IEI Integration SRM-121-150 User Manual

IEI Technology Corp.
User Manual
SRM Series/SRM-KIT Series Monitor
SRM Series LCD Monitor
MODEL:
SRM Series/SRM-KIT Series
9-36 V DC Input, VGA/DVI-D, Auto-Dimming,
Touch Screen, RoHS Compliance, IP 65 Protection
Rev. 2.02 – 8 November, 2011
Page I
SRM Series/SRM-KIT Series Monitor
Revision
Date Version Changes
8 November, 2011 2.02 Updated Section 5.4.6: RS-232 Touch Panel Connector
15 December, 2010 2.01 Modified AV-6600 AD board information
Modified Chapter 6 OSD Controls Updated Chapter 7 Software Drivers
27 August, 2010 2.00 Updated for SRM-121/150-R20 and SRM-KIT-R20
September 2008 1.11 Added SRM-121XA/XMA models information
May 2007 1.10 - Added safety warning note for monitors used in high
temperature areas
- AV-5300 AD Board CN25 connector pin 3 voltage changed
January 2007 1.0 Initial Release
to +9V~+36V input
Page II
SRM Series/SRM-KIT Series Monitor
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are

Copyright

reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page III
SRM Series/SRM-KIT Series Monitor

Table of Contents

1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.1.1 Standard Features.............................................................................................. 2
1.1.2 SRM Series Industrial Monitor Applications..................................................... 3
1.1.3 Model Variations................................................................................................ 4
1.1.3.1 SRM-121 Model Variations ........................................................................ 4
1.1.3.2 SRM-150 Model Variations ........................................................................ 4
1.2 EXTERNAL OVERVIEW................................................................................................ 5
1.2.1 SRM Series Front View...................................................................................... 5
1.2.2 SRM-KIT Series Front View............................................................................... 6
1.2.3 SRM Series Rear View........................................................................................ 6
1.2.4 SRM-KIT Series Rear View................................................................................ 7
1.2.5 Top View............................................................................................................. 8
1.2.6 Bottom View ....................................................................................................... 8
1.2.7 SRM Series I/O Panel ........................................................................................ 8
1.2.8 SRM-KIT Series I/O Panel................................................................................. 9
1.2.9 SRM Series Frame ........................................................................................... 10
1.3 SERIES SPECIFICATIONS.............................................................................................11
1.4 CERTIFICATIONS....................................................................................................... 12
2 MECHANICAL OVERVIEW.................................................................................... 13
2.1 PHYSICAL DIMENSIONS ............................................................................................ 14
2.1.1 SRM-121 Physical Dimensions........................................................................ 14
2.1.2 SRM-150 Physical Dimensions........................................................................ 15
2.1.3 SRM-KIT121 Physical Dimensions.................................................................. 16
2.1.4 SRM-KIT150 Physical Dimensions.................................................................. 17
2.2 MOUNTING KITS ...................................................................................................... 18
2.3 MOUNTING OPTIONS ................................................................................................ 18
2.3.1 Panel Mounting................................................................................................ 18
2.3.2 Rack and Cabinet Mounting ............................................................................ 19
2.3.3 Wall Mounting.................................................................................................. 19
Page IV
SRM Series/SRM-KIT Series Monitor
2.3.4 Monitor Arm or Stand Mounting......................................................................19
3 LCD AND TOUCH PANEL SPECIFICATIONS..................................................... 20
3.1 LCD SPECIFICATIONS............................................................................................... 21
3.1.1 LCD Overview ................................................................................................. 21
3.1.2 SRM-121 LCD Specifications.......................................................................... 21
3.1.3 SRM-121XA/XMA LCD Specifications............................................................ 22
3.1.4 SRM-150 LCD Specifications.......................................................................... 24
3.2 OPTIONAL TOUCH PANELS ....................................................................................... 26
3.2.1 Touch Panel Models......................................................................................... 26
3.2.2 Touch Panel Dimensions.................................................................................. 27
3.2.3 Touch Panel Specifications.............................................................................. 28
4 AD BOARD................................................................................................................... 29
4.1 AV-6600 AD BOARD OVERVIEW .............................................................................. 30
4.1.1 AV-6600 Peripheral Interface Connectors....................................................... 30
4.1.2 AV-6600 Rear Panel Connectors..................................................................... 32
5 INSTALLATION ......................................................................................................... 33
5.1 INSTALLATION PRECAUTIONS ................................................................................... 34
5.2 UNPACKING .............................................................................................................. 35
5.2.1 Packaging ........................................................................................................ 35
5.2.2 Unpacking Procedure ...................................................................................... 35
5.2.3 Packing List ..................................................................................................... 36
5.3 PRE-INSTALLATION PREPARATION ............................................................................ 37
5.3.1 Tools................................................................................................................. 37
5.3.2 Voltage Select Jumper Settings........................................................................ 37
5.4 CONNECTORS ........................................................................................................... 38
5.4.1 Rear Panel Connectors Overview.................................................................... 39
5.4.2 VGA Connector................................................................................................ 39
5.4.3 DVI-D Connector............................................................................................. 40
5.4.4 12V Power Connector...................................................................................... 40
5.4.5 DC Power Connector....................................................................................... 40
5.4.6 RS-232 Touch Panel Connector....................................................................... 41
5.5 MOUNTING THE SRM SERIES LCD MONITOR.......................................................... 42
5.5.1 Panel Mounting................................................................................................ 42
Page V
5.5.2 Cabinet and Rack Installation ......................................................................... 45
5.5.3 Wall Mounting.................................................................................................. 47
5.5.4 Monitor Stand Installation............................................................................... 51
5.5.5 Monitor Arm Installation................................................................................. 52
6 ON-SCREEN-DISPLAY (OSD) CONTROLS.......................................................... 54
6.1 USER MODE OSD STRUCTURE................................................................................. 55
6.1.1 OSD Buttons..................................................................................................... 55
6.1.2 OSD Menu Structure........................................................................................ 57
6.2 USING THE OSD....................................................................................................... 58
6.2.1 Main Display Features..................................................................................... 58
6.2.2 Color................................................................................................................ 59
6.2.3 OSD Configurations......................................................................................... 60
6.2.4 Auto-Dimming Configurations......................................................................... 61
6.2.4.1 Default Settings......................................................................................... 61
SRM Series/SRM-KIT Series Monitor
6.2.4.2 Changing the Default Settings .................................................................. 62
7 SOFTWARE DRIVERS.............................................................................................. 64
7.1 INTRODUCTION......................................................................................................... 65
7.2 RS-232 OR USB TOUCH SCREEN ............................................................................. 65
7.3 TOUCH PANEL DRIVER INSTALLATION...................................................................... 66
7.4 CHANGE THE TOUCH SCREEN INTERFACE ................................................................ 69
7.5 CALIBRATING THE TOUCH SCREEN........................................................................... 69
8 GASKET REPLACEMENT....................................................................................... 72
8.1 GASKET REPLACEMENT ........................................................................................... 73
A SAFETY PRECAUTIONS......................................................................................... 74
A.1 SAFETY PRECAUTIONS ............................................................................................ 75
A.1.1 General Safety Precautions............................................................................. 75
A.1.2 Anti-static Precautions.................................................................................... 76
A.2 MAINTENANCE AND CLEANING PRECAUTIONS........................................................ 76
A.2.1 Maintenance and Cleaning.............................................................................. 76
A.2.2 Cleaning Tools................................................................................................. 77
B CERTIFICATIONS .................................................................................................... 78
Page VI
SRM Series/SRM-KIT Series Monitor
B.1 ROHS COMPLIANT .................................................................................................. 79
B.2 IP 65 COMPLIANT FRONT PANEL ............................................................................. 79
C SMARTOSD................................................................................................................ 80
C.1 IEI SMARTOSD QUICK INSTALLATION GUIDE ......................................................... 81
C.2 PRE-INSTALLATION NOTICE ..................................................................................... 81
C.3 SMARTOSD INSTALL ............................................................................................... 81
C.4 SOFTWARE ILLUSTRATION ....................................................................................... 85
C.4.1 Manage Page................................................................................................... 87
C.4.2 EDID Page...................................................................................................... 88
C.4.3 Image Page...................................................................................................... 89
C.4.4 Display Page (for analog signal).................................................................... 90
C.4.5 Color Page ...................................................................................................... 91
C.4.6 PIP Page.......................................................................................................... 92
C.4.7 System Page..................................................................................................... 93
C.4.8 About Page ...................................................................................................... 94
C.5 SMARTOSD FAQ..................................................................................................... 95
C.5.1 Windows 2000 Installation Failure................................................................. 95
C.5.2 Vista Installation Failure................................................................................. 96
C.5.3 Model Failure.................................................................................................. 97
C.5.4 DCC Port Failure............................................................................................ 97
Page VII
SRM Series/SRM-KIT Series Monitor

List of Figures

Figure 1-1: SRM and SRM-KIT Series LCD Monitor....................................................................2
Figure 1-2: SRM Series Front View...............................................................................................5
Figure 1-3: SRM-KIT Series Front View........................................................................................6
Figure 1-4: SRM Series Rear View................................................................................................6
Figure 1-5: SRM-KIT Series Rear View.........................................................................................7
Figure 1-6: Top View.......................................................................................................................8
Figure 1-7: Bottom View ................................................................................................................8
Figure 1-8: Side View......................................................................................................................9
Figure 1-9: Side View......................................................................................................................9
Figure 1-10: SRM-121 Frame Rear View (10 rackmount kit screw holes)...............................10
Figure 1-11: SRM-150 Frame Rear View (12 rackmount kit screw holes)...............................10
Figure 2-1: SRM-121 Physical Dimensions (millimeters) .........................................................14
Figure 2-2: SRM-150 Physical Dimensions (millimeters) .........................................................15
Figure 2-3: SRM-KIT121 Physical Dimensions (millimeters) ...................................................16
Figure 2-4: SRM-KIT150 Physical Dimensions (millimeters) ...................................................17
Figure 4-1: AV-6600 AD Board Overview ...................................................................................30
Figure 5-1: Monitor Rear Panel Connections ............................................................................39
Figure 5-2: 12V Power Connector...............................................................................................40
Figure 5-3: DC Power Connector................................................................................................40
Figure 5-4: RS-232 Touch Panel Connector ..............................................................................41

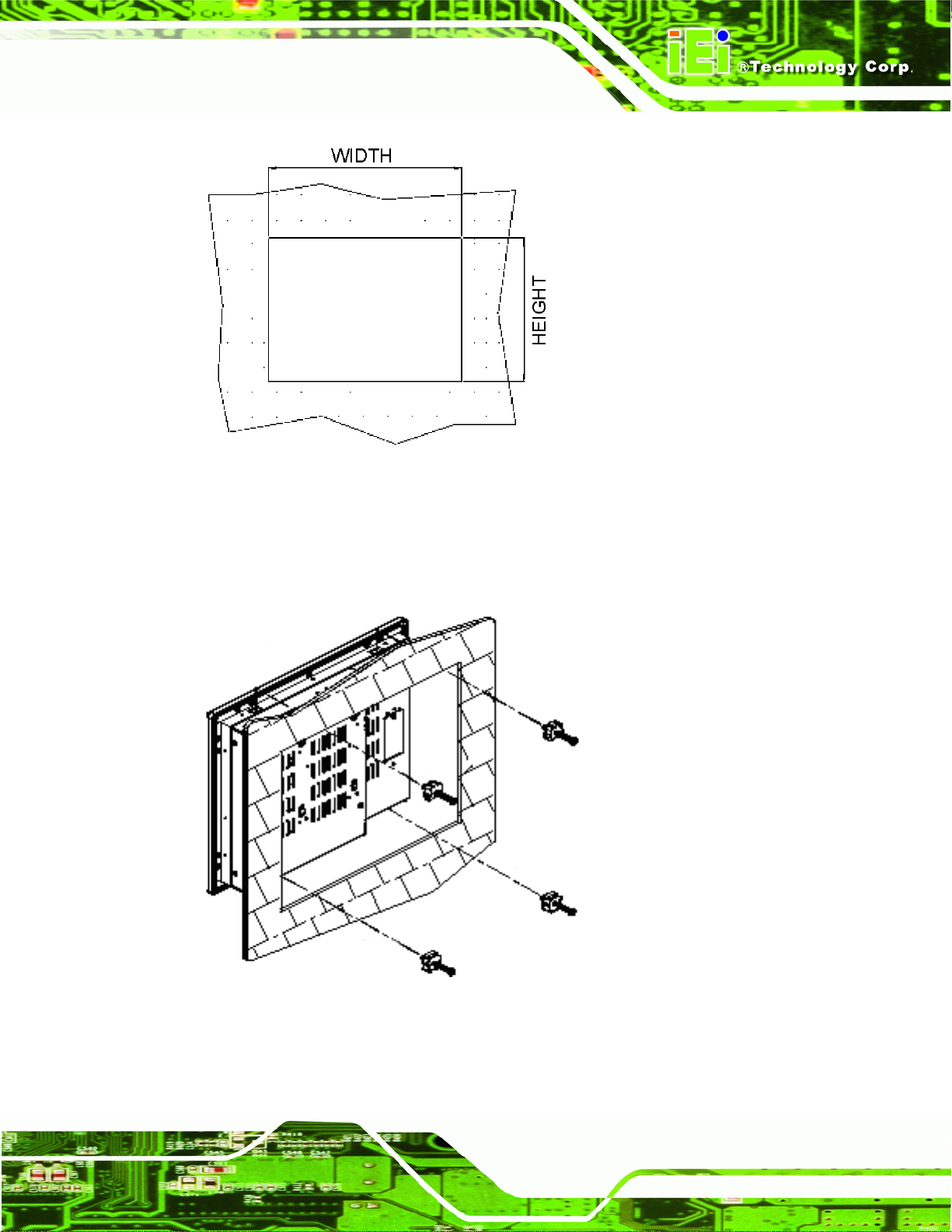

Figure 5-5: Panel Opening...........................................................................................................43
Figure 5-6: Insert the Monitor......................................................................................................43
Figure 5-7: Clamp Insertion Holes..............................................................................................44
Figure 5-8: Panel Mounting Clamp Position..............................................................................45
Figure 5-9: Secure the Rack Mount Kit.......................................................................................46
Figure 5-10: Install into a Cabinet/Rack .....................................................................................47
Figure 5-11: Wall-mounting Bracket...........................................................................................48
Figure 5-12: Monitor Support Screws.........................................................................................49
Figure 5-13: Wall Mounting the Monitor.....................................................................................50
Figure 5-14: VESA Mounting Holes ............................................................................................51
Figure 5-15: Monitor Stand Mounting.........................................................................................52
Page VIII
SRM Series/SRM-KIT Series Monitor
Figure 5-16: Monitor Arm Mounting............................................................................................53
Figure 6-1: OSD Control Buttons for All Models.......................................................................55
Figure 6-2: Main Display Features..............................................................................................58
Figure 6-3: Color Options ............................................................................................................59
Figure 6-4: OSD Configurations Menu .......................................................................................60
Figure 6-5: SRM-121 Default Linearity of the LCD Backlight and Ambient Light..................62
Figure 7-1: Setup Icon..................................................................................................................66
Figure 7-2: Welcome Screen .......................................................................................................67
Figure 7-3: License Agreement...................................................................................................67
Figure 7-4: Initiate Install .............................................................................................................68
Figure 7-5: Installation Starts......................................................................................................68
Figure 7-6: Finish Installation......................................................................................................69
Figure 7-7: PenMount Monitor Icon............................................................................................70
Figure 7-8: PenMount Monitor Popup Menu..............................................................................70
Figure 7-9: Configuration Screen................................................................................................70
Figure 7-10: Calibration Initiation Screen..................................................................................71
Figure 7-11: Calibration Screen ..................................................................................................71
Figure 8-1: Gasket Replacement.................................................................................................73
Figure 8-2: smartOSD Installer....................................................................................................82
Figure 8-3: smartOSD Welcome Screen.....................................................................................82
Figure 8-4: smartOSD Folder Select Screen..............................................................................83
Figure 8-5: smartOSD Confirm Installation................................................................................83
Figure 8-6: smartOSD Installation Progress..............................................................................84
Figure 8-7: smartOSD Installation Complete.............................................................................84
Figure 8-8: Manage Page .............................................................................................................87
Figure C-9: DLL Missing..............................................................................................................95
Figure C-10: Windows Vista Error ..............................................................................................96
Figure C-11: Install as Administrator..........................................................................................96
Figure C-12: Firmware Incompatibility.......................................................................................97
Figure C-13: DCC Port Failure.....................................................................................................97
Page IX
SRM Series/SRM-KIT Series Monitor
List of Tables
Table 1-1: SRM-121 Model Variants..............................................................................................4
Table 1-2: SRM-150 Model Variants..............................................................................................4
Table 1-3: SRM Series Specifications.........................................................................................11
Table 2-1: SRM Series Mounting Kits.........................................................................................18
Table 2-2: Panel Mounting Clamps.............................................................................................19
Table 2-3: Rack Mounting Holes.................................................................................................19
Table 3-1: SRM-121 LCD Specifications.....................................................................................22
Table 3-2: SRM-121XA/XMA LCD Specifications.......................................................................23
Table 3-3: SRM-150 LCD Specifications.....................................................................................25
Table 3-4: Touch Panel Models...................................................................................................26
Table 3-5: Touch Panel Dimensions (mm).................................................................................27
Table 3-6: Touch Panel Specifications.......................................................................................28
Table 4-1: AV-6600 Peripheral Interface Connectors................................................................31
Table 4-2: AV-6600 Rear Panel Connectors...............................................................................32
Table 5-1: External Peripheral Interface Connectors................................................................38
Table 5-2: RS-232 Touch Panel Connector Pinouts..................................................................41
Table 6-1: OSD Menus..................................................................................................................57
Table 6-2: LUX Measurement of Everyday Light Source..........................................................61
Table 6-3: Auto-Dimming Default Settings ................................................................................61
Table C-1: SmartOSD Menu Structure........................................................................................86
Page X
SRM Series/SRM-KIT Series Monitor
Chapter
1

1 Introduction

Page 1

1.1 Overview

Figure 1-1: SRM and SRM-KIT Series LCD Monitor
The SRM series industrial monitor is the latest member of IEI’s line of sophisticated LCD
SRM Series/SRM-KIT Series Monitor
designs, and it has been improved to be RoHS compliant. The SRM series is designed to fit industrial automation, or any other applications that require minimum installation space and flexible configuration. The SRM sunlight readable industrial monitor with the ultra-high brightness and auto-dimming LCD is also suitable for outdoor use. The flat front panel of the SRM series provides IP 65 protection, which effectively wards off dust and water. Flexible analog or digital interfaces are provided for ease of connection with a management computer. Resistive type touch panels are optional. If remote/non-attentive control is preferred, RS-232 or USB interfaces can be used with customized adapter cables.

1.1.1 Standard Features

All the models listed in Section 1.2.1 have the following standard features:
Auto-dimming TFT LCD 1000 cd/m Analog VGA and DVI-D in put
2
high brightness and 50000 hrs MTFB long lifetime panel
Page 2
IP 65 compliant aluminum front panel  Heavy duty aluminum chassis  RoHS compliance
SRM Series/SRM-KIT Series Monitor
Wide range operating temperature  Wide viewing angle  High contrast ratio  Advanced thermal and air-flow design  9 ~ 36V DC power input for mobile application  Supports panel, rack, wall, stand and arm mounting  RS-232 and USB interface touch panel

1.1.2 SRM Series Industrial Monitor Applications

The SRM series industrial monitor is designed for rigorous industrial environments where it may be exposed to both heat and moisture. Its durability and strength also makes it an ideal choice for public access computers. Some possible applications include:
 Digital Surveillance  X-ray imaging terminal  Multimedia advertising platform  General Computing
o Computer-based testing center o General purpose information system o Mobile nursing station o Interactive education use
Automation & Control
o Plant environment monitoring o Factory automation HMI terminal o Shop-floor/MES control
Self-service Kiosk
o Full-service receptionist kiosk o Hospital self-registration terminal o Interactive photo kiosk o Video rental kiosk o Self-service POS terminal
Page 3
Y
Y
Y
Y

1.1.3 Model Variations

1.1.3.1 SRM-121 Model Variations
The SRM-121 has eight models variations listed in Table 1-1.
Model Number LCD Size Resolution 9~36V Power Touch Screen
SRM-121GS/R-R20 12.1” 800 x 600 No RS-232 and USB
SRM Series/SRM-KIT Series Monitor
SRM-121GMS/R-R20 12.1” 800 x 600
SRM-121XA/R-R20 12.1” 1024 x 768 No RS-232 and USB
SRM-121XMA/R-R20 12.1” 1024 x 768 Yes RS-232 and USB
SRM-KIT121G-R20 12.1” 800 x 600 No No
SRM-KIT121GM-R20 12.1” 800 x 600
SRM-KIT121XA-R20 12.1” 1024 x 768 No No
SRM-KIT121XMA-R20 12.1” 1024 x 768 Yes No
Table 1-1: SRM-121 Model Variants
es RS-232 and USB
es No
1.1.3.2 SRM-150 Model Variations
The SRM-150 has four models variations listed in Table 1-2.
Model Number LCD Size 9~36V Power Touch Screen
SRM-150GS/R-R20 15” No RS-232 and USB
SRM-150GMS/R-R20 15”
SRM-KIT150G-R20 15” No No
SRM-KIT150GM-R20 15”
Table 1-2: SRM-150 Model Variants
Page 4
es RS-232 and USB
es No
SRM Series/SRM-KIT Series Monitor

1.2 External Overview

The SRM series industrial monitors are durable devices that can be used in harsh industrial environments. The following sections describe the physical layout of the SRM series industrial monitors.

1.2.1 SRM Series Front View

The front of the SRM series industrial monitor is a flat panel TFT LCD screen surrounded by an aluminum frame. A control button panel (OSD) is located vertically on the right side of the frame with the following control buttons:
LCD On/Off Auto Left Right Menu
The OSD panel also has one auto-dimming sensor, one power LED and one auto
-dimming LED.
Figure 1-2 shows the LCD monitor front view of SRM-121 and SRM-150.
Figure 1-2: SRM Series Front View
Page 5

1.2.2 SRM-KIT Series Front View

The front of the SRM-KIT series monitor is a flat panel TFT LCD screen attached to a
SRM Series/SRM-KIT Series Monitor
metal chassis.
Figure 1-2 shows a typical SRM-KIT front view.
Figure 1-3: SRM-KIT Series Front View

1.2.3 SRM Series Rear View

The rear panel features fan ventilation holes and four retention screw holes that support a
Page 6
wall-mounting bracket. The retention screw holes are circled in
Figure 1-4: SRM Series Rear View
Figure 1-4.
SRM Series/SRM-KIT Series Monitor

1.2.4 SRM-KIT Series Rear View

The rear of the SRM-KIT series monitor is a metal chassis. An on screen display (OSD) control button panel is located vertically on the left side of the chassis with the following control buttons:
LCD On/Off Auto Left Right Menu
The OSD panel also has one auto-dimming sensor, one power LED and one auto­dimming LED. Refer to Chapter
Figure 1-4 shows the LCD monitor front view of SRM-KIT121G and SRM-KIT150G.
6 for a complete description of OSD panel.
Figure 1-5: SRM-KIT Series Rear View
Page 7

1.2.5 Top View

The top view provides access to retention screws that secure the back cover to the
SRM Series/SRM-KIT Series Monitor
chassis. The retention screw holes are circled in
Figure 1-6: Top View

1.2.6 Bottom View

The bottom view provides access to retention screws that secure the back cover to the chassis. The retention screw holes are circled in
Figure 1-7: Bottom View
Figure 1-6 below.
Figure 1-7 below.

1.2.7 SRM Series I/O Panel

The I/O panel of the SRM Series shown in Figure 1-8 has the following interfaces.
1 x RS-232 connector touch panel interface  1 x USB connector touch panel interface  1 x 9~36V DC terminal block  1 x 12V DC input connector  1 x VGA connector  1 x DVI-D connector
Page 8
SRM Series/SRM-KIT Series Monitor
Figure 1-8: Side View

1.2.8 SRM-KIT Series I/O Panel

The I/O panel of the SRM-KIT Series shown in Figure 1-8 has the following interfaces.
1 x 12V DC input connector  1 x VGA connector  1 x DVI-D connector
Figure 1-9: Side View
Page 9

1.2.9 SRM Series Frame

An aluminum frame surrounds the SRM series LCD monitor. This aluminum frame has small screw holes that are used to attach the LCD monitor to a rack mount kit for mounting
SRM Series/SRM-KIT Series Monitor
into a rack or cabinet. The screw holes on SRM-121 and SRM-150 are circled in
1-10 and
Figure 1-11.
Figure
Figure 1-10: SRM-121 Frame Rear View (10 rackmount kit screw holes)
Page 10
Figure 1-11: SRM-150 Frame Rear View (12 rackmount kit screw holes)
SRM Series/SRM-KIT Series Monitor

1.3 Series Specifications

Table 1-3 shows the SRM Series specifications.
Model SRM-121 SRM-121XA/XMA SRM-150 LCD Size
Input Interface
Resolution
Brightness
Contrast
Display Color
Pixel Pitch
Front Frame
Chassis
View Angle
Input Voltage
OSD Function
12.1” 12.1” 15”
Analog VGA and DVI-D
800 x 600 1024 x 768 1024 x 768
2
1000 cd/m
700:1 600:1
262K (6 bit/color) or 16.7M (8 bit/color)
0.3075 mm 0.240 mm 0.297 mm
Aluminum
Heavy-duty steel
130 (H)/120 (V) 120 (H)/120 (V) 150 (H)/110 (V)
12VDC and 9~36VDC
Yes
800 cd/m2
Mounting
Color
Dimension (mm)
Operating Temperature
Storage Temperature
IP Level
N/G Weight
Table 1-3: SRM Series Specifications
Wall / Panel / Rack / Arm / Stand
Silver
340 x 260 x 58 409.62 x 309.0 x 65.2
-10°C~60°C
-20°C~80°C
IP 65 (SRM series only)
4 kgs 6 kgs
Page 11

1.4 Certifications

All SRM series industrial monitor models comply with the following international standards:
RoHS IP 65
SRM Series/SRM-KIT Series Monitor
For a more detailed description of these standards, please refer to Sections
B.1 and B.2.
Page 12
SRM Series/SRM-KIT Series Monitor
Chapter
2

2 Mechanical Overview

Page 13

2.1 Physical Dimensions

The following sections describe the physical dimensions for the SRM-121, SRM-150 and SRM-KIT industrial monitor.

2.1.1 SRM-121 Physical Dimensions

The physical dimensions of the SRM-121 are shown in Figure 2-1.
SRM Series/SRM-KIT Series Monitor
Figure 2-1: SRM-121 Physical Dimensions (millimeters)
Page 14
SRM Series/SRM-KIT Series Monitor

2.1.2 SRM-150 Physical Dimensions

The physical dimensions of the SRM-150 are shown in Figure 2-2.
Figure 2-2: SRM-150 Physical Dimensions (millimeters)
Page 15
SRM Series/SRM-KIT Series Monitor

2.1.3 SRM-KIT121 Physical Dimensions

The physical dimensions of the SRM-KIT121 are shown in Figure 2-2.
Page 16
Figure 2-3: SRM-KIT121 Physical Dimensions (millimeters)
SRM Series/SRM-KIT Series Monitor

2.1.4 SRM-KIT150 Physical Dimensions

The physical dimensions of the SRM-KIT150 are shown in Figure 2-2.
Figure 2-4: SRM-KIT150 Physical Dimensions (millimeters)
Page 17
W
A
A
S

2.2 Mounting Kits

The following sections describe the various optional mounting kits available for each
SRM Series/SRM-KIT Series Monitor
model of the SRM series industrial monitor. Refer to Section on the different mounting methods for the monitors.
Table 2-1 lists the mounting kits available for the SRM series monitor.
Model SRM-121 SRM-150
Panel Mounting Kit PK-121M PK-150M
Wall Mounting Kit
Rack Mounting Kit RK-121MS-R10 RK-150MS-R10
LCD Monitor Arm
LCD Monitor Stand
Table 2-1: SRM Series Mounting Kits

2.3 Mounting Options

K-121MS-R10WK-150MS-R10
RM-11
TAND-100-RS
RM-31
5.5 for detailed instructions
Each SRM series industrial monitor has a number of mounting holes or slots located on the back side of the aluminum frame or on the rear panel for mounting the monitor to a rack, panel, cabinet, rail, wall, arm or stand. The following sections describe the various mounting methods or each model of the SRM series industrial monitor.

2.3.1 Panel Mounting

Each model of the SRM series industrial monitor has a series of mounting slots located on the top and bottom panel for mounting the monitor to a panel.
Table 2-2 lists the number of mounting clamps required to mount the monitor to a panel.
Page 18
SRM Series/SRM-KIT Series Monitor
Model Mounting
Clamps
SRM-121 10 SRM-150 10
Table 2-2: Panel Mounting Clamps

2.3.2 Rack and Cabinet Mounting

Each model of the SRM series industrial monitor has a series of holes located on the rear of the front panel for securing the monitor to the rack mounting kit.
Table 2-3 lists the number of holes each monitor has to secure the monitor to the rack mounting kit.
Model Holes
SRM-121 10 SRM-150 12
Table 2-3: Rack Mounting Holes

2.3.3 Wall Mounting

Each model of the SRM series industrial monitor has four holes located on the rear panel for mounting the monitor to a wall.

2.3.4 Monitor Arm or Stand Mounting

The SRM series industrial monitor has four mounting holes which are compatible with VESA FDMI (MIS-D 100) and located on the rear panel for mounting the monitor to a monitor arm or stand.
Page 19
SRM Series/SRM-KIT Series Monitor
Chapter
3
3 LCD and Touch Panel
Specifications
Page 20
SRM Series/SRM-KIT Series Monitor

3.1 LCD Specifications

3.1.1 LCD Overview

The SRM series industrial monitors use the following LCD panels.
SRM-121: MITSUBISHI AA121SN02 SVGA TFT LCD  SRM-150: MITSUBISHI AA150XN08 XGA TFT LCD
Detailed specifications for the LCD screens are listed in the following sections.

3.1.2 SRM-121 LCD Specifications

Table 3-1 lists the LCD specifications of the SRM-121.
Model SRM-121
Size
MFR/Model
Resolution
Display Area (mm)
Pixel Pitch (mm)
Number of Colors
View Angle (H/V)
Brightness (cd/m2)
Contrast Ratio
Response Time (ms)
Interface
Input Voltage (V)
12.1”
MITSUBISHI AA121SN02
SVGA (800 x 600)
246.0 x 184.5
0.3075 x 0.3075
262K (6 bit/color), 16.7M (8 bit/color)
130 / 120
1000
700:1
T
: 10 TF: 30
R
LVDS (6 bit/8 bit)
3.3V
Backlight
Power Supply Voltage for LCD
4 CCFL
3.3V / 3.6V (Max.)
Page 21
Model SRM-121
SRM Series/SRM-KIT Series Monitor
Power Supply Current for LCD
Lamp Voltage/Current
Starting Lamp Minimum Voltage
Operating Temperature
Operating Humidity
Storage Temperature
Shock Level (Non-operation)
Vibration Level (Non-operation)
Lamp Life (hrs)
300mA / 450mA
Voltage: 540 Vrms Current: 12.0 mArms/14.0 mAms (Max.)
1000 Vrms (25°C)/ 1200 Vrms (0°C)/ 1290 Vrms (-20°C)
-10°C ~60°C
5%~90% RH.
-20°C ~80°C
1470 m/s
9.8 m/s range 5-500Hz sweep rate 0.5 octave/min
50,000
2
(100G), Waveform 2ms.
2
(1.0G) zero to peak, frequency
Table 3-1: SRM-121 LCD Specifications

3.1.3 SRM-121XA/XMA LCD Specifications

Table 3-1 lists the LCD specifications of the SRM-121XA/XMA.
Model SRM-121XA/XMA
Size
MFR/Model
Resolution
Display Area (H x V) (mm)
Pixel Pitch (mm)
Number of Colors
12.1”
MITSUBISHI AA121XJ02
XGA (1024 x 768)
245.76 x 184.32
0.240 x 0.240
262K(6 bit/color), 16.7M(8 bit/color)
Page 22
SRM Series/SRM-KIT Series Monitor
Model SRM-121XA/XMA
View Angle (H/V)
Brightness (cd/m2)
Contrast Ratio
Response Time (ms)
Interface
Input Voltage (V)
Backlight
Power Supply Voltage for LCD
Power Supply Current for LCD
Lamp Voltage/Current
Starting Lamp Minimum Voltage
120 / 120
1000
700:1
T
: 6 TF: 19
R
LVDS (6 bit/8 bit)
3.3V
4 CCFL
3.3V / 3.6V (Max.)
300mA / 450mA
Voltage: 540 Vrms Current: 13.0 mAms
1000 Vrms (25°C)/ 1200 Vrms (0°C)/ 1290 Vrms (-20°C)
Operating Temperature
Operating Humidity
Storage Temperature
Shock Level (Non-operation)
-10°C ~60°C
5%~90% RH.
-20°C ~80°C
1470 m/s
9.8 m/s
2
(100G), Waveform 2ms.
2
(1.0G) zero to peak, frequency
Vibration Level (Non-operation)
range 5-500Hz sweep rate 0.5 octave/min
Lamp Life (hrs)
50,000
Table 3-2: SRM-121XA/XMA LCD Specifications
Page 23

3.1.4 SRM-150 LCD Specifications

Table 3-3 lists the LCD specifications of the SRM-150.
Model SRM-150
SRM Series/SRM-KIT Series Monitor
Size
MFR/Model
Resolution
Active Area (mm)
Pixel Pitch (mm)
Number of Colors
View Angle (H/V)
Brightness (cd/m2)
Contrast Ratio
Response Time (ms)
Interface
Input Voltage (V)
15”
MITSUBISHI AA150XN08
XGA (1024 x 768)
246.0 x 184.5
0.297 x 0.297
262K(6 bit/color), 16.7M(8 bit/color)
150 / 110
800
600:1
T
: 6 TF: 19
R
LVDS (6 bit/8 bit)
3.3V
Page 24
Backlight
Power Supply Voltage for LCD
Power Supply Current for LCD
Lamp Voltage/Current
Starting Lamp Minimum Voltage
Operating Temperature
4 CCFL
3.3V / 3.6V (Max.)
410mA / 700mA
Voltage: 620 Vrms/2500 Vrms (Max.) Current: 6.5 mArms/8.0 mAms (Max.)
1300 Vrms (25°C)/ 1500 Vrms (0°C)/ 1650 Vrms (-20°C)
-10°C ~60°C
SRM Series/SRM-KIT Series Monitor
Model SRM-150
Operating Humidity
Storage Temperature
Shock Level (Non-operation)
Vibration Level (Non-operation)
Lamp Life (hrs)
Table 3-3: SRM-150 LCD Specifications
5%~90% RH.
-20°C ~80°C
980 m/s
9.8 m/s range 5-500Hz sweep rate 0.5 octave/min
50,000
2
(100G), Waveform 2ms.
2
(1.0G) zero to peak, frequency
Page 25

3.2 Optional Touch Panels

IEI offers optional touch panels for the SRM series industrial monitors with the following features:
Small border customized design  All size touch panel design  Customized activation force and palm rejection  Customized optical characteristics  High reliability and durability in the field

3.2.1 Touch Panel Models

Table 3-4 lists the SRM series industrial monitors and their associated touch panels.
SRM Series/SRM-KIT Series Monitor
Model Touch Panel
SRM-121 PANJIT 1121505B
SRM-150 PANJIT 1150508B
Table 3-4: Touch Panel Models
Page 26
SRM Series/SRM-KIT Series Monitor

3.2.2 Touch Panel Dimensions

Table 3-5 shows the touch panel dimensions in millimeters.
Model Dimension Width Length Thick
Dimensional Outline: 204 268 2.1
PanJit 1121505B
PanJit 1150508B
Viewing Area: 188 250 -
Active Area: 185 246 -
Dimensional Outline: 257.5 333.6 2.9
Viewing Area: 232.1 308.2 -
Active Area: 228.1 304.1 -
Table 3-5: Touch Panel Dimensions (mm)
Page 27

3.2.3 Touch Panel Specifications

Table 3-6 lists the touch panel specifications.
Type Analog Resistive Type Touch Panel
Wire Type 5-wire
RATING
Maximum Voltage and Current DC7V
Usable temperature range -10℃ ~ 50℃ (under ambient humidity)
SRM Series/SRM-KIT Series Monitor
Storage temperature range (Before assembling the PanJit Touch Panel) Operating Humidity 20% ~ 90% RH (under ambient temperature)
Storage Humidity 20% ~ 90% RH (under ambient temperature)
ELECTRICAL PERFORMANCE
Resistance between terminals
Linearity Direction “X”: 2% or less
Insulation resistance
Chattering 10msec or less
MECHANICAL PERFORMANCE
Input Method Stylus or finger
Linearity test force Input with finger: 100g or less
-20℃ ~ 70℃ (under ambient humidity)
Direction “X”: 40 ~ 100 Ω Direction “Y”: 40 ~ 100 Ω
Direction “Y”: 2% or less DC25V and 20MΩ or more
Input with stylus: 100g or less
Page 28
Surface hardness
OPTICAL PERFORMANCE
Optical clarity Total transmission 78﹪or more
2H
Table 3-6: Touch Panel Specifications
SRM Series/SRM-KIT Series Monitor
Chapter
4

4 AD Board

Page 29
SRM Series/SRM-KIT Series Monitor

4.1 AV-6600 AD Board Overview

The AV-6600 AD board provides a wide variety of control interfaces, receiving and managing interface signals from a CPU card through cabling. The following sections describe the AV-6600 AD board in detail.
Figure 4-1: AV-6600 AD Board Overview

4.1.1 AV-6600 Peripheral Interface Connectors

Table 4-1 shows a list of the peripheral interface connectors on the AV-6600 AD board.
Connector Type Label
Audio input connector 4-pin wafer connector CN11
Audio speaker output connector 4-pin wafer connector CN12
Page 30
SRM Series/SRM-KIT Series Monitor
Auto-dimming connector 6-pin wafer connector CN7
Debug connector 4-pin wafer connector CN9
External OSD and LED indication connector 9-pin wafer connector CN10
Infrared connector 6-pin wafer conne ctor CN8
Inverter interface connector 6-pin wafer connector CN6
LVDS connector 30-pin connector CN5
Power output connector (+12 V) 2-pin wafer connector CN3
Power output connector (+5 V) 2-pin wafer connector CN4
Power input connector 3-pin connector CN2
RS-232 and USB signal input connector 12-pin wafer connector CN14
Touchscreen connector 9-pin wafer connector J4
VGA connector 10-pin box header VGA2
Table 4-1: AV-6600 Peripheral Interface Connectors
Page 31

4.1.2 AV-6600 Rear Panel Connectors

Table 4-2 lists the rear panel connectors on the AV-6600 AD board.
Connector Type Label
12V DC power connector DC Power Jack CN13
DVI connector 24-pin DVI-D connector J2
VGA connector 15-pin VGA connector VGA1
Table 4-2: AV-6600 Rear Panel Connectors
SRM Series/SRM-KIT Series Monitor
Page 32
SRM Series/SRM-KIT Series Monitor
Chapter
5

5 Installation

Page 33

5.1 Installation Precautions

When installing the SRM series industrial monitor, please follow the precautions listed below:
Read the user manual: The user manual provides a complete description of
the SRM series industrial monitor, installation instructions and configuration options.
DANGER! Disconnect Power: Power to the monitor must be disconnected
when installing the SRM series industrial monitor, or before any attempt is made to access the rear panel. Electric shock and person al injury might occu r if the rear panel of the monitor is opened while the power cord is still connected to an electrical outlet.
Qualified Personnel: The SRM series industrial monitor must be installed
SRM Series/SRM-KIT Series Monitor
and operated only by trained and qualified personnel. Maintenance, upgrades, or repairs may only be carried out by qualified personnel who are familiar with the associated dangers.
Mounting: Since the monitor may weigh up to 10 kg (not including a swing
arm or other accessories), please ensure at least two people assist with mounting the monitor.
Air Circulation: Make sure there is sufficient air circulation when inst alling the
monitor. The monitor’s cooling vents must not be obstructed by any objects. Blocking the vents can cause overheating of the monitor. Leave at least 5 cm of clearance around the monitor to prevent overheating.
Grounding: The monitor should be properly grounded. The voltage feeds
must not be overloaded. Adjust the cabling and provide external overcharge protection per the electrical values indicated on the label attached to the back of the monitor.
Anti-static Discharge : The rear panel of the monitor must to be removed to
configure the monitor’s AD board voltage select jumper. When doing so, be sure the monitor is disconnected from its power source and take all necessary
Page 34
safety precautions to avoid electrocution and static discharge to the AD board. The use of a grounded wrist strap and an anti-static work pad i s recommended.
SRM Series/SRM-KIT Series Monitor

5.2 Unpacking

5.2.1 Packaging

When shipped, the SRM series industrial monitor is wrapped in a plastic bag. Two polystyrene ends are placed on either side of the monitor. The monitor is then placed into a first (internal) cardboard box. This box is then sealed and placed into a seco nd (external) cardboard box. The second box is also sealed. A bag containing accessory items is placed underneath the monitor, at the bottom of the internal (first) box.

5.2.2 Unpacking Procedure

To unpack the SRM series industrial monitor, follow the steps below:
WARNING:
The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the SRM series industrial monitor has been properly installed. This ensures the screen is protected during the installation process.
Step 1: Use box cutters, a knife or a sharp pair of scissors to open the seal on the top
side of the external (second) box.
Step 2: Open the external (second) box.
Step 3: Use box cutters, a knife or a sharp pai r of sciss ors t he seal on the top side of the
internal (first) box.
Step 4: Lift the monitor out of the boxes.
Step 5: Remove both polystyrene ends, one from each side.
Step 6: Pull the plastic cover off the SRM series industrial monitor.
Step 7: Make sure all the components listed in the packing list are present. Step 0:
Page 35

5.2.3 Packing List

All the monitors in the SRM series are shipped with the following components:
Quantity Item Image
1 36 W AC power adapter
1 AC power cord
1 DVI cable
1 Screw kit
SRM Series/SRM-KIT Series Monitor
1 VGA cable
1 User manual and driver CD
1 Touch screen driver CD (SRM series only)
1 Touch pen (SRM series only)
If any of these items are missing or damaged, contact the distributor or sales representative immediately.
Page 36
SRM Series/SRM-KIT Series Monitor

5.3 Pre-installation Preparation

5.3.1 Tools

Before installing the SRM series industrial monitor, make sure the following tools are on hand:
Phillips (crosshead) screwdriver: All the retention screws on the system are
Phillips screws.
Soft working mat: When the SRM series industrial monitor is installed, the
screen is placed on the working surface. It is therefore important to rest the MPC industrial workstation on a soft at that cannot damage the LCD screen on the front of the SRM series industrial monitor.

5.3.2 Voltage Select Jumper Settings

If the monitor comes with both 12V and 9 ~ 36V DC power connectors, the voltage select jumper on the integrated AD board must be configured for the DC connector that is used to power the monitor.
NOTE:
The default voltage select jumper is configured for a 12V power source. Do not change the jumper setting unless a 9~36V DC power connector is to be used as the monitor’s power source.
To properly set the voltage select jumper, the following steps must be completed:
Step 1: Use a screwdriver to remove all the screws holdi ng the rear panel t o the monitor.
Step 2: Remove the rear panel.
Step 3: Locate the voltage select jumper.
Page 37
Step 4: Use the jumper(s) to set the correct voltage input. Replace the rear panel.
Step 5: Replace all removed screws.Step 0:

5.4 Connectors

Table 5-1 lists the external peripheral interface panel connectors for the SRM series
industrial monitors.
SRM Series/SRM-KIT Series Monitor
VGA
DVI-D
Power (12V Jack)
Power (9 ~ 36V)
RS-232 Touch Panel
USB Touch Panel
Table 5-1: External Peripheral Interface Connectors
SRM-121 SRM-150 SRM-KIT121 SRM-KIT150
Yes Yes Yes Yes
Yes Yes Yes Yes
Yes Yes Yes Yes
M model only M model only M model only M model only
Yes Yes No No
Yes Yes No No
Page 38
SRM Series/SRM-KIT Series Monitor

5.4.1 Rear Panel Connectors Overview

Figure 5-1: Monitor Rear Panel Connections
Figure 5-1 shows all the possible rear panel connectors for the SRM series LCD monitor.
The following sections fully describe the rear panel connectors for the SRM series LCD monitor.

5.4.2 VGA Connector

Use the rear panel standard 15-pin female VGA connector to connect the monitor to the system graphics interface.
Page 39

5.4.3 DVI-D Connector

Use the rear panel standard 24-pin female DVI-D connector to connect the monitor to the system graphics interface.

5.4.4 12V Power Connector

Use the rear panel +12V DC jack to connect the monitor to a power source.
Figure 5-2: 12V Power Connector
SRM Series/SRM-KIT Series Monitor

5.4.5 DC Power Connector

Use the rear panel 3-pin terminal block DC power connector to connect the monitor to a DC power source.
Figure 5-3: DC Power Connector
Page 40
SRM Series/SRM-KIT Series Monitor

5.4.6 RS-232 Touch Panel Connector

Use the rear panel standard RS-232 DB-9 female touch panel connector to connect the monitor to the system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 N/A 6 NDSR 2 NRX 7 NRTS 3 NTX 8 N/A 4 NDTR 9 N/A 5 GND
Table 5-2: RS-232 Touch Panel Connector Pinouts
Figure 5-4: RS-232 Touch Panel Connector
Page 41
SRM Series/SRM-KIT Series Monitor

5.5 Mounting the SRM Series LCD Monitor

The SRM series LCD monitor can be mounted in a panel, cabinet, rack, or wall. The monitor can also be mounted on a monitor arm or stand. The mounting methods are described below.
CAUTION:
When mounting the monitor take care to tighten the retention screws or bolts until fully secure, but do not over tighten. Over tightening the retention screws or bolts may cause them to become stripped, rendering them useless.

5.5.1 Panel Mounting

To mount the SRM series LCD monitor into a panel, please follow the steps below.
Step 1: Select the position on the panel to mount the monitor.
Step 2: Cut out a section of the panel that corresponds to the rear p anel dimensions of
the monitor. Take care that the panel section that is cut out is smaller than the overall size of the metal frame that surrounds the monitor but just large enough for the rear panel of the monitor to fit through (
Figure 5-5).
Page 42
SRM Series/SRM-KIT Series Monitor
Figure 5-5: Panel Opening
Step 3: Slide the monitor through the hole until the metal frame is flushed against the
panel (
Figure 5-6).
Figure 5-6: Insert the Monitor
Page 43
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
SRM Series/SRM-KIT Series Monitor
the monitor, behind the metal frame. insertion holes on one side of the LCD monitor. Refer to mounting clamps required for each model.
Figure 5-7 shows the location of clamp
Table 2-2 for the
Page 44
Figure 5-7: Clamp Insertion Holes
SRM Series/SRM-KIT Series Monitor
Step 5: Tighten the screws that p ass through th e p anel mount ing clamp s until the plastic
caps at the front of all the screws are firmly secured to the panel (
Figure 5-8).
Figure 5-8: Panel Mounting Clamp Position

5.5.2 Cabinet and Rack Installation

The SRM series provides optional rack mount kits for industrial racks. To mount the SRM series LCD monitor into a cabinet/rack, please follow the steps below.
Step 1: The back of the metal frame surrounding the SRM series LCD monitor has
several retention screw holes for a rack mount kit. See
1-11.
Step 2: Slide the monitor through the rack mount kit until the rear side of the monitor
frame is flushed against the front of the rack mount kit.
Step 3: Make sure the retention screw holes at the rear of the monitor frame are aligned
with the retention screw holes in the rack mount kit.
Figure 1-10 and Figure
Page 45
Step 4: Secure the rack mount kit to the monitor by inserting and tightening the retention
SRM Series/SRM-KIT Series Monitor
screws (
Figure 5-9).
Figure 5-9: Secure the Rack Mount Kit
Step 5: Slide the monitor with the attached rack mount kit into a rack or cabinet (Figure
5-10).
Page 46
SRM Series/SRM-KIT Series Monitor
Figure 5-10: Install into a Cabinet/Rack
Step 6: Once the monitor with the attached cabinet/rack has been properly inserted into
the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet (
Figure 5-10).

5.5.3 Wall Mounting

To mount the SRM series industrial monitor onto a wall, please follow the steps below.
Step 1: Select a location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four bracket screw holes on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
Page 47
Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
SRM Series/SRM-KIT Series Monitor
the four pilot holes and tightening them (
Figure 5-11).
Figure 5-11: Wall-mounting Bracket
Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the
four screw holes on the real panel of the monitor and tighten until the screw shank is secured against the rear panel (
Figure 5-12).
Page 48
SRM Series/SRM-KIT Series Monitor
Figure 5-12: Monitor Support Screws
Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on
the bracket.
Page 49
Step 8: Carefully insert the screws through the holes and gently pull the monitor
SRM Series/SRM-KIT Series Monitor
downwards until the monitor rests securely in the slotted holes ( Ensure that all four of the mounting screws fit snuggly into their respective slotted holes.
Figure 5-13).
Figure 5-13: Wall Mounting the Monitor
Page 50
SRM Series/SRM-KIT Series Monitor

5.5.4 Monitor Stand Installation

The SRM series industrial monitor has Video Electronics Standards Association (VESA) standard mounting holes tapped into the rear panel. The standard holes are M4 set at 100m x 100mm apart (
Figure 5-14).
Figure 5-14: VESA Mounting Holes
The monitor stand mounting plate has a matching VESA hole pattern. To mount the SRM series industrial monitor onto a stand, please follow the steps below.
Step 1: Line up the threaded holes on the monito r rear p anel with the screw hole s on the
monitor stand mounting plate.
Page 51
Step 2: Secure the monitor to the stand with the supplied retention screws
Figure 5-15).
(
SRM Series/SRM-KIT Series Monitor
Figure 5-15: Monitor Stand Mounting

5.5.5 Monitor Arm Installation

The SRM series industrial monitor has Video Electronics Standards Association (VESA) standard mounting holes tapped into the rear panel. The standard holes are M4 set at 100m x 100mm apart ( VESA hole pattern. To mount the SRM series industrial monitor onto a monitor arm, please follow the steps below.
Step 1: Line up the threaded holes on the monito r rear p anel with the screw hole s on the
monitor arm mounting plate.
Step 2: Secure the monitor to the arm with the supplied retention screws (
Step 0:
Figure 5-14). The monitor arm mounting plate has a matching
Figure 5-16).
Page 52
SRM Series/SRM-KIT Series Monitor
Figure 5-16: Monitor Arm Mounting
Page 53
SRM Series/SRM-KIT Series Monitor
Chapter
6
6 On-Screen-Display (OSD)
Controls
Page 54
SRM Series/SRM-KIT Series Monitor

6.1 User Mode OSD Structure

6.1.1 OSD Buttons

There are several on-screen-display (OSD) control buttons oriented either vertically along the right hand side of the monitor front panel. OSD controls.
Figure 6-1 shows a typical arrangement of
Figure 6-1: OSD Control Buttons for All Models
LCD ON/OFF Button
Press this button to turn the LCD monitor on or off. When the LCD monitor is on, the power LED is turned on in green.
Auto/Exit Button
Press this button to enable auto-configuration or apply default values.
Left Button
Press this button to scroll to the left, to increase the value, or to switch from one selected item to another.
Right Button
Press this button to scroll to the right, to decrease the value, or to switch from one selected item to another.
Page 55
Menu/Enter Button
Press this button to open the OSD window. When inside a menu, press this button to confirm the function adjustment or selection of the item. There may be several levels in one item. As you select an item in the menu, the sub-items will be displayed.
The OSD control panel also includes one sensor and two LED.
Ambient Light Sensor
The ambient light sensor detects the brightness of ambient environment when the auto-dimming function is turned on.
Power LED
The power LED is turned on in green when the LCD monitor is on.
Auto-dimming LED
The auto-dimming LED is turned on in red when the auto-dimming function is
SRM Series/SRM-KIT Series Monitor
on.
Page 56
SRM Series/SRM-KIT Series Monitor

6.1.2 OSD Menu Structure

Table 6-1 shows the OSD menu structure for all models of the SRM series LCD monitor.
Level 0 Level 1 Value Main Display Features Menu
Color Menu
OSD Menu
Brightness 0 to 100 Contrast 0 to 100 Clock 0 to 100 Phase 0 to 100 H. Position 0 to 100 V. Position 0 to 100 Sharpness 1 to 5 6500K - Preset NTSC value 7500K - Preset NTSC value 9300K - Preset NTSC value Red RGB values from 0 to 100 Green RGB values from 0 to 100 Blue RGB values from 0 to 100 OSD Time Out 0 to 60 sec OSD Position 1 to 5 OSD Transparency 20, 40, 60, 80, 100
Exit Menu Exit Select
Table 6-1: OSD Menus
Factory Reset Select Auto Adjust Select Auto Color Select Gamma Off, On
Page 57

6.2 Using the OSD

OSD menu options are described below.

6.2.1 Main Display Features

Main display features are shown in Figure 6-2.
SRM Series/SRM-KIT Series Monitor
Figure 6-2: Main Display Features
The brightness option adjusts the brightness of screen. This function
Brightness
Contrast
Clock
Phase
H. Position
V. Position
Sharpness
adjusts the offset value of ADC. Setting this value too high or too low will affect the quality of image. When the auto- dimming function is turned on, the brightness control is not effective.
This function adjusts the gain value of ADC. Adjusting this value too high or too low will worsen the quality of image.
Adjusts the width of the display screen. Adjusts the input signal. Adjusts the horizontal position of the display screen. Adjusts the vertical position of the display screen Adjust the sharpness of the display
Page 58
SRM Series/SRM-KIT Series Monitor

6.2.2 Color

Color options are shown in Figure 6-3.
Figure 6-3: Color Options
The Color menu fine-tunes the palette of color hues for the LCD.
6500k
7500k
9300k
User
NTSC standard Kelvin NTSC standard Kelvin NTSC standard Kelvin This item allows fine-tuning the balance among Red, Green, and Blue color
hues if images look garish or unrealistic.
Page 59

6.2.3 OSD Configurations

The OSD configurations are shown in Figure 6-4.
SRM Series/SRM-KIT Series Monitor
Figure 6-4: OSD Configurations Menu
OSD Configurations are described below.
OSD Time Out
OSD Position
OSD Transparency
Factory Reset
Auto Adjust
Auto Color
Determines how many seconds the OSD screen stays on screen before it disappears when OSD is left unattended.
Adjusts the OSD position on the screen. Position 1 is in the upper left of the screen, position 2 in the upper right and position 3 in the center.
Adjust the transparency of the OSD menu background. Restores the default OSD settings. Note that this will restore all
default display settings. Automatically adjusts the position of the display screen Automatically adjusts the color settings.
Page 60
SRM Series/SRM-KIT Series Monitor

6.2.4 Auto-Dimming Configurations

The SRM industrial monitor features an auto-dimming LCD that can automatically adjust the backlight brightness according to the ambient light. If the auto-dimming function is turned on, the backlight turns brighter when the ambient illuminance is high. The backlight dims automatically when the ambient brightness level is low.
The SI unit of illuminance is “lux”. Lux measures the intensity of light. illuminance (LUX measurement) of everyday light sources.
Light Source Brightness (LUX) Night without moonlight Night with moonlight Office desk lighting Overcast day Sunny day Direct sunlight
Table 6-2: LUX Measurement of Everyday Light Source
<10 <100 500~1000 1000~2000 10,000 100,000
Table 6-2 lists the
6.2.4.1 Default Settings
The auto-dimming default settings of the SRM industrial monitor are listed in Table 6-3 below:
OSD Default Settings Description Light Min
Light Max
LUX Min
LUX Max
Table 6-3: Auto-Dimming Default Settings
0 Minimum backlight value
Unit in percentage (%)
100 Maximum backlight value
Unit in percentage (%)
0 Minimum ambient brightness
Unit in 100 lux
52 Maximum ambient brightness
Unit in 100 lux (52=5200 lux)
Page 61
The Figure 6-5 shows the SRM-121 default linearity of the LCD backlight and ambient light. When the sensor detects the ambient illuminance as 5200 LUX or above, the SRM series industrial monitor adjusts the LCD brightness to 100%.
SRM Series/SRM-KIT Series Monitor
1000
900 800 700 600 500
20%
1000
30%
1500
400 300 200 100
LCD Brightness (cd/m2)
0
10%
0%
0
500
40%
2000
50%
2500
60%
3000
3500
70%
80%
4000
100%
90%
4500
100%100%
5000
10000
15000
20000
100%
25000
30000
100%100%
35000
40000
Ambient Light (LUX)
Figure 6-5: SRM-121 Default Linearity of the LCD Backlight and Ambient Light
6.2.4.2 Changing the Default Settings
The maximum and minimum LUX value and backlight brightness in the OSD panel can be
Page 62
adjusted to meet custom needs and lighting conditions.
NOTE:
When the auto dimming function is on, the “Brightness Control” in main display feature (refer to Section adjust the maximum and minimum value of the LUX and backlight to make the LCD brighter or darker.
Light Max. and Light Min.
To keep the LCD brightness within a specific range, not the 0~100% wide range, adjust the minimum and maximum value of the LCD backlight. For example, set the Light Min. to
6.2.1) is not effective. The user can only
SRM Series/SRM-KIT Series Monitor
30 and the Light Max. to 70. Then, the adjustable LCD brightness range is among 30% to 70%. By doing this, the LCD brightness does not become too bright or too dark if the ambient light reaches the default maximum or minimum value.
LUX Max. and LUX Min.
The SRM series is an ideal product for outdoor display. However, if the SRM series is installed in an environment with stable and low lux lighting, the LCD monitor cannot detect the default maximum lux (5200 lux) and make the LCD brightness reach to the maximum. To set the LCD brightness to the maximum value, the user can adjust the default maximum lux value.
For example, in a low lux office desk lighting environment, the default lux maximum value may be adjusted from 52 (5200 lux) to 4 (400 lux). Once the setting is changed, the monitor detects the ambient light and increases the LCD brightness to the maximum. In this case, the LCD brightness increases in a low lux environment by decreasing the maximum LUX value while keeping other settings in default.
Page 63
SRM Series/SRM-KIT Series Monitor
Chapter
7

7 Software Drivers

Page 64
SRM Series/SRM-KIT Series Monitor

7.1 Introduction

The touch panel controller enables analog resistive touch panels for four-wire, five-wire & eight-wire models. The controller directly communicates with the PC system through the touch panel communications interface. The controller design is superior in sensitivity, accuracy, and friendly operation. The touch panel driver emulates the left mouse button and the right mouse button functions.
The touch panel driver supports the following operating systems:
Microsoft
o Microsoft o Microsoft o Microsoft o Microsoft o Microsoft o Microsoft
Microsoft
o Microsoft o Microsoft o Microsoft
Linux Kernel 2.6  DOS
Driver installation is described below.
®
Windows® versions:
®
Windows® 2000
®
Windows® XP
®
Windows® 2003
®
Windows® 2008
®
Windows® Vista
®
Windows® 7
®
Windows® CE versions:
®
Windows® CE 4.2
®
Windows® CE 5.0
®
Windows® CE 6.0

7.2 RS-232 or USB Touch Screen

Before installing the driver, connect the SRM Series monitor to the motherboard. The SRM Series monitors support touch screen modality through an RS-232 or USB interface connection. Decide through which interface the touch screen is to be controlled.
RS-232 Interface: If the touch screen interface connection is an RS-232
connection, connect the RS-232 connector on the single board computer to the DB-9 connector of the SRM Series monitor.
Page 65
USB Interface: If the touch screen interface connection is a USB connection,
connect the USB connector on the single board computer to the external USB port connector of the SRM Series monitor.
SRM Series/SRM-KIT Series Monitor

7.3 Touch Panel Driver Installation

WARNING:
Before the touch screen driver is installed, make sure the system is connected to the monitor with a USB cable or an RS-232 null cable. Also, make sure the VGA connector on the system is connected to the VGA connector on the bottom of the monitor.
To install the touch panel driver for the SRM Series, please follow the instructions below:
Step 1: Connect the SRM Series monitor to the single board computer. See above.
Step 2: Install the driv er CD. Install the driver CD into the system to which the SRM
Series monitor is connected.
Step 3: Select the Touch Screen option in the menu of driver CD. The directory in
Figure 7-1 appears.
Page 66
Figure 7-1: Setup Icon
SRM Series/SRM-KIT Series Monitor
Step 4: Double click the setup icon in Figure 7-1.
Step 5: The Welcome screen in
Figure 7-2: Welcome Screen
Step 6: Click Next to continue.
Figure 7-2 appears.
Step 7: The license agreement in
agreement by clicking I Agree.
Figure 7-3: License Agreement
Figure 7-3 appears. Accept the terms of the
Page 67
Step 8: The installation destination screen appears. See Figure 7-4. Click Install.
SRM Series/SRM-KIT Series Monitor
Figure 7-4: Initiate Install
Step 9: The installation of the program begins. See
Figure 7-5.
Figure 7-5: Installation Starts
Step 10: When the installation is complete, the complete screen appears. See
Figure 7-6.
Page 68
To complete the installation process click Finish.
SRM Series/SRM-KIT Series Monitor
Figure 7-6: Finish Installation

7.4 Change the Touch Screen Interface

If the touch screen interface must be changed from an RS-232 interface to a USB interface or, from a USB interface to an RS-232 interface, the following steps must be followed.
Step 1: Uninstall the touch screen driver
Step 2: Remove the interface cable i.e. remove the RS-232 cable or the USB cable
Step 3: Install the new cable i.e. install the USB cable or the RS-232 cable.
Step 4: Reinstall the driver CD as described above. Step 0:

7.5 Calibrating the Touch Screen

To calibrate the touch screen cursor with the motion of the touch screen pen (or finger), please follow the steps below:
Step 1: Make sure the system is properly connected through an RS-232 or a USB
interface to the SRM Series monitor.
Step 2: Make sure the touch screen driver is properly installed.
Page 69
Step 3: Locate the PenMount Monitor icon in the bottom left corner of the screen.
SRM Series/SRM-KIT Series Monitor
Figure 7-7: PenMount Monitor Icon
Step 4: Click the icon. A pop up menu appears. See
Figure 7-8.
Figure 7-8: PenMount Monitor Popup Menu
Step 5: Click Control Panel in the pop up menu shown in
Step 6: The configuration screen in
Figure 7-9 appears.
Figure 7-8.
Page 70
Figure 7-9: Configuration Screen
SRM Series/SRM-KIT Series Monitor
Step 7: Double click the PenMount 6000 icon as shown in Figure 7-9.
Step 8: The calibration initiation screen in
Step 9: Select the Standard Calibration button as shown in
Figure 7-10 appears.
Figure 7-10.
Figure 7-10: Calibration Initiation Screen
Step 10: The calibration screen in is shown. See
Figure 7-11.
Figure 7-11: Calibration Screen
Step 11: Follow the instructions. The user is asked touch the screen at five specified
points after which the screen is calibrated. Step 0:
Page 71
SRM Series/SRM-KIT Series Monitor
Chapter
8

8 Gasket Replacement

Page 72
SRM Series/SRM-KIT Series Monitor

8.1 Gasket Replacement

A gasket used for a long time may gradually lose its ability to protect the monitor from fluids and vapors; scratches or dirt may also accumulate. It is recommended that the gasket be replaced yearly.
NOTE:
If the monitor is mounted vertically, first remove it and place it on a flat, level surface with the display screen facing down before changing the gasket.
Step 1: Remove the old gasket from the sides of the monitor.
Step 2: Attach the new gasket to the monitor. Make sure the gasket fits precisely into the
groove along the edges of the monitor’s front panel (
Figure 8-1: Gasket Replacement
NOTE:
Compliance with the IP 65 standard depends on correct installation of
Figure 8-1).
the gasket. Be sure to check that the gasket is properly installed after changing it.
Page 73
SRM Series/SRM-KIT Series Monitor
Appendix
A

A Safety Precautions

Page 74
SRM Series/SRM-KIT Series Monitor
WARNING:
The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the SRM Series.

A.1 Safety Precautions

Please follow the safety precautions outlined in the sections that follow:

A.1.1 General Safety Precautions

Please ensure the following safety precautions are adhered to at all times.
Follow the electrostatic precautions outlined below whenever the SRM
Series is opened.
Make sure the power is turned off and the power cord is disco nnected
whenever the SRM Series is being installed, moved or modified.
Do not apply voltage levels that exceed the specified voltage range.
Doing so may cause fire and/or an electrical shock.
Electric shocks can occur if the SRM Series chassis is opened when the
SRM Series is running.
Do not drop or insert any objects into the ventilation openings of the SRM
Series.
If considerable amounts of dust, water, or fluids enter the SRM Series,
turn off the power supply immediately, unplug the power cord, and contact the SRM Series vendor.
DO NOT:
o Drop the SRM Series against a hard surface. o Strike or exert excessive force onto the LCD panel. o Touch any of the LCD panels with a sharp object o In a site where the ambient temperature exceeds the rated temperature
Page 75

A.1.2 Anti-static Precautions

WARNING:
Failure to take ESD precautions during the installation of the SRM Series may result in permanent damage to the SRM Series and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the SRM Series. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the SRM Series is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple an ti-static wristband can
SRM Series/SRM-KIT Series Monitor
help to prevent ESD from damaging any electrical component.
Self-grounding: Before handling any electrical component, touch any
grounded conducting material. During the time the electrical component is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring or working with an electrical
component, place it on an antic-static pad. This reduces the possibility of ESD damage.
Only handle the edges of the electrical component: When handling the
electrical component, hold the electrical component by its edges.

A.2 Maintenance and Cleaning Precautions

When maintaining or cleaning the SRM Series, please follow the guidelines below.

A.2.1 Maintenance and Cleaning

Prior to cleaning any part or component of the SRM Series, please read the details below.
Page 76
Except for the LCD panel, never spray or squirt liquids directly onto any other
components. To clean the LCD panel, gently wipe it with a piece of soft dry cloth or a slightly moistened cloth.
SRM Series/SRM-KIT Series Monitor
The interior of the SRM Series does not require cleaning. Keep fluids away
from the SRM Series interior.
Be cautious of all small removable components when vacuuming the SRM
Series.
Turn the SRM Series off before cleaning the SRM Series.  Never drop any objects or liquids through the openings of the SRM Series.  Be cautious of any possible allergic reactions to solvents or chemicals used
when cleaning the SRM Series.
Avoid eating, drinking and smoking within vicinity of the SRM Series.

A.2.2 Cleaning Tools

Some components in the SRM Series may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the SRM Series.
z Cloth – Although paper towels or tissues can be used, a soft, clean
piece of cloth is recommended when cleaning the SRM Series.
z Water or rubbing alcohol – A cloth moistened with water or rubbing
alcohol can be used to clean the SRM Series.
z Using solvents – The use of solvents is not recommended when
cleaning the SRM Series as they may damage the plastic parts.
z Vacuum cleaner – Using a vacuum specifically designed for
computers is one of the best methods of cleaning the SRM Series.
Dust and dirt can restrict the airflow in the SRM Series and cause its
circuitry to corrode.
z Cotton swabs - Cotton swaps moistened with rubbing alcohol or
water are excellent tools for wiping hard to reach areas.
Foam swabs - Whenever possible, it is best to use lint free swabs such as foam
swabs for cleaning.
Page 77
SRM Series/SRM-KIT Series Monitor
Appendix
B

B Certifications

Page 78
SRM Series/SRM-KIT Series Monitor

B.1 RoHS Compliant

All models in the SRM LCD monitor series comply with the Restriction of Hazardous Materials (RoHS) Directive. This means that all components used to build the industrial workstations and the workstation itself are RoHS compliant.
The RoHS Directive bans the placing on the EU market of new electrical and electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.

B.2 IP 65 Compliant Front Panel

The front panels on all five models in the SRM series LCD monitor series have an ingress protection rating (IP) of 65, IP 65. The front panels are protected from dust particles and water spray.
Page 79
SRM Series/SRM-KIT Series Monitor
Appendix
C

C smartOSD

Page 80
SRM Series/SRM-KIT Series Monitor

C.1 IEI smartOSD Quick Installation Guide

IEI smartOSD is a proprietary On-Screen-Display (OSD) software solution from IEI that enables easy, remote monitor setting adjustments in a Windows environment. IEI smartOSD delivers excellent performance and provides more flexibility than the typical OSD hardware solutions when adjusting a monitor. smartOSD also allows monitor settings such as brightness, contrast, screen position, size, color gain to be read and changed over normal video cable (VGA or DVI). The smartOSD function is only supporte d by revision 1.1 models and above.

C.2 Pre-installation Notice

Before installing smartOSD software, please make sure one of the following operating systems is installed:
Windows 95 Windows NT 4.0 Windows 98 Windows 2000 Windows 2003 Windows XP Windows Vista

C.3 smartOSD Install

Connect the SRM Series to a host computer. Insert the CD that came with the system and follow the instructions below.
Step 1: When the CD install the screen shown in
Figure 8-2 appears.
Page 81
SRM Series/SRM-KIT Series Monitor
Figure 8-2: smartOSD Installer
Step 2: Click “Smart OSD” in
Step 3: The welcome screen shown in
Figure 8-3: smartOSD Welcome Screen
Figure 8-2.
Figure 8-3 appears.
Page 82
Step 4: Click Next to continue.
Step 5: The Folder Select screen in
Figure 8-4 appears.
SRM Series/SRM-KIT Series Monitor
Figure 8-4: smartOSD Folder Select Screen
Step 6: Select the installation folder in
Step 7: Click Next to continue.
Step 8: The screen in
Figure 8-5: smartOSD Confirm Installation
Figure 8-5 appears.
Figure 8-4 shown above.
Step 9: Confirm the installation by clicking Next in the screen above.
Step 10: The program starts to install and the progress bar shown in
Figure 8-6 appears.
Page 83
SRM Series/SRM-KIT Series Monitor
Figure 8-6: smartOSD Installation Progress
Step 11: When the installation is complete the “Complete Installation” screen in
8-7 appears.
Figure 8-7: smartOSD Installation Complete
Step 12: Click Close in the screen above.
Figure
Page 84
Step 13: After quick setup is complete, the IEI smartOSD wizard logo appears on the
desktop as shown in the screen below.
Step 14: To access the smartOSD, click the smartOSD wizard logo.Step 0:
SRM Series/SRM-KIT Series Monitor

C.4 Software Illustration

The table below shows the smartOSD menu structure for all IEI LCD monitors.
NOTE:
To update the display setting status immediately, push the refresh button on every page
To turn the system on, press ALT + P.
Item Elements Management
EDID
Save/Load File Power Management EDID contains basic information about the monitor and its
capabilities.
Brightness Contrast Sharpness
Page 85
SRM Series/SRM-KIT Series Monitor
Display
Color
PIP
System
Auto Adjust Phase Clock Auto Color User Red Gain User Green Gain User Blue Gain Color Temperature (5000k and 4200k disabled in the SRM
Series) Gamma PIP (disabled in the SRM Series) PIP Source Input (disabled in the SRM Series) PIP Size (disabled in the SRM Series) Monitor Power Control Auto Brightness (disabled in the SRM Series) Main Source Input (S-Video and CVBS disabled) Volume (disabled in the SRM Series) Factory Presets/OSD Lock/OSD Unlock Mute (disabled in the SRM Series)
Table C-1: SmartOSD Menu Structure
Page 86
SRM Series/SRM-KIT Series Monitor

C.4.1 Manage Page

Figure 8-8: Manage Page
Page 87

C.4.2 EDID Page

SRM Series/SRM-KIT Series Monitor
Page 88
SRM Series/SRM-KIT Series Monitor

C.4.3 Image Page

Page 89

C.4.4 Display Page (for analog signal)

SRM Series/SRM-KIT Series Monitor
Page 90
