IEI Integration SPCIE-C2060 User Manual

SPCIE-C2060 PICMG 1.3 CPU Card
IEI Technology Corp.
MODEL:
SPCIE-C2060 Series
Full-Size PICMG 1.3 CPU Card Supports 32nm LGA1155 Intel
Xeon® E3 and Intel® Core™ i3 CPU, Intel® C206 Chipset,
DDR3, VGA/DVI-D, Dual Intel® PCIe GbE, Two SATA 6Gb/s
Ports, PCIe Mini, HD Audio and RoHS
User Manual
Rev. 1.01 – 20 February, 2012
Page i
SPCIE-C2060 PICMG 1.3 CPU Card
Revision
Date Version Changes
20 February, 2012
15 November, 2011
1.01 Updated the supported CPU type Updated Section Updated Appendix B: One Key Recovery
1.00 Initial release
1.6: Data Flow
Page ii
SPCIE-C2060 PICMG 1.3 CPU Card
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page iii
SPCIE-C2060 PICMG 1.3 CPU Card
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 INTRODUCTION........................................................................................................... 2
1.2 MODEL VARIATIONS................................................................................................... 3
1.3 FEATURES................................................................................................................... 3
1.4 CONNECTORS ............................................................................................................. 4
1.5 DIMENSIONS............................................................................................................... 5
1.6 DATA FLOW................................................................................................................ 7
1.7 TECHNICAL SPECIFICATIONS ...................................................................................... 8
2 PACKING LIST........................................................................................................... 10
2.1 ANTI-STATIC PRECAUTIONS.......................................................................................11
2.2 UNPACKING PRECAUTIONS........................................................................................11
2.3 PACKING LIST........................................................................................................... 12
2.4 OPTIONAL ITEMS...................................................................................................... 13
3 CONNECTORS ........................................................................................................... 15
3.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 16
3.1.1 SPCIE-C2060 Series Layout............................................................................ 16
3.1.2 Peripheral Interface Connectors ..................................................................... 16
3.1.3 External Interface Panel Connectors............................................................... 17
3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 18
3.2.1 12V Power Connector...................................................................................... 18
3.2.2 Audio Kit Connector........................................................................................ 18
3.2.3 Battery Connector............................................................................................ 19
3.2.4 DDR3 DIMM Slots........................................................................................... 20
3.2.5 Digital I/O Connector...................................................................................... 21
3.2.6 DVI-D Connector (DVI Model Only) .............................................................. 21
3.2.7 Fan Connector (CPU)...................................................................................... 22
3.2.8 Floppy Disk Drive Connector.......................................................................... 23
3.2.9 Front Panel Connector.................................................................................... 25
3.2.10 I2C Connector................................................................................................ 26
Page iv
SPCIE-C2060 PICMG 1.3 CPU Card
3.2.11 Infrared Interface Connector......................................................................... 26

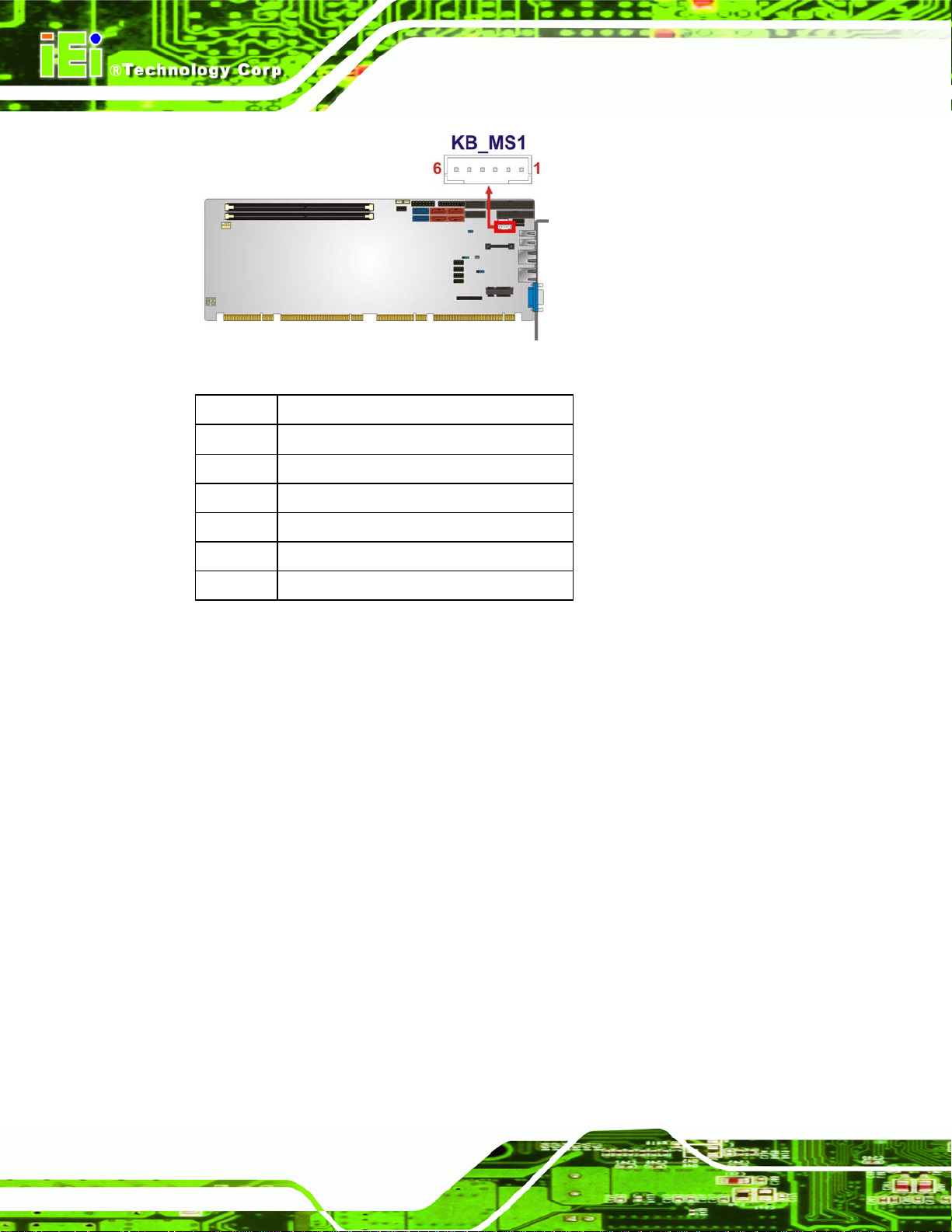

3.2.12 Keyboard/Mouse Connector.......................................................................... 27
3.2.13 Parallel Port Connector ................................................................................ 28
3.2.14 PCIe Mini Card Slot ...................................................................................... 29
3.2.15 SATA 3Gb/s Drive Connector........................................................................ 31
3.2.16 SATA 6Gb/s Drive Connector........................................................................ 32
3.2.17 Serial Port Connectors, RS-232..................................................................... 32
3.2.18 Serial Port Connector, RS-422/485................................................................ 33
3.2.19 SMBus Connector .......................................................................................... 34
3.2.20 SPI ROM Connector...................................................................................... 35
3.2.21 TPM Connector.............................................................................................. 36
3.2.22 USB Connectors............................................................................................. 37
3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 38
3.3.1 Ethernet Connectors ........................................................................................ 38
3.3.2 USB Connectors............................................................................................... 39
3.3.3 VGA Connector................................................................................................ 40
4 INSTALLATION ......................................................................................................... 41
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 42
4.2 INSTALLATION CONSIDERATIONS.............................................................................. 42
4.2.1 Socket LGA1155 CPU Installation .................................................................. 44
4.2.2 Socket LGA1155 Cooling Kit Installation........................................................ 47
4.2.3 DIMM Installation........................................................................................... 48
4.3 JUMPER SETTINGS .................................................................................................... 49
4.3.1 AT/ATX Power Select Jumper.......................................................................... 49
4.3.2 Clear CMOS Jumper........................................................................................ 50
4.3.3 Wake-on LAN Jumper ...................................................................................... 51
4.4 CHASSIS INSTALLATION............................................................................................ 52
4.4.1 Airflow.............................................................................................................. 52
4.4.2 CPU Card Installation..................................................................................... 52
4.5 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 52
4.5.1 Dual RS-232 Cable with Slot Bracket.............................................................. 52
4.5.2 DVI-D/USB Kit Installation (DVI Model Only)............................................... 53
4.5.3 SATA Drive Connection................................................................................... 54
4.5.4 USB Cable (Dual Port) with Slot Bracket ....................................................... 56
Page v
SPCIE-C2060 PICMG 1.3 CPU Card
4.5.5 PCIe Mini Card Installation............................................................................ 57
4.6 EXTERNAL PERIPHERAL INTERFACE CONNECTION................................................... 58
4.6.1 LAN Connection............................................................................................... 58
4.6.2 USB Device Connection (Single Connector)................................................... 59
4.6.3 VGA Monitor Connection ................................................................................ 60
4.7 INTEL
®
AMT SETUP PROCEDURE............................................................................. 61
5 BIOS.............................................................................................................................. 63
5.1 INTRODUCTION......................................................................................................... 64
5.1.1 Starting Setup................................................................................................... 64
5.1.2 Using Setup...................................................................................................... 64
5.1.3 Getting Help..................................................................................................... 65
5.1.4 Unable to Reboot after Configuration Changes.............................................. 65
5.1.5 BIOS Menu Bar................................................................................................ 65
5.2 MAIN........................................................................................................................ 66
5.3 ADVANCED ............................................................................................................... 67
5.3.1 ACPI Settings................................................................................................... 68
5.3.2 T rusted Computing........................................................................................... 69
5.3.3 CPU Configuration.......................................................................................... 69
5.3.3.1 CPU Information....................................................................................... 70
5.3.4 SATA Configuration......................................................................................... 72
5.3.5 Intel TXT(LT) Configuration............................................................................ 73
5.3.6 USB Configuration........................................................................................... 74
5.3.7 Super IO Configuration ................................................................................... 76
5.3.7.1 Serial Port n Configuration....................................................................... 77
5.3.7.2 Parallel Port Configuration....................................................................... 81
5.3.8 H/W Monitor.................................................................................................... 82
5.3.8.1 FAN 1 Configuration ................................................................................ 83
5.3.9 Serial Port Console Redirection...................................................................... 85
5.3.10 iEi Feature..................................................................................................... 86
5.4 CHIPSET ................................................................................................................... 87
5.4.1 Northbridge Configuration.............................................................................. 88
5.4.2 Southbridge Configuration .............................................................................. 91
5.4.3 Integrated Graphics......................................................................................... 94
5.4.4 ME Subsystem.................................................................................................. 95
Page vi
SPCIE-C2060 PICMG 1.3 CPU Card
5.5 BOOT........................................................................................................................ 96
5.6 SECURITY................................................................................................................. 98
5.7 EXIT......................................................................................................................... 99
6 SOFTWARE DRIVERS............................................................................................ 101
6.1 AVAILABLE SOFTWARE DRIVERS ............................................................................ 102
6.2 SOFTWARE INSTALLATION ...................................................................................... 102
6.3 CHIPSET DRIVER INSTALLATION............................................................................. 104
6.4 GRAPHICS DRIVER INSTALLATION.......................................................................... 107
6.5 LAN DRIVER INSTALLATION...................................................................................110
6.6 AUDIO DRIVER INSTALLATION ................................................................................114
6.7 INTEL® AMT DRIVER AND APPLICATION................................................................116
6.7.1 Intel® Management Engine Components Installation....................................116
6.7.2 Intel® IT Director Application Installation................................................... 120
A BIOS OPTIONS ........................................................................................................ 126
B ONE KEY RECOVERY........................................................................................... 130
B.1 ONE KEY RECOVERY INTRODUCTION .................................................................... 131
B.1.1 System Requirement....................................................................................... 132
B.1.2 Supported Operating System......................................................................... 133
B.2 SETUP PROCEDURE FOR WINDOWS........................................................................ 134
B.2.1 Hardware and BIOS Setup ............................................................................ 135
B.2.2 Create Partitions........................................................................................... 135
B.2.3 Install Operating System, Drivers and Applications..................................... 139
B.2.4 Build-up Recovery Partition.......................................................................... 140
B.2.5 Create Factory Default Image....................................................................... 142
B.3 AUTO RECOVERY SETUP PROCEDURE.................................................................... 147
B.4 SETUP PROCEDURE FOR LINUX.............................................................................. 152
B.5 RECOVERY TOOL FUNCTIONS ................................................................................ 155
B.5.1 Factory Restore............................................................................................. 157
B.5.2 Backup System............................................................................................... 158
B.5.3 Restore Your Last Backup.............................................................................. 159
B.5.4 Manual........................................................................................................... 160
B.6 RESTORE SYSTEMS FROM A LINUX SERVER THROUGH LAN.................................. 161
B.6.1 Configure DHCP Server Settings.................................................................. 162
Page vii
B.6.2 Configure TFTP Settings............................................................................... 163
B.6.3 Configure One Key Recovery Server Settings............................................... 164
B.6.4 Start the DHCP, TFTP and HTTP................................................................. 165
B.6.5 Create Shared Directory................................................................................ 165
B.6.6 Setup a Client System for Auto Recovery...................................................... 166
B.7 OTHER INFORMATION............................................................................................ 169
B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller....................... 169
B.7.2 System Memory Requirement ........................................................................ 171
C TERMINOLOGY ..................................................................................................... 172
D DIGITAL I/O INTERFACE..................................................................................... 176
D.1 INTRODUCTION...................................................................................................... 177
D.2 DIO CONNECTOR PINOUTS ................................................................................... 177
D.3 ASSEMBLY LANGUAGE SAMPLES........................................................................... 177
SPCIE-C2060 PICMG 1.3 CPU Card
D.3.1 Enable the DIO Input Function .................................................................... 177
D.3.2 Enable the DIO Output Function.................................................................. 178
E WATCHDOG TIMER............................................................................................... 179
F HAZARDOUS MATERIALS DISCLOSURE........................................................ 182
F.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 183
Page viii
SPCIE-C2060 PICMG 1.3 CPU Card
List of Figures
Figure 1-1: SPCIE-C2060 Series....................................................................................................2
Figure 1-2: Connectors ..................................................................................................................4
Figure 1-3: SPCIE-C2060 Series Dimensions (mm) ....................................................................5
Figure 1-4: External Interface Panel Dimensions (mm)..............................................................6
Figure 1-5: Data Flow Diagram......................................................................................................7
Figure 3-1: Connectors and Jumpers.........................................................................................16
Figure 3-2: ATX Power Connector Pinout Location..................................................................18
Figure 3-3: Audio Connector Location.......................................................................................19
Figure 3-4: Battery Connector Location.....................................................................................20
Figure 3-5: DDR3 DIMM Slot Locations......................................................................................20
Figure 3-6: Digital I/O Connector Location ................................................................................21
Figure 3-7: DVI-D Connector Location .......................................................................................22
Figure 3-8: CPU Fan Connector Location..................................................................................23
Figure 3-9: Floppy Disk Location................................................................................................24
Figure 3-10: Front Panel Connector Location ...........................................................................25
Figure 3-11: I2C Connector Location..........................................................................................26
Figure 3-12: Infrared Connector Location..................................................................................27
Figure 3-13: Keyboard/Mouse Connector Location..................................................................28
Figure 3-14: Parallel Port Connector Location..........................................................................29
Figure 3-15: PCIe Mini Card Slot Location.................................................................................30
Figure 3-16: SATA 3Gb/s Drive Connector Location................................................................31
Figure 3-17: SATA 6Gb/s Drive Connector Location................................................................32
Figure 3-18: Serial Port Connector Location.............................................................................33
Figure 3-19: RS-422/485 Connector Location............................................................................34
Figure 3-20: SMBus Connector Location...................................................................................35
Figure 3-21: SPI Connector Location .........................................................................................36
Figure 3-22: TPM Connector Location........................................................................................37
Figure 3-23: USB Connector Pinout Locations.........................................................................38
Figure 3-24: External Peripheral Interface Connector..............................................................38
Figure 3-25: Ethernet Connector.................................................................................................39
Page ix
Figure 3-26: VGA Connector .......................................................................................................40
Figure 4-1: Disengage the CPU Socket Load Lever..................................................................44
Figure 4-2: Remove Protective Cover.........................................................................................45
Figure 4-3: Insert the Socket LGA1155 CPU..............................................................................46
Figure 4-4: Close the Socket LGA1155 ......................................................................................46
Figure 4-5: Cooling Kit Support Bracket....................................................................................47
Figure 4-6: DIMM Installation.......................................................................................................48
Figure 4-7: AT/ATX Power Mode Jumper Location...................................................................50
Figure 4-8: Clear BIOS Jumper Location ...................................................................................51
Figure 4-9: Wake-on LAN Connector Pinout Locations ...........................................................51
Figure 4-10: Dual RS-232 Cable Installation..............................................................................53
Figure 4-11: DVI-D/USB Kit Installation......................................................................................54
Figure 4-12: SATA Drive Cable Connection...............................................................................55
Figure 4-13: SATA Power Drive Connection..............................................................................56
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-14: Dual USB Cable Connection..................................................................................57
Figure 4-15: PCIe Mini Card Installation.....................................................................................58
Figure 4-16: LAN Connection......................................................................................................59
Figure 4-17: USB Device Connection.........................................................................................60
Figure 4-18: VGA Connector .......................................................................................................61
Figure 6-1: Introduction Screen............................................................................................... 103
Figure 6-2: Available Drivers.................................................................................................... 103
Figure 6-3: Chipset Driver Screen............................................................................................ 104
Figure 6-4: Chipset Driver Welcome Screen........................................................................... 105
Figure 6-5: Chipset Driver License Agreement...................................................................... 105
Figure 6-6: Chipset Driver Read Me File ................................................................................. 106
Figure 6-7: Chipset Driver Setup Operations ......................................................................... 106
Figure 6-8: Chipset Driver Installation Finish Screen............................................................ 107
Figure 6-9: Graphics Driver Welcome Screen........................................................................ 108
Figure 6-10: Graphics Driver License Agreement.................................................................. 108
Figure 6-11: Graphics Driver Setup Operations..................................................................... 109
Figure 6-12: Graphics Driver Installation Finish Screen ....................................................... 109
Figure 6-13: Intel® Network Connection Menu....................................................................... 110
Figure 6-14: LAN Driver Welcome Screen .............................................................................. 111
Figure 6-15: LAN Driver License Agreement.......................................................................... 111
Figure 6-16: LAN Driver Setup Options................................................................................... 112
Page x
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 6-17: LAN Driver Installation ........................................................................................ 113
Figure 6-18: LAN Driver Installation Complete....................................................................... 113
Figure 6-19: Audio Driver – Extracting Files........................................................................... 114
Figure 6-20: Audio Driver Welcome Screen............................................................................ 115
Figure 6-21: Audio Driver Installation...................................................................................... 115
Figure 6-22: Audio Driver Installation Complete.................................................................... 115
Figure 6-23: Intel® ME Driver Welcome Screen ..................................................................... 117
Figure 6-24: Intel® ME Driver License Agreement................................................................. 117
Figure 6-25: Intel® ME Driver Read Me File............................................................................ 118
Figure 6-26: Intel® ME Driver Setup Operations.................................................................... 119
Figure 6-27: Intel® ME Driver Installation Finish Screen ...................................................... 119
Figure 6-28: IT Director Welcome Screen ............................................................................... 121
Figure 6-29: IT Director License Agreement........................................................................... 121
Figure 6-30: IT Director Installation......................................................................................... 122
Figure 6-31: IT Director Installation Complete........................................................................ 123
Figure 6-32: IT Director Configuration Tool Welcome Screen.............................................. 123
Figure 6-33: IT Director – Creating Password ........................................................................ 124
Figure 6-34: IT Director Configuration Complete................................................................... 125
Figure B-1: IEI One Key Recovery Tool Menu........................................................................ 131
Figure B-2: Launching the Recovery Tool.............................................................................. 136
Figure B-3: Recovery Tool Setup Menu .................................................................................. 136
Figure B-4: Command Mode..................................................................................................... 137
Figure B-5: Partition Creation Commands.............................................................................. 138
Figure B-6: Launching the Recovery Tool.............................................................................. 140
Figure B-7: Manual Recovery Environment for Windows..................................................... 140
Figure B-8: Building the Recovery Partition........................................................................... 141
Figure B-9: Press Any Key to Continue.................................................................................. 141
Figure B-10: Press F3 to Boot into Recovery Mode............................................................... 142
Figure B-11: Recovery Tool Menu ........................................................................................... 142
Figure B-12: About Symantec Ghost Window........................................................................ 143
Figure B-13: Symantec Ghost Path ......................................................................................... 143
Figure B-14: Select a Local Source Drive ............................................................................... 144
Figure B-15: Select a Source Partition from Basic Drive ...................................................... 144
Figure B-16: File Name to Copy Image to ............................................................................... 145
Figure B-17: Compress Image.................................................................................................. 145
Page xi
Figure B-18: Image Creation Confirmation............................................................................. 146
Figure B-19: Image Creation Complete................................................................................... 146
Figure B-20: Image Creation Complete................................................................................... 146
Figure B-21: Press Any Key to Continue................................................................................ 147
Figure B-22: Auto Recovery Utility.......................................................................................... 148
Figure B-23: Disable Automatically Restart............................................................................ 148
Figure B-24: Launching the Recovery Tool............................................................................ 149
Figure B-25: Auto Recovery Environment for Windows ....................................................... 149
Figure B-26: Building the Auto Recovery Partition................................................................ 150
Figure B-27: Factory Default Image Confirmation ................................................................. 150
Figure B-28: Image Creation Complete................................................................................... 151
Figure B-29: Press any key to continue.................................................................................. 151
Figure B-30: Partitions for Linux.............................................................................................. 153
Figure B-31: System Configuration for Linux......................................................................... 154
SPCIE-C2060 PICMG 1.3 CPU Card
Figure B-32: Access menu.lst in Linux (Text Mode).............................................................. 154
Figure B-33: Recovery Tool Menu ........................................................................................... 155
Figure B-34: Recovery Tool Main Menu.................................................................................. 156
Figure B-35: Restore Factory Default...................................................................................... 157
Figure B-36: Recovery Complete Window.............................................................................. 157
Figure B-37: Backup System.................................................................................................... 158
Figure B-38: System Backup Complete Window ................................................................... 158
Figure B-39: Restore Backup................................................................................................... 159
Figure B-40: Restore System Backup Complete Window..................................................... 159
Figure B-41: Symantec Ghost Window ................................................................................... 160
Figure B-42: Disable Automatically Restart............................................................................ 167
Page xii
SPCIE-C2060 PICMG 1.3 CPU Card
List of Tables
Table 1-1: SPCIE-C2060 Series Model Variations .......................................................................3
Table 1-2: SPCIE-C2060 Series Specifications............................................................................9
Table 2-1: Packing List.................................................................................................................13
Table 2-2: Optional Items.............................................................................................................14
Table 3-1: Peripheral Interface Connectors...............................................................................17
Table 3-2: Rear Panel Connectors..............................................................................................18
Table 3-3: ATX Power Connector Pinouts .................................................................................18
Table 3-4: Audio Connector Pinouts ..........................................................................................19
Table 3-5: Battery Connector (BT2) Pinouts..............................................................................20
Table 3-6: Digital I/O Connector Pinouts....................................................................................21
Table 3-7: DVI-D Connector Pinouts...........................................................................................22
Table 3-8: CPU Fan Connector Pinouts......................................................................................23
Table 3-9: Floppy Disk Pinouts...................................................................................................24
Table 3-10: Front Panel Connector Pinouts...............................................................................25
Table 3-11: I2C Connector Pinouts.............................................................................................26
Table 3-12: Infrared Connector Pinouts.....................................................................................27
Table 3-13: Keyboard/Mouse Connector Pinouts .....................................................................28
Table 3-14: Parallel Port Connector Pinouts .............................................................................29
Table 3-15: PCIe Mini Card Slot Pinouts ....................................................................................31
Table 3-16: SATA 3Gb/s Drive Connector Pinouts....................................................................31
Table 3-17: SATA 6Gb/s Drive Connector Pinouts....................................................................32
Table 3-18: Serial Port Connector Pinouts ................................................................................33
Table 3-19: RS-422/485Connector Pinouts................................................................................34
Table 3-20: SMBus Connector Pinouts ......................................................................................35
Table 3-21: SPI Connector Pinouts.............................................................................................36
Table 3-22: TPM Connector Pinouts...........................................................................................37
Table 3-23: USB Port Connector Pinouts...................................................................................38
Table 3-24: LAN Pinouts ..............................................................................................................39
Table 3-25: Connector LEDs........................................................................................................39
Table 3-26: USB Port Pinouts......................................................................................................40
Page xiii
Table 3-27: VGA Connector Pinouts...........................................................................................40
Table 4-1: Jumpers.......................................................................................................................49
Table 4-2: AT/ATX Power Mode Jumper Settings.....................................................................50
Table 4-3: Clear BIOS Jumper Settings......................................................................................50
Table 4-4: Wake-on LAN Connector Pinouts.............................................................................51
Table 5-1: BIOS Navigation Keys................................................................................................65
Table 6-1: Digital I/O Connector Pinouts................................................................................. 177
SPCIE-C2060 PICMG 1.3 CPU Card
Page xiv
SPCIE-C2060 PICMG 1.3 CPU Card
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................66
BIOS Menu 2: Advanced..............................................................................................................67
BIOS Menu 3: ACPI Configuration..............................................................................................68
BIOS Menu 4: TPM Configuration...............................................................................................69
BIOS Menu 5: CPU Configuration...............................................................................................70
BIOS Menu 6: CPU Configuration...............................................................................................71
BIOS Menu 7: SATA Configuration.............................................................................................72
BIOS Menu 8: Intel TXT(LT) Configuration ................................................................................74
BIOS Menu 9: USB Configuration...............................................................................................74
BIOS Menu 10: Super IO Configuration......................................................................................76
BIOS Menu 11: Serial Port n Configuration Menu.....................................................................77
BIOS Menu 12: Parallel Port Configuration Menu.....................................................................81
BIOS Menu 13: H/W Monitor........................................................................................................82
BIOS Menu 14: FAN 1 Configuration..........................................................................................84
BIOS Menu 15: Serial Port Console Redirection.......................................................................85
BIOS Menu 16: IEI Feature...........................................................................................................87
BIOS Menu 17: Chipset................................................................................................................88
BIOS Menu 18:Northbridge Chipset Configuration...................................................................88
BIOS Menu 19: Southbridge Chipset Configuration.................................................................91
BIOS Menu 20: Integrated Graphics...........................................................................................94
BIOS Menu 21: ME Subsystem....................................................................................................95
BIOS Menu 22: Boot.....................................................................................................................96
BIOS Menu 23: Security...............................................................................................................98
BIOS Menu 24:Exit........................................................................................................................99
BIOS Menu 25: IEI Feature........................................................................................................ 152
SPCIE-C2060 Series
Page xv
SPCIE-C2060 PICMG 1.3 CPU Card
Chapter
1

1 Introduction

Page 1

1.1 Introduction

Figure 1-1: SPCIE-C2060 Series
The SPCIE-C2060 Series is a PICMG 1.3 CPU card. It accepts a Socket LGA1155 Intel® Xeon® E3 or Core™ i3 processor and supports two 240-pin 1066/1333 MHz dual-channel
SPCIE-C2060 PICMG 1.3 CPU Card
DDR3 DIMM modules up to 16.0 GB.
The SPCIE-C2060 Series supports two GbE interfaces through the Intel® 82579 Ethernet PHY (with Intel® AMT 7.0 support) and the Intel® 82574L Ethernet controller.
The integrated Intel® C206 chipset supports two SATA 6Gb/s and four SATA 3G b/s drives. Two USB 2.0 on the rear panel, six USB 2.0 by pin header and one PCIe Mini interface provide flexible expansion options. High Definition Audio (HDA) support ensures HDA devices can be easily implemented on the SPCIE-C2060 Series.
Page 2
SPCIE-C2060 PICMG 1.3 CPU Card

1.2 Model Variations

The model variations of the SPCIE-C2060 Series are listed below.
Model No. CPU Supported DVI-D by 26-pin header
SPCIE-C2060-DVI-R10
SPCIE-C2060-R10
Table 1-1: SPCIE-C2060 Series Model Variations
LGA1155 Intel® Xeon® E3 and Intel® Core™ i3
LGA1155 Intel® Xeon® E3 and Intel® Core™ i3

1.3 Features

Some of the SPCIE-C2060 Series motherboard features are listed below:
PICMG 1.3 full-size graphics grade solution  LGA1155 CPU socket  Intel® C206 chipset  Dual-channel DDR3 DIMMs support up to 16.0 GB  Dual independent display by VGA and DVI-D (DVI model only)  One PCIe Mini expansion slot  Two Intel® PCIe Gigabit Ethernet connectors (LAN2 with Intel® AMT 7.0
support)
Yes
No
Two SATA 6Gb/s connectors with RAID function  Four SATA 3Gb/s connectors with RAID function  TPM V1.2 hardware security function supported by the TPM module  High Definition Audio  RoHS compliant
Page 3

1.4 Connectors

The connectors on the SPCIE-C2060 Series are shown in the figure below.
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 1-2: Connectors
Page 4
SPCIE-C2060 PICMG 1.3 CPU Card

1.5 Dimensions

The main dimensions of the SPCIE-C2060 Series are shown in the diagram below.
Figure 1-3: SPCIE-C2060 Series Dimensions (mm)
Page 5
Figure 1-4: External Interface Panel Dimensions (mm)
SPCIE-C2060 PICMG 1.3 CPU Card
Page 6
SPCIE-C2060 PICMG 1.3 CPU Card

1.6 Data Flow

7Figure 1-5 shows the data flow between the system chipset, the CPU and other
components installed on the motherboard.
Figure 1-5: Data Flow Diagram
Page 7

1.7 Technical Specifications

The SPCIE-C2060 Series technical specifications are listed below.
Specification/Model SPCIE-C2060 Series
SPCIE-C2060 PICMG 1.3 CPU Card
Form Factor CPU Supported Chipset Memory
Graphics Engine
Audio BIOS Ethernet Controllers
Super I/O Controller Watchdog Timer Expansion
PICMG 1.3 LGA1155 Intel® Xeon® E3/Core™ i3 CPU Intel® C206 Two 240-pin 1333/1066 MHz dual-channel ECC/non-ECC unbuffered
DDR3 SDRAM DIMMs support (system max. 16.0 GB) Supports DirectX 10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode Supports IEI AC-KIT-888HD audio kit UEFI BIOS Intel® 82574L PCIe Ethernet controller
Intel® 82579 PHY with Intel® AMT 7.0 support (LAN2) Fintek F81866 Software programmable supports 1~2 55 sec. system reset One PCIe Mini slot (with USB 2.0/1.1 signal)
I/O Interface Connectors Audio Connector Digital I/O Display Output
Ethernet Fan
Page 8
PCIe signal and PCI signal via golden fingers Supports PCIe x1/x4* slots on backplane
* When installing a PCIe x4 device on the backplane, use the BIOS version supporting PCIe x4 specifications.
One internal audio connector (10-pin header) 8-bit, 4-bit input/4-bit output One VGA integrated in the Intel® C206 (rear I/O)
One DVI-D integrated in the Intel® C206 (via 26-pin header to IO-KIT-001-R20 DVI-D/US B module) (DVI model only)
Two RJ-45 GbE port s One 4-pin wafer connector
SPCIE-C2060 PICMG 1.3 CPU Card
Specification/Model SPCIE-C2060 Series FDD Front Panel
I2C Infrared Keyboard/Mouse Parallel Port Serial ATA
Serial Ports
SMBus TPM USB Ports
One 34-pin floppy disk drive connector One 14-pin header (power LED, HDD LED, speaker, power button,
reset button) One 4-pin wafer connector One via 5-pin header One 6-pin wafer connector One parallel port via internal 26-pin box header Four SATA 3Gb/s connectors (support RAID 0, 1, 5, 10)
Two SATA 6Gb/s connectors (supp ort RAID 0, 1, 5, 10) Two RS-232 via internal box headers
One RS-422/485 via internal 4-pin wafer connector One 4-pin wafer connector One via 20-pin header Two external USB 2.0 ports on rear IO
Six internal USB 2.0 ports by three pin headers
Environmental and Power Specifications Power Supply Power Consumption
Operating Temperature
Humidity Physical Specifications Dimensions Weight GW/NW Table 1-2: SPCIE-C2060 Series Specifications
5V/12V, AT/ATX power supported
3.3V@1.69A, 5V@3.45A , 12V@0.32A, Vcore@5.24A, 5VSb@0.17 (Intel® Xeon® E3-1275 CPU with two 1333 MHz 2GB DDR3 memory)
-10ºC ~ 60ºC
5% ~ 95% (non-condensing)
338 mm x 126 mm 1200 g / 420 g
Page 9
SPCIE-C2060 PICMG 1.3 CPU Card
Chapter
2

2 Packing List

Page 10
SPCIE-C2060 PICMG 1.3 CPU Card

2.1 Anti-static Precautions

WARNING!
Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minutes to discha rge
any excess static buildup.
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.

2.2 Unpacking Precautions

When the SPCIE-C2060 Series is unpacked, please do the following:
Follow the antistatic guidelines above.  Make sure the packing box is facing upwards whe n opening.  Make sure all the packing list items are present.
Page 11

2.3 Packing List

NOTE:
If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the SPCIE-C2060 Series was purchased from or contact an IEI sales representative directly by sending an email to 33sales@iei.com.tw.
The SPCIE-C2060 Series is shipped with the following components:
Quantity Item and Part Number Image
1 SPCIE-C2060 Series CPU card
SPCIE-C2060 PICMG 1.3 CPU Card
4 SATA cable
(P/N: 32000-062800-RS)
1 Dual RS-232 cable
(P/N: 19800-000051-RS)
1 Dual USB cable with bracket
(P/N: CB-USB02-RS)
1 Mini jumper pack
1 DVI-D/USB kit (DVI model only)
(P/N: IO-KIT-001-R20)
Page 12
SPCIE-C2060 PICMG 1.3 CPU Card
Quantity Item and Part Number Image
1 One Key Recovery CD
(P/N: IEI-7B000-000478-RS)
1 Utility CD
1 Quick Installation Guide
Table 2-1: Packing List

2.4 Optional Items

The following are optional components which may be separately purchased:
Item and Part Number Image
RS-422/485 cable (P/N: 32200-074800-RS)
KB/MS cable with bracket (P/N: 19800-000075-RS)
SATA to IDE/CF converter board (P/N: SAIDE-KIT01-R10)
SATA power cable (P/N: 32102-000100-200-RS)
FDD flat cable (P/N: 32200-000017-RS)
Page 13
Item and Part Number Image
LPT cable (P/N: 32200-015100-RS)
AC-KIT-888HD audio kit (P/N: AC-KIT-888HD-R10)
LGA1155/LGA1156 cooler kit (1U chas sis compatible, 73W)
(P/N: CF-1 156A-RS)
LGA1155/LGA1156 cooler kit (95W)
SPCIE-C2060 PICMG 1.3 CPU Card
(P/N: CF-1 156B-RS)
LGA1155/LGA1156 cooler kit (1U chas sis compatible, 45W)
(P/N: CF-1 156C-RS)
LGA1155/LGA1156 cooler kit (1U chas sis compatible, 65W)
(P/N: CF-1 156D-RS)
Table 2-2: Optional Items
Page 14
SPCIE-C2060 PICMG 1.3 CPU Card
Chapter
3

3 Connectors

Page 15
SPCIE-C2060 PICMG 1.3 CPU Card

3.1 Peripheral Interface Connectors

This chapter details all the jumpers and connectors.

3.1.1 SPCIE-C2060 Series Layout

The figures below show all the connectors and jumpers.
Figure 3-1: Connectors and Jumpers

3.1.2 Peripheral Interface Connectors

The table below lists all the connectors on the board.
Connector Type Label
+12V ATX power supply connector 4-pin Molex power
Audio kit connector 10-pin header J_AUDIO1 Battery connector 2-pin wafer BT2 DDR3 DIMM sockets 240-pin socket CHA_DIMM1
Digital I/O connector 10-pin header DIO1 DVI-D connector (DVI model only) 26-pin header DVI1
CPU12V1
connector
CHB_DIMM1
Page 16
SPCIE-C2060 PICMG 1.3 CPU Card
Connector Type Label
Fan connector (CPU) 4-pin wafer CPU_FAN1 Floppy disk drive connector 34-pin box header FDD1 Front panel connector 14-pin header F_PANEL1 I2C connector 4-pin wafer I2C_1 Infrared connector 5-pin header IR1 Keyboard and mouse connector 6-pin wafer KB_MS1 Parallel port connector 26-pin box header LPT1 PCIe Mini slot PCIe Mini CN3 SATA 3Gb/s drive connector 7-pin SATA connector SATA3, SATA4,
SATA 6Gb/s drive connector 7-pin SATA connector SATA1, SATA2
SATA5, SATA6
Serial port, RS-422/485 4-pin wafer COM4 Serial port, RS-232 10-pin box header COM1, COM2 SMBus connector 4-pin wafer SMBUS_1 SPI ROM connector 8-pin header JSPI1 TPM connector 20-pin header TPM1 USB connectors 8-pin header USB1, USB2,
USB3
Table 3-1: Peripheral Interface Connectors

3.1.3 External Interface Panel Connectors

The table below lists the connectors on the external I/O panel.
Connector Type Label
Ethernet connector RJ-45 LAN1 Ethernet connector RJ-45 LAN2 USB port USB USB_C1 USB port USB USB_C2
Page 17
Connector Type Label
VGA connector 15-pin female VGA1
Table 3-2: Rear Panel Connectors

3.2 Internal Peripheral Connectors

The section describes all of the connectors on the SPCIE-C2060 Series.

3.2.1 12V Power Connector

CN Label: CPU12V1
SPCIE-C2060 PICMG 1.3 CPU Card
CN Type: CN Location: CN Pinouts:
The connector supports the 12V power supply.
Figure 3-2: ATX Power Connector Pinout Location
4-pin Molex power connector
Figure 3-2
See
Table 3-3
See
Pin Description Pin Description
1 GND 2 GND 3 +12V 4 +12V
Table 3-3: ATX Power Connector Pinouts

3.2.2 Audio Kit Connector

CN Label: J_AUDIO1
10-pin header See
Page 18
CN Type: CN Location:
Figure 3-3
SPCIE-C2060 PICMG 1.3 CPU Card
See
CN Pinouts:
This connector connects to an external audio kit.
Figure 3-3: Audio Connector Location
Table 3-4
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 ACZ_SYNC 2 ACZ_BITCLK 3 ACZ_SDOUT 4 ACZ_PCBEEP 5 ACZ_SDIN 6 ACZ_RST# 7 ACZ_VCC 8 ACZ_GND 9 ACZ_12V 10 ACZ_GND
Table 3-4: Audio Connector Pinouts

3.2.3 Battery Connector

CAUTION:
Risk of explosion if battery is replaced by and incorrect type. Only certified engineers should replace the on-board battery.
Dispose of used batteries according to instructions and local regulations.
CN Label: BAT1 CN Type: CN Location:
2-pin wafer
Figure 3-4
See
Page 19
See
CN Pinouts:
This is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off.
Figure 3-4: Battery Connector Location
Table 3-5
SPCIE-C2060 PICMG 1.3 CPU Card
Pin Description
1 GND 2 Battery+
Table 3-5: Battery Connector (BT2) Pinouts

3.2.4 DDR3 DIMM Slots

CN Label: CHA_DIMM1, CHB_DIMM1 CN Type: CN Location:
The DIMM slots are for DDR3 DIMM memory modules.
DDR3 DIMM slot See 7Figure 3-5
Page 20
Figure 3-5: DDR3 DIMM Slot Locations
SPCIE-C2060 PICMG 1.3 CPU Card

3.2.5 Digital I/O Connector

CN Label: DIO1 CN Type: CN Location: CN Pinouts:
10-pin header See Figure 3-6 See Table 3-6
The digital I/O connector provides programmable input and output for external devices. The digital I/O provides 4-bit output and 4-bit input.
Figure 3-6: Digital I/O Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 VCC 3 Output 3 4 Output 2 5 Output 1 6 Output 0 7 Input 3 8 Input 2 9 Input 1 10 Input 0
Table 3-6: Digital I/O Connector Pinouts

3.2.6 DVI-D Connector (DVI Model Only)

CN Label: DVI1 CN Type: CN Location: CN Pinouts:
26-pin header
Figure 3-7
See
Table 3-7
See
Page 21
SPCIE-C2060 PICMG 1.3 CPU Card
The DVI-D connector connects to a monitor that supports DVI video input via the DVI-D/USB kit.
Figure 3-7: DVI-D Connector Location
Pin Description Pin Description
Data 2-
1 3 5 7 9 11 13 15 17 19 GND 20 21 23 25 GND 26 NC
GND NC DDC Data Data 1­GND NC GND Data 0-
NC Clock +
2 4 6 8 10 12 14 16 18
22 GND 24
Data 2+ NC DDC Clock NC Data 1+ NC VCC Hot Plug Detect Data 0+ NC
Clock -
Table 3-7: DVI-D Connector Pinouts

3.2.7 Fan Connector (CPU)

CN Label: CPU_FAN1
4-pin wafer See Figure 3-8 See Table 3-8
Page 22
CN Type: CN Location: CN Pinouts:
SPCIE-C2060 PICMG 1.3 CPU Card
The fan connector attaches to a CPU cooling fan.
Figure 3-8: CPU Fan Connector Location
PIN NO. DESCRIPTION
1 GND 2 +12 V 3 Rotation Signal 4 PWM Control Signal
Table 3-8: CPU Fan Connector Pinouts

3.2.8 Floppy Disk Drive Connector

CN Label: FDD1 CN Type: CN Location: CN Pinouts:
The floppy disk drive connector is connected to a floppy disk drive.
34-pin header
Figure 3-9
See
Table 3-9
See
Page 23
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 3-9: Floppy Disk Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 REDUCE WRITE 3 GND 4 NC 5 NC 6 NC 7 GND 8 INDEX# 9 GND 10 MOTOR ENABLE A# 11 GND 12 DRIVE SELECT B# 13 GND 14 DRIVE SELECT A# 15 GND 16 MOTOR ENABLE B# 17 GND 18 DIRECTION# 19 GND 20 STEP# 21 GND 22 WRITE DATA# 23 GND 24 WRITE GATE# 25 GND 26 TRACK 0# 27 GND 28 WRITE PROTECT# 29 GND 30 READ DATA# 31 GND 32 SIDE 1 SELECT# 33 GND 34 DISK CHANGE#
Table 3-9: Floppy Disk Pinouts
Page 24
SPCIE-C2060 PICMG 1.3 CPU Card

3.2.9 Front Panel Connector

CN Label: F_PANEL1 CN Type: CN Location: CN Pinouts:
14-pin header See Figure 3-10 See Table 3-10
The front panel connector connects to the indicator LEDs and buttons on the computer's front panel.
Figure 3-10: Front Panel Connector Location
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power LED 1 +5V Speaker 2 +5V 3 N/C 4 N/C 5 GROUND 6 N/C Power Button 7 PWR_BTN+ 8 Speaker 9 PWR_BTN- Reset 10 N/C HDD LED 11 +5V 12 RESET­ 13 HDD_LED- 14 GROUND
Table 3-10: Front Panel Connector Pinouts
Page 25

3.2.10 I2C Connector

CN Label: I2C_1
SPCIE-C2060 PICMG 1.3 CPU Card
CN Type: CN Location: CN Pinouts:
The I2C connector is for system debug.
Figure 3-11: I2C Connector Location
4-pin wafer
Figure 3-11
See
Table 3-11
See
Pin Description
1 GND 2 PCH_GP38_PU 3 PCH_GP39_PU 4 +5VS
Table 3-11: I2C Connector Pinouts

3.2.11 Infrared Interface Connector

CN Label: IR1
5-pin header
Figure 3-12
See
Table 3-12
See
Page 26
CN Type: CN Location: CN Pinouts:
The infrared connector attaches to an infrared receiver for use with remote controls.
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 3-12: Infrared Connector Location
Pin Description
1 VCC 2 NC 3 IR-RX 4 GND 5 IR-TX
Table 3-12: Infrared Connector Pinouts

3.2.12 Keyboard/Mouse Connector

CN Label: KB_MS1 CN Type: CN Location: CN Pinouts:
The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.
6-pin wafer
Figure 3-13
See
Table 3-13
See
Page 27
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 3-13: Keyboard/Mouse Connector Location
Pin Description
1 +5 VCC 2 Mouse Data 3 Mouse Clock 4 Keyboard Data 5 Keyboard Clock 6 GROUND
Table 3-13: Keyboard/Mouse Connector Pinouts

3.2.13 Parallel Port Connector

CN Label: LPT1 CN Type: CN Location: CN Pinouts:
The parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.
26-pin box header
Figure 3-14
See
Table 3-14
See
Page 28
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 3-14: Parallel Port Connector Location
Pin Description Pin Description
1 STROBE# 2 DATA0 3 DATA1 4 DATA2 5 DATA3 6 DATA4 7 DATA5 8 DATA6 9 DATA7 10 ACKNOWLEDGE# 11 BUSY 12 PAPER EMPTY 13 PRINTER SELECT 14 AUTO FORM FEED # 15 ERROR# 16 INITIALIZE# 17 PRINTER SELECT LN# 18 GND 19 GND 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND
Table 3-14: Parallel Port Connector Pinouts

3.2.14 PCIe Mini Card Slot

CN Label: CN3 CN Type:
PCIe Mini card slot
7Figure 3-15
CN Location: CN Pinouts:
See
Table 3-15
See
Page 29
SPCIE-C2060 PICMG 1.3 CPU Card
The PCIe Mini card slot is for installing a PCIe Mini expansion card.
Figure 3-15: PCIe Mini Card Slot Location
Pin Description Pin Description
1 3 NC 4 GND 5 NC 6 7 9 GND 10 11 13 15 17 19 21 GND 22 23 25 27 GND 28
PCIE_WAKE#
CLKREQ#
CLK­CLK+ GND PCIRST# LPC
PERN2 PERP2
2
8
12 14 16 18 GND 20
24 26 GND
VCC3
1.5V LFRAME# LAD3 LAD2 LAD1 LAD0
VCC3 PCIRST# 3VDual
1.5V
Page 30
29 GND 30
PETN2 PETP2
31 33 35 GND 36 37 NC 38 39 NC 40 GND 41 NC 42 NC 43 NC 44 45 NC 46
32 34 GND
SMBCLK SMBDATA
USBD­USBD+
RF_LINK# BLUELED#
SPCIE-C2060 PICMG 1.3 CPU Card
Pin Description Pin Description
47 NC 48 49 NC 50 GND 51 NC 52
Table 3-15: PCIe Mini Card Slot Pinouts

3.2.15 SATA 3Gb/s Drive Connector

CN Label: SATA3, SATA4, SATA5, SATA6
1.5V
VCC3
CN Type: CN Location: CN Pinouts:
7-pin SATA drive connector
Figure 3-16
See
Table 3-16
See
The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s data transfer rate.
Figure 3-16: SATA 3Gb/s Drive Connector Location
Pin Description Pin Description
1 GND 2 TX+ 3 TX- 4 GND 5 RX- 6 RX+ 7 GND
Table 3-16: SATA 3Gb/s Drive Connector Pinouts
Page 31

3.2.16 SATA 6Gb/s Drive Connector

CN Label: SATA1, SATA2
SPCIE-C2060 PICMG 1.3 CPU Card
CN Type: CN Location: CN Pinouts:
The SATA drive connectors can be connected to SATA drives and support up to 6Gb/s data transfer rate.
Figure 3-17: SATA 6Gb/s Drive Connector Location
7-pin SATA drive connector See Figure 3-17 See Table 3-17
Pin Description Pin Description
1 GND 2 TX+ 3 TX- 4 GND 5 RX- 6 RX+ 7 GND
Table 3-17: SATA 6Gb/s Drive Connector Pinouts

3.2.17 Serial Port Connectors, RS-232

CN Label: COM1, COM2
10-pin box header See Figure 3-18 See Table 3-18
Page 32
CN Type: CN Location: CN Pinouts:
SPCIE-C2060 PICMG 1.3 CPU Card
Each of these connectors provides RS-232 connections.
Figure 3-18: Serial Port Connector Location
Pin Description Pin Description
1 Data Carrier Direct (DCD) 2 Receive Data (RXD) 3 Transmit Data (TXD) 4 Data Terminal Ready (DTR) 5 Ground (GND) 6 Data Set Ready (DSR) 7 Request To Send (RTS) 8 Clear To Send (CTS) 9 Ring Indicator (RI) 10 N/C
Table 3-18: Serial Port Connector Pinouts

3.2.18 Serial Port Connector, RS-422/485

CN Label: COM4 CN Type: CN Location: CN Pinouts:
4-pin wafer See Figure 3-19 See Table 3-19
NOTE:
These pins are shared with those on the main serial port. Use either the pins on the main connector, or on this connector, but not both.
Page 33
This connector provides RS-422 or RS-485 communications.
Figure 3-19: RS-422/485 Connector Location
SPCIE-C2060 PICMG 1.3 CPU Card
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RXD485# 3 RXD485­2 RXD485+ 4 RXD485#
Table 3-19: RS-422/485Connector Pinouts

3.2.19 SMBus Connector

CN Label: SMBUS_1 CN Type: CN Location: CN Pinouts:
The SMBus (System Management Bus) connector provides low-speed system management communications.
4-pin wafer
Figure 3-20
See
Table 3-20
See
Page 34
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 3-20: SMBus Connector Location
Pin Description
1 GND 2 SMB_DATA 3 SMB_CLK 4 +V5S
Table 3-20: SMBus Connector Pinouts

3.2.20 SPI ROM Connector

CN Label: JSPI1 CN Type: CN Location: CN Pinouts:
The SPI connector is used to flash the BIOS.
8-pin header See Figure 3-21 See Table 3-21
Page 35
Figure 3-21: SPI Connector Location
SPCIE-C2060 PICMG 1.3 CPU Card
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3V 2 GND 3 SPI_CS0 4 SPI_CLK 5 SPI_SO0 6 SPI_SI 7 NC 8 NC
Table 3-21: SPI Connector Pinouts

3.2.21 TPM Connector

CN Label: TPM1 CN Type: CN Location: CN Pinouts:
The TPM connector connects to a TPM module.
20-pin header See Figure 3-22 See Table 3-22
Page 36
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 3-22: TPM Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 CLK 2 GND 3 ERAME# 4 NC 5 RESRT# 6 +5V 7 AD3 8 AD2 9 +3V 10 AD1 11 AD0 12 GND 13 SMB_CLK 14 SMB_DATA 15 SB3V 16 SERIRQ 17 GND 18 CLKRUN# 19 PM_SUS_STAT# 20 DRQ#
Table 3-22: TPM Connector Pinouts

3.2.22 USB Connectors

CN Label: USB1, USB2, USB3 CN Type: CN Location: CN Pinouts:
The USB connectors connect to USB devices. Each pin header provides two USB ports.
8-pin header See Figure 3-23 See Table 3-23
Page 37
Figure 3-23: USB Connector Pinout Locations
SPCIE-C2060 PICMG 1.3 CPU Card
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND 3 DATA- 4 DATA+ 5 DATA+ 6 DATA­7 GND 8 VCC
Table 3-23: USB Port Connector Pinouts

3.3 External Peripheral Interface Connector Panel

The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following:
Figure 3-24: External Peripheral Interface Connector

3.3.1 Ethernet Connectors

CN Label: CN Type:
LAN1 and LAN2
RJ-45
Page 38
CN Location: CN Pinouts:
Figure 3-24
See
Figure 3-25 and Table 3-24
See
SPCIE-C2060 PICMG 1.3 CPU Card
The SPCIE-C2060 Series is equipped with two built-in RJ-45 Ethernet controllers. Each controller can connect to the LAN through one RJ-45 LAN connector.
Pin Description Pin Description
1 MDIA3- 2 MDIA3+ 3 MDIA2- 4 MDIA1­5 MDIA1+ 6 MDIA2+ 7 MDIA0- 8 MDIA0+
Table 3-24: LAN Pinouts
Figure 3-25: Ethernet Connector
LED Description LED Description
A on: linked
blinking: data is being sent/received
Table 3-25: Connector LEDs

3.3.2 USB Connectors

CN Label: USB_C1 and USB_C2 CN Type:
B off: 10 Mb/s
green: 100 Mb/s orange: 1000 Mb/s
USB port
CN Location: CN Pinouts:
See Figure 3-24 See Table 3-26
The SPCIE-C2060 Series has two external USB 2.0 ports. The ports connect to both USB
2.0 and USB 1.1 devices.
Pin Description
1 VCC 2 DATA-
Page 39
Pin Description
3 DATA+ 4 GROUND
Table 3-26: USB Port Pinouts

3.3.3 VGA Connector

CN Label: VGA1
SPCIE-C2060 PICMG 1.3 CPU Card
CN Type: CN Location: CN Pinouts:
15-pin Female See Figure 3-24 See Figure 3-26 and Table 3-27
The VGA connector connects to a monitor that accepts a standard VGA input.
Pin Description Pin Description
1 RED 2 GREEN 3 BLUE 4 NC 5 GND 6 GND 7 GND 8 GND 9 VGAVCC 10 GND 11 NC 12 DDCDAT 13 HSYNC 14 VSYNC 15 DDCCLK
Table 3-27: VGA Connector Pinouts
Page 40
Figure 3-26: VGA Connector
SPCIE-C2060 PICMG 1.3 CPU Card
Chapter
4

4 Installation

Page 41

4.1 Anti-static Precautions

WARNING:
Failure to take ESD precautions during the installation of the SPCIE-C2060 Series may result in permanent damage to the SPCIE-C2060 Series and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the SPCIE-C2060 Series . Dry climates are especially susceptible to ESD. It is therefore critical that whenever the SPCIE-C2060 Series or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
SPCIE-C2060 PICMG 1.3 CPU Card
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the SPCIE-C2060 Series, place it
on an antic-static pad. This reduces the possibility of ESD damaging the SPCIE-C2060 Series.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.

4.2 Installation Considerations

NOTE:
The following installation notices and installation considerations should be read and understood before installation. All installation notices must
Page 42
be strictly adhered to. Failing to adhere to these precautions may lead to severe damage and injury to the person performing the installation.
SPCIE-C2060 PICMG 1.3 CPU Card
WARNING:
The installation instructions described in this manual should be carefully followed in order to prevent damage to the components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the SPCIE-C2060
Series installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the SPCIE-C2060 Series on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the SPCIE-C2060 Series off:
o When working with the SPCIE-C2060 Series, make sure that it is
disconnected from all power supplies and that no electricity is being fed into the system.
Before and during the installation of the SPCIE-C2060 Series DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
Page 43

4.2.1 Socket LGA1155 CPU Installation

WARNING:
CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.
DO NOT touch the pins at the bottom of the CPU. When handling the CPU, only hold it on the sides.
To install the CPU, follow the steps below.
SPCIE-C2060 PICMG 1.3 CPU Card
Step 1: Disengage the load lever by pressing the lever down and slightly outward to
clear the retention tab. Fully open the lever. See
Figure 4-1: Disengage the CPU Socket Load Lever
Step 2: Open the socket and remove the protective cover. The black protective
Figure 4-1.
Page 44
cover can be removed by pulling up on the tab labeled "Remove". See
Figure 4-2.
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-2: Remove Protective Cover
Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the
socket contacts are free of foreign material. If any debris is found, remove it with compressed air.
Step 4: Orientate the CPU properly. The contact array should be facing the CPU
socket.
Step 5: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the
CPU socket.
Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.
Carefully match the two orientation notches on the CPU with the socket alignment keys.
Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are
properly aligned, the CPU should slide into the CPU socket smoothly. See
Figure 4-3.
Page 45
Figure 4-3: Insert the Socket LGA1155 CPU
Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little
SPCIE-C2060 PICMG 1.3 CPU Card
to have the load plate be able to secure to the knob. Engage the load lever by pushing it back to its original position ( resistance, but will not require extreme pressure.
Figure 4-4: Close the Socket LGA1155
Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power
Figure 4-4). There will be some
Page 46
supply to the board. Step 0:
SPCIE-C2060 PICMG 1.3 CPU Card

4.2.2 Socket LGA1155 Cooling Kit Installation

The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the heat sink. The thermal paste between the CPU and the heat sink is important for optimum heat dissipation.
To install the cooling kit, follow the instructions below.
Step 1: A cooling kit bracket is pre -installed on the rear of the motherboard. See
4-5.
Figure 4-5: Cooling Kit Support Bracket
Step 2: Place the cooling kit onto the socket LGA1155 CPU. Make sure the CPU
cable can be properly routed when the cooling kit is installed.
Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make
Figure
sure the four threaded screws on the corners of the cooling kit properly pass through the holes of the cooling kit bracket.
Step 4: Secure the cooling kit by fastening the four retention screws of the cooling kit.
Page 47
Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the SPCIE-C2060 Series. Carefully route the cable and avoid heat generating chips and fan blades.Step 0:

4.2.3 DIMM Installation

To install a DIMM, please follow the steps below and refer to Figure 4-6.
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-6: DIMM Installation
Step 1: Open the DIMM socket handles. Open the two handles outwards as far as
they can. See
Step 2: Align the DIMM with the socket. Align the DIMM so the notch on the memory
lines up with the notch on the memory socket. See
Step 3: Insert the DIMM. Once aligned, press down until the DIMM is properly seated.
Clip the two handles into place. See
Step 4: Removing a DIMM. To remove a DIMM, push both handles outward. The
memory module is ejected by a mechanism in the socket.Step 0:
Figure 4-6.
Figure 4-6.
Figure 4-6.
Page 48
SPCIE-C2060 PICMG 1.3 CPU Card

4.3 Jumper Settings

NOTE:
A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To CLOSE/SHORT a jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper.
The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
Description Label Type
AT/ATX power select JATX_AT1 2-pin header Clear CMOS jumper J_CMOS1 3-pin header Wake-on LAN WOL_SEL1 3-pin header
Table 4-1: Jumpers

4.3.1 AT/ATX Power Select Jumper

Jumper Label: JATX_AT1 Jumper Type: Jumper Settings: Jumper Location:
The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX.
2-pin header See Table 4-2 See Figure 4-7
Setting Description
Closed ATX power (Default)
Page 49
Setting Description
Open AT power
SPCIE-C2060 PICMG 1.3 CPU Card
Table 4-2: AT/ATX Power Mode Jumper Settings
Figure 4-7: AT/ATX Power Mode Jumper Location

4.3.2 Clear CMOS Jumper

Jumper Label: J_CMOS1 Jumper Type: Jumper Settings: Jumper Location:
3-pin header See Table 4-3 See Figure 4-8
Page 50
To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more, and then move back to the default position.
Setting Description
Short 1-2 Normal Short 2-3 Clear BIOS
Table 4-3: Clear BIOS Jumper Settings
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-8: Clear BIOS Jumper Location

4.3.3 Wake-on LAN Jumper

CN Label: WOL_SEL1 CN Type: CN Location: CN Pinouts:
The Wake-on LAN connector allows the user to enable or disable the Wake-o n LAN (WOL) function.
3-pin header See Figure 4-9 See Table 4-4
PIN NO. DESCRIPTION
Short 1-2 Enable Wake-on LAN (Default) Short 2-3 Disable Wake-on LAN
Table 4-4: Wake-on LAN Connector Pinouts
Figure 4-9: Wake-on LAN Connector Pinout Locations
Page 51

4.4 Chassis Installation

4.4.1 Airflow

WARNING:
Airflow is critical to the cooling of the CPU and other onboard components. The chassis in which the SPCIE-C2060 Series must have air vents to allow cool air to move into the system and hot air to move out.
The SPCIE-C2060 Series must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow
SPCIE-C2060 PICMG 1.3 CPU Card
through the board surface.

4.4.2 CPU Card Installation

To install the CPU card onto the backplane, carefully align the CPU card edge connector with the CPU card socket on the backplane. To do this, please refer to the reference material that came with the backplane. Next, secure the CPU card to the chassis. To do this, please refer to the reference material that came with the chassis.

4.5 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the onboard connectors.

4.5.1 Dual RS-232 Cable with Slot Bracket

The dual RS-232 cable slot connector consists of two connectors attached to two independent cables. Each cable is then attached to a D-sub 9 male connector that is mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.
Page 52
Step 1: Locate the connectors. The locations of the RS-232 connectors are sho wn in
Chapter 3.
SPCIE-C2060 PICMG 1.3 CPU Card
Step 2: Insert the cable connectors. Insert one connector into each serial port box
headers ( connector can only be installed in one direction.
Figure 4-10). A key on the front of the cable connectors ensures the
Figure 4-10: Dual RS-232 Cable Installation
Step 3: Secure the bracket. The dual RS-232 connector has two D-sub 9 male
connectors secured on a bracket. To secure the bracket to the chassis please refer to the reference material that came with the chassis.

4.5.2 DVI-D/USB Kit Installation (DVI Model Only)

The DVI-D/USB kit, consisting of one DVI-D and four USB ports, connects to the DVI-D and USB connectors on the SPCIE-C2060 Series. To install the DVI-D/USB kit, please follow the steps below.
Step 1: Connect the cables to the DVI-D/USB kit. Connect the included cable s to the
DVI-D/USB kit.
Step 2: Connect the cables to the board. Connect the other ends of the included
cables to the board.
Page 53
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-11: DVI-D/USB Kit Installation
Step 3: Mount the DVI-D/USB kit onto the chassis. Once the DVI-D/USB kit is
connected to the board, secure the DVI-D/USB kit bracket to the system chassis.

4.5.3 SATA Drive Connection

The SPCIE-C2060 Series is shipped with four SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below.
Step 1: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 2: Insert the cable connector. Press the clip on the connector at the end of the
SATA cable and insert the cable connector into the on-board SATA drive connector. See
Figure 4-12.
Page 54
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-12: SATA Drive Cable Connection
Step 3: Connect the cable to the SATA disk. Connect the connector on th e other end
of the cable to the connector at the back of the SATA drive. See
Step 4: Connect the SATA power cable (optional). Connect the SATA power
connector to the back of the SATA drive. See
Figure 4-13.
Figure 4-13.
Page 55
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-13: SATA Power Drive Connection

4.5.4 USB Cable (Dual Port) with Slot Bracket

The SPCIE-C2060 Series is shipped with a dual port USB 2.0 cable. To connect the USB cable connector, please follow the steps below.
Step 1: Locate the connectors. The locations of the USB connectors are shown in
Chapter 3.
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
Step 2: Align the connectors. The cable has two connectors. Correctly align pin 1on
Page 56
each cable connector with pin 1 on the SPCIE-C2060 Series USB connector.
SPCIE-C2060 PICMG 1.3 CPU Card
Step 3: Insert the cable connectors. Once the cable connectors are properly aligned
with the USB connectors on the SPCIE-C2060 Series, connect the cable connectors to the on-board connectors. See
Figure 4-14.
Figure 4-14: Dual USB Cable Connection
Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a
bracket. To secure the bracket to the chassis please refer to the installation instructions that came with the chassis.

4.5.5 PCIe Mini Card Installation

To install the PCIe Mini card, please refer to the diagram and instructions below.
Page 57
Figure 4-15: PCIe Mini Card Installation
Step 1: Insert into the socket at and angle. Line up the notch on the card with the
SPCIE-C2060 PICMG 1.3 CPU Card
notch on the connector. Slide the PCIe Mini card into the socket at an angle of about 20º.
Step 2: Push down until the card clips into place. Push the other end of the card
down until it clips into place on the plastic connector.

4.6 External Peripheral Interface Connection

This section describes connecting devices to the external connectors on the SPCIE-C2060 Series.

4.6.1 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection to an external network. To connect a LAN cable with an RJ-45 connector, please follow the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connecto rs are shown
Page 58
in Chapter 3.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the SPCIE-C2060 Series. See
Figure 4-16.
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-16: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector. Step 0:

4.6.2 USB Device Connection (Single Connector)

There are two external USB 2.0 connectors. Both connectors are perpendicular to the SPCIE-C2060 Series. To connect a USB 2.0 or USB 1.1 device, please follow the instructions below.
Step 1: Located the USB connectors. The locations of the USB conne ctors are shown
in Chapter 3.
Step 2: Align the connectors. Align the USB device connector with one of the
connectors on the SPCIE-C2060 Series. See
Figure 4-17.
Page 59
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-17: USB Device Connection
Step 3: Insert the device connector. Once aligned, gently insert the USB device
connector into the on-board connector.

4.6.3 VGA Monitor Connection

The SPCIE-C2060 Series has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the SPCIE-C2060 Series, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Page 60
Step 3: Insert the VGA connector. Once the conne ctors are prop erly aligned with the
insert the male connector from the VGA screen into the female connector on the SPCIE-C2060 Series. See
Figure 4-18.
SPCIE-C2060 PICMG 1.3 CPU Card
Figure 4-18: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either side of the connector. Step 0:

4.7 Intel® AMT Setup Procedure

The SPCIE-C2060 Series is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below.
Step 1: Make sure the CHA_DIMM1 socket is installed with one DDR3 DIMM.
Step 2: Connect an Ethernet cable to the RJ-45 connector labeled LAN2.
Step 3: The AMI BIOS options regarding the Intel® ME or Intel® AMT must be enabled,
Step 4: Properly install the Intel® Management Engine Components drivers from the
iAMT Driver & Utility directory in the driver CD. See Section
Step 5: Configure the Intel® Management Engine BIOS extension (MEBx). To get into
6.7.
the Intel® MEBx settings, press <Ctrl+P> after a single beep during boot-up
Page 61
process. Enter the Intel® current ME password as it requires (the Intel® default password is admin).
SPCIE-C2060 PICMG 1.3 CPU Card
NOTE:
To change the password, enter a new password following the strong password rule (containing at least one upper case letter, one lower case letter, one digit and one special character, and be at least eight characters).
Page 62
SPCIE-C2060 PICMG 1.3 CPU Card
Chapter
5

5 BIOS

Page 63

5.1 Introduction

The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed.

5.1.1 Starting Setup

The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.
1. Press the DEL or F2 key as soon as the system is turned on or
2. Press the DEL or F2 key when the “Press DEL or F2 to enter SETUP” message appears on the screen.
If the message disappears before the DEL or F2 key is pressed, restart the computer and try again.
SPCIE-C2060 PICMG 1.3 CPU Card

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E keys are shown in.
Key Function
Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side Right arrow Move to the item on the right hand side + Increase the numeric value or make changes
- Decrease the numeric value or make changes Page Up key Increase the numeric value or make changes Page Dn key Decrease the numeric value or make changes
SC to quit. Navigation
Page 64
SPCIE-C2060 PICMG 1.3 CPU Card
Key Function
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -­Exit current page and return to Main Menu
F1 General help, only for Status Page Setup Menu and Option
Page Setup Menu F2 Previous values F3 Load optimized defaults F4 Save changes and Exit BIOS
Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

5.1.4 Unable to Reboot after Configuration Changes

If the computer cannot boot after changes to the system configuration is made, CMOS defaults. Use the jumper described in Chapter 4.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.  Advanced – Changes the advanced system settings.  Chipset – Changes the chipset settings.  Boot – Changes the system boot configuration.  Security – Sets User and Supervisor Passwords.
SC or
Save & Exit – Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.
Page 65
SPCIE-C2060 PICMG 1.3 CPU Card

5.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
BIOS Information BIOS Vendor American Megatrends Core Version 4.6.4.0 0.03 Compliency UEFI 2.0 Project Version B202AR07.ROM Build Date 06/24/2011 11:53:40
Memory Information Total Memory 1024 MB (DDR3 1067)
System Date [Tue 09/27/2011] System Time [15:10:27]
Access Level Administrator
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Set the Date. Use Tab to switch between Data elements.
----------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
BIOS Menu 1: Main
Î System Overview
The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information cannot be changed. The items shown in the system overview include:
BIOS Vendor: Installed BIOS vendor  Core Version: Current BIOS version  Project Version: the bo ard version  Build Date: Date the current BIOS version was made
Î Memory Information
The Memory Information lists a brief summary of the on-board memory. The fields in Memory Information cannot be changed.
Total Memory: Displays the auto-detected system memory size and type.
Page 66
The System Overview field also has two user configurable fields:
SPCIE-C2060 PICMG 1.3 CPU Card
Î System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and year.
Î System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

5.3 Advanced

Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:
WARNING!
Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
> ACPI Settings > Trusted Computing > CPU Configuration > SATA Configuration > Intel TXT(LT) Configuration > USB Configuration > Super IO Configuration > H/M Monitor > Serial Port Console Redirection > iEi Feature
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
System ACPI Parameters
----------------------
ÅÆ
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
: Select Screen
BIOS Menu 2: Advanced
Page 67
S
SPCIE-C2060 PICMG 1.3 CPU Card

5.3.1 ACPI Settings

The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options.
Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.
Advanced
ACPI Settings
ACPI Sleep State [S1 (CPU Stop Clock)]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
elect the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.
----------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
BIOS Menu 3: ACPI Configuration
Î ACPI Sleep State [S1 (CPU Stop Clock)]
Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.
Î
Suspend Disabled
Î
S1 (CPU Stop Clock)
Î
S3 (Suspend to RAM)
DEFAULT
The system enters S1(POS) sleep state. The system appears off. The CPU is stopped; RAM is refreshed; the system is running in a low power mode.
The caches are flushed and the CPU is powered off. Power to the RAM is maintained. The computer returns slower to a working state, but more power is saved.
Page 68
E
SPCIE-C2060 PICMG 1.3 CPU Card

5.3.2 Trusted Computing

Use the Trusted Computing menu (BIOS Menu 4) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM).
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
TPM Configuration TPM SUPPORT [Disable]
Current TPM Status Information
NO TPM Hardware
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
nables or Disables TPM support. O.S. will not show TPM. Reset of platform is required.
----------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
BIOS Menu 4: TPM Configuration
Î TPM Support [Disable]
Use the TPM Support option to configure support for the TPM.
Î
Disable DEFAULT
Î
Enable
TPM support is disabled. TPM support is enabled.

5.3.3 CPU Configuration

Use the CPU Configuration menu (BIOS Menu 5) to enter the CPU Information submenu or enable Intel Virtualization Technology.
Page 69
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Configuration
> CPU Information
Hyper-threading [Enabled] Intel Virtualization Technology [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 5: CPU Configuration
SPCIE-C2060 PICMG 1.3 CPU Card
Socket specific CPU Information
----------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
Î Hyper-threading [Enabled]
Use the Hyper-threading function to enable or disable the CPU hyper threading function.
Î
Disabled
Î
Enabled DEFAULT
Î Intel Virtualization Technology [Disabled]
Use the Intel Virtualization Technology option to enable or disable virtualization on the system. When combined with third party software, Intel® Virtualization technology allows several OSs to run on the same system at the same time.
Î
Disabled DEFAULT
Î
Enabled
Disables the use of hyper threading technology Enables the use of hyper threading technology
Disables Intel Virtualization Technology.
Enables Intel Virtualization Technology.
5.3.3.1 CPU Information
Use the CPU Information submenu (BIOS Menu 6) to view detailed CPU specifications and configure the CPU.
Page 70
SPCIE-C2060 PICMG 1.3 CPU Card
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Configuration
Intel(R) Xeon(R) CPU E31275 @ 3.40GHz CPU Signature 206a7 Microcode Patch 14 Max CPU Speed 3400 MHz Min CPU Speed 1600 MHz Processor Cores 4 Intel HT Technology Supported Intel VT-x Technology Supported Intel SMX Technology Supported
L1 Data Cache 32 kB x 4 L1 Code Cache 32 kB x 4 L2 Cache 256 kB x 4 L3 Cache 8192 kB
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 6: CPU Configuration
----------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
The CPU Configuration menu (
Processor Type: Lists the brand name of the CPU being used  CPU Signature: Lists the CPU signature value.  Microcode Patch: Lists the microcode patch being used.  Max CPU Speed: Lists the maximum CPU processing speed.  Min CPU Speed: Lists the minimum CPU processing speed.  Processor Cores: Lists the number of the processor core  Intel HT Technology: Indicates if Intel HT Technology is supported by the
CPU.
Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the
CPU.
Intel SMX Technology: Indicates if Intel SMX Technology is supported by the
CPU.
L1 Data Cache: Lists the amount of data storage space on the L1 cache.  L1 Code Cache: Lists the amount of code storage space on the L1 cache.  L2 Cache: Lists the amount of storage space on the L2 cache.
BIOS Menu 6) lists the following CPU details:
L3 Cache: Lists the amount of storage space on the L3 cache.
Page 71
SPCIE-C2060 PICMG 1.3 CPU Card

5.3.4 SATA Configuration

Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
SATA Configuration
SATA Mode [AHCI Mode]
SATA Port0 Not Present
Staggered Spin-up [Disabled] External SATA Port [Disabled] Hot Plug [Disabled]
SATA Port1 Not Present
Staggered Spin-up [Disabled] External SATA Port [Disabled] Hot Plug [Disabled]
SATA Port2 Not Present
Staggered Spin-up [Disabled] External SATA Port [Disabled] Hot Plug [Disabled]
SATA Port3 Not Present
Staggered Spin-up [Disabled] External SATA Port [Disabled] Hot Plug [Disabled]
SATA Port4 Not Present
Staggered Spin-up [Disabled] External SATA Port [Disabled] Hot Plug [Disabled]
SATA Port5 Not Present
Staggered Spin-up [Disabled] External SATA Port [Disabled] Hot Plug [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
(1) IDE Mode. (2) AHCI Mode. (3) RAID Mode.
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
BIOS Menu 7: SATA Configuration
Î SA TA Mode [AHCI Mode]
Use the SATA Mode option to configure SATA devices as normal IDE devices.
Page 72
SPCIE-C2060 PICMG 1.3 CPU Card
Î
Disable
Î
IDE Mode
Î
AHCI Mode DEFAULT
Î
RAID Mode
Î Staggered Spin-up [Disabled]
Staggered Spin-up allows the system to power up one drive at a time to prevent excess power consumption. Use the Staggered Spin-up option to enable or disable the staggered spin-up function.
Î
Disabled DEFAULT
Î
Enabled
Î External SATA Port [Disabled]
Disables SATA devices. Configures SATA devices as normal IDE device. Configures SATA devices as AHCI device. Configures SATA devices as RAID device.
Disables staggered spin-up. Enables staggered spin-up.
Use the External SATA Port option to enable or disable the external SATA port.
Î
Disabled DEFAULT
Î
Enabled
Î Hot Plug [Disabled]
Use the Hot Plug option to enable or disable the hot plug function.
Î
Disabled DEFAULT
Î
Enabled
Disables the external SATA port. Enables the external SATA port.
Disables the hot plug function. Enables the hot plug function.

5.3.5 Intel TXT(LT) Configuration

Use the Intel TXT(LT) Configuration menu to configure Intel Trusted Execution Technology support.
Page 73
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Intel Trusted Execution Technology Configuration
Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior to TXT.
Secure Mode Extensons (SMX) Disabled
Intel TXT(LT) Support [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 8: Intel TXT(LT) Configuration
SPCIE-C2060 PICMG 1.3 CPU Card
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

5.3.6 USB Configuration

Use the USB Configuration menu (BIOS Menu 9) to read USB configuration information and configure the USB settings.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
USB Configuration
USB Devices: 1 Keyboard, 2 Hubs
USB Support [Enabled] Legacy USB Support [Enabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 9: USB Configuration
USB Support Parameters
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
Î USB Devices
The USB Devices Enabled field lists the USB devices that are enabled on the system
Page 74
SPCIE-C2060 PICMG 1.3 CPU Card
Î USB Support [Enabled]
Use the USB Support option to enable or disable USB support on the system.
Î
Disabled
Î
Enabled DEFAULT
Î Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system.
Î
Enabled DEFAULT
Î
Disabled
USB support disabled USB support enabled
Legacy USB support enabled Legacy USB support disabled
Page 75
SPCIE-C2060 PICMG 1.3 CPU Card

5.3.7 Super IO Configuration

Use the Super IO Configuration menu (BIOS Menu 10) to set or change the configurations for the FDD controllers, parallel ports and serial ports.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Super IO Configuration
Super IO Chip Fintek F81866
Floppy Disk Controller [Enabled] > Serial Port 1 Configuration > Serial Port 2 Configuration > Serial Port 4 Configuration > Serial Port 6 Configuration > Parallel Port Configuration
Power Saving Function [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Floppy Disk Controller
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
BIOS Menu 10: Super IO Configuration
Î Floppy Disk Controller [Enabled]
Use the Floppy Disk Controller option to enable or disable the floppy disk controller.
Î
Disabled
Î
Enabled DEFAULT
Î Power Saving Function [Disabled]
Use the Power Saving Function BIOS option to enable or reduce power consumption in the S5 state. When enabled, the system can only be powered-up using the power button.
Î
Disabled DEFAULT
Î
Enabled
Floppy disk controller disabled Floppy disk controller enabled
Power saving function support disabled Power saving function support enabled
Page 76
E
SPCIE-C2060 PICMG 1.3 CPU Card
5.3.7.1 Serial Port n Configuration
Use the Serial Port n Configuration menu (BIOS Menu 11) to configure the serial port n.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port n Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4
Change Settings [Auto]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
nable or Disable Serial Port (COM)
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select = - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
BIOS Menu 11: Serial Port n Configuration Menu
5.3.7.1.1 Serial Port 1 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Î
Auto DEFAULT
Disable the serial port Enable the serial port
The serial port IO port address and interrupt address are automatically detected.
Î
IO=3F8h; IRQ=4
Serial Port I/O port address is 3F8h and the interrupt address is IRQ4
Page 77
SPCIE-C2060 PICMG 1.3 CPU Card
Î
IO=3F8h; IRQ=3, 4
Î
IO=2F8h; IRQ=3, 4
Î
IO=2C0h; IRQ=3, 4
Î
IO=2C8h; IRQ=3, 4
5.3.7.1.2 Serial Port 2 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Î
Disabled
Serial Port I/O port address is 3F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2C0h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2C8h and the interrupt address is IRQ3, 4
Disable the serial port
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Î
Auto DEFAULT
Î
Î
Î
Î
IO=2F8h; IRQ=3
IO=3F8h; IRQ=3, 4
IO=2F8h; IRQ=3, 4
IO=2C0h;
Enable the serial port
The serial port IO port address and interrupt address are automatically detected.
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3
Serial Port I/O port address is 3F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2C0h and the interrupt
Page 78
IRQ=3, 4
address is IRQ3, 4
SPCIE-C2060 PICMG 1.3 CPU Card
Î
IO=2C8h; IRQ=3, 4
5.3.7.1.3 Serial Port 4 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Î
Auto DEFAULT
Serial Port I/O port address is 2C8h and the interrupt address is IRQ3, 4
Disable the serial port Enable the serial port
The serial port IO port address and interrupt address are automatically detected.
Î
IO=2E8h; IRQ=10
Î
IO=3E8h; IRQ=10, 11
Î
IO=2E8h; IRQ=10, 11
Î
IO=2D0h; IRQ=10, 11
Î
IO=2D8h; IRQ=10, 11
Î Device Mode [RS485]
Use the Device Mode option to enable or disable the serial port.
Serial Port I/O port address is 2E8h and the interrupt address is IRQ10
Serial Port I/O port address is 3E8h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2E8h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2D0h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2D8h and the interrupt address is IRQ10, 11
Page 79
SPCIE-C2060 PICMG 1.3 CPU Card
Î
RS422
Î
RS485 DEFAULT
5.3.7.1.4 Serial Port 6 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Enables serial port RS-422 support. Enables serial port RS-485 support.
Disable the serial port Enable the serial port
Î
Auto DEFAULT
Î
IO=2E0h; IRQ=10
Î
IO=2C0h; IRQ=10, 11
Î
IO=2C8h; IRQ=10, 11
Î
IO=2D0h; IRQ=10, 11
Î
IO=2D8h; IRQ=10, 11
Î
IO=2E0h; IRQ=10, 11
The serial port IO port address and interrupt address are automatically detected.
Serial Port I/O port address is 2E0h and the interrupt address is IRQ10
Serial Port I/O port address is 2C0h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2C8h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2D0h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2D8h and the interrupt address is IRQ10, 11
Serial Port I/O port address is 2E0h and the interrupt address is IRQ10, 11
Page 80
SPCIE-C2060 PICMG 1.3 CPU Card
5.3.7.2 Parallel Port Configuration
Use the Parallel Port Configuration menu (BIOS Menu 11) to configure the serial port n.
Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.
Advanced
Parallel Port Configuration
Parallel Port [Enabled]
Device Settings IO=378h; IRQ=7
Change Settings [Auto] Device Mode [Printer Mode]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Parallel Port (LPT/LPTE)
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit
BIOS Menu 12: Parallel Port Configuration Menu
Î Parallel Port [Enabled]
Use the Parallel Port option to enable or disable the parallel port.
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the parallel port IO port address and interrupt address.
Î
Auto DEFAULT
Î
IO=378h;
Disable the parallel port Enable the parallel port
The parallel port IO port address and interrupt address are automatically detected.
Parallel Port I/O port address is 378h and the
IRQ=7
Î
IO=278h; IRQ=7
interrupt address is IRQ7 Parallel Port I/O port address is 278h and the
interrupt address is IRQ7
Page 81
SPCIE-C2060 PICMG 1.3 CPU Card
Î
IO=3BCh; IRQ=7
Î Device Mode [Printer Mode]
Use the Device Mode option to select the mode the parallel port operates in. Configuration options are listed below.
 Printer Mode Default  SPP Mode  EPP-1.9 and SPP Mode  EPP-1.7 and SPP Mode  ECP Mode  ECP and EPP 1.9 Mode  ECP and EPP 1.7 Mode
Parallel Port I/O port address is 3BCh and the interrupt address is IRQ7

5.3.8 H/W Monitor

The H/W Monitor menu (BIOS Menu 13) contains the fan configuration submenus and displays operating temperature, fan speeds and system voltages.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
PC Health Status
CPU Temperature :+46 C SYS Temperature :+34 C CPU FAN Speed :3957 RPM VCC3V :+3.360 V V_core :+1.032 V +1.05V :+1.064 V VDDR :+1.616 V VSB3V :+3.424 V VBAT :+3.200 V 5VSB :+4.968 V
> FAN 1 Configuration
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Smart FAN Configuration
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
Page 82
BIOS Menu 13: H/W Monitor
SPCIE-C2060 PICMG 1.3 CPU Card
Î PC Health Status
The following system parameters and values are shown. The system parameters that are monitored are:
System Temperatures:
o CPU Temperature o System Temperature
Fan Speeds:
o CPU Fan Speed
Voltages:
o VCC3V o Vcore o +1.05V o VDDR o VSB3V o VBAT o 5VSB
5.3.8.1 FAN 1 Configuration
Use the FAN 1 Configuration submenu (BIOS Menu 14) to configure fan 1 temperature and speed settings.
Page 83
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
PC Health Status
CPU Smart Fan control [Auto by RPM] Target Temp Sensor [CPU Temperature] Temperature Bound 1 60 Temperature Bound 2 50 Temperature Bound 3 40 Temperature Bound 4 30 Segment 1 Speed (%) 100 Segment 2 Speed (%) 85 Segment 3 Speed (%) 70 Segment 4 Speed (%) 60 Segment 5 Speed (%) 50 Full Speed Count 6000
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 14: FAN 1 Configuration
SPCIE-C2060 PICMG 1.3 CPU Card
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
Î CPU Smart Fan control [Auto by RPM]
Use the CPU Smart Fan control option to configure the CPU Smart Fan.
Î
Auto by RPM DEFAULT
Î
Auto by Duty-Cycle
Î
Manual by RPM
Î
Manual by Duty-Cycle
Î Target Temp. Sensor [CPU Temperature]
Use the Target Temp. Sensor option to set the target CPU temperature.
The fan adjusts its speed using Auto by RPM settings
The fan adjusts its speed using Auto by Duty-Cycle settings
The fan spins at the speed set in Manual by RPM settings
The fan spins at the speed set in Manual by Duty Cycle settings
Page 84
Î
CPU Temperature
DEFAULT
Sets the target temperature sensor to the CPU temperature.
SPCIE-C2060 PICMG 1.3 CPU Card
Î
SYS Temperature
Î Temperature Bound n
Use the + or – key to change the fan Temperature Bound n value. Enter a decimal number between 0 and 127.
Î Segment n Speed (%)
Use the + or – key to change the fan Segment n Speed value in percentage. Enter a decimal number between 0 and 100.
Î Full Speed Count
Use the + or – key to change the fan Full Speed Count value. Enter a decimal number between 500 and 15000.
Sets the target temperature sensor to the System Temperature setting.

5.3.9 Serial Port Console Redirection

The Serial Port Console Redirection menu (BIOS Menu 15) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
COM1
Console Redirection [Disabled]
> Console Redirection Settings
COM2
Console Redirection [Disabled]
> Console Redirection Settings
iAMT SOL
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 15: Serial Port Console Redirection
Console Redirection Enable or Disable
---------------------
ÅÆ
: Select Screen
: Select Item Enter Select +/-: Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
Page 85
Loading...
