IEI Integration QM871 User Manual

ICE-QM871 COM Express Module
IEI Technology Corp.
ICE-QM871
COM Express R2.0 Module (Type 6),
4th Generation Intel® Core™ i7/i5/i3 or Celeron® Processor,
DDR3 and RoHS Compliant
User Manual
Rev. 1.00 – 24 May, 2013
Page i
ICE-QM871 COM Express Module
Revision
Date Version Changes
24 May, 2013
1.00 Initial release
Page ii
ICE-QM871 COM Express Module
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page iii
ICE-QM871 COM Express Module
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 INTRODUCTION........................................................................................................... 2
1.2 FEATURES................................................................................................................... 2
1.3 CONNECTORS ............................................................................................................. 3
1.4 DIMENSIONS............................................................................................................... 4
1.5 DATA FLOW................................................................................................................ 6
1.6 TECHNICAL SPECIFICATIONS ...................................................................................... 7
2 PACKING LIST............................................................................................................. 9
2.1 ANTI-STATIC PRECAUTIONS...................................................................................... 10
2.2 UNPACKING PRECAUTIONS....................................................................................... 10
2.3 PACKING LIST............................................................................................................11
2.4 OPTIONAL ITEMS...................................................................................................... 12
3 CONNECTORS ........................................................................................................... 13
3.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 14
3.1.1 ICE-QM871 Layout ......................................................................................... 14
3.1.2 Peripheral Interface Connectors ..................................................................... 15
3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 15
3.2.1 COM Express Connector AB........................................................................... 15
3.2.2 COM Express Connector CD........................................................................... 19
3.2.3 SO-DIMM Connectors..................................................................................... 24
3.2.4 SPI Flash Connector (BIOS) ........................................................................... 24
3.2.5 SPI Flash Connector (EC)............................................................................... 25
4 INSTALLATION ......................................................................................................... 27
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 28
4.2 INSTALLATION CONSIDERATIONS.............................................................................. 28
4.3 SO-DIMM INSTALLATION ....................................................................................... 30
4.4 JUMPER SETTINGS ..................................................................................................... 31
4.4.1 LVDS Panel Type Selection.............................................................................. 31
Page iv
ICE-QM871 COM Express Module
4.5 MOUNTING THE ICE-QM871 TO AN OPTIONAL BASEBOARD....................................... 32
5 BIOS.............................................................................................................................. 36
5.1 INTRODUCTION......................................................................................................... 37
5.1.1 Starting Setup................................................................................................... 37
5.1.2 Using Setup...................................................................................................... 37
5.1.3 Getting Help..................................................................................................... 38
5.1.4 Unable to Reboot after Configuration Changes.............................................. 38
5.1.5 BIOS Menu Bar................................................................................................ 38
5.2 MAIN........................................................................................................................ 39
5.3 ADVANCED............................................................................................................... 40
5.3.1 ACPI Settings................................................................................................... 41
5.3.2 RTC Wake Settings ........................................................................................... 42
5.3.3 T rusted Computing........................................................................................... 43
5.3.4 CPU Configuration.......................................................................................... 45
5.3.5 SATA Configuration ......................................................................................... 47
5.3.6 Intel(R) Rapid Start Technology....................................................................... 48
5.3.7 AMT Configuration.......................................................................................... 49
5.3.8 USB Configuration........................................................................................... 50
5.3.9 iWDD H/W Monitor......................................................................................... 51
5.3.9.1 Smart Fan Mode Configuration................................................................ 52
5.3.10 F81866 Super IO Configuration.................................................................... 53
5.3.10.1 Serial Port n Configuration..................................................................... 54
5.3.11 F81866 H/W Monitor..................................................................................... 56
5.3.11.1 Smart Fan Mode Configuration.............................................................. 57
5.3.12 Serial Port Console Redirection.................................................................... 57
5.3.13 iEi Feature..................................................................................................... 60
5.4 CHIPSET ................................................................................................................... 61
5.4.1 System Agent (SA) Configuration .................................................................... 62
5.4.1.1 Graphics Configuration............................................................................. 62
5.4.1.2 NB PCIe Configuration............................................................................. 65
5.4.1.3 Memory Configuration ............................................................................. 66
5.4.2 PCH-IO Configuration .................................................................................... 67
5.4.2.1 PCI Express Configuration....................................................................... 68
5.5 BOOT........................................................................................................................ 69
Page v
5.6 SECURITY................................................................................................................. 71
5.7 SAVE & EXIT............................................................................................................ 71
6 SOFTWARE DRIVERS.............................................................................................. 73
6.1 AVAILABLE SOFTWARE DRIVERS.............................................................................. 74
6.2 ST ARTING THE DRIVER PROGRAM ............................................................................ 74
6.3 CHIPSET DRIVER INSTALLATION............................................................................... 76
6.4 GRAPHICS DRIVER INSTALLATION............................................................................ 79
6.5 LAN DRIVER INSTALLATION.................................................................................... 82
6.6 USB 3.0 DRIVER INSTALLATION .............................................................................. 87
6.7 AUDIO DRIVER INSTA LLATION ................................................................................. 90
6.8 INTEL® AMT DRIVER INSTALLATION ...................................................................... 92
A BIOS OPTIONS .......................................................................................................... 95
B ONE KEY RECOVERY............................................................................................. 98
ICE-QM871 COM Express Module
B.1 ONE KEY RECOVERY INTRODUCTION ...................................................................... 99
B.1.1 System Requirement....................................................................................... 100
B.1.2 Supported Operating System......................................................................... 101
B.2 SETUP PROCEDURE FOR WINDOWS........................................................................ 102
B.2.1 Hardware and BIOS Setup ............................................................................ 103
B.2.2 Create Partitions........................................................................................... 103
B.2.3 Install Operating System, Drivers and Applications..................................... 107
B.2.4 Build-up Recovery Partition.......................................................................... 108
B.2.5 Create Factory Default Image........................................................................110
B.3 AUTO RECOVERY SETUP PROCEDURE.....................................................................115
B.4 SETUP PROCEDURE FOR LINUX.............................................................................. 120
B.5 RECOVERY TOOL FUNCTIONS ................................................................................ 123
B.5.1 Factory Restore............................................................................................. 125
B.5.2 Backup System............................................................................................... 126
B.5.3 Restore Your Last Backup.............................................................................. 127
B.5.4 Manual........................................................................................................... 128
B.6 RESTORE SYSTEMS FROM A LINUX SERVER THROUGH LAN.................................. 129
B.6.1 Configure DHCP Server Settings.................................................................. 130
B.6.2 Configure TFTP Settings............................................................................... 131
B.6.3 Configure One Key Recovery Server Settings............................................... 132
Page vi
ICE-QM871 COM Express Module
B.6.4 Start the DHCP, TFTP and HTTP................................................................. 133
B.6.5 Create Shared Directory................................................................................ 133
B.6.6 Setup a Client System for Auto Recovery...................................................... 134
B.7 OTHER INFORMATIO N ............................................................................................ 137
B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller....................... 137
B.7.2 System Memory Requirement ........................................................................ 139
C INTEL® AMT CONFIGURATION........................................................................ 140
C.1 INTEL C.2 INTEL
®
AMT SETUP PROCEDURE .......................................................................... 141
®
MANAGEMENT ENGINE BIOS EXTENSION ................................................ 141
C.3 USING THE INTEL® AMT WEB INTERFACE ........................................................... 146
D TERMINOLOGY ..................................................................................................... 149
E WATCHDOG TIMER............................................................................................... 153
F HAZARDOUS MATERIALS DISCLOSURE........................................................ 156
F.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 157
Page vii
ICE-QM871 COM Express Module
List of Figures
Figure 1-1: ICE-QM871 ...................................................................................................................2
Figure 1-2: Connectors ..................................................................................................................3
Figure 1-3: ICE-QM871 Dimensions (mm)....................................................................................4
Figure 1-4: ICE-QM871 with Heatspreader Plate and Cooloer Kit Dimensions (mm)..............5
Figure 1-5: Data Flow Diagram......................................................................................................6
Figure 3-1: Connectors ................................................................................................................14
Figure 3-2: COM Express Connector AB Location ...................................................................15
Figure 3-3: COM Express Connector CD Location ...................................................................20

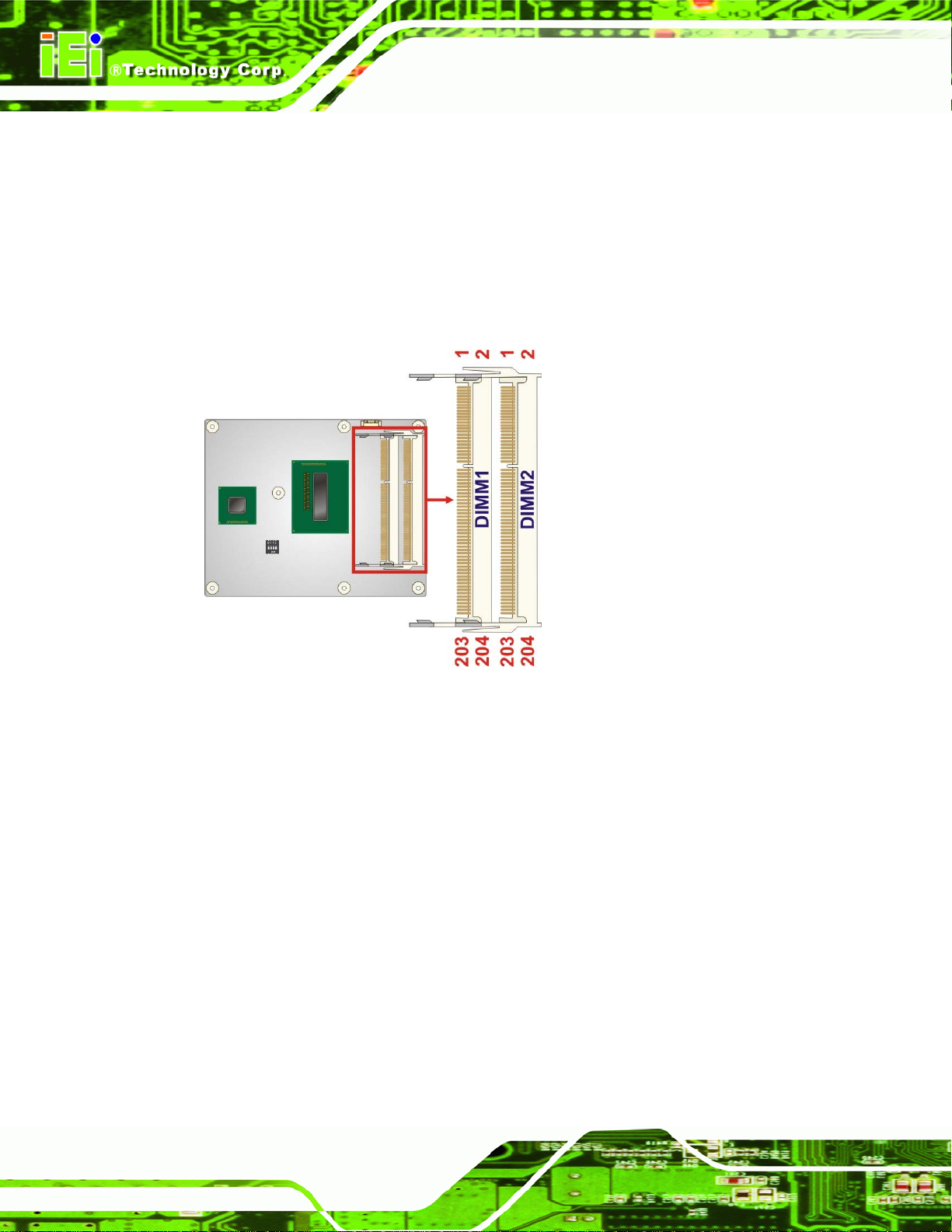

Figure 3-4: SO-DIMM Connector Locations...............................................................................24
Figure 3-5: SPI Flash Connector (BIOS) Location.....................................................................25
Figure 3-6: SPI Flash Connector (EC) Location ........................................................................26
Figure 4-1: SO-DIMM Installation................................................................................................30
Figure 4-2: LVDS Panel Type Selection Switch Location.........................................................32
Figure 4-3: Connect the COM Express Connectors..................................................................33
Figure 4-4: Attach the Cooling Kit to the Heatspreader Plate..................................................33
Figure 4-5: Secure the Heatspreader Plate with the Cooling Kit to the Baseboard ..............34
Figure 4-6: Connect to the CPU Fan Connector on the Baseboard........................................35

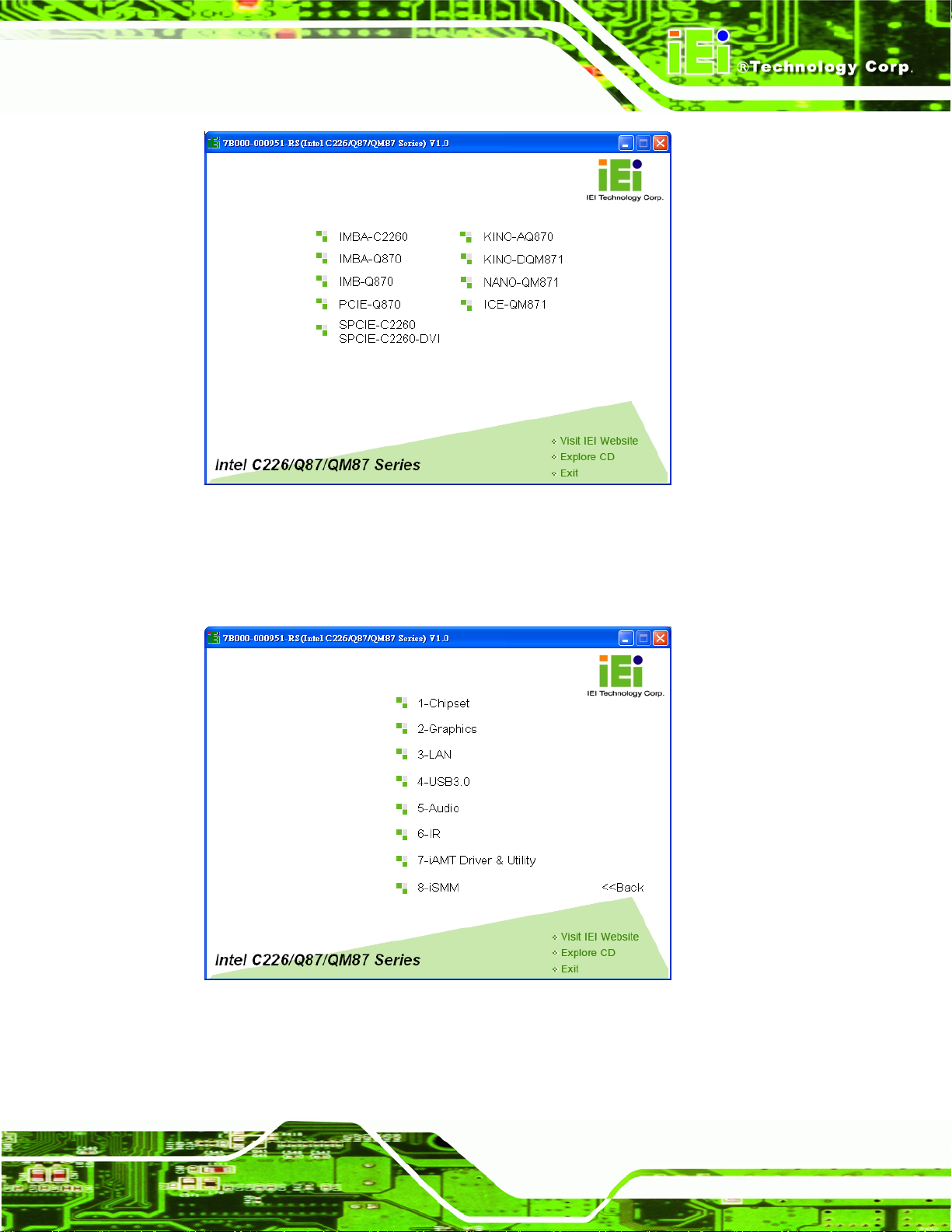

Figure 6-1: Start Up Screen .........................................................................................................75
Figure 6-2: Drivers........................................................................................................................75
Figure 6-3: Chipset Driver Welcome Screen..............................................................................76
Figure 6-4: Chipset Driver License Agreement.........................................................................77
Figure 6-5: Chipset Driver Read Me File ....................................................................................77
Figure 6-6: Chipset Driver Setup Operations ............................................................................78
Figure 6-7: Chipset Driver Installation Finish Screen...............................................................79
Figure 6-8: Graphics Driver Welcome Screen...........................................................................80
Figure 6-9: Graphics Driver License Agreement.......................................................................80
Figure 6-10: Graphics Driver Read Me File................................................................................81
Figure 6-11: Graphics Driver Setup Operations........................................................................81
Figure 6-12: Graphics Driver Installation Finish Screen ..........................................................82
Figure 6-13: Windows Control Panel..........................................................................................83
Page viii
ICE-QM871 COM Express Module
Figure 6-14: System Control Panel.............................................................................................83

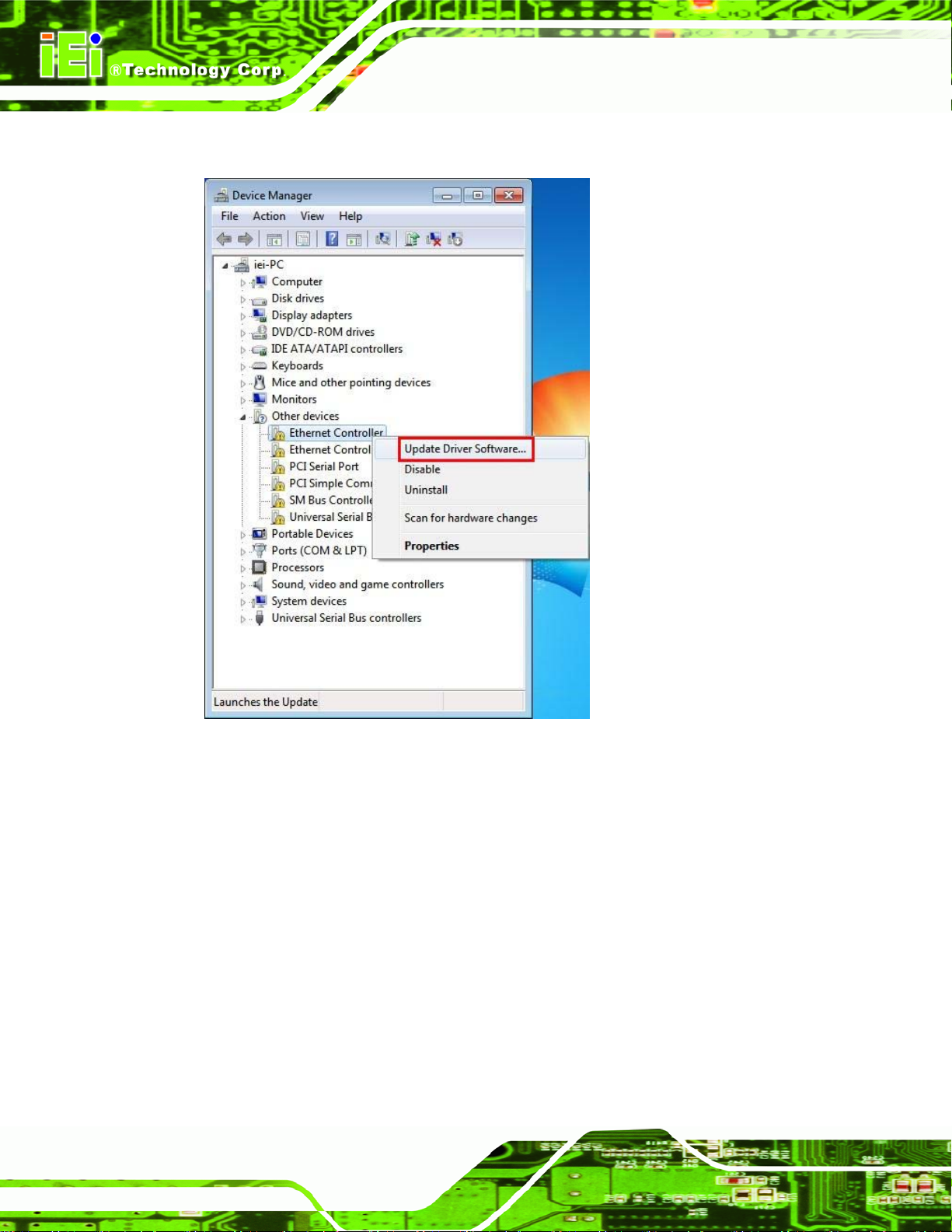

Figure 6-15: Device Manager List ...............................................................................................84
Figure 6-16: Update Driver Software Window ...........................................................................85
Figure 6-17: Locate Driver Files..................................................................................................85
Figure 6-18: LAN Driver Installation ...........................................................................................86
Figure 6-19: LAN Driver Installation Complete..........................................................................86
Figure 6-20: USB 3.0 Driver Welcome Screen...........................................................................87
Figure 6-21: USB 3.0 Driver License Agreement.......................................................................88
Figure 6-22: USB 3.0 Driver Read Me File..................................................................................88
Figure 6-23: USB 3.0 Driver Setup Operations..........................................................................89
Figure 6-24: USB 3.0 Driver Installation Finish Screen ............................................................89
Figure 6-25: Audio Driver Welcome Screen...............................................................................90
Figure 6-26: Audio Driver Installation.........................................................................................91
Figure 6-27: Audio Driver Installation Complete.......................................................................91
Figure 6-28: Intel® ME Driver Welcome Screen ........................................................................92
Figure 6-29: Intel® ME Driver License Agreement....................................................................93
Figure 6-30: Intel® ME Driver Setup Operations.......................................................................93
Figure 6-31: Intel® ME Driver Installation Finish Screen .........................................................94
Figure B-1: IEI One Key Recovery Tool Menu...........................................................................99
Figure B-2: Launching the Recovery Tool.............................................................................. 104
Figure B-3: Recovery Tool Setup Menu .................................................................................. 104
Figure B-4: Command Prompt ................................................................................................. 105
Figure B-5: Partition Creation Commands.............................................................................. 106
Figure B-6: Launching the Recovery Tool.............................................................................. 108
Figure B-7: Manual Recovery Environment for Windows..................................................... 108
Figure B-8: Building the Recovery Partition........................................................................... 109
Figure B-9: Press Any Key to Continue.................................................................................. 109
Figure B-10: Press F3 to Boot into Recovery Mode............................................................... 110
Figure B-11: Recovery Tool Menu ........................................................................................... 110
Figure B-12: About Symantec Ghost Window........................................................................ 111
Figure B-13: Symantec Ghost Path ......................................................................................... 111
Figure B-14: Select a Local Source Drive ............................................................................... 112
Figure B-15: Select a Source Partition from Basic Drive ...................................................... 112
Figure B-16: File Name to Copy Image to ............................................................................... 113
Figure B-17: Compress Image.................................................................................................. 113
Page ix
Figure B-18: Image Creation Confirmation............................................................................. 114
Figure B-19: Image Creation Complete................................................................................... 114
Figure B-20: Image Creation Complete................................................................................... 114
Figure B-21: Press Any Key to Continue................................................................................ 115
Figure B-22: Auto Recovery Utility.......................................................................................... 116
Figure B-23: Disable Automatically Restart............................................................................ 116
Figure B-24: Launching the Recovery Tool............................................................................ 117
Figure B-25: Auto Recovery Environment for Windows ....................................................... 117
Figure B-26: Building the Auto Recovery Partition................................................................ 118
Figure B-27: Factory Default Image Confirmation ................................................................. 118
Figure B-28: Image Creation Complete................................................................................... 119
Figure B-29: Press any key to continue.................................................................................. 119
Figure B-30: IEI Feature ............................................................................................................ 120
Figure B-31: Partitions for Linux.............................................................................................. 121
ICE-QM871 COM Express Module
Figure B-32: System Configuration for Linux......................................................................... 122
Figure B-33: Access menu.lst in Linux (Text Mode).............................................................. 122
Figure B-34: Recovery Tool Menu ........................................................................................... 123
Figure B-35: Recovery Tool Main Menu.................................................................................. 124
Figure B-36: Restore Factory Default...................................................................................... 125
Figure B-37: Recovery Complete Window.............................................................................. 125
Figure B-38: Backup System.................................................................................................... 126
Figure B-39: System Backup Complete Window ................................................................... 126
Figure B-40: Restore Backup................................................................................................... 127
Figure B-41: Restore System Backup Complete Window..................................................... 127
Figure B-42: Symantec Ghost Window ................................................................................... 128
Figure B-43: Disable Automatically Restart............................................................................ 135
Figure C-1: Intel® Active Management Technology Status Dialog...................................... 141
Figure C-2: Intel® Current ME Password................................................................................ 142
Figure C-3: Change Intel® ME Password................................................................................ 143
Figure C-4: Verify New Password............................................................................................ 143
Figure C-5: Intel® AMT Configuration..................................................................................... 143
Figure C-6: Provision Model..................................................................................................... 144
Figure C-7: Intel® AMT 2.0 Mode ............................................................................................. 144
Figure C-8: Enterprise............................................................................................................... 145
Figure C-9: Enable Network Interface...................................................................................... 145
Page x
ICE-QM871 COM Express Module
Figure C-10: Exit........................................................................................................................ 146
Figure C-11: Intel® AMT Web Address.................................................................................... 147
Figure C-12: Intel® AMT Web Login Dialog ............................................................................ 147
Figure C-13: Intel® AMT Web Interface................................................................................... 148
Page xi
ICE-QM871 COM Express Module
List of Tables
Table 1-1: ICE-QM871 Specifications ...........................................................................................8
Table 2-1: Packing List.................................................................................................................12
Table 2-2: Optional Items.............................................................................................................12
Table 3-1: Peripheral Interface Connectors...............................................................................15
Table 3-2: COM Express Connector AB Pin Definitions...........................................................19
Table 3-3: COM Express Connector CD Pin Definitions...........................................................23
Table 3-4: SPI Flash Connector (BIOS) Pinouts........................................................................25
Table 3-5: SPI Flash Connector (EC) Pinouts............................................................................26
Table 4-1: LVDS Panel Type Selection.......................................................................................31
Table 5-1: BIOS Navigation Keys................................................................................................38
Page xii
ICE-QM871 COM Express Module
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................39
BIOS Menu 2: Advanced..............................................................................................................41
BIOS Menu 3: ACPI Settings .......................................................................................................41
BIOS Menu 4: RTC Wake Settings..............................................................................................42
BIOS Menu 5: Trusted Computing..............................................................................................44
BIOS Menu 6: CPU Configuration...............................................................................................45
BIOS Menu 7: SATA Configuration.............................................................................................47
BIOS Menu 8: Intel(R) Rapid Start Technology .........................................................................48
BIOS Menu 9: AMT Configuration...............................................................................................49
BIOS Menu 10: USB Configuration.............................................................................................50
BIOS Menu 11: iWDD H/W Monitor .............................................................................................51
BIOS Menu 12: Smar Fan Mode Configuration..........................................................................52
BIOS Menu 13: F81866 Super IO Configuration........................................................................53
BIOS Menu 14: Serial Port n Configuration Menu.....................................................................54
BIOS Menu 15: F81866 H/W Monitor...........................................................................................56
BIOS Menu 16: Smart Fan Mode Configuration ........................................................................57
BIOS Menu 17: Serial Port Console Redirection.......................................................................58
BIOS Menu 18: iEi Feature...........................................................................................................60
BIOS Menu 19: Chipset................................................................................................................61
BIOS Menu 20: System Agent (SA) Configuration....................................................................62
BIOS Menu 21: Graphics Configuration.....................................................................................63
BIOS Menu 22: NB PCIe Configuration ......................................................................................65
BIOS Menu 23: Memory Configuration.......................................................................................66
BIOS Menu 24: PCH-IO Configuration........................................................................................67
BIOS Menu 25: PCI Express Configuration ...............................................................................68
BIOS Menu 26: Boot.....................................................................................................................69
BIOS Menu 27: Security...............................................................................................................71
BIOS Menu 28: Save & Exit..........................................................................................................72
ICE-QM871
Page xiii
ICE-QM871 COM Express Module
Chapter
1

1 Introduction

Page 1

1.1 Introduction

Figure 1-1: ICE-QM871
ICE-QM871 COM Express Module
The ICE-QM871 COM Express Type 6 module provides the main processing chips and is connected to a compatible COM Express baseboard. The ICE-QM871 is equipped with the Intel® QM87 Express Chipset and the 4th generation Intel® Core™ i7/i5/i3 or Celeron® processor. The COM Express standard allows the COM Express baseboard to be designed, while leaving the choice of processor till the later stages of design. The ICE-QM871 provides a low power option with the full range of modern I/O options. The ICE-QM871 embedded module is designed for flexible integration by system developers into customized platform devices.

1.2 Features

Some of the ICE-QM871 COM Express module features are listed below:
Complies with COM Express Ty pe 6 form factor  Supports 4th generation Intel® Core™ i7/i5/i3 or Celeron® processor  Intel® QM87 Express Chipset  Supports DDR3/DDR3L (1.35V) SO-DIMM  Supports 18-/24-bit dual-channel LVDS, analog CRT (VGA) and HDTV
Page 2
Supports USB 3.0, SATA 6Gb/s and GbE  RoHS compliant
ICE-QM871 COM Express Module

1.3 Connectors

The connectors on the ICE-QM871 are shown in the figures below.
Figure 1-2: Connectors
Page 3

1.4 Dimensions

The main dimensions of the ICE-QM871 are shown in the diagram below.
ICE-QM871 COM Express Module
Figure 1-3: ICE-QM871 Dimensions (mm)
Page 4
ICE-QM871 COM Express Module
Figure 1-4: ICE-QM871 with Heatspreader Plate and Cooloer Kit Dimensions (mm)
Page 5

1.5 Data Flow

Figure 1-5 shows the data flow between the system chipset, the CPU and other
components installed on the motherboard.
ICE-QM871 COM Express Module
Page 6
Figure 1-5: Data Flow Diagram
ICE-QM871 COM Express Module

1.6 Technical Specifications

The ICE-QM871 technical specifications are listed below.
ICE-QM871 Form Factor CPU Supported Express Chipset
Memory
Graphics Engine
Ethernet
BIOS Embedded
Controller Watchdog Timer
PICMG COM Express R2.1 Type 6 for basic size (95 mm x 125 mm) 4th generation Intel® Core™ i7/i5/i3 or Celeron® processor Intel® QM87 Two 204-pin 1600/1 333/1066 MHz dual-channel DDR3/DDR3L (1.35V)
unbuffered SO-DIMMs supported (system max. 16 GB) Intel® HD Graphics Gen 7
Supports DirectX 11and OpenCL 1.1 Full MPEG2, VC-1 and AVC decoding
Intel® I218LM Ethernet Controller Supports Intel® AMT 9.0
UEFI BIOS
iWDD
Software programmable supports 1~2 55 sec. system reset
Display (Signal to
Baseboard) Expansions
(Signal to Baseboard)
One VGA (up to 2048 x 1536 @ 75Hz) is integrated in the Intel® QM87 One 18-/24-bit dual-channel LVDS (up to 1920 x 1200 @ 60Hz) Three DDI (up to 2560 x 1600 @ 60Hz)
One PCIe x16 Seven PCIe x1
Page 7
ICE-QM871
Four USB 3.0 Eight USB 2.0 Two SATA 6Gb/s Two SATA 3Gb/s
ICE-QM871 COM Express Module
I/O Interfaces (Signal to
Baseboard)
Power Consumption
Operating Temperature
Storage Temperature
Humidity (Operating)
Two RS-232 HD Audio 8-bit GPIO SMBus I2C LPC TPM SPI
+12V @ 1.75 A , Vcore_12V @ 3.33A (2.30 GHz Intel® Core™ i7-3610QE CPU with two 8 GB 1600 MHz DDR3 SO-DIMMs)
-20ºC ~ 65ºC
-30ºC ~ 75ºC
5% ~ 95% (non-condensing)
Dimensions Weight (GW/NW) Table 1-1: ICE-QM871 Specifications
Page 8
125 mm x 95 mm 700 g/250 g
ICE-QM871 COM Express Module
Chapter
2

2 Packing List

Page 9

2.1 Anti-static Precautions

WARNING!
Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minutes to discharge
any excess static buildup.
ICE-QM871 COM Express Module
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.

2.2 Unpacking Precautions

When the ICE-QM871 is unpacked, please do the following:
Follow the antistatic guidelines above.  Make sure the packing box is facing upwards whe n opening.  Make sure all the packing list items are present.
Page 10
ICE-QM871 COM Express Module

2.3 Packing List

NOTE:
If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the ICE-QM871 was purchased from or contact an IEI sales representative directly by sending an email to 32sales@iei.com.tw.
The ICE-QM871 is shipped with the following components:
Quantity Item and Part Number Image
1 ICE-QM871
1 Heatspreader plate
(P/N: 34000-000490-RS)
1 Cooling kit
(P/N: 19100-000168-00-RS)
1 One Key Recovery CD
Page 11
Quantity Item and Part Number Image
1 Utility CD
1 Quick Installation Guide
Table 2-1: Packing List

2.4 Optional Items

The following are optional components which may be separately purchased:
ICE-QM871 COM Express Module
Item and Part Number Image
Baseboard for COM Express Type 6 modules (P/N: ICE-DB-T6R-R10)
Table 2-2: Optional Items
Page 12
ICE-QM871 COM Express Module
Chapter
3

3 Connectors

Page 13
ICE-QM871 COM Express Module

3.1 Peripheral Interface Connectors

This chapter details all the connectors.

3.1.1 ICE-QM871 Layout

The figure below shows all the connectors.
Figure 3-1: Connectors
Page 14
ICE-QM871 COM Express Module

3.1.2 Peripheral Interface Connectors

The table below lists all the connectors on the ICE-QM871.
Connector Type Label
COM Express connector AB COM Express connector J3 COM Express connector CD COM Express connector J4 SO-DIMM connectors SO-DIMM connector DIMM1, DIMM2 SPI Flash (BIOS) 6-pin connector JSPI1 SPI Flash (EC) 6-pin connector JSPI2
Table 3-1: Peripheral Interface Connectors

3.2 Internal Peripheral Connectors

The section describes all of the connectors on the ICE-QM871.

3.2.1 COM Express Connector AB

CN Label: J3 CN Type: CN Location: CN Pinouts:
The standard COM Express connector AB location and pinout s are shown below.
220-pin COM Express connector See Figure 3-2 See Table 3-2
Figure 3-2: COM Express Connector AB Location
Page 15
Pin No. Description Pin No. Description
ICE-QM871 COM Express Module
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16
GND GBE0_MDI3­GBE0_MDI3+ GBE0_LINK100# GBE0_LINK1000# GBE0_MDI2­GBE0_MDI2+ GBE0_LINK# GBE0_MDI1­GBE0_MDI1+ GND1 GBE0_MDI0­GBE0_MDI0+ GBE0_CTREF SUS_S3# SATA0_TX+
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16
GND15 GBE0_ACT# LPC_FRAME# LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_DRQ0# LPC_DRQ1# LPC_CLK GND16 PWRBTN# SMB_CK SMB_DAT SMB_ALERT# SATA1_TX+
A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32
SATA0_TX­SUS_S4# SATA0_RX+ SATA0_RX­GND2 SATA2_TX+ SATA2_TX­SUS_S5# SATA2_RX+ SATA2_RX­BATLOW# ATA_ACT# AC/HD_SYNC AC/HD_RST# GND3 AC/HD_BITCLK
B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32
SATA1_TX­SUS_STAT# SATA1_RX+ SATA1_RX­GND17 SATA3_TX+ SATA3_TX­PWR_OK SATA3_RX+ SATA3_RX­WDT AC/HD_SDIN2 AC/HD_SDIN1 AC/HD_SDIN0 GND18 SPKR
Page 16
ICE-QM871 COM Express Module
Pin No. Description Pin No. Description
A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48
AC/HD_SDOUT BIOS_DISABLE# THRMTRIP# USB6­USB6+ USB_6_7_OC# USB4­USB4+ GND4 USB2­USB2+ USB_2_3_OC# USB0­USB0+ VCC_RTC EXCD0_PERST#
B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48
I2C_CK I2C_DAT THRM# USB7­USB7+ USB_4_5_OC# USB5­USB5+ GND USB3­USB3+ USB_0_1_OC# USB1­USB1+ EXCD1_PERST# EXCD1_CPPE#
A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64
EXCD0_CPPE# LPC_SERIRQ GND5 PCIE_TX5+ PCIE_TX5­GPI0 PCIE_TX4+ PCIE_TX4­GND6 PCIE_TX3+ PCIE_TX3­GND7 PCIE_TX2+ PCIE_TX2­GPI1 PCIE_TX1+
B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64
SYS_RESET# CB_RESET# GND20 PCIE_RX5+ PCIE_RX5­GPO1 PCIE_RX4+ PCIE_RX4­GPO2 PCIE_RX3+ PCIE_RX3­GND PCIE_RX2+ PCIE_RX2­GPO3 PCIE_RX1+
Page 17
Pin No. Description Pin No. Description
ICE-QM871 COM Express Module
A65 A66 A67 A68 A69 A70 A71 A72 A73 A74 A75 A76 A77 A78 A79 A80
PCIE_TX1­GND8 GPI2 PCIE_TX0+ PCIE_TX0­GND9 LVDS_A0+ LVDS_A0­LVDS_A1+ LVDS_A1­LVDS_A2+ LVDS_A2­LVDS_VDD_EN LVDS_A3+ LVDS_A3­GND10
B65 B66 B67 B68 B69 B70 B71 B72 B73 B74 B75 B76 B77 B78 B79 B80
PCIE_RX1­WAKE0# WAKE1# PCIE_RX0+ PCIE_RX0­GND22 LVDS_B0+ LVDS_B0­LVDS_B1+ LVDS_B1­LVDS_B2+ LVDS_B2­LVDS_B3+ LVDS_B3­LVDS_BKLT_EN GND23
A81 A82 A83 A84 A85 A86 A87 A88 A89 A90 A91 A92 A93 A94 A95 A96
LVDS_A_CK+ LVDS_A_CK­LVDS_I2C_CK LVDS_I2C_DAT GPI3 RSVD RSVD PCIE0_CK_REF+ PCIE0_CK_REF­GND11 SPI_VCC SPI_MISO GPO0 SPI_CLK SPI_MOSI PP_TPM
B81 B82 B83 B84 B85 B86 B87 B88 B89 B90 B91 B92 B93 B94 B95 B96
LVDS_B_CK+ LVDS_B_CK­LVDS_BKLT_CTRL VCC5SBY1 VCC5SBY2 VCC5SBY3 VCC5SBY4 BIOS_DIS1# VGA_RED GND24 VGA_GRN VGA_BLU VGA_HSYNC VGA_VSYNC VGA_I2C_CK VGA_I2C_DAT
Page 18
ICE-QM871 COM Express Module
Pin No. Description Pin No. Description
A97 A98 A99 A100 A101 A102 A103 A104 A105 A106 A107 A108 A109 A110
RSVD RS1_TX RS1_RX GND13 RS2_TX RS2_RX LID# VCC_12V7 VCC_12V8 VCC_12V9 VCC_12V10 VCC_12V11 VCC_12V12 GND14
B97 B98 B99 B100 B101 B102 B103 B104 B105 B106 B107 B108 B109 B110
SPI_CS# RSVD RSVD GND25 FAN_PWMOUT FAN_TACHIN SLEEP# VCC_12V16 VCC_12V17 VCC_12V18 VCC_12V19 VCC_12V20 VCC_12V21 GND26
Table 3-2: COM Express Connector AB Pin Definitions

3.2.2 COM Express Connector CD

CN Label: J4 CN Type: CN Location: CN Pinouts:
The standard COM Express connector CD location and pino uts are shown below.
220-pin COM Express connector
Figure 3-3
See
Table 3-3
See
Page 19
ICE-QM871 COM Express Module
Figure 3-3: COM Express Connector CD Location
Pin No. Description Pin No. Description
C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16
GND0 GND USB_SSRX0­USB_SSRX0+ GND USB_SSRX1­USB_SSRX1+ GND USB_SSRX2­USB_SSRX2+ GND1 USB_SSRX3­USB_SSRX3+ GND RSVD RSVD
D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16
GND15 GND USB_SSTX0­USB_SSTX0+ GND USB_SSTX1­USB_SSTX1+ GND USB_SSTX2­USB_SSTX2+ GND16 USB_SSTX3­USB_SSTX3+ GND
DDI1_CTRLCLK_AUX+ DDI1_CTRLDATA_AUX-
Page 20
C17 C18 C19 C20 C21
RSVD RSVD PCIE_RX6+ PCIE_RX6­GND2
D17 D18 D19 D20 D21
RSVD RSVD PCIE_TX6+ PCIE_TX6­GND17
ICE-QM871 COM Express Module
Pin No. Description Pin No. Description
C22 C23 C24 C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C36 C37
RSVD RSVD DDI1_HPD RSVD RSVD ­RSVD RSVD RSVD RSVD GND3
DDI2_CTRLCLK_AUX+ DDI2_CTRLDATA_AUX-
DDI2_DDC_AUX_SEL RSVD
DDI3_CTRLCLK_AUX+ DDI3_CTRLDATA_AUX-
D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 D33 D34 D35 D36 D37
RSVD RSVD RSVD RSVD DDI1_PAIR0+ DDI1_PAIR0­RSVD DDI1_PAIR1+ DDI1_PAIR1­GND18 DDI1_PAIR2+ DDI1_PAIR2­DDI1_DDC_AUX_SEL RSVD DDI1_PAIR3+ DDI1_PAIR3-
C38 C39 C40 C41 C42 C43 C44 C45 C46 C47 C48 C49 C50 C51 C52 C53
DDI3_DDC_AUX_SEL DDI3_PAIR0+ DDI3_PAIR0­GND4 DDI3_PAIR1+ DDI3_PAIR1­DDI3_HPD RSVD DDI3_PAIR2+ DDI3_PAIR2­RSVD DDI3_PAIR3+ DDI3_PAIR3­GND5 PEG_RX0+ PEG_RX0-
D38 D39 D40 D41 D42 D43 D44 D45 D46 D47 D48 D49 D50 D51 D52 D53
RSVD DDI2_PAIR0+ DDI2_PAIR0­GND19 DDI2_PAIR1+ DDI2_PAIR1­DDI2_HPD RSVD DDI2_PAIR2+ DDI2_PAIR2­RSVD DDI2_PAIR3+ DDI2_PAIR3­GND20 PEG_TX0+ PEG_TX0-
Page 21
Pin No. Description Pin No. Description
ICE-QM871 COM Express Module
C54 C55 C56 C57 C58 C59 C60 C61 C62 C63 C64 C65 C66 C67 C68 C69
RSVD PEG_RX1+ PEG_RX1­RSVD PEG_RX2+ PEG_RX2­GND7 PEG_RX3+ PEG_RX3­RSVD1 RSVD2 PEG_RX4+ PEG_RX4­RSVD3 PEG_RX5+ PEG_RX5-
D54 D55 D56 D57 D58 D59 D60 D61 D62 D63 D64 D65 D66 D67 D68 D69
PEG_LANE_RV# PEG_TX1+ PEG_TX1­TYPE2# PEG_TX2+ PEG_TX2­GND21 PEG_TX3+ PEG_TX3­RSVD10 RSVD9 PEG_TX4+ PEG_TX4­GND28 PEG_TX5+ PEG_TX5-
C70 C71 C72 C73 C74 C75 C76 C77 C78 C79 C80 C81 C82 C83 C84 C85
GND9 PEG_RX6+ PEG_RX6­GND PEG_RX7+ PEG_RX7­GND8 RSVD4 PEG_RX8+ PEG_RX8­GND10 PEG_RX9+ PEG_RX9­RSVD5 GND6 PEG_RX10+
D70 D71 D72 D73 D74 D75 D76 D77 D78 D79 D80 D81 D82 D83 D84 D85
GND22 PEG_TX6+ PEG_TX6­GND PEG_TX7+ PEG_TX7­GND29 RSVD PEG_TX8+ PEG_TX8­GND23 PEG_TX9+ PEG_TX9­RSVD8 GND30 PEG_TX10+
Page 22
ICE-QM871 COM Express Module
Pin No. Description Pin No. Description
C86 C87 C88 C89 C90 C91 C92 C93 C94 C95 C96 C97 C98 C99 C100 C101
PEG_RX10­GND35 PEG_RX11+ PEG_RX11­GND27 PEG_RX12+ PEG_RX12­GND11 PEG_RX13+ PEG_RX13­GND12 RSVD6 PEG_RX14+ PEG_RX14­GND13 PEG_RX15+
D86 D87 D88 D89 D90 D91 D92 D93 D94 D95 D96 D97 D98 D99 D100 D101
PEG_TX10­GND31 PEG_TX11+ PEG_TX11­GND24 PEG_TX12+ PEG_TX12­GND32 PEG_TX13+ PEG_TX13­GND33 RSVD PEG_TX14+ PEG_TX14­GND25 PEG_TX15+
C102 C103 C104 C105 C106 C107 C108 C109 C110
PEG_RX15­GND VCC_12V1 VCC_12V2 VCC_12V3 VCC_12V4 VCC_12V5 VCC_12V6 GND14
D102 D103 D104 D105 D106 D107 D108 D109 D110
PEG_TX15­GND34 VCC_12V7 VCC_12V8 VCC_12V9 VCC_12V10 VCC_12V11 VCC_12V12 GND26
Table 3-3: COM Express Connector CD Pin Definitions
Page 23

3.2.3 SO-DIMM Connectors

CN Label: DIMM1, DIMM2
ICE-QM871 COM Express Module
CN Type: CN Location:
The SO-DIMM connectors are for installing memory on the system.
204-pin DDR3 SO-DIMM connector
Figure 3-4
See
Figure 3-4: SO-DIMM Connector Locations

3.2.4 SPI Flash Connector (BIOS)

CN Label: JSPI1
6-pin connector See Figure 3-6 See Table 3-5
Page 24
CN Type: CN Location: CN Pinouts:
The SPI Flash connector is for flashing new BIOS onto the SPI BIOS chip.
ICE-QM871 COM Express Module
Figure 3-5: SPI Flash Connector (BIOS) Location
Pin Description
1 +V3.3M_SPI_CON 2 SPI_CS 3 SPI_SO_SW 4 SPI_CLK_SW 5 SPI_SI_SW 6 GND
Table 3-4: SPI Flash Connector (BIOS) Pinouts

3.2.5 SPI Flash Connector (EC)

CN Label: JSPI2 CN Type: CN Location: CN Pinouts:
The SPI Flash connector is for flashing new BIOS onto the embedded controller.
6-pin connector See Figure 3-6 See Table 3-5
Page 25
ICE-QM871 COM Express Module
Figure 3-6: SPI Flash Connector (EC) Location
Pin Description
1 +V3.3M_SPI_CON_EC 2 SPI_CS#0_CN_EC 3 SPI_SO_SW_EC 4 SPI_CLK_SW_EC 5 SPI_SI_SW_EC 6 GND
Table 3-5: SPI Flash Connector (EC) Pinouts
Page 26
ICE-QM871 COM Express Module
Chapter
4

4 Installation

Page 27

4.1 Anti-static Precautions

WARNING:
Failure to take ESD precautions during the installation of the ICE-QM871 may result in permanent damage to the ICE-QM871 and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the ICE-QM871. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the ICE-QM871 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
ICE-QM871 COM Express Module
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the ICE-QM871, place it on an
antic-static pad. This reduces the possibility of ESD damaging the ICE-QM871.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.

4.2 Installation Considerations

NOTE:
The following installation notices and installation considerations should be read and understood before installation. All installation notices must
Page 28
be strictly adhered to. Failing to adhere to these precautions may lead to severe damage and injury to the person performing the installation.
ICE-QM871 COM Express Module
WARNING:
The installation instructions described in this manual should be carefully followed in order to prevent damage to the components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the ICE-QM871
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the ICE-QM871 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the ICE-QM871 off:
o When working with the ICE-QM871, make sure that it is disconnected
from all power supplies and that no electricity is being fed into the system.
Before and during the installation of the ICE-QM871 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
Page 29

4.3 SO-DIMM Installation

WARNING:
Using incorrectly specified SO-DIMM may cause permanent damage to the ICE-QM871. Please make sure the purchased SO-DIMM complies with the memory specifications of the ICE-QM871. SO-DIMM specifications compliant with the ICE-QM871 are listed in Chapter 1.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 4-1.
ICE-QM871 COM Express Module
Figure 4-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the ICE-QM871 on an anti-static pad with
the solder side facing up.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the plastic bridge in the socket.
Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
Figure 4-1)
Step 4: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket
out and push the rear of the SO-DIMM down. (See
Figure 4-1)
Page 30
ICE-QM871 COM Express Module
Step 5: Secure the SO-DIMM. Release the arms on the SO-DIMM socket. They clip into
place and secure the SO-DIMM in the socket.

4.4 Jumper Settings

4.4.1 LVDS Panel Type Selection

Jumper Label: SW1 Jumper Type: Jumper Settings: Jumper Location:
DIP switch
Table 4-1
See
Figure 4-2
See
This switch sets the resolution of the panel attached to the LVDS output. The pin order listed in the first column of
SW1 EDID Resolution Color Depth Channel
0000 800X600 18-bit Single 0001 1024X768 18-bit Single 0010 1024X768 24-bit Single 0011 1280X768 18-bit Single 0100 1280X800 18-bit Single 0101 1280X960 18-bit Single 0110 1280X1024 24-bit Dual 0111 1366X768 18-bit Single
Table 4-1 is: 4 3 2 1. (ON=0, OFF=1)
1000 1366X768 24-bit Single 1001 1440X900 24-bit Dual 1010 1400X1050 24-bit Dual 1011 1600X900 24-bit Dual 1100 1680X1050 24-bit Dual 1101 1600X1200 24-bit Dual 1110 1920X1080 24-bit Dual 1111 1920X1200 24-bit Dual
Table 4-1: LVDS Panel Type Selection
Page 31
Figure 4-2: LVDS Panel Type Selection Switch Location
ICE-QM871 COM Express Module

4.5 Mounting the ICE-QM871 to an Optional Baseboard

NOTE:
Baseboard can be designed by the end user, customized by IEI, or purchased from IEI. For more information visit the IEI website (
www.ieiworld.com) or contact an IEI sales representative.
WARNING:
Never run the COM Express module without the cooling kit. The heatspreader plate shipped with the ICE-QM871 acts as a thermal interface between the module and the cooling kit. The cooling kit must be installed on the heatspreader plate to maintain proper operating temperatures. Make sure to maintain the heatspreader plate temperature under 60°C in operation.
Follow the steps below to install the ICE-QM871 to the optional baseboard.
Step 1: Align the two COM Express connectors on the reverse side of ICE-QM871 with
Page 32
the corresponding connectors on the baseboard. Gently push the COM Express module down to ensure the connectors are properly connected (
Figure 4-3).
ICE-QM871 COM Express Module
Figure 4-3: Connect the COM Express Connectors
Step 2: Place the supplied cooling kit on the heatspreader plate, aligning the retention
screw holes ( heatspreader plate for optimum heat dissipation.
Figure 4-4). Ensure to apply thermal paste to the heat sink or
Figure 4-4: Attach the Cooling Kit to the Heatspreader Plate
Page 33
Step 3: Place the heatspreader plate with the cooling kit on the ICE-QM871, aligning the
ICE-QM871 COM Express Module
retention screw holes (
Step 4: Secure the heatspreader plate with the cooling kit onto the base board with the
supplied retention screws (
Figure 4-5).
Figure 4-5).
Page 34
Figure 4-5: Secure the Heatspreader Plate with the Cooling Kit to the Baseboard
Step 5: Connect the cooling kit fan cable to the CPU fan connector on the baseboard
Figure 4-6).
(
ICE-QM871 COM Express Module
Figure 4-6: Connect to the CPU Fan Connector on the Baseboard
Page 35
ICE-QM871 COM Express Module
Chapter
5

5 BIOS

Page 36
ICE-QM871 COM Express Module

5.1 Introduction

The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed.

5.1.1 Starting Setup

The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.
1. Press the DEL or F2 key as soon as the system is turned on or
2. Press the DEL or F2 key when the “Press DEL or F2 to enter SETUP” message appears on the screen.
If the message disappears before the DEL or F2 key is pressed, restart the computer and try again.

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E keys are shown in the following table.
Key Function
Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side Right arrow Move to the item on the right hand side + Increase the numeric value or make changes
- Decrease the numeric value or make changes Page Up key Move to the next page Page Dn key Move to the previous page
SC to quit. Navigation
Page 37
Key Function
Esc key Main Menu – Quit and not save changes into CMOS
F1 General help, only for St atus Page Setup Menu and Option
F2 Load previous values F3 Load optimized defaults F4 Save changes and Exit BIOS
Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

ICE-QM871 COM Express Module
Status Page Setup Menu and Option Page Setup Menu -­Exit current page and return to Main Menu
Page Setup Menu
When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

5.1.4 Unable to Reboot after Configuration Changes

If the computer cannot boot after changes to the system configuration are made, CMOS defaults. Use the jumper described in Chapter 4.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.  Advanced – Changes the advanced system settings.  Chipset – Changes the chipset settings.  Boot – Changes the system boot configuration.  Security – Sets User and Supervisor Passwords.
SC or
Page 38
Save & Exit – Selects exit options and loads default settings.
The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.
ICE-QM871 COM Express Module

5.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
BIOS Information BIOS Vendor American Megatrends Core Version 4.6.5.4 Compliancy UEFI 2.3.1; PI 1.2 Project Version B268AT04.ROM Build Date and Time 05/15/2013 17:52:16
iWDD Vendor ICP iWDD Version B163ER10.bin
Processor Information Name Haswell Brand String Intel(R) Core(TM) i5­Frequency 3200 MHz Processor ID 306c3 Stepping CO Number of Processors 2Core(s) / 4Thread(s) Microcode Revision 7 GT Info GT2 (800 MHz)
IGFX VBIOS Version 2167 Memory RC Version 1.0.0.0 Total Memory 4096 MB (DDR3) Memory Frequency 1600 MHz
PCH Information Name LynxPoint PCH SKU QM87 Stepping 04/C1 LAN PHY Revision A3
ME FW Version 9.0.2.1345 ME Firmware SKU 5MB
SPI Clock Frequency DOFR Support Supported Read Status Clock Frequnecy 50 MHz Write Status Clock Frequnecy 50 MHz Fast Read Status Clock Frequnecy 50 MHz
System Date [Tue 12/25/2012] System Time [15:10:27]
Access Level Administrator
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Set the Date. Use Tab to switch between Date elements.
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 1: Main
Page 39
System Overview
The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information cannot be changed. The items shown in the system overview include:
BIOS Information Processor Information Memory Information PCH Information SPI Clock Frequency
The System Overview field also has two user configurable fields:
System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and
ICE-QM871 COM Express Module
year.
System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

5.3 Advanced

Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:
WARNING:
Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.
Page 40
S
ICE-QM871 COM Express Module
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
> ACPI Settings > RTC Wake Settings > Trusted Computing > CPU Configuration > SATA Configuration > Intel(R) Rapid Start Technology > AMT Configuration > USB Configuration > iWDD H/W Monitor > F81866 Super IO Configuration > F81866 H/W Monitor > Serial Port Console Redirection > iEi Feature
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 2: Advanced
System ACPI Parameters
----------------------

: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
: Select Screen

5.3.1 ACPI Settings

The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
ACPI Settings
ACPI Sleep State [S1 only(CPU Stop C1…]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
elect ACPI sleep state the system will enter when the SUSPEND button is pressed.
----------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 3: ACPI Settings
Page 41
E
w
ACPI Sleep State [S1 only (CPU Stop Clock)]
Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.
ICE-QM871 COM Express Module
S1 only (CPU Stop Clock)
S3 only (Suspend to RAM)
DEFAULT
The system enters S1 (POS) sleep state. The system appears off. The CPU is stopped; RAM is refreshed; the system is running in a low power mode.
The caches are flushed and the CPU is powered off. Power to the RAM is maintained. The computer returns slower to a working state, but more power is saved.

5.3.2 RTC Wake Settings

The RTC Wake Settings menu (BIOS Menu 4) enables the system to wake at the specified time.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Wake system with Fixed Time [Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
nable or disable System
ake on alarm event. When enabled, System will wake on the date::hr::min::sec specified
----------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 4: RTC Wake Settings
Page 42
ICE-QM871 COM Express Module
Wake system with Fixed Time [Disabled]
Use the Wake system with Fixed Time option to enable or disable the system wake on alarm event.
Disabled D
Enabled
EFAULT

5.3.3 Trusted Computing

The real time clock (RTC) cannot generate a wake event
If selected, the Wake up every day option appears allowing you to enable to disable the system to wake every day at the specified time. Besides, the following options appear with values that can be selected:
Wake up date Wake up hour Wake up minute Wake up second After setting the alarm, the computer turns itself on
from a suspend state when the alarm goes off.
Use the Trusted Computing menu (BIOS Menu 5) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM).
Page 43
E
I
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Configuration Security Device Support [Disable]
Current Status Information
NO Security Device Found
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
ICE-QM871 COM Express Module
nables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and
NT1A interface will not be available.
----------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 5: Trusted Computing
Security Device Support [Disable]
Use the Security Device Support option to configure support for the TPM.
Disable DEFAULT
Enable
TPM support is disabled. TPM support is enabled.
Page 44
a
T
ICE-QM871 COM Express Module

5.3.4 CPU Configuration

Use the CPU Configuration menu (BIOS Menu 6) to view detailed CPU specifications and configure the CPU.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
CPU Configuration
Intel(R) Core(TM) i5-4400E CPU @ 2.70GHz CPU Signature 306c3 Microcode Patch 7 Max CPU Speed 2700 MHz Min CPU Speed 800 MHz CPU Speed 3200 MHz Processor Cores 2 Intel HT Technology Supported Intel VT-x Technology Supported Intel SMX Technology Supported 64-bit Supported EIST Technology Supported
L1 Data Cache 32 kB x 2 L1 Code Cache 32 kB x 2 L2 Cache 256 kB x 2 L3 Cache 3072 kB
Hyper-threading [Enabled] Intel Virtualization Technology [Disabled] Intel TXT(LT) Support [Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enabled for Windows XP
nd Linux (OS optimized for Hyper-Threading
echnology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
----------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 6: CPU Configuration
The CPU Configuration menu (
Processor Type: Lists the brand name of the CPU being used  CPU Signature: Lists the CPU signature value.  Microcode Patch: Lists the microcode patch being used.  Max CPU Speed: Lists the maximum CPU processing speed.  Min CPU Speed: Lists the minimum CPU processing speed.  CPU Speed: Lists the CPU processing speed  Processor Cores: Lists the number of the processor core  Intel HT Technology: Indicates if Intel HT Technology is supported by the
CPU.
BIOS Menu 6) lists the following CPU details:
Page 45
Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the
CPU.
Intel SMX Technology: Indicates if Intel SMX Technology is supported by the
CPU.
EIST Technology: Indicates if the Enhanced Intel SpeedStep® Technology
(EIST) is supported by the CPU.
64-bit: Indicates if 64-bit is supported by the CPU.  L1 Data Cache: Lists the amount of data storage space on the L1 cache.  L1 Code Cache: Lists the amount of code storage space on the L1 cache.  L2 Cache: Lists the amount of storage space on the L2 cache.  L3 Cache: Lists the amount of storage space on the L3 cache.
Hyper-threading [Enabled]
Use the Hyper-Threading BIOS option to enable or disable the Intel Hyper-Threading
ICE-QM871 COM Express Module
Technology.
Disabled
Enabled DEFAULT
Intel Virtualization Technology [Disabled]
Use the Intel Virtualization Technology option to enable or disable virtualization on the system. When combined with third party software, Intel® Virtualization technology allows several OSs to run on the same system at the same time.
Disabled DEFAULT
Enabled
Intel TXT(LT) Support [Disabled]
Use the Intel TXT(LT) Support BIOS option to enable or disable the Intel Trusted
Disables the Intel Hyper-Threading Technology. Enables the Intel Hyper-Threading Technology.
Disables Intel Virtualization Technology. Enables Intel Virtualization Technology.
Page 46
Execution Technology.
Disabled DEFAULT
Enabled
Disables the Intel Trusted Execution Technology. Enables the Intel Trusted Execution Technology.
ICE-QM871 COM Express Module

5.3.5 SATA Configuration

Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
SATA Controller(s) [Enabled] SATA Mode Selection [IDE]
S_ATA1 Empty S_ATA2 Empty S_ATA3 Empty S_ATA4(or mSATA) Empty
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enable or disable SATA Device.
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 7: SATA Configuration
SATA Controller(s) [Enabled]
Use the SATA Controller(s) option to configure the SATA controller.
Enabled DEFAULT
Disabled
SATA Mode Selection [IDE]
Use the SATA Mode Selection option to configure SATA devices.
IDE DEFAULT
AHCI
RAID
Enable SATA controller. Disable SATA controller.
Configures SATA devices as normal IDE device. Configures SATA devices as AHCI device. Configures SATA devices as RAID device.
Page 47
ICE-QM871 COM Express Module
NOTE:
Before accessing the RAID configuration utility, ensure to set the
Option ROM Messages BIOS option in the Boot menu to Force BIOS. This is to allow the “Press <CTRL+I> to enter Configuration
Utility……” message to appear during POST. Press Ctrl+I when prompted to enter the RAID configuration utility.

5.3.6 Intel(R) Rapid Start Technology

Use the Intel(R) Rapid Start Technology (BIOS Menu 8) menu to configure Intel® Rapid Start Technology support.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Intel(R) Rapid Start Technology [Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enable or disable Intel(R) Rapid Start Technology
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 48
BIOS Menu 8: Intel(R) Rapid Start Technology
Intel(R) Rapid Start Technology [Disabled]
Use Intel(R) Rapid Start Technology option to enable or disable the Intel® Rapid Start Technology function.
Disabled DEFAULT
Enabled
Intel® Rapid Start Technology is disabled Intel® Rapid Start Technology is enabled
E
T
I
a
ICE-QM871 COM Express Module

5.3.7 AMT Configuration

The AMT Configuration menu (BIOS Menu 9) allows the advanced power management options to be configured.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Intel AMT [Enabled] Un-Configure ME [Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enable/Disable Intel (R) Active Management Technology BIOS
xtension. Note: iAMT H/W is always enabled.
his option just controls the BIOS extension execution.
f enabled, this requires
dditional firmware in the SPI device.
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 9: AMT Configuration
Intel AMT [Enabled]
Use Intel AMT option to enable or disable the Intel® AMT function.
Disabled
Enabled DEFAULT
Un-Configure ME [Disabled]
Use the Un-Configure ME option to perform ME unconfigure without password operation.
Disabled DEFAULT
Enabled
Intel® AMT is disabled Intel® AMT is enabled
Not perform ME unconfigure To perform ME unconfigure
Page 49
d
ICE-QM871 COM Express Module

5.3.8 USB Configuration

Use the USB Configuration menu (BIOS Menu 10) to read USB configuration information and configure the USB settings.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
USB Configuration
USB Devices: 1 Keyboard, 2 Hubs
Legacy USB Support [Enabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enables Legacy USB support. AUTO option
isables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 10: USB Configuration
USB Devices
The USB Devices field lists the USB devices that are enabled on the system
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.
Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system.
Page 50
ICE-QM871 COM Express Module
Enabled DEFAULT
Disabled
Auto
Legacy USB support disabled
Legacy USB support enabled
Legacy USB support disabled if no USB devices are connected

5.3.9 iWDD H/W Monitor

The iWDD H/W Monitor menu (BIOS Menu 11) displays the CPU temperature and CPU fan speed, and contains the fan configuration submenu.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
PC Health Status
CPU temperature : +68 C CPU_FAN1 Speed : 1878 RPM
VDDR : +1.381 V +VCC_CORE : +1.741 V +1.05S : +1.070 V +V1.5S : +1.501 V +V1.8S : +1.815 V +V3.3A : +2.997 V +V5S : +5.048 V VCC12 : +11.321 V
> Smart Fan Mode Configuration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Smart Fan Mode Select
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 11: iWDD H/W Monitor
PC Health Status
The following system parameters and values are shown. The system parameters that are monitored are:
CPU Temperature CPU Fan Speed  VDDR +VCC_CORE +1.05S +V1.5S
Page 51
+V1.8S +V3.3A +V5S VCC12
ICE-QM871 COM Express Module
5.3.9.1 Smart Fan Mode Configuration
Use the Smart Fan Mode Configuration submenu (BIOS Menu 12) to configure the smart fan temperature and speed settings.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Smart Fan Mode Configuration
Fan 1 Smart Fan Control [Auto Mode] Auto mode fan start temperature 50 Auto mode fan off temperature 40 Auto mode fan start PWM 30 Auto mode fan slope PWM 1
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Smart Fan Mode Select
---------------------

: Select Screen
: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit
Page 52
BIOS Menu 12: Smar Fan Mode Configuration
Fan 1 Smart Fan Control [Auto Mode]
Use the Fan 1 Smart Fan Control option to configure the CPU Smart Fan.
Manual Mode
Auto Mode DEFAULT
The fan spins at the speed set in Manual by Duty Cycle settings
The fan adjusts its speed using Auto by Duty-Cycle settings
S
ICE-QM871 COM Express Module
Auto mode fan start/off temperature
Use the + or – key to change the Auto mode fan start/off temperature value. Enter a decimal number between 1 and 100.
Auto mode fan start PWM
Use the + or – key to change the Auto mode fan start PWM value. Enter a decimal number between 1 and 128.
Auto mode fan slope PWM
Use the + or – key to change the Auto mode fan slope PWM value. Enter a decimal number between 1 and 64.

5.3.10 F81866 Super IO Configuration

Use the F81866 Super IO Configuration menu (BIOS Menu 13) to set or change the configurations for the serial ports.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
F81866 Super IO Configuration
F81866 Super IO Chip F81866
> Serial Port 1 Configuration > Serial Port 2 Configuration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 13: F81866 Super IO Configuration
et Parameters of Serial Port 1 (COMA)
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 53
ICE-QM871 COM Express Module
5.3.10.1 Serial Port n Configuration
Use the Serial Port n Configuration menu (BIOS Menu 14) to configure the serial port n.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Serial Port n Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4
Change Settings [Auto]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enable or Disable Serial Port (COM)
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 14: Serial Port n Configuration Menu
5.3.10.1.1 Serial Port 1 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Auto DEFAULT
IO=3F8h;
Disable the serial port Enable the serial port
The serial port IO port address and interrupt address are automatically detected.
Serial Port I/O port address is 3F8h and the interrupt
Page 54
IRQ=4
address is IRQ4
ICE-QM871 COM Express Module
IO=3F8h; IRQ=3, 4
IO=2F8h; IRQ=3, 4
IO=2C0h; IRQ=3, 4
IO=2C8h; IRQ=3, 4
Serial Port I/O port address is 3F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2C0h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2C8h and the interrupt address is IRQ3, 4
5.3.10.1.2 Serial Port 2 Configuration
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled
Disable the serial port
Enabled DEFAULT
Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt address.
Auto DEFAULT
IO=2F8h; IRQ=3
IO=3F8h; IRQ=3, 4
IO=2F8h; IRQ=3, 4
IO=2C0h;
Enable the serial port
The serial port IO port address and interrupt address are automatically detected.
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3
Serial Port I/O port address is 3F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4
Serial Port I/O port address is 2C0h and the interrupt
IRQ=3, 4
address is IRQ3, 4
Page 55
ICE-QM871 COM Express Module
IO=2C8h; IRQ=3, 4
Serial Port I/O port address is 2C8h and the interrupt address is IRQ3, 4

5.3.11 F81866 H/W Monitor

The F81866 H/W Monitor menu (BIOS Menu 15) contains the fan configuration submenu and displays the system fan speeds.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
PC Health Status
> Smart Fan Mode Configuration
FAN1 : N/A FAN2 : N/A
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Smart Fan Mode Select
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 15: F81866 H/W Monitor
Page 56
ICE-QM871 COM Express Module
5.3.11.1 Smart Fan Mode Configuration
Use the Smart Fan Mode Configuration submenu (BIOS Menu 16) to configure fan temperature and speed settings.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Smart Fan Mode Configuration
FAN1 Smart Fan Control [Manual Duty Mode] Manual Duty Mode 60
FAN2 Smart Fan Control [Manual Duty Mode] Manual Duty Mode 60
Smart Fan Mode Select
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 16: Smart Fan Mode Configuration
FAN1/FAN2 Smart Fan Mode [Manual Duty Mode]
Use the FAN1/FAN2 Smart Fan Mode option to configure the system smart fans.
Manual Duty Mode
Manual Duty Mode
Use the + or – key to change the value. Enter a decimal number between 0 and 100.
DEFAULT
The fan spins at the speed set in Manual Duty Mode settings (below option)

5.3.12 Serial Port Console Redirection

The Serial Port Console Redirection menu (BIOS Menu 17) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.
Page 57
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
COM1
Console Redirection [Disabled]
> Console Redirection Settings
COM2
Console Redirection [Disabled]
> Console Redirection Settings
iAMT SOL
COM3(Pci Bus0, Dev22,Func3) Console Redirection Port Is Disabled
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 17: Serial Port Console Redirection
ICE-QM871 COM Express Module
Console Redirection Enable or Disable
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Console Redirection [Disabled]
Use Console Redirection option to enable or disable the console redirection fun ction.
Disabled DEFAULT
Enabled
Disabled the console redirection function Enabled the console redirection function
NOTE:
The following five options appear when the Console Redirection option is enabled.
Terminal Type [ANSI]
Use the Terminal Type option to specify the remote terminal type.
Page 58
VT100
VT100+
The target terminal type is VT100 The target terminal type is VT100+
ICE-QM871 COM Express Module
VT-UTF8
ANSI DEFAULT
Bits per second [115200]
Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.
9600
19200
38400
57600
115200 DEFAULT
Data Bits [8]
The target terminal type is VT-UTF8 The target terminal type is ANSI
Sets the serial port transmission speed at 9600. Sets the serial port transmission speed at 19200. Sets the serial port transmission speed at 38400. Sets the serial port transmission speed at 57600. Sets the serial port transmission speed at 115200.
Use the Data Bits option to specify the number of data bits.
7
8 DEFAULT
Parity [None]
Use the Parity option to specify the parity bit that can be sent with the data bits for detecting the transmission errors.
None DEFAULT
Even
Odd
Mark
Sets the data bits at 7. Sets the data bits at 8.
No parity bit is sent with the data bits. The parity bit is 0 if the number of ones in the data
bits is even. The parity bit is 0 if the number of ones in the data
bits is odd. The parity bit is always 1. This option does not
provide error detection.
Page 59
c
s
ICE-QM871 COM Express Module
Space
Stop Bits [1]
Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit.
1 DEFAULT
2
The parity bit is always 0. This option does not provide error detection.
Sets the number of stop bits at 1. Sets the number of stop bits at 2.

5.3.13 iEi Feature

Use the iEi Feature menu (BIOS Menu 18) to configure One Key Recovery function.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
iEi Feature
Auto Recovery Function [Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Auto Recovery Function Reboot and recover system automatically within 10 min, when OS
rashes. Please install Auto Recovery API
ervice before enabling this function.
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 18: iEi Feature
Auto Recovery Function [Disabled]
Use the Auto Recovery Function BIOS option to enable or disable the auto recovery function of the IEI One Key Recovery.
Page 60
ICE-QM871 COM Express Module
Disabled DEFAULT
Enabled
Auto recovery function disabled Auto recovery function enabled

5.4 Chipset

Use the Chipset menu (BIOS Menu 19) to access the PCH IO and System Agent (SA) configuration menus.
WARNING!
Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
> System Agent (SA) Configuration > PCH-IO Configuration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
System Agent (SA) Parameters
---------------------

: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
: Select Screen
BIOS Menu 19: Chipset
Page 61
ICE-QM871 COM Express Module

5.4.1 System Agent (SA) Configuration

Use the System Agent (SA) Configuration menu (BIOS Menu 20) to configure the System Agent (SA) parameters.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Chipset
VT-d Capability Supported
VT-d [Disabled] > Graphics Configuration > NB PCIe Configuration > Memory Configuration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Check to enable VT-d function on MCH.
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 20: System Agent (SA) Configuration
VT-d [Disabled]
Use the VT-d option to enable or disable VT-d support.
Disabled DEFAULT
Enabled
Disables VT-d support. Enables VT-d support.
5.4.1.1 Graphics Configuration
Use the Graphics Configuration (BIOS Menu 21) menu to configure the video device connected to the system.
Page 62
d
D
ICE-QM871 COM Express Module
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Chipset
Graphics Configuration
Primary Display [Auto] DVMT Pre-Allocated [256M] DVMT Total Gfx Mem [MAX]
Primary IGFX Boot Display [VBIOS Default] LCD Panel Type [800x600 18Bit] Backlight Control [Inverted]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 21: Graphics Configuration
Select which of IGFX/PEG/PCI Graphics
evice should be Primary
isplay Or select SG for Switchable Gfx.
----------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Primary Display [Auto]
Use the Primary Display option to select the primary graphics controller the system uses. The following options are available:
Auto Default IGFX PEG PCIE
DVMT Pre-Allocated [256M]
Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots. The system memory allocated can then only be used as graphics memory, and is no longer available to applications or the operating system. Configuration options are listed below:
 32M  64M  128M  256M Default  512M
Page 63
DVMT Total Gfx Mem [MAX]
Use the DVMT Total Gfx Mem option to select DVMT5.0 total graphic memory size used by the internal graphic device. The following options are available:
 128M  256M  MAX Default
Primary IGFX Boot Display [VBIOS Default]
Use the Primary IGFX Boot Display option to select the display device used by the system when it boots. Configuration options are listed below.
ICE-QM871 COM Express Module
 VBIOS Default  CRT  LVDS  HDMI 1  Display Port 2  Display Port 3
LCD Panel Type [By Hardware]
Use the LCD Panel Type option to select the type of flat panel connected to the system. Configuration options are listed below.
640x480 18BIT 800x600 18BIT 1024x768 18BIT 1024x768 24BIT 1280x800 24BIT 1280x1024 48BIT
DEFAULT
DEFAULT
Page 64
1366x768 24BIT 1440x900 48BIT 1440x1050 48BIT 1600x900 48BIT 1600x1200 48BIT 1680x1050 48BIT
C
ICE-QM871 COM Express Module
1920x1080 48BIT 1920x1200 48BIT 2048x1536 48BIT
Backlight Control [Inverted]
Use the Backlight Control option to select the backlight control mode.
Normal
Inverted DEFAULT
The LVDS backlight is brighter at low voltage level. The LVDS backlight is brighter at high voltage level.
5.4.1.2 NB PCIe Configuration
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Chipset
NB PCIe Configuration PCIEX16 Not Present
PCIEX16 – Gen X [Auto] Enable PEG [Auto] Detect Non-Compliance Device [Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
onfigure PEG0 B0:D1:F0
Gen1-Gen3
----------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 22: NB PCIe Configuration
PCIEX16 – Gen X [Auto]
Use the PCIEX16 – Gen X option to select the support type of the PCI Express x16 slot. The following options are available:
Auto Default Gen1 Gen2 Gen3
Page 65
Enable PEG [Auto]
Use the Enable PEG option to enable or disable the PCI Express controller. The following options are available:
Disabled Enabled Auto Default
Detect Non-Compliance Device [Disabled]
Use the Detect Non-Compliance Device option to enable or disable detecting a non-compliance PCI Express device in the PEG. The following options are available:
Disabled Default Enabled
ICE-QM871 COM Express Module
5.4.1.3 Memory Configuration
Use the Memory Configuration submenu (BIOS Menu 23) to view memory information.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Chipset
Memory Information
Total Memory 4096 MB (DDR3) DIMM1 4096 MB (DDR3) DIMM2 Not Present
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 23: Memory Configuration
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 66
F
ICE-QM871 COM Express Module

5.4.2 PCH-IO Configuration

Use the PCH-IO Configuration menu (BIOS Menu 24) to configure the PCH parameters.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Chipset
Restore AC Power Loss [Last State] Azalia [Enabled] Power Saving Function(ERP) [Disabled]
> PCI Express Configuration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Select AC power state with power is re-applied after a power failure. When Auto Power Button
unction select Enabled the AC power loss will always power on.
---------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 24: PCH-IO Configuration
Restore AC Power Loss [Last State]
Use the Restore AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.
Power Off
Power On
Last State DEFAULT
Azalia [Enabled]
Use the Azalia option to enable or disable the High Definition Audio controller.
The system remains turned off The system turns on The system returns to its previous state. If it was on, it
turns itself on. If it was off, it remains off.
Page 67
S
ICE-QM871 COM Express Module
Disabled
Enabled DEFAULT
Power Saving Function [Disabled]
Use the Power Saving Function option to enable or disable power saving function.
Disabled
Enabled DEFAULT
The onboard High Definition Audio controller is disabled The onboard High Definition Audio controller
automatically detected and enabled
Power saving function is disabled Enable to reduce power consumption in system off st ate.
5.4.2.1 PCI Express Configuration
Use the PCI Express Configuration menu (BIOS Menu 25) to select the support type of the PCI Express or PCIe Mini slots.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Chipset
PCI Express Configuration
M_PCIE1 PCIE Port
PCIe Speed [Auto]
M_PCIE2 PCIE Port
PCIe Speed [Auto]
PCIE1 PCIE Port
PCIe Speed [Auto]
PCIE2 PCIE Port
PCIe Speed [Auto]
PCIE3 PCIE Port
PCIe Speed [Auto]
PCIE4 PCIE Port
PCIe Speed [Auto]
PCIE5 PCIE Port
PCIe Speed [Auto]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
elect PCI Express port speed.
----------------------

: Select Screen
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Menu 25: PCI Express Configuration
Page 68
ICE-QM871 COM Express Module
PCIe Speed
Use PCIe Speed option to select the speed type of the PCI Express or PCIe Mini slots. The following options are available:
Auto Default Gen1 Gen2

5.5 Boot

Use the Boot menu (BIOS Menu 26) to configure system boot options.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
Boot Configuration
Bootup NumLock State [On] Quiet Boot [Enabled] Option ROM Messages [Force BIOS] Launch PXE OpROM [Disabled] UEFI Boot [Disabled]
Boot Option Priorities
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Select the keyboard NumLock state
---------------------

: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
: Select Screen
BIOS Menu 26: Boot
Bootup NumLock State [On]
Use the Bootup NumLock State BIOS option to specify if the number lock setting must be modified during boot up.
On DEFAULT
Allows the Number Lock on the keyboard to be enabled automatically when the computer system boots up. This allows the immediate use of the 10-key numeric keypad located on the right side of the keyboard. To confirm this, the Number Lock LED light on the keyboard is lit.
Page 69
ICE-QM871 COM Express Module
Off
Quiet Boot [Enabled]
Use the Quiet Boot BIOS option to select the screen display when the system boots.
Disabled
Enabled DEFAULT
Option ROM Messages [Force BIOS]
Use the Option ROM Messages option to set the Option ROM display mode.
Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.
Normal POST messages displayed OEM Logo displayed instead of POST messages
Force BIOS
Keep Current
Launch PXE OpROM [Disabled]
Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.
Disabled DEFAULT
Enabled
UEFI Boot [Disabled] Use the UEFI Boot BIOS option to allow the system to boot from the UEFI devices.
Disabled DEFAULT
DEFAULT
Sets display mode to force BIOS.
Sets display mode to current.
Ignore all PXE Option ROMs Load PXE Option ROMs.
Disables to boot from the UEFI devices.
Page 70
Enabled
Enables to boot from the UEFI devices.
S
ICE-QM871 COM Express Module

5.6 Security

Use the Security menu (BIOS Menu 27) to set system and user passwords.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
Password Description
If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20
Administrator Password
User Password
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Password
---------------------

: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
et Setup Administrator
: Select Screen
BIOS Menu 27: Security
Administrator Password
Use the Administrator Password to set or change an administrator password.
User Password
Use the User Password to set or change a user password.

5.7 Save & Exit

Use the Save & Exit menu (BIOS Menu 28) to load default BIOS values, optimal failsafe values and to save configuration changes.
Page 71
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
Save Changes and Reset
Discard Changes and Reset
Restore Defaults Save as User Defaults Restore User Defaults
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
BIOS Menu 28: Save & Exit
ICE-QM871 COM Express Module
Reset the system after saving the changes.
---------------------

: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
: Select Screen
Save Changes and Reset
Use the Save Changes and Reset option to save the changes made to the BIOS options and reset the system.
Discard Changes and Reset
Use the Discard Changes and Reset option to exit the system without saving the changes made to the BIOS configuration setup program.
Restore Defaults
Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation.
Save as User Defaults
Use the Save as User Defaults option to save the changes done so far as user defaults.
Page 72
Restore User Defaults
Use the Restore User Defaults option to restore the user defaults to all the setup options.
ICE-QM871 COM Express Module
Chapter
6

6 Software Drivers

Page 73

6.1 Available Software Drivers

NOTE:
The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates.
The following drivers can be installed on the system:
Chipset Graphics LAN USB 3.0
ICE-QM871 COM Express Module
Audio Intel® AMT
Installation instructions are given below.

6.2 Starting the Driver Program

To access the driver installation programs, please do the following.
Step 1: Insert the CD that came with the system into a CD drive connected to the
system.
NOTE:
If the installation program doesn't start automatically: Click "Start->Computer->CD Drive->autorun.exe"
Page 74
Step 2: The driver main menu appears (Figure 6-1).
ICE-QM871 COM Express Module
Figure 6-1: Start Up Screen
Step 3: Click ICE-QM871.
Step 4: The list of drivers in
Figure 6-2 appears.
Figure 6-2: Drivers
Page 75

6.3 Chipset Driver Installation

To install the chipset driver, please do the following.
ICE-QM871 COM Express Module
Step 1: Access the driver list. (See Section
Step 2: Click “1-Chipset”.
Step 3: Locate the setup file and double click on it.
Step 4: The Welcome Screen in
Figure 6-3 appears. Click Next to continue.
6.2)
Page 76
Figure 6-3: Chipset Driver Welcome Screen
Step 5: The license agreement in
Step 6: Read the License Agreement.
Step 7: Click Yes to continue.
Figure 6-4 appears.
ICE-QM871 COM Express Module
Figure 6-4: Chipset Driver License Agreement
Step 8: The Read Me file in
Step 9: Click Next to continue.
Figure 6-5 appears.
Figure 6-5: Chipset Driver Read Me File
Page 77
Step 10: Setup Operations are performed as shown in Figure 6-6.
ICE-QM871 COM Express Module
Figure 6-6: Chipset Driver Setup Operations
Step 11: Once the Setup Operations are complete, click Next to continue.
Step 12: The Finish screen in
Step 13: Select “Yes, I want to restart the computer now” and click the Finish icon.
Figure 6-7.
See
Figure 6-7 appears.
Page 78
ICE-QM871 COM Express Module
Figure 6-7: Chipset Driver Installation Finish Screen

6.4 Graphics Driver Installation

To install the graphics driver, please do the following.
Step 1: Access the driver list. (See Section
Step 2: Click “2-Graphics” and select the folder which corresponds to the operating
system.
Step 3: Double click the setup file.
Step 4: The Welcome Screen in
Figure 6-8 appears. Click Next to continue.
6.2)
Page 79
ICE-QM871 COM Express Module
Figure 6-8: Graphics Driver Welcome Screen
Step 5: The license agreement in
Step 6: Click Yes to continue.
Figure 6-9 appears. Read the License Agreement.
Page 80
Figure 6-9: Graphics Driver License Agreement
ICE-QM871 COM Express Module
Step 7: The Read Me file in Figure 6-10 appears. Step 8: Click Next to continue.
Figure 6-10: Graphics Driver Read Me File
Step 9: Setup Operations are performed as shown in
Figure 6-11.
Figure 6-11: Graphics Driver Setup Operations
Page 81
Step 10: Once the Setup Operations are complete, click the Next icon to continue.
Step 11: The Finish screen appears.
Step 12: Select “Yes, I want to restart the computer now” and click the Finish icon.
Figure 6-12.
See
ICE-QM871 COM Express Module
Figure 6-12: Graphics Driver Installation Finish Screen

6.5 LAN Driver Installation

To install the LAN driver, please do the following.

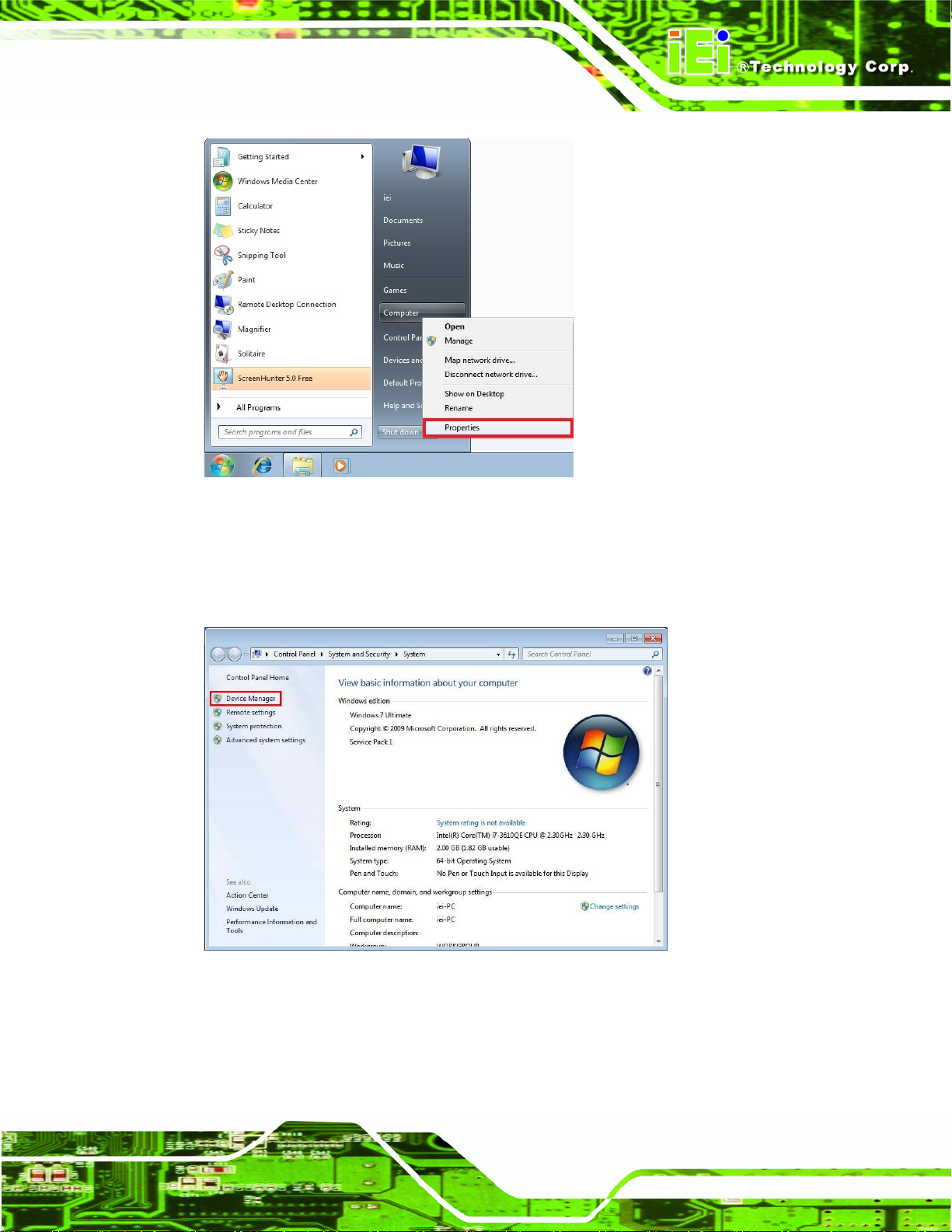

Step 1: Right-click the Computer button from the start menu and select Properties
Figure 6-13).
(
Page 82
ICE-QM871 COM Express Module
Figure 6-13: Windows Control Panel
Step 2: The system control panel window in
Step 3: Click the Device Manager link (
Figure 6-14: System Control Panel
Figure 6-14).
Figure 6-14 appears.
Step 4: A list of system hardware devices appears (
Step 5: Right-click the Ethernet Controller that has question marks next to it (this means
Windows does not recognize the device).
Figure 6-15).
Page 83
Step 6: Select Update Driver Software.
ICE-QM871 COM Express Module
Page 84
Figure 6-15: Device Manager List
Step 7: The Update Driver Software Window appears (
Figure 6-16).
ICE-QM871 COM Express Module
Figure 6-16: Update Driver Software Window
Step 8: Select “Browse my computer for driver software” and click N
Step 9: Click Browse to select “X:\3-LAN” directory in the Locate File wi ndow, where
X:\” is the system CD drive. (
Figure 6-17).
EXT to continue.
Figure 6-17: Locate Driver Files
Step 10: Click N
EXT to continue.
Page 85

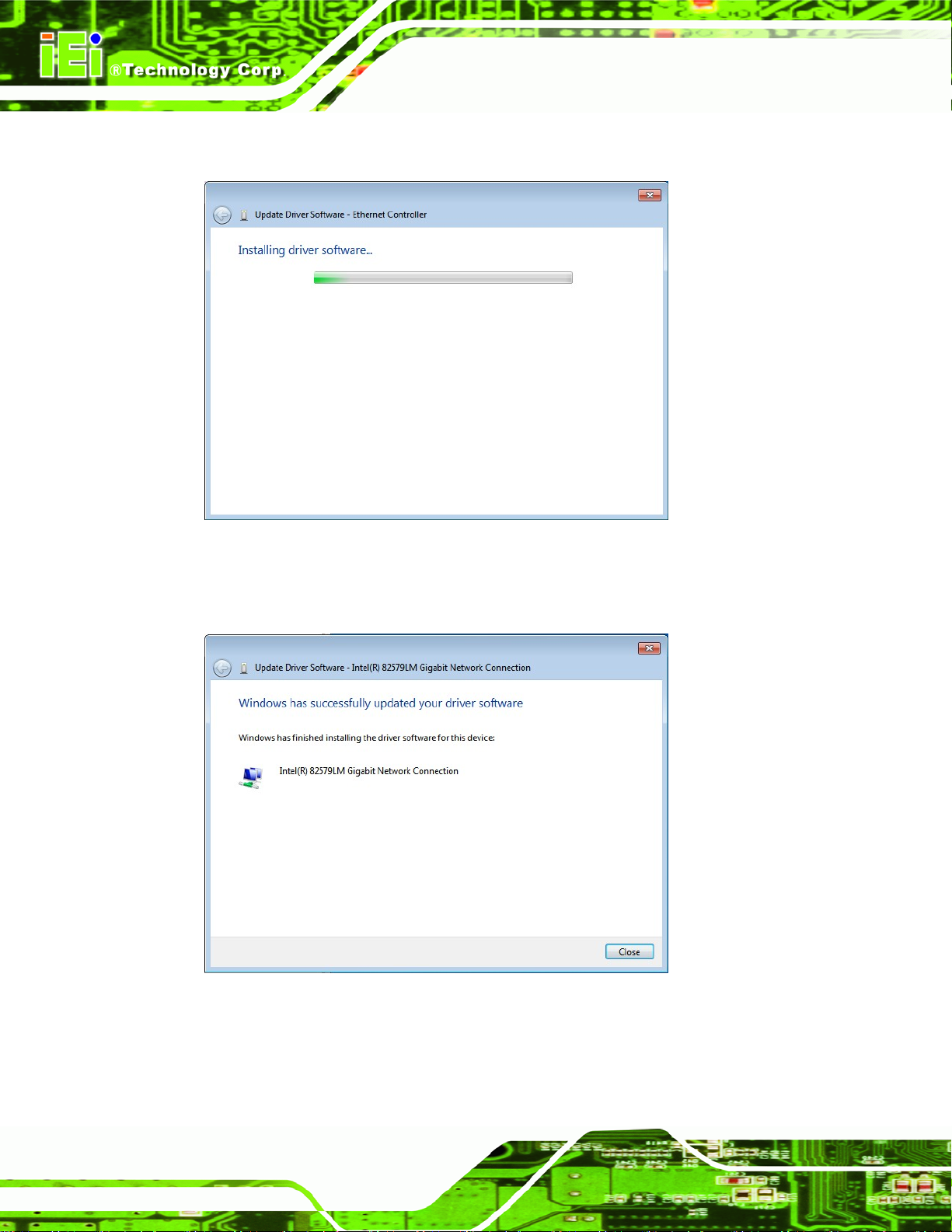

Step 11: Driver Installation is performed as shown in Figure 6-18.
ICE-QM871 COM Express Module
Figure 6-18: LAN Driver Installation
Step 12: The Finish screen in
Figure 6-19 appears. Click Close to exit.
Page 86
Figure 6-19: LAN Driver Installation Complete
ICE-QM871 COM Express Module

6.6 USB 3.0 Driver Installation

WARNING:
Do not run this driver’s installer (Setup.exe) from a USB storage device (ie. external USB hard drive or USB thumb drive). For proper installation, please copy driver files to a local hard drive folder and run from there.
To install the USB 3.0 driver, please follow the steps below.
Step 1: Access the driver list. (See Section
Step 2: Click “4-USB 3.0”.
Step 3: Locate the setup file and double click on it.
Step 4: The Welcome Screen in
Step 5: Click Next to continue.
Figure 6-20 appears.
6.2)
Figure 6-20: USB 3.0 Driver Welcome Screen
Page 87
Loading...
