IEI Integration Q870-i2 User Manual

IMBA-Q870-i2 A TX Motherboard
MODEL:
IMBA-Q870-i2
ATX Motherboard with LGA1150 Intel® Core i7/i5/i3,
DDR3, DVI, HDMI, DisplayPort, VGA, USB 3.0, COM Ports
Six SATA 6Gb/s Ports, IPMI 2.0 and RoHS
User Manual
Rev. 1.01 –13 March, 2014
Page i
Date Version Changes
13 March, 2014 1.01 Deleted I2C information
8 January, 2014 1.00 Initial release
IMBA-Q870-i2 A TX Motherboard
Revision
Page ii
IMBA-Q870-i2 A TX Motherboard
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page iii
IMBA-Q870-i2 A TX Motherboard
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 INTRODUCTION........................................................................................................... 2
1.2 BENEFITS ................................................................................................................... 2
1.3 FEATURES................................................................................................................... 3
1.4 CONNECTORS ............................................................................................................. 4
1.5 DIMENSIONS............................................................................................................... 5
1.6 DATA FLOW................................................................................................................ 6
1.7 TECHNICAL SPECIFICATIONS ...................................................................................... 7
2 PACKING LIST............................................................................................................. 9
2.1 ANTI-STATIC PRECAUTIONS...................................................................................... 10
2.2 UNPACKING PRECAUTIONS....................................................................................... 10
2.3 PACKING LIST............................................................................................................11
2.4 OPTIONAL ITEMS...................................................................................................... 12
3 CONNECTORS ........................................................................................................... 15
3.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 16
3.1.1 IMBA-Q870-i2 Layout..................................................................................... 16
3.1.2 Peripheral Interface Connectors ..................................................................... 17
3.1.3 External Interface Panel Connectors............................................................... 18
3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 19
3.2.1 Additional Power Connector ........................................................................... 19
3.2.2 ATX Power Connector ..................................................................................... 19
3.2.3 Battery Connector............................................................................................ 21
3.2.4 Chassis Intrusion Connector............................................................................ 22
3.2.5 CPU Power Connector.................................................................................... 23
3.2.6 DisplayPort Connector.................................................................................... 23
3.2.7 Digital I/O Connector...................................................................................... 24
3.2.8 EC Debug Connector....................................................................................... 25
3.2.9 Fan Connector (CPU)...................................................................................... 26
3.2.10 Fan Connectors (System)............................................................................... 27
Page iv
IMBA-Q870-i2 A TX Motherboard
3.2.11 Front Panel Audio Connector........................................................................ 28
3.2.12 Front Panel Connector.................................................................................. 29
3.2.13 iRIS Module Slot............................................................................................ 30
3.2.14 Keyboard and Mouse Connector................................................................... 31
3.2.15 LAN LED Connectors.................................................................................... 32
3.2.16 Memory Card Slots........................................................................................ 33
3.2.17 mSATA Card Slot............................................................................................ 34
3.2.18 Parallel Port Connector ................................................................................ 36
3.2.19 Power Button ................................................................................................. 37
3.2.20 SATA 6Gb/s Drive Connectors....................................................................... 38
3.2.21 Serial Port Connectors, RS-232..................................................................... 39
3.2.22 Serial Port Connector, RS-422/485................................................................ 40
3.2.23 SMBus Connector .......................................................................................... 41
3.2.24 SPI Flash Connector...................................................................................... 42
3.2.25 SPI Flash Connector, EC............................................................................... 43
3.2.26 TPM Connector.............................................................................................. 44
3.2.27 USB 2.0 Connectors....................................................................................... 45
3.2.28 USB 3.0 Connector ........................................................................................ 46
3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 47
3.3.1 Audio Connector .............................................................................................. 48
3.3.2 Keyboard/Mouse and USB 2.0 Connectors..................................................... 49
3.3.3 Ethernet and USB 2.0 Connectors................................................................... 49
3.3.4 Ethernet and USB 3.0 Connectors................................................................... 50
3.3.5 HDMI Port Connector..................................................................................... 51
3.3.6 Serial Port Connector (COM1) ....................................................................... 52
3.3.7 VGA and DVI Connectors................................................................................ 52
4 INSTALLATION ......................................................................................................... 55
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 56
4.2 INSTALLATION CONSIDERATIONS.............................................................................. 56

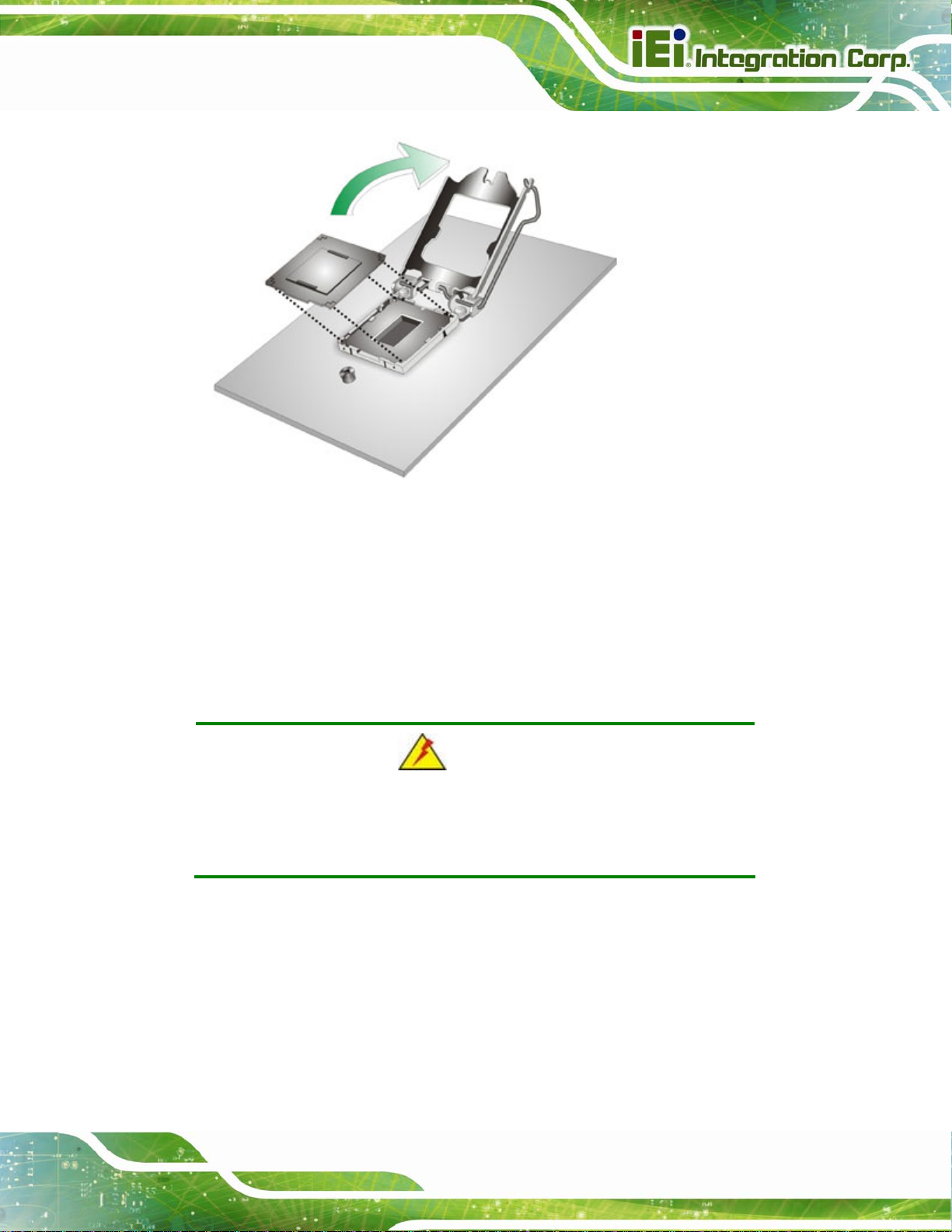

4.2.1 Socket LGA1150 CPU Installation .................................................................. 58
4.2.2 Socket LGA1150 Cooling Kit Installation........................................................ 61
4.2.3 DIMM Installation........................................................................................... 63
4.2.4 iRIS-2400 Module Installation......................................................................... 64
4.2.5 mSATA Card Installation.................................................................................. 65
Page v
IMBA-Q870-i2 A TX Motherboard
4.3 SYSTEM CONFIGURATION......................................................................................... 66
4.3.1 AT/ATX Power Mode Setting ........................................................................... 67
4.3.2 Clear CMOS Button......................................................................................... 67
4.3.3 Flash Descriptor Security Override................................................................. 67
4.3.4 mSATA Slot Setup............................................................................................. 68
4.3.5 PCIe x16 Interface Setup................................................................................. 69
4.3.6 USB Power Select............................................................................................ 69
4.4 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 70

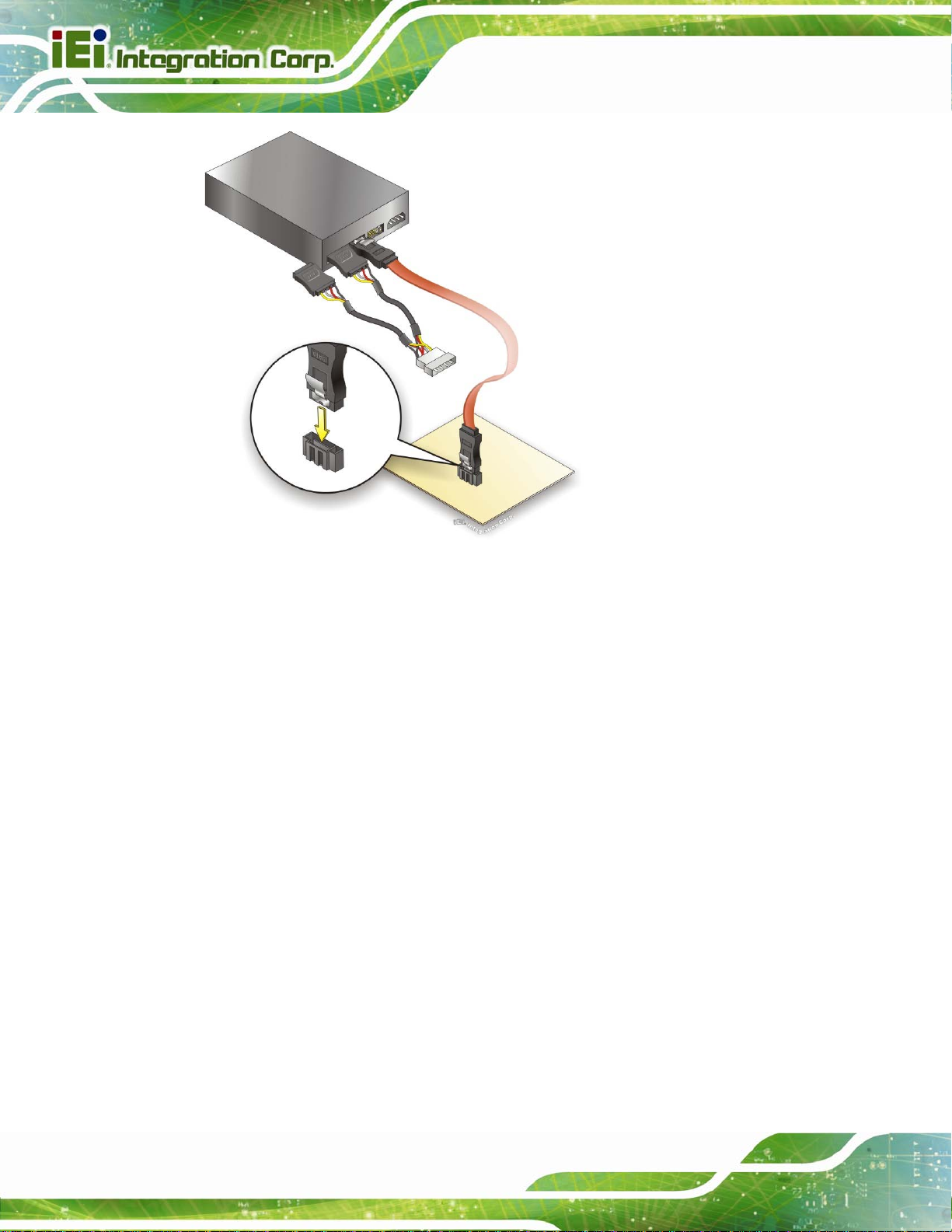

4.4.1 SATA Drive Connection ................................................................................... 70
4.5 EXTERNAL PERIPHERAL INTERFACE CONNECTION ................................................... 72
4.5.1 Audio Connector .............................................................................................. 72
4.5.2 DVI Display Device Connection...................................................................... 73
4.5.3 HDMI Display Device Connection.................................................................. 74
4.5.4 LAN Connection............................................................................................... 75
4.5.5 PS/2 Keyboard and Mouse Connection........................................................... 76
4.5.6 Serial Device Connection ................................................................................ 77
4.5.7 USB Connection (Dual Connector)................................................................. 78
4.5.8 VGA Monitor Connection ................................................................................ 79
4.6 INTEL
®
AMT SETUP PROCEDURE............................................................................. 80
4.7 IPMI SETUP PROCEDURE ......................................................................................... 81
4.7.1 Managed System Hardware Setup ................................................................... 81
4.7.2 Using the IEI iMAN Web GUI.......................................................................... 82
5 BIOS.............................................................................................................................. 84
5.1 INTRODUCTION......................................................................................................... 85
5.1.1 Starting Setup................................................................................................... 85
5.1.2 Using Setup...................................................................................................... 85
5.1.3 Getting Help..................................................................................................... 86
5.1.4 Unable to Reboot after Configuration Changes.............................................. 86
5.1.5 BIOS Menu Bar................................................................................................ 86
5.2 MAIN........................................................................................................................ 87
5.3 ADVANCED............................................................................................................... 89
5.3.1 ACPI Settings................................................................................................... 90
5.3.2 RTC Wake Settings........................................................................................... 91
5.3.3 T rusted Computing........................................................................................... 92
Page vi
IMBA-Q870-i2 A TX Motherboard
5.3.4 CPU Information.............................................................................................. 93
5.3.5 SATA Configuration ......................................................................................... 96
5.3.6 Intel(R) Rapid Start Technology....................................................................... 97
5.3.7 AMT Configuration.......................................................................................... 98
5.3.8 USB Configuration........................................................................................... 99
5.3.9 F81866 Super IO Configuration.................................................................... 100
5.3.9.1 Serial Port n Configuration..................................................................... 101
5.3.9.2 Parallel Port Configuration..................................................................... 107
5.3.10 iWDD H/W Monitor..................................................................................... 108
5.3.10.1 Smart Fan Mode Configuration.............................................................110
5.3.11 Serial Port Console Redirection....................................................................111
5.3.12 iEi Feature....................................................................................................114
5.4 CHIPSET ..................................................................................................................115
5.4.1 PCH-IO Configuration ...................................................................................116
5.4.1.1 PCI Express Configuration......................................................................118
5.4.1.2 PCH Azalia Configuration.......................................................................119
5.4.2 System Agent (SA) Configuration ...................................................................119
5.4.2.1 Graphics Configuration........................................................................... 120
5.4.2.2 NB PCIe Configuration........................................................................... 123
5.4.2.3 Memory Configuration ........................................................................... 124
5.5 BOOT...................................................................................................................... 125
5.6 SECURITY............................................................................................................... 127
5.7 EXIT....................................................................................................................... 127
6 SOFTWARE DRIVERS............................................................................................ 129
6.1 AVAILABLE SOFTWARE DRIVERS ............................................................................ 130
6.2 SOFTWARE INSTALLATION...................................................................................... 130
6.3 CHIPSET DRIVER INSTALLATION............................................................................. 132
6.4 GRAPHICS DRIVER INSTALLATION.......................................................................... 135
6.5 LAN DRIVER INSTALLATION.................................................................................. 138
6.6 USB 3.0 DRIVER INSTALLATION ............................................................................ 142
6.7 AUDIO DRIVER INSTALLATION ............................................................................... 146
6.7.1 BIOS Setup..................................................................................................... 146
6.7.2 Driver Installation ......................................................................................... 146
6.8 INTEL® AMT DRIVER INSTALLATION .................................................................... 148
Page vii
A BIOS OPTIONS ........................................................................................................ 152
B ONE KEY RECOVERY........................................................................................... 156
B.1 ONE KEY RECOVERY INTRODUCTION .................................................................... 157
B.1.1 System Requirement....................................................................................... 158
B.1.2 Supported Operating System......................................................................... 159
B.2 SETUP PROCEDURE FOR WINDOWS........................................................................ 160
B.2.1 Hardware and BIOS Setup ............................................................................ 161
B.2.2 Create Partitions........................................................................................... 161
B.2.3 Install Operating System, Drivers and Applications..................................... 165
B.2.4 Building the Recovery Partition.................................................................... 166
B.2.5 Create Factory Default Image....................................................................... 168
B.3 AUTO RECOVERY SETUP PROCEDURE.................................................................... 173
B.4 SETUP PROCEDURE FOR LINUX.............................................................................. 178
B.5 RECOVERY TOOL FUNCTIONS ................................................................................ 181
IMBA-Q870-i2 A TX Motherboard
B.5.1 Factory Restore............................................................................................. 183
B.5.2 Backup System............................................................................................... 184
B.5.3 Restore Your Last Backup.............................................................................. 185
B.5.4 Manual........................................................................................................... 186
B.6 RESTORE SYSTEMS FROM A LINUX SERVER THROUGH LAN.................................. 187
B.6.1 Configure DHCP Server Settings.................................................................. 188
B.6.2 Configure TFTP Settings ............................................................................... 189
B.6.3 Configure One Key Recovery Server Settings............................................... 190
B.6.4 Start the DHCP, TFTP and HTTP................................................................. 191
B.6.5 Create Shared Directory................................................................................ 191
B.6.6 Setup a Client System for Auto Recovery...................................................... 193
B.7 OTHER INFORMATION ............................................................................................ 195
B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller....................... 195
B.7.2 System Memory Requirement ........................................................................ 198
C TERMINOLOGY ..................................................................................................... 199
D DIGITAL I/O INTERFACE..................................................................................... 203
D.1 INTRODUCTION...................................................................................................... 204
D.2 DIO CONNECTOR PINOUTS ................................................................................... 204
D.3 ASSEMBLY LANGUAGE SAMPLES........................................................................... 204
Page viii
IMBA-Q870-i2 A TX Motherboard
D.3.1 Enable the DIO Input Function .................................................................... 204
D.3.2 Enable the DIO Output Function.................................................................. 205
E WA TCHDOG TIMER............................................................................................... 206
F HAZARDOUS MATERIALS DISCLOSURE........................................................ 209
F.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 210
Page ix
IMBA-Q870-i2 A TX Motherboard
List of Figures
Figure 1-1: IMBA-Q870-i2...............................................................................................................2
Figure 1-2: IMBA-Q870-i2 Connectors..........................................................................................4
Figure 1-3: IMBA-Q870-i2 Dimensions (mm) ...............................................................................5
Figure 1-4: Data Flow Diagram......................................................................................................6
Figure 3-1: Connectors and Jumpers.........................................................................................16
Figure 3-2: Additional Power Connector Location....................................................................19
Figure 3-3: ATX Power Connector Location..............................................................................20
Figure 3-4: Battery Connector Location.....................................................................................21
Figure 3-5: Chassis Intrusion Connector Location...................................................................22
Figure 3-6: CPU Power Connector Location..............................................................................23
Figure 3-7: DisplayPort Connector Location.............................................................................24

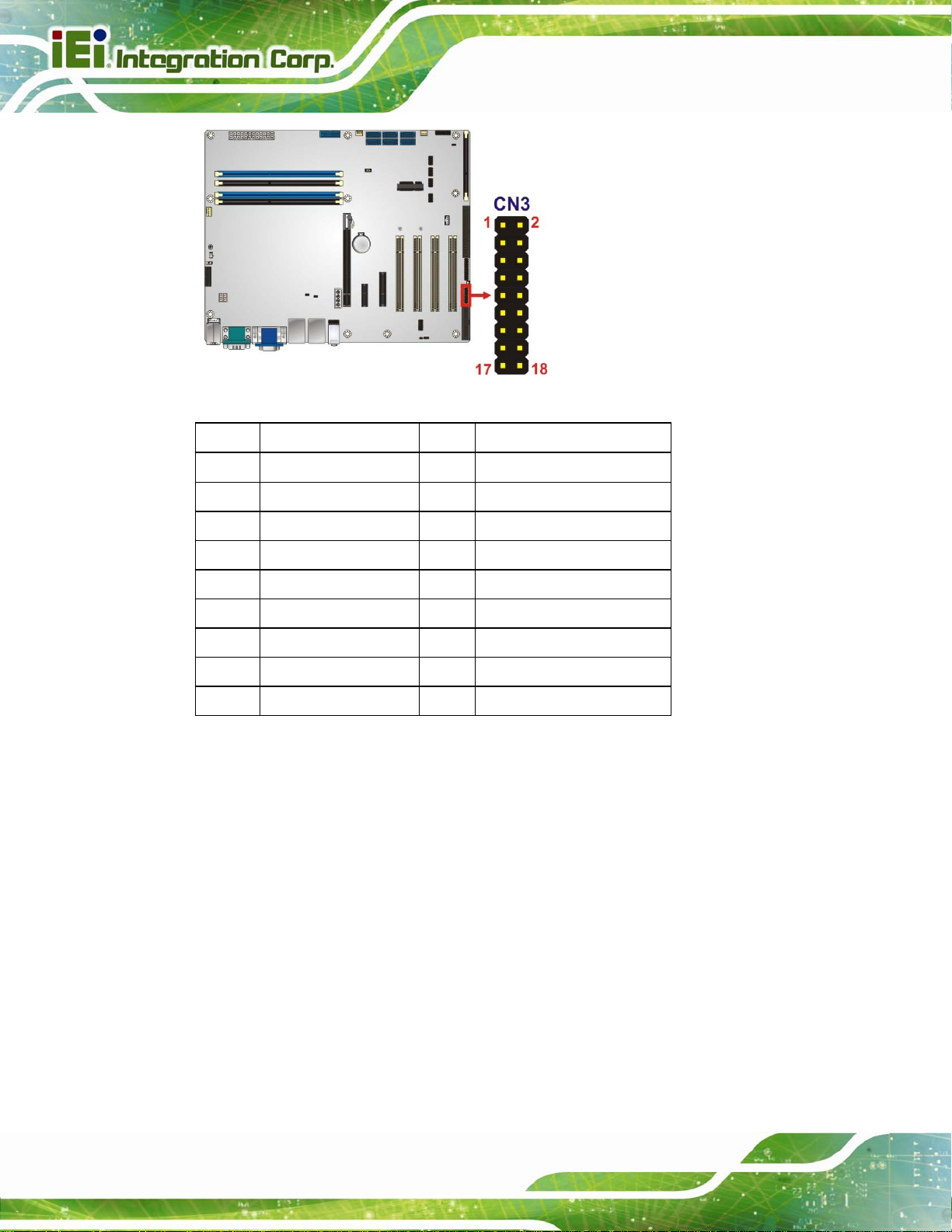

Figure 3-8: Digital I/O Connector Location ................................................................................25
Figure 3-9: EC Debug Connector Location................................................................................26
Figure 3-10: CPU Fan Connector Location................................................................................27
Figure 3-11: System Fan Connector Locations.........................................................................28
Figure 3-12: Front Panel Audio Connector Location................................................................29
Figure 3-13: Front Panel Connector Location ...........................................................................30
Figure 3-15: iRIS Module Slot Location......................................................................................31
Figure 3-16: Keyboard and Mouse Location..............................................................................32
Figure 3-17: LAN LED Connector Locations .............................................................................33
Figure 3-18: Memory Card Slot Locations.................................................................................34
Figure 3-19: mSATA Card Slot Location....................................................................................35
Figure 3-20: Parallel Port Connector Location..........................................................................36

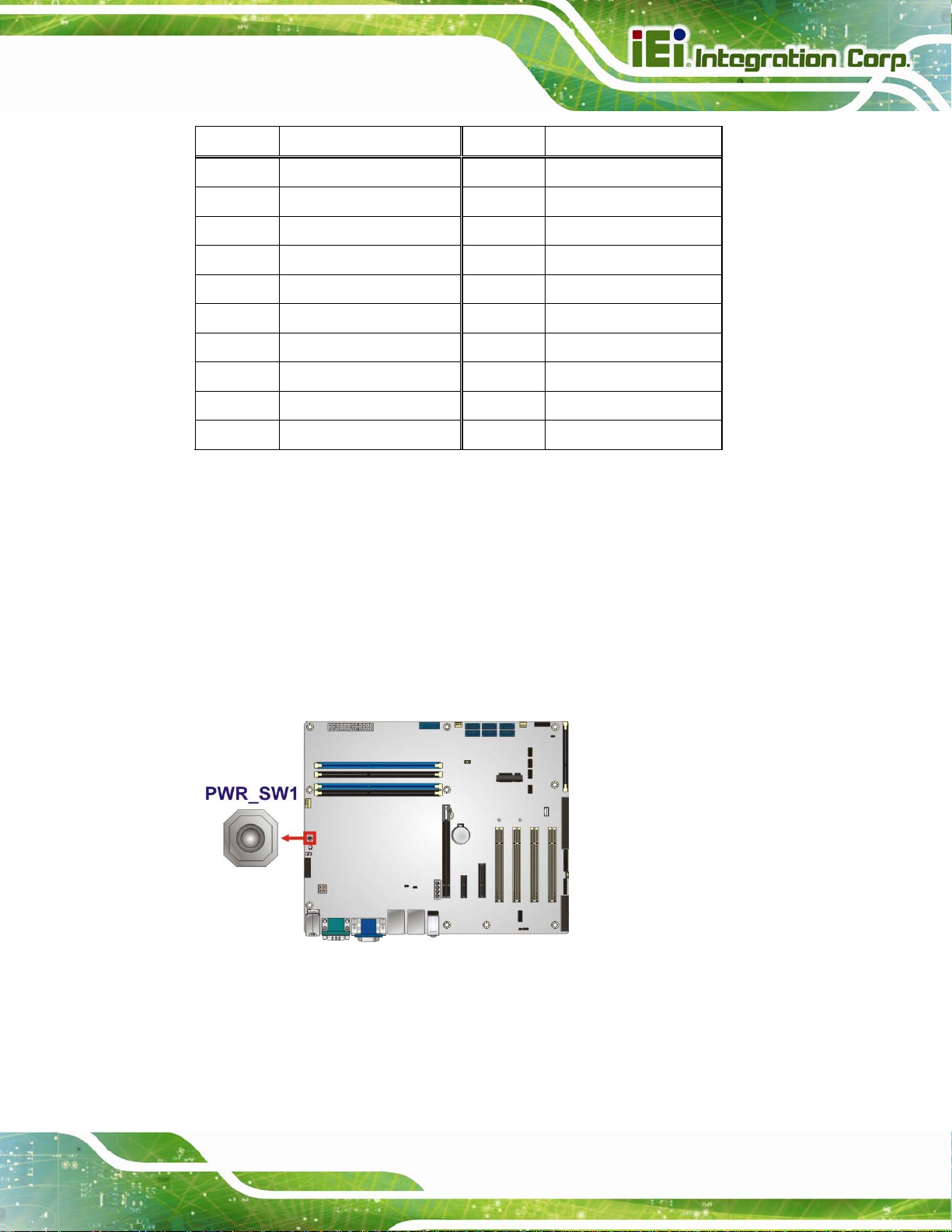

Figure 3-21: Power Button Location...........................................................................................37
Figure 3-22: SATA 6Gb/s Drive Connector Locations..............................................................38
Figure 3-23: Serial Port Connector Location.............................................................................39

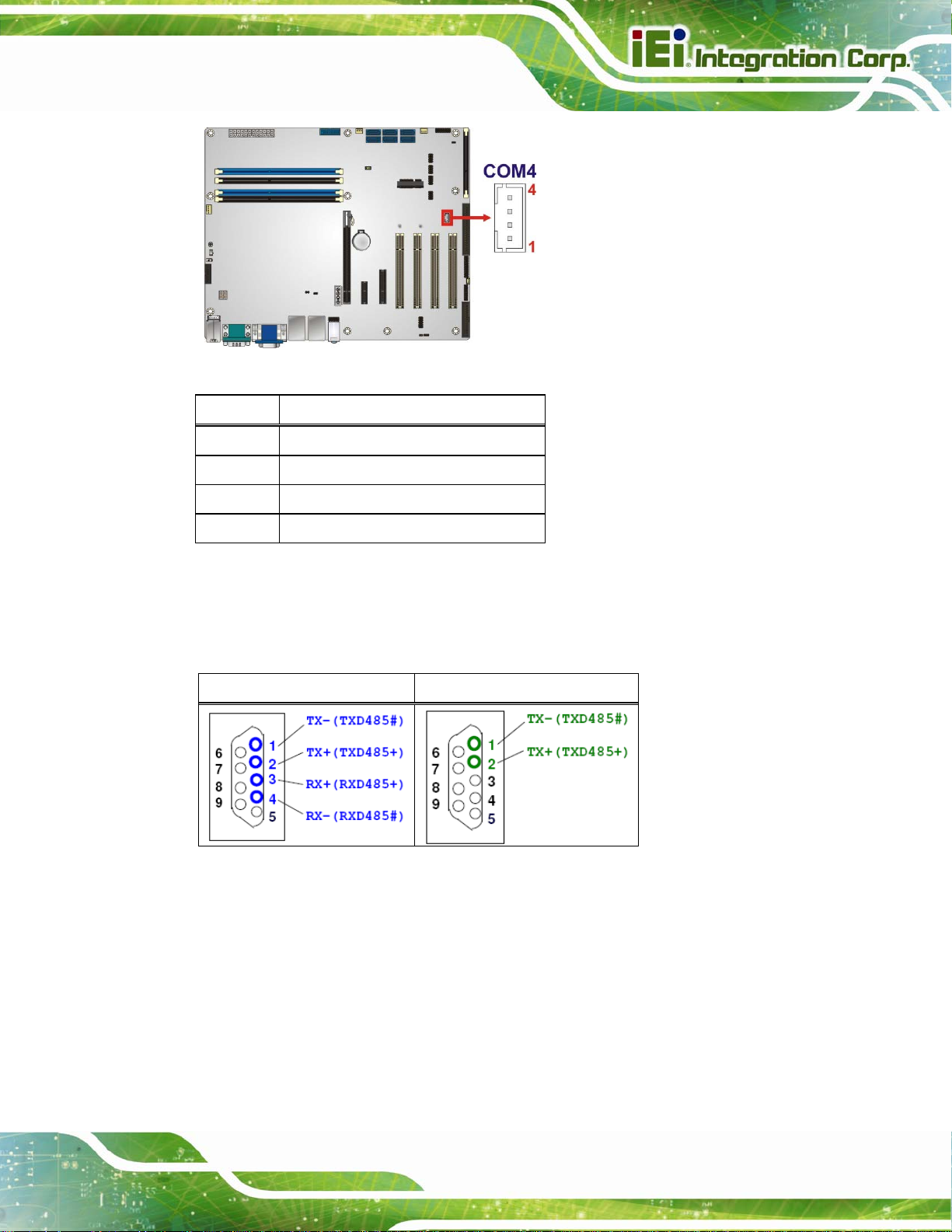

Figure 3-24: RS-422/485 Connector Location............................................................................41
Figure 3-25: SMBus Connector Location...................................................................................42

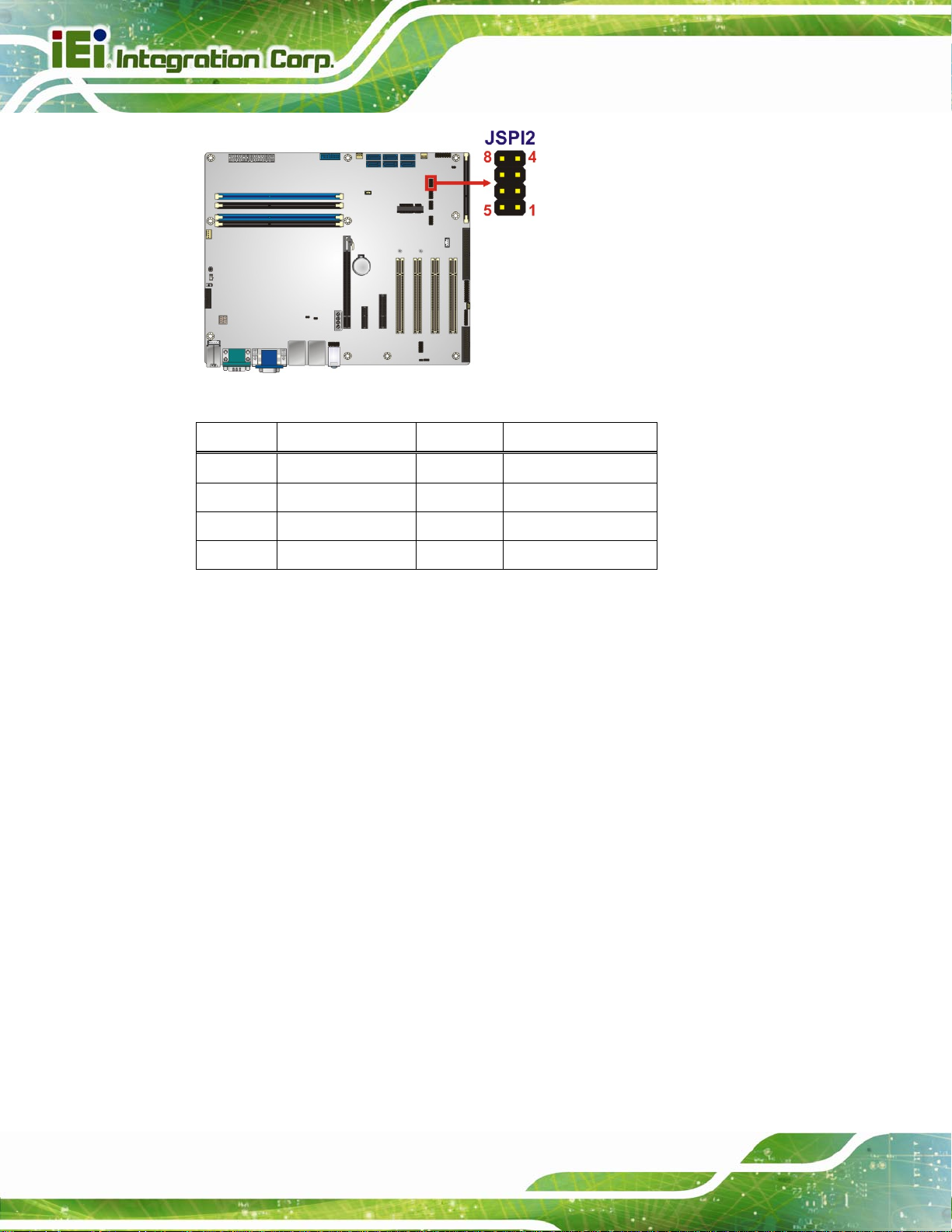

Figure 3-26: SPI Flash Connector Location...............................................................................43
Figure 3-27: SPI EC Flash Connector Location.........................................................................44
Page x
IMBA-Q870-i2 A TX Motherboard
Figure 3-28: TPM Connector Location........................................................................................45
Figure 3-29: USB 2.0 Connector Locations ...............................................................................46
Figure 3-30: USB 3.0 Connector Location .................................................................................47
Figure 3-31: External Peripheral Interface Connector..............................................................48

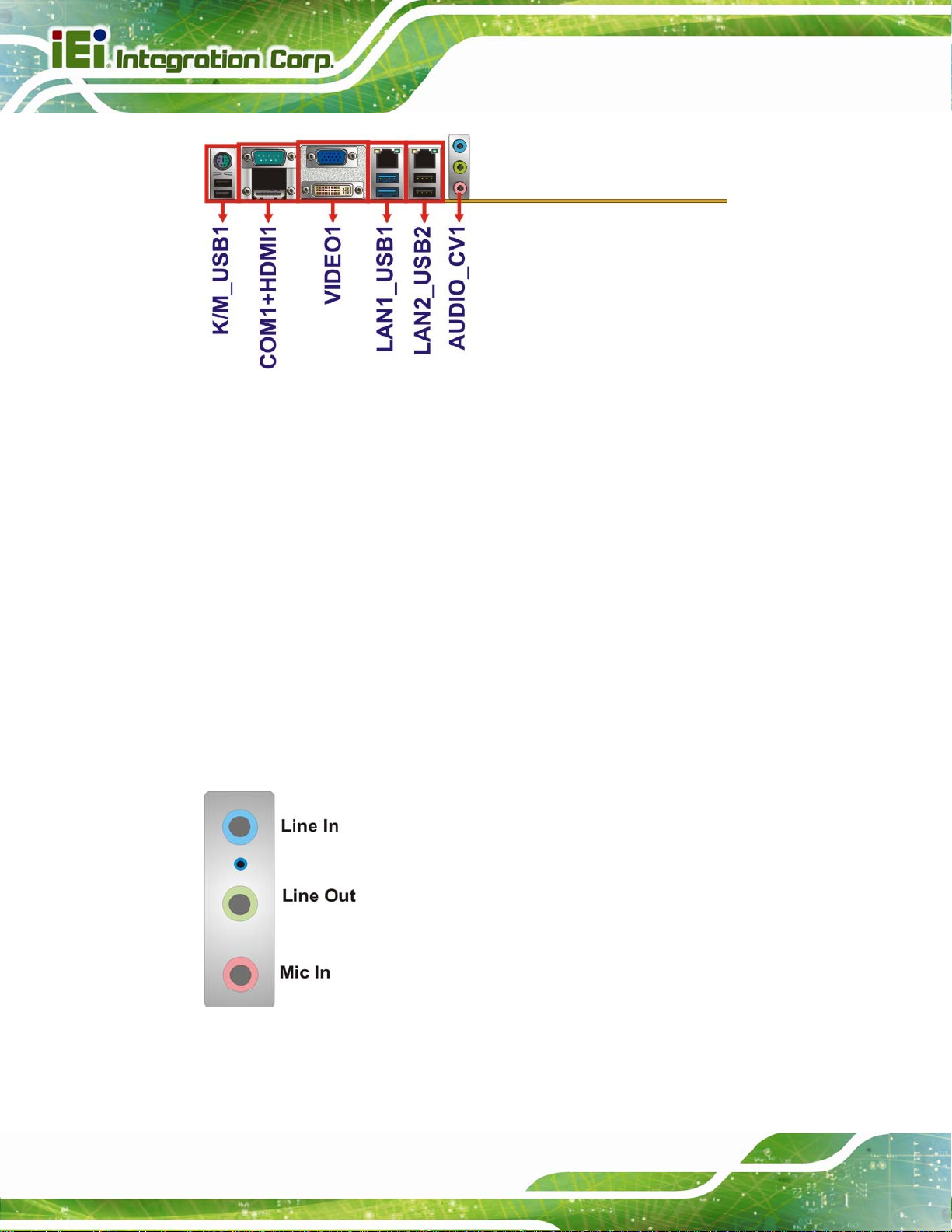

Figure 3-32: Audio Connector.....................................................................................................48
Figure 3-33: Serial Port Connector Pinouts...............................................................................52
Figure 3-34: VGA Connector .......................................................................................................53

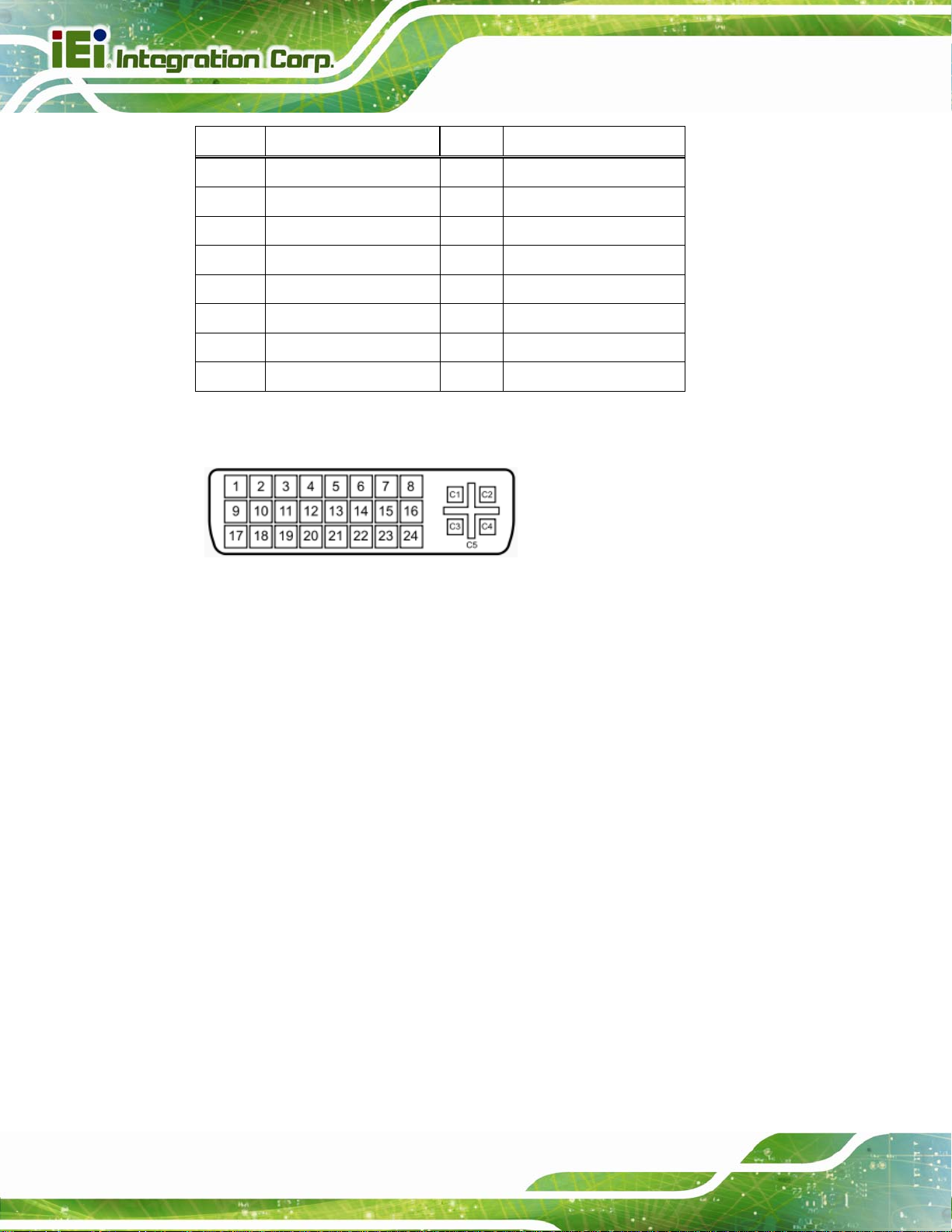

Figure 3-35: DVI-I Connector.......................................................................................................54
Figure 4-1: Disengage the CPU Socket Load Lever..................................................................58
Figure 4-2: Remove Protective Cover.........................................................................................59

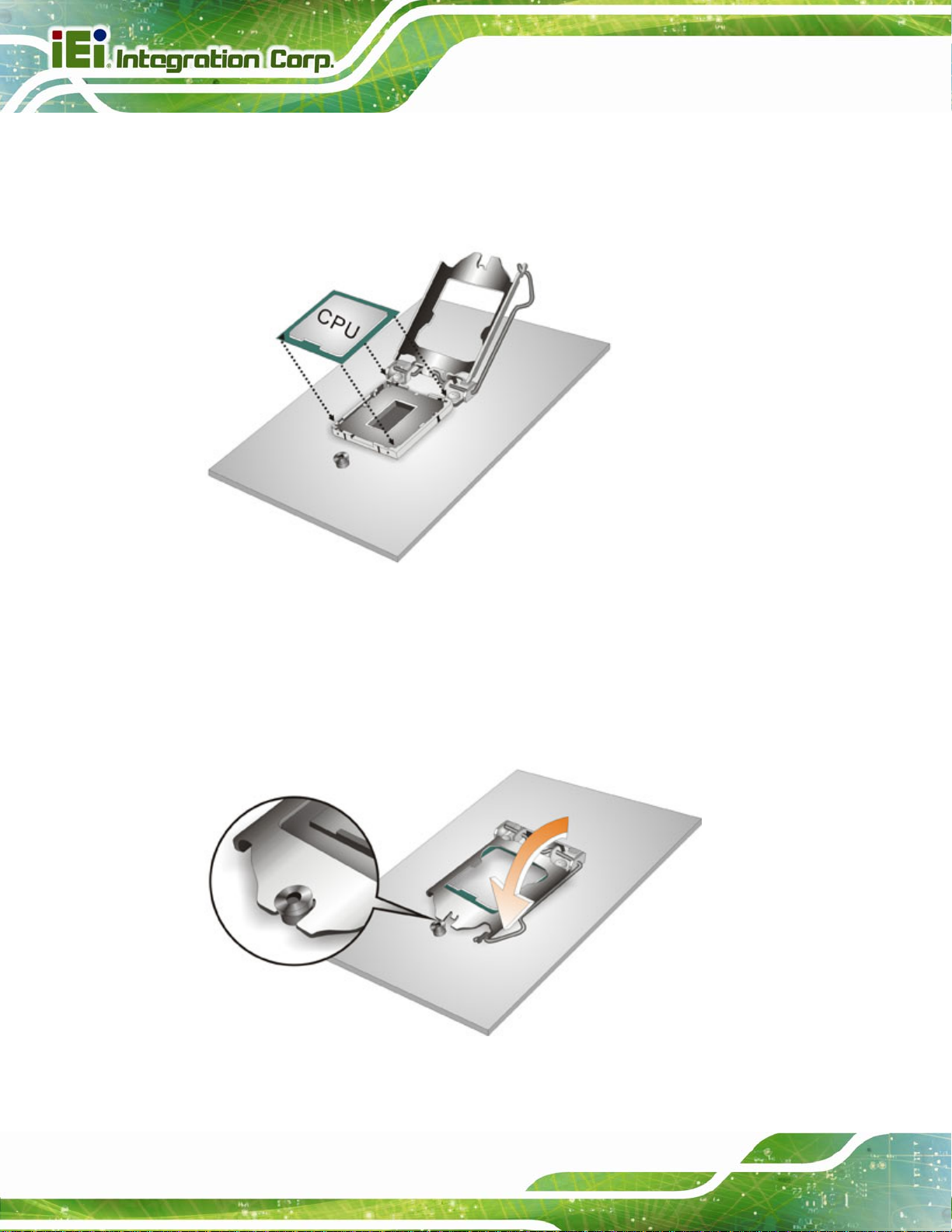

Figure 4-3: Insert the Socket LGA1150 CPU..............................................................................60
Figure 4-4: Close the Socket LGA1150 ......................................................................................60
Figure 4-5: Cooling Kits (CF-1156A-RS and CF-1156E-RS) .....................................................61
Figure 4-6: Cooling Kit Support Bracket....................................................................................62
Figure 4-7: DIMM Installation.......................................................................................................63
Figure 4-8: iRIS-2400 Module Installation ..................................................................................64
Figure 4-9: Remove the Retention Screws for the mSATA Card.............................................65
Figure 4-10: Insert the mSATA Card into the Socket at an Angle...........................................66
Figure 4-11: Secure the mSATA Card.........................................................................................66
Figure 4-12: AT/ATX Power Mode Switch Location..................................................................67
Figure 4-13: Clear CMOS Button Location.................................................................................67

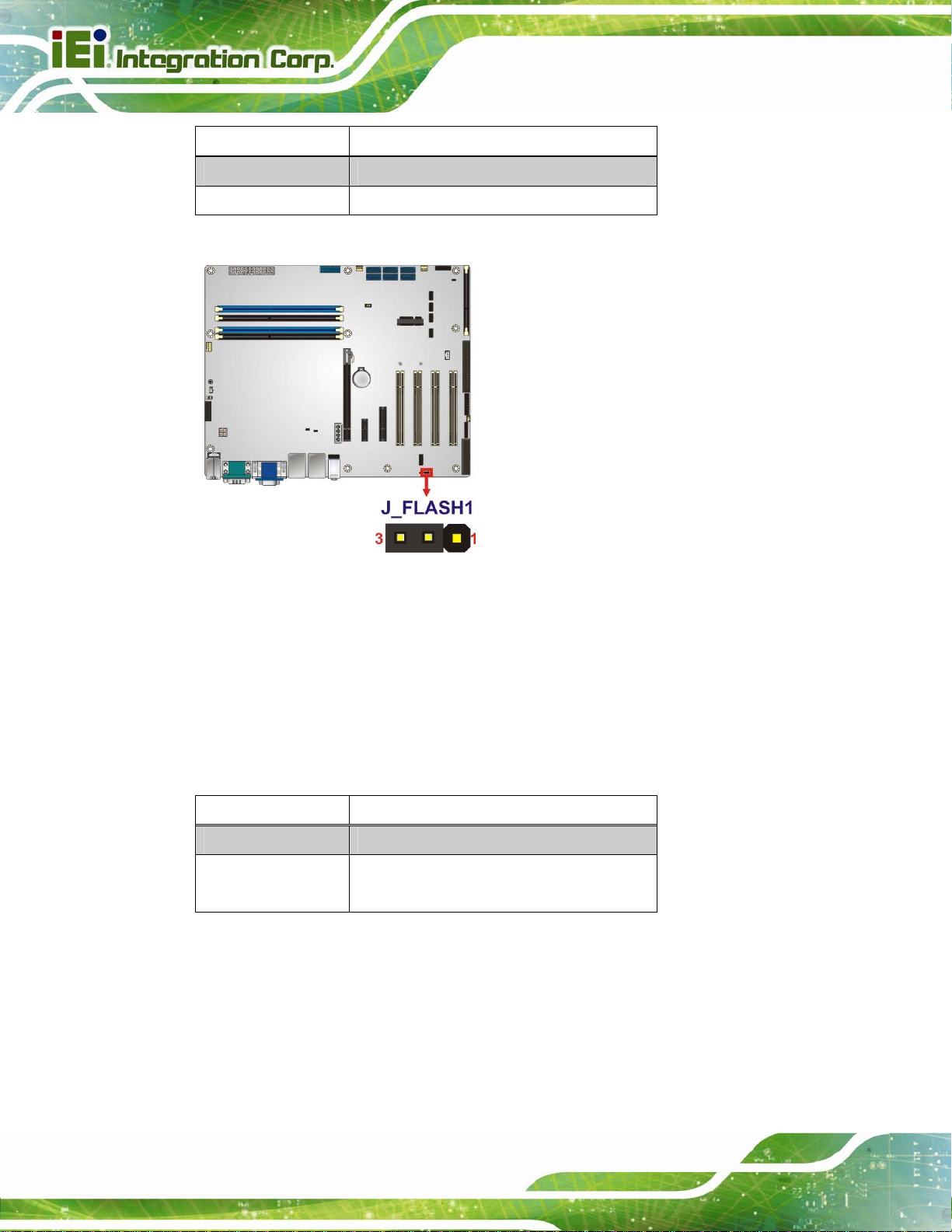

Figure 4-14: Flash Descriptor Security Override Jumper Location ........................................68
Figure 4-15: mSATA Slot Setup Jumper Location....................................................................69
Figure 4-16: SATA Drive Cable Connection...............................................................................71
Figure 4-17: SATA Power Drive Connection..............................................................................72
Figure 4-18: Audio Connector.....................................................................................................73
Figure 4-19: DVI Connector.........................................................................................................74
Figure 4-20: HDMI Connection....................................................................................................75
Figure 4-21: LAN Connection......................................................................................................76
Figure 4-22: PS/2 Keyboard/Mouse Connector.........................................................................77
Figure 4-23: Serial Device Connector.........................................................................................78
Figure 4-24: USB Connector........................................................................................................79
Figure 4-25: VGA Connector .......................................................................................................80
Figure 4-26: IEI iMAN Web Address............................................................................................82
Figure 4-27: IEI iMAN Web GUI....................................................................................................83
Page xi
Figure 6-1: Introduction Screen............................................................................................... 131
Figure 6-2: Available Drivers.................................................................................................... 131
Figure 6-3: Chipset Driver Welcome Screen........................................................................... 132
Figure 6-4: Chipset Driver License Agreement...................................................................... 133
Figure 6-5: Chipset Driver Read Me File ................................................................................. 133
Figure 6-6: Chipset Driver Setup Operations ......................................................................... 134
Figure 6-7: Chipset Driver Installation Finish Screen............................................................ 134
Figure 6-8: Graphics Driver Welcome Screen........................................................................ 135
Figure 6-9: Graphics Driver License Agreement.................................................................... 136
Figure 6-10: Graphics Driver Read Me File............................................................................. 136
Figure 6-11: Graphics Driver Setup Operations..................................................................... 137
Figure 6-12: Graphics Driver Installation Finish Screen ....................................................... 137
Figure 6-13: Windows Control Panel....................................................................................... 138
Figure 6-14: System Control Panel.......................................................................................... 139
IMBA-Q870-i2 A TX Motherboard
Figure 6-15: Device Manager List ............................................................................................ 140
Figure 6-16: Update Driver Software Window ........................................................................ 141
Figure 6-17: Locate Driver Files............................................................................................... 141
Figure 6-18: LAN Driver Installation ........................................................................................ 142
Figure 6-19: USB 3.0 Driver Welcome Screen........................................................................ 143
Figure 6-20: USB 3.0 Driver License Agreement.................................................................... 144
Figure 6-21: USB 3.0 Driver Read Me File............................................................................... 144
Figure 6-22: USB 3.0 Driver Setup Operations....................................................................... 145
Figure 6-23: USB 3.0 Driver Installation Finish Screen ......................................................... 145
Figure 6-24: InstallShield Wizard Welcome Screen............................................................... 147
Figure 6-25: Audio Driver Software Configuration................................................................. 147
Figure 6-26: Restart the Computer .......................................................................................... 148
Figure 6-27: Intel® ME Driver Welcome Screen ..................................................................... 149
Figure 6-28: Intel® ME Driver License Agreement................................................................. 150
Figure 6-29: Intel® ME Driver Setup Operations.................................................................... 150
Figure 6-30: Intel® ME Driver Installation Finish Screen ...................................................... 151
Figure B-1: IEI One Key Recovery Tool Menu........................................................................ 157
Figure B-2: Launching the Recovery Tool.............................................................................. 162
Figure B-3: Recovery Tool Setup Menu .................................................................................. 162
Figure B-4: Command Prompt ................................................................................................. 163
Figure B-5: Partition Creation Commands.............................................................................. 164
Page xii
IMBA-Q870-i2 A TX Motherboard
Figure B-6: Launching the Recovery Tool.............................................................................. 166
Figure B-7: Manual Recovery Environment for Windows..................................................... 166
Figure B-8: Building the Recovery Partition........................................................................... 167
Figure B-9: Press Any Key to Continue.................................................................................. 167
Figure B-10: Press F3 to Boot into Recovery Mode............................................................... 168
Figure B-11: Recovery Tool Menu ........................................................................................... 168
Figure B-12: About Symantec Ghost Window........................................................................ 169
Figure B-13: Symantec Ghost Path ......................................................................................... 169
Figure B-14: Select a Local Source Drive ............................................................................... 170
Figure B-15: Select a Source Partition from Basic Drive ...................................................... 170
Figure B-16: File Name to Copy Image to ............................................................................... 171
Figure B-17: Compress Image.................................................................................................. 171
Figure B-18: Image Creation Confirmation............................................................................. 172
Figure B-19: Image Creation Complete................................................................................... 172
Figure B-20: Image Creation Complete................................................................................... 172
Figure B-21: Press Any Key to Continue................................................................................ 173
Figure B-22: Auto Recovery Utility.......................................................................................... 174
Figure B-23: Disable Automatically Restart............................................................................ 175
Figure B-24: Launching the Recovery Tool............................................................................ 175
Figure B-25: Auto Recovery Environment for Windows ....................................................... 176
Figure B-26: Building the Auto Recovery Partition................................................................ 176
Figure B-27: Factory Default Image Confirmation ................................................................. 177
Figure B-28: Image Creation Complete................................................................................... 177
Figure B-29: Press any key to continue.................................................................................. 177
Figure B-30: Partitions for Linux.............................................................................................. 179
Figure B-31: Manual Recovery Environment for Linux ......................................................... 180
Figure B-32: Access menu.lst in Linux (Text Mode).............................................................. 180
Figure B-33: Recovery Tool Menu ........................................................................................... 181
Figure B-34: Recovery Tool Main Menu.................................................................................. 182
Figure B-35: Restore Factory Default...................................................................................... 183
Figure B-36: Recovery Complete Window.............................................................................. 183
Figure B-37: Backup System.................................................................................................... 184
Figure B-38: System Backup Complete Window ................................................................... 184
Figure B-39: Restore Backup................................................................................................... 185
Figure B-40: Restore System Backup Complete Window..................................................... 185
Page xiii
Figure B-41: Symantec Ghost Window ................................................................................... 186
Figure B-42: Disable Automatically Restart............................................................................ 193
IMBA-Q870-i2 A TX Motherboard
Page xiv
IMBA-Q870-i2 A TX Motherboard
List of Tables
Table 1-1: IMBA-Q870-i2 Specifications.......................................................................................8
Table 2-1: Packing List.................................................................................................................12
Table 2-2: Optional Items.............................................................................................................14
Table 3-1: Peripheral Interface Connectors...............................................................................18
Table 3-2: Rear Panel Connectors..............................................................................................18
Table 3-3: Additional Power Connector Pinouts.......................................................................19
Table 3-4: ATX Power Connector Pinouts .................................................................................20
Table 3-5: Battery Connector Pinouts........................................................................................22
Table 3-6: Chassis Intrusion Connector Pinouts......................................................................22
Table 3-7: CPU Power Connector Pinouts.................................................................................23
Table 3-8: DisplayPort Connector Pinouts ................................................................................24
Table 3-9: Digital I/O Connector Pinouts....................................................................................25
Table 3-10: EC Debug Connector Pinouts .................................................................................26
Table 3-11: CPU Fan Connector Pinouts ...................................................................................27
Table 3-12: System Fan Connector Pinouts..............................................................................28
Table 3-13: Front Panel Audio Connector Pinouts ...................................................................29
Table 3-14: Front Panel Connector Pinouts...............................................................................30
Table 3-16: Keyboard and Mouse Connector Pinouts..............................................................32
Table 3-17: LAN1 LED Connector (LED_LAN1) Pinouts...........................................................33
Table 3-18: LAN2 LED Connector (LED_LAN2) Pinouts...........................................................33
Table 3-19: mSATA Card Slot Pinouts........................................................................................36
Table 3-20: Parallel Port Connector Pinouts .............................................................................37
Table 3-21: SATA 6Gb/s Drive Connector Pinouts....................................................................38
Table 3-22: COM3~6 Serial Port Connector Pinouts.................................................................40
Table 3-23: RS-422/485 Connector Pinouts...............................................................................41
Table 3-24: DB-9 RS-422/485 Pinouts.........................................................................................41
Table 3-25: SMBus Connector Pinouts ......................................................................................42
Table 3-26: SPI Flash Connector Pinouts ..................................................................................43
Table 3-27: SPI EC Flash Connector Pinouts ............................................................................44
Table 3-28: TPM Connector Pinouts...........................................................................................45
Page xv
Table 3-29: USB 2.0 Connector Pinouts.....................................................................................46
Table 3-30: USB 3.0 Connector Pinouts.....................................................................................47
Table 3-31: USB 2.0 Port Pinouts................................................................................................49
Table 3-32: PS/2 Connector Pinouts...........................................................................................49
Table 3-33: USB 2.0 Port Pinouts................................................................................................50
Table 3-34: LAN2 Pinouts ............................................................................................................50
Table 3-35: USB 3.0 Port Pinouts................................................................................................51
Table 3-36: LAN1 Pinouts ............................................................................................................51
Table 3-37: HDMI Connector Pinouts .........................................................................................52
Table 3-38: Serial Port Connector Pinouts ................................................................................52
Table 3-39: VGA Connector Pinouts...........................................................................................53
Table 3-40: DVI Connector Pinouts.............................................................................................54
Table 4-1: Flash Descriptor Security Override Jumper Settings.............................................68
Table 4-2: mSATA Slot Setup Jumper Settings.........................................................................68
IMBA-Q870-i2 A TX Motherboard
Table 4-3: PCIe x16 Interface Setup............................................................................................69
Table 4-4: BIOS Options and Configured USB Ports................................................................70
Table 5-1: BIOS Navigation Keys................................................................................................86
Table 5-2: BIOS Options and Configured USB Ports............................................................. 117
Table 6-1: Digital I/O Connector Pinouts................................................................................. 204
Page xvi
IMBA-Q870-i2 A TX Motherboard
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................88
BIOS Menu 2: Advanced..............................................................................................................89
BIOS Menu 3: ACPI Configuration..............................................................................................90
BIOS Menu 4: RTC Wake Settings..............................................................................................91
BIOS Menu 5: Trusted Computing..............................................................................................92
BIOS Menu 6: CPU Information...................................................................................................93
BIOS Menu 7: SATA Configuration.............................................................................................96
BIOS Menu 8: Intel(R) Rapid Start Technology .........................................................................97
BIOS Menu 9: AMT Configuration...............................................................................................98
BIOS Menu 10: USB Configuration.............................................................................................99
BIOS Menu 11: F81866 Super IO Configuration ..................................................................... 100
BIOS Menu 12: Serial Port n Configuration Menu.................................................................. 101
BIOS Menu 13: Parallel Port Configuration Menu.................................................................. 107
BIOS Menu 14: iWDD H/W Monitor .......................................................................................... 109
BIOS Menu 15: Smart Fan Mode Configuration ..................................................................... 110
BIOS Menu 16: Serial Port Console Redirection.................................................................... 112
BIOS Menu 17: iEi Feature........................................................................................................ 114
BIOS Menu 18: Chipset............................................................................................................. 115
BIOS Menu 19: PCH-IO Configuration..................................................................................... 116
BIOS Menu 20: PCI Express Configuration ............................................................................ 118
BIOS Menu 21: PCH Azalia Configuration .............................................................................. 119
BIOS Menu 22: System Agent (SA) Configuration................................................................. 120
BIOS Menu 23: Graphics Configuration.................................................................................. 120
BIOS Menu 24: LCD Control..................................................................................................... 122
BIOS Menu 25: NB PCIe Configuration ................................................................................... 123
BIOS Menu 26: Memory Configuration.................................................................................... 124
BIOS Menu 27: Boot.................................................................................................................. 125
BIOS Menu 28: Security............................................................................................................ 127
BIOS Menu 29:Exit..................................................................................................................... 128
BIOS Menu 30: IEI Feature........................................................................................................ 178
Page xvii
IMBA-Q870-i2 A TX Motherboard
Chapter
1

1 Introduction

Page 1

1.1 Introduction

IMBA-Q870-i2 A TX Motherboard
Figure 1-1: IMBA-Q870-i2
The IMBA-Q870-i2 is an ATX motherboard. It accepts a Socket LGA1150 Intel® Core™ i7, Core™ i5, Core™ i3, Pentium® or Celeron® processor and supports four 240-pin 1333/1066 MHz dual-channel DDR3 DIMM modules up to 32.0 GB maximum. The IMBA-Q870-i2 includes VGA, HDMI, and DVI-D display ports for triple independent display. Expansion and I/O include four PCI slots, one PCIe x16 slot, one PCIe x4 slot with x1 signal, one PCIe x1 slot, two USB 3.0 ports on the rear panel, two USB 3.0 ports by pin header, four USB 2.0 on the rear panel, four USB 2.0 by pin header, six SATA 6Gb/s connectors, six COM ports, and two keyboard/mouse connectors.

1.2 Benefits

Some of the IMBA-Q870-i2 motherboard benefits include:
Powerful graphics with multiple monitors  Staying connected with both wired LAN connections  Speedy running of multiple programs and applications
Page 2
IMBA-Q870-i2 A TX Motherboard

1.3 Features

Some of the IMBA-Q870-i2 motherboard features are listed below:
ATX form factor  RoHS compliant  LGA1150 Intel® Core™ i7, Core™ i5, Core™ i3, Pentium® or Celeron®
processor supported
Intel® Q87 Chipset  Four 240-pin 1333/1066 MHz dual-channel DDR3 DIMMs with up to 32.0 GB
memory
HDMI, DisplayPort, DVI-D and VGA interfaces support triple independent
display
Supports IPMI 2.0 via IEI iRIS-2400 module  Two Intel® PCIe GbE connectors, LAN1 with Intel® AMT 9.0 support  Six SATA 6Gb/s connectors support RAID 0, 1, 5, 10  One PCIe Mini slot for mSATA modules or USB devices  Four PCI card expansion slots  One PCIe x16 card expansion slot  One PCIe x4 card expansion slot with x1 signal  One PCIe x1 card expansion slot  Multiple USB 3.0 and USB 2.0 ports  High Definition Audio
Page 3

1.4 Connectors

The connectors on the IMBA-Q870-i2 are shown in the figure below.
IMBA-Q870-i2 A TX Motherboard
Figure 1-2: IMBA-Q870-i2 Connectors
Page 4
IMBA-Q870-i2 A TX Motherboard

1.5 Dimensions

The main dimensions of the IMBA-Q870-i2 are shown in the diagram below.
Figure 1-3: IMBA-Q870-i2 Dimensions (mm)
Page 5

1.6 Data Flow

8Figure 1-4 shows the data flow between the system chipset, the CPU and other
components installed on the motherboard.
IMBA-Q870-i2 A TX Motherboard
Page 6
Figure 1-4: Data Flow Diagram
IMBA-Q870-i2 A TX Motherboard

1.7 Technical Specifications

IMBA-Q870-i2 technical specifications are listed below.
Specification/Model IMBA-Q870-i2 Form Factor CPU Supported
Chipset Integrated Graphics
Memory
Audio BIOS Digital I/O Ethernet Controllers
Super I/O Controller
ATX LGA1150 Intel® Core™ i7, Core™ i5, Core™ i3, Pentium® or Celeron®
processor supported Intel® Q87 Intel® HD Graphics Gen 7.5 supports DirectX 11.1, OpenCL 1.2, OpenGL
3.2, Full MPEG2, VC1, AVC Decode Four 240-pin 1333/1066 MHz dual-channel DDR3 SDRAM DIMMs support
up to 32.0 GB maximum Realtek ALC662 HD Audio codec (line-in, line-out, mic-in) UEFI BIOS 8-bit, 4-bit input/4-bit output
LAN1: Intel® I217LM PHY with Intel® AMT 9.0 support LAN2: Intel® I210-AT PCIe Ethernet controller with NCSI & IPMI 2.0 support
Fintek F81866
Watchdog Timer Expansion PCI PCIe
I/O Interface Connectors Audio Connectors
Software programmable supports 1~2 55 sec. system reset
Four PCI slots One PCIe x1 slot
One PCIe x16 slot One PCIe x4 slot (with x1 signal) One PCIe Mini slot for mSATA card or USB devices only
One external audio jack (line-in, line-out, mic-in) One internal front panel audio connector (2x5 pin header)
Page 7
Specification/Model IMBA-Q870-i2
IMBA-Q870-i2 A TX Motherboard
Display Ports
Ethernet Keyboard/Mouse
TPM Serial Ports
USB ports
One HDMI integrated in the Intel® Q87 (up to 2560x1600, 60Hz) One DVI-D integrated in the Intel® Q87 (up to 2560x1600, 60Hz) One VGA integrated in the Intel® Q87 (up to 1920x1200, 60Hz) One internal DisplayPort integrated in the Intel® Q87 supports HDMI, LVDS,
VGA, DVI, DisplayPort (up to 3840x2160, 60Hz) Two RJ-45 GbE port s One internal keyboard and mouse connector
One PS/2 keyboard and mouse connector One TPM connector via 20-pin header One external RS-232 serial port
One RS-422/485 via internal wafer connector Four RS-232 via internal box headers
Two external USB 3.0 ports on rear IO Two internal USB 3.0 ports by pin headers Four external USB 2.0 ports on rear IO Four internal USB 2.0 ports by pin headers
Serial ATA LAN LED Environmental and Power Specifications Power Supply Power Consumption
Operating Temperature Humidity Physical Specifications Dimensions Weight GW/NW Table 1-1: IMBA-Q870-i2 Specifications
Six SATA 6Gb/s connectors support RAID 0, 1, 5, 10 Two 2-pin LAN active LED connectors
ATX power supported
3.3V@0.66A, 5V@4.34A , 12V@0.16A, Vcore_12V@4.01A, 5VSB@0.21A (3.90GHz Intel® i7-4770K CPU with four 4GB 1333MHz DDR3 DIMMs)
-20ºC ~ 60ºC/-4°F ~ 140°F 5% ~ 95% (non-condensing)
244 mm x 305 mm 1200 g / 700 g
Page 8
IMBA-Q870-i2 A TX Motherboard
Chapter
2

2 Packing List

Page 9

2.1 Anti-static Precautions

WARNING!
Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minutes to discharge
any excess static buildup.
IMBA-Q870-i2 A TX Motherboard
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.

2.2 Unpacking Precautions

When the IMBA-Q870-i2 is unpacked, please do the following:
Follow the antistatic guidelines above.  Make sure the packing box is facing upwards whe n opening.  Make sure all the packing list items are present.
Page 10
IMBA-Q870-i2 A TX Motherboard

2.3 Packing List

NOTE:
If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the IMBA-Q870-i2 was purchased from or contact an IEI sales representative directly by sending an email to 33sales@ieiworld.com.tw.
The IMBA-Q870-i2 is shipped with the following components:
Quantity Item and Part Number Image
1 IMBA-Q870-i2 single board computer
2 SATA cable
(P/N: 32000-062800-RS)
1 I/O shielding
(P/N: 45014-0046C0-00-RS)
1 Mini jumper pack (2.54mm)
(P/N: 33101-000656-RS)
1 Utility CD
Page 11
Quantity Item and Part Number Image
1 Quick Installation Guide
Table 2-1: Packing List

2.4 Optional Items

The following are optional components which may be separately purchased:
Item and Part Number Image
IPMI 2.0 adapter card with AST2400 BMC chip (P/N: iRIS-2400-R10)
IMBA-Q870-i2 A TX Motherboard
Dual-port USB cable with bracket (P/N: 19800-003100-200-RS)
Dual-port USB 3.0 cable with bracket (P/N: 19800-010500-100-RS)
SAT A Power Cable (P/N: 32102-000100-200-RS)
RS-422/485 cable, 200mm (P/N: 32205-003800-100-RS)
Quad port RS-232 cable with bracket (400/400/400/400MM) (P/N: 32205-001203-100-RS)
Page 12
KB/MS cable (P/N: 19800-000075-RS)
IMBA-Q870-i2 A TX Motherboard
Item and Part Number Image
Parallel port cable (P/N:19800-000049-RS)
LGA1155/LGA1156 cooler kit (1U chassis compatible, 73W)
(P/N: CF-1 156A-RS-R11)
LGA1155/LGA1156 cooler kit (95W) (P/N: CF-1156E-R11)
DisplayPort to HDMI converter board for IEI IDP connector (P/N: DP-HDMI-R10)
DisplayPort to 24-bit dual-channel LVDS converter board for iEi IDP connector
(P/N: DP-LVDS-R10)
DisplayPort to VGA converter board for iEi IDP connector (P/N: DP-VGA-R10)
DisplayPort to DVI-D converter board for iEi IDP connector (P/N: DP-DVI-R10)
DisplayPort to DisplayPort converter board for iEi IDP connector
(P/N: DP-DP-R10)
Page 13
Item and Part Number Image
IMBA-Q870-i2 A TX Motherboard
20-pin Infineon TPM Module, S/W management tool, firmware V3.17
(P/N: TPM-IN01-R1 1)
Table 2-2: Optional Items
Page 14
IMBA-Q870-i2 A TX Motherboard
Chapter
3

3 Connectors

Page 15

3.1 Peripheral Interface Connectors

This chapter details all the jumpers and connectors.

3.1.1 IMBA-Q870-i2 Layout

The figures below show all the connectors and jumpers.
IMBA-Q870-i2 A TX Motherboard
Figure 3-1: Connectors and Jumpers
Page 16
IMBA-Q870-i2 A TX Motherboard

3.1.2 Peripheral Interface Connectors

The table below lists all the connectors on the board.
Connector Type Label
Additional power connector 4-pin connector ATXPWR1 ATX power connector 24-pin connector ATX1 Battery connector Battery holder BAT1 Chassis intrusion connector 2-pin header CHASSIS1 CPU power connector 4-pin connector CPU12V1 Digital I/O connector 10-pin header DIO1 DisplayPort connector 19-pin box header DP1 EC debug connector 18-pin header CN3 Fan connector (CPU) 4-pin wafer CPU_FAN1 Fan connectors (system) 3-pin wafer SYS_FAN1, SYS_FAN2 Front panel audio connector 10-pin header FRONT-PANEL1 Front panel connector 14-pin header F_PANEL1 iRIS module connector 204-pin SO-DIMM slot IPMI1 Keyboard and mouse connector 6-pin wafer KB_MS1 LAN1 LED connector 2-pin header LED_LAN1 LAN2 LED connector 2-pin header LED_LAN2 Memory card slot DIMM slot CHA_DIMM1, CHA_DIMM2,
CHB_DIMM1, CHB_DIMM2 mSATA card slot PCIe Mini socket CN2 Parallel port connector 26-pin box header LPT1 PCI slot PCI slot PCI1, PCI2, PCI3, PCI4 PCIe x1 slot PCIe x1 slot PCIEX1_1 PCIe x16 slot PCIe x16 slot PCIEX16_1 PCIe x4 slot with PCIe x1 signal PCIe x4 slot PCIEX4_1
Page 17
Connector Type Label
Power button Push button PWR_SW1 SAT A 6Gb/s drive connectors 7-pin SATA connector S_ATA1, S_ATA2, S_ATA3,
Serial port, RS-232 40-pin box header COM2-6 Serial port, RS-422/485 4-pin wafer COM4 SMBus connector 4-pin wafer CN1 SPI flash connector 8-pin header JSPI1 SPI flash connector, EC 8-pin header JSPI2 TPM connector 20-pin header TPM1 USB 2.0 connectors 8-pin headers USB1, USB2 USB 3.0 connector 19-pin box header CN4
IMBA-Q870-i2 A TX Motherboard
S_ATA 4, S_ATA5, S_ATA 6
Table 3-1: Peripheral Interface Connectors

3.1.3 External Interface Panel Connectors

The table below lists the connectors on the external I/O panel.
Connector Type Label
Audio connector Audio jacks AUDIO_CV1 Keyboard/Mouse and USB 2.0 ports PS/2, USB 2.0 K/M_USB1 Ethernet and USB 2.0 ports RJ-45, USB 2.0 LAN2_USB2 Ethernet and USB 3.0 ports RJ-45, USB 3.0 LAN1_USB1 HDMI connector HDMI port HDMI1 Serial Port connector (COM1) 9-pin male DB-9 COM1 VGA and DVI connector 15-pin female,
24-pin female
VIDEO1
Page 18
Table 3-2: Rear Panel Connectors
IMBA-Q870-i2 A TX Motherboard

3.2 Internal Peripheral Connectors

The section describes all of the connectors on the IMBA-Q870-i2.

3.2.1 Additional Power Connector

CN Label: ATXPWR1 CN Type: CN Location: CN Pinouts:
The additional power connector provides extra +12V and +5V power to the system.
Figure 3-2: Additional Power Connector Location
4-pin connector
Figure 3-2
See
Table 3-3
See
Pin Description
1 +12V 2 GND 3 GND 4 +5V
Table 3-3: Additional Power Connector Pinouts

3.2.2 ATX Power Connector

CN Label: ATX1 CN Type: CN Location:
24-pin A TX See
Figure 3-3
Page 19
See
CN Pinouts:
Table 3-4
IMBA-Q870-i2 A TX Motherboard
The ATX power connector connects to an ATX power supply.
Figure 3-3: ATX Power Connector Location
Pin Description Pin Description
1 +3.3V 13 +3.3V 2 +3.3V 14 -12V 3 GND 15 GND 4 +5V 16 PS_ON 5 GND 17 GND 6 +5V 18 GND 7 GND 19 GND 8 Power good 20 -5V 9 5VSB 21 +5V 10 +12V 22 +5V 11 +12V 23 +5V 12 +3.3V 24 GND
Table 3-4: ATX Power Connector Pinouts
Page 20
IMBA-Q870-i2 A TX Motherboard

3.2.3 Battery Connector

CAUTION:
Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery.
Dispose of used batteries according to instructions and local regulations.
CN Label: BAT1 CN Type: CN Location: CN Pinouts:
A system battery is placed in the battery holder. The battery provides power to the system clock to retain the time when power is turned off.
Battery holder
Figure 3-4
See
Table 3-5
See
Figure 3-4: Battery Connector Location
Pin Description
1 NC
Page 21
Pin Description
2 BAT+ 3 BAT-(GND)
Table 3-5: Battery Connector Pinouts

3.2.4 Chassis Intrusion Connector

CN Label: CHASSIS1
IMBA-Q870-i2 A TX Motherboard
CN Type: CN Location: CN Pinouts:
2-pin header
8Figure 3-5
See
8Table 3-6
See
The chassis intrusion connector is for a chassis intrusion detection sensor or switch that detects if a chassis component is removed or replaced.
Page 22
Figure 3-5: Chassis Intrusion Connector Location
Pin Description
1 +3.3VSB 2 CHASSIS OPEN
Table 3-6: Chassis Intrusion Connector Pinouts
IMBA-Q870-i2 A TX Motherboard

3.2.5 CPU Power Connector

CN Label: CPU12V1 CN Type: CN Location: CN Pinouts:
The CPU power input connector provides power to the CPU.
Figure 3-6: CPU Power Connector Location
4-pin connector See Figure 3-6 See Table 3-7
PIN NO. DESCRIPTION
1 GND 2 GND 3 +12V 4 +12V
Table 3-7: CPU Power Connector Pinouts

3.2.6 DisplayPort Connector

CN Label: DP1 CN Type: CN Location: CN Pinouts:
The DisplayPort connector supports HDMI, LVDS, VGA, DVI and DisplayPort graphics interfaces with up to 3840x2160 resolutions.
19-pin box header See Figure 3-7 See Table 3-8
Page 23
IMBA-Q870-i2 A TX Motherboard
Figure 3-7: DisplayPort Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +5V 11 AUXP 2 LANE1N 12 AUXN 3 LANE1P 13 GND 4 GND 14 LANE2P 5 LANE3N 15 LANE2N 6 LANE3P 16 GND 7 GND 17 LANE0P 8 AUX_CTRL_DET_D 18 LANE0N 9 GND 19 +3.3V 10 HPD
Table 3-8: DisplayPort Connector Pinouts

3.2.7 Digital I/O Connector

CN Label: DIO1 CN Type: CN Location: CN Pinouts:
The digital I/O connector provides programmable input and output for external devices.
10-pin header See Figure 3-8 See Table 3-9
Page 24
The digital I/O provides 4-bit output and 4-bit input.
IMBA-Q870-i2 A TX Motherboard
Figure 3-8: Digital I/O Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 VCC 3 Output 3 4 Output 2 5 Output 1 6 Output 0 7 Input 3 8 Input 2 9 Input 1 10 Input 0
Table 3-9: Digital I/O Connector Pinouts

3.2.8 EC Debug Connector

CN Label: CN3 CN Type: CN Location: CN Pinouts:
The EC debug connector is used for EC debug.
18-pin header
Figure 3-9
See
Table 3-10
See
Page 25
IMBA-Q870-i2 A TX Motherboard
Figure 3-9: EC Debug Connector Location
Pin Description Pin Description
1 EC_EPP_STB# 2 EC_EPP_AFD# 3 EC_EPP_PD0 4 NC 5 EC_EPP_PD1 6 EC_EPP_INIT# 7 EC_EPP_PD2 8 EC_EPP_SLIN# 9 EC_EPP_PD3 10 GND 11 EC_EPP_PD4 12 NC 13 EC_EPP_PD5 14 EC_EPP_BUSY 15 EC_EPP_PD6 16 EC_EPP_KSI5 17 EC_EPP_PD7 18 EC_EPP_KSI4
Table 3-10: EC Debug Connector Pinouts

3.2.9 Fan Connector (CPU)

CN Label: CPU_FAN1 CN Type: CN Location: CN Pinouts:
The fan connector attaches to a CPU cooling fan.
4-pin wafer See Figure 3-10 See Table 3-11
Page 26
IMBA-Q870-i2 A TX Motherboard
Figure 3-10: CPU Fan Connector Location
PIN NO. DESCRIPTION
1 GND 2 +12 V 3 FANIO 4 PWM
Table 3-11: CPU Fan Connector Pinouts

3.2.10 Fan Connectors (System)

CN Label: SYS_FAN1, SYS_FAN2 CN Type: CN Location: CN Pinouts:
Each fan connector attaches to a system cooling fan.
3-pin wafer See Figure 3-11 See Table 3-12
Page 27
Figure 3-11: System Fan Connector Locations
IMBA-Q870-i2 A TX Motherboard
PIN NO. DESCRIPTION
1 FANIO 2 +12 V (PWM) 3 GND
Table 3-12: System Fan Connector Pinouts

3.2.11 Front Panel Audio Connector

CN Label: FRONT-PANEL1 CN Type: CN Location: CN Pinouts:
This connector connects to speakers, a microphone and an audio input.
10-pin header
Figure 3-12
See
Table 3-13
See
Page 28
IMBA-Q870-i2 A TX Motherboard
Figure 3-12: Front Panel Audio Connector Location
Pin Description Pin Description
1 MIC2-L 2 GND 3 MIC2-R 4 Presence# 5 LINE2-R 6 MIC2-JD 7 FRONT-IO 8 NC 9 LINE2-L 10 LINE2-JD
Table 3-13: Front Panel Audio Connector Pinouts

3.2.12 Front Panel Connector

CN Label: F_PANEL1 CN Type: CN Location: CN Pinouts:
The front panel connector connects to the indicator LEDs and buttons on the computer's front panel.
14-pin header See Figure 3-13 See Table 3-14
Page 29
IMBA-Q870-i2 A TX Motherboard
Figure 3-13: Front Panel Connector Location
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power LED 1 +5V Speaker 2 Beep Power 3 NC IPMI LED 4 IPMI ID_LED+ 5 GND 6 IPMI ID_LED­Power Button 7 PWRBT_SW# Speaker 8 PC Beep 9 GND 10 NC HDD LED 11 +5V Reset 12 EXTRST­ 13 SATA_LED# 14 GND
Table 3-14: Front Panel Connector Pinouts

3.2.13 iRIS Module Slot

CN Label: IPMI1 CN Type: CN Location:
The iRIS module slot is used to install the IEI iRIS-2400 IPMI 2.0 module. Please refer to
Section
4.7 for IPMI setup procedure.
204-pin DDR3 SO-DIMM slot
8Figure 3-14
See
Page 30
IMBA-Q870-i2 A TX Motherboard
WARNING:
The iRIS module slot is designed to install the IEI iRIS-2400 IPMI 2.0 module only. DO NOT install other modules into the iRIS module slot. Doing so may cause damage to the IMBA-Q870-i2.
Figure 3-14: iRIS Module Slot Location

3.2.14 Keyboard and Mouse Connector

CN Label: KB_MS1 CN Type: CN Location: CN Pinouts:
The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.
6-pin wafer
Figure 3-15
See
Table 3-15
See
Page 31
IMBA-Q870-i2 A TX Motherboard
Figure 3-15: Keyboard and Mouse Location
Pin Description
1 VCC 2 Mouse Data 3 Mouse Clock 4 Keyboard Data 5 Keyboard Clock 6 GND
Table 3-15: Keyboard and Mouse Connector Pinouts

3.2.15 LAN LED Connectors

CN Label: LED_LAN1, LED_LAN2 CN Type: CN Location: CN Pinouts:
The LAN LED connectors are used to connect to the LAN LED indicators on th e chassis to indicate users the link activities of the two LAN ports.
2-pin header
8Figure 3-16
See
8Table 3-16 and Table 3-17
See
Page 32
IMBA-Q870-i2 A TX Motherboard
Figure 3-16: LAN LED Connector Locations
Pin Description
1 +3.3V 2 LAN1_LED_LINK#_ACT
Table 3-16: LAN1 LED Connector (LED_LAN1) Pinouts
Pin Description
1 +3.3V 2 LAN2_LED_LINK#_ACT
Table 3-17: LAN2 LED Connector (LED_LAN2) Pinouts

3.2.16 Memory Card Slots

CN Label: CHA_DIMM1, CHA_DIMM2, CHB_DIMM1, CHB_DI MM2 CN Type: CN Location:
The DIMM slots are for DDR3 DIMM memory modules.
DDR3 DIMM slot See 8Figure 3-17
Page 33
Figure 3-17: Memory Card Slot Locations
IMBA-Q870-i2 A TX Motherboard

3.2.17 mSATA Card Slot

CN Label: CN2 CN Type: CN Location: CN Pinouts:
The mSATA card slot is for installing mSATA cards or USB devices only.
NOTE:
If the user shorts the mSATA Slot Setup jumper (MSATA_SW1) to force the system to enable mSATA device, the S_ATA6 connector will be disabled. Please refer to Section
PCIe Mini slot
8Figure 3-18
See
Table 3-18
See
4.3.4.
Page 34
IMBA-Q870-i2 A TX Motherboard
Figure 3-18: mSATA Card Slot Location
Pin Description Pin Description
1 PCIE_WAKE# 2 +3.3V 3 N/C 4 GND 5 N/C 6 1.5V 7 N/C 8 N/C 9 GND 10 N/C 11 MSATA_CLK# 12 N/C 13 MSATA _CLK 14 N/C 15 GND 16 N/C 17 PLTRST_N 18 GND 19 N/C 20 +3.3V 21 GND 22 PLTRST_N 23 SATA_RX+ 24 +3.3V 25 SATA_RX- 26 GND 27 GND 28 1.5V 29 GND 30 SMB_CLK 31 SATA_TX- 32 SMB_DATA 33 SATA_TX+ 34 GND 35 GND 36 USB_DATA­37 GND 38 USB_DATA+ 39 +3.3V 40 GND 41 +3.3V 42 N/C
Page 35
Pin Description Pin Description
43 +3.3V 44 N/C 45 CLINK_CLK 46 N/C 47 CLINK_DATA 48 1.5V 49 CLINK_RST# 50 GND 51 MSATA_DET 52 +3.3V
Table 3-18: mSATA Card Slot Pinouts

3.2.18 Parallel Port Connector

CN Label: LPT1
IMBA-Q870-i2 A TX Motherboard
CN Type: CN Location: CN Pinouts:
26-pin box header
Figure 3-19
See
Table 3-19
See
The parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.
Page 36
Figure 3-19: Parallel Port Connector Location
Pin Description Pin Description
1 STROBE# 2 DATA 0 3 DATA 1 4 DATA 2 5 DATA 3 6 DATA 4
IMBA-Q870-i2 A TX Motherboard
Pin Description Pin Description
7 DATA 5 8 DATA 6 9 DATA 7 10 ACKNOWLEDGE# 11 BUSY 12 PAPER EMPTY 13 PRINTER SELECT 14 AUTO FORM FEED # 15 ERROR# 16 INITIALIZE# 17 PRINTER SELECT LN# 18 GROUND 19 GROUND 20 GROUND 21 GROUND 22 GROUND 23 GROUND 24 GROUND 25 GROUND 26 NC
Table 3-19: Parallel Port Connector Pinouts

3.2.19 Power Button

CN Label: PWR_SW1 CN Type: CN Location:
Push button
Figure 3-20
See
The on-board power button controls system power.
Figure 3-20: Power Button Location
Page 37

3.2.20 SATA 6Gb/s Drive Connectors

CN Label: S_ATA1, S_ATA2, S_ATA3, S_ATA4, S_ATA5, S_ATA6
IMBA-Q870-i2 A TX Motherboard
CN Type: CN Location: CN Pinouts:
7-pin SATA drive connectors See Figure 3-21 See Table 3-20
The SATA drive connectors can be connected to SATA drives.
Figure 3-21: SATA 6Gb/s Drive Connector Locations
Pin Description
1 GND 2 SATA_TX+ 3 SATA_TX­4 GND 5 SATA_RX­6 SATA_RX+ 7 GND
Table 3-20: SATA 6Gb/s Drive Connector Pinouts
Page 38
IMBA-Q870-i2 A TX Motherboard
NOTE:
If the user shorts the mSATA Slot Setup jumper (MSATA_SW1) to force the system to enable mSATA device, the S_ATA6 connector will be disabled. Please refer to Section

3.2.21 Serial Port Connectors, RS-232

CN Label: COM2-6 CN Type: CN Location: CN Pinouts:
The connector provides four RS-232 ports connection.
40-pin box header See Figure 3-22 See Table 3-21
4.3.4.
Figure 3-22: Serial Port Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR 3 RXD 4 RTS COM2 5 TXD 6 CTS 7 DTR 8 RI 9 GND 10 GND
11 DCD 12 DSR
Page 39
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
13 RXD 14 RTS COM3 15 TXD 16 CTS 17 DTR 18 RI 19 GND 20 GND
21 DCD 22 DSR 23 RXD 24 RTS COM5 25 TXD 26 CTS 27 DTR 28 RI 29 GND 30 GND
31 DCD 32 DSR 33 RXD 34 RTS COM6 35 TXD 36 CTS 37 DTR 38 RI
IMBA-Q870-i2 A TX Motherboard
39 GND 40 GND
Table 3-21: COM3~6 Serial Port Connector Pinouts

3.2.22 Serial Port Connector, RS-422/485

CN Label: COM4 CN Type: CN Location: CN Pinouts:
Used for RS-422/485 communications.
4-pin wafer See Figure 3-23 See Table 3-22
Page 40
IMBA-Q870-i2 A TX Motherboard
Figure 3-23: RS-422/485 Connector Location
PIN NO. DESCRIPTION
1 RXD422­2 RXD422+ 3 TXD422+/TXD485+ 4 TXD422-/TXD485-
Table 3-22: RS-422/485 Connector Pinouts
Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9 connector are listed below.
RS-422 Pinouts RS-485 Pinouts
Table 3-23: DB-9 RS-422/485 Pinouts

3.2.23 SMBus Connector

CN Label: CN1 CN Type:
4-pin wafer
CN Location: CN Pinouts:
See Figure 3-24 See Table 3-24
Page 41
The SMBus (System Management Bus) connector provides low-speed system management communications.
Figure 3-24: SMBus Connector Location
IMBA-Q870-i2 A TX Motherboard
PIN DESCRIPTION
1 GND 2 SMB_DATA 3 SMB_CLK 4 +5V
Table 3-24: SMBus Connector Pinouts

3.2.24 SPI Flash Connector

CN Label: JSPI1 CN Type: CN Location: CN Pinouts:
The SPI flash connector is used to flash the SPI ROM.
8-pin header See Figure 3-25 See Table 3-25
Page 42
IMBA-Q870-i2 A TX Motherboard
Figure 3-25: SPI Flash Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3V 2 SPI_CS# 3 SPI_SO 4 NC 5 GND 6 SPI_CLK 7 SPI_SI 8 NC
Table 3-25: SPI Flash Connector Pinouts

3.2.25 SPI Flash Connector, EC

CN Label: JSPI2 CN Type: CN Location: CN Pinouts:
The SPI flash connector is used to flash the EC ROM.
8-pin header See Figure 3-26 See Table 3-26
Page 43
Figure 3-26: SPI EC Flash Connector Location
IMBA-Q870-i2 A TX Motherboard
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3V 2 SPI_CS# 3 SPI_SO 4 NC 5 GND 6 SPI_CLK 7 SPI_SI 8 NC
Table 3-26: SPI EC Flash Connector Pinouts

3.2.26 TPM Connector

CN Label: TPM1 CN Type: CN Location: CN Pinouts:
The TPM connector connects to a TPM module.
20-pin header See Figure 3-27 See Table 3-27
Page 44
IMBA-Q870-i2 A TX Motherboard
Figure 3-27: TPM Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LCLK 2 GND 3 LFRAME# 4 KEY 5 LRERST# 6 +5V 7 LAD3 8 LAD2 9 +3.3V 10 LAD1 11 LAD0 12 GND 13 SCL 14 SDA 15 SB3V 16 SERIRQ 17 GND 18 GLKRUN# 19 LPCPD# 20 LDRQ#
Table 3-27: TPM Connector Pinouts

3.2.27 USB 2.0 Connectors

CN Label: USB1, USB2 CN Type: CN Location: CN Pinouts:
The USB 2.0 connectors connect to USB 2.0 devices. Each pin header provides two USB
8-pin header See Figure 3-28 See Table 3-28
2.0 ports.
Page 45
Figure 3-28: USB 2.0 Connector Locations
IMBA-Q870-i2 A TX Motherboard
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND 3 USB_DATA- 4 USB_DATA+ 5 USB_DATA+ 6 USB_DATA­7 GND 8 VCC
Table 3-28: USB 2.0 Connector Pinouts

3.2.28 USB 3.0 Connector

CN Label: CN4 CN Type: CN Location: CN Pinouts:
The USB 3.0 connector connects to USB 3.0 devices. This connector provides two USB 3.0 ports.
19-pin box header See Figure 3-29 See Table 3-29
Page 46
IMBA-Q870-i2 A TX Motherboard
Figure 3-29: USB 3.0 Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 11 USB_DATA+ 2 USB3_RX- 12 USB_DATA­3 USB3_RX+ 13 GND 4 GND 14 USB3_TX+ 5 USB3_TX- 15 USB3_TX­6 USB3_TX+ 16 GND 7 GND 17 USB3_RX+ 8 USB_DATA- 18 USB3_RX­9 USB_DATA+ 19 VCC 10 NC
Table 3-29: USB 3.0 Connector Pinouts

3.3 External Peripheral Interface Connector Panel

The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following:
Page 47
Figure 3-30: External Peripheral Interface Connector

3.3.1 Audio Connector

CN Label: AUDIO_CV1
IMBA-Q870-i2 A TX Motherboard
CN Type: CN Location:
The audio jacks connect to external audio devices.
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
Line Out port (Lime): Connects to a head phone or a speaker . With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.
Audio jack See Figure 3-30
Page 48
Figure 3-31: Audio Connector
IMBA-Q870-i2 A TX Motherboard

3.3.2 Keyboard/Mouse and USB 2.0 Connectors

CN Label: K/M_USB1 CN Type: CN Location: CN Pinouts:
PS/2, USB 2.0 See Figure 3-30 See Table 3-30 and Table 3-31
The USB 2.0 connector can be connected to a USB device.
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 5 VCC 2 USB_DATA- 6 USB_DATA­3 USB_DATA+ 7 USB_DATA+ 4 GND 8 GND
Table 3-30: USB 2.0 Port Pinouts
The PS/2 port is for connecting a PS/2 mouse and a PS/2 keyboard.
PIN DESCRIPTION
9 GND 10 Keybo ard Da ta 11 Mouse Data 12 VCC 13 Keyboard Clock 14 Mouse Clock
Table 3-31: PS/2 Connector Pinouts

3.3.3 Ethernet and USB 2.0 Connectors

CN Label: LAN2_USB2 CN Type: CN Location: CN Pinouts:
RJ-45, USB 3.0 See Figure 3-30 See Table 3-32 and Table 3-33
Page 49
IMBA-Q870-i2 A TX Motherboard
The USB 2.0 connector can be connected to a USB device.
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 5 VCC 2 USB_DATA- 6 USB_DATA­3 USB_DATA+ 7 USB_DATA+ 4 GND 8 GND
Table 3-32: USB 2.0 Port Pinouts
A 10/100/1000 Mb/s connection can be made to a Local Area Network.
PIN DESCRIPTION PIN DESCRIPTION
P2 TRD2P0 P6 TRD2P2 P3 TRD2N0 P7 TRD2N2 P4 TRD2P1 P8 TRD2P3 P5 TRD2N1 P9 TRD2N3
Table 3-33: LAN2 Pinouts

3.3.4 Ethernet and USB 3.0 Connectors

CN Label: LAN1_USB1 CN Type: CN Location: CN Pinouts:
There are two external USB 3.0 connectors on the IMBA-Q870-i2.
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 10 VCC 2 USB_DATA- 11 USB_DATA­3 USB_DATA+ 12 USB_ DATA+
RJ-45, USB 3.0 See Figure 3-30 See Table 3-34 and Table 3-35
Page 50
4 GND 13 GND 5 USB3_RX- 14 USB3_RX­6 USB3_RX+ 15 USB3_ RX+
IMBA-Q870-i2 A TX Motherboard
PIN DESCRIPTION PIN DESCRIPTION
7 GND 16 GND 8 USB3_TX- 17 USB3_TX­9 USB3_TX+ 18 USB3_TX+
Table 3-34: USB 3.0 Port Pinouts
A 10/100/1000 Mb/s connection can be made to a Local Area Network. LAN1 also supports Intel® AMT 9.0.
PIN DESCRIPTION PIN DESCRIPTION
20 LAN1_MDI0P 24 LAN1_MDI2P 21 LAN1_MDI0N 25 LAN1_MDI2N 22 LAN1_MDI1P 26 LAN1_MDI3P 23 LAN1_MDI1N 27 LAN1_MDI3N
Table 3-35: LAN1 Pinouts

3.3.5 HDMI Port Connector

CN Label: HDMI1 CN Type: CN Location: CN Pinouts:
The HDMI port connects to an HDMI device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 HDMI_DATA2 13 N/C 2 GND 14 N/C 3 HDMI_DATA2# 15 HDMI_SCL 4 HDMI_DATA1 16 HDMI_SDA 5 GND 17 GND
HDMI connector See Figure 3-30 See Table 3-36
6 HDMI_DATA1# 18 +5V 7 HDMI_DATA0 19 HDMI_HPD 8 GND 20 HDMI_GND
Page 51
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
9 HDMI_DATA0# 21 HDMI_GND 10 HDMI_CLK 22 HDMI_GND 11 GND 23 HDMI_GND 12 HDMI_CLK#
IMBA-Q870-i2 A TX Motherboard
Table 3-36: HDMI Connector Pinouts

3.3.6 Serial Port Connector (COM1)

CN Label: COM1 CN Type: CN Location: CN Pinouts:
The serial port connects to a RS-232 serial communications device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD1 6 DSR1 2 RXD1 7 RTS1 3 TXD1 8 CTS1 4 DTR1 9 RI1 5 GND
DB-9 connector See Figure 3-30 See Table 3-37
Table 3-37: Serial Port Connector Pinouts
Figure 3-32: Serial Port Connector Pinouts

3.3.7 VGA and DVI Connectors

CN Label: VIDEO1
Page 52
IMBA-Q870-i2 A TX Motherboard
CN Type: CN Location: CN Pinouts:
15-pin Female, 24-pin header See Figure 3-30 See Table 3-38 and Table 3-39
The VGA connector connects to a monitor that accepts a standard VGA input.
PIN DESCRIPTION PIN DESCRIPTION
V1 RED V2 GREEN V3 BLUE V4 NC V5 GND V6 GND V7 GND V8 GND V9 VCC V10 GND V11 NC V12 DDCDA V13 HSYNC V14 VSYNC V15 DDCCLK
Table 3-38: VGA Connector Pinouts
Figure 3-33: VGA Connector
The DVI connector connects to a monitor that supports DVI video input.
PIN DESCRIPTION PIN DESCRIPTION
C1 RED 10 DVI_DATA1 C2 GREEN 11 GND C3 BLUE 12 N/C C4 HS 13 N/C C5 GND 14 +5V C6 NC 15 Hot Plug Detect 1 DVI_DATA2# 16 HPDET
Page 53
PIN DESCRIPTION PIN DESCRIPTION
2 DVI_DATA2 17 DVI_DATA0# 3 GND 18 DVI_DATA0 4 N/C 19 GND 5 N/C 20 N/C 6 DDC CLK 21 N/C 7 DDC DATA 22 N/C 8 VS 23 DVI_CLK 9 DVI_DATA1# 24 DVI_CLK#
IMBA-Q870-i2 A TX Motherboard
Table 3-39: DVI Connector Pinouts
Figure 3-34: DVI-I Connector
Page 54
IMBA-Q870-i2 A TX Motherboard
Chapter
4

4 Installation

Page 55

4.1 Anti-static Precautions

WARNING:
Failure to take ESD precautions during the installation of the IMBA-Q870-i2 may result in permanent damage to the IMBA-Q870-i2 and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IMBA-Q870-i2. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IMBA-Q870-i2 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
IMBA-Q870-i2 A TX Motherboard
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the IMBA-Q870-i2, place it on an
antic-static pad. This reduces the possibility of ESD damaging the IMBA-Q870-i2.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.

4.2 Installation Considerations

NOTE:
The following installation notices and installation considerations should be read and understood before installation. All installation notices must
Page 56
be strictly adhered to. Failing to adhere to these precautions may lead to severe damage and injury to the person performing the installation.
IMBA-Q870-i2 A TX Motherboard
WARNING:
The installation instructions described in this manual should be carefully followed in order to prevent damage to the components and injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the IMBA-Q870-i2
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the IMBA-Q870-i2 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the IMBA-Q870-i2 of f:
o When working with the IMBA-Q870-i2, make sure that it is disconnected
from all power supplies and that no electricity is being fed into the system.
Before and during the installation of the IMBA-Q870-i2 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
Page 57

4.2.1 Socket LGA1150 CPU Installation

WARNING:
CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.
DO NOT touch the pins at the bottom of the CPU. When handling the CPU, only hold it on the sides.
To install the CPU, follow the steps below.
IMBA-Q870-i2 A TX Motherboard
Step 1: Disengage the load lever by pressing the lever down and slightly outward to
clear the retention tab. Fully open the lever. See
Figure 4-1: Disengage the CPU Socket Load Lever
Step 2: Open the socket and remove the protective cover. The black protective
Figure 4-1.
Page 58
cover can be removed by pulling up on the tab labeled "Remove". See
Figure 4-2.
IMBA-Q870-i2 A TX Motherboard
Figure 4-2: Remove Protective Cover
Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the
socket contacts are free of foreign material. If any debris is found, remove it with compressed air.
Step 4: Orientate the CPU properly. The contact array should be facing the CPU
socket.
WARNING:
DO NOT touch the pins at the bottom of the CPU. When handling the CPU, only hold it on the sides.
Step 5: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the
CPU socket.
Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.
Carefully match the two orientation notches on the CPU with the socket alignment keys.
Page 59
Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are
properly aligned, the CPU should slide into the CPU socket smoothly. See
Figure 4-3.
IMBA-Q870-i2 A TX Motherboard
Figure 4-3: Insert the Socket LGA1150 CPU
Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little
to have the load plate be able to secure to the knob. Engage the load lever by pushing it back to its original position ( resistance, but will not require extreme pressure.
Figure 4-4). There will be some
Page 60
Figure 4-4: Close the Socket LGA1150
IMBA-Q870-i2 A TX Motherboard
Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power
supply to the board. Step 0:

4.2.2 Socket LGA1150 Cooling Kit Installation

WARNING:
DO NOT attempt to install a push-pin cooling fan.
The pre-installed support bracket prevents the board from bending and is ONLY compatible with captive screw type cooling fans.
Figure 4-5: Cooling Kits (CF-1156A-RS and CF-1156E-RS)
The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the heat sink. The thermal paste between the CPU and the heat sink is important for optimum heat dissipation.
To install the cooling kit, follow the instructions below.
Page 61
Step 1: A cooling kit bracket is pre-inst alled on the rear of the motherboard. See Figure
4-6.
Figure 4-6: Cooling Kit Support Bracket
IMBA-Q870-i2 A TX Motherboard
Step 2: Place the cooling kit onto the socket LGA1150 CP U. Make sure the CPU
cable can be properly routed when the cooling kit is installed.
Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make
sure the four threaded screws on the corners of the cooling kit properly pass through the holes of the cooling kit bracket.
Step 4: Secure the cooling kit by fastening the four retention screws of the cooling kit.
Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the IMBA-Q870-i2. Carefully route the cable and avoid heat generating chips and fan blades.
Page 62
IMBA-Q870-i2 A TX Motherboard

4.2.3 DIMM Installation

To install a DIMM, please follow the steps below and refer to Figure 4-7.
Figure 4-7: DIMM Installation
Step 1: Open the DIMM socket handles. Open the two handles outwards as far as
they can. See
Step 2: Align the DIMM with the socket. Align the DIMM so the notch on the memory
lines up with the notch on the memory socket. See
Step 3: Insert the DIMM. Once aligned, press down until the DIMM is properly seated.
Clip the two handles into place. See
Step 4: Removing a DIMM. To remove a DIMM, push both handles outward. The
memory module is ejected by a mechanism in the socket.Step 0:
Figure 4-7.
Figure 4-7.
Figure 4-7.
Page 63

4.2.4 iRIS-2400 Module Installation

WARNING:
The iRIS module slot is designed to install the IEI iRIS-2400 IPMI 2.0 module only. DO NOT install other modules into the iRIS module slot. Doing so may cause damage to the IMBA-Q870-i2.
To install the iRIS-2400 module, please follow the steps below and refer to Figure 4-7.
IMBA-Q870-i2 A TX Motherboard
Page 64
Figure 4-8: iRIS-2400 Module Installation
Step 1: Open the socket handles. Open the two handles outwards as far as they can.
Figure 4-7.
See
Step 2: Align the iRIS-2400 module with the socket. Align the iRIS-2400 module so
the notch on the module lines up with the notch on the socket. See
Step 3: Insert the iRIS-2400 module. Once aligned, press down until the iRIS-2400
module is properly seated. Clip the two handles into place. See
Figure 4-7.
Figure 4-7.
IMBA-Q870-i2 A TX Motherboard
Step 4: Removing the iRIS-2400 module. To remove the iRIS-2400 module, push both
handles outward. The module is ejected by a mechanism in the socket.Step 0:
NOTE:
After installing the iRIS-2400 module, use LAN2 port to establish a network connection. Please refer to Section procedures.

4.2.5 mSATA Card Installation

To install a mSATA card, please follow the steps below.
Step 1: Locate the mSA TA card slot. The location of the mSATA card slot is shown in
Chapter 3.
Step 2: Remove the retention screws. Remove the two retention screws secured on
the motherboard as shown in
4.7 for IPMI setup
9Figure 4-9.
Figure 4-9: Remove the Retention Screws for the mSATA Card
Step 3: Insert into the socket at an angle. Line up the notch on the card with the notch
on the connector. Slide the mSATA card into the socket at an angle of about 20º
9Figure 4-10).
(
Page 65
Figure 4-10: Insert the mSATA Card into the Socket at an Angle
Step 4: Secure the mSATA card. Secure the mSATA card with the retention screws
IMBA-Q870-i2 A TX Motherboard
previously removed (
Figure 4-11: Secure the mSATA Card

4.3 System Configuration

The system configuration is controlled by buttons, switches, jumpers and BIOS options.
9Figure 4-11). Step 4:
Page 66
The system configuration must be performed before installation.
IMBA-Q870-i2 A TX Motherboard

4.3.1 AT/ATX Power Mode Setting

The AT and ATX power mode selection is made through the AT/ATX power mode switch which is shown in
Figure 4-12.
Figure 4-12: AT/ATX Power Mode Switch Location

4.3.2 Clear CMOS Button

To reset the BIOS, remove the on-board battery and press the clear CMOS button for three seconds or more. The clear CMOS button location is shown in
Figure 4-13.
Figure 4-13: Clear CMOS Button Location

4.3.3 Flash Descriptor Security Override

The Flash Descriptor Security Override jumper specifies whether to override the flash descriptor.
Page 67
Setting Description
Short 1-2 No override (Default) Short 2-3 Override
IMBA-Q870-i2 A TX Motherboard
Table 4-1: Flash Descriptor Security Override Jumper Settings
Figure 4-14: Flash Descriptor Security Override Jumper Location

4.3.4 mSATA Slot Setup

The mSATA Slot Setup jumper specifies whether to automatically detect the mSATA
Page 68
device installed in the mSATA card slot (CN2). If the user shorts the mSATA Slot Setup jumper to force the system to enable mSATA device, the S_ATA6 connector will be disabled.
Setting Description
Open Automatically detect mSATA device (Default)
Force to enable mSATA device
Short
(The S_ATA6 conne ctor will be disabled)
Table 4-2: mSATA Slot Setup Jumper Settings
IMBA-Q870-i2 A TX Motherboard
Figure 4-15: mSATA Slot Setup Jumper Location

4.3.5 PCIe x16 Interface Setup

The PCIe x16 interface setup is made through the BIOS options in “Chipset Æ PCH-IO Configuration” BIOS menu. Use the PCIEX16 Power option to configure the PCIe x16 channel mode.
BIOS Options Description
1 x16 PCIE Sets the PCIe x16 slot as one PCIe x16. (Default)
Table 4-3: PCIe x16 Interface Setup
Please refer to Section 5.4.1 for detailed information.

4.3.6 USB Power Select

The USB power selection is made through the BIOS options in “Chipset Æ PCH-IO Configuration” BIOS menu. Use the USB SW1 Power and the USB SW2 Power BIOS options to configure the power source to the corresponding USB ports (see
BIOS Options Configured USB Ports
USB SW1 Power
Table 4-4).
K/M_USB1 (external USB 2.0 ports) LAN1_USB1 (external USB 3.0 ports)
Page 69
BIOS Options Configured USB Ports
LAN2_USB2 (external USB 2.0 ports)
IMBA-Q870-i2 A TX Motherboard
USB SW2 Power
Table 4-4: BIOS Options and Configured USB Ports
USB1 (internal USB 2.0 ports) USB2 (internal USB 2.0 ports) CN4 (internal USB 3.0 ports)
Please refer to Section 5.4.1 for detailed information.

4.4 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the onboard connectors.

4.4.1 SATA Drive Connection

The IMBA-Q870-i2 is shipped with two SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below.
Step 1: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 2: Insert the cable connector. Insert the cable connector into the on-board SATA
drive connector. See
Figure 4-16.
Page 70
IMBA-Q870-i2 A TX Motherboard
Figure 4-16: SATA Drive Cable Connection
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end
of the cable to the connector at the back of the SATA drive. See
Step 4: Connect the SATA power cable (optional). Connect the SATA power
connector to the back of the SATA drive. See
Figure 4-17.
Figure 4-17.
Page 71
IMBA-Q870-i2 A TX Motherboard
Figure 4-17: SATA Power Drive Connection
The SATA power cable can be bought from IEI. See
Optional Items in Section 2.4.

4.5 External Peripheral Interface Connection

This section describes connecting devices to the external connectors on the IMBA-Q870-i2.

4.5.1 Audio Connector

The audio jacks on the external audio connector enable the IMBA-Q870-i2 to be connected to a stereo sound setup. Each jack supports both input and output. When connecting a device, the High Definition Audio utility will automatically detect input or output. The lime green (top) audio jack does not support input from a microphone. To install the audio devices, follow the steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
Page 72
may not match the colors on the rear panel.
IMBA-Q870-i2 A TX Motherboard
Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used to plug them into the audio jacks.
Figure 4-18: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.

4.5.2 DVI Display Device Connection

The IMBA-Q870-i2 has a single female DVI-I connector on the external peripheral interface panel. The DVI-I connector is connected to a digital display device. To connect a digital display device to the IMBA-Q870-i2, please follow the instructions below.
Step 1: Locate the DVI-I connector. The location of the DVI-I connector is shown in
another chapter.
Step 2: Align the DVI-I connector. Align the male DVI-I connector on the digital display
device cable with the female DVI-I connector on the external peripheral interface.
Page 73
Step 3: Insert the DVI-I connector. Once the connectors are properly aligned with the
male connector, insert the male conne ctor from the digital display device into the
IMBA-Q870-i2 A TX Motherboard
female connector on the IMBA-Q870-i2. See
Figure 4-19: DVI Connector
Figure 4-19.
Step 4: Secure the connector. Secure the DVI-I connector from the digital display
device to the external interface by tightening the two retention screws on either side of the connector. Step 0:

4.5.3 HDMI Display Device Connection

The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. To connect the HDMI cable to the IMBA-Q870-i2, follow the steps below.
Step 1: Locate the HDMI connector. The location is shown in Chapter 3.
Step 2: Align the connector. Align the HDMI conne ctor with the HDMI port. Make sure
the orientation of the connector is correct.
Page 74
IMBA-Q870-i2 A TX Motherboard
Figure 4-20: HDMI Connection
Step 3: Insert the HDMI connector. Gently insert the HDMI connector. The connector
should engage with a gentle push. If the connector does not insert easily, check again that the connector is aligned correctly, and that the connector is being inserted with the right way up. Step 0:

4.5.4 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection to an external network. To connect a LAN cable with an RJ-45 connector, please follow the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 3.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the IMBA-Q870-i2. See
Figure 4-21.
Page 75
Figure 4-21: LAN Connection
IMBA-Q870-i2 A TX Motherboard
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector. Step 0:

4.5.5 PS/2 Keyboard and Mouse Connection

The IMBA-Q870-i2 has a PS/2 connector on the external peripheral interface panel. The PS/2 connector is used to connect to a keyboard or a mouse to the system. Follow the steps below to connect a keyboard or a mouse to the IMBA-Q870-i2.
Step 1: Locate the PS/2 connector. The location of the PS/2 connector is shown in
Chapter 3.
Step 2: Insert the keyboard/mouse connector. Insert a PS/2 keyboard or mouse
connector into the appropriate PS/2 connector on the external peripheral interface connector . See
Figure 4-22.
Page 76
IMBA-Q870-i2 A TX Motherboard
Figure 4-22: PS/2 Keyboard/Mouse Connector

4.5.6 Serial Device Connection

The IMBA-Q870-i2 has a single male DB-9 connector on the external peripheral interface panel for a serial device. Follow the steps below to connect a serial device to the IMBA-Q870-i2.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 3.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the external peripheral interface. See
Figure 4-23.
Page 77
Figure 4-23: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector to the external
IMBA-Q870-i2 A TX Motherboard
interface by tightening the two retention screws on either side of the connector.

4.5.7 USB Connection (Dual Connector)

The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the IMBA-Q870-i2.
Step 1: Locate the USB Series "A" receptacle connectors. The location of the USB
Series "A" receptacle connectors are shown in Chapter 3.
Step 2: Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into
the USB Series "A" receptacle on the external peripheral interface. See
Figure 4-24.
Step 0:
Page 78
IMBA-Q870-i2 A TX Motherboard
Figure 4-24: USB Connector

4.5.8 VGA Monitor Connection

The IMBA-Q870-i2 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the IMBA-Q870-i2, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector. Once the connectors are properly ali gned with the
insert the male connector from the VGA screen into the female connector on the IMBA-Q870-i2. See
Figure 4-25.
Page 79
Figure 4-25: VGA Connector
IMBA-Q870-i2 A TX Motherboard
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either side of the connector. Step 0:

4.6 Intel® AMT Setup Procedure

The IMBA-Q870-i2 is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below.
Step 1: Make sure at least one of the memory sockets is installed with a DDR3 DIMM.
Step 2: Connect an Ethernet cable to the RJ-45 connector labeled LAN1.
Step 3: The AMI BIOS options regarding the Intel® ME or Intel® AMT must be enabled,
Step 4: Properly install the Intel® Management Engine Components drivers from the
iAMT Driver & Utility directory in the driver CD. See Section
Step 5: Configure the Intel® Management Engine BIOS extension (MEBx). To get into
6.8.
Page 80
the Intel® MEBx settings, press <Ctrl+P> after a single beep during boot-up
IMBA-Q870-i2 A TX Motherboard
process. Enter the Intel® current ME password as it requires (the Intel® default password is admin).
NOTE:
To change the password, enter a new password following the strong password rule (containing at least one upper case letter, one lower case letter, one digit and one special character, and be at least eight characters).

4.7 IPMI Setup Procedure

The IMBA-Q870-i2 features Intelligent Platform Management Interface (IPMI) that helps lower the overall costs of server management by enabling users to maximize IT resources, save time and manage multiple systems. The IMBA-Q870-i2 supports IPMI 2.0 through the optional iRIS-2400 module. Follow the steps below to setup IPMI.

4.7.1 Managed System Hardware Setup

The hardware configuration of the managed system (IMBA-Q870-i2) is described below.
Step 1: Install an iRIS-2400 module to the IPMI module socket (refer to Section
Step 2: Make sure at least one DDR3 DIMM is installed in one of the DIMM sockets. If
multiple DIMMs are installed, all of the DIMMs must be same size, same speed and same brand to get the best performance.
Step 3: Connect an Ethernet cable to the RJ-45 connector labeled LAN2_USB2
Figure 3-30).
(
4.2.4).
Page 81

4.7.2 Using the IEI iMAN Web GUI

To manage a client system from a remote console using IEI iMAN Web GUI, follow the steps below.
Step 1: Obtain the IP address of the managed system. It is recommended to use the
IPMI Tool on the managed system to obtain the IP address. To use IPMI Tool to obtain IP address, follow the steps bel ow: a. Copy the Ipmitool.exe file to a bootable USB flash drive. b. Insert the USB flash drive to the IMBA-Q870-i2 c. The IMBA-Q870-i2 boots from the USB flash drive d. Enter the following command: ipmitool 20 30 02 01 03 00 00 (there is a space between each two-digit number)
IMBA-Q870-i2 A TX Motherboard
e. A serial of number shows. The last four two-digit hexadecimal numbers are the IP address. Convert the hexadecimal numbers to decimal numbers.
Step 2: On the remote management console, open a web browser. Enter the managed
system IP address in the web browser (
Figure 4-26: IEI iMAN Web Address
Step 3: The login page appears in the web browser.
Step 4: Enter the user name and password to login the system. The default login
username and password are:
-Username: admin
-Password: admin
Step 5: Press the login button to login the system.
Figure 4-26).
Page 82
Step 6: The IEI iMAN Web GUI appears (
Figure 4-27).
