POC-17i/19i Series

MODEL:

POC-17i/19i Series

Medical Panel PC with Intel® Core™ i7/i5/i3 Processor,

TFT LCD, Wireless LAN, Touch Screen,

RS-232/422/485 and RoHS

User Manual

Rev. 1.00 – 7 August, 2013

Page i

Date Version Changes

7 August, 2013 1.00 Initial release

POC-17i/19i Series

Revision

Page ii

POC-17i/19i Series

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the part

of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification

purposes only and may be trademarks and/or registered trademarks of their respective

owners.

Page iii

Contact Information

Headquarters

IEI Integration Corp.

POC-17i/19i Series

Address:

Phone: Fax: Web Site: Sales Email:

No. 29, Zongxing Rd., Xizhi Dist.,

New Taipei City 221, Taiwan +886-2-8691-6798 +886-2-6616-0028

www.ieiworld.com sales@ieiworld.com.tw

USA

IEI Integration USA Corp. Address:

Phone: Fax: Web Site:

138 University Parkway,

Pomona, CA 91768 +1-909-595-2819 +1-909-595-2816

www.ieiworld.com

Sales Email:

Page iv

sales@usa.ieiworld.com.tw

POC-17i/19i Series

Table of Contents

1 INTRODUCTION.......................................................................................................... 1

1.1 OVERVIEW.................................................................................................................. 2

1.2 FEATURES................................................................................................................... 3

1.3 EXTERNAL OVERVIEW................................................................................................ 3

1.3.1 General Description........................................................................................... 3

1.3.2 Front Panel........................................................................................................ 3

1.3.3 Rear Panel ......................................................................................................... 4

1.3.4 I/O Interface Panel ............................................................................................ 5

1.3.5 OSD Control Buttons......................................................................................... 6

1.4 INTERNAL OVERVIEW................................................................................................. 6

1.5 SYSTEM SPECIFICATIONS............................................................................................ 7

1.6 DIMENSIONS............................................................................................................... 9

2 UNPACKING ................................................................................................................11

2.1 UNPACKING.............................................................................................................. 12

2.2 PACKING LIST........................................................................................................... 13

3 INSTALLATION......................................................................................................... 15

3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 16

3.2 INSTALLATION PRECAUTIONS................................................................................... 16

3.3 INST ALLATION AND CONFIGU RATION STEPS............................................................. 17

3.4 REMOVING THE REAR PANEL COVER ....................................................................... 17

3.5 REMOVING THE INTERNAL ALUMINUM COVER ........................................................ 18

3.6 JUMPER SETTINGS .................................................................................................... 19

3.6.1 Access the Jumpers.......................................................................................... 20

3.6.2 Preconfigured Jumpers .................................................................................... 20

3.6.3 Clear CMOS Jumper........................................................................................ 21

3.6.4 COM1 Pin 9 Setting......................................................................................... 22

3.6.5 COM3 TX Function Select Jumper.................................................................. 24

3.6.6 COM3 RS-232/422/485 Jumper....................................................................... 25

Page v

3.6.6.1 COM3 RS-422 and RS-485 Pinouts......................................................... 26

3.6.7 COM3 RS Function Select Jumper.................................................................. 27

3.6.8 ME Debug Mode Jumper................................................................................. 28

3.6.9 iTPM Setting Jumper ....................................................................................... 29

3.6.10 ME RTC Select Jumper.................................................................................. 30

3.6.11 SPI Setting Jumper......................................................................................... 31

3.7 MOUNTING THE SYSTEM .......................................................................................... 32

3.7.1 Wall Mounting.................................................................................................. 32

3.7.2 Arm Mounting .................................................................................................. 35

3.8 BOTTOM PANEL CONNECTORS ................................................................................. 36

3.8.1 LAN Connection............................................................................................... 36

3.8.2 Serial Device Connection ................................................................................ 37

3.8.3 USB Device Connection................................................................................... 38

3.8.4 VGA Monitor Connection ................................................................................ 39

POC-17i/19i Series

3.9 AT/ATX MODE SELECTION...................................................................................... 40

3.9.1 AT Power Mode................................................................................................ 41

3.9.2 ATX Power Mode ............................................................................................. 41

4 SYSTEM MAINTENANCE ....................................................................................... 42

4.1 SYSTEM MAINTENANCE INTRODUCTION .................................................................. 43

4.2 ANTI-STATIC PRECAUTIONS...................................................................................... 43

4.3 TURN OFF THE POWER.............................................................................................. 44

4.4 REPLACING COMPONENTS........................................................................................ 44

4.4.1 Memory Module Replacement ......................................................................... 44

4.4.2 HDD Card Replacement.................................................................................. 46

5 BIOS SETUP................................................................................................................ 49

5.1 INTRODUCTION......................................................................................................... 50

5.1.1 Starting Setup................................................................................................... 50

5.1.2 Using Setup...................................................................................................... 50

5.1.3 Getting Help..................................................................................................... 51

5.1.4 Unable to Reboot After Configuration Changes.............................................. 51

5.1.5 BIOS Menu Bar................................................................................................ 51

5.2 MAIN........................................................................................................................ 52

5.3 ADVANCED............................................................................................................... 53

Page vi

POC-17i/19i Series

5.3.1 ACPI Settings................................................................................................... 54

5.3.2 T rusted Computing........................................................................................... 55

5.3.3 CPU Configuration.......................................................................................... 56

5.3.4 SATA Configuration......................................................................................... 57

5.3.5 USB Configuration........................................................................................... 58

5.3.6 Super IO Configuration ................................................................................... 59

5.3.6.1 Serial Port n Configuration....................................................................... 60

5.3.7 H/W Monitor.................................................................................................... 64

5.3.8 Serial Port Console Redirection...................................................................... 65

5.4 CHIPSET ................................................................................................................... 66

5.4.1 Northbridge Configuration.............................................................................. 67

5.4.2 Southbridge Configuration .............................................................................. 68

5.4.3 Intel IGD SWSCI OpRegion............................................................................. 69

5.5 BOOT........................................................................................................................ 71

5.6 SECURITY................................................................................................................. 72

5.7 EXIT......................................................................................................................... 73

6 SOFTWARE DRIVERS.............................................................................................. 75

6.1 AVAILABLE SOFTWARE DRIVERS .............................................................................. 76

6.2 CHIPSET DRIVER INSTALLATION............................................................................... 76

6.3 VGA DRIVER INSTALLATION.................................................................................... 80

6.4 LAN DRIVER INSTALLATION.................................................................................... 84

6.5 AUDIO DRIVER INSTALLATION ................................................................................. 86

6.5.1 BIOS Setup....................................................................................................... 86

6.5.2 Driver Installation ........................................................................................... 86

6.6 TOUCH SCREEN DRIVER........................................................................................... 90

6.7 WIRELESS DRIVER ................................................................................................... 92

6.8 KEYPAD DRIVER ...................................................................................................... 95

A SAFETY PRECAUTIONS....................................................................................... 100

A.1 SAFETY PRECAUTIONS .......................................................................................... 101

A.1.1 General Safety Precautions........................................................................... 101

A.1.2 Explanation of Graphical Symbols................................................................ 102

A.1.3 Anti-static Precautions.................................................................................. 103

A.1.4 Product Disposal........................................................................................... 104

Page vii

A.2 MAINTENANCE AND CLEANING PRECAUTIONS...................................................... 104

A.2.1 Maintenance and Cleaning............................................................................ 104

A.2.2 Cleaning Tools............................................................................................... 105

A.3 FCC PRECAUTIONS ............................................................................................... 105

B BIOS OPTIONS ........................................................................................................ 107

B.1 BIOS CONFIGURATION OPTIONS ........................................................................... 108

C WATCHDOG TIMER ...............................................................................................110

D HAZARDOUS MATERIALS DISCLOSURE........................................................113

D.1 HAZARDOUS MATER IAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS

ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ......................................114

POC-17i/19i Series

Page viii

POC-17i/19i Series

List of Figures

Figure 1-1: POC-17i/19i Series Medical Panel PC .......................................................................2

Figure 1-2: Front View....................................................................................................................4

Figure 1-3: Rear View.....................................................................................................................4

Figure 1-4: I/O Interface Connector Panel....................................................................................5

Figure 1-5: OSD Control Buttons..................................................................................................6

Figure 1-6: POC-17i Series Dimensions (mm).............................................................................9

Figure 1-7: POC-17i Series Dimensions (mm)...........................................................................10

Figure 3-1: Back Cover Retention Screws.................................................................................18

Figure 3-2: Aluminum Back Cover Retention Screws ..............................................................19

Figure 3-3: Clear CMOS Jumper .................................................................................................22

Figure 3-4: JP7 Jumper Setting Location ..................................................................................23

Figure 3-5: JP8 Jumper Setting Location ..................................................................................24

Figure 3-6: COM3 TX Function Select Jumper Location..........................................................25

Figure 3-7: COM3 RS-232/422/485 Serial Port Select Jumper Location..................................26

Figure 3-8: COM3 RX Function Select Jumper Location..........................................................28

Figure 3-9: ME Debug Mode Jumper Location..........................................................................29

Figure 3-10: iTPM Jumper Location............................................................................................30

Figure 3-11: ME RTC Jumper Location ......................................................................................31

Figure 3-12: SPI Jumper Location ..............................................................................................32

Figure 3-13: Wall-mounting Bracket...........................................................................................33

Figure 3-14: Chassis Support Screws........................................................................................34

Figure 3-15: Securing the Panel PC............................................................................................35

Figure 3-16: Arm Mounting Retention Screw Holes..................................................................36

Figure 3-17: LAN Connection......................................................................................................37

Figure 3-18: Serial Device Connector.........................................................................................38

Figure 3-19: USB Device Connection.........................................................................................39

Figure 3-20: VGA Connector .......................................................................................................40

Figure 3-21: AT/ATX Switch Location.........................................................................................40

Figure4-1: HDD Bracket Screws..................................................................................................45

Figure 4-2: SO-DIMM Socket Location .......................................................................................45

Page ix

Figure 4-3: DDR SO-DIMM Module Installation..........................................................................46

Figure 4-4: HDD Cover Screw......................................................................................................47

Figure 4-5: HDD Bracket Retention Screw.................................................................................47

Figure 4-6: HDD Removal ............................................................................................................48

Figure 6-1: Chipset Driver File Extraction Screen.....................................................................77

Figure 6-2: Chipset Driver Welcome Screen..............................................................................77

Figure 6-3: Chipset Driver License Agreement.........................................................................78

Figure 6-4: Readme File Information Screen.............................................................................78

Figure 6-5: Setup Progress Screen.............................................................................................79

Figure 6-6: Chipset Driver Installation Finish Screen...............................................................79

Figure 6-7: VGA Driver Readme File...........................................................................................80

Figure 6-8: VGA Driver Setup File Extraction Screen...............................................................81

Figure 6-9: VGA Driver Welcome Screen...................................................................................81

Figure 6-10: VGA Driver License Agreement.............................................................................82

POC-17i/19i Series

Figure 6-11: VGA Driver Readme File.........................................................................................82

Figure 6-12: VGA Driver Setup Operations................................................................................83

Figure 6-13: VGA Driver Setup Is Complete Screen .................................................................83

Figure 6-14: LAN Driver Welcome Screen ................................................................................. 84

Figure 6-15: LAN Driver Welcome Screen ................................................................................. 85

Figure 6-16: LAN Driver Installation ...........................................................................................85

Figure 6-17: LAN Driver Installation Complete..........................................................................86

Figure 6-18: The InstallShield Wizard Starts .............................................................................87

Figure 6-19: Preparing Setup Screen .........................................................................................87

Figure 6-20: InstallShield Wizard Welcome Screen..................................................................88

Figure 6-21: Audio Driver Progress Screen...............................................................................88

Figure 6-22: Installation Wizard Updates the System...............................................................89

Figure 6-23: Restart the Computer .............................................................................................89

Figure 6-24: PenMount Welcome Screen...................................................................................90

Figure 6-25: License Agreement.................................................................................................91

Figure 6-26: Choose Install Location..........................................................................................91

Figure 6-27: Installing PenMount Universal Driver V2.1.0.263.................................................92

Figure 6-28: PenMount Universal Driver Update Complete .....................................................92

Figure 6-29: Wireless Driver License Agreement......................................................................93

Figure 6-30: Wireless Driver Configuration Tool Options........................................................94

Figure 6-31: Wireless Mode Select Window ..............................................................................94

Page x

POC-17i/19i Series

List of Tables

Table 1-1: System Specifications..................................................................................................8

Table 3-1: Jumpers.......................................................................................................................20

Table 3-2: Preconfigured Jumpers .............................................................................................21

Table 3-3: Clear CMOS Jumper Settings....................................................................................21

Table 3-4: COM1 Pin 9 Setting Jumper Settings.......................................................................22

Table 3-5: COM3 Pin 9 Setting Jumper Settings.......................................................................23

Table 3-6: COM3 TX Function Select Jumper Settings.............................................................24

Table 3-7: COM3 RS-232/422/485 Serial Port Select Jumper Settings....................................26

Table 3-8: RS-422 Pinouts ...........................................................................................................26

Table 3-9: RS-485 Pinouts ...........................................................................................................27

Table 3-10: COM3 RX Function Select Jumper Settings..........................................................27

Table 3-11: ME Debug Mode Jumper Settings ..........................................................................28

Table 3-12: iTPM Jumper Settings..............................................................................................29

Table 3-13: ME RTC Jumper Settings.........................................................................................30

Table 3-14: SPI Jumper Settings.................................................................................................31

Table 5-1: BIOS Navigation Keys................................................................................................51

Page xii

POC-17i/19i Series

BIOS Menus

BIOS Menu 1: Main.......................................................................................................................52

BIOS Menu 2: Advanced..............................................................................................................54

BIOS Menu 3: ACPI Configuration..............................................................................................54

BIOS Menu 4: TPM Configuration...............................................................................................55

BIOS Menu 5: CPU Configuration...............................................................................................56

BIOS Menu 6: IDE Configuration.................................................................................................57

BIOS Menu 7: USB Configuration...............................................................................................58

BIOS Menu 8: Super IO Configuration........................................................................................59

BIOS Menu 9: Serial Port n Configuration Menu.......................................................................60

BIOS Menu 10: Hardware Health Configuration........................................................................64

BIOS Menu 11: Serial Port Console Redirection.......................................................................65

BIOS Menu 12: Chipset................................................................................................................66

BIOS Menu 13: Northbridge Chipset Configuration..................................................................67

BIOS Menu 14: Southbridge Chipset Configuration.................................................................68

BIOS Menu 15: Intel IGD SWSCI OpRegion ...............................................................................69

BIOS Menu 16: Boot.....................................................................................................................71

BIOS Menu 17: Security...............................................................................................................72

BIOS Menu 18: Exit.......................................................................................................................73

Page xiii

POC-17i/19i Series

Chapter

1 Introduction

Page 1

1.1 Overview

POC-17i/19i Series

Figure 1-1: POC-17i/19i Series Medical Panel PC

The POC-17i/19i Series is an Intel® Core™ powered flat panel PC with a rich variety of

functions and peripherals. All POC-17i/19i Series models are designed for easy and

simplified integration into point-of-care (POC) applications.

An Intel® Core™ i7/i5/i3 processor coupled with the Intel® HM55 chipset delivers optimal

memory, graphics, and peripheral I/O support. The system comes with 2.0 GB of

preinstalled DDR3 dual-channel SO-DIMMs and supports a maximum of 8.0 GB ensuring

smooth data throughputs with reduced bottlenecks and fast system access. The

POC-17i/19i Series features a Gen 5.7 Enhanced Graphics Engine with 12 execution units

and DirectX 10 and Open GL 2.1 support for high quality video performance. Dual display

support is provided via VGA and HDMI ports.

Two serial ports and four external USB 2.0 ports provide simplified connectivity to a variety

of external peripheral devices. Wi-Fi capabilities and two RJ-45 GbE connectors allow for

smooth connection of the system to an external LAN. The POC-17i/19i Series also

Page 2

supports a 2.5” SATA HDD drive which can be accessed without removing the entire back

panel.

POC-17i/19i Series

Intended use: The POC-17i/19i Series is intended to serve as a medical computing device

for integration with hospital system. It is designed for general purpose for hospital

environment. For data collection and display for reference. It shall not be used for

life-supporting system.

1.2 Features

The POC-17i/19i Series features the following:

 Intel® Core™ i7/i5/i3 processor

 Intel® HM55 chipset

 2.0 GB DDR3 SO-DIMM preinstalled

 802.11 a/b/g/n wireless module

 Four USB 2.0 ports

 Watchdog timer that triggers a system reset if the system hangs for some

reason

 AT or ATX power mode

 Touch screen

 RoHS compliance

1.3 External Overview

1.3.1 General Description

The stylish POC-17i/19i Series panel PC is comprised of a screen, rear panel and bottom

panel. An anti-bacteria plastic front frame surrounds the front screen. The rear panel

provides screw holes for a wall-mounting bracket compliant with VESA FDMI standard. An

I/O interface on the bottom panel provides access to external interface connectors that

include LAN, USB 2.0, serial port, reset button, VGA, HDMI, audio connector, power

connector, power switch and AT/ATX mode switch. The right side panel provides access

to a SATA HDD drive.

1.3.2 Front Panel

The front side of the POC-17i/19i Series is a flat panel TFT LCD screen surrounded by an

anti-bacteria plastic frame. The power LED is located at the top center of the front panel

(

Figure 1-2).

Page 3

POC-17i/19i Series

Figure 1-2: Front View

1.3.3 Rear Panel

The rear panel provides access to retention screw holes that support the wall mounting.

Refer to

Figure 1-3.

Page 4

Figure 1-3: Rear View

POC-17i/19i Series

1.3.4 I/O Interface Panel

The I/O interface panel located on the bottom of the POC-17i/19i Series has the following

I/O interface connectors:

 1 x Power switch

 1 x 12 V DC In connector

 1 x RS-232 connector

 1 x RS-232/422/485 connector

 2 x RJ-45 for Giga LAN connectors

 1 x AT/ATX power mode switch

 4 x USB 2.0 connectors

 1 x HDMI connector

 1 x Audio line-out connector

 1 x VGA connector

 1 x Reset button

The external I/O interface connector panel is shown in

Figure 1-4.

Figure 1-4: I/O Interface Connector Panel

Page 5

1.3.5 OSD Control Buttons

The POC-17i/19i Series has seven OSD control buttons as shown below.

POC-17i/19i Series

Figure 1-5: OSD Control Buttons

1.4 Internal Overview

The POC-17i/19i Series has the following components installed internally:

 1 x Mainboard

 1 x 2.0 GB 800/1066 MHz DDR3 SO-DIMM

 1 x Wireless module

 1 x 320GB SATA HDD

Page 6

POC-17i/19i Series

1.5 System Specifications

The technical specifications for the POC-17i/19i Series systems are listed in Table 1-1.

Specification POC-17i POC-19i LCD Size 17” 19” Max. Resolution 1280 x 1024 1280 x 1024 Brightness (cd/m2) 350 350 LCD Color 16.7 M 16.7 M Viewing Angle (H-V) 170。/ 160。 170。/ 160。 CPU Intel® Celeron® P4500 1.86G CPU

Intel® Core™ i3-330M 2.26G CPU Intel® Core™ i5-520M 2.4G CPU Intel® Core™ i7-620M 2.66G CPU

Chipset Intel® HM55 Memory One 204-pin 2 GB DDR3 SO-DIMM preinstalled

(system max. 8GB, dual SO-DIMM slot)

Speaker AMP 3 W + AMP 3 W (built-in stereo speakers) Watchdog Timer Software progr ammable supports 1 sec. ~ 255 sec. system reset Expansion 1 x PCIe Mini card (wireless LAN 802.11 a/b/g/n module) HDD Drive Bay One 2.5” 320GB SATA HDD preinstalled Construction Material Anti-bacteria plastic front frame Mounting VESA 100 mm x 100 mm:

Wall mounting Arm mounting

Dimensions (mm) (W x H x D) 428 x 350 x 76 470 x 383 x 79 Operational Temperature 0ºC ~ 50ºC Storage/Transportation Temperature -20ºC ~ 60ºC Operational Humidity 5% ~ 95%, non-co ndensing Storage/Transportation Humidity 5% ~ 95%, non-condensing Operational Pressure 700 hPa ~ 1060 hPa Storage/Transportation Pressure 500 hPa ~ 1060 hPa Net Weight 6.0kg 6.2kg EMC CE, FCC Class B

Page 7

Specification POC-17i POC-19i Safety ANSI/AAMI ES60601-1

CAN/CSA C22.2 No. 60601-1 IEC/EN 60601-1 3rd edition

Touch Screen Resistive Type 5-wire (touch controller is on board) Power Adapter Manufacturer: FSP Group Inc. (Medical Grade) Model: PMP120-12-S Input: 100 V ~ 240 V, 47 Hz ~ 63 Hz, 1.4 A ~ 0.6 A Output: 12 V, 8 A, 96 W System Rating 12 V, 8 A I/O Ports and Switches 1 x 12 V DC input jack 1 x Audio line-out connector 1 x RS-232 COM port connector 1 x RS-232/422/485 COM port connector

POC-17i/19i Series

2 x RJ-45 for GbE LAN 1 x HDMI port 4 x USB 2.0 ports 1 x VGA connector 1 x Power switch 1 x Reset button

Table 1-1: System Specifications

Page 8

POC-17i/19i Series

1.6 Dimensions

The POC-17i Series dimensions are shown in Figure 1-6 and listed below.

 Width: 428 mm  Height: 250.1 mm  Depth: 76 mm (approximate)

Figure 1-6: POC-17i Series Dimensions (mm)

Page 9

The POC-19i Series dimensions are shown in Figure 1-7 and listed below.

 Width: 469.9 mm  Height: 382.5 mm  Depth: 79 mm (approximate)

POC-17i/19i Series

Page 10

Figure 1-7: POC-17i Series Dimensions (mm)

POC-17i/19i Series

Chapter

2 Unpacking

Page 11

WARNING:

The labels on the external box are best to be read at a distance of

30 cm due to the small label size.

2.1 Unpacking

To unpack the flat panel PC, follow the steps below:

WARNING!

The front side LCD screen has a protective plastic cover stuck to the

POC-17i/19i Series

screen. Only remove the plastic cover after the flat panel PC has been

properly installed. This ensures the screen is protected during the

installation process.

Step 1: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the

external (second) box.

Step 2: Open the external (second) box.

Step 3: Use box cutters, a knife or a sharp pair of scissors that seals the top side of the

internal (first) box.

Step 4: Lift the monitor out of the boxes.

Step 5: Remove both polystyrene ends, one from each side.

Step 6: Pull the plastic cover off the flat panel PC.

Step 7: Make sure all the components listed in the packing list are present.

Page 12

POC-17i/19i Series

2.2 Packing List

The POC-17i/19i Series flat panel PC is shipped with the following components:

NOTE:

If any of these items are missing or damaged, contact the distributor or

sales representative immediately.

Quantity Item Image Standard

1 POC-17i/19i Series

1 Medical-grade power adapter

1 Power cord

1 Screw kit

Page 13

1 Touch pen

POC-17i/19i Series

1 User manual CD and driver CD

Page 14

POC-17i/19i Series

Chapter

3 Installation

Page 15

3.1 Anti-static Precautions

WARNING:

Failure to take ESD precautions during the maintenance of the device

may result in permanent damage to the device and severe injury to the

user.

Electrostatic discharge (ESD) can cause serious damage to electronic components,

including the POC-17i/19i Series. Dry climates are especially susceptible to ESD. It is

therefore critical that whenever the POC-17i/19i Series is accessed internally, or any other

electrical component is handled, the following anti-static precautions are strictly adhered

to.

POC-17i/19i Series

 Wear an anti-static wristband: - Wearing a simple anti-static wristband can

help to prevent ESD from damaging the board.

 Self-grounding: - Before handling the board touch any grounded conducting

material. During the time the board is handled, frequently touch any

conducting materials that are connected to the ground.

 Use an anti-static pad: - When configuring the POC-17i/19i Series, place it

on an antic-static pad. This reduces the possibility of ESD damaging the

device.

 Only handle the edges of the PCB: - When handling the PCB, hold the PCB

by the edges.

3.2 Installation Precautions

When installing the flat panel PC, please follow the precautions listed below:

 Power turned off: When installing the flat panel PC, make sure the power is

off. Failing to turn off the power may cause severe injury to the body and/or

damage to the system.

Page 16

 Certified Engineers: Modification to the product is not permitted unless with

authorization of the company, certified engineer does not mean he/she has

the authority from the company, so remove the modification part.

POC-17i/19i Series

 Anti-static Discharge : If a user open the rear panel of the flat panel PC, to

configure the jumpers or plug in added peripheral devices, ground themselves

first and wear and anti-static wristband.

3.3 Installation and Configuration Steps

The following installation steps must be followed.

Step 1: Remove the rear panel cover

Step 2: Remove the internal aluminum cover

Step 3: Configure the system jumpers

Step 4: Connect peripheral devices to the bottom panel of the flat panel PC

Step 5: Mount the flat panel PC

3.4 Removing the Rear Panel Cover

WARNING:

Over-tightening rear cover screws will crack the plastic frame.

Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm).

To access the POC-17i/19i Series internally, the rear panel cover must first be removed.

To remove the rear panel cover, please follow the steps below.

Step 1: Remove twenty-one (21) retention screws from the rear panel cover. See

3-1.

Figure

Page 17

POC-17i/19i Series

Figure 3-1: Back Cover Retention Screws

Step 2: Lift the cover off the POC-17i/19i Series panel PC.

3.5 Removing the Internal Aluminum Cover

WARNING:

Over-tightening rear cover screws will crack the plastic frame.

Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm).

To remove the internal aluminum cover, follow the steps below.

Step 1: Remove retention screws securing the internal aluminum cover.

Step 2:

Figure 3-2 shows the aluminum cover retention screws of the POC-17i/19i

Series.

Page 18

POC-17i/19i Series

Figure 3-2: Aluminum Back Cover Retention Screws

Step 3: Lift the aluminum cover away to expose the mainboard jumpers.

3.6 Jumper Settings

NOTE:

A jumper is a metal bridge used to close an

electrical circuit. It consists of two or three metal

pins and a small metal clip (often protected by a

plastic cover) that slides over the pins to connect

them. To CLOSE/SHORT a jumper means

connecting the pins of the jumper with the plastic

clip and to OPEN a jumper means removing the

plastic clip from a jumper.

The following jumpers can be found on the motherboard installed in the POC-17i/19i

Series. Before the POC-17i/19i Series is installed, the jumpers must be set in accordance

with the desired configuration. The jumpers on the POC-17i/19i Series motherboard are

listed in

Table 3-1.

Page 19

Description Label Type

Clear CMOS setting J_CMOS1 3-pin header

COM1 Pin 9 setting JP7, JP8 6-pin header

COM3 TX function select JP9 6-pin header

COM3 RS-232/422/485 JP10 12-pin header

COM3 RS function select JP11 8-pin header

ME Debug Mode JP12 2-pin header

iTPM setting J_ITPM1 3-pin header

ME RTC select ME_RTC1 3-pin header

SPI setting J_SPI1 3-pin header

POC-17i/19i Series

Table 3-1: Jumpers

3.6.1 Access the Jumpers

To access the jumpers, please remove the back panel and the internal aluminum chassis

(see Section

3.4 and Section 3.5).

3.6.2 Preconfigured Jumpers

WARNING:

Do not change the settings on the jumpers in described here. Doing so

may disable or damage the system.

The following jumpers are preconfigured for the POC-17i/19i Series. Users should not

change these jumpers (

Table 3-2).

Page 20

Jumper Name Label Type

MCU Detect LCD Type JP3 4-pin header

POC-17i/19i Series

MCU PWM Power JP4 3-pin header

LCD Power Select J_VLVDS1 6-pin header

Table 3-2: Preconfigured Jumpers

3.6.3 Clear CMOS Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

If the POC-17i/19i Series fails to boot due to improper BIOS settings, the clear CMOS

jumper clears the CMOS data and resets the system BIOS information. To do this, use the

jumper cap to close the pins for a few seconds then remove the jumper clip.

If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault

may be corrected by pressing F1 to enter the CMOS Setup menu. Do one of the

following:

 Enter the correct CMOS setting

 Load Optimal Defaults

 Load Failsafe Defaults.

J_CMOS1

3-pin header

Table 3-3

See

Figure 3-3

See

After having done one of the above, save the changes and exit the CMOS Setup menu.

The clear CMOS jumper settings are shown in

Clear CMOS Description

Short 1 - 2 Keep CMOS Setup Short 2 - 3 Clear CMOS Setup

Table 3-3: Clear CMOS Jumper Settings

The location of the clear CMOS jumper is shown in Figure 3-3 below.

Table 3-3.

Page 21

POC-17i/19i Series

Figure 3-3: Clear CMOS Jumper

3.6.4 COM1 Pin 9 Setting

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

Two jumpers (JP7 and JP8) configure pin 9 on COM1 and COM3 DB-9 connectors. Pin 9

on the COM1 and the COM3 DB-9 connectors can be set as the ring (RI) signal, +5 V or

+12 V. The COM1 and COM3 Pin 9 Setting jumper selection options are shown in the

tables below.

JP7 Description

Short 1-2 COM1 RI +12 V Short 3-4 COM1 RI Normal Short 5-6 COM1 RI Pin +5 V

JP7 and JP8

6-pin header

Table 3-4 and Table 3-5

See

Figure 3-4 and Figure 3-5

See

Page 22

Table 3-4: COM1 Pin 9 Setting Jumper Settings

POC-17i/19i Series

The JP7 jumper location is shown below.

Figure 3-4: JP7 Jumper Setting Location

JP8 Description

Short 1-2 COM3 RI +12 V Short 3-4 COM3 RI Normal Short 5-6 COM3 RI +5 V

Table 3-5: COM3 Pin 9 Setting Jumper Settings

The JP8 jumper location is shown below.

Page 23

POC-17i/19i Series

Figure 3-5: JP8 Jumper Setting Location

3.6.5 COM3 TX Function Select Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

The COM3 TX Function Select jumper configures the TX pin on COM3 serial port

connector as RS-422 or RS-485. The COM3 TX Function Select jumper selection

options are shown in

JP9 Description

Short 1 – 3 RS-422 TXShort 2 – 4 RS-422 TX+ Short 3 – 5 RS-485 DShort 4 – 6 RS-485 D+

JP9

6-pin header

Table 3-6

See

Figure 3-6

See

Table 3-6.

Page 24

Table 3-6: COM3 TX Function Select Jumper Settings

The COM3 TX Function Select jumper location is shown in Figure 3-6 below.

POC-17i/19i Series

Figure 3-6: COM3 TX Function Select Jumper Location

3.6.6 COM3 RS-232/422/485 Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

The COM3 RS-232/422/485 Serial Port Select jumper sets the communication protocol

used by the second serial communications port (COM3) as RS-232, RS-422 or RS-485.

The COM3 RS-232/422/485 Serial Port Select settings are shown in

JP10 Description

Short 1-2 RS-232 Short 4-5 RS-232

JP10

12-pin header (four 3-pin headers combined)

Table 3-7

See

Figure 3-7

See

Table 3-7.

Short 7-8 RS-232 Short 10-11 RS-232 Short 2-3 RS-422/485

Page 25

Short 5-6 RS-422/485 Short 8-9 RS-422/485 Short 11-12 RS-422/485

POC-17i/19i Series

Table 3-7: COM3 RS-232/422/485 Serial Port Select Jumper Settings

The COM3 RS-232/422/485 Serial Port Select jumper location is shown in Figure 3-7.

Figure 3-7: COM3 RS-232/422/485 Serial Port Select Jumper Location

3.6.6.1 COM3 RS-422 and RS-485 Pinouts

The pinouts for RS-422 and RS-485 operation of external serial port COM 3 are detailed

below.

COM 3 RS-422 Description

Pin 1 TXPin 2 TX+ Pin 6 RXPin 7 RX+

Page 26

Table 3-8: RS-422 Pinouts

POC-17i/19i Series

COM 3 RS-485 Description

Pin 1 DataPin 2 Data+

Table 3-9: RS-485 Pinouts

3.6.7 COM3 RS Function Select Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

JP11

8-pin header

Table 3-10

See

Figure 3-8

See

The COM3 RX Function Select jumper sets the communication protocol used by the RX

serial communications port COM3 as RS-232, RS-422 or RS-485. The COM3 RX

Function Select jumper settings are shown in

COM3 RX Function Select Description

Short 1-2 DET BIOS RS232/422/485 Short 3-4 RS-232 Short 5-6 RS-422 Short 7-8 RS-485

Table 3-10.

Table 3-10: COM3 RX Function Select Jumper Settings

The COM3 RX Function Select jumper location is shown in Figure 3-8.

Page 27

POC-17i/19i Series

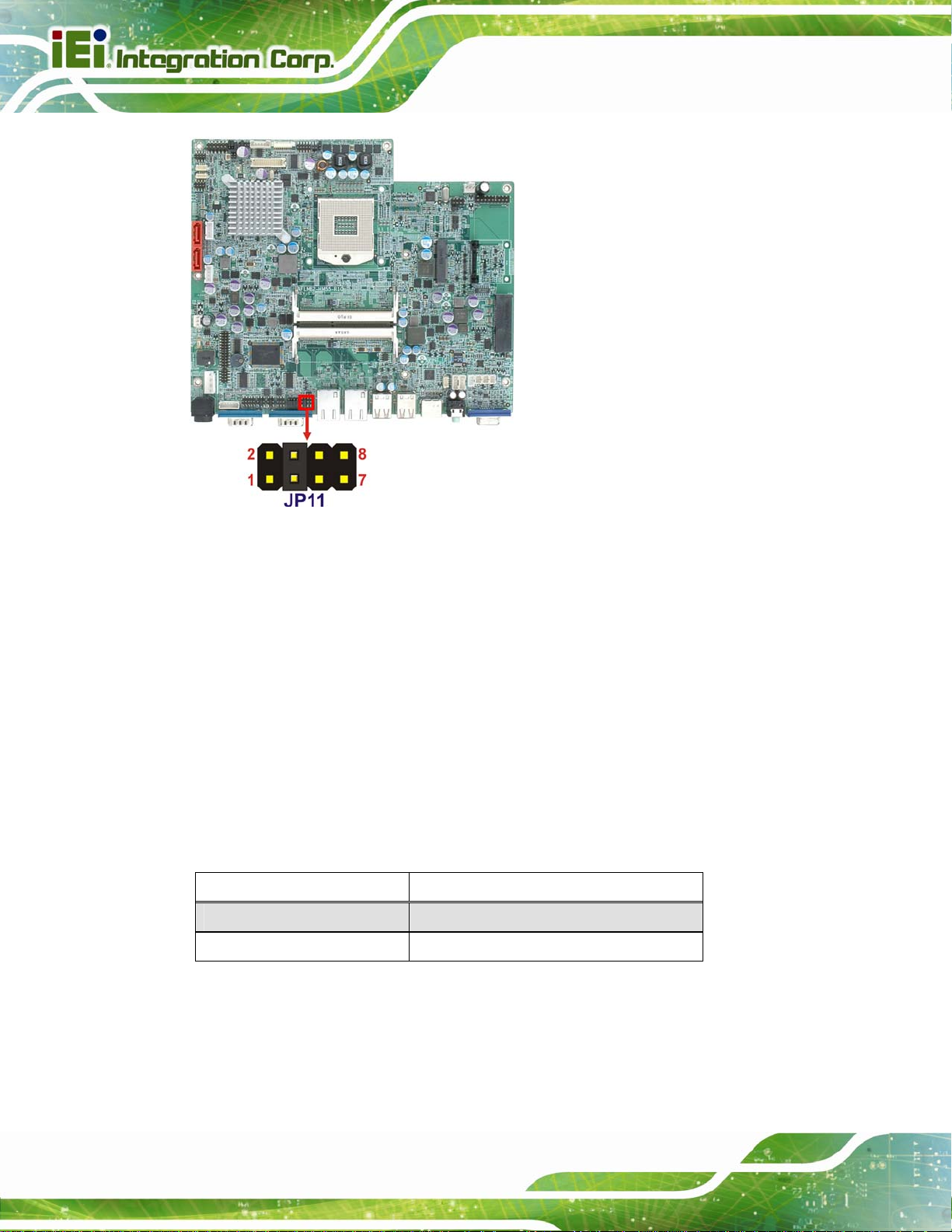

Figure 3-8: COM3 RX Function Select Jumper Location

3.6.8 ME Debug Mode Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

The ME Debug Mode jumper allows ME firmware overwrite protection. The ME Debug

Mode jumper settings are shown in

ME Debug Mode Description

Open Disabled Closed Enabled

Table 3-11: ME Debug Mode Jumper Settings

JP12

2-pin header

Table 3-11

See

Figure 3-9

See

Table 3-11.

Page 28

The ME Debug Mode jumper location is shown in Figure 3-9.

POC-17i/19i Series

Figure 3-9: ME Debug Mode Jumper Location

3.6.9 iTPM Setting Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

The iTPM jumper settings are shown in

iTPM setting Description

Short 1-2 Disable iTPM Short 2-3 Enable iTPM

Table 3-12: iTPM Jumper Settings

The iTPM jumper location is shown in Figure 3-10.

J_ITPM1

3-pin header

Table 3-12

See

Figure 3-10

See

Table 3-12.

Page 29

POC-17i/19i Series

Figure 3-10: iTPM Jumper Location

3.6.10 ME RTC Select Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

The ME RTC select jumper settings are shown in

ME RTC select Description

Short 1-2 Keep ME RTC Short 2-3 Clear ME RTC

Table 3-13: ME RTC Jumper Settings

ME_RTC1

3-pin header

Table 3-13

See

Figure 3-11

See

Table 3-13.

Page 30

The ME RTC jumper location is shown in Figure 3-11.

POC-17i/19i Series

Figure 3-11: ME RTC Jumper Location

3.6.11 SPI Setting Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

The SPI jumper settings are shown in

SPI setting Description

Short 1-2 Program SP10 Short 2-3 Program SPI1

Table 3-14: SPI Jumper Settings

J_SPI

3-pin header

Table 3-14

See

Figure 3-12

See

Table 3-14.

The SPI jumper location is shown in Figure 3-12.

Page 31

Figure 3-12: SPI Jumper Location

3.7 Mounting the System

POC-17i/19i Series

WARNING!

When mounting the flat panel PC onto an arm, onto the wall or onto a

panel, it is better to have more than one person to help with the installation

to make sure the panel PC does not fall down and get damaged.

The methods of mounting the POC-17i/19i Series are listed below.

 Wall mounting

 Arm mounting

The mounting methods are described below.

3.7.1 Wall Mounting

To mount the flat panel PC onto the wall, please follow the steps below.

Step 1: Select the location on the wall for the wall-mounting bracket.

Page 32

Step 2: Carefully mark the locations of the four screw holes in the bracket on the wall.

POC-17i/19i Series

Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention

screws.

Step 4: Align the wall-mounting bracket screw holes with the pilot holes.

Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into

the four pilot holes and tightening them (

Figure 3-13).

Figure 3-13: Wall-mounting Bracket

Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the

four screw holes on the real panel of the flat panel PC and tighten until the screw

shank is secured against the rear panel (

Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on

the bracket.

Step 8: Carefully insert the screws through the holes and gently pull the monitor

downwards until the monitor rests securely in the slotted holes (

Ensure that all four of the mounting screws fit snuggly into their respective

slotted holes.

Figure 3-14).

Page 33

POC-17i/19i Series

NOTE:

In the diagram below the bracket is already installed on the wall.

Page 34

Figure 3-14: Chassis Support Screws

Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting

bracket. (

Figure 3-15).

POC-17i/19i Series

Figure 3-15: Securing the Panel PC

3.7.2 Arm Mounting

The POC-17i/19i Series is VESA (Video Electronics Standards Association) compliant and

can be mounted on an arm with a 75mm or 100mm interface pad. To mount the

POC-17i/19i Series on an arm, please follow the steps below.

Step 1: The arm is a separately purchased item. Please correctly mount the arm onto

the surface it uses as a base. To do this, refer to the installation documentation

that came with the mounting arm.

Page 35

POC-17i/19i Series

NOTE:

When purchasing the arm please ensure that it is VESA compliant and that

the arm has a 100 mm interface pad. If the mounting arm is not VESA

compliant it cannot be used to support the POC-17i/19i Series flat panel

PC.

Step 2: Once the mounting arm has been firmly attached to the surface, lift the flat panel

PC onto the interface pad of the mounting arm.

Step 3: Align the retention screw holes on the mounting arm interface with those in the

flat panel PC. The POC-17i/19i Series arm mount retention screw holes are

shown in

Figure 3-16.

Figure 3-16: Arm Mounting Retention Screw Holes

Step 4: Secure the flat panel PC to the interface pad by inserting four retention screws

through the bottom of the mounting arm interface pad and into the flat panel PC.

3.8 Bottom Panel Connectors

3.8.1 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

Page 36

POC-17i/19i Series

Step 1: Locate the RJ-45 connectors on the bottom panel of the POC-17i/19i Series.

Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the bottom panel of the POC-17i/19i Series. See

Figure 3-17.

Figure 3-17: LAN Connection

Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the onboard RJ-45 connector.

3.8.2 Serial Device Connection

The POC-17i/19i Series has two male DB-9 connectors on the bottom panel for serial

devices to be connected. Follow the steps below to connect a serial device to the

POC-17i/19i Series panel PC.

Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in

Chapter 2.

Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into

the DB-9 connector on the bottom panel. See

Figure 3-18.

Page 37

POC-17i/19i Series

Figure 3-18: Serial Device Connector

Step 3: Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

3.8.3 USB Device Connection

There are four external USB 2.0 connectors. All connectors are perpendicular to the

POC-17i/19i Series. To connect a USB 2.0 or USB 1.1 device, please follow the

instructions below.

Step 1: Located the USB connectors. The locations of the USB connectors are shown

in Chapter 2.

Step 2: Align the connectors. Align the USB device connector with one of the

connectors on the bottom panel. See

Figure 3-19.

Page 38

POC-17i/19i Series

Figure 3-19: USB Device Connection

Step 3: Insert the device connector. Once aligned, gently insert the USB device

connector into the onboard connector.

3.8.4 VGA Monitor Connection

The POC-17i/19i Series has a single female DB-15 connector on the external peripheral

interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect

a monitor to the POC-17i/19i Series, please follow the instructions below.

Step 1: Locate the female DB-15 connector. The location of the female DB-15 connector

is shown in Section

Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3: Insert the VGA connector. Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

POC-17i/19i Series. See

1.3.4.

Figure 3-20.

Page 39

Figure 3-20: VGA Connector

Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA

POC-17i/19i Series

monitor to the external interface by tightening the two retention screws on either

side of the connector. Step 0:

3.9 AT/ATX Mode Selection

AT and ATX power modes can both be used on the POC-17i/19i Series. The selection is

made through an AT/ATX switch on bottom panel (

ATX mode, follow the steps below.

Step 1: Locate the AT/ATX switch on the bottom panel (

Figure 3-21: AT/ATX Switch Location

Figure 3-21). To select AT mode or

Figure 3-21).

Page 40

Step 2: Adjust the switch according to the preferred setting.

POC-17i/19i Series

3.9.1 AT Power Mode

With the AT mode selected, the power is controlled by a central power unit rather than a

power switch. The POC-17i/19i Series panel PC turns on automatically when the power is

connected. The AT mode benefits a production line to control multiple panel PCs from a

central management center and other applications including:

 ATM

 Self-service kiosk

 Plant environment monitoring system

 Factory automation platform

 Manufacturing shop flow

3.9.2 ATX Power Mode

With the ATX mode selected, the POC-17i/19i Series panel PC goes in a standby mode

when it is turned off. The panel PC can be easily turned on via network or a power switch

in standby mode. Remote power control is perfect for advertising applications since the

broadcasting time for each panel PC can be set individually and controlled remotely. Other

possible application includes

 Security surveillance

 Point-of-Sale (POS)

 Advertising terminal

Page 41

POC-17i/19i Series

Chapter

4 System Maintenance

Page 42

POC-17i/19i Series

4.1 System Maintenance Introduction

If the components of the POC-17i/19i Series fail they must be replaced. Components that

can be replaced include:

 SO-DIMM module

 HDD drive

Please contact the system reseller or vendor to purchase replacement parts.

4.2 Anti-static Precautions

WARNING:

Failure to take ESD precautions during the maintenance of the

POC-17i/19i Series may result in permanent damage to the

POC-17i/19i Series and severe injury to the user.

Electrostatic discharge (ESD) can cause serious damage to electronic components,

including the POC-17i/19i Series. Dry climates are especially susceptible to ESD. It is

therefore critical that whenever the panel PC is accessed internally, or any other electrical

component is handled, the following anti-static precautions are strictly adhered to.

 Wear an anti-static wristband: - Wearing a simple anti-static wristband can

help to prevent ESD from damaging the board.

 Self-grounding: - Before handling the board touch any grounded conducting

material. During the time the board is handled, frequently touch any

conducting materials that are connected to the ground.

 Use an anti-static pad: - When configuring the POC-17i/19i Series, place it

on an antic-static pad. This reduces the possibility of ESD damaging the

POC-17i/19i Series.

 Only handle the edges of the PCB: - When handling the PCB, hold the PCB

by the edges.

Page 43

4.3 Turn off the Power

WARNING:

Failing to turn off the system before opening it can cause permanent

damage to the system and serious or fatal injury to the user.

Before any maintenance procedures are carried out on the system, make sure the system

is turned off.

4.4 Replacing Components

4.4.1 Memory Module Replacement

POC-17i/19i Series

The flat panel PC features two DDR3 dual-channel SO-DIMM sockets supporting a

system max of 8GB. If the memory module fails, follow the instructions below to replace

the memory module.

Step 1: Remove the back cover. See Section

Step 2: Remove the internal aluminum back cover. See Section

Step 3: Remove four (4) retention screws securing the HDD bracket to the chassis. See

the following figure.

3.4.

3.5.

Page 44

POC-17i/19i Series

Figure

Step 4: Lift the HDD bracket away to expose the DIMM connectors. See (

ٛ 4-1: HDD Bracket Screws

Figure 4-2).

Figure 4-2: SO-DIMM Socket Location

Step 5: Remove the DDR memory module by pulling both the spring retainer clips

outward from the socket.

Page 45

Step 6: Grasp the DDR memory module by the edges and carefully pull it out of the

socket.

Step 7: Install the new DDR memory module by pushing it into the socket at an angle

Figure 4-3).

(

Step 8: Gently pull the spring retainer clips of the SO-DIMM socket out and push the

POC-17i/19i Series

rear of the DDR memory module down (

Step 9: Release the spring retainer clips on the SO-DIMM socket. They clip into place

and secure the DDR memory module in the socket.

Figure 4-3).

Figure 4-3: DDR SO-DIMM Module Installation

4.4.2 HDD Card Replacement

The POC-17i/19i Series is preinstalled with one HDD. To replace the HDD, follow the

instructions below.

Page 46

Step 1: Follow all anti-static procedures. See Section

Step 2: Turn off the power. See Section

Step 3: Remove the HDD cover by removing the HDD cover screw.

4.3.

4.2.

POC-17i/19i Series

Figure 4-4: HDD Cover Screw

Step 4: Remove the HDD bracket retention screw (

Figure 4-5: HDD Bracket Retention Screw

Figure 4-4).

Step 5: Pull the old HDD from the HDD slot.

Page 47

POC-17i/19i Series

Figure 4-6: HDD Removal

Step 6: Line up the new HDD with the SATA connector.

Step 7: Insert the HDD into SATA connector until it is securely in place.

Step 8: Secure the HDD bracket with the previously removed retention screw.

Step 9: Replace the HDD cover and secure using one (1) retention screw.

Page 48

POC-17i/19i Series

Chapter

5 BIOS Setup

Page 49

5.1 Introduction

A licensed copy of the BIOS is preprogrammed into the ROM BIOS. The BIOS setup

program allows users to modify the basic system configuration. This chapter describes

how to access the BIOS setup program and the configuration options that may be

changed.

5.1.1 Starting Setup

The UEFI BIOS is activated when the computer is turned on. The setup program can be

activated in one of two ways.

POC-17i/19i Series

1. Press the D

2. Press the D

appears on the screen. 0.

If the message disappears before the D

and try again.

ELETE or F2 key as soon as the system is turned on or ELETE or F2 key when the “Press Del to enter SETUP” message

ELETE or F2 key is pressed, restart the computer

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E

keys are shown in the following table.

Key Function

Up arrow Move to the item above

Down arrow Move to the item below

Left arrow Move to the item on the left hand side

SC to quit. Navigation

Page 50

Right arrow Move to the item on the right hand side

+ Increase the numeric value or make changes

- Decrease the numeric value or make changes

Page Up key Move to the next page

Page Dn key Move to the previous page

POC-17i/19i Series

Esc key Main Menu – Quit and do not save changes into CMOS

F1 key General help, only for Status Page Setup Menu and Option

F9 key Load optimized defaults

F10 key Save changes and Exit BIOS

Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu

Page Setup Menu

possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

5.1.4 Unable to Reboot After Configuration Changes

If the computer cannot boot after changes to the system configuration are made, CMOS

defaults. Use the jumper described in Chapter 4.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:

Main Changes the basic system configuration.



Advanced Changes the advanced system settings.

 Chipset Changes the chipset settings

 Boot Changes the system boot configuration.



Security Sets User and Supervisor Passwords.



Save & Exit Selects exit options and loads default settings

SC or

The following sections completely describe the configuration options found in the menu

items at the top of the BIOS screen and listed above.

Page 51

5.2 Main

The Main BIOS menu (5BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.

Main Advanced Chipset Boot Security Save & Exit

BIOS Information BIOS Vendor American Megatrends Core Version 4.6.3.7 0.16 Project Version H691AR10.ROM Build Date 10/12/2010 15:39:09

Memory Information Total Memory 1024 MB (DDR3 1066)

System Date [Wed 04/20/2011] System Time [14:27:27]

Access Level Administrator

Set the Date. Use Tab to switch between Date elements.

----------------------

ÅÆ

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

POC-17i/19i Series

: Select Screen

BIOS Menu 1: Main

Î System Overview

The System Overvie w lists a brief summary of different system components. The fields in System Overview cannot be changed. The items shown in the system overview include:

 BIOS Vendor: Installed BIOS vendor  Core Version: Current BIOS version  Project Version: The board version  Build Date: Date the current BIOS version was made  Access Level: User access level

Î Memory Information

The Memory Information lists a brief summary of the on-board memory. The fields in Memory Information cannot be changed.

 Total Memory: Displays the auto-detected system memory size and type.

Page 52

POC-17i/19i Series

The System Overview field also has two user configurable fields:

Î System Date [xx/xx/xx]

Use the System Date option to set the system date. Manually enter the day, month and

year.

Î System Time [xx:xx:xx]

Use the System Time option to set the system time. Manually enter the hours, minutes

and seconds.

5.3 Advanced

Use the Advanced menu (5BIOS Menu 2) to configure the CPU and peripheral devices

through the following sub-menus:

WARNING:

Setting the wrong values in the sections below may cause the system

to malfunction. Make sure that the settings made are compatible with

the hardware.

 ACPI Settings

 Trusted Computing

 CPU Configuration

 SATA Configuration

 USB Configuration

 Super IO Configuration

 H/W Monitor

 Serial Port Console Redirection

Page 53

Main Advanced Chipset Boot Security Save & Exit

> ACPI Settings > Trusted Computing > CPU Configuration > SATA Configuration > USB Configuration > Super IO Configuration > H/M Monitor > Serial Port Console Redirection

BIOS Menu 2: Advanced

System ACPI Parameters

----------------------

ÅÆ

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

POC-17i/19i Series

: Select Screen

5.3.1 ACPI Settings

The ACPI Settings menu (5BIOS Menu 5) configures the Advanced Configuration and

Power Interface (ACPI) options.

Advanced

ACPI Sleep State [S1 (CPU Stop Clock)]

elect the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 3: ACPI Configuration

Page 54

POC-17i/19i Series

Î ACPI Sleep State [S3 (CPU Stop Clock)]

Use the ACPI Sleep State option to specify the sleep state the system enters when it is

not being used.

S1 (CPU Stop Clock)

S3 (Suspend to RAM)

DEFAULT

The system enters S1 (POS) sleep state. The

system appears off. The CPU is stopped; RAM is

refreshed; the system is running in a low power

mode.

The caches are flushed and the CPU is powered

off. Power to the RAM is maintained. The

computer returns slower to a working state, but

more power is saved.

5.3.2 Trusted Computing

Use the Trusted Computing menu (BIOS Menu 4) to configure settings related to the

Trusted Computing Group (TCG) Trusted Platform Module (TPM).

Advanced

TPM Configuration TPM SUPPORT [Disable]

Current TPM Status Information NO TPM Hardware

nables or Disables TPM

support. O.S. will not show TPM. Reset of platform is required.

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 4: TPM Configuration

Page 55

Î TPM Support [Disable]

Use the TPM Support option to configure support for the TPM.

POC-17i/19i Series

Disable DEFAULT

Enable

TPM support is disabled.

TPM support is enabled.

5.3.3 CPU Configuration

Use the CPU Configuration menu (BIOS Menu 5) to view detailed CPU specifications

and configure the CPU.

Advanced

CPU Configuration

Processor Type Intel(R) Celeron (R) EMT64 Supported Processor Speed 1862 MHz Processor Stepping 20652 Microcode Revision 9 Processor Cores 2 Intel HT Technology Not Supported

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 56

BIOS Menu 5: CPU Configuration

The CPU Configuration menu (

 Processor Type: Lists the brand name of the CPU being used

 EMT64: Indicates if EM64T is supported by the CPU.

 Processor Speed: Lists the CPU processing speed

 Processor Stepping: Lists the CPU processing stepping

 Microcode Revision: Lists the microcode revision

 Processor Cores: Lists the number of the processor core

 Intel HT Technology: Indicates if Intel HT Technology is supported by the

CPU.

BIOS Menu 5) lists the following CPU details:

POC-17i/19i Series

5.3.4 SATA Configuration

Use the SATA Configuration menu (BIOS Menu 6) to change and/or set the

configuration of the SATA devices installed in the system.

Advanced

SATA Configuration

SATA Port0 Not Present SATA Port1 Not Present SATA Port2 Not Present

SATA Mode [IDE Mode] Serial-ATA Controller 0 [Compatible] Serial-ATA Controller 1 [Enhanced]

(1) IDE Mode. (2) AHCI Mode.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 6: IDE Configuration

Î SATA Mode [IDE Mode]

Use the SATA Mode option to configure SATA devices as normal IDE devices.

Disable

IDE Mode DEFAULT

AHCI Mode

Î Serial-ATA Controller n [Compatible]

Use the Serial-ATA Controller option to configure the SATA controller.

Disabled

Enhanced

Disables SATA devices.

Configures SATA devices as normal IDE device.

Configures SATA devices as AHCI device.

Disables the on-board SATA controller.

Configures the on-board SATA controller to be in

Enhanced mode. In this mode, IDE channels and SATA

channels are separated.

Page 57

POC-17i/19i Series

Compatible DEFAULT

Configures the on-board SATA controller to be in

compatible mode. In this mode, a SATA channel will

replace one of the IDE channels. This mode supports

up to 6 storage devices.

5.3.5 USB Configuration

Use the USB Configuration menu (BIOS Menu 7) to read USB configuration information

and configure the USB settings.

Advanced

USB Configuration

USB Devices: 1 Keyboard, 2 Hubs

All USB Devices [Enabled] Legacy USB Support [Enabled]

Enable / Disable All USB Devices

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 7: USB Configuration

Î USB Devices

The USB Devices Enabled field lists the USB devices that are enabled on the system

Î All USB Devices [Enabled]

Use this option to enable or disable all USB device support on the system.

Disabled

Enabled DEFAULT

Page 58

All USB device support disabled

All USB device support enabled

POC-17i/19i Series

Î Legacy USB Support [Enabled]

Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard

support. Normally if this option is not enabled, any attached USB mouse or USB keyboard

does not become available until a USB compatible operating system is fully booted with all

USB drivers loaded. When this option is enabled, any attached USB mouse or USB

keyboard can control the system even when there is no USB driver loaded onto the

system.

Disabled

Enabled DEFAULT

Auto

Legacy USB support disabled

Legacy USB support enabled

Legacy USB support disabled if no USB devices are

connected

5.3.6 Super IO Configuration

Use the Super IO Configuration menu (BIOS Menu 8) to set or change the

configurations for the FDD controllers, parallel ports and serial ports.

Advanced

Super IO Configuration

Super IO Chip Finteck F81865

> Serial Port 0 Configuration > Serial Port 1 Configuration > Serial Port 2 Configuration > Parallel Port Configuration

et Parameters of Serial

Port 0 (COMA)

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 8: Super IO Configuration

Page 59

POC-17i/19i Series

5.3.6.1 Serial Port n Configuration

Use the Serial Port n Configuration menu (BIOS Menu 9) to configure the serial port n.

Advanced

Serial Port 0 Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4

Change Settings [Auto]

nable or Disable Serial

Port (COM)

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 9: Serial Port n Configuration Menu

5.3.6.1.1 Serial Port 0 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.

Auto DEFAULT

Disable the serial port

Enable the serial port

The serial port IO port address and interrupt address

are automatically detected.

IO=3F8h; IRQ=4

Page 60

Serial Port I/O port address is 3F8h and the interrupt

address is IRQ4

POC-17i/19i Series

IO=3F8h; IRQ=3, 4

IO=2F8h; IRQ=3, 4

IO=2C0h; IRQ=3, 4

IO=2C8h; IRQ=3, 4

5.3.6.1.2 Serial Port 1 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Serial Port I/O port address is 3F8h and the interrupt

address is IRQ3, 4

Serial Port I/O port address is 2F8h and the interrupt

address is IRQ3, 4

Serial Port I/O port address is 2C0h and the interrupt

address is IRQ3, 4

Serial Port I/O port address is 2C8h and the interrupt

address is IRQ3, 4

Disable the serial port

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.

Auto DEFAULT

IO=2F8h; IRQ=3

IO=3F8h; IRQ=3, 4

IO=2F8h; IRQ=3, 4

IO=2C0h;

Enable the serial port

The serial port IO port address and interrupt address

are automatically detected.

Serial Port I/O port address is 2F8h and the interrupt

address is IRQ3

Serial Port I/O port address is 3F8h and the interrupt

address is IRQ3, 4

Serial Port I/O port address is 2F8h and the interrupt

address is IRQ3, 4

Serial Port I/O port address is 2C0h and the interrupt

IRQ=3, 4

address is IRQ3, 4

Page 61

POC-17i/19i Series

IO=2C8h; IRQ=3, 4

5.3.6.1.3 Serial Port 2 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.

Auto DEFAULT

Serial Port I/O port address is 2C8h and the interrupt

address is IRQ3, 4

Disable the serial port

Enable the serial port

The serial port IO port address and interrupt address

are automatically detected.

IO=3E8h; IRQ=11

IO=3E8h; IRQ=10, 11

IO=2E8h; IRQ=10, 11

IO=2D0h; IRQ=10, 11

IO=2D8h; IRQ=10, 11

Serial Port I/O port address is 3E8h and the interrupt

address is IRQ11

Serial Port I/O port address is 3E8h and the interrupt

address is IRQ10, 11

Serial Port I/O port address is 2E8h and the interrupt

address is IRQ10, 11

Serial Port I/O port address is 2D0h and the interrupt

address is IRQ10, 11

Serial Port I/O port address is 2D8h and the interrupt

address is IRQ10, 11

Page 62

POC-17i/19i Series

5.3.6.1.4 Parallel Port Configuration

Î Parallel Port [Enabled]

Use the Parallel Port option to enable or disable the parallel port.

Disabled

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the parallel port IO port address and interrupt

address.

Auto DEFAULT

IO=378h; IRQ=7

IO=278h; IRQ=7

IO=3BCh; IRQ=7

Disable the parallel port

Enable the parallel port

The parallel port IO port address and interrupt

address are automatically detected.

Parallel Port I/O port address is 378h and the

interrupt address is IRQ7

Parallel Port I/O port address is 278h and the

interrupt address is IRQ7

Parallel Port I/O port address is 3BCh and the

interrupt address is IRQ7

IO=378h

IO=278h

IO=3BCh

Î Device Mode [Printer Mode]

Use the Device Mode option to select the mode the parallel port operates in.

Configuration options are listed below.

 Standard and Bi-direction (SPP) mode Default

 EPP-1.9 and SPP Mode

 ECP Mode

 ECP and EPP 1.9 Mode

Parallel Port I/O port address is 378h

Parallel Port I/O port address is 278h

Parallel Port I/O port address is 3BCh

Page 63

 Printer mode

 EPP-1.7 and SPP Mode

 ECP and EPP 1.7 Mode

POC-17i/19i Series

5.3.7 H/W Monitor

The H/W Monitor menu (BIOS Menu 10) shows the operating temperature, fan speeds

and system voltages.

Advanced

PC Health Status

CPU Temperature :+91 C SYS Temperature :+58 C CPU FAN Speed :4702 RPM SYS FAN Speed :3722 RPM VCC3C :+3.360 V V_core :+1.192 V +5V :+5.045 V +12V :+12.056 V +1.5V :+1.520 V VSB3V :+3.360 V VBAT :+3.280 V

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 10: Hardware Health Configuration

Î PC Health Status

The following system parameters and values are shown. The system parameters that are

monitored are:

 System Temperatures:

 Fan Speeds:

 Voltages:

Page 64

o CPU Temperature o System Temperature

o CPU Fan Speed o System Fan Speed

POC-17i/19i Series

o VCC3V o Vcore o +5V o +12 V o +1.5V o VSB3V o VBAT

5.3.8 Serial Port Console Redirection

The Serial Port Console Redirection menu (BIOS Menu 11) allows the console

redirection options to be configured. Console redirection allows users to maintain a

system remotely by re-directing keyboard input and text output through the serial port.

Advanced

Serial port 0

Console Redirection [Disabled]

> Console Redirection Settings

Serial port 2

Console Redirection [Disabled]

> Console Redirection Settings

Console Redirection Enable or Disable.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 11: Serial Port Console Redirection

Î Console Redirection [Disabled]

Use Console Redirection option to enable or disable the console redirection function.

Disabled DEFAULT

Enabled

Disabled the console redirection function

Enabled the console redirection function

Page 65

5.4 Chipset

Use the Chipset menu (BIOS Menu 12) to access the Northbridge and Southbridge

configuration menus

WARNING!

Setting the wrong values for the Chipset BIOS selections in the Chipset

BIOS menu may cause the system to malfunction.

Main Advanced Chipset Boot Security Save & Exit

> North Bridge > South Bridge > Intel IGD SWSCI OpRegion

North Bridge Parameters

---------------------

ÅÆ

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

POC-17i/19i Series

: Select Screen

Page 66

BIOS Menu 12: Chipset

POC-17i/19i Series

5.4.1 Northbridge Configuration

Use the Northbridge Chipset Configuration menu (BIOS Menu 13) to configure the

Northbridge chipset.

Chipset

Memory Information

CPU Type Arrandale

Total Memory 1024 MB (DDR3 1066)

Memory Slot0 1024 MB (DDR3 1066) Memory Slot2 0 MB (DDR3 1066)

CAS# Latency(tCL) 7 RAS# Active Time(tRAS) 20 Row Precharge Time(tRP) 7 RAS# to CAS# Delay(tRCD) 7 Write Recovery Time(tWR) 8 Row Refresh Cycle Timea(tRFC) 60 Write to Read Delay(tWTR) 4 Active to Active Delay(tRRD) 4 Read CAS# Precharge(tRTP) 5

IGD Memory [64M]

IGD Share Memory Size

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 13: Northbridge Chipset Configuration

Î IGD Memory [32 MB]

Use the IGD Memory option to specify the amount of system memory that can be used by

the Internal graphics device.

Disable

32 MB DEFAULT

64 MB

32 MB of memory used by internal graphics device

64 MB of memory used by internal graphics device

Page 67

POC-17i/19i Series

5.4.2 Southbridge Configuration

Use the Southbridge Configuration menu (BIOS Menu 14) to configure the Southbridge

chipset.

Chipset

Auto Power Button [Disabled]

Restore AC Power Loss [Power Off]

Audio Configuration

Azalia HD Audio [Enabled] Set Spread Spectrum [Disabled]

When Auto Power Button

unction select Enabled

the AC power loss will always power on.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 14: Southbridge Chipset Configuration

Î Restore on AC Power Loss [Power Off]

Use the Restore on AC Power Loss BIOS option to specify what state the system

returns to if there is a sudden loss of power to the system.

Power Off DEFAULT

Power On

Last State

Î Azalia HD Audio [Enabled]

Use the Azalia HD Audio option to enable or disable the High Definition Audio controller.

Disabled

The system remains turned off

The system turns on

The system returns to its previous state. If it was on, it

turns itself on. If it was off, it remains off.

The onboard High Definition Audio controller is disabled

Page 68

POC-17i/19i Series

Enabled DEFAULT

Î Set Spread Spectrum [Disabled]

Use the Set Spread Spectrum option to enable or disable the Set Spread Spectrum

function.

Disabled DEFAULT

Enabled

The onboard High Definition Audio controller

automatically detected and enabled

Set Spread Spectrum is disabled

Set Spread Spectrum is enabled

5.4.3 Intel IGD SWSCI OpRegion

Use the Intel IGD SWSCI OpRegion menu (BIOS Menu 15) to configure the video device

connected to the system.

Chipset

Intel IGD SWSCI OpRegion Configuration

DVMT/FIXED Memory [Maximum] Active LFP [Enable LVDS] LCD Panel Type [800x600 18bit]

Select DVMT/FIXED Mode Memory size used by Internal Graphics Device

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Menu 15: Intel IGD SWSCI OpRegion

Î DVMT/FIXED Memory [Maximum]

Use the DVMT/FIXED Memory option to specify the maximum amount of memory that

can be allocated as graphics memory. Configuration options are listed below.

 128 MB

Page 69

 256 MB

 Maximum Default

Î Active LFP [Enable LVDS]

Use the Active LFP option to enable or disable LVDS.

POC-17i/19i Series

Disable LVDS

Enable LVDS

Î LCD Panel Type [Select by Panel ID]

Use the LCD Panel Type option to select the type of flat panel connected to the system.

Configuration options are listed below.

 Select by Panel ID D

 800x600 18bit

 1024x768 18bit

 1024x768 24bit

 1280x800 18bit

 1366x768 18bit

 1400x1050 48bit

DEFAULT

LVDS is disabled

LVDS is enabled

EFAULT

Page 70

 1440x900 48bit

 1600x900 48bit

 1600x1200 48bit

 1680x1050 48bit

 1920x1080 48bit

 1920x1200 48bit

 2048x1536 48bit

POC-17i/19i Series

5.5 Boot

Use the Boot menu (BIOS Menu 16) to configure system boot options.

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration

Quiet Boot [Enabled] Bootup NumLock State [On] Realtek 8111E PXE OpROM [Disabled]

Boot Option Priorities

Enables/Disables Quiet Boot option

---------------------

ÅÆ

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

: Select Screen

BIOS Menu 16: Boot

Î Quiet Boot [Enabled]

Use the Quiet Boot BIOS option to select the screen display when the system boots.

Disabled

Enabled DEFAULT

Î Bootup NumLock State [On]

Use the Bootup NumLock State BIOS option to specify if the number lock setting must

be modified during boot up.

On DEFAULT

Normal POST messages displayed

OEM Logo displayed instead of POST messages

Allows the Number Lock on the keyboard to be

enabled automatically when the computer system

boots up. This allows the immediate use of the

10-key numeric keypad located on the right side of

the keyboard. To confirm this, the Number Lock LED

light on the keyboard is lit.

Page 71

POC-17i/19i Series

Off

Î Realtek 8111E PXE OpROM [Disabled]

Use the Realtek 8111E PXE OpROM BIOS option to enable or disable Boot Option for

Legacy Network Devices.

Disabled DEFAULT

Enabled

5.6 Security

Does not enable the keyboard Number Lock

automatically. To use the 10-keys on the keyboard,

press the Number Lock key located on the upper

left-hand corner of the 10-key pad. The Number

Lock LED on the keyboard lights up when the

Number Lock is engaged.

Disables Boot Option for Legacy Network Devices.

Enables Boot Option for Legacy Network Devices.

Use the Security menu (BIOS Menu 17) to set system and user passwords.

Main Advanced Chipset Boot Security Save & Exit

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights

Administrator Password User Password

Set User Password Set Master Password

BIOS Menu 17: Security

et Setup Administrator

Password

---------------------

ÅÆ

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

: Select Screen

Page 72

POC-17i/19i Series

Î Administrator Password

Use the Administrator Password field to set or change a administrator password.

Î User Password

Use the User Password field to set or change a user password.

Î Set User Password

Use the Set User Password field to set or change an HDD user password.

NOTE:

It is recommended that the system be reset after setting a new HDD

password.

5.7 Exit

Use the Exit menu (BIOS Menu 18) to load default BIOS values, optimal failsafe values

and to save configuration changes.

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Reset Discard Changes and Reset

Restore Defaults Save as User Defaults Restore User Defaults

Reset the system after saving the changes.

---------------------

ÅÆ

↑ ↓: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

: Select Screen

BIOS Menu 18: Exit

Page 73

Î Save Changes and Reset

Use the Save Changes and Reset option to save the changes made to the BIOS options

and reset the system.

Î Discard Changes and Reset

Use the Discard Changes and Reset option to exit the system without saving the

changes made to the BIOS configuration setup program.

Î Restore Defaults

Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation.

Î Save as User Defaults

POC-17i/19i Series

Use the Save as User Defaults option to save the changes done so far as user defaults.

Î Restore User Defaults

Use the Restore User Defaults option to restore the user defaults to all the setup options.

Page 74

POC-17i/19i Series

Chapter

6 Software Drivers

Page 75

6.1 Available Software Drivers

NOTE:

The content of the CD may vary throughout the life cycle of the product

and is subject to change without prior notice. Visit the IEI website or

contact technical support for the latest updates.

The following drivers can be installed on the system:

 Chipset

 VGA

 LAN

 Audio

POC-17i/19i Series

 Touch screen

 Wireless

 Keypad function

Installation instructions are given below.

6.2 Chipset Driver Installation

To install the chipset driver, please do the following.

Step 1: Access the driver list from the driver CD.

Step 2: Click Chipset and locate the install icon “infinst_autol_9_1_1_1024.exe”.

Double click the install icon.

Step 3: The setup files are extracted as shown in

Figure 6-1.

Page 76

POC-17i/19i Series

Figure 6-1: Chipset Driver File Extraction Screen

Step 4: When the setup files are completely extracted the Welcome Screen in

6-2 appears.

Step 5: Click N

EXT to continue.

Figure

Figure 6-2: Chipset Driver Welcome Screen

Step 6: The license agreement in

Figure 6-3 appears.

Page 77

Step 7: Read the License Agreement and click YES to continue.

Figure 6-3: Chipset Driver License Agreement

POC-17i/19i Series

Step 8: The Readme File Information screen in

Step 9: Click N

Figure 6-4: Readme File Information Screen

EXT to continue.

Figure 6-4 appears.

Page 78

Step 10: Setup operations are performed as shown in

Figure 6-5.

POC-17i/19i Series

Step 11: Once the setup operations are complete, click NEXT to continue.

Figure 6-5: Setup Progress Screen

Step 12: The Setup Is Complete screen appears.

Step 13: Select “Yes, I want to restart the computer now” and click Finish (

6-6).

Figure

Figure 6-6: Chipset Driver Installation Finish Screen

Page 79

6.3 VGA Driver Installation

To install the VGA driver, please do the following.

Step 1: Access the driver list from the driver CD

Step 2: Click VGA and double click on the folder which corresponds to your operating

system.

Step 3: Double click on the install icon.

POC-17i/19i Series

Step 4: The VGA Readme File in

Step 5: Click N

EXT to continue.

Figure 6-7 appears.

Page 80

Figure 6-7: VGA Driver Readme File

Step 6: The installation files are extracted as shown in

Step 7: Click N

EXT to continue.

Figure 6-8.

POC-17i/19i Series

Figure 6-8: VGA Driver Setup File Extraction Screen

Step 8: The Welcome Screen in

Step 9: Click N

Figure 6-9: VGA Driver Welcome Screen

EXT to continue.

Figure 6-9 appears.

Step 10: The License Agreement in

Step 11: Click Y

ES to accept and continue.

Figure 6-10 appears.

Page 81

Figure 6-10: VGA Driver License Agreement

POC-17i/19i Series

Step 12: The Readme File in

Step 13: Click N

Figure 6-11: VGA Driver Readme File

EXT to continue.

Figure 6-11 appears.

Page 82

Step 14: Setup operations are performed as shown in

Step 15: Once the setup operations are complete, click N

Figure 6-12.

EXT to continue.

POC-17i/19i Series

Figure 6-12: VGA Driver Setup Operations

Step 16: The Setup Is Complete screen appears.

Step 17: Select “Yes, I want to restart the computer now” and click

6-13.

Figure 6-13: VGA Driver Setup Is Complete Screen

FINISH. See Figure

Page 83

6.4 LAN Driver Installation

To install the LAN driver, please do the following.

Step 1: Access the driver list from the driver CD

Step 2: Locate the installation icon setup.exe and double click on it.

POC-17i/19i Series

Step 3: The Welcome screen in

Step 4: Click N

Figure 6-14: LAN Driver Welcome Screen

EXT to continue.

Figure 6-14 appears.

Page 84

Step 5: The Ready to Install screen in

Step 6: Click I

NSTALL to proceed with the installation.

Figure 6-15 appears.

POC-17i/19i Series

Figure 6-15: LAN Driver Welcome Screen

Step 7: The program begins to install.

Step 8: The installation progress can be monitored in the progress bar shown in

6-16.

Figure

Figure 6-16: LAN Driver Installation

Step 9: When the driver installation is complete, the screen in

Figure 6-17 appears.

Page 85

Step 10: Click FINISH to exit setup.

POC-17i/19i Series

Figure 6-17: LAN Driver Installation Complete

6.5 Audio Driver Installation

To install the Realtek High Definition (HD) Audio driver, please follow the steps below.

6.5.1 BIOS Setup

Step 1: Enter the BIOS setup. To do this, reboot the system and press F2 during POST.

Step 2: Go to the Southbridge Configuration menu. Set the Audio Controller option to

[Azalia].

Step 3: Press F10

6.5.2 Driver Installation

To install the audio driver, please do the following.

to save the changes and exit the BIOS setup. The system reboots.

Page 86

Step 1: Access the driver list from the driver CD

Step 2: Click Audio then double click on the folder which corresponds to your operating

system.

POC-17i/19i Series

Step 3: Locate the install icon and double click on it.

Step 4: The InstallShield Wizard starts (

Figure 6-18: The InstallShield Wizard Starts

Step 5: The InstallShield Wizard is prepared to guide the user through the rest of the

process (

Figure 6-19).

Figure 6-18).

Figure 6-19: Preparing Setup Screen

Step 6: Once initialized, the InstallShield Wizard welcome screen appears

Figure 6-20).

(

Step 7: Click N

EXT to continue the installation.

Page 87

Figure 6-20: InstallShield Wizard Welcome Screen

POC-17i/19i Series

Step 8: InstallShield starts to install the new software as shown in

Figure 6-21: Audio Driver Progress Screen

Step 9: The Installation Wizard updates the system as shown in

Figure 6-21.

Figure 6-22.

Page 88
