IEI Integration HDC-502E User Manual

HDC-502E Video Capture Card
IEI Technology Corp.
MODEL:
HDC-502E
ideo/Audio Capture Card with
SDI Input Channel,1920x1080@60p,
and Hardware H.264 Codec
User Manual
Rev. 2.00 – 27 November, 2012
Page I
HDC-502E Video Capture Card
Revision
Date Version Changes
27 November, 2012 2.00 Updated for V2.00 software version and latest
specifications
15 November, 2011 1.00 Initial release
Page II
HDC-502E Video Capture Card
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.
Page III
HDC-502E Video Capture Card
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 OVERVIEW.................................................................................................................. 2
1.2 FEATURES................................................................................................................... 2
1.3 APPLICATIONS............................................................................................................ 3
1.4 CONNECTOR OVERVIEW............................................................................................. 3
1.5 SPECIFICATIONS ......................................................................................................... 4
1.6 DIMENSIONS............................................................................................................... 6
2 HARDWARE INSTALLATION................................................................................... 7
2.1 UNPACKING................................................................................................................ 8
2.1.1 Anti-static Precautions....................................................................................... 8
2.1.2 Unpacking Precautions...................................................................................... 8
2.1.3 Unpacking Checklist.......................................................................................... 9
2.2 HARDWARE INSTALLATION PROCEDURE..................................................................... 9
2.3 VIDEO CAPTURE CARD INSTALLATION..................................................................... 10
2.4 SDI DEVICE INSTALLATION.......................................................................................11
3 DRIVER AND APPLICATION INSTALLATION (WINDOWS).......................... 12
3.1 OVERVIEW................................................................................................................ 13
3.2 DRIVER INSTALLATION............................................................................................. 13
3.2.1 Driver Installation in 64-bit Windows 7 OS..................................................... 17
3.2.2 Uninstall Driver............................................................................................... 18
3.3 SOFTWARE INSTALLATION ........................................................................................ 19
3.3.1 System Requirements........................................................................................ 19
3.3.2 HDCapture Program Installation.................................................................... 20
4 HDCAPTURE APPLICATION (WINDOWS) .........................................................23
4.1 HDCAPTURE OVERVIEW.......................................................................................... 24
4.2 VIDEO CONFIGURATION ........................................................................................... 24
4.3 VIDEO CAPTURE....................................................................................................... 27
4.4 UNINSTALL HDCAPTURE ......................................................................................... 28
Page IV
HDC-502E Video Capture Card
4.5 FAQ......................................................................................................................... 29
A HAZARDOUS MATERIALS DISCLOSURE......................................................... 30
A.1 HAZARDOUS MATERIA L DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ....................................... 31
Page V
HDC-502E Video Capture Card
List of Figures
Figure 1-1: HDC-502E Video Capture Card..................................................................................2
Figure 1-2: HDC-502E Connector Overview.................................................................................3
Figure 1-3: HDC-502E Dimensions (mm) .....................................................................................6
Figure 2-1: HDC-502E Installation...............................................................................................10
Figure 2-2: Connecting SDI Devices to the Video Capture Card.............................................11
Figure 3-1: Windows Security.....................................................................................................14
Figure 3-2: Windows Warning Window......................................................................................14
Figure 3-3: Device Driver Installation Wizard............................................................................15
Figure 3-4: Driver Installing.........................................................................................................15
Figure 3-5: Driver Installation Complete ....................................................................................16
Figure 3-6: Device Manager.........................................................................................................16
Figure 3-7: Command Prompt – Driver Installation ..................................................................17
Figure 3-8: Device Manager – 64-bit OS.....................................................................................18
Figure 3-9: HDCapture Setup Wizard..........................................................................................20
Figure 3-10: Select Installation Folder........................................................................................21
Figure 3-11: Confirm Installation ................................................................................................21
Figure 3-12: Installation Complete..............................................................................................22
Figure 4-1: HDCapture .................................................................................................................24
Figure 4-2: HDC-502E Device Ports............................................................................................25
Figure 4-3: Encoding Settings.....................................................................................................26
Figure 4-4: Capturing Video ........................................................................................................27
Figure 4-5: Uninstall HDCapture.................................................................................................28
Page VI
HDC-502E Video Capture Card
List of Tables
Table 1-1: Specifications ...............................................................................................................5
Table 2-1: Package List Contents.................................................................................................9
Page VII
HDC-502E Video Capture Card
Chapter
1

1 Introduction

Page 1

1.1 Overview

Figure 1-1: HDC-502E Video Capture Card
The low power HDC-502E video capture card supports 1080p full HD video via SDI connection. The HDC-502E video capture card is equipped with a high-performing codec
HDC-502E Video Capture Card
component featuring two SDI video input channels and two SDI audio input channels.
A software development kit (SDK) is shipped with each card and the flexible system architecture simplifies the integration of cameras, video signal processing, storage and video management and or security applications.

1.2 Features

Some of the HDC-502E video capture card features are listed below.
Encoding up to 1920x1080@60p  SDI input channel with 1920x1080@60p (per channel)  Pass through for transmitting uncompressed video up to 1080p resolution.  Capture or record HD video in H.264 format  Reduce the amount of hard disk space needed by real-time H.264 recording
Low power consumption  Software development kit (SDK)
compression capability
Page 2
HDC-502E Video Capture Card

1.3 Applications

Some possible applications include:
Video games DVD/Blue-ray player Camcorder Video surveillance Video analyzer Video post production

1.4 Connector Overview

The following section introduces the connectors on the HDC-502E.
The HDC-502E comes with two SDI input and two loop through connectors. A PCIe edge connector on the bottom of the capture card enables the HDC-502E to interface with a motherboard.
Figure 1-2: HDC-502E Connector Overview
NOTE:
The other connectors, jumpers and interfaces on the board not specified above are for R&D diagnostic purposes and should not be used by the end user.
Page 3

1.5 Specifications

The HDC-502E specifications are listed in the table below:
HDC-502E Video Capture Card
Video Input Channels Video Input Type Audio Input Channels Audio Input Type Loop Through Channels Loop Through Type Interface VIDEO PROCESSING Video Engine
Resolution
HDC-502E
Two SDI Two SDI Two SDI PCIe x1
H.264/AVC High Profile Level 4.2 1920 x 1080 60p/50p/30p/25p/24p
1920 x 1080 60i/50i 1280 x 720 60p/50p/30p/25p 720 x 480 60i
AUDIO PROCESSING Audio Format Bit Rate SYSTEM REQUIREMENTS
System
Page 4
720 x 576 50i
MPEG-1 Audio Layer 2 256 kbps
Windows:
Microsoft Windows XP Service Pack2 (SP2) (32-bit version) Microsoft Windows 7 32-bit Microsoft Windows 7 64-bit Microsoft DirectX 9.0c Microsoft .NET Framework 3.0/3.5/4.0 Win7DSFilterTweaker tool (for Windows 7 OS only) Visual C++ 2005 & 2008 Redistributable
HDC-502E Video Capture Card
SOFTWARE SUPPORT Device Driver
SDK
OTHERS Dimensions (WxH) (mm) Operating Temperature Power Consumption
HDC-502E
Linux:
Fedora 16 (Kernel 3.1.0)
Driver fo r Wi n d ow s XP, Windows 7 and Linux Fedora 16 SDK provided with demo program and sample source code
Windows: Provide SDK and demo program with sample source code in C# Linux: Provide SDK and driver/demo program with sample source code in C
188 mm x 125 mm 0ºC ~ 60ºC (32ºF ~ 140ºF), non-condensing
14.2 W (12 V @ 0.76 A, 3.3 V @ 1.52 A)
Table 1-1: Specifications
Page 5

1.6 Dimensions

The dimensions for the HDC-502E are listed in the following sections.
HDC-502E Video Capture Card
Page 6
Figure 1-3: HDC-502E Dimensions (mm)
HDC-502E Video Capture Card

2 Hardware Installation

Chapter
2
Page 7

2.1 Unpacking

2.1.1 Anti-static Precautions

WARNING:
Failure to take ESD precautions during the installation of the video capture card may result in permanent damage to the capture card and severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the video capture card. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the video capture card or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
HDC-502E Video Capture Card
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the video capture card, place it on
an antic-static pad. This reduces the possibility of ESD damaging the video capture card.
Only handle the edges of the PCB: When handling the PCB, hold the PCB
by the edges.

2.1.2 Unpacking Precautions

When the video capture card is unpacked, please do the following:
Follow the anti-static precautions outlined in Section Make sure the packing box is facing upwards so the video capture card does
not fall out of the box.
2.1.1.
Page 8
Make sure all the components listed in Section
2.1.3 are present.
HDC-502E Video Capture Card

2.1.3 Unpacking Checklist

NOTE:
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the video capture card from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to
The video capture card is shipped with the following components:
Quantity Item Image
1 HDC-502E video capture card
1 Utility CD
1
Quick installation guide
sales@iei.com.tw.
Table 2-1: Package List Contents

2.2 Hardware Installation Procedure

To install the video capture card hardware, the following steps must be followed:
Step 1: Install the video capture card.
Page 9
Step 2: Install the SDI source equipment. Step 0:
Once the steps above have been completed, the hardware installation procedures are complete.

2.3 Video Capture Card Installation

The HDC-502E video capture card has a PCIe x1 interface. To install the HDC-502E, please follow the steps below:
Step 1: Align the PCIe edge connector on the bottom of the video capture card with the
HDC-502E Video Capture Card
PCIe slot on the system motherboard (
Step 2: Gently insert the video capture card into the PCIe slot.
Step 3: Push down gently on the video card to make sure it is firmly inserted into the
PCIe slot.
Figure 2-1).
Page 10
Figure 2-1: HDC-502E Installation
Step 4: Insert a retention screw through the top of the video capture card external
bracket into the chassis to secure t he card to the chassis. Step 0:
HDC-502E Video Capture Card

2.4 SDI Device Installation

Various devices can be connected to the HDC-502E. Video input and video output are all supported. Follow the steps below to connect devices to the HDC-502E.
Step 1: Insert the SDI cable connector into the SDI port on the HDC-502E. Make sure
the connection is secure.
Step 2: Connect the other end of the SDI cable to the device. Make sure the connection
is secure.
Step 3: Repeat steps 1 and 2 until all devices are connected.Step 0:
Figure 2-2: Connecting SDI Devices to the Video Capture Card
Page 11
HDC-502E Video Capture Card
Chapter
3
3 Driver and Application
Installation (Windows)
Page 12
HDC-502E Video Capture Card

3.1 Overview

A CD is shipped with the video capture card. The CD contains a driver for the video capture controllers on the card. When the video capture card is installed on the system, the driver must be installed. Failure to install the driver means that the video capture card cannot be detected by the system.
NOTE:
The Found New Hardware Wizard will automatically start when the system detects the video capture card. Click Cancel to exit the wizard and follow the steps described in this chapter to install the driver and the HDCapture demo program.

3.2 Driver Installation

To install the HDC-502E driver, please follow the steps below. If the HDC-502E driver is already installed, please refer to Section
NOTE:
If the User Access Control dialog box appears during installation, click Yes to continue.
Step 1: Make sure to log in the system as the administrator.
Step 2: Insert the driver CD.
Step 3: Locate the “Driverinstaller.bat” file in the driver CD. Double click it. The console
3.2.2 to uninstall the driver first.
window appears and starts to install all drivers.
Step 4: The screen in
Figure 3-1 appears. Click Install.
Page 13
Figure 3-1: Windows Security
Step 5: If the following window appears, click Install this driver software anyway.
HDC-502E Video Capture Card
Figure 3-2: Windows Warning Window
Page 14
HDC-502E Video Capture Card
Step 6: The Device Driver Installation Wizard appears. Click Next to start.
Figure 3-3: Device Driver Installation Wizard
Step 7: The video capture card driver starts to install and the screen in
appears.
Figure 3-4: Driver Installing
Step 8: When the driver installation is complete, the screen in
Figure 3-5 appears. Click
Figure 3-4
Finish to exit.
Page 15
HDC-502E Video Capture Card
Figure 3-5: Driver Installation Complete
Step 9: Check the device manager in the Windows control panel to ensure the driver
(MB86H55-REB PCI, HDC controller and WinDriver) has been properly inst alled .
Figure 3-6 for the details.
See
Page 16
Figure 3-6: Device Manager
HDC-502E Video Capture Card

3.2.1 Driver Installation in 64-bit Windows 7 OS

To install the driver in a 64-bit Windows 7 operating system, please do the followings.
Step 1: Make sure to log in the system as the administrator.
Step 2: Insert the driver CD.
Step 3: Run a Command Prompt as an administrator (right click the Command
Prompt and select Run as administrator).
Step 4: In the Command Prompt window , specify the 64-bit driver directory. Then, type
DriverInstaller.bat to start the driver installation.
Figure 3-7: Command Prompt – Driver Installation
Step 5: Follow Step 5 ~ Step 8 in Section
Windows 7 operating system.
Step 6: Check the device manager in the Windows control panel to ensure the driver
(MB86H55-REB PCI, DEVICE and WinDriver) has been properly installed. See
Figure 3-8 for the details.
3.2 to complete installing the driver to a 64-bit
Page 17
HDC-502E Video Capture Card
Figure 3-8: Device Manager – 64-bit OS

3.2.2 Uninstall Driver

To uninstall the driver, please follow the steps below.
Step 1: Make sure to login the system as the administrator.
Step 2: Locate the “Driveruninstaller.bat” file in the driver CD. Double click it to uninstall
the driver.
Step 3: The console window pop-up and all drivers will be uninstalled.
Page 18
HDC-502E Video Capture Card

3.3 Software Installation

The HDC-502E comes with a video capture application – HDCapture. This section describes how to install the application in Windows environment.

3.3.1 System Requirements

The supported OS versions are listed below:
Microsoft Windows XP SP2 32-bit  Microsoft Windows 7 32-bit  Microsoft Windows 7 64-bit
After installing the driver, the following programs must be installed in order to use the HDCapture demo program:
Microsoft .NET Framework 3.0/3.5/4.0  Microsoft DirectX 9.0c  Win7DSFilterTweaker tool (for Windows 7 OS only)  Visual C++ 2005 & 2008 Redistributable
Please download the setup files of these programs from the official websites and install these programs in the system. For detailed setup procedures for some of the above programs, please refer to Appendix Error! Reference source not found..
NOTE:
For the 64-bit Windows 7 operating system, the Microsoft .NET Framework 4.0 must be installed.
Page 19

3.3.2 HDCapture Program Installation

To install the HDCapture demo program, please follow the steps below.
NOTE:
If the User Access Control dialog box appears during installation, click Yes to continue.
Step 1: Insert the driver CD. Step 2: Locate the HDCapture_x86_Vxxxx.msi file in the driver CD. Double click the
setup file to start the installation. The user can also downl oad the latest setup file from IEI website.
HDC-502E Video Capture Card

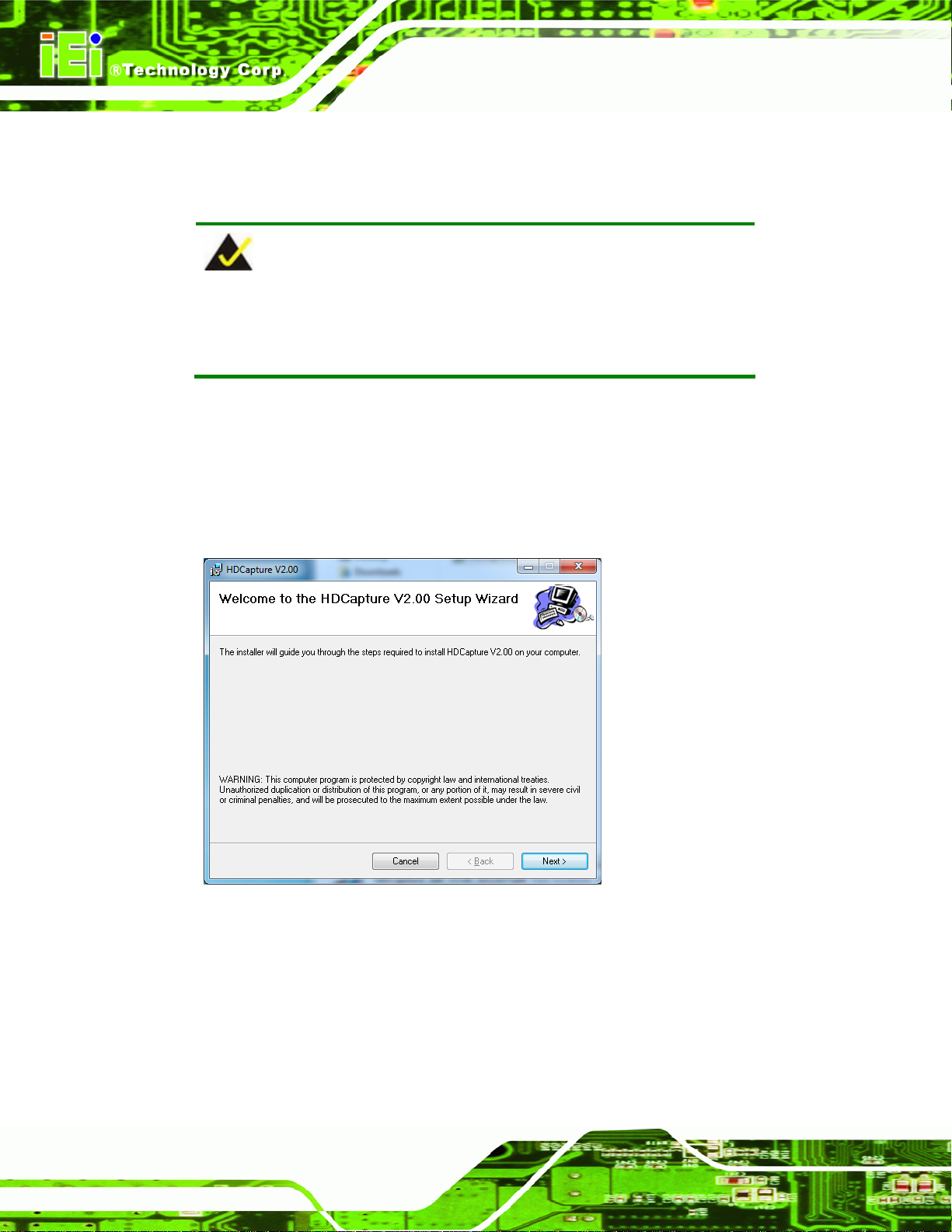

Step 3: The HDCapture Setup Wizard welcome window appears. Click Next to start.
Figure 3-9: HDCapture Setup Wizard
Page 20
HDC-502E Video Capture Card
Step 4: Select a folder for HDCapture installation in Figure 3-10. Click Next to continue.
Figure 3-10: Select Installation Folder
Step 5: The following screen appears. Click Next to confirm the installation.
Figure 3-11: Confirm Installation
Step 6: The system starts installing the HDCapture.
Page 21

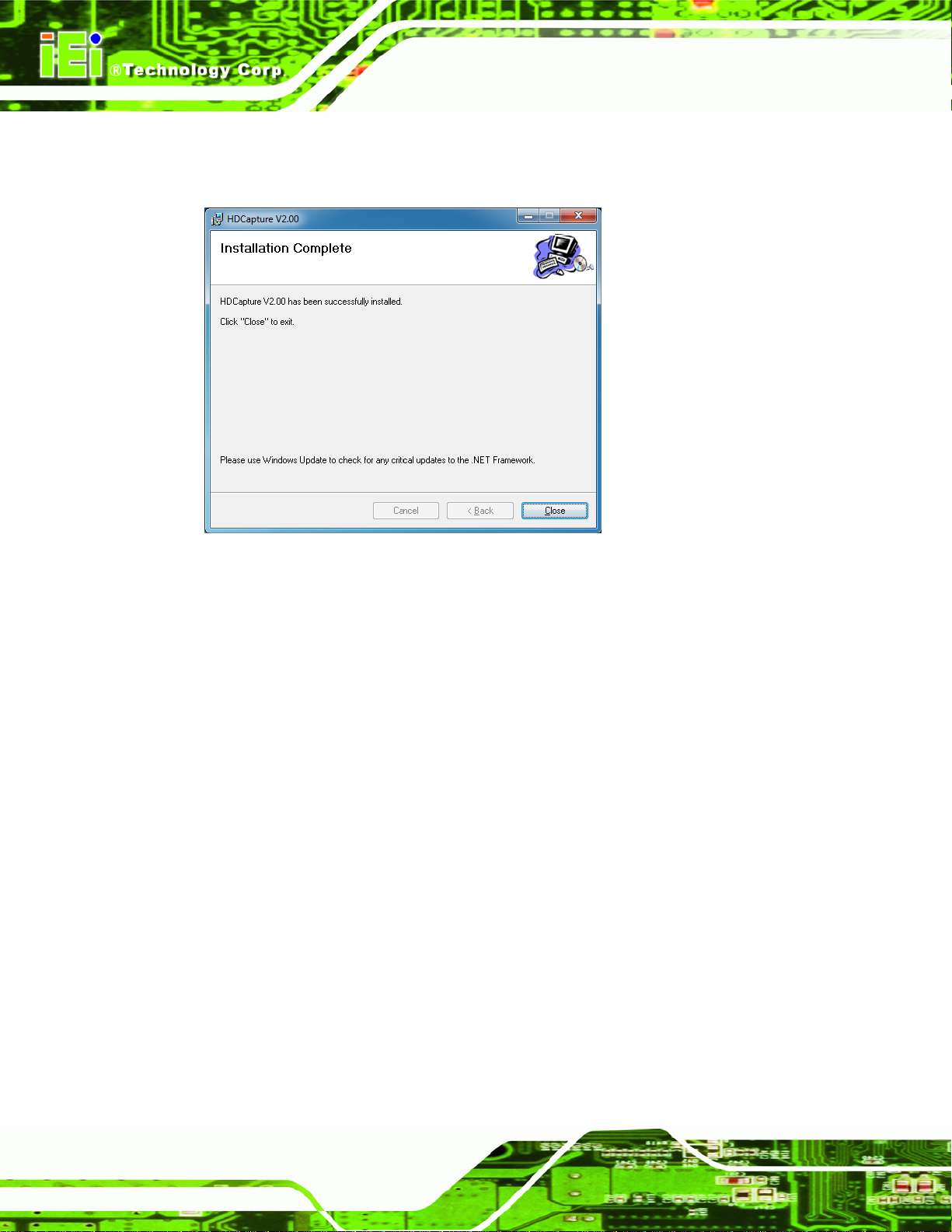

Step 7: When the HDCapture is successfully installed, the following window appears.
Click Close to exit. Step 0:
HDC-502E Video Capture Card
Figure 3-12: Installation Complete
Page 22
HDC-502E Video Capture Card
Chapter
4
4 HDCapture Application
(Windows)
Page 23

4.1 HDCapture Overview

The HDCapture application is a video capture tool that allows user to capture video through the SDI input ports in Windows environment.
NOTE:
If you cannot open the application in the 64-bit Windows 7 operating system, right-click the HDCapture application from the root installed directory, and click Run as administrator.

4.2 Video Configuration

To configure the HDCapture software, follow the steps below. If the older version of the
HDC-502E Video Capture Card
HDCapture is already installed, please refer to Section
Step 1: Launch the HDCapture. The best resolution to view HDCapture is 1280 x 1024
or above.
4.4 to uninstall it.
Page 24

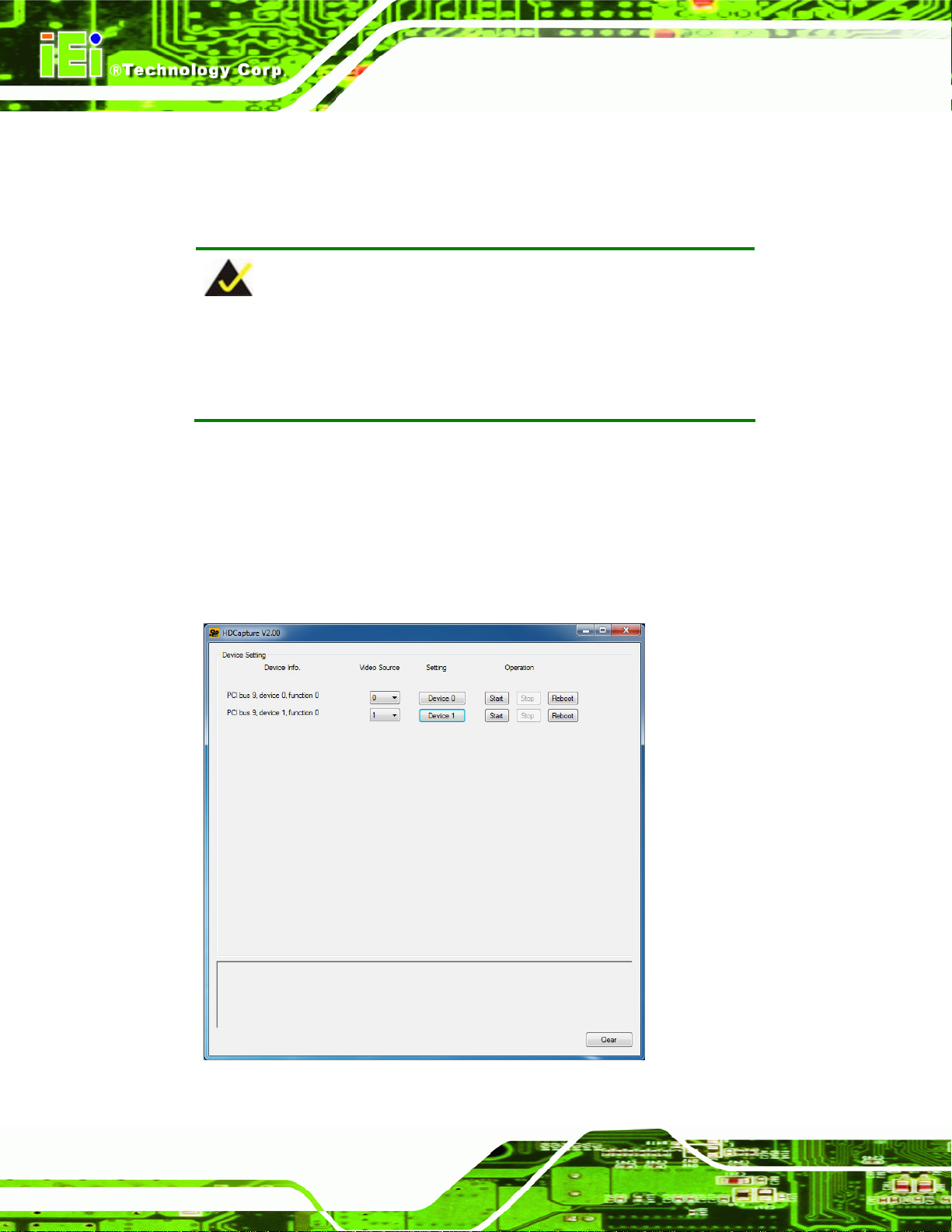

Figure 4-1: HDCapture
HDC-502E Video Capture Card
Step 2: Enable and configure the device settings by clicking the Device # (0, 1) buttons.
The device number is decided by which port the device is installed.
Figure 4-2: HDC-502E Device Ports
Step 3: Click the Device # button. The Encoding window appears (
the video input format which depends on the video device. The available options include:
1920x1080 (60p) (6000kps – 20000kps)  1920x1080 (59.94p) (6000kps – 20000kps)  1920x1080 (50p) (6000kps – 20000kps)  1920x1080 (60i) (6000kps – 20000kps)  1920x1080 (59.94i) (6000kps – 20000kps)  1920x1080 (50i) (6000kps – 20000kps)  1440x1080 (60i) (5000kps – 20000kps)  1440x1080 (59.94i) (5000kps – 20000kps)  1440x1080 (50i) (5000kps – 20000kps)  1280x720 (60p) (4000kps – 20000kps)  1280x720 (59.94p) (4000kps – 20000kps)  1280x720 (50p) (4000kps – 20000kps)  720x480 (60i) (2000kps – 10000kps)
Figure 4-3). Choose
720x480 (59.94i) (2000kps – 10000kps)  720x480 (50i) (2000kps – 10000kps)
Step 4: Configure the encoding settings, including encoding file directory (cl i ck Ref
button to choose the directory), rate control (CBR or VBR) and video encoding
Page 25
bitrate (must be in the range of video format). When “CBR” is selected, the “Bitrate” text box is displayed. When “VBR” is selected, the “A verage bitrate” and “Peak bitrate” text boxes are displayed. Close the window to save the settings.
HDC-502E Video Capture Card
Figure 4-3: Encoding Settings
Step 5: Repeat Step 2 ~ Step 4 to configure the con nected input device. Step 0:
Page 26
HDC-502E Video Capture Card

4.3 Video Capture

To use the HDCapture to capture video, follow the steps below.
Step 1: Click Start to start capturing video (
Figure 4-4).
Figure 4-4: Capturing Video
Step 2: Click Stop to stop capture.Step 0:
Page 27

4.4 Uninstall HDCapture

To uninstall the HDCapture, follow the steps below.
Step 1: Select Control Panel Æ Programs Æ Programs and Features.
Step 2: Select HDCapture and click the Uninstall button to uninstall the HDCapture.
HDC-502E Video Capture Card
Page 28
Figure 4-5: Uninstall HDCapture
HDC-502E Video Capture Card

4.5 FAQ

Q: The input source video format is 60Hz and the HDCapture software video format
setting is also 60Hz. But the video and sound are not synchronized.
A: Please change the video format of HDCapture software to 59.94P to capture the video.
Q: Capture card, driver, application and input source are all ready, but the recorded video
is not displayed or displayed incorrectly.
A: A correct video codec is needed to display the H.264 video image. For example, ffdshow codec.
Q: The error message window appears from time to time.
A: The OS status, audio codec and input devices may all be the reasons to trigger DMA
errors.
Q: How to know the current DirectX version used on the system?
A: In Windows, Start Æ Run Æ Type ‘dxdiag’ Æ Enter. Then you can find the current
version in DirectX Diagnostic Tool window.
Q: How to obtain the latest driver?
A: Please go to
driver from “Support” pages.
http://www.ieiworld.com/. You can always find and download the latest
Page 29
HDC-502E Video Capture Card
Appendix
A
A Hazardous Materials
Disclosure
Page 30
HDC-502E Video Capture Card

A.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury

The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicab le to China RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally Friendly Use Period” (EFUP). This is an estimate of the number of years that these substances would “not leak out or undergo abrupt change.” This product may contain replaceable sub-assemblies/components which have a shorter EFUP such as batteries and lamps. These components will be separately marked.
Please refer to the table on the next page.
Page 31
HDC-502E Video Capture Card
Toxic or Hazardous Substances and Elements Part Name Lead (Pb)
Housing
X
Display X Printed Circuit
X
Mercury (Hg)
Cadmium (Cd)
Hexavalent Chromium (CR(VI))
Polybrominated Biphenyls (PBB)
O O O O O O O O O O O O
Polybrominated Diphenyl Ethers (PBDE)
X
X
X Board Metal
X
O O O O
O Fasteners Cable
X
O O O O
X Assembly Fan Assembly X Power Supply
X
O O O O O O O O
X
X Assemblies Battery O
O O O O O
O: This toxic or hazardous substance is contained in all of the homogeneous materials for the p art is bel ow the limit requirement in SJ/T11363-2006
X: This toxic or hazardous substance is contained in at least one of the homogeneous materials for this part is above the limit requirement in SJ/T11363-2006
Page 32
HDC-502E Video Capture Card
此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。
本产品上会附有环境友好使用期限的标签,此期限是估算这些物质不会有泄漏或突变”的
年限。本产品可能包含有较短的环境友好使用期限的可替换元件,像是电池或灯管,这些
元件将会单独标示出来。
部件名称
壳体
显示
印刷电路板
金属螺帽
电缆组装
风扇组装
电力供应组装
电池
表示该有毒有害物质在该部件所有物质材料中的含量均在
O:
表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
X:
有毒有害物质或元素
(Pb)
X
X X X X X X O
(Hg)
O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O
(Cd)
六价铬
(CR(VI))
SJ/T11363-2006
SJ/T11363-2006
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
X
X X O X X X
标准规定的限量要求以下。
标准规定的限量要求。
Page 33
Loading...
