A
IMBA-H610 A TX Motherboard
MODEL:
IMBA-H610
TX Motherboard for LGA1155 Intel® Core™
i7/i5/i3/Pentium®/Celeron® CPU, Intel® H61 Chipset, DDR3,
VGA, DVI-D, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s,
HD Audio and RoHS
User Manual
Rev. 1.03 – 24 April, 2014
Page i
IMBA-H610 A TX Motherboard
Revision
Date Version Changes
24 April, 2014 1.03 Modified LAN pinouts
Updated Chapter
26 November, 2012 1.02 Updated Section 3.2.16 Serial P ort Connector, RS-422/485
29 August, 2012 1.01 Added Section 3.3.5 Serial Port Connector (COM2)
Updated Section
Updated Appendix B: One Key Recovery
21 October, 2011 1.00 Initial release
2: Packing List
3.3.4 Serial Port Connector (COM1)
Page ii
IMBA-H610 A TX Motherboard
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
Copyright
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
Page iii
IMBA-H610 A TX Motherboard
Table of Contents
1 INTRODUCTION.......................................................................................................... 1
1.1 INTRODUCTION........................................................................................................... 2
1.2 FEATURES................................................................................................................... 2
1.3 CONNECTORS ............................................................................................................. 3
1.4 DIMENSIONS............................................................................................................... 4
1.5 DATA FLOW................................................................................................................ 5
1.6 TECHNICAL SPECIFICATIONS ...................................................................................... 6
2 PACKING LIST............................................................................................................. 8
2.1 ANTI-STATIC PRECAUTIONS........................................................................................ 9
2.2 UNPACKING PRECAUTIONS......................................................................................... 9
2.3 PACKING LIST........................................................................................................... 10
2.4 OPTIONAL ITEMS.......................................................................................................11
3 CONNECTORS ........................................................................................................... 14
3.1 PERIPHERAL INTERFACE CONNECTORS..................................................................... 15
3.1.1 IMBA-H610 Layout.......................................................................................... 15
3.1.2 Peripheral Interface Connectors ..................................................................... 16
3.1.3 External Interface Panel Connectors............................................................... 17
3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 17
3.2.1 12V Power Connector...................................................................................... 17
3.2.2 ATX Power Connector ..................................................................................... 18
3.2.3 Battery Connectors .......................................................................................... 20
3.2.4 DDR3 DIMM Slots........................................................................................... 21
3.2.5 Digital I/O Connector...................................................................................... 21
3.2.6 Fan Connector (CPU)...................................................................................... 22

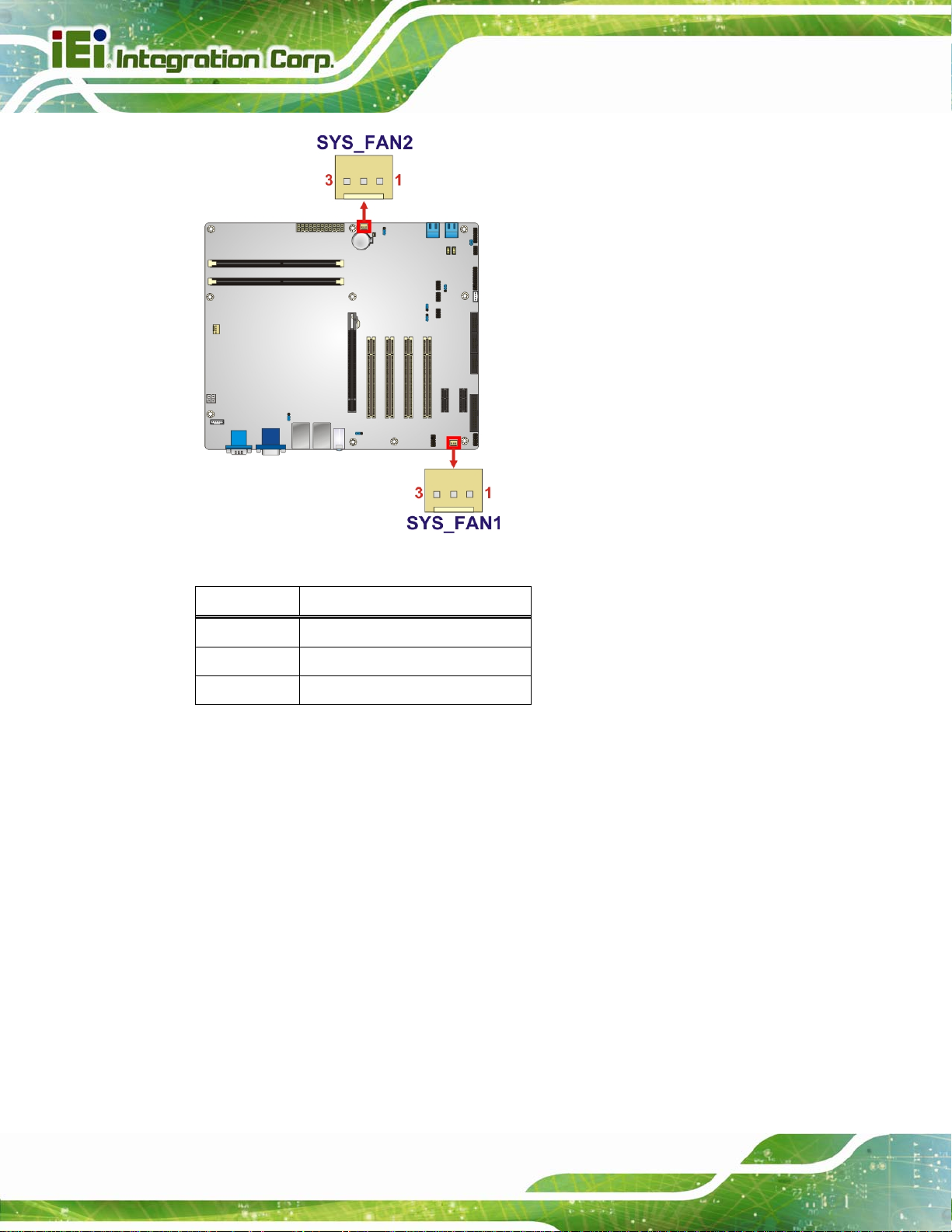

3.2.7 Fan Connectors (System)................................................................................. 23
3.2.8 Front Panel Audio Connector.......................................................................... 24
3.2.9 Front Panel Connector.................................................................................... 25
3.2.10 I2C Connector................................................................................................ 26
3.2.11 Parallel Port Connector................................................................................. 27
Page iv
IMBA-H610 A TX Motherboard

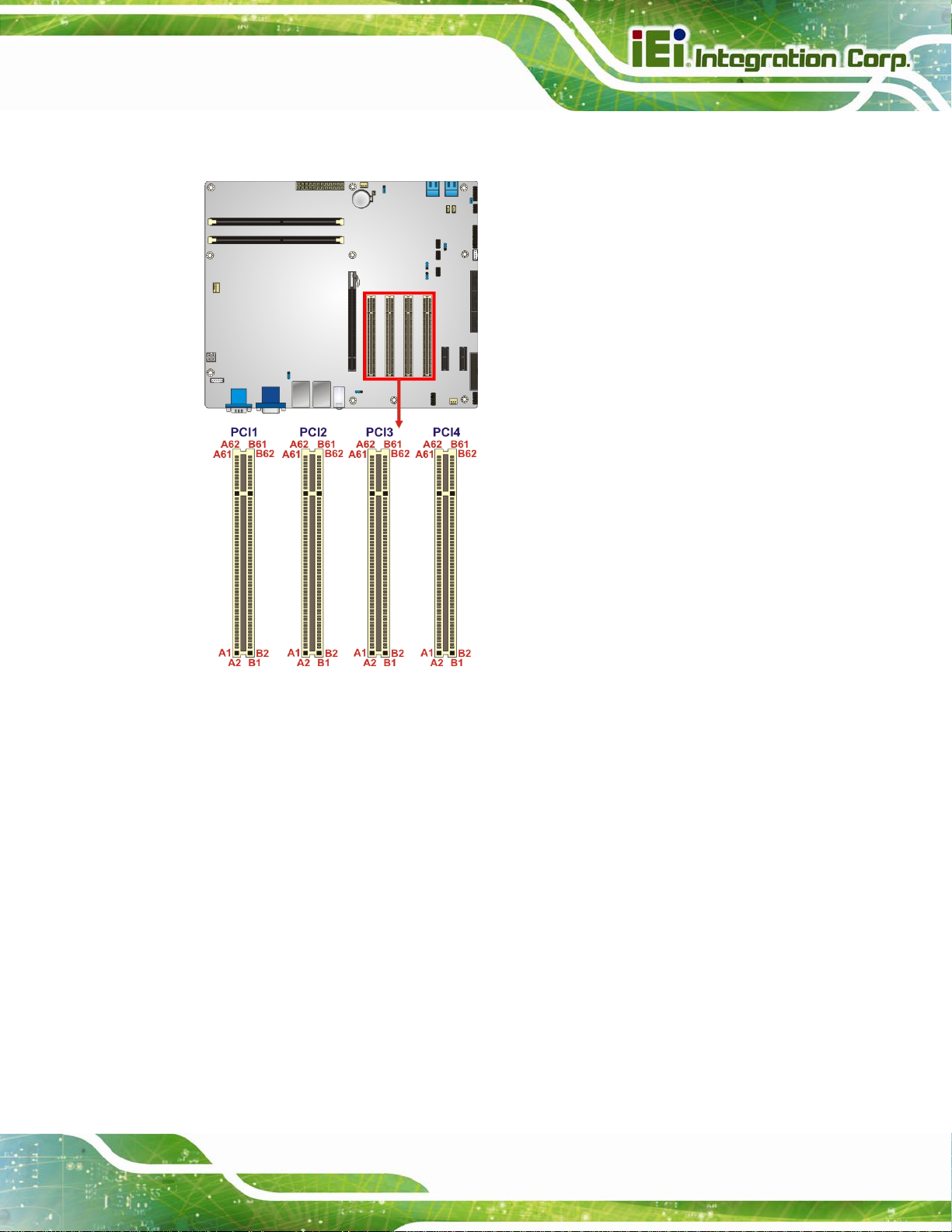

3.2.12 PCI Slots ........................................................................................................ 28
3.2.13 PCIe x1 Slots.................................................................................................. 29
3.2.14 PCI Express x16 Slot...................................................................................... 30
3.2.15 SATA 3Gb/s Drive Connectors....................................................................... 30

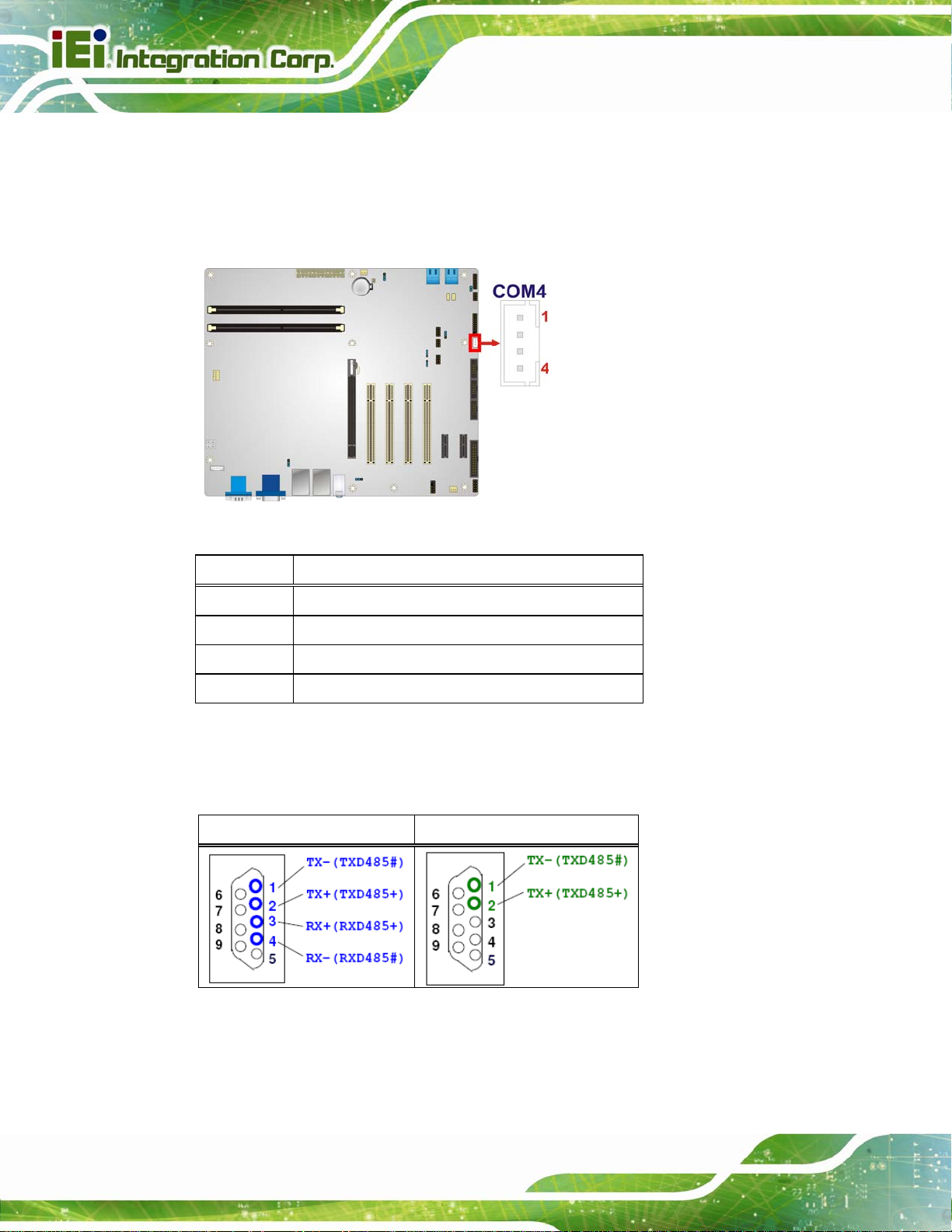

3.2.16 Serial Port Connector, RS-422/485................................................................ 31
3.2.17 Serial Port Connectors, RS-232..................................................................... 33
3.2.18 SMBus Connector .......................................................................................... 33
3.2.19 SPI ROM Connector...................................................................................... 34
3.2.20 TPM Connector.............................................................................................. 35
3.2.21 USB Connectors............................................................................................. 36
3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 37
3.3.1 Audio Connector .............................................................................................. 38
3.3.2 Ethernet and USB Connector........................................................................... 38
3.3.3 Keyboard/Mouse Connector............................................................................ 39
3.3.4 Serial Port Connector (COM1) ....................................................................... 40
3.3.5 Serial Port Connector (COM2) ....................................................................... 41
3.3.6 VGA and DVI Connector................................................................................. 41
4 INSTALLATION ......................................................................................................... 43
4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 44
4.2 INSTALLATION CONSIDERATIONS.............................................................................. 44
4.2.1 Socket LGA1155 CPU Installation .................................................................. 46
4.2.2 Socket LGA1155 Cooling Kit Installation........................................................ 49
4.2.3 DIMM Installation........................................................................................... 51
4.3 JUMPER SETTINGS .................................................................................................... 52
4.3.1 AT/ATX Power Select Jumper.......................................................................... 52
4.3.2 Clear CMOS Jumper........................................................................................ 53
4.3.3 USB Power Select Jumpers.............................................................................. 54
4.4 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 55
4.4.1 SATA Drive Connection ................................................................................... 55
4.5 EXTERNAL PERIPHERAL INTERFACE CONNECTION................................................... 57
4.5.1 Audio Connector .............................................................................................. 57
4.5.2 DVI Display Device Connection...................................................................... 58
4.5.3 LAN Connection............................................................................................... 59
4.5.4 PS/2 Keyboard and Mouse Connection........................................................... 60
Page v
4.5.5 Serial Device Connection ................................................................................ 61
4.5.6 USB Connection (Dual Connector)................................................................. 62
4.5.7 VGA Monitor Connection ................................................................................ 63
5 BIOS.............................................................................................................................. 65
5.1 INTRODUCTION......................................................................................................... 66
5.1.1 Starting Setup................................................................................................... 66
5.1.2 Using Setup...................................................................................................... 66
5.1.3 Getting Help..................................................................................................... 67
5.1.4 Unable to Reboot after Configuration Changes.............................................. 67
5.1.5 BIOS Menu Bar................................................................................................ 67
5.2 MAIN........................................................................................................................ 68
5.3 ADVANCED............................................................................................................... 69
5.3.1 ACPI Settings................................................................................................... 70
5.3.2 T rusted Computing........................................................................................... 71
IMBA-H610 A TX Motherboard
5.3.3 CPU Configuration.......................................................................................... 72
5.3.3.1 CPU Information....................................................................................... 73
5.3.4 SATA Configuration ......................................................................................... 74
5.3.5 Intel TXT(LT) Configuration............................................................................ 75
5.3.6 USB Configuration........................................................................................... 76
5.3.7 Super IO Configuration ................................................................................... 78
5.3.7.1 Serial Port n Configuration....................................................................... 79
5.3.8 H/W Monitor.................................................................................................... 84
5.3.8.1 FAN 1 Configuration ................................................................................ 86
5.3.8.2 FAN 2 Configuration ................................................................................ 87
5.3.9 Serial Port Console Redirection...................................................................... 89
5.3.10 iEi Feature..................................................................................................... 93
5.4 CHIPSET ................................................................................................................... 94
5.4.1 North Bridge Configuration............................................................................. 95
5.4.2 South Bridge Configuration............................................................................. 97
5.4.3 Integrated Graphics....................................................................................... 100
5.5 BOOT...................................................................................................................... 101
5.6 SECURITY............................................................................................................... 103
5.7 EXIT....................................................................................................................... 104
6 SOFTWARE DRIVERS ............................................................................................ 106
Page vi
IMBA-H610 A TX Motherboard
6.1 AVAILABLE SOFTWARE DRIVERS............................................................................ 107
6.2 SOFTWARE INSTALLATION ...................................................................................... 107
6.3 CHIPSET DRIVER INSTALLATION............................................................................. 109
6.4 GRAPHICS DRIVER INSTALLATION...........................................................................112
6.5 LAN DRIVER INSTALLATION...................................................................................115
6.6 AUDIO DRIVER INSTALLATION ................................................................................117
A BIOS OPTIONS .........................................................................................................119
B ONE KEY RECOVERY........................................................................................... 123
B.1 ONE KEY RECOVERY INTRODUCTION .................................................................... 124
B.1.1 System Requirement....................................................................................... 125
B.1.2 Supported Operating System......................................................................... 126
B.2 SETUP PROCEDURE FOR WINDOWS........................................................................ 127
B.2.1 Hardware and BIOS Setup ............................................................................ 128
B.2.2 Create Partitions........................................................................................... 128
B.2.3 Install Operating System, Drivers and Applications..................................... 132
B.2.4 Build-up Recovery Partition.......................................................................... 133
B.2.5 Create Factory Default Image....................................................................... 135
B.3 AUTO RECOVERY SETUP PROCEDURE.................................................................... 140
B.4 SETUP PROCEDURE FOR LINUX.............................................................................. 145
B.5 RECOVERY TOOL FUNCTIONS ................................................................................ 148
B.5.1 Factory Restore............................................................................................. 150
B.5.2 Backup System............................................................................................... 151
B.5.3 Restore Your Last Backup.............................................................................. 152
B.5.4 Manual........................................................................................................... 153
B.6 RESTORE SYSTEMS FROM A LINUX SERVER THROUGH LAN.................................. 154
B.6.1 Configure DHCP Server Settings.................................................................. 155
B.6.2 Configure TFTP Settings............................................................................... 156
B.6.3 Configure One Key Recovery Server Settings............................................... 157
B.6.4 Start the DHCP, TFTP and HTTP................................................................. 158
B.6.5 Create Shared Directory................................................................................ 158
B.6.6 Setup a Client System for Auto Recovery...................................................... 159
B.7 OTHER INFORMATION............................................................................................ 162
B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller....................... 162
B.7.2 System Memory Requirement ........................................................................ 164
Page vii
C TERMINOLOGY ..................................................................................................... 165
D DIGITAL I/O INTERFACE..................................................................................... 169
D.1 INTRODUCTION...................................................................................................... 170
D.2 DIO CONNECTOR PINOUTS ................................................................................... 170
D.3 ASSEMBLY LANGUAGE SAMPLES........................................................................... 170
D.3.1 Enable the DIO Input Function .................................................................... 170
D.3.2 Enable the DIO Output Function.................................................................. 171
E WATCHDOG TIMER............................................................................................... 172
F HAZARDOUS MATERIALS DISCLOSURE........................................................ 175
F.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CER TIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 176
IMBA-H610 A TX Motherboard
Page viii
IMBA-H610 A TX Motherboard
List of Figures
Figure 1-1: IMBA-H610 ...................................................................................................................2
Figure 1-2: Connectors ..................................................................................................................3
Figure 1-3: IMBA-H610 Dimensions (mm)....................................................................................4
Figure 1-4: Data Flow Diagram......................................................................................................5
Figure 3-1: Connectors and Jumpers.........................................................................................15
Figure 3-2: 12V Power Connector Location...............................................................................18
Figure 3-3: ATX Power Connector Pinout Location..................................................................19
Figure 3-4: Battery Connector Locations...................................................................................20
Figure 3-5: DDR3 DIMM Slot Locations......................................................................................21
Figure 3-6: Digital I/O Connector Location ................................................................................22
Figure 3-7: CPU Fan Connector Location..................................................................................23
Figure 3-8: System Fan Connector Location.............................................................................24
Figure 3-9: Front Panel Audio Connector Location..................................................................25
Figure 3-10: Front Panel Connector Location ...........................................................................26
Figure 3-11: I2C Connector Location..........................................................................................27
Figure 3-12: Parallel Port Connector Location..........................................................................28
Figure 3-13: PCI Slot Locations ..................................................................................................29
Figure 3-14: PCIe x1 Slot Locations ...........................................................................................30
Figure 3-15: PCIe x16 Slot Location ...........................................................................................30
Figure 3-16: SATA 3Gb/s Drive Connector Location................................................................31
Figure 3-17: RS-422/485 Connector Location............................................................................32
Figure 3-18: Serial Port Connector Location.............................................................................33
Figure 3-19: SMBus Connector Location...................................................................................34
Figure 3-20: SPI Connector Location .........................................................................................35
Figure 3-21: TPM Connector Location........................................................................................36
Figure 3-22: USB Connector Pinout Locations.........................................................................37
Figure 3-23: External Peripheral Interface Connector..............................................................37
Figure 3-24: Audio Connector.....................................................................................................38
Figure 3-25: Ethernet Connector.................................................................................................39
Figure 3-26: Serial Port Connector (COM1) Pinouts.................................................................40
Page ix
Figure 3-27: Serial Port Connector (COM2) Pinouts.................................................................41
Figure 3-28: VGA Connector .......................................................................................................42
Figure 4-1: Disengage the CPU Socket Load Lever..................................................................46
Figure 4-2: Remove Protective Cover.........................................................................................47
Figure 4-3: Insert the Socket LGA1155 CPU..............................................................................48
Figure 4-4: Close the Socket LGA1155 ......................................................................................48
Figure 4-5: Cooling Kit Support Bracket....................................................................................50
Figure 4-6: DIMM Installation.......................................................................................................51
Figure 4-7: AT/ATX Power Mode Jumper Location...................................................................53
Figure 4-8: Clear BIOS Jumper Location ...................................................................................54
Figure 4-9: USB Power Select Jumper Location.......................................................................55
Figure 4-10: SATA Drive Cable Connection...............................................................................56
Figure 4-11: SATA Power Drive Connection..............................................................................57
Figure 4-12: Audio Connector.....................................................................................................58
IMBA-H610 A TX Motherboard
Figure 4-13: DVI Connector.........................................................................................................59
Figure 4-14: LAN Connection......................................................................................................60
Figure 4-15: PS/2 Keyboard/Mouse Connector.........................................................................61
Figure 4-16: Serial Device Connector.........................................................................................62
Figure 4-17: USB Connector........................................................................................................63
Figure 4-18: VGA Connector .......................................................................................................64
Figure 6-1: Introduction Screen............................................................................................... 108
Figure 6-2: Available Drivers.................................................................................................... 108
Figure 6-3: Chipset Driver Screen............................................................................................ 109
Figure 6-4: Chipset Driver Welcome Screen........................................................................... 110
Figure 6-5: Chipset Driver License Agreement...................................................................... 110
Figure 6-6: Chipset Driver Read Me File ................................................................................. 111
Figure 6-7: Chipset Driver Setup Operations ......................................................................... 111
Figure 6-8: Chipset Driver Installation Finish Screen............................................................ 112
Figure 6-9: Graphics Driver Welcome Screen........................................................................ 113
Figure 6-10: Graphics Driver License Agreement.................................................................. 113
Figure 6-11: Graphics Driver Setup Operations..................................................................... 114
Figure 6-12: Graphics Driver Installation Finish Screen ....................................................... 114
Figure 6-13: LAN Driver Welcome Screen .............................................................................. 115
Figure 6-14: LAN Driver Installation ........................................................................................ 116
Figure 6-15: LAN Driver Installation Complete....................................................................... 116
Page x
IMBA-H610 A TX Motherboard
Figure 6-16: Audio Driver – Extracting Files........................................................................... 117
Figure 6-17: Audio Driver Welcome Screen............................................................................ 118
Figure 6-18: Audio Driver Installation...................................................................................... 118
Figure 6-19: Audio Driver Installation Complete.................................................................... 118
Figure B-1: IEI One Key Recovery Tool Menu........................................................................ 124
Figure B-2: Launching the Recovery Tool.............................................................................. 129
Figure B-3: Recovery Tool Setup Menu .................................................................................. 129
Figure B-4: Command Prompt ................................................................................................. 130
Figure B-5: Partition Creation Commands.............................................................................. 131
Figure B-6: Launching the Recovery Tool.............................................................................. 133
Figure B-7: Manual Recovery Environment for Windows..................................................... 133
Figure B-8: Building the Recovery Partition........................................................................... 134
Figure B-9: Press Any Key to Continue.................................................................................. 134
Figure B-10: Press F3 to Boot into Recovery Mode............................................................... 135
Figure B-11: Recovery Tool Menu ........................................................................................... 135
Figure B-12: About Symantec Ghost Window........................................................................ 136
Figure B-13: Symantec Ghost Path ......................................................................................... 136
Figure B-14: Select a Local Source Drive ............................................................................... 137
Figure B-15: Select a Source Partition from Basic Drive ...................................................... 137
Figure B-16: File Name to Copy Image to ............................................................................... 138
Figure B-17: Compress Image.................................................................................................. 138
Figure B-18: Image Creation Confirmation............................................................................. 139
Figure B-19: Image Creation Complete................................................................................... 139
Figure B-20: Image Creation Complete................................................................................... 139
Figure B-21: Press Any Key to Continue................................................................................ 140
Figure B-22: Auto Recovery Utility.......................................................................................... 141
Figure B-23: Disable Automatically Restart............................................................................ 141
Figure B-24: Launching the Recovery Tool............................................................................ 142
Figure B-25: Auto Recovery Environment for Windows ....................................................... 142
Figure B-26: Building the Auto Recovery Partition................................................................ 143
Figure B-27: Factory Default Image Confirmation ................................................................. 143
Figure B-28: Image Creation Complete................................................................................... 144
Figure B-29: Press any key to continue.................................................................................. 144
Figure B-30: IEI Feature ............................................................................................................ 145
Figure B-31: Partitions for Linux.............................................................................................. 146
Page xi
Figure B-32: System Configuration for Linux......................................................................... 147
Figure B-33: Access menu.lst in Linux (Text Mode).............................................................. 147
Figure B-34: Recovery Tool Menu ........................................................................................... 148
Figure B-35: Recovery Tool Main Menu.................................................................................. 149
Figure B-36: Restore Factory Default...................................................................................... 150
Figure B-37: Recovery Complete Window.............................................................................. 150
Figure B-38: Backup System.................................................................................................... 151
Figure B-39: System Backup Complete Window ................................................................... 151
Figure B-40: Restore Backup................................................................................................... 152
Figure B-41: Restore System Backup Complete Window..................................................... 152
Figure B-42: Symantec Ghost Window ................................................................................... 153
Figure B-43: Disable Automatically Restart............................................................................ 160
IMBA-H610 A TX Motherboard
Page xii
IMBA-H610 A TX Motherboard
List of Tables
Table 1-1: IMBA-H610 Specifications ...........................................................................................7
Table 2-1: Packing List.................................................................................................................11
Table 2-2: Optional Items.............................................................................................................13
Table 3-1: Peripheral Interface Connectors...............................................................................17
Table 3-2: Rear Panel Connectors..............................................................................................17
Table 3-3: 12V Power Connector Pinouts ..................................................................................18
Table 3-4: ATX Power Connector Pinouts .................................................................................19
Table 3-5: Battery Connector (BT2) Pinouts..............................................................................21
Table 3-6: Digital I/O Connector Pinouts....................................................................................22
Table 3-7: CPU Fan Connector Pinouts......................................................................................23
Table 3-8: System Fan Connector Pinouts................................................................................24
Table 3-9: Front Panel Audio Connector Pinouts .....................................................................25
Table 3-10: Front Panel Connector Pinouts...............................................................................26
Table 3-11: I2C Connector Pinouts.............................................................................................27
Table 3-12: Parallel Port Connector Pinouts .............................................................................28
Table 3-13: SATA 3Gb/s Drive Connector Pinouts....................................................................31
Table 3-14: RS-422/485Connector Pinouts................................................................................32
Table 3-15: DB-9 RS-422/485 Pinouts.........................................................................................32
Table 3-16: Serial Port Connector Pinouts ................................................................................33
Table 3-17: SMBus Connector Pinouts ......................................................................................34
Table 3-18: SPI Connector Pinouts.............................................................................................35
Table 3-19: TPM Connector Pinouts...........................................................................................36
Table 3-20: USB Port Connector Pinouts...................................................................................37
Table 3-21: LAN Pinouts ..............................................................................................................39
Table 3-22: Connector LEDs........................................................................................................39
Table 3-23: USB Port Pinouts......................................................................................................39
Table 3-24: PS/2 Connector Pinouts...........................................................................................40
Table 3-25: Serial Port Connector (COM1) Pinouts...................................................................40
Table 3-26: Serial Port Connector (COM2) Pinouts...................................................................41
Table 3-27: VGA Connector Pinouts...........................................................................................42
Page xiii
Table 3-28: DVI Connector Pinouts.............................................................................................42
Table 4-1: Jumpers.......................................................................................................................52
Table 4-2: AT/ATX Power Mode Jumper Settings.....................................................................53
Table 4-3: Clear BIOS Jumper Settings......................................................................................53
Table 4-4: USB Power Select Jumper Settings .........................................................................54
Table 5-1: BIOS Navigation Keys................................................................................................67
IMBA-H610 A TX Motherboard
Page xiv
IMBA-H610 A TX Motherboard
BIOS Menus
BIOS Menu 1: Main.......................................................................................................................68
BIOS Menu 2: Advanced..............................................................................................................70
BIOS Menu 3: ACPI Configuration..............................................................................................70
BIOS Menu 4: TPM Configuration...............................................................................................71
BIOS Menu 5: CPU Configuration...............................................................................................72
BIOS Menu 6: CPU Configuration...............................................................................................73
BIOS Menu 7: SATA Configuration.............................................................................................74
BIOS Menu 8: Intel TXT(LT) Configuration ................................................................................76
BIOS Menu 9: USB Configuration...............................................................................................76
BIOS Menu 10: Super IO Configuration......................................................................................78
BIOS Menu 11: Serial Port n Configuration Menu.....................................................................79
BIOS Menu 12: H/W Monitor........................................................................................................85
BIOS Menu 13: FAN 1 Configuration..........................................................................................86
BIOS Menu 14: FAN 2 Configuration..........................................................................................88
BIOS Menu 15: Serial Port Console Redirection.......................................................................90
BIOS Menu 16: IEI Feature...........................................................................................................94
BIOS Menu 17: Chipset................................................................................................................95
BIOS Menu 18:Northbridge Chipset Configuration...................................................................95
BIOS Menu 19: Southbridge Chipset Configuration.................................................................98
BIOS Menu 20: Integrated Graphics........................................................................................ 100
BIOS Menu 21: Boot.................................................................................................................. 101
BIOS Menu 22: Security............................................................................................................ 103
BIOS Menu 23:Exit..................................................................................................................... 104
Page xv
IMBA-H610 A TX Motherboard
Chapter
1
1 Introduction
Page 1
1.1 Introduction
Figure 1-1: IMBA-H610
IMBA-H610 A TX Motherboard
The IMBA-H610 is an ATX motherboard. It accepts a Socket LGA1155 Intel® Core™
i7/i5/i3/Pentium®/Celeron® processor and supports two 240-pin 1333/1066 MHz DDR3
DIMM modules up to 16.0 GB. The IMBA-H610 includes a VGA and DVI-D port.
Expansion and I/O include four PCI slots, one PCIe x16 slot, two PCIe x1 slots, four USB
2.0 by rear panel, six USB 2.0 by pin header, four SATA 3Gb/s connectors, six COM ports,
and two keyboard/mouse connectors.
1.2 Features
Some of the IMBA-H610 motherboard features are listed below:
ATX form factor
LGA1155 CPU socket
Intel® H61 chipset
DDR3 DIMMs support up to 16.0 GB
Intel® HD graphics technology integrates high-performance graphics and
TPM V1.2 hardware security function provided by the TPM module
media processing
Page 2
Four PCI card expansion slots
Two external RS-232 serial ports
IMBA-H610 A TX Motherboard
Three internal RS-232 serial port connectors
One internal RS-422/485 serial port connector
Two Realtek PCIe Gigabit Ethernet connectors (LAN1 with ASF 2.0 support)
Four SATA 3Gb/s connectors
High Definition Audio
RoHS compliant
1.3 Connectors
The connectors on the IMBA-H610 are shown in the figure below.
Figure 1-2: Connectors
Page 3
1.4 Dimensions
The main dimensions of the IMBA-H610 are shown in the diagram below.
IMBA-H610 A TX Motherboard
Figure 1-3: IMBA-H610 Dimensions (mm)
Page 4
IMBA-H610 A TX Motherboard
1.5 Data Flow
7Figure 1-4 shows the data flow between the system chipset, the CPU and other
components installed on the motherboard.
Figure 1-4: Data Flow Diagram
Page 5
1.6 Technical Specifications
IMBA-H610 technical specifications are listed below.
Specification/Model IMBA-H610
IMBA-H610 A TX Motherboard
Form Factor
CPU Supported
Chipset
Memory
Graphics Engine
Ethernet Controllers
Audio
BIOS
Super I/O Controller
PCIe-PCI Bridge
ATX
LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU
Intel® H61
Two 240-pin 1333/1066 M Hz unbuf fered DDR3 SDRAM DIMMs support
(system max. 16.0 GB)
Intel® HD Graphics 2000/3000 (based on CPU type)
Supports DirectX 10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode
Dual Realtek RTL8111E PCIe GbE controllers (LAN1 with ASF 2.0
support)
Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic)
UEFI BIOS
Fintek F81866
ITE IT8892E
Watchdog Timer
Expansion
PCI
PCIe
I/O Interface Connectors
Audio Connectors
Digital I/O
Display Ports
Page 6
Software programmable supports 1~2 55 sec. system reset
Four PCI slots
One PCIe x16 slot
Two PCIe x1 slots
Three external audio jacks (line-in, line-out, mic-in)
One internal front panel audio connector (10-pin header)
8-bit programmable I/O
One VGA integrated in the Intel® H61
One DVI-D integrated in the Intel® H61
IMBA-H610 A TX Motherboard
Specification/Model IMBA-H610
Ethernet
Fan Connectors
Front Panel
I2C
Keyboard/Mouse
Parallel Port
Serial ATA
Serial Ports
SMBus
TPM
Two RJ-45 GbE port s
One 4-pin CPU fan connector
Two 3-pin system fan conn ector
One 14-pin header (power LED, HDD LED, speaker, power button,
reset button)
One 4-pin wafer connector
Dual PS/2 port
One parallel port via internal 26-pin box header
Four SATA 3Gb/s connectors
Two external RS-232 serial ports
Three RS-232 via internal box headers
One RS-422/485 via internal 4-pin wafer connector
One 4-pin wafer connector
One via 20-pin header
USB Ports
Environmental and Power Specifications
Power Supply
Power Consumption
Operating
Temperature
Humidity
Physical Specifications
Dimensions
Weight GW/NW
Table 1-1: IMBA-H610 Specifications
Four external USB 2.0 ports on rear IO
Six internal USB 2.0 ports by three pin headers
AT/ATX power supported
3.3V@1.65A, 5V@6.31A, 12V@0.18A, Vcore@7.88A, 5VSb@0.15
(3.10 GHz Intel® Core™ i5-2400 CPU with 4 GB 1333 MHz DDR3
memory)
-10ºC ~ 60ºC
5% ~ 95% (non-condensing)
244 mm x 305 mm
1200 g / 700 g
Page 7
IMBA-H610 A TX Motherboard
Chapter
2
2 Packing List
Page 8
IMBA-H610 A TX Motherboard
2.1 Anti-static Precautions
WARNING!
Static electricity can destroy certain electronics. Make sure to follow the
ESD precautions to prevent damage to the product, and injury to the
user.
Make sure to adhere to the following guidelines:
Wear an anti-static wristband: Wearing an anti-static wristband can prevent
electrostatic discharge.
Self-grounding: Touch a grounded conductor every few minutes to discharge
any excess static buildup.
Use an anti-static pad: When configuring any circuit board, place it on an
anti-static mat.
Only handle the edges of the PCB: Don't touch the surface of the
motherboard. Hold the motherboard by the edges when handling.
2.2 Unpacking Precautions
When the IMBA-H610 is unpacked, please do the following:
Follow the antistatic guidelines above.
Make sure the packing box is facing upwards whe n opening.
Make sure all the packing list items are present.
Page 9
2.3 Packing List
NOTE:
If any of the components listed in the checklist below are missing, do
not proceed with the installation. Contact the IEI reseller or vendor the
IMBA-H610 was purchased from or contact an IEI sales representative
directly by sending an email to 33sales@ieiworld.com.
The IMBA-H610 is shipped with the following components:
Quantity Item and Part Number Image
1 IMBA-H610 motherboard
IMBA-H610 A TX Motherboard
4 SATA cable
(P/N: 32000-062800-RS)
1 I/O shielding
(P/N: 45014-0008C0-00-RS)
1 Mini jumper pack
1 One Key Recovery CD
1 Utility CD
Page 10
IMBA-H610 A TX Motherboard
Quantity Item and Part Number Image
1 Quick Installation Guide
Table 2-1: Packing List
2.4 Optional Items
The following are optional components which may be separately purchased:
Item and Part Number Image
Dual-port USB cable with bracket
(P/N: 19800-003100-300-RS)
SATA power cable
(P/N: 32102-000100-200-RS)
RS-422/485 cable (200 mm)
(P/N: 32205-003800-300-RS)
Parallel port cable
(P/N: 19800-000049-RS)
Dual RS-232 cable
(P/N: 19800-000051-RS)
20-pin Infineon TPM module, S/W management tool,
firmware v3.17
(P/N: TPM-IN01-R1 1)
Page 11
Item and Part Number Image
LGA1155/LGA1156 cooler kit (1U chassi s compatible,
73W)
(P/N: CF-1 156A-RS-R11)
LGA1155/LGA1156 cooler kit (1U chassi s compatible,
45W)
(P/N: CF-1 156C-RS)
LGA1155/LGA1156 cooler kit (1U chassi s compatible,
65W)
(P/N: CF-1 156D-RS)
IMBA-H610 A TX Motherboard
High-performance LGA1155/LGA1156 cooler kit (95W)
(P/N: CF-1156E-R11)
Intel® Core™ i5-2500T processor (LGA1155, quad core
2.3 GHz, 6M cache, 45W, compatible with CF-1156C-RS
CPU cooler kit)
(P/N: CPU-DT-i5-2500T)
Intel® Core™ i5-2390T processor (LGA1155, dual core
2.7 GHz, 3M cache, 35W, compatible with CF-1156C-RS
CPU cooler kit)
(P/N: CPU-DT-i5-2390T)
Intel® Core™ i3-2120T processor (LGA1155, dual core
2.6 GHz, 3M cache, 35W, compatible with CF-1156C-RS
CPU cooler kit)
(P/N: CPU-DT-i3-2120T)
Page 12
IMBA-H610 A TX Motherboard
Item and Part Number Image
Intel® Pentium® G630T processor (LGA1155, dual core
2.3 GHz, 3M cache, 35W, compatible with CF-1156C-RS
CPU cooler kit)
(P/N: CPU-DT-P-G630T)
Intel® Celeron® G440 processor (LGA1155, single core
1.6 GHz, 1M cache, 35W, compatible with CF-1156C-RS
CPU cooler kit)
(P/N: CPU-DT-C-G440)
Table 2-2: Optional Items
Page 13
IMBA-H610 A TX Motherboard
Chapter
3
3 Connectors
Page 14
IMBA-H610 A TX Motherboard
3.1 Peripheral Interface Connectors
This chapter details all the jumpers and connectors.
3.1.1 IMBA-H610 Layout
The figures below show all the connectors and jumpers.
Figure 3-1: Connectors and Jumpers
Page 15
3.1.2 Peripheral Interface Connectors
The table below lists all the connectors on the board.
Connector Type Label
+12V ATX power supply connector 4-pin Molex CPU12V1
ATX Power connector 24-pin A TX ATX1
Battery connector 2-pin wafer BT2
Battery holder CR2032 battery holder BAT1
DDR3 DIMM slots DDR3 DIMM slot CHA_DIMM1
Digital I/O connector 10-pin header DIO1
Fan connector (CPU) 4-pin wafer CPU_FAN1
IMBA-H610 A TX Motherboard
CHB_DIMM1
Fan connector (system 1) 3-pin wafer SYS_FAN1
Fan connector (system 2) 3-pin wafer SYS_FAN2
Front panel audio connector 10-pin header FP_AUDIO1
Front panel connector 14-pin header F_PANEL1
I2C connector 4-pin wafer I2C_1
Parallel port connector 26-pin box header LPT1
PCI slots PCI slots PCI1, PCI2, PCI3,
PCI4
PCIe x1 slots PCIe x1 slot PCIEX1_1,
PCIEX1_2
PCIe x16 slot PCIe x16 slot PCIEX16_1
SATA 3Gb/s drive connector 14-pin SATA connector SATA12, SATA56
Serial port, RS-422/485 4-pin wafer COM4
Serial ports, RS-232 10-pin box header COM3, COM5,
SMBus connector 4-pin wafer SMBUS_1
SPI ROM connector 8-pin header JSPI1
Page 16
COM6
IMBA-H610 A TX Motherboard
Connector Type Label
TPM connector 20-pin header TPM1
USB connectors 8-pin header USB2, USB3,
Table 3-1: Peripheral Interface Connectors
3.1.3 External Interface Panel Connectors
The table below lists the connectors on the external I/O panel.
Connector Type Label
Audio connector Audio jack AUDIO_CV1
Ethernet and USB 2.0 ports RJ-45, USB LAN1_USB01_1,
USB4
LAN2_USB23_1
Keyboard and mouse connector Dual PS/2 KB_MS2
Serial port connectors 9-pin male DB-9 COM1
VGA and DVI connector 15-pin female,
24-pin header
Table 3-2: Rear Panel Connectors
3.2 Internal Peripheral Connectors
The section describes all of the connectors on the IMBA-H610.
3.2.1 12V Power Connector
CN Label: CPU12V1
CN Type:
CN Location:
CN Pinouts:
4-pin Molex
See Figure 3-2
See Table 3-3
VIDEO1
The connector supports the 12V power supply.
Page 17
IMBA-H610 A TX Motherboard
Figure 3-2: 12V Power Connector Location
Pin Description
1 GND
2 GND
3 +12V
4 +12V
Table 3-3: 12V Power Connector Pinouts
3.2.2 ATX Power Connector
CN Label: ATX1
CN Type:
CN Location:
CN Pinouts:
The ATX power connector connects to an ATX power supply.
24-pin A TX
See
See
Figure 3-3
Table 3-4
Page 18
IMBA-H610 A TX Motherboard
Figure 3-3: ATX Power Connector Pinout Location
Pin Description Pin Description
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 NC 20 NC
9 +5V 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
Table 3-4: ATX Power Connector Pinouts
Page 19
3.2.3 Battery Connectors
CAUTION:
Risk of explosion if battery is replaced by an incorrect type. Only
certified engineers should replace the on-board battery.
Dispose of used batteries according to instructions and local
regulations.
CN Label: BAT1, BT2
IMBA-H610 A TX Motherboard
CN Type:
CN Location:
CN Pinouts:
This is connected to the system battery. The battery provides power to the system clock to
retain the time when power is turned off.
Battery holder and 2-pin wafer
Figure 3-4
See
Table 3-5
See
Page 20
Figure 3-4: Battery Connector Locations
Pin Description
1 GND
IMBA-H610 A TX Motherboard
Pin Description
2 Battery+
Table 3-5: Battery Connector (BT2) Pinouts
3.2.4 DDR3 DIMM Slots
CN Label: CHA_DIMM1, CHB_DIMM1
CN Type:
CN Location:
The DIMM slots are for DDR3 DIMM memory modules.
DDR3 DIMM slot
See 7Figure 3-5
Figure 3-5: DDR3 DIMM Slot Locations
3.2.5 Digital I/O Connector
CN Label: DIO1
CN Type:
CN Location:
CN Pinouts:
The digital I/O connector provides programmable input and output for external devices.
The digital I/O provides 4-bit output and 4-bit input.
10-pin header
See Figure 3-6
See Table 3-6
Page 21
IMBA-H610 A TX Motherboard
Figure 3-6: Digital I/O Connector Location
Pin Description Pin Description
1 GND 2 VCC
3 Output 3 4 Output 2
5 Output 1 6 Output 0
7 Input 3 8 Input 2
9 Input 1 10 Input 0
Table 3-6: Digital I/O Connector Pinouts
3.2.6 Fan Connector (CPU)
CN Label: CPU_FAN1
CN Type:
CN Location:
CN Pinouts:
The fan connector attaches to a CPU cooling fan.
4-pin wafer
See Figure 3-7
See Table 3-7
Page 22
IMBA-H610 A TX Motherboard
Figure 3-7: CPU Fan Connector Location
Pin Description
1 GND
2 +12 V
3 FANIO1
4 PWM
Table 3-7: CPU Fan Connector Pinouts
3.2.7 Fan Connectors (System)
CN Label: SYS_FAN1, SYS_FAN2
CN Type:
CN Location:
CN Pinouts:
The fan connector attaches to a cooling fan.
3-pin wafer
See Figure 3-8
See Table 3-8
Page 23
IMBA-H610 A TX Motherboard
Figure 3-8: System Fan Connector Location
Pin Description
1 FANIO
2 +12 V (PWM)
3 GND
Table 3-8: System Fan Connector Pinouts
3.2.8 Front Panel Audio Connector
CN Label: FP_AUDIO1
CN Type:
CN Location:
CN Pinouts:
This connector connects to speakers, a microphone and an audio input.
10-pin header
Figure 3-9
See
Table 3-9
See
Page 24
IMBA-H610 A TX Motherboard
Figure 3-9: Front Panel Audio Connector Location
Pin Description Pin Description
1 LMIC2_L 2 AUD GND
3 LMIC2_R 4 PRESENCE#
5 LLINE2-R 6 MIC2-JD
7 F_SENSE 8 NC
9 LLINE2-L 10 LINE2-JD
Table 3-9: Front Panel Audio Connector Pinouts
3.2.9 Front Panel Connector
CN Label: F_PANEL1
CN Type:
CN Location:
CN Pinouts:
The front panel connector connects to the indicator LEDs and buttons on the computer's
front panel.
14-pin header
See Figure 3-10
See Table 3-10
Page 25
IMBA-H610 A TX Motherboard
Figure 3-10: Front Panel Connector Location
Function Pin Description Function Pin Description
Power LED 1 ACPILED Speaker 2 Beep Power
3 NC 4 NC
5 GND 6 NC
Power Button 7 PWRBT_SW#_C 8 PC Beep
9 GND Reset 10 NC
HDD LED 11 HDDLED 12 EXTRST 13 HDDLED- 14 GND
Table 3-10: Front Panel Connector Pinouts
3.2.10 I2C Connector
CN Label: I2C_1
CN Type:
CN Location:
CN Pinouts:
The I2C connector is for system debug.
4-pin wafer
Figure 3-11
See
Table 3-11
See
Page 26
IMBA-H610 A TX Motherboard
Figure 3-11: I2C Connector Location
Pin Description
1 +5V_DUAL
2 PCH_GP38_PU
3 PCH_GP39_PU
4 GND
Table 3-11: I2C Connector Pinouts
3.2.11 Parallel Port Connector
CN Label: LPT1
CN Type:
CN Location:
CN Pinouts:
The parallel port connector connects to a parallel port connector interface or some other
parallel port device such as a printer.
26-pin box header
Figure 3-12
See
Table 3-12
See
Page 27
IMBA-H610 A TX Motherboard
Figure 3-12: Parallel Port Connector Location
Pin Description Pin Description
1 STB 2 AFD
3 PPD0 4 ERROR
5 PPD1 6 INIT
7 PPD2 8 SLIN
9 PPD3 10 GND
11 PPD4 12 GND
13 PPD5 14 GND
15 PPD6 16 GND
17 PPD7 18 GND
19 ACK 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT
Table 3-12: Parallel Port Connector Pinouts
3.2.12 PCI Slots
Page 28
CN Label: PCI1, PCI2, PCI3, PCI4
CN Type:
CN Location:
PCI Slot
Figure 3-13
See
IMBA-H610 A TX Motherboard
The PCI slot enables a PCI expansion module to be connected to the board.
Figure 3-13: PCI Slot Locations
3.2.13 PCIe x1 Slots
CN Label: PCIEX1_1, PCIEX1_2
CN Type:
CN Location:
The PCIe x1 slot is for PCIe x1 expansion cards.
PCIe x1 slot
Figure 3-14
See
Page 29
Figure 3-14: PCIe x1 Slot Locations
3.2.14 PCI Express x16 Slot
CN Label: PCIEX16_1
IMBA-H610 A TX Motherboard
CN Type:
CN Location:
The PCIe x16 expansion card slot is for PCIe x16 expansion cards.
Figure 3-15: PCIe x16 Slot Location
PCIe x16 slot
Figure 3-15
See
3.2.15 SATA 3Gb/s Drive Connectors
Page 30
CN Label: SATA12, SATA56
CN Type:
14-pin SATA connector
IMBA-H610 A TX Motherboard
See
CN Location:
CN Pinouts:
Figure 3-16
Table 3-13
See
The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s
data transfer rate.
Figure 3-16: SATA 3Gb/s Drive Connector Location
Pin Description Pin Description
1 GND 8 GND
2 TXP_A 9 TXP_B
3 TXN_A 10 TXN_B
4 GND 11 GND
5 RXN_A 12 RXN_B
6 RXP_A 13 RXP_B
7 GND 14 GND
Table 3-13: SATA 3Gb/s Drive Connector Pinouts
3.2.16 Serial Port Connector, RS-422/485
CN Label: COM4
CN Type:
4-pin wafer
Page 31
IMBA-H610 A TX Motherboard
CN Location:
CN Pinouts:
See Figure 3-17
See Table 3-14
This connector provides RS-422 or RS-485 communications.
Figure 3-17: RS-422/485 Connector Location
Pin Description
1 RXD4222 RXD422+
3 TXD422+/TXD485+
4 TXD422-/TXD485-
Table 3-14: RS-422/485Connector Pinouts
Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9
connector are listed below.
RS-422 Pinouts RS-485 Pinouts
Table 3-15: DB-9 RS-422/485 Pinouts
Page 32
IMBA-H610 A TX Motherboard
3.2.17 Serial Port Connectors, RS-232
CN Label: COM3, COM5, COM6
CN Type:
CN Location:
CN Pinouts:
Each of these connectors provides RS-232 connections.
Figure 3-18: Serial Port Connector Location
10-pin box header
See Figure 3-18
See Table 3-16
Pin Description Pin Description
1 -NDCD1 6 -NCTS1
2 -NDSR1 7 -NDTR1
3 NSIN1 8 -XRI1
4 -NRTS1 9 GND
5 NSOUT1 10 GND
Table 3-16: Serial Port Connector Pinouts
3.2.18 SMBus Connector
CN Label: SMBUS_1
CN Type:
CN Location:
CN Pinouts:
4-pin wafer
See
See
Figure 3-19
Table 3-17
Page 33
The SMBus (System Management Bus) connector provides low-speed system
management communications.
Figure 3-19: SMBus Connector Location
IMBA-H610 A TX Motherboard
Pin Description
1 +5V_DUAL
2 SMBCLK
3 SMBDATA
4 GND
Table 3-17: SMBus Connector Pinouts
3.2.19 SPI ROM Connector
CN Label: JSPI1
CN Type:
CN Location:
CN Pinouts:
The SPI connector is used to flash the BIOS.
8-pin header
See Figure 3-20
See Table 3-18
Page 34
IMBA-H610 A TX Motherboard
Figure 3-20: SPI Connector Location
Pin Description Pin Description
1 +3.3V 2 GND
3 SPI_CS0 4 SPI_CLK
5 SPI_SO0 6 SPI_SI
7 NC 8 NC
Table 3-18: SPI Connector Pinouts
3.2.20 TPM Connector
CN Label: TPM1
CN Type:
CN Location:
CN Pinouts:
The TPM connector connects to a TPM module.
20-pin header
See Figure 3-21
See Table 3-19
Page 35
IMBA-H610 A TX Motherboard
Figure 3-21: TPM Connector Location
Pin Description Pin Description
1 LCLK 2 GND2
3 LERAME# 4 KEY
5 LRESRT# 6 +5V
7 LAD3 8 LAD2
9 +3V 10 LAD1
11 LAD0 12 GND3
13 SCL 14 SDA
15 SB3V 16 SERIRQ
17 GND1 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 3-19: TPM Connector Pinouts
3.2.21 USB Connectors
CN Label: USB2, USB3, USB4
CN Type:
CN Location:
CN Pinouts:
8-pin header
See Figure 3-22
See Table 3-20
Page 36
The USB connectors connect to USB devices. Each pin header provides two USB ports.
IMBA-H610 A TX Motherboard
Figure 3-22: USB Connector Pinout Locations
Pin Description Pin Description
1 VCC 2 GND
3 DATA- 4 DAT A+
5 DATA+ 6 DATA7 GND 8 VCC
Table 3-20: USB Port Connector Pinouts
3.3 External Peripheral Interface Connector Panel
The figure below shows the external peripheral interface connector (EPIC) panel. The
EPIC panel consists of the following:
Figure 3-23: External Peripheral Interface Connector
Page 37
3.3.1 Audio Connector
CN Label: AUDIO_CV1
IMBA-H610 A TX Motherboard
CN Type:
CN Location:
The audio jacks connect to external audio devices.
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
Line Out port (Lime): Connects to a head phone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.
Audio jack
See Figure 3-23
Figure 3-24: Audio Connector
3.3.2 Ethernet and USB Connector
CN Label: LAN1_USB01_1, LAN2_USB23_1
RJ-45 and USB 2.0 connectors
See Figure 3-23
See Table 3-21
Page 38
CN Type:
CN Location:
CN Pinouts:
The LAN connector connects to a local network.
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 5 MDIA2+
IMBA-H610 A TX Motherboard
PIN DESCRIPTION PIN DESCRIPTION
2 MDIA3+ 6 MDIA1+
3 MDIA1- 7 MDIA04 MDIA2- 8 MDIA0+
Table 3-21: LAN Pinouts
Figure 3-25: Ethernet Connector
LED Description LED Description
A on: linked
blinking: data is being sent/received
Table 3-22: Connector LEDs
The IMBA-H610 has four external USB 2.0 ports. The ports connect to both USB 2.0 and
USB 1.1 devices.
PIN DESCRIPTION
1 VCC
2 DATA 3 DATA +
4 GND
Table 3-23: USB Port Pinouts
B off: 10 Mb/s
green: 100 Mb/s
orange: 1000 Mb/s
3.3.3 Keyboard/Mouse Connector
CN Label: KB_MS2
CN Type:
CN Location:
CN Pinouts:
Dual PS/2
See Figure 3-23
See Table 3-24
Page 39
IMBA-H610 A TX Motherboard
The PS/2 ports are for connecting a PS/2 mouse and a PS/2 keyboard.
PIN DESCRIPTION PIN DESCRIPTION
1 Keyb oard Data 7 Mouse Data
2 NC 8 NC
3 GND 9 GND
4 VCC 10 VCC
5 Keyboard Clock 11 Mouse Clock
6 NC 12 NC
Table 3-24: PS/2 Connector Pinouts
3.3.4 Serial Port Connector (COM1)
CN Label: COM1 (top)
CN Type:
CN Location:
CN Pinouts:
The serial port connects to a RS-232 serial communications device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
DB-9 connector
See Figure 3-23
See Table 3-25 and Figure 3-26
Page 40
Table 3-25: Serial Port Connector (COM1) Pinouts
Figure 3-26: Serial Port Connector (COM1) Pinouts
IMBA-H610 A TX Motherboard
3.3.5 Serial Port Connector (COM2)
CN Label: COM1 (bottom)
CN Type:
CN Location:
CN Pinouts:
The serial port connects to a RS-232 serial communications device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
Table 3-26: Serial Port Connector (COM2) Pinouts
DB-9 connector
See Figure 3-23
See Table 3-26 and Figure 3-27
Figure 3-27: Serial Port Connector (COM2) Pinouts
3.3.6 VGA and DVI Connector
CN Label: VIDEO1
CN Type:
CN Location:
CN Pinouts:
The VGA connector connects to a monitor that accepts a standard VGA input.
15-pin Female, 24-pin header
See Figure 3-23
See Table 3-27 and Table 3-28
Page 41
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VGAVCC 10 GND
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
IMBA-H610 A TX Motherboard
Table 3-27: VGA Connector Pinouts
Figure 3-28: VGA Connector
The DVI connector connects to a monitor that supports DVI video input.
PIN DESCRIPTION PIN DESCRIPTION
1 DVI_DATA2#_C 2 DVI_DATA2_C
3 GND 4 NC
5 NC 6 DVI_SCL
7 DVI_SDA 8 NC
9 DVI_DATA1#_C 10 DVI_DATA1_C
Page 42
11 GND 12 NC
13 NC 14 +5V
15 GND 16 DVI_HPD
17 DVI_DATA0#_C 18 DVI_DATA0_C
19 GND 20 NC
21 NC 22 GND
23 DVI_CLK_C 24 DVI_CLK#_C
Table 3-28: DVI Connector Pinouts
IMBA-H610 A TX Motherboard
Chapter
4
4 Installation
Page 43
4.1 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
IMBA-H610 may result in permanent damage to the IMBA-H610 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the IMBA-H610. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the IMBA-H610 or any other electrical component is handled, the
following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: - Wearing a simple anti-static wristband can
IMBA-H610 A TX Motherboard
help to prevent ESD from damaging the board.
Self-grounding:- Before handling the board touch any grounded conducting
material. During the time the board is handled, frequently touch any
conducting materials that are connected to the ground.
Use an anti-static pad: When configuring the IMBA-H610, place it on an
antic-static pad. This reduces the possibility of ESD damaging the
IMBA-H610.
Only handle the edges of the PCB:-: When handling the PCB, hold the PCB
by the edges.
4.2 Installation Considerations
NOTE:
The following installation notices and installation considerations should
be read and understood before installation. All installation notices must
Page 44
be strictly adhered to. Failing to adhere to these precautions may lead
to severe damage and injury to the person performing the installation.
IMBA-H610 A TX Motherboard
WARNING:
The installation instructions described in this manual should be
carefully followed in order to prevent damage to the components and
injury to the user.
Before and during the installation please DO the following:
Read the user manual:
o The user manual provides a complete description of the IMBA-H610
installation instructions and configuration options.
Wear an electrostatic discharge cuff (ESD):
o Electronic components are easily damaged by ESD. Wearing an ESD cuff
removes ESD from the body and helps prevent ESD damage.
Place the IMBA-H610 on an antistatic pad:
o When installing or configuring the motherboard, place it on an antistatic
pad. This helps to prevent potential ESD damage.
Turn all power to the IMBA-H610 off:
o When working with the IMBA-H610, make sure that it is disconnected
from all power supplies and that no electricity is being fed into the system.
Before and during the installation of the IMBA-H610 DO NOT:
Remove any of the stickers on the PCB board. These stickers are required for
warranty validation.
Use the product before verifying all the cables and power connectors are
properly connected.
Allow screws to come in contact with the PCB circuit, connector pins, or its
components.
Page 45
4.2.1 Socket LGA1155 CPU Installation
WARNING:
CPUs are expensive and sensitive components. When installing the
CPU please be careful not to damage it in anyway. Make sure the CPU
is installed properly and ensure the correct cooling kit is properly
installed.
DO NOT touch the pins at the bottom of the CPU. When handling the
CPU, only hold it on the sides.
To install the CPU, follow the steps below.
IMBA-H610 A TX Motherboard
Step 1: Disengage the load lever by pressing the lever down and slightly outward to
clear the retention tab. Fully open the lever. See
Figure 4-1: Disengage the CPU Socket Load Lever
Step 2: Open the socket and remove the protective cover. The black protective
Figure 4-1.
Page 46
cover can be removed by pulling up on the tab labeled "Remove". See
Figure 4-2.
IMBA-H610 A TX Motherboard
Figure 4-2: Remove Protective Cover
Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the
socket contacts are free of foreign material. If any debris is found, remove it with
compressed air.
Step 4: Orientate the CPU properly. The contact array should be facing the CPU
socket.
Step 5: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the
CPU socket.
Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.
Carefully match the two orientation notches on the CPU with the socket
alignment keys.
Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are
properly aligned, the CPU should slide into the CPU socket smoothly. See
Figure 4-3.
Page 47
Figure 4-3: Insert the Socket LGA1155 CPU
Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little
IMBA-H610 A TX Motherboard
to have the load plate be able to secure to the knob. Engage the load lever by
pushing it back to its original position (
resistance, but will not require extreme pressure.
Figure 4-4: Close the Socket LGA1155
Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power
Figure 4-4). There will be some
Page 48
supply to the board. Step 0:
IMBA-H610 A TX Motherboard
4.2.2 Socket LGA1155 Cooling Kit Installation
WARNING:
DO NOT attempt to install a push-pin cooling fan.
The pre-installed support bracket prevents the board from bending and
is ONLY compatible with captive screw type cooling fans.
The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of
thermal paste on the bottom of the heat sink. The thermal paste
between the CPU and the heat sink is important for optimum heat
dissipation.
To install the cooling kit, follow the instructions below.
Step 1: A cooling kit bracket is pre-inst alled on the rear of the motherboard. See
4-5.
Figure
Page 49
Figure 4-5: Cooling Kit Support Bracket
Step 2: Place the cooling kit onto the socket LGA1155 CP U. Make sure the CPU
IMBA-H610 A TX Motherboard
cable can be properly routed when the cooling kit is installed.
Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make
sure the four threaded screws on the corners of the cooling kit properly pass
through the holes of the cooling kit bracket.
Step 4: Secure the cooling kit by fastening the four retention screws of the cooling kit.
Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the IMBA-H610. Carefully route the cable and avoid heat generating chips
and fan blades.Step 0:
Page 50
IMBA-H610 A TX Motherboard
4.2.3 DIMM Installation
To install a DIMM, please follow the steps below and refer to Figure 4-6.
Figure 4-6: DIMM Installation
Step 1: Open the DIMM socket handles. Open the two handles outwards as far as
they can. See
Step 2: Align the DIMM with the socket. Align the DIMM so the notch on the memory
lines up with the notch on the memory socket. See
Step 3: Insert the DIMM. Once aligned, press down until the DIMM is properly seated.
Clip the two handles into place. See
Step 4: Removing a DIMM. To remove a DIMM, push both handles outward. The
memory module is ejected by a mechanism in the socket.Step 0:
Figure 4-6.
Figure 4-6.
Figure 4-6.
Page 51
4.3 Jumper Settings
NOTE:
A jumper is a metal bridge used to close
an electrical circuit. It consists of two or
three metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
IMBA-H610 A TX Motherboard
The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
Description Label Type
AT/ATX power select JATX_AT1 2-pin header
Clear CMOS jumper J_CMOS1 3-pin header
USB power select jumpers USB_PWR2,
USB_PWR3,
USB_PWR4,
LAN1_USB01_PWR1,
LAN2_USB23_PWR1
Table 4-1: Jumpers
3-pin header
4.3.1 AT/ATX Power Select Jumper
Jumper Label: JATX_AT1
Jumper Type:
2-pin header
Page 52
Jumper Settings:
Jumper Location:
See Table 4-2
See Figure 4-7
IMBA-H610 A TX Motherboard
The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX.
Setting Description
Closed ATX power (Default)
Open AT power
Table 4-2: AT/ATX Power Mode Jumper Settings
Figure 4-7: AT/ATX Power Mode Jumper Location
4.3.2 Clear CMOS Jumper
Jumper Label: J_CMOS1
Jumper Type:
Jumper Settings:
Jumper Location:
To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more,
and then move back to the default position.
Setting Description
Short 1-2 Normal (Default)
Short 2-3 Clear BIOS
Table 4-3: Clear BIOS Jumper Settings
3-pin header
See Table 4-3
See Figure 4-8
Page 53
IMBA-H610 A TX Motherboard
Figure 4-8: Clear BIOS Jumper Location
4.3.3 USB Power Select Jumpers
Jumper Label: USB_PWR2, USB_PWR3, USB_PWR4,
LAN1_USB01_PWR1, LAN2_USB23_PWR1
Jumper Type:
Jumper Settings:
Jumper Location:
The USB Power Select jumper specifies the USB power.
Setting Description
Short 1-2 +5V_DUAL
Short 2-3 +5V (Default)
Table 4-4: USB Power Select Jumper Settings
3-pin header
Table 4-4
See
Figure 4-9
See
Page 54
IMBA-H610 A TX Motherboard
Figure 4-9: USB Power Select Jumper Location
4.4 Internal Peripheral Device Connections
This section outlines the installation of peripheral devices to the onboard connectors.
4.4.1 SATA Drive Connection
The IMBA-H610 is shipped with four SATA drive cables. To connect the SATA drives to
the connectors, please follow the steps below.
Step 1: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 2: Insert the cable connector. Insert the cable connector into the on-board SATA
drive connector until it clips into place. See
Figure 4-10.
Page 55
IMBA-H610 A TX Motherboard
Figure 4-10: SATA Drive Cable Connection
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end
of the cable to the connector at the back of the SATA drive. See
Step 4: Connect the SATA power cable (optional). Connect the SATA power
connector to the back of the SATA drive. See
Figure 4-11.
Figure 4-11.
Page 56
IMBA-H610 A TX Motherboard
Figure 4-11: SATA Power Drive Connection
The SATA power cable can be bought from IEI. See
Optional Items in Section 2.4.
4.5 External Peripheral Interface Connection
This section describes connecting devices to the external connectors on the IMBA-H610.
4.5.1 Audio Connector
The audio jacks on the external audio connector enable the IMBA-H610 to be connected
to a stereo sound setup. Each jack supports both input and output. When connecting a
device, the High Definition Audio utility will automatically detect input or output. The lime
green (top) audio jack does not support input from a microphone. To install the audio
devices, follow the steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel.
Page 57
Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
IMBA-H610 A TX Motherboard
Figure 4-12: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
4.5.2 DVI Display Device Connection
The IMBA-H610 has a single female DVI-D connector on the external peripheral interface
panel. The DVI-D connector is connected to a digital display device. To connect a digital
display device to the IMBA-H610, please follow the instructions below.
Step 1: Locate the DVI-D connector. The location of the DVI-D connector is shown in
another chapter.
Step 2: Align the DVI-D connector. Align the male DVI-D connector on the digital
display device cable with the female DVI-D connector on the external peripheral
interface.
Page 58
Step 3: Insert the DVI-D connector. Once the connectors are properly aligned with the
male connector, insert the male conne ctor from the digital display device into the
female connector on the IMBA-H610. See
Figure 4-13.
IMBA-H610 A TX Motherboard
Figure 4-13: DVI Connector
Step 4: Secure the connector. Secure the DVI-D connector from the digital display
device to the external interface by tightening the two retention screws on either
side of the connector. Step 0:
4.5.3 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 4.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the IMBA-H610. See
Figure 4-14.
Page 59
Figure 4-14: LAN Connection
IMBA-H610 A TX Motherboard
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector. Step 0:
4.5.4 PS/2 Keyboard and Mouse Connection
The IMBA-H610 has a dual PS/2 connector on the external peripheral inte rface panel. The
dual PS/2 connector is used to connect to a keyboard and mouse to the system. Follow
the steps below to connect a keyboard and mouse to the IMBA-H610.
Step 1: Locate the dual PS/2 connector. The location of the dual PS/2 connector is
shown in Chapter 3.
Step 2: Insert the keyboard/mouse connector. Insert a PS/2 keyboard or mouse
connector into the appropriate PS/2 connector on the external peripheral
interface connector . See
Figure 4-15.
Page 60
IMBA-H610 A TX Motherboard
Figure 4-15: PS/2 Keyboard/Mouse Connector
4.5.5 Serial Device Connection
The IMBA-H610 has two female DB-9 connectors on the external peripheral interface
panel for two serial devices. Follow the steps below to connect a serial device to the
IMBA-H610.
Step 1: Locate the DB-9 connector. The locations of the DB-9 connectors are shown
in Chapter 3.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the external peripheral interface. See
Figure 4-16.
Page 61
IMBA-H610 A TX Motherboard
Figure 4-16: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
4.5.6 USB Connection (Dual Connector)
The external USB Series "A" receptacle connectors provide easier and quicker access to
external USB devices. Follow the steps below to connect USB devices to the IMBA-H610.
Step 1: Locate the USB Series "A" receptacle connectors. The location of the USB
Series "A" receptacle connectors are shown in Chapter 3.
Step 2: Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into
the USB Series "A" receptacle on the external peripheral interface. See
Figure 4-17.
Step 0:
Page 62
IMBA-H610 A TX Motherboard
Figure 4-17: USB Connector
4.5.7 VGA Monitor Connection
The IMBA-H610 has a single female DB-15 connector on the external peripheral interface
panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor
to the IMBA-H610, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector. Once the connectors are properly ali gned with the
insert the male connector from the VGA screen into the female connector on the
IMBA-H610. See
Figure 4-18.
Page 63
Figure 4-18: VGA Connector
IMBA-H610 A TX Motherboard
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector. Step 0:
Page 64
IMBA-H610 A TX Motherboard
Chapter
5
5 BIOS
Page 65
5.1 Introduction
The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to
certain system settings. This chapter outlines the options that can be changed.
NOTE:
Some of the BIOS options may vary throughout the life cycle of the
product and are subject to change without prior notice.
5.1.1 Starting Setup
The UEFI BIOS is activated when the computer is turned on. The setup program can be
activated in one of two ways.
IMBA-H610 A TX Motherboard
1. Press the DEL or F2 key as soon as the system is turned on or
2. Press the DEL or F2 key when the “Press DEL or F2 to enter SETUP”
message appears on the screen.
If the message disappears before the DEL or F2 key is pressed, restart the computer and
try again.
5.1.2 Using Setup
Use the arrow keys to highlight items, press ENTER to select, use the PageUp and
PageDown keys to change entries, press F1 for help and press E
keys are shown in.
Key Function
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item on the left hand side
SC to quit. Navigation
Page 66
Right arrow Move to the item on the right hand side
+ Increase the numeric value or make changes
IMBA-H610 A TX Motherboard
Key Function
- Decrease the numeric value or make changes
Page Up key Move to the next p age
Page Dn key Move to the previous page
Esc key Main Menu – Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu
F1 General help, only for Status Page Setup Menu and Option
Page Setup Menu
F2 Previous values
F3 Load optimized defaults
F4 Save changes and Exit BIOS
Table 5-1: BIOS Navigation Keys
5.1.3 Getting Help
When F1 is pressed a small help window describing the appropriate keys to use and the
possible selections for the highlighted item appears. To exit the Help Window press E
the F1 key again.
5.1.4 Unable to Reboot after Configuration Changes
If the computer cannot boot after changes to the system configuration is made, CMOS
defaults. Use the jumper described in Chapter 4.
5.1.5 BIOS Menu Bar
The menu bar on top of the BIOS screen has the following main items:
Main – Changes the basic system configuration.
Advanced – Changes the advanced system settings.
SC or
Chipset – Changes the chipset settings.
Boot – Changes the system boot configuration.
Security – Sets User and Supervisor Passwords.
Page 67
Save & Exit – Selects exit options and loads default settings
The following sections completely describe the configuration options found in the menu
items at the top of the BIOS screen and listed above.
IMBA-H610 A TX Motherboard
5.2 Main
The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
The Main menu gives an overview of the basic system information.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
BIOS Information
BIOS Vendor American Megatrends
Core Version 4.6.4.0 0.03
Compliency UEFI 2.0
Project Version B223AR02.ROM
Build Date 09/27/2011 11:53:40
Memory Information
Total Memory 1024 MB (DDR3 1333)
System Date [Tue 10/04/2011]
System Time [15:10:27]
Access Level Administrator
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Set the Date. Use Tab to
switch between Date
elements.
----------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
BIOS Menu 1: Main
Î System Overview
The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information
cannot be changed. The items shown in the system overview include:
BIOS Vendor: Installed BIOS vendor
Core Version: Current BIOS version
Project Version: the bo ard version
Build Date: Date the current BIOS version was made
Page 68
IMBA-H610 A TX Motherboard
Î Memory Information
The Memory Information lists a brief summary of the on-board memory. The fields in
Memory Information cannot be changed.
Total Memory: Displays the auto-detected system memory size and type.
The System Overview field also has two user configurable fields:
Î System Date [xx/xx/xx]
Use the System Date option to set the system date. Manually enter the day, month and
year.
Î System Time [xx:xx:xx]
Use the System Time option to set the system time. Manually enter the hours, minutes
and seconds.
5.3 Advanced
Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices
through the sub-menus.
WARNING!
Setting the wrong values in the sections below may cause the system
to malfunction. Make sure that the settings made are compatible with
the hardware.
Page 69
S
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Main Advanced Chipset Boot Security Save & Exit
> ACPI Settings
> Trusted Computing
> CPU Configuration
> SATA Configuration
> Intel TXT(LT) Configuration
> USB Configuration
> Super IO Configuration
> H/M Monitor
> Serial Port Console Redirection
> iEi Feature
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 2: Advanced
IMBA-H610 A TX Motherboard
System ACPI Parameters
----------------------
ÅÆ
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
: Select Screen
5.3.1 ACPI Settings
The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and
Power Interface (ACPI) options.
Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.
Advanced
ACPI Settings
ACPI Sleep State [S1 (CPU Stop Clock)]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
elect the highest ACPI
sleep state the system
will enter when the
SUSPEND button is
pressed.
----------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
BIOS Menu 3: ACPI Configuration
Page 70
E
IMBA-H610 A TX Motherboard
Î ACPI Sleep State [S1 (CPU Stop Clock)]
Use the ACPI Sleep State option to specify the sleep state the system enters when it is
not being used.
Î
Suspend Disabled
Î
S1 (CPU Stop
Clock)
Î
S3 (Suspend to
RAM)
DEFAULT
The system enters S1(POS) sleep state. The
system appears off. The CPU is stopped; RAM is
refreshed; the system is running in a low power
mode.
The caches are flushed and the CPU is powered
off. Power to the RAM is maintained. The
computer returns slower to a working state, but
more power is saved.
5.3.2 Trusted Computing
Use the Trusted Computing menu (BIOS Menu 4) to configure settings related to the
Trusted Computing Group (TCG) Trusted Platform Module (TPM).
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
TPM Configuration
TPM SUPPORT [Disable]
Current TPM Status Information
NO TPM Hardware
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
nables or Disables TPM
support. O.S. will not
show TPM. Reset of
platform is required.
----------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
BIOS Menu 4: TPM Configuration
Page 71
Î TPM Support [Disable]
Use the TPM Support option to configure support for the TPM.
IMBA-H610 A TX Motherboard
Î
Disable DEFAULT
Î
Enable
TPM support is disabled.
TPM support is enabled.
5.3.3 CPU Configuration
Use the CPU Configuration menu (BIOS Menu 5) to enter the CPU Information
submenu or enable Intel Virtualization Technology.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Configuration
> CPU Information
Intel Virtualization Technology [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Socket specific CPU
Information
----------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
BIOS Menu 5: CPU Configuration
Î Intel Virtualization Technology [Disabled]
Use the Intel Virtualization Technology option to enable or disable virtualization on the
system. When combined with third party software, Intel® Virtualization technology allows
several OSs to run on the same system at the same time.
Î
Disabled DEFAULT
Î
Enabled
Page 72
Disables Intel Virtualization
Technology.
Enables Intel Virtualization Technology.
IMBA-H610 A TX Motherboard
5.3.3.1 CPU Information
Use the CPU Information submenu (BIOS Menu 6) to view detailed CPU specifications
and configure the CPU.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Configuration
Intel(R) Core(TM) i5-2400 CPU @ 3.10GHz
CPU Signature 206a7
Microcode Patch 14
Max CPU Speed 3100 MHz
Min CPU Speed 1600 MHz
Processor Cores 4
Intel HT Technology Not Supported
Intel VT-x Technology Supported
Intel SMX Technology supported
L1 Data Cache 32 kB x 4
L1 Code Cache 32 kB x 4
L2 Cache 256 kB x 4
L3 Cache 6144 kB
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
----------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
BIOS Menu 6: CPU Configuration
The CPU Configuration menu (
Processor Type: Lists the brand name of the CPU being used
CPU Signature: Lists the CPU signature value.
Microcode Patch: Lists the microcode patch being used.
Max CPU Speed: Lists the maximum CPU processing speed.
Min CPU Speed: Lists the minimum CPU processing speed.
Processor Cores: Lists the number of the processor core
Intel HT Technology: Indicates if Intel HT Technology is supported by the
CPU.
Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the
CPU.
Intel SMX Technology: Indicates if Intel SMX Technology is supported by the
CPU.
L1 Data Cache: Lists the amount of data storage space on the L1 cache.
BIOS Menu 6) lists the following CPU details:
L1 Code Cache: Lists the amount of code storage space on the L1 cache.
Page 73
L2 Cache: Lists the amount of storage space on the L2 cache.
L3 Cache: Lists the amount of storage space on the L3 cache.
IMBA-H610 A TX Motherboard
5.3.4 SATA Configuration
Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the
configuration of the SATA devices installed in the system.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
SATA Configuration
SATA Mode [IDE Mode]
Serial-ATA Controller 0 [Compatible]
Serial-ATA Controller 1 [Enhanced]
SATA Port0 Not Present
SATA Port1 Not Present
SATA Port4 Not Present
SATA Port5 Not Present
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
(1) IDE Mode. (2) AHCI
Mode. (3) RAID Mode.
---------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
BIOS Menu 7: SATA Configuration
Î SATA Mode [IDE Mode]
Use the SATA Mode option to configure SATA devices as normal IDE devices.
Î
Disable
Î
IDE Mode DEFAULT
Î
AHCI Mode
Î Serial-ATA Controller 0 [Compatible]
Use the Serial-ATA Controller 0 option to configure the serial ATA controller 0.
Î
Disabled
Disables the on-board ATA controller.
Disables SATA devices.
Configures SATA devices as normal IDE device.
Configures SATA devices as AHCI device.
Page 74
IMBA-H610 A TX Motherboard
Î
Compatible D
Î
Enhanced
Î Serial-ATA Controller 1 [Enhanced]
Use the Serial-ATA Controller 1 option to configure the serial ATA controller 1.
Î
Disabled
Î
Enhanced D
EFAULT
Configures the on-board ATA controller to be in
Disables the on-board ATA controller.
EFAULT
Configures the on-board ATA controller to be in
compatible mode. In this mode, a SATA channel will
replace one of the IDE channels. This mode supports up
to 4 storage devices.
Enhanced mode. In this mode, IDE channels and SATA
channels are separated. This mode supports up to 6
storage devices. Some legacy OS do not support this
mode.
Configures the on-board ATA controller to be in
Enhanced mode. In this mode, IDE channels and SATA
channels are separated.
5.3.5 Intel TXT(LT) Configuration
Use the Intel TXT(LT) Configuration menu to configure Intel Trusted Execution
Technology support.
Page 75
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Intel Trusted Execution Technology Configuration
Intel TXT support only can be enabled/disabled if SMX
is enabled. VT and VT-d support must also be enabled prior
to TXT.
Secure Mode Extensons (SMX) Enabled
Intel TXT(LT) Support [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 8: Intel TXT(LT) Configuration
IMBA-H610 A TX Motherboard
---------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
5.3.6 USB Configuration
Use the USB Configuration menu (BIOS Menu 9) to read USB configuration information
and configure the USB settings.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
USB Configuration
USB Devices:
1 Keyboard, 2 Hubs
USB Support [Enabled]
Legacy USB Support [Enabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 9: USB Configuration
USB Support Parameters
---------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
Î USB Devices
The USB Devices Enabled field lists the USB devices that are enabled on the system
Page 76
IMBA-H610 A TX Motherboard
Î USB Support [Enabled]
Use the USB Support option to enable or disable USB support on the system.
Î
Disabled
Î
Enabled DEFAULT
Î Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard
support. Normally if this option is not enabled, any attached USB mouse or USB keyboard
does not become available until a USB compatible operating system is fully booted with all
USB drivers loaded. When this option is enabled, any attached USB mouse or USB
keyboard can control the system even when there is no USB driver loaded onto the
system.
Î
Enabled DEFAULT
Î
Disabled
USB support disabled
USB support enabled
Legacy USB support enabled
Legacy USB support disabled
Page 77
S
IMBA-H610 A TX Motherboard
5.3.7 Super IO Configuration
Use the Super IO Configuration menu (BIOS Menu 10) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Super IO Configuration
Super IO Chip Fintek F81866
> Serial Port 1 Configuration
> Serial Port 2 Configuration
> Serial Port 3 Configuration
> Serial Port 4 Configuration
> Serial Port 5 Configuration
> Serial Port 6 Configuration
Power Saving Function [Disabled]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
et Parameters of Serial
Port 1 (COMA)
---------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
BIOS Menu 10: Super IO Configuration
Î Power Saving Function [Disabled]
Use the Power Saving Function BIOS option to enable or reduce power consumption in
the S5 state. When enabled, the system can only be powered-up using the power button.
Î
Disabled DEFAULT
Î
Enabled
Power saving function support disabled
Power saving function support enabled
Page 78
E
IMBA-H610 A TX Motherboard
5.3.7.1 Serial Port n Configuration
Use the Serial Port n Configuration menu (BIOS Menu 11) to configure the serial port n.
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port n Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4
Change Settings [Auto]
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
nable or Disable Serial
Port (COM)
---------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
= - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
BIOS Menu 11: Serial Port n Configuration Menu
5.3.7.1.1 Serial Port 1 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Î
Auto DEFAULT
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Î
IO=3F8h;
IRQ=4
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ4
Page 79
IMBA-H610 A TX Motherboard
Î
IO=3F8h;
IRQ=3, 4
Î
IO=2F8h;
IRQ=3, 4
Î
IO=2C0h;
IRQ=3, 4
Î
IO=2C8h;
IRQ=3, 4
5.3.7.1.2 Serial Port 2 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Î
Disabled
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2C0h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2C8h and the interrupt
address is IRQ3, 4
Disable the serial port
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Î
Auto DEFAULT
Î
Î
Î
Î
IO=2F8h;
IRQ=3
IO=3F8h;
IRQ=3, 4
IO=2F8h;
IRQ=3, 4
IO=2C0h;
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2C0h and the interrupt
Page 80
IRQ=3, 4
address is IRQ3, 4
IMBA-H610 A TX Motherboard
Î
IO=2C8h;
IRQ=3, 4
5.3.7.1.3 Serial Port 3 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Î
Auto DEFAULT
Serial Port I/O port address is 2C8h and the interrupt
address is IRQ3, 4
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Î
Î
Î
Î
Î
IO=3E8h;
IRQ=10
IO=3E8h;
IRQ=10, 11
IO=2E8h;
IRQ=10, 11
IO=2D0h;
IRQ=10, 11
IO=2D8h;
IRQ=10, 11
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ10
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2D0h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2D8h and the interrupt
address is IRQ10, 11
Page 81
5.3.7.1.4 Serial Port 4 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
IMBA-H610 A TX Motherboard
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Î
Auto DEFAULT
Î
Î
Î
IO=2E8h;
IRQ=10
IO=3E8h;
IRQ=10, 11
IO=2E8h;
IRQ=10, 11
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ10
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ10, 11
Î
IO=2D0h;
IRQ=10, 11
Î
IO=2D8h;
IRQ=10, 11
Î Device Mode [RS422/485]
Use the Device Mode option to set the serial port signaling mode.
Î
Normal
Î
RS422/485 DEFAULT
Page 82
Serial Port I/O port address is 2D0h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2D8h and the interrupt
address is IRQ10, 11
Sets the serial port mode to normal.
Enables serial port RS-422/485 support.
IMBA-H610 A TX Motherboard
5.3.7.1.5 Serial Port 5 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Î
Auto DEFAULT
Î
Î
Î
IO=2C0h;
IRQ=10
IO=2C0h;
IRQ=10, 11
IO=2C8h;
IRQ=10, 11
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Serial Port I/O port address is 2C0h and the interrupt
address is IRQ10
Serial Port I/O port address is 2C0h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2C8h and the interrupt
address is IRQ10, 11
Î
IO=2D0h;
IRQ=10, 11
Î
IO=2D8h;
IRQ=10, 11
Î
IO=2E0h;
IRQ=10, 11
5.3.7.1.6 Serial Port 6 Configuration
Î Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Serial Port I/O port address is 2D0h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2D8h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2E0h and the interrupt
address is IRQ10, 11
Page 83
IMBA-H610 A TX Motherboard
Î
Disabled
Î
Enabled DEFAULT
Î Change Settings [Auto]
Use the Change Settings option to change the serial port IO port address and interrupt
address.
Î
Auto DEFAULT
Î
Î
Î
IO=2E0h;
IRQ=10
IO=2C0h;
IRQ=10, 11
IO=2C8h;
IRQ=10, 11
Disable the serial port
Enable the serial port
The serial port IO port address and interrupt address
are automatically detected.
Serial Port I/O port address is 2E0h and the interrupt
address is IRQ10
Serial Port I/O port address is 2C0h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2C8h and the interrupt
address is IRQ10, 11
Î
Î
Î
IO=2D0h;
IRQ=10, 11
IO=2D8h;
IRQ=10, 11
IO=2E0h;
IRQ=10, 11
Serial Port I/O port address is 2D0h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2D8h and the interrupt
address is IRQ10, 11
Serial Port I/O port address is 2E0h and the interrupt
address is IRQ10, 11
5.3.8 H/W Monitor
The H/W Monitor menu (BIOS Menu 12) contains the fan configuration submenus and
displays operating temperature, fan speeds and system voltages.
Page 84
IMBA-H610 A TX Motherboard
Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.
Advanced
PC Health Status
CPU Temperature :+50 C
SYS Temperature :+33 C
CPU FAN Speed :2209 RPM
SYS FAN Speed :N/A
VCC3V :+3.360 V
V_core :+1.224 V
+1.05V :+1.072 V
VDDR :+1.632 V
VSB3V :+3.440 V
VBAT :+3.296 V
5VSB :+5.040 V
> FAN 1 Configuration
> FAN 2 Configuration
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
BIOS Menu 12: H/W Monitor
Smart FAN Configuration
---------------------
ÅÆ
: Select Screen
↑ ↓: Select Item
Enter Select
+ - Change Opt.
F1 General Help
F2 Previous Values
F3 Optimized Defaults
F4 Save & Exit
ESC Exit
Î PC Health Status
The following system parameters and values are shown. The system parameters that are
monitored are:
System Temperatures:
o CPU Temperature
o System Temperature
Fan Speeds:
o CPU Fan Speed
o System Fan Speed
Voltages:
o VCC3V
o Vcore
o +1.05V
o VDDR
o VSB3V
o VBAT
o 5VSB
Page 85
Loading...
