IEI Integration ECW-281B-B2-D525 User Manual

Download

Page i

ECW-281B/B2-D525 Embedded System

MODEL:

IEI Intel® Atom Fanless Embedded System

RoHS Compliant, Dual GbE LAN, COM Ports, USB 2.0

-281B/B2-D525

User Manual

Rev. 1.03 19 October, 2012

ECW-281B/B2-D525 Embedded System

Revision

Date Version Changes

19 October, 2012 1.03 Added bottom cover screw torque warning 24 October, 2011 1.02 Modified COM port locations in Section 22.3.2

Updated Chapter 5: BIOS 17 May, 2011 1.01 Added Section A.1.3 2Product Disposal 7 December, 2010 1.00 Initial release

Page ii

Page iii

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the part

of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification

purposes only and may be trademarks and/or registered trademarks of their respective

owners.

ECW-281B/B2-D525 Embedded System

WARNING

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause u ndesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—

Reorient or relocate the receiving antenna.

—

Increase the separation between the equipment and receiver.

—

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

—

Consult the dealer or an experienced radio/ TV technician for help.

You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void your authority to operate such equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

Page iv

Page v

Table of Contents

1 INTRODUCTION.......................................................................................................... 1

1.1 OVERVIEW.................................................................................................................. 2

1.1.1 Benefits............................................................................................................... 2

1.1.2 Features ............................................................................................................. 2

1.2 MODEL VARIATIONS ................................................................................................... 3

1.3 TECHNICAL SPECIFICATIONS ...................................................................................... 4

1.4 POWER MODULE SPECIFICATIONS (OPTIONAL).......................................................... 6

1.5 POWER ADAPTER (OPTIONAL) ................................................................................... 7

2 MECHANICAL DESCRIPTION................................................................................. 8

2.1 MECHANICAL OVERVIEW........................................................................................... 9

2.2 PHYSICAL DIMENSIONS.............................................................................................. 9

2.3 EXTERNAL OVERVIEW.............................................................................................. 10

2.3.1 Front Panel...................................................................................................... 10

2.3.2 Rear Panel ....................................................................................................... 10

2.3.2.1 ECW-281B-D525 Rear Panel................................................................... 10

2.3.2.2 ECW-281B2-D525 Rear Panel..................................................................11

2.3.3 Bottom Surface................................................................................................. 12

2.4 INTERNAL OVERVIEW............................................................................................... 13

3 SYSTEM COMPONENTS ......................................................................................... 14

3.1 EMBEDDED SYSTEM MOTHERBOARD....................................................................... 15

3.1.1 WAFER-PV-D5252 Motherboard Overview.................................................... 15

3.1.2 CPU Support.................................................................................................... 16

3.2 PERIPHERAL INTERFACE CONNECTORS..................................................................... 16

3.2.1 Peripheral Interface Connectors ..................................................................... 16

3.3 INTERNAL PERIPHERAL CONNECTORS...................................................................... 17

3.3.1 ATX Power Connector ..................................................................................... 17

3.3.2 Audio Connector (10-pin)................................................................................ 18

3.3.3 CompactFlash® Socket.................................................................................... 19

3.3.4 LED Connector................................................................................................ 20

ECW-281B/B2-D525 Embedded System

3.3.5 PCIe Mini Card Slot ........................................................................................ 21

3.3.6 Power Button Connector.................................................................................. 23

3.3.7 Reset Button Connector ................................................................................... 23

3.3.8 SATA Drive Connectors ................................................................................... 24

3.3.9 Serial Port Connector (COM3, COM4, COM5 and COM6)........................... 25

3.3.10 Serial Port Connector (COM 2)(RS-232, RS-422 or RS-485)....................... 26

3.3.11 USB Connectors (Internal)............................................................................. 27

4 INSTALLATION ......................................................................................................... 29

4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 30

4.2 INSTALLATION PROCEDURE...................................................................................... 30

4.2.1 Installation Procedure Overview..................................................................... 30

4.2.2 Unpacking........................................................................................................ 31

4.2.3 Bottom Surface Removal.................................................................................. 32

4.2.4 Configure the Jumper Settings......................................................................... 33

ECW-281B/B2-D525 Embedded System

4.2.4.1 Jumpers..................................................................................................... 34

4.2.4.2 CF Card Setup........................................................................................... 35

4.2.4.3 Clear CMOS Jumper................................................................................. 35

4.2.4.4 COM 6 Function Select Jumper (ECW-281B-D525 Series Only) ........... 37

4.2.4.5 COM 1 Pin 9 Setting Jumper.................................................................... 38

4.2.5 Hard Drive Installation.................................................................................... 39

4.2.6 Mounting the System with Mounting Brackets................................................. 42

4.2.7 Mounting the System with Wall Mount Kit....................................................... 42

4.2.8 DIN Mounting.................................................................................................. 44

4.2.9 Wireless Antenna Installation (Wireless Models Only).................................... 46

4.2.10 Cable Connections......................................................................................... 47

4.3 POWER-ON PROCEDURE........................................................................................... 47

4.3.1 Installation Checklist....................................................................................... 47

4.3.2 Terminal Block Pinouts.................................................................................... 48

4.3.3 Power-on Procedure........................................................................................ 48

5 BIOS.............................................................................................................................. 50

5.1 INTRODUCTION......................................................................................................... 51

5.1.1 Starting Setup................................................................................................... 51

5.1.2 Using Setup...................................................................................................... 51

Page vi

Page vii

5.1.3 Getting Help..................................................................................................... 52

5.1.4 Unable to Reboot After Configuration Changes.............................................. 52

5.1.5 BIOS Menu Bar................................................................................................ 52

5.2 MAIN........................................................................................................................ 53

5.3 ADVANCED............................................................................................................... 54

5.3.1 ACPI Configuration......................................................................................... 54

5.3.2 CPU Configuration.......................................................................................... 56

5.3.3 IDE Configuration........................................................................................... 57

5.3.4 USB Configuration........................................................................................... 58

5.3.5 Super IO Configuration ................................................................................... 59

5.3.5.1 Serial Port n Configuration....................................................................... 60

5.3.6 H/W Monitor.................................................................................................... 65

5.3.7 Serial Port Console Redirection...................................................................... 66

5.3.8 IEI Feature....................................................................................................... 68

5.4 CHIPSET ................................................................................................................... 69

5.4.1 Host Bridge...................................................................................................... 70

5.4.1.1 OnChip VGA Configuration..................................................................... 71

5.4.2 South Bridge..................................................................................................... 72

5.4.3 Intel IGD SWSCI OpRegion............................................................................. 73

5.5 BOOT........................................................................................................................ 75

5.6 SECURITY................................................................................................................. 77

5.7 EXIT......................................................................................................................... 77

6 TROUBLESHOOTING AND MAINTENANCE..................................................... 79

6.1 ECW-281B/B2-D525 SYSTEM MAINTENANCE OVERVIEW...................................... 80

6.2 SYSTEM TROUBLESHOOTING.................................................................................... 80

6.2.1 The System Doesn’t Turn On............................................................................ 80

6.2.2 The System Doesn’t Boot Up............................................................................ 81

6.2.3 More Troubleshooting...................................................................................... 82

6.3 COMPONENT REPLACEMENT PROCEDURE................................................................ 82

6.3.1 SO-DIMM Replacement................................................................................... 83

A SAFETY PRECAUTIONS......................................................................................... 85

A.1 SAFETY PRECAUTIONS ............................................................................................ 86

A.1.1 General Safety Precautions............................................................................. 86

ECW-281B/B2-D525 Embedded System

A.1.2 Anti-static Precautions.................................................................................... 87

A.1.3 Product Disposal............................................................................................. 88

A.2 MAINTENANCE AND CLEANING PRECAUTIONS........................................................ 88

A.2.1 Maintenance and Cleaning.............................................................................. 88

A.2.2 Cleaning Tools................................................................................................. 89

B ONE KEY RECOVERY............................................................................................. 90

B.1 ONE KEY RECOVERY INTRODUCTION...................................................................... 92

B.1.1 System Requirement......................................................................................... 93

B.1.2 Supported Operating System........................................................................... 94

B.2 SETUP PROCEDURE FOR WINDOWS.......................................................................... 95

B.2.1 Hardware and BIOS Setup .............................................................................. 95

B.2.2 Create Partitions............................................................................................. 96

B.2.3 Install Operating System, Drivers and Applications....................................... 99

B.2.4 Build-up Recovery Partition.......................................................................... 100

ECW-281B/B2-D525 Embedded System

B.2.5 Create Factory Default Image....................................................................... 102

B.3 SETUP PROCEDURE FOR LINUX.............................................................................. 107

B.4 RECOVERY TOOL FUNCTIONS .................................................................................110

B.4.1 Factory Restore..............................................................................................112

B.4.2 Backup System................................................................................................113

B.4.3 Restore Your Last Backup...............................................................................114

B.4.4 Manual............................................................................................................115

B.5 OTHER INFORMATION .............................................................................................116

B.5.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller........................116

B.5.2 System Memory Requirement .........................................................................118

C BIOS MENU OPTIONS............................................................................................119

C.1 BIOS CONFIGURATION OPTIONS ........................................................................... 120

D WATCHDOG TIMER .............................................................................................. 122

Page viii

Page ix

List of Figures

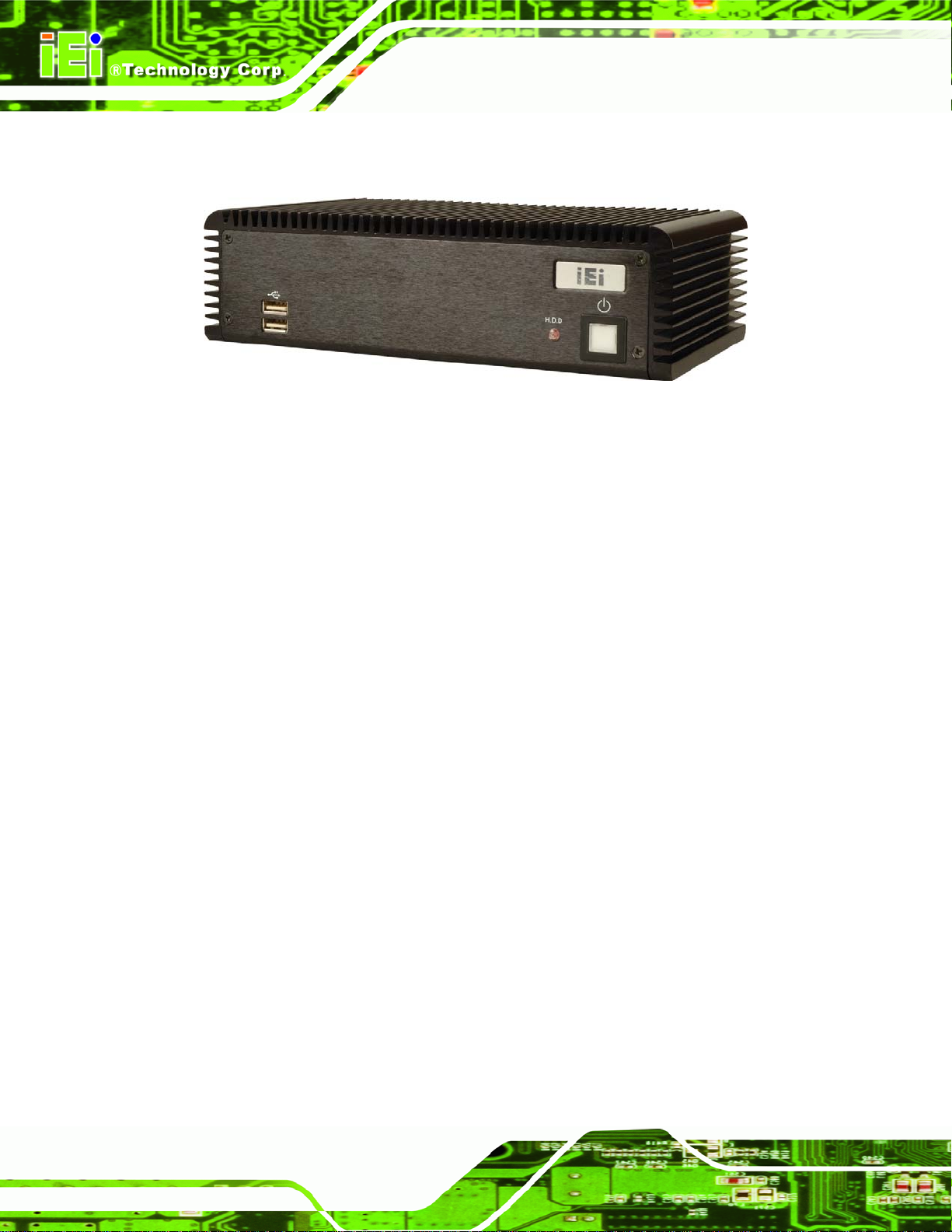

Figure 1-1: ECW-281B/B2-D525 Series Embedded System.......................................................2

Figure 1-2: Power Adapter.............................................................................................................7

Figure 2-1: ECW-281B/B2-D525 Dimensions (mm).....................................................................9

Figure 2-2: ECW-281B/B2-D525 Front Panel..............................................................................10

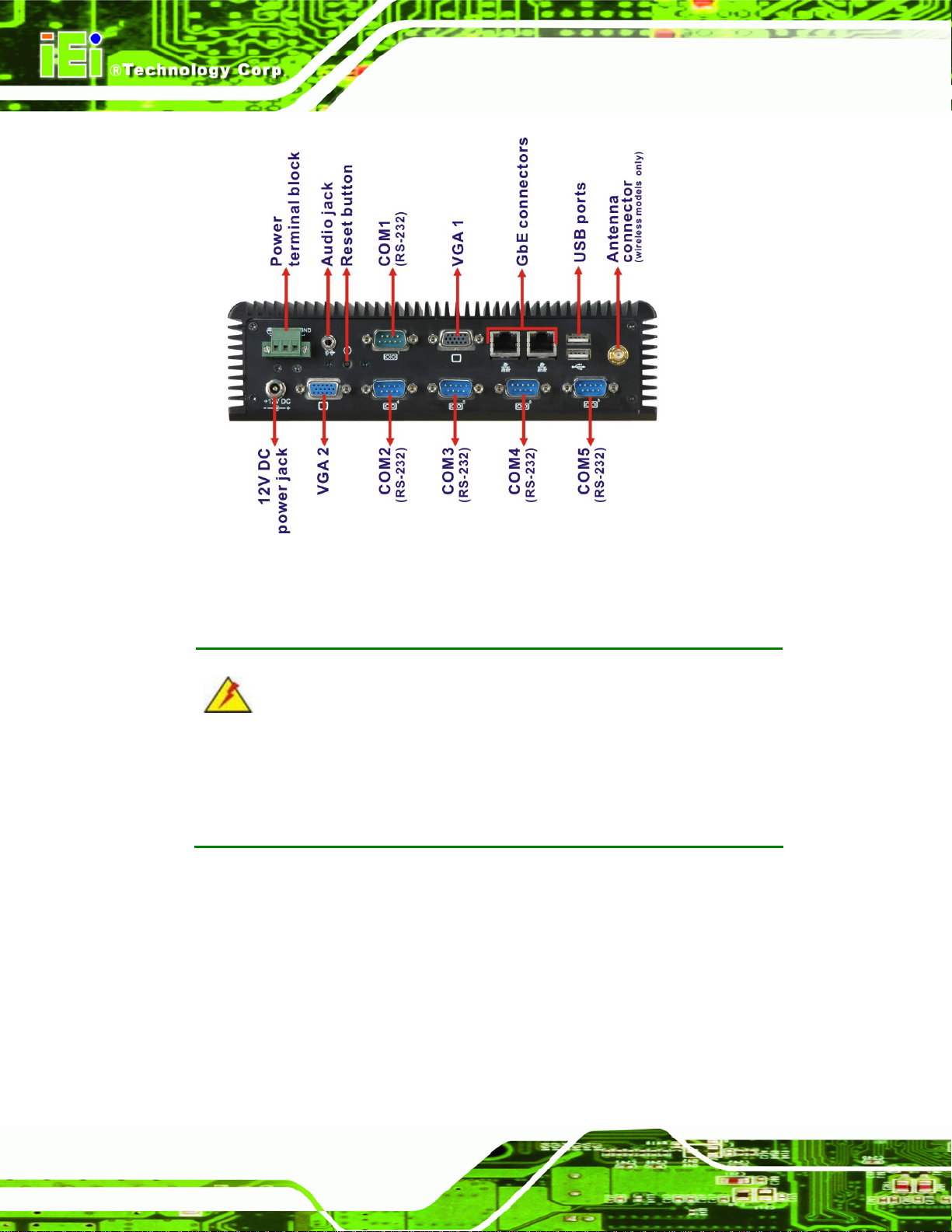

Figure 2-3: ECW-281B-D525 Rear Panel.....................................................................................11

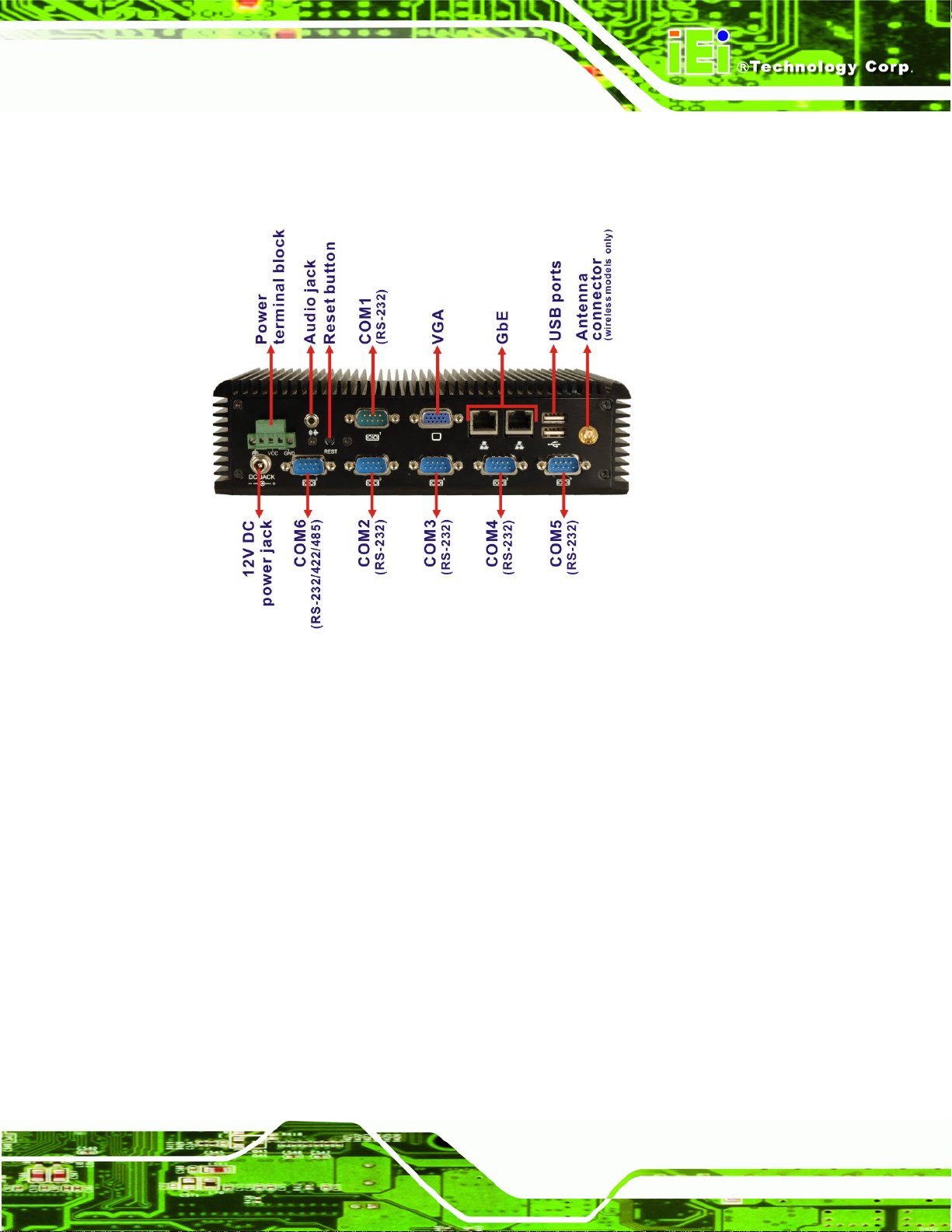

Figure 2-4: ECW-281B2-D525 Rear Panel ..................................................................................12

Figure 2-5: Bottom Surface .........................................................................................................13

Figure 2-6: Internal Overview......................................................................................................13

Figure 3-1: WAFER-PV-D5252 Jumper and Connector Locations ..........................................15

Figure 3-2: ATX Power Connector Location..............................................................................17

Figure 3-3: Audio Connector Pinouts (10-pin)...........................................................................18

Figure 3-4: CF Card Socket Location .........................................................................................19

Figure 3-5: LED Connector Locations........................................................................................21

Figure 3-6: PCIe Mini Card Slot Location...................................................................................22

Figure 3-7: Power Button Connector Location..........................................................................23

Figure 3-8: Reset Button Connector Locations.........................................................................24

Figure 3-9: SATA Drive Connector Locations...........................................................................24

Figure 3-10: COM3 to COM6 Connector Pinout Locations.......................................................25

Figure 3-11: RS-232/422/485 Serial Port Connector Location..................................................27

Figure 3-12: USB Connector Pinout Locations.........................................................................28

Figure 4-1: Bottom Surface Retention Screws..........................................................................33

Figure 4-2: Jumpers .....................................................................................................................34

Figure 4-3: CF Card Setup Jumper Location.............................................................................35

Figure 4-4: Clear CMOS Jumper .................................................................................................36

Figure 4-5: COM 2 Function Select Jumper Location...............................................................37

Figure 4-6: COM 1 Pin 9 Setting Jumper Location....................................................................38

Figure 4-7: Hard Drive Bracket....................................................................................................39

Figure 4-8:HDD Bracket Retention Screws................................................................................39

Figure 4-9: HDD Retention Screws.............................................................................................40

Figure 4-10: HDD Thermal Pad....................................................................................................41

Figure 4-11: Mounting Bracket Retention Screws ....................................................................42

ECW-281B/B2-D525 Embedded System

Figure 4-12: Wall-mounting Bracket...........................................................................................43

Figure 4-13: Mount the Embedded System................................................................................44

Figure 4-14: DIN Rail Mounting Bracket.....................................................................................45

Figure 4-15: Screw Locations......................................................................................................45

Figure 4-16: Mounting the DIN RAIL...........................................................................................46

Figure 4-17: Secure the Assembly to the DIN Rail....................................................................46

Figure 4-18: Wireless Antenna Installation................................................................................47

Figure 4-19: Terminal Block Pinouts..........................................................................................48

Figure 4-20: Power Button...........................................................................................................49

Figure 6-1: SO-DIMM Installation................................................................................................83

Figure B-1: IEI One Key Recovery Tool Menu...........................................................................92

Figure B-2: Launching the Recovery Tool.................................................................................96

Figure B-3: Recovery Tool Setup Menu .....................................................................................97

Figure B-4: Command Mode........................................................................................................97

ECW-281B/B2-D525 Embedded System

Figure B-5: Partition Creation Commands.................................................................................98

Figure B-6: Launching the Recovery Tool.............................................................................. 100

Figure B-7: System Configuration for Windows .................................................................... 100

Figure B-8: Build-up Recovery Partition................................................................................. 101

Figure B-9: Press any key to continue.................................................................................... 101

Figure B-10: Press F3 to Boot into Recovery Mode............................................................... 102

Figure B-11: Recovery Tool Menu ........................................................................................... 102

Figure B-12: About Symantec Ghost Window........................................................................ 103

Figure B-13: Symantec Ghost Path ......................................................................................... 103

Figure B-14: Select a Local Source Drive ............................................................................... 104

Figure B-15: Select a Source Partition from Basic Drive ...................................................... 104

Figure B-16: File Name to Copy Image to ............................................................................... 105

Figure B-17: Compress Image.................................................................................................. 105

Figure B-18: Image Creation Confirmation............................................................................. 106

Figure B-19: Image Creation Process...................................................................................... 106

Figure B-20: Image Creation Complete................................................................................... 106

Figure B-21: Press Any Key to Continue................................................................................ 107

Figure B-22: Partitions for Linux.............................................................................................. 108

Figure B-23: System Configuration for Linux......................................................................... 109

Figure B-24: Access menu.lst in Linux (Text Mode).............................................................. 109

Figure B-25: Recovery Tool Menu ........................................................................................... 110

Page x

Page xi

Figure B-26: Recovery Tool Main Menu.................................................................................. 111

Figure B-27: Restore Factory Default...................................................................................... 112

Figure B-28: Recovery Complete Window.............................................................................. 112

Figure B-29: Backup System.................................................................................................... 113

Figure B-30: System Backup Complete Window ................................................................... 113

Figure B-31: Restore Backup................................................................................................... 114

Figure B-32: Restore System Backup Complete Window..................................................... 114

Figure B-33: Symantec Ghost Window ................................................................................... 115

ECW-281B/B2-D525 Embedded System

List of Tables

Table 1-1: Model Variations...........................................................................................................3

Table 1-2: Technical Specifications..............................................................................................5

Table 1-3: DC-to-DC Power Module Specifications.....................................................................6

Table 1-4: Power Adapter Specifications.....................................................................................7

Table 3-1: Peripheral Interface Connectors...............................................................................17

Table 3-2: ATX Power Connector Pinouts .................................................................................18

Table 3-3: Audio Connector Pinouts (10-pin)............................................................................18

Table 3-4: CF Card Socket Pinouts.............................................................................................20

Table 3-5: LED Connector Pinouts .............................................................................................21

Table 3-6: PCIe Mini Card Slot Pinouts ......................................................................................23

Table 3-7: Power Button Connector Pinouts.............................................................................23

Table 3-8: Reset Button Connector Pinouts..............................................................................24

Table 3-9: SATA Drive Connector Pinouts.................................................................................25

Table 3-10: COM3 to COM6 Connector Pinouts ........................................................................26

Table 3-11: RS-232/RS-485 Serial Port Connector Pinouts......................................................27

Table 3-12: USB Port Connector Pinouts...................................................................................28

Table 4-1: Package List Contents...............................................................................................32

Table 4-2: Jumpers.......................................................................................................................34

Table 4-3: CF Card Setup Jumper Settings ...............................................................................35

Table 4-4: Clear CMOS Jumper Settings....................................................................................36

Table 4-5: COM 6 Function Select Jumper Settings.................................................................37

Table 4-6: COM 1 Pin 9 Setting Jumper Settings......................................................................38

Table 5-1: BIOS Navigation Keys................................................................................................52

Page xii

Page xiii

List of BIOS Menus

BIOS Menu 1: Main.......................................................................................................................53

BIOS Menu 2: Advanced..............................................................................................................54

BIOS Menu 3: ACPI Configuration..............................................................................................55

BIOS Menu 4: CPU Configuration...............................................................................................56

BIOS Menu 5: IDE Configuration.................................................................................................57

BIOS Menu 6: USB Configuration...............................................................................................58

BIOS Menu 7: Super IO Configuration........................................................................................59

BIOS Menu 8: Serial Port n Configuration Menu.......................................................................60

BIOS Menu 9: Hardware Health Configuration..........................................................................65

BIOS Menu 10: Serial Port Console Redirection.......................................................................67

BIOS Menu 11: IEI Feature...........................................................................................................68

BIOS Menu 12: Chipset................................................................................................................69

BIOS Menu 13:Host Bridge Configuration.................................................................................70

BIOS Menu 14: OnChip VGA Configuration...............................................................................71

BIOS Menu 15:Southbridge Chipset Configuration..................................................................72

BIOS Menu 16: Intel IGD SWSCI OpRegion ...............................................................................74

BIOS Menu 17: Boot.....................................................................................................................75

BIOS Menu 18: Security...............................................................................................................77

BIOS Menu 19:Exit........................................................................................................................78

ECW-281B/B2-D525 Embedded System

Page 1

Chapter

1 Introduction

ECW-281B/B2-D525 Embedded System

1.1 Overview

Figure 1-1: ECW-281B/B2-D525 Series Embedded System

There are four WAFER-PV-D5252 Intel® Atom™ based embedded solutions in the

ECW-281B/B2-D525 Embedded System

ECW-281B/B2-D525 series. All fanless motherboards have been optimized

applications that require minimum installation space. The WAFER-

supports a full range of functions for an AT/ATX-compatible industrial computer.

ECW-281B/B2-D525 embedded subsystems are all capable of supporting one 2.5” SATA hard

disk drive. The W models also have a built-in 802.11 b/g/n wireless module.

PV-D5252 motherboard

for multimedia

1.1.1 Benefits

The ECW-281B/B2-D525 embedded system has the following benefits:

 Easy installation saves installation time

 Complete integration saves solution development time and cost

 Secure storage with one SATA hard drive supported

 Compact size saves space

 Powerful preinstalled Intel® Atom™ D525 CPU and motherboard ensures

rigorous processing needs can be met

1.1.2 Features

Page 2

The ECW-281B/B2-D525 has the following features

 RoHS compliant design

 Fanless system

 1.8 GHz Intel® Atom™ D525 CPU supported

ECW-281B/B2-D525 Embedded System

 Dual GbE LAN for high speed network applications

 One SATA hard drive supported

 Wall mount and DIN mount supported.

1.2 Model Variations

There are six models in the ECW-281B/B2-D525 embedded system series. The six

models are all preinstalled with an Intel® Atom™ D525 processor and 1 GB DDR3

memory. The model variations are listed in

ECW-281B Series Power Wireless VGA COM Ports ECW-281B-R10/D525/1GB 12V DC input

(60 W adaptor)

ECW-281BW-R10/D525/1GB 12V DC input

(60 W adaptor)

ECW-281BWD-R10/D525/1GB 9V~36V DC input No ECW-281BWDW-R10/D525/1GB 9V~36V DC input Yes ECW-281B2 Series Power Wireless VGA COM Ports ECW-281B2-R10/D525/1GB 12V DC input

(60 W adaptor)

ECW-281B2W-R10/D525/1GB 12V DC input

(60 W adaptor)

ECW-281B2WD-R10/D525/1GB 9V~36V DC input No ECW-281B2WDW-R10/D525/1GB 9V~36V DC input Yes

655Table 1-1 below.

Yes

1 x VGA 5 x RS-232

1 x RS-232 or optional RS-422/485

2 x VGA 5 x RS-232

Table 1-1: Model Variations

Page 3

ECW-281B/B2-D525 Embedded System

1.3 Technical Specifications

The specifications for the Intel based embedded systems are listed below.

ECW-281B-D525 ECW-281B2-D525 CPU

System Chipset

System Memory

Ethernet

Display

Serial Port

USB

Audio

Preinstalled 1.8 GHz Intel® Atom™ Processor D525 with 1 MB L2 cache

Intel® ICH8M

Preinstalled 1.0 GB DDR3 SDRAM SO-DIMM (system max. 2 GB)

Dual Realtek RTL8111E GbE controllers

Built-in 802.11 b/g/n wireless module for the wireless models

One VGA port Two VGA port

 VGA1: 2048 x 1536 (max.)

 VGA2: 1024 x 768 (max.)

Five RS-232

One RS-232 or RS-422/485 (optional)

Four USB 2.0 ports

One audio out

Five RS-232

Storage

Chassis Construction

Power Supply

Operating Shock

Operating Vibration

Page 4

One 2.5” SATA hard drive supported

One internal CF card slot

Aluminum Alloy

9 V – 36 V DC (WD series models):

Internal DC-to-DC power converter

12 V DC models:

External power adapter, 90V AC ~ 264V AC @ 47Hz ~ 63Hz, 60 W

Half-sine wave shock 3G; 11ms; 3 shocks per axis

MIL-STD-810F 514.5C-1 (HDD)

MIL-STD-810F 514.5C-2 (CF)

ECW-281B/B2-D525 Embedded System

Operating Temperature

Color

Mounting

Weight (Net/Gross)

Dimensions (D x W x H)

EMC

Table 1-2: Technical Specifications

-20ºC ~ 65ºC with SATA SSD, air flow*

-10ºC ~ 50ºC with SATA HDD in wireless model, air flow*

*Ambient air speed per IEC-68-2-2 standard

Black

DIN mount

VESA MIS-D 75 wall mount

2.1 kg/3.9 kg

132 mm x 229 mm x 64 mm

FCC Class A, CE

Page 5

ECW-281B/B2-D525 Embedded System

1.4 Power Module Specifications (Optional)

A DC-to-DC power module is preinstalled in the WD series model to provide 9 V~36 V

power input. The specifications for the IDD-936260A are shown in

Model Name: IDD-936260A Input

Output: 12V

5VSB

Max. Total Output:

Performance Characteristics: Noise & Ripple:

Line Regulation:

Load Regulation

9 V DC~36 V DC

3 A (Max.)

10 A (Max.)

0.5 A (Max.)

60 W

< 240 mV

< 20 mV

<60 mV

655Table 1-3.

Page 6

Efficiency:

Dimensions:

Weight:

Operating Temperature:

Table 1-3: DC-to-DC Power Module Specifications

Up to 90%

40 mm x 100 mm

58 g

-40°C~85°C

ECW-281B/B2-D525 Embedded System

1.5 Power Adapter (Optional)

The ECW-281B/B2-D525 series models that feature 12 V DC input are shipped with a

60W power adapter.

Figure 1-2: Power Adapter

The specifications for the adapter are listed in

Input Voltage

Input Frequency

Output Voltage

Output Current

Efficiency

Operating Temperature

Storage Temperature

Table 1-4: Power Adapter Specifications

90 V ~ 264 V AC

47 Hz ~ 63 Hz

12 V

5 A

87%

0 ºC ~ 40 ºC

-20 ºC ~ 65 ºC

655Table 1-4:

Page 7

ECW-281B/B2-D525 Embedded System

Chapter

2 Mechanical Description

Page 8

ECW-281B/B2-D525 Embedded System

2.1 Mechanical Overview

The ECW-281B/B2-D525 RoHS compliant, Intel® Atom™ fanless embedded system

features industrial grade components that offer longer operating life, high shock/vibration

resistance and endurance over a wide temperature range. The ECW-281B/B2-D525

combines these features in an aluminum enclosure. Featuring two LAN, four USB, six

serial communication ports, as well as audio, and VGA, the ECW-281B/B2-D525 offers

system integrators and developers the best selection of robust and high performance

computing system platforms. An internal bracket supports one 2.5” SATA hard drives.

2.2 Physical Dimensions

The dimensions of the ECW-281B/B2-D525 are listed below and shown in 655Figure 2-1.

 Height: 64.00 mm  Width: 229.00 mm  Length: 132.00 mm

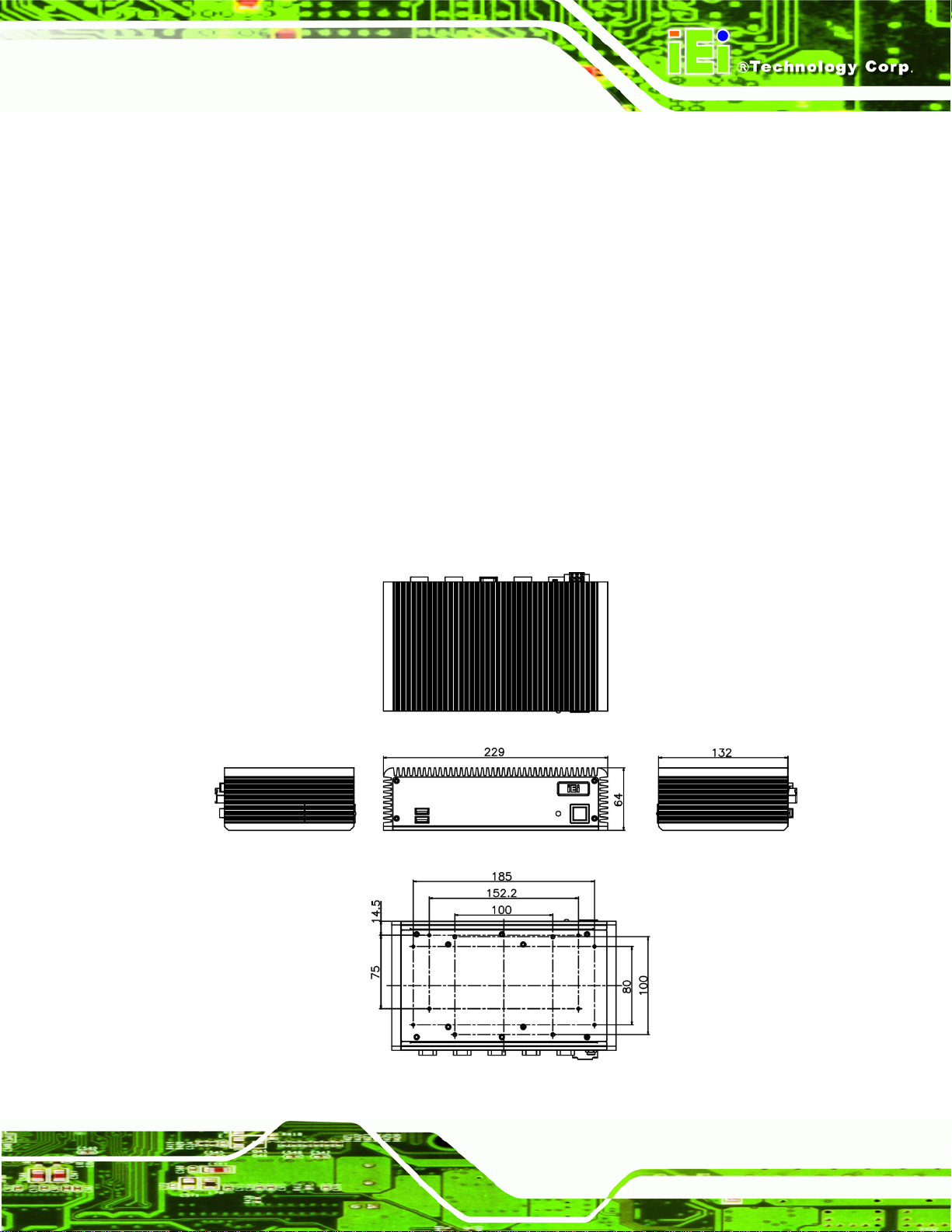

Figure 2-1: ECW-281B/B2-D525 Dimensions (mm)

Page 9

2.3 External Overview

2.3.1 Front Panel

The ECW-281B/B2-D525 front panel contains:

 2 x USB port connectors

 1 x HDD LED indicator

 1 x Power button

ECW-281B/B2-D525 Embedded System

An overview of the front panel is shown in

655Figure 2-2 below.

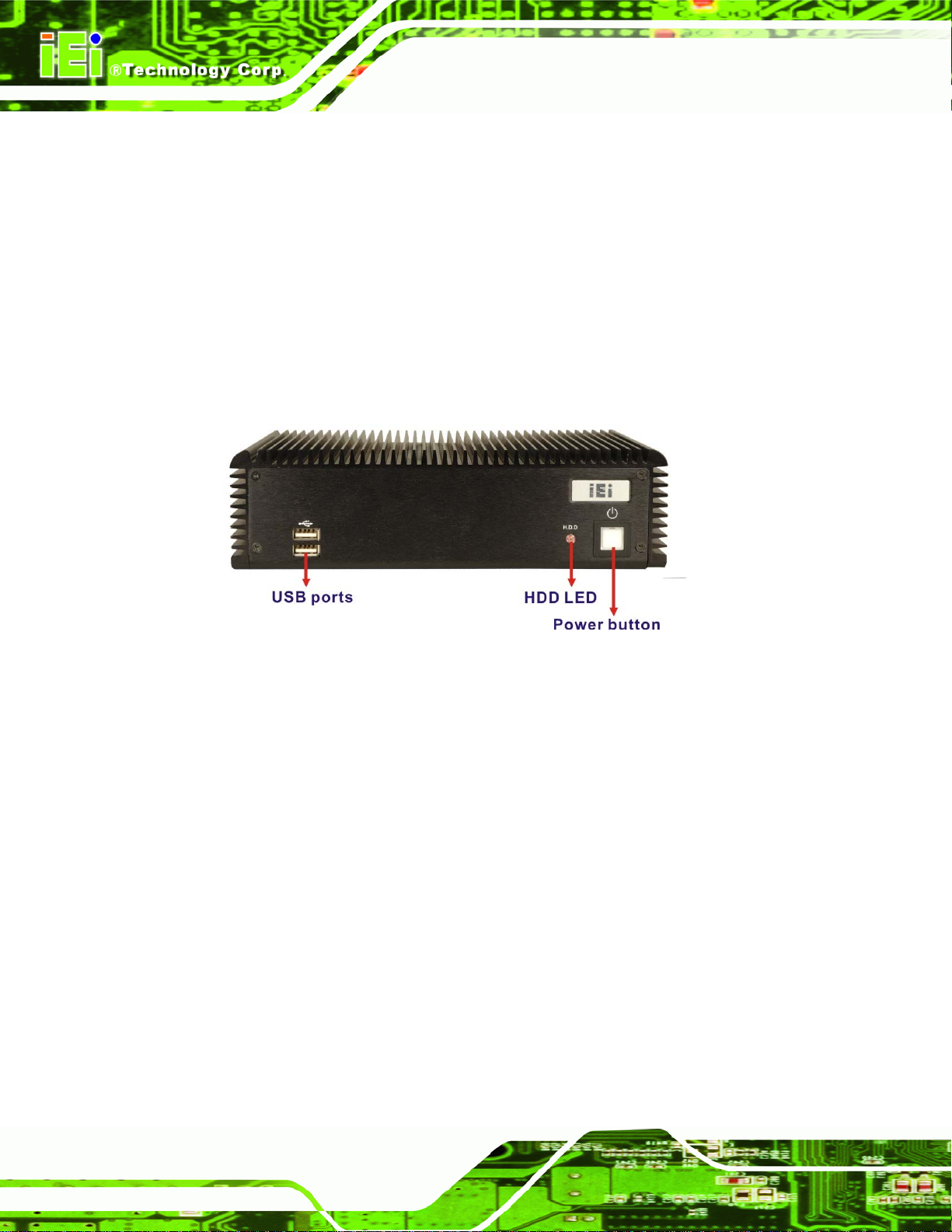

Figure 2-2: ECW-281B/B2-D525 Front Panel

2.3.2 Rear Panel

2.3.2.1 ECW-281B-D525 Rear Panel

The rear panel of the ECW-281B-D525 provides access to the following external I/O

connectors.

Page 10

 2 x USB port connectors

 2 x RJ-45 Ethernet connector

 1 x VGA connector

 1 x RS-232/422/485 serial port (Default: RS-232)

 5 x RS-232 serial ports

 1 x Speaker out

 1 x 3-pin power terminal block

 1 x 12V DC power jack

ECW-281B/B2-D525 Embedded System

 1 x Wireless antenna connector (for wireless models only)

An overview of the rear panel is shown in

655Figure 2-3.

Figure 2-3: ECW-281B-D525 Rear Panel

2.3.2.2 ECW-281B2-D525 Rear Panel

The rear panel of the ECW-281B2-D525 provides access to the following external I/O

connectors.

 2 x USB port connectors

 2 x RJ-45 Ethernet connector

 2 x VGA connectors

 5 x RS-232 serial ports

 1 x Speaker out

 1 x 3-pin power terminal block

 1 x 12V DC power jack

 1 x Wireless antenna connector (for wireless models only)

An overview of the rear panel is shown in

655Figure 2-4.

Page 11

ECW-281B/B2-D525 Embedded System

Figure 2-4: ECW-281B2-D525 Rear Panel

2.3.3 Bottom Surface

WARNING:

Never remove the bottom access panel from the chassis while power is still

being fed into the system. Before removing the bottom access panel, make

sure the system has been turned off and all power connectors unplugged.

The bottom surface of the ECW-281B/B2-D525 contains the retention screw holes for the

VESA MIS-D 100 wall-mount kit, two-side mounting brackets and DIN mount bracket.

Page 12

ECW-281B/B2-D525 Embedded System

Figure 2-5: Bottom Surface

2.4 Internal Overview

The ECW-281B/B2-D525 internal components are listed below:

 1 x IEI WAFER motherboard (preinstalled)

 1 x IEI power module (WD modesls only)

 1 x SO-DIMM module (preinstalled)

 1 x Hard drive bracket and SATA cable support one SATA hard disk

All the components are accessed by removing the bottom surface.

Figure 2-6: Internal Overview

Page 13

ECW-281B/B2-D525 Embedded System

Chapter

3 System Components

Page 14

ECW-281B/B2-D525 Embedded System

3.1 Embedded System Motherboard

NOTE:

The jumpers and connectors shown in the section below are those jumpers and connectors that are relevant to the configuration and installation of the embedded system. For a complete list of jumpers and connectors on the WAFER-PV-D5252 m otherboard, please refer to the WAFER-PV-D5252 user manual.

The ECW-281B/B2-D525 models have a WAFER-PV-D5252 motherboard installed in the

system. The following sections describe the relevant connectors and jumpers on the

motherboard.

3.1.1 WAFER-PV-D5252 Motherboard Overview

The locations of the WAFER-PV-D5252 jumpers and connectors used on the

ECW-281B/B2-D525 are shown in

655Figure 3-1 below.

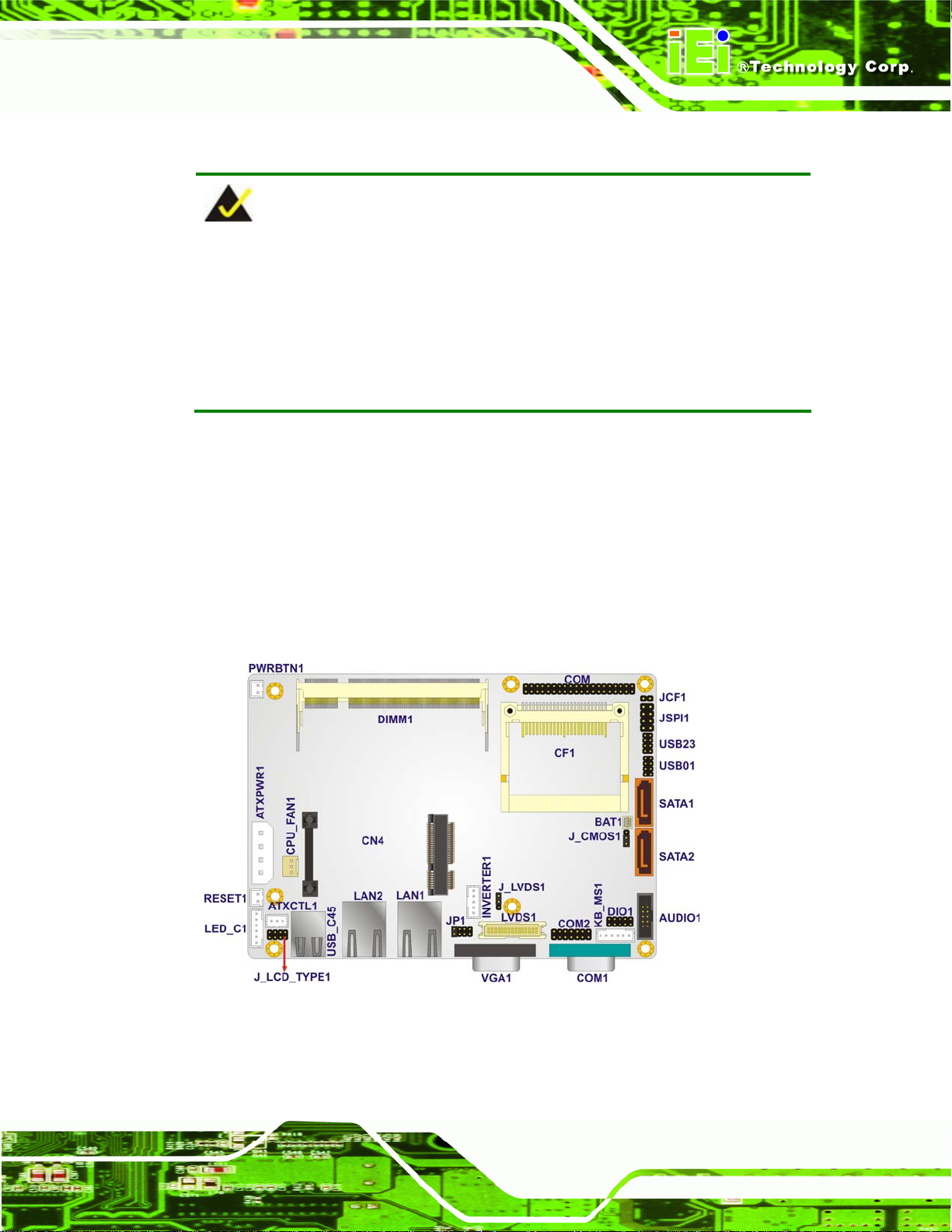

Figure 3-1: WAFER-PV-D5252 Jumper and Connector Locations

Page 15

3.1.2 CPU Support

NOTE:

The ECW-281B/B2-D525 series has a preinstalled Intel® Atom™

1.8 GHz CPU on-board. If the CPU fails, the motherboard has to be

replaced. Please contact the IEI reseller or vendor you purchased the

ECW-281B/B2-D525 from or contact an IEI sales representative directly.

To contact an IEI sales representative, please send an email to

322sales@iei.com.tw.

The ECW-281B/B2-D525 comes with an embedded 45 nm 1.8 GHz Intel® Atom™

processor D525. It is a dual-core processor with 1 MB L2 cache.

ECW-281B/B2-D525 Embedded System

3.2 Peripheral Interface Connectors

Section 6553.2.1 lists all the peripheral interface connectors seen in Section 6553.1.1.

3.2.1 Peripheral Interface Connectors

655Table 3-1 shows a list of the peripheral interface connectors on the WAFER-PV-D5252

that are used for the ECW-281B/B2-D525. Detailed descriptions of these connectors can

be found in Section

Connector Type Label

ATX power connector 4-pin ATX J1

Audio connector 10-pin box header AUDIO1

Battery connector 2-pin wafer BT1

CompactFlash® socket 50-pin CF socket CF1

LED connector 6-pin header CN2

6553.3.

Page 16

PCIe Mini Card slot PCIe Mini Slot CN1

ECW-281B/B2-D525 Embedded System

Power button connector 2-pin wafer PWR_BTN

Reset button connector 2-pin header RST_BTN

Serial ATA (SATA) drive connectors 7-pin SATA SATA1

RS-232 serial port connector (COM3 – COM6) 40-pin header COM

RS-232/422/485 serial port connector 14-pin header COM2

USB 2.0 connector 8-pin header USB4

Table 3-1: Peripheral Interface Connectors

3.3 Internal Peripheral Connectors

Internal peripheral connectors are found on the motherboard and are only accessible

when the motherboard is outside of the chassis. This section has complete descriptions of

the internal, peripheral connectors on the WAFER-PV-D5252 that are used for the

ECW-281B/B2-D525.

3.3.1 ATX Power Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

4-pin power connector (1x4)

655Figure 3-2

See

755Table 3-2

See

The 4-pin ATX power connector is connected to a DC-DC power module.

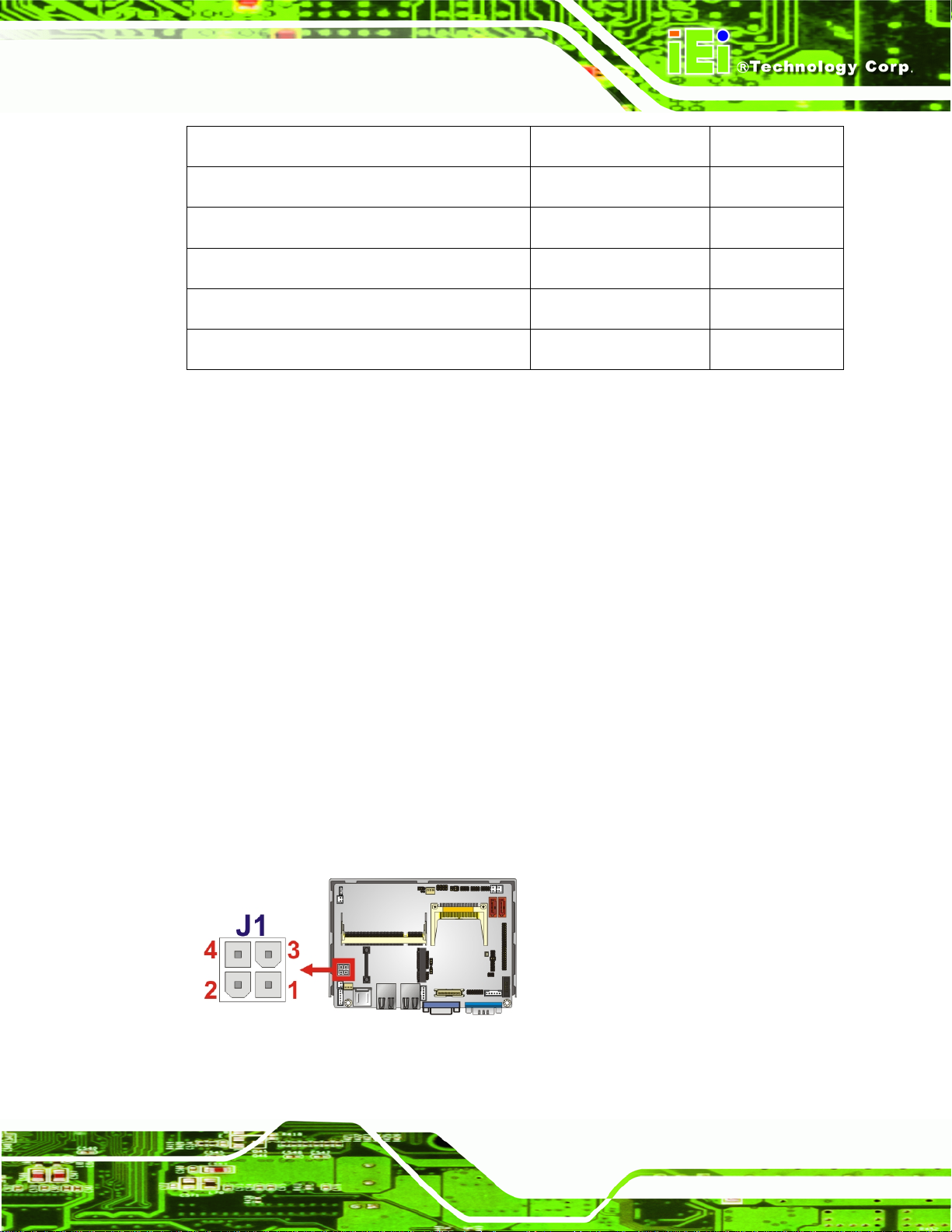

Figure 3-2: ATX Power Connector Location

Page 17

PIN NO. DESCRIP TIO N

1 GND 2 GND 3 +12V 4 +5V

Table 3-2: ATX Power Connector Pinouts

3.3.2 Audio Connector (10-pin)

ECW-281B/B2-D525 Embedded System

CN Label:

CN Type:

CN Location:

CN Pinouts:

AUDIO1

10-pin box header

755Figure 3-3

See

755Table 3-3

See

The 10-pin audio connector is interfaced to an audio line-out connector and provides

output of audio signals from the system.

Figure 3-3: Audio Connector Pinouts (10-pin)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

Page 18

1 LINE_OUTR 2 LINEIN_R 3 GND_AUDIO 4 GND_AUDIO 5 LINE_OUTL 6 LINEIN_L 7 GND_AUDIO 8 GND_AUDIO 9 MICIN 10 MICIN

Table 3-3: Audio Connector Pinouts (10-pin)

ECW-281B/B2-D525 Embedded System

3.3.3 CompactFlash® Socket

CN Label:

CN Type:

CN Location:

CN Pinouts:

CF1

50-pin header (2x25)

755Figure 3-4

See

755Table 3-4

See

A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the

ECW-281B/B2-D525.

Figure 3-4: CF Card Socket Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND 26 CD1# 2 D3 27 D11 3 D4 28 D12 4 D5 29 D13 5 D6 30 D14 6 D7 31 D15 7 CE# 32 CE2# 8 A10 33 VS1# 9 OE# 34 IOR# 10 A9 35 IOW# 11 A8 36 WE#

Page 19

ECW-281B/B2-D525 Embedded System

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

12 A7 37 IRQ 13 VCC 38 VCC 14 A6 39 CSEL# 15 A5 40 VS2# 16 A4 41 RESET# 17 A3 42 WAIT# 18 A2 43 INPACK# 19 A1 44 REG# 20 A0 45 BVD2 21 D0 46 BVD1 22 D1 47 D8 23 D2 48 D9 24 IOCS16# 49 D10 25 CD2# 50 GND2

Table 3-4: CF Card Socket Pinouts

3.3.4 LED Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

The LED connector connects to an HDD indicator LED and a power LED on the system

chassis to inform the user about HDD activity and the power on/off status of the system.

CN2

6-pin wafer (1x6)

755Figure 3-5

See

755Table 3-5

See

Page 20

ECW-281B/B2-D525 Embedded System

Figure 3-5: LED Connector Locations

Pin Description

+5 V Power Output

Power LED

HDD LED

Table 3-5: LED Connector Pinouts

3.3.5 PCIe Mini Card Slot

CN Label:

CN Type:

CN Location:

CN Pinouts:

1 +5 V 2 GND 3 VCC 4 GND 5 VCC 6 -HDLED

CN1

52-pin Mini PCIe Card Slot

7755Figure 3-6

See

755Table 3-6

See

The PCIe mini card slot enables a PCIe mini card expansion module to be connected to

the board. Cards supported include among others wireless LAN (WLAN) cards.

Page 21

ECW-281B/B2-D525 Embedded System

Figure 3-6: PCIe Mini Card Slot Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 PCIE_WAKE# 2 VCC3 3 N/C 4 GND 5 N/C 6 1.5V 7 CLKREQ# 8 LFRAME# 9 GND 10 LAD3 11 CLK- 12 LAD2 13 CLK+ 14 LAD1 15 GND 16 LAD0 17 PCIRST# 18 GND 19 LPC 20 VCC3 21 GND 22 PCIRST# 23 PERN2 24 3VDual 25 PERP2 26 GND 27 GND 28 1.5V

Page 22

29 GND 30 SMBCLK 31 PETN2 32 SMBDATA 33 PETP2 34 GND 35 GND 36 USBD37 N/C 38 USBD+ 39 N/C 40 GND 41 N/C 42 N/C 43 N/C 44 RF_LINK# 45 N/C 46 BLUELED# 47 N/C 48 1.5V 49 N/C 50 GND

ECW-281B/B2-D525 Embedded System

51 N/C 52 VCC3

Table 3-6: PCIe Mini Card Slot Pinouts

3.3.6 Power Button Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

PWR_BTN

2-pin wafer (1x2)

755Figure 3-7

See

755Table 3-7

See

The power button connector is connected to a power switch on the system chassis to

enable users to turn the system on and off.

Figure 3-7: Power Button Connector Location

PIN NO. DESCRIPTION

1 Power Switch2 GND

Table 3-7: Power Button Connector Pinouts

3.3.7 Reset Button Connector

CN Label:

CN Type:

CN Location:

RST_BTN

2-pin wafer (1x2)

755Figure 3-8

See

Page 23

ECW-281B/B2-D525 Embedded System

CN Pinouts:

See

755Table 3-8

The reset button connector is connected to a reset switch on the system chassis to enable

users to reboot the system when the system is turned on.

Figure 3-8: Reset Button Connector Locations

PIN NO. DESCRIPTION

1 Reset Switch 2 GND

Table 3-8: Reset Button Connector Pinouts

3.3.8 SATA Drive Connectors

CN Label:

CN Type:

CN Location:

CN Pinouts:

The SATA connectors connect to SATA hard drives or optical drives.

Figure 3-9: SATA Drive Connector Locations

SA TA1, SATA2

7-pin SATA drive connectors

See

7755Figure 3-9

7755Table 3-9

Page 24

ECW-281B/B2-D525 Embedded System

PIN NO. DESCRIPTION

1 GND 2 TX+ 3 TX4 GND 5 RX6 RX+ 7 GND

Table 3-9: SATA Drive Connector Pinouts

3.3.9 Serial Port Connector (COM3, COM4, COM5 and COM6)

CN Label:

CN Type:

CN Location:

CN Pinouts:

COM

40-pin header (2x20)

755Figure 3-10

See

755Table 3-10

See

The 40-pin serial port connector contains the following four serial ports: COM3, COM4,

COM5 and COM6. All these serial ports are RS-232 serial communications channels. The

serial port locations are specified below.

 COM3 is located on pin 1 to pin 10

 COM4 is located on pin 11 to pin 20

 COM5 is located on pin 21 to pin 30

 COM6 is located on pin 31 to pin 40

Figure 3-10: COM3 to COM6 Connector Pinout Locations

Page 25

ECW-281B/B2-D525 Embedded System

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD3) 2 DATA SET READY (DSR3) 3 RECEIVE DATA (RXD3) 4 REQUEST TO SEND (RTS3) 5 TRANSMIT DATA (TXD3) 6 CLEAR TO SEND (CTS3) 7 DATA TERMINAL READY (DTR3) 8 RING INDICATOR (RI3) 9 GND 10 GND 11 DATA CARRIER DETECT (DCD4) 12 DATA SET READY (DSR4) 13 RECEIVE DATA (RXD4) 14 REQUEST TO SEND (RTS4) 15 TRANSMIT DATA (TXD4) 16 CLEAR TO SEND (CTS4) 17 DATA TERMINAL READY (DTR4) 18 RING IND I CATOR (RI4) 19 GND 20 GND 21 DATA CARRIER DETECT (DCD5) 22 DATA SET READY (DSR5) 23 RECEIVE DATA (RXD5) 24 REQUEST TO SEND (RTS5) 25 TRANSMIT DATA (TXD5) 26 CLEAR TO SEND (CTS5) 27 DATA TERMINAL READY (DTR5) 28 RING IND I CATOR (RI5) 29 GND 30 GND 31 DATA CARRIER DETECT (DCD6 32 DATA SET READY (DSR6) 33 RECEIVE DATA (RXD6) 34 REQUEST TO SEND (RTS6) 35 TRANSMIT DATA (TXD6 36 CLEAR TO SEND (CTS6) 37 DATA TERMINAL READY (DTR6 38 RING INDICATOR (RI6) 39 GND 40 GND

Table 3-10: COM3 to COM6 Connector Pinouts

3.3.10 Serial Port Connector (COM 2)(RS-232, RS-422 or RS-485)

CN Label:

CN Type:

CN Location:

CN Pinouts:

COM2

14-pin header (2x7)

755Figure 3-11

See

755Table 3-11

See

Page 26

The 14-pin serial port connector connects to the COM2 serial communications channels.

COM2 is a multi function channel. In default mode COM2 is an RS-232 serial

ECW-281B/B2-D525 Embedded System

communication channel but, with the COM2 function select jumper, can be configured as

either an RS-422 or RS-485 serial communications channel.

Figure 3-11: RS-232/422/485 Serial Port Connector Location

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 NDCD 2 NDSR2

3 NRX 4 NRTS2

5 NTX 6 NCTS2

7 NDTR 8 NRI2

9 GND 10 GND

11 TXD485+ 12 TXD485-

13 RXD485+ 14 RXD485-

Table 3-11: RS-232/RS-485 Serial Port Connector Pinouts

3.3.11 USB Connectors (Internal)

CN Label:

CN Type:

CN Location:

CN Pinouts:

The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0

USB4

8-pin header (2x4)

7755Figure 3-12

See

7755Table 3-12

See

ports. Each USB connector can support two USB devices. Additional external USB ports

are found on the rear panel. The USB ports are used for I/O bus expansion.

Page 27

ECW-281B/B2-D525 Embedded System

Figure 3-12: USB Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC 2 GND 3 DATA- 4 DATA+ 5 DATA+ 6 DATA7 GND 8 VCC

Table 3-12: USB Port Connector Pinouts

Page 28

ECW-281B/B2-D525 Embedded System

Chapter

4 Installation

Page 29

4.1 Anti-static Precautions

WARNING:

If the following anti-static precautions are not followed, a user may be

injured and the system irreparably damaged.

Electrostatic discharge (ESD) can cause serious damage to electronic components,

including the WAFER series motherboard and the power module. (Dry climates are

especially susceptible to ESD.) It is therefore critical that whenever the

ECW-281B/B2-D525 is opened and any electrical component handled, the following

anti-static precautions are strictly adhered to.

ECW-281B/B2-D525 Embedded System

 Wear an anti-static wristband: - Wearing a simple anti-static wristband can

help to prevent ESD from damaging the board.

 Self-grounding:- Before handling the board, touch any grounded conducting

material. During the time the board is handled, frequently touch any

conducting materials that are connected to the ground.

4.2 Installation Procedure

4.2.1 Installation Procedure Overview

To properly install the ECW-281B/B2-D525, the following steps must be followed. Detailed

descriptions of these instructions are listed in the sections that follow.

Step 1: Unpacking

Step 2: Configure the jumper settings

Step 3: Install the SATA hard disk drive (HDD)

Page 30

Step 4: Mount the ECW-281B/B2-D525

Step 5: Connect the front panel peripheral connectors

ECW-281B/B2-D525 Embedded System

Step 6: Power the system upStep 0:

4.2.2 Unpacking

After the ECW-281B/B2-D525 is received make sure the following components are

included in the package. If any of these components are missing, please contact the

ECW-281B/B2-D525 reseller or vendor where it was purchased or contact an IEI sales

representative immediately.

Quantity Item Image

1 ECW-281B/B2-D525 embedded

system

2 Mounting brackets

1 Screw set

1 DIN mount kit

1 SATA and power cable

1 Thermal pad for HDD

1 Quick installation guide

Page 31

1 Driver and manual CD

ECW-281B/B2-D525 Embedded System

Wireless antenna (wireless model only)

1 Power cord

(optional for WD models)

1 Power adapter with ERP and PSE

certificates (optional for WD models)

(P/N: 63000-FSP060DBAB1552-RS)

1 VESA MIS-D 100 wall mount kit

(optional)

Table 4-1: Package List Contents

4.2.3 Bottom Surface Removal

WARNING:

Over-tightening bottom cover screws will cause damage to the bottom

surface. Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm).

Page 32

Before the jumper settings can be configured and the hard disk drive can be installed, the

bottom surface must be removed. To remove the bottom surface, please follow the steps

below:

Step 1: Remove the bottom surface retention screws. The bottom surface is secured to

the chassis with six retention screws (

removed.

765Figure 4-1). All six screws must be

ECW-281B/B2-D525 Embedded System

Figure 4-1: Bottom Surface Retention Screws

Step 2: Gently remove the bottom surface from the ECW-281B/B2-D525. Step 0:

4.2.4 Configure the Jumper Settings

To configure the jumper settings, please follow the steps below.

Step 1: Remove the bottom surface. See Section

7654.2.3.

Step 2: Locate the jumper settings on the embedded motherboard. See Chapter

765...4.2.4.1.

Step 3: Make the jumper settings in accordance with the settings described and defined

in Chapter

4.2.4.1.

Page 33

4.2.4.1 Jumpers

ECW-281B/B2-D525 Embedded System

NOTE:

jumper is a metal bridge used to close

an electrical circuit. It consists of two or

three metal pins and a small metal clip

(often protected by a plastic cover) that

slides over the pins to connect them. To

CLOSE/SHORT a jumper means

connecting the pins of the jumper with

the plastic clip and to OPEN a jumper

means removing the plastic clip from a

jumper.

The WAFER-PV-D5252 motherboard has several onboard jumpers (765Table 4-2).

Description Label Type

Clear CMOS J_CMOS1 3-pin header

CompactFlash® master/slave selection JCF1 2-pin header

COM2 RS-232/422/485 selection JP1 8-pin header

COM1 pin-9 voltage selection JP2 6-pin header

Figure 4-2: Jumpers

Table 4-2: Jumpers

Page 34

ECW-281B/B2-D525 Embedded System

4.2.4.2 CF Card Setup

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

JCF1

2-pin header

765Table 4-3

See

765Figure 4-3

See

The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave

device or the master device. CF Card Setup jumper settings are shown in

CF Card Setup Description OFF Slave Default Short 1-2 Master

765Table 4-3.

Table 4-3: CF Card Setup Jumper Settings

The CF Card Setup jumper location is shown in 765Figure 4-3.

Figure 4-3: CF Card Setup Jumper Location

4.2.4.3 Clear CMOS Jumper

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

J_CMOS1

3-pin header

7765Table 4-4

See

7765Figure 4-4

See

Page 35

ECW-281B/B2-D525 Embedded System

If the ECW-281B/B2-D525 fails to boot due to improper BIOS settings, the clear CMOS

jumper clears the CMOS data and resets the system BIOS information. To do this, use the

jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to

pins 1 and 2.

If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault

may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the

following:

 Enter the correct CMOS setting

 Load Optimal Defaults

 Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu.

The clear CMOS jumper settings are shown in

Clear CMOS Description Short 1 - 2 Keep CMOS Setup Default Short 2 - 3 Clear CMOS Setup

7765Table 4-4.

Table 4-4: Clear CMOS Jumper Settings

The location of the clear CMOS jumper is shown in 7765Figure 4-4 below.

Page 36

Figure 4-4: Clear CMOS Jumper

ECW-281B/B2-D525 Embedded System

4.2.4.4 COM 6 Function Select Jumper (ECW-281B-D525 Series Only)

Jumper Label:

Jumper Type:

Jumper Settings:

Jumper Location:

JP1

8-pin header

765Table 4-5

See

765Figure 4-5

See

The COM 6 Function Select jumper sets the communication protocol used by the second

serial communications port (COM 6) as RS-232, RS-422 or RS-485. The COM 6 Function

Select settings are shown in

COM 6 Function Select Description Short 1-2 RS-232 Default Short 3-4 RS-422 Short 5-6 RS-485 Short 5-6

Short 7-8

765Table 4-5.

RS-485 with RTS control

Table 4-5: COM 6 Function Select Jumper Settings

The COM 6 Function Select jumper location is shown in 765Figure 4-5.

Figure 4-5: COM 2 Function Select Jumper Location

Page 37

4.2.4.5 COM 1 Pin 9 Setting Jumper

Jumper Label: JP2

ECW-281B/B2-D525 Embedded System

Jumper Type: Jumper Settings: Jumper Location:

6-pin header

5Table 4-6

See

5Figure 4-6

See

The COM 1 Pin 9 Setting jumper configures pin 9 on COM 1 as either a +5 V, +12 V power

source or as a ring-in (RI) line. The COM 1 Pin 9 Setting jumper selection options are

shown in

Setting Description

Short 1-3 COM 1 RI Pin use +5 V Short 3-5 COM 1 RI Pin use +12 V Short 3-4 COM 1 RI Pin use RI (Default)

5Table 4-6.

Table 4-6: COM 1 Pin 9 Setting Jumper Settings

Page 38

Figure 4-6: COM 1 Pin 9 Setting Jumper Location

ECW-281B/B2-D525 Embedded System

4.2.5 Hard Drive Installation

One 2.5” SATA hard drive supported. The SATA drive is installed into a hard drive bracket

attached on the inside of the bottom panel (

765Figure 4-7).

Figure 4-7: Hard Drive Bracket

To install the hard drive into the system, please follow the steps below.

Step 1: Remove the bottom surface See Section

Step 2: Remove the hard drive bracket from the bottom surface by removing the four

7654.2.3.

retention screws that secure the bracket to the bottom surface. (

765Figure 4-8)

Figure 4-8:HDD Bracket Retention Screws

Step 3: Place the HDD into the bracket.

Page 39

ECW-281B/B2-D525 Embedded System

Step 4: Align the retention screw holes in the HDD with those in the bottom of the

bracket.

Step 5: Secure the HDD with the bracket by inserting four retention screws into the

bottom of the bracket (

765Figure 4-9).

Figure 4-9: HDD Retention Screws

Step 6: Locate the breather hole of the HDD. Cut off the corresponding area of the

breather hole from the thermal pad.

Step 7: Adhere the thermal pad to the HDD. Make sure there is no obstacle covering the

Page 40

breather hole (

765Figure 4-10).

CAUTION:

Make sure the breather hole of the HDD is not covered. Covering the breather

hole may cause damage to the HDD.

ECW-281B/B2-D525 Embedded System

Figure 4-10: HDD Thermal Pad

Step 8: Replace the HDD bracket onto the bottom surface by aligning the four retention

screw holes in the HDD bracket with those in the back of the bottom surface.

Step 9: Reinsert the four previously removed retention screws.

Step 10: Connect the SATA cable connector in the ECW-281B/B2-D525 to the HDD.

Step 11: Replace the bottom surface to the bottom panel by reinserting the six previously

removed retention screws. Step 0:

WARNING:

Over-tightening bottom cover screws will cause damage to the bottom

surface. Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm).

Page 41

ECW-281B/B2-D525 Embedded System

4.2.6 Mounting the System with Mounting Brackets

To mount the embedded system onto a wall or some other surface using the two mounting

brackets, please follow the steps below.

Step 1: Turn the embedded system over.

Step 2: Align the two retention screw holes in each bracket with the corresponding

retention screw holes on the sides of the bottom surface.

Step 3: Secure the brackets to the system by inserting two retention screws into each

bracket.

Figure 4-11: Mounting Bracket Retention Screws

Step 4: Drill holes in the intended installation surface.

Step 5: Align the mounting holes in the sides of the mounting brackets with the predrilled

holes in the mounting surface.

Step 6: Insert four retention screws, two in each bracket, to secure the system to the

wall. Step 0:

4.2.7 Mounting the System with Wall Mount Kit

To mount the embedded system onto a wall using the VESA MIS-D 100 wall mount kit,

please follow the steps below.

Step 1: Select the location on the wall for the wall-mounting bracket.

Page 42

ECW-281B/B2-D525 Embedded System

Step 2: Carefully mark the locations of the four bracket screw holes on the wall.

Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention

screws.

Step 4: Align the wall-mounting bracket screw holes with the pilot holes.

Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into

the four pilot holes and tightening them (

Figure 4-12: Wall-mounting Bracket

65Figure 4-12).

Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the

four screw holes on the bottom panel of the system and tighten until the screw

shank is secured against the bottom panel (760H760H

5Figure 4-13).

Step 7: Align the mounting screws on the ECW-281B/B2-D525 bottom panel with the

mounting holes on the bracket.

Step 8: Carefully insert the screws through the holes and gently pull the monitor

downwards until the ECW-281B/B2-D525 rests securely in the slotted holes

765Figure 4-13). Ensure that all four of the mounting screws fit snuggly into their

(

respective slotted holes.

Page 43

ECW-281B/B2-D525 Embedded System

NOTE:

In the diagram below the bracket is already installed on the wall.

Figure 4-13: Mount the Embedded System

4.2.8 DIN Mounting

To mount the ECW-281B/B2-D525 embedded system onto a DIN rail, please follow the

steps below.

Page 44

ECW-281B/B2-D525 Embedded System

Step 1: Attach the DIN rail mounting bracket to the bottom panel of the embedded

system. Secure the bracket to the embedded system with the supplied retention

screws (

765Figure 4-14).

Figure 4-14: DIN Rail Mounting Bracket

Step 2: Make sure the inserted screw in the center of the bracket is at the lowest

position of the elongated hole (

765Figure 4-15).

Figure 4-15: Screw Locations

Step 3: Place the DIN rail flush against the back of the mounting bracket making sure

the edges of the rail are between the upper and lower clamps (

765Figure 4-16).

Page 45

ECW-281B/B2-D525 Embedded System

Figure 4-16: Mounting the DIN RAIL

Step 4: Secure the DIN rail to the mounting bracket by turning the top screw clockwise.

This draws the lower clamp up and secures the embedded system to the DIN

765Figure 4-17).

rail (

Figure 4-17: Secure the Assembly to the DIN Rail

4.2.9 Wireless Antenna Installation (Wireless Models Only)

To install an antenna to the wireless ECW-281B/B2-D525 series for efficient wireless

network transmission, follow the steps below.

Step 1: Locate the antenna connector on the rear panel of the embedded system (refer

765Figure 2-3).

765Figure 4-18).

Page 46

Step 2: Install the antenna to the antenna connector (

ECW-281B/B2-D525 Embedded System

Figure 4-18: Wireless Antenna Installation

4.2.10 Cable Connections

Once the system has been mounted on the wall, the following connectors can be

connected to the system.

 VGA cable connector

 Serial port connectors

 RJ-45 connectors

 USB devices can be connected to the system.

The cable connection locations are shown in

4.3 Power-On Procedure

4.3.1 Installation Checklist

WARNING:

Make sure a power supply with the correct input voltage is being fed into

the system. Incorrect voltages applied to the system may cause damage to

the internal electronic components and may also cause injury to the user.

765Figure 2-3.

To power on the embedded system please make sure of the following:

 The bottom surface panel is installed

Page 47

 All peripheral devices (VGA monitor, serial communications devices etc.) are

connected

 The power cables are plugged in

 The system is securely mounted

4.3.2 Terminal Block Pinouts

The terminal block pinouts are shown in 766Figure 4-19.

ECW-281B/B2-D525 Embedded System

Figure 4-19: Terminal Block Pinouts

The chassis ground is connected to the ECW chassis internally. The cable ground is

connected to the ground pin on the input power connector of the power module.

4.3.3 Power-on Procedure

To power-on the ECW-281B/B2-D525 please follow the steps below:

Step 1: Push the power button.

Step 2: Once turned on, the power button should turns to blue. See

Step 0:

766Figure 4-20.

Page 48

ECW-281B/B2-D525 Embedded System

Figure 4-20: Power Button

Page 49

ECW-281B/B2-D525 Embedded System

Chapter

5 BIOS

Page 50

ECW-281B/B2-D525 Embedded System

5.1 Introduction

The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to

certain system settings. This chapter outlines the options that can be changed.

5.1.1 Starting Setup

The UEFI BIOS is activated when the computer is turned on. The setup program can be

activated in one of two ways.

1. Press the F2 key as soon as the system is turned on or

2. Press the F2 key when the “Press F2 to enter SETUP” message appears on

the screen. 0.

If the message disappears before the F2 key is pressed, restart the computer and try

again.

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E

keys are shown in.

Key Function

Up arrow Move to the item above

Down arrow Move to the item below

Left arrow Move to the item on the left hand side

Right arrow Move to the item on the right hand side

+ Increase the numeric value or make changes

- Decrease the numeric value or make changes

Page up Move to the next page

Page down Move to the previous page

SC to quit. Navigation

Page 51

Key Function

Esc Main Menu – Quit and do not save changes into CMOS

F1 General help, only for Status Page Setup Menu and Option

F9 Load optimized defaults

F10 Save changes and Exit BIOS

Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the

ECW-281B/B2-D525 Embedded System

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu

Page Setup Menu

possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

5.1.4 Unable to Reboot After Configuration Changes

If the computer cannot boot after changes to the system configuration is made, CMOS

defaults. Use the jumper described in Chapter 4.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:

 Main – Changes the basic system configuration.

 Advanced – Changes the advanced system settings.

 Chipset – Changes the chipset settings.

 Boot – Changes the system boot configuration.

 Security – Sets User and Supervisor Passwords.

 Save & Exit – Selects exit options and loads default settings

SC or

Page 52

The following sections completely describe the configuration options found in the menu

items at the top of the BIOS screen and listed above.

ECW-281B/B2-D525 Embedded System

5.2 Main

The Main BIOS menu (6BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.

Main Advanced Chipset Boot Security Save & Exit

BIOS Information BIOS Vendor American Megatrends Core Version 4.6.4.0 0.20 Compliency UEFI 2.0 Project Version E338AR14.ROM Build Date 09/03/2010 15:39:09

System Date [Tue 05/06/2008] System Time [14:20:27]

Access Level Administrator

et the Time. Use Tab to switch between Time elements.

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 1: Main

Î BIOS Information

The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information

cannot be changed. The items shown in the system overview include:

 BIOS Vendor: Installed BIOS vendor  Core Version: Current BIOS version  Project Version: the board version  Build Date: Date the current BIOS version was made

The System Overview field also has two user configurable fields:

Î System Date [xx/xx/xx]

Use the System Date option to set the system date. Manually enter the day, month and year.

Page 53

Î System Time [xx:xx:xx]

Use the System Time option to set the system time. Manually enter the hours, minutes

and seconds.

5.3 Advanced

Use the Advanced menu (6BIOS Menu 2) to configure the CPU and peripheral devices

through the following sub-menus:

WARNING!

Setting the wrong values in the sections below may cause the system

to malfunction. Make sure that the settings made are compatible with

the hardware.

ECW-281B/B2-D525 Embedded System

Main Advanced Chipset Boot Security Save & Exit

> ACPI Settings > CPU Configuration > IDE Configuration > USB Configuration > Super IO Configuration > H/M Monitor > Serial Port Console Redirection > IEI Feature

BIOS Menu 2: Advanced

System ACPI Parameters

----------------------

ÅÆ

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

5.3.1 ACPI Configuration

: Select Screen

Page 54

The ACPI Configuration menu (6BIOS Menu 3) configures the Advanced Configuration

and Power Interface (ACPI) options.

ECW-281B/B2-D525 Embedded System

Advanced

ACPI Sleep State [S1 (CPU Stop Clock)]

Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 3: ACPI Configuration

Î ACPI Sleep State [S1 (CPU Stop Clock)]

Use the ACPI Sleep State option to specify the sleep state the system enters when it is

not being used.

S1 (CPU Stop Clock)

S3 (Suspend to RAM)

DEFAULT

The system enters S1(POS) sleep state. The

system appears off. The CPU is stopped; RAM is

refreshed; the system is running in a low power

mode.

The caches are flushed and the CPU is powered

off. Power to the RAM is maintained. The

computer returns slower to a working state, but

more power is saved.

Page 55

ECW-281B/B2-D525 Embedded System

5.3.2 CPU Configuration

Use the CPU Configuration menu (6BIOS Menu 4) to view detailed CPU specifications

and configure the CPU.

Advanced

CPU Configuration

Processor Type Intel(R) Atom(TM) CPU D525 @1.80GHz EMT64 Supported Processor Speed 1800 MHz System Bus Speed 800 MHz Ratio Status 9 Actual Ratio 9 Processor Stepping 106ca Microcode Revision 263 L1 Cache RAM 2x56 k L2 Cache RAM 2x512 k Processor Cores Dual Hyper-Threading Supported

Hyper-Threading [Enabled]

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 4: CPU Configuration

The CPU Configuration menu (

 Processor Type: Lists the brand name of the CPU being used

 EMT64: Indicates if the EM64T is supported by the CPU.

 Processor Speed: Lists the CPU processing speed

 Actual Ratio: Lists the ratio of the frequency to the clock speed

 Processor Stepping: Lists the CPU processing stepping

 Microcode Revision: Lists the microcode revision

 L1 Cache RAM: Lists the CPU L1 cache size

 L2 Cache RAM: Lists the CPU L2 cache size

 Processor Cores: Lists the number of the processor core

 Hyper-Threading: Indicates if the Intel HT Technology is supported by the

CPU.

6BIOS Menu 4) lists the following CPU details:

Page 56

ECW-281B/B2-D525 Embedded System

Î Hyper Threading [Enabled]

Use the Hyper Threading function to enable or disable the CPU hyper threading function.

Disabled

Enabled DEFAULT

Disables the use of hyper threading technology

Enables the use of hyper threading technology

5.3.3 IDE Configuration

Use the IDE Configuration menu (6BIOS Menu 5) to change and/or set the configuration

of the IDE devices installed in the system.

Advanced

SATA Configuration

SATA Port0 Not Present SATA Port1 Not Present SATA Port2 Not Present SATA Port3 Not Present

ATA/IDE Configuration [Enhanced]

Configure SATA as [IDE]

Select ATA/IDE Configuration.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 5: IDE Configuration

Î ATA/IDE Configurations [Enhanced]

Use the ATA/IDE Configurations option to configure the ATA/IDE controller.

Disabled

Compatible

Disables the on-board ATA/IDE controller.

Configures the on-board ATA/IDE controller to be in

compatible mode. In this mode, a SATA channel will

replace one of the IDE channels. This mode supports up

to 4 storage devices.

Page 57

ECW-281B/B2-D525 Embedded System

Enhanced DEFAULT

Î Configure SATA as [IDE]

Use the Configure SATA as option to configure SATA devices as normal IDE devices.

IDE DEFAULT

AHCI

Configures the on-board ATA/IDE controller to be in

Enhanced mode. In this mode, IDE channels and SATA

channels are separated. This mode supports up to 6

storage devices. Some legacy OS do not support this

mode.

Configures SATA devices as normal IDE device.

Configures SATA devices as normal AHCI device.

5.3.4 USB Configuration

Use the USB Configuration menu (6BIOS Menu 6) to read USB configuration information

and configure the USB settings.

Advanced

USB Configuration

USB Devices: 1 Keyboard, 2 Hubs

Legacy USB Support [Enabled]

BIOS Menu 6: USB Configuration

Enables Legacy USB support. AUTO option

isables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

Page 58

ECW-281B/B2-D525 Embedded System

Î USB Devices

The USB Devices Enabled field lists the USB devices that are enabled on the system

Î Legacy USB Support [Enabled]

Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard

support. Normally if this option is not enabled, any attached USB mouse or USB keyboard

does not become available until a USB compatible operating system is fully booted with all

USB drivers loaded. When this option is enabled, any attached USB mouse or USB

keyboard can control the system even when there is no USB driver loaded onto the

system.

Enabled DEFAULT

Disabled

Auto

Legacy USB support enabled

Legacy USB support disabled

Legacy USB support disabled if no USB devices are

connected

5.3.5 Super IO Configuration

Use the Super IO Configuration menu (6BIOS Menu 7) to set or change the

configurations for the FDD controllers, parallel ports and serial ports.

Advanced

Super IO Configuration

Super IO Chip Finteck F81865

> Serial Port 1 Configuration > Serial Port 3 Configuration > Serial Port 4 Configuration > Serial Port 5 Configuration > Serial Port 6 Configuration > Serial Port 2 Configuration

et Parameters of Serial Port 0 (COMA)

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 7: Super IO Configuration

Page 59

ECW-281B/B2-D525 Embedded System

5.3.5.1 Serial Port n Configuration

Use the Serial Port n Configuration menu (6BIOS Menu 8) to configure the serial port n.

Advanced

Serial Port 1 Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4

Change Settings [Auto]

nable or Disable Serial Port (COM)

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 8: Serial Port n Configuration Menu

5.3.5.1.1 Serial Port 1 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.

Auto DEFAULT

Disable the serial port

Enable the serial port

The serial port IO port address and interrupt address

are automatically detected.

IO=3F8h; IRQ=4

Page 60

Serial Port I/O port address is 3F8h and the interrupt

address is IRQ4

ECW-281B/B2-D525 Embedded System

IO=3F8h; IRQ=3, 4

IO=2F8h; IRQ=3, 4

5.3.5.1.2 Serial Port 3 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

Serial Port I/O port address is 3E8h and the interrupt

address is IRQ3, 4

Serial Port I/O port address is 2F8h and the interrupt

address is IRQ3, 4

Disable the serial port

Enable the serial port

address.

Auto DEFAULT

IO=2F8h; IRQ=3

IO=3F8h; IRQ=3, 4

IO=2F8h; IRQ=3, 4

5.3.5.1.3 Serial Port 4 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

The serial port IO port address and interrupt address

are automatically detected.

Serial Port I/O port address is 2F8h and the interrupt

address is IRQ3

Serial Port I/O port address is 3F8h and the interrupt

address is IRQ3, 4

Serial Port I/O port address is 2F8h and the interrupt

address is IRQ3, 4

Disabled

Disable the serial port

Page 61

ECW-281B/B2-D525 Embedded System

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.

Auto DEFAULT

IO=3E8h; IRQ=11

IO=3E8h; IRQ=10, 11

IO=2E8h; IRQ=10, 11

Enable the serial port

The serial port IO port address and interrupt address

are automatically detected.

Serial Port I/O port address is 3E8h and the interrupt

address is IRQ11

Serial Port I/O port address is 3E8h and the interrupt

address is IRQ10, 11

Serial Port I/O port address is 2E8h and the interrupt

address is IRQ10, 11

5.3.5.1.4 Serial Port 5 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.

Auto DEFAULT

Disable the serial port

Enable the serial port

The serial port IO port address and interrupt address

are automatically detected.

Page 62

ECW-281B/B2-D525 Embedded System

IO=2E8h; IRQ=10

IO=3E8h; IRQ=10, 11

IO=2E8h; IRQ=10, 11

5.3.5.1.5 Serial Port 6 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled DEFAULT

Serial Port I/O port address is 2E8h and the interrupt

address is IRQ10

Serial Port I/O port address is 3E8h and the interrupt

address is IRQ10, 11

Serial Port I/O port address is 2E8h and the interrupt

address is IRQ10, 11

Disable the serial port

Enable the serial port

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.

Auto DEFAULT

IO=2C0h; IRQ=11

IO=2C0h; IRQ=10, 11

IO=2C8h; IRQ=10, 11

The serial port IO port address and interrupt address

are automatically detected.

Serial Port I/O port address is 2C0h and the interrupt

address is IRQ11

Serial Port I/O port address is 2C0h and the interrupt

address is IRQ10, 11

Serial Port I/O port address is 2C8h and the interrupt

address is IRQ10, 11

Page 63

5.3.5.1.6 Serial Port 2 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

ECW-281B/B2-D525 Embedded System

Disabled

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt

address.

Auto DEFAULT

IO=2C8h; IRQ=10

IO=2C0h; IRQ=10, 11

IO=2C8h; IRQ=10, 11

Disable the serial port

Enable the serial port

The serial port IO port address and interrupt address

are automatically detected.

Serial Port I/O port address is 2C8h and the interrupt

address is IRQ10

Serial Port I/O port address is 2C0h and the interrupt

address is IRQ10, 11

Serial Port I/O port address is 2C8h and the interrupt

address is IRQ10, 11

Page 64

ECW-281B/B2-D525 Embedded System

5.3.6 H/W Monitor

The H/W Monitor menu (6BIOS Menu 9) shows the operating temperature, fan speeds and

system voltages.

Advanced

PC Health Status

CPU Temperature :+53 C Accuracy:1.(-5~+10)degree around 100 degree

2.(-10~+15)degree around 50 degree SYS Temperature :+37 C CPU FAN Speed :N/A SYS FAN Speed :N/A VCC3C :+3.312 V V_core :+1.160 V V1_05V :+1.040 V VCC3V :+3.288 V Vcc :+5.003 V VSB3V :+3.328 V VBAT :+3.216 V

CPU Smart Fan control [Auto Mode] Temperature Bound 1 60 Temperature Bound 2 50 Temperature Bound 3 40 Temperature Bound 4 30 SYS Smart Fan control [Auto Mode] Temperature Bound 1 60 Temperature Bound 2 50 Temperature Bound 3 40 Temperature Bound 4 30

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 9: Hardware Health Configuration

Î PC Health Status

The following system parameters and values are shown. The system parameters that are

monitored are:

 System Temperatures:

 Fan Speeds:

o CPU Temperature o System Temperature

Page 65

o CPU Fan Speed o System Fan Speed

 Voltages:

o VCC3V o V_core o V1_05V o VCC3V o Vcc o VSB3V o VBAT

Î CPU Smart Fan control [Auto Mode]

Use the CPU Smart Fan control option to configure the CPU fan.

ECW-281B/B2-D525 Embedded System

Auto Mode

Manual Mode

The fan adjusts its speed using these settings:

Temperature Bound 1

Temperature Bound 2

Temperature Bound 3

Temperature Bound 4

The fan spins at the speed set in:

Manual Duty Cycle Setting

5.3.7 Serial Port Console Redirection

The Serial Port Console Redirection menu (6BIOS Menu 10) allows the console

redirection options to be configured. Console redirection allows users to maintain a

system remotely by re-directing keyboard input and text output through the serial port.

Page 66

ECW-281B/B2-D525 Embedded System

Advanced

COM1

Console Redirection [Disabled]

> Console Redirection Settings

COM3

Console Redirection [Disabled]

> Console Redirection Settings

COM4

Console Redirection [Disabled]

> Console Redirection Settings

COM5

Console Redirection [Disabled]

> Console Redirection Settings

COM6

Console Redirection [Disabled]

> Console Redirection Settings

COM2

Console Redirection [Disabled]

> Console Redirection Settings

Console Redirection Enable/Disable

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 10: Serial Port Console Redirection

Î Console Redirection [Disabled]

Use Console Redirection option to enable or disable the console redirection function.

Disabled DEFAULT

Enabled

Î Terminal Type [ANSI]

Use the Terminal Type option to specify the remote terminal type.

VT100

VT100+

ANSI DEFAULT

Disabled the console redirection function

Enabled the console redirection function

The target terminal type is VT100

The target terminal type is VT100+

The target terminal type is ANSI

Page 67

Î Bits per second [115200]

Use the Bits per second option to specify the bits per second.

 9600

 19200

 57600

ECW-281B/B2-D525 Embedded System

 115200 D

EFAULT

5.3.8 IEI Feature

Use the IEI Feature menu (6BIOS Menu 11) to configure One Key Recovery function.

BIOS SETUP UTILITY

Main Advanced PCIPNP Boot Security Chipset Exit

iEi Feature

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Disabled]

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 11: IEI Feature

Î Auto Recovery Function [Disabled]

Use the Auto Recovery Function BIOS option to enable or disable the auto recovery

function of the IEI One Key Recovery.

Disabled DEFAULT

Enabled

Page 68

Auto recovery function disabled

Auto recovery function enabled

ECW-281B/B2-D525 Embedded System

5.4 Chipset

Use the Chipset menu (6BIOS Menu 12) to access the Northbridge and Southbridge

configuration menus

WARNING!

Setting the wrong values for the Chipset BIOS selections in the Chipset

BIOS menu may cause the system to malfunction.

Main Advanced Chipset Boot Security Save & Exit

> Host Bridge > South Bridge > Intel IGD SWSCI OpRegion

Host Bridge Parameters

---------------------

ÅÆ

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

: Select Screen

BIOS Menu 12: Chipset

Page 69

ECW-281B/B2-D525 Embedded System

5.4.1 Host Bridge

Use the Host Bridge menu (6BIOS Menu 13) to configure the host bridge chipset.

Chipset

> OnChip VGA Configuration Initiate Graphic Adapter [IGD]

******* Memory Information ******** Memory Frequency 800 Mhz

Total Memory 2048 MB

DIMM#0 2048 MB DIMM#1 Not present

Config On Chip VGA Settings

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 13:Host Bridge Configuration

Î Initiate Graphic Adapter

Use the Initiate Graphic Adapter option to select the graphics controller used as the

primary boot device. Select either an integrated graphics controller (IGD) or a combination

of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration

options are listed below:

 IGD

 PCI/IGD D

EFAULT

Page 70

ECW-281B/B2-D525 Embedded System

5.4.1.1 OnChip VGA Configuration

Use the OnChip VGA Configuration menu (6BIOS Menu 13) to configure the OnChip

VGA.

Chipset

OnChip VGA Configuration

Share Memory Size [8 MB] Multi-Monitor Support [Enabled]

Select Share Memory Size.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 14: OnChip VGA Configuration

Î Share Memory Size [8 MB]

Use the Share Memory Size option to set the amount of system memory allocated to the

integrated graphics processor when the system boots. The system memory allocated can

then only be used as graphics memory, and is no longer available to applications or the

operating system. Configuration options are listed below:

 Disabled

 1 MB

 8 MB Default

Î Multi-Monitor Support [Enabled]

Use Multi-Monitor Support option to enable or disable the multi-monitor function.

Page 71

ECW-281B/B2-D525 Embedded System

Disabled

Enabled DEFAULT

Disabled the multi-monitor function

Enabled the multi-monitor function

5.4.2 South Bridge

Use the South Bridge menu (6BIOS Menu 15) to configure the Southbridge chipset.

Chipset

Auto Power Button Function [Enabled]

Restore AC Power Loss [Last State] HD Audio Controller [Enabled] USB Function [Enabled] USB 2.0(EHCI) Support [Enabled] Set Spread Spectrum function [Disabled]

nable/Disable Azalia HD Audio

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 15:Southbridge Chipset Configuration

Î Restore on AC Power Loss [Last State]

Use the Restore on AC Power Loss BIOS option to specify what state the system

returns to if there is a sudden loss of power to the system.

Power Off

Power On

Last State DEFAULT

Î HD Audio Controller [Enabled]

The HD Audio Controller option enables or disables the HD audio controller.

The system remains turned off

The system turns on

The system returns to its previous state. If it was on, it

turns itself on. If it was off, it remains off.

Page 72

ECW-281B/B2-D525 Embedded System

Enabled DEFAULT

Disabled

Î USB Function [Enabled]

Use the USB Function BIOS option to enable or disable USB function support.

Disabled

Enabled DEFAULT

Î USB 2.0 (EHCI) Support [Enabled]

Use the USB 2.0 (EHCI) Support BIOS option to enable or disable the USB 2.0 controller.

Enabled DEFAULT

Disabled

The onboard HD audio controller automatically

detected and enabled

The onboard HD audio controller is disabled

USB function support disabled

USB function support enabled

USB 2.0 controller enabled

USB 2.0 controller disabled

Î Set Spread Spectrum Function [Disabled]

The Set Spread Spectrum Function option can help to improve CPU EMI issues.

Disabled DEFAULT

Enabled

The spread spectrum function is disabled

The spread spectrum function is enabled

5.4.3 Intel IGD SWSCI OpRegion

Use the Intel IGD SWSCI OpRegion menu to configure the video device connected to the

system.

Page 73

Advanced

Intel IGD SWSCI OpRegion Configuration

DVMT Mode Select [DVMT Mode] DVMT/Fixed Memory [256 MB] IGD - Boot Type [VBIOS Default] LCD Panel Type [Select by Panel ID]

Panel ID Resolution 800x600 18bit

BIOS Menu 16: Intel IGD SWSCI OpRegion

Î DVMT Mode Select [DVMT Mode]

ECW-281B/B2-D525 Embedded System

Select DVMT/FIXED Mode

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology

(DVMT) operating mode.

Fixed Mode

DVMT Mode DEFAULT

Î DVMT/FIXED Memory [256 MB]

Use the DVMT/FIXED Memory option to specify the maximum amount of memory that

can be allocated as graphics memory. Configuration options are listed below.

 128 MB

 256 MB Default

 Maximum

A fixed portion of graphics memory is reserved as

graphics memory.

Graphics memory is dynamically allocated according to

the system and graphics needs.

Î IGD - Boot Type [VBIOS Default]

Use the IGD - Boot Type option to select the display device used by the system when it

boots. Configuration options are listed below.

Page 74

ECW-281B/B2-D525 Embedded System

 VBIOS Default DEFAULT

 CRT

 LFP

 CRT + LFP

Î LCD Panel Type [VBIOS Default]

Use the LCD Panel Type option to select the type of flat panel connected to the system.

Configuration options are listed below.

 Select by Panel ID D

 640x480 18bit

 800x480 18bit

 800x600 18bit

 1024x768 18bit

 1280x1024 18bit

 1366x768 18bit

 1280x800 18bit

 1280x600 18bit

EFAULT

5.5 Boot

Use the Boot menu (6BIOS Menu 17) to configure system boot options.

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration

Bootup NumLock State [On]

Quiet Boot [Enabled] Launch PXE OpROM [Disabled]

Boot Option Priorities

Select the keyboard NumLock state

---------------------

ÅÆ

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

: Select Screen

BIOS Menu 17: Boot

Page 75

Î Bootup NumLock State [On]

Use the Bootup NumLock State BIOS option to specify if the number lock setting must

be modified during boot up.

ECW-281B/B2-D525 Embedded System

On DEFAULT

Off

Î Quiet Boot [Enabled]

Use the Quiet Boot BIOS option to select the screen display when the system boots.

Allows the Number Lock on the keyboard to be

enabled automatically when the computer system

boots up. This allows the immediate use of the

10-key numeric keypad located on the right side of

the keyboard. To confirm this, the Number Lock LED

light on the keyboard is lit.

Does not enable the keyboard Number Lock

automatically. To use the 10-keys on the keyboard,

press the Number Lock key located on the upper

left-hand corner of the 10-key pad. The Number

Lock LED on the keyboard lights up when the

Number Lock is engaged.

Disabled

Enabled DEFAULT

Î Launch PXE OpROM [Disabled]

Use the Launch PXE OpROM option to enable or disable boot option for legacy network

devices.

Disabled DEFAULT

Enabled

Page 76

Normal POST messages displayed

OEM Logo displayed instead of POST messages

Ignore all PXE Option ROMs

Load PXE Option ROMs.

ECW-281B/B2-D525 Embedded System

5.6 Security

Use the Security menu (6BIOS Menu 18) to set system and user passwords.

Main Advanced Chipset Boot Security Save & Exit

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights.

Administrator Password User Password

Set User Password

Set Master Password

Set Setup Administrator Password

---------------------

ÅÆ

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

: Select Screen

BIOS Menu 18: Security

Î Administrator Password

Use the Administrator Password to set or change a administrator password.

Î User Password

Use the User Password to set or change a user password.

5.7 Exit

Use the Exit menu (6BIOS Menu 19) to load default BIOS values, optimal failsafe values

and to save configuration changes.

Page 77

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Reset Discard Changes and Reset

Restore Defaults Save as User Defaults Restore User Defaults

BIOS Menu 19:Exit

ECW-281B/B2-D525 Embedded System

saving the changes.

---------------------

ÅÆ

↑ ↓: Select Item Enter Select F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

xit system setup after

: Select Screen

Î Save Changes and Reset

Use the Save Changes and Reset option to save the changes made to the BIOS options

and to exit the BIOS configuration setup program.

Î Discard Changes and Reset

Use the Discard Changes and Reset option to exit the system without saving the

changes made to the BIOS configuration setup program.

Î Restore Defaults

Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation.

Î Save as User Defaults

Use the Save as User Defaults option to save the changes done so far as user defaults.

Î Restore User Defaults

Use the Restore User Defaults option to restore the user defaults to all the setup options.

Page 78

ECW-281B/B2-D525 Embedded System

Chapter

6 Troubleshooting and

Maintenance

Page 79

ECW-281B/B2-D525 Embedded System

WARNING:

Take Anti-Static precautions whenever maintenance is being carried out on the

system components. Failure to take anti-static precautions can cause

permanent system damage. For more details on anti-static precautions, please

refer to Section

8664.1.

6.1 ECW-281B/B2-D525 System Maintenance Overview

NOTE:

When doing maintenance operations on the system, please follow the

instructions in this chapter. Failure to follow these instructions may lead to

personal injury and system damage.

To preserve the working integrity of the ECW-281B/B2-D525 embedded system, the

system must be properly maintained. If embedded system components need replacement,

the proper maintenance procedures must be followed to ensure the system can continue

to operate normally.

6.2 System Troubleshooting

This section provides some simple troubleshooting suggestions.

6.2.1 The System Doesn’t Turn On

If after turning the system on, there is no power (indicated by the power button on the front

panel not turning on) please do the following:

Step 1: Check that the power cable connector is properly connected to the terminal

block or power socket on the system front panel.

Step 2: Check that the power cable connector is properly plugged into the power source.

Step 3: Make sure the power button is turned on.

Page 80

ECW-281B/B2-D525 Embedded System

Step 4: Plug the system into a monitor and check to see if anything appears on the

screen. If the boot-up screen appears it means the power LED has become

disconnected. To fix this problem, open the top cover and reconnect the power

LED to the motherboard. Step 0:

If the above steps have been completed and the system still doesn’t turn on, please do the

following.

Step 1: Open the bottom surface (Section

8664.2.3)

Step 2: Check the terminal block/power socket power cable connector is properly

connected to the power module or motherboard.

Step 3: Check that the power button cable connector is properly connected to the

motherboard.

Step 4: Make sure the cable connecting to the terminal block/power socket are properly

attached and have not become separated.

Step 5: Make sure the cable connecting the power button to the motherboard is still

properly attached to the power button and has not been separated. Step 0:

6.2.2 The System Doesn’t Boot Up

If the system doesn’t boot up please do the following:

Step 1: Check the power is turned on. See Section

8666.2.1 above.

Step 2: Make sure the SO-DIMM module is properly installed.

Step 3: Reset the system using the reset CMOS jumper. Step 0:

Page 81

6.2.3 More Troubleshooting

 Nothing appears on the monitor after booting up the system: Make sure

the monitor is properly connected to the system and the monitor is connected

to a power supply and turned on.

WARNING!

If all troubleshooting measures have been taken and the system still

fails to start, contact the IEI reseller or vendor you purchased the

ECW-281B/B2-D525 from or contact an IEI sales representative

directly. To contact an IEI sales representative, please send an email

322sales@iei.com.tw.

ECW-281B/B2-D525 Embedded System

6.3 Component Replacement Procedure

WARNING!

Users are not advised to attempt to repair or replace any internal or

external components of the ECW-281B/B2-D525 embedded system

other than those listed below. If any other components fail or need

replacement, contact the IEI reseller or vendor you purchased the

ECW-281B/B2-D525 from or contact an IEI sales representative

directly. To contact an IEI sales representative, please send an email

322sales@iei.com.tw.

The embedded system components listed below can all be replaced if they fail:

Page 82

 SO-DIMM module

 Internal hard disk drive (see Section

8664.2.5)

ECW-281B/B2-D525 Embedded System

6.3.1 SO-DIMM Replacement

WARNING:

Using incorrectly specified SO-DIMM may cause permanently damage

the ECW-281B/B2-D525. Please make sure the purchased SO-DIMM

complies with the memory specifications of the ECW-281B/B2-D525.

To replace a SO-DIMM memory module into a SO-DIMM socket, please follow the steps

below.

Step 1: Remove the bottom surface panel. Place the ECW-281B/B2-D525 on an

anti-static pad with the bottom panel facing up and the bottom surface removed.

(see Section

8664.2.3).

Step 2: Locate the SO-DIMM on the motherboard.

Step 3: Remove the SO-DIMM by releasing the arms on the SO-DIMM socket.

Step 4: Align the new SO-DIMM with the socket. The SO-DIMM must be oriented in

such a way that the notch in the middle of the SO-DIMM must be aligned with

the plastic bridge in the socket (

866Figure 6-1).

Step 5: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle

866Figure 6-1).

(

Figure 6-1: SO-DIMM Installation

Page 83

ECW-281B/B2-D525 Embedded System

Step 6: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket

out and push the rear of the SO-DIMM down. (See

866Figure 6-1)

Step 7: Secure the SO-DIMM. Release the arms on the SO-DIMM socket. They clip into

place and secure the SO-DIMM in the socket.Step 0:

Page 84

ECW-281B/B2-D525 Embedded System

Appendix

A Safety Precautions

Page 85

WARNING:

The precautions outlined in this chapter should be strictly followed.

Failure to follow these precautions may result in permanent damage to

the ECW-281B/B2-D525.

A.1 Safety Precautions

Please follow the safety precautions outlined in the sections that follow:

A.1.1 General Safety Precautions

ECW-281B/B2-D525 Embedded System

Please ensure the following safety precautions are adhered to at all times.

 Follow the electrostatic precautions outlined below whenever the

ECW-281B/B2-D525 is opened.

 Make sure the power is turned off and the power cord is disconnected

whenever the ECW-281B/B2-D525 is being installed, moved or modified.

 Do not apply voltage levels that exceed the specified voltage range.

Doing so may cause fire and/or an electrical shock.

 Electric shocks can occur if the ECW-281B/B2-D525 chassis is opened

when the ECW-281B/B2-D525 is running.

 Do not drop or insert any objects into the ventilation openings of the

ECW-281B/B2-D525.

 If considerable amounts of dust, water, or fluids enter the

ECW-281B/B2-D525, turn off the power supply immediately, unplug the

power cord, and contact the ECW-281B/B2-D525 vendor.

 DO NOT:

o Drop the ECW-281B/B2-D525 against a hard surface.

Page 86

o In a site where the ambient temperature exceeds the rated temperature

ECW-281B/B2-D525 Embedded System

A.1.2 Anti-static Precautions

WARNING:

Failure to take ESD precautions during the installation of the

ECW-281B/B2-D525 may result in permanent damage to the

ECW-281B/B2-D525 and severe injury to the user.

Electrostatic discharge (ESD) can cause serious damage to electronic components,

including the ECW-281B/B2-D525. Dry climates are especially susceptible to ESD. It is

therefore critical that whenever the ECW-281B/B2-D525 is opened and any of the

electrical components are handled, the following anti-static precautions are strictly

adhered to.

 Wear an anti-static wristband: Wearing a simple anti-static wristband can

help to prevent ESD from damaging any electrical component.

 Self-grounding: Before handling any electrical component, touch any

grounded conducting material. During the time the electrical component is

handled, frequently touch any conducting materials that are connected to the

ground.

 Use an anti-static pad: When configuring or working with an electrical

component, place it on an antic-static pad. This reduces the possibility of ESD

damage.

 Only handle the edges of the electrical component: When handling the

electrical component, hold the electrical component by its edges.

Page 87

IEI Integration ECW-281B-B2-D525 User Manual
