IEI Integration B650 User Manual

Download

PICOe-B650 Half-size PCIe CPU Card

MODEL:

PICOe-B650

Half-size PCIe CPU Card with LGA1155 32nm Intel® Core™

i7/i5/i3 CPU and Intel® B65 Chipset, DDR3, VGA, USB 2.0,

Dual PCIe GbE, SATA 6Gb/s, HD Audio, RoHS Compliant

User Manual

Rev. 1.01 – 20 November, 2013

Page i

PICOe-B650 Half-size PCIe CPU Card

Revision

Date Version Changes

20 November, 2013 1.01 Updated Section 5.3.4: SATA Configuration

3 February, 2012 1.00 Initial release

Page ii

PICOe-B650 Half-size PCIe CPU Card

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.

Page iii

PICOe-B650 Half-size PCIe CPU Card

Table of Contents

1 INTRODUCTION.......................................................................................................... 1

1.1 INTRODUCTION........................................................................................................... 2

1.2 CONNECTORS ............................................................................................................. 3

1.3 DIMENSIONS............................................................................................................... 4

1.4 DATA FLOW................................................................................................................ 5

1.5 TECHNICAL SPECIFICATIONS ...................................................................................... 6

2 UNPACKING ................................................................................................................. 8

2.1 ANTI-STATIC PRECAUTIONS........................................................................................ 9

2.2 UNPACKING PRECAUTIONS......................................................................................... 9

2.3 UNPACKING CHECKLIST ........................................................................................... 10

2.3.1 Package Contents............................................................................................. 10

2.3.2 Optional Items...................................................................................................11

3 CONNECTORS ........................................................................................................... 13

3.1 PERIPHERAL INTERFA CE CONNECTORS..................................................................... 14

3.1.1 PICOe-B650 Layout......................................................................................... 14

3.1.2 Peripheral Interface Connectors ..................................................................... 14

3.1.3 External Interface Panel Connectors............................................................... 15

3.2 INTERNAL PERIPHERAL CONNECTORS ...................................................................... 16

3.2.1 ATX Power Supply Enable Connector............................................................. 16

3.2.2 Audio Connector .............................................................................................. 17

3.2.3 Battery Connector............................................................................................ 18

3.2.4 CPU Fan Connector........................................................................................ 19

3.2.5 CPU 12 V Power Connector............................................................................ 19

3.2.6 Digital Input/Output (DIO) Connector............................................................ 20

3.2.7 Front Panel Connector.................................................................................... 21

3.2.8 I2C Connector.................................................................................................. 22

3.2.9 Keyboard/Mouse Connector............................................................................ 23

3.2.10 SATA 6Gb/s Connector................................................................................... 24

3.2.11 SATA 3Gb/s Connector................................................................................... 25

Page iv

PICOe-B650 Half-size PCIe CPU Card

3.2.12 Serial Port Connectors (COM 1 and COM 2)............................................... 26

3.2.13 SMBus Connector .......................................................................................... 27

3.2.14 SPI Flash Connector...................................................................................... 28

3.2.15 TPM Connector.............................................................................................. 29

3.2.16 USB Connectors (Internal)............................................................................ 30

3.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL ......................................... 31

3.3.1 LAN Connectors............................................................................................... 31

3.3.2 USB Connectors............................................................................................... 32

3.3.3 VGA Connector................................................................................................ 33

4 INSTALLATION ......................................................................................................... 34

4.1 ANTI-STATIC PRECAUTIONS...................................................................................... 35

4.2 INSTALLATION CONSIDERATIONS.............................................................................. 36

4.3 CPU AND MEMORY INSTALLATION........................................................................... 37

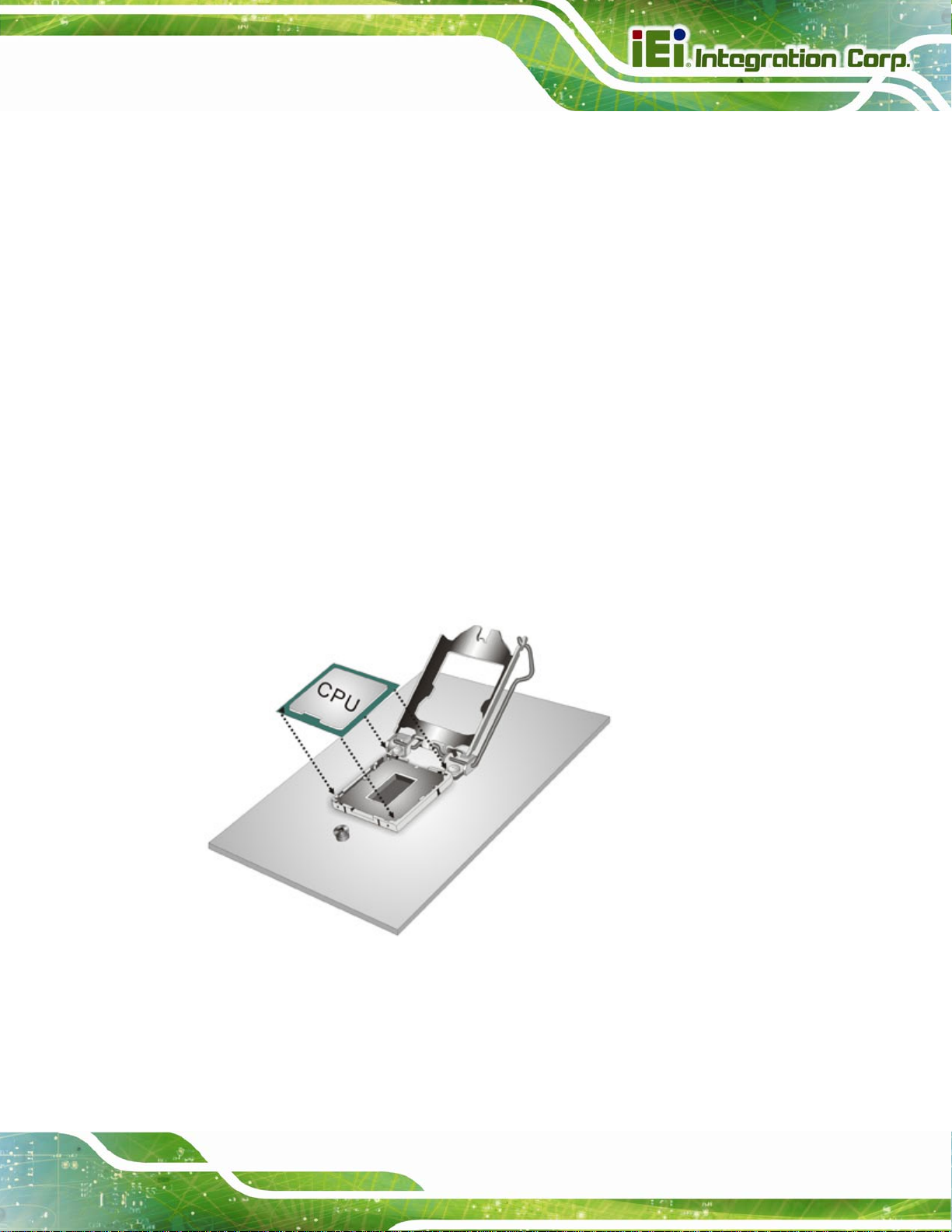

4.3.1 Socket LGA1155 CPU Installation .................................................................. 37

4.3.2 Socket LGA1155 Cooling Kit Installation........................................................ 40

4.3.3 SO-DIMM Installation..................................................................................... 42

4.4 JUMPER SETTINGS .................................................................................................... 43

4.4.1 AT/ATX Power Mode Select Jumper................................................................ 43

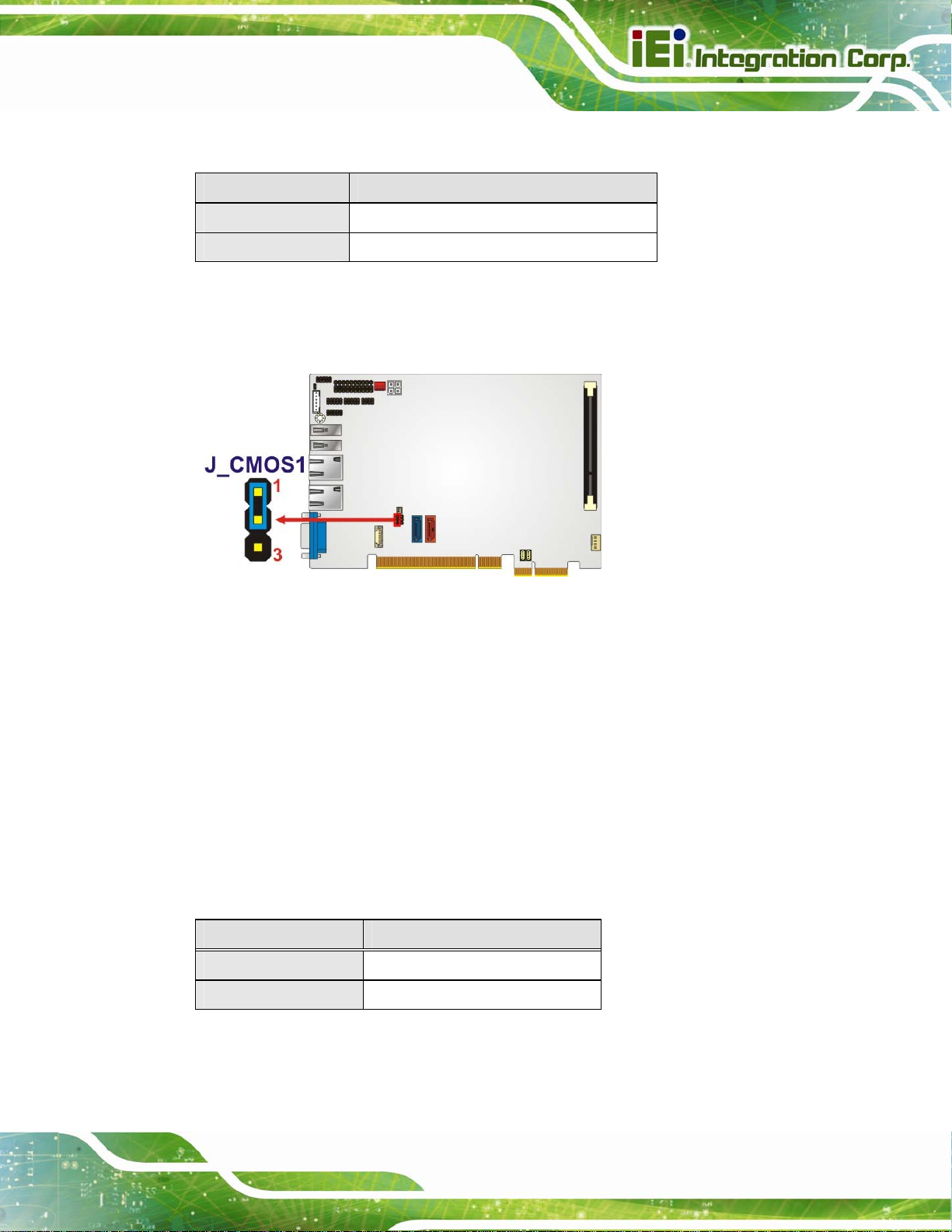

4.4.2 Clear CMOS Jumper........................................................................................ 44

4.4.3 PCIe Status Select Jumper............................................................................... 45

4.5 CHASSIS INSTALLATION............................................................................................ 46

4.5.1 Airflow.............................................................................................................. 46

4.5.2 Backplane Installation..................................................................................... 46

4.5.3 CPU Card Installation..................................................................................... 47

4.6 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 47

4.6.1 Dual RS-232 Cable with Slot Bracket.............................................................. 47

4.6.2 SATA Drive Connection ................................................................................... 48

4.6.3 USB Cable (Dual Port) with Slot Bracket ....................................................... 50

4.7 EXTERNAL PERIPHERAL INTERFACE CONNECTION................................................... 51

4.7.1 LAN Connection............................................................................................... 52

4.7.2 USB Connection............................................................................................... 52

4.7.3 VGA Monitor Connection ................................................................................ 53

4.8 SOFTWARE INSTALLATION ........................................................................................ 54

5 BIOS SCREENS........................................................................................................... 56

Page v

5.1 INTRODUCTION......................................................................................................... 57

5.1.1 Starting Setup................................................................................................... 57

5.1.2 Using Setup...................................................................................................... 57

5.1.3 Getting Help..................................................................................................... 58

5.1.4 Unable to Reboot After Configuration Changes.............................................. 58

5.1.5 BIOS Menu Bar................................................................................................ 58

5.2 MAIN........................................................................................................................ 59

5.3 ADVANCED............................................................................................................... 60

5.3.1 ACPI Settings................................................................................................... 61

5.3.2 T rusted Computing........................................................................................... 62

5.3.3 CPU Configuration.......................................................................................... 62

5.3.3.1 CPU Information....................................................................................... 63

5.3.4 SATA Configuration ......................................................................................... 65

5.3.5 Intel TXT(LT) Configuration............................................................................ 66

PICOe-B650 Half-size PCIe CPU Card

5.3.6 USB Configuration........................................................................................... 67

5.3.7 Super IO Configuration ................................................................................... 68

5.3.7.1 Serial Port n Configuration....................................................................... 69

5.3.8 H/W Monitor.................................................................................................... 71

5.3.8.1 FAN 1 Configuration ................................................................................ 72

5.3.9 Serial Port Console Redirection...................................................................... 74

5.3.10 IEI Feature..................................................................................................... 75

5.4 CHIPSET ................................................................................................................... 75

5.4.1 Northbridge Configuration.............................................................................. 77

5.4.2 Southbridge Configuration .............................................................................. 79

5.4.3 Integrated Graphics......................................................................................... 80

5.5 BOOT........................................................................................................................ 81

5.6 SECURITY................................................................................................................. 83

5.7 EXIT......................................................................................................................... 84

A BIOS OPTIONS .......................................................................................................... 86

B ONE KEY RECOVERY............................................................................................. 89

B.1 ONE KEY RECOVERY INTRODUCTION ...................................................................... 90

B.1.1 System Requirement......................................................................................... 91

B.1.2 Supported Operating System........................................................................... 92

B.2 SETUP PROCEDURE FOR WINDOWS.......................................................................... 93

Page vi

PICOe-B650 Half-size PCIe CPU Card

B.2.1 Hardware and BIOS Setup .............................................................................. 94

B.2.2 Create Partitions............................................................................................. 94

B.2.3 Install Operating System, Drivers and Applications....................................... 98

B.2.4 Building the Recovery Partition...................................................................... 99

B.2.5 Create Factory Default Image....................................................................... 101

B.3 AUTO RECOVERY SETUP PROCEDURE.................................................................... 106

B.4 SETUP PROCEDURE FOR LINUX...............................................................................111

B.5 RECOVERY TOOL FUNCTIONS .................................................................................114

B.5.1 Factory Restore..............................................................................................116

B.5.2 Backup System................................................................................................117

B.5.3 Restore Your Last Backup...............................................................................118

B.5.4 Manual............................................................................................................119

B.6 RESTORE SYSTEMS FROM A LINUX SERVER THROUGH LAN.................................. 120

B.6.1 Configure DHCP Server Settings.................................................................. 121

B.6.2 Configure TFTP Settings............................................................................... 122

B.6.3 Configure One Key Recovery Server Settings............................................... 123

B.6.4 Start the DHCP, TFTP and HTTP................................................................. 124

B.6.5 Create Shared Directory................................................................................ 124

B.6.6 Setup a Client System for Auto Recovery...................................................... 125

B.7 OTHER INFORMATION............................................................................................ 128

B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller....................... 128

B.7.2 System Memory Requirement ........................................................................ 130

C TERMINOLOGY ..................................................................................................... 131

D DIGITAL I/O INTERFACE..................................................................................... 135

D.1 INTRODUCTION...................................................................................................... 136

D.2 DIO CONNECTOR PINOUTS ................................................................................... 136

D.3 ASSEMBLY LANGUAGE SAMPLES........................................................................... 137

D.3.1 Enable the DIO Input Function .................................................................... 137

D.3.2 Enable the DIO Output Function.................................................................. 137

E WATCHDOG TIMER............................................................................................... 138

F HAZARDOUS MATERIALS DISCLOSURE........................................................ 141

F.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS

ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ..................................... 142

Page vii

PICOe-B650 Half-size PCIe CPU Card

List of Figures

Figure 1-1: PICOe-B650 Half-size CPU Card................................................................................2

Figure 1-2: Connectors ..................................................................................................................3

Figure 1-3: PICOe-B650 Dimensions (mm)..................................................................................4

Figure 1-4: Data Flow Block Diagram...........................................................................................5

Figure 3-1: Connector and Jumper Locations...........................................................................14

Figure 3-2: ATX Power Supply Enable Connector Location....................................................16

Figure 3-3: Audio Connector Location.......................................................................................17

Figure 3-4: Battery Connector Location.....................................................................................18

Figure 3-5: +12V Fan Connector Location.................................................................................19

Figure 3-6: CPU Power Connector Location..............................................................................20

Figure 3-7: DIO Connector Location...........................................................................................21

Figure 3-8: Front Panel Connector Location .............................................................................22

Figure 3-9: I2C Connector Location............................................................................................23

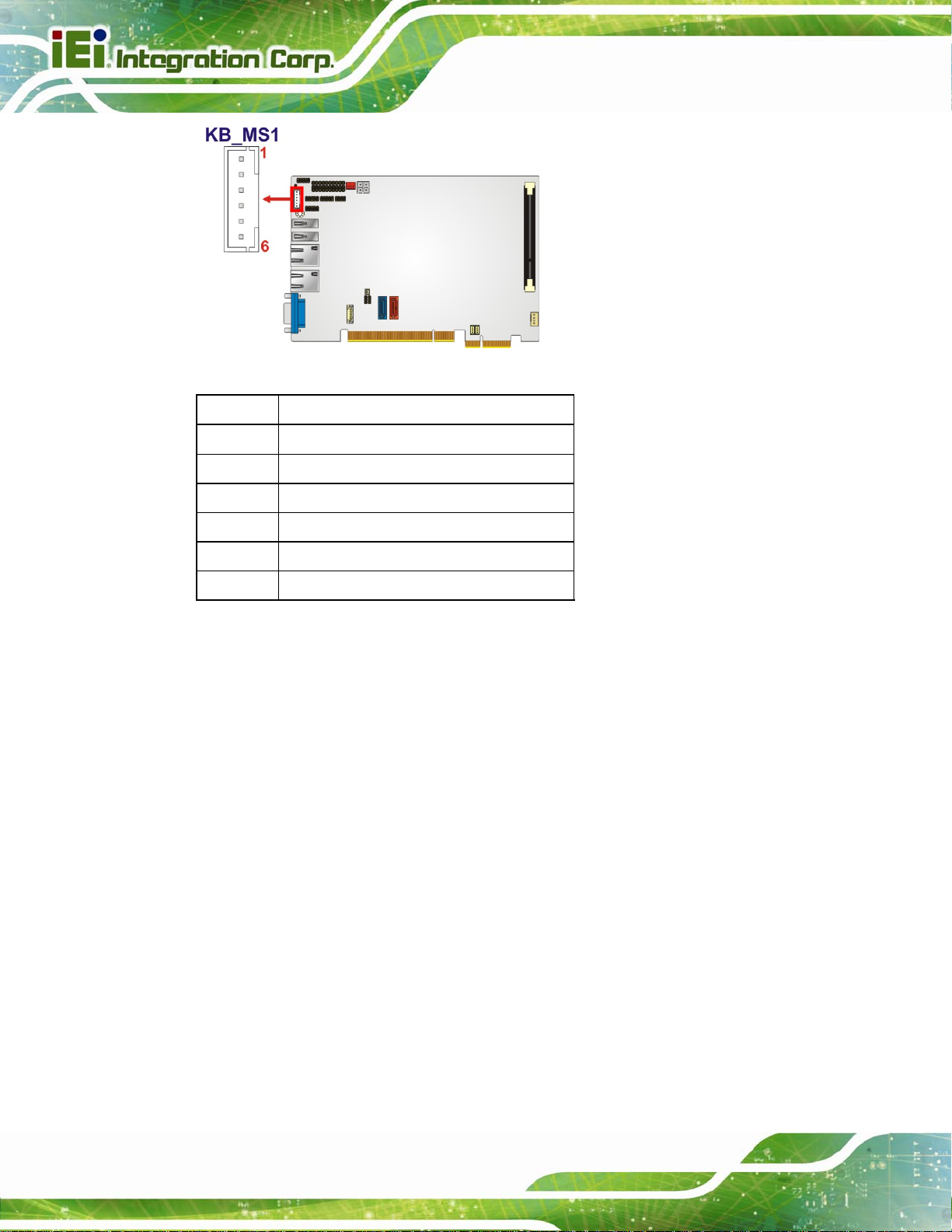

Figure 3-10: Keyboard/Mouse Connector Location..................................................................24

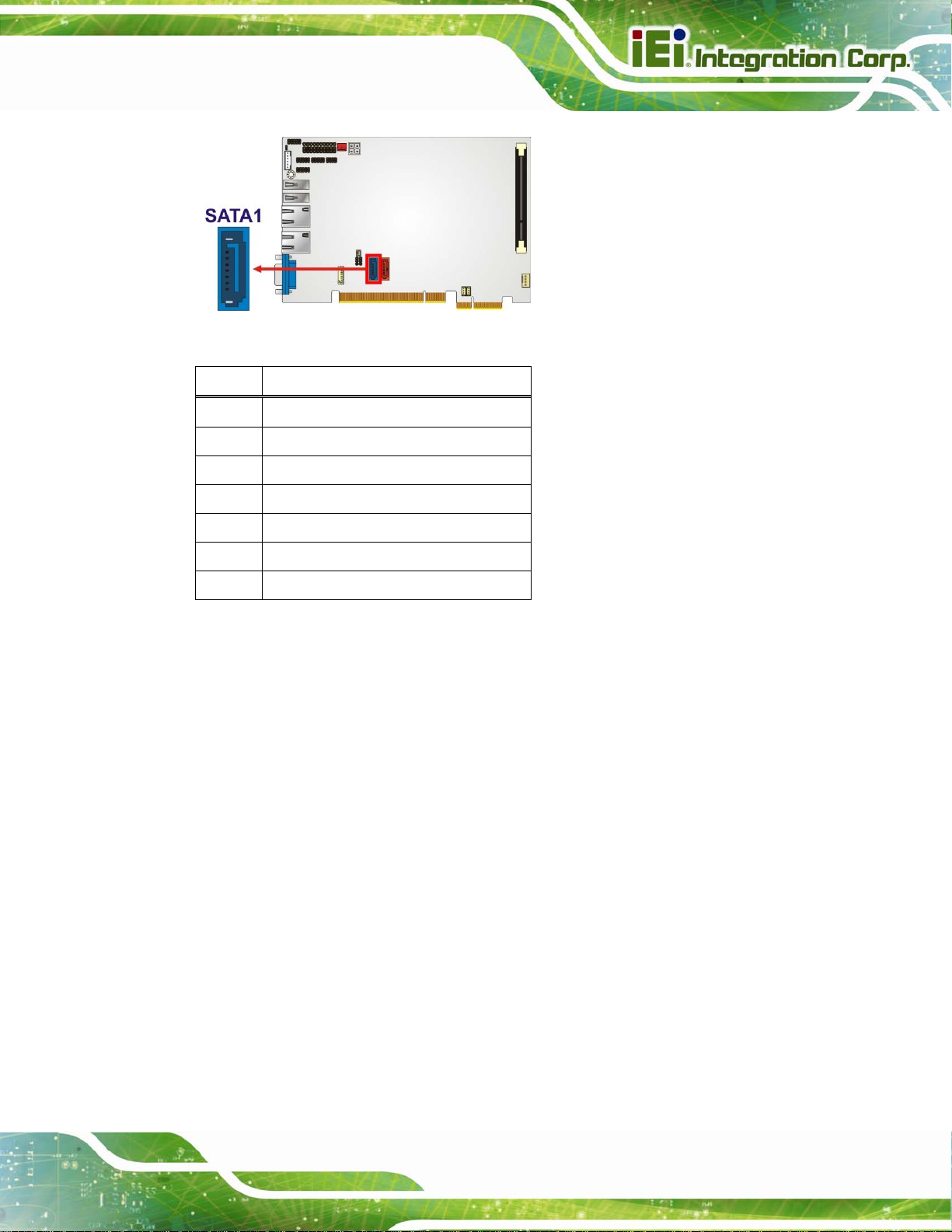

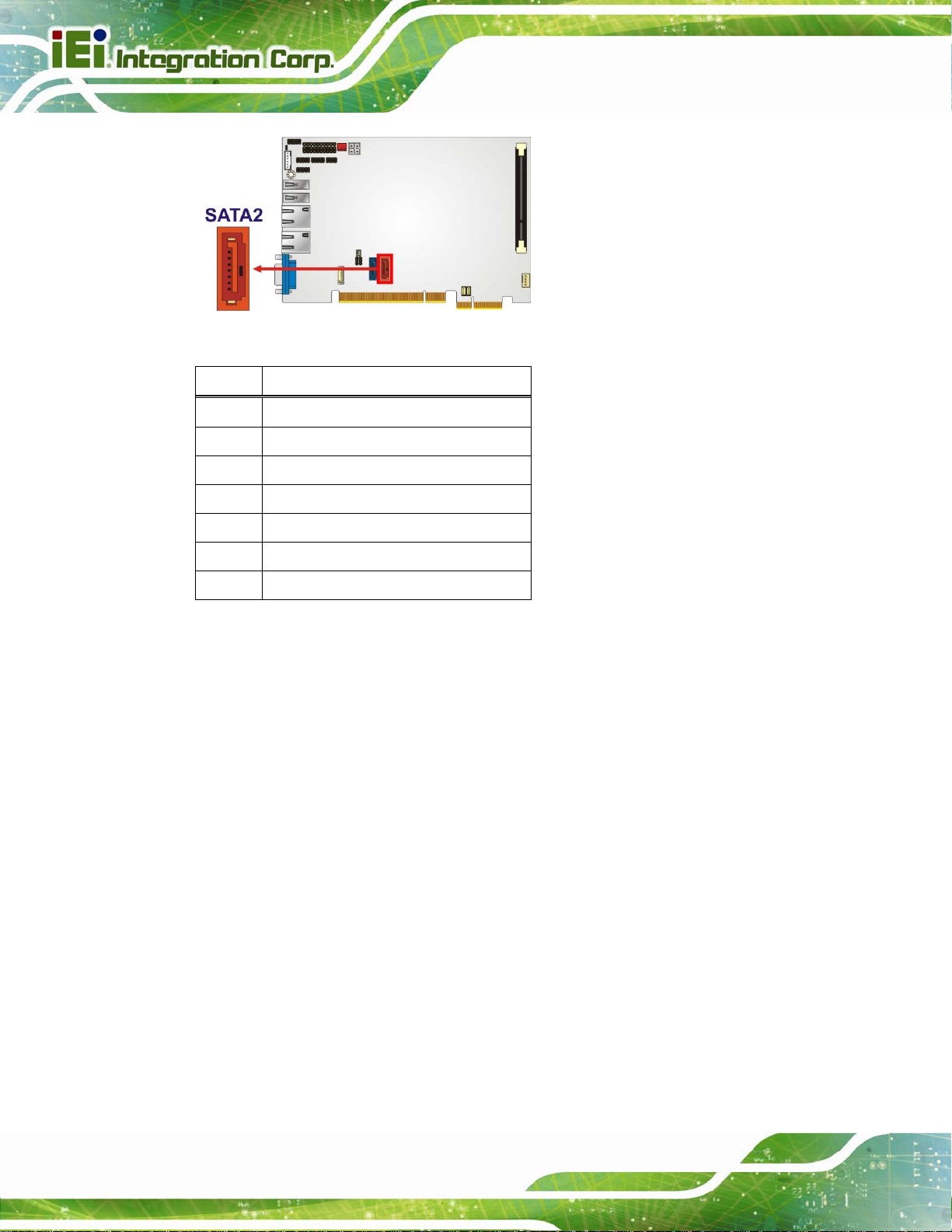

Figure 3-11: SATA Drive Connector Location...........................................................................25

Figure 3-12: SATA Drive Connector Location...........................................................................26

Figure 3-13: COM Connector Locations.....................................................................................27

Figure 3-14: SMBus Connector Location...................................................................................28

Figure 3-15: SPI Flash Connector Location...............................................................................28

Figure 3-16: TPM Connector Location........................................................................................29

Figure 3-17: USB Connector Location........................................................................................30

Figure 3-18: PICOe-B650 External Peripheral Interface Connector ........................................31

Figure 3-19: RJ-45 Ethernet Connector......................................................................................32

Figure 3-20: VGA Connector .......................................................................................................33

Figure 4-1: Disengage the CPU Socket Load Lever..................................................................38

Figure 4-2: Remove Protective Cover.........................................................................................38

Figure 4-3: Insert the Socket LGA1155 CPU..............................................................................39

Figure 4-4: Close the Socket LGA1155 ......................................................................................40

Figure 4-5: Cooling Kit Support Bracket....................................................................................41

Figure 4-6: SO-DIMM Installation................................................................................................42

Page viii

PICOe-B650 Half-size PCIe CPU Card

Figure 4-7: AT/ATX Power Mode Jumper Location...................................................................44

Figure 4-8: Clear CMOS Jumper .................................................................................................45

Figure 4-9: PCIe Status Select Jumper Pinout Locations........................................................46

Figure 4-10: Dual RS-232 Cable Installation..............................................................................48

Figure 4-11: SATA Drive Cable Connection...............................................................................49

Figure 4-12: SATA Power Drive Connection..............................................................................50

Figure 4-13: Dual USB Cable Connection..................................................................................51

Figure 4-14: LAN Connection......................................................................................................52

Figure 4-15: USB Connector........................................................................................................53

Figure 4-16: VGA Connector .......................................................................................................54

Figure 4-17: Introduction Screen................................................................................................55

Figure 4-18: Available Drivers.....................................................................................................55

Figure B-1: IEI One Key Recovery Tool Menu...........................................................................90

Figure B-2: Launching the Recovery Tool.................................................................................95

Figure B-3: Recovery Tool Setup Menu .....................................................................................95

Figure B-4: Command Prompt ....................................................................................................96

Figure B-5: Partition Creation Commands.................................................................................97

Figure B-6: Launching the Recovery Tool.................................................................................99

Figure B-7: Manual Recovery Environment for Windows........................................................99

Figure B-8: Building the Recovery Partition........................................................................... 100

Figure B-9: Press Any Key to Continue.................................................................................. 100

Figure B-10: Press F3 to Boot into Recovery Mode............................................................... 101

Figure B-11: Recovery Tool Menu ........................................................................................... 101

Figure B-12: About Symantec Ghost Window........................................................................ 102

Figure B-13: Symantec Ghost Path ......................................................................................... 102

Figure B-14: Select a Local Source Drive ............................................................................... 103

Figure B-15: Select a Source Partition from Basic Drive ...................................................... 103

Figure B-16: File Name to Copy Image to ............................................................................... 104

Figure B-17: Compress Image.................................................................................................. 104

Figure B-18: Image Creation Confirmation............................................................................. 105

Figure B-19: Image Creation Complete................................................................................... 105

Figure B-20: Image Creation Complete................................................................................... 105

Figure B-21: Press Any Key to Continue................................................................................ 106

Figure B-22: Auto Recovery Utility.......................................................................................... 107

Figure B-23: Disable Automatically Restart............................................................................ 107

Page ix

Figure B-24: Launching the Recovery Tool............................................................................ 108

Figure B-25: Auto Recovery Environment for Windows ....................................................... 108

Figure B-26: Building the Auto Recovery Partition................................................................ 109

Figure B-27: Factory Default Image Confirmation ................................................................. 109

Figure B-28: Image Creation Complete................................................................................... 110

Figure B-29: Press any key to continue.................................................................................. 110

Figure B-30: Partitions for Linux.............................................................................................. 112

Figure B-31: Manual Recovery Environment for Linux ......................................................... 113

Figure B-32: Access menu.lst in Linux (Text Mode).............................................................. 113

Figure B-33: Recovery Tool Menu ........................................................................................... 114

Figure B-34: Recovery Tool Main Menu.................................................................................. 115

Figure B-35: Restore Factory Default...................................................................................... 116

Figure B-36: Recovery Complete Window.............................................................................. 116

Figure B-37: Backup System.................................................................................................... 117

PICOe-B650 Half-size PCIe CPU Card

Figure B-38: System Backup Complete Window ................................................................... 117

Figure B-39: Restore Backup................................................................................................... 118

Figure B-40: Restore System Backup Complete Window..................................................... 118

Figure B-41: Symantec Ghost Window ................................................................................... 119

Figure B-42: Disable Automatically Restart............................................................................ 126

Page x

PICOe-B650 Half-size PCIe CPU Card

List of Tables

Table 1-1: Technical Specifications..............................................................................................7

Table 3-1: Peripheral Interface Connectors...............................................................................15

Table 3-2: Rear Panel Connectors..............................................................................................15

Table 3-3: ATX Power Supply Enable Connector Pinouts .......................................................16

Table 3-4: Audio Connector Pinouts ..........................................................................................17

Table 3-5: Battery Connector Pinouts........................................................................................18

Table 3-6: +12V Fan Connector Pinouts.....................................................................................19

Table 3-7: CPU Power Connector Pinouts.................................................................................20

Table 3-8: DIO Connector Connector Pinouts...........................................................................21

Table 3-9: Front Panel Connector Pinouts.................................................................................22

Table 3-10: I2C Connector Pinouts.............................................................................................23

Table 3-11: Keyboard/Mouse Connector Pinouts .....................................................................24

Table 3-12: SATA Drive Connector Pinouts...............................................................................25

Table 3-13: SATA Drive Connector Pinouts...............................................................................26

Table 3-14: COM Connector Pinouts..........................................................................................27

Table 3-15: SMBus Connector Pinouts ......................................................................................28

Table 3-16: SPI Flash Connector.................................................................................................29

Table 3-17: TPM Connector Pinouts...........................................................................................30

Table 3-18: USB Port Connector Pinouts...................................................................................31

Table 3-19: LAN Pinouts ..............................................................................................................32

Table 3-20: RJ-45 Ethernet Connector LEDs.............................................................................32

Table 3-21: USB Port Pinouts......................................................................................................33

Table 3-22: VGA Connector Pinouts...........................................................................................33

Table 4-1: Jumpers.......................................................................................................................43

Table 4-2: AT/ATX Power Mode Jumper Settings.....................................................................44

Table 4-3: Clear CMOS Jumper Settings....................................................................................45

Table 4-4: PCIe Status Select Jumper Settings.........................................................................45

Table 5-1: BIOS Navigation Keys................................................................................................58

Page xi

PICOe-B650 Half-size PCIe CPU Card

BIOS Menus

BIOS Menu 1: Main.......................................................................................................................59

BIOS Menu 2: Advanced..............................................................................................................60

BIOS Menu 3: ACPI Configuration..............................................................................................61

BIOS Menu 4: TPM Configuration...............................................................................................62

BIOS Menu 5: CPU Configuration...............................................................................................63

BIOS Menu 6: CPU Configuration...............................................................................................64

BIOS Menu 7: SATA Configuration.............................................................................................65

BIOS Menu 8: Intel TXT(LT) Configuration ................................................................................66

BIOS Menu 9: USB Configuration...............................................................................................67

BIOS Menu 10: Super IO Configuration......................................................................................68

BIOS Menu 11: Serial Port n Configuration Menu.....................................................................69

BIOS Menu 12: H/W Monitor........................................................................................................71

BIOS Menu 13: FAN 1 Configuration..........................................................................................72

BIOS Menu 14: Serial Port Console Redirection.......................................................................74

BIOS Menu 15: IEI Feature...........................................................................................................75

BIOS Menu 16: Chipset................................................................................................................76

BIOS Menu 17:Northbridge Chipset Configuration...................................................................77

BIOS Menu 18: Southbridge Chipset Configuration.................................................................79

BIOS Menu 19: Integrated Graphics...........................................................................................80

BIOS Menu 20: Boot.....................................................................................................................81

BIOS Menu 21: Security...............................................................................................................83

BIOS Menu 22:Exit........................................................................................................................84

BIOS Menu 23: IEI Feature........................................................................................................ 111

Page xii

PICOe-B650 Half-size PCIe CPU Card

1 Introduction

Chapter

Page 1

1.1 Introduction

PICOe-B650 Half-size PCIe CPU Card

Figure 1-1: PICOe-B650 Half-size CPU Card

The PICOe-B650 half-size PCIe CPU card is an embedded LGA1155 Intel® Core™ processor i3, i5 or i7 platform. The PICOe-B650 supports one 204-pin 1066/1333 MHz

8.0 GB (max.) DDR3 SDRAM SO-DIMM. The board includes one VGA connector, and supports a dual-display configuration.

The PICOe-B650 also comes with two Gigabit Ethernet (GbE) connectors, one SATA 6Gb/s connector, one SATA 3Gb/s connector and four USB 2.0 connector. Serial device connectivity is provided by two internal RS-232 connectors.

The PICOe-B650 supports an optional Trusted Platform Module (TPM) to provide a trusted and secure base for various applications.

Page 2

PICOe-B650 Half-size PCIe CPU Card

1.2 Connectors

The connectors on the PICOe-B650 are shown in the figure below.

Figure 1-2: Connectors

Page 3

1.3 Dimensions

The dimensions of the board are listed below:

 Length: 185 mm  Width: 122 mm

PICOe-B650 Half-size PCIe CPU Card

Page 4

Figure 1-3: PICOe-B650 Dimensions (mm)

PICOe-B650 Half-size PCIe CPU Card

1.4 Data Flow

5Figure 1-4 shows the data flow between the two on-board chipsets and other components

installed on the motherboard and described in the following sections of this chapter.

Figure 1-4: Data Flow Block Diagram

Page 5

1.5 Technical Specifications

PICOe-B650 technical specifications are listed in table below.

Specification PICOe-B650

PICOe-B650 Half-size PCIe CPU Card

Form Factor CPU Socket CPU Options

System Chipset Graphics Engine

Memory

LAN BIOS Super I/O Ethernet Controller

Half-size PCIe CPU Card LGA1155 socket Intel® Core™ i7/i5/i3 quad-core/dual-core processor

Intel® Pentium®/Celeron® processor Intel® B65 Intel® HD Graphics Gen 6 support for DX10.1 and OpenGL 3.0

Full MPEG2, VC1, AVC Decode One 204-pin SO-DIMM socket supports one 1333/1066 MHz DDR3

SDRAM SO-DIMM (system max. 8 GB) Dual Realtek RTL8111E PCIe GbE controllers, LAN1 supports ASF 2.0 UEFI BIOS Fintek F81866 Two Realtek RTL8111E PCIe GbE controllers

(LAN1 with ASF2.0 support)

Digital I/O Watchdog Timer SMBus I2C TPM Expansion PCI PCIe I/O Interface Connectors Display

Page 6

8-bit digital I/O (4-bit input, 4-bit output) Software programmable supports 1~2 55 sec. system reset One 4-pin wafer connector One 4-pin wafer connector One 20-pin header supports optional Infineon TPM module

PCI signal via golden finger Four PCIe x1 via golden finger

One VGA port (VGA integrated in Intel® B65)

PICOe-B650 Half-size PCIe CPU Card

Specification PICOe-B650 Ethernet Audio Keyboard/Mouse Serial Ports USB 2.0 ports

Storage Serial ATA

Environmental and Power Specifications Power Supply Power Consumption

Operating Temperature

Two RJ-45 GbE port s Supports 7.1 channel HD audio via optional IEI AC-KIT-888HD kit One keyboard and mouse connector via internal 6-pin header Two RS-232 serial ports via internal pin header Two external USB ports

Two USB ports via internal pin headers

One SATA 6Gb/s port One SATA 3Gb/s port

5 V / 12 V, AT/ATX power support 5V@3.17A, 12V@0.46A, Vcore_12V@7.26A, 5VSB@0.18A (3.4GHz

Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory)

-10°C~60°C

Storage Temperature Humidity Physical Specifications Dimensions Weight GW/NW Table 1-1: Technical Specifications

-20°C~70°C 5% ~ 95% (non-condensing)

185 mm x 122 mm 1000g/260g

Page 7

PICOe-B650 Half-size PCIe CPU Card

Chapter

2 Unpacking

Page 8

PICOe-B650 Half-size PCIe CPU Card

2.1 Anti-static Precautions

WARNING!

Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user.

Make sure to adhere to the following guidelines:

 Wear an anti-static wristband: Wearing an anti-static wristband can prevent

electrostatic discharge.

 Self-grounding: Touch a grounded conductor every few minutes to discharge

any excess static buildup.

 Use an anti-static pad: When configuring any circuit board, place it on an

anti-static mat.

 Only handle the edges of the PCB: Don't touch the surface of the

motherboard. Hold the motherboard by the edges when handling.

2.2 Unpacking Precautions

When the PICOe-B650 is unpacked, please do the following:

 Follow the antistatic guidelines above.  Make sure the packing box is facing upwards when opening.  Make sure all the packing list items are present.

Page 9

2.3 Unpacking Checklist

NOTE:

If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the PICOe-B650 was purchased from or contact an IEI sales

PICOe-B650 Half-size PCIe CPU Card

representative directly by sending an email to

2sales@iei.com.tw.

2.3.1 Package Contents

The PICOe-B650 is shipped with the following components:

Quantity Item and Part Number Image

1 PICOe-B650 CPU card

2 SATA cable

(P/N: 32801-000703-200-RS)

1 Dual RS-232 cable

Page 10

(P/N: 19800-000112-RS)

1 Dual USB cable (w bracket)

(P/N: 19800-003000-200-RS)

1 Mini jumper pack

(P/N: 33101-000657-RS)

1 Utility CD

PICOe-B650 Half-size PCIe CPU Card

1 One Key Recovery CD

1 Quick Installation Guide

2.3.2 Optional Items

The PICOe-B650 is shipped with the following components:

Item and Part Number Image

SATA power cable (P/N: 32102-000100-200-RS)

KB/MS cable (with bracket) (P/N: 19800-000075-RS)

7.1 Channel HD Audio kit with Realtek ALC888 (P/N: AC-KIT-888HD-R10)

SATA to IDE/CompactFlash® converter board (P/N: SAIDE-KIT01-R10)

Infineon TPM module (P/N: TPM-IN01-R1 1)

LGA1155/LGA1156 Cooler kit (1U Chassis compatible, 73W)

(P/N: CF-1 156A-RS)

Page 11

LGA1155/LGA1156 Cooler kit (95W) (P/N: CF-1 156B-RS)

LGA1155/LGA1156 Cooler kit (45W) (P/N: CF-1 156C-RS)

PICOe-B650 Half-size PCIe CPU Card

Page 12

PICOe-B650 Half-size PCIe CPU Card

Chapter

3 Connectors

Page 13

PICOe-B650 Half-size PCIe CPU Card

3.1 Peripheral Interface Connectors

Section 3.1.1 shows peripheral interface connector locations. Section 3.2 lists all the peripheral interface connectors seen in Section

3.1.1.

3.1.1 PICOe-B650 Layout

5Figure 3-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

Figure 3-1: Connector and Jumper Locations

3.1.2 Peripheral Interface Connectors

5Table 3-1 shows a list of the peripheral interface connectors on the PICOe-B65 0. Detailed

descriptions of these connectors can be found below.

Connector Type Label

ATX power control connector 3-pin wafer ATXCTL1 Audio connector 9-pin header J_AUDIO1 Battery connector 2-pin wafer BT1

Page 14

PICOe-B650 Half-size PCIe CPU Card

Connector Type Label

CPU fan connector 4-pin wafer CPU_FAN1 CPU power connector 4-pin connector CPU12V1 DDR3 SO-DIMM 204-pin SO-DIMM DIMM1 Digital input/output (DIO) connector 10-pin header DIO1 Front panel connector 10-pin header F_PANEL1 I2C connector 4-pin wafer I2C_1 Keyboard and mouse connector 6-pin wafer KB_MS1 SATA 6Gb/s connector 7-pin SATA SATA1 SATA 3Gb/s connector 7-pin SATA SATA2 Serial port connectors (RS-232) 10-pin header COM1, COM2 SMBus connector 4-pin wafer SMBUS_1 SPI flash connector 6-pin wafer JSPI1 TPM connector 20-pin header TPM1 USB 2.0 connector 8-pin header USB2

Table 3-1: Peripheral Interface Connectors

3.1.3 External Interface Panel Connectors

5Table 3-2 lists the rear panel connectors on the PICOe-B650. Detailed descriptions of

these connectors can be found in Section

Connector Type Label

Ethernet connector RJ-45 LAN1 Ethernet connector RJ-45 LAN2 USB 2.0 port USB port USB_C1 USB 2.0 port USB port USB_C2

53.3 on page 531.

VGA port connector 15-pin female CRT1

Table 3-2: Rear Panel Connectors

Page 15

PICOe-B650 Half-size PCIe CPU Card

3.2 Internal Peripheral Connectors

Internal peripheral connectors are found on the CPU card and are only accessible when the CPU card is outside of the chassis. This section has complete descriptions of all the internal, peripheral connectors on the PICOe-B650.

3.2.1 ATX Power Supply Enable Connector

CN Label: ATXCTL1 CN Type: CN Location: CN Pinouts:

The ATX power supply enable connector enables the PICOe-B650 to be connected to an ATX power supply. In default mode, the PICOe-B650 can only use an AT power supply. To enable an ATX power supply the AT Power Select jumper must also be configured. Please refer to Section

3-pin wafer (1x3)

Figure 3-2

See

Table 3-3

See

4.4.1 for more details.

Page 16

Figure 3-2: ATX Power Supply Enable Connector Location

Pin Description

1 GND 2 PS-ON 3 +5 Standby

Table 3-3: ATX Power Supply Enable Connector Pinouts

PICOe-B650 Half-size PCIe CPU Card

3.2.2 Audio Connector

CN Label: J_AUDIO1 CN Type: CN Location: CN Pinouts:

9-pin header (2x5)

Figure 3-3

See

Table 3-4

See

The 9-pin audio connector is connected to external audio devices including speakers and microphones for the input and output of audio signals to and from the system.

Figure 3-3: Audio Connector Location

Pin Description Pin Description

1 HDA_SYNC 2 HDA_BITCLK 3 HDA_SDOUT 4 PC_BEEP 5 HDA_SDIN0 6 HDA_RST# 7 +5V 8 GND 9 +12V 10 GND

Table 3-4: Audio Connector Pinouts

Page 17

3.2.3 Battery Connector

CAUTION:

Risk of explosion if battery is replaced by and incorrect type. Only certified engineers should replace the on-board battery.

Dispose of used batteries according to instructions and local regulations.

CN Label: BT1

PICOe-B650 Half-size PCIe CPU Card

CN Type: CN Location: CN Pinouts:

This is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off.

Figure 3-4: Battery Connector Location

2-pin wafer (1x2)

Figure 3-4

See

Table 3-5

See

Page 18

Pin Description

1 Battery+ 2 Ground

Table 3-5: Battery Connector Pinouts

PICOe-B650 Half-size PCIe CPU Card

3.2.4 CPU Fan Connector

CN Label: CPU_FAN1 CN Type: CN Location: CN Pinouts:

4-pin wafer (1x4)

5Figure 3-5

See

5Table 3-6

See

The cooling fan connector provides a 12V, 500mA current to the cooling fan. The connector has a "rotation" pin to get rotation signals from fans and notify the system so the system BIOS can recognize the fan speed. Please note that only specified fans can issue the rotation signals.

Figure 3-5: +12V Fan Connector Location

Pin Description

1 GND 2 +12V 3 FANIO1 4 PWM

Table 3-6: +12V Fan Connector Pinouts

3.2.5 CPU 12 V Power Connector

CN Label: CPU12 V1 CN Type: CN Location: CN Pinouts:

4-pin connector

Figure 3-6

See

Table 3-7

See

Page 19

This connector accepts 12 V of power for the processor.

Figure 3-6: CPU Power Connector Location

PICOe-B650 Half-size PCIe CPU Card

Pin Description Pin Description

1 GND 2 GND 3 +12 V 4 +12 V

Table 3-7: CPU Power Connector Pinouts

3.2.6 Digital Input/Output (DIO) Connector

CN Label: DIO1 CN Type: CN Location: CN Pinouts:

The digital input/output connector is managed through a Super I/O chip. The DIO connector pins are user programmable.

10-pin header (2x5)

Figure 3-7

See

Table 3-8

See

Page 20

PICOe-B650 Half-size PCIe CPU Card

Figure 3-7: DIO Connector Location

Pin Description Pin Description

1 GND 2 +5V 3 Output 3 4 Output 2 5 Output 1 6 Output 0 7 Input 3 8 Input 2 9 Input 1 10 Input 0

Table 3-8: DIO Connector Connector Pinouts

3.2.7 Front Panel Connector

CN Label: F_PANEL1 CN Type: CN Location: CN Pinouts:

The front panel connector connects to external switches and indicators to monitor and controls the CPU card. These indicators and switches include:

 HDD LED  Power button  Power LED

10-pin header (1x10)

Figure 3-8

See

Table 3-9

See

 Reset

Page 21

PICOe-B650 Half-size PCIe CPU Card

Figure 3-8: Front Panel Connector Location

FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION

1 N/A 6 PWR_LED+

2 PWR_BTN 7 PWR_LED+ Power Button 3 GND 4 HDD_LED+ 6 RESET HDD LED 5 HDD_LED-

Power LED

8 GND

Reset

8 GND

Table 3-9: Front Panel Connector Pinouts

3.2.8 I2C Connector

CN Label: I2C_1 CN Type: CN Location: CN Pinouts:

The I2C connector is used to connect I

4-pin wafer (1x4)

6Figure 3-9

See

6Table 3-10

See

C-bus devices to the mainboard.

Page 22

PICOe-B650 Half-size PCIe CPU Card

Figure 3-9: I2C Connector Location

Pin Description

1 +5V_DUAL 2 PCH_GP38_PU 3 PCH_GP39_PU 4 GND

Table 3-10: I2C Connector Pinouts

3.2.9 Keyboard/Mouse Connector

CN Label: KB_MS1 CN Type: CN Location: CN Pinouts:

The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2 Y-cable to add keyboard and mouse functionality to the system.

6-pin header (1x6)

Figure 3-10

See

Table 3-11

See

Page 23

PICOe-B650 Half-size PCIe CPU Card

Figure 3-10: Keyboard/Mouse Connector Location

Pin Description

1 VCC5_KBMS 2 MS DATA 3 MS CLK 4 KB DATA 5 KB CLK 6 GROUND

Table 3-11: Keyboard/Mouse Connector Pinouts

3.2.10 SATA 6Gb/s Connector

CN Label: SATA1 CN Type: CN Location: CN Pinouts:

The SATA connectors connect to SATA hard drives or optical drives with data transfer speeds as high as 6Gb/s.

7-pin SATA drive connector See See

6Figure 3-11 6Table 3-12

Page 24

PICOe-B650 Half-size PCIe CPU Card

Figure 3-11: SATA Drive Connector Location

Pin Description

1 GND 2 TX+ 3 TX4 GND 5 RX6 RX+ 7 GND

Table 3-12: SATA Drive Connector Pinouts

3.2.11 SATA 3Gb/s Connector

CN Label: SATA2 CN Type: CN Location: CN Pinouts:

The SATA connectors connect to SATA hard drives or optical drives with data transfer speeds as high as 3Gb/s.

7-pin SATA drive connector

6Figure 3-12

See

6Table 3-13

See

Page 25

PICOe-B650 Half-size PCIe CPU Card

Figure 3-12: SATA Drive Connector Location

Pin Description

1 GND 2 TX+ 3 TX4 GND 5 RX6 RX+ 7 GND

Table 3-13: SATA Drive Connector Pinouts

3.2.12 Serial Port Connectors (COM 1 and COM 2)

CN Label: COM1, COM2 CN Type: CN Location: CN Pinouts:

The 10-pin serial port connectors provide three RS-232 serial communications channels. The COM serial port connectors can be connected to external RS-232 serial port devices.

10-pin header (2x5)

6Figure 3-13

See

6Table 3-14

See

Page 26

PICOe-B650 Half-size PCIe CPU Card

Figure 3-13: COM Connector Locations

Pin Description Pin Description

1 -NDCD1 6 -NCTS1 2 -NDSR1 7 -NDTR1 3 NSIN1 8 -XRI1 4 -NRTS1 9 GND 5 NSOUT1 10 GND

Table 3-14: COM Connector Pinouts

3.2.13 SMBus Connector

CN Label: SMBUS_1 CN Type: CN Location: CN Pinouts:

The SMBus Connector provides a connection to a SMBus (System Management Bus) device.

4-pin wafer (1x4) See See

Figure 3-14 Table 3-15

Page 27

Figure 3-14: SMBus Connector Location

PICOe-B650 Half-size PCIe CPU Card

Pin Description

1 +5V_DUAL 2 SMBCLK 3 SMBDATA 4 GND

Table 3-15: SMBus Connector Pinouts

3.2.14 SPI Flash Connector

CN Label: JSPI1 CN Type: CN Location: CN Pinouts:

The SPI Flash connector is used to flash the BIOS.

6-pin header (1x6)

Figure 3-15

See

Table 3-16

See

Page 28

Figure 3-15: SPI Flash Connector Location

PICOe-B650 Half-size PCIe CPU Card

Pin Description

1 SPI_VCC 2 SPI_CS# 3 SPI_MISO 4 SPI_CLK 5 SPI_MOSI 6 GND

Table 3-16: SPI Flash Connector

3.2.15 TPM Connector

CN Label: TPM1 CN Type: CN Location: CN Pinouts:

20-pin header (2x10)

Figure 3-16

See

Table 3-17

See

The Trusted Platform Module (TPM) connector secures the system on bootup.

Figure 3-16: TPM Connector Location

Pin Description Pin Description

1 LCLK 2 GND2 3 LFRAME# 4 KEY 5 LRESET# 6 +5V

Page 29

Pin Description Pin Description

7 LAD3 8 LAD2 9 +3V 10 LAD1 11 LAD0 12 GND3 13 SCL 14 SDA 15 SB3V 16 SERIRQ 17 GND1 18 GLKRUN# 19 LPCPD# 20 LDRQ#

Table 3-17: TPM Connector Pinouts

3.2.16 USB Connectors (Internal)

CN Label: USB2

PICOe-B650 Half-size PCIe CPU Card

CN Type: CN Location: CN Pinouts:

8-pin header (2x4)

6Figure 3-17

See

6Table 3-18

See

The internal USB connector provides connectivity to two USB 1.1 or two USB 2.0 ports. Each USB connector can support two USB devices. Additional external USB ports are found on the rear panel. The USB ports are used for I/O bus expansion.

Page 30

Figure 3-17: USB Connector Location

PICOe-B650 Half-size PCIe CPU Card

Pin Description Pin Description

1 VCC 2 GND 3 DATA- 4 DATA+ 5 DATA+ 6 DATA7 GND 8 VCC

Table 3-18: USB Port Connector Pinouts

3.3 External Peripheral Interface Connector Panel

6Figure 3-18 shows the PICOe-B650 external peripheral interface connector (EPIC) panel.

The PICOe-B650 EPIC panel consists of the following:

 2 x RJ-45 LAN connectors  2 x USB connectors  1 x VGA connector

Figure 3-18: PICOe-B650 External Peripheral Interface Connector

3.3.1 LAN Connectors

CN Label: LAN1 and LAN2 CN Type: CN Location: CN Pinouts:

RJ-45

6Figure 3-18

See

6Table 3-19

See

The PICOe-B650 is equipped with two built-in RJ-45 Ethernet controllers. The controllers can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the connector indicating the status of LAN. The pin assignments are listed in the following table:

Page 31

Pin Description Pin Description

1 MDIA3- 5 MDIA1+ 2 MDIA3+ 6 MDIA2+ 3 MDIA2- 7 MDIA04 MDIA1- 8 MDIA0+

PICOe-B650 Half-size PCIe CPU Card

Table 3-19: LAN Pinouts

Figure 3-19: RJ-45 Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one yellow (activity/link) and one green/orange (speed). The yellow LED indicates activity/link on the port and the green/orange LED indicates the connection speed. See

ACT/LINK LED SPEED LED STATUS

OFF No Link OFF 10 Mbps connection YELLOW Link GREEN 100 Mbps connection BLINKING Data activity ORANGE 1000 Mbps connection

DESCRIPTION STATUS DESCRIPTION

6Table 3-20.

Table 3-20: RJ-45 Ethernet Connector LEDs

3.3.2 USB Connectors

CN Label: USB_C1, USB_C2 CN Type: CN Location: CN Pinouts:

The PICOe-B650 has two external USB 2.0 ports. The ports connect to both USB 2.0 and USB 1.1 devices.

Page 32

USB port

6Figure 3-18

See

6Table 3-21

See

PICOe-B650 Half-size PCIe CPU Card

Pin Description

1 VCC 2 DATA3 DATA+ 4 GND

Table 3-21: USB Port Pinouts

3.3.3 VGA Connector

CN Label: VGA1 CN Type: CN Location: CN Pinouts:

15-pin Female

6Figure 3-18

See

6Figure 3-20 and 6Table 3-22

See

The PICOe-B650 has a single 15-pin female connector for connectivity to standa rd display devices.

Figure 3-20: VGA Connector

Pin Description Pin Description

1 RED 2 GREEN 3 BLUE 4 NC 5 GND 6 GND 7 GND 8 GND 9 VCC 10 GND 11 NC 12 DDC DAT 13 HSYNC 14 VSYNC 15 DDCCLK

Table 3-22: VGA Connector Pinouts

Page 33

PICOe-B650 Half-size PCIe CPU Card

Chapter

4 Installation

Page 34

PICOe-B650 Half-size PCIe CPU Card

4.1 Anti-static Precautions

WARNING:

Failure to take ESD precautions during the installation of the PICOe-B650 may result in permanent damage to the PICOe-B650 and severe injury to the user.

Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PICOe-B650. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PICOe-B650 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

 Wear an anti-static wristband: Wearing a simple ant i-static wristband can

help to prevent ESD from damaging the board.

 Self-grounding: Before handling the board, touch any grounded conducting

material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.

 Use an anti-static pad: When configuring the PICOe-B650, place it on an

antic-static pad. This reduces the possibility of ESD damaging the PICOe-B650.

 Only handle the edges of the PCB: When handling the PCB, hold the PCB

by the edges.

Page 35

4.2 Installation Considerations

NOTE:

The following installation notices and installation considerations should be read and understood before the PICOe-B650 is installed. All installation notices pertaining to the installation of the PICOe-B650 should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the PICOe-B650 and injury to the person installing the CPU card.

PICOe-B650 Half-size PCIe CPU Card

WARNING:

The installation instructions described in this manual should be carefully followed in order to prevent damage to the PICOe-B650, PICOe-B650 components and injury to the user.

Before and during the installation please DO the following:

 Read the user manual:

o The user manual provides a complete description of the PICOe-B650

installation instructions and configuration options.

 Wear an electrostatic discharge cuff (ESD):

o Electronic components are easily damaged by ESD. Wearing an ESD cuff

removes ESD from the body and helps prevent ESD damage.

 Place the PICOe-B650 on an antistatic pad:

o When installing or configuring the motherboard, place it on an antistatic

pad. This helps to prevent potential ESD damage.

Page 36

 Turn all power to the PICOe-B650 off:

o When working with the PICOe-B650, make sure that it is disconnected

from all power supplies and that no electricity is being fed into the system.

PICOe-B650 Half-size PCIe CPU Card

Before and during the installation of the PICOe-B650 DO NOT:

 Remove any of the stickers on the PCB board. These stickers are required for

warranty validation.

 Use the product before verifying all the cables and power connectors are

properly connected.

 Allow screws to come in contact with the PCB circuit, connector pins, or its

components.

4.3 CPU and Memory Installation

WARNING:

Do not run the CPU without a heatsink and fan. Without the heatsink and fan, the high temperatures can destroy the CPU and other components. CPUs marked as fanless don't need the fan, but still need adequate ventilation.

The CPU, CPU cooling kit and DIMM are the most critical components of the PICOe-B650. If one of these component is not installed the PICOe-B650 cannot run.

4.3.1 Socket LGA1155 CPU Installation

WARNING:

CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.

DO NOT touch the pins at the bottom of the CPU. When handling the CPU, only hold it on the sides.

To install the CPU, follow the steps below.

Page 37

Step 1: Disengage the load lever by pressing the lever down and slightly outward to

PICOe-B650 Half-size PCIe CPU Card

clear the retention tab. Fully open the lever. See

Figure 4-1: Disengage the CPU Socket Load Lever

Step 2: Open the socket and remove the protective cover. The black protective

cover can be removed by pulling up on the tab labeled "Remove". See

Figure 4-1.

Figure 4-2.

Figure 4-2: Remove Protective Cover

Page 38

PICOe-B650 Half-size PCIe CPU Card

Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the

socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

Step 4: Orientate the CPU properly. The contact array should be facing the CPU

socket.

Step 5: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the

CPU socket.

Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.

Carefully match the two orientation notches on the CPU with the socket alignment keys.

Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are

properly aligned, the CPU should slide into the CPU socket smoothly. See

Figure 4-3.

Figure 4-3: Insert the Socket LGA1155 CPU

Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little

to have the load plate be able to secure to the knob. Engage the load lever by

Page 39

pushing it back to its original position (Figure 4-4). There will be some resistance, but will not require extreme pressure.

Figure 4-4: Close the Socket LGA1155

PICOe-B650 Half-size PCIe CPU Card

Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power

supply to the board. Step 0:

4.3.2 Socket LGA1155 Cooling Kit Installation

WARNING:

DO NOT attempt to install a push-pin cooling fan.

The pre-installed support bracket prevents the board from bending and is ONLY compatible with captive screw type cooling fans.

The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan.

Page 40

PICOe-B650 Half-size PCIe CPU Card

WARNING:

Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the heat sink. The thermal paste between the CPU and the heat sink is important for optimum heat dissipation.

To install the cooling kit, follow the instructions below.

Step 1: A cooling kit bracket is pre -installed on the rear of the CPU card. See

4-5.

Figure 4-5: Cooling Kit Support Bracket

Step 2: Place the cooling kit onto the socket LGA1155 CPU. Make sure the CPU

Figure

cable can be properly routed when the cooling kit is installed.

Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make

sure the four threaded screws on the corners of the cooling kit properly pass through the holes of the cooling kit bracket.

Step 4: Secure the cooling kit by fastening the four retention screws of the cooling kit.

Page 41

Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector

on the PICOe-B650. Carefully route the cable and avoid heat generating chips and fan blades. Step 0:

4.3.3 SO-DIMM Installation

To install a SO-DIMM, please follow the steps below and refer to Figure 4-6.

PICOe-B650 Half-size PCIe CPU Card

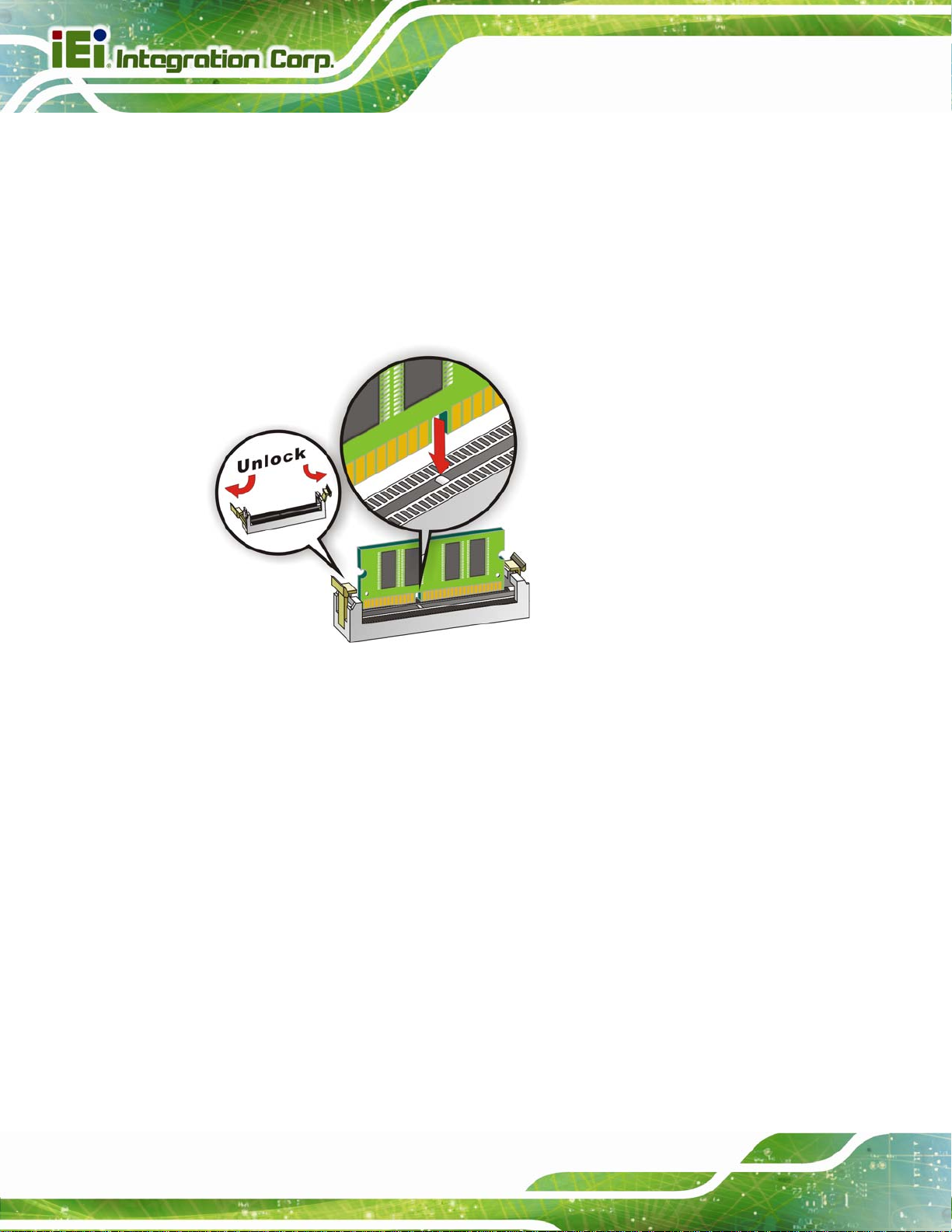

Figure 4-6: SO-DIMM Installation

Step 1: Open the SO-DIMM socket handles. Open the two handles outwards as far as

they can. See

Step 2: Align the SO-DIMM with the socket. Al ign the DIMM so the notch on the

memory lines up with the notch on the memory socket. See

Step 3: Insert the SO-DIMM. Once aligned, press down until the SO-DIMM is properly

seated. Clip the two handles into place. See

Step 4: Removing a SO-DIMM. To remove a SO-DIMM, push both handles outward.

The memory module is ejected by a mechanism in the socket.Step 0:

Figure 4-6.

Page 42

PICOe-B650 Half-size PCIe CPU Card

4.4 Jumper Settings

NOTE:

A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To CLOSE/SHORT a jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper.

Before the PICOe-B650 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the PICOe-B650 are listed in

Description Label Type

AT/ATX power mode select JATX_AT1 3-pin header Clear CMOS J_CMOS1 3-pin header PCIe status select J_PCIE1 2-pin h eader

Table 4-1: Jumpers

6Table 4-1.

4.4.1 AT/ATX Power Mode Select Jumper

Jumper Label: JATX_AT1 Jumper Type: Jumper Settings: Jumper Location:

3-pin header

Table 4-2

See

Figure 4-7

See

The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX.

Page 43

Setting Description

Short 1-2 Use ATX power (Default) Short 2-3 Use AT power

PICOe-B650 Half-size PCIe CPU Card

Table 4-2: AT/ATX Power Mode Jumper Settings

Figure 4-7: AT/ATX Power Mode Jumper Location

4.4.2 Clear CMOS Jumper

Jumper Label: J_CMOS1 Jumper Type: Jumper Settings:

3-pin header

6Table 4-3

See

Page 44

6Figure 4-8

Jumper Location:

See

If the PICOe-B650 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the following:

 Enter the correct CMOS setting  Load Optimal Defaults  Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu.

PICOe-B650 Half-size PCIe CPU Card

The clear CMOS jumper settings are shown in 6Table 4-3.

Setting Description Short 1 - 2 Keep CMOS Setup (Default)

Short 2 - 3 Clear CMOS Setup

Table 4-3: Clear CMOS Jumper Settings

The location of the clear CMOS jumper is shown in 6Figure 4-8 below.

Figure 4-8: Clear CMOS Jumper

4.4.3 PCIe Status Select Jumper

Jumper Label: J_PCIE1 Jumper Type: Jumper Settings: Jumper Location:

The PCIe Status Select jumper allows the PCIe status to be configured. The PCIe Status Select jumper settings are shown in

Setting Description

Open One PCIe x4 Short Four PCIe x1 (Default)

2-pin header

Table 4-4

See

Figure 4-9

See

Table 4-4.

Table 4-4: PCIe Status Select Jumper Settings

The PCIe Status Select jumper location is shown in Figure 4-9.

Page 45

Figure 4-9: PCIe Status Select Jumper Pinout Locations

4.5 Chassis Installation

4.5.1 Airflow

PICOe-B650 Half-size PCIe CPU Card

WARNING:

Airflow is critical to the cooling of the CPU and other onboard components. The chassis in which the PICOe-B650 must have air vents to allow cool air to move into the system and hot air to move out.

The PICOe-B650 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

4.5.2 Backplane Installation

Before the PICOe-B650 can be installed into the chassis, a backplane must first be installed. Please refer to the installation instructions that came with the backplane and the chassis to see how to install the backplane into the chassis.

Page 46

PICOe-B650 Half-size PCIe CPU Card

NOTE:

IEI has a wide range of backplanes available. Please contact your PICOe-B650 vendor, reseller or an IEI sales representative at

sales@iei.com.tw or visit the IEI website (http://www.ieiworld.com.tw)

to find out more about the available chassis.

4.5.3 CPU Card Installation

To install the PICOe-B650 CPU card onto the backplane, carefully align the CPU card interface connectors with the corresponding socket on the backplane. To do this, please refer to the reference material that came with the backplane. Next, secure the CPU card to the chassis. To do this, please refer to the reference material that came with the chassis.

4.6 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the onboard connectors.

4.6.1 Dual RS-232 Cable with Slot Bracket

The dual RS-232 cable slot connector consists of two connectors attached to two independent cables. Each cable is then attached to a D-sub 9 male connector that is mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.

Step 1: Locate the connectors. The locations of the RS-232 connectors are sho wn in

Chapter 3.

Step 2: Insert the cable connectors. Insert one connector into each serial port pin

headers. See

Figure 4-10.

Page 47

Figure 4-10: Dual RS-232 Cable Installation

PICOe-B650 Half-size PCIe CPU Card

Step 3: Secure the bracket. The dual RS-232 connector has two D-sub 9 male

connectors secured on a bracket. To secure the bracket to the chassis please refer to the reference material that came with the chassisStep 0:

4.6.2 SATA Drive Connection

The PICOe-B650 is shipped with two SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below.

Step 1: Locate the connectors. The locations of the SATA drive connectors are shown

in Chapter 3.

Step 2: Insert the cable connector. Insert the cable connector into the on-board SATA

drive connector until it clips into place. See

6Figure 4-11.

Page 48

PICOe-B650 Half-size PCIe CPU Card

Figure 4-11: SATA Drive Cable Connection

Step 3: Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See

6Figure 4-12.

Step 4: Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See

6Figure 4-12.

Page 49

PICOe-B650 Half-size PCIe CPU Card

Figure 4-12: SATA Power Drive Connection

4.6.3 USB Cable (Dual Port) with Slot Bracket

The PICOe-B650 is shipped with a dual port USB 2.0 cable. To connect the USB cable connector, please follow the steps below.

Step 1: Locate the connectors. The locations of the USB connectors are shown in

Chapter 3.

WARNING:

If the USB pins are not properly aligned, the USB device can burn out.

Step 2: Align the connectors. The cable has two connectors. Correctly align pin 1on

Page 50

each cable connector with pin 1 on the PICOe-B650 USB connector.

Step 3: Insert the cable connectors. Once the cable connectors are properly aligned

with the USB connectors on the PICOe-B650, connect the cable connectors to

PICOe-B650 Half-size PCIe CPU Card

the on-board connectors. See Figure 4-13.

Figure 4-13: Dual USB Cable Connection

Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a

bracket. To secure the bracket to the chassis please refer to the installation instructions that came with the chassis.Step 0:

4.7 External Peripheral Interface Connection

The following external peripheral devices can be connected to the external peripheral interface connectors.

 RJ-45 Ethernet cable connectors  USB devices  VGA monitors

To install these devices, connect the corresponding cable connector from the actual device to the corresponding PICOe-B650 external peripheral interface connector making sure the pins are properly aligned.

Page 51

4.7.1 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection to an external network. To connect a LAN cable with an RJ-45 connector, please follow the instructions below.

Step 1: Locate the RJ-45 connectors. The locations of the USB connecto rs are shown

in Chapter 3.

Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of

PICOe-B650 Half-size PCIe CPU Card

the RJ-45 connectors on the PICOe-B650. See

Figure 4-14: LAN Connection

6Figure 4-14.

Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the onboard RJ-45 connector. Step 0:

4.7.2 USB Connection

The external USB Series "A" receptacle connector provides easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the PICOe-B650.

Step 1: Locate the USB Series "A" receptacle connectors. The location of the USB

Page 52

PICOe-B650 Half-size PCIe CPU Card

Series "A" receptacle connectors are shown in Chapter 3.

Step 2: Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into

the USB Series "A" receptacle on the external peripheral interface. See 4-15.

6Figure

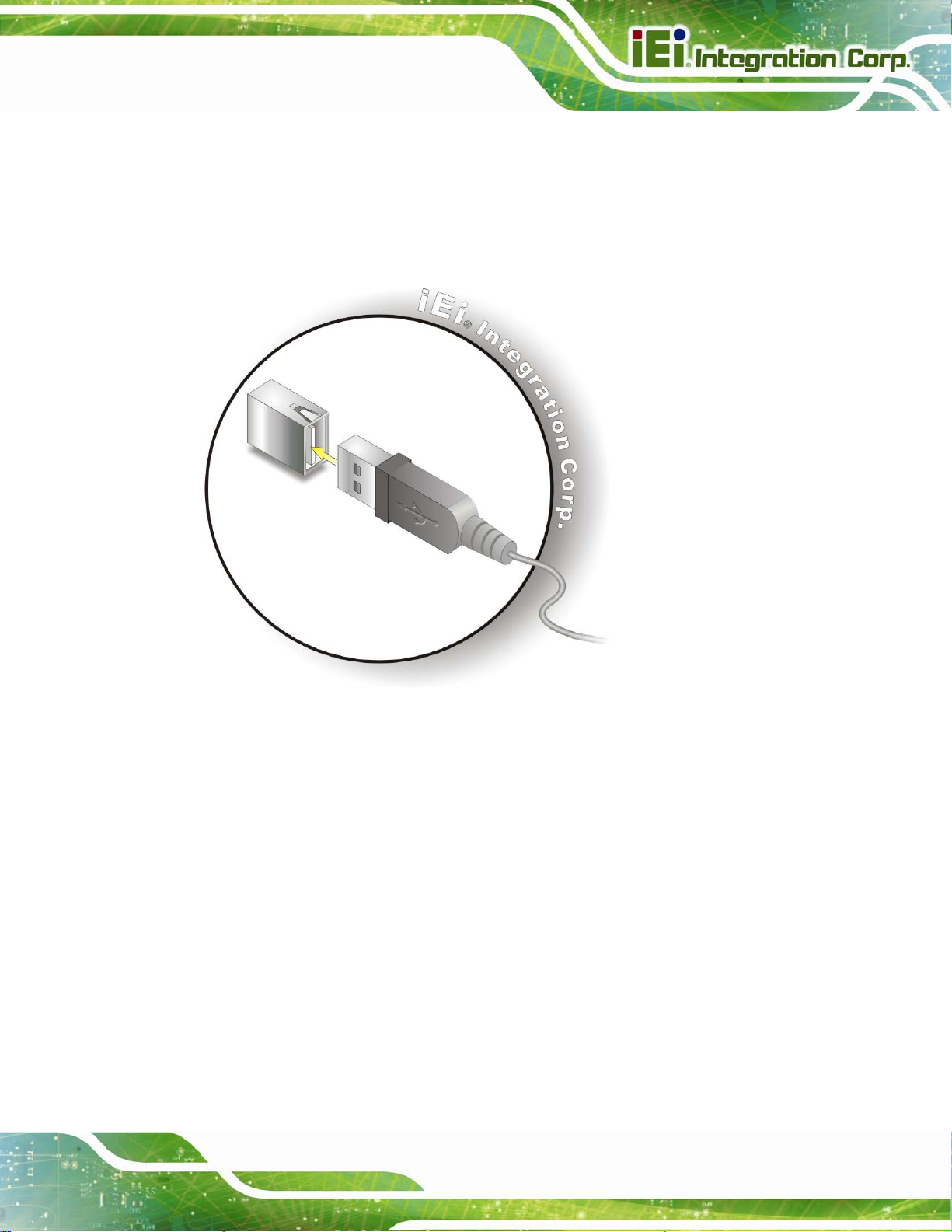

Figure 4-15: USB Connector

4.7.3 VGA Monitor Connection

The PICOe-B650 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the PICOe-B650, please follow the instructions below.

Step 1: Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3: Insert the VGA connector. Once the conne ctors are prop erly aligned with the

Page 53

insert the male connector from the VGA screen into the female connector on the

PICOe-B650 Half-size PCIe CPU Card

PICOe-B650. See

Figure 4-16: VGA Connector

6Figure 4-16.

Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either side of the connector. Step 0:

4.8 Software Installation

All the drivers for the PICOe-B650 are on the CD that came with the system. To install the drivers, please follow the steps below.

Step 1: Insert the CD into a CD drive connected to the system.

NOTE:

If the installation program doesn't start automatically: Click "Start->My Computer->CD Drive->autorun.exe"

Step 2: The driver main menu appears (Figure 4-17).

Page 54

PICOe-B650 Half-size PCIe CPU Card

Figure 4-17: Introduction Screen

Step 3: Click PICOe-B650.

Step 4: A new screen with a list of available drivers appears (

Figure 4-18: Available Drivers

Step 5: Install all of the necessary drivers in this menu. Step 0:

Figure 4-18).

Page 55

PICOe-B650 Half-size PCIe CPU Card

Chapter

5 BIOS Screens

Page 56

PICOe-B650 Half-size PCIe CPU Card

5.1 Introduction

The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed.

5.1.1 Starting Setup

The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

1. Press the D

2. Press the D appears on the screen. 0.

If the message disappears before the D and try again.

ELETE or F2 key as soon as the system is turned on or ELETE or F2 key when the “Press Del to enter SETUP” message

ELETE or F2 key is pressed, restart the computer

5.1.2 Using Setup

Use the arrow keys to highlight items, press ENTER to select, use the PageUp and PageDown keys to change entries, press F1 for help and press E keys are shown in.

Key Function

Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side

SC to quit. Navigation

Right arrow Move to the item on the right hand side F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu F2 key Load previous values. F3 key Load optimized defaults

Page 57

Key Function

F4 key Save all the CMOS changes Esc key Main Men u – Quit and not save changes into CMOS

Table 5-1: BIOS Navigation Keys

5.1.3 Getting Help

When F1 is pressed a small help window describing the appropriate keys to use and the

PICOe-B650 Half-size PCIe CPU Card

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu

possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

5.1.4 Unable to Reboot After Configuration Changes

If the computer cannot boot after changes to the system configuration is made, CMOS defaults. Use the jumper described in Chapter 4.

5.1.5 BIOS Menu Bar

The menu bar on top of the BIOS screen has the following main items:

 Main – Changes the basic system configuration.  Advanced – Changes the advanced system settings.  Chipset – Changes the chipset settings.  Boot – Changes the system boot configuration.  Security – Sets User and Supervisor Passwords.  Save & Exit – Selects exit options and loads default settings

SC or

Page 58

The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.

PICOe-B650 Half-size PCIe CPU Card

5.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.

Main Advanced Chipset Boot Security Save & Exit

BIOS Information BIOS Vendor American Megatrends Core Version 4.6.4.0 0.03 Compliency UEFI 2.0 Project Version B218AR09.ROM Build Date 12/29/2011 17:06:33

Memory Information Total Memory 2048 MB (DDR3 1333)

System Date [Tue 03/04/2011] System Time [15:10:27]

Access Level Administrator

Set the Date. Use Tab to switch between Data elements.

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 1: Main

Î System Overview

The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information cannot be changed. The items shown in the system overview include:

 BIOS Vendor: Installed BIOS vendor  Core Version: Current BIOS version  Project Version: the board version  Build Date: Date the current BIOS version was made

Î Memory Information

The Memory Information lists a brief summary of the on-board memory. The fields in Memory Information cannot be changed.

 Total Memory: Displays the auto-detected system memory size and type.

The System Overview field also has two user configurable fields:

Page 59

Î System Date [xx/xx/xx]

Use the System Date option to set the system date. Manually enter the day, month and year.

Î System Time [xx:xx:xx]

Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

5.3 Advanced

Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:

WARNING!

PICOe-B650 Half-size PCIe CPU Card

Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.

Main Advanced Chipset Boot Security Save & Exit

> ACPI Settings > Trusted Computing > CPU Configuration > SATA Configuration > Intel TXT(LT) Configuration > USB Configuration > Super IO Configuration > H/M Monitor > Serial Port Console Redirection > iEi Feature

System ACPI Parameters

----------------------

ÅÆ

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

: Select Screen

Page 60

BIOS Menu 2: Advanced

PICOe-B650 Half-size PCIe CPU Card

5.3.1 ACPI Settings

The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options.

Advanced

ACPI Settings

ACPI Sleep State [S1 (CPU Stop Clock)]

elect the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 3: ACPI Configuration

Î ACPI Sleep State [S1 (CPU Stop Clock)]

Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.

Suspend Disabled

S1 (CPU Stop Clock)

S3 (Suspend to RAM)

DEFAULT

The system enters S1(POS) sleep state. The system appears off. The CPU is stopped; RAM is refreshed; the system is running in a low power mode.

The caches are flushed and the CPU is powered off. Power to the RAM is maintained. The computer returns slower to a working state, but more power is saved.

Page 61

PICOe-B650 Half-size PCIe CPU Card

5.3.2 Trusted Computing

Use the Trusted Computing menu (BIOS Menu 4) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM).

Advanced

TPM Configuration TPM SUPPORT [Disable]

Current TPM Status Information

NO TPM Hardware

nables or Disables TPM support. O.S. will not show TPM. Reset of platform is required.

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 4: TPM Configuration

Î TPM Support [Disable]

Use the TPM Support option to configure support for the TPM.

Disable DEFAULT

Enable

TPM support is disabled. TPM support is enabled.

5.3.3 CPU Configuration

Use the CPU Configuration menu (BIOS Menu 5) to enter the CPU Information submenu or enable Intel Virtualization Technology.

Page 62

PICOe-B650 Half-size PCIe CPU Card

Advanced

CPU Configuration

> CPU Information

Intel Virtualization Technology [Disabled]

BIOS Menu 5: CPU Configuration

Socket specific CPU Information

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

Î Intel Virtualization Technology [Disabled]

Use the Intel Virtualization Technology option to enable or disable virtualization on the system. When combined with third party software, Intel® Virtualization technology allows several OSs to run on the same system at the same time.

Disabled DEFAULT

Enabled

Disables Intel Virtualization Technology.

Enables Intel Virtualization Technology.

5.3.3.1 CPU Information

Use the CPU Information submenu (BIOS Menu 6) to view detailed CPU specifications and configure the CPU.

Page 63

Advanced

CPU Configuration

Intel(R) Pentium(R) CPU G850 @ 2.90GHz CPU Signature 206a7 Microcode Patch 14 Max CPU Speed 2900 MHz Min CPU Speed 1600 MHz Processor Cores 2 Intel HT Technology Not Supported Intel VT-x Technology Supported Intel SMX Technology Not Supported

L1 Data Cache 32 kB x 2 L1 Code Cache 32 kB x 2 L2 Cache 256 kB x 2 L3 Cache 3072 kB

BIOS Menu 6: CPU Configuration

PICOe-B650 Half-size PCIe CPU Card

----------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

The CPU Configuration menu (

 Processor Type: Lists the brand name of the CPU being used  CPU Signature: Lists the CPU signature value.  Microcode Patch: Lists the microcode patch being used.  Max CPU Speed: Lists the maximum CPU processing speed.  Min CPU Speed: Lists the minimum CPU processing speed.  Processor Cores: Lists the number of the processor core  Intel HT Technology: Indicates if Intel HT Technology is supported by the

CPU.

 Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the

CPU.

 Intel SMX Technology: Indicates if Intel SMX Technology is supported by the

CPU.

 L1 Data Cache: Lists the amount of data storage space on the L1 cache.  L1 Code Cache: Lists the amount of code storage space on the L1 cache.  L2 Cache: Lists the amount of storage space on the L2 cache.

BIOS Menu 6) lists the following CPU details:

Page 64

 L3 Cache: Lists the amount of storage space on the L3 cache.

PICOe-B650 Half-size PCIe CPU Card

5.3.4 SATA Configuration

Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system.

Advanced

SATA Configuration

SATA Mode [IDE Mode] Serial-ATA Controller 0 [Compatible] Serial-ATA Controller 1 [Enhanced]

SATA Port0 Not Present

SATA Port1 Not Present

(1) IDE Mode. (2) AHCI Mode.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 7: SATA Configuration

Î SATA Mode [IDE Mode]

Use the SATA Mode option to configure SATA devices as normal IDE devices.

Page 65

PICOe-B650 Half-size PCIe CPU Card

Disable

IDE Mode DEFAULT

AHCI Mode

Î Serial-ATA Controller n

Use the Serial-ATA Controller option to configure the SATA controller.

Disabled

Enhanced

Compatible

Disables SATA devices. Configures SATA devices as normal IDE device. Configures SATA devices as AHCI device.

Disables the on-board SATA controller. Configures the on-board SATA controller to be in

Enhanced mode. In this mode, IDE channels and SATA channels are separated.

Configures the on-board SATA controller to be in compatible mode. In this mode, a SATA channel will replace one of the IDE channels. This mode supports up to 6 storage devices.

5.3.5 Intel TXT(LT) Configuration

Use the Intel TXT(LT) Configuration menu to configure Intel Trusted Execution Technology support.

Advanced

Intel Trusted Execution Technology Configuration

Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior to TXT.

Secure Mode Extensons (SMX) Enabled

Intel TXT(LT) Support [Disabled]

BIOS Menu 8: Intel TXT(LT) Configuration

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

Page 66

PICOe-B650 Half-size PCIe CPU Card

5.3.6 USB Configuration

Use the USB Configuration menu (BIOS Menu 9) to read USB configuration information and configure the USB settings.

Advanced

USB Configuration

USB Devices: 1 Keyboard, 2 Hubs

USB Support [Enabled] Legacy USB Support [Enabled]

USB Support Parameters

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 9: USB Configuration

Î USB Devices

The USB Devices Enabled field lists the USB devices that are enabled on the system

Î USB Support [Enabled]

Use the USB Support option to enable or disable USB support on the system.

Disabled

Enabled DEFAULT

Î Legacy USB Support [Enabled]

Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard

USB support disabled USB support enabled

does not become available until a USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB

Page 67

keyboard can control the system even when there is no USB driver loaded onto the system.

PICOe-B650 Half-size PCIe CPU Card

Enabled DEFAULT

Disabled

Legacy USB support enabled Legacy USB support disabled

5.3.7 Super IO Configuration

Use the Super IO Configuration menu (BIOS Menu 10) to set or change the configurations for the FDD controllers, parallel ports and serial ports.

Advanced

Super IO Configuration

Super IO Chip Fintek F81866

> Serial Port 1 Configuration > Serial Port 2 Configuration

Power Saving Function [Disabled]

et Parameters of Serial Port 1 (COMA)

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 10: Super IO Configuration

Î Power Saving Function [Disabled]

Use the Power Saving Function BIOS option to enable or reduce power consumption in the S5 state. When enabled, the system can only be powered-up using the power button.

Disabled DEFAULT

Enabled

Page 68

Power Saving Function support disabled Power Saving Function support enabled

PICOe-B650 Half-size PCIe CPU Card

5.3.7.1 Serial Port n Configuration

Use the Serial Port n Configuration menu (BIOS Menu 11) to configure the serial port n.

Advanced

Serial Port n Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4

Change Settings [Auto]

nable or Disable Serial Port (COM)

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select = - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 11: Serial Port n Configuration Menu

5.3.7.1.1 Serial Port 1 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt address.

Auto DEFAULT

Disable the serial port Enable the serial port

The serial port IO port address and interrupt address are automatically detected.

IO=3F8h; IRQ=4

Serial Port I/O port address is 3F8h and the interrupt address is IRQ4

Page 69

PICOe-B650 Half-size PCIe CPU Card

IO=3F8h; IRQ=3, 4

IO=2F8h; IRQ=3, 4

IO=2C0h; IRQ=3, 4

IO=2C8h; IRQ=3, 4

5.3.7.1.2 Serial Port 2 Configuration

Î Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Serial Port I/O port address is 3F8h and the interrupt address is IRQ3, 4

Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4

Serial Port I/O port address is 2C0h and the interrupt address is IRQ3, 4

Serial Port I/O port address is 2C8h and the interrupt address is IRQ3, 4

Disable the serial port

Enabled DEFAULT

Î Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt address.

Auto DEFAULT

IO=2F8h; IRQ=3

IO=3F8h; IRQ=3, 4

IO=2F8h; IRQ=3, 4

IO=2C0h;

Enable the serial port

The serial port IO port address and interrupt address are automatically detected.

Serial Port I/O port address is 2F8h and the interrupt address is IRQ3

Serial Port I/O port address is 3F8h and the interrupt address is IRQ3, 4

Serial Port I/O port address is 2F8h and the interrupt address is IRQ3, 4

Serial Port I/O port address is 2C0h and the interrupt

Page 70

IRQ=3, 4

address is IRQ3, 4

PICOe-B650 Half-size PCIe CPU Card

IO=2C8h; IRQ=3, 4

Serial Port I/O port address is 2C8h and the interrupt address is IRQ3, 4

5.3.8 H/W Monitor

The H/W Monitor menu (BIOS Menu 12) contains the fan configuration submenus and displays operating temperature, fan speeds and system voltages.

Advanced

PC Health Status

CPU Temperature :+44 C SYS Temperature :+32 C CPU FAN Speed :1950 RPM VCC3V :+3.328 V V_core :+1.112 V +1.05V :+1.040 V VDDR :+1.632 V VSB3V :+3.424 V VBAT :+3.232 V 5VSB :+4.992 V

> FAN 1 Configuration

Smart FAN Configuration

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 12: H/W Monitor

Î PC Health Status

The following system parameters and values are shown. The system parameters that are monitored are:

 System Temperatures:

 Fan Speed:

 Voltages:

o CPU Temperature o System Temperature

o CPU Fan Speed

Page 71

PICOe-B650 Half-size PCIe CPU Card

o VCC3V o Vcore o Vcc o +1.05V o VDDR o VSB3V o VBAT o 5VSB

5.3.8.1 FAN 1 Configuration

Use the FAN 1 Configuration submenu (BIOS Menu 13) to configure fan 1 temperature and speed settings.

Advanced

PC Health Status

CPU Smart Fan control [Auto by RPM] Target Temp Sensor [CPU Temperature] Temperature Bound 1 60 Temperature Bound 2 50 Temperature Bound 3 40 Temperature Bound 4 30 Segment 1 Speed (%) 100 Segment 2 Speed (%) 85 Segment 3 Speed (%) 70 Segment 4 Speed (%) 60 Segment 5 Speed (%) 50 Full Speed Count 3000

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 13: FAN 1 Configuration

Î CPU Smart Fan control [Auto by RPM]

Use the CPU Smart Fan control option to configure the CPU Smart Fan.

Auto by RPM DEFAULT

Page 72

The fan adjusts its speed using Auto by RPM settings

PICOe-B650 Half-size PCIe CPU Card

Auto by Duty-Cycle

Manual by RPM

Manual by Duty-Cycle

Î Target Temp. Sensor [CPU Temperature]

Use the Target Temp. Sensor option to set the target CPU temperature.

CPU Temperature

System Temperature1

System

DEFAULT

The fan adjusts its speed using Auto by Duty-Cycle settings

The fan spins at the speed set in Manual by RPM settings

The fan spins at the speed set in Manual by Duty Cycle settings

Sets the target temperature sensor to the CPU temperature.

Sets the target temperature sensor to the System Temperature1 setting.

Sets the target temperature sensor to the System

Temperature2

Î Temperature Bound n

Use the + or – key to change the fan Temperature Bound n value. Enter a decimal number between 0 and 127.

Î Segment n Speed (%)

Use the + or – key to change the fan Segment n Speed value in percentage. Enter a decimal number between 0 and 100.

Î Full Speed Count

Use the + or – key to change the fan Full Speed Count value. Enter a decimal number between 500 and 15000.

Temperature2 setting.

Page 73

PICOe-B650 Half-size PCIe CPU Card

5.3.9 Serial Port Console Redirection

The Serial Port Console Redirection menu (BIOS Menu 14) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.

Advanced

COM1

Console Redirection [Disabled]

> Console Redirection Settings

COM2

Console Redirection [Disabled]

> Console Redirection Settings

Console Redirection Enable or Disable

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 14: Serial Port Console Redirection

Î Console Redirection [Disabled]

Use Console Redirection option to enable or disable the console redirection fun ction.

Disabled DEFAULT

Enabled

Disabled the console redirection function Enabled the console redirection function

Page 74

PICOe-B650 Half-size PCIe CPU Card

5.3.10 IEI Feature

Use the IEI Feature menu (BIOS Menu 23) to configure One Key Recovery function.

BIOS SETUP UTILITY

Advanced

iEi Feature

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Disabled]

Auto Recovery Function Reboot and recover system automatically within 10 min, when OS

rashes. Please install

Auto Recovery API

ervice before enabling

this function.

----------------------

ÅÆ

Select Screen

↑ ↓ Select Item Enter Go to SubScreen F1 General Help F10 Save and Exit ESC Exit

BIOS Menu 15: IEI Feature

Î Auto Recovery Function [Disabled]

Use the Auto Recovery Function BIOS option to enable or disable the auto recovery function of the IEI One Key Recovery.

Disabled DEFAULT

Enabled

5.4 Chipset

Use the Chipset menu (BIOS Menu 16) to access the Northbridge, Southbridge, Integrated Graphics, and ME Subsystem configuration menus.

Auto recovery function disabled Auto recovery function enabled

Page 75

PICOe-B650 Half-size PCIe CPU Card

WARNING!

Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

Main Advanced Chipset Boot Security Save & Exit

> North Bridge > South Bridge > Integrated Graphics

North Bridge Parameters

---------------------

ÅÆ

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

: Select Screen

BIOS Menu 16: Chipset

Page 76

PICOe-B650 Half-size PCIe CPU Card

5.4.1 Northbridge Configuration

Use the Northbridge Chipset Configuration menu (BIOS Menu 17) to configure the Northbridge chipset.

Chipset

Memory Information

Total Memory 2048 MB (DDR3 1333)

Memory Slot0 2048 MB (DDR3 1333)

Initate Graphic Adapter [PEG/IGD] IGD Memory [64M]

VT-d [Disabled]

Select which graphics controller to use as the primary boot device.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 17:Northbridge Chipset Configuration

Î Initiate Graphic Adapter [PEG/IGD]

Use the Initiate Graphic Adapter option to select the graphics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a combination of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration options are listed below:

 IGD  PCI/IGD  PCI/PEG  PEG/IGD D  PEG/PCI

EFAULT

Page 77

Î IGD Memory [64M]

Use the IGD Memory option to specify the amount of system memory that can be used by the Internal graphics device.

PICOe-B650 Half-size PCIe CPU Card

Disable

32 M

64 M DEFAULT

96 M

128 M

160 M

192 M

224 M

256 M

32 MB of memory used by internal graphics device 64 MB of memory used by internal graphics device 96 MB of memory used by internal graphics device 128 MB of memory used by internal graphics

device 160 MB of memory used by internal graphics

device 192 MB of memory used by internal graphics

device 224 MB of memory used by internal graphics

device 256 MB of memory used by internal graphics

device

Page 78

288 M

320 M

352 M

384 M

416 M

448 M

288 MB of memory used by internal graphics device

320 MB of memory used by internal graphics device

352 MB of memory used by internal graphics device

384 MB of memory used by internal graphics device

416 MB of memory used by internal graphics device

448 MB of memory used by internal graphics device

PICOe-B650 Half-size PCIe CPU Card

480 M

512 M

Î VT-d [Disabled]

Use the VT-d option to enable or disable VT-d support.

Disabled DEFAULT

Enabled

480 MB of memory used by internal graphics device

512 MB of memory used by internal graphics device

Disables VT-d support. Enables VT-d support.

5.4.2 Southbridge Configuration

Use the Southbridge Configuration menu (BIOS Menu 18) to configure the Southbridge chipset.

Chipset

Auto Power Button Status [OFF]

Restore AC Power Loss [Power Off]

Audio Configuration

Azalia HD Audio [Enabled]

pecify what state to go to when power is re-applied after a power failure (G3 state).

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

BIOS Menu 18: Southbridge Chipset Configuration

Î Restore on AC Power Loss [Power Off]

Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.

Page 79

PICOe-B650 Half-size PCIe CPU Card

Power Off DEFAULT

Power On

Î Azalia HD Audio [Enabled]

Use the Azalia HD Audio option to enable or disable the High Definition Audio controller.

Disabled

Enabled DEFAULT

The system remains turned off The system turns on

The onboard High Definition Audio controller is disabled The onboard High Definition Audio controller is detected

automatically and enabled

5.4.3 Integrated Graphics

Use the Integrated Graphics menu (BIOS Menu 19) to configure the video device connected to the system.

Advanced

Intel IGD SWSCI OpRegion Configuration

DVMT Mode Select [DVMT Mode] DVMT/FIXED Memory [Maximum]

Select DVMT Mode used by Internal Graphics Device. If Fixed Mode selected, IGD Memory

ight need to be changed to a larger value, for IGD to have sufficient memory.

---------------------

ÅÆ

: Select Screen

↑ ↓: Select Item Enter Select +/-: Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save ESC Exit

BIOS Menu 19: Integrated Graphics

Page 80

PICOe-B650 Half-size PCIe CPU Card

Î DVMT Mode Select [DVMT Mode]

Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology (DVMT) operating mode.

Fixed Mode

DVMT Mode DEFAULT

Î DVMT/FIXED Memory [Maximum]

Use the DVMT/FIXED Memory option to specify the maximum amount of memory that can be allocated as graphics memory. Configuration options are listed below.

 128 MB  256 MB  Maximum D

5.5 Boot

Use the Boot menu (BIOS Menu 20) to configure system boot options.

A fixed portion of graphics memory is reserved as graphics memory.

Graphics memory is dynamically allocated according to the system and graphics needs.

EFAULT

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration

Bootup NumLock State [On] Quiet Boot [Enabled] Launch PXE OpROM [Disabled] Option ROM Messages [Keep Current]

Boot Option Priorities

BIOS Menu 20: Boot

Select the keyboard NumLock state

---------------------

ÅÆ

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

: Select Screen

Page 81

Î Bootup NumLock State [On]

Use the Bootup NumLock State BIOS option to specify if the number lock setting must be modified during boot up.

PICOe-B650 Half-size PCIe CPU Card

On DEFAULT

Off

Î Quiet Boot [Enabled]

Use the Quiet Boot BIOS option to select the screen display when the system boots.

Allows the Number Lock on the keyboard to be enabled automatically when the computer system boots up. This allows the immediate use of the 10-key numeric keypad located on the right side of the keyboard. To confirm this, the Number Lock LED light on the keyboard is lit.

Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.

Disabled

Enabled DEFAULT

Î Launch PXE OpROM [Disabled]

Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.

Disabled DEFAULT

Enabled

Î Option ROM Messages [Keep Current]

Use the Option ROM Messages option to set the Option ROM display mode.

Page 82

Normal POST messages displayed OEM Logo displayed instead of POST messages

Ignore all PXE Option ROMs Load PXE Option ROMs

PICOe-B650 Half-size PCIe CPU Card

Force BIOS

Keep Current

DEFAULT

Sets display mode to force BIOS.

Sets display mode to current.

5.6 Security

Use the Security menu (BIOS Menu 21) to set system and user passwords.

Main Advanced Chipset Boot Security Save & Exit

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password must be 3 to 20 characters long.

Administrator Password User Password

Password

---------------------

ÅÆ

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

et Setup Administrator

: Select Screen

BIOS Menu 21: Security

Î Administrator Password

Use the Administrator Password to set or change a administrator password.

Î User Password

Use the User Password to set or change a user password.

Page 83

PICOe-B650 Half-size PCIe CPU Card

5.7 Exit

Use the Exit menu (BIOS Menu 22) to load default BIOS values, optimal failsafe values and to save configuration changes.

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Reset Discard Changes and Reset

Restore Defaults Save as User Defaults Restore User Defaults

Exit the system after saving the changes.

---------------------

ÅÆ

↑ ↓: Select Item Enter Select + - Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save & Exit ESC Exit

: Select Screen

BIOS Menu 22:Exit

Î Save Changes and Reset

Use the Save Changes and Reset option to save the changes made to the BIOS options and reset the system.

Î Discard Changes and Reset

Use the Discard Changes and Reset option to exit the system without saving the changes made to the BIOS configuration setup program.

Î Restore Default s

Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation.

Page 84

PICOe-B650 Half-size PCIe CPU Card

Î Save as User Defaults

Use the Save as User Defaults option to save the changes done so far as user defaults.

Î Restore User Defaults

Use the Restore User Defaults option to restore the user defaults to all the setup options.

Page 85

PICOe-B650 Half-size PCIe CPU Card

Appendix

A BIOS Options

Page 86

PICOe-B650 Half-size PCIe CPU Card

Below is a list of BIOS configuration options in the BIOS chapter.

　 System Overview .................................................................................................................59

　 Memory Information ............................................................................................................59

　 System Date [xx/xx/xx]........................................................................................................60

　 System Time [xx:xx:xx].......................................................................................................60

　 ACPI Sleep State [S1 (CPU Stop Clock)] ...........................................................................61

　 TPM Support [Disable] ........................................................................................................62

　 Intel Virtualization Technology [Disabled] ........................................................................63

　 SATA Mode [IDE Mode].......................................................................................................65

　 Serial-ATA Controller n .......................................................................................................66

　 USB Devices.........................................................................................................................67

　 USB Support [Enabled] .......................................................................................................67

　 Legacy USB Support [Enabled]..........................................................................................67

　 Power Saving Function [Disabled].....................................................................................68

　 Serial Port [Enabled]............................................................................................................69

　 Change Settings [Auto].......................................................................................................69

　 Serial Port [Enabled]............................................................................................................70

　 Change Settings [Auto].......................................................................................................70

　 PC Health Status..................................................................................................................71

　 CPU Smart Fan control [Auto by RPM]..............................................................................72

　 Target Temp. Sensor [CPU Temperature] .........................................................................73

　 Temperature Bound n..........................................................................................................73

　 Segment n Speed (%) ..........................................................................................................73

　 Full Speed Count .................................................................................................................73

　 Console Redirection [Disabled] .........................................................................................74

　 Auto Recovery Function [Disabled]...................................................................................75

　 Initiate Graphic Adapter [PEG/IGD]....................................................................................77

　 IGD Memory [64M] ...............................................................................................................78

　 VT-d [Disabled].....................................................................................................................79

　 Restore on AC Power Loss [Power Off] ............................................................................79

　 Azalia HD Audio [Enabled]..................................................................................................80

　 DVMT Mode Select [DVMT Mode].......................................................................................81

　 DVMT/FIXED Memory [Maximum] ......................................................................................81

　 Bootup NumLock State [On]...............................................................................................82

Page 87

　 Quiet Boot [Enabled] ...........................................................................................................82

　 Launch PXE OpROM [Disabled].........................................................................................82

　 Option ROM Messages [Keep Current] .............................................................................82

　 Administrator Password .....................................................................................................83

　 User Password.....................................................................................................................83

　 Save Changes and Reset ....................................................................................................84

　 Discard Changes and Reset ...............................................................................................84

　 Restore Defaults ..................................................................................................................84

　 Save as User Defaults .........................................................................................................85

　 Restore User Defaults .........................................................................................................85
