LUMIFA LED Lighting
LIGHTING YOUR WAY
Our LUMIFA LEDs provide bright, long-lasting illumination for a variety of applications, from
machine tools to chemical plants—and everything in between. Thanks to their rugged construction
and range of IP ratings, they can withstand even the toughest industrial environment to bring you
high-quality, uniform lighting using one-third of the power of traditional uorescent bulbs.
Technical Features
QUALITY ILLUMINATION
With brightness levels up to 153 lumens/watt, our LEDs cast bright, uniform lighting onto target
objects with minimal metal reection, glare and shadows.
RUGGED
With their solid housing and IP ratings, our units can withstand exposure to dust, water, oil
and metal shavings, making them suitable for harsh industrial environments and hazardous
applications in oil and gas, mining—and more.
LOW MAINTENANCE
Swapping out a light is quick and easy. Our LEDs oer plug-and-play connection options,
including quick-connect and pigtail M12 connections, as well as pre-wired models with removable
plug-in or spring-clamp terminals.
VERSATILE
Models are available in a variety of sizes, brightness levels, colors and connections, while optional
adjustable or fixed-angle mounting brackets make installation fast and easy. With widths as
narrow as 25 mm, they can even be deployed in tight, hard-to-reach spaces.
Lumifa LED Lighting | 3
LUMIFA LF1B-N
• Industrial Machines
• Semiconductor Equipment
• Control Panels
LF1B-N Series
The LF1B-N series is available in six lengths, two covers (transparent or white) and six distinct colors—cool white,
warm white, yellow, red, blue and green—making it a exible lighting solution for control panels, industrial machines,
manufacturing lines, work stations and more. These compact, energy-ecient units are low-maintenance and last for
years, contributing to overall cost savings.
• Compact size: 27.5 mm wide x 16 mm high
• Six lengths: 134, 210, 330, 580 and 1,080 mm
• Yellow light ideal for photosensitive materials
• IP65-rated for use in wet environments
• Vibration- and shock-resistant
Optical Specications
ILLUMINATION COLOR COOL WHITE WARM WHITE YELLOW RED GREEN BLUE
COVER
Color Temperature/
Dominant Wavelength (typ.)
LF1B- NA
LF1B- NB
Reference
Brightness
(typ.) at 0.5m, lx
LED modules and illumination units may vary in color and brilliance. Luminous ux, color temperature, and illuminance values shown are typical.
LF1B- NC
LF1B- ND
LF1B- NE
LF1B- NF
Clear White Clear White Clear White Clear White Clear White Clear White
6500K 3000K 590nm 620nm 525nm 455nm
95 85 90 80 20 18 20 18 30 27 10 9
240 215 230 2100 40 36 40 36 60 55 20 18
455 410 440 395 75 65 75 65 110 100 30 27
840 750 815 725 125 110 12 5 110 19 0 170 50 45
1100 995 1065 960 160 145 160 145 260 235 60 55
1350 1210 130 0 1170 180 160 180 160 300 270 80 70
Part Number Structure (use for interpreting part numbers only)
LF1B - NC 3 P - 2 THWW2 - 3M
LENGTH
A: 134 mm (5. 28” )
B: 210mm (8.27”)
C: 330mm (12.99”)
D: 580mm (22.83”)
E: 830mm (32.68”)
F: 1,080mm (42.52”)
COVER ILLUMINATION COLOR
3: Clear
4: White
THWW2: Cool White
TLW W2: Warm White
SHY2: Yell ow
CABLE LENGTH
3M: 3m
SHR2: Red
THS2: Blue
SHG2: Green
LUMIFA LF2B
• Control Panels
• Industrial Equipment
• Manufacturing Lines
& Work Stations
LF2B Series
The LF2B features a rugged, slim design for industrial applications and installations where space is limited. Its high
illuminance, snap-in mounting brackets, range of input voltages, DC-battery compatibility and IP65 rating make this
series ideal for a wide variety of lighting applications, from control panels to industrial equipment in wet environments.
• Slim size: 40 mm wide x 29 mm high
• Five lengths: 210, 330, 580, 830 and 1,080 mm
• Clear or white cover options
• Mounting brackets enable one-step
installation process in tight spaces
• IP65-rated for use in wet environments
• 100-240V AC or 12/24V DC rated voltages
Optical Specications
MODEL
COVER
Illumination Color
Color Temperature, K
Luminous Flux (typ.), lm
Reference Illuminance (typ.)
at 0.5m directly below, lx
LED modules and illumination units may vary in illumination colors and illuminance.
LF2B-B
(210 mm)
Clear White Clear White Clear White Clear White Clear White
235 215 465 425 935 860 1380 1270 1860 1710
290 265 540 500 10 65 980 1385 1275 1520 140 0
LF2B-C
(330 mm)
LF2B-D
(580 mm)
Cool White
6500
LF2B-E
(830 mm)
*UL applies for DC units only.
LF2B-F
(1,080 mm)
Part Number Structure (use for interpreting part numbers only)
LF2B - C 3 P - ATHWW2 - 1M
LENGTH
B: 210mm (8.27”)
C: 330mm (12.99”)
D: 580mm (22.83”)
E: 830mm (32.68”)
F: 1,080mm (42.52”)
COVER
3: Clear
4: White
RATED VOLTAGE DC12V/24V Length
A: 100–240 VAC
B: 12V/24V DC
B: (210 mm)
C: (330mm)
D: (580mm) only
Lumifa LED Lighting | 5

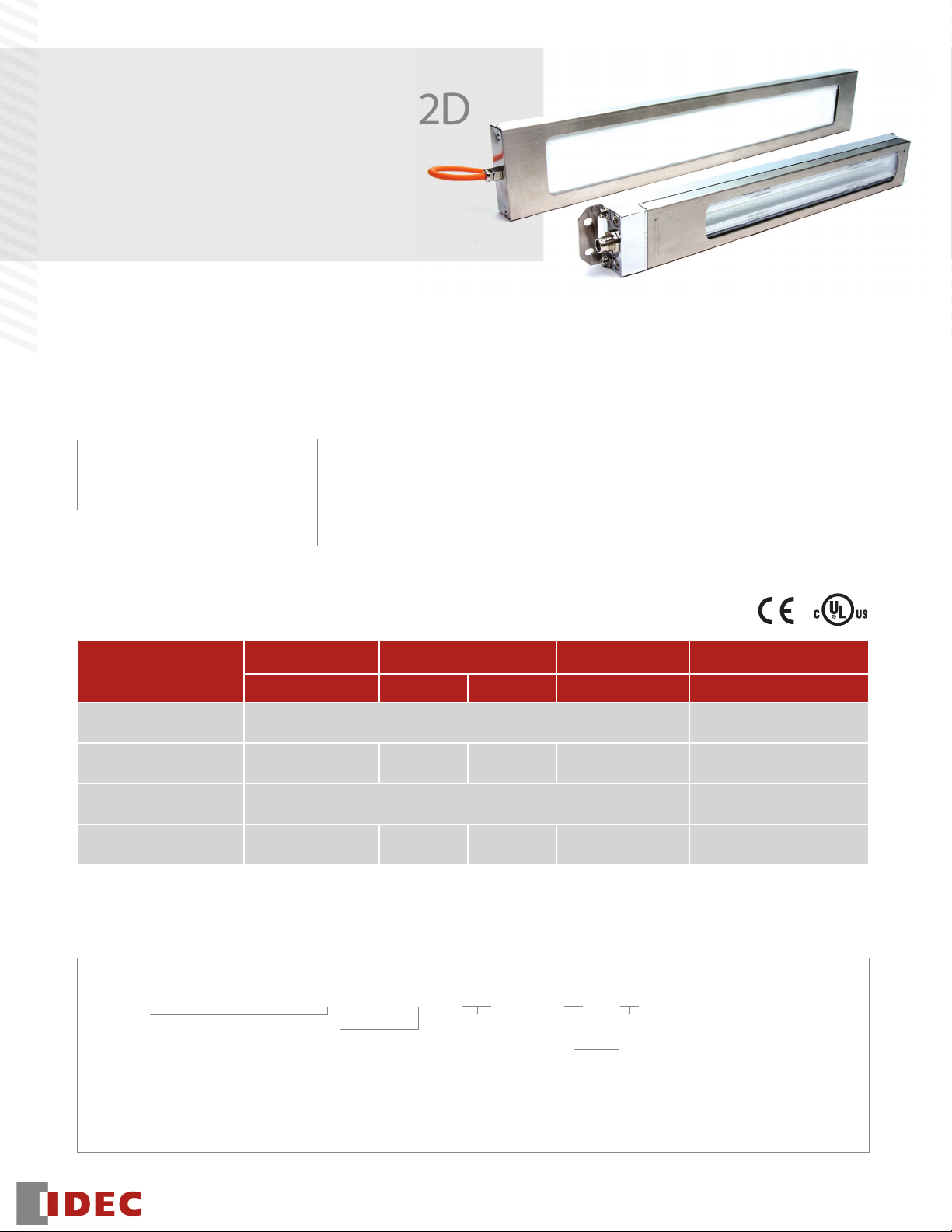

LUMIFA LF1D & LF2D
• Machine Tools
• Food & Beverage Processing Equipment
• Pharmaceutical & Chemical
• Automotive
LF1D & LF2D Series
Thanks to their rugged construction and high brightness levels up to 3,000 lumens, the LF1D and LF2D series are
ideal for machine tools, food and beverage processing equipment and automotive, pharmaceutical and chemical
applications. With their IP67, IP67F, IP67G and IP69K ratings, stainless-steel cover and diecast aluminum housing, they can
even be used in the presence of high-pressure, high-temperature washdown.
MINI (LF1D -C)
• Compact size: 100 x 50 x 25 mm
• Single LED module design
eliminates multiple shadows
SLIM & WIDE (LF1D/2D-EN, EH, FH)
• Durable polycarbonate or reinforced
glass options
• No glare, shadows or strip eect
• M12 Quick Connect available
• Surface or recessed mount options
LONG (LF1D -H/J)
• Two lengths: 365 and 510 mm
• Extremely bright illumination—2,000
lumens (LF1D-H) or 3,000 lumens (LF1D-J)
• M12 Quick Disconnect option (Pig Tail)
Optical Specications
MODEL
Illumination Color
Total Luminous Flux, lm
Color Temperature, k
Reference Illuminance at
1.0m, lx
LED modules and illumination units may vary in color and brilliance. Luminous ux, color temperature, and illuminance values shown are typical.
MINI SLIM WIDE LONG
LF1D -C LF1D/2D-EN LF1D/2D-EH LF1D/2D-FH LF1D-H LF1D -J
Cool White Neutral White
560 153 0 1260 154 0 2000 3000
5700 4700
180 1700 1800 15 00 560 840
Part Number Structure (use for interpreting part numbers only)
L F 1 D - EN 2F - 2 W - A
SHAPE
1: Surface Mount
2: Recessed Mount
SIZE
(LED Arrangement)
C: Mini 100mm (3.94”)
EN: Slim Model (48 LEDs x 1 Row)
EH: Slim Model (10 LEDs x 1 Row)
FH: Wide Model (7 LEDs x 2 Rows)
H: Long 365mm (14.37”)
J: Long 510mm (20.08”)
LENS TYPE DEGREE
OF PROTECTION
2F: Reinforced glass
3G: Polycarbonate
(EH, FH only)
21F: Reinforced Glass/
Diused (EN only)
CABLE OPTIONS
(see chart in datasheet)
ILLUMINATION COLOR
W: Cool White
N: Neutral White
LUMIFA EF1A
• Hazardous Locations
• Oil & Gas
• Waste Water Treatment
• Painting & Chemical Plants
EF1A Series
Thanks to its rugged construction and Type 4X enclosure rating, the EF1A series is ideal for demanding applications
in oil and gas, water treatment, chemical plants—and more. Units integrate heavy-duty aluminum housing with a
reinforced glass lens, as well as UL-rated LED ood lights (Class 1, Zones 1 and 2). With their variety of mounting
options, including adjustable, xed angle or no mounting brackets, the EF1A can be installed virtually anywhere.
• Heavy-duty aluminum housing with
reinforced glass lens
• Optional clear or translucent lenses
Optical Specications
LENS TYPE
COLLECTING LENS
(Optical Dispersion)
Illumination Color
Color Temperature (typ.), K
Total Luminous Flux (typ.), lm
Reference Illuminance (typ.)
at 1.0m directly below, lx
With Without With Without
1100 450 205 175
• Fixed or angle adjustable mounting bracket options
• Long-lasting, maintenance-free LEDs
• ON/OFF switch option
Clear Diused
Cool White
5700
960
Part Number Structure (use for interpreting part numbers only)
E F 1 A - 1 1 1 W 1 P S A - N2 - A2
VOLTAGE
1: 24V DC
2: 100 to 240V AC
LENS TYPE
Blank: Clear
1: Diused
OPTICAL
DISPERSION
Blank: Narrow
1: Wide
CONDUIT/SWITCH
Blank: With conduit on
one side / Without
T: With conduit on
both sides / Without
P: With conduit on
one side / With
TERMINATION TYPE
Blank: Spring clamp terminal
S: Screw terminal
MOUNTING
BRACKET
Blank: Without
A: With xed angle
mounting bracket
B: With adjustable angle
mounting bracket
Lumifa LED Lighting | 7
PUSHBUT TON SWITCH
A2: Extended (Maintained)
CONDUIT SIZE
(Male Connection
Thread)
N1: 1/2” NPT
N2: 3/4” NPT
M25: M25 (P1. 5)
M32: M32 (P1.5)
LUMIFA LED
APPLICATIONS
• Food & beverage processing
machines
• Packaging machines
• Semiconductor manufacturing
equipment
• Machine tools
• Automotive manufacturing
machines
• Oil & gas (other
hazardous locations)
• Control panels
• Printing machines
• Production systems
• Test equipment
• Solar power equipment
• Cosmetic manufacturing
equipment
• Chemical manufacturing
equipment
• Show cases
• Foundries
• Photosensitive devices
• Advertising displays
• Assembly & robotics
• Work stations
Lumifa LED Lighting | 9
Selection Guide
LF1B-N
Protection Class
Cover Options
Application List
Illumination Color
1
Reference Illumination
Power Consumption
Operating Voltage
Protection Class
IP65
Clear/White
Industrial Machines, Machine Tool, Plant Equipment, Test Equipment, Control Panel, Food Processing
Machines, Cosmetic Plant, Chemical Plant, Show Cases, Semiconductor Manufacturing Equipment,
Ic Foundry, Photosensitive Material, Darkroom Experiment, Advertising Display, Light Ornaments
Cool White
(6500K)
2
LF1B-NA: 95lx
LF1B-NF : 1350lx
Warm White
(3000K)
LF1B-NA:90lx
LF1B-NF : 130 0lx
LF1B-NA: 1.5W
LF1B-NB: 2.9W
LF1B -NC: 4.4W
LF1B-ND: 8.7W
LF1B-NE: 13.0W
LF1B - NF: 17. 3W
Blue
(455nm)
LF1B-NA: 10lx
LF1B -NF: 80lx
Yellow
(590nm)
LF1B-NA: 20lx
LF1B -NF: 180lx
LF1B-NA: 1.0W
LF1B-NB: 2.0W
LF1B -NC: 2 .9W
LF1B -ND: 5.8W
LF1B-NE: 8.7W
LF1B -N F: 11. 6W
Red
(620nm)
Green
(525nm)
LF1B-NA: 30lx
LF1B -NF: 300 lx
24V DC
LF2B
IP65
Cover Options
Application List
Illumination Color
Reference Illumination
1
2
Power Consumption
Operating Voltage
1. K: Color Temperature (typ.), mm: Dominant Wavelength (typ.).
2. Directly below at 0.5m unless otherwise noted.
Various Machines And Systems, Control Panel, Manufacturing Lines, Work Stations
LF2B-B: 290lx
LF2B-C: 540lx
LF2B-D: 1065lx
LF2B-E: 1385lx
LF2B -F: 1520 lx
LF2B-B: 2.6W
LF2B-C: 4.9W
LF2B-D: 10.6W
12/24V DC 100 to 240V AC
Clear White
Cool White (6500K)
LF2B-B: 265lx
LF2B-C: 500lx
LF2B-D: 980lx
LF 2B-E: 1275l x
LF2B-F: 1400lx
LF2B-B: 2.2W
LF2B-C: 4.4W
LF2B-D: 7.8W
LF 2B-E: 12.2W
LF2B -F: 15.9W
LF1D- C
LF1D/2D
Wide-angle and high luminance
LF1D- H LF1D-J
Form Factor
Protection Class
3
Application List
Illumination Color
1
Reference Illumination
Power Consumption
Operating Voltage
Protection Class
Application List
Illumination Color
1
Mini Slim Wide Long
IP67 / IP67F / IP69K
Machine Tools, Food and Beverage Processing Machines, Automotive,
Chemical/Pharmaceutical, Production System, Test Equipment
White (5700K) White (5700K) Neutral White (4700K)
2
180lx 1800lx 1500lx 560lx 840lx
P67 (all models), IP67F/IP67G (see
note 4), IP69K (LF1D only)
IP67 / IP67F / IP69K
3
4.6W 10W 12.5W 18.4W 2 7. 6W
24V DC
EF1A
Type 4X (IP67) without switch, Type 3S (IP65) with switch
For Hazardous Locations: Oil, Gas And Mining Industries, Printing Factory,
Gas Station, Chemical Complex Control Panel, Waste Water Treatment
White (5700K)
Reference Illumination
2
Power Consumption
Operating Voltage
1. K: Color Temperature (typ.), mm: Dominant Wavelength (typ.).
2. Directly below at 0.5m unless otherwise noted.
3. Degree of protection: IEC60529 (IP67), JIS C 0920 (IP67F/IP67G), and DIN40050-9 (IP69K).
IP67F: LF1D-C/H/J, LF1D/LF2D-EN/EH, LF1D/LF2D-FH (reinforced glass), IP67G: LF1D/LF2D-EN, IP69K: LF1D only
Clear glass surface: 1,100lx (condensing light), 205lx (diused light)
Translucent glass: 450lx (condensing light), 175lx (diused light)
19W 17W
100 to 240V AC 24V DC
Lumifa LED Lighting | 11
Loading...
