Ideal SS1201 User Manual

Product Manual
Qty
Description
1
Smart Switch SS1201
1
Smart Switch Cradle
2
Mounting Screw
1
Locking Screw
1
Instruction card

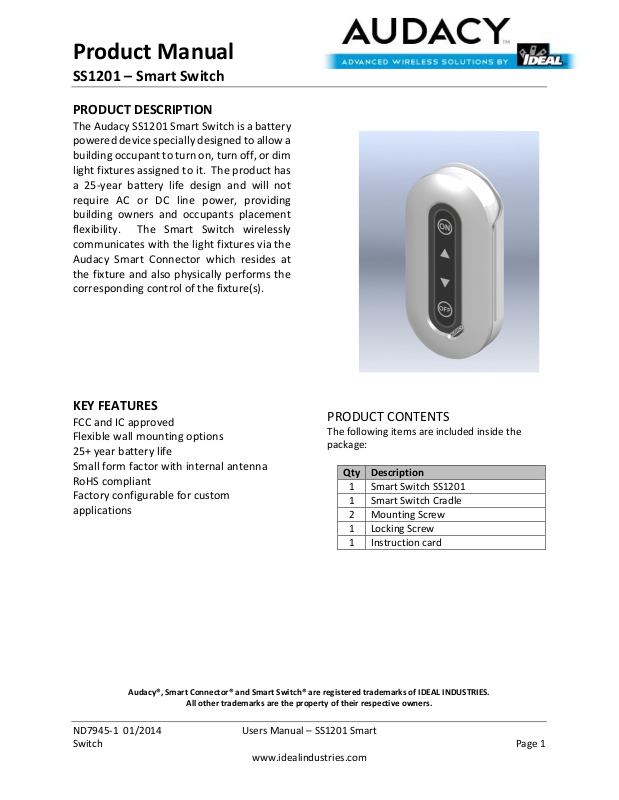

SS1201 – Smart Switch
PRODUCT DESCRIPTION
The Audacy SS1201 Smart Switch is a battery powered device specially designed to allow a building occupant to turn on, turn off, or dim light fixtures assigned to it. The product has a 25-year battery life design and will not require AC or DC line power, providing building owners and occupants placement flexibility. The Smart Switch wirelessly communicates with the light fixtures via the Audacy Smart Connector which resides at the fixture and also physically performs the corresponding control of the fixture(s).
KEY FEATURES
FCC and IC approved Flexible wall mounting options 25+ year battery life Small form factor with internal antenna RoHS compliant Factory configurable for custom applications
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.
All other trademarks are the property of their respective owners.
PRODUCT CONTENTS
The following items are included inside the package:
ND7945-1 01/2014 Users Manual – SS1201 Smart Switch Page 1 www.idealindustries.com
Product Manual
Item
Description
Radio
915 MHz Internal Antenna
Regulatory Approvals
FCC Part 15 and Industry Canada Contains FCC ID: 2AAMXSS1201 Contains IC: 11250A-SS1201
Transmit Range
100 ft. indoors to an Audacy Gateway or Smart Connector in a typical commercial office building
Power
25+ year Li battery, non-replaceable
Operating Temperature
-40°C to 5-°C Storage Temperature
-40°C to 50°C
Installation Environment
Indoor use only Mounting
6 bracket mounting holes (See mechanical drawing for dimensions)
Color
White
Dimensions
4.56” x 2.29” x 0.95” (115.82 x 58.17 x 24.13 mm)
Weight
3 oz
Warranty
1 year
SS1201 – Smart Switch
SET-UP AND OPERATION
1. Wall-mount the SS1201 cradle in the desired location with the optional mounting
screws(2). Cradle can be mounted directly to drywall of will fit over a standard switch plate.
2. Press the button located on the bottom side of the Smart Switch SS1201 to activate
device.
3. When the green LED illuminates during switch actions, the SS1201 is active and
transmitting radio frequency (RF) energy. Data is automatically included in the transmission and can be received by one of the Audacy line smart connectors and/or Gateway.
4. An optional screw can be used to lock the Smart Switch in the cradle.
SPECIFICATIONS
ND7945-1 01/2014 Users Manual – SS1201 Smart Switch Page 2 www.idealindustries.com
Product Manual
SS1201 – Smart Switch
MECHANICAL (REAR VIEW)
MECHANICAL (TOP VIEW)
*Dimensions in inches
*Dimensions in inches
ND7945-1 01/2014 Users Manual – SS1201 Smart Switch Page 3 www.idealindustries.com
