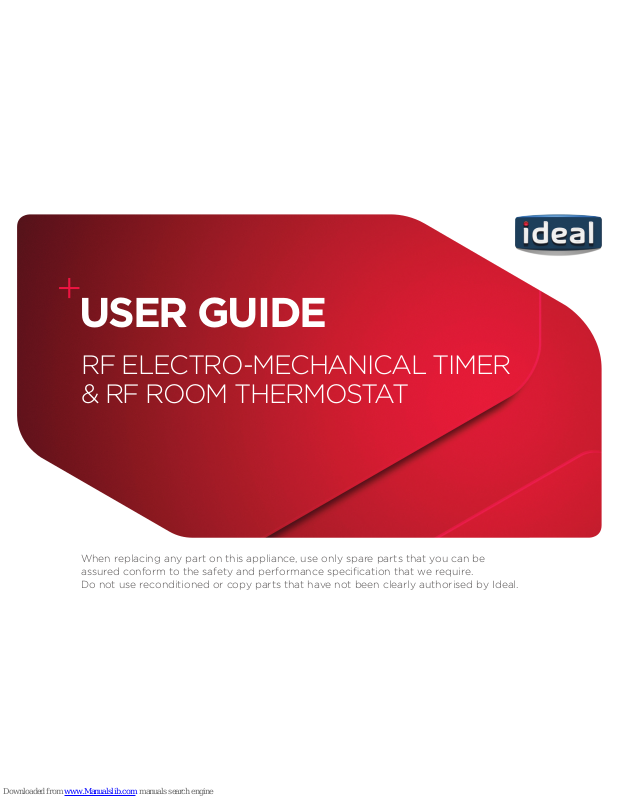

RF ELECTRO-MECHANICAL TIMER
& RF ROOM THERMOSTAT
USER GUIDE
When replacing any part on this appliance, use only spare parts that you can be
assured conform to the safety and performance specification that we require.
Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.
2
CONTENTS
The national regulations and respective safety instructions are to be observed.
Interferences and changes to the device will lead to cancellation of the warranty.
RF Electro-Mechanical Timer .................................4
RF Room Thermostat .............................................5
Room Temperature .................................................6
Setting the time.......................................................7
Timed/On/Off ..........................................................8
Setting the Central Heating On/Off Times ..............9
Fault Help ........................................................10,11
Battery Replacement ............................................12
3
Suitable for the following products:
Logic+ Combi
Logic Combi
Logic Combi E
Logic Combi ES
Logic Code Combi
Logic Code Combi ES
RF Electro-Mechanical Timer
& RF Room Thermostat
Continuously OFF
Continuously ON
Room Stat
Signal
ON
off
on
Timed
DO NOT Turn
Anti-Clockwise
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
RFT1
RT1
Set
ºC
23.5
4
RF Electro-Mechanical Boiler Mounted Timer
Continuously OFF
Continuously ON
Room Stat
Signal
ON
Timed
DO NOT Turn
Anti-Clockwise
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
RFT1
off
on
Program
Tappets
Heat
Demand
RF Signal
Strength
Indication
On/Timed/Off
Switch
Actual
Time
Note. The heat demand indicator will be illuminated whenever both the timer and room
thermostat indicate that central heating is required.
Note. RF signal strength light illuminates green for good signal and red for a poor signal.
5
RT1
Frost
Protection
Operation
Signal
Strength
Indication
Actual Temperature
(standard display)
(Set Temperature
shown when knob
rotated)
Temperature
Setting
Knob
Low
Battery
Indication
Note. If the low battery symbol is visible or the display is blank then replace the batteries.
Frost Protection Operation will occur if the Room Temperature is less than 5ºC.
Set
ºC
23.
5
Room Thermostat
6
RT1
Temperature
Setting
Knob
To set the Room Temperature, rotate the knob until the desired
temperature is shown on the display.
Set
ºC
23.
5
Room Temperature
7
Setting the Time
Continuously OFF
Continuously ON
Room Stat
Signal
ON
Timed
DO NOT Turn
Anti-Clockwise
RFT1
off
on
Outer
Dial
Clock
Hands
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
The outer dial should be set to the current time.
Rotate the dial slowly in a clockwise direction, until the correct hour is aligned with the arrow printed on the dial.
Note that the outer dial is printed with 24 hour clock. 8.00 am = 8 on the dial. 8.00pm = 20 on the dial.
Clock hands will allow for fine adjustment of the current time setting of the dial.
Do not attempt to rotate the dial in an anti-clockwise direction.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
8
Timed, Continuously On and Continuously Off Operation
Continuously OFF
Continuously ON
Room Stat
Signal
ON
Timed
DO NOT Turn
Anti-Clockwise
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
RFT1
off
on
On/Timed/Off
Switch
To set the timer for Continuously On, Timed or Continuously Off
operation, slide the On/Timed/Off switch into the desired position.
9
Setting the Central Heating On/Off Times
Continuously OFF
Continuously ON
Room Stat
Signal
ON
Timed
DO NOT Turn
Anti-Clockwise
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
RFT1
Tappets
set to
OFF period
Tappets
set to
ON period
Set Tappets to outer edge for ON periods
Set Tappets to inner edge for OFF periods
off
on
10
Fault Potential Corrective Actions
Central Heating will not
switch on
Check that the timer tappets are set to the outer edge of the dial.
Rotate the room thermostat knob until the set point is 30ºC.
Check that the power to the boiler is switched on.
Check that the “Mode” knob on the front of the boiler is in the winter
position.
Check that the link wire in the incoming mains connection to the boiler
is in place across the room stat connections (see boiler installation
instructions).
Check that the Timer On/Timed/Off switch is on (or the unit is timed on)
Stand next to the boiler holding the room thermostat for 5 mins. If the
central heating switches on then the room thermostat was either too far
away from the boiler or there were unsuitable materials between the
boiler and the room thermostat. Re-position room thermostat.
Change the batteries in the room thermostat.
Replace both the RF Timer and the RF Room Thermostat for a new pair.
Fault Help
11
Fault Potential Corrective Actions
Central Heating will not
switch off
Check that the timer tappets are set to the inner edge of the dial.
Check the room temperature is not below 5ºC (frost protection).
Rotate the room thermostat knob until the set point is 5ºC
Check that the Timer On/Timed/Off switch is off ( or the unit is timed off)
Stand next to the boiler holding the room thermostat for 5 mins. If the
central heating switches off then the room thermostat was either too far
away from the boiler or there were unsuitable materials between the
boiler and the room thermostat. Re-position room thermostat.
Change the batteries in the room thermostat.
Replace both the RF Timer and the RF Room Thermostat for a new pair.
Fault Help
12
The unit requires 2 x AA 1.5V Batteries.
Batteries should operate for approximately 18
months.
Only good quality 1.5V alkaline batteries
should be used. DO NOT use re-chargeable
batteries as they only have a terminal
voltage of 1.2V nominal.
To replace batteries remove the Room Stat
from its back plate. Gain access by using a
at headed screwdriver inserted into the slot
underneath the unit.
Note that if the batteries are removed for more
than 30 seconds, the set temperature will be
lost.
If the batteries are not replaced and no signal
is received by the receiver the red room stat
signal light will be illuminated on the boiler
mounted RF Timer.
After 1 hour the boiler will operate in
“Emergency Mode” with a continuous, but
reduced temperature until the batteries are
replaced.
BATTERY REPLACEMENT
RT1
Batteries -
2x 1.5V LR6/AA
Set
ºC
23.
5
13
14
15
