Ideal ND2365 User Manual

2

#61-481

480 Platinum Pro Series

Commercial Contractor
Grade Multimeter

Hz

True RMS

Hz

True RMS

1

7

4

2

3

5

6

Symbols in this Manual

This symbol indicates where cautionary or other

information is found in the manual.
Fuse
Battery

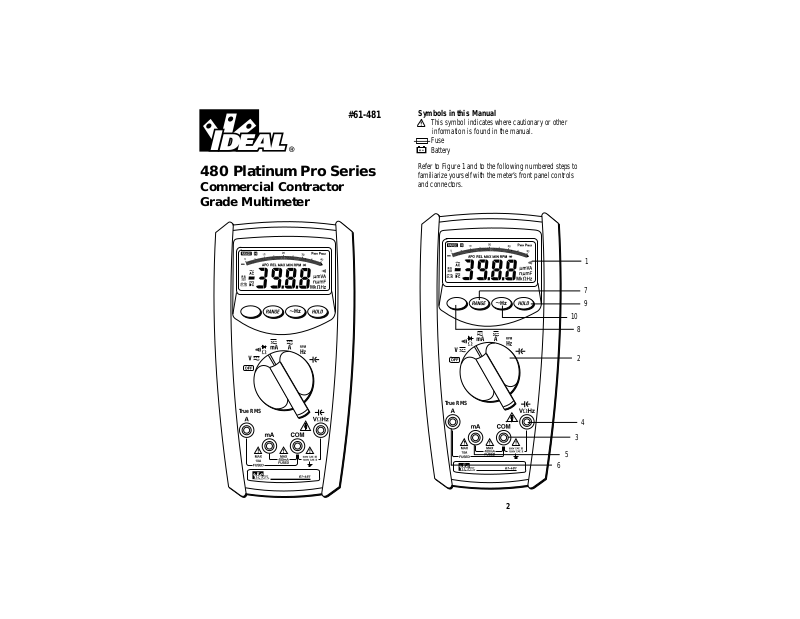

Refer to Figure 1 and to the following numbered steps to
familiarize yourself with the meter’s front panel controls
and connectors.

9

8

10

43

1. Digital Display – The digital display has 4000 counts

LCD readout with 82 segments analog bar graph, auto
polarity, decimal point, “ ” AC, DC RANGE,
APO and unit annunciators.

2. Rotary Switch – Select the Function and Range desired.

3. COM Input Terminal –Ground input connector.

4. VΩHz Input Terminal –Positive input connector for

Volts, Ohms and Frequency.

5. mA Input Terminal –Positive input connector for Amp
measurements (up to 400mA).

6. A Input Terminal –Positive input connector for Amp
measurements (up to 10A).

7. Range Switch, (Manual Range) – “Range” switch is
pushed to select manual ranging and to change ranges.
When “Range” switch is pushed on “Range” annunciator on
the LCD appears. Push “ Range ” switch to select appropri­ate range to be used. Push “Range” switch and hold 2 sec­onds to return to Autoranging.

8. Blue Switch – Push the switch to measure AC Voltage /
Current or DC Voltage / Current in the Voltage / Current
mode or to measure Resistance or continuity or diode in
Ω / / mode or to measure frequency or RPM in
Hz/RPM mode.

9. Hold Switch – This switch is used to hold measured value
for all functions, and then annunciator is displayed.
Conversions are made but the display is not updated. This
switch could be invoked to “MIN/MAX” mode or
“PMIN/PMAX” mode.

10. Hz Switch – This switch is used to quickly view the
frequency during measuring the AC voltage or current. Push
“ Hz” switch once the LCD is changed to display fre­quency. Push “ Hz” switch again, the LCD back to dis­play the AC signal amplitude reading. In “ Hz” mode,
pressing RANGE key switch does not change the frequency
range. However, RANGE key switch changes the sensitivity
of frequency detection, if the input signal amplitude is less
than 1% of full scale reading, the user shall increase the
sensitivity. Pressing Range switch in “ Hz” mode also
changes the full scale range of the original voltage or cur­rent mode.

WARNING!

1. DO NOT UNDER ANY CIRCUMSTANCES EXCEED THESE
RATINGS:

• Voltage is not to exceed 1000 Volts.

• Resistance, Capacitance, Logic and Continuity functions

are not to be performed on circuits capable of delivering
greater than 600 Volts.

• Current measurements are not to be performed on cir-

cuits capable of delivering greater than 500 Volts

2. To avoid electrical shock hazards and/or damage to the meter:

• Do not exceed the voltage ratings for the meter. Use

caution when measuring voltage.

• Do not use during electrical storms. AC power sources

with inductive loads or electrical storms may result in
high voltage. High energy transients can damage meter
and present a dangerous shock hazard.

• Turn off power to the circuit or device being measured

before taking resistance and capacitance measurements.
Fully discharge all capacitors before measuring.

3. Ensure meter is in proper working order before using.
Visually inspect meter for damage. Performing a continuity
check can verify proper operation. If the meter reading goes
from overload to zero, this typically means the meter is in
proper working order.

4. Visually inspect leads for damage before using. Replace if
insulation is damaged or leads appear suspect.

5. Never ground yourself when taking electrical measurements.
Do not touch exposed metal pipes, outlets, fixtures etc.
Keep your body isolated from ground by using dry clothing,
rubber shoes, mats, or any other approved insulating mater­ial. Keep your fingers behind the finger guards on the
probes. Work with others.

6. Before beginning all unknown measurements, set meter to
highest possible range.

7. Before breaking a circuit for testing, turn off the power to the
circuit. When disconnecting from a circuit, disconnect the
hot lead first, then the common lead.

8. Disconnect the meter from the circuit before turning off any
indicator, including motors, transformers, and solenoids.

H

H

65

Overload Protection

Function Overload Protection
VAC & VDC 1000V
AAC & ADC 1A/500V

16A/500V
Ohms (Ω) 600VAC/600VDC
Diode 600VAC/600VDC
Continuity 600VAC/600VDC

Unit of Measure Multipliers

For your reference, the following symbols are often used to
make measurement easier:
Symbol

Verbal Multiplier
M mega x 1,000,000
k kilo x 1,000
m milli ÷ 1,000
µ micro ÷ 1,000,000

Auto Power Off (APO)

The APO sign on the LCD panel indicates the meter is working
in the Auto Power Off mode. If the meter idles for more than 30
minutes, the meter automatically turns the power off. When this
happens, the state (non-logic measurement) of the meter is
saved, the meter can be turned back on by pushing any key
switch or changing the rotary switch. The meter will give an
alarm 15 seconds before the meter automatically turns the
power off. To disable the auto power off function, power up the
meter while pressing either the range or Hz switch.

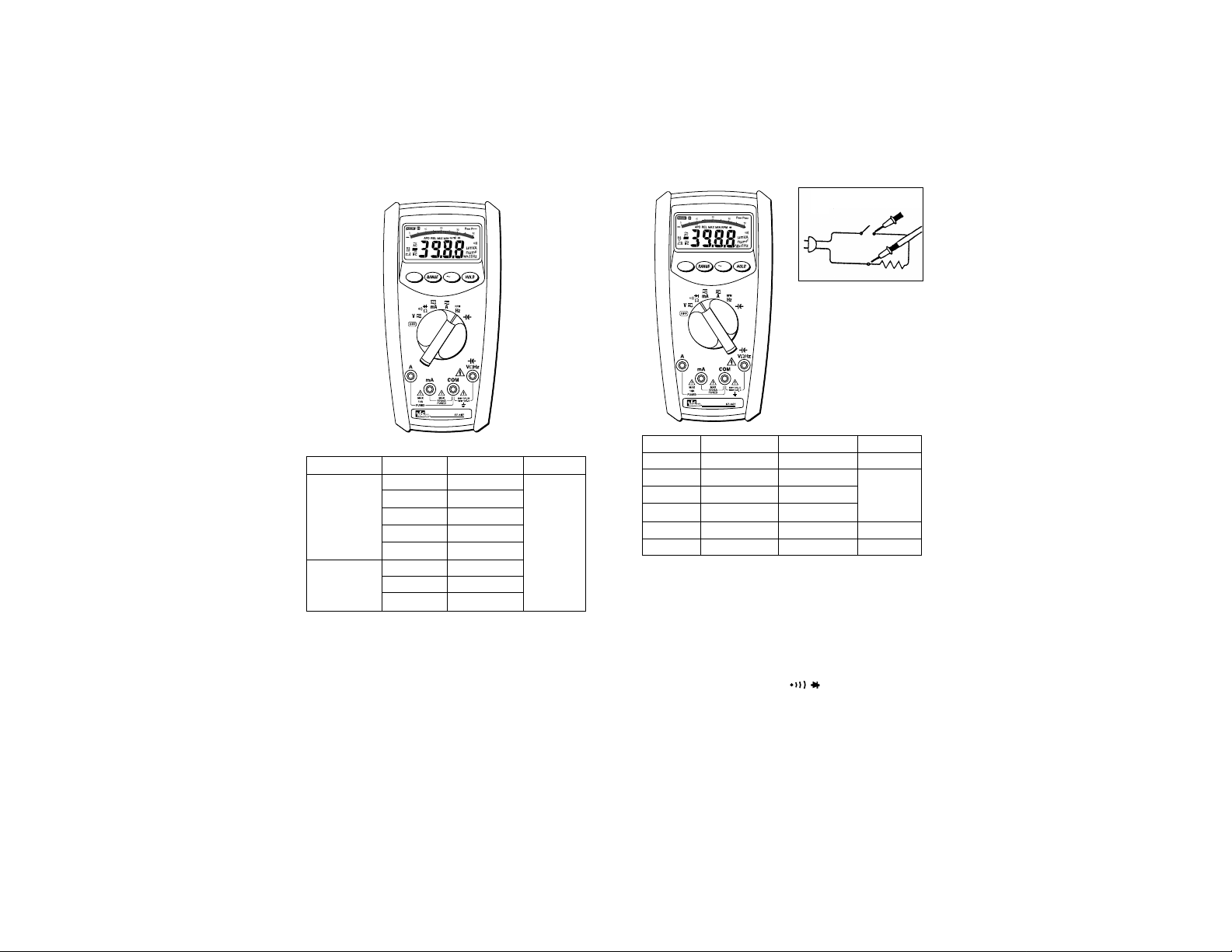

True RMS AC Volt

Range Resolution Max Display Accuracy

400mV 0.1mV 400.0 ±(2.0% +10)

40Hz to 60Hz

4V 1mV 4.000 ±(1.3% +5)

40Hz to 500kHz

40V 10mV 40.00 ±(1.3% +5)
400V 100mV 400.0 40Hz to 1kHz
750V 1V 750

AC Conversion Type:AC conversions are ac-coupled, true rms
responding, calibrated to the rms value Sine wave input.

Input and Impedance: 10MΩ less than 100 PF.
Crest Factor: +1.5% additional error for C.F. from 1.4 to 3

+3.0% additional error for C.F. from 3 to 4

To Measure True RMS AC Voltage:

1. Plug the black test lead into the COM port and the red test lead
into the VΩH port.

2. Set the rotary switch to the V position.

3. Push the blue button until

AC is shown on the display.

4. Connect the meter in parallel with the load or circuit.

5. Measure AC Voltage.

Circuit Connection:

Hz

True RMS

8

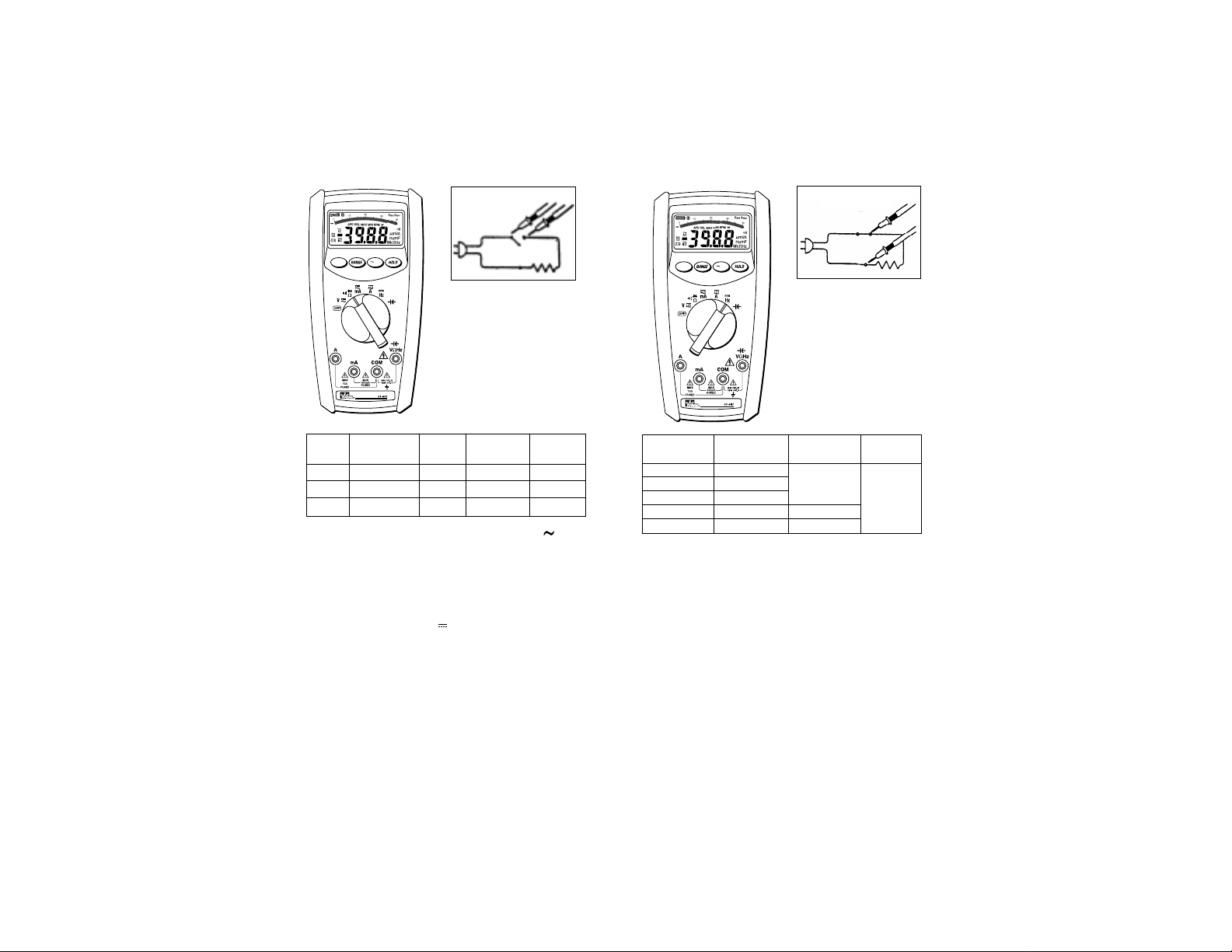

True RMS AC Current

Range Resolution Max Accuracy Voltage

Display Burden

40mA 10µA 40.00 ±(2.0% +5) 200mV max

400mA 0.1mA 400.0 2Vmax

10A 10mA 10.00 ±(2.5% +5) 2V max

AC Conversion Type:AC conversions are ac-coupled, true
rms responding, calibrated to the rms value Sine wave input.

Overload Protection: 1A (500V) fast blow fuse for mA input

16A (500V) fast blow fuse for A input

Crest Factor: +1.5% additional error for C.F. from 1.4 to 3

+3.0% additional error for C.F. from 3 to 4

To Measure True RMS AC Current:

1. Plug the black test lead into the COM port and the red test
lead into the mA or A port.

2. Set the rotary switch to the mA or A position.

3. Push the blue button until AC is shown on the display.

4. Connect the meter in series with the load or circuit.

5. Measure AC Current.

7

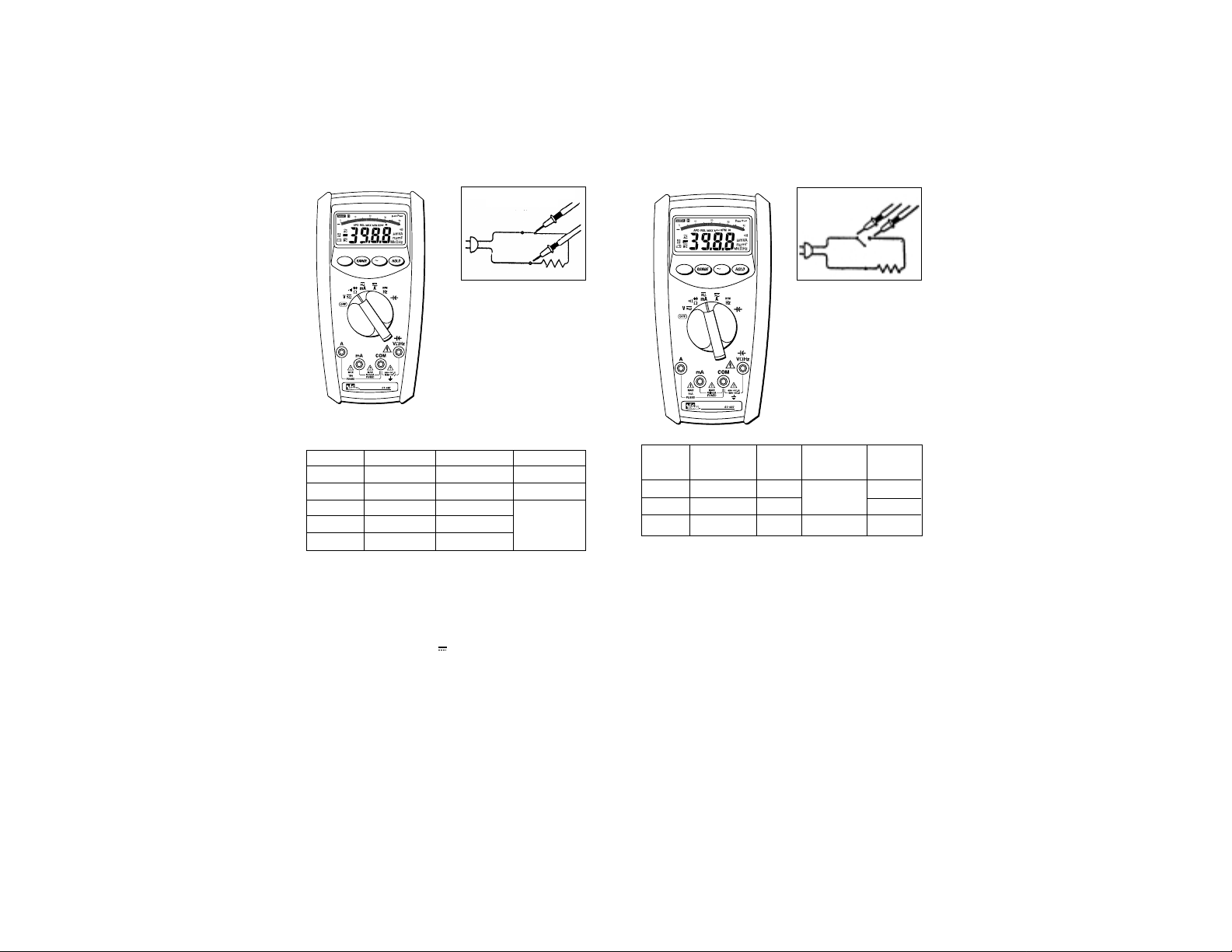

DC Volts

Range Resolution Max Display Accuracy

400mV 100µV 400.0 ±(0.25% +5)

4V 1mV 4.000 ±(0.4% +1)

40V 10mV 40.00 ±(0.25% +1)

400V 100mV 400.0

1000V 1V 1000

Input Impedance: 10MΩ (over 1000MΩ in 400mV range)
To Measure DC Voltage:

1. Plug the black test lead into the COM port and the red test
lead into the VΩHz port.

2. Set the rotary switch to the V position.

3. Push the blue button until DC is shown on the display.

4. Connect the meter in parallel with the load or circuit.

5. Measure DC Voltage.

Circuit Connection:

Hz

Circuit Connection:

Hz

True RMS

True RMS

10

Frequency/RPM

Range Resolution Sensitivity Accuracy

4.0KHz/40KRPM 1Hz/300RPM 100mV rms* Frequency:
40KHz/400KRPM 10Hz/300RPM 0.01% ±1 digit
400KHz/4MRPM 100Hz/3KRPM
4MHz/40MRPM 1KHz/30KRPM 250mV rms RPM:
40MHz/400MRPM 10KHz/300KRPM IV rms 0.01% ±10 digits

To Measure Frequency:

1. Plug the black test lead into the COM port and the red test
lead into the VΩHz port.

2. Set the rotary switch to the HZ RPM position.

3. For RPM, Push the blue button until RPM is shown on
the display.

4. Connect the meter in parallel with the load or circuit.

5. Measure Frequency or RPM.

Overload Protection: 600V rms
*Less than 50Hz the sensitivity is 1.5V.

DC Current

Range Resolution Max Accuracy Voltage

Display Burden

40mA 10µA 40.00 ±(0.6% +2) 200mVmax

400mA 0.1mA 400.0 ±(0.7% +2) 2Vmax

10A 10mA 10.00 ±(1.0% +2) 2V max

Overload Protection: 1A (500V) fast blow fuse for A input

16A (500V) fast blow fuse for A input

To Measure DC Current:

1. Plug the black test lead into the COM port and the red test
lead into the mA or A port.

2. Set the rotary switch to the mA or A position.

3. Push the blue button until DC is shown on the display.

4. Connect the meter in series with the load or circuit.

5. Measure DC Current.

9

Hz

Circuit Connection:

Circuit Connection:

Hz

True RMS

True RMS

12

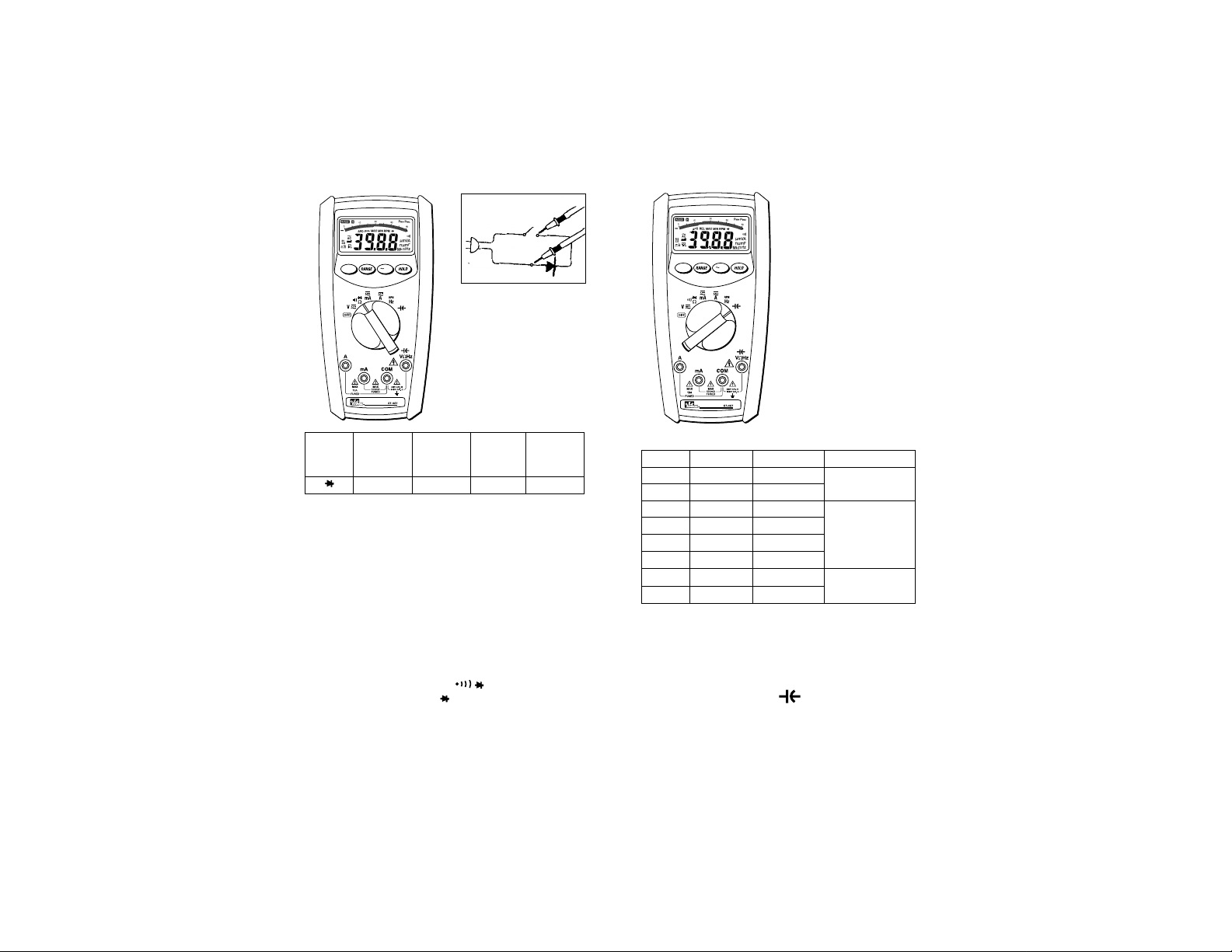

Resistance (Ohms)

Range Resolution MaxDisplay Accuracy

400Ω 0.1Ω 400.0 ±(0.7% +3)

4kΩ 1Ω 4.000 ±(0.4% +3)

40kΩ 10Ω 40.00

400kΩ 100Ω 400.0

4MΩ 1kΩ 4.000 ±(0.6%+3)

40MΩ 10kΩ 40.00 ±(1.5% +5)

Open Circuit Voltage: -1.3V approx.
To Measure Resistance:

1. Turn the power off to the circuit or device that is to be
measured and discharge all capacitors before attempting
a measurement.

2. Plug the black test lead into the COM port and the red test
lead into the VΩHz port.

3. Set the rotary switch to the Ω position.

4. For correct reading, ensure that the device being tested
contains no voltage.

5. Press the range button to select the proper range of the
meter.

6. Measure resistance.

11

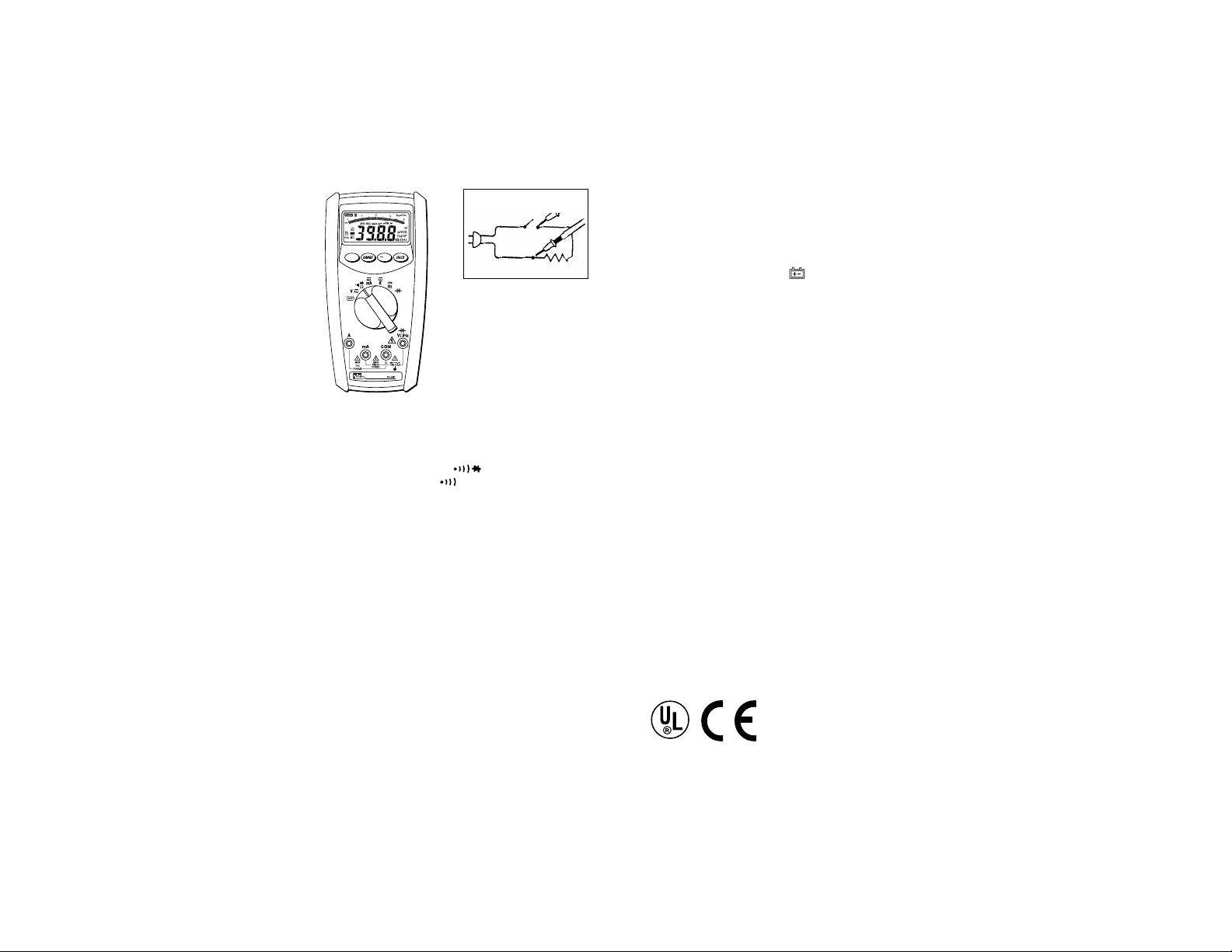

Frequency with Hz Switch

Function Range Sensitivity Accuracy

AC Voltage 400mV 40mV rms 0.01%

4V 0.2V rms reading
40V 2V rms +5 digits
400V 20V rms
750V 200V rms

AC Current 40mA 8mA rms

400mA 80mA rms
10A 8A rms

To Measure Frequency with the Hz Switch

This switch is used to quickly view frequency during a mea­surement of AC voltage or current.

1. Push ~ Hz during an AC voltage or current measurement.

2. The LCD will display the frequency measurement of the cir­cuit.

3. Push ~Hz again to return to the AC voltage or current mea­surement.

Hz

True RMS

Hz

Circuit Connection:

˜

˜

True RMS

14

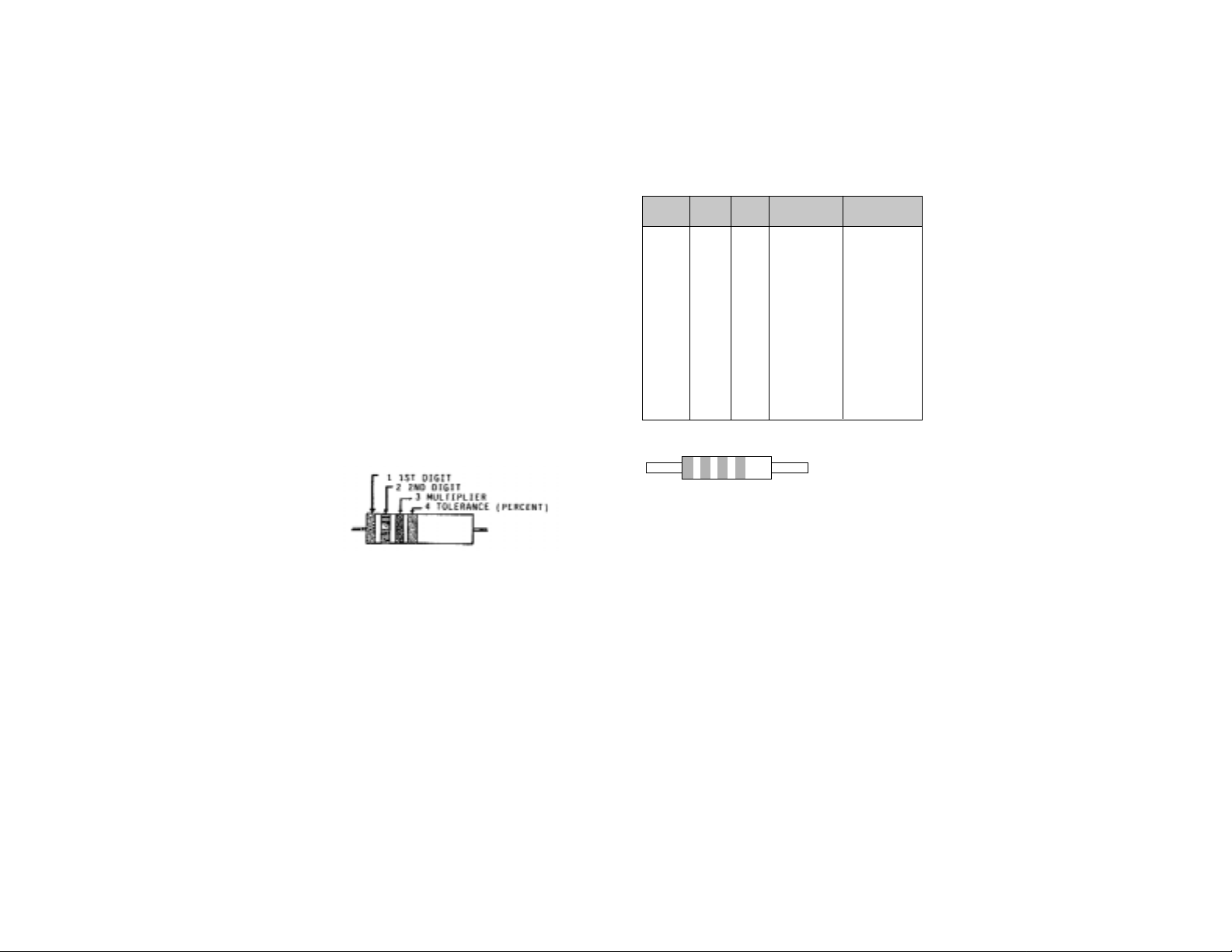

Resistor Color Code Table

1st 2nd Tolerance

Color Digit Digit Multiplier (Percentage)

Black 0 0 1

Brown 1 1 10

Red 2 2 100
Orange 3 3 1,000
Yellow 4 4 10,000

Green 5 5 100,000

Blue 6 6 1,000,000

Violet 7 7 10,000,000

Gray 8 8 100,000,000

White 9 9 1,000,000,000

Gold +/- 5%

Silver +/- 10%

No Color +/- 20%

Example:

1st color band is blue so the first digit is a 6
2nd color band is red so the second digit is a 2
3rd color band is yellow so multiply 62 x 10,000
4th color band is gold so the tolerance is ±5%

Your Resistor value is 620,000 Ohms (620kΩ) with a tolerance
of ±5%.

13

Range Guide for Ohms (Ω):

300 = Meter indicates actual resistance
3k = Multiply meter display reading by 1,000 to

acquire actual resistance.

30k = Multiply meter display reading by 1,000 to

acquire actual resistance.

300k = Multiply meter display reading by 1,000 to

acquire actual resistance.

3M = Multiply meter display reading by

1,000,000 to acquire actual resistance

300M= Multiply meter display reading by

1,000,000 to acquire actual resistance.
The meter displays total resistance through all possi­ble paths between the probe-tips. These multiple
paths may result in measurements that do not corre­spond to the ohm value indicated by the resistor
color code.

Determining Resistor Values:

To determine the value of a resistor, use the color bands on the

resistor and the table on the following page.

Blue

Red

Yellow

Gold

Diode Testing

Function Resolution Accuracy Max. Test Max. Open

Current Circuit

Voltage

1mV +(1.5% +5)* 1.5mA 3V

* For 0.4V to 0.8V.

Overload Protection: 600V rms max
Diode Check:

To ensure a proper functioning diode, the meter will develop a
voltage across the component from a test current. The diode
test function allows measurements of forward voltage drops
across diode and transistor junctions.

1. Turn off power to the device or circuit that is being tested
and discharge all capacitors.

2. Plug the black test lead into the COM port and the red test
lead into the VΩHz port.

3. Set the rotary switch to the Ω position.

4. Press the blue button until is shown on the display

5. Connect the test leads to the diode. Normally the forward
voltage drop of a good silicone diode is shown between
400V and 90V. If the diode under test is defective, “000”
(short circuit) or “OL” (non-conductive) is displayed.

16

Capacitance

Range Resolution Max Display Accuracy

4nF 1pF 4.000 ±(3.% reading
40nF 10pF 40.00 +10 digits)
400nF 100pF 400.0 ±(2% reading
4µF 1nF 4.000 +8 digits)
40µF 10nF 40.00
400µF 100nF 400.0
4mF 1µF 4.000 ±(5% reading
40mF 10µF 40.00 +20 digits)

Overload Protection: 600V rms

To Measure Capacitance:

1. Plug the black test lead into the COM port and the red test
lead into the VΩHz port.

2. Set the rotary switch to the position.

3. Connect the test leads to the circuit to be measured.

4. Measure capacitance.

Hz

15

Circuit Connection:

Hz

True RMS

True RMS

18

General Specifications
LCD Display: 4000 count maximum reading

Bar Graph Display: 82 segment analog bar graph
Polarity Indication: Automatic, negative indicated,

positive implied

Overrange Indication: “OL” or “-OL”
Low Battery Indication: “ ” when the battery

voltage drops below operating
voltage

Size (WxHxD): 88mm x 180mm x 33.5mm

(without holster)
94mm x 188mm x 40mm (with
holster)

Sampling: 2 times/sec LCD Display,

12 times/sec bar graph

Auto Power Off: Approx. 30 min.
Operating Temperature: 0°C ~ 30°C (<80% RH),

30°C ~ 40°C (<75% RH),
40°C ~ 50°C (<45% RH)

Storage Temperature: -20°C ~ 60°C (0~80% RH)

when battery removed from
meter

Temperature Coefficient: 0.15 x (specified accuracy) /

°C, <18°C or >28°C

Power Requirements: 9V NEDA 1604, 1EC bf 22,

J1S 006P

Battery Life: 300 hours (alkaline )
Installation Category: IEC 1010, 1000V Cat. II,

600V Cat III

Environmental Conditions
Indoor Use
Maximum Altitude: 2000 Meter
Installation Category: IEC 1010, 1000V Cat. II,

600V Cat. III

Pollution Degree: 2

17

Continuity Check

To Verify Continuity:

A continuity test ensures that all circuit connections are intact.

1. Plug the black test lead into the COM port and the red test
lead into the VΩHz port.

2. Set the rotary switch to the Ω position.

3. Press the blue button until is shown in the display.

4. Connect the test leads to the circuit to be measured. The
buzzer will sound if the resistance of the circuit measured is
lower than 30Ω.

Accessories
For AC Current Clamp (61-450):

1. Plug the black test lead into the COM port and the red test
lead into the VΩHz port.

2. Remove the probe tips from the end of the leads.

3. Attach the leads to the current clamp. (polarity will not effect
reading)

4. Set the rotary switch to the V position.

5. Push the blue button until AC is shown on the display.

6. Snap the jaw of the current clamp around one of the current
carrying conductors.

Hz

Circuit Connection:

C

˜

True RMS

Lifetime Limited Warranty

This meter is warranted to the original purchaser against
defects in material or workmanship for the lifetime of the meter.
During this warranty period, IDEAL INDUSTRIES, INC. will, at
its option, replace or repair the defective unit, subject to
verification of the defect or malfunction.

This warranty does not apply to defects resulting from abuse,
neglect, accident, unauthorized repair, alteration, or
unreasonable use of the instrument.

Any implied warranties arising out of the sale of an IDEAL
product, including but not limited to implied warranties of
merchantability and fitness for a particular purpose, are limited
to the above. The manufacturer shall not be liable for loss of
use of the instrument or other incidental or consequential
damages, expenses, or economic loss, or for any claim or
claims for such damage, expenses or economic loss.

State laws vary, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state.

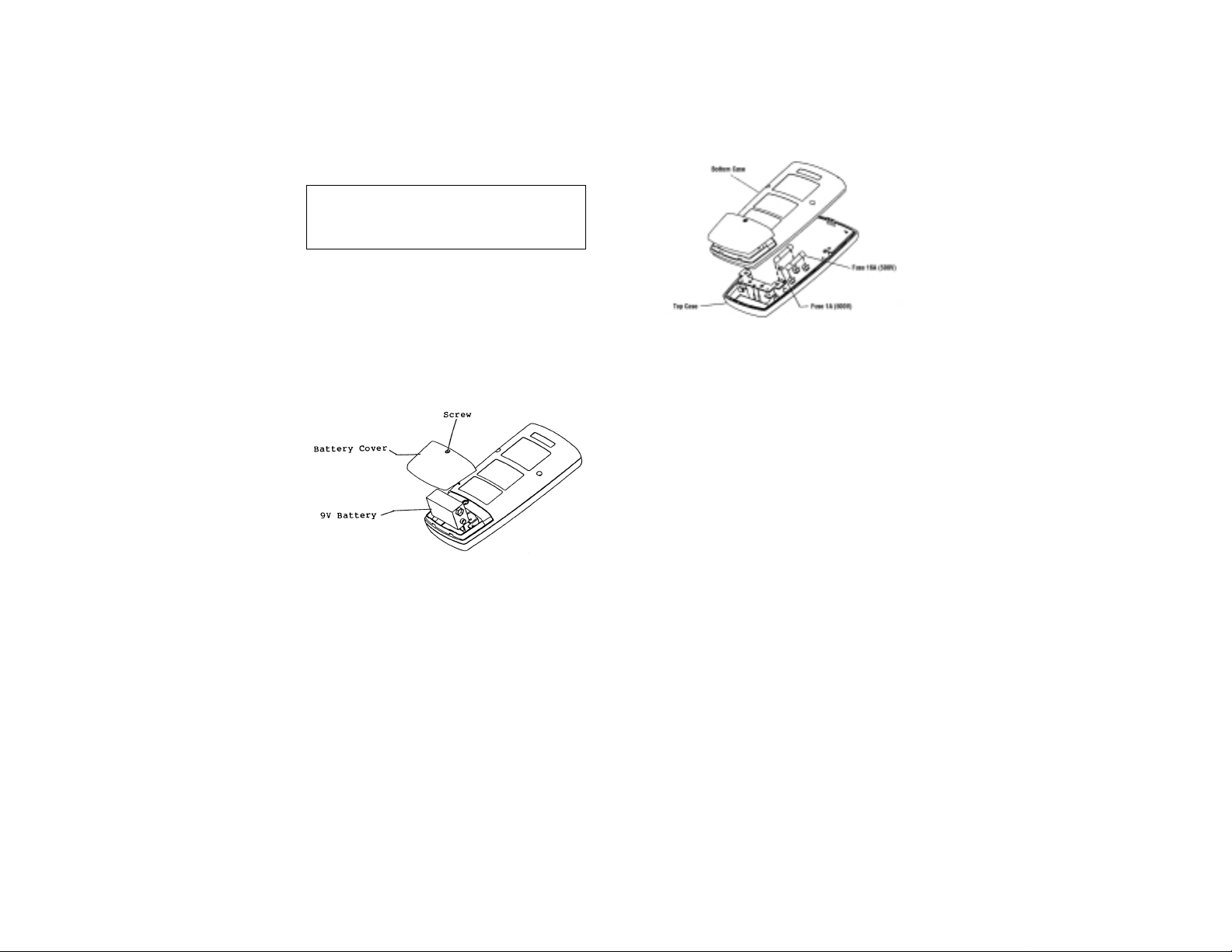

Maintenance

Battery Installation or Replacement:

The #61-480 is powered by one 9V battery.

1. Remove the test leads from the front terminals and turn the
meter off.

2. Remove the screw from the battery cover and lift to remove.

3. Lift battery box and replace batteries.

4. Make sure the battery box leads do not become pinched
between the case and battery cover before replacing the
battery cover and screw.

Fuse Replacement

1. Remove the test leads from the front terminals and turn the
meter off.

2. Remove the screw from the battery cover and lift to remove.

3. Remove the screws from the bottom case and the inside of
the battery cover and lift the case bottom until it unsnaps
from the case top.

4. Remove the defective fuse by gently prying one end of the
fuse loose and sliding the fuse out of the fuse holder.

5. Install a new fuse of the same size and rating. Make sure it
is centered in the fuse holder.

6. Make sure the battery box leads do not become pinched
between the case and battery cover before replacing the
bottom case and battery cover.

IDEAL INDUSTRIES, INC.

Sycamore, IL 60178, U.S.A.
800-304-3578 Customer Assistance
www.testersandmeters.com

ND 2365-1 Made in Taiwan

Warning

To avoid electrical shock, remove test lead before opening the
cover. Repairs or servicing not covered in this manual should
only be performed by qualified personnel.

19
