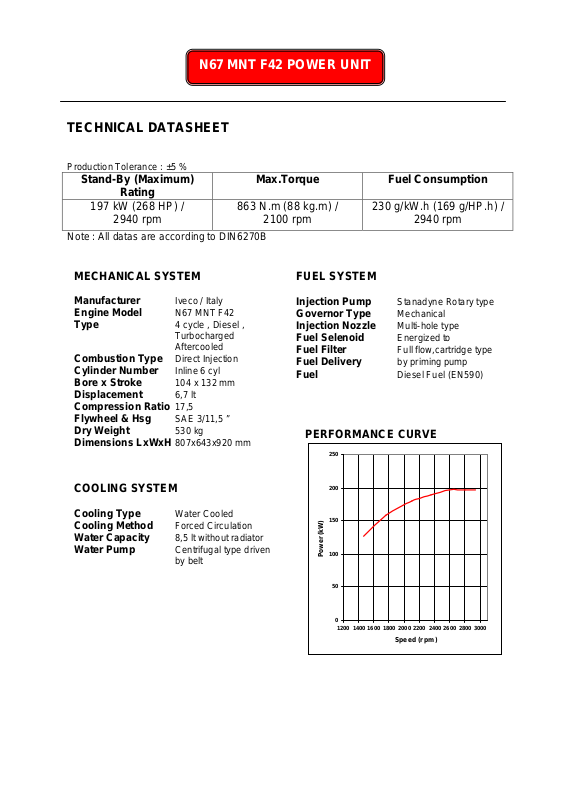

Page 1
N67 MNT F42 POWER UNIT
TECHNICAL DATASHEET
Production Tolerance : ±5 %
Stand-By (Maximum)
Rating
197 kW (268 HP) /
2940 rpm
Note : All datas are according to DIN6270B
MECHANICAL SYSTEM
Manufacturer
Engine Model
Type
Aftercooled
Combustion Type
Cylinder Number
Bore x Stroke
Displacement
Compression Ratio
Flywheel & Hsg
Dry Weight
Dimensions LxWxH
Iveco / Italy
N67 MNT F42
4 cycle , Diesel ,
Turbocharged
Direct Injection
Inline 6 cyl
104 x 132 mm
6,7 lt
17,5
SAE 3/11,5 ”
530 kg
807x643x920 mm
COOLING SYSTEM
Cooling Type
Cooling Method
Water Capacity
Water Pump
Water Cooled
Forced Circulation
8,5 lt without radiator
Centrifugal type driven
by belt
Max.Torque Fuel Consumption
863 N.m (88 kg.m) /
2100 rpm
FUEL SYSTEM
Injection Pump
Governor Type
Injection Nozzle
Fuel Selenoid
Fuel Filter
Fuel Delivery
Fuel
PERFORMANCE CURVE
230 g/kW.h (169 g/HP.h) /
2940 rpm
Stanadyne Rotary type
Mechanical
Multi-hole type
Energized to
Full flow,cartridge type
by priming pump
Diesel Fuel (EN590)
250
200
150
100
Power (kW)
50
0
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
Speed (rpm)
Page 2
LUBRICATION SYSTEM
Lubrication Method
Oil Pump
Oil Filter
Oil Capacity
Recomended Oil
Pressure feed type
Gear Driven
Full Flow cartridge
12,8 lt
CE 15W/40 grade
N67 MNT F42 POWER UNIT
ELECTRICAL SYSTEM
Charging Alternator
Starting Motor
Battery Voltage
Capacity
(Recomended)
24 V , 90 Amp
24 V, 4 kW
24 V
2 x 102 Ah
OPTIONS
(EWI) Engine Wiring
(CPA) Basic Start Panel
(CHE) Coolant Heater
(ESI1) Industrial type Silencer
(ESI2) Residential type Silencer
(BAT) Battery , cables & rack
(BFR1) Baseframe Std.c/w fuel tank
(BFR2) Extended Baseframe c/w fuel tank
(NFP) Conformity kit to NFPA-20 standards
(CPL) Coupling with its guard
(TBX) Tool Kit
UNIT CONVERSION
HP = kW x 1,3596
Torque (N.m) = 9549,3 x P(kW) / N(1/min)
Torque (kg.m) = 716,2 x P(HP) / N(1/min)
1 Bar = 1,019726 kg/cm² = 100 kPA
1 kW = 0,2388 kcal/s
IDEA MAKİNA İMALAT SAN.VE TİC.LTD.ŞTİ.
İmes San.Sitesi B Blok 205.Sok.No:1
Y.Dudullu - Ümraniye /İstanbul - TURKEY
Tel : + 90 216 313 42 77
Fax : + 90 216 313 42 79
e-mail : [email protected]
All information given in this leaflet is intended for general purposes only.Due to the continuous improvement policy , Idea reserves the right to amend the datas
herein without notice.
