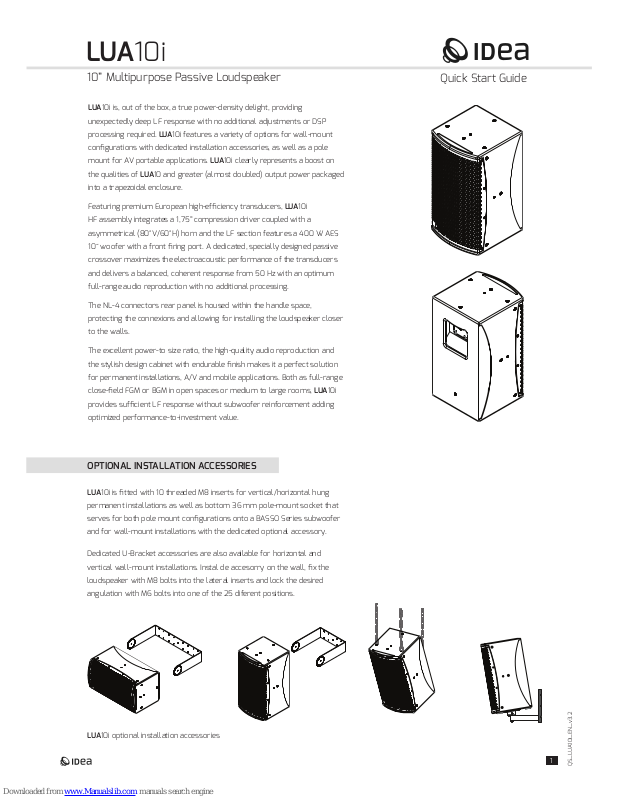

LUA10i
10” Multipurpose Passive Loudspeaker
Quick Start Guide
LUA10i is, out of the box, a true power-density delight, providing
unexpectedly deep LF response with no additional adjustments or DSP
processing required. LUA10i features a variety of options for wall-mount
congurations with dedicated installation accessories, as well as a pole
mount for AV portable applications. LUA10i clearly represents a boost on
the qualities of LUA10 and greater (almost doubled) output power packaged
into a trapezoidal enclosure.
Featuring premium European high-efciency transducers, LUA10i
HF assembly integrates a 1,75” compression driver coupled with a
asymmetrical (80˚V/60˚H) horn and the LF section features a 400 W AES
10˝ woofer with a front ring port. A dedicated, specially designed passive
crossover maximizes the electroacoustic performance of the transducers
and delivers a balanced, coherent response from 50 Hz with an optimum
full-range audio reproduction with no additional processing.
The NL-4 connectors rear panel is housed within the handle space,
protecting the connexions and allowing for installing the loudspeaker closer
to the walls.
The excellent power-to size ratio, the high-quality audio reproduction and
the stylish design cabinet with endurable nish makes it a perfect solution
for permanent installations, A/V and mobile applications. Both as full-range
close-eld FGM or BGM in open spaces or medium to large rooms, LUA10i
provides sufcient LF response without subwoofer reinforcement adding
optimized performance-to-investment value.
OPTIONAL INSTALLATION ACCESSORIES
LUA10i is tted with 10 threaded M8 inserts for vertical/horizontal hung
permanent installations as well as bottom 36 mm pole-mount socket that
serves for both pole mount congurations onto a BASSO Series subwoofer
and for wall-mount installations with the dedicated optional accessory.
Dedicated U-Bracket accessories are also available for horizontal and
vertical wall-mount installations. Instal de accesorry on the wall, x the
loudspeaker with M8 bolts into the lateral inserts and lock the desired
angulation with M6 bolts into one of the 25 diferent positions.
LUA10i optional installation accessories
Page 2
2
QS_LUA10i_EN_v3.2
TECHNICAL DATA
IEC ltered pink noise with a 6dB crest factor, 2 hours.
*
Frequency range values for recommended factory presets.
**
TECHNICAL DRAWINGS
312 mm 285 mm
521 mm
Enclosure design Trapezoidal · Bass-Reex
HF Transducer 1 x 10˝ Woofer
LF Transducer 1 x 1.75˝/ 1” Exti Compression Driver
RMS Power Handling * 400 W
Nominal Impedance 8 Ohm
SPL
(Continuous/Peak) 125/131 dB SPL
Frequency Range (-10 dB) 50 - 18000 Hz
Frequency Range (-3 dB) 75 - 17000 Hz
Coverage 80° x 60˚
Dimensions (WxHxD) 285 x 512 x 312 mm
(11,2 x 20,2 x 12,3 inch)
Weight 14 kg (30,9 lbs)
Connectors
+/- 1
+/- 2
2 x Neutrik speakON® NL-4 in parallel
Full-Range Signal
parallel Signal
Cabinet Construction 15 mm Plywood
Grille 1.5 mm perforated weatherised steel with protective foam
Finish Durable IDEA proprietary Aquaforce high-resistance paint coating process
Handles 1 integrated rear handle
Installation 4 Rubber feet
10 x threaded M8 inserts
Accessories Vertical U-Bracket (UB-L10i-V)
Horizontal U-Bracket (UB-L10i-H)
Wall mount accessory (WM)
35 mm Pole (K&M-21338)
35 mm Tripod (K&M-21302)
Page 3
3
QS_LUA10i_EN_v3.2
I MAS D Electroacústica SL
Constitución 5 – 9, 46009 VALENCIA (Spain)
Declares that: LUA10i
Complies with the following EU Directives:
• RoHS (2002/95/CE) Restriction of Hazardous Substances
• LVD (2006/95/CE) Low Voltage Directive
• EMC (2004/108/CE) Electro-Magnetic Compatibility
• WEEE (2002/96/CE) Waste of Electric and Electronic Equipment
• EN 60065: 2002 Audio, video and similar electronic apparatus. Safety requirements.
• EN 55103-1: 1996 Electromagnetic compatibility: Emission
• EN 55103-2: 1996 Electromagnetic compatibility: Immunity
DECLARATION OF CONFORMITY
WARNINGS AND SAFETY GUIDELINES
WARRANTY
!
• All IDEA products are guaranteed against any manufacturing defect for a period of 5 years from date of purchase for acoustical parts
and 2 years from date of purchase for electronic devices.
• The guarantee excludes damage from incorrect use of the product.
• Any guarantee repair, replacement and servicing must be exclusively done by the factory or any of authorized service centres.
• Do not open or intend to repair the product; otherwise servicing and replacement will not be applicable for guarantee repair.
• Return the damaged unit, at shipper’s risk and freight prepaid, to the nearest service centre with a copy of the purchase invoice in order
to claim guarantee service or replacement.
• Read this document thoroughly, follow all safety warnings and keep it for future reference.
• The exclamation mark inside a triangle indicates that whatever repairing and component replacement operations must be done by quali-
ed and authorized personnel.
• No user serviceable parts inside.
• Only use accessories tested and approved by IDEA and supplied by the manufacturer or an authorized dealer.
• Installations, rigging and suspension operations must be done by qualied personnel.
• Only use accessories specied by IDEA, complying with maximum loads specications and following local safety regulations.
• Read the specications and connection instructions before proceeding to connect the system and use only cabling supplied or recom-
mended by IDEA. Connection of the system should be done by qualied personnel.
• Professional sound reinforcement systems can deliver high SPL levels that may result in hearing damage. Do not stand close to the
system while in use.
• Loudspeaker produce magnetic eld even while they are not in use or even when disconnected. Do not place or expose loudspeakers to
any device that is sensitive to magnetic elds such as television monitors or data storage magnetic material.
• Disconnect the equipment during lightning storms and when it is not to be used for a long time.
• Do not expose this device to rain or moisture.
• Do not place any objects containing liquids, such as bottles or glasses, on the top of the unit. Do not splash liquids on the unit.
• Clean with a wet cloth. Do not use solvent-based cleaners.
• Regularly check the loudspeaker housings and accessories for visible signs of wear and tear, and replace them when necessary.
• Refer all servicing to qualied service personnel.
• This symbol on the product indicates that this product should not be treated as household waste. Follow local regulation for recycling of
electronic devices.
• IDEA declines any responsibility from misuse that may result in malfunction or damage of the equipment.
Page 4
4
QS_LUA10i_EN_v3.2
For further information scan the QR Code
or refer to the following web address: www.ideaproaudio.com/lua10i
www.ideaproaudio.com
IDEA is always in pursuit of better performance, greater reliability and design features.
Technical specications and minor nish details may vary without notice in order to improve our products.
©2017 - I MAS D Electroacústica SL
