ROCKY – 3722EVS
TM
Dual
Celeron
& Pentium® III with
Dual LAN & Dual ULTRA160 SCSI
& SiS 6326 VGA SBC
@Copyright 2001
All Rights Reserved.
Manual first edition MAR 21,2001
The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to use
the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Trademarks
ROCKY-3722EVS is registered trademarks of ICP Electronics Inc., IBM PC is
a registered trademark of International Business Machines Corporation. Intel
is a registered trademark of Intel Corporation. AWARD is registered
trademarks of Award Software International, Inc. Other product names
mentioned herein are used for identification purposes only and may be
trademarks and/or registered trademarks of their respective companies.
Support
Any questions regarding the content of this manual or related issues can be emailed to us directly at :
Support@mail.icpacquire.com.tw
Ver 2.0
3.5 Keyboard & PS/2 Mouse Connector................................................18
Contents
1. Introduction .....................................................................4
1.1 Specifications ......................................................................................5
1.2 What You Have...................................................................................8
2. Installation.......................................................................9
2.1 ROCKY – 3722EVS's Layout.........................................................10
2.2 Unpacking Precautions.....................................................................11
2.3 Setting the CPU of ROCKY-3722EVS ..........................................11
2.4 Watch-Dog Timer.............................................................................12
2.5 DiskOnChip™ Flash Disk ..............................................................12
2.6 Clear CMOS Setup ...........................................................................13
2.7 PS/2 Mouse IRQ12 Setting ..............................................................13
2.8 SMI Type Setting………………………………………………...12
3.6 External Switches and Indicators .....................................................19
3.7 USB Port Connector .........................................................................20
3.8 IrDA Infrared Interface Port .............................................................20
3.9 CPU & SYSTEM Fan Connector....................................................20
3.10 LAN RJ45 & STATE LED Connector ...........................................21
3.11 VGA Connector ................................................................................21
3.12 ULTRA 160 SCSI & Active LED
Connector ……………………20
4. AWARD BIOS Setup....................................................22
4.1 Introduction ...................................................................................................22
4.2 Starting Setup ................................................................................................22
4.3 Using Setup ...................................................................................................23
4.4 Getting Help...................................................................................................24
4.5 Main Menu....................................................................................................24
4.6 Standard CMOS Setup..................................................................................27
4.7 BIOS Features Setup .....................................................................................30
3. Connection ....................................................................14
3.1 Floppy Disk Drive Connector ..........................................................15
3.2 PCI E-IDE Disk Drive Connector ...................................................16
3.3 Parallel Port .......................................................................................17
3.4 Serial Ports ........................................................................................17
1
4.8 Chipset Features Setup..................................................................................36
4.9 Power Management Setup............................................................................40
4.10 PnP/PCI Configuration Setup ......................................................................45
4.11 Integrated Peripherals Setup..........................................................................47
4.12 Supervisor/User Password Setting……………...........................................50
5. Appendix A. Watch-Dog Timer ...................................52
Appendix B. I/O Address Map .....................................53
2
Appendix C. ATX Power Supply .................................55
1
Appendix D. How to used Wake Up Function.............57
Introduction
Welcome to the ROCKY-3722EVS Dual Celeron & Pentium®
III Single Board Computer. The ROCKY-3722EVS board is an
ISA/PCI form factor board, which comes equipped with high
performance Pentium® III Processor and advanced high
performance multi-mode I/O, designed for the system
manufacturers, integrators, or VARs that want to provide all the
performance, reliability, and quality at a reasonable price.
In addition, the ROCKY-3722EVS provides SiS 6326 VGA on
board. The VGA chip is SiS 3D graphics chipset which provides
up to 1600x1200 colors resolution. The VGA memory on board
is 4MB SDRAM RAM.
This board has a built-in DiskOnChip™(DOC) Flash Disk Socket
for embedded applications. The DOC Flash Disk is 100%
software compatible with hard disks. Users can use any DOS
command without any extra software utility. The DOC currently
is available from 2MB to 144MB.
An advanced high performance super AT I/O chip – Winbond
W83977TF is used in the ROCKY-3722EVS board. Both onchip UARTs are compatible with the NS16C550. The parallel
port and IDE interface are compatible with IBM PC/AT
architecture.
The ROCKY-3722EVS uses dual Intel 82559 Fast Ethernet
Multifunction PCI Controller as a LAN controller. The 82559 is a
fully integrated 10BASE-T/100BASE-TX LAN solution with high
performance networking functions and low power features.
The ROCKY-3722EVS uses the advanced INTEL
Chipset,440BX
which is 100% ISA/PCI software compatible chipset with PCI
2.1 standard.
3
4
1.1 Specifications
CPU(PGA370)
Intel Celeron® and Pentium® III (FC-PGA)
Processor, supports 66 MHz and 100 MHz FSB
IrDA port
USB port
Supports Serial Infrared(SIR) and Amplitude Shift
Keyed IR(ASKIR) interface
Supports two USB ports for future expansion
Bus interface
Bus speed
DMA channels
Interrupt levels
Chipset
Real-time
clock/calendar
RAM memory
Ultra DMA/33
IDE interface
Floppy disk
drive interface
Serial ports
Bi-directional
parallel port
Hardware
monitor
PCI(4 MASTER)/ISA bus, PICMG compliant
ISA : 8MHz, PCI: 33MHz
7
15
Intel 440BX
SGS M4T28 or equivalent device
Four 168-pin DIMM sockets support SDRAM and
EDO RAM module. The max. memory is up to
1GB.
Up to four PCI Enhanced IDE hard drives. The
Ultra DMA/33 IDE c an handle data transfer up to
33MB/s. The compatible with existing ATA-2 IDE
specifications is its best advantage, so there is no
need to do any changes for users’ current
accessories.
Supports up to two floppy disk drives,
5.25”(360KB and 1.2MB) and/or 3.5” (720KB,
1.44MB, and 2.88MB)
Two RS-232 ports with 16C550 UART ( or
compatible) with 16-byte FIFO buffer. Support up
to 115.2Kbps. Ports can be individually
configured to COM1, COM2 or disabled.
Configurable to LPT1, LPT2, LPT3 or disabled.
Supports EPP/ECP/SPP
Built-in LM78 to monitor power supply voltage
and fan speed status
Watch-dog
timer
VGA controller
Ethernet
SCSI
Flash disk
socket
Keyboard and
PS/2 mouse
connector
Power
consumption
Operating
Can be set by PROGRAM period. Reset or NMI is
generated when CPU does not periodically
trigger the timer. Your program use hex 043 and
443 to control the watch-dog and generate a
system reset.
SiS6326 3D graphics chipset w/ 4MB SDRAM
RAM.
Screen Resolution : up to 1600x1200x16/256.
Dual Intel 82559 Fast Ethernet controller , IEEE
802.3u Auto-Negotiation support for 10BASET/100BASE-TX standard. An RJ45 connector is
located on the mounting bracket for easy
conn ection.
Dual Port ULTRA 160 SCSI.Complies with the
PCI 2.1 specification .performs wide,SCSI
synchronous transfers as fast as 160 Mbytes/s on
each SCSI channl for a total of 320Mbytes/s.
The DiskOnChip™ compatible 32-pin dip socket
is provided for Flash Disk ( DiskOnChip™ )
application which will let users to use the Flash
Disk with DOS command, without any extra
software u tility.
A 6-pin mini DIN connector is located on the
mounting bracket for easy connection to a
keyboard or PS/2 mouse. For alternative
application, a keyboard and a PS/2 mouse pin
header connector are also available on board,
located on CN9 and CN10 respectively.
+5V @ 7,8A ( Dual Pentium® III 600MHz,128MB
SDRAM)
+12V @ 380mA ,-12V @40mA
0° ~ 55° C ( CPU needs Cooler)
5
6
temperature
1.2 What You Have
In additio n to this
package includes the following items:
ROCKY-3722EVS Single Board Computer
•
One RS-232 x2 and Printer Cable with bracket
•
One FDD cable
•
One HDD cable
•
One SCSI cable
•
One 6-pin Mini-Din convert to two 6-pin mini-Din cable for
•
keyboard and mouse connection.
If any of these items are missing or damaged, contact the
dealer from whom you purchased this product. Save the
shipping materials and carton in case you want to ship or store
the product in the future.
User's Manual
, the ROCKY-3722EVS
7
8
2
Installation
This chapter describes how to install the ROCKY-3722EVS. At
first, the layout of ROCKY-3722EVS is shown, and the
unpacking information that you should be careful is described.
The jumpers and switches setting for the ROCKY-3722EVS's
configuration, such as CPU type selection, system clock setting,
and watch dog timer, are also included.

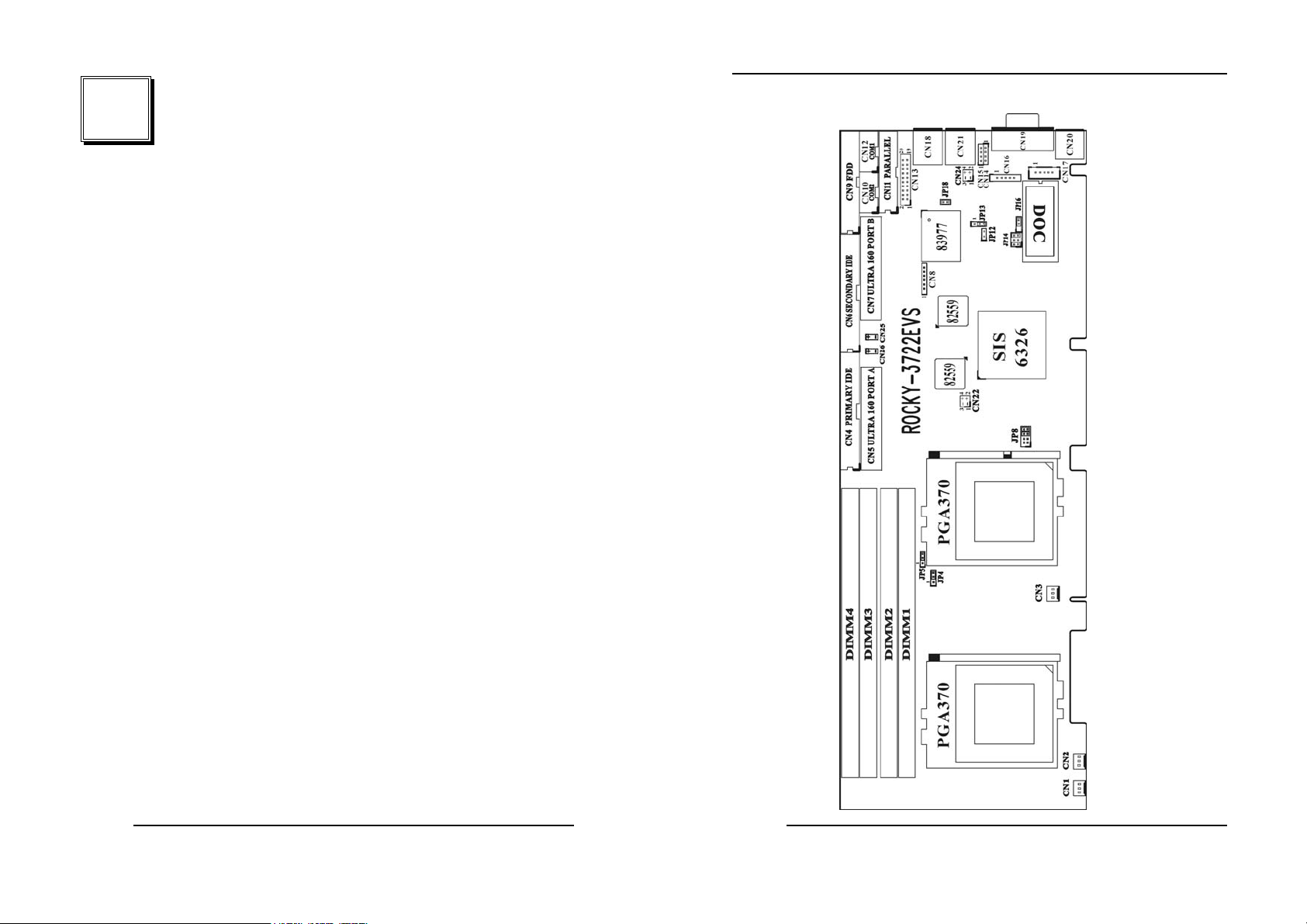

2.1 ROCKY – 3722EVS's Layout
9
10
2.2 Unpacking Precautions
A
Some components on ROCKY-3722EVS SBC are very
sensitive to static electric charges and can be damaged by a
sudden rush of power. To protect it from unintended damage,
be sure to follow these precautions:
Ground yourself to remove any static charge before touching
your ROCKY-3722EVS SBC. You can do it by using a grounded
wrist strap at all times or by frequently touching any conducting
materials that is connected to the ground.
Handle your ROCKY-3722EVS SBC by its edges. Don’t touch IC
chips, leads or circuitry if not necessary.
Do not plug any connector or jumper while the power is on.
Table of Jumpers
LABEL FUNCTION
JP4,JP5 CPU Type Setting
JP8 CPU Multiplier Setting,Normal by AUTO detect.
JP12 CMOS state settng
JP13 SMI Type Setting
JP14 DiskOnChip Memory Address Setting
JP16 Watch-Dog Active Type Setting
JP18 IRQ12 Enable/Disable Setting
Note:
ll shaded rows in tables of this manual are the default settings
for the ROCKY-3722EVS.
2.3 Setting the CPU of ROCKY-3722EVS (JP4, JP5)
JP8 : CPU Multiplier Setting
•
Speed 1-2 3-4 5-6 7-8
3.0 x
3.5 x
4.0 x
4.5 x
5.0 x
5.5 x
6.0 x
6.5 x
7.0 x
7.5 x
8.0 x
CLOSE OPEN CLOSE CLOSE
CLOSE OPEN OPEN CLOSE
OPEN CLOSE CLOSE CLOSE
OPEN CLOSE OPEN CLOSE
OPEN OPEN CLOSE CLOSE
OPEN OPEN OPEN CLOSE
CLOSE CLOSE CLOSE OPEN
CLOSE CLOSE OPEN OPEN
CLOSE OPEN CLOSE OPEN
CLOSE OPEN OPEN OPEN
OPEN CLOSE CLOSE OPEN
PS: If CPU RATIO is fixed by Intel ,the JP8 is no purpose.
2.4 Watch-Dog Timer (JP16)
The Watch-Dog Timer is enabled by reading I/O port 443H. It
should be triggered before the time-out period ends, otherwise it
will assume the program operation is abnormal and will issue a
reset signal to start again, or activate NMI to CPU. The WatchDog Timer is disable by reading I/O port 043H or 843H. Refer to
Appendix A for detailed information on Watch-Dog Timer.
• JP16 : Watch-Dog Active Type Setting
JP16 DESCRIPTION
1-2 ACTIVATE NMI TO CPU WHEN WDT TIME-
OUT
2-3 RESET WHEN WDT TIME-OUT
OPEN DISABLE WDT
JP4 & JP5 : Celeron or Pentium III Dual Processor
•
Function JP4 JP5
Celeron 1-2 1-2
Pentium III 2-3 2-3
11
2.5 DiskOnChip™ Flash Disk (JP14)
The DiskOnChip™ Flash Disk Chip(DOC) is produced by MSystems. Because the DOC is 100% software compatible to
hard disk and DOS, users don‘t need any extra software utility. It
is just “plug and play” easy and reliable. At present the DOC is
12
available from 2MB to 144MB. The DiskOnChip only shares
8KB memory address.
• JP14 : DiskOnChip Memory Address Setting
Address 1-2 3-4 5-6
CE000 – CFFFF OFF ON ON
D6000 – D7FFF ON OFF ON
DE000 – DFFFF OFF OFF ON
2.6 Clear CMOS Setup (JP12)
If want to clear the CMOS Setup(for example forgot the
password you should clear the setup and then set the password
again.), you should close the JP1 about 3 seconds, then open it
again. Set back to normal operation mode, open JP1.
JP12 : Clear CMOS Setup (Reserve Function)
•
JP12 DESCRIPTION
OPEN Normal Operation
CLOSE Clear CMOS Setup
2.7 PS/2 Mouse IRQ12 Setting (JP18)
While operating, the on board PS/2 mouse will use IRQ12.
• JP1 8 : IRQ12 Enable/Disable Se tting
JP18 DESCRIPTION
CLOSE Enable IRQ12 for PS/2 Mouse Operating
OPEN Disable PS/2 Mouse. Release IRQ12 to bus
2.8 SMI Type Setting (JP13)
JP13 DESCRIPTION
1-2 Single processor
2-3 Dual processors
3
Connection
This chapter describes how to connect peripherals, switches
and indicators to the ROCKY- 3722EVS board.
Table of Connectors
LABEL FUNCTION
CN1 System Board
CN2 CPU Fan Connector
CN3 CPU Fan Connector
CN4 Primary IDE Connector
CN5,CN7 ULTRA 160 SCSI Connector
CN6 Secondary IDE Connector
CN8 IrDA connector
CN9 FDC Connector
CN10,CN12 Serial Port 10-pin Connector
CN11 Parallel Port Connector
CN13 External Switches and Indicators
CN14,CN15 USB Connector
CN16 External 5-pin Header PS/2 MOUSE
Connector
CN17 External 5-pin Header Keyboard Connector
CN18,CN21 LAN RJ45 Connector
CN19 15-pin Female Connector
CN20 PS/2 Mouse & Keyboad Connector
CN22,CN24 LAN State LED Connector
CN25,CN26 ULTRA 160 SCSI Active LED Connector
Fan Connector
13
14
3.1 Floppy Disk Drive Connector (CN9)
3.2 PCI E-IDE Disk Drive Connector (CN4, CN6)
The ROCKY-3722EVS board is equipped with a 34-pin daisychain drive connector cable.
CN9 : FDC Connector
•
PIN NO. DE SCRIPTION PIN NO. DE SC RIPT ION
1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#
9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 W RITE DATA#
23 GROUND 24 W RITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 W RITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#
You can attach four IDE( Integrated Device Electronics) hard
disk drives on two channels. These connectors support UltraDMA33 IDE devices. Non-DMA33 devices are suggested to be
conneted to the secondary IDE connector.
CN4 (IDE 1) : Primary IDE Connector
CN6 (IDE 2) : Secondary IDE Connector
CN4/CN6 : IDE Interface Connector
•
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND - DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
15
16
3.3 Parallel Port (CN11)
This port is usually connected to a printer. The ROCKY3722EVS includes an on-board parallel port, accessed through
a 26-pin flat-cable connector CN11.
CN11 : Parallel Port Connector
•
PIN NO. D ESCRIPT ION PIN NO. DESCRIPT ION
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOW LEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND
3.4 Serial Ports (CN10, CN12)
The ROCKY-3722EVS offers two high speed NS16C550
compatible UART.
CN12 (COM1) : 10-pin header on board
CN10 (COM2) : 10-pin header on board
Serial port connections (CN12, CN10)
Connector Ports Address Interrupt
CN12 COM1 3F8 IRQ4
CN10 COM2 2F8 IRQ3
• Serial Port 10-pin Connector
PIN NO. DESCRIPTION
1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)
10 GROUND (GND)
3.5 Keyboard & PS/2 Mouse Connector (CN20)
A 6-pin mini DIN connector(CN20) is located on the mounting
bracket for easy connection to a keyboard or a PS/2 mouse.
The card comes with an cable to convert from the 6-pin miniDIN connector to two 6-pin mini-DIN connectors for keyboard
and mouse connection.
CN20 : 6-pin Mini-DIN Keyboard Connector
•
PIN NO. DESCRIPTION
1 KEYBOARD DATA
2 MOUSE DATA
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 MOUSE CLOCK
For alternative application, a keyboard and a PS/2 mouse pin
header connector are also available on board, located on CN17
and CN16 respectively.
CN16 : PS/2 Mouse Connector
•
PIN NO. DESCRIPTION
1 MOUSE DATA
2 NC
3 GROUND
4 +5V
5 MOUSE CLOCK
17
18
A
CN17 : 5-pin Header Keyboard Connector
•
PIN NO. DE SCRIPT ION
1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GROUND
5 +5V
3.7 USB Port Connector (CN14,CN15)
The ROCKY- 3722EVS has two built-in USB ports for the future
new I/O bus expansion.
CN14 USB0 CN15 USB1
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
3.6 External Switches and Indicators (CN13)
There are several external switches and indicators for
monitoring and controlling your CPU board. All the functions are
in the CN13 connector.
CN13 : External Switches and Indicators
PIN DESCRIPTION PIN DESCRIPTION
Power
LED
KeyLock
★ ATX
Signal
★ For backplanes with ATX Connector (through Power Button
& +5VSB)
1 +5V 2 Speaker
3 N/C 4 N/C
5 GND 6 N/C
7 KeyLock 8 +5V
9 GND 10 Reset Switch
11 GND 12 GND
13 N/C 14 IDE LED
15 ATX Power
16 +5V
Control Pin
17 ATX 5Vsb 18 ATX Power
Button
19 ATX 5Vsb 20 ATX 5Vsb
Speaker
Reset
button
IDE LED
ATX
Power
Button
1
2DATA-2 DAT
3 DATA+ 3 DATA+
4 GROUND 4 GROUND
3.8 IrDA Infrared Interface Port (CN8)
The ROCKY-3722EVS has a built-in IrDA port which supports
Serial Infrared(SIR) or Amplitude Shift Keyed IR(ASKIR)
interface. If you want to use the IrDA port, you have to configure
SIR or ASKIR model in the BIOS under Peripheral Setup COM2.
Then the normal RS-232 COM 2 will be disabled.
• CN8 : IrDA connector
PIN NO. DESCRIPTION
1 VCC
2 FIR-RX
3 IR-RX
4 Ground
5 IR-TX
6 CIRRX
3.9 CPU & SYSTEM Fan Connector (CN1, CN2, CN3)
The ROCKY-3722EVS provides two CPU cooling fan
connectors, CN2 and CN3 as well as a chassis fan connector,
CN1. These connectors can supply 12V/500mA to the cooling
fan. All connectors have the same pin assignments and provide
a "rotation" pin to get rotation signals from fans and notice the
system. So the system BIOS can recognize the fan speed.
Please note that only specified fan can issue the rotation signals.
• CN1/CN2/CN3 : Fan Connector
PIN NO. DESCRIPTION
19
20
1 Rotat ion Si gnal
2 12V
3 Ground
3.10 LAN RJ45 & State LED Connector (CN18,CN21)
The ROCKY-3722EVS is equipped with two built-in 10/100Mbps
Ethernet controllers. You can connect it to your LAN through
RJ45 LAN connectors. There are two LEDs on the connector
indicating the status of LAN. The pin assignments are as
following:
• CN18/CN21: LAN RJ45 Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TX+ 5. N/C
2 TX- 6. RX-
3. RX+ 7. N/C
4. N/C 8. N/C
• CN22/CN24: LAN State LED Connector
PIN NO. DESCRIPTION
1-2 ACT/LINK
3-4 100TX
3.11 VGA Connector (CN19)
The ROCKY-3722EVS has a built-in 15-pin VGA connector
directly connects to your CRT monitor.
• CN19 : 15-pin Female Connector
1 RED 2 GREEN
3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND
9 NC 10 GROUND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
3.12 ULTRA 160 SCSI & Active LED Connector
The ROCKY-3722EVS provides two SCSI connectors -- Port A
and Port B. Each port supports 16 SCSI devices at 160Mbps
speed. There are also two connectors indicating the status of
the SCSI channels.
CN5(Port A)/CN7(Port B) : Ultra 160 SCSI Connector, 68-
•
pin
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 CHA_SCDP12 35 CHA_SCDM12
2 CHA_SCDP13 36 CHA_SCDM13
3 CHA_SCDP14 37 CHA_SCDM14
4 CHA_SCDP15 38 CHA_SCDM15
5 CHA_SCDPHP 39 CHA_SCDPHM
6 CHA_SCDP0 40 CHA_SCDM0
7 CHA_SCDP1 41 CHA_SCDM1
8 CHA_SCDP2 42 CHA_SCDM2
9 CHA_SCDP3 43 CHA_SCDM3
10 CHA_SCDP4 44 CHA_SCDM4
11 CHA_SCDP5 45 CHA_SCDM5
12 CHA_SCDP6 46 CHA_SCDM6
13 CHA_SCDP7 47 CHA_SCDM7
14 CHA_SCDPLP 48 CHA_SCDPLM
15 GND 49 GND
16 CHA_DIFFSENSE 50 N/C
17 TRMPWRS 51 TRMPWRS
18 TRMPWRS 52 TRMPWRS
19 N/C 53 N/C
20 GND 54 GND
21 CHA_ATNP 55 CHA_ATNM
22 GND 56 GND
23 CHA_BSYP 57 CHA_BSYM
24 CHA_ACKP 58 CHA_ACKM
25 CHA_RSTP 59 CHA_RSTM
26 CHA_MSGP 60 CHA_MSGM
27 CHA_SELP 61 CHA_SELM
28 CHA_CDP 62 CHA_CDM
29 CHA_REQP 63 CHA_REQM
30 CHA_IOP 64 CHA_IOM
31 CHA_SCD8P 65 CHA_SCDM8
32 CHA_SCD9P 66 CHA_SCDM9
21
22
33 CHA_SCD10P 67 CHA_SCDM10
34 CHA_SCD11P
• CN26: Ultra160 SCSI port A active LED connector.
• CN25: Ultra160 SCSI port B active LED connector.
68 CHA_SCDM11
Th e B IOS reads the system info rmation co n tained in the CM OS and begins the
process of checking out the system and configuring it. When it finishes, the
BIOS will seek an operating system on one of the disks and then launch and turn
control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two
ways:
4
AWARD BIOS SETUP
4.1 Introduction
This manual discusses Award's Setup program built into the ROM BIOS. The
Setup program allows u sers to modify th e basic system configuration. This
special information is then stored in battery-backed RAM so that it retains the
Setup information when the power is turned off.
The Award BIOS installed in your computer system’s ROM (Read Only Memory)
is a custom version of an ind ustry standard BIOS. This means that it supports
Intel PGA370 processors in a standard IBM-AT compatible input/output system.
The BIOS provides critical low-level support for standard devices such as disk
drives and serial and parallel ports.
The Award BIOS has been customized by adding important, but non-standard,
features such as virus and password protection as well as special support for
detailed fine-tuning of th e chipset con trolling the entire system.
The rest of this manual is intended to guide you through the process of
co nfig u rin g your system u sing Setup.
4.2 Starting Setup
1. By pressing <Del> immediately after sw itc h ing the system on, or
2. by pressing the <Del> key when the following message appears briefly at the
bottom of the screen during the POST (Power On Self Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the
"RESET" button on the system case. You may also restart by simultaneously
pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the
correct time and the system does not boot, an error message will be displayed
and you will again be ask ed to ...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
4.3 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use
the PageUp and PageDown keys to change entries, press <F1> for help and
press <Esc> to quit. The following table provides more detail about how to
navigate in the Setup program using the keyboard.
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
The Award BIOS is immediately activated when you first power on the computer.
23
24
Esc key Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu --
Exit current page and return to Main Menu
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and Option
Page Setup Menu
(Shift)F2 key Change color from total 16 colors. F2 to select color
forward, (Shift) F2 to select color backward
F3 key Calendar, only for Status Page Setup Menu
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only for
Option Page Setup Menu
F6 key Load the default CMOS value from BIOS default table, only
for Option Page Setup Menu
F7 key Load the default
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu
4.4 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to
use and the possible selections for the highlighted item. To exit the Help Window
press <Esc> or the F1 key again.
If, after making and saving system changes with Setup, you discover that your
computer no longer is able to boot, the Award BIOS supports an override to the
CMOS setting s which resets your system to its defaults.
4.5 Main Menu
Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear
on the screen. The Main Menu allows you to select from several setup functions
and two exit choices. Use the arrow keys to select
among the items and press <Enter> to accept and enter the sub-menu.
Note that a brief description of each highlighted selection appears at the bottom
of the screen.
Setup Items
The best advice is to only alter settings which you thoroughly understand. To this
end, we strongly recommend that you avoid making any changes to the chipset
defaults. These defaults have been carefully chosen by both Award and your
systems manufacturer to provide the absolute maximum performance and
reliability. Even a seemingly small change to the chipset setup has the potential
for causing you to use the override.
25
The main menu includes the following main setup categories. Recall that some
systems may not include all en tries.
Standard CMOS Setup
26
This setup page includes all the items in a standard, AT-compatible BIOS.
their needs.
BIOS Features Setup
This setup page includes all the items of Award special enhanced features.
Super / User Password Setting
Change, set, or disable password. It allows you to limit access to the system and
Setup, or just to Setup.
Chipset Features Setup
This setup page includes all the items of chipset special features.
Power Management Setup
This entry only appears if your system supports Power Management, “Green PC”,
standards.
PNP / PCI Configuration Setup
This entry appears if your system supports PNP / PCI.
Integrated Peripherals
This section page includes all the items of IDE hard drive and Programmed
Input / Output features. See also Section 5, “Chipset Features Setup”.
IDE HDD Auto Detection
Automatically detect and configure hard disk parameters. The Award BIOS
includes this ability in th e event you are uncertain of your hard disk’s parameters.
See also “Standard CM OS Setup”.
Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Save
Abandon all CMOS value changes and exit setup.
4.6 Standard CMOS Setup
The items in Standard CMOS Setup Menu are divided into 10 categories. Each
Load BIOS Defaults
The BIOS defaults have been set by the manufacturer and represent settings
which provide the minimum requirements for your system to o p erate.
Load Setup Defaults
The chipset defaults are settings which provide for maximum system
performance. While Award has designed the custom BIOS to maximize
performance, the manufacturer has the right to change these defaults to meet
27
28
category includes no, one or more than one setup items. Use the arrow keys to
highlight the item and then use the <PgUp> or <PgDn> keys to select the value
you want in each item.
Date
The date format is <day>, <date> <month> <year>. Press <F3> to show the
calendar.
day The day, from Sun to Sat, determined by the BIOS and is
display-only
date The date, from 1 to 31 (or the maximum allowed in the month)
month The month, Jan through Dec.
year The year, from 1900 through 2099
Time
The time format is <hour> <minute> <second>. The time is calculated based on
the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.
Daylight saving
The category adds one hour to the clock when daylight-saving time begins. It
also subtracts one hour when standard time returns.
Enabled Enable daylight-saving
Disabled Disable daylight-saving
Primary Master/Primary Slave/Secondary
Master/Secondary Slave
The categories identify the types of 2 channels that have been installed in the
computer. There are 45 predefined types and 4 user definable types are for
Enhanced IDE BIOS. Type 1 to Type 45 are predefined. Type user is user-
definable.
Press PgUp or PgDn to select a numbered hard disk type or type the number
and press <Enter>. Note that the specifications of your drive must match with
the drive table. The hard disk will not work properly if you enter improper
information for this category. If your hard disk drive type is not matched or listed,
you can use Type “User” to define your own drive type manually.
If you select Type “User”, you will need to know the information listed below.
Enter the information directly from the keyboard and press <Enter>. This
information should be included in the documentation from your hard disk vendor
or the system manufacturer.
If the controller of HDD interface is ESDI, the selection shall be “Type 1”.
If the controller of HDD interface is SCSI, the selection shall be “None”.
If you select Type ”Auto”, BIOS will Auto-Detect the HDD & CD-ROM Drive at th e
POST stage and showing the IDE for HDD & CD-ROM Drive.
TYPE drive type
CYLS. Number of cylinders
HEADS number of heads
PRECOMP write precom
LANDZONE landing zone
SECTORS number of sectors
MODE mode type
If a hard disk has not been installed select NONE and press <Enter>.
Drive A Type / Drive B Type
The category identifies the types of floppy disk drive A or drive B that have been
installed in the computer.
None No floppy drive installed
360K, 5.25 in 5-1/4 inch PC-type standard drive; 360 kilobyte capacity
1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte
capacity
720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity
29
30
1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity
2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity
Video
The category selects the type of video adapter used for the primary system
monitor. Although secondary monitors are supported, you do not have to select
the type in Setup.
EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For
EGA, VGA, SEGA, SVGA or PGA monitor adapters.
CGA 40 Color Graphics Adapter, power up in 40 column mode
CGA 80 Color Graphics Adapter, power up in 80 column mode
MONO Monochrome adapter, includes high resolution monochrome
adapters
sequence, keyboard operation, shadowing and security.
Halt On
Th e category determines whether the computer will sto p if an error is detected
during power up.
No errors The system boo t will not be sto pped for an y error that
may be detected.
All errors W henever the BIOS detects a non-fatal error the
system will be stopped and you will be prom pted .
All,
But Keyboard
All, But Diskette The system bo ot will no t stop for a disk error; it will stop
All, Bu t Disk/Key The system b oot will not stop for a keyboard or d isk
The system boot will not stop for a keybo ard error; it will
stop for all other errors.
for all other errors.
error; it will stop for all other errors.

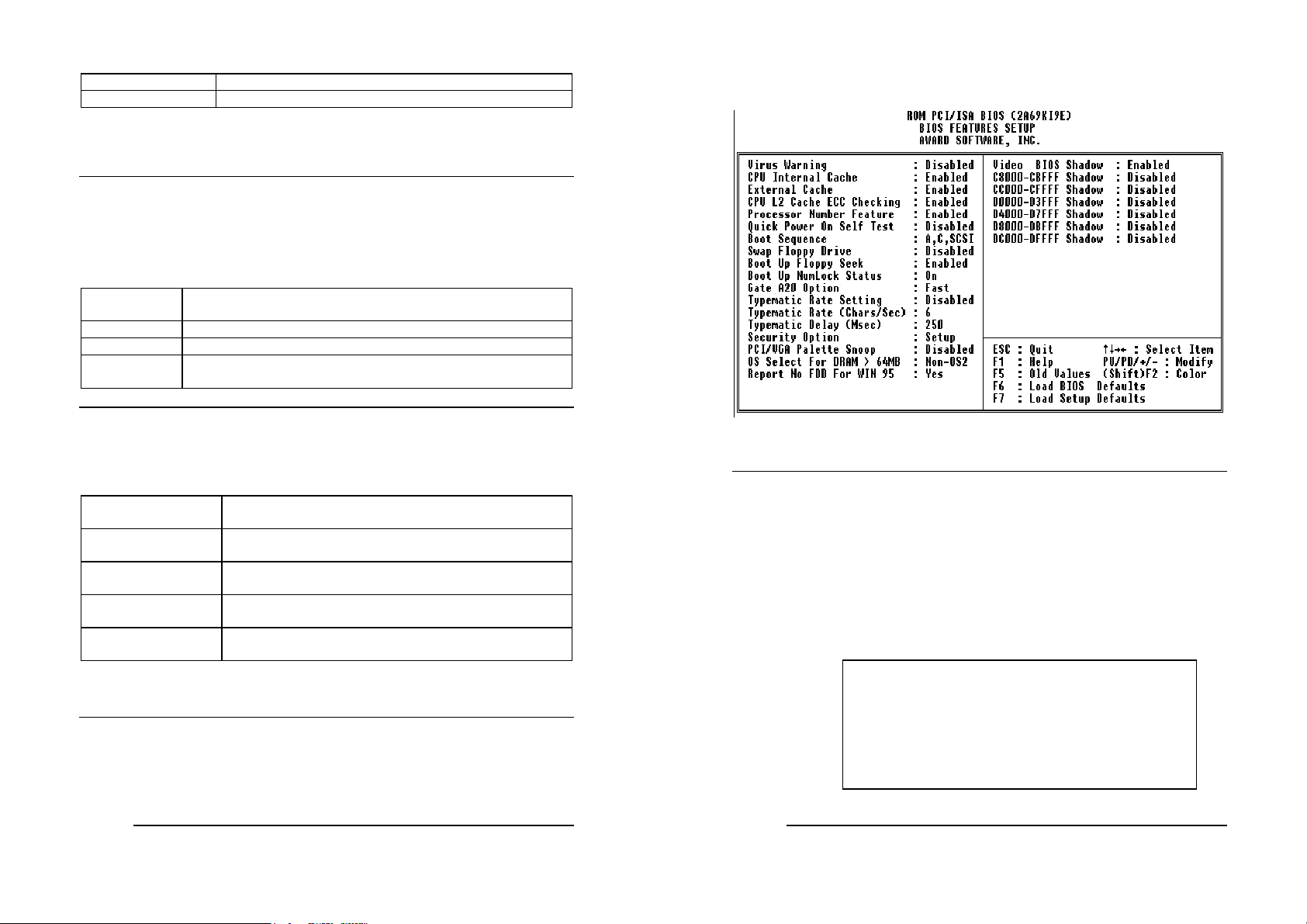

4.7 BIOS Features Setup
This section allows you to configure your system for basic operation.
You have the opportunity to select the system’s default speed, boot-up
31
Virus Warning
When this item is enabled, the Award BIOS will monitor the boot sector and
partition table of the hard disk drive for any attempt at modification. If an attempt
is mad e, th e BIOS will halt th e system and the followin g erro r message will
appear. Afterwards, if necessary, you will be ab le to ru n an anti-viru s program to
locate and remove the problem before any damage is done.
! WARNING !
Disk boot sector is to be modified
Type "Y" to accept write or "N" to abort write
Award Software , Inc.
32
Enabled Activates automatically when the system boots up causing a
warning message to appear when anything attempts to access
the boot sector or hard disk partition table.
Disabled No warning message will appear when anything attempts to
access the boot sector or hard disk partition table.
NOTE: Many disk diagnostic programs which attempt to access the boot
sector table can cause the above warning message. If you will be
running such a program, we recommend that you first disable
Virus Protection beforehand.
Swap Floppy Drive
This item allows you to determine whether enable the swap floppy drive or not.
The choice: Enabled/Disabled
.
Boot Up Floppy Seek
CPU Internal Cache/External Cache
These two categories speed up memory access. However, it depends on
CPU/chipset design. The default value is en able.
Enabled Enable cache
Disabled Disable cache
Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power up the
computer. If it is set to Enable, BIOS will shorten or skip some check items
during POST.
Enabled Enable quick POST
Disabled Normal POST
Boot Sequence
This category determines which drive to search first for the disk operating system
(i.e., DOS). Default value is A,C.
C,A System will first search for hard disk drive then floppy disk
drive.
A,C System will first search for floppy disk drive then hard disk
drive.
CDROM, C, A System will first search for CDROM drive, then hard disk
drive and the next is floppy disk drive.
C, CDROM, A System will first search for hard disk drive , then CDROM
drive, and the next is floppy disk drive.
During POST, BIOS will determine if the floppy disk drive installed is 40 or 80
tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.
Enabled BIOS searches for floppy disk drive to determine if it is 40 or 80
tracks. Note that BIOS can not tell from 720K, 1.2M or 1.44M
drive type as they are all 80 tracks.
Disabled BIOS will no t search for the type of floppy disk drive by track
number. Note that there will not be any warning message if
the drive installed is 360K.
Boot Up NumLock Status
This allows you to determine the default state of the numeric keypad. By default,
the system boots up with NumLock on.
On Keypad is number keys
Off Keypad is arrow keys
Boot Up System Speed
Selects th e de fault system spe ed -- the normal o peratin g sp ee d at power up.
High Set the speed to high
Low Set the speed to low
Gate A20 Option
This entry allows you to select how the gate A20 is handled. The gate A20 is a
device used to address memory above 1 Mbytes. Initially, the gate A20 was
handled via a pin on the keyboard. Today, while keyboards still provide th is
33
34
support, it is more common, and much faster, for the system chipset to provide
support for gate A20.
Normal keyboard
Fast chipset
between when the key was first depressed and when the acceleration begins.
250 250 msec
500 500 msec
750 750 msec
1000 1000 msec
Typematic Rate Setting
This determines if the typematic rate is to be used. When disabled, continually
holding down a key on your keyboard will generate only one instance. In other
words, the BIOS will only report that the key is down. When the typematic rate is
enabled, the BIOS will report as before, but it will then wait a moment, and, if the
key is still down, it will begin the report that the key has been depressed
repeatedly. For example, you would use such a feature to accelerate cursor
movements with the arrow keys.
Enabled Enable typematic rate
Disabled Disable typematic rate
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, this selection allows you select the rate at
which the keys are accelerated.
6 6 characters per second
8 8 characters per second
10 10 characters per second
12 12 characters per second
15 15 characters per second
20 20 characters per second
24 24 characters per second
30 30 characters per second
Typematic Delay (Msec)
Security Option
Th is catego ry allows you to limit access to the system and Setup, or just to Setup.
System The system will not bo ot an d ac cess to Setup will be denied if the
correct password is not entered at the prompt.
Setup The system will boot, but access to Setup will be denied if the
correct password is not entered at the prompt.
Note: To disable security, select PASSWORD SETTING at Main Menu and then
you will be ask ed to enter password . Do not type an yth ing and ju st press
<Enter> , it will disable security. Once the security is disab led, th e system will bo ot
and you can enter Setup freely.
OS Select for DRAM > 64
This item allows you to access the memory that over 64MB in OS/2.
The choice: Non-OS2, OS2.
PCI / VGA Palette Snoop
It determines whether the MPEG ISA/VESA VGA Cards can work with PCI/VGA
or not.
Enabled W hen PCI/VGA working with MPEG ISA/VESA VGA Card.
Disabled When PCI/VGA not working with MPEG ISA/VESA VGA Card.
When the typematic rate is enabled, this selection allows you to select the delay
35
Video BIOS Shadow
36
Determines whether video BIOS will be co pied to RAM. Ho wever, it is op tional
depending on chipset design. Video Shadow will increase the video speed.
The Choice: Enabled, Disabled.
Enabled Video shadow is enabled
Disabled Video shadow is disabled
C8000 - CBFFF Shadow/DC000 - DFFFF Shadow
These categories determine whether option ROMs will be copied to RAM. An
example of such option ROM would be support of on-board SCSI.
Enabled Optional shadow is enabled
Disabled Optional shadow is disabled
4.8 Chipset Features Setup
EDO DRAM Speed Selection
The DRAM timing is controlled by the DRAM Timing Registers. The timings
programmed into this register are dependent on the system design. Slower rates
may be required in certain system designs to support loose layouts or slower
memory.
50ns DRAM Timing Type.
60ns DRAM Timing Type.
EDO CASx# MA Wait State
You could select the timing control type of EDO DRAM CAS MA (memory
address bus).The choice: 1, 2.
You could select the timing control type of EDO DRAM RAS MA (memory
address bus).The choice: 1, 2.
SDRAM RAS-to-CAS Delay
You can select RAS to CAS Delay time in HCLKs of 2/2 or 3/3. The system
board designer should set the values in this field, depending on the DRAM
installed. Do not change the values in this field unless you change specifications
of the installed DRAM or the installed CPU..
Auto Configuration
Auto Configuration selects predetermined optimal values of chipset parameters.
When Disabled, chipset parameters revert to setup information stored in CMOS.
Many fields in this screen are not available when Auto Configuration is Enabled.
37
The Choice: 2, 3.
SDRAM RAS Precharge Time
Defines the length of time for Row Address Strobe is allowed to precharge.
The Choice: 2, 3.
38
SDRAM CAS latency Time
Video RAM Cacheable
You can select CAS latency time in HCLKs of 2/2 or 3/3. The system board
designer should set the values in this field, depending on the DRAM installed. Do
not change the values in this field unless you change specifications of the
installed DRAM or the installed CP U..
The Choice: 2, 3.
DRAM Data Integrity Mode
Select Parity or ECC (error-correcting code), according to the type of installed
DRAM. The Choice: Non-ECC, ECC.
Cache Features
System BIOS Cacheable
Select Enabled allows caching of the system BIOS ROM at F000h-FFFFFh,
resulting in better system performan ce. However, if any program write s to th is
memory area, a system error may result.
Enabled BIOS access cached
Select Enabled allows caching of the video RAM , resulting in better system
performanc e. However, if any program writes to this memory area, a system
error may result.
PCI and IDE Configuration
8 Bit I/O Recovery Time
The recovery time is the length of time, measured in CPU clocks, which the
system will delay after the completion of an input/output request. This delay takes
place because the CPU is operating so much faster than the input/output bus
that the CPU must be delayed to allow for the completion of the I/O.
This item allows you to determine the recovery time allowed for 8 bit I/O. Choices
are from NA, 1 to 8 CPU clocks.
16 Bit I/O Recovery Time
This item allows you to determine the recovery time allowed for 16 bit I/O.
Choices are from NA, 1 to 4 CPU clocks.
Disabled BIOS access not cached
Video BIOS Cacheable
Select Enabled allows caching of the video BIOS ROM at C0000h-F7FFFh,
resulting in better video performance. However, if any program writes to this
memory area, a system error may result.
Enabled Video BIOS access cached
Disabled Video BIOS access not cached
39
Memory Hole At 15M-16M
In order to improve performance, certain space in memory can be reserved for
ISA cards. This memory must be mapped into the memory space below 16 MB.
Enabled Memory hole supported.
Disabled Memory hole not supported.
Passive Release
40
When Enabled, CPU to PCI bus accesses are allowed during passive release.
Otherwise, the arbiter only accepts another PCI master access to local DRAM.
The Choice: Enabled, Disabled.
Delayed Transaction
The chipset has an embedded 32-bit posted write buffer to support delay
transactions cycles. Select Enabled to support compliance with PCI specification
version 2.1.
The Choice: Enabled, Disabled.
Power Supply Type
This field seletion the system power AT or ATX.
4.9 Power Management Setup
The Power Management Setup allows you to configure you system to most
effectively save energy while operating in a manner consistent with your own style
of computer use.
41
ACPI function
This item allows you to select power Management ACPI mode.
The Choice: Enable , Disable.
Power Management
This category allows you to select the type (or degree) of power saving and is
directly related to the following modes:
1. Doze Mode
2. Standby Mode
3. Suspend Mode
4. HDD Power Down
There are four selections for Power Management, three of which have fixed
mode settings.
42
Disable (default) No power management. Disables all four modes
Video Off After
Min. Power Saving Minimum power management. Doze Mode = 1 hr.
Standby Mode = 1 hr., Suspend Mode = 1 hr., and
HDD Power Down = 15 min.
Max. Power Saving Maximum power management -- ONLY
AVAILABLE FOR SL CPU’S. Doze Mode = 1 min.,
Standby Mode = 1 min., Suspend Mode = 1 min.,
and HDD Power Down = 1 min.
User Defined Allows you to set each mode individually. When not
disabled, each of the ranges are from 1 min. to 1 hr.
except for HDD Power Down which ranges from 1
min. to 15 min. and disable.
PM Control APM
When enabled, an Advanced Power Management device will be activated to
enhance the Max. Power Saving mode and stop the CPU internal clock.
If the Max. Po wer Saving is not en ab led, this will be preset to No.
Video Off Method
This determines the manner in which the monitor is blanked.
When enabled, this feature allows the VGA adapter to operate in a power saving
mode.
N/A Monitor will rem ain on during power saving mo des.
Suspend Monitor blanked when the systems enters the
Suspend mode.
Standby Monitor blanked when the system enters Standby
mode.
Doze Monitor blank ed when the system enters any
power saving mode.
MODEM Use IRQ
Name the interrupt request (IRQ) line assigned to the modem (if any) on your
system. Activity of the selected IRQ always awakens the system.
The choices: NA, 3, 4, 5, 7, 9, 10, 11
PM Timers
V/H SYNC+ B lank This selection will cau se th e system to tu rn o ff the
vertical and horizontal synchronization ports and
write blanks to the video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Initial display power management signaling.
43
The following four modes are Green PC power saving functions which are only
user configurable when User Defined Power Management has been selected.
See above for available selections.
Doze Mode
44
When enabled and after the set time of system inactivity, the CPU clock will run at
slower sp eed wh ile all oth er devices still operate at fu ll speed.
Standby Mode
a very low-power-usage state, with only enough circuitry receiving power to
detec t power button activity or Resume by Ring activity.
The Choice: Instant-Off, Delay 4 Sec.
When enabled and after the set time of system inactivity, the fixed disk drive and
the video would be shut off while all other devices still o perate at fu ll speed.
Suspend Mode
When enabled and after the set time of system inac tivity, all d evices except the
CPU will be shut off.
HDD Power Down
When enabled and after the set time of system in activity, the h ard d isk drive will
be powered down while all other devices remain active.
Throttle Duty Cycle
When the system enters Doze mode, the CPU clock runs only part of the time.
You may select the percent of time that the clock runs.
The Choice: 12.5%, 25.0%, 37.5%, 50.0%, 62.5%, 75.0%
PowerOn by Ring/LAN
An input signal on the serial Ring Indicator (RI) line (in other words, an incoming
call on the modem) awakens the system from a soft off state..
The Choice: Enabled, Disabled.
IRQ 8 Break Suspend
You can Enable or Disable monitoring of IRQ8 so it does not awaken the system
from Suspend mode.
The Choice: Enabled, Disabled.
Reload Global Timer Events
When Enabled, an event occurring on each device listed below restarts the
global time for Standby mode.
IRQ[3 -7, 9-15], NMI
Primary IDE 0
Primary IDE 1
VGA Active Monitor
When Enabled, any video activity restarts the global timer for Standby mode.
The Choice: Enabled, Disabled.
Soft-Off by PWR-BTTN
When Enabled, turning the system off with the on/off butto n places the syste m in
45
Secondary IDE 0
Secondary IDE 1
Floppy Disk
Serial Port
Parallel Po rt
46
4.10 PnP / PCI Configuration Setup
Th is section describes c o nfiguring the PCI bus system. PC I, or Personal
Computer Interconnect, is a system which allows I/O devices to operate at
speeds nearing the speed the CPU itself uses when communicating with its own
special components. This section covers some very technical items and it is
and Play-compatible devices. If you select Auto, all the interrupt request (IRQ)
and DMA assignment fields disappear, as the BIOS automatically assigns them.
The choice: Auto and Manual.
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended System
Configuration Data (ESCD) when you exit Setup if you have installed a new add-
on and the system reconfig u ration has caused suc h a serious co n flict that the
op erating system cannot boot.
The choice: Enabled and Disabled.
IRQ n Assigned to
When resources are controlled manually, assign each system interrupt as one of
the following types, depending on the type of device using the interrupt:
Legacy ISA Devices compliant with the original PC AT bus specification,
requiring a specific in terrupt (such as IRQ4 fo r serial po rt 1). PCI/ISA PnP
Devices compliant with the Plug and Play standard, whether designed for PCI or
ISA bus architecture.
strongly recommended that only experienced users should make any changes to
the default settings.
PNP OS Installed
Select Yes if the system operating environment is Plug-and-Play aware
(e.g.,Windows 95).
The Choice: Yes and No.
Resource Controlled by
The Award Plug and Play BIOS can automatically configure all the boot and Plug
47
DMA n Assigned to
When resources are controlled manually, assign each system DMA channel as
one of the following types, depending on the type of device using the interrupt:
Legacy ISA Devices compliant with the original PC AT bus specification,
requiring a spec ific DMA channel
PCI/ISA PnP Devices compliant with the Plug and Play standard, whether
designed for PCI or ISA bus architecture.
48
4.11 Integrated Peripherals
IDE HDD Block Mode
This allows your hard disk controller to use the fast block mode to transfer data to
and from your hard disk drive (HDD).
Enabled IDE controller uses block mode.
and the operating environment includes a DMA driver (Windows 95 OSR2 or a
third-party IDE bus master driver). If your hard drive and your system software
both support Ultra DMA/33, select Auto to enable BIOS support.
The Ch oice: Auto, Disabled
On-Chip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with support for
two IDE channels. Select Enabled to activate each channel separately.
USB Keyboard support
Select Enabled if your system contains a Universal Serial Bus (USB) controller
and you have a USB keyboard.
The Choice: Enabled, Disabled.
Onboard FDD Controller
This should be enabled if your system has a floppy disk drive (FDD) installed on
the system board and you wish to use it. Even when so equipped, if you add a
higher performance controller, you will need to disable this feature.
Disabled IDE controller uses standard mode.
IDE Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4)
for each of the four IDE devices that the onboard IDE interface supports. Modes
0 through 4 provide successively increased performance. In Auto mode, the
system automatically determines the best mode for each device.
IDE Primary/Secondary Master/Slave UDMA
Ultra DMA/33 impleme ntation is possible only if your IDE hard drive supports it
49
The Choice: Enabled, Disabled.
Onboard Serial Port 1/Port 2
This item allows you to determine access onboard serial port 1/port 2 controller
with which I/O address.
Th e Ch oice: 3 F8/IRQ4, 2 F8/IRQ3, 3E8/IRQ4, 2F8 /IRQ3 , Disabled, Au to .
Onboard IR Controller
This item allows you to select onboard IR controller.
50
Onboard Parallel Port
Select a logical LPT port name and matching address for the physical parallel
(printer) port.
The choice: 378H/IRQ7, 278H/IRQ5, 3BCH/IRQ7, Disabled.
Parallel Port Mode
Select an operating mode for the onboard parallel port. Select Compatible or
Extended unless you are certain both your hardware and software support EPP
or ECP mode.
The choice: SPP, ECP+EPP1.7, EPP1.7+SPP, EPP1.9+SPP, ECP,
ECP+EPP1.9, and Normal.
When you select this function, the following message will appear at the center of
the screen to assist you in creating a password.
ENTER PASSWO RD:
Type the password, up to eight characters in length, and press <Enter>. The
password typed now will clear any previously entered passw ord from CMOS
memory. You will be asked to confirm the password. Type the password again
and press <Enter>. You may also press <Esc> to abort the selection and not
enter a password.
To disable a password, just press <Enter> when you are prompted to enter the
password. A message will confirm the password will be disabled. Once the
passwo rd is disab led , the system will boot and you can enter Setu p freely.
PASSW OR D DISABLED:
ECP Mode Use DMA
Select a DMA channel for the port.
Choices are 3, 1.
4.12 Supervisor / User Password Setting
You can set either supervisor or user password, or both of then. The differences
between are:
supervisor password : can enter and change the options of the setup menus.
user password : just can only enter but do not have the right to change
the options of the setup menus.
51
When a password has been enabled, you will be prompted to enter it every time
you try to enter Setup. This prevents an unauthorized person from changing any
part of your system config uration.
Additionally, when a password is enabled, you can also require the BIOS to
req uest a password every time your system is reb ooted. Th is would p revent
unauthorized use of your computer.
You determine when the password is required within the BIOS Features Setup
Menu and its Security option (see Section 3). If the Security option is set to
“System”, the password will be required both at boot and at entry to Setup.
to “Setup”, prompting only occurs when trying to enter Setup.
If set
5
Appendix A. Watch-Dog Timer
52
The WatchDog Timer is a device to ensure that standalone systems can
always recover from abnormal conditions that cause the system to
crash. These conditions may result from an external EMI or a software
bug. When the system stops working, hardware on the board will
perform hardware reset (cold boot) to bring the system back to a known
Three I/O ports control the operation of WatchDog Timer.
state.
443 (hex) Write Set WatchDog Time period
443 (hex) Read Enable the refresh the WatchDog Timer.
043/843 (hex) Read Disable the WatchDog Timer.
Prior to enable the WatchDog Timer, user has to set the time-out period.
The resolution of the timer is 1 second and the range of the timer is from
1 sec to 255 sec. You need to send the time-out value to the I/O port –
443H, and then enable it by reading data from the same I/O port – 443H.
This will activate the timer that will eventually time out and reset the CPU
board. To ensure that this reset condition won’t occur, the WatchDog
Timer must be periodically refreshed by reading the same I/O port 443H.
This must be done within the time-out period that is set by the software,
please refer to the example program. Finally, we have to disable the
WatchDog timer by reading the I/O port -- 843H or 043H. Otherwise the
system could reset unconditionally.
A tolerance of at least 5% must be maintained to avoid unknown
routines in the operating system (DOS), such as disk I/O that can be
very time-consuming. Therefore if the time-out period has been set to 10
seconds, the I/O port 443H must be read within 7 seconds.
Example assembly program:
TIMER_PORT = 443H
TIMER_START = 443H
TIMER_STOP = 843H
;;INITIAL TIMER C OUNTER
MOV DX, TIMER_PORT
MOV AL, 8 ;;8 seconds
OUT DX, AL
MOV DX, TIMER_START
IN AL, DX. ;;START COUNTER
W_LOOP:
MOV DX, TIMER_STOP
IN AL, DX
MOV DX, TIMER_START
53
IN AL, DX ;;RESTART COUNTER
;;ADD YOUR APPLICATION HERE
CMP EXIT_AP, 0
JNE W_LOOP
MOV DX, TIMER_STOP
IN AL, DX
;;EXIT AP
54
Appendix B. I/O Address Map
• I/O Address Map
I/O Address
Description
Map
000-01F DMA Controller #1
020-021 Interrupt Controller # 1, Master
040-05F System Timer
060-06F Standard 101/102 keyboard Controller
070-07F Real time Clock, NMI Controller
080-0BF DMA Page Register
0A0-0BF Interrupt Controller # 2
0C0-0DF DMA Controller # 2
0F0-0F0 Clear Math Coprocessor Busy
0F1-0F1 Reset Math Coprocessor
0F8-OFF Math Coprocessor
170-1F7 BUS Master PCI IDE Controller
278-27F Parallel Printer Port 2
2F8-2FF Serial Port 2
294-297 PCI bus
376-376 BUS Master PCI IDE Controller
378-37F Parallel Printer Port 1
3B0-3DF Standard AGP Graphic Adapter
3F0-3F7 Floppy Disk Controller
3F8-3FF Serial Port 1
443 Watch dog timer enable
843/043 Watch dog timer disable
1 st MB Memory Address Map
Memory address Description
00000-9FFFF SYSTEM MEMORY
A0000-BFFFF VGA BUFFER
C0000-C7FFF VGA BIOS
C8000-CFFFF NO USE
D6000-D7FFF DEFAULT DOC2000 ADDRESS
E0000-FFFFF SYSTEM BIOS
100000 EXTEND MEMORY
IRQ Mapping Chart
IRQ0 System Timer IRQ8 RTC clock
IRQ1 Keyboard IRQ9 SCSI PORT A / LAN2
IRQ2 IRQ Controller IRQ10 USB
IRQ3 COM2 IRQ11 SCSI PORT B
IRQ4 COM1 IRQ12 PS/2 mouse
IRQ5 LAN1 IRQ13 FPU
IRQ6 FDC IRQ14 Primary IDE
IRQ7 Printer IRQ15 Secondary IDE
DMA Channel Assig nmen t
Channel Function
0 Available
1 Available
2 Floppy disk
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available
55
56
Appendix C. ATX Power Supply
The following notes show how to connect ATX Power Supply to the
backplanes and / or the ISBC card.
A. For backplanes with ATX Connector
1. Please, disconnect the AC cord of the Power Supply from the AC
source to prevent sudden electric surge to the board.
2. Please, check the type of your CPU board. All CPU board listed on
the next page support ATX power supply but has two types of
power switch connection:
2.1. ROCKY-3722EVS (through Power Button & GND):
Connect the ATX power button switch to the pin 18 (power
button) and pin 20 (+5VSB) of CN13 on the board. And connect
the power cable from backplane to CN13 of CPU card.
If you want to turn ON the system, just press the button once.
And If you want to turn off the power supply, please press the
ATX power switch button for about 4 seconds.
B. For the backplanes with ATX power supply
connector
For some SBC without ATX power ON/OFF function, then you can
control the ATX power supply through backplane’s PS ON
connector. Refer to the figure below: for the backplanes with ATX
connector, the connection can be made simply as following:
1. Connect the ON/OFF (ordinary one) switch to Pin 2 (PS ON) and
Pin 3 (GND) of connector CN2
2. You may now turn the power ON/OFF by the power switch
57
58
Appendix D. How to use Wake-Up Function
The ROCKY-3722EVS provides two kind of Wake Up Function.
This page describes how to use Modem Wake-Up and LAN Wake-Up
function.
Wake-Up function is working while you use ATX power supply,
PowerOn By Ring/LAN :
You must set the option Power On By Ring/LAN of CMOS SETUP
to be enabled. The ATX power supply will be switched on when there is
a ring signal detected on pin “RI” of serial port.
When your computer is in power-down status, you can see LAN
Link/Active LED is flashing. This status indicates that the LAN chip has
entered standby mode and waits for Wake-Up signal. You can use other
computers to wake up your computer by sending ID to it.
: ID is the address of your system LAN. Every LAN chip has a factory-
ID
set ID which you can find it from network information in WINDOWS.
ID’s form a t is xxxxxxxxxxxx
Example ID: 009027388320
59
Loading...
