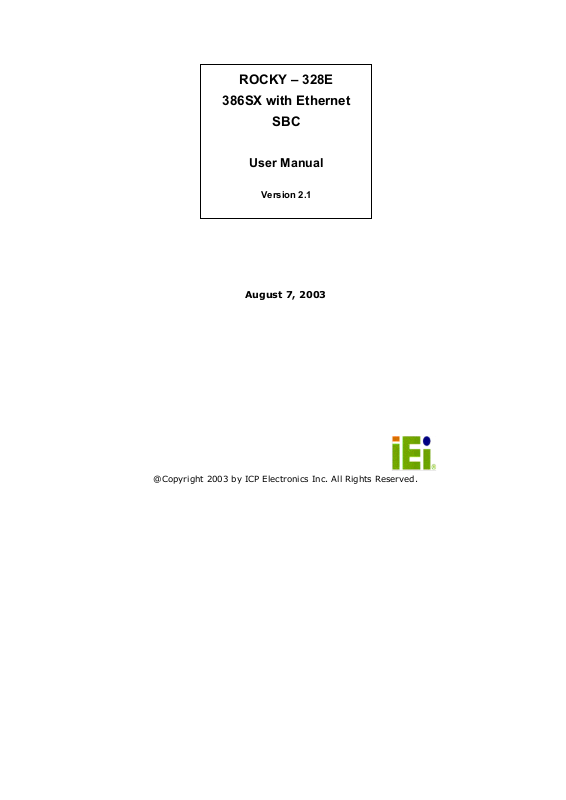

ICP ROCKY-328E User Manual

ROCKY – 328E

386SX with Ethernet

SBC

User Manual

Version 2.1

August 7, 2003

@Copyright 2003 by ICP Electronics Inc. All Rights Reserved.

Copyright Notice

The information in this document is subject to change without prior
notice in order to improve reliability, design and function and does
not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of the
possibility of such damages.
This document contains proprietary information protected by
copyright. All rights are reserved. No part of this manual may be
reproduced by any mechanical, electronic, or other means in any
form without prior written permission of the manufacturer.

Trademarks

ROCKY-328E is registered trademarks of Acquire Inc., PC/104 is
trademarked of PC/104 Consortium, IBM PC is a registered trademark
of International Business Machines Corporation. Intel is a registered
trademark of Intel Corporation. AMI is registered trademarks of
American Megatrends, Inc. Other product names mentioned herein
are used for identification purposes only and may be trademarks
and/or registered trademarks of their respective companies.

2

Table of Contents

1. INTRODUCTION ................................................. 2

1.1 SPECIFICATIONS :.........................................................3

1.2 PACKAGE CONTENTS ......................................................4

2. INSTALLATION ................................................... 5

2.1 ROCKY-328E'S LAYOUT ................................................5

2.2 CPU O

2.3 SYSTEM MEMORY DRAM.................................................7

2.4 WATCH-DOG TIMER ......................................................7

2.5 DISKONCHIP™ FLASH DISK............................................8

2.6 C

PERATION SPEED SETTING.......................................7

LEAR CMOS SETUP .....................................................9

3. CONNECTION..................................................... 10

3.1 FLOPPY DISK DRIVE CONNECTOR ..................................... 10

3.2 IDE D

3.3 P

3.4 S

3.5 K

3.6 L

3.7 E

3.8 E

3.9 E

3.10 PC/104 C

ISK DRIVE CONNECTOR......................................... 10

ARALLEL PORT .......................................................... 11

ERIAL PORTS ........................................................... 12

EYBOARD / MOUSE CONNECTOR ..................................... 12

AN RJ45 CONNECTOR................................................. 13

XTERNAL SWITCHES AND INDICATORS .............................. 13

XTERNAL POWER CONNECTOR ........................................ 14

XTERNAL SPEAKER ..................................................... 15

ONNECTION BUS ............................................ 15

4. AMI BIOS SETUP.............................................. 16

4.1 GETTING START .........................................................16

4.2 S

4.3 A

TANDARD CMOS SETUP.............................................. 16

DVANCED CMOS SETUP.............................................. 16

APPENDIX A. E2 KEY™ FUNCTION.............. 18

APPENDIX B. WATCH-DOG TIMER............... 20

1

1. Introduction

Welcome to the ROCKY-328E 386SX with Ethernet Single
Board Computer. The ROCKY-328E is an ISA with PC/104
form factor board, which comes equipped with ALI 6117
(includes 386SX CPU) and advanced high-performance
multi-mode I/O, designed for the system manufacturers,
integrators, or VARs that want to provide all the
performance, reliability, and quality at a reasonable price.

An advanced high performance super AT I/O chip SMC
FDC37C669 or equivalent chip is used in the ROCKY-328E
board. The UART is compatible with the NS16C550. The
parallel port and IDE interface are compatible with IBM
PC/AT and XT architecture's, as well as EPP and ECP. The
FDC37C669 incorporates sophisticated power control
circuitry(PCC). The PCC supports multiple low power down
modes.

The most outstanding feature in the ROCKY-328E is built­in PC/104 expansion bus. Based on the PC/104 bus, you
could easily install over thousands of PC/104 modules
from hundreds' vendors in the world. The ROCKY-328E
has external power connector that could let it connects
with power supply directly. It is more suitable for your
standalone applications.

In addition, the ROCK-328E provides one 72-pin SIMM
( Single In-line Memory Module) socket to install max.
32MB memory(single side RAM). The board also designed
4MB DRAM on board for OEM customer.

2

1.1 Specifications :

The ROCKY –328E 386SX with Ethernet Single Board
Computer provides the following specification:

 System :



CPU : ALI 6117,includes 386SX CPU



DMA channels : 7



Interrupt levels : 15



Real-time clock/calendar : Uses Li-battery backup

 Memory :



RAM memory : 512KB to 32MB,only
side SIMM



Shadow RAM



System BIOS : 0E0000h ~ 0FFFFFh

memory

: C0000h ~ DFFFFh

support

 Input/Output :



IDE hard disk drive interface : Supports up to two
IDE hard disk drives. Can be disabled through system
BIOS Setup.



Floppy disk drive interface : Supports two 2.88 MB,

1.44MB, 1.2MB, 720KB, or 360KB floppy disk drives.
Can be disabled through system BIOS Setup.



Two high speed Series ports : NS16C550 compatible
UARTs with send/receive 16-byte FIFOs, data rates are
independently programmable from 115.2K baud down to
50 baud. Modem controls the circuitry.



Multi-mode Parallel Port :

Standard mode - IBM PC/XT, PC/AT, PS/2 compatible bi-

directional parallel port.

Enhanced mode - Enhanced parallel port ( EPP)

compatible with IEEE 1284 specification.

High speed mode - Microsoft and Hewlett Packard

extended capabilities port ( ECP), compatible with IEEE
1248 specification.

single

3



Industrial features :



Watch-dog timer : Can be set to 1,2,10,20,110,or
220 seconds per period. Reset or NMI was generated
when CPU did not periodically trigger the timer. Your
program use hex 043 and 443 to control the watch-dog
and generate a system reset.



PC/104 expansion bus : A 64-pin and 40-pin,
industrial embedded-PC bus standard.



External power connector : 8-pin male connector



Keyboard connector : A 5-pin header on board and 6-
pin mini-DIN keyboard connector is located on the
mounting bracket.



General :



Power Consumption : +5V @ 1A ( 40MHz,4MB RAM)



Operating Temperature : 0° ~ 60° C ( CPU needs
Cooler)



Humidity : 5% ~ 95%, non-condense



Dimension: 180mm(W) x 122mm(L), standard AT form
factor

1.2 Package Contents

In addition to this User's Manual, the ROCKY-328E
package includes the following items:

One ROCKY-328E 386SX with Ethernet Single Board

•

Computer

One Printer Cable

•

One FDD/HDD Cable

•

One 6-pin Mini-Din to Keyboard/Mouse Adapter Cable

•

If any of these items is missing or damaged, contact the
dealer from whom you purchased the product. Save the
shipping materials and carton in case you want to ship or
store the product in the future.

4

2. Installation

This chapter describes how to install the ROCKY-328E.
First, the layout of ROCKY-328E is shown, then comes the
unpacking information that you should be careful with is
illustrated. After that is jumpers and switches setting for
ROCKY-328E's configuration, with information such as CPU
type selection, system clock setting, and interrupt IRQ
setting for serial ports and parallel port.

2.1 ROCKY-328E's Layout

< This page is intentionally left blank. >

5

ROCKY-328E’s LAYOUT:

6

2.2 CPU Operation Speed Setting

CPU SPEED SETTING:

•

The system clock is generated by the ICS650-01, and the

different CPU clock frequency can be selected utilizing
JP19 as shown in the following table:

JP19 1-2 3-4

33Mhz OPEN OPEN
25MHz CLOSE CLOSE
40MHz CLOSE OPEN

2.3 System Memory DRAM

The system DRAM on board is divided into two banks,
bank 0 and 1. Bank 0 is the on board optional 2/4MB
DRAM while Bank 1 is the one 72-pin SIMM. Based on
chipset function, the 72-pin SIMM only support single side
DRAM. There have two jumpers related to this setting.

JP3/JP6 : 2/4MB DRAM and 72-pin SIMM selection

•

Function JP3 JP6
On Board 2/4MB CLOSE CLOSE
72-pin SIMM OPEN OPEN

2.4 Watch-Dog Timer

The Watch-Dog Timer is enabled by reading port 443H. It
should be triggered before the time-out period ends,
otherwise it will assume the program operation is
abnormal and will issue a reset signal to start again, or
else activate NMI to CPU. The Watch-Dog Timer is disable
by reading port 043H. The Watch-Dog Timer time-out
period can be set 1,2,10,20,110 or 220 sec. by jumper JP9.

7

JP10 : Watch-Dog Active Type Setting

•

JP10 DESCRIPTION

2-3 RESET WHEN WDT TIME-OUT
1-2 ACTIVATE NMI TO CPU WHEN WDT TIME-

OUT

OPEN

DISABLE WDT

• JP9 : WDT TIME-OUT PERIOD

JP9 1-2 3-4 5-6 7-8

1sec OPEN OPEN CLOSE OPEN

2sec OPEN OPEN CLOSE CLOSE
10sec OPEN CLOSE OPEN OPEN
20sec OPEN CLOSE OPEN CLOSE

110sec CLOSE OPEN OPEN OPEN
220sec CLOSE OPEN OPEN CLOSE

2.5 DiskOnChip™ Flash Disk

The DiskOnChip™ Flash Disk Chip(DOC) is produced by M­Systems. DOC (MD-2200-xMB) is 32-pin DIP package. As
DOC is 100% compatible to hard disk and DOS system,
users don‘t need to install any extra software utility to
operate. “Plug and play” function is not only easy but also
reliable.

JP15 : DiskOnChip™ Memory Address Setting

•

Address 1-2 3-4 5-6
CE000 CLOSE OPEN OPEN

D6000 OPEN CLOSE OPEN
DE000 OPEN OPEN CLOSE

8

2.6 Clear CMOS Setup

If the user wants to clear the CMOS Setup(for example
you forgot the password, then you should clear setup and
reset the password), you should close the JP17 pin 2-3 for
about 3 seconds, then open it again. To set back to normal
operation mode, please take off the jumper. .

JP17 : Clear CMOS Setup (Reserve Function)

•

JP17 DESCRIPTION
1-2 Normal Operation

2-3 Clear CMOS Setup

9

3. Connection

This chapter illustrates how to connect peripherals,
switches and indicators to the ROCKY-328E board. You can
access most of the connectors from the top of the board
while it is installed in the chassis.

3.1 Floppy Disk Drive Connector

ROCKY-328E board comes equipped with a 34-pin daisy­chain driver connector cable. The detailed pin assignment
of the connector is specified as following table:

CN2 : FDC CONNECTOR

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE CURRENT#

3 GROUND 4 N/C

5 GROUND 6 N/C

7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#

3.2 IDE Disk Drive Connector

You can attach two IDE( Integrated Device Electronics)
hard disk drives to the ROCKY-328E internal controller.
The board comes equipped with a 40-pin flat-cable

10

connector. The detailed pin assignment of the connector is
specified in the following table:

CN1: IDE Interface Connector

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND - DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND

3.3 Parallel Port

This port is usually connected to a printer, The ROCKY­328E includes an on-board parallel port that can be
accessed through a 26-pin flat-cable connector CN9. The
detailed pin assignment of the connector is specified in the
following table:

CN9 : Parallel Port Connector

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE

11

17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 IOW# 24 GROUND
25 GROUND

3.4 Serial Ports

The ROCKY-328E offers two high speed NS16C550
compatible UARTs with Read/Receive 16 byte FIFO serial
ports. These ports let you connect to serial devices or a
communication network. Two DB-9 connectors are
provides by the ROCKY-328E The detailed pin assignment
of the connectors are specified as following tables:

CN13 & CN15 : Serial Port Connector( ACE0 & ACE1)

•

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

3.5 Keyboard / Mouse Connector

The ROCKY-328E provides two keyboard connectors. A 5­pin header keyboard connector CN11 supports passive
backplane applications. Another one is a 6-pin Mini-DIN
connector CN16 on the board mounting bracket for single
board computer applications. The detailed pin assignment
of the connector is specified in the following tables:

CN11 : 5-pin Header Keyboard Connector

•

PIN NO. DESCRIPTION

1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GROUND

12

5 +5V

CN10 : 5-pin Header PS/2 Mouse Connector

•

PIN NO. DESCRIPTION

1 MOUSE CLOCK
2 MOUSE DATA
3 N/C
4 GROUND
5 +5V

CN16 : 6-pin Mini-DIN Keyboard/Mouse Connector

•

PIN NO. DESCRIPTION

1 KEYBOARD DATA
2 MOUSE DATA
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 MOUSE CLOCK

3.6 Lan RJ45 Connector

The ROCKY-328E built-in a RJ45 Lan connector for 10Mbps
Ethernet(NE-2000 compatible) operation.

• CN14 : Lan RJ45 Connector

1 TX+ 5. NC
2 TX- 6. RX-

3. RX+ 7. NC

4. NC 8. NC

• CN17 : LED Connector(4-pin header) for Lan

1 LED Link 2 +5V
3 LED RX 4 +5V

3.7 External Switches and Indicators

There are many external switches and indicators for
monitoring and controlling your CPU board. These features

13

are completely optional so feel free to install them in case
you need it. The detailed pin assignment of the
connectors is specified in the following tables:

• CN8 : RESET BUTTON

PIN NO. DESCRIPTION

1 EXTERNAL RESET
2 GROUND

CN3 : IDE LED Connector

•

PIN-NO DESCRIPTION

1 +5V
2 HDD ACTIVE#

CN4 : POWER LED & KEYLOCK

•

PIN NO. DESCRIPTION

1 POWER LED ANODE
2 KEY
3 GROUND
4 KEYLOCK

5 GROUND

3.8 External Power Connector

The ROCKY-328E has an on-board external power

connector CN12. You can connect power directly to the
CPU board for some types of single-board-computer
( without passive backplane) application.

CN12 : EXTERNAL POWER CONNECTOR

•

PIN NO. DESCRIPTION

1 +5V
2 +12V
3 -12V
4 GROUND
5 GROUND
6 -5V
7 +12V
8 +5V

14

3.9 External Speaker

The ROCKY-328E has its own buzzer so you also can
connect to the external speaker through connector CN5.

• CN5 : SPEAKER

PIN NO. DESCRIPTION

1 SPEAKER SIGNAL
2 GROUND

3.10 PC/104 Connection Bus

The ROCKY-328E's PC/104 expansion bus let you connect
to any kind of PC/104 modules. The PC/104 bus has
already become an industrial embedded PC bus standard
so you could easily install over thousands of PC/104
modules from hundreds of venders worldwide.

NOTE : ROCKY-328E allows directly plug in PC/104

module, so you don‘t need the PC/104
Connection Kit.

15

4. AMI BIOS Setup

The ROCKY-328E use AMI BIOS for system configuration,
and the AMI BIOS setup program is designed to provide
maximum flexibility in configuring the system by offering
various options which may be selected for end-user
requirements. This chapter is written to guide through
proper use of these features.

4.1 Getting Start

When the system is powered on, the BIOS will enter the
Power-On-Self-Test routines. These routines will be
executed for System Test and Initialization and System
Configuration Verification. After the POST routines are
completed, the following message appears :

" Hit < Del>, if you want to run SETUP"

To access AMI BIOS Setup program, press <Del> key.

4.2 Standard CMOS Setup

Standard CMOS Setup is the first option on the main menu.
The standard CMOS setup utility is used to configure the
following features :

•

Date/Time,

•

Hard Disk Type,

•

Floppy Disk Type,
All of these features are commonly seen so we won’t
elaborate on these items in this menu.

4.3 Advanced CMOS Setup

When you enter the Advanced CMOS Setup, this Setup
program is equipped with a series of help screens,
accessed through <F1> key, which will display the options
available for a particular configuration feature. All of the
items on the left side of the screen commonly seen so

16

they will not be explained in detail here. Here, we will only
focus on some special items that are found particularly in
ROCKY-328E board. These items are explained in detail
below :

 On-board IDE Controller :

The IDE hard disk drive can be Enable or Disable by
this item. When you do not need hard disk, the IDE
controller can be disabled.

 On-board Floppy Controller :

The floppy disk drive can be Enable or Disable by this
item. When you do not need floppy disk, the FDD
controller can be disabled.

 Serial Port 1 :

The options are Disable, 3E8,2F8 ,or 3F8. You can
set the I/O address of the serial port ( COMA) or
disable it.

 Serial Port 2 :

The options are Disable, 2E8,3F8,or 2F8. You can set
the I/O address of the serial port 1 ( COMB) or disable
it.

 Parallel Port :

The options are Disable, 3BC, 378 or 278. You can
set the I/O address of the parallel port or disable it.

 Parallel Port Mode :

ROCKY-318 provides EPP,ECP,ECP+EPP, and Normal
Mode.

 Primary Display :

You could set VGA/EGA, CGA40x25, CGA80x25,
Mono or Absent. When set Absent the ROCKY-328E

will not check the display adapter when power on the
system.

 System Keyboard :

You could set Present or Absent. When set Absent
the ROCKY-328E will not check the display adapter
when power on the system.

17

Appendix A. E2 Key™ Function

The ROCKY-328E provides an outstanding E2KEY™
function for system integrator. Based on the E

2

KEY™ you
could freely store ID Code, Pass Word, or Critical Data in
the 1Kbit EEPROM. Since the EEPROM is a type of
nonvolatile memory, you don’t have to worry losing very
important data.

Basically the E

2

KEY™ is based on a 1Kbit EEPROM which is
configured to 64 words(from 0 to 63). You could
access(read or write) each word at any time.

2

When you want to use the E

KEY™ function, you should
find the utility in the package. The software utility will
include the following four files,

README.DOC
E2KEY.OBJ
EKEYDEMO.C
EKEYDEMO.EXE.

The E2KEY.OBJ provides two library function for user to

2

integrate their application with E

KEY™ function. These
library (read_e2key and write_e2key) are written and
compiled in C format. Please read the following statement
and you will know to use it. It is pretty easy.

unsigned int read_e2key(unsigned int address)

2

/* This function will return the E

KEY™’s data at address.
The address range is from 0 to 63. Return data is one
word,16 bits */

void write_e2key(unsigned int address,unsigned
data)

18

/* This function will write the given data to E2KEY™ at
address. The address range is from 0 to 63. The data
value is from 0 to 0xffff. */

For easy accurate usage, please refer to EKEYDEMO.C
code beforehand.

2

Please note the E

KEY™ function is based on parallel port
operations so you should first enable ROCKY-328E’s
parallel port. Otherwise will be not working.

If you need Windows NT/95 driver for this function. Please
download relative drivers from

ftp.icpacquire.com.tw.

19

Appendix B. Watch-Dog Timer

The Watch-Dog Timer is provided to ensure that
standalone systems can always recover from catastrophic
conditions that caused the CPU to crash. This condition
may have occurred by external EMI or a software bug.
When the CPU stops working correctly, hardware on the
board will either perform a hardware reset (cold boot) or a
non-maskable interrupt (NMI) to bring the system back to
a known state.

The Watch-Dog Timer is controlled by two I/O ports.

443

(hex)

043

(hex)

To enable the Watch-Dog Timer, a reading action from I/O
port 443H must be performed. This will enable and
activate the countdown timer which will eventually time
out and either reset the CPU or cause an NMI depending
on the setting of JP10. To ensure that this reset condition
does not occur, the Watch-Dog Timer must be periodically
refreshed by reading the same I/O port 433H. This must
be done within the time out period that is selected by
jumper JP9.

A tolerance of at least 30% must be maintained to avoid
unknown routines within the operating system (DOS),
such as disk I/O that can be very time consuming.
Therefore if the time out period has been set to 10
seconds, the I/O port 443H must be read within 7 seconds.

Read

Read Disable the Watch-Dog Timer.

Enable the refresh the Watch-Dog

Timer.

Note: When exiting a program it is necessary to disable the

Watch-Dog Timer, otherwise the system will reset.

20
