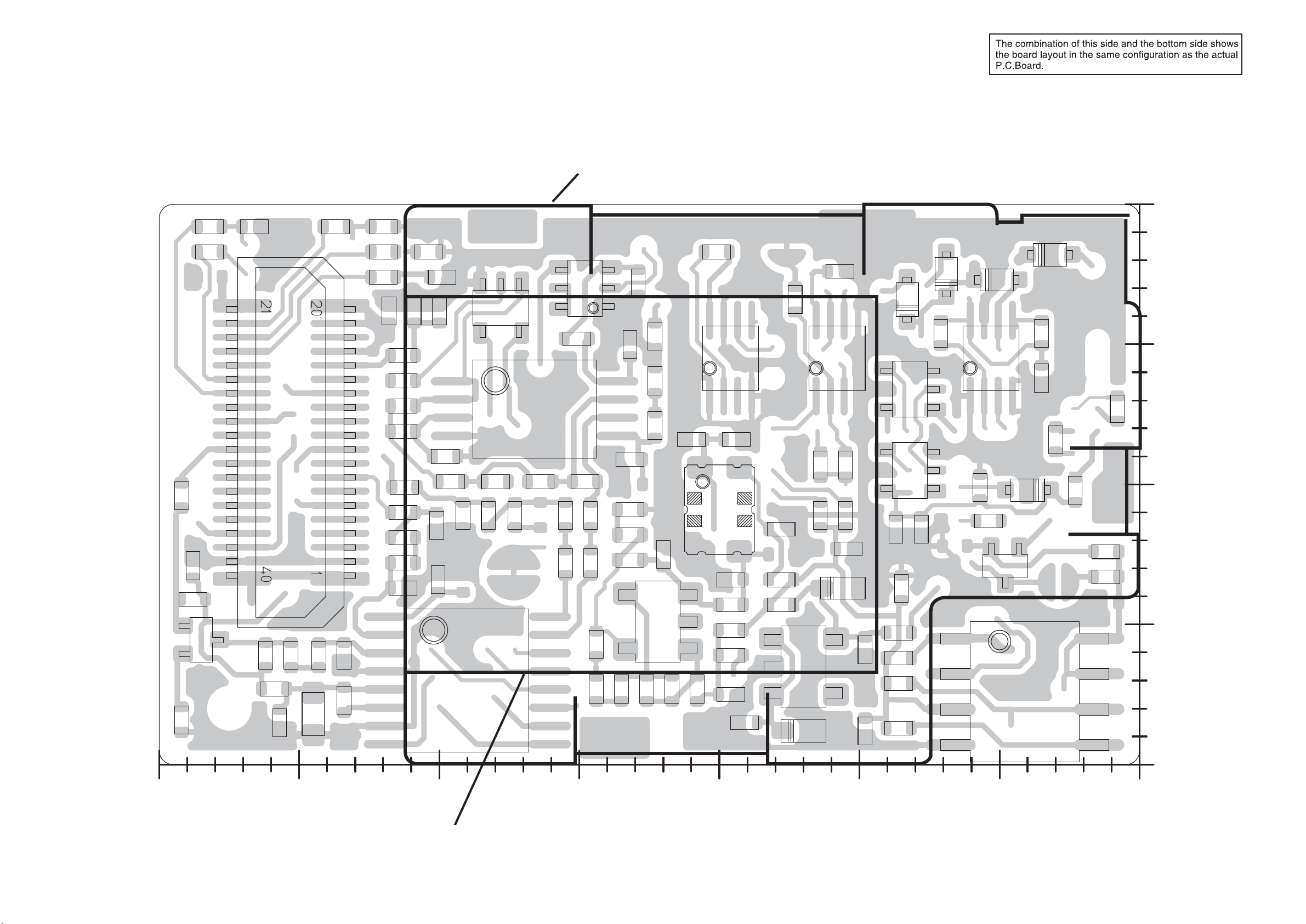

BOARD LAYOUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

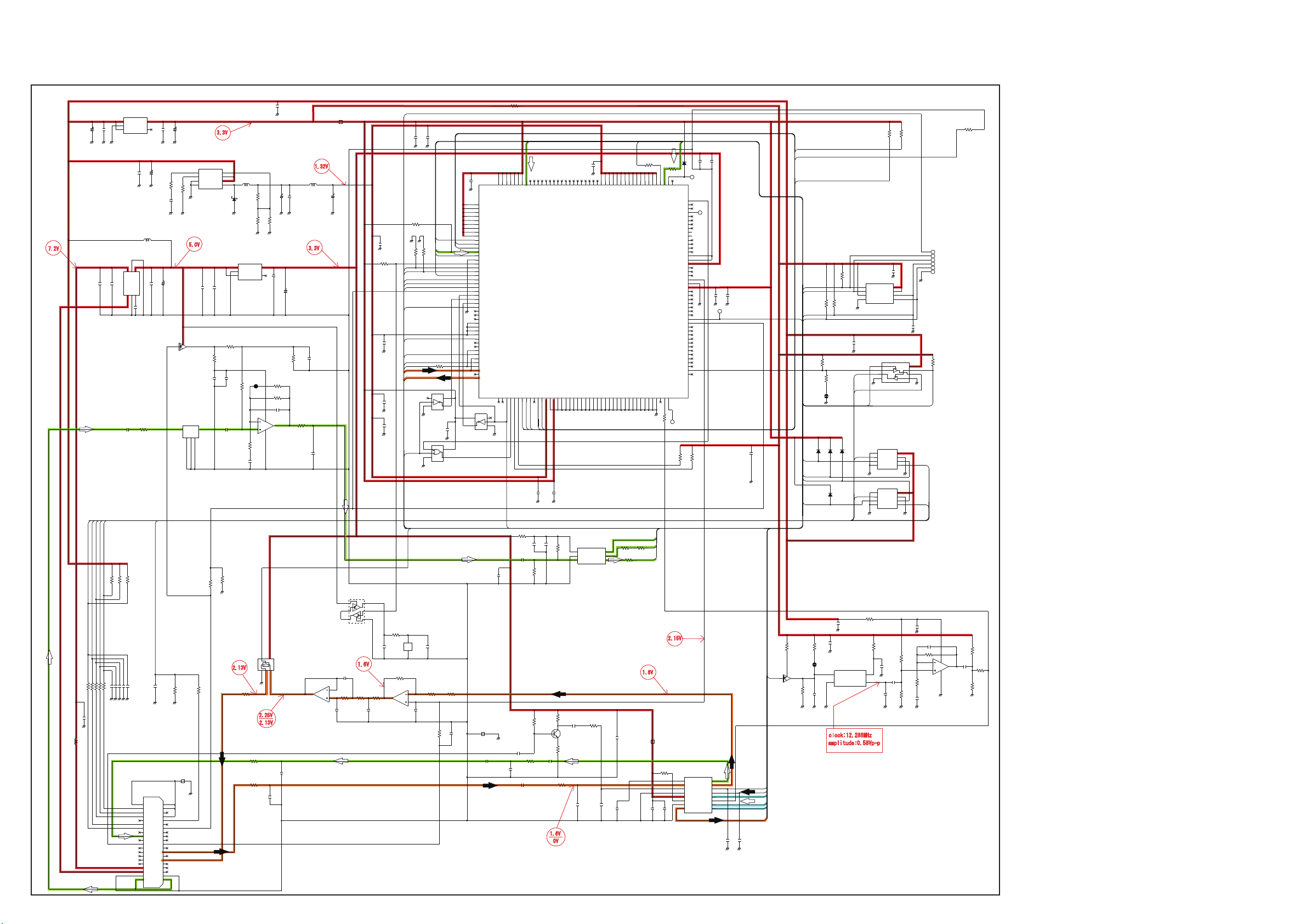

VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 6
Dec. 2009
SECTION 6
SECTION 6. PARTS LIST
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
IC1 1180002271 S.REG TK11250CMCL-G T 29.2/10.9
IC2 1180002590 S.REG XC6204B332MR B 12/3.7
IC3 1110006700 S.IC TB7100F (TE85L,F) T 26.9/17.1
IC4 1180002590 S.REG XC6204B332MR T 22.7/10.9
IC7 1110006230 S.IC NJM2711F-TE1-#ZZZB T 25.4/2.3
IC8 1110005290 S.IC NJM2115V-TE1-#ZZZB B 21.6/12.7
IC9 1130007021 S.IC TC7S66FU(TE85L,F) B 22.8/16.3
IC10 1140013280 S.IC TMS320VC5507ZHH [GEN-03] T 7.2/11.1
1140013290 S.IC TMS320VC5509AZHH [GEN-04]
IC11 1130006891 S.IC TC7S04FU(TE85R,F) B 8.2/10.5
IC12 1130007281 S.IC TC7S32FU(TE85R,F) B 8.2/13.4
IC13 1190002080 S.IC AD7476ARTZ-500RL7 <FE> T 17.4/3
IC16 1130012910 S.IC AK4554VTP-E2/P B 24/3
IC17 1110006230 S.IC NJM2711F-TE1-#ZZZB B 17.2/3.7
IC18 1130014800 S.IC R1EX24064ATA00A [GEN-04] only B 4.2/7.2
IC20 1130014210 S.IC AT25FS010N-SH27-T [GEN-03] B 4.1/2.6
1130013360 S.IC AT25F2048N-10SU-2.7SL383 0
[GEN-04]
IC22 1130006891 S.IC TC7S04FU(TE85R,F) T 15.1/10.8
IC23 1130013040 S.IC TC7WBD125AFK(T5L,F) B 5.3/14.5
IC24 1130013040 S.IC TC7WBD125AFK(T5L,F) B 14.6/14.5
IC26 1130013050 S.IC HD74LV2GT125AUSE-E B 11/14.5
Q1 1590003550 S.TRA XP4313(TX) B 19.8/17
Q2 1590003231 S.TRA UNR9113G0L T 23.8/8
Q3 1530003190 S.TRA 2SC4617 TLQ [GEN-04] only B 33.5/4.4
D1 1750001280 S.DIO CUS02(TE85L,Q) T 24.4/14.4
D2 1790001241 S.DIO MA2S7280GL B 8.3/16.6
D3 1790001241 S.DIO MA2S7280GL B 5.1/17.6
D4 1790001241 S.DIO MA2S7280GL B 6.9/17.5
D5 1790001241 S.DIO MA2S7280GL B 4/9.7
D6 1790001241 S.DIO MA2S7280GL B 2.5/17.6
FI1 2020002210 S.CER CFXCE450KCFA-R1 T 29.3/2.1
X1 6050012930 S.XTA CR-886 DSA321SCA 12.288 MHz B 15.2/9.5
L1 6200001620 S.COI ELJFC 1R0K-F T 32.9/9.8
L2 6200012090 S.COI CDRH2D18HP-150NC T 21.4/17.5
L3 6200007830 S.COI ELJFC 4R7K-F T 17.3/18.8
L4 6200001620 S.COI ELJFC 1R0K-F T 30/6.5
R1 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/14.6
R2 7030005240 S.RES ERJ2GEJ 473 X (47K) B 25.1/16.1
R3 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/13.7
R4 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/9
R5 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.2/9.9
R9 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 26/6.4
R10 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 27.8/6.4
R11 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.1/6.4
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 26.9/4.8
R13 7030004980 S.RES ERJ2GEJ 101 X (100) T 22.3/2.8
R14 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 21.4/1.2
R15 7030004970 S.RES ERJ2GEJ 470 X (47) T 20.5/1.2
R16 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 30/4.6
R18 7030005240 S.RES ERJ2GEJ 473 X (47K) B 15.1/18.3
R19 7030005240 S.RES ERJ2GEJ 473 X (47K) B 3.5/15.4
R20 7030005240 S.RES ERJ2GEJ 473 X (47K) B 7.1/15.4
R22 7030004980 S.RES ERJ2GEJ 101 X (100) B 27.6/18.1
R23 7030004980 S.RES ERJ2GEJ 101 X (100) B 27.1/17.2
R24 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.2/18.9
R25 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.4/18.9
R26 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.4/17.8
R27 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 31.2/13.7
R28 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 32.2/13.7
R32 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 19.6/7
R33 7030005600 S.RES ERJ2GEJ 273 X (27K) B 19.6/8.9
R34 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 17.3/11.8
R35 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.8/10.1
R36 7030009710 S.RES ERJ2GEJ 203 X (20K) B 21.4/10.1
R37 7030009710 S.RES ERJ2GEJ 203 X (20K) B 24.6/10.1
R38 7030009710 S.RES ERJ2GEJ 203 X (20K) B 26.3/11.9
R39 7030004980 S.RES ERJ2GEJ 101 X (100) B 20.1/15.2
R41 7030004970 S.RES ERJ2GEJ 470 X (47) B 13.1/6.8
R43 7030004970 S.RES ERJ2GEJ 470 X (47) B 17.8/6.8
R44 7030005240 S.RES ERJ2GEJ 473 X (47K) B 17.8/5.9
R45 7030005240 S.RES ERJ2GEJ 473 X (47K) B 16.3/6.6
R46 7030004980 S.RES ERJ2GEJ 101 X (100) B 18.5/1.2
R47 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 17.6/1.2
R48 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/4.7
R49 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/1.8
R50 7030010040 S.RES ERJ2GEJ-JPW B 14.6/3.8
R51 7030005120 S.RES ERJ2GEJ 102 X (1K) T 29.5/19.2
R52 7030005310 S.RES ERJ2GEJ 124 X (120K) T 29.5/18.2
R53 7030011060 S.RES RR0510P-273-D (27K) T 21/14.3
R54 7030008260 S.RES RR0510P-393-D (39K) T 22/14.3
R55 7030010040 S.RES ERJ2GEJ-JPW B 13.1/5.9
R56 7030005170 S.RES ERJ2GEJ 474 X (470K) T 23/14.3
R62 7030007250 S.RES ERJ2GEJ 220 X (22) T 15.8/6.8
R63 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 18.3/0.81
R64 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 19.6/2.8
DESCRIPTION
M.
H/V
LOCATION
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
R69 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 20.5/8.9
R70 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/7.2
R71 7030004980 S.RES ERJ2GEJ 101 X (100)
[GEN-04] only B 29.3/3.9
R72 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.4/2.3
R73 7030005120 S.RES ERJ2GEJ 102 X (1K)
[GEN-04] only B 34.2/1.6
R74 7030005120 S.RES ERJ2GEJ 102 X (1K)
[GEN-04] only B 31.9/3.9
R75 7030008300 S.RES ERJ2GEJ 184 X (180K)
[GEN-04] only B 33.8/5.9
R81 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 9.9/4.3
R82 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 8.3/4.3
R83 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 12.3/4.3
R84 7030005050 S.RES ERJ2GEJ 103 X (10K) B 1.9/9.7
R85 7030005240 S.RES ERJ2GEJ 473 X (47K) T 15.8/5.6
R86 7030005240 S.RES ERJ2GEJ 473 X (47K) T 23.5/5.2
R87 7030005240 S.RES ERJ2GEJ 473 X (47K) T 22.1/6.7
R91 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/8.9
R92 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/8.9
R93 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/1.3
R94 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/2.9
R95 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/3.8
R96 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/10.7
R97 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/10.7
C1 4030018560 S.CER C2012 JB 1A 475K-T T 32.9/12
C2 4030016930 S.CER ECJ0EB1A104K T 26.7/11.8
C3 4030016930 S.CER ECJ0EB1A104K T 29.9/8.3
C4 4030016930 S.CER ECJ0EB1A104K T 26.7/10
C5 4550007070 S.TAN TEESVP 1A 475M8R T 25.3/10.9
C6 4030018860 S.CER ECJ0EB0J105K T 26.7/8.4
C7 4030016930 S.CER ECJ0EB1A104K T 25.8/8.4
C9 4030016930 S.CER ECJ0EB1A104K T 18.4/9.9
C10 4550007030 S.TAN TEESVP 0J 106M8R T 20.1/10.9
C11 4550007070 S.TAN TEESVP 1A 475M8R B 12/1
C12 4030016930 S.CER ECJ0EB1A104K B 14.6/0.81
C13 4030016930 S.CER ECJ0EB1A104K B 9.8/4.1
C14 4550007030 S.TAN TEESVP 0J 106M8R B 10.6/6.3
C21 4030016930 S.CER ECJ0EB1A104K T 31.6/4.6
C22 4030018910 S.CER C1608 JB 0J 475K-T T 25.2/5
C23 4030016930 S.CER ECJ0EB1A104K T 23.9/6.4
C24 4030016930 S.CER ECJ0EB1A104K T 26.9/6.4
C25 4030016930 S.CER ECJ0EB1A104K T 27.8/4.8
C26 4030016930 S.CER ECJ0EB1A104K T 21.4/2.8
C27 4030017590 S.CER ECJ0EC1H070C T 22.3/1.2
C28 4030017730 S.CER ECJ0EB1E471K T 20.5/2.8
C31 4030016930 S.CER ECJ0EB1A104K B 18.2/15
C32 4030017460 S.CER ECJ0EB1E102K B 17.9/17.2
C33 4030016790 S.CER ECJ0EB1C103K B 17.3/13.4
C34 4030016930 S.CER ECJ0EB1A104K B 18/10
C35 4030017460 S.CER ECJ0EB1E102K B 23/10.1
C36 4030017450 S.CER ECJ0EB1E271K B 24.8/11
C37 4030017750 S.CER ECJ0EB1E122K B 26.3/12.8
C40 4030017420 S.CER ECJ0EC1H470J B 26.2/19.2
C41 4030017420 S.CER ECJ0EC1H470J B 25.4/18.3
C42 4030017420 S.CER ECJ0EC1H470J B 24.9/17.4
C43 4030017420 S.CER ECJ0EC1H470J T 31.2/18.2
C44 4030017420 S.CER ECJ0EC1H470J B 31.7/18.9
C45 4030017420 S.CER ECJ0EC1H470J B 26.3/15.6
C46 4030017420 S.CER ECJ0EC1H470J B 24.1/8.9
C47 4030017420 S.CER ECJ0EC1H470J B 25.1/8.5
C48 4030017420 S.CER ECJ0EC1H470J T 33.2/13.7
C51 4550007030 S.TAN TEESVP 0J 106M8R T 24.3/17.9
C52 4030016930 S.CER ECJ0EB1A104K T 26.2/14.2
C53 4030017770 S.CER ECJ0EB1E332K T 31.2/19.2
C54 4550006970 S.TAN TEESVA0G476M8R T 18.4/15.1
C55 4030016930 S.CER ECJ0EB1A104K T 20/14.3
C56 4550006970 S.TAN TEESVA0G476M8R T 16.2/15.1
C57 4030016790 S.CER ECJ0EB1C103K B 17.8/7.7
C61 4030016790 S.CER ECJ0EB1C103K B 13.9/17.6
C62 4030017460 S.CER ECJ0EB1E102K B 19.4/2.9
C63 4030016930 S.CER ECJ0EB1A104K B 12.9/8.6
C64 4030017430 S.CER ECJ0EC1H101J B 14.8/6.8
C65 4030016930 S.CER ECJ0EB1A104K B 14.8/5.9
C66 4030016930 S.CER ECJ0EB1A104K B 19.4/1.2
C67 4030017380 S.CER ECJ0EC1H050B B 16.7/1.2
C68 4030016930 S.CER ECJ0EB1A104K B 15.8/1.2
C71 4030016930 S.CER ECJ0EB1A104K B 33.8/7.1
C72 4030017460 S.CER ECJ0EB1E102K T 18.7/8.7
C73 4030018910 S.CER C1608 JB 0J 475K-T T 14.4/4.5
C74 4030016930 S.CER ECJ0EB1A104K T 16.5/0.81
C81 4030018860 S.CER ECJ0EB0J105K [GEN-04] only B 34.2/9.6
C82 4030018860 S.CER ECJ0EB0J105K B 23.2/8.9
C83 4030017460 S.CER ECJ0EB1E102K B 22.3/8.9
C84 4030018860 S.CER ECJ0EB0J105K B 20.5/7
C85 4030016930 S.CER ECJ0EB1A104K T 19.6/1.2
C86 4030018860 S.CER ECJ0EB0J105K B 26.3/8.1
C87 4030016950 S.CER ECJ0EB1A473K B 26.3/6.3
C88 4030016950 S.CER ECJ0EB1A473K B 28.4/3.9
C89 4030016930 S.CER ECJ0EB1A104K B 25/6.6
C91 4030016930 S.CER ECJ0EB1A104K B 30.7/1.5
C92 4030018910 S.CER C1608 JB 0J 475K-T B 29.5/1.8
C93 4030018860 S.CER ECJ0EB0J105K [GEN-04] only B 30.3/3.9
C100 4030016790 S.CER ECJ0EB1C103K T 14.9/8.4
C101 4030018910 S.CER C1608 JB 0J 475K-T T 14.1/16.7
C102 4030016930 S.CER ECJ0EB1A104K B 17.3/15
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
1
M.
LOCATION
S.=Surface mount
H/V
Dec. 2009
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
C103 4030016790 S.CER ECJ0EB1C103K T 11.6/18.2
C104 4030018860 S.CER ECJ0EB0J105K T 14/8.4
C105 4030016790 S.CER ECJ0EB1C103K T 14.9/6.8
C106 4030016930 S.CER ECJ0EB1A104K T 14.4/12.7
C107 4030016790 S.CER ECJ0EB1C103K T 14/6.8
C108 4030016790 S.CER ECJ0EB1C103K B 2.5/10.6
C109 4030018860 S.CER ECJ0EB0J105K T 13.1/18.2
C110 4030016930 S.CER ECJ0EB1A104K B 3.5/13.8
C111 4030016930 S.CER ECJ0EB1A104K B 10.4/7.7
C112 4030016930 S.CER ECJ0EB1A104K B 9.8/1.2
C113 4030016930 S.CER ECJ0EB1A104K B 5.7/9.9
C114 4030018910 S.CER C1608 JB 0J 475K-T T 16.6/8.8
C115 4030018910 S.CER C1608 JB 0J 475K-T T 6.8/18
C116 4030016790 S.CER ECJ0EB1C103K T 9.2/18.2
C117 4030017400 S.CER ECJ0EC1H220J [GEN-04] only T 6.5/4.3
C119 4030017420 S.CER ECJ0EC1H470J [GEN-04] only B 8.5/6.3
C120 4030017420 S.CER ECJ0EC1H470J [GEN-04] only T 22.6/5.5
C121 4030017420 S.CER ECJ0EC1H470J [GEN-04] only T 21.7/5.5
J1 6510026780 S.CON AXK640347YG B 30.3/11.5
EP2 6910016330 S.BEA MMZ1005S 601CT-S B 30.9/2.7
EP3 6910016330 S.BEA MMZ1005S 601CT-S T 34.2/13.7
EP4 6910016330 S.BEA MMZ1005S 601CT-S B 8.6/4.7
DESCRIPTION
M.
H/V
LOCATION
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
IC1 1180002271 S.REG TK11250CMCL-G T 28.2/10.9
IC2 1180002590 S.REG XC6204B332MR B 12/3.5
IC3 1110006700 S.IC TB7100F (TE85L,F) T 26.9/17.1
IC4 1180002590 S.REG XC6204B332MR T 22.2/10.9
IC7 1110006230 S.IC NJM2711F-TE1-#ZZZB T 25.4/2.3
IC8 1110005290 S.IC NJM2115V-TE1-#ZZZB B 21.6/12.7
IC9 1130007021 S.IC TC7S66FU(TE85L,F) B 22.8/16.3
IC10 1140013290 S.IC TMS320VC5509AZHH T 7.2/11.1
IC11 1130006891 S.IC TC7S04FU(TE85R,F) B 8.2/10.5
IC12 1130007281 S.IC TC7S32FU(TE85R,F) B 8.2/13.4
IC13 1190002080 S.IC AD7476ARTZ-500RL7 <FE> T 17.4/3
IC16 1130012910 S.IC AK4554VTP-E2/P B 24/3
IC17 1110006230 S.IC NJM2711F-TE1-#ZZZB B 17.2/5.1
IC20 1130013360 S.IC AT25F2048N-10SU-2.7SL3830 B 4.1/2.6
IC22 1130006891 S.IC TC7S04FU(TE85R,F) T 15.1/10.8
IC23 1130013040 S.IC TC7WBD125AFK(T5L,F) B 5.3/14.5
IC24 1130013040 S.IC TC7WBD125AFK(T5L,F) B 14.6/14.5
IC26 1130013050 S.IC HD74LV2GT125AUSE-E B 10.8/14.5
Q1 1590003550 S.TRA XP4313(TX) B 19.8/17
Q2 1590003231 S.TRA UNR9113G0L T 23.8/8
Q3 1530003190 S.TRA 2SC4617 TLQ B 33.5/4.4
Q5 1590003231 S.TRA UNR9113G0L B 4.8/7.1
D1 1750001280 S.DIO CUS02(TE85L,Q) T 24.4/14.4
D2 1790001241 S.DIO MA2S7280GL B 8.3/16.6
D3 1790001241 S.DIO MA2S7280GL B 5.1/17.3
D4 1790001241 S.DIO MA2S7280GL B 6.9/17.5
D5 1790001241 S.DIO MA2S7280GL B 4/9.8
D6 1790001241 S.DIO MA2S7280GL B 3.2/18.2
FI1 2020002210 S.CER CFXCE450KCFA-R1 T 29.3/2.1
X1 6050012930 S.XTA CR-886 DSA321SCA 12.288 MHz B 15/9.1
L1 6200007830 S.COI ELJFC 4R7K-F T 32.9/10.4
L2 6200012090 S.COI CDRH2D18HP-150NC T 21.9/17.6
L3 6200007830 S.COI ELJFC 4R7K-F T 15.6/18.8
L4 6200001620 S.COI ELJFC 1R0K-F T 21.5/14.3
R1 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/14.6
R2 7030005240 S.RES ERJ2GEJ 473 X (47K) B 25/16.2
R3 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/13.7
R4 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/9
R5 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.2/9.9
R9 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 26/6.4
R10 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 27.8/6.4
R11 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.1/6.4
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 26.9/4.8
R13 7030004980 S.RES ERJ2GEJ 101 X (100) T 22.3/2.8
R14 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 21.4/1.2
R15 7030004970 S.RES ERJ2GEJ 470 X (47) T 20.5/1.2
R16 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 30.6/4.5
R18 7030005240 S.RES ERJ2GEJ 473 X (47K) B 15.1/18.3
R19 7030005240 S.RES ERJ2GEJ 473 X (47K) B 3.5/15.4
R20 7030005240 S.RES ERJ2GEJ 473 X (47K) B 7.1/15.4
R22 7030004980 S.RES ERJ2GEJ 101 X (100) B 27/18.3
R23 7030004980 S.RES ERJ2GEJ 101 X (100) B 27/17.4
R24 7030004980 S.RES ERJ2GEJ 101 X (100) B 28.7/19.2
R25 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.2/19.2
R26 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.2/18.3
R27 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 31.2/14.3
R28 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 32.2/14.3
R32 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 19.6/7.2
R33 7030005600 S.RES ERJ2GEJ 273 X (27K) B 19.6/8.9
R34 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 17.3/12.1
R35 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.8/10.1
R36 7030009710 S.RES ERJ2GEJ 203 X (20K) B 21.4/10.1
R37 7030009710 S.RES ERJ2GEJ 203 X (20K) B 24.6/10.1
R38 7030009710 S.RES ERJ2GEJ 203 X (20K) B 26.3/11.9
R39 7030004980 S.RES ERJ2GEJ 101 X (100) B 20.1/15.2
R41 7030004970 S.RES ERJ2GEJ 470 X (47) B 12.8/6.6
R43 7030004970 S.RES ERJ2GEJ 470 X (47) B 18.2/8.2
R44 7030005240 S.RES ERJ2GEJ 473 X (47K) B 18.2/7.3
R45 7030005240 S.RES ERJ2GEJ 473 X (47K) B 17/7.5
R46 7030004980 S.RES ERJ2GEJ 101 X (100) B 18.5/2.7
R47 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 17.6/2.7
R48 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/4.8
R49 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/2.5
R50 7030010040 S.RES ERJ2GEJ-JPW B 14.6/3.9
R51 7030005120 S.RES ERJ2GEJ 102 X (1K) T 29.5/19.2
R52 7030005310 S.RES ERJ2GEJ 124 X (120K) T 29.5/18.2
R53 7030011060 S.RES RR0510P-273-D (27K) T 19.6/15.9
R54 7030008260 S.RES RR0510P-393-D (39K) T 27.7/14.2
R55 7030010040 S.RES ERJ2GEJ-JPW B 12.8/5.7
R56 7030005170 S.RES ERJ2GEJ 474 X (470K) T 28.7/14.2
R62 7030007250 S.RES ERJ2GEJ 220 X (22) T 15.8/6.8
R63 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 18.3/0.81
R64 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 19.6/2.8
R69 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 20.5/8.9
R70 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/7.2
R71 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.3/3.9
R72 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.4/2.3
R73 7030005120 S.RES ERJ2GEJ 102 X (1K) B 34.2/1.6
R74 7030005120 S.RES ERJ2GEJ 102 X (1K) B 31.2/3.9
R75 7030008300 S.RES ERJ2GEJ 184 X (180K) B 33.8/5.9
R81 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 9.9/4.3
R82 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 8.3/4.3
R83 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 12.4/4.3
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
2
M.
LOCATION
S.=Surface mount
H/V
Dec. 2009
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
R84 7030005050 S.RES ERJ2GEJ 103 X (10K) B 2.3/9.8
R85 7030005240 S.RES ERJ2GEJ 473 X (47K) T 15.8/5.6
R86 7030005240 S.RES ERJ2GEJ 473 X (47K) T 22/6.5
R87 7030005240 S.RES ERJ2GEJ 473 X (47K) T 23.5/5.2
R91 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/8.9
R92 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/8.9
R93 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/1.3
R94 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/2.9
R95 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/3.8
R96 7030005090 S.RES ERJ2GEJ 104 X (100K) B 10.5/10.7
R97 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/10.7
R98 7030005050 S.RES ERJ2GEJ 103 X (10K) B 12.3/16.6
R99 7030004980 S.RES ERJ2GEJ 101 X (100) T 23.2/1.2
R100 7030010040 S.RES ERJ2GEJ-JPW T 5.3/17.9
R101 7030005120 S.RES ERJ2GEJ 102 X (1K) T 9.5/17.9
R102 7030005120 S.RES ERJ2GEJ 102 X (1K) B 1.2/6.7
R103 7030005120 S.RES ERJ2GEJ 102 X (1K) B 1.2/7.6
R104 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.4/11.6
R106 7030010040 S.RES ERJ2GEJ-JPW T 18.4/6.5
R107 7030010040 S.RES ERJ2GEJ-JPW T 17.6/5.2
R108 7030005120 S.RES ERJ2GEJ 102 X (1K) B 5.4/8.7
R109 7030010040 S.RES ERJ2GEJ-JPW B 0.81/12.7
R110 7030004980 S.RES ERJ2GEJ 101 X (100) B 3/11.6
C1 4030018560 S.CER C2012 JB 1A 475K-T T 32.9/12.6
C2 4030016930 S.CER ECJ0EB1A104K T 25.7/11.8
C3 4030016930 S.CER ECJ0EB1A104K T 30.7/10.4
C4 4030016930 S.CER ECJ0EB1A104K T 25.7/10.2
C5 4550007930 S.TAN TEESVJ 1A 475M8R T 24.6/10.5
C6 4030018860 S.CER ECJ0EB0J105K T 26.2/8.4
C7 4030016930 S.CER ECJ0EB1A104K T 25.3/8.4
C9 4030016930 S.CER ECJ0EB1A104K T 18.4/9.9
C10 4550007730 S.TAN TEESVJ 0J 106M8R T 19.7/10.9
C11 4550007930 S.TAN TEESVJ 1A 475M8R B 12/1.2
C12 4030016930 S.CER ECJ0EB1A104K B 14.1/1.5
C13 4030016930 S.CER ECJ0EB1A104K B 9.8/4.1
C14 4550007730 S.TAN TEESVJ 0J 106M8R B 10.6/6.3
C21 4030016930 S.CER ECJ0EB1A104K T 30.6/5.4
C22 4030018910 S.CER C1608 JB 0J 475K-T T 25.2/5
C23 4030016930 S.CER ECJ0EB1A104K T 23.9/6.4
C24 4030016930 S.CER ECJ0EB1A104K T 26.9/6.4
C25 4030016930 S.CER ECJ0EB1A104K T 27.8/4.8
C26 4030016930 S.CER ECJ0EB1A104K T 21.4/2.8
C27 4030017590 S.CER ECJ0EC1H070C T 22.3/1.2
C28 4030017730 S.CER ECJ0EB1E471K T 20.5/2.8
C31 4030016930 S.CER ECJ0EB1A104K B 18.2/15
C32 4030017460 S.CER ECJ0EB1E102K B 17.9/17.2
C33 4030016790 S.CER ECJ0EB1C103K B 17.3/13.7
C34 4030016930 S.CER ECJ0EB1A104K B 18.2/10.9
C35 4030017460 S.CER ECJ0EB1E102K B 23/10.1
C36 4030017450 S.CER ECJ0EB1E271K B 24.8/11
C37 4030017750 S.CER ECJ0EB1E122K B 26.3/12.8
C40 4030017420 S.CER ECJ0EC1H470J B 27/19.2
C41 4030017420 S.CER ECJ0EC1H470J B 25.4/18.3
C42 4030017420 S.CER ECJ0EC1H470J B 24.9/17.4
C43 4030017420 S.CER ECJ0EC1H470J T 31.2/18.2
C44 4030017420 S.CER ECJ0EC1H470J B 31.6/19.2
C45 4030017420 S.CER ECJ0EC1H470J B 25.9/16.2
C46 4030017420 S.CER ECJ0EC1H470J B 24.1/8.9
C47 4030017420 S.CER ECJ0EC1H470J B 25.1/8.5
C48 4030017420 S.CER ECJ0EC1H470J T 33.2/14.3
C51 4550007730 S.TAN TEESVJ 0J 106M8R T 24.5/17.5
C52 4030016930 S.CER ECJ0EB1A104K T 26.2/14.2
C53 4030017770 S.CER ECJ0EB1E332K T 31.2/19.2
C54 4030019460 S.CER C1608 JB 0J 106M-T T 18.2/16
C55 4030016930 S.CER ECJ0EB1A104K T 18.5/18.5
C57 4030016790 S.CER ECJ0EB1C103K B 18.2/9.1
C61 4030016790 S.CER ECJ0EB1C103K B 10.7/17.6
C62 4030017460 S.CER ECJ0EB1E102K B 19.4/4.3
C63 4030016930 S.CER ECJ0EB1A104K B 12.8/8.4
C64 4030017620 S.CER ECJ0EC1H100C B 14.6/6.6
C65 4030016930 S.CER ECJ0EB1A104K B 14.6/5.7
C66 4030016930 S.CER ECJ0EB1A104K B 19.4/2.7
C67 4030017380 S.CER ECJ0EC1H050B B 16.7/2.7
C68 4030016930 S.CER ECJ0EB1A104K B 15.8/2.7
C71 4030016930 S.CER ECJ0EB1A104K B 33.8/7.1
C72 4030017460 S.CER ECJ0EB1E102K T 18.7/8.7
C73 4030018910 S.CER C1608 JB 0J 475K-T T 14.5/4.5
C74 4030016930 S.CER ECJ0EB1A104K T 16.5/0.81
C81 4030018860 S.CER ECJ0EB0J105K B 34.2/9.6
C82 4030018860 S.CER ECJ0EB0J105K B 23.2/8.9
C83 4030017460 S.CER ECJ0EB1E102K B 22.3/8.9
C84 4030018860 S.CER ECJ0EB0J105K B 20.5/7.2
C85 4030016930 S.CER ECJ0EB1A104K T 19.6/1.2
C86 4030018860 S.CER ECJ0EB0J105K B 26.3/8.1
C87 4030016950 S.CER ECJ0EB1A473K B 26.3/6.3
C88 4030016950 S.CER ECJ0EB1A473K B 28.4/3.9
C89 4030016930 S.CER ECJ0EB1A104K B 25/6.6
C91 4030016930 S.CER ECJ0EB1A104K B 30.7/1.5
C92 4030018910 S.CER C1608 JB 0J 475K-T B 29.5/1.8
C93 4030018860 S.CER ECJ0EB0J105K B 30.3/3.9
C99 4030018860 S.CER ECJ0EB0J105K B 8.7/8.4
C100 4030016790 S.CER ECJ0EB1C103K T 14.9/8.4
C101 4030018910 S.CER C1608 JB 0J 475K-T T 14.1/16.4
C102 4030016930 S.CER ECJ0EB1A104K B 17.3/15.3
C103 4030016790 S.CER ECJ0EB1C103K T 12.2/18.2
C104 4030018860 S.CER ECJ0EB0J105K T 14/8.4
C105 4030016790 S.CER ECJ0EB1C103K T 14.9/6.8
C106 4030016930 S.CER ECJ0EB1A104K T 14.4/12.7
C107 4030016790 S.CER ECJ0EB1C103K T 14/6.8
C108 4030016790 S.CER ECJ0EB1C103K B 7.8/8.4
C109 4030018860 S.CER ECJ0EB0J105K T 13.1/18.2
C110 4030016930 S.CER ECJ0EB1A104K B 3.5/13.8
C111 4030016930 S.CER ECJ0EB1A104K B 10.4/7.7
DESCRIPTION
M.
H/V
LOCATION
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
C112 4030016930 S.CER ECJ0EB1A104K B 9.8/1.2
C113 4030016930 S.CER ECJ0EB1A104K B 5.7/9.9
C114 4030018910 S.CER C1608 JB 0J 475K-T T 16.6/8.8
C115 4030018910 S.CER C1608 JB 0J 475K-T T 7.4/18
C116 4030016790 S.CER ECJ0EB1C103K T 4.1/18.3
C117 4030017400 S.CER ECJ0EC1H220J T 6.5/4.3
C119 4030017420 S.CER ECJ0EC1H470J B 8.5/6.3
C120 4030017420 S.CER ECJ0EC1H470J T 21.7/5.3
C121 4030017420 S.CER ECJ0EC1H470J T 22.6/5.3
C122 4030016930 S.CER ECJ0EB1A104K B 16/11.6
J1 6510026780 S.CON AXK640347YG B 30.3/11.5
EP2 6910016330 S.BEA MMZ1005S 601CT-S B 30.9/2.7
EP3 6910016330 S.BEA MMZ1005S 601CT-S T 34.2/14.3
EP4 6910016330 S.BEA MMZ1005S 601CT-S B 8.6/4.7
EP5 6910016330 S.BEA MMZ1005S 601CT-S B 26.8/16.2
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
3
M.
LOCATION
S.=Surface mount
H/V
Dec. 2009
SECTION 3 BOARD LAYOUTS
• MAIN-A UNIT (For UT-126H)
(TOP VIEW)
MP2
“2887 PLATE”
(8510018640)
CLK
GPIO1
C0
CS
C116
R100 R101
C115
IC10
C103
C109
C101
X
C106
IC22
C104
C100
L3
C114
SO
C55
C54
C9
C72
R53
C10
5V
L2
L4
IC4
Q2
C51
D1
C5
C7
C2
C4
IC3
C52
C6
R54
IC1
R51
R52
C53
C43
B7248
R56
R27
C3
VCC
R28
C1
L1
C48
EP3
V0 V5 V10 V15 V20
H0H5H10H15H20H25H30H35
RCK
RDATA
RE
C117
R81R82 R83
SI
SCK
C107
C73
XTAL
C105
R85
R62
C74
R107
IC13
R63
R106
R64
C85
C28
R15
R86
C120
C26
R14
C121
R13
C27
C23
R87
R99
R11
C22
IC7
R9
C24
R12
R10
C25
FI1
C21
R16
MP2
4
Dec. 2009
• MAIN-A UNIT (For UT-126H)
(BOTTOM VIEW)
MP4
“2887 B-SHIELD”
(8510019210)
C81
C71
R75
R26
C44
J1
R18
X1
B
R104
C64
C65
C63
R41
R55
R98
C61
R97
R92
MP5
R96
R91
C111
C14
D2
IC11IC12
C108
C99
C119
D4
R20
IC23IC24 IC26
C113
R108
D6
D3
R19
C110
R109
R110
R84
D5
C
R103
Q5
R102
EP5
MP4
C41
C45
C42
R2
Q1
C32
R24R25
C40
R22
R23
IC9
C102
R39
R1
R3
C31
C33
IC8
C37
R38
R5
R4
C86
R70
C87
C36
C47
C89
C46
A
C35
C82
C83
R35R36R37
R69
C84
R32R33
C34
C57
R43
R44
R34
C122
R45
IC17
R73
Q3
R74
EP2
C93
C91
R71
C92
C88
R72
IC16
MP5
“SPONGE (KH)”
(8930077640)
C62
C66
R46
R47
C67
C68
R48
R50
R49
C12
IC2
C11
C13
C112
EP4
R95
IC20
R94
R93
V0V5V10V15V20
H0 H5 H10 H15 H20 H25 H30 H35
5
Dec. 2009
SECTION 5 VOLTAGE DIAGRAM
• MAIN UNIT (For UT-119S/H)
5V_VDD
4.7 SVSP
VCC
CCS
R25
100
47P
C48
1U
L1
CIRQ
R26
100
IC2
1
5
VIN
VOUT
2
VSS
3
CE4NC
C11
XC6204B332M
C12
0.1
4
5
6
GND
VIN
C1
4.7
C3
0.1
CONT2GND3NP
IC1
1
C21
F
D_I
0.1
SI
SO
SCK
47K
47K
47KR18
R20
R19
R23
R22
R24
47P
47P
47P
47P
47P
C40
C44
C42
C41
C43
100
100
100
CCK
CSI
CSO
CIRQ
CCS
DAFO
DISC
VCC
+5V
GND
0.1 C52
L4
1U
VOUT
TK11250CM
C2
0.1
R16
1.5K
AXK640345J
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
10 SVS
0.1
C4
RESET
47P
C45
J1
0.1
C51
4.7 SVSP
C13
1K
R51
0.0033
C53
C5
MMZ1005S601CT
2021
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C14
10 SVSP
Q2
UNR9113J
47K
R2
EP2
OPT3(RES)
OPT1(PD)
VREF
1
2
3
4
120K
R52
FI1
CFXCE450KCFA
I O
R1
100
DMI
DMO
IC3
COMP
RT
PGN D
SGND5SW
TB7100F
1
C6
R27
FB
ENB
VIN
C7
0.1
100
R11
4.7
C22
IF-FILTER
R28
3.3K
8
7
6
R9
6.8K
C23
C25
0.1
5.6K
D1
IC4
1
2
3
XC6204B332M
0.1
L2
15U
CUS02
VIN
VSS
CE4NC
1.5K
R12
100
0.1
R3
100
VOUT
100
CP129
CF20
4
3
100
R4
27K
39K
R13
C26
TC7S66FU
R5
R53
R54
5
5
2
R56
4
C47
C57
470K
0.1
R99
100
R14
1.8K
7P
C27
1
IC7
NJM2711F
+3.3V_A
5
IC9
123
47P
0.01
47 MSVA
C9
10 SVS
C46
C54
47P
C10
R10
C55
0.1
5.6K
47
NJM2115V
R55
IC22
0
DRESET
CS
SO
SCK
SI
GND CP128
DSP FLASH
10K
R97
CIRQO
IC17
C68
1
0.1
CP115
CP111
CP112
CP113
CP114
47K
47K
R83
4.7K
R48
R50
0
R49
R82
4.7K
4.7K
1
2
3
4
C110
CIRQ
SI
CCS
SCK
R434 7
47
R41
0.1
*IC20
CS
SO
HOLD
WP
VSS5SI
IC26
1
2
3
45
HD74LV2GT125A
GPIO5
IC23
1
OE1
2
A1
3
B2
4
GND5A2
TC7WBD125AFK
IC24
1
OE1
2
A1
3
B2
4
GND5A2
TC7WBD125AFK
47K
C63
0.1
C65
47K
10P
C64
R81
0.1
C112
8
VCC
7
6
SCK
C117
22P
8
7
6
8
VCC
7
OE2
6
B1
SO
8
VCC
7
OE2
6
B1
RESET
C62
0.001
5PC67
2.2KR47
5
R44
4
3
2
NJM2711F
100
R46
R45
0.1
C66
DVDD_3.3V
TSW
UNR9113J
R103
Q5
1k
R104
47k
EMU1
TRST
EMU0
R102
C122
GPIO4
BDR0
BCLKX0
BDX0
COUT
CCSI
CCLK
DRESET
1k
0.1
47K
47K
R93
R94
R96
100K
10K
R98
CF20
CP130
DVDD_3.3V
MA2S728
MA2S728
D3
D2
MA2S728
D5
0.01
47P
C119
CR-886 12.288MHZ
X1
1
NC
2
GND3OUT
12.288MHZ
CLOCK
47KR95
0.1
CIN
MA2S728
D4
C61
4
VCC
AGND
+3.3V_A
C105
0.01
*C93
C100
P10
P11
L8
L9
N11
P9
K8
M10
M9
*IC10
DSP
E4
C7
C5
C2
B9
E13
D11
C11
B11
IC13
1
VDD
8.2K
2
GND
SDATA
3
VIN4SCLK
AD7476ARTZ
A/D
*R71
0.047
C87
C88
L10
P12
B1
A2
R63
*Q3
100
N8
E5
N7
F11
CS
0.047
BCLKX0
J11
L14
J5
L1
M11
M4
M5
M3
K5
K4
F4
M13
R107
6
5
0.1
C71
0.1
C89
BDR0
L11
L12
F13
H10
C9
A11
1
2
3
CCLK
0.001
C72
+3.3V_A
EP3
C82
1
C83
L13
E3
E6
A8
D9
H13
H14
D10
B10
TCK
R62
22
C85
0.1
*C81
R69
2.2K
0.001
C86
N12
A4
M14
D3
D4
D6
D2
B4
G12
G11
J12
J14
K13
K14
J13
TRST
TMS
TDO
TDI
1
C104
0.01
C73
4.7
0.1
C74
8.2K
R64
*R74
*R75
*R73
C84
1
1
R70
CP10S
CP110
BCLKR0
F5
B5
B2
C6
A6
F2
F1
P2
P1
E14
100
R110
BFSR0
BDR0
1k
BCLKR0
MMZ1005S601CT
47K
R72
4.7
C92
L2
CP10S
R91
CODEC
CP57
1
2
3
4
5
6
7
8
D6
4.7
MA2S728
M2
L3
K3
M1
K2
J4
J3
J1
H5
H4
H1
G4
G2
G5
C13
B14
C14
E11
D12
D13
D14
E12
F10
G3
H3
K1
P5
P7
M8
K9
N3
P3
L4
N4
P4
L5
N5
L6
M6
P6
K6
K7
M7
L7
H11
10K
10K
R92
LINEAR
IC16
AOUTR
VCOM
AOUTL
AINR
PWDAN
AINL
PWADN
VSS
VDD
DEM0
DEM1
SDTO9SDTI
AK4554VT
7
SCLK
MCLK
LRCK
C101
0.1
C102
+3.3V_A
AGND
0.1
0.01
C106
C107
PDC
C120
1
0.
1
C111
A0
2
A1
3
A2
4
VSS
GPIO2
GPIO3
BCLKX1
BFSX1
BDX1
BDR1
47P
47P
C121
IC18*
8
VCC
WP
6
SCL
5
SDA
16
15
14
13
12
11
10
R109
0
J10
C10
B7
B8
G1
N9
N2
N1
N14
N10
R108
0
R106
0
EP2
0.1
C91
0.01
10K
R84
C114
C115
C116
0.001
C103
4.7
4.7
0.01
100
C32
IC8
7
NJM2115V
R39
R35
100K
NJM2115V
DRESET
GPIO5
CIRQO
GPIO7
CCSI
DRESET
BFSX1
COUT
CCSI
GPIO7
8
V+
GND
4
0.01
R85
47K
PDC
BDR1
BDX1
BCLKX1
IC8
6
5
47K
C34
CVDD_1.35V
1
C108
R87
R86
47K
R101
1
2
3
1
2
3
0.1
R33
27K
0.1
DVDD_3.3V
C109
BDX0
BFSR0
BFSX0
GPIO2
GPIO3
GPIO4
1k
IC11
TC7S04FU
IC12
TC7S32FU
C31
4.7K
5
4
0.1
C113
5
4
DVDD_3.3V
R32
5.6K
R34
C33
0.01
EMU0
EMU1
DVDD_3.3V
1
C99
H2
J2
K10
M12
N13
N6
P13
P14
P8
E7
K11
K12
A5
B6
F3
E1
E2
B3
A3
D5
C4
D1
G14
G13
G10
F14
F12
C3
E10
C1
C12
A13
A14
B13
H12
A12
B12
D7
D8
A7
E9
C8
E8
A9
A10
5
4
TC7S04FU
DBIAS
MMZ1005S601CT
EP4
MMZ1005S601CT
L3
4.7U
C56
47 MSVA
+3.3V_A
0.1
C24
R15
470P
C28
C37
0.0012
IC8
2
1
3
270P
CVDD_1.35V
Q1
XP4313
4
3
5
2
1
6
R36
20K
20K
R38
20K
R37
C36
C35
0.001
*; Refer to “PARTS LIST.”
6
Dec. 2009
• MAIN-A UNIT (For UT-126H )
5V_VDD
4.7
VCC
CCS
R25
100
47P
C48
L1
ELJFC 4R7K 4.7U
IC2
1
5
VIN
VOUT
2
VSS
3
C11
CE4NC
XC6204B332M
C12
0.1
4
5
6
VIN
GND
C1
4.7
SI
SO
SCK
CIRQ
R23
R22
R26
R24
100
100
100
100
VOUT
C3
0.1
CONT2GND3NP
IC1
1
R16
C21
D_IF
0.1
1.5K
47K
47K
47KR18
R20
R19
47P
47P
47P
47P
47P
C41
C43
C40
C42
C44
CCK
22
CSI
23
CSO
24
25
CIRQ
26
CCS
27
DAF
O
28
29
30
DISC
31
32
33
34
35
36
VCC
37
+5V
38
GND
39
40
10
0.1 C52
L4
1U
0.1
TK11250CM
C2
0.1
AXK640347YG
C51
4.7
C4
RESET
47P
C45
J1
10
C13
0.1
1K
R51
0.0033
C53
C5
47K
MMZ1005S601CT
2021
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C14
120K
R52
Q2
UNR9113G0
R2
EP5
OPT3(RES)
OPT1(PD )
VREF
DMI
DMO
IC3
1
COMP
2
RT
3
PGND
4
SGND5SW
TB7100F
1
FI1
CFXCE450KCFA
I O
R1
100
8
FB
7
ENB
6
VIN
L2
15U
CUS02
D1
IC4
1
VIN
2
VSS
3
CE4NC
XC6204B332M
C6
C7
0.1
R9
6.8K
100
R11
4.7
C23
C22
0.1
R12
0.1
C25
IF-FILTER
5.6K
R28
3.3K
R27
R3
100
R55
0.01
C57
C55
C54
R53
27K
39K
VOUT
CP129
1.5K
CF20
4
3
R13
100
C26
0.1
TC7S66FU
100
R5
R4
100
R54
R56
5
5
2
4
3
C47
10 C1608 6.3V B
470K
0.1
C9
R99
100
R14
1.8K
7P
C27
1
IC7
NJM2711F
+3.3V_A
5
IC9
1
2
C46
47P
0.1
10
C10
5.6K
R10
47
R15
NJM2115V
47P
EP4
MMZ1005S601CT
L3
4.7U
+3.3V_A
C37
0.0012
20K
R38
C36
CVDD_1.35V
Q1
XP4313
4
3
5
2
1
6
R36
20K
20K
R37
0.001
0.1
C24
470P
C28
IC8
2
1
3
270P
DRESET
DVDD_3.3V
CVDD_1.35V
1
C109
0.01
C108
DVDD_3.3V
1
C99
H2
J2
K10
BDX0
BFSR0
BFSX0
GPIO2
GPIO3
GPIO4
1k
5
4
0.1
5
4
R32
R34
EMU0
EMU1
C113
DVDD_3.3V
0.01
C33
M12
N13
N6
P13
P14
P8
E7
K11
K12
A5
B6
F3
E1
E2
B3
A3
D5
C4
D1
G14
G13
G10
F14
F12
C3
E10
C1
C12
A13
A14
B13
H12
A12
B12
D7
D8
A7
E9
C8
E8
A9
A10
5
4
TC7S04FU
MMZ1005S601CT
R85
47K
0.01
C103
10K
R84
4.7
C114
4.7
C115
0.01
C116
100
R39
C32
0.001
R35
100K
IC8
7
NJM2115V
C35
GPIO5
CIRQO
GPIO7
CCSI
DRESET
BDR1
BDX1
BCLKX1
COUT
CCSI
GPIO7
NJM2115V
8
V+
GND
4
6
5
47K
PDC
BFSX1
IC8
C34
R87
R86
47K
R101
IC11
1
2
3
TC7S04FU
IC12
1
2
3
TC7S32FU
C31
0.1
R33
27K 5.6K
0.1
4.7K
0
R82
4.7K
4.7K
*IC20
1
CS
2
SO
3
WP
4
VSS5SI
C110
CIRQ
SI
GPIO5
CCS
SCK
R434 7
4
VCC
1
2
3
45
IC23
1
2
3
4
TC7WBD125AFK
IC24
1
2
3
4
TC7WBD125AFK
47
R41
R81
0.1
VCC
HOLD
SCK
IC26
HD74LV2GT125A
OE1
VCC
A1
OE2
B2
B1
GND5A2
OE1
VCC
A1
OE2
B2
B1
GND5A2
0.1
C63
0.1
C65
10P
C64
C112
8
7
6
22P
C117
8
7
6
8
7
6
SO
8
7
6
RESET
C62
0.001
47K
4
R44
3
100
R46
47K
R45
0.1
C66
AGND
+3.3V_A
BDR0
L11
L12
L13
N12
M14
D3D4D6
F13
E3
E6
H10
A4
A8
D9
C9
A11
B10
D10
H14
IC22
EP3
C82
1
H13
1
2
3
TCK
CCLK
R62
22
C85
0.1
0.001
C72
+3.3V_A
DBIAS
*C81
R69
2.2K
0.001
C83
C86
1
D2A2B1
J13
K14
K13B4J14
J12
G11
G12
TRST
TMS
TDO
TDI
1
C104
0.01
C105
C73
4.7
0.1
C74
R63
8.2K
R64
*R75
*R73 *R74
C84
1
R70
0.01
C100
N11
L10
P12
P10
P11
L9
M9
M10
L8
K8
P9
N7
N8
M4
*IC10
DSP
C2C5C7
E4
E5
D11
VDD
GND
SDATA
VIN4SCLK
F4K4K5
E13
F11
6
CS
5
B11B9C11
IC13
1
8.2K
2
3
AD7476ARTZ
A/D
*R71
*C93
*Q3
100
0.047
0.047
C87
C88
R109
BCLKX0
0
J10
J11
L14
J5
C10
L1
G1
M11
M3M5N1
N2N9P1P2F1
M13
N10
N14
BFSR0
R108
R107
BDR0
1k
0
R106
BCLKR0
0
EP2
0.1
C71
1
0.
C89
0.1
C91
R100
0
B5
B2B7B8
C6
A6
F2
100
R110
MMZ1005S601CT
47K
R72
4.7
C92
D6
BCLKR0
MA2S7280G
L2
F5
M2
L3
K3
M1
K2
J4
J3
J1
H5
H4
H1
G4
G2
G5
C13
B14
C14
E11
D12
D13
D14
E12
F10
G3
H3
K1
P5
P7
M8
K9
N3
N4
N5
M6
M7
L7
H11
E14
CP57
CP10S
10K
R92
R91
LINEAR
CODEC
IC16
1
VCOM
2
AINR
3
AINL
4
VSS
5
VDD
6
DEM0
7
DEM1
8
SDTO9SDTI
AK4554VT
4.7
C101
0.1
C102
CP110
CP10S
CP116
AGND
C10
+3.3V_A
CP119
0.1
0.01
C106
C107
A13
TSW
PDC
P3
L4
P4
L5
L6
P6
K6
K7
C111
10K
AOUTL
PWDA N
PWADN
16
OUTR
15
14
13
12
SCLK
11
MCLK
10
LRCK
0.1
GPIO2
GPIO3
BCLKX1
BFSX1
BDX1
BDR1
47P
47P
C120
C121
3.3V_VDD
DVDD_3.3V
TSW
UNR9113G0
EMU1
TRST
EMU0
47KR95
GPIO4
BDR0
47K
47K
R93
R94
BCLKX0
BDX0
0.1
R96
100K
CIN
10K
R98
CF20
CP130
DVDD_3.3V
MA2S7280GD2MA2S7280GD3MA2S7280G
D4
COUT
CCS I
CCLK
MA2S7280G
D5
DRESET
C61
0.01
1k
47P
1k
R103
Q5
C119
R102
X_CR-817_12.288MHZ
CP131
X1
CF20OPEN
1
NC
2
GND3OUT
12.288MHZ
47K
R104
0.1
C122
CLOCK
R83
4.7K
CP115
DRESET
CP111
CS
CP112
SO
SCK
CP113
CP114
SI
GND CP128
DSP FLASH
10K
R97
CIRQO
5PC67
2.2KR47
IC17
5
C68
1
0.1
2
NJM2711F
47K
R48
R50
0
47K
R49
*; Refer to “PARTS LIST.”
7
May. 2009
SERVICE MANUAL
ADDENDUM
CONTENTS
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BOARD LAYOUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 6
May. 2009
SECTION 6. PARTS LIST
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
IC1 1180002271 S.REG TK11250CMCL-G T 29.2/10.9
IC2 1180002590 S.REG XC6204B332MR B 12/3.7
IC3 1110006700 S.IC TB7100F (TE85L,F) T 26.9/17.1
IC4 1180002590 S.REG XC6204B332MR T 22.7/10.9
IC7 1110006230 S.IC NJM2711F-TE1-#ZZZB T 25.4/2.3
IC8 1110005290 S.IC NJM2115V-TE1-#ZZZB B 21.6/12.7
IC9 1130007021 S.IC TC7S66FU(TE85L,F) B 22.8/16.3
IC10 1140013280 S.IC TMS320VC5507ZHH [GEN-03] T 7.2/11.1
1140013290 S.IC TMS320VC5509AZHH [GEN-04]
IC11 1130006891 S.IC TC7S04FU(TE85R,F) B 8.2/10.5
IC12 1130007281 S.IC TC7S32FU(TE85R,F) B 8.2/13.4
IC13 1190002080 S.IC AD7476ARTZ-500RL7 T 17.4/3
IC16 1130012910 S.IC AK4554VTP-E2/P B 24/3
IC17 1110006230 S.IC NJM2711F-TE1-#ZZZB B 17.2/3.7
IC18 1140008650 S.IC HN58X2464TI0 [GEN-04] B 4.2/7.2
IC20 1130014210 S.IC AT25FS010N-SH27-T [GEN-03] B 4.1/2.6
1130013360 S.IC AT25F2048N-10SU-2.7SL383
[GEN-04]
IC22 1130006891 S.IC TC7S04FU(TE85R,F) T 15.1/10.8
IC23 1130013040 S.IC TC7WBD125AFK(T5L,F) B 5.3/14.5
IC24 1130013040 S.IC TC7WBD125AFK(T5L,F) B 14.6/14.5
IC26 1130013050 S.IC HD74LV2GT125AUSE-E B 11/14.5
Q1 1590003550 S.TRA XP4313(TX) B 19.8/17
Q2 1590003231 S.TRA UNR9113G0-(TX) T 23.8/8
Q3 1530003190 S.TRA 2SC4617 TLQ [GEN-04] only B 33.5/4.4
D1 1750001280 S.DIO CUS02(TE85L,Q) T 24.4/14.4
D2 1790001241 S.DIO MA2S7280G B 8.3/16.6
D3 1790001241 S.DIO MA2S7280G B 5.1/17.6
D4 1790001241 S.DIO MA2S7280G B 6.9/17.5
D5 1790001241 S.DIO MA2S7280G B 4/9.7
D6 1790001241 S.DIO MA2S7280G B 2.5/17.6
FI1 2020002210 S.CER CFXCE450KCFA-R10 T 29.3/2.1
X1 6050012930 S.XTA CR-886 DSB321SC 12.288 MHz B 15.2/9.5
L1 6200001620 S.COI ELJFC 1R0K-F T 32.9/9.8
L2 6200012090 S.COI CDRH2D18HP-150NC T 21.4/17.5
L3 6200007830 S.COI ELJFC 4R7K-F T 17.3/18.8
L4 6200001620 S.COI ELJFC 1R0K-F T 30/6.5
R1 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/14.6
R2 7030005240 S.RES ERJ2GEJ 473 X (47K) B 25.1/16.1
R3 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/13.7
R4 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/9
R5 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.2/9.9
R9 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 26/6.4
R10 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 27.8/6.4
R11 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.1/6.4
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 26.9/4.8
R13 7030004980 S.RES ERJ2GEJ 101 X (100) T 22.3/2.8
R14 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 21.4/1.2
R15 7030004970 S.RES ERJ2GEJ 470 X (47) T 20.5/1.2
R16 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 30/4.6
R18 7030005240 S.RES ERJ2GEJ 473 X (47K) B 15.1/18.3
R19 7030005240 S.RES ERJ2GEJ 473 X (47K) B 3.5/15.4
R20 7030005240 S.RES ERJ2GEJ 473 X (47K) B 7.1/15.4
R22 7030004980 S.RES ERJ2GEJ 101 X (100) B 27.6/18.1
R23 7030004980 S.RES ERJ2GEJ 101 X (100) B 27.1/17.2
R24 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.2/18.9
R25 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.4/18.9
R26 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.4/17.8
R27 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 31.2/13.7
R28 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 32.2/13.7
R32 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 19.6/7
R33 7030005600 S.RES ERJ2GEJ 273 X (27K) B 19.6/8.9
R34 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 17.3/11.8
R35 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.8/10.1
R36 7030009710 S.RES ERJ2GEJ 203 X (20K) B 21.4/10.1
R37 7030009710 S.RES ERJ2GEJ 203 X (20K) B 24.6/10.1
R38 7030009710 S.RES ERJ2GEJ 203 X (20K) B 26.3/11.9
R39 7030004980 S.RES ERJ2GEJ 101 X (100) B 20.1/15.2
R41 7030004970 S.RES ERJ2GEJ 470 X (47) B 13.1/6.8
R42 7030005240 S.RES ERJ2GEJ 473 X (47K)
R43 7030004970 S.RES ERJ2GEJ 470 X (47) B 17.8/6.8
R44 7030005240 S.RES ERJ2GEJ 473 X (47K) B 17.8/5.9
R45 7030005240 S.RES ERJ2GEJ 473 X (47K) B 16.3/6.6
R46 7030004980 S.RES ERJ2GEJ 101 X (100) B 18.5/1.2
R47 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 17.6/1.2
R48 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/4.7
R49 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/1.8
R50 7030010040 S.RES ERJ2GEJ-JPW B 14.6/3.8
R51 7030005120 S.RES ERJ2GEJ 102 X (1K) T 29.5/19.2
DESCRIPTION
M.
H/V
LOCATION
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
R52 7030005310 S.RES ERJ2GEJ 124 X (120K) T 29.5/18.2
R53 7030011060 S.RES RR0510P-273-D (27K) T 21/14.3
R54 7030008260 S.RES RR0510P-393-D (39K) T 22/14.3
R55 7030010040 S.RES ERJ2GEJ-JPW B 13.1/5.9
R56 7030005170 S.RES ERJ2GEJ 474 X (470K) T 23/14.3
R62 7030007250 S.RES ERJ2GEJ 220 X (22) T 15.8/6.8
R63 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 18.3/0.8
R64 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 19.6/2.8
R69 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 20.5/8.9
R70 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/7.2
R71 7030004980 S.RES ERJ2GEJ 101 X (100)
[GEN-04] only B 29.3/3.9
R72 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.4/2.3
R73 7030005120 S.RES ERJ2GEJ 102 X (1K)
[GEN-04] only B 34.2/1.6
R74 7030005120 S.RES ERJ2GEJ 102 X (1K)
[GEN-04] only B 31.9/3.9
R75 7030008300 S.RES ERJ2GEJ 184 X (180K)
[GEN-04] only B 33.8/5.9
R81 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 9.9/4.3
R82 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 8.3/4.3
R83 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 12.3/4.3
R84 7030005050 S.RES ERJ2GEJ 103 X (10K) B 1.9/9.7
R85 7030005240 S.RES ERJ2GEJ 473 X (47K) T 15.8/5.6
R86 7030005240 S.RES ERJ2GEJ 473 X (47K) T 23.5/5.2
R87 7030005240 S.RES ERJ2GEJ 473 X (47K) T 22.1/6.7
R91 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/8.9
R92 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/8.9
R93 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/1.3
R94 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/2.9
R95 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/3.8
R96 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/10.7
R97 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/10.7
C1 4030018560 S.CER C2012 JB 1A 475K-T T 32.9/12
C2 4030016930 S.CER ECJ0EB1A104K T 26.7/11.8
C3 4030016930 S.CER ECJ0EB1A104K T 29.9/8.3
C4 4030016930 S.CER ECJ0EB1A104K T 26.7/10
C5 4550007070 S.TAN TEESVP 1A 475M8R T 25.3/10.9
C6 4030018860 S.CER ECJ0EB0J105K T 26.7/8.4
C7 4030016930 S.CER ECJ0EB1A104K T 25.8/8.4
C9 4030016930 S.CER ECJ0EB1A104K T 18.4/9.9
C10 4550007030 S.TAN TEESVP 0J 106M8R T 20.1/10.9
C11 4550007070 S.TAN TEESVP 1A 475M8R B 12/1
C12 4030016930 S.CER ECJ0EB1A104K B 14.6/0.8
C13 4030016930 S.CER ECJ0EB1A104K B 9.8/4.1
C14 4550007030 S.TAN TEESVP 0J 106M8R B 10.6/6.3
C21 4030016930 S.CER ECJ0EB1A104K T 31.6/4.6
C22 4030018910 S.CER C1608 JB 0J 475K-T T 25.2/5
C23 4030016930 S.CER ECJ0EB1A104K T 23.9/6.4
C24 4030016930 S.CER ECJ0EB1A104K T 26.9/6.4
C25 4030016930 S.CER ECJ0EB1A104K T 27.8/4.8
C26 4030016930 S.CER ECJ0EB1A104K T 21.4/2.8
C27 4030017590 S.CER ECJ0EC1H070C T 22.3/1.2
C28 4030017730 S.CER ECJ0EB1E471K T 20.5/2.8
C31 4030016930 S.CER ECJ0EB1A104K B 18.2/15
C32 4030017460 S.CER ECJ0EB1E102K B 17.9/17.2
C33 4030016790 S.CER ECJ0EB1C103K B 17.3/13.4
C34 4030016930 S.CER ECJ0EB1A104K B 18/10
C35 4030017460 S.CER ECJ0EB1E102K B 23/10.1
C36 4030017450 S.CER ECJ0EB1E271K B 24.8/11
C37 4030017750 S.CER ECJ0EB1E122K B 26.3/12.8
C40 4030017420 S.CER ECJ0EC1H470J B 26.2/19.2
C41 4030017420 S.CER ECJ0EC1H470J B 25.4/18.3
C42 4030017420 S.CER ECJ0EC1H470J B 24.9/17.4
C43 4030017420 S.CER ECJ0EC1H470J T 31.2/18.2
C44 4030017420 S.CER ECJ0EC1H470J B 31.7/18.9
C45 4030017420 S.CER ECJ0EC1H470J B 26.3/15.6
C46 4030017420 S.CER ECJ0EC1H470J B 24.1/8.9
C47 4030017420 S.CER ECJ0EC1H470J B 25.1/8.5
C48 4030017420 S.CER ECJ0EC1H470J T 33.2/13.7
C51 4550007030 S.TAN TEESVP 0J 106M8R T 24.3/17.9
C52 4030016930 S.CER ECJ0EB1A104K T 26.2/14.2
C53 4030017770 S.CER ECJ0EB1E332K T 31.2/19.2
C54 4550006970 S.TAN TEESVA0G476M8R T 18.4/15.1
C55 4030016930 S.CER ECJ0EB1A104K T 20/14.3
C56 4550006970 S.TAN TEESVA0G476M8R T 16.2/15.1
C57 4030016790 S.CER ECJ0EB1C103K B 17.8/7.7
C61 4030016790 S.CER ECJ0EB1C103K B 13.9/17.6
C62 4030017460 S.CER ECJ0EB1E102K B 19.4/2.9
C63 4030016930 S.CER ECJ0EB1A104K B 12.9/8.6
C64 4030017430 S.CER ECJ0EC1H101J B 14.8/6.8
C65 4030016930 S.CER ECJ0EB1A104K B 14.8/5.9
C66 4030016930 S.CER ECJ0EB1A104K B 19.4/1.2
C67 4030017380 S.CER ECJ0EC1H050B B 16.7/1.2
C68 4030016930 S.CER ECJ0EB1A104K B 15.8/1.2
C71 4030016930 S.CER ECJ0EB1A104K B 33.8/7.1
C72 4030017460 S.CER ECJ0EB1E102K T 18.7/8.7
C73 4030018910 S.CER C1608 JB 0J 475K-T T 14.4/4.5
C74 4030016930 S.CER ECJ0EB1A104K T 16.5/0.81
C81 4030018860 S.CER ECJ0EB0J105K [GEN-04] only B 34.2/9.6
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
1
M.
LOCATION
S.=Surface mount
H/V
May. 2009
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
C82 4030018860 S.CER ECJ0EB0J105K B 23.2/8.9
C83 4030017460 S.CER ECJ0EB1E102K B 22.3/8.9
C84 4030018860 S.CER ECJ0EB0J105K B 20.5/7
C85 4030016930 S.CER ECJ0EB1A104K T 19.6/1.2
C86 4030018860 S.CER ECJ0EB0J105K B 26.3/8.1
C87 4030016950 S.CER ECJ0EB1A473K B 26.3/6.3
C88 4030016950 S.CER ECJ0EB1A473K B 28.4/3.9
C89 4030016930 S.CER ECJ0EB1A104K B 25/6.6
C91 4030016930 S.CER ECJ0EB1A104K B 30.7/1.5
C92 4030018910 S.CER C1608 JB 0J 475K-T B 29.5/1.8
C93 4030018860 S.CER ECJ0EB0J105K [GEN-04] only B 30.3/3.9
C100 4030016790 S.CER ECJ0EB1C103K T 14.9/8.4
C101 4030018910 S.CER C1608 JB 0J 475K-T T 14.1/16.7
C102 4030016930 S.CER ECJ0EB1A104K B 17.3/15
C103 4030016790 S.CER ECJ0EB1C103K T 11.6/18.2
C104 4030018860 S.CER ECJ0EB0J105K T 14/8.4
C105 4030016790 S.CER ECJ0EB1C103K T 14.9/6.8
C106 4030016930 S.CER ECJ0EB1A104K T 14.4/12.7
C107 4030016790 S.CER ECJ0EB1C103K T 14/6.8
C108 4030016790 S.CER ECJ0EB1C103K B 2.5/10.6
C109 4030018860 S.CER ECJ0EB0J105K T 13.1/18.2
C110 4030016930 S.CER ECJ0EB1A104K B 3.5/13.8
C111 4030016930 S.CER ECJ0EB1A104K B 10.4/7.7
C112 4030016930 S.CER ECJ0EB1A104K B 9.8/1.2
C113 4030016930 S.CER ECJ0EB1A104K B 5.7/9.9
C114 4030018910 S.CER C1608 JB 0J 475K-T T 16.6/8.8
C115 4030018910 S.CER C1608 JB 0J 475K-T T 6.8/18
C116 4030016790 S.CER ECJ0EB1C103K T 9.2/18.2
C117 4030017400 S.CER ECJ0EC1H220J [GEN-04] only T 6.5/4.3
C119 4030017420 S.CER ECJ0EC1H470J [GEN-04] only B 8.5/6.3
C120 4030017420 S.CER ECJ0EC1H470J [GEN-04] only T 22.6/5.5
C121 4030017420 S.CER ECJ0EC1H470J [GEN-04] only T 21.7/5.5
J1 6510025230 S.CON AXK640345J2 B 30.3/11.5
EP2 6910016330 S.BEA MMZ1005S 601CT-S B 30.9/2.7
EP3 6910016330 S.BEA MMZ1005S 601CT-S T 34.2/13.7
EP4 6910016330 S.BEA MMZ1005S 601CT-S B 8.6/4.7
DESCRIPTION
M.
H/V
LOCATION
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
IC1 1180002271 S.REG TK11250CMCL-G T 28.2/10.9
IC2 1180002590 S.REG XC6204B332MR B 12/3.5
IC3 1110006700 S.IC TB7100F (TE85L,F) T 26.9/17.1
IC4 1180002590 S.REG XC6204B332MR T 22.2/10.9
IC7 1110006230 S.IC NJM2711F-TE1-#ZZZB T 25.4/2.3
IC8 1110005290 S.IC NJM2115V-TE1-#ZZZB B 21.6/12.7
IC9 1130007021 S.IC TC7S66FU(TE85L,F) B 22.8/16.3
IC10 1140013290 S.IC TMS320VC5509AZHH T 7.2/11.1
IC11 1130006891 S.IC TC7S04FU(TE85R,F) B 8.2/10.5
IC12 1130007281 S.IC TC7S32FU(TE85R,F) B 8.2/13.4
IC13 1190002080 S.IC AD7476ARTZ-500RL7 T 17.4/3
IC16 1130012910 S.IC AK4554VTP-E2/P B 24/3
IC17 1110006230 S.IC NJM2711F-TE1-#ZZZB B 17.2/5.1
IC20 1130013360 S.IC AT25F2048N-10SU-2.7SL383 B 4.1/2.6
IC22 1130006891 S.IC TC7S04FU(TE85R,F) T 15.1/10.8
IC23 1130013040 S.IC TC7WBD125AFK(T5L,F) B 5.3/14.5
IC24 1130013040 S.IC TC7WBD125AFK(T5L,F) B 14.6/14.5
IC26 1130013050 S.IC HD74LV2GT125AUSE-E B 10.8/14.5
Q1 1590003550 S.TRA XP4313(TX) B 19.8/17
Q2 1590003231 S.TRA UNR9113G0-(TX) T 23.8/8
Q3 1530003190 S.TRA 2SC4617 TLQ B 33.5/4.4
Q5 1590003231 S.TRA UNR9113G0-(TX) B 4.8/7.1
D1 1750001280 S.DIO CUS02(TE85L,Q) T 24.4/14.4
D2 1790001241 S.DIO MA2S7280G B 8.3/16.6
D3 1790001241 S.DIO MA2S7280G B 5.1/17.3
D4 1790001241 S.DIO MA2S7280G B 6.9/17.5
D5 1790001241 S.DIO MA2S7280G B 4/9.8
D6 1790001241 S.DIO MA2S7280G B 3.2/18.2
FI1 2020002210 S.CER CFXCE450KCFA-R10 T 29.3/2.1
X1 6050012930 S.XTA CR-886 DSA321SCA 12.288 MHz B 15/9.1
L1 6200001620 S.COI ELJFC 1R0K-F T 32.9/10.4
L2 6200012090 S.COI CDRH2D18HP-150NC T 21.9/17.6
L3 6200007830 S.COI ELJFC 4R7K-F T 15.6/18.8
L4 6200001620 S.COI ELJFC 1R0K-F T 21.5/14.3
R1 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/14.6
R2 7030005240 S.RES ERJ2GEJ 473 X (47K) B 25/16.2
R3 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/13.7
R4 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/9
R5 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.2/9.9
R9 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 26/6.4
R10 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 27.8/6.4
R11 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.1/6.4
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 26.9/4.8
R13 7030004980 S.RES ERJ2GEJ 101 X (100) T 22.3/2.8
R14 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 21.4/1.2
R15 7030004970 S.RES ERJ2GEJ 470 X (47) T 20.5/1.2
R16 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 30.6/4.5
R18 7030005240 S.RES ERJ2GEJ 473 X (47K) B 15.1/18.3
R19 7030005240 S.RES ERJ2GEJ 473 X (47K) B 3.5/15.4
R20 7030005240 S.RES ERJ2GEJ 473 X (47K) B 7.1/15.4
R22 7030004980 S.RES ERJ2GEJ 101 X (100) B 27/18.3
R23 7030004980 S.RES ERJ2GEJ 101 X (100) B 27/17.4
R24 7030004980 S.RES ERJ2GEJ 101 X (100) B 28.7/19.2
R25 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.2/19.2
R26 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.2/18.3
R27 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 31.2/14.3
R28 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 32.2/14.3
R32 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 19.6/7.2
R33 7030005600 S.RES ERJ2GEJ 273 X (27K) B 19.6/8.9
R34 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 17.3/12.1
R35 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.8/10.1
R36 7030009710 S.RES ERJ2GEJ 203 X (20K) B 21.4/10.1
R37 7030009710 S.RES ERJ2GEJ 203 X (20K) B 24.6/10.1
R38 7030009710 S.RES ERJ2GEJ 203 X (20K) B 26.3/11.9
R39 7030004980 S.RES ERJ2GEJ 101 X (100) B 20.1/15.2
R41 7030004970 S.RES ERJ2GEJ 470 X (47) B 12.8/6.6
R43 7030004970 S.RES ERJ2GEJ 470 X (47) B 18.2/8.2
R44 7030005240 S.RES ERJ2GEJ 473 X (47K) B 18.2/7.3
R45 7030005240 S.RES ERJ2GEJ 473 X (47K) B 17/7.5
R46 7030004980 S.RES ERJ2GEJ 101 X (100) B 18.5/2.7
R47 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 17.6/2.7
R48 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/4.8
R49 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/2.5
R50 7030010040 S.RES ERJ2GEJ-JPW B 14.6/3.9
R51 7030005120 S.RES ERJ2GEJ 102 X (1K) T 29.5/19.2
R52 7030005310 S.RES ERJ2GEJ 124 X (120K) T 29.5/18.2
R53 7030011060 S.RES RR0510P-273-D (27K) T 19.6/15.9
R54 7030008260 S.RES RR0510P-393-D (39K) T 27.7/14.2
R55 7030010040 S.RES ERJ2GEJ-JPW B 12.8/5.7
R56 7030005170 S.RES ERJ2GEJ 474 X (470K) T 28.7/14.2
R62 7030007250 S.RES ERJ2GEJ 220 X (22) T 15.8/6.8
R63 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 18.3/0.81
R64 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 19.6/2.8
R69 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 20.5/8.9
R70 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/7.2
R71 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.3/3.9
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
2
M.
LOCATION
S.=Surface mount
H/V
May. 2009
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
R72 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.4/2.3
R73 7030005120 S.RES ERJ2GEJ 102 X (1K) B 34.2/1.6
R74 7030005120 S.RES ERJ2GEJ 102 X (1K) B 31.2/3.9
R75 7030008300 S.RES ERJ2GEJ 184 X (180K) B 33.8/5.9
R81 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 9.9/4.3
R82 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 8.3/4.3
R83 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 12.4/4.3
R84 7030005050 S.RES ERJ2GEJ 103 X (10K) B 2.3/9.8
R85 7030005240 S.RES ERJ2GEJ 473 X (47K) T 15.8/5.6
R86 7030005240 S.RES ERJ2GEJ 473 X (47K) T 22/6.5
R87 7030005240 S.RES ERJ2GEJ 473 X (47K) T 23.5/5.2
R91 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/8.9
R92 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/8.9
R93 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/1.3
R94 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/2.9
R95 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/3.8
R96 7030005090 S.RES ERJ2GEJ 104 X (100K) B 10.5/10.7
R97 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/10.7
R98 7030005050 S.RES ERJ2GEJ 103 X (10K) B 12.3/16.6
R99 7030004980 S.RES ERJ2GEJ 101 X (100) T 23.2/1.2
R100 7030010040 S.RES ERJ2GEJ-JPW T 5.3/17.9
R101 7030005120 S.RES ERJ2GEJ 102 X (1K) T 9.5/17.9
R102 7030005120 S.RES ERJ2GEJ 102 X (1K) B 1.2/6.7
R103 7030005120 S.RES ERJ2GEJ 102 X (1K) B 1.2/7.6
R104 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.4/11.6
R106 7030010040 S.RES ERJ2GEJ-JPW T 18.4/6.5
R107 7030010040 S.RES ERJ2GEJ-JPW T 17.6/5.2
R108 7030005120 S.RES ERJ2GEJ 102 X (1K) B 5.4/8.7
R109 7030010040 S.RES ERJ2GEJ-JPW B 0.81/12.7
R110 7030004980 S.RES ERJ2GEJ 101 X (100) B 3/11.6
C1 4030018560 S.CER C2012 JB 1A 475K-T T 32.9/12.6
C2 4030016930 S.CER ECJ0EB1A104K T 25.7/11.8
C3 4030016930 S.CER ECJ0EB1A104K T 30.7/10.4
C4 4030016930 S.CER ECJ0EB1A104K T 25.7/10.2
C5 4550007930 S.TAN TEESVJ 1A 475M8R T 24.6/10.5
C6 4030018860 S.CER ECJ0EB0J105K T 26.2/8.4
C7 4030016930 S.CER ECJ0EB1A104K T 25.3/8.4
C9 4030016930 S.CER ECJ0EB1A104K T 18.4/9.9
C10 4550007730 S.TAN TEESVJ 0J 106M8R T 19.7/10.9
C11 4550007930 S.TAN TEESVJ 1A 475M8R B 12/1.2
C12 4030016930 S.CER ECJ0EB1A104K B 14.1/1.5
C13 4030016930 S.CER ECJ0EB1A104K B 9.8/4.1
C14 4550007730 S.TAN TEESVJ 0J 106M8R B 10.6/6.3
C21 4030016930 S.CER ECJ0EB1A104K T 30.6/5.4
C22 4030018910 S.CER C1608 JB 0J 475K-T T 25.2/5
C23 4030016930 S.CER ECJ0EB1A104K T 23.9/6.4
C24 4030016930 S.CER ECJ0EB1A104K T 26.9/6.4
C25 4030016930 S.CER ECJ0EB1A104K T 27.8/4.8
C26 4030016930 S.CER ECJ0EB1A104K T 21.4/2.8
C27 4030017590 S.CER ECJ0EC1H070C T 22.3/1.2
C28 4030017730 S.CER ECJ0EB1E471K T 20.5/2.8
C31 4030016930 S.CER ECJ0EB1A104K B 18.2/15
C32 4030017460 S.CER ECJ0EB1E102K B 17.9/17.2
C33 4030016790 S.CER ECJ0EB1C103K B 17.3/13.7
C34 4030016930 S.CER ECJ0EB1A104K B 18.2/10.9
C35 4030017460 S.CER ECJ0EB1E102K B 23/10.1
C36 4030017450 S.CER ECJ0EB1E271K B 24.8/11
C37 4030017750 S.CER ECJ0EB1E122K B 26.3/12.8
C40 4030017420 S.CER ECJ0EC1H470J B 27/19.2
C41 4030017420 S.CER ECJ0EC1H470J B 25.4/18.3
C42 4030017420 S.CER ECJ0EC1H470J B 24.9/17.4
C43 4030017420 S.CER ECJ0EC1H470J T 31.2/18.2
C44 4030017420 S.CER ECJ0EC1H470J B 31.6/19.2
C45 4030017420 S.CER ECJ0EC1H470J B 25.9/16.2
C46 4030017420 S.CER ECJ0EC1H470J B 24.1/8.9
C47 4030017420 S.CER ECJ0EC1H470J B 25.1/8.5
C48 4030017420 S.CER ECJ0EC1H470J T 33.2/14.3
C51 4550007730 S.TAN TEESVJ 0J 106M8R T 24.5/17.5
C52 4030016930 S.CER ECJ0EB1A104K T 26.2/14.2
C53 4030017770 S.CER ECJ0EB1E332K T 31.2/19.2
C54 4550007720 S.TAN TEESVP 0G 476M8R T 18.2/16
C55 4030016930 S.CER ECJ0EB1A104K T 18.5/18.5
C56 4550007720 S.TAN TEESVP 0G 476M8R T 16.2/16
C57 4030016790 S.CER ECJ0EB1C103K B 18.2/9.1
C61 4030016790 S.CER ECJ0EB1C103K B 10.7/17.6
C62 4030017460 S.CER ECJ0EB1E102K B 19.4/4.3
C63 4030016930 S.CER ECJ0EB1A104K B 12.8/8.4
C64 4030017620 S.CER ECJ0EC1H100C B 14.6/6.6
C65 4030016930 S.CER ECJ0EB1A104K B 14.6/5.7
C66 4030016930 S.CER ECJ0EB1A104K B 19.4/2.7
C67 4030017380 S.CER ECJ0EC1H050B B 16.7/2.7
C68 4030016930 S.CER ECJ0EB1A104K B 15.8/2.7
C71 4030016930 S.CER ECJ0EB1A104K B 33.8/7.1
C72 4030017460 S.CER ECJ0EB1E102K T 18.7/8.7
C73 4030018910 S.CER C1608 JB 0J 475K-T T 14.5/4.5
C74 4030016930 S.CER ECJ0EB1A104K T 16.5/0.81
C81 4030018860 S.CER ECJ0EB0J105K B 34.2/9.6
C82 4030018860 S.CER ECJ0EB0J105K B 23.2/8.9
C83 4030017460 S.CER ECJ0EB1E102K B 22.3/8.9
C84 4030018860 S.CER ECJ0EB0J105K B 20.5/7.2
C85 4030016930 S.CER ECJ0EB1A104K T 19.6/1.2
C86 4030018860 S.CER ECJ0EB0J105K B 26.3/8.1
C87 4030016950 S.CER ECJ0EB1A473K B 26.3/6.3
C88 4030016950 S.CER ECJ0EB1A473K B 28.4/3.9
C89 4030016930 S.CER ECJ0EB1A104K B 25/6.6
C91 4030016930 S.CER ECJ0EB1A104K B 30.7/1.5
C92 4030018910 S.CER C1608 JB 0J 475K-T B 29.5/1.8
DESCRIPTION
M.
H/V
LOCATION
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
C93 4030018860 S.CER ECJ0EB0J105K B 30.3/3.9
C99 4030018860 S.CER ECJ0EB0J105K B 8.7/8.4
C100 4030016790 S.CER ECJ0EB1C103K T 14.9/8.4
C101 4030018910 S.CER C1608 JB 0J 475K-T T 14.1/16.4
C102 4030016930 S.CER ECJ0EB1A104K B 17.3/15.3
C103 4030016790 S.CER ECJ0EB1C103K T 12.2/18.2
C104 4030018860 S.CER ECJ0EB0J105K T 14/8.4
C105 4030016790 S.CER ECJ0EB1C103K T 14.9/6.8
C106 4030016930 S.CER ECJ0EB1A104K T 14.4/12.7
C107 4030016790 S.CER ECJ0EB1C103K T 14/6.8
C108 4030016790 S.CER ECJ0EB1C103K B 7.8/8.4
C109 4030018860 S.CER ECJ0EB0J105K T 13.1/18.2
C110 4030016930 S.CER ECJ0EB1A104K B 3.5/13.8
C111 4030016930 S.CER ECJ0EB1A104K B 10.4/7.7
C112 4030016930 S.CER ECJ0EB1A104K B 9.8/1.2
C113 4030016930 S.CER ECJ0EB1A104K B 5.7/9.9
C114 4030018910 S.CER C1608 JB 0J 475K-T T 16.6/8.8
C115 4030018910 S.CER C1608 JB 0J 475K-T T 7.4/18
C116 4030016790 S.CER ECJ0EB1C103K T 4.1/18.3
C117 4030017400 S.CER ECJ0EC1H220J T 6.5/4.3
C119 4030017420 S.CER ECJ0EC1H470J B 8.5/6.3
C120 4030017420 S.CER ECJ0EC1H470J T 21.7/5.3
C121 4030017420 S.CER ECJ0EC1H470J T 22.6/5.3
C122 4030016930 S.CER ECJ0EB1A104K B 16/11.6
J1 6510025230 S.CON AXK640345J2 B 30.3/11.5
EP2 6910016330 S.BEA MMZ1005S 601CT-S B 30.9/2.7
EP3 6910016330 S.BEA MMZ1005S 601CT-S T 34.2/14.3
EP4 6910016330 S.BEA MMZ1005S 601CT-S B 8.6/4.7
EP5 6910016330 S.BEA MMZ1005S 601CT-S B 26.8/16.2
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V
M.
LOCATION
S.=Surface mount
3
May. 2009
SECTION 3 BOARD LAYOUTS
• MAIN-A UNIT (For UT-126H)
(TOP VIEW)
MP2
“2887 PLATE”
(8510018640)
CLK
GPIO1
C0
CS
C116
R100 R101
C115
IC10
C103
C109
C101
X
C106
IC22
C100
C104
L3
C114
C56
SO
C55
C54
C9
C72
R53
C10
5V
L2
L4
IC4
Q2
C51
D1
C5
C7
C2
C4
IC3
C52
C6
R54
IC1
R51
R52
C53
C43
B7072B
R27
R56
C3
VCC
R28
C1
L1
C48
EP3
C105
R85
R62
C74
R107
IC13
R63
R106
R64
C85
C107
RCK
C117
R81R82 R83
C73
XTAL
RDATA
RE
V0 V5 V10 V15 V20
H0H5H10H15H20H25H30H35
SI
SCK
C28
R15
R86
C120
C26
R14
C121
R13
C27
C23
R87
R99
R11
C22
IC7
R9
C24
R12
R10
C25
FI1
C21
R16
MP2
4
May. 2009
(KH)
• MAIN-A UNIT (For UT-126H)
(BOTTOM VIEW)
MP4
“2887 B-SHIELD”
(8510019210)
V20
C81
C71
R75
R73
R26
Q3
C44
R74
EP2
J1
C93
C91
R24R25
R71
C92
C88
R72
C40
R22
R23
EP5
R1
R3
C37
R38
R5
R4
C86
R70
C87
MP4
C41
C45
C42
R2
C36
C47
C89
IC9
C35
C82
C46
A
IC16
C83
IC8
R39
R69
C84
Q1
R35R36R37
R32R33
C62
C66
C31
C34
C57
R43
R44
R46
C32
C102
C33
R34
IC17
R47
C122
R45
C67
C68
R18
X1
B
R104
C64
C65
R48
R50
R49
C12
C63
R41
R55
R98
R97
R92
IC2
C11
C61
MP5
R96
R91
C111
C14
C13
C112
D2
IC11IC12
C99
C119
EP4
R95
R94
R93
R20
C108
D4
IC23IC24 IC26
C113
R108
D3
Q5
D6
R19
C110
D5
IC20
V15
R109
R110
R84
C
R103
R102
V5V10
V0
MP5
“SPONGE
H0 H5 H10 H15 H20 H25 H30 H35
”
5
May. 2009
SECTION 5 VOLTAGE DIAGRAM
• MAIN UNIT (For UT-119S/H)
5V_VDD
4.7 SVSP
VCC
CCS
CIRQ
R25
R26
100
100
47P
C48
1U
L1
IC2
1
5
VIN
VOUT
2
VSS
3
CE4NC
C11
XC6204B332M
C12
0.1
4
5
6
GND
VIN
C1
4.7
C3
0.1
CONT2GND3NP
IC1
1
C21
D_IF
0.1
SI
SO
SCK
47K
47K
47KR18
R20
R19
R23
R22
R24
47P
47P
47P
47P
47P
C44
C42
C40
C41
C43
100
100
100
CCK
CSI
CSO
CIRQ
CCS
DAFO
DISC
VCC
+5V
GND
0.1 C52
L4
1U
VOUT
TK11250CM
C2
0.1
R16
1.5K
AXK640345J
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
10 SVS
0.1
C45
J1
C51
4.7 SVSP
C4
RESET
47P
C13
0.1
1K
R51
0.0033
C53
C5
MMZ1005S601CT
2021
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C14
10 SVSP
Q2
UNR9113G0
47K
R2
EP2
OPT3(RES)
OPT1(PD)
VREF
1
2
3
4
120K
R52
FI1
CFXCE450KCFA
I O
DMI
DMO
IC3
COMP
RT
PGND
SGND5SW
TB7100F
1
R1
100
C6
100
R27
FB
ENB
VIN
C7
0.1
R11
4.7
C22
IF-FILTER
R28
3.3K
8
7
6
R9
6.8K
C23
C25
0.1
5.6K
D1
IC4
1
2
3
XC6204B332M
0.1
L2
15U
CUS02
VIN
VSS
CE4NC
1.5K
R12
100
0.1
R3
100
VOUT
100
R4
100
27K
39K
CP129
CF20
4
3
R13
C26
TC7S66FU
R5
R53
R54
R56
5
5
2
4
0.1
R99
100
R14
1.8K
C27
IC7
NJM2711F
+3.3V_A
5
123
C47
C57
470K
7P
1
IC9
47P
0.01
47 MSVA
C9
10 SVS
C46
R55
IC22
0
DRESET
CS
SO
SCK
SI
GND CP128
DSP FLASH
10K
R97
CIRQO
IC17
1
R83
4.7K
CP115
CP111
CP112
CP113
CP114
47K
R48
C68
R50
0.1
0
47K
R49
R82
4.7K
4.7K
1
2
3
4
C110
CIRQ
SI
CCS
SCK
R434 7
47
R41
*IC20
CS
SO
WP
VSS5SI
GPIO5
1
2
3
4
1
2
3
4
0.1
C63
C65
10P
C64
R81
0.1
8
VCC
7
HOLD
6
SCK
IC26
1
2
3
45
HD74LV2GT125A
IC23
VCC
OE1
OE2
A1
B2
B1
GND5A2
TC7WBD125AFK
IC24
VCC
OE1
OE2
A1
B1
B2
GND5A2
TC7WBD125AFK
47K
R44
0.1
47K
R45
C112
8
7
6
8
7
6
0.001
100
0.1
22P
C117
8
7
6
SO
RESET
C62
5PC67
2.2KR47
5
4
3
2
NJM2711F
R46
C66
DVDD_3.3V
TSW
UNR9113J
EMU1
TRST
EMU0
GPIO4
BDR0
BCLKX0
BDX0
COUT
CCSI
CCLK
DRESET
1k
R103
1k
R102
Q5
0.1
C122
R104
47k
MAIN UNIT
47K
47K
R93
R94
R96
100K
CIN
10K
R98
CF20
CP130
DVDD_3.3V
MA2S7280G
MA2S7280G
D3
D4
D2
MA2S7280G
D5
0.01
47P
C119
CR-886_12.288 MHz
X1
1
NC
2
GND3OUT
12.288MHZ
CLOCK
47KR95
MA2S7280G
C61
VCC
0.1
4
AGND
+3.3V_A
C100
BDR0
L11
L12
F13
H10
C9
A11
1
2
3
CCLK
0.001
C72
+3.3V_A
EP3
C82
1
C83
L13
E3
E6
A8
D9
H13
H14
D10
B10
TCK
R62
22
C85
0.1
*C81
R69
2.2K
0.001
C86
N12
A4
M14
D3
D4
D6
D2
B4
G12
G11
J12
J14
K13
K14
J13
TRST
TMS
TDO
TDI
1
C104
0.01
C105
C73
4.7
0.1
C74
8.2K
R64
*R74
*R75
*R73
C84
1
1
R70
0.01
L10
P10
P11
P12
L9
N11
P9
K8
M10
M9
*IC10
DSP
C7
C5
C2
B9
B1
A2
R63
*Q3
100
*C93
E13
D11
C11
B11
IC13
1
VDD
8.2K
2
GND
SDATA
3
VIN4SCLK
AD7476ARTZ
A/D
*R71
0.047
C87
C88
BCLKX0
J11
L14
J5
L1
L8
M11
N7
N8
M4
M5
M3
K5
K4
F4
E5
E4
M13
F11
R107
6
CS
5
0.1
C71
0.1
0.047
C89
CP10S
CP110
BCLKR0
L2
F5
B5
C6
A6
F2
F1
P2
E14
100
R110
BFSR0
BDR0
1k
BCLKR0
MMZ1005S601CT
CODEC
47K
R72
4.7
C92
CP57
CP10S
10K
R91
IC16
1
VCOM
2
AINR
3
AINL
4
VSS
5
VDD
6
DEM0
7
DEM1
8
SDTO9SDTI
AK4554VT
D6
MA2S7280G
M2
L3
K3
M1
K2
J4
J3
J1
H5
H4
H1
G4
G2
G5
C13
B14
C14
E11
D12
D13
D14
E12
F10
G3
H3
K1
P5
P7
M8
K9
N3
P3
L4
N4
P4
L5
N5
L6
M6
P6
K6
K7
M7
L7
H11
10K
R92
LINEAR
4.7
AOUTR
AOUTL
PWDAN
PWADN
SCLK
MCLK
LRCK
C101
C102
AGND
0.1
16
15
14
13
12
11
10
0.1
+3.3V_A
C106
0.01
C107
PDC
C111
0.1
GPIO2
GPIO3
BCLKX1
BFSX1
BDX1
BDR1
47P
47P
C120
C121
R109
0
J10
C10
B2
B7
B8
G1
P1
N9
N2
N1
N14
N10
R108
0
R106
0
EP2
0.1
C91
0.01
10K
R84
C114
C115
C116
0.001
C103
4.7
4.7
0.01
100
C32
IC8
7
R39
R35
100K
NJM2115V
DRESET
R85
47K
GPIO5
CIRQO
GPIO7
PDC
CCSI
DRESET
BDR1
BDX1
BCLKX1
BFSX1
COUT
CCSI
GPIO7
NJM2115V
8
V+
IC8
GND
4
6
5
0.01
47K
C34
CVDD_1.35V
1
C108
R87
R86
47K
R101
1
2
3
1
2
3
0.1
R33
27K
0.1
DVDD_3.3V
C109
BDX0
BFSR0
BFSX0
GPIO2
GPIO3
GPIO4
1k
IC11
TC7S04FU
IC12
TC7S32FU
C31
4.7K
5
4
0.1
5
4
DVDD_3.3V
R32
5.6K
R34
C33
C113
0.01
EMU0
EMU1
DVDD_3.3V
1
C99
H2
J2
K10
M12
N13
N6
P13
P14
P8
E7
K11
K12
A5
B6
F3
E1
E2
B3
A3
D5
C4
D1
G14
G13
G10
F14
F12
C3
E10
C1
C12
A13
A14
B13
H12
A12
B12
D7
D8
A7
E9
C8
E8
A9
A10
5
4
TC7S04FU
DBIAS
MMZ1005S601CT
EP4
MMZ1005S601CT
L3
4.7U
C55
C54
0.1
C10
5.6K
R10
47
R15
NJM2115V
47P
C24
IC8
C28
1
+3.3V_A
0.1
470P
47 MSVA
2
3
270P
C56
C37
0.0012
20K
R38
C36
CVDD_1.35V
Q1
XP4313
4
3
5
2
1
6
R36
20K
20K
R37
C35
0.001
*; Refer to “PARTS LIST.”
6
• MAIN-A UNIT (For UT-126H)
5V_VDD
4.7
VCC
CCS
CIRQ
R25
100
47P
C48
1U
L1
IC2
1
5
VIN
VOUT
2
VSS
3
C11
CE4NC
XC6204B332M
C12
0.1
4
5
6
VIN
GND
C1
4.7
SI
SO
SCK
R23
R22
R26
R24
100
100
100
100
VOUT
C3
0.1
CONT2GND3NP
IC1
1
R16
C21
D_IF
0.1
1.5K
47K
47K
47KR18
R20
R19
47P
47P
47P
47P
47P
C41
C43
C40
C42
C44
CCK
22
CSI
23
CSO
24
25
CIRQ
26
CCS
27
28
DAFO
29
30
DISC
31
32
33
34
35
36
VCC
37
+5V
38
GND
39
40
10
0.1 C52
L4
1U
0.1
C4
TK11250CM
C2
0.1
47P
C45
AXK640347YG
0.1
C51
4.7
RESET
J1
10
C13
1K
R51
0.0033
C53
C5
47K
MMZ1005S601CT
2021
19
18
17
OPT3(RES)
16
15
OPT1(PD )
14
13
12
11
VREF
10
9
8
7
6
5
4
3
2
1
C14
120K
Q2
UNR9113G0
R2
EP5
DMI
DMO
R52
IC3
1
COMP
2
RT
3
PGND
4
SGND5SW
TB7100F
1
FI1
CFXCE450KCFA
I O
R1
100
8
FB
7
ENB
6
VIN
L2
15U
D1
IC4
1
VIN
2
VSS
3
CE4NC
XC6204B332M
C6
C7
0.1
R9
6.8K
100
R11
4.7
C23
C22
0.1
R12
0.1
C25
IF-FILTER
5.6K
R28
3.3K
R27
R3
CUS02
100
R55
0.01
C57
47
C55
C54
R53
27K
39K
VOUT
CP129
1.5K
CF20
4
3
R13
100
C26
0.1
TC7S66FU
100
R5
R4
100
0.1
R54
470K
R56
5
0.1
C9
10
C10
5.6K
R10
R99
100
R14
1.8K
7P
C27
5
2
4
3
+3.3V_A
2
C47
1
IC7
NJM2711F
5
IC9
1
47P
47
R15
NJM2115V
47P
C46
EP4
MMZ1005S601CT
L3
4.7U
47
C56
+3.3V_A
C37
0.0012
20K
C36
CVDD_1.35V
Q1
XP4313
4
3
5
2
1
6
R36
20K
R38
20K
R37
C35
0.001
0.1
C24
470P
C28
IC8
2
1
3
270P
DRESET
DVDD_3.3V
CVDD_1.35V
1
C109
0.01
C108
DVDD_3.3V
C99
H2
J2
K10
BDX0
BFSR0
BFSX0
GPIO2
GPIO3
GPIO4
1k
5
4
0.1
5
4
R32
R34
EMU0
EMU1
C113
DVDD_3.3V
0.01
C33
M12
N13
N6
P13
P14
P8
E7
K11
K12
A5
B6
F3
E1
E2
B3
A3
D5
C4
D1
G14
G13
G10
F14
F12
C3
E10
C1
C12
A13
A14
B13
H12
A12
B12
D7
D8
A7
E9
C8
E8
A9
A10
5
4
TC7S04FU
MMZ1005S601CT
R85
47K
0.01
C103
10K
R84
4.7
C114
4.7
C115
0.01
C116
100
R39
C32
0.001
R35
100K
IC8
7
NJM2115V
GPIO5
CIRQO
GPIO7
CCSI
DRESET
BDR1
BDX1
BCLKX1
COUT
CCSI
GPIO7
NJM2115V
8
V+
GND
4
6
5
47K
PDC
BFSX1
IC8
C34
R87
R86
47K
R101
IC11
1
2
3
TC7S04FU
IC12
1
2
3
TC7S32FU
C31
0.1
R33
27K 5.6K
0.1
4.7K
0
R82
4.7K
4.7K
*IC20
1
CS
2
SO
3
WP
4
VSS5SI
C110
CIRQ
SI
GPIO5
CCS
SCK
R434 7
4
VCC
1
2
3
45
IC23
1
2
3
4
TC7WBD125AFK
IC24
1
2
3
4
TC7WBD125AFK
47
R41
R81
0.1
8
VCC
7
HOLD
6
SCK
IC26
HD74LV2GT125A
OE1
VCC
A1
OE2
B2
B1
GND5A2
OE1
VCC
A1
OE2
B2
B1
GND5A2
0.1
C63
0.1
C65
10P
C64
C112
22P
C117
8
7
6
8
7
6
SO
8
7
6
RESET
C62
0.001
47K
4
R44
3
100
R46
47K
R45
0.1
C66
AGND
+3.3V_A
BDR0
L11
L12
L13
N12
M14
D3D4D6
F13
E3
E6
H10
A4
A8
1
IC22
EP3
C82
D9
C9
A11
B10
D10
H14
H13
1
2
3
TCK
CCLK
R62
22
C85
0.1
0.001
C72
+3.3V_A
DBIAS
*C81
1
0.001
C83
C86
1
D2A2B1
J13
K14
K13B4J14
J12
G11
G12
TRST
TMS
TDO
TDI
1
C104
0.01
C73
4.7
0.1
C74
R63
8.2K
R64
*R75
*R73 *R74
R69
C84
1
2.2K
R70
0.01
C100
N11
L10
P12
P10
P11
L9
M9
M10
L8
K8
P9
N7
N8
M4
*IC10
DSP
C2C5C7
E4
E5
D11
VDD
GND
SDATA
VIN4SCLK
F4K4K5
E13
F11
6
CS
5
B11B9C11
C105
IC13
1
8.2K
2
3
AD7476ARTZ
A/D
*R71
*C93
*Q3
C71
100
0.047
0.047
C87
C88
R109
BCLKX0
0
J10
J11
L14
J5
C10
L1
G1
M11
M3M5N1
N2N9P1P2F1
M13
N10
N14
BFSR0
R108
R107
BDR0
1k
0
R106
BCLKR0
0
EP2
0.1
1
0.
C89
0.1
C91
R100
0
B5
B2B7B8
C6
A6
F2
100
R110
MMZ1005S601CT
47K
R72
4.7
C92
D6
BCLKR0
MA2S7280G
L2
F5
M2
L3
K3
M1
K2
J4
J3
J1
H5
H4
H1
G4
G2
G5
C13
B14
C14
D12
D13
D14
G3
H3
K1
P5
P7
M8
K9
N3
P3
L4
N4
P4
L5
N5
L6
M6
P6
K6
K7
M7
E14
CP57
CP10S
10K
R92
R91
LINEAR
CODEC
IC16
1
VCOM
2
AINR
3
AINL
4
VSS
5
VDD
6
DEM0
7
DEM1
8
SDTO9SDTI
AK4554VT
4.7
C101
0.1
C102
CP110
CP10S
CP116
AGND
C10
+3.3V_A
E11
CP119
E12
F10
0.1
0.01
C106
C107
A13
TSW
PDC
L7
H11
C111
10K
AOUTL
PWDA N
PWADN
16
OUTR
15
14
13
12
SCLK
11
MCLK
10
LRCK
0.1
GPIO2
GPIO3
BCLKX1
BFSX1
BDX1
BDR1
47P
47P
C120
C121
EMU1
3.3V_VDD
TRST
EMU0
DVDD_3.3V
GPIO4
BDR0
47K
47K
R93
R94
BCLKX0
BDX0
R96
100K
CIN
10K
R98
CF20
CP130
DVDD_3.3V
MA2S7280GD2MA2S7280GD3MA2S7280G
R102
CP131
47K
1k
CF20OPEN
0.1
C122
D4
MA2S7280G
D5
0.01
47P
C119
X_CR-817_12.288MHZ
X1
1
NC
2
GND3OUT
12.288MHZ
TSW
UNR9113G0
COUT
CCS I
CCLK
DRESET
1k
R103
Q5
R104
CLOCK
MAIN-A UNIT
47KR95
0.1
C61
R83
4.7K
CP115
DRESET
CP111
CS
CP112
SO
SCK
CP113
CP114
SI
GND CP128
DSP FLASH
10K
R97
CIRQO
5PC67
2.2KR47
IC17
5
C68
1
0.1
2
NJM2711F
47K
R48
R50
0
47K
R49
*; Refer to “PARTS LIST.”
7
Sep. 2008
SERVICE MANUAL
ADDENDUM
CONTENTS
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BOARD LAYOUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 8
Sep. 2008
SECTION 6. PARTS LIST
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
IC1 1180002271 S.REG TK11250CMCL-G T 29.2/10.9
IC2 1180002590 S.REG XC6204B332MR B 12/3.7
IC3 1110006700 S.IC TB7100F (TE85L,F) T 26.9/17.1
IC4 1180002590 S.REG XC6204B332MR T 22.7/10.9
IC7 1110006230 S.IC NJM2711F-TE1-#ZZZB T 25.4/2.3
IC8 1110005290 S.IC NJM2115V-TE1-#ZZZB B 21.6/12.7
IC9 1130007021 S.IC TC7S66FU(TE85L,F) B 22.8/16.3
IC10 1140013280 S.IC TMS320VC5507ZHH [GEN-03] T 7.2/11.1
1140013290 S.IC TMS320VC5509AZHH [GEN-04]
IC11 1130006891 S.IC TC7S04FU(TE85R,F) B 8.2/10.5
IC12 1130007281 S.IC TC7S32FU(TE85R,F) B 8.2/13.4
IC13 1190002080 S.IC AD7476ARTZ-500RL7 T 17.4/3
IC16 1130012910 S.IC AK4554VTP-E2/P B 24/3
IC17 1110006230 S.IC NJM2711F-TE1-#ZZZB B 17.2/3.7
IC18 1140008650 S.IC HN58X2464TI0 [GEN-04] B 4.2/7.2
IC20 1130014210 S.IC AT25FS010N-SH27-T [GEN-03] B 4.1/2.6
1130013360 S.IC AT25F2048N-10SU-2.7SL383
[GEN-04]
IC22 1130006891 S.IC TC7S04FU(TE85R,F) T 15.1/10.8
IC23 1130013040 S.IC TC7WBD125AFK(T5L,F) B 5.3/14.5
IC24 1130013040 S.IC TC7WBD125AFK(T5L,F) B 14.6/14.5
IC26 1130013050 S.IC HD74LV2GT125AUSE-E B 11/14.5
Q1 1590003550 S.TRA XP4313(TX) B 19.8/17
Q2 1590003230 S.TRA UNR9113J-(TX) T 23.8/8
Q3 1530003190 S.TRA 2SC4617 TLQ [GEN-04] only B 33.5/4.4
D1 1750001280 S.DIO CUS02(TE85L,Q) T 24.4/14.4
D2 1790001240 S.DIO MA2S728-(TX) B 8.3/16.6
D3 1790001240 S.DIO MA2S728-(TX) B 5.1/17.6
D4 1790001240 S.DIO MA2S728-(TX) B 6.9/17.5
D5 1790001240 S.DIO MA2S728-(TX) B 4/9.7
D6 1790001240 S.DIO MA2S728-(TX) B 2.5/17.6
FI1 2020002210 S.CER CFXCE450KCFA-R10 T 29.3/2.1
X1 6050012350 S.XTA CR-817 DSB321SC 12.288 MHz B 15.2/9.5
L1 6200001620 S.COI ELJFC 1R0K-F T 32.9/9.8
L2 6200012090 S.COI CDRH2D18HP-150NC T 21.4/17.5
L3 6200007830 S.COI ELJFC 4R7K-F T 17.3/18.8
L4 6200001620 S.COI ELJFC 1R0K-F T 30/6.5
R1 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/14.6
R2 7030005240 S.RES ERJ2GEJ 473 X (47K) B 25.1/16.1
R3 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/13.7
R4 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/9
R5 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.2/9.9
R9 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 26/6.4
R10 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 27.8/6.4
R11 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.1/6.4
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 26.9/4.8
R13 7030004980 S.RES ERJ2GEJ 101 X (100) T 22.3/2.8
R14 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 21.4/1.2
R15 7030004970 S.RES ERJ2GEJ 470 X (47) T 20.5/1.2
R16 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 30/4.6
R18 7030005240 S.RES ERJ2GEJ 473 X (47K) B 15.1/18.3
R19 7030005240 S.RES ERJ2GEJ 473 X (47K) B 3.5/15.4
R20 7030005240 S.RES ERJ2GEJ 473 X (47K) B 7.1/15.4
R22 7030004980 S.RES ERJ2GEJ 101 X (100) B 27.6/18.1
R23 7030004980 S.RES ERJ2GEJ 101 X (100) B 27.1/17.2
R24 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.2/18.9
R25 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.4/18.9
R26 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.4/17.8
R27 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 31.2/13.7
R28 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 32.2/13.7
R32 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 19.6/7
R33 7030005600 S.RES ERJ2GEJ 273 X (27K) B 19.6/8.9
R34 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 17.3/11.8
R35 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.8/10.1
R36 7030009710 S.RES ERJ2GEJ 203 X (20K) B 21.4/10.1
R37 7030009710 S.RES ERJ2GEJ 203 X (20K) B 24.6/10.1
R38 7030009710 S.RES ERJ2GEJ 203 X (20K) B 26.3/11.9
R39 7030004980 S.RES ERJ2GEJ 101 X (100) B 20.1/15.2
R41 7030004970 S.RES ERJ2GEJ 470 X (47) B 13.1/6.8
R42 7030005240 S.RES ERJ2GEJ 473 X (47K)
R43 7030004970 S.RES ERJ2GEJ 470 X (47) B 17.8/6.8
R44 7030005240 S.RES ERJ2GEJ 473 X (47K) B 17.8/5.9
R45 7030005240 S.RES ERJ2GEJ 473 X (47K) B 16.3/6.6
R46 7030004980 S.RES ERJ2GEJ 101 X (100) B 18.5/1.2
R47 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 17.6/1.2
R48 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/4.7
R49 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/1.8
R50 7030010040 S.RES ERJ2GEJ-JPW B 14.6/3.8
R51 7030005120 S.RES ERJ2GEJ 102 X (1K) T 29.5/19.2
R52 7030005310 S.RES ERJ2GEJ 124 X (120K) T 29.5/18.2
DESCRIPTION
M.
H/V
LOCATION
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
R53 7030011060 S.RES RR0510P-273-D (27K) T 21/14.3
R54 7030008260 S.RES RR0510P-393-D (39K) T 22/14.3
R55 7030010040 S.RES ERJ2GEJ-JPW B 13.1/5.9
R56 7030005170 S.RES ERJ2GEJ 474 X (470K) T 23/14.3
R62 7030007250 S.RES ERJ2GEJ 220 X (22) T 15.8/6.8
R63 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 18.3/0.8
R64 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 19.6/2.8
R69 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 20.5/8.9
R70 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/7.2
R71 7030004980 S.RES ERJ2GEJ 101 X (100)
[GEN-04] only B 29.3/3.9
R72 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.4/2.3
R73 7030005120 S.RES ERJ2GEJ 102 X (1K)
[GEN-04] only B 34.2/1.6
R74 7030005120 S.RES ERJ2GEJ 102 X (1K)
[GEN-04] only B 31.9/3.9
R75 7030008300 S.RES ERJ2GEJ 184 X (180K)
[GEN-04] only B 33.8/5.9
R81 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 9.9/4.3
R82 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 8.3/4.3
R83 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 12.3/4.3
R84 7030005050 S.RES ERJ2GEJ 103 X (10K) B 1.9/9.7
R85 7030005240 S.RES ERJ2GEJ 473 X (47K) T 15.8/5.6
R86 7030005240 S.RES ERJ2GEJ 473 X (47K) T 23.5/5.2
R87 7030005240 S.RES ERJ2GEJ 473 X (47K) T 22.1/6.7
R91 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/8.9
R92 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/8.9
R93 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/1.3
R94 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/2.9
R95 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/3.8
R96 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/10.7
R97 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/10.7
C1 4030018560 S.CER C2012 JB 1A 475K-T T 32.9/12
C2 4030016930 S.CER ECJ0EB1A104K T 26.7/11.8
C3 4030016930 S.CER ECJ0EB1A104K T 29.9/8.3
C4 4030016930 S.CER ECJ0EB1A104K T 26.7/10
C5 4550007070 S.TAN TEESVP 1A 475M8R T 25.3/10.9
C6 4030018860 S.CER ECJ0EB0J105K T 26.7/8.4
C7 4030016930 S.CER ECJ0EB1A104K T 25.8/8.4
C9 4030016930 S.CER ECJ0EB1A104K T 18.4/9.9
C10 4550007030 S.TAN TEESVP 0J 106M8R T 20.1/10.9
C11 4550007070 S.TAN TEESVP 1A 475M8R B 12/1
C12 4030016930 S.CER ECJ0EB1A104K B 14.6/0.8
C13 4030016930 S.CER ECJ0EB1A104K B 9.8/4.1
C14 4550007030 S.TAN TEESVP 0J 106M8R B 10.6/6.3
C21 4030016930 S.CER ECJ0EB1A104K T 31.6/4.6
C22 4030018910 S.CER C1608 JB 0J 475K-T T 25.2/5
C23 4030016930 S.CER ECJ0EB1A104K T 23.9/6.4
C24 4030016930 S.CER ECJ0EB1A104K T 26.9/6.4
C25 4030016930 S.CER ECJ0EB1A104K T 27.8/4.8
C26 4030016930 S.CER ECJ0EB1A104K T 21.4/2.8
C27 4030017590 S.CER ECJ0EC1H070C T 22.3/1.2
C28 4030017730 S.CER ECJ0EB1E471K T 20.5/2.8
C31 4030016930 S.CER ECJ0EB1A104K B 18.2/15
C32 4030017460 S.CER ECJ0EB1E102K B 17.9/17.2
C33 4030016790 S.CER ECJ0EB1C103K B 17.3/13.4
C34 4030016930 S.CER ECJ0EB1A104K B 18/10
C35 4030017460 S.CER ECJ0EB1E102K B 23/10.1
C36 4030017450 S.CER ECJ0EB1E271K B 24.8/11
C37 4030017750 S.CER ECJ0EB1E122K B 26.3/12.8
C40 4030017420 S.CER ECJ0EC1H470J B 26.2/19.2
C41 4030017420 S.CER ECJ0EC1H470J B 25.4/18.3
C42 4030017420 S.CER ECJ0EC1H470J B 24.9/17.4
C43 4030017420 S.CER ECJ0EC1H470J T 31.2/18.2
C44 4030017420 S.CER ECJ0EC1H470J B 31.7/18.9
C45 4030017420 S.CER ECJ0EC1H470J B 26.3/15.6
C46 4030017420 S.CER ECJ0EC1H470J B 24.1/8.9
C47 4030017420 S.CER ECJ0EC1H470J B 25.1/8.5
C48 4030017420 S.CER ECJ0EC1H470J T 33.2/13.7
C51 4550007030 S.TAN TEESVP 0J 106M8R T 24.3/17.9
C52 4030016930 S.CER ECJ0EB1A104K T 26.2/14.2
C53 4030017770 S.CER ECJ0EB1E332K T 31.2/19.2
C54 4550006970 S.TAN TEESVA0G476M8R T 18.4/15.1
C55 4030016930 S.CER ECJ0EB1A104K T 20/14.3
C56 4550006970 S.TAN TEESVA0G476M8R T 16.2/15.1
C57 4030016790 S.CER ECJ0EB1C103K B 17.8/7.7
C61 4030016790 S.CER ECJ0EB1C103K B 13.9/17.6
C62 4030017460 S.CER ECJ0EB1E102K B 19.4/2.9
C63 4030016930 S.CER ECJ0EB1A104K B 12.9/8.6
C64 4030017430 S.CER ECJ0EC1H101J B 14.8/6.8
C65 4030016930 S.CER ECJ0EB1A104K B 14.8/5.9
C66 4030016930 S.CER ECJ0EB1A104K B 19.4/1.2
C67 4030017380 S.CER ECJ0EC1H050B B 16.7/1.2
C68 4030016930 S.CER ECJ0EB1A104K B 15.8/1.2
C71 4030016930 S.CER ECJ0EB1A104K B 33.8/7.1
C72 4030017460 S.CER ECJ0EB1E102K T 18.7/8.7
C73 4030018910 S.CER C1608 JB 0J 475K-T T 14.4/4.5
C74 4030016930 S.CER ECJ0EB1A104K T 16.5/0.81
C81 4030018860 S.CER ECJ0EB0J105K [GEN-04] only B 34.2/9.6
C82 4030018860 S.CER ECJ0EB0J105K B 23.2/8.9
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
1
M.
LOCATION
S.=Surface mount
H/V
Sep. 2008
[MAIN UNIT] (For UT-119S/H)
REF PARTS
NO. NO.
C83 4030017460 S.CER ECJ0EB1E102K B 22.3/8.9
C84 4030018860 S.CER ECJ0EB0J105K B 20.5/7
C85 4030016930 S.CER ECJ0EB1A104K T 19.6/1.2
C86 4030018860 S.CER ECJ0EB0J105K B 26.3/8.1
C87 4030016950 S.CER ECJ0EB1A473K B 26.3/6.3
C88 4030016950 S.CER ECJ0EB1A473K B 28.4/3.9
C89 4030016930 S.CER ECJ0EB1A104K B 25/6.6
C91 4030016930 S.CER ECJ0EB1A104K B 30.7/1.5
C92 4030018910 S.CER C1608 JB 0J 475K-T B 29.5/1.8
C93 4030018860 S.CER ECJ0EB0J105K [GEN-04] only B 30.3/3.9
C100 4030016790 S.CER ECJ0EB1C103K T 14.9/8.4
C101 4030018910 S.CER C1608 JB 0J 475K-T T 14.1/16.7
C102 4030016930 S.CER ECJ0EB1A104K B 17.3/15
C103 4030016790 S.CER ECJ0EB1C103K T 11.6/18.2
C104 4030018860 S.CER ECJ0EB0J105K T 14/8.4
C105 4030016790 S.CER ECJ0EB1C103K T 14.9/6.8
C106 4030016930 S.CER ECJ0EB1A104K T 14.4/12.7
C107 4030016790 S.CER ECJ0EB1C103K T 14/6.8
C108 4030016790 S.CER ECJ0EB1C103K B 2.5/10.6
C109 4030018860 S.CER ECJ0EB0J105K T 13.1/18.2
C110 4030016930 S.CER ECJ0EB1A104K B 3.5/13.8
C111 4030016930 S.CER ECJ0EB1A104K B 10.4/7.7
C112 4030016930 S.CER ECJ0EB1A104K B 9.8/1.2
C113 4030016930 S.CER ECJ0EB1A104K B 5.7/9.9
C114 4030018910 S.CER C1608 JB 0J 475K-T T 16.6/8.8
C115 4030018910 S.CER C1608 JB 0J 475K-T T 6.8/18
C116 4030016790 S.CER ECJ0EB1C103K T 9.2/18.2
C117 4030017400 S.CER ECJ0EC1H220J [GEN-04] only T 6.5/4.3
C119 4030017420 S.CER ECJ0EC1H470J [GEN-04] only B 8.5/6.3
C120 4030017420 S.CER ECJ0EC1H470J [GEN-04] only T 22.6/5.5
C121 4030017420 S.CER ECJ0EC1H470J [GEN-04] only T 21.7/5.5
J1 6510025230 S.CON AXK640345J2 B 30.3/11.5
EP2 6910016330 S.BEA MMZ1005S 601CT-S B 30.9/2.7
EP3 6910016330 S.BEA MMZ1005S 601CT-S T 34.2/13.7
EP4 6910016330 S.BEA MMZ1005S 601CT-S B 8.6/4.7
DESCRIPTION
M.
H/V
LOCATION
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
IC1 1180002271 S.REG TK11250CMCL-G T 28.2/10.9
IC2 1180002590 S.REG XC6204B332MR B 12/3.5
IC3 1110006700 S.IC TB7100F (TE85L,F) T 26.9/17.1
IC4 1180002590 S.REG XC6204B332MR T 22.2/10.9
IC7 1110006230 S.IC NJM2711F-TE1-#ZZZB T 25.4/2.3
IC8 1110005290 S.IC NJM2115V-TE1-#ZZZB B 21.6/12.7
IC9 1130007021 S.IC TC7S66FU(TE85L,F) B 22.8/16.3
IC10 1140013290 S.IC TMS320VC5509AZHH T 7.2/11.1
IC11 1130006891 S.IC TC7S04FU(TE85R,F) B 8.2/10.5
IC12 1130007281 S.IC TC7S32FU(TE85R,F) B 8.2/13.4
IC13 1190002080 S.IC AD7476ARTZ-500RL7 T 17.4/3
IC16 1130012910 S.IC AK4554VTP-E2/P B 24/3
IC17 1110006230 S.IC NJM2711F-TE1-#ZZZB B 17.2/5.1
IC20 1130013360 S.IC AT25F2048N-10SU-2.7SL383 B 4.1/2.6
IC22 1130006891 S.IC TC7S04FU(TE85R,F) T 15.1/10.8
IC23 1130013040 S.IC TC7WBD125AFK(T5L,F) B 5.3/14.5
IC24 1130013040 S.IC TC7WBD125AFK(T5L,F) B 14.6/14.5
IC26 1130013050 S.IC HD74LV2GT125AUSE-E B 10.8/14.5
Q1 1590003550 S.TRA XP4313(TX) B 19.8/17
Q2 1590003230 S.TRA UNR9113J-(TX) T 23.8/8
Q3 1530003190 S.TRA 2SC4617 TLQ B 33.5/4.4
Q5 1590003230 S.TRA UNR9113J-(TX) B 4.8/7.1
D1 1750001280 S.DIO CUS02(TE85L,Q) T 24.4/14.4
D2 1790001240 S.DIO MA2S728-(TX) B 8.3/16.6
D3 1790001240 S.DIO MA2S728-(TX) B 5.1/17.3
D4 1790001240 S.DIO MA2S728-(TX) B 6.9/17.5
D5 1790001240 S.DIO MA2S728-(TX) B 4/9.8
D6 1790001240 S.DIO MA2S728-(TX) B 3.2/18.2
FI1 2020002210 S.CER CFXCE450KCFA-R10 T 29.3/2.1
X1 6050012930 S.XTA CR-886 DSA321SCA 12.288 MHz B 15/9.1
L1 6200001620 S.COI ELJFC 1R0K-F T 32.9/10.4
L2 6200012090 S.COI CDRH2D18HP-150NC T 21.9/17.6
L3 6200007830 S.COI ELJFC 4R7K-F T 15.6/18.8
L4 6200001620 S.COI ELJFC 1R0K-F T 21.5/14.3
R1 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/14.6
R2 7030005240 S.RES ERJ2GEJ 473 X (47K) B 25/16.2
R3 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/13.7
R4 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/9
R5 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.2/9.9
R9 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 26/6.4
R10 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 27.8/6.4
R11 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.1/6.4
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 26.9/4.8
R13 7030004980 S.RES ERJ2GEJ 101 X (100) T 22.3/2.8
R14 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 21.4/1.2
R15 7030004970 S.RES ERJ2GEJ 470 X (47) T 20.5/1.2
R16 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 30.6/4.5
R18 7030005240 S.RES ERJ2GEJ 473 X (47K) B 15.1/18.3
R19 7030005240 S.RES ERJ2GEJ 473 X (47K) B 3.5/15.4
R20 7030005240 S.RES ERJ2GEJ 473 X (47K) B 7.1/15.4
R22 7030004980 S.RES ERJ2GEJ 101 X (100) B 27/18.3
R23 7030004980 S.RES ERJ2GEJ 101 X (100) B 27/17.4
R24 7030004980 S.RES ERJ2GEJ 101 X (100) B 28.7/19.2
R25 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.2/19.2
R26 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.2/18.3
R27 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 31.2/14.3
R28 7030009290 S.RES ERJ2GEJ 562 X (5.6K) T 32.2/14.3
R32 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 19.6/7.2
R33 7030005600 S.RES ERJ2GEJ 273 X (27K) B 19.6/8.9
R34 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 17.3/12.1
R35 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.8/10.1
R36 7030009710 S.RES ERJ2GEJ 203 X (20K) B 21.4/10.1
R37 7030009710 S.RES ERJ2GEJ 203 X (20K) B 24.6/10.1
R38 7030009710 S.RES ERJ2GEJ 203 X (20K) B 26.3/11.9
R39 7030004980 S.RES ERJ2GEJ 101 X (100) B 20.1/15.2
R41 7030004970 S.RES ERJ2GEJ 470 X (47) B 12.8/6.6
R43 7030004970 S.RES ERJ2GEJ 470 X (47) B 18.2/8.2
R44 7030005240 S.RES ERJ2GEJ 473 X (47K) B 18.2/7.3
R45 7030005240 S.RES ERJ2GEJ 473 X (47K) B 17/7.5
R46 7030004980 S.RES ERJ2GEJ 101 X (100) B 18.5/2.7
R47 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 17.6/2.7
R48 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/4.8
R49 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.6/2.5
R50 7030010040 S.RES ERJ2GEJ-JPW B 14.6/3.9
R51 7030005120 S.RES ERJ2GEJ 102 X (1K) T 29.5/19.2
R52 7030005310 S.RES ERJ2GEJ 124 X (120K) T 29.5/18.2
R53 7030011060 S.RES RR0510P-273-D (27K) T 19.6/15.9
R54 7030008260 S.RES RR0510P-393-D (39K) T 27.7/14.2
R55 7030010040 S.RES ERJ2GEJ-JPW B 12.8/5.7
R56 7030005170 S.RES ERJ2GEJ 474 X (470K) T 28.7/14.2
R62 7030007250 S.RES ERJ2GEJ 220 X (22) T 15.8/6.8
R63 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 18.3/0.81
R64 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 19.6/2.8
R69 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 20.5/8.9
R70 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/7.2
R71 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.3/3.9
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
2
M.
LOCATION
S.=Surface mount
H/V
Sep. 2008
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
R72 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.4/2.3
R73 7030005120 S.RES ERJ2GEJ 102 X (1K) B 34.2/1.6
R74 7030005120 S.RES ERJ2GEJ 102 X (1K) B 31.2/3.9
R75 7030008300 S.RES ERJ2GEJ 184 X (180K) B 33.8/5.9
R81 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 9.9/4.3
R82 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 8.3/4.3
R83 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 12.4/4.3
R84 7030005050 S.RES ERJ2GEJ 103 X (10K) B 2.3/9.8
R85 7030005240 S.RES ERJ2GEJ 473 X (47K) T 15.8/5.6
R86 7030005240 S.RES ERJ2GEJ 473 X (47K) T 22/6.5
R87 7030005240 S.RES ERJ2GEJ 473 X (47K) T 23.5/5.2
R91 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.5/8.9
R92 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/8.9
R93 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/1.3
R94 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/2.9
R95 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.6/3.8
R96 7030005090 S.RES ERJ2GEJ 104 X (100K) B 10.5/10.7
R97 7030005050 S.RES ERJ2GEJ 103 X (10K) B 11.4/10.7
R98 7030005050 S.RES ERJ2GEJ 103 X (10K) B 12.3/16.6
R99 7030004980 S.RES ERJ2GEJ 101 X (100) T 23.2/1.2
R100 7030010040 S.RES ERJ2GEJ-JPW T 5.3/17.9
R101 7030005120 S.RES ERJ2GEJ 102 X (1K) T 9.5/17.9
R102 7030005120 S.RES ERJ2GEJ 102 X (1K) B 1.2/6.7
R103 7030005120 S.RES ERJ2GEJ 102 X (1K) B 1.2/7.6
R104 7030005240 S.RES ERJ2GEJ 473 X (47K) B 14.4/11.6
R106 7030010040 S.RES ERJ2GEJ-JPW T 18.4/6.5
R107 7030010040 S.RES ERJ2GEJ-JPW T 17.6/5.2
R108 7030005120 S.RES ERJ2GEJ 102 X (1K) B 5.4/8.7
R109 7030010040 S.RES ERJ2GEJ-JPW B 0.81/12.7
R110 7030004980 S.RES ERJ2GEJ 101 X (100) B 3/11.6
C1 4030018560 S.CER C2012 JB 1A 475K-T T 32.9/12.6
C2 4030016930 S.CER ECJ0EB1A104K T 25.7/11.8
C3 4030016930 S.CER ECJ0EB1A104K T 30.7/10.4
C4 4030016930 S.CER ECJ0EB1A104K T 25.7/10.2
C5 4550007930 S.TAN TEESVJ 1A 475M8R T 24.6/10.5
C6 4030018860 S.CER ECJ0EB0J105K T 26.2/8.4
C7 4030016930 S.CER ECJ0EB1A104K T 25.3/8.4
C9 4030016930 S.CER ECJ0EB1A104K T 18.4/9.9
C10 4550007730 S.TAN TEESVJ 0J 106M8R T 19.7/10.9
C11 4550007930 S.TAN TEESVJ 1A 475M8R B 12/1.2
C12 4030016930 S.CER ECJ0EB1A104K B 14.1/1.5
C13 4030016930 S.CER ECJ0EB1A104K B 9.8/4.1
C14 4550007730 S.TAN TEESVJ 0J 106M8R B 10.6/6.3
C21 4030016930 S.CER ECJ0EB1A104K T 30.6/5.4
C22 4030018910 S.CER C1608 JB 0J 475K-T T 25.2/5
C23 4030016930 S.CER ECJ0EB1A104K T 23.9/6.4
C24 4030016930 S.CER ECJ0EB1A104K T 26.9/6.4
C25 4030016930 S.CER ECJ0EB1A104K T 27.8/4.8
C26 4030016930 S.CER ECJ0EB1A104K T 21.4/2.8
C27 4030017590 S.CER ECJ0EC1H070C T 22.3/1.2
C28 4030017730 S.CER ECJ0EB1E471K T 20.5/2.8
C31 4030016930 S.CER ECJ0EB1A104K B 18.2/15
C32 4030017460 S.CER ECJ0EB1E102K B 17.9/17.2
C33 4030016790 S.CER ECJ0EB1C103K B 17.3/13.7
C34 4030016930 S.CER ECJ0EB1A104K B 18.2/10.9
C35 4030017460 S.CER ECJ0EB1E102K B 23/10.1
C36 4030017450 S.CER ECJ0EB1E271K B 24.8/11
C37 4030017750 S.CER ECJ0EB1E122K B 26.3/12.8
C40 4030017420 S.CER ECJ0EC1H470J B 27/19.2
C41 4030017420 S.CER ECJ0EC1H470J B 25.4/18.3
C42 4030017420 S.CER ECJ0EC1H470J B 24.9/17.4
C43 4030017420 S.CER ECJ0EC1H470J T 31.2/18.2
C44 4030017420 S.CER ECJ0EC1H470J B 31.6/19.2
C45 4030017420 S.CER ECJ0EC1H470J B 25.9/16.2
C46 4030017420 S.CER ECJ0EC1H470J B 24.1/8.9
C47 4030017420 S.CER ECJ0EC1H470J B 25.1/8.5
C48 4030017420 S.CER ECJ0EC1H470J T 33.2/14.3
C51 4550007730 S.TAN TEESVJ 0J 106M8R T 24.5/17.5
C52 4030016930 S.CER ECJ0EB1A104K T 26.2/14.2
C53 4030017770 S.CER ECJ0EB1E332K T 31.2/19.2
C54 4550007720 S.TAN TEESVP 0G 476M8R T 18.2/16
C55 4030016930 S.CER ECJ0EB1A104K T 18.5/18.5
C56 4550007720 S.TAN TEESVP 0G 476M8R T 16.2/16
C57 4030016790 S.CER ECJ0EB1C103K B 18.2/9.1
C61 4030016790 S.CER ECJ0EB1C103K B 10.7/17.6
C62 4030017460 S.CER ECJ0EB1E102K B 19.4/4.3
C63 4030016930 S.CER ECJ0EB1A104K B 12.8/8.4
C64 4030017620 S.CER ECJ0EC1H100C B 14.6/6.6
C65 4030016930 S.CER ECJ0EB1A104K B 14.6/5.7
C66 4030016930 S.CER ECJ0EB1A104K B 19.4/2.7
C67 4030017380 S.CER ECJ0EC1H050B B 16.7/2.7
C68 4030016930 S.CER ECJ0EB1A104K B 15.8/2.7
C71 4030016930 S.CER ECJ0EB1A104K B 33.8/7.1
C72 4030017460 S.CER ECJ0EB1E102K T 18.7/8.7
C73 4030018910 S.CER C1608 JB 0J 475K-T T 14.5/4.5
C74 4030016930 S.CER ECJ0EB1A104K T 16.5/0.81
C81 4030018860 S.CER ECJ0EB0J105K B 34.2/9.6
C82 4030018860 S.CER ECJ0EB0J105K B 23.2/8.9
C83 4030017460 S.CER ECJ0EB1E102K B 22.3/8.9
C84 4030018860 S.CER ECJ0EB0J105K B 20.5/7.2
C85 4030016930 S.CER ECJ0EB1A104K T 19.6/1.2
C86 4030018860 S.CER ECJ0EB0J105K B 26.3/8.1
C87 4030016950 S.CER ECJ0EB1A473K B 26.3/6.3
C88 4030016950 S.CER ECJ0EB1A473K B 28.4/3.9
C89 4030016930 S.CER ECJ0EB1A104K B 25/6.6
C91 4030016930 S.CER ECJ0EB1A104K B 30.7/1.5
C92 4030018910 S.CER C1608 JB 0J 475K-T B 29.5/1.8
DESCRIPTION
M.
H/V
LOCATION
[MAIN-A UNIT] (For UT-126H)
REF PARTS
NO. NO.
C93 4030018860 S.CER ECJ0EB0J105K B 30.3/3.9
C99 4030018860 S.CER ECJ0EB0J105K B 8.7/8.4
C100 4030016790 S.CER ECJ0EB1C103K T 14.9/8.4
C101 4030018910 S.CER C1608 JB 0J 475K-T T 14.1/16.4
C102 4030016930 S.CER ECJ0EB1A104K B 17.3/15.3
C103 4030016790 S.CER ECJ0EB1C103K T 12.2/18.2
C104 4030018860 S.CER ECJ0EB0J105K T 14/8.4
C105 4030016790 S.CER ECJ0EB1C103K T 14.9/6.8
C106 4030016930 S.CER ECJ0EB1A104K T 14.4/12.7
C107 4030016790 S.CER ECJ0EB1C103K T 14/6.8
C108 4030016790 S.CER ECJ0EB1C103K B 7.8/8.4
C109 4030018860 S.CER ECJ0EB0J105K T 13.1/18.2
C110 4030016930 S.CER ECJ0EB1A104K B 3.5/13.8
C111 4030016930 S.CER ECJ0EB1A104K B 10.4/7.7
C112 4030016930 S.CER ECJ0EB1A104K B 9.8/1.2
C113 4030016930 S.CER ECJ0EB1A104K B 5.7/9.9
C114 4030018910 S.CER C1608 JB 0J 475K-T T 16.6/8.8
C115 4030018910 S.CER C1608 JB 0J 475K-T T 7.4/18
C116 4030016790 S.CER ECJ0EB1C103K T 4.1/18.3
C117 4030017400 S.CER ECJ0EC1H220J T 6.5/4.3
C119 4030017420 S.CER ECJ0EC1H470J B 8.5/6.3
C120 4030017420 S.CER ECJ0EC1H470J T 21.7/5.3
C121 4030017420 S.CER ECJ0EC1H470J T 22.6/5.3
C122 4030016930 S.CER ECJ0EB1A104K B 16/11.6
J1 6510025230 S.CON AXK640345J2 B 30.3/11.5
EP2 6910016330 S.BEA MMZ1005S 601CT-S B 30.9/2.7
EP3 6910016330 S.BEA MMZ1005S 601CT-S T 34.2/14.3
EP4 6910016330 S.BEA MMZ1005S 601CT-S B 8.6/4.7
EP5 6910016330 S.BEA MMZ1005S 601CT-S B 26.8/16.2
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V
M.
LOCATION
S.=Surface mount
3
Sep. 2008
SECTION 3 BOARD LAYOUTS
• MAIN UNIT (For UT-119S/H)
(TOP VIEW)
MP2
“2887 PLATE”
(8510018640)
CLK
GPIO1
C0
CS
C115
IC10
C116
C103
C109
C106
C101
X
IC22
C100
C104
L3
C56
C114
SO
C54
C9
C72
C55
C10
5V
L2
R53
R54
IC4
R56
Q2
C51
D1
C5
C52
C7
IC3
C2
C4
C6
R51
R52
C53
C43
B6839B
R27
R28
IC1
C3
VCC
C1
L1
C48
EP3
C28
R15
R87
C121
C26
R14
C120
R13
C27
C23
R86
R99
R11
C22
IC7
R9
C24
R12
R10
C25
L4
R16
FI1
MP2
C21
C105
R85
R62
C74
IC13
R63
R64
C85
C107
RCK
C117
R81R82 R83
C73
XTAL
RDATA
RE
V0 V5 V10 V15 V20
H0H5H10H15H20H25H30H35
SI
SCK
4
Sep. 2008
• MAIN UNIT (For UT-119S/H)
(BOTTOM VIEW)
C81
C71
R75
R26
C44
J1
MP4
“2887 B-SHIELD”
(8510019210)
MP4
R23
C45
R1
R3
C40
C41
C42
R2
IC9
Q1
R39
C32
C31
C102
C33
R18
C61
R24R25
R22
“2887 A-SHEET”
MP1
MP1
(8930077620)
D2
D4
R20
IC23IC24 IC26
D3
R19
C110
D6
B
IC8
C37
R38
R5
R4
C86
R70
C87
C36
C47
C89
A
C46
C35
C82
C83
R35R36R37
R69
C84
R32R33
C34
C57
R44
R34
R45
X1
C64
C65
C63
R41R43
R55
R97
R92
C14
R96
R91
C111
IC11IC12
C113
C119
R98
C108
D5
IC18
R84
MP5
R73
Q3
R74
EP2
C91
C93
R71
C92
C88
R72
IC16
C62
C66
R46
IC17
C67
R47
C68
R48
R50
R49
C12
IC2
C11
C13
C112
EP4
R95
IC20
R94
R93
V0V5V10V15V20
H0 H5 H10 H15 H20 H25 H30 H35
MP5
“SPONGE (KH)”
(8930077640)
5
Sep. 2008
• MAIN-A UNIT (For UT-126H)
(TOP VIEW)
MP2
“2887 PLATE”
(8510018640)
V15 V20
V10
CLK
GPIO1
C0
CS
C116
R100 R101
C115
IC10
C103
C109
C101
X
C106
IC22
C100
C104
L3
C114
C56
SO
C55
C54
C9
C72
R53
C10
5V
L2
L4
IC4
Q2
C51
D1
C5
C7
C2
C4
IC3
C52
C6
R54
IC1
R51
R52
C53
C43
B7072B
R28
R56
R27
C3
VCC
C1
L1
C48
EP3
C105
R85
R62
C74
R107
IC13
R63
R106
R64
C85
C107
V5
RCK
C117
R81R82 R83
C73
XTAL
RDATA
RE
V0
H0H5H10H15H20H25H30H35
SI
SCK
C28
R15
R86
C120
C26
R14
C121
R13
C27
C23
R87
R99
R11
C22
IC7
R9
C24
R12
R10
C25
FI1
C21
R16
MP2
6
Sep. 2008
• MAIN-A UNIT (For UT-126H)
(BOTTOM VIEW)
C81
C71
R75
R73
R26
Q3
C44
R74
EP2
J1
C93
C91
R24R25
R71
C92
C88
R72
C40
R22
R23
R1
R3
C37
R38
EP5
R5
R4
C86
R70
C87
MP4
C41
C45
MP4
“2887 B-SHIELD”
(8510019210)
C42
R2
IC9
C36
C35
C82
C47
C46
C83
A
C89
IC16
IC8
R39
R69
C84
Q1
R35R36R37
R32R33
C62
C66
C31
C34
C57
R43
R44
R46
C32
C102
C33
R34
IC17
R47
C122
R45
C67
C68
R18
X1
B
R104
C64
C65
R48
R50
R49
C12
C63
R41
R55
MP1
“2887 A-SHEET”
(8930077620)
MP1
C61
R98
R96
R97
R91
R92
C111
C14
C13
IC2
C112
C11
D2
IC11IC12
C99
C119
EP4
R95
R94
R93
R20
C108
D4
IC23IC24 IC26
C113
R108
D3
Q5
D6
R19
C110
D5
IC20
R110
R84
C
V20
V15
R109
MP5
R103
R102
V5V10
V0
“SPONGE (KH)”
(8930077640)
7
H0 H5 H10 H15 H20 H25 H30 H35
MP5
Sep. 2008
SECTION 5 VOLTAGE DIAGRAM
• MAIN UNIT (For UT-119S/H)
5V_VDD
4.7 SVSP
VCC
CCS
CIRQ
R25
R26
100
100
47P
C48
1U
L1
IC2
1
5
VIN
VOUT
2
VSS
3
CE4NC
C11
XC6204B332M
C12
0.1
4
5
6
GND
VIN
C1
4.7
C3
0.1
CONT2GND3NP
IC1
1
C21
D_IF
0.1
SI
SO
SCK
47K
47K
47KR18
R20
R19
R23
R22
R24
47P
47P
47P
47P
47P
C42
C40
C41
C44
C43
100
100
100
CCK
CSI
CSO
CIRQ
CCS
DAFO
DISC
VCC
+5V
GND
0.1 C52
L4
1U
VOUT
TK11250CM
C2
0.1
R16
1.5K
AXK640345J
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
10 SVS
0.1
C45
J1
C51
4.7 SVSP
C4
RESET
47P
C13
0.1
1K
R51
0.0033
C53
C5
MMZ1005S601CT
2021
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C14
10 SVSP
Q2
UNR9113J
47K
R2
EP2
OPT3(RES)
OPT1(PD)
VREF
1
2
3
4
120K
R52
FI1
CFXCE450KCFA
I O
DMI
DMO
IC3
COMP
RT
PGND
SGND5SW
TB7100F
1
R1
100
C6
100
R27
FB
ENB
VIN
C7
0.1
R11
7
4.
C22
IF-FILTER
R28
3.3K
8
7
6
R9
6.8K
C23
C25
0.1
5.6K
D1
IC4
1
2
3
XC6204B332M
0.1
L2
15U
CUS02
VIN
VSS
CE4NC
1.5K
R12
100
0.1
R3
100
VOUT
100
R4
100
27K
39K
CP129
CF20
4
3
R13
C26
TC7S66FU
R5
R53
R54
R56
5
5
2
4
0.1
R99
100
R14
1.8K
C27
IC7
NJM2711F
+3.3V_A
5
123
C47
C57
470K
7P
1
IC9
47P
0.01
47 MSVA
C9
10 SVS
C46
R55
IC22
0
DRESET
CS
SO
SCK
SI
GND CP128
DSP FLASH
10K
R97
CIRQO
IC17
1
R83
4.7
K
CP115
CP111
CP112
CP113
CP114
47K
R48
C68
R50
0.1
0
47K
R49
2
R8
4.7K
4.7K
1
2
3
4
C110
CIRQ
SI
CCS
SCK
R434 7
47
R41
*IC20
CS
SO
WP
VSS5SI
GPIO5
1
2
3
4
1
2
3
4
0.1
C63
C65
10P
C64
R81
0.1
8
VCC
7
HOLD
6
SCK
IC26
1
2
3
45
HD74LV2GT125A
IC23
OE1
VCC
A1
OE2
B2
B1
GND5A2
TC7WBD125AFK
IC24
OE1
VCC
A1
OE2
B2
B1
GND5A2
TC7WBD125AFK
47K
R44
1
0.
47K
R45
C112
8
7
6
8
7
6
0.001
100
0.1
22P
C117
8
7
6
SO
RESET
C62
5PC67
2.2KR47
5
4
3
2
NJM2711F
R46
C66
DVDD_3.3V
TSW
UNR9113J
R103
Q5
1k
R104
EMU1
TRST
EMU0
R102
C122
47k
GPIO4
BDR0
BCLKX0
BDX0
R96
100K
R98
CP130
DVDD_3.3V
MA2S728
D3
D2
COUT
CCSI
CCLK
D5
DRESET
1k
47P
C119
X_CR-817_12.288MHZ
X1
1
NC
2
GND3OUT
12.288MHZ
0.1
CLOCK
47K
R93
10K
CF20
MA2S728
MA2S728
0.01
47KR95
47K
R94
0.1
CIN
MA2S728
D4
C61
4
VCC
AGND
+3.3V_A
C100
BDR0
L11
L12
F13
H10
C9
A11
1
2
3
CCLK
0.001
C72
+3.3V_A
EP3
C82
1
C83
L13
E3
E6
A8
D9
H13
H14
D10
B10
TCK
R62
22
C85
0.1
*C81
R69
2.2K
0.001
C86
N12
A4
M14
D4
D6
D3
B4
D2
J12
J14
G12
G11
K13
K14
J13
TRST
TMS
TDO
TDI
1
C104
0.01
C105
C73
4.7
0.1
C74
8.2K
R64
*R74
*R75
*R73
C84
1
1
R70
0.01
L10
P11
P10
P12
L9
N11
P9
K8
M10
M9
*IC10
DSP
C7
C5
B1
A2
C2
B9
E13
D11
C11
B11
IC13
1
VDD
8.2K
R63
2
GND
SDATA
3
VIN4SCLK
AD7476ARTZ
A/D
*R71
*C93
*Q3
100
0.047
C87
C88
BCLKX0
J11
L14
J5
L8
L1
M11
N7
N8
M4
E4
M5
M3
K5
K4
F4
E5
M13
F11
R107
6
CS
5
0.1
C71
0.1
0.047
C89
CP10S
CP110
BCLKR0
L2
F5
B5
C6
A6
F2
F1
P2
E14
100
R110
BFSR0
BDR0
1k
BCLKR0
MMZ1005S601CT
CODEC
47K
R72
7
4.
C92
CP57
CP10S
10K
R91
IC16
1
VCOM
2
AINR
3
AINL
4
VSS
5
VDD
6
DEM0
7
DEM1
8
SDTO9SDTI
AK4554VT
D6
MA2S728
M2
L3
K3
M1
K2
J4
J3
J1
H5
H4
H1
G4
G2
G5
C13
B14
C14
E11
D12
D13
D14
E12
F10
G3
H3
K1
P5
P7
M8
K9
N3
P3
L4
N4
P4
L5
N5
L6
M6
P6
K6
K7
M7
L7
H11
R92
LINEAR
4.7
10K
AOUTR
AOUTL
PWDAN
PWADN
SCLK
MCLK
LRCK
C101
C102
AGND
0.1
16
15
14
13
12
11
10
0.1
+3.3V_A
C106
0.01
C107
PDC
C111
0.1
GPIO2
GPIO3
BCLKX1
BFSX1
BDX1
BDR1
R109
0
J10
C10
B7
B2
B8
G1
P1
N9
N1
N2
N14
N10
R108
0
R106
0
EP2
0.1
C91
0.01
10K
R84
C114
C115
C116
0.001
C103
4.7
4.7
0.01
100
C32
IC8
7
R39
R35
100K
NJM2115V
DRESET
R85
47K
GPIO5
CIRQO
GPIO7
PDC
CCSI
DRESET
BDR1
BDX1
BCLKX1
BFSX1
COUT
CCSI
GPIO7
NJM2115V
8
V+
IC8
GND
4
6
5
0.01
47K
C34
CVDD_1.35V
1
C108
R87
R86
47K
R101
1
2
3
1
2
3
0.1
R33
27K
0.1
DVDD_3.3V
C109
BDX0
BFSR0
BFSX0
GPIO2
GPIO3
GPIO4
1k
IC11
TC7S04FU
IC12
TC7S32FU
C31
4.7K
5
4
0.1
5
4
DVDD_3.3V
R32
5.6K
R34
C33
C113
0.01
EMU0
EMU1
DVDD_3.3V
1
C99
H2
J2
K10
M12
N13
N6
P13
P14
P8
E7
K11
K12
A5
B6
F3
E1
E2
B3
A3
D5
C4
D1
G14
G13
G10
F14
F12
C3
E10
C1
C12
A13
A14
B13
H12
A12
B12
D7
D8
A7
E9
C8
E8
A9
A10
5
4
TC7S04FU
DBIAS
MMZ1005S601CT
EP4
MMZ1005S601CT
L3
4.7U
C55
C54
0.1
C10
5.6K
R10
47
R15
NJM2115V
47P
C24
IC8
C28
1
+3.3V_A
0.1
470P
47 MSVA
2
3
270P
C56
C37
0.0012
20K
R38
C36
CVDD_1.35V
Q1
XP4313
4
3
5
2
1
6
R36
20K
20K
R37
C35
0.001
MAIN UNIT
47P
47P
C120
C121
*; Refer to “PARTS LIST.”
8
• MAIN-A UNIT (For UT-126H)
5V_VDD
4.7
VCC
CCS
CIRQ
R25
100
47P
C48
1U
L1
IC2
1
5
VIN
VOUT
2
VSS
3
C11
CE4NC
XC6204B332M
C12
0.1
4
5
6
VIN
GND
C1
4.7
SI
SO
SCK
R23
R22
R26
R24
100
100
100
100
VOUT
C3
0.1
CONT2GND3NP
IC1
1
R16
C21
D_IF
0.1
1.5K
47K
47K
47K
R20
R19
R18
47P
47P
47P
47P
47P
C41
C43
C40
C42
C44
CCK
22
CSI
23
CSO
24
25
CIRQ
26
CCS
27
28
DAFO
29
30
DISC
31
32
33
34
35
36
VCC
37
+5V
38
GND
39
40
10
0.1 C52
L4
1U
0.1
C4
TK11250CM
C2
0.1
47P
C45
AXK640347YG
RESET
0.1
C51
7
4.
J1
10
C13
1K
R51
0.0033
C53
C5
47K
MMZ1005S601CT
2021
19
18
17
OPT3(RES)
16
15
OPT1(PD )
14
13
12
11
VREF
10
9
8
7
6
5
4
3
2
1
DMI
DMO
C14
120K
R52
Q2
UNR9113J
R2
EP5
IC3
1
COMP
2
RT
3
PGND
4
SGND5SW
TB7100F
1
FI1
CFXCE450KCFA
I O
R1
100
8
FB
7
ENB
6
VIN
L2
15U
D1
IC4
1
VIN
2
VSS
3
CE4NC
XC6204B332M
C6
C7
0.1
R9
6.8K
100
R11
4.7
C23
C22
0.1
R12
0.1
C25
IF-FILTER
5.6K
R28
3.3K
R27
R3
CUS02
100
R55
0.01
C57
47
C55
C54
R53
27K
39K
VOUT
CP129
1.5K
CF20
4
3
R13
100
C26
0.1
TC7S66FU
100
R5
R4
100
0.1
R54
470K
R56
5
0.1
C9
10
C10
5.6K
R10
R99
100
R14
1.8K
7P
C27
5
2
4
3
+3.3V_A
2
C47
1
IC7
NJM2711F
5
IC9
1
47P
47
R15
NJM2115V
47P
C46
EP4
MMZ1005S601CT
L3
4.7U
47
C56
+3.3V_A
C37
0.0012
20K
C36
CVDD_1.35V
Q1
XP4313
4
3
5
2
1
6
R36
20K
R38
20K
R37
C35
0.001
0.1
C24
470P
C28
IC8
2
1
3
270P
DRESET
DVDD_3.3V
CVDD_1.35V
1
C109
0.01
C108
DVDD_3.3V
C99
H2
J2
K10
BDX0
BFSR0
BFSX0
GPIO2
GPIO3
GPIO4
1k
5
4
0.1
5
4
R32
R34
EMU0
EMU1
C113
DVDD_3.3V
0.01
C33
M12
N13
N6
P13
P14
P8
E7
K11
K12
A5
B6
F3
E1
E2
B3
A3
D5
C4
D1
G14
G13
G10
F14
F12
C3
E10
C1
C12
A13
A14
B13
H12
A12
B12
D7
D8
A7
E9
C8
E8
A9
A10
5
4
TC7S04FU
MMZ1005S601CT
R85
47K
0.01
C103
10K
R84
4.7
C114
4.7
C115
0.01
C116
100
R39
C32
0.001
R35
100K
IC8
7
NJM2115V
GPIO5
CIRQO
GPIO7
CCSI
DRESET
BDR1
BDX1
BCLKX1
COUT
CCSI
GPIO7
NJM2115V
8
V+
GND
4
6
5
47K
PDC
BFSX1
IC8
C34
R87
R86
47K
R101
IC11
1
2
3
TC7S04FU
IC12
1
2
3
TC7S32FU
1
C31
0.
R33
27K 5.6K
0.1
4.7K
0
R82
4.7K
4.7K
R81
0.1
C112
*IC20
1
2
3
4
C110
CIRQ
SI
CCS
SCK
R434 7
VCC
CS
SO
HOLD
WP
VSS5SI
IC26
1
2
3
45
HD74LV2GT125A
GPIO5
IC23
1
OE1
2
A1
3
B2
4
GND5A2
TC7WBD125AFK
IC24
1
OE1
2
A1
3
B2
4
GND5A2
TC7WBD125AFK
47
R41
0.1
4
C64
8
VCC
7
6
SCK
22P
C117
8
7
6
8
VCC
7
OE2
6
B1
SO
8
VCC
7
OE2
6
B1
RESET
C62
0.001
47K
R44
C63
0.1
100
R46
C65
47K
R45
0.1
10P
C66
MAIN-A UNIT
4
3
AGND
+3.3V_A
BDR0
L11
L12
L13
N12
M14
D3D4D6
F13
E3
E6
H10
A4
A8
1
IC22
EP3
C82
D9
C9
A11
B10
D10
H14
H13
1
2
3
TCK
CCLK
R62
22
C85
0.1
0.001
C72
+3.3V_A
DBIAS
*C81
1
0.001
C83
C86
1
D2A2B1
J13
K14
K13B4J14
J12
G11
G12
TRST
TMS
TDO
TDI
1
C104
0.01
C73
4.7
0.1
C74
R63
8.2K
R64
*R75
*R73 *R74
R69
C84
1
2.2K
R70
0.01
C100
N11
L10
P12
P10
P11
L9
M9
M10
L8
K8
P9
N7
N8
M4
*IC10
DSP
C2C5C7
E4
E5
D11
SDATA
F4K4K5
E13
F11
6
CS
5
B11B9C11
C105
IC13
1
VDD
8.2K
2
GND
3
VIN4SCLK
AD7476ARTZ
A/D
*R71
*C93
*Q3
C71
100
0.047
0.047
C87
C88
R109
BCLKX0
0
J10
J11
L14
J5
C10
L1
G1
M11
M3M5N1
N2N9P1P2F1
M13
N10
N14
BFSR0
R108
R107
BDR0
1k
0
R106
BCLKR0
0
EP2
0.1
1
0.
C89
0.1
C91
R100
0
B5
B2B7B8
C6
A6
F2
100
R110
MMZ1005S601CT
47K
R72
4.7
C92
D6
BCLKR0
MA2S728
L2
F5
M2
L3
K3
M1
K2
J4
J3
J1
H5
H4
H1
G4
G2
G5
C13
B14
C14
D12
D13
D14
G3
H3
K1
P5
P7
M8
K9
N3
P3
L4
N4
P4
L5
N5
L6
M6
P6
K6
K7
M7
L7
H11
E14
CP57
CP10S
10K
R92
R91
LINEAR
CODEC
IC16
1
VCOM
2
AINR
3
AINL
4
VSS
5
VDD
6
DEM0
7
DEM1
8
SDTO9SDTI
AK4554VT
4.7
C101
0.1
C102
CP110
CP10S
CP116
AGND
C10
+3.3V_A
E11
CP119
E12
F10
0.1
0.01
C106
C107
A13
TSW
PDC
C111
10K
AOUTL
PWDA N
PWADN
16
OUTR
15
14
13
12
SCLK
11
MCLK
10
LRCK
0.1
GPIO2
GPIO3
BCLKX1
BFSX1
BDX1
BDR1
47P
47P
C120
C121
3.3V_VDD
DVDD_3.3V
TSW
UNR9113J
EMU1
TRST
EMU0
47KR95
GPIO4
BDR0
47K
47K
R93
R94
BCLKX0
BDX0
0.1
R96
100K
CIN
10K
R98
CF20
CP130
DVDD_3.3V
MA2S728D2MA2S728D3MA2S728
R102
CP131
47K
1k
CF20OPEN
0.1
C122
D4
MA2S728
D5
C61
0.01
47P
C119
X_CR-817_12.288MHZ
X1
1
NC
2
GND3OUT
12.288MHZ
COUT
CCS I
CCLK
DRESET
1k
R103
Q5
R104
CLOCK
R83
4.7K
CP115
DRESET
CP111
CS
CP112
SO
SCK
CP113
CP114
SI
GND CP128
DSP FLASH
10K
R97
CIRQO
5PC67
2.2KR47
IC17
5
C68
1
0.1
2
NJM2711F
47K
R48
R50
0
47K
R49
9
Jul. 2008
SERVICE MANUAL
ADDENDUM
CONTENTS
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BOARD LAYOUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 6
Jul. 2008
SECTION 2 PARTS LIST
[MAIN-A UNIT]
REF ORDER
NO. NO.
IC1 1180002271 S.REG TK11250CMCL-G T 28.2/10.9
IC2 1180002590 S.REG XC6204B332MR B 12/3.5
IC3 1110006700 S.IC TB7100F (TE85L,F) T 26.9/17.1
IC4 1180002590 S.REG XC6204B332MR T 22.2/10.9
IC7 1110006230 S.IC NJM2711F-TE1-#ZZZB T 25.4/2.3
IC8 1110005290 S.IC NJM2115V-TE1-#ZZZB B 21.6/12.7
IC9 1130007021 S.IC TC7S66FU (TE85L,F) B 22.8/16.3
IC10 1140013290 S.IC TMS320VC5509AZHH T 7.2/11.1
IC11 1130006891 S.IC TC7S04FU (TE85R,F) B 8.2/10.5
IC12 1130007281 S.IC TC7S32FU (TE85R,F) B 8.2/13.4
IC13 1190002080 S.IC AD7476ARTZ-500RL7 T 17.4/3
IC16 1130012910 S.IC AK4554VTP-E2/P B 24/3
IC17 1110006230 S.IC NJM2711F-TE1-#ZZZB B 17.2/5.1
IC20 1130013360 S.IC AT25F2048N-10SU-2.7SL383 B 4.1/2.6
IC22 1130006891 S.IC TC7S04FU (TE85R,F) T 15.1/10.8
IC23 1130013040 S.IC TC7WBD125AFK (T5L,F) B 5.3/14.5
IC24 1130013040 S.IC TC7WBD125AFK (T5L,F) B 14.6/14.5
IC26 1130013050 S.IC HD74LV2GT125AUSE-E B 10.8/14.5
Q1 1590003550 S.TR XP4313 (TX) B 19.8/17
Q2 1590003230 S.TR UNR9113J-(TX) T 23.8/8
Q3 1530003190 S.TR 2SC4617 TLQ B 33.5/4.4
Q5 1590003230 S.TR UNR9113J-(TX) B 4.8/7.1
D1 1750001280 S.DIO CUS02 (TE85L,Q) T 24.4/14.4
D2 1790001240 S.DIO MA2S728-(TX) B 8.3/16.6
D3 1790001240 S.DIO MA2S728-(TX) B 5.1/17.3
D4 1790001240 S.DIO MA2S728-(TX) B 6.9/17.5
D5 1790001240 S.DIO MA2S728-(TX) B 4/9.8
D6 1790001240 S.DIO MA2S728-(TX) B 3.2/18.2
FI1 2020002210 S.CER CFXCE450KCFA-R1 T 29.3/2.1
X1 6050012350 S.XTL CR-817 (12.288 MHz) B 15/9.1
L1 6200001620 S.COL ELJFC 1R0K-F T 32.9/10.4
L2 6200012090 S.COL CDRH2D18HP-150NC T 21.9/17.6
L3 6200007830 S.COL ELJFC 4R7K-F T 15.6/18.8
L4 6200001620 S.COL ELJFC 1R0K-F T 21.5/14.3
R1 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/14.6
R2 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 25/16.2
R3 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/13.7
R4 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/9
R5 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.2/9.9
R9 7030005290 S.RES ERJ2GEJ 682 X (6.8 k) T 26/6.4
R10 7030009290 S.RES ERJ2GEJ 562 X (5.6 k) T 27.8/6.4
R11 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.1/6.4
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 26.9/4.8
R13 7030004980 S.RES ERJ2GEJ 101 X (100) T 22.3/2.8
R14 7030008400 S.RES ERJ2GEJ 182 X (1.8 k) T 21.4/1.2
R15 7030004970 S.RES ERJ2GEJ 470 X (47) T 20.5/1.2
R16 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 30.6/4.5
R18 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 15.1/18.3
R19 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 3.5/15.4
R20 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 7.1/15.4
R22 7030004980 S.RES ERJ2GEJ 101 X (100) B 27/18.3
R23 7030004980 S.RES ERJ2GEJ 101 X (100) B 27/17.4
R24 7030004980 S.RES ERJ2GEJ 101 X (100) B 28.7/19.2
R25 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.2/19.2
R26 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.2/18.3
R27 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) T 31.2/14.3
R28 7030009290 S.RES ERJ2GEJ 562 X (5.6 k) T 32.2/14.3
R32 7030009290 S.RES ERJ2GEJ 562 X (5.6 k) B 19.6/7.2
R33 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 19.6/8.9
R34 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 17.3/12.1
R35 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 19.8/10.1
R36 7030009710 S.RES ERJ2GEJ 203 X (20 k) B 21.4/10.1
R37 7030009710 S.RES ERJ2GEJ 203 X (20 k) B 24.6/10.1
R38 7030009710 S.RES ERJ2GEJ 203 X (20 k) B 26.3/11.9
R39 7030004980 S.RES ERJ2GEJ 101 X (100) B 20.1/15.2
R41 7030004970 S.RES ERJ2GEJ 470 X (47) B 12.8/6.6
R43 7030004970 S.RES ERJ2GEJ 470 X (47) B 18.2/8.2
R44 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 18.2/7.3
R45 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 17/7.5
R46 7030004980 S.RES ERJ2GEJ 101 X (100) B 18.5/2.7
R47 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 17.6/2.7
R48 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 14.6/4.8
R49 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 14.6/2.5
R50 7030010040 S.RES ERJ2GEJ-JPW B 14.6/3.9
R51 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 29.5/19.2
R52 7030005310 S.RES ERJ2GEJ 124 X (120 k) T 29.5/18.2
R53 7030011060 S.RES RR0510P-273-D (27 k) T 19.6/15.9
R54 7030008260 S.RES RR0510P-393-D (39 k) T 27.7/14.2
R55 7030010040 S.RES ERJ2GEJ-JPW B 12.8/5.7
R56 7030005170 S.RES ERJ2GEJ 474 X (470 k) T 28.7/14.2
R62 7030007250 S.RES ERJ2GEJ 220 X (22) T 15.8/6.8
R63 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) T 18.3/.8
R64 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) T 19.6/2.8
R69 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 20.5/8.9
R70 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/7.2
R71 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.3/3.9
DESCRIPTION
M.
H/V
LOCATION
[MAIN-A UNIT]
REF ORDER
NO. NO.
R72 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 28.4/2.3
R73 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 34.2/1.6
R74 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 31.2/3.9
R75 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 33.8/5.9
R81 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 9.9/4.3
R82 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 8.3/4.3
R83 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 12.4/4.3
R84 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 2.3/9.8
R85 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 15.8/5.6
R86 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 22/6.5
R87 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 23.5/5.2
R91 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 10.5/8.9
R92 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 11.4/8.9
R93 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 8.6/1.3
R94 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 8.6/2.9
R95 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 8.6/3.8
R96 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 10.5/10.7
R97 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 11.4/10.7
R98 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 12.3/16.6
R99 7030004980 S.RES ERJ2GEJ 101 X (100) T 23.2/1.2
R100 7030010040 S.RES ERJ2GEJ-JPW T 5.3/17.9
R101 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 9.5/17.9
R102 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 1.2/6.7
R103 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 1.2/7.6
R104 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 14.4/11.6
R106 7030010040 S.RES ERJ2GEJ-JPW T 18.4/6.5
R107 7030010040 S.RES ERJ2GEJ-JPW T 17.6/5.2
R108 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 5.4/8.7
R109 7030010040 S.RES ERJ2GEJ-JPW B .8/12.7
R110 7030004980 S.RES ERJ2GEJ 101 X (100) B 3/11.6
C1 4030018560 S.CER C2012 JB 1A 475K-T T 32.9/12.6
C2 4030016930 S.CER ECJ0EB1A104K T 25.7/11.8
C3 4030016930 S.CER ECJ0EB1A104K T 30.7/10.4
C4 4030016930 S.CER ECJ0EB1A104K T 25.7/10.2
C5 4550007930 S.TAN TEESVJ 1A 475M8R T 24.6/10.5
C6 4030018860 S.CER ECJ0EB0J105K T 26.2/8.4
C7 4030016930 S.CER ECJ0EB1A104K T 25.3/8.4
C9 4030016930 S.CER ECJ0EB1A104K T 18.4/9.9
C10 4550007730 S.TAN TEESVJ 0J 106M8R T 19.7/10.9
C11 4550007930 S.TAN TEESVJ 1A 475M8R B 12/1.2
C12 4030016930 S.CER ECJ0EB1A104K B 14.1/1.5
C13 4030016930 S.CER ECJ0EB1A104K B 9.8/4.1
C14 4550007730 S.TAN TEESVJ 0J 106M8R B 10.6/6.3
C21 4030016930 S.CER ECJ0EB1A104K T 30.6/5.4
C22 4030018910 S.CER C1608 JB 0J 475K-T T 25.2/5
C23 4030016930 S.CER ECJ0EB1A104K T 23.9/6.4
C24 4030016930 S.CER ECJ0EB1A104K T 26.9/6.4
C25 4030016930 S.CER ECJ0EB1A104K T 27.8/4.8
C26 4030016930 S.CER ECJ0EB1A104K T 21.4/2.8
C27 4030017590 S.CER ECJ0EC1H070C T 22.3/1.2
C28 4030017730 S.CER ECJ0EB1E471K T 20.5/2.8
C31 4030016930 S.CER ECJ0EB1A104K B 18.2/15
C32 4030017460 S.CER ECJ0EB1E102K B 17.9/17.2
C33 4030016790 S.CER ECJ0EB1C103K B 17.3/13.7
C34 4030016930 S.CER ECJ0EB1A104K B 18.2/10.9
C35 4030017460 S.CER ECJ0EB1E102K B 23/10.1
C36 4030017450 S.CER ECJ0EB1E271K B 24.8/11
C37 4030017750 S.CER ECJ0EB1E122K B 26.3/12.8
C40 4030017420 S.CER ECJ0EC1H470J B 27/19.2
C41 4030017420 S.CER ECJ0EC1H470J B 25.4/18.3
C42 4030017420 S.CER ECJ0EC1H470J B 24.9/17.4
C43 4030017420 S.CER ECJ0EC1H470J T 31.2/18.2
C44 4030017420 S.CER ECJ0EC1H470J B 31.6/19.2
C45 4030017420 S.CER ECJ0EC1H470J B 25.9/16.2
C46 4030017420 S.CER ECJ0EC1H470J B 24.1/8.9
C47 4030017420 S.CER ECJ0EC1H470J B 25.1/8.5
C48 4030017420 S.CER ECJ0EC1H470J T 33.2/14.3
C51 4550007730 S.TAN TEESVJ 0J 106M8R T 24.5/17.5
C52 4030016930 S.CER ECJ0EB1A104K T 26.2/14.2
C53 4030017770 S.CER ECJ0EB1E332K T 31.2/19.2
C54 4550007720 S.TAN TEESVP 0G 476M8R T 18.2/16
C55 4030016930 S.CER ECJ0EB1A104K T 18.5/18.5
C56 4550007720 S.TAN TEESVP 0G 476M8R T 16.2/16
C57 4030016790 S.CER ECJ0EB1C103K B 18.2/9.1
C61 4030016790 S.CER ECJ0EB1C103K B 10.7/17.6
C62 4030017460 S.CER ECJ0EB1E102K B 19.4/4.3
C63 4030016930 S.CER ECJ0EB1A104K B 12.8/8.4
C64 4030017620 S.CER ECJ0EC1H100C B 14.6/6.6
C65 4030016930 S.CER ECJ0EB1A104K B 14.6/5.7
C66 4030016930 S.CER ECJ0EB1A104K B 19.4/2.7
C67 4030017380 S.CER ECJ0EC1H050B B 16.7/2.7
C68 4030016930 S.CER ECJ0EB1A104K B 15.8/2.7
C71 4030016930 S.CER ECJ0EB1A104K B 33.8/7.1
C72 4030017460 S.CER ECJ0EB1E102K T 18.7/8.7
C73 4030018910 S.CER C1608 JB 0J 475K-T T 14.5/4.5
C74 4030016930 S.CER ECJ0EB1A104K T 16.5/.8
C81 4030018860 S.CER ECJ0EB0J105K B 34.2/9.6
C82 4030018860 S.CER ECJ0EB0J105K B 23.2/8.9
C83 4030017460 S.CER ECJ0EB1E102K B 22.3/8.9
C84 4030018860 S.CER ECJ0EB0J105K B 20.5/7.2
C85 4030016930 S.CER ECJ0EB1A104K T 19.6/1.2
C86 4030018860 S.CER ECJ0EB0J105K B 26.3/8.1
C87 4030016950 S.CER ECJ0EB1A473K B 26.3/6.3
C88 4030016950 S.CER ECJ0EB1A473K B 28.4/3.9
C89 4030016930 S.CER ECJ0EB1A104K B 25/6.6
C91 4030016930 S.CER ECJ0EB1A104K B 30.7/1.5
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
1
M.
LOCATION
S.=Surface mount
H/V
[MAIN-A UNIT]
REF ORDER
NO. NO.
C92 4030018910 S.CER C1608 JB 0J 475K-T B 29.5/1.8
C93 4030018860 S.CER ECJ0EB0J105K B 30.3/3.9
C99 4030018860 S.CER ECJ0EB0J105K B 8.7/8.4
C100 4030016790 S.CER ECJ0EB1C103K T 14.9/8.4
C101 4030018910 S.CER C1608 JB 0J 475K-T T 14.1/16.4
C102 4030016930 S.CER ECJ0EB1A104K B 17.3/15.3
C103 4030016790 S.CER ECJ0EB1C103K T 12.2/18.2
C104 4030018860 S.CER ECJ0EB0J105K T 14/8.4
C105 4030016790 S.CER ECJ0EB1C103K T 14.9/6.8
C106 4030016930 S.CER ECJ0EB1A104K T 14.4/12.7
C107 4030016790 S.CER ECJ0EB1C103K T 14/6.8
C108 4030016790 S.CER ECJ0EB1C103K B 7.8/8.4
C109 4030018860 S.CER ECJ0EB0J105K T 13.1/18.2
C110 4030016930 S.CER ECJ0EB1A104K B 3.5/13.8
C111 4030016930 S.CER ECJ0EB1A104K B 10.4/7.7
C112 4030016930 S.CER ECJ0EB1A104K B 9.8/1.2
C113 4030016930 S.CER ECJ0EB1A104K B 5.7/9.9
C114 4030018910 S.CER C1608 JB 0J 475K-T T 16.6/8.8
C115 4030018910 S.CER C1608 JB 0J 475K-T T 7.4/18
C116 4030016790 S.CER ECJ0EB1C103K T 4.1/18.3
C117 4030017400 S.CER ECJ0EC1H220J T 6.5/4.3
C119 4030017420 S.CER ECJ0EC1H470J B 8.5/6.3
C120 4030017420 S.CER ECJ0EC1H470J T 21.7/5.3
C121 4030017420 S.CER ECJ0EC1H470J T 22.6/5.3
C122 4030016930 S.CER ECJ0EB1A104K B 16/11.6
J1 6510025230 S.CNR AXK640345J B 30.3/11.5
EP2 6910016330 S.BEA MMZ1005S 601CT-S B 30.9/2.7
EP3 6910016330 S.BEA MMZ1005S 601CT-S T 34.2/14.3
EP4 6910016330 S.BEA MMZ1005S 601CT-S B 8.6/4.7
EP5 6910016330 S.BEA MMZ1005S 601CT-S B 26.8/16.2
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
M.
H/V
LOCATION
2
Jul. 2008
SECTION 3 BOARD LAYOUTS
• MAIN-A UNIT
(TOP VIEW)
MP2
“2887 PLATE”
(8510018640)
CLK
GPIO1
C0
CS
C116
R100 R101
C115
IC10
C103
C109
C101
X
C106
IC22
C104
C100
L3
C56
C114
SO
C55
C54
C9
C72
R53
C10
5V
L2
L4
IC4
Q2
C51
D1
C5
C7
IC3
C52
C2
C4
C6
R54
IC1
R51
R52
C53
C43
B7072A
R27
R56
C3
VCC
R28
C1
L1
C48
EP3
C107
R85
R107
RCK
RDATA
RE
V0 V5 V10 V15 V20
H0H5H10H15H20H25H30H35
C117
R81R82 R83
SI
SCK
C73
XTAL
IC13
C74
R63
R106
R64
C85
R62
C105
C28
R15
R86
C120
C26
R14
C121
R13
C27
C23
R87
R99
R11
C22
IC7
R9
C24
R12
R10
C25
FI1
C21
R16
MP2
3
• MAIN-A UNIT
(BOTTOM VIEW)
C81
C71
R75
R26
C44
J1
MP4
“2887 B-SHIELD”
(8510019210)
B
EP5
MP4
C41
C45
C42
R2
Q1
R18
C32
R24R25
C40
R22
R23
“2887 A-SHEET”
MP1
R98
MP1
(8930077620)
C61
D2
D4
D6
D3
IC9
R5
R4
C86
R70
C87
R1
R3
C37
R38
C36
C47
C89
A
C46
C35
C82
C83
IC8
R39
R35R36R37
R69
C84
R32R33
C31
C34
C57
R43
R44
C102
C33
R34
C122
R45
IC17
R104
X1
C64
C65
C63
R41
R55
R97
R92
R96
R91
C111
C14
IC11IC12
C108
C99
C119
R20
IC23IC24 IC26
C113
R108
Q5
D5
R19
C110
R110
C
R84
R109
MP5
R103
R102
R73
Q3
R74
EP2
C93
C91
R71
C92
C88
R72
IC16
C62
C66
R46
R47
C67
C68
R48
R50
R49
C12
IC2
C11
C13
C112
EP4
R95
IC20
R94
R93
V0V5V10V15V20
H0 H5 H10 H15 H20 H25 H30 H35
MP5
“SPONGE (KH)”
(8930077640)
4
Jul. 2008
SECTION 4 BLOCK DIAGRAM
5
Jul. 2008
SECTION 5 VOLTAGE DIAGRAM
5V_VDD
4.7 SVSP
VCC
CCS
R25
100
47P
C48
1U
L1
CIRQ
R26
100
IC2
1
5
VIN
VOUT
2
VSS
3
CE4NC
C11
XC6204B332M
C12
0.1
0.1 C52
L4
1U
4
5
6
GND
VIN
C1
4.7
SI
SO
SCK
R23
R22
R24
100
100
100
D_IF
VOUT
C3
0.1
CONT2GND3NP
TK11250CM
IC1
1
C2
0.1
R16
C21
0.1
1.5K
47K
47K
47KR18
R20
R19
47P
47P
47P
47P
47P
C40
C44
C42
C41
C43
AXK640345J
CCK
22
CSI
23
CSO
24
25
CIRQ
26
CCS
27
DAFO
28
29
30
DISC
31
32
33
34
35
36
VCC
37
+5V
38
GND
39
40
10 SVS
0.1
C45
J1
C51
4.7 SVSP
C4
RESET
47P
C13
0.1
10 SVSP
1K
R51
0.0033
C53
C5
47K
MMZ1005S601CT
2021
19
18
17
OPT3(RES)
16
15
OPT1(PD)
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C14
120K
R52
Q2
UNR9113J
FI1
CFXCE450KCFA
I O
R2
EP2
VREF
DMI
DMO
1
2
3
4
IC3
TB7100F
R1
100
COMP
RT
PGN D
SGND5SW
1
C6
R27
FB
ENB
VIN
C7
0.1
100
R11
4.7
C22
IF-FILTER
R28
3.3K
C25
8
7
6
R9
6.8K
C23
0.1
5.6K
D1
1
2
3
0.1
L2
15U
CUS02
IC4
VIN
VSS
CE4NC
XC6204B332M
1.5K
R12
100
0.1
R3
100
VOUT
R4
100
CP129
CF20
4
3
100
27K
39K
R13
C26
R5
R53
R54
5
5
2
4
TC7S66FU
R56
+3.3V_A
C47
C57
470K
C9
0.1
R99
100
R14
1.8K
7P
C27
1
IC7
NJM2711F
5
IC9
123
47P
0.01
47 MSVA
10 SVS
C46
EP4
MMZ1005S601CT
L3
4.7U
C55
C54
0.1
C10
5.6K
R10
47
R15
NJM2115V
47P
C24
IC8
1
+3.3V_A
0.1
C28
470P
47 MSVA
2
3
270P
C56
C37
0.0012
20K
R38
C36
CVDD_1.35V
Q1
XP4313
4
3
5
2
1
6
R36
20K
20K
R37
C35
0.001
0.01
10K
R84
C114
C115
C116
0.001
C103
4.7
4.7
0.01
100
C32
IC8
7
NJM2115V
R39
R35
100K
NJM2115V
8
GND
4
DRESET
R85
47K
GPIO5
CIRQO
GPIO7
CCSI
DRESET
BDR1
BDX1
BCLKX1
BFSX1
COUT
CCSI
GPIO7
V+
6
5
PDC
IC8
0.01
47K
C34
CVDD_1.35V
1
C108
R87
R86
47K
R101
1
2
3
1
2
3
0.1
R33
27K
0.1
DVDD_3.3V
C109
BDX0
BFSR0
BFSX0
GPIO2
GPIO3
GPIO4
1k
IC11
TC7S04FU
IC12
TC7S32FU
C31
4.7K
5
4
0.1
C113
5
4
DVDD_3.3V
R32
5.6K
R34
C33
0.01
EMU0
EMU1
DVDD_3.3V
1
C99
H2
J2
K10
M12
N13
N6
P13
P14
P8
E7
K11
K12
A5
B6
F3
E1
E2
B3
A3
D5
C4
D1
G14
G13
G10
F14
F12
C3
E10
C1
C12
A13
A14
B13
H12
A12
B12
D7
D8
A7
E9
C8
E8
A9
A10
IC22
5
4
TC7S04FU
DBIAS
EP3
MMZ1005S601CT
C82
1
R55
0
DRESET
CS
SO
SCK
SI
GND CP128
DSP FLASH
10K
R97
CIRQO
IC17
1
R83
4.7K
CP115
CP111
CP112
CP113
CP114
47K
R48
C68
R50
0.1
0
47K
R49
R82
4.7K
4.7K
1
2
3
4
C110
CIRQ
SI
CCS
SCK
R434 7
47
R41
0.1
*IC20
CS
SO
HOLD
WP
VSS5SI
IC26
1
2
3
45
HD74LV2GT125A
GPIO5
IC23
1
OE1
2
A1
3
B2
4
GND5A2
TC7WBD125AFK
IC24
1
OE1
2
A1
3
B2
4
GND5A2
TC7WBD125AFK
47K
C63
0.1
C65
47K
10P
C64
R81
0.1
C112
8
VCC
7
6
SCK
22P
C117
8
7
6
8
VCC
7
OE2
6
B1
SO
8
VCC
7
OE2
6
B1
RESET
C62
0.001
5PC67
2.2KR47
5
R44
4
3
2
NJM2711F
100
R46
R45
0.1
C66
DVDD_3.3V
TSW
UNR9113J
R103
EMU1
TRST
EMU0
47KR95
GPIO4
BDR0
47K
47K
R93
R94
BCLKX0
BDX0
0.1
R96
100K
CIN
10K
R98
CF20
CP130
DVDD_3.3V
MA2S728
MA2S728
MA2S728
D3
D4
D2
COUT
CCSI
CCLK
MA2S728
D5
DRESET
0.01
C61
1k
47P
R104
R102
C122
47k
C119
X_CR-817_12.288MHZ
X1
1
NC
2
GND3OUT
12.288MHZ
0.1
CLOCK
4
VCC
1k
Q5
AGND
+3.3V_A
C100
C105
0.01
L10
P10
P11
P12
B1
A2
R63
*C93
*Q3
100
L8
L9
N11
P9
K8
M10
M9
*IC10
DSP
E4
C7
C5
C2
B9
E13
D11
C11
B11
IC13
1
VDD
8.2K
2
GND
SDATA
3
VIN4SCLK
AD7476ARTZ
A/D
*R71
0.047
C87
C88
N8
E5
N7
F11
CS
0.047
BCLKX0
J10
J11
L14
J5
L1
M11
M4
N1
M5
M3
K5
K4
F4
M13
R107
6
5
0.1
C71
0.1
C89
BDR0
L11
L12
F13
H10
C9
A11
1
2
3
CCLK
0.001
C72
+3.3V_A
C83
L13
E3
E6
A8
D9
H13
H14
D10
B10
TCK
R62
22
C85
0.1
*C81
R69
2.2K
0.001
C86
N12
A4
M14
D3
D4
D6
D2
B4
G12
G11
J12
J14
K13
K14
J13
TRST
TMS
TDO
TDI
1
C104
0.01
C73
4.7
0.1
C74
8.2K
R64
*R74
*R75
*R73
C84
1
1
R70
G1
N10
0
R106
R109
C10
B8
N2
N14
R108
0
EP2
0.1
0
BCLKR0
B2
B7
C6
A6
F1
P2
P1
N9
R110
1k
MMZ1005S601CT
47K
R72
C91
C92
CP10S
CP110
B5
F2
100
BCLKR0
4.7
F5
E14
BFSR0
BDR0
L2
CP10S
R91
CODEC
CP57
1
2
3
4
5
6
7
8
D6
4.7
MA2S728
M2
L3
K3
M1
K2
J4
J3
J1
H5
H4
H1
G4
G2
G5
C13
B14
C14
E11
D12
D13
D14
E12
F10
G3
H3
K1
P5
P7
M8
K9
N3
P3
L4
N4
P4
L5
N5
L6
M6
P6
K6
K7
M7
L7
H11
10K
10K
R92
LINEAR
IC16
AOUTR
VCOM
AOUTL
AINR
PWDAN
AINL
PWADN
VSS
VDD
DEM0
DEM1
SDTO9SDTI
AK4554VT
SCLK
MCLK
LRCK
C101
C102
AGND
0.1
16
15
14
13
12
11
10
0.1
+3.3V_A
C106
0.01
C107
PDC
C111
0.1
GPIO2
GPIO3
BCLKX1
BFSX1
BDX1
BDR1
MAIN-A UNIT
47P
47P
C120
C121
*; Refer to “PARTS LIST.”
6
DIGITAL MODULATOR/DEMODULATOR UNIT
ut-119h
ut-126h
S-14423XZ-C1
Feb. 2008
INTRODUCTION CAUTION
This service manual describes the latest technical
information for the UT-119H and UT-126H
MODULATOR/DEMODULATOR UNIT
at the time of publication.
DIGITAL
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit Icom parts numbers
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1180002271 TK11250CM UT-126H MAIN-A UNIT 1 piece
6050012350 CR-817 UT-126H MAIN-A UNIT 2 pieces
Addresses are provided on the inside back cover for your
convenience.
NEVER connect the unit to an AC outlet or to a DC power
supply. This will ruin the unit.
DO NOT expose the unit to rain, snow or any liquids.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
(UT-126H)
Icom, Icom Inc. and
logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
SECTION 1 SPECIFICATION
SECTION 2 PARTS LIST
SECTION 3 BOARD LAYOUTS
SECTION 4 BLOCK DIAGRAM
SECTION 5 VOLTAGE DIAGRAM
CONTENTS
SECTION 1 SPECIFICATION
• Power supply voltage : 5.5–10 V (supplied from transceiver)
• Modulation method : 4-level FSK (FDMA)
• Data baud rate : 4800 bps
• Encoding method : DVSI AMBE+2
• Current drain (typical) : 54 mA (at TX)
45 mA (at RX)
38 mA (at Stand-by)
• Frequency accuracy : Less than ±10 ppm
• Modulation input level : 150 mVp-p typ. (normal modulation level)
• Modulation output level : 500 mVrms typ. (max. amplitude pattern)
• AF output level : 35 mVrms typ. (NXDN 1031 pattern)
• Operating temperature range : –30°C to +60°C; 22°F to 140°F
• Dimensions (approx.) : 35.0 (W)×7.0 (H)×20.0 (D) mm; 1
• Weight (approx.) : 3.5 g;
• Connector type : AXK640345J
1
/8 oz
3
/8 (W)×9/32 (H)×25/32 (D) in.
1 - 1
SECTION 2 PARTS LIST
[MAIN-A UNIT]
REF ORDER
NO. NO.
IC1 1180002271 S.REG TK11250CMCL-G T 29.2/10.9
IC2 1180002590 S.REG XC6204B332MR B 12/3.7
IC3 1110006700 S.IC TB7100F (TE85L,F) T 26.9/17.1
IC4 1180002590 S.REG XC6204B332MR T 22.7/10.9
IC7 1110006230 S.IC NJM2711F-TE1 T 25.4/2.3
IC8 1110005290 S.IC NJM2115V-TE1 B 21.6/12.7
IC9 1130007021 S.IC TC7S66FU (TE85L,F) B 22.8/16.3
IC10 1140013290 S.IC TMS320VC5509AZHH T 7.2/11.1
IC11 1130006891 S.IC TC7S04FU (TE85R,F) B 8.2/10.5
IC12 1130007281 S.IC TC7S32FU (TE85R,F) B 8.2/13.4
IC13 1190002080 S.IC AD7476ARTZ-500RL7 T 17.4/3
IC16 1130012910 S.IC AK4554VTP-E2/P B 24/3
IC17 1110006230 S.IC NJM2711F-TE1 B 17.2/3.7
IC18 1140008650 S.IC HN58X2464TI B 4.2/7.2
IC20 1130013360 S.IC AT25F2048N-10SU-2.7SL383 B 4.1/2.6
IC22 1130006891 S.IC TC7S04FU (TE85R,F) T 15.1/10.8
IC23 1130013040 S.IC TC7WBD125AFK (T5L,F) B 5.3/14.5
IC24 1130013040 S.IC TC7WBD125AFK (T5L,F) B 14.6/14.5
IC26 1130013050 S.IC HD74LV2GT125AUSE-E B 11/14.5
Q1 1590003550 S.TR XP4313 (TX) B 19.8/17
Q2 1590003230 S.TR UNR9113J-(TX) T 23.8/8
Q3 1530003190 S.TR 2SC4617 TLQ B 33.5/4.4
D1 1750001280 S.DIO CUS02 (TE85L,Q) T 24.4/14.4
D2 1790001240 S.DIO MA2S728-(TX) B 8.3/16.6
D3 1790001240 S.DIO MA2S728-(TX) B 5.1/17.6
D4 1790001240 S.DIO MA2S728-(TX) B 6.9/17.5
D5 1790001240 S.DIO MA2S728-(TX) B 4/9.7
D6 1790001240 S.DIO MA2S728-(TX) B 2.5/17.6
FI1 2020002210 S.CER CFXCE450KCFA-R1 T 29.3/2.1
X1 6050012350 S.XTL CR-817 (12.288 MHz) B 15.2/9.5
L1 6200001620 S.COL ELJFC 1R0K-F T 32.9/9.8
L2 6200012090 S.COL CDRH2D18HP-150NC T 21.4/17.5
L3 6200007830 S.COL ELJFC 4R7K-F T 17.3/18.8
L4 6200001620 S.COL ELJFC 1R0K-F T 30/6.5
R1 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/14.6
R2 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 25.1/16.1
R3 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/13.7
R4 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/9
R5 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.2/9.9
R9 7030005290 S.RES ERJ2GEJ 682 X (6.8 k) T 26/6.4
R10 7030009290 S.RES ERJ2GEJ 562 X (5.6 k) T 27.8/6.4
R11 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.1/6.4
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 26.9/4.8
R13 7030004980 S.RES ERJ2GEJ 101 X (100) T 22.3/2.8
R14 7030008400 S.RES ERJ2GEJ 182 X (1.8 k) T 21.4/1.2
R15 7030004970 S.RES ERJ2GEJ 470 X (47) T 20.5/1.2
R16 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 30/4.6
R18 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 15.1/18.3
R19 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 3.5/15.4
R20 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 7.1/15.4
R22 7030004980 S.RES ERJ2GEJ 101 X (100) B 27.6/18.1
R23 7030004980 S.RES ERJ2GEJ 101 X (100) B 27.1/17.2
R24 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.2/18.9
R25 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.4/18.9
R26 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.4/17.8
R27 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) T 31.2/13.7
R28 7030009290 S.RES ERJ2GEJ 562 X (5.6 k) T 32.2/13.7
R32 7030009290 S.RES ERJ2GEJ 562 X (5.6 k) B 19.6/7
R33 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 19.6/8.9
R34 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 17.3/11.8
R35 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 19.8/10.1
R36 7030009710 S.RES ERJ2GEJ 203 X (20 k) B 21.4/10.1
R37 7030009710 S.RES ERJ2GEJ 203 X (20 k) B 24.6/10.1
R38 7030009710 S.RES ERJ2GEJ 203 X (20 k) B 26.3/11.9
R39 7030004980 S.RES ERJ2GEJ 101 X (100) B 20.1/15.2
R41 7030004970 S.RES ERJ2GEJ 470 X (47) B 13.1/6.8
R43 7030004970 S.RES ERJ2GEJ 470 X (47) B 17.8/6.8
R44 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 17.8/5.9
R45 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 16.3/6.6
R46 7030004980 S.RES ERJ2GEJ 101 X (100) B 18.5/1.2
R47 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 17.6/1.2
R48 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 14.6/4.7
R49 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 14.6/1.8
R50 7030010040 S.RES ERJ2GEJ-JPW B 14.6/3.8
R51 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 29.5/19.2
R52 7030005310 S.RES ERJ2GEJ 124 X (120 k) T 29.5/18.2
R53 7030011060 S.RES RR0510P-273-D (27 k) T 21/14.3
R54 7030008260 S.RES RR0510R-393-D (39 k) T 22/14.3
R55 7030010040 S.RES ERJ2GEJ-JPW B 13.1/5.9
R56 7030005170 S.RES ERJ2GEJ 474 X (470 k) T 23/14.3
R62 7030007250 S.RES ERJ2GEJ 220 X (22) T 15.8/6.8
R63 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) T 18.3/8
R64 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) T 19.6/2.8
R69 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 20.5/8.9
R70 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.3/7.2
R71 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.3/3.9
DESCRIPTION
M.
H/V
LOCATION
[MAIN-A UNIT]
REF ORDER
NO. NO.
R72 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 28.4/2.3
R73 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 34.2/1.6
R74 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 31.9/3.9
R75 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 33.8/5.9
R81 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 9.9/4.3
R82 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 8.3/4.3
R83 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 12.3/4.3
R84 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 1.9/9.7
R85 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 15.8/5.6
R86 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 23.5/5.2
R87 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 22.1/6.7
R91 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 10.5/8.9
R92 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 11.4/8.9
R93 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 8.6/1.3
R94 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 8.6/2.9
R95 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 8.6/3.8
R96 7030005090 S.RES ERJ2GEJ 104 X (100 k)
[UT-126H] only B 10.5/10.7
R97 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 11.4/10.7
R98 7030005050 S.RES ERJ2GEJ 103 X (10 k)
[UT-126H] only B 3.6/12
R99 7030004980 S.RES ERJ2GEJ 101 X (100) T 23.2/1.2
C1 4030018560 S.CER C2012 JB 1A 475K-T T 32.9/12
C2 4030016930 S.CER ECJ0EB1A104K T 26.7/11.8
C3 4030016930 S.CER ECJ0EB1A104K T 29.9/8.3
C4 4030016930 S.CER ECJ0EB1A104K T 26.7/10
C5 4550007070 S.TAN TEESVP 1A 475M8R T 25.3/10.9
C6 4030018860 S.CER ECJ0EB0J105K T 26.7/8.4
C7 4030016930 S.CER ECJ0EB1A104K T 25.8/8.4
C9 4030016930 S.CER ECJ0EB1A104K T 18.4/9.9
C10 4550007030 S.TAN TEESVP 0J 106M8R T 20.1/10.9
C11 4550007070 S.TAN TEESVP 1A 475M8R B 12/1
C12 4030016930 S.CER ECJ0EB1A104K B 14.6/8
C13 4030016930 S.CER ECJ0EB1A104K B 9.8/4.1
C14 4550007030 S.TAN TEESVP 0J 106M8R B 10.6/6.3
C21 4030016930 S.CER ECJ0EB1A104K T 31.6/4.6
C22 4030018910 S.CER C1608 JB 0J 475K-T T 25.2/5
C23 4030016930 S.CER ECJ0EB1A104K T 23.9/6.4
C24 4030016930 S.CER ECJ0EB1A104K T 26.9/6.4
C25 4030016930 S.CER ECJ0EB1A104K T 27.8/4.8
C26 4030016930 S.CER ECJ0EB1A104K T 21.4/2.8
C27 4030017590 S.CER ECJ0EC1H070C T 22.3/1.2
C28 4030017730 S.CER ECJ0EB1E471K T 20.5/2.8
C31 4030016930 S.CER ECJ0EB1A104K B 18.2/15
C32 4030017460 S.CER ECJ0EB1E102K B 17.9/17.2
C33 4030016790 S.CER ECJ0EB1C103K B 17.3/13.4
C34 4030016930 S.CER ECJ0EB1A104K B 18/10
C35 4030017460 S.CER ECJ0EB1E102K B 23/10.1
C36 4030017450 S.CER ECJ0EB1E271K B 24.8/11
C37 4030017750 S.CER ECJ0EB1E122K B 26.3/12.8
C40 4030017420 S.CER ECJ0EC1H470J B 26.2/19.2
C41 4030017420 S.CER ECJ0EC1H470J B 25.4/18.3
C42 4030017420 S.CER ECJ0EC1H470J B 24.9/17.4
C43 4030017420 S.CER ECJ0EC1H470J T 31.2/18.2
C44 4030017420 S.CER ECJ0EC1H470J B 31.7/18.9
C45 4030017420 S.CER ECJ0EC1H470J B 26.3/15.6
C46 4030017420 S.CER ECJ0EC1H470J B 24.1/8.9
C47 4030017420 S.CER ECJ0EC1H470J B 25.1/8.5
C48 4030017420 S.CER ECJ0EC1H470J T 33.2/13.7
C51 4550007030 S.TAN TEESVP 0J 106M8R T 24.3/17.9
C52 4030016930 S.CER ECJ0EB1A104K T 26.2/14.2
C53 4030017770 S.CER ECJ0EB1E332K T 31.2/19.2
C54 4550006970 S.TAN TEESVA0G476M8R T 18.4/15.1
C55 4030016930 S.CER ECJ0EB1A104K T 20/14.3
C56 4550006970 S.TAN TEESVA0G476M8R T 16.2/15.1
C57 4030016790 S.CER ECJ0EB1C103K B 17.8/7.7
C61 4030016790 S.CER ECJ0EB1C103K B 13.9/17.6
C62 4030017460 S.CER ECJ0EB1E102K B 19.4/2.9
C63 4030016930 S.CER ECJ0EB1A104K B 12.9/8.6
C64 4030017620 S.CER ECJ0EC1H100C [UT-126H] only B 14.8/6.8
C65 4030016930 S.CER ECJ0EB1A104K B 14.8/5.9
C66 4030016930 S.CER ECJ0EB1A104K B 19.4/1.2
C67 4030017380 S.CER ECJ0EC1H050B B 16.7/1.2
C68 4030016930 S.CER ECJ0EB1A104K B 15.8/1.2
C71 4030016930 S.CER ECJ0EB1A104K B 33.8/7.1
C72 4030017460 S.CER ECJ0EB1E102K T 18.7/8.7
C73 4030018910 S.CER C1608 JB 0J 475K-T T 14.4/4.5
C74 4030016930 S.CER ECJ0EB1A104K T 16.5/8
C81 4030018860 S.CER ECJ0EB0J105K B 34.2/9.6
C82 4030018860 S.CER ECJ0EB0J105K B 23.2/8.9
C83 4030017460 S.CER ECJ0EB1E102K B 22.3/8.9
C84 4030018860 S.CER ECJ0EB0J105K B 20.5/7
C85 4030016930 S.CER ECJ0EB1A104K T 19.6/1.2
C86 4030018860 S.CER ECJ0EB0J105K B 26.3/8.1
C87 4030016950 S.CER ECJ0EB1A473K B 26.3/6.3
C88 4030016950 S.CER ECJ0EB1A473K B 28.4/3.9
C89 4030016930 S.CER ECJ0EB1A104K B 25/6.6
C91 4030016930 S.CER ECJ0EB1A104K B 30.7/1.5
C92 4030018910 S.CER C1608 JB 0J 475K-T B 29.5/1.8
C93 4030018860 S.CER ECJ0EB0J105K B 30.3/3.9
C100 4030016790 S.CER ECJ0EB1C103K T 14.9/8.4
C101 4030018910 S.CER C1608 JB 0J 475K-T T 14.1/16.7
C102 4030016930 S.CER ECJ0EB1A104K B 17.3/15
C103 4030016790 S.CER ECJ0EB1C103K T 11.6/18.2
C104 4030018860 S.CER ECJ0EB0J105K T 14/8.4
C105 4030016790 S.CER ECJ0EB1C103K T 14.9/6.8
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
2 - 1
M.
S.=Surface mount
H/V
LOCATION
[MAIN-A UNIT]
REF ORDER
NO. NO.
C106 4030016930 S.CER ECJ0EB1A104K T 14.4/12.7
C107 4030016790 S.CER ECJ0EB1C103K T 14/6.8
C108 4030016790 S.CER ECJ0EB1C103K B 2.5/10.6
C109 4030018860 S.CER ECJ0EB0J105K T 13.1/18.2
C110 4030016930 S.CER ECJ0EB1A104K B 3.5/13.8
C111 4030016930 S.CER ECJ0EB1A104K B 10.4/7.7
C112 4030016930 S.CER ECJ0EB1A104K B 9.8/1.2
C113 4030016930 S.CER ECJ0EB1A104K B 5.7/9.9
C114 4030018910 S.CER C1608 JB 0J 475K-T T 16.6/8.8
C115 4030018910 S.CER C1608 JB 0J 475K-T T 6.8/18
C116 4030016790 S.CER ECJ0EB1C103K T 9.2/18.2
C117 4030017400 S.CER ECJ0EC1H220J [UT-126H] only T 6.5/4.3
C119 4030017420 S.CER ECJ0EC1H470J [UT-126H] only B 8.5/6.3
C120 4030017420 S.CER ECJ0EC1H470J [UT-126H] only T 22.6/5.5
C121 4030017420 S.CER ECJ0EC1H470J [UT-126H] only T 21.7/5.5
J1 6510025230 S.CNR AXK640345J B 30.3/11.5
EP2 6910016330 S.BEA MMZ1005S 601CT-S B 30.9/2.7
EP3 6910016330 S.BEA MMZ1005S 601CT-S T 34.2/13.7
EP4 6910016330 S.BEA MMZ1005S 601CT-S B 8.6/4.7
DESCRIPTION
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
M.
H/V
LOCATION
2 - 2
SECTION 3 BOARD LAYOUTS
• MAIN-A UNIT
(TOP VIEW)
MP2
“2887 PLATE”
(8510018640)
V15 V20
V10
CLK
GPIO1
C0
CS
C115
IC10
C116
C103
C109
C101
X
C106
IC22
C104
C100
L3
C56
C114
SO
C54
C9
C72
C55
C10
5V
L2
R53
R54
IC4
R56
Q2
C51
D1
C5
C52
C7
IC3
C2
C4
C6
R51
R52
C53
C43
B6839B
R27
R28
IC1
C3
VCC
C1
L1
C48
EP3
C28
R15
R87
C121
C26
R14
C120
R13
C27
C23
R86
R99
R11
C22
IC7
R9
C24
R12
R10
C25
L4
R16
FI1
MP2
C21
C105
R85
R62
C74
IC13
R63
R64
C85
C107
V5
RCK
C117
R81R82 R83
C73
XTAL
RDATA
RE
V0
H0H5H10H15H20H25H30H35
SI
SCK
3 - 1
• MAIN-A UNIT
(BOTTOM VIEW)
C81
R75
R26
C71
C44
J1
MP1
“2887 SPONGE”
(8930070320)
MP1
R23
C40
C45
R1
R3
C41
C42
R2
IC9
Q1
R39
C32
C31
C102
C33
R18
C61
D2
D4
R20
D3
IC23IC24 IC26
R19
C110
D6
B
R24R25
R22
IC8
C37
R38
R5
R4
C86
R70
C87
C36
C47
C89
C46
A
C35
C82
C83
R35R36R37
R69
C84
R33
R32
C34
C57
R44
R34
R45
X1
C64
C65
C63
R41R43
R55
R97
R92
C14
R96
R91
C111
IC11IC12
C113
C119
R98
C108
D5
IC18
R84
MP5
R73
Q3
R74
EP2
C91
C93
R71
C92
C88
R72
IC16
C62
C66
R46
IC17
C67
R47
C68
R48
R50
R49
C12
IC2
C11
C13
C112
EP4
R95
IC20
R94
R93
V0V5V10V15V20
H0 H5 H10 H15 H20 H25 H30 H35
MP5
“SPONGE(JW)”
(8930073970)
3 - 2
SECTION 4 BLOCK DIAGRAM
4 - 1
SECTION 5 VOLTAGE DIAGRAM
5V_VDD
4.7 SVSP
VCC
CCS
R25
100
47P
C48
1U
L1
CIRQ
R26
100
IC2
5
1
VOUT
VIN
2
VSS
3
CE4NC
C11
XC6204B332M
C12
0.1
0.1 C52
L4
1U
4
5
6
GND
VIN
C1
4.7
SI
SO
SCK
R23
R22
R24
100
100
100
D_IF
VOUT
C3
0.1
CONT2GND3NP
TK11250CM
IC1
1
C2
0.1
R16
C21
0.1
1.5K
47K
47K
47KR18
R20
R19
47P
47P
47P
47P
47P
C44
C42
C40
C41
C43
AXK640345J
CCK
22
CSI
23
CSO
24
25
CIRQ
26
CCS
27
DAFO
28
29
30
DISC
31
32
33
34
35
36
VCC
37
+5V
38
GND
39
40
10 SVS
0.1
C45
J1
C51
C4
RESET
47P
0.1
R51
C53
4.7 SVSP
2021
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C13
10 SVSP
1K
0.0033
C5
47K
C14
120K
R52
Q2
UNR9113J
FI1
CFXCE450KCFA
I O
R2
OPT3(RES)
OPT1(PD)
VREF
IC3
8
1
COMP
FB
7
2
RT
ENB
6
3
PGND
VIN
C7
0.1
100
R11
7
4.
C22
IF-FILTER
R28
3.3K
C25
R9
6.8K
C23
0.1
5.6K
D1
1
2
3
0.1
L2
15U
CUS02
IC4
VIN
VSS
CE4NC
XC6204B332M
1.5K
R12
100
0.1
R3
100
4
SGND5SW
TB7100F
1
C6
R27
R1
100
DMI
DMO
VOUT
CP129
CF20
100
R4
100
27K
39K
4
3
R13
C26
TC7S66FU
R5
R53
R54
5
5
2
4
R56
R99
100
R14
1.8K
+3.3V_A
C47
0.01
C57
47 MSVA
470K
C9
0.1
7P
C27
1
IC7
NJM2711F
5
IC9
123
C46
47P
C54
10 SVS
47P
C55
0.1
C10
R10
5.6K
47
R15
NJM2115V
EP4
MMZ1005S601CT
L3
4.7U
C56
47 MSVA
+3.3V_A
0.1
C24
470P
C28
C37
0.0012
IC8
2
1
3
270P
CVDD_1.35V
Q1
XP4313
4
3
5
2
1
6
R36
20K
20K
R38
20K
R37
C36
C35
0.001
0.01
10K
R84
C114
C115
C116
0.001
C103
4.7
4.7
0.01
100
C32
IC8
7
NJM2115V
R39
R35
100K
NJM2115V
8
V+
GND
4
DRESET
R85
47K
GPIO5
CIRQO
GPIO7
PDC
CCSI
DRESET
BDR1
BDX1
COUT
CCSI
GPIO7
6
5
0.01
47K
IC8
C34
BFSX1
CVDD_1.35V
1
C108
R87
R86
47K
BCLKX1
1
2
3
1
2
3
0.1
R33
27K
0.1
DVDD_3.3V
C109
BDX0
BFSR0
BFSX0
GPIO2
GPIO3
GPIO4
IC11
TC7S04FU
IC12
TC7S32FU
C31
4.7K
5
4
0.1
C113
5
4
DVDD_3.3V
R32
5.6K
R34
C33
0.01
EMU0
EMU1
DVDD_3.3V
H2
J2
K10
M12
N13
N6
P13
P14
P8
E7
K11
K12
A5
B6
F3
E1
E2
B3
A3
D5
C4
D1
G14
G13
G10
F14
F12
C3
E10
C1
C12
A13
A14
B13
H12
A12
B12
D7
D8
A7
E9
C8
E8
A9
A10
IC22
5
4
TC7S04FU
DBIAS
EP3
MMZ1005S601CT
C82
1
R55
0
DRESET
CS
SO
SCK
SI
GND CP128
DSP FLASH
10K
CIRQO
C68
1
0.1
CP115
CP111
CP112
CP113
CP114
47K
47K
R83
4.7
K
R48
R50
0
R49
2
R8
4.7K
4.7K
1
2
3
4
C110
CIRQ
SI
CCS
SCK
R434 7
47
R41
*IC20
CS
SO
WP
VSS5SI
GPIO5
1
2
3
4
1
2
3
4
0.1
C63
C65
10P
C64
R81
0.1
VCC
HOLD
SCK
IC26
1
2
3
45
HD74LV2GT125A
IC23
OE1
VCC
A1
OE2
B2
B1
GND5A2
TC7WBD125AFK
IC24
OE1
VCC
A1
OE2
B2
B1
GND5A2
TC7WBD125AFK
47K
R44
1
0.
47K
R45
C112
8
7
6
22P
C117
8
R97
7
6
8
7
6
SO
8
7
6
RESET
C62
0.001
5PC67
2.2KR47
IC17
5
4
3
2
NJM2711F
100
R46
0.1
C66
DVDD_3.3V
C119
47P
EMU1
TRST
EMU0
GPIO4
BDR0
BCLKX0
BDX0
100K
DVDD_3.3V
D2
COUT
CCSI
CCLK
DRESET
X_CR-817_12.288MHZ
X1
1
NC
2
GND3OUT
12.288MHZ
R98
CP130
MA2S728
CLOCK
47KR95
47K
47K
R93
R94
0.1
R96
CIN
10K
CF20
MA2S728
MA2S728
D3
D4
MA2S728
D5
0.01
C61
4
VCC
AGND
+3.3V_A
C100
C105
0.01
J11
L10
P11
P12
P10
L9
N11
M10
*IC10
DSP
B1
A2
C5
C2
B9
C11
B11
IC13
1
VDD
8.2K
R63
2
GND
3
VIN4SCLK
AD7476ARTZ
*R71
*C93
*Q3
100
0.047
C87
L14
J5
L8
L1
P9
K8
M11
N7
N8
M9
M4
M5
M3
K5
K4
F4
E4
C7
E5
M13
E13
D11
F11
6
BFSR0
CS
5
BDR0
SDATA
BCLKR0
A/D
0.1
C71
0.1
0.047
C88
C89
BDR0
2
L11
L1
F13
H10
C9
A11
1
2
3
CCLK
0.001
C72
+3.3V_A
C83
L13
E3
E6
A8
D9
H13
H14
D10
B10
TCK
R62
22
C85
0.1
*C81
R69
2.2K
0.001
C86
N12
A4
M14
D4
D6
D3
D2
B4
J12
J14
K13
K14
J13
G12
G11
TRST
TMS
TDO
TDI
1
C104
0.01
C73
4.7
0.1
C74
8.2K
R64
*R74
*R75
*R73
C84
1
1
R70
CP10S
D6
4.7
L2
CP57
R91
LINEAR
CODEC
1
2
3
4
5
6
7
8
MA2S728
M2
L3
K3
M1
K2
J4
J3
J1
H5
H4
H1
G4
G2
G5
C13
B14
C14
E11
D12
D13
D14
E12
F10
G3
H3
K1
P5
P7
M8
K9
N3
P3
L4
N4
P4
L5
N5
L6
M6
P6
K6
K7
M7
L7
H11
10K
10K
R92
IC16
VCOM
AOUTR
AINR
AOUTL
AINL
PWDAN
VSS
PWADN
VDD
SCLK
DEM0
MCLK
DEM1
LRCK
SDTO9SDTI
AK4554VT
C101
0.1
C102
+3.3V_A
AGND
0.1
0.01
C106
C107
PDC
*IC18
C111
C120
0.1
1
A0
2
A1
3
A2
4
VSS
GPIO2
GPIO3
BCLKX1
BFSX1
BDX1
BDR1
47P
47P
C121
8
VCC
7
WP
6
SCL
5
SDA
16
15
14
13
12
11
10
CP110
BCLKR0
BCLKX0
J10
C10
F5
B7
B5
B2
B8
C6
A6
G1
F2
F1
P2
P1
N9
N1
N2
E14
N14
N10
CP10S
MMZ1005S601CT
EP2
47K
R72
0.1
4.7
C91
C92
*; Refer to “PARTS LIST.”
5 - 1
1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Phone : +81 (06) 6793 5302
Fax : +81 (06) 6793 0013
URL : http://www.icom.co.jp/world/index.html
<Corporate Headquarters>
2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.
Phone : +1 (425) 454-8155 Fax : +1 (425) 454-1509
URL : http://www.icomamerica.com
E-mail : sales@icomamerica.com
<Customer Service>
Phone : +1 (425) 454-7619
Glenwood Centre #150-6165
Highway 17 Delta, B.C., V4K 5B8, Canada
Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090
URL : http://www.icomcanada.com
E-mail : info@icomcanada.com
Unit 1 / 103 Garden Road, Clayton VIC 3168 Australia
Phone : +61 (03) 9549-7500 Fax : +61 (03) 9549-7505
URL : http://www.icom.net.au
E-mail : sales@icom.net.au
146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : +64 (09) 274 4062 Fax : +64 (09) 274 4708
URL : http://www.icom.co.nz
E-mail : inquiries@icom.co.nz
10C07, Long silver Mansion, No.88, Yong Ding
Road, Haidian District, Beijing, 100039, China
Phone : +86 (010) 5889 5391/5392/5393
Fax : +86 (010) 5889 5395
E-mail : bjicom@bjicom.com
URL : http://www.bjicom.com
Communication Equipment
Auf der Krautweide 24
65812 Bad Soden am Taunus, Germany
Phone : +49 (6196) 76685-0
URL
: http://www.icomeurope.com
E-mail : info@icomeurope.com
Ctra. Rubi, No. 88 Bajos A 08174, Sant Cugat del Valles, Barcelona, Spain
Phone : +34 (93) 590 26 70 Fax : +34 (93) 589 04 46
URL : http://www.icomspain.com
E-mail : icom@icomspain.com
Blacksole House, The Boulevard, Altira Business Park, Herne Bay, CT6 6GZ, UK
Phone : +44 (01227) 741741 Fax : +44 (01227) 741742
URL : http://www.icomuk.co.uk
E-mail : info@icomuk.co.uk
Zac de la Plaine
1 Rue Brindejonc des Moulinais BP 5804
31505 Toulouse Cedex, France
Phone : +33 (5) 61 36 03 03 Fax : +33 (5) 61 36 03 00
URL : http://www.icom-france.com
E-mail : icom@icom-france.com
6F No.68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.
Phone : +886 (02) 2559 1899 Fax : +886 (02) 2559 1874
URL : http://www.asia-icom.com
E-mail : sales@asia-icom.com
81-850 Sopot, ul. 3 Maja 54, Poland
Phone : +48 (58) 550 7135 Fax : +48 (58) 551 0484
E-mail : icompolska@icompolska.com.pl
Fax : +49 (6196) 76685-50
1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan
S-14423XZ-C1
© 2008 Icom Inc.
Loading...
