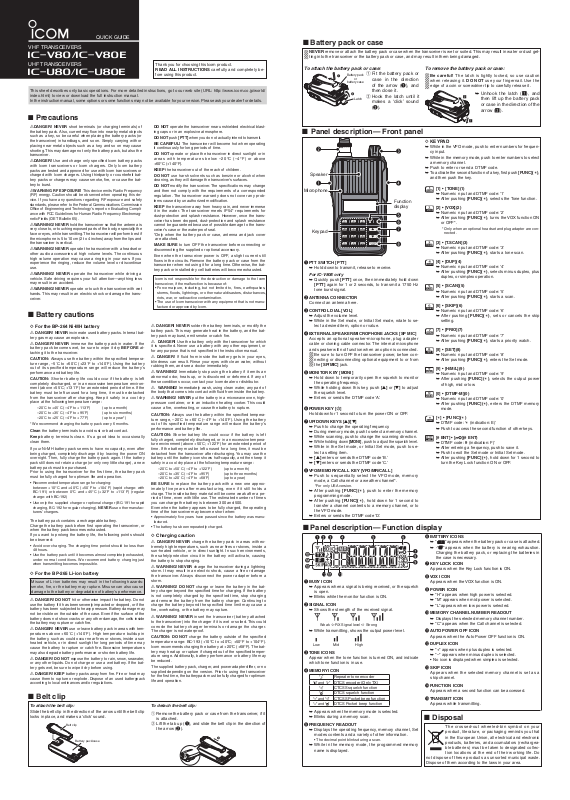

Page 1
Lo
QUICK GUIDE
u
i
o
q w e r
y
t
!5
!4
!3
k
VHF TRANSCEIVERS
iV80/iV80E
UHF TRANSCEIVERS
iU80/iU80E
This sheet describes only basic operations. For more detailed instructions, go to our web site (URL: http://www.icom.co.jp/world/
index.html) to view or download the full instruction manual.
In the instruction manual, some options or some functions may not be available for your version. Please ask your dealer for details.
Thank you for choosing this Icom product.
READ ALL INSTRUCTIONS carefully and completely before using this product.
■ Battery pack or case
NEVER remove or attach the battery pack or case when the transceiver is wet or soiled. This may result in water or dust get-
ting into the transceiver or the battery pack or case, and may result in them being damaged.
To attach the battery pack or case:
q
Battery pac
battery case
w
q Fit the battery pack or
or
case in the direction
of the arrow (q), and
then close it.
w Hook the latch until it
Latch
makes a ‘click’ sound
(w).
To remove the battery pack or case:
Be careful! The latch is tightly locked, so use caution
when releasing it. DO NOT use your fingernail. Use the
edge of a coin or screwdriver tip to carefully release it.
➥ Unhook the latch (z), and
x
then lift up the battery pack
or case in the direction of the
arrow (x).
■ Precautions
RDANGER!
the battery pack. Also, current may flow into nearby metal objects
such as a key, so be careful when placing the battery packs (or
the transceiver) in handbags, and so on. Simply carrying with or
placing near metal objects such as a key, and so on may cause
shorting. This may damage not only the battery pack, but also the
transceiver.
RDANGER!
with Icom transceivers or Icom chargers. Only Icom battery
packs are tested and approved for use with Icom transceivers or
charged with Icom chargers. Using thirdparty or counterfeit bat
tery packs or chargers may cause smoke, fire, or cause the battery to burst.
RWARNING RF EXPOSURE! This device emits Radio Frequency
(RF) energy. Caution should be observed when operating this de
vice. If you have any questions regarding RF exposure and safety
standards, please refer to the Federal Communications Commission
Office of Engineering and Technology’s report on Evaluating Compli
ance with FCC Guidelines for Human Radio Frequency Electromagnetic Fields (OET Bulletin 65).
RWARNING!
very close to, or touching exposed parts of the body, especially the
face or eyes, while transmitting. The transceiver will perform best if
the microphone is 5 to 10 cm (2 to 4 inches) away from the lips and
the transceiver is vertical.
RWARNING! NEVER operate the transceiver with a headset or
other audio accessories at high volume levels. The continuous
high volume operation may cause a ringing in your ears. If you
experience the ringing, reduce the volume level or discontinue
use.
RWARNING! NEVER operate the transceiver while driving a
vehicle. Safe driving requires your full attention—anything less
may result in an accident.
RWARNING! NEVER operate or touch the transceiver with wet
hands. This may result in an electric shock or damage the transceiver.
NEVER short terminals (or charging terminals) of
Use and charge only specified Icom battery packs
NEVER hold the transceiver so that the antenna is
■ Battery cautions
D
For the BP-264 Ni-MH battery
R DANGER! NEVER incinerate used battery packs. Internal bat-
tery gas may cause an explosion.
R DANGER! NEVER immerse the battery pack in water. If the
battery pack becomes wet, be sure to wipe it dry BEFORE at-
taching it to the transceiver.
CAUTION: Always use the battery within the specified temperature range, –5˚C to +60˚C (+23˚F to +140˚F). Using the battery
out of its specified temperature range will reduce the battery’s
performance and battery life.
CAUTION: Shorter battery life could occur if the battery is left
completely discharged, or in an excessive temperature environment (above +55˚C; +131˚F) for an extended period of time. If the
battery must be left unused for a long time, it must be detached
from the transceiver after charging. Keep it safely in a cool dry
place at the following temperature range:
–20˚C to +45˚C (–4˚F to +113˚F) (up to a month)
–20˚C to +35˚C (–4˚F to +95˚F) (up to six months)
–20˚C to +25˚C (–4˚F to +77˚F) (up to a year*)
* We recommend charging the battery pack every 6 months.
Clean the battery terminals to avoid rust or bad contact.
Keep battery terminals clean. It’s a good idea to occasionally
clean them.
If your Ni-MH battery pack seems to have no capacity, even after
being charged, completely discharge it by leaving the power ON
overnight. Then, fully charge the battery pack again. If the battery
pack still does not retain a charge (or only very lit
battery pack must be purchased.
Prior to using the transceiver for the first time, the battery pack
must be fully charged for optimum life and operation.
• Recommended temperature range for charging:
between +10°C and +40°C (+50˚F to +104˚F) (rapid charge: with
BC-191) or between 0°C and +45°C (+32˚F to +113˚F) (regular
charge: with BC-192)
• Use only the supplied charger or optional charger (BC-191 for rapid
charging, BC-192 for regular charging). NEVER use other manufacturers’ chargers.
The battery pack contains a rechargeable battery.
Charge the battery pack before first operating the transceiver, or
when the battery pack becomes exhausted.
If you want to prolong the battery life, the following points should
be observed:
• Avoid over charging. The charging time period should be less than
48 hours.
• Use the battery pack until it becomes almost completely exhausted,
under normal conditions. We recommend battery charging just
when transmitting becomes impossible.
tle charge), a new
D For the BP-265 Li-ion battery
Misuse of Li-ion batteries may result in the following hazards:
smoke, fire, or the battery may rupture. Misuse can also cause
damage to the battery or degradation of battery’s performance.
R DANGER! DO NOT hit or otherwise impact the battery. Do not
use the battery if it has been severely impacted or dropped, or if the
battery has been subjected to heavy pressure. Battery damage may
not be visible on the outside of the case. Even if the surface of the
battery does not show cracks or any other damage, the cells inside
the battery may rupture or catch fire.
R DANGER! NEVER use or leave battery pack in areas with tem-
peratures above +60˚C (+140˚F). High temperature buildup in
the battery, such as could occur near fires or stoves, inside a sun
heated vehicle, or in direct sunlight for long periods of time may
cause the battery to rupture or catch fire. Excessive temperatures
may also degrade battery performance or shorten battery life.
R DANGER! DO NOT expose the battery to rain, snow, seawater,
or any other liquids. Do not charge or use a wet battery. If the bat
tery gets wet, be sure to wipe it dry before using.
R DANGER! KEEP battery packs away from fire. Fire or heat may
cause them to rupture or explode. Dispose of an used batterypack
according to local ordinances and/or regulations.
■ Belt clip
To attach the belt clip:
Slide the belt clip in the direction of the arrow until the belt clip
locks in place, and makes a ‘click’ sound.
Belt clip
Battery pack/case
DO NOT operate the transceiver near unshielded electrical blasting caps or in an explosive atmosphere.
DO NOT push [PTT] when you do not actually intend to transmit.
BE CAREFUL! The transceiver will become hot when operating
it continuously for long periods of time.
DO NOT operate or place the transceiver in direct sunlight or in
areas with temperatures below –20°C (–4°F) or above
+60°C (+140°F).
KEEP the transceiver out of the reach of children.
-
DO NOT
cleaning, as they will damage the transceiver's surfaces.
DO NOT modify the transceiver. The specifications may change
and then not comply with the requirements of a corresponded
-
regulation. The transceiver warranty does not cover any problems caused by unauthorized modification.
KEEP
it in the water. The transceiver meets IP54* requirements for
dust-protection and splash resistance. However, once the trans
ceiver has been dropped, dust-protection and splash resistance
cannot be guaranteed because of possible damage to the trans
ceiver’s case or the waterproof seal.
* Only when the battery pack or case, antenna and jack cover
are attached.
MAKE SURE to turn OFF the transceiver before connecting or
disconnecting the supplied or optional accessory.
Even when the transceiver power is OFF, a slight current still
flows in the circuits. Remove the battery pack or case from the
transceiver when not using it for a long time. Otherwise, the battery pack or installed dry cell batteries will become exhausted.
Icom is not responsible for the destruction or damage to the Icom
transceiver, if the malfunction is because of:
• Force majeure, including, but not limited to, res, earthquakes,
• The use of Icom transceiver with any equipment that is not manu-
R DANGER! NEVER solder the battery terminals, or modify the
battery pack. This may generate heat in the battery, and the bat
tery pack may burst, emit smoke or catch fire.
R DANGER! Use the battery only with the transceiver for which
it is specified. Never use a battery with any other equipment, or
for any purpose that is not specified in the instruction manual.
R DANGER! If fluid from inside the battery gets in your eyes,
blindness can result. Rinse your eyes with clean water, without
rubbing them, and see a doctor immediately.
R WARNING! Immediately stop using the battery if it emits an
abnormal odor, heats up, or is discolored or deformed. If any of
these conditions occur, contact your Icom dealer or distributor.
R WARNING! Immediately wash, using clean water, any part of
the body that comes into contact with fluid from inside the battery.
R WARNING! NEVER put the battery in a microwave oven, high-
pressure container, or in an induction heating cooker. This could
cause a fire, overheating, or cause the battery to rupture.
CAUTION: Always use the battery within the specified tempera-
ture range, –20˚C to +60˚C (–4˚F to +140˚F). Using the battery
out of its specified temperature range will reduce the battery’s
performance and battery life.
CAUTION:
fully charged, completely discharged, or in an excessive tempera
ture environment (above +50˚C; +122˚F) for an extended period of
time. If the battery must be left unused for a long time, it must be
detached from the transceiver after discharging. You may use the
battery until the battery icon shows half-capacity, and then keep it
safely in a cool dry place at the following temperature range:
BE SURE to replace the battery pack with a new one approximately five years after manufacturing, even if it still holds a
charge. The inside battery material will become weak after a period of time, even with little use. The estimated number of times
you can charge the battery is between 300 and 500.
Even when the battery appears to be fully charged, the operating
time of the transceiver may become short when:
• Approximately ve years have passed since the battery was manufactured.
• The battery has been repeatedly charged.
use harsh solvents such as benzine or alcohol when
the transceiver away from heavy rain, and never immerse
storms, floods, lightnings, or other natural disasters, disturbances,
riots, war, or radioactive contamination.
factured or approved by Icom.
Shorter battery life could occur if the battery is left
–20˚C to +50˚C (–4˚F to +122˚F) (up to a month)
–20˚C to +35˚C (–4˚F to +95˚F) (up to three months)
–20˚C to +20˚C (–4˚F to +68˚F) (up to a year)
D Charging caution
R DANGER! NEVER charge the battery pack in areas with ex-
tremely high temperatures, such as near fires or stoves, inside a
sun-heated vehicle, or in direct sunlight. In such environments,
the safety/protection circuit in the battery will activate, causing
the battery to stop charging.
R
WARNING! NEVER charge the transceiver during a lightning
storm. It may result in an electric shock, cause a fire or damage
the transceiver. Always disconnect the power adapter before a
storm.
R
WARNING! DO NOT charge or leave the battery in the bat-
tery charger beyond the specified time for charging. If the battery
is not completely charged by the specified time, stop charging
and remove the battery from the battery charger. Continuing to
charge the battery beyond the specified time limit may cause a
fire, overheating, or the battery may rupture.
R
WARNING! NEVER insert the transceiver (battery attached
to the transceiver) into the charger if it is wet or soiled. This could
corrode the battery charger terminals or damage the charger.
The charger is not waterproof.
CAUTION: DO NOT charge the battery outside of the specified
temperature range: BC-193 (+10°C to +40°C; +50°F to +104°F).
Icom recommends charging the battery at +20°C (+68°F). The battery may heat up or rupture if charged out of the specified temperature range. Additionally, battery performance or battery life may
be reduced.
The supplied battery pack, charger, and power adapter differ, or no
supplied depending on the version. Prior to using the transceiver
for the first time, the batterypack must be fully charged for optimum
life and operation.
To detach the belt clip:
q Remove the battery pack or case from the transceiver, if it
is attached.
w Lift the tab up (q), and slide the belt clip in the direction of
the arrow (w).
w
q
z
■ Panel description— Front panel
D KEYPAD
w
e
Speaker
q
r
Microphone
Function
display
-
-
Keypad
t
y
u
i
q PTT SWITCH [PTT]
➥ Hold down to transmit, release to receive.
For IC-V80E only
➥ Quickly push [PTT] once, then immediately hold down
[PTT] again for 1 or 2 seconds, to transmit a 1750 Hz
tone burst signal.
w ANTENNA CONNECTOR
Connect an antenna here.
e CONTROL DIAL [VOL]
➥ Adjust the volume level.
➥ While in the Set mode, or Initial Set mode, rotate to se-
lect a desired item, option or value.
-
-
r EXTERNAL SPEAKER/MICROPHONE JACKS [SP MIC]
Accepts an optional speaker-microphone, plug adapter
cable or cloning cable connector. The internal microphone
and speaker will not function when an option is connected.
Be sure to turn OFF the transceiver power, before con-
necting or disconnecting optional equipment to or from
the [SP/MIC] jack.
t MONITOR KEY [MONI]
➥ Hold down to temporarily open the squelch to monitor
the operating frequency.
➥ While holding down this key, push [Y] or [Z] to adjust
the squelch level.
➥ Enters or sends the DTMF code ‘A.’
y POWER KEY [
]
Hold down for 1 second to turn the power ON or OFF.
u UP/DOWN KEYS [Y]/[Z]
➥ Push to change the operating frequency.
➥ During memory mode, push to select a memory channel.
➥ While scanning, push to change the scanning direction.
➥
While holding down [MONI], push to adjust the squelch level.
➥ While in the Set mode, or Initial Set mode, push to se-
lect a setting item.
➥ [Y] enters or sends the DTMF code ‘B.’
➥ [Z] enters or sends the DTMF code ‘C.’
i VFO/MEMORY/CALL KEY [VFO/MR/CALL]
➥ Push to sequentially select the VFO mode, memory
mode, a Call channel or a weather channel*.
*For only USA version.
➥ After pushing [FUNC](M), push to enter the memory
programming mode.
➥ After pushing [FUNC](M), hold down for 1 second to
transfer a channel contents to a memory channel, or to
the VFO mode.
➥ Enters or sends the DTMF code ‘D.’
➥ While in the VFO mode, push to enter numbers for frequen-
cy input.
➥ While in the memory mode, push to
enter numbers to select
a memory channel.
➥ Push to enter or send a DTMF code.
➥
To activate the second function of a key, first push [FUNC](M),
and then push the key.
[1] • [ TONE](1)
➥ Numeric i
nput and DTMF code: ‘1’
➥ After pushing [FUNC](M), selects the Tone function.
[2] • [VOX](2)
➥ Numeric i
nput and DTMF code: ‘2’
➥ After pushing [FUNC](M), turns the VOX function ON
or OFF*.
* Only when an optional headset and plug adapter are con-
nected.
[3] • [T.SCAN](3)
➥ Numeric i
nput and DTMF code: ‘3’
➥ After pushing [FUNC](M), starts a tone scan.
[4] • [DUP](4)
➥ Numeric i
nput and DTMF code: ‘4’
➥ After pushing [FUNC](M), selects minus duplex, plus
duplex, or simplex operation.
[5] • [SCAN](5)
➥ Numeric i
nput and DTMF code: ‘5’
➥ After pushing [FUNC](M), starts a scan.
[6] • [SKIP](6)
➥ Numeric i
nput and DTMF code: ‘6’
➥ After pushing [FUNC](M), sets or cancels the skip
setting.
[7] • [PRIO](7)
➥ Numeric i
nput and DTMF code: ‘7’
➥ After pushing [FUNC](M), starts a priority watch.
[8] • [SET](8)
➥ Numeric i
nput and DTMF code: ‘8’
➥ After pushing [FUNC](M), enters the Set mode.
[9] • [H/M/L](9)
➥ Numeric i
nput and DTMF code: ‘9’
➥ After pushing [FUNC](M), selects the output power
of high, mid or low.
[0] • [DTMF-M](0)
➥ Numeric i
nput and DTMF code: ‘0’
➥ After pushing [FUNC](M), enters the DTMF memory
mode.
[M] • [FUNC](M)
➥
DTMF code: ‘M (indication: E)’
➥ Push to access the second function of other keys.
➥
DTMF code: ‘# (indication: F)’
[# ENT] • [
](# ENT)
➥ After entering a frequency, push to save it.
➥ Push to exit the Set mode or Initial Set mode.
➥ After pushing [FUNC](M), hold down for 1 second to
turn the Key Lock function ON or OFF.
■ Panel description— Function display
y BATTERY ICONS
!1!2
!0
q BUSY ICON
➥ Appears when a signal is being received, or the squelch
is open.
➥ Blinks while the monitor function is ON.
w SIGNAL ICON
➥ Shows the strength of the received signal.
Weak RX Signal level Strong
➥ While transmitting, shows the output power level.
w Mid High
e TONE ICONS
Appear when the tone function is turned ON, and indicate
which tone function is in use.
r MEMORY ICON
“ ”
“D” and “ ”
“ ”
“D”
“ ” and “ ”
“ ” and “D”
Repeater tone encoder
DTCS encoder (Only TX)
CTCSS squelch function
DTCS squelch function
CTCSS Pocket beep function
DTCS Pocket beep function
➥ Appears when the memory mode is selected.
➥ Blinks during a memory scan.
t FREQUENCY READOUT
➥ Displays the operating frequency, memory channel, Set
modes contents and a variety of other information.
• The decimal point blinks during a scan.
➥ While in the memory mode, the programmed memory
name is displayed.
➥ “
➥ -“
u KEY LOCK ICON
Appears when the Key Lock function is ON.
i VOX ICON
Appears when the VOX function is ON.
o POWER ICON
➥ “ H” appears when high power is selected.
➥ “ M” appears when mid power is selected.
➥ “ L” appears when low power is selected.
!0 MEMORY CHANNEL NUMBER READOUT
➥ Displays the selected memory channel number.
➥ “C” appears when the Call channel is selected.
!1 AUTO POWER OFF ICON
Appears when the Auto Power OFF function is ON.
!2 DUPLEX ICON
➥ “+” appears when plus duplex is selected.
➥ “–” appears when minus duplex is selected.
• No icon is displayed when simplex is selected.
!3 SKIP ICON
Appears when the selected memory channel is set as a
skip channel.
!4 FUNCTION ICON
Appears when a second function can be accessed.
!5 TRANSMIT ICON
Appears while transmitting.
■ Disposal
not dispose of these products as unsorted municipal waste.
Dispose of them according to the laws in your area.
” appears when the battery pack or case is attached.
” appears when the battery is nearing exhaustion.
Charging the battery pack, or replacing the batteries in
the case is necessary.
The crossed-out wheeled-bin symbol on your
product, literature, or packaging reminds you that
in the European Union, all electrical and electronic
products, batteries, and accumulators (rechargeable batteries) must be taken to designated collection locations at the end of their working life. Do
Page 2
D
Band
edge
Band
edge
1A
2A
3A
1b
2b
3b
Scan edges
Scan
Jump
5 seconds
5 seconds
Select the scan pause timer option.
Select the resume options of a scan pause.
• Scan stop timer
■ Basic operation
■ Repeater operation
[VOL]
[PTT]
[3] • [T.SCAN]
[2]•[VOX]
[1]•[ TONE]
[4]•[DUP]
[7]•[PRIO]
[0]•[DTMF-M]
[5]•[SCAN]
[8]•[SET]
[VFO/MR/CALL]
[MONI]
[ ]
[6]•[SKIP]
[9]•[H/M/L]
[# ENT]•[ ]
D Turning power ON/OFF
➥ Hold down [ ] for 1 second to turn the power ON or OFF.
D Mode selection
The transceiver has 2 basic operating modes; VFO mode and
memory mode.
➥ Push [VFO/MR/CALL] several times to sequentially select
the VFO mode, memory mode, Call channel mode and
weather channel mode*.
*For only USA version.
D Setting a frequency
• Using [Y] or [Z]
q If necessary, push [VFO/MR/CALL] several times to select
the VFO mode.
w Push [Y] or [Z] to set a frequency.
• The frequency changes according to the selected tuning
step.
• Using the keypad
q If necessary, push [VFO/MR/CALL] several times to select
the VFO mode.
w To enter the desired frequency, enter 6 digits, starting from
the 100 MHz digit.
• Entering two or three* to ve digits, and then pushing [# ENT],
also sets the frequency. (*Depending on the transceiver version)
• If the entered frequency is outside of the frequency range, the
previously displayed frequency is automatically recalled.
■
Memory channels
D Memory channel programming
q
Push [VFO/MR/CALL] several times to select the VFO mode.
w Set the desired frequency.
➥ If desired, set other data (e.g. frequency offset, duplex
direction, tone squelch, and so on.).
e Push [FUNC](M), and then push [VFO/MR/CALL].
• “X” and the memory channel number blink.
• Select the Call channel mode to program the Call channel.
r Push [Y] or [Z] to select the memory channel to be pro-
grammed.
• Select “1A/1B” to “3A/3B” to program a scan edge channel.
t Push [FUNC](M), and then hold down [VFO/MR/CALL] for
1 second to program.
• 3 beeps sound.
• If you continue to hold down [VFO/MR/CALL] for 1 second after
programming, the memory channel number automatically increases.
NOTE: To cancel programming, push [VFO/MR/CALL] be-
fore doing step t.
■ Scan operation
D Scan types
PROGRAMMED SCAN
The Programmed scan P1 scans between 1A and 1b, P2 scans between 2A and 2b, and P3 scans between 3A and 3b frequencies.
MEMORY (SKIP) SCAN
Mch 1
Mch 0
Mch 199
PRIORITY WATCH
• Memory/Call channel watch • Memory scan watch
VFO
frequency
D Programmed scan
Repeatedly scans between two programmed frequencies
(memory channels “xA” and “xb”). Used to check for frequencies within a specified range, such as repeater output frequencies, and so on. 3 pairs of scan edges are programmable.
NOTE: Scan edge channels, 1A/b, 2A,b and 3A/b must be
programmed in advance. Program them in the same manner as regular memory channels.
If identical frequencies are programmed into the scan
edge channels, the programmed scan will not function.
q Push [VFO/MR/CALL] several times to select the VFO
mode.
w
Push [FUNC](M), and then push [SCAN](5) to start the scan.
e During the scan, push [FUNC](M), and then push [SET](8)
several times to select either the “P1,” “P2,” “P3” or “AL”
scan.
• “AL” for band edge to band edge scan.
• “P1,” “P2” and “P3” for programmed scan between the programmed
scan edge channels.
• To change the scan direction, push [Y] or [Z].
r To cancel the scan, push any key except [ ], [Y]/[Z],
[MONI] or [FUNC](M).
D Memory Scan
Repeatedly scans memory channels, except those set as
skip channels, described in the next scan topic.
q Push [VFO/MR/CALL] several times to select the memory
mode.
• “X” appears.
w
Push [FUNC](M), and then push [SCAN](5) to start the
scan.
• To change the scan direction, push [Y] or [Z].
e To cancel the scan, push any key except [ ], [Y]/[Z],
[MONI] or [FUNC](M).
Mch 2 Mch 3 Mch 4 Mch 5
Mch 10
Memory
(Call)
channel
SKIP
Mch 9 Mch 8 Mch 7
VFO
frequency
SKIP
SKIP
Mch 6
Mch 0
Mch 1
Mch 2
Mch 199
D Tuning step selection
The transceiver has 8 tuning step options;
• 5 kHz • 10 kHz • 12.5 kHz • 15 kHz
• 20 kHz • 25 kHz • 30 kHz • 50 kHz
The tuning step can be selected in the Set mode.
q Push [FUNC](
M
), and then push [SET](8) to enter the Set
mode.
w Push [Y] or [Z] to select the tuning step item (tS).
e Rotate [VOL] to select the desired tuning step.
r Push [# ENT] to exit the Set mode.
D Key Lock function
Use the Key Lock function to prevent accidental frequency or
channel change and unnecessary function access.
➥ Push [FUNC](
M
), and then hold down [ ](# ENT) for
1 second to turn the Key Lock function ON or OFF.
• “ ” appears while the Key Lock function is ON.
• [ ], [VOL], [MONI], [PTT] and [FUNC](M) + [ ](# ENT) are
still operable while the Key Lock function is ON.
D Monitor function
This function is used to listen to weak signals, or to manually
open the squelch. You can use it without disturbing the squelch
setting, even when mute functions such as the tone squelch
are in use.
➥ Hold down [MONI] to open the squelch.
• Release [MONI] to cancel the function.
D Adjusting the squelch level
➥ While holding down [MONI], push [Y] or [Z] several times
to adjust the squelch level.
• “SqL 1” is loose squelch (for weak signals) and “SqL10” is tight
squelch (for strong signals). “SqL 0” is open squelch.
D Selecting output power
Set the output power level to suit your operating requirements.
Lower output powers during short-distance communications
may reduce the possibility of interference to other stations and
will reduce current consumption.
➥ Push [FUNC](
M
), and then push [H/M/L](9) several times to
select the output power.
• “ H,” “M,” or “ L” appears, depending on the selected output power.
D Selecting a memory channel
• Using [Y] or [Z]
q Push [VFO/MR/CALL] several times to select the memory
mode.
• “X” appears.
w Push [Y] or [Z] to select the desired channel.
• Only programmed channels are displayed.
• Using the keypad
q Push [VFO/MR/CALL] several times to select the memory
mode.
• “X” appears.
w To select the desired channel, enter the 3 digits of the
channel number using the keypad.
• Blank channels are also selectable.
• Entering one or two digits, and then pushing [# ENT] also se-
lects a 1 or 2 digit memory channel, respectively.
D Selecting the Call channel
➥ Push [VFO/MR/CALL] several times to select the Call
channel.
• “C” appears instead of the memory channel number.
D Setting skip channels
The memory skip function speeds up scanning by not scanning those memory channels set as skip channels. Set skip
channels as follows.
q Push [VFO/MR/CALL] several times to select the memory
mode.
w Push [Y] or [Z] to select the memory channel to be
skipped.
e Push [FUNC](M), and then push [SKIP](6) to set the chan-
nel as skip channel.
•
“SKIP” appears.
D Scan resume setting
Various pause and timer options can be selected with the Scan
Resume function. The selected resume option is also used for
Priority Watch, described below.
D Priority watch
• Memory or Call channel watch
While operating on a VFO frequency, Priority Watch checks for
a signal on the selected memory or Call channel every 5 seconds.
q Select the VFO mode, and then set the operating frequency.
w Push [VFO/MR/CALL] several times to select the memory
mode or Call channel mode.
• For memory channel watch:
Push [Y] or [Z] to select a desired memory channel.
e
Push [FUNC](M), and then push [PRIO](7) to start the
watch.
• The decimal point “.”, on the frequency readout blinks.
• When a signal is received on the channel, the watch resumes ac-
cording to the selected scan resume option.
r To cancel the watch, push any key except [ ], [Y]/[Z],
[MONI], [FUNC](M), or [PTT].
• Memory scan watch
While operating on a VFO frequency, Priority Watch sequentially checks for signals on each memory (except Skip) channel.
q Select the VFO mode, and then set the operating frequency.
w Push [VFO/MR/CALL] several times to select the memory
mode.
e Push [FUNC](M), and then push [SCAN](5) to start the
memory scan.
r Push [FUNC](M), and then push [PRIO](7) to start the
watch.
• The VFO mode is selected, and the decimal point “.”, on the frequency readout blinks.
• When a signal is received on a channel, the watch resumes according to the selected scan resume option.
t To cancel the watch, push any key except [ ], [Y]/[Z],
[MONI], [FUNC](M), or [PTT].
■
Partial reset
If you want to reset the VFO frequency, VFO settings and Set
mode items to their default values, without clearing the mem
ory contents, you can do a partial reset of the transceiver's
CPU.
q Hold down [ ] for 1 second to turn OFF the power.
w While holding down [VFO/MR/CALL], hold down
[
] for 1 second to turn ON the power.
• The CPU will partially reset.
-
D Accessing a repeater
q Set the receive frequency (the repeater output frequency).
• For only USA version:
When the Auto Repeater function is ON, step w and e are not
necessary.
w Push [FUNC](M), and then push [DUP](4) several times to
select minus duplex or plus duplex. ( “–” or “+”)
e Push [FUNC](M), and then push [TONE](1) several times
to turn ON the subaudible tone encoder, depending on the
repeater requirements.
• “ ” appears.
• The subaudible tone frequency can be set in the Set mode.
r Hold down [PTT] to transmit.
• The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).
• If “OFF” appears, conrm that the frequency offset is correctly
set.
t Release [PTT] to receive.
y Hold down [MONI] to check whether you can directly re-
ceive the signal from the other station
• When the other station’s signal can be directly received, move to
a non-repeater frequency to use simplex. (duplex OFF)
.
For only USA version:
Auto repeater function uses standard repeater tone fre-
quencies and frequency offsets.
D Duplex operation
• Setting the frequency offset
q Push [FUNC](M), and then push [SET](8) to enter the Set
mode.
w Push [Y] or [Z] to select the frequency offset item.
• “±” and decimal point “.” blink, and the current frequency offset
appears.
e Rotate [VOL] to set the desired frequency offset.
• The offset is set in the same step as the frequency tuning step.
• The unit of the frequency offset is “MHz.”
r Push [# ENT] to exit the Set mode.
• Setting the duplex direction
➥ Push [FUNC](M), and then push [DUP](4) to select the off-
set direction.
• The “–” (negative offset) or “+” (positive offset) icon appears to
represent the frequency offset direction.
• “–” or “+” blinks when the Reverse Duplex function is ON.
For only USA version:
The Auto Repeater function has priority over the manual
duplex setting. If the transmit frequency changes after setting, the Auto Repeater function may have changed the
duplex setting. Turn the Auto Repeater function OFF to
prevent this.
■ Set mode programming
• Set mode operation
q Push [FUNC](M), and then push [SET](8) to enter the Set
mode.
w Push [Y] or [Z] to select a desired item.
e Rotate [VOL] to select an option or value.
r Push [# ENT] to exit the Set mode.
Set mode items
• Repeater tone frequency
Select the subaudible tone
needed to access the repeater.
• Tone squelch frequency
Select the CTCSS tone frequency
for tone squelch.
• DTCS code
Set the DTCS code for
DTCS squelch and DTCS encoder.
• DTCS polarity
Set the Transmit
and Receive DTCS polarity.
• Frequency offset
Set the duplex frequency offset.
• Reverse duplex function
Tu rn the Reverse Duplex function
ON or OFF
• Tuning step
Select the VFO tuning step.
• Scan resume setting
Select the scan pause and resume setting.
• Function key timer
• LCD backlight
• TX permission
• Weather alert (For only USA version)
• VOX gain
• MIC gain
• VOX delay
• VOX time-out timer
• DTMF TX key
• Operating mode
NOTE: When the display type setting is set to “CH” in the Initial
Set mode, and accessing the Set mode from the memory
mode, most of the Set mode items do not appear.
Set the time between when the Function
mode is entered, and how long it remains
activated after you push the keypad key
to activate its second function.
Select the LCD Backlight function.
Tu rns the TX Inhibit function ON or OFF.
Tu rn the Weather Alert function ON or OFF.
Set the VOX gain.
To turn OFF the VOX function, select “VOX.OF.”
Set the microphone sensitivity.
Set the VOX Delay.
Set the VOX time-out timer.
To turn OFF the function, select “Vto.OF.”
Select the method to transmit
a DTMF code sequence.
Set the operating mode to FM or FM-N.
:
:
D Reverse Duplex function
When the reverse duplex function is ON, the receive and transmit frequencies are reversed.
q
Push [FUNC](M), and then push [SET](8) to enter the Set mode.
w Push [Y] or [Z] to select the Reverse Duplex function item
(REV).
e Rotate [VOL] to turn the function ON or OFF.
r Push [# ENT] to exit the Set mode.
• “–” or “+” blinks when the Reverse Duplex function is ON.
D Subaudible tones
Some repeaters require subaudible tones to access. Subaudible tones are superimposed over your normal signal, and
must be set in advance.
q
Push [FUNC](M), and then push [SET](8) to enter the Set mode.
w Push [Y] or [Z] to select the repeater tone item. (rt)
e Rotate [VOL] to select the desired subaudible tone fre-
quency.
r Push [# ENT] to exit the Set mode.
D DTCS encoder (Only TX)
The DTCS encoder superimposes the selected DTCS code
over your transmitted signal.
q
Push [FUNC](M), and then push [SET](8) to enter the Set mode.
w Set the DTCS code and polarity, in the same way you set
the DTCS squelch.
• You can set the DTCS transmit and receive polarity, but the
DTCS encoder affects only transmit.
e Push [# ENT] to exit the Set mode.
r Push [FUNC](M), and then push [TONE](1) several times,
until both “
• The DTCS encoder activated.
” and “ ” appear.
D Tone setting
• DTMF TONES
While holding down [PTT], push the desired DTMF keys, [0]
to [9], [MONI](A), [Y](B), [Z](C), [VFO/MR/CALL](D), [M]
(E), and [# ENT](F), to transmit their assigned DTMF codes.
• 1750 Hz TONE
To access some European repeaters, the transceiver must
transmit a 1750 Hz tone burst.
For IC-V80E only
Quickly push [PTT] once, then immediately hold down [PTT]
again for 1 or 2 seconds.
For other transceivers
While holding down [PTT], hold down either the [Y] or [Z]
for 1 or 2 seconds
.
■ Initial Set mode programming
The initial Set mode is accessed at power ON, and allows
you to set seldom-changed settings. In this way, you can
“customize” the transceiver to suit your preference and operating style.
• Initial Set mode operation
q While holding down [Y] and [Z], hold down [ ] for 1 sec-
ond to enter the Initial Set mode.
w Push [Y] or [Z] to select a desired item.
e Rotate [VOL] to select an option or value.
r Push [# ENT] to exit the initial Set mode.
Initial Set mode items
• Key-touch beep
• Time-out timer
• Auto repeater
• Auto power OFF
• Lockout
• Squelch delay
• DTMF speed
• Dial assignment
• Display type
• LCD contrast
• Power save
• Select speed
• Microphone simple mode
• Battery protection function
• Auto low power
• Squelch burst
(For only USA version)
(For only IC-U80/IC-U80E)
Tu rns the key-touch beep ON
(Set the beep level 1 to 3) or OFF.
Inhibit continuous transmissions
longer than the selected time period.
Tu rns the Auto Repeater function
ON or OFF.
Automatically turns OFF
the transceiver’s power.
Tu rn the Lockout function ON or OFF.
Set the squelch delay to Short or Long.
Set the DTMF sending rate.
Select whether or not to use [VOL] as
the tuning control instead of [Y] and [Z].
Select the display type for memory
mode operation.
Select the LCD contrast.
Select the ratio of the power save time
to the standby time.
Selects whether or not to accelerate
the step speed when rotating
[VOL] rapidly.
Select the Microphone mode.
Select the protection option
according to your battery type.
Tu rns the Auto Low Power function
ON or OFF.
Tu rns the Squelch Burst function
ON or OFF.
:
:
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain,
Russia, Australia, New Zealand, and/or other countries. All other products or brands are registered trademarks or trademarks of their respective holders.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Printed on recycled paper with soy ink.
A-6795H-1EX-y
Printed in Japan
© 2012–2016 Icom Inc.
Loading...
