Icom IM700PRO User Manual

INSTRUCTION MANUAL

SSB RADIO TELEPHONE

iM700PRO

IMPORTANT

DISPOSAL

READ THIS INSTRUCTION MANUAL CAREFULLY

before attempting to operate the transceiver.

SAVE THIS INSTRUCTION MANUAL—This manual
contains important safety and operating instructions
for the IC-M700PRO SSB RADIO TELEPHONE.

EXPLICIT DEFINITIONS

The explicit definitions described below apply to this
instruction manual.

WORD DEFINITION

RWARNING

CAUTION

NOTE

Personal injury, fire hazard or electric
shock may occur.

Equipment damage may occur.

If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.

PRECAUTIONS

The crossed-out wheeled-bin symbol on
your product, literature, or packaging re­minds you that in the European Union, all
electrical and electronic products, batter­ies, and accumulators (rechargeable bat-

teries) must be taken to designated
collection locations at the end of their working life. Do
not dispose of these products as unsorted municipal
waste. Dispose of them according to the laws in your
area.

Icom, Icom Inc. and the Icom logo are registered trademarks of
Icom Incorporated (Japan) in Japan, the United States, the United
Kingdom, Germany, France, Spain, Russia, Australia, New Zealand,
and/or other countries.

RWARNING! NEVER connect the transceiver di-

rectly to an AC outlet. This may pose a fire hazard or
result in an electric shock.

RWARNING! NEVER mount the transceiver over-

head. The weight of the transceiver is approximately

7.9 kg. (17.4 lb), but its apparent weight will increase
several fold due to wave shocks and vibration. The
transceiver must be mounted on a flat hard surface
only.

NEVER connect a power source of more than 16 V
DC, such as a 24 volt battery. This connection will ruin
the transceiver.

NEVER allow children to play with equipment contain­ing a radio transmitter.

NEVER expose the transceiver to rain, snow or any
liquids.

NEVER install the IC-M700PRO into a positive­grounding ship. Such a connection might blow fuses,
and is not usable.

DO NOT use chemical agents such as benzene or al­cohol when cleaning, as they can damage the trans­ceiver’s surfaces.

i

In maritime mobile operation, KEEP the transceiver
and microphone as far away as possible (at least 1 m)
from the magnetic navigation compass to prevent er­roneous indications.

USE an Icom microphone and/or handset only (sup­plied or optional). Other brands may have different pin
assignments and may damage the transceiver.

DO NOT use or place the transceiver in areas with
temperatures below –20°C (–4°F) or above +60°C
(+140°F).

DO NOT connect the transceiver to a power source
using reverse polarity. This connection will not only
blow fuses but may also damage the transceiver.

DO NOT place the transceiver in excessively dusty en­vironments, or in direct sunlight.

DO NOT place the transceiver against walls, or putting
anything on top of the transceiver. This will obstruct
heat dissipation.

Icom is not responsible for the destruction, damage to, or
performance of any Icom or non-Icom equipment, if the
malfunction is because of:

• Force majeure, including, but not limited to, fires,
earthquakes, storms, floods, lightning, other natural
disasters, disturbances, riots, war, or radioactive
contamination.

• The use of Icom transceivers with any equipment that is
not manufactured or approved by Icom.

TABLE OF CONTENTS

IMPORTANT ······························································ i
PRECAUTIONS ·························································· i
EXPLICIT DEFINITIONS ············································ i
DISPOSAL ·································································· i
TABLE OF CONTENTS ············································ ii

1 OPERATING RULES AND GUIDELINES ··········· 1

2 PANEL DESCRIPTION ········································· 2

■ Front panel ·························································2

■ Display ································································ 4

3 SELECTING A CHANNEL/FREQUENCY ············5

■ Memory mode/VFO mode ··································5

■ Selecting a channel ············································5

D Scan function ················································· 6

■ Selecting a frequency ········································ 6

■ Resetting the CPU ············································· 7

4 RECEIVE AND TRANSMIT ···································8

■ Basic voice receive and transmit ························8

■ Functions for transmit ········································· 8

D Transmit frequency check ·····························8

■ Functions for receive ··········································9

D Squelch function ············································9
D Noise blanker ················································· 9
D AGC OFF function ·········································9
D Clarity control ················································· 9

■ CW operation ···················································· 10

■ FSK operation ··················································· 10

6 CONNECTIONS AND INSTALLATION ··············· 15

■ Connections on the rear panel ·························15

■ Unpacking ························································· 15

■ Connector information ······································16

■ Ground connection ···········································18

■ Power source ···················································· 18

■ Antenna ····························································19

D MN-100/MN-100L ANTENNA MATCHERS 19
D AT-130 AUTOMATIC ANTENNA TUNER ···19
D Non-Icom tuner ············································ 19

■ Mounting ··························································· 20

D Mounting location ········································20
D Mounting example ·······································20
D Transceiver dimensions ······························· 20

■ Disassembling the transceiver ·························· 21

D Opening the case ········································21

■ Fuse replacement ············································· 21

D DC power cable fuse ···································21
D Circuitry fuse ················································21

7 TROUBLESHOOTING ········································· 22

■ Specifications ···················································23

8 SPECIFICATIONS AND OPTIONS ·····················23

■ Options ·····························································23

5 SET MODE ··························································· 11

■ Set mode operation ··········································11

■ Set mode contents ············································ 11

ii

1

OPERATING RULES AND GUIDELINES

❑ CALL PROCEDURES

Calls must be properly identified and time limits must
be respected.

q Give your call sign each time you call another ves-

sel or coast station. If you have no call sign, identify
your vessel name and the name of the licensee.

w Give your call sign at the end of each transmission

that lasts more than 3 minutes.

e You must break and give your call sign at least once

every 15 minutes. during long ship-to-shore calls.

r Keep your unanswered calls short, less than 30

seconds.

Do not repeat a call for 2 minutes.

t Unnecessary transmissions are not allowed.

❑ PRIORITIES

q Read all rules and regulations pertaining to priori-

ties and keep an up-to-date copy handy. Safety and
distress calls take priority over all others.

w False or fraudulent distress calls are prohibited and

punishable by law.

❑ PRIVACY

q Information overheard but not intended for you can-

not be lawfully used in any way.

w Indecent or profane language is prohibited.

❑ LOGS

q All distress, emergency and safety calls must be re-

corded in complete detail. Log data activity is usu­ally recorded in 24 hour time. Universal Time (UTC)
is frequently used.

w Adjustments, repairs, channel frequency changes

and authorized modifications affecting electrical
operation of the equipment must be kept in the
maintenance log; entries must be signed by the au­thorized licensed technician performing or supervis­ing the work.

❑ RADIO LICENSES

(1) SHIP STATION LICENSE
You must have a current radio station license before
using the transceiver. It is unlawful to operate a ship
station which is not licensed.

Inquire through your dealer or the appropriate govern­ment agency for a Ship-Radiotelephone license appli­cation. This government-issued license states the call
sign which is your craft’s identification for radio pur­poses.

(2) OPERATOR’S LICENSE
A Restricted Radiotelephone Operator Permit is the li­cense most often held by small vessel radio operators
when a radio is not required for safety purposes.

The Restricted Radiotelephone Operator Permit must
be posted or be kept with the operator. Only a licensed
radio operator may operate a transceiver.

However, non-licensed individuals may talk over a
transceiver if a licensed operator starts, supervises,
and ends the call, and makes the necessary log en­tries.

Keep a copy of the current government rules and reg­ulations handy.

1

■ Front panel

MICROPHONE

POWER

VOLUME

TX FREQ

2182KHz

RESET

MODE

TUNE

SSB RADIO TELEPHONE

AGC SQL SCAN

CLARITY

NB

SPEAKER

[ALARM] [TX FREQ]+

FOR ALARM TX

DIMMER

GROUP CHANNEL

123

456

789

CL

T ONLY ENT

0

CH/FREQ

iM 700PRO

TX

RX

DSC

F

ALM

qwer tyui !

0

o

This function is not installed
in the IC-M700PRO.

PANEL DESCRIPTION

2

q MICROPHONE CONNECTOR (p. 16)
Accepts the supplied microphone or an optional

handset.

☞ NOTE: No audio is output to the speaker when

the microphone or handset is not connected.

w POWER SWITCH [POWER]

Turns power ON or OFF.

e SPEAKER SWITCH [SPEAKER]

Turns the built-in speaker ON or OFF.

• “è” appears in the display while the speaker is turned

OFF.

• Any external speaker connected to the rear panel is not
turned OFF.

r DISPLAY INTENSITY SWITCH [DIMMER]

Turns the display backlighting ON or OFF.

t VOLUME CONTROL [VOLUME]

Adjusts the audio output level.

• No sound is output to the speaker when:

➥ A microphone is not connected.
➥ The [SQL] switch is turned ON and no signal is being

y GROUP CHANNEL SELECTOR [GROUP]

In the memory mode, selects 1 of 3 channel groups

(“A,” “B” or “C”). (p. 5)

• In the VFO mode, it has no function.

➥ Selects an item in the set mode. (p. 11)

received.

u ANTENNA TUNE SWITCH [TUNE] (p. 8)
Tunes the external tuner to the antenna.

• Activates only when an optional antenna tuner such as
Icom’s AT-130 is connected.

☞ NOTE: When selecting “automatic tuning” in the

set mode, pushing this switch is not necessary
to tune the antenna. (p. 11)

i CHANNEL SELECTOR [CHANNEL] (p. 5)
➥ In the memory mode, selects an operating chan-

nel within the selected channel group.

• A maximum of 50 channels are available in each

channel group, depending on set mode setting (pgs.
13 and 14).

➥ In the VFO mode, changes the operating fre-

quency in 0.1 kHz steps.

• Frequencies selected in the VFO mode are tempo-

rary.

o SCAN SWITCH [SCAN] (p. 6)
Push to toggle the scan ON or OFF.

!0 CLARITY CONTROL [CLARITY] (p. 9)
Shifts the receive frequency ±150 Hz for clear re-

ception of an off frequency signal.

2

2

CH/FREQ

T ONLY

ENT

CL

0

9

to

MICROPHONE

POWER

VOLUME

TX FREQ

2182KHz

RESET

MODE

TUNE

SSB RADIO TELEPHONE

AGC SQL SCAN

CLARITY

NB

SPEAKER

[ALARM] [TX FREQ]+

FOR ALARM TX

DIMMER

GROUP CHANNEL

123

456

789

CL

T ONLY ENT

0

CH/FREQ

iM 700PRO

TX

RX

DSC

F

0

ALM

!1

!2!3!4!5!6!7This function is not installed

in the IC-M700PRO.

PANEL DESCRIPTION

■ Front panel (Continued)

!1 KEYPAD

No function*.

Toggles between the memory mode and the

VFO mode. (p. 5)

• This key may be disabled by your dealer.

No function*.

No function*.

No function*.

* These keys function in some versions. See the separate

KEYPAD OPERATION and CHANNEL LIST instruction
sheet for operating details.

!2 SQUELCH SWITCH [SQL] (p. 9)
Activates the voice squelch function to reject unde-

sired background noise while no signal is being re­ceived.

• The squelch opens only when the received signal con­tains no voice or FSK components.

!3 NOISE BLANKER SWITCH [NB] (p. 9)
Turns the noise blanker function ON to remove

pulse-type noise such as engine ignition noise.

• “NB” appears when the function is turned ON.

!4 AGC OFF SWITCH [AGC] (p. 9)
Deactivates the AGC function to receive weak sig-

nals blocked by strong adjacent signals.

• “ê” appears when the [AGC] switch is turned ON

!5 MODE SWITCH [MODE]

Temporarily selects an operating mode. Available

modes differ with the transceiver version.

• USB, AM, J2B (AFSK), FSK, R3E and CW modes are

• The temporary mode is cleared and the previous mode

!6 TRANSMIT FREQUENCY SWITCH [TX FREQ]

(p. 8)

Displays the transmit frequency and opens the

squelch to check and monitor the transmit fre­quency.

!7 2182 kHz SELECTION SWITCH

[2182KHz •

➥ Selects channel 0 (2182 kHz; distress call fre-

• The channel selector does not function when select-

➥ Ignores external control and gives the front

(stands for AGC deactivated).

available.

appears when changing a channel.

reset

] (p. 5)

quency).

ing channel 0.

panel control priority when an external control­ler (NMEA format) is connected.

3

■ Display

TUNE

DUP SIMP

TX

RX

SCAN

SQL NB

AGC

AGC

ALM

q

w

e

rt yu

i

o

!0!1!2!3

PANEL DESCRIPTION

2

q RECEIVE INDICATOR

Appears while receiving and when the squelch is

open.

w TUNE INDICATOR (p. 8)
Flashes while the connected antenna tuner, such

as Icom’s AT-130, is being tuned.

• Tuning starts when transmitting on a new frequency or
pushing the [TUNE] switch.

e TRANSMIT INDICATOR

Appears when transmitting.

r S/RF METER

➥ Shows the relative received signal strength while

receiving.

➥ Shows output power while transmitting.

t CHANNEL/VFO INDICATOR (p. 5)
➥ Shows the selected group and channel in the

memory mode.

➥ “FREQ” appears in the VFO mode.

y SQUELCH INDICATOR (p. 9)
Appears when the squelch is ON.

u SCAN INDICATOR (p. 6)
Appears when the scan function is in use.

• The scan function is not available on some versions.

• Pushing [SCAN] starts and stops the scan.

i NOISE BLANKER INDICATOR (p. 9)
Appears when the [NB] switch is turned ON.

o AGC OFF INDICATOR (p. 9)
Appears when the [AGC] switch is pushed to indi-

cate the AGC function is deactivated.

!0 MODE READOUT

Shows the selected operating mode (type of emis-

sion).

!1 SPEAKER OFF INDICATOR

Appears when the [SPEAKER] switch is pushed to

indicate the front panel speaker is deactivated.

!2 FREQUENCY READOUT

➥ Shows the selected frequency whether in the

memory mode or the VFO mode. (p. 5)

➥ Shows the transmit frequency (for duplex

channels) when transmitting or when pushing
[TX FREQ]. (p. 8)

!3 SIMPLEX/DUPLEX INDICATORS

These appear to show whether the selected chan-

nel is simplex or duplex.

• In the VFO mode, only simplex channels are available.

• No indicator means that there is no transmit frequency
programmed.

4

3

SQL

SIMP

SQL

CH/FREQ

CH/FREQ

Memory mode

VFO mode

SQL

DUP

SQL

SIMP

SQL

Rotate
[GROUP]

to select a
channel group

Group A

Group B

Group C

Rotate
[CHANNEL]

to select a
channel within
a group

Group B, channel 1

Group B, channel 2

Group B, channel 50

DUP

SQL

DUP

SQL

DUP

SQL

SELECTING A CHANNEL/FREQUENCY

■ Memory mode/VFO mode

The transceiver has 2 operating modes: memory mode
and VFO mode. The memory mode is used to select
preprogrammed marine channels in one of the 3 chan­nel groups; The VFO mode is used to select frequen­cies around preprogrammed channels.

Push [CH/FREQ] to toggle between the memory and
VFO modes.

• “FREQ” appears when in the VFO mode.

• In the VFO mode, only simplex operation is possible.

■ Selecting a channel

The transceiver has 150 channels divided into 3
groups of 50 channels, maximum. However, the num­ber of channels in each group can be restricted in the
set mode, depending on your needs. (pgs. 13 and 14)

☞ NOTE: When channel 0 and/or 2182 kHz is se-

lected with the [2182KHz] switch, channel selection
is NOT possible. In such cases, push [2182KHz]
first.

q If necessary, push [CH/FREQ] to select the mem-

ory mode.

w Rotate the [GROUP] selector to select the desired

channel group; then rotate the [CHANNEL] selector
to select the desired channel.

5

D Scan function

Channel scan

ch 1

ch 2 ch 3

ch 4

ch 5ch 50

scan is
cancelled
when
transmitting

Channel resume scan

ch 1

ch 2 ch 3

ch 4

ch 5ch 50

scan pauses
for 10 seconds
after the squelch
opens,
then resumes

Rotate
[CHANNEL]

to select a
frequency in
100 Hz steps

1.6 MHz selected

1.6001 MHz selected

SIMP

SQL

SIMP

SQL

The scan function allows you to automatically search
for signals with a group of channels. There are 2 scan
types (selectable in the set mode) as follows:

SELECTING A CHANNEL/FREQUENCY

3

Scan operation

q Rotate the [GROUP] selector to select the group

you wish to scan.

w If necessary, push [SQL] to close the squelch.

• “SQL” appears.

e Push [SCAN] to start scanning.

• “SCAN” appears.

r Push [SCAN] again to stop scanning.

• “SCAN” disappears.

■ Selecting a frequency

The transceiver has 0.5 to 30.0 MHz general cover­age receive capability, with 100 Hz resolution. Use the
VFO mode to select frequencies around the prepro­grammed channels in the memory mode.

☞ NOTE: Frequencies selected in the VFO mode are

for temporary use and are not stored in memory.

q While in the memory mode, rotate the [GROUP]

and [CHANNEL] selectors to select the channel
nearest the frequency you want.

w Push [CH/FREQ] to select the VFO mode.

• “FREQ” appears.

e Rotate the [CHANNEL] selector to select the de-

sired frequency.

• The frequency changes in 100 Hz steps.

6

3

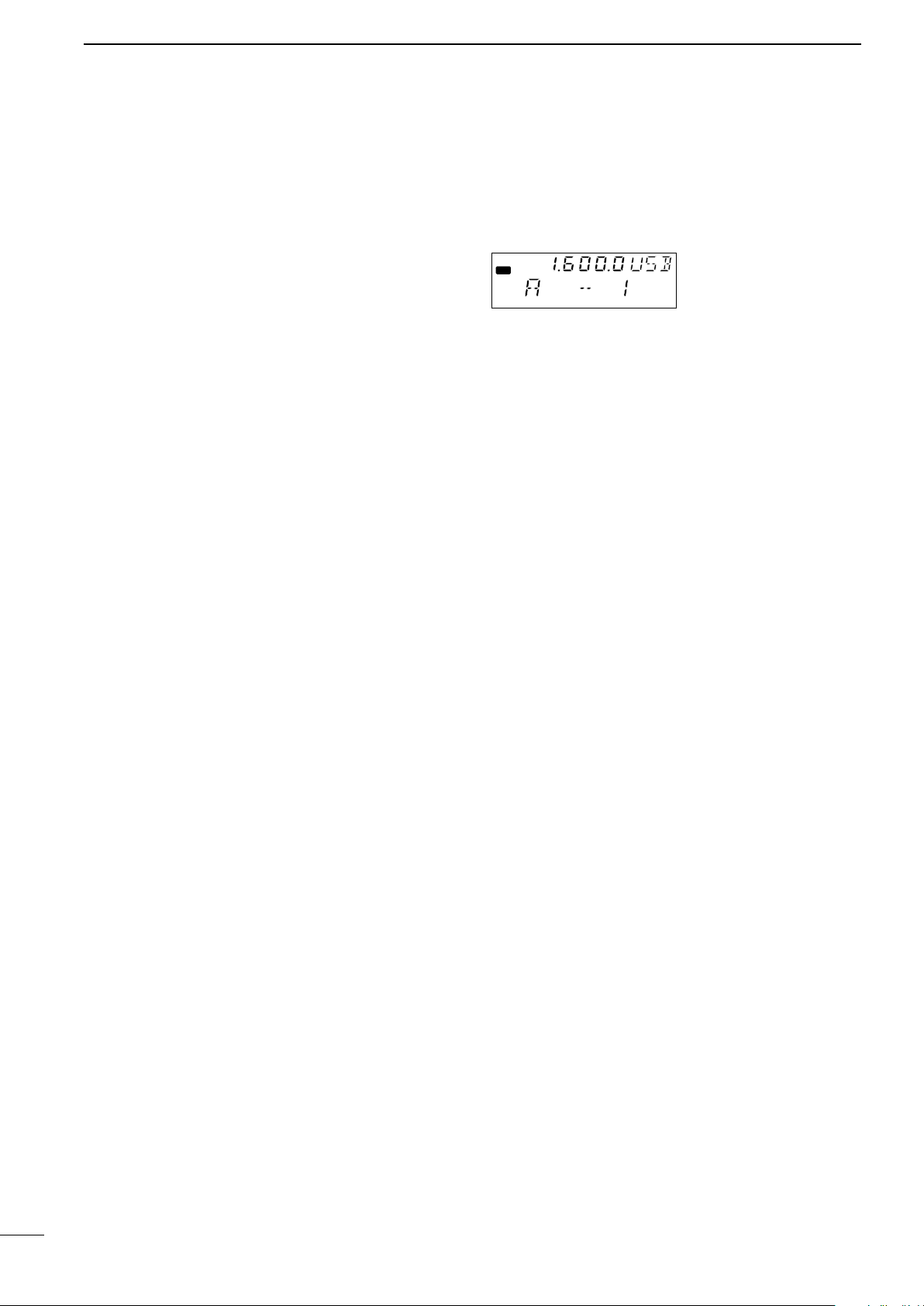

SIMP

RX

Group A, channel 1 is
selected after resetting
the CPU.

SELECTING A CHANNEL/FREQUENCY

■ Resetting the CPU

Under some circumstances, the transceiver’s internal
CPU may cause erroneous indications on the display.
If this happens, reset the CPU as follows:

While pushing [ENT] and [0], push [POWER] to turn
power ON.

• The CPU is reset and the display at right appears.

CAUTION: Resetting the CPU returns the set mode

contents to their default values.

7

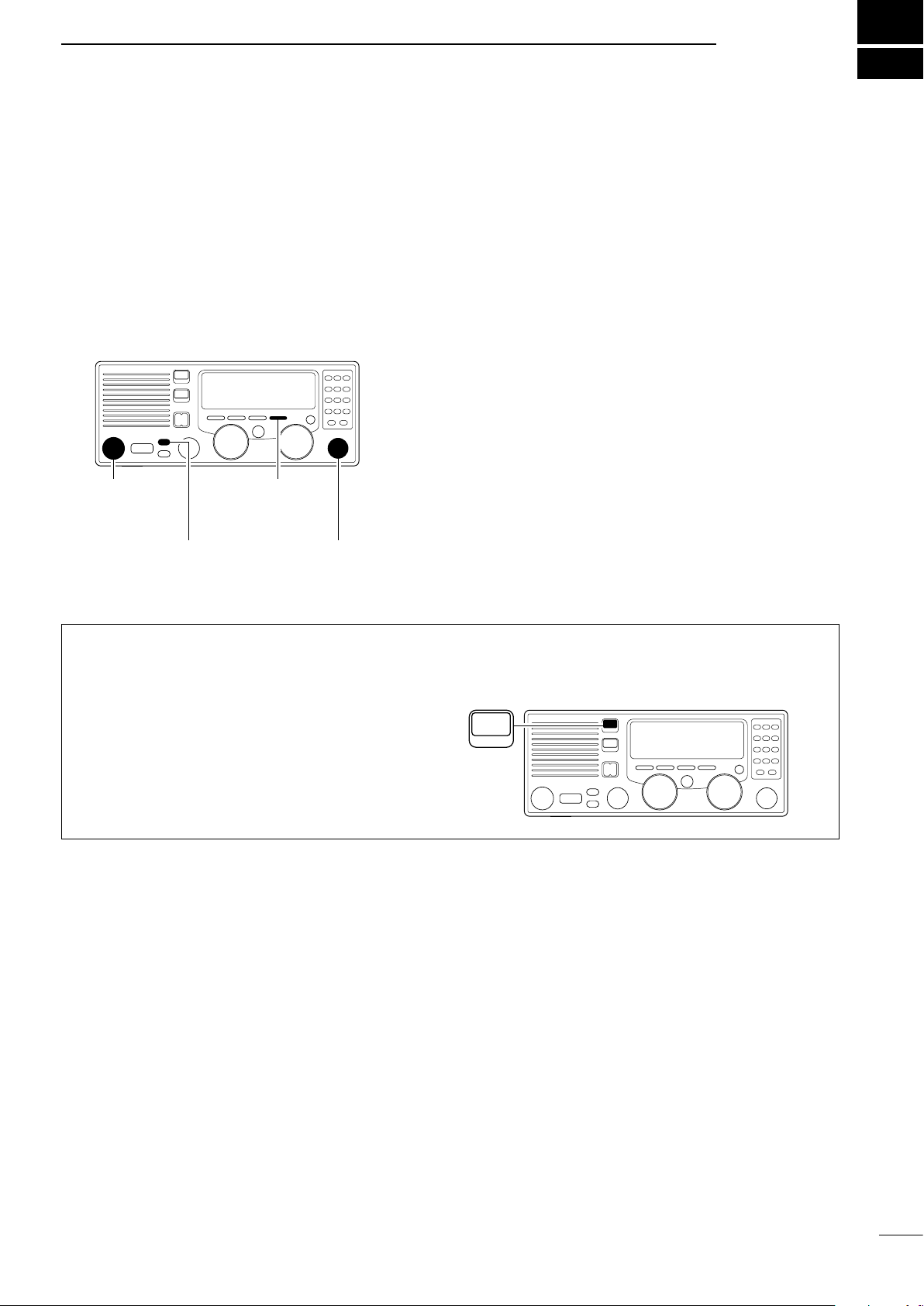

RECEIVE AND TRANSMIT

microphone
connector

[SQL]

[SPEAKER] [CLARITY]

TX FREQ

4

■ Basic voice receive and transmit

q Check the following in advance:
➥ The microphone is connected.
➥ The [SPEAKER] switch is turned OFF.
➥ The [SQL] switch is turned OFF.
➥ The [CLARITY] control is set to the center posi-

tion.

➥ The memory mode is selected.

• If necessary, push [CH/FREQ] to select the memory
mode.

w Select the desired channel to be received with the

[GROUP] and [CHANNEL] selectors.

• When receiving a signal, the S-meter shows the signal
strength.

e Adjust [VOLUME] to the desired audio level when

receiving a signal.

r If the received signal is in a different mode, push

[MODE] to select the desired operating mode.

t If connected, push [TUNE] to tune the antenna

tuner.

• This operation is not necessary when “automatic tun­ing” is selected in the set mode (p. 11).

y To transmit on the channel, push and hold the PTT

switch on the microphone.

• “TUNE” flashes for 1 to 2 seconds for the first trans­mission on a channel when an antenna tuner is con­nected.

u After the flashing stops, speak into the microphone

at your normal voice level.

• The RF meter shows the output power, according to
your voice level.

i Release the PTT switch to return to receive.

■ Functions for transmit

D Transmit frequency check

When “DUP” appears on the display, such as for a
ship-to-shore channel, the transmit frequency differs
from the receive frequency.

In such cases, the transmit frequency should be mon­itored before transmitting to prevent interference to
other stations.

Push and hold [TX FREQ] to monitor the transmit fre­quency.

• The display shows the transmit frequency.

8

4

DUP

SQL

DUP

RX

NB

DUP

RX

AGC

AGC

[CLARITY]

RECEIVE AND TRANSMIT

■ Functions for receive

D Squelch function

The squelch function detects signals with voice com­ponents and squelches (mutes) unwanted signals,
such as unmodulated beat signals. This provides
quiet standby.

When you need to receive weak signals, the squelch
should be turned OFF.

D Noise blanker

The noise blanker function reduces pulse type noise,
such as that coming from engine ignitions.

The noise blanker may distort reception of strong
signals. In such cases, the noise blanker should be
turned OFF.

Push [SQL] to toggle the function ON or OFF.

• “SQL” appears when the squelch function is turned ON.

Push [NB] to toggle the function ON or OFF.

• “NB” appears when the noise blanker function is turned
ON.

D AGC OFF function

The receiver gain is automatically adjusted accord­ing to the received signal strength with the AGC (Au­tomatic Gain Control) function, to prevent distortion
from strong signals and to obtain a constant output
level.

When receiving weak signals with adjacent strong
signals or noise, the AGC function may reduce the
sensitivity. In this situation, the AGC function should
be deactivated.

D Clarity control

Voice signals received from other stations may be
difficult to receive. This may sometimes happen if a
station is transmitting slightly off frequency. In such
cases, vary the receive frequency only, using the
[CLARITY] control.

Push [AGC] to toggle the function ON or OFF.

• “ê” appears when the AGC function is deactivated.

Adjust [CLARITY] to improve the audio signal.

9

■ CW operation

2

8

4

5

1

3

6

7

ACC(1) socket

pin 1

pin 2

CW key

2

8

4

5

1

3

6

7

ACC(1) socket

FSK terminal unit

FSK keying

AF input

Tx/Rx control

Ground

pin 3

pin 4

pins 2, 5

RECEIVE AND TRANSMIT

4

The transceiver has the following CW keying features
selectable in the set mode, as described on page

12.

➥ Full break-in (receiving is possible while transmitting)
➥ Semi break-in (automatic transmission with keying)
➥ OFF (manual transmission is necessary before keying)

q Connect a CW keyer or an external electronic

keyer to the ACC(1) socket, as shown at right.

w Select the desired channel to operate in the CW

mode.

e When the selected channel is not in the CW mode,

push [MODE] one or more times to select “CW.”

r Operate the CW keyer to transmit a CW signal.

☞ NOTE:

➥ CW mode is not available in some versions.
➥ CW narrow can be selected in the set mode

when an optional filter is installed. (p. 12)

■ FSK operation

The transceiver has FSK and J2B modes for FSK op­eration—use FSK when using the built-in oscillator;
use J2B when using an AFSK terminal unit.

CW key connection

FSK terminal unit connection

q Connect an FSK terminal unit as shown at right.
w Select the desired channel.

• FSK channels are available, depending on the ver­sion.

e Push [MODE] one or more times to select either

“FSK” or “J2B.”

r Operate the FSK terminal unit.

☞ NOTE:

➥ FSK shift frequency and FSK polarity can be

adjusted in the set mode (p. 12).

➥ Some transceivers may operate 1.7 kHz higher

than the IC-M700PRO’s J2B mode, even when
the same displayed frequencies are in use.

10

5

[POWER]

Status

Item

[ENT][1]

AT-130
(default)

AT-120

AH-3

Tuning starts when pushing
[PTT] on a new frequency.

Tuning starts only when
[TUNE] is pushed.
(default)

Channel scan

Scan is canceled when
transmitting.

Channel resume scan

Scan pauses when squelch
opens, then resumes after
10 seconds.
(default)

SET MODE

■ Set mode operation

Set mode operation is used for programming infre­quently changed values or functions.

☞ NOTE: Some of the set mode items described in

this section are not available on some transceiver
versions.

q If necessary, push [POWER] to turn power OFF.
w While pushing [ENT] and [1], push [POWER] to turn

power ON and enter the set mode.

e Rotate the [GROUP] selector to select the desired

item.

r Rotate the [CHANNEL] selector to set the values or

options for the selected item.

t Turn power OFF and then ON again to exit the set

mode.

■ Set mode contents

(1) Antenna tuner

The transceiver has several tuner control systems for
use with an optional Icom antenna tuner. Select the
condition, depending on the antenna tuner you are
using.

☞ NOTE: An internal switch selection may be re-

quired when using a non-Icom tuner (p. 19).

(2) Automatic tuning operation

When the optional AT-130 automatic antenna tuner is
connected, tuning can be started automatically with­out the [TUNE] switch, for instant operation.

If manual tuning is required, this automatic operation
can be deactivated.

(3) Scan type selection

This item sets scan to function as “channel scan” or
“channel resume scan.”

Both channel scan and channel resume scan search
around a user selected channel or search in the band
when a channel is selected.

11

(4) Scan speed

Fastest scan speed
(default)

Slowest scan speed

Passband:

2.3 kHz/ 6 dB
(default)

Passband:
500 Hz/ 6 dB

Frequency shift:
170 Hz
(default)

Frequency shift:
425 Hz

Frequency shift:
850 Hz

FSK normal
(default)

FSK reverse

Full break-in

Automatic keying without
delay time (default)

Semi break-in

Automatic keying with delay
time

OFF

Manual transmission
necessary for keying

Selects scan speed as follows:

(unit: sec./ch)

2 3 4 5 6 7 8 9 10

2 3 4 5 6 7 8 9 10

Faster Slower

(5) CW/FSK narrow filter

This selects the passband width for CW (A1A), FSK
or J2B mode.

☞ NOTE: When “ON” is selected without the optional

filter installed, the transceiver does not function in
these modes.

SET MODE

5

(6) FSK frequency shift

Several shift settings (the difference between the
mark and space frequency) are used for FSK opera­tion. This item allows you to select a shift setting for
almost any FSK system.

(7) FSK polarity

Normal and reverse polarities are available for FSK
operation. This item allows you to select one of these
polarities.

“FK-REV OFF” (normal):
key open (mark); key close (space)

“FK-REV ON” (reverse):
key open (space); key close (mark)

(8) CW break-in

The CW break-in function (in A1A mode) toggles
transmit and receive with CW keying. Full break-in al­lows you to receive signals between transmitted key­ing pulses during CW transmission. Semi break-in
allows you to mute receiving until keying stops with
a delay time.

12

5

Lowest contrast

Highest contrast

(default: 7)

NMEA ID: 1

NMEA ID: 99

(default: 2)

The [REMOTE] socket
(default)

The [CLONE] jack

Dimmest
(default)

Brightest

Minimum number of
channels set for
Group A: 1

Maximum number of
channels set for
Group A: 50 (default)

SET MODE

(9) LCD contrast

The LCD contrast can be adjusted through 10 levels,
to suit transceiver mounting angle, location and am­bient lighting.

(10) ID number setting for remote control

When connecting an external controller, such as a
personal computer, 2-digit ID codes are required to
access the transceiver. The IC-M700PRO adopts the
NMEA0183 format, and uses a “proprietary sentence”
for remote control.

(11) Remote control input terminal

Remote control signals can be input via the [RE­MOTE] socket or [CLONE] jack.

(12) Display backlighting

Allows you to select 1 of 4 intensity levels for the dis­play backlighting.

(13) Group A channel inhibit

This item allows you to set the number of usable
channels in channel group A, up to a maximum of 50
channels.

13

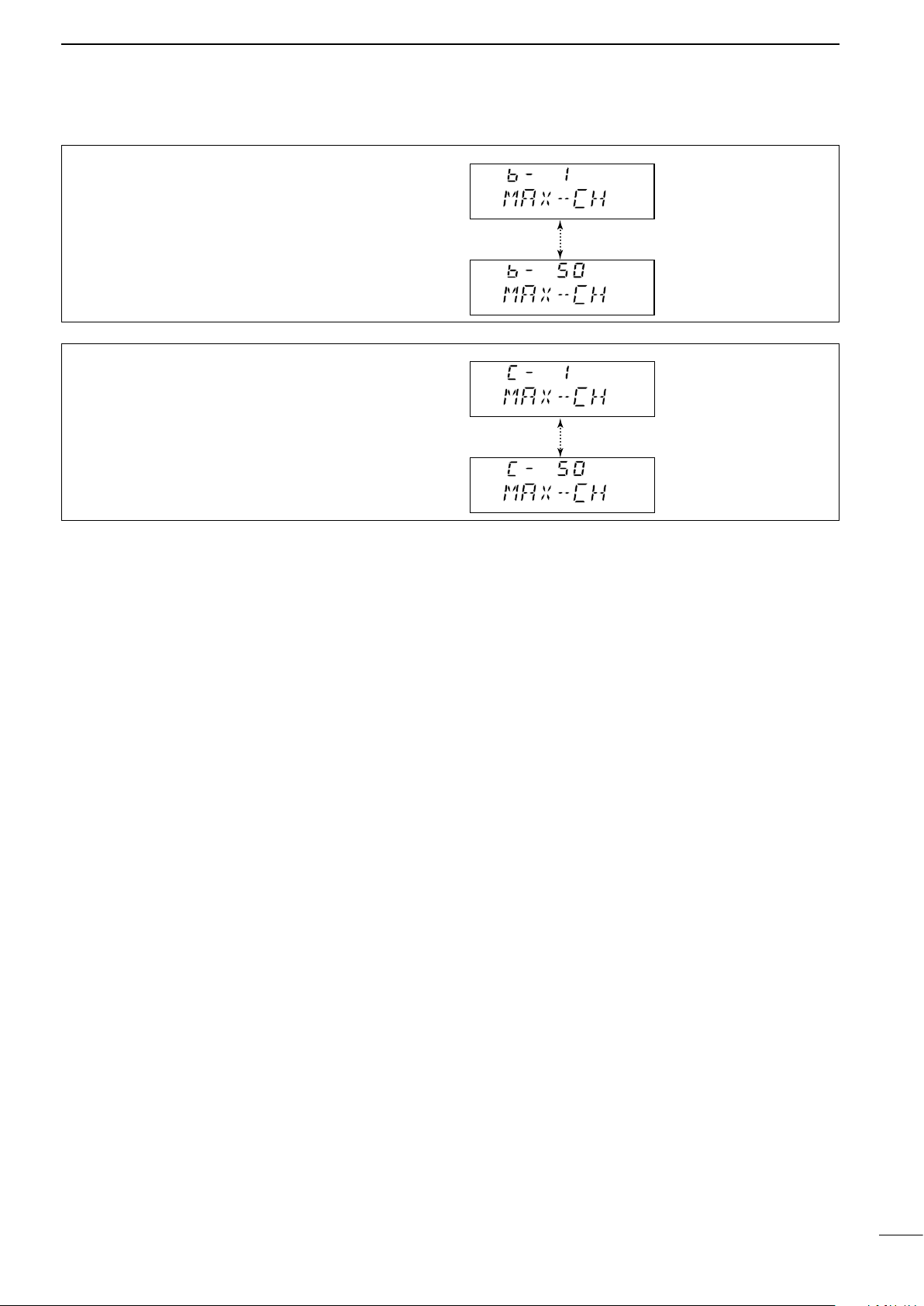

(14) Group B channel inhibit

Minimum number of
channels set for
Group B: 1

Maximum number of
channels set for
Group B: 50 (default)

Minimum number of
channels set for
Group C: 1

Maximum number of
channels set for
Group C: 50 (default)

This item allows you to set the number of usable
channels in channel group B, up to a maximum of 50
channels.

(15) Group C channel inhibit

This item allows you to set the number of usable
channels in channel group C, up to a maximum of 50
channels.

SET MODE

5

14

6

Optional AT-130

External
speaker

q

w

r

t

y

u

i

e

12 V battery

R CAUTION:
NEVER remove the

line fuse from the DC
power cable.

CONNECTIONS AND INSTALLATION

■ Connections on the rear panel

15

q ANTENNA CONNECTOR (p. 19)
Connects a 50 ø HF band antenna with a 50 ø

matched coaxial cable and a PL-259 plug.

w GROUND TERMINAL

IMPORTANT! Connects to a ship’s (or vehicle’s)

ground. See p. 18 for details.

e ACC(1) and ACC(2) SOCKETS

See p. 16 for details.

r CLONE JACK

For Dealer use only.

t REMOTE SOCKET (p. 17)
REMOTE socket for Marine and General versions.

y EXTERNAL SPEAKER JACK

Connects a 4 to 8 ø external speaker using a

monaural plug. This external audio is not muted by
the [SPEAKER] switch on the front panel.

1

⁄4”

■ Unpacking

Microphone (HM-180) ············································ 1
Microphone hanger ················································ 1
DC power cable (OPC-1107A) ······························ 1
Mounting bracket ··················································· 1
Cushion rubber ······················································ 4
Bracket knobs (8820000170) ································ 4
Flat washer (M5) ···················································· 4

CONNECTORS

DIN connector (8-pin for ACC1) ····························· 1
DIN connector (7-pin for ACC2) ····························· 1
Speaker plug (5610000440) ·································· 1
Tuner connector (5610000150) ····························· 1
Pins for tuner connector (5610000160) ·················· 4
Plates for tuner connector (6910009540) ··············· 4

u TUNER RECEPTACLE

Connects a control cable to an optional AT-130 an-

tenna tuner. A female connector is supplied for

connection.

i DC POWER RECEPTACLE

Connects to a regulated 12–16 V DC power source

such as a 12 V battery or DC power supply using
the supplied DC power cable.

CAUTION: DO NOT connect to a 24 V battery.

This will damage the transceiver.

NUTS AND BOLTS

Allen bolt (M6 × 50) ··············································· 4
Self-tapping screws (M6 × 30) ······························· 4
Nuts (M6; use 2 pcs. for each bolt) ························ 8
Flat washers (M6) ·················································· 8
Spring washers (M6) ············································· 4
Self- tapping screws

(M3 × 16 for mic. hanger) ······························· 2

FUSES

DC power cable (30 A) ·········································· 1
1205 (internal) ······················································· 2

■ Connector information

CONNECTIONS AND INSTALLATION

6

ACC(1)

2

45

13

8

67

ACC(2)

2

45

13

67

PIN NAME DESCRIPTION

PIN

SPECIFICATIONS

1 CWK CW and FSK keying input. Input level: Less than 0.6 V for transmit.
2 GND Connects to ground. Connected in parallel with ACC(2) pin 2.

3 SEND

4 MOD

5 AF

Input/output pin.
Goes to ground when transmitting.
When grounded, transmits.

Modulator input.
Usable when pin 3 is grounded.

AF detector output.
Fixed, regardless of the [AF] position.

Ground level: –0.5 to 0.8 V
Input current: Less than 20 mA
Connected in parallel with ACC(2) pin 3.

Input impedance: 10 kø
Input level: Approx. 100 mV rms

Output impedance: 4.7 kø
Output level: 100–300 mV rms

6 NC No connection.

7 13.6 V 13.6 V output when power is ON.

Output current: Max. 1 A
Connected in parallel with ACC(2) pin 7.

Control voltage: –3 to 0 V

8 ALC ALC voltage input.

Input impedance: More than 10 kø
Connected in parallel with ACC(2) pin 5.

PIN NAME DESCRIPTION

PIN

1 8 V Regulated 8 V output.

Output voltage: 8 V ±0.3 V
Output current: Less than 10 mA

SPECIFICATIONS

2 GND Same as ACC(1) pin 2.
3 SEND Same as ACC(1) pin 3.
4 NC No connection.
5 ALC Same as ACC(1) pin 8.
6 RLC T/R relay control output. When transmitting: 0 V (less than 0.5 A)
7 13.6 V Same as ACC(1) pin 7.

MICROPHONE PIN NAME DESCRIPTION

PIN

1 MIC+

Audio input from the microphone
element.

2 NC No connection.

1

2

3

7

8

6

54

3 AF1

4 AF2

AF output controlled with [VOLUME].
Connected to pin 4 in the microphone.

AF input.

Connected to pin 3 in the microphone.
5 PTT PTT switch input. When grounded, transmits.
6 GND Connected to ground.
7 MIC– Coaxial ground for MIC+.
8 AF– Coaxial ground for AF1 and AF2.

TUNER PIN NAME DESCRIPTION

12

PIN

1 KEY Key signal input. –0.5 to 0.8 V during tuning
2 START Start signal output. Pulled up 8 V, 0 V(100 msec) as start signal.
3 13.6V 13.6 V output Max. current:2 A

34

4

E

_ terminal

SPECIFICATIONS

Input impedance: 600 ø

Output impedance: 4 ø

SPECIFICATIONS

Ground

16

6

CONNECTIONS AND INSTALLATION

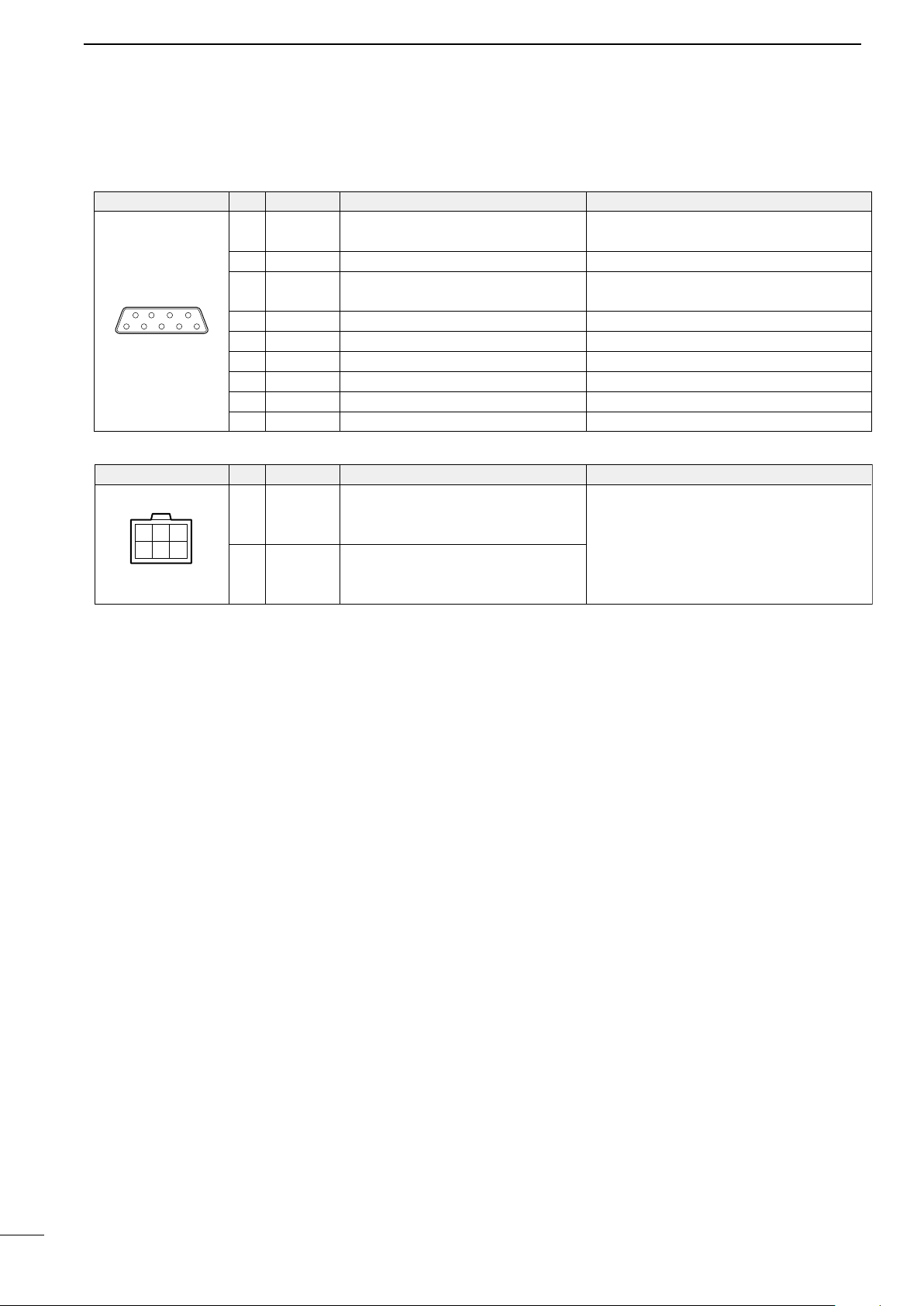

■ Connector information (Continued)

REMOTE

69

51

DC 13.6V PIN NAME DESCRIPTION

1 2
4 635

PIN NAME DESCRIPTION

PIN

1 MOD+

2 MOD– Coaxial ground for MOD+.

3 AF+

4 AF– Coaxial ground for AF+.
5 NMI+ NMEA data input. NMEA standard format/level
6 NMI– Coaxial ground for NMI+.
7 NMO+ NMEA data output. NMEA standard format/level
8 NMO– Coaxial ground for NMO+.
9 GND Ground for digital equipment.

PIN

1–3 + + DC input

4–6

– _ DC input

Modulation input from an external
terminal unit.

AF detector output for an external
terminal unit.

SPECIFICATIONS

Input impedance: 600 ø
Input level:Approx. 1.3 mV rms

Output impedance: 600 ø
Output level: 0.25–2.5 V rms

SPECIFICATIONS

Max. power consumption: 30 A

17

■ Ground connection

Crimp

Solder

or

Supplied
DC power cable

red

black

12 V
battery

Optional AT-130

Transceiver

Copper pipe Metal object Copper screen

The transceiver and antenna tuner MUST have an
adequate ground connection. Otherwise, the overall
efficiency of the transceiver and antenna tuner instal­lation will be reduced. Electrolysis, electrical shocks
and interference from other equipment could also
occur.

For best results, use the heaviest gauge wire or strap
available and make the connection as short as possi­ble. Ground the transceiver and antenna tuner to one
ground point, otherwise voltage differences between
2 ground points may cause electrolysis.

CAUTION: The IC-M700PRO has a negative

ground. NEVER connect the IC-M700PRO to a
“positive ground system,” otherwise the transceiver
will not function.

Ground system example

CONNECTIONS AND INSTALLATION

Good ground points

• Ship’s ground terminal

• External ground plate

• External copper screen

Acceptable ground points

• Stainless steel tuna tower

• Stainless steel stanchion

• Through mast

• Through hull

• Metal water tank

Undesirable ground points

(these points may cause electrolysis)

• Engine block

• Keel bolt

Unusable ground points

(these connections may cause an explosion or elec­trical shock)

• Gas or electrical pipe

• Fuel tank

• Oil-catch pan

6

■ Power source

The transceiver requires regulated DC power of

13.6 V and at least 30 A. There are 3 ways to sup­ply power:

• A direct connection to a 12 V battery in your ship,
through the supplied DC power cable.

CAUTION: The supplied DC power cable MUST be

used to provide power to the transceiver. AVOID ex­ceeding the 3 m (10 ft) length of the DC power cable.
If it is necessary to make a run of over 3 m (10 ft),
use a #6 or similar gauge wire instead of the sup­plied DC power cable, for a maximum run of 6 m
(20 ft).

DC power cable connection

☞ NOTE: Use terminals for

the cable connection.

18

6

Coaxial cable

To antenna element

Control cable (sold separately)
An optional OPC-566 is available

IC-M700PRO

[13.6]

[E]

[START]

[KEY]

[E]

[KEY]
[13.6]

[START]

AT-130

S9
(Start port level)

S11
(Key port input)

CONNECTIONS AND INSTALLATION

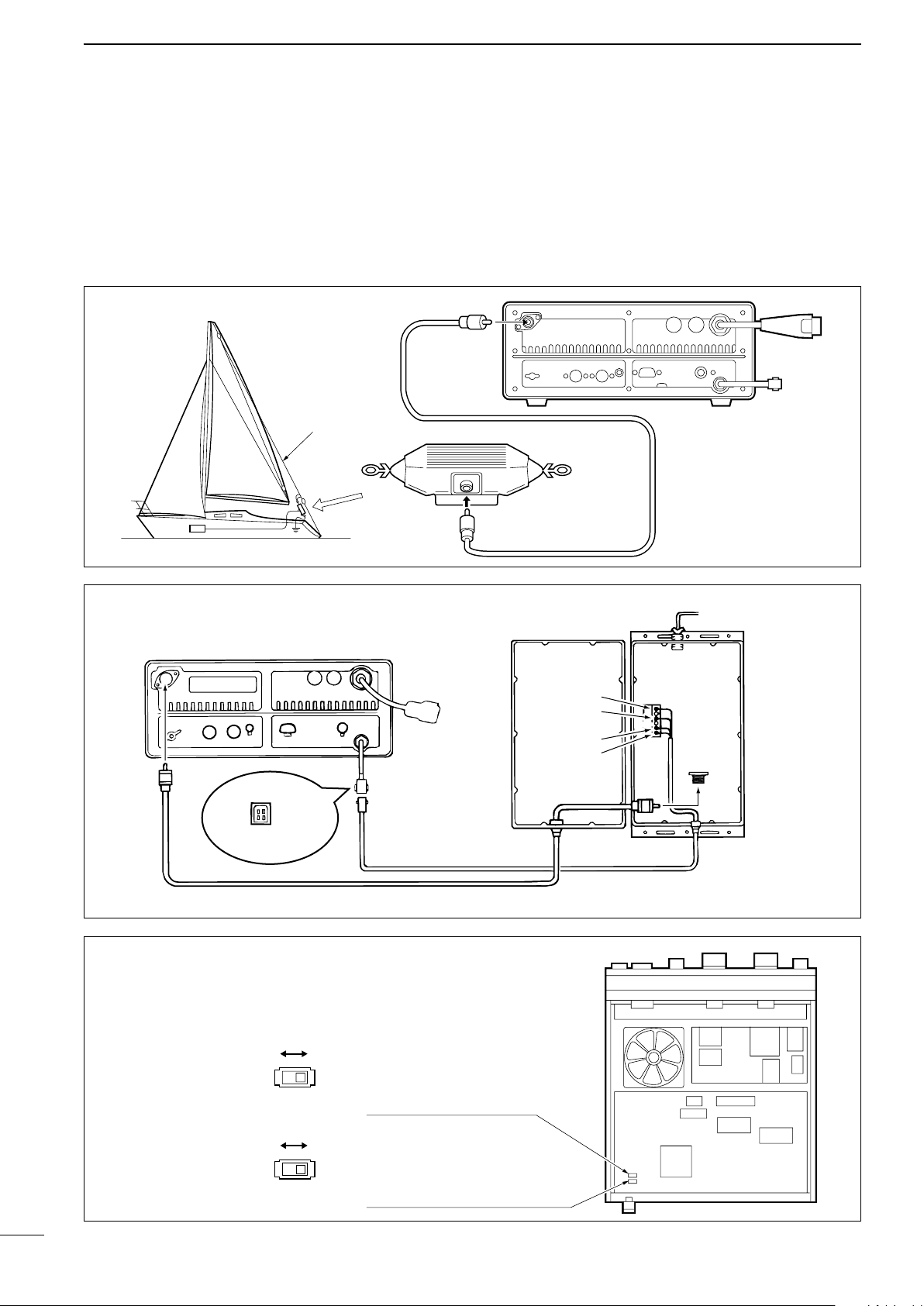

■ Antenna

Most stations operate with a whip or long wire (insu­lated backstay) antenna. However, these antennas
cannot be connected directly to the transceiver, since
their impedance may not be matched with the trans­ceiver antenna connector.

D MN-100/MN-100L ANTENNA MATCHERS

Antenna wire

MN-100/MN-100L

D AT-130 AUTOMATIC ANTENNA TUNER

Even with a 50 ø matched antenna, all marine bands
may not be fully usable. The following antenna
matcher, or antenna tuner may be helpful for proper
antenna installation.

19

D Non-Icom tuner

Some non-Icom tuners may be used with the IC­M700PRO. Please consult your dealer or marina if
you wish to use one. The following internal settings
may be required for connection.

Supplies 8 V when push-

ing [TUNE].

Accepts “LOW” as an an-

swer back signal.

Grounded when pushing [TUNE].
(used for AT-130—default)

Accepts “HIGH” as an answer back signal.
(used for AT-130—default)

■ Mounting

Spring washer

Flat
washers

Nuts
(Use two nuts to
prevent loosening.)

115

(4

1

/

2

)

67

(2

5

/

8

)

93.5

(3

11

/

16

)

100 (3

15

/

16

)

152

(6)

58

(2

9

/

32

)

290

(11

7

/

16

) 280 (11)

312.5 (12

5

/

16

)

350 (13

25

/

32

)

319 (12

9

/

16

)

143

(5

5

/

8

)

170 (6

11

/

16

)

Unit:mm(inches)

CONNECTIONS AND INSTALLATION

6

R

WARNING: NEVER mount the transceiver

overhead. The weight of the transceiver is approxi­mately

7.9 kg. (17.4 lb)

, but its apparent weight will
increase several fold due to wave shocks or vibra­tion. The transceiver must be mounted on a flat,
hard surface.

D Mounting example

D Mounting location

Select a location that provides easy access to the front
panel for navigation safety, has good ventilation and
is not subject to sea spray. The face of the transceiver
should be at 90 degrees to your line of sight when op­erating it.

CAUTION: KEEP the transceiver and microphone at
least 1 meter away from your vessel’s magnetic navi­gation compass.

Check the installation angle; the display may not be
easy to read at some angles.

D Transceiver dimensions

20

6

Rear frame

Rear sealing

Front sealing

CONNECTIONS AND INSTALLATION

■ Disassembling the transceiver

D Opening the case

Follow the case and cover opening procedures
shown here when you want to adjust a setting for
non-Icom tuner control.

q Remove the 9 screws from the rear panel, then re-

move the rear frame and rear sealing.

w Remove the transceiver case.
e When reassembling the transceiver, check the fol-

lowing points:

➥ Internal fan and slits in the case are on the

same side.
➥ Front sealing is mated correctly.
➥ Rear sealing is attached in the proper

orientation.
➥ Screws are tightened securely.

■ Fuse replacement

The fuses are installed in the DC power cable and
the circuitry in the body, to protect the transceiver.

D DC power cable fuse

FGB 30 A

D Circuitry fuse

5 A

21

PROBLEM POSSIBLE CAUSE SOLUTION REF.

POWER

÷

÷

÷

÷

p. 18
p. 21

RECEIVE

÷

÷

÷

÷

÷

÷

p. 2
p. 2

p. 9

÷

÷

÷

÷

pgs.
2, 11

p. 11

÷

÷

÷

÷

÷

÷

÷

÷

p. 3

p. 9

p. 9

p. 9

TRANSMIT

÷

÷

÷

÷

pgs.
2, 11

p. 3

÷

÷

÷

÷

p. 3

DISPLAY

÷ ÷ p. 13

÷

÷ p. 9

Reconnect the cable securely.
Find and repair the cause of the
problem and then replace the damaged
fuse with a new one.

Turn ON the [SPEAKER] switch.
Connect the microphone to the
[MICROPHONE] connector.
Adjust the squelch to proper level or
push [SQL] to turn it OFF to receive
weak signals.

Push [TUNE] to tune the using antenna
tuner or select “automatic tuning” in the
set mode when using an optional
AT-130.
Set the proper tuner for the connected
tuner.
Adjust the squelch to proper level.

Push [MODE] to select the proper
operating mode.
Push [AGC] to activate the AGC
function.
Push [NB] to turn the noise blanker
OFF.
Adjust the [CLARITY] control to receive
proper audio output.

Push [TUNE] to tune the using antenna
tuner, or select “automatic tuning” in
the set mode.
Push [MODE] to select USB mode (or
AM, R3E, etc.).

Push [MODE] to select the proper
operating mode.
Speak into the microphone naturally
and do not hold the microphone too
close to your mouth.

Set to the proper display contrast.

Power cable is improperly connected.
The DC power cable fuse or circuitry
fuse is blown.

The [SPEAKER] switch is turned OFF.
Microphone is not connected.

The squelch is closed.

Antenna is not properly matched to the
operating frequency.

Wrong tuner is selected in the set
mode.
The squelch is set to deep.

No sound comes from the
speaker.

Power does not come ON
when [POWER] is pushed.

Sensitivity is too low and
only strong signals are
audible.

The received audio is
unclear or distorted.

Your signal does not
reach as far away as
usual.

Transmit signal is unclear
or distorted.

All indicators appear and
the channel number can
not be read.

Wrong operating mode is selected.

AGC is deactivated while receiving a
strong signal.
Noise blanker is turned ON when
receiving a strong signal.
The [CLARITY] control is rotated too
far clockwise or counterclockwise.

The antenna tuner is improperly
matched to the operating frequency
when manual tuning is selected.
CW or FSK mode is selected for voice
transmission.

The wrong operation mode is selected.

Microphone is too close to your mouth.

The highest contrast is selected in the
set mode.

What appears to be equipment malfunction may not
be damaging or difficult to solve. Check the following
chart before making any adjustments or sending the
transceiver to an Icom Service Center.

TROUBLESHOOTING

7

22

8

SPECIFICATIONS AND OPTIONS

■ Specifications

GENERAL

• Frequency coverage :
Receive 500 kHz–29.999 MHz
Transmit 1.6– 2.9999 MHz 4.0– 4.9999 MHz

6.0– 6.9999 MHz 8.0– 8.9000 MHz

12.0– 13.9999 MHz 16.0– 17.9999 MHz

18.0– 19.9999 MHz 22.0– 22.9999 MHz

25.0– 27.5000 MHz

• Mode : USB, AM, CW, FSK and AFSK
(

• Number of channels : 150 channels (max.)

• Antenna impedance : 50 ø nominal

• Usable temp. range : –30°C to +60°C

• Frequency stability : ±10 Hz

• Power supply requirement : 13.6 V DC±15%

• Current drain :
Transmit
Receive

• Dimensions : 291.4(W)×116.4(H)×315(D) mm
(projections not included) 11.3(W)×4.4(H)×12.8(D) in

• Weight (approx.) : 7.9 kg; 17.4 lb

(max. output power) 30 A

(max. audio output) 2.5 A (negative ground)

available modes differ with the
version)

3 groups of 50 channels each

(–22°F to +140°F)

(–30°C to +60°C; –22°F to +140°F)
( ±20 Hz above 15 MHz for Gen-

eral and Marine versions)

( negative and floating grounds

available depending on the ver­sion)

TRANSMITTER

• Output power : 150 W pep

(60 W above 24 MHz)

• Spurious emissions : –75 dB typical

• Carrier suppression : 65 dB typical

• Unwanted sideband suppression : 70 dB typical

• Microphone impedance : 600 ø

RECEIVER

• Sensitivity
USB, CW, AFSK, FSK,

0.35 µV

1.0 µV (1.6–1.7999 MHz)

6.3 µV (0.5–1.5999 MHz)

AM (for 10 dB S/N):

2.2 µV

6.3 µV (1.6–1.7999 MHz)

32 µV (0.5–1.5999 MHz)

• Spurious response rejection : 80 dB typical

• Audio output power : 4.0 W (at 10% distortion

• Audio impedance : 4 ø

• Clarity variable range : ±150 Hz

All stated specifications
tice or obligation.

(for 12 dB SINAD):

typical (1.8–29.9999 MHz)

typical (1.8–29.9999 MHz)

(1.6–29.9999 MHz)

with a 4 ø load)

(4 to 8 ø acceptable)

are subject to change without no-

23

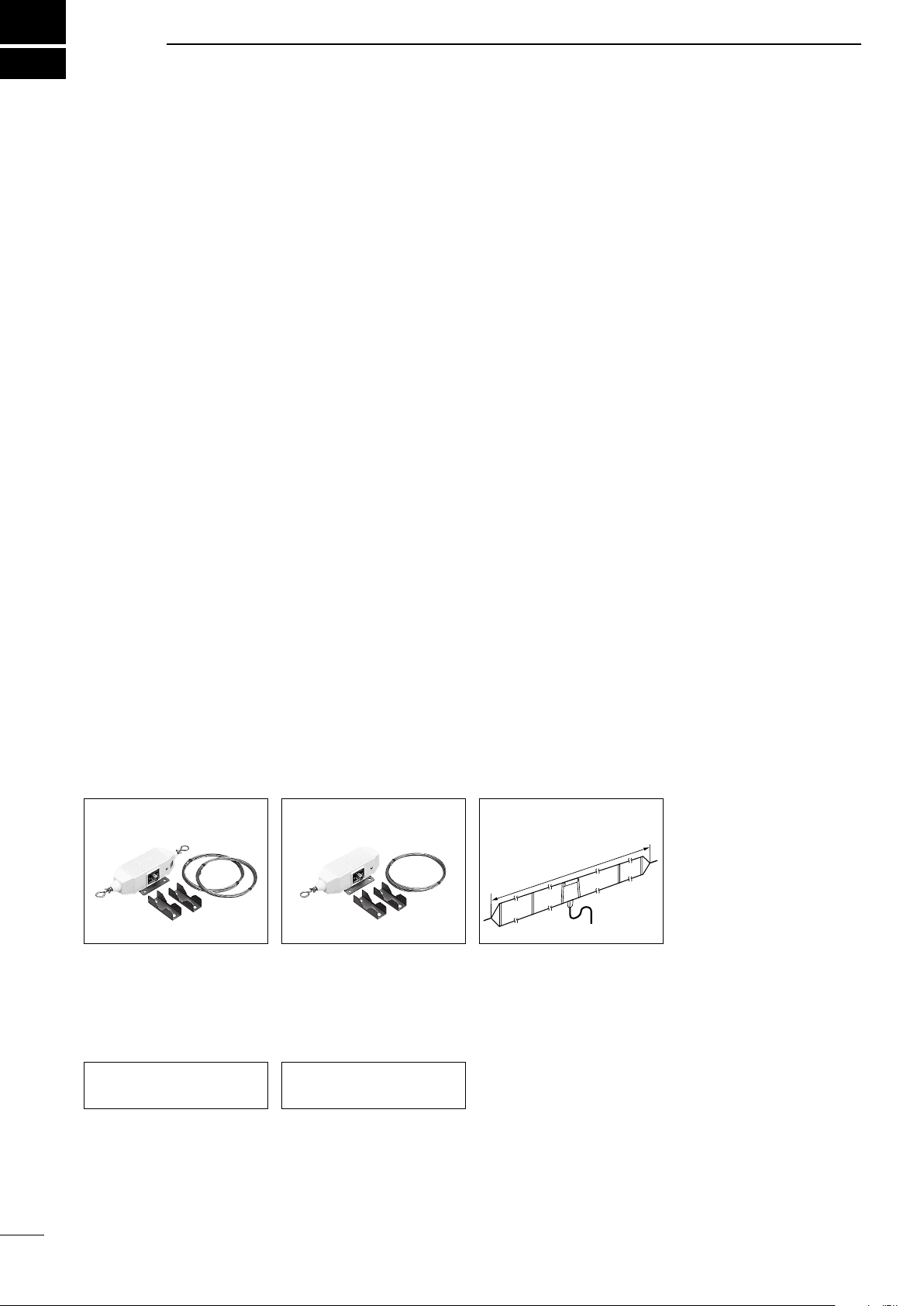

■ Options

MN-100

antenna matcher

Matches the transceiver to a
dipole antenna. Covers all HF
bands from 1.5 to 30 MHz.
8 m (26 ft.) × 2 antenna wires
are included.

AT-130

automatic antenna tuner

Matches the transceiver to a
long wire antenna with a mini­mum of insertion loss.

MN-100L

antenna matcher

Matches the transceiver to a
long wire antenna. Covers all
HF bands from 1.5 to 30 MHz.
15 m (49 ft.) × 1 antenna wire
are included.

OPC-566

control cable

The optional control cable for
AT-130.

AH-710

folded dipole antenna

approx. 24.5 m; 80.3 ft

Covers from 1.9 to 30 MHz
band. Has an SO-239 con­nector. Easy to assemble
(non-kink construction).

Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event the Icom transceiver is used
with equipment that is not manufactured or approved by
Icom.

MEMO

24

A5472H-1EX-3a
Printed in Japan
© 1997–2017 Icom Inc.

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
