ICOM ID-1 User guide

INSTRUCTION MANUAL

MIC

TD/RD PWR TX/RX

POWER

TRANSCEIVER

ID-1

DIGITAL

DIGITAL TRANSCEIVER

ID-1

FOREWORD

IMPORTANT

Thank you for purchasing this Icom product. The ID-1

TRANSCEIVER

nology and craftsmanship. With proper care, this product
should provide you with years of trouble-free operation.

We want to take a couple of moments of your time to thank
you for making your ID-1 your radio of choice, and hope you
agree with Icom’s philosophy of “technology first.” Many hours
of research and development went into the design of your ID-

1.

DD

FEATURES

is designed and built with Icom’s superior tech-

❍ FM, Digital Voice and Data modes available

❍ Standard PC control application via USB

terminal connection

Remote controller for current mobile trans-

❍

ceiver style operation

(optional for some versions)

❍ Standard 10BASE-T connector for data

transmission/reception

i

DIGITAL

READ ALL INSTRUCTIONS carefully and completely

before using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This in-

struction manual contains important operating instructions for
the ID-1.

EXPLICIT DEFINITIONS

WORD DEFINITION

R WARNING!

CAUTION

NOTE

Icom, Icom Inc. and the logo are registered trademarks of Icom
Incorporated (Japan) in the United States, the United Kingdom, Ger­many, France, Spain, Russia and/or other countries.
Microsoft and Windows are registered trademarks of Microsoft Cor­poration in the United States and/or other countries.
All other products or brands are registered trademarks or trademarks
of their respective holders.

Personal injury, fire hazard or electric shock
may occur.

Equipment damage may occur.

Recommended for optimum use. No risk of
personal injury, fire or electric shock.

PRECAUTION

RWARNING RF EXPOSURE! This device emits

Radio Frequency
served when operating this device. If you have any questions re­garding RF exposure and safety standards please refer to the
Federal Communications Commission Office of Engineering and
Technology’s report on Evaluating Compliance with FCC Guide­lines for Human Radio frequency Electromagnetic Fields

Bulletin 65)

(RF) energy. Extreme caution should be ob-

(OET

.

RWARNING! NEVER connect the transceiver to an AC

outlet. This may pose a fire hazard or result in an electric shock.

RWARNING! NEVER operate the transceiver while dri-

ving a vehicle. Safe driving requires your full attention—anything
less may result in an accident.

RWARNING! NEVER transmit without an operational

antenna for 1.2 GHz operation. Transmission into a shorted or
non resonant antenna may damage the transceiver.

NEVER cut the DC power cable between the DC plug and

fuse holder. If an incorrect connection is made after cutting, the
transceiver may be damaged.

NEVER connect the transceiver to a power source of more

than 16 V DC. This will damage the transceiver.

NEVER connect the transceiver to a power source using re-

verse polarity. This will damage the transceiver.

NEVER expose the transceiver to rain, snow or any liquids.

The transceiver may be damaged.

NEVER operate or touch the transceiver with wet hands. This

may result in an electric shock or damage the transceiver.

NEVER place the transceiver where normal operation of the

vehicle may be hindered or where it could cause bodily injury.

NEVER let objects impede the operation of the cooling fan on

the rear panel.

DO NOT push the PTT when not actually desiring to trans-

mit.

DO NOT allow children to play with any radio equipment con-

taining a transmitter.

During mobile operation,
without running the vehicle’s engine. When the transceiver’s
power is ON and your vehicle’s engine is OFF, the vehicle’s bat­tery will soon become exhausted.

DO NOT operate the transceiver

BE CAREFUL! The transceiver will become hot when op-

erating it continuously for long periods.

ii

PRECAUTION

AVOID using or placing the transceiver in direct sunlight or in

areas with temperatures below –10°C (+14˚F) or above +60°C
(+140˚F).

AVOID the use of chemical agents such as benzine or alcohol

when cleaning, as they can damage the transceiver’s surfaces.

USE Icom microphones only (supplied or optional). Other man-

ufacturer’s microphones have different pin assignments and may
damage the transceiver if attached.

DO NOT use the supplied CD for any other devices.
The CD is for the ID-1 only.

If a connection cable is disconnected or has a loose connec­tion during operation, an error may occur. Connect the con­nectors correctly, and DO NOT touch the connectors during
operation.

For the operation of PC and peripheral devices, follow the in­structions provided in the manuals which come with the PC
and peripheral devices.

This device may cause signal interference when used in a do­mestic setting. When interference occurs, move this unit as
far as possible away from the affected device.

All copyrights associated with this manual and all intellectual
property rights associated with the hardware and software of
the ID-1 are held by Icom Inc.

Unauthorised reproduction or transmission of this manual, or
any part hereof, is prohibited.

The content of this manual, the hardware and software asso­ciated with the ID-1, and the appearance of the ID-1 are all
subject to change without notice.

For U.S.A. only

CAUTION: Changes or modifications to this device, not ex-

pressly approved by Icom Inc., could void your authority to
operate this device under FCC regulations.

iii

o!0

q

!2

ew

ty

ui

!1

r

SUPPLIED ACCESSORIES

qMicrophone (HM-118N) ……………………………………1
wExternal speaker (SP-22) …………………………………1
eEthernet cable coupler ……………………………………1
rDC power cable (3 m; 9.8 ft) ………………………………1
tUSB extension cable (1.5 m; 4.9 ft) ………………………1
yEthernet cable (3 m; 9.8 ft) …………………………………1
uSelf-adhesive rubber feet …………………………………1
iApplication CD ………………………………………………1
oRemote controller (RC-24)*…………………………………1
!0Mounting bracket for remote controller* …………………1
!1Mounting screws, nuts and washers* ………………1 set
!2Mic extension cable (2.5 m; 8.2 ft)* ………………………1

*Optional for some versions.

iv

TABLE OF CONTENTS

FOREWORD .................................................................................... i

IMPORTANT .............................................................................. i

EXPLICIT DEFINITIONS ........................................................... i

PRECAUTION ........................................................................... ii

SUPPLIED ACCESSORIES ..................................................... iv

TABLE OF CONTENTS ............................................................ v

1 PANEL DESCRIPTION .................................................. 1–12

■ Front panel ........................................................................ 1

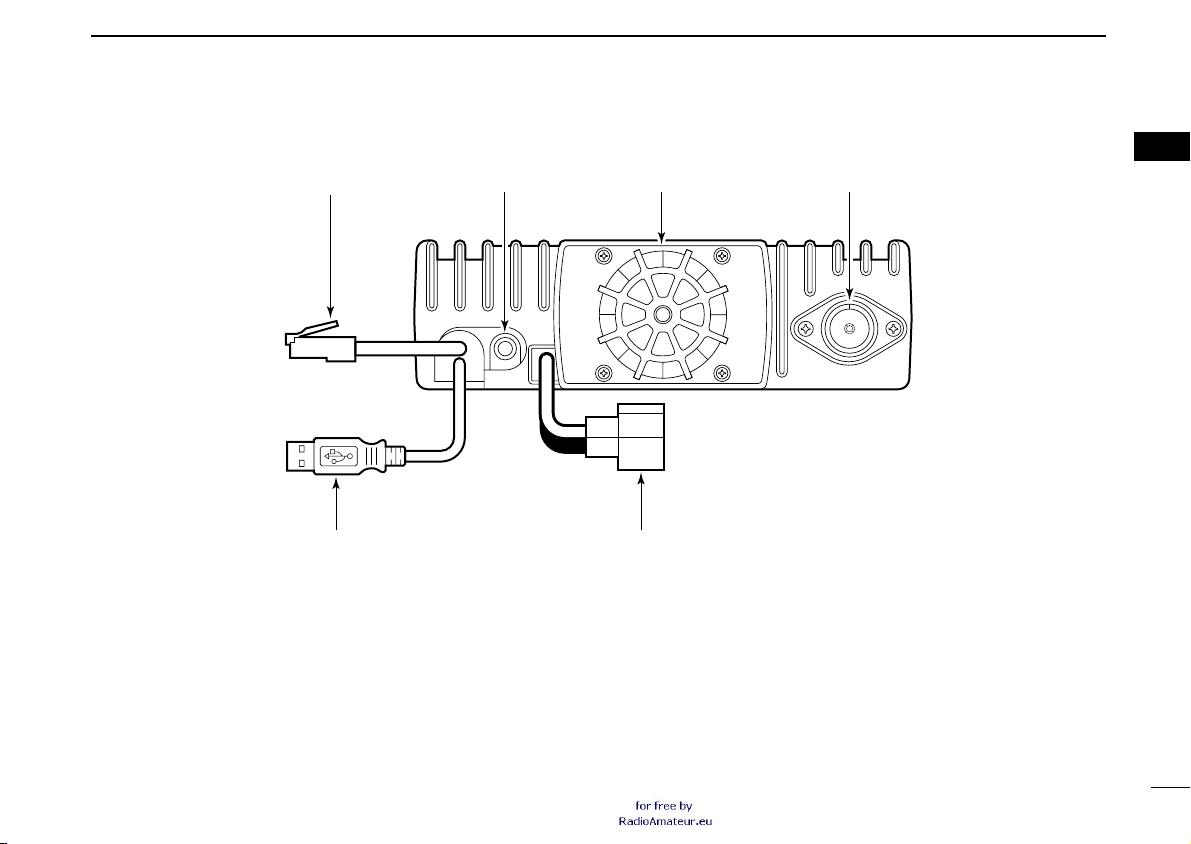

■ Rear panel ........................................................................ 2

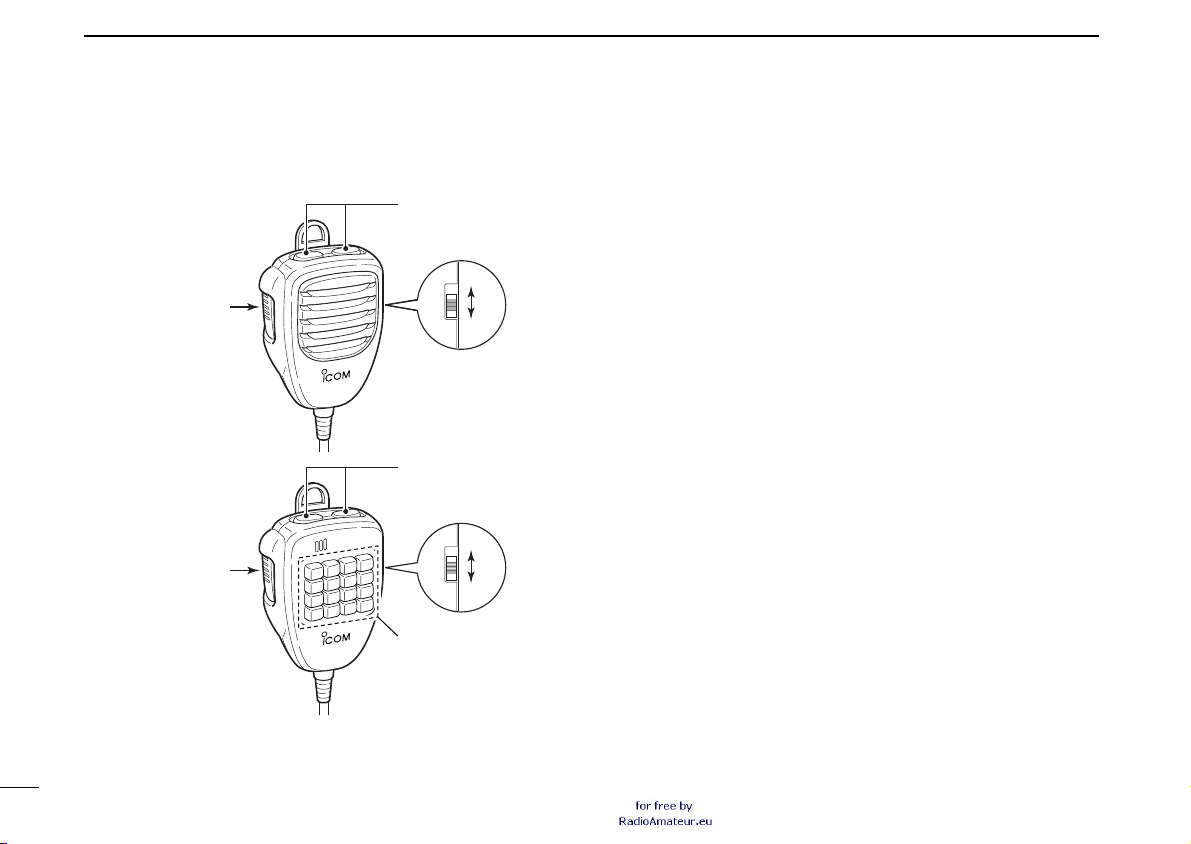

■ Microphones (HM-118N/TN) ............................................. 3

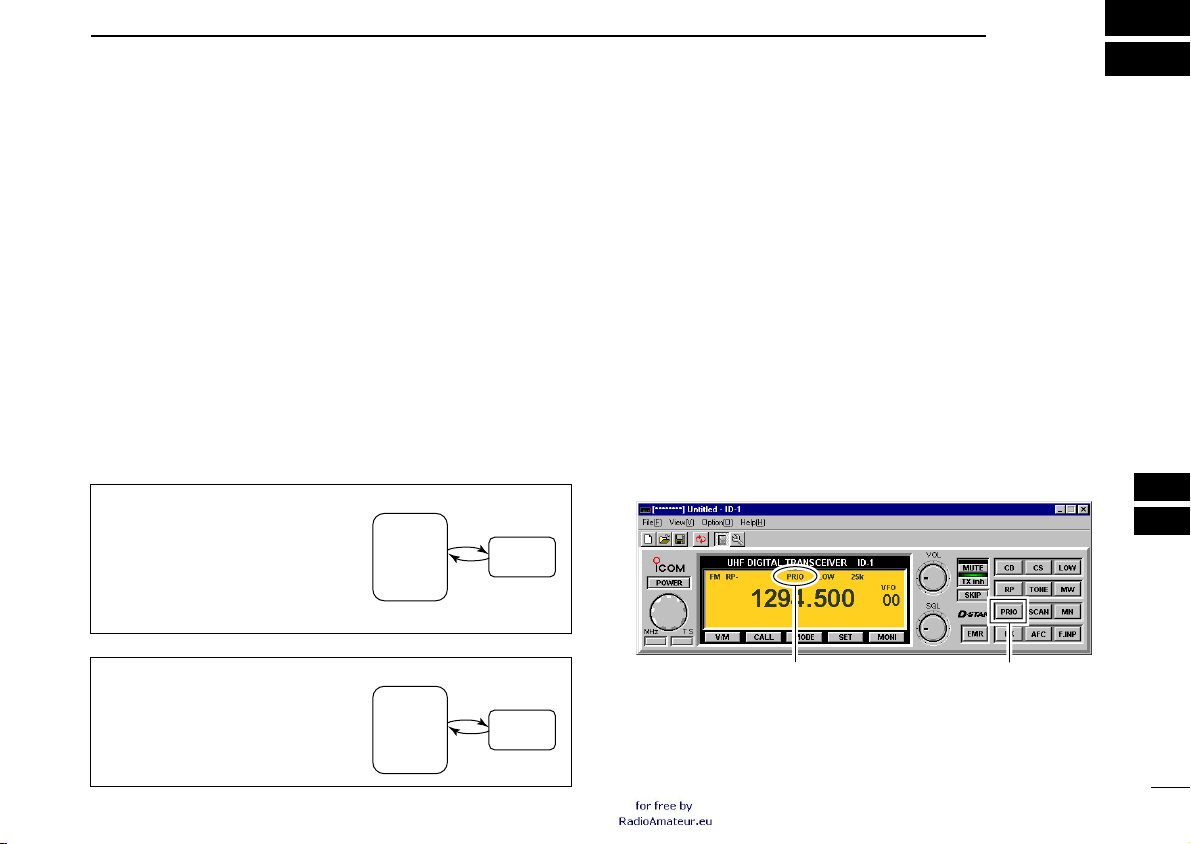

■ Application screens ........................................................... 4

■ Remote controller (RC-24; Optional for some versions) ... 9

2 INSTALLATION AND CONNECTIONS ....................... 13–17

■ Unpacking ....................................................................... 13

■ Selecting a location ......................................................... 13

■ Antenna connection ........................................................ 13

■ Power supply connections .............................................. 15

■ Microphone and speaker connections ............................ 16

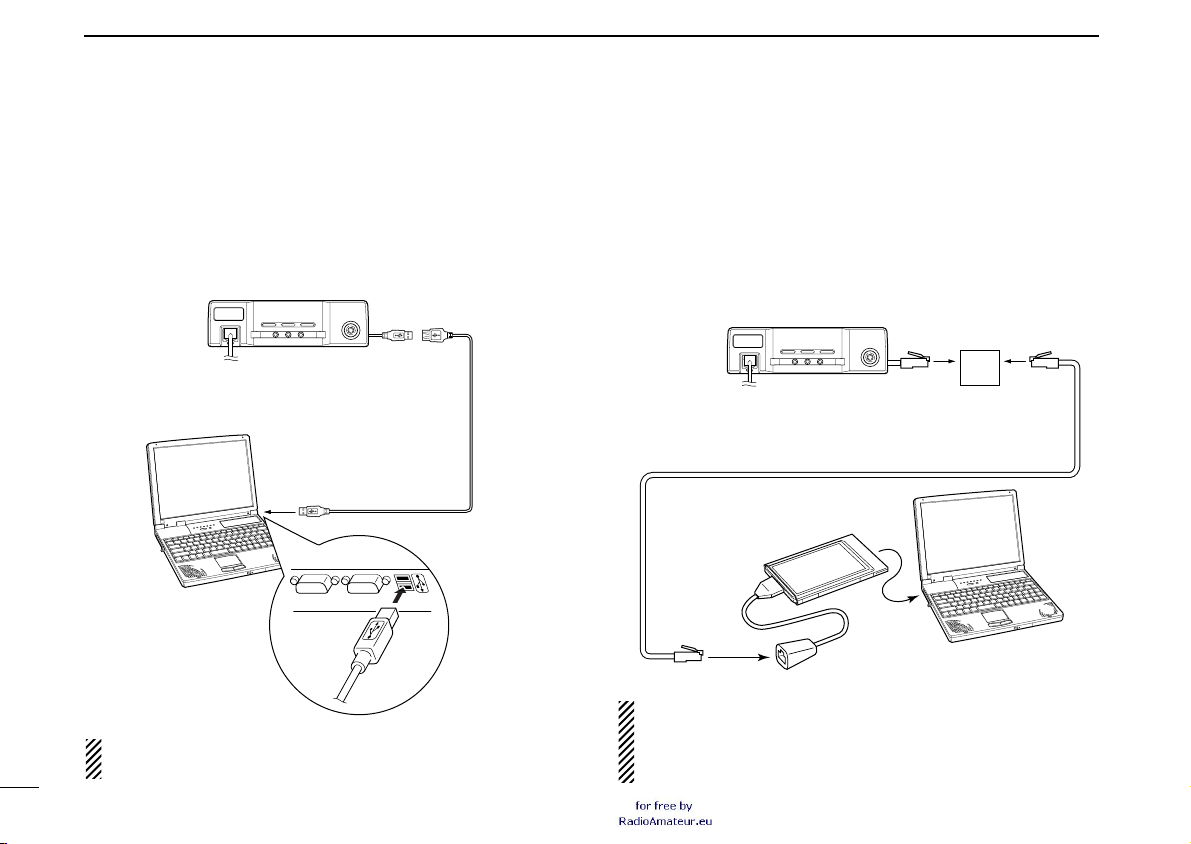

■ Connecting a PC ............................................................. 17

3 DRIVER INSTALLATION ............................................. 18–29

■ Microsoft

■ Microsoft

■ Microsoft

®

Windows®XP ................................................. 18

®

Windows®98/Me ............................................ 22

®

Windows®2000 .............................................. 23

■ COM port confirmation .................................................... 28

4 APPLICATION INSTALLATION .................................. 30–31

5 BASIC OPERATION .................................................... 32–38

■ Preparation ..................................................................... 32

■ Squelch level adjustment (FM mode only) ...................... 33

v

■ Audio level adjustment .................................................... 34

■ VFO and memory mode ................................................. 34

■ Setting a frequency ......................................................... 35

■ Tuning step selection ...................................................... 37

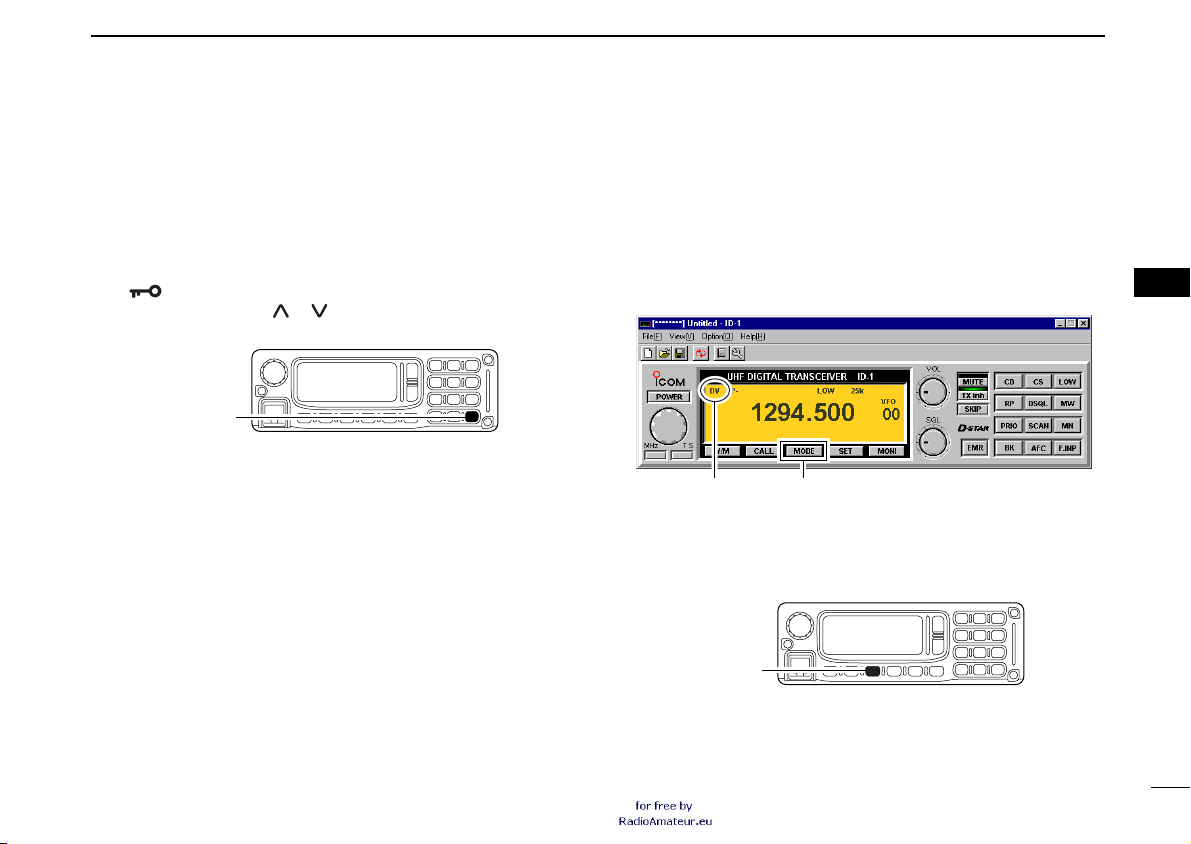

■ Lock function (RC-24 only) ............................................. 38

■ Operating mode selection ............................................... 38

6 CALL SIGN PROGRAMMING ..................................... 39–44

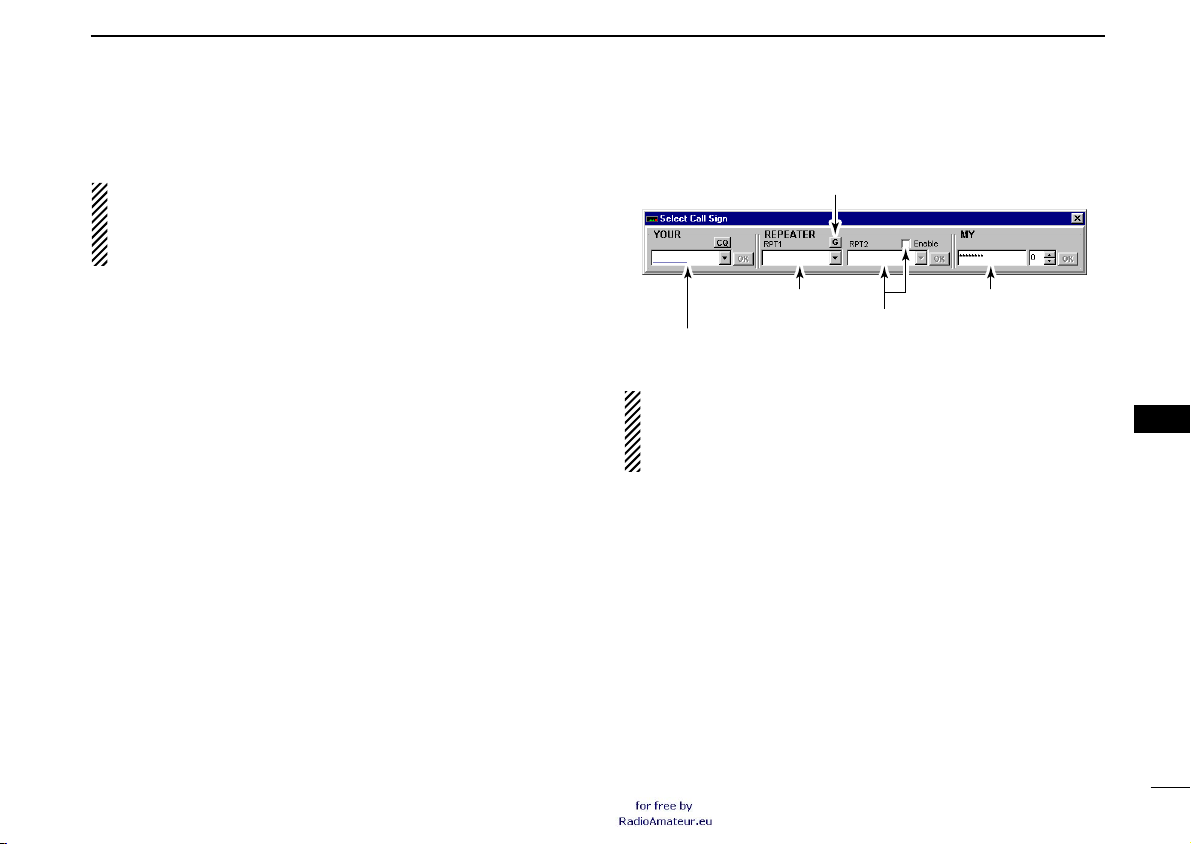

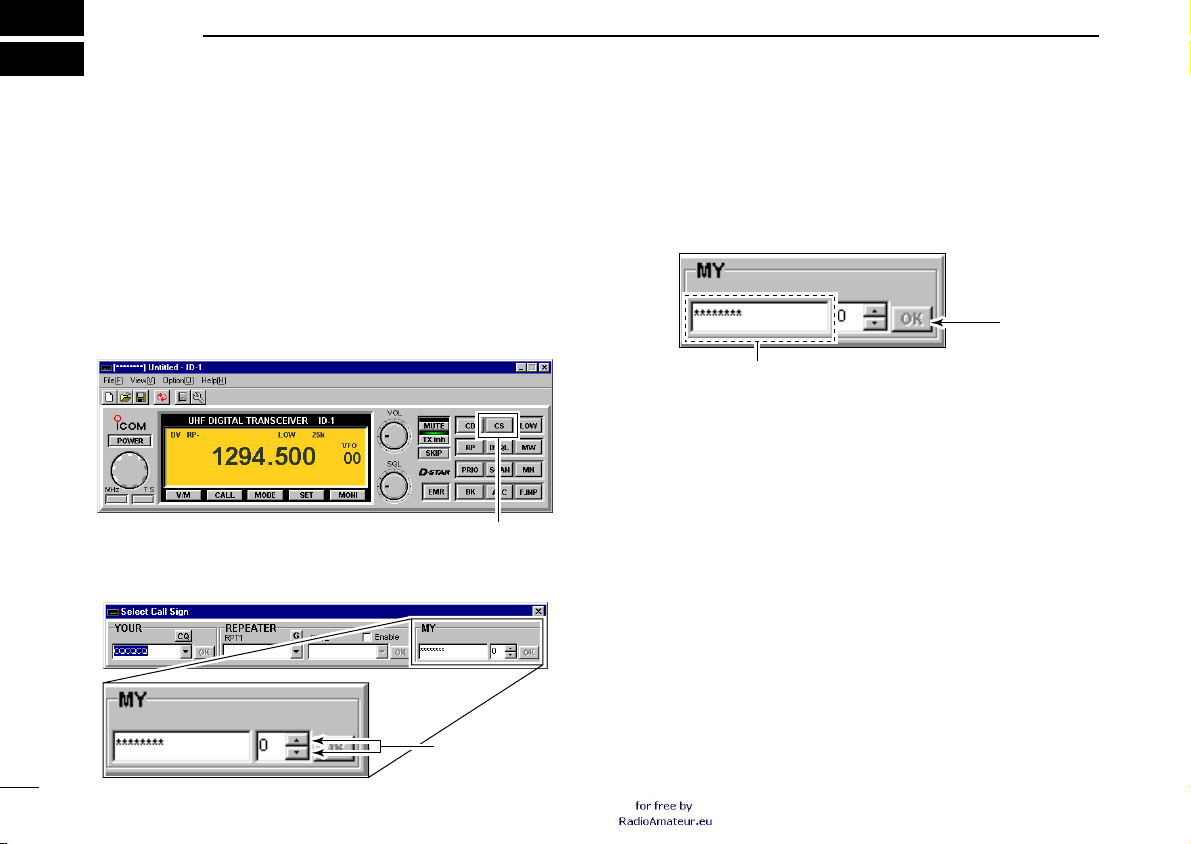

■ Your call sign programming ............................................ 39

■ Station/Repeater call sign programming ......................... 42

7 TRANSMIT AND RECEIVE— VOICE .......................... 45–50

■ FM mode operation ......................................................... 45

■ Digital voice mode operation .......................................... 45

■ When receiving a Digital call............................................ 47

■ S-meter squelch .............................................................. 48

■ AFC function ................................................................... 49

■ Monitor function .............................................................. 49

8 REPEATER OPERATION— VOICE ............................ 51–59

■ About D-STAR system .................................................... 51

■ General ........................................................................... 52

■ Accessing an FM repeater .............................................. 53

■ Repeater tone frequency setting...................................... 55

■ Offset frequency setting .................................................. 56

■ Accessing a Digital repeater ........................................... 57

9 DATA OPERATION ...................................................... 60–66

■ General ........................................................................... 60

■ Precaution ....................................................................... 60

■ Internet access ............................................................... 61

■ Data transferring ............................................................. 64

1

■ Slow data communication ............................................... 66

10MEMORY/CALL OPERATION ..................................... 67–78

■ General description ......................................................... 67

■ Memory channel selection............................................... 67

■ Call channel selection ..................................................... 68

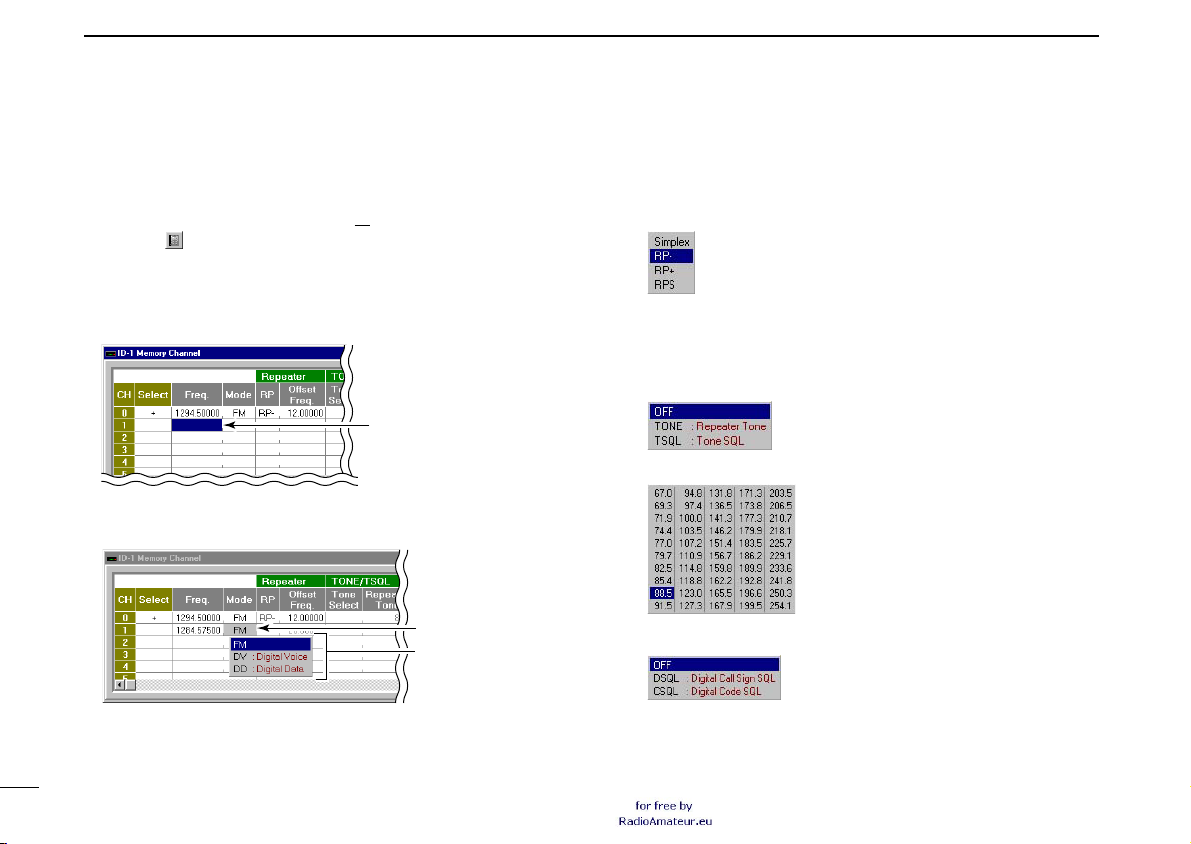

■ Programming a memory/call channel ............................. 70

■ Copying a memory contents ........................................... 73

■ Memory clearing ............................................................. 74

■ Programming memory name .......................................... 76

■ Memory name indication ................................................. 78

11SCAN OPERATION ..................................................... 79–85

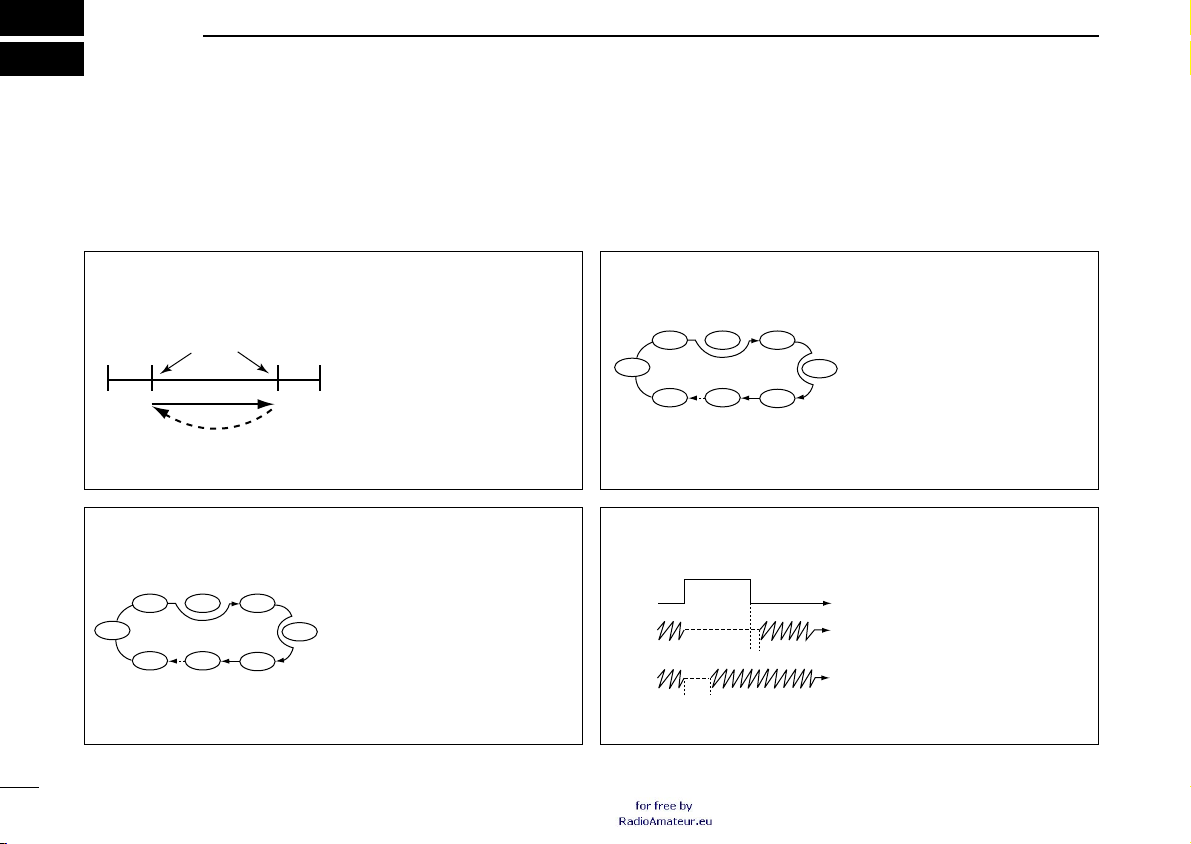

■ Scan types ...................................................................... 79

■ Scan start/stop ................................................................ 80

■ Programming scan edge channels ................................. 81

■ Skip channel setting ........................................................ 84

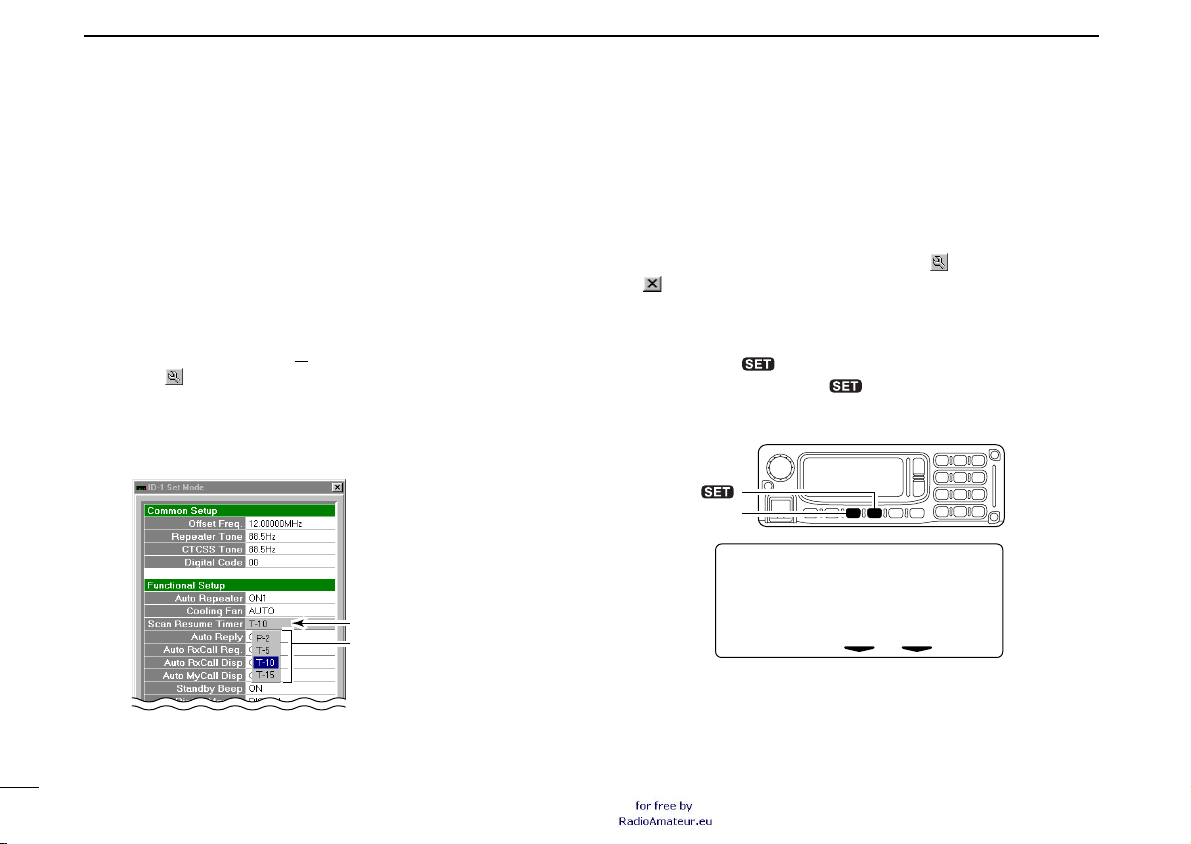

■ Scan resume condition ................................................... 85

12PRIORITY WATCH........................................................ 86–87

■ Priority watch types ......................................................... 86

■ Priority watch operation .................................................. 86

13POCKET BEEP AND TONE/DIGITAL SQUELCH ...... 88–95

■ Pocket beep operation .................................................... 88

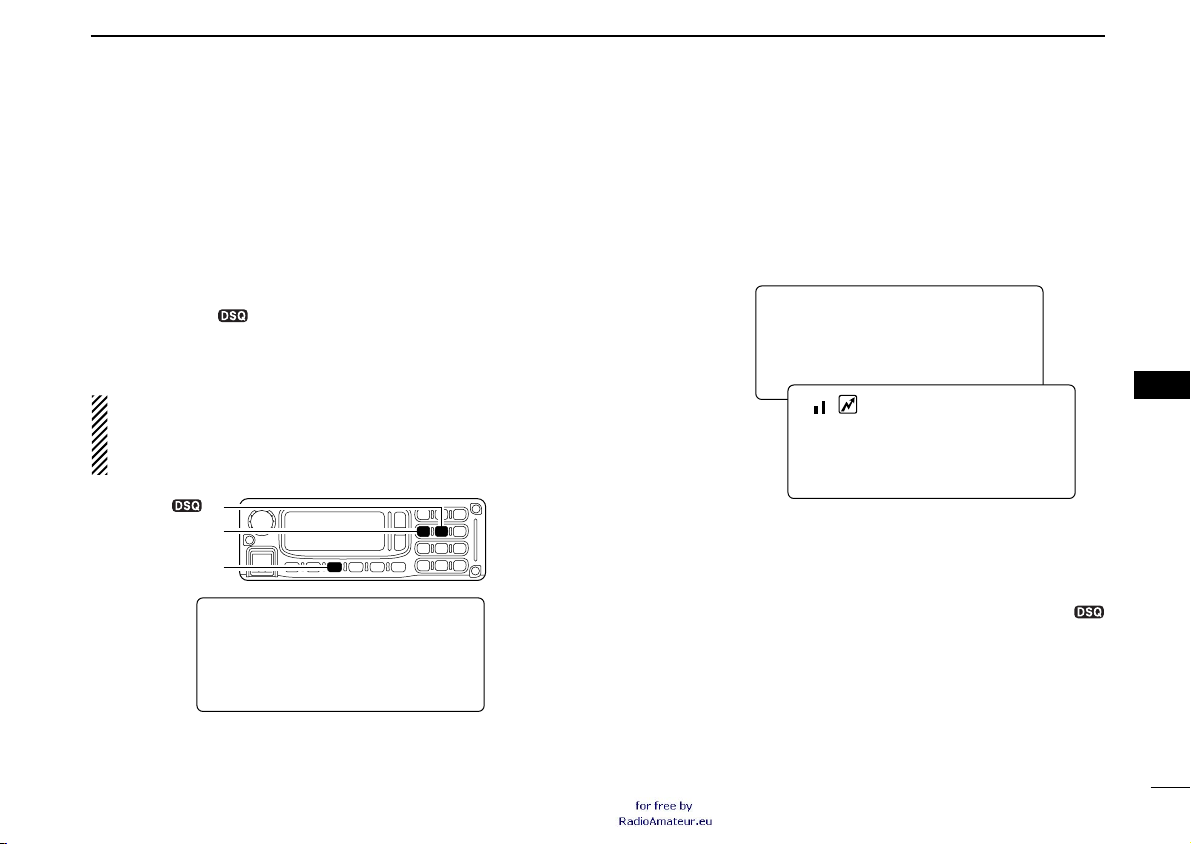

■ Tone/Digital code/call sign squelch operation ................. 92

14OTHER FUNCTIONS ................................................. 96–104

■ Set mode ........................................................................ 96

■ Emergency communication .......................................... 101

■ Break-in communication ............................................... 102

■ CPU reset ..................................................................... 104

15MAINTENANCE ....................................................... 105–106

■ Troubleshooting ............................................................ 105

■ Fuse replacement ......................................................... 106

16SPECIFICATIONS AND OPTIONS .......................... 107–108

■ Specifications ................................................................ 107

■ Options ......................................................................... 108

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

vi

q

i

MIC

TD/RD PWR TX/RX

POWER

TRANSCEIVER

ID-1

DIGITAL

qewr t

1

PANEL DESCRIPTION

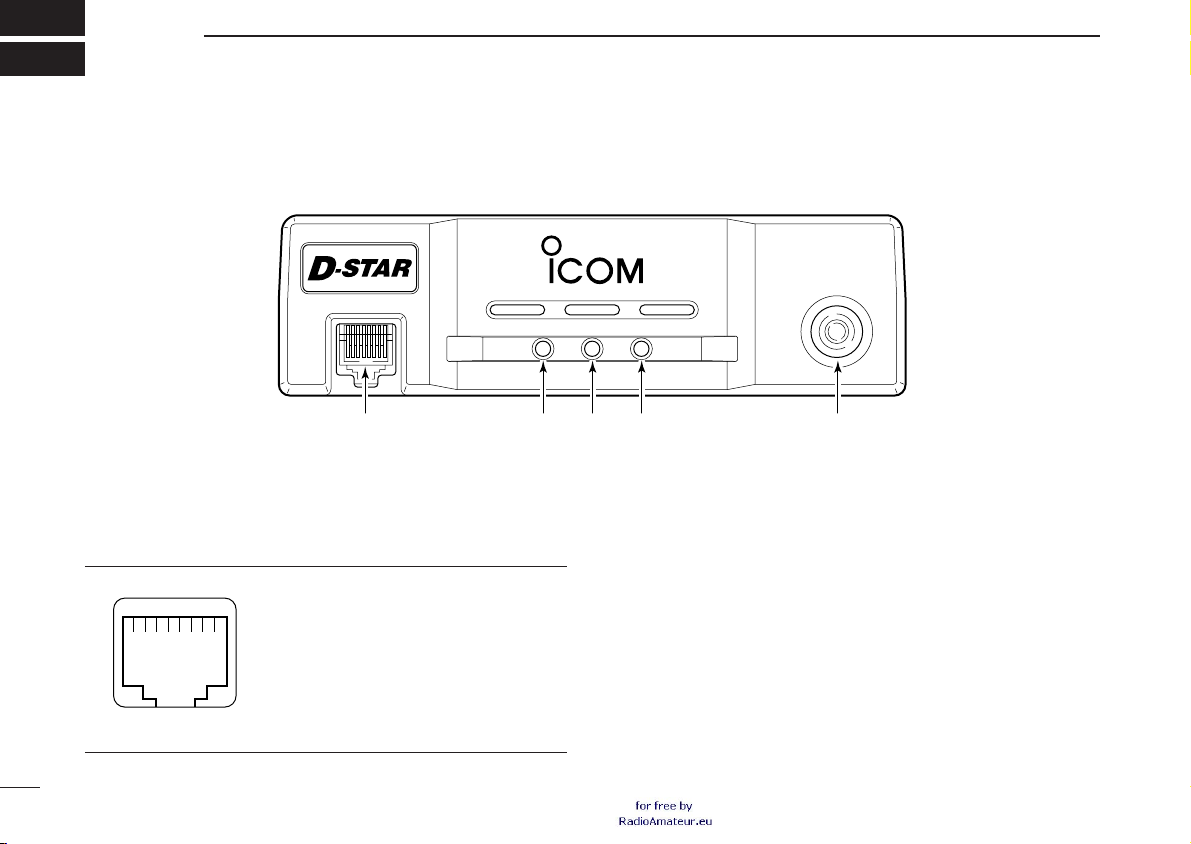

■ Front panel

qMICROPHONE CONNECTOR [MIC]

Connects the supplied microphone or the remote con­troller, RC-24 (optional for some versions).

q +8 V DC output (Max. 100 mA)
w Channel up/down
e Data out
r PTT
t GND (microphone ground)
y MIC (microphone input)
u GND

1

i Data IN

wDATA TRANSMIT/RECEIVE INDICATOR

Lights green while receiving; lights red while transmitting
data in DD mode.

ePOWER INDICATOR

Lights while the transceiver power is turned ON.

rTRANSMIT/RECEIVE INDICATOR

Lights green while receiving; lights red while transmitting
in FM/digital voice mode.

tPOWER SWITCH [POWER]

Turns power ON and OFF when pushed for 1 sec.

PANEL DESCRIPTION

q

ewr

t

y

1

■ Rear panel

qETHERNET RECEPTACLE (p. 17)

Connects to a PC directly, or via an extension cable.

wEXTERNAL SPEAKER JACK [SP] (p. 16)

Connects the supplied (or optional) external speaker for
voice reception.

eCOOLING FAN

The fan rotates when the internal temperature of the trans­ceiver exceeds the preset value until the temperature drops.
Also runs while receiving depending on the setting in set
mode.

r

ANTENNA CONNECTOR (p. 13)

Connects a 50 Ω antenna with a type-N connector and a
50 Ω coaxial cable.

tUSB RECEPTACLE

Connects to a PC directly or via an extension cable.

yPOWER RECEPTACLE

Accepts 13.8 V DC ±15% with the supplied DC power
cable.

(p. 17)

(p. 15)

1

2

1 PANEL DESCRIPTION

w

q

ON

OFF

e

w

r

q

ON

OFF

e

• HM-118N

• HM-118TN

(DTMF; option)

■ Microphones (HM-118N/TN)

qPTT SWITCH

Push and hold to transmit; release to receive.

wUP/DOWN SWITCHES [UP]/[DN]

Push either switch to change operating frequency, mem­ory channel, etc.

eUP/DN LOCK SWITCH

Slide to toggle [UP]/[DN] switches function ON and OFF.

rKEYPAD (HM-118TN only)

While pushing [PTT], push the desired key to send the
DTMF code.

3

PANEL DESCRIPTION

qw e r t

!0!1!2!3!4!5!6!7!9@0 !8@1

yu i o

1

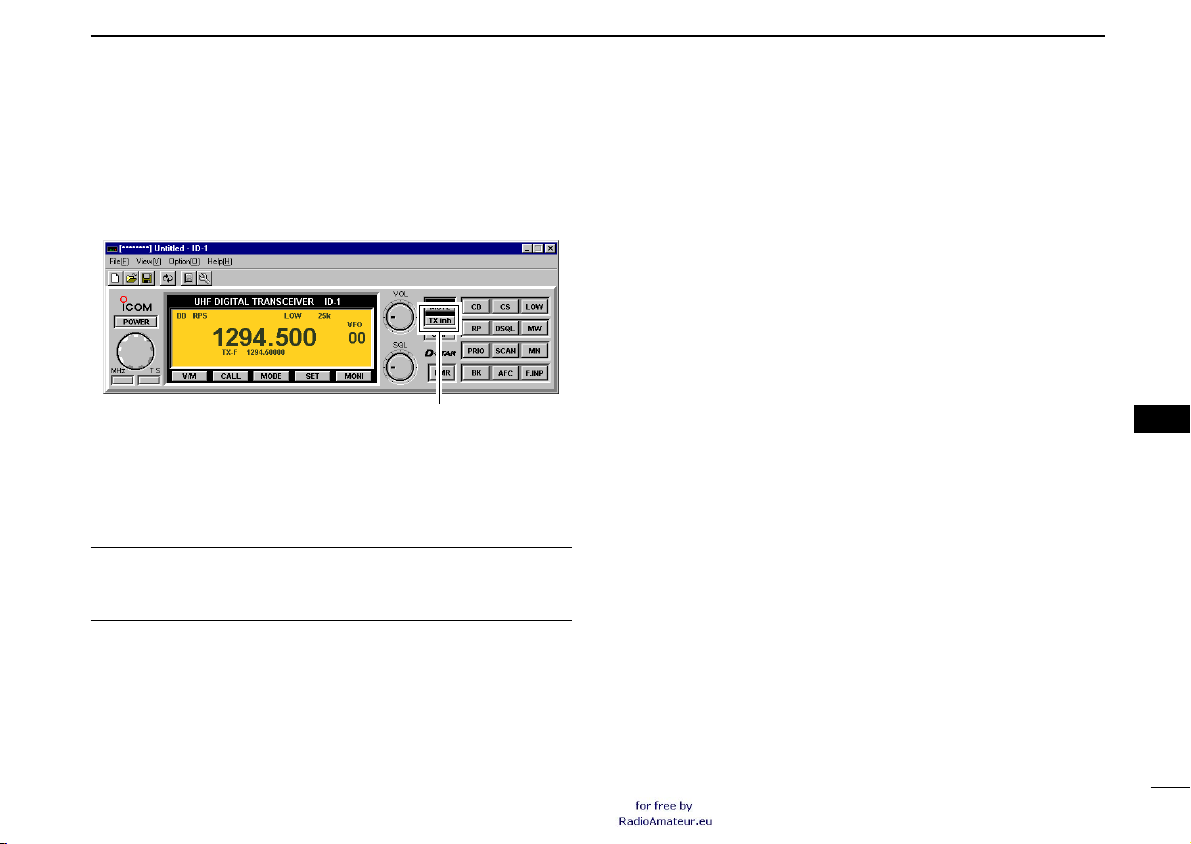

■ Application screens

DD

Main screen

qFILE MENU

Click to display the file menu to perform the following op­eration.

• Transceiver initialization

• Opening a file

• Saving (over-write or with different file name) the set con-

• Reads the transceivers memory data

• Printing out the memory contents

• Quitting the application

tents

(See NOTE on p. 6)

wVIEW MENU

Click to display the view menu to display the following
screens or selections.

• Memory channel list screen

• Set mode screen

• Font size setting

• Tool bar indication ON/OFF

• My call sign screen

1

4

1 PANEL DESCRIPTION

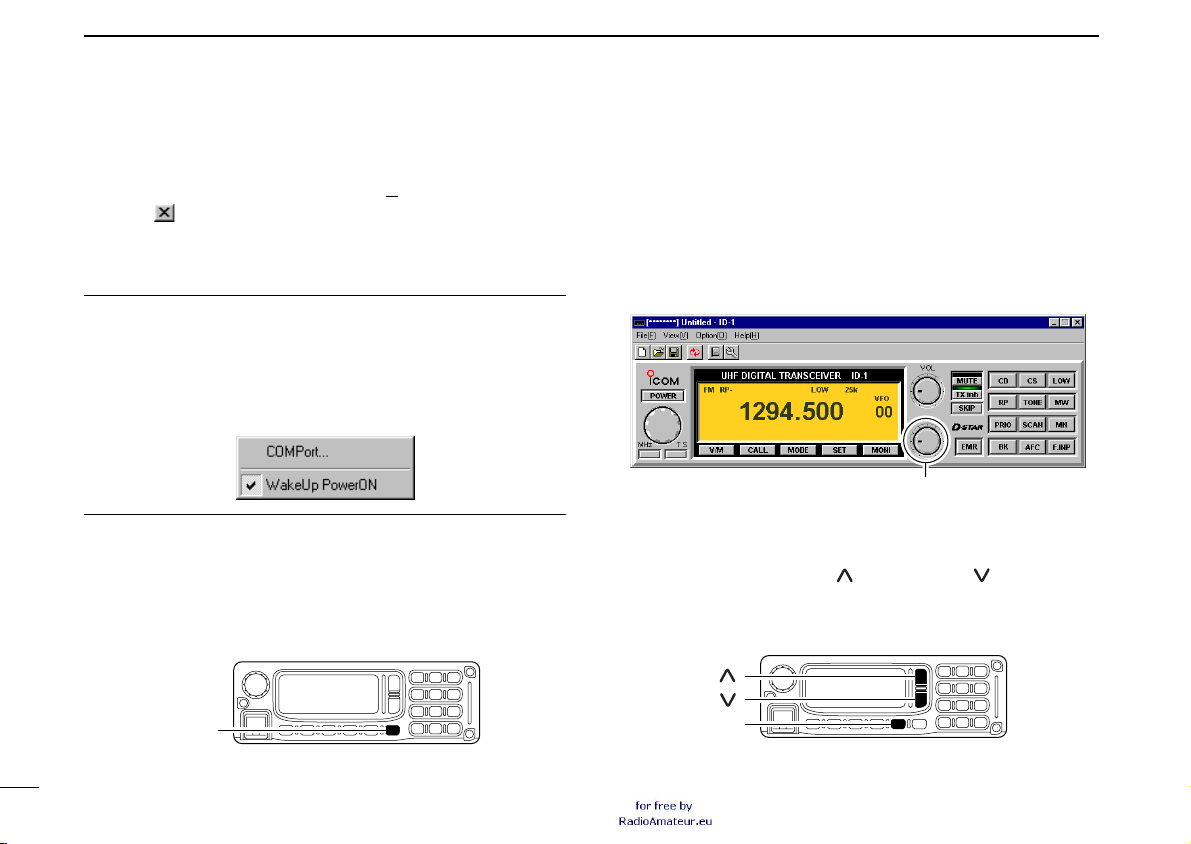

eOPTION MENU

Click the option menu to display and set the following
items.

• COM port setting screen

•“Wake up power ON” function

rHELP MENU

Click the help menu to display the following screen.

• Help file

• Application version information

tTOOL BAR

The following functions can be performed by clicking one
of the desired short cut button.

• Transceiver initialization

• Opening a file

• Saving the file

• Reads the transceivers memory data

• Displays memory channel list screen

• Displays set mode screen

yAUDIO VOLUME CONTROL [VOL]

Left clicking to decrease; right clicking to increase the
audio volume level.

uTRANSMIT INHIBIT BUTTON [TX inh]

Inhibits transmission during digital mode operation.

iAUDIO MUTE BUTTON [MUTE]

Mutes the audio output.

(See NOTE on p. 6)

oFUNCTION BUTTONS

[CD] : Click to display and hide the Received call

record screen.

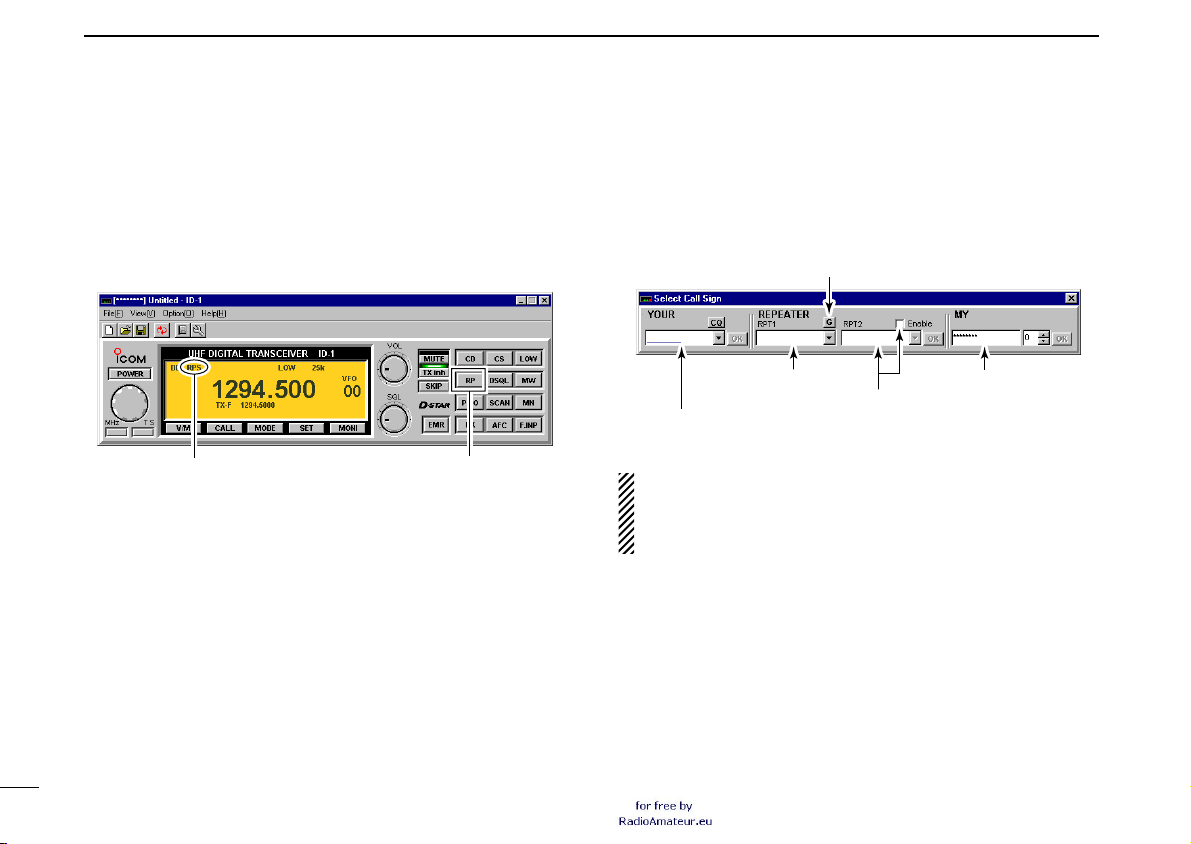

[CS] : Click to display and hide the Select Call Sign

screen.

[LOW] : Click to select the transmit output power from

high and low.

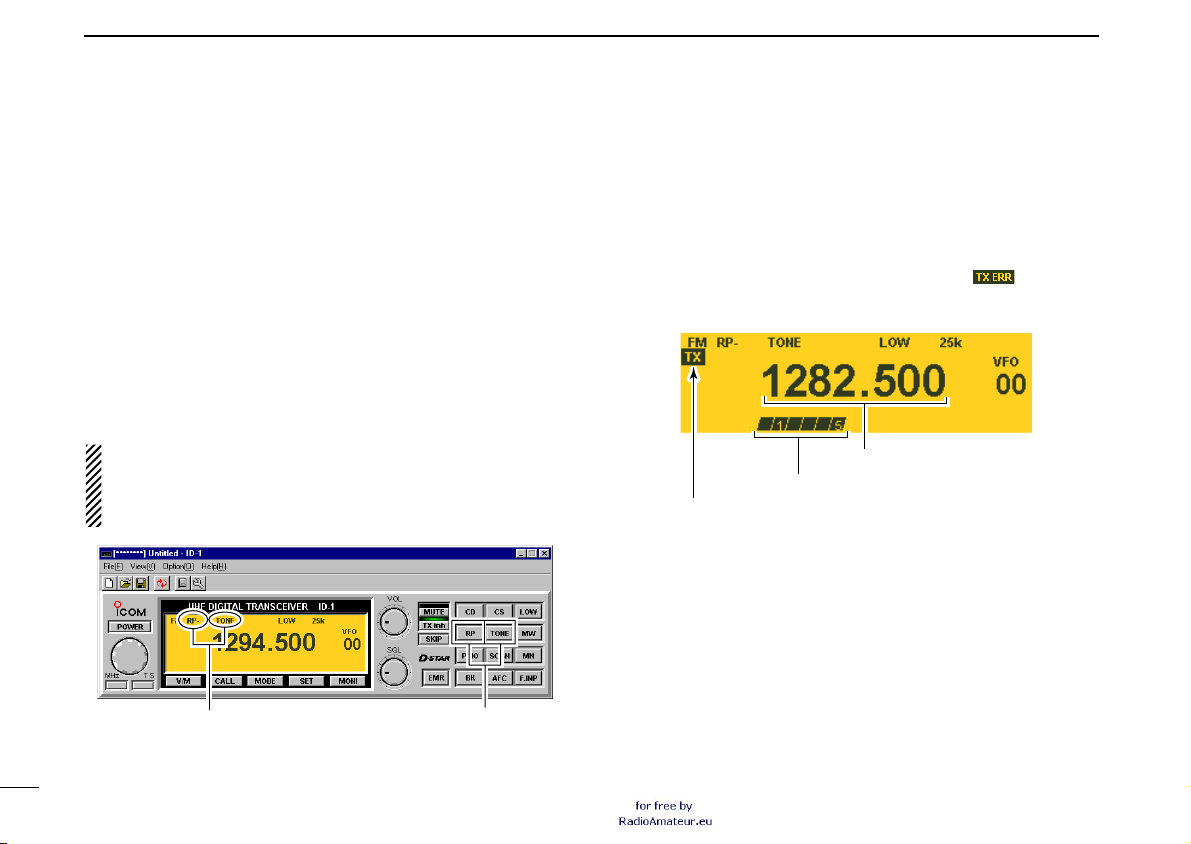

[RP] : Click to select repeater shifting mode from RP–,

RP+, RPS and simplex (no indication).

[TONE] : During FM mode operation

Click to select tone condition from repeater
tone ON, tone squelch ON, pocket beep func­tion ON and no tone operation.

[DSQL] : During Digital voice mode operation

Click to select tone condition from digital code
squelch ON, digital call sign squelch ON, pocket
beep function ON and no tone operation.

[MW] : Click to display and hide the Memory program-

ming screen.

[PRIO] : Click to start and cancel priority watch function.
[SCAN] : Click to display the scan type selection screen.

After the scan type selection, starts the scan.

[MN] : Click to switch the memory name indication ON

and OFF during memory mode operation.

[BK] : Click to start break-in communication.
[AFC] : Click to turn the automatic frequency control

function ON and OFF.

[F.INP] : Click to display and hide the Keypad screen.

5

PANEL DESCRIPTION

1

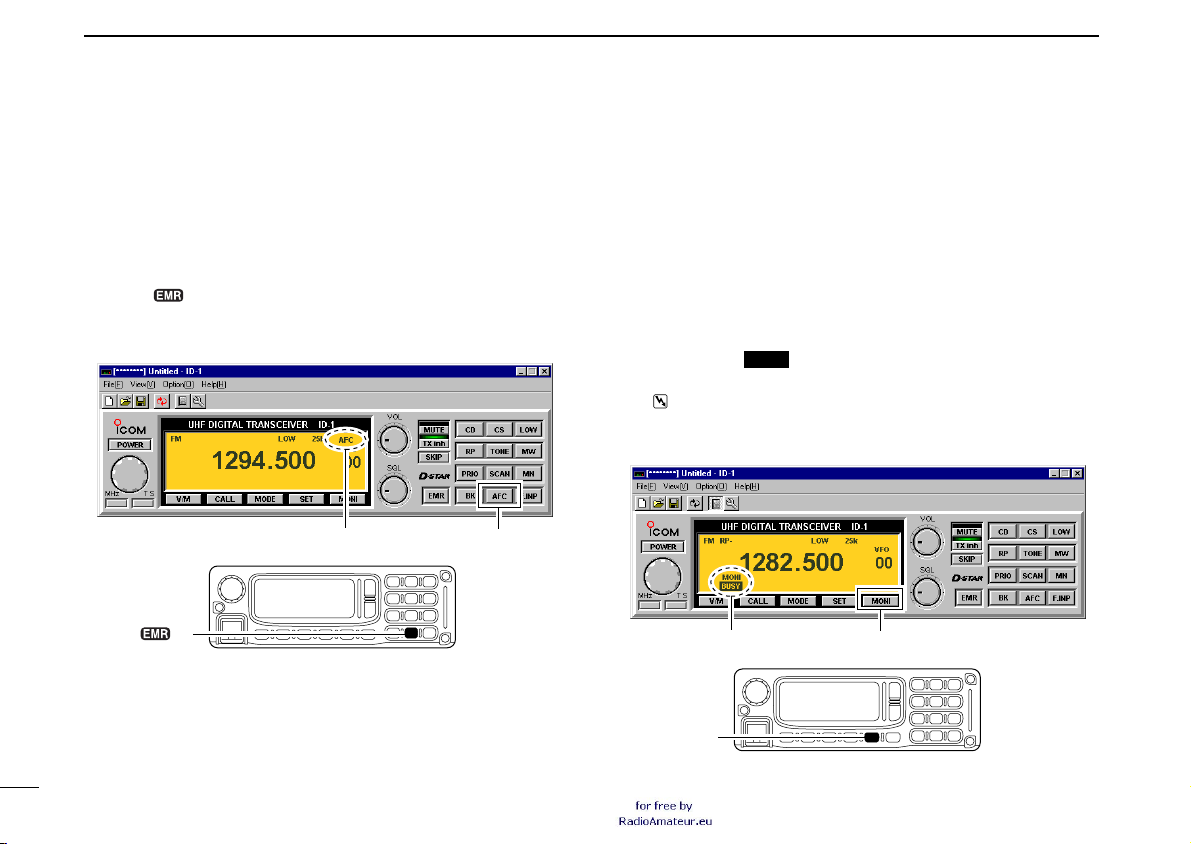

!0EMERGENCY MODE BUTTON [EMR]

Click to enter and exit emergency mode.

!1SKIP BUTTON [SKIP]

During memory mode, click to turn the skip setting for the
selected memory channel ON and OFF.

!2SQUELCH CONTROL [SQL]

Left click to decrease; right click to increase the squelch
level.

!3MONITOR BUTTON [MONI]

Click to turn the monitor function ON and OFF.
While the function ON, any squelches, such as tone
squelch, are released and emits audio.

!4SET MODE BUTTON [SET]

Click to display and hide the Set mode screen.

!5OPERATING MODE BUTTON [MODE]

Click to select the operating mode from FM, digital voice
(DV) and data (DD).

!6CALL CHANNEL BUTTON [CALL]

Click to select a call channel (1–3).

!7VFO/MEMORY MODE BUTTON [V/M]

Click to switch between VFO and memory mode.

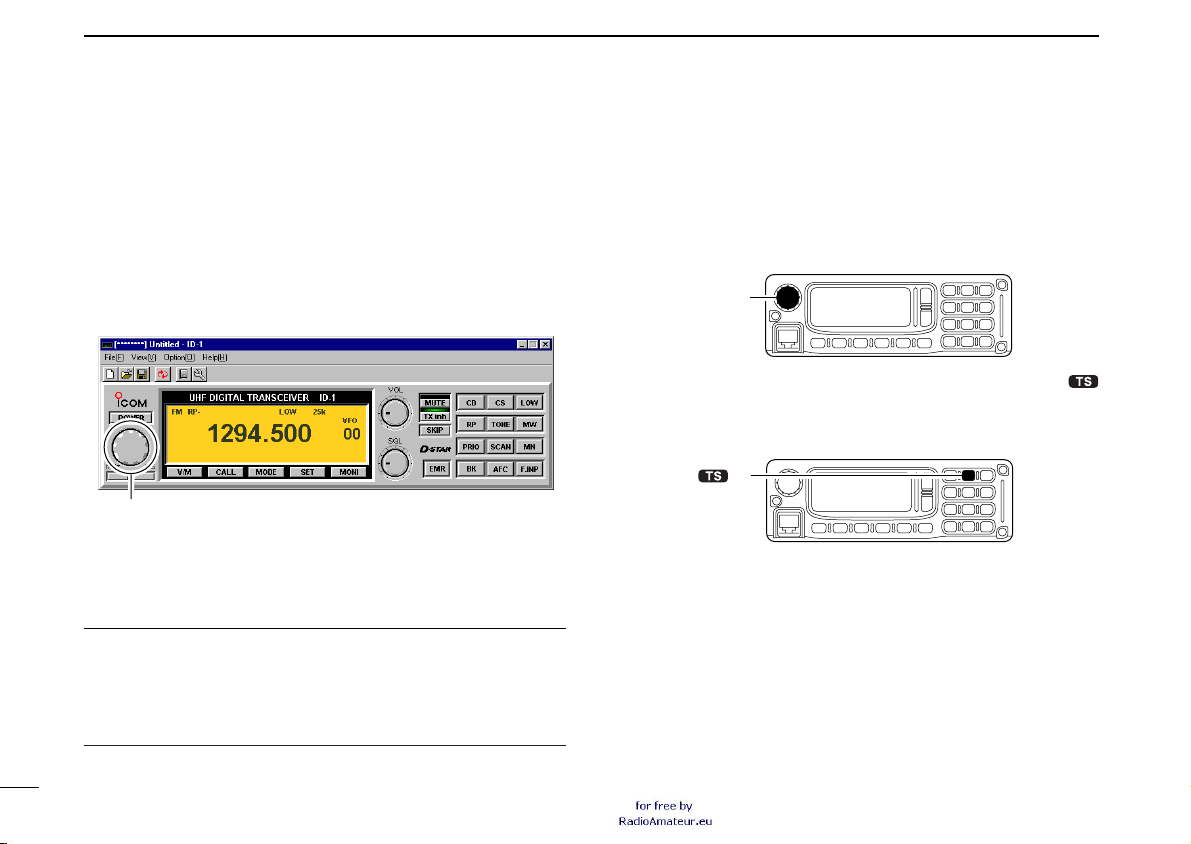

!8TUNING DIAL [DIAL]

Left click to decrease; right click to increase the operating
frequency or memory channel.

!9TUNING STEP BUTTON [TS]

Click to display the tuning step list.
After the tuning step selection, the list disappears.

@01 MHz TUNING BUTTON [MHz]

Click to turn the 1 MHz tuning ON and OFF.
While the 1 MHz tuning is selected, “Z” icon appears.

@1POWER BUTTON [POWER]

Click to turn the transceiver power ON and OFF.
Even the transceiver power is turned OFF, the control ap­plication is still running.

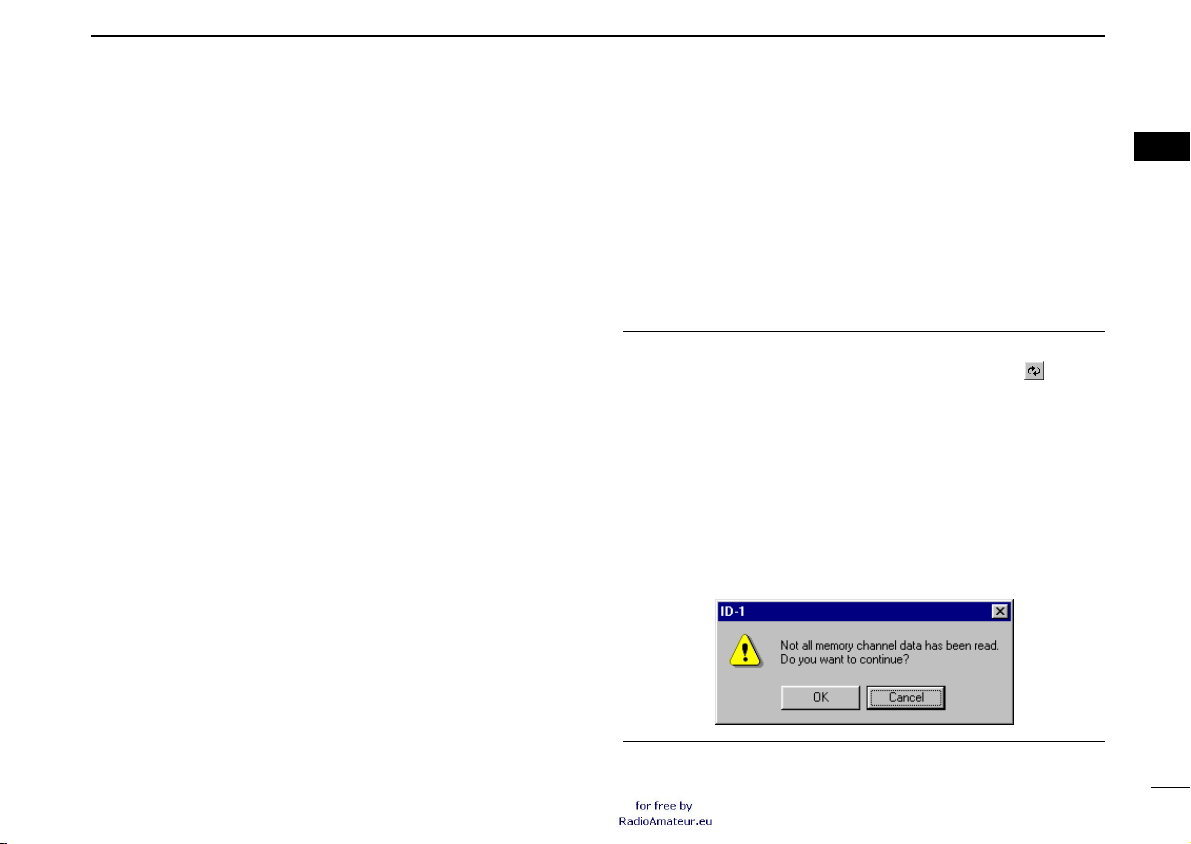

NOTE: While reading the transceiver’s memory data

While reading the transceiver’s memory data the “” button
in the tool bar will change from Black to Red arrows.
It is not recommended to save data or initialize the trans­ceiver while the program is downloading the memory chan­nel data. If transceiver initialization or save data buttons are
accidentally pushed, the dialog box shown below will appear.

It is recommended to click the cancel button to allow the task
of reading the transceiver to be completed. Then try the ini­tialization or saving data. Completetion of the download is in­dicated when the arrows change from Red to Black.

1

6

1 PANEL DESCRIPTION

q w e r yt u i o

DD

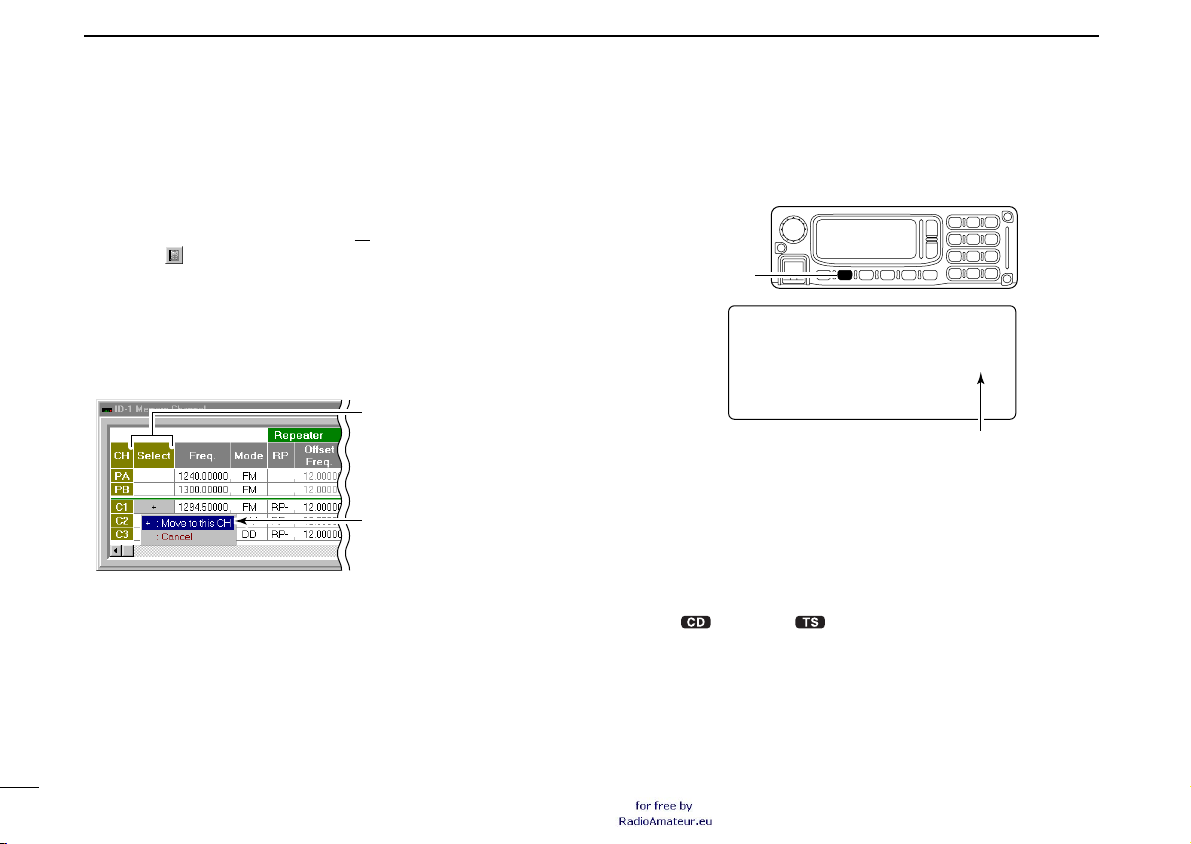

Memory channel list screen

qCHANNEL SELECT

Select the memory channel for operation by double click­ing and select “Move to this channel”.
“+” appears when the channel is selected.

wPROGRAMMED FREQUENCY

Enter the desired operating frequency.
Select the desired frequency cell, then enter the desired
frequency from the PC’s keyboard directly.

eOPERATING MODE

To select the desired operating mode, double click the
mode cell. Then click to select the desired operating mode,
FM, DV (Digital Voice) or DD (Data mode).

7

rREPEATER

Select the desired shift direction for repeater operation
from RP–, RP+, RPS and Simplex in RP cell, and enter the
desired offset frequency via the PC’s keyboard within 0 to
60 MHz range in Offset Freq. cell.

RP– : Negative shift
RP+ : Positive shift
RPS : For repeater operation in DD mode

tTONE/TSQL

Select the desired tone function from TONE, TSQL and
OFF in Tone Select cell, and select the desired tone fre­quency for each Repeater Tone and TSQL Tone from the
list appeared by double clicking the cell.

TONE : Repeater tone ON
TSQL : Tone squelch ON

PANEL DESCRIPTION

1

yDIGITAL

Select the desired digital tone function from digital code
squelch, digital call sign squelch and OFF in DSQL cell,
and enter the desired digital code number within 00 to 99
range for the digital code squelch function.

DSQL : Digital call sign squelch ON
CSQL : Digital code squelch ON

uCALL SIGN

Enter the station’s call sign that you want to call into YOUR
cell, and repeater call sign into RPT1 and RPT2 cell.

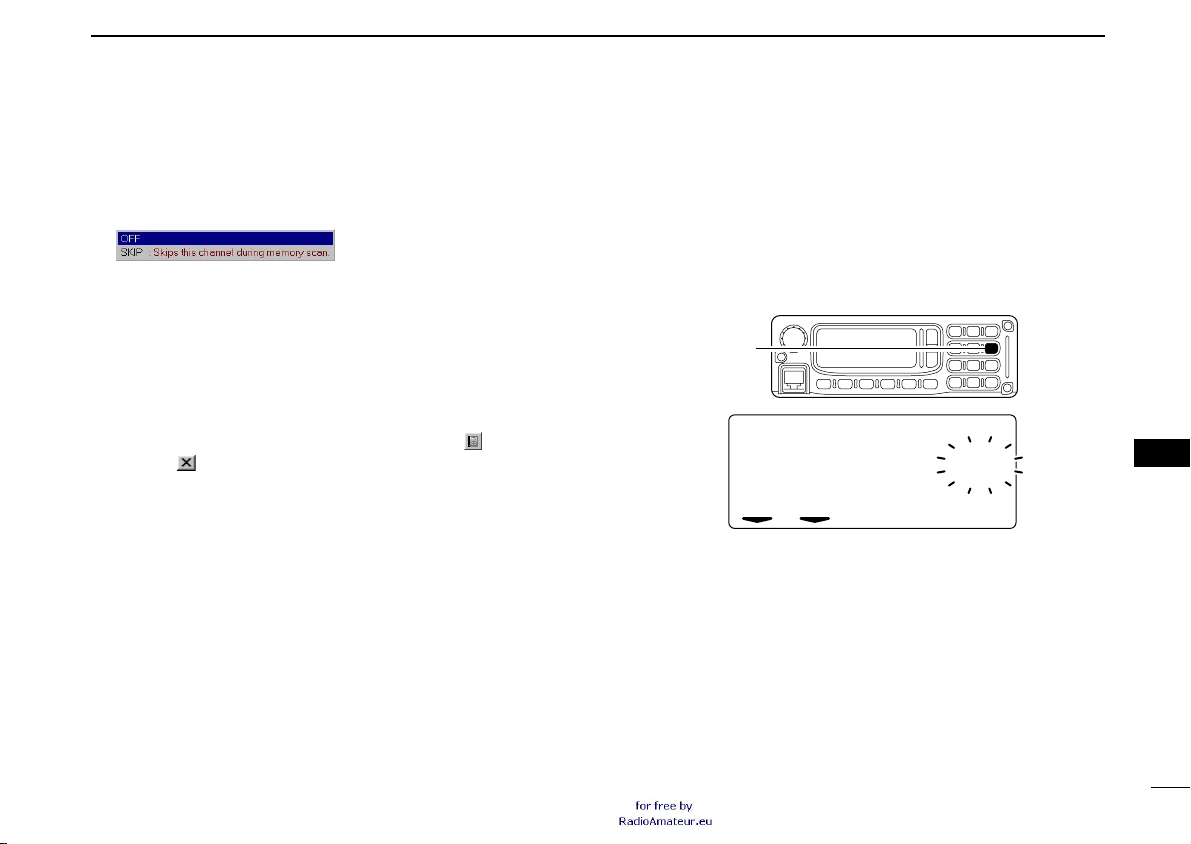

iSKIP SETTING

Turn the skip function ON (SKIP) and OFF.
When ON is set, the memory channel will be skipped dur­ing memory scan.

oMEMORY NAME

Enter the desired memory name.
Each name can have up to 10 characters.

1

8

1 PANEL DESCRIPTION

1294.

500

00

DV RP-

q

w

e

r

t y u i o

Function display (p. 12)

Keypad (pgs. 10, 11)

■ Remote controller (RC-24; Optional for some versions)

qTUNING DIAL [DIAL]

Selects the operating frequency (p. 35), memory channel
(p. 68), the setting of the set mode value or condition and
the scanning direction.

wUP/DOWN SWITCHES [ ]/[ ]

➥ Adjusts the audio output level. (p. 34)
➥ After pushing [SQL], adjusts squelch level. (p. 33)

eMICROPHONE CONNECTOR [MIC]

Connects the microphone, supplied with the transceiver.

rVFO/MEMORY SWITCH [V/M] (p. 34)

Push to toggle VFO and memory mode.

tCALL SWITCH [CALL] (p. 69)

Push to select and toggle call channel 1, 2 and 3.

9

yOPERATING MODE SWITCH [MODE] (p. 38)

Push to select an operating mode from FM, DV (Digital
Voice) and DD (Data mode).

uTRANSMIT INHIBIT•SET MODE SWITCH [TXinh• ]

➥ Push to inhibits a transmission during DD mode. (p. 63)
➥ Push for 0.5 sec. to enter set mode. (p. 96)

iSQUELCH SWITCH [SQL] (p. 33)

Push this switch then push either [ ] or [ ] switch to ad­just the squelch level.

oPOWER SWITCH [PWR] (p. 33)

Turns power ON and OFF when pushed for 0.5 sec.

DD

Keypad

[CS••1]

➥ Push to enter call sign select mode. (p. 40)
➥ Push for 0.5 sec. to enter received call record

indication. (p. 47)

➥ After pushing [F.INP•L], input digit “1” for op-

erating frequency or memory channel.

[MHz••2]

➥ Push to select 1 MHz tuning. (p. 35)
➥ Push for 0.5 sec. to enter tuning step select-

ing condition. (p. 37)

➥ After pushing [F.INP•L], input digit “2” for op-

erating frequency or memory channel.

[LOW•3]

➥ Push to toggle low and high transmit output

power. (p. 45)

➥ After pushing [F.INP•L], input digit “3” for op-

erating frequency or memory channel.

[RP•4]

➥ Push to toggle repeater operating mode.

(pgs. 54, 59, 63)

➥ After pushing [F.INP•L], input digit “4” for op-

erating frequency or memory channel.

PANEL DESCRIPTION

[TONE••5]

➥ FM mode: Push to turn the repeater tone,

tone squelch and pocket beep function ON
and OFF.

➥ DV Mode: Push to turn the digital call sign,

digital code squelch and pocket beep function
ON and OFF.

➥ After pushing [F.INP•L], input digit “5” for op-

erating frequency or memory channel.

[MW•6]

➥ Push to enter select memory write condition.

(p. 72)

➥ After pushing [F.INP•L], input digit “6” for op-

erating frequency or memory channel.

[PRIO••7]

➥ Push to start and stop priority watch. (p. 87)
➥ Push for 0.5 sec. to set the selected memory

channel as a skip channel during memory
mode. (p. 84)

➥ After pushing [F.INP•L], input digit “7” for op-

erating frequency or memory channel.

[SCAN•8]

➥ Push to start and stop scanning. (p. 80)
➥ After pushing [F.INP•L], input digit “8” for op-

erating frequency or memory channel.

1

1

10

1 PANEL DESCRIPTION

[MN•9]

➥ Push to select memory name or frequency in-

dication during memory mode. (p. 78)

➥ After pushing [F.INP•L], input digit “9” for op-

erating frequency or memory channel.

[BK••.]

➥ Push to enable a break call during digital

voice operation. (p. 103)

➥ Push for 0.5 sec. to select “CQ” as a call sign

during digital voice operation. (p. 46)

➥ After pushing [F.INP•L], selects previous

“MHz” digits frequency for operating fre-

quency. (p. 36)

[AFC••0]

➥ Push to turn the AFC (Automatic Frequency

Control) function ON and OFF. (p. 49)

➥ Push for 1.5 sec. to turn the emergency mode

ON, and push for 0.5 sec. to turn the function
OFF during digital voice mode operation.
(p. 102)

➥ After pushing [F.INP•L], input digit “0” for op-

erating frequency or memory channel.

[F.INP•L]

➥ Push to enable the direct frequency or mem-

ory channel number input.

➥ Push for 0.5 sec. to turn the RC-24 key lock

function ON and OFF. (p. 38)

11

DD

1294.500

FM RP-

M00

quwert y

Function display

qS/RF INDICATORS

➥ Shows the relative signal strength while receiving sig-

nals in 3 steps.

➥ Shows the output power level while transmitting.

wTRANSMIT INDICATOR

Appears while transmitting.

PANEL DESCRIPTION

eBUSY INDICATOR

Appears when a signal is being received, the squelch is
open, or the monitor function is activated.

NOTE: If this indicator appears and no audio is heard it
is one of several conditions.

1. Verify audio level setting.

2. Verify connection of external speaker.

3. FM: Signal coming in, but does not match TSQL.
Digital Voice: Incoming signal does not match call-

signs in the call sign squelch list.

rPOCKET BEEP INDICATORS (p. 90)

Appears when the pocket beep function is activated.

tLOCK INDICATOR (p. 38)

Appears when the lock function is in use.

yLOW POWER INDICATOR

Appears when low output power is selected.

uMULTI-FUNCTION INDICATOR

Shows variety of information, such as the operating fre­quency, operating mode, memory names, set mode item
and conditions.

1

1

12

2

ID-1

To antenna

Roof-mount antenna
(Drill a hole or use a magnetic mount.)

Gutter-mount antenna

Trunk-mount
antenna

INSTALLATION AND CONNECTIONS

■ Unpacking

After unpacking, immediately report any damage to the deliv­ering carrier or dealer. Keep the shipping cartons.

For a description and a diagram of accessory equipment in­cluded with the ID-1, see ‘Supplied Accessories’ on p. iv of
this manual.

■ Selecting a location

Select a location for the transceiver that allows adequate air
circulation, free from extreme heat, cold, or vibrations, and
away from TV sets, TV antenna elements, radios and other
electromagnetic sources.

■ Antenna connection

For radio communications, the antenna is of critical impor­tance, along with output power and sensitivity. Select an­tenna(s), such as a well-matched 50 Ω antenna, and feedline.

1.5:1 or better of Voltage Standing Wave Ratio (VSWR) is
recommended for your desired band. Of course, the trans­mission line should be a coaxial cable.

NOTE: There are many publications covering proper an­tennas and their installation. Check with your local dealer
for more information and recommendations.

• Antenna location for mobile operation

To obtain maximum performance from the transceiver, select
a high-quality antenna and mount it in a good location. A non­radial antenna should be used when using a magnetic mount.

13

CAUTION: Protect your transceiver from lightning by using
a lightning arrestor.

INSTALLATION AND CONNECTIONS

2

Type-N CONNECTOR INSTALLATION EXAMPLE

Nut Rubber gasket

q

Washer

w

Clamp

e

r

Be sure the center conductor is
the same height as the plug body.

15 mm ≈19⁄32 in 6 mm ≈1⁄4 in 3 mm ≈1⁄8 in

3 mm

15 mm

Center
conductor

6 mm

Solder hole

No space

Slide the nut, washer,
rubber gasket and clamp
over the coaxial cable,
then cut the end of the
cable evenly.

Strip the cable and fold the
braid back over the clamp.

Soft solder the center
conductor. Install the
center conductor pin and
solder it.

Carefully slide the plug
body into place aligning the
center conductor pin on the
cable. Tighten the nut onto
the plug body.

2

14

2 INSTALLATION AND CONNECTIONS

12 V

Grommet

NOTE:

Use terminals for the
cable connections.

WARNING!
NEVER

remove the
fuse holders.

Crimp

Solder

12 V
battery

Supplied

DC power cable

+ red

ID-1

_ black

red⊕

black

−

DC power

supply 13.8 V

AC

outlet

Fuses
15 A

Black
Red⊕

−

⊕

−

ID-1

■ Power supply connections

CAUTION: Before connecting the DC power cable,

check the following important items. Make sure:

• The [POWER] switch is OFF.

• Output voltage of the power source is 12–15 V when you

use a power supply.

• DC power cable polarity is correct.

Red : positive + terminal
Black : negative _ terminal

Use a DC power supply with a 10 A capacity and above when
operating the transceiver with AC power. Refer to the dia­grams below.

• Connecting to a DC power supply

15

• Connecting to a vehicle battery

INSTALLATION AND CONNECTIONS

ID-1

SP-22

to [SP]

ID-1

to [MIC]

ID-1

Mic extension
cable, OPC-647
(2.5 m; 8.2 ft)

RC-24

to [MIC]

to [MIC]

■ Microphone and speaker connections

Connect the supplied microphone to the [MIC] connector on
the remote controller or front panel and the speaker to the
[SP] connector on the rear panel as follows.

• Microphone connection through RC-24 • Microphone connection without RC-24

• Speaker connection

2

2

16

2 INSTALLATION AND CONNECTIONS

ID-1

PC

Use the supplied OPC-1069, Ethernet cable (3 m; 9.8 ft),
and the cable coupler for extension, if desired.

to Ethernet
port

to card
slot

Cable coupler

Ethernet card

ID-1

PC

Use the supplied
USB extension cable,
OPC-1127

(1.5 m; 4.9 ft),

if desired.

to USB
port

■ Connecting a PC

DD

PC connection for control

USB (Universal Serial Bus) cable is used for the connection
between the ID-1 and a PC.
An USB extension cable, OPC-1127 (1.5 m; 4.9 ft), is sup­plied with the transceiver for extended connection.

NOTE: When connecting the ID-1 and the PC through an

17

USB hub, use the self-powered type.

DD

PC connection for data operation

Ethernet cable connection is additionally required for the data
operation.
Connect the Ethernet receptacle to the Ethernet port on your
PC directly or through the supplied extension cable with the
cable coupler, if desired.

NOTE: When no Ethernet port is available with your PC,
install an Ethernet card and it’s driver before connecting
the ID-1. Ask your local computer dealer for details about
installing a Ethernet card to your computer.

The displayed dialog boxes or indications may differ

Click

Select

slightly from the following instructions according to your
system conditions, or environment.

■ Microsoft®Windows®XP

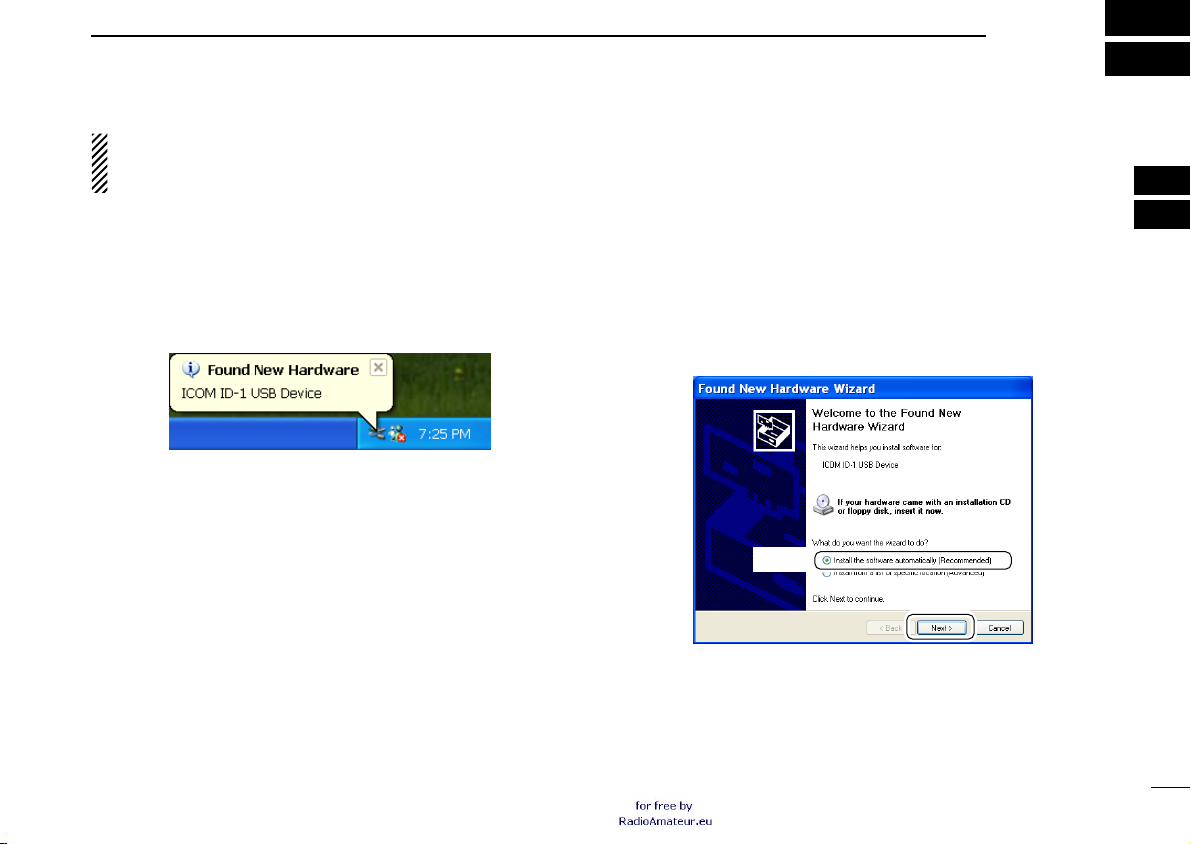

qConnect the ID-1 to the desired USB port.

• Push [POWER] to turn the power ON.

•“Found New Hardware” appears as below.

DRIVER INSTALLATION

wThe “Found New Hardware Wizard” will come up as below.

Insert the supplied CD into the CD drive, select “Install the
software automatically (Recommended),” then click
[Next>].

3

2
3

18

3 DRIVER INSTALLATION

Click

Click

eThe wizard starts searching for the driver and shows the

dialog below during search.

rAfter the driver is found, the “Hardware Installation” dialog

box appears as below.
Click [Continue Anyway] to start the installation.

tWindows starts installing the USB driver.

yAfter the installation is completed, click [Finish].

19

DRIVER INSTALLATION

Click

Click

Select

3

uThe “Found New Hardware Wizard” will come up again to

install the USB serial port driver.
Select “Install the software automatically (Recommended),”
then click [Next>].

iAfter the driver is found, the “Hardware Installation” dialog

box appears as below.
Click [Continue Anyway] to start the installation.

3

oWindows starts installing the USB driver.

20

3 DRIVER INSTALLATION

Click

!0After the installation is completed, click [Finish].

!1After clicking [Finish], the dialog appears as below.

!2Eject the CD.

• Rebooting the PC is recommended.

21

■ Microsoft®Windows®98/Me

Click

e Click

q Click to select

w Select

Click

DRIVER INSTALLATION

3

qConnect the ID-1 to the desired USB port.

• Push [POWER] to turn the power ON.

•“New Hardware is found” dialog box appears.

wThe “New Hardware Found” will come up as below. Click

[B

rowse...].

eInsert the supplied CD into the drive.
rClick [Z] to select the appropriate CD-ROM drive then click

“Driver” folder. After the driver is found, click [OK].

tClick [OK].

• The driver installation starts.

yAfter the installation, eject the CD.

• Rebooting the PC is recommended.

3

22

3 DRIVER INSTALLATION

Click

Select

Click

■ Microsoft®Windows®2000

qConnect the ID-1 to the desired USB port.

• Push [POWER] to turn the power ON.

•“Found New Hardware” dialog box appears below.

wThe “Found New Hardware Wizard” will come up as below.

Click [Next>].

eSelect “Search for a suitable driver for my device (recom-

mended),” then click [Next>].

23

DRIVER INSTALLATION

Click

Click

Select

3

rSelect “CD-ROM drives,” and insert the supplied CD into

the CD drive, then click [Next>].

tWhen the driver is found, the following dialog is displayed.

Click [Next>] to start the installation.

NOTE: When the appropriate driver is not found, a differ­ent dialog is displayed. In such case, click [<Back], select
“Specify a location”, click [Next>], then type “D:\driver” in
the text box to select the “Driver” folder in the CD (if CD
drive is D).

3

24

3 DRIVER INSTALLATION

Click

Click

yAfter the installation is completed, click [Finish].

uThe “Found New Hardware” wizard appears again.

iClick [Next>].

25

DRIVER INSTALLATION

Click

Select

Click

Select

3

oSelect “Search for a suitable driver for my device (recom-

mended),” then click [Next>].

!0Select “CD-ROM drives,” then click [Next>].

3

26

3 DRIVER INSTALLATION

Click

Click

!1When the driver is found, the following dialog is displayed.

Click [Next>] to start the installation.

NOTE: When the appropriate driver is not found, a differ­ent dialog is displayed. In such case, click [<Back], select
“Specify a location,” click [Next>], then type “D:\driver” in
the text box to select the “Driver” folder in the CD (if CD
drive is D).

!2After the installation is completed, click [Finish].

!3Eject the CD.

• Rebooting the PC is recommended.

27

DRIVER INSTALLATION

Click

Click

3

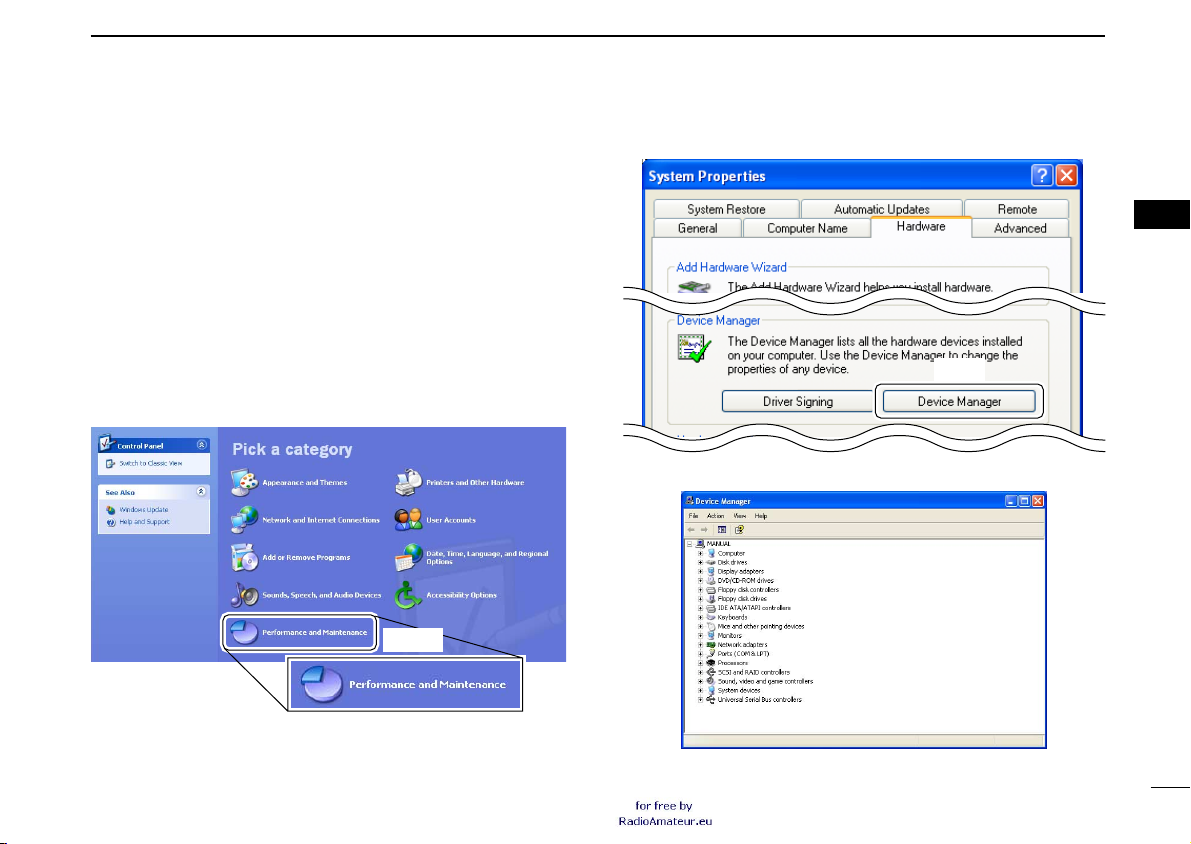

■ COM port confirmation

After the driver installation, confirm the driver availability and
the port number are recommended.

In this section, screen shots of Windows XP are used for in­struction example. However, the instructions are similar to an­other operating systems, Windows 98, Me and 2000.

qBoot up the Windows.
wSelect the “Control Panel” in the Start menu.

• Control panel appears as shown in the next step below.

eClick the “Performance and Maintenance.”

• Performance and Maintenance menu appears.

tClick the [Device Manager].

3

• Device Manager screen appears as below.

rClick the “System,” then click the “Hardware” tab in the dis-

played System Properties screen.

28

3 DRIVER INSTALLATION

Confirm the USB serial port availability and the COM port
number.
(In this example, the USB serial port number is “4.”)

Click

yClick “” of the “Ports (COM & LPT)” to display the usable

COM port and the port number.

uConfirm the USB serial port availability and the COM port

number.

• The COM port number is used for the COM port setup. (p. 33)

iClose the Device Manager, System Properties screen and

then Control panel.

29

APPLICATION INSTALLATION

Click

Double click

4

qInsert the CD into the CD drive.
wOpen the CD drive contents via “My computer” or “Win-

dows Exproler.”

•“Driver” and “ID1” folders are available.

eDouble click “Setup.exe” file in “ID1” folder.

• The “Installshield®Wizard” starts preparing the installation.

rAfter the preparation, the following dialog is displayed.

Click [Next>].

3
4

30

4 APPLICATION INSTALLATION

Click

Click

tConfirm the location, then click [Next>] to start the installa-

tion.

• Click [Browse...] then type the desired location if you specifying
the installation location.

yAfter the installation is completed, click [Finish].

uEject the CD.

• The ID-1 shortcut icon is created on the desktop.

• Rebooting the PC is recommended.

31

■ Preparation

Click

Enter the appropriate

port number

(within 1–256)

Click

Click

BASIC OPERATION

5

DD

Turing power ON/OFF from the control
software

qBoot up Windows.
wStart the ID-1 control software by double clicking the icon

on the desktop, or select “ID-1” in the program menu.

• ID-1 main screen appears and “COM Port Error” may be dis-

played for 1st time as below.

eClick [Port Setup].

• COM Port Setup dialog box appears.

rEnter the appropriate COM port number from the PC’s key-

board within 1–256 range, then click [Apply].

• See pages 28, 29 for how to confirm the COM port number.

• The transceiver power comes up and the default frequency will

be displayed on the main screen when the correct port number is
entered.

• Once the COM port is set, this operation will not be necessary.

• When using multiple radios with the same Laptop, changing the

COM Port number will be required each time a new radio is con­nected to the computer.

tClick [POWER] to turn the power OFF.

• The transceiver power can also be turned OFF by pushing
[POWER] on the ID-1 front panel.

4
5

32

5 BASIC OPERATION

[SQL]

[ ]

[ ]

Right click to increase; Left click to decrease

[PWR]

■ Squelch level adjustment

yTo quit the application, select “Exit(X

click “” button on the top right corner of the screen.

• The application cannot be quit by turning OFF the transceiver’s
power only. And also, the transceiver power is still ON even the
application is quit without turning OFF with [POWER].

)” in the file menu, or

Hint!

The ID-1 has “WakeUp PowerON” function, which automati-
cally powers ON when the control software is started up.
To turn the function ON and OFF, select “Wakeup PowerON”
item in option menu. “✔” appears when the function is acti­vated.

DD

Turing power ON/OFF from the RC-24

➥ Push [PWR] to turn the power ON.

• Pushing [POWER] on the ID-1 front panel also turns power ON.

• Push [PWR] (or [POWER] on the ID-1 front panel) for 0.5 sec. to

turn the power OFF.

(FM mode only)

DD

From the control software

➥ Set the cursor on [SQL] control then; right click to increase,

left click to decrease the squelch level.

• Set [SQL] within 9–12 o’clock position is recommended.

DD

From the RC-24

➥ Push [SQL], then push [ ] to increase, [ ] to decrease

the squelch level.

•“SQL” and set level appear on the function display.

• Set the squelch level within 9 to 19 is recommended.

33

BASIC OPERATION

[V/M]

Click “VFO” or “MEMO” appears

[ ]

[ ]

Right click to increase; Left click to decrease

5

■ Audio level adjustment

DD

From the control software

qOpen the squelch.

• The monitor function is available to open the squelch without ad­justing [SQL] level— click [MONI] to open and close the squelch.

wSet the cursor on [VOL] control then; right click to increase,

left click to decrease the audio level.

DD

From the RC-24

➥ Push [ ] to increase, [ ] to decrease the audio level.

•“VOL” and set level appear on the function display.

• The audio level can be adjusted within 0 (no audio) to 32 (max.

audio) levels.

■ VFO and memory mode

DD

From the control software

➥ Click [V/M] to toggle between VFO and memory mode.

DD

From the RC-24

➥ Push [V/M] to toggle between VFO and memory mode.

•“M” appears besides memory channel number when memory
mode is selected.

5

34

5 BASIC OPERATION

[MHz• •2]

[DIAL]

Right click to increase; Left click to decrease

■ Setting a frequency

DD

Using the control software tuning dial

qSet the cursor on the tuning dial control then; right click to

increase, left click to decrease the operating frequency.

• While clicking and holding either right or left button of the mouse,
the operating frequency increases or decreases continuously.

• Operating frequency changes in the selected tuning steps. See
page 37 for the tuning step selection.

wTo change the frequency in 1 MHz steps, click [MHz], then

click (left or right) the tuning dial.

•“Z” appears above the 1 MHz digit when the 1 MHz tuning step
is selected.

Hint!

[⇐] and [⇒] keys on the PC’s keyboard also functions as the

tuning dial.
Press [⇐] to decrease; press [⇒] to increase the operating
frequency.

35

DD

Using the RC-24 tuning dial

qRotate [DIAL] to set the operating frequency.

• Operating frequency will be changed with the selected tuning
steps. See page 37 for the tuning step selection.

wTo change the frequency in 1 MHz steps, push [MHz•

•2], then rotate the [DIAL].

• Below 1 MHz digits disappear when the 1 MHz tuning step is se-

lected.

DD

Using microphone [UP]/[DN]

➥ Push the microphone’s [UP]/[DN] to set the operating fre-

quency.

• While pushing and holding either [UP] or [DN], the operating fre­quency increases or decreases continuously.

• Operating frequency will be changed with the selected tuning
steps. See page 37 for the tuning step selection.

DD

[F.INP•L]

Numeric buttons

Click

Direct frequency input from the control
software

qClick [F.INP].

• Keypad screen appears.

wClick 4 to 7 digit desired numeric buttons to enter the de-

sired operating frequency within 1240.000 to

1300.000 MHz range.

• After the 7th digit is entered, the frequency automatically fixed
and set to the transceiver.

• Click [ENT] to fix and set the frequency when 4 to 7 digits are en­tered.

• When a digit is mistakenly input, click [CE] to clear the input, then
input from the 1st digit.

• Click [.] first, when changing frequency below 100 kHz digits.

BASIC OPERATION

5

Hint!

The direct frequency input can also be performed from the
PC’s keyboard.
Enter the desired operating frequency via the PC’s keyboard.
e.g. When entering 1295.575 MHz;

[1], [2], [9], [5], [.], [5], [7], [5] [Ent]

DD

Direct frequency input from the RC-24

qPush [F.INP•L]

• Operating frequency disappears.

wPush the appropriate 7-digit keys to enter the desired op-

erating frequency.

• After the 7th digit is entered, the frequency automatically fixed
and set to the transceiver.

• When a digit is mistakenly input, push [F.INP•L] to clear the
input, then input from the 1st digit.

• Push [BK••.] first, when changing frequency below 100 kHz
digits.

5

36

5 BASIC OPERATION

[DIAL]

[MHz• •2]

“✔” appears for the
selected tuning step

Click

■ Tuning step selection

DD

Selecting with the control software

➥ Click [TS], then select the desired tuning step from the list.

• 5, 6.25, 10, 12.5, 20, 25, 50 and 100 kHz tuning steps are avail­able.

DD

Selecting with the RC-24

qPush [MHz••2] for 0.5 sec.

•“TS” and the selected tuning step appear.

wRotate [DIAL] to select the desired tuning step.

• 5, 6.25, 10, 12.5, 20, 25, 50 and 100 kHz tuning steps are avail­able.

• When no operation is performed for 5 sec., both “TS” and tun­ing step selection indication disappear and the transceiver return
to normal condition.

37

BASIC OPERATION

[MODE]

ClickMode indcation

[F.INP•L]

5

■ Lock function (RC-24 only)

To prevent accidental frequency changes and unnecessary
function access, use the lock function.

➥ Push [F.INP•L] for 0.5 sec. to turn the lock function ON

and OFF.

•“ ” appears when the lock function ON.

• [PTT] (microphone), [ ], [ ],

while the lock function is in use.

[SQL] and [LOW•3] can be used

■ Operating mode selection

The ID-1 has 3 operating modes— FM, Digital voice and Data
modes.

DD

Selecting with the control software

➥ Click [MODE] to select the desired operating mode.

• DV for Digital voice, DD for Data mode.

DD

Selecting with the RC-24

➥ Push [MODE] to select the desired operating mode.

•“FM,” “DV” or “DD” is displayed.

5

38

6

Click

Type your call sign here.

Click either
button.

Click

CALL SIGN PROGRAMMING

■ Your call sign programming

Your call sign must be programmed for both Digital voice and
data modes communications.
Up to 5 call signs for your group members can be pro­grammed.

DD

Programming with the control software

qClick [CS].

• Select Call Sign screen appears.

wClick either [Y]/[Z] button for “MY” to select the call sign

channel.

eSelect “MY” text box then type your call sign from the PC’s

keyboard.

rClick [OK] for “MY” to program.

39

DD

[CALL]

[MODE]

SçåAAB

MY

1:********

[V/M]

E

MY

1:********

[DIAL]

Channel number

E

MY

0:********

[CS• •1]

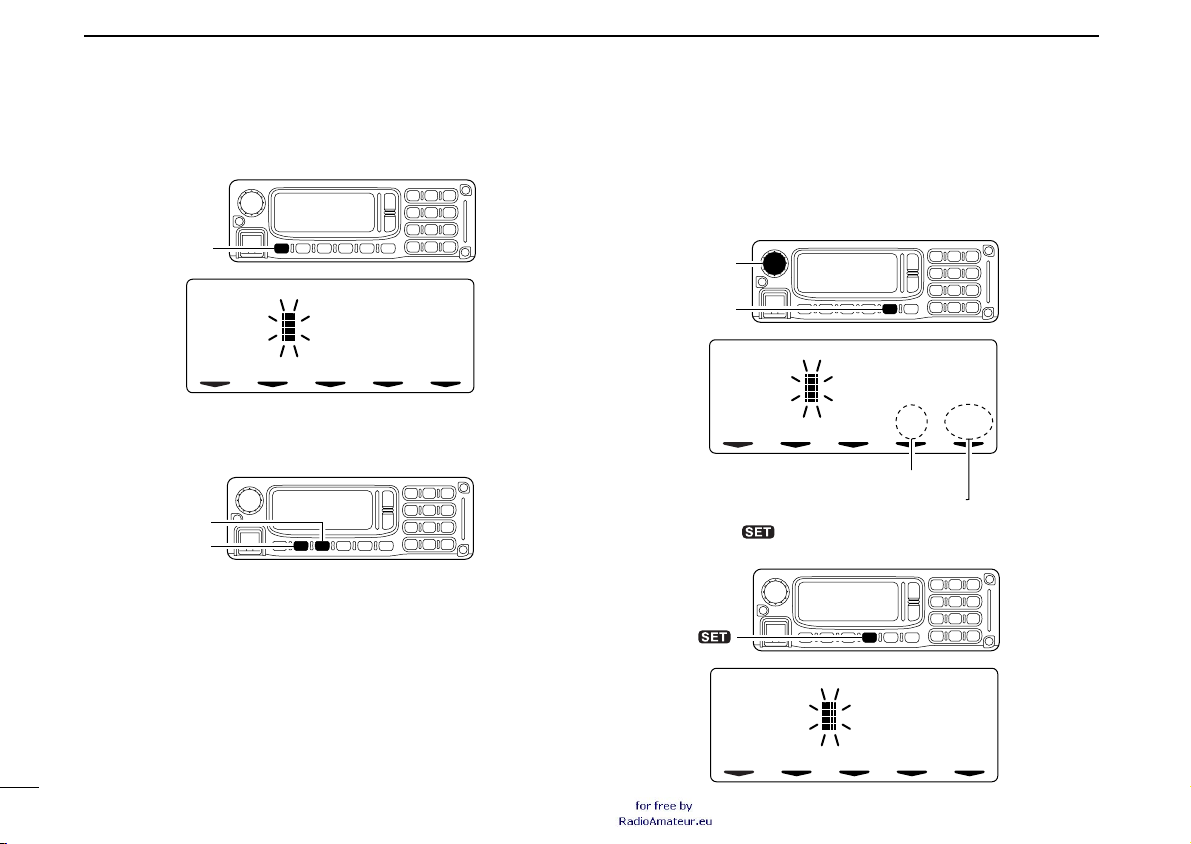

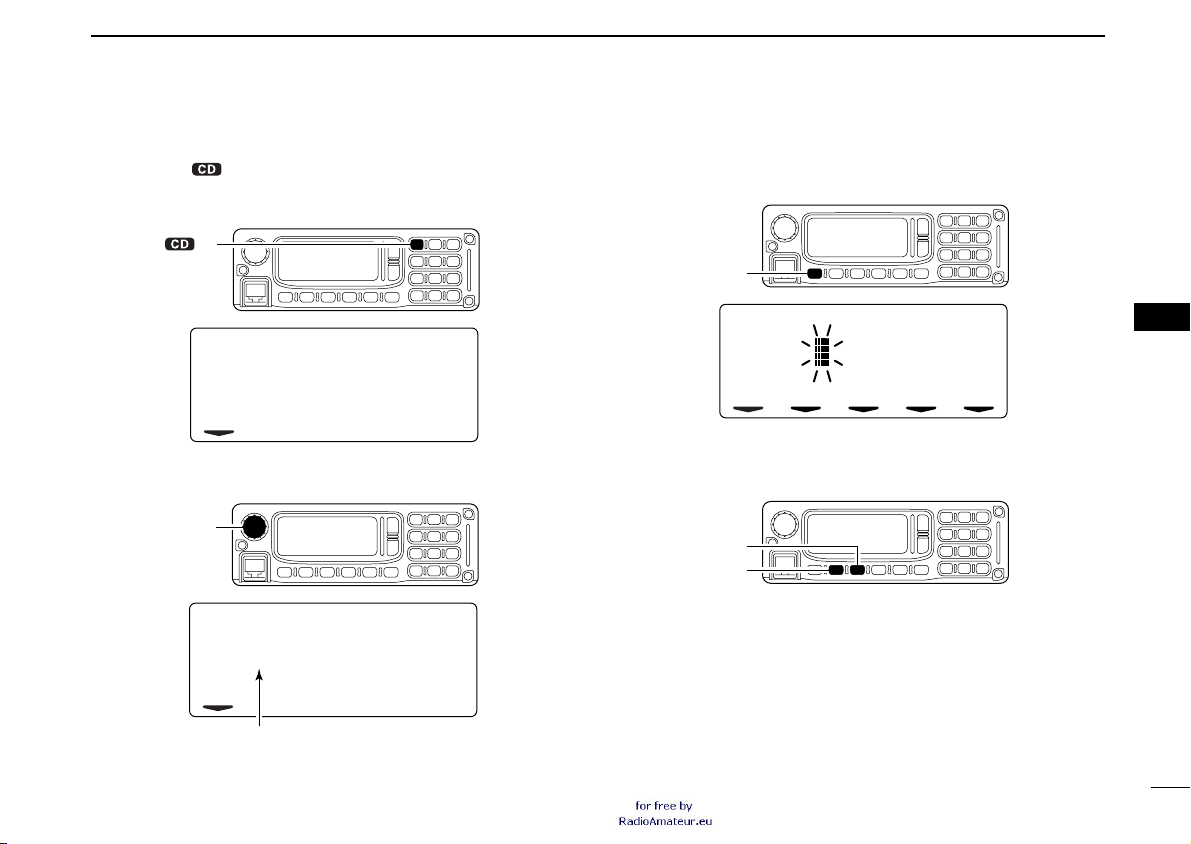

Programming with the RC-24

qPush [CS••1] 4 times to enter call sign select mode and

select My call sign item.

•“MY” call sign channel number and programmed call sign appear.

wRotate [DIAL] to select the desired call sign channel.

•“********” displayed when no call sign is programmed.

CALL SIGN PROGRAMMING

ePush [V/M] to enter the call sign edit condition.

• The 1st digit blinks.

rPush [CALL] or [MODE] to select the digit to be edited.

• Pushing [CALL] moves the cursor to left; pushing [MODE] moves
cursor to right.

6

6

40

6 CALL SIGN PROGRAMMING

SçåAAB

MY

1:A*******

[TXinh• ]

SçåAAB

MY

1:********

[SQL]

Shows the selected character
Shows the selected character group

[DIAL]

41

tPush [SQL] several times to select the desired character

group, then rotate [DIAL] to select the desired character.

• AB : Alphabets (A to Z)

• 12 : Numbers (0 to 9)

• _/ : Symbols (space and /)

yPush [TXinh• ] to enter the selected character.

• The cursor move to right automatically.

uRepeat the steps r to y to enter your call sign.
iPush [V/M] to fix the call sign and exit the edit condition.

■

[DIAL]

E s00:

UR

:CQCQCQ

W

[CS• •1]

Record

number

Selected call sign

Click to program.

Enter the desired call sign
directly.

Station/Repeater call sign programming

CALL SIGN PROGRAMMING

6

Station call sign must be programmed for the specified sta­tion call as well as repeater operation in both Digital voice and
data modes communications.
Up to 20 call signs can be stored for selection.

DD

Programming with the control software

qClick [CS] to shows the Select Call Sign screen.
wClick YOUR’s CQ to remove “✔” mark, then type the de-

sired station/repeater call sign into the text box.

• Call sign is also being programmed in RPT1 and RPT2.

eClick [OK] to program.

rRepeat steps w and e to program another station call

sign.

DD

Programming with the RC-24

qPush [CS••1] once to enter call sign select mode and

select station call sign item.

•“UR” and the selected call sign appear in the upper line, station
call sign channel number and programmed call sign appear in
the lower line.

wRotate [DIAL] to select the desired station call sign record

channel to be programmed.

6

42

6 CALL SIGN PROGRAMMING

SçåAAB

UR

:AQCQCQ

[TXinh• ]

SçåAAB

UR

:CQCQCQ

[SQL]

Shows the selected character
Shows the selected character group

[DIAL]

[CALL]

[MODE]

SçåAAB

UR

:CQCQCQ

[V/M]

ePush [V/M] to enter the call sign edit condition.

rPush [CALL] or [MODE] to select the digit to be edited.

43

• The 1st digit blinks.

• Pushing [CALL] moves the cursor to left; pushing [MODE] moves

cursor to right.

tPush [SQL] several times to select the desired character

group, then rotate [DIAL] to select the desired character.

• AB : Alphabets (A to Z)

• 12 : Numbers (0 to 9)

• _/ : Symbols (space and /)

yPush [TXinh• ] to enter the selected character.

• The cursor move to right automatically.

CALL SIGN PROGRAMMING

E s00:JA3YUA

UR

:JA3YUA

W

[V/M]

6

uRepeat the steps r to y to enter the desired station or re-

peater call sign.

iPush [V/M] to program the call sign and exit the edit condi-

tion.

oRepeat steps w to i to program another station/repeater

call signs.

✔

For your information:

Station and/or repeater call sign can be programmed from
Received call record when a call is received.
See page 47 for details.

6

44

7

Click to displays “CQCQCQ.”

[LOW•3]

[MODE]

ClickClick

TRANSMIT AND RECEIVE— VOICE

■ FM mode operation

qSet the desired frequency in VFO mode from the control

software or the RC-24. (pgs. 35, 36)

• Set the squelch (p. 33) and volume (p. 34) level as desired.

wSelect FM mode with [MODE].
eClick [LOW] in the control software (main screen); or push

[LOW•3] on the RC-24 to select the desired output power.

•“LOW” appears when low power is selected; disappears when

high power is selected.

rPush and hold [PTT] to transmit and speak into the micro-

phone at normal voice level.

tRelease [PTT] to return to receive.

■ Digital voice mode operation

qSet the desired frequency in VFO mode from the control

software or the RC-24. (pgs. 35, 36)

• Set the volume (p. 34) level as desired.

wSelect DV (Digital voice) mode with [MODE].
eClick [LOW] in the control software (main screen); or push

[LOW•3] on the RC-24 to select the desired output power.

•“LOW” appears when low power is selected; disappears when

high power is selected.

DD

When sending a CQ

rSelect “CQ” as the call sign.

Control software

- Click [CS] to shows the Select Call sign screen.

- Click “CQ” button of “YOUR.” (“✔” appears)

- Click [OK].

45

TRANSMIT AND RECEIVE— VOICE

E s00:JA3YUA

UR

:JA3YUA

W

Click to select the desired
call sign (programmed)
; or enter the desired call
sign directly.

LOW

DV

00

1294.500

[BK• •.]

7

RC-24

- Push [BK••.] for 0.5 sec.

•“ ” appears beside the operating mode indication, “DV.”

DD

When calling the desired station

rSet the desired call sign.

Control software

- Click [CS] to shows the Select Call sign screen.

- Click “CQ” button of “YOUR.” (“✔” disappears)

- Click [Z] to select the desired call sign (programmed), or

enter the desired call sign into the text box directly.

- Click [OK].

RC-24

- Push [CS••1].

- Rotate [DIAL] to select the desired call sign (pro-

grammed), or push [V/M] then set the desired call sign
(see pgs. 42–44), then push [SQL] for 0.5 sec.

- Push [CS••1] 4 times to exit call sign select mode.

7

tPush and hold [PTT] to transmit and speak into the micro-

phone at normal voice level.

• Transmit indicator appears and the RF meter shows the output
power.

• The programmed your (“MY”) call sign is displayed on the RC­24 function display.

yRelease [PTT] to return to receive.

• The other station call sign will be received.

• Up to 10 received call signs can be stored into the received call

record automatically. See page 47 for details.

NOTE: The digital modes operation is vastly different than
FM. One of the differences is in the digital modes the
squelch does not function, changing the squelch setting or
pressing the moni button will not open to hear the hiss of
"White Noise".

46

47

Caller:

Receive

Callsign

[CS• •1]

Call sign is displayed here

7 TRANSMIT AND RECEIVE— VOICE

■ When receiving a Digital call

When an individual station call is received, the calling station
call sign can be stored into th received call record.
The record screen will automatically be displayed when an in­dividual station call is received.

The record is cleared once turning power OFF.

DD

Received call record— control software

qWhen a call is received during Digital mode operation, both

Voice and Data, the Received call record screen appears
automatically by default.

• Various information, such as calling station, called station, re­peater call signs, status, date and calling type, are listed.

wTo reply to a call, click to select the desired call record then

click [select] button in the screen.

• The “Caller –>” call sign is set for call.

• Also, the set call sign is programmed for station/repeater call

sign selection list automatically.

eTo close the screen, click [Close] button or “” in the

screen, or click [CD] in the main screen.

DD

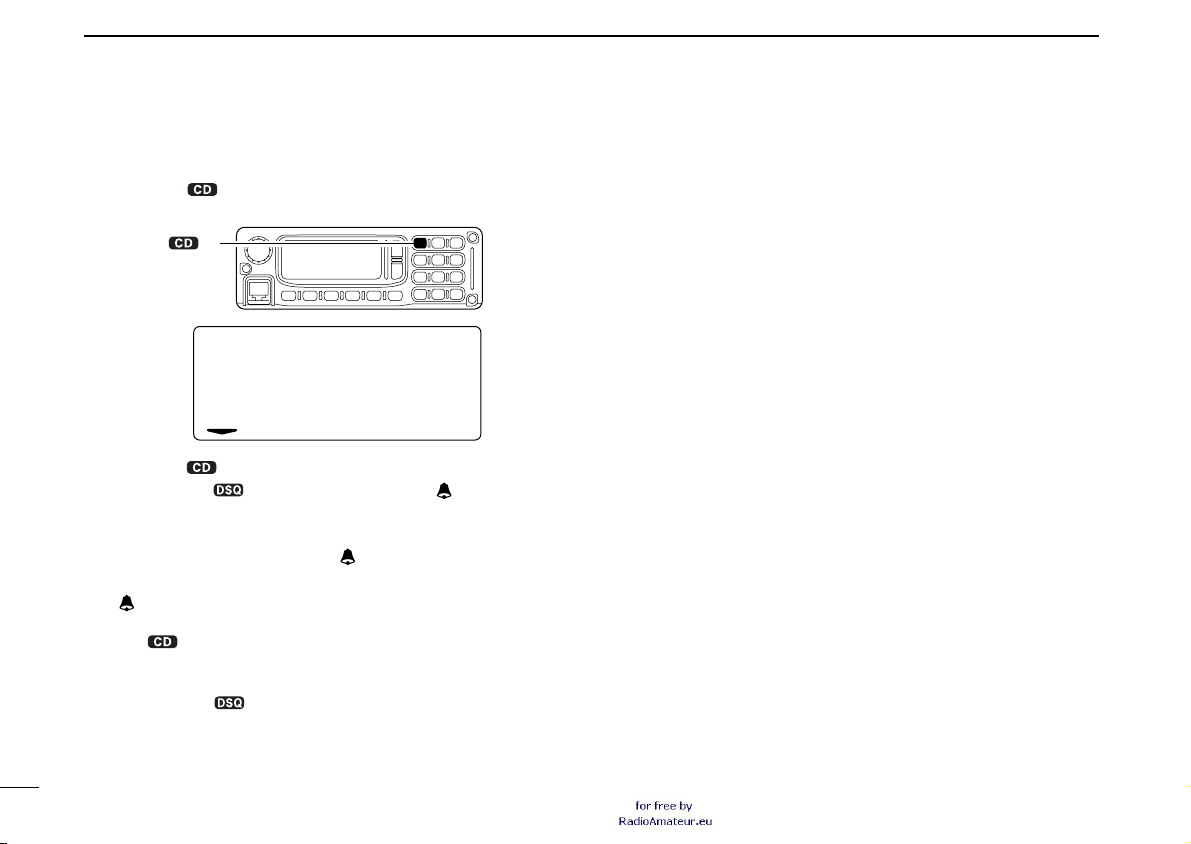

Received call record— RC-24

qTo confirm the received calls, push [CS••1] for 0.5 sec.

to enter receive call sign indication mode.

•“Caller” call sign is displayed

wPush [CS••1] to change the record content.

•“Called,” “RxRPT1” and “RxRPT2” are available.

eRotate [DIAL] to see the other call records.
rTo reply a call, select the desired call record then push

[SQL] for 0.5 sec.

• The call sign is set for call.

• Also, the set call sign is programmed for station/repeater call

sign selection list automatically.

tTo return to operating condition, push [CS••1] for

0.5 sec. again.

TRANSMIT AND RECEIVE— VOICE

Shows the set level

■ S-meter squelch

7

DD

Automatic received call record indication

The automatic Received call record screen indication can be
deactivated, if desired.

qClick [CD] to display the Received call record screen.
wClick “Displays when new call sign signal is received” to

turn the automatic indication ON and OFF.

• ON (“✔”) : The record screen automatically appears when
a call is received. (default)

• OFF (no “✔”) : The record screen appears only when [CD] is
clicked.

Click to remove “✔”

✔

About status indication

A status is indicated in digital repeater operation as follow;
RP UP : When receiving the signal that another station

accessing to the repeater.

UR? : When the target station does not reply the call.
RPT? : When the linking repeater is unable to found.

The ID-1 has an S-meter squelch. The S-meter squelch al­lows you to set a minimum signal level needed to open the
squelch.

➥ Set [SQL] clockwise past the 12 o’clock position in the con-

trol software (main screen) to activate the S-meter squelch.

• S-meter squelch level can be adjusted between 12 o’clock and
fully clockwise position.

• When setting the squelch from the RC-24, a level greater than
‘19’ activates the squelch attenuator.

• The S/RF meter shows the set level with the reversed indication.

NOTE: The squelch attenuator functions even when the
monitor function is in use. Thus set the [SQL] within 10 to
12 o’clock position (12 to 19 level when setting with the
RC-24) is recommended when using the monitor function.

7

48

7 TRANSMIT AND RECEIVE— VOICE

[SQL]

ClickAppears

[AFC• •0]

ClickAppears

■ AFC function

The AFC (Automatic Frequency Control) function tunes the
displayed frequency automatically when an off-set frequency
is received. It activates in FM and Digital voice modes only.

➥ Click [AFC] in the control software (main screen); or push

[AFC••0] on the RC-24 to turn the AFC function ON
and OFF.

•“AFC” appears when the function ON.

■ Monitor function

The monitor function releases all squelch mutes, noise
squelch, tone squelch, digital code squelch and digital call
sign squelch, to monitor the signal on the displayed fre­quency.

➥ Click [MONI] in the control software (main screen); or push

and hold [SQL] on the RC-24 to activate the monitor func­tion.

•“MONI” and “” appear for FM mode, “MONI” appears for
DV and DD mode operation when the function ON. (main screen)

•“ ” appears on the RC-24 function display while holding [SQL]
for FM operation.

• The displayed frequency shifts when duplex (RP– or RP+) is set.

BUSY

49

DD

LOW

Digital Monitor

DIGITAL

[MODE]

[DIAL]

[TXinh• ]

Double click the Digital
Monitor cell, then select
the desired monitoring mode.

Under normal settings, an FM mode signal cannot be heard,
even when the monitor is turned ON. There is an exception,
and this is when you have the Digital monitor set to the Ana­log mode. This will allow an FM mode signal to "Break-in" dur­ing digital communications.

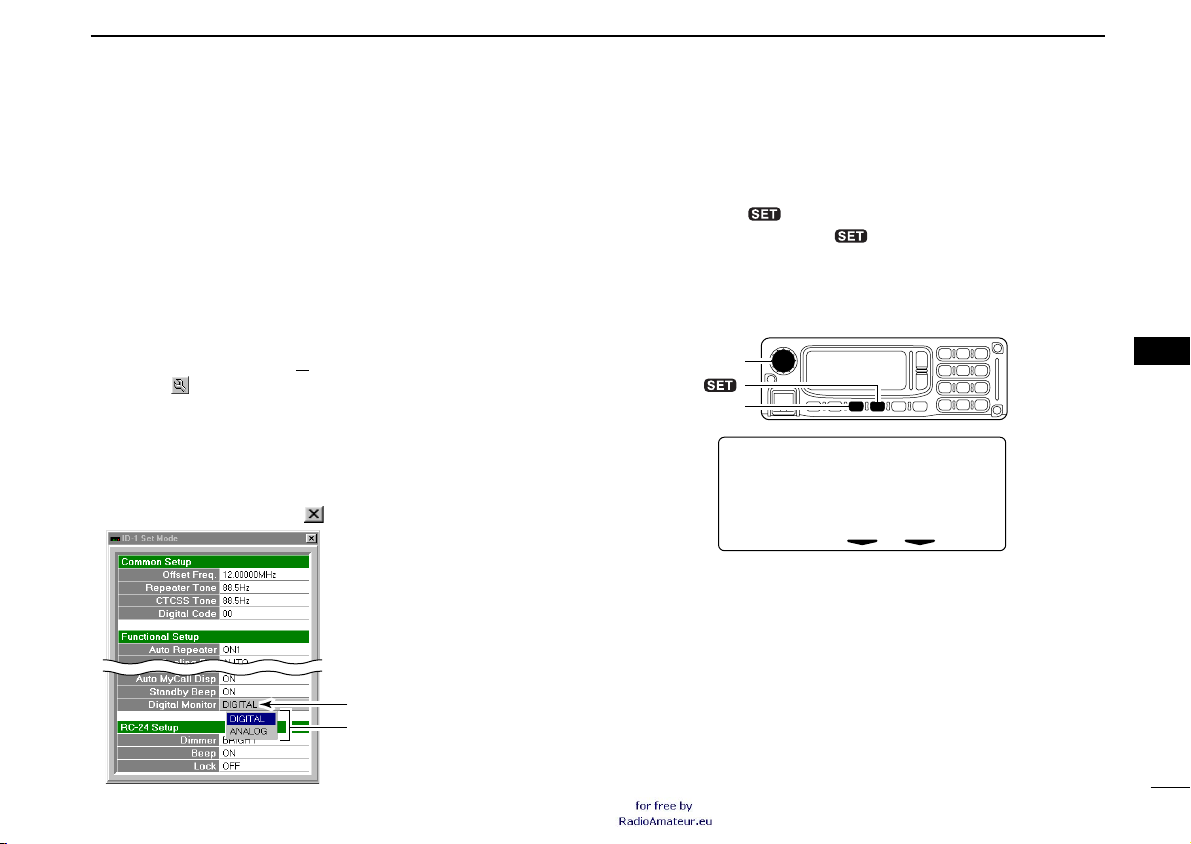

• Setting from the control software

qDisplays set mode screen by performing one of the follow-

wDouble click “Digital Monitor” cell, then select the desired

Monitoring mode selection

ing operations.

- Select “Edit SetMode(C

- Click “” button in tool bar.

- Click [SET].

- Press [F7] key on the PC keyboard.

monitoring mode from “DIGITAL” and “ANALOG.”

• ANALOG: FM mode, DIGITAL: Digital

•

To close the screen, click “” or repeat the operation as step q.

)...” in view menu.

TRANSMIT AND RECEIVE— VOICE

7

• Setting from the RC-24

qPush [MODE] several times to select digital mode.
wPush [TXinh• ] for 0.5 sec. to enter set mode.
ePush [MODE] or [TXinh• ] to select “Digital Mon-

itor” item.

rRotate [DIAL] to select the desired monitoring mode.

• ANALOG: FM mode, DIGITAL: Digital

tPush [PWR] momentarily to exit set mode.

7

50

Station A

Repeater A

Repeater D

1.2 GHz signal

Station C

Repeater C

1.2 GHz signal

10 GHz signal

1.2 GHz
signal

Station D

Station B

Repeater B

10 GHz signal

1.2 GHz signal

Internet
network

Internet
network

8

REPEATER OPERATION— VOICE

■ About D-STAR system

In the D-STAR system, repeater linking via a 10 GHz band
backbone and internet network (gateway connection) capa­bilities are available. This system allows you to much wider
coverage range during Digital voice mode operation.

• D-STAR system outline

For current existing repeater operation, stations that are com­municating must be in the same repeater’s operating area.
However, in the D-STAR system as in the illustration at left,
the repeaters can be linked via the system repeaters (with a
10 GHz signal). Thus stations A and B can communicate even
though they are in different repeater operating areas.

Also, the D-STAR system repeaters are connectable through
the internet network— gateway connection capability.

For example, when station B uses the gateway connection
station B can communicate with the station C!
By using the gateway connection, long distance communica­tion like DX operation may be possible with 1.2 GHz digital
voice!

In the D-STAR system, independent repeater’s operating
area is called as Area and a group that linking repeaters via a
10 GHz backbone is called as Zone.

51

■ General

Step 3:

Set the duplex (shift) direction (–duplex or +duplex).

- Set the offset frequency (shift value), if required.

Step 4 for FM mode:

Set the subaudible tone (repeater tone) encoder
function ON.

- Set the subaudible tone frequency, if required.

Step 1:

Set the desired operating mode.

Step 2:

Set the desired receive frequency (repeater output frequency).

Step 4 for Digital voice mode:

Set the desired repeater call sign.

- Set the desired linked repeater call sign, if required.

Repeater example;

Receives the 1269.975 MHz signal
and the detected audio signals are
transmitted on 1289.975 MHz simul­taneously.

Station A:
Tx: 1269.975 MHz
Rx: 1289.975 MHz

Station B:
Tx: 1269.975 MHz
Rx: 1289.975 MHz

Repeaters allow you to extend the operatable range, and also
to cover blind zones. Because a repeater has much higher
output power than the typical transceiver, and has a wider
coverage area.

Normally, a repeater has independent frequency for each re­ceive and transmit, and a subaudible tone may be required
to accessing a repeater.

Refer to an amateur radio handbook or a ham magazine for
details of local FM repeater, such as repeater input/output fre­quencies and location.

REPEATER OPERATION— VOICE

DD

Repeater operation flow chart

8

8

•

The ID-1 USA version has the auto repeater function. Thus the step 3
(and 4 in FM mode) may not be necessary, depending on the setting.

• Repeater settings can be stored into a memory channel.

52

8 REPEATER OPERATION— VOICE

Displays transmit frequency.

Indicates transmit output power level.

Appears during transmit.

Appear Click

■ Accessing an FM repeater

DD

Setting from the control software

qClick [MODE] to select FM mode.

•“FM” appears.

wSet the desired receive frequency (repeater output frequency).
eClick [RP] several times to select minus or plus duplex.

•“RP–” or “RP+” appears.

• 12 MHz is set as the default for the USA version. Refer to page

56 for offset frequency setting.

rClick [TONE] to turn the repeater tone encoder ON.

•“TONE” appears.

• 88.5 Hz is set as the default. Refer to page 55 for tone frequency

setting.

NOTE for the USA version: During the auto repeater
function ON, the steps e and r are not necessary, de­pending on the settings. See page 100 for the auto re­peater function.

tPush and hold [PTT] to transmit.

• The display frequency automatically changes to the transmit fre­quency (repeater input frequency).

• If the repeater indicator, “RP–” or “RP+,” and “” blink, con-
firm that the duplex direction and the offset frequency (p. 56) is

set correctly.

yRelease [PTT] to receive.
uClick [MONI] to check whether the other station’s transmit

signal can be received directly.

iTo return to simplex operation, click [RP] several times to

clear the “RP–” or “RP+” indicator.

oTo turn OFF the repeater tone encoder, click [TONE] sev-

eral times until no tone indicators appear.

53

DD

LOW

FM RP- TONE

00

1294.500

LOW

FM RP- TONE

00

1282.500

During receive

During transmit

LOW

FM RP- TONE

00

1294.500

[MODE]

[RP•4]

[TONE• •5]

qPush [MODE] to select FM mode.

wSet the desired receive frequency (repeater output frequency).
ePush [RP•4] several times to select minus or plus duplex.

rPush [TONE••5] to turn the repeater tone encoder ON.

Setting from the RC-24

•“FM” appears.

•“RP-” or “RP+” appears.

• 12 MHz is set as the default. Refer to page 56 for offset fre-

quency setting.

•“TONE” appears.

• 88.5 Hz is set as the default. Refer to page 55 for tone frequency

setting.

NOTE for the USA version: During the auto repeater
function ON, the steps e and r are not necessary, de­pending on the settings. See page 100 for the auto re­peater function.

REPEATER OPERATION— VOICE

tPush and hold [PTT] to transmit.

• The display frequency automatically changes to the transmit fre­quency (repeater input frequency).

• If the repeater indicator, “RP-” or “RP+” blinks, confirm that the
offset frequency (p. 56) is set correctly.

yRelease [PTT] to receive.

uPush and hold [SQL] to check whether the other station’s

transmit signal can be received directly.

iTo return to simplex operation, push [RP•4] several times to

clear the “RP-” or “RP+” indicator.

oTo turn OFF the repeater tone encoder, push [TONE•

•5] several times until no tone indicators appear.

8

8

54

8 REPEATER OPERATION— VOICE

67.0

69.3

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

LOW

Repeater Tone

88.5

[MODE]

[DIAL]

[TXinh• ]

Double click

Appears

Select from the above list.

■ Repeater tone frequency setting

55

DD

Setting from the control software

qDisplays set mode screen by performing one of the follow-

ing operations.

- Select “Edit SetMode(C

)...” in view menu.

- Click “” button in tool bar.

- Click [SET].

- Press [F7] key on the PC keyboard.

wDouble click “Repeater Tone” frequency cell, then select

the desired frequency from the displayed list.

• To close the screen, click “” or repeat the operation as step q.

DD

Setting from the RC-24

qPush [MODE] several times to select FM mode.
wPush [TXinh• ] for 0.5 sec. to enter set mode.
ePush [MODE] or [TXinh• ] to select “Repeater

Tone” item.

rRotate [DIAL] to select the desired tone frequency.

• See the table below for the available frequencies.

tPush [PWR] momentarily to exit set mode.

• Available tone frequencies (unit: Hz)

■ Offset frequency setting

LOW

Offset Frequency

12.000

[MODE]

[DIAL]

[TXinh• ]

Double click, then enter
the desired offset frequency.

REPEATER OPERATION— VOICE

8

DD

Setting from the control software

qDisplays set mode screen by performing one of the follow-

ing operations.

- Select “Edit SetMode(C

- Click “” button in tool bar.

- Click [SET].

- Press [F7] key on the PC keyboard.

wDouble click “Offset Freq” frequency cell, then enter the de-

sired frequency within 0 to 60.000 MHz range.

• To close the screen, click “” or repeat the operation as step q.

)...” in view menu.

DD

Setting from the RC-24

qPush [MODE] several times to select FM mode.
wPush [TXinh• ] for 0.5 sec. to enter set mode.
ePush [MODE] or [TXinh• ] to select “Offset Fre-

quency” item.

rRotate [DIAL] to set the desired offset frequency.

• The tuning step, previously selected in VFO mode, is used for
the setting.

tPush [PWR] momentarily to exit set mode.

8

56

8 REPEATER OPERATION— VOICE

Click if necessary

Click to shows “✔” and select/enter the
desired repeater call sign, if desired.

Select/enter the desired call sign

;or click to display “CQCQCQ” for CQ call

Click if necessary

Appears Click

■ Accessing a Digital repeater

DD

Setting from the control software

qClick [MODE] to select DV (Digital voice) mode.

•“DV” appears.

wSet the desired receive frequency (repeater output frequency).
eClick [RP] several times to select the repeater mode.

• Select “RP–” or “RP+.”

rClick [CS] to display the Select Call Sign screen, then set

your call sign in “MY.”

• Click [Y]/[Z] to select the programmed your call sign.

• When your call sign is not programmed, enter your call sign into

the text box directly.

tSet the desired station call sign in “YOUR.”

• When sending a CQ

- Click [CQ] to displays “CQCQCQ” then click [OK].

• When calling the desired station

- Click [Z] to select the call sign.

• When the desired call sign is not programmed, enter the de­sired call sign into the text box directly.

ySet the desired near-by repeater call sign in “RPT1” then

click [OK].

• Click [Z] to select the call sign.

• When the desired repeater call sign is not programmed, enter the

call sign into the text box directly.

• When linking repeaters via internet network (gateway connec­tion), clicking [G] may be necessary depending on the repeater
system.

uClick “Enable” to display “✔,” then set the near-by repeater

call sign from the desired station in “RPT2” then click [OK],
if necessary.

• Click [Z] to select the call sign.

• When the desired repeater call sign is not programmed, enter the

call sign into the text box directly.

• When linking repeaters via internet network (gateway connec­tion), clicking [G] may be necessary depending on the repeater
system.

57

iPush and hold [PTT] to transmit; release [PTT] to receive.
oClick [RP] several times until the “RP–” or “RP+” indicator

disappears to return to simplex operation.

Hint!

When using the gateway connection capabilities, the D-STAR
system repeater automatically searches for the nearest re­peater from the desired station that you want to call even
when you don’t know the desired station is in which Area or
Zone.

REPEATER OPERATION— VOICE

8

How to make a CQ call to another Zone?

When you want to make a CQ call to another Zone, set the
call signs as follows.
e.g.: Another Zone’s repeater call sign= xx0xxx,

the nearest repeater call sign= xx1xxx

q Enter “CQxx0xxx” into “YOUR” (or “UR” in RC-24).
w Enter “xx1xxx” into “RPT1” (or “RPT1” in RC-24).
e Enter “xx0xxx” into “RPT2” (or “RPT2” in RC-24)

*Some repeater system requires the “G” setting with clicking [G]

in “Select Call Sign” screen or pushing [ ] for 0.5 sec. on RC-

24).

8

58

8 REPEATER OPERATION— VOICE

LOW

E s00:STATION1 W

RPT1:IDRP01 Gå

[CS• •1]

[DIAL]

LOW

DV RP-

00

1294.500

[MODE]

[RP•4]

DD

Setting from the RC-24

qPush [MODE] to select DV (Digital voice) mode.

•“DV” appears.

wSet the desired receive frequency (repeater output frequency).
ePush [RP•4] several times to select the repeater mode.

• Select “RP-” or “RP+.”

rPush [CS••1] to enter call sign select mode, then rotate

[DIAL] to select the desired station call sign.

•

When sending a CQ, push [BK••.] for 0.5 sec. to displays “ .”

• Refer to the pages 42 to 44 for call sign setting when the desired

call sign is not programmed.

tPush [CS••1] one more time to select “RPT1,” then ro-

tate [DIAL] to select the desired repeater call sign.

• Refer to the pages 42 to 44 for call sign setting when the desired
call sign is not programmed.

• Push [CS••1] one more times again to select “RPT2” then
set the desired repeater call sign when using the repeater link­ing capability.

• When linking repeaters via internet network (gateway connec­tion), pushing [ ] for 0.5 sec. may be necessary depending on
the repeater system.

yPush [CS••1] once or twice to exit call sign select

mode.

uPush [PTT] to transmit, release [PTT] to receive.
iTo clear “RP-” or “RP+” push [RP•4] once or twice.

59

DATA OPERATION

9

■ General

The ID-1 allows you to not only for the voice communications
but also the data communications with Data mode.

The data communication functions as a wireless LAN unit
with up to 128 kbps (theoretical value) of data transmission
speed. Any data files can be copied to the connected PC.

Internet accessing* is also provided with Data mode opera­tion when gateway connection is used.

*Contract with a gateway repeater manager is additionally required.

■ Precaution

Icom Inc. assume no responsibility whatsoever for any dam­ages or lost profits resulting from opportunities for signal com­munications being lost because of the failure, malfunction,
poor condition, damage, or data loss of this unit or because of
such external causes as power failure. Icom also dismisses
all responsibility for demands made by a third party.

The transmitting data may be received and decrypted by a
third party/station due to the ID-1 transmits data without en­cryption.

Connect the ID-1 and PC via Ethernet cable for Data mode
operation in advance. (see p. 17)

Disconnect the PC from any other network, another ISP, LAN,
etc., is recommended. Network error may be occurred.

For data transferring (PC-to-PC communication), a fixed IP
address must be assigned, the same workgroup setting and
have shared folder must be held for both PCs.

8
9

60

9 DATA OPERATION

Set the gateway
repeater call sign

Set the gateway
repeater call sign*

*See Note below

Set the near-by

repeater call sign*

Click if necessary

Set your call sign

Appears Click

■ Internet access

DD

Setting from the control software

qClick [MODE] to select DD (Data) mode.

•“DD” appears.

wSet the near-by repeater frequency.
eClick [RP] several times to select “RPS”.

uSet the gateway repeater call sign in “RPT2” then [OK].

• Click [Enable] (“✔” appears) to enable “RPT2” call sign setting.

• Click [Z] to select or enter the call sign into the text box directly.

• When the gateway repeater require the “G” setting, click [G].

rClick [CS] to display the Select Call Sign screen, set your

call sign in “MY” then click [OK].

• Click [Y]/[Z] to select the programmed your call sign.

• When your call sign is not programmed, enter your call sign into

the text box directly.

tSet the gateway repeater call sign in “YOUR” then click

[OK].

• Click [Z] to select or enter the call sign into the text box directly.

ySet the desired near-by repeater call sign in “RPT1.”

• Click [Z] to select or enter the call sign into the text box directly.

61

NOTE: When the near-by repeater is gateway repeater,
set the call sign into “RPT1” then click [OK], and skip step
u.

• When the repeater require the “G” setting, click [G].

iClick [TX inh] to release transmission inhibit.

Click

• The transmit inhibit indicator (above [TX inh]) turns OFF.

• Starts accessing to the gateway repeater.

oStart up a web browser then access to the desired web

site.

!0Click [TX inh] again to disconnect (inhibit the transmission)

from the gateway repeater.

Hint!

When starting up a E-mail application at step o, you can ac­cess to the mail server to send or receive an E-mail.

DATA OPERATION

9

9

62

63

LOW

E s00:GATEWY W

RPT2: GATEWY GåG

G

[CS• •1]

[DIAL]

[ ]

LOW

DD TXinh

00

1294.500

[MODE]

[RP•4]

9 DATA OPERATION

DD

Setting from the RC-24

qPush [MODE] to select DD (Data) mode.

•“DD” appears.

wSet the near-by repeater frequency.
ePush [RP•4] several times to select “RPS.”

• “RPS” displayed briefly.

rPush [CS••1] to enter call sign select mode, then rotate

[DIAL] to select the gateway repeater call sign.

• Refer to the pages 42 to 44 for call sign setting when the desired
call sign is not programmed.

tPush [CS••1] one more time to select “RPT1,” then ro-

tate [DIAL] to select the desired near-by repeater call sign.

• Refer to the pages 42 to 44 for call sign setting when the desired
call sign is not programmed.

yPush [CS••1] one more time to select “RPT2,” then ro-

tate [DIAL] to select the gateway repeater call sign.

uPush [ ] for 0.5 sec. to enable the gateway connection,

when the repeater require the “G” setting.

•“G” appears beside the call sign.

NOTE: When the near-by repeater is gateway repeater,
push [ ] for 0.5 sec. (if necessary) after the call sign set­ting into “RPT1” in step t and skip step y.

iPush [CS••1] once (or twice) to exit call sign select

mode.

oPush [TXinh• ] to release transmission inhibit.

•“RPS” appears instead of “TXinh” indication.

• Starts accessing to the gateway repeater.

!0Start up a web browser then access to the desired web

site.

!1Push [TXinh• ] again to disconnect (inhibit the trans-

mission) from the gateway repeater.

■ Data transferring

Set the desired
station call sign

Set the gateway
repeater call sign*

*if desired

Set the near-by

repeater call sign*

Click if necessary

Set your call sign

NOTE: Set a fixed IP address, the same workgroup and a
shared folder for each PC, as well as the call sign setting
each other for direct data transferring between ID-1s. In
this case, the steps e, t to u are not necessary.

DD

qClick [MODE] to select DD (Data mode).

•“DD” appears.

wSet the desired frequency.
eClick [RP] several times to select “RPS,” when connecting

the PC through repeater/s.

rClick [CS] to display the Select Call Sign screen, set your

call sign in “MY” then click [OK].

• Click [Y]/[Z] to select the programmed your call sign.

• When your call sign is not programmed, enter your call sign into

tSet the desired station call sign in “YOUR” then click [OK].

• Click [Z] to select or enter the call sign into the text box directly.

For direct data transferring between ID-1s, go to step ii.

ySet the desired near-by repeater call sign in “RPT1,” if de-

sired.

• Click [Z] to select or enter the call sign into the text box directly.

uSet the gateway repeater call sign in “RPT2,” then [OK], if

desired.

• Click [Enable] (“✔” appears) to enable “RPT2” call sign setting.

• Click [Z] to select or enter the call sign into the text box directly.

• When the gateway repeater require the “G” setting, click [G].

Setting from the control software

the text box directly.

DATA OPERATION

NOTE: When the near-by repeater is gateway repeater,
set the call sign into “RPT1” then click [OK], and skip step
u.

• When the repeater require the “G” setting, click [G].

iClick [TX inh] to release transmission inhibit.

• The transmit inhibit indicator (above [TX inh]) turns OFF.

• Starts accessing to the desired station (via repeater/s).

oOpen “Network Computers.”

• The shared folder of the desired station appears.

• It may takes a minutes until the shared folder appears according

to the conditions, or PC performance.

!0Open the shared folder, then drag and drop the desired file

to transferring.

!1Click [TX inh] again to disconnect (inhibit the transmission)

from the connected PC.

9

9

64

9 DATA OPERATION

DD

Setting from the RC-24

qPush [MODE] to select DD (Data) mode.

•“DD” appears.

wSet the desired frequency.
ePush [RP•4] several times to select “RPS,” when connect-

ing the PC through repeater/s.

• “RPS” displayed briefly.

rPush [CS••1] to enter call sign select mode, then rotate

[DIAL] to select the desired station call sign.

• Refer to the pages 43 to 45 for call sign setting when the desired
call sign is not programmed.

For direct data transferring between ID-1s, go to step ii.

tPush [CS••1] one more time to select “RPT1,” then ro-

tate [DIAL] to select the desired near-by repeater call sign,
if desired.

• Refer to the pages 42 to 44 for call sign setting when the desired
call sign is not programmed.

yPush [CS••1] one more time to select “RPT2,” then ro-

tate [DIAL] to select the gateway repeater call sign, if de­sired.

uPush [ ] for 0.5 sec. to enable the gateway connection,

when the repeater require the “G” setting.

•“G” appears beside the call sign.

NOTE: When the near-by repeater is gateway repeater,
push [ ] for 0.5 sec. (if necessary) after the call sign set­ting into “RPT1” in step t and skip step y.

iPush [CS••1] once (or twice) to exit call sign select

mode.

oPush [TXinh• ] to release transmission inhibit.

•“RPS” appears instead of “TXinh” indication.

• Starts accessing to the desired PC (via repeater/s).

!0Open “Network Computers.”

• The shared folder of the desired station appears.

• It may takes a minutes until the shared folder appears according

to the conditions, or PC performance.

!1Open the shared folder, then drag and drop the desired file

to transferring.

!2Push [TXinh• ] again to disconnect (inhibit the trans-

mission) from the gateway repeater.

65

■ Slow data communication

In addition to the data communication, a slow data communi­cation capability is available.
Slow data communications require narrow passband width,
thus digital voice mode is used and provides a simultaneous
operation with voice and data.

qSet the desired frequency.
wSelect DV (Digital voice) mode.

• Click [MODE] on the main screen or push [MODE] on the RC-

24.

eSet another settings, such as repeater, digital code

squelch, transmit output power.

rClick “” or select “Exit(X

software.

NOTE: The control software must be quit during slow data
operation. The control software and a slow data communi­cation application cannot be operated simultaneously, due
to both of data passing through the ID-1 USB port.

tStart up the slow data communication application.
ySet the application as follows.

• Port : The same COM port number as ID-1’s

• Baud rate : 19200 bps

• Data : 8 bit

• Parity : None

• Stop : 1 bit

• Flow control : Xon/Xoff

)” in File menu to quit the control

DATA OPERATION

uPush and hold [PTT] to transmit, release to receive the

data.

• Refer to the instruction of the application that how to send or re­ceive data.

9

9

66

10

Double click the desired
channel’s “Select” cell.

Select “+ : Move this CH.”

Appears

Click

MEMORY/CALL OPERATION

■ General description

The transceiver has 105 memory channels including 2 scan
edge memory channels (1 pair), and 3 call channels. Each of
these channels can be individually programmed with operat­ing frequency (pgs. 35, 36), operating mode (p. 38), repeater
mode (pgs. 53, 54, 57–59), offset frequency (p. 56), subaudi­ble tone encoder or tone squelch and its tone frequency
(p. 55), Digital squelch and its station call sign (pgs. 88–95),
repeater call signs (RPT1 and RPT2; pgs. 57–59), skip infor­mation* (p. 84) and memory names (pgs 76–78).

*Except scan edges and call channels.

■ Memory channel selection

DD

Selecting with the control software

qClick [V/M] to select memory mode.

•“MEMO” appears.

• Dial selection

wLeft click or right click on [DIAL] to increase or decrease

the memory channel number.

• The programmed memories can only be selected.

• Direct channel number input

wClick on [F.INP] to display keypad screen.
eClick the appropriate numeral keys to select the desired

memory channel.

• When selecting a channel 00 to 09, click [0] first then click [0]–[9],
or click [0]–[9] then click [ENT].

• PC keyboard can also be used for the direct channel selection.

• Selecting from Memory Channel screen

wDisplay the Memory channel screen.

- Select “Edit Memory Channel(M

- Click “” in tool bar.

- Press [F6] key on the PC keyboard.

eDouble click, or right click the desired channel’s “Select”

cell, then select “+ : Move to this CH” to select the desired
memory channel.

• Click the desired memory channel’s “Select” cell, then press
[Enter] while pressing [Ctrl] key on the PC keyboard.

)...” in View menu.

67

DD

“CALL” and “C” appear

Click

LOW

FM

M00

1294.500

[V/M]

Appears

Selecting with the RC-24

qPush [V/M] to select memory mode.

•“M” appears beside the channel number indication.

• Dial selection

wRotate [DIAL] to select the desired memory channel.

• The programmed memory channels can only be selected.

• Microphone’s [UP]/[DN] switches can also be used for the selec-

tion.

• Keypad selection

wPush [F.INP•L] then push the appropriate digit keys to se-

lect the desired memory channel.

• Channel number indication disappear after pushing [F.INP•L].

• When selecting a channel 00 to 09, push [AFC••0] first then

push [AFC••0]–[MN•9].

MEMORY/CALL OPERATION

10

■ Call channel selection

Call channel is pre-programmed memory channel that can be
accessed by simply clicking call channel button.
The transceiver has 3 call channels.

DD

Selecting with the control software

qClick [CALL] to select memory mode.

•“CALL” and “C” appear.

• Dial selection

wLeft click or right click on [DIAL] to increase or decrease

the call channel number.

• Direct channel number input

wClick on [F.INP] to displays keypad screen.
eClick the appropriate numeral key ([1], [2] or [3]) to select

the desired call channel.

• PC keyboard can also be used for the direct channel selection.

• [CALL] key selection

wClick [CALL] each time to select C1 to C3 in sequence.

10

68

69

LOW

FM

C1

1294.500

[CALL]

“C” appears

Double click the desired
channel’s “Select” cell.

Select “+ : Move this CH.”

10 MEMORY/CALL OPERATION

• Selecting from Memory Channel screen

wDisplay the Memory channel screen.

- Select “Edit Memory Channel(M

- Click “” in tool bar.

- Press [F6] key on the PC keyboard.

eDouble click, or right click the desired channel’s “Select”

cell, then select “+ : Move to this CH” to select the desired
call channel.

• Click the desired call channel’s “Select” cell, then press [Enter]
while pressing [Ctrl] key on the PC keyboard.

)...” in View menu.

DD

Selecting with the RC-24

qPush [CALL] to select call channel

•“C” appears beside the channel number indication.

• Dial selection

wRotate [DIAL] to select the desired call channel.

• Microphone’s [UP]/[DN] switches can also be used for the selec­tion.

• Keypad selection

wPush [F.INP•L] then push the appropriate digit key

([CS••1], [MHz••2] or [LOW•3]) to select the de-
sired call channel.

• Channel number indication disappear after pushing [F.INP•L].

• [CALL] selection

wPush [CALL] each time to select C1 to C3 in sequence.

■ Programming a memory/call channel

Click

Click to

select

Shows the selected memory
or call channel number and
previously programmed fre­quency.

Right click to move memory
or call channel number up.
Left click to move memory or
call channel number down.

Click

MEMORY/CALL OPERATION

10

VFO settings, including the set mode contents such as re­peater tone frequency, offset, can be programmed into a
memory and call channel.

DD

Programming from the control software
— main screen

qSet the desired frequency in VFO mode.

➥ Set the operating mode with [MODE]
➥ Set the frequency using [DIAL] or keypad.
➥ Set other data (e.g. station call sign, tone information,

etc.) if required.

wClick [MW] to display the Memory programming screen.

eSelect the desired memory or call channel number by right

clicking or left clicking on the [DIAL] in the screen.

• Click “MEMORY” to select memory, or click “CALL” to select call
channel.

10

rClick [MW] on the Memory programming screen to pro-

gram.

tTo close the Memory programming screen, click [MW] on

the main screen again or click “.”

70

10 MEMORY/CALL OPERATION

Double click the
Mode cell, then
select the desired
operating mode.

Click to select, then enter
the desired operating
frequency.

DD

Programming from the control software
— Memory Channel screen

qDisplay the Memory channel screen.

- Select “Edit Memory Channel(M

- Click “” in tool bar.

- Press [F6] key on the PC keyboard.

wClick to select the “Freq.” cell of desired memory or call

channel, then enter the desired operating frequency from
the PC keyboard directly.

eDouble click the Mode cell in the same memory/call chan-

nel, then select the desired operating mode.

)...” in View menu.

rSet the other items as follows.

• Repeaters— RP

Double click the cell, then select the
desired duplex condition.

• Repeaters— Offset Freq.

Click to select the cell, then enter the desired offset fre­quency from the PC keyboard directly.

• TONE/TSQL— Tone Select

Double click the cell, then select the
desired tone condition.

• TONE/TSQL— Repeater Tone, TSQL Tone

Double click the cell, then select the
desired tone frequency.

• Digital— DSQL

Double click the cell, then select the
desired digital squelch condition.

71

• Digital— Code

Click to select the cell, then enter the desired digital code
number from the PC keyboard directly.

MEMORY/CALL OPERATION

LOW

FM

M00

1294.500

[MW•6]

10

• Call Sign— YOUR, RPT1, RPT2

Click to select the cell, then enter the desired station or
repeater call sign from the PC keyboard directly.

• SKIP

Double click then select the skip condition.

• Not selectable for the scan edges and call channels.

• Memory Name

Click to select the cell, then enter the desired memory
name from the PC keyboard directly.

tRepeat the steps w to r to program another memory or

call channels.

yTo close the Memory Channel screen, click “” in tool bar

or click “.”

DD

Programming with the RC-24

qSet the desired frequency in VFO mode.

➥ Set the operating mode with [MODE].
➥ Set the frequency using [DIAL] or keypad.
➥ Set other data (e.g. station call sign, tone information,

etc.), if required.

wPush [MW•6] momentarily.

• The previously selected memory channel number blinks.

eRotate [DIAL] to select the desired memory/call channel to

be programmed.

• Push [V/M] to select the previously selected memory channel
(the same memory channel as displayed at step w), push [CALL]
to select call channel 1.

• Select “MC1” as the call channel 1, “MC2” as the call channel 2
and “MC3” as the call channel 3.

rPush [MW•6] for 0.5 sec. to program.

• 3 beeps sound.

• Memory channel number automatically increases when continu-
ing to push [MW•6] after programming.

10

72

10 MEMORY/CALL OPERATION

Select to copy
Select to paste

Click to

select

Shows the selected memory
channel number and previ­ously programmed frequency.

Right click to move memo­ry channel number up.
Left click to move memory
channel number down.

■ Copying a memory contents

This function copies a memory channel’s contents to VFO (or
another memory/call channel). This is useful when searching
for signals around a memory channel frequency and for re­calling the offset frequency, subaudible tone frequency etc.

DD

Copying from the control software
— main screen

qSelect the desired memory/call channel to be copied with

[DIAL] or keypad.

•

Click [V/M] or [CALL] to select memory or call channel, if necessary.

wClick [MW] to display the Memory programming screen.
eClick to select the desired mode (MEMORY, CALL or VFO)

to be copied to.

rSelect the desired memory or call channel number by right

clicking or left clicking on the [DIAL] in the screen.

DD

Copying from the control software
— Memory Channel screen

qDisplay the Memory channel screen.

- Select “Edit Memory Channel(M

- Click “” in tool bar.

- Press [F6] key on the PC keyboard.

wRight click any cell of the desired memory/call channel to

be copied, except “Select,” then select “Copy(C
displayed menu as below.

• After selecting a cell of the desired memory channel, press [C]
key while [Ctrl] key is pressed and held— these key actions are
the same as the mouse operation above.

eRight click any cell of the desired memory/call channel to

be copied to, except “Select,” then select “Paste(V

• After selecting a cell of the desired memory channel, press [V]
key while [Ctrl] key is pressed and held— these key actions are
the same as the mouse operation above.

)...” in View menu.

)” from the

).”

tClick [MW] on the Memory programming screen to copy.
yTo close the Memory programming screen, click [MW] on

the main screen again or click “.”

73

NOTE: Copying a memory/call channel contents to VFO is
not possible from the Memory Channel screen.

DD

Click to

select

Shows the selected memory
channel number and previ­ously programmed frequency.

Right click to move memo­ry channel number up.
Left click to move memory
channel number down.

LOW

FM

M00

1294.500

[MW•6]

Copying with the RC-24

qSelect the desired memory or call channel with [DIAL] or

keypad to be copied.

• Push [V/M] or [CALL] to select memory mode or call channel, if
desired.

wPush [MW•6] momentarily.

• The previously selected memory channel number blinks.

eRotate [DIAL] to select VFO, the desired memory or call

channel to be programmed.

• Select “M--” when copying to VFO.

• Select “M00” to “M99” when copying to memory channel.

• Select “MC1” to “MC3” when copying to call channel.

• The display shows the currently programmed frequency and set-

tings.

• Push [V/M] to select a blank memory channel, push [CALL] to
select call channel 1.

rPush [MW•6] for 0.5 sec. to program.

• 3 beeps sound.

MEMORY/CALL OPERATION

10

■ Memory clearing

Contents of programmed memories can be cleared (blanked),
if desired.

DD

Clearing from the control software
— main screen

qClick [MW] to display the Memory programming screen.
wClick to select the “MEMORY.”
eSelect the desired memory channel number to be cleared

by right clicking or left clicking on the [DIAL] in the screen.

rClick [M-CL] on the Memory programming screen to clear

the contents.

tTo close the Memory programming screen, click [MW] on

the main screen again or click “.”

10

74

75

Select to clear

q

w

e

r

10 MEMORY/CALL OPERATION

DD

Clearing from the control software
— Memory Channel screen

qDisplay the Memory channel screen.

- Select “Edit Memory Channel(M

- Click “” in tool bar.

- Press [F6] key on the PC keyboard.

wRight click any cell of the desired memory channel to be

cleared, except “Select,” then select “Clear” from the dis­played menu as below.

DD

Clearing with the RC-24

qPush [V/M] to select VFO mode.
wPush [MW•6] momentarily.

•“M--” blinks.

eSelect the desired memory channel with [DIAL] or keypad

to be cleared.

rPerform the following operations within 2 sec.

- Push [MW•6] momentarily.

- Push [MW•6] for 0.5 sec. again.

• The programmed frequency disappears and the selected mem­ory channel number blinks.

)...” in View menu.

✔ For your convenience— Memory Chan-

nel screen other operations

qMove to above (Press [Ctrl] and [⇑] keys at the same time)

swaps the selected Memory Channel with the Channel
above it.

wMove to below (Press [Ctrl] and [⇓] keys at the same time)

swaps the selected Memory Channel with the Channel
below it.

eDelete [Del]

Deletes the selected Memory Channel and moves the
Memory Channels up one Memory Channel location.

rInsert [Ins]

Inserts an empty Memory Channel above the selected
Memory Channel and moves the Memory Channels down
one Memory Channel location.

■ Programming memory name

[CALL]

[MODE]

LOW

çå A AB

Name:

[MN•9]

Click to select then
type the desired
memory name.

MEMORY/CALL OPERATION

10

Each memory channel can be programmed with an alphanu­meric channel name for easy recognition and can be indicated
independently by channel. Names can be a maximum of 10
characters.

DD

Programming from the control software

qDisplay the Memory Channel screen.

- Select “Edit Memory Channel(M

- Click “” in tool bar.

- Press [F6] key on the PC keyboard.

wClick to select “Memory Name” cell of the desired memory

channel.

eType the desired 10-character memory name from the PC

keyboard.

rTo close the Memory Channel screen, click “” on the

main screen or repeat the step q.

)...” in View menu.

DD

Programming with the RC-24

qPush [V/M] to select memory mode.
wSelect the desired memory channel with [DIAL] or keypad.
ePush [MN•9] for 0.5 sec. to enter memory name program-

ming condition.

• 1 short and 1 long beep will sound.

rPush [CALL] or [MODE] to select the digit to be edited.

• Pushing [CALL] moves the cursor to left; pushing [MODE] moves
cursor to right.

10

76

10 MEMORY/CALL OPERATION

çå 1 12

Name:Icom

ID-1

çå A AB

Name:

[SQL]

Shows the selected character
Shows the selected character group

[DIAL]

77

tPush [SQL] several times to select the desired character

group, then rotate [DIAL] to select the desired character.

• AB : Alphabets (Capital: A to Z)

• ab : Alphabets (Small letter: a to z)

• 12 : Numbers (0 to 9)

• _/ : Symbols (space and /)

• !" : Symbols (! “ # $ % & ’ ( ) ✱ + , – . : ; < = > ? @ [ \ ] ^ _ ` {

| } ~)

yPush [TXinh• ] to enter the selected character.

• The cursor move to right automatically.

uRepeat the steps r to y to enter the desired memory

name.

iPush [MN•9] for 0.5 sec. to program the memory name and

exit the edit condition.

• 1 short and 1 long beep will sound.

• Return to memory mode automatically.

oRepeat steps w to i to program another memory names.

■ Memory name indication

LOW

FM

1294.500 M00

LOW

FM

Icom

ID-1 M00

[MN•9]

Selected with [MN•9].

Click

Toggles indication with [MN].

MEMORY/CALL OPERATION

10

During memory mode operation, the programmed memory
name can be displayed instead of the programmed frequency
for your preference.

DD

Selecting from the control software

qClick [V/M] to select memory mode, if necessary.

•“MEMO” appears.

wClick [MN] to show the programmed memory name.

•“MN” appears.

• When no memory name is programmed, the programmed fre-

quency is displayed.

eTo cancel the indication, click [MN] again.

DD

Selecting with the RC-24

qPush [V/M] to select memory mode.
wSelect the desired memory channel with [DIAL] or keypad.
ePush [MN•9] momentarily to toggle the indication between

programmed memory name and frequency.

•“MN ON” or “MN OFF” displayed for a while when memory
name indication or frequency indication is selected, respectively.

10

78

11

FMDV DV

DV

DVDVDV

DD

M 00

M 04

M 01 M 02 M 03

M 05

M 99

M 06

Band
edge

Band
edge

Scan edges

Scan

Jump

MPA MPB

Start End

SKIP

SKIP

M 00

M 04

M 01 M 02 M 03

M 05

M 99

M 06

Pause
scan

Receiving
a signal

Timer
scan

Pausing

2 sec.

SCAN OPERATION

■ Scan types

Scanning searches for signals automatically and makes it
easier to locate new stations for contact or listening purposes.

PROGRAMMED SCAN

MEMORY SCAN

79

There are 3 scan types and 4 resume conditions to suit your
operating needs.

MODE SELECT SCAN

Repeatedly scans between
two user-programmed fre­quencies. Used for checking
for frequencies within a speci­fied range such as repeater
output frequencies, etc.

Repeatedly scans memory
channels except those set as

SCAN RESUME
CONDITION (p. 85)

skip channels. Used for often­called channels and for by­passing normally busy
channels such as repeater
frequencies.

Repeatedly scans all memory
channels with the selected op­erating mode.

4 resume conditions are avail­able: 3 timer scans and pause
scan. When receiving a sig­nal, pause scan pauses until
the signal disappears; timer
scans pause for 5, 10 or
15 sec.

■ Scan start/stop

[SCAN•8]

Selectable when VFO has
been selected.

Selectable when memory mode
has been selected.

Click

SCAN OPERATION

11

DD

Preparation

Set the scan resume condition (p. 85); program the scan
edges (pgs. 81–83); program 2 or more memory channels
(pgs. 70–72); set skip settings (p. 84), if desired.

DD

Scanning from the control software

qSelect VFO mode for programmed scan; or memory mode

for memory/mode select scan with [V/M].

• Select a memory channel which the desired operating mode is
programmed.

wClick [SCAN].

eSelect the desired scan type.

• After the selection, the selected scan starts.

*The above list indication is for instruction description only. In the

actual application clearly shows only the selectable items only.

rTo cancel the scan, click [SCAN] again then select “OFF.”

DD

Scanning with the RC-24

qSelect VFO when programmed scan; or select memory

mode when memory/select mode scan with [V/M]

• Select a memory channel which the desired operating mode is
programmed.

wPush [SCAN•8] momentarily to start programmed or mem-

ory scan; push [SCAN•8] for 0.5 sec. to start select mode
scan.

• Decimal point, “.”, blinks during programmed scan; “M” indica­tor blinks during memory/select mode scan.

eTo cancel the scan, push [SCAN•8] momentarily.

11

80

11 SCAN OPERATION

Click

Click to

select

Shows the selected scan
edge channel and previously
programmed frequency.

Select “PA” or “PB”
channel.

Click

■ Programming scan edge channels

Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges PA and PB, in memory channels.

DD

Programming from the control software
— main screen

qSet the desired scan start frequency in VFO mode.

➥ Set the operating mode with [MODE]
➥ Set the frequency using [DIAL] or keypad.
➥ Set other data (e.g. station call sign, tone information,

etc.) if required.

wClick [MW] to display the Memory programming screen.

eSelect the memory channel “PA ” by right clicking or left

clicking on the [DIAL] in the screen.

• Click to select “MEMORY” if call is selected.

rClick [MW] on the Memory programming screen to pro-

gram.

tSet the desired scan end frequency in VFO mode as the

step q.

ySelect the memory channel “PB,” then click [MW] in Mem-

ory programming screen to program.

uTo close the Memory programming screen, click [MW] on

the main screen again or click “.”

81

DD

Double click the
Mode cell, then
select the desired
operating mode.

Click to select, then enter
the desired scan edge
frequency.

Programming from the control software
— Memory Channel screen

qDisplay the Memory channel screen.

- Select “Edit Memory Channel(M

- Click “” in tool bar.

- Press [F6] key on the PC keyboard.

wClick to select the “Freq.” cell of either the scan edge chan-

nel, PA or PB, then enter the desired operating frequency
from the PC keyboard directly.

)...” in View menu.

SCAN OPERATION

rSet the other items as follows.

• Repeaters— RP

Double click the cell, then select the
desired duplex condition.

• Repeaters— Offset Freq.

Click to select the cell, then enter the desired offset fre­quency from the PC keyboard directly.

• TONE/TSQL— Tone Select

Double click the cell, then select the
desired tone condition.

11

eDouble click the Mode cell in the same memory/call chan-

nel, then select the desired operating mode.

• TONE/TSQL— Repeater Tone, TSQL Tone

Double click the cell, then select the
desired tone frequency.

• Digital— DSQL

Double click the cell, then select the
desired digital squelch condition.

• Digital— Code

Click to select the cell, then enter the desired digital code
number from the PC keyboard directly.

11

82

11 SCAN OPERATION

[MW•6]

• Call Sign— YOUR, RPT1, RPT2

Click to select the cell, then enter the desired station or
repeater call sign from the PC keyboard directly.

• Memory Name

Click to select the cell, then enter the desired memory
name from the PC keyboard directly.

tRepeat the steps w to r to program another scan edge

channel.

yTo close the Memory Channel screen, click “” in tool bar

or click “.”

DD

Programming with the RC-24

qSet the desired scan edge frequency in VFO mode.

➥ Set the operating mode with [MODE]
➥ Set the frequency using [DIAL] or keypad.
➥ Set other data (e.g. station call sign, tone information,

etc.) if required.

wPush [MW•6] momentarily.

• Memory channel number blinks.

eRotate [DIAL] to select a scan edge channel to be pro-

grammed.

• Select “MPA” as the PA, “MPB” as the PB channel.

rPush [MW•6] for 0.5 sec. to program.

• 3 beeps sound.

• Scan edge channel number automatically increases when con-
tinuing to push [MW•6] after programming.

tRepeat the steps q to r to program the another scan

edge channel.

83

■ Skip channel setting

LOW

FM

1294.500 M00

[PRIO• •7]

Appears

Double click then select the

desired skip condition.

SCAN OPERATION

11

The memory skip function speeds up scanning by checking
only those memory channels not set as skip channels. Set
skip channels as follows.

DD

qDisplay the Memory channel screen.

wDouble click the “SKIP” cell of the desired memory chan-

eRepeat the step w to set the skip condition for another

Setting from the control software

- Select “Edit Memory Channel(M

- Click “” in tool bar.

- Press [F6] key on the PC keyboard.

nel, then select the skip condition from “OFF” and “SKIP.”

•“SKIP” indicator appears on the main screen when “SKIP” is se-
lected.

• Scan edge and call channels cannot be selected as the skip
channel.

memory channels, if desired.

)...” in View menu.

DD

Setting from the RC-24

qSelect the desired memory channel.

➥ Push [V/M] to select memory mode.
➥ Select the desired memory channel number with [DIAL]

or keypad.

wPush [PRIO••7] for 0.5 sec. to turn the skip setting ON

and OFF.

•“ ” appears when the skip setting ON.

11

84

11 SCAN OPERATION

Scan Timer

T-10

[MODE]

[TXinh• ]

Double click
then select the desired
scan resume condition.

■ Scan resume condition

The scan resume condition can be selected as timer or pause
scan. The selected resume condition is also used for priority
watch. (pgs. 86, 87)

DD

qDisplay the Set Mode screen.

wDouble click the “Scan Resume Timer” cell, then select the

85

[

Setting from the control software

- Select “Edit Set Mode(C

- Click “” in tool bar.

- Press [F7] key on the PC keyboard.

desired scan resume condition from “P-2,” “T-5,” “T-10” and
“T-15.”

)...” in View menu.

• Resuming conditions

•“P-2” : Scan pauses until the signal disappears and then re-
sumes 2 sec. later.

•“T-5” : Scan pauses 5 sec. while receiving a signal.

•“T10” : Scan pauses 10 sec. while receiving a signal.

•“T-15” : Scan pauses 15 sec. while receiving a signal.

eTo close the Set Mode screen, click “” in tool bar or click

“.”

DD

Setting from the RC-24

qPush [TXinh• ] for 0.5 sec. to enter set mode.
wPush [MODE] or [TXinh• ] several times to select “Scan

Timer” item.

• Select “ON” for “Extension” item in advance.

eRotate [DIAL] to select the desired scan resume condition.

• See “•Resuming conditions” above.

rPush [PWR] momentarily to exit set mode.

PRIORITY WATCH

Click

Appears during priority watch

12

■ Priority watch types

Priority watch checks for signals on a VFO frequency every
5 sec. while operating in memory mode. The transceiver has
2 priority watch types to suit your needs. You can also trans­mit on the VFO frequency while the priority watch operates.

The watch resumes according to the selected scan resume
condition. See previous page for details.

☞ NOTES: If the pocket beep function is activated, the trans-

ceiver automatically selects the tone squelch function
when priority watch starts.

MEMORY CHANNEL
WATCH

While operating on a VFO fre­quency, priority watch checks for
a signal on the selected memory
channel every 5 sec.

CALL CHANNEL WATCH

While operating on a VFO fre­quency, priority watch checks for
signals on the call channel every
5 sec.

5 sec.

VFO

frequency

5 sec.

VFO

frequency

50 msec.

Memory
channel

50 msec.

Call

channel

■ Priority watch operation

DD

Operating from the control software

qSelect VFO mode; then, set an operating frequency.
wSet the watch channel(s).

For memory channel watch:

Select the desired memory channel.

For call channel watch:

Select the desired call channel by clicking [CALL], then
click (left or right) on the [DIAL].

eClick [PRIO] to start the watch.

•“PRIO” appears during priority watch.

• The transceiver checks the memory or call channel every 5 sec.

• The watch resumes according to the selected scan resume con-

dition. (p. 85)

• While the watch is pausing, clicking the [PRIO] resumes the
watch manually.

rClick [PRIO] again to stop the watch.

11
12

86

12 PRIORITY WATCH

LOW

FM

00p1294.500

[PRIO• •7]

DD

Operating from the RC-24

qSelect VFO mode; then, set an operating frequency.
wSet the watch channel(s).

For memory channel watch:

Select the desired memory channel.

For call channel watch:

Select the desired call channel by clicking [CALL], then
click (left or right) on the [DIAL].

ePush [PRIO••7] to start the watch.

•“p” blinks during priority watch

• The transceiver checks the memory or call channel every 5 sec.

• The watch resumes according to the selected scan resume con-

dition. (p. 85)

87

rPush [PRIO••7] again to stop the watch.

POCKET BEEP AND TONE/DIGITAL SQUELCH

Double click, then
select the desired
tone frequency.

13

■ Pocket beep operation

This function uses subaudible tones in FM; digital code or call
sign in Digital voice mode for calling and can be used as a
“common pager” to inform you that someone has called while
you were away from the transceiver.

In addition, if the received signal includes matched digital
code, any calls, even a CQ call, can be received when using
the pocket beep function with digital code. However, when
using the call sign squelch for the pocket beep, the signal that
containing your call sign (when another station calling you)
can only be received.

DD

Setting from the control software

qSet the desired operating frequency and mode (FM or Dig-

ital voice).

• Using the CTCSS — in FM mode

wDisplays the Set Mode screen.

- Select “Edit Set Mode(C

- Click “” in tool bar.

- Press [F7] key on the PC keyboard.

eDouble click the “CTCSS Tone” cell, then select the desired

tone frequency.

rClick [TONE]

pears to turn the pocket beep function ON.

tWhen a signal with matched tone signal is received;

- The transceiver emits beep tones.

- Shows “PBEEP” and “” indications alternately.

yPush [PTT] to answer.

• The pocket beep function is cancelled and the tone squelch or
digital code squelch operation is selected automatically.

•“TSQL” indication appears instead of “PBEEP.”

uClick [TONE] once to cancel the tone squelch function.

•“TSQL” indication disappears.

(FM mode) once or twice until “PBEEP” ap-

)...” in View menu.

PBEEP

12
13

88

13 POCKET BEEP AND TONE/DIGITAL SQUELCH

Select/enter the desired call sign

Enter the desired
code number.

89

• Using the digital code squelch— in Digital voice mode

wDisplays the Set Mode screen.
eDouble click the “Digital Code” cell, then enter the desired

code number within 00 to 99.

rClick [DSQL] several times until “CBEEP” appears to turn

the pocket beep function ON.

tWhen a signal with matched digital code is received;

- The transceiver emits beep tones.

- Shows “CBEEP” and “” indications alternately.

CBEEP

yPush [PTT] to answer.

• The pocket beep function is cancelled and the digital code
squelch operation is selected automatically.

•“CSQL” indication appears instead of “CBEEP.”

• When the called station call sign is not selected in “YOUR” (in

Select Call Sign screen), click [CD] to display Received Call
Record screen, select the call then click [Select] to set the call
sign before pushing [PTT].

uClick [DSQL] several times to cancel the digital code

squelch function.

•“CSQL” indication disappears.

• Using the call sign squelch— in Digital voice mode

wClick [CS] to display Select Call Sign screen.
eSelect or enter the desired call sign in “MY.”

• After the setting, click [OK].

rClick [DSQL] several times until “DBEEP” appears to turn

the pocket beep function ON.

tWhen the signal with matched call sign is received;

- The transceiver emits beep tones.

- Shows “DBEEP” and “” indications alternately.

DBEEP

yPush [PTT] to answer.

• The pocket beep function is cancelled and the call sign squelch
operation is selected automatically.

•“DSQL” indication appears instead of “DBEEP.”

• When the called station call sign is not selected in “YOUR” (in

Select Call Sign screen), click [CD] to display Received Call
Record screen, select the call then click [Select] to set the call
sign before pushing [PTT].

uClick [DSQL] several times to cancel the call sign squelch

function.

•“DSQL” indication disappears.

DD

LOW

Digital Code

00

LOW

CTCSS Tone

88.5

[MODE]

[TXinh• ]

qSet the desired operating frequency and mode (FM or Dig-

ital voice).

• Using the CTCSS— in FM mode

wPush [TXinh• ] for 0.5 sec. to enter set mode.
ePush [MODE] or [TXinh• ] several times to select

“CTCSS Tone” item.

rRotate [DIAL] to select the desired tone squelch frequency.

• After the selection, push [PWR] momentarily to exit set mode.

tPush [TONE••5] once or twice to turn the pocket beep

function ON.

•“ ” and “TSQL” appear.

yWhen a signal with matched tone is received the trans-

ceiver emits beep tones and “” indicator blinks.

uPush [PTT] to answer.

•“ ” indicator disappears.

iPush [TONE••5] once to cancel the tone squelch func-

tion.

•“TSQL” disappears.

Setting from the RC-24

POCKET BEEP AND TONE/DIGITAL SQUELCH

• Using the digital code squelch— in Digital voice mode

wPush [TXinh• ] for 0.5 sec. to enter set mode.
ePush [MODE] or [TXinh• ] several times to select

“Digital Code” item.

rRotate [DIAL] to select the desired code number.

• After the selection, push [PWR] momentarily to exit set mode.

tPush [TONE••5] several times until “” and “CSQL”

appear to turn the pocket beep function ON.

yWhen a signal with matched digital code is received;

- The transceiver emits beep tones.

- “” indicator blinks.

uPush [PTT] to answer.

•“ ” indicator disappears.

• When the called station call sign is not selected in “UR,” push

[CS••1] for 0.5 sec. to display receive call sign indication
mode then push [SQL] for 0.5 sec. to set the call sign before
pushing [PTT].

iPush [TONE••5] once to cancel the digital code

squelch function.

•“CSQL” disappears.

13

13

90

LOW

E

MY :0

[CS• •1]

91

13 POCKET BEEP AND TONE/DIGITAL SQUELCH

• Using the call sign squelch— in Digital voice mode

wPush [CS••1] 4 times (“MY” selection), then rotate dial

to select the desired call sign.

ePush [CS••1] again to exit call sign selecting condition.
rPush [TONE••5] several timers until “” and “DSQL”

appear to turn the pocket beep function ON.

tWhen a signal with matched call sign is received the trans-

ceiver emits beep tones and “” indicator blinks.

yPush [PTT] to answer.

•“ ” indicator disappears.

• When the called station’s call sign is not selected in “UR,” push

[CS••1] for 0.5 sec. to display receive call sign indication
mode then click [SQL] for 0.5 sec. to set the call sign before
pushing [PTT].

uPush [TONE••5] once to cancel the call sign squelch

function.

•“DSQL” disappears.

POCKET BEEP AND TONE/DIGITAL SQUELCH

Double click, then
select the desired
tone frequency.

■ Tone/Digital code/call sign squelch operation

The tone, digital code or call sign squelch opens only when
receiving a signal with the same pre-programmed subaudible
tone, digital code or call sign, respectively.

DD

Setting from the control software

qSet the desired operating frequency and mode (FM or Dig-

ital voice).

• Using the CTCSS — in FM mode

wDisplays the Set Mode screen.

- Select “Edit Set Mode(C

- Click “” in tool bar.

- Press [F7] key on the PC keyboard.

eDouble click the “CTCSS Tone” cell, then select the desired

tone frequency.

)...” in View menu.

rClick [TONE] once or twice until “TSQL” appears to turn the

tone squelch function ON.

tWhen a signal with matched tone signal is received the

squelch opens and the signal can be heard.

• When the received signal includes an unmatched tone, the
squelch does not open. However, the S/RF indicator shows the
received signal strength.

yPush [PTT] to answer.
uClick [TONE] once to cancel the tone squelch function.

•“TSQL” indication disappears.

13

13

92

13 POCKET BEEP AND TONE/DIGITAL SQUELCH

Select/enter the desired call sign

Enter the desired
code number.

93

• Using the digital code squelch— in Digital voice mode

wDisplays the Set Mode screen.
eDouble click the “Digital Code” cell, then enter the desired

code number within 00 to 99.

rClick [DSQL] several times until “CSQL” appears to turn

the pocket beep function ON.

tWhen a signal with matched digital code is received, the

squelch opens and the signal can be heard.

• When the received signal includes an unmatched code, the
squelch does not open. However, the S/RF indicator shows the
received signal strength.

yOperate the transceiver in the normal way (push [PTT] to

transmit; release to receive).

• When the called station’s call sign is not selected in “YOUR” (in
Select Call Sign screen), click [CD] to display Received Call
Record screen, select the call then click [Select] to set the call
sign before pushing [PTT].

uClick [DSQL] several times to cancel the digital code

squelch function.

•“CSQL” indication disappears.

• Using the call sign squelch— in Digital voice mode

wClick [CS] to display Select Call Sign screen.
eSelect or enter the desired call sign in “MY.”

• After the setting, click [OK].

rClick [DSQL] several times until “DSQL” appears to turn

the call sign squelch function ON.

tWhen a signal with matched call sign is received, the

squelch opens and the signal can be heard.

• When the received signal includes an unmatched call sign, the
squelch does not open. However, the S/RF indicator shows the
received signal strength.

yOperate the transceiver in the normal way (push [PTT] to

transmit; release to receive).

• When the called station’s call sign is not selected in “YOUR” (in
Select Call Sign screen), click [CD] to display Received Call
Record screen, select the call then click [Select] to set the call
sign before pushing [PTT].

uClick [DSQL] several times to cancel the call sign squelch.

•“DSQL” indication disappears.
