INSTRUCTION MANUAL
VHF TRANSCEIVER
iF3161/F3163
Series
UHF TRANSCEIVER
iF4161/F4163
Series
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not
cause harmful interference.
The photo shows the
UHF transceiver.
IMPORTANT
EXPLICIT DEFINITIONS
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This
instruction manual contains important operating instructions
for the IC-F3161T/S/DT/DS, IC-F3163T/S VHF TRANSCEIV-
ERS and IC-F4161T/S/DT/DS, IC-F4163T/S UHF TRANSCEIVERS.
See the operating guide for details of IDAS™, BIIS, MDC
and LTR® system operations. Ask your dealer for details.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
IDAS is trademark of Icom Incorporated (Japan).
LTR is a registered trademark of the E.F.Johnson Technologies, INC. in the
United States.
All other products or brands are registered trademarks or trademarks of their
respective holders.
i
WORD DEFINITION
RDANGER!
RWARNING!
CAUTION
NOTE
Personal death, serious injury or an explosion may occur.
Personal injury, fire hazard or electric
shock may occur.
Equipment damage may occur.
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
PRECAUTIONS
R DANGER! NEVER short the terminals of the bat-
tery pack.
R WARNING! NEVER hold the transceiver so that
the antenna is very close to, or touching exposed parts of
the body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 2 to 4 in. (5
to 10 cm) away from the lips and the transceiver is vertical.
R WARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
CAUTION: NEVER use non-Icom battery packs/char-
gers to prevent the loss of the transceiver’s good performance
and warranty.
DO NOT push [PTT] when not actually desiring to transmit.
DO NOT use or place the transceiver in direct sunlight or
in areas with temperatures below +22°F (–30°C) or above
+140°F (+60°C).
The basic operations, transmission and reception of the
transceiver are guaranteed within the specified operating
temperature range. However, the LCD display may not operate correctly, or show an indication in the case of long hours
of operation, or after being placed in extremely cold areas.
DO NOT modify the transceiver. The transceiver warranty
does not cover any problems caused by unauthorized modification.
KEEP the transceiver away from the heavy rain, and Never
immerse it in the water. The transceiver is water resistant,
not waterproof.
For U.S.A. only
CAUTION: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ii
VOICE CODING TECHNOLOGY
FCC INFORMATION
The AMBE+2™ voice coding Technology embodied in this
product is protected by intellectual property rights including
patent rights, copyrights and trade secrets of Digital Voice
Systems, Inc. This voice coding Technology is licensed solely
for use within this Communications Equipment. The user of
this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble
the Object Code, or in any other way convert the Object Code
into a human-readable form. U.S. Patent Nos.
#5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365,
#5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772,
#5,247,579, #5,226,084 and #5,195,166.
• FOR CLASS B UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and re
ceiver.
• Connect the equipment into an outlet on a circuit differ
ent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV techni
cian for help.
-
-
-
iii
TABLE OF CONTENTS
IMPORTANT .......................................................................... i
EXPLICIT DEFINITIONS ....................................................... i
PRECAUTIONS .................................................................... ii
VOICE CODING TECHNOLOGY ........................................ iii
FCC INFORMATION ........................................................... iii
TABLE OF CONTENTS ....................................................... iv
1
ACCESSORIES ...........................................................1−3
■ Supplied accessories ...................................................1
■ Accessory attachments ................................................ 1
2
PANEL DESCRIPTION ..............................................4−10
■ Front panel ................................................................... 4
■ Function display ...........................................................5
■ Programmable function keys ........................................6
3
BASIC OPERATION ................................................11−18
■ Turning power ON ......................................................11
■ Channel selection .......................................................12
■ Call procedure ............................................................13
■ Receiving and transmitting .........................................13
■ User set mode ............................................................16
■ Scrambler function .....................................................16
■ Stun function ..............................................................16
■ Emergency transmission ............................................17
■Man Down Emergency Call ........................................17
■ Automatic Key Lock function ...................................... 18
■ Priority A channel selection ........................................18
■ Forced Narrow function ..............................................18
4
BATTERY CHARGING ............................................19−23
■ Caution .......................................................................19
■ Optional battery chargers ...........................................21
5

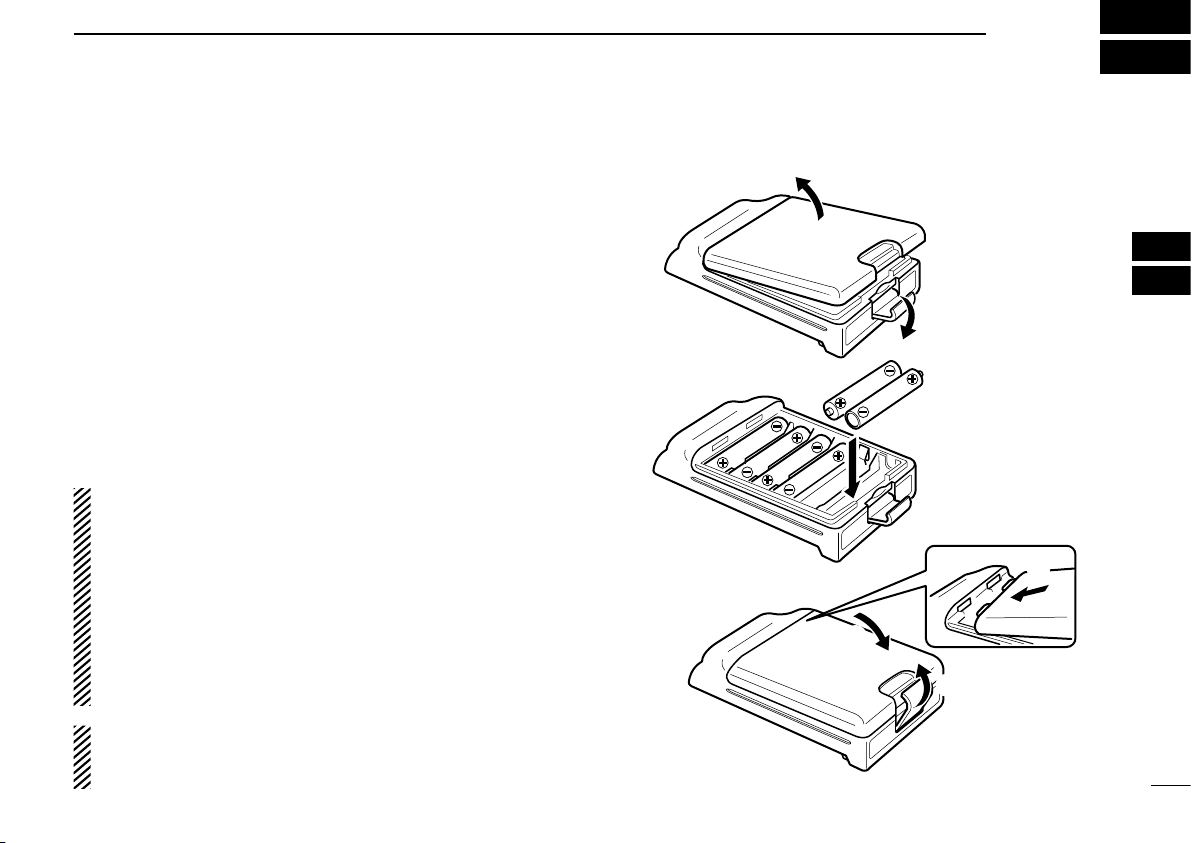

BATTERY CASE ............................................................24
■ Optional battery case (BP-240) ..................................24
6
SWIVEL BELT CLIP ................................................25−26
■ MB-93 contents .......................................................... 25
■ To attach ..................................................................... 25
■ To detach .................................................................... 26
7

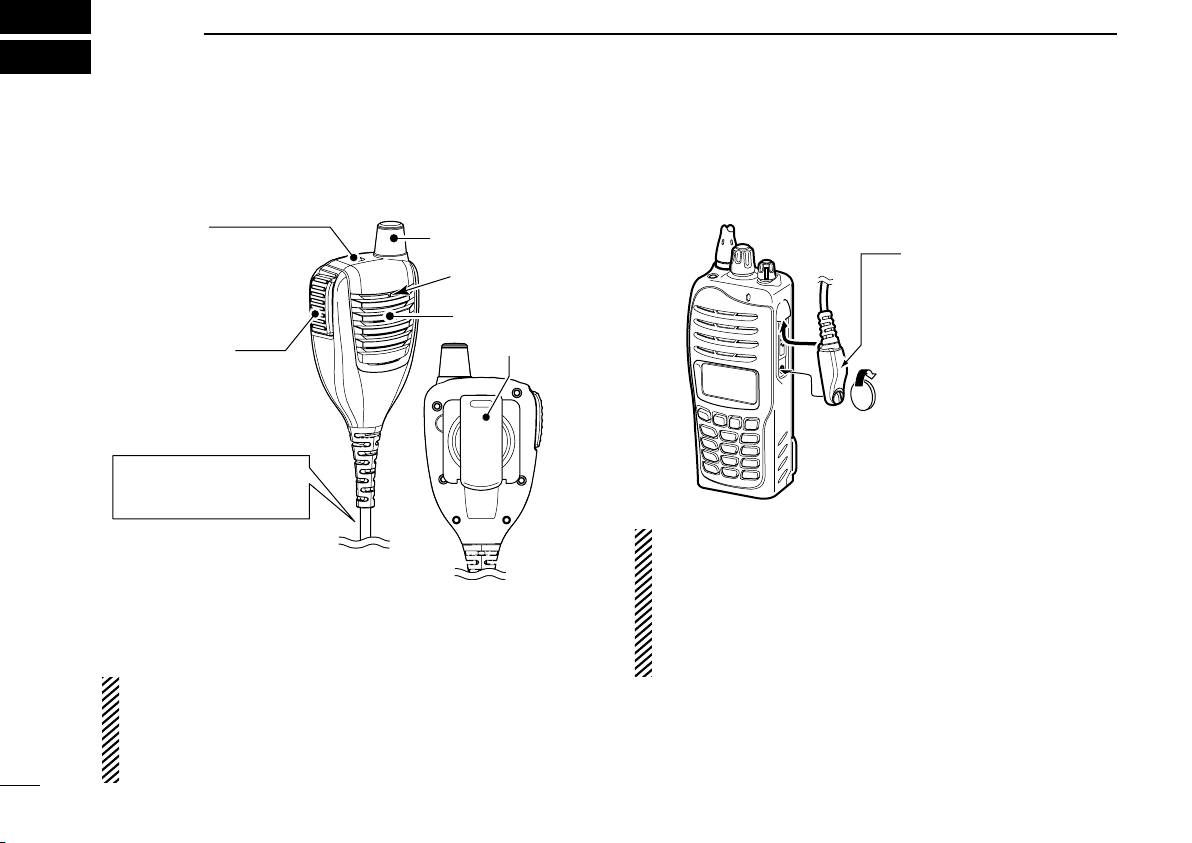

SPEAKER MICROPHONE ............................................27
■
Optional HM-169/HM-170GP description
■ To attach ..................................................................... 27
8
OPTIONS .................................................................28−31
9
SAFETY TRAINING INFORMATION .......................32−33
....................27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
iv
1
Battery pack Belt clip
Connector cover
(with screw)
Flexible antenna
(This illustration is
for the UHF type.)
ACCESSORIES
■ Supplied accessories
The following accessories are supplied.
■ Accessory attachments
D Flexible antenna
Connect the supplied flexible antenna
to the antenna connector.
CAUTION:
•
NEVER HOLD the antenna when
carrying the transceiver.
• Transmitting without an antenna
may damage the transceiver.
1
ACCESSORIES
q
w
Battery release
button
Battery pack
q
w
1
D Battery pack
To attach the battery pack:
Slide the battery pack on the back of the transceiver in the direction of the arrow (q), then lock it with the battery release button.
• Slide the battery pack until the battery release button makes a ‘click’
To release the battery pack:
Push the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
sound.
NEVER release or attach the battery pack when the trans-
ceiver is wet or soiled. This may result water or dust getting into the transceiver/battery pack and may result in the
transceiver being damaged.

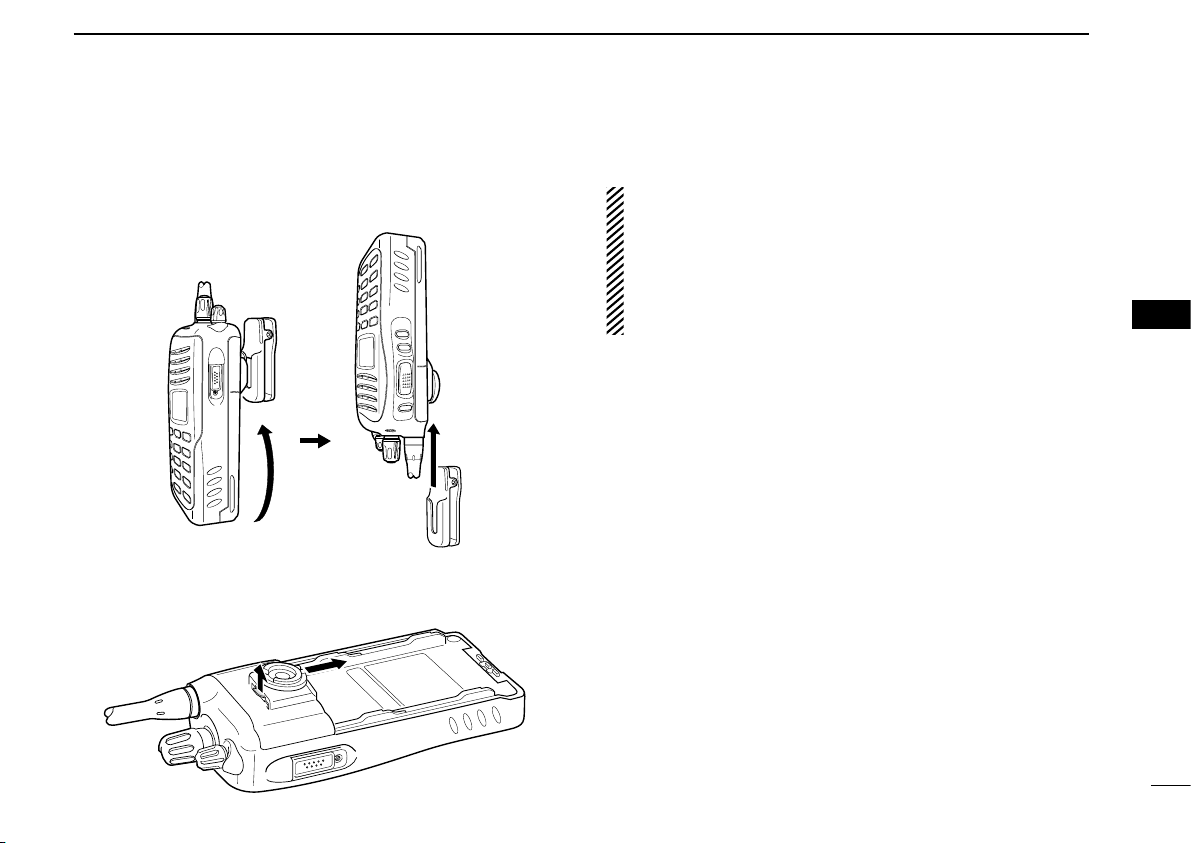

D Belt clip
To attach the belt clip:
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
To detach the belt clip:
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
NOTE: Keep the battery pack terminals clean. It’s a good
idea to clean the battery pack terminals once a week.
2
ACCESSORIES
q
w
Multiconnector
Connector
cover
q
w
1
D Connector cover
Attach the connector cover when the optional equipment is
not used.
To attach the connector cover:
q Insert the connector cover into the multi-connector.
w Tighten the screw.
CAUTION:
Attach the connector cover when the optional equipment
is not used. Otherwise the terminals of the multi-connector may be shorted by metal object, etc., and this could
damage the transceiver.
3
To detach the connector cover:
q Unscrew the screw using a phillips screwdriver.
w Detach the connector cover for the optional equipment
connector.
PANEL DESCRIPTION
w
e
t
r
y
q
!1
!0
o
!2
u
i
Microphone
Speaker
2
■ Front panel
q ROTARY SELECTOR
Rotate to select the pre-programmed memory channels or
the operating zone. (Depending on the pre-setting)
w ANTENNA CONNECTOR
Connects the supplied antenna. (p. 1)
e DEALER-PROGRAMMABLE KEY [EMR]
Desired function can be programmed by your dealer.
(p. 6)
r DEALER-PROGRAMMABLE KEY [Side1]
Desired function can be programmed by your dealer.
(p. 6)
t PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
y DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Desired function can be programmed independently by
your dealer. (p. 6)
u 10-KEYPAD (Depending on version)
The keypad allows you to enter digits to:
• Select memory channels
• Select tone channels
• Select DTMF codes (during transmit)
• Set TX codes
• Start up with the password
i DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired function can be programmed independently by
your dealer. (p. 6)
o FUNCTION DISPLAY (p. 5)
Displays a variety of information such as an operating
channel number/name, Set mode contents, DTMF code,
selected function, etc.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4
Connector cover
NOTE: Attach the connector cover when the optional
equipment is not used.
See p. 3 for details.
SET
CALA TXCU
TXC
q t iuyrew
o
!0
PANEL DESCRIPTION
2
!0 MULTI-CONNECTOR
Connect an optional equipment.
!1 BUSY/TRANSMIT INDICATOR
➥
Lights green while receiving a signal, or when the
squelch is open.
➥
Lights red while transmitting.
!2 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
■ Function display
q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
➥ Appears when the channel is in the ‘audible’ (unmute)
condition.
➥ Appears when the matched signal is received.
r COMPANDER INDICATOR
Appears when the compander function is activated.
t SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
5
PANEL DESCRIPTION
Indication
Full Middle
Charging
required
No batteryBattery level
blinks when the battery is exhausted.
blinks when the battery is over charged.
2
y BELL INDICATOR
Appears/blinks when the matched signal is received, ac-
cording to the pre-programming.
u CALL CODE MEMORY INDICATOR
Appears when the call code memory is selected.
i BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
o ALPHANUMERIC DISPLAY
➥ Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
➥ The indication mode can be selected from 1 line or 2
lines. Ask your dealer for details.
• In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!0 KEY INDICATOR
Indicate the programmed function of the front panel keys
([P0], [P1], [P2] and [P3]).
■ Programmable function keys
The following functions can be assigned to [EMR], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details concerning your transceivers programming.
If the programmable function names are bracketed in the following explanations, the specific key is used to activate the
function depends on the programming.
CH UP AND DOWN KEYS “UP” “DOWN”
➥ Push to select an operating channel. When [Rotary selec-
tor] selects “operating channel,” this key is not available.
➥ Push to select a transmit code channel after pushing
[TX Code CH Select].
➥ Push to select a DTMF channel after pushing [DTMF Au-
todial].
➥ Push to select a scan group after pushing and holding
[Scan].
➥ Push to select the desired application type, individual/talk-
group ID, TX status message and SDM (Short Data Message) after pushing [Digital Button].
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
6
PANEL DESCRIPTION
2
ZONE KEY “ZONE”
Push this key, then push [CH Up] or [CH Down] to select
the desired zone. When [Rotary selector] selects “operating
zone,” this key operation is not available.
What is “zone”?— Selected channels are assigned to a
zone according to how they are to be used in a group. For
example, ‘Staff A’ and ‘Staff B’ are assigned into a “Business” zone, and ‘John’ and ‘Cindy’ are assigned into a “Private” zone.
ZONE UP AND DOWN KEYS “ZNUP” “ZNDN”
Push to select an operating zone. When [Rotary selector] selects “operating zone,” this key is not available.
SCAN KEY “SCAN”
➥ Push to start and cancel scanning operation.
• When Power ON Scan function is activated, push to pause the
scanning operation. And the paused scan restarts after the
specified time period has passed.
➥ Push and hold this key for 1 sec. to indicate the scan list,
then push [CH Up] or [CH Down] to select the desired list.
SCAN ADD/DEL (TAG) KEY “SCAD”
➥ Push to add channel to, or delete it from the current scan
group.
1. Push to indicate the scan group, then push [CH Up] or
[CH Down] to select the desired group.
2. Push to add or delete the channel to/from the selected
scan group.
3. Push and hold for 1 sec. to exit the scan group selection
mode.
➥ Push this key while scan is paused (a signal is detected)
on a channel (except for priority channel,) the channel is
cleared from the scan group.
Depending on the setting, the cleared channel is added
to the scan group again after the scan is cancelled.
(Nuisance Delete function)
PRIORITY CHANNEL KEYS “PRA” “PRAR” “PRB” “PRBR”
➥ Push to select Priority A or Priority B channel.
➥ Push and hold [Prio A (Rewrite)] or [Prio B (Rewrite)] for
1 sec. to rewrite the Priority A or Priority B channel for the
operating channel.
7
Loading...
