Icom IC-F5022, IC-F6022 User Manual

INSTRUCTION MANUAL

VHF MOBILE TRANSCEIVER

iF5022

UHF MOBILE TRANSCEIVER

iF6022

IMPORTANT

EXPLICIT DEFINITIONS

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

SAVE THIS INSTRUCTION MANUAL — This

instruction manual contains important operating instructions for the IC-F5022 VHF MOBILE TRANSCEIVER and the IC-F6022 UHF MOBILE TRANSCEIVER.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries. All other products or brands are registered trademarks or trademarks of their respective holders.

WORD DEFINITION

RWARNING

CAUTION

NOTE

Personal injury, fire hazard or electric shock may occur.

Equipment damage may occur.

If disregarded, inconvenience only. No risk of personal injury, ﬁre or electric shock.

PRECAUTIONS

RWARNING! NEVER connect the transceiver to an AC

outlet. This may pose a ﬁre hazard or result in an electric shock.

RWARNING! NEVER connect the transceiver to a

power source of more than 16 V DC such as a 24 V battery. This connection will ruin the transceiver.

RWARNING! NEVER cut the DC power cable be-

tween the DC plug and fuse holder. If an incorrect connec tion is made after cutting, the transceiver might be damaged.

RWARNING! NEVER place the transceiver where

normal operation of the vehicle may be hindered or where it could cause bodily injury.

CAUTION! NEVER allow children to touch the trans-

ceiver.

CAUTION! NEVER expose the transceiver to rain,

snow or any liquids.

USE the speciﬁed microphone only. Other microphones have

different pin assignments and may damage the transceiver.

DO NOT use or place the transceiver in areas with tem-

peratures below –25°C or above +55°C, or in areas subject to direct sunlight, such as the dashboard.

DO NOT operate the transceiver without running the ve-

hicle’s engine. The vehicle’s battery will quickly run out when the transceiver transmits while the vehicle’s engine is OFF.

DO NOT place the transceiver in excessively dusty envi-

ronments.

DO NOT place the transceiver against walls. This will ob-

struct heat dissipation.

DO NOT use chemical agents such as benzine or alcohol

when cleaning, as they damage the transceiver surfaces.

BE CAREFUL! The transceiver will become hot when

operating continuously for long periods.

Approved Icom optional equipment is designed for optimal performance when used with an Icom transceiver. Icom is not responsible for the destruction or damage to an Icom transceiver in the event the Icom transceiver is used with equipment that is not manufactured or approved by Icom.

IMPORTANT .......................................................................... i

EXPLICIT DEFINITIONS ....................................................... i

PRECAUTIONS .................................................................... ii

TABLE OF CONTENTS ....................................................... iii

1 PANEL DESCRIPTIONPANEL DESCRIPTION ................................................

 ■ Front panel ................................................................... 1

 ■ Function display ...........................................................2

 ■ Programmable function keys ........................................3

2 BASIC OPERATIONBASIC OPERATION ..................................................

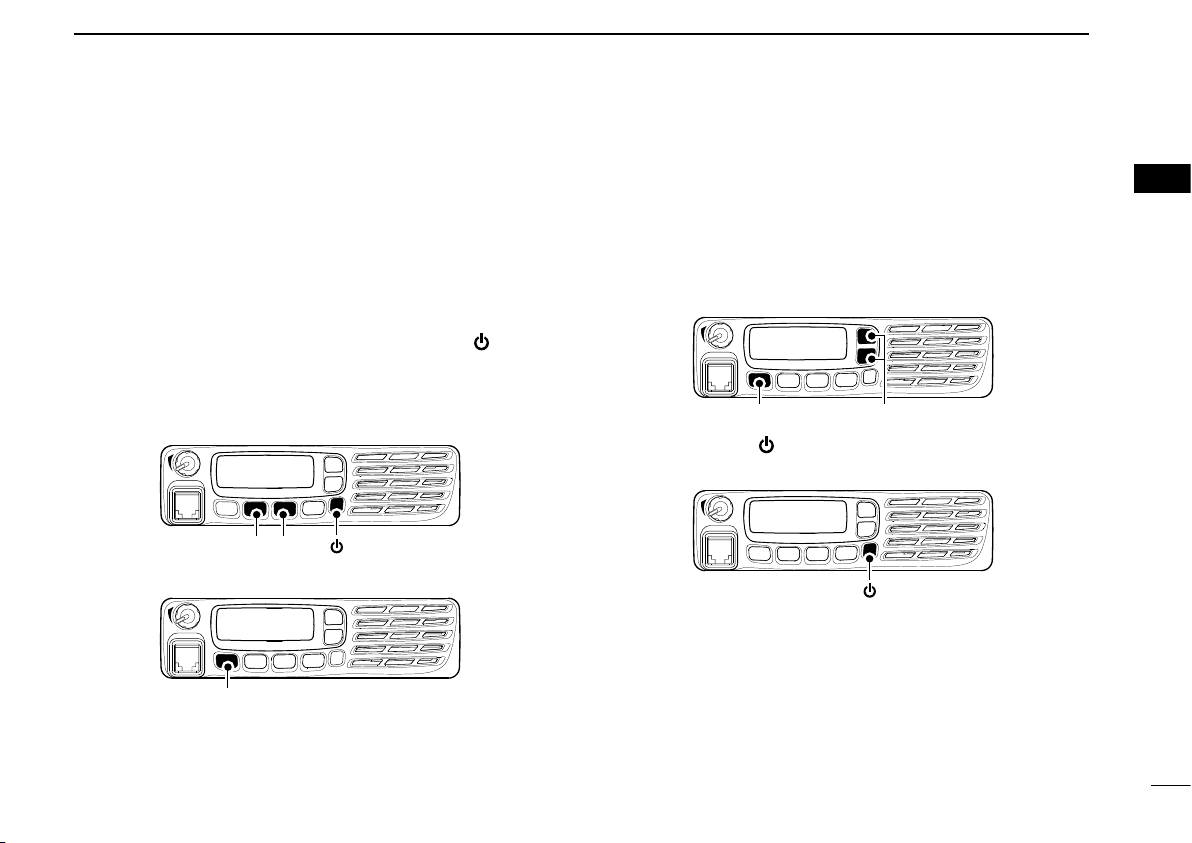

 ■ Turning power ON ........................................................7

 ■ Channel selection .........................................................7

 ■ Call procedure ..............................................................8

 ■ Receiving and transmitting ...........................................8

 ■ User set mode ............................................................11

 ■ Scrambler function .....................................................12

 ■ Emergency transmission ............................................12

 ■ Stun function ..............................................................12

 ■ Priority A channel selection ........................................12

 ■ MDC 1200 system operation ......................................13

1−6

7−13

CONNECTION AND MAINTENANCE ....................14−16

 ■ Rear panel connection ...............................................14

 ■ Supplied Accessories .................................................15

 ■ Mounting the transceiver ............................................15

 ■ Antenna ......................................................................16

 ■ Fuse replacement ......................................................16

 ■ Cleaning ..................................................................... 16

 ■ Options .......................................................................16

4 DOCDOC .........................................................................17−19

iii

q w

SpeakerFunction display (p. 2)

PANEL DESCRIPTION

■ Front panel

q AF VOLUME CONTROL KNOB [VOL]

Rotate the knob to adjust the desired audio output level.

• Minimum audio level is pre-set. (p. 11)

w UP/DOWN KEYS [CH Up]/[CH Down]

Push to select an operating channel, etc.

* The desired function can be assigned by your dealer. (p. 3)

e POWER KEY [ ]

 Push to turn the power ON and OFF.

• The following functions are available at power ON as options:

- Automatic scan start

- Password prompt

- Set mode

r DEALER-PROGRAMMABLE KEYS

Desired functions can be programmed independently by

your dealer. (p. 3)

t MICROPHONE CONNECTOR

Connect the supplied or optional microphone. NEVER connect non-specified microphones. The pin

assignments may be different and the transceiver may be damaged.

D MICROPHONE

The supplied or optional microphone has a PTT switch and a hanger hook.

• The following functions are available when the microphone is on or off hook (depending on the setting):

- Automatic scan starts when it is on hook.

- Scan is cancelled when it is off hook.

- Scan is paused when it is off hook.

Automatic priority channel selection is available when it is off hook.

- Sets to ‘Inaudible’ condition (mute condition) when it is on hook.

- Sets to ‘Audible’ condition (unmute condition) when it is off hook.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Weak Receive Signal level Strong

PANEL DESCRIPTION

q w e r t y u i

■ Function display

q TRANSMIT INDICATOR

 Appears while transmitting.

w BUSY INDICATOR

 Appears while the channel is busy.

e SIGNAL STRENGTH INDICATOR

 Indicates relative signal strength level as below.

r LOW POWER INDICATOR

 Appears when low output power is selected.

t AUDIBLE INDICATOR

 ➥ Appears when the channel is in the ‘Audible’ (unmute)

condition.

 ➥ Appears when the speciﬁc 2/5-tone/MDC* code is re-

ceived.

y SCRAMBLER INDICATOR

 Appears when the voice scrambler function is activated.

u BELL INDICATOR

Appears/blinks when the speciﬁc 2/5-tone/MDC* code is

received, according to the pre-programming.

i SCAN INDICATOR

Blinks during scan.

o ALPHANUMERIC DISPLAY

 Displays an operating channel number, channel name,

Set mode contents, DTMF code, etc.

* MDC operation only (p. 13)

PANEL DESCRIPTION

■ Programmable function keys

The following functions can be assigned to [UP], [DOWN], [P0]

, [P1], [P2] and [P3] programmable function keys. Consult your Icom dealer or system operator for details con cerning your transceivers programming. If the programmable function names are bracketed in the fol lowing explanations, the speciﬁc key is used to activate the function depends on the programming.

CH UP AND DOWN KEYS

➥ Push to select an operating channel. ➥ Push to select a transmit code channel after pushing [TX

Code CH Select].

➥ Push to select a DTMF channel after pushing [DTMF Au-

todial].

➥ Push to select a scan group after pushing and holding

[Scan A Start/Stop]/[Scan B Start/Stop] for 1 sec.

ZONE KEY

Push this key, then select the desired zone using [CH Up]/ [CH Down].

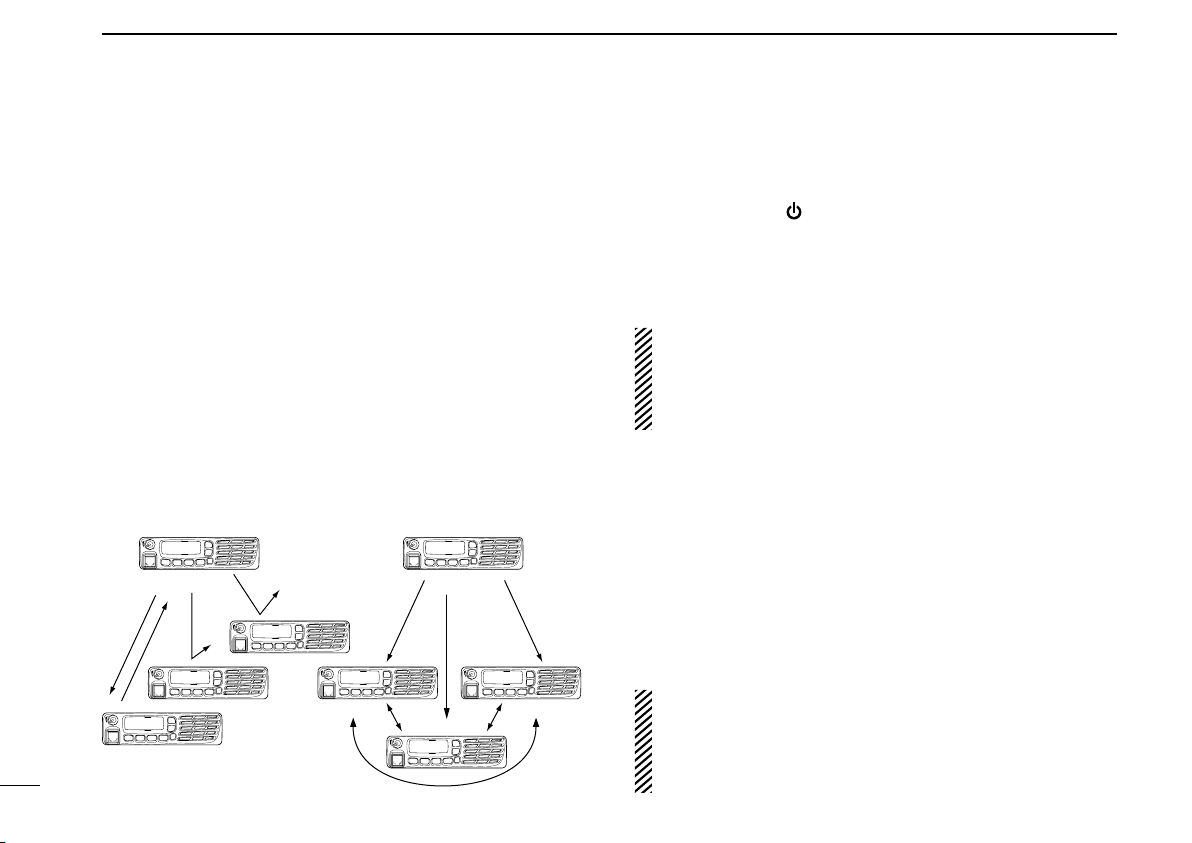

What is “zone”?— Selected channels are assigned to a

zone according to how they are to be used in a group. For example, ‘Staff A’ and ‘Staff B’ are assigned into a “Business” zone, and ‘John’ and ‘Cindy’ are assigned into a “Private” zone.

SCAN A START/STOP KEY

Push to start and cancel scanning operation.

➥

• When Power ON Scan function is activated, push to pause the

scanning operation. And the paused scan resumes after the speciﬁed time period has passed.

ush and hold this key for 1 sec. to indicate the scan list,

➥ P

then push [CH Up] or [CH Down] to select the desired list.

SCAN B START/STOP KEY

Push to start and cancel scanning operation.

➥ The scan restarts after the specified time period has

passed when the scan (started with this key) is cancelled by except for this key operation. Push and hold this key for 1 sec. to indicate the scan list,

➥

then push [CH Up] or [CH Down] to select the desired list.

SCAN ADD/DEL (TAG) KEY

➥ Push to add/delete the selected channel to/from the scan

list.

1. Pu sh t o indic ate the sca n gr oup, t hen pus h [C H Up ] or [CH Down] to select the desired list.

2. Push to add or delete the channel to/from the selected scan list.

3. Push and hold for 1 sec. to exit the scan list selection mode.

➥ Push this key while scan is paused (a signal is detected)

on a channel (except for priority channel), the channel is cleared from the scan list.

Depending on the setting, the cleared channel is added to the scan list again after the scan is cancelled.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

PANEL DESCRIPTION

PRIO A/B KEYS

➥ Push to select Priority A or Priority B channel. ➥ Push and hold [Prio A (Rewrite)] or [Prio B (Rewrite)] for

1 sec. to rewrite the operating channel as the Priority A or Priority B channel.

MR-CH 1/2/3/4 KEYS

Push to select the memory channel 1 to 4 directly.

MONI (AUDI) KEY

➥ Push to mute and release the CTCSS (DTCS) or 2-tone

squelch mute. Open any squelch/deactivate any mute while pushing and holding this key.

(LMR operation only)

➥ Activates one of (or two of) the following functions on

each channel independently:

• Push and hold to unmute the channel (audio is emitted; ‘Audible’ condition).

• Push to mute the channel (sets to ‘Inaudible’ only).

• Push after the communication is ﬁnished to send a ‘reset code’. (5-tone operation only)

NOTE: The un-mute condition (‘Audible’ condition) may

(PMR operation only)

automatically return to the mute condition (‘Inaudible’ condition) after a specified period depending on pro gramming.

LOCK KEY

Push and hold to electronically lock all programmable keys except the following:

[Moni(Audi)], [Lock], [Call] (incl. Call A and Call B), [Emergency], [Surveillance], [Siren], [Lone Worker] and [OPT 1/2/3].

LONE WORKER KEY

Push to turn the Lone Worker function ON or OFF.

• If the Lone Worker function is activated, Emergency function is automatically turned ON after the speciﬁed time period has passed with no operation is performed.

HIGH/LOW KEY

Push to select the transmit output power temporarily or per manently, depending on the pre-setting.

• Ask your dealer for the output power level for each selection.

C.TONE CH ENT KEY

Push to enter the continuous tone channel selection mode. Then, push [CH Up]/[CH Down] to change the tone frequency/ code setting. The selected channel remains set as the continu ous tone channel until another channel is designated as such.

TALK AROUND KEY

Push to turn the talk around function ON and OFF.

• The talk around function equalizes the transmit frequency to the

receive frequency for transceiver-to-transceiver communication.
