VHF AND UHF TRANSCEIVERS
(
VHF transceiver with 10-keypad
)
(
VHF transceiver without 10-keypad
)
(
UHF transceiver with 10-keypad
)
(
UHF transceiver without 10-keypad
)
A New Direction
in Private Mobile Radios
■ Large channel capacity
■ Wide range frequency coverage
■ Lithium-ion battery standard
■ Multiple tone signaling capabilities
■ Built-in audio compander
■ Optional SmarT runk 3G™, voice scrambler,
man down and DTMF decoder units
Page 2
Lithium-Ion battery pack
The large capacity 1150mAh Li-Ion battery pack, BP-231, provides 8/9 hours* of
operating time. For longer operating time,
use the BP-232 which is rated for a full
15/16 hours*. Li-Ion technology has virtually no memory charging issues. Arugged
dual-rail guide securely locks the battery
to the radio.
* UHF/VHF, typical operation Tx:Rx: Stand-
by=5:5:90, power save on.
Wide frequency range and
large channel capacity
The IC-F34G series covers a wide frequency range in one version (136–174,
400–470MHz)
. Wide, middle and narrow
channel bandwidth* is programmable to
each channel. The 256 memory channel
capacity with 16 memory banks allows
you to divide and store a variety of flexible channel groupings. Easy memory
channel selection is possible with a simple rotation of the rotary channel knob.
(* Programmable 25/12.5kHz or 20/12.5kHz)
Small and lightweight body
The IC-F34G series sheds size and
weight compared with previous models,
weighing just 285g*
(including BP-231) and
measuring only 53
(W)×120(H)×32.5(D)
mm. The aluminum die-cast chassis and
polycarbonate casing combination meets
MIL standard specifications.
* VHF version.
Built-in multi-format tone
signaling
Use the built-in CTCSS, DTCS, 2-Tone, 5Tone or BIIS capability to set up your own
talk groups and quiet stand-by when others
are talking. You can also set up selective
calls to individuals or control a repeater.
The IC-F34G series is suitable for a variety
of needs — large or small, mobile or stationary. Whether you are on a large-scale
construction site, warehouse, hospital or
hotel, or operating a small on the go messenger service, this radio provides the
built-in flexibility to handle all your communication needs. Offering advanced features
such as wide frequency range, multiple signaling and loud audio, the IC-F34G series is
a rugged and reliable 2-way communications tool. This is the new direction in PMR
communications.
Advanced functions packed in
a tough, lightweight body
Advanced functions packed in
a tough, lightweight body
Page 3
Multiple 5-T one, Multiple 2-Tone
Encode or decode up to 8 5-Tone, 10
2-Tone codes on a single memory channel. This is perfect for professionals who
require multiple district paging on one
channel. When a matched tone is received, the following items are programmable for each code.
• Bell icon • Answer back • Stun
• Beep sound • Auto transmit • Scan
• 8-character text
8 programmable buttons
The [P0]–[P3], [▲], [▼], [Red] and [Moni-
tor] buttons are programmable to meet
specific needs. The [Red] button on the
top panel can be assigned as an emergency trigger.
Alphanumeric display
The 8-character alphanumeric display
shows channel, bank, tone code and
scanning list name on the display. Aseparate row of operational icons indicate battery, signal strength, RX/TX and other
radio conditions.
Audio compander
The built-in audio compander reduces
noise components and provides clear reception even in narrow band use.
Built-in voice scrambler
The IC-F34G series includes a built-in inversion type voice scrambler in all models. When a more secure system is
required, the optional voice scrambler unit
UT-109 or UT-110 is available.
BIIS 1200 compatible
The following selective calling and data
features are available with the built-in BIIS
system.
• 32 abbreviated call memories
• 7 group IDs • 24-status Messages
• Send 8-character SDM
(Short Data Message)
• Receive up to 95 characters of free text
Other features
• 8 DTMF autodial memories
• 2 step reduced power setting
• Power saver
• Power on password
• Busy, repeater lockout functions
• Optional SmarTrunk 3G™ unit, UT-117
• Flash ROM CPU
• Optional headset and speaker microphone available and more...

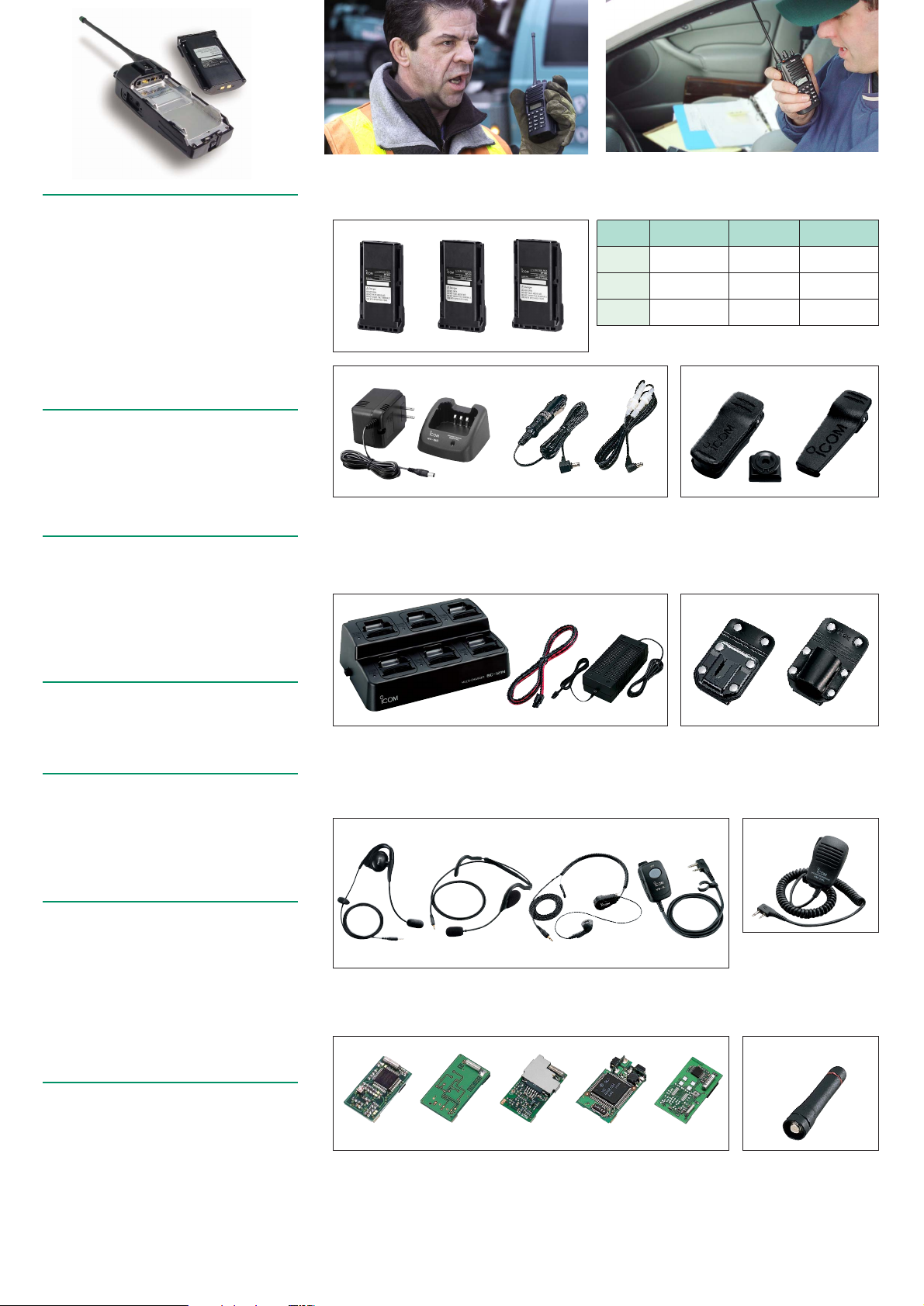

BC-160 DESKTOP CHARGER + BC-145AC ADAPTER
Charges the BP-231 in 2 hours
(approx.).
BC-119N DESKTOP CHARGER + AD-106 CHARGER ADAPTER
+ BC-145 AC ADAPTER : Charges the BP-231 in 2 hours (approx.).
CP-17L : CIGARETTE LIGHTER CABLE, OPC-515L : DC POWER CABLE
For use with the BC-160 or BC-119N. (12–16V DC required).
▲ BC-160
▲ BC-121N+AD-106 (6 pcs.)
RAPID CHARGER
MULTI-CHARGER
▲ BC-145
▲ BC-124
BC-121N MULTI-CHARGER + AD-106 CHARGER ADAPTER
+ BC-124 AC ADAPTER
Rapidly charges up to 6 battery packs
(Six AD-106s are required).
Charging time: approx. 2 hours when BP-231 is attached.
OPC-656 DC POWER CABLE :
For use with the BC-121N. (12–20V DC required).
HM-131L : Durable body.
Equipped with an earphone
jack and revolving clip.
SP-13 : EARPHONE
Provides clear audio in noisy
environments.
SPEAKER-MICROPHONE
▲ HS-95 ▲ HS-97
HEADSETS and PTT/VOX UNIT
▲ HS-94
MB-93 : Swivel type. A fast and easy way
to remove the transceiver from
your belt.
MB-94 : Alligator type. Same as supplied.
BELT CLIPS
▲ MB-93 ▲ MB-94
MB-96N : Swivel type belt hanger. Swivel
joint of the MB-93 supplied.
MB-96F : Fixed type belt hanger. For use
with MB-94.
LEATHER BELT HANGERS
▲ MB-96F
HS-94: Earhook headset with flexible boom microphone.
HS-95: Behind-the-head headset with flexible boom microphone.
HS-97: Throat microphone fits around your neck and picks up speech vibration.
VS-1L: PTT/VOX unit. Required when using these headsets with the transceiver.
▲ MB-96N
OPTIONS
▲ BP-230 ▲ BP-231 ▲ BP-232
▲ OPC-515L▲ CP-17L
BATTERYPACKS
▲ OPC-656
▲ VS-1L
UT-109 VOICE
SCRAMBLER UNIT
UT-105 : Provides SmarTrunk II™ capabilities.
UT-108 : Provides DTMF,Selective call and ANI capabilities.
UT-109 : Up to 32 scrambling codes are available.
Version 02 is required.
UT-110 : Up to 1020 scrambling codes are available. Version 02 is required.
UT-113 : Automatically sends an emergency signal when the transceiver is left in a
horizontal position for a preset time.
UT-117 : Provides SmarTrunk 3G™and SmarTrunk II™ capabilities. Enhanced call-
ing features available.
UT-108
DTMF DECODER
UT-105
SmarTrunk II™ Board
STUBBY ANTENNAS
• FA-SC56VS : 150–162MHz
• FA-SC57VS : 160–174MHz
• FA-SC73US : 450–490MHz
ANTENNAS
• FA-SC25V : 136–150MHz
• FA-SC55V : 150–174MHz
• FA-SC25U : 400–430MHz
• FA-SC57U : 430–470MHz
STUBBY ANTENNA
FA-SC73US
INTERNAL UNITS
UT-113MAN
DOWN UNIT
UT-117
SmarTrunk 3G™ Board
Battery Type and
Operating time
* Output
power
packs capacity (VHF/UHF) (VHF/UHF)
BP-230
Li-Ion
6/6 hours 5W/4W
7.4V/ 800mAh
BP-231
Li-Ion
9/8 hours 5W/4W
7.4V/1150mAh
BP-232
Li-Ion
16/15 hours 5W/4W
7.4V/2000mAh
* Operating time is approximate time (at 20˚C).
Tx: Rx: standby=5:5:90. Power save on.
Page 4
VHF AND UHF TRANSCEIVERS
• Frequency range :
IC-F34GT/GS 136–174MHz
IC-F44GT/GS 400–470MHz
•Number of channels : 256 channels/16 banks
• Channel spacing : 12.5kHz/20kHz/25kHz
• PLL channel step : 2.5kHz, 3.125kHz
(VHF)
5kHz, 6.25kHz (UHF)
• Antenna impedance : 50Ω
•
Usable temperature range
: –25˚C to +55˚C
•
Power supply requirement
: 7.2V DC nominal
•Current drain (at 7.2V DC; approx.):
Transmit at 5W/4W 1.5A/1.7A
(VHF/UHF)
at 1W 0.7A/0.8A(VHF/UHF)
Receive stand-by 85mA
rated output 300mA
• Dimensions : 53 (W) ×120 (H) ×32.5 (D) mm
(projections are not included)
•
Weight (with BP-231 and ANT)
: 285g (VHF)
300g (UHF)
• Output power : 5W (VHF), 4W (UHF)
• Max. frequency deviation : ±5.0/4.0/2.5kHz (Wide/middle/narrow)
• Frequency error : ±1.5kHz
• Spurious emissions : 0.25µW
(below 1GHz)
1.0µW
(above 1GHz)
• Adjacent channel power : 70dB
(Wide, middle)
60dB
(Narrow)
• Residual modulation (With CCITT filter) :
VHF 55/53/50dB
typ. (Wide/middle/narrow)
UHF 48/46/43dB
typ. (Wide/middle/narrow)
• Audio harmonic distortion: 3% typ. (AF 1kHz, 40% deviation)
• Modulation limiting : 60–100% of max. deviation
•
Ext. microphone connector
: 3-conductor 2.5 (d) mm/2.2kΩ
• Intermediate frequency : 1st 46.35MHz
2nd 450kHz
• Sensitivity : –4dBµV
typ. (emf, at 20dB SINAD)
• Squelch sensitivity : –4dBµV typ.
(emf, at threshold)
•
Adjacent channel selectivity
:
VHF 75/75/65dB
typ. (Wide/middle/narrow)
UHF 73/73/63dB typ. (Wide/middle/narrow)
• Spurious response : 70dB
•Intermodulation : 67dB
typ.
• Hum and noise ratio (with CCITT filter) :
VHF 55/53/50dB
typ. (Wide/middle/narrow)
UHF 45/44/40dB typ. (Wide/middle/narrow)
• Audio output power : 500mW typ.
(at 5% distortion with an 8Ω load)
•
External speaker connector
: 2-conductor 3.5 (d) mm /8Ω
SPECIFICATIONS
GENERAL
TRANSMITTER
RECEIVER
Measurements made in accordance with EN 300-086.
All stated specifications are subject to change without notice or obligation.
SmarTrunk II and SmarTrunk 3G are trademarks of SmarTrunk Systems, Inc.
All other trademarks are the properties of their respective holders.

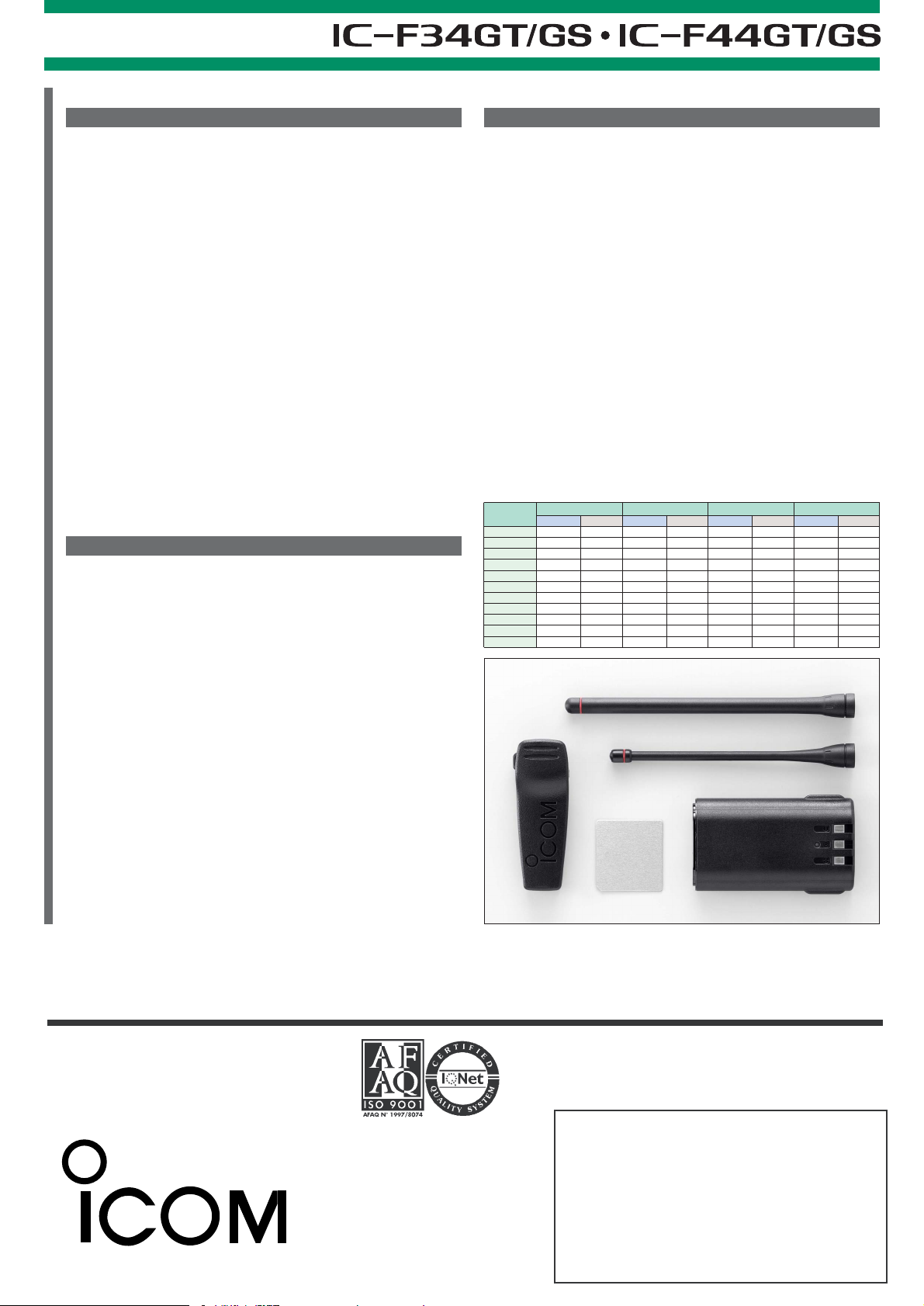

SUPPLIED ACCESSORIES
• Battery pack, BP-231• Belt clip, MB-94
• UHF Antenna
• VHF Antenna
• Unit cover
(May differ according to version)
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict
environmental standards as follows.
Standard
MIL 810C MIL 810D MIL 810E MIL 810F
Method Proc. Method Proc. Method Proc. Method Proc.
Low Pressure
500.1 I 500.2 I, II 500.3 I, II 500.4 I, II
High Temp. 501.1 I 501.2 I, II 501.3 I, II 501.4 I, II
Low Temp. 502.1 I 502.2 I, II 502.3 I, II 502.4-3 I, II
Temp. Shock 503.1 I 503.2 I 503.3 I 503.4 I
Solar Radiation
505.1 I 505.2 I 505.3 I 505.4 I
Rain 506.1 II 506.2 II 506.3 II 506.4 III
Humidity 507.1 I, II 507.2 II, III 507.3 II, III 507.4 –
Salt Fog 509.1 I 509.2 I 509.3 I 509.4 –
Dust 510.1 I 510.2 I 510.3 I 510.4 I
Vibration 514.2 VIII, X 514.3 I 514.4 I 514.4 I
Shock 516.2 I, II, V 516.3 I, IV 516.4 I, IV 516.5 I, IV
