Icom IC-F31GS, IC-F41GT, IC-F31GT, IC-F41GS User Manual

VHF AND UHF TRANSCEIVERS

Up to 8 dealer-programmable
key assignments

The following functions can be pro­grammed

.

• Channel up/down • Bank up • Call • Beep

• Scan A/B start/stop • Scan Tag add/delete

• Priority A/B • Key lock • Monitor • Scrambler

• C. Tone CH enter • MR-CH 1/2/3/4 • High/Low

• Talk around

• ID-MR select • Null (Light)

• Tx code enter • Re-dial • Wide/Narrow

• Tx code CH select • Emergency single/repeat

• DTMF autodial • Special function 1/2

• OPT 1/2/3 momentary • Compand

Advanced PC programming for
Microsoft

®

Windows®95/98

256 memory channels

Up to 256 memory channels with 12 char­acter channel names can be stored with
up to 16 banks. The rotary selector allows
you to select each bank or memory chan­nel.

Simultaneously work 2 optional
internal units

2 optional units can be installed and will
work simultaneously. You can select op­tional units to suit your needs and to pro­vide versatile usage.

Combination of available internal units

✔ Available simultaneously

1 UT-113 is available in conventional mode.
2 UT-105 and the UT-111 have to be installed

in slot 1.

* Same optional types, such as UT-109 and

UT-110, can not be installed simultaneously.

Full built-in tone-signalings

All tone-signalings are builtin such as
CTCSS, DTCS, 2-tone/5-tone and DTMF
encode/decode, so you don't need to in­stall an optional tone-signaling board. And
a wide variety of selective calling systems
are available to call specific station(s) or
control a repeater. In addition, ANI (Auto­matic Number Indication) function is avail­able with 2-tone/5-tone and DTMF.

Largest LCD in its class

With the large LCD, a simple sentence of
up to 24 full-dot matrix characters pro­vides more smooth communication than
previous one word indication. Operational
icons, such as antenna (S-meter) or bat­tery life, show various operating status at
a glance. What is more, original charac­ters can be made and indicated on the
LCD.

Durable construction

The body is compact, yet the polycarbon­ate panel and one-piece aluminum chas­sis provides durable construction to meet
MIL STD grade C, D and E for shock and
vibration. You can count on the unit to op­erate in challenging environments.

Flash ROM for system upgrades

Flash ROM is adapted as the main CPU,
which allows system customize and future
compatibility with other protocol. A newly
designed ultra high speed PLL, with a
Fractional-N system, offers faster acquisi­tion times for efficient trunking use.

Prolonged Ni-MH battery

The Ni-MH battery is designed for 10
hours operation. A battery case is option­ally available for using a set of alkaline
batteries (six AA (R6) cells) during charg­ing.

Built-in compander function

Built-in compander function provides clear
audio quality under noisy environments.

* Receiving party must have same function.

Smart design with easy opera­tion

The rounded, compact* design fits com­fortably in your palm, and is easy to carry
around. The large keypad makes one­hand operation easy.

* Size: 54(W)×139(H)×38(D) mm

Multi connector for accessories

The 9-pin multi connector, which use the
spring action for close contact, allows you
reliable operation with accessories, such
as speaker-microphone or earphone.

Other features

• The red key on the top panel can be an
emergency trigger

• Normal and priority scan functions

• Time-out timer capability

• Narrow/wide multi-band width and 2­step power save are supported

• Talk around function changes duplex
channels to simplex channel

• VOX capability and more...

UT-109

Voice

Scrambler

Unit

UT-110

Voice

Scrambler

Unit

UT-113

Man

Down

Unit

Option slot 1
UT-109

Voice Scrambler Unit

✔

UT-110

Voice Scrambler Unit

✔

UT-113

Man Down Unit

✔✔

UT-105 (2)

SmarTrunk ΙΙ™ Logic Board

✔✔1

UT-111 (2)

LTR®Trunking Board

✔✔1

Option slot 2

UT-111

TRUNKING
UNIT

UT-105

SmarTrunk II

TM

Logic Board

UT-109

VOICE
SCRAMBLER
UNIT

UT-110

VOICE
SCRAMBLER
UNIT

UT-113

MAN DOWN
UNIT

OPTIONS

Approx. output power and battery life (Tx (Hi): Rx: standby=5:5:90)

BC-119 DESKTOP CHARGER + AD-94 (#02) CHARGER ADAPTOR
For rapid charging of battery pack, BP-209 or BP-210. An AC adaptor is supplied
with the charger. Charging time: 1.5 to 2 hours
BC-121 MULTI-CHARGER + AD-94 (#02) CHARGER ADAPTOR
+ BC-124 AC ADAPTOR
For rapid charging of up to 6 battery packs

(six AD-94s are required.), BP-209 or

BP-210. The BC-124 outputs 12 V DC and has 7 A capacity for the BC-121. Charg­ing time: 1.5 to 2 hours.

BC-137 (#02) BATTERY CHARGER
+ BC-122 AC ADAPTOR
Regularly charges a battery pack,
BP-209 or BP-210, with/without trans­ceiver. The AC adaptor, BC-122, is ad­ditionally required.

EM-80 : Durable, full-sized microphone with internal

speaker.

EM-89 : Slim dimensions. Equipped with an ear-

phone jack and a transmit indicator.

MB-74 BELT CLIP
Alligator type. Clips onto
almost anything in a va

ri-

ety of convenient

places.

MB-68 BELT CLIP
Same as that supplied is
also available.

UT-105 : Provides SmarTrunk II™ capabilities.
UT-109 : Provides operating security. Up to 32 scrambling codes are available. The scrambling sys-

tem is not compatible with the UT-110.

UT-110 : Provides higher operating security. Up to 1020

(255 codes × 4 groups) scrambling codes are

available. The scrambling system is not compatible with the UT-109.

UT-111 : Provides LTR

®

trunking capabilities.

UT-113 :

Automatically sends an emergency signal when the transceiver is left in horizontal position.

BP-208

AA (R6)
batteries × 6

BP-209

Ni-Cd

7.2 V/1100 mAh

BP-210

Ni-MH

7.2 V/1650 mAh

BATTERY PACK

OUTPUT POWER

BATTERY LIFE (approx.)

IC-F31GT/GS IC-F41GT/GS

BP-208 1 W typ. 1 W typ. —
BP-209 5 W typ. 4 W typ. 6.5 hours
BP-210 5 W typ. 4 W typ. 10 hours

EM-89EM-80

BC-121+AD-94 (#02)×(6 pcs.)
+BC-124

BC-137 (#02)+BC-122

SPEAKER-MICROPHONES

INTERNAL UNITS

BATTERY PACKS AND CASE BATTERY CHARGER

BC-119

+AD-94 (#02)

AD-52 EARPHONE

JACK ADAPTOR

Transforms 9-pin multi
connector to φ 3.5 mm
earphone connector.

AD-52

EARPHONE JACK
ADAPTOR

MB-74 BELT CLIP

ANTENNA
FA-SC25V

VHF ANTENNA FOR 136–155 MHz

FA-SC55V

VHF ANTENNA FOR 146–174 MHz

FA-SC25U

UHF ANTENNA FOR 400–430 MHz

FA-SC57U

UHF ANTENNA FOR 440–470 MHz

FA-SC72U

UHF ANTENNA FOR 470–520 MHz

The answer to 21st Century business communication is here!

If you want a durable, ver­satile, reliable and easy­to-operate portable
communications tool, the
IC-F31G & IC-F41G series
is efficient for you. This
series is designed for
commercial communica­tion or professional use
with a host of built-in fea­tures, such as multiple
tone-signalings, Flash
ROM, high speed PLL,
Compander function and
more. Not only for con­ventional operation, but
also compatible with
Trunking systems*, this
series is useful for small
systems to large wide
networks. Icom's tech­nologies guarantee to sat­isfy your needs.

▲ IC-F41GT

▲ IC-F41GS

iC-f41gs

iC-f41gt

iC-f31gs

iC-f31gt

VHF AND UHF
TRANSCEIVERS

8×20 dot character can be made on a PC and
plural characters can be combined on LCD.

* Optional unit is required.

Count on us!

Printed in Japan

<

Corporate Headquarters

>

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.
Phone : [phone] Fax : [phone]
URL : http://www.icomamerica.com

<

Customer Service>Phone : [phone]

Communication Equipment
Himmelgeister Str. 100, D-40225 Düsseldorf, Germany
Phone : [phone] Fax : [phone]
URL : http://www.icomeurope.com

A.B.N. 88 006 092 575
290-294 Albert Street, Brunswick, Victoria, 3056, Australia
Phone : [phone] Fax : [phone]
URL : http://www.icom.net.au

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.
Phone : [phone] Fax : [phone]
URL : http://www.icomuk.co.uk

Zac de la Plaine, Rue Brindejonc des Moulinais
BP 5804, 31505 Toulouse Cedex, France
Phone : [phone] Fax : [phone]
URL : http://www.icom-france.com

Crta. de Gracia a Manresa Km. 14,750
08190 Sant Cugat del Valles Barcelona, SPAIN
Phone : [phone] Fax : [phone]
URL : http://www.icomspain.com

6F No. 68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.
Phone : [phone] Fax : [phone]

Glenwood Centre #150-6165 Highway 17,
Delta, B.C., V4K 5B8, Canada
Phone : [phone] Fax : [phone]
URL : http://www.icomcanada.com

Your local distributor/dealer:

Icom Inc. (Japan), is an
ISO9001 certification
acquired company.

Certificate Number Q14190

6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan Phone: [phone] Fax: [phone]

URL: http://www.icom.co.jp/world/index.html

VHF AND UHF TRANSCEIVERS

00YT0120 © 2000 Icom Inc.

• Frequency range :
IC-F31GT/GS 136–174 MHz
IC-F41GT/GS 400–430 MHz

440–480 MHz

• Number of Channels : Max. 256 Ch/ 16 banks

• Type of emission : 16K0F3E

(25/30 kHz)

8K50F3E (12.5/15 kHz)
14K0F3E (20 kHz)

• Channel spacing : 30/15 kHz (25/12.5 kHz)

20/12.5 kHz

• Antenna impedance : 50 Ω

• Frequency error : ±1.5 kHz

• PLL channel step : 5 kHz, 6.25 kHz, 7.5 kHz

•

Power supply requirement

: 7.5 V DC (Icom battery pack)

• Current drain (at 7.5 V DC; approx)

:

Transmit at 5 W 1.7 A

typ. (IC-F31GT/GS)

at 4 W 1.7 A typ. (IC-F41GT/GS)

Receive at AF max. 300 mA

at stand-by 95 mA

• Operating temp. range : –25˚C to +55˚C

• Dimensions : 54(W)×139(H)×38(D) mm

(projections not included)

• Weight (with BP-210) : 420 g

• Modulation system : Variable reactance frequency modu-

lation

• Output power : 5.0 W

(IC-F31GT/GS)

(nominal) 4.0 W (IC-F41GT/GS)

• Max. freq. deviation : ± 2.5 kHz, ± 5 kHz, ± 4 kHz

• Modulation limiting : 60–100%

•

Audio harmonic distortion

: 3% typ. (1 kHz/40% dev.)

• Spurious emissions : Less than 0.25 µW

• Adjacent Ch. power : 60 dB

(12.5 kHz)

70 dB (25/20 kHz)

• Residual modulation : 43 dB

typ. (12.5 kHz)

45 dB typ. (25/20 kHz)

• External MIC connector : 9-pin multi connector/ 2.2 kΩ

• Intermediate freq. : 1st 31.65 MHz

(IC-F31GT/GS)

47.25 MHz (IC-F41GT/GS)

2nd 450 kHz

• Sensitivity : 0.63 µV

typ. (at 20 dB SINAD) e.m.f.

• Squelch sensitivity : 0.25 µV (at threshold)

• Adjacent Ch. selectivity : 63 dB typ. (12.5 kHz)

73 dB typ. (25 kHz)

• Spurious response : 70 dB

• Intermodulation : 70 dB

typ.

• Hum and noise ratio : 43 dB typ. (12.5 kHz)
45 dB typ. (25/20 kHz)

• Audio output power :

0.5 W typ.

(at 5% distortion with an 8 Ω load)

• External SP connector : 9-pin multi connector/ 8 Ω

Applicable U.S. Military Specifications

Icom makes rugged products that meet MIL-STD requirements and strict
environmental standards as follows.

Measurements made in accordance with ETS 300-086.
All stated specifications are subject to change without notice or
obligation.

SPECIFICATIONS

GENERAL

TRANSMITTER

RECEIVER

Microsoft and Windows are registered trademarks of Microsoft Corporation in the
U.S.A. and other countries.
SmarTrunk II is a trademark of the SmarTrunk System Corporation.
LTR is a registered trademark of the EFJohnson Radio Systems.

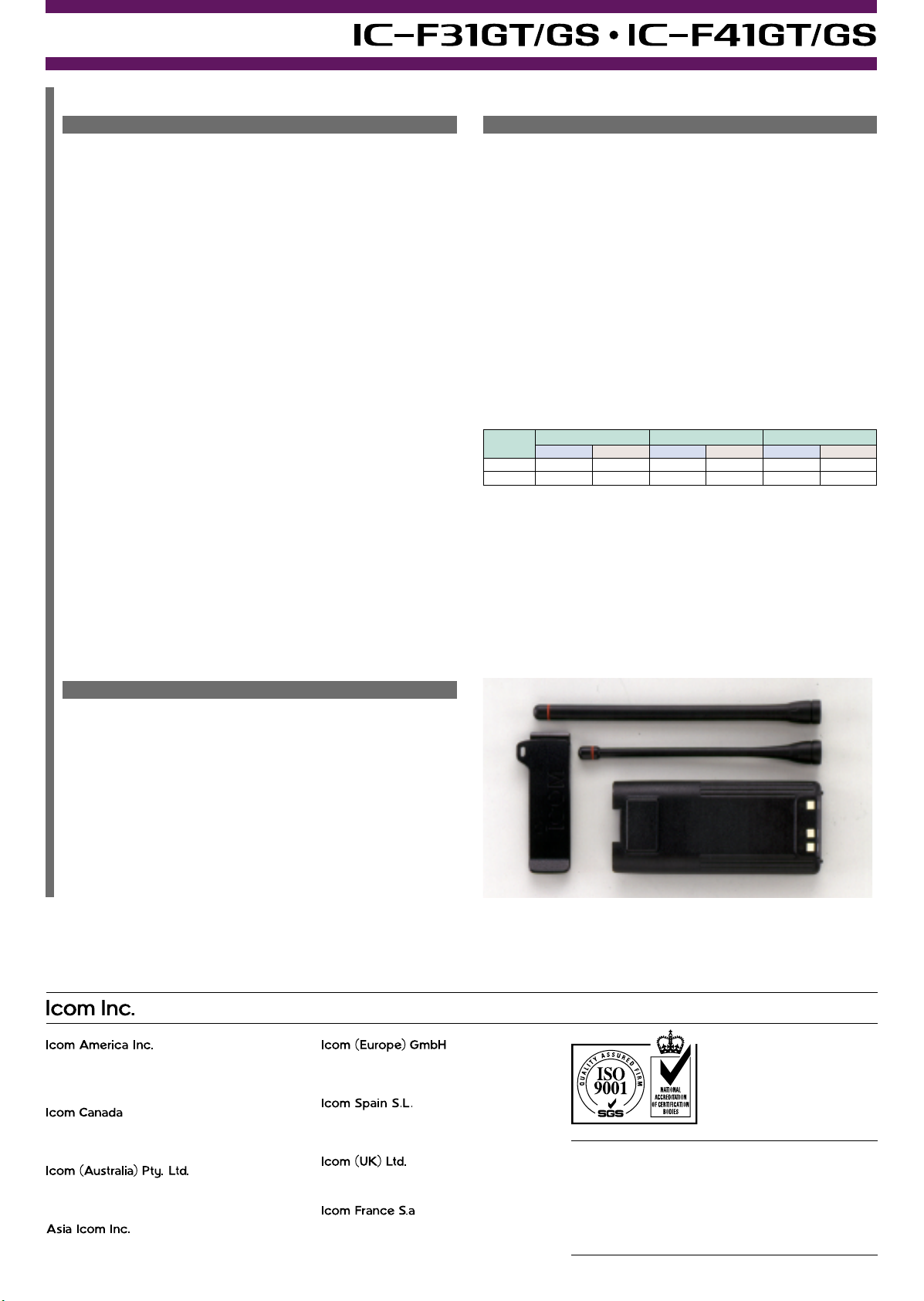

Supplied accessories:

• Battery pack, BP-210

• Belt clip, MB-68

• Antenna

(may differ according to version)

Standard

MIL 810C MIL 810D MIL 810E

Method

Procedure

Method

Procedure

Method

Procedure

Vibration 514.2 X 514.3 I 514.4 I
Shock 516.2 I 516.3 I 516.4 I

▲ UHF antenna

▲ VHF antenna
