Icom IC-F4030 Insrtuction Manual
INSTRUCTION MANUAL
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful interference.
iF3030 Series
VHF TRANSCEIVERS
iF4030 Series
UHF TRANSCEIVERS

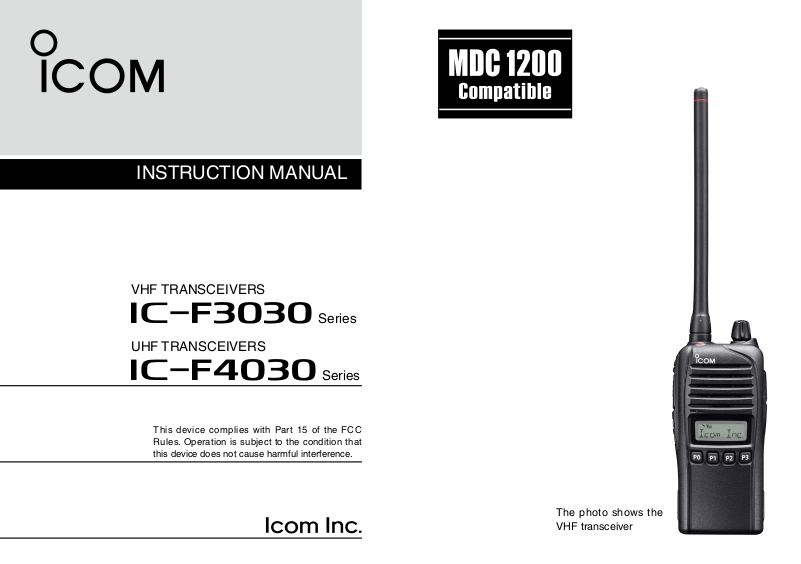

The photo shows the
VHF transceiver
IMPORTANT
EXPLICIT DEFINITIONS
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This
instruction manual contains important oper ating instructions
for the IC-F3031S, IC-F3033S, IC-F3033T, IC-F3033T-T,
IC-F3036S, IC-F3036T VHF TRANSCEIVERS and the ICF4031S, IC-F4033S, IC-F4033T, IC-F4036S, IC-F4036T
UHF TRANSCEIVERS.
This instruction manual includes some functions which are
usable only when they are pre-programmed by your dealer.
Ask your dealer for details.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
i
WORD DEFINITION
RDANGER!
RWARNING!
CAUTION
NOTE
Personal death, serious injury or an explosion may occur.
Personal injury, fire hazard or electric
shock may occur.
Equipment damage may occur.
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
PRECAUTIONS
DANGER! NEVER short the terminals of the battery
R
pack.
DANGER! Use and charge only specified Icom bat-
R
tery packs with Icom radios or Icom chargers. Only Icom battery packs are tested and approved for use with Icom radios
or charged with Icom chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or
cause the battery to burst.
WARNING! NEVER hold the transceiver so that
R
the antenna is very close to, or touching exposed parts of
the body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
(2 to 4 inches) away from the lips and the transceiver is vertical.
WARNING! NEVER operate the transceiver with
R
a headset or other audio accessories at high volume levels.
Hearing experts advise against continuous high volume operation. If you experience a ringing in your ears, reduce the
volume level or discontinue use.
WARNING! NEVER operate the transceiver while
R
driving a vehicle. Safe driving requires your full attention—
anything less may result in an accident.
CAUTION: MAKE SURE the flexible antenna, bat-
tery pack and jack cover are securely attached to the transceiver, and that the antenna and battery pack are dry before
attachment. Exposing the inside of the transceiver to dust or
water will result in serious damage to the transceiver.
DO NOT operate the transceiver near unshielded electri-
cal blast ing caps or in an explosive atmosphere.
DO NOT
push [PTT] when not actually intending to transmit.
DO NOT use or place the transceiver in direct sunlight or
in areas with temperatures below –30°C (–22°F) or above
+60°C (+140°F).
The basic operations, transmission and reception of the
transceiver are guaranteed within the specified operating
temperature range. However, the LCD display may not be
operate correctly, or show an indication in the case of long
hours of operation, or after being placed in extremely cold
areas.
DO NOT modify the transceiver. The transceiver warranty does
not cover any problems caused by unauthorized modification.
DO NOT use harsh solvents such as benzine or alcohol
when cleaning, as they will damage the transceiver surfaces.
BE CAREFUL! The transceiver will become hot when
operating it continuously for long periods of time.
ii
PRECAUTIONS (Continued)
FCC INFORMATION
BE CAREFUL! The IC-F3031S, IC-F3033S, IC-
F3033T, IC-F3033T-T, IC-F3036S, IC-F3036T, IC-F4031S,
IC-F4033S, IC-F4033T, IC-F4036S and IC-F4036T meet
IP67* requirements for dust-tight and waterproof protection.
However, once the transceiver has been dropped, dust-tight
and waterproof protection cannot be guaranteed because of
possible damage to the transceiver’s case or the waterproof
seal.
* Only when the jack cover or the optional HM-168LWP is
attached.
Even when the transceiver power is OFF, a slight current still
flows in the circuits. Remove the battery pack or batteries
from the trans ceiver when not using it for a long time. Otherwise, the installed battery pack or batteries will become exhausted, and will need to be recharged or replaced.
MAKE SURE to turn the transceiver power OFF before
connect ing the supplied/optional equipment.
For U.S.A. only:
CAUTION: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.
• FOR CLASS A UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
iii
TABLE OF CONTENTS
IMPORTANT .......................................................................... i
EXPLICIT DEFINITIONS ....................................................... i
PRECAUTIONS .................................................................... ii
FCC INFORMATION ........................................................... iii
TABLE OF CONTENTS ....................................................... iv
1 ACCESSORIES ...........................................................1–2
Supplied accessories ■ ...................................................1
Accessory attachments ■ ................................................1
2 PANEL DESCRIPTION ................................................3–7
Front panel ■ ...................................................................3
Function display ■ ...........................................................4
Programmable function keys ■ ........................................5
3 BASIC OPERATION ..................................................8–14
Turning power ON ■ ........................................................8
Channel selection ■ ........................................................9
Call procedure ■ ..............................................................9
Receiving and transmitting ■ .........................................10
User set mode ■ ............................................................12
Emergency Call ■ ..........................................................12
Priority A channel selection ■ ........................................13
Man Down Emergency Call ■ ........................................13
Stun function ■ ..............................................................13
Scrambler function ■ .....................................................13
MDC 1200 system operation ■ .....................................14
4 BATTERY CHARGING ............................................15–19
Caution ■ .......................................................................15
Optional battery chargers ■ ...........................................17
5 OPTIONAL SWIVEL BELT CLIP ............................ 20–21
MB-93 contents ■ ..........................................................20
Attaching ■ ....................................................................20
Detaching ■ ...................................................................21
6 SPEAKER MICROPHONE ............................................22
Optional HM-168LWP description ■ ..............................22
Attachment ■ .................................................................22
7 BATTERY CASE ......................................................23–25
BP-240 optional battery case ■ .....................................23
BP-261 optional battery case ■ .....................................24
8 OPTIONS .................................................................26–27
9 SAFETY TRAINING INFORMATION .......................28–29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
iv
1
Flexible antenna
Battery pack
Belt clip
AC adapter*
(for the battery charger)
Battery charger*
*Not supplied, or shape is different, depending on the transceiver
version.
q
w
Battery release button
ACCESSORIES
Supplied accessories ■
NOTE: Some accessories are not supplied with depending
on versions.
Accessory attachments ■
Flexible antenna D
1
Connect the supplied flexible antenna to
the antenna connector.
CAUTION:
• NEVER carry the transceiver by
holding the antenna.
• DO NOT connect the antenna other
than listed on page 24.
• Transmitting without an antenna
may damage the transceiver.
Battery pack D
To attach the battery pack:
Slide the battery pack in the direction of the arrow (q) until
the battery release button makes a ‘click’ sound.
NOTE: Push on the bottom of the pack to make sure the
release button is firmly locked.
To release the battery pack:
Slide the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
NEVER release or attach the battery pack when the transceiver is wet or soiled. This may result water or dust getting into the transceiver/battery pack and may result in the
transceiver being damaged.
NOTE: Keep the battery terminals clean. It's a good idea
to regularly clean them.
ACCESSORIES
q
w
w
[MIC/SP] jack
Jack cover
q
q
q
w
1
Belt clip D
To attach the belt clip:
Release the battery pack if it is attached. q
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
To detach the belt clip:
Release the battery pack if it is attached. q
Pinch the clip ( w q), and slide the belt clip in the direction of
the arrow (w).
Jack cover D
To attach the jack cover:
q Attach the jack cover to the [MIC/SP] jack.
w Tighten the screws.
CAUTION:
• Attach the jack cover when the op-
tional speaker-microphone is not
used.
• Use the supplied screws only.
To detach the jack cover:
q Unscrew the screws using a phillips
screwdriver.
w Detach the jack cover for the speak-
er-microphone or headset connection.
1
2
2
q
w
r
e
o
u
y
Microphone
Speaker
t
i
Jack cover
NOTE: Attach the jack
cover when the optional
equipment is not used.
See (p. 2) for details.
PANEL DESCRIPTION
Front panel ■
t DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Desired functions can be programmed independently by
your dealer. (p. 5)
y DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer. (p. 5)
u FUNCTION DISPLAY (p. 4)
Displays a variety of information such as an operating
channel number/name, 2-tone code, DTMF numbers, se-
lected function and so on.
i EXTERNAL MICROPHONE/SPEAKER JACK
Connect an optional speaker-microphone.
NOTE: Connect or disconnect the optional equipment
after the transceiver is turned OFF.
q ANTENNA CONNECTOR
Connects the supplied antenna.
w DEALER-PROGRAMMABLE KEY [Emer]
Desired function can be programmed by your dealer. (p. 7)
e DEALER-PROGRAMMABLE KEY [Side1]
Desired function can be programmed by your dealer.
(p. 5)
r PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
3
o VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
PANEL DESCRIPTION
yq iutrew
o
!0
2
Function display ■
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
r LOW POWER INDICATOR
Appears when low output power is selected.
• When the battery power decreases to a specied level, low
power is selected automatically.
t AUDIBLE INDICATOR
➥ Appears when the channel is in the ‘audible’ (unmute)
condition.
Appears when the specified 2-tone code is received. ➥
y SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
u BELL INDICATOR
Appears or blinks when the specific 2-tone code is re-
ceived, according to the pre-programming.
i KEY LOCK INDICATOR
Appears during the key lock function is ON.
o BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
!0 ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4
PANEL DESCRIPTION
2
Programmable function keys ■
The following functions can be assigned to [Emer], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details concerning your transceivers programming.
If the programmable function names are bracketed in the following explanations, the specific key is used to activate the
function depends on the programming.
CH UP AND DOWN KEYS
➥ Push to select an operating channel.
➥ Push to select a transmit code channel after pushing [TX
Code CH Select].
➥ Push to select a DTMF channel after pushing [DTMF Au-
todial].
➥ Push to select a scan group after pushing and holding
[Scan A Start/Stop]/[Scan B Start/Stop] for 1 second.
SIREN KEY
Push to emit a siren.
ZONE KEY
Push this key, then push [CH Up] or [CH Down] to select the
desired zone.
What is “zone”?— The desired channels are assigned
into a zone according to the intended use for grouping.
For example, ‘Staff A’ and ‘Staff B’ are assigned into a
“Business” zone, and ‘John’ and ‘Cindy’ are assigned into
a “Private” zone.
5
SCAN A KEY
➥ This key’s operation depends on the Power ON Scan set-
ting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation. In case of
transmission during scan, scanning will be cancelled.
When the power ON scan function is turned ON;
Push to pause scanning, then resumes scanning after
passing a specified time period. In case of transmission
during scan, scanning will be cancelled.
➥ Push and hold this key for 1 second to indicate the scan
group, then push [CH Up] or [CH Down] to select the desired group.
SCAN B KEY
➥ Push to start and cancel scanning operation. In case of
transmission during scan, scanning will be paused. Then
resumes scanning after passing a specified time period.
➥ Push and hold this key for 1 second to indicate the scan
group, then push [CH Up] or [CH Down] to select the desired group.
PRIO A/B KEYS
➥ Push to select Priority A or Priority B channel.
➥ Push and hold [Prio A (Rewrite)] or [Prio B (Rewrite)] for 1
second to reassign the operating channel to Priority A or
Priority B channel.
PANEL DESCRIPTION
2
SCAN ADD/DEL (TAG) KEY
➥ Push to add a channel to, or delete it from the current scan
list.
• When a channel is added to the current scan list, the display
shows “SCAN ON.” When a channel is deleted from the current
scan list, the display shows “SCAN OFF.” After showing “SCAN
ON” or “SCAN OFF,” the display shows the current scan list text.
➥ You can add a channel to, or delete it from the scan list
after selecting the list.
1. Hold down for 1 second to display the current scan list,
and then push [CH Up] or [CH Down] to select a desired
list.
2. Push this key to add a channel to, or delete it from the
selected list.
3. Hold down this key for 1 second to exit the scan list
selection mode.
➥ Push this key while a scan is paused on a channel, except
for primary or secondary channel, and then the channel is
deleted from the scan list.
• Depending on the setting, the deleted channel is added to the
scan list again after the scan is cancelled. (Nuisance Delete
function)
C.TONE CH ENT KEY
Push to select the continuous tone channel using [CH Up]/
[CH Down] to change the tone frequency/code setting. The
selected channel remains set as the continuous tone channel
until another channel is designated as such.
MR-CH 1/2/3/4 KEYS
Push to select memory channels 1 to 4 in the operating zone
directly.
MONI KEY
Mute and release the CTCSS (DTCS) or 2-tone squelch
mute. Open any squelch/deactivate any mute while pushing
and holding this key.
LOCK KEY
➥ Push and hold for 1 second to electronically lock all pro-
grammable keys except the following:
[Call] (incl. Call A and Call B), [Moni], [Emergency], [Sur-
veillance], [Siren], [Lone Worker] and [OPT 1/2/3].
➥
Push and hold for 1 second again to turn the lock function
OFF.
HIGH/LOW KEY
Push to select the transmit output power temporarily or permanently, depending on the presetting.
• Ask your dealer for the output power level for each selection.
OPT MOMENTARY KEYS
Controls the output signal level of the optional ports in the
optional unit connector while pushing and holding this key.
OPT OUT KEYS
Push to control the output signal level of the optional ports in
the optional unit connector.
SCRAMBLER FUNCTION
Push to toggle the voice scrambler function ON and OFF.
2
6
PANEL DESCRIPTION
2
TALK AROUND KEY
Push to turn the talk around function ON and OFF.
• The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY
Push to toggle the IF bandwidth between wide and narrow.
DTMF AUTODIAL KEY
➥ Push to enter the DTMF channel selection mode. Then se-
lect the desired DTMF channel using [CH Up]/[CH Down].
➥ After selecting the desired DTMF channel, push this key to
transmit the DTMF code.
RE-DIAL KEY
Push to transmit the last-transmitted DTMF code.
EMERGENCY KEY
Push and hold to transmit the emergency call.
• The transceiver can transmit the emergency call silently or audibly
depending on the presetting. Ask your dealer for details.
• When the emergency call transmits with beeps, the emergency
text is displayed on the LCD if programmed.
• If you want to cancel the emergency call, push and hold the key
again before transmitting the call.
• The emergency call is transmitted one time only or repeatedly until
receiving a control code, depending on the presetting.
SURVEILLANCE KEY
Push to turn the surveillance function ON or OFF.
When this function is turned ON, the beep is not emitted and
the LCD backlight does not light when a signal is received or
a key is pushed, etc.
CALL KEYS
Push to transmit a 2-tone.
• Call transmission is necessary before you call another station depending on your signaling system.
• [Call A] and/or [Call B] may be available when your system employs selective ‘Individual/Group’ calls. Ask your dealer which call
is assigned to each key.
LONE WORKER KEY
Push to turn the Lone Worker function ON or OFF.
• If the Lone Worker function is activated, the Emergency function
is automatically turned ON after the specified time period has
passed with no operation is performed.
TX CODE CHANNEL UP/DOWN KEYS
Push to select a TX code channel directly.
TX CODE CHANNEL SELECT KEY
Push to enter the ID code channel selection mode directly.
Then set the desired channel using [CH Up]/[CH Down].
(p. 11)
USER SET MODE KEY
➥ Push and hold for 1 second to enter user set mode.
• During in the user set mode, push this key to select an item that
is enabled by your dealer, and change the value or condition by
pushing [CH Up] or [CH Down].
➥ Push and hold this key for 1 second again to exit user set
mode.
User set mode is also available via the ‘Power ON function.’
Refer to page 8 also.
7
Loading...
