INSTRUCTION MANUAL
VHF TRANSCEIVERS
iF3021T/S
iF3023T/S
iF3026T/S
UHF TRANSCEIVERS
iF4021T/S
iF4023T/S
iF4026T/S
Thi s device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful interference.
The photo shows the 10-key
version VHF transceiver.
Page 2
IMPORTANT PRECAUTIONS
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This
instruction manual contains impor tant operating instruc
tions for the IC-F3021T/S, IC-F3023T/S, IC-F3026T/S VHF
TRANSCEIVERS and the IC-F4021T/S, IC-F4023T/S, ICF4026T/S UHF TRANSCEIVERS
.
R CAUTION! NEVER hold the transceiver so that
the antenna is very close to, or touching exposed parts of
the body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 2 to 4 in. (5
-
to 10 cm) away from the lips and the transceiver is vertical.
R CAUTION! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
R CAUTION! NEVER short the terminals of the bat-
EXPLICIT DEFENITIONS
WORD DEFINITION
RWARNING
CAUTION
NOTE
Personal injury, fire hazard or electric
shock may occur.
Equipment damage may occur.
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
tery pack.
R CAUTION! NEVER use non-Icom battery packs/
chargers to prevent the loss of the transceiver’s good performance and warranty.
DO NOT push [PTT] when not actually desiring to trans-
mit.
DO NOT use or place the transceiver in direct sunlight or
in areas with temperatures below +22°F (–30°C) or above
+140°F (+60°C).
Icom, Icom Inc. and th e logo are regist ered trade marks o f Icom
Incor porated (Japan) in the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
i
DO NOT modify the transceiver for any reason.
Page 3
FCC INFORMATION
KEEP the transceiver from the heavy rain, and Never im-
merse it in the water. The transceiver construction is water
resistant, not waterproof.
The basic operations, transmission and reception of the
transceiver are guaranteed within the specified operating
temperature range. However, the LCD display may not be
operate correctly, or show an indication in the case of long
hours of operation, or after being placed in extremely cold
areas.
Icom optional equipment is designed for optimal performance when used with this transceiver. We are not responsible for the transceiver being damaged or any accident
caused when using non-Icom optional equipment.
For U.S.A. only
CAUTION: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.
• FOR CLASS B UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit differ
ent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV techni
cian for help.
-
-
ii
Page 4
TABLE OF CONTENTS
IMPORTANT .......................................................................... i
EXPLICIT DEFENITIONS .....................................................i
PRECAUTIONS .....................................................................i
FCC INFORMATION ............................................................ ii
TABLE OF CONTENTS ....................................................... iii
1
ACCESSORIES ...........................................................1−3
■Supplied accessories ...................................................1
■Accessory attachments ................................................ 1
2 PANEL DESCRIPTION ................................................
■Front panel ...................................................................4
■Function display ...........................................................6
■Programmable function keys ........................................7
3 BASIC OPERATION ................................................
■Turning power ON ...................................................... 10
■Channel selection .......................................................11
■Call procedure ............................................................11
■Receiving and transmitting .........................................12
■User set mode ............................................................14
■Stun function ..............................................................14
■Emergency Call ..........................................................14
■Man Down Emergency Call ........................................14
■Scrambler function .....................................................15
■Priority A channel selection ........................................15
■MDC 1200 system operation ......................................15
4−9
10−15
4 OPTIONAL SmarTrunk OPERATION .....................
■SmarTrunk 3G™ mode selection ...............................16
■SmarTrunk 3G™ operation .........................................16
5 BATTERY CHARGING ............................................
■ Caution .......................................................................18
■Optional battery chargers ...........................................20
6 BATTERY CASE ............................................................
■ Optional battery case (BP-240) ..................................22
7 OPTIONAL SWIVEL BELT CLIP ............................
■MB-93 contents .......................................................... 23
■Attaching ....................................................................23
■Detaching ................................................................... 24
8
OPTIONS .................................................................25−26
9 SAFETY TRAINING INFORMATION .............................
16−17
18−21
22
23−24
27
iii
Page 5
ACCESSORIES
Flexible antenna Battery pack Belt clip
Unit cover
(double-sided tape)*
Jack cover
(with screws)
*Use the unit cover as a spare. Ask your dealer for details.
1
■Supplied accessories
NOTE: Some accessories are not supplied with depend-
ing on versions.
■Accessory attachments
D Flexible antenna
Connect the supplied flexible antenna
to the antenna connector.
CAUTION!
• NEVER HOLD
carrying the transceiver.
• Transmitting without an antenna
may damage the transceiver.
the antenna when
1
1
Page 6
ACCESSORIES
q
w
Battery release button
q
w
1
D Battery pack
To attach the battery pack:
Slide the battery pack in the direction of the arrow (q), then
lock it with the battery release button.
• Slide the battery pack until the battery release button makes a
‘click’ sound.
To release the battery pack:
Slide the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
NEVER release or attach the battery pack when the
transceiver is wet or soiled. This may result water or dust
getting into the transceiver/battery pack and may result in
the transceiver being damaged.
D Belt clip
To attach the belt clip:
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
To detach the belt clip:
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction
of the arrow (w).
2
Page 7
ACCESSORIES
q
q
w
q
w
[MIC/SP] jac
k
Jack cover
1
D Jack cover
Attach the jack cover when the optional speaker-microphone
or headset is not used.
To attach the jack cover:
q Attach the jack cover to the [MIC/SP] jack.
w Tighten the screws.
CAUTION!
• Attach the jack cover when the optional speaker-micro
phone or headset is not used.
• Use the supplied screws only.
1
To detach the jack cover:
q Unscrew the screws using a phillips screwdriver.
w Detach the jack cover for the speaker-microphone or
headset connection.
-
3
Page 8
2
q
w
r
e
o
i
u
y
Microphone
Speaker
!0
t
PANEL DESCRIPTION
■Front panel
q ANTENNA CONNECTOR
Connects the supplied antenna.
w DEALER-PROGRAMMABLE KEY [Emer]
Desired function can be programmed by your dealer.
(p. 7)
e DEALER-PROGRAMMABLE KEY [Side1]
Desired function can be programmed by your dealer.
(p. 7)
r PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
t DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Desired functions can be programmed independently by
your dealer. (p. 7)
y 10-KEYPAD (Depending on version)
The keypad allows you to enter digits to:
• Select memory channels
• Select tone channels
• Select DTMF codes (during transmit)
• Set TX codes
• Start up with the password
u DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer. (p. 7)
i FUNCTION DISPLAY (p. 6)
Displays a variety of information such as an operating
channel number/name, 2-tone code, DTMF numbers, selected function, etc.
4
Page 9
PANEL DESCRIPTION
Jack cover
NOTE: Attach the jack
cover when the optional
equipment is not used.
See (p. 3) for details.
2
o EXTERNAL MICROPHONE/SPEAKER JACK
Connect an optional speaker-microphone or headset.
NOTE: Connect or disconnect the optional equipment
after the transceiver is turned OFF.
!0 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
2
5
Page 10
PANEL DESCRIPTION
yq iutrew
o
!0
2
■Function display
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
r LOW POWER INDICATOR
Appears when low output power is selected.
• When the battery power decreases to a specified level, low
power is selected automatically.
t AUDIBLE INDICATOR
➥ Appears when the channel is in the ‘audible’ (unmute)
condition.
➥ Appears when the specified 2-tone code is received.
y SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
u BELL INDICATOR
Appears/blinks when the specific 2-tone code is received,
according to the pre-programming.
i KEY LOCK INDICATOR
Appears during the key lock function is ON.
o BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
!0 ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
6
Page 11
■Programmable function keys
The following functions can be assigned to [Emer], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details concerning your transceivers programming.
If the programmable function names are bracketed in the following explanations, the specific key is used to activate the
function depends on the programming.
CH UP AND DOWN KEYS
➥ Push to select an operating channel.
➥ Push to select a transmit code channel after pushing [TX
Code CH Select].
➥ Push to select a DTMF channel after pushing [DTMF Au-
todial].
➥ Push to select a scan group after pushing and holding
[Scan A Start/Stop]/[Scan B Start/Stop] for 1 sec.
ZONE KEY
Push this key, then push [CH Up] or [CH Down] to select the
desired zone.
What is “zone”?— The desired channels are assigned
into a zone according to the intended use for grouping.
For example, ‘Staff A’ and ‘Staff B’ are assigned into a
“Business” zone, and ‘John’ and ‘Cindy’ are assigned into
a “Private” zone.
PANEL DESCRIPTION
SCAN A KEY
➥ This key’s operation depends on the Power ON Scan set-
ting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation. In case of
transmission during scan, scanning will be cancelled.
When the power ON scan function is turned ON;
Push to pause scanning, then resumes scanning after
passing a specified time period. In case of transmission
during scan, scanning will be cancelled.
➥ Push and hold this key for 1 sec. to indicate the scan
group, then push [CH Up] or [CH Down] to select the desired group.
SCAN B KEY
➥ Push to star t and cancel scanning operation. In case of
transmission during scan, scanning will be paused. Then
resumes scanning after passing a specified time period.
➥ Push and hold this key for 1 sec. to indicate the scan
group, then push [CH Up] or [CH Down] to select the desired group.
SCAN ADD/DEL (TAG) KEY
Push to add or delete the selected channel to/from the scan
group.
2
2
7
Page 12
PANEL DESCRIPTION
2
PRIO A/B KEYS
➥ Push to select Priority A or Priority B channel.
➥ Push and hold [Prio A (Rewrite)] or [Prio B (Rewrite)] for
1 sec. to reassign the operating channel to Priority A or
Priority B channel.
MR-CH 1/2/3/4 KEYS
Push to select memory channels 1 to 4 in the operating zone
directly.
MONI KEY
Mute and release the CTCSS (DTCS) or 2-tone squelch
mute. Open any squelch/deactivate any mute while pushing
and holding this key.
LOCK KEY
➥ Push and hold for 1 sec. to electronically lock all program-
mable keys except the following:
[Call] (incl. Call A and Call B), [Moni] and [Emergency].
➥ Push and hold for 1 sec. again to turn the lock function
OFF.
HIGH/LOW KEY
Push to select the transmit output power temporarily or per
manently, depending on the pre-setting.
• Ask your dealer for the output power level for each selection.
C.TONE CH ENT KEY
Push to select the continuous tone channel using [CH Up]/
[CH Down] to change the tone frequency/code setting. The
TALK AROUND KEY
Push to turn the talk around function ON and OFF.
• The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY
Push to toggle the IF bandwidth between wide and narrow.
DTMF AUTODIAL KEY
➥ Push to enter the DTMF channel selection mode. Then
select the desired DTMF channel using [CH Up]/[CH
Down].
➥ After selecting the desired DTMF channel, push this key
to transmit the DTMF code.
RE-DIAL KEY
Push to transmit the last-transmitted DTMF code.
CALL KEYS
Push to transmit a 2-tone.
• Call transmission is necessar y before you call another station
depending on your signaling system.
• [C al l A ] and/or [Call B] m ay be availabl e when your sy st em
-
employs selective ‘Individual/Group’ calls. Ask your dealer which
call is assigned to each key.
LONE WORKER KEY
Push to turn the Lone Worker function ON or OFF.
• If the Lone Worker function is activated, the Emergency function is
automatically turned ON after the specified time period has passed
with no operation is performed.
selected channel remains set as the continuous tone channel until another channel is designated as such.
8
Page 13
PANEL DESCRIPTION
2
EMERGENCY KEYS
Push and hold to transmit the emergency call.
• The transceiver can transmit the emergency call silently or audibly
depending on the pre-setting. Ask your dealer for details.
• When the emergency call transmits with beeps, the emergency
text is displayed on the LCD if programmed.
• If you want to cancel the emergency call, push and hold the key
again before transmitting the call.
• The emergency call is transmitted one time only or repeatedly until
receiving a control code, depending on the pre-setting.
SURVEILLANCE KEY
Push to turn the surveillance function ON or OFF.
When this function is turned ON, the beep is not emitted and
the LCD backlight does not light when a signal is received or
a key is pushed, etc.
SIREN KEY
Push to emit a siren.
TX CODE CHANNEL SELECT KEY
Push to enter the ID code channel selection mode directly.
Then set the desired channel using [CH Up]/[CH Down].
(p. 13)
TX CODE CHANNEL UP/DOWN KEYS
Push to select a TX code channel directly.
SCRAMBLER FUNCTION
Push to toggle the voice scrambler function ON and OFF.
USER SET MODE KEY
➥ Push and hold for 1 sec. to enter user set mode.
• During user set mode, push this key to select an item, and
change the value or condition using [CH Up]/[CH Down].
➥ Push and hold this key for 1 sec. again to exit user set
mode.
User set mode is also available via the ‘Power ON function.’
Refer to (p. 14) also.
OPT OUT KEYS
Push to control the output signal level of the optional ports in
the optional unit connector.
OPT MOMENTARY KEYS
Controls the output signal level of the optional ports in the
optional unit connector while pushing and holding this key.
D For SmarTrunk operation only
TRUNKING GROUP SW KEY
Push to select the Trunking group.
TRUNKING CALLER ID SW KEY
Push to display the received ID record in sequence.
TURBO SPEEDIAL A/B/C/D KEYS
Push to dial a commonly used number automatically.
CALL/CLEAR-DOWN KEYS
Functions as [M] and [#] keys on the 10-keypad.
• Push [M] for call, push [#] for clear-down.
2
9
Page 14
3
[VOL]
[PTT]
[Emer]
Dry battery mode
Appears
KEY
NUMBER
0
5
4
9
3
8
2
7
1
6
[Side3]
[P0]/[P1]/
[P2]/[P3]
Side3
[VOL]
BASIC OPERATION

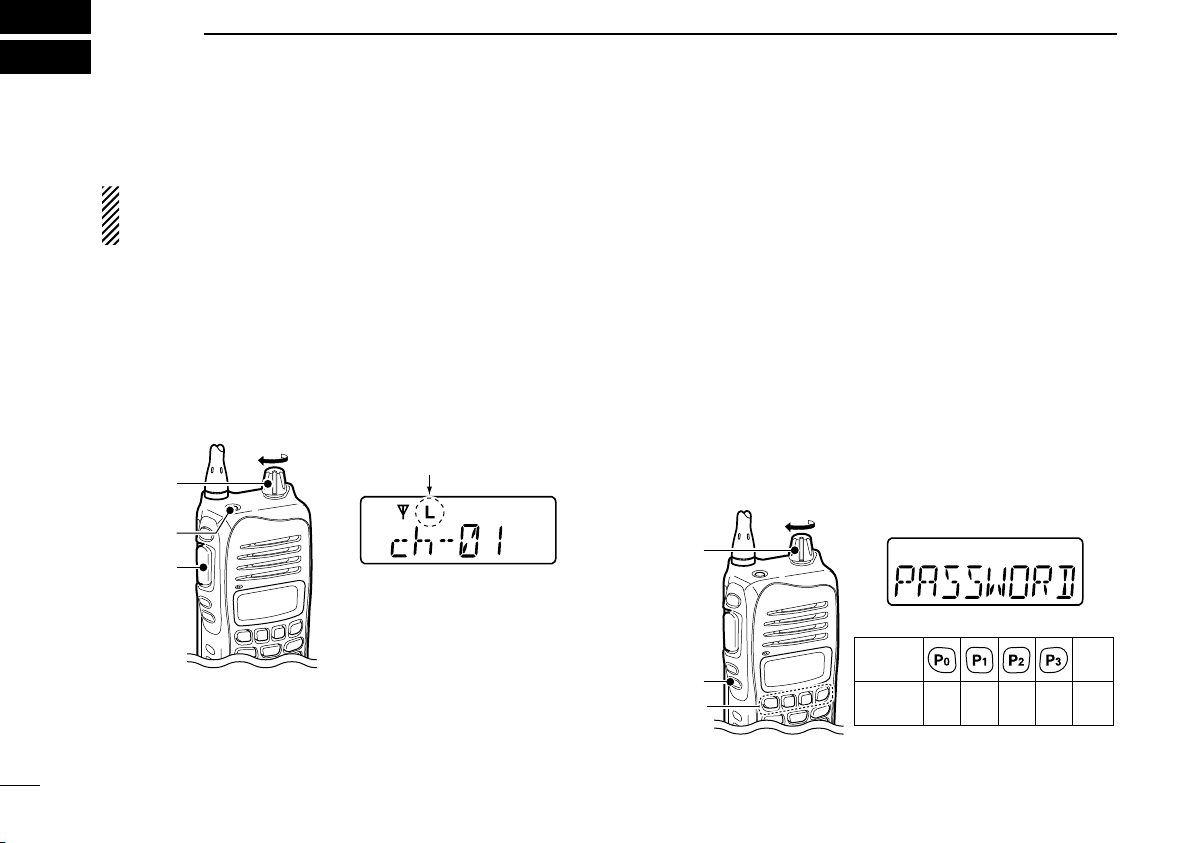

■Turning power ON
10
Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(p. 18)
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad can be used for password input depending on version:
• The keys in the table below can be used for password input:
• The transceiver detects numbers in the same block as identical.
Therefore “01234” and “56789” are the same.
e When the “PASSWORD” indication does not clear after
inputting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
D Battery type selection
The battery type must be selected according to the attaching
battery type when turning the transceiver ON.
Ask your dealer for details.
q Turn the power OFF.
w While pushing and holding [Emer] and [PTT], turn the
power ON with rotating [VOL] to toggle the attaching battery type.
• After the display appears, release [Emer] and [PTT].
• “DRY BATT” is displayed for about 3 sec. then “
the battery case operation is selected. In this case, the transmit
output power is low.
• “LI-ION” is displayed for about 3 sec. when the Lithium-ion battery operation is selected.
L” appears when
Page 15
BASIC OPERATION
Selective calling
Non-selective calling
3
■Channel selection
Several types of channel selections are available. Methods
may differ according to your system set up.
NON-ZONE TYPE:
Push [CH Up] or [CH Down] to select the desired operating
channel, in sequence; or, push one of [MR-CH 1] to [MR-CH 4]
keys to select a channel directly.
ZONE TYPE:
Push [Zone], then push [CH Up] or [CH Down] to select the
desired zone.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turning
power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call.
■Call procedure
When your system employs tone signaling (excluding CTCSS
and DTCS), the call procedure may be necessary prior to voice
transmission. The tone signaling employed may be a selective
calling system which allows you to call specific station(s) only
and prevent unwanted stations from contacting you.
q Select the desired TX code channel or 2-tone code ac-
cording to your System Operator’s instructions.
• This may not be necessary depending on programming.
• Refer to page 13 for selection.
w Push the call key (assigned to one of the dealer program-
mable keys: [Emer], [Side1], [Side2], [Side3], [P0], [P1],
[P2] and [P3]) or [PTT].
e After transmitting a 2-tone code, the remainder of your
communication can be carried out in the normal fashion.
3
11
Page 16
BASIC OPERATION
3
■Receiving and transmitting
NOTE: Transmitting without an antenna may damage the
transceiver. See page 1 for accessory attachments.
Receiving:
q Rotate [VOL] to turn the power ON.
w Push [CH Up] or [CH Down] to select the conventional
system channel, in sequence.
e When receiving a call, adjust the audio output level to a
comfortable listening level.
Transmitting:
Wait for the channel to become clear to avoid interference.
q Push [Call] when initiating a call from your side.
• Coded audio may be heard from the transceiver, then “ ” ap-
pears.
• This operation may not be necessary depending on your signaling system. Ask your dealer for details.
w While pushing and holding [PTT], speak into the micro-
phone at a normal voice level.
e Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak into the microphone at a normal voice level.
D Transmitting notes
• Transmit inhibit function
The transceiver has several inhibit functions which restrict
transmission under the following conditions:
- The channel is in mute condition (‘Inaudible’ condition;
“ ” does not appear.)
- The channel is busy.
- Un-matched (or matched) CTCSS is received.
(Depending on the pre-setting.)
- The selected channel is a ‘receive only’ channel.
• Time-out timer
After continuous transmission for the pre-programmed time
period, the time-out timer is activated, causing the transceiver to stop transmitting.
• Penalty timer
Once the time-out timer is activated, transmission is further
inhibited for a period determined by the penalty timer.
• PTTID call
The transceiver sends the ID code (DTMF or digital ANI)
automatically when [PTT] is pushed (beginning of transmission) and released (end of transmission) depends on the
setting.
12
Page 17
BASIC OPERATION
3
D TX code channel selection
If the transceiver has [TX Code CH Select] assigned to it,
the indication can be toggled between the operating channel
number (or name) and TX code channel number (or name).
When the TX code channel number (or name) is displayed,
[CH Up] or [CH Down] selects the TX code channel.
USING [TX CODE CH SELECT] KEY:
q Push [TX Code CH Select]— a TX code channel number
(or name) appears.
w Push [CH Up] or [CH Down] to select the desired TX code
channel.
• Push [TX Code CH Select] again to return to the operating
channel number indication.
e Push [Call] to transmit the selected TX code.
USING [TX CODE CH UP]/[TX CODE CH DOWN] KEY:
If the transceiver has [TX Code CH Up] or [TX Code CH
Down] assignment, the programmed TX code channel can
be selected directly when pushed.
D DTMF transmission
If the transceiver has [DTMF Autodial] assigned to it, the
automatic DTMF transmission function is available. Up to 8
DTMF channels are available.
TO SELECT A TX CODE:
q Push [DTMF Autodial]— a DTMF channel appears.
w Push [CH Up] or [CH Down] to select the desired DTMF
channel.
e Push [DTMF Autodial] to transmit the DTMF code in the
selected DTMF channel.
3
13
Page 18
BASIC OPERATION
3
14
■User set mode
User set mode is accessed at power ON and allows you to
set seldom-changed settings. In this case you can “customize” the transceiver operation to suit your preferences and
operating style.
Entering the user set mode:
q While pushing and holding [Side2] and [Side3], rotate
[VOL] to turn the power ON. Then, push and hold [P0] for
1 sec. to enter user set mode.
w Push [P0] several times to select the appropriate item.
Then push [CH Up] or [CH Down] to set the desired level/
condition.
• Availa ble set mode fun ctions are B ackligh t, Bee p, Bee p
Level, SQL Level, Mic Gain, Battery Voltage, Signal Moni
and Lone Worker.
e Rotate [VOL] to turn the power OFF to exit user set mode.
NOTE: User set mode is also available via a programma-
ble function key. Refer to “USER SET MODE KEY.” (p. 9)
■Stun function
When the specified ID, set as a killer ID, is received, the stun
function is activated.
When the killer ID is received, the transceiver switches to the
password required condition. Entering of the password via the
keypad is necessary to operate the transceiver again in this case.
■Emergency Call
The emergency call can be performed using [Emergency].
(p. 9)
The transceiver will send a DTMF, 5-tone or MDC 1200 emergency signal* one time only or repeatedly on the emergency
channel. However, when no emergency channel is specified,
the signal is transmitted on the previously selected channel.
If you want to cancel the emergency call, push and hold the
key again before transmitting the call.
* Depending on the operating model type.
■Man Down Emergency Call
This function requires the optional UT-124R man down unit
and can be performed in conventional mode.
The man down emergency call function transmits an emergency call automatically when the transceiver has been left
in a horizontal position.
After the emergency call, the transceiver performs transmission and reception alter nately with receiving a signal and
emitting audio.
When the emergency reset signal is received, the function is
cancelled.
IMPORTANT: Set an emergency channel individually, to
provide certain emergency call operation is recommended.
Page 19
BASIC OPERATION
3
■Scrambler function
The voice scrambler function provides private communication between stations. The optional Rolling or Non-rolling
type can be available.
q Push [Scrambler] to turn the scrambler function ON.
• “ ” appears.
w Push [Scrambler] again to turn the scrambler function
OFF.
• “ ” disappears.
■Priority A channel selection
When one of the following operations is performed, the
transceiver selects the Priority A channel automatically.
Priority A is selected when;
• Clear down signal is received/transmitted
- Set the ‘Move to PrioA CH’ item as ‘Clear down.’
• Turning the power ON
The Priority A channel is selected each time the trans
ceiver power is turned ON.
• Status call
The Priority A channel is selected when transmitting a
status call.
■MDC 1200 system operation
D Receiving an Emergency Call
q When an emergency call is received;
• Beeps sound.
• The calling station alias and “EMG EMG” are displayed alternately.
w Turn power OFF, change the channel, etc. to stop the
beep and display indication.
D Receiving a Stun and Revive
The dispatcher can send MDC 1200 system signals that
will stun or revive your transceiver. If a Stun command is
-
received that matches your station ID, the transceiver will
display “SORRY” and you can not receive or transmit. When
a Revive command is received that matches your station ID,
normal operation is restored.
3
15
Page 20
4
OPTIONAL SmarTrunk OPERATION
16
■ SmarTrunk 3G™ mode
selection
This transceiver is capable of SmarTrunk 3G™ functions.
The optional UT-117R allows communication in conventional
and SmarTrunk 3G™ channels. Select a zone for SmarTrunk
3G™ operation before trunking operation.
• Push [Zone], then push [CH Up] or [CH Down] to select the
desired zone which is specified as SmarTrunk 3G™ operation.
- Scanning starts when a zone for SmarTrunk 3G™ operation is
selected.
- Contact your dealer for details.
■SmarTrunk 3G™ operation
These features are enabled by a dealer and may not be
available in your system. Contact your dealer for details.
D Receiving a call*
When you hear ringing, push [M] to answer.
• For a group call, you hear a short ring followed by two short beeps.
You do not have to answer a group call to hear it over the air.
D Terminating a call*
After completing a call, push [#] to disconnect (hang up).
IMPORTANT: If one person in the conversation termi-
nates a call, all participants will be cut off.
1
1
D Last number re-dial*
Push [M] 2times to automatically re-dial the last called
number.
• A high-pitched beep indicates that the number is accepted.
*1 Available for 4-key version when the [M] or [#] key function is as-
signed to any programmable key.
D Clear channel alerting*
If all channels are busy, the transceiver automatically begins
searching for an open channel and beeps every ten seconds. When two short beeps (low-pitched, then high-pitched)
are heard, a channel is available. Push [M], [M] immediately
to re-dial the last number.
D PTT dispatch operation*
q Push [PTT] once (without dialling) to initiate a dispatch
call.
w Begin talking after you hear three beeps (one short, high-
pitched, two very-short, low-pitched).
e Receiving a dispatch call is indicated by the same three-
beep sequence.
• It is not necessary to push [M] to answer a dispatch call.
D Placing a telephone call*
Enter the phone number followed by [1], [M].
• A high-pitched beep indicates that the number is accepted.
• When the called party answers, push the [PTT] switch to talk, and
release it to listen.
1
1
1
2
Page 21
OPTIONAL SmarTrunk OPERATION
4
D Calling another local system subscriber*
Enter the subscriber number followed by [3], [M].
• A high-pitched beep indicates that the number is accepted.
• You hear ringing, then two short beeps when the subscriber answers.
• If the other subscriber is on another call or out of range, you hear
a fast busy signal and the call terminates automatically.
D Memory speed-dialling*
To automatically dial a commonly used number from memory;
• Push [M] followed by the memory location (0–9).
D Emergency call*
Push [0], [M] to initiate an emergency call.
• Contact your dealer for details.
2
2
2
D Turbo SpeeDial
To automatically dial a commonly used number with one
push;
• Push one of the turbo SpeeDials ([A], [B], [C] or [D]).
D Programming memory speed dial
q Push and hold [M] until you hear a high-pitched beep.
w Enter the memory location (0–9, A, B, C, D), the tele-
phone or subscriber number, then [1], [M] (or [3], [M] if for
another system subscriber).
• A high-pitched beep indicates successful programming.
• Memories [A]–[D] are used for the Turbo SpeeDial.
D System busy indication
If all channels are busy, three low beeps sound after you initiate a call. Try the call again later.
D Displaying the received ID record
Push [Trunking Caller ID SW] to display the received ID
record in sequence.
• The latest received ID is displayed at first.
• The record is cleared when the transceiver is turned OFF.
*1 Available for 4-key version when the [M] or [#] key function is as-
signed to any programmable key.
*2 Available for 10-keypad version only. Use the Turbo SpeeDial function
instead.
NOTE: For additional operating instructions, contact your
dealer.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Page 22
5
BATTERY CHARGING
■ Caution
Misuse of Lithium-ion batteries may result in the following hazards: smoke, fire, or the battery may rupture.
Misuse can also cause damage to the battery or degradation of battery performance.
R DANGER! Use and charge only specified Icom battery
packs with Icom radios or Icom charger. Only Icom battery
packs are tested and approved for use and charge with Icom
radios or Icom charger. Using third-party or counterfeit battery packs or charger may cause smoke, fire, or cause the
battery to burst.
D Battery caution
R DANGER! DO NOT hammer or otherwise impact the bat-
tery. Do not use the battery if it has been severely impacted
or dropped, or if the battery has been subjected to heavy
pressure. Battery damage may not be visible on the outside
of the case. Even if the surface of the battery does not show
cracks or any other damage, the cells inside the battery may
rupture or catch fire.
R DANGER! NEVER use or leave battery packs in areas
with temperatures above +60˚C (+140˚F). High temperature buildup in the battery, such as could occur near fires
or stoves, inside a sun heated car, or in direct sunlight may
cause the battery to rupture or catch fire. Excessive temperatures may also degrade battery performance or shorten
battery life.
R DANGER! DO NOT expose the battery to rain, snow,
seawater, or any other liquids. Never charge or use a wet
battery. If the battery gets wet, be sure to wipe it dry before
using. The battery is not waterproof.
R DANGER! NEVER incinerate used battery packs since
inter nal battery gas may cause them to rupture, or may
cause an explosion.
R DANGE R! NEV ER so lder the b atte r y ter m ina ls or
NEVER modify the battery pack. This may cause heat generation, and the battery may rupture, emit smoke or catch
fire.
R DANGER! Use the battery only with the transceiver for
which it is specified. Never use a battery with any other
equipment, or for any purpose that is not specified in this instruction manual.
R DANGER! If fluid from inside the battery gets in your
eyes, blindness can result. Rinse your eyes with clean water,
without rubbing them, and see a doctor immediately.
18
Page 23
BATTERY CHARGING
5
1
WARNING! Immediately stop using the battery if it emits an
abnormal odor, heats up, or is discolored or deformed. If any
of these conditions occur, contact your Icom dealer or distributor.
WARNING! Immediately wash, using clean water, any part
of the body that comes into contact with fluid from inside the
battery.
WARNING! NEVER
high-pressure container, or in an induction heating cooker.
This could cause a fire, overheating, or cause the battery to
rupture.
CAUTION! Always use the battery within the specified temperature range for the transceiver (–30˚C to +60˚C; –22˚
F to +140˚F) and the battery itself (–20˚C to +60˚C; –4˚F to
+140˚F). Using the battery out of its specified temperature
range will reduce the battery’s performance and battery life.
CAUTION! Shorter battery life could occur if the battery is left
fully charged, completely discharged, or in an excessive temperature environment (above +50˚C; +122˚F) for an extended
period of time. If the battery must be left unused for a long
time, it must be detached from the radio after discharging.
You may use the battery until
half
, then keep it safely in a cool dry place with the tempera-
ture between –20˚C to +20˚C (–4˚F to +68˚F).
put the battery in a microwave oven,
the remaining capacity is about
D Charging caution
R DANGER! NEVER charge the battery pack in areas with
extremely high temperatures, such as near fires or stoves,
inside a sun heated car, or in direct sunlight. In such environments, the safety/protection circuit in the battery will activate,
causing the battery to stop charging.
WARNING! NEVER
tery charger beyond the specified time for charging. If the
battery is not completely charged by the specified time, stop
charging and remove the battery from the battery charger.
Continuing to charge the battery beyond the specified time
limit may cause a fire, overheating, or the battery may rupture.
WARNING! NEVER
to the transceiver) into the charger if it is wet or soiled. This
could corrode the battery charger terminals or damage the
charger. The charger is not waterproof.
CAUTION! NEVER
fied temperature range: BC-160 (0˚C to +40˚C; +32˚F to
+104˚F). Icom recommends charging the battery at +20˚C
(+68˚F). The battery may heat up or rupture if charged out
of the specified temperature range. Additionally, battery performance or battery life may be reduced.
charge or leave the battery in the bat-
insert the transceiver (battery attached
charge the battery outside of the speci-
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
19
Page 24
BATTERY CHARGING
Screws supplied
with the charger
adapter
AD-106
Connectors
Plugs
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
TransceiverBattery
pack
Turn power OFF
IMPORTANT!:
Ensure the guide lobs on the
battery pack are correctly
aligned with the guide rails
inside the charger adapter.
Lobs
Guide rail
5
■Optional battery chargers
D Rapid charging with the BC-160
The optional BC-160 provides rapid charging of optional LiIon battery packs.
• An AC adapter (may be supplied with BC-160 depending
20
on version) or the DC power cable (OPC-515L/CP-17L) is
additionally required.
D AD-106 installation
The AD-106 charger adapter must be installed into the
BC-119N or BC-121N before battery charging.
➥ Connect the AD-106 ch ar ge r a dap ter and the BC-
119N/BC-121N as below, then install the AD-106 into the
holder space of the BC-119N or BC-121N with the supplied screws.
* This illustration is described with the BC-119N.
Page 25
BATTERY CHARGING
AD-106 charger
adapter is installed
in BC-119N.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Transceiver
Battery
pack
Turn power OFF
IMPORTANT!:
Ensure the guide lobs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Lobs
Guide rails
Battery
pack
AD-106 charger
adapters are installed
in each slot.
AC adapter
(Purchased
separately)
Transceiver
Turn power OFF
DC power cable
(OPC-656)
(Connect with the
DC power supply;
13.8 V/at least 7 A)
IMPORTANT!:
Ensure the guide lobs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Guide rails
Lobs
5
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-17L).
D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.
• Six AD-106 charger adapters
• An AC adapter (BC-157) or the DC power cable (OPC-656)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
21
Page 26
q
BP-240
w
Fig.1
Fig.2
Fig.3
e
r
t
6
BATTERY CASE
■ Optional battery case (BP-240)
When using the optional battery case, install 6 × AAA (LR03)
size alkaline batteries as illustrated at right.
q Unhook the battery cover release hook (q), and open the
cover in the direction of the arrow (w). (Fig.1)
w Then, install 6 × AAA (LR03) size alkaline batteries.
(Fig.2)
• Install the alkaline batteries only.
• Be sure to observe the correct polarity.
• Do not pin the ribbon under the batteries.
e Fit the cover in the direction of the arrow (e), then close
(r). And hook the batter y cover release hook until it
makes a ‘click’ sound (t). (Fig.3)
CAUTION!
• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new
and old batteries together.
• Keep battery contacts clean. It’s a good idea to clean
battery terminals once a week.
• Never incinerate used battery cells since internal bat
tery gas may cause them to rupture.
•
Never expose a detached battery case to water. If the battery case gets wet, be sure to wipe it dry before using it.
NOTE: When the optional battery case is attached, the
battery type must be selected to “DRY BATT” when turning the transceiver ON. (p. 10)
-
22
Page 27
OPTIONAL SWIVEL BELT CLIP
q w
Once the transceiver is locked in place,
it will swivel 360 degrees.
7
■MB-93 contents
Qty.
q Belt clip ...........................................................................1
w Base clip .........................................................................1
■Attaching
q Release the battery pack if it is attached. (p. 2)
w Slide the base clip in the direction of the arrow until the
base clip is locked and makes a ‘click’ sound.
e Clip the belt clip to a part of your belt. And inser t the
transceiver into the belt clip until the base clip inserted
fully into the groove.
r Once the transceiver is locked in place, it swivels as illus-
trated below.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
23
Page 28
OPTIONAL SWIVEL BELT CLIP
q
w
7
■Detaching
q Turn the transceiver upside down in the direction of the
arrow and pull out from the belt clip.
w Release the battery pack if it is attached. (p. 2)
e Pinch the clip (q), and slide the base clip in the direction
of the arrow (w).
CAUTION!
HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING
OR DETACHING THE TRANSCEIVER FROM THE BELT
CLIP.
Otherwise the transceiver may not be attached to the
holder or swivel properly if the transceiver is accidentally
dropped and the base clip is scratched or damaged.
24
Page 29
OPTIONS
7.4 V
BP-240
—*
2
7.4 V
Battery case for AAA
(LR03) × 6 alkaline
980 mAh
2000 mAh
Battery pack
BP-230N
BP-232N
Voltage Capacity Battery life*
1
7.35 hrs.
15.5 hrs.
*1 When the power save function is turned ON, and the operat-
ing periods are calculated under the following conditions;
TX : RX : standby = 5 : 5 : 90
*2 Operating period depends on the alkaline cells used.
8
D BATTERY PACK
D CHARGERS
• BC-119N desktop charger + AD-106 charger adapter
+ BC-145
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger depending on versions. Charging
time: approx. 3 hours when BP-232N is attached.
• BC-121N
+ BC-157
For rapid charging of up to 6 battery packs (six AD-106’
s are required) simultaneously. An AC adapter should be
purchased separately. Charging time: approx. 3 hours when
BP-232N is attached.
• BC-160
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger depending on versions. Charging
time: approx. 3 hours when BP-232N is attached.
ac adapter
multi-charger + AD-106 charger adapter (6 pcs.)
ac adapter
desktop charger + BC-145 ac adapter
D BELT CLIPS
• MB-93 swivel belt clip
• MB-94 belt clip
Exclusive alligator-type belt clip. The same as supplied with
the transceiver.
• MB-96N/96F
leather belt hanger
D OPTIONAL UNITS
• UT-108R dtmf decoder unit
Provides pager and code squelch capabilities.
• UT-109R /UT-110R*
Non-rolling type (UT-109R)/Rolling type (UT-110R)* voice
scrambler unit provides higher communication security.
*You can use the UT-110R as Non-rolling type.
• UT-124R man down unit
Provides measure of safety when working in a hazardous
environment, etc.
• UT-117R SmarTrunk 3G™ logic board
Provides SmarTrunk 3G™ capability.
voice scrambler units
D DC CABLES
• CP-17L cigarette lighter cable
Allows charging of the battery pack through a 12 V ciga-
rette lighter socket. (For BC-119N)
• OPC-515L/OPC-656
Allows charging of the battery pack using a 13.8 V power
source instead of the AC adapter.
OPC-515L: For BC-119N
OPC-656 : For BC-121N
dc power cables
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
25
Page 30
OPTIONS
8
D OTHER OPTIONS
• SP-13 earphone
Provides clear receive audio in noisy environment.
• HM-158L/159L
Combination speaker-microphone that provides convenient
operation while hanging the transceiver from your belt.
• HS-94/HS-95/HS-97
HS-94: Ear-hook type
HS-95: Neck-arm type
HS-97: Throat microphone
VS-1L: VOX/PTT switch box for hands-free operation, etc.
• FA-SC25V/FA-SC55V/
FA-SC25U/FA-SC57U/FA-SC72U
FA-SC25V: 136–150 MHz FA-SC55V: 150–174 MHz
FA-SC25U: 400–430 MHz FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz
• FA-SC56VS/FA-SC57VS/FA-SC73US
FA-SC56VS: 150–162 MHz FA-SC57VS: 160–174 MHz
FA-SC73US: 450–490 MHz
Some options may not available in some countries. Ask your dealer
for details.
speaker-microphone
headset + VS-1L vox/ptt case
antennas
stubby antennas
26
Page 31
W ARNIN G
CAU TIO N
SAFETY TRAINING INFORMATION
Y
our Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for
and classified as “Occupational Use Only”, meaning it
must be used only during the course of employment
by individuals aware of the hazards, and the ways to
minimize such hazards. This radio is NOT intended
for use by the “General Population” in an uncontrolled environment.
This radio has been tested and complies with the FCC RF exposure
limits for “Occupational Use Only”. In addition, your Icom radio complies with the following Standards and Guidelines with regard to RF
energy and electromagnetic energy levels and evaluation of such
levels for exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields.
• Ame rican National Standards Institute (C95.1-1992), IEEE
Standard for Safety Levels with Respect to Human Exposure to
Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave.
• The following accessories are authorized for use with this prod-
uct. Use of accessories other than those specified may result in
RF exposure levels exceeding the FCC requirements for wireless RF exposure.; Belt Clip (MB-94), Rechargeable Li-Ion Battery Pack (BP-230N/BP-232N) and Speaker-microphone (HM159L/HM-158L).
To ensure that your expose to RF electromagnetic
energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines:
9
• DO NOT operate the radio without a proper antenna attached,
as this may damaged the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna
supplied with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio.
•
DO NOT transmit for more than 50% of total radio use time (“50%
duty cycle”). Transmitting more than 50% of the time can cause
FCC RF exposure compliance requirements to be exceeded. The
radio is transmitting when the TX indicator lights red. You can
cause the radio to transmit by pressing the “PTT” switch.
• ALWAYS keep the antenna at least 2.5 cm (1 inch) away from
the body when transmitting and only use the Icom belt-clips
listed on page 25 when attaching the radio to your belt, etc., to
ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best
sound quality, hold the antenna at least 5 cm (2 inches) from
your mouth, and slightly off to one side.
The information listed above provides the user with the information
needed to make him or her aware of RF exposure, and what to do
to assure that this radio operates with the FCC RF exposure limits
of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that can
possibly cause interference with other devices or systems. To avoid
such interference, turn off the radio in areas where signs are posted
to do so. DO NOT operate the transmitter in areas that are sensitive to
electromagnetic radiation such as hospitals, aircraft, and blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are exposed as consequence of their employment provided those persons
are fully aware of the potential for exposure and can exercise control
over their exposure.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
27
Page 32
A-6506D-1EX-t
Printed in Japan
© 2006–2008 Icom Inc.
Printed on recycled paper with soy ink.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Loading...
