Icom IC-F4022S, IC-F4022T, IC-F3022S, IC-F3022T User Manual

VHF AND UHF TRANSCEIVERS

Compact lightweight body

The rounded compact* design fits com­fortably in your palm and is light-weight**
for carrying around all day. The large size
programmable buttons have ample but­ton-pitch to allow blind touch operation.
*

53(W)×120(H)×36.9(D) mm

** 296g including BP-232N

IP54 dust-protection and
splash resistance

The IC-F3022 series meets IP54 require­ments for dust-protection and splash resis­tance.

The aluminum die-cast chassis is
the basis for this rugged construction, al­lowing long-life usage in various environ­ments.

128 memory channels and
button control memory channel

The IC-F3022 series has 128 memory
channels with 8 zones. Memory channel
selection can be made easily with the
up/down buttons laid out below the PTT
button.

Most popular signalings built-in

Use the built-in 2-Tone, 5-Tone, CTCSS
and DTCS capabilities as standard to set
up your own talk groups and quiet stand­by when others are talking.

Multiple 2-Tone, Multiple 5-Tone

Up to ten 2-Tone and eight 5-Tone codes
can be decoded on a channel. When a
matched tone is received, the following
items are programmable for each code.

• Beep sound • Answer back • Scan

• Bell icon • Radio stun/kill

Lithium-Ion battery standard

Supplied

2000mAh Li-Ion battery pack,
BP-232N, provides 15.5 hours* of operat­ing time. Li-Ion batteries have virtually no
memory issues and allows you flexible
charging.

* Typical operation; Tx:Rx:Stand-

by=5:5:90, power save on

Only Icom quality can offer this
featured radio. In this compact
tive features such as multip
Lithium-Ion battery and wide fre
This rugged handheld easily ex
reliable performance and comm

▲ IC-F3022T ▲ IC-F4022S

8 programmable buttons

The [P0]–[P3], [▲], [▼], [Monitor] and
[Red] buttons are programmable to meet
specific needs. The [Red] button on the
top panel can be assigned as an emer­gency trigger.

Alphanumeric display

The 8-character alphanumeric display
shows channel, zone, tone code and
scanning channel names on the display.
A separate row of operational icons indi­cate battery, signal strength, RX/TX and
other radio conditions.

Wide frequency coverage

The IC-F3022 series covers a wide fre­quency range with one version

(136–174,

400–470 MHz)

. Wide, middle and narrow

channel spacing

(25, 20, 12.5kHz) is pro-

grammable per channel.

Optional board

The IC-F3022 series has a 40-pin expan­sion socket for adding an optional board.
A voice scrambler provides secure con­versation and the DTMF decoder features
has ANI

(Automatic Number Identification)

capability, depending on the installed
board.

Optional VOX headset

With one of Icom’s optional headsets and
PTT/VOX unit, the IC-F3022 series offers
hands-free operation.

Other features

• Optional man down unit, UT-124R

• TOT

(Time-Out-Timer) function and lock

out penalty timer

• 8 DTMF autodial memories

• 2 step power saver

• 2 step low battery beep

• Surveillance function temporarily turns
off the LED backlight and beep sound

• Normal and priority scan

• 500mW loud and clear audio

simple to use but versatile rich

light weight body, many attrac-

▲ BP-230N ▲ BP-232N ▲ BP-240

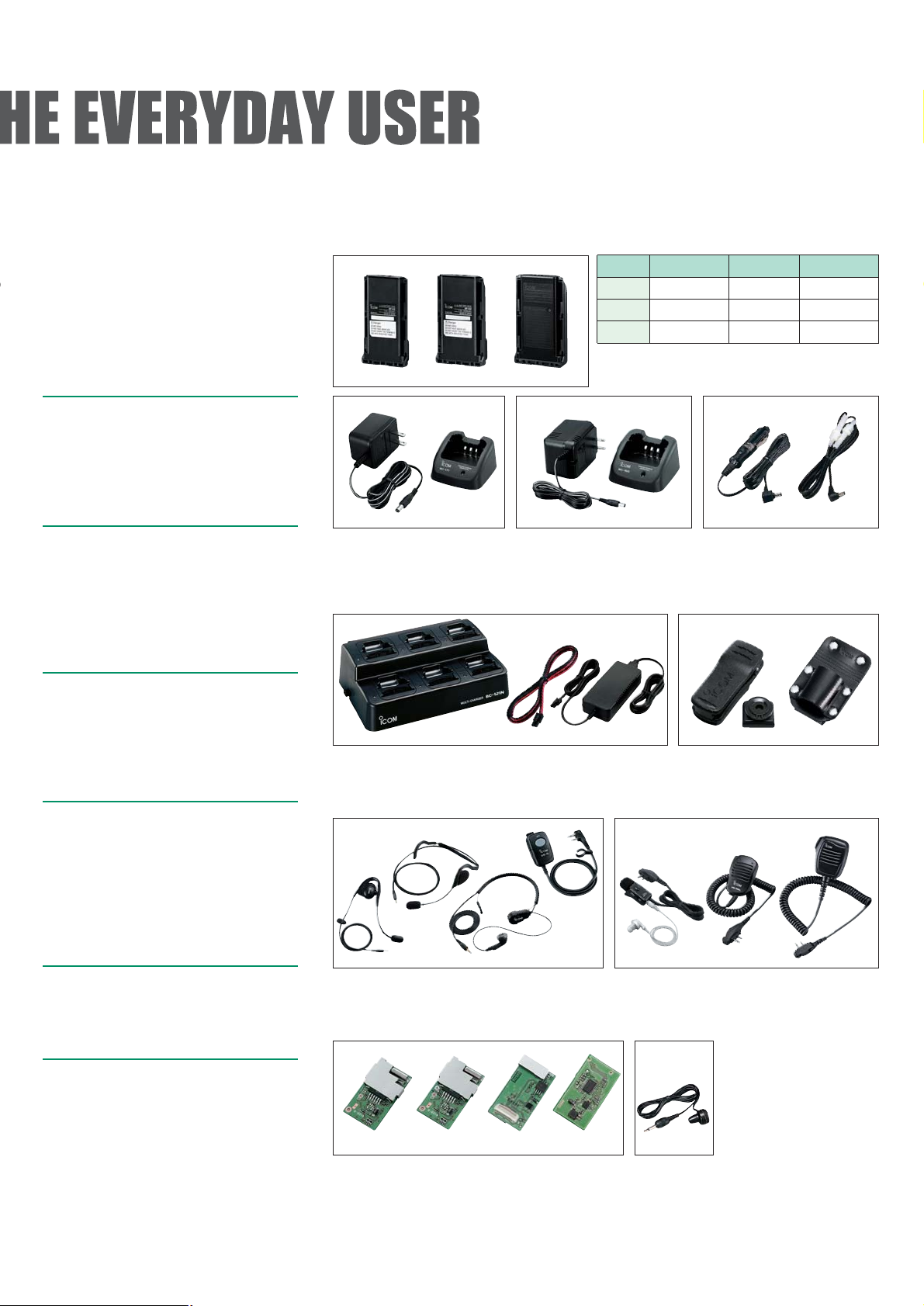

BATTERY PACKS AND CASE

Battery Type and

Operating time

* Output

power

packs capacity (VHF/UHF) (VHF/UHF)

BP-230N

Li-Ion

7.35 hours 5W/4W

7.4V/ 980mAh

BP-232N

Li-Ion

15.5 hours 5W/4W

7.4V/2000mAh

BP-240

AAA (LR03)

–1W

batteries × 6

* Operating time is approximate time (at 20˚C). Tx: Rx: standby=5:5:90.

Power save on.

▲ BC-121N+AD-106 (6 pcs.)

MULTI-CHARGER

▲ BC-157

BC-121N MULTI-CHARGER + AD-106 CHARGER ADAPTER
+ BC-157 AC ADAPTER
Rapidly charges up to 6 battery packs

(Six AD-106s are required).

Charges the BP-232N in 3 hours (approx.).
OPC-656 DC POWER CABLE :For use with the BC-121N.

(12–20V DC required)

.

STUBBY ANTENNAS

• FA-SC56VS:

150–162MHz, 80mm

• FA-SC57VS: 160–174MHz, 80mm

• FA-SC73US: 450–490MHz, 60mm

CUT ANTENNAS

• FA-SC61VC: 136–174MHz

• FA-SC61UC: 380–520MHz

Cut the antenna element to tune to a
specific center frequency.

ANTENNAS

• FA-SC25V: 136–150MHz

• FA-SC55V: 150–174MHz

• FA-SC25U: 400–430MHz

• FA-SC57U: 430–470MHz

OPTIONS

▲ OPC-656

Some options may not be available in some countries. Please ask your dealer for details.

BC-171 DESKTOP CHARGER
+ BC-147 AC ADAPTER
Charges the BP-232N in 10 hours (ap­prox.).

BC-160 DESKTOP CHARGER
+ BC-145 AC ADAPTER
Charges the BP-232N in 3 hours

(approx.)

.

BC-119N + AD-106 + BC-145 is also
available. : Charges the BP-232N in 3
hours (approx.).

▲ BC-160

RAPID CHARGER

▲ BC-145

REGULAR CHARGER

▲ BC-147

▲ BC-171

HM-153L: Durable earphone-microphone with revolving clip.
HM-158L:

Compact and durable body with screw-type connector.

HM-159L: Full size durable speaker microphone.

▲ HS-95

▲ HS-97

HEADSETS and PTT/VOX UNIT

▲ HS-94

HS-94: Earhook headset with flexible boom microphone.
HS-95: Behind-the-head headset with flexible boom microphone.
HS-97: Throat microphone fits around your neck and picks up

speech vibration.

VS-1L: PTT/VOX unit. Required when using these headsets with

the transceiver.

▲ VS-1L

▲ HM-159L

SPEAKER-MICROPHONES

▲ HM-158L▲ HM-153L

CP-17L CIGARETTE LIGHTER CABLE,
OPC-515L DC POWER CABLE

For use with the BC-160 or BC-119N.
(12–16V DC required).

▲ MB-93

MB-93 : Swivel type belt clip.
MB-94 : Alligator type. Same as supplied.
MB-96N : Swivel type belt hanger.
MB-96F : Fixed type belt hanger.

BELT CLIPS AND LEATHER BELT HANGERS

▲ MB-96F

▲ OPC-515L

▲ CP-17L

POWER SUPPLY CABLES

UT-109R: Up to 32 scrambling codes are available. 40-pin type.
UT-110R: Up to 1020 scrambling codes are available. 40-pin type.
UT-108R: Provides DTMF selective call and ANI capabilities. 40-

pin type.

UT-124R: Automatically sends an emergency signal when the

transceiver is left in a horizontal position for a preset
time.

40-pin type.

INTERNAL UNITS

UT-109R VOICE
SCRAMBLER UNIT

UT-110R VOICE
SCRAMBLER UNIT

UT-108R

DTMF DECODER

Provides clear
audio in noisy en­vironments.

SP-13

EARPHONE

UT-124R MAN
DOWN UNIT

• Frequency range :
IC-F3022T/S 136–174MHz
IC-F4022T/S 400–470MHz

• Number of channels : 128 channels/8 zones

• Channel spacing : 12.5/20/25kHz

• PLL channel step : 2.5kHz, 3.125kHz

• Antenna impedance : 50Ω

•

Usable temperature range

: –25˚C to +55˚C

•

Power supply requirement

: 7.2V DC

• Current drain

(at 7.2V DC; approx.):

Transmit

VHF/UHF 1.5A/1.5A

(at 5W/4W)

Receive Stand-by 72mA

Rated output 250mA

•

Dimensions (with BP-232N)

: 53 (W) ×120 (H) ×36.9 (D) mm

(projections are not included)

• Weight

(approx.) : 296g (with BP-232N)

• Output power : 5W

(VHF)

, 4W (UHF)

• Max. frequency deviation : ±5.0/±4.0/±2.5kHz

(Wide/mid/narrow)

• Frequency error : ±2.5ppm

• Spurious emissions : 0.25µW

(≤ 1GHz)

1.0µW (> 1GHz)

• Adjacent channel VHF : 80/80/70dB typ. (Wide/mid/narrow)

power UHF 76/74/68dB typ. (Wide/mid/narrow)

• Audio harmonic distortion : 1.5%

typ. (AF 1kHz, 40% deviation)

• Modulation limiting : 60–100% of max. deviation

•

Ext. microphone connector

: 3-conductor 2.5 (d)

mm/2.2kΩ

• Intermediate frequency : 1st 46.35MHz
2nd 450kHz

• Sensitivity : –4dBµV

typ. (emf; at 20dB SINAD)

• Squelch sensitivity : –4dBµV typ. (emf; at threshold)

• Adjacent channel

VHF : 76/75/66dB typ. (Wide/mid/narrow)

selectivity UHF 74/73/64dB typ. (Wide/mid/narrow)

• Spurious response : 70dB min.

• Intermodulation : 67dB

typ.

• Hum and noise ratio VHF

: 60/58/55dB typ. (Wide/mid/narrow)

UHF

57/55/51dB typ. (Wide/mid/narrow)

• Audio output power : 500mW

typ.

(at 5% distortion with an 8Ω load)

•

External speaker connector

: 2-conductor 3.5 (d) mm/8Ω

VHF AND UHF TRANSCEIVERS

SPECIFICATIONS

GENERAL

TRANSMITTER

RECEIVER

Measurements made in accordance with EN 300-086.

All stated specifications are subject to change without notice or obligation.

SUPPLIED ACCESSORIES

• Battery pack, BP-232N• Belt clip, MB-94

• UHF Antenna

• VHF Antenna

• Option plate

All trademarks are the properties of their respective holders.

(May differ according to version)
