Icom IC-F4S, IC-F4, IC-F3S, IC-F3 Service Manual

SERVICE
MANUAL

VHF FM TRANSCEIVERS

iC-f3
iC-f3s

UHF FM TRANSCEIVERS

iC-f4
iC-f4s

INTRODUCTION

6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
Phone : [phone]
Fax : [phone]

Communication Equipment
Himmelgeister Str. 100, D-40225 Düsseldorf, Germany
Phone: [phone] Fax : [phone]
URL : http://www.icomeurope.com

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.
Phone: [phone] Fax : [phone]
URL : http://www.icomuk.co.uk

Zac de la Plaine, Rue Brindejonc des Moulinais
BP 5804, 31505 Toulouse Cedex, France
Phone: [phone] Fax : [phone]
URL : http://www.icom-france.com

Crta. de Gracia a Manresa Km. 14,750
08190 Sant Cugat del Valles Barcelona, SPAIN
Phone: [phone] Fax : [phone]
E-mail : [e-mail]

<

Corporate Headquarters

>

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.
Phone: [phone] Fax : [phone]
URL : http://www.icomamerica.com

<

Customer Service

>

Phone: [phone]

A.C.N. 006 092 575
290-294 Albert Street, Brunswick, Victoria, 3056, Australia
Phone: [phone] Fax : [phone]
URL : http://www.icom.net.au

6F No. 68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan R.O.C.
Phone: [phone] Fax : [phone]

A Division of Icom America Inc.
3071 #5 Road, Unit 9, Richmond, B.C., V6X 2T4, Canada
Phone: [phone] Fax : [phone]

This service manual describe the latest information for the
IC-F3/IC-F3S and IC-F4/IC-F4S at the time of publication.

DANGER

NEVER connect the transceiver to an AC outlet or to a DC

power supply that uses more than 16 V. Such a connection
could cause a fire hazard and/or electric shock.

DO NOT expose the transceiver to rain, snow or any

liquids.

DO NOT reverse the polarities of the power supply when

connecting the transceiver.

DO NOT apply an RF signal of more than 20 dBm (100

mW) to the antenna connector. This could damage the
transceiver’s front end.

ORDERING PARTS

Be sure to include the following four points when ordering
replacement parts:

1. 10-digit order numbers

2. Component part number and name

3. Equipment model name and unit name

4. Quantity required

<SAMPLE ORDER>

1110001810 S.IC TA7368F IC-F3S MAIN UNIT 1 piece
8810009510 Screw B0 2 × 4 NI-ZU IC-F4 MAIN PCB 6 pieces

Addresses are provided on the inside back cover for your
convenience.

IC-F3 IC-F4S

REPAIR NOTES

1. Make sure a problem is internal before disassembling the transceiver.

2. DO NOT open the transceiver until the transceiver is disconnected from its power source.

3. DO NOT force any of the variable components. Turn them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insulated tuning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the transceiver is defective.

6. DO NOT transmit power into a signal generator or a sweep generator.

7. ALWAYS connect a 40 dB or 50 dB attenuator between the transceiver and a deviation meter or spectrum analyser when
using such test equipment.

8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

2 - 1 IC-F3/S................................................................................................................................................2-1

2 - 2 IC-F4/S................................................................................................................................................2-2

SECTION 3 DISASSEMBLY AND OPTION INSTRUCTIONS

3 - 1 DISASSEMBLY INSTRUCTION ..........................................................................................................3-1

3 - 2 OPTIONAL UNIT INSTALLATIONS....................................................................................................3-2

SECTION 4 CIRCUIT DESCRIPTION

4 - 1 RECEIVER CIRCUITS........................................................................................................................4-1

4 - 2 TRANSMITTER CIRCUITS.................................................................................................................4-2

4 - 3 PLL CIRCUIT ......................................................................................................................................4-3

4 - 4 POWER SUPPLY CIRCUITS..............................................................................................................4-3

4 - 5 CPU PORT ALLOCATIONS................................................................................................................4-4

SECTION 5 ADJUSTMENT PROCEDURES

5 - 1 PREPARATION...................................................................................................................................5-1

5 - 2 PLL ADJUSTMENT for IC-F3/S..........................................................................................................5-3

5 - 3 TRIMMER ADJUSTMENT for IC-F3/S................................................................................................5-4

5 - 4 TRANSMITTER ADJUSTMENT for IC-F3/S.......................................................................................5-5

5 - 5 RECEIVER ADJUSTMENT for IC-F3/S..............................................................................................5-6

5 - 6 PLL ADJUSTMENT for IC-F4/S..........................................................................................................5-7

5 - 7 TRIMMER ADJUSTMENT for IC-F4/S ................................................................................................5-8

5 - 8 TRANSMITTER ADJUSTMENT for IC-F4/S.......................................................................................5-9

5 - 9 RECEIVER ADJUSTMENT for IC-F4/S............................................................................................5-10

SECTION 6 PARTS LIST

6 - 1 IC-F3/S................................................................................................................................................6-1

6 - 2 IC-F4/S................................................................................................................................................6-5

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

SECTION 8 SEMI-CONDUCTOR INFORMATION

SECTION 9 BOARD LAYOUTS

9 - 1 IC-F3/S MAIN UNIT.............................................................................................................................9-1

9 - 2 VR BOARD..........................................................................................................................................9-1

9 - 3 IC-F4/S MAIN UNIT.............................................................................................................................9-3

SECTION 10 BLOCK DIAGRAM

10 - 1 IC-F3/S..............................................................................................................................................10-1

10 - 2 IC-F4/S..............................................................................................................................................10-2

SECTION 11 VOLTAGE DIAGRAM

11 - 1 IC-F3/S..............................................................................................................................................11-1

11 - 2 IC-F4/S..............................................................................................................................................11-2

All stated specifications are subject to change without notice or obligation.

Frequency coverage

Type of emission
Number of channels
Power supply requirement

TX

at High

Current drain

at Low

(approx.)

RX

rated audio
stand-by

Frequency stability

Usable temperature range
Dimensions (proj. not included)

Weight (BP-196)

Output power
Modulation system

Max. freqequency deviation

Spurious emissions

Adjacent channel power
Transmitter audio distortion

Limitting charact of modulator
Ext. microphone connector
Receive system

Intermediate frequencies

Sensitivity (typical)
Squelch sencitivity

(at threshold)

Adjcent chnnel selectivity
Spurious response

Intermoduration rejection ratio
Audio output power

(at 9.6 V DC)
External SP connector

IC-F3/F3S IC-F4/F4S

RECEIVER TRANSMITTER GENERAL

400.000–430.000 MHz (L-band)

136.000–150.000 MHz (L-band) 440.000–470.000 MHz (ML-band)

470.000–500.000 MHz (MH-band)

146.000–174.000 MHz (H-band) 490.000–512.000 MHz (H1-band)

490.000–520.000 MHz (H2-band)

16K0F3E (W-type), 14K0F3E (M-type: F3/S only), 8K50F3E (N-type)

32 ch (16 channels

× 2 banks: 2-BANK version), 16 ch (16 channel version)

9.6 V DC (negative ground; supplied battery pack)

1.3 A 1.4 A
600 mA 700 mA
250 mA 250 mA

60 mA (typ.) 60 mA (typ.)

±0.0005% (EIA), ±2000 Hz (ETS/CEPT; W, M-types), ±2.5 kHz (ETS/CEPT; N-type)

+22˚F to +140˚F (EIA) +22˚F to +140˚F (EIA)
–20˚C to +55˚C (ETS/CEPT) –30˚C to +60˚C (ETS/CEPT)

57(W)

× 140(H) × 37(D) mm; 2

1

⁄4(W) × 51⁄2(H) × 115⁄32(D) inch

390 g; 13.8 oz

High 5 W High 4 W

Low 1 W Low 1 W

Variable reactance frequency modulation

±5.0 kHz (W-type), ±4.0 kHz (M-type), ±2.5 kHz (N-type)

70 dB typical (EIA)

0.25 µW (ETS/CEPT)

70 dB typical (W, M-types)
60 dB (N-type)

Less than 5 % at 1 kHz, 60 % deviation

70–100 % of max.deviation

3-conductor 2.5(d) mm (

1

⁄10")/2 kΩ

Double-conversion superheterodyne system

1st: 31.05 MHz 1st: 46.350 MHz

2nd: 450 kHz 2nd: 450 kHz

0.25 µV at 12 dB SINAD 0.3 µV at 12 dB SINAD

0.63 µV (emf) at 20 dB SINAD 0.79 µV (emf) at 20 dB SINAD

0.25 µV 0.3 µV
70 dB (W, M-types)

60 dB (N-type)

70 dB
65 dB

500 mW typical at 10% distortion with a 8 Ω load

3-conductor 3.5 (d) mm (

1

⁄8")/8 Ω

SECTION 1 SPECIFICATIONS

1 - 1

SECTION 2 INSIDE VIEWS

Low-pass filter circuit

Current detector circuit

RF amplifier
(Q12: 3SK239)

Crystal filter
(FI1)

T/R switching circuit
(D4: MA77)

1st mixer circuit
(Q13: 3SK166-2)

PLL reference oscillator
(X1: CR-575, 15.3 MHz)

CPU (IC8)

EEPROM (IC7)

VCO circuit

APC control circuit

Mute switch
(IC4: BU4066BCFV)

PLL IC
(IC1: µPD3140GS)

Microphone amplifier
circuit

FM IF IC
(IC2: TA31136FN)

Antenna switching
circuit (D1: MA77)

Power amplifier
(Q1: 2SK2595)

T/R switching
circuit (D3: MA77)

Expander IC
(IC10: M62354GP)

2-1 IC-F3/S

• MAIN UNIT

F3/S

TOP VIEW BOTTOM VIEW

2 - 1

2-2 IC-F4/S

Low-pass filter circuit

Current detector circuit

RF amplifier
(Q12: 3SK239)

Crystal filter
(FI1)

T/R switching circuit
(D4: MA77)

PLL reference oscillator
(X1: 15.3 MHz)

CPU (IC8)

EEPROM (IC7)

VCO circuit

APC control circuit

Mute switch
(IC4: BU4066BCFV)

PLL IC
(IC1: µPD3140GS)

Microphone amplifier
circuit

FM IF IC
(IC2: TA31136FN)

Antenna switching
circuit (D1: MA77)

Power amplifier
(Q1: 2SK2595)

T/R switching
circuit (D3: MA77)

Expander IC
(IC10: M62354GP)

1st mixer circuit
(Q13: 3SK241 R)

• MAIN UNIT

F4/S

TOP VIEW BOTTOM VIEW

2 - 2

3 - 1

SECTION 3 DISASSEMBLY INSTRUCTIONS

3-1 DISASSEMBLY INSTRUCTION

• Removing the chassis panel

q Unscrew 1 nut A, and remove 1 knob B.
w Unscrew 2 screws,

C

.

e Take off the chassis in the direction of the arrow.
r Unplug J6 to separate front panel and chassis.

• Removing the MAIN unit

q Remove the sealing rubber.
w Unsolder 3 points

D

and unscrew 1 nut E.

e Unscrew 2 screws,

F

, and 6 screws G(silver, 2 mm), to separate the chassis and MAIN unit.

r Take off the MAIN unit in the direction of the arrow.

Chassis

C

(nickel, 2 mm) × 2

J6 (Speaker connector)

Front panel

A

Nut

B

Knob

F

(black, 2 mm) × 2

Guide holes

Shield cover
(IC-F4/F4S only)

G

G

MAIN unit

Sealing rubber

E Nut

Chassis

G

G

G

D

G

(silver, 2 mm) × 6

3 - 2

3-2 OPTIONAL UNIT INSTALLATIONS

1 Remove the option cover.
2 Remove the bottom protective paper of sponge.
3 Connect either a UT-80, UT-96 or UT-105 optional unit to J5.
4 Attached the 1556 sponge to the specified position at the unit as following illustration.

5 Replace the option cover to the chassis-hole.

Option cover

Option unit

J5

SPONGE
Parts name : 1556 sponge
Order No. : 8930013545

UT-80 UT-96

SECTION 4 CIRCUIT DESCRIPTION

4 - 1

4-1 RECEIVER CIRCUITS

4-1-1 ANTENNA SWITCHING CIRCUIT

Received signals are passed through the low-pass filter
(L1–L3, C1–C7 for IC-F3/S, L1–L3, C3, C5, C7 for IC-F4/S).
The filtered signals are applied to the λ⁄4 type antenna
switching circuit (D8 for IC-F3/S D406, D8 for IC-F4/S).

The antenna switching circuit functions as a low-pass filter
while receiving. However, its impedance becomes very high
while D8 (IC-F3/S)/D406 and D8 (IC-F4/S) is/are turned ON.
Thus transmit signals are blocked from entering the receiv­er circuits. The antenna switching circuit employs a λ⁄4 type
diode switching system. The passed signals are then
applied to the RF amplifier circuit.

4-1-2 RF CIRCUIT

The RF circuit amplifies signals within the range of frequen­cy coverage and filters out-of-band signals.

The signals from the antenna switching circuit are amplified
at the RF amplifier (Q12) after passing through the tuneable
bandpass filter (D9, D10, C83 for IC-F3/S, D10, L413, C79
for IC-F4/S). The amplified signals are applied to the 1st
mixer circuit (Q13) after out-of-band signals are suppressed
at the tuneable bandpass filter (D11, D12, D21, D22, C94 for
IC-F3/S, D11, D12, D401, C94 for IC-F4/S).

Varactor diodes are employed at the bandpass filters that
track the filters and are controlled by the CPU (IC8) via the
expander IC (IC10) using T1–T4 signals. These diodes tune
the centre frequency of an RF passband for wide bandwidth
receiving and good image response rejection.

4-1-3 1ST MIXER AND 1ST IF CIRCUITS

The 1st mixer circuit converts the received signal to a fixed
frequency of the 1st IF signal with a PLL output frequency.
By changing the PLL frequency, only the desired frequency
will be passed through a crystal filter at the next stage of the
1st mixer.

The signals from the RF circuit are mixed at the 1st mixer
(Q13) with a 1st LO signal coming from the VCO circuit to
produce a 31.05 MHz (IC-F3/S) or 46.35 MHz (IC-F4/S) 1st
IF signal.

The 1st IF signal is applied to a pair of crystal filters (FI1) to
suppress out-of-band signals. The filtered 1st IF signal is
applied to the IF amplifier (Q14 for IC-F3/S, Q400 for IC­F4/S), then applied to the 2nd mixer circuit (IC2, pin 16).

4-1-4 2ND IF AND DEMODULATOR CIRCUITS

The 2nd mixer circuit converts the 1st IF signal to a 2nd IF
signal. Adouble conversion superheterodyne system (which
converts receive signals twice) improves the image rejection
ratio and obtains stable receiver gain.

The 1st IF signal from the IF amplifier is applied to the 2nd
mixer section of the FM IF IC (IC2, pin 16), and is mixed with
the 2nd LO signal to be converted to a 450 kHz 2nd IF sig­nal.

The FM IF IC contains the 2nd mixer, limiter amplifier, quad­rature detector and active filter circuits. A 2nd LO signal
(30.6 MHz for IC-F3/S, 45.9 MHz for IC-F4/S) is produced at
the PLL circuit by dividing it’s reference frequency.

The 2nd IF signal from the 2nd mixer (IC2, pin 3) passes
through a ceramic filter (FI2) to remove unwanted hetero­dyned frequencies. It is then amplified at the limiter amplifi­er (IC2, pin 5) and applied to the quadrature detector (IC2,
pins 10, 11) to demodulate the 2nd IF signal into AF signals.

4-1-5 AF CIRCUIT

AF signals from the FM IF IC (IC2 pin 9) are applied to the
mute switch (IC4, pin 1) via the AF filter circuit (IC3b, pins 6,

7). The output signals from pin 11 are applied to the AF
power amplifier (IC5, pin 4) after being passed through the
[VOL] control (VR board, R1).

• 2nd IF AND DEMODULATOR CIRCUITS

Mixer

16

Limiter
amp.

2nd IF filter
450 kHz

PLL IC

IC1

X1

15.3 MHz

IC2 TA31136F

12

1st IF from the IF amp.

"SD" signal to the CPU pin 98

11109

87 5 3

AF signal "DET"

R5

X3

Squelch level

adjustment pot

R92

2

17 16

Active
filter

FI2

Noise

detector

FM

detector

13

"NOIS" signal to the CPU pin 19

RSSI

Noise
comp.

×2 or ×3

4 - 2

The applied AF signals are amplified at the AF power ampli­fier circuit (IC5, pin 4) to obtain the specified audio level. The
amplified AF signals, output from pin 10, are applied to the
internal speaker (SP1) via the [SP] jack when no plug is con­nected to the jack.

4-1-6 SQUELCH CIRCUIT

Asquelch circuit cuts out AF signals when no RF signals are
received. By detecting noise components in the AF signals,
the squelch switches the AF mute switch.

Aportion of the AF signals from the FM IF IC (IC2, pin 9) are
applied to the active filter section (IC2, pin 8) where noise
components are amplified and detected with an internal
noise detector. The squelch level adjustment pot (R92) is
connected in parallel to the active filter input (pin 8) to con­trol the input noise level.

The active filter section amplifies noise components. The fil­tered signals are rectified at the noise detector section and
converted into “NOIS” (pulse type) signals at the noise com­parator section. The “NOIS” signal is applied to the CPU
(IC8, pin 19).

The CPU detects the receiving signal strength from the
number of the pulses, and outputs an “RM” signal from pin

43. This signal controls the mute switch (IC4) to cut the AF
signal line.

4-2 TRANSMITTER CIRCUITS

4-2-1 MICROPHONE AMPLIFIER CIRCUIT

The microphone amplifier circuit amplifies audio signals with
+6 dB/octave pre-emphasis characteristics from the micro­phone to a level needed for the modulation circuit.

The AF signals from the microphone are applied to the
microphone amplifier circuit (IC3c, pin 10). The amplified AF
signals are passed through the low-pass filter circuit (IC3d,
pins 13, 14) via the mute switch (IC4, pins 2–4). The filtered
AF signals are applied to the modulator circuit after being
passed through the mute switch (IC4, pins 8–10) and the
deviation adjustment pot (R119; IC-F4/S only).

4-2-2 MODULATION CIRCUIT

The modulation circuit modulates the VCO oscillating signal
(RF signal) using the microphone audio signal.

The audio signals change the reactance of a diode (D6 for
IC-F3/S, D404 for IC-F4/S) to modulate an oscillated signal
at the VCO circuit (Q7, Q8). The oscillated signal is ampli­fied at the buffer-amplifiers (Q4, Q6), then applied to the T/R
switching circuit (D3, D4).

4-2-3 DRIVE/POWER AMPLIFIER CIRCUITS

The signal from the VCO circuit passes through the T/R
switching circuit (D3) and is amplified at the buffer(s) (Q3 for
IC-F3/S, Q3, Q403 for IC-F4/S), drive (Q2) and power ampli­fier (Q1) to obtain 5 W (IC-F3/S)/4 W (IC-F4/S) of RF power
(at 9.6 V DC). The amplified signal passes through the
antenna switching circuit (D1), and low-pass filter and is
then applied to the antenna connector.

The bias current of the drive (Q2) and the power amplifier
(Q1) is controlled by the APC circuit.

4-2-4 CURRENT DETECTOR CIRCUIT

The current detector circuit (Q9, Q28) detects the total dri­ving current of the drive and the power amplifiers, using the
current sensor (R161). The differential amplifier (Q9) detects
the voltage difference of the current sensor input and output
voltages, then outputs control voltage to the APC circuit (IC­F3/S only) and the CPU (IC8, pin 97).

4-2-5 POWER DETECTOR CIRCUIT (IC-F4/S ONLY)

The power detector circuit (D2) detects the transmit power
output level and converts it to DC voltage. The detected sig­nal is applied to the APC circuit.

4-2-6 APC CIRCUIT

The APC circuit (IC3a, Q37) protects the drive and the
power amplifiers from excessive current drive, and selects
HIGH or LOW output power.

• APC circuit

Q1
Power
amp.

Q2
Driver
amp.

IC3a

+

–

T5

VCC

Q9

"ISENS" signal
to the CPU

Q28

R161

RF signal
from PLL

to antenna

T4

TXC

Q37

S5

Current sensor circuit

APC control circuit

IC-F3/S only

Power detector
circuit (D2; IC-F4/S only)

4 - 3

The signal output from the current sensor circuit (Q9, Q28;
IC-F3/S) or the power detector circuit (D2; IC-F4/S) is
applied to the differential amplifier (IC3a, pin 2), and the “T4”
signal from the expander (IC10, pin 14), controlled by the
CPU (IC8), is applied to the other input for reference.

When the driving current is increased, input voltage of the
differential amplifier (pin 2) will be increased. In such cases,
the differential amplifier output voltage (pin 1) is decreased
to reduce the driving current.

4-3 PLL CIRCUIT

A PLL circuit provides stable oscillation of the transmit fre­quency and receive 1st LO frequency. The PLL output com­pares the phase of the divided VCO frequency to the refer­ence frequency. The PLL output frequency is controlled by
the divided ratio (N-data) of a programmable divider.

The PLL circuit contains the VCO circuit (Q7, Q8). The oscil­lated signal is amplified at the buffer-amplifiers (Q5, Q6) and
then applied to the PLL IC (IC1, pin 2).

The PLL IC contains a prescaler, programmable counter,
programmable divider, phase detector and charge pump,
etc. The entered signal is divided at the prescaler and pro­grammable counter section by the N-data ratio from the
CPU. The divided signal is detected on phase at the phase
detector using the reference frequency.

If the oscillated signal drifts, its phase changes from that of
the reference frequency, causing a lock voltage change to
compensate for the drift in the oscillated frequency.

A portion of the VCO signal is amplified at the buffer-ampli­fier (Q4) and is then applied to the receive 1st mixer or trans­mit buffer-amplifier circuit via the T/R switching diode (D3,
D4).

4-4 POWER SUPPLY CIRCUITS

VOLTAGE LINE

• PLL circuit for IC-F3/S

Shift register

×2

Prescaler

Phase
detector

Loop

filter

Programmable
counter

Programmable
divider

X1

15.3 MHz

30.6 MHz signal
to the FM IF IC

16

Q7, Q8

VCO circuit

Buffer
Q6

Buffer
Q4

Buffer
Q5

3
4
5

PLST
SCK
SO

to transmitter circuit
to 1st mixer circuit

D4

D3

17

8

2

Line

HV

VCC

CPU5

5V

T5

R5

S5

OPT

Description

The voltage from the attached battery pack.
The same voltage as the HV line (battery volt-

age) which is controlled by the power switch
([VOL] control).

Common 5 V converted from the VCC line by
the reference regulator circuit (IC6). The output
voltage is applied to the CPU (IC8) and the 5V
regulator circuit.

Common 5 V converted from the VCC line by
the 5 V regulator circuit (Q18, Q19) using the
reference regulator (IC6).

5 V for transmitter circuits regulated by the T5
regulator circuit (Q22).

5 V for receiver circuits regulated by the R5 reg­ulator circuit (Q21).

Common 5 V converted from the 5V line by the
S5 regulator circuit (Q20).

The same voltage as the 5V line for the optional
HM-75A or HS-51 through a resistor (R132).

4 - 4

4-5 CPU PORT ALLOCATIONS

4-5-1 CPU (IC8)

CPU (IC8) — continued

Pin

number

1

11

12

13

14

15

18

19

26

36–41

(IC-F3/S)

40, 41

(IC-F4/S)

42

43

44–47

48

49

50

51

52

53

54

60–62

63

Port

name

CTCIN

CSIFT

SCK

SI

SO

UNLK

PLST

NOIS

CONT

KS0–KS5

KS4, KS5

MM

RM

KR0–KR5

R5C

S5C

TXC

T5C

LIGHT

AFON

DST

CTDA0–

CTDA2

DUSE

Description

Input port for CTCSS/DTCS signals
for decoding.

Outputs reference oscillator for the
CPU control signal.

Outputs clock signal to the PLL IC
(IC1), EEPROM (IC7) and expander
IC (IC10), etc.

Input port for the data signals from
EEPROM (IC7), etc.

Outputs data signals to the PLL IC
(IC1), EEPROM (IC7) and expander
IC (IC10), etc.

Input port for PLL unlock signal from
the PLLIC (IC1). High level signal is
applied during unlock.

Outputs strobe signals to the PLL IC
(IC1).

Input port for noise signals (pulse
type) from the FM IF IC (IC2).

Outputs LCD contrast control signal.

High: When normal level is selected

Output ports for key matrix.

Outputs mic. mute control signal.

Low: When DTMF or 2/5-tone sig-

nal is selected

Outputs RX mute control signal.

Low: When muted
Input ports for key matrix.
Outputs R5 regulator control signal.

Low: While receiving
Outputs S5 regulator control signal.

Low: While power is ON
Outputs T5 regulator control signal.

Low: While transmitting
Outputs T5 regulator control signal.

Low: While transmitting
Outputs LCD backlight control signal.

High: Lights ON
Outputs the regulator circuit for the

AF amplifier control signal.

High: While AF amp. is activated.
Outputs strobe signals to the

expander IC (IC10).
Outputs CTCSS and DTCS encode

signals (3-bit, D/A type).
Outputs filter switch control signal

for the CTCSS and DTCS (Q38).

High: DTCS is activated.

Pin

number

90

91

Port

name

MTONE

DTMF

Description

Output port for:
Beep audio while receiving.
2/5-tone signals while transmitting.

Output port for DTMF signals while
transmitting.

Pin

number

2
3
4

11–13

14

Port

name

DST

SCK

SO

T1–T3

T4

Description

Input port for strobe signals.
Input port for clock signal.
Input port for data signal.
Output tuneable bandpass filter

control voltage.
Outputs tuneable bandpass filter

control signal while receiving.
Outputs RF output power control
signals while transmitting.

4-5-2 OUTPUT EXPANDER IC (IC10)

5 - 1

F3/S

F4/S

SECTION 5 ADJUSTMENT PROCEDURES

5-1 PREPARATION

■ REQUIRED TEST EQUIPMENT

EQUIPMENT

DC power supply

RF power meter
(terminated type)

Frequency counter

FM deviation meter

Digital multimeter

GRADE AND RANGE

Output voltage : 9.6 V DC
Current capacity : 5 Aor more

Measuring range : 1–10 W
Frequency range : 120–500 MHz
Impedance : 50 Ω
SWR : Less than 1.2 : 1

Frequency range : 0.1–500 MHz
Frequency accuracy : ±1 ppm or better
Sensitivity : 100 mV or better

Frequency range : DC–500 MHz
Measuring range : 0 to ±5 kHz

Input impedance : 10 MΩ/V DC or better

EQUIPMENT

Audio generator

Attenuator

Standard signal
generator (SSG)

DC voltmeter
Oscilloscope

AC millivoltmeter

GRADE AND RANGE

Frequency range : 300–3000 Hz
Output level : 1–500 mV

Power attenuation : 40 or 50 dB
Capacity : 10 W or more

Frequency range : 120–500 MHz
Output level : 0.1 µV–32 mV

(–127 to –17 dBm)
Input impedance : 50 kΩ/V DC or better
Frequency range : DC–20 MHz

Measuring range : 0.01–20 V
Measuring range : 10 mV–10 V

■ TRIMMER ADJUSTMENT

When you adjust the contents on page 5-4 or 5-8, TRIMMER ADJUSTMENT, the optional CS-F3 FIELD PROGRAMMING SOFTWARE
(Rev. 3.0 or later) and OPC-478 CLONING CABLE are required.

• STARTING TRIMMER ADJUSTMENT

Turn ON power to the transceiver, connect a computer to the [SP] jack using the optional OPC-478 CLONING CABLE, then
start up the “ADJUST” program in CS-F3.

• STARTING THE PROGRAM

q Boot up DOS.
w Insert the CS-F3 backup disk into drive A.
e Type the following to start up the program:

ADJ>ADJUST [Enter]

• The adjustment screen appears after reading set data
from the transceiver.

r After the adjustment screen appears, set or modify the

data as desired.

NOTE: When the EEPROM (IC7) is replaced or the transceiver displays an error message and beeps, the following oper-

ation is necessary before starting the ADJUSTMENT.

1. Download the programmed frequency data using the CS-F3

FIELD PROGRAMMING SOFTWARE (Rev. 3.0 or later) from an

exact same version of the transceiver, then save it. (See the instructions for detailed operation.)

2. Return to DOS.

3. Copy the saved frequency data into the "ADJ" directory as follows:
A>COPY [file name].ICF A:\ADJ [ENT]

4. Connect the transceiver in which the EEPROM has been replaced, using the OPC-478 CLONING CABLE.

5. Change the directory to "ADJ", and type as follows:
A>CD ADJ [ENT]
A>ADJ>EEPROM [file name].ICF 1* [ENT]

When cloning is successful, the transceiver displays "CL GOOD".

*RS-232C port number. You have to type “A>EEPROM [file name].ICF 2” when the port number is set to “2”. This setting

can be confirmed in the SETUP window while CS-F3 is running.

A:\>CD ADJ

Boot up DOS, and
change the directory.

Start up command.
Program starts up,

then the adjustment
screen appears after
reading set data from
the transceiver.

A:\>ADJ>ADJUST

***** Trimmer Control Software for IC–F3 Series *****

RX:174.00000MHz

Base Freq : 174.00000MHzPWR : High

Memory CH : 1
Power(Lo) : 72
Power(Hi) : 142
MOD : 80
BPF 1 : 2
BPF 2 : 54
BPF 3 : 92
BPF 4 : 4

[TAB] : Display Parameters [F8] at BPF : Sweep [F9] at BPF : Sweep T1~T4
[Enter] at TXF : REF Set Mode ↑ / ↓ : Cursor Up/Down / : +/– ESC : Quit

D/A 1 (REF) 120 : 78h 2.353V
D/A 2 (MODE) 131 : 83h 2.569V
D/A 3 (T1) 192 : C0h 3.765V
D/A 4 (T2) 198 : C6h 3.882V
D/A 5 (T3) 204 : CCh 4.000V
D/A 6 (T4/PWR) 114 : 72h 2.235V

A/D 1 (VIN) 171 : ABh 10.729V
A/D 2 (REMOTE) 255 : FFh 5.000V
A/D 3 (SD) 54 : 36h 1.059V
A/D 4 (ISENS) 177 : B1h 2.314V
A/D 5 (TEMPS) 186 : BAh 30.353'C
A/D 6 (LVIN) 108 : 6Ch 2.118V

TX:174.00000MHz

5 - 2

F3/S

F4/S

• SCREEN DISPLAY EXAMPLE

• CONNECTIONS

NOTE:

The above values for settings are examples only. Each transceiver has its
own specific values for each setting.

*

DO NOT change the value when adjusting the IC-F4/S. A value of 80 is

necessary for the IC-F4/S.

Memory CH : 1

Power(Lo) : 72
Power(Hi) : 142
MOD : 80
BPF 1 : 2
BPF 2 : 54
BPF 3 : 92
BPF 4 : 4
TXF SET :

***** Trimmer Control Software for IC–F3 Series *****

A/D 1 (VIN) 171 : ABh 10.729V
A/D 2 (REMOTE) 255 : FFh 5.000V
A/D 3 (SD) 54 : 36h 1.059V
A/D 4 (ISENS) 177 : B1h 2.314V
A/D 5 (TEMPS) 186 : BAh 30.353'C
A/D 6 (LVIN) 108 : 6Ch 4.300V

D/A 1 (REF) 120 : 78h 2.353V
D/A 2 (MODE) 131 : 83h 2.569V
D/A 3 (T1) 192 : C0h 3.765V
D/A 4 (T2) 198 : C6h 3.882V
D/A 5 (T3) 204 : CCh 4.000V
D/A 6 (T4/PWR) 114 : 72h 2.235V

RX:174.00000MHz TX:174.00000MHz

Base Freq : 174.00000MHzPWR : High

[TAB] : Display Parameters [F8] at BPF : Sweep [F9] at BPF : Sweep T1~T4
[Enter] at TXF : REF Set Mode ↑ / ↓ : Cursor Up/Down / : +/– ESC : Quit

PLL lock voltage

Internal temperature

Operating channel

RF output power

FM deviation*

Receive sensitivity

Reference frequency

Connected battery voltage

to an RS-232C port

Personal
computer

OPC-478

to the antenna connector

to [MIC]

Audio generator

RF power meter

10 W / 50 Ω

Frequency

counter

Standard signal generator

0.1 µV to 32 mV

(–127 dBm to –17 dBm)

AC millivoltmeter

DB9 female plug

(incl. level converter circuit)

CAUTION:

DO NOT transmit while

SSG is connected to the
antenna connector.

Attenuator

40 dB or 50 dB

FM deviation meter

5 - 3

5-2 PLL ADJUSTMENT for IC-F3/S

PLL LOCK
VOLTAGE

12• Operating freq. :

150.000 MHz (L-band)

174.000 MHz (H-band)

• Transmitting

• Receiving

MAIN Connect a multi-meter

to check point CP1.

3.0 V (L-band)

4.3 V (H-band)

2.2–3.2 V
(L-band)

3.1–4.1 V

(H-band)

MAIN L11

Verify

ADJUSTMENT ADJUSTMENT CONDITIONS

UNIT LOCATION

VALUE

UNIT ADJUST

MEASUREMENT ADJUSTMENT

connect (soldering) here

DC power supply

,

.

see detailed illustration
below

Power supply connection

VR board

connect (soldering)
, line here

CP1

PLL lock voltage
check point

L11

PLL lock voltage
adjustment

RF power meter

F3/S

• MAIN unit

5 - 4

Select an operation using [↑]/[↓] keys, then set the specified value using [←]/[→] keys on the connected computer keyboard.

*This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.

REFERENCE
FREQUENCY

OUTPUT
POWER

FM DEVIATION

BPF1–BPF4

CONVENIENT: The BPF T1–BPF T4 can be adjusted automatically.

q-1 Set each to 0, then push the [F9] key.

(The cursor must be set to the BPF T1 position.)

q-2 The connected PC tunes BPF T1–BPF T4 to peak levels.

or

w-1 Set the cursor to one of BPF T1, T2, T3 or T4 as desired.
w-2 Push [F8] to start tuning.
w-3 Pepeat w-1 and w-2 to perform additional BPF tuning.

• Operating freq. :

136.000 MHz (L-band)

146.000 MHz (H-band)

• High/Low switch : Low

• Transmitting

•Transmitting

• Operating freq. :

143.000 MHz (L-band)

146.000 MHz (H-band)

• High/Low switch : Low

• Transmitting

• High/Low switch : High

• Transmitting

• Operating freq. :

143.000 MHz (L-band)

160.000 MHz (H-band)

• High/Low switch : Low

• Connect an audio generator to the [MIC]
jack and set as:

1 kHz/150 mV

• Set an FM deviation meter as:

HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P–P)/2

• Transmitting

• Operating freq. :

136.000 MHz (L-band)

146.000 MHz (H-band)

• Set an SSG as:

Level : 3.2 µV* (–97 dBm)
Modulation : 1 kHz
Deviation : ±3.5 kHz (W-type)

±1.75 kHz (N-type)
±2.8 kHz (M-type)

• Receiving

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

UNIT LOCATION

5-3 TRIMMER ADJUSTMENT for IC-F3/S

1

2

1

2

1

1

Top

panel

Top

panel

Top

panel

Top

panel

Loosely couple a frequency
counter to the antenna connec­tor.

Connect an RF power meter to
the antenna connector.

Connect an FM deviation meter
to the antenna connector
through an attenuator.

Connect an SSG to the antenna
connector and a SINAD meter
with an 8 Ω load to the [SP] jack.

136.000000 MHz
(L-band)

146.000000 MHz

(H-band)

136.001360 MHz
(L-band)

146.001460 MHz

(H-band)

1.0 W

5.0 W

±4.2 kHz (W-type)

±2.1 kHz (N-type)

±3.4 kHz (M-type)

Minimum distortion

level

F3/S

The following adjustment must be performed after “REFERENCE FREQUENCY ADJUSTMENT” in section 5-3.

5 - 5

Set to flat wave
form

5-4 TRANSMITTER ADJUSTMENT for IC-F3/S

DTCS WAVE
FORM

1 • Operating freq. :

143.000 MHz (L-band)

160.000 MHz (H-band)

• High/Low switch : Low

• No audio applied to the [MIC] jack.

• DTCS code : 007

• Transmitting

Top

panel

Connect an FM devia­tion meter with an
oscilloscope to the
antenna connector
through an attenuator.

MAIN R150

ADJUSTMENT ADJUSTMENT CONDITIONS

UNIT LOCATION

VALUE

UNIT ADJUST

MEASUREMENT ADJUSTMENT

connect (soldering) here

DC power supply

,

.

see detailed illustration
below

Power supply connection

VR board

connect (soldering)
, line here

R150

DTCS wave
form adjustment

FM deviation

meter

Oscilloscope

Attenuator

F3/S

• MAIN unit

5 - 6

F3/S

The following adjustment must be performed after “BPF1–BPF4 ADJUSTMENT” in section 5-3.

5-5 RECEIVER ADJUSTMENT for IC-F3/S

SQUELCH
LEVEL

12• Operating freq. :

136.000 MHz (L-band)

146.000 MHz (H-band)

• Set the SSG as:
Modulation : 1kHz
Deviation : ±3.5 kHz (W-type)

±1.75 kHz (N-type)
±2.8 kHz (M-type)

• Receiving

• Turn R92 clockwise to close squelch.

• Receiving

Top

panel

Connect an SSG to
the antenna connector
and SINAD meter with
an 8 Ω load to the [SP]
jack.

12 dB SINAD

At the point
where the audio
signals just
appears.

SSG

MAIN

Output

level

R92

ADJUSTMENT ADJUSTMENT CONDITIONS

UNIT LOCATION

VALUE

UNIT ADJUST

MEASUREMENT ADJUSTMENT

connect (soldering) here

DC power supply

,

.

see detailed illustration
below

Power supply connection

VR board

connect (soldering)
, line here

R92

Squelch
adjustment

Standard signal

generator

SINAD meter

Speaker (8 Ω)

• MAIN unit

5 - 7

F4/S

5-6 PLL ADJUSTMENT for IC-F4/S

PLL LOCK
VOLTAGE

1

2
3

4

• Operating freq. :

400.000 MHz (L-band)

440.000 MHz (ML-band)

470.000 MHz (MH-band)

490.000 MHz (H1/H2-bands)

• Receiving

• Transmitting

• Operating freq. :

430.000 MHz (L-band)

470.000 MHz (ML-band)

500.000 MHz (MH-band)

512.000 MHz (H1-band)

520.000 MHz (H2-band)

• Receiving

• Transmitting

MAIN Connect a multimeter

to check point CP1.

1.3 V

2.5–4.2 V
(H1-band)

3.0–4.5 V

(other)

MAIN L11

L405

Verify

ADJUSTMENT ADJUSTMENT CONDITIONS

UNIT LOCATION

VALUE

UNIT ADJUST

MEASUREMENT ADJUSTMENT

connect (soldering) here

DC power supply

,

.

see detailed illustration
below

Power supply connection

VR board

connect (soldering)
, line here

L405

PLL lock voltage
adjustment for TX

L11

PLL lock voltage
adjustment for RX

CP1

PLL lock voltage
check point

RF power meter

• MAIN unit

5 - 8

F4/S

Select an item using [↑]/[↓] keys on the connected computer keyboard.

*This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.

5-7 TRIMMER ADJUSTMENT for IC-F4/S

REFERENCE
FREQUENCY

OUTPUT
POWER

BPF1–BPF4

1

2

1

2

3

4

1

• Operating freq. :

400.000 MHz (L-band)

440.000 MHz (ML-band)

470.000 MHz (MH-band)

490.000 MHz (H1/H2-bands)

• High/Low switch : Low

• Transmitting

• Transmitting

• Operating freq. :

415.000 MHz (L-band)

455.000 MHz (ML-band)

485.000 MHz (MH-band)

501.000 MHz (H1-band)

505.000 MHz (H2-band)

• High/Low switch : High

• Transmitting

• Operating freq. :

400.000 MHz (L-band)

440.000 MHz (ML-band)

470.000 MHz (MH-band)

490.000 MHz (H1/H2-bands)

• High/Low switch : High

• Transmitting

• High/Low switch : Low

• Transmitting

• Operating freq. :

400.000 MHz (L-band)

440.000 MHz (ML-band)

470.000 MHz (MH-band)

490.000 MHz (H1/H2-bands)

• Set an SSG as:
Level :

3.2 µV* (–97 dBm)
Modulation : 1 kHz
Deviation

: ±3.5 kHz (W-type)

±1.75 kHz (N-type)

• Receiving

Top

panel

Top

panel

Top

panel

Loosely couple a
frequency counter
to the antenna con­nector.

Connected comput­er screen “Power
(Hi)”.

Connect an RF
power meter to the
antenna connector.

Connect an SSG to
the antenna con­nector and a SINAD
meter with an 8 Ω
load to the [SP]
jack.

400.000000 MHz
(L-band)

440.000000 MHz

(ML-band)

470.000000 MHz

(MH-band)

490.000000 MHz

(H1/H2-bands)

400.004000 MHz
(L-band)

440.004400 MHz

(ML-band)

470.004700 MHz

(MH-band)

490.004900 MHz

(H1/H2-bands)

180

Maximum output

4.2 W

1.1 W

Minimum distortion
level

Push [←] or [→]
keys on the com­puter key-board.

Push [←] or [→]
keys on the com­puter key-board.

Adjust C467 on
the MAIN unit.
(see detailed
illustration at
right)

Push [←] or [→]
keys on the com­puter key-board.

Push [←] or [→]
keys on the com­puter key-board.

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE ADJUSTMENT

UNIT LOCATION

CONVENIENT: The BPF T1–BPF T4 can be adjusted automatically.

q-1 Set each to 0, then push the [F9] key.

(The cursor must be set to the BPF T1 position.)

q-2 The connected PC tunes BPF T1–BPF T4 to peak levels.

or

w-1 Set the cursor to one of BPF T1, T2, T3 or T4 as desired.
w-2 Push [F8] to start tuning.
w-3 Pepeat w-1 and w-2 to perform additional BPF tuning.

5 - 9

F4/S

• MAIN unit

connect
(soldering) here

DC power supply

,

.

see detailed illustration
below

Power supply connection

VR board

connect (soldering)
, line here

R150

DTCS wave
form adjustment

R119

Frequency deviation
adjustment

FM deviation

meter

Oscilloscope

RF power meter

Attenuator

Audio generator

AC millivoltmeter

C467*

*Other side of this

point.

Transmit output
power adjustment

The following adjustment must be performed after “REFERENCE FREQUENCY ADJUSTMENT” in section 5-7.

Set to flat wave
form

5-8 TRANSMITTER ADJUSTMENT for IC-F4/S

FM
DEVIATION

DTCS WAVE
FORM

11• Operating freq. :

400.000 MHz (L-band)

440.000 MHz (ML-band)

470.000 MHz (MH-band)

490.000 MHz (H1/H2-bands)

• High/Low switch : Low

• Connect an audio generator to the
[MIC] jack and set as:

1 kHz/150 mV

• Set an FM deviation meter as:

HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P–P)/2

• Transmitting

• Operating freq. :

415.000 MHz (L-band)

455.000 MHz (ML-band)

485.000 MHz (MH-band)

501.000 MHz (H1-band)

505.000 MHz (H2-band)

• High/Low switch : Low

• No audio applied to the [MIC] jack.

• DTCS code : 007

• Transmitting

Top

panel

Top

panel

Connect an FM devia­tion meter to the
antenna connector
through an attenuator.

Connect an FM devia­tion meter with an
oscilloscope to the
antenna connector
through an attenuator.

MAIN

MAIN

R119

R150

ADJUSTMENT ADJUSTMENT CONDITIONS

UNIT LOCATION

VALUE

UNIT ADJUST

MEASUREMENT ADJUSTMENT

±4.1 kHz
(W-type)
±2.1 kHz

(N-type)

5 - 10

F4/S

The following adjustment must be performed after “BPF1–BPF4 ADJUSTMENT” in section 5-7.

5-9 RECEIVER ADJUSTMENT for IC-F4/S

SQUELCH
LEVEL

12• Operating freq. :

400.000 MHz (L-band)

440.000 MHz (ML-band)

470.000 MHz (MH-band)

490.000 MHz (H1/H2-bands)

• Set the SSG as:
Modulation : 1 kHz
Deviation : ±3.5 kHz (W-type)

±1.75 kHz (N-type)

• Receiving

• Turn R92 clockwise to close squelch.

• Receiving

Top

panel

Connect an SSG to
the antenna connector
and SINAD meter with
an 8 Ω load to the
antenna connector.

12 dB SINAD

At the point
where the audio
signals just
appears.

SSG

MAIN

Output

level

R92

ADJUSTMENT ADJUSTMENT CONDITIONS

UNIT LOCATION

VALUE

UNIT ADJUST

MEASUREMENT ADJUSTMENT

connect (soldering) here

DC power supply

,

.

see detailed illustration
below

Power supply connection

VR board

connect (soldering)
, line here

R92

Squelch
adjustment

Standard signal

generator

SINAD meter

Speaker (8 Ω)

• MAIN unit

S.=Surface mount

Ò: L-band, Ó: H-band, N: N-type, M: M-type, W: W-type
e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT]

6-1 IC-F3/F3S

[MAIN UNIT]

IC1 1130007610 S.IC µPD3140GS-E1 (DS8)
IC2 1110003490 S.IC TA31136FN (D,EL)
IC3 1110003780 S.IC NJM2902V-TE1
IC4 1130008090 S.IC BU4066BCFV-E1
IC5 1110001810 S.IC TA7368F (TP1)
IC6 1180001080 S.IC S-81250PG-PD-T1
IC7 1140005620 S.IC X25080SI-2.7T6 [16 ch]

1130008670 S.IC 25LC160T-I/SN [2-BANK]

IC8 1140006460 S.IC HD6433875A40H [16 ch]

1140008380 S.IC HD6433875B26H [2-BANK]
IC10 1110003690 S.IC M62354GP 75EC
IC11 1110003500 S.IC S-80742SL-A6-T1

Q1 1560000950 S.FET 2SK2595AXTB
Q2 1560000960 S.FET 2SK2596BXTL
Q3 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q4 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q5 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q6 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q7 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q8 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q9 1590002160 S.TRANSISTOR XP6401-(TX)
Q11 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q12 1580000720 S.FET 3SK239AXRTL
Q13 1580000490 S.FET 3SK166A-2-T7
Q14 1530002360 S.TRANSISTOR 2SC2714-Y (TE85R)
Q15 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q16 1590001190 S.TRANSISTOR XP6501-(TX).AB
Q17 1590002530 S.TRANSISTOR UN911H(TX)
Q18 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q19 1590001190 S.TRANSISTOR XP6501-(TX).AB
Q20 1510000670 S.TRANSISTOR 2SA1588-GR (TE85R)
Q21 1510000670 S.TRANSISTOR 2SA1588-GR (TE85R)
Q22 1510000670 S.TRANSISTOR 2SA1588-GR (TE85R)
Q23 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q25 1530000160 S.TRANSISTOR 2SC2712-Y (TE85RTEM)
Q26 1590000430 S.TRANSISTOR DTC144EUA T106
Q27 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q28 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q29 1590001770 S.TRANSISTOR XP1213 (TX)
Q31 1590000660 S.TRANSISTOR DTC144TU T107
Q32 1590000430 S.TRANSISTOR DTC144EUA T106
Q33 1590001650 S.TRANSISTOR XP4601 (TX)
Q34 1560000540 S.FET 2SK880-Y (TE85R)
Q35 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q36 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q37 1590000720 S.TRANSISTOR DTA144EUAT106
Q38 1590000430 S.TRANSISTOR DTC144EUA T106

D1 1790000620 S.DIODE MA77 (TX)
D3 1790000620 S.DIODE MA77 (TX)
D4 1790000620 S.DIODE MA77 (TX)
D5 1720000370 S.VARICAP HVU350TRF
D6 1790000620 S.DIODE MA77 (TX)
D7 1720000670 S.VARICAP HVU17TRF
D8 1790000450 S.DIODE MA862 (TX)
D9 1720000370 S.VARICAP HVU350TRF
D10 1720000370 S.VARICAP HVU350TRF
D11 1720000370 S.VARICAP HVU350TRF
D12 1720000370 S.VARICAP HVU350TRF
D13 1720000370 S.VARICAP HVU350TRF
D15 1790001280 S.DIODE MA111 (TX)
D16 1790001200 S.DIODE MA6S121 (TX)
D17 1790001200 S.DIODE MA6S121 (TX)
D18 1790001280 S.DIODE MA111 (TX) F3 only
D19 1790001280 S.DIODE MA111 (TX)
D21 1720000370 S.VARICAP HVU350TRF
D22 1720000370 S.VARICAP HVU350TRF
D24 1750000130 S.DIODE DA204U T107
D25 1790000670 S.DIODE SB07-03C-TB
D26 1160000060 S.DIODE DAN202U T107

D27 1750000130 S.DIODE DA204U T107
D28 1790000620 S.DIODE MA77 (TX)
D29 1730002260 S.ZENER MA8030-H (TX)

FI1 2010002080 XTAL FL-268 (31.05 MHz) N, M

2010002110 XTAL FL-270 (31.05 MHz) W

FI2 2020001410 CERAMIC CFWM450G N

2020001270 CERAMIC CFWM450E M, W

X1 6050009981 XTAL CR-575A (15.3 MHz) e

6050009991 XTAL CR-576A (15.3 MHz) u
X2 6050008840 S.XTAL CR-463 (6.8 MHz)
X3 6070000210

S.DISCRIMINATOR

CDBCA450CX24

L1 6110002000 COIL LA-226
L2 6110002040 COIL LA-225
L3 6110002040 COIL LA-225
L4 6200002100 S.COIL LQN 1A17NJ04
L5 6200005780 S.COIL 33CS-Y655LY-03K=P3
L6 6200002820 S.COIL LQN 1A47NJ04
L7 6200006980 S.COIL ELJRE R10G-F
L8 6200006980 S.COIL ELJRE R10G-F
L9 6200004600 S.COIL MLF1608D R15K-T Ò

6200006980 S.COIL ELJRE R10G-F Ó
L10 6200004600 S.COIL MLF1608D R15K-T Ò

6200006980 S.COIL ELJRE R10G-F Ó
L11 6200004850 S.COIL MC152-E558CN-100024
L12 6200003090 S.COIL NL 322522T-2R7J-3
L13 6200003960 S.COIL MLF1608A 1R0K-T
L14 6200005740 S.COIL ELJRE 47NG-F Ò

6200007000 S.COIL ELJRE 82NG-F Ó
L15 6200002820 S.COIL LQN 1A 47NJ04
L16 6200007160 S.COIL LQN1H 54NK04
L17 6200007160 S.COIL LQN1H 54NK04
L18 6200002360 S.COIL LQN 1A 33NJ04
L19 6200002360 S.COIL LQN 1A 33NJ04
L20 6200004790 S.COIL MLF1608D R47K-T
L21 6200005740 S.COIL ELJRE 47NG-F
L22 6200002820 S.COIL LQN 1A 47NJ04
L23 6200002370 S.COIL LQN 1A 39NJ04 Ò

6200002360 S.COIL LQN 1A33NJ04 Ó
L24 6200003090 S.COIL NL 322522T-2R7J-3
L25 6200003960 S.COIL MLF1608A 1R0K-T
L26 6200003590 S.COIL EXCCL3225U1
L27 6200003590 S.COIL EXCCL3225U1
L28 6200006670 S.COIL ELJRE 68NG-F
L29 6200006980 S.COIL ELJRE R10G-F
L30 6200007220 S.COIL EXCCL4532U1

R1 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R2 7030005320 S.RESISTOR RR0816P-103-D (10 kΩ)
R3 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ)
R4 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω)
R5 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R7 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R8 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) Ò

7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) Ó
R9 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R10 7030003250 S.RESISTOR ERJ3GEYJ 270 V (27 Ω) Ò

7030003310 S.RESISTOR ERJ3GEYJ 820 V (82 Ω) Ó
R11 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R12 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R13 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω)
R14 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R15 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R16 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R17 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R18 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R19 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)

6 - 1

SECTION 6 PARTS LIST

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F3/S

S.=Surface mount

Ò: L-band, Ó: H-band, N: N-type, M: M-type, W: W-type
e: ETS/CEPT version, u: EIA/TIA version

R115 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R116 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R117 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R119 7310004140 S.TRIMMER EVM-1YSX50 B35 (304)
R120 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R121 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R122 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R123 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R125 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R126 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R127 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω)
R128 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R130 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R131 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R132 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R133 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R134 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R135 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R137 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R139 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R141 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R142 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R144 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R145 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R146 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R147 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R148 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R149 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R150 7310004110 S.TRIMMER EVM-1YSX50 B54 (503)
R151 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R153 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R154 7030008120 S.RESISTOR RR0816P-682-D (6.8 kΩ)
R155 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R156 7030000160 S.RESISTOR MCR10EZHJ 15 Ω (150)
R157 7030000160 S.RESISTOR MCR10EZHJ 15 Ω (150)
R158 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R159 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R160 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R161 7030007330 S.RESISTOR ERJ1WRSJR15U (0.15 Ω)
R162 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R163 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R166 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R167 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R168 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R169 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R170 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R171 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R174 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R175 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R176 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R177 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R178 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R181 7030005870 S.RESISTOR RR0816R-104-D (100 kΩ)
R182 7510000910 S.THERMISTOR NTCCF2012 4AH 473KC-T
R183 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R184 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R185 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R186 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R187 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R190 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R191 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R192 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R193 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R194 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R195 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R196 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R197 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R198 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R199 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R200 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R201 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R202 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R203 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R204 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R205 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R207 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R208 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R209 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R210 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R213 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R214 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)

[MAIN UNIT][MAIN UNIT]

R20 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R21 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R22 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R23 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R24 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R25 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R26 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R27 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R28 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R29 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R30 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R31 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R32 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R33 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R34 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R35 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R41 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) Ò

7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) Ó
R42 7410000950 S.ARRAY EXB-V8V 102JV
R44 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R45 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R48 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R49 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R50 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R51 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R52 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R53 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R54 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R55 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R57 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R58 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R59 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω)
R61 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R62 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R63 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R64 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R65 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R66 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R67 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R68 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R69 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R70 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R72 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R75 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R77 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R79 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R80 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R81 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R82 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) N

7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) M

7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) W
R83 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R84 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)
R85 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R86 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R87 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R88 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R91 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) N

7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ)

M, W
R92 7310004110 S.TRIMMER EVM-1YSX50 B54 (503)
R93 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R94 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R95 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R96 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R97 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R98 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R99 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R100 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ)
R101 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R102 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R103 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R104 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R105 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R106 7410000950 S.ARRAY EXB-V8V 102JV
R107 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R108 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R109 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R112 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R113 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R114 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) N

7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) M, W

6 - 2

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F3/S

S.=Surface mount

Ò: L-band, Ó: H-band, N: N-type, M: M-type, W: W-type
e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT][MAIN UNIT]

R215 7030005520 S.RESISTOR RR0816R-334-D (330 kΩ)
R216 7030005630 S.RESISTOR RR0816R-154-D (150 kΩ)
R217 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R218 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R219 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R220 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)
R221 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R222 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R224 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) N

7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) M, W
R226 7410000950 S.ARRAY EXB-V8V 102JV
R227 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R228 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R229 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R230 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R231 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R232 7410000950 S.ARRAY EXB-V8V 102JV
R233 7410000950 S.ARRAY EXB-V8V 102JV
R234 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R235 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ)
R236 7410000950 S.ARRAY EXB-V8V 102JV
R237 7410000950 S.ARRAY EXB-V8V 102JV
R238 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R240 7410000950 S.ARRAY EXB-V8V 102JV
R241 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R242 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R243 7410000950 S.ARRAY EXB-V8V 102JV
R244 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R245 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R249 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R250 7030005320 S.RESISTOR RR0816P-103-D (10 kΩ)
R251 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R252 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R253 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R255 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R257 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R258 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)

C1 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A
C2 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C3 4030009990 S.CERAMIC C1608 CH 1H 200J-T-A
C4 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C5 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C6 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A Ò

4030007010 S.CERAMIC C1608 CH 1H 100D-T-A Ó
C7 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A Ò

4030007030 S.CERAMIC C1608 CH 1H 150J-T-A Ó
C8 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C9 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C10 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C11 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C12 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C13 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C14 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C15 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A
C17 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C18 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C19 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C20 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C21 4510004870 S.ELECTROLYTIC ECEV1CA330P
C22 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A
C23 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C24 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C25 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C26 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C27 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C28 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C29 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C30 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C31 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C32 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C33 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C34 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C35 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C36 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C37 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A Ò

4030009510 S.CERAMIC C1608 CH 1H 010B-T-A Ó
C38 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A
C39 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C41 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A

C42 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C44 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A Ò

4030008650 S.CERAMIC C1608 JB 1H 332K-T-A Ó

C45 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A Ò

4030007130 S.CERAMIC C1608 CH 1H 101J-T-A Ó
C46 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C47 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C48 4550006170 S.TANTALUM ECST1AY225R
C49 4550006590 S.TANTALUM ECST1CY684R
C50 4550006200 S.TANTALUM ECST0JY106R
C51 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A
C52 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C53 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C54 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C55 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C56 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C57 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C58 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C59 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C60 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C61 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A Ò

4030007020 S.CERAMIC C1608 CH 1H 120J-T-A Ó
C62 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A Ò

4030007000 S.CERAMIC C1608 CH 1H 090D-T-A Ó
C63 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C64 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C65 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A
C66 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C67 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C69 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A
C70 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C71 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C72 4550006150 S.TANTALUM ECST1CY105R
C73 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C75 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C76 4030009990 S.CERAMIC C1608 CH 1H 200J-T-A Ò

4030007040 S.CERAMIC C1608 CH 1H 180J-T-A Ó
C78 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C79 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A
C80 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A Ò

4030009350 S.CERAMIC C1608 CH 1H 3R5B-T-A Ó
C81 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C82 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C83 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A
C84 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C85 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A
C86 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A Ò

4030009920 S.CERAMIC C1608 CH 1H 050B-T-A Ó
C87 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C88 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C89 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C90 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C91 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C92 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C93 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C94 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A
C95 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C96 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C97 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C98 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C99 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C100 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A
C101 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C102 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A
C104 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C105 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C106 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C107 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C108 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C109 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C110 4030011530 S.CERAMIC C1608 CH 1H 110J-T-A N, M

4030007000 S.CERAMIC C1608 CH 1H 090D-T-A W
C111 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C112 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C113 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C114 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C115 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C116 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A N

4030007120 S.CERAMIC C1608 CH 1H 820J-T-A M, W
C117 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C118 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A

6 - 3

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F3/S

S.=Surface mount

Ò: L-band, Ó: H-band, N: N-type, M: M-type, W: W-type
e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT][MAIN UNIT]

C119 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C120 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C121 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C122 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C123 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C124 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C125 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A
C126 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A
C128 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C129 4550006680 S.TANTALUM ECST0JY156R
C131 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C132 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C133 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C134 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C135 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A
C136 4030010770 S.CERAMIC C1608 JB 1H 392K-T-A
C137 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A N

4030008890 S.CERAMIC C1608 JB 1C 273K-T-A M, W
C138 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C139 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C140 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C141 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C142 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C143 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C144 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C145 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C146 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C147 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C148 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C149 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C150 4550006200 S.TANTALUM ECST0JY106R
C151 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C152 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C153 4510005370 S.ELECTROLYTIC ECEV1AA221P
C154 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C155 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C156 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C157 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C158 4510005320 S.ELECTROLYTIC ECEV0JA101SP
C159 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C160 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C161 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C162 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C163 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C164 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C165 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C166 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C167 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C168 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C169 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C170 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C171 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C172 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C173 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C174 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C175 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C176 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C177 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C179 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C180 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C181 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C182 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C183 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C184 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C185 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C186 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C187 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C189 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C190 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C193 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C194 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C195 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A
C196 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C197 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C198 4550006170 S.TANTALUM ECST1AY225R
C199 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C200 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C201 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C202 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C203 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C204 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

C205 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C209 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C210 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C211 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C212 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C213 4550006170 S.TANTALUM ECST1AY225R
C214 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C215 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C217 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C218 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C221 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C222 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C223 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C224 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C225 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A
C226 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C227 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C228 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C229 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C230 4550006140 S.TANTALUM ECST1EY474R
C231 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C232 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C233 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C234 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C235 4030009560 S.CERAMIC C1608 CH 1H R75B-T-A Ò only
C237 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C238 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C239 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C240 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C241 4550006200 S.TANTALUM ECST0JY106R
C242 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C243 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C244 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C245 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C246 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C248 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C249 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C250 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C251 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C252 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C253 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C254 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C257 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C258 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C259 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C260 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C261 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C262 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C263 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C264 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C265 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C266 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C267 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C268 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C269 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C270 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C271 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C272 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C273 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C274 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C275 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C276 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C277 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A
C278 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A Ò

4030007010 S.CERAMIC C1608 CH 1H 100D-T-A Ó
C280 4030009650 S.CERAMIC C1608 CH 1H 240J-T-A
C281 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C282 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C283 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C284 4030008650 S.CERAMIC C1608 JB 1H 332K-T-A Ò

4030006860 S.CERAMIC C1608 JB 1H 102K-T-A Ó
C286 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A
C287 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A Ò

4030007080 S.CERAMIC C1608 CH 1H 390J-T-A Ó
C288 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C289 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C290 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A
C291 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C292 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

6 - 4

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F3/S

S.=Surface mount

[MAIN UNIT]

J2 6450001680 CONNECTOR HSJ1122-010010
J3 6450001690 CONNECTOR HSJ1456-01-220
J4 6450000870 CONNECTOR HEC2711-01-020
J5 6510018430 S.CONNECTOR AXN330C038P
J6 6510007080 CONNECTOR PI28A-02M
J7 6910010850 CONNECTOR IMSA-9230B-1-05Z080-T

DS1 5030001460 LCD LM-1462B
DS2 5010000160 S.LED LNJ310M6URA
DS3 5010000160 S.LED LNJ310M6URA
DS4 5040002190 S.LED LNJ808R8ERA

MC1 7700002160 MICROPHONE KUC3523-040245

S1 2230000900 S.SWITCH JPM1990-2013R

SP1 2510000960 SPEAKER K036NA500-26

W1 7030003860 S.JUMPER ERJ3GE JPW V
W2 7030003860 S.JUMPER ERJ3GE JPW V
W7 7030003860 S.JUMPER ERJ3GE JPW V [2-BANK]
W8 7030003860 S.JUMPER ERJ3GE JPW V [16 ch]
W10 7030003860 S.JUMPER ERJ3GE JPW V

WS1 8600035801 M.OTHER FX1922 P01MA-1

EP1 0910048456 PCB B 4929F
EP2 8930042590 LCD CONTACT SRCN-1922-SP-N-W

R1 7210002950 VARIABLE RV-312 (RK0971110)

EP1 0910048462 PCB B 4930B

6 - 5

REF ORDER

DESCRIPTION

NO. NO.

[VR BOARD]

REF ORDER

DESCRIPTION

NO. NO.

F3/S

[L]: L-band, [ML]: ML-band, [MH]: MH-band, [H1]: H1-band, [H2]: H2-band S.=Surface mount
N: N-type, W: W-type, e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT]

6-2 IC-F4/F4S

[MAIN UNIT]

IC1 1130007610 S.IC µPD3140GS-E1 (DS8)
IC2 1110003490 S.IC TA31136FN (D,EL)
IC3 1110003780 S.IC NJM2902V-TE1
IC4 1130008090 S.IC BU4066BCFV-E1
IC5 1110001810 S.IC TA7368F (TP1)
IC6 1180001080 S.IC S-81250PG-PD-T1
IC7 1140005620 S.IC X25080SI-2.7T6 [16 ch]

1130008670 S.IC 25LC160T-I/SN [2-BANK]

IC8 1140006460 S.IC HD6433875A40H [16 ch]

1140008380 S.IC HD6433875B26H [2-BANK]
IC10 1110003690 S.IC M62354GP 75EC
IC11 1110003500 S.IC S-80742SL-A6-T1

Q1 1560000950 S.FET 2SK2595AXTB
Q2 1560000960 S.FET 2SK2596BXTL
Q3 1530002620 S.TRANSISTOR 2SC3585 R44-T2B
Q4 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q5 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q6 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q7 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q8 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q9 1590002160 S.TRANSISTOR XP6401-(TX)
Q11 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q12 1580000720 S.FET 3SK239AXRTL
Q13 1580000680 S.FET 3SK241-R(TX)
Q15 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q16 1590001190 S.TRANSISTOR XP6501-(TX).AB
Q17 1590002530 S.TRANSISTOR UN911H (TX)
Q18 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q19 1590001190 S.TRANSISTOR XP6501-(TX).AB
Q20 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q21 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q22 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q23 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q25 1530000160 S.TRANSISTOR 2SC2712-Y (TE85RTEM)
Q26 1590000430 S.TRANSISTOR DTC144EUA T106
Q27 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q28 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q29 1590001770 S.TRANSISTOR XP1213 (TX)
Q31 1590000660 S.TRANSISTOR DTC144TU T107
Q33 1590001650 S.TRANSISTOR XP4601 (TX)
Q34 1560000540 S.FET 2SK880-Y (TE85R)
Q35 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q36 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q37 1590000720 S.TRANSISTOR DTA144EUAT106
Q38 1590000430 S.TRANSISTOR DTC144EUA T106
Q400 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q401 1590001400 S.TRANSISTOR XP1214 (TX)
Q402 1590000430 S.TRANSISTOR DTC144EUA T106
Q403 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q404 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q405 1590000430 S.TRANSISTOR DTC144EUA T106

D1 1790000620 S.DIODE MA77 (TX)
D2 1790000490 S.DIODE HSM88AS-TR
D3 1790000620 S.DIODE MA77 (TX)
D4 1790000620 S.DIODE MA77 (TX)
D5 1720000370 S.VARICAP HVU350TRF
D7 1720000670 S.VARICAP HVU17TRF
D8 1790000620 S.DIODE MA77 (TX)
D10 1720000370 S.VARICAP HVU350TRF
D11 1720000370 S.VARICAP HVU350TRF
D12 1720000370 S.VARICAP HVU350TRF
D15 1790001280 S.DIODE MA111 (TX)
D16 1790001200 S.DIODE MA6S121 (TX)
D17 1790001200 S.DIODE MA6S121 (TX)
D24 1750000130 S.DIODE DA204U T107
D25 1790000670 S.DIODE SB07-03C-TB
D26 1160000060 S.DIODE DAN202U T107
D27 1750000130 S.DIODE DA204U T107
D33 1790001280 S.DIODE MA111 (TX) F4 only
D400 1790001210 S.DIODE 1SS375-TL
D401 1720000370 S.VARICAP HVU350TRF
D402 1790001210 S.DIODE 1SS375-TL
D403 1720000370 S.VARICAP HVU350TRF
D404 1720000520 S.VARICAP 1T365-01-T8A
D405 1720000360 S.DIODE HSU88TRF

D406 1790000620 S.DIODE MA77 (TX)

FI1 2010002100 XTAL FL-267 (46.35 MHz) N

2010002120 XTAL FL-271 (46.35 MHz) W

FI2 2020001410 CERAMIC CFWM450G N

2020001270 CERAMIC CFWM450E W

X1 6050009991 XTAL CR-576A (15.3 MHz)
X2 6050008840 S.XTAL CR-463 (6.8 MHz)
X3 6070000210

S.DISCRIMINATOR

CDBCA450CX24

L1 6200005780 S.COIL 33CS-Y655LY-03K=P3

[L], [ML], [MH]

6200005800 S.COIL 33CS-Y655LY-02M=P3

[H1], [H2]

L2 6200005770 S.COIL 33CS-Y655LY-04K=P3

[L], [ML]

6200005780 S.COIL 33CS-Y655LY-03K=P3

[MH]

6200005800 S.COIL 33CS-Y655LY-02M=P3

[H1], [H2]

L3 6200005770 S.COIL 33CS-Y655LY-04K=P3

[L], [ML]

6200005780 S.COIL 33CS-Y655LY-03K=P3

[MH]

6200005800 S.COIL 33CS-Y655LY-02M=P3

[H1], [H2]
L5 6110003230 S.COIL LA-515
L6 6200006780 S.COIL ELJRE 1N8Z-F [L]

6200006770 S.COIL ELJRE 1N5Z-F other

L7 6200005680 S.COIL ELJRE 15NG-F [L]

6200005670 S.COIL ELJRE 12NG-F other

L8 6200005400 S.COIL LL1608-F27NJ [L], [ML], [MH]

6200005380 S.COIL LL1608-F18NJ [H1], [H2]
L9 6200005400 S.COIL LL1608-F27NJ
L11 6200003690 S.COIL MC152-E558ANA-100051=P3

[L], [ML]

6200004110 S.COIL MC152-E558ANA-100050

[MH], [H1], [H2]
L12 6200003550 S.COIL MLF1608A 4R7K-T
L13 6200003960 S.COIL MLF1608A 1R0K-T
L14 6200002450 S.COIL LL2012-F15NK
L15 6200002100 S.COIL LQN 1A 17NJ04
L17 6200002320 S.COIL LQN 1A 8N8J04
L18 6200002320 S.COIL LQN 1A 8N8J04
L19 6200002320 S.COIL LQN 1A 8N8J04
L20 6200004480 S.COIL MLF1608D R82K-T
L21 6200005460 S.COIL LL1608-F82NJ [L]

6200005430 S.COIL LL1608-F47NJ other
L22 6200004660 S.COIL MLF1608A 1R8K-T
L24 6200004480 S.COIL MLF1608D R82K-T
L25 6200004480 S.COIL MLF1608D R82K-T
L26 6200003590 S.COIL EXCCL3225U1
L27 6200003590 S.COIL EXCCL3225U1
L400 6200003540 S.COIL MLF1608D R22K-T [L], [ML]

6200005430 S.COIL LL1608-F47NJ [MH], [H1], [H2]
L401 6200002100 S.COIL LQN 1A 17NJ04
L402 6200002320 S.COIL LQN 1A 8N8J04
L403 6200004780 S.COIL MLF1608A 1R5K-T
L404 6200004780 S.COIL MLF1608A 1R5K-T
L405 6200004110 S.COIL MC152-E558ANA-100050
L406 6200004780 S.COIL MLF1608A 1R5K-T
L407 6200003550 S.COIL MLF1608A 4R7K-T
L409 6200003550 S.COIL MLF1608A 4R7K-T
L410 6200003960 S.COIL MLF1608A 1R0K-T
L411 6200005400 S.COIL LL1608-F27NJ
L412 6200003960 S.COIL MLF1608A 1R0K-T
L413 6200005400 S.COIL LL1608-F27NJ [L]

6200005370 S.COIL LL1608-F15NJ [ML]
L414 6200003540 S.COIL MLF1608D R22K-T
L415 6200007220 S.COIL EXCCL4532U1
L416 6200003540 S.COIL MLF1608D R22K-T
L417 6200005400 S.COIL LL1608-F27NJ [MH]

6200005390 S.COIL LL1608-F22NJ [H1], [H2]

6 - 6

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F4/S

[L]: L-band, [ML]: ML-band, [MH]: MH-band, [H1]: H1-band, [H2]: H2-band S.=Surface mount
N: N-type, W: W-type, e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT][MAIN UNIT]

R1 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R2 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R3 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R5 7030000220 S.RESISTOR MCR10EZHJ 47 Ω (470)
R7 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R8 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)
R9 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R12 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R13 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R14 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R15 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R17 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R18 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R19 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R20 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R21 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R22 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R23 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R32 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) [MH]

7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) other
R33 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R34 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)

[L], [ML], [MH]

7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)

[H1], [H2]
R40 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ)
R41 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω)
R42 7410000950 S.ARRAY EXB-V8V 102JV
R44 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R45 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R46 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R48 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R49 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R50 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R51 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R52 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R53 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R54 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R55 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R59 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R62 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R63 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R64 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R65 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R66 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R67 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R68 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R69 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R70 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R72 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R75 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R77 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R82 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) N

7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) W
R83 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R84 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R85 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R86 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) N

7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) W
R87 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) N

7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) w
R88 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R89 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R90 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) N

7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) W
R92 7310004110 S.TRIMMER EVM-1YSX50 B54 (503)
R93 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R94 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R95 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R96 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R97 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R98 7030003880 S.RESISTOR ERJ3GEYJ 244 V (240 kΩ) e

7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ) u
R99 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R100 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ)
R101 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R102 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R103 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R104 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R105 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) N

7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) W

R107 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) N-e

7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)N-u
7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)W-e
7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)W-u

R108 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) N

7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) W
R109 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R112 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R113 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) e

7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) u
R114 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R115 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R116 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R117 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R118 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R119 7310004090 S.TRIMMER EVM-1YSX50 B14 (103)
R120 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R121 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R122 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R123 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R125 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R126 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R127 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R128 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R130 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R131 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R132 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R133 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R134 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R135 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R137 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R139 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R141 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R142 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R144 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R146 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R147 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R148 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R149 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R150 7310004110 S.TRIMMER EVM-1YSX50 B54 (503)
R153 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R154 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)
R155 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R156 7030000160 S.RESISTOR MCR10EZHJ 15 Ω (150)
R157 7030000160 S.RESISTOR MCR10EZHJ 15 Ω (150)
R158 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R159 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R160 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R161 7030007330 S.RESISTOR ERJ1WRSJR15U (0.15 Ω)
R162 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R163 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R164 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R165 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ)
R166 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R167 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R168 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R169 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R170 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R171 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R172 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R174 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R176 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R178 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R181 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R182 7510000910 S.THERMISTOR NTCCF2012 4AH 473KC-T
R183 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R184 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R185 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R186 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R190 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R191 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R192 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R193 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R194 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R195 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R196 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R197 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R199 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R200 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R202 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R203 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)

6 - 7

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F4/S

[L]: L-band, [ML]: ML-band, [MH]: MH-band, [H1]: H1-band, [H2]: H2-band S.=Surface mount
N: N-type, W: W-type, e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT][MAIN UNIT]

R204 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R205 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R207 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R208 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R209 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R210 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R214 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R215 7030005520 S.RESISTOR RR0816R-334-D (330 kΩ)
R216 7030005630 S.RESISTOR RR0816R-154-D (150 kΩ)
R218 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) e

7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) u

R219 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) e

7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) u
R220 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)
R221 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R224 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)

N-[H1]/[H2]

7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)

N-other

7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)

W-[H2]

7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)

W-other
R226 7410000950 S.ARRAY EXB-V8V 102JV
R227 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R228 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R229 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R230 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R231 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R234 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R235 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ)
R236 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R237 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R400 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R401 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R402 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R403 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω)
R404 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R405 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R406 7030003330 S.RESISTOR ERJ3GEYJ 121 V (120 Ω) N

7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) W
R407 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R408 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R409 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R410 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R411 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)

[L], [ML]

7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)

[MH], [H1], [H2]
R412 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R413 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω)
R414 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R415 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R416 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R417 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R419 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω)
R420 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)

[L], [ML], [MH]

7030003330 S.RESISTOR ERJ3GEYJ 121 V (120 Ω)

[H1], [H2]
R421 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R422 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R424 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R425 7410000950 S.ARRAY EXB-V8V 102JV
R426 7410000950 S.ARRAY EXB-V8V 102JV
R427 7410000770 S.ARRAY EXB-V4V 102JV (1 kΩ)
R428 7410000950 S.ARRAY EXB-V8V 102JV
R429 7410000950 S.ARRAY EXB-V8V 102JV
R430 7410000950 S.ARRAY EXB-V8V 102JV
R431 7410000770 S.ARRAY EXB-V4V 102JV (1 kΩ)
R432 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R433 7410000950 S.ARRAY EXB-V8V 102JV
R434 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R436 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ)
R437 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R438 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R439 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R440 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R441 7510000930 S.THERMISTOR NTCCF2012 3NH 103KC-T
R442 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R443 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

R444 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R445 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R446 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R447 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R448 7030003210 S.RESISTOR ERJ3GEYJ 120 V (12 Ω)
R449 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R450 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R451 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R452 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R453 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) N

7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) W

R454 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) e

7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) u

R455 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)

e-N-[L]/[ML]/[MH]

7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)

e-W-[L]/[ML]/[MH]

7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)

u-N-[L]/[ML]/[MH]

7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)

u-W-[L]/[ML]

7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)

N-[H1]/[H2]

7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)

W-[H2]
R456 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R457 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R458 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R459 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R460 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)

[L], [ML]
R461 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R464 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R465 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω)

[L], [ML]

7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)

[MH], [H1], [H2]
R466 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R468 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) e

7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) u
R469 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R470 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)

[MH], [H1], [H2]

R471 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)

C3 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A [MH]

4030007020 S.CERAMIC C1608 CH 1H 120J-T-A other
C5 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A

[L]

4030006990 S.CERAMIC C1608 CH 1H 080D-T-A

[ML]

4030007010 S.CERAMIC C1608 CH 1H 100D-T-A

[MH]

4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[H1], [H2]

C7 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A [L]

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A other
C8 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C9 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C10 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C11 4030004880 S.CERAMIC C2012 CH 1H 120J-T-A

[L]

4030004850 S.CERAMIC C2012 CH 1H 080D-T-A

[ML]

4030004810 S.CERAMIC C2012 CH 1H 040C-T-A

[MH], [H1], [H2]
C13 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C14 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C15 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A [L]

4030009990 S.CERAMIC C1608 CH 1H 200J-T-A other
C17 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C18 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C19 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C20 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C21 4510005310 S.ELECTROLYTIC ECEV1CA220SR
C22 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[L], [H1], [H2]

4030006990 S.CERAMIC C1608 CH 1H 080D-T-A

[ML], [MH]

C24 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A

6 - 8

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F4/S

[L]: L-band, [ML]: ML-band, [MH]: MH-band, [H1]: H1-band, [H2]: H2-band S.=Surface mount
N: N-type, W: W-type, e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT][MAIN UNIT]

C25 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A
C26 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C27 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C28 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C30 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C31 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C32 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C33 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C42 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C47 4550006410 S.TANTALUM ECST1VY334R [MH]

4550006360 S.TANTALUM ECST1VY104R other
C48 4550006450 S.TANTALUM ECST1EY105R
C51 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C52 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C53 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C54 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C55 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C56 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C57 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C58 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C59 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C60 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C61 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A
C62 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A
C63 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C64 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C65 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A
C66 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A
C67 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A
C69 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A
C70 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C71 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C72 4550006320 S.TANTALUM ECST0JY475R
C73 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C75 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C76 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A [L]

4030006980 S.CERAMIC C1608 CH 1H 070D-T-A other
C77 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A

[L], [ML]

4030009530 S.CERAMIC C1608 CH 1H 030B-T-A

[MH]

4030009550 S.CERAMIC C1608 CH 1H 2R5B-T-A

[H1], [H2]

C78 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[L], [ML]

4030011770 S.CERAMIC C1608 CH 1H 060B-T-A

[MH], [H1], [H2]
C79 4030009550 S.CERAMIC C1608 CH 1H 2R5B-T-A
C84 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C85 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A

[L]

4030011770 S.CERAMIC C1608 CH 1H 060B-T-A

[ML], [MH]

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A

[H1], [H2]
C86 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A

[L]

4030009920 S.CERAMIC C1608 CH 1H 050B-T-A

[ML]

4030009550 S.CERAMIC C1608 CH 1H 2R5B-T-A

[MH]

4030009530 S.CERAMIC C1608 CH 1H 030B-T-A

[H1], [H2]
C87 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C88 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C89 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C90 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C91 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A

[L]

4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[ML]

4030009920 S.CERAMIC C1608 CH 1H 050B-T-A

[MH]

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A

[H1], [H2]
C92 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A [L]

4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[ML]

4030011770 S.CERAMIC C1608 CH 1H 060B-T-A

[MH], [H1], [H2]
C93 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A

C94 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C95 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C96 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A

[L]

4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[ML]

4030011770 S.CERAMIC C1608 CH 1H 060B-T-A

[MH], [H1], [H2]

C97 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[L]

4030009920 S.CERAMIC C1608 CH 1H 050B-T-A

[ML]

4030009530 S.CERAMIC C1608 CH 1H 030B-T-A

[MH]

4030009520 S.CERAMIC C1608 CH 1H 020B-T-A

[H1], [H2]
C98 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C99 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C105 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C106 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A N

4030007010 S.CERAMIC C1608 CH 1H 100D-T-A W
C107 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C108 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C109 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A N

4030007010 S.CERAMIC C1608 CH 1H 100D-T-A W
C112 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C113 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C114 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C115 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C116 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A N

4030007100 S.CERAMIC C1608 CH 1H 560J-T-A W
C117 4550006700 S.TANTALUM ECST1AY106R
C118 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C120 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C121 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C122 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C123 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C124 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C125 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A
C126 4030010770 S.CERAMIC C1608 JB 1H 392K-T-A
C128 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C129 4550006680 S.TANTALUM ECST0JY156R
C131 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C132 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C133 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C134 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A N

4030007150 S.CERAMIC C1608 CH 1H 151J-T-A W
C135 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A N

4030007130 S.CERAMIC C1608 CH 1H 101J-T-A W
C136 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C137 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C139 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C140 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C141 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C142 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C143 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C144 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C145 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C146 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C147 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C148 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C149 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C150 4550006200 S.TANTALUM ECST0JY106R
C151 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C152 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C153 4550006670 S.TANTALUM ECST1AD107R
C154 4550006200 S.TANTALUM ECST0JY106R
C155 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C156 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C157 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C158 4510005320 S.ELECTROLYTIC ECEV0JA101SP
C159 4550006320 S.TANTALUM ECST0JY475R
C160 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C161 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C162 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C163 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C164 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C165 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C166 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C167 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C168 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

6 - 9

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F4/S

[L]: L-band, [ML]: ML-band, [MH]: MH-band, [H1]: H1-band, [H2]: H2-band S.=Surface mount
N: N-type, W: W-type, e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT][MAIN UNIT]

C169 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C170 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C171 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C172 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C173 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C174 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C175 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C176 4550006370 S.TANTALUM ECST0JX226R
C177 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C179 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C180 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C181 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C182 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C183 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C184 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C185 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C186 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C187 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C189 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C190 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C192 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C193 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C194 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C195 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A
C196 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C197 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C199 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C200 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C201 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C202 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C204 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C205 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C206 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A
C207 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C208 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C209 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C210 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C211 4550006320 S.TANTALUM ECST0JY475R
C212 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C213 4550006320 S.TANTALUM ECST0JY475R
C214 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C215 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C216 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C217 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C218 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C221 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C222 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A
C223 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C224 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C225 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C226 4030009630 S.CERAMIC C1608 JB 1H 822K-T-A
C227 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C228 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A
C229 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C230 4550006140 S.TANTALUM ECST1EY474R
C231 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C232 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C233 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C234 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C237 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C238 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C239 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C240 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C241 4550006200 S.TANTALUM ECST0JY106R
C242 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C243 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C244 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C245 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C247 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C248 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C249 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C250 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C251 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C252 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C253 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C254 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C255 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C256 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C257 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C400 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C401 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A

C402 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C403 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C404 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C405 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[L]

4030011770 S.CERAMIC C1608 CH 1H 060B-T-A

[ML]

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A

[MH]

4030009530 S.CERAMIC C1608 CH 1H 030B-T-A

[H1], [H2]

C406 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A

[L]

4030006990 S.CERAMIC C1608 CH 1H 080D-T-A

[ML]

4030006980 S.CERAMIC C1608 CH 1H 070D-T-A

[MH], [H1], [H2]
C407 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C408 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C410 4030011530 S.CERAMIC C1608 CH 1H 110J-T-A

[L]

4030016830 S.CERAMIC GRM39 CH 070B 50PT

[ML]

4030007020 S.CERAMIC C1608 CH 1H 120J-T-A

[MH]

4030007010 S.CERAMIC C1608 CH 1H 100D-T-A

[H1], [H2]
C411 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A

[L]

4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A

[ML]

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A

[MH]

4030009530 S.CERAMIC C1608 CH 1H 030B-T-A

[H1], [H2]
C412 4030008200 S.CERAMIC C1608 UJ 1H 050C-T-A

[L], [ML]

4030008220 S.CERAMIC C1608 UJ 1H 070D-T-A

[MH], [H1], [H2]
C413 4030016830 S.CERAMIC GRM39 CH 070B 50PT
C414 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C415 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C416 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C417 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C418 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A

[L]

4030007000 S.CERAMIC C1608 CH 1H 090D-T-A

[ML]

4030006990 S.CERAMIC C1608 CH 1H 080D-T-A

[MH], [H1], [H2]
C419 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A [L]

4030009560 S.CERAMIC C1608 CH 1H R75B-T-A other

C421 4030008190 S.CERAMIC C1608 UJ 1H 040C-T-A

[L]

4030008210 S.CERAMIC C1608 UJ 1H 060D-T-A

[ML], [MH]

4030008180 S.CERAMIC C1608 UJ 1H 030C-T-A

[H1], [H2]
C422 4030016830 S.CERAMIC GRM39 CH 070B 50PT

[L], [ML]

4030011770 S.CERAMIC C1608 CH 1H 060B-T-A

[MH]

4030009920 S.CERAMIC C1608 CH 1H 050B-T-A

[H1], [H2]
C423 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A

[L], [ML]

4030009920 S.CERAMIC C1608 CH 1H 050B-T-A

[MH]

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A

[H1], [H2]
C424 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C426 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C427 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C428 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C429 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C430 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C431 4550006300 S.TANTALUM ECST1AY475R
C432 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C433 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C434 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C435 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

6 - 10

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

F4/S

[L]: L-band, [ML]: ML-band, [MH]: MH-band, [H1]: H1-band, [H2]: H2-band S.=Surface mount
N: N-type, W: W-type, e: ETS/CEPT version, u: EIA/TIA version

[MAIN UNIT]

C436 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C438 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C439 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C440 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C441 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C442 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C443 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C444 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C446 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C447 4510004420 S.ELECTROLYTIC ECEV0JV330SR
C448 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A

[L], [ML]

4030007020 S.CERAMIC C1608 CH 1H 120J-T-A

[MH]

4030011530 S.CERAMIC C1608 CH 1H 110J-T-A

[H1], [H2]
C449 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C450 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A N

4030009510 S.CERAMIC C1608 CH 1H 010B-T-A W

C451 4030009990 S.CERAMIC C1608 CH 1H 200J-T-A N

4030006990 S.CERAMIC C1608 CH 1H 080D-T-A W
C452 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A
C454 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C455 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A

[L], [ML], [MH]

4030007090 S.CERAMIC C1608 CH 1H 470J-T-A

[H1], [H2]
C456 4550006200 S.TANTALUM ECST0JY106R
C457 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A

[L], [ML]
C458 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C459 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A

[L], [ML]

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A

[MH], [H1], [H2]
C460 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A N

4030009970 S.CERAMIC C1608 JB 1H 182K-T-A W

C463 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A

[L], [ML], [MH]
C464 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C465 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A
C466 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C467 4610001590 S.TRIMMER TZC03R100A110 10P
C468 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C469 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C470 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C471 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C472 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C473 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C474 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C475 4030009350 S.CERAMIC C1608 CH 1H 3R5B-T-A [L]

4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A [ML]
C476 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C477 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C479 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C481 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C482 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C483 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C486 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A
C487 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C488 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A
C489 4030008860 S.CERAMIC C1608 JB 1C 153K-T-A
C490 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C491 4550006450 S.TANTALUM ECST1EY105R
C492 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A

[L], [ML], [MH]

C493 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A

[L], [ML]

4030008890 S.CERAMIC C1608 JB 1C 273K-T-A

[MH], [H1], [H2]
C496 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C497 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C498 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C499 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C500 4030011810 S.CERAMIC C1608 JB 1A 224K-T-N

J2 6450001680 CONNECTOR HSJ1122-010010
J3 6450001690 CONNECTOR HSJ1456-01-220
J4 6450000870 CONNECTOR HEC2711-01-020
J5 6510018430 S.CONNECTOR AXN330C038P

6 - 11

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

J6 6510007080 CONNECTOR PI28A-02M
J7 6910010850 CONNECTOR IMSA-9230B-1-05Z080-T

DS1 5030001460 LCD LM-1462B
DS2 5010000160 S.LED LNJ310M6URA
DS3 5010000160 S.LED LNJ310M6URA
DS4 5040002190 S.LED LNJ808R8ERA

MC1 7700002160 MICROPHONE KUC3523-040245

S1 2230000990 S.SWITCH EVQ-PJ705K

SP1 2510000960 SPEAKER K036NA500-26

W1 7030003860 S.JUMPER ERJ3GE JPW V
W2 7030003860 S.JUMPER ERJ3GE JPW V
W6 7120000480 S.JUMPER MJP-0.4-T
W7 7030003860 S.JUMPER ERJ3GE JPW V [16 ch]
W8 7030003860 S.JUMPER ERJ3GE JPW V [2-BANK]
W12 7030003860 S.JUMPER ERJ3GE JPW V

WS1 8600035811 M.OTHER FX1923 P01MA-1

EP1 0910048568 PCB B 4929H
EP2 8930042590 LCD CONTACT SRCN-1922-SP-N-W

R1 7210002950 VARIABLE RV-312 (RK0971110)

EP1 0910048852 PCB B 4968B

REF ORDER

DESCRIPTION

NO. NO.

[VR BOARD]

REF ORDER

DESCRIPTION

NO. NO.

F4/S

7 - 1

F3/S

F4/S

MP1 8010016822 1922 chassis-2 1
MP2 8210014561 1922 front panel assembly-1 (F3) 1

8210015151 2065 front panel assembly-1 (F3S) 1
MP4 8210014330 1922 contact base 1
MP5 8610010420 Knob N-261 1
MP6 8930042110 1922 10-key (F3) 1

8930043970 2065 7-key (F3S) 1
MP7 8930042070 1922 MIC cap 1
MP9 8930042030 1922 main seal 1
MP10 8110006050 1922 OPT cover 1
MP11 8930042050 1922 DC cap 1
MP12 8930042090 1922 plus terminal 1
MP13 8930042080 1922 minus terminal 1
MP14 8950004671 ANT connector-101A 1
MP17 8310040690 1922 window plate (D) 1
MP19 8930042720

1922 rear sheet (A)e-GEN

(F3) 1

8930042360

1922 rear sheet

u-Ò-W (F3) 1

8930042760

1922 rear sheet (E)

u-Ó-W 16 ch (F3) 1

8930043320

1922 rear sheet (G)

u-Ò-N (F3) 1

8930043330

1922 rear sheet (H)

u-Ó-N (F3) 1

8930045660

1922 rear sheet (AC)

u-Ó-W

2 BANK (F3)

1

8930044750

1922 rear sheet (U)e-EUR

(F3) 1

8930044350

1922 rear sheet (K)e-GEN

(F3S) 1

8930044360

1922 rear sheet (L)

u-Ò-W (F3S) 1

8930044370

1922 rear sheet (M)

u-Ó-W (F3S) 1

8930044380

1922 rear sheet (N)

u-Ò-N (F3S) 1

8930047450

1922 rear sheet (O)

u-Ó-N (F3S) 1

8930045670

1922 rear sheet (AD)e-EUR

(F3S) 1
MP21 8930042350 1922 MIC sheet 1
MP22 8930042560 1922 OPT sheet 1
MP24 8830001250 Nut 1
MP25 8830001010 Hex nut (A) 1
MP26 8810000100 Screw PH M2 × 4 ZK 2
MP27 8810009510 Screw PH B0 2 × 4 NI-ZU (BT) 6
MP28 8810009510 Screw PH B0 2 × 4 NI-ZU (BT) 1
MP29 8810009510 Screw PH B0 2 × 4 NI-ZU (BT) 2
MP30 8810009560 Screw PH B0 2 × 6 ZK (BT) 2
MP31 8810009560 Screw PH B0 2 × 6 ZK (BT) 2
MP34 8930043210 1922 A-rear sheet 1
MP35 8930043760 1923 MIC seal 1
MP36 8930043860 Sponge (FH) 1
MP37 8860001060 1989 antenna rug plate 1
MP38 8510010870 1922 shield cover e (F3S) 1
MP39 8930043610 Isolating sheet (EZ) 1

REF ORDER

DESCRIPTION

NO. NO.

[CHASSIS PARTS] for IC-F3/S

Ò, [L]:

L-band

, Ó:

H-band

, [ML]: ML-band, [MH]: MH-band, [H1]: H1-band, [H2]: H2-band

CE: CE-type, W:

W-type

, N:

N-type

, u:

EIA/TIA version

, e-GEN, e-EUR:

ETS/CEPT version

Screw abbreviations : PH: Pan head A0, B0: Self-tapping NI: Nickel ZK: Black

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

7-1 CABINET PARTS

QTY .

MP1 8010016822 1922 Chassis-2 1
MP2 8210014731 1922 Front panel (B) assembly-1 (F4) 1

8210015161 2066 Front panel (A) assembly-1 (F4S) 1
MP4 8210014330 1922 Contact base 1
MP5 8610010420 Knob N-261 1
MP6 8930042110 1922 10-key (F4) 1

8930043970 2065 7-key (F4S) 1
MP7 8930042070 1922 MIC cap 1
MP9 8930042030 1922 Main seal 1
MP10 8110006050 1922 OPT cover 1
MP11 8930042050 1922 DC cap 1
MP12 8930042090 1922 Plus terminal 1
MP13 8930042080 1922 Minus terminal 1
MP17 8310040690 1922 Window plate (D) 1
MP19 8930042750 1922 Rear sheet (D) e-GEN (F4) 1

8930044950 1922 Rear sheet (W) u-[L]-W (F4) 1

8930044960 1922 Rear sheet (X) u-[ML]-W (F4) 1

8930046680 1922 Rear sheet (AE) u-[L]-N (F4) 1

8930046690 1922 Rear sheet (AF) u-[ML]-N (F4) 1

8930047000 1922 Rear sheet (AK) u-[MH] (F4) 1

8930047010 1922 Rear sheet (AL) u-[H

1] (F4) 1

8930045550 1922 Rear sheet (AA) e-CE (F4) 1

8930044400 1922 Rear sheet (P) e-GEN (F4S) 1

8930046700 1922 Rear sheet (AG) u-[L]-N (F4S) 1

8930046710 1922 Rear sheet (AH) u-[ML]-N (F4S) 1

8930046810 1922 Rear sheet (AI) u-[L]-W (F4S) 1

8930048140 1922 Rear sheet (AT) u-[ML]-W (F4S) 1

8930047020 1922 Rear sheet (AM) u-[MH] (F4S) 1

8930047030 1922 Rear sheet (AN) u-[H

1]-N (F4S) 1

8930044460 1922 Rear sheet (AB) e-CE (F4S) 1
MP21 8930042350 1922 MIC sheet 1
MP22 8930042560 1922 OPT sheet 1
MP24 8830001250 Nut 1
MP25 8830001010 Hex nut (A) 1
MP26 8810000100 Screw PH M2 × 4 ZK 2
MP27 8810009510 Screw B0 2 × 4 NI-ZU (BT) 6
MP28 8810009510 Screw PH B0 2 × 4 NI-ZU (BT) 1
MP29 8810009510 Screw PH B0 2 × 4 NI-ZU (BT) 2
MP30 8810009560 Screw PH B0 2 × 6 ZK (BT) 2
MP31 8810009560 Screw PH B0 2 × 6 ZK (BT) 2
MP34 8930043210 1922 A-rear sheet 1
MP36 8950004671 ANT connector-101A 1
MP37 8510011260 1923 Shield cover 1
MP38 8930043760 1923 MIC seal 1
MP39 8930043860 Sponge (FH) 1
MP40 8930043610 Isolating sheet (EZ) 1

REF ORDER

DESCRIPTION

NO. NO.

QTY .

[CHASSIS PARTS] for IC-F4/S

DS1 5030001460 LCD LM-1462B 1

EP2 8930042590 LCD contact SRCN-1922-SP-N-W 1

MP1 8510011111 1922 VCO case-1 1
MP2 8510011101 1922 VCO cover-1 1
MP3 8930042060 1922 LCD holder 1
MP4 8210014380 1922 Reflector 1
MP5 8410002081 1922 PA heatsink-1 1

SP1 2510000960 K036NA500-26A27 1

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT] for IC-F3/S

QTY .

DS1 5030001460 LCD LM-1462B 1

EP2 8930042590 LCD contact SRCN-1922-SP-N-W 1

MP1 8510011111 1922 VCO case-1 1
MP2 8930042060 1922 LCD holder 1
MP3 8210014380 1922 Reflector 1
MP4 8410002081 1922 PA heatsink-1 1
MP6 8510011180 1922 VCO cover 1
MP7 8510011230 1923 VCO shield 1
MP8 8930046590 Sponge (FO) (F4S) only 1

SP1 2510000960 K036NA500-26A27 1

REF ORDER

DESCRIPTION

NO. NO.

QTY .

[MAIN UNIT] for IC-F4/S

7 - 2

7-2 ACCESSORIES

EP1

Optional product

Antenna FA-SC24V-1 (F3/S: L-band) 1

Optional product

Antenna FA-SC54V-1 (F3/S: H-band) 1

Optional product

Antenna FA-SC24U-1 (F4/S: L-band) 1

Optional product

Antenna FA-SC56U-2 (F4/S: ML-band) 1
Antenna FA-SC71U-2 (F4/S: MH, H1 and H2 bands)

1

EP2

Optional product

Battery BP-196 1

MP1

Optional product

1922 belt clip 1

MP2 8930043210 1922 A-rear sheet 1

REF ORDER

DESCRIPTION QTY.

NO. NO.

EP2

EP1

MP1 MP2

MP2 (C): F3/F4

MP5 (C)

MP7 (C)

MP24 (C)

MP11 (C)

MP17 (C)

MP3 (M): F3/S
MP2 (M): F4/S

MP6 (C): F3/F4

DS1 (M)

MP4 (M): F3/S
MP3 (M): F4/S

IC-F3S/IC-F4S parts

EP2 (M)

MP30 (C)

MP21 (C)

MP35 (C): F3/S
MP38 (C): F4/S

MP37 (C): F4/S
MP38 (C): F3/S e

SP1 (M)

MP27 (C)

VR BOARD

MP27 (C)

MP7 (M):
F4/S only

MAIN UNIT

MP27 (C)

MP27 (C)

MP1 (M)

MP8 (M):
F4/S only

MP2 (M): F3/S
MP6 (M): F4/S

MP5 (M): F3/S
MP4 (M): F4/S

MP31 (C)

MP13 (C)

MP1 (C)

MP36 (C): F3/S
MP39 (C): F4/S

MP10 (C)

MP34 (C)

MP19 (C)

MP22 (C)

MP29 (C)

MP12 (C)

MP14 (C): F3/S
MP36 (C): F4/S

MP26 (C)

MP37 (C): F3/S only

MP4 (C)

MP25 (C)

MP39 (C): F3/S
MP40 (C): F4/S

MP28 (C)

MP9 (C)

Note

(M): MAIN UNIT
(C): CHASSIS

MP27 (C)

MP2 (C)

MP6 (C)

8 - 1

SECTION PARTS LISTSECTION 8 SEMI-CONDUCTOR INFORMATIONS

8-1 TRANSISTORS AND FETs 8-2 DIODES

NAME

SYMBOL

INSIDE VIEW NAME

SYMBOL

INSIDE VIEW

2SA1362 - GR AEG
2SA1588 - GR ZG

C

BE

2SB1132 - R BAR

BE

C

C

2SC2712 - Y LY
2SC2714 - Y QY
2SC3585 R44 R44
2SC4081 - R BR
2SC4116 - BL LB
2SC4215 - O QO
2SC4226 - R25 R25
2SC5107 - O MFO

BE

C

2SK2595AXTB AX

G

D

S

S

2SK2596BXTL BX

GD

S

S

DTA144EU 16
UN911H 6P

BE

C

XP1213 9L
XP1214 9H

C1 C2

EB1

B2

XP4601 5C

EEB

C

C

B

XP6401 5O

EEB

CC

B

XP6501 - AB 5N

2SK880 - Y XY

G

SD

3SK166 - 2 K
3SK239XR - TL XR
3SK241-R DU

SD

G1G2

NAME

SYMBOL

INSIDE VIEW NAME

SYMBOL

INSIDE VIEW

1T365-01 pink

line

AC

pink

1SS375 FH
DA204U K
HSM88AS C1

AC

DAN202U N

HSU88TRF 9
HVU17TRF E

AC

HVU350TRF 4

AC

MA6S121 M2D

MA8030 - H 3

∧

O

MA8033 - L 3_3

AC

MA862 M1I

A2

C2

A1

C1

SB07-03C-TB J

A

C

MA77 4B

AC

MA111 1B

AC

C

A1

A2

C2C3

A3

A2 A1

C1

B2 E2

C2 C1

E1

B1

13

64

F3/S

The combination of this page and the next page
shows the unit layout in the same configuration as
the actual P.C. Board.

9 - 2 VR BOARD (common)

• TOP VIEW

9 - 1

SECTION 9 BOARD LAYOUTS

9-1 IC-F3/S MAIN UNIT

• TOP VIEW

VCC
VOL GND
VOL OUT

VOL IN

HV

to VR UNIT

SP SPG

P1

ANTENNA

SPEAKER
SP1

MICROPHONE

VCC

to
MAIN UNIT
J7

GND

VOLOUT

VOLIN

BATT

F3/S

9 - 2

• BOTTOM VIEW

PTTIN

PTTOUT

MICOUT

MICINNCNCNCSIGOUT

OPT1

OPT2

OPT3

GNDNCNC

NC

GND

5 V

VCC

MICMUTE

AFONOP

BEEPOUT

RXMUTE

DISCIN

AFOUTNCCCS

CIRQSOSI

SCK

to OPTIONAL UNIT

J4

CHARGER

CLONE

SP

AF
OUT

OPT

MIC

EXT. MIC
J2

EXT. SP
J3

PTT switch

BATT

VOLIN

VOLOUT

GND

VCC

to MAIN UNIT
J7

R1R1

• BOTTOM VIEW

The combination of this page and the next page
shows the unit layout in the same configuration as
the actual P.C. Board.

F4/S

The combination of this page and the next page
shows the unit layout in the same configuration as
the actual P.C. Board.

9 - 3

9-3 IC-F4/S MAIN UNIT

• TOP VIEW

VCC
VOL GND
VOL OUT

VOL IN

HV

to VR UNIT

SP SPG

P1

ANTENNA

SPEAKER
SP1

MICROPHONE
MC1

F4/S

9 - 4

• BOTTOM VIEW

Note:

*1

.....

*2

.....

L413 [MH], [H

1], [H2]

R470 [L], [ML]
R460 [MH], [H

1], [H2]

L417 [L], [ML]

PTTIN

PTTOUT

MICOUT

MICINNCNCNCSIGOUT

OPT1

OPT2

OPT3

GNDNCNC

NC

GND

5 V

VCC

MICMUTE

AFONOP

BEEPOUT

RXMUTE

DET

AFOUTNCCCS

CIRQSOSI

SCK

to OPTIONL UNIT

J4

CHARGER

CLONE

SP

AF
OUT

OPT

MIC

EXT. MIC
J2

EXT. SP
J3

PTT SWITCH

Connect below parts that depending band.

The combination of this page and the next page
shows the unit layout in the same configuration as
the actual P.C. Board.

10 - 1

SECTION 10 BLOCK DIAGRAMS

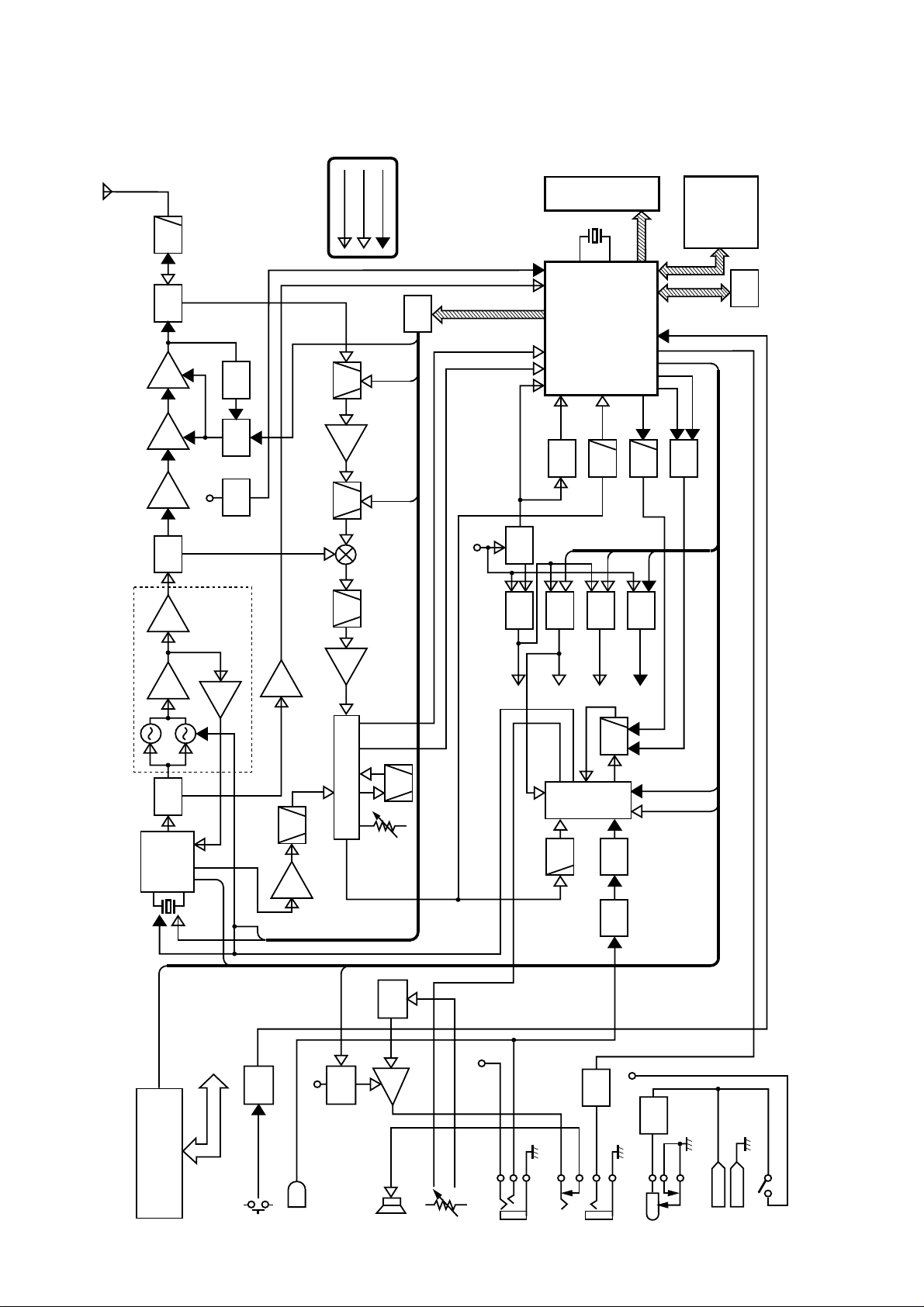

10-1 IC-F3/S

OPTIONAL UNIT

MIC, AF, PTT,

MM, RM, AFONOP,

SIGOUT

PTT

PTT

CONT

MIC

R105, C133

COMMON LINE

Rx LINE

Tx LINE

MIC

AMP

IC3c

IC3b

HPF

IC4

ANALOG

SWITCH

IC3d

LPF

CTCSS

TONE

MMRM

5 V

R5

S5

VCC

T5

Q18

Q21

Q20

Q22

AF

REG

Q15

VCC

AF

AMP

IC5

SP

VR

MIC JACK

AF OUT

SP

CLONE

DET

EXT. MIC

SP JACK

CHARGE

I. LIM

Q27

VCC

BATT

GND

POWER SWITCH

BUFFER

Q31, D27

5 V

PRE

ENPHA

REG.

+5

CPU

+5

REG.R5REG.S5REG.

T5

CPU 5 V

Q33

Q35

Q36

RESET

LPF

CTCSS

DTCS

DTMF

MTONE

LPF

BUFFER

IC6

IC11

IC8

CPU.

X2

LCD

KEY

MATRIX

EEPROM

IC7

D/A

IC10

SD

NOIS

L16, L17

BPF

RF

AMP

IF

AMP

L18, L19FI1Q14

BPFBPF

BPF

Q13 Q12

FI2

SQL

(INSIDE)

IF DET IC

IC2

DET

BPF

L13, L25

30.6 MHZ

BUFFER

BUFFER BUFFER BUFFER

BUFFER

Q34

IC1

PLL IC

REF

X1

LOOP

FILTER

R33, R34, C48

Q7, Q8

VCO

Q6

Q4

Q5

T/R

SWITCH

D3, D4 Q3 Q2 Q1 D1, D8 L1, L2, L3

PRE

AMP

PWR

AMP

ANT

SWITCH

LPF

ANT.

IC3aQ9

APCI. SENS

VCC

J5

Q17

OPTIONAL UNIT

MIC, AF, PTT,

MM, RM, AFONOP,

SIGOUT

PTT

PTT

CONT

MIC

COMMON LINE

Rx LINE

Tx LINE

MIC

AMP

IC3c

IC3b

HPF

IC4

ANALOG

SWITCH

IC3d

LPF

CTCSS

TONE

MMRM

5 V

R5

S5

VCC

T5

Q18

Q21

Q20

Q22

AF

REG

DE

ENPHA

Q15, Q16,

D26

VCC

AF

AMP

IC5

SP

VR

MIC JACK

AF OUT

SP

CLONE

DET

EXT. MIC

SP JACK

CHARGE

LIM I.

Q27

VCC

BATT

GND

POWER SWITCH

BUFFER

Q31, D27

5 V

PRE

ENPHA

REG.

+5

CPU

+5

REG.R5REG.S5REG.

T5

CPU 5 V

TUNETUNE

Q33

Q35

Q36

RESET

LPF

CTCSS

DTCS

DTMF

MTONE

LPF

BUFFER

IC6

IC11, Q23

IC8

CPU

5.8 MHz

X2

LCD

KEY

MATRIX

EEPROM

IC7

D/A

IC10

SD

NOIS

D10

BPF

RF

AMP

IF

AMP

D11, D12, D401FI1Q400

BPFBPF

BPF

Q13 Q12

FI2

SQL

(INSIDE)

IF DET IC

IC2

DET

BPF

Q11

MOD

FRQCON

15.3 MHz

45.9 MHz

BUFFER

BUFFER BUFFER BUFFER

BUFFER

Q34

IC1

CI PLL

REF

X1

LOOP

FILTER

Q7

VCO

Q6

Q4

Q5

T/R

SWITCH

D3, D4 Q3, Q403 Q2 Q1 D1, D8, D406

PRE

AMP

PWR

AMP

ANT

SWITCH

LPF

ANT.

IC3aQ9

APCI. SENS

D2

PWR

DET

VCC

J5

Q17

BUFFER

Q8

10 - 2

10-2 IC-F4/S

G
G
G
G

G
G
G

G
G
G

D

D

D

SECTION 11 VOLTAGE DIAGRAM

11-1 IC-F3/S

OPTIONAL
UNIT

MC1

KUC3523-040245

MIC

VR BOARD

RV-312

R1

J2

HSJ1122-010010

EXT. MIC

SPEAKER

W5

W6

SP1

J3

HSJ1456-01-220A

EXT. SP

HEC2711-01-020

CHARGER

PTT

9.6V

9.6V

(SW ON)

1
2

J4

130

15 16

J5

GND
PTTIN
5V
PTTOUT
VCC
MICOUT
MICMUTE
MICIN
AFONOP
NC
BEEPOUT
NC
RXMUTE
NC
DISCIN
SIGOUT
AFOUT
OPT1
NC
OPT2
CCS
OPT3
CIRQ
GND
SO
NC
SI
NC
SCK
NC

C163

0.001

JPM1990-2013R

J7

1
2
3
4
5

C282

0.001

J6P1

SP

1

SPG

2

AF OUT
SP

CLONE

C167

47p

S1

HV
VOL IN
VOL OUT
VOL GND

VCC

VR

OPT

MIC

D24
DA204U

C165

0.001

C164

0.001

C168

0.001

C170

0.001

R144
33k

C223

0.01

C224

0.01

L30
EXCCL
4532U

Q29
XP1213

1
2
3

C166

0.001

C169

0.001

R156

15

R157

5V

R258 100

W7W8A

Q27

2SB1132R

15

C200

0.001

C201

0.001

I

VCC

CPU5

C155

10

+

R192
10k

C225

0.022

TONE

FRQCON

2.5Vp-p

R199

3.9k

5V

PTTIN

PTTOUT

VCC

MICOUT

MICIN

AFONOP

BEEPOUT

DISCIN

SIGOUT

AFOUT

OPPD
IROCH
OPCS

B

OPINT

SO

SI

R142
100

+

C283

0.001

C172
470p

C173
47

D27
DA204U

SB07-03C

R158

10k

MM

RM

MIC

VOLIN

VOLOUT

R132

470

AFOUT

D25

C202

0.001

C203

0.001

R174
15k

Q31

DTC144TU

5

4

CLIN

C177

CLOUT

C180
47p

C181
47p

C182
47p

C183
47p

C184
47p

C185
47p

T5

2SA1588

TX: 5.0V

+

22

R141

4.7k

T5C

Q22

P0

C186

0.001

R5

+

C176

22

C162

0.01

P1 P2

23A

1

56

4

89

7

*0#

C187

0.001

Q21

2SA1588

RX: 5.0V

R139

4.7k

C161

0.01

R5C R5C

C189

0.001

C175

22

S5

2SA1588

5.0V

+

R137

4.7k

S5C

P3

C190

0.001

B

C

D

Q20

C160

0.01

R240
1k×4

C174

+

22

D17
MA6S121

D16
MA6S121

5.0V

R134

2.2k

3

Q18

2SB1132R

56

21

C159

0.1

R241
1k

R242
1k

R243
1k×4

D18
MA111

IC-F3 only
IC-F3S=open

R135
10k

Q19

XP6501AB

4

5.0V

R133
10k

C158
100

KR3
KR2
KR1
KR0

KS5

KS4

KS3
KS2

KS1
KS0

IR1

C275

0.001

9.6V

IC6

S-81250PG-PD

C157

+

0.001

R5

C249

0.01

D

MODCON

+

C241
10

G

C156

0.001

DET

C248

0.01

C222

0.1

R191
10k

R250
10k

C242

0.01

R154

6.8k

R153
1k

SCK

1
2
3
4
5
6
7
8

DST

SO

5V

R220
270k

R221

330k

Q36
2SC4081

R198
1k

C198

2.2

+

Q33 XP4601

4

5

6

R190

R200

39k

1k

IC10

M62354GP

DO
LD
CLK
DI
AO1
AO2
NC
GND GND

C240

C239

0.01

0.01

MTONE

R218
120k

2.0V

R197
180k

3

2

1

R201
56k

VCC
VDD

AO6
AO5
AO4
AO3

NC

C238

0.01

DTMF

R219
120k

C244

0.01

16
15
14
13
12

11
10
9

R106
1k×4

C237

0.01
T1 T2 T3

SI

ECS

X25080SI-2.7 [16 ch]
25LC160T-I/SN [2-BANK]

CTCIN

C292

0.1

C221

0.01

IC11
S-80742SL-A6

R146
100k

T4

1

CS

2

SO

3

WP

4

VSS

C250

0.01

R224
33k [W], [M]
39k [N]

Q38
DTC144EU

54

NC

NC

VDD

VSS

OUT
123

R149
10k

C230

R148

0.47

100k

+

R147
220k

D15

MA111

8

VCC

7

HOLD

6

SCK

5

SI

C245

0.01

IC7

5V

Q35

2SC4081

R207

47k

MAIN UNIT

C197
470p

Q23
2SC4081

SO

R203
12k

C228

0.01

C227

0.1
R202

12k

NTCCF20124AH

C144

0.001

CTCSS

CTDA

DUSF

R182

R181
100k

R103
18k

Q26
DTC144EU

R214
1k
C196
470p

SCK
SI
SO

UNLK

C258
47p

CL IN
CL OUT
PLST
NOIS

C262
47p

OPINT

ECS
OPPD
OPCS

C254

47p

IROCH

C259
47p

C263
47p

C253
47p

C195
39p

C232

0.1

6.8 MHz

C260
47p

C257
47p

C252
47p

C193
8p

R215
330k

R216
150k

R101
1M

CSIFT
RESET

CTCIN

X2
CR-463

C194

C261
47p

R232
1k×4

C251
47p

12p

C231

0.1

R226
1k×4

R233
1k×4

R102
10

R228
100k

R227
1k

PTTOUT

SD

VIN

CL IN

PB1/AN1

P10/TMOW

V3

VSS

2728293031

R196
100k

C199

0.01

ISENS

TEMPS

ISENS

SD

PB2/NA2

PB3/AN3

PB4/AN4

V2V1VCC

32333435363738

COM4

VCC

CPU5

TEMPS
VIN

CL IN

R213
1k

IR1

C141

0.001

C276
47p

R194
100k

R193
100k

1
2

3
4
5
6
7
8

9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

C274

0.001

C273

0.001

C143

0.001

C142

0.001

PBO/AN0
AVSS

TEST
X2
X1
VSS
OSC1
OSC2

RES
NMI

P20/IRQ4/ADTRG
P21/SCK1
P22/SI1
P23/SO1
P24/SCK3
P25/RXD
P26/TXD
P27/IRQ0
P17/IRQ3/TMIF
P16/IRQ2
P15/IRQ1
P14
P13/TMIG
P12/TMOFH
P11/TMOFL

26

R235
680k

R195
100k

CONT

DTMF

SEG52

MTONE

SEG52

MTONE

DTMF

PTTOUT

LVIN LVIN

CPU5

CPU5

CPU5

AVCC

VTREF

AVREF

TONED

TONEM

PB6/AN6

PB5/AN5

PB7/AN7

PE3/SEG52/CL1

IC8

HD6433875A40H [16 ch]

HD6433875B26H [ 2-BANK]

PA3/COM4

PA2/COM3

PA1/COM2

PA0/COM1

P50/WKP0/SEG1

P51/WKP1/SEG2

P52/WKP2/SEG3

P53/WKP3/SEG4

P54/WKP4/SEG5

3940414243444546474849

COM1

COM3

COM2

KS1

KS0

KS2

KS3

KS4

SEG48

SEG49

SEG50

SEG51

SEG48

SEG49

SEG50

SEG51

PD7/SEG48

PE0/SEG49/M

PE1/SEG50/DO

PE2/SEG51/CL2

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

P60/SEG9

KR1

KR0

KS5

SEG45

SEG46

SEG47

SEG45

SEG46

SEG47

PD6/SEG47

PD5/SEG46

PD4/SEG45

P61/SEG10

P62/SEG11

P63/SEG12

KR2

KR3

SEG42

SEG43

SEG44

SEG42

SEG43

SEG44

PD3/SEG44

PD2/SEG43

PD1/SEG42

P64/SEG13

P66/SEG/14

P66/SEG15

50

SEG41

SEG41

CPU5

767778798081828384858687888990919293949596979899100

VCC

PD0/SEG41

P67 /SEG16

R245
100k

P97/SEG40
P96/SEG39

P95/SEG38
P94/SEG37
P93/SEG36
P92/SEG35
P91/SEG34
P90/SEG33
P87/SEG32
P86/SEG31
P85/SEG30
P84/SEG29
P83/SEG28
P82/SEG27
P81/SEG26
P80/SEG25
P77/SEG24
P76/SEG23
P75/SEG22
P74/SEG21
P73/SEG20
P72/SEG19
P71/SEG18
P70/SEG17

R238
100k

75

SE

74

SE

73

SE
SE

72
71
70

SE

69

SE
SE

68
67
66

SE
SE

65

SE

64
63

CT

62

CT

61

CT

60
59
58
57
56

55
54
53
52
51

COMPLETE VIEW

11 - 1

35

CPU5

I

N
E

E

U
A
U

V

2

C

0

0

R

O

COM1

R
1

C

CPU5

93

AVREF

DTMF

DTMF

VTREF

TONED

MTONE

MTONE

TONEM

SEG50

SEG51

SEG52

SEG50

SEG51

SEG52

CPU5

AVCC

PE3/SEG52/CL1

PE2/SEG51/CL2

SEG48

SEG49

SEG48

SEG49

PD7/SEG48

PE0/SEG49/M

PE1/SEG50/DO

IC8

HD6433875A40H [16 ch]

HD6433875B26H [ 2-BANK]

PA0/COM1

P50/WKP0/SEG1

P51/WKP1/SEG2

P52/WKP2/SEG3

P53/WKP3/SEG4

P54/WKP4/SEG5

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

KS4

KS5

P60/SEG9

KR0

363738

3940414243444546474849

KS1

KS0

KS2

KS3

SEG45

SEG46

SEG47

SEG45

SEG46

SEG47

PD6/SEG47

PD5/SEG46

P61/SEG10

P62/SEG11

KR1

KR2

KR3

SEG42

SEG43

SEG44

SEG42

SEG43

SEG44

PD4/SEG45

PD3/SEG44

PD2/SEG43

P63/SEG12

P64/SEG13

P66/SEG/14

50

SEG41

SEG41

CPU5

7677787980818283848586878889909192

VCC

PD1/SEG42

PD0/SEG41

P67 /SEG16

P66/SEG15

R245
100k

P97/SEG40
P96/SEG39

P95/SEG38
P94/SEG37
P93/SEG36
P92/SEG35
P91/SEG34
P90/SEG33
P87/SEG32
P86/SEG31
P85/SEG30
P84/SEG29
P83/SEG28
P82/SEG27
P81/SEG26
P80/SEG25
P77/SEG24
P76/SEG23
P75/SEG22
P74/SEG21
P73/SEG20
P72/SEG19
P71/SEG18
P70/SEG17

R238
100k

5V

VCC

T5
R5

SCK

DISCIN

AFOUT

PTTOUT

MIC

S5

FRQCON

CTCSS

LVIN

PLST

SO

UNLK

MODCON

5V

C62
18p [L]
9p [H]

R5
S5

C290
15p

VCC

R5
S5

R150
50k

5V

R42
1k×4

L14

47nH [L]

82nH [H]

C51

15p

1H

C123

0.001

L13

C61
18p [L]
12p [H]

R92
50k

R51
470k

C71

0.1

C72
1

C59
47p

C58
47p

R41
47 [L]
100 [H]

C60

0.001

C65
4p

C53
12p

R91
390k [W], [M]
100k [N]

C154

10

W1

D

PTTIN

C55

0.01

C66
18p

C70

0.01

R50
100k

R49
47k

R48
10k

C57
47p

C67
10p

FI2
CFWM450E [W], [M]

L25

CFWM450G [N]

1H

R88
120k

R87

3.3k

+

C147

0.1
R130

100k

C69
33p

D7
HVU17

1

VCC1

2

IN1

3

ENB

4

CLK

5

DATA

6

T1

7

LOK

8

CP1

9

10

FO1

C56

0.001

IC1

PD3140GS

O

I

C121
220p

R86

100k

C120

C122

220p

0.1

R131
470

Q17
UN911H

W2

C

C210

C209

0.1

0.1

MICIN MICOUT

X1
CR-575A e
CR-576A u

C64
12p

GND1

IN2

VCC2

XB

XO

GND2

CP2

FI2

FO2

R85

1.5k

F

C132

0.01

15.3 MHz

R45
100

C63
56p

20
19
18

17
16

XI

15
14
13
12
11

R84

390

IC2

TA31136FN(D)

1

OSCIN

2

OSCOUT

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN

C118

0.01

C119

1

W9W10 E

IC3c
NJM2902

R104

R105

100k

150

C133

0.1

DET

C54

0.001

3.6V

10

9

AFO

+

0

MIX

G
N-R
N-D

RS

IFO
QU

—

R1
15

V

VCC

DS2

LNJ310M6URA

R183
560

DS3

R234
22k

75

SEG40

74

SEG39

73

SEG38
SEG37

72
71
70

SEG35

69

SEG34
SEG33

68
67
66

SEG31
SEG30

65

SEG29

64
63
62
61
60

59
58
57
56

55
54
53
52
51

CTDA2
CTDA1
CTDA0

R217 1k

R231 10k
R230 27k
R229 68k

R236 1k×4

R237 1k×4

C264
47p

C268
47p

C226

0.047

C265
47p

C269
47p

C246

0.033

C266
47p

C270
47p

DUSF
CTDA

DST
T5C
S5C
R5C

C272
47p

C267
47p

C271
47p

LNJ310M6URA

Q25

2SC2712

R204

3.3k

R205

1.5k

COM4
SEG29
SEG30
SEG31
SEG33
SEG34
SEG35
SEG37
SEG38
SEG39
SEG40
SEG41
SEG42
SEG43
SEG44
SEG45
SEG46
SEG47
SEG48
SEG49
SEG50
SEG51
SEG52

AFON

TXC

RM
MM

COM1
COM2
COM3

DS1
LM-1462B

1

COM1

2

COM2

3

COM3

4

COM4

5

SEG1

6

SEG2

7

SEG3

8

SEG4

9

SEG5

10

SEG6

11

SEG7

12

SEG8

13

SEG9

14

SEG10

15

SEG11

16

SEG12

17

SEG13

18

SEG14

19

SEG15

20

SEG16

21

SEG17

22

SEG18

23

SEG19

24

SEG20

25

SEG21

26

SEG22

27

SEG23

28

SEG24

29

SEG25

30

SEG26

31

SEG27

32

SEG28

33

SEG29

34

SEG30

35

SEG31

36

SEG32

37

COM4

38

COM3

39

COM2

40

COM1

DS4

LNJ808R8ERA

R155
100

COMPLETE VIEW

Note

.....

[L]

L-band

.....

[H]

H-band

5V

VCC

[W]
[ M ]
[ N ]

.....

.....

.....

W-type

M-type
N-type

....

e

ETS/CEPT version

....

u

EIA/TIA

version

VCC

R217 1k

R231 10k
R230 27k
R229 68k

236 1k×4

C264
47p

237 1k×4

C268
47p

C226

0.047

C265
47p

C269
47p

R234
22k

C246

0.033

C266
47p

C270
47p

DUSF
CTDA

C272
47p

DST
T5C
S5C
R5C

C267
47p

C271
47p

LNJ310M6URA

LNJ310M6URA

Q25

2SC2712

R204

3.3k

R205

1.5k

COM1
COM2
COM3

COM4

SEG29
SEG30

SEG31
SEG33
SEG34
SEG35
SEG37
SEG38
SEG39
SEG40
SEG41
SEG42
SEG43
SEG44
SEG45
SEG46
SEG47
SEG48
SEG49
SEG50
SEG51
SEG52

AFON

TXC

RM
MM

DS2

DS3

VCC

DS1
LM-1462B

1

COM1

2

COM2

3

COM3

4

COM4

5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

30

31
32
33

34

35
36
37

COM4

38

COM3

39

COM2

40

COM1

DS4

LNJ808R8ERA

R155
100

SEG1
SEG2
SEG3
SEG4

SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24
SEG25

SEG26
SEG27

SEG28
SEG29

SEG30
SEG31
SEG32

R183
560

SCK

DISCIN

AFOUT

PTTOUT

MIC

T5
R5
S5

FRQCON

CTCSS

LVIN

PLST

UNLK

MODCON

T5

R161

32

45

R2

10k

C10

L28

0.001

68nH

C280
24p

R9
10k

C18

0.001

Q12 3SK239A

L18
33nH

C88

C87

0.001

0.01

R99

R178

12k

3.9k

Q16
XP6501AB

C129

15

+

R100

1.8k

AFON

0.15

R3

1k

1

6

Q9

XP6401

R8

4.7k [L]
12k [H]

R222
10k

4.8V

R59
180

0V

VCC

R120

68k

R145
1M

AFONOP

C21

+

33

C19

Q2

2SK2596

R7

100

C138

0.001

C139

0.1

D26
DAN202U

0.001

L6
47nH

C17

0.001

Q15
2SB1132

6

1

C20

0.001

C277

1.5p

R252
100k

54

23

R121

1k

L27
EXCCL3225U

R255
47

C15
33p

L17
54nH

C86
9p [L]
5p [H]

T2

C140

0.1

R5

100

R122

2.7k

R123

3.3k

C281

0.001

Q1
2SK2595

C13

0.001

D10
HVU350

C85
120p

R62
1M

R63
100k

0.001

7.0V

C145
+

C84

R4
22

10

C14

0.001

C12

0.001

C235

0.75p

[L] only

C171

0.1

C146

0.001

C83
1p

L26
EXCCL3225U

C289

47p

L5
Y655LY-03K=P3

L4

17nH

C287
15p [L]
39p [H]

D9
HVU350

C81
100p

R57
1M

R58
100k

C82

T1

0.001

1

NC

2

VCC

3

NC

4

VIN

5

RIPPLE

R126

C149

0.1

VOL OUT

C204

0.001

39nH [L]
33nH [H]

C11

56p

C80
5p [L]

3.5p [H]

D29
MA8030

IC5

TA7368F

10k

C7
12p [L]
15p [H]

C78
10p

R52
100k

—

+

C73

0.1

2

3

C75

0.01

L3
LA-225

C6

12p [L]
10p [H]

R127

C150

33

10

R251
330k

C5
18p

L22
47nH

D8
MA862

R53
10k

R54
180k

L2
LA-225L1LA-226

5pC45p

20pC37p

S5

R210

T4

ISENS

C151

+

47P

C2

C1

R1
82k

L15
47nH

C52
22p

Q37
DTA144EU

3.9k

C243

0.001

C153

220

+

R128
10

C152

0.047

AF OUT

TXC

C76
20p[L]
18p[H]

ANT

J1

C8

0.001

R160
150

L24

2.7 H

C288

0.001

L23

C205

D1

MA77

0.001

C278
12p [L]
10p [H]

C79
4p

L16
54nH

C179

0.01

4

1

11

R55
1k

C291

0.001

IC3a
NJM2902V

10

POUT

9

PWGND

8

PREGND

7

PHASE

6

NF

NOIS

R177
1k

R184
10k

C49

0.68

C217

0.1

TX 174 MHz : 4.3V
RX 174 MHz : 3.6V

R3410R32

560

R33

2.2k

C48

2.2

R208
10k

R244
100k

C114

C113

0.033

SD

C125

0.0022

C124

0.01

R176

3.9k

BEEPOUT

Q34
2SK880

R186
47k

C47

0.1

Q32 DTC144EU

C116
82p [W], [M]
100p [N]

R83
470

C112

0.001

0.001

C126

0.0027

R93

27k

C233

0.001

C211

0.001

C229

0.001

R82

1.2k [W]

1.5k [M]

2.7k [N]

DET

R94
1M

R171
47k

L12

2.7 H

C218

0.001

CP1

R175
1k

D28

MA77

R209
10k

X3

CDBCA450CX24

2.3V

R253
470

C115

0.01

Q14
2SC2714

R95
1M

6

—

7

5

+

IC3b
NJM2902V

C286

0.0022

C215

0.1

C42

0.001

R96
47k

R257
1M

R31
1k

R151
47k

C111

0.01

MM

R29
1k

R80
100k

R79
560

R81

1.5k

R30

4.7k

D19
MA111

C46

0.001

L11

MC152-E558CN-100024

C45
330p [L]
100p [H]

D6
MA77

C41

C44

39p

0.001[L]

0.0033 [H]

FL-270 [W]

FL-268 [N], [M]

R166

100k

IC4

BU4066BCFV

1

I/O

2

O/I

3

O/I

4

I/O

5

CONT.B

6

CONT.C

7

VEE

R5C

Q11
2SC4081

+

C50
10

D5

HVU350

C108

0.01

FI1

C110
9p [W]
11p [N], [M]

CONT.A
CONT.D

C148

0.01

HVU350

VDD

I/O
O/I
O/I

I/O

R125
27k

D13

R77
100

14
13
12
11

10
9

8

C131

0.01

C37
2p [L]
1p [H]

C109

0.001

TONE

C38

1.5p

R75
220

C107

0.001

R27
470

R26

8.2k

C36

0.001

R25

8.2k

Q7
2SC4226

Q13
3SK166

C105

0.01

1.3V

RM

4.0V

R28
100

Q8
2SC4226

R24
220

C106
56p

C104

0.001

R167
100k

C39

0.001

C35

0.001

L20

0.47 H

R112
1M

C128

1

CTCSS

C33

0.001
C34

0.5p

R5
S5

R72
10k

R44
10k

L10

0.15 H [L]

0.1 H [H]

R22
68k

Q6
2SC4215

0V

R70
100k

L29

0.1 H

R168

10k

SIGOUT

R23
680

C32

0.001

R169

10k

C31
5p

C102
15p

C212

C213

C214

0.033

0.01

2.2

C101
56p

R20
68k

Q5
2SC4215

L21
47nH

C100
15p

R97
220k

R98
180k

R107
180k

+

R113
68k

R170
10k

0.0039

R21
470

L9

0.15 H [L]

0.1 H [H]

C30
22p

C98
5p

L19
33nH

C136

1LO

R68

4.7k

R114
22k [W], [M]
33k [N]

C97
8p

C29

0.001

C28
12p

R115

R159

100k

R19
390

L8

0.1 H

R18
39k

C27
18p

Q4
2SC4215

R69
100

C99

0.001

D22
HVU350

C96
100p

R67
100k

T4

120k

—

13
12

+

IC3d
NJM2902V

R116

C26

0.001

R17

4.7k

C95

0.001

C135
180p

1k

R66
1M

14

R15
100

R16
1

D3
MA77

D4

MA77

C94
2p

D12
HVU350

R117

1.5k

C137

0.027 [W], [M]

0.033 [N]

R14

4.7k

S5

C25

22p

1.2k

R64
1M

R11

C93

0.001

C24

0.001

D11
HVU350

C92
100p

R65
100k

T3

L7

0.1 H

R12

3.3k

R13

33

C23

0.001

R119
300 k

R249
47k

R61
47

C90

0.001

D21
HVU350

R162

1k

Q28
2SC4081

C9

0.001
C22

15p

Q3

2SC4226

R10

27 [L]
82 [H]

C91
8p

0.9V

1.9V

C284

0.0033 [L]

0.001 [H]

C89

0.001

R187
100k

R163

15k

R51

R50

470k

100k

R49

C69

47k

R48
10k

C57

C56

47p

0.001

C67
10p

FI2
CFWM450E [W], [M]

L25

CFWM450G [N]

1H

R87

3.3k

0.1
R130

100k

33p

X1
CR-575A e
CR-576A u

D7
HVU17

1

VCC1

2

IN1

3

ENB

4

CLK

5

DATA

6

T1

7

LOK

8

CP1

9

10

FO1

IC1

PD3140GS

O

I

C121

220p

R86

100k

C120

C122

220p

0.1

R131
470

Q17

UN911H

W2

C

C210

C209

0.1

0.1

MICIN MICOUT

R85

1.5k

C64
12p

GND1

VCC2

GND2

C132

0.01

15.3 MHz

20
19

IN2

18
17

XB

16

XI

15

XO

14
13

CP2

12

FI2

11

FO2

R84

390

IC2

TA31136FN(D)

1

OSCIN

2

OSCOUT

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN

C119

1

W9W10 E

F

R104
100k

C133

C63
56p

C118

0.01

0.1

C71

0.1

5V

L14

C51
15p

1H

L13

C61
18p [L]
12p [H]

R92
50k

C72
1

C59
47p

C58
47p

R41
47 [L]
100 [H]

C60

0.001

C65
4p

C53
12p

R91
390k [W], [M]
100k [N]

C154

10

W1

D

PTTIN

C55

0.01

C66
18p

C70

0.01

R88
120k

+

C147

R150
50k

R42
1k×4

SO

47nH [L]
82nH [H]

C62
18p [L]
9p [H]

R5 R5
S5 S5

C290
15p

C123

0.001

VCC

R5
S5

5V

R45
100

C54

0.001

3.6V

DET

IC3c
NJM2902V

10

9

R105
150

MIXIN

GND
N-REC
N-DET

RSSI

IFOUT

QUAD

AFOUT

+

—

R108
150k

VOL IN

R185
1k

C234

0.001

C134

220p

R109

10k

R35

2.2k

C117

0.001
16

15
14
13

8

12
11
10

9

COMPLETE VIEW

SECTION 11 VOLTAGE DIAGRAM

11-1 IC-F3/S

Note

[L]
[H]

.....

.....

L-band
H-band

[W]
[ M ]
[ N ]

.....

.....

.....

W-type

M-type
N-type

....

e

ETS/CEPT version

....

u

EIA/TIA

version

OPTIONAL
UNIT

MC1

KUC3523-040245
MIC

VR BOARD

RV-312

R1

J2

HSJ1122-010010

EXT. MIC

SPEAKER

W5

W6

SP1

J3

HSJ1456-01-220A

EXT. SP

HEC2711-01-020

CHARGER

PTT

9.6V

9.6V

(SW ON)

1
2

J4

130

15 16

J5

GND
PTTIN
5V
PTTOUT
VCC
MICOUT
MICMUTE
MICIN
AFONOP
NC
BEEPOUT
NC
RXMUTE
NC
DISCIN
SIGOUT
AFOUT
OPT1
NC
OPT2
CCS
OPT3
CIRQ
GND
SO
NC
SI
NC
SCK
NC

C163

0.001

JPM1990-2013R

J7

HV

1

VOL IN

2

VOL OUT

3

VOL GND

4

VCC

5

C282

0.001
OPT

MIC

J6P1

SP

1

SPG

2

AF OUT
SP

CLONE

C167
47p

S1

D24
DA204U

VR

C165

0.001

C164

0.001

C168

0.001

C170

R144
33k

0.001

C223

0.01

C224

0.01

L30
EXCCL
4532U

Q29
XP1213

1
2
3

C166

0.001

C169

0.001

R156

15

R157

C200

0.001

5V

R258 100

W7W8A

Q27
2SB1132R

15

C201

0.001

C222

0.1

I

VCC

CPU5

C155

10

R192
10k

C225

0.022

+

TONE

FRQCON

2.5Vp-p

R199

3.9k

5V

PTTIN

PTTOUT

VCC

MICOUT

MICIN

AFONOP

BEEPOUT

DISCIN

SIGOUT

AFOUT

OPPD
IROCH
OPCS

B

OPINT

SO

SI

R142
100

+

C283

0.001

C172
470p

C173
47

D27
DA204U

SB07-03C

R158

10k

MM

RM

MIC

VOLIN

VOLOUT

R132

470

AFOUT

D25

C202

0.001

C203

0.001

R174

15k

Q31

DTC144TU

5

4

CLIN

T5

Q22

2SA1588

TX: 5.0V

+

C177

22

R141

4.7k

C162

0.01

T5C

CLOUT

C180
47p

P0

C181
47p

1

C182
47p

4

C183
47p

7

C184
47p

*0#

C185
47p

C186

0.001

R5

Q21

2SA1588

RX: 5.0V

+

C176

22

R139

4.7k

R5C R5C

P1 P2

23A

56

89

C187

0.001

C161

0.01

C189

0.001

C175

+

22

S5

2SA1588

5.0V

R137

4.7k

S5C

P3

C190

0.001

Q20

B

C

D

C160

0.01

R240
1k×4

C174

+

22

D16
MA6S121

D17
MA6S121

5.0V

R134

2.2k

3

Q18
2SB1132R

56

21

C159

0.1

R241
1k

R242
1k

R243
1k×4

D18
MA111

IC-F3 only
IC-F3S=open

R135

10k

Q19

XP6501AB

4

5.0V

R133
10k

C158

KR3
KR2
KR1
KR0

KS5

KS4

KS3
KS2

KS1
KS0

C275

0.001

9.6V

IC6

S-81250PG-PD

C157

+

0.001

100

C249

0.01

IR1

MODCON

+

C241
10

D

G

C156

0.001

DET

C248

0.01

R5

R191
10k

R250
10k

C242

0.01

R154

6.8k

R153
1k

R198
1k

4

SCK

1
2
3
4
5
6
7
8

DST

SO

5V

R220
270k

R221
330k

Q36
2SC4081

C198

2.2

+

Q33 XP4601

5

6

R190

R200

39k

1k

IC10
M62354GP

DO

VCC
VDD

LD

AO6

CLK
DI

AO5

AO1

AO4

AO2

AO3

NC
GND GND

C240

C239

0.01

0.01

DTMF

MTONE

R218
120k

2.0V

R197
180k

3

2

1

R201
56k

NC

C238

0.01

R219
120k

C244

0.01

16
15
14
13
12

11
10
9

C237

0.01

CTCIN

C221

0.01

R106
1k×4

SI

IC11
S-80742SL-A6

54

NC

VDD

OUT
123

C230

0.47

+

R146

D15

100k

MA111

T4

T1 T2 T3

ECS

1

VCC

CS

2

SO

HOLD

3

WP

C250

0.01

VSS

IC7

R207

47k

SCK

5V

4

X25080SI-2.7 [16 ch]

25LC160T-I/SN [2-BANK]

R224
33k [W], [M]
39k [N]

C292

0.1

Q38
DTC144EU

NTCCF20124AH

NC

C197
470p

VSS

Q23

R149
10k

2SC4081

R148

100k

R147

220k

C144

0.001

SO

8
7
6

5

SI

C245

0.01

R203
12k

C228

0.01

C227

0.1
R202

12k

CTCSS

CTDA

DUSF

Q35

2SC4081

MAIN UNIT

R182

R181

100k

R103
18k

Q26
DTC144EU

R214
1k
C196
470p

SCK
SI
SO

UNLK

C258
47p

CL IN

CL OUT
PLST
NOIS

C262
47p

OPINT
ECS
OPPD
OPCS

C254
47p

IROCH

C259
47p

C263
47p

C253
47p

C195

39p

C232

0.1

6.8 MHz

C260
47p

C257
47p

C252
47p

C193

8p

R215

330k

R216

150k

CSIFT
RESET

CTCIN

X2
CR-463

R101
1M

C194

C261
47p

R232
1k×4

C251
47p

12p

C231

0.1

R226
1k×4

R233
1k×4

R102
10

R228
100k

R227

1k

5V

R162
1k

Q28
2SC4081

R10

27 [L]
82 [H]

C91
8p

0.9V

1.9V

VCC

R163

15k

C10

0.001

C18

0.001

Q12 3SK239A

C89

0.001

R187
100k

C88

0.001

R99
12k

R100

1.8k

AFON

32

45

C280
24p

L18
33nH

R178

3.9k

C129
+

C87

0.01

R161

0.15

R3

1k

6

Q9

R2

10k

L28
68nH

R9
10k

4.8V

Q16
XP6501AB

R120

68k

15

1

XP6401

R8

4.7k [L]
12k [H]

R222
10k

R59
180

0V

VCC

R145
1M

D26
DAN202U

AFONOP

C21

+

33

C19

0.001

Q2
2SK2596

R7

100

C138

0.001

Q15
2SB1132

C139

0.1

L6
47nH

C17

0.001

6

1

C20

0.001

C277

1.5p

R252
100k

54

23

R121
1k

L27
EXCCL3225U

R255
47

C15
33p

L17
54nH

C86
9p [L]
5p [H]

T2

C140

0.1

R5

100

R122

2.7k

R123

3.3k

R63
100k

C281

0.001

Q1
2SK2595

R4
22

C13

0.001

D10
HVU350

C85
120p

R62
1M

C84

0.001

7.0V

C145

10

+

C14

0.001

C235

0.75p

[L] only

C171

0.1

C146

0.001

C12

0.001

C83
1p

L26
EXCCL3225U

C289
47p

L5
Y655LY-03K=P3

L4

17nH

C287
15p [L]
39p [H]

D9
HVU350

C81
100p

R57
1M

R58
100k

C82

T1

0.001

1

NC

2

VCC

3

NC

4

VIN

5

RIPPLE

R126

C149

0.1

VOL OUT

C204

0.001

39nH [L]
33nH [H]

C11

56p

C80
5p [L]

3.5p [H]

D29
MA8030

IC5

TA7368F

10k

C7
12p [L]
15p [H]

C78
10p

C73

0.1

R52
100k

2

—

3

+

C75

0.01

L3
LA-225

C6
12p [L]
10p [H]

R127

33

C150

10

L2
LA-225L1LA-226

C5
18p

L22
47nH

D8
MA862

R53
10k

R54
180k

R251
330k

T4

+

5pC45p

20pC37p

S5

ISENS

C151

47P

C2

C1

L15
47nH

C52
22p

Q37
DTA144EU

R210

3.9k

C153

220

+

R128
10

C152

0.047

AF OUT

R1
82k

C243

0.001

TXC

C76
20p[L]
18p[H]

ANT

J1

C8

0.001

R160

150

L24

2.7 H

C288

0.001

L23

C205

D1

MA77

0.001

C278
12p [L]
10p [H]

C79
4p

L16
54nH

C179

0.01

4

1

11

R55
1k

C291

0.001

IC3a
NJM2902V

10

POUT

9

PWGND

8

PREGND

7

PHASE

6

NF

PTTOUT

T5

SCK

DISCIN

AFOUT

PTTOUT

MIC

R5
S5

FRQCON

CTCSS

LVIN

PLST

SO

UNLK

MODCON

5V

SD

VIN

CL IN

PB1/AN1

P10/TMOW

V3

VSS

2728293031

R196

100k

C199

0.01

ISENS

ISENS

SD

PB2/NA2

PB3/AN3

PB4/AN4

V2V1VCC

32333435363738

COM4

VCC

CPU5
TEMPS

VIN

CL IN

R213
1k

IR1

C141

0.001

C276
47p

R194
100k

R193

100k

1
2

3
4
5
6
7
8

9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

C274

0.001

C273

0.001

C143

0.001

C142

0.001

PBO/AN0
AVSS

TEST
X2
X1
VSS
OSC1
OSC2

RES
NMI

P20/IRQ4/ADTRG
P21/SCK1
P22/SI1
P23/SO1
P24/SCK3
P25/RXD
P26/TXD
P27/IRQ0
P17/IRQ3/TMIF
P16/IRQ2
P15/IRQ1
P14
P13/TMIG
P12/TMOFH
P11/TMOFL

26

R235
680k

R195
100k

CONT

DTMF

SEG52

MTONE

SEG52

MTONE

DTMF

PTTOUT

LVIN LVIN

TEMPS

CPU5

CPU5

CPU5

AVCC

VTREF

AVREF

TONED

PB7/AN7

TONEM

PB6/AN6

PB5/AN5

IC8

HD6433875A40H [16 ch]

HD6433875B26H [ 2-BANK]

PA3/COM4

PA2/COM3

PA1/COM2

PA0/COM1

P50/WKP0/SEG1

P51/WKP1/SEG2

P52/WKP2/SEG3

P53/WKP3/SEG4

3940414243444546474849

COM1

COM3

COM2

KS1

KS0

KS2

KS3

KS4

SEG48

SEG49

SEG50

SEG51

SEG48

SEG49

SEG50

SEG51

PD7/SEG48

PE0/SEG49/M

PE1/SEG50/DO

PE3/SEG52/CL1

PE2/SEG51/CL2

P54/WKP4/SEG5

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

P60/SEG9

KR0

KS5

SEG45

SEG46

SEG47

SEG45

SEG46

SEG47

PD6/SEG47

PD5/SEG46

P61/SEG10

P62/SEG11

KR1

KR2

KR3

SEG42

SEG43

SEG44

SEG42

SEG43

SEG44

PD4/SEG45

PD3/SEG44

PD2/SEG43

P63/SEG12

P64/SEG13

P66/SEG/14

50

SEG41

SEG41

CPU5

767778798081828384858687888990919293949596979899100

VCC

PD1/SEG42

PD0/SEG41

P97/SEG40
P96/SEG39

P95/SEG38

P67 /SEG16

P66/SEG15

R245
100k

P94/SEG37
P93/SEG36
P92/SEG35
P91/SEG34
P90/SEG33
P87/SEG32
P86/SEG31
P85/SEG30
P84/SEG29
P83/SEG28
P82/SEG27
P81/SEG26
P80/SEG25
P77/SEG24
P76/SEG23
P75/SEG22
P74/SEG21
P73/SEG20
P72/SEG19
P71/SEG18
P70/SEG17

R238
100k

VCC

DS2

LNJ310M6URA

R183
560

DS3

R234
22k

75

SEG40

74

SEG39

73

SEG38
SEG37

72
71
70

SEG35

69

SEG34
SEG33

68
67
66

SEG31
SEG30

65

SEG29

64
63
62
61
60

59
58
57
56
55
54
53
52
51

CTDA2
CTDA1
CTDA0

R217 1k
R231 10k
R230 27k
R229 68k

R236 1k×4

R237 1k×4

C264
47p

C268
47p

C226

0.047

C265
47p

C269
47p

C246

0.033

C266
47p

C270
47p

DUSF
CTDA

C272
47p

DST
T5C
S5C
R5C

C267
47p

C271
47p

LNJ310M6URA

Q25

2SC2712

R204

3.3k

R205

1.5k

AFON

TXC

RM
MM

COM1
COM2
COM3
COM4
SEG29
SEG30
SEG31
SEG33
SEG34
SEG35
SEG37
SEG38
SEG39
SEG40
SEG41
SEG42
SEG43
SEG44
SEG45
SEG46
SEG47
SEG48
SEG49
SEG50
SEG51
SEG52

DS1
LM-1462B

1

COM1

2

COM2

3

COM3

4

COM4

5

SEG1

6

SEG2

7

SEG3

8

SEG4

9

SEG5

10

SEG6

11

SEG7

12

SEG8

13

SEG9

14

SEG10

15

SEG11

16

SEG12

17

SEG13

18

SEG14

19

SEG15

20

SEG16

21

SEG17

22

SEG18

23

SEG19

24

SEG20

25

SEG21

26

SEG22

27

SEG23

28

SEG24

29

SEG25

30

SEG26

31

SEG27

32

SEG28

33

SEG29

34

SEG30

35

SEG31

36

SEG32

37

COM4

38

COM3

39

COM2

40

COM1

DS4

LNJ808R8ERA

R155
100

VCC

T5

R184
10k

R3410R32

C49

0.68

NOIS

R177
1k

C217

0.1

TX 174 MHz : 4.3V
RX 174 MHz : 3.6V

560

R33

2.2k

C48

2.2

R208
10k

R244
100k

C114

C113

0.033

0.001

SD

C125

0.0022

C124

0.01

R176

3.9k

BEEPOUT

Q34
2SK880

C233

R186

0.001

47k

C211

0.001

C47

0.1

Q32 DTC144EU

C229

0.001

R82

1.2k [W]

1.5k [M]

2.7k [N]

C116
82p [W], [M]
100p [N]

R83
470

C112

0.001

DET

C126

0.0027

R94

R93

1M

27k

R171
47k

CP1

R175
1k

L12

2.7 H

C218

0.001

MA77

R209
10k

X3

CDBCA450CX24

R253
470

C115

0.01

Q14
2SC2714

R95
1M

6

—

5

+

IC3b
NJM2902V

C286

0.0022

C215

0.1

D28

7

2.3V

R96
47k

R31
1k

R151
47k

C42

0.001

R257
1M

R29
1k

C44

0.001[L]

0.0033 [H]

R81

1.5k

C111

0.01
R80

100k

R79
560

MM

C46

0.001

Q11
2SC4081

R30

4.7k

D19
MA111

C50
10

L11

MC152-E558CN-100024

C45
330p [L]
100p [H]

D6
MA77

D5

C41

HVU350

39p

FI1

FL-270 [W]

FL-268 [N], [M]

C110
9p [W]
11p [N], [M]

R166
100k

IC4

BU4066BCFV

1

I/O

2

O/I

CONT.A

3

CONT.D

O/I

4

I/O

5

CONT.B

6

CONT.C

7

VEE

C148

0.01

R5C

C108

0.01

+

HVU350

VDD

I/O
O/I
O/I

I/O

R125
27k

D13

R77
100

14
13
12
11

10
9

8

C131

0.01

C37
2p [L]
1p [H]

C109

0.001

TONE

C38

1.5p

R75
220

C107

0.001

R27
470

R26

8.2k

C36

0.001

R25

8.2k

Q7
2SC4226

Q13
3SK166

C105

0.01

1.3V

RM

4.0V

R28
100

Q8
2SC4226

R24
220

C106
56p

C104

0.001

R167
100k

C39

0.001

C35

0.001

L20

0.47 H

R112
1M

C128

1

CTCSS

C33

0.001
C34

0.5p

R5
S5

Q6
2SC4215

R72
10k

R44
10k

SIGOUT

R22
68k

R70
100k

R168

10k

R23
680

C32

0.001

L10

0.15 H [L]

0.1 H [H]

0V

C102
15p

L29

0.1 H

R169

10k

C31
5p

C212

0.01

C213

2.2

C214

0.033

Q5
2SC4215

C101
56p

R170
10k

R20
68k

+

L21
47nH

R97
220k

R98
180k

R107
180k

R113
68k

L9

0.15 H [L]

0.1 H [H]

C100
15p

C136

0.0039

R21
470

C30
22p

C98
5p

L19
33nH

1LO

R68

4.7k

C97
8p

R114
22k [W], [M]
33k [N]

C29

0.001

C28
12p

Q4
2SC4215

R69
100

C99

0.001

R115

IC3d
NJM2902V

R159

100k

R18
39k

T4

13
12

120k

R19
390

L8

0.1 H

C27
18p

R17

4.7k

D22
HVU350

C96
100p

R67
100k

C95

0.001

C135
180p

—
+

R116

C26

0.001

1k

R66
1M

14

R15
100

R16

1

D3
MA77

D4
MA77

C94
2p

D12
HVU350

R117

1.5k

C137

0.027 [W], [M]

0.033 [N]

R51

R50

470k

100k

R49

C69

47k

R48
10k

C57
47p

C67
10p

FI2
CFWM450E [W], [M]

L25

CFWM450G [N]

1H

R87

3.3k

+

0.1
R130

100k

33p

D7
HVU17

1

VCC1

2

IN1

3

ENB

4

CLK

5

DATA

6

T1

7

LOK

8

CP1

9

10

FO1

IC1

C56

0.001

PD3140GS

O

I

C121
220p

R86

100k

C120

C122

220p

0.1

R131
470

Q17
UN911H

W2

C

C210

C209

0.1

0.1

MICIN MICOUT

X1
CR-575A e
CR-576A u

C64
12p

GND1

IN2

VCC2

XB

XO

GND2

CP2

FI2

FO2

R85

1.5k

F

C132

0.01

15.3 MHz

C63
56p

20
19
18

17
16

XI

15
14
13
12
11

R84
390

IC2

TA31136FN(D)

1

OSCIN

2

OSCOUT

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN

C118

0.01

C119

1

W9W10 E

R104
100k

C133

0.1

C71

0.1

L13

C61
18p [L]
12p [H]

R92
50k

C72
1

C55

0.01

C59
47p

C58
47p

R41
47 [L]
100 [H]

C60

0.001

C65
4p

C53
12p

R91
390k [W], [M]
100k [N]

C154

10

W1

D

PTTIN

C66
18p

C70

0.01

R88
120k

C147

R150
50k

5V

R42
1k×4

L14
47nH [L]
82nH [H]

C62
18p [L]
9p [H]

R5 R5
S5 S5

C51

15p

1H

C290
15p

C123

0.001

VCC

R5
S5

R45
100

C54

0.001

3.6V

DET

IC3c
NJM2902V

10

9

R105
150

MIXIN

GND
N-REC
N-DET

RSSI

IFOUT
QUAD

AFOUT

+

—

R108
150k

VOL IN

R185
1k

C234

0.001

C134

220p

R109

10k

R35

2.2k

C117

0.001
16

15
14
13

12
11
10

8

9

S5

R14

4.7k

C25

22p

R11

1.2k

R64
1M

C24

0.001

D11
HVU350

C92
100p

C93

0.001

R65
100k

T3

L7

0.1 H

R12

3.3k

R13

33

C23

0.001

R119
300 k

R249
47k

R61
47

C90

0.001

D21
HVU350

C9

0.001
C22

15p

Q3

2SC4226

C284

0.0033 [L]

0.001 [H]

LEFT SIDE RIGHT SIDECENTER

11 - 1

4

C
0

11-2 IC-F4/S

OPTIONAL
UNIT

MC1

KUC3523-040245

MIC

VR BOARD

R1

RV-312

J2

HSJ1122-010010

EXT. MIC

SPEAKER

SP1

J3

HSJ1456-01-220A

EXT. SP

BATT

BATTERY

GND

HEC2711-01-020

CHARGER

PTT

9.6V

9.6V

(SW ON)

1
2

J4

J5

130

GND
PTTIN PTTIN
5V
PTTOUT
VCC
MICOUT MICOUT
MICMUTE
MICIN MICIN
AFONOP AFONOP
NC
BEEPOUT BEEPOUT
NC
RXMUTE
NC
DET
SIGOUT SIGOUT
AFOUT AFOUT
OPT1
NC
OPT2
CCS
OPT3
CIRQ
GND
SO
NC
SI
NC
SCK
NC

15 16

L416

0.22 H

C498
56p

C163

0.001

EVQ-PJ705K

J7

HV

1

VOL IN

2

VOL OUT

3

VOL GND

4

VCC

5

OPT

L412
1H

MIC

L414

0.22 H

J6P1

SP

1

SPG

2

AF OUT
SP

CLONE

C167

47p

S1

C164

47p

C171

0.001

D24
DA204U

AF

C168

0.001

C170

0.001

C223

0.01

C224

0.01

R471 100

Q29
XP1213

1

2
3

R144
33k

C165
470p

C169

0.001

C172

470p

R156

W7

15

R157

C200

0.001

15

C428 C429

47p 47p

5

4

+

C201

0.001

5V

RM

R132
470

C173
47

PTTOUT

OPPD

U/D

OPCS

OPINT

SO

SI

MM

R142
100

C166

0.001

D27
DA204U

Q27

2SB1132R

VCC

W12

MIC

VOL IN

VOL OUT

AFOUT

R158

10k

C202

0.001

R174
15k

Q31
DTC144TU

D25

SB07-03C

5V

C250

47p

C177

22

CLIN

SPG

T5

C174

22

+

Q22

2SA1362

TX: 5.0V
RX: 0.4V

+

R444
10k

R141

4.7k

C162

0.01

T5C

CLOUT

C180
47p

P0

C181
47p

1

C182
47p

4

C183
47p

7

C184
47p

*0#

C185
47p

C186

0.001

R5

Q21

2SA1362

TX: 0V
RX: 5.0V

+

C176

22

R139

4.7k

R5C

P1 P2

23A

56

89

C187

0.001

R443
10k

C161

0.01

C189

0.001

S5

5.0V

+

C175

22

C190

0.001

Q20

2SA1362

R137

4.7k

S5C

P3

B

C

D

C160

0.01

R442
10k

C433
47p

C434

0.001

D16
MA6S121

D17
MA6S121

5.0V

3

Q18
2SB1132R

56

21

R134

2.2k
C159

4.7

R430
1k×4

C435

0.001
R429

1k×4

R428
1k×4

D33
MA111

IC-F4 only
IC-F4S=open

C192

0.001

R135
10k

Q19

XP6501AB

4

5.0V

R133
1k

C158

+

100

KR3

KR2
KR1
KR0

RM
MM
KS5

KS4

KS3
KS2

KS1
KS0

IR1

MODCON

+

C241
10

IC6

S-81250PG-PD

O

G

C156

C157

0.001

0.001

DET

R466
22k

R5

C249

0.01

C221

0.1

R190
22k

C489

0.015

Q405
DTC144EU

VCC

CPU5

I

C155

C248

0.01

Q36
2SC4081

C488

0.0022

R191
22k

C222

0.0056

TONE

R434
10k

C242

0.01

R154

6.8k

R153
1k

+

10

DST

FRQCON

5V

R168
10k

DTMF, 5 TONE SIGNAL ON

3.0Vp-p

R199

R436

1.8k

C431

1k

4.7

+

Q33 XP4601

4

5

6

R200

R437

220

47k

Q38
DTC144EU

SCK

IC10

M62354GP

1

DO

2

LD

3

CLK

4

DI

5

AO1

6

AO2

7

NC

8

GND VSS

C240

0.01

SO

R220
270k

R221
330k

R197
180k

3

2

1

R192
56k

MTONE

R218
68k e
82k u

C247

0.001

C225

0.01

C239

0.01

2.0V

C500

0.22

CTCIN

VCC
VDD

AO6
AO5
AO4
AO3

NC

C244

0.01

C238

0.01

DTMF

R219
82k e
100k u

C463

0.01
[L],[ML],[MH]
only

R224
33k [W]-[H
27k [W]-other
82k [N]-[H
[N]-[H
68k [N]-other

16
15
14
13
12

11
10
9

C237

0.01
T1 T2 T3

SI

ECS

CTCSS SIGNAL ON

3.0Vp-p

DTCS SIGNAL ON

3.5Vp-p

2]

R207
47k

1],
2]

Q35 2SC4081

NC

OUT
123

C230

0.47

+

R146
100k

CS
SO
WP
VSS

IC7

R203 R202
47k 47k

C226

C227

0.0082

0.1

NTCCF20124AH

54

NC

VDD

VSS

R149
10k

D15

MA111

8

VCC

7

HOLD

6

SCK

5

SI

CPU5

3.0V

3.0V

R461
47k

Q23
2SC4081

R148
100k

R147
220k

SO

C245

0.01

M

IC11
S-80742SL-A6

T4

1
2

3
4

X25080SI-2.7 [16 ch]
25LC160T-I/SN [2-BANK]

C228
820p

MAIN UNIT

R182

R234
22k

R230
56k

R229
22k

R231
180k

R181

100k

L409

4.7 H

C232

0.1 33

C197

470p

4.93V

C144

0.001

CTDA0

CTDA1

CTDA2

CTCSS

DUSF

+

Q26
DTC144EU

R214
1k

C196
470p

SCK
SI
SO

UNLK

C255
22p

CL IN
CL OUT
NOIS
PLST

OPINT
ECS
OPPD
OPCS

U/D

C447

R103
18k

C254
47p

4.95V

C252
47p

C253
47p

R215

330k

C195
39p

R216
150k

6.8 MHz

CTCIN

C251
47p

W8

C231

0.1

R101
1M

C193
8p

CSIFT
RESET

R226
1k×4

R425
1k×4

R426
1k×4

C430
47p

X2
CR-463

C194

12p

R227
1

PTTOUT

SD

VIN

CL IN

PB1/AN1

P10/TMOW

V3

V2V1VCC

VSS

2728293031

R196

100k

C199

0.01

ISENS

ISENS

SO

PB2/NA2

PB3/AN3

PB4/AN4

32333435363738

COM4

VCC

CPU5

TEMPS

VIN

CL IN

C143

1

PBO/AN0

2

AVSS

3

TEST

4

X2

5

X1

6

VSS

7

OSC1

8

OSC2

9

RES

10

NMI

11

P20/IRQ4/ADTRG

12

P21/SCK1

13

P22/SI1

14

P23/SO1

15

P24/SCK3

16

P25/RXD

17

P26/TXD

18

P27/IRQ0

19

P17/IRQ3/TMIF

20

P16/IRQ2

21

P15/IRQ1

22

P14

23

P13/TMIG

24

P12/TMOFH

25

P11/TMOFL

R194
100k

R193
100k

C142

0.1

R235
680k

R195

100k

100p

26

CONT

C141

0.1

R102
10

CTCIN
AVss

TEST

Xcin
VSS
Xin
Xout

RESET
NMI

CSIFT
SCK
SI
SO

UNLK
CL IN
CL OUT

PLST

NOIS

CPINT

ECS

OPPD

OPCS

IR1

TROCH

R228
100k

R427
1k×2

IR1

DTMF

MTONE

MTONE

DTMF

PTTOUT

LVIN LVIN

TEMPS

AVref

VTref

AVCC

AVCC

VTREF

AVREF

TONED

TONEM

PB6/AN6

PB5/AN5

PB7/AN7

IC8

HD6433875A40H [16 ch]
HD6433875B26H [2-BANK]

PA3/COM4

PA2/COM3

PA1/COM2

PA0/COM1

P50/WKP0/SEG1

P51/WKP1/SEG2

P52/WKP2/SEG3

P53/WKP3/SEG4

3940414243444546474849

COM1

COM3

COM2

KS1

KS0

KS2

KS3

SEG49

SEG50

SEG51

SEG52

SEG49

SEG50

SEG51

SEG52

PE0/SEG49/M

PE1/SEG50/DO

PE3/SEG52/CL1

PE2/SEG51/CL2

P54/WKP4/SEG5

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

KS4

KS5

SEG46

SEG47

SEG48

SEG46

SEG47

SEG48

PD7/SEG48

PD6/SEG47

P60/SEG9

P61/SEG10

KR1

KR0MMRM

KR2

SEG45

SEG44

SEG45

SEG44

PD5/SEG46

PD4/SEG45

PD3/SEG44

P62/SEG11

P63/SEG12

P64/SEG13

KR3

R5C

SEG41

SEG42

SEG43

SEG41

SEG42

SEG43

PD2/SEG43

PD1/SEG42

P66/SEG/14

P66/SEG15

50

R432
100k

R431
1k×2

C438

0.1

C439

0.1

S5C

CPU5

767778798081828384858687888990919293949596979899100

VCC

PD0/SEG41

P97/SEG40
P96/SEG39

P95/SEG38
P94/SEG37
P93/SEG36
P92/SEG35
P91/SEG34
P90/SEG33
P87/SEG32
P86/SEG31
P85/SEG30
P84/SEG29
P83/SEG28
P82/SEG27
P81/SEG26
P80/SEG25
P77/SEG24
P76/SEG23
P75/SEG22
P74/SEG21
P73/SEG20
P72/SEG19
P71/SEG18
P70/SEG17

P67 /SEG16

R236
1k

C256

0.001

C257
47p

TXC

T5C

75

SEG40

74

SEG39

73

SEG38
SEG37

72
71
70

SEG35

69

SEG34
SEG33

68
67
66

SEG31
SEG30

65

SEG29

64

DUSF

63

CTDA2

62

CTDA1

61

CTDA0

60
59
58
57
56
55

DST

54

AFON

53

LIGHT

52
51

R433 1k×

R237
100k

COMPLETE VIEW

P51/WKP1/SEG2

91

SEG48

DTMF

TONED

O

0

2

9

7

4

3

k
8

1

7

4

SEG49

SEG50

SEG51

SEG52

MTONE

SEG48

SEG49

SEG50

SEG51

SEG52

MTONE

AVCC

AVCC

TONEM

IC8

33875A40H [16 ch]
33875B26H [2-BANK]

P52/WKP2/SEG3

38

3940414243444546474849

KS2

KS3

PE0/SEG49/M

PE1/SEG50/DO

PE3/SEG52/CL1

PE2/SEG51/CL2

P53/WKP3/SEG4

P54/WKP4/SEG5

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

KS4

KR0MMRM

KS5

PD7/SEG48

P60/SEG9

KR1

SEG45

SEG46

SEG47

SEG45

SEG46

SEG47

PD6/SEG47

PD5/SEG46

PD4/SEG45

P61/SEG10

P62/SEG11

P63/SEG12

KR2

KR3

SEG42

SEG43

SEG44

SEG42

SEG43

SEG44

PD3/SEG44

PD2/SEG43

P64/SEG13

P66/SEG/14

50

R5C

S5C

SEG41

SEG41

CPU5

767778798081828384858687888990

VCC

PD1/SEG42

PD0/SEG41

P66/SEG15

R432
100k

R431
1k×2

C438

0.1

C439

0.1

C256

0.001

P97/SEG40
P96/SEG39

P95/SEG38
P94/SEG37
P93/SEG36
P92/SEG35
P91/SEG34
P90/SEG33
P87/SEG32
P86/SEG31
P85/SEG30
P84/SEG29
P83/SEG28
P82/SEG27
P81/SEG26
P80/SEG25
P77/SEG24
P76/SEG23
P75/SEG22
P74/SEG21
P73/SEG20
P72/SEG19
P71/SEG18
P70/SEG17

P67 /SEG16

R236
1k

C257
47p

TXC

T5C

Note

.......

[L]
[ML]

[MH].....MH-band (470—500 MHz)

5V

T5
R5

AFOUT

PTTOUT

MIC

S5

FRQCON

CTCSS

LVIN

PLST

SO

UNLK

MODCON

5V

C123

0.001

W1

PTTIN

C154

R5
S5

VCC

R5
S5

10

VCC

DS2

LNJ310M6URA

R183
560

DS4

DS1

LM-1462B

1

COM1

2

COM2

3

COM3

4

COM4

5

SEG1

6

SEG2

7

SEG3

8

SEG4

9

SEG5

10

SEG6

11

SEG7

12

SEG8

13

SEG9

14

SEG10

15

SEG11

16

SEG12

17

SEG13

18

SEG14

19

SEG15

20

SEG16

21

SEG17

22

SEG18

23

SEG19

24

SEG20

25

SEG21

26

SEG22

C446
47p

SCK

LED ON : 5.7V

DS3

LNJ310M6URA

Q25

2SC2712

LIGHT

R204

3.3k
R205

1.5k

75

SEG40

74

SEG39

73

SEG38
SEG37

72
71
70

SEG35

69

SEG34
SEG33

68
67
66

SEG31
SEG30

65

SEG29

64

DUSF

63

CTDA2

62

CTDA1

61

CTDA0

60
59
58
57
56
55

DST

54

AFON

53

LIGHT

52
51

R433 1k×4

LIGHT

R237
100k

C440

0.1

C441

0.1

C442
47p

DST

AFON

T5C

R155
100

LNJ808R8ERA

COM1
COM2
COM3
COM4
SEG29
SEG30
SEG31
SEG33
SEG34
SEG35
SEG37
SEG38
SEG39
SEG40
SEG41
SEG42
SEG43
SEG44
SEG45
SEG46
SEG47
SEG48
SEG49
SEG50
SEG51
SEG52

L-band (400 - 430 MHz)

.....

ML-band (440 - 470 MHz)

VCC

R51

R50

470k

100k

C71

C70

0.001

0.01

R48

5V

R42
1k×4

C59
100p

L14
15nH

6p

C52

0.01
R40

680k

C51
10p

Q11
2SC4081

R90
33k [W]
10k [N]

C490
220p

Q17
UN911H

0.1
R130

100k

C209

0.1

MICIN MICOUT

C72

100k

4.7

C55

0.01

C58
100p

R41
56

C60

0.001

C57
22p

R44

1.2k

L13
1H

C53
5p

R88
120k

R441
NTCCF20123NH

R89
10k

R131
470

R468

6.8k e
12k u

C493

0.047 [L], [ML]

0.027 other

R150
50k

C626pC61

R92
50k

+

C147

C444

0.001

C65

4p

R87

1.8k [W]

3.3k [N]

R49
47k

W2

C210

0.1

C66
4p

C56

0.1

C69
33p

D7
HVU17

R440
120k

1

VCC1

2

IN1

3

ENB

4

CLK

5

DATA

6

T1

7

LOK

8

CP1

9

FI1

10

FO1

L403

1.5 H

FI2
CFWM450E [W]
CFWM450G [N]

L25

0.82 H

C121

220p

R86
120k [W]
100k [N]

C122
220p

C132

0.0047

R104
100k

C133

0.1

CR-576A

C64
12p

GND1

VCC2

GND2

FO2

IC1

PD3140GS

C67

3p

R85

1.5k

I

O

C120

0.1

R105
270 [W]
470 [N]

15.3 MHz

X1

20
19

IN2

18
17

XB

16

XI

15

XO

14
13

CP2

12

FI2

11

R84

47

TA31136FN(D)

1

2
3
4

5
6
7
8

C118

0.001

AF

IC3c
NJM2902V

10

+

9

—

C134
150p [W]
220p [N]

R108
150k [W]
180k [N]

[H1] ..... H1

[H2] ..... H2

R185
1k

R45
100

R184

C63

10k

56p

R46
1

C54

0.001

R34
1k other

1], [H

2.7k [H

TX: 0V
RX: 4.8V

IC2

MIXIN

OSCIN
OSCOUT

GND

MIXOUT

N-REC

VCC

N-DET

IFIN

RSSI

DEC

IFOUT
QUAD

FILOUT

AFOUT

FILIN

R452
1k

C217

0.1

8

R109

10k

VOL IN

C234

0.001

C443

0.047

C48
1

2

C117
10

16
15

R
4

C

0.

R
1

6.

]

C

4

14
13
12
11
10

9

N

C1

0.0
C1

0.

R1

3.

COMPLETE VIEW

Note

.......

[L]
[ML]

L-band (400 - 430 MHz)

.....

ML-band (440 - 470 MHz)

[MH].....MH-band (470—500 MHz)

[H1] ..... H1-band (490—512 MHz)

[H

2] ..... H2-band (490—520 MHz)

[W]
[ N ]

.....

.....

W-type

N-type

....

e

ETS/CEPT version

....

u

EIA/TIA version

LNJ310M6URA

LED ON : 5.7V

LNJ310M6URA

Q25

LIGHT

R204

3.3k
R205

1.5k

T

C442

C441

47p

0.1

DS2

DS3

2SC2712

VCC

DST

AFON

T5C

LNJ808R8ERA

R155
100

COM1
COM2
COM3
COM4
SEG29
SEG30
SEG31
SEG33
SEG34
SEG35
SEG37
SEG38
SEG39
SEG40
SEG41
SEG42
SEG43
SEG44
SEG45
SEG46
SEG47
SEG48
SEG49
SEG50
SEG51
SEG52

R183
560

DS4

DS1
LM-1462B

1

COM1

2

COM2

3

COM3

4

COM4

5

SEG1

6

SEG2

7

SEG3

8

SEG4

9

SEG5

10

SEG6

11

SEG7

12

SEG8

13

SEG9

14

SEG10

15

SEG11

16

SEG12

17

SEG13

18

SEG14

19

SEG15

20

SEG16

21

SEG17

22

SEG18

23

SEG19

24

SEG20

25

SEG21

26

SEG22

C446
47p

SCK

AFOUT

PTTOUT

MIC

5V

R162
1k

Q28

2SC4081

33k

C10

470p

TX: 0V
RX: 1.62V

C403
47p

C402
8p

L17

8.8nH

1], [H2]

D26
DAN202U

AFON

C479
47p

R163

C404

0.001

C86
6p [L]
5p [ML]

2.5p [MH]
3p [H

T1

R178

3.9k

1.95V

C129

15

+

VCC

1], [H2]

R63
10k

32

45

Q9
XP6401

R2
10k

TX: 0.63V
RX: 0V

C18
470p

C481

470p

D10
HVU350

VCC

R120

68k

R451
1M

AFONOP

R402
47k

T5
R5
S5

FRQCON

CTCSS

LVIN

PLST

SO

UNLK

MODCON

5V

VCC

R450

2.2k

C417

0.5p

R464
1k

14
13
12
11

10
9

8

C416
470p

C426

0.001

C427

0.5p

C105

0.001

D405
HSU88

TX: 0.70V
RX: 0.77V

3
2
1

Q402
DTC144EU

C106
10p [W]
6p [N]

TX: 0V
RX: 4.66V

TX: 0V
RX: 0.86V

C477
47p

TONE

RM

L417
27nH [MH]
22nH [H
[H

R22
68k

R75
270

C33
470p

L20

0.82 H

Q13
3SK241

R167

100k

CTCSS

C456
10

Q404
2SC4116

1],

2]

R460
220
[L], [ML]

Q6
2SC5107

C473
47p

R72
47k

C499
47p

R112
100k

C128
1

R23
220

2.20V

R70

4.7k

C31
5p

4.12V

+

TX: 3.20V
RX: 3.18V

R449
470

R447
470

0V

L21
82nH [L]
47nH other

R169
10k

SIGOUT

+

L9
27nH

R20

C28

68k

12p

Q5
2SC5107

TX: 0.64V
RX: 0.76V

C455
10p other
47p [H

R448
12

C98
22p

L19

8.8nH

C212

0.1

C213

4.7

R170
10k

C491
1

TX: 3.48V
RX: 3.45V

R21
220

+

C214

0.1

Q34

C234

MIXIN

GND

N-REC

N-DET

RSSI
IFOUT
QUAD

R452
1k

R184
10k

1], [H

C217

0.1

0.001

C443

0.047

C48
1

2

C117
10

16
15

]

14
13
12
11
10

2SK880

R186
47k

C432

0.001

R32
1 k [MH]

6.8k other

+

C476

47p

+

9

NOIS

C125

0.0015
C124

0.01

R176

3.9k

LV

C233

0.001

R33

4.7k

C47

0.1 other

0.33 [MH]

R424

100k

C115
100p

C114

0.001

SD

C126

0.0039

R93

27k

BEEPOUT

C410
11 p [L]
7p [ML]
12 p [MH]
10 p [H

1

[H

2]

R409
10

R415
10

L407

4.7 H

C218

0.001

+

D403

HVU350

R208
100k

R82

1.2k [W]

2.2k [N]

C116
56p [W]
100p [N]

R83
330

C113

0.001

IC3b
NJM2902V

6
5

R94
1M

C465

0.0022

CR-576A

C64
12p

GND1

VCC2

GND2

I

C120

0.1

R105
270 [W]
470 [N]

1.5k

CP2

FO2

R85

15.3 MHz

X1

20
19

IN2

18
17

XB

16

XI

15

XO

14
13
12

FI2

11

R84
47

TA31136FN(D)

1

2
3
4

5
6
7
8

C118

0.001

AF

IC3c
NJM2902V

10

+

9

—

C134
150p [W]
220p [N]

R108
150k [W]
180k [N]

R45
100

C63
56p

R46
1

TX: 0V
RX: 4.8V

IC2

OSCIN
OSCOUT

MIXOUT
VCC
IFIN
DEC
FILOUT
FILIN

8

R109

10k

VOL IN

R185
1k

C54

0.001

R34
1k other

2.7k [H

AFOUT

C444

0.001

4p

R87

1.8k [W]

3.3k [N]

R49
47k

W2

C210

0.1

C66
4p

C56

0.1

C69
33p

D7
HVU17

R440
120k

1

VCC1

2

IN1

3

ENB

4

CLK

5

DATA

6

T1

7

LOK

8

CP1

9

FI1

10

FO1

L403

1.5 H

FI2
CFWM450E [W]
CFWM450G [N]

L25

0.82 H

C121
220p

R86
120k [W]
100k [N]

C122
220p

C132

0.0047

R104

100k

C133

0.1

IC1

PD3140GS

C67

3p

O

R51

R50

470k

100k

C71

C70

0.001

0.01

R48

5V

R42
1k×4

C59
100p

L14
15nH

6p

C52

0.01
R40

680k

C51
10p

Q11

2SC4081

R90
33k [W]
10k [N]

C490
220p

+

Q17
UN911H

C147

0.1
R130

100k

MICIN MICOUT

C72

4.7

C55

0.01

C58
100p

R41
56

C60

0.001

R44

1.2k

L13
1H

R441
NTCCF20123NH

R89
10k

R131
470

C209

0.1

100k

C57
22p

C65

C53
5p

R88
120k

R468

6.8k e
12k u

C493

0.047 [L], [ML]

0.027 other

R150
50k

C626pC61

R5
S5 S5

C123

0.001

R92
50k

VCC

R5
S5

C154

10

W1

PTTIN

R410 3.3k

C412
5 p [L], [ML]
7 p other

C411

1.5p[L]

0.3p[ML]

],

4 p [MH]
3 p [H

1],
2

]

[H

L11
MC152-E558ANA-100051=P3 [L], [ML]
MC152-E558ANA-100050 other

D5
HVU350

L12

4.7 H

C419
1p [L]

0.75p

C418

other

12p [L]
9p [ML]
8p other

C475

3.5p [L]

1.5p [ML]

D404

MC152-E558ANA-100050

1T365

R422
220k

5V

R209

C229

0.1

100k

TX: 0V
RX: 2.9V

X3
CDBCA450CX24

L22

1.8 H

D402

1SS375

R407
120k

C112

0.001

Q400

2SC4215

DET

R95
1M

R171
47k

7

R454
1M u
1 e

R96
47k

C215

0.1

R459
10k

R453
47k [W]
56k [N]

—
+

C421

4p [L]

6p [ML], [MH]

3p [H

1], [H2]

C422
7p [L], [ML]
6p [MH],
5p [H
[H

L405

C211

4.7

R408
1k

C408

470p

R406
390 [W]
120 [N]

C474

0.01

C464

0.001

C497
47p

R411

2.7 k [L], [ML]

3.3 k other

R413 4.7

C413
7p

C414
8p

R416

3.3k

1],
2]

C42

470p

+

MM

Q8 2SC4226

2.26V

Q7
2SC4226

R417

3.3k

R419

4.7

TX: 1.82V
RX: 1.92V

C423
6p [L], [ML]
5p [MH],

1

],[H2]

4p [H

L406

1.5 H

R420
270 other
120 [H

R421
10k

FI1 FL-271 [W]
FL-267 [N]

R469

2.7k

R166
100k

1
2
3
4
5
6
7

R412

4.14V

1

C415

0.01

L404

1.5 H

1.72V

R414
470

TX: 1.26V
RX: 1.45V

4

5

1], [H2]

R77

C107

100

0.001

C108

0.01

C451
8p [W]
20p [N]

IC4

BU4066BCFV

I/O

VDD

O/I

CONT.A
CONT.D

O/I
I/O

CONT.B

O/I

CONT.C

O/I

VEE

C148

0.1

TX: 4.04V
RX: 4.14V

C424
470p

Q401
XP1214

C109
10p [W]
8p [N]

C450
1p [W]
2p [N]

C131

0.01

I/O

I/O

R125
27k

C30
12p

C32
470p

R18
47k

R465
22 [L], [ML]
47 other

R68
10k

1], [H2]

D12
HVU350

C96
9p [L]
7p [ML]
6p

other
C97
7p [L]
5p [ML]
3p [MH]
2p
[H

1], [H2]

R107
120k [N]-e
150k [N]-u
270k [W]-e
330k [W]-u

R172
1M

C99

0.001

T4

R97

220k

R98
240k e
270k u

R113
68k e
82k u

R19

100

Q4
2SC5107

TX: 0.81V
RX: 0.77V

R69
1k

C94

0.5p

R66
150k

R67
10k

C26

470p

TX: 3.62V
RX: 0.40V

L8
27nH [L]
27nH [ML], [MH]
18nH [H

1], [H2]

C27
5p

R17

4.7k

1LO

R5

C454

0.001

D11
HVU350

R64
220k

R65
10k

C95

C93

47p

47p

R114

33k

C136

0.0047

C216

0.1

R15
10k

R14

100

C483
470p

D3
MA77

C486
5p

D4
MA77

C449
47p

7p [ML]

5p [MH]

4p [H

1], [H2]

C92
9p [L]
7p [ML]
6p other

T3 T2

R115

C135

100p [W]
120p [N]

—
13
12

+

IC3d
NJM2902V

R159
100k

C471

47p

R445

220

C472
47p

L411
27nH

R446

56k

C452

3p

Q403
2SC5107

TX: 0.63V
RX: 0.39V

L410
1H

Q12 3SK239A

C405

C90

7p [L]

0.001

6p [ML]
4p [MH]
3p [H
[H

C89

0.5p

C91

9p [L]

L402

8.8nH

R404
220k

R405
10k

R455

120k

120k [N]-e-[L]/[ML]/[MH]
100k [N]-u-[L]/[ML]/[MH]
330k [N]-[H
82k [W]-e-[L]/[ML]/[MH]
68k [W]-u-[L]/[ML]
180k [W]-[H

R117

1.5k

14

C137

0.033

R116

1k

1],
2]

S5

C458

47p

C492
10p

except

1], [H2]

[H

TX: 0V
RX: 4.95V

C406
10p [L]
8p [ML]
7p
other

D401
HVU350

C407
47p

1]/[H2]

2]

R455

R439
56k

C25

4p

C470
47p

C487
47p

C24
470p

C88

0.001

R13

10

R12

10k

R401
100k

L18

8.8nH

R403

4.7

C87
47p

TX: 0V
RX: 0.77V

R119
10k

R118
1

C460

0.0018 [W]

0.001 [N]

C9

470p

L7
15nH [L]
12nH other

C22
7p other
8p [ML], [MH]

TX: 4.75V
RX: 0.40V

Q3
2SC3585

TX: 0.59V
RX: 0.40V

0V

R400

4.7k

R59
150

C85
10p [L]
6p [ML], [MH]
4p [H

R99
10k

R100

1.8k

C496
470p

R3

1k

1

6

R9
10k

C79

2.5p
L413

27nH [L]
15nH [ML]

C457
2p
[L], [ML]
only

R62
220k

C84
47p

Q16
XP6501AB

C139

0.1

R161

0.15

C21

+

22

Q2
2SK2596

R8

6.8k

R470
1 [MH], [H

Q15
2SB1132

C20
470p

C19

0.001

R7

100

C17

0.001

1], [H2]

C459
47p [L], [ML]
4p other

L400

0.22 H
[L], [ML]
47nH
other

C77
56p [L], [ML]
3p [MH]

2.5p [H

6

54

23

1

R121

1k

C4681C436

C469
47p

C401
47p

C78
7p [L], [ML]
6p other

R122

2.7k

3.3k
+

R457
18k

C145

MA77

10

0.001

C14

0.01

TX: 1.0V
RX: 0V

R5

47

C13

0.001

L401
17nH

D8

C146

0.001

L27
EXCCL3225U

C482
470p

L6

1.8nH [L]

1.5nH other

C15
27p [L]
20p other

R458
27k

C400
47p

D400

1SS375

1], [H2]

6.9V (VR MIN.)—6.4V (VR MAX.)

R123

C140

0.1

L26
EXCCL3225U

L5
LA-515

Q1
2SK2595

C76
4p [L]
7p
other

D406

MA77

C448
15p [L], [ML]
12p [MH]
11p [H

1], [H2]

C467
10p

L15
17nH

ISENS

1
2
3
4

5

W6

NC
VCC
NC

VIN
RIPPLE

R126

C149

0.1

VOL OUT

T5

C204

0.001

C205
18p

C206

0.3p

C11
12p [L]
8p [ML]
4p other

C179

0.01

R55
1k

IC5

TA7368F

PWGND

PREGND

PHASE

10k

R160

150

L24

0.82 H

D1

MA77

R456

1.5k

S5

C73

0.1

R52
100k

1

IC3a
NJM2902V

POUT

NF

L3
Y655LY-04K [L], [ML]
Y655LY-03K=P3 [MH]
Y655LY-02M [H

L2
Y655LY-04K [L], [ML]
Y655LY-03K=P3 [MH]
Y655LY-02M [H

L1
Y655LY-03=P3 [L], [ML], [MH]
Y655LY-02M [H

C8

0.001

C7
5p [L]
4p other

D2
HSM88AS

Q37
DTA144EU

R210

2.2k

R53
10k

4

2

—

3

+

11

150k

R438

C75

330k

0.01

10
9
8

7
6

R127

10

C150

10

R54

T4

+

L2L3

C5
9p [L]
8p [ML]
10p [MH]
7p [H

C207

0.001

C151

1], [H2]

1], [H2]

1], [H2]

L1

R1
82k

C3
12p other
10p [MH]

1], [H2]

R164

2.7k

R165

1.8k

C466
47p

C243

0.001

TXC

EXCCL4532U

47P

AF OUT

L415

R128
10

C152

0.047

C208

0.001

C153
100

+

J1

ANT.

R5C

SPG

11-2

COMPLETE VIEW

11-2 IC-F4/S

Note

.......

[L]
[ML]

L-band (400 - 430 MHz)

.....

ML-band (440 - 470 MHz)

[MH].....MH-band (470—500 MHz)

[H1] ..... H1-band (490—512 MHz)

[H

2] ..... H2-band (490—520 MHz)

[W]
[ N ]

.....

.....

W-type

N-type

....

e

ETS/CEPT version

....

u

EIA/TIA version

OPTIONAL
UNIT

MC1

KUC3523-040245

MIC

VR BOARD

R1

RV-312

J2

HSJ1122-010010

EXT. MIC

SPEAKER

SP1

J3

HSJ1456-01-220A

EXT. SP

BATT

BATTERY

GND

HEC2711-01-020

CHARGER

PTT

9.6V

9.6V

(SW ON)

1
2

J4

J5

130

GND
PTTIN PTTIN
5V
PTTOUT
VCC
MICOUT MICOUT
MICMUTE
MICIN MICIN
AFONOP AFONOP
NC
BEEPOUT BEEPOUT
NC
RXMUTE
NC
DET
SIGOUT SIGOUT
AFOUT AFOUT
OPT1
NC
OPT2
CCS
OPT3
CIRQ
GND
SO
NC
SI
NC
SCK
NC

15 16

L416

0.22 H

C498
56p

C163

0.001

EVQ-PJ705K

J7

HV

1

VOL IN

2

VOL OUT

3

VOL GND

4

VCC

5

OPT

L412
1H

MIC

L414

0.22 H

J6P1

SP

1

SPG

2

AF OUT
SP
CLONE

C167
47p

S1

C164

47p

AF

C168

0.001

C171

0.001

D24
DA204U

C170

0.001

R144
33k

C165
470p

C223

0.01

C224

0.01

R471 100

W7

Q29
XP1213

1

2
3

C169

0.001

C172
470p

R156

15

R157

15

C200

0.001

C428 C429
47p 47p

5

4

+

C201

0.001

5V

RM

R132
470

C173
47

PTTOUT

OPPD

U/D

OPCS

OPINT

SO

SI

MM

VOL IN

VOL OUT

R142
100

C166

0.001

D27
DA204U

Q27

2SB1132R

VCC

W12

MIC

AFOUT

R158

10k

C202

0.001

R174

15k

Q31
DTC144TU

D25

SB07-03C

5V

C250
47p

C177

SPG

22

CLIN

T5

C174

22

+

Q22

2SA1362

TX: 5.0V
RX: 0.4V

+

R444
10k

R141

4.7k

C162

0.01

T5C

CLOUT

C180
47p

P0

C181
47p

1

C182

47p

4

C183
47p

7

C184
47p

*0#

C185
47p

C186

0.001

R5

Q21

2SA1362

TX: 0V
RX: 5.0V

+

C176

22

R139

4.7k

R5C

P1 P2

23A

56

89

C187

0.001

R443
10k

C161

0.01

C189

0.001

S5

5.0V

+

C175

22

P3

C190

0.001

Q20

2SA1362

R137

4.7k

S5C

B

C

D

C160

0.01

R442
10k

C433
47p

C434

0.001

D16
MA6S121

D17
MA6S121

5.0V

Q18
2SB1132R

56

21

3

R134

2.2k
C159

4.7

R430
1k×4

C435

0.001
R429

1k×4

R428

1k×4

D33
MA111

IC-F4 only
IC-F4S=open

C192

0.001

R135
10k

Q19

XP6501AB

4

5.0V

R133
1k

C158

+

100

KR3
KR2
KR1
KR0

RM
MM
KS5
KS4

KS3
KS2

KS1
KS0

IR1

MODCON

+

IC6

S-81250PG-PD

O

G

C157

0.001

DET

R466
22k

R5

C249

0.01

C221

0.1

R190
22k

C489

0.015

Q405
DTC144EU

VCC

CPU5

C241
10

I

C156

0.001

C155

C248

0.01

Q36

2SC4081

C488

0.0022

R191
22k

C222

0.0056

TONE

R434
10k

C242

0.01

R154

6.8k

R153
1k

+

10

DST

FRQCON

5V

R168
10k

DTMF, 5 TONE SIGNAL ON

3.0Vp-p

R199

R436

1.8k

C431

1k

4.7

+

Q33 XP4601

4

5

6

R200

R437

220

47k

Q38
DTC144EU

SCK

IC10

M62354GP

1

DO

2

LD

3

CLK

4

DI

5

AO1

6

AO2

7

NC

8

GND VSS

C240

0.01

SO

MTONE

R220
270k

R221
330k

R197
180k

3

2

1

R192
56k

R218
68k e
82k u

C247

0.001

C225

0.01

C239

0.01

2.0V

C500

0.22

CTCIN

VCC
VDD

AO6
AO5
AO4
AO3

NC

C244

0.01

C238

0.01

DTMF

R219
82k e
100k u

C463

0.01
[L],[ML],[MH]
only

R224
33k [W]-[H
27k [W]-other
82k [N]-[H
[N]-[H
68k [N]-other

16
15
14
13
12

11
10
9

C237

0.01
T1 T2 T3

SI

ECS

CTCSS SIGNAL ON

3.0Vp-p

DTCS SIGNAL ON

3.5Vp-p

2]

R207
47k

1],
2]

Q35 2SC4081

OUT
123

C230

0.47

+

R146
100k

CS
SO
WP

VSS

IC7

R203 R202
47k 47k

C226

C227

0.0082

0.1

NTCCF20124AH

54

NC

NC

VDD

VSS

R149

10k

D15

MA111

VCC

HOLD

SCK

SI

CPU5

3.0V

3.0V

R461
47k

Q23
2SC4081

R148

100k

R147
220k

8
7
6

5

C245

0.01

M

IC11

S-80742SL-A6

T4

1
2

3
4

X25080SI-2.7 [16 ch]
25LC160T-I/SN [2-BANK]

C228
820p

MAIN UNIT

SO

R182

R234
22k

R230
56k

R229
22k

R231
180k

R181

100k

C197

470p

C144

0.001

CTDA0

CTDA1

CTDA2

CTCSS

DUSF

L409

4.7 H

C232

0.1 33

4.93V

Q26
DTC144EU

R214
1k

C196
470p

SCK
SI
SO

UNLK

C255
22p

CL IN
CL OUT
NOIS
PLST

OPINT

ECS
OPPD
OPCS

U/D

+

C447

R103

18k

C254
47p

4.95V

C252
47p

C253
47p

R215

330k

C195

39p

R216
150k

6.8 MHz

CTCIN

C251
47p

W8

C231

0.1

R101
1M

C193

8p

CSIFT
RESET

R226
1k×4

R425
1k×4

R426
1k×4

C430
47p

X2

CR-463

C194

12p

R227
1

5V

R162
1k

Q28
2SC4081

33k

C10
470p

TX: 0V
RX: 1.62V

C403
47p

C402
8p

L17

8.8nH

1], [H2]

R99
10k

1.8k

D26
DAN202U

AFON

C479
47p

R163

C404

0.001

C86
6p [L]
5p [ML]

2.5p [MH]
3p [H

T1

R178

3.9k

1.95V

C129

15

+

VCC

1], [H2]

R63
10k

32

45

Q9
XP6401

R2

10k

TX: 0.63V
RX: 0V

C18
470p

C481
470p

D10
HVU350

VCC

R120

68k

R451
1M

AFONOP

R402
47k

PTTOUT

T5

SCK

AFOUT

PTTOUT

MIC

R5
S5

FRQCON

CTCSS

LVIN

PLST

SO

UNLK

MODCON

5V

C123

0.001

C154

W1

PTTIN

SD

VIN

CL IN

PB2/NA2

PB1/AN1

P10/TMOW

V3

V2V1VCC

VSS

2728293031

R196

100k

C199

0.01

ISENS

ISENS

SO

PB3/AN3

PB4/AN4

32333435363738

VCC

CPU5

TEMPS

VIN

CL IN

C143

1

PBO/AN0

2

AVSS

3

TEST

4

X2

5

X1

6

VSS

7

OSC1

8

OSC2

9

RES

10

NMI

11

P20/IRQ4/ADTRG

12

P21/SCK1

13

P22/SI1

14

P23/SO1

15

P24/SCK3

16

P25/RXD

17

P26/TXD

18

P27/IRQ0

19

P17/IRQ3/TMIF

20

P16/IRQ2

21

P15/IRQ1

22

P14

23

P13/TMIG

24

P12/TMOFH

25

P11/TMOFL

R194
100k

R193
100k

C142

0.1

R235
680k

R195

100k

100p

26

CONT

C141

0.1

R102
10

CTCIN
AVss

TEST

Xcin
VSS
Xin
Xout

RESET
NMI

CSIFT
SCK
SI
SO

UNLK
CL IN
CL OUT

PLST

NOIS

CPINT

ECS

OPPD

OPCS

IR1
TROCH

R228
100k

R427
1k×2

IR1

DTMF

MTONE

MTONE

DTMF

PTTOUT

LVIN LVIN

TEMPS

AVref

VTref

AVCC

AVCC

VTREF

AVREF

TONED

TONEM

PB6/AN6

PB5/AN5

PB7/AN7

IC8

HD6433875A40H [16 ch]
HD6433875B26H [2-BANK]

PA3/COM4

PA2/COM3

PA1/COM2

PA0/COM1

P50/WKP0/SEG1

P51/WKP1/SEG2

P52/WKP2/SEG3

P53/WKP3/SEG4

3940414243444546474849

COM1

COM4

COM3

COM2

KS1

KS0

KS2

KS3

SEG48

SEG49

SEG50

SEG51

SEG52

SEG48

SEG49

SEG50

SEG51

SEG52

PE0/SEG49/M

PE1/SEG50/DO

PE3/SEG52/CL1

PE2/SEG51/CL2

P54/WKP4/SEG5

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

KS5

KS4

KR0MMRM

SEG45

SEG46

SEG47

SEG45

SEG46

SEG47

PD7/SEG48

PD6/SEG47

PD5/SEG46

P60/SEG9

P61/SEG10

P62/SEG11

KR1

KR2

KR3

SEG43

SEG44

SEG43

SEG44

PD4/SEG45

PD3/SEG44

PD2/SEG43

P63/SEG12

P64/SEG13

P66/SEG/14

50

S5C

R5C

SEG41

SEG42

SEG41

SEG42

CPU5

767778798081828384858687888990919293949596979899100

PD1/SEG42

PD0/SEG41

P66/SEG15

R432
100k

R431
1k×2

C438

0.1

C439

0.1

VCC

P97/SEG40
P96/SEG39

P95/SEG38
P94/SEG37
P93/SEG36
P92/SEG35
P91/SEG34
P90/SEG33
P87/SEG32
P86/SEG31
P85/SEG30
P84/SEG29
P83/SEG28
P82/SEG27
P81/SEG26
P80/SEG25
P77/SEG24
P76/SEG23
P75/SEG22
P74/SEG21
P73/SEG20
P72/SEG19
P71/SEG18
P70/SEG17

P67 /SEG16

R236
1k

C256

0.001

C257
47p

TXC

T5C

VCC

DS2

LNJ310M6URA

R183
560

DS4

DS1
LM-1462B

1

COM1

2

COM2

3

COM3

4

COM4

5

SEG1

6

SEG2

7

SEG3

8

SEG4

9

SEG5

10

SEG6

11

SEG7

12

SEG8

13

SEG9

14

SEG10

15

SEG11

16

SEG12

17

SEG13

18

SEG14

19

SEG15

20

SEG16

21

SEG17

22

SEG18

23

SEG19

24

SEG20

25

SEG21

26

SEG22

C446
47p

LED ON : 5.7V

DS3

LNJ310M6URA

Q25

2SC2712

LIGHT

R204

3.3k
R205

1.5k

75

SEG40

74

SEG39

73

SEG38
SEG37

72
71
70

SEG35

69

SEG34

SEG33

68
67
66

SEG31
SEG30

65

SEG29

64

DUSF

63

CTDA2

62

CTDA1

61

CTDA0

60
59
58
57
56
55

DST

54

AFON

53

LIGHT

52
51

R433 1k×4

LIGHT

R237
100k

C440

0.1

C441

0.1

C442
47p

DST

AFON

T5C

LNJ808R8ERA

R155
100

COM1
COM2
COM3
COM4
SEG29
SEG30
SEG31
SEG33
SEG34
SEG35
SEG37
SEG38
SEG39
SEG40
SEG41
SEG42
SEG43
SEG44
SEG45
SEG46
SEG47
SEG48
SEG49
SEG50
SEG51
SEG52

VCC

R450

2.2k

C416
470p

C417

0.5p

C426

0.001

R464
1k

14
13
12
11

10
9

8

C427

0.5p

C105

0.001

C477
47p

TONE

D405
HSU88

L417
27nH [MH]
22nH [H
[H

R22
68k

TX: 0.70V
RX: 0.77V

3
2
1

Q402
DTC144EU

C106
10p [W]
6p [N]

TX: 0V
RX: 4.66V

R75
270

TX: 0V
RX: 0.86V

RM

C33
470p

L20

0.82 H

Q13
3SK241

R167
100k

CTCSS

C456
10

Q404
2SC4116

1],

2]

R460
220
[L], [ML]

Q6
2SC5107

C473
47p

R72
47k

C499
47p

R112
100k

C128
1

R23
220

2.20V

R70

4.7k

C31
5p

4.12V

+

TX: 3.20V
RX: 3.18V

TX: 0.64V
RX: 0.76V

R449
470

R447
470

0V

L21
82nH [L]
47nH other

R169
10k

SIGOUT

+

TX: 3.48V
RX: 3.45V

R21
220

L9
27nH

R20

C28

68k

12p

Q5
2SC5107

C455
10p other
47p [H

R448
12

C98
22p

L19

8.8nH

C212

0.1

C213

4.7

R170
10k

C491
1

C30
12p

C32
470p

R465
22 [L], [ML]
47 other

R68
10k

1], [H2]

C97
7p [L]
5p [ML]
3p [MH]
2p
[H

+

C214

0.1

R18
47k

C99

0.001

D12
HVU350

C96
9p [L]
7p [ML]
6p
other

1], [H2]

T4

220k

R98
240k e
270k u

R107
120k [N]-e
150k [N]-u
270k [W]-e
330k [W]-u

R113
68k e
82k u

R172
1M

R19

100

Q4
2SC5107

TX: 0.81V
RX: 0.77V

R69
1k

R66
150k

R67
10k

R97

L8
27nH [L]
27nH [ML], [MH]
18nH [H

C27
5p

R17

4.7k

C454

0.001

C94

0.5p

D11
HVU350

C95

C93

47p

47p

R114

33k

C136

0.0047

C216

0.1

Q34

C234

R184
10k

1], [H

MIXIN

GND
N-REC
N-DET

RSSI
IFOUT
QUAD

R452
1k

C217

0.1

0.001

C443

0.047

C117
10

C48
1

2

16
15

14
13
12
11
10

2SK880

R186
47k

C432

0.001

R32
1 k [MH]

6.8k other

+

]

C476

47p

+

9

NOIS

C125

0.0015
C124

0.01

R176

3.9k

LV

C233

0.001

R33

4.7k

C47

0.1 other

0.33 [MH]

R424
100k

C115
100p

C114

0.001

SD

C126

0.0039

R93
27k

BEEPOUT

C410
11 p [L]
7p [ML]
12 p [MH]

1

10 p [H
[H

2]

R409
10

R415
10

L407

4.7 H

C218

0.001

+

D403

HVU350

R208
100k

R82

1.2k [W]

2.2k [N]

C116
56p [W]
100p [N]

R83
330

C113

0.001

IC3b
NJM2902V

6
5

R94
1M

C465

0.0022

CR-576A

C64
12p

GND1

VCC2

GND2

I

C120

0.1

R105
270 [W]
470 [N]

R85

1.5k

FO2

15.3 MHz

X1

20
19

IN2

18
17

XB

16

XI

15

XO

14
13

CP2

12

FI2

11

R84
47

TA31136FN(D)

1
2

3
4

5
6
7
8

C118

0.001

AF

IC3c
NJM2902V

10

+

9

—

C134
150p [W]
220p [N]

R108
150k [W]
180k [N]

R45
100

C63
56p

R46
1

TX: 0V
RX: 4.8V

IC2

OSCIN
OSCOUT

MIXOUT
VCC
IFIN
DEC
FILOUT
FILIN

8

R109

VOL IN

R185
1k

C54

0.001

R34
1k other

2.7k [H

10k

AFOUT

C444

0.001

4p

R87

1.8k [W]

3.3k [N]

R49
47k

W2

C210

0.1

C66
4p

C56

0.1

C69
33p

D7
HVU17

R440
120k

1

VCC1

2

IN1

3

ENB

4

CLK

5

DATA

6

T1

7

LOK

8

CP1

9

FI1

10

FO1

L403

1.5 H

FI2
CFWM450E [W]
CFWM450G [N]

L25

0.82 H

C121

220p

R86
120k [W]
100k [N]

C122
220p

C132

0.0047

R104
100k

C133

0.1

IC1

PD3140GS

C67
3p

O

R51

R50

470k

100k

C71

C70

0.001

0.01

R48

5V

R42
1k×4

C59
100p

L14
15nH

6p

C52

0.01
R40

680k

C51
10p

Q11

2SC4081

R90
33k [W]
10k [N]

C490
220p

Q17
UN911H

0.1
R130

100k

C209

0.1

MICIN MICOUT

C72

100k

4.7

C55

0.01

C58
100p

R41
56

C60

0.001

C57
22p

R44

C65

1.2k

L13
1H

C53
5p

R88
120k

R441
NTCCF20123NH

R89
10k

R131
470

R468

6.8k e
12k u

C493

0.047 [L], [ML]

0.027 other

R150
50k

C626pC61

R5
S5 S5

R92
50k

VCC

R5
S5

+

10

C147

R410 3.3k

C412
5 p [L], [ML]
7 p other

C411

1.5p[L]

0.3p[ML]

],

4 p [MH]
3 p [H

1],

[H

2

]

L11
MC152-E558ANA-100051=P3 [L], [ML]
MC152-E558ANA-100050 other

D5
HVU350

L12

4.7 H

C419
1p [L]

0.75p

C418

other

12p [L]
9p [ML]
8p other

C475

3.5p [L]

1.5p [ML]

D404

MC152-E558ANA-100050

1T365

R422
220k

5V

R209

C229

0.1

100k

TX: 0V
RX: 2.9V

X3
CDBCA450CX24

L22

1.8 H

D402

1SS375

R407
120k

C112

0.001

Q400
2SC4215

DET

R95

1M

R171
47k

7

R454
1M u
1 e

R96
47k

C215

0.1

R459
10k

R453
47k [W]
56k [N]

—
+

C421

4p [L]

6p [ML], [MH]

3p [H

1], [H2]

C422
7p [L], [ML]
6p [MH],
5p [H
[H

L405

C211

R408
1k

C408

470p

R406
390 [W]
120 [N]

C474

0.01

C464

0.001

C497
47p

R411

2.7 k [L], [ML]

3.3 k other

R413 4.7

C413
7p

C414
8p

R416

3.3k

1],
2]

C42

470p

+

4.7

MM

R5C

2.26V

Q7
2SC4226

R417

3.3k

R419

4.7

TX: 1.82V
RX: 1.92V

C423
6p [L], [ML]
5p [MH],

1

4p [H

L406

1.5 H

R420
270 other
120 [H

R421
10k

FI1 FL-271 [W]
FL-267 [N]

R469

2.7k

R166

100k

1
2
3
4
5
6
7

Q8 2SC4226

R412
1

C415

0.01

L404

1.5 H

],[H2]

1], [H2]

R77

C107

100

0.001

C108

0.01

C451
8p [W]
20p [N]

IC4

BU4066BCFV

I/O
O/I

CONT.A
CONT.D

O/I
I/O

CONT.B
CONT.C

VEE

C148

0.1

4.14V

1.72V
TX: 4.04V

RX: 4.14V

R414
470

C424
470p

TX: 1.26V
RX: 1.45V

Q401
XP1214

4

5

C109
10p [W]
8p [N]

C450
1p [W]
2p [N]

C131

0.01

VDD

I/O
O/I
O/I

I/O

R125

27k

C26
470p

TX: 3.62V
RX: 0.40V

C483
470p

1], [H2]

1LO

R5

R64
220k

R65
10k

13
12

R15
10k

R14
100

C452

D3
MA77

C486
5p

D4
MA77

L410
1H

C449

C90

47p

0.001

C91

9p [L]

7p [ML]

5p [MH]

4p [H

1], [H2]

C92
9p [L]
7p [ML]
6p other

T3 T2

120k

R115

C135

100p [W]
120p [N]

—

14

+

IC3d
NJM2902V

R159
100k

C471
47p

R445

220

C472
47p

L411
27nH

R446

56k

3p

Q403
2SC5107

TX: 0.63V
RX: 0.39V

Q12 3SK239A

C405
7p [L]
6p [ML]
4p [MH]

1],

3p [H

2]

[H

C89

0.5p

L402

8.8nH

D401

R404

HVU350

220k

R405

C407

10k

47p

S5

R455
120k [N]-e-[L]/[ML]/[MH]
100k [N]-u-[L]/[ML]/[MH]
330k [N]-[H
82k [W]-e-[L]/[ML]/[MH]
68k [W]-u-[L]/[ML]
180k [W]-[H

R117

1.5k

C137

0.033

R116

1k

R439
56k

C470
47p

C487
47p

C24
470p

C458
47p

C25

4p

C492
10p

except

1], [H2]

[H

TX: 0V
RX: 4.95V

C406
10p [L]
8p [ML]
7p
other

C88

0.001

1]/[H2]

2]

R455

R13

10

R12
10k

R401
100k

L18

8.8nH

R403

4.7

C87
47p

TX: 0V
RX: 0.77V

R119
10k

R118
1

C460

0.0018 [W]

0.001 [N]

C9
470p

L7
15nH [L]
12nH other

C22
7p other
8p [ML], [MH]

TX: 4.75V
RX: 0.40V

Q3
2SC3585

TX: 0.59V
RX: 0.40V

0V

R400

4.7k

R59
150

C85
10p [L]
6p [ML], [MH]
4p [H

R100

C496
470p

R3

1k

1

6

Q2
2SK2596

R9
10k

C79

2.5p
L413

27nH [L]
15nH [ML]

C457
2p
[L], [ML]
only

R62
220k

C84
47p

Q16

XP6501AB

C139

0.1

R161

0.15

C21

+

22

R8

6.8k

R470
1 [MH], [H

Q15

2SB1132

SPG

C20
470p

C19

0.001

R7

100

C17

0.001

1], [H2]

C459
47p [L], [ML]
4p other

L400

0.22 H
[L], [ML]
47nH
other

C77
56p [L], [ML]
3p [MH]

2.5p [H

6

54

23

1

R121

1k

C4681C436

C469
47p

C401
47p

C78
7p [L], [ML]
6p other

R122

2.7k

R123

3.3k

R457
18k

+

C145

10

D8

MA77

0.001

C14

0.01

TX: 1.0V
RX: 0V

R5
47

C13

0.001

L401
17nH

C146

0.001

L27
EXCCL3225U

C482
470p

L6

1.8nH [L]

1.5nH other

C15
27p [L]
20p other

R458
27k

C400
47p

D400

1SS375

1], [H2]

6.9V (VR MIN.)—6.4V (VR MAX.)

C140

0.1

L26
EXCCL3225U

L5
LA-515

Q1
2SK2595

D406
MA77

C448
15p [L], [ML]
12p [MH]
11p [H

1], [H2]

C467
10p

L15
17nH

C76
4p [L]
7p
other

ISENS

1
2
3
4
5

W6

NC
VCC
NC

VIN
RIPPLE

R126

C149

0.1

VOL OUT

T5

C204

0.001

C205
18p

C206

0.3p

C11
12p [L]
8p [ML]
4p other

C179

0.01

R55
1k

IC5

TA7368F

PWGND

PREGND

PHASE

10k

R160
150

L24

0.82 H

D1

MA77

R456

1.5k

S5

C73

0.1

R52
100k

1

IC3a

NJM2902V

POUT

NF

L3
Y655LY-04K [L], [ML]
Y655LY-03K=P3 [MH]
Y655LY-02M [H

L2
Y655LY-04K [L], [ML]
Y655LY-03K=P3 [MH]
Y655LY-02M [H

L1
Y655LY-03=P3 [L], [ML], [MH]
Y655LY-02M [H

C8

0.001

C7
5p [L]
4p other

D2
HSM88AS

Q37

DTA144EU

R210

2.2k

R53
10k

4

2

—

3

+

11

R438

C75

330k

0.01

10
9
8

7
6

R127

10

C150

10

R54

150k

+

C5
9p [L]
8p [ML]
10p [MH]
7p [H

C207

0.001

T4

L2L3

C151

47P

1], [H2]

R164

2.7k

C466
47p

C243

0.001

TXC

1], [H2]

1], [H2]

1], [H2]

L1

R1
82k

C3
12p other
10p [MH]

R165

1.8k

L415

EXCCL4532U

R128
10

C152

0.047

AF OUT

C208

0.001

+

C153
100

J1

ANT.

LEFT SIDE RIGHT SIDECENTER

11-2

6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
Phone : [phone]
Fax : [phone]

Communication Equipment
Himmelgeister Str. 100, D-40225 Düsseldorf, Germany
Phone: [phone] Fax : [phone]
URL : http://www.icomeurope.com

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.
Phone: [phone] Fax : [phone]
URL : http://www.icomuk.co.uk

Zac de la Plaine, Rue Brindejonc des Moulinais
BP 5804, 31505 Toulouse Cedex, France
Phone: [phone] Fax : [phone]
URL : http://www.icom-france.com

Crta. de Gracia a Manresa Km. 14,750
08190 Sant Cugat del Valles Barcelona, SPAIN
Phone: [phone] Fax : [phone]
E-mail : [e-mail]

<

Corporate Headquarters

>

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.
Phone: [phone] Fax : [phone]
URL : http://www.icomamerica.com

<

Customer Service

>

Phone: [phone]

A.C.N. 006 092 575
290-294 Albert Street, Brunswick, Victoria, 3056, Australia
Phone: [phone] Fax : [phone]
URL : http://www.icom.net.au

6F No. 68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan R.O.C.
Phone: [phone] Fax : [phone]

A Division of Icom America Inc.
3071 #5 Road, Unit 9, Richmond, B.C., V6X 2T4, Canada
Phone: [phone] Fax : [phone]

6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan

A-5452MI-S-q

© 1997 Icom Inc.
