Icom IC-F34GT, IC-F44GS, IC-F44GT, IC-F34GS User Manual

INSTRUCTION MANUAL

VHF TRANSCEIVER

iF34GT/GS

UHF TRANSCEIVER

iF44GT/GS

IMPORTANT

PRECAUTION

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This

instruction manual contains important operating instructions
for the IC-F34GT/GS VHF TRANSCEIVER and IC-F44GT/GS
UHF TRANSCEIVER.

EXPLICIT DEFINITIONS

WORD DEFINITION

RWARNING

CAUTION

NOTE

Icom, Icom Inc. and the logo are registered trademarks of Icom
Incorporated (Japan) in the United states, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
SmarTrunk II™ and SmarTrunk 3G™ are Trademark of SmarTrunk Systems,
Inc.

i

Personal injury, fire hazard or electric shock
may occur.

Equipment damage may occur.

If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.

R CAUTION! NEVER hold the transceiver so that the

antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
away from the lips and the transceiver is vertical.

R CAUTION! NEVER operate the transceiver with a

headset or other audio accessories at high volume levels.

R CAUTION! NEVER short the terminals of the bat-

tery pack.

DO NOT push PTT when not actually desiring to transmit.
AVOID using or placing the transceiver in direct sunlight or

in areas with temperatures below –25°C or above +55°C.

The basic operations, transmission and reception of the trans­ceiver are guaranteed within the specified operating temper­ature range. However, the LCD display may not be operate
correctly, or show an indication in the case of long hours of
operation, or after being placed in extremely cold areas.

DO NOT modify the transceiver for any reason.
KEEP the transceiver from the heavy rain, and Never

immerse it in the water. The transceiver construction is water
resistant, not waterproof.

The use of non-Icom battery packs/chargers may impair
transceiver performance and invalidate the warranty.

ii

TABLE OF CONTENTS

IMPORTANT ........................................................................ i

EXPLICIT DEFINITIONS ..................................................... i

PRECAUTION ..................................................................... i

TABLE OF CONTENTS ...................................................... iii

1 ACCESSORIES ......................................................... 1–3

■ Supplied accessories ................................................. 1

■ Accessory attachments .............................................. 1

2 PANEL DESCRIPTION ........................................... 4–10

■ Front panel ................................................................. 4

■ Function display ......................................................... 6

■ Programmable function keys ..................................... 7

3 BASIC OPERATION .............................................. 11–15

■ Turning power ON .................................................... 11

■ Channel selection ..................................................... 11

■ Call procedure........................................................... 12

■ Receiving and transmitting........................................ 12

■ User Set mode .......................................................... 15

■ Scrambler function .................................................... 15

4 BIIS OPERATION .................................................. 16–27

■ Default setting .......................................................... 16

■ Receiving a call ........................................................ 16

■ Transmitting a call .................................................... 18

■ Receiving a message ............................................... 20

■ Transmitting a status ................................................ 22

■ Transmitting an SDM ............................................... 23

■ Position data transmission ....................................... 25

■ Printer connection .................................................... 25

■ Digital ANI ................................................................ 25

■ Auto emergency transmission .................................. 26

■ Stun function ............................................................ 26

■ BIIS indication .......................................................... 26

■ Priority A channel selection ...................................... 26

■ Man Down Emergency Call ..................................... 27

5 OPTIONAL SmarTrunk OPERATION .................. 28–29

■ SmarTrunk II™/SmarTrunk 3G™

and conventional modes ........................................... 28

■ SmarTrunk II™/SmarTrunk 3G™ operation.............. 28

6 OPTIONAL UNIT INSTALLATION ........................ 30–31

■ Optional unit installation ........................................... 30

■ UT-109 and UT-110 installation ................................ 31

■ UT-105, UT-117 and UT-117S installation ................ 32

7 BATTERY CHARGING .......................................... 33–36

■ Battery charging ....................................................... 33

■ Battery caution ......................................................... 33

■ Optional battery chargers ......................................... 34

8 SWIVEL BELT CLIP .............................................. 37–38

■ MB-93 contents ........................................................ 37

■ To attach .................................................................. 37

■ To detach ................................................................. 38

9 OPTIONS ............................................................... 39–40

10 DOC ....................................................................... 41–42

iii

ACCESSORIES

qw

r

e

t

1

■ Supplied accessories

The following accessories are supplied: Qty.

q Flexible antenna ……………………………………………1
w Battery pack …………………………………………………1
e Belt clip ………………………………………………………1
r Unit cover (double-sided tape)* ……………………………1
t Jack cover (with screws) ………………………………1 set

*Use the unit cover as a spare. Ask your dealer for details.

■ Accessory attachments

D Flexible antenna

Connect the supplied flexible anten­na to the antenna connector.

CAUTION!

• NEVER HOLD by the antenna
when carrying the transceiver.

• Transmitting without an antenna
may damage the transceiver.

1

ACCESSORIES

q

w

q

w

1

ï Battery pack

To attach the battery pack:

Slide the battery pack in the direction of the arrow (q), then
lock it with the battery release button.

• Slide the battery pack until the battery release button makes a ‘click’
sound.

To release the battery pack:

Push the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.

NEVER release or attach the battery pack when the trans­ceiver is wet or soiled. This may result water or dust get­ting into the transceiver/battery pack and may result in the
transceiver being damaged.

D Belt clip

To attach the belt clip:

q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt

clip is locked and makes a ‘click’ sound.

To detach the belt clip:

q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of

the arrow (w).

2

ï Jack cover

q

w

q

w

Attach the jack cover when the optional speaker-microphone
is not used.

To attach the jack cover:

q Attach the jack cover on

the [SP]/[MIC] jack.

w Tighten the screws.

To detach the jack cover:

q Unscrew the screws with

a Phillips screwdriver.

w Detach the jack cover for

the speaker-microphone
connection.

ACCESSORIES

1

3

2

[SP]/[MIC] jack cover
NOTE: Attach the [SP]/[MIC] jack

cover when the optional speaker­microphone is not used.
(See p. 3 for details)

i

t

r

q

e

u

y

w

o

!0

!1

10-keypad version

PANEL DESCRIPTION

■ Front panel

e DEALER-PROGRAMMABLE KEY [RED]

Desired function can be programmed by your dealer.
(p. 7)

r [SP]/[MIC] JACK

Connect the optional speaker-microphone.

q ROTARY SELECTOR

Rotate to select the pre-programmed memory channels or
the operating bank.

4

(Depending on the pre-setting)

w VOLUME CONTROL [VOL]

Rotate to turn the power ON/OFF and adjusts the audio
level.

t FUNCTION DISPLAY

Displays a variety of information such as an operating
channel number/name, 2/5-tone code, DTMF numbers,
selected function, etc.

y DEALER-PROGRAMMABLE KEYS [P0] to [P3]

Desired functions can be programmed independently by
your dealer. (p. 7)

PANEL DESCRIPTION

2

u 10-KEYPAD (Depending on version)

The keypad allows you to enter digits to:

• Select memory channels

• Select tone channels

• Select DTMF codes (during transmit)

• Set TX codes

• Set SmarTrunk II™/SmarTrunk 3G™ codes

• Set BIIS status number

• Input text message for SDM operation

• Start up with the password

i UP/DOWN KEYS

➥ Push to select an operating channel.
➥ Push to select a TX code channel after pushing

[TX CODE CH SELECT].

➥ Push to select a DTMF channel after pushing [DTMF].
➥ Push to select a scan group after pushing and holding

[SCAN].

➥ Push to select a BIIS code, status number or SDM after

pushing [DIGITAL].

*Desired functions can be programmed independently by your

dealer. (p. 7)

o PTT SWITCH [PTT]

➥ Push and hold to transmit; release to receive.
➥ Push to transmit the call during MSK operation, depend-

ing on the setting.

!0 MONITOR KEY

➥ Mute and release the CTCSS (DTCS) or 2-tone squelch

mute. Open any squelch/deactivate any mute while
pushing this key. (LMR operation only)

➥ Activates one of (or two of) the following functions on

each channel independently.
(PMR or BIIS PMR operation only)

• Push and hold the key to unmute the channel (audio is
emitted; ‘audible’ condition).

• Push the key to toggle the mute and unmute conditions
(toggles ‘audible’ and ‘inaudible’).

• Push the key to mute the channel (sets to ‘inaudible’ only).

• Push the key to unmute the channel (sets to ‘audible’ only).

• Push the key after communication is finished to send a ‘reset
code.’

• Push the key after communication is finished to send a ‘clear
down code’ during BIIS operation on an MSK channel.

NOTE: The unmute condition (‘audible’ conditions)
may automatically return to the mute condition
(‘inaudible’ condition) after a specified period.

*Desired function can be programmed by your dealer. (p. 7)

!1 ANTENNA CONNECTOR

Connects the supplied antenna.

5

PANEL DESCRIPTION

q !1!0oiuytrew

!2

!3

2

■ Function display

q TRANSMIT INDICATOR

Appears while transmitting.

w BUSY INDICATOR

Appears while the channel is busy.

e SCROLL INDICATOR

Appears when a received SDM including more than 8
characters is displayed.

r SIGNAL STRENGTH INDICATOR

Indicates relative signal strength level.

t LOW POWER INDICATOR

Appears when low output power is selected.

• When the battery power decreases to a specified level, low
power is selected automatically.

y AUDIBLE INDICATOR

➥ Appears when the channel is in the ‘audible’ (unmute)

condition.

➥ Appears when the specified 2/5-tone/BIIS code is

received.

u COMPANDER INDICATOR

Appears when the compander function is activated.

i SCRAMBLER INDICATOR

Appears when the voice scrambler function is activated.

o BELL INDICATOR

Appears/blinks when the specific 2/5-tone/BIIS code is
received, according to the pre-programming.

!0 CALL CODE MEMORY INDICATOR

Appears when the call code memory is selected.

!1 KEY LOCK INDICATOR

Appears during the key lock function is ON.

!2 BATTERY INDICATOR

Appears or blinks when the battery power decreases to a
specified level.

!3 ALPHANUMERIC DISPLAY

Displays an operating channel number, channel name, Set
mode contents, DTMF code, etc.

6

■ Programmable function keys

PANEL DESCRIPTION

2

The following functions can be assigned to [UP], [DOWN],
[P0], [P1], [P2], [P3], [RED] and [MONITOR] programmable
function keys.
Consult your Icom dealer or system operator for details con­cerning your transceivers programming.
If the programmable function names are bracketed in the fol­lowing explanations, the specific key is used to activate the
function depends on the programming.

CH UP AND DOWN KEYS

➥ Push to select an operating channel.
➥ Push to select a transmit code channel after pushing [TX

Code CH Select].

➥ Push to select a DTMF channel after pushing [DTMF

Autodial].

➥ Push to select a scan group after pushing and holding

[Scan A Start/Stop]/[Scan B Start/Stop].

➥ Push to select a BIIS code, status number or SDM after

pushing [Digital].

BANK SELECT KEY

Push this key, then push [CH Up] or [CH Down] to select the
desired bank.

SCAN A KEY

➥ This key’s operation depends on the Power ON Scan set-

ting.

When the power ON scan function is turned OFF;

Push to start and cancel scanning operation. In case of
transmission during scan, cancels scanning.

When the power ON scan function is turned ON;

Push to pause scanning. Scanning resumes after passing
a specified time period. In case of transmission during
scan, pauses scanning. Scanning resumes after passing
a specified time period.

➥ Push and hold this key for 1 sec. to indicate the scan

group, then push [CH Up] or [CH Down] to select the
desired group.

SCAN B KEY

➥ Push to start and cancel scanning operation. In case of

transmission during scan, pauses scanning. Scanning
resumes after passing a specified time period.

➥ Push and hold this key for 1 sec. to indicate the scan

group, then push [CH Up] or [CH Down] to select the
desired group.

7

PANEL DESCRIPTION

2

SCAN TAG KEY

Push to add or delete the selected channel to the scan group.

PRIORITY CHANNEL KEYS

➥ Push to select Priority A or Priority B channel.
➥ Push and hold [Prio A (Rewrite)] to rewrite the Prio A chan-

nel.

MR-CH 1/2/3/4 KEYS

Push to select an operating channel directly.

MONITOR KEY

➥ Mute and release the CTCSS (DTCS) or 2-tone squelch

mute. Open any squelch/deactivate any mute while push­ing this key. (LMR operation only)

➥ Activates one of (or two of) the following functions on each

channel independently: (PMR or BIIS PMR operation only)

• Push and hold to un-mute the channel (audio is emitted;
‘Audible’ condition).

• Push to mute the channel (sets to ‘Inaudible’ only).

• Push to un-mute the channel (sets to ‘Audible’ only).

• Push after the communication is finished to send a ‘reset
code’.

NOTE: The un-mute condition (‘Audible’ condition) may
automatically return to the mute condition (‘Inaudible‘
condition) after a specified period.

LOCK KEY

Push and hold to electronically lock all programmable keys
except the following:
[Call] (incl. Call A and Call B), [Moni(Audi)] and [Emergency].

OUTPUT POWER SELECTION KEY

Push to select the transmit output power temporarily or per­manently, depending on the pre-setting.

•Ask your dealer for the output power level for each selection.

C.TONE CHANNEL ENTER KEY

Push to select the continuous tone channel using
[CH Up]/[CH Down] to change the tone frequency/code set­ting after pushing this key for permanent operation.

TALK AROUND KEY

Turn the talk around function ON and OFF.

•The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.

WIDE/NARROW KEY

Push to toggle the IF bandwidth between wide and narrow.

• The wide passband width can be selected from 25.0 or 20.0 kHz

using the CS-F33G
tion only) Ask your Dealer for details.

CLONING SOFTWARE

. (PMR or BIIS PMR opera-

8

PANEL DESCRIPTION

2

DTMF AUTODIAL KEY

➥ Push to enter the DTMF channel selection mode. Then

select the desired DTMF channel using [CH Up]/[CH Down]
keys.

➥ After selecting the desired DTMF channel, push this key to

transmit the DTMF code.

DTMF RE-DIAL KEY

Push to transmit the last-transmitted DTMF code.

CALL KEYS

Push to transmit a 2/5-tone/BIIS ID code.

•Call transmission is necessary before you call another station
depending on your signalling system.

•[Call A] and/or [Call B] may be available when your system employs
selective ‘Individual/Group’ calls. Ask your dealer which call is
assigned to each key.

EMERGENCY KEYS

➥ Push and hold to transmit an emergency call.
➥ When [Emergency Single (Silent)] or [Emergency Repeat

(Silent)] is pushed, an emergency call is transmitted without
a beep emission and LCD indication change.

• If you want to cancel the emergency call, push (or push and
hold) the key again before transmitting the call.

• The emergency call is transmitted one time only or repeatedly
until receiving a control code depending on the pre-setting.

TX CODE ENTER KEY (PMR or BIIS PMR operation only)
Push to enter the direct ID code edit mode, for both 5-tone
and MSK. Then set the desired digit using [CH Up]/[CH
Down]/[TX Code CH Up]/[TX Code CH Down] or 10-keypad.*
(p. 14)
*Depending on version

TX CODE CHANNEL SELECT KEY

➥ Push to enter the direct ID code channel selection mode.

Then set the desired channel using [CH Up]/[CH Down]/
[TX Code CH Up] or [TX Code CH Down]. (p. 13)

➥ While in ID code channel selection mode, push for 1 sec. to

enter the ID code edit mode for 5-tone and MSK. Then set
the desired digit using [CH Up]/[CH Down]/[TX Code CH
Up]/[TX Code CH Down] or 10-keypad.* (p. 14)
*Depending on version

TX CODE CHANNEL UP/DOWN KEYS

Push to select a TX code channel directly.

ID MEMORY READ KEY (PMR or BIIS PMR operation only)
➥ Recalls detected ID codes.

•Push this key, then push [CH Up]/[CH Down] for selection.

• Up to 5 ID’s are memorized.

➥ Push and hold to erase the selected memorized ID’s.

VOICE SCRAMBLER FUNCTION

Push to toggle the voice scrambler function ON and OFF.

9

PANEL DESCRIPTION

2

COMPANDER KEY

Push to toggle the compander function ON and OFF.
The compander function reduces noise components from the
transmitting audio to provide clear communication.

USER SET MODE KEY

➥ Push and hold to enter user set mode.

• During user set mode, push this key to select an item, and push
[CH Up]/[CH Down] to change the value or condition.

➥ Push and hold this key again to exit user set mode.

OPT OUT KEYS

Push to control the optional unit connector output signal level.

DIGITAL KEY (BIIS operation only)
➥ Push to select the call ID list, transmit message and stand-

by condition. Toggles between queue channel and
received message record indication after queue channel is
selected.

➥ Push and hold to select queue channel indication.

STATUS UP/DOWN KEYS (BIIS operation only)
➥ While in the standby condition, push to display the trans-

mit status indication and select a status number.

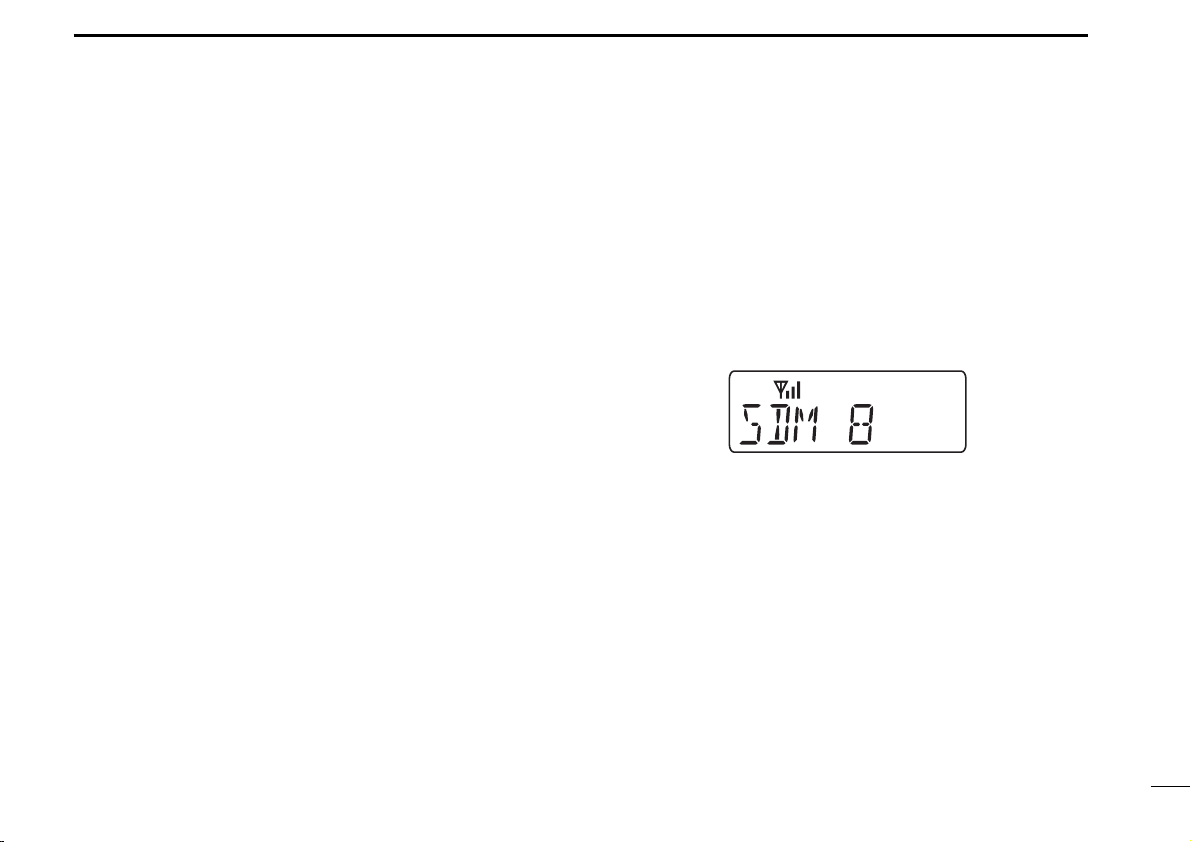

➥ When a received SDM is displayed, push to cancel the

automatic scroll and scroll the message manually.

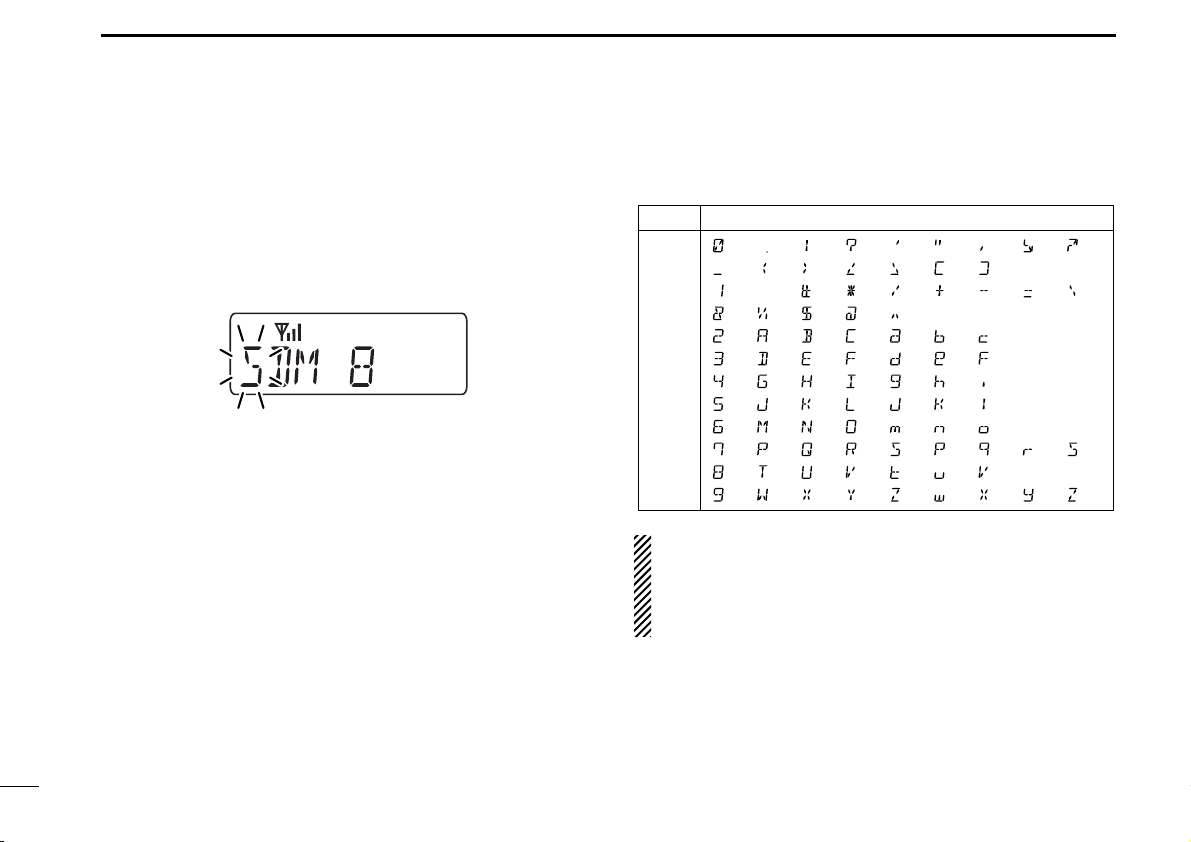

➥ When an SDM that contains more than 8 characters is dis-

played, push to scroll the message manually.

D For SmarTrunk operation only

TRUNKING GROUP KEY

Push to select the Trunking group.

TURBO SPEEDIAL A/B/C/D KEYS

Push to automatically dial a commonly used number with one
push.

CALL/CLEAR-DOWN KEYS

Functions as [M] and [#] keys on the 10-keypad.

• Push [M] for call, push [#] for clear-down.

TRUNKING CALLER ID KEY

Push [Trunking Caller ID SW] to display the received ID
record in sequence (while in SmarTrunk 3G™ operation).

10

BASIC OPERATION

KEY

NUMBER

0
5

4
9

3
8

2
7

1
6

DOWN

3

■ Turning power ON

q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,

input the digit codes as directed by your dealer.

• 10-keypad can be used for password input depending on ver­sion:

• The keys in the table below can be used for password input:

• The transceiver detects numbers in the same block as identical.
Therefore “01234” and “56789” are the same.

e When the “PASSWORD” indication does not clear after

inputting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.

■ Channel selection

Several types of channel selections are available. Methods
may differ according to your system set up.

NON-BANK TYPE:

Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]* to
select the desired operating channel, in sequence; or, push
one of [MR-CH 1] to [MR-CH 4] keys to select a channel
directly.

• Up to 16 pre-programmed channels can be selected via [ROTARY
SELECTOR].*

BANK TYPE:

Push [BANK], then push [UP] or [DOWN] or rotate [ROTARY
SELECTOR]* to select the desired bank.

AUTOMATIC SCAN TYPE:

Channel setting is not necessary for this type. When turning
power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call.

*Depending on the pre-setting.

11

BASIC OPERATION

Selective calling

Non-selective calling

3

■ Call procedure

When your system employs tone signaling (excluding CTCSS
and DTCS), the call procedure may be necessary prior to voice
transmission. The tone signalling employed may be a selec­tive calling system which allows you to call specific station(s)
only and prevent unwanted stations from contacting you.
q Select the desired TX code channel or 2/5-tone code

according to your System Operator’s instructions.

• This may not be necessary depending on programming.

• Refer to pgs. 13 or 14 for selection.

w Push the call key (assigned to one of the dealer program-

mable keys: [Up], [Down], [P0], [P1], [P2], [P3],
[Emergency] and [Monitor]) or [PTT].

e After transmitting a 2/5-tone code, the remainder of your

communication can be carried out in the normal fashion.

■ Receiving and transmitting

NOTE: Transmitting without an antenna may damage the

transceiver. See p. 1 for antenna attachment.

Receiving:

q Rotate [VOL] to turn the power ON.
w Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]*

to select a channel, in sequence.

*Depending on the pre-setting.

e When receiving a call, adjust the audio output level to a

comfortable listening level.

Transmitting:

Wait for the channel to become clear to avoid interference.
q While pushing and holding [PTT], speak into the micro-

phone at a normal voice level.

w Release [PTT] to return to receive.

IMPORTANT: To maximize the readability of your signal;

1. Pause briefly after pushing [PTT].

2. Hold the microphone 5 to 10 cm from your mouth, then
speak into the microphone at a normal voice level.

12

BASIC OPERATION

3

D Transmitting notes

• Transmit inhibit function

The transceiver has several inhibit functions which restrict
transmission under the following conditions:

- The channel is in mute condition (‘Inaudible’ condition;
“” does not appear.)

- The channel is busy.

- Un-matched (or matched) CTCSS is received.

(Depending on the pre-setting.)

- The selected channel is a ‘receive only’ channel.

• Time-out timer

After continuous transmission for the pre-programmed time
period, the time-out timer is activated, causing the transceiv­er to stop transmitting.

• Penalty timer

Once the time-out timer is activated, transmission is further
inhibited for a period determined by the penalty timer.

D TX code channel selection

If the transceiver has [TX Code CH Select] assigned to it,
indication can be toggled between the operating channel
number (or name) and TX code channel number (or name).
When the TX code channel number (or name) is displayed,
[UP]/[DOWN] selects the TX code channel.

TO SELECT A TX CHANNEL:

q Push [TX Code CH Select]— a TX code channel appears.
w Push [UP] or [DOWN] to select the desired TX code chan-

nel.

e Push [Call] (or [PTT] during MSK operation) to transmit the

selected TX code.

r Push [TX Code CH Select] again to return to the operat-

ing channel number indication.

FOR TX CODE CHANNEL TYPE:

If the transceiver has a [TX Code CH Up] or [TX Code CH
Down] key assignment, the programmed TX code channel
can be selected directly.

13

BASIC OPERATION

3

D TX code number edit

(PMR or BIIS PMR operation only)
If the transceiver has [TX Code CH Select] or [TX Code
Enter] assigned to it, TX code contents can be edited within
the allowable digits.

TO EDIT A TX CODE VIA [TX CODE CH SELECT] KEY:

q Push [TX Code CH Select] to enter the TX code channel

selection mode.

• Select the desired channel using [UP] or [DOWN] if necessary.

w Push [TX Code CH Select] for 1 sec. to enter the TX code

edit mode.

e Push [TX Code CH Select] to select the desired digit to be

edited.

r Set the desired digit using [UP], [DOWN], [TX Code CH

Up], [TX Code CH Down] or 10-keypad.*

*Depending on version.

t Push [TX Code CH Select] to set the digit. The editable

digit will move to the right automatically.

• When the 10-keypad is used to set, the editable digit will move to
the right automatically without pushing [TX Code CH Select].

y Repeat r and t to input all allowable digits.
u Push [Call] or [PTT] to transmit the edited TX code.

TO EDIT A TX CODE VIA [TX CODE ENTER] KEY:

q Select the desired TX code channel via [TX Code CH Up]

or [TX Code CH Down].

w Push [TX Code Enter] to enter the TX code edit mode.
e Push [TX Code Enter] to select the desired digit to be edit-

ed.

r Set the desired digit using [UP], [DOWN], [TX Code CH

Up] or [TX Code CH Down] or 10-keypad*.

*Depending on version.

t Push [TX Code Enter] to set the digit. The editable digit will

move to the right automatically.

• When the 10-keypad is used to set, the editable digit will move to
the right automatically without pushing [TX Code CH Select].

y Repeat r and t to input all allowable digits.
u Push [Call] or [PTT] to transmit the edited TX code.

14

BASIC OPERATION

3

D DTMF transmission

If the transceiver has [DTMF Autodial] assigned to it, the auto­matic DTMF transmission function is available. Up to 8 DTMF
channels are available.

TO SELECT A TX CODE:

q Push [DTMF Autodial]— a DTMF channel appears.
w Push [UP] or [DOWN] to select the desired DTMF chan-

nel.

e Push [DTMF Autodial] to transmit the DTMF code in the

selected DTMF channel.

■ User set mode

User set mode is accessed with [User Set Mode] and allows
you to set seldom-changed settings. In this case you can
“customize” the transceiver operation to suit your preferences
and operating style.

Entering the user set mode:

q Push and hold [User Set Mode] to enter user set mode.

Push [User Set Mode] momentarily to select the item.
Then push [UP] or [DOWN] to set the desired level/condi­tion.

• Available set mode functions are Backlight, Beep, SQL Level,

Mic Gain and Battery Voltage.

w Push and hold [User Set Mode] to exit user set mode.

■ Scrambler function

The voice scrambler function provides private communication
between stations. The frequency inversion type is equipped
to all versions, moreover, the optional Rolling or Non-rolling
type can be available.

q Push [Scrambler] to turn the scrambler function ON.

• “” appears.

w Push [Scrambler] again to turn the scrambler function

OFF.

• “” disappears.

15

4

Appears or blinksAppears

BIIS OPERATION

16

■ Default setting

The following functions are assigned to each programmable
key as the default. However, the assigned function can be
changed by your dealer. Ask your dealer for details.

NOTE: [TX Code Enter] must be assigned to any key.

[P0]; Call : Push to transmit a 5-tone/BIIS call

when the selected channel is a 5­tone or MSK channel, respectively.

[P1]; Digital : Push to select the call list ID/trans-

mit message, or to display the
receive message record for selec­tion.

[P3]; TX Code Enter : Push to enter the direct ID code edit

mode for both 5-tone and MSK.

[UP]/[DOWN]; CH Up/Down

: While in the standby condition,

selects the operating channel.
After pushing [Digital] or [TX Code
CH Select], selects call list or TX
code channel, respectively.

[MONITOR]; Moni(Audi): Push this key after the communica-

tion to send a ‘Clear down’ signal
during MSK channel operation.

[P2]/[RED]; Null : No function is assigned.

■ Receiving a call

DD

Individual call

q When an individual call is received;

• Beeps sound.

•“ ” appears and the mute is released.

•The programmed text message (e.g.“”) and the calling

station ID (or text) is displayed alternately, depending on the set­ting.

•“ ” appears or blinks depending on the setting.

w Push and hold [PTT], then speak into the microphone at a

normal voice level.

•“ ” indicator appears.

e Release [PTT] to return to receive.

•“ ” appears while receiving a signal.

r To finish the conversation, push [MONITOR] (Moni(Audi))

to send the ‘Clear down’ signal.

• Either station can send a ‘Clear down’ signal.

•“ ” is displayed for 2 sec. (approx.).

•“ ” disappears and the transceiver returns to the standby condi-

tion.

BIIS OPERATION

Appears or blinksAppears

4

DD

Group call

q When a group call is received;

• Beeps sound.

•“ ” appears and the mute is released.

•The programmed text message (e.g.“”) and the calling

station ID (or text) is displayed alternately, depending on the set­ting.

•“ ” appears or blinks depending on the setting.

w Push and hold [PTT], then speak into the microphone at a

normal voice level.

NOTE: Only one station is permitted to speak.

•“ ” appears.

e Release [PTT] to return to receive.

•“ ” appears while receiving a signal.

r To finish the conversation, push [MONITOR] (Moni(Audi))

to send the ‘Clear down’ signal.

• Either station can send a ‘Clear down’ signal.

•“ ” is displayed for 2 sec. (approx.)

•“ ” disappears and the transceiver returns to the standby condi-

tion.

DD

Displaying the received call record
— Queue indication

The transceiver memorizes the calling station IDs for record.
Up to 3 calls can be memorized, and the oldest call record is
erased when a 4th call is received. However, once the trans­ceiver is powered OFF, the all records are cleared.

q Push [P1] (Digital) for 1 sec.

• Displays following indication.

When a record is available

When no record is available

w Push [UP] or [DOWN] to select the desired call.
e Push [P1] (Digital) for 1 sec. again to return to the standby

condition.

•When no operation is performed for 30 sec., the transceiver

returns to the standby condition automatically.

17

BIIS OPERATION

Call code text is displayed.

Appears

4

■ Transmitting a call

Total of a 3 ways for code selection are available—selecting
the call code from memory, entering the call code from the
keypad and calling back from the queue channel record.

DD

Using call memory

q While in the standby condition, push [P1] (Digital) to enter

the call code memory channel selection mode.

•“ ” appears.

w Push [UP] or [DOWN] to select the desired call code.
e Push [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the trans­ceiver repeats the call 3 times (default) automatically,
and

“”is displayed during each call. However, an

error beep sounds and
answer back is received after the calls.

r Push [PTT] to transmit; release to receive.
t Push [MONITOR] (Moni(Audi)) to send the ‘Clear down’

signal.

“”is displayed when no

DD

Calling back from the queue channel

q While in the standby condition, push [P1] (Digital) for

1 sec. to enter the queue memory channel selection mode.

w Push [UP] or [DOWN] to select the desired record.

e Push [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the trans­ceiver repeats the call 3 times (default) automatically,
and

“”is displayed during each call. However, an

error beep sounds and
answer back is received after the calls.

r Push [PTT] to transmit; release to receive.
t Push [MONITOR] (Moni(Audi)) to send the ‘Clear down’

signal.

“”

is displayed when no

18

DD

Direct code entry

q While in the standby condition, push [P3] (TX Code Enter)

to enter the TX code edit mode.

• Editable code digit blinks.

w Push [P3] (TX Code Enter) to select the desired digit to be

edited.

• Editable digit differs according to the setting.

e Set the desired digit using [CH Up]/[CH Down]/[TX Code

CH Up]/[TX Code CH Down] or 10-keypad.*

*Depending on version

r Push [P3] (TX Code Enter) to set the digit, then the

editable digit will move to the right automatically.

• When the 10-keypad is used to set, the editable digit will move to
the right automatically without pushing [P3] (TX Code Enter).

t Repeat e and r to input all allowable digits.
y Push [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the trans­ceiver repeats the call 3 times (default) automatically,
and

“”is displayed during each call. However, an

error beep sounds and
answer back is received after the calls.

“”is displayed when no

BIIS OPERATION

u Push [PTT] to transmit; release to receive.
i Push [MONITOR] (Moni(Audi)) to send the ‘Clear down’

signal.

For your information

When the “UpDate” setting for the call code is enabled, the
set code is overwritten into the call code memory.

4

19

BIIS OPERATION

4

■ Receiving a message

DD

Receiving a status message

q When a status message is received;

• Beeps sound.

• The calling station ID (or text) and the status message is dis-

played alternately, depending on the setting.

w Push [MONITOR] (Moni(Audi)) to return to the standby

condition.

NOTE: Only the calling station ID (or text) is displayed (no
message is displayed alternately) when the scroll timer is
set to ‘OFF.’ In this case, push [Status Up]/[Status Down]
to display the status message manually.

DD

Receiving an SDM

q When an SDM is received;

• Beeps sound.

• The calling station ID (or text) and the SDM is displayed alter-

nately, depending on the setting.

w When the received SDM includes more than 8 characters,

“” appears and the message scrolls automatically, when
the automatic scroll function is activated.

• Push [Status Up]/[Status Down] to scroll the message manually.

e Push [MONITOR] (Moni(Audi)) to return to the standby

condition.

20

DD

Received message selection

The transceiver memorizes the received messages for
record. Up to 6 messages for status and SDM, or 95 charac­ter SDM’s can be memorized. The oldest message is erased
when the 7th message is received. However, once the trans­ceiver is powered OFF, all messages are cleared.

q Push [P1] (Digital) for 1 sec.

• Displays queue memory.

w Push [P1] (Digital) momentarily.

• Displays message memory.

When a message is available

When no message is available

BIIS OPERATION

e Push [UP] or [DOWN] to select the desired message.

•When selecting the SDM that includes more than 8 characters,
“” appears and the message scrolls automatically, when the

automatic scroll function is activated.

• Push [Status Up]/[Status Down] to scroll the message manually.

r Push [P1] (Digital) for 1 sec. again to return to the standby

condition.

•When no operation is performed for 30 sec., the transceiver
returns to the standby condition automatically.

4

21

BIIS OPERATION

Status message is displayed.

4

■ Transmitting a status

DD

General

The status message can be selected with the programmed
text, and the message text is also displayed on the function
display of the called station.
Up to 24 status types (1 to 24) are available, and the status
messages 22 and 24 have designated meanings.

Status 22: Emergency*
Status 24: GPS request

*The status 22 can also be used as a normal status message by

disabling the designated meaning. However, the status 24 is fixed.

The status call can be sent with both individual and group
calls.

DD

Transmitting a status

q While in the standby condition, push [P1] (Digital), then

push [UP] or [DOWN] to select the desired station/group
code.

w Push [P1] (Digital) again, then push [UP] or [DOWN] to

select the desired status message.

Or, you can select the desired status message using
[Status Up]/[Status Down] key directly.

e Push [P0] (Call) or [PTT]* to transmit the status message

to the selected station/group.

*PTT call can be made only when PTT call capability is permitted.

•2 beeps will sound and the transceiver returns to the standby
condition automatically when the transmission is successful.

22

■ Transmitting an SDM

SDM is displayed.

BIIS OPERATION

4

DD

General

The short data message, SDM, can be sent to an individual
station or group stations. Also, 8 SDM memory channels are
available and the messages can be edited via PC program­ming.

DD

Transmitting an SDM

q While in the standby condition, push [P1] (Digital), then

push [UP] or [DOWN] to select the desired station/group
code.

w Push [P1] (Digital) again, then push [UP] or [DOWN] to

select the desired SDM.

Or, you can select the desired SDM using [Status Up]/
[Status Down] key directly.

e Push [P0] (Call) or [PTT]* to transmit the SDM to the

selected station/group.

*PTT call can be made only when PTT call capability is permitted.

•2 beeps will sound and the transceiver returns to the standby
condition automatically when the transmission is successful.

23

Key

[0]

[1]

[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]

Characters

(0)

(1)

(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)

(.)

(Space)

(A)
(D)
(G)

(J)
(M)
(P)

(T)

(W)

(!)

(#)

(B)
(E)
(H)
(K)
(N)
(Q)
(U)
(X)

(?)

(✱)

(C)
(F)

(I)

(L)
(O)
(R)
(V)
(Y)

(’)

(/)

(a)
(d)
(g)

(j)
(m)
(S)

(t)
(Z)

(")

(+)

(b)
(e)
(h)
(k)
(n)
(p)
(u)
(w)

(,)

(—)

(c)

(f)
(i)

(l)
(o)
(q)
(v)
(x)

(;)

(=)

(r)

(y)

(:)

(_) (() ()) (<) (>) ([) (])

(/)

(&) (%) ($) (@) (^)

(s)

(z)

24

BIIS OPERATION

4

DD

Programming an SDM memory

(10-keypad version is required)

q During standby condition, push [P1] (Digital) twice, then

push [UP] or [DOWN] to select the desired SDM to be edit­ed.

w Push [M] or [#] to enter the message editing condition.

•The first character blinks when [#] is pushed, the last character

blinks when [M] is pushed as below.

e Push the appropriate digit key, [0] to [9], to enter the

desired character.

• See the table at right for the available characters.

•Pushing [UP] also enters space, pushing [DOWN] deletes the

selected character.

r Push [#] to move the cursor to the right, push [M] to move

the cursor to the left.

t Repeat steps e and r to set the desired text message.
y Push [P1] (Digital) for 1 sec. to overwrite the set content

into the memory.

•Push [P1] (Digital) momentarily to cancel the editing and return to
the original message indication.

• Available characters

NOTE: A decimal point can only be written with the CS-

F33G

CLONING SOFTWARE

can be rewritten with the 10-keypad, except for the deci­mal point, as it is not included in the transceiver character
list, and cannot be displayed again.

. Pre-programmed characters

BIIS OPERATION

4

■ Position data transmission

When the optional cable and a GPS receiver is connected to
the transceiver, the position (longitude and latitude) data can
be transmitted automatically.
Ask your dealer or system operator for connection details.

The position data is transmitted when;

• Status 24 message is received

*When the status 24 message, GPS request, is received.

• Fully automatic
When automatic position transmission is enabled, send
the position data according to ‘Time Marker’ and ‘Interval
Timer’ settings.

• PTT is released
When ‘Send with Logoff’ is enabled.

-Set the ‘Log-In/Off’ item as ‘L-OFF.’

• After sending a status message
When ‘Send with Status’ is enabled.

• After sending an SDM
When ‘Send with SDM’ is enabled.

• After sending status 22 (Emergency)
When ‘Send with Emergency’ is enabled.

■ Printer connection

When the optional cable is connected to the transceiver, a
printer can be connected to print out the received SDM con­tent and the ID of the station who sent the message.
Ask your dealer or system operator for connection details.

■ Digital ANI

The own ID can be transmitted each time the PTT is pushed
(log-in) or released (log-off) during individual or group call
communications.
By receiving the ANI, the communication log can be recorded
when using a PC dispatch application.

In addition, when using the ANI with log-in, the PTT side tone
function can be used to inform you that the ID is sent and
voice communication can be performed.

25

BIIS OPERATION

4

26

■ Auto emergency transmission

When [Emergency Single (Silent)] or [Emergency Repeat
(Silent)] is pushed, an emergency signal is automatically
transmitted for the specified time period.

The status 22 (Emergency) is sent to the selected ID station,
and the position data is transmitted after the emergency sig­nal when a GPS receiver is connected to the transceiver.

The emergency transmission is performed on the emergency
channel, however, when no emergency channel is specified,
the signal is transmitted on the previously selected channel.

There is no change in the function display or beep emission
during automatic emergency transmission.

■ Stun function

When the specified ID, set as a killer ID, is received, the stun
function is activated.

When the killer ID is received, the transceiver switches to the
password required condition. Entering of the password via the
keypad is necessary to operate the transceiver again in this
case.

■ BIIS indication

The following indications are available for the BIIS operation
on an MSK channel.

: Individual/group call is successful.
: Message (status or SDM) transmission is suc-

cessful.
: No answer back is received.
: Appears during retry of the call (2nd call).
: End the communication.
: Operating channel is in the busy condition.

■ Priority A channel selection

When one of the following operations is performed, the trans­ceiver selects the Priority A channel automatically.

Priority A is selected when;

• Clear down signal is received/transmitted

-Set the ‘Move to PrioA CH’ item as ‘Clear down.’

• Turning the power ON
The Priority A channel is selected each time the trans-

ceiver power is turned ON.

• Status call
The Priority A channel is selected when transmitting a sta-

tus call.

-Enable the ‘Send Status on PrioA CH’ item in the MSK

configuration.

■ Man Down Emergency Call

BIIS OPERATION

4

The optional UT-113
tion.

The man down emergency call function transmits an emer­gency call automatically, when the transceiver has been left in
a horizontal position.

This function can be performed for both 5-tone and MSK
channels.

After the emergency call, the transceiver performs transmis­sion and reception alternately with the following conditions:

- Transmits the microphone signals.

- Receives the signal and emits audio.

When the emergency reset signal is received, the function is
cancelled.

IMPORTANT: Set an emergency channel individually, to
provide certain emergency call operation is recommended.

MAN DOWN UNIT

is required for this func-

27

5

OPTIONAL SmarTrunk OPERATION

■ SmarTrunk II™,
SmarTrunk 3G™ and
conventional modes

This transceiver is capable of SmarTrunk II™/SmarTrunk
3G™ functions.

The optional UT-105/UT-117/UT-117S allow communications
in conventional channels, SmarTrunk II™/SmarTrunk 3G™
channels. Select a channel bank for SmarTrunk II™/
SmarTrunk 3G™ before trunking operation.

•Push [BANK] several times to select a channel bank for con-

ventional channels or SmarTrunk II™/SmarTrunk 3G™
channels.

- Scanning starts when a channel bank for SmarTrunk II™/
SmarTrunk 3G™ operation is selected.

- Contact your Dealer for channel bank details.

■ SmarTrunk II™ and
SmarTrunk 3G™ operation

These features are enabled by a Dealer and may not be
available in your system. Contact your Dealer for details.

D Receiving a call

When you hear ringing, push [M] to answer.

• For a group call, you hear a short ring followed by two short beeps.

You do not have to answer a group call to hear it over the air.

D Terminating a call

After completing a call, push [#] to disconnect (hang up).

IMPORTANT: If one person in the conversation terminates
a call, all participants will be cut off.

D Last number re-dial

Push [M] 2times to automatically re-dial the last called num­ber.

• A high-pitched beep indicates that the number is accepted.

D Clear channel alerting

If all channels are busy, the transceiver automatically begins
searching for an open channel and beeps every ten seconds.
When two short beeps (low-pitched, then high-pitched) are
heard, a channel is available. Push [M], [M] immediately to re­dial the last number.

*1

*1

*1

*1

28

OPTIONAL SmarTrunk OPERATION

5

D PTT dispatch operation

*1

q Push [PTT] once (without dialling) to initiate a dispatch call.
w Begin talking after you hear three beeps (one short, high-

pitched, two very-short, low-pitched).

e Receiving a dispatch call is indicated by the same three-

beep sequence.

• It is not necessary to push [M] to answer a dispatch call.

D Placing a telephone call

*2

Enter the phone number followed by [1], [M].

• A high-pitched beep indicates that the number is accepted.

• When the called party answers, push the [PTT] switch to talk, and

release it to listen.

D Calling another local system subscriber

*2

Enter the subscriber number followed by [3], [M].

• A high-pitched beep indicates that the number is accepted.

• You hear ringing, then two short beeps when the subscriber

answers.

• If the other subscriber is on another call or out of range, you hear a
fast busy signal and the call terminates automatically.

D Memory speed-dialling

*2

To automatically dial a commonly used number from memory:

• Push [M] followed by the memory location (0–9).

D Emergency call

*2

Push [0], [M] to initiate an emergency call.

• Contact your dealer for details.

D Turbo SpeeDial

To automatically dial a commonly used number with one
push:

• Push one of the turbo SpeeDials ([A], [B], [C] or [D]).

D Programming memory speed dial

q Push and hold [M] until you hear a high-pitched beep.
w Enter the memory location (0–9, A, B, C, D), the telephone

or subscriber number, then [1], [M] (or [3], [M] if for another
system subscriber).

• A high-pitched beep indicates successful programming.

• Memories [A]–[D] are used for the Turbo SpeeDial.

D System busy indication

If all channels are busy, three low beeps sound after you initi­ate a call. Try the call again later.

D Displaying the received ID record

(Available for SmarTrunk 3G™ only)
Push [Trunking Caller ID SW] to display the received ID
record in sequence.

• The latest received ID is displayed at first.

• The record is cleared when the transceiver is turned OFF.

*1

Available for 4-key version when the [M] or [#] key function is
assigned to any programmable key.

*2

Available for 10-keypad version only. Use the Turbo SpeeDial func­tion instead.

NOTE: For additional operating instructions, contact your
Dealer.

29

6

*This illustration is

described with the
UT-113.

OPTIONAL UNIT INSTALLATION

■ Optional unit installation

Install the optional unit as follows:

30

q Rotate [VOL] to turn the power OFF, and remove the bat-

tery pack. (p. 2)

w Remove the unit cover.

NOTE: Use a flat head screw driver or a similar flat instrument,
and insert into the hollow of the chassis, then lift and take away
the unit cover.
Use the supplied spare unit cover! Do not use the cover that
has been removed once. Water or dust may get into the trans­ceiver because the cover may be bent or has lost it’s adhesion.
This may result in the transceiver being damaged.

e Install the unit as shown below.

r Replace the unit cover and the battery pack, then rotate

[VOL] to turn the power ON.

NOTE: The optional UT-109/UT-110

UT-105

SmarTrunk 3G™

fications. Please refer to the additional installation as
shown on pgs. 31 and 32.

SmarTrunk II™

LOGIC BOARD

LOGIC BOARD

requires some PC board modi-

SCRAMBLER UNITS

or UT-117/UT-117S

,

■ UT-109 and UT-110 installation

OPTIONAL UNIT INSTALLATION

6

The following PC board modification is required when
installing the optional UT-109 or UT-110:

q Rotate [VOL] to turn the power OFF, and remove the bat-

tery pack. (p. 2)

w Remove the unit cover as shown on p. 30 (Optional unit

installation).

e Cut the pattern on the PCB at the TX mic circuit (MIC) and

RX AF circuit (DISC) as shown below.

r Install the scrambler unit as described in the Optional unit

installation (p. 30).

t Replace the unit cover and the battery pack, then rotate

[VOL] to turn the power ON.

NOTE: When uninstalling the scrambler unit

Be sure to re-solder the disconnected points at left, other­wise no TX modulation or AF output is available.

31

OPTIONAL UNIT INSTALLATION

A

B

C

Remove

6

■ UT-105, UT-117 and UT-117S installation

32

The following PC board modification is required when
installing the optional UT-105, UT-117 or UT-117S:

q Rotate [VOL] to turn the power OFF, and remove the bat-

tery pack. (p. 2)

w Remove the unit cover as described in the Optional unit

installation (p. 30).

e Cut and solder the pattern on the PCB at the RX AF cir-

cuit as shown at right.
The next step r is necessary for the UT-117S installation.
Go to step t to install the UT-105 or UT-117.

r Cut the pattern on the PCB at the TX mic circuit (MIC) and

RX AF circuit (DISC) as shown at right.

t Install the UT-105/UT-117/UT-117S as described in the

Optional unit installation (p. 30).

y Replace the unit cover and the battery pack, then rotate

[VOL] to turn the power ON.

e

A

C

B

UT-117S only

r

NOTE: When uninstalling the SmarTrunk 3G™ unit

Be sure to un-solder A and B, and re-solder B and C as
shown below, otherwise no AF output is available.
Moreover, the UT-117S is required to re-solder the TX mic
circuit (MIC) and RX AF circuit (DISC) (p. 31).

BATTERY CHARGING

7

■ Battery charging

Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.

CAUTION: To avoid damage to the transceiver, turn the
power OFF while charging.

• Recommended temperature range for charging:
+10°C to +40°C

• Use the specified chargers (BC-119N, BC-121N and BC-

160). NEVER use another manufacture’s charger.

• Use the specified AC adapter. NEVER use another manu-
facture’s adapter.

Recommendation:

Charge the supplied battery pack for a maximum of
up to 10 hours. Li-Ion batteries are different from Ni­Cd batteries in that it is not necessary to completely
charge and discharge them to prolong the battery life.
Therefore, charging the battery in intervals, and not
for extended periods is recommended.

■ Battery caution

R DANGER Charge the specified Icom batteries only.

Only tested and approved for use with genuine Icom batter­ies. Fire and/or explosion may occur when a third party bat­tery pack or counterfeit product is charged.

CAUTION! NEVER insert battery pack/transceiver (with the

battery pack attached) in a wet or soiled condition into the
charger. This may result in corrosion of the charger terminals
or damage to the charger. The charger is not waterproof and
water can easily get into it.

NEVER incinerate used battery packs. Internal battery gas

may cause an explosion.

NEVER immerse the battery pack in water. If the battery

pack becomes wet, be sure to wipe it dry BEFORE attaching
it to the transceiver.

NEVER short the terminals of the battery pack. Also, current

may flow into nearby metal objects, such as a necklace, etc.
Therefore, be careful when carrying with, or placing near
metal objects, carrying in handbags, etc.

AVOID leaving the battery pack in a fully charged, or completely

discharged condition for long time. It causes shorter battery life.
In case of leaving the battery pack unused for a long time, it
must be kept safely after discharge, or use the battery until the
battery indicator appears, then remove it from the transceiver.

If your battery pack seems to have no capacity even after
being charged, fully charge the battery pack again. If the bat­teries still do not retain a charge (or very little), new battery
pack must be purchased.

33

BATTERY CHARGING

Screws supplied
with the charger
adapter

AD-106

Connectors

Plugs

q

w

AC adapter
(Not supplied with
some versions.)

Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.

BP-231

TRANSCEIVER

7

■ Optional battery chargers

ï Rapid charging with the BC-160

The optional BC-160 provides rapid charging of optional Li­Ion battery packs.

• An AC adapter (may be supplied with BC-160 depending on
version) or the DC power cable (OPC-515L/CP-17L) is addi­tionally required.

ï AD-106 installation

q Install the AD-106 desktop charger adapter into the holder

space of the BC-119N/BC-121N.

w Connect the plugs of the BC-119N/BC-121N to the AD-106

desktop charger adapter with the connector, then install
the adapter into the charger with the supplied screws.

34

BATTERY CHARGING

DC power cable (OPC-656)
(Connect with the DC power supply;

13.8 V/at least 7 A)

AC adapter
(Purchase

separately)

AD-106 charger
adapters are installed
in each slot.

TRANSCEIVER

BP-231

AD-106 charger
adapter is installed
in BC-119N.

AC adapter
(Not supplied with
some versions.)

Optional OPC-515L (for 13.8 V
power source) or CP-17L (for 12
V cigarette lighter socket) can be
used instead of the AC adapter.

BP-231

TRANSCEIVER

7

ï Rapid charging with the BC-119N+AD-106

The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.

• AD-106 charger adapter

• An AC adapter (may be supplied with BC-119N depending

on version) or the DC power cable (OPC-515L/CP-17L).

ï Rapid charging with the BC-121N+AD-106

The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.

• Six AD-106 charger adapters

• An AC adapter (BC-124) or the DC power cable (OPC-656)

35

BATTERY CHARGING

Guide rail

Lobs

7

IMPORTANT!: Battery charging

Ensure the guide lobs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-160.)

36

SWIVEL BELT CLIP

q w

8

■ MB-93 contents

Qty.

q Belt clip ……………………………………………………… 1
w Base clip …………………………………………………… 1

■ To attach

q Release the battery pack if it is attached. (p. 2)
w Slide the base clip in the direction of the arrow until the

base clip is locked and makes a ‘click’ sound.

e Clip the belt clip to a part of your belt. And insert the trans-

ceiver into the belt clip until the base clip inserted fully into
the groove.

r Once the transceiver is locked in place, it swivels as illus-

trated below.

37

SWIVEL BELT CLIP

q

w

8

■ To detach

q Turn the transceiver upside down in the direction of the

arrow and pull out from the belt clip.

w Release the battery pack if it is attached. (p. 2)
e Pinch the clip (q), and slide the base clip in the direction

of the arrow (w).

CAUTION!

HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING
OR DETACHING THE TRANSCEIVER FROM THE BELT
CLIP.

Otherwise the transceiver may not be attached to the hold­er or swivel properly if the transceiver is accidentally
dropped and the base clip is scratched or damaged.

38

OPTIONS

7.4 V

7.4 V

7.4 V

1150 mAh

800 mAh

2000 mAh

6 hrs.

16 hrs.

Battery pack

BP-230

BP-231

BP-232

Voltage Capacity Battery life*

IC-F34GT/GS 9 hrs.

8 hrs.IC-F44GT/GS

* Operating periods are calculated under the following conditions;

TX : RX : standby = 5 : 5 : 90

9

D BATTERY PACK

D CHARGERS

•BC-119N
+ BC-145

For rapid charging of battery packs. An AC adapter is sup­plied with the charger depending on versions. Charging
time: approx. 2 hours when BP-231 is attached.

•BC-121N
+ BC-124

For rapid charging of up to 6 battery packs (six AD-106’s are
required) simultaneously. An AC adapter should be pur­chased separately. Charging time: approx. 2 hours when
BP-231 is attached.

•BC-160

For rapid charging of battery packs. An AC adapter is sup­plied with the charger depending on versions. Charging
time: approx. 2 hours when BP-231 is attached.

DESKTOP CHARGER

AC ADAPTER

MULTI-CHARGER

AC ADAPTER

DESKTOP CHARGER

+ AD-106

+ AD-106

+ BC-145

CHARGER ADAPTER

CHARGER ADAPTER

AC ADAPTER

(6 pcs.)

D BELT CLIPS

• MB-93

• MB-94

Exclusive alligator-type belt clip. The same as supplied with
the transceiver.

• MB-96N/96F

SWIVEL BELT CLIP

BELT CLIP

LEATHER BELT HANGER

D OPTIONAL UNITS

• UT-108

Provides pager and code squelch capabilities.

• UT-109 (#02)/UT-110 (#02)

Non-rolling type (UT-109)/Rolling type (UT-110) voice
scrambler unit provides higher communication security.

• UT-113

Provides a measure of safety when working in a hazardous
environment, etc.

• UT-105

Provides SmarTrunk II™ capabilities.

• UT-117/117S*

Provides SmarTrunk 3G™ capabilities.

*In addition to SmarTrunk 3G™ capabilities, UT-117S sup-

DTMF DECODER UNIT

SCRAMBLER UNITS

MAN DOWN UNIT

SmarTrunk II™

LOGIC BOARD

SmarTrunk 3G™

LOGIC BOARD

ports the voice scrambler capability.

39

OPTIONS

9

D DC CABLES

• CP-17L

Allows charging of the battery pack through a 12 V cigarette
lighter socket. (For BC-119N)

• OPC-515L/OPC-656

Allows charging of the battery pack using a 13.8 V power
source instead of the AC adapter.
OPC-515L: For BC-119N
OPC-656 : For BC-121N

CIGARETTE LIGHTER CABLE

DC POWER CABLES

D OTHER OPTIONS

• SP-13

• HM-131L

• HS-94/HS-95/HS-97

• FA-SC73US

• FA-SC56VS

• FA-SC57VS

EARPHONE

Provides clear receive audio in noisy environment.

SPEAKER-MICROPHONE

Combination speaker-microphone that provides convenient
operation while hanging the transceiver from your belt.

HEADSET

+ VS-1L

VOX/PTT CASE

HS-94: Ear-hook type
HS-95: Neck-arm type
HS-97: Throat microphone
VS-1L: VOX/PTT switch box for hands-free operation, etc.

STUBBY ANTENNA

Shorter UHF antenna. Frequency range: 450–490 MHz

STUBBY ANTENNA

Shorter VHF antenna. Frequency range: 150–162 MHz

STUBBY ANTENNA

Shorter VHF antenna. Frequency range: 160–174 MHz

40

Some options may not available in some countries. Please ask your
dealer for details.

DECLARATION

OF CONFORMITY

We Icom Inc. Japan

1-1-32, Kamiminami, Hirano-ku
Osaka 547-0003, Japan

Kind of equipment:

VHF TRANSCEIVER

Type-designation: iC-

f34gt/gs

Signature

Authorized representative name

Place and date of issue

Düsseldorf 13th Sep. 2004

Declare on our sole responsibility that this equipment complies with the
essential requirements of the Radio and Telecommunications Terminal
Equipment Directive, 1999/5/EC, and that any applicable Essential Test
Suite measurements have been performed.

Version (where applicable):

0168

136 174 MHz 12.5 kHz/20 kHz/25 kHz

This compliance is based on conformity with the following harmonised
standards, specifications or documents:

i) EN 301 489-1 v1.3.1 (Sept 2001)
ii) EN 301 489-5 (August 2000)
iii) EN 60950 (August 1992+A11)
iv) EN 300 086-2 (March 2001)
v) EN 300 219-2 (March 2001)
vi) EN 300 113-2 (March 2001)

CE versions of the IC-F34GT/GS and IC­F44GT/GS which display the “CE” symbol on
the serial number seal, comply with the essen­tial requirements of the European Radio and
Telecommunication Terminal Directive
1999/5/EC.

This warning symbol indicates that this equip­ment operates in non-harmonised frequency
bands and/or may be subject to licensing condi­tions in the country of use. Be sure to check that
you have the correct version of this radio or the
correct programming of this radio, to comply with
national licensing requirement.

DOC

10

41

42

DECLARATION

OF CONFORMITY

We Icom Inc. Japan

1-1-32, Kamiminami, Hirano-ku
Osaka 547-0003, Japan

Kind of equipment:

UHF TRANSCEIVER

Type-designation: iC-

f44gt/gs

Signature

Authorized representative name

Place and date of issue

Düsseldorf 30th Apr. 2004

Declare on our sole responsibility that this equipment complies with the
essential requirements of the Radio and Telecommunications Terminal
Equipment Directive, 1999/5/EC, and that any applicable Essential Test
Suite measurements have been performed.

Version (where applicable):

0168

400 470 MHz 12.5 kHz/20 kHz/25 kHz

This compliance is based on conformity with the following harmonised
standards, specifications or documents:

i) EN 301 489-1 v1.3.1 (Sept 2001)
ii) EN 301 489-5 (August 2000)
iii) EN 60950 (August 1992+A11)
iv) EN 300 086-2 (March 2001)
v) EN 300 219-2 (March 2001)
vi) EN 300 113-2 (March 2001)

10

DOC

< Intended Country of Use >

GER
AUT
GBR
IRL
NOR

FRA
NED
BEL
LUX

ESP
POR
ITA
GRE

SWE
DEN
FIN
SUI

A-6362H-1EU-q
Printed in Japan
© 2004 Icom Inc.

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
