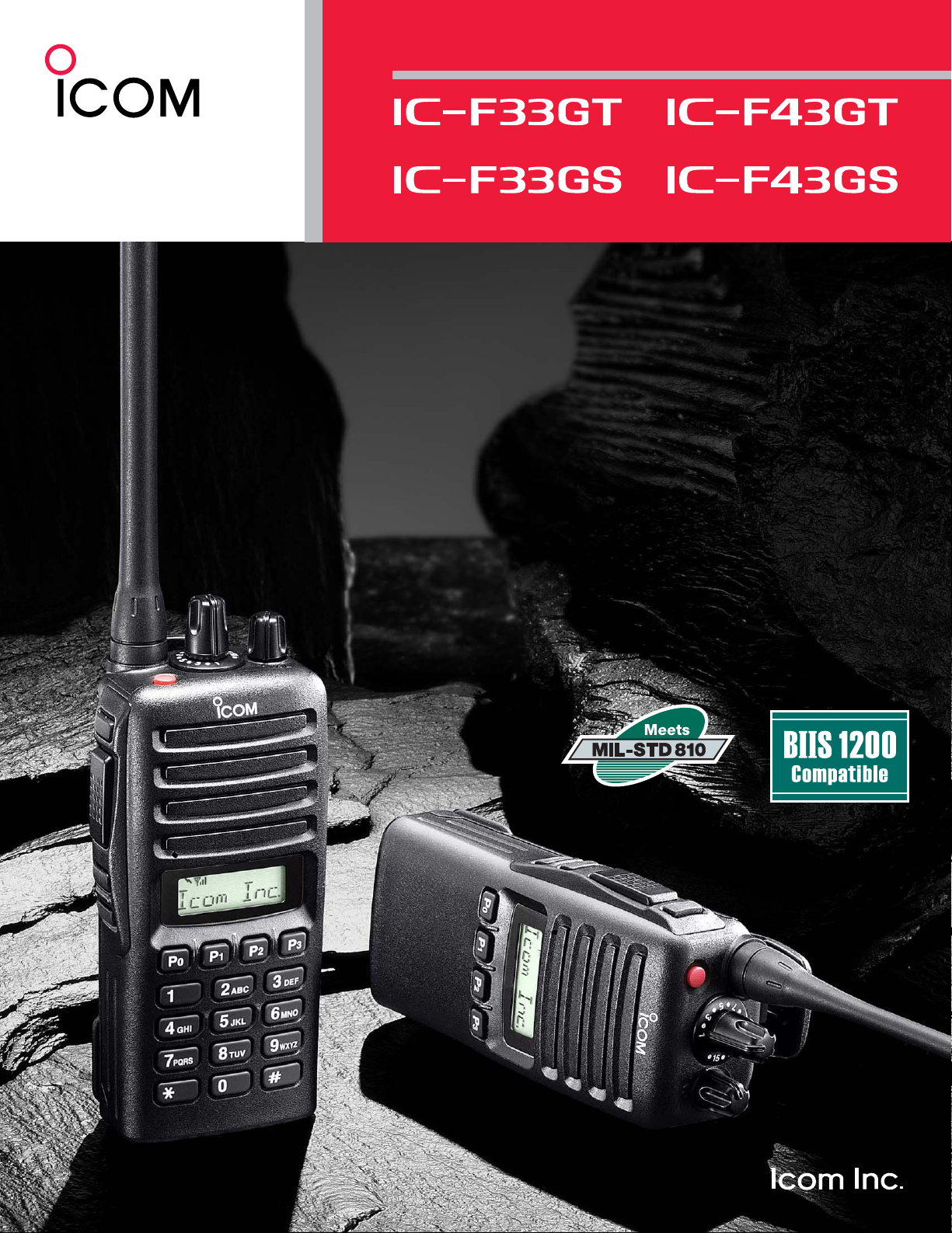

Icom IC-F43GT, IC-F33GT brochure

VHF AND UHF TRANSCEIVERS

(

VHF transceiver with 10-keypad

)

(

VHF transceiver without 10-keypad

)

(

UHF transceiver with 10-keypad

)

(

UHF transceiver without 10-keypad

)

A new direction
in Land Mobile radios

■ Large channel capacity

■ Wide range frequency coverage

■ Lithium-ion battery standard

■ Multiple tone signaling capabilities

■ Built-in audio compander

■ Optional SmarT runk 3G™, voice scrambler,

man down and DTMF decoder units

iC-f33gs

iC-f33gt

iC-f43gs

iC-f43gt

A new direction in Land Mobile radios

The IC-F33G series is suitable for a variety
of needs — large or small, mobile or station­ary. Whether you are a large-scale construc­tion site, warehouse, hospital or hotel, or a
small on the go messenger service, this
radio provides the built-in flexibility to han­dle your communication needs.
Offering advanced features such as wide fre­quency range, multiple signaling and loud
audio, the IC-F33G series is a rugged and re­liable 2-way communications tool. This is
the new direction in LMR communications.

Lithium-Ion battery pack

Supplied 1150mAh Li-Ion battery pack, BP­231, provides 8/9 hours* of operating time.
For longer operating time, use the BP-232
which is rated for a full 15/16 hours*. Li-Ion
technology has virtually no memory charging
issues. A rugged dual-rail guide securely
locks the battery to the radio.

* UHF/VHF, Typical operation Tx:Rx: Stand-

by=5:5:90, power save on

Wide frequency range and
large channel capacity

The IC-F33G series covers a wide fre­quency range in one version

MHz, UHF 400–470MHz or 450–512 (520) MHz).

The 256 memory channel capacity with 16
memory banks allows you to divide and
store a variety of flexible channel groupings.
Easy memory channel selection with a sim­ple rotation of the rotary channel knob.

Small and lightweight body

The IC-F33G series sheds size and weight
compared with previous models, weighing
just 285g*
only 53
minum die-cast chassis and polycarbonate
casing combination meets MIL standard
specifications.

* 10.0 oz, VHF version ** 23/32(W)x 423/32(H)x19/32(D) in

Built-in multi-format tone
signaling

Use the built-in CTCSS, DTCS, 2-Tone, 5­Tone or BIIS capability to set up your own
talk groups and quiet stand-by when others
are talking. You can also set up selective
calls to individuals or control a repeater.

(including BP-231) and measuring

(W)×120(H)×32.5(D) mm**. The alu-

(VHF 136–174

Multiple 2-Tone, Multiple 5-Tone

Encode or decode up to 10 2-Tone, 8 5­Tone codes on a single memory channel.
This is perfect for professionals who require
multiple district paging on one channel.
When a matched tone is received, the fol­lowing items are programmable for each
code.

• Bell icon • Answer back • Stun

• Beep sound • Auto transmit • Scan

8 programmable buttons

The [P0]–[P3], [▲], [▼], [Red] and [Monitor]
buttons are programmable to meet specific
needs. The [Red] button on the top panel
can be assigned as an emergency trigger.

Alphanumeric display

The 8-character alphanumeric display
shows channel, bank, tone code and scan­ning channel names on the display. Asepa­rate row of operational icons indicate
battery, signal strength, RX/TX and other
radio conditions.

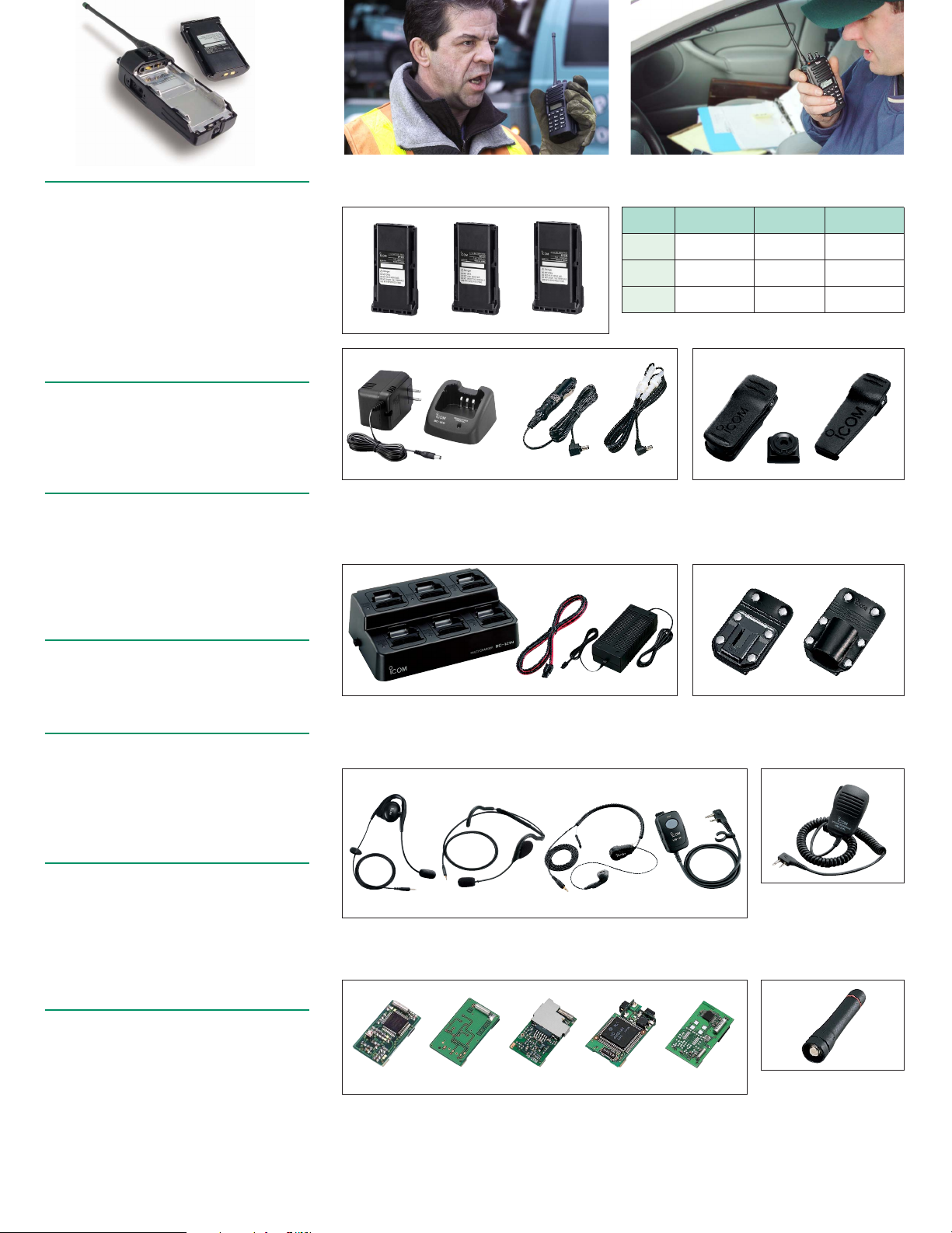

OPTIONS

BATTERYPACKS

▲ BP-230 ▲ BP-231 ▲ BP-232

RAPID CHARGER

▲ BC-160▲ BC-145

BC-160 DESKTOP CHARGER + BC-145 AC ADAPTER
Charges the BP-231 in 2 hours (approx.).

BC-119N DESKTOPCHARGER + AD-106 CHARGER ADAPTER
+ BC-145 AC ADAPTER : Charges the BP-231 in 2 hours (approx.).

CP-17L CIGARETTE LIGHTER CABLE, OPC-515L DC POWER CABLE
For use with the BC-160 or BC-119N. (12–16V DC required).

MULTI-CHARGER

Battery Type and

packs capacity (VHF/UHF) (VHF/UHF)

BP-230
BP-231
BP-232

* Operating time is approximate time (at 20˚C).

Tx: Rx: standby=5:5:90. Power save on.

▲ OPC-515L▲ CP-17L

Operating time

Li-Ion

7.4V/ 800mAh
Li-Ion

7.4V/1150mAh
Li-Ion

7.4V/2000mAh

BELT CLIPS

▲ MB-93 ▲ MB-94

MB-93 : Swivel type. Afast and easy way to re-
MB-94 : Alligator type. Same as supplied.

LEATHER BELT HANGERS

6/6 hours 5W/4W
9/8 hours 5W/4W

16/15 hours 5W/4W

move the transceiver from your belt.

* Output

power

Audio compander

The built-in audio compander reduces
noise components and provides clear re­ception even in narrow band use.

Built-in voice scrambler

The IC-F33G series includes a built-in in­version type voice scrambler in all models.
When a more secure system is required,
the optional voice scrambler unit UT-109 or
UT-110 is available.

BIIS 1200 compatible

The following selective calling and data fea­tures are available with the built-in BIIS system.

• 32 abbreviated call memories

• 7 group IDs • 24-status Messages
Send 8-character SDM (Short Data Message)

•

• Receive up to 95 characters of free text

Other features

• 8 DTMF autodial memories

• 2 step reduced power setting

• Power saver

• Power on password

• Busy, repeater lockout functions

• Optional SmarTrunk 3G™ unit, UT-117

• Programmable wide and narrow channel
bandwidth
and more...

(25/12.5kHz, 30/15kHz)

▲ BC-121N+AD-106 (6 pcs.)

BC-121N MULTI-CHARGER + AD-106 CHARGER ADAPTER
+ BC-124 AC ADAPTER
Rapidly charges up to 6 battery packs
Charging time: approx. 2 hours when BP-231 is attached.

OPC-656 DC POWER CABLE :For use with the BC-121N.

HEADSETS and PTT/VOX UNIT

▲ HS-94

HS-94: Earhook headset with flexible boom microphone.
HS-95: Behind-the-head headset with flexible boom microphone.
HS-97: Throat microphone fits around your neck and picks up speech vibration.
VS-1L: PTT/VOX unit. Required when using these headsets with the transceiver.

INTERNAL UNITS

UT-105

SmarTrunk II™ Board

UT-105 : Provides SmarTrunk II™capabilities.
UT-108 : Provides DTMF, Selective call and ANI capabilities.
UT-109 : Up to 32 scrambling codes are available.
UT-110 : Up to 1020 scrambling codes are available. Version 02 is required.
UT-113 : Automatically sends an emergency signal when the transceiver is left in a horizon-

tal position for a preset time.

UT-117 : Provides SmarTrunk 3G™ and SmarTrunk II™ capabilities. Enhanced calling fea-

tures available.

▲ HS-95 ▲ HS-97

UT-108

DTMF DECODER

▲ OPC-656

(Six AD-106s are required).

UT-109 VOICE
SCRAMBLER UNIT

▲ BC-124

(12–20V DC required)

UT-113MAN
DOWN UNIT

Version 02 is required.

▲ MB-96N

MB-96N: Swivel type belt hanger. Swivel joint of
MB-96F : Fixed type belt hanger. For use with

.

▲ VS-1L

UT-117

SmarTrunk 3G™ Board

▲ MB-96F

the MB-93 supplied.

MB-94.

SPEAKER-MICROPHONE

HM-131L: Durable body.

Equipped with an earphone jack
and revolving clip.

SP-13 : EARPHONE
Provides clear audio in noisy en­vironments.

STUBBY ANTENNA

STUBBY ANTENNAS

• FA-SC56VS : 150–162MHz

• FA-SC57VS : 160–174MHz

• FA-SC73US : 450–490MHz

ANTENNAS

• FA-SC25V : 136–150MHz

• FA-SC55V : 150–174MHz

• FA-SC25U : 400–430MHz

• FA-SC57U : 430–470MHz

• FA-SC72U : 470–520MHz

FA-SC73US

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan Phone: [phone] Fax: [phone]

Count on us!

URL: http://www.icom.co.jp/world/index.html

Printed in Japan

2380 116th Avenue N.E., Bellevue,
WA 98004, U.S.A.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomamerica.com
<

Customer Service> Phone : [phone]

Communication Equipment
Himmelgeister Str. 100,
D-40225 Düsseldorf, Germany
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icomeurope.com

A.B.N. 88 006 092 575
290-294 Albert Street, Brunswick,
Victoria, 3056, Australia
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icom.net.au

Unit 9, Sea St., Herne Bay,
Kent, CT6 8LD, U.K.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomuk.co.uk

Zac de la Plaine, 1,
Rue Brindejonc des Moulinais BP 5804,
31505 Toulouse Cedex, France
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icom-france.com

Crta. de Gracia a Manresa Km. 14,750
08190 Sant Cugat del Valles Barcelona, Spain
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icomspain.com

146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icom.co.nz

Glenwood Centre #150-6165 Highway 17,
Delta, B.C., V4K 5B8, Canada
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomcanada.com

Icom America Inc.

Icom (Europe) GmbH

Icom Spain S.L.

Icom (UK) Ltd.

Icom France S.a

Icom Canada

Icom (Australia) Pty. Ltd.

Icom New Zealand

Your local distributor/dealer:

JP98/14190QA

TW03/00288EM

Icom Inc. (Japan), is an ISO 9001 and ISO

14001 certification acquired company.

6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.asia-icom.com

Asia Icom Inc.

1305, Wanshang Plaza, Shijingshan Road,
Beijing, China
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.bjicom.com

Beijing Icom Ltd.

Sopot, 3 maja 54, Poland
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icompolska.com.pl

Icom Polska

VHF AND UHF TRANSCEIVERS

iC-f33gt/gs iC-f43gt/gs

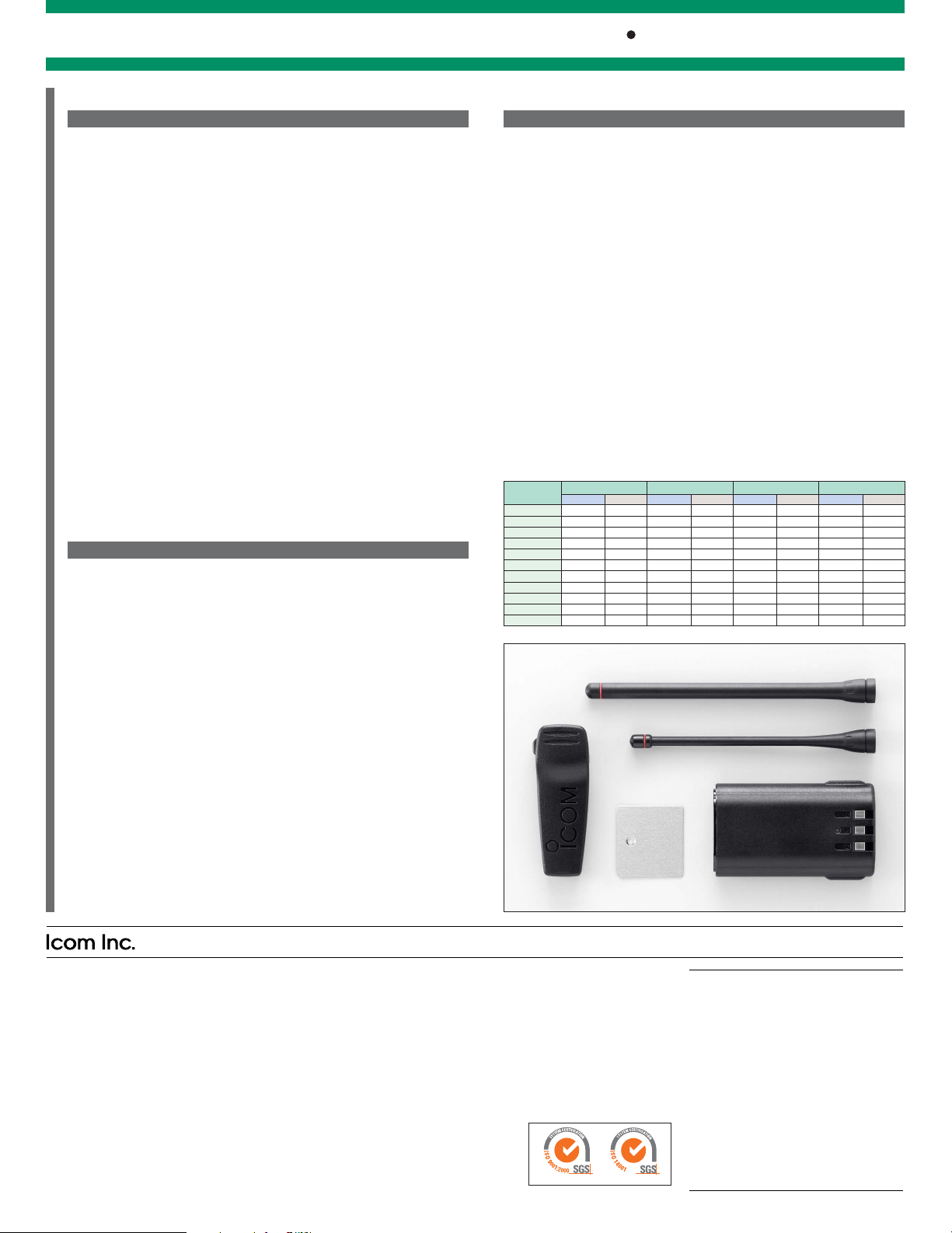

SPECIFICATIONS

GENERAL

• Frequency range :
IC-F33GT/GS 136–174MHz
IC-F43GT/GS 400–470MHz (U.S.A. and General)

450–512MHz (U.S.A.)
450–520MHz (General)

•Number of channels : 256 channels/16 banks

• Channel spacing : 12.5kHz/25kHz, 15kHz/30kHz

• PLL channel step : 2.5kHz, 3.125kHz

5kHz, 6.25kHz (UHF)

• Antenna impedance : 50Ω

•

Usable temperature range

•

Power supply requirement

•Current drain

(at 7.2V DC; approx.):

: –30˚C to +60˚C; –22°F to +140°F
: 7.2V DC

Transmit VHF/UHF 1.5A/1.7A
Receive stand-by 85mA

rated output 300mA

• Dimensions

(projections are not included)

•Weight

(with BP-231 and anttenna)

• Output power : 5W

(with BP-231) : 53 (W) ×120 (H) ×32.5 (D) mm;

3

⁄

2

32 (W)

(approx.) : 285g; 10.0oz (VHF)

300g; 10.6oz (UHF)

TRANSMITTER

(VHF), 4W (UHF)

• Max. frequency deviation : ±5kHz

±2.5kHz (Narrow)

• Frequency error : ±2.5ppm

• Spurious emissions : 80dB

typ. (VHF)

70dB typ. (UHF)

• Adjacent channel power : 70dB

(Wide)

• FM Hum and Noise : 46dB typ. (Wide)

40dB

typ. (Narrow)

• Audio harmonic distortion : 3% typ. (AF 1kHz, 40% deviation)

• Modulation limiting : 60–100% of max. deviation

• External microphone connector :

3-conductor 2.5 (d) mm (

(U.S.A. and General)

(at 5W/4W)

×423⁄

32 (H)

(Wide)

, 60dB (Narrow)

(VHF)

×19⁄

32 (D) in

1

⁄10″)/2.2kΩ

RECEIVER

• Intermediate frequency : 1st 46.35MHz
2nd 450kHz

• Sensitivity : 0.25µV

• Squelch sensitivity : 0.25µV

•

Adjacent channel selectivity

: 75dB typ. (Wide)

typ. (at 12dB SINAD)
typ. (at threshold)

65dB typ. (Narrow)

• Spurious response : 70dB

• Intermodulation : 74dB

typ.

• Hum and noise ratio : 45dB typ. (Wide)
40dB typ. (Narrow)

• Audio output power : 500mW

(at 5% distortion with an 8Ω load)

•

External speaker connector

: 2-conductor 3.5 (d) mm (

typ.

1

⁄8″)/8Ω

Applicable U.S. Military Specifications

Icom makes rugged products that meet MIL-STD requirements and strict
environmental standards as follows.

Standard

Low Pressure
High Temp. 501.1 I 501.2 I, II 501.3 I, II 501.4 I, II
Low Temp. 502.1 I 502.2 I, II 502.3 I, II 502.4-3 I, II
Temp. Shock 503.1 I 503.2 I 503.3 I 503.4 I

Solar Radiation

Rain 506.1 II 506.2 II 506.3 II 506.4 III
Humidity 507.1 I, II 507.2 II, III 507.3 II, III 507.4 –
Salt Fog 509.1 I 509.2 I 509.3 I 509.4 –
Dust 510.1 I 510.2 I 510.3 I 510.4 I
Vibration 514.2 VIII, X 514.3 I 514.4 I 514.4 I
Shock 516.2 I, II, V 516.3 I, IV 516.4 I, IV 516.5 I, IV

SUPPLIED ACCESSORIES

MIL 810C MIL 810D MIL810E MIL810F

Method Proc. Method Proc. Method Proc. Method Proc.

500.1

505.1 I 505.2 I 505.3 I 505.4 I

I 500.2 I, II 500.3 I, II 500.4 I, II

(May differ according to version)

• VHF Antenna

• UHF Antenna

Measurements made in accordance with EIA/TIA-603. All stated spec­ifications are subject to change without notice or obligation.

SmarTrunk II and SmarTrunk 3G are trademarks of SmarTrunk Systems, Inc. All other
trademarks are the properties of their respective holders.

• Unit cover

• Battery pack, BP-231• Belt clip, MB-94

04DS009A* © 2004 Icom Inc.
