Icom IC-F3030 Instruction Manual
INSTRUCTION MANUAL
VHF TRANSCEIVERS
iF3030 Series
UHF TRANSCEIVERS
iF4030 Series
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful interference.
The photo shows the
VHF transceiver
IMPORTANT
EXPLICIT DEFINITIONS
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This
instruction manual contains important oper ating instructions
for the IC-F3031S, IC-F3031T, IC-F3033S, IC-F3033T, IC-
F3033T-T, IC-F3036S, IC-F3036T VHF TRANSCEIVERS
and the IC-F4031S, IC-F4031T, IC-F4033S, IC-F4033T, IC-
F4036S, IC-F4036T UHF TRANSCEIVERS.
This instruction manual includes some functions which are
usable only when they are preset by your dealer. Ask your
dealer for details.
Icom, Icom Inc. and Icom logo are registered trademarks of Icom Incorporated
(Japan) in Japan, the United States, the United Kingdom, Germany, France,
Spain, Russia, Australia, New Zealand, and/or other countries.
i
WORD DEFINITION
RDANGER!
RWARNING!
CAUTION
NOTE
Personal death, serious injury or an explosion may occur.
Personal injury, fire hazard or electric
shock may occur.
Equipment damage may occur.
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
DISPOSAL
The crossed-out wheeled-bin symbol on your
product, literature, or packaging reminds you
that in the European Union, all electrical and
electronic products, batteries, and accumulators
(rechargeable batteries) must be taken to des-
ignated collection locations at the end of their
working life. Do not dispose of these products as unsorted
municipal waste. Dispose of them according to the laws in
your area.
PRECAUTIONS
DANGER! Use and charge only specified Icom bat-
R
tery packs with Icom radios or Icom chargers. Only Icom battery packs are tested and approved for use with Icom radios
or charged with Icom chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or
cause the battery to burst.
WARNING! NEVER hold the radio so that the an-
R
tenna is very close to, or touching exposed parts of the body,
especially the face or eyes, while transmitting. The radio will
perform best if the microphone is 5 to 10 cm (2 to 4 inches)
away from the lips and the radio is vertical.
WARNING! NEVER operate the radio with a head-
R
set or other audio accessories at high volume levels. The
continuous high volume operation may cause a ringing in
your ears. If you experience the ringing, reduce the volume
level or discontinue use.
WARNING! NEVER operate the radio while driving
R
a vehicle. Safe driving requires your full attention—anything
less may result in an accident.
CAUTION: MAKE SURE the flexible antenna, bat-
tery pack and jack cover are securely attached to the radio,
and that the antenna and battery pack are dry before attachment. Exposing the inside of the radio to dust or water will
result in serious damage to the radio.
DO NOT operate the radio near unshielded electrical
blast ing caps or in an explosive atmosphere.
DO NOT push [PTT] when you do not actually intend to
transmit.
DO NOT operate or place the radio in direct sunlight or
in areas with temperatures below –30°C (–22°F) or above
+60°C (+140°F).
DO NOT modify the radio. The specifications may change
and then not comply with the requirements of a corresponded
regulation. The radio warranty does not cover any problems
caused by unauthorized modification.
DO NOT use harsh solvents such as benzine or alcohol
when cleaning, as they will damage the radio surfaces.
BE CAREFUL! The radio will become hot when operat-
ing it continuously for long periods of time.
ii
PRECAUTIONS (Continued)
FCC INFORMATION
BE CAREFUL! The transceiver meets IP67* require-
ments for dust-tight and waterproof protection. However,
once the transceiver has been dropped, dust-tight and waterproof protection cannot be guaranteed because of possible
damage to the transceiver’s case or the waterproof seal.
* Only when the jack cover or the optional HM-168LWP is
attached.
Even when the transceiver power is OFF, a slight current still
flows in the circuits. Remove the battery pack or batteries
from the trans ceiver when not using it for a long time. Otherwise, the installed battery pack or batteries will become exhausted, and will need to be recharged or replaced.
MAKE SURE to turn OFF the radio power before
connect ing the supplied/optional equipment.
• FOR CLASS A UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
CAUTION: Changes or modifications to this transceiver,
not expressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations.
iii
TABLE OF CONTENTS
IMPORTANT .......................................................................... i
EXPLICIT DEFINITIONS .......................................................i
PRECAUTIONS .................................................................... ii
FCC INFORMATION ........................................................... iii
TABLE OF CONTENTS ....................................................... iv
1 ACCESSORIES ...........................................................1–2
■ Supplied accessories ...................................................1
■ Accessory attachments ................................................1
2 PANEL DESCRIPTION ................................................ 3–7
■ Front panel ................................................................... 3
■ Function display ........................................................... 4
■ Programmable function keys ........................................5
3 BASIC OPERATION .................................................. 8–14
■ Turning power ON ........................................................8
■ Channel selection ........................................................ 9
■ Call procedure .............................................................. 9
■ Receiving and transmitting .........................................10
■ User set mode ............................................................ 12
■ Emergency Call .......................................................... 12
■ Priority A channel selection ........................................13
■ Man Down Emergency Call........................................13
■ Stun function .............................................................. 13
■ Scrambler function ..................................................... 13
■ MDC 1200 system operation .....................................14
4 BATTERY CHARGING ............................................15–19
■ Caution ....................................................................... 15
■ Battery chargers .........................................................17
5 OPTIONAL SWIVEL BELT CLIP ............................20–21
■ MB-93 contents .......................................................... 20
■ Attaching .................................................................... 20
■ Detaching ................................................................... 21
6 SPEAKER MICROPHONE ............................................ 22
■ Optional HM-168LWP description .............................. 22
■ Attachment ................................................................. 22
7 BATTERY CASE ......................................................23–25
■ BP-240 optional battery case .....................................23
■ BP-261 optional battery case .....................................24
8 OPTIONS ................................................................. 26–27
9 SAFETY TRAINING INFORMATION .......................28–29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
iv
1
er
ACCESSORIES
■ Supplied accessories
NOTE: Some accessories are not supplied with depending
on versions.
Battery pack
Belt clip
*Not supplied, or shape is different, depending on the transceiv
version.
Battery charger*
Power adapter*
(for the battery charger)
Flexible antenna
D Battery pack
To attach the battery pack:
Slide the battery pack in the direction of the arrow (q) until
the battery release button makes a ‘click’ sound.
NOTE: Push on the bottom of the pack to make sure the
release button is firmly locked.
To release the battery pack:
Slide the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
NEVER release or attach the battery pack when the transceiver is wet or soiled. This may result water or dust getting into the transceiver/battery pack and may result in the
transceiver being damaged.
■ Accessory attachments
D Flexible antenna
Connect the supplied flexible antenna to
the antenna connector.
CAUTION:
• NEVER carry the transceiver by
holding the antenna.
• DO NOT connect the antenna other
than listed on page 24.
• Transmitting without an antenna
may damage the transceiver.
1
NOTE: Keep the battery terminals clean. It's a good idea
to occasionally clean them.
q
Battery release button
w
ACCESSORIES
Jack cover
1

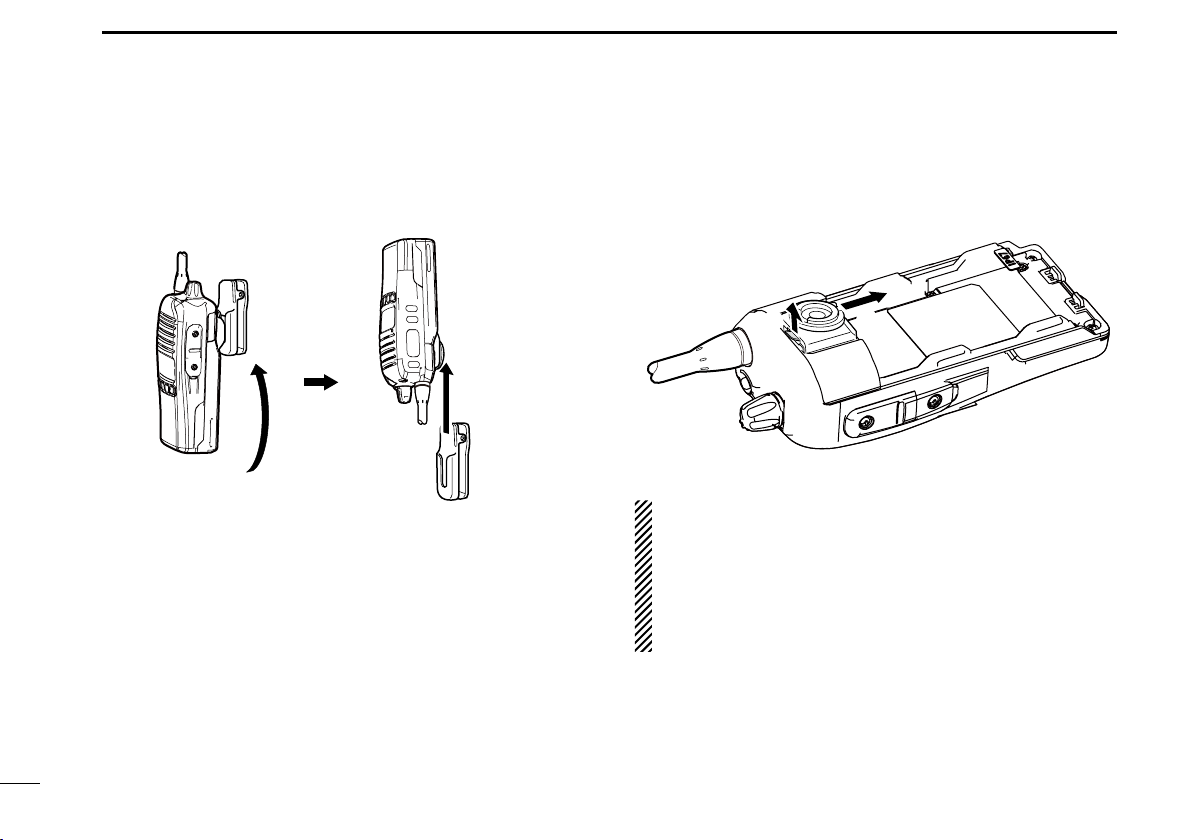

D Belt clip
To attach the belt clip:
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
To detach the belt clip:
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
w
q
D Jack cover
To attach the jack cover:
q Attach the jack cover to the [MIC/SP] jack.
w Tighten the screws.
[MIC/SP] jack
q
CAUTION:
• Attach the jack cover when the op-
tional speaker-microphone is not
used.
• Use the supplied screws only.
To detach the jack cover:
q Unscrew the screws using a phillips
screwdriver.
w Detach the jack cover for the speak-
er-microphone or headset connection.
w
1
q
w
q
2
2
o
details.
PANEL DESCRIPTION
■ Front panel
q
w
e
r
t
i
Speaker
Microphone
u
y
t DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Desired functions can be programmed independently by
your dealer. (p. 5)
y DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer. (p. 5)
u FUNCTION DISPLAY (p. 4)
Displays a variety of information such as an operating
channel number/name, 2-Tone code, DTMF numbers, se-
lected function and so on.
i EXTERNAL MICROPHONE/SPEAKER JACK
Connect an optional speaker-microphone.
NOTE: Connect or disconnect the optional equipment
after the transceiver is turned OFF.
q ANTENNA CONNECTOR
Connects the supplied antenna.
w DEALER-PROGRAMMABLE KEY [Emer]
Desired function can be programmed by your dealer. (p. 7)
e DEALER-PROGRAMMABLE KEY [Side1]
Desired function can be programmed by your dealer.
(p. 5)
r PTT SWITCH [PTT]
Hold down to transmit; release to receive.
3
Jack cover
NOTE: Attach the jack
cover when the optional
equipment is not used.
Refer to page 2 for
o VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
PANEL DESCRIPTION
2
■ Function display
yq iutrew
o
!0
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
r LOW POWER INDICATOR
Appears when low output power is selected.
• When the battery power decreases to a specified level, low
power is selected automatically.
t AUDIBLE INDICATOR
➥ Appears when the channel is in the ‘audible’ (unmute)
condition.
➥ Appears when the specified 2-Tone code is received.
y SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
u BELL INDICATOR
Appears or blinks when the specific 2-Tone code is re-
ceived, according to the pre-programming.
i KEY LOCK INDICATOR
Appears during the key lock function is ON.
o BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
!0 ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4
PANEL DESCRIPTION
2
■ Programmable function keys
The following functions can be assigned to [Emer], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details concerning your transceivers programming.
If the programmable function names are bracketed in the following explanations, the specific key is used to activate the
function depends on the programming.
CH UP AND DOWN KEYS
➥ Push to select an operating channel.
➥ Push to select a transmit code channel after pushing [TX
Code CH Select].
➥ Push to select a DTMF channel after pushing [DTMF Au-
todial].
➥ Push to select a scan group after pushing and holding
[Scan A Start/Stop]/[Scan B Start/Stop] for 1 second.
SIREN KEY
Push to emit a siren.
ZONE KEY
Push this key, then push [CH Up] or [CH Down] to select the
desired zone.
What is “zone”?— The desired channels are assigned
into a zone according to the intended use for grouping.
For example, ‘Staff A’ and ‘Staff B’ are assigned into a
“Business” zone, and ‘John’ and ‘Cindy’ are assigned into
a “Private” zone.
5
SCAN A KEY
➥ This key’s operation depends on the Power ON Scan set-
ting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation. In case of
transmission during scan, scanning will be cancelled.
When the power ON scan function is turned ON;
Push to pause scanning, then resumes scanning after
passing a specified time period. In case of transmission
during scan, scanning will be cancelled.
➥ Hold down this key for 1 second to indicate the scan group,
then push [CH Up] or [CH Down] to select the desired
group.
SCAN B KEY
➥ Push to start and cancel scanning operation. In case of
transmission during scan, scanning will be paused. Then
resumes scanning after passing a specified time period.
➥ Hold down this key for 1 second to indicate the scan group,
then push [CH Up] or [CH Down] to select the desired
group.
PRIO A/B KEYS
➥ Push to select Priority A or Priority B channel.
➥ Hold down [Prio A (Rewrite)] or [Prio B (Rewrite)] for 1
second to reassign the operating channel to Priority A or
Priority B channel.
PANEL DESCRIPTION
2
SCAN ADD/DEL (TAG) KEY
➥ Push to add a channel to, or delete it from the current scan
list.
• When a channel is added to the current scan list, the display
shows “SCAN ON.” When a channel is deleted from the current
scan list, the display shows “SCAN OFF.” After showing “SCAN
ON” or “SCAN OFF,” the display shows the current scan list text.
➥ You can add a channel to, or delete it from the scan list
after selecting the list.
1. Hold down for 1 second to display the current scan list,
and then push [CH Up] or [CH Down] to select a desired
list.
2. Push this key to add a channel to, or delete it from the
selected list.
3. Hold down this key for 1 second to exit the scan list
selection mode.
➥ Push this key while a scan is paused on a channel, except
for primary or secondary channel, and then the channel is
deleted from the scan list.
• Depending on the setting, the deleted channel is added to the
scan list again after the scan is cancelled. (Nuisance Delete
function)
C.TONE CH ENT KEY
Push to select the continuous tone channel using [CH Up]/
[CH Down] to change the tone frequency/code setting. The
selected channel remains set as the continuous tone channel
until another channel is designated as such.
MR-CH 1/2/3/4 KEYS
Push to select memory channels 1 to 4 in the operating zone
directly.
MONI KEY
Mute and release the CTCSS (DTCS) or 2-Tone squelch
mute. Open any squelch/deactivate any mute while pushing
and holding this key.
LOCK KEY
➥ Hold down for 1 second to electronically lock all program-
mable keys except the following:
[Call] (incl. Call A and Call B), [Moni], [Emergency], [Sur-
veillance], [Siren], [Lone Worker] and [OPT 1/2/3].
➥ Hold down
HIGH/LOW KEY
Push to select the transmit output power temporarily or permanently, depending on the presetting.
• Ask your dealer for the output power level for each selection.
OPT MOMENTARY KEYS
Controls the output signal level of the optional ports in the
optional unit connector while pushing and holding this key.
OPT OUT KEYS
Push to control the output signal level of the optional ports in
the optional unit connector.
SCRAMBLER FUNCTION
Push to toggle the voice scrambler function ON and OFF.
for 1 second again to turn the lock function OFF.
2
6
PANEL DESCRIPTION
2
TALK AROUND KEY
Push to turn the talk around function ON and OFF.
• The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY
Push to toggle the IF bandwidth between wide and narrow.
DTMF AUTODIAL KEY
➥ Push to enter the DTMF channel selection mode. Then se-
lect the desired DTMF channel using [CH Up]/[CH Down].
➥ After selecting the desired DTMF channel, push this key to
transmit the DTMF code.
RE-DIAL KEY
Push to transmit the last-transmitted DTMF code.
CALL KEYS
Push to transmit a 2-Tone.
• Call transmission is necessary before you call another station depending on your signaling system.
• [Call A] and/or [Call B] may be available when your system employs selective ‘Individual/Group’ calls. Ask your dealer which call
is assigned to each key.
LONE WORKER KEY
Push to turn the Lone Worker function ON or OFF.
• If the Lone Worker function is activated, the Emergency function
is automatically turned ON after the specified time period has
passed with no operation is performed.
TX CODE CHANNEL UP/DOWN KEYS
Push to select a TX code channel directly.
EMERGENCY KEY
Hold down to transmit the emergency call.
• The transceiver can transmit the emergency call silently or audibly
depending on the presetting. Ask your dealer for details.
• When the emergency call transmits with beeps, the emergency
text is displayed on the LCD if programmed.
• If you want to cancel the emergency call, hold down the key again
before transmitting the call.
• The emergency call is transmitted one time only or repeatedly until
receiving a control code, depending on the presetting.
SURVEILLANCE KEY
Push to turn the surveillance function ON or OFF.
When this function is turned ON, the beep is not emitted and
the LCD backlight does not light when a signal is received or
a key is pushed, etc.
TX CODE CHANNEL SELECT KEY
Push to enter the ID code channel selection mode directly.
Then set the desired channel using [CH Up]/[CH Down].
(p. 11)
USER SET MODE KEY
➥ Hold down for 1 second to enter user set mode.
• During in the user set mode, push this key to select an item that
is enabled by your dealer, and change the value or condition by
pushing [CH Up] or [CH Down].
➥ Hold down this key for 1 second again to exit user set
mode.
7
Loading...
