Icom IC-400PRO User Manual

INSTRUCTION MANUAL

UHF TRANSCEIVER

i400PRO

IMPORTANT

PRECAUTION

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

SAVE THIS INSTRUCTION MANUAL — This

instruction manual contains important operating instructions
for the IC-400PRO UHF TRANSCEIVER.

RWARNING! NEVER connect the transceiver to an

AC outlet. This may pose a fire hazard or result in an electric
shock.

RWARNING! NEVER operate the transceiver while

driving a vehicle. Safe driving requires your full attention—
anything less may result in an accident.

NEVER connect the transceiver to a power source of more

EXPLICIT DEFINITIONS

WORD DEFINITION

RWARNING

CAUTION

NOTE

Personal injury, fire hazard or electric shock
may occur.

Equipment damage may occur.

If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.

than 16 V DC. This will damage the transceiver.

NEVER cut the DC power cable between the DC plug and

fuse holder. If an incorrect connection is made after cutting,
the transceiver might be damaged.

NEVER place the transceiver where normal operation of

the vehicle may be hindered or where it could cause bodily
injury.

NEVER allow children to play with any radio equipment

containing a transmitter.

NEVER expose the transceiver to rain, snow or any liquids.

The transceiver may be damaged.

NEVER operate or touch the transceiver with wet hands.

Icom, Icom Inc. and the logo are registered trademarks of Icom
Incorporated (Japan) in the United states, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.

SmarTrunk II™ is a trademark of the SmarTrunk Systems, Inc.

i

This may result in an electric shock or damage the transceiv­er.

DO NOT push the PTT when not actually desiring to trans-

mit.

DO NOT use or place the transceiver in areas with tem-

peratures below –10°C or above +60°C, or in areas subject to
direct sunlight, such as the dashboard.

AVOID operating the transceiver without running the vehi-

cle’s engine. When the transceiver’s power is ON and your
vehicle’s engine is OFF, the vehicle’s battery will soon
become exhausted.

AVOID placing the transceiver in excessively dusty envi-

ronments.

AVOID placing the transceiver against walls. This will

obstruct heat dissipation.

AVOID setting the transceiver in a place without adequate

ventilation. Heat dissipation may be affected, and the trans­ceiver may be damaged.

AVOID the use of chemical agents such as benzine or

alcohol when cleaning, as they damage the transceiver sur­faces.

USE the specified microphone only (supplied or optional).

Other microphones have different pin assignments and may
damage the transceiver.

BE CAREFUL! The transceiver will become hot when

operating continuously for long periods.

This device complies with Standard
Australia Specification No. AS/NZS4365­1996 and AS4295-1995.

ii

TABLE OF CONTENTS

IMPORTANT ........................................................................ i

EXPLICIT DEFINITIONS ..................................................... i

PRECAUTION ..................................................................... i

TABLE OF CONTENTS ...................................................... iii

SUPPLIED ACCESSORIES ............................................... iv

1 PANEL DESCRIPTION ............................................... 1–4

■ Front panel ................................................................... 1

■ Function display ........................................................... 4

2 BASIC OPERATION .................................................... 5–6

■ Turning power ON ........................................................ 5

■ Channel selection ......................................................... 5

■ Receiving and transmitting ........................................... 6

3 REPEATER OPERATION ............................................... 7

■ Repeater operation.........................................................7

■ Accessing a repeater......................................................7

4 SCAN OPERATION ................................................... 8–14

■ Scan types......................................................................8

■ Scanning preparation .....................................................9

■ Open scan ....................................................................11

■ Group and priority scans ..............................................12

■ Repeater search scan ..................................................13

5 GROUP MODE OPERATION .................................. 15–16

■ Group mode (CTCSS)..................................................15

6 SELCALL OPERATION .......................................... 17–21

■ General.........................................................................17

■ Calling operation ..........................................................17

■ When receiving a call ...................................................20

■ Setting the silent stand-by condition.............................21

iii

7 OTHER FUNCTIONS .............................................. 22–33

■ Smart-Ring and ATS

■ Voice scrambler function ..............................................23

■ DTMF transmission ......................................................24

■ Channel lock function ...................................................24

■ RX frequency setting ....................................................25

■ Wide/Narrow function ...................................................26

■ Set mode ......................................................................27

8 PROGRAMMABLE FUNCTION KEYS ................... 34–36

9 CONNECTION AND MAINTENANCE .................... 37–40

■ Rear panel and connection ........................................ 37

■ Mounting the transceiver ............................................. 38

■ Optional UT-108 installation ....................................... 39

■ Optional UT-109 or UT-110 installation ...................... 39

■ Optional OPC-617 installation ..................................... 40

■ Antenna ....................................................................... 40

■ Fuse replacement ....................................................... 40

■ Cleaning ..................................................................... 40

10 SPECIFICATIONS ....................................................... 41

11 OPTIONS ..................................................................... 42

(Automatic Transponder System).....22

qw

e

ry

u

i

o

!0

!1

!2

t

KEY-STICKER

ICOM

SUPPLIED ACCESSORIES

q Microphone .................................................................. 1

w Microphone hanger and screw set .......................... 1 set

e Microphone hanger cable .............................................. 1

r DC power cable (OPC-1194) ..........................................1

t Function name stickers* (KEY STICKER) ......................1

y Mounting bracket ........................................................... 1

u Bracket bolts ................................................................. 4

i Mounting screws (M5×12) ............................................. 4

o Self-tapping screws (M5×20) ......................................... 4

!0 Flat washers .................................................................. 4

!1 Spring washers ............................................................. 4

!2 Nuts ............................................................................... 4

*Function name stickers

Function of keys can be changed. Stickers are supplied for
easy identification.

iv

1

ie

q

Function Display (p. 4)

w

u y t r

Speaker

Normal mode

Set mode Function mode

Push [O]
for 1 sec.

PANEL DESCRIPTION

■ Front panel

q AF VOLUME CONTROL KNOB

Rotate the knob to adjust the audio output level.

• Minimum audio level is pre-programmed.

w []/[ ] KEYS*

➥ Push to select an operating channel.
➥ After pushing [O], push to toggle between CB bank and

Private bank (user programmable channels).

e POWER SWITCH [ ]

Push to turn the power ON and OFF.

• The Automatic scan start function and the password prompt are
available at power ON as optional settings. (The optional CS­400PRO

1

CLONING SOFTWARE

is required.)

r [O] KEY*

➥ Push to enter channel bank selection mode.

• In channel bank selection mode, push []/[]to select the
desired channel bank.

➥ Push for 1 sec. to toggle Function mode, Set mode or

Normal mode.

• Returns to the Normal mode automatically after 30 sec. when
no key operations are performed in Function or Set mode.

PANEL DESCRIPTION

1

t [DUP] KEY*

NN

➥

Push to toggle the transmit frequency mode between

NN

duplex and simplex. (CB channel 1 to 8 only)

• Duplex: The set TX frequency is used for the transmission.

• Simplex: The set RX frequency is used for the transmis-

sion.

NN

➥

Push and hold to set the selected channel to priority

NN

or normal.

• Priority channel is used for both group and priority scans.

FF

➥

Push to toggle the 5tone mute activity between CONT

FF

(Continuous Tone) and SGL (Single Tone).

• CONT: SelCall mute is released.

• SGL: SelCall mute is activated. In this case, [PTT] switch

action is inhibited while SelCall mute is activated.

y [SCN] KEY*

NN

➥

Push to start or stop the scan.

NN

NN

➥

Push and hold to enter the scan type selection mode.

NN

• Push []/[]to select the desired scan type.

• Push [SCN] to set the channel as a tag channel.

- “S” appears for tag channels.

FF

➥

Push to recall the received ID code.

FF

• Push []/[]to select the record.

NN

➥

: Stands for Normal mode operation.

NN

FF

➥

: Stands for Function mode operation.

FF

u [MONI] KEY*

NN

➥

Activates the following functions on each channel

NN

independently:

• Push and hold the key to release the mute to the channel
(audio is emitted; ‘Audible’ condition).

- “” appears.

• During “” appears, push the key to mute the channel
(sets to ‘Inaudible’).

NOTE: The unmute condition (‘Audible’ condition)
may automatically return to the mute condition
(‘Inaudible’ condition) after a specified time period
depending on the pre-setting.

FF

➥

Push to transmit the SelCall code on the selected

FF

channel.

FF

➥

Push and hold to enter the SelCall code/code number

FF

selection mode (p. 17).

• Push []/[]to select the desired code/code number.

*Information

Up to two desired functions, one each for Normal and
Function mode, can be re-assigned to [], [], [O],
[DUP], [SCN] and [MONI] keys with the optional CS­400PRO

CLONING SOFTWARE

. (p. 34)
The default setting is used in this instruction manual, for
description.

1

2

PANEL DESCRIPTION

Normal mode

Function mode

Set mode

: Set the desired level/mode.

: Change the individual setting.

/

: Change the common setting.

: Push to enter channel bank selection mode.
Push for 1 sec. to enter Normal mode.

: Turn the function ON and OFF.

: [CH Up] : [ID-MR Select]

: [Bank/Func]

: [CONT/SGL]

: [Call]

: [CH Down]

: [CH Up] : [Scan Start/Stop]

: [Bank/Func]

: [Dup/Pri]

: [Moni(Audi)]

: [CH Down]

Push [O] for 1 sec.

Push [O] for 1 sec.

Push [ ] to turn power ON.

1

Key flow chart for the default setting

3

i MICROPHONE CONNECTOR

Connect the supplied microphone or optional DTMF micro­phone.

NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.

DD

MICROPHONE

The supplied microphone has a PTT switch and a hanger
hook.

• The following functions are available when the microphone is on or
off hook:
(The optional CS-400PRO

- Automatic scan start when on hook.

- Automatic priority channel selection when off hook.

- Sets to ‘Inaudible’ condition (mute condition) when on hook.

- Sets to ‘Audible’ condition (unmute condition) when off hook.

CLONING SOFTWARE

is required.)

PANEL DESCRIPTION

The channel is in CTCSS mute condition.

The channel is in SelCall mute condition.

The channel is in both CTCSS/SelCall mute
condition.

t

q

w

e

r

u

i

!0

oy

!1

1

■ Function display

q TRANSMIT INDICATOR

Appears while transmitting.

w BUSY INDICATOR

Appears while receiving a signal or when the squelch is
open.

e SIGNAL STRENGTH METER

Indicates relative receive signal strength level.

r LOW POWER INDICATOR

Appears when low output power is selected.

[High/Low] must be assigned to the desired program­mable key using the optional CS-400PRO

SOFTWARE

t SQUELCH INDICATOR

Appears when the channel is in ‘Audible’ condition
(SelCall/CTCSS mute is released).

y DUPLEX INDICATOR

Appears when the duplex operation is selected.

when change the output power.

1

u SCRAMBLER INDICATOR

Appears when the scrambler function is activated. (Optional
UT-109 (#02)/UT-110 (#02) SCRAMBLER UNIT is required.)

i SELCALL/5TONE INDICATOR

Appears when the specified Selcall/5-tone is received.

o SCAN CHANNEL INDICATOR

Appears when the selected memory channel is specified
as a scan channel.

!0 ALPHANUMERIC DISPLAY

Displays the operating channel number, channel names,
Set mode contents, DTMF numbers, etc.

!1 UNDER BAR INDICATOR

➥ Shows the channel mute condition (‘Inaudible’ condi-

tion) as below.

➥ The left under bar blinks in Function mode, and lights in

Set mode.

➥ Appears in Set mode when the key under the indicator

can be activated.

CLONING

During “” appears, the channel is
even if the channel is in mute condition.

‘

Audible’ condition

4

2

BASIC OPERATION

■ Turning power ON

➥ Push [ ] to turn the power ON.

Push []

About the password prompt:

If the transceiver is programmed for a start up passcode,
enter the specified 4-digit code.

(The optional CS-400PRO

CLONING SOFTWARE

is required.)

■ Channel selection

➥ Push []/[]to select the desired operating channel.

• While pushing and holding []or [], the displayed channel
changes continuously until channel number “01” appears.

• When displayed channel stops at channel number “01”, beeps
are emitted.

Push [] or []

D Private channel selection

q Push [O] (Bank/Func) to enter the channel bank selection

mode. Then select the desired bank with []/[]. Push

• The keys in the table below can be used for password input:

• The transceiver detects numbers in the same block as identical.

Therefore “01234” and “56789” are the same.

KEY

NUMBER

When the “PASSWORD” indication does not clear after
entering 4 digit code, the enter code number is incorrect. In
this case, turn the power off and start over.

5

01234
56789

[O] (Bank/Func) again to set the bank.

Push [O]

w Push []/[]to select the desired operating channel in

sequence.

NOTE: The selected channel is retained even when the
transceiver is turned off.

■ Receiving and transmitting

RECEIVING:

q Push [ ] to turn the power ON.
w Select the desired operating channel. (p. 5)
e While receiving a signal, adjust the audio output level to a

comfortable listening level.

BASIC OPERATION

2

D Transmitting notes

• Time-out timer

After continuous transmission for a pre-programmed period,
the time-out timer is activated causing the transceiver to stop
transmitting and automatically select receive.

2

TRANSMITTING:

q While pushing and holding [PTT], speak into the micro-

phone at your normal voice level.

w Release [PTT] to receive.

IMPORTANT!: To maximize the readability of your signal;

➥ After pushing [PTT], pause briefly.
➥ Hold the microphone 2 to 5 cm from your mouth, then

speak into the microphone at a normal voice level.

NOTE: Transmission is inhibited when the channel is in 5
tone mute condition (‘Inaudible’ condition), or receive only
channel is selected.

6

3

REPEATER OPERATION

■ Repeater operation

Repeaters allow you to extend the operational range of your
radio.

Normally, a repeater has independent frequencies for receive
and transmit.

Repeater example;

Receives the channel 31 signal and
the detected audio signals are trans­mitted on channel 1 simultaneously.

Ch 1 Ch 31

Ch 31 Ch 1

Station A:
Tx: Channel 31
Rx: Channel 1

Station B:
Tx: Channel 31
Rx: Channel 1

■ Accessing a repeater

A repeater amplifies received signals and re-transmits them
on a different channel, allowing you to communicate over
greater distances with improved reliability. When using a
repeater, the transmit channel is shifted from the receive
channel by 30 channels. You can search the accessible
repeater in your local area using the Repeater search scan
function (p. 13).

q Push []/[]to select the desired channel from 1 to 8

(repeater output channel).

w Push [DUP] (Dup/Pri) to set duplex.

• “” appears.

• The duplex setting is only available on channels 1 to 8.

e While pushing and holding [PTT], speak into the micro-

phone at your normal voice level.

• The displayed channel automatically changes to the transmit
channel (repeater input channel), and “” appears.

r Release [PTT] to receive.
t To cancel the duplex setting, push [DUP] (Dup/Pri).

7

Repeatedly scans all tag channels in sequence.

ch 40

ch 1 ch 2 ch 3

ch 4

ch 5

ch 6ch 39

OPEN SCAN

■ Scan types

SCAN OPERATION

4

The transceiver has 4 scan types, tag function and 4 resume
conditions providing scanning versatility.
Tag channels are independently set for open, group and pri­ority scans. Initially, all channels may be set as tag channels
for all scans.

GROUP OR PRIORITY
SCAN

ch 8

Priority

channel

Repeatedly watches a priority channel while scanning
only specified tag channels.

IMPORTANT!:

A microphone should be on hook to start scanning.

3
4

REPEATER SEARCH SCAN

ch 1

Scan cancel

TX on ch 38

RX on ch 8

RX only

TX on ch 34

RX on ch 4

Scans all repeater channels (1 to 8) in sequence.
If there are no busy channels after scanning channels 1
to 8 (RX only), it begins scanning from channel 1 again,
then the transceiver transmits a signal to search for a re­peater while the scanning.

ch 26ch 12

ch 2

RX only

TX on ch 33

RX on ch 3

ch 8

RX only

TX on ch 32

RX on ch 2

TX on ch 31

RX on ch 1

8

SCAN OPERATION

Open scan setting

Push [SCN]
(Scan Start/Stop)

Appears for
the channels
to be scanned

Open scan

Push [] or []

4

■ Scanning preparation

IC-400PRO scans all tagged channels, and can be selected
so the scan resume condition is a pause or timer scan.
Therefore, these items must be set before starting a scan
(except the repeater search scan). These items must be set
for each scan type (open, group and priority) independently.

D Setting scan tag

q Select the desired channel. (p. 5)
w Push [SCN] (Scan Start/Stop) for 1 sec. to enter the scan

e Push []/[]to select the desired scan type.

9

type selection mode.

Push [SCN] for 1 sec.

• Open, group, priority and repeater search scans are available.

Previously selected scan type
is displayed.

r Push [SCN] (Scan Start/Stop) to select the tag setting ON

and OFF.

• “S” appears when the tag setting ON (The channel is set as a
scan channel).

t Push [SCN] (Scan Start/Stop) for 1 sec. to return to

Normal mode.

To speed up scanning:

For open scan, cancel the tag channel setting to skip unde­sired channels such as usually busy channels.
For group scan, set only often-used channels as tag chan­nels.
All memory channels may be set as tag channels by
default.

SCAN OPERATION

T-5 setting

T-10 setting

P-5 setting

T-15 setting

4

D Setting scan resume condition

q Push [O]
w Push [O]

The keys under these indicators can be activated.

e Push [SCN] for 1 sec. to enter the common setting for the

transceiver.

r Push [SCN] several times until “SST” appears.

Push [SCN]

(Bank/Func)
(Bank/Func)

Channel*Bank*

for 1 sec. to enter Function mode.
for 1 sec. again to enter Set mode.

Push [O] for 1 sec.

*The bank and channel number

are continuously displayed af­ter entering set mode.

SST appears

[

t Push []/[]to select the desired scan resume condi-

tion.

- “T-5” : Scan pauses for 5 sec. then resumes.

- “T-10” : Scan pauses for 10 sec. then resumes.

- “T-15” : Scan pauses for 15 sec. then resumes.

- “P-5” : Scan pauses until the signal disappears, then resumes
5 sec. after the signal disappears.

y Push [SCN] for 1 sec., then push [O] for 1 sec. to return to

Normal mode.

4

10

SCAN OPERATION

Start channel

Open scan setting

Open scan

Push [] or []

4

■ Open scan

Open scan searches for being transmitted signals automati­cally and makes it easier to locate new stations for contact or
listening purposes.

IMPORTANT!:

• A microphone should be on hook to start scanning.

• During open scan, transmission is inhibited except on a

busy channel.

q Push [SCN] (Scan Start/Stop) for 1 sec. to enter the scan

type selection mode.

Push [SCN] for 1 sec.

w Push []/[]to select the open scan.

Previously selected scan type
is displayed.

e Push [SCN] (Scan Start/Stop) for 1 sec. to return to

Normal mode.

- “OS” appears besides the channel number indication.

r Push [SCN] (Scan Start/Stop) to start the open scan.

t When receiving a signal, scan pauses and resumes

according to the selected scan resume condition. (p. 10)

y Push [SCN] (Scan Start/Stop) to cancel the scan.

11

■ Group and priority scans

Group scan Priority scan

Start channel

Group scan setting Priority scan setting

Priority channel

SCAN OPERATION

4

Group and priority scans repeatedly watch a priority channel
while scanning specified channels. This is useful when wait-
ing for a call on the priority channel or several specified chan­nels.
Group and priority scans behave differently when transmit­ting. Group scan can only transmit on a busy channel, and
priority scan can only transmit on a priority channel or start
channel.

IMPORTANT!:

A microphone should be on hook to start scanning.

q Push [SCN] (Scan Start/Stop) for 1 sec. to enter the scan

type selection mode.

w Push []/[]to select the group or priority scan.

Push [] or []

Group scan

Priority scan

e Push [SCN] (Scan Start/Stop) for 1 sec. to return to

Normal mode.

- “GS” or “PS” appears besides the channel number indication.

r Select the priority channel if desired.

- Push []/[]to select the desired channel.

- Push [DUP] (Dup/Pri) for 1 sec. to set the channel as a priority

channel.

t Push [SCN] (Scan Start/Stop) to start the scan.

y When receiving a signal, the scan pauses and resumes

according to the selected scan resume condition. (p. 10)

u Push [SCN] (Scan Start/Stop) to cancel the scan.

4

12

SCAN OPERATION

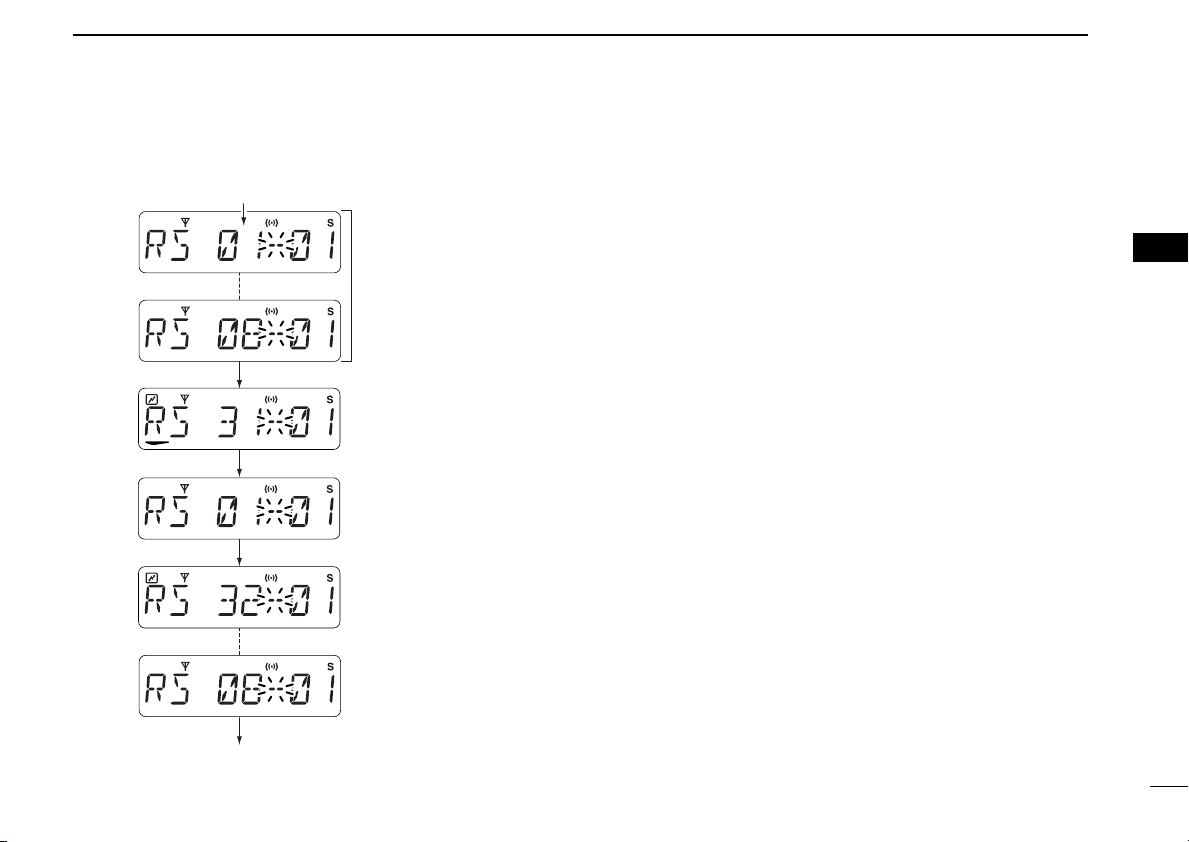

Repeater search scan

Repeater scan

Push [] or []

4

■ Repeater search scan

The repeater search scan is not only searching for a signal
on the repeater channels, but also access a repeater by
transmitting automatically in sequence.
Thus the repeater search scan function searches an available
repeater in the area even if the repeater is not in use.

IMPORTANT!:

A microphone should be on hook to start scanning.

The repeater search scan detects a signal on the repeater

output, CH 1 to 8, only. Therefore, repeater availability can­not be guaranteed even the repeater scan is stopped,
because the scan will stop if any activity is detected. (The
scan is cancelled when receiving a signal, such as stations
communicating in simplex operation on a repeater output
channel.)

q Push [SCN] (Scan Start/Stop) for 1 sec. to enter the scan

type selection mode.

w Push []/[]to select the repeater scan.

e Push and hold [SCN] (Scan Start/Stop) to return to Normal

mode.

• “RS” appears when the repeater scan is selected.

r Push [SCN] (Scan Start/Stop) to start the repeater scan.

• See the flow as described at right for repeater search scan
details.

t When receiving a signal on the repeater channel, scan

stops.

• 3 high beeps sound when receiving a signal, and 3 low beeps
sound when no signal receiving.

y Push [SCN] (Scan Start/Stop) to cancel the scanning man-

ually.

13

DD

Searches for signal on
repeater output signal.

Scanning channel
is displayed.

Access to the repeater
automatically.

Wait for a signal from
the repeater.

Access to the next re­peater automatically.

Scan is cancelled automatically.

Scan

When not reply signal is received.

Repeater search scan flow

SCAN OPERATION

4

4

14

5

GROUP MODE OPERATION

15

■ Group mode

[

(CTCSS)

D Setting the CTCSS frequency

The IC-400PRO is equipped with 51 CTCSS frequencies for
group mode operation. The group mode operation provides
communication with silent stand-by since you will only receive
calls from group members using the same CTCSS frequency.

First of all, set the same CTCSS frequency for all group mem­ber’s transceivers.
To access the IC-40Jr or IC-4088S operating in Group mode
(including Smart-Ring function), the same CTCSS frequency
should be set. Select the CTCSS frequency matching the
group code that is set to the IC-40Jr or IC-4088S, referring to
the “Group code/frequency table” in the next page.
For example, when group code “01” is set to the IC-40Jr/IC­4088S, select “67.0” as CTCSS frequency.

NOTE: Only the stations with the same CTCSS frequency
or matching the group code can be heard in group mode
operation.

To turn ON the group mode operation:

q Push []/[]to select the desired channel.
w While in Function mode, push [O]

to enter Set mode.

• Push [O]
Function mode.

• The bank and channel can be selected after entering Set mode.

The keys under these indicators can be activated.

e Push [MONI] for 1 sec. to enter the individual setting.
r Push [MONI] several times until “CT” appears.

[MONI]

t Push []/[]to select the desired frequency.

• When “OFF” is displayed, push [DUP] to enables the tone fre­quency selection, in advance.

y Push [MONI] for 1 sec. to exit the individual setting, then

push [O] for 1 sec. to exit Set mode.

• The under bar indicator appears. (p. 4)

(Bank/Func)

Channel*Bank*

for 1 sec. to enter the transceiver into

Push [O] for 1 sec.

(Bank/Func)

*The bank and channel number

are continuously displayed af­ter entering set mode.

CT appears

for 1 sec.

GROUP MODE OPERATION

Code

01

---

--­02
03
04
05
06
07
08
09

Freq.

67.0

69.3

71.0

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

Code

10
11
12
13
14
15
16
17
18
19
20

Freq.

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

Code

21
22
23
24
25

--­26

--­27

---

Freq.

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

Code

28

--­29

--­30

--­31

---

--­32

Freq.

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

Code

--­33
34
35

--­36
37
38

---

---

Freq.

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1
OFF

Push [DUP]

5

To cancel the group mode operation:

q While in Function mode, push [O]

(Bank/Func)

for 1 sec.

to enter Set mode.

• Push [O]
Function mode.

(Bank/Func)

for 1 sec. to enter the transceiver into

w Push [MONI] for 1 sec. to enter the individual setting.
e Push [MONI] several times until “CT” appears.
r Push [DUP] to select “OFF” (group mode OFF).

t Push [MONI] for 1 sec. to exit the individual setting, then

push [O] for 1 sec. to exit Set mode.

• The under bar indicators disappear.

DD

Group code/frequency table (unit: Hz)

✔ What is CTCSS (Continuous Tone Coded Squelch

System) GROUP MODE ?

CTCSS (Continuous Tone Coded Squelch System)
GROUP MODE allows communication with silent stand by.
Only signals containing a specific CTCSS frequency can
open the squelch.
This conveniently eliminates unwanted audio and is useful
in group activities or security related activities where
unwanted output can be a problem. Note that CTCSS
group mode is not private—anyone can receive your calls.

The IC-400PRO is equipped with 51 CTCSS frequency for
CTCSS GROUP MODE use. Selecting a CTCSS frequen­cy applies it to all 40 operating channels. To temporarily
hear all signals (including noise) push and hold [MONI]. Do
not use CTCSS GROUP MODE if you want to hear signals
on all channels.

: Stands for the recommended CTCSS frequency. In

case a frequency other than at left is used, sometimes
the squelch system may not performed correctly.

5

16

6

Push [] or []

SELCALL OPERATION

■ General

In addition to the group mode operation for silent stand-by,
the SelCall operation is available. SelCall is an abbreviation
for “Selective Calling”. In Group mode operation, there are 51
ways to make an individual call with CTCSS frequencies ver­sus 100,000 ways to make an individual call with Selcall using
5tone.
SelCall allows you to selectively call another unit that is oper­ating on the same channel.
SelCall can also call the entire group on that channel using
group call code.

The caller station code/name, status message, Answer Back
function, automatic scan start function, etc. are available with
SelCall operation. A variety of functions are available depend­ing on the setting with the CS-400PRO
See the help file for setting details.

CLONING SOFTWARE

■ Calling operation

D TX code channel selection

The [MONI] (Call) key (in Function mode) enables you to
change the TX code channel with []/[]keys.

TX code is transmit SelCall code. Max. 32 TX code chan­nels can be pre-programmed into the IC-400PRO using
the optional CS-400PRO

To select a TX code channel:

q While in Function mode, push [MONI] (Call) for 1 sec. to

enter the TX code channel selection mode.

• Push [O]
Function mode.

.

Push [MONI] for 1 sec.

w Push []/[]to select the desired TX code channel.

(Bank/Func)

CLONING SOFTWARE

for 1 sec. to enter the transceiver into

The TX code or TX code
channel name (if program­med) is displayed.

.

17

SELCALL OPERATION

Push [MONI]

The first digit starts blinking

Push [MONI] for 1 sec.

6

e Push [MONI] (Call) to set the TX code channel, and return

to Function mode.

Push [MONI]

r Push [MONI] (Call) to transmit the code on the selected

channel.

Appears while transmitting

Push [MONI]

✔

CONVENIENT!

• The TX code channel name can be assigned to the all 32
TX code channel via the optional CS-400PRO

SOFTWARE

. The TX code channel name allows you to easy

to select the channel, find the channel user, and so on.

• The long tone function is useful and provides you to proper
individual or group call even through a repeater, or when the
calling station is in scanning operation. The long tone func­tion can be activated in Set mode. (p. 30)

CLONING

D TX code number edit

The [MONI] (Call) key (in Function mode) enables you to
change the TX code contents within the allowable digits.
The group call function works by allowing you to edit a special
‘group code’ into the last 2 digits position of the SelCall ID
code.

To edit a TX code:

q While in Function mode, push [MONI] (Call) for 1 sec. to

enter the TX code channel selection mode.

• Push [O]
Function mode.

• Push []/[]to select the desired TX code channel, if desired.

w Push [MONI] (Call) for 1 sec. again to enter the TX code

edit mode.

e Push [MONI] (Call) to select the desired digit to be edited.

• Editable digit blinks

(Bank/Func)

for 1 sec. to enter the transceiver into

6

18

SELCALL OPERATION

Push [MONI]

Appears while transmitting

Push [MONI]

Push [MONI]

Push [] or []

6

r Push []/[]to set the desired code.

• Select “❋” when group code is set.

t Push [MONI] (Call) to set the code and the editable digit

move to right automatically.

y Repeat step r and t to input all allowed digits.
u Push [MONI] (Call) to set the TX code.

i Push [MONI] (Call) to return to Function mode.

o Push [MONI] (Call) to transmit the code on the selected

channel.

NOTE: The TX code editable digit can only be set/changed
with the optional CS-400PRO

CLONING SOFTWARE

.

19

■ When receiving a call

BlinksAppears

SELCALL OPERATION

6

D Receiving an individual call

When receiving an individual call (default setting);

- “PiRo” beeps sound repeatedly for 10 sec.

- Transmits the answer back call with single tone for 2 sec.

- The received ID code is displayed and memorised into the trans­ceiver.

- “” and “” appear, and the channel turns ‘Audible’ condition
(mute is released)

RX code is receiving SelCall code. Max. 8 RX code chan­nels can be pre-programmed into the IC-400PRO using
the optional CS-400PRO

You can set the transceiver condition when receiving an indi­vidual call using the CS-400PRO
help file for setting details.

Recall the memorised RX code:

q During in Function mode, push [SCN] (ID-MR Select) to

display the memorised RX code.

w Push []/[]to select the desired RX code.
e Push [MONI] (Call) to transmit the code on the selected

channel.

CLONING SOFTWARE

CLONING SOFTWARE

Appear

.

. See the

D Receiving a group call

When receiving a group call (default setting);

- “PiPi” beep sounds.

- “GROUP” is displayed.

- “” blinks and “” appears, and the channel turns ‘Audible’ con-
dition (mute is released)

You can set the display condition when receiving a group call
with the CS-400PRO
setting details.

CLONING SOFTWARE

. See the help file for

D Answering a call

q When receiving a call (individual or group call), the indica-

tors appear as at left/above.

w Push any key to return to the condition before receiving a

call.

• “” still lights/blinks on the display.

e Then push [PTT] to communicate via the microphone with

the caller, if desired.

6

20

SELCALL OPERATION

Push [MONI]

Push [MONI] for 1 sec.

Appears

Push [O] for 1 sec.

Normal mode

Push [DUP]

Appears

6

■ Setting the silent stand-by condition

The SelCall mute condition allows silent operation until you
are selcalled.

q While in Function mode, push [DUP] (CONT/SGL) and

select the single tone to activate the SelCall mute
(‘Inaudible’ condition).

• Push [O]
Function mode.

• When the single tone is selected, “SGL” is displayed briefly, and
the under bar appears as below.

w Push [O] for 1 sec. to enter Set mode, and push for 1 sec.

again to return to Normal mode.

(Bank/Func)

for 1 sec. to enter the transceiver into

e To monitor the channel;

Push [MONI] (Moni(Audi)) for 1 sec. to release the SelCall
mute (audio is emitted; ‘Audible’ condition).

• “” appears.

r To enable SelCall mute;

When “” appears, push the key to mute the channel
(sets to ‘Inaudible’).

• “” disappears.

NOTE: The unmute condition (‘Audible’ condition) may
automatically return to the mute condition (‘Inaudible’ con­dition) after a specified time period depending on the pre­setting.

21

OTHER FUNCTIONS

Appear

Appears while transmitting

Blinks when a group
member answers a call.

7

■ Smart-Ring and ATS (Automatic Transponder System)

These functions have an answer back feature, and allows you
to confirmation of whether or not a call has reached the
receiving party even if the operator is temporarily away from
the transceiver. The Smart-Ring is for manual, and the ATS
is for automatic confirmation. Both functions are compatible
with the IC-40Jr and IC-4088S.

[ATS/S-ring] must be assigned to the desired programma­ble key using the optional CS-400PRO

D Smart-Ring

q Set the same CTCSS frequency (or group code) for all of

the group transceivers. (See p. 15)

w Push [ATS/S-ring].

•A beep is emitted and “” appears on the display.

• When a member of a specific group answers a call, “” blinks.

• When no answer back is received, the transceiver emits short

faint beep tones.

e Push [PTT] to answer and to stop the flashing.

NOTE: This function is available only when the called sta-

tion has set the same CTCSS frequency (or group code)
and the same operating channel as you.

CLONING SOFTWARE

KEY ASSIGNMENT

D ATS

➥ Push [ATS/S-ring] for 1 sec. to turn the function ON.

•The transceiver starts to send a searching signal every 60 sec.

•“ ” and “” appear on the display when the function is activat-

ed.

.

- When the transceiver receives an answer back signal, “” stays
on the display until the next search transmit.

- If no reply is received, “” blinks until the next search transmit.

NOTE:

• The setting at left is for the calling station only. A called
party automatically sends an answer back signal without
any presettings. All IC-400PRO’s operating on the same
operating channel will answer back to the call in the sur­roundings communications area.

• When the CTCSS frequency (or group code) is set to the
IC-400PRO, this function is available only for the same
frequency (code) setting.

6
7

22

OTHER FUNCTIONS

Push [] or []

7

23

■ Voice scrambler function (optional UT-109/110 is required)

The voice scrambler function provides communication priva­cy. The optional UT-109/110 (#02)
provides high performance private communication between
stations with the same scrambling codes. The scrambler is
not compatible with the IC-4088S’s scrambler system.

• The scrambler group code is must be set in advance using
the optional CS-400PRO when the UT-110 is installed.

• ACA class licence inhibits using this function in channels
5, 11 and 35, or while accessing a repeater.

q Push []/[]to select the desired channel.

• Except for the channels 5, 11 or 35.

w While in Function mode, push [O]

to enter Set mode.

• Push [O]
Function mode.

The keys under these indicators can be activated.

(Bank/Func)

Channel*Bank*

for 1 sec. to enter the transceiver into

Push [O] for 1 sec.

VOICE SCRAMBLER UNITS

(Bank/Func)

*The bank and channel number

are continuously displayed af­ter entering set mode.

for 1 sec.

e Push [MONI] for 1 sec. to enter the individual setting.
r Push [MONI] several times until “SCR” appears.

Push [MONI]

t Push [DUP] to turn the scrambler function ON.

Push [DUP]

t Push []/[]to select the desired code.

• Available codes;

- UT-109 (Non-rolling type): 1 to 32

- UT-110 (Rolling type): 1 to 255

y Push [MONI] for 1 sec. to exit the individual setting, then

push [O] for 1 sec. to exit Set mode.

[

SCR appears

The scrambler
code appears

OTHER FUNCTIONS

Push [Ch Lock]
for 1 sec.

7

■ DTMF

KEY ASSIGNMENT

transmission

Up to 8 DTMF (Dual Tone Multiple Frequency) code channels
are available for storage of often used DTMF codes of up to
24 digits and the automatic DTMF transmission function is
available without using the optional HM-100TN

PHONE

.
DTMF signaling can be used for remote control via phone
patch system, etc.

[DTMF Autodial] must be assigned to the desired pro­grammable key using the optional CS-400PRO

SOFTWARE

To transmit a DTMF code:

q Push [DTMF Autodial]—a DTMF code channel appears.

w Push []/[]to select the desired DTMF channel.
e Push [DTMF Autodial] to transmit the DTMF code the

selected DTMF channel.

If the transceiver has a [Re-dial] key, the last transmitted
DTMF code is sent immediately when pushing the key.

.

DTMF code channel appears.

DTMF MICRO

CLONING

■ Channel lock

KEY ASSIGNMENT

function

This function electronically locks [], [], [SCN] (Scan
Start/Stop)/(ID-MR Select), [MR-CH 1] to [MR-CH 4] and
[Hook Scan] keys (if assigned) to prevent accidental chan­nel change.

­[Ch Lock] must be assigned to the desired programmable
key using the optional CS-400PRO

➥ Push [Ch Lock] for 1 sec. to turn the channel lock func-

tion ON and OFF.

CLONING SOFTWARE

.

7

24

OTHER FUNCTIONS

Push [] or []

7

■ RX frequency setting (for private banks only)

The receive frequency in the private bank channels can be
re-programmed within 450 to 500 MHz frequency range
depending on the setting.

q Push []/[]to select the desired channel.
w While in Function mode, push [O]

to enter Set mode.

• Push [O]
Function mode.

• The bank and channel can be selected after entering Set mode.

The keys under these indicators can be activated.

(Bank/Func)

Push [O] for 1 sec.

Channel*Bank*

for 1 sec. to enter the transceiver into

(Bank/Func)

*The bank and channel number

are continuously displayed af­ter entering set mode.

for 1 sec.

e Push [MONI] for 1 sec. to enter the individual setting.
r Push [MONI] several times until the RX frequency appears.

Push [MONI]

t Push [DUP] to enter the RX frequency setting mode.

Push [DUP]

y Push [DUP] to select the desired digit to be edited.

Push [DUP]

u Push []/[]to set the desired number.

[

RX frequency appears

The first digit starts blinking.

25

OTHER FUNCTIONS

Push

[Wide/Narrow]

Push [DUP]
Push [DUP]

7

i Push [DUP] to set the number and the editable digit move

to right.

o Repeat step u and i to input the desired frequency.
!0 Push [DUP] to set the RX frequency.

!1 Push [MONI] for 1 sec. to exit the individual setting, then

push [O] for 1 sec. to exit Set mode.

✔

CONVENIENT!

The 5-digit channel name can be programmed using the
optional CS-400PRO

CLONING SOFTWARE

.

■ Wide/Narrow

KEY ASSIGNMENT

function

This function temporarily changes the bandwidth between
wide or narrow on Private channels only.

[Wide/Narrow] must be assigned to the desired program­mable key using the optional CS-400PRO

WARE

.

➥ Push [Wide/Narrow] to toggle the bandwidth between

wide or narrow.

CLONING SOFT

-

7

26

OTHER FUNCTIONS

7

■ Set mode

Set mode allows you to change seldom used common set­ting for the transceiver, or individual setting for the operating
channel. In this case you can “customize” transceiver opera­tion to suit your preferences and operating style.

To enter the common setting for the transceiver, or individ­ual setting, push the appropriate key in step t below.

Entering the Set mode:

q Push [O] (Bank/Func) to enter the channel bank selection

mode. Then select the desired channel bank with []/
[]key. Push [O] (Bank/Func) again to exit the channel
bank selection mode.

w Push []/[]to select the desired channel when you

change the individual setting.

*The bank and channel can be selected after entering Set mode.

e Push [O]

mode.

r Push for 1 sec. again to enter the Set mode.

The keys under these indicators can be activated.

(Bank/Func)

Channel*Bank*

for 1 sec. to enter the Function

*The bank and channel number

are continuously displayed af­ter entering set mode.

t Push [SCN] for 1 sec. to change the common setting, or

[MONI] for the individual setting.

y Push [SCN]/[MONI] (the same key that you pushed in

step t) to select the appropriate item. Then, push []/
[]to set the desired level/mode or [DUP] to turn the func-
tion ON or OFF (depending on the selected item).

u After pushing [SCN]/[MONI] (the same key that you

pushed in step t) for 1 sec., push [O] for 1 sec. to exit Set
mode.

NOTE: The displayed items can be changed depending on
the pre-setting via the optional CS-400PRO

WARE

.

See next page for Set mode flow chart.

CLONING SOFT

-

27

Push [SCN] for 1 sec.

Backlight

CTCSS frequency

Scrambler

Normal mode

Set mode

Function mode

Beep

AF Min level

Auto power OFF

Scan Stop Timer

SelCall Form

Long Tone

SelCall Sequency Station code ID code

Squelch level

Push [O] (Bank/Func)
for 1 sec.

Push [O] (Bank/Func)
for 1 sec.

Push [MONI]

for 1 sec.

Push [SCN]

Push [MONI]

Lockout

Time-out timer

Appears when accessing user set mode
from CB bank only.
Appears when accessing user set mode
from private bank only.

RX frequency

❍ Individual setting

❍ Common setting

DD

Set mode flow chart

The following flow chart describes Set mode details.

OTHER FUNCTIONS

7

7

28

OTHER FUNCTIONS

Turn OFF after 2 hours This function is OFF

0 setting 255 setting

0 setting 120 setting

Beep ON Beep OFF

(silent operation)

AUT setting Continuously ON setting

Backlight is OFF DIM setting

7

DD

Common setting

• Backlight condition

The transceiver has display backlight for night-time opera­tion. Select the desired condition.

- OFF : Backlight never lights.

- DIM : Backlight lights dimly.

- AUT : Backlight turns ON when no signal applied to external DIM
terminal, and lights dimly when a signal applied to external
DIM terminal (optional OPC-617

- ON : Backlight lights continuously.

ACC CABLE

is required).

• Beep condition

The key-touch beeps can be turned ON and OFF.

• Squelch level

Adjust the noise squelch level within a 0 to 255 range.

- The lower the set value is the easier it is for the squelch to open,
and easier for the scan to stop.

• AF Min level

Adjust the minimum audio output level within a 0 to 255
range.

• Auto Power OFF

The transceiver can be set to automatically turn OFF after 2
hours in which no operations are performed and receiving
no signal.
To cancel the function, select “OFF” in Set mode.

29

OTHER FUNCTIONS

STN+ID settingSTN setting

The long tone function is ON The long tone function is OFF

TP40 setting SelCall inhibit setting

T-15 settingP-5 setting

Lock-out function is OFF.

Rpt1 setting

Busy setting

7

• Lockout CB

Select the transmission lockout (temporary transmission
inhibit) capability from OFF, Busy and Rpt 1 for CB mode.

- OFF: No restriction for receiving a signal.

- BUSY (Busy Lockout): Transmission is inhibited while receiving a
signal.

- RPT1 (Repeater Lockout (1)): Transmission is permitted only while
receiving a matched CTCSS tone, or receiving no signal.

• Scan stop timer

The scan resume condition can be selected as a pause or
timer scan.

- T-5/10/15 : Scan pauses 5/10/15 sec. while receiving a signal.

- P-5 : Scan pauses until the signal disappears and then

resumes 5 sec. thereafter.

• SelCall Format

Select the SelCall format from CCIR, ZVEI1, ZVEI2, DZVEI,
EEA, EEA2, DAPL, TP40, TP100, DTMF, IC20 and INH.

• The optional UT-108
“DTMF”.

• “TP40” and “TP100” are compatible with other manufacture’s CB

transceiver SelCall.

DTMF DECODER UNIT

is required to select

• Long tone

Select the long tone function to activate the long tone capa­bility for CB mode.

• SelCall sequence

Select the own ID code sending sequence from ST and
ST-ID.

- ST : Does not send the ID code.

- ST-ID: Sends the ID code after sending station or group code.

7

30

OTHER FUNCTIONS

The ID code 12345

Push

[DUP]

The code channel name is displayed.
(if programmed)

7

• STN code (Station to be called)

➥ Select the station code channel with []/[]key.
➥ Set the desired station code following the steps as below.

q

While the station code is displayed,

enter the station code edit mode.

w Push [DUP] to select the desired digit to be edited.

• Editable digit blinks

e Push []/[]to set the desired code.

• Select “❋” when group code is set.

r Push [DUP] to set the code and the editable digit

move to right automatically.

t Repeat step e and r to input all allowed digits.
y Push [DUP] to set the station code.

The station code 11111

The code channel name is displayed.
(if programmed)

Push

[DUP]

push [DUP] to

• ID code (Self ID number)

➥ Select the ID code channel with []/[]key.
➥ Set the desired ID code in the same way as the station

code setting.

31

OTHER FUNCTIONS

The scrambler code is 1

The scrambler code is 255

Scrambler function is OFF

Push [DUP]

Push [DUP]

Push

[ ] or [ ]

Time-out timer function
is ON

Time-out timer function
is OFF

Push

[ ] or [ ]

CTCSS frequency 67.0

CTCSS frequency 88.5

CTCSS function is OFF

Push [DUP]

Push [DUP]

Push

[ ] or [ ]

7

DD

Individual setting

• CTCSS function

Select CTCSS frequency.

• Time-out timer

Turn the time-out timer function ON or OFF to limit continu­ous transmission.

• Scrambler function

(The optional UT-109/110 is required)

Set the scrambler codes to provides high performance pri­vate communication between stations with the same codes.
ACA class licence inhibits using this function in channels 5,
11 and 35, or while accessing a repeater. (p. 23)

- UT-109: 1 to 32

- UT-110: 1 to 255

The scrambler group code is must be set in advance using
the optional CS-400PRO when the UT-110 is installed.

7

32

OTHER FUNCTIONS

Receive frequency is 450.000000

Push

[DUP]

7

• RX frequency

The receive frequency can be re-programmed from the
transceiver if permitted. (p. 25)
q While the receive frequency is displayed, push [DUP] to

enter the RX frequency setting mode.

w Push [DUP] to select the digit to be edited.
e Push []/[]to set the desired number.
r Push [DUP] to set the number and the editable digit

move to right.

t Repeat step e and r to input the desired frequency.
y Push [DUP] to set the RX frequency.

33

PROGRAMMABLE FUNCTION KEYS

Normal mode

Set mode Function mode

Push [O]
for 1 sec.

8

The following functions can be assigned to [MONI], [SCN],
[DUP], [O], [ ] and []programmable function keys with
the optional CS-400PRO
In the following explanations, programmable function names
are bracketed. The specific switch used to activate the func-
tion depends on programming.

CH UP AND DOWN KEYS

➥ In standby condition, push to select an operating channel.
➥ After pushing [BANK/FUNC], push to select the desired

channel bank.

*The private channels are set in the channel bank 2 to 8. Select

the desired channel bank before operating the private mode.

BANK/FUNC KEY

➥ Push to enter channel bank selection mode.

• In channel bank selection mode, push []/[]to select the
desired channel bank.

➥ Push for 1 sec. to toggle Function mode, Set mode or

Normal mode.

• Returns to the Normal mode automatically after 30 sec. when no
key operations are performed in Function or Set mode.

CLONING SOFTWARE

.

SCAN START/STOP KEY

➥ Push to start or stop the scan.
➥ Push and hold to enter the scan type selection mode.

• Push [CH Up]/[CH Down] to select the desired scan type.

➥ In scan type selection mode, push to set the channel as a

tag channel.

• “S” appears for tag channels.

NOTE: Place the microphone on hook to start scanning.
Take the microphone off hook to stop scanning.

MR-CH 1/2/3/4 (Private bank only)
Push to select the operating channels 1 to 4 directly.

OUTPUT POWER SELECTION KEYS

Select the transmit output power temporarily, or permanently,
depending on the pre-setting.

• See the help file of the optional CS-400PRO
the output power level for each selection.

CLONING SOFTWARE

for

7
8

NOTE: This key should be assigned to Normal/Function

mode respectively to change the key mode.

34

PROGRAMMABLE FUNCTION KEYS

8

MONITOR KEY

Activates one of (or two of) the following functions on each
channel independently:

• Push and hold the key to unmute the channel (audio is emitted;
‘Audible’ condition).

• Push the key to toggle between the mute and unmute conditions
(toggles between ‘Audible’ and ‘Inaudible’).

• Push the key to mute the channel (sets to ‘Inaudible’ only).

• Push the key to unmute the channel (sets to ‘Audible’ only).

• Push the key after communication is finished to send a ‘reset code’.

NOTE: The unmute condition (‘Audible’ condition) may
automatically return to the mute condition (‘Inaudible’ con­dition) after a specified period depending on the pre-set­ting.

WIDE/NARROW KEY (Private bank only)
Push this key to toggle the bandwidth between wide or nar­row.

DTMF AUTODIAL KEY

Push this key to display the text of the DTMF channel number
and set the desired channel number via the [CH Up]/[CH
Down] key. Then, push this key again to transmit a specified
DTMF code.

CALL KEY

➥ Push to transmit the 5tone code on the selected channel.
➥ Push and hold to enter the 5tone code channel/number

selection mode. (pgs. 17, 18)

• Push [CH Up]/[CH Down] to select the desired channel/ num-
ber.

ID-MR SELECT KEY

➥ Push to recall the received ID code.

Push [CH Up]/[CH Down] to select the record.

HOOK SCAN

Push to turn the hanger action scan function (automatic scan
start when on hook) OFF temporarily, and push again to turn
the function ON.

ATS/S-RING KEY

➥ Push to transmit the Smart-ring signal to the other station.
➥ Push for 1 sec. to turn the ATS function ON and OFF.

CH LOCK KEY

This function electronically locks [CH Up], [CH Down], [Scan
Start/Stop], [MR-CH 1] to [MR-CH 4], [ID MR Select] and
[Hook Scan] keys to prevent accidental channel change.

35

RE-DIAL KEY

Push to send the last transmitted DTMF code.

DUP/PRI KEY

➥ Push to toggle the transmit frequency mode between

duplex and simplex.

• Duplex: The set TX frequency is used for the transmission.

• Simplex: The set RX frequency is used for the transmission.

➥ Push for 1 sec. to set the selected channel to priority or

normal.

➥ Priority channel is used for group or priority scan.

CONT/SGL KEY

Push to toggle the 5tone mute activity CONT (Continuous
Tone) and SGL (Single Tone).

PROGRAMMABLE FUNCTION KEYS

8

8

36

9

CONNECTION AND MAINTENANCE

37

■ Rear panel and connection

Antenna

q

Optional cable
(OPC-617)

Optional speaker
(SP-22)

t

e

r

black:

w

red:

+

12V
Battery

NEVER connect to

a 24 V battery.

IMPORTANT! The
microphone hanger
connection is neces­sary to use the scan­ning function.

R CAUTION! NEVER re-
move the fuse-holder from
the DC power cable.

NOTE: Use the terminals as
shown below for the cable
connections.

Crimp

Solder

CONNECTION AND MAINTENANCE

Flat washer

Spring washer

When using
self-tapping screws

■ Mounting the transceiver

9

q ANTENNA CONNECTOR

w MICROPHONE HANGER

e DC POWER RECEPTACLE

r OPTIONAL CABLE (OPC-617)

t EXTERNAL SPEAKER JACK

Connects to an antenna. Contact your dealer about an­tenna selection and placement.

Connect the supplied microphone hanger to the vehicle’s
ground for microphone on/off hook functions. (See p. 3)

IMPORTANT!:

The microphone hanger connection is necessary to use
the scanning function. Scan starts when a microphone
on hook.

Connects to a 12 V DC battery. Pay attention to polarities.

NEVER connect to a 24 V battery. This could damage
the transceiver.

Connect an external modem unit, dimmer control, etc.

Connect a 4–8 Ω (5 W) external speaker, if desired.

The universal mounting bracket supplied with your transceiv­er allows overhead mounting.

• Mount the transceiver securely with the 4 supplied screws
to a thick surface which can support more than 1.5 kg.

9

38

CONNECTION AND MAINTENANCE

UT-108

MIC

DISC

9

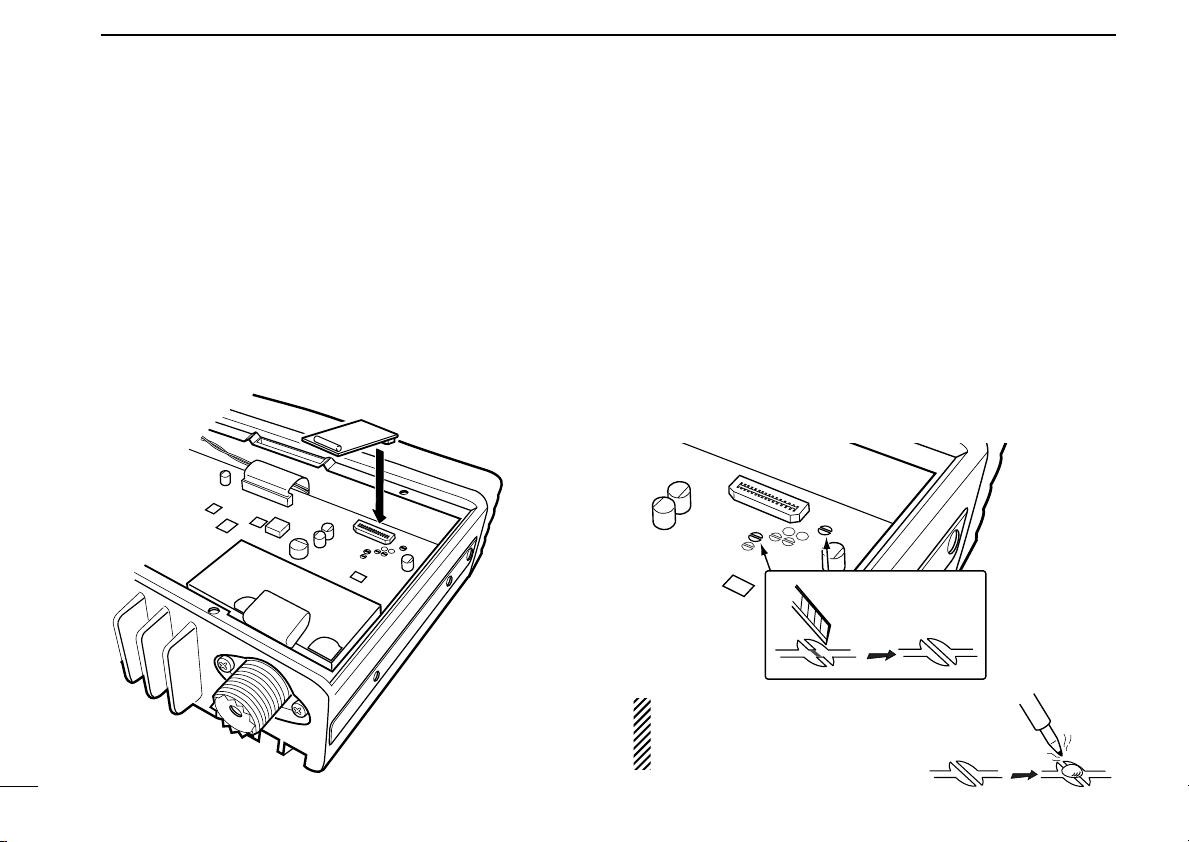

■ Optional UT-108 installation

Install the optional UT-108 unit as follows:

q Turn the power OFF, then disconnect the DC power cable.
w Unscrew the 4 cover screws, then remove the bottom

cover.

e Install the unit as shown in the diagram below.
r Replace the bottom cover and screws, then re-connect the

DC power cable.

Front panel

■ Optional UT-109 or UT-110
installation

q Turn the power OFF, then disconnect the DC power cable.
w Unscrew the 4 cover screws, then remove the bottom

cover.

e Cut the pattern on the PCB at the TX mic circuit (MIC) and

RX AF circuit (DISC) as shown below.

r Install the scrambler unit as described in the installation of

optional UT-108 as on the page at left.

t Replace the bottom cover and screws, then re-connect the

DC power cable.

Front panel

NOTE: Be sure to re-solder the above
disconnected points when you remove
the scrambler units. Otherwise no TX
modulation or AF output is available.

39

CONNECTION AND MAINTENANCE

q

Dimmer cont. IN or

IGSW cont. IN

w AF OUT
e Det. AF OUT
r Mod. IN
t PTT control IN or

y Horn drive cont. OUT
u AF GND
i Det. AF GND
o Mod. GND

OPTIONAL CABLE PIN ASSIGNMENT

t r e w q

o i u y

FTSW control IN

OPC-617

Cut off the bushing as in the
illustration, when you install
the optional OPC-617.

9

■ Optional OPC-617 installation

Install the OPC-617 as shown below.

■ Antenna

A key element in the performance of any communication sys­tem is an antenna. Contact your dealer about antennas and
the best places to mount them.

■ Fuse replacement

A fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem if possible, and replace the damaged
fuse with a new rated one.

9

❑ Fuse rating: 10 A, IC-F520/F620: 20 A

■ Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.

AVOID the use of solvents such as benzene or
alcohol, as they may damage the transceiver sur­faces.

40

10

CH

1
2
3
4
5
6
7
8
9

10

Freq.

476.425

476.450

476.475

476.500

476.525

476.550

476.575

476.600

476.625

476.650

CH

31
32
33
34
35
36
37
38
39
40

Freq.

477.175

477.200

477.225

477.250

477.275

477.300

477.325

477.350

477.375

477.400

CH

21
22
23
24
25
26
27
28
29
30

Freq.

476.925

476.950

476.975

477.000

477.025

477.050

477.075

477.100

477.125

477.150

CH

11
12
13
14
15
16
17
18
19
20

Freq.

476.675

476.700

476.725

476.750

476.775

476.800

476.825

476.850

476.875

476.900

SPECIFICATIONS

41

DD

GENERAL

• Frequency coverage
CB : 476.425–477.400 MHz
Private : 450.000–500.000 MHz (RX only)

• Mode
CB : 16K0F3E
Private : 16K0F3E (Wide)/8K50F3E (Narrow)

• Number of channels
CB : 40 channels/1 bank
Private : 88 channels/7 banks

• Channel spacing
CB : ±25 kHz
Private : ±25 kHz (Wide)/±12.5 kHz (Narrow)

• Current drain (approx.)
TX : (at 5W) 4 A
RX : Max. audio 1200 mA

Stand-by 300 mA

• Power supply voltage : 13.8 V DC

• Frequency stability : ±2.5 ppm

• Antenna connector : SO-239 (50 Ω)

• Usable temperature range : –10°C to +60°C

• Dimensions : 150 (W) × 40(H) × 117.5(D) mm

(Projections not included)

• Weight (approx.) : 800 g

DD

TRANSMITTER

• Output power (at 13.8 V DC) : 5 W

• Modulation system :

• Max. frequency deviation : ±5 kHz

• Spurious emissions : –30 dBm

• Adjacent channel power : –22 dBm

DD

RECEIVER

• Sensitivity (12 dB SINAD) : 0.25 µV typ.

• Squelch sensitivity : 0.25 µV typ. (Threshold)

•

Intermodulation rejection ratio:
Spurious response rejection ratio

•

• Adjacent channel selectivity : 73 dB (Wide)/65 dB (Narrow)

• Audio output power : 4.0 W typ. at 10% distortion with a 4

All stated specifications are subject to change without notice or
obligation.

DD

Channel frequency list

Variable reactance frequency
modulation

70 dB

: 75 dB

Ω load

OPTIONS

11

UT-108

Provides pager and code squelch capabilities.

UT-109/UT-110

• UT-109: Non-rolling type (max. 32 codes)

• UT-110: Rolling type (max. 1020 codes)

SP-22

HM-100TN

DTMF DECODER UNIT

VOICE SCRAMBLER UNITS

UT-108 UT-109 UT-110

EXTERNAL SPEAKER

Compact and easy-to-install. Same
as that supplied with some versions.
Input impedance: 4 Ω
Max. input power: 5 W

DTMF MICROPHONE

Hand microphone with a DTMF key­pad.

SM-25

DESKTOP MICROPHONE

OPC-617

ACC CABLE

For base station operation.
Monitor switch is equipped.

Provides external terminal connec­tion.

10
11

42

A-6287D-1AU
Printed in Japan
© 2003 Icom Inc.

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
