VHF TRANSCEIVER
iF110
iF111
iF121
SERVICE
MANUAL
INTRODUCTION
This service manual describes the latest service information
for the IC-F110, F111 and F121 VHF TRANSCEIVER at the
time of publication.
DANGER
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 16 V. This will ruin the
transceiver.
DO NOT expose the transceiver to rain, snow or any liquids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100 mW)
to the antenna connector. This could damage the transceiver’s front end.
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110003490 S.IC TA31136FN IC-F110 MAIN UNIT 5 pieces
8810009990 Screw
PH BT M3×8 ZK
IC-F110 Bottom cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
REPAIR NOTES
1. Make sure a problem is internal before disassembling the
transceiver.
2.
DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4.
DO NOT short any circuits or electronic parts. An insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the trans-
ceiver is defective.
6.
DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 40 dB to 50 dB attenuator between
the transceiver and a deviation meter or spectrum analyzer when using such test equipment.
8.
READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
MODEL
IC-F110
IC-F111
IC-F121
VERSION
Europe
General
General
U.S.A.
SYMBOL
EUR
GEN
GEN
USA
TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEW
SECTION 3 DISASSEMBLY INSTRUCTIONS
SECTION 4 CIRCUIT DESCRIPTION
4 - 1 RECEIVER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 1
4 - 2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 2
4 - 3 PLL CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 3
4 - 4 POWER SUPPLY CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 4
4 - 5 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 4
SECTION 5 ADJUSTMENT PROCEDURES
5 - 1 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 1
5 - 2 PLL ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 4
5 - 3 SOFTWARE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 5
SECTION 6 PARTS LIST
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
SECTION 8 SEMI-CONDUCTOR INFORMATION
SECTION 9 BOARD LAYOUTS
9 - 1 FRONT UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1
9 - 2 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 - 3
SECTION 10 BLOCK DIAGRAM
SECTION 11 VOLTAGE DIAGRAMS
11 - 1 FRONT UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 1
11 - 2 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 - 2
EXPLICIT DEFINITIONS
136 – 174 MHz
FREQUENCY COVERAGE CHANNEL SPACING
Narrow/Wide-type
Narrow/Middle-type
12.5 kHz/ 25.0 kHz
12.5 kHz/ 20.0 kHz
15.0 kHz/ 30.0 kHz
1 - 1
SECTION 1 SPECIFICATIONS
All stated specifications are subject to change without notice or obligation.
Measurement method
Frequency coverage
Type of emission
Number of conventional channels
Antenna impedance
Power supply voltage (negative ground)
Current drain (approx.)
Usable temperature range
Dimensions (proj. not included)
Weight
RF output power
Modulation system
Maximum permissible deviation
Frequency error
Spurious emissions
Adjacent channel power
Audio frequency response
Audio hormonic distortion
FM hum and noise (typical)
(without CCICT filter)
Residual modulation (typical)
(with CCICT filter)
Limitting charact of modulator
Microphone connector
Receive system
Intermediate frequencies
Sensitivity (typical)
Squelch sensitivity (at threshold)
Hum and noise
Adjcent channel selectivity
Spurious response
Intermoduration
Audio output power
External SP connector
[GEN], [USA] [EUR]
RECEIVER TRANSMITTER GENERAL
EIA-152-C/204D or TIA-603 ETS 300 086
136.000–174.000 MHz
N/W: (12.5 kHz; Narrow/25 kHz; Wide): 8K50F3E/16K0F3E [EUR]
(12.5 kHz; Narrow/25 kHz; Wide): 11K0F3E/16K0F3E [GEN]
(15 kHz; Narrow/30 kHz; Wide): 11K0F3E/16K0F3E [USA]
N/M (12.5 kHz; Narrow/20 kHz; Middle): 8K50F3E/14K0F3E [EUR]
maximum 128 channels
50 Ω nominal (SO-239)
13.6 V DC nominal 13.2 V DC nominal
TX; 7.0 A (at 25 W), 14.0 A (at 50 W)
Rx; 1200 mA (maximum audio)
300 mA (stand-by)
–30˚C to +60˚C (–22˚F to +140˚F) –25˚C to +55˚C
150(W)
× 40(H) × 117.5(D) mm; 5
29
⁄32(W) × 49⁄16(H) × 45⁄8(D) inch [25 W]
150(W) × 40(H) × 167.5(D) mm; 529⁄32(W) × 49⁄16(H) × 619⁄32(D) inch [50 W]
0.8 kg; 1 lb 12 oz [25 W], 1.1 kg; 2 lb 7 oz [50 W]
High/Low2/Low1: 25 W/10 W/2.5 W [25 W]
High/Low2/Low1: 50 W/25 W/5 W [50 W]
Variable reactance frequency modulation
±2.5 kHz [Narrow], ±4.0 kHz [Middle], ±5.0 kHz [Wide]
±5.0 ppm ±1.5 kHz
70 dB (typical) 0.25 µW ≤ 1GHz, 1.0 µW > 1 GHz
60 dB minimum [Narrow]; 70 dB minimum [Middle], [Wide]
+2 dB to –5 dB of 6 dB/octave
Range from 300 Hz to 2550 Hz [Narrow] / 3000 Hz [Middle], [Wide]
3% typical at 1 kHz (40% deviation)
34 dB (min.), 40 dB (typ.) [Narrow]
—
40 dB (min.), 46 dB (typ.) [Wide]
40 dB (min.), 50 dB (typ.) [Narrow]
– 43 dB (min.), 53 dB (typ.) [Middle]
45 dB (min.), 55 dB (typ.) [Wide]
70 – 100% of maximum deviation
8-pin modular (600 Ω)
Double-conversion superheterodyne system
1st: 46.35 MHz, 2nd: 450 kHz
0.25 µV typical at 12 dB SINAD –4 dBµV (emf) typical at 20 dB SINAD
0.25 µV typical –4 dBµV (emf) typical
34 dB (min.), 40 dB (typ.) [Narrow]
40 dB (min.), 50 dB (typ.) [Narrow]
40 dB (min.), 45 dB (typ.) [Wide]
43 dB (min.), 53 dB (typ.) [Middle]
45 dB (min.), 55 dB (typ.) [Wide]
60 dB (min.), 65 dB (typ.) [Narrow]
70 dB (min.), 75 dB (typ.) [Middle]/[Wide]
75 dB
70 dB (min.), 74 dB (typ.) 65 dB (min.), 67 dB (typ.)
4 W typical at 10% distortion with a 4 Ω load
2-conductor 3.5 (d) mm (
1
⁄8")/4 Ω
2 - 1

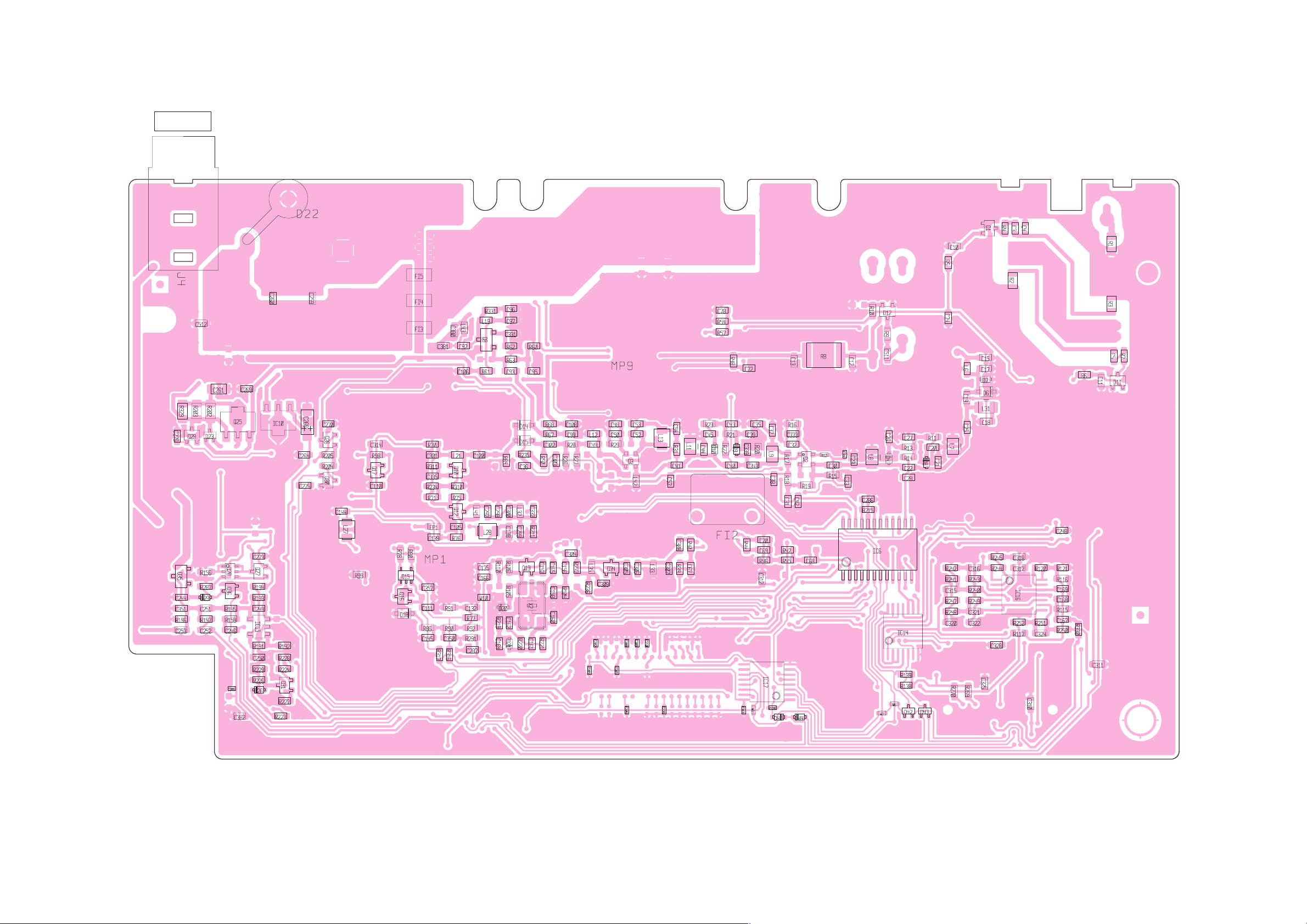

SECTION 2 INSIDE VIEW
Antenna switch/
Low-pass filter circuit
Mixer*
(Q3: 3SK299)
2nd IF filter*
(FI2: ALFYM450F=K)
D/A converter*
(IC6: M62363FP-650C)
IF IC
(IC1: TA31136FN)
1st IF filter
(FI1: FL-335)
* Located under side of the point.
Final FET module
(IC3: S-AV33)
CPU 5V regurator*
(IC10: AN78L05M)
8V regurator
(IC9: TA7808F)
VCO circuit
AF amplifier
(IC8: LA4425A)
Reference crystal oscillator*
(X2: CR-740 15.3 MHz)
PLL IC
(IC4: MB15A02PFV-1)
3 - 1
SECTION 3 DISASSEMBLY INSTRUCTIONS
• Opening case
➀ Unscrew 4 screws A, and remove the bottom cover.
➁ Disconnect the flat cable B from J2.
➂ Disconnect the cable C from J7.
➃ Unscrew 2 screws D, and remove the front unit.
B
C
D
A
J2
J7
➄ Unscrew 8 screws E.
➅ Remove the filter case F.
➆ Unscrew the screw G.
➇ Unsolder 3 points H from the antenna connector.
➈ Unsolder 4 points I from IC3.
E
F
G
H
I
➉ Lift up the front portion of the main unit and remove it.
• Installation location
UT-105 SmarTrank 2 logic board
UT-108 DTMF decoder unit
UT-109
Voice scrambler unit
UT-110
UT-111 Trunking unit
OPC-617 ACC cable (for external terminal connection)
UT-105
UT-108
UT-109
UT-110
UT-111
OPC-617
J1
J6
SECTION 4 CIRCUIT DESCRIPTION
4 - 1
4-1 RECEIVER CIRCUITS
4-1-1 ANTENNA SWITCHING CIRCUIT
(MAIN UNIT)
The antenna switching circuit functions as a low-pass filter
while receiving and as resonator circuit while transmitting.
This circuit does not allow transmit signals to enter the
receiver circuits.
Received signals enter the antenna connector and pass
through the low-pass filters (L1–L3, C1, C2, C6–8). The filtered signals are then applied to the RF circuit passed
through the
λ⁄4 type antenna switching circuit (D5–D7, D48,
L4, L6).
4-1-2 RF CIRCUIT (MAIN UNIT)
The RF circuit amplifies signals within the range of frequency coverage and filters out-of-band signals.
The signals from the antenna switching circuit pass through
the two-stage tunable bandpass filters (D8, D4). The filtered
signals are amplified at the RF amplifier (Q2) and then enter
other two-stage bandpass filters (D9, D10) to suppress
unwanted signals. The filtered signals are applied to the 1st
mixer circuit (Q3).
The tunable bandpass filters (D4, D8–D10) employ varactor
diodes to tune the center frequency of the RF passband for
wide bandwidth receiving and good image response rejection. These diodes are controlled by the CPU (FRONT unit;
IC1) via the D/A converter (IC6).
The gate control circuit reduces RF amplifier gain and attenuates RF signal to keep the audio output at a constant level.
The receiver gain is determined by the voltage on the “RSSI”
line from the FM IF IC (IC1, pin 12). The gate control circuit
(Q1) supplies control voltage to the RF amplifier (Q2) and
sets the receiver gain.
When receiving strong signals, the “RSSI” voltage increases
and the gate control voltage decreases. As the gate control
voltage is used for the bias voltage of the RF amplifier (Q2),
then the RF amplifier gain is decreased.
4-1-3 1ST MIXER AND 1ST IF CIRCUITS
(MAIN UNIT)
The 1st mixer circuit converts the received signals to a fixed
frequency of the 1st IF signal with the PLL output frequency.
By changing the PLL frequency, only the desired frequency
will pass through a MCF (Monolithic Crystal Filter; FI1) at the
next stage of the 1st mixer.
The RF signals from the bandpass filter are applied to the
1st mixer circuit (Q3). The applied signals are mixed with the
1st LO signal coming from the RX VCO circuit (Q14) to produce a 46.35 MHz 1st IF signal. The 1st IF signal passes
through a MCF (Monolithic Crystal Filter; FI1) to suppress
out-of-band signals. The filtered signal is amplified at the 1st
IF amplifier (Q4) and applied to the 2nd IF circuit.
4-1-4 2ND IF AND DEMODULATOR CIRCUITS
(MAIN UNIT)
The 2nd mixer circuit converts the 1st IF signal to a 2nd IF
signal. A double-conversion superheterodyne system
improves the image rejection ratio and obtains stable receiver gain.
The 1st IF signal from the 1st IF amplifier (Q4) is applied to
the 2nd mixer section of the FM IF IC (IC1, pin 16) and is
then mixed with the 2nd LO signal for conversion to a 450
kHz 2nd IF signal.
IC1 contains the 2nd mixer, limiter amplifier, quadrature
detector, active filter and noise amplifier circuits, etc. A
tripled frequency from the PLL reference oscillator is used
for the 2nd LO signal (45.9 MHz).
The 2nd IF signal from the 2nd mixer (IC1, pin 3) passes
through a ceramic filter (FI2) to remove unwanted heterodyned frequencies. It is then amplified at the limiter amplifier section (IC1, pin 5) and applied to the quadrature detector section (IC1, pins 10, 11 and X1) to demodulate the 2nd
IF signal into AF signals.
The AF signals are output from pin 9 (IC1) and are then
applied to the AF amplifier circuit.
• 2ND IF AND DEMODULATOR CIRCUIT
"SQLIN" signal
AF signals
8
Active
filter
FM
detector
X1 Discriminator
Limiter
amp.
7
Noise
detector
5V
RSSI
2nd IF filter
450 kHz
FI2
5
"RSSI" signal to the CPU
45.9 MHz
32
Mixer
161311109
"NOIS" signal to the CPU
BPF
IC1
TA31136FN
1st IF from the IF amplifier (Q4)
Q34
3
X2
15.3 MHz
4 - 2
4-1-5 AF AMPLIFIER CIRCUIT (MAIN UNIT)
The AF amplifier circuit amplifies the demodulated AF signals to drive a speaker.
The AF signals from the FM IF IC (IC1, pin 9) are applied to
the active filter circuit (IC16). The active filter circuit (highpass filter) removes CTCSS or DTCS signals.
The filtered AF signals are output from pin 14 (IC16) and are
applied to the de-emphasis circuit (R117, C378) with frequency characteristics of –6 dB/octave, and then passed
through the analog switch (IC14, pins 1–3) and low-pass filter (IC5). The filtered signal is applied to the electronic volume controller (IC6, pin 9).
The output AF signals from the electronic volume controller
(IC6, pin 10) are passed through the analog switch (IC14
pins 9–11) and are applied to the AF amplifier (IC15) and AF
power amplifier (IC8) to drive the speaker.
4-1-6 RECEIVER MUTE CIRCUITS
(MAIN AND FRONT UNITS)
• NOISE SQUELCH
The noise squelch circuit cuts out AF signals when no RF
signals are received. By detecting noise components in the
AF signals, the squelch circuit switches the AF mute switch.
Some noise components in the AF signals from the FM IF IC
(IC1, pin 9) are passed through the level controller (IC6, pins
1, 2). The level controlled signals are applied to the active filter section in the FM IF IC (IC1, pin 8). Noise components
about 10 kHz are amplified and output from pin 7.
The filtered signals are converted to the pulse-type signals
at the noise detector section and output from pin 13 (NOIS).
The NOIS signal from the FM IF IC is applied to the CPU
(FRONT unit; IC1, pin 53). The CPU then analyzes the noise
condition and controls the AF mute signal via “AFON” line
(D44, D45) to the AF mute circuit (Q35, Q36, D29, D30).
• CTCSS AND DTCS
The tone squelch circuit detects AF signals and opens the
squelch only when receiving a signal containing a matching
subaudible tone (CTCSS or DTCS). When tone squelch is in
use, and a signal with a mismatched or no subaudible tone
is received, the tone squelch circuit mutes the AF signals
even when noise squelch is open.
A portion of the AF signals from the FM IF IC (IC1, pin 9)
passes through the low-pass filter (IC16) to remove AF
(voice) signals and is applied to the CTCSS or DTCS
decoder inside the CPU (FRONT unit; IC1, pin 60) via the
“CDEC” line to control the AF mute switch.
4-2 TRANSMITTER CIRCUITS
4-2-1 MICROPHONE AMPLIFIER CIRCUIT
(MAIN AND FRONT UNITS)
The microphone amplifier circuit amplifies audio signals
within +6 dB/octave pre-emphasis characteristics from the
microphone to a level needed for the modulation circuit.
The AF signals (MIC) from the MIC jack (FRONT unit; J1)
are amplified at the AF amplifier (FRONT unit; IC5) and
applied to the MAIN unit via J2 (pin 28). The AF signal are
applied to the limiter amplifier (IC5, pin 5).
The entered signals are pre-emphasized with +6dB/octave
at a limiter amplifier, then passed through the analog switch
(IC14, pins 2–4) and splatter filter (IC5, pins 2, 1). The output signals from the splatter filter are applied to the level
controller (IC6, pin 9).
The deviation level controlled signals are then applied to the
modulation circuit (D18) as the “MOD” signal after being
passed through the analog switch (IC14, pins 9, 8).
4-2-2 MODULATION CIRCUIT
(MAIN AND FRONT UNITS
The modulation circuit modulates the VCO oscillating signal
(RF signal) using the microphone audio signals.
The AF signals from the analog switch (IC14, pin 8) change
the reactance of varactor diode (D18) to modulate the oscillated signal at the TX VCO circuit (Q13, D16, D31). The
modulated VCO signal is amplified at the buffer amplifiers
(Q11, Q10) and is then applied to the drive amplifier circuit
via the T/R switch (D14).
The CTCSS/DTCS signals from the CPU (FRONT unit; IC1,
pins 22–24) are passed through the low-pass filter (FRONT
unit; IC5), and mixer and splatter filter (IC5), and are then
applied to the VCO circuit.
4-2-3 DRIVE AMPLIFIER CIRCUIT (MAIN UNIT)
The drive amplifier circuit amplifies the VCO oscillating signal to the level needed at the power amplifier.
The RF signal from the buffer amplifier (Q10) passes
through the T/R switch (D14) and is amplified at the drive
amplifier circuit (Q8). The amplified signal is applied to the
power amplifier circuit.
4 - 3
4-2-4 POWER AMPLIFIER CIRCUIT (MAIN UNIT)
The power amplifier circuit amplifies the driver signal to an
output power level.
The RF signal from the drive amplifier (Q8) is passed
through the low-pass filter circuit (L18, L43, C89, C90, C92,
C380, C381, C510) and applied to the power module (IC3)
to obtain 25 W or 50 W of RF power.
The amplified signal is passed through the antenna switching circuit (D2), low-pass filter and APC detector, and is then
applied to the antenna connector.
Control voltage for the power amplifier (IC3, pin 2) comes
from the APC amplifier (IC2) to stabilize the output power.
The transmit mute switch (D28) controls the APC amplifier
when transmit mute is necessary.
4-2-5 APC CIRCUIT (MAIN UNIT)
The APC circuit protects the power amplifier from a mismatched output load and stabilizes the output power.
The APC detector circuit detects forward signals and reflection signals at D1 and D11 respectively. The combined voltage is at minimum level when the antenna impedance is
matched at 50 Ω, and is increased when it is mismatched.
The detected voltage is applied to the APC amplifier (IC2,
pin 3), and the power setting “T2” signal from the D/A converter (IC6, pin 22), controlled by the CPU (FRONT unit;
IC1), is applied to the other input for reference. When antenna impedance is mismatched, the detected voltage exceeds
the power setting voltage. Then the output voltage of the
APC amplifier (IC2, pin 4) controls the input current of the
drive amplifier (Q8) and power module (IC3) to reduce the
output power.
4-3 PLL CIRCUITS
4-3-1 PLL CIRCUIT (MAIN UNIT)
A PLL circuit provides stable oscillation of the transmit frequency and receive 1st LO frequency. The PLL output compares the phase of the divided VCO frequency to the reference frequency. The PLL output frequency is controlled by
the divided ratio (N-data) of a programable divider.
The PLL circuit contains the TX/RX VCO circuit (Q13, Q14).
The oscillated signal is amplified at the buffer amplifiers
(Q11, Q12) and then applied to the PLL IC (IC4, pin 8) via
the low-pass filter (L32, C298–C300).
The PLL IC contains a prescaler, programable counter, programable divider and phase detector, etc. The entered signal is divided at the prescaler and programable counter section by the N-data ratio from the CPU. The reference signal
is generated at the reference oscillator (X2) and is also
applied to the PLL IC. The PLL IC detects the out-of-step
phase using the reference frequency, and outputs it from
pin 5. The output signal is passed through the loop filter
(R97/C149, R96/C147), and is then applied to the VCO circuit as the lock voltage.
If the oscillated signal drifts, its phase changes from that of
the reference frequency, causing a lock voltage change to
compensate for the drift in the oscillated frequency.
4-3-2 VCO CIRCUIT (MAIN UNIT)
The VCO circuit contains a separate RX VCO (Q14, D33,
D34) and TX VCO (Q13, D16, D18, D31). The oscillated signal is amplified at the buffer amplifiers (Q11, Q10) and is
then applied to the T/R switch circuit (D14, D15). Then the
receive 1st LO (Rx) signal is applied to the 1st mixer (Q3)
and the transmit (Tx) signal to the drive amplifier circuit (Q8).
A portion of the signal from the buffer amplifier (Q11) is fed
back to the PLL IC (IC4, pin 8) via the buffer amplifier (Q12)
and low-pass filter (L32, C298–C300) as the comparison
signal.
• PLL CIRCUIT
2nd LO signal to
the FM IF IC
45.9 MHz
15.3 MHz
Loop
filter
X2
Q14, D33, D34
Q13, D18, D19, D31
Tripler
Q34
×3
RX VCO
TX VCO
5
1
Phase
detector
Programmable
divider
Buffer
Q11
Programmable
counter
Buffer
Q10
Buffer
Q12
IC4 MB15A02PFV1
Prescaler
Shift register
10
11
D15
to 1st mixer circuit
D14
to transmitter circuit
8
SCK
9
SO
PLST
4 - 4
Description
The voltage from a DC power supply.
The same voltage as the HV line which is controlled by the power switching circuit (Q23, Q24).
When the [POWER] switch is pushed, the CPU
outputs the “PWON” control signal to the power
switching circuit to turn the circuit ON.
Common 5 V for the CPU converted from the HV
line by the CPU5V regulator circuit (IC10). The
circuit outputs the voltage regardless of the
power ON/OFF condition.
Common 8 V converted from the VCC line by the
8V regulator circuit (IC9).
Common 5 V converted from the 8 V and CPU5
lines by the 5V regulator circuit (Q27, Q28).
Receive 8 V controlled by the R8 regulator circuit
(Q26, Q30) using the “RXC” signal from the
expander IC (IC17, pin 4).
Transmit 8 V controlled by the T8 regulator circuit
(Q25, Q29, D23) using the “TMUT” signal from
the expander IC (IC17, pin 13).
Line
HV
VCC
CPU5V
8V
5V
R8V
T8V
Input port for the internal temperature.
Input port for the low voltage detection
from the connected power supply.
Input port for reset signal.
Output ports for 5/2 tone and DTMF
signals.
Outputs the CPU clock shift signal.
Outputs cut-off frequency control signal
to the low-pass filter (MAIN unit; IC5)
for CTCSS/DTCS switching.
Input port for the key matrix.
Output ports for 5/2 tone and DTMF
signals.
Input port for the PLL unlock signal
from the PLL IC (MAIN unit; IC4).
Input port for the key matrix.
Output ports for CTCSS/DTCS signals.
Input ports for the key matrix.
Outputs the clock signal to the PLL IC
(MAIN unit; IC4), D/A converter (MAIN
unit; IC6), LED driver (IC4) and optional board (connect to MAIN unit; J1).
Outputs the data signal to the PLL IC
(MAIN unit; IC4), D/A converter (MAIN
unit; IC6) and optional board (connect
to MAIN unit; J1).
Output port for beep sound signal.
I/O port for the data signal for the EEPROM (IC3)
Outputs the clock signal for the EEPROM (IC3).
Outputs the clock signal for the LCD
driver (IC6, pin 17).
Outputs the data signal for the LCD driver (IC6, pin 48).
Outputs the strobe signal for the PLL
IC (MAIN unit; IC4).
Outputs the strobe signal for the D/A
converter IC (MAIN unit; IC6).
Outputs the strobe signal for the
expander IC (IC17).
Outputs the control signal for the LCD
driver IC (IC6).
Outputs the control signal for the power
switching circuit (MAIN unit; Q24,
Q23).
1
2
7
13–14
15
16
17, 18
19–20
21
22
23–25
26, 27
28
29
30
31
32
33
34
36
37
38
39
41
TEMP
BATV
RES
SENC0–
SENC1
CSFT
DUSE
KS0, KS1
SENC2–
SENC3
UNLK
KR0
CENO0–
CENO2
KR1, KR2
SCK
SO
BEEP
ESDA
ESCL
LSCK
LSO
PLST
DAST
EXST
EXOE
PWON
Pin Port
Description
number name
4-4 POWER SUPPLY CIRCUITS
4-4-1 VOLTAGE LINES (MAIN UNIT)
4-5 PORT ALLOCATIONS
4-5-1 CPU (FRONT UNIT; IC1)
Outputs dimmer control signal.
High: Dimmter is ON.
Outputs backlight control signal.
High: Backlight is ON.
Output LCD segment signals.
Output LCD common signals.
4 - 5
I/O ports for the optional board control
signals.
Input port for the clock sigal from the
optional board via J1.
Input port for the cloning signal.
Output port for the cloning signal.
Input port for the POWER switch.
• Input port for the remote power control signal from the external connector.(J6)
• Input port for the dimmer control.
Input port for the “NOIS” signal from
the FM IF IC (MAIN unit; IC1) for noise
squelch operation.
Input port for interruption signal from
the optional board via J1.
Outputs chip select signal for the
optional board via J1.
Input port for the PTT switch from
microphone.
Input port for the PTT switch from the
external connector (J6).
Low : External PTT switch is ON.
Input port for the microphone hanger
detection signal.
Low : Microphone on hook.
Input port for the AF volume control
signal (R14).
High : [VOL] is maximum clockwise.
Input port for the CTCSS/DTCS decoding signals.
Input port for the single tone decoding
signal.
Input port for the optional board detection signal.
Input port for receiving signal strength
level detection.
Input port for the PLL lock voltage.
44–46
48
49
50
51
52
83
54
55
56
57
58
59
60
61
62
63
64
OPT3–
OPT1
SI
CLI
CLO
POSW
IGSW
NOIS
CIRQ
CCS
PTT
EPTT
HANG
AFVI
CDEC
SDEC
OPV1V2
RSSI
LVIN
Pin Port
Description
number name
Outputs transmit/receive control signal.
High: While receiving.
Outputs audio output control signal.
High: While receiving.
Outputs wide/narrow control signal.
High: Wide is selected.
Outputs receiving mute control signal.
Low: While receiving is muting.
Outputs transmitting mute control signal.
Low: While transmitting is muting.
Outputs the microphone mute control
signal.
Low: While the microphone is muting.
4
5
6
7
13
14
RXC
AFON
NWC
RMUT
TMUT
MMUT
Pin Port
Description
number name
1
2
3–34
35–38
LIGT1
LIGT2
SEG32–
SEG1
COM4–
COM1
Pin Port
Description
number name
4-5-3 LCD DRIVER (FRONT UNIT; IC6)
4-5-2 OUTPUT EXPANDER (MAIN UNIT; IC17)CPU-Continued
5 - 1
SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION
When you adjust the contents on pages 5-5 and 5-6, SOFTWARE ADJUSTMENT, the optional CS-F100 ADJ
ADJUST-
MENT SOFTWARE (Rev. 1.0 or later), *OPC-1122 JIG CABLE
(modified OPC-1122 CLONING CABLE; see illustration below)
are required.
■ SYSTEM REQUIREMENTS
• IBM PC compatible computer with an RS-232C serial port
(38400 bps or faster).
• Microsoft Windows 95/98 or Windows ME
• Intel Pentium 100 MHz processor or faster
• At least 16 MB RAM and 10 MB of hard disk space
• 640×480 pixel display (800×600 pixel display recommend-
ed)
■ ADJUSTMENT SOFTWARE INSTALLATION
q Boot up Windows.
- Quit all applications when Windows is running.
w Insert the ‘CS-F100’ into the appropriate CD drive.
e Select ‘Run’ from the [Start] menu.
r Type the setup program name using the full path name,
then push [Enter] key.
(ex. D:\CSF100ADJ\Setup.exe)
t Follow the prompts.
y Program group ‘CS-F100 ADJ’ appears in the ‘Programs’
folder of the [Start] menu.
■ STARTING SOFTWARE ADJUSTMENT
q Connect IC-F110 and PC with *OPC-1122 JIG CABLE.
w Turn the transceiver power ON.
e Boot up Windows, and click the program group ‘CS-F100
ADJ’ in the ‘Programs’ folder of the [Start] menu, then
CS-F100 ADJ’s window appears.
r Click ‘Connect’ on the CS-F100 ADJ’s window, then
appears IC-F110’s up-to-date condition.
t Set or modify adjustment data as desired.
IBM is a registered trademark of International Bussiness
Machines Corporation in the U.S.A. and other countries.
Microsoft and Windows are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
Screen shots produced with permission from Microsoft
Corporation. All other products or brands are registered
trademarks or trademarks of their respective holders.
• *OPC-1122 (JIG CABLE)
OPC-1122
(Cloning cable)
PTTE
PTT
MIC
MICE
Electrolytic
capacitor
47 F
Add a jumper wire here
PTT switch
+
Audio generator
300 Hz to 3 kHz
AC
millivoltmeter
5 - 2
Personal
computer
to the MIC
connector
to an RS-232C port
DB9 female plug
RS-232C cable
(straight)
*OPC-1122
(JIG CABLE)
AC millivoltmeter
Audio generator
FM deviation meter
(DC measurable)
Attenuator
40 dB or 50 dB
to the antenna connector
to DC cable
Standard signal generator
127 to 17 dBm
(0.1 V to 32 mV)
CAUTION:
DO NOT transmit while
the SSG is connected to
the antenna connector.
RF power meter
50 / 1 50 W
DC power supply
13.2 V / 15 A
Frequency
counter
• CONNECTIONS
■ REQUIRED TEST EQUIPMENT
EQUIPMENT
DC power supply
RF power meter
(terminated type)
Frequency counter
FM deviation meter
DC voltmeter
GRADE AND RANGE
Output voltage : 13.2 V DC
Current capacity : 15 A or more
Measuring range : 1–100 W
Frequency range : 100–300 MHz
Impedance : 50 Ω
SWR : Less than 1.2 : 1
Frequency range : 0.1–300 MHz
Frequency accuracy : ±1 ppm or better
Sensitivity : 100 mV or better
Frequency range : DC–300 MHz
Measuring range : 0 to ±10 kHz
Input impedance : 50 kΩ/V DC or better
EQUIPMENT
Audio generator
Standard signal
generator (SSG)
Oscilloscope
AC millivoltmeter
External speaker
Attenuator
GRADE AND RANGE
Frequency range : 300–3000 Hz
Measuring range : 1–500 mV
Frequency range : 0.1–300 MHz
Output level : 0.1 µV–32 mV
(–127 to –17 dBm)
Frequency range : DC–20 MHz
Measuring range : 0.01–20 V
Measuring range : 10 mV–10 V
Input impedance : 4 Ω
Capacity : 7 W or more
Power attenuation : 40 or 50 dB
Capacity : 50 W or more
5 - 3
• SCREEN DISPLAY EXAMPLE
CS-F100 ADJ Rev.1.0
File
Option
1
COM 1: OPEN
Connect
2
Reload (F5) Disp para
10
12
14
16
4
5
6
7
8
9
11
13
15
[A / D]
VIN : 178 : B2h : 19.96 V
TEMPS : 177 : B1h : 26.44 ’C
LVIN : 176 : B0h : 3.45 V
SD : 23 : 17h : 0.45 V
CH No. : 01 RX Freq = 136.200000, TX Freq = < RF Power: High Mode: Wide
Power (Hi) : 198 [ # # # # # # # # # # # # # # # # # ]
Power (L2) : 115 [ # # # # # # # # # ]
Power (L1) : 52 [ # # # # ]
BAL W : 155 [ # # # # # # # # # # # ]
BAL Ratio : 128 [ # # # # # # # # # ]
MOD W : 212 [ # # # # # # # # # # # # # # # # # ]
MOD Ratio : 132 [ # # # # # # # # # ]
CTCS/DTCS : 186 [ # # # # # ]
SQL : 0 [ # # # # # # # # # # # # # # # ]
BPF ALL : [Enter] to sweep
BPF T1 : 21 [ # # # # # # # # # # # ] [Enter] to sweep
BPF T2 : 4 [ # # # # # # # # # ] [Enter] to sweep
TXF : [Enter] to start
S-Meter : [Enter] to start
[D / A]
BPF T1 : 197 : 32h : 0.98 V
T2/POW : 172 : 32h : 0.98 V
REF : 125 : 2Dh : 0.88 V
MOD BAL : 149 : 36h : 21.18
Dev : 0 : 00h : 0.00 V
CTCSS : 174 : AEh : 3.41 V
SQL Lev : 0 : 00h : 0.00
AGC : 255 : FFh : 5.00 V
3
NOTE:
1
2
3
4
5
6
7
8
The above values for settings are example only.
Each transceiver has its own specific values for each setting.
: Transceiver’s connection state
: Reload adjustment data
: Receive sensitivity measurement
: Connected DC voltage
: PLL lock voltage
: Operating channel select
: RF output power
: Modulation balance
9
: FM deviation
: CTCSS/DTCS deviation
10
: Squelch level
11
: Receive sensitivity (automatically)
12
: Receive sensitivity (manually)
13
: Reference frequency
14
: S-meter
15
: Adjustment items
16
5 - 4
5-2 PLL ADJUSTMENT
PLL LOCK
VOLTAGE
1
2
3
4
• Operating freq. : 174.000 MHz
• Receiving
• Output power : Low1
• Transmitting
• Operating freq. : 136.000 MHz
• Receiving
• Output power : Low1
• Transmitting
MAIN Connect a digital multi-
meter or an oscilloscope to the check
point, “LV”.
3.2 V
3.6 V
0.9–1.5 V
0.8–1.4 V
MAIN C134
C133
Verify
ADJUSTMENT ADJUSTMENT CONDITIONS
UNIT LOCATION
VALUE
UNIT ADJUST
MEASUREMENT ADJUSTMENT
DC power supply
13.2 V / 15 A
LV
PLL lock voltage
check point
C134
PLL lock voltage
adjustment for RX
C133
PLL lock voltage
adjustment for TX
5 - 5
5-3 SOFTWARE ADJUSTMENT
Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard.
1
1
2
3
1
2
1
2
1
• Operating freq. : 174.000 MHz
• Output power : Low1
• Connect the RF power meter or 50 Ω
dummy load to the antenna connector.
• Transmitting
• Operating freq. : 155.000 MHz
• Output power : High
• Transmitting
• Output power : Low2
• Transmitting
• Output power : Low1
• Transmitting
• Operating freq. : 155.000 MHz
• Output power : Low1
• IF bandwidth : Wide
• Connect an audio generator to the [MIC]
jack through the JIG cable and set as:
1.0 kHz/40 mVrms
• Set an FM deviation meter as:
HPF : OFF
LPF : 20 kHz
De-emphasis: OFF
Detector : (P–P)/2
• Transmitting
• IF bandwidth : Narrow
• Transmitting
• Set to the DTCS set channel, and push
[Connect] on the Adjustment software.
• Operating freq. : 155.000 MHz
• Output power : Low1
• Transmitting
• IF bandwidth : Narrow
• Transmitting
• Operating freq. : 155.000 MHz
• Output power : Low1
• IF bandwidth : Wide
• CTCSS : 151.4 Hz
• DTCS code : 007
• Set the FM deviation meter as:
HPF : OFF
LPF : 20 kHz
De-emphasis: OFF
Detector : (P–P)/2
• No audio applied to the [MIC] connector.
• Transmitting
REFERENCE
FREQUENCY
[TXF]
OUTPUT
POWER
[Power (Hi)]
[Power (L2)]
[Power (L1)]
FM
DEVIATION
[MOD W]
[MOD Ratio]
MODULATION
BALLANCE
[BAL W]
[BAL Ratio]
CTCSS/DTCS
DEVIATON
[CTCS/DTCS]
Rear
panel
Rear
panel
Rear
panel
Rear
panel
Rear
panel
Loosely couple a frequnecy
counter to the antenna connector.
Connect an RF power meter to
the antenna connector.
Connect an FM deviation meter
to the antenna connector
through the attenuator.
Connect an FM deviation meter
with an oscilloscope to the
antenna connector through an
attenuator.
Connect an FM deviation meter
to the antenna connector
through the attenuator.
174.0000 MHz
25.0 W (25 W type)
50.0 W (50 W type)
10.0 W (25 W type)
25.0 W (50 W type)
2.5 W (25 W type)
5.0 W (50 W type)
±4.1 kHz [N/W]
±3.3 kHz [N/M]
±2.1 kHz
±0.7 kHz [N/W]
±0.56 kHz [N/W]
ADJUSTMENT ADJUSTMENT CONDITION
MEASUREMENT
VALUE
UNIT
LOCATION
Set to square wave
form
5 - 6
*The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit.
SOFTWARE ADJUSTMENT – continued
Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard.
Minimum distortion
level
Set “SQL level” to
close squelch.
Then set “SQL level”
at the point where
the audio signals
just appears.
1
1
1
2
• Operating freq. : 136.000 MHz
• IF bandwidth : Wide
• Connect a standard signal generator to
the antenna connector and set as:
Frequency : 136.000 MHz
Level : 10 µV* (–87 dBm)
Modulation : 1 kHz
Deviation : ±3.5 kHz [N/W]
±2.8 kHz [N/M]
• Receiving
• Operating freq. : 136.000 MHz
• IF bandwidth : Narrow
• Connect an SSG to the antenna con-
nector and set as:
Frequency : 136.000 MHz
Level : 0.2 µV* (–121 dBm)
Modulation : 1 kHz
Deviation : ±1.75 kHz
• Receiving
• Operating freq. : 136.000 MHz
• IF bandwidth : Wide
• Connect an SSG to the antenna con-
nector and set as:
Frequency : 136.000 MHz
Level : 14 µV* (–84 dBm)
Modulation : 1 kHz
Deviation : ±3.5 kHz [N/W]
±2.8 kHz [N/M]
• Receiving
• Set an SSG as:
Level : 0.45 µV* (–114 dBm)
RX
SENSITIVITY
[BPF T1],
[BPF T2]
SQUELCH
LEVEL
[SQL]
S-METER
[S-METER]
(S3 LEVEL)
(S1 LEVEL)
MAIN
Rear
panel
Connect a SINAD meter with a
4 Ω load to the external [SP]
jack.
Connect a SINAD meter with a
4 Ω load to the external [SP]
jack.
ADJUSTMENT ADJUSTMENT CONDITION
MEASUREMENT
VALUE
UNIT
LOCATION
CONVENIENT:
The BPF T1–BPF T2 can be adjusted automatically.
q-1: Set the cursol to “BPF ALL” on the adjustment program and then push [ENTER] key.
q-2: The connected PC tunes BPF T1, BPF T2 to peak levels.
or
w-1: Set the cursol to BPF T1 or BPF T2 as desired.
w-2: Push [ENTER] key to start tuning.
w-3: Repeat w-1 and w-2 to perform additional BPF tuning.
• Adjusting S3 and S1’s S-meter level automatically when
push the return key on the key board.
[FRONT UNIT][FRONT UNIT]
IC1 1140011260 S.IC HD6433687A11FP (FX-2622A)
IC2 1110005770 S.IC S-80942CNMC-G9C-T2
IC3 1140008650 S.IC HN58X2464TI
IC5 1110005340 S.IC NJM12902V-TE1
IC6 1130009090 S.IC LC75834W
Q1 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q2 1590001050 S.TRANSISTOR DTC114TUA T106
Q3 1590000430 S.TRANSISTOR DTC144EUA T106
Q5 1590001050 S.TRANSISTOR DTC114TUA T106
D1 1790000950 S.ZENER MA8056-M (TX)
D2 1790000950 S.ZENER MA8056-M (TX)
D3 1790000950 S.ZENER MA8056-M (TX)
D4 1790000620 S.DIODE MA77 (TX)
D5 1790001250 S.DIODE MA2S111-(TX)
X1 6050009520 S.XTAL CR-520 (19.6608 MHz+)
L1 6200003640 S.COIL MLF1608E 100K-T
L2 6200001980 S.COIL NL 252018T-1R0J
R7 7030009160 S.RESISTOR ERJ2GEJ 181 X (180 Ω)
R8 7030009160 S.RESISTOR ERJ2GEJ 181 X (180 Ω)
R9 7030005000 S.RESISTOR ERJ2GEJ 471 X (470 Ω)
R11 7030009280 S.RESISTOR ERJ2GE
R12 7030009140 S.RESISTOR ERJ2GEJ 272 X (2.7 kΩ)
R14 7210003020 VARIABLE EVU-F2KFK1 B14 (10KB)
R15 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R16 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R18 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R19 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R20 7030008300 S.RESISTOR ERJ2GEJ 184 X (180 kΩ)
R21 7030005720 S.RESISTOR ERJ2GEJ 563 X (56 kΩ)
R22 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R23 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R24 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R25 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R26 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R27 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R28 7030005040 S.RESISTOR ERJ2GEJ 472 X (4.7 kΩ)
R29 7030008290 S.RESISTOR ERJ2GEJ 183 X (18 kΩ)
R30 7030005110 S.RESISTOR ERJ2GEJ 224 X (220 kΩ)
R31 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R32 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R33 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R34 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R35 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R36 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R37 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R38 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R39 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R40 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R41 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R42 7030007350 S.RESISTOR ERJ2GEJ 393 X (39 kΩ)
R43 7030005060 S.RESISTOR ERJ2GEJ 333 X (33 kΩ)
R44 7030005100 S.RESISTOR ERJ2GEJ 154 X (150 kΩ)
R45 7030005530 S.RESISTOR ERJ2GEJ 100 X (10 Ω)
R46 7030005160 S.RESISTOR ERJ2GEJ 105 X (1 MΩ)
R47 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R48 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R49 7030008010 S.RESISTOR ERJ2GEJ 123 X (12 kΩ)
R50 7410001130 S.ARRAY EXB28V102JX
R51 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R52 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R54 7410001130 S.ARRAY EXB28V102JX
R55 7410000770 S.ARRAY EXB-V4V 102JV (1 kΩ)
R56 7410001130 S.ARRAY EXB28V102JX
R57 7030005160 S.RESISTOR ERJ2GEJ 105 X (1 MΩ)
R58 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R59 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103
S.=Surface mount
R60 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R65 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R67 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R68 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R73 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R74 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R75 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R76 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R77 7030005030 S.RESISTOR ERJ2GEJ 152 X (1.5 kΩ)
R78 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R79 7410000770 S.ARRAY EXB-V4V 102JV (1 kΩ)
R80 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R81 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R82 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R83 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R84 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R85 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R86 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R87 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R88 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R89 7030005090 S.RESISTOR ERJ2GEJ 104 X (100 kΩ)
R90 7030006610 S.RESISTOR ERJ2GEJ 394 X (390 kΩ)
C1 4030018100 S.CERAMIC ECJ0EB1H681K
C2 4030017420 S.CERAMIC ECJ0EC1H470J
C3 4030017420 S.CERAMIC ECJ0EC1H470J
C4 4030017420 S.CERAMIC ECJ0EC1H470J
C5 4030017420 S.CERAMIC ECJ0EC1H470J
C6 4030017420 S.CERAMIC ECJ0EC1H470J
C7 4030017420 S.CERAMIC ECJ0EC1H470J
C8 4030017460 S.CERAMIC ECJ0EB1E102K
C9 4030017460 S.CERAMIC ECJ0EB1E102K
C10 4030017460 S.CERAMIC ECJ0EB1E102K
C11 4030017420 S.CERAMIC ECJ0EC1H470J
C12 4030017460 S.CERAMIC ECJ0EB1E102K
C14 4030017460 S.CERAMIC ECJ0EB1E102K
C15 4030016780 S.CERAMIC ECJ0EB1C153K
C16 4030016930 S.CERAMIC ECJ0EB1A104K
C17 4030017740 S.CERAMIC ECJ0EB1E821K
C19 4030016930 S.CERAMIC ECJ0EB1A104K
C20 4030018110 S.CERAMIC ECJ0EB1H272K
C21 4030018240 S.CERAMIC ECJ0EB1E562K
C22 4030017710 S.CERAMIC ECJ0EC1H181J
C23 4030018090 S.CERAMIC ECJ0EB1C822K
C24 4030017510 S.CERAMIC ECJ0EC1H680J
C25 4030016790 S.CERAMIC ECJ0EB1C103K
C26 4030016930 S.CERAMIC ECJ0EB1A104K
C27 4030017450 S.CERAMIC ECJ0EB1E271K
C28 4030016930 S.CERAMIC ECJ0EB1A104K
C29 4550006050 S.TANTALUM TEMSVA 0J 106M8L
C30 4030017030 S.CERAMIC ECJ0EB1A273K
C31 4030017400 S.CERAMIC ECJ0EC1H220J
C32 4030017640 S.CERAMIC ECJ0EC1H150J
C33 4030017510 S.CERAMIC ECJ0EC1H680J
C34 4030017730 S.CERAMIC ECJ0EB1E471K
C35 4030016930 S.CERAMIC ECJ0EB1A104K
C36 4030016930 S.CERAMIC ECJ0EB1A104K
C37 4030017420 S.CERAMIC ECJ0EC1H470J
C38 4030017420 S.CERAMIC ECJ0EC1H470J
C41 4030017460 S.CERAMIC ECJ0EB1E102K
C50 4030017420 S.CERAMIC ECJ0EC1H470J
C54 4030017420 S.CERAMIC ECJ0EC1H470J
C69 4030017420 S.CERAMIC ECJ0EC1H470J
C74 4030017420 S.CERAMIC ECJ0EC1H470J
C75 4030016930 S.CERAMIC ECJ0EB1A104K
C76 4030016930 S.CERAMIC ECJ0EB1A104K
C77 4030016950 S.CERAMIC ECJ0EB1A473K
C78 4030017460 S.CERAMIC ECJ0EB1E102K
C79 4030016930 S.CERAMIC ECJ0EB1A104K
C80 4030016930 S.CERAMIC ECJ0EB1A104K
C81 4030017460 S.CERAMIC ECJ0EB1E102K
C82 4030017420 S.CERAMIC ECJ0EC1H470J
C83 4030017420 S.CERAMIC ECJ0EC1H470J
C84 4030017420 S.CERAMIC ECJ0EC1H470J
C85 4030017420 S.CERAMIC ECJ0EC1H470J
6 - 1
SECTION 6 PARTS LIST
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
A: [F110] B: [F111] and [F121] C: IC-F110 for [EUR]
D: IC-F110 for [GEN] E: IC-F110 for 25 kHz F: IC-F110 for 20 kHz
S.=Surface mount
[MAIN UNIT][FRONT UNIT]
J1 6450002210 CONNECTOR 3017-8821 <KIN>
J2 6510022470 S.CONNECTOR 40FLT-SM1-TB
DS1 5040002310 S.LED SML-311YTT86
DS2 5040002310 S.LED SML-311YTT86
DS3 5040002310 S.LED SML-311YTT86
DS4 5040002310 S.LED SML-311YTT86
DS5 5040002310 S.LED SML-311YTT86
DS6 5040002310 S.LED SML-311YTT86
DS7 5040002310 S.LED SML-311YTT86
DS8 5040002310 S.LED SML-311YTT86
DS9 5040002310 S.LED SML-311YTT86
DS11 5030002510 LCD L2-0607TAY
SP1 2510001220 SPEAKER C052SB500-13
W1 8900010500 CABLE OPC-1046
EP1 0910055684 PCB B 5910D
EP2 8930059170 LCD CONTACT SRCN-2622-SP-N-W
IC1 1110003490 S.IC TA31136FN (D,EL)
IC2 1110002750 S.IC TA75S01F (TE85R)
IC3 1150002100 IC S-AV32 (I)
B
1150002110 IC S-AV33 (I) A
IC4 1140005990 S.IC MB15A02PFV1-G-BND-ER
IC5 1110005330 S.IC NJM12904V-TE1
IC6 1190000350 S.IC M62363FP-650C
IC8 1110003090 IC LA4425A
IC9 1180001250 S.IC TA7808F (TE16L)
IC10 1180000970 S.IC AN78L05M-(E1)
IC14 1130008090 S.IC BU4066BCFV-E1
IC15 1110002750 S.IC TA75S01F (TE85R)
IC16 1110005340 S.IC NJM12902V-TE1
IC17 1130007570 S.IC BU4094BCFV-E2
Q1 1560000840 S.FET 2SK1829 (TE85R)
Q2 1580000730 S.FET 3SK293 (TE85L)
Q3 1580000760 S.FET 3SK299-T1 U73
Q4 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q5 1590000430 S.TRANSISTOR DTC144EUA T106
Q8 1530000370 S.TRANSISTOR 2SC3356-T1B
Q10 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q11 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q12 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q13 1530002920 S.TRANSISTOR 2SC4226-T1 R25
Q14 1530002920 S.TRANSISTOR 2SC4226-T1 R25
Q15 1590001400 S.TRANSISTOR XP1214 (TX)
Q16 1590000430 S.TRANSISTOR DTC144EUA T106
Q17 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q18 1560000540 S.FET 2SK880-Y (TE85R)
Q19 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q20 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
B only
Q23 1550000020 S.FET 2SJ377 (TE16R)
Q24 1590000430 S.TRANSISTOR DTC144EUA T106
Q25 1540000550 S.TRANSISTOR 2SD1664 T100Q
Q26 1510000920 S.TRANSISTOR 2SA1577 T106 Q
Q27 1510000920 S.TRANSISTOR 2SA1577 T106 Q
Q28 1590001190 S.TRANSISTOR XP6501-(TX) .AB
Q29 1590001050 S.TRANSISTOR DTC114TUA T106
Q30 1590000430 S.TRANSISTOR DTC144EUA T106
Q31 1590001450 S.FET 2SJ144-GR (TE85R)
Q33 1590000430 S.TRANSISTOR DTC144EUA T106
Q34 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q35 1590000990 S.TRANSISTOR DTC363EK T146
Q36 1590000430 S.TRANSISTOR DTC144EUA T106
Q37 1590000430 S.TRANSISTOR DTC144EUA T106
Q38 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
D1 1790001210 S.DIODE 1SS375-TL
D2 1750000510 S.DIODE UM9401F A only
D3 1710001060 DIODE XB15A407 B only
D4 1750000720 S.VARICAP HVC375BTRF
D5 1750000510 S.DIODE UM9401F
D6 1790000620 S.DIODE MA77 (TX)
D7 1790001240 S.DIODE MA2S728-(TX)
D8 1750000720 S.VARICAP HVC375BTRF
D9 1750000710 S.VARICAP HVC350BTRF
D10 1750000710 S.VARICAP HVC350BTRF
D11 1790001210 S.DIODE 1SS375-TL
D12 1790001210 S.DIODE 1SS375-TL
B only
D14 1790000620 S.DIODE MA77 (TX)
D15 1790000620 S.DIODE MA77 (TX)
D16 1750000770 S.VARICAP HVC376BTRF
D18 1720000470 S.VARICAP 1SV239 (TPH3)
D20 1790001250 S.DIODE MA2S111-(TX)
D21 1750000830 S.VARICAP HVC362TRF
D22 1790000700 DIODE DSA3A1
D23 1750000370 S.DIODE DA221 TL
D26 1790001250 S.DIODE MA2S111-(TX)
D27 1790001250 S.DIODE MA2S111-(TX)
D28 1790001240 S.DIODE MA2S728-(TX)
D29 1790001250 S.DIODE MA2S111-(TX)
D31 1750000770 S.VARICAP HVC376BTRF
D33 1750000770 S.VARICAP HVC376BTRF
D34 1750000770 S.VARICAP HVC376BTRF
D37 1790001250 S.DIODE MA2S111-(TX)
D40 1750000520 S.DIODE DAN222TL
D42 1160000140 S.DIODE DAP222 TL
D43 1160000140 S.DIODE DAP222 TL
D44 1790001250 S.DIODE MA2S111-(TX)
D45 1790001250 S.DIODE MA2S111-(TX)
D48 1750000580 S.DIODE 1SV307 (TPH3)
A only
D49 1750000370 S.DIODE DA221 TL
D50 1790001250 S.DIODE MA2S111-(TX)
D51 1790001210 S.DIODE 1SS375-TL
FI1 2030000150 S.MONOLITH FL-335 (46.350 MHz)
FI2 2020001840 CERAMIC ALFYM450F=K
FI3 2040001440 S.LC
NFE31PT152Z1E9L (NFM60R20T152)
FI4 2040001440 S.LC
NFE31PT152Z1E9L (NFM60R20T152)
FI5 2040001440 S.LC
NFE31PT152Z1E9L (NFM60R20T152)
B only
X1 6070000190
S.DISCRIMINATOR
CDBCB450KCAY24-R0 (CDBC450CX24)
X2 6050011510 S.XTAL CR-740 (15.300 MHz)
L1 6200010050 S.COIL AS080547-47N
L2 6200010050 S.COIL AS080547-47N
L3 6200010050 S.COIL AS080547-47N
L4 6200010430 S.COIL 0.50-2.0-6TL
L5 6200010420 S.COIL FHW1210HC 1R0JGT
L6 6200010400 S.COIL ELJRE 39NJ 39N
L7 6200008090 S.COIL
LQW2BHN68NJ01L (LQN21A 68NJ04)
L8 6200008090 S.COIL
LQW2BHN68NJ01L (LQN21A 68NJ04)
L9 6200007750 S.COIL
LQW2BHN56NJ01L (LQN21A 56NJ04)
L10 6200004660 S.COIL MLF1608A 1R8K-T
L11 6200007750 S.COIL
LQW2BHN56NJ01L (LQN21A 56NJ04)
L12 6200009180 S.COIL ELJRE R10J-F3
L13 6200001620 S.COIL ELJFC 1R0K-F
L16 6200010050 S.COIL AS080547-47N
L18 6200009170 S.COIL ELJRE 47NJ-F2 A only
L19 6200009150 S.COIL ELJRE 82NJ-F3
L21 6200009150 S.COIL ELJRE 82NJ-F3
L22 6200009160 S.COIL ELJRE 68NJ-F3
L25 6200009460 S.COIL 0.25-1.9-7TL 67N
L26 6200008390 S.COIL 0.25-1.9-9TL
L27 6200002000 S.COIL NL 252018T-3R3J
L28 6200002000 S.COIL NL 252018T-3R3J
L29 6200004660 S.COIL MLF1608A 1R8K-T
L31 6200007750 S.COIL
LQW2BHN56NJ01L (LQN21A 56NJ04)
L32 6200010390 S.COIL ELJRE 33NJ-F3
L33 6200004480 S.COIL MLF1608D R82K-T
L35 6200003540 S.COIL MLF1608D R22K-T
6 - 2
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
A: [F110] B: [F111] and [F121] C: IC-F110 for [EUR]
D: IC-F110 for [GEN] E: IC-F110 for 25 kHz F: IC-F110 for 20 kHz
S.=Surface mount
[MAIN UNIT][MAIN UNIT]
L37 6200003640 S.COIL MLF1608E 100K-T
L38 6200009460 S.COIL 0.25-1.9-7TL 67N
L39 6200008150 S.COIL 0.35-1.6-7TL 44N
L41 6200009160 S.COIL ELJRE 68NJ-F3
L42 6200003550 S.COIL MLF1608A 4R7K-T
L43 6200005740 S.COIL ELJRE 47NG-F
R1 7030000620 S.RESISTOR MCR10EZHJ 100 kΩ
R2 7030000220 S.RESISTOR MCR10EZHJ 47 Ω (470)
R3 7030000220 S.RESISTOR MCR10EZHJ 47 Ω (470)
R4 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R5 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
A
7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) B
R6 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) B
7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) A
R7 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R8 7030006070 S.RESISTOR ERJ12YJ101U (100 Ω)
R9 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
B only
R10 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)
B only
R11 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R12 7030005530 S.RESISTOR ERJ2GEJ 100 X (10 Ω)
R13 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R14 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R15 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)
R16 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R17 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R18 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R19 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R20 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) C
7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) D, B
R21 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R22 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R23 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R26 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R27 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R28 7030003210 S.RESISTOR ERJ3GEYJ 120 V (12 Ω)
R29 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R31 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R32 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R33 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R34 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R35 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R36 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R37 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
E, B
7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) F
R38 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R39 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R40 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R42 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R43 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R44 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R45 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R46 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R48 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
B only
R49 7520000230 S.POSISTOR PRF18BD471QB1RB
B only
R50 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R51 7030003770 S.RESISTOR ERJ3GEYJ 564 V (560 kΩ)
A
7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) B
R52 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R53 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) A
7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) B
R54 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) B
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) A
R55 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R56 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R57 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R58 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R59 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
B
7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) A
R60 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R61 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R62 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω)
R63 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R67 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
A
7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω) B
R68 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R69 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R70 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R71 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R73 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R74 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R75 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R76 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R77 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R78 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R79 7030005351 S.RESISTOR ERA3YED 182V
R80 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R83 7030005351 S.RESISTOR ERA3YED 182V
R84 7030006571 S.RESISTOR ERA3YED 392V
R85 7030006571 S.RESISTOR ERA3YED 392V
R86 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R89 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R90 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R91 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R92 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R93 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R95 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
C
7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) D, B
R96 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R97 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R98 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R99 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R100 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R101 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R103 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R104 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R105 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R106 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R110 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R111 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R112 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R113 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R114 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R115 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R116 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R117 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R118 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R119 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ)
R120 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R121 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R122 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ)
R123 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R124 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R125 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R126 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R127 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R128 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R129 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R130 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R133 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R134 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R135 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)
R136 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R137 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R138 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R139 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R141 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R142 7410001130 S.ARRAY EXB28V102JX
R143 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R144 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R145 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R146 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R147 7410001130 S.ARRAY EXB28V102JX
R148 7410001130 S.ARRAY EXB28V102JX
R149 7410001130 S.ARRAY EXB28V102JX
R150 7410001130 S.ARRAY EXB28V102JX
R156 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R159 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R183 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R184 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R185 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R186 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R187 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R188 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R191 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R192 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R193 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R194 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
6 - 3
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
A: [F110] B: [F111] and [F121] C: IC-F110 for [EUR]
D: IC-F110 for [GEN] E: IC-F110 for 25 kHz F: IC-F110 for 20 kHz
S.=Surface mount
[MAIN UNIT][MAIN UNIT]
R195 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R196 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R197 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R198 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R199 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R200 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R201 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R202 7030000440 S.RESISTOR MCR10EZHJ 3.3 kΩ
A
7030000480 S.RESISTOR MCR10EZHJ 6.8 kΩ (682) B
R203 7030000440 S.RESISTOR MCR10EZHJ 3.3 kΩ A
7030000480 S.RESISTOR MCR10EZHJ 6.8 kΩ (682) B
R204 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R205 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R209 7510001470 S.THERMISTOR NTCG20 4AG 473JT
R210 7030005871 S.RESISTOR ERA3YKD 104V (100 kΩ)
R211 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω)
R212 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R213 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R214 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R215 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R216 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R217 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R218 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R219 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R220 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R221 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R222 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R223 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R224 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R225 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R226 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R227 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R228 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R229 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R230 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R231 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R232 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R234 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R235 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R236 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R237 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ)
R238 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R240 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R241 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R242 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R243 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R244 7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ)
R245 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R247 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R248 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R249 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R250 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R251 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R252 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R261 7030005160 S.RESISTOR ERJ2GEJ 105 X (1 MΩ)
R262 7030005160 S.RESISTOR ERJ2GEJ 105 X (1 MΩ)
R263 7030005160 S.RESISTOR ERJ2GEJ 105 X (1 MΩ)
R264 7030005070 S.RESISTOR ERJ2GEJ 683 X (68 kΩ)
R265 7030008290 S.RESISTOR ERJ2GEJ 183 X (18 kΩ)
R266 7030005240 S.RESISTOR ERJ2GEJ 473 X (47 kΩ)
R267 7030005600 S.RESISTOR ERJ2GEJ 273 X (27 kΩ)
R268 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ)
R269 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R270 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R271 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R285 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R287 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R290 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R291 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R297 7030005651 S.RESISTOR ERA3YKD 304V (300 kΩ)
R298 7030005871 S.RESISTOR ERA3YKD 104V (100 kΩ)
R304 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R310 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R311 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R312 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R313 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R314 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R315 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R316 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R317 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R318 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R319 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R320 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R321 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R322 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R323 7030005220 S.RESISTOR ERJ2GEJ 223 X (22 kΩ)
R324 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R325 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R326 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R327 7030005120 S.RESISTOR ERJ2GEJ 102 X (1 kΩ)
R328 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω)
R329 7030000440 S.RESISTOR MCR10EZHJ 3.3 kΩ
A
7030000480 S.RESISTOR MCR10EZHJ 6.8 kΩ (682) B
R330 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R331 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R332 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R333 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R334 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R335 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R336 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
C1 4030011170 S.CERAMIC
GRM31M2C2H180JV01L (GRM42-6 CH)
C2 4030011180 S.CERAMIC
GRM31M2C2H220JV01L (GRM42-6 CH)
A
4030011270 S.CERAMIC
GRM31M2C2H200JV01L (GRM42-6 CH)
B
C3 4030011340 S.CERAMIC C1608 CH 1H 471J-T
C4 4030007040 S.CERAMIC C1608 CH 1H 180J-T A
4030007030 S.CERAMIC C1608 CH 1H 150J-T B
C5 4030011340 S.CERAMIC C1608 CH 1H 471J-T
C6 4030011180 S.CERAMIC
GRM31M2C2H220JV01L (GRM42-6 CH)
A
4030011270 S.CERAMIC
GRM31M2C2H200JV01L (GRM42-6 CH)
B
C7 4030011290 S.CERAMIC
GRM31M2C2H240JV01L (GRM42-6 CH)
A
4030011170 S.CERAMIC
GRM31M2C2H180JV01L (GRM42-6 CH)
B
C8 4030011180 S.CERAMIC
GRM31M2C2H220JV01L (GRM42-6 CH)
A
4030011270 S.CERAMIC
GRM31M2C2H200JV01L (GRM42-6 CH)
B
C9 4030011180 S.CERAMIC
GRM31M2C2H220JV01L (GRM42-6 CH)
A
4030011270 S.CERAMIC
GRM31M2C2H200JV01L (GRM42-6 CH)
B
C10 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C11 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C12 4030011340 S.CERAMIC C1608 CH 1H 471J-T
C13 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C14 4030017200 S.CERAMIC
GRM31BR32J102KY01L (GHM1030 R)
C15 4030008560 S.CERAMIC C1608 CH 1H 300J-T
C17 4030007020 S.CERAMIC C1608 CH 1H 120J-T
C18 4030011770 S.CERAMIC C1608 CH 1H 060B-T
C19 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C20 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C21 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T
C22 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T
C25 4030011770 S.CERAMIC C1608 CH 1H 060B-T
C26 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C27 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C28 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C29 4030009910 S.CERAMIC C1608 CH 1H 040B-T
C30 4030007050 S.CERAMIC C1608 CH 1H 220J-T
C31 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C32 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C33 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C34 4030017460 S.CERAMIC ECJ0EB1E102K
C35 4030017490 S.CERAMIC C1608 JB 1A 105K-T
C36 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C37 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C38 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C39 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C40 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T
C41 4030007050 S.CERAMIC C1608 CH 1H 220J-T
C42 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C43 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C44 4030009530 S.CERAMIC C1608 CH 1H 030B-T
C45 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C48 4030007090 S.CERAMIC C1608 CH 1H 470J-T
6 - 4
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
A: [F110] B: [F111] and [F121] C: IC-F110 for [EUR]
D: IC-F110 for [GEN] E: IC-F110 for 25 kHz F: IC-F110 for 20 kHz
S.=Surface mount
[MAIN UNIT][MAIN UNIT]
C49 4030007040 S.CERAMIC C1608 CH 1H 180J-T
C50 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C51 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C52 4030007060 S.CERAMIC C1608 CH 1H 270J-T
C53 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C54 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C55 4030009910 S.CERAMIC C1608 CH 1H 040B-T
C56 4030007040 S.CERAMIC C1608 CH 1H 180J-T
C57 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C58 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C59 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C60 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C61 4030007130 S.CERAMIC C1608 CH 1H 101J-T
C62 4030007120 S.CERAMIC C1608 CH 1H 820J-T
C63 4030017420 S.CERAMIC ECJ0EC1H470J
C64 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C65 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C66 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C67 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C68 4030007130 S.CERAMIC C1608 CH 1H 101J-T
C69 4030007140 S.CERAMIC C1608 CH 1H 121J-T
C70 4030007140 S.CERAMIC C1608 CH 1H 121J-T
C71 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C72 4030006860 S.CERAMIC C1608 JB 1H 102K-T
B only
C73 4030017490 S.CERAMIC C1608 JB 1A 105K-T
C74 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C75 4550006050 S.TANTALUM TEMSVA 0J 106M8L
C76 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C77 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C78 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C79 4030011810 S.CERAMIC C1608 JB 1A 224K-T
C80 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C81 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C82 4030011270 S.CERAMIC
GRM31M2C2H200JV01L (GRM42-6 CH)
A
4030011120 S.CERAMIC
GRM31M2C2H100JV01L (GRM42-6 CH)
B
C83 4030011180 S.CERAMIC
GRM31M2C2H220JV01L (GRM42-6 CH)
A
4030011120 S.CERAMIC
GRM31M2C2H100JV01L (GRM42-6 CH)
B
C84 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C85 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C86 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C87 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C88 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C89 4030007040 S.CERAMIC C1608 CH 1H 180J-T A only
C90 4030007040 S.CERAMIC C1608 CH 1H 180J-T
A only
C91 4510005750
S.ELECTROLYTIC
ECEV1EA220SP
C92 4030007030 S.CERAMIC C1608 CH 1H 150J-T
C93 4030007030 S.CERAMIC C1608 CH 1H 150J-T A
4030007020 S.CERAMIC C1608 CH 1H 120J-T B
C94 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C95 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C96 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C97 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C99 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C100 4030007010 S.CERAMIC C1608 CH 1H 100D-T
C101 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T
C102 4030007010 S.CERAMIC C1608 CH 1H 100D-T
C103 4030009530 S.CERAMIC C1608 CH 1H 030B-T
C104 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C105 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C106 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C107 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C108 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C109 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C110 4030011340 S.CERAMIC C1608 CH 1H 471J-T
C111 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C113 4030009560 S.CERAMIC C1608 CH 1H R75B-T
C114 4030007070 S.CERAMIC C1608 CH 1H 330J-T
C115 4030007070 S.CERAMIC C1608 CH 1H 330J-T
C116 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C117 4030011340 S.CERAMIC C1608 CH 1H 471J-T
C118 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T
C119 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C120 4030011340 S.CERAMIC C1608 CH 1H 471J-T
C121 4030007040 S.CERAMIC C1608 CH 1H 180J-T
C122 4030007070 S.CERAMIC C1608 CH 1H 330J-T
C123 4030007110 S.CERAMIC C1608 CH 1H 680J-T
C124 4030011280 S.CERAMIC C1608 CH 1H 271J-T
C126 4030007070 S.CERAMIC C1608 CH 1H 330J-T
C127 4030007030 S.CERAMIC C1608 CH 1H 150J-T
C129 4030009510 S.CERAMIC C1608 CH 1H 010B-T
C131 4030009510 S.CERAMIC C1608 CH 1H 010B-T
C132 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C133 4610001590 S.TRIMMER TZC3R100A110R00
C134 4610001590 S.TRIMMER TZC3R100A110R00
C135 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C136 4030009530 S.CERAMIC C1608 CH 1H 030B-T
C138 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C139 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C140 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C141 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C142 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C143 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C144 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C145 4030010760 S.CERAMIC C1608 CH 1H 331J-T
C146 4550006150 S.TANTALUM ECST1CY105R
C147 4550006390 S.TANTALUM TEMSVA 1C 335M-8L
C148 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C149 4550000550 S.TANTALUM TESVA 1V 224M1-8L
C151 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C152 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C153 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C154 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C155 4030011280 S.CERAMIC C1608 CH 1H 271J-T
C156 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C157 4030007130 S.CERAMIC C1608 CH 1H 101J-T
C158 4030007130 S.CERAMIC C1608 CH 1H 101J-T
C160 4030007000 S.CERAMIC C1608 CH 1H 090D-T
C161 4030007130 S.CERAMIC C1608 CH 1H 101J-T
C162 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C163 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C164 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C165 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C166 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C167 4030008920 S.CERAMIC C1608 JB 1H 473K-T
C168 4030008920 S.CERAMIC C1608 JB 1H 473K-T
C169 4030008920 S.CERAMIC C1608 JB 1H 473K-T
C170 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C172 4030009630 S.CERAMIC C1608 JB 1H 822K-T
C173 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C174 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C175 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C176 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C177 4030008770 S.CERAMIC C1608 JB 1H 562K-T
C178 4030007150 S.CERAMIC C1608 CH 1H 151J-T
C179 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C180 4510004640
S.ELECTROLYTIC
ECEV1CA470SP
C181 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C182 4030008770 S.CERAMIC C1608 JB 1H 562K-T
C183 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C184 4030009580 S.CERAMIC C1608 JB 1H 681K-T
C200 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C201 4030016930 S.CERAMIC ECJ0EB1A104K
C202 4030016930 S.CERAMIC ECJ0EB1A104K
C203 4030016930 S.CERAMIC ECJ0EB1A104K
C204 4030017420 S.CERAMIC ECJ0EC1H470J
C207 4030017460 S.CERAMIC ECJ0EB1E102K
C208 4030017460 S.CERAMIC ECJ0EB1E102K
C209 4030017460 S.CERAMIC ECJ0EB1E102K
C210 4030017460 S.CERAMIC ECJ0EB1E102K
C226 4030017420 S.CERAMIC ECJ0EC1H470J
C244 4030017480 S.CERAMIC C1608 JB 1A 474K-T
C245 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C246 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C248 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C249 4030006870 S.CERAMIC C1608 JB 1H 222K-T
C250 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C251 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C252 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C253 4030008880 S.CERAMIC C1608 JB 1H 223K-T
C254 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C255 4510008030
S.ELECTROLYTIC
ECEV1EA471P
C256 4510006260
S.ELECTROLYTIC
ECEV1AA471UP
C258 4510008030
S.ELECTROLYTIC
ECEV1EA471P
C259 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C260 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C261 4030004760 S.CERAMIC C2012 JF 1H 104Z-T
C262 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C263 4030004760 S.CERAMIC C2012 JF 1H 104Z-T
6 - 5
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
A: [F110] B: [F111] and [F121] C: IC-F110 for [EUR]
D: IC-F110 for [GEN] E: IC-F110 for 25 kHz F: IC-F110 for 20 kHz
S.=Surface mount
[MAIN UNIT]
C264 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C265 4510008030
S.ELECTROLYTIC
ECEV1EA471P
C266 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C268 4550006700 S.TANTALUM ECST1AY106R
C269 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C270 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C271 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C272 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C273 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C274 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C275 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C276 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C280 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C282 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C283 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C286 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C287 4030008650 S.CERAMIC C1608 JB 1H 332K-T
C288 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C289 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C290 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C291 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C292 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C293 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C294 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C295 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C297 4030007050 S.CERAMIC C1608 CH 1H 220J-T
C298 4030007020 S.CERAMIC C1608 CH 1H 120J-T
C299 4030007020 S.CERAMIC C1608 CH 1H 120J-T
C300 4030007010 S.CERAMIC C1608 CH 1H 100D-T
C301 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C302 4030007010 S.CERAMIC C1608 CH 1H 100D-T
C303 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C304 4030007010 S.CERAMIC C1608 CH 1H 100D-T
C305 4030007100 S.CERAMIC C1608 CH 1H 560J-T
C306 4030009910 S.CERAMIC C1608 CH 1H 040B-T
C307 4030006980 S.CERAMIC C1608 CH 1H 070D-T
C308 4030009530 S.CERAMIC C1608 CH 1H 030B-T
C309 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C310 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C311 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C312 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C314 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C315 4030008880 S.CERAMIC C1608 JB 1H 223K-T
C316 4030009490 S.CERAMIC C1608 JB 1H 821K-T
C317 4030009490 S.CERAMIC C1608 JB 1H 821K-T
C318 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C320 4030008910 S.CERAMIC C1608 JB 1H 393K-T
C321 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C322 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C324 4030011340 S.CERAMIC C1608 CH 1H 471J-T
C325 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C327 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C330 4550006170 S.TANTALUM ECST1AY225R
C331 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C332 4550006700 S.TANTALUM ECST1AY106R
C333 4030007090 S.CERAMIC C1608 CH 1H 470J-T
C335 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C337 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C339 4030009550 S.CERAMIC C1608 CH 1H 2R5B-T
C342 4550006410 S.TANTALUM ECST1VY334R
C343 4030006900 S.CERAMIC C1608 JB 1H 103K-T
C348 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C349 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C350 4030017490 S.CERAMIC C1608 JB 1A 105K-T
C351 4030008920 S.CERAMIC C1608 JB 1H 473K-T
C352 4510005750
S.ELECTROLYTIC
ECEV1EA220SP
C353 4030011770 S.CERAMIC C1608 CH 1H 060B-T
C355 4030006990 S.CERAMIC C1608 CH 1H 080D-T
C356 4030006990 S.CERAMIC C1608 CH 1H 080D-T
C357 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C359 4030017490 S.CERAMIC C1608 JB 1A 105K-T
C360 4030009920 S.CERAMIC C1608 CH 1H 050B-T
C361 4030016930 S.CERAMIC ECJ0EB1A104K
C362 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C363 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C364 4030006850 S.CERAMIC C1608 JB 1H 471K-T
C372 4030006850 S.CERAMIC C1608 JB 1H 471K-T
C375 4030006860 S.CERAMIC C1608 JB 1H 102K-T
C376 4030009910 S.CERAMIC C1608 CH 1H 040B-T
C378 4030010020 S.CERAMIC C1608 JB 1H 122K-T
C379 4030006900 S.CERAMIC C1608 JB 1H 103K-T
6 - 6
REF ORDER
DESCRIPTION
NO. NO.
A: [F110] B: [F111] and [F121] C: IC-F110 for [EUR]
D: IC-F110 for [GEN] E: IC-F110 for 25 kHz F: IC-F110 for 20 kHz
[MAIN UNIT]
C380 4030007050 S.CERAMIC C1608 CH 1H 220J-T A
4030007040 S.CERAMIC C1608 CH 1H 180J-T B
C381 4030007050 S.CERAMIC C1608 CH 1H 220J-T A
4030009650 S.CERAMIC C1608 CH 1H 240J-T B
C382 4030007170 S.CERAMIC C1608 CH 1H 221J-T
C383 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C384 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C385 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C508 4030011170 S.CERAMIC
GRM31M2C2H180JV01L (GRM42-6 CH)
C509 4030011600 S.CERAMIC C1608 JB 1E 104K-T
C510 4030007030 S.CERAMIC C1608 CH 1H 150J-T A only
C511 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T
B only
C512 4030006860 S.CERAMIC C1608 JB 1H 102K-T
B only
C513 4030011120 S.CERAMIC
GRM31M2C2H100JV01L (GRM42-6 CH)
B only
C514 4030011120 S.CERAMIC
GRM31M2C2H100JV01L (GRM42-6 CH)
B only
C515 4030006860 S.CERAMIC C1608 JB 1H 102K-T
B only
J1 6510018430 S.CONNECTOR AXN330C038P
J2 6510022470 S.CONNECTOR 40FLT-SM1-TB
J4 6450000140 CONNECTOR HSJ0807-01-010
J6 6510019250 S.CONNECTOR B11B-ZR-SM3-TF
J7 6510014960 S.CONNECTOR B2B-ZR-SM3-TF
W1 7120000470 JUMPER ERDS2T0
W2 8900011861 CABLE OPC-1195A <CMI>
W4 7030003860 S.JUMPER ERJ3GE JPW V
W6 7030010040 S.JUMPER ERJ2GE-JPW
W7 7030010040 S.JUMPER ERJ2GE-JPW
W8 7030010040 S.JUMPER ERJ2GE-JPW
W9 7030010040 S.JUMPER ERJ2GE-JPW
W10 7030003860 S.JUMPER ERJ3GE JPW V
W11 7030003860 S.JUMPER ERJ3GE JPW V
B only
W12 7030003860 S.JUMPER ERJ3GE JPW V
B only
EP1 6910013370 S.BEAD
BLM18BB221SN1D (BLM11B221SB)
EP2 6910011560 BEAD HF70BB4.5X5X1.6
EP3 6910011560 BEAD HF70BB4.5X5X1.6
EP4 6910010280 BEAD HF70BB9.5X10.4X4.9
EP5 6910010280 BEAD HF70BB9.5X10.4X4.9
EP6 0910055673 PCB B 5909C
REF ORDER
DESCRIPTION
NO. NO.
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
J1 6510004880 Connector MR-DS-E 01 1
MP1 8010019060 2601 chassis 1
MP2 8110007820 2601 cover 1
MP3 8210019340 2622 front panel 1
MP4 8930059010 2622 keyboard 1
MP5 8930059090 2622 LCD plate 1
MP6 8210019350 2622 reflector 1
MP7 8610011180 Knob N292 1
MP9 8810008660 Screw PH BT M3 × 8 NI-ZU 8
MP10 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP11 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP12 8810008760 Screw PH BT M3 × 8 NI-ZU 3
MP13 8810008660 Screw PH BT M3 × 8 NI-ZU 1
MP14 8810009990 Screw PH BT M3 × 8 ZK 4
MP15 8810009990 Screw PH BT M3 × 8 ZK 2
MP16 8930059100 2622 LCD filter 1
MP17 8930059000 2601 SP net 1
[CHASSIS PARTS]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
R14 7210003020 Variable resistor EVU-F2KFK1 B14 1
SP1 2510001220 Speaker C052SB500-13 1
J1 6450002210 Connector 3017-8821 1
W1 8900010500 Cable OPC-1046 1
DS11 5030002510 LCD L2-0607TAY 1
EP2 8930059170 LCD contact SRCN-2622-SP-N-W 1
MP1 8930059110 2622 spring 1
[FRONT UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
J4 6450000140 Connector HSJ0807-01-010 1
W2 8900011861 Cable OPC-1195A 1
MP1 8510002280 VCO shield plate (A) 1
MP4 8510014940 2601 VCO case 1
MP5 8510014950 2601 VCO cover 1
MP6 8510014910 2601 filter case 1
MP7 8510015110 2602 M-plate 1
MP9 8930058990 Shield sponge (V) 1
MP10 8930058840 Shield sponge (T) [GEN] only 1
MP11 8930058840 Shield sponge (T) 1
[MAIN UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
MC1 0800005780 Microphone HM-100N 1
W1 8900011780 Cable OPC-1194 1
W2 8900000730 Cable OPC-049 1
MP1 8010019170 2601 mobil bracket assembly 1
MP3 8820000530 Flange bolt M4 × 8 NI 4
MP4 8810000470 Screw PH M5 × 12 (+-) 4
MP5 8810005840 Screw PH A M5 × 20 4
MP6 8850000150 Flat washer M5 NI BS 4
MP7 8850000390 Spring washer M5 4
MP8 8830000120 Nut M5 4
MP9 6910004210 731 mic hanger set 1
MP10 8310054770 1705 LCD seal (F) 1
[ACCESSORIES]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
Screw abbreviations A,BT:
Self-tapping
PH: Pan head
ZK: Black BS: Brass
NI: Nickel NI-ZU: Nickel-Zinc
MC1
M
O
IC
MP9 MP10
LCD-STICKER
W1
MP1
MP3
MP4
MP5
MP6
MP7
MP8
W2
MP15 (C)
R14 (F)
J1 (F)
MP16 (C)
DS11 (F)
MP5 (C)
W1 (F)
MP12 (C)
MP1 (F)
FRONT UNIT
Unit abbreviations (F): FRONT UNIT
(M): MAIN UNIT
(C): CHASSIS PARTS
EP2 (F)
MP6 (C)
MP7 (C)
MP3 (C)
SP1 (F)
MP4 (C)
MP17 (C)
MP11 (C)
MP7 (M)
MP1 (C)
J1 (C)
MP10 (C)
MP10 (M)
MP1 (M)
MAIN UNIT
MP9 (M)
MP11 (M)
MP9 (C)
MP6 (M)
MP2 (C)
MP14 (C)
MP9 (C)
MP5 (M)
MP4 (M)
MP13 (C)
J4 (M)
W2 (M)
MP9 (C)
7 - 2
SECTION 8 SEMI-CONDUCTOR INFORMATION
• TRANSSISTORS AND FET’S • DIODES
2SA1577 T106 Q 2SC3356 T1B R25 2SC4213 B 2SC4215 O
2SC4226 T1 R25 2SC5107 O 2SD1664 T100Q 2SJ144 GR
2SJ377
2SK880 Y 2SK1829 3SK293 3SK299 T1 U73
DTC114TUA T106
DTC144EUA T106 DTC363 EK XP1214 XP6501 AB
(Symbol: HQ) (Symbol: R25) (Symbol: AB)
2SC4116 BL
(Symbol: LL) (Symbol: QO)
(Symbol: R25) (Symbol: MFO) (Symbol: DAQ) (Symbol: VG)
(Symbol: 4L)
(Symbol: XY) (Symbol: K1) (Symbol: UF) (Symbol: U73)
(Symbol: 04)
(Symbol: 26) (Symbol: H27) (Symbol: 9H) (Symbol: 5N)
UM9401F
MA8056 M MA77
MA2S728
MA2S111 HVC376B
HVC375BHVC362
HVC350B
1SV3071SV239 1SS375-TL
(Symbol: 5-6)
(Symbol: none)
(Symbol: 4B)
(Symbol: B)
(Symbol: A)(Symbol: B9)
(Symbol: B8)(Symbol: V2)
(Symbol: B0)
DSA3A1
DAP222
(Symbol: Green)
(Symbol: P)
DAN222TL
(Symbol: N)(Symbol: TX)
DA221 TL
(Symbol: K)(Symbol: TC)(Symbol: FH)
8 - 1
B
E
B
E
C
C
S
G
D
B
E
B
E
C
C
G
S
D
B
E
B
C
E
D
S
C
G2
G1
B
C
E
B
C
E
B1
E1
B2
C1
C2
B
E
S
D
D
S
C
G
G2
G1
E1
E2
B2
C1
B1
C2
B
E
G
S
B
E
C
D
G
D
S
C
C1
A
C2
AC
BLACK LINE
AC
AC
green
AC
A
AC
AC
C
AC
A
C
A1
C
A2
AC
AC
SECTION 9 BOARD LAYOUTS
9-1 FRONT UNIT
• TOP VIEW
8V
1
to
Microphone
7
28
J1
AFO
MICE
GND
CLO
PTT
MIC
CLI
9 - 1
1
16
148
24
13
12
36
37
25
17
14 8
17
32
33
48
49
85
14
64
139
2
to MAIN unit J2
40
J2
DIM
DAST
OPT3
OPT2
OPT1
PTTO
PTTI
REM
SCK
SI
SO
CIRQ
CCS
MIC
EPTT
NC
BEEP
PWON
8V
GND
GND
TONE
TENC
NOIS
EXOE
EXST
UNLK
PLST
CDEC
SDEC
OV12
RSSI
LVIN
TEMP
BATV
NC
NC
5V
CPU5
AFO
113
214
J3
GND
GND
PWON
OPT1
P87
P86
CPU5V
GND
GND
GND
NMI
RES
OPT2
NC
9 - 2
• BOTTOM VIEW (FRONT UNIT)
ANT
CHASSIS
J1
to DC cable
W2
IC3
1
4
8
5
18
169
1
8
16
9
1
to Optional unit
15
30 16
J1
GND
5V
VCC
MMUTE
AFONO
BEEPO
RMUTE
DET
DISC
REM
CCS
CIRQ
SO
SI
SCK
PTTI
PTTO
MCOT
MCIN
NC
BUSY
NC
SIGO
OPT1
OPT2
OPT3
GND
DAST
OV12
OV12
DIM
40 2
39
to FRONT unit J2
1
J2
DAST
OPT3
OPT2
OPT1
PTTO
PTTI
REM
SCK
SI
SO
CIRQ
CCS
MIC
EPTT
NC
BEEP
PWON
8V
GND
GND
TONE
TENC
NOIS
EXOE
EXST
UNLK
PLST
CDEC
SDEC
OV12
RSSI
LVIN
TEMP
BATV
NC
NC
5V
CPU5
AFO
VCC
1
11
J6
DIM
HORN
GND
AFO
GND
DISC
GND
IN
GND
PTT
to Optional
cable OPC-617
SP
-
1
to
speaker
2
J7
SP+
9-2 MAIN UNIT
• TOP VIEW
9 - 3
SP
14 8
1
1
8
16
9
1
7
14
8
7
12
24
1
13
9 - 4
• BOTTOM VIEW (MAIN UNIT)
SECTION 10 BLOCK DIAGRAM
DISC
MIC
AFO
BEEP
8V
MCOT
MCIN
BEEPO
RSSI
MIXER
8V
CSFT
19.6608 MHz
BEEP
NOIS
DIM
CDEC
SDEC
EPTT
LVIN
RSSI
F
D
E
DET
DISC
J6
MAIN UNIT
FRONT UNIT
J1
CTCSS/DTCS DEC
5/2 TONE DEC
J1
BEEP0
182.35 MHz-220.35 MHz
46.35 MHz
450 kHz
SQIN
DET
45.9 MHz
15.3 MHz
HVC362
D21
BAL
REF
136-174 MHz
TENC
NWC
AF VR
PWR
S2-S7
JACK
MIC
ACC
M62363FP-650C
IC6
BU4066BCFV
IC14
IC1 TA31136FN
CPU
NOIS
TMUT
T2
T1T2
AF ON
DATA LINE
RX LINE
TX LINE
COMMON LINE
CONTROL LINE
Explanatory notes
DUSE
TENC
REM
TONE
RSSI
TX VCO
F
RX VCO
RXC
TXC
8V
LVIN
OPTION
IF IC
D/A
DISC
MCOT MCIN
SIGO
SIG
F
EPTT
HORNO
DIM
DIM
HORN
PTT
AFO
IN
8V
EXOE
LCS
LSCK
LSO
AFO
MIC
PTTI PTT
CLI CLO
SENC0-3
CENC0-2
RESET
8V
VCC
CPU5
CPU5
HV
PWON
RXC
TMUT
VCC
8V
R8V
T8V
5V
CDEC
SDEC
AFVI
POSW
KS0-1
KR0-2
RMUT
MMUT
TXC
SW
ANALOG
Q30 DTC144EU
Q26 2SA1577
REG
R8
2SK1829
Q1
AGC
LPF
R59
PTTO
2SC3356
Q8
AMP
DRIVE
DTC144EU
Q5
SW
W/N
DTC144EU
Q3
FIL
SW
AN78L05M
IC10
IC17
BUSY
RXC
NWC
RMUTE
RMUT
TMUT
HORNO
BU40948BCFV
D42
DAP222
CPU5
REG
W2
2SJ144
Q31
SW
LINE
2SK880
Q18
BUFF
2SC5107
Q12
BUFF
2SC5107
Q11
BUFF
2SC5107
Q10
BUFF
J4
SP
POSW
R14
D29 MA2S111
Q36 DTC144EU
Q35 DTC363EK
MUTE
AF
LA4425A
IC8
AMP
AF
TA75S01F
IC15
AMP
PRE
D23 DA221
Q29 DTC114TU
Q25 2SD1664
REG
T8
TA7808F
IC9
REG
+8
Q28 XP6501
Q27 2SA1577
REG
+5
NJM12902V
IC16
HPF
HPF
ALFYM450F=K
FI2
CERAMIC
BPF
2SC4215
Q4
AMP
IF
FL-335
FI1
XTAL
BPF
TA75S01F
IC2
AMP
APC
3SK293
Q2
AMP
RF
BPF
HVC375B
D8
BPF
HVC375B
D4
BPF
HVC350B
D9
BPF
HVC350B
D10
BPF
3SK299
Q3
1SV239
D18
MOD
FM
NJM12902V
IC5
AMP
NJM12904V
IC5
AMP
CR-520
X1
CDBC450CX24
X1
CR-740
X2
2SC4116
Q34
X3
MB15A02PFV-1
IC4
IC
PLL
LOOP
FIL
Q16 DTC144EU
Q15 XP1214
SW
VCO
2SC4116
Q17
RIPPLE
FIL
D16, D31 HVC376B
2SC4226
Q13
D33, D34 HVC376B
2SC4226
Q14
D14, D15
MA77
SW
TX/RX
S-AV33 [25W]
S-AV32 [50W]
IC3
AMP
PWR
D48 1SV307
D6 MA77
D5 UM9401F
D3 XB15A407 [50W]
D2 UM9401F [25W]
SW
ANT
NJM12902V
IC16
RESTORATION
MA77
D4
SW
SHIFT
S-80942CNMC-G9C
IC2
HD6433687A05FP
IC1
RESET
EXP
MMUT
CTRL
HN58X2464TI
IC3
EEPROM
LC75834W
IC6
SEG1-32
COM1-4
DTC114TUQ5DTC114TU
Q2
LIGT2
LIGT1
DRIVER
LCD
CTRL
LIGT
DS1-9
SML-311YT
CTRL
DIM
Q24 DTC144EU
Q23 2SJ377
POWER
SW
D28 MA2S728
SW
MUTE
2SC4215
Q19
REF
1SS375
D1, D11
DET
PWR
NJM12902V
IC5
BEEP
LPF
NJM12902V
IC5
LPF
NJM12902V
IC16
LPF
NJM12902V
IC16
LPF
NJM12904V
IC5
SIG
LPF
LPF
LPF LPFLPF LPF
KEY × 6
L2-0607TAY
DS11
LCD
REM
SIGO
BEEPO
AFONO
MMUTE
PTTI
BUSY
RMUT
CTRL
MMUT
MMUTE
D43
DAP222
AFONO
AFON
D44, D45
MA2S111
AFON
CTRL
10 - 1
SECTION 11 VOLTAGE DIAGRAMS
11-1 FRONT UNIT
J2
DIM
DAST
OPT3
OPT2
OPT1
PTTO
PTTI
REM
SCK
SI
SO
CIRQ
CCS
MIC
EPTT
NC
NC
NC
BEEP
PWON
8V
GND
GND
TONE
TENC
NOIS
EXOE
EXST
UNLK
J3
NMI
RESRES
OPT2
NC
GND
GND
GND
GND
GND
PWON
OPT1
P87
P86
CPU5V
PLST
CDEC
SDEC
OV12
RSSI
LVIN
TEMP
BATV
5V
CPU5
AFO
to
MAIN
unit J2
IC1
HD64F3687
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
171819202122232425262728293031
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
495051525354555657585960616263
64
P86/AN6
P87/AN7
AVCC
X2
X1
VCL
RES
TEST
VSS
OSC2
OSC1
VCC
P50/WKP0
P51/WKP1
P34
P35
P36
P37
P52/WKP2
P53/WKP3
P54/WKP4
P55/WKP5/ADTRG
P10/TMOW
P11/PWM
P12
P56/SDA
P57/SCL
P74/TMRIV
P75/TMCIV
P76/TMOV
P24
P63/FTI0D0
P62/FTI0C0
P61/FTI0B0
NMI
P60/FTI0A0
P64/FTI0A1
P65/FTI0B1
P66/FTI0C1
P67/FTI0D1
P85
P86
P87
P20/SCK3
P21/RXD
P22/TXD
P23
P70/SCK3_2
P71/RXD_2
P72/TXD_2
P14/IRQ0
P15/IRQ1/TMIB1
P16/IRQ2
P17/IRQ3/TRGV
P33
P32
P31
P30
P83/AN3
P82/AN2
P81/AN1
P80/AN0
P84/AN4
P85/AN5
C74
47p
C50
47p
C38
47p
C54
47p
L2 1.0µ
PWON
BEEP
DIM
TONE
DAST
TENC
OPT3
NOIS
OPT2
EXOE
OPT1
EXST
PTT
UNLK
PTTI
PLST
REM
CDEC
SCK
SDEC
SI
OV12
SO
RSSI
CIRQ
LVIN
CCS
TEMP
MIC
BATV
EPTT
KS0
KS1
R56
1k
UNLK
KR0
CENC2
CENC1
CENC0
KR1
KR2
SCK
SO
8
7
6
5
1
2
3
4
VCC
WP
SCL
SDA
A0
A1
A2
VSS
IC3
HN58X2464TI
R58
10k
R68
10k
R54
1k
R79
1k
SI
OPT2
OPT1
OPT3
P87
P86
PWON
LCS
NMI
EXOE
EXST
R52
1k
R50
1k
POSW
DIM
NOIS
CIRQ
CCS
PTT
EPTT
AFVI
CDEC
SDEC
OV12
RSSI
LVIN
CLO
CLI
D5
MA2S111
CP1
C35 0.1
TEMP
BATVRES
R51 100k
SENC0
SENC1
R48
12k
R49
12k
D4
MA77
C34
470p
R47
12k
C33
68p
C32
15p
X1
CR-520
R45
10
C31
22p
C78
0.001
R46
1M
CD
NC
OUT
VDD
VSS
R67
10k
C30
0.027
IC2
S-80942CNMC-G9C
LSO
LSCK
DUSE
DUSE
Q3
DTC144EU
C19
0.1
R29
18k
C82
47p
R28
4.7k
14
+
-
12
13
IC5
NJM12902V
TENC
C17
820p
C85
47p
C16
0.1
R27
47k
R26
47k
C15
0.015
R24
47k
R25
22k
R22 22k
R21 56k
R20 180k
C14
0.001
CENC0
CPU5V CPU5V
5V
5V
8V
5V
8V
CENC1
R65 1k
REM
CENC2
7
IC5
NJM12902V
6
5
-
+
TONE
BEEP
C24
68p
C69
47p
R39
68k
C23
0.0082
R38
68k
1
IC5
NJM12902V
2
3
-
+
C21
0.0056
C22
180p
R37
68k
SENC3
R33 22k
R36
68k
C20
0.0027
R35
68k
R34
22k
R32 47k
SENC2
SENC1
R31 100k
SENC0
R30 220k
C29
10
11
GND
V+
4
IC5
NJM12902V
C28
0.1
+
9
10
IC5
NJM12902V
8
C84
47p
R44 150k
C27 270p
C76
0.1
C41
0.001
R43
33k
R42
39k
C25
0.01
C26
0.1
R41
10k
R40
47k
R81
100k
R80
100k
J1
8V
CLO
AFO
PTT
MICE
MIC
GND
CLI
C81
0.001
R16 1k
L1 10µ
R76 1k
C7
47p
C8
0.001C90.001
C10
0.001
C11
47p
C12
0.001
R19
100k
D3
MA8056
CLO
CLI
R18
100k
D2
MA8056
PTTI
D1
MA8056
BEEP
KR2
KR1
KR0
KS1
KS0
POSW
R59
RV-150
C1 680p
C3 47p
C4 47p
C5 47p
C79 0.1
DS11
L2-0607TAY
C2 47p
C80 0.1
R78 47k
R60 100k
R75 10k
COM2
COM1
SEG32
SEG31
SEG30
SEG29
SEG28
SEG27
SEG26
SEG25
SEG24
SEG23
SEG1
SEG2
SEG3
COM3
COM4
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
EXOE
LCS
LSCK
LSO
COM1
COM2
COM3
COM4
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24
SEG25
SEG26
SEG27
SEG28
SEG29
SEG30
SEG31
SEG32
COM1
COM2
COM3
COM4
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24
SEG25
SEG26
SEG27
SEG28
SEG29
SEG30
SEG31
SEG32
SEG22
SEG21
SEG20
SEG19
SEG18
SEG17
SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
R14
10k
AFVI
5V
S1
S2
C6 47p
S3
C37 47p
S4
S7
S6
S5
LIGT1
Q1
2SC4116
R11
390
R12
2.7k
R74
10k
R73
10k
R86
100k
R85
100k
R87
100k
R88
100k
R89
100k
R84 100k
R82 100k
R83 100k
Q2
DTC114TU
Q5
DTC114TU
5V
FRONT UNIT
DS1-DS9
SML-311YT
R7
180
DS3 DS2 DS1 LIGT2
DS6 DS5 DS4
R8
180
R9
470
DS9 DS8 DS7
DS2-10 SML-311YT
to
mic
Jack
C77
0.047
R77 1.5k
R15 1k
5
4
1
2
3
C75
0.1
SENC3
SENC2
PLST
DAST
R55
1k
BEEP
R57
1M
C36
0.1
R23
47k
C83
47p
R90
390k
IC6
LC75834W
37
38
39
40
41
42
43
44
45
46
47
48
1234567891011
12
13
14
15
16
17
18
19
20
21
22
23
24
2526272829303132333435
36
123456789
101112131415161718192021222324252627282930313233343536
COM3 S24
S23
S22
S21
S20
S19
S18
S17
S16
S15
S14
S13
COM4
VDD
VLCD
VLCD1
VLCD2
VSS
OSC
INH
CE
CL
DI
P1/S1
P2/S2
P3/S3
P4/S4
P5/S5
P6/S6
P7/S7
P8/S8S9S10
S11
S12
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
COM1
COM2
Dim ON: 6.2V
OFF: 7.2V
Dim OFF: 0V
ON : 5V
LIGHT ON: 5V
OFF: 0V
TX: 0V
RX: 4.9V 7.9V
19.7 MHz
2.1Vp-p
5.0V
CTCSS : 0V
DTCS : 5V
5.0V
5.0V
MEASUREMENT CONDITIONS
VOLTMETER
Amplitude(Oscilloscope) : 100 MHz
Frequency : 155 MHz
Transmission : 25 W
11 - 1
11-2 MAIN UNIT
J1
SCK
SI
SO
CIRQ
CCS
GND
GND
DISC
DET
BEEPO
AFONO
OV12
OV12
DAST
OPT3
OPT2
OPT1
SIGO
BUSY
R266 47k
R267 27k
R268 10k
R265 18k
R270 100k
R264 68k
R269 100k
R263 1M
R262 1M
R261 1M
R271 100
MIC
CP24
CP23
C311
0.001
SCK
SI
OV12
SO
DAST
CIRQ
CCS
OPT3
REM
OPT2
DISC
OPT1
DET
SIGO
BEEPO
RMUTE
MMUTE
REM
RMUTE
MMUTE
MCIN
MCOT
PTTO
PTTI
BUSY
AFONO
MAIN UNIT (1)
to
Optional
unit
J2
DIM
DAST
OPT3
OPT2
OPT1
PTTO
PTTI
REM
SCK
SI
SO
CIRQ
CCS
MIC
EPTT
NC
BEEP
PWON
8V
GND
GND
TONE
TENC
NOIS
EXOE
EXST
UNLK
PLST
CDEC
SDEC
OV12
RSSI
LVIN
TEMP
BATV
NC
NC
5V
CPU5
AFO
J1
8V
CL0
AFO
PTT
MICE
MIC
GND
CLI
to
mic
jack
J3
CPU5V
P86
P87
OPT1
PWON
GND
GND
NC
OPT2
RES
NMI
GND
GND
GND
J2
DIM
DAST
OPT3
OPT2
OPT1
PTTO
PTTI
REM
SCK
SI
SO
CIRQ
CCS
MIC
EPTT
BEEP
PWON
8V
GND
GND
TONE
TENC
NOIS
EXOE
EXST
UNLK
PLST
CDEC
SDEC
OV12
RSSI
LVIN
TEMP
BATV
NC
NC
NC
5V
CPU5
AFO
FRONT UNIT
R147
1k
R148
1k
R149
1k
R3271kR3261kR3251kR143
1k
R150
1k
R141
1k
C204 47p
C201 0.1
C202 0.1
C207 0.001
C208 0.001
C209 0.001
C210 0.001
C203 0.1
C226
47p
C382
220p
R145 1k
R144 1k
R146 1k
DIM
DAST
OPT3
OPT2
OPT1
PTTO
PTTI
BUSY
EXOE
EXST
REM
PLST
TONE
TENC
NOIS
CDEC
SDEC
CCS
MAIN
UNIT
(2)
PWON
BEEP
EPTT
BATV
C166
0.01
R110
47
C162
0.01
R220
47k
R221
47k
REF
BAL
C16310R222
10k
C164
0.01
R219
100k
R314
100k
R315
100k
D21
HVC362
L10
1.8µ
BUS LINE2
C161
100p
C160
9p
X2
CR-740
R105
47k
D20
MA2S111
R106
82k
C158
100p
R104
1.2k
C156
47p
C157
100p
Q19
2SC4215
C142
0.001
R101
1k
C143
0.001
C141
0.001
R100
10k
9
10
11
12
13
14
15
16
8
7
6
5
4
3
2
1
CLOCK
DATA
LE
FC
NC
FOUT
P
B
FIN
LD
GND
DO
VCC
VP
OSCOUT
OSCIN
VCC
IC4
MB15A02PFV-1
C152 47P
C153 47P
C154 47P
C151
0.1
R103
150k
C155
270p
C140
0.1
L29
1.8µ
UNLK
SCK
SO
PLST
C149
0.22
R971R95
220
C1461C138
47p
R89
10k
C147
3.3
R96
2.2k
Q18
2SK880
R92
100k
R91
33k
C132
0.1
R90
47k
LVIN
CP1
C145
330p
C314
0.01
R98
2.2k
C148
10
Q17
2SC4116
C353
6p
D34
HVC376B
D33
HVC376B
L39
44n
C144
47p
L28
3.3µ
D31
HVC376B
D16
HVC376B
L38
67n
C3764pC360
5p
C355
8p
R99
1k
L27
3.3µ
L37
10µ
C127
15p
L26
92n
C136
3p
C134
10p
C126
33p
R85
3.9k
C114
33p
C115
33p
W4
Q14
2SC4226
R79
1.8k
C116
0.01
C117
470p
C124
270p
L25
67n
C129
1p
D18
1SV239
R86
120k
C131
1p
C133
10p
C123
68p
R84
3.9k
C121
18p
C122
33p
R328
4.7
Q13
2SC4226
R83
1.8k
C119
0.001
C120
470p
3
2
1
4
5
Q15
XP1214
EP1
R21156C299
12p
C298
12p
C300
10p
L32
33n
C113
0.75p
C118
0.5p
R316
1k
C357
0.1
TXC
C139
0.1
R77
10k
Q16
DTC144EU
C111
47p
R317
1k
R209
47k
C200
0.1
R210
100K
TEMP
C350
1
C287R291
100k 0.0033
MOD
F
C337
0.001
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
IC1
TA31136FN
OSCIN
OSCOUT
MIXOUT
VCC
IFIN
DEC
FILOUT
FILIN
MIXIN
GND
N-REC
N-DET
RSSI
IFOUT
QUAD
AFOUT
R44
VCC
220k
C70
120p
R45
150k
R46
2.2k
R42
100k
C68
100p
C71
0.1
IO
FI2
ALFYM450F=K
R40
1.5k
R39
47
C312
0.1
L33
0.82µ
C307
7p
C305
56p
C306
4p
Q34
2SC4116
Q38
2SC4213
C69
120p
SQIN
R236
1.2k
R237
680k
L35
0.22µ
C309
0.01
C304
10p
R43
470
C66
0.001
DET
C348
0.001
RSSI
NOIS
C63
47p
C65
0.001
C62
82p
R37
2.7k(N/W)
4.7k(N/M)
C64
0.001
NWC
Q5
DTC144EU
X1
CDBC450CX24
R36
3.9k
R38
100k
C75
10
C67
0.001
R290
680
R34
100k
C60
0.01
C58
0.001
R33
150
C101
1.5p
R8V
R35
100
C59
0.001
Q4
2SC4215
b
PTTO
PTTI
IC14
BU4066BCFV
1
2
3
4
5
6
7
14
13
12
11
10
9
8
I/O
O/I
O/I
I/O
CONT.B
CONT.C
VEE
VDD
CONT.A
CONT.D
I/O
O/I
O/I
I/O
IC17
BU4094BCFV
1
2
3
4
5
6
7
16
15
14
13
12
11
10
STR
D
CLK
Q1
Q2
Q3
Q4
VDD
QE
Q5
Q6
Q7
Q8
QS
89
VSS QS
TXC
MMUT
R138
100k
C378
0.0012
R117
180k
+
-
12
13
14
IC16
NJM12902V
R121
47k
R120 10k
R119
5.6k
R118
12k
R114
12k
C169
0.047
C168
0.047
R115
3.9k
R334
470k
C167
0.047
R330
4.7k
R333
100k
R285
100
DISC
CP2
DET
AFSW
DISC
R122
8.2k
R125
100k
R323
22k
R123
100k
b
C181
0.1
R124
4.7k
C182
0.0056
R129
100
R128
10k
R130
22k
C176
47p
MOD
AFONO
MMUT
MMUTE
EXOE
TMUT
HORNO
BUSY
EXST
SO
SCK
RXC
NWC
RMUTE
BEEPO
AFON
RMUT
R139
100k
RMUT
+
2
3
1
IC5
NJM12904V
R185
120k
R183
220k
C177
0.0056
R184
33k
C178
150p
R186
100k
R187
10k
R188
560
C179
0.1
R135
270k
R134
27k
R133
180k
SIG
C173
0.1
C172
0.0082
R332
33k
C509
0.1
R136
10k
R324
100k
R137
68k
C175
0.001
C359
1
R112
27k
R111
3.3k
R113
2.2k
C180
47
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
VIN1
VOUT1
VOUT2
VIN2
VDD
LD
CLK
DI
VIN3
VOUT3
VOUT4
VIN4
VIN8
VOUT8
VOUT7
VIN7
GND
RESET
VDAREF
DO
VIN6
VOUT6
VOUT5
VIN5
IC6
M62363FP-650C
C174
10
5V
CPU5V
8V
R231
1
C283
0.001
DET
TENC
DAST
SCK
SO
BAL
R215
470
SQIN
REF
AFSW
T2
T1
SCK
SI
SO
CIRQ
R142
1k
RSSI
AFO
CP25
TEMP
LVIN
R126
470
C183
0.1
C361
0.1
C184 680p
R127
39k
7
6
IC5
NJM12904V
5
-
+
BUS LINE1
5V
NC
NC
VCC
C310
0.001
C165
0.01
R931kD37
MA2S111
C135
0.001
C356
8p
R80
1k
R78
1k
C297
22p
RXC
V+
GND
8
4
IC5
NJM12904V
C248
0.001
C308
3p
0.1
0.1
C385
C384
C61
100p
OV12
R116
12k
C170
0.001
TONE
C282
0.1
a
b
c
d
VCC
e
C286
0.01
D42
W6
W8
W9
W10
W7
DAP222
D44
MA2S111
D45
MA2S111
D43
DAP222
D51
1SS375
550mVrms
(40mVrms at mic terminal)
5.0V
15.3 MHz
940mVp-p
6.9V
TX: 4.3V
RX: 0V
TX: 0V
RX: 4.3V
3.1V
4.9V
WIDE:1.1V
NARROW:1.3V
4.9V
TX: 0V
RX: 7.2V
WIDE: 5.0V
NARROW: 0V
MEASUREMENT CONDITIONS
VOLTMETER
Amplitude(Oscilloscope) : 100 MHz
Frequency : 155 MHz
Transmission : 25 W
11 - 2
Q20
2SC4116
MAIN
UNIT
(1)
BUS LINE2
C110
470p
L41
68n
R75
120k
C105
0.001
Q12
2SC5107
R8V
C104
0.001
R74
120k
L22
68n
R76
470
R73
100
C109
0.001
C102
10p
R71
100
Q11
2SC5107
R310
8.2k
R311
220
C335
0.001
C301
0.001
R234
8.2k
L21
82n
Q10
2SC5107
C100
10p
D14
MA77
D15
MA77
R69
4.7k
R50
10k
R235
1k
C303
0.001
R70
100
C108
0.01
R68
10k
R67
100
R331
1k
C99
0.001
C93
15p
Q8
2SC3356
R62
56
C331
0.001
R63
15k
C95
0.001
R60
100
C92
15p
C510
15p
L18
47n
C90
18p
C89
18p
L43
47n
C381
22p
C380
22p
C106
47p
R61
47
L19
82n
C96
0.001
C97
47p
IN
VCC1
VCC2
OUT
IC3
T8V T8V
HV
T8V
S-AV33 [25W]
S-AV32 [50W]
5
1234
6
EP2
EP3
C86 47p
C87 0.001
C342 0.33
C364 470p
C84 47p
C85 0.001
C91 22
C372 470p
FI4
NFM60R20T152
FI3
NFM60R20T152
FI5
NFM60R20T152
[50W]
D40
DAN222
C83
22p
C514
10p[50W]
C513
10p[50W]
L16
AS080547-47N
C82
20p
D2
UM9401F
[25W]
D3
XB15A407[50W]
C12
470p
R8
100
R214
1.5k
C107
0.001
C13
47p
R216
1.5k
C14
0.001L3AS080547-47NL2AS080547-47N
C9 22p
C8 22p
C7 24p
C508 18p
C6
22p
D1
1SS375
C10
0.001
R5
10k[25W]
27k[50W]
C3
470p
R4
270
C4
18p
R2
47
R3
47
D11
1SS375
C11
0.001
R7
270
C5
470p
R6
33k[25W]
27k[50W]
W1
J1
C2
22pC118p
R1
100k
L1
AS080547-47N
C352
22
FI1
R8V
VCC
T8V
VCC
VCC
HV
FL-335
C56
18p
C55
4p
R31
100
C57
0.001
L13
1µ
C51
0.001
R32
150
C52
27p
C53
0.01
C54
0.001
R29
100
R335
1k
C50
0.001
C48
47p
Q3
3SK299
C49
18p
R28
C40
1.5p
12
L12
0.1µ
L42
4.7µ
R27
470
R26
470
C302
10p
C44
3p
L11
56n
D10
HVC350B
C45
0.001
R23
150k
C43
0.001
R21
220k
C39
0.001
D9
HVC350B
C42
0.001
R22
10k
T2
C339
2.5p
R20
Q2
3SK293
C32
0.001
C333
47p
R16
270
R15
270k
C30
22p
L8
68n
C29
4p
C33
0.1
C34
0.001
R312
220k
R19
100k
R12
10
C31
0.1
R17
100
C35
1
C37
0.001
L9
56n
C343
0.01
R319
18k
C363
0.1
R18
1
C38
0.001
D49
DA221
D50
MA2S111
R318
4.7k
R321
10k
D27
MA2S111
R320
470k
RSSI
T1
R14
10k
R11
100k
C20
0.001
C27
0.001
C383
0.1
C28
0.001
D8
HVC375B
C26
0.001
R13
100k
D4
HVC375B
L7 68n
C21 1.5p
C25
6p
L31
56n
C18
6p
C19
0.001
D6 MA77
D7 MA2S728
C17 12p
C15 30p
L6
39n
D48 1SV307
D5 UM9401F
C94
47p
C330
2.2
R212
330
R213
10k
C332
10
L4
0.50-2.0-6TL
4
2
3
1
5
C79
0.22
R56
150k
R59
18k[25W]
10k[50W]
IC2
TA75S01F
R51
560k
C76
0.01
C72
0.001
R49
PRF18
R48
180k
C81
0.001
C77
0.001
R53
1
R58
100
R10
270k
R9
10k
C511
0.3p
D12
1SS375
[50W] only
[50W] only
C80
0.1
R52
15k
R54
10k[25W]
8.2k[50W]
C78
0.001
R57
10k
T2
C74
0.001
C73
1
D28
MA2S728
R55
4.7k
C88
0.001
TMUT
+
-
10
9
8
IC16
NJM12902V
C324
470p
R251
470k
R250
100k
C327
10
5V
CPU5V
8V
+
-
5
6
7
IC16
NJM12902V
C322
0.01
R249
22k
R248
22k
C320
0.039
R247
22k
DET
R252
470
C325
0.001
3
2
+
-
1
IC16
NJM12902V
R245
180k
C318
0.1
C317
820p
R243
82k
R244
390k
C316
820p
C315
0.022
R241
100k
R242
39k
R240
100k
SDEC
CDEC
R322
100k
C379
0.01
C245
0.01
R304
22k
R232
39k
C280
0.01
R313
1M
BEEPO
BEEP
R192
220k
C250
0.1
4
135
2
R191
220k
R194
2.2k
C249
0.0022
R193
470k
R159
10k
R1951kC251
0.1
R287
10k
C244
0.47
Q35
DTC363EK
Q37
DTC144EU
C351
0.047
R196
22k
IC15
TA75S01F
R197
10k
C253
0.022
4
1
2
3
5
C252
0.1
C255
470
R198
10k
R199
10k
C256
470
C254
0.001
C375
0.001
Q36
DTC144EU
AFON
AFO
D23
DA221
C269
0.001
Q29
DTC114TU
TMUT
R203
3.3k
C272
10
R202
3.3k
R329
3.3k
Q25
Q23
2SJ377
2SD1664
C271
10
C270
0.001
Q26
2SA1577
Q30
DTC144EU
RXC
R204
4.7k
R205
10k
R218
22k
R217
22k
C274
10
C273
0.001
Q27
2SA1577
654
123
R156
4.7k
IC8
LA4425A
C266 10
C262 0.1
OI
G
IC9
TA7808F
C261 0.1
C265 470
R201
470
R200
10k
C260 47p
C512 0.001[50W]
C259 0.001
C258 470
D22 DSA3A1
IC10
AN78L05M
C264 0.1
C268 10
G
IO
C263 0.1
C276
0.001
C275
0.001
Q24
DTC144EU
PWON
J6
Q33
DTC144EU
DIM
BATV
R238
100k
C293
0.001
C294
0.001
C291
0.001
C290
0.001
C292
47p
270[EUR]
470[GEN], [USA]
C288
0.1
C289
0.1
R225
10k
R224
47
R223
1k
DET
EPTT
R228
100k
C246
0.1
D29
MA2S111
R229
1M
Q31
2SJ144
R227
1M
C295
10
F
R230
68k
R336
68k
FDESIG
SIGO
EP4
HV
W2
EP5
J4
J7
C362
0.001
+
-
P1
CHASSIS
SP1
VCC
GND
DIM
HORN
GND
AFO
GND
DISC
GND
IN
GND
PTT
GND
to
OPC-617
BUS LINE1
C103
3p
L5
1µ
C36
0.001
C41
22p
Q1
2SK1829
C22
1.5p
11
GND
V+
4
IC16
NJM12902V
C349
0.1
C321
0.1
Q28
XP6501
R298
100k
R297
300k
HORNO
R226
100k
D26
MA2S111
e
VCC
d
c
b
a
MAIN UNIT (2)
6.4V
6.0V
TX: 6.9V
RX: 0V
TX: 2.9V
RX: 0V
TX: 2.2V
RX: 2.0V
TX: 0V
RX: 2.7V
TX: 0V
RX: 3.7V
TX: 0V
RX: 5.6V
TX: 0.2V
RX: 2.1V
4.9V
TX: 0V
RX: 7.2V
TX: 0V
RX: 0.7V
TX: 0V
RX: 6.4V
Lo level
1~3dBm
MEASUREMENT CONDITIONS
VOLTMETER
Amplitude(Oscilloscope) : 100 MHz
Frequency : 155 MHz
Transmission : 25 W
TX: 5.7V
RX: 0.2V
TX: 6.0V
RX: 0.2V
TX: 2.9V
RX: 1.8V
TX: 0.1V
RX: 4.8V
AF ON: 4.5V
OFF: 0V
TX: 7.9V
RX: 0V
TX: 0V
RX: 7.8V
7.9V
5.0V
5.0V
13.2V
POWER ON: 4.9V
OFF: 0V
4.4V
11 - 3
1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan
S-13911HZ-C1
C 2003 Icom Inc.
Loading...
