Icom i706MK G Service Manual

SERVICE MANUAL

HF/VHF/UHF ALL MODE TRANSCEIVER

i706MK™G

INTRODUCTION

DANGER

This service manual describes the latest service information for the IC-706MKIIG HF/VHF/UHF ALL MODE TRANSCEIVER at the time of publication.

VERSION NO.

#02, #12 #03, #13 #04, #14 #05, #15 #08, #18

VERSION Europe France Spain U.S.A. Other

SYMBOL

EUR FRA ESP USA OTH

To upgrade quality, any electrical or mechanical parts and internal circuits are subject to change without notice or obligation.

NEVER connect the transceiver to an AC outlet or to a DC power supply that uses more than 16 V. This will ruin the transceiver.

DO NOT expose the transceiver to rain, snow or any liquids. DO NOTreverse the polarities of the power supply when con-

necting the transceiver. DO NOT apply an RF signal of more than 20 dBm (100 mW)

to the antenna connector. This could damage the transceiver’s front end.

ORDERING PARTS

Be sure to include the following four points when ordering replacement parts:

1. 10-digit order numbers

2. Component part number and name

3. Equipment model name and unit name

4. Quantity required

1110004080 S.IC µPC2709T IC-706MKIIG MAIN UNIT 05 pieces 8810009020 Screw FH M2.6 x 5 ZK IC-706MKII G Top cover 10 pieces

Addresses are provided on the inside back cover for your convenience.

REPAIR NOTES

1. Make sure a problem is internal before disassembling the transceiver.

2. DO NOT open the transceiver until the transceiver is disconnected from its power source.

3. DO NOT force any of the variable components. Turn them slowly and smoothly.

4. DO NOT short any circuits or electronic par ts. An insu- lated tuning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the trans- ceiver is defective.

6. DO NOT transmit power into a signal generator or a sweep generator.

7. ALWAYS connect a 50 dB to 60 dB attenuator between the transceiver and a deviation meter or spectrum analyzer when using such test equipment.

8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.

SECTION 1 SPECIFICATIONS

FM

— —

0.5 µV

0.25 µV

0.18 µV

FREQUENCY

0.5 – 1.8 MHz

1.8 – 28 MHz*

28 – 29.999 MHz

50 MHz band 144 MHz band 440 MHz band

SSB/CW/RTTY

—

0.16 µV

0.13 µV

0.11 µV

AM

13 µV

2 µV 2 µV 1 µV 1 µV 1 µV

All stated specifications are subject to change without notice or obligation.

Predrive amplifier (Q101: 2SK2854)

HPF board

D/A converter (IC2201: M62352GP)

¡PA AND PLL UNITS

FILTER board

MAIN CPU clock (X2161: CR-636)

MAIN CPU * (IC 2001: HD6433337YA56F)

MAIN board 3rd IF filter for FM *

(FI791: SFPC455E-TC01) MIC amplifier

(IC931: µPC5023GS-077-E1) AF selector switch *

(IC861: BU4052BCFV-E2)

Tx FM PLL IC * (IC1011: LC7153M-TLM)

Balanced modulator * (IC1041: NJM1496V)

Discriminator (X791: CDB455CX24)

FM IF IC * (IC791: TA31136FN)

RX preamplifier (IC151: µPC1658G)

1st mixer (D271: HSB88WSTR)

1st IF filter (FI511: FI-261)

2nd mixer * (D551: HSB88WSTR)

2nd IF filter (FI561: FL-23)

Space for optional filters

FL-100, FL-101, FL-103

  FL-233, FL-232



Power amplifers (Q171, Q172, Q231: SRFJ7044)

DDS IC (IC101: SC-1246)

BFO DDS IC (IC901: SC-1287)

PLL IC * (IC461: LMX2306TMX)

VCO1 * (Q301: 2SK508)

VCO2 * (Q331: 2SK508)

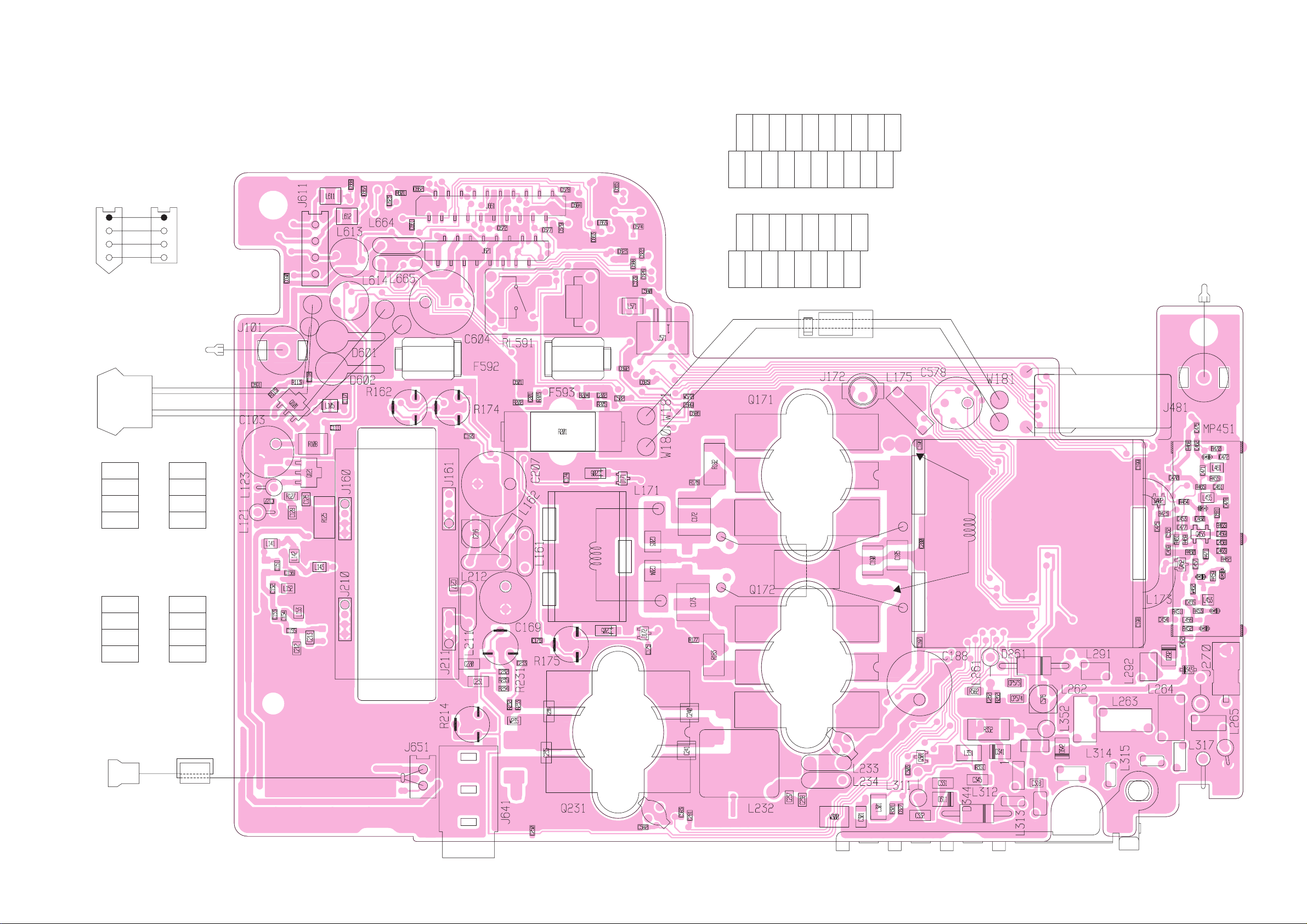

PA unit

DRIVER board

Drive amplifers (Q161, Q211: MRF1508TI)

Predrive amplifer (Q121: MXR9745)

AF power amplifer (IC231: LA4425A)

PLL unit AF volume controller

(IC201: M5282FP) VCO3 *

(Q361: 2SK508) Reference oscillator

(X621: CR-275A 30.00000 MHz)

*Located under side of the point

¡MAIN AND FILTER BOARDS

2 - 1

SECTION 2 INSIDE VIEWS

3-1 RECEIVER CIRCUITS

3-1-1 HF/50 MHz RF CIRCUIT

(FILTER, MAIN AND HPF BOARDS)

HF/50 MHz RF filters pass only the desired band signals and suppress any undesired band signals. The HF/50 MHz RF circuit has 7 low-pass filters and 8 high-pass filters for specified band use.

HF/50 MHz RF signals from the [ANT1] connector, pass through one of 7 low-pass filters as below, the transmit/ receive switching relay (FILTER board; RL1) and low-pass filter (FILTER board; L1, L2, C1–C5), and are then applied to the MAIN board via J1 (FILTER board).

The signals from the FILTER board are applied to or bypass the 20 dB attenuator (R122, R125, R126). The signals pass through the high-pass filter (L132, L133, C132–C137) to suppress strong signals below 1.6 MHz and are then applied to the HPF board via the “SAF” terminal.

(1) 0.03–2 MHz and 30–40 MHz

The signals pass through a low-pass filter (L101, L102, C101–C105), and then applied to the preamplifier circuit on the MAIN board.

(2) 2–30 MHz

The signals from the low-pass filter (L101, L102, C101–C105) are applied to one of 6 high-pass filters as at right above and are then applied to the preamplifier circuit on the MAIN board.

(3) 40–60 MHz

The signals pass through the low-pass filter (L172, L173, C172–C176) and the high-pass filter (L174, L175, C177–C181) via D171 and are then applied to the preamplifier circuit on the MAIN board.

3-1-2 VHF AND UHF RF CIRCUITS (PA UNIT)

The VHF and UHF RF circuits pass and amplify only the desired band signals and suppresses any undesired band signals. The both RF circuits have a preamplifier and bandpass filters respectively.

• VHF RF CIRCUIT

The VHF RF signals from the [ANT2] connector pass through the low-pass filter (L263–L265, C274–C276) and antenna switching circuit (D291–D293). The signals are applied to the bandpass filter (D403, D409, D408), and are then amplified at the preamplifier circuit (Q403). The amplified signals are then applied to the another bandpass filter (D407, D406, D410).

• UHF RF CIRCUIT

The UHF RF signals from the [ANT2] connector pass through the high-pass filter (L316, L317, C326–C327), lowpass filter (L313–L315, C322–C324) and antenna switching circuit (D341, D342, D343). The signals are amplified at the preamplifier circuit (Q453) between the 2 bandpass filters (D454, D453 and D454, D456).

The filtered signals are applied to the MAIN board via J481 (PAunit) and are then applied to the preamplifier circuit.

D403, D408, D409, D406, D407, D410, D454, D453, D454 and D456 are varactor diodes that tune the ceinter frequency of an RF passband for wide bandwidth receiving and good image response rejection. On the VHF band, receiving signals are above 129 MHz, the switching diodes (D404, D405) are turned off by the control signal “2MBL” from PLL unit, then the varactor diodes (D408, D407) are disconnected.

• Used RF high-pass filter (HPF board)

• Used RF low-pass filter (FILTER board)

3 - 1

SECTION 3 CIRCUIT DESCRIPTION

• RECEIVER CONSTRUCTION

1st LO:

69.0415 MHz–

530.0115 MHz

BPF

LPF

HPF

1st mixer

D271

2nd LO:

60.0 MHz

2nd mixer D511

to AM demod. circuit (D761)

to FM demod. circuit (IC791)

[ANT1]

0.03–60 MHz

LPF

[ANT2] 60–470 MHz

Crystal

filter

FI511

69.0115 MHz

Crystal

filter

NB

gate

FI561

to WFM detector circuit (IC631)

to BFO circuit (IC1041)

9.0115MHz

NB

circuit

FILTER BOARD

PA UNIT

HPF

BOARD

MAIN BOARD

SSB, CW

filter

FI671

AM, FM-N

filter

FI681

Optional

filter-1

Optional

filter-2

amp.

Pre-amp.

IC151

Frequency

(MHz)

0.03–2 MHz 2–4 MHz 4–8 MHz

8–15 MHz

Frequency

(MHz)

15–22 MHz 22–30 MHz 30–60 MHz

Control

signal

L5 L6 L7

Control

signal

L1 L2 L3 L4

Entrance

coil

RL15 RL13

RL5 RL9

Entrance

coil

RL11

RL7 RL3

Frequency

(MHz)

0.03–2 MHz 2–4 MHz 4–8 MHz

8–15 MHz

Frequency

(MHz)

15–22 MHz 22–30 MHz 30–40 MHz 40–60 MHz

Control

signal

L5H

L6H THH B7H

Control

signal

THH

L2H L3H L4H

Entrance

coil

D111 D121 D131 D141

Entrance

coil

D151 D161 D111 D171

3-1-3 PREAMPLIFIER CIRCUIT (MAIN BOARD)

The preamplifier circuit in the IC-706MKIIG has approx. 15dB gain over a wide-band frequency range.

When the preamplifier is turned ON, the signals from the RF circuit are applied to the preamplifier (IC151) via D2182. Amplified or bypassed signals are applied to the 1st mixer circuit (D271).

3-1-4 1ST MIXER CIRCUIT (MAIN BOARD)

The 1st mixer circuit mixes the receive signals with the 1st LO signal to convert the receive signal frequencies to a 69 or 70.7 MHz 1st IF signal.

The signals from the preamplifier circuit, or signals which bypass the preamplifier, are passed through a low-pass filter and then applied to the 1st mixer (D271).

The 1st LO signals (69.0415–539.0115 MHz) enter the MAIN board from the PLL unit via J281. The LO signal is amplified at IC281, filtered by a lowpass filter, and then, applied to the 1st mixer.

3-1-5 1ST IF CIRCUIT (MAIN BOARD)

The 1st IF circuit filters and amplifies the 1st IF signals. The 1st IF signals are applied to a Crystal Filter (FI511) to suppress out-of-band signals.

The 69 MHz 1st IF signals (except WFM) pass through the crystal filter (FI511), however, the 70.7 MHz 1st IF signal (WFM) passes through a bandpass filter (L501–L505, C501–C506). Then the filtered signals are applied to the IF amplifier (IC521).

The AGC voltage is supplied to the transmit/receive switching circuit (D521, D522) and D521/D522 function as PIN attenuators for AGC operation.

The amplified signals are then applied to the 2nd mixer circuit (D551) via the bandpass filter (L542–L546, C542–C545).

3-1-6 2ND MIXER CIRCUIT (MAIN BOARD)

The 2nd mixer circuit mixes the 1st IF signals and 2nd LO signal (60.00 MHz) to convert the 1st IF to a 2nd IF.

The 1st IF signals from the band pass filter (L542–L546, C542–C545) are converted to 9 MHz or 10.7 MHz 2nd IF signals at the 2nd mixer (D551).

The 2nd IF signals are applied to the bandpass filter (FI561) to suppress undesired signals, such as the 2nd LO signal, and are then applied to the noise blanker gate (D561, D562).

While in WFM mode, the IF signals pass through the lowpass filter (L601, C601–C603), IF amplifiers (Q601, Q611), ceramic filter (FI611). The signals are then applied to the WFM demodulator circuit (IC631).

3-1-7 NOISE BLANKER CIRCUIT (MAIN BOARD)

The noise blanker circuit detects pulse type noise, and turns OFF the signal line when noise appears.

Aportion of the signals from FI561 are amplified at the noise amplifiers (Q621, Q632, amplifier section of IC631), then detected at the noise detector (D632) to convert the noise components to DC voltages.

The converted voltages are then applied to the noise blanker switch (Q634, Q635). At the moment the detected voltage exceeds Q634’s threshold level, Q635 outputs a blanking signal to close the noise blanker gate (D561, D562) by applying reverse-biased voltage.

The detected voltage from D632 is also applied to the noise blanker AGC circuit (Q631, Q633) and is then fed back to the noise amplifier (IC631) as a bias voltage. The noise AGC circuit prevents closure of the noise blanker gate for long periods by non-pulse-type noise. The time constant of the noise blanker AGC circuit is determined by R637.

The 2nd IF signals from the noise blanker gate are then applied to the 2nd IF circuit.

3-1-8 2ND IF CIRCUIT

The 2nd IF circuit amplifies and filters the 2nd IF signals. The 2nd IF signals from the noise blanker gate (D561,

D562) are amplified at the IF amplifier (IC571) via the Tx/Rx switch (D572) and applied to a 2nd IF filter as shown below.

The filtered or bypassed signals are applied to the buffer amplifier (Q721), IF amplifiers (Q731, Q741) and buffer amplifier (Q751) to obtain a detectable level at the demodulator circuit

The amplified signals from the buffer amplifier (Q751) are shared between the SSB/CW/RTTY detector (IC841), AM detector (D761) and AGC detector (D771). Output signals from the buffer amplifier (Q721) are applied to the FM IF IC (IC791).

3 - 2

• 1st IF frequency

• 2nd IF frequency

• Used 2nd IF filter Mode Used filter Control signal

SSB, CW, RTTY

AM nar.

AM, FM nar.

FM

SSB nar.

CW nar., RTTY nar.

SSB wide, CW wide,

RTTY wide

FL-272 (FI671)

FL-94 (FI681)

Bypassed

Optional FL-223

Optional FL-100,

FL101, FL-223,

FL-232

Optional FL-103

2F23 2F80

2FTH

OP1 or OP2

1st IF

69.0115 MHz

69.0100 MHz

69.0106 MHz

69.0105 MHz

70.7000 MHz

Mode

SSB/AM-N/FM

AM/FM-N

CW RTTY WFM

2nd IF

9.0115 MHz

9.0100 MHz

9.0106 MHz

9.0105 MHz

10.7000 MHz

Mode

SSB/AM-N/FM

AM/FM-N

CW RTTY WFM

3 - 3

3-1-9 IF SHIFT CIRCUIT (MAIN BOARD)

The IF shift circuit shifts the center frequency of IF signals to electronically shift the center frequency.

The IF shift circuit shifts the 1st LO and BFO within ±1.2 kHz in SSB/CW/RTTY modes or ±250 Hz in CW-N/RTTY-N modes. As a result, the 2nd IF (also 1st IF) is shifted from the center frequency of the 2nd IF filter (FI671, FI681 or optional IF filters). This means 2nd IF signals do not pass through the center of the 2nd IF filter. Therefore, the higher or lower frequency components of the IF are cut out. Since the BFO frequency is also shifted the same value as the 1st IF, frequency is corrected at the detector.

In the IC-706MKIIG, the 1st LO frequency is shifted to change the 2nd IF because a fixed 2nd LO frequency (60 MHz) is used. The 1st IF filter (FI671) and crystal filter (FI561) have 15 kHz pass-band widths, and do not affect IF shift operation.

3-1-10 AGC CIRCUIT (MAIN BOARD)

The AGC (Automatic Gain Control) circuit reduces IF amplifier gain to keep the audio output at a constant level. The receiver gain is determined by the voltage on the AGC line (Q776 collector).

The 2nd IF signal from the buffer amplifier (Q751) is detected at the AGC detector (D771) and applied to the AGC amplifier (IC811b). IC811b sets the receiver gain with the [RF/SQL] control via the “RFGV” signal line.

When receiving strong signals, the detected voltage increases and the AGC voltage decreases via the DC amplifier (Q776). The AGC voltage is used for the bias voltage of the transmit/receive switching PIN diodes (D521, D522, D572, D573) to attenuate the received signals.

When AGC slow is selected, C775 and R778 are connected in parallel to obtain appropriate AGC characteristics.

3-1-11 S-METER CIRCUIT (MAIN BOARD)

The S-meter circuit indicates the relative received signal strength while receiving by utilizing the AGC voltage which changes depending on the received signal strength.

The output voltage of the AGC amplifier (IC811b, pin 7) is applied to the main CPU (IC2001, pin 36) as an S-meter signal via the analog switch (IC2101, pins 5, 3) as the “SML” signal. The FM S-meter signal from the FM IF IC (IC791, pin

12) is also applied to the analog switch (IC2101, pin 5) via the meter amplifier (Q774).

The S-meter signal from the main CPU (IC2001) is applied to the sub CPU and is then displayed on the S-meter readout.

3-1-12 SQUELCH CIRCUIT (MAIN BOARD)

The squelch circuit mutes audio output when the S-meter signal is lower than the [RF/SQL] control setting level.

The S-meter signal is applied to the main CPU (IC2001, pin

36) in SSB/CW/RTTY modes and is compared with the threshold level set by the [RF/SQL] control. The [RF/SQL] setting is picked up at the sub CPU (DISPLAY board; IC1, pin 99). The main CPU compares the S-meter signal and [RF/SQL] setting, and controls the AF selector switch (IC861) to cut out AF signals via IC2122a.

In FM mode, a portion of the AF signals from the FM IF IC (IC791, pin 9) are applied to the active filter section (pin 8) where noise components above 20 kHz are amplified. The signals are rectified at the noise detector section and then output from pin 14. The noise squelch signal from pin 14 is applied to the main CPU (IC2001, pin 31) via the analog switch (IC2101, pins 14, 13) as the “NSQL” signal. The CPU then controls the AF selector switch (IC861).

3-1-13 DEMODULATOR CIRCUITS (MAIN BOARD)

(1) SSB/CW/RTTY modes

The 2nd IF signals from the buffer amplifier (Q751) are mixed with the BFO signal from the PLL unit at the product detector (IC841, pin 6). The detected AF signals from IC841 (pin 1) are applied to the AF selector switch (IC861, pin 12).

(2) AM mode

The 2nd IF signals from the buffer amplifier (Q751) are detected at the AM detector (D761). The detected AF signal is applied to the AF selector switch (IC861, pin 15).

(3) FM/FM NARROW modes

The 2nd IF signals from the buffer amplifier (Q721) are applied to the FM IF IC (IC791, pin 16) where the IF signals are converted into 455 kHz IF signals. The signals pass through FI791 and are applied to the quadrature detector section. X791 is used for quadrature detector. The detected AF signals from pin 9 are then applied to the AF selector switch (IC861, pin 14) via the de-emphasis circuit (IC811a).

(4) WFM mode

The 2nd IF signals from the IF amplifier (Q611) are applied to the WFM demodulator circuit (IC631, pins 2, 3) where the IF signals are converted into AF signals. The detected AF signals from pin 8 are then applied to the AF selector switch (IC861, pin 11).

• AGC CIRCUIT

AGC line

RFGV (RF gain control)

AGC

FAST

Q771

8 V

D771

C771

C772

2nd IF signal

C775 R778Q773

C774 R777Q772

C773 R776

R775

D772

R772

R773

R774

Amp.

AGC

amp.

Q776, Q777

IC811b

“SML”

AGC det.

S-meter signal

3 - 4

3-1-14 AF SELECTOR SWITCH (MAIN BOARD)

The AF signals from one of the detector circuits are applied to the AF selector switch (IC861). IC861 consists of dual 4channel analog switches which are selected with a mode signal and the squelch control signal.

3-1-15 AF AMPLIFIER CIRCUIT (PLL UNIT)

The AF amplifier amplifies the demodulated signal to a suitable driving level for the speaker.

The AF signals from the AF selector switch (MAIN board; IC861) are applied to the PLL unit via the “AFI” signal line. The CW side tone/beep tone and optional synthesized voice are also applied to the PLL unit via the “AFBP” signal line.

The AF signals from the MAIN board are applied to the VCA (Voltage Controlled Amplifier) circuit (IC201). The AF gain setting from the main CPU is converted to DC voltage at the D/A converter (MAIN board IC2201) and applied to the VCA control terminal (IC201, pin 8) via the “AFGC” signal line. The output AF signal from IC201 (pin 9) is power-amplified at IC231 to drive the speaker.

3-2 TRANSMITTER CIRCUITS

3-2-1 MICROPHONE AMPLIFIER CIRCUIT

(MAIN BOARD)

The microphone amplifier circuit amplifies microphone input signals and outputs the amplified signals to the balanced modulator or FM modulation circuit.

Audio signals from the front or rear panel [MIC] connector enter the microphone amplifier IC (IC931, pin 22) and are then amplified at the microphone amplifier or speech compressor section. Compression level is adjusted with the [COMP GAIN] control (R945).

The amplified or compressed signals are applied to the VCA section of IC931. The microphone gain setting from the D/A converter (IC2201, pin 2) is applied to the VCA control terminal (IC931, pin 10). The resulting signals from pin 9 are then applied to the buffer amplifier (Q961) via the analog switch (IC1141). External modulation input from the [ACC] socket (pin 11) is also applied to Q961.

While in SSB mode, the amplified signals from the buffer amplifier (Q961) are passed through the AF selector switch (IC971) and are then applied to the balanced modulator (IC1041).

While in AM/FM mode, the amplified signals from the buffer amplifier (Q961) are applied to the limiter amplifier (IC981a) and splatter filter (IC981b). The signals are then applied to the AF selector switch (IC971) in AM mode or to the varactor diode (D1012) in FM mode.

3-2-2 VOX CIRCUIT (MAIN BOARD)

The VOX (Voice-Operated-Transmission) circuit sets transmitting conditions according to voice input.

When the VOX function is activated, the microphone signals from IC931 (pin 19) are applied to the VOX comparator section in the main CPU (IC2001, pin 32) via the VOXL line.

A portion of the power amplified AF signals from the AF power amplifier (PLL unit; IC231) are amplified at the buffer amplifier (IC931, pins 14, 15) and applied to the anti-VOX comparator section in the main CPU (IC2001, pin 33) via the AVXLline.

Then the main CPU compares these and controls the transmitter circuit.

3-2-3 BALANCED MODULATOR (MAIN BOARD)

The balanced modulator converts the AF signals from the microphone amplifier to a 9 MHz IF signal with a BFO (Beat Frequency Oscillator) signal.

Microphone signals from the AF selector switch (IC971) are applied to the balanced modulator (IC1041, pin 1). The BFO signal from the PLL unit is applied to IC1041 (pin 10) as a carrier signal.

IC1041 is a double balanced mixer IC and outputs a double side band (DSB) signal with –40 dB of carrier suppression. R1045 adjusts the balanced level of IC1041 for maximum carrier suppression. The resulting signal passes through a 9 MHz IF filter (FI671 in SSB/CW/RTTY modes) to suppress unwanted side-band signals.

In AM mode, R1042 is connected to upset the balance of IC1041 via Q1041 for leaking the BFO signal as a carrier signal. The CW keying/RTTY TX signal is applied to IC1041 pin 1.

• AF selector switch

11

13

INH

15

12

9, 10

14

X3

X2

X0

X

X1

SSB/CW/ RTTY

IC861

FM WFM

AM

6

AFS1, AFS2 SQL

AFI signal to PLL unit

• Microphone amplifier

11 2, 3 10

19

22

9

1415

MIC signal

IC931

[

COMP GAIN

]

(R945)

MIGV from D/A convertor (IC35)

VOXL to CPU

AVOXL to CPU

AFO signal

Amp.

COMP

Buffer

COMS from CPU

AMOD to IC1141

VCA

Buffer

3 - 5

3-2-4 FM MODULATION CIRCUIT (MAIN BOARD)

The microphone signals from Q961 are applied to the limiter amplifier (IC981a) and the splatter filter (IC981b). The 1750 Hz European tone signal from the main CPU (IC2001 pin

40) is also applied to IC981a pin 2 for European repeaters. The sub-audible tone signal (67.0–254.1 Hz) from the main CPU (IC2001 pin 37) is also applied to IC981b pin 5 for repeater use.

The resulting signals are applied to the VCO circuit (Q1011, D1012) via R1002 to change the reactance of the varactor diode (D1012) for FM modulation. The modulated signal is amplified at the buffer amplifier (Q1013) and bypasses the 9 MHz IF filter.

3-2-5 TRANSMITTER IF CIRCUIT (MAIN BOARD)

The 9 MHz IF signal from the modulation circuit passes through the 9 MHz IF filter (FI671 in SSB/CW/RTTY modes; FI681 in AM/FM-N modes; through in FM mode). The signal is amplified at IC571, and then passes through the total gain adjustment volume (R579), and the crystal filter (FI561). The signal is then applied to the 2nd mixer (D551).

The signal is mixed with the 2nd LO signal (60 MHz) and converted to a 69 MHz IF signal at the 2nd mixer (D551). The 69 MHz IF signal passes through a bandpass filter, IF amplifier (IC521) and 69 MHz IF filter (FI511), and is then converted to the displayed frequency at the 1st mixer (D271) with the 1st LO signal. The mixers (D271, D551) and IF amplifiers (IC521, IC571) are used commonly for both receiving and transmitting.

The ALC voltage is supplied to the transmit/receive switching circuit (D521/D522 and D572/D573). D521/D522 and D572/D573 function as PIN attenuators for ALC operation.

3-2-6 RF CIRCUIT

(PA UNIT, MAIN AND HPF BOARD)

The RF circuit amplifies the displayed frequency signal to obtain 100 W of RF output power for HF/50 MHz bands and 50 W for the 144 MHz band, 20 W for the 440 MHz band.

The HF/50 MHz RF signals from the 1st mixer (D271) via the low-pass filter enter the HPF board and then pass through one of 8 high-pass filters (Refer to 3-1 for used RF high-pass filter). The 50 MHz RF signals pass through a low-pass filter additionally. The filtered signals return to the MAIN board, are amplified at the YGR amplifier (IC231), and are then applied to the PAunit.

The 144 MHz RF signals from the 1st mixer (D271) via the low-pass filter (L251–253, C253–259) bypass the filters and pass through the bandpass filter (L182–L184, L195, L196, C181–C186, C195–C197) in the MAIN board. The signals are amplified at the RF amplifier (IC221) and YGR amplifer (IC231) and are then applied to the PAunit.

The 440 MHz RF signals from the 1st mixer (D271) via the low-pass filter (L251–253, C253–259) are amplified at RF amplifier (IC222) and passed through the bandpass filter (FI371–FI373) in the MAIN board. The filtered signal is amplified at the YGR amplifer (IC231) and is applied to the PA unit.

The signals from IC231 enter the PA unit and is amplified at the drive amplifiers (Q101, Q121) in sequence. The amplified signals are applied to the band switch (RL1).

The HF/50 MHz RF signals from the band switch (RL1) are amplified at the drive (DRIVER board; Q161) and power (Q171, Q172) amplifiers to obtain a stable 100 W of RF output power. The power-amplified signals are then applied to the [ANT1] connector via one of the 7 low-pass filters in the FILTER board.

For the 144/440 MHz RF signals from the band switch (RL1), 50 W for 144 MHz band or 20 W for 440 MHz band of RF output power is obtained at the drive (DRIVER board; Q211) and power amplifier (Q231). The power-amplified signals are applied to the [ANT2] connector via the antenna switching circuit and low-pass (144 MHz band) or high pass (440 MHz band) filters.

3-2-7 ALC CIRCUIT (MAIN BOARD)

The ALC (Automatic Level Control) circuit reduces the gain of IF amplifiers in order for the transceiver to output a constant RF power set by the RF power setting even when the supplied voltage shifts, etc.

The HF/50 MHz RF power signal level is detected at the power detector (FIL TER board; D9), buffer-amplified at IC1b and applied to the MAIN board as the “HFOR” voltage.

The 144 MHz and 440 MHz RF power signals are detected at the power detectors (PA unit; D262, D263) and (PA unit; D312, D313) respectively. The detected signals are applied to the MAIN board as the “VFOR” or “UFOR” voltages.

• TRANSMITTER CONSTRUCTION

1st LO

60.0 MHz

BFO

FM tone

D551

IC231

[ANT1]

HF+50 MHz

[ANT2]

144/440 MHz

144 MHz

440 MHz

Q101 Q121

Q171 Q172

Q231

Q1011

D231

IC1041

IC931

Crystal

filter

FI1

FI671, FI681,

or optional filter

MIC

except FM

9.0115 MHz

Crystal

filter

BPF

LPF

HPF

BPF

HPF

PA UNIT

HPF

BOARD

FILTER BOARD

MAIN BOARD

Amp. Amp. Amp.

Amp.

Q161

Amp.

Q211

Amp.

IDC

FM, AM

AM

FM

FM only

50 MHz

144 MHz

SSB

•

BPF

440 MHz

3 - 6

The “FOR”, “VFOR” and “UFOR” voltages are combined to the “FORL” voltage and then applied to IC1091b (pin 6). The “POCV” voltage from the D/A converter (IC2201, pin 3), determined by the RF power setting, is applied to IC1091b (pin 5) as the reference voltage.

When the “FORL” voltage exceeds the “POCV” voltage, ALC bias voltage from IC1091a (pin 1) controls the PIN diodes (D521, D522, D572, D573) using Q1092. This adjusts the output power to the level determined by the RF power setting until the “FORL” and “POCV” voltages are equalized.

In AM mode, IC1091a operates as an averaging ALC amplifier with Q1091 and C1091. Q1071 turns ON and the “POCV” voltage is shifted for 40 W AM output power (maximum, 20 W for 144 MHz band, 8 W for 440 MHz band) through R1080.

The ALC bias voltage from IC1091a is also applied to the main CPU (IC2001 pin 34) as the “ALCL” voltage for ALC meter indication.

An external ALC input (minus voltage) from the [ACC] socket (pin 6) is shifted to plus voltage at D1131 and is applied to the buffer amplifier (Q1131). External ALC operation is identical to that of the internal ALC.

3-2-8 APC CIRCUIT (MAIN BOARD)

The APC (Automatic Power Control) circuit protects the power amplifiers on the PAunit from high SWR and excessive current for the HF/50 MHz band.

The reflected wave signal appears and increases on the antenna connector when the antenna is mismatched. The HF/50 MHz reflected signal level is detected at D10 (FILTER board), and is amplified at the APC amplifier (IC1091c) and applied to the ALC circuit as the reference voltage.

For the current APC, the driving current at the power amplifier is detected in the voltages (“ICH” and “ICL”) which appear at both terminals of a 0.012 Ω resistor (R201) on the PAunit. The detected voltages are applied to the differential amplifier (IC1091d, pins 13, 12). When the current of the power amplifier exceeds 22 A, IC1091d controls the ALC line via IC1091a to prevent excessive current flow.

3-2-9 RF, ALC, SWR METER CIRCUITS

(MAIN BOARD)

While transmitting, RF, ALC or SWR meter readings are available and can be selected with the [MET] switch.

(1) Power meter

The “FOR”, “VFOR” and “UFOR” voltages are combined to the “FORL” voltage, and it is then applied to the main CPU (IC2001, pin 35) via the analog switch (IC2101, pins 11, 13) for indicating the output power.

(2) ALC meter

The ALC bias voltage from IC1091a pin 1 is applied to the main CPU (IC2001, pin 34) via the “ALCV” signal line for indicating the ALC level.

(3) SWR meter

The “FORL” and “REFL” voltages are applied to the main CPU (IC2001, pins 32 and 36) via the analog switch (IC2101, pins 11, 13 and 4, 3) respectively. The main CPU compares the ratio of “FORV” to “REFV” voltage and indicates the SWR for the [ANT1] connector.

3-3 PLL CIRCUITS

3-3-1 GENERAL

The PLL unit generates a 1st LO frequency (69.0415–530.0115 MHz), a 2nd LO frequency (60 MHz), a BFO frequency (9.01 MHz), an FM 3rd LO frequency (9.4665/9.4650 MHz) and a TX FM PLL reference frequency (9.0115/9.0100 MHz).

The 1st LO PLL adopts a mixer-less dual loop PLL system and has 3 VCO circuits. The BFO uses a DDS and the 2nd LO uses a fixed frequency double that of the crystal oscillator.

3-3-2 1ST LO PLL CIRCUIT

The 1st LO PLL contains a main loop and reference loop forming a dual loop system.

The reference loop generates a 10.6605 to 10.683 MHz frequency using a DDS circuit, and the main loop generates a

69.0415 to 269.50575 MHz frequency using the reference loop frequency.

While operating on 60 MHz and above, the output is doubled at D531 for oscillating a wide frequency range.

(1) REFERENCE LOOP PLL

The oscillated signal at the reference VCO (Q1, D1) is amplified at the amplifiers (Q21, Q51) and is then applied to the DDS IC (IC101, pin 46). The signal is then divided and detected on phase with the DDS generated frequency.

The detected signals output from IC101 (pin 56) is converted into a DC voltage (lock voltage) at the loop filter (R133, R134, C133) and then fed back to the varactor diode (D1) in the VCO circuit.

(2) MAIN LOOP PLL

The oscillated signal at one of the main loop VCOs (Q301, Q331, Q361) is amplified at the buffer amplifiers (Q10) and is then applied to the PLL IC (IC461, pin 6). The signal is then divided and detected on phase with the reference loop output frequency.

The detected signal output from the PLL IC (IC461, pin 2) is converted into a DC voltage (lock voltage) at the active loop filter and then fed back to one of the varactor diodes (D301, D331, D361) in the VCO circuits. While operating on 60 MHz and above, the VCO output is doubled at the doubler circuit (D531) and amplified at the ampolifier (IC541).

The oscillated signal passes through a low-pass or bandpass filter and is then applied to the MAIN board as a 1st LO signal.

3 - 7

3-3-3 2ND LO AND REFERENCE OSCILLATOR

CIRCUITS

The reference oscillator (X621, Q621) generates a 30.0 MHz frequency used for the 1st LO and BFO circuits as a system clock and for the 2nd LO signal.

The oscillated signal is amplified at the buffer amplifier (Q661), and is doubled at Q681 and the 60 MHz frequency is picked up at the bandpass filter (L681, L682). The 60 MHz signal is applied to the MAIN board as a 2nd LO signal.

3-3-4 BFO CIRCUIT

The DDS IC (IC901) generates a 10-bit digital signal. The signal is converted into an analog wave signal at the D/A converter (R951–R970). The analog wave is passed through the high-pass filter and low-pass filter. The 9 MHz BFO signal is then applied to the MAIN board via the “BFO” signal line.

While transmitting in RTTY mode, the RTTY keying signal is applied to IC901 pin 3 to shift the generated frequency and to obtain 2 frequencies for FSK operation.

While receiving in FM or FM narrow mode, the BFO circuit generates a 9.4665 MHz frequency as the 3rd LO signal.

While transmitting in FM or FM narrow mode, the BFO circuit generates a 9.0115 MHz or 9.0100 MHz frequency as the TX FM PLL reference frequency, respectively.

69.0415–

539.0115 MHz (1st LO)

10.665–

10.683 MHz

129.0115–

539.0115 MHz

69.0415–

129.0115 MHz

60.0 MHz (2nd LO)

[ANT1] [ANT2]

1st mixer

D271

0.03– 60 MHz

60– 470 MHz

9.01 MHz (BFO)

9.4665 MHz (FM)

9.4650 MHz (FM nar.)

9.0115 MHz (FM)

9.0100 MHz (FM nar.)

to FM IF IC (IC791)

to TX FM PLL IC (IC1011)

IC901

IC101

IC461

Q681

PLL UNIT

MAIN BOARD

Q301 Q331 Q361

Q1

Phase

detector

1

⁄N divider

1

⁄

86

Phase

detector

Main loop PLL

Ref. loop PLL

DDS

2

DDS

D/A

BPF

2nd mixer

D551

Product detector

IC841

69.0115 MHz

(WFM: 70.7 MHz)

to AF selector switch

Ref. Osc.

30.0 MHz

X621

BPF

1st IF 2nd IF

AF signals

Q621

to WFM detector (IC631)

• FREQUENCY CONSTRUCTION

• BFO frequency

IF shift: Center, RTTY: Normal polarity

3-4 LOGIC CIRCUITS

3-4-1 BAND SELECTION DATA

(MAIN BOARD AND PLL UNIT)

To select the correct RF low-pass filter, high-pass filter and VCOs on the PLL unit, the CPU outputs the following band selection data from the I/O expander (MAIN board; IC2231, IC2232), the D/Aconverter (MAIN board; IC2201) or DDS IC (PLL unit; IC101) depending on the display frequency.

The D/A convertor output from IC2201 (pin 18) is doubled at IC891d to obtain the band voltage for external equipment.

• Band selection data

3-4-2 SUB CPU PORT ALLOCATIONS

(DISPLAY board; IC1)

3 - 8

USB

LSB

CW

CW-R

RTTY

AM FM

FM nar.

WFM

9.0130

9.0100

9.0106

(–CW pitch frequency)

9.0106

(+CW pitch frequency)

9.008375 (2125 Hz tone)

9.008885 (1615 Hz tone) No output

9.4665 (3rd LO)

9.4650 (3rd LO) No output

9.0130

9.0100

9.0106

(–CW pitch frequency)

9.0106

(+CW pitch freqency)

9.0105 (MARK)

9.0100

9.0115 (PLLref.)

9.0100 (PLL ref.) No output

Mode

RX BFO/3rd LO TX BFO/FM PLL ref.

frequency [MHz] frequency [MHz]

0.03– 1.999999

2.0– 3.999999

4.0– 7.999999

8.0– 10.999999

11.0– 14.999999

15.0– 21.999999

22.0– 29.999999

30.0– 39.999999

40.0– 59.999999

60.0–128.999999

129.0–143.999999

144.0–148.000000

148.000001–

199.999999

400.000000–

470.000000

IC2231,

IC2201 IC101

IC2232

(MAIN) (PLL)

Frequency (MAIN)

[MHz]

HPF LPF 1/2 band

VCO

LPF

BPF LPF voltage BPF

L1 L2 L3

L4

L5 L6

B7W

B7

B8

B9

L1 L2 L3

L4

L5 L6

L7

L8

B9

3.70 V

3.19 V

2.68 V 0 V

2.18 V

1.69 V

1.19 V

0.96 V

VCO1

VCO2

VCO1

VCO2

VCO3

LOF1

LOF2

LOF3 LOF4 LOF5

LOF4

LOF6

1

18

19, 20

80

81

96

97 98

99

Input port for the [SHIFT] control. Outputs a PTT signal.

Low : While transmitting.

Outputs displaly backlight control signal.

Input port for the [PHONES] jack connection detection.

High : When the headphone or

external speaker is connected

to the [PHONES] jack. Input port for the [RIT] switch. Input port for the [PTT] switch on the

microphone. Input port for the microphone up/down

signal. Input port for the [AF] control. Input port for the [RF/SQL] control.

SFTL

PTTS

BU1S,

BU2S

PHNK

RSK

PTTL

FUDL AFGL

SQLL

Pin Port

Description

number name

3-4-3 I/O EXPANDER PORT ALLOCATIONS

(MAIN board; IC2221)

4

5

6

7

11, 12

13

14

Outputs select signal for the Tx AF selector switch (IC1141).

Hign : When AM and SSB modes

are selected. Outputs AM mode select signal.

High : When AM mode is selected.

Outputs FM and FM-N modes select signal.

High : When FM and FM-N modes

are selected. Outputs WFM mode select signal.

High : When WFM mode is selected.

Output select signals for the Rx AF selector switch (IC861).

Outputs non-FM mode select signal.

High : When SSB/CW/RTTY/AM

modes are selected. Outputs an audio mute signal for the

analog switch (IC971).

High : While transmitting in

CW/RTTY modes.

MODS

AMS

FMS

WFMS

AFS1,

AFS2

UNFM

MINH

Pin Port

Description

number name

PORT

MODE

WFM FM AM SSB/CW/RTTY AFS1 High High Low Low AFS2 High High Low Low

40

41

42

43

44

45

46

48

49–51

52

53

54

55

61

62

63

71

74

75 78

79

Outputs 1750 Hz European tone signal.

Outputs a strobe signal for the optional UT-102 (Voice synthesizer unit).

Outputs serial data for the I/O expanders, optional AT-180/UT-102.

Outputs a clock signal for the I/O expanders, optional AT-180/ UT-102.

Outputs a strobe signal for the I/O expander ICs (IC2231, IC2232).

Outputs a strobe signal for the I/O expander ICs (IC2221, IC2222).

Outputs a strobe signal for the D/A converter IC (IC2201).

Outputs a strobe signal for the BFO DDS IC (PLL unit; IC901).

Output mode control signals for the 1st LO DDS IC (PLL unit; IC101).

Outputs a strobe signal for the 1st LO DDS IC (PLL unit; IC101).

Outputs a strobe signal for the 1st LO PLL IC (PLL unit; IC461).

Outputs serial data for the DDS ICs (PLL unit; IC101, IC901) and PLL IC (PLL unit; IC461).

Outputs a clock signal for the DDS ICs (PLL unit; IC101, IC901) and PLL IC (PLL unit; IC461).

Outputs AGC rate select signal

Low : When AGC fast is selected.

Outputs the NB switch (Q635) control slignal.

High : When the [NB] is turned ON,

except FM/WFM modes.

Outputs the attenuator circuit control slignal.

High : When the [ATT] is turned ON.

Outputs a strobe signal for the TX FM PLL IC (IC1011).

Input port for transmit/receive switching signals for the [ACC] connector.

Low : While transmitting.

Outputs a CW keying signal or RTTY TX signal.

Output port for CI-V bus line. Input port for CI-V bus line.

3 - 9

ETON

MSST

MDT

MCK

BSTB

DSST

ASTB

PBST

CON2–

CON0

PDST

PMST

PDT

PCK

AFGS

NBS

ATTS

FMST

SNDS

KDS

LTXD

LRXD

(MAIN unit; IC2001)–Continued

Pin Port

Description

number name

13

14

15

16

17

18

19

20

21

22

23

24

30

31

32 33

34 37

39

Input port for the external paddle (DASH).

Low : During key down

Input port for the external paddle (DOT) or straight key.

Low : During key down

Input port for the PLL unlock signal from the DDS IC (PLL unit; IC101) and PLL IC (PLL unit; IC461).

Low : while PLL unlock

Input port for transmit control signal from the optional AT-180/AH-4 antenna tuners.

Input port for the optional antenna tuner connection detection.

High : When the optional antenna

tuner is connected.

Outputs a squelch control signal for the external unit.

Input port for the [POWER] switch.

Low : When the [POWER] switch is

pushed.

Outputs the switching relay (PA unit; RL591) control signal.

High : While power is ON.

Outputs start signal for the optional AT-180 antenna tuner.

Output port

: Beep audio signals while

receiving.

: CW side tone signals while

transmitting.

Outputs start signal for the optional AH-4

Outputs squelch mute control signal, applied to the AF mute switch (MAIN board; Q772).

Low : While squelch is closed.

Input port for the CTCSS decode signal from the low-pass filter (IC811C).

Input port from the [RTTY] or [MIC] connector.

High : While transmitting. Input port for the VOX voltage. Input port for the anti-VOX voltage. ALC level input port for the ALC meter

indication. Outputs subaudible tone signals. Input port for the optional UT-102

(Voice synthesizer unit) activation signal.

High : During speech synthesis.

3-4-4 MAIN CPU PORT ALLOCATIONS

(MAIN unit; IC2001)

DASK

DOTK

UNLK

TKEY

TCON

SQSS

PWK

POWS

ATST

BEEP

AHST

AFMS

CTCV

SNDL

VOXL

AVXL

ALCV

TONE

SPBK

Pin Port

Description

number name

4-1 PREPARATION BEFORE SARVICING

■ REQUIRED TEST EQUIPMENT

DC power supply

RF power meter (terminated type)

Frequency counter

RF voltmeter

Standard signal generator (SSG)

FM deviation meter

Modulation analyzer

Distortion meter

Oscilloscope

Digital multimeter AC millivoltmeter DC voltmeter DC ammeter

Audio generator

Spectram analyzer

Attenuator

External speaker

EQUIPMENT GREDE AND RANGE EQUIPMENT GREDE AND RENGE

4 - 1

SECTION 4 ADJUSTMENT PROCEDURES

Output voltage : 13.8 V DC Current capacity : 30 A or more

Measuring range : 10–200 W Frequency range : 1.8–500 MHz Impedance : 50 Ω SWR : Less than 1.2 : 1

Frequency range : 0.1–500 MHz Frequency accuracy : ±1 ppm or better Sensitivity : 100 mV or better

Frequency range : 0.1–500 MHz Measuring range : 0.01–10 V

Frequency range : 0.1–30 MHz Output level : 0.1 µV–32 mV

(–127 to –17 dBm)

Frequency range : 0–500 MHz Measuring range : 0 to ±5 kHz

Frequency range : At least 500 MHz Measuring range : 0–100 %

Frequency range : 1 kHz ±10 % Measuring range : 1–100 %

Frequency range : DC–100 MHz Measuring range : 0.01–10 V

Imput impeadance : 10 MΩ/DC or beter Measuring range : 10 mV–10 V Input impedance :

50 kΩ/V DC or better Measurement capability: 1 A/50 A Frequency range : 300–3000 Hz

Measuring range : 1–500 mV Frequency range : At least 1000 MHz

Spectraum bandwidth : 100 kHz or more Power attenuation : 50 or 60 dB

Capacity : 150 W or more Input impedance : 8 Ω

Capacity : 5 W or more

‘‘

CONNECTIONS

Attenuator 50 or 60 dB

Audio

generator

RF power meter

A200 W/50 Ω

DC power supply

AA13.8 V/30 A

Standard signal

aagenerator

FM deviation

AAmeter

Spectrum analyzer

AC millivoltmeter

Modulation

aanalyzer

CAUTION:

DO NOT connect the

signal generator while transmitting.

Speaker

to [EXT SP]

i706MKIIG

to [MIC]

to [DC 13.8 V]

to [ELEC KEY]

to [ANT 1/2]

Keyer

• Microphone connector

• (Rear panel view)

Frequency counter

AM meter

1 A, 30 A

Pin 5

MIC GND

Pin 6 MIC INPUT

– +

Pin 4 PTT

18

Pin 7 GND

4-2 PLL ADJUSTMENTS

4 - 2

REFERENCE FREQUENCY

REFERENCE LOOP LOCK VOLTAGE

MAIN LOOP LOCK VOLTAGE

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

1

2

1

2

3

• Display frequency: Any

• L623 (PLL unit) : Center

• Receiving

• Display frequency: 0.0300 MHz

• Mode : USB

• Receiving

• Display frequency

: 128.99999 MHz

• Mode : USB

• Receiving

• Display frequency

: 199.99999 MHz

• Mode : USB

• Receiving

• Display frequency

: 470.00000 MHz

• Mode : USB

• Receiving

PLL

Connect an RF voltmeter to check point P681.

Connect a frequency counter to check point P681.

Connect a digital multimeter or oscilloscope to check point CP131.

Connect a digital multimeter or oscilloscope to check point CP401.

Maximum level (0 dB or more)

60.000000 MHz

2.0 V

4.0 V

PLL

L681,

L682

L601 L623

R602

C4

C306

C335

C367

4-3 TRANSMITTER ADJUSTMENTS

TRANSMIT TOTAL GAIN

OUTPUT POWER

CARRIER SUPPRESSION

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

1

2 1

2

3

4

1

• Display frequency: 14.10000 MHz

• Mode : USB

• [Q1 RF POWER] : H

• Connect an audio generator to [MIC] connector and set as:

1.5 kHz/3 mV

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : USB

• [Q2 MIC GAIN] : 5

• Connect an audio generator to [MIC] connector and set as:

1.5 kHz/30 mV

• Transmitting

• Display frequency

: 52.00000 MHz

• Transmitting

• Display frequency

: 145.00000 MHz

• Transmitting

• Display frequency

: 435.00000 MHz

• Transmitting

• Display frequency

: 14.10000 MHz

• Mode : USB and LSB

• Apply no signal to [MIC] connector.

• Transmitting

Rear

Panel

Rear

Panel

Rear

Panel

Connect an RF power meter to [ANT1] connector.

Connect an RF power meter to [ANT2] connector.

Connect a spectrum analyzer to [ANT1] connector via an attenuator.

Maximum RF power

50 W 100 W

100 W

50 W

20 W

Minimum carrier level

MAIN

L511, L512, L562, L563,

L566

R579

R1082

R1084

R1086

R1088

R1045

4 - 3

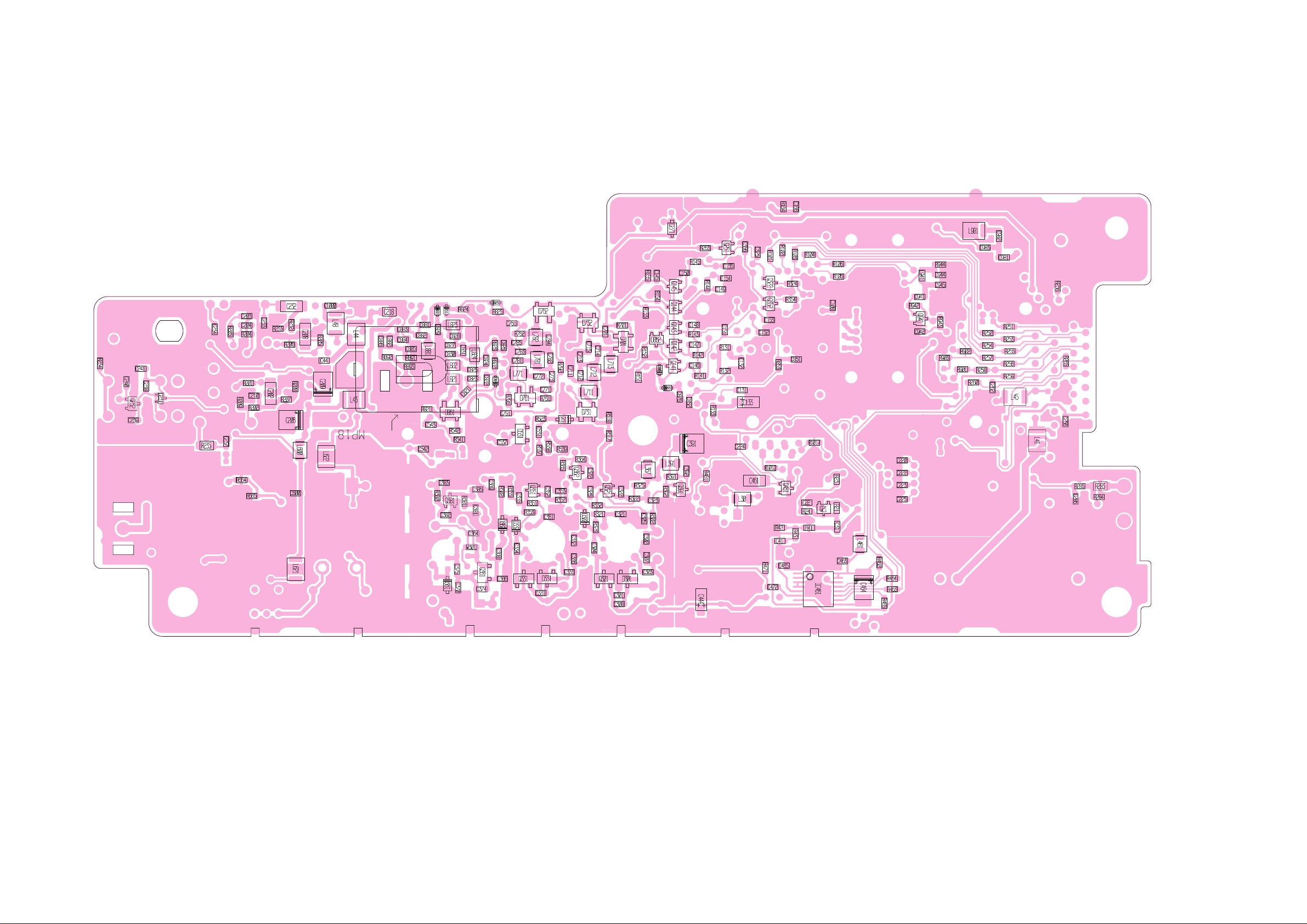

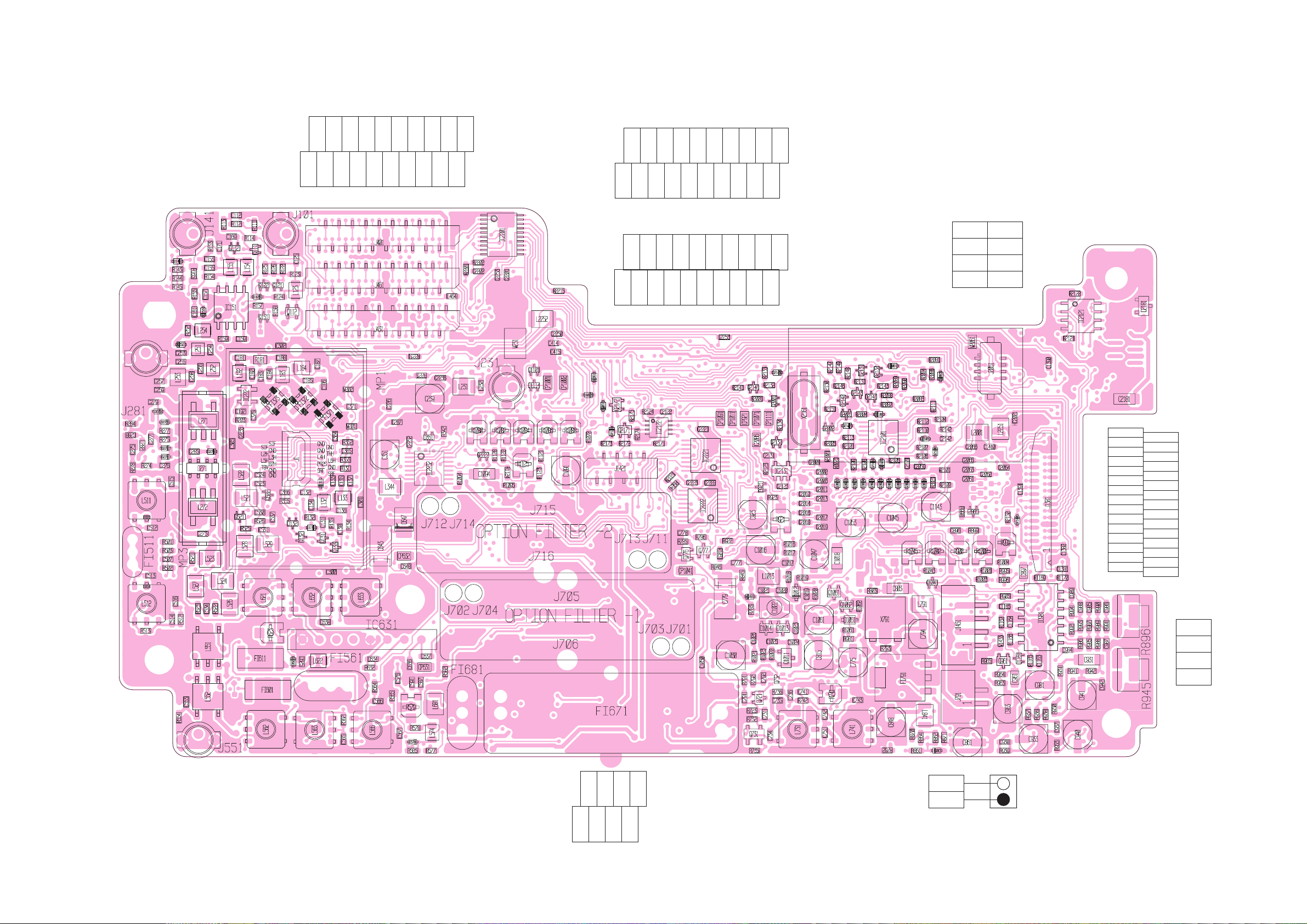

• MAIN UNIT

• PLL AND PA UNITS

CP131

CP401

Reference loop lock voltage check point

Reference frequency adjustment

C4

P681

L682 L681

C335

C306 C367

Main loop lock voltage adjustment

Main loop lock voltage check point

Reference loop lock voltage adjustment

Reference frequency check point

2nd LO level adjustment

R1082 R1084 R1086 R1088

R1045

L511

L512

L562 L563

L566

R579

L623 R602

L601

Transmit total gain

Output power adjustment

Carrier suppression adjustment

4 - 4

TRANSMITTER ADJUSTMENTS (continued)

FM VCO

FM DEVIATION

RESIDUAL AM

AM MODULATION

CW CARRIER LEVEL

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

1

2 1

2

3

1

• Display frequency: 29.10000 MHz

• Mode : FM

• [Q1 RF POWER] : H

• [M4 TON] : OFF

• Apply no signal to [MIC] connector.

• Transmitting

• Display frequency: 29.10000 MHz

• Mode : FM

• [Q1 RF POWER] : H

• [M4 TON] : OFF

• [Q2 MIC GAIN] : 5

• Connect an audio generator to [MIC] connector and set as:

1 kHz/30 mV

• Transmitting

• Display frequency: 29.10000 MHz

• Mode : FM

• [Q1 RF POWER] : H

• [M4 TON] : OFF

• [Q2 MIC GAIN] : 5

• Connect an audio generator to [MIC] connector and set as:

1 kHz/30 mV and OFF

• Transmitting

• Display frequency

: 14.10000 MHz

• Mode : AM

• [Q1 RF POWER] : H

• [Q2 MIC GAIN] : 5

• Disconnect the plug from J281 on the MAIN board.

• Apply no signal to [MIC] connector.

• Transmitting

• Connect the plug to J281 on the MAIN board.

• Apply no signal to [MIC] connector.

• Transmitting

• Connect an audio generator to [MIC] connector and set as:

1 kHz/30 mV

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : CW

• [Q1 RF POWER] : H

• [Q5 KEY SPEED]: 60

• [M4 BRK] : BK

(semi break-in)

• CW paddle : n

• Connect an RF power meter to [ANT1] connector.

• Transmit dots for a while using a paddle.

MAIN

Rear

Panel

MAIN

Rear

Panel

Connect a digital multimeter to check point CP1011.

Connect an FM deviation meter to [ANT1] connector via an attenuator.

Connect an RF power meter to [ANT1] connector.

Connect an osilloscope to check point CP1041.

Connect an RF power meter to [ANT1] connector.

Connect a modulation analyzer to [ANT1] connector via an attenuator.

Connect an osilloscope to check point CP921 and [ANT1] connector.

1.8 V

±4.5 kHz

Minimum power difference with modulation and unmodulation.

100 mVp-p

35 W

90 % modulation

At the point where the CW carrier completely comes up in a 10 msec. delay after CP921 voltage comes up.

MAIN

C1022

R1002

adjust in sequence L511, L512, then adjust L562, L563, L566.

R1042

R1080

R999

R921

After adjustment, varify the TRANSMIT TOTAL GAIN and OUTPUT POWER adjustments.

10 msec.

Keying (CP921)

4 - 5

• MAIN UNIT

R921

R1042

R1002

R999

R1080

L511

L512

CP1011

CP1041

L562 L563 L566

Residual AM adjustment

FM VCO check point

CP921

CW carrier level check point

AM modulation check point

AM modulation pre-setting

FM deviation adjustment

C1022

FM VCO adjustment

AM modulation adjustment

CW carrier level adjustment

J281

4 - 6

TRANSMITTER ADJUSTMENTS (continued)

IDLING CURRENT (for drive

amplifiers)

(for final

amplifiers)

SWR DETECTION

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

1

2

3

4

5

1

2

3

• Display frequency: 14.10000 MHz

• Mode : USB

• [Q2 MIC GAIN] : 1 (minimum)

• turn R162, R174, R175, R214, R231 (on the PA unit) to maximum counterclockwise position.

• Disconnect the plug from J571 on the PAunit.

• Transmitting

• Display frequency: 145.10000 MHz

• Mode : USB

• [Q2 MIC GAIN] : 1 (minimum)

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : USB

• [Q2 MIC GAIN] : 1 (minimum)

• Transmitting

• Display frequency: 145.10000 MHz

• Mode : USB

• [Q2 MIC GAIN] : 1 (minimum)

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : USB

• Ground CP1071 on the MAIN board.

• Connect an audio generator to [MIC] connector and set as:

1.5 kHz/30 mV

• Transmitting

PA

Rear

Panel

FILTER

Connect a DC ammeter between the DC power supply and transceiver’s DC power socket (P601 on the PAunit).

Connect an RF power meter to [ANT1] connector.

Connect a digital multimeter to check point W16.

0.5 Aincrease from that R162 is in maximum counterclockwise position.

1.0 A increase from step 1.

1.0 Aincrease from that R174 is in maximum counterclockwise position.

1.0 A increase from step 3.

2.0 A increase from step 4.

100 W

Minimum voltage

PA

Quick

set

mode

FILTER

R162

R214

R174

R175

R231

Q2 MIC

GAIN

C58

After remove the jumper wire from CP1071 on the MAIN board.

4 - 7

• MAIN AND FILTER UNITS

• PA UNIT

C58

R162

R214

R174

R175

R231

J571

CP1071

Drive idling adjustment

Final idling adjustment

SWR detection pre-setting

Idling current pre-setting

W16

SWR detection check point

SWR detection adjustment

4-4 RECEIVER ADJUSTMENTS

*This output level of the standard signal generator (SSG) is indicated as SSG’s open circuit.

RECEIVER TOTAL GAIN

WFM RECEIVING

NOISE BLANKER

Muximum AF output level

30 dB of AF level difference

4.0 V

Adjust the maximum noise wave displayed on the oscilloscope.

At the point where the noise just reduces.

1

2

1

2

• Display freq. : 14.10000 MHz

• Mode : USB

• [RIT] : OFF

• [M4 AGC] : Fast (F AGC)

• [M3 NB] : OFF

• [P.AMP/ATT] : Preamp ON

• Connect a standard signal generator to the [ANT1] connector and set as:

Frequency : 14.10150 MHz Level :

0.5 µV* (–113 dBm)

Modulation : OFF

• Receiving

• [P.AMP/ATT] : Preamp OFF

• Set an SSG as:

Frequency : 14.10150 MHz Level :

500 µV* (–53 dBm) and OFF

Modulation : OFF

• Receiving

• Display freq. : 14.10000 MHz

• Mode : WFM

• Set an SSG as:

Frequency : 14.10000 MHz Level :

500 µV* (–53 dBm)

Modulation : OFF

• Receiving

• Display freq. : 14.10000 MHz

• Mode : USB

• [P.AMP/ATT] : Preamp ON

• [M3 NB] : OFF

• R623 (MAIN) : Center

• Connect an SSG to the [ANT1] connector and set as:

Frequency : 14.1015 MHz Level : 18 µV* (–82 dBm)

Modulation : OFF and apply the following signal to the [ANT1] connector.

• Receiving

• [M3 NB] : ON

• Set an SSG as: Level : 10 µV* (–87 dBm) Modulation : OFF

• Receiving

L731,

L741

R741

L632

L621,

L633

R623

Connect an AC millivoltmeter to the [EXT SP] jack with an 8 Ω dummy load.

Connect an AC millivoltmeter to the [EXT SP] jack with a 8 Ω dummy load.

Connect a digital multimeter or oscilloscope to check point CP631.

Connect an oscilloscope to check point CP632.

MAIN

Rear

Panel

Rear

Panel

MAIN

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

4 - 8

1 msec.

100 msec.

4 - 9

• MAIN UNIT

CP631

L632

R741

L741

L731

L621

L633

CP632

Receiver total gain adjustment

Noise blanler check point

Noise blanler adjustment

WFM receiving adjustment

WFM receiving check point

4-5 SET MODE ADJUSTMENT

4 - 10

ENTERING ADJUSTMENT SET MODE

Id APC

FILTER CALIBRATION

POWER METER (14 MHz)

TUNING POWER (14 MHz)

(50 MHz)

POWER METER (145 MHz)

POWER METER (430 MHz)

ALC METER

SWR METER

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

• Enter adjustment set mode:

1 Turn power OFF. 2 Terminate the [REMOTE] jack with a

3.5(d) mm mini-plug.

3 While pushing [P.AMP/ATT] and

[TUNE/CALL], turn power ON.

• Connect an RF power meter to [ANT1]

connector.

• Connect a DC ammeter between the DC

power supply and transceiver’s DC power socket (P601 on the PAunit).

• Transmit using an external PTT switch.

• Connect an RF power meter to [ANT1]

connector.

• Connect an RF power meter to [ANT1]

connector.

• Transmit using an external PTT switch.

• Connect an RF power meter to [ANT1]

connector.

• Transmit using an external PTT switch.

• Connect an RF power meter to [ANT2]

connector.

• Transmit using an external PTT switch.

• Connect an RF power meter to [ANT2]

connector.

• Transmit using an external PTT switch.

• Connect an RF power meter to [ANT1]

connector.

• Connect an audio generator to [MIC] con-

nector and set as :

Level : 1.5 kHz/30mV

• Transmit using an external PTT switch.

• Connect a 50 Ω dummy load or power

meter to [ANT1] connector.

• Connect a 50 Ω dummy load or power

meter to [ANT1] connector.

1

2

1

2

1

2

1

2

1

2

SET IdAPC

GO FILTER CAL

SET 90 %

SET 50 %

SET TUNE Po

SET 90 %

SET 50 %

SET 90 %

SET 50 %

ALC START

SWR 1 LOAD

SWR 2 LOAD

Push [F-3 (TX)] to enter the TX adjustment setting mode.

Then advance to the following setting, or push [UP]/[DN] to scroll the display.

Set a total current at 15 Aby adjusting R1125 on the MAIN board.

Push [MENU] to set the "SET IdAPC" after returning receiving condition.

Push and hold [MENU (GO)] to make the calibration.

• Transceiver transmits for a while.

Set to 90 W using [MAIN DIAL], then push [MENU] while transmitting.

Set to 50 W using [MAIN DIAL], then push [MENU] while transmitting.

Set to 10 W using [MAIN DIAL], then push [MENU] while transmitting.

Set to 45 W using [MAIN DIAL], then push [MENU] while transmitting.

Set to 25 W using [MAIN DIAL], then push [MENU] while transmitting.

Set to 18 W using [MAIN DIAL], then push [MENU] while transmitting.

Set to 10 W using [MAIN DIAL], then push [MENU] while transmitting.

Push and hold [MENU] to set ALC reference level while transmitting.

Push [MENU] to set SWR reference level.

Push [MENU] to set SWR2 level.

• The display returns to the same as the ADUSTMENT SET MODE above.

USB

RX TX

Push [F-1 (EXIT)] to exit adjustment set mode.

SET MODE ADJUSTMENT (continued)

ENTERING ADJUSTMENT SET MODE

SENSITIVITY

S-METER

• Enter adjustment set mode:

1 Turn power OFF. 2 Terminate the [REMOTE] jack with a

3.5(d) mm mini-plug.

3 While pushing [P.AMP/ATT] and

[TUNE/CALL], turn power ON.

• Connect a standard signal generator to [ANT2] and set as :

Frequency : 60.05150 MHz Modulation : OFF

• Receiving

• Connect an SSG to [ANT1] connector and set as:

Frequency : 14.1515 MHz Level : OFF

• Receiving

• Set an SSG as :

Level : 50 µV (–73 dBm) Modulation : OFF

• Receiving

• Set an SSG as :

Level : 50 mV (–13 dBm) Modulation : OFF

• Receiving

VHF1 BPF1 L

S0 LEVEL

S9 LEVEL

+60dB LEVEL

Push [F-2 (RX)] to enter the RX adjustment setting mode.

Then advance to the following setting, or push [UP]/[DN] to scroll the display.

Set a connected SSG’s level at 10 dB of S/N ratio with AC millivoltmeter.

Set maximum AF level using the [MAIN DIAL], then push [MENU] to set the "VHF1 BPF1 L".

Push [MENU] to set the "S0 level".

Push [MENU] to set the "S9 level".

Push [MENU] to set the "+60 dB level".

• The display returns to the same as the ADUSTMENT SET MODE above.

Push [F-1 (EXIT)] to exit adjustment set mode.

4 - 11

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

1

2

3

1

2

3

USB

RX TX

• Same operation as step 2 for the listed BPFs.

• Set an SSG as: Modulation : OFF VHF1 BPF2 L : 60.05150 MHz VHF1 BPF1 M : 90.50150 MHz VHF1 BPF2 M : Same as left VHF1 BPF1 H : 128.9515 MHz VHF1 BPF2 H : Same as left VHF2 BPF1 L : 129.1015 MHz VHF2 BPF2 L : Same as left VHF2 BPF1 M : 145.1515 MHz VHF2 BPF2 M : Same as left VHF2 BPF1 H : 170.0015 MHz VHF2 BPF2 H : Same as left UHF BPF1 L : 400.0015 MHz UHF BPF2 L : Same as left UHF BPF1 M : 435.1515 MHz UHF BPF2 M : Same as left UHF BPF1 H : 470.0015 MHz UHF BPF2 H : Same as left

• Receiving

S.=Surface mount

S1 2250000290 ENCODER SW-159 (EC24B50B)

W1 8900006040 CABLE OPC-593 W2 8900006250 CABLE OPC-610

IC1 1140008050 S.IC HD6433832SD47H IC2 1130007960 S.IC SED1522F0C (QFP15-100PIN) IC3 1130002660 S.IC µPD4030BG-T1 IC4 1110004750 S.IC S-80945ALMP-DA9-T2 IC5 1180001080 S.IC S-81250PG-PD-T1 IC6 1140003630 S.IC X24C01S-2.7T6

Q1 1590002310 S.TRANSISTOR DTC114EE TL Q2 1520000460 S.TRANSISTOR 2SB1132 T100 R Q3 1530002060 S.TRANSISTOR 2SC4081 T107 R Q4 1540000440 S.TRANSISTOR 2SD1619-T-TD Q8 1590002370 S.TRANSISTOR XP4111 (TX) Q9 1590001870 S.TRANSISTOR DTA114EE TL Q10 1530002060 S.TRANSISTOR 2SC4081 T107 R Q11 1520000380 TRANSISTOR 2SB1143 S Q12 1590002370 S.TRANSISTOR XP4111 (TX) Q13 1520000460 S.TRANSISTOR 2SB1132 T100 R Q14 1530002060 S.TRANSISTOR 2SC4081 T107 R Q15 1590001870 S.TRANSISTOR DTA114EE TL Q16 1590002770 S.FET CPH3404

D1 1750000370 S.DIODE DA221 TL D2 1750000370 S.DIODE DA221 TL D3 1750000370 S.DIODE DA221 TL D5 1790001250 S.DIODE MA2S111-(TX) D6 1790001250 S.DIODE MA2S111-(TX) D7 1160000140 S.DIODE DAP222 TL D9 1790001250 S.DIODE MA2S111-(TX) D10 1790001250 S.DIODE MA2S111-(TX) D11 1160000060 S.DIODE DAN202U T107 D12 1790001250 S.DIODE MA2S111-(TX) D13 1160000060 S.DIODE DAN202U T107 D14 1160000140 S.DIODE DAP222 TL D15 1160000140 S.DIODE DAP222 TL D16 1160000140 S.DIODE DAP222 TL

X1 6050009660 S.XTAL MA-406 (9.8304 MHz)

L1 6200003260 S.COIL NL 322522T-101J L2 6200003950 S.COIL HF50ACC 322513-T L3 6200003950 S.COIL HF50ACC 322513-T L4 6200003950 S.COIL HF50ACC 322513-T L5 6200003950 S.COIL HF50ACC 322513-T

R1 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R2 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R3 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R4 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R5 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R6 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R7 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R8 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R9 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R10 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R11 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R12 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R13 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

R14 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R15 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R16 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R17 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R18 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R19 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R20 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R21 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R22 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R23 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R24 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R25 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R26 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R27 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R29 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R30 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R33 7010003871 RESISTOR PSD1/4 2.2 Ω R36 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R37 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R38 7030007110 S.RESISTOR MCR18EZHJ 100 Ω (101) R39 7030007110 S.RESISTOR MCR18EZHJ 100 Ω (101) R40 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R41 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R42 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R44 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R45 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R46 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R47 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R49 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R50 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R51 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R52 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R53 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R54 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R55 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R56 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R57 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R58 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R65 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R66 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R67 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R68 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R69 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R70 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R71 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R72 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R73 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R74 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R75 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R76 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R83 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R84 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R85 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R92 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R93 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R95 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R96 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R97 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R98 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R99 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R100 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R101 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R102 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R103 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R104 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R105 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R106 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R107 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R108 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R109 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R110 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R111 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R112 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R113 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R114 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R115 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)

5 - 1

SECTION 5 PARTS LIST

REF ORDER

DESCRIPTION

NO. NO.

[FRONT UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[DISPLAY BOARD]

REF ORDER

DESCRIPTION

NO. NO.

[DISPLAY BOARD][DISPLAY BOARD]

S.=Surface mount

R116 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R117 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R118 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R119 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R120 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R121 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R122 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R123 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R124 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R125 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R126 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R127 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R128 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R129 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R130 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R131 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R132 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R133 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R134 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R135 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R136 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R137 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R138 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R140 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R141 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R142 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)

C1 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C5 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A C7 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C8 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C9 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C10 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C11 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C12 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C13 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C14 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C15 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C16 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C18 4030015170 S.CERAMIC C3216 JB 0J 475M-T-N C19 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C20 4030015170 S.CERAMIC C3216 JB 0J 475M-T-N C21 4550002980 S.TANTALUM TEMSVA 1C 225M-8L C22 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C23 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C24 4550002980 S.TANTALUM TEMSVA 1C 225M-8L C25 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C26 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C27 4550002980 S.TANTALUM TEMSVA 1C 225M-8L C28 4550002980 S.TANTALUM TEMSVA 1C 225M-8L C29 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C30 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C31 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C32 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C33 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C34 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C35 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C36 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C37 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C38 4030008890 S.CERAMIC C1608 JB 1C 273K-T-A C39 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C40 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C41 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C42 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

J1 6510019120 S.CONNECTOR S8B-PH-SM3-TB J2 6450001630 CONNECTOR HSJ1406-01-050 J3 6510018890 S.CONNECTOR 52559-1390

DS1 5040002020 S.LED CL-170UR-CD-T DS2 5040002010 S.LED CL-170PG-CD-T DS3 5040002020 S.LED CL-170UR-CD-T DS4 5030001670 LCD DLC-8309YBGF DS5 5030001290 LED D2264

S1 2260002250 S.SWITCH LS22BB-2SD-PG-T

S2 2260002250 S.SWITCH LS22BB-2SD-PG-T S3 2260002540 S.SWITCH SKQHFC S4 2260002540 S.SWITCH SKQHFC S5 2260002540 S.SWITCH SKQHFC S6 2260002540 S.SWITCH SKQHFC S7 2260002540 S.SWITCH SKQHFC S8 2260002540 S.SWITCH SKQHFC S9 2260002540 S.SWITCH SKQHFC S10 2260002540 S.SWITCH SKQHFC S11 2260002550 S.SWITCH SKQHFH S12 2260002550 S.SWITCH SKQHFH S13 2260002250 S.SWITCH LS22BB-2SD-PG-T S14 2260001680 S.SWITCH SKQDPB

W1 7030003860 S.JUMPER ERJ3GE JPW V W2 7120000470 JUMPER ERDS2T0

WS1 8970023320 M.OTHER SX2177 J LEAD SET (1)/DI

EP1 0910050925 PCB B 5207E EP2 8930039790 LCD CONTACT SRCN-1691-ZSS-505

R1 7210002780 VARIABLE RV-300 (RK0972210) 10KB/10KB R2 7210002940 VARIABLE TP96D231E20-20F-10KB-1897

J1 6510018890 S.CONNECTOR 52559-1390

S1 2220000540 SWITCH SW-162 (SSSS22-2-11)

EP1 0910050931 PCB B 5208A

IC151 1110003970 S.IC µPC1658G-E1 IC221 1110004100 S.IC TA4001F (TE85L) IC222 1110004090 S.IC TA4002F (TE85R) IC231 1110004080 S.IC µPC2709T-E3 IC281 1110004080 S.IC µPC2709T-E3 IC351 1160000160 S.IC TD62783AFN (S,EL) IC521 1110003310 S.IC µPC1688G-T1 IC571 1110003960 S.IC µPC2713T-E3 IC631 1110003140 IC LA1150N IC791 1110003490 S.IC TA31136FN (D,EL) IC811 1110003780 S.IC NJM2902V-TE1 IC841 1110004870 S.IC TA4101F (TE12L) IC861 1130009100 S.IC BU4052BCFV-E2 IC891 1110003780 S.IC NJM2902V-TE1 IC931 1140005280 S.IC µPC5023GS-077-E1 IC971 1130006220 S.IC TC4W53FU (TE12L) IC981 1110003870 S.IC NJM2058M-T1 IC1011 1130007660 S.IC LC7153M-TLM IC1041 1110004840 S.IC NJM1496V-TE1 IC1091 1110003780 S.IC NJM2902V-TE1 IC1141 1130009100 S.IC BU4052BCFV-E2 IC2001 1140008070 S.IC HD6433337YA56F IC2101 1130009100 S.IC BU4052BCFV-E2 IC2121 1130009020 S.IC X25650S8I-2.5T6 IC2122 1130007110 S.IC TC7W04FU (TE12L) IC2131 1130003760 S.IC TC4S81F (TE85R) IC2161 1130009110 S.IC S-80942ANMP-DD6-T2 IC2201 1110004310 S.IC M62352GP 75EC IC2202 1110003780 S.IC NJM2902V-TE1

5 - 2

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MIAN BOARD]

REF ORDER

DESCRIPTION

NO. NO.

[VR BOARD]

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

IC2221 1130007570 S.IC BU4094BCFV-E2 IC2222 1130007570 S.IC BU4094BCFV-E2 IC2231 1130005490 S.IC TC74HC4094AF IC2232 1130007570 S.IC BU4094BCFV-E2 IC2241 1160000130 S.IC TD62783AF (TP1)

Q111 1590002310 S.TRANSISTOR DTC114EE TL Q112 1590002310 S.TRANSISTOR DTC114EE TL Q121 1590002310 S.TRANSISTOR DTC114EE TL Q122 1590001870 S.TRANSISTOR DTA114EE TL Q131 1590002310 S.TRANSISTOR DTC114EE TL Q132 1590002310 S.TRANSISTOR DTC114EE TL Q133 1590001870 S.TRANSISTOR DTA114EE TL Q151 1590002310 S.TRANSISTOR DTC114EE TL Q271 1590000720 S.TRANSISTOR DTA144EUAT106 Q351 1590002480 S.TRANSISTOR UMC3N TR Q352 1590002480 S.TRANSISTOR UMC3N TR Q353 1590002480 S.TRANSISTOR UMC3N TR Q354 1590002480 S.TRANSISTOR UMC3N TR Q521 1590002310 S.TRANSISTOR DTC114EE TL Q522 1590002310 S.TRANSISTOR DTC114EE TL Q571 1590002310 S.TRANSISTOR DTC114EE TL Q572 1530002060 S.TRANSISTOR 2SC4081 T107 R Q573 1530002060 S.TRANSISTOR 2SC4081 T107 R Q601 1530002060 S.TRANSISTOR 2SC4081 T107 R Q611 1530002060 S.TRANSISTOR 2SC4081 T107 R Q621 1560000560 S.FET 2SK882-GR (TE85L) Q631 1510000510 S.TRANSISTOR 2SA1576A T106R Q632 1560000560 S.FET 2SK882-GR (TE85L) Q633 1530002060 S.TRANSISTOR 2SC4081 T107 R Q634 1530002060 S.TRANSISTOR 2SC4081 T107 R Q635 1590002310 S.TRANSISTOR DTC114EE TL Q636 1590001330 S.TRANSISTOR DTA114EUA T106 Q721 1530002060 S.TRANSISTOR 2SC4081 T107 R Q731 1580000600 S.FET 3SK126-O (TE85R) Q732 1590002480 S.TRANSISTOR UMC3N TR Q741 1560000560 S.FET 2SK882-GR (TE85L) Q751 1530002060 S.TRANSISTOR 2SC4081 T107 R Q771 1530002060 S.TRANSISTOR 2SC4081 T107 R Q772 1590002760 S.TRANSISTOR UMC1NTR Q773 1590002760 S.TRANSISTOR UMC1NTR Q774 1530002060 S.TRANSISTOR 2SC4081 T107 R Q776 1530002060 S.TRANSISTOR 2SC4081 T107 R Q777 1510000510 S.TRANSISTOR 2SA1576A T106R Q961 1530002060 S.TRANSISTOR 2SC4081 T107 R Q981 1590002310 S.TRANSISTOR DTC114EE TL Q982 1590002310 S.TRANSISTOR DTC114EE TL Q1011 1560000330 S.FET 2SK210-GR (TE85R) Q1012 1590002310 S.TRANSISTOR DTC114EE TL Q1013 1530002060 S.TRANSISTOR 2SC4081 T107 R Q1014 1590002760 S.TRANSISTOR UMC1NTR Q1041 1590002310 S.TRANSISTOR DTC114EE TL Q1061 1510000510 S.TRANSISTOR 2SA1576A T106R Q1062 1530002060 S.TRANSISTOR 2SC4081 T107 R Q1071 1590002310 S.TRANSISTOR DTC114EE TL Q1072 1590002310 S.TRANSISTOR DTC114EE TL Q1073 1590002310 S.TRANSISTOR DTC114EE TL Q1074 1590002310 S.TRANSISTOR DTC114EE TL Q1075 1590002310 S.TRANSISTOR DTC114EE TL Q1091 1590002310 S.TRANSISTOR DTC114EE TL Q1092 1530002060 S.TRANSISTOR 2SC4081 T107 R Q1101 1590002310 S.TRANSISTOR DTC114EE TL Q1131 1510000510 S.TRANSISTOR 2SA1576A T106R Q2001 1590001870 S.TRANSISTOR DTA114EE TL Q2131 1590002310 S.TRANSISTOR DTC114EE TL Q2141 1590002310 S.TRANSISTOR DTC114EE TL Q2171 1510000510 S.TRANSISTOR 2SA1576A T106R Q2172 1530002060 S.TRANSISTOR 2SC4081 T107 R Q2221 1590002480 S.TRANSISTOR UMC3N TR Q2222 1590002480 S.TRANSISTOR UMC3N TR Q2223 1590002480 S.TRANSISTOR UMC3N TR Q2224 1590002480 S.TRANSISTOR UMC3N TR Q2225 1590002480 S.TRANSISTOR UMC3N TR Q2226 1590002310 S.TRANSISTOR DTC114EE TL Q2227 1590002310 S.TRANSISTOR DTC114EE TL

D111 1750000640 S.DIODE 1SV312 (TE85L) D112 1750000640 S.DIODE 1SV312 (TE85L) D123 1790001250 S.DIODE MA2S111-(TX) D131 1790001620 S.DIODE 1SV308 (TPL3)

D132 1790001610 S.DIODE 1SS385 (TE85L) D133 1790001250 S.DIODE MA2S111-(TX) D141 1790001620 S.DIODE 1SV308 (TPL3) D142 1750000640 S.DIODE 1SV312 (TE85L) D143 1790001620 S.DIODE 1SV308 (TPL3) D151 1790001620 S.DIODE 1SV308 (TPL3) D152 1790001620 S.DIODE 1SV308 (TPL3) D153 1790001620 S.DIODE 1SV308 (TPL3) D222 1750000640 S.DIODE 1SV312 (TE85L) D224 1790001620 S.DIODE 1SV308 (TPL3) D251 1790001620 S.DIODE 1SV308 (TPL3) D252 1790001620 S.DIODE 1SV308 (TPL3) D261 1790001620 S.DIODE 1SV308 (TPL3) D262 1790001620 S.DIODE 1SV308 (TPL3) D271 1750000430 S.DIODE HSB88WSTR D272 1790001620 S.DIODE 1SV308 (TPL3) D273 1790001620 S.DIODE 1SV308 (TPL3) D274 1790001620 S.DIODE 1SV308 (TPL3) D275 1790001620 S.DIODE 1SV308 (TPL3) D276 1790001620 S.DIODE 1SV308 (TPL3) D351 1750000520 S.DIODE DAN222TL D352 1750000520 S.DIODE DAN222TL D500 1790001620 S.DIODE 1SV308 (TPL3) D501 1790001620 S.DIODE 1SV308 (TPL3) D502 1790000450 S.DIODE MA862 (TX) D521 1750000450 S.DIODE 1SV265-TL D522 1750000450 S.DIODE 1SV265-TL D551 1750000430 S.DIODE HSB88WSTR D552 1790000450 S.DIODE MA862 (TX) D561 1790000450 S.DIODE MA862 (TX) D562 1790000450 S.DIODE MA862 (TX) D571 1790001260 S.DIODE MA2S077-(TX) D572 1750000450 S.DIODE 1SV265-TL D573 1750000450 S.DIODE 1SV265-TL D574 1790001250 S.DIODE MA2S111-(TX) D621 1790000450 S.DIODE MA862 (TX) D622 1790001250 S.DIODE MA2S111-(TX) D623 1790001250 S.DIODE MA2S111-(TX) D631 1750000520 S.DIODE DAN222TL D632 1790001210 S.DIODE 1SS375-TL D633 1790001250 S.DIODE MA2S111-(TX) D634 1790001250 S.DIODE MA2S111-(TX) D671 1790000450 S.DIODE MA862 (TX) D672 1790000450 S.DIODE MA862 (TX) D681 1790000450 S.DIODE MA862 (TX) D682 1790000450 S.DIODE MA862 (TX) D683 1790001250 S.DIODE MA2S111-(TX) D691 1790000450 S.DIODE MA862 (TX) D692 1790000450 S.DIODE MA862 (TX) D701 1790000450 S.DIODE MA862 (TX) D702 1790000450 S.DIODE MA862 (TX) D711 1790000450 S.DIODE MA862 (TX) D712 1790000450 S.DIODE MA862 (TX) D721 1790000450 S.DIODE MA862 (TX) D761 1790001210 S.DIODE 1SS375-TL D771 1790001210 S.DIODE 1SS375-TL D772 1790001250 S.DIODE MA2S111-(TX) D791 1790000450 S.DIODE MA862 (TX) D861 1790001240 S.DIODE MA2S728-(TX) D921 1750000520 S.DIODE DAN222TL D923 1710000160 S.DIODE 1SS133 D931 1750000370 S.DIODE DA221 TL D932 1750000370 S.DIODE DA221 TL D981 1790001610 S.DIODE 1SS385 (TE85L) D1011 1790001250 S.DIODE MA2S111-(TX) D1012 1720000590 S.VARICAP MA357 (TX) D1013 1790001210 S.DIODE 1SS375-TL D1014 1790001210 S.DIODE 1SS375-TL D1041 1790001250 S.DIODE MA2S111-(TX) D1042 1790000450 S.DIODE MA862 (TX) D1061 1730002510 S.ZENER MA8027-H (TX) D1071 1790001250 S.DIODE MA2S111-(TX) D1072 1790001240 S.DIODE MA2S728-(TX) D1073 1790001240 S.DIODE MA2S728-(TX) D1074 1790001610 S.DIODE 1SS385 (TE85L) D1075 1790001250 S.DIODE MA2S111-(TX) D1076 1790001040 S.ZENER MA8033-L (TX) D1077 1790001040 S.ZENER MA8033-L (TX) D1078 1790001240 S.DIODE MA2S728-(TX) D1091 1160000140 S.DIODE DAP222 TL D1111 1790001610 S.DIODE 1SS385 (TE85L) D1112 1790001610 S.DIODE 1SS385 (TE85L)

5 - 3

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

D1113 1160000140 S.DIODE DAP222 TL D1114 1790001610 S.DIODE 1SS385 (TE85L) D1131 1790001330 S.ZENER MA8036-L (TX) D1132 1160000140 S.DIODE DAP222 TL D1161 1790001610 S.DIODE 1SS385 (TE85L) D2001 1750000370 S.DIODE DA221 TL D2002 1750000370 S.DIODE DA221 TL D2025 1790001250 S.DIODE MA2S111-(TX) [ESP] only D2026 1790001250 S.DIODE MA2S111-(TX) [FRA] only D2027 1790001250 S.DIODE MA2S111-(TX) [EUR], [ESP] only D2029 1790001250 S.DIODE MA2S111-(TX) [ESP] only D2030 1790001250 S.DIODE MA2S111-(TX) D2081 1790001250 S.DIODE MA2S111-(TX) D2082 1790001250 S.DIODE MA2S111-(TX) D2083 1790001250 S.DIODE MA2S111-(TX) D2101 1790001250 S.DIODE MA2S111-(TX) D2102 1790001250 S.DIODE MA2S111-(TX) D2103 1790001250 S.DIODE MA2S111-(TX) D2104 1790001250 S.DIODE MA2S111-(TX) D2105 1790001250 S.DIODE MA2S111-(TX) D2106 1790001250 S.DIODE MA2S111-(TX) D2107 1790001250 S.DIODE MA2S111-(TX) D2108 1790001610 S.DIODE 1SS385 (TE85L) D2131 1750000370 S.DIODE DA221 TL D2132 1750000370 S.DIODE DA221 TL D2133 1750000520 S.DIODE DAN222TL D2141 1750000370 S.DIODE DA221 TL D2142 1750000370 S.DIODE DA221 TL D2143 1750000370 S.DIODE DA221 TL D2144 1790001250 S.DIODE MA2S111-(TX) D2145 1790001250 S.DIODE MA2S111-(TX) D2161 1790001250 S.DIODE MA2S111-(TX) D2171 1790001250 S.DIODE MA2S111-(TX) D2181 1730000910 S.ZENER RD12M-T2B2 D2182 1790001620 S.DIODE 1SV308 (TPL3) D2183 1790001620 S.DIODE 1SV308 (TPL3)

FI371 2040001420 S.LC LFSC25N 12B 0440B FI372 2040001420 S.LC LFSC25N 12B 0440B FI373 2040001420 S.LC LFSC25N 12B 0440B FI511 2010002090 FILTER FL-261 (69.0115 MHz) FI561 2010000270 FILTER FL-23 FI601 2020001610 S.CERAMIC SFECV10.7MA-5 FI611 2020001610 S.CERAMIC SFECV10.7MA-5 FI671 2010002130 D.FILTER FL-272 (9.0115 MHz) FI681 2010000730 FILTER FL-94 FI791 2020001050 S.CERAMIC SFPC455E-TC01

X791 6070000150

S.DISCRIMINATOR

CDBC455CX24-TC

X2161 6050010500 S.XTAL CR-636 (14.7456 MHz)

L111 6200003550 S.COIL MLF1608A 4R7K-T L112 6200008070 S.COIL MLF1608E 6R8K 6.8U L121 6200008860 S.COIL ACL2520L-101K-T L122 6200003550 S.COIL MLF1608A 4R7K-T L123 6200003940 S.COIL NL 252018T-5R6J L132 6200002630 S.COIL NL 252018T-R10J L133 6200002640 S.COIL NL 252018T-R15J L141 6200008860 S.COIL ACL2520L-101K-T L151 6200008860 S.COIL ACL2520L-101K-T L153 6200008860 S.COIL ACL2520L-101K-T L154 6200008860 S.COIL ACL2520L-101K-T L155 6200008860 S.COIL ACL2520L-101K-T L156 6200008860 S.COIL ACL2520L-101K-T L158 6200003640 S.COIL MLF1608K 100K-T L159 6200003640 S.COIL MLF1608K 100K-T L182 6200002520 S.COIL ELJNC R18K-F L183 6200002520 S.COIL ELJNC R18K-F L184 6200002520 S.COIL ELJNC R18K-F L195 6200006670 S.COIL ELJRE 68NG-F L196 6200006990 S.COIL ELJRE 56NG-F L231 6200001710 S.COIL NL 322522T-220J L232 6200004480 S.COIL MLF1608D R82K-T L233 6200004960 S.COIL NL 252018T-R33J L251 6200008230 S.COIL 0.30-1.3-5TL 22N L252 6200008230 S.COIL 0.30-1.3-5TL 22N L253 6200008330 S.COIL 0.45-1.4-4TL 15N L254 6200008860 S.COIL ACL2520L-101K-T L255 6200008860 S.COIL ACL2520L-101K-T

L256 6200008860 S.COIL ACL2520L-101K-T L257 6200008860 S.COIL ACL2520L-101K-T L261 6200007720 S.COIL LQN21A 33NJ04 L262 6200007740 S.COIL LQN21A 47NJ04 L271 6130002960 S.COIL 617DB-1327=P3 L272 6130002960 S.COIL 617DB-1327=P3 L273 6200004920 S.COIL MLF1608A 2R2K-T L281 6200004590 S.COIL MLF1608D R18K-T L282 6200005600 S.COIL ELJRE 3N3Z-F L344 6200002970 S.COIL NL 322522T-121J L371 6200005690 S.COIL ELJRE 18NG-F L372 6200005690 S.COIL ELJRE 18NG-F L417 6200003550 S.COIL MLF1608A 4R7K-T L435 6200003550 S.COIL MLF1608A 4R7K-T L464 6200003550 S.COIL MLF1608A 4R7K-T L477 6200003550 S.COIL MLF1608A 4R7K-T L501 6200005190 S.COIL MLF1608D R56K-T L502 6200004070 S.COIL MLR1608M 22NJ-T L503 6200005190 S.COIL MLF1608D R56K-T L504 6200004940 S.COIL MLF1608D R27K-T L505 6200004220 S.COIL MLR1608M 27NJ-T L511 6150004970 S.COIL LS-522 L512 6150004970 S.COIL LS-522 L513 6200002990 S.COIL NL 322522T-2R2J-3 L521 6200002990 S.COIL NL 322522T-2R2J-3 L522 6200002990 S.COIL NL 322522T-2R2J-3 L523 6200002990 S.COIL NL 322522T-2R2J-3 L524 6200002990 S.COIL NL 322522T-2R2J-3 L525 6200002990 S.COIL NL 322522T-2R2J-3 L526 6200002990 S.COIL NL 322522T-2R2J-3 L527 6200001830 S.COIL NL 322522T-100J L528 6200001830 S.COIL NL 322522T-100J L529 6200002990 S.COIL NL 322522T-2R2J-3 L541 6200003540 S.COIL MLF1608D R22K-T L542 6200007700 S.COIL LQN21A 22NJ04 L543 6200005180 S.COIL MLF1608D R39K-T L544 6200004600 S.COIL MLF1608D R15K-T L545 6200007700 S.COIL LQN21A 22NJ04 L546 6200004720 S.COIL MLF1608D R10K-T L551 6140002810 S.COIL LR-317 L552 6140002810 S.COIL LR-317 L561 6200004600 S.COIL MLF1608D R15K-T L562 6150004870 S.COIL LS-512 L563 6150004870 S.COIL LS-512 L564 6200004600 S.COIL MLF1608D R15K-T L565 6200004600 S.COIL MLF1608D R15K-T L566 6150004900 S.COIL LS-515 L571 6200002900 S.COIL ELJSC 680K-F L572 6200002900 S.COIL ELJSC 680K-F L573 6200003260 S.COIL NL 322522T-101J L574 6200002040 S.COIL NL 252018T-101J L575 6200003260 S.COIL NL 322522T-101J L576 6200003260 S.COIL NL 322522T-101J L577 6200003260 S.COIL NL 322522T-101J L578 6200003260 S.COIL NL 322522T-101J L579 6200001850 S.COIL NL 322522T-5R6J L601 6200003030 S.COIL NL 322522T-R47J-3 L602 6200003260 S.COIL NL 322522T-101J L603 6200003260 S.COIL NL 322522T-101J L621 6150004880 S.COIL LS-513 L622 6200002040 S.COIL NL 252018T-101J L631 6200003190 S.COIL NL 322522T-470J L632 6150004890 S.COIL LS-514 L633 6150004880 S.COIL LS-513 L634 6200003260 S.COIL NL 322522T-101J L671 6200003120 S.COIL NL 322522T-8R2J L681 6200001710 S.COIL NL 322522T-220J L682 6200001830 S.COIL NL 322522T-100J L701 6200003120 S.COIL NL 322522T-8R2J L711 6200003120 S.COIL NL 322522T-8R2J L731 6150004910 S.COIL LS-516 L741 6150004910 S.COIL LS-516 L791 6200003260 S.COIL NL 322522T-101J L841 6200003260 S.COIL NL 322522T-101J L1011 6200003260 S.COIL NL 322522T-101J L1012 6200003260 S.COIL NL 322522T-101J L1013 6200002990 S.COIL NL 322522T-2R2J-3 L1014 6200001830 S.COIL NL 322522T-100J L1015 6200008600 S.COIL ELJFC 560K-F 56U L1041 6200002040 S.COIL NL 252018T-101J L1042 6200002040 S.COIL NL 252018T-101J L1043 6200002040 S.COIL NL 252018T-101J

5 - 4

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

L1044 6200003260 S.COIL NL 322522T-101J L2001 6200001830 S.COIL NL 322522T-100J L2251 6200003950 S.COIL HF50ACC 322513-T L2252 6200003950 S.COIL HF50ACC 322513-T L2253 6200003640 S.COIL MLF1608K 100K-T L2254 6200005190 S.COIL MLF1608D R56K-T

R111 7030003310 S.RESISTOR ERJ3GEYJ 820 V (82 Ω) R112 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R113 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R114 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R115 7030000300 S.RESISTOR MCR10EZHJ 220 Ω (221) R116 7030000300 S.RESISTOR MCR10EZHJ 220 Ω (221) R117 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R120 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R121 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R122 7030002180 S.RESISTOR MCR03EZHJ 1.8 kΩ R123 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R124 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R125 7030002180 S.RESISTOR MCR03EZHJ 1.8 kΩ R126 7030002180 S.RESISTOR MCR03EZHJ 1.8 kΩ R131 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R132 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R133 7030009220 S.RESISTOR ERJ12YJ561H R134 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R135 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R141 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R142 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R143 7030002180 S.RESISTOR MCR03EZHJ 1.8 kΩ R144 7030002180 S.RESISTOR MCR03EZHJ 1.8 kΩ R145 7030002180 S.RESISTOR MCR03EZHJ 1.8 kΩ R151 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R153 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R154 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R155 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R156 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R157 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R158 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R159 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R160 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R161 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R162 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R163 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R164 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R165 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R174 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R181 7030000340 S.RESISTOR MCR10EZHJ 470 Ω (471) R200 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R201 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R202 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R203 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R204 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R223 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Ω) R224 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R232 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R234 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R236 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R237 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R238 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R251 7030000300 S.RESISTOR MCR10EZHJ 220 Ω (221) R252 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R253 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R271 7030000300 S.RESISTOR MCR10EZHJ 220 Ω (221) R274 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R275 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R276 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R277 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R278 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R279 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R280 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R281 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R282 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R283 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R284 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R285 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R286 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R288 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R340 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R341 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R342 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R343 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

R351 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R352 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R353 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R354 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R355 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R356 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R357 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R358 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R359 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R501 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R502 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R503 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R511 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R512 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R513 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R514 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R521 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R522 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R523 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R524 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R525 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R526 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R527 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R528 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R551 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R552 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R553 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R554 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R561 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R562 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R563 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R564 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R571 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R572 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R573 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R574 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R576 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R577 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R578 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R579 7310002670 S.TRIMMER RV-143 (RH03A3AS2) 471 R580 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R581 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R582 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R583 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R584 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R585 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R586 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R587 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R588 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R601 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R602 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R603 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R604 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R605 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R612 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R613 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R614 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R615 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R616 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R617 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R618 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R619 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R621 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R622 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R623 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103 R624 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R625 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R626 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R627 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R628 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R631 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R632 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R633 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R634 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R635 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R636 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R637 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R638 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R639 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R640 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R641 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R642 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)

5 - 5

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

R643 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R644 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R661 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R662 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R663 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R664 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R665 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R671 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R672 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R673 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R674 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R681 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R682 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R683 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R684 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R691 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R692 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R693 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R701 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R702 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R703 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R704 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R711 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R712 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R713 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R714 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R721 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R722 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ) R723 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R730 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R731 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R732 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R733 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R734 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R735 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R736 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R741 7310002720 S.TRIMMER RV-148 (RH03A3AS3X0DA) 472 R742 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R751 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R752 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R753 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R761 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R762 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R763 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R764 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R771 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R772 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R773 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R774 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R775 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R776 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R777 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R778 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R779 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R780 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R781 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R782 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R783 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R785 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R786 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R791 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R792 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R793 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R794 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ) R795 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R796 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R797 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R803 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R811 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R812 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R813 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R814 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R815 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R816 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R821 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R822 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R823 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R824 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R825 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R826 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R827 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R828 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)

R829 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R830 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R831 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R832 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R841 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R842 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R843 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R845 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R846 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R861 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R862 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R864 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R866 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R868 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R869 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R870 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R871 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R872 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R881 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R882 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R883 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R884 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R890 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R891 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R892 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R893 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R894 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R895 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R896 7310004250 TRIMMER EVN-D2AA03 B25 R898 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R899 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R900 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103 R901 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R902 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R903 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R911 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R912 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R913 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R921 7310002590 S.TRIMMER RV-109 (RH03A3AJ3X0BA) 222 R922 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R923 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R924 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R931 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R932 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R933 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R934 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R935 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R936 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R937 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R938 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R939 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R940 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R941 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R942 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R943 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R944 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R945 7310004250 TRIMMER EVN-D2AA03 B25 R946 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R947 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω) R948 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R949 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R950 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R951 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R952 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R953 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R963 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R964 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R965 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R966 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R967 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R971 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R981 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R982 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R983 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R984 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R985 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R986 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R987 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R988 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R989 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R990 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ) R991 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ)

5 - 6

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

R992 7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ) R993 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R994 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R995 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R996 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R998 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R999 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103 R1000 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R1001 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R1002 7310002720 S.TRIMMER RV-148 (RH03A3AS3X0DA) 472 R1003 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R1004 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1011 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1012 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R1013 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R1014 7030003830 S.RESISTOR ERJ3GEYJ 185 V (1.8 MΩ) R1015 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R1016 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1017 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1018 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1019 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R1020 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1021 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1022 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1023 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1024 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R1025 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1026 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1027 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1028 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1029 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1030 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1031 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1041 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1042 7310002790 S.TRIMMER RV-155 (RH03A3AE5) 154 R1043 7030005680 S.RESISTOR RR0816R-473-D (47 kΩ) R1044 7030005680 S.RESISTOR RR0816R-473-D (47 kΩ) R1045 7310002720 S.TRIMMER RV-148 (RH03A3AS3X0DA) 472 R1046 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1047 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1048 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R1049 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R1050 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R1051 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R1052 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R1054 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R1055 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1057 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1061 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1062 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1070 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R1071 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1072 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1073 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R1074 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R1075 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1076 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1077 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R1079 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R1080 7310002800 S.TRIMMER RV-156 (RH03A3AJ5) 224 R1082 7310002800 S.TRIMMER RV-156 (RH03A3AJ5) 224 R1084 7310002800 S.TRIMMER RV-156 (RH03A3AJ5) 224 R1086 7310002800 S.TRIMMER RV-156 (RH03A3AJ5) 224 R1088 7310002800 S.TRIMMER RV-156 (RH03A3AJ5) 224 R1091 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R1092 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1093 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1094 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R1095 7030004710 S.RESISTOR ERJ3GEYJ 475 V (4.7 MΩ) R1096 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R1097 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1098 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1099 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1100 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R1101 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R1102 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1103 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R1104 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1111 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1112 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R1113 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1114 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

R1115 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R1116 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1121 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1122 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1123 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R1124 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R1125 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103 R1126 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R1127 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1128 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1131 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1132 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1133 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1141 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1142 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1143 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1144 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1145 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R1146 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1147 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1148 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1149 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R1150 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R1161 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1162 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1163 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R1164 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R1165 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1166 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ) R1167 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1168 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1169 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R1170 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2001 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R2002 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2003 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2004 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2005 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2011 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2012 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2013 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2014 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2015 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2016 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2017 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2018 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2019 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2021 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2041 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2042 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2044 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2045 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2051 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2052 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2053 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2054 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2055 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2056 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2057 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2058 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2061 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2062 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2063 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2064 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2065 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2072 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2074 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2076 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R2077 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2081 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2084 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2085 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2086 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2087 7030006560 S.RESISTOR RR0816P-223-D (22 kΩ) R2088 7030006560 S.RESISTOR RR0816P-223-D (22 kΩ) R2089 7030006560 S.RESISTOR RR0816P-223-D (22 kΩ) R2090 7030006560 S.RESISTOR RR0816P-223-D (22 kΩ) R2101 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2102 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2103 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2104 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2105 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)

5 - 7

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

R2106 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R2107 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2108 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2109 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2110 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2111 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2112 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2113 7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ) R2121 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2122 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2123 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2124 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2131 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R2132 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2133 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2134 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2141 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2142 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2143 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2144 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2146 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2147 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2148 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2149 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2150 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R2151 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2152 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2161 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2162 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2163 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R2164 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R2165 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2166 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2167 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2171 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2172 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R2173 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R2174 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2175 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R2201 7030007660 S.RESISTOR RR0816P-331-D (330 Ω) R2202 7030006520 S.RESISTOR RR0816P-561-D (560 Ω) R2203 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2204 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2205 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2206 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2207 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2208 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2209 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2210 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2211 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2212 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2213 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2214 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2215 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R2221 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2231 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2241 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R2242 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R2243 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R2244 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R2245 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)

C111 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C112 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C113 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C114 4030008650 S.CERAMIC C1608 JB 1H 332K-T-A C115 4030011330 S.CERAMIC C1608 CH 1H 391J-T-A C116 4030008650 S.CERAMIC C1608 JB 1H 332K-T-A C121 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C122 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C123 4030009880 S.CERAMIC C1608 JB 1H 682K-T-A C124 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A C125 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C131 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C132 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C133 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C134 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C135 4030011540 S.CERAMIC C1608 CH 1H 750J-T-A C136 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C137 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C138 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

C141 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C153 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C155 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C157 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C159 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C161 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C163 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C165 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C167 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C168 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C169 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C171 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C173 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C181 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C182 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C183 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C184 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C185 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C186 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C187 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C188 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C191 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C192 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C195 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C196 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C197 4030008560 S.CERAMIC C1608 CH 1H 300J-T-A C201 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C212 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C222 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C223 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C224 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C226 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C233 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C235 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C236 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C237 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C238 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C239 4510005870 S.ELECTROLYTIC ECEV1HA3R3SR C251 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C253 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A C254 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C255 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C256 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C257 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C258 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C259 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C261 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C262 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C263 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C264 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C272 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C273 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C275 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C276 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C277 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C278 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C279 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C281 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C282 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C283 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C284 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C285 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C286 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C287 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C288 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C289 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C290 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C300 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C301 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C302 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C303 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C351 4510004630 S.ELECTROLYTIC ECEV1CA100SR C352 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C361 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C362 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C363 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C364 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C365 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C366 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C367 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C371 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C372 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A

5 - 8

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

C373 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A C374 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A C375 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A C376 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C401 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C402 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C403 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C404 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C405 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C406 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C407 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C408 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C409 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C410 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C411 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C412 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C413 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C414 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C415 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C417 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C426 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C432 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C434 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C439 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C440 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C445 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C461 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C462 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C463 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C465 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C466 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C467 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C468 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C469 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C470 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C471 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C472 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C473 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C475 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C476 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C501 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C502 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C503 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C504 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C505 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C506 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C507 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C511 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C512 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C513 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C514 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C515 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C516 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C521 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C522 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C523 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C524 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C525 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C526 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C527 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C528 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C529 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C530 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C531 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C532 4030009650 S.CERAMIC C1608 CH 1H 240J-T-A C533 4030009650 S.CERAMIC C1608 CH 1H 240J-T-A C534 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C536 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C537 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C541 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C542 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C543 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C544 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C545 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C546 4550006770 S.TANTALUM TEMSVD2 1C 476M-12R C552 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C553 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C561 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C562 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C563 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C564 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A C565 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

C566 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C567 4030011280 S.CERAMIC C1608 CH 1H 271J-T-A C571 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C572 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C573 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C574 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C575 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C576 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C577 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C578 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C579 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C580 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C581 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C582 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C583 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C585 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C587 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C588 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C589 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C590 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C591 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C601 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C602 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C603 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C604 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C605 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C606 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C607 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C611 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C612 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C613 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C621 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C622 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C623 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C624 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C625 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C631 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C632 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C633 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C634 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C635 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C636 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C637 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C638 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C639 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C640 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C641 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C642 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C643 4550006660 S.TANTALUM ECST1CC226R C644 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C645 4550006770 S.TANTALUM TEMSVD2 1C 476M-12R C646 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C647 4550006080 S.TANTALUM TEMSVB2 1C 106M-8L C648 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C649 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C661 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C662 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C663 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C664 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C671 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C672 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C673 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C681 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C682 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C683 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C684 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C685 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C691 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C692 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C701 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C702 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C703 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C711 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C712 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C713 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C721 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C722 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C731 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C732 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C733 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C734 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C735 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

5 - 9

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

C736 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C741 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C742 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C743 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C751 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C752 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C761 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C762 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C763 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C764 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C771 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C772 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C773 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C774 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A C775 4510004630 S.ELECTROLYTIC ECEV1CA100SR C776 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C777 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C778 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C779 4550006690 S.TANTALUM ECST1AC476R C791 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C792 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C793 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C794 4510004430 S.ELECTROLYTIC ECEV1CV220WR C795 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C796 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C797 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C798 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C799 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C800 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C801 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C802 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C803 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C811 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C812 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C813 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C814 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C815 4510004630 S.ELECTROLYTIC ECEV1CA100SR C821 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C822 4030008910 S.CERAMIC C1608 JB 1C 393K-T-A C823 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C824 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A C825 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C826 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C827 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C828 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C841 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C842 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C843 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C844 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C845 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C846 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C847 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C848 4510004630 S.ELECTROLYTIC ECEV1CA100SR C849 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C850 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C851 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C861 4510004630 S.ELECTROLYTIC ECEV1CA100SR C862 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C881 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C882 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C883 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C891 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C892 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C893 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C894 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C895 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C896 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C897 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C898 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C899 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C921 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C922 4550006390 S.TANTALUM TEMSVA1C 335M-8L C923 4510004430 S.ELECTROLYTIC ECEV1CV220WR C931 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C932 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C933 4510005860 S.ELECTROLYTIC ECEV1HA2R2SR C934 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C935 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C936 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C937 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C938 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C939 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A

C940 4510004630 S.ELECTROLYTIC ECEV1CA100SR C941 4510004430 S.ELECTROLYTIC ECEV1CV220WR C942 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C943 4030008910 S.CERAMIC C1608 JB 1C 393K-T-A C944 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C945 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C946 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C961 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A C963 4510004630 S.ELECTROLYTIC ECEV1CA100SR C964 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C971 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C981 4510004630 S.ELECTROLYTIC ECEV1CA100SR C982 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C983 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C984 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C985 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C986 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C987 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C988 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C989 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A C1011 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1012 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1013 4550006930 S.TANTALUM TESVSP 0J 225M-8R C1014 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1015 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1016 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1017 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1018 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C1019 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1020 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C1021 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C1022 4610002140 S.TRIMMER CTZ3S-20C-WI-PF C1023 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C1024 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C1025 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C1026 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1027 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C1028 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1029 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C1030 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1031 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1032 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1033 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C1041 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C1043 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1044 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1045 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1046 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1047 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1048 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1049 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1050 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1051 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1052 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1053 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1061 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1091 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1094 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C1095 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1096 4030009990 S.CERAMIC C1608 CH 1H 200J-T-A C1141 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A C1142 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1143 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1144 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1145 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A C1161 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A C1162 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1163 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1164 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1165 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1381 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1382 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1390 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C1391 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1394 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1397 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1410 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1421 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C1426 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1427 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1428 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2001 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

5 - 10

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN BOARD][MAIN BOARD]

S.=Surface mount

C2002 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2003 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2004 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2011 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2012 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2013 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2014 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2016 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2017 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2018 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2019 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2022 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2041 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2042 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2044 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2059 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2061 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2062 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2063 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2064 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2065 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2066 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2071 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2072 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2073 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2074 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2075 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2076 4030009590 S.CERAMIC C2012 JF 1C 225Z-T-A C2081 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2082 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2083 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2084 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2085 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2086 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A C2101 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2121 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2122 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2123 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2131 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2141 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2142 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2143 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2144 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2145 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2146 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2147 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C2161 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C2162 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C2163 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2164 4030008890 S.CERAMIC C1608 JB 1C 273K-T-A C2165 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2166 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2181 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C2201 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2202 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2221 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2222 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2223 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2231 4020000970 CYLINDER UP050B 472K Z C2232 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2233 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2234 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2235 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C2236 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C2237 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C2238 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C2239 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C2240 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C2250 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C2251 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2252 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C2253 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

J1 6510021280 S.CONNECTOR AXK6S20645P J101 6510007020 CONNECTOR TMP-J01X-V6 J141 6510007020 CONNECTOR TMP-J01X-V6 J231 6510007020 CONNECTOR TMP-J01X-V6 J281 6510007020 CONNECTOR TMP-J01X-V6 J401 6510020080 S.CONNECTOR 52808-2090 J431 6510020080 S.CONNECTOR 52808-2090 J461 6510020080 S.CONNECTOR 52808-2090

J551 6510007020 CONNECTOR TMP-J01X-V6 J701 6450001560 CONNECTOR PD-72 J702 6450001560 CONNECTOR PD-72 J703 6450001560 CONNECTOR PD-72 J704 6450001560 CONNECTOR PD-72 J705 6510020380 CONNECTOR JS0330-GT J706 6510020380 CONNECTOR JS0330-GT J711 6450001560 CONNECTOR PD-72 J712 6450001560 CONNECTOR PD-72 J713 6450001560 CONNECTOR PD-72 J714 6450001560 CONNECTOR PD-72 J715 6510020380 CONNECTOR JS0330-GT J716 6510020380 CONNECTOR JS0330-GT J791 6510018960 S.CONNECTOR B2B-PH-SM3-TB J1381 6510019070 S.CONNECTOR 52559-3092 J1421 6510020090 S.CONNECTOR 52808-0890 J1431 6510018970 S.CONNECTOR B4B-PH-SM3-TB J2061 6510019190 S.CONNECTOR 52365-0891

W201 7030003860 S.JUMPER ERJ3GE JPW V W202 7030003860 S.JUMPER ERJ3GE JPW V W231 7030008240 S.JUMPER ERJ12YJ0R00H W301 7030003860 S.JUMPER ERJ3GE JPW V W302 7030000010 S.JUMPER MCR10EZHJ JPW (000) W303 7030000010 S.JUMPER MCR10EZHJ JPW (000) W461 7030003860 S.JUMPER ERJ3GE JPW V W514 7030003860 S.JUMPER ERJ3GE JPW V W844 7030003860 S.JUMPER ERJ3GE JPW V W1056 7030003860 S.JUMPER ERJ3GE JPW V W1078 7030003860 S.JUMPER ERJ3GE JPW V W1433 7030003860 S.JUMPER ERJ3GE JPW V W2001 7030003860 S.JUMPER ERJ3GE JPW V W2061 7030000010 S.JUMPER MCR10EZHJ JPW (000) W2101 7030003860 S.JUMPER ERJ3GE JPW V

WS1 8970023330 M.OTHER SX2177 J LEAD SET (3)/MA

EP1 0910050946 PCB B 5209F

Q191 1560000720 S.FET 2SK2171-4-TD Q211 1520000560 S.TRANSISTOR 2SB1123T-TD Q212 1590002310 S.TRANSISTOR DTC114EE TL Q213 1590002310 S.TRANSISTOR DTC114EE TL Q214 1590002480 S.TRANSISTOR UMC3N TR Q215 1590002310 S.TRANSISTOR DTC114EE TL

D101 1790001260 S.DIODE MA2S077-(TX) D111 1790001260 S.DIODE MA2S077-(TX) D112 1790001260 S.DIODE MA2S077-(TX) D121 1790001260 S.DIODE MA2S077-(TX) D122 1790001260 S.DIODE MA2S077-(TX) D131 1790001260 S.DIODE MA2S077-(TX) D132 1790001260 S.DIODE MA2S077-(TX) D141 1790001260 S.DIODE MA2S077-(TX) D142 1790001260 S.DIODE MA2S077-(TX) D151 1790001260 S.DIODE MA2S077-(TX) D152 1790001260 S.DIODE MA2S077-(TX) D161 1790001260 S.DIODE MA2S077-(TX) D162 1790001260 S.DIODE MA2S077-(TX) D171 1790001260 S.DIODE MA2S077-(TX) D172 1790001260 S.DIODE MA2S077-(TX) D191 1790001260 S.DIODE MA2S077-(TX) D192 1790001260 S.DIODE MA2S077-(TX) D211 1750000520 S.DIODE DAN222TL D212 1750000520 S.DIODE DAN222TL

L101 6200002910 S.COIL NL 252018T-R27J L102 6200004960 S.COIL NL 252018T-R33J L111 6200003240 S.COIL NL 322522T-221J

5 - 11

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[HPF BOARD]

REF ORDER

DESCRIPTION

NO. NO.

[HPF BOARD][HPF BOARD]

S.=Surface mount

L121 6200002040 S.COIL NL 252018T-101J L122 6200007170 S.COIL MLF1608A 3R3K-T L123 6200003550 S.COIL MLF1608A 4R7K-T L124 6200002040 S.COIL NL 252018T-101J L131 6200004920 S.COIL MLF1608A 2R2K-T L132 6200004660 S.COIL MLF1608A 1R8K-T L133 6200004660 S.COIL MLF1608A 1R8K-T L134 6200002040 S.COIL NL 252018T-101J L141 6200003960 S.COIL MLF1608A 1R0K-T L142 6200003960 S.COIL MLF1608A 1R0K-T L143 6200003960 S.COIL MLF1608A 1R0K-T L144 6200002040 S.COIL NL 252018T-101J L151 6200002040 S.COIL NL 252018T-101J L152 6200001700 S.COIL MLF2012D R47K-T L153 6200001200 S.COIL MLF2012D R56M-T L154 6200001210 S.COIL MLF2012D R68M-T L155 6200001060 S.COIL MLF2012D 47NM-T L161 6200002040 S.COIL NL 252018T-101J L162 6200001170 S.COIL MLF2012D R33M-T L163 6200001180 S.COIL MLF2012D R39K-T L164 6200002040 S.COIL NL 252018T-101J L171 6200005010 S.COIL NL 252018T-100J L172 6200001090 S.COIL MLF2012D 68NM-T L173 6200001100 S.COIL MLF2012D 82NM-T L174 6200001870 S.COIL MLF2012D R27K-T L175 6200001130 S.COIL MLF2012D R15M-T L176 6200005010 S.COIL NL 252018T-100J L191 6200005010 S.COIL NL 252018T-100J L192 6200003840 S.COIL MLF2012D R22K-T L193 6200001170 S.COIL MLF2012D R33M-T L194 6200003280 S.COIL NL 252018T-2R2J L195 6140002810 S.COIL LR-317 L196 6200001500 S.COIL MLF2012D R12K-T L197 6200004150 S.COIL MLF1608D 47NM-T

R101 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R102 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R111 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R171 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R172 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R191 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R192 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R193 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R194 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) R195 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R211 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R212 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R213 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R214 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

C101 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C102 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C103 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C104 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C105 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C111 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C121 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C122 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C123 4030008860 S.CERAMIC C1608 JB 1C 153K-T-A C124 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A C125 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C126 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C131 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C132 4030009580 S.CERAMIC C1608 JB 1H 681K-T-A C133 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A C134 4030009580 S.CERAMIC C1608 JB 1H 681K-T-A C135 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C136 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C141 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C142 4030010240 S.CERAMIC C1608 JB 1H 391K-T-A C143 4030010030 S.CERAMIC C1608 SL 1H 511J-T-A C144 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C145 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C146 4030009580 S.CERAMIC C1608 JB 1H 681K-T-A C147 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C151 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C152 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C153 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C154 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C155 4030011330 S.CERAMIC C1608 CH 1H 391J-T-A

C156 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C161 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C162 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C163 4030010020 S.CERAMIC C1608 JB 1H 122K-T-A C164 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C165 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C166 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C171 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C172 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C173 4030011540 S.CERAMIC C1608 CH 1H 750J-T-A C174 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C175 4030009650 S.CERAMIC C1608 CH 1H 240J-T-A C176 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C177 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A C178 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C179 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C180 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C181 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C182 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C191 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C192 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C193 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C194 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C195 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C196 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C197 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C198 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C199 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C200 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A

J101 6510021270 S.CONNECTOR AXK5S20045P

EP1 0910050954 PCB B 5222D

IC101 1140003641 S.IC SC-1246 IC201 1110003300 S.IC M5282FP 70CD IC231 1110003090 IC LA4425A IC271 1180000420 S.IC TA78L05F (TE12R) IC281 1110002030 IC TA7808S IC291 1180001070 S.IC TA7805F (TE16L) IC461 1130009230 S.IC LMX2306TMX IC541 1110003320 S.IC µPC2710T-E3 IC901 1140004550 S.IC M65343FP/SC1287

Q1 1560000330 S.FET 2SK210-GR (TE85R) Q10 1530002570 S.TRANSISTOR 2SC4405-3-TL Q21 1530002060 S.TRANSISTOR 2SC4081 T107 R Q51 1530002060 S.TRANSISTOR 2SC4081 T107 R Q71 1530002060 S.TRANSISTOR 2SC4081 T107 R Q141 1590001330 S.TRANSISTOR DTA114EUA T106 Q142 1590001330 S.TRANSISTOR DTA114EUA T106 Q143 1590001330 S.TRANSISTOR DTA114EUA T106 Q144 1590001330 S.TRANSISTOR DTA114EUA T106 Q145 1590001330 S.TRANSISTOR DTA114EUA T106 Q161 1530002560 S.TRANSISTOR 2SC4403-3-TL Q232 1590000680 S.TRANSISTOR DTC114EUAT106 Q251 1590000720 S.TRANSISTOR DTA144EUAT106 Q261 1590002310 S.TRANSISTOR DTC114EE TL Q301 1560000490 S.FET 2SK508 K52 T2B Q321 1530003090 S.TRANSISTOR 2SC4213-B (TE85R) Q322 1590000720 S.TRANSISTOR DTA144EUAT106 Q331 1560000490 S.FET 2SK508 K52 T2B Q351 1530003090 S.TRANSISTOR 2SC4213-B (TE85R) Q352 1590000720 S.TRANSISTOR DTA144EUAT106 Q361 1560000490 S.FET 2SK508 K52 T2B Q362 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R) Q381 1530003090 S.TRANSISTOR 2SC4213-B (TE85R) Q391 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R) Q461 1590000720 S.TRANSISTOR DTA144EUAT106 Q491 1560000540 S.FET 2SK880-Y (TE85R) Q521 1590002480 S.TRANSISTOR UMC3N TR

5 - 12

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PLL UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[PLL UNIT][PLL UNIT]

S.=Surface mount

Q621 1530002560 S.TRANSISTOR 2SC4403-3-TL Q661 1530002560 S.TRANSISTOR 2SC4403-3-TL Q681 1530002560 S.TRANSISTOR 2SC4403-3-TL Q851 1590001330 S.TRANSISTOR DTA114EUA T106 Q931 1530002060 S.TRANSISTOR 2SC4081 T107 R Q941 1530002560 S.TRANSISTOR 2SC4403-3-TL

D1 1720000590 S.VARICAP MA357 (TX) D231 1750000520 S.DIODE DAN222TL D261 1750000520 S.DIODE DAN222TL D271 1710000780 S.DIODE MA114 (TX) D301 1720000390 S.VARICAP KV1470TL D302 1790000620 S.DIODE MA77 (TX) D331 1720000390 S.VARICAP KV1470TL D332 1790000620 S.DIODE MA77 (TX) D361 1790001400 S.VARICAP MA304B (TX) D362 1790000620 S.DIODE MA77 (TX) D511 1790000620 S.DIODE MA77 (TX) D531 1750000620 S.DIODE MA717WK (TX) D601 1720000590 S.VARICAP MA357 (TX) D701 1790000450 S.DIODE MA862 (TX) D731 1790000450 S.DIODE MA862 (TX) D732 1790000450 S.DIODE MA862 (TX) D761 1750000210 S.DIODE 1SV237 (TE85R) D762 1750000210 S.DIODE 1SV237 (TE85R) D821 1790001620 S.DIODE 1SV308 (TPL3) D822 1790001620 S.DIODE 1SV308 (TPL3) D825 1790001620 S.DIODE 1SV308 (TPL3) D851 1790001620 S.DIODE 1SV308 (TPL3) D861 1750000210 S.DIODE 1SV237 (TE85R) D862 1160000060 S.DIODE DAN202U T107 D863 1790001250 S.DIODE MA2S111-(TX) D864 1790001250 S.DIODE MA2S111-(TX) D931 1790001250 S.DIODE MA2S111-(TX)

FI71 2020001600 S.CERAMIC SFECV10.5MA-5

X621 6050005711 XTAL CR-275A(30.00000 MHz)

L1 6130002970 COIL LB-343 L11 6200005010 S.COIL NL 252018T-100J L30 6200002040 S.COIL NL 252018T-101J L41 6200003590 S.COIL EXCCL3225U1 L42 6200003590 S.COIL EXCCL3225U1 L43 6200003590 S.COIL EXCCL3225U1 L44 6200003590 S.COIL EXCCL3225U1 L45 6200001830 S.COIL NL 322522T-100J L48 6200001830 S.COIL NL 322522T-100J L71 6200002860 S.COIL NL 252018T-4R7J L131 6200001830 S.COIL NL 322522T-100J L161 6200002040 S.COIL NL 252018T-101J L163 6200003540 S.COIL MLF1608D R22K-T L231 6140002220 COIL LR-270 (TR6X3X2 3A9) L301 6170000230 COIL LW-25 L302 6190001280 COIL E544GN-110248 L303 6170000230 COIL LW-25 L331 6170000230 COIL LW-25 L332 6190001370 COIL E544GN-110254 L333 6170000230 COIL LW-25 L363 6180000810 COIL LAL 03NA 2R2M L364 6180000810 COIL LAL 03NA 2R2M L366 6190001390 COIL C-13975-4.5 L367 6200005010 S.COIL NL 252018T-100J L382 6200003260 S.COIL NL 322522T-101J L383 6180000810 COIL LAL 03NA 2R2M L391 6200005010 S.COIL NL 252018T-100J L411 6140002220 COIL LR-270 (TR6X3X2 3A9) L461 6200005010 S.COIL NL 252018T-100J L501 6200001980 S.COIL NL 252018T-1R0J L531 6140002810 S.COIL LR-317 L532 6200003540 S.COIL MLF1608D R22K-T L542 6200002920 S.COIL ELJNC R33K-F L600 6200002040 S.COIL NL 252018T-101J L601 6130001100 COIL LB-146 L621 6200003260 S.COIL NL 322522T-101J L622 6200003590 S.COIL EXCCL3225U1 L623 6150004520 S.COIL LS-508 L641 6200002000 S.COIL NL 252018T-3R3J

L642 6200004670 S.COIL NL 252018T-3R9J L681 6150004830 S.COIL LS-509 L682 6150004830 S.COIL LS-509 L711 6200002160 S.COIL ELJNC 82NK-F L712 6200001630 S.COIL ELJNC R10K-F L713 6200002160 S.COIL ELJNC 82NK-F L741 6200002150 S.COIL ELJNC 56NK-F L742 6200003670 S.COIL ELJNC 68NK-F L743 6200003670 S.COIL ELJNC 68NK-F L771 6200002160 S.COIL ELJNC 82NK-F L781 6200001770 S.COIL ELJNC 47NK-F L782 6200002120 S.COIL ELJNC 33NK-F L801 6200005740 S.COIL ELJRE 47NG-F L802 6200005720 S.COIL ELJRE 33NG-F L811 6200005710 S.COIL ELJRE 27NG-F L812 6200005720 S.COIL ELJRE 33NG-F L821 6200007740 S.COIL LQN21A 47NJ04 L822 6200007720 S.COIL LQN21A 33NJ04 L823 6200007730 S.COIL LQN21A 39NJ04 L824 6200007710 S.COIL LQN21A 27NJ04 L861 6200005700 S.COIL ELJRE 22NG-F L862 6200005680 S.COIL ELJRE 15NG-F L871 6200005680 S.COIL ELJRE 15NG-F L872 6200005670 S.COIL ELJRE 12NG-F L881 6200002180 S.COIL NL 252018T-R12J L882 6200005660 S.COIL ELJRE 10NG-F L901 6200005010 S.COIL NL 252018T-100J L941 6200003540 S.COIL MLF1608D R22K-T L981 6200003170 S.COIL NL 322522T-330J L991 6200007390 S.COIL ELJFC 120K-F 12U L992 6200006380 S.COIL ELJFC 150K 15U L1000 6200006980 S.COIL ELJRE R10G-F L1001 2040000490 COIL EXC-ELDR25C L1016 6200005010 S.COIL NL 252018T-100J

R11 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R12 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R13 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R14 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R15 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R16 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R21 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R23 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R24 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R32 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R34 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) R41 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Ω) R42 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω) R43 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Ω) R52 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R53 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R54 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R71 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R72 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R73 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R75 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R76 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R101 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R102 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R103 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R104 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R105 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R106 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R131 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R132 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R133 7030009690 S.RESISTOR RR0816P-101-D (100 Ω) R134 7030005630 S.RESISTOR RR0816R-154-D (150 kΩ) R135 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R141 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R142 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R143 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R144 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R145 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R151 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R152 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R153 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R154 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R155 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R161 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R162 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R164 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω)

5 - 13

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PLL UNIT][PLL UNIT]

S.=Surface mount

R170 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R171 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R172 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R173 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R174 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R175 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R176 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R177 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R178 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R179 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R180 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R181 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R182 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R183 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R184 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R185 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R186 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R187 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R188 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R189 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R190 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R191 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R192 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R193 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R201 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R202 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R203 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R204 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R205 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R206 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R207 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R208 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R209 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R231 7510001100 S.THERMISTOR NTCCM1608 4LH 104KC R232 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R233 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R234 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R235 7030000100 S.RESISTOR MCR10EZHJ 4.7 Ω (4R7) R236 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R237 7030000321 S.RESISTOR ERX1SJ3R3 (3.3 Ω) R251 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R252 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R253 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R254 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R255 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R256 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R257 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R258 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R259 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R260 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R261 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R263 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R264 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R265 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R283 7510000910 S.THERMISTOR NTCCF2012 4AH 473KC-T R284 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R285 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R291 7030006080 S.RESISTOR ERJ1WYJ220H (22 Ω) R292 7030006080 S.RESISTOR ERJ1WYJ220H (22 Ω) R302 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R321 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R322 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R323 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R324 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R325 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R332 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R351 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R352 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R353 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R354 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R355 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R356 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω) R361 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω) R364 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R365 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R381 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R382 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R383 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R384 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R385 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R391 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R392 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

R411 7030009690 S.RESISTOR RR0816P-101-D (100 Ω) R412 7030006580 S.RESISTOR RR0816P-122-D (1.2 kΩ) R461 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R462 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R463 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R464 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R465 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R491 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R492 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R493 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R494 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R501 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω) R502 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R511 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R512 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R513 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R515 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R516 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R517 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R518 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R523 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R524 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R531 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R532 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω) R533 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R537 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R538 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R539 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R541 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R542 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω) R601 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R602 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103 R603 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R604 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R605 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R606 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R621 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R622 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R623 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R641 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R661 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R662 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R663 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R664 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R665 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω) R666 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R681 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R682 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R683 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R684 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R701 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R731 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R761 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R762 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R791 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R792 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R821 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R822 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R823 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R824 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R825 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R851 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R852 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R853 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R891 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R892 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω) R893 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R901 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R902 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R903 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R931 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R932 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R933 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R934 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R942 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R943 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R944 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω) R951 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R952 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R953 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R954 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R955 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ)

5 - 14

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PLL UNIT][PLL UNIT]

S.=Surface mount

R956 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R957 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R958 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R959 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R960 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R961 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R962 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R963 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R964 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R965 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R966 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R967 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R968 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R969 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R970 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R1011 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1012 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1013 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1014 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1015 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1017 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)

C1 4040000190 BARRIERLAYR UAT 05X 103K C2 4030008560 S.CERAMIC C1608 CH 1H 300J-T-A C3 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A C4 4610001850 S.TRIMMER TZBX4R200BA110T00 20P C5 4030016550 S.CERAMIC CM105 CH 151G 50AT C11 4510005600 S.ELECTROLYTIC ECEV1CS100SR C12 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C13 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C14 4030016550 S.CERAMIC CM105 CH 151G 50AT C15 4030016550 S.CERAMIC CM105 CH 151G 50AT C21 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C22 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C31 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C41 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C44 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C45 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C51 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C52 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C71 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C72 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C73 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C75 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C76 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C77 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C101 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C102 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C103 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C104 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C105 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C106 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C107 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C108 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C109 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C110 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C111 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C112 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C113 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C114 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C131 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C132 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C133 4550003220 S.TANTALUM TEMSVA1E 105M-8L C145 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C146 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C147 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C148 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C149 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C150 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C151 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C152 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C153 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C154 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C155 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C161 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C163 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C165 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C166 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C200 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C201 4550006080 S.TANTALUM TEMSVB2 1C 106M-8L C202 4030009110 S.CERAMIC C3216 JB 1C 474K-T-A

C203 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C204 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C205 4030009110 S.CERAMIC C3216 JB 1C 474K-T-A C206 4550006080 S.TANTALUM TEMSVB2 1C 106M-8L C207 4030009110 S.CERAMIC C3216 JB 1C 474K-T-A C208 4030010210 S.CERAMIC C3216 JB 1C 105M-T-A C209 4550006080 S.TANTALUM TEMSVB2 1C 106M-8L C210 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C212 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C215 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C218 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C220 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C221 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C222 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C223 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C224 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C225 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C231 4510004590 ELECTROLYTIC 16 MV 470 HC C232 4030009110 S.CERAMIC C3216 JB 1C 474K-T-A C233 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C234 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C235 4510004590 ELECTROLYTIC 16 MV 470 HC C236 4510004590 ELECTROLYTIC 16 MV 470 HC C237 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C238 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C239 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C240 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C241 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C251 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C256 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C262 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C265 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C271 4510005600 S.ELECTROLYTIC ECEV1CS100SR C272 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C273 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C274 4510005600 S.ELECTROLYTIC ECEV1CS100SR C281 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C284 4510005600 S.ELECTROLYTIC ECEV1CS100SR C285 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C286 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C291 4510005600 S.ELECTROLYTIC ECEV1CS100SR C292 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C293 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C294 4510005600 S.ELECTROLYTIC ECEV1CS100SR C295 4510001350 ELECTROLYTIC 16 MS5 10UF C301 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C302 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C303 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C304 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A C305 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C306 4610001830 S.TRIMMER TZBX4N100BA110T00 10P C307 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C308 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C321 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C322 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C323 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C325 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C326 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C331 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C332 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C333 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C334 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A C335 4610001830 S.TRIMMER TZBX4N100BA110T00 10P C336 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A C351 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C352 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C353 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C355 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C356 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C364 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C366 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A C367 4610001860 S.TRIMMER TZBX4Z060BA110T00 6P C368 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A C369 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C370 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A C372 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C373 4510006220 S.ELECTROLYTIC ECEV1CA101UP C374 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C375 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C376 4550002890 S.TANTALUM TESVA1A 225M1-8L C381 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C382 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

5 - 15

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PLL UNIT][PLL UNIT]

S.=Surface mount

C383 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C384 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C385 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C391 4550006350 S.TANTALUM TEMSVB2 1A 226M-8L C392 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C414 4550006250 S.TANTALUM TEMSVA1A 106M-8L C444 4550000930 S.TANTALUM TESVA1D 684M1-8L C461 4550005980 S.TANTALUM TEMSVA1A 475M-8L C463 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C464 4550006080 S.TANTALUM TEMSVB2 1C 106M-8L C465 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C472 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C491 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C492 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C493 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C501 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C511 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C512 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C514 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C531 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C537 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C541 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C542 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C543 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C544 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C547 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C600 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C602 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C603 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C623 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C624 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C625 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C626 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C641 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C642 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A C643 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C644 4030009470 S.CERAMIC C1608 CH 1H R75C-T-A C645 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C662 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C663 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C664 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C665 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C681 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C682 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C683 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C684 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A C685 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C686 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C701 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C711 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C712 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C713 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C714 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C715 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C731 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C741 4030008560 S.CERAMIC C1608 CH 1H 300J-T-A C742 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C743 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C744 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A C745 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C761 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C771 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C772 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C773 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C781 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C782 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A C783 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C784 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C785 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C791 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C801 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C802 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C803 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C804 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C805 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C811 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C812 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A C813 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C814 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A C815 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C821 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C822 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A

C823 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C824 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C825 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C826 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C827 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C828 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C829 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C830 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C831 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C851 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C852 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C853 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C861 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C862 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C863 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C864 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C865 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C871 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C872 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C873 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C874 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C875 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C876 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C881 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C882 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C883 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C884 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C885 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C886 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C902 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C903 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C904 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C905 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C906 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C907 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C931 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C934 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C935 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C941 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C942 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C944 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C945 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C981 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C982 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C983 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C991 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C992 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A C993 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C994 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A C995 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C1000 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C1001 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C1002 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C1004 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C1005 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C1006 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

RL231 6330000621 RELAY SY-12-K

CP281 6910009670 S.CHECK P HK3-S-T CP282 6910009670 S.CHECK P HK3-S-T

J252 6510019980 S.CONNECTOR 52808-1690 J253 6510019970 S.CONNECTOR 52808-1090 J254 6510019070 S.CONNECTOR 52559-3092

W301 7030003860 S.JUMPER J3GE JPW V W592 7030003860 S.JUMPER J3GE JPW V W981 7030003860 S.JUMPER J3GE JPW V W982 7030003860 S.JUMPER J3GE JPW V W993 7030003860 S.JUMPER J3GE JPW V

WS1 8600036460 M.OTHER SX2177 P251

✕J251PL

WS2 8970023261 M.OTHER SX2177 1.5D COAXIAL-1 (2)/PL WS3 8970023300 M.OTHER SX2177 ICOM SHIELD (1)/PL

EP1 0910050966 PCB B 5210F

5 - 16

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PA UNIT][PA UNIT]

S.=Surface mount

Q101 1560001090 S.FET 2SK2854 Q121 1590002640 S.FET MXR9745RT1 Q171 1590002690 FET SRFJ7044 Q172 1590002690 FET SRFJ7044 Q231 1590002690 FET SRFJ7044 Q301 1590000680 S.TRANSISTOR DTC114EUAT106 Q351 1590000680 S.TRANSISTOR DTC114EUAT106 Q402 1590000680 S.TRANSISTOR DTC114EUAT106 Q403 1580000690 S.FET 3SK291 (TE85R) Q452 1590000680 S.TRANSISTOR DTC114EUAT106 Q453 1580000690 S.FET 3SK291 (TE85R) Q501 1520000460 S.TRANSISTOR 2SB1132 T100 R Q502 1590000680 S.TRANSISTOR DTC114EUAT106 Q511 1510000920 S.TRANSISTOR 2SA1577 T107 Q Q512 1590000680 S.TRANSISTOR DTC114EUAT106 Q513 1590000680 S.TRANSISTOR DTC114EUAT106 Q514 1590000680 S.TRANSISTOR DTC114EUAT106 Q521 1520000460 S.TRANSISTOR 2SB1132 T100 R Q522 1590000680 S.TRANSISTOR DTC114EUAT106 Q523 1590000680 S.TRANSISTOR DTC114EUAT106 Q531 1510000920 S.TRANSISTOR 2SA1577 T107 Q Q532 1590000680 S.TRANSISTOR DTC114EUAT106 Q533 1590000680 S.TRANSISTOR DTC114EUAT106 Q541 1590001330 S.TRANSISTOR DTA114EUA T106 Q542 1590000680 S.TRANSISTOR DTC114EUAT106 Q551 1590001330 S.TRANSISTOR DTA114EUA T106 Q552 1590000680 S.TRANSISTOR DTC114EUAT106 Q571 1520000460 S.TRANSISTOR 2SB1132 T100 R Q572 1530002060 S.TRANSISTOR 2SC4081 T107 R Q573 1590001330 S.TRANSISTOR DTA114EUA T106 Q574 1530002060 S.TRANSISTOR 2SC4081 T107 R Q575 1590000680 S.TRANSISTOR DTC114EUAT106 Q576 1590001330 S.TRANSISTOR DTA114EUA T106 Q591 1590000680 S.TRANSISTOR DTC114EUAT106

D101 1790000620 S.DIODE MA77 (TX) D102 1790000620 S.DIODE MA77 (TX) D103 1790000620 S.DIODE MA77 (TX) D104 1790000620 S.DIODE MA77 (TX) D171 1160000060 S.DIODE DAN202U T107 D172 1160000060 S.DIODE DAN202U T107 D231 1160000060 S.DIODE DAN202U T107 D261 1710000310 DIODE MI407 D262 1790000980 S.DIODE MA742 (TX) D263 1790000980 S.DIODE MA742 (TX) D291 1750000510 S.DIODE UM9401F D292 1750000510 S.DIODE UM9401F D293 1750000550 S.DIODE 1SS355 TE-17 D301 1750000510 S.DIODE UM9401F D311 1750000510 S.DIODE UM9401F D312 1790001240 S.DIODE MA2S728-(TX) D313 1790001240 S.DIODE MA2S728-(TX) D341 1750000510 S.DIODE UM9401F D342 1750000510 S.DIODE UM9401F D343 1750000550 S.DIODE 1SS355 TE-17 D344 1750000310 S.DIODE MI407 D401 1790001620 S.DIODE 1SV308 (TPL3) D402 1790001620 S.DIODE 1SV308 (TPL3) D403 1750000610 S.VARICAP MA2SV0500L D404 1790001620 S.DIODE 1SV308 (TPL3) D405 1790001620 S.DIODE 1SV308 (TPL3) D406 1750000610 S.VARICAP MA2SV0500L D407 1720000590 S.VARICAP MA357 (TX) D408 1720000590 S.VARICAP MA357 (TX) D409 1750000610 S.VARICAP MA2SV0500L D410 1750000610 S.VARICAP MA2SV0500L D451 1790001620 S.DIODE 1SV308 (TPL3) D452 1790001620 S.DIODE 1SV308 (TPL3) D453 1720000700 S.VARICAP 1SV305 (TPL3) D454 1720000700 S.VARICAP 1SV305 (TPL3) D455 1720000700 S.VARICAP 1SV305 (TPL3) D456 1720000700 S.VARICAP 1SV305 (TPL3) D481 1750000210 S.DIODE 1SV237 (TE85R) D573 1160000060 S.DIODE DAN202U T107 D574 1790000950 S.ZENER MA8056-M (TX) D575 1160000060 S.DIODE DAN202U T107 D591 1160000060 S.DIODE DAN202U T107 D601 1790000700 DIODE DSA3A1 D602 1790000700 DIODE DSA3A1

L102 6200005050 S.COIL NL 252018T-330J L103 6200008570 S.COIL LQN21A 6N8D04 L104 6200005730 S.COIL ELJRE 39NG-F L105 6200002860 S.COIL NL 252018T-4R7J L106 6200002040 S.COIL NL 252018T-101J L121 6180000870 COIL LAL 03NA 6R8K L122 6200003950 S.COIL HF50ACC 322513-T L123 6180000900 COIL LAL 03NA 101K L141 6200007770 S.COIL LQN21A R10J04 L142 6200007800 S.COIL LQN21A R18J04 L143 6200007790 S.COIL LQN21A R15J04 L152 6200007740 S.COIL LQN21A 47NJ04 L153 6200007750 S.COIL LQN21A 56NJ04 L161 2040000490 COIL EXC-ELDR25C L162 6140002220 COIL LR-270 (TR6X3X2 3A9) L171 6140003040 COIL LR-322B L172 6140000610 COIL LR-83 L173 6140003350 COIL LR-376 L174 6140002030 COIL LR-230 (SK-10M-15Y 120) L175 6110001730 COIL LA-262 L211 2040000490 COIL EXC-ELDR25C L212 2040000490 COIL EXC-ELDR25C L232 6110003560 COIL LA-549 L233 2040000490 COIL EXC-ELDR25C L234 2040000490 COIL EXC-ELDR25C L261 6170000230 COIL LW-25 L262 6110001670 COIL LA-253 L263 6110001740 COIL LA-263 L264 6110001680 COIL LA-254 L265 6110001600 COIL LA-243 L291 6110001540 COIL LA-234 L292 6110001540 COIL LA-234 L301 6200008360 S.COIL 0.25-1.9-13TL L311 6170000230 COIL LW-25 L312 6110002110 COIL LA-382 L313 6110002130 COIL LA-383 L314 6110001530 COIL LA-233 L315 6110002110 COIL LA-382 L316 6110002110 COIL LA-382 L317 6110001520 COIL LA-232 L341 6110001520 COIL LA-232 L342 6110001520 COIL LA-232 L351 6200008360 S.COIL 0.25-1.9-13TL L352 6170000230 COIL LW-25 L361 6170000230 COIL LW-25 L401 6200007720 S.COIL LQN21A 33NJ04 L402 6200007760 S.COIL LQN21A 82NJ04 L403 6200003710 S.COIL NL 252018T-2R7J L404 6200003640 S.COIL MLF1608K 100K-T L406 6200007700 S.COIL LQN21A 22NJ04 L407 6200007760 S.COIL LQN21A 82NJ04 L408 6200007710 S.COIL LQN21A 27NJ04 L410 6200003640 S.COIL MLF1608K 100K-T L453 6200008530 S.COIL 0.30-1.0-4TR 12N L455 6200007230 S.COIL LQN21A 15NJ04 L456 6200005620 S.COIL ELJRE 4N7Z-F L461 6200007680 S.COIL LQN21A 12NJ04 L571 6200003950 S.COIL HF50ACC 322513-T L611 6200003240 S.COIL NL 322522T-221J L612 6200003240 S.COIL NL 322522T-221J L613 6910003570 COIL 2943-666663 L614 6910003570 COIL 2943-666663 L621 6200003950 S.COIL HF50ACC 322513-T L622 6200003550 S.COIL MLF1608A 4R7K-T L623 6200003550 S.COIL MLF1608A 4R7K-T L663 6200004480 S.COIL MLF1608D R82K-T L664 2040000490 COIL EXC-ELDR25C L665 2040000490 COIL EXC-ELDR25C

R102 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Ω) R104 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω) R105 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R106 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R107 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R108 7030008190 S.RESISTOR ERJ12YJ330H (33 Ω) R111 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R112 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R113 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R114 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R115 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R121 7030000230 S.RESISTOR MCR10EZHJ 56 Ω (560)

5 - 17

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PA UNIT][PA UNIT]

S.=Surface mount

R122 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R123 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R124 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R125 7030009570 S.RESISTOR ERJ1WYJ5R6H (5.6 Ω) R126 7030000340 S.RESISTOR MCR10EZHJ 470 Ω (471) R127 7030000140 S.RESISTOR MCR10EZHJ 10 Ω (100) R161 7030000260 S.RESISTOR MCR10EZHJ 100 Ω (101) R162 7310003240 TRIMMER EVN-2ACA00 B23 (202) R164 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R172 7030006080 S.RESISTOR ERJ1WYJ220H (22 Ω) R173 7030006080 S.RESISTOR ERJ1WYJ220H (22 Ω) R174 7310003200 TRIMMER EVN-2ACA00 B14 (103) R175 7310003200 TRIMMER EVN-2ACA00 B14 (103) R176 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R177 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R178 7030007130 S.RESISTOR ERJ1WYJ150H (15 Ω) R179 7030007130 S.RESISTOR ERJ1WYJ150H (15 Ω) R180 7030006130 S.RESISTOR ERJ1WYJ100H (10 Ω) R181 7030006130 S.RESISTOR ERJ1WYJ100H (10 Ω) R182 7030007630 S.RESISTOR MCR100JZHJ 0.68 Ω (R68) R183 7030007630 S.RESISTOR MCR100JZHJ 0.68 Ω (R68) R201 7100000810 S.RESISTOR ERX5WQK 12MH R202 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R203 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R204 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R205 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R211 7030000340 S.RESISTOR MCR10EZHJ 470 Ω (471) R213 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R214 7310003240 TRIMMER EVN-2ACA00 B23 (202) R215 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R231 7310003200 TRIMMER EVN-2ACA00 B14 (103) R232 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R233 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R234 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R235 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R261 7030007360 S.RESISTOR ERJ1WYJ470H (47 Ω) R262 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R263 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R264 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R266 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R267 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R268 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R269 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R301 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R302 7030006070 S.RESISTOR ERJ12YJ101H (100 Ω) R303 7030000340 S.RESISTOR MCR10EZHJ 470 Ω (471) R311 7030007360 S.RESISTOR ERJ1WYJ470H (47 Ω) R312 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R313 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R314 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R317 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R319 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R320 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R351 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R352 7030006180 S.RESISTOR ERJ1WYJ101H (100 Ω) R361 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R403 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R407 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R408 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω) R409 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R410 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R411 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ) R412 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R413 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R414 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ) R415 7030003330 S.RESISTOR ERJ3GEYJ 121 V (120 Ω) R416 7030003330 S.RESISTOR ERJ3GEYJ 121 V (120 Ω) R418 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R419 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R420 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R421 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R422 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R423 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R424 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R451 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R452 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R453 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R455 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R459 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R460 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R461 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ) R462 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)

R463 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω) R464 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R465 7030003210 S.RESISTOR ERJ3GEYJ 120 V (12 Ω) R468 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R469 7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ) R470 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R471 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ) R501 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R502 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R511 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R512 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R513 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R521 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R522 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R531 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R532 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R571 7510000910 S.THERMISTOR NTCCF2012 4AH 473KC-T R572 7510000910 S.THERMISTOR NTCCF2012 4AH 473KC-T R575 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R576 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R577 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R579 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R580 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R581 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R582 7510000910 S.THERMISTOR NTCCF2012 4AH 473KC-T R591 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R601 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)

C101 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C102 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C103 4510004590 ELECTROLYTIC 16 MV 470 HC C104 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C106 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C109 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C111 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C113 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C114 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C115 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C116 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C117 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C118 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C121 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C123 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C125 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C126 4030004710 S.CERAMIC C2012 JB 1H 471K-T-A C127 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C128 4030008960 S.CERAMIC C2012 JB 1C 104K-T-A C129 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C141 4030008960 S.CERAMIC C2012 JB 1C 104K-T-A C144 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C145 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A C146 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C147 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C148 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C151 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C152 4030010240 S.CERAMIC C1608 JB 1H 391K-T-A C153 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C154 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A C155 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C156 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C161 4030008960 S.CERAMIC C2012 JB 1C 104K-T-A C163 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C165 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C167 4030008960 S.CERAMIC C2012 JB 1C 104K-T-A C169 4510004590 ELECTROLYTIC 16 MV 470 HC C172 4030011760 S.CERAMIC GRM44-1 SL 682J 200PT C173 4030011760 S.CERAMIC GRM44-1 SL 682J 200PT C174 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C175 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C176 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C178 4030011760 S.CERAMIC GRM44-1 SL 682J 200PT C179 4030011760 S.CERAMIC GRM44-1 SL 682J 200PT C183 4030011740 S.CERAMIC GRM42-2 CH 201J 500PT C185 4320001050 S.MICA UC342H 3900J-T C186 4320001050 S.MICA UC342H 3900J-T C187 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT C188 4510004600 ELECTROLYTIC 16 MV 1000 HC C189 4030008960 S.CERAMIC C2012 JB 1C 104K-T-A C190 4320001120 S.MICA UC342H2200J-T 220P C191 4030011740 S.CERAMIC GRM42-2 CH 201J 500PT C193 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A

5 - 18

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PA UNIT][PA UNIT]

S.=Surface mount

C195 4030011160 S.CERAMIC GRM42-6 CH 150J 500PT C196 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C197 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C198 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C199 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C200 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C201 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C202 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C203 4030011740 S.CERAMIC GRM42-2 CH 201J 500PT C204 4030011740 S.CERAMIC GRM42-2 CH 201J 500PT C207 4510004600 ELECTROLYTIC 16 MV 1000 HC C212 4030004860 S.CERAMIC C2012 CH 1H 090D-T-A C213 4030004720 S.CERAMIC C2012 JB 1H 102K-T-A C214 4030004720 S.CERAMIC C2012 JB 1H 102K-T-A C216 4510004630 S.ELECTROLYTIC ECEV1CA100SR C217 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A C218 4030004570 S.CERAMIC C2012 SL 1H 470J-T-A C219 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C220 4030011180 S.CERAMIC GRM42-6 CH 220J 500PT C231 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT C232 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C233 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C235 4030011210 S.CERAMIC GRM42-6 CH 330J 500PT C236 4030011210 S.CERAMIC GRM42-6 CH 330J 500PT C237 4030004570 S.CERAMIC C2012 SL 1H 470J-T-A C238 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A C239 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C240 4030016580 S.CERAMIC GRH111 CH 390J 500PT C241 4030016580 S.CERAMIC GRH111 CH 390J 500PT C242 4030016590 S.CERAMIC GRH111 CH 470J 500PT C243 4030016590 S.CERAMIC GRH111 CH 470J 500PT C244 4030016570 S.CERAMIC GRH111 CH 270J 500PT C245 4030016560 S.CERAMIC GRH111 CH 180J 500PT C246 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT C247 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C250 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C261 4030016570 S.CERAMIC GRH111 CH 270J 500PT C262 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C264 4030011230 S.CERAMIC GRM42-6 CH 390J 500PT C265 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT C268 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C272 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C274 4030011230 S.CERAMIC GRM42-6 CH 390J 500PT C275 4030011210 S.CERAMIC GRM42-6 CH 330J 500PT C276 4030011180 S.CERAMIC GRM42-6 CH 220J 500PT C278 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C279 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C280 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C281 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C291 4030008560 S.CERAMIC C1608 CH 1H 300J-T-A C292 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C301 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT C302 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C303 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C311 4030011210 S.CERAMIC GRM42-6 CH 330J 500PT C312 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C313 4030004890 S.CERAMIC C2012 CH 1H 150J-T-A C314 4030004880 S.CERAMIC C2012 CH 1H 120J-T-A C317 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C318 4030004780 S.CERAMIC C2012 CH 1H 010C-T-A C319 4030004780 S.CERAMIC C2012 CH 1H 010C-T-A C321 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C322 4030011090 S.CERAMIC GRM42-6 CH 070D 500PT C323 4030011090 S.CERAMIC GRM42-6 CH 070D 500PT C324 4030011120 S.CERAMIC GRM42-6 CH 100D 500PT C326 4030011110 S.CERAMIC GRM42-6 CH 090D 500PT C327 4030011070 S.CERAMIC GRM42-6 CH 050C 500PT C328 4030011110 S.CERAMIC GRM42-6 CH 090D 500PT C329 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C331 4030011070 S.CERAMIC GRM42-6 CH 050C 500PT C332 4030011120 S.CERAMIC GRM42-6 CH 100D 500PT C341 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C344 4030011100 S.CERAMIC GRM42-6 CH 080D 500PT C345 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT C353 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C354 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C361 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C401 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C402 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C405 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C407 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C408 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

C409 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C410 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C411 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C412 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C414 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C418 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C421 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C422 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C423 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C425 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C427 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C452 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C453 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C454 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C455 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C457 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C458 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C459 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C460 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C461 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C462 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C463 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C469 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C470 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C471 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C472 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C476 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C477 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C478 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C501 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C502 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C511 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C521 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C531 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C552 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C553 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C571 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C572 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C573 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C574 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C575 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C576 4510004430 S.ELECTROLYTIC ECEV1CV220WR C577 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C578 4510004590 ELECTROLYTIC 16 MV 470 HC C579 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C580 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C581 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C582 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C583 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C591 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C592 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C593 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C594 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C601 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C602 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C603 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C604 4510004600 ELECTROLYTIC 16 MV 1000 HC C613 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C621 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C622 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C623 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C624 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C626 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C627 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C632 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C641 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C651 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C652 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C661 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C662 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C663 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C664 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C665 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C666 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C667 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C668 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C669 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C670 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C672 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C673 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C674 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C675 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A

5 - 19

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[FILTER BOARD][PA UNIT]

S.=Surface mount

C676 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C677 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C678 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C679 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C680 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C681 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C682 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C683 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C684 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C685 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C686 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C687 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C688 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C689 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C690 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C691 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C692 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

RL591 6330001550 RELAY JV-12-KT

CP573 6910009670 S.CHECK P HK3-S-T CP574 6910009670 S.CHECK P HK3-S-T

J160 6510021530 CONNECTOR IMSA-9230B-1-04Z024-T J161 6510021530 CONNECTOR IMSA-9230B-1-04Z024-T J172 6510007020 CONNECTOR TMP-J01X-V6 J210 6510021530 CONNECTOR IMSA-9230B-1-04Z024-T J211 6510021530 CONNECTOR IMSA-9230B-1-04Z024-T J270 6510017150 CONNECTOR TMP-S01X-C1 J571 6510018960 S.CONNECTOR B2B-PH-SM3-TB J621 6510019980 S.CONNECTOR 52808-1690 J641 6450000140 CONNECTOR HSJ0807-01-010 J661 6510020080 S.CONNECTOR 52808-2090

F591 5210000130 FUSE FGB 4A F592 5220000230 HOLDER S-N5054 #01 F593 5220000230 HOLDER S-N5054 #01

W235 7030000010 S.JUMPER MCR10EZHJ JPW (000) W300 7030008240 S.JUMPER ERJ12YJ0R00H W301 7030008240 S.JUMPER ERJ12YJ0R00H W316 7030003860 S.JUMPER ERJ3GE JPW V W320 7030003860 S.JUMPER ERJ3GE JPW V W361 7120000470 JUMPER ERDS2T0 W409 7030000010 S.JUMPER MCR10EZHJ JPW (000) W462 7030003860 S.JUMPER ERJ3GE JPW V W572 7030003860 S.JUMPER ERJ3GE JPW V

WS1 8970023310 M.OTHER SX2177 1.5D COAXIAL (2)/PA WS2 8970022462 M.OTHER SX1897 J BOARD SET-2 (1)/PA WS3 8970023271 M.OTHER SX2177 SPECIAL WIRE (1)/PA WS4 8600036490 M.OTHER SX2177 P601PA WS6 8600036470 M.OTHER SX2177 J611

✕612PA

WS7 8600034701 M.OTHER SX2177 P651

✕J651PA

WS8 8970023340 M.OTHER SX2177 J LEAD SET (1)/PA

EP1 0910050976 PCB B 5211F EP174 9018970370 TUBE TUBE 20(d) L=25 mm

IC1 1110002700 S.IC NJM2904M-T1

Q1 1590000680 S.TRANSISTOR DTC114EUA T106 Q2 1530002060 S.TRANSISTOR 2SC4081 T107 R Q3 1530002060 S.TRANSISTOR 2SC4081 T107 R Q4 1530002060 S.TRANSISTOR 2SC4081 T107 R Q5 1530002060 S.TRANSISTOR 2SC4081 T107 R Q6 1530002060 S.TRANSISTOR 2SC4081 T107 R Q7 1530002060 S.TRANSISTOR 2SC4081 T107 R Q8 1530002060 S.TRANSISTOR 2SC4081 T107 R Q9 1530003090 S.TRANSISTOR 2SC4213-B (TE85R) Q10 1530002060 S.TRANSISTOR 2SC4081 T107 R Q11 1540000450 S.TRANSISTOR 2SD1623-T-TD Q12 1590001870 S.TRANSISTOR DTA114EE TL

D1 1750000300 S.DIODE 1SS302 (TE85R) D2 1750000300 S.DIODE 1SS302 (TE85R) D3 1750000300 S.DIODE 1SS302 (TE85R) D4 1750000300 S.DIODE 1SS302 (TE85R) D5 1750000300 S.DIODE 1SS302 (TE85R) D6 1750000300 S.DIODE 1SS302 (TE85R) D7 1750000300 S.DIODE 1SS302 (TE85R) D8 1750000300 S.DIODE 1SS302 (TE85R) D9 1790001210 S.DIODE 1SS375-TL D10 1790001210 S.DIODE 1SS375-TL D23 1750000300 S.DIODE 1SS302 (TE85R) D24 1160000050 S.DIODE DAP202U T107 D25 1750000640 S.DIODE 1SV312 (TE85L) D26 1790001250 S.DIODE MA2S111-(TX)

L1 6110001560 COIL LA-236 L2 6110001630 COIL LA-246 L5 6110003570 COIL LA-550 L6 6110003570 COIL LA-550 L7 6110003550 COIL LA-547 (LA-214A) L10 6140001800 COIL LR-216 (T50-2) L11 6140001800 COIL LR-216 (T50-2) L14 6140003450 COIL LR-387 [EUR], [FRA], [ESP]

6140003470 COIL LR-389 [USA], [OTH] L15 6140003460 COIL LR-388 L18 6140002560 COIL LR-293 (T50-10) L19 6140002560 COIL LR-293 (T50-10) L22 6110002920 COIL LA-481 L23 6110003580 COIL LA-551 L26 6140001800 COIL LR-216 (T50-2) L27 6140001780 COIL LR-214 (T50-2) L30 6140002570 COIL LR-294 (T50-2) L31 6140002580 COIL LR-295 (T50-2) L33 6140003490 COIL LR-391 L34 6200002040 S.COIL NL 252018T-101J L35 6200003950 S.COIL HF50ACC 322513-T L36 6200002040 S.COIL NL 252018T-101J L37 6200002040 S.COIL NL 252018T-101J L39 6200003950 S.COIL HF50ACC 322513-T L41 6200003950 S.COIL HF50ACC 322513-T L42 6200003950 S.COIL HF50ACC 322513-T L43 6200003950 S.COIL HF50ACC 322513-T L44 6200002040 S.COIL NL 252018T-101J L45 6200002040 S.COIL NL 252018T-101J L46 6200002040 S.COIL NL 252018T-101J L47 6200002040 S.COIL NL 252018T-101J L48 6200002040 S.COIL NL 252018T-101J L49 6200002040 S.COIL NL 252018T-101J L50 6140002560 COIL LR-293 (T50-10) L51 6200003950 S.COIL HF50ACC 322513-T L54 6200002040 S.COIL NL 252018T-101J L55 6200002040 S.COIL NL 252018T-101J L56 6200005010 S.COIL NL 252018T-100J L57 6200002040 S.COIL NL 252018T-101J L58 6200003950 S.COIL HF50ACC 322513-T L59 6200003950 S.COIL HF50ACC 322513-T L60 6200002040 S.COIL NL 252018T-101J L61 6200003950 S.COIL HF50ACC 322513-T L63 6200005010 S.COIL NL 252018T-100J L64 6200002040 S.COIL NL 252018T-101J L65 6200002040 S.COIL NL 252018T-101J L66 6200002040 S.COIL NL 252018T-101J L67 6200002040 S.COIL NL 252018T-101J L68 6200003590 S.COIL EXCCL3225U1

5 - 20

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[FILTER BOARD][FILTER BOARD]

S.=Surface mount

L69 6200002040 S.COIL NL 252018T-101J L70 6200003550 S.COIL MLF1608A 4R7K-T L71 6200002040 S.COIL NL 252018T-101J L72 6200002040 S.COIL NL 252018T-101J L73 6200002040 S.COIL NL 252018T-101J L74 6200002040 S.COIL NL 252018T-101J L75 6200002040 S.COIL NL 252018T-101J L76 6200002040 S.COIL NL 252018T-101J L77 6200002040 S.COIL NL 252018T-101J L78 6200002040 S.COIL NL 252018T-101J L79 6200002040 S.COIL NL 252018T-101J L80 6200002040 S.COIL NL 252018T-101J L81 6200002040 S.COIL NL 252018T-101J L82 6200002040 S.COIL NL 252018T-101J L83 6200002040 S.COIL NL 252018T-101J L84 6200002040 S.COIL NL 252018T-101J L85 6200002040 S.COIL NL 252018T-101J L86 6200002040 S.COIL NL 252018T-101J L87 6180000900 COIL LAL 03NA 101K

R2 7030007190 S.RESISTOR ERJ12YJ220H (22 Ω) R3 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R4 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R5 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R6 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R7 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R8 7540000130 ABSORBER 2P-50A-301 R9 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R10 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R11 7010003241 RESISTOR PSD1/4V 47 Ω R15 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R16 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R17 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R18 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R26 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R27 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R28 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R33 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R34 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R35 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R36 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R37 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R38 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R39 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R40 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R42 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R43 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R60 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R61 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R62 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R63 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω) R64 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R65 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R66 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R67 7030000320 S.RESISTOR MCR10EZHJ 330 Ω (331) R68 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R69 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R70 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R71 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R72 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R73 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R74 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R75 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R76 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R77 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R78 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R79 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R80 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R81 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R82 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R83 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

C1 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C2 4030009470 S.CERAMIC C1608 CH 1H R75C-T-A C3 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C4 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C5 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C6 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C7 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C15 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

C16 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C17 4010005360 CERAMIC HM11SJ SL 301J 500V C19 4010007590 CERAMIC HM15SJ SL 681J 500V C21 4010005930 CERAMIC HM11SJ SL 391J 500V C22 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C23 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C29 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C30 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C31 4010007610 CERAMIC HM95SJ SL 241J 500V C32 4010005810 CERAMIC HM74SJ SL 111J 500V C33 4010005880 CERAMIC HM95SJ SL 271J 500V C36 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C37 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C40 4010007610 CERAMIC HM95SJ SL 241J 500V C43 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C44 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C45 4010005930 CERAMIC HM11SJ SL 391J 500V C46 4010008160 CERAMIC HM13SJ SL 431J 500V C47 4010005870 CERAMIC HM95SJ SL 221J 500V C48 4010005810 CERAMIC HM74SJ SL 111J 500V C49 4010007490 CERAMIC HM15SJ SL 561J 500V C50 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C51 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C52 4010007500 CERAMIC HM15SJ SL 751J 500V C53 4010006410 CERAMIC HM13SJ SL 471J 500V C54 4010007500 CERAMIC HM15SJ SL 751J 500V C55 4010005820 CERAMIC HM74SJ SL 121J 500V C56 4010007500 CERAMIC HM15SJ SL 751J 500V C57 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C58 4610002050 S.TRIMMER ECR-JC010 A12W C59 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C62 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C63 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C64 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C65 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C66 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C67 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C69 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C70 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C71 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C72 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C73 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C74 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C75 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C76 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C78 4010005850 CERAMIC HM95SJ SL 181J 500V C79 4010005860 CERAMIC HM95SJ SL 201J 500V C80 4010007590 CERAMIC HM15SJ SL 681J 500V C81 4010006410 CERAMIC HM13SJ SL 471J 500V C82 4010007500 CERAMIC HM15SJ SL 751J 500V C84 4010007490 CERAMIC HM15SJ SL 561J 500V C87 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C88 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C89 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C90 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C91 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C92 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C93 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C94 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C95 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C96 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C97 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C98 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C99 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C100 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C101 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C102 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C103 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C104 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C105 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C110 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C111 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C112 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C113 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C114 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C115 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C116 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C117 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C118 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C119 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C120 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C121 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

5 - 21

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[FILTER BOARD][FILTER BOARD]

S.=Surface mount

C122 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C123 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C124 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C125 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C126 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C127 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C128 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C133 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C135 4010005820 CERAMIC HM74SJ SL 121J 500V C136 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT C140 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C141 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C143 4010006410 CERAMIC HM13SJ SL 471J 500V C144 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C145 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C146 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C147 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C148 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C149 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C151 4010005540 CERAMIC HM60SJ SL 030C 500V C152 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C153 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C154 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C155 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C156 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C157 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C158 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C159 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C162 4030011080 S.CERAMIC GRM42-6 CH 060D 500PT C163 4030011080 S.CERAMIC GRM42-6 CH 060D 500PT C164 4030011160 S.CERAMIC GRM42-6 CH 150J 500PT C166 4030011730 S.CERAMIC GRM42-6 CH 101J 500PT C168 4030011230 S.CERAMIC GRM42-6 CH 390J 500PT C169 4030011510 S.CERAMIC GRM42-6 CH 560J 500PT

[EUR], [FRA], [ESP]

4030011240 S.CERAMIC GRM42-6 CH 470J 500PT

[USA], [OTH]

C170 4030011230 S.CERAMIC GRM42-6 CH 390J 500PT

[EUR], [FRA], [ESP]

4030011240 S.CERAMIC GRM42-6 CH 470J 500PT

[USA], [OTH]

C171 4030011180 S.CERAMIC GRM42-6 CH 220J 500PT

[EUR], [FRA], [ESP]

4030011160 S.CERAMIC GRM42-6 CH 150J 500PT

[USA], [OTH] C172 4030014460 S.CERAMIC GRM42-6 CH 820J 500PT C174 4030011510 S.CERAMIC GRM42-6 CH 560J 500PT C175 4030011730 S.CERAMIC GRM42-6 CH 101J 500PT C176 4030011730 S.CERAMIC GRM42-6 CH 101J 500PT C177 4030011180 S.CERAMIC GRM42-6 CH 220J 500PT C178 4030011550 S.CERAMIC GRM42-6 CH 680J 500PT C180 4030011550 S.CERAMIC GRM42-6 CH 680J 500PT C181 4030011730 S.CERAMIC GRM42-6 CH 101J 500PT

[EUR], [FRA], [ESP]

4030014460 S.CERAMIC GRM42-6 CH 820J 500PT

[USA], [OTH] C182 4030014460 S.CERAMIC GRM42-6 CH 820J 500PT C183 4030011730 S.CERAMIC GRM42-6 CH 101J 500PT C184 4030011730 S.CERAMIC GRM42-6 CH 101J 500PT C185 4030011210 S.CERAMIC GRM42-6 CH 330J 500PT C186 4030011730 S.CERAMIC GRM42-6 CH 101J 500PT C189 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C190 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C191 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C192 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C193 4030011120 S.CERAMIC GRM42-6 CH 100D 500PT C200 4030011050 S.CERAMIC GRM42-6 CJ 030C 500PT

[USA], [OTH] only C201 4030011290 S.CERAMIC GRM42-6 CH 240J 500PT C202 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C203 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C204 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C205 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C206 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C207 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C208 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C209 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C210 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C211 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C213 4030012610 S.CERAMIC C2012 JB 1C 474K-T-A C214 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C215 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

RL1 6330001330 RELAY AG 201344 RL2 6330001430 RELAY NA-12W-K RL3 6330001430 RELAY NA-12W-K RL4 6330001150 RELAY MZ-12DK RL5 6330001150 RELAY MZ-12DK RL6 6330001150 RELAY MZ-12DK RL7 6330001150 RELAY MZ-12DK RL8 6330001150 RELAY MZ-12DK RL9 6330001150 RELAY MZ-12DK RL10 6330001150 RELAY MZ-12DK RL11 6330001150 RELAY MZ-12DK RL12 6330001150 RELAY MZ-12DK RL13 6330001150 RELAY MZ-12DK RL14 6330001150 RELAY MZ-12DK RL15 6330001150 RELAY MZ-12DK RL16 6330001150 RELAY MZ-12DK

J4 6450001490 CONNECTOR HLJ7001-01-3010 J5 6450001640 CONNECTOR TCS5044-01-4111 J7 6450001650 CONNECTOR HSJ0836-01-500 J8 6450001660 CONNECTOR EX345GLB J9 6510020080 S.CONNECTOR 52808-2090 J11 6510016170 CONNECTOR 52018-8835 J12 6510020080 S.CONNECTOR 52808-2090 J13 6510017150 CONNECTOR TMP-S01X-C1 J14 6450001840 CONNECTOR TCS7568-43-201

W15 7030003860 S.JUMPER ERJ3GE JPW V W16 7030003860 S.JUMPER ERJ3GE JPW V W17 7030003860 S.JUMPER ERJ3GE JPW V W18 7030003860 S.JUMPER ERJ3GE JPW V W19 7030009300 S.JUMPER ERJ1WY0R00H W20 7030009300 S.JUMPER ERJ1WY0R00H W23 7030003860 S.JUMPER ERJ3GE JPW V

WS1 8970023280 M.OTHER SX2177 1.5D COAXIAL (2)/FI

EP1 0910050996 PCB B 5213F

Q100 1590002680 S.FET MRF1508T1 Q200 1590002680 S.FET MRF1508T1

R165 7030009560 S.RESISTOR ERJ1WYJ181H R166 7030000020 S.RESISTOR MCR10EZHJ 1 Ω (010)

C168 4030006480 S.CERAMIC GRM42-6 B 104K 50PT C169 4030011740 S.CERAMIC GRM42-2 CH 201J 500PT

W213 7030000010 S.JUMPER MCR10EZHJ JPW (000)

EP1 0910050985 PCB B 5212E

5 - 22

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[DRIVER BOARD]

REF ORDER

DESCRIPTION

NO. NO.

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY

[CHASSIS PARTS]

REF. NO.

J3 6510000370 Connector MR-DS [ANT1] 1 J4 6510000370 Connector MR-DS [ANT2] 1

W1 8900008850 OPC-874 1 W2 8900008860 OPC-875 1 W3 8900008880 OPC-877 1 W14 8900008700 OPC-852 1 W15 8900008870 OPC-876 1 W16 8900006980 OPC-682 1

EP1 8930021010 Domed plug DP-500 1 EP2 0910045921 Flexible PCB B-4598A 1

MF1 2710000580 Fan FBA06T12HF 1

SP1 2510000990 Speaker VS-66Y0811 1

MP1 8010017540 2177 Chassis 1 MP2 8110006060 1897 upper-cover (incl.MP10 and MP38) 1 MP3 8110006590 2177 lower-cover 1 MP7 8930049121 2177 fan holder-1 1 MP8 8820000530 Flang bolt M4 x 8 NI 1 MP10 8930015850 SP net 1 MP11 8930018520 TR crip (A) 1 MP12 8950004180 1691 contact base (A) 1 MP17 8310045920 2177 ANT plate 1 MP19 8810008660 Screw PH BT M3 x 8 NI-ZU 5 MP20 8810007410 Screw PH M3 x 6 NI 2 MP21 8810009610 Screw FH M2.6 x 6 ZK 5 MP22 8850000140 Flat washer M 4 NI BS 1 MP24 8810008990 Screw PH BT M2 x 10 ZK 1 MP25 8850001560 Ster washer M 4 1 MP26 8810008660 Screw PH BT M3 x 8 NI-ZU 4 MP27 8810008660 Screw PH BT M3 x 8 NI-ZU 5 MP28 8810008660 Screw PH BT M3 x 8 NI-ZU 6 MP32 8810007410 Screw PH M3 X 6 NI 2 MP33 8810008490 Setscrew H M2.6 x 8 NI 2 MP34 8810008490 Setscrew H M2.6 x 8 NI 2 MP35 8810008490 Setscrew H M2.6 x 8 NI 2 MP36 8810009610 Screw PH M2.6 x 6 ZK 5 MP37 8810008490 Setscrew H M2.6 x 8 NI 2 MP38 8930038650 Sheet BE 1 MP40 8930038820 Aluminum sheet V 1 MP49 8930028390 Sheet AH 5 MP60 8930042440 1897 SP holder 1 MP61 8810009610 Screw PH M2.6 x 6 ZK 4 MP62 8810009390 Screw PH BT M3 x 18 NI-ZU 4 MP63 8810007410 Screw PH M3 x 6 NI 2 MP65 8810008660 Screw PH BT M3 x 8 NI-ZU 2 MP74 8510011940 2177 plate 1 MP75 8810009510 Screw PH BT M2 x 4 NI-ZU 2 MP76 8510006440 ANT cover 1 MP77 8930048550 2177 clip 1 MP79 8930048960 Shield tape (B) 1 MP80 8930048970 Shield tape (C) 1 MP81 8930048960 Shield tape (B) 1 MP83 8930015640 Code holder 1 MP84 8930048120 Shield tape (A) 1 MP87 8930049110 Sponge (GC) 1 MP89 8930001160 Earth spr ing 1

ORDER NO. DESCRIPTION QTY. REF. NO.

[FRONT PARTS]

ORDER NO. DESCRIPTION QTY.

S1 2250000290 Encorder SW-159 (EC24B50B) 1

W1 8900006040 Flat cable OPC-593 1 W2 8900006250 Cable OPC-610 1

MP1 8210015780 2177 front panel 1 MP2 8210015890 1691 rear panel (A) 1 MP3 8930047970 2177 menu key 1 MP4 8930047960 2177 mode key 1 MP5 8930048370 1691 UP/DOWN key (B) 1 MP6 8930036731 1691 4-key-1 1 MP7 8930036751 Spring (Y)-1 1 MP8 8930032340 1424 N-spring 1 MP9 8830001010 Hex nut (A) 2 MP10 8610010660 Knob N-237 (A) (incl. MP27) 1 MP11 8610010670 Knob N-238 (A) 2 MP12 8610010021 Konb N-239 base-1 1 MP13 8610010030 Knob N-239 cover 1 MP14 8610010040 Konb N-239 finger rest 1 MP15 8930036691 1691 release button-1 1 MP16 8930048090 2177 lens 1 MP17 8310036280 1691 window plate 1 MP18 8310036273 1691 brake plate-3 (incl. MP20) 1 MP19 8950004191 1691 contact base (B)-1 1 MP20 8930036740 1691 brake pad 2 MP21 8930037111 1691 brake sheet-1 1 MP22 8310036583 1691 caution label (S)-3 1 MP23 8810008990 Screw PH BT M2 x 10 ZK 2 MP24 8930038940 Sponge (EF) 1 MP25 8830001410 1897 nut 1 MP26 8610010360 Knob N260 (incl. MP28) 1 MP27 8610007510 Knob spring No. 7800 1 MP28 8610007510 Knob spring No. 7800 1

8210015910 2177 front panel assembly

(incl. MP1, MP5, MP6, MP16, MP17) 1

8610010111 Knob N-239 assembly

(incl. MP8, MP12, MP13, MP14, MP21) 1

[DISPLAY BOARD]

REF. NO.

J2 6450001630 Connector HSJ1406-01-050 [PHONES] 1

DS4 5030001670 LCD DLC-8309YBGF 1 DS5 5030001290 LED D2264 1

EP2 8930039790 LCD connector SRCN-1691-ZSS-505 2

MP1 8930036710 1691 LCD holder 1 MP3 8810009040 Setscrew H M2.6 x 10 NI 1 MP4 8830000180 Nut M 2.6 NI BS 1 MP5 8930043470 1897 front plate 1

ORDER NO. DESCRIPTION QTY.

[VR BOARD]

REF. NO.

R1 7210002780 Variable resistor RV-300 (RK0972210) 1 R2 7210002940 Variable resistor

ORDER NO. DESCRIPTION QTY.

TP96D231E20-20F-10KB-1897 1

S1 2220000540 Switch SW-162 (SSSS22-2-11) 1

6 - 1

[MAIN BOARD]

[FILTER BOARD]

REF. NO.

MP1 8510011950 2177 HPF case 1 MP2 8510005990 724 shield case cover 1 MP3 8510012400 1691 D/A case 2177 D/A case 1 MP4 8930014140 Earth spring (D) 1 MP5 8930014140 Earth spring (D) 1 MP6 8310045930 2177 shield plate 1 MP7 8510010460 1691 main shield plate 1 MP8 8930014140 Earth spring (D) 1 MP9 8930017200 752 earth spring 1 MP10 8930017200 752 earth spr ing 1 MP14 8510012410 2177 main S-plate 1

ORDER NO. DESCRIPTION QTY.

[DRIVER BOARD]

REF. NO.

MP1 8410002270 2177 heatsink 1

ORDER NO. DESCRIPTION QTY.

[PLL UNIT]

REF. NO.

MP1 8510012260 2177 PLL shield case 1 MP2 8510010850 1897 D/A case 1 MP5 8510005150 602 shield case 1 MP6 8510012140 2177 shield cover 1 MP7 8510005150 602 shield case 1 MP8 8510012140 2177 shield cover 1 MP9 8510005150 602 shield case 1 MP10 8510012140 2177 shield cover 1 MP11 8510010150 1691 D/A case 1 MP12 8510011980 2177 VCO case 1 MP13 8510011990 2177 VCO cover 1 MP14 8810009000 Screw PH No. 0 M2.6 x 5 ZK 4 MP15 8510011970 2177 OSC case 1 MP16 8930001170 Earth spr ing (A) 1 MP18 8510011250 1897 main shield plate 1 MP19 8510011960 2177 OSC cover 1 MP20 8930049151 2177 PLL spring-1 1 MP21 8930043100 Sponge (EU) 1 MP23 8930030220 Rubber sheet (L) 1 MP24 8930049460 2177 VCO angle 1 MP25 8930024170 Earth spr ing (G) 1 MP26 8930049470 Rubber sheet (AS) 1 MP27 8930049470 Rubber sheet (AS) 1 MP28 8930036870 Sponge (DZ) 1 MP29 8930014140 Earth spr ing (D) 1 MP30 8930017200 752 earth spr ing 1 MP31 8930017200 752 earth spr ing 1 MP32 890028380 SHEET (C) 1

ORDER NO. DESCRIPTION QTY.

REF. NO.

J4 6450001490 Connector HLJ7001-01-3010 [ELEC-KEY] 1 J5 6450001640 Connector TCS5044-01-4111 [ACC] 1 J7 6450001650 Connector HSJ0836-01-500 [REMOTE] 1 J8 6450001660 Connector EX345GLB [RTTY] 1 J11 6510016170 Connector 52018-8835 [MIC] 1 J12 6510020080 Connector 52808-2090 1 J13 6510017150 Connector TMP-S01X-C1 1 J14 6450001840 Connector TCS7568-43-201 [DATA] 1

MP1 8930017200 752 earth spring 1 MP3 8930001170 Earth spring (A) 1

ORDER NO. DESCRIPTION QTY.

[UNPACKING]

REF. NO.

F1 5210000090 Fuse FGB 30A 2 F2 5210000130 Fuse FGB 4A 1

P1 5610000050 Electronic keyer plug AP330 1 P2 5610000170 RTTY key plug AP370 1

W1 8900006490 DC power cable OPC-025D 1 W2 8900006110 ACC cable OPC-596 1

MC1 7700002000 Hand microphone HM-103 ACC 1

MP1 8930007300 Mic hunger 1

Screw abbreviations BT: Self-tapping PH: Pan head

ORDER NO. DESCRIPTION QTY.

NI: Nickel NI-ZU:Nickel-Zinc BS: Brass ZK: Black

[PA PARTS]

REF. NO.

F591 5210000130 Fuse FGB 4A 1

J19 6510001920 Connector 1490R [TUNER] 1 J641 6450000140 Connector HSJ0807-01-010 1

P8 6510003780 Connector LLR-06 [DC 13.8V] 1

MP101 8930014140 Earth spring (D) 1 MP231 8860001130 2177 rug 1 MP232 8930049100 2177 PA spring 1 MP233 8930014140 Earth spring (D) 1 MP234 8860001130 2177 rug 1 MP451 8510012150 2177 PA shield plate 1 MP501 8930024170 Earth spring (G) 1 MP502 8930024170 Earth spring (G) 1

ORDER NO. DESCRIPTION QTY.

6 - 2

6 - 3

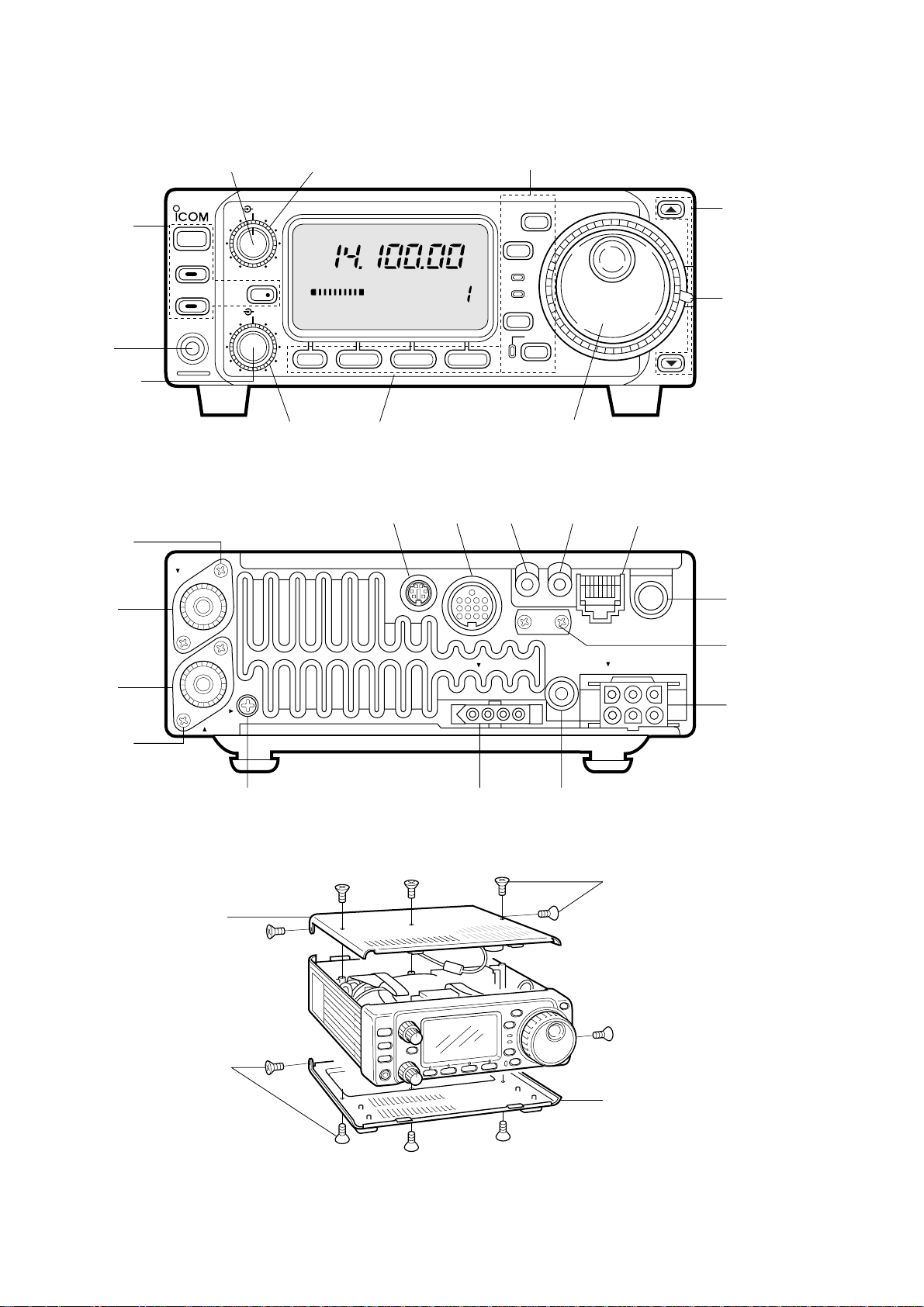

HF/VHF/UHF TRANSCEIVER

i706MK™G

AF

RIT/ SUB

MENU F-1 F-2 F-3

MODE

BAND

TS

DISPLAY

LOCK

RX

TX

M-CH

PHONES

TUNER/CALL

P.AMP/ATT

POWER

SHIFT

RF/SQL

CH

VFO A

P

O

S1

5

537920401060dB

USB

M1

SPL

A/B A=B

DC 13.8V

EXT SP

MIC

KEY

TUNER

ANT 1

ANT 2

GND

MP6 (FR)

MP2 (C)

MP8 (C)+MP22 (C)+MP25 (C) J641 (PA)

J4 (FL)

MP5 (FR)

J11 (FL)

J7 (FL)J8 (FL)

J5 (FL)

J19 (PA)

J3 (C)

MP18 (FR)+ MP20 (FR)

MP8 (FR)+MP12 (FR)+MP13 (FR)+MP14 (FR) +MP21 (FR)

MP20 (C)

MP32 (C)

MP36 (C)

MP21 (C)

J2 (D)

J4 (C) + MP17 (C)

MP26 (FR)

MP11 (FR) MP3 (FR)

MP3 (C)

EP1 (C)

P8 (PA)

J14 (FL)

MP10 (FR) MP11 (FR) MP4 (FR)

6 - 4

MP8 (FR)+MP12 (FR)+MP13 (FR)+MP14 (FR)+MP21 (FR)

MP25 (FR)

S1 (FR)

MP18 (FR)+MP20 (FR)

MP26 (FR)

MP10 (FR)

MP11 (FR)

MP9 (FR)

MP15 (FR)

MP7 (FR)

VR BOARD

R1 (V)

S1 (V)

R2 (V)

W1 (FR)

MP1 (D)

DS4 (D)

EP2 (D)

DS5 (D)

J2 (D)

DISPLAY BOARD

W1 (FR)

MP19 (FR)

MP1 (FR)+MP3 (FR) +MP5 (FR)+MP6 (FR)+MP16 (FR)+MP17 (FR)

S1 (FR)

W2 (FR)

MP4 (D)

MP5 (D)

MP3 (D)

MP27 (C)

MP77 (C)

W1 (C)+WP85 (C)

PA UNIT

PLL UNIT

MP63 (C)

MP33 (C)

MP34 (C)

MP26 (C)

MP35 (C)

MP80 (C)

J19 (PA)

P8 (PA)

MP49 (C)

MP24 (C)

MP12 (C)

EP2 (C)

MP24 (FR)

MP2 (FR)

MP23 (FR)

MAIN BOARD

EP2 (C)

MP19 (C)

MP2 (M)

W1 (C)+MP85 (C)

MP60 (C)

SP1 (C)

MP28 (C)

W2 (C)

W3 (C)

J4 (FL)

J7 (FL)

J8 (FL)

FILTER BOARD

MF1 (C)

MP62 (C)

MP40 (C)

EP1 (C)

MP65 (C)

MP20 (C)

J3 (C)

MP32 (C)

J4 (C)

MP8 (C)

MP25 (C)

MP22 (C)

MP49 (C)

Unit abbreviations: (C): CHASSIS PARTS (FR): FRONT PARTS (D): DISPLAY BOARD (M): MAIN BOARD

(PL): PLL UNIT (PA): PA UNIT (FL): FILTER UNIT (H): HPF BOARD (V): VR BOARD

MP4 (FR)

MP22(FR)

MP5 (M)

MP3 (M)+MP14 (M)

MP1 (M)

MP8 (M)

W15 (C)+MP86 (C)

MP6 (M)

MP9 (M)

MP10 (M)

MP7 ( M)

J5 (FL)

J14 (FL)

MP3 (FL)

J11 (FL)

MP1 (FL)

MP75 (C)

MP74 (C)

MP79 (C)

MP81 (C)

MP17 (C)

MP1 (C)

MP76 (C)

MP63 (C)

MP89 (C)

MP7 (C)

MP83 (C)

J641 (PA)

W15 (C)+MP86 (C)

W14 (C)

MP87 (C)

MP501 (PA)

MP502 (PA)

MP233 (PA)

MP232 (PA)

MP231 (PA)

MP101 (PA)

MP234 (PA)

MP13 (PL)

MP24 (PL)

MP16 (PL)

MP14 (PL)

MP27 (PL)

MP26 (PL)

W3 (C)

W2 (C)

MP4 (M)

MP28 (PL)

MP6 (PL)+MP8 (PL)

MP11 (C)

MP19 (PL)

MP30 (PL)

MP31 (PL)

MP9 (PL)+MP10 (PL)

MP25 (PL)

MP5 (PL)+MP7 (PL)+ MP23 (PL)

MP11 (PL)

MP1 (PL)

MP21 (PL)

W16 (C)

MP37 (C)

7 - 1

1SS302

(Symbol: C3)

1SV237

(Symbol: BB)

DA221

(Symbol: K)

MA2S111

(Symbol: A)

MA717WK

(Symbol: M3D)

1SS355

(Symbol: A)

1SV265

(Symbol: LV)

DAN202U

(Symbol: N)

HSB88WSTR

(Symbol: Silver line)

MA2S728

(Symbol: B)

MA742

(Symbol: M1U)

1SV305

(Symbol: TV)

DAN222

(Symbol: N)

KV1470TL

(Symbol: F7)

MA2SV0500L

(Symbol: A)

MA77

(Symbol: 4B)

1SS375

(Symbol: FH)

1SV308

(Symbol: TX)

DAP202U

(Symbol: P)

MA114

(Symbol: 1E)

MA304B

(Symbol: 7R)

MA8027

(Symbol: 2^7)

1SS385

(Symbol: 09)

1SV312

(Symbol: BB)

DAP222

(Symbol: P)

MA2S077

(Symbol: S)

MA357

(Symbol: NL)

MA8033

(Symbol: 3_3)

• DIODES

MA8036L

(Symbol: 3_6)

RD12M T2B2

(Symbol: 122)

MA8056M

(Symbol: 5-6)

UM9401F

MA8068M

(Symbol: 6-8)

MA862

(Symbol: M1I)

SECTION 7 SEMI-CONDUCTOR INFORMATION

E

C

B

S

D

G

S G

D

G

S

D

G

S

D

S

D

G

2SA1576 R

(Symbol: FR)

2SC4081 R

(Symbol: BR)

2SD1619

(Symbol: DB)

2SK508 K52

(Symbol: K52)

CPH3404

(Symbol: KD)

DTC114EU

(Symbol: 24)

2SA1577 Q

(Symbol: FR)

2SC4116 GR

(Symbol: LG)

2SC4213 B

(Symbol: AB)

2SD1623

(Symbol: DF)

2SK880 Y

(Symbol: XY)

DTA114EE

(Symbol: 14)

DTC144EE

(Symbol: 24)

2SB1123T

(Symbol: BF)

2SB1132R

(Symbol: BA)

2SK210 GR

(Symbol: YG)

2SK2171-4

(Symbol: KM)

2SK882 GR

(Symbol: TG)

DTA114EU

(Symbol: 14)

MRF1508T1

(Symbol: 1508)

2SC4403-3

(Symbol: LY3)

3SK126 O

(Symbol: UC)

DTA144EU

(Symbol: 16)

MXR9745RT1

(Symbol: RG)

2SB1143 S

2SC4405-3

(Symbol: OY3)

2SK2854

(Symbol: UP)

3SK291

(Symbol: UF)

DTC114EE

(Symbol: 24)

RN1202

SRFJ7044

(Symbol: SRFJ7044)

UMC1NTR

(Symbol: C1)

UMC3N TR

(Symbol: C3)

XP4111

(Symbol: 9U)

• TRANSISTOR AND FET’S

S

D

S

G

B

C

E

D

S

G2

G1

D

S

G2

G1

S

D

S

G

E1 B1

C2

E2

B2

C1

G

S

D

GD

S

D

S

G

S

8VLM

U/D

AF

PTT

MICEL

MICL

GND

SQLS

18

J1

TO FRONT UNIT W2

DN

AFL SQL AFV

UP

SFT

GND

AFL

AF

AF AFS AFS

5V

1

13

12

2

J3

TO VR

BOARD J1

87

14 1

75

76

100

50

26

51

125

100

1

25

75

51

76

26

5

8

4

1

50

S1 (FRONT)

MP5

Q11

SUP 5V SDN

LRXD LTXD

8V AFO GND

MIC

MICE

PWK

• DISPLAY BOARD (TOP VIEW)

8-1 DISPLAY BOARD

AF

RF/SQL

M-CH

SHIFT

TO DISPLAY BOARD

J3

AFL

AF

AF AFS AFS

5V

DN

AFL SQL AFV

UP

SFT

GND

J1

13

12

2

1

• VR BOARD

SPEAKER

PHONES

SECTION 8 BOARD LAYOUT

8 - 1

POWER

P.AMP/ATT

TUNER/CALL

RIT/SUB

MENU F-1 F-2 F-3

LOCK

DISP

TS

MODE

PHONES

R3

W2

• DISPLAY BOARD (BOTTOM VIEW)

8 - 2

85

14

114

78

1 4

8 5

1

8

16

9

1

8

16

9

1

8

16

9

18

45

1

14

78

18

1

10

20

11

TB3V

TB1V

PR3S

KEY

L8

UREF

UFOR

AT13

ICH

R8V

TB4V

TB2V

PR4S

STRT

L9

GND

VREF

VFOR

ICL

T8V

119

20 2

J401

CIVE

BDT

KEY

DOT

EALC

PTTP

SQLS

8V

DOUT

AMOD

CIV

FSKK

BAND

DASH

U/D

GND

AAF

AFO

T8V

DIN

119

20 2

J461

L2L4L6

GND

HREF

GND

14V

AT13

MICE

SNDSR

L1

L3

L5

L7

HFOR

SDSS

14V

MIC

SEND

119

20 2

J431

LTXD

AFO

MIC

PWK

LRXD

8V

GND

MICE

82

17

J1421

MSST

MCK GND

SPCH

MDT

SPBK

5VL

GND

AAF

FSKK

14V

H5V PDST CON1

PCK

IMST

DINT

AFBP

8V

PBST MLLV

AFGC

DSPS

GND

14V

HV

DRES CON2 CON0

PDT

DDT

ICK

8V

POWS

PCE SPS

5V

UL

J1381

TO PA UNIT J661

TO FILTER UNIT J9

TO FILTER UNIT J12

TO FRONT UNIT MP20

TO OPTIONAL UNIT UT-102

AFI

AFIE

AFOE

AFO

GND BFO

J1431

J791 P991

TO OPTIONAL UNIT UT-106

TO PLL UNIT J254

1

2

4

GND BFO

1

7

2

8

J2061

30

2

29

1

• MAIN BOARD (TOP VIEW)

8-2 MAIN BOARD

8 - 3

1

20

21

40 41

60

61

80

1 4

8 5

1

12

24

13

1

17

148

8

16

9

1

8

16

9

1

4

8 5

1

8

16

9

1

7

14

8

17

14 8

1

12

24

13

1

9

18

10

1

14

7

8

1

9

18

10

18

169

1

7

14

8

• MAIN BOARD (BOTTOM VIEW)

8 - 4

HFO

GND

HFI

GND

J101

J100

VUO

GND

J201

1

4

1

4

TO PA UNIT J211

14

TO PA UNIT J160

VUI

GND

J200

14

TO PA UNIT J210

TO PA UNIT J161

SRF

GND

PA2S

L6H

L4H

THH

GND

T8V

B7H

L5H

L3H

L2H

GND

SIF

10 1

11 20

J101

TO MAIN UNIT J1

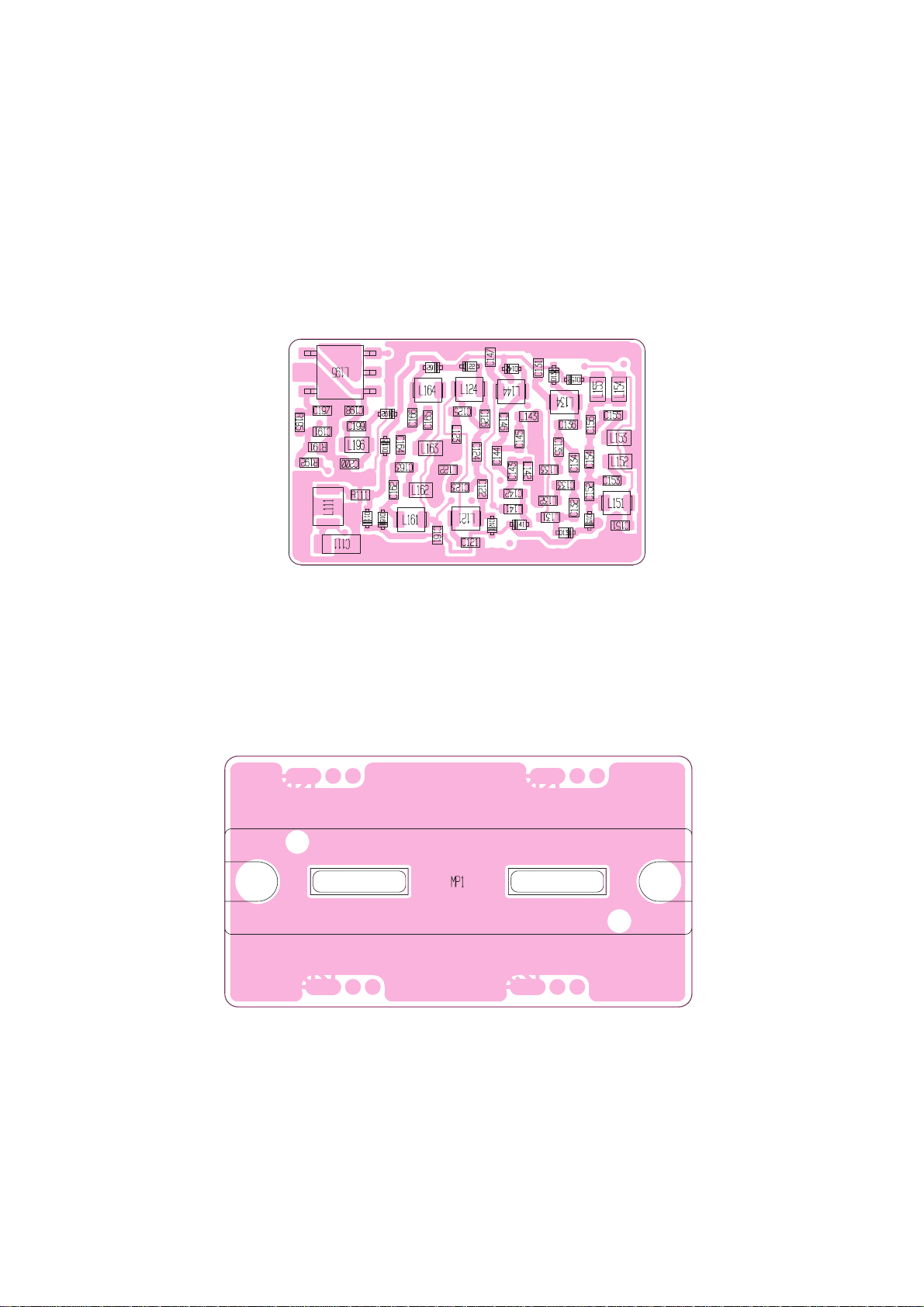

• HPF BOARD (TOP VIEW)

• DRIVER BOARD (TOP VIEW)

8-6 HPF AND DRIVER BOARDS

8 - 5

• HPF BOARD (BOTTOM VIEW)

• DRIVER BOARD (BOTTOM VIEW)

8 - 6

J611J612 ETKY ETST

ET14 ETE

ETKY ETST ET14 ETE

P101

J601

P651

P481

L174

HFI

HFI GND GND

1

4

J160

GND GND HFO HFO

4

1

J161

TO DRIVE BOARD J100

TO DRIVE BOARD J101

TO DRIVE BOARD J210

TO DRIVE BOARD J211

VUI

GND GND

1

4

J210

TB4V

TB2V

PR4S

STRT

L9

GND

VREF

VFOR

ICL

T8V

TB3V

TB1V

PR3S

KEY

L8

UREF

UFOR

AT13

ICH

R8V

119

2

20

J661

ESPO

ESPE

POWS

GND

14V

THER

8V

2MBL

ESPO

ESPE

GND

14V

GND

8V

HV

16 2

15

1

J621

GND GND VUO VUO

4

1

J211

TO MAIN UNIT J231

TO MAIN J401

TO PLL J252

TO MAIN UNIT J141

• PA UNIT (TOP VIEW)

8-4 PA UNIT

8 - 7

• PA UNIT (BOTTOM VIEW)

8 - 8

111

12

22

44

34

3323

1

100 76

26 50

25

75

51

1

5

10

6

BFO

GND

P991

TO MAIN J791

P891

TO MAIN J281

P681

TO MAIN J551

TO MAIN J1431

AFI

AFIE

AFOE

AFO

14V

FSKK

IMST

DINT

AAF

8V

AFBP

H5V

PDST

PCK

CON1

PBST MLLV

AFGC

DSPS

HV

14V

DDT

ICK

GND

POWS

8V

DRES CON2

PDT

CON0

PCE SPS

5V

UL

J254

1

29 30

2

TO MAIN J1381

GND

DSPS

ICK

IMST

DRES

GND

5V

DDT

DINT

J253

19

210

TO OPTIONAL UNIT UT-106

J252

2MBL

8V

THER

14V

GND

POWS

ESPE

ESPO

HV

8V

GND

14V

GND

ESPE

ESPO

15 1

216

TO PA UNIT J621

• PLL UNIT (TOP VIEW)

8-3 PLL UNIT

8 - 9

1

8

16

9

• PLL UNIT (BOTTOM VIEW)

8 - 10

RTTY REMOTE

KEY

8VM

MAFM

MCEM

GND

U/DM

SENM

MICM

SQSM

17

28

J11

TO MIC

CIVE

BDT

KEY

DOT

CIV

FSKK

BAND

DASH

EALC

PTTP

SQLS

8V

U/D

GND

AAF

AFO

DOUT

AMOD

T8V

DIN

TO MAIN UNIT J461

119

220

J9

L2

L4

L6

GND

L1

L3

L5

L7

HREF

GND

14V

AT13

HFOR

SDSS

14V

MICE

SNDSR

MIC

SEND

TO MAIN BOARD J431

119

220

J12

P1

(HRX)

TO MAIN BOARD J101

P2

(HPAO)

TO PA UNIT J172

DATA ACC

14

85

AFOUT PTTP DIN

3

5

1

4

6

2

J14

AAF DOUT

1234 5678 9

101112

13

J5

BOTA SENO1

138A SENO2 AFA MODA SQSA

8VA GND

1 2

4 3

8 7

12

11

13

10 6 9 5

B A N A

K E Y A

A L C A

F S K A

• FILTER UNIT (TOP VIEW)

8-5 FILTER UNIT

8 - 11

• FILTER BOARD (BOTTOM VIEW)

8 - 12

9 - 1

SECTION 9 BLOCK DIAGRAM

IC571 µPC2713T

NB

GETE

GATE CTRL

WAVE CTRL

DRIVE CTRL

NB SW

NB

DET

WFM

DET

AGC

CTRL

IF AMP

R8V

AGC

ATT D572

TX TOTAL GAIN R579 RV-143

XTAL

BPF

LPF

CERAMIC

BPF

IF

AMP

N DATA

XTAL BPF

RFGC

AFMS

WFAF

SSAF AMAF FMAF

MIC

VOXL AVXL CTCV DASH DOT UL

DIMMER CTRL

DATA

ALC

WCNT

Q573 2SC4081

Q572 2SC4081

DRIV

D561 MA862 D562 MA862

FI561 FL-23

9.0115 MHz

Q636 DTA114EE

UL

NBS Q634 2SC4081 Q635 DTC114E

D632

1SS375

Q632 2SK882

IC631 LA1150N

GAIN CONTROL R623 RV-148

NOISE

AMP

NOISE

AMP

CERAMIC

BPF

NOISE AMP

Q631 2SK1576

Q621 2SK882

FI611 SFECV10.7MA-5

FI601 SFECV10.7MA-5

IF AMP

Q611 2SC4081

Q601 2SC4081

10.7 MHz

69-71 MHz

D551 HSB88WS

ATT D522 ATT D521

FI511 FL-261

IC521 µPC1688

T8V R8V

R8V

T8V

AGC

ALC

AGC

ALC

69.0115 MHz

XTAL CTRL

BPF

70.7 MHz

ATT

3 dB

3 dB 3 dB

3 dB

D271 HSB88WS

ATT ATT

ATT

LPF

IC151 µPC1658G

IC281 µPC2709T

1LO

LO

AMP

PRE AMP

PR1S

IC891B NJM2902V

AF

AMP

R900 RV-150

DATA

OPT

UT-102

IC891A NJM2902V

IC891C NJM2902V

R896 EVN-D2AA03B25

3 kHz

LPF

BEEP

IC861 BU4052BCFV

MODE

SW

SQL

IC811D NJM2902V IC811C NJM2902V

IC791 TA31136FN

IC811A NJM2902V

CTCV

AM

DET

DEEMPH

FM

DET

FI791 SFPC455E

OVDV

IC981C NJM2058M

IC1141B BU4052BCFV

IC1141A BU4052BCFV

IC981D NJM2058M

9600 DATA OUT

9600 DATA IN

SWSWAMP

AMP

AMOD

COMPARATOR

MIGV

COMS

IC931 µPC5023-077

BUFF

LIMIT AMP

VCA

COMP GAIN R945 EVN-D2AA03B25

AFO

Q961 2SC4081

ETON TONE

PREEMPH/ LIMIT

LPF

IC981A NJM2058M

IC981B NJM2058M

FM

AM

POCV HFOR VFOR UFOR HREF VREF UREF

ICH ICL

KDS8

ALC AMP

IC1091B NJM2902V

IC1091A NJM2902V

Q1131 2SA1576

Q1092 2S4081

ALC

EALC

ALCL

LEVEL SHIFT

WAVE FORM

CW/RTTY

IC1041 NJM1496V

AMS8

T8V

AM CARR CTRL

Q1011 2SK210 D1012 MA357 D1013 1SS375 D1014 1SS375

Q1013 2SC4081

BUFF

BUFF BUFF

BUFF

N DATA

LOOP FILTER

PD

1/N

1/R

BFO

IC2001 HD64F3337Y

X2161 CR-636 (14.7456 MHz)

IC2121 X25650S8I-2.5

IC2201 M62352GP

MAIN

CPU

AGFS

HV

IC2161 S-80942ANMP-DD6

IC2131 TC4S81F Q2131 DTC114EE D2133 DAN222

IC2221 BU4094BCFV IC2222 BU4094BCFV IC2231 TC74HC4094AF IC2232 BU4094BCFV

IC351 TD62783AFN IC2241 TD62783AF Q2221 UMC3N Q2222 UMC3N Q2223 UMC3N Q2224 UMC3N Q2225 UMC3N

IC2122B TC7W04FU IC2122C TC7W04FU Q2171 2SA1576 Q2172 2SC4081

DATA

N DATA

RESET

TUNER

CTRL

DRIVER

D/A

CI-V

I/F

EEP ROM

EXPAND

KDS

DRES

8V

+5 REG

LCD DRIVER

LCD

KEY LIGHT

KEY

MAIN DIAL

SUB DIAL

SHFT

AF

RF/SOL

VR BOARD

BACK LIGHT

PTT

IC4 S-80945ALMP

IC5 S81250PG-PD Q10 2SC4081 R Q11 SSB1143 S D9 MA2S111

X1 MA-406 (9.8304 MHz)

EEPROM

LED

DRIVER

PTT

DRIVER

Q8 XP4111 Q12 XP4111 Q15 DTA114EE

Q4 2SD1619 T Q9 DTA114EE

Q2 2SB1132 R Q3 2SC4081 R

DS5 D2264

TX

RX

COMMON

DATA BUS

IC201 M5282

AAF AFGC AFO

(FRONT PHONE)

IC231 LA4425A

RL231 SY-12-K Q232 DTC114EU

SPS

AF AMP

VCA

8V

5V H5V14V HV

+8 REG

+5 REG

IC291 TA7805F

IC271 TA78L05F

IC281 TA7808S

3 kHz

D761 1SS375

IC841 TA4101F

IF

AMP

IF

AMP

Q751 2SC4081

Q741 2SK882

Q731 3SK126

Q721 2SC4081

AGC DET

AGC AMP

AGC

RFG CTRL

DELAY

CTRL

Q776 2SC4081 Q777 2SA1576

Q771 2SC4081 D771 1SS375

Q772 UMC1N Q773 UMC1N

D772 MA2S111

SML

Q774 2SC4081

METER AMP

BFO

D1131 MA8036 L D1132 DAP222

SSB/AM

IC1011 LC7153M

RX TOTAL GAIN R741 RV-148

FM

FI671 FL-272

FI681 FL-94

SSB/CW/RTTY

AM/FM-N

OPTION FILTER-1

OPTION FILTER-2

0.1-2 MHz 30-40 MHz

HPF BOARD

HFP

LPF

HPF

FAN CTRL

LPF

HFP

HFP LPF

LPF

HFP LPF

BPF

HFP

PRE AMP

RF AMP

Q191 2SK2171 4

40 MHz

2-4 MHz

4-8 MHz

8-15 MHz

15-22 MHz

22-30 MHz

40-60 MHz (PREAMP ON)

40-60 MHz (TX or RX/PREAMP OFF)

144 MHz

440 MHz

IC222 TA4002F

IC221 TA4001F

FI371 FI372 FI373 LFSC25N12B 0440B

VURX

ATT

ATT HPF

HPF

1.6 MHz

1.6 MHz20 dB

3 dB

10 dB

Q111 DTC114EE Q112 DTC114EE

Q121 DTC114EE Q122 DTA114EE

60 MHz

YGC AMP

PRE DRIVE

DRIVE AMP

PWR AMP

BIASBIAS

Q9 2SC4213 B

RL1 AG201344

RF SW

ANT

SW

Q101 2SK2854

Q121 MXR9745RT1

HF/ 50 MHz

144/440 MHz

DRIVER (b)

Q211 MRF1508

Q231 SRFJ7044

TX/RX

SW

TX/RX

SW

PWR

DET

D261 MI407 D291 UM9401F D292 UM9401F D293 1SS355

D311 UM9401F D341 UM9401F D342 UM9401F D343 1SS355 D344 UM9401F Q301 DTC114EU Q351 DTC114EU

D262 MA742 D263 MA742

D171 DAN202U D172DAN202U

VFOR

UFOR

D312 MA742 D313 MA742

440 MHz

144 MHz

440 MHz

ATT

D401 1SV308 D402 1SV308

D451 1SV308 D452 1SV308

ATT

BPF

D406 MA2SV05 D407 MA357 D410 MA2SV05

D454 1SV305 D456 1SV305

Q402 DTC114EU Q403 3SK291 D403 MA2SV05 D408 MA357 D409 MA2SV05

Q452 DTC114EU Q453 3SK291 D453 1SV305 D455 1SV305

D573 DAN202U D574 MA8056 M D575 DAN202U Q571 2SB1132 R Q572 2SC4081 R

RL591 JV-12-KT Q591 DTC114EE

14V

HV

F591 FGB 4A

from PS

SP

FAN

ANT2 144/ 440 MHz

ANT1 HF/ 50 MHz

PWR /SWR DET

D9 1SS375 D10 1SS375

BUFF

HFOR

HREF

IC1B NJM2904M

IC1A NJM2904M

LPF HPF

HPFHPF AMP

HPF

ATT

FREQ: (DISP, FREQ) + (69.0115 MHz)

RX FREQ=0.03-29.999999 MHz

RX FREQ=30-59.999999 MHz

RX FREQ=60-128.999999 MHz

RX FREQ=129-143.999999 MHz RX FREQ=148.000001

-199.999999 MHz

RX FREQ=144-148 MHz

RX FREQ=400-470 MHz

Q141 DTA114EU Q142 DTA114EU Q143 DTA114EU Q144 DTA114EU Q145 DTA114EU Q851 DTA114EU

LPF

FIL SELECT

× 2

D531 MA717WK

IC541 µPC2710

8V

MLLV

Q362 2SC4116

Q391 2SC4116

Q491 2SK880

RIPPLE

FIL

RIPPLE

FIL

BUFF

P/D

1/N DIV

1/R DIV

ATT

Q21 2SC4081

AMP

Q1 2SK210 D1 MA357

LOOP

FIL

P/D

D/A

DDS

CERAMIC

BPF

IC101 SC-1246

Q71 2SC4081

FI71 SFECV10.5MA-5

Q931 2SC4081 D931 MA2S111

FSKK

LEVEL CONV

Q941 2SC4403

Q161 2SC4403

IC901 SC-1287

BFO

LPF HPF D/A

2LO

(60.000000 MHz) (30.000000 MHz)

(30.000000 MHz)

BPF

LPF

× 2

Q681 2SC4403

Q661 2SC4403

BUFF

Q621 2SC4403 D601 MA357 R602 RV-150

X621 CR-275A

OPT CR-282

UL

Q261 DTC114EE Q461 DTA144EU D261 DAN222

LEVEL CONV

UN-LOCK UN-LOCK

Q51 2SC4081

VCO3

VCO2

VCO1

Q361 2SK508 Q381 2SC4213 D361 1SV304

Q331 2SK508 Q351 2SC4213 Q352 DTA144EU D331 KV1470

Q301 2SK508 Q321 2SC4213 Q322 DTA144EU D301 KV1470

AMP

Q10 2SC4405

IC3 BU4030BG

ATT

3 dB

IC971 TC4W53FU

5.006 kHz

WAVE FORM CTRL

DISPLAY BOARD

FRONT UNIT

OPT UT-106

MAIN UNIT

FILTER UNIT

PA UNIT

CHASSIS UNIT

DRIVER (a)

Q161 MRF1508

144 MHz

0.03-2.0 MHz

2.0-4.0 MHz

4.0-8.0 MHz

8.0-15.0 MHz

15.0-22.0 MHz

22.0-30.0 MHz

30.0-60.0 MHz

PLL UNIT

2LO

IC231 µPC2709T

ATT HPF

HPAO

Q171 SRFJ7044 Q172 SRFJ7044

PRE AMP

LPF

PWR DET

IC461 LMX2306

DDS

CERAMIC

BPF

250 MHz

AGC

IC811B NJM2902V

IC1091C NJM2902V

IC1091D NJM2902V

Q1041 DTC114EE

9.0115 MHz

IC2 SED1522F0

Q14 2SC4081 R Q13 2SC1132 R

DS4

KEY DIMMER CTRL

IC1 HD6433834H

SUB CPU

IC6 X24C0IS-2.7-T

IC2202 NJM2902V

AMP

APC AMP

ALC AMP

SECTION 9 BLOCK DIAGRAM

9 - 1

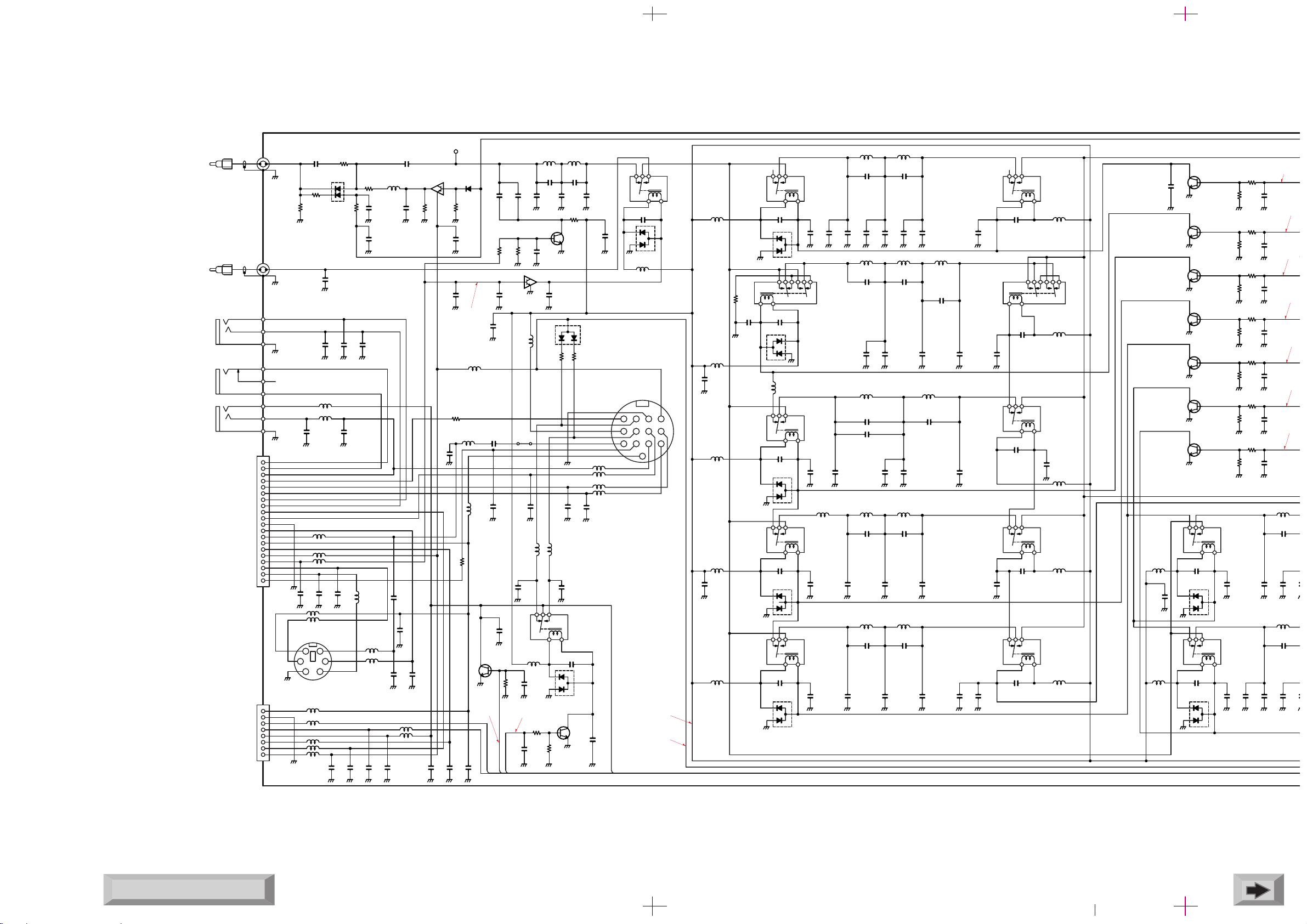

SECTION 10 VOLTAGE DIAGRAM

¡¡

FRONT UNIT

PC3/AN11 AVSS TEST X2 X1 VSS OSC1 OSC2 RES MD0 P20/IRQ4/ADTRG P21/UD

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

26272829303132333435363738394041424344454647484950

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

767778798081828384858687888990919293949596979899100

P22 P23 P24 P25 P26 P27 P30/SCK1 P31/SI1 P32/SO1 P33/SCK2 P34/SI2 P35/SO2 P36/STRB

P37/CS

VSSV3V2V1VCC

PA3/COM4

PA2/COM3

PA1/COM2

PA0/COM1

P50/WKP0/SEG1

P51/WKP1/SEG2

P52/WKP2/SEG3

P53/WKP3/SEG4

P54/WKP4/SEG5

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

P60/SEG9

P61/SEG10

P62/SEG11

P63/SEG12

P64/SEG13

P65/SEG14

P66/SEG15

P67/SEG16

P70/SEG17

P71/SEG18

P72/SEG19

P73/SEG20

P74/SEG21

P75/SEG22

P76/SEG23

P77/SEG24

P80/SEG25

P81/SEG26

P82/SEG27

P83/SEG28

P84/SEG29

P85/SEG30

P86/SEG31

P87/SEG32

P90/SEG33

P91/SEG34

P92/SEG35

P93/SEG36

P94/SEG37/M

P95/SEG38/D0

P96/SEG39/CL2

P97/SEG40/CL1

VCC

P10/TMOW

P11/TMOFL

P12/TMPFH

P13/TMIG

P14/PWM

P15/IRQ1/TMIB

P16/IRQ2/TMIC

P17/IRQ3/TMIF

P40/SCK3

P41/RXD

P42/TXD

P43/IRQ0

AVCC

PB0/AN0

PB1/AN1

PB2/AN2

PB3/AN3

PB4/AN4

PB5/AN5

PB6/AN6

PB7/AN7

PC0/AN9

PC1/AN9

PC2/AN10

IC1 HD6433832SD47H

18 19 20 21 22

14

13

12

11

10

9

8

7

6

5

4

3

2

1

15

17

31

16

23

25

24

26272829303433

32413536373839

40

4645444342

55

474850

49

51

52

53

54

61

56

57

58

59

60

67

62

63

64

65

66

74

68

69

70

71

82

75

72

73

7677787980

819683848586878889909192939495

979899

100

COM7 SEG68 SEG67 SEG66 SEG65 SEG64 SEG63 SEG62 SEG61 SEG60 SEG59 SEG58 SEG57 SEG56 SEG55 SEG54 SEG53 SEG52 SEG51 SEG50 SEG49 SEG48 SEG47 SEG46 SEG45

SEG44

SEG43

SEG42

SEG41

SEG40

SEG39

SEG38

SEG37

SEG36

SEG35

SEG34

SEG33

SEG32

SEG31

SEG30

SEG29

SEG28

SEG27

SEG26

SEG25

SEG24

SEG23

SEG22

SEG21

SEG20

SEG19

SEG18

SEG17

SEG16

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

SEG9

SEG8

SEG7

SEG6

SEG5

SEG4

SEG3

SEG2

SEG1

SEG0

A0

CS(OSC1)

CL(OSC2)

E(RD)

R/W/(WR)

VSS

D80

D81

D82

D83

D84

D85

D86

D87

VDD

RES

FR

V5V3V2

M/S

V4

V1

COM0

COM1

COM2

COM3

COM4

COM5

COM6

IC2 SED1522FOC

SG44

SG43

SG42

SG41

SG40

SG39

SG38

SG37

SG36

SG35

SG34

SG33

SG32

SG31

SG30

SG29

SG28

SG27

SG26

SG25

SG24

SG23

SG22

SG21

SG20

COM7 SG68 SG67 SG66 SG65 SG64 SG63 SG62 SG61 SG60 SG59 SG58 SG57 SG56 SG55 SG54 SG53 SG52 SG51 SG50 SG49 SG48 SG47 SG46 SG45

SG0 SG1 SG2 SG3 SG4 SG5 SG6 SG7 SG8

SG9 SG10 SG11 SG12 SG13 SG14 SG15 SG16 SG17 SG18 SG19

R76 2.2M

R74

100k

R75

100k

WR RD

AD

C25

0.1

C20

4.7

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

SE40 SE39 SE38 SE37

SE16

SE17

SE18

SE19

SE20

SE21

SE22

SE23

SE24

SE25

SE26

SE27

SE28

SE29

SE30

SE31

SE32

SE33

SE34

SE35

SE36

R73

4.7k

R69

4.7k

R70

4.7k

R71

4.7k

R72

4.7k

COM0

COM1

COM2

COM3

COM4

COM5

COM6

MP19

S14

(POWER)

LRXD LTXD

8V

AFO

GND

MIC

MICE

PWK

LTXD

LRXD

R93 1k R92 1k

R41 47k

R40 47k

L2 HF50ACC322513-B

L3 HF50ACC322513-B

Q16 CPH3404

C41

0.1

R142 100k

GND

5V

SFT

AFS

UP

AFS

AFV

AF

SQL

AF

AFL

DN

J3

R103

100k

R102 220k

C35

0.001

R101 100k

6 5

4

R100 1M

R107

100k

R106 220k

C36

0.001

R105 100k

2 1

3

R104 1M

7

C14

0.1

D2 DA221

D3 DA221

R38 100

SDAK

SDBK

SQL

AFV

SFT

R27

4.7k

R26

4.7k

R29

4.7k

C2

0.0047

C1

0.0047

C4

0.0047

W1

GND5VSFT

AFSUPAFS

AFVAFSQLAFAFL

AFL

DN

GND

SFT

5V

UP

5V

DN

GND

AFV

5V

GND

SQL

5V

R2 TP96D231E20-20F

-10KB-1897

(AF)

(RF/SQL)

(RIT)

(SHIFT)

AFL AF AFS

(PHONE)

(SPEAKER)

VR BOARD

SQLL

AFGL

SFTL

606162636465666768697071727374757677787980818283848586878889909192939495969798

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

1234567891011121314151617181920212223242526272829303132333435363738394041424344454647484950515253545556575859

SG10

SG11

SG12

SG13

SG14

SG15

SG16

SG17

SG18

SG19

SG20

SG21

SG22

SG23

SG24

SG25

SG26

SG27

SG28

SG29

SG30

SG31

SG32

SG33

SG34

SG35

SG36

SG37

SG38

SG39

SG40

SG41

SG42

SG43

SG44

SG45

SG46

SG47

SG48

SG49

SG50

SG51

SG52

SG53

SG54

SG55

SG56

SG57

SG58

SG59

SG60

SG61

SG62

SG63

SG64

SG65

SG66

SG67

SG68

COM7

COM6

COM5

COM4

COM3

COM2

COM1

COM0

CM4

CM3

CM2

CM1

CM4

SE40

SE39

SE38

SE37

SE36

SE35

SE34

SE33

SE32

SE31

SE30

SE39

SE29

SE28

SE18

SE27

SE26

SE40

SE25

SE24

SE23

SE24

SE22

SE21

SE20

SE19

SE13

SE17

SE16

SE15

SE18

SE14

SE13

SE12

SE11

SE10

SE9

SG0

SG1

SG2

SG3

SG4

SG5

SG6

SG7

SG8

SG9

R39 100

R36

1k

C5

0.47

R37 22k

D1 DA221

R85 100k

C24

2.2

C23

0.1

L4 HF50ACC322513-B

L5 HF50ACC322513-B

C27

2.2

C28

2.2

D9 MA2S111

R97

390

Q11 2SB1143

Q10 2SC4081

R96 10

IGO

IC5 S-81250PG-PD

C22

0.1

C21

2.2

R95 10

C29

0.1

C39

0.1

R109

680

D10 MA2S111

CP31

R110

10k

D11 DAN202U

R112

2.2k

R111

1.2k

Q3 2SC4081

Q2 2SB1132

C40

0.1

R113

680

R114

10k

D12 MA2S111

Q14 2SC4081

R115

4.7k

R116 820

Q13

2SB1132 D13 DAN202U

W2

RSK

PRAK

R25 10k

R24 10k

R23 10k

R22 10k

R21 10k

R20 10k

R10 18k

S3

R123 390

R124 390

R11 10k

S4

R126 390

R125 390

R12 18k

S5

R128 390

R127 390

R13 10k

S6

R130 390

R129 390

R14 18k

S7

R132 1.2k

R131 1.2k

R15 10k

S8

R134 1.2k

R133 1.2k

R16 18k

S9

R136 1.2k

R135 1.2k

R17 10k

S10

R138 1.2k

R137 1.2k

R18 18k

S11

R140 820

R19 10k

S12

R141 820

RSK

MDAK

MDBK

SDAK

SDBK

PRAK

MENK

F2K

MODK

DISK

BUPK

PTTL

FUDL

AFGL

SQLL

SFTL

R108 47k

C12

0.1

C13

0.1

PRED ATTD TUND RITD LCKD RXD TXD PTTS BL1S BL2S SUBD

BL1S BL2S

TXD

ECK EDT WR RD

AD

CM4

CM3

CM2

CM1

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

SE9

SE10

SE11

SE12

SE13

SE14

SE15

R68 10k

R67 10k

R66 10k

R65 10k

C18

4.7

C19

0.1

(MENU)

(F-1)

(F-2)

(F-3)

(DISP)

(LOCK)

(MODE)

(TS)

(UP)

(DN)

R9 10k

D14 DAP222

KL2S KL1S

S1

321

456

Q8 XP4111

MENK

F2K

MODK

DISK

BUPK

R2 470

R117 680

R1 150

R118

1.5k

R8

18k

R120

1.5k

S2

D15 DAP222

R3 470

R119 680

Q15 DTA114EE

R99 150

R122 680

S13

D16 DAP222

321

546Q12

XP4111

R7 1k

R121

1.8k

R4 1k

DS1 CL-170UR-CD-D

R6 1k

DS3 CL-170UR-CD-D

Q1 DTC114EE

DS2 CL-170PG-CD-D

R5 150

MIC

L1 100u

MICEL

AF

C7 0.0047

C33

0.0047

R30 1k

C32

0.0047

C31

0.0047

W1

PRED

ATTD

TUND

RITD

SUBD

LCKD

TXD

RXD

C8

0.0047

R45

3.3k

PTTL

FUDL

C9

0.0047

D7 DAP222

R47 47k

R44

3.3k

R46

2.2k

R42

1k

D5 MA2S111

D6 MA2S111

Q4 2SD1619

C30

0.0047

R98

2.2k

Q9 DTA114EE

PTTS

R50 1M

X1 MA-406 (9.8304 MHz)

C11

12p

C10

12p

IC3

PD4030BG

IC3b

IC3a

8 9

10

R54 1M

IC3c

MDAK

R53 100k

R51

100k

C15

0.001

R52 220k

MDBK

R57 100k

12 13

11

R58 1M

IC3d

C16

0.001

R55

100k

R56 220k

IC3

PD4030BG

OUT VDD VSS

CD

NC

IC4 S-80945ALMP-DA9-T2

C37

0.1

C38

0.027

NC NC NC VSS

VCC

NC SCL SDA

IC6 X24C01S-2.7-T

1 2 3

5

4

1 2 3 4

8 7 6 5

R84

22k

R83

22k

C26

0.1

UP E DN

SUP 5V SDN

S1

(MAIN DIAL)

DISPLAY BOARD

(P.AMP /ATT)

(TUNER /CALL)

(RIT /SUB)

(LOCK)

(TX)

(RX)

SQLS GND MICL MICEL PTT AF L/D 8VLM

R49 220

DS4 DLC-8309YBGF

R1 RV-300

S1

14

AFS

PHNK AFLS

(PHONES)

C34

470p

AF

MIC MICEL

J1

(MIC)

CP1 CP2 CP3

CP12

CP13

CP11

J2

CP21 CP22 CP23 CP24 CP25 CP26 CP27 CP28

(POWER)

MAIN (3) J1421

TXD

LRES

5V

8VL

5V

LRES

PHNK

KL2S

KL1S

5V

R33

2.2

DS5 D2264

W2

CP32

5V 8VL 5V

5V

C42

0.0047

SECTION 10 VOLTAGE DIAGRAM

• FRONT UNIT

10 - 1

BACK LIGHT (high/low/off)

BACK LIGHT (4.3 V/3.2 V/0 V)

BACK LIGHT (5.0 V/0 V/0 V)

BACK LIGHT (9.3 V/3.8 V/0 V)

BACK LIGHT (5.0 V/5.0 V/0 V)

BACK LIGHT (5.0 V/0 V/0 V)

7.8 V

5.0 V

5.1 V

MEASUREMENT CONDITIONS SUPPLY VOLTAGE: 13.8 V

14.1

MHz USB

DIGITAL MULTIMETER: 50 k‰/V

RX: 4.1 V TX: 0 V

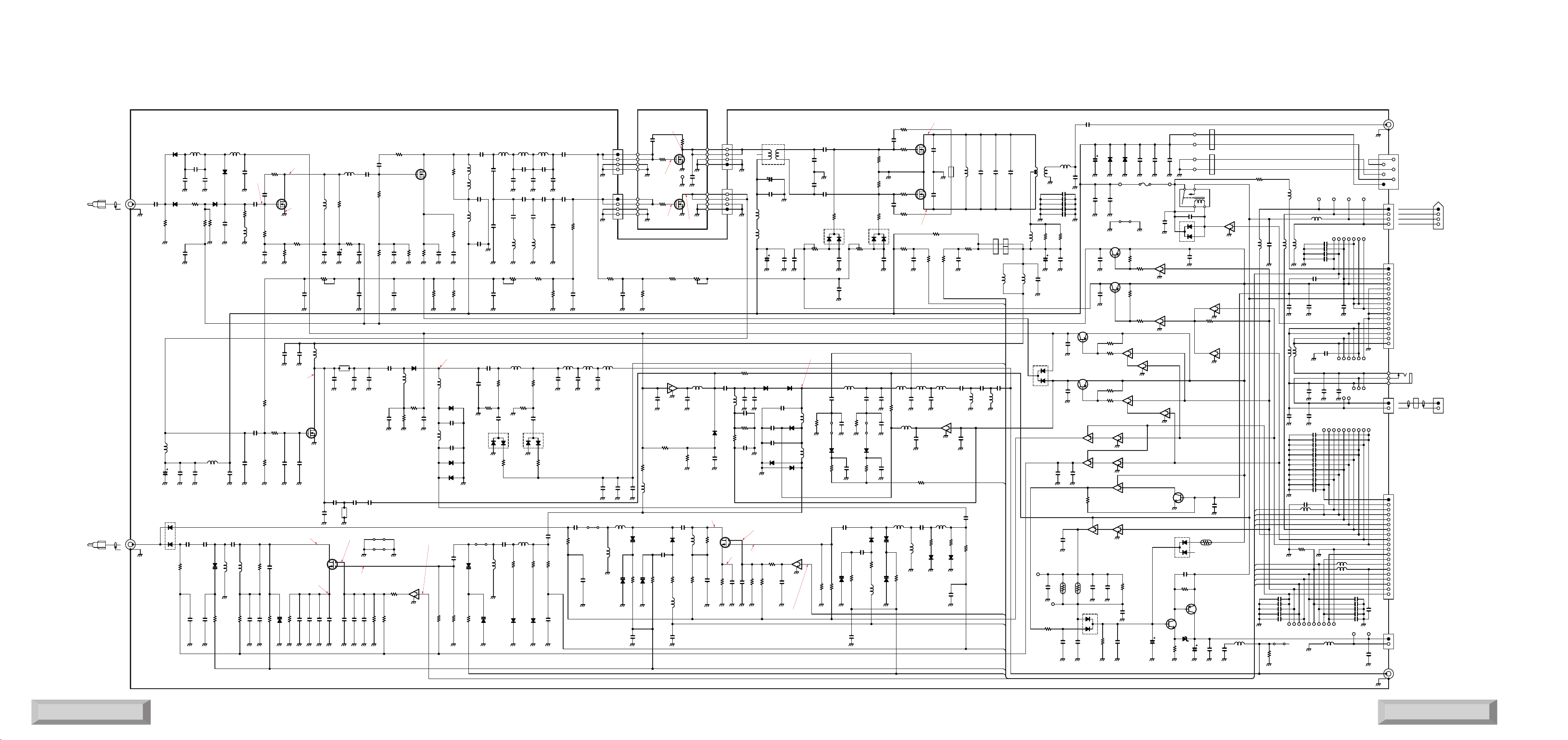

GND GND GND THH L4H L6H

PA2S

GND SRF SRF GND GND T8V B7H L5H L3H L2H GND SIF SIF

D192 MA2S077

L196

0.12uH

C199 15p

C198

39p

C200

39p

C197

0.01

L195 LR-317

R195 47

R191

220k

C191

0.0047

R194 1

L194

2.2uH

Q191 2SK2171

L193

0.33uH

C196

0.01

R193

150

C195 33p

L192

0.22uH

C194

180p

C193 56p

L191

10uH

L197 47nH

D191 MA2S077

R192

47

C192

0.01

D172 MA2S077

L176

10uH

R172

100

C182

0.01

C180

330p

L175

0.15uH

C179

0.01

C181 82p

C178

68p

L174

0.27uH

C177 120p

C175 24p

L173 82nH

C176

150p

C174

150p

C172

39p

L172 68nH

C173 75p

L171

10uH

C171

0.1

R171

220k

D171 MA2S077

R111 100

L111 220uH

D112 MA2S077

D162 MA2S077

L164

100uH

C165

330p

L163

0.39uH

C166

0.0047

L162

0.33uH

C164 100p

C163

0.0012

C162 220p

L161

100uH

C161

0.1

D161 MA2S077

D111 MA2S077

D122 MA2S077

L124

100uH

C125

0.1

L123

0.39uH

C126

0.0047

C124

0.0015

L122

3.3uH

C123

0.015

C122

0.0027

L121

100uH

C121

0.1

D121 MA2S077

D212 DAN222

D211 DAN222

3

2

1

4

5

Q214 UMC3N

R214

10k

Q215 DTC114EE

R213

10k

B7RH PR2S

Q213 DTC114EE

Q212 DTC114EE

Q211 2SB1123

R211 10k

D142 MA2S077

L144

100uH

C145

0.001

L143

1uH

C146 680p

C144 330p

L142

1uH

C143

510p

C142 390p

L141

1uH

C141

0.1

D141 MA2S077

D132 MA2S077

L134

100uH

C135

0.0027

L133

1.8uH

C136

0.001

C134 680p

L132

1.8uH

C133

0.0015

C132 680p

L131

2.2uH

C131

0.1

C147

0.1

D131 MA2S077

D152 MA2S077

L154

0.68uH

C155

390p

L153

0.56uH

C156 220p

C154 150p

L152

0.47uH

C153

0.001

C152 180p

L151

100uH

C151

0.1

D151 MA2S077

L155 47nH

L102

0.33uH

C104 10p

C105

12p

C103

150p

C101

68p

C102 27p

L101

0.27uH

R102

470k

R101 470k

D101 MA2S077

HPF BOARD

J231

CP231

R238

270

R237 18

R236

270

HRX

J101

CP101

D111

1SV312 1 243

R120

150

L121

100uH

C121

0.1

C122

0.0027

C123

0.0068

L122

4.7uH

C124

0.0015

L123

5.6uH

C125

0.1

R122 1.8k

R125 1.8k R126 1.8k

Q121 DTC114EE

Q122 DTC114EE

R124

10k

R123 220k

D123 MA2S111

R112

100

C112

0.1

R113 220

R111 82

R115 220

Q111 DTC114EE

R114

220k

Q112 DTC114EE

R116 220

C111

0.1

R117

100

C113

0.1

L111

4.7uH

L112

6.8uH

C115 390p

C114

0.0033

C115

0.0033

D112 1SV312

124

3

R135

10k

C138

0.1

R134

270

C137

47p

C135

75p

C136 12p

L133

0.15uH

C133

27p

C134 39p

L132

0.1uH

C132

0.1p

R133

560

R132

560

C131

0.1

Q133 DTA114EE

GND GND GND THH L4H L6H PA2S GND SRF SRF GND GND T8V B7H L5H L3H L2H GND SIF SIF

FILTER P1

PA P101

PA P481

PLL P891

PAI

Q131 DTA114EE

D131 1SV308

R131 220k

Q132 DTA114EE

C363

0.1

C362

0.1

C361

0.1

C367

0.1

C366

0.1

C365

0.1

C364

0.1

L4H L6H

L5H L3H L2H

L159

10uH

PR2S

D132 1SS385

BHF

L7

B7W L1

D351 DAN221

L2 L3 L4 L5 L6 B7

ATTS

D352 DAN222

R343

10k

R342

10k

L344

120uH

C35110C352

0.1

IC351 TD62783AFN

1 2 3 4 5 6 7 8 9

18 17 16 15 14 13 12 11 10

IN1 IN2 IN3 IN4 IN5 IN6 IN7 IN8 VS

Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8

GND

R358

10k

R357

10k

R356

10k

R355

10k

R354

10k

R353

10k

R352

10k

R351

10k

AT13

B7H

L5H

L4H

L3H

L2H

THH

L6H

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7 B7W BHF ATTS PR2S PR1S AT13

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7 B7W BHF ATTS PR2S PR1S AT13 T8V 8V 14V B8V 5V GND

MAIN UNIT(2)

Q351 UMC3N

3

2

1

4

5

R359

10k

Q352 UMC3N

3

2

1

4

5

R340

10k

Q353 UMC3N

3

2

1

4

5

R341

10k

L8

L9 B0

C238

0.1

L8H L9H 80H

L233

0.33uH

C236

15p

C237

0.1

L232

0.82uH

L231 22uH

4

532

1

6

C2236

470p

C239

3.3

IC231

PC2709T

C235

0.1

R234 10

C2238

470p

C233

0.1 R232

470p

D222

1SV312 4 312

C224

0.001

R224

270

3

4

2

1

IC221 TA4001F

R223

15

C223

0.001

C222

0.1

L196 56nH

C195 8p

C196

22p

C197

30p

L195 68nH

C186

27p

L184

0.18uH

C185 5p

L183

0.18uH

C184

0.5p

C183

4p

C182

0.5p

L182

0.18uH

C181 5p

R181

470

C188

0.001

C187

0.001

R200 180

D142 1SV312

342

1

L141

100uH

R145 1.8k

R144 1.8k

R143 1.8k

R141

220k

D141 1SV308

D143

1SV308

J141

CP141

VURX

C141

0.1

D2182 1SV308

D151 1SV308

R151

220

L151

100uH

R153

150

L153

100uH

C153

0.1

5 6 7 8

4 3 2 1

IC151

PC1658G

SETC IN BYPS BYPS

VCC OUT

SETE

GNDC168

10p

R164 47

C155

0.1

L154 100uH

C169

0.001 R154

470

L155

100uH

R155 820

C161

0.1

D153 1SV308

R156 180

Q151 DTC114EE

R157

470

C159

0.1

R159

10

C163

0.1

C165

0.1

R160

270

C167

0.1

R161 18

R162

270

D2183 1SV308

R174 220

R165 220

C171

0.1 D152

1SV308

R163

220

L156

100uH

C173

0.1

L158

10uH

R252

220

L254

100uH

D252 1SV308

C2536pC255

10p

C254

1.5p

L251 22uH

L252 22uH

C256

1.5p

C257

10p

L253 15uH

C258 4p

C259

4p

R251

220

C264

8p

L262 47nH

L261 33nH

C262 18p

C263

33p

C261

22p

L255

100uH

1IF

D251 1SV308

D262 1SV308

D261 1SV308

R253

220

L257

100uH

C251

0.0047

L271 617DB-1327=P3

D275

1SV308

C285

47p

C272

10p

L272 617DB-1327=P3

C273

0.0047 R280

330

L273

2.2uH

D271 HSB88WS

1IF

R271 220

L256 100uH

D275

1SV308

D273

1SV308

R276

1k

C278

0.001

C279

0.001

D274

1SV308

D272

1SV308

R277

1k

R275

1k

C277

0.001

C276

0.001

R274

1k

C275

0.001

R278

10k

R288

3.3k

C289

0.001

Q271 DTA144EU

R279

1k

C287

0.001

C2240

0.001

Q354 UMC3N

3

2

1

4

5

C191

0.0047

C192

0.0047

R203 10

C2235

470p

C2237

470p

3

4

2

1

C376 470p

FI373 LFSC25N

2431

C375

5p

L372 18nH

C374

5p

FI372 LFSC25N

1342

W301

C373

5p

L371 18nH

C372

5p

FI371 LFSC25N

1342

C371 470p

R286 10

R285

470

C290

0.1

C282

0.0047

L281

0.18uH

IC281

PC2709T

6

1

235

4

C281

0.0047

R283

270

R281

270

R282 18

J281

CP281

1LO

J1J101

D224

1SV308

R202 150

C212

0.001

W231

W201

W303

W302

W202

MP9 MP10 MP11

R212

4.7k

C300 0.001

C301 0.001

C302 0.001

C303 0.001

D133 MA2S111

MP4

IC222 TA4002F

R142

220k

R284 10

C293

0.0047

C157

0.1

R158 220k

C284

0.001

C286

0.001

C2239

0.001

C111 1

L6H

L2H

L4H L3H L5H

R121 180

R204 150

T8V

C201

0.001

R201

470

5V

BHF

L282

33n

C288

3p

8V

R8V L8H 5V L9H PR1S

T8V 8V B8V 80H 14V 5V

MAIN (1)

• MAIN UNIT MAIN (1)

10 - 2

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

14.1

MHz USB

DIGITAL MULTIMETER:50

k‰/V

40.0—59.999999 MHz 11.6V

22.0—29.999999 MHz 11.6 V

0.03—1.999999 MHz

30.0—39.999999 MHz

11.6 V

2.0—3.999999 MHz

11.6 V

4.0—7.999999 MHz

11.6 V

15.0—21.999999 MHz

11.6 V

8.0—14.999999 MHz

11.6 V

0.03—29.999999 MHz

4.6 V

30.0—59.999999 MHz 4.6 V

4.0—7.999999 MHz 4.6 V

8.0—14.999999 MHz 4.6 V

15.0—21.999999 MHz 4.6 V

22.0—29.999999 MHz 4.6 V

40.0—59.999999 MHz 4.6 V

400.0—470.000000 MHz 4.6 V

60.0—199.999999 MHz 4.6 V

0.03—1.599999 MHz 4.6 V

0.03—1.999999 MHz 4.6 V

2.0—3.999999 MHz 4.6 V

4.6 V

4.4 V

ON:0 V OFF:4.4 V

4.8 V

¡¡

MAIN UNIT

J401

PA J651

R8V T8V ICH ICL AT13 VFOR UFOR VREF UREF GND L8 L9 KEY STRT PR3S PR4S TB1V TB2V TB3V TB4V

CP401

C401 0.0047

C402 0.0047

CP402

CP403

C403 0.0047

C404 0.0047

CP404

CP405

C414 470p

CP406

C415 470p

CP407

CP408

CP409

C405 0.0047

CP410

C406 0.0047

CP411

CP412

C407 0.0047

C417 0.0047

CP413

CP414

CP415

C408 0.0047

C409 0.0047

CP416

CP417

C410 0.0047

C411 0.0047

CP418

CP419

C412 0.0047

C413 0.0047

CP420

FILTER J12

SNDSR

SEND MICE

MIC

AT13

14V 14V 14V

GND SDSS HREF HFOR

GND

L7 L6 L5 L4 L3 L2 L1

CP431

J431

CP432

CP433

CP434

CP435

CP436

CP437

CP438

CP439

CP440

CP441

CP442

CP443

CP444

CP445

CP446

CP447

CP448

CP449

CP450

C440

470p

C439

470p

C426

0.1 C445

0.0047

L435 4.7uH

MAIN UNIT (1)

AT13 L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7 B7W

BHF

ATTS

PR2S

PR1S

5V

R8V

14V

8V

T8V

1IF

GND

MAIN UNIT (3)

TB3V TB4V

SQLS

8V

14V

NBS

WCNT

5V

AMS8

WFM8

R8V T8V

AGC

ALC

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7

B7W

BHF 1F15 ATTS PR1S PR2S PR3S PR4S TB1V TB2V

GND 2IF WFAF ICL ICH PTTP SDSS SEND SNDSR EALC AAF AFO AMOD MICE MIC DOUT DIN BAND U/D DOT DASH FSKK CIVE CIV STRT KEY BDT UL UREF VREF HREF UFOR VFOR HFOR DRIV

FILTER J9

PLL P681

DIN

J461

AMOD

DOUT

T8V

8V

AFO

SQLS

AAF

PTTP

GND

EALC

U/D DOT

DASH

KEY

BAND

BDT FSKK CIVE

CIV

C461 0.0047

CP461

C462 0.0047

CP462

C463 470p

CP463

CP464

C465 0.0047

CP465

C466 0.0047

CP466

C467 0.0047

CP467

C468 0.0047

CP468

C469 0.0047

CP469

CP470

C470. 0.0047

CP471

C471. 0.0047

CP472

C472. 0.0047

CP473

C473. 0.0047

CP474

CP475

C475. 0.0047

CP476

CP477

C476. 0.0047

CP478

W461

CP479

CP480

L464 4.7uH

T8V 8V 14V R8V 5V

D500 1SV308

R501

1k

C5019pL501

0.56uH

C5039pL503

0.56uH

C504 18p

L504

0.27uH

C502

220p

L502

22nH

L505

27nH

C505

220p

R502

1k

C507

0.0047

R503 470

C604

0.0047

L602 100uH

C601

150p

C603

150p

C602 27p

L601

0.47uH

R6011kR602

12k

C605

0.0047

R604

330

R603

2.2k C606

0.0047

R605

47

Q601 2SC4081

C607

0.0047

FI601 SFECV10.7MA-5

R613

1k

L603 100uH

R614

560

C611

0.0047

R615

47

Q611 2SC4081

C612

0.0047

R616

1k

C613

0.0047

R617

47

FI611 SFECV10.7MA-5

R618

820

R621

100k

C621

0.1

R622 100

Q621 2SK882

R623

RV-150

(10kB)

R624

33k

R625

4.7k

C622

82p

R626

100

C623

0.1

L621 LS-513

C624

0.1

R627

470

D621 MA862

R628

470

C631

0.0047 L631

47uH

C632

0.1

Q631 2SA1576

R631

47k

IC631 LA1150N

12345678

CP631

L634 100uH

L632 LS-514

C635

10p

R632 22k

C634 18p

C637

0.1

WFAF

R633

220k

R634

220

C639

0.1

T8V

C638

0.0047

C636

0.001

Q632 2SK882

R635

4.7k

C640

82p

D631 DAN222

C641

0.1

R636

100

L633 LS-513

C642 150p

CP632

R637

47k

Q633 2SC4081

R638

4.7k

C543

22

R639

100k

C644

22p

C64547R640

6.8k

Q634 2SC4081

R641

3.3k

D633

MA2S111

Q635 DTC114EE

WFAF

C648

0.0047

AMS8

NBS

R642 330

R643

22k

C646

0.1 D634

MA2S111

C647

10

R644

1k

Q636 DTA114EU

W514

L511 FL-522

C511

0.0047

R511

1k

C512

9p

FI511 FL-261

C513

9p

C514

0.0047

R513

330

R512

1k

D502 MA862

L513

2.2uH

R514

470

C521

0.0047

C522

0.0047

L521

2.2uH

C523

0.1

L522

2.2uH

C524

0.001

C516

0.001

C515

0.001

R527 220

R528

220

D521 1SV265

125

4 3

L523

2.2uH

R521

47

C527

0.0047

4

1

3

2

IC521

PC1688

C525

0.0047

L527 10uH

C528 0.0047

R522 47 C529 0.0047

L524

2.2uH

R523 100

C534

0.1

C536

0.1

R524 220

L525

22uH

Q522 DTC114EE

AGC ALC

8V R8V

T8V

D522

1SV265 3 4 51

2

C530

0.001

L528

10uH

C531

0.1

L529

2.2uH

R525 220

R526 220

C537

0.001

Q521 DTC114EE

C532 24p

C533 24p

C541

220p

L542

22nH

L541

0.22uH

C542 12p

L543

0.39uH

L544

0.15uH

C543 33p

L546

0.10uH

C545

22p

L551 LR-317

D551 HSB88WS

C552

68p

L552 LR-317

R553 270

R551 270

R55218C553

0.1

R554

470

D552 MA862

L561

0.15uH

1F15

R56147C561

0.1

L562 LS-512

C562

10p

C563

15p

FI561 FL-23

L563 LS-512

C565

0.1

R562

220

L565

0.15uH

L564

0.15uH

D561 MA862

R563

220

D562 MA862

R564

47

C566

0.1

L566 LS-515

ALC

AGC

C571 0.0047

C572 0.0047

C567

270p

R565

120

D571 MA2S077

L571

68uH

C573

0.1

L572

68uH

C574

0.1

R576

220

D573

1SV265 3 4 51

2

L573

100uH

C585

0.1

R577

220

L574

100uH

R578

100

C591

0.1

C587

0.1

R579

RV-143

(470B)

GND GND IN

OUT GND VCC

3 2 1

C575

0.0047

C577 0.0047

C588 0.1

R580 100

R581 220

IC571

PC2713T

4 5 6

L576

100uH

C579

0.0047

C576

0.0047

C578

0.0047

R582

470

C582

0.1

R583

220

C589

0.1

L577

100uH

L575

100uH

L578

100uH

C583

0.1

R584 470

R573

220

D572 1SV265

5 4 32

1

R574

220

Q571 DTC114EE

L579

5.6uH

C580 56p

C581 56p

D574 MA2S111

R585 4.7k

Q572 2SC4081

Q573 2SC4081

R586

3.3k

R587

4.7k

C590

0.1 WCNT

R572

2.2k

R571

4.7k

DRIV

R588 47k

J551

CP551

2LO

AT13 L2 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7

PR1S PR2S ATTS

BHF

B7W

2IF WFAF ICL ICH PTTP SDSS SEND SNDSR EALC AAF AFO AMOD MICE MIC DOUT DIN BAND U/D DOT DASH FSKK CIVE CIV STRT KEY BDT UL UREF VREF HREF UFOR VFOR HFOR

14V

8V

5V AMS8 WFM8

R8V

T8V AGC ALC

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0

B7 B7W BHF

1F15 ATTS PR1S PR2S PR3S PR4S TB1V TB2V TB3V TB4V SQLS

NBS

WCNT

R8V T8V ICH

ICL AT13 VFOR UFOR VREF UREF

L8 L9

KEY STRT PR3S PR4S TB1V TB2V TB3V TB4V

SNDSR SEND MICE MIC AT13 14V 14V 14V

SDSS HREF HFOR

L7 L6 L5 L4 L3 L2 L1

AMOD DIN DOUT T8V 8V AFO SQLS AAF PTTP

EALD U/D DOT CASH KEY BAND BDT FSKK OIVE CIV

1F15

WFM8

C506

0.0047

R612

6.8k

D632 1SS375

WFM8

L512 LS-522

C526

0.0047

C546

47

C544

220p

L545

22uH

UL

C633

0.1

2IF

R8V

L526 2.2uH

C564 2p

D501 1SV308

D622 MA2S111

L622

100uH

C625

0.1

8V

C649 0.1

R619 680

8V 14V R8V

D923 MA2S111

C432

0.0047

C434

0.0047

MAIN (2)

DRIV

L417 4.7uH L477 4.7uH

¡MAIN UNIT

MAIN (2)

10 - 3

WFM: 0 V WFM: 1.25 V

WFM: 0.95 V

WFM: 0.8 V

WFM: 4.2 V

WFM: 6.4 V

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

14.1

MHz USB

DIGITAL MULTIMETER:50

k‰/V

C732

R730

R734

7

C1048

R2244

33

R731

• MAIN UNIT

V

MAIN (3)

PLL J991

PLL P251

FRONT MP19

PLL J254

J791

J1431

J1421

J1381

BFO

AFI AFIE AFOE AFO

LRXD LTXD 8V AFO GND MIC MICE PWK

HV 14V 14V FSKK DDT IMST IDS DINT GND AAF POWS 8V 8V AFBP UL DSPS 5V AFGC SPS MLLV PCE PBST BOT PCK CON0 CON1 CON2 PDST DRES H5V

DRIV HFOR VFOR UFOR HREF VREF UREF UL BDT KEY STRT CIV CIVE FSKK DASH DOT U/D BAND DIN DOUT MIC MICE AMOD AFO AAF EALC SNOSR SEND SDSS PTTP ICH ICL WFAF

CP791

C1421

470p

MAIN UNIT (2)

CP1431

CP1432

CP1433

W1433

CP1421

CP1422

CP1423

C1426

0.0047

CP1381

CP1382

CP1383

CP1408

CP1409

CP1410

DRIV HFOR VFOR UFOR HREF VREF UREF UL BDT KEY STRT CIV CIVE FSKK DASH DOT U/D BAND DIN DOUT MIC MICE AMOD AFO AAF EALC SNOSR SEND SDSS PTTP ICH ICL WFAF 2IF

CP1434

CP1424

CP1384

CP1407

CP1425

C1427

CP1385

CP1406

CP1426

0.0047

CP1386

CP1405

CP1427

CP1387

CP1404

CP1428

CP1388

CP1403

AMS8

WFMB

ATTS PR1S PR2S PR3S PR4S TB1V TB2V TB3V TB4V SQLS

WCNTGND

C1428

0.0047

CP1389

CP1402

14V

8V 5V

R8V T8V

AGC

ALC

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7

B7W

BHF

1F15

NBS

CP1390

CP1401

CP1391

CP1400

CP931

CP1392

CP1399

PR1S PR2S PR3S PR4S TB1V TB2V TB3V TB4V SQLS

WCNT

CP1393

CP1398

R8V

T8V AGC ALC

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7

B7W

BHF

1F15 ATTS

NBS

CP1394

CP1397

C1410

0.0047

C1397

0.0047

C1391

0.0047

C1382

0.0047

C1381

0.0047

CP1395

CP1396

C1390

0.001

C1394

0.0047

14V 8V 5V R8V T8V HV H5V 2IF

AFIE AFOE

LRXD

LTXD

MICE

PWK

FSKK

IMST

DINT

POWS

AFBP

DSPS

AFGC

MLLV

PBST

CON0 CON1 CON2 POST DRES

14V 8V 5V R8V T8V HV H5V 2IF

R912

IC891d

15k

10k

100k

+

14

R864 15k

C941

22

R862 68k

C861

10

VCC

SWC VCAC VCAO

VCAI

SWO BU1O

BU1I

SWI

CMPO

CMPI

R913 470

R861

2.2k

R941 220

NC

D861

MA2S728

R952

R953 10k

12 11 10 9 8 7 6 5 4 3 2 1

BAND

BANV

SPCH

AFBP

14V

BEEP

WFAF

AFIE

4.7k

AGC

Q777 2SA1576

Q776 2SC4081

R786

10

R846

100k

C778

0.0047

C777

AMAF FMAF SSAF CTCV 8V

BFO

W844

AFI

MIGV

COMS

C940

10

C850

0.1

0.047

R1143

R1145

470k

AMOD

C848

C847

0.0047

R1144

470k

1 2 3 4 5 6 7 8

4.7k

C1145

0.47

R1150

4.7k

R948

C946

47k

0.1

R946 10k

R944 22k

D931 DA221

C849

BFO 5V T8V

C1141

0.47

DIN

RXS

8V

C1144

R1149

0.1

6.8k

R949 47k

R950

220k

C945 1

R945 200k

R951

220k

D932 DA221

R943

6.8k

C943

0.039

C779

0.0047

10

L841

IC1141 BU4052BCFV

Y0 Y2 Y Y3 Y1 INH VEE VSS

R947

C944

47

100uH

56

0.1

R1142 47k

R785

C846

VDD

47k

0.0047

X2 X1

X X0 X3

A

B

R1163 15k

R1164 18k

R1141 47k

C961

0.47

SML

IC811b

6

7

5

+

R779

4.7k

Q774 2SC4081

R845

R842

C842

C845

56k

100

0.0047

0.1

Q961 2SC4081

3.7 V

C1142

6.3 V

C1163

0.1

C1161

0.47

R1162 100k

C1162

0.1

R782

R1146

R964 33k

680

1 2 3 4

470k

0.0047

R965

IC841 TA4101F

R781 100k

C776

IFOUT VCC OSCIN BASE

R1147

470k

R963

C963 10

C964

220

R1165 100k

R1161 100k -

0.1

COLECT

R1148

470k

100

1

R783 47k

16 15 14 13 12 11 10 9

4.3 V

R967

R966

R780

GND BASE BASE

1k

3.9k

13 12

470

R1166 330k

IC981d

Q773 UMC1N

4

C775

10

5

R778

10k

R841

470

C841

0.0047

8 7 6 5

C844

C1143

10

MINH

MODS D96S

R981 10

C982

0.1

R982

R983

14

+

C851 100p

0.1

47k

18k

D1161 1SS385

R1041 100

IC971

TC4W53FU 1 2 3 4

C981

10

R984

C983

AGFS

Q772 UMC1N

C843

15k

0.1

4

C774

0.47

5

R777

100

R828 470k

C828 100p

IC811c

9

-+8 10

0.1

C1041 1

R985

R986

C984

R832

150k

180k

0.1

R1167 100k

C1164

R831

10k

AMS

8 7 6 5

2

-

3

+

11

R987

270

C985

0.1

ETON

0.1

C1165

3

2

1

R971 10k

R829 100k

1M

4

C986

0.1

C827

4.4 V

R988 150k

1

IC981a NJM2058M

R991 680k

0.1

TONE

3

2

1

0.0047

C971

R1168

R990

0.0047

270k

100k

R1169

AFMS

C826

150k

C825

0.1

C773

0.0047

R776

100

R830

2.2M

R827

120k

0.1

R992

390k

R989

150k

D772 MA2S111

R774 1k

Q771 2SC4081

R775

1M

IC811d

13

-

14

12

+

R826

100k

R1011

C1011

0.0047

100

C1012

0.1

R1013

15k

C1013

2.2

R993

C988

82k

0.0022 6

5

R994 82k

C987

0.001 C989

120p

2F80

9

-8

10

+

IC981c

R1170

100k

R763 100k

C764

0.01

C824

4.4 V

IC981b

+

IFST MCK MOT

R1012 33k

R825 82k

0.0015

C823

R1014

R996

R764 15k

C763

0.1

1.8M

R1000 560

1k

Q981 DTC114EE

R824 82k

R995

1.2k

R999

0.0047

C822

1 2 3 4 5 6 7 8

9 10 11 12

R1004

R771

4.7k

RV-150

R773

6.8k

C762

0.039

IC1011 LC715317

XIN CE CL DI LDB LDA CA TEST PDA2 PDA1 AIA AOA

10k

(10kB)

0.0022

R823 82k

R821

R822

R998 22k

C772

2.2M

1M

R1001 68k

R1003 68k

D771 1SS375

100p

R761 1k

R762

R1002

RV-148

Q982 DTC114EE

R772 1k

68k

FMAF

8V

C821

XOUT PDB2 PDB1

OUTB

OUTA

(4.7kB)

OVDV

RFGV

L741 LS-516

R742 47

FI791 SFPC455ETC01

47k

10k

0.1

R1048 820

C1018

1k

5.8 V

C742

47p

Q741 2SK882

C743

0.1

C797

C800

R796

C801

0.1

C802

0.1

C1020

R1018 100k

68p

C1021

56p

D1012

MA357

R1019

2.2k

R1020

C1043

C1045

470k

C1019

0.0047

R1050 330

0.1

C1044

0.0047

10

1

C771 150p

C761

0.0047

D761 1SS375

R816

100

IC811a NJM2902V

0.1

C815

24 23 22 21

AIA

20

AOB

19 18

CB

17

VDD

16

PIB

15

VSS

14

PIA

13

R1042

RV-155

Q1041

AMS8

DTC114EE

C814

10

(150kB)

R814 150k

R751

470

3.2 V

R752 47k

C751 220p

Q751 2SC4081

R815

D1041

R1043

R753

150k

R1031

C1015

MA2S111

47k

220

10k

0.0047

C812

0.01

C811

R1044

0.1

CP1011

L1012

C1016

47k

100uH

10

1.9 V

R811

10k

R1016

R1017

C1017

R10461kR1047

R1049

1.2k

C752

0.1

R813

0.1

10k

R812 39k

2114

-+1 3

C813

0.01

D1011

MA2S111

C1014

0.0047

R1045 RV-148 (4.7kB)

C736

0.0047

220p

3.3k

L1041

C1046

0.1

C1022

R1015 47

100uH

0.1

R795 150k

R797

20p

D1013 1SS375

D1014 1SS375

R741

1k

R1051

C1052

C741

0.0047

L731 LS-516

R736 47

RV-148

(4.7kB)

IC791 TA31136FN

1

OSCIN

2

OSCOUT

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN

C799

220p

C1023 150p

L1013

2.2uH

8.2k

C2234

0.1

6.1 V

C734

47p

C735

0.1

R794 330k

0.8 V(FM) 6.6 V(FM)

R1022 100k

C1024 150p

R1023

100k

IC1041 NJM1496V

1

VS+

2

VCS

3

VCS

4

VS-

5

BIAS

6

VO+

7

NC

C1047 10

R735

4

5

C798

0.01

Q731 3SK126

470

R1021

Q1011 2SK210

3.4 V(FM)

C1025

VCC-

VCC+

D732 UMC3N

100

C1026

150p

VEE

NC

VO-

NC

MIXIN

GND N-REC N-DET

RSSI

IFOUT QUAD

AFOUT

0.0047

C733

14 13 12 11 10 9 8

C2233

0.1

D921 DAN222

3

2

1

4.0 V

R733

16 15 14 13 12 11 10 9

Q1012 DTC114EE

R1052 330

C1053

UNF8

470

C793

0.004

C1027 10p

R1024

L1014 10uH

L1042 100uH

10

C C

150

4.3

C922

C899

0.001

R898 100k

IC891b

R903

6

4.7k 5

R896

200k

IC891a NJM2902V

11

R895

4.7k

AFI

C883 1

AFO

R884

10k

IC861 BU4052BCFV

1

Y0

2

Y2

3

Y

4

Y3

5

Y1

6

AFO

MIC

DDT

IDS

AAF

UL

SPS

PCE

BOT PCK

INH

7

VEE

8

VSS

SQL

MIC

R935

C936

C935

R934

+

R899

100k

R902

4.7k

C895

1

C896

0.1

4

C893

0.001

2

-+1 3

C894

0.0047

IC891c

9

-

8

10

+

R883

47k

16

VDD

15

X2

14

X1

13

X

12

X0

11

X3

10

A

9

B

VOXL

AVXL

6.8k

R940

6.8k

C938 100p

0.1

C939

1

R939 100k

C934 470p

R933 100k

R932

82k

0.047

10k

R931

4.7k

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

DIGITAL MULTIMETER:50

R892 56k

R893 47k

R882 10k

R894

C882

AFS2

C931 2

7

R900

100k

0.0022

C862

0.0047

C932

AFS1

R937 10k

RV-150

470p

14.1

(10kB)

R890 150k

C892

R871 10k

C933

MHz USB

R911

100k

13 12

C897 1

R901

47k

C898

0.1

R891

120k

0.01

C891

0.1

C881

0.0047

R881

10k

R868

R870 47k

R869 12k

R866 480k

R872

CP861

AFO

R936

10k

R938

100k

IC931

PC5023-077

13

NC

C937

0.1

14

AVI

15

AVO

16

MUTE

17

VOXO

18

VOXI

19

BU2O

20

BU2I

21

AMPO

22

AMP-

23

AMP+

24

GND

2.2

R942 1k

C942

0.1

k‰/V

COMPLETE VIEW

10 - 4

47k

0

0047

D X X

X X

14V 8V 5V R8V T8V HV H5V 2IF

SML

IC811b

6

7

5

+

R779

4.7k

Q774

56k

100

0.0047

0.1

Q961 2SC4081

3.7 V

C1142

C1163

0.1

C1161

0.47

R1162 100k

C1162

0.1

R782

R1146

6.3 V

R964 33k

680

1 2 3 4

470k

0.0047

R965

IC841 TA4101F

2SC4081

R781 100k

C776

IFOUT VCC OSCIN BASE

R1147

470k

R963

C963 10

C964

220

R1165 100k

R1161 100k -

0.1

COLECT

R1148

100

1

081

R783 47k

R845

R842

C842

C845

.

R1141 47k

16

D

15

2

14

1

13

X

12

0

11

3

10

A

9

B

4.3 V

C961

0.47

R1163 15k

R1164 18k

Q773 UMC1N

4

C775

10

5

R778

10k

R780

470

R841

470

C841

0.0047

8 7

GND

6

BASE

5

BASE

C844

470k

C1143

10

MINH

MODS D96S

R981 10

C982

0.1

1k

3.9k

IC981d

R1166 330k

+

R982

R983

14

R967

R966

13 12

C851 100p

0.1

47k

18k

D1161 1SS385

R1041 100

IC971

TC4W53FU 1 2 3 4

C981

10

R984

C983

AGFS

Q772 UMC1N

C843

15k

0.1

4

C774

0.47

5

R777

100

R828 470k

C828 100p

IC811c

9

-+8 10

C1041 1

R985

R986

C984

R832

150k

180k

0.1

R1167 100k

C1164

R831

10k

AMS

8 7 6 5

2

-

3

+ 11

R987

270

C985

0.1

ETON

0.1

C1165

0.1

3

2

1

R971 10k

R829 100k

1M

4

C986

0.1

C827

4.4 V

1

IC981a NJM2058M

0.1

TONE

3

2

1

0.0047

R988 150k

R991 680k

C971

R1168

R990

0.0047

270k

100k

R1169

AFMS

C826

150k

C825

0.1

C773

0.0047

R776

100

R830

2.2M

R827

120k

0.1

R992

390k

R989

150k

D772 MA2S111

R774 1k

Q771 2SC4081

R775

1M

IC811d

13

-

14

12

+

R826

100k

R1011

C1011

0.0047

100

C1012

0.1

R1013

15k

C1013

2.2

R993

C988

82k

0.0022

R994 82k

C987

0.001 C989

120p

2F80

9

-8

10

+

IC981c

R1170

100k

R763 100k

C764

0.01

IC981b 6 5

4.4 V

C824

IFST MCK MOT

R1012 33k

+

R825 82k

C823

0.0015

R1014

R996

R764 15k

C763

0.1

R824 82k

1.8M

R1000 560

R995

1.2k

1k

R999 Q981 DTC114EE

0.0047

10 11 12

R771

4.7k

C822

IC1011

LC715317 1 2 3 4 5 6 7 8 9

R1004

RV-150

R773

0.039

XIN CE CL DI LDB LDA CA TEST PDA2 PDA1 AIA AOA

10k

(10kB)

6.8k

C762

R823 82k

0.0022

R821

R822

R998 22k

C772

2.2M

1M

R761 1k

R1001 68k

R1003 68k

R1002

R772 1k

D771 1SS375

100p

R762

68k

C821

RV-148

(4.7kB)

Q982 DTC114EE

FMAF

8V

XOUT

PDB2 PDB1

OUTB

OUTA

OVDV

R734

C732

C796 0.1 C795 100p

150

4.3 V(FM)

C922

3.3

R730

R731

2.5 V

R2244

12k

15k

47

0.0047

C1031

560

0.1

5.9 V

C722

R721

100

0.1

Q721 2SC4081

C731

0.0047

R732

18k

C791

0.0047

R791

2.2k

C794

22

X791

CDBC455CX24

C803 1 R803 4.7k

Q1014 UMC1N

1 2 3

0.0047

C1030

10

R1025

100

R1026 100k

C1028

0.0047

Q1013 2SC4081

R1028 1k

R1027

1k

C1049

0.0047

R1057

1k

W1056

R1054

680

R923 470

R921 RV-109 (2.2kB)

R922

8.2k

R722

5.6k

R793

R1055 10k

L1043 100uH

R723

1.5k

C1029 12p

CP1041

C1061

C792

680

D791 MA862

R1030

D1042 MA862

10

CP921

C921

0.0047

R792 10k

L791 100uH

10k

1

R663

R1071

D672 MA862

D682 MA862

D683 MA2S111

D692 MA982

D702 MA982

D712 MA982

R664

47k

10k

C571

0.0047

C701

0.0047

C711

0.0047

10k

C664

0.1

R1072

470k

C1096

20p

R1077

R1076 100k

220k -

Q1071 DTC114EE

Q1072 DTC114EE

Q1073 DTC114EE

Q1074 DTC114EE

Q1075 DTC114EE

C683 82p

R672

R674

R682

R684

R692

R693

R702

R704

R712

R714

6 5

IC1091b

R1080 RV-156 (220k)

R1081 100k

R1082 RV-156 (220k)

R1083 100k

R1084 RV-156 (220k)

R1086 RV-156 (220k)

R1088 RV-156 (220k)

2.2k

10k

2.2k

10k

2.2k

10k

2.2k

10k

2.2k

10k

R1073

+

1M

L671

8.2uH

C673

L682

10uH

C685

C691

0.0047

L701

8.2uH

C703

L711

8.2uH

C713

D1071 MA2S111

R1074

2.2M

7

FI671 FL-272

1

34

0.1

FI681 FL-94

0.1

CP1091

Q1091 DTC114EE

ALCL

HREF VREF

UREF

REFL

ICH ICL

R1091 330

D1111 1SS385

D1112 1SS385

R1121 47k

R1122 47k

R673 220

R683 220

R703 220

R713 220

2

MP5

L681

22uH

C1091

R1092

R1123

33k

R1061

WCNT

TIFS

KDS8

D721

C662

MA862

0.0047

R665

10k

2F23

2F80

2FTH

OP1

OP2

CP1071

CP1002

D1072 MA2S728

HFOR

D1078 MA2S728

VFOR

D1073 MA2S728

UFOR FORL

POCV

D1077 MA8033

AMS8

BHF

L7

470

L8

L9

R1070 56k

D1075 MA2S111

R1075

D1076

10k

MA8033

R1079 330 W1078

D981 1SS385

D1074 1SS385

3.9 V

C721

22p

NSQL

DOUT

5

L1011 100uH

4

R1029

10k

C1032

0.0047

L1015

56uH

C1033

22p

L1044 100uH

C1050

0.0047

C1051

0.1

Q1061 2SA1576

Q1062 2SC4051

R1062 1k

D1061

MA8027

R924

4.7k

C923

22

RFGV

C797

C800

R796

C736

0.0047

220p

3.3k

L1041

C1046

0.1

R1015 47

100uH

0.1

R795 150k

C1022

R797

20p

D1013 1SS375

D1014 1SS375

R741

1k

R1051

C1052

RV-148

8.2k

0.1

C741

0.0047

(4.7kB)

L1013

L731 LS-516

C799

2.2uH

R736 47

IC791

TA31136FN 1 2 3 4 5 6 7 8

220p

C1023 150p

C2234

OSCIN OSCOUT MIXOUT VCC IFIN DEC FILOUT FILIN

0.1

L741 LS-516

R742 47

FI791 SFPC455ETC01

47k

10k

0.1

R1048 820

C1018

1k

5.8 V

C742

47p

Q741 2SK882

C743

0.1

C801

0.1

C802

0.1

C1020

R1018 100k

68p

C1021

56p

D1012

MA357

R1019

2.2k

R1020

C1043

C1045

10

C1019

0.1

0.0047

R1050 330

C1044

0.0047

470k

1

C771 150p

C761

0.0047

D761 1SS375

R816

100

IC811a NJM2902V

0.1

C815

24 23 22 21

AIA

20

AOB

19 18

CB

17

VDD

16

PIB

15

VSS

14

PIA

13

R1042

RV-155

Q1041

AMS8

DTC114EE

C814

10

(150kB)

R814 150k

R751

470

3.2 V

R752 47k

C751 220p

Q751 2SC4081

R815

D1041

R1043

R753

150k

R1031

C1015

MA2S111

47k

10k

220

0.0047

C812

0.01

C811

R1044

0.1

CP1011

L1012

C1016

47k

100uH

10

1.9 V

R811

10k

R1016

R1017

C1017

R10461kR1047

R1049

1.2k

C752

0.1

R813

0.1

10k

R812 39k

2114

-+1 3

C813

0.01

D1011

MA2S111

C1014

0.0047

R1045 RV-148 (4.7kB)

6.1 V

C734

47p

C735

0.1

R794 330k

0.8 V(FM) 6.6 V(FM)

R1022 100k

C1024 150p

R1023

100k

IC1041 NJM1496V

1

VS+

2

VCS

3

VCS

4

VS-

5

BIAS

6

VO+

7

NC

C1047 10

R735

4

5

C798

0.01

Q731 3SK126

470

R1021

Q1011 2SK210

3.4 V(FM)

C1025

VCC-

VCC+

D732 UMC3N

100

C1026

150p

VEE

NC

VO-

NC

MIXIN

N-REC

N-DET

RSSI

IFOUT

QUAD

AFOUT

C733

GND

0.0047

14 13 12 11 10 9 8

C2233

0.1

D921 DAN222

UNF8

3

2

1

4.0 V

R733

470

C793

0.0047

16 15 14 13 12 11 10 9

C1027 10p

R1024

L1014 10uH

Q1012 DTC114EE

R1052 330

L1042 100uH

C105310C1048

C681

1.5p

D1091 DAP222

10

470

CP1111

Q1114 1SS385

R671

C672

C682

R691

C692

R701

C702

R711

C712

C1094 1

2.2k

0.1

1.5p

2.2k

0.1

2.2k

0.1

2.2k

0.1

R1094

R1111

R1124 33k

R1125 RV-150 (10kB)

150

1k

13 12

14V 8V 5V R8V T8V HV H5V

R662

10k

R681

2.2k

C684

0.1

C663

0.1

R1095

4.7M

R1096

22k

R1093 10k

R1097

10k

R1113 100k

10

R1115

1.8k

R1126 1M

-14 +

IC1091d

R1128 47k

Q1101 DTC114EE

D671 MA862

D681 MA982

D691 MA982

D701 MA982

D711 MA982

R1098

10k

R1099

10k

R1112 1M

IC1091c 9

-8 +

EALC

C661

0.0047

R661

10k

4

2

-1

3

+

11

IC1091a NJM2902V

R1116 470

R1114 10k

R1127 470

Q1131 2SA1576

CP1001

Q2226 DTC114EE

R1132 1k

R1133

MAIN UNIT (4)

H5V HV 14V 8V 5V AMS AMS8

AMS

WFM8 FMS8 UNF8 R8V T8V

L1

L2

L3

L4

L5

L6

L7

L8

L9

B0

B7

B7W

BHF

IDS

1F15

2F23

2F80

2FB0

2FTH

OP1

OP2

RXS

ATTS

PR1S

PR2S

PR3S

PR4S

TB1V

TB2V

TB3V

TB4V

RFGV

AGFS

AFGC

AFMS

AFS1

AFS2

SQL

SQLS

NBS

CTCV

NSQL

AVXL

IDS

ALC

R1104 100

R1101 220

R1103

10

Q1092 2SC4081

R1100

220

R1102

1k

C1095

0.0047

D1113 DAP222

R1131

10k

D1131

MA8036

100k

D1132 DAP222

Q2227 DTC114EE

MAIN (3)

VOXL COMS MIGV MINH MODS DRIV POCV KDS8 TIFS ETON TONE ALCL FORL REFL SML LRXD LTXD MCK MDT IFST ICK DDT DINT DSPS IMST CON0 CON1 CON2 DRES PBST PCE PCK PDST PDT MLLV UL BDT KEY STRT CIV CIVE SPCH BEEP DASH DOT U/D BANV SPS POWS PWK SEND SDSS PTTP 0VDV D95S SNDSR

AVXL VOXL COMS MIGV MINH MODS DRIV POCV KDS8 TIFS ETON TONE ALCL FORL REFL SML LRXD LTXD MCK MDT IFST ICK DDT DINT DSPS IMST CON0 CON1 CON2 DRES PBST PCE PCK PDST PDT MLLV UL BDT KEY STRT CIV CIVE SPCH BEEP DASH DOT U/D BANV SPS POWS PWK SEND SDSS PTTP 0VDV D95S SNDSR GND

COMPLETE VIEW

• MAIN UNIT MAIN (4)

Optional unit

J2061

CP2071

W2061

CIV

CIVE

DSPI

DASH DOT UL

0VDV PWK POWS

SQLS

KEY STRT

CP2072

CP2073

CP2074

D2144 MA2S111

R2152 47k

5VL

CP2075

HV

CP2076

HV

5VL

CP2078

D2181

RD12M

C21811C2166

C2147

470p

Q2131 DTC114EE

R2150 470

R2149 1k

0.1

SPBK MCK MDT MSST SPCH

Q2172 2SC4081

R2151

47k

R2133 1k

R2134 1k

C2146

D2133 DAN222

C2131

R2167 10k

0.0047

0.1

D2171 MA2S111

D2132 DA221

CP2171

R2164 33k

4

D2143 DA221

R2173 33k

R2175 18k

R2148

5

3

C2165

0.0047

47k

1 2

IC2131 TC4S81F

R2147 1k

R2172

6.8k

Q2171 2SA1576

R2163

C2145

0.0047

R2132

47k

R2174

47k

IC2161

S-80942ANMP-DD6 1 2 3

39k

D2131 DA221

IC2122c

35

IC2122b

OUT VDD VSSCONC

R2146

47k D2142 DA221

H5V HV

5VL

SNDS

Q2001 DTA114EE

D2001 DA221

L2001

10uH

C2059

0.1

5.0 V

67 nS

H5VL

C2163

0.1

R2171

100k

62

C2162

R2144 1k

X2161 CR-636

12p

DASK DOTK UNLK

C2143

0.0047

Q2141 DTC114EE

R2141

10k

ATST AHST

ATOT 8V

C2161

D2141 DA221

12p

C2141

0.0047

C2123

5

4

TKEY TCON

R2131

D2145

C2144

1M

C2164

MA2S111

0.0047

0.027

D2161 MA2S111

R2165 100

R2143

47p

R2161 10k

R2162

4.7k 1

2 3 4 5

R2166

6

100

7 8 9

10 11 12 13 14 15 16 17 18 19 20

R2142 1k

47k

C2142

0.0047

SQSS

IC2121 X25650S8I-2.5

R2121

47k

R2122

47k

R2133

CS SO WP VSS

100k

HOLD

C2004

0.1

RES XTAL EXTAL MD1 MD0 NMT STBY/FVPP VCC SCK0/P52 RXD0/P51 TXD0/P50 VSS WAIT/SDA/P97 P96 AS/P95 WB/P94 BD/P93 IRQ0/P92 IRQ1/EIOW/P91 ADTRG/IRQ2/ECS2

CP2121

VCC

SCK

SI

C2122

R2004 47k

D2002 DA221

R2005 47k

80

VSS

P83/IOR

P80/HA0

P82/CS1

P81/GA20

P36/HDB6/D6

IC2001 HD6433337YA56F

KEYIN3/FTIB/P63

KEYIN4/FTIC/P64

KEYIN5/FTID/P65

KEYIN6/IRQ6/P66

KEYIN7/IRQ7/P67

8

17

4

P37/HDB7/D7

AVCC

AN0/P70

P84/IOW/IRQ3/TX

P85/CS2/IRQ4/RX

P86/IRQ5/SCK1/S

KEYIN0/FTCI/P60

KEYIN1/FTOA/P61

KEYIN2/FTIA/P62

21222324252627282930313233343536373839

C2121

0.1

R2124 100k

0.1 IC2122a

TC7W04FU

P33/HDB3/D3

P34/HDB4/D4

P35/HDB5/D5

AN1/P71

AN2/P72

AN3/P73

R2003 1k R2002 1k

R2001 220

P30/HDB0/D0

P31/HDB1/D1

P32/HDB2/D2

AN4/P74

AN5/P75

AN6/OA0/P76

61626364656667686970717273747576777879

P12/A2

P11/A1

P10/A0

AN7/OA1/P77

AVSS

TMCIO/P40

40

R2077

47k

D2083

MA2S111

R2011 R2012 R2013 R2014 R2015 R2016 R2017 R2018 R2019

P13/A3

P45/TMRI1/HIRQ1

P44/TMO1/HIRQ1

P43/TMCI1/HIROQ1

TMO0/P41

R2076

C2075

0.0047

C2081

0.0047

C2082

100 1k 1k 1k 1k 1k 1k 1k 1k

P14/A4 P15/A5 P16/A6 P17/A7

P20/A8

P21/A9 P22/A10 P23/A11 P24/A12 P25/A13 P26/A14 P27/A15

P47/PW1 P46/PW0

P42/TMRI0

1M

0.0047

W2001

C2018

C2019

0.0047

60 59 58 57 56

VSS

55 54 53 52 51 50 49 48 47

VCC

46 45 44 43 42 41

C2066

C2076

2.2

C2074

0.0047

C2073

C2083

0.0047

C2084

0.0047

MPXB MPXA

0.1

0.0047

R2084 4.7k

0.0047

C2017

0.0047

R2072 1k

R2074 1k

C2072

0.0047

D2082

MA2S111

CP2061

C2003

0.0047

C2016

0.0047

D2025 D2026 D2027 D2028 D2029 D2030 D2031

C2071

0.0047

R2081 4.7k

R2086

1k

C2002

0.0047

C2001

C2022

0.0047

MA2S111 MA2S111 MA2S111 MA2S111 MA2S111 MA2S111 MA2S111

R2041 1k R2042 1k

R2044 1k

R2051 1k R2052 1k R2053 1k R2054 1k R2055 1k R2056 1k R2057 1k R2058 1k

R2061 100 R2062 100 R2063 100 R2064 100 R2065 100

C2065

47p

R2087

22k

D2081 MA2S111

R2085

4.7k

C2085

0.0047

C2014

C2044

C2064

R2088

0.0047

47p

22k

C2013

0.0047

[ESP] [FRA] [EUR],[ESP]

[ESP]

R2045

47k

C2063

47p

R2089

22k

C2012

R2021

C2042

C2062

R2090

47p

47k

0.0047

47p

SPBK

22k

C2011

C2041

C2061

47p

0.0047

47p

LRXD

LTXD

RXS TXS KDS

SNDSR

FMST PR4S PR3S PR2S PR1S

D96S ATTS

NBS

AGFS

COMS

SDSS

1S15

DRES

PCK

PDT PMST PDST CON0 CON1 CON2

PBST

L2254 0.56uH

L2253 10uH

ETON

TONE AFMS BEEP

SQL

ALCL AVXL VOXL SNDL CTCV

ATOT 8V

MCK MDT MSST SPCH

ASTB DSST BSTB MCK MDT

H5V HV 14V 8V 5VL

5VL

14V

8V

C2221

C2251

47p

IC2221 BU4094BCFV

C2222

IC2222 BU4094BCFV

DSST DRES MCK MDT BSTB

C2201

0.1

C2101

R2112

IC2101 BU4052BCFV

0.1

100k

1

STR

2

D

3

15

OE

1

STR

2

D

3

15

OE

IC2201 M62352GP

11

VCC

12

AO11

13

AO12

14

DO

15

LD

16

CLK

17

DI

18

AO1

19

AO2

20

GND VSS

R2215

2.2k

13

X

3

Y

R2111

100k

W2101

16

CLK

8

16

CLK

8

16

VCC

8

VDD

AO10

AO9 AO8 AO7 AO6 AO5 AO4 SO3

MODS

4

Q1

AMS

5

Q2

FMS

6

Q3

WFMS

7

Q4

MINH

14

Q5

UNFM

13

Q6

AFS1

12

Q7

AFS2

11

Q8

9

QS

10

QS

2OP1

4

Q1

2OP2

5

Q2

2NTH

6

Q3

2NBO

7

Q4

2N23

14

Q5

DSPS

13

Q6

SPS

12

Q7

TIFS

11

Q8

R2221

9

QS

100

10

QS

10 9 8 7 6 5 4 3 2 1

C2202

0.1

MPXB MPXA 5VL

12

X0

14

X1

15

X2

11

X3

1

Y0

5

Y1

2

Y2

4

Y3

6

INH

10

A

9

B

C2223

TN4V TN3V TN2V TN1V

47p

R2201

R2202

R2110

3

2

1

Q2221 UMC3N

330

560

4.7k

D2107

R2113

D2105

MA2S111

390k

MA2S111

R2203 100k

234

R2204

IC2202a NJM2902V

R2106 2.2k

R2107 4.7k

R2109 4.7k

3

4

2

55

1

Q2222 UMC3N

R2205 100k

D2102

6 5

R2211

10k

R2206

MA2S111

D2103

MA2S111

+

100k

D2101

R2108 1k

1

11

MA2S111

4

+

100k

IC2202b

R2104 4.7k

R2105 4.7k

D2104 MA2S111

D2106 MA2S111

7

R2101 4.7k R2102 4.7k R2103 4.7k

3

2

1

R2212

Q2223 UMC3N

4

5

R2207 100k

9

-

8

10

+

10k

R2208

100k

IC2202c

C2086

0.47

COMPLETE VIEW

AN6/OA0/P76

P30/HDB0/D0

R2003 1k R2002 1k

64

P10/A0

AN7/OA1/P77

373839

R2077

D2083

P11/A1

AVSS

47k

MA2S111

P12/A2

TMCIO/P40

R2011 R2012 R2013 R2014 R2015 R2016 R2017 R2018 R2019

616263

P13/A3

P45/TMRI1/HIRQ1

P44/TMO1/HIRQ1

P43/TMCI1/HIROQ1

TMO0/P41

40

C2075

0.0047

C2081

0.0047

P47/PW1 P46/PW0

P42/TMRI0

R2076

1M

C2082

0.0047

100 1k 1k 1k 1k 1k 1k 1k 1k

P14/A4 P15/A5 P16/A6 P17/A7

P20/A8

P21/A9 P22/A10 P23/A11 P24/A12 P25/A13 P26/A14 P27/A15

VSS

VCC

C2019

C2076

C2074

C2083

0.0047

2.2

0.0047

MAIN UNIT(3)

H5V HV 14V 8V 5V GND BDT STRT KEY SQLS POWS PWK 0VDV UL DOT DASH CIV CIVE LRXD LTXD SNDSR IFST PR4S PR3S PR2S PR1S D96S ATTS NBS AGFS R8V T8V KDS8 1F15 AMS8 FMS8 WFM8 UNF8 COMS SDSS SPS DRES MCK MDT SPCH ETON TONE AFMS BEEP SQL PCK POT PCE PDST CON0 CON1 CON2 PBST MODS MINH AFS1 AFS2 AMS TIFS OP1 OP2 2FTH 2FB0 2F23 ALCL AVXL VOXL SEND CTCV NSQL MLLV FORL SML REFL U/D PTTP DINT DSPS DDT ICK IMST L1 L2 L3 L4 L5 L6 L7 L8 L9 BHF B0 B7 B7W IDS TB4V TB3V TB2V TB1V DRIV RFGV POCV MIGV AFGC BANV

R2231 100

AMS

IC2231 TC74HC4094AF

IC2232 BU4094BCFV

RXS TXS KDS 1S15 AMS FMS WFMS UNFM 8V

H5V HV 14V 8V 5VL

5VL

C2231

C2232

C2252

0.0047

0.1

47p

L2251 HF50ACC322513-B

L2252 HF50ACC322513-B

IC2241 TD62783AF

1

IN1

2

IN2

3

IN3

4

IN4

5

IN5

6

IN6

7

IN7

8

IN8

9

VS

16

1

STR

2

D

3

CLK

15

OE

8

16

1

STR

2

D

3

CLK

15

OE

8

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

DIGITAL MULTIMETER:50

H5V HV 14V 8V 5V

BDT

C2250

0.001

C2253

0.001

18

O1

17

O2 O3 O4 O5 O6 O7 O8

GND

4

Q1

5

Q2

6

Q3

7

Q4

14

Q5

13

Q6

12

Q7

11

Q8

9

QS

10

QS

4

Q1

5

Q2

6

Q3

7

Q4

14

Q5

13

Q6

12

Q7

11

Q8

9

QS

10

QS

14.1

MHz USB

R2245 220

16 15 14 13 12 11 10

R2241

680

R2242

680

R2243

680

L1 L2 L3 L4 L5 L6 L7 L8

L9 BHF B0 B7 B7W IDS

k‰/V

STRT KEY SQLS POWS PWK 0VDV UL DOT DASH CIV CIVE LRXD LTXD SNDSR FMST PR4S PR3S PR2S PR1S D96S ATTS NBS AGFS R8V T8V KDS8 1F15 AMS8 FMS8 WFM8 UNF8 COMS SDSS SPS DRES MCK MDT SPCH ETON TONE AFMS BEEP SQL PCK PDT PMST PDST CON0 CON1 CON2 PBST MODS MINH AFS1 AFS2 AMS TIFS OP1 OP2 2FTH 2FB0 2F23 ALCL AVXL VOXL SNDL CTCV NSQL MLLV FORL SML REFL MUDL OPTL DSPI DSPS DDT MCK DSST L1 L2 L3 L4 L5 L6 L7 L8 L9 BHF B0 B7 B7W IDS TB4V TB3V TB2V TB1V DRIV RFGV POCV MIGV AFGV BANV

H5V HV 14V 8V

LRXD

LTXD

RXS

TXS

KDS

C2012

R2021

C2042

C2062

R2090

47p

47k

0.0047

47p

SPBK

22k

C2011

C2041

C2061

47p

0.0047

47p

SNDSR

FMST PR4S PR3S PR2S PR1S

D96S ATTS

NBS

AGFS

COMS

SDSS

1S15

DRES

PCK

PDT PMST PDST CON0 CON1 CON2

PBST

L2254 0.56uH

L2253 10uH

ETON

TONE AFMS BEEP

SQL

ALCL AVXL VOXL SNDL CTCV

ATOT 8V

MCK MDT MSST SPCH

ASTB DSST BSTB MCK MDT

W2001

C2018

60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41

C2066

C2073

C2084

0.0047

MPXB MPXA

0.1

0.0047

C2017

0.0047

R2072 1k

R2074 1k

C2072

0.0047

R2084 4.7k

D2082

MA2S111

CP2061

C2003

0.0047

C2016

0.0047

C2071

0.0047

R2081 4.7k

R2086

1k

C2002

C2022

D2025 D2026 D2027 D2028 D2029 D2030 D2031

R2051 1k R2052 1k R2053 1k R2054 1k R2055 1k R2056 1k R2057 1k R2058 1k

R2061 100 R2062 100 R2063 100 R2064 100 R2065 100

C2065

R2087

D2081 MA2S111

C2085

0.0047

MA2S111 MA2S111 MA2S111 MA2S111 MA2S111 MA2S111 MA2S111

47p

22k

0.0047

C2001

C2014

R2041 1k R2042 1k

R2044 1k

C2044

C2064

R2088

R2085

4.7k

0.0047

47p

22k

C2013

0.0047

[ESP] [FRA] [EUR],[ESP]

[ESP]

R2045

47k

C2063

47p

R2089

22k

5VL

14V

8V

C2221

0.1

IC2221 BU4094BCFV

C2222

0.1

IC2222 BU4094BCFV

DSST DSST DRES MCK MDT BSTB

C2201

0.1

C2251

47p

C2101

0.1

R2112

100k

IC2101 BU4052BCFV

1

STR

2

D

3

CLK

15

OE

1

STR

2

D

3

CLK

15

OE

IC2201 M62352GP

11

VCC

12

AO11

13

AO12

14

DO

15

LD

16

CLK

17

DI

18

AO1

19

AO2

20

GND VSS

R2215

2.2k

13

X

3

Y

R2111

100k

W2101

16

8

16

8

16

VCC

8

VDD

AO10

AO9 AO8 AO7 AO6 AO5 AO4 SO3

MODS

4

Q1

AMS

5

Q2

FMS

6

Q3

WFMS

7

Q4

MINH

14

Q5

UNFM

13

Q6

AFS1

12

Q7

AFS2

11

Q8

9

QS

10

QS

2OP1

4

Q1

2OP2

5

Q2

2NTH

6

Q3

2NBO

7

Q4

2N23

14

Q5

DSPS

13

Q6

SPS

12

Q7

TIFS

11

Q8

R2221

9

QS

100

10

QS

10 9 8 7 6 5 4 3 2 1

C2202

0.1

MPXB MPXA 5VL

12

X0

14

X1

15

X2

11

X3

1

Y0

5

Y1

2

Y2

4

Y3

6

INH

10

A

9

B

C2223

TN4V TN3V TN2V TN1V

47p

R2201

R2202

R2110

3

2

1

Q2221 UMC3N

330

560

4.7k

D2107

MA2S111

R2113

D2105

R2203 100k

IC2202a NJM2902V

390k

MA2S111

234

R2204

R2106 2.2k

R2107 4.7k

R2108 1k

R2109 4.7k

3

4

2

55

1

Q2222 UMC3N

R2205 100k

D2102

6 5

R2211

10k

R2206

MA2S111

D2103

MA2S111

1

+

11

100k

D2101

MA2S111

4

+

100k

IC2202b

R2104 4.7k

R2105 4.7k

D2104 MA2S111

D2106 MA2S111

7

3

2

1

Q2223 UMC3N

R2212

R2101 4.7k R2102 4.7k R2103 4.7k

10k

R2207 100k

10

9

R2208

+

100k

IC2202c

C2086

3

4

2

5

1

8

D2108 1SS385

0.47

Q2224 UMC3N

R2213

4

5

R2209 100k

13

-

12

+

10k

R2210

100k

IC2202d

MODS

AMS

MINH

AFS1 AFS2

OP1

OP2 2FTH 2FB0 2F23 DSPS

SPS TIFS

3

2

1

Q2225 UMC3N

14

R2214

10k

DDT

4

5

DRES MCK MDT BSTB 5VL

TB4V TB3V TB2V TB1V DRIV RFGV POCV MIGV AFGV BANV

NSQL MLLV FORL

SML

REFL

MUDL

OPTL

MAIN (4)

10 - 5

COMPLETE VIEW

• PA UNIT

MAIN(1) J231

P101

PA

C113

J101

0.1

PAI

R112

MEASUREMENT CONDITIONS SUPPLY VOLTAGE: 13.8 V

DIGITAL MULTIMETER: 50

L211

D101 MA77

C114

D102 MA77

330

14.1

EXC-ELDR25C

C216

100

39p

MHz USB

k‰/V

C217

L104 39nH

C115 7p

R102 15

0.0047

C118

C116

39p

R113

330

0.1

L212 EXC-ELDR25C

C218

DRIVER

13.8 V

D301

UM9401F

C301

C311 33p

0.001

J161

HFO HFO GND GND

J211

VUO VUO GND GND

L311

LW-25

R311

47

C168

C280

C163

470p

0.1 Q100

R165

R163 1k

MP1

180

13.8 V

R162 2k

L301

0.25-1.9-13TL

C303

R303

C169

200p

0.001

470

MRF1508

R166 1

HF TX

4.2 V

Q200 MRF1508

W213

V/U TX

4.6 V

0.1

R164

2.2k

Q301

C302

0.001 DTC114EU

R302 100

R352 100

L352 LW-25

470

0.001

L264 LA-254

C275

J160

HFI HFI GND GND

J210

VUI VUI GND GND

R161 100

L265 LA-243

33p

C276

22p

C279

0.001

C281

0.001

L105

4.7uH

D103

MA77

C117

0.1

2.1 V

D104 MA77

R115

1k

47p

C219

0.0047

C101

C102

0.1

R114

330

3p

L106

100uH

R232

2.2k

C231

0.001

C220

22p

C233

2.2k

C106

R104

R107 680

C104

W235

P2T8

L103

STRIP

C240

6.8nH

39p

R108 33

C245 18p

C111

C232

0.1

0.0047

C242

C121

0.1

47p

C246

0.001

13.6 V

Q101 2SK2854

0.1

L102

33uH

R111

LA-549

C109

R231 10k

470

0.1

C103

470

C244 27p

0.3 V

R106

68

4.7k

0.1

R105

4.7k

C233

0.001

C237

47p

C238

0.0047 L232

13.7 V

Q231 SRFJ7044

C235

33p

C236

33p

R121

R123

C243

R124 560

C125

0.1

Q121 MXR9745-RT1

56

4.7k

C123

0.1

R122

C247

470p

C261 27p

47p

L261

LW-25

R262

100k

C262

0.001

C126

2.2k

R125

5.6k

D261 MI407

L291

R261 47

C278

0.001

L292

470p

LA-234

R235

820

D291 UM9401F

D292 UM9401F

D293 1SS355

R126

470

R127

10

C128

0.1

UHF TX:0.2 V RX:0 V

C291 30p

C292 12p

L123

100uH

L121

6.8uH

L122

HF50ACC322513-T

R234

820

C127

0.1

C129

0.1

C141

0.1

D262 MA742

C265

0.001

C264

C151

R267 1k

C250

L141

L142

0.18uH

C1456pC147

C146

68p

C153 15p

C152

390p

L152

47nH

R213 10

R269 1k

R264

2.2k

L143

0.15uH

3p

C155 47p

C154

L153

R268

C272

120p

56nH

10k

0.001

C148

D263 MA742

C161

0.1

39p

C213

0.001

R211

C212

9p

R215

1.5k

C214

L263 LA-263

C274

39p

0.1uH

27p

C144

68p

C156

4p

R214 2k

0.001

L262 LA-253

R266

12k

39p

C268

0.001

R263

2.2k

R301 10k

C312

0.001

R312 100k

C329

0.001

L161

EXC-ELDR25C

D311 UM9401F

C332 10p

L171 LR-322B

C169 470

C167 0.1

L162

C207

1000

C331 5p

D342 UM9401F

LR-270

C345

0.001

C341 12p

C165

C344 8p

0.1

D344 MI407

D341 UM9401F

D343 1SS355

L341

L342

LA-232

C203

200p

C204

200p

D171 DAN202U

R174 10k

C176 0.1

VHF TX:0.8 V

RX:0 V

C172

0.0068

C173

0.068

R317 8.2k

C318

D312

R313

1p

W316

MA2S728

1k

R172

22

L312 LA-382

C313 15p

C317

0.001

C174 0.1

C193

470p

D172 DAN202U

R175 10k

C319

R319 8.2k

D313

R314

R176

R177

R173

1p

W320

MA2S728

1k

C322

2.2k

C321

R178 15

Q171 SRFJ7044

C178

0.0068

R182

0.68

R183

0.68

Q172 SRFJ7044

C179

0.0068

R179

22

15

R202

3.3k

C175 0.1

L313 LA-383

7p

C3237pC324

R351

10k

L351

0.25-1.9-13TL

C314 12p

0.001

C201

13.7 V

C191

200p

W171

L172

LR-83

C185

390p

C183

200p

R201

13.7 V

0.012

0.1

R203

3.3k

R204

3.3k

C202

0.1

L315

L314 LA-233

R320

4.7k

C354

10p

0.001

LA-382

Q351 DTC114EU

C326 9p

R205

3.3k

L316

LA-382

C353

0.001

C327 5p

L317

EP

LA-232

J481

VURX

MAIN (1) J141

P481

COMPLETE VIEW

D481 1SV237

C476

0.001

R468

C470 0.001

STRIP

C241

39p

C462 3p

330

C472 15p

D456

1SV305

R470 100k

C471

0.5p

L461 12nH

L455 15nH

R465 12

C478 0.1

R455 1.5k

C461 0.001

C460 10p

R464 100k

R463 39

D454 1SV305

C453 0.001

6.2 V

Q453 3SK291

0.3 V

C477 0.1

UHF PREAMP ON:2.4 V

C681 0.1

C459 0.001

OFF:1.7 V

C458 0.001

C463 0.1

1.4 V

C469 0.1

W300

W301

R462 330k

R461 330k

R471 270k

UHF PREAMP ON:0 V

Q452 DTC114EU

OFF:4.4 V

R469

C457

W462

0.001

D455

1SV305

390k

R460

150k

R459

100k

D453

1SV305

C455 3p

L453

12nH

L456

4.7nH

R453

D451

4.7

1SV308

R452

D452

4.7

1SV308

C452

R451

C454

1.8k

8p

0.001

C421

0.001

R422

W409

330

C422

0.001

L408

27nH

L407 82nH

D410 MA2SV05

C418

0.001

D406

MA2SV05

R419 100k

D407 MA357

C414 470p

R420 100k

C423

0.001

C412

0.001

R418

D405

L410

1SV308

1k

10uH

L403

R416

120

2.7uH

5.6 V

R424

Q403 3SK291

680

C411

0.001

0.8 V

R415 120

C410 0.001

1.8 V

C409 0.1

VHF PREAMP ON:3.0 V

OFF:2.1 V

R423 220k

R414 330k

C413 220k

VHF PREAMP ON:0 V

Q402 DTC114EU

C425 0.001

OFF:4.4 V

R412 180k

R411 330k

C408

0.001

D408 MA357

R421 100k

C407 470p

C427

0.001

R410

L404

1k

10uH

D404

1SV308

D409 MA2SV05

L402 82nH

D403

MA2SV05

R409 100k

C405

0.001

L401

33nH

L406 22nH

R40833R407

D402

1SV308

D401

C401

4.7

1SV308

0.0047

C402

R403

0.001

1.8k

10 - 6

2

1SV305

.1

A742

L175 LA-262

C195

10

C189

0.1

C521

0.0047

C531

0.0047

Q541 DTA114EU

C552

0.001

47k

R572

C581 0.0047

15p

Q531 2SA1577

47k

C574 0.0047

C187

0.68

C604

C591

Q551 DTA114EU

R580

68k

Q576 DTA114EU

C572

D573 DAN202U

1000

0.1

C501

Q521 2SB1132

0.0047

0.1

D602

C592

R521 47k

R522 1k

R531 47k

R532 1k

C583

0.001

DSA3A1

0.0047

Q501 2SB1132

Q511 2SA1577

C511

0.1

R575 1.2k

D601

F592 S-N5054

R579

82k

DSA3A1

W572

Q522 DTC114EU

Q523 DTC114EU

Q532 DTC114EU

Q542 DTC114EU

Q552 DTC114EU

Q573 DTA114EU

Q575 DTC114EU

C582

C575 0.1

C603

0.001

R501

R511

R502 1k

R512 1k

0.1

F591 FGB4A

47k

Q533 DTC114EU

C602

0.0047

Q502 DTC114EU

Q512 DTC114EU

C601

F593 S-N5054

C594

0.1

Q572 2SC4081

C576 220

470p

R577

D575 DAN202U

1k

W601

W602

W603

W604

C593 0.1

Q574 2SC4081

C577

0.1

R576 10k

D574 MA8056

C578

EP601

EP602

14V

RL591 JV-12-KT

Q591 DTC114EU

D591 DAN202U

C502

0.0047

Q571 2SB1132

470

Q514 DTC114EU

R513 10k

Q513 DTC114EU

C573

R582 47k

C579

0.1

8V

T8V

8V

LPF8

T8V

LPF9

8V

T8V

R8V

LPF8

LPF9

8V

THPE

0.1 14V

T8V

8V

14V

C361

0.0047

L361 LW-25

R591

4.7

L611 220uH

C613 0.1

C684 0.1 C680 0.1 C679 0.1 C678 0.1 C677 0.1

R361 47k

L612 220uH

L665 EXC-ELDR25C

W361

L621

HF50ACC322513-T

L614

2943-666663

C626

0.001

L664

C691

C652

0.1

C670 0.1 C682 0.1 C669 0.1 C668 0.0047 C683 0.1 C667 0.0047 C666 0.1 C665 0.1 C664 0.1 C663 0.1 C662 0.1 C661 0.1

C685 0.001

L663 0.82uH

R601

4.7k

CP680

CP679

CP678

L613 2943-666663

C627 0.1 C623 0.1 C622 0.1 C621 0.1

C688 0.001

C624

0.0047

C632 0.1

EXC-ELDR25C

C690

0.001

C651

0.0047

CP677

CP676

CP675

CP674

L571 HF50ACC322513-T

CP661

CP673

C641

CP662

CP671

CP621

CP622

C692

0.001

CP636

0.0047

CP663

CP664

C676 0.1 C675 470p C674 470p C673 470p C672 470p

CP672

CP623

CP624

CP635

CP634

CP651

CP652

CP665

CP666

L622 4.7uH L623 4.7uH

DRIVER

13.8 V

D301

5.6 V

UM9401F

R424

680

C411

0.001

C301

C311 33p

0.001

L311

R311

Q403 3SK291

J161

HFO HFO GND GND

J211

VUO VUO GND GND

LW-25

47

0.8 V

R415 120

C168

C163

0.1

C280

470p

D410 MA2SV05

C418

0.001

D406

MA2SV05

R419 100k

0.1

R164

2.2k

C302

0.001

R352 100

L352 LW-25

D407 MA357

Q100 MRF1508

R166 1

HF TX

4.2 V

Q200 MRF1508

W213

V/U TX

4.6 V

Q301 DTC114EU

R302 100

C414 470p

R420 100k

C423

0.001

R163 1k

MP1

L301

0.25-1.9-13TL

C412

0.001

D405

1SV308

R418

1k

L410

10uH

R165

13.8 V

180

C169

200p

R162 2k

C303

0.001

R303

470

L403

2.7uH

R416

120

470

0.001

L264 LA-254

C275

J160

HFI HFI GND GND

J210

VUI VUI GND GND

R161 100

L265 LA-243

33p

C276

22p

C279

0.001

C281

0.001

L407

0.001

L408

82nH

27nH

W409

C422

L141

L142

141

0.1uH

C151

27p

C144

68p

27

C156

4p

29

R214 2k

C250

0.001

C264

R267 1k

L262 LA-253

R266

12k

39p

C268

0.001

R263

2.2k

C455 3p

L453

12nH

D453

1SV305

C265

0.001

62

462

0.18uH

C1456pC147

C146

68p

C153 15p

C152

390p

L152

47nH

R213 10

R269 1k

R264

L456

4.7nH

R453

4.7

D451

1SV308

L143

0.15uH

C161

0.1

3p

C148

39p

C155

C213

47p

0.001

C154

120p

L153

56nH

R268

10k

C272

0.001

D263 MA742

2.2k

R452

4.7

D452

1SV308

C452

R451

C454

R211

C212

9p

R215

1.5k

C214

L263 LA-263

C274

39p

C421

0.001

8p

R422

330

1.8k

0.001

R301 10k

C312

0.001

R312 100k

C329

0.001

C410 0.001

1.8 V

C409 0.1

L171 LR-322B

C169 470

C167 0.1

L161

EXC-ELDR25C

L162

LR-270

C207

1000

D311 UM9401F

C331 5p

C332 10p

C345

0.001

C341 12p

D342 UM9401F

VHF PREAMP ON:3.0 V

R423 220k

R414 330k

C413 220k

C165

0.1

D344 MI407

C344 8p

L341

LA-232

D341 UM9401F

L342

LA-232

D343 1SS355

OFF:2.1 V

Q402 DTC114EU

C425 0.001

VHF PREAMP ON:0 V

OFF:4.4 V

C203

200p

C204

200p

D171 DAN202U

R174 10k

C176 0.1

VHF TX:0.8 V

RX:0 V

C172

0.0068

C173

0.068

R317 8.2k

R412 180k

C318

D312

R313

1p

W316

MA2S728

1k

R411 330k

R172

22

C174 0.1

C193

L312 LA-382

C313 15p

C317

0.001

C408

0.001

D408 MA357

D172 DAN202U

R175 10k

470p

R319 8.2k

C407 470p

R421 100k

C319

D313

R314

C427

1p

MA2S728

1k

R410

L404

0.001

R176

R177

R173

W320

1k

10uH

C322

C321

2.2k

22

7p

0.001

D404

C178

0.0068

C179

0.0068

C175 0.1

L313 LA-383

C314 12p

L402 82nH

1SV308

D403

D409 MA2SV05

R409 100k

R178 15

Q171 SRFJ7044

R182

0.68

R183

0.68

Q172 SRFJ7044

R179 15

R202

3.3k

C3237pC324

R351

10k

L351

0.25-1.9-13TL

MA2SV05

C201

13.7 V

C191

200p

W171

L172

LR-83

C185

390p

C190

220p

C183

200p

R201

13.7 V

0.012

0.1

R203

3.3k

R204

3.3k

C202

0.1

L315

L314 LA-233

R320

4.7k

C405

0.001

L401

33nH

C354

10p

0.001

LA-382

Q351 DTC114EU

L406 22nH

R40833R407

D402

1SV308

D401

C401

C326 9p

4.7

1SV308

0.0047

R205

3.3k

L316

LA-382

C353

0.001

C402

R403

0.001

1.8k

C327 5p

EP605 W180

L233 ICL ICH PHT8 PHV

PT8V

P2T8

VFOR

C328 9p

L317

LA-232

P4T8

UFOR

PR3S P2R8 2MBL

AT13 P4R8

TB2V TB1V PR4S

W181

EXC-ELDR25C

C186

390p

L234

EXC-ELDR25C

C239

0.0047

D231 DAN202U

P2R8

P4R8

CP573

L174

L173 LR-376

LR-230

C571

C196 0.001 C197 0.001 C198 0.001 C199 0.001 C200 0.001

R18010R181

C188

C553

0.0047

CP574

R581

1.5k

1000

0.001

C686

R571

CP627

CP633

CP643

CP667

CP572

CP614CP613CP612CP611

CP628

CP632

CP642

CP668

C580

CP629

CP631

CP641

CP669

0.001

HPAO

ETKY ETST ET14 ETE

HV 2MBL 8V 8V GND THEP 14V 14V 14V GND GND POWS ESPE ESPE ESPO ESPO

ESPO ISPO ESPE

ISPO ESPE

CP670

TB4V TB3V TB2V TB1V PR4S PR3S STRT KEY LPF9 LPF8 GND UREF VREF UFOR VFOR AT13 ICL ICH T8V R8V

CP571

FANO FANE

C687

P601

J172

J621

J651

0.001

J611

J651

J571

J270

FILTER P2

PA J252

J641

W651 W652

MAIN (2) J401

to 144/440MHz ANT

J612

P651EP604

COMPLETE VIEW

• FILTER UNIT

9

T

M

T

9 4

C

9

T

E

9

T

N

9 4

E

9

T

MAIN (1) J101

PA J172

[KEY]

[CIV]

[RTTY]

P1

HRX

P2

HPAD

J4

J7

J8

MAIN (2) J461

[MIC]

J1

J2

J9

J11

PAO

DASH

DOT

GND

CIV

CIVE

GND

CIV CIVE FSKK BDT BANV KEY DASH DOT U/D EALC GND PTTP AAF SQLS AFO

DOUT DIN AMOD

SQSM GND MICM MCEM SENM MAFM U/DM 8VM

C190

0.1

R63 56

R64

220k

L51 HF50ACC322513-B

L43 HF50ACC322513-B

C207 0.001

L87

L41 L60

C208

0.001

J14

6

4

21

[DATA ]

L44

L45

L48 L56 L49

D25

1SV312 4 3

C193

10p

C69

0.0047

100uH

HF50ACC322513-B 100uH

C155

0.0047

L65 100uH L64 100uH

AFOUT

5

3

100uH

100uH 100uH 100uH

C75

0.0047

R62 390

1 2

R67

C72 0.0047

C153

0.0047

C115

0.0047

330

C70

0.0047

L68 EXCCL3225U

C76

R61 100

L66

L67 100uH

0.0047

C206

SENR

FSKR

100uH

0.001

C192

C214

C157

220k

C112

Q12 DTA114EE

0.0047

R66

C149

C71 0.0047

C113

0.0047

CP101

R9 100

D26 MA2S111

4.7k

C210

0.001

0.1

TX:6.4 V RX:0.2 V

L59 HF50ACC322513-B

L36 100uH

R10 100

C114

0.0047

HFRX

C124

0.1

R271kR281kR126

C104

0.0047

C209

0.001

C123 1

L37

100uH

C140

C159

0.0047

Q11 2SD1623

TX: 0.75 V RX: 0 V

SNDSR

C125

0.1C133pC356pC539p

Q9 2SC4213

0.1

Q1 DTC114EU

L42

HF50ACC322513-B

W17

C74

0.0047

0.001

L35

HF50ACC322513-B

C145

0.0047

L86 100uH

R60

2.2k

C202

V.UHF: 4.1 V

HF: 0 V

C147

0.0047

SDSS

C189

0.1

L69 100uH

R65

C191

0.1

0.0047

8V T8V

C158

1

C154 0.0047

C156

0.0047

L46

100uH

L47

100uH

C73

0.0047

R82 1k

0.0047

R83

L1 LA-236

C2

0.75p

10k

L2 LA-246

C4 15p

R26 10k

C103

0.0047

R42

2.2k

C111

0.0047

L61

HF50ACC322513-B

C144

C146 0.0047

D23 1SS302

Q10 2SC4081

D24 DAP202U

R43

2.2k

8VA

GND BDTA SEND1 138A SEND2 AFA MODA

SQSA L39 HF50ACC322513-B

L55

L34

C110

0.0047

RL16 MZ-12D-K

C148

0.0047

C127

L54 100uH

0.1

1

2 4

4321

3 8 7 12 11 13

FSKA

100uH

ALCA

100uH

BANA KEYA

SEND

C6 0.0047

D1 1SS302

L71 100uH

[ACC]

J5

13

10 695

5678

9101112

13.5 V

8.0 V

RL1 AG20B44

L72 100uH

L73 100uH

L74 100uH

L75 100uH

L76 100uH

C101

C102

0.001

0.0047

R11

C87

0.0047

L10 LR-216

RL4 MZ-12D-K

C16 0.0047

D3 1SS302

47

C7 0.0047

D2 1SS302

L63

10uH

C23 0.0047

D4 1SS302

C30 0.0047

D5 1SS302

C37 0.0047

D6 1SS302

C89

0.0047

RL2 NA-12W-K

RL6 MZ-12D-K

C91

0.0047

L50 LR-293

RL8 MZ-12D-K

C93

0.0047

RL10 MZ-12D-K

C95

0.0047

13

C184 100p

C17

300p

C135

120p

L5 LA-550

C162 6p

L14 LR-387(EUR,FRA,ESP) LR-389(USA,OTH)

C170 39p(EUR,FRA,ESP) 47p(USA,OTH)

C200 3p

C169

56p(EUR,FRA,ESP)

47p(USA,OTH)

L18 LR-293

C32 110p

C31

240p

L22 LA-481

C177 22p

C176

100p

C78

180p

C19

L6 LA-550

C1636pC180

C181

100p(EUR,FRA,ESP)

82p(USA,OTH)

C33

C40

L11 LR-216

C185 33p

680p

C164 15p

68p

L19 LR-293

C174 56p

270p

L23 LA-551

C178 68p

240p

C79

200p

C21

390p

L7 LA-547

C166

100p

L15 LR-388

C171 22p(EUR,FRA,ESP) 15p(USA,OTH)

C182

82p

C175

100p

C183

100p

C201 24p

C172

4.0~7.999999 CONNECT:4.2 NO CONNEC

C118

C105

C121

C119

C120

C117

C116

C45

C52

0.0047

30.0~59.9 CONNEC NO CONN

22.0~29.99

0.0047

CONNECT: NO CONNE

8.0~14.99

0.0047

CONNEC NO CONN

15.0~21.9

0.0047

CONNEC NO CON

2.0~3.999

0.0047

CONNEC NO CONN

0.03~1.999

0.0047

CONNECT: NO CONN

0.0047

L26 LR-216

C46 430p

390p

L30 LR-294

C53 470p

750p

C80

680p

C54

750p

R72 1k

R80 1k

R78 1k

R74 1k

R76 1k

R70 1k

R68 1k

C81

470p

0.001

C44 0.0047

D7 1SS302

C51 0.0047

D8 1SS302

Q4 2SC4081

Q8 2SC4081

Q7 2SC4081

Q5 2SC4081

Q6 2SC4081

Q3 2SC4081

Q2 2SC4081

R73

R81

R79

R75

R77

R71

R69

RL12 MZ-12D-K

RL14 MZ-12D-K

10k

C97

0.0047

C99

0.0047

RL5 MZ-12D-K

C22

0.0047

C90

0.0047

RL3 NA-12W-K

C15

0.0047

C168

39p

C88

0.0047

RL7 MZ-12D-K

C29 0.0047

82p

RL9 MZ-12D-K

C36

0.0047

C94

0.0047

RL11 MZ-12D-K

C43

C211

0.001

0.0047

C96

0.0047

L79 100uH

L80 100uH

C92

0.0047

L81 100uH

L82 100uH

L83 100uH

7MHz

50MHz

24MHz 28MHz

10MHz 14MHz

18MHz 21MHz

3.5MHz

1.9MHz

L77 100uH

L78 100uH

C205

C141

0.001

COMPLETE VIEW

C136

8

W15

W16

HF50ACC322513-B

R40

1k

L70

4.7uH

SDSS

0.68

ATT ON:11.5 V ATT OFF:0 V

L1 L2 L3 L4 L5 L6 L7

R33 1k R34 1k R35 1k R36 1k R37 1k R38 1k R39 1k

C203

0.001

C128

0.0047

W18

W19

W20

W23

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

DIGITAL MULTIMETER:50

FILTER

L10 LR-216

RL1 AG20B44

L72 100uH

L73 100uH

C101

0.001

1

5

9

5

.5 V

.0 V

L74 100uH

L75 100uH

C102

L76 100uH

0.0047

R11

C87

0.0047

C16 0.0047

D3 1SS302

47

C7 0.0047

D2 1SS302

L63

10uH

C23 0.0047

D4 1SS302

C30 0.0047

D5 1SS302

C37 0.0047

D6 1SS302

RL4 MZ-12D-K

C89

0.0047

RL2 NA-12W-K

RL6 MZ-12D-K

C91

0.0047

L50 LR-293

RL8 MZ-12D-K

C93

0.0047

RL10 MZ-12D-K

C95

0.0047

13

C184 100p

C17

300p

C135

120p

L5 LA-550

C162 6p

L14 LR-387(EUR,FRA,ESP) LR-389(USA,OTH)

C170 39p(EUR,FRA,ESP) 47p(USA,OTH)

C200 3p

C169

56p(EUR,FRA,ESP)

47p(USA,OTH)

L18 LR-293

C32 110p

C31

240p

L22 LA-481

C177 22p

C176

100p

C78

180p

C19

C1636pC180

C181

100p(EUR,FRA,ESP)

82p(USA,OTH)

C33

C40

L11 LR-216

C185 33p

680p

L6 LA-550

68p

L19 LR-293

C174 56p

270p

L23 LA-551

C178 68p

240p

C164 15p

C79

200p

C21

390p

L7 LA-547

C166

100p

L15 LR-388

C171 22p(EUR,FRA,ESP) 15p(USA,OTH)

C182

82p

C175

100p

C183

100p

C201 24p

C172

4.0~7.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

R72 1k

C118

0.0047

R80 1k

22.0~29.999999 MHZ

C105

0.0047

CONNECT:4.2 V NO CONNECT:0 V

R78 1k

C121

0.0047

R74 1k

C119

0.0047

R76 1k

C120

0.0047

R70 1k

C117

0.0047

R68 1k

C116

0.0047

L26 LR-216

C46 430p

C45

390p

L30 LR-294

C53 470p

C52

750p

C81

470p

30.0~59.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

8.0~14.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

15.0~21.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

2.0~3.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

0.03~1.999999 MHZ CONNECT:4.1 V NO CONNECT:0 V

C80

680p

C54

750p

L3

L7

L6

L4

L5

L2

L1

L27 LR-214

C48 110p

C47

220p

C49

560p

C186

100p

L31 LR-295

C55 120p

C82

750p

C143

470p

C84

560p

C56

750p

D9 1SS375

R18 100

C58

10p

C59

180p

C62

330p

R4

8.2k

R6

47k

C67

470p

R17

1k

RL13 MZ-12D-K

RL15 MZ-12D-K

IC1b

C152

0.001

R16 100

R15

1k

C98

0.0047

C57

0.0047

C100

0.0047

R3

C65 470p

7

IC1 NJM2904M

1

C133

0.1

C50

0.0047

L33 LR-391

R2 22

10k

5

+

6

-

IC1a

4

2

3

+

8

L57 100uH

C66 470p

L84 100uH

L85 100uH

C151

C63

330p

C64

47p

D10 1SS375

R5

1k

R7

100k

C204

47p

L58

C213

0.47

3p

C215

0.1

C122

0.0047

13

0.001

C44 0.0047

D7 1SS302

C51 0.0047

D8 1SS302

Q4 2SC4081

Q8 2SC4081

Q7 2SC4081

Q5 2SC4081

Q6 2SC4081

Q3 2SC4081

Q2 2SC4081

R73

R81

R79

R75

R77

R71

R69

RL12 MZ-12D-K

RL14 MZ-12D-K

10k

C97

0.0047

C99

0.0047

RL5 MZ-12D-K

C22

0.0047

C90

0.0047

RL3 NA-12W-K

C15

0.0047

C168

39p

C88

0.0047

RL7 MZ-12D-K

C29 0.0047

82p

RL9 MZ-12D-K

C36

0.0047

C94

0.0047

RL11 MZ-12D-K

C43

C211

0.001

0.0047

C96

0.0047

L79 100uH

L80 100uH

C92

0.0047

L81 100uH

L82 100uH

L83 100uH

7MHz

50MHz

24MHz 28MHz

10MHz 14MHz

18MHz 21MHz

3.5MHz

1.9MHz

L77 100uH

L78 100uH

C205

C141

0.001

HOUT

R8

2P-50-W1L301

GND HFOR HREF SDSS GND 14V 14V 14V AT13 MIC MICE SEND SNDSR

14.1

MHz USB

k‰/V

J13

[ANT1]

J12

MAIN (2) J431

10 - 7

COMPLETE VIEW

2

R601

R602

C

• PLL UNIT

P251 EP2

MAIN (3) J1431

PA J621

Optional unit

MAIN (3) J1381

R135 1k

R133

C133

100

R134

R54 68k

0.65 V

C101 0.1

C102 0.1

C103 0.1

C161

C207 0.47

0.0047

R291 22

R52

0.0047

C206 10

10.8 V

C291 10

47

R161 330

VCAOUT

VCAIN

150k

C52

0.0047

R53

270

Q51 2SC4081

VCC

CTL

NC

8.0 V

C292 0.0047

C110 0.1

51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

10 9 8 7 6

8V

J251

AFI AFIE AFOE AFO

J252

ESPD ESPD ESPE ESPE POWS GND GND 14V 14V 14V THEA GND 8V 8V 2HBL HV

J253

DAES DINT INST DOT ICK 5V DSPS GND GND GND

J254

H5V DRES PDST CON2 CON1 CON0 PCK POT PBST PCE MLLV SPS AFGC 5V DSCP UL AFBP 8V 8V POWS AAF GND DINT ICK IMST DDT FSKK 14V 14V HV

R1015 470

R1017 470

L1015 10uH

C256

R1014 470

R264 1k

0.1

C215 47p

R1012 470

R1013 470

L1000

0.1uH

C1006 0.001

R1011 470

C221 0.0047

C1004 0.001

FSKK

C251

0.001

C251 0.001

R263 1k

C224 47p

C225 47p

C222 47p

C220 47p

AFBPULSPS

C1000 0.001

Q251 DTA144EU

R259 1k

R260 1k

MLLV

PCE

C218 1

R257 1k

R258 1k

BSTB

RDAT

L48 10uH

L44 EXCCL3225U

C1001 0.001

C1005 0.001

5V

R253 1k

R254 1k

R255 1k

R256 1k

RCK

CON0

CON1

CON2

C1002 0.001

R251 1k

R252 1k

DSTB

DRES

THER

L43 EXCCL3225U

L1001 EXC-ELDR25C

VCO1

R265 27k

L42 EXCCL3225U

L45 10uH

C265 0.001

C212 0.0047

L41

EXCCL3225U

C45 1

5V

ULD

DRES

LOF5

LOF4

LOF3

LOF2

LOF1

AFBP

R209 2.2k

C44 0.0047

D271 MA114

R151 10k

R152 10k

R153 10k

R154 10k

R155 10k

C145 0.0047

R207 10k

R208 2.2k

R202 10k

C210 0.001

C295 10

C271 10

13.2 V

H5V

12.7 V

C203

0.1

Q141 DTA114EU

Q142 DTA114EU

Q143 DTA114EU

Q144 DTA114EU

Q145 DTA114EU

3.9 V

C202

0.47

R205 1

C281 0.0047

C272 0.0047

R203 10k

C131

C132

14V

0.0047

0.1

R206 1k

IC281 TA7808S

I

CP282

IC271 TA78L05F

I

R131 12k

R141 1k

C146 0.0047

R142 1k

C147 0.0047

R143 1k

C148 0.0047

R144 1k

C149 0.0047

R145 1k

C150 0.0047

R236

8.2k R201

47k

R204 220k C204 220p

O

G

O

G

C205

0.47

CP281

R284

680

C273 0.0047

R132

2.2M

C151 0.0047

C152 0.0047

C153 0.0047

C154 0.0047

C155 0.0047

C201 10

4.4 V

R283

47k

R285 1k

C274 10

VCO3

5.0 V

L131 10uH

VCO2

VCO1

C284

C286

1 2 3 4 5

10

0.1

L161

100uH

IC201 M5282FP

VCC2 IN+ INOUT GND

4.4 V

R292 22

C285

1

R72 220

R71 47

C71

0.0047

VDD

0.75 V

OIVOUT

VSS

C104 0.1

5V

C294 10

C72 0.1

VSS

POIN

REFIN

VSS2

BUM21

BUN21

BUN41

C105 0.1

C106 0.1

C163

0.0047

R162

18k

C165

100p

5V

AF GAINCENTER:2.2 V

14V

L231 LR-270

R232 10k

FSKK

R231 100k

R931

4.7k

OSCO

VSS

BUM20

C931 0.1

C51

0.0047

C111 0.1

C112 0.1

50494847464544434241403938373635343332313029282726

VSS PD2 PD1 PD0 VSS PDTRI VSS VDD REFOSC RC FCK VDD VSS O12MA O4MA VSS VDD ETCO7 ETCO6 ETCO5 ETCO4 ETCO3 ETCO2 ETCO1 ETCO0

7677787980818283848586878889909192939495969798

2.4 V

Q161 2SC4403

C208 1

C209 10

THER

5.0 V

IC291 TA7805F

O

I

G

C293 0.0047

CP131

VDD

BUN20

L163

0.22uH

D931 MA2S111

C73 22p

OSCF

BUN40

C232

0.47

R233

2.5 V

OSCI

IC101 SC-1246

VSS

0.85 V

C233

0.0047

1k

L30 100uH C2 30p

C1 0.01

R73 68k

Q71 2SC4081

VSS

VDD

VSS

SYSRESET

VDD

SYS CLK

VSS

R101 1k

DSTB

R237

3.3 5

1 2

IC231 LA4425A

R932 33k

R76 47

0.65 V

VDD

STRB

CON2

R102 1k

R103 1k

CON2

CON1

C231

4

3

R933 15k

D1 MA357

C76 47p

TEOUTH4

TEOUTH3

CON1

CON0

R104 1k

CON0

470

C236 470

6.4 V

R16 4.7k

L71

4.7uH

YEOUTH2

TEOUTH1

VSS

BUSY

13.5 V

C234

0.1

R234 470

C935

0.0047

C934 0.0047

C3 4p

W993

TEOUTH0

TESTOUT

VSS

CONT CLK

R105 1k

PCM

C235

R235

C237

C4 20p

VSS

VDD3

DATA

VDD

99

100

R106 1k

PDAT

470

4.7

0.1

R934

2.2k

L1 LB-343

FI71 SFECV10.5MA-5

C77 47p

VDD VDD TE3 TE2 TE1

VSS DA11 DA10

DA9

DA8

DA7

DA6

VDD

VSS

DA5

DA4

DA3

DA2

DA1

DA0

VDD

VSS2

VSS

SYSCLK0

VSS

C166

100p

D231 DAN222

C241 0.1

Q931 2SC4081

C5 150p

C113 0.1

25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

R75 180

C114 0.1

R164

C238 0.0047

RL231 SY-12-K

C944

100p

C109 0.1

C108 0.1

C107 0.1

68

R13 100k

Q1 2SK210

R14 100k

R944

C14 150p

R12 100

C13

0.0047

C21 3p

R15 150

C15 150p

10uH

C239 0.1

C491 0.001

C262 0.001

L941

0.22uH

C941

0.0047

C945

100p

0.65 V

MLLV

8V

UL

L11

68

R11 47

R23

100

C11

10

C12

0.0047

R21 47k

Q21 2SC4081

C75

0.0047

R491 100

Q491 2SK880

Q232 DTC114EU

R261 47k

Q261 DTC114EE

R943

R942 18k

Q941 2SC4403

0.75 V 2.4 V

C22

0.1

R24

270

C31

0.0047

2.8 V

R170 2k

R172 2k

R174 2k

R176 2k

R178 2k

R180 2k

R182 2k

R184 2k

R186 2k

R188 2k

R190 2k

R192 2k

R494

1M

C493

0.001

CP401

R492

100k

C492

0.001

CONNECT PHONE:4.8 V NO CONNECT PHONE:0 V

C240

0.1

D261 DAN222

330

C942

0.1

R32 820R34 1

R493 100k

30MHz

SPS

ULP

ULD

R41 15

R171

R173

R175

R177

R179

R181

R183

R185

R187

R189

R191

R193

1k

R42 68

C444 0.68

PON

R903 1k

8V

L303 LW-25

R43

15

R35668L333

LW-25

C41

0.0047

L354

2.2uH

D361

MA304B

C367

L411 LR-270

5V

Q461 DTA144EU

ULP

RDAT

BSTB

L901

10uH

R902 1k

R901 1k

C902

0.1

C903

0.1

C301 470p

C308 150p

D301 KV1470

C331 150p

D331 KV1470

L356 C-13975-4.5

6p

R412

1.2k

R461 100k

C461

4.7

C465

0.01

C907

0.1

C906

0.1

3332313029282726252423

I

34

VSS

35

UL

36

P1

37

TREE

38

P2

39

VDD

40

VSS

41

STRB

42

DATA

43

CON CLK

44

VDD

VSS

123456789

C904

0.1

C306

C335

Q

FSK1

C375

0.001

10p

POM2

FSK0

C472

R411 100

POM1

ETC0

C303

0.0047

C333

0.0047

POM0

IC901 SC-1287

ETC1

C307

0.1p

C336

4p

L363

IC461

LMX2306TM 1 2 3 4 5 6 7 8

VDD

VSS

VDD

SYS CLK

L301 LW-25

L331 LW-25

Q361 2SK508

2.2uH

C414 10

FLO CPO GND GND FIN FIN VCC1 OSCIN

DRES

RESET

NUM0

W301

C370

ROMCE

NUM1

10

VDD

NUM2

L302 E544GN-110248

Q301 2SK508

L332 E544GN-110254

Q331 2SK508

C364

C374

7p

0.3p C366

VP VCC2 FD/LD

LE DATA

CLOCK

CE

GND

DA9

DA8 DA7 DA6 DA5 VSS DA4 DA3 DA2 DA1 DA0 VSS

VDD

11

C905

0.1

470p

6p

R302 100

C302

470p

C304

C326

0.0047

C332

470p

C355

0.0047

R381 330

C385

R465 100k

R361 68

C368 1p

0.0047

1p

R332 100

C334 1p

R383

4.3k

R384

C464 10p

R462 1k R464 1k R463 1k

Q321 2SC4213

Q351 2SC4213

Q381 2SC4213

10k

R951 2k

R953 2k

R955 2k

R957 2k

R959 2k

R961 2k

R963 2k

R965 2k

R967 2k

R969 2k

C369

470p

C382

L461

R323

4.7k

R353

4.7k

0.0047

10uH

C463 0.0047

R321 330

C321

0.0047

R351 150

C351

0.0047

C376

2.2

L383

2.2uH

C381

0.0047

16 15 14 13 12 11 10 9

22 21 20 19 18 17 16 15 14 13 12

R322 10k

C322

0.0047

R325 10k

R352 10k

C352

0.0047

R355 0.0047

R382 10k

R952

R954

R956

R958

R960

R962

R964

R966

R968

R970 2k

C382

1k

0.0047

3.3 V

PCK

C305 D302

MA77

R324 1k

C323

D332 MA77

C353

0.0047

3.3 V

R354 1k

0.0047

D362 MA77

R385

PDAT

470p

L382 100uH

10k

PCE

8V

5V

R603 1k

COMPLETE VIEW

10 - 8

42

84

L30 100uH C2 30p

CP131

C1 0.01

2.5 V

R73 68k

R76 47

Q71 2SC4081

C73 22p

414039383736353433323130292827

VDD

OSCF

BUN20

BUN40

858687888990919293949596979899

L163

0.22uH

C232

0.47

R233

D931 MA2S111

OSCI

IC101 SC-1246

VSS

0.85 V

C233

1k

VSS

VDD

0.0047

VDD

SYSRESET

SYS CLK

VSS

R237

1 2

IC231 LA4425A

R932 33k

0.65 V

VSS

VDD

VSS

STRB

R101 1k

DSTB

3.3 5

3

R933 15k

VDD

TEOUTH4

CON2

CON1

R102 1k

R103 1k

R104 1k

CON2

CON1

CON0

C231

470

4

C236 470

6.4 V

72

20

NTER:2.2 V

-270

D1 MA357

C76 47p

TEOUTH3

CON0

C234

C935

R16 4.7k

L71

4.7uH

YEOUTH2

TEOUTH1

VSS

BUSY

13.5 V

0.1

R234 470

0.0047

C934 0.0047

C3 4p

W993

TEOUTH0

TESTOUT

VSS

CONT CLK

R105 1k

R106 1k

PCM

PDAT

C235

R235

C237

R934

C4 20p

C77 47p

26

VSS

VDD3

SYSCLK0

DATA

VDD

100

470

4.7

0.1

2.2k

Q931 2SC4081

C5 150p

L1 LB-343

FI71 SFECV10.5MA-5

VDD VDD

TE3 TE2 TE1

VSS DA11 DA10

DA9 DA8 DA7

DA6 VDD VSS

DA5

DA4

DA3

DA2

DA1

DA0 VDD

VSS2

VSS

C166

100p

D231 DAN222

C241 0.1

R75 180

C113 0.1

25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

C238 0.0047

RL231 SY-12-K

C944

100p

C114 0.1

R164

C109 0.1

C108 0.1

C107 0.1

68

R13 100k

Q1 2SK210

C14 150p

R14 100k

R944

R12 100

C13

0.0047

C21 3p

R15 150

C15 150p

10uH

C239 0.1

C491 0.001

C262 0.001

L941

0.22uH

C941

0.0047

C945

100p

0.65 V

MLLV

8V

UL

L11

68

R11 47

R23

100

C11

10

C12

0.0047

R21 47k

Q21 2SC4081

C75

0.0047

R491 100

Q491 2SK880

Q232 DTC114EU

R261 47k

Q261 DTC114EE

R943

R942 18k

Q941 2SC4403

0.75 V 2.4 V

C22

0.1

R24

270

C31

0.0047

2.8 V

R170 2k

R172 2k

R174 2k

R176 2k

R178 2k

R180 2k

R182 2k

R184 2k

R186 2k

R188 2k

R190 2k

R192 2k

R494

1M

C493

0.001

CP401

R492

100k

C492

0.001

CONNECT PHONE:4.8 V NO CONNECT PHONE:0 V

C240

0.1

D261 DAN222

330

C942

0.1

R32 820R34 1

R493 100k

30MHz

SPS

ULP

ULD

R41 15

R171

R173

R175

R177

R179

R181

R183

R185

R187

R189

R191

R193

1k

R42 68

C444 0.68

PON

R903 1k

R43

C41

15

0.0047

RDAT

R902 1k

8V

BSTB

R901 1k

R35668L333

L354

2.2uH

D361

MA304B

L411 LR-270

5V

Q461 DTA144EU

ULP

L901

10uH

C902

0.1

C903

0.1

L303 LW-25

LW-25

D301 KV1470

D331 KV1470

L356 C-13975-4.5

C367

6p

C907

R461 100k

C461

C465

0.01

0.1

C906

34

VSS

35

UL

36

P1

37

TREE

38

P2

39

VDD

40

VSS

41

STRB

42

DATA

43

CON CLK

44

VDD

C904

C301 470p

C308 150p

C306

C331 150p

C335

R412

1.2k

4.7

0.1

3332313029282726252423

I

Q

VSS

FSK1

123456789

0.1

C375

0.001

10p

POM2

FSK0

R411 100

C472

POM1

ETC0

C303

0.0047

C333

0.0047

POM0

IC901 SC-1287

ETC1

C307

0.1p

C336

4p

L363

C414 10

IC461 LMX2306TM

1

FLO

2

CPO

3

GND

4

GND

5

FIN

6

FIN

7

VCC1

8

OSCIN

DRES

VDD

VSS

VDD

SYS CLK

L301 LW-25

L331 LW-25

Q361 2SK508

2.2uH

RESET

NUM0

W301

C370

ROMCE

NUM1

10

VDD

NUM2

L302 E544GN-110248

Q301 2SK508

L332 E544GN-110254

Q331 2SK508

C364

C374

7p

0.3p C366

VP

VCC2

FD/LD

LE

DATA

CLOCK

CE

GND

DA9

DA8 DA7 DA6 DA5 VSS DA4 DA3 DA2 DA1 DA0 VSS

VDD

11

C905

0.1

470p

6p

3.3 V

R302 100

C302

470p

C304

C326

0.0047

C332

470p

C355

0.0047

R381 330

C385

R465 100k

R361 68

C368 1p

0.0047

1p

R332 100

C334 1p

R383

4.3k

R384

C464 10p

R462 1k R464 1k R463 1k

Q321 2SC4213

Q351 2SC4213

10k

R951 2k

R953 2k

R955 2k

R957 2k

R959 2k

R961 2k

R963 2k

R965 2k

R967 2k

R969 2k

C369

470p

Q381 2SC4213

R323

4.7k

R353

4.7k

R355 0.0047

C382

0.0047

L461

10uH

C463 0.0047

R321 330

C321

0.0047

R351 150

C351

0.0047

C376

2.2

L383

2.2uH

C381

0.0047

16 15 14 13 12 11 10 9

22 21 20 19 18 17 16 15 14 13 12

R322 10k

C322

R325 10k

R352 10k

C352

R382 10k

0.0047

R952

R954

R956

R958

R960

R962

R964

R966

R968

R970 2k

C382

1k

0.0047

C305

470p

D302 MA77

R324 1k

C323

0.0047

3.3 V

D332 MA77

R354 1k

C353

0.0047

D362 MA77

L382 100uH

R385

PCK

PDAT

C391 22

0.03—29.999999 MHz

60.0—128.999999 MHz CONNECT PHONE:0 V NO CONNECT PHONE:4.8 V

Q322 DTN144EU

Q362 2SC4116

C373 100

Q352 DTN144EU

30.0—59.999999 MHz

129.0—199.999999 MHz CONNECT PHONE:0 V NO CONNECT PHONE:4.8 V

10k

8V

5V

PCE

R603 1k

VCO3

R601

1k

R602

RV-150

(10kB)

C602 0.0047

L623 LS-508

R604 1k

C851

3.9 V

Q391 2SC4116

C325

470p

R364

10k

R365 10k

3.9 V

C326

470p

5V

R853 1k

0.0047

C852

0.0047

L531 LR-317

59.999999—470.0 MHz CONNECT PHONE:0 V NO CONNECT PHONE:4.8 V

L600 100uH

R605 47k

D601

MA357

C603

0.0047 R605

10

R641 220

C6417pC643

R391

R392

D531 MA717WK

L391 10uH

10k

C392 0.001

R502

4.7k

L367 10uH

C372

Q851 DTA114EU

C537

0.0047

C600

0.1

L601 LB-146

C626

56p

L641

3.3uH

C6422pC644

10p

L532

0.001

C876

0.22uH

L642

3.9uH

8V

VCO1

VCO2

0.0047

X621 CR-275A

Option

0.75p

C645

8p

R531

R532 39

150

1.8 V

R501 33

2.0 V 7.7 V

C514

0.0047

W592

R622

L622

R512

3.7k

R523 1k

C531

R537 270

R538

R539 270

R533

150

R621

Q621 2SC4403

C624 56p

4.7k

EXCCL3225U

C662

0.0047

3.5 V

Q10 2SC4405

0.0047

18

C541

0.0047

15k

C563

R511

R524

C547

0.0047

IC541 uPC2710

1.1 V

0.0047

R663

2.2k

5V

R701 1k

D701 MA862

L713 82nH

C714 7p

47p

C715

27p

L743 68nH

C744 5p

33p

C745

18p

0.0047

C773 15p

C772

68p

C781

15p

82nH

C805 18p

C804

82p

C811

8p

83nH

R823

C824 8p

68p

33nH

C830

7p

LOF6

R851

C864 8p

47p

15nH

C875

5p

C682 27p

C681 0.0047

C683 0.0047

L991

L992

12uH

15uH

C9925pC994

2p

C993

43

12

L881

L781 47nH

1k

L824 27nH

1k

L872 12nH

33p

D732 MA862

C881 82p

C883 82p

C882

220p

C884

0.12uH

C7823pC784

C783

27p

L811 27nH

C812 6p

C813

18p

C831 12p

C827

27p

C874

1.5p

C871

9p

C684 1p

L681 LS-509

C995

18p

L782 33nH

8p

L812 33nH

L823 39nH

L871 15nH

21

4p

C814 2p

C828 4p

C872

0.5p

C701

R731 1k

43

C785

C829

C873

8.2k

L501

10uH

C501

0.0047 D731

L711

C512

R517

0.0047

18

R516

270

R515

470

1.3 V

R513

100

C511

0.0047

D511 MA77

4

5

Q521 UMC3N

C542

0.0047

10

L542

0.22uH

5

1

4

235

R541

150

R542

39

8V REF

L621

C625

0.0047

R623 470

R662

1.8k

Q661 2SC4403

100uH

R665

2 1

C623

0.0047

R661 100

R664

180

68

R518

270

3

2

1

C543 0.0047

D861 1SV237

R821

150

C665

0.0047

2.7 V

C664

47p

MA862

1 23

D862 DAN202U

D761 1SV237

124

D864 MA2S111

D821 1SV308

D863 MA2S111

3 4

R681 100

R666 150

1.8 V

C981 18p

R822

R852

1k

4

3

R682

R683

22k

10k

C982

L981

R791 1k

82nH

L741 56nH

47p

C822 12p

C862 10p

33uH

C801 22p

C711

33p

C741

30p

L801

47nH

C821

27p

L821

47nH

C861

15p

L861

22nH

Q681 2SC4403

C686 47p

C983 18p

L712

0.1uH

L742 68nH

R751 1k

7.5 V

C991

C712 10p

C742 9p

C771 12p

C803 10p

C802

27p

C823 10p

C863 5p

R684 220

18p

C713

C743

C781

L771

L802

C825

L822

C865

L862

1.3 V

LOF1

0.0047

LOF2

C731

0.0047

L882

R892

10nH

39

C886 4p

C885

LOF3

R762

100

342

D752 1SV237

12p

LOF4

R792

1k

C815

10p

LOF5

D822 1SV308

22p

D851 1SV308

5p

C685 27p

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

DIGITAL MULTIMETER:50

R893

150

4p

1

C791

0.0047

C826

0.001

R824

L682 LS-509

0.03—29.999999 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

30.0—59.999999 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

R825 10k

D825 1SV308

129.0—143.999999 MHz

148.000001—199.999999 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

144.0—148.0 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

1k

14.1

MHz USB

k‰/V

J891

0.03—29.999999 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

J681

J991 P991

BFO

1LO P891

2LO P681

MAIN (1) J281

MAIN (3) J551

MAIN (3) J791

PLL

COMPLETE VIEW

• MAIN UNIT MAIN (3)

FRONT MP19

PLL J991

PLL P251

PLL J254

J791

J1431

J1421

J1381

BFO

AFI AFIE AFOE AFO

LRXD LTXD 8V AFO GND MIC MICE PWK

HV 14V 14V FSKK DDT IMST IDS DINT GND AAF POWS 8V 8V AFBP UL DSPS 5V AFGC SPS MLLV PCE PBST BOT PCK CON0 CON1 CON2 PDST DRES H5V

DRIV HFOR VFOR UFOR HREF VREF UREF UL BDT KEY STRT CIV CIVE FSKK DASH DOT U/D BAND DIN DOUT MIC MICE AMOD AFO AAF EALC SNOSR SEND SDSS PTTP ICH ICL WFAF

CP791

C1421

CP1431

W1433

CP1421

470p

CP1381

CP1410

MAIN UNIT (2)

DRIV HFOR VFOR UFOR HREF VREF UREF UL BDT KEY STRT CIV CIVE FSKK DASH DOT U/D BAND DIN DOUT MIC MICE AMOD AFO AAF EALC SNOSR SEND SDSS PTTP ICH ICL WFAF 2IF

CP1432

CP1433

CP1434

CP1422

CP1423

CP1424

CP1425

C1426

0.0047

C1427

CP1382

CP1383

CP1384

CP1385

CP1406

CP1407

CP1408

CP1409

CP1426

0.0047

CP1386

CP1405

CP1427

CP1387

CP1404

CP1428

CP1388

CP1403

AMS8

WFMB

ATTS PR1S PR2S PR3S PR4S TB1V TB2V TB3V TB4V SQLS

WCNTGND

C1428

0.0047

CP1389

CP1402

14V

R8V T8V

AGC

ALC

B7W BHF

1F15

NBS

CP1390

CP1401

8V 5V

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7

CP1391

CP1400

CP931

CP1392

CP1399

PR2S PR3S PR4S

TB2V

SQLS

WCNT

CP1393

CP1398

R8V

T8V AGC ALC

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0

B7 B7W BHF

1F15 ATTS PR1S

TB1V

TB3V TB4V

NBS

CP1394

CP1397

C1410

0.0047

C1397

0.0047

C1391

0.0047

C1382

0.0047

C1381

0.0047

CP1395

CP1396

C1390

0.001

C1394

0.0047

14V 8V 5V R8V T8V HV H5V 2IF

AFIE AFOE

LRXD LTXD

MICE

PWK

FSKK

IMST

DINT

POWS

AFBP

DSPS

AFGC

MLLV

PBST

CON0 CON1 CON2 POST DRES

14V 8V 5V R8V T8V HV H5V 2IF

R912

IC891d

15k

10k

100k

+

14

R864 15k

C941

22

R862 68k

C861

10

SWC VCAC VCAO

VCAI

SWO BU1O

BU1I

CMPO

CMPI

R913 470

BAND

BANV

SPCH

AFBP

14V

BEEP

AFI

D861

MA2S728

WFAF

R861

2.2k

AFIE

MIGV

COMS

R952

4.7k

R953 10k

12

VCC

11 10 9 8 7 6 5 4

SWI

3 2 1

NC

R941 220

C940

AGC

Q777 2SA1576

Q776 2SC4081

R786

10

R846

100k

C778

0.0047

C777

AMAF FMAF SSAF CTCV 8V

BFO

W844

C850

0.1

0.047

R1143

R1145

470k

AMOD

C848

C847

0.0047

IC1141 BU4052BCFV

R1144

470k

1 2 3 4 5 6 7 8

4.7k

C1145

0.47

R1150

4.7k

R948

C946

47k

0.1

R946 10k

R944 22k

D931 DA221

C849

BFO 5V T8V

C1141

0.47

DIN

RXS

8V

C1144

R1149

0.1

6.8k

R949 47k

R950

220k

C945 1

R945 200k

R951

220k

D932 DA221

R943

6.8k

10

C943

0.039

0.0047

10

Y0 Y2 Y Y3 Y1 INH VEE VSS

C779

R947

C944

L841

47

56

0.1

100uH

R1142 47k

R785

C846

VDD

47k

0.0047

X2 X1

X X0 X3

A

B

R1163 15k

R1164 18k

R1141 47k

16 15 14 13 12 11 10 9

C961

0.47

4.3 V

R783 47k

R845

R842

C842

C845

56k

100

0.0047

0.1

Q961 2SC4081

3.7 V

R782

R1146

C1142

6.3 V

C1163

0.1

C1161

0.47

R1162 100k

C1162

0.1

R964 33k

SML

0.0047

680

1 2 3 4

470k

R965

IC841 TA4101F

IFOUT VCC OSCIN BASE

220

IC811b

6

7

5

+

R779

4.7k

Q774 2SC4081

R781 100k

C776

0.1

R1147

470k

R1148

R963

100

C963 10

C964

1

R1165 100k

R1161 100k -

COLECT

BASE BASE

470k

R967

R966

13 12

R780

GND

1k

3.9k

IC981d

470

R1166 330k

+

R971 10k

R829 100k

1M

4

C986

0.1

C827

4.4 V

1

IC981a NJM2058M

0.1

TONE

R988 150k

R991 680k

3

2

1

0.0047

C971

R1168

R990

0.0047

270k

100k

R1169

AFMS

C826

150k

C825

0.1

C773

0.0047

R776

100

R830

2.2M

R827

120k

0.1

R992

390k

R989

150k

AGFS

Q773 UMC1N

4

C775

10

5

R778

10k

R841

C841

8 7 6 5

C1143

10

MODS D96S

R981 10

C982

0.1

14

470

0.0047

C844

C851 100p

MINH

R982

R983

0.1

47k

18k

D1161 1SS385

R1041 100

IC971

TC4W53FU 1 2 3 4

C981

10

R984

C983

3

2

1

C843

0.1

15k

0.1

C1041 1

IC811c

R985

R986

C984

C828 100p

R832

150k

180k

0.1

R1167 100k

C1164

Q772 UMC1N

4

C774

0.47

5

R777

100

R828 470k

9

-+8 10

R831

10k

AMS

8 7 6 5

2

-

3

+ 11

R987

270

C985

0.1

ETON

0.1

C1165

D772 MA2S111

R774 1k

Q771 2SC4081

R775

1M

IC811d

13

14

12

+

R826

100k

R1011

C1011

0.0047

100

C1012

0.1

R1013

15k

C1013

2.2

R993

C988

82k

0.0022

R994 82k

C987

0.001 C989

120p

2F80

9

-8

10

+

IC981c

R1170

100k

R763 100k

C764

0.01

IC981b 6 5

4.4 V

C824

+

IFST MCK MOT

R1012 33k

R825 82k

0.0015

R1014

C823

0.1

1.8M

R996

1k

Q981 DTC114EE

R764 15k

C763

R1000 560

R824 82k

R995

1.2k

R999

0.0047

10 11 12

R771

4.7k

C822

IC1011

LC715317 1 2 3 4 5 6 7 8 9

R1004

RV-150

0.039

10k

R773

XIN CE CL DI LDB LDA CA TEST PDA2 PDA1 AIA AOA

(10kB)

6.8k

C762

R823 82k

0.0022

R821

R822

R998 22k

C772

2.2M

1M

R1001 68k

R1003 68k

D771 1SS375

100p

R761 1k

R762

R1002

RV-148

Q982 DTC114EE

R772 1k

68k

(4.7kB)

C821

FMAF

8V

XOUT

PDB2 PDB1

OUTB

OUTA

OVDV

R734

C732

C796 0.1 C795 100p

150

4.3 V(FM)

C922

3.3

R730

R731

2.5 V

R2244

12k

15k

47

0.0047

C1031

560

0.1

5.9 V

C722

R721

100

0.1

Q721 2SC4081

C731

0.0047

R732

18k

C791

0.0047

R791

2.2k

C794

22

X791

CDBC455CX24

C803 1 R803 4.7k

Q1014 UMC1N

1 2 3

0.0047

C1030

10

R1025

100

R1026 100k

C1028

Q1013 2SC4081

R1028 1k

R1027

1k

C1049

0.0047

R1057

1k

W1056

R1054

680

R923 470

R921 RV-109 (2.2kB)

R922

8.2k

R793

0.0047

R1055 10k

L1043 100uH

R722

5.6k

R723

1.5k

C1029 12p

CP1041

C1061

C792

680

D791 MA862

R1030

D1042 MA862

10

CP921

C921

1

0.0047

R792 10k

L791 100uH

5

4

10k

3.9 V

C721

C1050

D1061

22p

NSQL

DOUT

R1029

L1015

0.0047

MA8027

10k

C1032

56uH

C1033

Q1061 2SA1576

R924

4.7k

C923

0.0047

22p

L1044 100uH

C1051

22

L1011 100uH

0.1

Q1062 2SC4051

R1062 1k

R1061

WCNT

TIFS

KDS8

R663

R1071

D683 MA2S111

R664

47k

D672 MA862

D682 MA862

D692 MA982

D702 MA982

D712 MA982

10k

R1076 100k

R1072

10k

C664

0.1

470k

R1077 220k -

Q1071 DTC114EE

Q1072 DTC114EE

Q1073 DTC114EE

Q1074 DTC114EE

Q1075 DTC114EE

C1096

C571

0.0047

C701

0.0047

C711

0.0047

20p

C683 82p

R672

R674

R682

R684

R692

R693

R702

R704

R712

R714

6 5

IC1091b

R1080 RV-156 (220k)

R1081 100k

R1082 RV-156 (220k)

R1083 100k

R1084 RV-156 (220k)

R1086 RV-156 (220k)

R1088 RV-156 (220k)

2.2k

10k

2.2k

10k

2.2k

10k

2.2k

10k

2.2k

10k

R1073

+

1M

L671

8.2uH

C673

0.1

L682

10uH

C685

0.1

C691

0.0047

L701

8.2uH

C703

0.1

L711

8.2uH

C713

0.1

D1071 MA2S111

R1074

2.2M

7

FI671 FL-272

1

34

FI681 FL-94

CP1091

Q1091 DTC114EE

ALCL

HREF VREF

UREF

REFL

ICH ICL

R1091 330

D1111 1SS385

D1112 1SS385

R1121 47k

R1122 47k

R673 220

R683 220

R703 220

R713 220

2

MP5

L681

22uH

C1091

R1092

R1123

33k

D721

C662

MA862

0.0047

R665

10k

2F23

2F80

2FTH

OP1

OP2

CP1071

CP1002

D1072 MA2S728

HFOR

D1078 MA2S728

VFOR

D1073 MA2S728

UFOR FORL

POCV

D1077 MA8033

AMS8

BHF

L7

470

L8

L9

R1070 56k

D1075 MA2S111

R1075 10k

R1079 330 W1078

D981 1SS385

D1074 1SS385

D1076 MA8033

RFGV

L741 LS-516

R742 47

FI791 SFPC455ETC01

47k

10k

0.1

R1048 820

C1018

1k

5.8 V

C742

47p

Q741 2SK882

C743

0.1

C797

C800

R796

C801

0.1

C802

0.1

C1020

R1018 100k

68p

C1021

56p

D1012

MA357

R1019

2.2k

R1020

C1043

C1045

470k

C1019

0.0047

R1050 330

0.1

C1044

0.0047

10

1

C771 150p

C761

0.0047

D761 1SS375

R816

100

IC811a NJM2902V

0.1

C815

24 23 22 21

AIA

20

AOB

19 18

CB

17

VDD

16

PIB

15

VSS

14

PIA

13

R1042

RV-155

Q1041

AMS8

DTC114EE

C814

10

(150kB)

R814 150k

R751

470

3.2 V

R752 47k

C751 220p

Q751 2SC4081

R815

D1041

R1043

R753

150k

R1031

C1015

MA2S111

47k

220

10k

0.0047

C812

0.01

C811

R1044

0.1

L1012

C1016

47k

1.9 V

CP1011

100uH

10

R811

10k

R1016

R1017

C1017

R10461kR1047

R1049

1.2k

C752

0.1

R813

0.1

10k

R812 39k

2114

-+1 3

C813

0.01

D1011

MA2S111

C1014

0.0047

R1045 RV-148 (4.7kB)

C736

0.0047

220p

3.3k

L1041

C1046

0.1

R1015 47

100uH

0.1

R795 150k

C1022

R797

20p

D1013 1SS375

D1014 1SS375

R741

1k

R1051

C1052

RV-148

L1013

8.2k

0.1

C741

0.0047

L731 LS-516

(4.7kB)

C799

2.2uH

220p

R736 47

1 2 3 4 5 6 7 8

C1023 150p

C2234

IC791 TA31136FN

OSCIN OSCOUT MIXOUT VCC IFIN DEC FILOUT FILIN

0.1

6.1 V

C734

47p

C735

0.1

R794 330k

0.8 V(FM) 6.6 V(FM)

R1022 100k

C1024 150p

R1023

100k

IC1041 NJM1496V

1

VS+

2

VCS

3

VCS

4

VS-

5

BIAS

6

VO+

7

NC

C1047 10

R735

4

5

C798

0.01

Q731 3SK126

470

R1021

Q1011 2SK210

3.4 V(FM)

C1025

VCC-

VCC+

D732 UMC3N

100

C1026

150p

VEE

NC

VO-

NC

MIXIN

GND N-REC N-DET

RSSI IFOUT

QUAD

AFOUT

0.0047

C733

14 13 12 11 10 9 8

C2233

0.1

D921 DAN222

UNF8

3

2

1

4.0 V

R733

470

16 15 14 13 12 11 10 9

C1027 10p

L1014 10uH

Q1012 DTC114EE

R1052 330

L1042 100uH

C105310C1048

C793

0.0047

R1024

C899

0.001

R898 100k

IC891b

R903

6

4.7k 5

R896

200k

IC891a NJM2902V

11

R895

4.7k

AFI

C883 1

AFO

R884

10k

IC861 BU4052BCFV

1

Y0

2

Y2

3

Y

4

Y3

5

Y1

6

AFO

MIC

DDT

IDS

AAF

UL

SPS

PCE

BOT PCK

INH

7

VEE

8

VSS

SQL

MIC

R935

C936

C935

R934

+

R899

100k

R902

4.7k

C895

1

C896

0.1

4

C893

0.001

2

-+1

3

C894

0.0047

IC891c

9

8

10

+

R883

47k

16

VDD

15

X2

14

X1

13

X

12

X0

11

X3

10

A

9

B

VOXL

AVXL

6.8k

R940

6.8k

C938 100p

0.1

C939

1

R939 100k

C934 470p

R933 100k

R932

82k

0.047

10k

R931

4.7k

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

DIGITAL MULTIMETER:50

R892 56k

R893 47k

R882 10k

R894

C882

AFS2

C931 2

7

R900

100k

0.0022

C862

0.0047

C932

AFS1

R937 10k

RV-150

470p

14.1

(10kB)

R890 150k

C892

R871 10k

AFO

C933

MHz USB

0.01

C881

R881

2.2

k‰/V

R911

C897 1

R901

47k

C898

0.1

R891

C891

0.0047

10k

R870 47k

R936

10k

R938

100k

C937

0.1

100k

120k

0.1

R869 12k

CP861

13 14 15 16 17 18 19 20 21 22 23 24

R942 1k

13 12

R868

R866 480k

R872

IC931

PC5023-077

NC AVI AVO MUTE VOXO VOXI BU2O BU2I AMPO AMPAMP+ GND

C942

0.1

D1091 DAP222

10

470

CP1111

Q1114 1SS385

C681

1.5p

R671

C672

C682

R691

C692

R701

C702

R711

C712

C1094 1

2.2k

0.1

1.5p

2.2k

0.1

2.2k

0.1

2.2k

0.1

R1094

R1111

R1124 33k

R1125 RV-150 (10kB)

150

1k

13 12

14V 8V 5V R8V T8V HV H5V

R662

10k

R681

2.2k

C684

0.1

C663

0.1

R1095

4.7M

R1096

22k

R1093 10k

R1097

10k

R1113 100k

10

R1115

1.8k

R1126 1M

-14 +

IC1091d

R1128 47k

Q1101 DTC114EE

D671 MA862

D681 MA982

D691 MA982

D701 MA982

D711 MA982

R1098

10k

R1099

10k

R1112 1M

IC1091c 9

-8 +

EALC

C661

0.0047

R661

10k

4

2

-1

3

+

11

IC1091a NJM2902V

R1116 470

R1114 10k

R1127 470

Q1131 2SA1576

CP1001

Q2226 DTC114EE

R1132 1k

R1133

100k

R1101 220

R1100

IDS

R1104 100

220

R1102

1k

D1113 DAP222

D1132 DAP222

Q2227 DTC114EE

ALC

R1103

10

Q1092 2SC4081

C1095

0.0047

R1131

10k

D1131

MA8036

MAIN (3)

AMS

L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7 B7W BHF IDS 1F15 2F23 2F80 2FTH OP1 OP2 RXS ATTS PR1S PR2S PR3S PR4S TB1V TB2V TB3V TB4V RFGV AGFS AFGC AFMS AFS1 AFS2 SQL SQLS NBS CTCV NSQL AVXL VOXL COMS MIGV MINH MODS DRIV POCV KDS8 TIFS ETON TONE ALCL FORL REFL SML LRXD LTXD MCK MDT IFST ICK DDT DINT DSPS IMST CON0 CON1 CON2 DRES PBST PCE PCK PDST PDT MLLV UL BDT KEY STRT CIV CIVE SPCH BEEP DASH DOT U/D BANV SPS POWS PWK SEND SDSS PTTP 0VDV D95S SNDSR

MAIN UNIT (4)

H5V HV 14V 8V 5V AMS AMS8 WFM8 FMS8 UNF8 R8V T8V L1 L2 L3 L4 L5 L6 L7 L8 L9 B0 B7 B7W BHF IDS 1F15 2F23 2FB0 2FTH OP1 OP2 RXS ATTS PR1S PR2S PR3S PR4S TB1V TB2V TB3V TB4V RFGV AGFS AFGC AFMS AFS1 AFS2 SQL SQLS NBS CTCV NSQL AVXL VOXL COMS MIGV MINH MODS DRIV POCV KDS8 TIFS ETON TONE ALCL FORL REFL SML LRXD LTXD MCK MDT IFST ICK DDT DINT DSPS IMST CON0 CON1 CON2 DRES PBST PCE PCK PDST PDT MLLV UL BDT KEY STRT CIV CIVE SPCH BEEP DASH DOT U/D BANV SPS POWS PWK SEND SDSS PTTP 0VDV D95S SNDSR GND

LEFT SIDE

10 - 4

RIGHT SIDE

• MAIN UNIT MAIN (4)

Optional unit

J2061

CP2071

W2061

CIV

CIVE

DSPI

DASH DOT UL

0VDV PWK POWS

SQLS

KEY STRT

CP2072

CP2073

CP2074

D2144 MA2S111

R2152 47k

5VL

CP2075

HV

CP2076

HV

5VL

CP2078

D2181

RD12M

C21811C2166

C2147

470p

Q2131 DTC114EE

R2150 470

R2149 1k

0.1

SPBK MCK MDT MSST SPCH

Q2172 2SC4081

R2151

MAIN UNIT(3)

H5V HV 14V 8V 5V GND BDT STRT KEY SQLS POWS PWK 0VDV UL DOT DASH CIV CIVE LRXD LTXD SNDSR IFST PR4S PR3S PR2S PR1S D96S ATTS NBS

AGFS

R8V T8V KDS8 1F15 AMS8 FMS8 WFM8 UNF8 COMS SDSS SPS DRES MCK MDT SPCH ETON TONE AFMS BEEP SQL PCK POT PCE PDST CON0 CON1 CON2 PBST MODS MINH AFS1 AFS2 AMS TIFS OP1 OP2 2FTH 2FB0 2F23 ALCL AVXL VOXL SEND CTCV NSQL MLLV FORL SML REFL U/D PTTP DINT DSPS DDT ICK IMST L1 L2 L3 L4 L5 L6 L7 L8 L9 BHF B0 B7 B7W IDS TB4V TB3V TB2V TB1V DRIV RFGV POCV MIGV AFGC BANV

R2231 100

AMS

IC2231 TC74HC4094AF

IC2232 BU4094BCFV

RXS TXS KDS 1S15 AMS FMS WFMS UNFM 8V

H5V HV 14V 8V 5VL

5VL

C2231

C2232

C2252

0.0047

0.1

47p

L2251 HF50ACC322513-B

L2252 HF50ACC322513-B

IC2241 TD62783AF

1

IN1

2

IN2

3

IN3

4

IN4

5

IN5

6

IN6

7

IN7

8

IN8

9

VS

16

1

STR

2

D

3

CLK

15

OE

8

16

1

STR

2

D

3

CLK

15

OE

8

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

DIGITAL MULTIMETER:50

H5V HV 14V 8V 5V

BDT

C2250

0.001

C2253

0.001

18

O1

17

O2 O3 O4 O5 O6 O7 O8

GND

4

Q1

5

Q2

6

Q3

7

Q4

14

Q5

13

Q6

12

Q7

11

Q8

9

QS

10

QS

4

Q1

5

Q2

6

Q3

7

Q4

14

Q5

13

Q6

12

Q7

11

Q8

9

QS

10

QS

14.1

MHz USB

R2245 220

16 15 14 13 12 11 10

R2241

680

R2242

680

R2243

680

L1 L2 L3 L4 L5 L6 L7 L8

L9 BHF B0 B7 B7W IDS

k‰/V

STRT KEY SQLS POWS PWK 0VDV UL DOT DASH CIV CIVE LRXD LTXD SNDSR FMST PR4S PR3S PR2S PR1S D96S ATTS NBS AGFS R8V T8V KDS8 1F15 AMS8 FMS8 WFM8 UNF8 COMS SDSS SPS DRES MCK MDT SPCH ETON TONE AFMS BEEP SQL PCK PDT PMST PDST CON0 CON1 CON2 PBST MODS MINH AFS1 AFS2 AMS TIFS OP1 OP2 2FTH 2FB0 2F23 ALCL AVXL VOXL SNDL CTCV NSQL MLLV FORL SML REFL MUDL OPTL DSPI DSPS DDT MCK DSST L1 L2 L3 L4 L5 L6 L7 L8 L9 BHF B0 B7 B7W IDS TB4V TB3V TB2V TB1V DRIV RFGV POCV MIGV AFGV BANV

H5V HV

5VL

SNDS

Q2001 DTA114EE

D2001 DA221

L2001

10uH

C2059

0.1

R2172

6.8k

Q2171

R2173

D2171 MA2S111

CP2171

R2164

R2167

33k

10k

47k

C2146

0.0047

R2133 1k

R2134 1k

D2132 DA221

D2133 DAN222

4

C2131

0.1

D2143 DA221

33k

R2175 18k

R2148

5

3

C2165

0.0047

47k

1 2

IC2131 TC4S81F

R2147 1k

2SA1576

R2163

C2145

0.0047

R2132

47k

R2174

47k

IC2161

S-80942ANMP-DD6 1 2 3

39k

D2131 DA221

IC2122c

35

IC2122b

OUT VDD VSSCONC

R2146

47k D2142 DA221

R2171

100k

62

5

4

C2164

0.027

D2145

MA2S111

C2144

0.0047

TKEY TCON

R2131

1M

C2162

R2144 1k

67 nS

12p

DASK DOTK UNLK

C2143

0.0047

Q2141 DTC114EE

R2141

10k

ATST AHST

ATOT 8V

X2161 CR-636

5.0 V

C2161

D2141 DA221

12p

C2141

0.0047

C2123

D2161 MA2S111

R2165 100

R2143

47p

H5VL

C2163

0.1

R2161 10k

R2162

4.7k 1

2 3 4 5

R2166

6

100

7 8 9

10 11 12 13 14 15 16 17 18 19 20

R2142 1k

47k

C2142

0.0047

SQSS

IC2121 X25650S8I-2.5

R2121

47k

R2122

47k

R2133

CS SO WP VSS

100k

HOLD

C2004

0.1

RES XTAL EXTAL MD1 MD0 NMT STBY/FVPP VCC SCK0/P52 RXD0/P51 TXD0/P50 VSS WAIT/SDA/P97 P96 AS/P95 WB/P94 BD/P93 IRQ0/P92 IRQ1/EIOW/P91 ADTRG/IRQ2/ECS2

CP2121

VCC

SCK

SI

C2122

R2004 47k

D2002 DA221

R2005 47k

80

VSS

P83/IOR

P80/HA0

P82/CS1

P81/GA20

P36/HDB6/D6

IC2001 HD6433337YA56F

KEYIN3/FTIB/P63

KEYIN4/FTIC/P64

KEYIN5/FTID/P65

KEYIN6/IRQ6/P66

KEYIN7/IRQ7/P67

8

17

4

P37/HDB7/D7

AVCC

AN0/P70

P84/IOW/IRQ3/TX

P85/CS2/IRQ4/RX

P86/IRQ5/SCK1/S

KEYIN0/FTCI/P60

KEYIN1/FTOA/P61

KEYIN2/FTIA/P62

21222324252627282930313233343536373839

C2121

0.1

R2124 100k

0.1 IC2122a

TC7W04FU

P33/HDB3/D3

P34/HDB4/D4

P35/HDB5/D5

AN1/P71

AN2/P72

AN3/P73

R2003 1k R2002 1k

R2001 220

P30/HDB0/D0

P31/HDB1/D1

P32/HDB2/D2

AN4/P74

AN5/P75

AN6/OA0/P76

61626364656667686970717273747576777879

P12/A2

P11/A1

P10/A0

AN7/OA1/P77

AVSS

TMCIO/P40

40

R2077

47k

D2083

MA2S111

R2011 R2012 R2013 R2014 R2015 R2016 R2017 R2018 R2019

P13/A3

P45/TMRI1/HIRQ1

P44/TMO1/HIRQ1

P43/TMCI1/HIROQ1

TMO0/P41

R2076

C2075

0.0047

C2081

0.0047

C2082

100 1k 1k 1k 1k 1k 1k 1k 1k

P14/A4 P15/A5 P16/A6 P17/A7

P20/A8

P21/A9 P22/A10 P23/A11 P24/A12 P25/A13 P26/A14 P27/A15

P47/PW1 P46/PW0

P42/TMRI0

1M

0.0047

W2001

C2018

C2019

0.0047

60 59 58 57 56

VSS

55 54 53 52 51 50 49 48 47

VCC

46 45 44 43 42 41

C2066

C2076

2.2

C2074

0.0047

C2073

C2083

0.0047

C2084

0.0047

MPXB MPXA

0.1

0.0047

R2084 4.7k

0.0047

C2017

0.0047

R2072 1k

R2074 1k

C2072

0.0047

D2082

MA2S111

CP2061

C2003

0.0047

C2016

0.0047

D2025 D2026 D2027 D2028 D2029 D2030 D2031

C2071

0.0047

R2081 4.7k

R2086

1k

C2002

0.0047

C2001

C2022

0.0047

MA2S111 MA2S111 MA2S111 MA2S111 MA2S111 MA2S111 MA2S111

R2041 1k R2042 1k

R2044 1k

R2051 1k R2052 1k R2053 1k R2054 1k R2055 1k R2056 1k R2057 1k R2058 1k

R2061 100 R2062 100 R2063 100 R2064 100 R2065 100

C2065

47p

R2087

22k

D2081 MA2S111

R2085

4.7k

C2085

0.0047

C2014

C2044

C2064

R2088

0.0047

47p

22k

C2013

0.0047

[ESP] [FRA] [EUR],[ESP]

[ESP]

R2045

47k

C2063

47p

R2089

22k

C2012

R2021

C2042

C2062

R2090

47p

47k

0.0047

47p

SPBK

22k

C2011

C2041

C2061

47p

0.0047

47p

LRXD

LTXD

RXS TXS KDS

SNDSR

FMST PR4S PR3S PR2S PR1S

D96S ATTS

NBS

AGFS

COMS

SDSS

1S15

DRES

PCK

PDT PMST PDST CON0 CON1 CON2

PBST

L2254 0.56uH

L2253 10uH

ETON

TONE AFMS BEEP

SQL

ALCL AVXL VOXL SNDL CTCV

ATOT 8V

MCK MDT MSST SPCH

ASTB DSST BSTB MCK MDT

H5V HV 14V 8V 5VL

5VL

14V

8V

C2221

0.1

IC2221 BU4094BCFV

C2222

0.1

IC2222 BU4094BCFV

DSST DSST DRES MCK MDT BSTB

C2201

0.1

C2251

47p

C2101

0.1

R2112

100k

IC2101 BU4052BCFV

1

STR

2

D

3

15

OE

1

STR

2

D

3

15

OE

IC2201 M62352GP

11

VCC

12

AO11

13

AO12

14

DO

15

LD

16

CLK

17

DI

18

AO1

19

AO2

20

GND VSS

R2215

2.2k

13

X

3

Y

R2111

100k

W2101

16

CLK

8

16

CLK

8

16

VCC

8

VDD

AO10

AO9 AO8 AO7 AO6 AO5 AO4 SO3

MODS

4

Q1

AMS

5

Q2

FMS

6

Q3

WFMS

7

Q4

MINH

14

Q5

UNFM

13

Q6

AFS1

12

Q7

AFS2

11

Q8

9

QS

10

QS

2OP1

4

Q1

2OP2

5

Q2

2NTH

6

Q3

2NBO

7

Q4

2N23

14

Q5

DSPS

13

Q6

SPS

12

Q7

TIFS

11

Q8

R2221

9

QS

100

10

QS

10 9 8 7 6 5 4 3 2 1

C2202

0.1

MPXB MPXA 5VL

12

X0

14

X1

15

X2

11

X3

1

Y0

5

Y1

2

Y2

4

Y3

6

INH

10

A

9

B

C2223

TN4V TN3V TN2V TN1V

47p

R2201

R2202

R2110

3

2

1

Q2221 UMC3N

330

560

4.7k

D2107

R2113

D2105

MA2S111

R2203 100k

IC2202a NJM2902V

390k

MA2S111

234

R2204

R2106 2.2k

R2107 4.7k

R2108 1k

R2109 4.7k

3

4

2

55

1

Q2222 UMC3N

R2205 100k

D2102

6 5

R2211

10k

R2206

MA2S111

D2103

MA2S111

100k

+

D2101

1

11

MA2S111

4

+

100k

IC2202b

R2104 4.7k

R2105 4.7k

D2104 MA2S111

D2106 MA2S111

7

R2101 4.7k R2102 4.7k R2103 4.7k

3

2

1

Q2223 UMC3N

R2212

10k

R2207 100k

10

9

R2208

+

100k

C2086

4

5

IC2202c

0.47

3

2

1

8

D2108 1SS385

Q2224 UMC3N

R2213

4

5

R2209 100k

13

-

12

+

10k

R2210

100k

IC2202d

MODS

AMS

MINH

AFS1 AFS2

OP1

OP2 2FTH 2FB0 2F23 DSPS

SPS TIFS

3

2

1

Q2225 UMC3N

14

R2214

10k

DDT

4

5

DRES MCK MDT BSTB 5VL

TB4V TB3V TB2V TB1V DRIV RFGV POCV MIGV AFGV BANV

NSQL MLLV FORL

SML

REFL

MUDL

OPTL

MAIN (4)

LEFT SIDE

10 - 5

RIGHT SIDE

• PA UNIT

MAIN(1) J231

MAIN (1) J141

P101

P481

PA

C113

J101

0.1

PAI

R112

MEASUREMENT CONDITIONS SUPPLY VOLTAGE: 13.8 V

DIGITAL MULTIMETER: 50

L211

J481

VURX

D101 MA77

C114

D102 MA77

330

14.1

EXC-ELDR25C

C216

100

D481 1SV237

39p

MHz USB

k‰/V

C476

0.001

R468

L104 39nH

C115 7p

R102 15

C118

C217

0.0047

330

C470 0.001

C116

39p

R113

330

0.1

L212 EXC-ELDR25C

C218

47p

C462 3p

C472 15p

D456

D104 MA77

D103

R115

1SV305

R470 100k

MA77

1k

C219

0.0047

L461 12nH

C471

0.5p

L105

4.7uH

C101

C117

0.1

3p

C220

22p

L455 15nH

R465 12

R114

L106

C231

0.001

C478 0.1

2.1 V

C102

0.1

330

100uH

R455 1.5k

C461 0.001

R232

C233

2.2k

R107 680

C106

0.1

R104

68

C104

0.1

W235

C460 10p

R464 100k

C237

47p

C235

33p

R463 39

D454 1SV305

P2T8

13.6 V

Q101 2SK2854

0.3 V

R106

4.7k

R105

4.7k

C238

C236

C233

0.001

0.0047

13.7 V

Q231 SRFJ7044

33p

C453 0.001

L232

LA-549

6.2 V

Q453 3SK291

0.3 V

C477 0.1

L102

33uH

R111

C109

0.1

C103

R231 10k

C244 27p

C241

39p

UHF PREAMP ON:2.4 V

C681 0.1

C459 0.001

470

STRIP

L103

6.8nH

R108 33

C240

39p

STRIP

OFF:1.7 V

C458 0.001

C111

C232

C245 18p

C463 0.1

0.1

0.0047

C242

1.4 V

C469 0.1

C121

0.1

47p

C246

0.001

R121

56

R123

4.7k

C243

47p

W300

W301

R462 330k

C125

C123

C247

C261 27p

C262

0.001

R461 330k

R124 560

0.1

Q121 MXR9745-RT1

0.1

470p

R262

R471 270k

R122

2.2k

D261 MI407

L261

LW-25

R261 47

100k

UHF PREAMP ON:0 V

Q452 DTC114EU

R125

C278

5.6k

0.001

C126

470p

L291

LA-234

L292

LA-234

OFF:4.4 V

R235

820

D292 UM9401F

D293 1SS355

R469

R126

470

R127

10

C128

0.1

UHF TX:0.2 V RX:0 V

D291 UM9401F

C291 30p

C292 12p

C457

0.001

390k

L123

100uH

L121

6.8uH

L122

HF50ACC322513-T

R234

820

R460

150k

R459

D455

C127

0.1

C129

0.1

C141

0.1

D262 MA742

W462

1SV305

100k

C265

0.001

C264

C151

R267 1k

C250

L175 LA-262

C195

10

C189

0.1

C521

0.0047

C531

0.0047

Q541 DTA114EU

C552

0.001

47k

R572

C581 0.0047

15p

Q531 2SA1577

47k

C574 0.0047

C187

0.68

C604

C591

Q551 DTA114EU

R580

68k

Q576 DTA114EU

C572

D573 DAN202U

1000

0.1

C501

Q521 2SB1132

0.0047

0.1

D602

C592

R521 47k

R522 1k

R531 47k

R532 1k

C583

0.001

DSA3A1

0.0047

Q501 2SB1132

Q511 2SA1577

C511

0.1

R575 1.2k

D601

F592 S-N5054

R579

82k

DSA3A1

W572

Q522 DTC114EU

Q523 DTC114EU

Q532 DTC114EU

Q542 DTC114EU

Q552 DTC114EU

Q573 DTA114EU

Q575 DTC114EU

C582

C575 0.1

C603

0.001

R501

R511

0.1

R502 1k

R512 1k

F591 FGB4A

47k

Q533 DTC114EU

C602

0.0047

Q502 DTC114EU

Q512 DTC114EU

C601

F593 S-N5054

C594

0.1

Q572 2SC4081

C576 220

470p

R577

1k

C593 0.1

Q574 2SC4081

D575 DAN202U

C577

0.1

R576 10k

D574 MA8056

W601

W602

W603

W604

C578

EP601

EP602

14V

RL591 JV-12-KT

Q591 DTC114EU

D591 DAN202U

C502

0.0047

R582 47k

Q571 2SB1132

470

C579

Q514 DTC114EU

R513 10k

Q513 DTC114EU

C573

0.1

0.1 C361

8V

T8V

8V

LPF8

T8V

LPF9

8V

T8V

R8V

LPF8

LPF9

8V

THPE

14V

T8V

8V

14V

0.0047

L361 LW-25

R591

4.7

L611 220uH

C613 0.1

C684 0.1 C680 0.1 C679 0.1 C678 0.1 C677 0.1

R361 47k

L612 220uH

L665 EXC-ELDR25C

CP680

W361

L621

HF50ACC322513-T

L613 2943-666663

L614

2943-666663

C626

0.001

L664

EXC-ELDR25C

C691

0.001

C652

0.1

C670 0.1 C682 0.1 C669 0.1 C668 0.0047 C683 0.1 C667 0.0047 C666 0.1 C665 0.1 C664 0.1 C663 0.1 C662 0.1 C661 0.1

C685 0.001

L663 0.82uH

R601

4.7k

CP679

CP678

CP677

C627 0.1 C623 0.1 C622 0.1 C621 0.1

C688 0.001

C624

0.0047

C632 0.1

C690

0.001

C651

0.0047

CP676

CP675

CP674

L571 HF50ACC322513-T

CP661

CP673

C641

CP662

CP671

CP621

CP622

C692

0.001

CP636

0.0047

CP663

CP664

C676 0.1 C675 470p C674 470p C673 470p C672 470p

CP672

CP623

CP624

CP635

CP634

CP651

CP652

CP665

CP666

L622 4.7uH L623 4.7uH

DRIVER

13.8 V

D301

UM9401F

5.6 V

R424

C411

680

0.001

C301

C311 33p

L311

R311

0.001

Q403 3SK291

R415 120

0.8 V

J161

HFO HFO GND GND

J211

VUO VUO GND GND

LW-25

47

C168

C163

0.1

C280

470p

D410 MA2SV05

C418

0.001

D406

MA2SV05

R419 100k

0.1

R164

2.2k

C302

0.001

R352 100

L352 LW-25

D407 MA357

Q100 MRF1508

R166 1

HF TX

4.2 V

Q200 MRF1508

W213

V/U TX

4.6 V

Q301 DTC114EU

R302 100

C414 470p

R420 100k

C423

R163 1k

0.001

MP1

L301

0.25-1.9-13TL

C412

0.001

D405

1SV308

R418

1k

L410

10uH

R165

13.8 V

180

C169

200p

R162 2k

C303

0.001

R303

470

L403

2.7uH

R416

120

470

0.001

L264 LA-254

C275

J160

HFI HFI GND GND

J210

VUI VUI GND GND

R161 100

L265 LA-243

33p

C276

22p

C279

0.001

C281

0.001

L407

0.001

L408

82nH

27nH

W409

C422

L141

L142

0.18uH

C1456pC147

C146

68p

C153 15p

C152

390p

L152

47nH

R269 1k

R264

L456

4.7nH

R453

4.7

D451

1SV308

R213 10

L143

0.15uH

C161

0.1

3p

C148

39p

C155

C213

47p

0.001

C154

120p

L153

56nH

R268

10k

C272

0.001

D263 MA742

2.2k

R452

4.7

D452

1SV308

C452

R451

C454

8p

1.8k

0.001

R215

C212

9p

1.5k

L263 LA-263

C274

R211

C214

39p

C421

0.001

R422

330

0.1uH

27p

C144

68p

C156

4p

R214 2k

0.001

L262 LA-253

R266

12k

39p

C268

0.001

R263

2.2k

C455 3p

L453

12nH

D453

1SV305

R301 10k

C312

0.001

R312 100k

C329

0.001

C410 0.001

C409 0.1

L171 LR-322B

C169 470

C167 0.1

L161

EXC-ELDR25C

L162

LR-270

C207

1000

D311 UM9401F

C331 5p

C332 10p

C345

0.001

C341 12p

D342 UM9401F

VHF PREAMP ON:3.0 V

1.8 V

R423 220k

R414 330k

C413 220k

C165

0.1

D344 MI407

C344 8p

L341

LA-232

D341 UM9401F

L342

LA-232

D343 1SS355

OFF:2.1 V

Q402 DTC114EU

C425 0.001

VHF PREAMP ON:0 V

OFF:4.4 V

C203

200p

C204

200p

D171 DAN202U

R174 10k

C176 0.1

VHF TX:0.8 V

RX:0 V

R317 8.2k

C172

0.0068

C173

0.068

C318

D312

R313

R412 180k

1p

W316

MA2S728

1k

R411 330k

R172

22

C174 0.1

C193

L312 LA-382

C313 15p

C317

0.001

C408

0.001

D408 MA357

D172 DAN202U

R175 10k

470p

R319 8.2k

R421 100k

C407 470p

C319

D313

R314

C427

1p

MA2S728

1k

R410

L404

10uH

0.001

R176

R177

R173

W320

1k

C322

C321

2.2k

22

7p

0.001

D404

C178

0.0068

C179

0.0068

C175 0.1

L313 LA-383

C314 12p

L402 82nH

1SV308

D403

D409 MA2SV05

R409 100k

R178 15

Q171 SRFJ7044

R182

0.68

R183

0.68

Q172 SRFJ7044

R179 15

R202

3.3k

C3237pC324

R351

10k

L351

0.25-1.9-13TL

MA2SV05

C201

13.7 V

C191

200p

W171

L172

LR-83

C185

390p

C190

220p

C183

200p

R201

13.7 V

0.012

0.1

R203

3.3k

R204

3.3k

C202

0.1

L315

L314 LA-233

R320

4.7k

C405

0.001

L401

33nH

C354

10p

0.001

LA-382

Q351 DTC114EU

L406 22nH

R40833R407

D402

1SV308

D401

C401

C326 9p

R205

3.3k

L316

4.7

1SV308

0.0047

LA-382

C353

0.001

C402

R403

C327 5p

0.001

1.8k

EP605 W180

L233 ICL ICH PHT8 PHV

PT8V

P2T8

VFOR

C328 9p

L317

LA-232

P4T8

UFOR

PR3S P2R8 2MBL

AT13 P4R8

TB2V TB1V PR4S

W181

EXC-ELDR25C

C186

390p

L234

EXC-ELDR25C

C239

D231 DAN202U

P2R8

P4R8

CP573

L174

0.0047

L173 LR-376

LR-230

C571

C196 0.001 C197 0.001 C198 0.001 C199 0.001 C200 0.001

R18010R181

C188

1000

C553

0.001

C686

0.0047

R571

CP574

R581

1.5k

CP627

CP633

CP643

CP667

CP572

CP614CP613CP612CP611

CP628

CP632

CP642

CP668

C580

CP629

CP631

CP641

CP669

0.001

CP670

CP571

HPAO

ETKY ETST ET14 ETE

HV 2MBL 8V 8V GND THEP 14V 14V 14V GND GND POWS ESPE ESPE ESPO ESPO

ESPO ISPO ESPE

ISPO ESPE

TB4V TB3V TB2V TB1V PR4S PR3S STRT KEY LPF9 LPF8 GND UREF VREF UFOR VFOR AT13 ICL ICH T8V R8V

C687

FANO FANE

J172

P601

J651

J611

J621

J651

0.001

J270

J571

FILTER P2

PA J252

J641

W651 W652

MAIN (2) J401

to 144/440MHz ANT

J612

P651EP604

LEFT SIDE

10 - 6

RIGHT SIDE

• FILTER UNIT

MAIN (1) J101

PA J172

[KEY]

[CIV]

[RTTY]

P1

HRX

P2

HPAD

J4

J7

J8

MAIN (2) J461

[MIC]

J1

J2

DASH

DOT

GND

CIV

CIVE

GND

J9

J11

PAO

CIV CIVE FSKK BDT BANV KEY DASH DOT U/D EALC GND PTTP AAF SQLS AFO

DOUT DIN AMOD

SQSM GND MICM MCEM SENM MAFM U/DM 8VM

C190

0.1

R63 56

R64

220k

L51 HF50ACC322513-B

L43 HF50ACC322513-B

C207 0.001

L87

L41 L60

C208

0.001

J14

6

4

21

[DATA ]

L44

L45

L48 L56 L49

D25

1SV312 4 3

C193

10p

C69

0.0047

100uH

HF50ACC322513-B 100uH

C155

0.0047

L65 100uH L64 100uH

AFOUT

5

3

100uH

100uH 100uH 100uH

C75

0.0047

R62 390

1 2

R67

C72 0.0047

C153

0.0047

C115

0.0047

330

C70

0.0047

L68 EXCCL3225U

C76

R61 100

L66

L67 100uH

0.0047

C206

SENR

FSKR

100uH

0.001

C192

C214

220k

C157

C112

Q12 DTA114EE

0.0047

R66

C71 0.0047

C113

0.0047

CP101

C149

R9 100

D26 MA2S111

4.7k

C210

0.001

0.1

TX:6.4 V RX:0.2 V

L59 HF50ACC322513-B

L36 100uH

R10 100

C114

0.0047

HFRX

C124

0.1

R271kR281kR126

C104

0.0047

C209

0.001

C123 1

L37

100uH

C159

0.0047

Q11 2SD1623

TX: 0.75 V RX: 0 V

SNDSR

C125

0.1C133pC356pC539p

Q9 2SC4213

0.1

Q1 DTC114EU

L42

HF50ACC322513-B

W17

C74

0.0047

C140

0.001

L35

HF50ACC322513-B

C145

0.0047

L86 100uH

R60

2.2k

C202

V.UHF: 4.1 V

HF: 0 V

C147

0.0047

SDSS

C189

0.1

L69 100uH

R65

C191

0.1

0.0047

8V T8V

C158

1

C154 0.0047

C156

0.0047

L46

100uH

L47

100uH

C73

0.0047

L2

L1

LA-246

LA-236

C4

C2

15p

0.75p

C6 0.0047

R26 10k

C127

0.1

D1 1SS302

L71 100uH

C103

0.0047

D24 DAP202U

R43

2.2k

R42

2.2k 8VA

1

GND

2

BDTA

4

L54 100uH

3 8 7 12 11 13

100uH

4321

FSKA ALCA

BANA KEYA

SEND

SEND1 138A SEND2 AFA MODA SQSA

L39 HF50ACC322513-B

L55

L34

C111

0.0047

C110

0.0047

L61

HF50ACC322513-B

C144

0.0047

RL16 MZ-12D-K

C146 0.0047

0.0047

D23 1SS302

R82 1k

C148

Q10 2SC4081

0.0047

R83

10k

[ACC]

J5

13

10 695

5678

9101112

13.5 V

8.0 V

RL1 AG20B44

L72 100uH

L73 100uH

L74 100uH

L75 100uH

L76 100uH

C101

C102

0.001

0.0047

R11

C87

0.0047

RL4 MZ-12D-K

C16 0.0047

D3 1SS302

47

C7 0.0047

D2 1SS302

L63

10uH

C23 0.0047

D4 1SS302

C30 0.0047

D5 1SS302

C37 0.0047

D6 1SS302

C89

0.0047

RL2 NA-12W-K

RL6 MZ-12D-K

C91

0.0047

L50 LR-293

RL8 MZ-12D-K

C93

0.0047

RL10 MZ-12D-K

C95

0.0047

13

L10 LR-216

C184 100p

C17

300p

C135

120p

L5 LA-550

C162 6p

L14 LR-387(EUR,FRA,ESP) LR-389(USA,OTH)

C170 39p(EUR,FRA,ESP) 47p(USA,OTH)

C200 3p

C169

56p(EUR,FRA,ESP)

47p(USA,OTH)

L18 LR-293

C32 110p

C31

240p

L22 LA-481

C177 22p

C176

100p

C78

180p

C19

C1636pC180

C181

100p(EUR,FRA,ESP)

82p(USA,OTH)

C33

C40

L11 LR-216

C185 33p

680p

L6 LA-550

C164 15p

68p

L19 LR-293

C174 56p

270p

L23 LA-551

C178 68p

240p

C79

200p

C21

390p

L7 LA-547

C166

100p

L15 LR-388

C171 22p(EUR,FRA,ESP) 15p(USA,OTH)

C182

82p

C175

100p

C183

100p

C201 24p

C172

4.0~7.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

R72 1k

C118

0.0047

R80 1k

22.0~29.999999 MHZ

C105

0.0047

CONNECT:4.2 V NO CONNECT:0 V

R78 1k

C121

0.0047

R74 1k

C119

0.0047

R76 1k

C120

0.0047

R70 1k

C117

0.0047

R68 1k

C116

0.0047

L26 LR-216

C46 430p

C45

390p

L30 LR-294

C53 470p

C52

750p

C81

470p

30.0~59.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

8.0~14.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

15.0~21.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

2.0~3.999999 MHZ CONNECT:4.2 V NO CONNECT:0 V

0.03~1.999999 MHZ CONNECT:4.1 V NO CONNECT:0 V

C80

680p

C54

750p

L3

L7

L6

L4

L5

L2

L1

L27 LR-214

C48 110p

C47

220p

C49

560p

C186

100p

L31 LR-295

C55 120p

C82

750p

C143

470p

C84

560p

C58

10p

C59

180p

C62

330p

D9 1SS375

R4

8.2k

R6

47k

C67

470p

R18 100

R17

1k

C152

0.001

R16 100

R15

1k

RL13 MZ-12D-K

C98

0.0047

RL15 MZ-12D-K

C57

0.0047

C100

C56

750p

0.0047

7

IC1b

IC1 NJM2904M

1

C133

C50

0.0047

L33 LR-391

R2 22

R3

10k

C65 470p

5

+

6

-

IC1a

4

2

3

+

8

L57 100uH

0.1

C66 470p

L84 100uH

L85 100uH

C151

C63

330p

C64

47p

D10 1SS375

R5

1k

R7

100k

C204

47p

L58

HF50ACC322513-B

C213

0.47

3p

C215

0.1

C122

0.0047

13

0.001

C44 0.0047

D7 1SS302

C51 0.0047

D8 1SS302

Q4 2SC4081

Q8 2SC4081

Q7 2SC4081

Q5 2SC4081

Q6 2SC4081

Q3 2SC4081

Q2 2SC4081

R73

R81

R79

R75

R77

R71

R69

RL12 MZ-12D-K

RL14 MZ-12D-K

10k

C97

0.0047

C99

0.0047

RL5 MZ-12D-K

C22

0.0047

C90

0.0047

RL3 NA-12W-K

C15

0.0047

C168

39p

C88

0.0047

RL7 MZ-12D-K

C29 0.0047

82p

RL9 MZ-12D-K

C36

0.0047

C94

0.0047

RL11 MZ-12D-K

C43

C211

0.001

0.0047

C96

0.0047

L79 100uH

L80 100uH

C92

0.0047

L81 100uH

L82 100uH

L83 100uH

7MHz

50MHz

24MHz 28MHz

10MHz 14MHz

18MHz 21MHz

3.5MHz

1.9MHz

L77 100uH

L78 100uH

C205

C141

0.001

C136

0.68

ATT ON:11.5 V ATT OFF:0 V

L1

R33 1k

L2

R34 1k

L3

R35 1k

L4

R36 1k

L5

1k

4.7uH

SDSS

R37 1k

L6

R38 1k

L7

R39 1k

C128

0.0047

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

DIGITAL MULTIMETER:50

FILTER

C203

0.001

W18

W19

W20

W23

W15

W16

R40

L70

HOUT

R8

2P-50-W1L301

GND HFOR HREF SDSS GND 14V 14V 14V AT13 MIC MICE SEND SNDSR

14.1

MHz USB

k‰/V

J13

[ANT1]

J12

MAIN (2) J431

LEFT SIDE

10 - 7

RIGHT SIDE

• PLL UNIT

P251 EP2

MAIN (3) J1431

PA J621

Optional unit

MAIN (3) J1381

R135 1k

R133

C133

100

R134

R54 68k

0.65 V

C101 0.1

C102 0.1

C103 0.1

C161

C207 0.47

0.0047

R291 22

R52

0.0047

C206 10

10.8 V

C291 10

47

R161 330

VCAOUT

VCAIN

150k

C52

0.0047

R53

270

Q51 2SC4081

C110 0.1

VCC

CTL

NC

8.0 V

C292 0.0047

51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

10 9 8 7 6

8V

J251

AFI AFIE AFOE AFO

J252

ESPD ESPD ESPE ESPE POWS GND GND 14V 14V 14V THEA GND 8V 8V 2HBL HV

J253

DAES DINT INST DOT ICK 5V DSPS GND GND GND

R1014 470

R1015 470

R1017 470

L1015 10uH

J254

H5V DRES PDST CON2 CON1 CON0 PCK POT PBST PCE MLLV SPS AFGC 5V DSCP UL AFBP 8V 8V POWS AAF GND DINT ICK IMST DDT FSKK 14V 14V

R264 1k

HV

C256

0.1

C215 47p

R1013 470

C1006 0.001

R1011 470

R1012 470

FSKK

C251

0.001

L1000

0.1uH

C224 47p

C221 0.0047

C225 47p

C222 47p

C220 47p

C1004 0.001

AFBPULSPS

C251 0.001

R263 1k

R260 1k

MLLV

C218 1

C1000 0.001

Q251 DTA144EU

R258 1k

R259 1k

PCE

BSTB

L48 10uH

L44 EXCCL3225U

C1001 0.001

R255 1k

R256 1k

R257 1k

RDAT

RCK

CON0

C1005 0.001

5V

R253 1k

R254 1k

CON1

CON2

C1002 0.001

R251 1k

R252 1k

DSTB

DRES

THER

L43 EXCCL3225U

L1001 EXC-ELDR25C

VCO1

R265 27k

L42 EXCCL3225U

L45 10uH

C265 0.001

C212 0.0047

L41

EXCCL3225U

C45 1

5V

ULD

DRES

LOF5

LOF4

LOF3

LOF2

LOF1

AFBP

R209 2.2k

C44 0.0047

D271 MA114

R151 10k

R152 10k

R153 10k

R154 10k

R155 10k

C145 0.0047

R207 10k

R202 10k

C210 0.001

C295 10

C271 10

R208 2.2k

C203

0.1

R205 1

13.2 V

H5V

12.7 V

Q141 DTA114EU

Q142 DTA114EU

Q143 DTA114EU

Q144 DTA114EU

Q145 DTA114EU

3.9 V

C202

0.47

R203 10k

C281 0.0047

C272 0.0047

C131

C132

0.1

14V

0.0047

R236

R206 1k

IC281 TA7808S

I

G

CP282

IC271 TA78L05F

I

G

R131 12k

R141 1k

C146 0.0047

R142 1k

C147 0.0047

R143 1k

C148 0.0047

R144 1k

C149 0.0047

R145 1k

C150 0.0047

8.2k R201

47k

R204 220k C204 220p

CP281

O

R284

O

C273 0.0047

680

R132

C151 0.0047

C152 0.0047

C153 0.0047

C154 0.0047

C155 0.0047

C201 10

C205

0.47

R283

R285 1k

C274 10

2.2M

47k

4.4 V

VCO3

5.0 V

L131 10uH

VCO2

VCO1

1 2 3 4 5

C284

C286

IC201 M5282FP

10

0.1

R292 22

L161

VCC2 IN+ INOUT GND

100uH

4.4 V

C285

1

R72 220

R71 47

C71

0.0047

VDD

0.75 V

OIVOUT

VSS

C104 0.1

5V

VSS

POIN

REFIN

VSS2

BUM21

BUN21

C105 0.1

R162

18k

C165

100p

5V

AF GAINCENTER:2.2 V

14V

C294 10

C72 0.1

VSS

OSCO

BUN41

VSS

C106 0.1

C163

0.0047

L231 LR-270

R232 10k

R231 100k

R931

4.7k

FSKK

C931 0.1

VSS

BUM20

C51

0.0047

C111 0.1

C112 0.1

50494847464544434241403938373635343332313029282726

VSS PD2 PD1 PD0 VSS PDTRI VSS VDD REFOSC RC FCK VDD VSS O12MA O4MA VSS VDD ETCO7 ETCO6 ETCO5 ETCO4 ETCO3 ETCO2 ETCO1 ETCO0

7677787980818283848586878889909192939495969798

2.4 V

Q161 2SC4403

C208 1

C209 10

THER

5.0 V

IC291 TA7805F

O

I

G

C293 0.0047

CP131

VDD

BUN20

L163

0.22uH

D931 MA2S111

C73 22p

OSCF

BUN40

C232

0.47

C233

R233

2.5 V

OSCI

IC101 SC-1246

VSS

0.85 V

0.0047

1k

L30 100uH C2 30p

C1 0.01

R73 68k

Q71 2SC4081

VSS

VDD

VSS

SYSRESET

VDD

SYS CLK

VSS

R101 1k

DSTB

R237

3.3 5

1 2

3

IC231 LA4425A

R932 33k

R933 15k

R76 47

0.65 V

VDD

STRB

CON2

R102 1k

R103 1k

CON2

CON1

C231

4

D1 MA357

C76 47p

TEOUTH4

TEOUTH3

CON1

CON0

R104 1k

CON0

470

C236 470

6.4 V

R16 4.7k

L71

4.7uH

YEOUTH2

TEOUTH1

VSS

BUSY

13.5 V

C234

0.1

R234 470

C935

0.0047

C934 0.0047

C3 4p

W993

TEOUTH0

TESTOUT

VSS

CONT CLK

R105 1k

PCM

C235

R235

C237

R934

C4 20p

FI71 SFECV10.5MA-5

C77 47p

VSS

VDD3

SYSCLK0

DATA

VDD

99

100

R106 1k

PDAT

470

4.7

0.1

2.2k

Q931 2SC4081

DA11 DA10

VSS2

VDD VDD

TE3 TE2 TE1

VSS

DA9 DA8 DA7

DA6 VDD VSS

DA5

DA4

DA3

DA2

DA1

DA0 VDD

VSS

L1 LB-343

C166

D231 DAN222

C241 0.1

C5 150p

100p

R75 180

C113 0.1

C114 0.1

25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

C238 0.0047

RL231 SY-12-K

C944

100p

R164

68

R13 100k

Q1 2SK210

C109 0.1

C108 0.1

C107 0.1

R944

C14 150p

R14 100k

R12 100

C13

0.0047

C21 3p

R15 150

C15 150p

10uH

C239 0.1

C491 0.001

C262 0.001

L941

0.22uH

C941

0.0047

C945

100p

0.65 V

MLLV

8V

UL

L11

68

R11 47

R23

100

C11

10

C12

0.0047

R21 47k

Q21 2SC4081

C75

0.0047

R491 100

Q491 2SK880

Q232 DTC114EU

R261 47k

Q261 DTC114EE

R943

R942 18k

Q941 2SC4403

0.75 V 2.4 V

C22

0.1

R24

270

C31

0.0047

2.8 V

R170 2k

R172 2k

R174 2k

R176 2k

R178 2k

R180 2k

R182 2k

R184 2k

R186 2k

R188 2k

R190 2k

R192 2k

R494

1M

C493

0.001

CP401

R492

100k

C492

0.001

CONNECT PHONE:4.8 V NO CONNECT PHONE:0 V

C240

0.1

D261 DAN222

330

C942

0.1

R493 100k

30MHz

SPS

ULP

ULD

R32 820R34 1

R41 15

R171

R173

R175

R177

R179

R181

R183

R185

R187

R189

R191

R193

1k

R42 68

C444 0.68

PON

R903 1k

8V

L303 LW-25

R43

15

R35668L333

LW-25

C41

0.0047

L354

2.2uH

D361

MA304B

C367

L411 LR-270

5V

Q461 DTA144EU

ULP

RDAT

BSTB

L901

10uH

R902 1k

R901 1k

C902

0.1

C903

0.1

C308 150p

D301 KV1470

D331 KV1470

L356 C-13975-4.5

6p

R412

R461 100k

C461

4.7

C465

0.01

C907

0.1

C906

0.1

3332313029282726252423

34

VSS

35

UL

36

P1

37

TREE

38

P2

39

VDD

40

VSS

41

STRB

42

DATA

43

CON CLK

44

VDD

VSS

123456789

C904

0.1

C301 470p

C331 150p

1.2k

I

Q

C306

C335

FSK1

C375

0.001

10p

POM2

FSK0

R411 100

C472

POM1

ETC0

C303

0.0047

C333

0.0047

POM0

IC901 SC-1287

ETC1

C307

0.1p

C336

4p

L363

C414 10

IC461

LMX2306TM 1 2 3 4 5 6 7 8

DRES

VDD

VSS

VDD

SYS CLK

L301 LW-25

L331 LW-25

Q361 2SK508

2.2uH

FLO CPO GND GND FIN FIN VCC1 OSCIN

RESET

NUM0

W301

C370

ROMCE

NUM1

10

VDD

NUM2

L302 E544GN-110248

Q301 2SK508

L332 E544GN-110254

Q331 2SK508

C364

C374

7p

0.3p C366

VP

VCC2

FD/LD

LE

DATA

CLOCK

CE

GND

DA9

DA8 DA7 DA6 DA5 VSS DA4 DA3 DA2 DA1 DA0 VSS

VDD

11

C905

0.1

470p

6p

16 15 14 13 12 11 10 9

22 21 20 19 18 17 16 15 14 13 12

C321

C351

0.0047

C376

L383

C381

2.2

2.2uH

0.0047

R321 330

R351 150

C302

470p

C326

0.0047

C332

470p

C355

0.0047

R381 330

R465 100k

C385

R361 68

C368 1p

0.0047

R302 100

C304 1p

R332 100

C334 1p

R383

4.3k

R384

C464 10p

R462 1k R464 1k R463 1k

Q321 2SC4213

Q351 2SC4213

Q381 2SC4213

10k

R951 2k

R953 2k

R955 2k

R957 2k

R959 2k

R961 2k

R963 2k

R965 2k

R967 2k

R969 2k

C369

470p

C382

L461

R323

4.7k

R353

4.7k

0.0047

10uH

C463 0.0047

R322 10k

C322

0.0047

R325 10k

R352 10k

C352

0.0047

R355 0.0047

R382 10k

R952

R954

R956

R958

R960

R962

R964

R966

R968

R970 2k

C382

1k

0.0047

3.3 V

PCK

C305

R324 1k

C323

D332 MA77

C353

D302 MA77

470p

0.0047

3.3 V

R354 1k

0.0047

D362 MA77

R385

PDAT

L382 100uH

10k

PCE

C391 22

0.03—29.999999 MHz

60.0—128.999999 MHz CONNECT PHONE:0 V NO CONNECT PHONE:4.8 V

Q322 DTN144EU

Q362 2SC4116

C373 100

Q352 DTN144EU

30.0—59.999999 MHz

129.0—199.999999 MHz CONNECT PHONE:0 V NO CONNECT PHONE:4.8 V

5V

C851

8V

5V

VCO3

R601

1k

R602

RV-150

(10kB)

R604 1k

R603 1k

C602 0.0047

L623 LS-508

3.9 V

Q391 2SC4116

C325

470p

R364

10k

R365 10k

3.9 V

C326

470p

R853 1k

0.0047

C852

0.0047

L531 LR-317

59.999999—470.0 MHz CONNECT PHONE:0 V NO CONNECT PHONE:4.8 V

L600 100uH

R605 47k

D601

MA357

C603

0.0047 R605

10

R641 220

C6417pC643

R391

R392

D531 MA717WK

L391 10uH

10k

C392 0.001

R502

4.7k

L367 10uH

Q851 DTA114EU

C537

0.0047

C600

0.1

L601 LB-146

C626

56p

L641

3.3uH

C6422pC644

10p

C372

L532

0.001

C876

8V

VCO1

VCO2

0.0047

0.22uH

X621 CR-275A

Option

L642

3.9uH

0.75p

C645

8p

R531

R532 39

150

1.8 V

R501 33

2.0 V 7.7 V

C514

0.0047

R512

3.7k

C531

R538

W592

R533

Q621 2SC4403

R622

4.7k

L622

EXCCL3225U

C662

0.0047

3.5 V

R621

R523 1k

R537 270

R539 270

150

C624 56p

Q10 2SC4405

0.0047

18

C541

0.0047

15k

R524

C547

1.1 V

C563

R663

R511

8.2k

C511

10

0.0047

IC541 uPC2710

0.0047

2.2k

5V

0.0047

C625

0.0047

R662

Q661 2SC4403

4

5

1

L621

R623 470

C512

0.0047

D511 MA77

Q521 UMC3N

R541

8V REF

100uH

1.8k

R665

R513

C542

0.0047

150

L501

R516

C623

68

10uH

270

1.3 V

100

5

235

0.0047

R664

180

L542

R542

R517 18

R515

470

0.22uH

4

39

2 1

R661 100

C501

0.0047

R518

270

3

2 1

C543 0.0047

D861 1SV237

R821

150

C665

0.0047

2.7 V

C664

47p

D731

MA862 1 23

D862

DAN202U

D761

1SV237

124

D864 MA2S111

D821 1SV308

D863 MA2S111

3 4

R681 100

R666 150

1.8 V

C981

18p

R822

R852

4

3

1k

R682

R683

22k

10k

C982

L981

R791 1k

L711 82nH

L741 56nH

47p

33uH

C801 22p

C822 12p

C862 10p

C711

33p

C741

30p

L801

47nH

C821

27p

L821

47nH

C861

15p

L861

22nH

Q681 2SC4403

C686 47p

C983 18p

L712

0.1uH

L742 68nH

R751 1k

7.5 V

C991

C712 10p

C742 9p

C771 12p

C803 10p

C802

27p

C823 10p

C863 5p

R684 220

18p

C713

C743

C781

L771

L802

C825

L822

C865

L862

1.3 V

D701 MA862

L713 82nH

C714 7p

47p

C715

L743 68nH

C744 5p

33p

C745

0.0047

C773 15p

C772

68p

C781

82nH

C805 18p

C804

82p

C811

83nH

R823

C824 8p

68p

33nH

C830

LOF6

R851

C864 8p

47p

15nH

C875

C682 27p

C681 0.0047

C683 0.0047

L991 12uH

C9925pC994

2p

27p

18p

15p

8p

1k

7p

1k

5p

L992 15uH

C993

43

12

L881

33p

R701 1k

D732 MA862

C881 82p

C883 82p

C882

220p

0.12uH

L781 47nH

C7823pC784

C783

27p

L811 27nH

C812 6p

C813

18p

L824 27nH

C831 12p

C827

27p

L872 12nH

C874

1.5p

C871

9p

C684 1p

L681 LS-509

C995

18p

C884

L782 33nH

L823 39nH

L871 15nH

4p

8p

L812 33nH

C828 4p

C872

0.5p

43

21

C814 2p

C701

R731 1k

C785

C829

C873

0.0047

L882 10nH

C886 4p

12p

22p

5p

LOF1

LOF2

C731

0.0047

R892 39

R893

150

C885

4p

LOF3

R762

100

342

1

D752 1SV237

LOF4

C791

0.0047

R792

1k

C815

10p

LOF5

C826

0.001

D822 1SV308

D851 1SV308

R824

1k

L682 LS-509

C685 27p

MEASUREMENT CONDITIONS SUPPLY VOLTAGE:13.8 V

DIGITAL MULTIMETER:50

14.1

0.03—29.999999 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

30.0—59.999999 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

J891

R825 10k

D825 1SV308

129.0—143.999999 MHz

148.000001—199.999999 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

144.0—148.0 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

J681

J991 P991

MHz USB

k‰/V

PLL

1LO

P891

0.03—29.999999 MHz CONNECT PHONE:4.9 V NO CONNECT PHONE:0 V

2LO

P681

BFO

MAIN (1) J281

MAIN (3) J551

MAIN (3) J791

LEFT SIDE

10 - 8

RIGHT SIDE

Communication Equipment Himmelgeister Str. 100, D-40225 Düsseldorf, Germany Phone: 0211 346047 Fax : 0211 333639 URL : http://www.icomeurope.com

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K. Phone: 01227 741741 Fax : 01227 741742 URL : http://www.icomuk.co.uk

Zac de la Plaine, Rue Brindejonc des Moulinais BP 5804, 31505 Toulouse Cedex, France Phone: 561 36 03 03 Fax : 561 36 03 00 URL : http://www.icom-france.com

Crta. de Gracia a Manresa Km. 14,750 08190 Sant Cugat del Valles Barcelona, SPAIN Phone: (93) 590 26 70 Fax : (93) 589 04 46 URL : http://www.icomspain.com

<

Corporate Headquarters

>

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A. Phone: (425) 454-8155 Fax : (425) 454-1509 URL : http://www.icomamerica.com

<

Customer Service

>

Phone: (425) 454-7619

Glenwood Centre #150-6165 Highway 17 Delta, B.C., V4K 5B8, Canada Phone: (604) 952-4266 Fax : (604) 952-0090 URL : http://www.icomcanada.com

A.B.N. 88 006 092 575 290-294 Albert Street, Brunswick, Victoria, 3056, Australia Phone: 03 9387 0666 Fax : 03 9387 0022 URL : http://www.icom.net.au

146A Harris Road, East Tamaki, Auckland, New Zealand Phone: 09 274 4062 Fax : 09 274 4708

6F No. 68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C. Phone: (02) 2559 1899 Fax : (02) 2559 1874

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan Phone : 06 6793 5302 Fax : 06 6793 0013 URL : http://www.icom.co.jp/world/index.html

Icom America Inc.

Icom (Europe) GmbH

Asia Icom Inc.

Icom Spain S.L

Icom (UK) Ltd.

Icom France S.a

Icom Canada

Icom (Australia) Pty. Ltd.

Icom New Zealand

0 - 10

6-9-16, Kamihigashi, Hirano-ku Osaka 547-0002, Japan

A-5458H-SV

Printed in Japan

1-1-32, Kamiminami, Hirano-ku Osaka 547-0003, Japan

A-5564HZ-S-q

C 1999 Icom Inc.

Icom i706MK G Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 CIRCUIT DESCRIPTION

SECTION 4 ADJUSTMENT PROCEDURES

SECTION 5 PARTS LIST

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY

SECTION 7 SEMI-CONDUCTOR INFORMATION

SECTION 8 BOARD LAYOUT

SECTION 9 BLOCK DIAGRAM

SECTION 10 VOLTAGE DIAGRAM
