CRT125
"B" Series Bins
SERVICE PARTS MANUAL
Storage Bins
B25PP
B40PSA
B42PSA B55PSA
B100PSA B75
B40PSB
B42PSB
B55PSB
B120, B130, B150, B170
B100PSB
B70, B90
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081347-01 Date 4/14
SERVICE PARTS MANUAL
22 INCH WIDE ICE SERIES CUBERS
MODEL-ICE0320, ICE0520
Includes 50Hz. Units
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081297-01 PD04/02 Rev1/05
Storage Bin Service Parts Table of Contents
This parts list contains the service parts available for the Ice-O-Matic storage bins listed below.
B25PP
B42PSA
B40PSA
B55PSA
B75
B100PSA
CRT 125 Ice Cart
"B" SERIES BINS, B42, B40, B55 and B100
B70-B90
B120-B130-B150-B170
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
B25PP Page 2
B25PP Page 3
B42PSA Page 4
B40PSA and B55PSA Page 5
B75 Page 6
B100PSA Page 7
CRT125 Page 8
"B" SERIES BINS Page 9
B70-B90 Page 11
B120-B130-B150-B170 Page 12
Note: "A" Series and "B" Series components are not interchangeable.
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
Storage Bin B25 Bin
Item B25 Bin Description
1 2031302-01 Hinge-Left Hand
2 2031302-02 Hinge-Right Hand
3 2031303-97 Door, 30 x 11.375 Black Only (Includes Gasket)
4 6081036-01 Door Gasket 3.00 Ft. Required
5 9031008-15 Screw-Hinge to Door
6 2101252-01 Drip Shield/Ice Deflector
7 9031098-03 Drip Shield Screw
8 9031141-01 Plastic Nut
9 3012646-03 Drip Shield Stainless Steel Stiffner
10 9031113-04 Drip Shield Stainless Steel Stiffner Screws
11 6081004-07 Drip Shield Gasket 2.50 Ft Required
12 6081004-06 Bin Perimeter Gasket 6.33 Ft. Required
13 3012608-01 Connecting Strap
14 9031113-03 Connecting Strap Screw
15 9021001-04 Legs (Set of 4)
16 9051127-01 Ice Scoop
17 2031453-01 Leg Support (Includes Nut Retainers)
18 9031012-02 Leg Nut Retainer
Page 2
Storage Bin B25PP
r
From Serial Number 13011320011089
RIGHT
Item Part Numbe
1 1011515-01
2 1011515-02 Leg Support
3 1011515-03 Door / Shield Assembly (Includes Items 4,15,19,20,21,22,23 and 25)
4 1011515-04 Bin Door (Less Gasket see Item 20)
5 3012608-01 Bin Connecting Strap
6 1011515-06 Skid
7 1011515-07 Carton
8 1011515-08 Screw #10 x 1/2 PH SS (Stiffner Screws)
9 9031003-10 Flat Washer #10
10 9031141-01 Plastic Nut
11 1011515-11 Screw #10 x 1/2 Truss HD S.S.
12 1011515-12 Bolt, 5/8-11 x 1 1/4 (Bin to Skid)
13 9051127-01 Bin Scoop
14 1011515-14 Leg Set (5/8 x 11 Thread)
15 1011515-15 Ice Deflector Drip Sheild
16 1011515-16 Drip Shield Gasket (Gasket 1/8 x 1/2 x 30 inches)
17 1011515-17 Bin Perimiter Gasket (Gasket 1/4 x 1 x 75.25 inches)
18 9031001-33 IOM Logo
19 1011515-19 Drip Shield Brace
20 1011515-20 Bin Door Gasket (45 Inches Required)
21 9031008-15 Door Hinge Screw
22 1011515-22 Hinge Bracket Right Hand
23 1011515-23 Hinge Bracket Left Hand
24 9031113-03 Screw, Bin Connecting Strap
25 1011515-25 Drip Shiels Brace Screw
Bin Assembly (Box Only)
Description
Page 3
Storage Bin B42 Bin
Item B42 Bin Description
1 2031302-01 Hinge-Left Hand
2 2031302-02 Hinge-Right Hand
9121032-01 Nylon Bearing (Hinge)
3 2031303-98 Door, 22 x 15 Black (Includes Gasket)
4 6081036-01 Door Gasket 4.00 Ft. Required
5 9031008-15 Screw-Hinge to Door
6 2031496-01 Drip Shield
7 9031098-03 Drip Shield Screw
9 3011984-03 Ice Deflector
10 9031116-01 Hex Standoff
11 6041004-07 Drip Shield Gasket 2.3 Ft Required
12 6081004-06 Bin Perimeter Gasket 5.70 Ft. Required
13 3012608-01 Connecting Strap
14 9031113-03 Connecting Strap Screw
15 9021001-04 Leg Set (4)
16 9051127-01 Ice Scoop
17 2031310-03 Leg Support (Includes Nut Retainers)
19 9051126-02 Drain Plug
20 9031122-03 Thumbscrew
Page 4
Storage Bin B40 and B55 Bin
Item B40 Bin B55 Bin Description
1 2031302-01 2031302-01 Hinge-Left Hand
2 2031302-02 2031302-02 Hinge-Right Hand
3 2031303-93 2031303-93 Door, 30 x 15.375 Black Only (Includes Gasket)
4 6081036-01 6081036-01 Door Gasket 5.00 Ft. Required
5 9031008-15 9031008-15 Screw-Hinge to Door
6 9051370-02 9051370-02 Drip Shield/Ice Deflector
7 9031098-03 9031098-03 Drip Shield Screw
8 9031141-01 9031141-01 Plastic Nut
9 3012646-02 3012646-02 Drip Shield Stainless Steel Brace
10 9031113-04 9031113-04 Drip Shield Stainless Steel Stiffner Screws
11 6081004-07 6081004-07 Drip Shield Gasket 2.5 Ft Required
12 6081004-06 6081004-06 Bin Perimeter Gasket 6.30 Ft. Required
13 3012608-01 3012608-01 Connecting Strap
14 9031113-03 9031113-03 Connecting Strap Screw
15 9021001-04 9021001-04 Leg Set (4)
16 9051127-01 9051127-01 Ice Scoop
17 2031310-03 2031310-03 Leg Support (Includes Nut Retainers)
18 9031012-02 9031012-02 Nut Retainer 1/2-13
19 9051126-01 9051126-01 Drain Plug
Page 5
Storage Bin B75 Bin
Item B75 Description
1 1011369-01 Canopy
2 1011369-02 Baffle
3 1011369-03 Door Assembly
4 1011369-04 Drip Molding
5 1011369-05 Door Gasket (10 Feet Required)
6 1011369-06 Hinge R/H
7 1011369-07 Hinge L/H
8 1011369-08 Hinge Bushing
9 1011369-09 Hinge Spacer
10 1011369-10 Shoulder Screw
11 1011369-11 E-Clip
12 1011369-12 Drain Top
13 1011369-13 Legs, Painted (Set of 4)
14 1011369-14 Screw - Hinge to Frame
15 1011369-15 Screw - Hinge to Door
16 1011369-16 Door Hinge L/H
17 1011369-17 Door Hinge R/H
18 1011339-104 Gasket
19 1011351-69 O-Ring
20 1011351-05 Drain Bottom
Page 6
Storage Bin B100 Bin
Item B100 Bin Description
1 2031302-01 Hinge-Left Hand
2 2031302-02 Hinge-Right Hand
3 2031303-95 Door, 48 x 15 3/8 Black Only (Includes Gasket)
4 6081036-01 Door Gasket 6.50 Ft. Required
5 9031008-15 Screw-Hinge to Door
6 9051370-03 Drip Shield/Ice Deflector
7 9031098-03 Drip Shield Screw
8 9031141-01 Plastic Nut
9 3012646-01 Drip Shield Stainless Steel Stiffner
10 9031113-04 Drip Shield Stainless Steel Stiffner Screws
11 6081004-07 Drip Shield Gasket 4.0 Ft Required
12 6081004-06 Bin Perimeter Gasket 7.8 Ft. Required
13 3012608-01 Connecting Strap
14 9031113-04 Connecting Strap Screw
15 9021001-04 Leg Set (4)
16 9051127-01 Ice Scoop
17 2031310-03 Leg Support (Includes Nut Retainers)
18 9031012-02 Nut Retainer 1/2-13
19 9051126-01 Drain Plug
20 3012664-01 Bin Door Reinforcement
Page 7

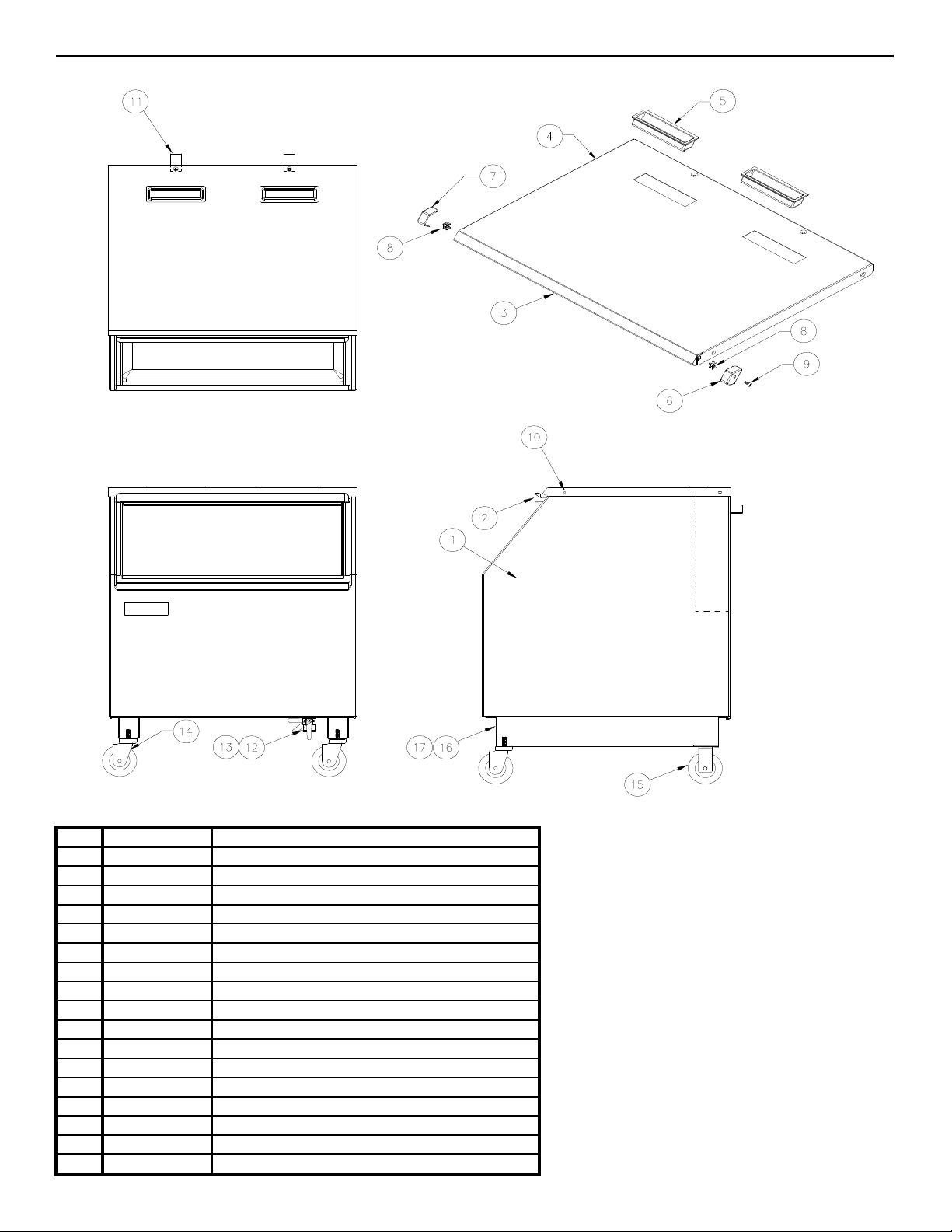

Storage Bins CRT125-Ice Cart
w
Item CRT125 Description Not Shown-Ice Scoop-9051127-02
1 9051214-01 Bin
2 9051310-01 Bin Door
3 2101414-01 Top Panel Assembly (Includes Items 4-8)
4 3021924-01 Top Panel Only
5 9021089-01 Recessed Handle
6 9051542-01 Corner Cap Right Hand
7 9051542-02 Corner Cap Left Hand
8 9031141-01 Plastic Nut
9 9031098-02 Plastic Corner Screw
10 9031023-10 Top Panel Screw
11 3012780-01 Hose Clip
12 9091117-01 Drain Valve
13 9091097-01 Drain Elbow
14 9021088-01 Caster-Pivot (Front)
15 9021094-01 Caster-Fixed (Rear)
16 2021511-01 Leg Channel (Left and Right)
17 9031113-02
Leg Channel Scre
Page 8

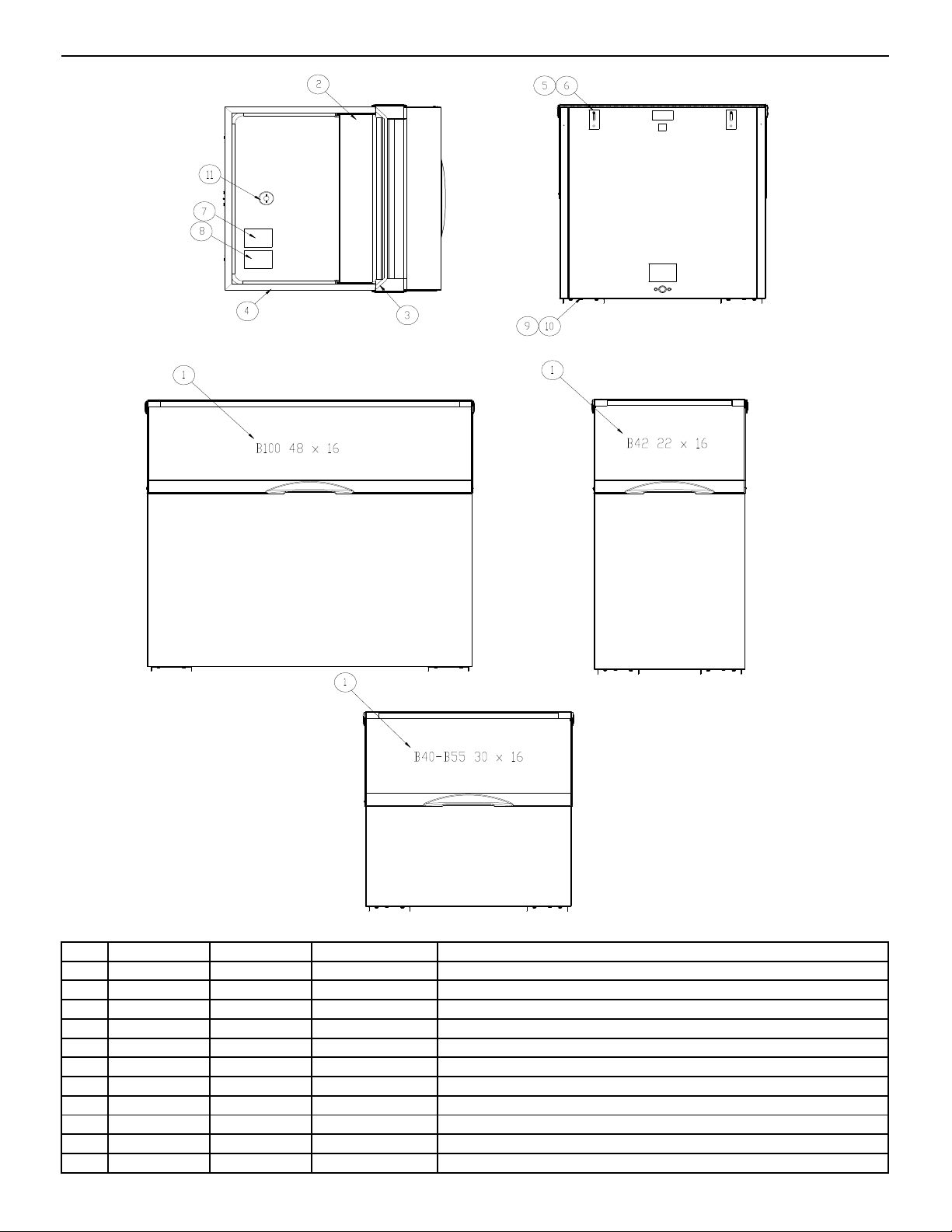

Storage Bins "B" Series Bins
Item B42 B40-B55 B100 Bin Description
1 9051559-03 9051559-01 9051559-02 Bin Door, Less Bin Door Brackets
2 9051566-03 9051566-01 9051566-02 Ice Deflector
3 6081004-07 6081004-07 6081004-07
4 6081037-01 6081037-01 6081037-01
5 3012608-01 3012608-01 3012608-01 Connecting Strap
6 9031113-04 9031113-04 9031113-04 Connecting Strap Screw
7 9021001-04 9021001-04 9021001-04 Leg Set (4)
8 9051127-01 9051127-01 9051127-01 Ice Scoop
9 2031310-03 2031310-03 2031310-03 Leg Support (Includes Nut Retainers)
10 9031012-02 9031012-02 9031012-02 Nut Retainer 1/2-13
11 9051126-01 9051126-01 9051126-01 Drain Plug
Gasket B100=4.0 ft B40/55=2.52 ft B42=1.85 ft
Gasket L Shape B100=7.6 ft B40/55=6.2 ft B42=5.5 ft
Page 9
Storage Bins "B" Series Bins
Item B42 B40-B55 B100 Bin Description
1 9051559-03 9051559-01 9051559-02 Bin Door, Less Bin Door Brackets
2 9051566-03 9051566-01 9051566-02 Ice Deflector
3 9051629-03 9051629-01 9051629-02
4 9051567-01
5 9021110-02 Pin, Hinge (Triple)
5NLA NLA
6 9051560-01 9051560-01 9051560-01 End Cap, Right
7 9051560-02 9051560-02 9051560-02 End Cap, Left
8 3013360-01 3013360-01 3013360-01 Bracket, Bin Door Right
9 3013360-02 3013360-02 3013360-02 Bracket, Bin Door Left
10 9021109-02 Sleeve, Friction (Triple)
10 NLA NLA
11 9131471-01 9131471-01 9131471-01 Hanger, Ice Scoop
12 9031113-03 9031113-03 9031113-03 Screw, Drip Shield to End Cap (2 per Side)
13 2101452-03S 2101452-01S 2101452-02S Drip Shield Assembly (Includes Item 3,6,7,10,11 and 12)
14 9031098-05 9031098-05 9031098-05 Screw, Drip Shield Assembly to Bin Side Panel (2 Per Side)
15 9031008-15 9031008-15 9031008-15 Screw, Bin Door Hinge (2 per Hinge Required)
Note: The Double Ball Hinge Pin and Double Friction Sleeve are No Longer Available
The Triple Ball Hinge Pin and Triple Ball Friction Sleeve must be ordered.
9051567-01 9051567-01 End Cap Cover
Drip Shield (9051561-01,-02,-03 are NLA)
Pin, Hinge (Double) See Note Below
Sleeve, Friction (Dual) See Note Below
Page 10
Storage Bins B70-B90 Storage Bin
7
Item B70 B90 Description
1 1011457-29 1011457-29 Snout Door Catch Bracket
2 1011457-12 1011457-12 View Window Extrusion Kit
3 1011457-13 1011457-13 View Window (2 ea.)
4 1011457-26 1011457-26 Poly Snout Door Hinge Left Hand
5 1011457-27 1011457-27 Poly Snout Door Hinge Right Hand
6 1011457-18 1011457-18 Snout Baffle
7 1011457-14 1011457-14 Poly Snout Extrusion Kit
8 1011457-20 1011457-20 Poly Snout Door
9 1011457-22 1011457-22 Poly Snout
10 1011457-24 1011457-24 Leg (Set of 4)
11 1011457-25 1011457-25 Plastic Drain
12 1011457-04 1011457-04 Wall Bracket (2 ea.)
13 1011457-05 1011457-05 Ice Maker Bracket (2 ea.)
1011457-07 1011457-07 B70/90 30 Inch Adapter Top
1011457-06 1011457-06 B70/90 1506 Adapter Top
1011457-01 1011457-01 48 inch Paddle
1011457-02 1011457-02 60 inch Paddle
1011457-03 1011457-03 Ice Paddle Bracket
Page 11
Storage Bins B120-130-150-170- Storage Bin
3
Item B120 B130 B150 B170 Description
1 1011457-12 1011457-12 1011457-12 1011457-12 View Window Extrusion Kit
2 1011457-13 1011457-13 1011457-13 1011457-13 View Window (2 ea.)
3 1011457-28 1011457-28 1011457-28 1011457-28 Snout Assembly (Includes 4,6,7,8,9,10 & 11)
4 1011457-19 1011457-19 1011457-19 1011457-19 Snout Baffle
5 1011457-15 1011457-15 1011457-15 1011457-15 Poly Snout Extrusion Kit
6 1011457-27 1011457-27 1011457-27 1011457-27 Poly Snout Door Hinge Right Hand
7 1011457-26 1011457-26 1011457-26 1011457-26 Poly Snout Door HingeLeft Hand
8 1011457-23 1011457-23 1011457-23 1011457-23 Poly Snout
9 1011457-17 1011457-17 1011457-17 1011457-17 Spring Loaded Snout Door Hinge Left Hand
10 1011457-16 1011457-16 1011457-16 1011457-16 Spring Loaded Snout Door Hinge Right Hand
11 1011457-21 1011457-21 1011457-21 1011457-21 Poly Snout Door
12 1011457-24 1011457-24 1011457-24 1011457-24 Leg (Set of 4)
13 1011457-25 1011457-25 1011457-25 1011457-25 Plastic Drain
1011457-01 1011457-01 1011457-01 1011457-01 48 inch Paddle
1011457-02 1011457-02 1011457-02 1011457-02 60 inch Paddle
1011457-03 1011457-03 1011457-03 1011457-03 Ice Paddle Bracket
1011457-08 1011457-08 NA NA 48 inch Poly Top
NA NA 1011457-09 1011457-09 60 inch Poly Top
1011457-10 1011457-10 1011457-10 1011457-10 9 inch Filler Panel
1011457-11 1011457-11 1011457-11 1011457-11 13 inch Filler Panel
Page 12
