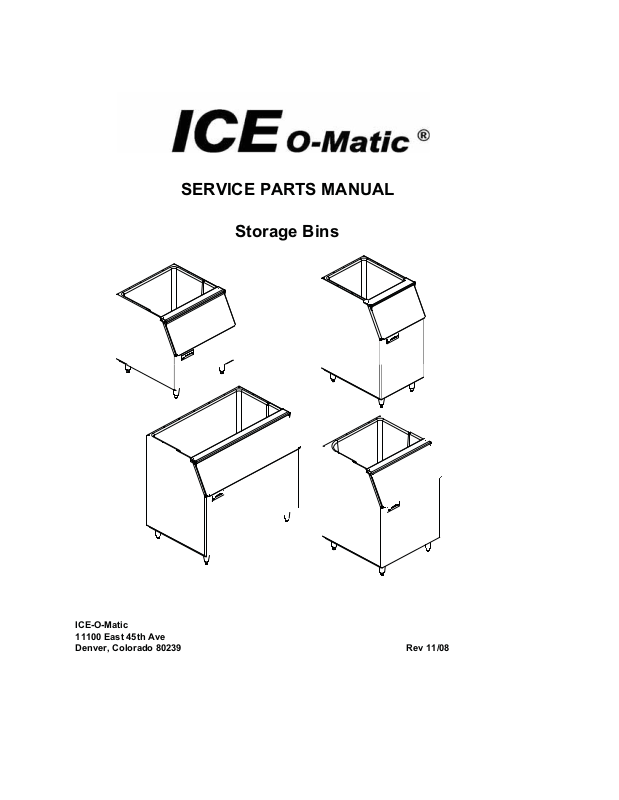

SERVICE PARTS MANUAL
Storage Bins
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239 Rev 11/08
Storage Bin Service Parts
Wiring Diagram
Page 10
This parts list contains the service parts available for the ICE Undercounter icemakers.
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Bin and Exterior Components Page 2 - 3
Refrigeration System Page 4 - 5
Harvest Assist Assembly Page 6
Control Box Page 7
Evaporator Page 8
Water Pump Page 9
ICE-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
The ICE Series Service Manual is available seperately, Part Number 9081270-01
Page 3 Rev. 11/08

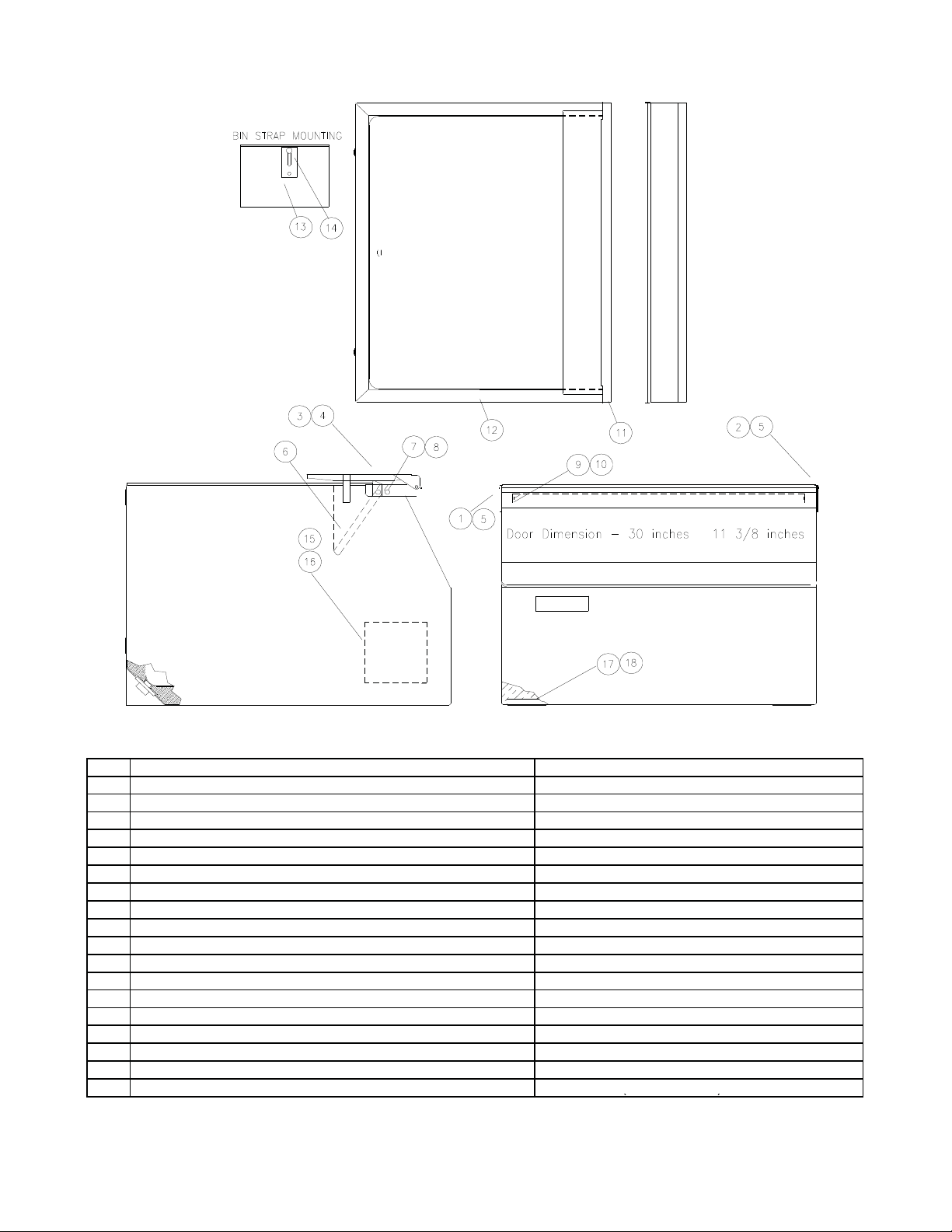

Storage Bin B25 Bin
(
)
()
Item B25 Bin Description
1 2031302-01 Hinge-Left Hand
2 2031302-02 Hinge-Right Hand
3 9051343-01 Door, 30 x 11.375 Black Only (Includes Gasket)
4 6081036-01 Door Gasket 3.00 Ft. Required
5 9031008-15 Screw-Hinge to Door
6 2101252-01 Drip Shield/Ice Deflector
7 9031098-03 Drip Shield Screw
8 9031141-01 Plastic Nut
9 3012646-03 Drip Shield Stainless Steel Stiffner
10 9031113-04 Drip Shield Stainless Steel Stiffner Screws
11 6081027-01 Drip Shield Gasket (Tear Drop) 2.94 Ft Required
12 6081004-06 Bin Perimeter Gasket 6.33 Ft. Required
13 3012608-01 Connecting Strap
14 9031113-03 Connecting Strap Screw
15 9021095-01 Leg Set (4 Ea.)
16 9051127-01 Ice Scoop
17 2031453-01 Leg Support (Includes Nut Retainers)
18 9031012-03 Nut Retainer
Page 4 Rev. 11/08
1/2-13 Thread
Storage Bin B42
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21 9031004-19 Washer, Rubber
B42 Bin
2031302-01
2031302-02
9051309-98
6081036-01
9031008-15
2031334-09
9031098-03
9031141-01
3011984-03
9031116-01
6081027-01
6081033-01
3012608-01
9031113-03
9021095-01
9051127-01
2031310-03
9031012-03
9051126-01
9031122-03
Page 5 Rev. 11/08
Description
Hinge-Left Hand
Hinge-Right Hand
Door, 22 x 15 Black (Includes Gasket)
Door Gasket 4.00 Ft. Required
Screw-Hinge to Door
Drip Shield
Drip Shield Screw
Plastic Nut
Ice Deflector
Hex Standoff
Drip Shield Gasket (Tear Drop) 2.28 Ft Required
Bin Perimeter Gasket 5.70 Ft. Required
Connecting Strap
Connecting Strap Screw
Leg Set (4 Ea.)
Ice Scoop
Leg Support (Includes Nut Retainers)
Nut Retainer (1/2-13 Thread)
Drain Plug
Thumbscrew

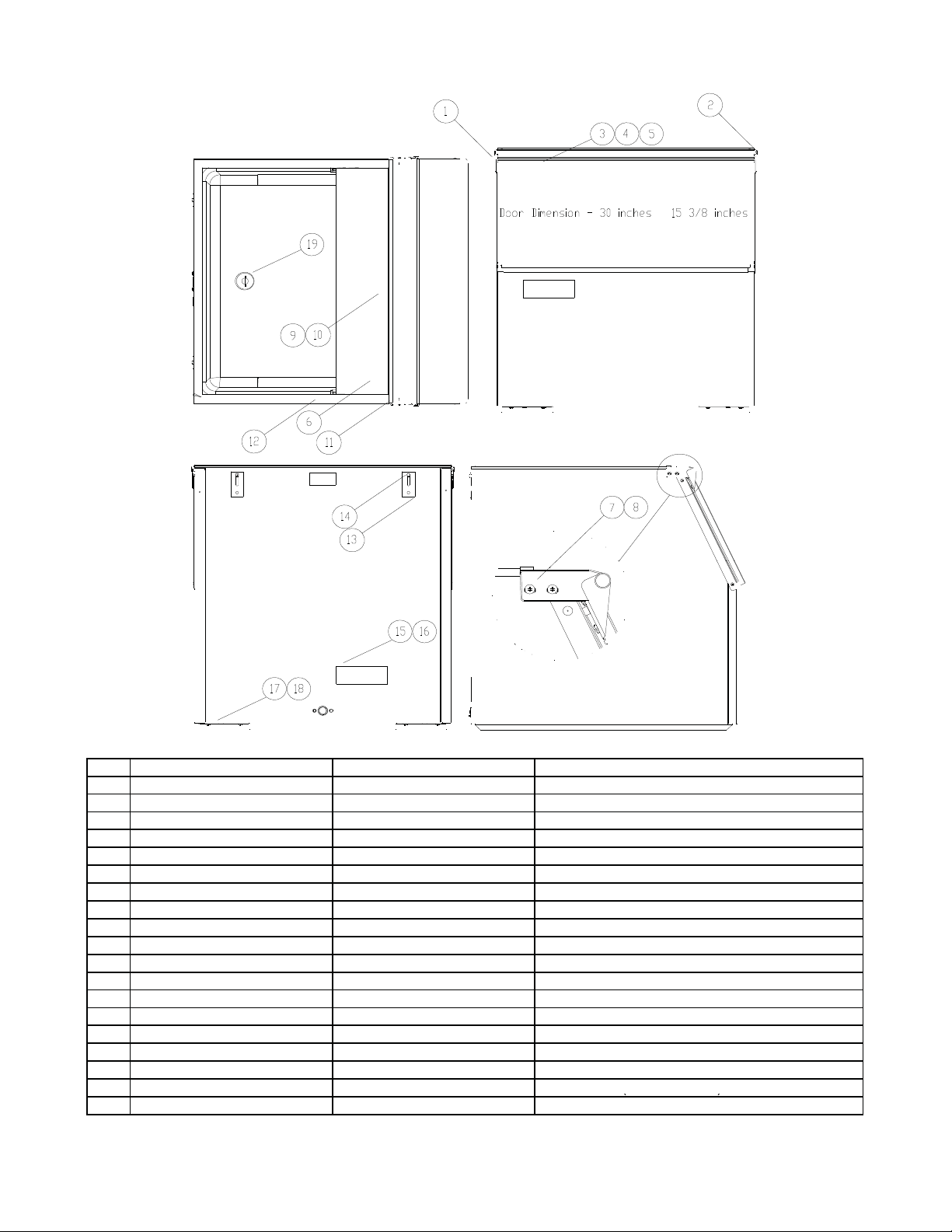

Storage Bin B40 B55
(
)
()
Item B40 Bin B55 Bin Description
1 2031302-01 2031302-01 Hinge-Left Hand
2 2031302-02 2031302-02 Hinge-Right Hand
3 9051309-93 9051309-93 Door, 30 x 15.375 Black Only (Includes Gasket)
4 6081036-01 6081036-01 Door Gasket 5.00 Ft. Required
5 9031008-15 9031008-15 Screw-Hinge to Door
6 2101252-02 2101252-02 Drip Shield/Ice Deflector- Includes Brace
7 9031098-03 9031098-03 Drip Shield Screw
8 9031141-01 9031141-01 Plastic Nut
9 3012646-02 3012646-02 Drip Shield Stainless Steel Brace
10 9031113-04 9031113-04 Drip Shield Stainless Steel Stiffner Screws
11 6081027-01 6081027-01 Drip Shield Gasket (Tear Drop) 2.94 Ft Required
12 6081004-06 6081004-06 Bin Perimeter Gasket 6.50 Ft. Required
13 3012608-01 3012608-01 Connecting Strap
14 9031113-03 9031113-03 Connecting Strap Screw
15 9021095-01 9021095-01 Leg Set (4 Ea.)
16 9051127-01 9051127-01 Ice Scoop
17 2031310-03 2031310-03 Leg Support (Includes Nut Retainers)
18 9031012-03 9031012-03 Nut Retainer
19 9051126-01 9051126-01 Drain Plug
Page 6 Rev. 11/08
1/2-13 Thread
g
Storage Bin B75
g
Item B75 Description
1 1011369-01 Canopy
2 1011369-02 Baffle
3 1011369-03 Door Assembly
4 1011369-04 Drip Molding
5 1011369-05 Door Gasket (10 Feet Required)
6 1011369-06 Hinge R/H
7 1011369-07 Hinge L/H
8 1011369-08 Hinge Bushing
9 1011369-09 Hinge Spacer
10 1011369-10 Shoulder Screw
11 1011369-11 E-Clip
12 1011369-12 Drain Top
13 1011369-13 Legs, Painted (Set of 4)
14 1011369-14 Screw - Hinge to Frame
15 1011369-15 Screw - Hinge to Door
16 1011369-16 Door Hinge L/H
17 1011369-17 Door Hinge R/H
18 1011339-104 Gasket
19 1011351-69 O-Rin
20 1011351-05 Drain Bottom
Page 7 Rev. 11/08
g
Storage Bin B100 Bin
g
Item B100 Bin Description
1 2031302-01 Hinge-Left Hand
2 2031302-02 Hinge-Right Hand
3 9051309-95 Door, 48 x 15 3/8 Black Only (Includes Gasket)
4 6081036-01 Door Gasket 6.50 Ft. Required
5 9031008-15 Screw-Hinge to Door
6 2101252-03 Drip Shield/Ice Deflector
7 9031098-03 Drip Shield Screw
8 9031141-01 Plastic Nut
9 3012646-01 Drip Shield Stainless Steel Stiffner
10 9031113-04 Drip Shield Stainless Steel Stiffner Screws
11 6081027-01 Drip Shield Gasket (Tear Drop) 4.44 Ft Required
12 6081004-06 Bin Perimeter Gasket 8.00 Ft. Required
13 3012608-01 Connecting Strap
14 9031113-03 Connecting Strap Screw
15 9021095-01 Leg Set (4 Ea.)
16 9051127-01 Ice Scoop
17 2031310-03 Leg Support (Includes Nut Retainers)
18 9031012-03 Nut Retainer (1/2-13 Thread)
19 9051126-01 Drain Plu
20 3012664-01 Bin Door Brace
Page 8 Rev. 11/08
