Product Specification

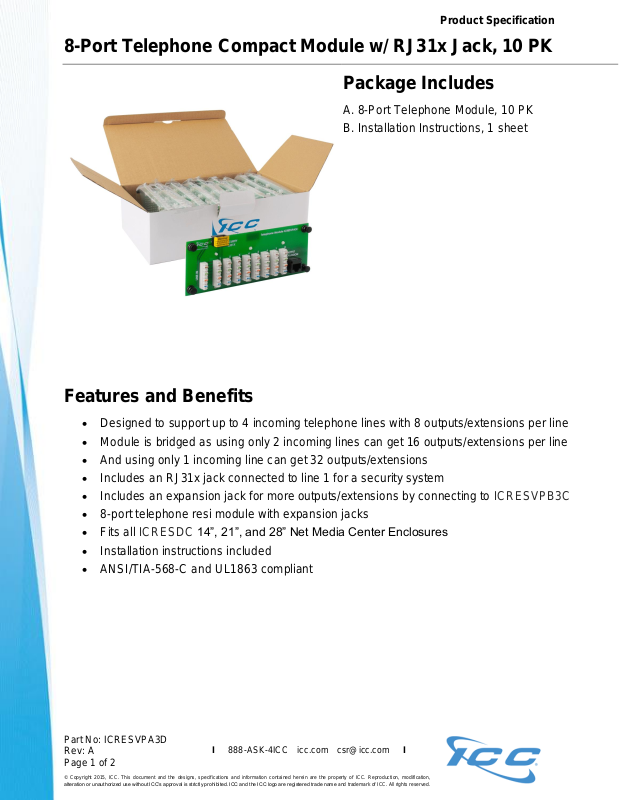

8-Port Telephone Compact Module w/ RJ31x Jack, 10 PK

Package Includes

A. 8-Port Telephone Module, 10 PK
B. Installation Instructions, 1 sheet

Features and Benefits

 Designed to support up to 4 incoming telephone lines with 8 outputs/extensions per line
 Module is bridged as using only 2 incoming lines can get 16 outputs/extensions per line
 And using only 1 incoming line can get 32 outputs/extensions
 Includes an RJ31x jack connected to line 1 for a security system
 Includes an expansion jack for more outputs/extensions by connecting to ICRESVPB3C
 8-port telephone resi module with expansion jacks
 Fits all ICRESDC 14”, 21”, and 28” Net Media Center Enclosures
 Installation instructions included
 ANSI/TIA-568-C and UL1863 compliant

Part No: ICRESVPA3D
Rev: A
Page 2 of 2

I 888-ASK-4ICC icc.com [e-mail] I

© Copyright 2015, ICC. This document and the designs, specifications and information contained herein are the property of ICC. Reproduction, modification,
alteration or unauthorized use without ICC’s approval is strictly prohibited. ICC and the ICC logo are registered trade name and trademark of ICC. All rights reserved.

Product Specification

6.5

6

2

2.56

NOTE: UNLESS OTHERWISE SPECIFIED

1. 8-Port Telephone Module with RJ31X Jack:
A. PCB: Glass Epoxy FR-4 Copper Clad, t=1.20mm
B. 110 Block:

-Housing: PC, UL 94V-0

-IDC: Phosphorous Bronze, Tin Plated
C. RJ45 & RJ31X Jacket/Socket:

-Housing: PBT + 15% Fiber Glass

-Contact: Phosphorous Bronze, 50u” Gold Plated
D. Wiring in Accordance to T568A

2. Locking Button:
A. Material: Nylon 6/6, UL 94V-0
