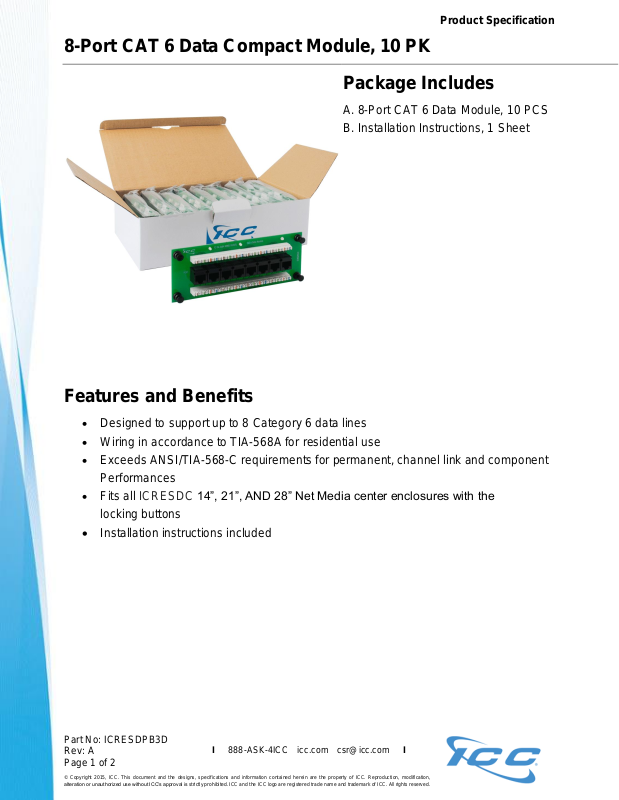

Product Specification

8-Port CAT 6 Data Compact Module, 10 PK

Package Includes

A. 8-Port CAT 6 Data Module, 10 PCS
B. Installation Instructions, 1 Sheet

Features and Benefits

 Designed to support up to 8 Category 6 data lines
 Wiring in accordance to TIA-568A for residential use
 Exceeds ANSI/TIA-568-C requirements for permanent, channel link and component

Performances

 Fits all ICRESDC 14”, 21”, AND 28” Net Media center enclosures with the

locking buttons

 Installation instructions included

Part No: ICRESDPB3D
Rev: A
Page 2 of 2

I 888-ASK-4ICC icc.com [e-mail] I

© Copyright 2015, ICC. This document and the designs, specifications and information contained herein are the property of ICC. Reproduction, modification,
alteration or unauthorized use without ICC’s approval is strictly prohibited. ICC and the ICC logo are registered trade name and trademark of ICC. All rights reserved.

Product Specification

2.56

6.5

6

2

NOTE: UNLESS OTHERWISE SPECIFIED

1. 8-Port CAT 6 Data Module:
A. PCB: Glass Epoxy FR-4 Copper Clad, t=1.20mm
B. 110 Block:

-Housing: PC, UL 94V-0

-IDC: Phosphorous Bronze, Tin Plated
C. RJ45 Jack/Socket:

-Housing: PBT + 15% Fiber Glass

-Contact: Phosphorous Bronze, 50u” Gold Plated
D. Wiring in Accordance to TIA-568A
E. Category 6 Rated

2. Locking Button:
A. Material: Nylon 6/6, UL 94V-0
