TABLE OF CONTENTS

WORK AREA OUTLETS

CAT 6A/6/5e connectors .......04

Integrated VDV outlets ..........10

Audio/Video connectors ......12

Confi gurable faceplates .......18

DecorexTM faceplates .............21

Surface mount jacks ...............24

Mounting boxes ......................27

Surface mount boxes .............28

Mobile patch boxes ...............29

MUTOA outlets .........................30

TABLE OF CONTENTS

RACKS & CABLE
MANAGEMENT

Wall mount racks ....................54

Floor mount racks ...................59

Vertical cable managers .......60

Horizontal cable managers ...62

Plastic rings ..............................64

Metal rings ...............................65

Shelves .....................................66

J-Hooks ....................................68

Ladder Rack ............................70

PATCH PANELS &
CROSS-CONNECT

CAT 6A patch panels ............32

CAT 6/5e patch panels .........34

Wall mountable panels .........34

Feed-through panels .............36

Confi gurable blank panels ....37

Telco panels ...........................39

110 wiring blocks ....................40

110 patch panels ...................42

66 wiring blocks .......................44

CORDS & CABLE
ASSEMBLIES

CAT 6A patch cords ...............72

CAT 6 patch cords .................72

CAT 5e patch cords ...............73

110 patch cords .....................74

Telco cables ...........................75

Modular plugs .........................76

Voice line cords ......................77

Velcro® brand cable ties .........78

Nylon cable ties ......................79

PREMISE CABLES

CAT 6A UTP/FTP ......................48

CAT 6e UTP ...............................48

CAT 6 UTP .................................50

CAT 5e .....................................50

FIBER OPTIC SYSTEM

Plug and Play cassettes .........82

Adapters .................................84

Patch panels ..........................85

Rack mount enclosures ..........86

Wall mount enclosures ...........89

Splice trays ..............................90

Couplers ..................................91

MUTOA boxes .........................92

Multimedia outlets .................93

Cable assemblies ..................94

RESIDENTIAL ENCLOSURES

Metal enclosure combos .......96

Plastic enclosure combos .....98

Voice modules ......................102

CAT 6/5e data modules .......103

Video modules ......................104

Multi-media patch panels ...105

Electrical power strip ............105

Electronics bracket ...............105

Cable management covers ..105

PRE-TERMINATED CABLES

HiPerLinkTM copper .................118

HiPerLinkTM fi ber optic .............119

TOOLS & ACCESSORIES

JackEasyTM tool .......................106

110/66 punch-down tool ....107

4-Pair punch-down tool ......108

5-Pair punch-down tool ......108

Cable stripping tools ...........109

Crimping tools .......................109

Compression tools ................110

Compression connectors .....111

Wire cutters ...........................112

Raceway cutter ....................112

INDEX

Part number index ................120

RACEWAY

Runway sections ...................114

Compatible outlets...............115

Connecting accessories ......116

Slotted wiring ducts .............117

Solid wiring ducts .................117

WIRING DIAGRAMS

T568A/B wiring .......................122

ICC is an independent and privately owned California corporation. ICC has been

manufacturing structured cabling products for small and mid-size installers since 1984.

2

888.ASK.4ICC | [email protected] | icc.com

HD or EZ

®

High Density

Up to 48-Ports in 1 RMS

HD Outlets

DecorexTM and Furniture

HD Panels

Single row ports

Easy

Easy to lay wires

EZ® Outlets

Classic and Furniture

EZ® Panel

Staggered ports

One Tool For Both

Be Green, Buy ValuePacks!

We created ValuePacks to shrink storage size, reduce packaging waste, and lower unit cost. Look for

ValuePacks throughout the catalog to save space, save Mother Earth, and save money.

Connectors

Faceplates Patch Cords 66 Blocks

3

WORK AREA OUTLETS CAT 6A CONNECTORS

CAT 6A 10G UTP MODULAR CONNECTORS HD STYLE

• Rear split-back IDC

• Shielded termination cap

• 50 micro-inch gold plated contacts

PART NO. DESCRIPTION CARTON / CASE

IC1078GAxx¹ 8P8C, UTP 50 / 400

Color (xx¹) = WH IV BL OR RD BK

PERMANENT LINK PERFORMANCE TEST

100

80

60

WORK AREA OUTLETS

40

NEXTdB

Signal transmission

Headroom

20

0

0500

Installed with ICC premise cable and tested per TIA Permanent Link specifi cation

CAT 6A 10G FTP MODULAR CONNECTOR HD STYLE

O

• 360

shielding from Electromagnetic Interference and Alien Crosstalk

TIA standard limit

Frequency (MHz)

• Rear split-back IDC

• 50 micro-inch gold plated contacts

PART NO. DESCRIPTION CARTON / CASE

IC1078S6A0 8P8C, FTP 50 / 400
ICACSGK6AS Grounding wire, 18 AWG, 7" length, 10 pcs.

PERMANENT LINK PERFORMANCE TEST

100

80

60

40

NEXTdB

20

0

0500

Installed with ICC premise cable and tested per TIA Permanent Link specifi cation

CAT 6A 10G UTP MODULAR COUPLER HD STYLE

TIA standard limit

Frequency (MHz)

• No termination required; feed-through the front and rear

• Joins two high performance CAT 6A patch cords

• 50 micro-inch gold plated contacts

PART NO. DESCRIPTION CARTON / CASE

IC107C6Axx¹ 8P8C, UTP 50 / 400

Color (xx¹) = WH BK

4

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS CAT 6 CONNECTORS

CAT 6 HD AND EZ® STYLE MODULAR CONNECTORS

A.

• Exceeds TIA-568 CAT 6 performance standard

• Built-in PCB technology for maximum signal quality

• 50 micro-inch gold plated contacts

• Includes a color T568A/B wiring diagram

• Terminate with the JackEasy termination tool

PART NO. DESCRIPTION CARTON / CASE

A. IC1078F6xx¹ 8P8C, HD style 50 / 400

• Rear split-back IDC

B. IC1078L6xx¹ 8P8C, EZ style

50 / 400

• Rear in-line IDC makes seating wires easy

• Pair-to-pair wiring; no splitting

B.

Color (xx¹) = WH IV BL OR RD YL GY BK AL GN PR

CAT 6 HD AND EZ® STYLE MODULAR CONNECTOR VALUEPACKS

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

A.

B.

• 25 pieces per bag

PART NO. DESCRIPTION CARTON / CASE

A. IC107F6Cxx¹ 8P8C, HD style , 25 pcs. 10 / 40
B. IC107L6Cxx¹ 8P8C, EZ style, 25 pcs. 10 / 40

Color (xx¹) = WH IV BL OR RD BK

CAT 6 MODULAR COUPLERS HD STYLE

• No termination required; feed-through the front and rear

• Exceeds TIA-568 CAT 6 performance standard

• 50 micro-inch gold plated contacts

PART NO. DESCRIPTION CARTON / CASE

IC107CP6xx¹ 8P8C 50 / 400

Color (xx¹) = WH BK

CAT 6 MODULAR COUPLER HD STYLE VALUEPACKS

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

• 25 pieces per bag

PART NO. DESCRIPTION CARTON / CASE

IC107C6Cxx¹ 8P8C, 25 pcs. 10 / 40

Color (xx¹) = WH BK

5

WORK AREA OUTLETS CAT 5e CONNECTORS

CAT 5e HD AND EZ® STYLE MODULAR CONNECTORS

A.

• Exceeds TIA-568 CAT 5e performance standard

• Built-in PCB technology for maximum signal quality

• 50 micro-inch gold plated contacts

• Includes a color T568A/B wiring diagram

• Compatible with VoIP phone systems

• Terminate with the JackEasy termination tool

PART NO. DESCRIPTION CARTON / CASE

A. IC1078F5xx¹ 8P8C, HD style 50 / 400

• Rear split-back IDC

B.

WORK AREA OUTLETS

A.

B.

B. IC1078E5xx¹ 8P8C, EZ style

50 / 400

• Rear in-line IDC makes seating wires easy

• Pair-to-pair wiring; no splitting

Color (xx¹) = WH IV BL OR RD YL GY BK AL GN PR

CAT 5e HD AND EZ® STYLE MODULAR CONNECTOR VALUEPACKS

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

• 25 pieces per bag

PART NO. DESCRIPTION CARTON / CASE

A. IC107F5Cxx¹ 8P8C, HD style, 25 pcs. 10 / 40
B. IC107E5Cxx¹ 8P8C, EZ style, 25 pcs. 10 / 40

Color (xx¹) = WH IV BL OR RD BK

CAT 5e MODULAR COUPLERS HD STYLE

• No termination required; feed-through the front and rear

• Exceeds TIA-568 CAT 5e performance standard

• 50 micro-inch gold plated contacts

PART NO. DESCRIPTION CARTON / CASE

IC107C5Exx¹ 8P8C 50 / 400

Color (xx¹) = WH BK

CAT 5e MODULAR COUPLER HD STYLE VALUEPACKS

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

• 25 pieces per bag

PART NO. DESCRIPTION CARTON / CASE

IC107C5Cxx¹ 8P8C, 25 pcs. 10 / 40

Color (xx¹) = WH BK

6

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS VOICE CONNECTORS

VOICE HD AND EZ® STYLE MODULAR CONNECTORS

A.

• Supports phone applications

• Compatible with RJ-11 plug

• Accepts category-rated cable and 22~24 AWG solid wire

• 50 micro-inch gold plated contacts

• Includes a color USOC/UTP wiring diagram

• Terminate with the JackEasy termination tool

PART NO. DESCRIPTION CARTON / CASE

A. IC1076F0xx¹ 6P6C, HD style 50 / 400

• Rear split-back IDC

B. IC1076V0xx¹ 6P6C, EZ style

50 / 400

• Rear in-line IDC makes seating wires easy

B.

Color (xx¹) = WH IV BL OR RD YL GY BK AL GN PR

VOICE HD AND EZ® STYLE MODULAR CONNECTOR VALUEPACKS

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

A.

B.

• 25 pieces per bag

PART NO. DESCRIPTION CARTON / CASE

A. IC1076FCxx¹ 6P6C, HD style, 25 pcs. 10 / 40
B. IC1076VCxx¹ 6P6C, EZ style, 25 pcs. 10 / 40

Color (xx¹) = WH IV

VOICE MODULAR COUPLERS HD STYLE

• No termination required; feed-through on the front and rear

• Supports phone applications

• Compatible with RJ-11 plug

• 50 micro-inch gold plated contacts

PART NO. DESCRIPTION CARTON / CASE

IC107C6Sxx¹ 6P6C, Pin 1-6 50 / 400
IC107C6Rxx¹ 6P6C, Pin 1-1 50 / 400

Color (xx¹) = WH IV GY BK

One Vendor, No Compatibility Issue

We fi ne tune premise cables and connectivity
outlets to work together as End-to-End solutions.

Page 46

7

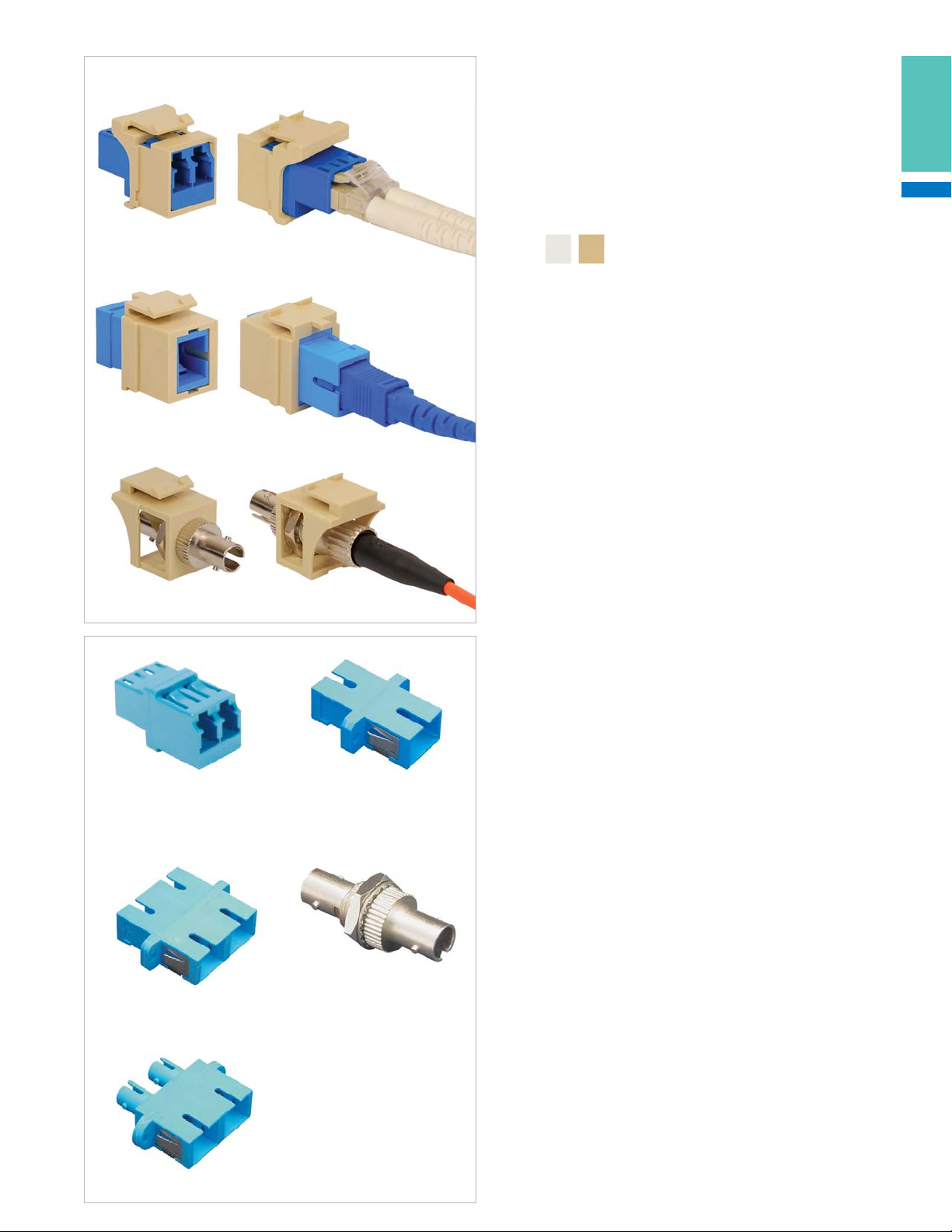

WORK AREA OUTLETS FIBER OPTIC COUPLERS

FIBER OPTIC MODULAR COUPLERS HD STYLE

• Female to female coupler

• Feed-through on the front and rear; no termination required

• Designed with ceramic sleeves

• Supports multimode and single-mode

PART NO. DESCRIPTION CARTON / CASE

A. IC107LC2xx¹ LC duplex coupler, ceramic sleeves 50 / 400
B. IC107SC2xx¹ SC simplex coupler, ceramic sleeve 50 / 400
C. IC107ST2xx¹ ST simplex coupler, ceramic sleeve 50 / 400

Color (xx¹) = WH IV

WORK AREA OUTLETS

A.

B.

C.

FIBER OPTIC COUPLERS IN ELITE™ SURFACE MOUNT BOXES

Elite surface mount box

Page 28

Snap-in design

8

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS

B. C. A.

• Fiber couplers are integrated into the bezel

• Designed with metal sleeves

FIBER OPTIC ELITE™ BEZELS

• Install bezels in Elite

TM

series faceplates, outlets and MUTOA boxes

• Package includes icons

PART NO. DESCRIPTION

A. IC108BFCxx¹ SC duplex to SC duplex, fl at
B. IC108BFDxx¹ 2 SC duplex to SC duplex, fl at
C. IC108BACxx¹ SC duplex to SC duplex, angled

E. Front D.

B.A.

E. Rear

D. IC108BFTxx¹ ST duplex to ST duplex, fl at
E. IC108BFRxx¹ SC duplex to ST duplex, fl at

Color (xx¹) = WH IV

FIBER OPTIC SLIM BEZELS

• Fiber couplers are integrated into the bezel

• Install slim bezels inside the bottom of Elite

PART NO. DESCRIPTION

A. ICFOBWLBxx¹ Dual LC duplex to LC duplex, metal sleeves
B. ICFOBWCBxx¹ SC duplex to SC duplex, metal sleeves
C. ICFOBWTBxx¹ ST duplex to ST duplex, metal sleeves

Color (xx¹) = WH IV GY

TM

multimedia outlets

C.

ELITE™ MULTIMEDIA OUTLETS AND MUTOA BOXES ARE CONFIGURABLE WITH ELITE BEZELS AND SLIM BEZELS

Elite multimedia outlet

Two bezel openings on the front

Page 31

Slim bezels mount inside the
bottom of multimedia outlets
allowing fi ber to enter and
exit vertically.

9

WORK AREA OUTLETS RESIDENTIAL OUTLETS

A.

D.

WORK AREA OUTLETS

FACEPLATE FEATURES

B.

C.

INTEGRATED FACEPLATES WITH VOICE, CAT 5e DATA AND VIDEO

• Integrate all the connectivity into one faceplate

• One-piece design; no assembly required

• Designed with rear 110-Type IDC for fast termination

• Durable ABS plastic body

• 50 micro-inch gold plated contacts

• Package includes retention caps to secure wiring

PART NO. DESCRIPTION CARTON / CASE

E.

F.

A. ICRDSV05xx¹ 6P6C voice and CAT 5e data 25 / 100
B. ICRDSVF0xx¹ 6P6C voice and F-Type video 25 / 100
C. ICRDSVF5xx¹ 6P6C voice, CAT 5e data and F-Type video 25 / 100
D. ICRDSV25xx¹ 6P6C voice, CAT 5e data and 2 F-Type video 25 / 100
E. ICRDS0F5xx¹ CAT 5e data and F-Type video 25 / 100
F. ICRDS2F5xx¹ 2 CAT 5e data and 2 F-Type video 25 / 100

Color (xx¹) = WH IV AL

IDC contacts

Retention caps

INTEGRATED FACEPLATE FEATURES

All ports are embossed to identify applications. All modular connectors have 50 micro inch gold plated contacts for maximum performance.

10

Voice Port

Supports:

• Phones

• Fax machines

CAT 5e Data Port

Supports:

• Home networking

• 1 Gigabit per second

• High speed internet

F-Type Port

Supports:

• 2 GHz bandwidth

• Televisions

• Satellite

• Cable

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS SURFACE MOUNT BOXES

CLASSIC SURFACE MOUNT BOXES KITTED WITH VOICE AND CAT 5e DATA MODULAR CONNECTORS

• Comes with a voice or CAT 5e, EZ

®

style, modular connector

• Connectors are removable

• Package includes adhesive strips and wood screws for mounting

A.

B.

PART NO.
DESCRIPTION

A. IC625SV1xx¹ 1-Port box, with voice EZ connector
B. IC625SV2xx¹ 2-Port box with 2 voice EZ connectors

SURFACE MOUNT BOX KIT FEATURES

C.

D.

C. IC625S51xx¹ 1-Port box with CAT 5e EZ connector
D. IC625S52xx¹ 2-Port box with 2 CAT 5e EZ connectors

Color (xx¹) = WH IV

Removable cover

Removable side knockoutsRemovable cover

Snap-in design

.30" H

Rear cable exit

.30" W

110-Type IDC makes terminating fast

Port labeling area

Port labeling areasRemovable side knockouts

.43" H

Rear cable exit

.30" W

11

WORK AREA OUTLETS

HDMI MODULAR COUPLERS HD STYLE

• Female to female gold plated coupler

• Supports high-defi nition video: 1080p, 3D and HDCP

PART NO. DESCRIPTION CARTON / CASE

IC107HDMxx¹ HDMI connector 50 / 400

Color (xx¹) = WH IV BK AL

A. B.

WORK AREA OUTLETS

USB MODULAR COUPLERS HD STYLE

• Female to female coupler

PART NO. DESCRIPTION CARTON / CASE

A. IC107UAAWH USB coupler, A-to-A 50 / 400

• Supports USB connectivity; backwards compatible

B. IC107UABWH USB coupler, A-to-B

50 / 400

• Supports USB connectivity

• Reversible coupler with either the A or B port facing outward

Color = White

3.5mm STEREO AUDIO PLUG MODULAR CONNECTORS HD STYLE

• Rear push-pins accept UTP cable or any 22~24 AWG wire

• Terminals are marked for correct polarity

PART NO. DESCRIPTION CARTON / CASE

IC107SAPxx¹ 3.5mm connector to push pin 50 /400

Color (xx¹) = WH IV BK AL

12

3.5mm STEREO AUDIO PLUG MODULAR COUPLERS HD STYLE

• Female to female nickel plated coupler

PART NO. DESCRIPTION CARTON / CASE

IC107SACWH 3.5mm coupler, feed-through 50 / 400

Color = White

S-VIDEO MODULAR CONNECTORS HD STYLE

• Front female connector with rear 110-Type IDC termination

• Rear IDC accepts UTP cable or any 22~24 AWG wire

• Package includes a termination cap to secure wiring

PART NO. DESCRIPTION CARTON / CASE

IC107SVIxx¹ S-Video connector 50 / 400

Color (xx¹) = WH IV BK AL

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS

HDMI DÉCOREX™ INSERTS WITH 2 OPEN HIGH DENSITY PORTS

• Female to female gold plated coupler

• Supports high-defi nition video: 1080p, 3D and HDCP

• Package includes 2 blank modular inserts

PART NO. DESCRIPTION CARTON / CASE

IC107DH2xx¹ 1 HDMI coupler, 2 HD ports 25 / 200

Color (xx¹) = WH IV BK AL

DUAL HDMI DÉCOREX INSERTS WITH 2 OPEN HIGH DENSITY PORTS

• Female to female gold plated couplers

• Supports high-defi nition video: 1080p, 3D and HDCP

• Package includes 2 blank modular inserts

PART NO. DESCRIPTION CARTON / CASE

IC107DDHxx¹ 2 HDMI couplers, 2 HD ports 25 / 200

Color (xx¹) = WH IV BK AL

VGA DÉCOREX INSERTS WITH 2 OPEN HIGH DENSITY PORTS

• Female to female 15-Pin VGA coupler

• Supports high quality analog video

• Package includes 2 blank modular inserts

PART NO. DESCRIPTION CARTON / CASE

IC107DR2xx¹ 1 VGA coupler, 2 HD ports 25 / 200

Color (xx¹) = WH IV BK AL

VGA DÉCOREX INSERTS WITH 4 OPEN HIGH DENSITY PORTS

• Female to female 15-Pin VGA coupler

• Supports high quality analog video

• Package includes 4 blank modular inserts

PART NO. DESCRIPTION CARTON / CASE

IC107DR4xx¹ 1 VGA coupler, 4 HD ports 25 / 200

Color (xx¹) = WH IV BK AL

VGA Décorex Inserts

Connecting to computer monitors,
projectors and fl at screen TV's from
the wall outlet.

13

WORK AREA OUTLETS VIDEO CONNECTORS

F-TYPE VIDEO MODULAR CONNECTORS HD STYLE

A.

• Female to female feed-through connector

• Threaded connector to secure connection

• Works with RG-6 and RG-59 coaxial cable

PART NO. DESCRIPTION CARTON / CASE

A. IC107B9Fxx¹ F-Type nickel plated, 3 GHz (pictured) 50 / 400
IC107B9Gxx¹ F-Type gold plated, 3 GHz 50 / 400
IC107B5Fxx² F-Type nickel plated, 2 GHz 50 / 400
IC107B5Gxx² F-Type gold plated, 2 GHz 50 / 400

Color (xx¹) = WH IV BK AL Color (xx2) = WH IV GY BK AL

F-TYPE VIDEO MODULAR CONNECTOR HD STYLE VALUEPACKS

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

WORK AREA OUTLETS

A.

B.

• 25 pieces per bag

PART NO. DESCRIPTION CARTON / CASE

A. IC107BFCWH F-Type nickel plated, 2 GHz, 25 pcs. 10 / 40
B. IC107BGCWH F-Type gold plated, 2 GHz, 25 pcs. 10 / 40

Color = White

F-TYPE VIDEO MODULAR COMPRESSION CONNECTOR HD STYLE

• Front female nickel plated connector with rear compression connector

• Rear compression connector works with RG-6 quad shield coaxial cable

• Not compatible with plenum cable

PART NO. DESCRIPTION CARTON / CASE

IC107FQGWH F-Type, RG-6Q, blue band 50 / 400

Color = White

BNC VIDEO MODULAR CONNECTORS HD STYLE

• Female to female feed-through nickel plated connector

• Supports CCTV, NTSC Analog video signals and satellite link signals

PART NO. DESCRIPTION CARTON / CASE

IC107BNCxx¹ BNC connector, 75 Ohm 50 / 400
IC107B3Gxx¹ BNC connector, 50 Ohm 50 / 400

Color (xx¹) = WH IV BK

14

BNC VIDEO MODULAR COMPRESSION CONNECTOR HD STYLE

• Front female nickel plated connector with rear compression connector

• Rear compression connector works with RG-6 quad shield coaxial cable

• Not compatible with plenum cable

PART NO. DESCRIPTION CARTON / CASE

IC107BQCWH BNC, blue band, 75 Ohm 50 / 400

Color = White

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS AUDIO AND VIDEO CONNECTORS

RCA FEMALE-TO-RCA FEMALE MODULAR CONNECTORS HD STYLE

A.

• Female to female feed-through connector

PART NO. DESCRIPTION CARTON / CASE

A. IC107R6Gxx¹ Red insert (pictured) 50 / 400
IC107G6Gxx¹ Green insert 50 / 400
IC107L6Gxx¹ Blue insert 50 / 400
IC107B6Gxx¹ White insert 50 / 400
IC107Y6Gxx¹ Yellow insert 50 / 400
IC107K6Gxx¹ Black insert 50 / 400

Color (xx¹) = WH IV BK AL

RCA FEMALE-TO-F-TYPE MODULAR CONNECTORS HD STYLE

A.

• Front female connector with rear F-Type female connector

• Rear connector works with RG-6 and RG-59 coaxial cable

PART NO. DESCRIPTION CARTON / CASE

A. IC107RFGxx¹ Red Insert (pictured) 50 / 400
IC107GFGxx¹ Green Insert 50 / 400
IC107LFGxx¹ Blue Insert 50 / 400
IC107BFGxx¹ White Insert 50 / 400
IC107YFGxx¹ Yellow Insert 50 / 400
IC107KFGxx¹ Black Insert 50 / 400

Color (xx¹) = WH IV BK AL

A.

A.

RCA FEMALE-TO-IDC MODULAR CONNECTORS HD STYLE

• Front female connector with rear 110-Type IDC termination

• Rear IDC accepts UTP cable or any 22~24 AWG wire

• Package includes a termination cap to secure wiring

PART NO. DESCRIPTION CARTON / CASE

A. IC107R8Gxx¹ Red insert (pictured) 50 / 400
IC107G8Gxx¹ Green insert 50 / 400
IC107L8Gxx¹ Blue insert 50 / 400
IC107B8Gxx¹ White insert 50 / 400
IC107Y8Gxx¹ Yellow insert 50 / 400
IC107K8Gxx¹ Black insert 50 / 400

Color (xx¹) = WH IV BK AL

RCA MODULAR COMPRESSION CONNECTORS HD STYLE

• Front female nickel plated connector with rear compression connector

• Rear compression connector works with RG-6 quad shield coaxial cable

• Not compatible with plenum cable

PART NO. DESCRIPTION CARTON / CASE

A. IC107RQRWH Red insert, blue band (pictured) 50 / 400
IC107RQGWH Green insert, blue band 50 / 400
IC107RQLWH Blue insert, blue band 50 / 400
IC107RQWWH White insert, blue band 50 / 400
IC107RQYWH Yellow insert, blue band 50 / 400
IC107RQKWH Black insert, blue band 50 / 400

Color = White

A. B.

RCA SOLDER TAIL AND COMPONENT PACK MODULAR CONNECTORS

PART NO. DESCRIPTION

A. IC107B7Gxx¹ Solder Tail, Black Insert, HD style

• Front female connector with rear solder tail termination

B. IC107RR5xx
IC107RF5xx
IC107RD5xx

2

Female to female connector, HD style, 5 pcs. (pictured)

2

Front female with rear F-Type female, HD style, 5 pcs.

2

Front female with rear 110-Type IDC termination, HD style, 5 pcs.

• Includes connectors with 2 red, 1 green, 1 blue and 1 white insert

• 5 pieces per bag

Color (xx¹) = WH IV AL Color (xx2) = WH IV BK AL

15

WORK AREA OUTLETS AUDIO SPEAKER CONNECTORS

DUAL AUDIO SPEAKER MODULAR CONNECTORS HD STYLE

• Front push buttons with rear crimp-on wire connector

• Black and red push buttons have + and - signs for correct polarity

• Accepts speaker wire up to 16 AWG

• Patented design

PART NO. DESCRIPTION CARTON / CASE

IC107DSCxx¹ Front speaker connector 50 / 400

Color (xx¹) = WH IV BK AL

DUAL FRONT AND BACK AUDIO SPEAKER MODULAR CONNECTORS
HD STYLE

• Front and rear push buttons

WORK AREA OUTLETS

• Black and red push buttons have + and - signs for correct polarity

• Accepts speaker wire up to 16 AWG

• Patented design

PART NO. DESCRIPTION CARTON / CASE

IC107DSBxx¹ Front and rear speaker connector 50 / 400

Color (xx¹) = WH IV

SPRING CLIP AUDIO SPEAKER MODULAR CONNECTORS HD STYLE

• Front spring clip with rear crimp-on wire connector

• Front accepts speaker wire up to 12 AWG

• Rear accepts speaker wire up to 16 AWG

• Comes in pairs with red and black clips for correct polarity

• Patented design

PART NO. DESCRIPTION CARTON / CASE

IC107BSSBK Spring clip connectors 50 / 400

Color = Black

BINDING POST AUDIO SPEAKER MODULAR CONNECTORS HD STYLE

• Front gold plated binding post with female banana plug

• Rear set-screw connection

• Accepts speaker wire up to 8 AWG

• Comes in pairs with red and black bands for correct polarity

PART NO. DESCRIPTION CARTON / CASE

IC107PMGxx¹ Binding post connectors, gold plated 50 / 400

Color (xx¹) = WH IV BK AL

16

Home Theater Solution

Install 7.1 surround sound, high
defi nition and component A/V as
well as satellite and cable input in
a DécorexTM quad-gang faceplate.

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS AUDIO AND VIDEO CONNECTORS

A. B. C.

A. B. C.

BINDING POST AUDIO SPEAKER DÉCOREX™ INSERTS

• Front gold plated binding post with female banana plug

• Rear set-screw connection

• Accepts speaker wire up to 8 AWG

• Red and black bands for correct polarity

PART NO. DESCRIPTION

A. ICRDSSBPxx¹ 2 binding posts
B. ICRDSDBPxx² 4 binding posts
C. ICRDSQBPxx² 8 binding posts

Color (xx¹) = WH IV Color (xx2) = WH IV AL

F-TYPE AND RCA DÉCOREX INSERTS

PART NO. DESCRIPTION

A. IC630DSFxx¹ F-Type connector
B. IC630DDFxx¹ 2 F-Type connectors

• Female to female F-Type connector

C. ICRDS3RFxx² F-Type connector and 3 RCA connectors

• Female to female F-Type connector

• 3 RCA female connectors with rear F-Type connectors

• Rear works with RG-6 and RG-59 coaxial cable

Color (xx¹) = WH IV AL Color (xx2) = WH IV

A. B.

BLANK FILL-IN MODULAR INSERTS HD STYLE

• Fills open and unused ports until they are needed

PART NO. DESCRIPTION CARTON / CASE

A. IC107BN0xx¹ Blank fi ll-in insert, 10 pcs. 25 / 200
B. IC107BNVxx² Blank fi ll-in insert, 100 pcs. VALUEPACK

Color (xx¹) = WH IV GY BK AL Color (xx2) = WH IV BK

CABLE FEED-THROUGH MODULAR INSERTS HD STYLE

• Allows cable to pass through a 0.30 inch diameter hole

PART NO. DESCRIPTION CARTON / CASE

IC107BN2xx¹ Cable feed-through insert, 10 pcs. 75 / 300

Color (xx¹) = WH IV GY AL

DUST COVER

• Works with CAT 6A, CAT 6, CAT 5e and voice

modular connectors and patch panels

• Snaps on the port opening to prevent dust

from entering

PART NO. DESCRIPTION

ICACSDCICL Dust cover, 10 pcs.
ICACSDCVCL Dust cover, 100 pcs.

Color = Clear

VALUEPACK

17

WORK AREA OUTLETS FACEPLATES

A. B. C. D. E.

F. G .

WORK AREA OUTLETS

H. I.

CLASSIC CONFIGURABLE FACEPLATES

• Flush mount style

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC107F01xx¹ 1-Port, single gang 25 / 200
B. IC107F02xx¹ 2-Ports, single gang 25 / 200
C. IC107F03xx¹ 3-Ports, single gang 25 / 200
D. IC107F04xx¹ 4-Ports, single gang 25 / 200
E. IC107F06xx¹ 6-Ports, single gang 25 / 200

F. IC107FD8xx¹ 8-Ports, double gang 25 / 100
G. IC107F12xx¹ 12-Ports, double gang 25 / 100

H. IC107FT9xx² 9-Ports, triple gang 25 / 200
I. IC107FT0xx² 12-Ports, triple gang 25 / 100

Color (xx¹) = WH IV GY BK AL Color (xx2) = WH IV GY

CLASSIC CONFIGURABLE FACEPLATE VALUEPACKS

A.

• Packaged in a resealable box for easy storage

• Reduces packaging waste

• 25 pieces per box

PART NO. DESCRIPTION

A. IC107F1Cxx¹ 1-Port, single gang, 25 pcs.
IC107F2Cxx¹ 2-Ports, single gang, 25 pcs.
IC107F3Cxx¹ 3-Ports, single gang, 25 pcs.
IC107F4Cxx¹ 4-Ports, single gang, 25 pcs.

Color (xx¹) = WH IV

CLASSIC CONFIGURABLE FACEPLATE FEATURES

We offer a wide selection of classic faceplates. They are confi gurable with modular connectors, couplers and adapters and are designed to fi t

standard NEMA outlet boxes. Faceplates come in various colors.

Retainer

18

4.50" H

2.75" W

Classic: Traditional design Stainless Steel: Greater durability, easy-to-clean Angled: Reduces cord bending

888.ASK.4ICC | [email protected] | icc.com | MPS

Front Rear

WORK AREA OUTLETS FACEPLATES

B. C. D. E. A.

F. G.

A. B. C. D. E.

F.

CLASSIC STAINLESS STEEL CONFIGURABLE FACEPLATES

• Flush mount style

• Corrosion resistant 304 stainless steel

PART NO. DESCRIPTION CARTON / CASE

A. IC107SF1SS 1-Port, single gang 25 / 200
B. IC107SF2SS 2-Ports, single gang 25 / 200
C. IC107SF3SS 3-Ports, single gang 25 / 200
D. IC107SF4SS 4-Ports, single gang 25 / 200
E. IC107SF6SS 6-Ports, single gang 25 / 200

F. IC107DF4SS 4-Ports, double gang 25 / 100
G. IC107DF8SS 8-Ports, double gang 25 / 100

CLASSIC ANGLED CONFIGURABLE FACEPLATES

• Angled ports help reduce cable stress

• Flush mount style

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC107DA1xx¹ 1-Port angled, single gang 25 / 200
B. IC107DA2xx¹ 2-Ports angled, single gang 25 / 200
C. IC107AF2xx² 1-Port fl at, 1-Port angled, single gang 25 / 200
D. IC107DA4xx¹ 4-Ports angled, single gang 25 / 200
E. IC107AF4xx² 2-Ports fl at, 2-Ports angled, single gang 25 / 200
F. IC107AF8xx² 4-Ports fl at, 4-Ports angled, double gang 25 / 200

Color (xx¹) = WH IV AL Color (xx2) = WH IV

B. C. D. E. A.

CLASSIC OVERSIZED CONFIGURABLE FACEPLATES

• Designed to cover uneven and oversized drywall cuts

• Larger than standard faceplates

• Flush mount style

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC107LF1xx¹ 1-Port, single gang 25 / 200
B. IC107LF2xx¹ 2-Ports, single gang 25 / 200
C. IC107LF3xx¹ 3-Ports, single gang 25 / 200
D. IC107LF4xx¹ 4-Ports, single gang 25 / 200
E. IC107LF6xx¹ 6-Ports, single gang 25 / 200

Color (xx¹) = WH IV AL

4.87" H

3.12" W

19

WORK AREA OUTLETS FACEPLATES

A. B. C. D. E.

F. G .

WORK AREA OUTLETS

A. B. C. D. E.

CLASSIC CONFIGURABLE FACEPLATES WITH STATION ID

• Flush mount style

• Durable ABS plastic

• Package includes paper labels and clear view covers

PART NO. DESCRIPTION CARTON / CASE

A. IC107S01xx¹ 1-Port, single gang 25 / 200
B. IC107S02xx¹ 2-Ports, single gang 25 / 200
C. IC107S03xx¹ 3-Ports, single gang 25 / 200
D. IC107S04xx¹ 4-Ports, single gang 25 / 200
E. IC107S06xx¹ 6-Ports, single gang 25 / 200

F. IC107SD8xx¹ 8-Ports, double gang 25 / 100
G. IC107ST9xx¹ 9-Ports, triple gang 25 / 100

Color (xx¹) = WH IV

CLASSIC STAINLESS STEEL CONFIGURABLE FACEPLATES WITH STATION ID

• Flush mount style

• Corrosion resistant 304 stainless steel

• Package includes paper labels and clear view covers

PART NO. DESCRIPTION CARTON / CASE

A. IC107S01SS 1-Port, single gang 25 / 200
B. IC107S02SS 2-Ports, single gang 25 / 200
C. IC107S03SS 3-Ports, single gang 25 / 200
D. IC107S04SS 4-Ports, single gang 25 / 200
E. IC107S06SS 6-Ports, single gang 25 / 200

A. B. C.

THREE STYLES OF CONFIGURABLE FACEPLATES

Accept labels up to

1.70” W x 0.40” H

CLASSIC ANGLED CONFIGURABLE FACEPLATES WITH STATION ID

• Angled ports help reduce cable stress

• Flush mount style

• Durable ABS plastic

• Package includes paper labels and clear view covers

PART NO. DESCRIPTION CARTON / CASE

A. IC107AS2xx¹ 1-Port fl at, 1-Port angled, single gang 25 / 200
B. IC107AS4xx¹ 2-Ports fl at, 2-Ports angled, single gang 25 / 200
C. IC107AS8xx¹ 4-Ports fl at, 4-Ports angled, double gang 25 / 200

Color (xx¹) = WH IV

HDMI DécorexTM Inserts

20

Station ID ElectricalDécorex

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS FACEPLATES

DÉCOREX™ CONFIGURABLE INSERTS

• Inserts are confi gurable with modular connectors

A. B. C. D. E. F.

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC107DI1xx¹ 1-Port 50 / 400
B. IC107DI2xx¹ 2-Ports 50 / 400
C. IC107DI3xx¹ 3-Ports 50 / 400
D. IC107DI4xx¹ 4-Ports; works with HD style connectors only 50 / 400
E. IC107DI6xx¹ 6-Ports; works with HD style connectors only 50 / 400
F. IC630DIBxx² Blank insert 50 / 400

Color (xx¹) = WH IV BK AL Color (xx2) = WH IV

A. B. C.

D.

A. B.

DÉCOREX CONFIGURABLE FACEPLATES

• Faceplates are confi gurable with Décorex inserts

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC107DFSxx¹ 1-Insert space, single gang 25 / 200
B. IC107DFDxx¹ 2-Insert spaces, double gang 25 / 200
C. IC107DFTxx¹ 3-Insert spaces, triple gang 50 / 200
D. IC107DFQxx¹ 4-Insert spaces, quad gang 25 / 100

Color (xx¹) = WH IV BK AL

DÉCOREX STAINLESS STEEL CONFIGURABLE FACEPLATES

• Faceplates are confi gurable with Décorex inserts

• Corrosion resistant 304 stainless steel

PART NO. DESCRIPTION CARTON / CASE

A. IC107DFSSS 1-Insert space, single gang 25 / 100
B. IC107DFDSS 2-Insert spaces, double gang 25 / 100

A. B. C. D.

HD style

ELECTRICAL CONFIGURABLE FACEPLATES & INSERTS

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC106FP2xx¹ 2-Ports, single gang faceplate 25 / 500
B. IC106FP4xx² 4-Ports, double gang faceplate 25 / 250

• Faceplates are confi gurable with electrical inserts

C. IC107DPIxx¹ 2-Ports, insert
D. IC1074PIxx¹ 4-Ports, insert; works with HD style connectors only 50 / 400

50 / 400

• Inserts are confi gurable with modular connectors

Color (xx¹) = WH IV AL Color (xx2) = WH IV

For Electrical Floor Boxes

Electrical inserts are confi gurable with voice,
data, audio, video and fi ber optic modular
connectors. They can also be installed in
NEMA electrical boxes on the fl oor.

21

WORK AREA OUTLETS

A. B.

A. B.

WORK AREA OUTLETS

FLUSH CONFIGURABLE TELEPHONE WALL PLATES

• Designed with standoffs to mount phones on walls and vertical surfaces

• Flush mount style

PART NO. DESCRIPTION CARTON / CASE

A. IC107FFWSS 1-Port, single gang, stainless steel 25 / 200
B. IC107FFWxx¹ 1-Port, single gang, ABS plastic 25 / 200

Color (xx¹) = WH IV BK AL

RECESSED CONFIGURABLE TELEPHONE WALL PLATES

• Designed with standoffs to mount phones on walls and vertical surfaces

• Recessed style

• Use color ID caps for a clean appearance

PART NO. DESCRIPTION CARTON / CASE

A. IC107FRWSS 1-Port, single gang, stainless steel 25 / 200
B. IC107FRWxx¹ 1-Port, single gang, ABS plastic 25 / 200

Color (xx¹) = WH IV BK AL

A. B. C.

RECESSED CONFIGURABLE TELEPHONE WALL PLATES

• Designed with standoffs to mount phones on walls and vertical surfaces

• Recessed style

• Durable ABS plastic

• Use color ID caps for a clean appearance

PART NO. DESCRIPTION CARTON / CASE

IC107FWPxx¹ 1-Port, single gang 25 / 200

Color (xx¹) = WH IV BK AL

BLANK FACEPLATES

• Covers open and unused wall outlets until needed

PART NO. DESCRIPTION CARTON / CASE

A. IC630EBSSS Blank, single gang, stainless steel 25 / 200
B. IC630EB0xx¹ Blank, single gang, ABS plastic 25 / 200
C. IC630EBDxx¹ Blank, double gang, ABS plastic 25 / 100

Color (xx¹) = WH IV AL

22

Blank Faceplates

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS

A.

B.

A. B.

BULK NOSE FACEPLATES

• Faceplates are molded with large opening

• Allows bulky cable to pass through the wall outlet

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC640BSSxx¹ Single gang 15 / 120

• 1.25" W x 0.90" D opening

B. IC640BDSxx¹ Double gang

10 / 80

• 2.75" W x 1.15" D opening

Color (xx¹) = WH IV

INTERNATIONAL CONFIGURABLE FACEPLATES

• Works with international wall outlet dimensions

• Spring loaded shutters in ports, prevent dust from entering

• Recessed areas above and below ports for easy labeling

PART NO. DESCRIPTION CARTON / CASE

A. IC107EF1WH 1-Port, 86 mm H x 86 mm W 25 / 200
B. IC107EF2WH 2-Ports, 86 mm H x 86 mm W 25 / 200

Color = White

EURO STYLE CONFIGURABLE ELITE™ MULTIMEDIA BOXES

• Works with international European wall outlet dimensions

• Two-piece design, faceplate and mounting box

• Confi gurable with Elite bezels

• Box is designed with knockouts to work with raceway systems

• Package includes paper labels, clear view covers and mounting screws

PART NO. DESCRIPTION

IC108CE1xx¹ 1-Bezel opening, 83.5 mm H x 83.5 mm W x 55.626 mm D

Color (xx¹) = WH IV GY

Bulk Nose Faceplates

23

WORK AREA OUTLETS SCREW TERMINAL OUTLETS

WALL PLATES INTEGRATED WITH VOICE AND VIDEO

• One-piece design; no assembly required

A. B. C. D. E.

• Designed with rear Phillips screw down terminals

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC630E60xx¹ 6P6C, single gang 25 / 200
B. IC630E66xx¹ 2 6P6C, single gang 25 / 200
C. IC630EG0xx¹ F-Type, single gang 25 / 200
D. IC630EGGxx¹ 2 F-Type, single gang 25 / 200
E. IC630E6Gxx¹ 6P6C and F-Type, single gang 25 / 200

Color (xx¹) = WH IV

SURFACE MOUNT JACKS INTEGRATED WITH VOICE

• Two-piece design; cover and base

A. B.

WORK AREA OUTLETS

• Wiring diagram is molded under the cover

• Designed with rear Phillips screw down terminals

• Package includes adhesive strips and wood screws for mounting

PART NO. DESCRIPTION CARTON / CASE

A. IC625SB6xx¹ 6P6C 100 / 400
B. IC625SB8xx¹ 8P8C 100 / 400

Color (xx¹) = WH IV

SURFACE MOUNT JACKS INTEGRATED WITH VOICE

• Two-piece design; cover and base

A. B.

• Wiring diagram is molded under the cover

• Designed with a keyed RJ31X jack with shorting bar

• Designed with rear Phillips screw down terminals

• Package includes adhesive strips and wood screws for mounting

PART NO. DESCRIPTION CARTON / CASE

A. IC635DS4xx¹ 8P4C 75 / 300
B. IC635DS8xx¹ 8P8C 75 / 300

Color (xx¹) = WH IV

SCREW DOWN TERMINATION FEATURES

Wall plates, surface mount jacks and DécorexTM inserts are designed with deep slotted Phillips screw heads to provide a traditional way to terminate wires.

Wiring diagram is molded under the cover

Deep slotted and fl at Phillips screws will not slip

when using automatic screw drivers

24

Removable side knockouts

Double washers so wires will not unwind

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS

A. B. C.

DÉCOREX INSERTS INTEGRATED WITH VOICE AND VIDEO

• Designed with rear Phillips screw down terminals

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

A. IC630DI6xx¹ 6P6C 25 / 200
B. IC630DD6xx¹ 2 6P6C 50 / 400
C. IC630DVFxx¹ 6P6C and F-Type 25 / 200

Color (xx¹) = WH IV AL

TELEPHONE WALL PLATES INTEGRATED WITH VOICE

• Designed with standoffs to mount phones on walls and vertical surfaces

• Designed with rear Phillips screw down terminals

• Durable ABS plastic

PART NO. DESCRIPTION CARTON / CASE

IC630DB6xx¹ 6P6C, single gang 25 / 200

Color (xx¹) = WH IV

A. B.

Telephone Wall Plates

Designed with mounting standoffs
so phones can be hung securely
on the wall.

TELEPHONE WALL PLATES INTEGRATED WITH VOICE

• Designed with standoffs to mount phones on walls and vertical surfaces

• Designed with rear 110-Type IDC for fast termination

• Package includes 110 punch-down termination tool

PART NO. DESCRIPTION CARTON / CASE

A. IC630DA6SS 6P6C, single gang, stainless steel 25 / 200
B. IC630SS6xx¹ 6P6C, single gang, ABS plastic 25 / 200

Color (xx¹) = WH IV

Page

22 and 25

25

WORK AREA OUTLETS FURNITURE FACEPLATES

CONFIGURABLE HIGH DENSITY NEMA MODULAR FURNITURE FACEPLATES

• Fits in offi ce furniture with NEMA size openings

HD modular connectors

• Faceplates are confi gurable with HD style connectors only

Port labeling areas

Station ID

PART NO. IC107FN4xx¹

WORK AREA OUTLETS

CONFIGURABLE HIGH DENSITY TIA MODULAR FURNITURE FACEPLATES

2.60" W

• Fits in offi ce furniture with TIA size openings

• Faceplates are confi gurable with HD style connectors only

1.83" H

0.19" D

Color (xx¹) = WH IV BK AL

HD modular connectors

GY

Port labeling areas

Station ID

PART NO. IC107FT4xx¹

CONFIGURABLE MODULAR FURNITURE FACEPLATES

• Fits in offi ce furniture with TIA size openings

• Faceplates are confi gurable with EZ

Port labeling areas

®

and HD style connectors

2.60" W

2.56" W

1.33" H

1.30" H

0.19" D

0.19" D

GY

Color (xx¹) = WH IV BK AL

EZ modular connectors

GY

26

PART NO. IC107FM3xx¹

CONFIGURABLE UNIVERSAL MODULAR FURNITURE FACEPLATES WITH ADJUSTABLE LOCKING TABS

• Two-piece design, faceplate and mounting box

• Faceplates are confi gurable with EZ

®

and HD style connectors

• Package includes wood screws for mounting

PART NO. IC108UF4xx¹

Station ID 1.76" D

888.ASK.4ICC | [email protected] | icc.com | MPS

Adjustable 2.0" to 3.5" W

Adjustable 0.875" to 2.375" H

2.34" to 3.50" W

0.82" to 1.93" H

Color (xx¹) = WH IV BK AL

GY

Color (xx¹) = WH IV BK AL

WORK AREA OUTLETS MOUNTING BOXES

A. B.

MOUNTING BOXES

• Durable ABS plastic

• Package includes adhesive strips and wood screws for mounting

• Package includes cable ties for cable management

PART NO. DESCRIPTION

A. IC107MRSxx¹ Single gang, 4.5" H x 2.75" W x 1.89" D
B. IC107MRDxx¹ Double gang, 4.5" H x 4.6" W x 1.89" D

Color (xx¹) = WH IV

LOW-PROFILE MOUNTING BOXES

• Works with wall plates and Décorex inserts with screw-down terminals only

• Durable ABS plastic

• Package includes wood screws for mounting

PART NO. DESCRIPTION

IC250MBSxx¹ Single gang, 4.5" H x 2.75" W x 0.93" D

Color (xx¹) = WH IV

JUNCTION BOXES

A. B.

• Two-piece design; mounting box and base

• Durable ABS plastic

• Package includes adhesive strips and wood screws for mounting

• Package includes cable ties for cable management

PART NO. DESCRIPTION

A. ICACSMBSxx¹ Single gang, 4.5" H x 2.75" W x 1.89" D
B. ICACSMBDxx¹ Double gang, 4.5" H x 4.6" W x 1.89" D

Color (xx¹) = WH IV

MOUNTING AND JUNCTION BOX FEATURES

Mounting and junction boxes fi t standard NEMA outlet boxes. They work with single and double gang faceplates. Designed with routing posts,

cable tie points and knockouts to work with raceway systems.

Routing postsKnockout

Mounting boxes: Cables need to be pulled

through the box prior to mounting.

Junction boxes: Bases and raceway can be

mounted prior to cable pulling.

27

WORK AREA OUTLETS SURFACE MOUNT BOXES

A. B. C.

CLASSIC CONFIGURABLE SURFACE MOUNT BOXES

• Two-piece design; cover and base

• Durable ABS plastic

• Package includes adhesive strips and wood screws for mounting

PART NO. DESCRIPTION

A. IC107SB1xx¹ 1-Port
B. IC107SB2xx¹ 2-Ports
C. IC107SB4xx² 4-Ports

D. E.

WORK AREA OUTLETS

A.

D. IC107SB6xx² 6-Ports
E. IC107SBTxx² 12-Ports, 1 station ID, works with raceway and magnets

Color (xx¹) = WH IV GY BK Color (xx2) = WH IV BK

CLASSIC CONFIGURABLE SURFACE MOUNT BOX VALUEPACKS

• Packaged in a resealable box for easy storage

• Reduces packaging waste

• 25 pieces per box

PART NO. DESCRIPTION

A. IC107BC1xx¹ 1-Port, 25 pcs.
IC107BC2xx¹ 2-Ports, 25 pcs.

Color (xx¹) = WH IV

C. A.

ELITE™ CONFIGURABLE SURFACE MOUNT BOXES

• Two-piece design; cover and base

• Designed to work with raceway and magnets

• Durable ABS plastic

• Package includes adhesive strips and wood screws for mounting

• Package includes icons

PART NO. DESCRIPTION

B. D.

SURFACE MOUNT BOX FEATURES

Classic and EliteTM surface mount boxes are confi gurable with HD and EZ® style modular connectors.

Elite boxes and 12-Port classic box work with raceway

Magnets (optional) Cable tie anchor pointsRemovable cover

A. IC108SB1xx¹ 1-Port
B. IC108SB2xx¹ 2-Ports
C. IC108SB4xx¹ 4-Ports, includes cable ties
D. IC108SB6xx¹ 6-Ports, includes cable ties

Color (xx¹) = WH IV GY

28

Classic 2-Port box Classic 12-Port box Elite 4-Port box

888.ASK.4ICC | [email protected] | icc.com | MPS

WORK AREA OUTLETS MOBILE PATCH BOXES

6-PORT CAT 6 AND CAT 5e MOBILE PATCH BOXES

A.

• Two-piece design; cover and base

• Designed with rear 110-Type IDC for fast termination

• 50 micro-inch gold plated contacts

• Exceeds TIA-568 CAT 6 and CAT 5e performance standards

• Package includes wood screws for mounting

• Package includes cable ties for cable management

• Durable ABS plastic

PART NO. DESCRIPTION

B.

A. ICMPPMB606 CAT 6, 8P8C, 6-Ports
B. ICMPPMB506 CAT 5e, 8P8C, 6-Ports

6-PORT CONFIGURABLE MOBILE PATCH BOX

• Two-piece design; cover and base

• Box is confi gurable with modular connectors

• Package includes wood screws for mounting

• Package includes cable ties for cable management

• Durable ABS plastic

PART NO. DESCRIPTION

IC107MB6BK 6-Ports blank

METAL AND ADHESIVE MAGNETS

A. B.

• To mount boxes on fl at metal surfaces

PART NO. DESCRIPTION

A. ICMAGBLOCK Metal magnet, 2 pcs.

• Works with boxes designed with magnet holders

B. IC317MTAPE Adhesive magnet, 2 pcs.

• Magnetic front with rear adhesive tape

• Works with all boxes

MOBILE PATCH BOX FEATURES

Mobile patch boxes allow connectivity in open environments where outlet is unavailable. Use for temporary workstations, POS terminals, warehouses,

industrial environment, tradeshows, retail showrooms and more.

Dust covers

Magnets (optional)

Universal T568A and T568B wiring Strain relief

Snap-in design

Confi gurable Integrated

Magnets (optional)

29

WORK AREA OUTLETS ELITE FACEPLATES AND OUTLETS

FLAT AND ANGLED ELITE™ BEZELS

• Install bezels in Elite

TM

series faceplates, outlets and MUTOA boxes

• Package includes icons

PART NO.
DESCRIPTION

IC108BF1xx¹

1-Port, fl at

IC108BF2xx¹

2-Ports, fl at

WORK AREA OUTLETS

SINGLE AND DOUBLE GANG ELITE™ FACEPLATES WITH STATION ID

IC108BA1xx¹

1-Port, angled

IC108BA2xx¹

2-Ports, angled

Color (xx¹) = WH IV

IC108BFBxx¹

Blank, fl at

Color (xx¹) = WH IV

Confi gurable with

TM

bezels

Elite

PART NO.
DESCRIPTION

IC108F01xx¹

1-Bezel opening

IC108F02xx¹

2-Bezel openings

IC108FD4xx¹

4-Bezel openings

MULTI-USER TELECOMMUNICATIONS OUTLET ASSEMBLY (MUTOA) ELITE™ MULTIMEDIA BOXES

Package includes:

• Cover and base

• Cable ties for cable management

• Paper labels and clear view covers

• Adhesive strips and wood screws for mounting

1-Bezel opening

8.67" H

Knockouts on top and bottom work with raceway

6-Bezel openings

Color (xx¹) = WH IV GY

Circuit identifi cation label

30

PART NO. DESCRIPTION

IC108MMBxx¹ MUTOA multimedia box with 7 Elite bezel openings

888.ASK.4ICC | [email protected] | icc.com | MPS

Magnets (optional)

8.50" W

2.41" D

WORK AREA OUTLETS ELITE FACEPLATES AND OUTLETS

SINGLE GANG ELITE™ MULTIMEDIA OUTLETS

Package includes:

• Cover and base

• Cable ties for cable management

• Paper labels and clear view covers

• Wood screws for mounting

2-Bezel openings

Color (xx¹) = WH IV GY

Confi gurable with EliteTM bezels

Fits single

gang outlet

7.50" H

1" D

PART NO. DESCRIPTION

IC108WBSxx¹ Single gang multimedia outlet with 2 Elite and 2 slim bezel openings

DOUBLE GANG ELITE™ MULTIMEDIA OUTLETS

Package includes:

4.45" W

• Cover and base

• Cable ties for cable management

• Paper labels and clear view covers

• Wood screws for mounting

4-Bezel openings

Fits double

gang outlet

7.50" H

2 slim bezel openings

Color (xx¹) = WH IV GY

6" W1" D

PART NO. DESCRIPTION

IC108WBDxx¹ Double gang multimedia outlet with 4 Elite and 3 slim bezel openings

3 slim bezel openings

31

PATCH PANELS & CROSS-CONNECT

CAT 6A PATCH PANELS

CAT 6A 10G UNSHIELDED TWISTED PAIR (UTP) PATCH PANEL

• Permanent Link performance tested up to 7.3dB headroom at 500 MHz

• Panel comes with 24 CAT 6A UTP HD style black modular connectors

• 50 micro-inch gold plated contacts

• Fits standard 19” EIA rack mount widths

• Package includes cable management bar, cable ties and #12 rack screws

PART NO. DESCRIPTION

ICMPP246AU 24-Port CAT 6A UTP patch panel, 1 RMS*

PATCH PANELS & CROSS-CONNECT

PERMANENT LINK PERFORMANCE TEST

100

80

60

40

20

0

0500

Installed with ICC premise cable and tested per TIA

Permanent Link specifi cation

NEXTdB

Signal transmission

Headroom

TIA standard limit

Frequency (MHz)

CAT 6A 10G FOILED TWISTED PAIR (FTP) PATCH PANEL

• Permanent Link performance tested up to 2.8dB headroom at 500 MHz

• FTP provides excellent protection against EMI/RFI interferences

• Panel comes with 24 CAT 6A FTP HD style modular connectors

• 50 micro-inch gold plated contacts

• Pre-installed grounding studs

• Fits standard 19” EIA rack mount widths

• Package includes cable management bar, cable ties and #12 rack screws

PART NO. DESCRIPTION

ICMPP246AS 24-Port CAT 6A FTP patch panel, 1 RMS*

PERMANENT LINK PERFORMANCE TEST

100

80

60

40

20

0

0500

Installed with ICC premise cable and tested per TIA

Permanent Link specifi cation

NEXTdB

TIA standard limit

Frequency (MHz)

32

*1 RMS (rack mount space) = 1.75" H

888.ASK.4ICC | [email protected] | icc.com | CXS

PATCH PANELS & CROSS-CONNECT PATCH PANEL FEATURES

HORIZONTAL PATCH PANEL FEATURES

• Exceeds TIA-568 performance standards

• Built-in PCB technology for maximum signal quality

• 50 micro-inch gold plated contacts

Color wiring diagram makes termination fast and easy

VERTICAL ZERO-U PATCH PANEL FEATURES

• Designed to mount on walls and distribution racks, uses no rack space

• Exceeds TIA-568 performance standards

4-Pair punch-down tool

Nylon cable ties

Retention caps

Purchased separately

• Built-in PCB technology for maximum signal quality

• 50 micro-inch gold plated contacts

Rear 110-Type IDC

FRONT ACCESS ZERO-U PATCH PANEL FEATURES

• Designed to mount on walls and distribution racks, uses no rack space

• Exceeds TIA-568 performance standards

• Front access 110-Type IDC terminations

• 50 micro-inch gold plated contacts

• Designed for wall mount

• Removable cover

33

PATCH PANELS & CROSS-CONNECT

CAT 6 AND CAT 5e PATCH PANELS

CAT 6 AND CAT 5e 12-PORT VERTICAL ZERO-U PATCH PANELS

• Two-piece design; patch panel with 89D mounting bracket

• Designed to mount on walls and distribution racks, uses no rack space

• 10” H x 3.30” W x 2.40” D

• Package includes cable ties for cable management

PART NO. DESCRIPTION CARTO N

ICMPP12V60 CAT 6, 12-Ports, 8P8C 25
ICMPP12V5E CAT 5e, 12-Ports, 8P8C 25

CAT 6 AND CAT 5e 24-PORT PATCH PANEL

• Fits standard 19” EIA rack mount widths

• Package includes cable ties and #12 rack screws

PART NO. DESCRIPTION CARTO N

ICMPP02460 CAT 6, 24-Ports, 8P8C, 1 RMS* 16
ICMPP0245E CAT 5e, 24-Ports, 8P8C, 1 RMS* 16

PATCH PANELS & CROSS-CONNECT

CAT 6 AND CAT 5e 48-PORT PATCH PANEL

• Fits standard 19” EIA rack mount widths

• Package includes cable ties and #12 rack screws

PART NO. DESCRIPTION CARTO N

ICMPP04860 CAT 6, 48-Ports, 8P8C, 2 RMS* 10
ICMPP0485E CAT 5e, 48-Ports, 8P8C, 2 RMS* 10

CAT 6 AND CAT 5e 12-PORT FRONT ACCESS ZERO-U PATCH PANELS

• Two-piece design; patch panel with removable cover

• Front access 110-Type IDC terminations

• Designed to mount on walls and distribution racks, uses no rack space

PART NO. DESCRIPTION CARTO N

ICMPP12F6E CAT 6, 12-Ports, 8P8C, front access 10
ICMPP12F5E CAT 5e, 12-Ports, 8P8C, front access 10

*1 RMS (rack mount space) = 1.75" H

34

DUST COVER

• Works with CAT 6A, CAT 6, CAT 5e and voice modular

connectors and patch panels

• Snaps on the port opening to prevent dust from entering

PART NO. DESCRIPTION

ICACSDCICL Dust cover, 10 pcs.
ICACSDCVCL Dust cover, 100 pcs.

Color = Clear

888.ASK.4ICC | [email protected] | icc.com | CXS

VALUEPACK

PATCH PANELS & CROSS-CONNECT VOICE PATCH PANELS

VOICE 12-PORT USOC VERTICAL ZERO-U PATCH PANEL

• Two-piece design; patch panel with 89D mounting bracket

• Designed to mount on walls and distribution racks, uses no rack space

• 10” H x 3.30” W x 2.40” D

• Package includes cable ties for cable management

PART NO. DESCRIPTION CARTO N

ICMPP012U6 12-Ports, 6P6C, USOC wiring 25

VOICE 24-PORT USOC PATCH PANEL

• Fits standard 19” EIA rack mount widths

• Package includes cable ties and #12 rack screws

PART NO. DESCRIPTION CARTO N

ICMPP024U6 24-Ports, 6P6C, USOC wiring, 1 RMS* 15

VOICE 48-PORT USOC PATCH PANEL

• Fits standard 19” EIA rack mount widths

• Package includes cable ties and #12 rack screws

PART NO. DESCRIPTION CARTO N

ICMPP048U6 48-Ports, 6P6C, USOC wiring, 2 RMS* 10

PATCH PANEL CABLE MANAGEMENT BAR

• Mount on rear of 19" rack mount patch panels

• Works with CAT 6, CAT 5e and voice patch panels

• Designed to support terminated cable

• Durable ABS plastic

PART NO. DESCRIPTION CARTO N

ICMPP25CMB Cable management bar 40

*1 RMS (rack mount space) = 1.75" H

PATCH PANEL COLOR ICONS

• Apply to patch panels for system administration

• Icons are molded with text identifi cation

• 12 icons per tree

PART NO. DESCRIPTION

ICMPPSCIxx¹ 6 voice and 6 data icons
ICMPPICDxx¹ 12 data icons
ICMPPICVxx¹ 12 voice icons

Color (xx¹) = WH IV BL OR RD YL GY GN PR

35

PATCH PANELS & CROSS-CONNECT

FEED-THROUGH PATCH PANELS

48-PORT HIGH DENSITY PATCH PANEL WITH CAT 6 AND CAT 5e
FEED-THROUGH MODULAR COUPLERS

• Fits standard 19” EIA rack mount widths

• 48 modular couplers pre-installed

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICMPP48C61 48-Ports, CAT 6, 8P8C,1 RMS*
ICMPP48C51 48-Ports, CAT 5e, 8P8C, 1 RMS*

HIGH DENSITY PATCH PANELS WITH CAT 6 FEED-THROUGH
MODULAR COUPLERS

• Fits standard 19” EIA rack mount widths

• 24 modular couplers pre-installed

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICMPP24CP6 24-Ports, CAT 6, 8P8C,1 RMS*
ICMPP48CP6 48-Ports, CAT 6, 8P8C, 2 RMS*

PATCH PANELS & CROSS-CONNECT

HIGH DENSITY PATCH PANELS WITH CAT 5e FEED-THROUGH
MODULAR COUPLERS

• Fits standard 19” EIA rack mount widths

• 24 modular couplers pre-installed

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICMPP24CP5 24-Ports, CAT 5e, 8P8C,1 RMS*
ICMPP48CP5 48-Ports, CAT 5e, 8P8C, 2 RMS*

FEED-THROUGH PATCH PANEL FEATURES

• CAT 6 or CAT 5e modular couplers pre-installed

• 50 micro-inch gold plated contacts

36

Connect patch cords on both ends

888.ASK.4ICC | [email protected] | icc.com | CXS

No assembly and no termination is required

PATCH PANELS & CROSS-CONNECT BLANK PATCH PANELS

CONFIGURABLE HIGH DENSITY BLANK PATCH PANEL

• Panel is confi gurable with HD style modular connectors

PART NO. DESCRIPTION

IC107BP481 48-Ports blank, 1 RMS*

CONFIGURABLE CAT 6A UTP BLANK PATCH PANEL

• Panel is confi gurable with CAT 6A UTP modular connectors

PART NO. DESCRIPTION

IC107PPU6A 24-Ports blank, 1 RMS*

CONFIGURABLE CAT 6A FTP BLANK PATCH PANEL

• Panel is confi gurable with CAT 6A FTP modular connectors

PART NO. DESCRIPTION

IC107PPS6A 24-Ports blank, 1 RMS*

CONFIGURABLE HIGH DENSITY BLANK PATCH PANEL

• Panel is confi gurable with HD style modular connectors

PART NO. DESCRIPTION

IC107BP241 24-Ports blank, 1 RMS*
IC107BP482 48-Ports blank, 2 RMS*

CONFIGURABLE BLANK PATCH PANEL

• Panel is confi gurable with EZ style modular connectors

PART NO. DESCRIPTION

IC107BE241 24-Ports blank, 1 RMS*

*1 RMS (rack mount space) = 1.75" H

37

PATCH PANELS & CROSS-CONNECT

VERTICAL BLANK PATCH PANELS

CONFIGURABLE HIGH DENSITY WALL MOUNT VERTICAL ZERO-U
BLANK PATCH PANEL

• Two-piece design; patch panel with 89U mounting bracket

• Panel is confi gurable with HD style modular connectors only

• 10” H x 3.30” W x 2.80” D

PART NO. DESCRIPTION CARTO N

IC107BP12V 12-Ports blank 30

CONFIGURABLE WALL MOUNT VERTICAL ZERO-U BLANK PATCH PANEL

• Two-piece design; patch panel with 89U mounting bracket

• Panel is confi gurable with EZ

®

style modular connectors

• 10” H x 3.30” W x 2.80” D

PART NO. DESCRIPTION CARTO N

IC107BP8VB 8-Ports blank 30

PATCH PANELS & CROSS-CONNECT

VERTICAL ZERO-U BLANK PATCH PANEL FEATURES

• Vertical patch panels are designed to mount on walls and distribution racks, uses no rack space

• They provide a fl exible solution suitable as a Consolidation Point in the Work Area

• Mounting bracket acts as a channel for routing cable behind the termination

12-Port HD style

Front view Rear view

Front view Rear view

8-Port EZ style

38

888.ASK.4ICC | [email protected] | icc.com | CXS

PATCH PANELS & CROSS-CONNECT TELCO PATCH PANELS

VOICE 8P2C PATCH PANELS WITH REAR TELCO CONNECTORS

• Fits standard 19” EIA rack mount widths

• Package includes cable ties and #12 rack screws

PART NO. DESCRIPTION CARTO N

ICMPP24T2C 24-Ports, active pins: 4 and 5, 1 RMS* 15
ICMPP48T2C 48-Ports, active pins: 4 and 5, 2 RMS* 10

• Male 50-Pin Telco connector(s) on the rear

ICMPP24TF2 24-Ports, active pins: 4 and 5, 1 RMS*
ICMPP48TF2 48-Ports, active pins: 4 and 5, 2 RMS* 10

15

• Female 50-Pin Telco connector(s) on the rear

VOICE 8P4C PATCH PANELS WITH REAR TELCO CONNECTORS

• Fits standard 19” EIA rack mount widths

• Package includes cable ties and #12 rack screws

PART NO. DESCRIPTION CARTO N

ICMPP24T4C 24-Ports, active pins: 3/4 and 5/6, 1 RMS* 15
ICMPP48T4C 48-Ports, active pins: 3/4 and 5/6, 2 RMS* 15

• Male 50-Pin Telco connector(s) on the rear

ICMPP24TF4 24-Ports, active pins: 3/4 and 5/6, 1 RMS*
ICMPP48TF4 48-Ports, active pins: 3/4 and 5/6, 2 RMS* 15

15

• Female 50-Pin Telco connector(s) on the rear

VOICE 6P2C PATCH PANELS WITH REAR TELCO CONNECTORS

• Fits standard 19” EIA rack mount widths

• Package includes cable ties and #12 rack screws

PART NO. DESCRIPTION CARTO N

ICMPP024T2 24-Ports, active pins: 3 and 4, 1 RMS* 15
ICMPP048T2 48-Ports, active pins: 3 and 4, 2 RMS* 10

• Male 50-Pin Telco connector(s) on the rear

ICMPPTF242 24-Ports, active pins: 3 and 4, 1 RMS*
ICMPPTF482 48-Ports, active pins: 3 and 4, 2 RMS* 10

• Female 50-Pin Telco connector(s) on the rear

VOICE 6P4C PATCH PANELS WITH REAR TELCO CONNECTORS

• Fits standard 19” EIA rack mount widths

• Package includes cable ties and #12 rack screws

PART NO. DESCRIPTION CARTO N

ICMPP024T4 24-Ports, active pins: 3/4 and 2/5, 1 RMS* 15
ICMPP048T4 48-Ports, active pins: 3/4 and 2/5, 2 RMS* 10

• Male 50-Pin Telco connector(s) on the rear

ICMPPTF244 24-Ports, active pins: 3/4 and 2/5, 1 RMS*
ICMPPTF484 48-Ports, active pins: 3/4 and 2/5, 2 RMS* 10

• Female 50-Pin Telco connector(s) on the rear

*1 RMS (rack mount space) = 1.75" H

Male Telco Connector Female Telco Connector

15

15

39

PATCH PANELS & CROSS-CONNECT

110 WIRING

CAT 6 110 WIRING BLOCK KIT

• 96-Pair base with feet

• Package includes 24 4-Pair 110 connecting blocks

PART NO. DESCRIPTION CARTO N

IC110WK966 96-Pair wiring block kit 10

CAT 5e 110 WIRING BLOCK KITS

PART NO. DESCRIPTION CARTO N

IC110W1004 100-Pair wiring block kit 10

• 100-Pair base with feet

• Package includes 20 4-Pair and 4 5-Pair 110 connecting blocks

PATCH PANELS & CROSS-CONNECT

IC110W3004 300-Pair wiring block kit

• 300-Pair base with feet

• Package includes 60 4-Pair and 12 5-Pair 110 connecting blocks

110 WIRING BLOCKS WITH FEET

PART NO. DESCRIPTION CARTO N

IC110WF100 100-Pair wiring block 10
IC110WF300 300-Pair wiring block 5

110 WIRING BLOCKS WITHOUT FEET

PART NO. DESCRIPTION CARTO N

IC110NF100 100-Pair wiring block 40
IC110NF300 300-Pair wiring block 10

5

40

A.

B.

110 CABLE MANAGEMENT BLOCKS

• Works with 110 wiring blocks

• Helps organize cable

PART NO. DESCRIPTION CARTO N

A. IC110CMBWF Block with feet 25
B. IC110CMBNF Block without feet 50

888.ASK.4ICC | [email protected] | icc.com | CXS

PATCH PANELS & CROSS-CONNECT 110 WIRING

CAT 5e 110 HINGED WIRING BLOCK KIT

• 100-Pair hinged base

• Hinge design allows access to the rear of the block

• Package includes 20 4-Pair and 4 5-Pair 110 connecting blocks

PART NO. DESCRIPTION CARTO N

IC110H1004 100-Pair hinged wiring block kit 10

110 HINGED WIRING BLOCK

• 100-Pair hinged base

• Hinge design allows access to the rear of the block

PART NO. DESCRIPTION CARTO N

IC110WH100 100-Pair hinged wiring block 10

110 HINGED CABLE MANAGEMENT BLOCK

• Works with 110 hinged wiring blocks

• Hinge design allows access to the rear of the cable channel

• Helps organize cable

PART NO. DESCRIPTION CARTO N

IC110WHCMS Hinged cable management block 25

110 WIRING SYSTEM FEATURES

• High performance solution for phone and data communications

• Ideal in a Telco Room, Main Distribution Frame, Intermediate

Distribution Frame and Consolidation Point

110 WIRING LABEL HOLDERS

• Use with 110 wiring blocks

• Holds and protects labels

PART NO. DESCRIPTION

IC110LHLDR Label holders, 6 pcs.

41

PATCH PANELS & CROSS-CONNECT

A.

B.

110 WIRING

CAT 6 RACK MOUNT 110 WIRING BLOCK PANEL KIT

• 96-Pair base with steel panel

• Fits standard 19” EIA rack mount widths

• Package includes 24 4-Pair 110 connecting blocks

• Package includes labels, label holders and #12 rack screws

PART NO. DESCRIPTION CARTO N

IC110PRK61 96-Pair wiring block kit, 1 RMS* 15

RACK MOUNT 110 WIRING BLOCK PANELS

• Works with 3-Pair, 4-Pair and 5-Pair connecting blocks

• Fits standard 19” EIA rack mount widths

• Package includes labels, label holders and #12 rack screws

PART NO. DESCRIPTION CARTO N

A. IC110RM100 100-Pair wiring block, 1 RMS* 15

• 100-Pair base with steel panel

B. IC110RM200 300-Pair wiring block, 2 RMS*

10

• 300-Pair base with steel panel

PATCH PANELS & CROSS-CONNECT

RACK MOUNT 110 CABLE MANAGEMENT PANEL

• Plastic clips with steel panel

• Fits standard 19” EIA rack mount widths

• Helps organize cable

PART NO. DESCRIPTION CARTO N

IC110RMCMB 110 cable management panel, 1 RMS* 15

*1 RMS (rack mount space) = 1.75" H

Connect 110 Systems with 110 Patch Cords

42

110 patch cords

Page 74

888.ASK.4ICC | [email protected] | icc.com | CXS

PATCH PANELS & CROSS-CONNECT 110 WIRING

A. B.

110 CONNECTING BLOCKS

• Works with 110 wiring blocks

• Supports Category 5e data

• Terminate with 22~26 AWG solid or stranded wires

• Color coded for easy termination

PART NO. DESCRIPTION CARTO N

A. IC110CB4PR 4-Pair, 10 pcs. 300

C. D.

B. IC110CB5PR 5-Pair, 10 pcs. 320
C. IC110CB4PC 4-Pair, 100 pcs. VALUEPACK
D. IC110CB5PC 5-Pair, 100 pcs. VALUEPACK

110 RETENTION CAP

• Secures and protects terminated wires

• Works with 110 connecting blocks and patch panels

• 50 pieces per bag

PART NO. DESCRIPTION CARTO N

IC110TC450 4 Conductor, 2-Pair, 110 retention cap, 50 pcs. 400

A. B.

CABLE MANAGEMENT SPOOLS

• Wall mounts to help retain and guide cable

• 10 pieces per bag

PART NO. DESCRIPTION CARTO N

A. ICACSWDS20 Spool with built-in wood screw, 10 pcs. 30
B. ICACSWDS10 Spool without screw, 10 pcs. 30

A. B.

110 PATCH PLUGS

PART NO. DESCRIPTION

A. ICMP1101PR Terminates 1-Pair of CAT 5e cable
B. ICMP1102PR Terminates 2-Pairs of CAT 5e cable
C. ICMP1103PR Terminates 3-Pairs of CAT 5e cable
D. ICMP1104PR Terminates 4-Pairs of CAT 6 cable

• Terminate with solid or stranded UTP cable

C. D.

Termination tools

Page 107

43

PATCH PANELS & CROSS-CONNECT

A. B. C. D.

B. A.

66 WIRING

66 WIRING BLOCK, 50 PAIR

• Wall mountable

• Made of high impact fl ame retardant material UL 94V-0

PART NO. DESCRIPTION

A. IC066NB050 66 wiring block

MOUNTING BRACKETS

• Snaps on the rear of 66 wiring blocks

PART NO. DESCRIPTION

B. ICMB89B0WH 89B bracket, open rear, 10” H x 3.30” W x 1.90” D
C. ICMB89D0WH 89D bracket, open front, 10” H x 3.30” W x 1.90” D
D. ICMB89U0WH 89U bracket, open front, 10” H x 3.30” W x 2.35” D

66 WIRING BLOCK AND MOUNTING BRACKET VALUEPACKS

• Packaged in a resealable box for easy storage

• Reduces packaging waste

• 25 pieces per box

PART NO. DESCRIPTION

A. IC066NBC50 66 wiring block, 25 pcs.
B. ICMB89BCWH 89B mounting bracket, 25 pcs.

PATCH PANELS & CROSS-CONNECT

66 WIRING BLOCK SYSTEM

89B mounting bracket

C. A. B.

66 WIRING BLOCK COVER, LABELING STRIPS AND BRIDGING CLIPS

PART NO. DESCRIPTION

A. IC066CV050 Wiring block cover

• Protects terminated wires from dust and debris

B. IC066LS050 Labeling strips, 10 pcs.

• Use a standard labeler or pen

C. IC066BRCLP Bridging clips, 100 pcs.

• Electrically interconnect adjacent terminals within the same row

Labeling strips

44

Terminals are designed for repeated termination

Terminate with solid insulated or stripped

cable (22~26 AWG)

888.ASK.4ICC | [email protected] | icc.com | CXS

Bridging clips electrically interconnect

adjacent terminals within the same row

PATCH PANELS & CROSS-CONNECT PRE-WIRED 66 WIRING

66 WIRING BLOCK PRE-WIRED WITH DATA PORTS

• Pre-wired data ports

• Integrated with 89D mounting bracket for wall mounting

• 10” H x 3.30” W x 3.00” D

PART NO. DESCRIPTION CARTO N

IC06628P8C 12-Ports, 8P8C 25

66 WIRING BLOCKS PRE-WIRED WITH VOICE PORTS

A. B.

• Pre-wired voice ports

• Integrated with 89D mounting bracket for wall mounting

• 10” H x 3.30” W x 3.00” D

PART NO. DESCRIPTION CARTO N

A. IC06686P6C 8-Ports, 6P6C 25
B. IC06626P4C 12-Ports, 6P4C 25

A. B.

66 WIRING BLOCKS PRE-WIRED WITH TELCO CONNECTORS

• Pre-wired with 1 or 2 female Telco connectors (25/50-Pair)

• Integrated with 89D mounting bracket for wall mounting

• 10” H x 3.30” W x 3.00” D

PART NO. DESCRIPTION CARTO N

A. IC066SFT25 Pre-wired with 1 25-pair female Telco connector 25
B. IC066DFT50 Pre-wired with 2 25-pair female Telco connectors 25

66 WIRING BLOCK PRE-WIRED WITH MODULAR CONNECTORS 66 WIRING BLOCK PRE-WIRED WITH TELCO CONNECTORS

Telco cable

Security strap

Hinged cover

Works with color icons

45

PREMISE CABLES

15

YEAR

12

YEAR

3

YEAR

WARRANTY

LIFE

Permanent

Work Area (WA)

Horizontal Cabling

PREMISE CABLES

One Vendor, No Compatibility Issue

Premise cables and connectivity outlets are fi ne tuned to work together as End-to-End solutions. CAT 6
Permanent Link solution including modular connectors, patch panels and premise cables stack up to

7.6dB NEXT headroom when installed and tested per TIA specifi cation. We also work with Elite InstallersTM to

offer warranty programs that are simple and effective. Using End-to-End solutions, Elite Installers can offer
a 15 Year Performance Warranty without certifi cation. Better yet, Certifi ed Elite Installers can verify the site
and offer a Lifetime Performance Warranty.

Choosing the Right Cabling

Choose different category-rated cables to support any installation requirement. Premise cables exceed
TIA and IEEE standards and are backwards compatible with lower category-rated products.

TIA-568-C.2 Standards Frequency Applications Distance Maximum Pair Untwist

500 MHz

250 MHz

100 MHz 10/100 Base-T/1000 Base-T/ Phone 100 m. (328 ft.) 13 mm. (0.5 in.)

10/100/1000 Base-T/10 GbE, Digital Video,

IEEE 802.3at for PoE Plus

10/100/1000 Base-T, Digital Video, Phone,

IEEE 802.3at for PoE Plus

100 m. (328 ft.) 13 mm. (0.5 in.)

100 m. (328 ft.) 13 mm. (0.5 in.)

Protecting the Installation

• 15 Year Performance Limited WarrantyTM for Elite Installers: no certifi cation required

• Lifetime Performance Limited WarrantyTM for Certifi ed Elite Installers for verifi ed sites

• Go online to icc.com/warranty for complete terms and conditions

46

++=

Page 48Page 34Page 5

888.ASK.4ICC | [email protected] | icc.com | CAB

LIFE

WARRANTY

or

15

YEAR

TM

TM

PREMISE CABLES

Link

Telecom Room (TR)

UTP vs. FTP

• Use Unshielded Twisted Pair (UTP) cable in low Electromagnetic

Interference (EMI) environments. UTP cable is more cost
effective compared to FTP since it does not require the
manufacturing cost of the shielding in FTP cable.

Foiled shielding

• Use Foiled Twisted Pair (FTP) cable in environments with high

Electromagnetic Interference (EMI) or Radio Frequency
Interference (RFI).

CMR vs. CMP

• Use Riser Rated Cable in vertical settings, such as cable runs

between fl oors through cable risers. These spaces cannot
be used for environmental air. The cable must self-extinguish
to prevent the fl ame from traveling up the cable.

• Use Plenum Rated Cable in spaces like raised fl ooring systems

and air handling ducts. Plenum cable must self-extinguish
and not reignite. They produce less smoke than traditional
PVC cable.

Premium Quality

• With stringent quality control procedures, premise cables
have been inspected and tested to comply with the strict

FCC®, TIA® and UL® standards.

• Premise cables are Restriction of Hazardous Substance (RoHS)
compliant to protect the environment.

47

PREMISE CABLES

CAT 6A UTP 650 MHz 10G PREMISE CABLES

• 4-Pair, 23 AWG, UTP, solid copper cable

• Designed with an X separator

• 0.34" outer diameter

• Packaged on a reel; 13.0" H x 17.3" W

• 1000 feet per reel (305 meters)

GRAPH EXPLANATION: The graphs shown below display channel-rated performance tests of structured

cabling systems, modular connectors, patch panels and patch cords installed with premise cable.

NEXTdB

100

80

60

40

PREMISE CABLES

PART NO. DESCRIPTION PALLET

ICCABP6Axx¹ CAT 6A UTP cable, CMP (Plenum) 15
ICCABR6Axx¹ CAT 6A UTP cable, CMR (Riser) 15

Color (xx¹) = BL WH

CAT 6A FTP 650 MHz 10G PREMISE CABLES

• 4-Pair, 23 AWG, FTP, solid copper cable

• Shielded jacket protects from EMI and RFI noise

• Designed with an X separator

• 0.34" outer diameter

• Packaged on a reel; 13.0" H x 17.3" W

• 1000 feet per reel (305 meters)

PART NO. DESCRIPTION PALLET

ICCABP6Fxx¹ CAT 6A FTP cable, CMP (Plenum) 15
ICCABR6Fxx¹ CAT 6A FTP cable, CMR (Riser) 15

Color (xx¹) = BL

20

TIA standard limit

0

0500

Frequency (MHz)

Tested per TIA Channel Link specifi cation

NEXTdB

100

Signal transmission

80

60

40

TIA standard limit

Headroom

20

0

0500

Frequency (MHz)

Tested per TIA Channel Link specifi cation

48

CAT 6e UTP 600 MHz PREMISE CABLES

• 4-Pair, 23 AWG, UTP, solid copper cable

• Designed with an X separator

• 0.234" outer diameter

• Packaged in an EZ pull box; 15.55” H x 9.60” W x 15.75” D

• 1000 feet per box (305 meters)

PART NO. DESCRIPTION PALLET

ICCABP6Exx¹ CAT 6e UTP cable, CMP (Plenum) 36
ICCABR6Exx¹ CAT 6e UTP cable, CMR (Riser) 30

Color (xx¹) = BL WH GY YL GN

888.ASK.4ICC | [email protected] | icc.com | CAB

NEXTdB

100

80

60

40

TIA standard limit

20

0

0250

Frequency (MHz)

Tested per TIA Channel Link specifi cation

PREMISE CABLES

CAT 6A UTP 650 MHz 10G PREMISE CABLE PERFORMANCE CHART

CHART EXPLANATION: The charts below show frequency and electrical performance values for reference only. Actual compliance testing is

based on swept frequency measurements. The specifi cation values are based on TIA-568 standard and are expressed in dB per 100M (328 Ft.).

FREQUENCY

(MHz)

ATTENUATION

(max)

RETURN LOSS

(min)

NEXT

(min)

PS NEXT

(min)

ACR

(min)

PS ACR

(min)

ACRF

(min)

PS ACRF

(min)

CAT 6A FTP 650 MHz 10G PREMISE CABLE PERFORMANCE CHART

FREQUENCY

(MHz)

ATTENUATION

(max)

RETURN LOSS

(min)

NEXT

(min)

PS NEXT

(min)

ACR

(min)

PS ACR

(min)

ACRF

(min)

PS ACRF

(min)

1 10 16 62.5 100 200 250 350 500 600 650

2.1 5.9 7.5 15.0 19.1 27.6 31.1 37.2 45.3 50.1 52.3

20.0 27.0 27.0 23.5 22.1 20.0 19.3 18.3 17.5 16.9 16.7

78.3 63.3 60.2 51.4 48.3 43.8 42.3 40.1 37.8 36.6 36.1

76.3 61.3 58.2 49.4 46.3 41.8 40.3 38.1 35.8 34.6 34.1

71.8 51.8 47.7 35.9 31.8 25.8 23.8 20.9 17.8 - -

68.8 48.8 44.7 32.9 28.8 22.8 20.8 17.9 14.8 - -

67.0 67.0 67.0 65.6 62.5 58.0 56.5 54.3 52.0 - -

67.0 58.2 54.1 42.3 38.2 32.2 30.2 27.3 24.2 - -

1 10 16 62.5 100 200 250 350 500 600 650

2.1 5.9 7.5 15.0 19.1 27.6 31.1 37.2 45.3 50.1 52.3

20.0 27.0 27.0 23.5 22.1 20.0 19.3 18.3 17.5 16.9 16.7

78.3 63.3 60.2 51.4 48.3 43.8 42.3 40.1 37.8 36.6 36.1

76.3 61.3 58.2 49.4 46.3 41.8 40.3 38.1 35.8 34.6 34.1

71.8 51.8 47.7 35.9 31.8 25.8 23.8 20.9 17.8 - -

68.8 48.8 44.7 32.9 28.8 22.8 20.8 17.9 14.8 - -

67.0 67.0 67.0 65.6 62.5 58.0 56.5 54.3 52.0 - -

67.0 58.2 54.1 42.3 38.2 32.2 30.2 27.3 24.2 - -

CAT 6e UTP 600 MHz PREMISE CABLE PERFORMANCE CHART

FREQUENCY

(MHz)

ATTENUATION

(max)

RETURN LOSS

(min)

NEXT

(min)

PS NEXT

(min)

ACR

(min)

PS ACR

(min)

ACRF

(min)

PS ACRF

(min)

1 10 16 62.5 100 200 250 350 500 600

2.0 5.9 7.4 14.9 19.1 27.7 31.2 37.5 45.8 50.7

21.0 25.5 26.0 26.0 22.5 19.8 19.0 17.8 16.2 15.7

82.3 67.3 64.2 55.4 52.3 47.8 46.3 45.7 44.8 44.2

80.3 65.3 62.2 53.4 50.3 45.8 44.3 43.7 42.8 42.2

80.3 61.4 56.8 40.4 33.2 20.1 15.1 8.2 0.0 -

78.3 59.4 54.8 38.4 31.2 18.1 13.1 6.2 - -

73.8 53.8 49.7 37.9 33.9 27.8 25.8 22.9 19.8 18.2

71.8 51.8 47.7 35.9 31.8 25.8 23.8 20.9 17.8 16.2

49

PREMISE CABLES

CAT 6 UTP 500 MHz PREMISE CABLES, PLENUM

• 4-Pair, 23 AWG, UTP, solid copper cable

• 0.200" outer diameter

• Packaged in an EZ pull box; 15.50” H x 10.25” W x 15.50” D

• 1000 feet per box (305 meters)

GRAPH EXPLANATION: The graphs shown below display channel-rated performance tests of structured

cabling systems, modular connectors, patch panels and patch cords installed with premise cable.

NEXTdB

100

Signal transmission

80

60

PREMISE CABLES

PART NO. DESCRIPTION PALLET

ICCABP6Vxx¹ CAT 6 UTP cable, CMP (Plenum) 30

Color (xx¹) = BL WH GY YL GN

CAT 6 UTP 500 MHz PREMISE CABLES, RISER

• 4-Pair, 23 AWG, UTP, solid copper cable

• 0.039" outer diameter

• Packaged in an EZ pull box; 14.57” H x 9.45” W x 15.35” D

• 1000 feet per box (305 meters)

40

TIA standard limit

Headroom

20

0

0250

Frequency (MHz)

Tested per TIA Channel Link specifi cation

NEXTdB

100

80

60

40

20

TIA standard limit

50

PART NO. DESCRIPTION PALLET

ICCABR6Vxx¹ CAT 6 UTP cable, CMR (Riser) 36

Color (xx¹) = BL WH GY YL GN

CAT 5e UTP 350 MHz PREMISE CABLES

• 4-Pair, 24 AWG, UTP, solid copper cable

• 0.177" outer diameter

• Packaged in an EZ pull box; 14.37” H x 8.97” W x 14.56” D

• 1000 feet per box (305 meters)

PART NO. DESCRIPTION PALLET

ICCABP5Exx¹ CAT 5e UTP cable, CMP (Plenum) 39
ICCABR5Exx¹ CAT 5e UTP cable, CMR (Riser) 45

Color (xx¹) = BL WH GY YL GN

0

0250

Frequency (MHz)

Tested per TIA Channel Link specifi cation

NEXTdB

100

80

60

40

20

TIA standard limit

0

0100

Frequency (MHz)

Tested per TIA Channel Link specifi cation

888.ASK.4ICC | [email protected] | icc.com | CAB

PREMISE CABLES

CAT 6 UTP 500 MHz PLENUM PREMISE CABLE PERFORMANCE CHART

CHART EXPLANATION: The charts below show frequency and electrical performance values for reference only. Actual compliance testing is

based on swept frequency measurements. The specifi cation values are based on TIA-568 standard and are expressed in dB per 100M (328 Ft.).

FREQUENCY

(MHz)

ATTENUATION

(max)

RETURN LOSS

(min)

NEXT

(min)

PS NEXT

(min)

ACR

(min)

PS ACR

(min)

ACRF

(min)

PS ACRF

(min)

CAT 6 UTP 500 MHz RISER PREMISE CABLE PERFORMANCE CHART

FREQUENCY

(MHz)

ATTENUATION

(max)

RETURN LOSS

(min)

NEXT

(min)

PS NEXT

(min)

ACR

(min)

PS ACR

(min)

ACRF

(min)

PS ACRF

(min)

1 10 16 62.5 100 200 250

2.0 6.0 7.6 15.4 19.8 29.0 32.8

20.0 25.0 25.0 21.5 20.1 18.0 17.3

74.3 59.3 56.2 47.4 44.3 39.8 38.3

72.3 57.3 54.2 45.4 42.3 37.8 36.3

72.3 53.3 48.7 32.0 24.5 10.8 5.5

70.3 51.3 46.7 29.9 22.5 8.8 3.5

67.8 47.8 43.7 31.8 27.8 21.8 19.8

64.8 44.8 40.7 28.9 24.8 18.8 16.8

1 10 16 62.5 100 200 250

2.0 6.0 7.6 15.4 19.8 29.0 32.8

20.0 25.0 25.0 21.5 20.1 18.0 17.3

74.3 59.3 56.3 47.4 44.3 39.8 38.3

72.3 57.3 54.3 45.1 42.3 37.8 36.3

72.3 53.3 48.7 32.0 24.5 10.8 5.5

70.3 51.3 46.7 30.0 22.5 8.8 3.5

67.8 47.8 43.7 31.8 27.8 21.7 19.8

64.8 44.8 40.7 28.8 24.8 18.7 16.8

CAT 5e UTP 350 MHz PREMISE CABLE PERFORMANCE CHART

FREQUENCY

(MHz)

ATTENUATION

(max)

RETURN LOSS

(min)

NEXT

(min)

PS NEXT

(min)

ACR

(min)

PS ACR

(min)

ACRF

(min)

PS ACRF

(min)

1 10 16 62.5 100 200 250

2.0 6.3 8.0 16.0 20.5 29.5 33.2

21.0 26.0 26.0 22.5 21.1 19.0 18.3

70.3 55.3 52.2 43.4 40.3 35.8 34.3

68.3 53.3 50.2 41.4 38.3 33.8 32.3

68.3 49.0 44.2 27.3 19.8 6.3 1.2

66.3 47.0 42.2 25.3 17.8 4.3 0

67.8 47.8 43.7 31.9 27.8 21.8 19.8

64.8 44.8 40.7 28.9 24.8 18.8 16.8

51

RACKS & CABLE MANAGEMENT

WALL AND FLOOR MOUNT SOLUTIONS

Hinged Wall Mount Brackets

• Limited space / closet installations

• Available in EZ-Fold or regular style

• Supports up to 60 lb. of equipment

RACKS & CABLE MANAGEMENT

Fixed Frame Wall Mount Racks

• Limited fl oor space / small room installations

• Self-squaring design; easy to assemble

• Supports up to 125 lb. of equipment

15" D

6" D

18" D

52

888.ASK.4ICC | [email protected] | icc.com | CMS

RACKS & CABLE MANAGEMENT

WALL AND FLOOR MOUNT SOLUTIONS

Swing Gate Wall Mount Racks

• Small room / space for swing out

• Swing out to access rear cable or equipment

• Supports up to 150 lb. of equipment

Floor Mount Distribution Racks

• Regulation size Telecom Rooms

• Available with 2 and 4 posts

• Supports up to 1500 lb. of equipment

19" D

53

RACKS & CABLE MANAGEMENT

HINGED WALL MOUNT BRACKET FEATURES

• Large rear opening for cable entry

• Standard EIA-310-D hole pattern

• Roll tapped threading limits rack screws from stripping

• 0.25" wall mounting holes

• Heavy duty 16 gauge steel

• Optional cover can be mounted on top only

WALL MOUNT BRACKETS

RACKS & CABLE MANAGEMENT

EZ-FOLD WALL MOUNT BRACKET FEATURES

• Unfold to 6 inch depth

• No weight bearing at the hinge

• Heavy duty 16 gauge steel

Hinged every 2 RMS allowing panels to swing out

giving access to the rear

2.5" H

Folds like a book to save storage space

Hinged for quick and easy rear access

Double mounting, double the strength

6" D

Optional top cover

6" D

54

EZ-FOLD WALL MOUNT BRACKET FEATURES

• No weight bearing at the hinge

• Hinged every 2 RMS for easy upgrade access and maintenance

• Double mounting, double the strength

• Heavy duty 16 gauge steel

Folds like a book to save storage space

2.5" H

888.ASK.4ICC | [email protected] | icc.com | CMS

Optional top and bottom covers

15" D

RACKS & CABLE MANAGEMENT

HINGED WALL MOUNT BRACKETS, 6" DEPTH

• Designed with heavy duty steel supporting up to 40 lb. of equipment

• 6” depth for network and phone equipment

• Package includes #10 wood screws and #12 rack screws

PART NO. DESCRIPTION

ICCMSHBCVR Wall mount bracket cover, 1 pc.
ICCMSHB1RS 1.75” H x 19.31” W x 6” D, 10 lb. capacity, 1 RMS*
ICCMSHB1RC 1.75” H x 19.31” W x 6” D, 10 lb. capacity, 1 RMS*, 2 pcs.
ICCMSHB2RS 3.50” H x 19.31” W x 6” D, 20 lb. capacity, 2 RMS*
ICCMSHB2RC 3.50” H x 19.31” W x 6” D, 20 lb. capacity, 2 RMS*, 2 pcs.
ICCMSHB4RS 7.00” H x 19.31” W x 6” D, 40 lb. capacity, 4 RMS*
ICCMSHB4RC 7.00” H x 19.31” W x 6” D, 40 lb. capacity, 4 RMS*, 2 pcs.

WALL MOUNT BRACKETS

VALUEPACK

VALUEPACK

VALUEPACK

ICCMSHB1RS ICCMSHB2RS ICCMSHB4RS

EZ-FOLD WALL MOUNT BRACKETS, 6" DEPTH

ICCMSHBCVR

• Designed with heavy duty steel supporting up to 30 lb. of equipment

• 6” depth for network and phone equipment

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICCMSHBCVR Wall mount bracket cover, 1 pc.
ICCMSABR62 3.50” H x 19.30” W x 6” D, 30 lb. capacity, 2 RMS*
ICCMSABR64 7.00” H x 19.30” W x 6” D, 30 lb. capacity, 4 RMS*
ICCMSABR66 10.50” H x 19.30” W x 6” D, 30 lb. capacity, 6 RMS*
ICCMSABR68 14.00” H x 19.30” W x 6” D, 30 lb. capacity, 8 RMS*

ICCMSABR62 ICCMSABR64 ICCMSABR66 ICCMSABR68

ICCMSHBCVR

EZ-FOLD WALL MOUNT BRACKETS, 15" DEPTH

• Designed with heavy duty steel supporting up to 30 lb. of equipment

• 15” depth for network and phone equipment

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICCMSABRSC Wall mount bracket cover kit, top and bottom covers, 2 pcs.
ICCMSABRS2 3.50” H x 19.30” W x 15” D, 30 lb. capacity, 2 RMS*
ICCMSABRS4 7.00” H x 19.30” W x 15” D, 30 lb. capacity, 4 RMS*
ICCMSABRS6 10.50” H x 19.30” W x 15” D, 30 lb. capacity, 6 RMS*
ICCMSABRS8 14.00” H x 19.30” W x 15” D, 30 lb. capacity, 8 RMS*

ICCMSABRS2 ICCMSABRS4 ICCMSABRS6 ICCMSABRS8

ICCMSABRSC

*1 RMS (rack mount space) = 1.75" H

55

RACKS & CABLE MANAGEMENT

WALL MOUNT RACK FEATURES

• 18” depth for network and phone equipment

• Standard EIA-310-D hole pattern

• 0.25" wall mounting holes

• Steel construction for strength and durability

SWING MOUNT RACKS

Self-squaring design

RACKS & CABLE MANAGEMENT

SWING FRAME WALL MOUNT RACK FEATURES

• Assemble and install in four easy steps

• Supports up to 85 lb.

• The frame is designed to swing outward

• Standard EIA-310-D hole pattern

• Steel construction for strength and durability

The frame can be installed to swing open left or right

Studs

16"

Wall

Template

Package includes a template to mark holes

SWING GATE WALL MOUNT RACK FEATURES

• Swings open left or right for quick and easy access

• Punch down while fully open

• 150 lb. weight capacity

• Standard EIA-310-D hole pattern

• 0.25" wall mounting holes

• Steel construction for strength and durability

Wing bolt locking system

Swings open

"Positive stop" locking mechanism

56

The frame can be installed to swing open left or right

Swings open

888.ASK.4ICC | [email protected] | icc.com | CMS

RACKS & CABLE MANAGEMENT

WALL MOUNT RACKS, 18" DEPTH

• Designed with heavy duty steel, supporting up to 125 lb. of equipment

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICCMSWMR08 17.75" H x 19.75" W x 18" D, 8 RMS*
ICCMSWMR15 30.00" H x 19.75" W x 18" D, 15 RMS*
ICCMSWMR30 56.25" H x 19.75" W x 18" D, 30 RMS*

ICCMSWMR08 ICCMSWMR15 ICCMSWMR30

SWING FRAME WALL MOUNT RACKS, 18" DEPTH

• Designed with heavy duty steel, supporting up to 85 lb. of equipment

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICCMSSFR12 25.60” H x 19.50” W x 18”D, 85 lb. capacity, 12 RMS*
ICCMSSFR25 49.13” H x 19.50” W x 18”D, 85 lb. capacity, 25 RMS*

SWING MOUNT RACKS

ICCMSSFR12 ICCMSSFR25

SWING GATE WALL MOUNT RACKS, 19" DEPTH

• Designed with heavy duty steel, supporting up to 150 lb. of equipment

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICCMSSGR21 27" H x 20.5" W x 19" D, 150 lb. capacity, 12 RMS*
ICCMSSGR22 41" H x 20.5" W x 19" D, 150 lb. capacity, 20 RMS*

*1 RMS (rack mount space) = 1.75" H

ICCMSSGR21 ICCMSSGR22

57

RACKS & CABLE MANAGEMENT

VERTICAL HINGED WALL MOUNT BRACKET FEATURES

• Mounting rails tilt downward for easy access to rear equipment

• Rail is designed with twist-lock to secure mounted equipment

• The frame comes assembled

• 0.25" wall mounting holes

• Supports up to 60 lb. of equipment

• Steel construction for strength and durability

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICCMSVHB06 12.75" H x 19.75" W x 12" D, 40 lb. capacity, 6 RMS*
ICCMSVHB08 16.25" H x 19.75" W x 12" D, 60 lb. capacity, 8 RMS*
ICCMSVHB18 16.25" H x 19.75" W x 18" D, 60 lb. capacity, 8 RMS*

WALL MOUNT RACKS

RACKS & CABLE MANAGEMENT

ICCMSVHB06 ICCMSVHB08 ICCMSVHB18

UTILITY WALL MOUNT RACK

• Suitable for areas where fl oor or wall space is limited

• Standard EIA-310-D hole pattern

• 0.25" wall mounting holes

• Steel construction for strength and durability

• Package includes #12 rack screws

PART NO. DESCRIPTION

ICCMSWMUR5 Wall mount utility rack, 5 RMS*

Swings down 90 degrees

75 lb. weight capacity

58

Equipment mounts vertically

*1 RMS (rack mount space) = 1.75" H

888.ASK.4ICC | [email protected] | icc.com | CMS

RACKS & CABLE MANAGEMENT

2-POST DISTRIBUTION RACKS

• 19” EIA rack mount width

• Supports up to 750 lb. when fl oor anchored

• Lightweight aluminum construction

PART NO. DESCRIPTION

ICCMSR1984 7' H, 45 RMS*
ICCMSR1972 6' H, 38 RMS*
ICCMSR1948 4' H, 24 RMS*
ICCMSRFLKT Concrete rack mount kit

Numbered markings

FLOOR MOUNT RACKS

ICCMSRFLKT

ADJUSTABLE 4-POST DISTRIBUTION RACK

ICCMSR1948 ICCMSR1972 ICCMSR1984

• Designed to be adjusted from 27" and up to 32" depth

• Works with 4-post rack shelves

• 19” EIA rack mount width

• Side rail holes for linking racks or vertical cable channels

• Supports up to 1500 lb. when properly loaded and fl oor anchored

• Lightweight aluminum construction

• Mounts to concrete fl oor with optional anchor kit

PART NO. DESCRIPTION

ICCMSR4P84 7' H, 45 RMS*
ICCMSRFLKT Concrete rack mount kit

Roll tapped mounting holes

The rails on all racks have Rack

Mount Space (RMS) numbered

markings

Rack is designed to adjust

from 27" up to 32" depth

*1 RMS (rack mount space) = 1.75" H

59

RACKS & CABLE MANAGEMENT

CABLE MANAGEMENT RACK

• 19” EIA rack mount width

• Designed with side rail holes for linking racks

• Supports up to 1000 lb. when fl oor anchored

• Mounts to concrete fl oor with optional anchor kit

• Lightweight aluminum construction

PART NO. DESCRIPTION

ICCMSCMRH7 7' H, 44 RMS*
ICCMSRFLKT Concrete rack mount kit

Integrated with 6" depth x 3.15" width cable channels

along both sides of rails

Numbered markings

RACKS & CABLE MANAGEMENT

FLOOR MOUNT RACKS

VERTICAL CABLE CHANNEL AND COVER

• Joins two 2-Post or 4-Post distribution racks together

• Front swivel latches for easy cable assembly

• Large rear openings for simplifi ed cable routing

• Lightweight aluminum construction

• 6.5" H x 6" W x 6.10" D

PART NO. DESCRIPTION

ICCMSCC6BK 6.5' H vertical cable channel
ICCMSCCVBK 3' H vertical cable channel cover

2 covers are required to

cover 1 cable channel

Cable channels can be

mounted back to back

60

ICCMSCC6BKICCMSCCVBK

*1 RMS (rack mount space) = 1.75" H

888.ASK.4ICC | [email protected] | icc.com | CMS

RACKS & CABLE MANAGEMENT

VERTICAL CABLE MANAGEMENT PANELS

SINGLE-SIDED VERTICAL FINGER DUCT PANELS, 4" W X 5" D

• Package includes cover and #12 rack screws

ICCMSCMA84 ICCMSCMA81 ICCMSCMA21 ICCMSCMA83 ICCMSCMA82 ICCMSCMA23 ICCMSCMA22

DOUBLE-SIDED VERTICAL FINGER DUCT PANELS, 4" W X 10" D

• Package includes cover and #12 rack screws

PART NO. DESCRIPTION

ICCMSCMA84 78" H, front, fl at mount, brackets on one side
ICCMSCMA81 78" H, front, side mount, brackets on one side
ICCMSCMA21 35" H, front, side mount, brackets on one side

FINGER DUCT PANEL FEATURES

• Route and manage large amounts of cable

• Designed with fl exible fi ngers for easy cable routing

• Durable plastic

Slide-on and removable covers

PART NO. DESCRIPTION

ICCMSCMA83 78" H, front and rear, side mount, brackets on one side
ICCMSCMA82 78" H, front and rear, center mount, brackets on both sides
ICCMSCMA23 35" H, front and rear, side mount, brackets on one side
ICCMSCMA22 35" H, front and rear, center mount, brackets on both sides

MOUNTING OPTIONS

Center Mount

Brackets on both sides to interconnect two racks

Side Mount

Bracket on one side, mounts on either side

of the rack's rear rails

Rear feed-through holes

Flat bracket on side, works with ICCMSCMRH7 rack

Flat Mount

61

RACKS & CABLE MANAGEMENT

HORIZONTAL CABLE MANAGEMENT PANELS

HORIZONTAL FINGER DUCT PANELS

• Available in single and double-sided styles

• Designed with fl exible fi ngers for easy cable routing

• Fits standard 19” EIA rack mount widths

• Package includes cover and #12 rack screws

A.

B.

RACKS & CABLE MANAGEMENT

PLASTIC RING AND INTERBAY PANELS

• Plastic rings for easy cable routing

• Base is designed with openings for rear cable access and with

cable tie anchor points

• Fits standard 19” EIA rack mount widths

• Package includes cover and #12 rack screws

A.

B.

C.

D.

PART NO. DESCRIPTION

A. ICCMSCMA41 Single-sided, 1.75 H x 19" W x 3.25" D, 1 RMS*
B. ICCMSCMA42 Single-sided, 3.50" H x 19" W x 3.25" D, 2 RMS*
C. ICCMSCMA61 Double-sided, 1.75" H x 19" W x 7.10" D, 1 RMS*
D. ICCMSCMA62 Double-sided, 3.50" H x 19" W x 7.10" D, 2 RMS*

C.

D.

PART NO. DESCRIPTION

A. ICCMSCMA51 Interbay panel, 1.75" H x 19" W x 3.88" D, 1 RMS*
B. ICCMSCMA52 Interbay panel, 3.50" H x 19" W x 3.88" D, 2 RMS*
C. ICCMSCMA31 Ring panel, 1.75" H x 19" W x 3.88" D, 1 RMS*
D. ICCMSCMA32 Ring panel, 3.50" H x 19" W x 3.88" D, 2 RMS*

62

*1 RMS (rack mount space) = 1.75" H

888.ASK.4ICC | [email protected] | icc.com | CMS

RACKS & CABLE MANAGEMENT

HORIZONTAL CABLE MANAGEMENT PANELS

METAL RING AND INTERBAY PANELS

• Steel construction for strength and durability

• Base is designed with openings for rear cable access

• Fits standard 19” EIA rack mount widths

• Package includes #12 rack screws

A.

B.

EXTENDED BRACKETS AND BLANK PANELS

• Extended brackets are designed for front or rear cable management

• No extra rack mount spaces are needed

• Blank panels fi ll empty spaces between mounted equipment

• Both fi t standard 19” EIA rack mount widths

• Package includes #12 rack screws

A.

B.

C.

3" D

5" D

C.

D.

E.

F.

D.

E.

F.

G.

METAL BLANK PANEL VALUEPACKS

PART NO. DESCRIPTION

A. ICCMSCMPK1 Ring panel and cover, 1.75" H x 19" W x 3" D, 1 RMS*
B. ICCMSCMPK2 Ring panel and cover, 3.50" H x 19" W x 3" D, 2 RMS*
C. ICCMSCMP31 Ring panel, 1.75" H x 19" W x 2.83" D, 1 RMS*
D. ICCMSCMP32 Ring panel, 3.50" H x 19" W x 2.83" D, 2 RMS*
E. ICCMSCMP51 Interbay panel, 1.75" H x 19" W x 3" D, 1 RMS*
F. ICCMSCMP52 Interbay panel, 3.50" H x 19" W x 3" D, 2 RMS*

*1 RMS (rack mount space) = 1.75" H

PART NO. DESCRIPTION CARTON

A. ICCMSFCMRP Front extended bracket, 3" deep
B. ICCMSRCMRP Rear extended bracket, 5" deep
C. ICCMSCMPB1 Blank panel, 1.75" H x 19" W, 1 RMS*
D. ICCMSCMPB2 Blank panel, 3.50" H x 19" W, 2 RMS* 40
E. ICCMSCMPB3 Blank panel, 5.25" H x 19" W, 3 RMS* 30
F. ICCMSCMPB4 Blank panel, 7.00" H x 19" W, 4 RMS* 30
G. ICCMSCMPC1 Blank panel, 1.75" H x 19" W, 1 RMS*, 12 pcs. VALUEPACK
ICCMSCMPC2 Blank panel, 3.50" H x 19" W, 2 RMS*, 12 pcs. VALUEPACK
ICCMSCMPC3 Blank panel, 5.25" H x 19" W, 3 RMS*, 6 pcs. VALUEPACK
ICCMSCMPC4 Blank panel, 7.00" H x 19" W, 4 RMS*, 6 pcs. VALUEPACK

60

63

RACKS & CABLE MANAGEMENT

RACKS & CABLE MANAGEMENT

PLASTIC RINGS

UNIVERSAL PLASTIC RING, 3" HEIGHT X 3" WIDTH

• Mount on the sides of racks to route cable vertically and horizontally

• Mount between distribution racks to join them together

• Durable ABS plastic

PART NO. DESCRIPTION

ICCMSCMPR7 3" H x 3" W sIngle ring, universal

PLASTIC RING, 1.25" HEIGHT

• Mount on the sides of racks to route cable horizontally

• Durable ABS plastic

PART NO. DESCRIPTION

ICCMSCMPR6 1.25" H sIngle ring, horizontal

PLASTIC RING, 1.25" WIDTH

• Mount on the sides of racks to route cable vertically

• Durable ABS plastic

PART NO. DESCRIPTION

ICCMSCMPR5 1.25" W sIngle ring, vertical

FRONT AND REAR PLASTIC RING, 3" HEIGHT X 3" WIDTH

• Mount between distribution racks to route cable vertically

• Designed with a steel frame

• Durable ABS plastic

PART NO. DESCRIPTION

ICCMSCMPR8 3" H x 3" W dual rings, vertical

64

FRONT AND REAR PLASTIC RING, 3" HEIGHT X 3" WIDTH

• Mount between distribution racks to route cable horizontally

• Designed with a steel frame

• Durable ABS plastic

PART NO. DESCRIPTION

ICCMSCMPR9 3" H x 3" W dual rings, horizontal

888.ASK.4ICC | [email protected] | icc.com | CMS

RACKS & CABLE MANAGEMENT

A. B.

C. D.

A.

METAL RINGS AND ACCESSORIES

METAL RINGS

• Mount on the sides of racks to route cable vertically

• Available with single-sided and double-sided rings

• Metal construction for durability

• Package includes #12 rack screws

PART NO. DESCRIPTION

A. ICCMSCMPR1 1.70" single-sided, vertical
B. ICCMSCMPR2 3" single-sided, vertical
C. ICCMSCMPR3 3" double-sided, vertical
D. ICCMSCMPR4 6" double-sided, vertical

METAL RING VALUEPACKS

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

• 10 pieces per box

B.

A. B.

Fits on the side of racks

PART NO. DESCRIPTION

A. ICCMSCMPT1 1.70" single-sided, vertical, 10 pcs.
B. ICCMSCMPT2 3" single-sided, vertical, 10 pcs.

"L" BRACKET PANEL, SINGLE AND VALUEPACK

PART NO. DESCRIPTION

A. ICCMSCMPL1 0.95" H x 6" W, 1 pc.

• Designed to mount to any EIA compliant hole spacing

• Provides custom vertical or horizontal cable management

B. ICCMSCMPLC 0.95" H x 6" W, 25 pcs.

VALUEPACK

• Packaged in a resealable box for easy storage

• Reduces packaging waste

• 25 pieces per box

*1 RMS (rack mount space) = 1.75" H

Cable Radius Manager

Cable radius manager sits on the side or mounts
on the front of wall mount and distribution racks
to support cable bend radius.

Fits on the front of racks

PART NO. DESCRIPTION

ICCMSRMU02 Radius management units, 2 pcs.
ICCMSRMU1C Radius management units, 20 pcs.

VALUEPACK

65

RACKS & CABLE MANAGEMENT

RACK SHELVES

SOLID BOTTOM RACK SHELVES

• Supports heavier equipment

• Package includes #12 rack screws

RACKS & CABLE MANAGEMENT

10" Depth, 2 RMS*

75 lb. capacity

Single-sided

PART NO. ICCMSRSF10

10" Depth VALUEPACK

2 pieces per box

PART NO. ICCMSRSFC1

15" Depth, 3 RMS*

75 lb. capacity

Single-sided

PART NO. ICCMSRSF15

15" Depth VALUEPACK

2 pieces per box

PART NO. ICCMSRSFC2

VENTED BOTTOM RACK SHELVES

• Provides air fl ow to ventilate mounted equipment

• Package includes #12 rack screws

10" Depth, 2 RMS*

50 lb. capacity

Single-sided

PAR T NO. ICCMSRSV10

15" Depth, 3 RMS*

50 lb. capacity

Single-sided

PAR T NO. ICCMSRSV15

20" Depth, 2 RMS*

125 lb. capacity

Double-sided

Compatible with 2-Post racks

PART NO. ICCMSRDS20

30" Depth, 3 RMS*

75 lb. capacity

125

Double-sided

Compatible with 2-Post racks

PART NO. ICCMSRDS30

20" Depth, 3 RMS*
Heavyduty

250 lb. capacity

Double-sided

PART NO. ICCMSHDS20

20" Depth, 2 RMS*

100 lb. capacity

Double-sided

Compatible with 2-Post racks

PART NO. ICCMSRDV20

30" Depth, 3 RMS*

100 lb. capacity

Double-sided

Compatible with 2-Post racks

PART NO. ICCMSRDV30

66

*1 RMS (rack mount space) = 1.75" H

888.ASK.4ICC | [email protected] | icc.com | CMS

RACKS & CABLE MANAGEMENT

RACK SHELVES

10" SLIDING KEYBOARD SHELF, 3 RMS*

• Bottom tray slides out an additional 10" to hold a keyboard

• Top shelf space can hold a fl at screen monitor and a mouse

• 20" fully extended

• 25 lb. capacity

• Package includes #12 rack screws

PART NO.

4-POST RACK SHELVES

ICCMSRKLST ICCMSRKSMT

• Manufactured with durable steel

• Fits standard 19” EIA rack mount widths

• Package includes #12 rack screws

10" KEYBOARD SHELF, 3 RMS*

• Keyboard shelf with sliding mouse tray

• 18.25" fully extended

• 10 lb. capacity

• Package includes #12 rack screws

ADJUSTABLE 27" TO 32" SOLID BOTTOM, 2 RMS*

125 lb. capacity

PART NO. ICCMSRAS30

32" VENTED BOTTOM, 2 RMS*

125 lb. capacity

PART NO. ICCMSRFV32

27" W

32" W

*1 RMS (rack mount space) = 1.75" H

67

RACKS & CABLE MANAGEMENT

WALL MOUNT J-HOOK VALUEPACKS

• Secures cable to the wall

• Alternative solution to cable trays

• Made of high quality galvanized steel

• Rust resistant zinc fi nish

• 25 pieces per box

3/4"

RACKS & CABLE MANAGEMENT

PART NO.

ICCMSJHK22 ICCMSJHK33 ICCMSJHK44 ICCMSJHK55

J-HOOKS

4"

2"

1 5/16"

CEILING MOUNT J-HOOK VALUEPACKS

• Secures cable from the ceiling

• Designed with a 90º swivel bracket allowing the hook to pivot from 0

• Alternative solution to cable trays

• Made of high quality galvanized steel

• Rust resistant zinc fi nish

• 25 pieces per box

1 5/16"

3/4"

PART NO.

ICCMSJH922 ICCMSJH933 ICCMSJH944 ICCMSJH955

O

to 180

O

4"

2"

68

J-HOOK FILL CHART - 50% CAPACITY

CABLE TYPE

J-HOOK SIZE

3/4" 15 10 5

1 5/16" 50 30 15

2" 80 50 25

4" 160 100 50

888.ASK.4ICC | [email protected] | icc.com | CMS

CAT 5e 4-PAIR 23 AWG

0.340" dia.

CAT 6 4-PAIR 23 AWG

0.236" dia.

Based on 50% fi ll capacity and ICC cabling O.D.

CAT 6A 4-PAIR 24 AWG

0.189" dia.

RACKS & CABLE MANAGEMENT

RACK ACCESSORIES

CONCRETE RACK MOUNT KIT

• Secures racks to concrete fl oors and brick walls

• 1200 lb. of load tension when properly installed as a kit

• Self expanding, no caulking is required

• Package includes 4 anchors, rods, hex nuts and washers

PART NO. DESCRIPTION

ICCMSRFLKT Rack mount kit

#12 RACK SCREWS

• #12-24 UNC thread combination drive

• 5/8 inch

• Black oxide fi nish

• Used with racks and rack mount products

PART NO. DESCRIPTION

ICACSS01BK #12-24 x 5/8", 25 pcs.

GROUNDING KIT

• Terminates grounding cable to patch panels and racks

• Accepts 6~14 gauge wires

PART NO. DESCRIPTION

ICACSGKS00 Grounding kit

Convert Panels from 19" to 23"

Offset bracket design maintains fl ush mounting of panels

PART NO. DESCRIPTION

ICCMSCBARM 1 RMS*, 2 pcs.
ICCMSCBARC 1 RMS*, 20 pcs.
ICCMSCBBRM 2 RMS*, 2 pcs.
ICCMSCBBRC 2 RMS*, 20 pcs.

*1 RMS (rack mount space) = 1.75" H

VALUEPACK

VALUEPACK

19" W

23" W

69

RACKS & CABLE MANAGEMENT

9

LADDER RACK SYSTEM

14

4

5

LADDER RACK RUNWAY SECTIONS

PART NO. DESCRIPTION

1. ICCMSLST10 Ladder rack runway, 10'

RACKS & CABLE MANAGEMENT

2. ICCMSLST05 Ladder rack runway, 5'

3. ICCMSLRW05 Kit, 5' runway, relay bracket, wall angle and J-bolts

4. ICCMSLFT90 90

5. ICCMSLIR90 90

6. ICCMSLOR90 90

1 & 2

O

fl at turn for a gradual sweeping bend

O

inside corner routes cable vertically

O

outside corner routes cable vertically

4

1 & 2

16

12

8

7

3

7. WALL SUPPORT ANGLE

Mounts runway to the wall

ICCMSLAWSK

5

6

8. RELAY RACK BRACKET

Mounts and secures runway over racks

ICCMSLRRBK

9. PROTECTIVE END CAPS

Covers runway ends

ICCMSLPECK, 2 each

70

10. J-BOLT KIT

Inserts over and secures runway

ICCMSLJB01, 2 each

888.ASK.4ICC | [email protected] | icc.com | CMS

11. TEE-JUNCTION SPLICES

Fastens runway in a tee intersection

ICCMSLTJSK, 2 each

12. BUTT SPLICES

Joins ladder rack runway at ends
ICCMSLEBSK, 2 each

RACKS & CABLE MANAGEMENT

LADDER RACK SYSTEM

10

17

LADDER RACK WEIGHT CHART - 50% CAPACITY

DISTANCE BETWEEN SPAN WEIGHT CAPACITY WIDTH CAT 6A (50%**) CAT 6 (50%**) CAT 5e (50%**)

10' straight section 300 lb.* 12" 500 720 1100

5' straight section 500 lb.* 12" 500 720 1100

*When properly secured on both ends of ladder rack runway straight sections
**Cable fi lls are based on .34” outside diameter (OD) CAT 6A, .24” O.D. CAT 6, and .21” O.D. CAT 5e ICC cable

CABLE RUNWAY FILLS

13

6' THREADED CEILING RODS

15

Ceiling mount to sustain over-hanging runway

ICCMSLCMRK, 2 each

11

6

FLOOR FOOT KIT

Includes mounting feet and butt

splice to secure runway to the fl oor

ICCMSLMFFK, 2 each

17. CABLE POSTS

Prevents cable from falling

ICCMSLCRPK, 2 each

4-POST RELAY RACK BRACKETS

Secures runway over 4-Post racks

ICCMSL4PBK, 2 each

13. TRIANGLE WALL SUPPORT

Holds ladder rack runway to the

wall, recommended every 5'

ICCMSLTWSK

14. WALL BRACKETS

Secures runway fl at against the wall

ICCMSLVWBK, 2 each

15. SWIVEL BUTT SPLICES

Allows ends to adjust in various angles

ICCMSLESSK, 2 each

16. RADIUS DROP

Maintains bend radius at drop points

ICCMSLCRDK

71

CORDS & CABLE ASSEMBLIES

All CAT 6A, CAT 6 and CAT 5e patch cords

have 50 micro inch gold plated contacts

CAT 6A AND CAT 6 PATCH CORDS

CAT 6A FTP 10G PATCH CORDS

• Exceeds TIA-568 CAT 6A performance standard

• Supports 10G bandwidth

O

• 360

shielding from Electromagnetic Interference and Alien Crosstalk

• RJ-45 plugs with 50 micro inch gold plated contacts

• Factory tested and wired T568

PART NO. DESCRIPTION

ICPCSGzzxx¹ 4-Pair, FTP, 26 AWG, stranded conductors

Length (zz¹) = 03, 05, 07, 10, 15 and 25 feet

Color (xx¹) = WH BL YL BK

CORDS & CABLE ASSEMBLIES

Top view

Bottom view

Molded slim profi le strain relief

Molded slim profi le strain relief

COMPONENT-RATED PERFORMANCE TEST

NEXTdB

100

Signal transmission

80

60

40

Headroom

20

TIA standard limit

0

0500

CAT 6 PATCH CORDS

Frequency (MHz)

Tested per TIA Component-Rated specifi cation

• Exceeds TIA-568 CAT 6 performance standard

• Slim boot fi ts narrow port spacing

• Flexible snag-free strain relief boots help maintain proper bend radius

• RJ-45 plugs with 50 micro inch gold plated contacts

• Factory tested and wired T568

72

PART NO. DESCRIPTION

ICPCSKzzxx¹ 4-Pair, UTP, 24 AWG, stranded conductors

Length (zz¹) = 01, 03, 05, 07, 10, 14 and 25 feet

Color (xx¹) = WH BL OR RD YL GY BK GN

COMPONENT-RATED PERFORMANCE TEST

NEXTdB

100

80

60

40

20

0

0250

888.ASK.4ICC | [email protected] | icc.com | PCS

Frequency (MHz)

Tested per TIA Component-Rated specifi cation

TIA standard limit

CORDS & CABLE ASSEMBLIES

Molded slim profi le strain relief

CAT 6 AND CAT 5e PATCH CORDS

CAT 5e PATCH CORDS

• Exceeds TIA-568 CAT 5e performance standard

• Slim boot fi ts narrow port spacing

• Flexible snag-free strain relief boots help maintain proper bend radius

• RJ-45 plugs with 50 micro inch gold plated contacts

• Factory tested and wired T568

PART NO. DESCRIPTION

ICPCSJzzxx¹ 4-Pair, UTP, 24 AWG, stranded conductors

Length (zz¹) = 01, 03, 05, 07, 10, 14 and 25 feet

Color (xx¹) = WH BL OR RD YL GY BK GN

Top view

Bottom view

A. B.

COMPONENT-RATED PERFORMANCE TEST

NEXTdB

100

Signal transmission

80

60

Headroom

40

TIA standard limit

20

0

0100

CAT 6 AND CAT 5e PATCH CORD VALUEPACKS

Frequency (MHz)

Tested per TIA Component-Rated specifi cation

• 4-Pair, UTP, 24 AWG, stranded conductors

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

• 25 pieces per bag

A. CAT 6

PART NO. DESCRIPTION

ICPCSD01BL 1' L, 25 pcs.
ICPCSD03BL 3' L, 25 pcs.
ICPCSD05BL 5' L, 25 pcs.
ICPCSD07BL 7' L, 25 pcs.
ICPCSD10BL 10' L, 25 pcs.

Length = 01, 03, 05, 07 and 10 feet

Color = Blue

B. CAT 5e

PART NO. DESCRIPTION

ICPCSC01BL 1' L, 25 pcs.
ICPCSC03BL 3' L, 25 pcs.
ICPCSC05BL 5' L, 25 pcs.
ICPCSC07BL 7' L, 25 pcs.
ICPCSC10BL 10' L, 25 pcs.

T568 Wiring Diagram

8
7
6
5
4
3
2
1

Brown

White / Brown

Green

White / Blue

Blue

White / Green

Orange

White / Orange

White / Orange
Orange
White / Green
Blue
White / Blue
Green
White / Brown
Brown

1
2
3
4
5
6
7
8

73

CORDS & CABLE ASSEMBLIES

CORDS & CABLE ASSEMBLIES

110 PATCH CORDS

110 TO RJ-45 CAT 6 PATCH CORD, T568B

• Terminated with 110 to RJ-45 patch plugs

• 4-Pair, 8P8C, wired to T568B

• Exceeds TIA-568 CAT 6 performance standard

• Factory tested

PART NO. DESCRIPTION

ICPCSEzzBL¹ 110 to RJ-45

Length (zz¹) = 03, 07 and 10 feet

Color = Blue

110 TO 110 CAT 6 PATCH CORD, T568B

• Terminated with 110 to 110 patch plugs

• 4-Pair, wired to T568B

• Exceeds TIA-568 CAT 6 performance standard

• Factory tested

PART NO. DESCRIPTION

ICPCSQzzBL¹ 110 to 110

Length (zz¹) = 03, 07 and 10 feet

Color = Blue

110 TO RJ-45 CAT 5e PATCH CORD, T568B

• Terminated with 110 to RJ-45 patch plugs

• 4-Pair, 8P8C, wired to T568B

• Exceeds TIA-568 CAT 5e performance standard

• Factory tested

PART NO. DESCRIPTION

ICPCSBzzBL¹ 110 to RJ-45

Length (zz¹) = 03, 07 and 10 feet

Color = Blue

110 TO 110 CAT 5e PATCH CORD, T568B

• Terminated with 110 to 110 patch plugs

• 4-Pair, wired to T568B

• Exceeds TIA-568 CAT 5e performance standard

• Factory tested

PART NO. DESCRIPTION

ICPCSRzzBL¹ 110 to 110

Length (zz¹) = 03, 07 and 10 feet

Color = Blue

74

110 Patching

110 patch cords are factory
terminated and tested to
exceed CAT 5e or CAT 6
performance standards.

888.ASK.4ICC | [email protected] | icc.com | PCS

CORDS & CABLE ASSEMBLIES

Male Male

TELCO CABLES

MALE TO MALE 25-PAIR RJ-21X TELCO CABLE

• Terminated with male Telco connectors

• 25-Pair, 24 AWG, UTP cable

PART NO. DESCRIPTION

ICPCSTMMzz¹ Male to male 25-Pair Telco cable

Length (zz¹) = 05, 10, 15, 25, 75 and 00 (00 = 100) feet

Color = Gray

FEMALE TO FEMALE 25-PAIR RJ-21X TELCO CABLE

• Terminated with female Telco connectors

• 25-Pair, 24 AWG, UTP cable

PART NO. DESCRIPTION

ICPCSTFFzz¹ Female to female 25-Pair Telco cable

Length (zz¹) = 05, 10, 15, 25, 75 and 00 (00 = 100) feet

Color = Gray

Female Female

Male Female

MaleBlunt

MALE TO FEMALE 25-PAIR RJ-21X TELCO CABLE

• Terminated with male to female Telco connectors

• 25-Pair, 24 AWG, UTP cable

PART NO. DESCRIPTION

ICPCSTFMzz¹ Male to female 25-Pair Telco cable

Length (zz¹) = 05, 10, 15, 25, 75 and 00 (00 = 100) feet

Color = Gray

BLUNT 25-PAIR RJ-21X TELCO CABLE TO TELCO CONNECTOR

• Blunt end allows cable to be terminated onto 110 and 66 wiring blocks

• The other end is terminated with a male or female Telco connector

PART NO. DESCRIPTION

ICPCSTMBzz¹ Blunt cable to male Telco connector (pictured)
ICPCSTFBzz¹ Blunt cable to female Telco connector

Length (zz¹) = 05, 10, 15 and 25 feet

Color = Gray

90O Male Telco Cable 90O Female Telco Cable

50-Pin, 90O style, CMR rated, Category 3

75

CORDS & CABLE ASSEMBLIES

MODULAR PLUGS

CORDS & CABLE ASSEMBLIES

SOLID AND STRANDED CAT 6
MODULAR PLUG

• Accepts 24~26 23~24 AWG solid

and stranded wires

• Oval cable entry

• Package includes loading bar

PART NO. DESCRIPTION

ICMP8P8C6E CAT 6, 100 pcs.

STRANDED CAT 5e MODULAR PLUG

• Accepts 24~26 AWG stranded wires

• Oval cable entry

• Package includes loading bar

PART NO. DESCRIPTION

ICMP8P8C5E CAT 5e, 100 pcs.

SOLID AND STRANDED CAT 5e AND
CAT 6 SHIELDED MODULAR PLUG

• Protects from Electromagnetic

Interference

• Accepts 24~26 23~24 AWG solid and

stranded wires

• Oval cable entry

• Package includes loading bar

PART NO. DESCRIPTION

ICMP8P8C6S CAT 6, 100 pcs.

SOLID 8P8C MODULAR PLUG

• Accepts 24~28 AWG solid wires

• Oval cable entry

PART NO. DESCRIPTION

ICMP8P8SRD 8P8C, 100 pcs.

STRANDED 8P8C MODULAR PLUG

• Accepts 24~28 AWG stranded wires

• Oval cable entry

PART NO. DESCRIPTION

ICMP8P8CRD 8P8C, 100 pcs.

SOLID 6P6C MODULAR PLUG

• Accepts 24~28 AWG solid wires

• Oval cable entry

PART NO. DESCRIPTION

ICMP6P6SRD 6P6C, 100 pcs.

STRANDED 8P8C MODULAR PLUG

• Accepts 24~28 AWG stranded wires

• Flat cable entry

PART NO. DESCRIPTION

ICMP8P8CFT 8P8C, 100 pcs.

STRANDED 6P6C MODULAR PLUG

• Accepts 24~28 AWG stranded wires

• Oval cable entry

PART NO. DESCRIPTION

ICMP6P6CRD 6P6C, 100 pcs.

76

STRANDED 6P6C MODULAR PLUG

• Accepts 24~28 AWG stranded wires

• Flat cable entry

PART NO. DESCRIPTION

ICMP6P6CFT 6P6C, 100 pcs.

888.ASK.4ICC | [email protected] | icc.com | PCS

STRANDED 6P4C MODULAR PLUG

• Accepts 24~28 AWG stranded wires

• Flat cable entry

PART NO. DESCRIPTION

ICMP6P4CFT 6P4C, 100 pcs.

CORDS & CABLE ASSEMBLIES

STRANDED 4P4C MODULAR PLUG

• Accepts 24~28 AWG stranded wires

• Flat cable entry

PART NO. DESCRIPTION

ICMP4P4CHS 4P4C, 100 pcs.

MODULAR PLUGS AND LINE CORDS

FLAT LINE CORDAGE

• Works with fl at entry plugs

• 26 AWG stranded copper wire

• 1000 feet per roll

PART NO. DESCRIPTION

IC1000S4SV 4-Conductor
IC1000S6SV 6-Conductor

Color = Silver satin

6P6C VOICE LINE CORD

• 6-Position, 6-Conductor

• Pin 1 to 6

• Designed for phone connectivity

PART NO. DESCRIPTION

ICLC6zzFSV¹ 6P6C

Length (zz¹) = 07, 14 and 25 feet

Color = Silver satin

MAKE CUSTOM LENGTH EXTENSION CORDS

• Ideal for customizing extension cords for phone and data connectivity

• 50 micro inch gold plated contacts on modular plugs

• Each bag contains 100 plugs

• Factory made patch cords are recommended for consistent performance

6P4C VOICE LINE CORD

• 6-Position, 4-Conductor

• Pin 2 to 5

• Designed for phone connectivity

PART NO. DESCRIPTION

ICLC4zzFSV¹ 6P4C

Length (zz¹) = 07, 14 and 25 feet

Color = Silver satin

Termination tools

Page 109

Premise cable

Page 50

Loading bar

STRANDED OR SOLID PLUGS

• Always identify the cable types before selecting

the appropriate plug

• For fl at cables, choose fl at plugs

• For round cables, choose oval plugs

• For stranded cables, choose stranded plugs

• For solid cables, choose solid plugs

77

CORDS & CABLE ASSEMBLIES

VELCRO® BRAND ONE WRAP® CABLE TIES

• Designed for secure cable fastening

• Quick, easy cable management and color-coding

• Comes individually perforated; tear off as needed

• 10 pieces per bag

PART NO. DESCRIPTION

A. ICACSV08xx¹ 8" L x 0.5" W, 10 pcs.
B. ICACSV12xx¹ 12" L x 0.5" W, 10 pcs.

Color (xx¹) = WH IV BL OR RD YL GY BK GN

VELCRO® BRAND ONE WRAP® CABLE TIE VALUEPACKS

• Packaged in a resealable bag for easy storage

• Reduces packaging waste

• 100 pieces per bag

CORDS & CABLE ASSEMBLIES

VELCRO® BRAND CABLE TIES

8” length

12” length

8” length

12” length

PART NO. DESCRIPTION

A. ICACSVB8BK 8" L x 0.5" W, 100 pcs.
B. ICACSVBTBK 12" L x 0.5" W, 100 pcs.

Color = BK

BULK VELCRO® BRAND CABLE TIES

• 1 continuous roll; cut off as needed

• 75 feet per roll

• Durable material

PART NO. DESCRIPTION

A. ICACSV75BL 75' L x 0.5" W, 1 roll, blue
B. ICACSV75BK 75' L x 0.5" W, 1 roll, black

Color = BL BK

Blue

Black

Velcro

®

Brand Cable Ties

Make cable management and color coding quick and easy.

78

888.ASK.4ICC | [email protected] | icc.com | PCS

CORDS & CABLE ASSEMBLIES

NYLON CABLE TIES

4” SUPPORTS 18 lb.

PART NO. ICACSS04BK Black ICACSS04NL Natural 100 pcs. per bag

5.5” SUPPORTS 18 lb.

PART NO. ICACSS55BK Black ICACSS55NL Natural 100 pcs. per bag

6” SUPPORTS 40 lb.

PART NO. ICACSM06BK Black ICACSM06NL Natural 100 pcs. per bag

7.5” SUPPORTS 50 lb.

PART NO. ICACSL75BK Black ICACSL75NL Natural 100 pcs. per bag
PART NO. ICACSL7KBK Black ICACSL7KNL Natural 1000 pcs. per bag VALUEPACK

8” SUPPORTS 18 lb.

NYLON CABLE TIES

• Durable and strong nylon material

• Loop tensile strength supports from 18 to 120 lb.

NYLON CABLE TIE VALUEPACKS

• 1000 pieces packaged in a resealable bag

PART NO. ICACSS08BK Black ICACSS08NL Natural 100 pcs. per bag
PART NO. ICACSS8KBK Black ICACSS8KNL Natural 1000 pcs. per bag VALUEPACK

8.5” SUPPORTS 40 lb.

PART NO. ICACSM85BK Black ICACSM85NL Natural 100 pcs. per bag
PART NO. ICACSM8KBK Black ICACSM8KNL Natural 1000 pcs. per bag VALUEPACK

11” SUPPORTS 50 lb.

PART NO. ICACSL11BK Black ICACSL11NL Natural 100 pcs. per bag
PART NO. ICACSL1KBK Black ICACSL1KNL Natural 1000 pcs. per bag VALUEPACK

12” SUPPORTS 40 lb.

PART NO. ICACSM12BK Black ICACSM12NL Natural 100 pcs. per bag

14.5” SUPPORTS 50 lb.

PART NO. ICACSL15BK Black ICACSL15NL Natural 100 pcs. per bag

14.5” SUPPORTS 120 lb.

PART NO. ICACSE15NL Natural 100 pcs. per bag

79

FIBER OPTIC SYSTEM

DIFFERENT WAYS TO INSTALL FIBER OPTICS

Enclosed Rack Mount Solutions

• Fiber rack mount enclosures provide a safe and clean environment for installing fi ber on racks

Rack mount enclosures

Page 86

FIBER OPTIC SYSTEM

Rear metal cover

Front metal cover

Enclosed Wall Mount Solutions

• Fiber wall mount enclosures are perfect for
installing fi ber in limited space

Wall mount enclosures

Page 89

80

Lockable doors

888.ASK.4ICC | [email protected] | icc.com | FOS

FIBER OPTIC SYSTEM

Rack Mount Panel Solutions

DIFFERENT WAYS TO INSTALL FIBER OPTICS

LC quad patch panels

Page 85

MPO patch panels

LC quad adapter panels

MPO adapter panels

Wall Outlet Solutions

• Multimedia outlets are perfect for distributing fi ber to the Work Area

Multimedia boxes

Page 92

Fits single

gang outlet

Plug and play MPO cassettes

Page 82

Multimedia outlets

Page 93

Confi gurable slim bezelsConfi gurable bezels

81

FIBER OPTIC SYSTEM

FIBER OPTIC SYSTEM

FIBER PLUG AND PLAY CASSETTES

PLUG AND PLAY APPLICATION FEATURES

• Supports 10G Ethernet, fi ber channel and link specifi cations

• Eliminates splicing, polishing and testing

• Saves signifi cant time and reduces overall installation costs

• Modular design for easy Moves, Adds, Changes (MACs)

• Confi gurable with fi ber enclosures and blank fi ber patch panels

PLUG AND PLAY CASSETTE FEATURES

• 100% factory terminated and tested

• Low Insertion Loss of <0.5dB

• Made of high quality and durable aluminum

Push-pin style for quick installation

Dust caps

Rack mount enclosures

Page 87

LC quad cassettes have 2 MPO and the duplex

cassettes have 1 MPO adapter on the rear

Pre-terminated fi ber jumpers

MPO adapter MPO jumper

82

LC fi ber plug and play cassette

888.ASK.4ICC | [email protected] | icc.com | FOS

3.56" D

MPO is a Multi-Fiber Push On connector

that is defi ned by IEC-61754-7 and TIA-604-

5-D. Multi-fi ber push on consist of 12 fi bers

per MPO plug. MTP* plug is backward

compatible with MPO plug.

*MTP is a registered trademark of US Conec

FIBER OPTIC SYSTEM

A. B.

C. D.

A. B.

FIBER PLUG AND PLAY CASSETTES

HD LC QUAD PLUG AND PLAY MPO CASSETTES, 24 FIBERS

• 6 LC quad adapters on the front with 2 MPO adapters on the rear

• Package includes dust caps and performance test results

PART NO. DESCRIPTION

A. ICFC24ML1G 6 LC quad, multimode, 10G aqua, 50/125µm (OM3)
B. ICFC24SLD9 6 LC quad, single-mode, blue, 9/125µm
C. ICFC24ML50 6 LC quad, multimode, beige, 50/125µm (OM2)
D. ICFC24MLD6 6 LC quad, multimode, beige, 62.5/125µm (OM1)

LC PLUG AND PLAY MPO CASSETTES, 12 FIBERS

• 6 LC duplex adapters on the front with 1 MPO adapter on the rear

• Package includes dust caps and performance test results

PART NO. DESCRIPTION

A. ICFC12ML1G 6 LC duplex, multimode, 10G aqua, 50/125µm (OM3)
B. ICFC12SLD9 6 LC duplex, single-mode, blue, 9/125µm
C. ICFC12ML50 6 LC duplex, multimode, beige, 50/125µm (OM2)
D. ICFC12MLD6 6 LC duplex, multimode, beige, 62.5/125µm (OM1)

C. D.

SC PLUG AND PLAY MPO CASSETTES, 12 FIBERS

A. B.

• 6 SC duplex adapters on the front with 1 MPO adapter on the rear

• Package includes dust caps and performance test results

PART NO. DESCRIPTION

A. ICFC12MS1G 6 SC duplex, multimode, 10G aqua, 50/125µm (OM3)
B. ICFC12SSD9 6 SC duplex, single-mode, blue, 9/125µm
C. ICFC12MS50 6 SC duplex, multimode, beige, 50/125µm (OM2)
D. ICFC12MSD6 6 SC duplex, multimode, beige, 62.5/125µm (OM1)

C. D.

RACK MOUNT PLUG AND PLAY CASSETTES WITH BLANK FIBER PATCH PANELS

• Fits standard 19” EIA rack mount widths

• Package includes #12 rack screws

Cassettes sold separately

PART NO. DESCRIPTION

ICFORPP1RM 3-Panel, 1 RMS*
ICFORPP2RM 6-Panel, 2 RMS*

*1 RMS (rack mount space) = 1.75" H

83

FIBER OPTIC SYSTEM

FIBER ADAPTER PANELS

HD LC QUAD ADAPTER PANEL, 24 FIBERS

• 6 quad LC aqua adapters

• LC to LC

PART NO. DESCRIPTION

ICFOPL161G Ceramic sleeves

support MM/SM*

Metal sleeves
support MM*

LC ADAPTER PANEL, 12 FIBERS

• 6 duplex LC blue adapters

• LC to LC

FIBER OPTIC SYSTEM

PART NO. DESCRIPTION

ICFOPL16BK Ceramic sleeves

support MM/SM*

SC ADAPTER PANEL, 6 FIBERS

• 6 simplex SC blue adapters

• SC to SC

PART NO. DESCRIPTION

ICFOPS16BK Metal sleeves

support MM*

ICFOPS26BK Ceramic sleeves
support MM/SM*

HD MPO ADAPTER PANEL, 72 FIBERS

• 6 MPO aqua adapters

144 FIBERS

• MPO to MPO

• Key up to key down

PART NO. DESCRIPTION

ICFOPM261G 6-Ports, MM/SM*

HD MPO ADAPTER PANEL, 72 FIBERS

• 6 MPO black adapters

144 FIBERS

• MPO to MPO

• Key up to key down

PART NO. DESCRIPTION

ICFOPM26BK 6-Ports, MM/SM*

MPO ADAPTER PANEL, 48 FIBERS 96 FIBERS

• 4 MPO black adapters

• MPO to MPO

• Key up to key down

PART NO. DESCRIPTION

ICFOPM24BK 4-Ports, MM/SM*

SC ADAPTER PANEL, 12 FIBERS

• 6 duplex SC blue adapters

• SC to SC

PART NO. DESCRIPTION

ICFOPC16BK Metal sleeves

support MM*

ICFOPC26BK Ceramic sleeves
support MM/SM*

ST ADAPTER PANEL, 8 FIBERS

• 8 simplex ST metal adapters

• ST to ST

PART NO. DESCRIPTION

ICFOPT18BK Metal sleeves

support MM*

ICFOPT28BK Ceramic sleeves
support MM/SM*

BLANK ADAPTER PANEL

• Covers unused panel openings

PART NO. DESCRIPTION

ICFOPB00BK Blank

ST ADAPTER PANEL, 6 FIBERS

• 6 simplex ST metal adapters

• ST to ST

PART NO. DESCRIPTION

ICFOPT16BK Metal sleeves

support MM*

ICFOPT26BK Ceramic sleeves
support MM/SM*

ST TO SC ADAPTER PANEL, 12 FIBERS

• 6 duplex ST to SC metal adapters

• ST to SC

PART NO. DESCRIPTION

ICFOPR16BK Metal sleeves

support MM*

ICFOPR26BK Ceramic sleeves
support MM/SM*

4-PORT BLANK ADAPTER PANEL

• Confi gurable with EZ

data, voice, audio, video and fi ber

optic modular connectors

PART NO. DESCRIPTION

ICFOPJ04BK 4-Ports

®

and HD

84

*MM=Multimode, SM=Single-mode

888.ASK.4ICC | [email protected] | icc.com | FOS

FIBER OPTIC SYSTEM

FIBER PATCH PANELS

HD LC QUAD FIBER PATCH PANEL, 96 FIBERS

• Patch panel loaded with 24 LC to LC quad adapters

• Fits standard 19” EIA rack mount widths

• Package includes dust caps and #12 rack screws

PART NO. DESCRIPTION

ICFP96ML1G LC quad patch panel, aqua adapters,1 RMS*

A.

B.

A.

B.

HD MPO FIBER PATCH PANELS, 288 FIBERS 576 FIBERS

• Patch panel loaded with 24 MPO to MPO adapters

• Fits standard 19” EIA rack mount widths

• Package includes dust caps and #12 rack screws

• Key up to key down

PART NO. DESCRIPTION

A. ICFP24MP1G MPO patch panel, aqua adapters, 1 RMS*
B. ICFP24MPBK MPO patch panel, black adapters, 1 RMS*

BLANK FIBER PATCH PANELS

• Confi gurable with fi ber adapter panels and plug and play cassettes

• Fits standard 19” EIA rack mount widths

• Package includes #12 rack screws

PART NO. DESCRIPTION

A. ICFORPP1RM 3 panel, 1 RMS*
B. ICFORPP2RM 6 panel, 2 RMS*

*1 RMS (rack mount space) = 1.75" H

Fast and Flexible Installations

4-Port blank adapter panel is confi gurable

with fi ber optic modular couplers

All adapter panels come with protective

caps to prevent dust from entering

Push-pins allow for easy removal and

installation of adapter panels

85

FIBER OPTIC SYSTEM

A.

B.

FIBER OPTIC SYSTEM

FIBER RACK MOUNT ENCLOSURES

SLIDE-OUT FIBER OPTIC RACK MOUNT ENCLOSURE WITH
REMOVABLE FRONT AND REAR METAL COVERS, 3 PANEL

• Holds up to 3 adapter panels and 1 splice tray 2 splice trays

• Slide-out tray with front and rear metal covers

• Package includes #12 rack screws

PART NO. DESCRIPTION

A. ICFORE31RM 3 panel, 1.75" H x 17" W x 12.6" D, 1 RMS*

SLIDE-OUT FIBER OPTIC RACK MOUNT ENCLOSURE WITH
REMOVABLE FRONT AND REAR METAL COVERS, 6 PANEL

• Holds up to 6 adapter panels and 1 splice tray 2 splice trays

• Slide-out tray with front and rear metal covers

• Package includes #12 rack screws

PART NO. DESCRIPTION

B. ICFORE62RM 6 panel, 3.50" H x 17" W x 12.6" D, 3 RMS* 2 RMS*

C.

D.

SLIDE-OUT FIBER OPTIC RACK MOUNT ENCLOSURE WITH
REMOVABLE FRONT AND REAR METAL COVERS, 12 PANEL

• Holds up to 12 adapter panels and 1 splice tray 4 splice trays

• Slide-out tray with front and rear metal covers

• Package includes #12 rack screws

PART NO. DESCRIPTION

C. ICFORET4RM 12 panel, 7.00" H x 17" W x 12.6" D, 4 RMS*

SPLICE TRAY

• Supports 12 fi bers with fusion sleeves

• Designed to work with the fi ber optic enclosures with removable front

and rear metal covers; see above

PART NO. DESCRIPTION

D. ICFOSKFM12 12 splice

*1 RMS (rack mount space) = 1.75" H

86

Easy Front and Rear Access

Fiber enclosures are designed with removable front and rear metal covers.

Push-pins

Rear Front

All enclosures have a 3.651" depth starting from the mounting rail to the front

888.ASK.4ICC | [email protected] | icc.com | FOS

3.651" D

FIBER OPTIC SYSTEM

A.

FIBER RACK MOUNT ENCLOSURES

SWING-OUT FIBER OPTIC RACK MOUNT ENCLOSURE, 2 PANEL

• Holds up to 2 adapter panels and 1 small or large splice tray

• Swing-out tray with open front

• Package includes 8 nylon ties, 2 hook and loop ties and #12 rack screws

PART NO. DESCRIPTION

A. ICFOR102BK 2 panel, 1.75" H x 17" W x 11" D, 1 RMS*

B.

C.

SLIDE-OUT FIBER OPTIC RACK MOUNT ENCLOSURE, 3 PANEL

• Holds up to 3 adapter panels and 1 small or large splice tray

• Slide-out tray with removable front transparent fl exi-panel door

• Package includes:

- 7 fi ber saddles, 4 hook and loop ties and #12 rack screws

PART NO. DESCRIPTION

B. ICFOR103BK 3 panel, 1.75" H x 17" W x 14" D, 1 RMS*

SLIDE-OUT FIBER OPTIC RACK MOUNT ENCLOSURE, 4 PANEL

• Holds up to 4 adapter panels and 4 small or 2 large splice trays

• Slide-out tray with swing-down front transparent fl exi-panel door

• Package includes:

- 2 cable management spools and 7 fi ber saddles

- 4 nylon ties, 4 hook and loop ties and #12 rack screws

- 1 grounding lug

PART NO. DESCRIPTION

C. ICFOR204BK 4 panel, 3.50" H x 17" W x 14" D, 2 RMS*

D.

E.

SLIDE-OUT FIBER OPTIC RACK MOUNT ENCLOSURE, 6 PANEL

• Holds up to 6 adapter panels and 6 small or 3 large splice trays

• Slide-out tray with swing-down front transparent fl exi-panel door

• Package includes:

- 2 cable management spools and 7 fi ber saddles

- 4 nylon ties, 4 hook and loop ties and #12 rack screws

- 1 grounding lug

PART NO. DESCRIPTION

D. ICFOR306BK 6 panel, 5.25" H x 17" W x 14" D, 3 RMS*

SLIDE-OUT FIBER OPTIC RACK MOUNT ENCLOSURE, 12 PANEL

• Holds up to 12 adapter panels and 8 small or 4 large splice trays

• Slide-out tray with swing-down front transparent fl exi-panel door

• Package includes:

- 2 cable management spools and 7 fi ber saddles

- 4 nylon ties, 4 hook and loop ties and #12 rack screws

- 1 grounding lug

PART NO. DESCRIPTION

E. ICFOR412BK 12 panel, 7.00" H x 17" W x 14" D, 4 RMS*

*1 RMS (rack mount space) = 1.75" H

87

FIBER OPTIC SYSTEM

A.

FIBER RACK MOUNT ENCLOSURES

FIBER OPTIC RACK MOUNT ENCLOSURE, 4 PANEL

• 2 slide-out trays with front transparent fl exi-panel door

• Top tray holds up to 4 adapter panels

• Bottom tray comes with 1 universal splice tray; holds up to 4

• Package includes:

- 14 fi ber saddles

- 8 nylon ties, 8 hook and loop ties

- 2 grounding lugs and #12 rack screws

PART NO. DESCRIPTION

A. ICFOR444BK 4 panel, 96 splice, 7.00" H x 17" W x 14" D, 4 RMS*

B.

FIBER OPTIC SYSTEM

C.

FIBER OPTIC SPLICE RACK MOUNT ENCLOSURE

• 1 slide-out tray with front transparent fl exi-panel door

• Tray comes with 1 universal splice tray; holds up to 4

• Package includes:

- 7 fi ber saddles, 12 nylon ties and 1 fastener strip

- 1 grounding lug and #12 rack screws

PART NO. DESCRIPTION

B. ICFORS3096 96 splice, 5.25" H x 17" W x 14" D, 3 RMS*

FIBER OPTIC SPLICE RACK MOUNT ENCLOSURE

• 1 slide-out tray with front transparent fl exi-panel door

• Tray comes with 6 universal splice trays; holds up to 8

• Package includes:

- 7 fi ber saddles, 12 nylon ties and 1 fastener strip

- 1 grounding lug and #12 rack screws

PART NO. DESCRIPTION

C. ICFORS4192 192 splice, 7.00" H x 17" W x 14" D, 4 RMS*

88

D.

E.

LOADED FIBER OPTIC RACK MOUNT ENCLOSURE WITH SC ADAPTERS

• Enclosure comes loaded with 24 simplex SC to SC blue adapters

• Holds 1 large splice tray

• Slide-out tray with removable front transparent fl exi-panel door

• Package includes:

- 7 fi ber saddles, 2 nylon ties, 4 hook and loop ties and #12 rack screws

PART NO. DESCRIPTION

D. ICFORSC024 24 simplex SC adapters, 1.75" H x 17" W x 14" D, 1 RMS*

LOADED FIBER OPTIC RACK MOUNT ENCLOSURE WITH ST ADAPTERS

• Enclosure comes loaded with 24 simplex ST to ST metal adapters

• Holds 1 large splice tray

• Slide-out tray with removable front transparent fl exi-panel door

• Package includes:

- 7 fi ber saddles, 2 nylon ties, 4 hook and loop ties and #12 rack screws

PART NO. DESCRIPTION

E. ICFORST024 24 simplex ST adapters, 1.75" H x 17" W x 14" D, 1 RMS*

*1 RMS (rack mount space) = 1.75" H

888.ASK.4ICC | [email protected] | icc.com | FOS

FIBER OPTIC SYSTEM

A.

FIBER WALL MOUNT ENCLOSURES

SINGLE DOOR FIBER OPTIC WALL MOUNT ENCLOSURE, 4 PANEL

• Holds up to 4 adapter panels

• Holds 1 splice tray; 12 splice 2 splice trays;12 splices per tray

• Single door design

• Package includes:

- 4 nylon ties, 4 hook and loop ties

PART NO. DESCRIPTION

A. ICFODE41WM 4 panel, single door with lock, 10.75" H x 13" W x 3.5" D
ICFOSKFM12 12 splice, splice tray (not pictured)

B.

C.

SINGLE DOOR FIBER OPTIC WALL MOUNT ENCLOSURE, 2 PANEL

• Holds up to 2 adapter panels and 1 small splice tray

• Single door design

• Package includes:

- 2 cable management spools and 4 nylon ties

- 4 standoff harness clips and 4 split fl at cable clamps with adhesive base

PART NO. DESCRIPTION

B. ICFOD102BK 2 panel, single door, 13" H x 9.25" W x 3.5" D

SINGLE DOOR FIBER OPTIC WALL MOUNT ENCLOSURE, 4 PANEL

• Holds up to 4 adapter panels and 1 small splice tray

• Single door design

• Package includes:

- 2 cable management spools and 4 nylon ties

- 4 standoff harness clips and 4 split fl at cable clamps with adhesive base

PART NO. DESCRIPTION

C. ICFOD104BK 4 panel, single door, 13" H x 11.5" W x 3.5" D

D.

E.

DUAL DOOR FIBER OPTIC WALL MOUNT ENCLOSURE, 2 PANEL

• Holds up to 2 adapter panels and 1 small splice tray

• Dual door design; the inner door is designed with a cam lock

• Comes with a built-in and adjustable cable management spool

• Package includes:

- 2 nylon ties, 2 hook and loop ties and 2 keys

PART NO. DESCRIPTION

D. ICFOD202BK 2 panel, dual doors, 10.2" H x 12" W x 3.5" D

DUAL DOOR FIBER OPTIC WALL MOUNT ENCLOSURE, 4 PANEL

• Holds up to 4 adapter panels and 1 small splice tray

• Dual door design; the outer door is designed with a cam lock and the

inner door is designed with a hasp for an optional lock

• Package includes:

- 2 cable management spools

- 4 nylon ties and 2 hook and loop ties

- 1 grounding lug and 2 keys

PART NO. DESCRIPTION

E. ICFOD204BK 2 panel, dual doors, 10.8" H x 12" W x 4.0" D

89

FIBER OPTIC SYSTEM

FIBER OPTIC SYSTEM

FIBER SPLICE TRAYS

SMALL 12 SPLICE TRAY KIT

• Two-piece design for cover and base

• Works with fi ber rack and wall mount enclosures

• Package includes:

- Side holders for bare fusion

- Fusion with sleeve and mechanical splice ribbon fusion

- 4 nylon ties and 3 adhesive hook and loop buttons

PART NO. DESCRIPTION

ICFOSTFM12 12 splice, small tray, 5.95" H x 4.67" W x 0.38" D

LARGE 24 SPLICE TRAY KIT

• Two-piece design for cover and base

• Works with fi ber rack mount enclosures only

• Package includes:

- Side holders for bare fusion

- Fusion with sleeve and mechanical splice ribbon fusion

- 4 nylon ties and 4 adhesive hook and loop buttons

PART NO. DESCRIPTION

ICFOSTFM24 24 splice, large tray, 11.15" H x 4.00" W x .44" D

UNIVERSAL 24 SPLICE TRAY KIT FOR SPLICE ENCLOSURES

• Two-piece design for cover and base

• Works with splice fi ber rack mount enclosures

• Package includes:

- 2 left and 2 right mechanical fusion sleeves

- 2 left and 2 right position fusion sleeves

- 4 nylon ties

PART NO. DESCRIPTION

ICFOSTUF24 24 splice, 10.66" H x 4.50" W x .4" D

SPLICE TRAY

• Supports 12 fi bers with fusion sleeves

• Designed to work with the fi ber optic enclosures with removable front

and rear metal doors

PART NO. DESCRIPTION

ICFOSKFM12 12 splice

*1 RMS (rack mount space) = 1.75" H

90

10G Fiber Optic Jumpers

Laser optimized aqua fi ber jumpers to support
10G/40G/100G applications, MPO, LC, and SC in
a variety of confi gurations and lengths

Page 94

888.ASK.4ICC | [email protected] | icc.com | FOS

FIBER OPTIC SYSTEM

FIBER OPTIC COUPLERS

A.

B.

C.

FIBER OPTIC MODULAR COUPLERS HD STYLE

• Female to female couplers

• Feed-through on the front and rear; no termination required

• Designed with ceramic sleeves

• Supports multimode and single-mode

PART NO. DESCRIPTION CARTON / CASE

A. IC107LC2xx¹ LC duplex couplers, ceramic sleeves 50 / 400
B. IC107SC2xx¹ SC simplex couplers, ceramic sleeve 50 / 400
C. IC107ST2xx¹ ST simplex couplers, ceramic sleeve 50 / 400

Color (xx¹) = WH IV

A.

C.

E.

B.

D.

FIBER OPTIC COUPLERS

• Female to female couplers

• Feed-through on the front and rear; no termination required

• Joins two fi ber cables

PART NO. DESCRIPTION

A. ICFOA5MM02 LC to LC duplex, ceramic sleeves, MM/SM*

B. ICFOA8MM01 SC to SC simplex, metal sleeve, MM*
ICFOA8SM01 SC to SC simplex, ceramic sleeve, MM/SM*

C. ICFOA8MM02 SC to SC duplex, metal sleeves, MM*
ICFOA8SM02 SC to SC duplex, ceramic sleeves, MM/SM*

D. ICFOA7MM01 ST to ST simplex, metal sleeve, MM*
ICFOA7SM01 ST to ST simplex, ceramic sleeve, MM/SM*

E. ICFOA9MM02 SC to ST duplex, metal sleeves, MM*
ICFOA9SM02 SC to ST duplex, ceramic sleeves, MM/SM*

*MM=Multimode, SM=Single-mode

91

FIBER OPTIC SYSTEM

ELITE MULTIMEDIA OUTLETS AND BOXES

BLANK AND FIBER OPTIC ELITE

PART NO.
DESCRIPTION

IC108BF1xx¹

1-Port, fl at

™

BEZELS WORK WITH MULTIMEDIA OUTLETS AND BOXES

IC108BF2xx¹

2-Ports, fl at

FIBER OPTIC SYSTEM

IC108BFCxx¹

SC to SC duplex, fl at

FIBER OPTIC SLIM BEZELS WORK WITH MULTIMEDIA OUTLETS

IC108BFDxx¹

2 SC to SC duplex, fl at

IC108BA1xx¹

1-Port, angled

IC108BACxx¹

SC to SC duplex, angled

IC108BA2xx¹

2-Ports, angled

IC108BFTxx¹

ST to ST duplex, fl at

IC108BFBxx¹

Blank, fl at

IC108BFBxx¹

SC to ST duplex, fl at

ICFOBWLBxx

LC to LC duplex

2

ICFOBWCBxx

SC to SC duplex

MUTOA ELITE™ MULTIMEDIA BOXES

Package includes:

• Cover and base

• Cable ties for cable management

• Paper labels and clear view covers

• Adhesive strips and wood screws for mounting

1-Bezel opening

8.67" H

Color (xx¹) = WH IV

2

Knockouts on top and bottom work with raceway

ICFOBWTBxx

ST to ST duplex

2

All fi ber optic bezels are designed with metal sleeves

6-Bezel openings

Color (xx2) = WH IV GY

Color (xx¹) = WH IV GY

Circuit identifi cation label

92

PART NO. DESCRIPTION

IC108MMBxx¹ MUTOA multimedia box with 7 Elite bezel openings

888.ASK.4ICC | [email protected] | icc.com | FOS

Magnets (optional)

8.50" W

2.41" D

FIBER OPTIC SYSTEM

ELITE MULTIMEDIA OUTLETS AND BOXES

SINGLE GANG ELITE™ MULTIMEDIA OUTLETS

Package includes:

• Cover and base

• Cable ties for cable management

• Paper labels and clear view covers

• Wood screws for mounting

2-Bezel openings

Color (xx¹) = WH IV GY

Confi gurable with EliteTM bezels

Fits single

gang outlet

7.50" H

1" D

PART NO. DESCRIPTION

IC108WBSxx¹ Single gang multimedia outlet with 2 Elite and 2 slim bezel openings

DOUBLE GANG ELITE™ MULTIMEDIA OUTLETS

Package includes:

4.45" W

• Cover and base

• Cable ties for cable management

• Paper labels and clear view covers

• Wood screws for mounting

4-Bezel openings

Fits double

gang outlet

7.50" H

2 slim bezel openings

Color (xx¹) = WH IV GY

6" W1" D

PART NO. DESCRIPTION

IC108WBDxx¹ Double gang multimedia outlet with 4 Elite and 3 slim bezel openings

3 slim bezel openings

93

FIBER OPTIC SYSTEM

m

FIBER CABLE ASSEMBLIES

10G LC to SC10G LC to LC 10G SC to SC

10G 50/125µm MULTIMODE FIBER JUMPERS, OFNR RISER RATED

FIBER OPTIC SYSTEM

Length (zz¹) = 01, 02, 03, 05, 07 and 10 meters (1 meter = 3.28 feet) Note: Housing boot and clip colors may vary

CONNECTOR TYPE 50/125µm SIMPLEX 50/125µm DUPLEX

LC to LC

LC to SC

LC to ST

ICFOJ1G6zz

ICFOJ2G6zz

ICFOJ8G6zz

1

1

1

ICFOJ1G7zz

ICFOJ2G7zz

ICFOJ8G7zz

1

1

1

10G MPO to MPO MPO to MPO 9/125µm

MPO to MPO 50/125µm

MPO to MPO 9/125µ

and 62.5/125µm

MPO FIBER JUMPERS, OFNP PLENUM RATED, 12 FIBERS

CONNECTOR TYPE SIMPLEX

10G MPO to MPO, multimode, 50/

MPO to MPO, multimode, 50/

MPO to MPO, multimode, 62.5/

MPO to MPO, single-mode 9/

125µm

125µm

125µm

125µm

ICFOJATGzz

ICFOJA55zz

ICFOJA55zz

ICFOJATSzz

Length (zz¹) = 05, 10, 15, 20, 30 and 50 meters (1 meter = 3.28 feet) Note: Housing boot and clip colors may vary

(nm)

5100

5400

5700

6000

0.0

50.0

100.0

150.0

200.0

(um)

(nm)

Height

6000

6254 nm

5700

Length

5400

0 um

5100

0.0 50.0 100.0 150.0 200.0

Surface Contour

(um)

(nm)

480

400

440

520

0.0 50.0 100.0 150.0

200.0

(um)

(nm)

Height

520

497 nm

480

440

Length

0 um

400

0.0 50.0 100.0 150.0 200.0

Surface Detail

3D-Mesh

30,280

(um)

1

1

1

1

PASS

Live Image

94

Fiber optic cable assemblies are factory built, terminated, and tested to ensure results exceeding ANSI/
TIA-568-C.3 performance standards. Cable assemblies are factory tested to an average Insertion Loss of

0.3dB, the lowest in the industry.

888.ASK.4ICC | [email protected] | icc.com | FOS

FIBER OPTIC SYSTEM

S

ST

LC

to LCS

SC

S

ST

LC

to LCS

SC

FIBER CABLE ASSEMBLIES

LC to LC

C to

LC to SC LC to ST

C to

SC to STSC to SC ST to ST

MULTIMODE FIBER JUMPERS, OFNR RISER RATED

CONNECTOR TYPE 50/125µm SIMPLEX 50/125µm DUPLEX 62.5/125µm SIMPLEX 62.5/125µm DUPLEX

LC to LC

LC to SC

LC to ST

SC to SC

SC to ST

ST to ST

ICFOJ1M6

ICFOJ2M6

ICFOJ8C6

ICFOJ9C6

ICFOJ7C6

1

zz

1

zz

-

1

zz

1

zz

1

zz

ICFOJ1M7

ICFOJ2M7

ICFOJ3M7

ICFOJ8C7

ICFOJ9C7

ICFOJ7C7

Length (zz¹) = 01, 02, 03, 05, 07 and 10 meters (1 meter = 3.28 feet) Note: Housing boot and clip colors may vary

1

zz

1

zz

1

zz

1

zz

1

zz

1

zz

ICFOJ1M2

ICFOJ2M2

ICFOJ8C2

ICFOJ9C2

ICFOJ7C2

1

zz

1

zz

-

1

zz

1

zz

1

zz

ICFOJ1M3

ICFOJ2M3

ICFOJ3M3

ICFOJ8C3

ICFOJ9C3

ICFOJ7C3

1

zz

1

zz

1

zz

1

zz

1

zz

1

zz

LC to LC

C to

LC to SC

C to

SC to STSC to SC ST to ST

LC to ST

SINGLE-MODE FIBER JUMPERS, OFNR RISER RATED

CONNECTOR TYPE 9/125µm SIMPLEX 9/125µm DUPLEX

LC to LC

LC to SC

LC to ST

SC to SC

SC to ST

ST to ST

ICFOJ1M4

ICFOJ2M4

ICFOJ8C4

ICFOJ9C4

ICFOJ7C4

1

zz

1

zz

-

1

zz

1

zz

1

zz

ICFOJ1M5

ICFOJ2M5

ICFOJ3M5

ICFOJ8C5

ICFOJ9C5

ICFOJ7C5

Length (zz¹) = 01, 02, 03, 05, 07 and 10 meters (1 meter = 3.28 feet) Note: Housing boot and clip colors may vary

1

zz

1

zz

1

zz

1

zz

1

zz

1

zz

95

RESIDENTIAL ENCLOSURES

14", 21" and 28" Combos

• Ideal solution for small and single-family homes

• Designed to be stud mounted

• Enclosure is compatible with most major brand modules

• Cables pictured are optional

NET.MEDIA CENTERS

TM

14" Combo

• 14" H x 14.25" W x 3.68" D

• Modules packaged separately

RESIDENTIAL ENCLOSURES

Door latch

Knockout for an optional

door lock with key

Includes top, bottom, rear and side

2" knockouts for routing cable

Rubber grommets protect

cable from damage

Voice module

• 8-Ports, bridged IDC

• Up to 4 incoming

phone lines

• Up to 8 extensions

• Built-in RJ31X

• Built-in expansion port

CAT 6 data module

• 8-Ports

• TIA Category 6 rated

• 50 micro-inch gold

plated contacts

96

The door has a hinged design and can

be reversed to swing open left or right

Video splitter module

• 1 input x 6 outputs

• 2 GHz, 5~2300 MHz bandwidth

14"

PART NO. DESCRIPTION

ICRESDC14K* Enclosure and hinged door with voice, CAT 6 data and 1 x

ICRESDC14D* Enclosure and hinged door with voice and 1 x 6 video split-

ICRESDC14E* Enclosure and hinged door
ICRESDC14H Hinged door

ICRESDR14H

*Includes grommets, rubber bumpers and mounting hardware

6 video splitter modules

ter modules

888.ASK.4ICC | [email protected] | icc.com | SRS

Extendable mounting tabs work with

different spacing between wall studs

NET.MEDIA CENTER COMBO REFERENCE GUIDE

ENCLOSURE PART NO. VOICE PORTS DATA PORTS VIDEO PORTS

14" ICRESDC14K 8 8, CAT 6 6, 2 GHz

14" ICRESDC14D 8 - 6, 2 GHz

21" ICRESDC21K 8 8, CAT 6 6, 2 GHz

28" ICRESDC28K 8 8, CAT 6 6, 2 GHz

RESIDENTIAL ENCLOSURES

NET.MEDIA CENTERS

TM

21" Combo

• 21" H x 14.25" W x 3.68" D

• Modules packaged separately

Rubber bumpers

28" Combo

• 28" H x 14.25" W x 3.68" D

• Modules packaged separately

20 Gauge steel

Includes knockouts for optional AC power outlets

21"

PART NO. DESCRIPTION

ICRESDC21K* Enclosure and hinged door with voice, CAT 6 data

and 1 x 6 video splitter modules

ICRESDC21E* Enclosure and hinged door
ICRESDC21H Hinged door

ICRESDR21H

Modules can be mounted

vertically or horizontally

All enclosures are designed with measurements on

each side for accurate installation between studs

28"

PART NO. DESCRIPTION

ICRESDC28K* Enclosure and hinged door with voice, CAT 6 data

and 1 x 6 video splitter modules

ICRESDC28E* Enclosure and hinged door
ICRESDC28H Hinged door

ICRESDR28H

*Includes grommets, rubber bumpers and mounting hardware

97

RESIDENTIAL ENCLOSURES

9", 8" and Mini Combos

• Ideal solution for apartments, condos, remodels and retrofi ts

• Can be surface or stud mounted

• 9" enclosure is compatible with most major brand modules

• Package includes mounting hardware

• Cables pictured are optional

NET.MEDIA CENTERS

TM

9" Combo

Tough ABS plastic

• 9.4" H x 15.10" W x 4.9" D

• Modules packaged separately

RESIDENTIAL ENCLOSURES

Voice module

• 8-Ports, bridged IDC

• Up to 4 incoming

phone lines

• Up to 8 extensions

• Built-in RJ31X

• Built-in expansion port

CAT 6 data module

• 8-Ports

• TIA Category 6 rated

• 50 micro-inch gold

plated contacts

CATV module

• 1 input x 6 outputs

• 2 GHz, 5~2300 MHz bandwidth

9.4" H

98

9" and 8" enclosures are designed with measurements

on each side for accurate installation between studs

9"

PART NO. DESCRIPTION

ICRESDC9PK Cover and base with voice, CAT 6 data and 1 x 6

video splitter modules
ICRESDC9PD Cover and base with voice and 1 x 6 video

splitter modules

888.ASK.4ICC | [email protected] | icc.com | SRS

Designed with a pad lock

option for additional security

NET.MEDIA CENTER COMBO REFERENCE GUIDE

ENCLOSURE PART NO. VOICE PORTS DATA PORTS VIDEO PORTS

9" ICRESDC9PK 8 8, CAT 6 6, 2 GHz

9" ICRESDC9PD 8 - 6, 2 GHz

8" ICRDSMMBK8 8 - 6, 2 GHz

Mini ICRDSMMBK1 8 8, CAT 5e 4, 1 GHz

Mini ICRDSMMBD1 8 - 4, 1 GHz

Includes knockouts for

optional AC power outlets

RESIDENTIAL ENCLOSURES

8" Combo 6 Pack

• 8" H x 15.10" W x 4.9" D

• Modules packaged separately

Snap-on cover

NET.MEDIA CENTERS

2" knockouts for routing cable

TM

Extendable mounting tabs

8" H

Mini Combo

• 7.5" H x 6.5" W x 3.5" D

CAT 5e data module

• 8-Ports

• TIA Category 5e rated

• 50 micro-inch gold

plated contacts

CATV module

• 1 input x 4 outputs

• 5 MHz - 1 GHz bandwidth

Designed with a pad lock

option for additional security

Voice module

• 8-Ports, bridged IDC

• Up to 4 incoming

phone lines

• Up to 8 extensions

Open space for

additional modules

Screw-down cover option

7.50" H

8" ValuePack

PART NO.

ICRDSMMBK8

DESCRIPTION

• Cover and base, 6 pcs.

• Voice module, 6 pcs.

• 1 x 4 splitter, 6 pcs.

• 1 x 6 splitter, 6 pcs.

• Mounting hardware

• Only available in 6 pack

Mini

PART NO. DESCRIPTION

ICRDSMMBK1 Cover and base with voice, CAT 5e data and 1 x 4

video splitter modules
ICRDSMMBD1 Cover and base with voice and 1 x 4 video

splitter modules

99

RESIDENTIAL ENCLOSURES

42" Enclosure

• 42" H x 14.25" W x 3.68" D

• Ideal solution for custom homes

• Designed to be stud mounted

• Enclosure is compatible with most major brand modules

PART NO.

ICRESDC42E

Surface screw mounts

have a recessed design

preventing screws from

RESIDENTIAL ENCLOSURES

interfering when modules

mount over them

NET.MEDIA CENTERS

TM

All doors are packaged

separately for protection

while enclosure is being

installed

Knockout for an optional

door lock with key

Ample room for modules

and upgrades

42" H

100

All enclosures are designed with measurements on

each side for accurate installation between studs

888.ASK.4ICC | [email protected] | icc.com | SRS

Vertical and horizontal

cable tie anchor points
