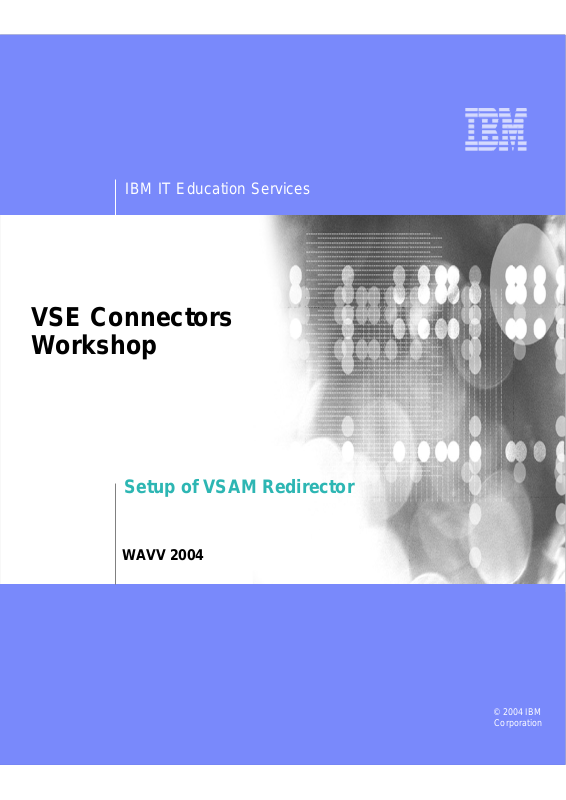

IBM WAVV 2004 User Manual

IBM IT Education Services

VSE Connectors
Workshop

Setup of VSAM Redirector

WAVV 2004

© 2004 IBM
Corporation

VSE Connectors

Workshop

Setup of

VSAM Redirector

WAVV 2004

Connectors

Wilhelm Mild, Ingo Franzki

[e-mail]

© Copyright IBM Corporation 2004

VSE/ESA 2.6/2.7

VSAM Redirector

The VSAM Redirector is a new VSE/ESA connector, introduced with VSE/ESA

2.6. The VSAM Redirector allows you to redirect all requests to a certain VSAM
file into any other file system or database on any other (Java-enabled) platform.
VSE/ESA is the client, while the server part runs on any other Java-enabled
platform like Windows.

For example you could use the VSAM Redirector to sy nchronize a VSAM file with
a DB2 database running on a Windows. By using the VSAM Redirector your
existing VSAM programs doesn't require any revisions.

The VSAM Redirector makes use of a so called VSAM Data Access Exit (VDA).
This exit intercepts all VSAM requests. The exit gets control at OPEN, CLOSE,
and for all data requests (GET, PUT, INSERT,...).

A configuration table is used to define which VSAM files are being "redirected".
The VSAM Redirector Client on VSE forwards all requests against a redirected file
to the VSAM Redirector Server which then handles the request.

The VSAM Redirector Server is a Java application. It can run on any Java
enabled platform.

Redirect VSAM requests to a HTML

page on Windows - Overview

Initial state:

ÎYou have a VSAM file that contains data

(FLIGHT.ORDERING.ORDERS)

ÎYou have applications that work with that VSAM file

(i.e. batch applications, CICS Application, tools like Ditto )

Goal:

ÎRedirect all VSAM INSERT requests to a HTML page on

Windows

ÎThis operation can be done with existing applications (without

changing/touching them)

NOTE: The VSAM Redirector Server does NOT require the

VSE Connector Client on Windows

Apache

HTML

page

CICS

Transaction

Handler

Redirector server

Redirector client

TCP/IP

Program

batch

VSAM Request

VSAM

VSE/ESA 2.6

Chapter1: Steps for installation

of VSAM Redirector server on

Windows

STEP1.1: Navigate to VSE Redirector Server home page

Open the VSE Homepage with a web browser:

http://www-1.ibm.com/servers/eserver/zseries/os/vse/

Click on "Service and Support" on the left side
and then on "e-business connectors and utilities".

The page you see contains the VSAM Redirector Server and some tools
that can be downloaded for free.

Navigate to the VSAM Redirector Server which
represents the remote component of the VSAM Redirector.

Click on:

Details and Download

The page explains the most important functions of the
VSAM Redirector Server, which is the Java part of the
VSAM Redirector function.

Steps for installation on a

workstation

STEP1.2: Verification if Java environment installed

To install the VSAM Redirector a Java Virtual Machine must
be installed on Windows.

yTo just run Java programs, the JRE 1.3.x or later is needed

(Java Runtime Environment),

yto develop/compile Java programs, JDK 1.3.x or later is needed

(Java Developer Kit, which includes the JRE).

To verify if a Java Virtual Machine is installed, open a command prompt and

hit command:

java -version

You should see something like:

Java version "1.3.1"
Java(TM) 2 Runtime Environment, Standard Editi on

If the messages above are shown go to STEP1.4.

STEP1.3: Install JDK if not on the system

If following message is shown:

'Java' is not recognized as an internal or external command,
operable program or batch file.

- > your system has no Java virtual machine

To install a Java Virtual machine on the PC do:
On the same HTML page (Service and Support -> VSE e-business

Connectors):

VSAM Redirector Server -> Details and Download

in section: Installation you will find a link were you can download the Java

Developer Kit from IBM.

http://www.ibm.com/developerworks/java/

or you can download a SUN Version from http://www.sun.com

(Runtime Environment) installed.

Install the downloaded JDK 1.3.x. or later and reboot the workstation.

Steps for installation on a

workstation

STEP1.4: Download VSE Redirector server Code

With Java installed, navigate on VSAM Redirector Server -> Details and

Download to:

Download latest Code via HTML

and click on: redir270-pq74694.zip (VSE 2.6 and 2.7). The file name may
vary since it contains an APAR number. Please make sure you have
applied the corresponding APAR on your VSE system.

The download process will be started. You will be prompted to specify
where to save the code. Save it in a place you remember later on.

Download via FTP:

An alternative to the HTML download can be an FTP download if the
code is on a FTP server.
For that issue commands:

ftp <ppp.xxx.yyy.zzz>
cd <pub>
bin
mget *.zip

After the code is downloaded it must be unzipped.
The ZIP file contains the following files:

install.class, install.bat, install.cmd, install.sh

Note: The VSAM Redirector server is also shipped and installed with the

VSE base product in Library PRD1.BASE as member iesvsmrd.w
You can download it from there in binary format and rename it to

redir27.zip. But the newest level will always be on the Internet.

Steps for installation on a

workstation

STEP1.5: Install VSE Redirector Server

To install the VSAM Redirector server, open a Windows command line and
change current directory to the one where install.class resides.

Type:

java install

or start the install program install.bat

This will guide you trough the installation process of the VSAM Redirector
Server.

The VSAM Redirector Server consists of:

ythe VSAM Redirector Server code
ya detailed HTML documentation about the functions and

possibilities

ytwo sample handlers, one for relational databases (i.e.DB2) and

one for HTML

yThe HTML handler allows, to collect data inserted into a

VSAM cluster, on a HTML page on Windows

yThe DB2 handler allows the synchronization of a VSAM

cluster with a remote DB2 database

ydocumentation how to develop own handlers.

NOTE: The VSE Redirector Server does NOT require the

VSE Connector Client

Verify installation of

VSAM Redirector Server

STEP1.6: Verify Redirector server Documentation

To verify that the VSAM Redirector Server is installed properly,

open the HTML Documentation

(For Windows: START -> Programs -> VSAM Redirector -> Online Help

The Help HTML page will be opened.

STEP1.7: Start VSE Redirector server

To start the VSAM Redirector Server, execut e:

run.bat in the <redirector> directory or

use START -> Programs -> VSAM Redirector -> Start Server)

• Commands for Redirector server:

status - shows the status of the server
stop x | all - stop client with number 'x' (show in status) or stop all clients
quit - stop all clients and exit server

Redirect a VSAM requests to a

HTML page

STEP1.8: Redirector Server -> Handler

To be able to work with VSAM data on another platform (ASCII), the most
important component is the Handler.
The handler is responsible for data manipulation and conversion. Therefore it

must know the structure (mapping) of t he VSAM record.
The handler used in the workshop is the HtmlHandler.class
stored in directory: <redir>\com\ibm\vse\htmlhandler

The handler needs a map to split the record into fields. This map does not need
to be defined on the VSE system, but you can reuse a already defined map.

A map for a VSAM cluster can be defined with the Maptool, VSE Navigator or
IDCAMS RECMAP utility.

We work with the VSAM Cluster FLIGHT.ORDERING.ORDERS
The ORDERS_MAP is already defined.

In the used HTML handler <redir>com\ibm\vse\htmlhandler\HtmlHandler.java
the mapping is hard coded.

The Record Layout of the ORDERS Cluster is defined as follows:

Offset Length Type Key Field Name Description

---------------------------------------------------------­0 20 STRING no FIRST_NAME First Name
20 20 STRING no LAST_NAME Last Name
40 4 UNSIGNED no FLIGHT_NUMBER Flight Number
44 4 UNSIGNED no SEATS Seats
48 1 BINARY no NON_SMOKE Smoker 0=no

The Record length is 49 Bytes
The Record Layout is reflected in the Map ORDERS_MAP

Chapter2: VSE Settings to

redirect a VSAM cluster

STEP2.1: Configuration for Redirector Client on VSE\ESA

To redirect requests for the:

•VSAM cluster: FLIGHT.ORDERING.ORDERS.TEAMxx

•in VSAM catalog: VSESP.USER.CATALOG

We have to setup the Configuration phase (IESRDCFG.PHASE).
In this phase we have to define which VSAM cluster should be redirected to which
remote location, and eventually filter which requests.
For that a skeleton in ICCF Library 59 is shipped, called SKRDCFG
It was copied to your primary library.
The definitions for the redirected file were extracted into member RDCFGxx
were xx is your team ID
This was done to be able to build at the end one phase with the settings from all

attendees.

Edit skeleton RDCFGxx:
Change the sample entry in the configuration as shown below.
Enter CASE M in the command line to switch to mixed case mode before editing.

IESRDENT CATALOG='VSESP.USER.CATALOG’, X

CLUSTER=‘FLIGHT.ORDERING.ORDERS.TEAMxx', X
EXIT='IESREDIR', X
OWNER=VSAM, X
IP='<ip-addr>', X
HANDLER='com.ibm.vse.htmlhandler.HtmlHandler', X
OPTIONS=‘’

The most important parameter is OWNER:
OWNER=VSAM means the READ requests will be done from the VSAM cluster

and the INSERTS will be done to VSAM and to the remote site specified in IP.

That means a synchronization takes place.

OWNER=REDIRECTOR means all requests are redirected to the remote site.

VSE Settings to redirect a VSAM

cluster

In your skeleton SKRDCFG consider:

– let the job load IESRDCFG into the SVA (Step 2)
– let the job copy IESVEX01 to IKQVEX01 in PRD2.CONFIG (Step 3)
– let the job load IKQVEX01 into the SVA (Step 4)
– do NOT let the job load IESRDANC into the SVA, because it has already be

done (Step 5)

– let the job execute IESRDLDA to register the new configuration (Step 6)
– submit SKRDCFG and check for RC=0000 (this is only to test for errors)

If the RC=0 tell the instructor and he’ll activate your definitions.

STEP2.2: Access the VSAM file with Ditto

Make sure the Redirector server is started on your Windows (STEP1.7)
Use Ditto (2) Edit or update data -> (1) Edit VSAM data
Enter the VSAM cluster name: FLIGHT.ORDERING.ORDERS.TEAMxx
Enter the catalog name: VSESP.USER.CATALOG
Monitor the Redirector server console on Windows and press <ENTER>
You must see the connection messages.
On VSE:

1. You should see the preloaded records from VSAM file (if OWNER=VSAM)

2. Make sure Ditto works in CHAR mode (upper right corner)

3. Insert in the first 40 (0-39) characters of the record (first name, last name)

4. Change the mode Ditto works in HEX (upper right corner)

5. Now from position 39 you can key in the numeric fields (two times 4 byte
numbers and a binary field that can be 00 or 01 – as the map describes
them in STEP1.8)

6. Add as much records as you want

7. At the command line hit save or press PF3

8. The Redirector Console on Windows should show a message that the
output.html page was created.

9. Open the HTML page in <redir> dierctory (output.html)

You should see your inserted records only.
Change the OWNER to REDIRECTOR and you’ll see each time you open in Ditto

the cluster, it’s empty – because it will nor rea d from VSAM anymore.

Chapter3: Redirect a VSAM file

to HTML

STEP3.1: Change Handler to read VSAM record as string

Exit Ditto on VSE and stop the Redirector server on Windows using command quit.
The handler on Windows should be changed to be able to use string fields only.
The handler is stored in <redir>\com\ibm\vse\htmlhandler as HtmlHandler.java
Edit the file and make following changes:

1. Change the HTML header tag to create an HTML page that will refresh itself
all 5 seconds.

<html><head><title>VSE/ESA Redirector sample</title>

<meta http-equiv=refresh content=5></head>

2. Change the lines in the source as below to read a string of 49 char.

- Define all fields as String:

String firstname, lastname, flightnumber, seats, smoker;

- Make the changes below in the source code (it’s in the last 3-rd )

firstname = requestInfo.getString(0, 20);
lastname = requestInfo.getString(20, 20);
flightnumber = requestInfo.getString(40, 4);
seats = requestInfo.getString(44, 4);

smoker = reqeustInfo.getString(48, 1);
// smoktmp = requestInfo.getString(48, 1);
// if(smoktmp.length > 0)
// if( smoktmp[0] == 0 )
// smoker = false;
// else
// smoker = true;

….. htmloutput.newLine();

htmloutput.flush();

Save the changed file.
To be able to compile it we have to update the CLASSPATH temporary.

set CLASSPATH=VsamRedir.jar;.;%CLASSPATH%

In <redir> type:

javac com\ibm\vse\htmlhandler\HtmlHandler.java

3. Test the changed handler.
Restart the Redirector server on Windows. In <redir> type: run.bat
Use Ditto again, in CHAR mode (right upper corner) add some records with 49
characters each. Now the output.html should refresh itself each 5 seconds and
show the inserted records.

Summary

Major Steps to install VSAM Redirector Server on a

Java Platform

9install Java Runtime Environment (JRE) or
9Java Developer Kit (JDK)

9free download from SUN or IBM

9version 1.3.x or later

http://www.ibm.com/developerworks/java/

9download VSAM Redirector Server

http://www-1.ibm.com/servers/eserver/zseries/os/vse/support/vseconn/redir.html

9install VSAM Redirector Server

9at a Windows command enter: java install

9Configure the VSAM clusters to be redirected on the VSE side

using skeleton SKRDCFG from ICCF lib 59.

Chapter4: Redirect VSAM requests

to a DB2 database on Windows

Apache

HTML

DB2 UDB

Redirector server

Initial state:

ÎYou have a VSAM file that contains data

(i.e. FFSTORES.DEMO.CLUSTER)

ÎYou have applications that work with that VSAM file

(i.e. FFST CICS Application)

page

Transaction

HandlerHandler

Redirector client

TCP/IP

Program

CICS

VSAM Request

batch

VSE/ESA 2.6

VSAM

Goal:

ÎRedirect all VSAM requests to DB2 UDB on Windows
ÎAccess the data with existing applications (without changing them)

NOTE: The VSAM Redirector Server does NOT require the

VSE Connector Client on Windows

STEP4.1: Define a map

To move the data into a database, you must know the format of the records.

Therefore you must do a mapping containing all fields including their offset in
the record, length and type.

– Start the VSE Navigator, connect to the VSAM host, and navigate to the VSAM

cluster FFSTORES.DEMO.CLUSTER.

– Right click the Cluster, choose "Create map definition". Enter a name for the

map, e.g. "MAP"

– Right click on the map, choose "Change map definition":

Redirect a VSAM file to DB2

Mapping of FFSTORES.DEMO.CLUSTER:

Field name Type Offset

Length

STOREID STRING 0 6
STORENAME STRING 6 25
LOCSTREET STRING 31 25
LOCCITY STRING 56 25
LOCZIP STRING 81 10
LOCCOUNTRY STRING 91 25
LOCREP STRING 116 20
STOREN1 UNSIGNED 136 4
STOREN2 UNSIGNED 140 4
LDATE STRING 144 10
WEBPIC1 STRING 154 20
WEBPIC2 STRING 174 20
ACODE STRING 194 10

To verify the mapping, use the VSE Navigator to display the VSAM data.
Right click on the map, choose "Display VSAM Data". On the "Display

Filter" dialog box, press "OK" to display all records (no filter).

STEP4.2: Export the mapping to a XML File
The VSAM Redirector "Create DB2 Tables" tool reads the mapping from a

XML file.
Right click on the map and choose "Export map to XML". Enter a filename

(e.g. ffstores.xml). You will need this file in the next step.

Redirect a VSAM file to DB2

STEP4.3: Create the tables in the database

To continue with the next steps

–you must have installed a database management system (i.e. DB2).
–you must have a JDBC Driver for it (i.e. db2java.zip in <db2>\java\).
–you must be able to connect to the database (userid/password)

Make sure the JDBC driver is in the CLASSPATH. You may have to edit
the create.bat/create.cmd/create.sh batch files as well as the
run.bat/run.cmd/run.sh batch files and add the JDBC Driver Archive to
the classpath:

set CLASSPATH=.;xerces.jar;<db2>\java\db2java.zip;

%CLASSPATH%

Also the path must setup to contain the DB2 libraries.
Start the "Create DB2 Tables" utility (create.bat/create.sh or START -

Programs - VSAM Redirector - Create DB2 Tables).

The tool prompts you for the following:

–XML Filename: enter the name of the XML File you exported in the last

step (i.e. ffstores.xml)

–DB url: enter a JDBC URL for your database, i.e. jdbc:db2:sample
–DB user: enter a user id you use for accessing the database
–DB password: enter the users password
–DB table name: Enter the name of the data table, i.e. FFSTORES. This

table will later contain the VSAM data.

–Map table name: Enter the name of the table that contains the mapping

information, i.e. FFSTORES_MAP. You can use the same map table for
several clusters.

–Map name: Enter the name of the map, i.e. FFSTORES. This name is

independent from the map defined with the VSE Navigator.

–DB system: Enter 1 for DB/2, 2 for Oracle.
–The tool now imports the XML file and tries to connect to the database.
–Next, the map info table is created (FFSTORES_MAP). Enter "Yes" to

continue.

–Then, the data table is created (FFSTORES). Enter "Yes" to continue.
–Cluster Type: Enter 1 (KSDS without AIX).
–Primary key field: Enter the name of the key field: STOREID. Press

enter to create the table and indexes.

Redirect a VSAM file to DB2

Before we can work with the data in the database, we have to load the data

from VSAM into the database. To do this we define a second cluster,
redirect this cluster and copy (repro) the original cluster into the redirected
one.

STEP4.4: Define cluster FFSTORES.REPRO.CLUSTER with the same

attributes as FFSTORES.DEMO.CLUSTER:

–KSDS
–Max/Avg. record length: 210
–Key Position: 0, Keylength: 6

STEP4.5: Configure the Redirector for FFSTORES.REPRO.CLUSTER:

Copy skeleton SKRDCFG from ICCF Library 59 to your primary library.
Edit/add a entry to the configuration table. Enter CASE M in the command

line to switch to mixed case mode before editing.

IESRDENT CATALOG='VSESP.USER.CATALOG', X

CLUSTER='FFSTORES.REPRO.CLUSTER', X
EXIT='IESREDIR', X
OWNER=REDIRECTOR, X
IP='<ip-addr>', X
HANDLER='com.ibm.vse.db2handler.DB2Handler', X
OPTIONS='dburl=jdbc:db2:<db>;dbuser=<userid> X

maptable=FFSTORES_MAP;map=FFSTORES; X
dbpassword=<password>;dbtable=FFSTORES'

–let the job load IESRDCFG into the SVA (Step 2)
–let the job copy IESVEX01 to IKQVEX01 in PRD2.CONFIG (Step 3)
–let the job load IKQVEX01 into the SVA (Step 4)
–let the job load IESRDANC into the SVA, if not already done (Step 5)
–let the job execute IESRDLDA to register the new configuration

(Step 6)

–submit and check for RC=0000

Redirect a VSAM file to DB2

STEP4.6: Copy FFSTORES.DEMO.CLUSTER into

FFSTORES.REPRO.CLUSTER:

Use the IDCAMS REPRO function to copy the contents of
FFSTORES.DEMO.CLUSTER into the redirected
FFSTORES.REPRO.CLUSTER:

* $$ JOB JNM=REPRO,CLASS=A,DISP=L
// JOB REPRO COPY FILE
// DLBL COPYIN,'FFSTORES.DEMO.CLUSTER',,VSAM,CAT=VSESPUC
// DLBL COPYOUT,'FFSTORES.REPRO.CLUSTER',,VSAM,CAT=VSESPUC
// EXEC IDCAMS,SIZE=AUTO

REPRO INFILE (COPYIN) -

OUTFILE (COPYOUT) -

NOREUSE
/*
/&

* $$ EOJ

During the copy process, the VSAM Redirector Client will get control (at
open time of FFSTO RES.REPRO.CLUSTER) and will connect to the
VSAM Redirector Server. In case this fails, a VSAM open error message
will be displayed.

To verify the data in the DB/2 table, issue the following SQL statement, or
use the DB/2 Control Center:

SELECT * FROM FFSTORES

Redirect a VSAM file to DB2

STEP4.7: Configure the Redirector for FFSTORES.DEMO.CLUSTER:

Edit skeleton SKRDCFG:
Change the previously created entry in the configuration table.
Enter case m in the command line to switch to mixed case mode before

editing. Change FFSTORES.REPRO.CLUSTER to
FFSTORES.DEMO.CLUSTER

IESRDENT CATALOG='VSESP.USER.CATALOG', X

CLUSTER='FFSTORES.DEMO.CLUSTER', X
EXIT='IESREDIR', X
OWNER=REDIRECTOR, X
IP='<ip-addr>', X
HANDLER='com.ibm.vse.db2handler.DB2Handler', X
OPTIONS='dburl=jdbc:db2:<db>;dbuser=<userid>; X

maptable=FFSTORES_MAP;map=FFSTORES; X
dbpassword=<password>;dbtable=FFSTORES'

–let the job load IESRDCFG into the SVA (Step 2)
–let the job copy IESVEX01 to IKQVEX01 in PRD2.CONFIG (Step 3)
–let the job load IKQVEX01 into the SVA (Step 4)
–do NOT let the job load IESRDANC into the SVA, because it has already

be done (Step 5)

–let the job execute IESRDLDA to register the new configuration

(Step 6)

–submit and check for RC=0000

STEP4.8: Finished.

You may have to reopen the VSAM file in CICS, since the VSAM

Redirector configuration becomes active at open time.
You can now work with your VSAM applications which will fully

transparently access DB2 data and think they are working with VSAM

data .

Additional Information

zVSE/ESA Home Page

http://www.ibm.com/servers/eserver/zseries/os/vse/

ze-business Connectors User's Guide

SC33-6719

http://www-1.ibm.com/servers/eserver/zseries/os/vse/pdf/ieswue21.pdf

ze-business connectors tools
z http://www.ibm.com/servers/eserver/zseries/os/vse/ebus/home.html

ze-business Connectivity for VSE/ESA SG24-5950

ze-business Solutions for VSE/ESA SG24-5662

zServlet and JSP Programming SG24-5755

zLinux Web Hosting with WebSphere, SG24-6007

DB2, and Domino

[e-mail]
