ThinkPad

®

X60

Hardw are

Maintenance Manual

This manual supports:
ThinkPad X60

(MT 1702, 1703, 1704, 1705, 1706, 1707, 1708, 1709, 2507, 2508,
2509, 2510, 2533, and 2534)

ThinkPad

®

X60

Hardw are

Maintenance Manual

Note

Before using this information and the product it supports, be sure to read the general information under “Notices” on page

154.

First Edition (October 2006)
© Copyright Lenovo 2006. All rights reserved.

U.S. GOVERNMENT USERS – RESTRICTED RIGHTS: Our products and/or services are provided with
RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to the GSA ADP Schedule
contract with Lenovo Group Limited, if any, or the standard terms of this commercial license, or if the agency is
unable to accept this Program under these terms, then we provide this Program under the provisions set forth in
Commercial Computer Software–Restricted Rights at FA R 52.227-19, when applicable, or under Rights in
Data-General, FA R 52.227.14 (Alternate III).

Contents

About this manual . . . . . . . . . .1

Introduction . . . . . . . . . . . . .3

Important service information . . . . . . . .3

Strategy for replacing FRUs . . . . . . . . .3

Strategy for replacing a hard disk drive . . . .4

Important notice for replacing a system board . .4

How to use error messages . . . . . . . .4

Strategy for replacing FRUs for CTO, CMV, and GAV 4

Product definition . . . . . . . . . . .4

FRU identification for CTO, CMV, and GAV

products . . . . . . . . . . . . . . .5

Important information about replacing RoHS

compliant FRUs . . . . . . . . . . . . .6

Diskette compatibility matrix . . . . . . . . .7

Safety notices: multilingual translations . . . . .7

Safety information . . . . . . . . . . . .13

General safety . . . . . . . . . . . .13

Electrical safety . . . . . . . . . . . .13

Safety inspection guide . . . . . . . . .15

Handling devices that are sensitive to

electrostatic discharge . . . . . . . . . .16

Grounding requirements . . . . . . . . .16

Laser compliance statement . . . . . . . . .17

General descriptions . . . . . . . . .19

Read this first . . . . . . . . . . . . .19

What to do first . . . . . . . . . . . .19

Related service information . . . . . . . . .21

Service We b site . . . . . . . . . . . .21

Restoring the pre-installed system . . . . . .21

Passwords . . . . . . . . . . . . . .21

Power management . . . . . . . . . .23

Checkout guide . . . . . . . . . . . . .26

Testing the computer . . . . . . . . . .26

Detecting system information with PC-Doctor . .28

Power system checkout . . . . . . . . .29

ThinkPad X60 . . . . . . . . . . . .33

Product overview . . . . . . . . . . . .34

Specifications . . . . . . . . . . . . .34

Status indicators for X60 . . . . . . . . .37

FRU tests . . . . . . . . . . . . . .39

Fn key combinations . . . . . . . . . .41

Symptom-to-FRU index . . . . . . . . . .43

Numeric error codes . . . . . . . . . .43

Error messages . . . . . . . . . . . .47

Beep symptoms . . . . . . . . . . . .49

No-beep symptoms . . . . . . . . . . .49

LCD-related symptoms . . . . . . . . .50

Intermittent problems . . . . . . . . . .51

Undetermined problems . . . . . . . . .51

FRU replacement notices . . . . . . . . . .52

Screw notices . . . . . . . . . . . . .52

Retaining serial numbers . . . . . . . . .52

Removing and replacing a FRU . . . . . . . .55

1010 Battery pack . . . . . . . . . . .56

1020 Hard disk drive (2.5-inch) and HDD rubber

rails . . . . . . . . . . . . . . . .57

1030 DIMM cover . . . . . . . . . . .59

1040 DIMM . . . . . . . . . . . . .60

1050 Keyboard . . . . . . . . . . . .61

1060 Upper case . . . . . . . . . . . .65

1070 Fingerprint reader . . . . . . . . .67

1080 Hard disk (1.8-inch) . . . . . . . . .68

1090 Hard disk housing (1.8-inch) . . . . . .69

1100 Wireless WA N PCI Express Mini card . . .70
1110 Wireless LAN PCI Express Mini card . . .71

1120 MDC . . . . . . . . . . . . . .73

1130 Backup battery . . . . . . . . . .74

1140 Speaker . . . . . . . . . . . . .75

1150 DC-in and RJ-11 connectors . . . . . .76

1160 LCD assembly . . . . . . . . . . .77

1170 Hard disk sub-card . . . . . . . . .82

1180 System board and lower case assembly with

label . . . . . . . . . . . . . . . .83

1190 Fansink . . . . . . . . . . . . .86

2010 LCD bezel . . . . . . . . . . . .87

2020 Inverter card . . . . . . . . . . .90

2030 Bluetooth daughter card . . . . . . . .91

2040 LCD . . . . . . . . . . . . . .92

2050 Wireless LAN antenna cables (SPWG) . . .95

2060 Hinges . . . . . . . . . . . . .97

2070 Wireless LAN antenna cables (TMD) . . . 100
2080 Wireless WA N antenna cable (TMD) . . . 102

2090 LCD panel and LCD cable . . . . . . 104

Locations . . . . . . . . . . . . . . . 106

Front view for X60 . . . . . . . . . . 106

Rear view for X60 . . . . . . . . . . . 107

Bottom view for X60 . . . . . . . . . . 108

Rear View for ThinkPad X6 UltraBase . . . . 109

Bottom View for ThinkPad X6 UltraBase . . . 109

Parts list . . . . . . . . . . . . . . .110

Overall . . . . . . . . . . . . . .110

LCD FRUs . . . . . . . . . . . . . 144

Keyboard . . . . . . . . . . . . . . 146

Recovery CDs . . . . . . . . . . . . 147

Miscellaneous parts . . . . . . . . . . 151

AC adapters . . . . . . . . . . . . . 151

Common parts list . . . . . . . . . . . 152

Notices . . . . . . . . . . . . . . . 154

Trademarks . . . . . . . . . . . . . . 155

© Copyright Lenovo 2006 iii

iv MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

About this manual

This manual contains service and reference information for ThinkPad X60 (MT
1702, 1703, 1704, 1705, 1706, 1707, 1708, 1709, 2507, 2508, 2509, 2510, 2533, and

2534) product. Use this manual along with the advanced diagnostic tests to
troubleshoot problems.

The manual is divided into sections as follows:

v The common sections provide general information, guidelines, and safety

information required in servicing computers.

v The product-specific section includes service, reference, and product-specific

parts information.

Important

This manual is intended for trained service personnel who are familiar with
ThinkPad products. Use this manual along with the advanced diagnostic tests
to troubleshoot problems effectively.

Before servicing a ThinkPad product, be sure to review the safety information
under “Safety notices: multilingual translations” on page 7, “Safety
information” on page 13, and “Laser compliance statement” on page 17.

© Copyright Lenovo 2006 1

2 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Introduction

Important service information

Important

BIOS and device driver fixes are customer-installable. The BIOS and device
drivers are posted on the customer support site http://www.lenovo.com/

support

Advise customers to contact the Customer Support Center at 800-426-7378 if
they need assistance in obtaining or installing any software fixes, drivers, and
BIOS downloads.

Customers in Canada should call the Customer Support Center at
800-565-3344 for assistance or download information.

Strategy for replacing FRUs

Before replacing parts

Make sure that all software fixes, drivers, and BIOS downloads are installed
before replacing any FRUs listed in this manual.

To download software fixes, drivers, and BIOS, do as follows:

1. Go to http://www.lenovo.com/support

2. Enter the product number of the computer or press Auto-detect button on

the screen.

3. Select Downloads and drivers.

4. Follow the directions on the screen and install the necessary software.

Use the following strategy to prevent unnecessary expense for replacing and

servicing FRUs:

v If you are instructed to replace a FRU but the replacement does not correct the

problem, reinstall the original FRU before you continue.

v Some computers have both a processor board and a system board. If you are

instructed to replace either the processor board or the system board, and
replacing one of them does not correct the problem, reinstall that board, and
then replace the other one.

v If an adapter or a device consists of more than one FRU, any of the FRUs may

be the cause of the error. Before replacing the adapter or device, remove the
FRUs, one by one, to see if the symptoms change. Replace only the FRU that
changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have
been customized. Running Automatic Configuration may alter the settings. Note
the current configuration settings (using the View Configuration option); then,
when service has been completed, verify that those settings remain in effect.

© Copyright Lenovo 2006 3

Important service information

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive.

Attention: The drive startup sequence in the computer you are servicing may
have been changed. Be extremely careful during write operations such as copying,
saving, or formatting. If you select an incorrect drive, data or programs can be
overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper
handling of a system board can cause damage to those components, and may
cause a system malfunction.

Attention: When handling a system board:

v Do not drop a system board or apply any excessive force to it.

v Avoid rough handling of any kind.

v Avoid bending a system board and hard pushing to prevent cracking at each

BGA (Ball Grid Array) chipset.

How to use error messages

Use the error codes displayed on the screen to diagnose failures. If more than one
error code is displayed, begin the diagnosis with the first error code. Whatever
causes the first error code may also cause false error codes. If no error code is
displayed, see whether the error symptom is listed in the Symptom-to-FRU Index
for the computer you are servicing.

Strategy for replacing FRUs for CTO, CMV, and GAV

Product definition

Dynamic Configure To Order (CTO)

provides the ability for a customer to configure an IBM

This
from an eSite, and have this configuration sent to fulfillment, where it is built and
shipped directly to the customer. The machine label, PC Entitlement Warehouse
(PEW), eSupport, and the HMM will load these products as the 4-digit MT and
3-digit model, where model = “CTO” (Example: 1829-CTO).

Custom Model Variant (CMV)

This is a unique configuration that has been negotiated between IBM or Lenovo
and the customer. A unique 4-digit MT and 3-digit model is provided to the
customer to place orders (Example: 1829-W15). A CMV is a special bid offering.
Therefore, it is NOT generally announced.

v The MTM portion of the machine label is the 4-digit MT and 3-digit model,

where model = “CTO” (Example: 1829-CTO). The PRODUCT ID portion of the
machine label is the 4-digit MT and 3-digit CMV model (Example: 1829-W15).

v The PEW record is the 4-digit MT and 3-digit model, where model = “CTO”

(Example: 1829-CTO).

v eSupport will show both the CTO and CMV machine type models (Example:

1829-CTO and 1829-W15 will be found on the eSupport site.)

v The HMM will have the 4-digit MT and 3-digit CTO model only (Example:

1829-CTO). Again, CMVs are custom models and are not found in the HMM.

®

or a Lenovo solution

4 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Important service information

General Announce Variant (GAV)

This is a standard model (fixed configuration). GAVs are announced and offered to
all customers. The MTM portion of the machine label is a 4-digit MT and 3-digit
model, where model = a “fixed part number”, not “CTO” (Example: 1829-F1U).
Also, PEW, eSupport, and the HMM will list these products under the same fixed
model number.

FRU identification for CTO, CMV, and GAV products

There are three information resources to identify which FRUs are used to support
CTO, CMV, and GAV products. These sources are PEW, eSupport, and the HMM.

Using PEW

v PEW is the primary source for identifying FRU part numbers and FRU

descriptions for the key commodities for CTO, CMV and GAV products at a MT

- serial number level. An example of key commodities are hard disk drives,
system boards, microprocessors, Liquid Crystal Displays (LCDs), and memory.

v Remember, All CTO and CMV products are loaded in PEW under the 4-digit

MT and 3-digit model, where model = “CTO” (Example: 1829-CTO). GAVs are
loaded in PEW under the 4-digit MT and 3-digit model, where model = a “fixed
part number”, not “CTO” (Example: 1829-F1U).

v PEW can be accessed at the following We b site:

http://w3-3.ibm.com/pc/entitle

Customers can also access PEW via

http://www-307.ibm.com/pc/support/site.wss/product.do?template=/
warranty/warranty.vm&sitestyle=lenovo

on MACHINE LOOKUP, followed by WARRANTY INFORMATION. Input

Click
the MT and the Serial number and the list of key commodities will be returned
in the PEW record under COMPONENT INFORMATION.

v Business Partners using Eclaim will access PEW when performing Entitlement

Lookup. Business Partners will enter Loc ID, MT and Serial, and the key
commodities will be returned in the Eclaim record under SYSTEM DETAILS.

v Authorized IBM Business Partners can access Eclaim at the following We b site:

https://wca.eclaim.com

Using eSupport

For Key Commodities (Examples - hard disk drive, system board,
microprocessor, LCD, and memory)

v eSupport can be used to view the list of key commodities built in a particular

machine serial (this is the same record found in PEW).

v eSupport can be accessed at the following We b site: http://www.lenovo.com/

support

v To view the key commodities, click on PA RT S INFORMATION, then PA RT S

LOOKUP. Type in the model type and serial number. The key commodities will
be returned in the eSupport record under PA RT S SHIPPED WITH YOUR
SYSTEM.

For the Remaining FRUs (the complete list of FRUs at the MT Model level)

v eSupport can be used to view the complete list of FRUs for a machine type and

model.

v To view the complete list of FRUs, type in the machine type and model

(Example: 1829-CTO) under QUICK PATH. Under “View by Document Type”
select PA RTS INFORMATION. Under “Filter by Category” select SERVICE

Introduction 5

Important service information

PARTS. Under “Parts Information by Date” select SYSTEM SERVICE PARTS. The
list of service parts by description, with applicable machine type model and FRU
will be displayed.

Using the HMM

Use the HMM as a back-up to PEW and eSupport to view the complete list of
FRUs at the MT Model level.

Important information about replacing RoHS compliant FRUs

RoHS, The Restriction of Hazardous Substances in Electrical and Electronic
Equipment Directive (2002/95/EC) is a European Union legal requirement
affecting the global electronics industry. RoHS requirements must be
implemented on Lenovo products placed on the market after June 2006. Products
on the market before June 2006 are not required to have RoHS compliant parts.
So, if the original FRU parts are non compliant, replacement parts can also be
non compliant. In all cases if the original FRU parts are RoHS compliant the
replacement part must also be RoHS compliant.

Lenovo plans to transition to RoHS compliance well before the implementation
date and expects its suppliers to be ready to support Lenovo's requirements and
schedule. Products sold in 2005 and 2006, will contain some RoHS compliant FRUs.
The following statement pertains to these products and any product Lenovo
produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS
implementation date, failed RoHS compliant parts must always be replaced using
RoHS compliant FRUs, so only the FRUs identified as compliant in the system
HMM or direct substitutions for those FRUs may be used.

Products marketed before June 2006 Products marketed after June 2006
Current or original

part

Non-RoHS Can be Non-RoHS Must be RoHS Must be RoHS

Non-RoHS Can be RoHS

Non-RoHS Can sub to RoHS

RoHS Must be RoHS

Replacement FRU Current or original

part

Replacement FRU

Note: A direct substitution is a part with a different FRU part number that is

automatically shipped by the distribution center at the time of the order.

6 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Diskette compatibility matrix

The compatibility of each of the drives with the diskettes for it is as follows:

Diskette compatibility matrix

Diskette

drive

3.5-inch 1.0 MB Read and write

Safety notices: multilingual translations

In this manual, safety notices appear in English with a page number reference to
the appropriate multilingual, translated safety notice found in this section.

The following safety notices are provided in English, French, German, Hebrew,
Italian, and Spanish.

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all screws, springs,
and other small parts are in place and are not left loose inside the computer. Verify this
by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes
can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité en clientèle,
vérifiez que tous les ressorts, vis et autres pièces sont bien en place et bien fixées. Pour
ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect ne se produit. Des pièces
métalliques ou des copeaux de métal pourraient causer un court-circuit.

Diskette

Compatibility

capacity

2.0 MB Read and write

4.0 MB Not compatible

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird, muß
sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile fehlen oder im
Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf Klappergeräusche
geprüft werden. Metallteile oder-splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di una FRU,
accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni siano nella
corretta posizione e non siano sparse all’interno dell’elaboratore. Verificare ciò scuotendo
l’elaboratore e prestando attenzione ad eventuali rumori; eventuali parti o pezzetti
metallici possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que todos los
tornillos, muelles y demás piezas pequeñas se encuentran en su sitio y no se encuentran
sueltas dentro del sistema. Compruébelo agitando el sistema y escuchando los posibles
ruidos que provocarían. Las piezas metálicas pueden causar cortocircuitos eléctricos.

Introduction 7

Safety notices

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do not
disassemble a standby battery, recharge it, throw it into fire or water, or short-circuit it.
Dispose of the battery as required by local ordinances or regulations. Use only the
battery in the appropriate parts listing. Use of an incorrect battery can result in
ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les démontez
pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne les mettez pas en
court-circuit. Pour les mettre au rebut, conformez-vous à la réglementation en vigueur.
Lorsque vous remplacez la pile de sauvegarde ou celle de l’horloge temps réel, veillez
à n’utiliser que les modèles cités dans la liste de pièces détachées adéquate. Une
batterie ou une pile inappropriée risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann
geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die Verkaufsstelle
oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Die
Batterie kann schwere Verbrennungen oder Verätzungen verursachen. Bei der
Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der
Bereitschafts-oder Systembatterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder
Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio. Non
smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle. Smaltirle
secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni
locali). Quando si sostituisce la batteria dell’RTC (real time clock) o la batteria di
supporto, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di
una batteria non adatta potrebbe determinare l’incendio o l’esplosione della batteria
stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio. No
las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite.
Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se
encuentren en la lista de piezas. La utilización de una batería no apropiada puede
provocar la ignición o explosión de la misma.

8 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Safety notices

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it, throw it
into fire or water, or short-circuit it. Dispose of the battery pack as required by local
ordinances or regulations. Use only the battery in the appropriate parts listing when
replacing the battery pack. Use of an incorrect battery can result in ignition or
explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau.
Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser que
les modèles cités dans la liste de pièces détachées adéquate. En effet, une batterie
inappropriée risque de prendre feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Bei
der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen
der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.
Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco o
nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR 915/82,
successive disposizioni e disposizioni locali). Quando si sostituisce la batteria,
utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una
batteria non adatta potrebbe determinare l’incendio o l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni recargue,
ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la
normativa local. Utilice sólo baterías que se encuentren en la lista de piezas al
sustituir la batería. La utilización de una batería no apropiada puede provocar la
ignición o explosión de la misma.

Introduction 9

Safety notices

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not recharge it,
remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate
it, or expose its cell contents to water. Dispose of the battery as required by local
ordinances or regulations. Use only the battery in the appropriate parts listing. Use of
an incorrect battery can result in ignition or explosion of the battery.

La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,
d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son connecteur
polarisé et ne la démontez pas. Ne l’exposez pas à une temperature supérieure à 100°C,
ne la faites pas brûler et n’en exposez pas le contenu à l’eau. Mettez la pile au rebut
conformément à la réglementation en vigueur. Une pile inappropriée risque de
prendre feu ou d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren
oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht
aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr Inhalt
nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung angebrachte
Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen Bestimmungen
für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs
verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien
kann zu Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o procurare
gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato, smontarla,
riscaldarla ad una temperatura superiore ai 100 gradi centigradi, incendiarla o gettarla
in acqua. Smaltirla secondo la normativa in vigore (DPR 915/82, successive
disposizioni e disposizioni locali). L’impiego di una batteria non adatta potrebbe
determinare l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios, explosiones
o quemaduras graves. No la recargue, ni quite el conector polarizado, ni la desmonte,
ni caliente por encima de los 100°C (212°F), ni la incinere ni exponga el contenido de
sus celdas al agua. Deséchela tal como dispone la normativa local.

10 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Safety notices

Safety notice 5

If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your
hands, immediately wash the affected areas with water for at least 15 minutes. Seek
medical care if any symptoms from the fluid are present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans les yeux
ou sur les mains une partie du fluide, rincez-les abondamment pendant au moins quinze
minutes. Consultez un médecin si des symptômes persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung die
örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm besteht aus Glas
und kann zerbrechen, wenn er unsachgemäß behandelt wird oder der Computer auf den
Boden fällt. Wenn der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in
Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen mindestens 15
Minuten mit Wasser abgespült und bei Beschwerden anschließend ein Arzt aufgesucht
werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto entrasse in
contatto con gli occhi o le mani, lavare immediatamente le parti interessate con acqua
corrente per almeno 15 minuti; poi consultare un medico se i sintomi dovessero
permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o sus manos,
lave inmediatamente las áreas afectadas con agua durante 15 minutos como mínimo.
Obtenga atención medica si se presenta algún síntoma del fluido despues de lavarse.

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part of the
inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique
protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der
Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la
parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la
tarjeta invertida.

Introduction 11

Safety notices

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery can
produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la mise
à la masse d’une batterie peut produire suffisamment de courant pour brûler des
matériaux combustibles ou causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei
Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu
entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in corto
circuito o a massa può fornire corrente sufficiente da bruciare materiali combustibili o
provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada o
con contacto a tierra puede producir la corriente suficiente como para quemar material
combustible o provocar quemaduras en el personal.

Safety notice 8

DANGER

Before removing any FRU, power off the computer, unplug all power cords from
electrical outlets, remove the battery pack, and then disconnect any interconnecting
cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension,
débranchez tous les cordons d’alimentation des socles de prise de courant, retirez la
batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen, der
Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU entfernt
wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese elettriche
tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi di
interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de las tomas
de corriente eléctrica, quite la batería y, a continuación, desconecte cualquier cable de
conexión entre dispositivos.

12 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Safety information

The following section presents safety information with which you need to be
familiar before you service a ThinkPad computer.

General safety

Follow these rules to ensure general safety:

v Observe good housekeeping in the area of the machines during and after

maintenance.

v When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt to

4. Lift by standing or by pushing up with your leg muscles; this action removes

Do not perform any action that causes hazards to the customer, or that makes

v

the equipment unsafe.

v Before you start the machine, make sure that other service representatives and

the customer’s personnel are not in a hazardous position.

v Place removed covers and other parts in a safe place, away from all personnel,

while you are servicing the machine.

v Keep your toolcase away from walk areas so that other people will not trip over

it.

v Do not wear loose clothing that can be trapped in the moving parts of a

machine. Make sure that your sleeves are fastened or rolled up above your
elbows. If your hair is long, fasten it.

v Insert the ends of your necktie or scarf inside clothing or fasten it with a

nonconductive clip, about 8 centimeters (3 inches) from the end.

v Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your

clothing.
Attention: Metal objects are good electrical conductors.

v Wear safety glasses when you are hammering, drilling, soldering, cutting wire,

attaching springs, using solvents, or working in any other conditions that might
be hazardous to your eyes.

v After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

v Reinstall all covers correctly before returning the machine to the customer.

v Fan louvers on the machine help to prevent overheating of internal components.

Do not obstruct fan louvers or cover them with labels or stickers.

Safety information

lift.

the strain from the muscles in your back. Do not attempt to lift any object that

weighs more than 16 kg (35 lb) or that you think is too heavy for you.

Electrical safety

Observe the following rules when working on electrical equipment.

Introduction 13

Safety information

Important

Use only approved tools and test equipment. Some hand tools have handles
covered with a soft material that does not insulate you when working with
live electrical currents.

Many customers have, near their equipment, rubber floor mats that contain
small conductive fibers to decrease electrostatic discharges. Do not use this
type of mat to protect yourself from electrical shock.

v Find the room emergency power-off (EPO) switch, disconnecting switch, or

electrical outlet. If an electrical accident occurs, you can then operate the switch
or unplug the power cord quickly.

v Do not work alone under hazardous conditions or near equipment that has

hazardous voltages.

v Disconnect all power before:

– Performing a mechanical inspection
– Working near power supplies
– Removing or installing main units

Before you start to work on the machine, unplug the power cord. If you cannot

v

unplug it, ask the customer to power-off the wall box that supplies power to the
machine, and to lock the wall box in the off position.

v If you need to work on a machine that has exposed electrical circuits, observe the

following precautions:
– Ensure that another person, familiar with the power-off controls, is near you.

Attention: Another person must be there to switch off the power, if
necessary.

– Use only one hand when working with powered-on electrical equipment;

keep the other hand in your pocket or behind your back.
Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from passing
through your body.

– When using testers, set the controls correctly and use the approved probe

leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate you

from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages;
Instructions for these precautions are in the safety sections of maintenance
information. Use extreme care when measuring high voltages.

v Regularly inspect and maintain your electrical hand tools for safe operational

condition.

v Do not use worn or broken tools and testers.

v Never assume that power has been disconnected from a circuit. First, check that it

has been powered off.

v Always look carefully for possible hazards in your work area. Examples of these

hazards are moist floors, nongrounded power extension cables, power surges,
and missing safety grounds.

v Do not touch live electrical circuits with the reflective surface of a plastic dental

mirror. The surface is conductive; such touching can cause personal injury and
machine damage.

14 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Safety information

v Do not service the following parts with the power on when they are removed

from their normal operating places in a machine:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators

and similar units. (This practice ensures correct grounding of the units.)

v If an electrical accident occurs:

– Use caution; do not become a victim yourself.
– Switch off power.
– Send another person to get medical aid.

Safety inspection guide

The purpose of this inspection guide is to assist you in identifying potentially
unsafe conditions. As each machine was designed and built, required safety items
were installed to protect users and service personnel from injury. This guide
addresses only those items. Yo u should use good judgment to identify potential
safety hazards due to attachment of non-ThinkPad features or options not covered
by this inspection guide.

If any unsafe conditions are present, you must determine how serious the apparent
hazard could be and whether you can continue without first correcting the
problem.

Consider these conditions and the safety hazards they present:

v Electrical hazards, especially primary power (primary voltage on the frame can

cause serious or fatal electrical shock)

v Explosive hazards, such as a damaged CRT face or a bulging capacitor

v Mechanical hazards, such as loose or missing hardware

determine whether there are any potentially unsafe conditions, use the

To
following checklist at the beginning of every service task. Begin the checks with
the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Power off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external
ground pin and the frame ground.

b. The power cord should be the type specified in the parts list.

c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-ThinkPad alterations. Use good judgment as to the

safety of any non-ThinkPad alterations.

7. Check inside the unit for any obvious unsafe conditions, such as metal filings,
contamination, water or other liquids, or signs of fire or smoke damage.

8. Check for worn, frayed, or pinched cables.

Introduction 15

Safety information

Handling devices that are sensitive to electrostatic discharge

9. Check that the power-supply cover fasteners (screws or rivets) have not been
removed or tampered with.

Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD.) ESD damage can occur when
there is a difference in charge between objects. Protect against ESD damage by
equalizing the charge so that the machine, the part, the work mat, and the person
handling the part are all at the same charge.

Notes

1. Use product-specific ESD procedures when they exceed the requirements
noted here.

2. Make sure that the ESD protective devices you use have been certified
(ISO 9000) as fully effective.

When handling ESD-sensitive parts:

v Keep the parts in protective packages until they are inserted into the product.

v Avoid contact with other people.

v Wear a grounded wrist strap against your skin to eliminate static on your body.

v Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

v Use the black side of a grounded work mat to provide a static-free work surface.

The mat is especially useful when handling ESD-sensitive devices.

v Select a grounding system, such as those listed below, to provide protection that

meets the specific service requirement.

Note

The use of a grounding system to guard against ESD damage is desirable
but not necessary.

– Attach the ESD ground clip to any frame ground, ground braid, or green-wire

ground.

– When working on a double-insulated or battery-operated system, use an ESD

common ground or reference point. Yo u can use coax or connector-outside
shells on these systems.

– Use the round ground prong of the ac plug on ac-operated computers.

Grounding requirements

Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be verified by a
certified electrician.

16 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Laser compliance statement

Some models of ThinkPad computer are equipped from the factory with an optical
storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are
also sold separately as options. If one of these drives is installed, it is certified in
the U.S. to conform to the requirements of the Department of Health and Human
Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1
laser products. Elsewhere, the drive is certified to conform to the requirements of
the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825
for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note
the following:

CAUTION:

Use of controls or adjustments or performance of procedures other than those
specified herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles aqui
especificados pode resultar em perigosa exposição à radiação.

Laser compliance statement

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de réglage
et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann
gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da quelle
specificate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí
especificados puede provocar la exposición a radiaciones peligrosas.

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage
device could result in exposure to hazardous laser radiation. There are no
serviceable parts inside those drives. Do not open.

Introduction 17

Laser compliance statement

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may
contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the beam, do
not view directly with optical instruments, and avoid direct exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe diretamente
por meio de instrumentos óticos e evite exposição direta com o feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder
directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente in
den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai eszközökkel.
Kerülje a sugárnyalábbal való érintkezést !.

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non guardarlo
direttamente con strumenti ottici e evitare l’esposizione diretta al fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental óptico el haz
de luz. Evite la exposición directa al haz.

18 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

General descriptions

Read this first

The descriptions in this chapter apply to any ThinkPad model that has the
PC-Doctor

®

for DOS diagnostics program. Some descriptions might not apply to

your particular computer.

Before you go to the checkout guide, be sure to read this section.

Important notes

v Only certified trained personnel should service the computer.
v Before replacing any FRU, read the entire page on removing and

replacing FRUs.

v When you replace FRUs, use new nylon-coated screws.
v Be extremely careful during such write operations as copying, saving, or

formatting. Drives in the computer that you are servicing sequence might
have been altered. If you select an incorrect drive, data or programs might
be overwritten.

v Replace a FRU only with another FRU of the correct model. When you

replace a FRU, make sure that the model of the machine and the FRU part
number are correct by referring to the FRU parts list.

v A FRU should not be replaced because of a single, unreproducible

failure. Single failures can occur for a variety of reasons that have nothing

to do with a hardware defect, such as cosmic radiation, electrostatic
discharge, or software errors. Consider replacing a FRU only when a
problem recurs. If you suspect that a FRU is defective, clear the error log
and run the test again. If the error does not recur, do not replace the FRU.

v Be careful not to replace a nondefective FRU.

What to do first

When you do return a FRU, you must include the following information in the
parts exchange form or parts return form that you attach to it:

__ 1. Name and phone number of servicer
__ 2. Date of service
__ 3. Date on which the machine failed
__ 4. Date of purchase
__ 5. Failure symptoms, error codes appearing on the display, and beep

symptoms

__ 6. Procedure index and page number in which the failing FRU was detected
__ 7. Failing FRU name and part number
__ 8. Machine type, model number, and serial number
__ 9. Customer’s name and address

Note for warranty:

During the warranty period, the customer may be responsible for repair costs if the
computer damage was caused by misuse, accident, modification, unsuitable
physical or operating environment, or improper maintenance by the customer.

© Copyright Lenovo 2006 19

Read this first

Following is a list of some common items that are not covered under warranty and
some symptoms that might indicate that the system was subjected to stress beyond
normal use.

Before checking problems with the computer, determine whether the damage is
covered under the warranty by referring to the following list:

The following are not covered under warranty:

v LCD panel cracked from the application of excessive force or from being

dropped

v Scratched (cosmetic) parts
v Distortion, deformation, or discoloration of the cosmetic parts
v Plastic parts, latches, pins, or connectors that have been cracked or broken by

excessive force

v Damage caused by liquid spilled into the system
v Damage caused by the improper insertion of a PC Card or the installation of an

incompatible card

v Improper CD insertion or use of an optical drive
v Diskette drive damage caused by pressure on the diskette drive cover, foreign

material in the drive, or the insertion of a diskette with multiple labels

v Damaged or bent diskette eject button
v Fuses blown by attachment of a nonsupported device
v Forgotten computer password (making the computer unusable)
v Sticky keys caused by spilling a liquid onto the keyboard
v Use of an incorrect ac adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted
activities:

v Missing parts might be a symptom of unauthorized service or modification.
v If the spindle of a hard disk drive becomes noisy, it may have been subjected to

excessive force, or dropped.

20 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Related service information

This section provides information about the following:

v “Service We b site”
v “Restoring the pre-installed system”
v “Passwords”
v “Power management” on page 23

Service Web site

When the latest maintenance diskette and the system program service diskette
become available, they will be posted on http://www.lenovo.com/think/spm

Restoring the pre-installed system

When the hard disk drive is replaced because of a failure, no Product Recovery
program is on the new hard disk. In this case, you must use the recovery CD for
the computer. Order the recovery CD and the hard disk drive at the same time so
that you can recover the new hard disk drive with the pre-installed software when
they arrive. For information on which CD to order, see “Recovery CDs” on page
147

Recovery to Factory Contents by using Product Recovery CDs

To create the service partition and install the factory contents from the recovery
CD, do the following:

Related service information

Note

The recovery process might take up to 2 hours.

1. Insert the recovery CD into the CD or DVD drive, then restart the computer.

2. Following message is displayed: “Your computer originally included a Product

Recovery program ... Reinstall the Product Recovery program? (Y/N) [ ]”.

3. Press Y key. The service partition is created and loaded with the Product
Recovery program files.

4. At next window, press Enter to continue.

v The service partition is created. The system automatically reboots during this

v The recovery process copies some files to the service partition, and

v Follow the prompts. Yo u may be prompted to change CDs.

v When the process is complete, the system reboots.

5. If you get a message asking which operating system to install, select the proper
operating system and press Enter.

6. A message is displayed: “Full Recovery:”. Press Enter to select.

7. On each of the next three windows, press the Y key.

8. Follow the prompts to complete the recovery.

Passwords

As many as three passwords may be needed for any ThinkPad computer: the
power-on password (POP), the hard-disk password (HDP), and the supervisor
password (SVP).

process.

PKUNZIPs others.

General descriptions 21

Related service information

If any of these passwords has been set, a prompt for it appears on the screen
whenever the computer is turned on. The computer does not start until the
password is entered.

Exception: If only an SVP is installed, the password prompt does not appear when

Power-on password:

A power-on password (POP) protects the system from being powered on by an
unauthorized person. The password must be entered before an operating system
can be booted.

Hard-disk password:

There are two hard-disk passwords (HDPs):

v User HDP—for the user

v Master HDP—for the system administrator, who can use it to get access to the

hard disk even if the user has changed the user HDP

Note:

the operating system is booted.

There are two modes for the HDP: User only and Master + User. The

Master + User mode requires two HDPs; the system administrator enters
both in the same operation. The system administrator then provides the user
HDP to the system user.

Attention: If the user HDP has been forgotten, check whether a master HDP has

been set. If it has, it can be used for access to the hard-disk drive. If no master
HDP is available, IBM does not provide any services to reset either the user or the
master HDP, or to recover data from the hard-disk drive. The hard-disk drive can
be replaced for a scheduled fee.

Supervisor password:

A supervisor password (SVP) protects the system information stored in the BIOS
Setup Utility. The SVP must be entered in order to get access to the BIOS Setup
Utility and make changes to system configuration settings.

Attention: If the SVP has been forgotten and cannot be made available to the
servicer, there is no service procedure to reset the password. The system board
must be replaced for a scheduled fee.

How to remove the power-on password

To remove a POP that you have forgotten, do the following:

(A) If no SVP has been set:

1. Turn off the computer.

2. Remove the battery pack.

For how to remove the battery pack, see “1010 Battery pack” on page 56.

3. Remove the backup battery.

For how to remove the backup battery, see “1130 Backup battery” on page 74.

4. Turn on the computer and wait until the POST ends.

After the POST ends, the password prompt does not appear. The POP has been
removed.

5. Reinstall the backup battery and the battery pack.

(B) If an SVP has been set and is known by the servicer:

22 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Related service information

1. Turn on the computer; then, while the “To interrupt normal startup, press the
blue Access IBM button” message is displayed at the lower-left of the screen,
press the Access IBM button.

2. Enter the SVP. Select Start setup utility.

3. Select Security, using the cursor keys to move down the menu.

4. Select Password.

5. Select Power-On Password.

6. At the Enter Current Password field, enter the SVP.

7. When the Enter New Password field opens, leave it blank and press Enter

twice.

8. In the Changes have been saved window, press Enter.

9. Press F10; then, in the Setup confirmation window, select Yes .

How to remove the hard-disk password

Attention: If User only mode is selected and the user HDP has been forgotten
and cannot be made available to the servicer, IBM does not provide any services to
reset the user HDPs or to recover data from the hard-disk drive. The hard-disk
drive can be replaced for a scheduled fee.

To remove a user HDP that has been forgotten, when the SVP and the master HDP
are known, do the following:

1. Turn on the computer; then, while the “To interrupt normal startup, press the
blue Access IBM button” message is displayed at the lower-left of the screen,
press the Access IBM button.

2. Enter the SVP. Select Start setup utility.

3. Select Security, using the cursor keys to move down the menu.

4. Select Password.

5. Select Hard-disk x password, where x is the letter of the hard-disk drive. A

pop-up window opens.

6. Select Master HDP.

7. Enter the master HDP; then leave the New Password field blank and press

Enter twice.

8. Press F10.

9. Select Yes in the Setup Configuration window.

Both user HDP and master HDP will have been removed.

Power management

To reduce power consumption, the computer has three power management modes:
screen blank, standby, and hibernation.

Screen blank mode

Screen blank mode has three variants, as follows:

1. If you press Fn+F3, or if the time set on the “LCD off timer” in the BIOS Setup
Utility expires,

v The LCD backlight turns off.
v The hard disk drive motor stops.
v The speaker is muted.

If you are using the Advanced Configuration and Power Interface (ACPI)

2.

operating system and you press Fn+F3,

v The LCD backlight turns off.
v The hard disk drive motor stops.

General descriptions 23

Related service information

3. If the time set on the “Turn off monitor” timer in the operating system expires,

v The LCD backlight turns off.

To end screen blank mode and resume normal operation, press any key.

Standby mode

When the computer enters standby mode, the following events occur in addition to
what occurs in screen blank mode:

v The LCD is powered off.
v The hard disk drive is powered off.
v The CPU stops.

To enter standby mode, press Fn+F4.

Note: If you are using the ACPI operating system, you can change the action of

In certain circumstances, the computer goes into standby mode automatically:

v If a “suspend time” has been set on the timer, and the user does not do any

operation with the keyboard, the TrackPoint®, the hard disk, the parallel
connector, or the diskette drive within that time.

v If the battery indicator blinks orange, indicating that the battery power is low.

(Alternatively, if Hibernate when battery becomes low has been selected in the
“Power Management Properties” window, the computer goes into hibernation
mode.)

Fn+F4.

To cause the computer to return from standby mode and resume operation, do one
of the following:

v Press the Fn key.

v Open the LCD cover.

v Turn on the power switch.

Also, in either of the following events, the computer automatically returns from
standby mode and resumes operation:

The ring indicator (RI) is signaled by a serial device or a PC Card device.

v

(Windows 2000 does not support the ring indicator (RI) resume by PC Card device.)

v The time set on the resume timer elapses.

Note: The computer does not accept any input immediately after it enters

standby mode. Wait a few seconds before taking any action to reenter
operation mode.

Hibernation mode

In hibernation mode, the following occurs:

v The system status, RAM, VRAM, and setup data are stored on the hard disk.

v The system is powered off.

If the computer enters the hibernation mode while it is docked to the

Note:

docking station, do not undock it before resuming normal operation. If you
do undock it and then try to resume normal operation, you will get an error
message, and you will have to restart the system.

To cause the computer to enter hibernation mode, do any of the following:

v Press the Fn+F12 keys.

24 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Related service information

v If you are using the ACPI operating system and have defined one of the

following actions as the event that causes the system to go into hibernation
mode, perform that action.
– Closing the lid.
– Pressing the power button.
– Pressing Fn+F4 keys.

Also, the computer goes into hibernation mode automatically in either of the
following conditions:

v If a “hibernation time” has been set on the timer, and if the user does not do

any operation with the keyboard, the TrackPoint, the hard disk drive, the
parallel connector, or the diskette drive within that time.

v If the timer conditions are satisfied in suspend mode.

When the power is turned on, the computer returns from hibernation mode and
resumes operation. The hibernation file in the boot record on the hard disk drive is
read, and system status is restored from the hard disk drive.

General descriptions 25

Checkout guide

Checkout guide

Testing the computer

Use the following procedures as a guide in identifying and correcting problems
with the ThinkPad computer.

Note: The diagnostic tests are intended to test only ThinkPad products. The use of

non-ThinkPad products, prototype cards, or modified options can lead to
false indications of errors and invalid system responses.

1. Identify the failing symptoms in as much detail as possible.

2. Verify the symptoms. Tr y to re-create the failure by running the diagnostic test

or by repeating the operation.

®

The ThinkPad computer has a test program called PC-Doctor

for DOS (hereafter

called PC-Doctor). Yo u can detect errors by running the diagnostics test included in
PC-Doctor. This section is an overview of the procedure. For details that depend
on model-unique functions, refer to “Product overview” on page 34.

For some possible configurations of the computer, PC-Doctor might not run
correctly. To avoid this problem, you need to initialize the computer setup by use
of the BIOS Setup Utility before you run PC-Doctor. On the BIOS Setup Utility
screen, press F9, Enter, F10, and then Enter.

Note: When you initialize the computer configuration, some devices are disabled,

such as the serial port. If you test one of these devices, you will need to
enable it by using PS2.EXE.

PC-Doctor cannot be used to test a device that is in the docking station, even if the
computer supports the docking station. To test a USB device, connect it to the USB
connector of the computer. To test the Ultrabay device, install it in the Ultrabay
Slim slot of the computer.

26 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Checkout guide

Creating the PC-Doctor diagnostics diskette

In X60, the PC-Doctor disk can be created by using the ThinkVantage Rescue
and Recovery.

To create the PC-Doctor disk from the , do as follows:

1. Enter the ThinkVantage Rescue and Recovery application by pressing the
blue ThinkVantage button during POST.

2. When the ThinkVantage Rescue and Recovery application finishes loading,
double-click the “Create diagnostic diskettes” icon.

3. It will take about 15 seconds to authenticate the digital signature, and
then the ThinkPad computer will reboot into PC-DOS.

4. A batch file will automatically start up to prompt the user through
creating the boot diskettes. The user will be informed how many diskettes
will be needed.

a. The user will be prompted to insert each diskette in sequence.

b. Typically, the user only needs to press the Enter key for the proper

floppy drive to format and create the diskette.

c. Each diskette will be erased and formatted with the PC-Doctor for

DOS boot image.

Once all the diskettes have been created, the ThinkPad computer will

5.

reboot. The user is asked to remove all diskettes from the drive, or to
insert the first diskette created if it is desired to run the diagnostics.

To run the test, do as follows:

Note: In the following procedure, you can select an item not only with the arrow

keys, but also with the TrackPoint. Instead of pressing Enter, click the left
button.

1. Insert the PC-Doctor disk into the diskette drive; then power on the computer.

If the computer cannot be powered on, go to “Power system checkout” on page
29, and check the power sources.

If an error code appears, go to “Symptom-to-FRU index” on page 43.

On the first screen, select the model and press Enter. Follow the instructions on
the screen.

2. The main panel of PC-Doctor appears.

3. Select Diagnostics with the arrow keys, and press Enter.

A pull-down menu appears. (Its exact form depends on the model.)

PC-Doctor menu does not mean the formal support device list. Some

Note:

unsupported device names may appear in the PC-Doctor menu.

The options on the test menu are as follows:

General descriptions 27

Checkout guide

Diagnostics Interactive Tests

v Run Normal Test
v Run Quick Test
v CPU/Coprocessor
v Systemboard
v Video Adapter
v Serial Ports
v Parallel Ports
v Fixed Disks

v Keyboard
v Video
v Internal Speaker
v Mouse
v Diskette
v System Load
v CD-ROM/DVD Test

v Intel Wireless Radio
v Diskette Drives
v Other Devices
v ThinkPad Devices
v Communication
v Wireless LAN
v Memory Test – Full
v Memory Test – Quick

Notes:

v In the Keyboard test in Interactive Tests, the Fn key should be held down for at least 2

seconds; otherwise, it cannot be sensed.

v Video Adapter test supports only the LCD display on the ThinkPad computer. If you

have an external monitor attached to your computer, detach it before running PC-Doctor
for DOS.

v To test Digital Signature Chip, the chip must be enabled.
v To test Serial Ports or Parallel Ports, the ThinkPad computer must be attached to the

ThinkPad X6 UltraBase.

Diagnostics

Run NormalTest

Run QuickTest
CPU/Coprocessor
Systemboard
Video Adapter
Serial Ports
Parallel Ports
Fixed Disks
Diskette Drives
Other Devices
ZIP Drive
Communication
Memory Test - Full
Memory Test - Quick

InteractiveTests

Hardware Info

Utility F1=Help

Quit

PC-DOCTOR 2.0 Copyright 2001 PC-Doctor, Inc. All Rights Reserved.

Use the cursor keys and ESC to move in menus. Press ENTER to select.

4. Run the applicable function test.

5. Follow the instructions on the screen. If there is a problem, PC-Doctor shows

messages describing it.

6. To exit the test, select Quit — Exit Diag.

To cancel the test, press Esc.

After executing PC-Doctor, check the system time/date and reset them if

Note:

needed.

Detecting system information with PC-Doctor

PC-Doctor can detect the following system information:

Hardware Info

v System Configuration
v Memory Contents
v Physical Disk Drives
v Logical Disk Drives
v VGA Information
v IDE Drive Info
v PCI Information

28 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Checkout guide

v PNPISA Info
v SMBIOS Info
v VESA LCD Info
v Hardware Events Log

Utility

v Run External Tests
v Surface Scan Hard Disk
v Benchmark System
v DOS Shell
v Tech Support Form
v Battery Rundown
v View Test Log
v Print Log
v Save Log
v Full Erase Hard Drive
v Quick Erase Hard Drive

PC-Doctor for Windows

This product is designed to help you troubleshoot and resolve problems related to
your computer. Select one of the categories listed below to display symptoms and
solutions:

v CHECK SYSTEM HEALTH
v SYSTEM AND DEVICE TESTS
v LENOVO TROUBLESHOOTING
v CENTER
v SYSTEM REPORTS
v UPDATES AND SUPPORT

Power system checkout

To verify a symptom, do the following:

1. Power off the computer.

2. Remove the battery pack.

3. Connect the ac adapter.

4. Check that power is supplied when you power on the computer.

5. Power off the computer.

6. Disconnect the ac adapter and install the charged battery pack.

7. Check that the battery pack supplies power when you power on the computer.

you suspect a power problem, see the appropriate one of the following power

If
supply checkouts:

v “Checking the ac adapter”
v “Checking operational charging” on page 30
v “Checking the battery pack” on page 30
v “Checking the backup battery” on page 31

Checking the ac adapter

Yo u are here because the computer fails only when the ac adapter is used:
v If the power problem occurs only when the port replicator is used, replace the

port replicator.

v If the power-on indicator does not turn on, check the power cord of the ac

adapter for correct continuity and installation.

v If the computer does not charge during operation, go to ″Checking operational

charging.″

To check the ac adapter, do the following:

General descriptions 29

Checkout guide

1. Unplug the ac adapter cable from the computer.

2. Measure the output voltage at the plug of the ac adapter cable. See the

following figure:

Pin Voltage (V dc)

1 Ground

2 +19.5 to +21.0

1

2

3. If the voltage is not correct, replace the ac adapter.

4. If the voltage is acceptable, do the following:

v Replace the system board.
v If the problem persists, go to “Product overview” on page 34.

Noise from the ac adapter does not always indicate a defect.

Note:

Checking operational charging

To check whether the battery charges properly during operation, use a discharged
battery pack or a battery pack that has less than 50% of the total power remaining
when installed in the computer.

Perform operational charging. If the battery status indicator or icon does not turn
on, remove the battery pack and let it return to room temperature. Reinstall the
battery pack. If the charge indicator or icon still does not turn on, replace the
battery pack.

If the charge indicator still does not turn on, replace the system board. Then
reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95% of
the total power remains; under this condition the battery pack can charge to 100%
of its capacity. This protects the battery pack from being overcharged or from
having a shortened life.

To check the status of your battery, move your cursor to the Power Meter icon in
the icon tray of the Windows taskbar and wait for a moment (but do not click),
and the percentage of battery power remaining is displayed. To get detailed
information about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to charge. Remove it

from the computer and leave it at room temperature for a while. After it
cools down, reinstall and recharge it.

To check the battery pack, do the following:

1. Power off the computer.

2. Remove the battery pack and measure the voltage between battery terminals 1

(+) and 5 (−). See the following figure:

30 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Checkout guide

Terminal Voltage (V dc)

7

6

2 + 0 to + 14.4

5

4

6 Ground (−)

3

2

1

3. If the voltage is less than +14.4 V dc, the battery pack has been discharged.

Note: Recharging will take at least 3 hours, even if the indicator does not turn

on.

If the voltage is still less than +14.4 V dc after recharging, replace the battery.

4. If the voltage is more than +14.4 V dc, measure the resistance between battery

terminals 4 and 5. The resistance must be 4 to 30 K .

If the resistance is not correct, replace the battery pack. If the resistance is
correct, replace the system board.

Checking the backup battery

Do the following:

1. Power off the computer, and unplug the ac adapter from it.

2. Turn the computer upside down.

3. Remove the battery pack (see “1010 Battery pack” on page 56).

4. Remove the backup battery (see “1130 Backup battery” on page 74).

5. Measure the voltage of the backup battery. See the following figure.

Red (+)

Wire Voltage (V dc)

Red +2.5 to +3.2

Black (-)

Black Ground

v If the voltage is correct, replace the system board.
v If the voltage is not correct, replace the backup battery.
v If the backup battery discharges quickly after replacement, replace the system

board.

General descriptions 31

Checkout guide

32 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

ThinkPad X60

Product overview . . . . . . . . . . . .34

Specifications . . . . . . . . . . . . .34

Status indicators for X60 . . . . . . . . .37

FRU tests . . . . . . . . . . . . . .39

Fn key combinations . . . . . . . . . .41

Symptom-to-FRU index . . . . . . . . . .43

Numeric error codes . . . . . . . . . .43

Error messages . . . . . . . . . . . .47

Beep symptoms . . . . . . . . . . . .49

No-beep symptoms . . . . . . . . . . .49

LCD-related symptoms . . . . . . . . .50

Intermittent problems . . . . . . . . . .51

Undetermined problems . . . . . . . . .51

FRU replacement notices . . . . . . . . . .52

Screw notices . . . . . . . . . . . . .52

Retaining serial numbers . . . . . . . . .52

Restoring the serial number of the system unit 53

Retaining the UUID . . . . . . . . .53

Reading or writing the ECA information . .53

Removing and replacing a FRU . . . . . . . .55

1010 Battery pack . . . . . . . . . . .56

1020 Hard disk drive (2.5-inch) and HDD rubber

rails . . . . . . . . . . . . . . . .57

1030 DIMM cover . . . . . . . . . . .59

1040 DIMM . . . . . . . . . . . . .60

1050 Keyboard . . . . . . . . . . . .61

1060 Upper case . . . . . . . . . . . .65

1070 Fingerprint reader . . . . . . . . .67

1080 Hard disk (1.8-inch) . . . . . . . . .68

1090 Hard disk housing (1.8-inch) . . . . . .69

1100 Wireless WA N PCI Express Mini card . . .70
1110 Wireless LAN PCI Express Mini card . . .71

1120 MDC . . . . . . . . . . . . . .73

1130 Backup battery . . . . . . . . . .74

1140 Speaker . . . . . . . . . . . . .75

1150 DC-in and RJ-11 connectors . . . . . .76

1160 LCD assembly . . . . . . . . . . .77

1170 Hard disk sub-card . . . . . . . . .82

1180 System board and lower case assembly with

label . . . . . . . . . . . . . . . .83

1190 Fansink . . . . . . . . . . . . .86

2010 LCD bezel . . . . . . . . . . . .87

2020 Inverter card . . . . . . . . . . .90

2030 Bluetooth daughter card . . . . . . . .91

2040 LCD . . . . . . . . . . . . . .92

2050 Wireless LAN antenna cables (SPWG) . . .95

2060 Hinges . . . . . . . . . . . . .97

2070 Wireless LAN antenna cables (TMD) . . . 100
2080 Wireless WA N antenna cable (TMD) . . . 102

2090 LCD panel and LCD cable . . . . . . 104

Locations . . . . . . . . . . . . . . . 106

Front view for X60 . . . . . . . . . . 106

Rear view for X60 . . . . . . . . . . . 107

Bottom view for X60 . . . . . . . . . . 108

Rear View for ThinkPad X6 UltraBase . . . . 109

Bottom View for ThinkPad X6 UltraBase . . . 109

Parts list . . . . . . . . . . . . . . .110

Overall . . . . . . . . . . . . . .110

LCD FRUs . . . . . . . . . . . . . 144

12.1-in. XGA TFT . . . . . . . . . . 144

Keyboard . . . . . . . . . . . . . . 146

Recovery CDs . . . . . . . . . . . . 147

For Windows XP Professional SP2 . . . . 147

For Windows XP Home . . . . . . . . 150

Miscellaneous parts . . . . . . . . . . 151

AC adapters . . . . . . . . . . . . . 151

Common parts list . . . . . . . . . . . 152

Tools . . . . . . . . . . . . . . 152

Power cords (system) . . . . . . . . . 152

Notices . . . . . . . . . . . . . . . 154

Trademarks . . . . . . . . . . . . . . 155

© Copyright Lenovo 2006 33

Product overview

Product overview

This section presents the following product-unique information:

v “Specifications”
v “Status indicators for X60” on page 37
v “FRU tests” on page 39
v “Fn key combinations” on page 41

Specifications

Feature Description

®

Processor

v Intel

Pentium

®

M Processor, Standard Voltage, Dual Core,

T7200 (2.00 GHz, 667 MHz FSB, 4 MB L2 cache)

v Intel Pentium M Processor, Standard Voltage, Dual Core,

T5600 (1.83 GHz, 667 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Standard Voltage, Dual Core,

T5500 (1.66 GHz, 667 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Standard Voltage, Dual Core,

T2500 (2.00 GHz, 667 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Standard Voltage, Dual Core,

T2400 (1.83 GHz, 667 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Standard Voltage, Dual Core,

T2300 (1.66 GHz, 667 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Standard Voltage, Single Core,

T1300 (1.66 GHz, 667 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Low Voltage, Dual Core, L2400

(1.66 GHz, 667 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Low Voltage, Dual Core, L2300

(1.50 GHz, 667 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Ultra Low Voltage, Single Core,

U1400 (1.20 GHz, 533 MHz FSB, 2 MB L2 cache)

v Intel Pentium M Processor, Ultra Low Voltage, Single Core,

U1300 (1.06 GHz, 533 MHz FSB, 2 MB L2 cache)

Memory (standard and
optional)

v 256-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card
v 512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card
v 1-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card
v 2-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card
v 2-GB DDR2-533 SDRAM SO-DIMM (PC2-4200) card

Bus architecture v HUB link

v PCI bus
v LPC bus

(continued)

34 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Product overview

Feature Description

Video v Graphics chip: Intel 945GM

v Total video memory: UMA, 128MB max

CMOS RAM v 242 bytes

Hard disk drive v 30.0 GB, 1.8-inch, PATA interface

v 40.0 GB, 1.8-inch, PATA interface
v 60.0 GB, 1.8-inch, PATA interface
v 40.0 GB, 2.5-inch, S ATA interface
v 60.0 GB, 2.5-inch, S ATA interface
v 80.0 GB, 2.5-inch, S ATA interface
v 100.0 GB, 2.5-inch, S ATA interface
v 120.0 GB, 2.5-inch, S ATA interface

Display v 12.1-inch, 16M colors, super wide viewing angle XGA (1024

× 768 resolution) TFT color LCD

I/O port (system) v External monitor connector

v RJ11 connector
v RJ45 connector
v Stereo headphone jack
v Monaural microphone jack
v Universal serial bus (USB) connector × 3
v PCMCIA CardBus
v Infrared port
v Docking connector
v DC-in
v IEEE 1394 connector
v Bluetooth antenna (Bluetooth models only)

I/O port (ThinkPad X6
UltraBase)

v External monitor connector
v RJ11 connector
v RJ45 connector
v Parallel connector
v Serial connector
v Universal serial bus (USB) connector × 4
v DC-in
v Stereo speakers
v Monaural microphone jack
v Stereo headphone jack

Internal modem v 56.6 Kbps

Audio v Internal monaural speaker

v Software control volume

Infrared transfer v IrDA 1.1

(continued)

ThinkPad X60 35

Product overview

Feature Description

PCI Express Mini Card v 802.11a/b/g (Wireless LAN)

v 802.11b/g (Wireless LAN)
v Wireless WA N
v 802.11n MIMO (Wireless LAN)

PC card v One Type-II

SD card v With I/O support

Ultrabay device UltraBay Slim (supported by ThinkPad X6 UltraBase)

Modem daughter card

v ThinkPad Modem (MDC-1.5)

(MDC)

AC adapter v 65-watt type

Diskette drive (external) v USB diskette drive

Battery pack (main) v 1 parallel of 4 series of cells (1P4S) Li-Ion battery pack (2.0

AH) (Prismatic)

v 1 parallel of 4 series of cells (1P4S) Li-Ion battery pack (2.6

AH) (Standard)

v 2 parallel of 4 series of cells (2P4S) Li-Ion battery pack (5.2

AH) (Hybrid)

The prismatic battery is only for ThinkPad X60s

Note:

computer. The standard and hybrid batteries require a spacer
when used with ThinkPad X60s computer.

Preinstalled operating

v Windows XP

system

36 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Product overview

Status indicators for X60

The system status indicators show the status of the computer, as follows:

12 3 4 56 7 8 910

89

10

ThinkPad X60 37

Product overview

Indicator Meaning

1 Wireless LAN

status

Green: Wireless is operational and radio on state. This indicator

is on when the data is transmitted.

2 Bluetooth status

R

3 Wireless WA N

status

4 Num lock

Green: The Bluetooth is operational. This indicator is on when

the Bluetooth is on and not in suspend mode.

Green: Wireless is operational and radio on state. This indicator

is on when the data is transmitted.

Green: The numeric keypad on the keyboard is enabled. To

enable or disable the keypad, press and hold the Shift
key, and press the NumLk (ScrLk) key.

5 Caps lock

6 Drive in use

Green: Caps Lock mode is enabled. To enable or disable Caps

Lock mode, press the Caps Lock key.

Green: Data is being read from or written to the hard disk drive,

or the drive in the Ultrabay device. When this indicator is
on, do not put the computer into standby mode or turn
off the computer.

Note:

Do not move the system while the Green drive in use light

is on. Sudden physical shock could cause drive errors.

7 Power on

Green: The computer is on and ready to use. This indicator stays

lit whenever the computer is on and is not in standby
mode.

8 Battery status Green: The battery is in use and has enough power. The ac

adapter has charged the battery completely.

Blinking green:

The battery is being charged, but still has enough power
to operate. (At regular intervals, the indicator light turns
off briefly.)

Orange:

The battery is being charged, but the battery power is still
low.

Blinking orange:

The battery needs to be charged. When the indicator
starts blinking orange, the computer beeps three times.

9 AC power

status

Green: The ac adapter is connected and the computer is

operating on ac power. If a battery is installed in the
computer, it is charged when this indicator is green.

10 Standby status Green: The computer is in standby mode.

Blinking green:

The computer is entering standby mode or hibernation
mode, or is resuming normal operation.

38 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Product overview

FRU tests

The following table shows the test for each FRU.

FRU Applicable test
System board 1. Diagnostics --> CPU/Coprocessor

2. Diagnostics --> Systemboard

3. If the docking station or the port replicator is attached to the

ThinkPad computer, undock it. Place the computer on a
horizontal surface, and run Diagnostics --> ThinkPad Devices

--> HDD Active Protection Test.

Do not apply any physical shock to the computer while the

Note:

test is running.

Power Diagnostics --> ThinkPad Devices --> AC Adapter, Battery 1

(Battery 2)

LCD unit 1. Diagnostics --> Video Adapter

2. Interactive Tests --> Video

Modem, MDC1.5 1. Make sure the modem is set up correctly.

2. Replace the modem jack and the modem card in turn, and run

the following test in Diagnostics --> Communication:

a. Conexant Smart Modem Interrupt
b. Conexant Smart Modem Dialtone

Audio 1. Interactive Tests --> Internal Speaker

2. Diagnostics --> Other Devices --> Analog Devices HDA
CODEC Test

Speaker Interactive Tests --> Internal Speaker
PC Card slot Diagnostics --> Systemboard --> PCMCIA
Keyboard 1. Diagnostics --> Systemboard --> Keyboard

2. Interactive Tests --> Keyboard

TrackPoint or pointing
device

If the TrackPoint does not work, check the configuration in the
ThinkPad Configuration program. If the TrackPoint is disabled,
select Enable to enable it.

After you use the TrackPoint, the pointer may drift on the screen
for a short time. This drift can occur when a slight, steady pressure
is applied to the TrackPointing Stick. This symptom is not a
hardware problem. If the pointer stops after a short time, no
service action is necessary.

If enabling the TrackPoint does not correct the problem, continue
with the following:
v Interactive Tests --> Mouse

(continued)

ThinkPad X60 39

Product overview

FRU Applicable test

Hard disk drive Enter the BIOS Setup Utility and change Serial ATA ( SATA) setting

to Compatibility, then run Diagnostics --> Fixed Disks

Diskette drive 1. Diagnostics --> Diskette Drives

2. Interactive Tests --> Diskette

CD-ROM or DVD
drive

1. Diagnostics --> Other Devices --> CD-ROM/DVD

2. Interactive Tests --> CD-ROM/DVD Test

Memory 1. If two DIMMs are installed, remove one of them and run

Diagnostics --> Memory Test - Quick.

2. If the problem does not recur, return the DIMM to its place,
remove the other one, and run the test again.

3. If the test does not detect the error, run Diagnostics -->
Memory Test - Full.

The maximum supported memory size is 3GB.

Note:

Fan 1. Turn on the computer and check the air turbulence at the

louver near the power switch.

2. Run Diagnostics --> ThinkPad Devices --> Fan.

40 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Product overview

Fn key combinations

The following table shows the function of each combination of Fn with a function
key.

Key combination Description

Fn+F1 Reserved.

Fn+F2 Reserved.
Fn+F3 Standby mode

Turn off the LCD display, leaving the screen blank. Hard disk drive
spindown while CPU still works. To turn the LCD display on
again, press any key or the TrackPoint stick.

Fn+F4 Sleep mode

This function causes the system to enter a low power sleep state.
The unit may remain in the Sleep state for an extended time. For
ACPI systems the OS will determine which state the system will
enter by user setting on the control panel.

Fn+F5 Wireless radio on/off switching

Enable or disable the built-in wireless networking features (the
IEEE 802.11 standard and wireless WA N if available), and the
Bluetooth features. If this combination of keys are pressed, a list of
wireless features is displayed in the Wireless Radio Control
window. The user can quickly change the power state of each
feature in the list.

Fn+F6 Reserved.
Fn+F7 Switch a display output location

v External monitor (CRT display)
v Computer display and external monitor (LCD + CRT display)
v Computer display (LCD)

For any operating system other than Windows 2000 or

Note:

Windows XP, no additional procedure is needed; just press Fn+F7.

Note:

1. This function does not work when different desktop images are
displayed on the computer display and the external monitor
(the Extend desktop function).

2. This function does not work while a DVD movie or a video clip
is playing.

3. For Windows 2000 or Windows XP, a hotkey application might
take over the switching function.

(continued)

ThinkPad X60 41

Product overview

Key combination Description

Fn+F8 Mouse Property

Opens the window for setting up mouse properties. Tabs for the
following choices are displayed:

v Buttons: User can make decisions on button configuration,

double-click speed, and clicklock function.

v Pointers: User is able to customize pointer’s graphic appearance.
v Pointer Options: User can select pointer’s motion and visibility.
v Hardware: User is able to view the hardware device property of

the mouse.

v TrackPoint: User is able to select and set TrackPoint Stick speed,

Scrolling or Magnifying Glass function.

This function is supported only in Windows XP and

Note:

Windows 2000.

Fn+F9 Issue device ejection

Opens the ThinkPad EasyEject Utility screen. Buttons for the
following choices are displayed:

v Run EasyEject Actions: User can select, stop, and remove

external devices connected to the ThinkPad computer.

v Configure EasyEject Actions: User can open the ThinkPad

EasyEject Utility main window.

v Fn+F9 Settings: User can configure the settings for the Fn+F9

function.

This function is supported only in Windows XP and

Note:

Windows 2000.

Fn+F10 Reserved.

Fn+F11 Reserved.
Fn+F12 Hibernation

Turn hibernation mode on. To return to normal operation, press the
power button for less than four seconds.
Note: To use Fn+F12 for hibernation in Windows XP and Windows
2000, the PM device driver must have been installed on the
computer.

Fn+Home LCD brightness up

The

LCD becomes brighter.

Fn+End LCD brightness down

The LCD becomes less bright.

Fn+Spacebar FullScreen magnifier

Enable the FullScreen Magnifier function.

42 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Symptom-to-FRU index

The symptom-to-FRU index in this section lists symptoms and errors and their
possible causes. The most likely cause is listed first, in boldface type.

Note: Do the FRU replacement or other actions in the sequence shown in the

column headed “FRU or action, in sequence.” If replacing a FRU does not
solve the problem, put the original part back in the computer. Do not
replace a nondefective FRU.

This index can also help you determine, during regular servicing, what FRUs are
likely to need to be replaced next.

A numeric error is displayed for each error detected in POST or system operation.
In the displays, n can be any number.

If no numeric code is displayed, check the narrative descriptions of symptoms. If
the symptom is not described there, go to “Intermittent problems” on page 51.

Note

For a device not supported by diagnostic codes in the ThinkPad notebook
computers, see the manual for that device.

Symptom-to-FRU index

Numeric error codes

Symptom or error FRU or action, in sequence
0175

System board.

Bad CRC1, stop POST task—The EEPROM
checksum is not correct.

0176

System Security—The system has been
tampered with.

0177

1. Run BIOS Setup Utility, and save the
current setting by pressing F10.

2. System board.

System board.

Bad SVP data, stop POST task—The
checksum of the supervisor password in the
EEPROM is not correct.

0182

Bad CRC2. Enter BIOS Setup and load Setup
defaults.—The checksum of the CRS2 setting
in the EEPROM is not correct.

0185

Bad startup sequence settings. Enter BIOS
Setup and load Setup defaults.

0187

1. Run BIOS Setup Utility. Press F9, and
Enter to load the default setting. Then
save the current setting by pressing F10.

2. System board.

1. Run BIOS Setup Utility. Press F9, and

Enter to load the default setting. Then
save the current setting by pressing F10.

System board.

EAIA data access error—The access to
EEPROM is failed.

0188

Invalid

RFID Serialization Information Area.

0189

Invalid

RFID configuration information

System board.

System board.

area—The EEPROM checksum is not correct.

ThinkPad X60 43

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
0190

Critical low-battery error

0191

System Security—Invalid Remote Change
requested.

0192

System Security— Embedded Security
hardware tamper detected.

0199

System Security— Security password retry
count exceeded.

01C8

Tw o or more modem devices are found.
Remove all but one of them. Press <Esc> to
continue.

01C9

More than one Ethernet devices are found.
Remove one of them. Press <Esc> to
continue.

01CA

More than one Wireless LAN devices are
found. Remove one of them.

0200

Hard disk error—The hard disk is not
working.

021x

Keyboard error.

0220

Monitor type error—Monitor type does not
match the one specified in CMOS.

0230

Shadow RAM error—Shadow RAM fails at
offset nnnn.

0231

System RAM error—System RAM fails at
offset nnnn.

0232

Extended RAM error— Extended RAM fails
at offset nnnn.

0250

System battery error—System battery is
dead.

0251

System CMOS checksum bad— Default
configuration used.

1. Charge the battery pack.

2. Battery pack.

1. Run BIOS Setup Utility, and then save

current setting by pressing F10.

2. System board.

System board.

1. Run BIOS Setup Utility, and then save
the current setting by pressing F10.

2. System board.

1. Remove either a Mini-PCI Card or a

modem daughter card. Otherwise, press
Esc to ignore the warning message.

2. System board.

1. Remove the Ethernet device that you

installed; or press Esc to ignore the
warning message.

2. System board.

1. Remove the wireless LAN device that

you installed.

2. System board.

1. Reseat the hard disk drive.

2. Load Setup Defaults in BIOS Setup

Utility.

3. Hard disk drive.

4. System board.

Run interactive tests of the keyboard and
the auxiliary input device.

Load Setup Defaults in BIOS Setup Utility.

System board.

1. DIMM.

2. System board.

1. DIMM.

2. System board.

1. Charge the backup battery for more

than 8 hours by connecting the ac
adapter.

2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.

1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.

2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.

44 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
0252

Password checksum bad—The password is

Reset the password by running BIOS Setup
Utility.

cleared.

0260

System timer error.

1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.

2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.

3. System board.

0270

Real-time

clock error.

1. Charge the backup battery for more

than 8 hours by connecting the ac
adapter.

2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.

3. System board.

0271

Date and time error—Neither the date nor

Run BIOS Setup Utility to reset the time
and date.

the time is set in the computer.

0280

Previous boot incomplete— Default
configuration used.

1. Load “Setup Default” in BIOS Setup
Utility.

2. DIMM.

3. System board.

02B2

Incorrect drive A type.

1. Diskette drive.

2. External FDD cable.

3. I/O card.

02F0

CPU ID:xx Failed.

02F4

EISA CMOS not writable.

1. CPU.

2. System board.

1. Load Setup Defaults in BIOS Setup

Utility.

2. Replace the backup battery.

3. System board.

02F5

DMA test failed.

02F6

Software NMI failed

02F7

Fail-safe timer NMI failed

1801

Attached docking station is not supported

1802

Unauthorized network card is plugged

1. DIMM.

2. System board.

1. DIMM.

2. System board.

1. DIMM.

2. System board.

Shut down the computer and remove it
from the docking station.

1. Remove Mini PCI network card.

2. System board.

in—Turn off and remove the miniPCI
network card.

1803

Unauthorized daughter card is plugged
in—Turn off and remove the daughter card.

1804

Unauthorized WA N card is plugged
in—Power off and remove the WA N card.

1. Remove the daughter card that you
installed.

2. System board.

1. Remove the WA N card that you

installed.

2. System board.

ThinkPad X60 45

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
1810

Hard disk partition layout error.

1820

More than one external fingerprint reader is
attached. Power off and remove all but the
reader that you set up within your main
operating system.

2000

Hard Drive Active Protection sensor
diagnostics failed.
Press <Esc> to continue.
Press <F1> to enter SETUP

2010

Warning:
(HDD) may not function correctly on this
system. Ensure that your HDD is supported
on this system and that the latest HDD
firmware is installed.

2100

Initialization error on HDD0 (Main hard
disk drive)

2102

Initialization error on HDD1 (Ultrabay hard
disk drive)

Your internal hard disk drive

1. If the Access Predesktop Area has been

previously disabled, then go to the
BIOS Setup Utility by pressing F1 to
open the BIOS Setup Utility. Select
Security --> Predesktop Area --> Access
Predesktop Area. Set this item to
Disabled. Save and exit.

2. If the Access Predesktop Area has not
been previously disabled, press Enter to
load Access Predesktop Area. Then run

RECOVER TO FACTORY CONTENTS

in Access Predesktop Area.

3. If item 2 failed, press F3 in the Welcome
screen in RECOVER TO FACTORY
CONTENTS. Run FDISK, and then
delete all partitions. Run RECOVER TO
FACTORY CONTENTS in Access
Predesktop Area again.

4. If item 3 failed, select CD-ROM boot in
Startup in Access Predesktop Area. Boot
from the Recovery CD and perform full
recovery from it.

5. If item 4 failed, replace the hard disk
drive.

Remove all but the reader that you set up
for the authentication.

1. Undock docking station or port
replicator if it is attached to the
ThinkPad computer, and place the
computer on a horizontal surface. Do not
apply any physical shock to the
computer.

2. Run Diagnostics --> ThinkPad Devices

--> HDD Active Protection Test.

Inform the following information to the
customer:
If in the primary bay the customer is using a
non-IBM or non-Lenovo hard disk drive
(HDD), or an old generation IBM HDD
which is not supported by this system, with
the risk in mind, the customer can still use it
by pressing ESC. If in the primary drive bay
the customer is using a supported
IBM/Lenovo HDD with an old firmware,
the customer needs to update its firmware to
the latest. The latest version is available at

http://www.lenovo.com/support

1. Reseat the hard disk drive.

2. Main hard disk drive.

3. System board.

1. Reseat the hard disk drive.

2. Ultrabay hard disk drive.

3. System board.

46 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
2110

Read error on HDD0 (Main hard disk drive)

1. Reseat the hard disk drive.

2. Main hard disk drive.

3. System board.

2112

Read error on HDD1 (Ultrabay hard disk
drive)

1. Reseat the hard disk drive.

2. Ultrabay hard disk drive.

3. System board.

Error messages

Symptom or error FRU or action, in sequence
Device address conflict. 1. Load “Setup Defaults” in the BIOS

Setup Utility.

2. Backup battery.

3. System board.

Allocation error for device. 1. Load “Setup Defaults” in the BIOS

Setup Utility.

2. Backup battery.

3. System board.

Failing bits: nnnn. 1. DIMM.

2. System board.

Invalid system configuration data. 1. DIMM.

2. System board.

I/O device IRQ conflict. 1. Load “Setup Defaults” in the BIOS

Setup Utility.

2. Backup battery.

3. System board.

Hibernation error. 1. Restore the system configuration to

what it was before the computer
entered hibernation mode.

2. If memory size has been changed,
re-create the hibernation file.

Fan error. 1. Fan.

2. Thermal grease.

3. System board.

Thermal sensing error. System board.

Authentication of system services failed.
Press <Esc> to resume.

The Predesktop Area in the HDD is
corrupted. Restore it from a recovery CD.

ThinkPad X60 47

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
Cannot boot from any device. Check the status of device which you want

to boot from.

Device not found.

1. The device you want to boot from.

2. System board.

Device

Error.

1. The device you want to boot from.

2. System board.

No

valid operating system.

1. Check that the operating system has no

failure and is installed correctly.

2. Reinstall the operation system.

Excluded

from boot order.

v Enter the BIOS Setup Utility and add the

device in boot order.

48 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Symptom-to-FRU index

Beep symptoms

Symptom or error FRU or action, in sequence

One beep and a blank, unreadable, or
flashing LCD.

1. Reseat the LCD connector.

2. LCD assembly.

3. External CRT.

4. System board.

One long and two short beeps, and a blank
or unreadable LCD.

1. System board.

2. LCD assembly.

3. DIMM.

Tw o short beeps with error codes. POST error. See “Numeric error codes” on

page 43.

Tw o short beeps and a blank screen. 1. System board.

2. DIMM.

Three short beeps, pause, three more short
beeps, and one short beep.

1. DIMM.

2. System board

One short beep, pause, three short beeps,
pause, three more short beeps, and one short
beep.

Only the cursor appears. Reinstall the operating system.

Four cycles of four short beeps and a blank

System board (security chip)

screen.
Five short beeps and a blank screen. System board

No-beep symptoms

Symptom or error FRU or action, in sequence

No beep, power-on indicator on, LCD blank,
and no POST.

1. Make sure that every connector is
connected tightly and correctly.

2. DIMM.

3. System board.

No beep, power-on indicator on, and LCD
blank during POST.

1. Reseat DIMM.

2. System board.

The power-on password prompt appears. A power-on password or a supervisor

password is set. Type the password and
press Enter.

The hard-disk password prompt appears. A hard-disk password is set. Type the

password and press Enter.

The DOS full screen looks smaller than it
should.

Start the ThinkPad Configuration program
and set the Screen expansion function.

ThinkPad X60 49

Symptom-to-FRU index

LCD-related symptoms

Symptom or error FRU or action, in sequence

No beep, power-on indicator on, and a
blank LCD during POST.

v LCD backlight not working.
v LCD too dark.
v LCD brightness cannot be adjusted.
v LCD contrast cannot be adjusted.

v LCD screen unreadable.
v Characters missing pixels.
v Screen abnormal.
v Wrong color displayed.

Horizontal or vertical lines displayed on
LCD.

Important

The TFT LCD for the notebook computer contains many thin-film transistors
(TFTs). The presence of a small number of dots that are missing, discolored,
or always lighted is characteristic of TFT LCD technology, but excessive pixel
problems can cause viewing concerns. The LCD should be replaced if the
number of missing, discolored, or lighted dots in any background is:
v XGA: 8 or more bright dots, 8 or more dark dots, or a total of 9 or more

bright and dark dots.

A bright dot means a pixel is always on (white or color.) A dark dot

Note:

means a pixel is always off (black color.)

System board.

1. Reseat the LCD connectors.

2. LCD assembly.

3. System board.

1. See important note for “LCD-related

symptoms.”

2. Reseat all LCD connectors.

3. LCD assembly.

4. System board.

LCD assembly.

50 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Symptom-to-FRU index

Intermittent problems

Intermittent system hang problems can be due to a variety of causes that have
nothing to do with a hardware defect, such as cosmic radiation, electrostatic
discharge, or software errors. FRU replacement should be considered only when a
problem recurs.

When analyzing an intermittent problem, do the following:

1. Run the diagnostic test for the system board in loop mode at least 10 times.

2. If no error is detected, do not replace any FRUs.

3. If any error is detected, replace the FRU shown by the FRU code. Rerun the

test to verify that no more errors exist.

Undetermined problems

If the diagnostic tests did not identify the adapter or device that has failed, if
wrong devices are installed, or if the system simply is not operating, follow these
procedures to isolate the failing FRU (do not isolate FRUs that have no defects).

Verify that all attached devices are supported by the computer.

Verify that the power supply being used at the time of the failure is operating
correctly. (See “Power system checkout” on page 29.)

1. Turn off the computer.

2. Visually check each FRU for damage. Replace any damaged FRU.

3. Remove or disconnect all of the following devices:
a. Non-ThinkPad devices
b. Devices attached to the port replicator
c. Printer, mouse, and other external devices
d. Battery pack
e. Hard disk drive
f. External diskette drive or optical drive
g. DIMM
h. Optical disk or diskette in the internal drive
i. PC Cards

4. Turn on the computer.

5. Determine whether the problem has been solved.

6. If the problem does not recur, reconnect the removed devices one at a time

until you find the failing FRU.

7. If the problem remains, replace the following FRUs one at a time (do not
replace a nondefective FRU):

a. System board
b. LCD assembly

ThinkPad X60 51

FRU replacement notices

FRU replacement notices

This section contains notices related to removing and replacing parts. Read this
section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the ThinkPad computer, this
problem is addressed with special nylon-coated screws that have the following
characteristics:

v They maintain tight connections.
v They do not easily come loose, even with shock or vibration.
v They are harder to tighten.
v Each one should be used only once.

the following when you service this machine:

Do
v Keep the screw kit (for the P/N, see “Miscellaneous parts” on page 151) in your

tool bag.

v Always use new screws.
v Use a torque screwdriver if you have one.

Tighten

screws as follows:

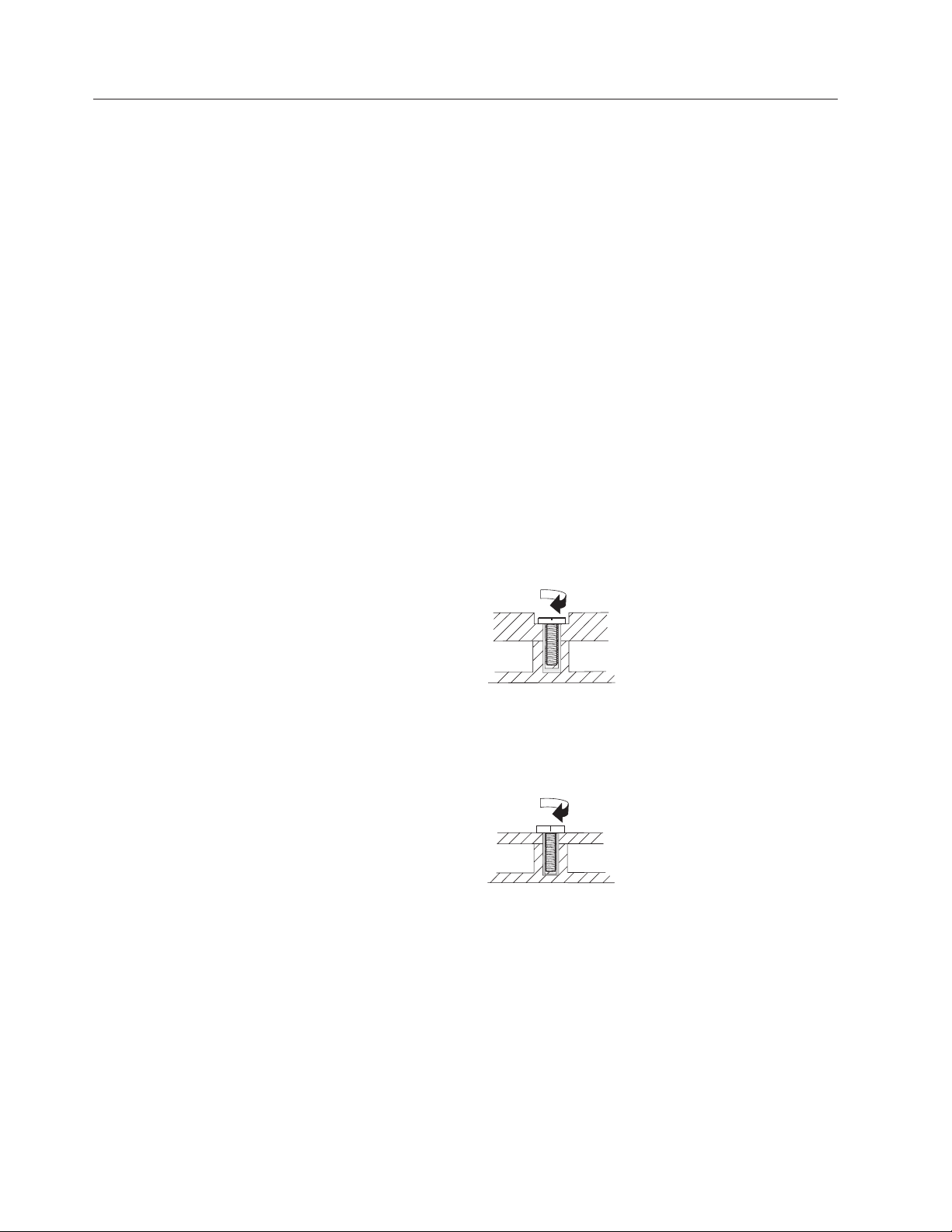

v Plastic to plastic

Turn an additional 90 degrees after the screw head touches the surface of the
plastic part:

90 degrees more

(Cross-section)

v Logic card to plastic

Turn an additional 180 degrees after the screw head touches the surface of the
logic card:

180 degrees more

(Cross-section)

v Torque driver

If you have a torque driver, refer to the “Torque” column for each step.

v Make sure that you use the correct screw. If you have a torque screwdriver,

tighten all screws firmly to the torque shown in the table. Never use a screw

that you removed. Use a new one. Make sure that all of the screws are
tightened firmly.

v Ensure torque screw drivers are calibrated correctly following country

specifications.

Retaining serial numbers

This section includes the following descriptions:
v “Restoring the serial number of the system unit” on page 53

52 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

FRU replacement notices

v “Retaining the UUID”
v “Reading or writing the ECA information”

Restoring the serial number of the system unit

When the computer was manufactured, the EEPROM on the system board was
loaded with the serial numbers of the system and all major components. These
numbers need to remain the same throughout the life of the computer.

If you replace the system board, you must restore the serial number of the system
unit to its original value.

Before replacing the system board, save the original serial number by doing the
following:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and
restart the computer.

2. From the main menu, select 1. Set System Identification.

3. Select 2. Read S/N data from EEPROM.

The serial number of each device in your computer is displayed; the serial number
of the system unit is listed as follows:
v 20: Serial number

Write down that number.

Note: The serial number of the system unit is also written on the label attached to

the bottom of the computer.

After you have replaced the system board, restore the serial number by doing the
following:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later and
restart the computer.

2. From the main menu, select 1. Set System Identification.

3. Select 1. Add S/N data from EEPROM.

Follow the instructions on the screen.

Retaining the UUID

The Universally Unique Identifier (UUID) is a 128-bit number uniquely assigned to
your computer at production and stored in the EEPROM of your system board.
The algorithm that generates the number is designed to provide unique IDs until
the year A.D. 3400. No two computers in the world have the same number.

When you replace the system board, you must set the UUID on the new system
board as follows:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and
restart the computer.

2. From the main menu, select 4. Assign UUID.

A new UUID is created and written. If a valid UUID already exists, it is not
overwritten.

Reading or writing the ECA information

Information on Engineering Change Announcements (ECA) are stored in the
EEPROM of the system board. The electronic storage of this information simplifies
the procedure to check if the ECA has been previously applied to a machine. The
machine does not need to be disassembled to check for the ECA application.

ThinkPad X60 53

FRU replacement notices

To check what ECAs have been previously applied to the machine, use the ECA
Information Read/Write function on the ThinkPad Hardware Maintenance Diskette
Version 1.73 or later.

1. Insert the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and

2. From the main menu, select 6. Set ECA Information.

3. To read ECA information, select 2. Read ECA/rework number from EEPROM

4. To read box build date, select 5. Read box build date from EEPROM, and

After an ECA has been applied to the machine, the EEPROM must be updated to
reflect the ECA's application. Use the ThinkPad Hardware Maintenance Diskette
Version 1.73 or later to update the EEPROM.

Note: Only the ECA number is stored in the EEPROM. The machine type of the

1. Insert the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and

2. From the main menu, select 6. Set ECA Information.

3. To write ECA information, select 1. Write ECA/rework number from EEPROM,

4. To write box build date, select 4. Write box build date from EEPROM, and

restart the computer.

and follow the instruction.

follow the instruction on the screen.

ECA is assumed be the same as the machine type of the machine that had
the ECA applied to it.

restart the computer.

and follow the instruction.

follow the instruction on the screen.

If the system board is being replaced, try to read the ECA information from the old
system board and transfer the information to the new system. If the system board
is inoperable, this will not be possible.

54 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

This section presents directions and drawings for use in removing and replacing a
FRU. Be sure to observe the following general rules:

1. Do not try to service any computer unless you have been trained and certified.
An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 52.

3. Begin by removing any FRUs that have to be removed before the failing FRU.

Any such FRUs are listed at the top of the page. Remove them in the order in
which they are listed.

4. Follow the correct sequence in the steps for removing the FRU, as given in the
drawings by the numbers in square callouts.

5. When turning a screw to replace a FRU, turn it in the direction as given by the
arrow in the drawing.

6. When removing the FRU, move it in the direction as given by the arrow in the
drawing.

7. To put the new FRU in place, reverse the removal procedure and follow any
notes that pertain to replacement. For information about connecting and
arranging internal cables, see “Locations” on page 106.

8. When replacing a FRU, use the correct screw as shown in the procedures.

Removing and replacing a FRU

DANGER

Before removing any FRU, turn off the computer, unplug all power cords from
electrical outlets, remove the battery pack, and then disconnect any interconnecting
cables.

Attention: After replacing a FRU, do not turn on the computer until you have

made sure that all screws, springs, and other small parts are in place and none are
loose inside the computer. Verify this by shaking the computer gently and listening
for rattling sounds. Metallic parts or metal flakes can cause electrical short circuits.

Attention: The system board is sensitive to, and can be damaged by, electrostatic

discharge. Before touching it, establish personal grounding by touching a ground
point with one hand or by using an electrostatic discharge (ESD) strap (P/N

6405959).

ThinkPad X60 55

Removing and replacing a FRU

1010 Battery pack

DANGER

Use only the battery specified in the parts list for your computer. Any other battery
could ignite or explode.

1

2

3

56 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1020 Hard disk drive (2.5-inch) and HDD rubber rails

Note: This procedure is only for models with a 2.5-inch hard disk drive.

Attention

v Do not drop or apply any shock to the hard disk drive. The hard disk

drive is sensitive to physical shock. Incorrect handling can cause damage
and permanent loss of data.

v Before removing the drive, have the user make a backup copy of all the

information on the drive if possible.

v Never remove the drive while the system is operating or is in suspend

mode.

For access, remove following FRU:

v “1010 Battery pack” on page 56

2

1

Step Screw (quantity) Color Torque

1 M3 × 3 mm, wafer-head, nylon-coated (1) Black 0.196 Nm

(2 kgfcm)

3

ThinkPad X60 57

Removing and replacing a FRU

When installing: Make sure that the hard disk is connected firmly.

4

4

58 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1030 DIMM cover

For access, remove following FRU:
v “1010 Battery pack” on page 56

Note: Loosen the screws 1, but do not remove them.

1

1

2

Step Screw (quantity) Color Torque

1 M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.157 Nm

(1.6 kgfcm)

ThinkPad X60 59

Removing and replacing a FRU

1040 DIMM

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1030 DIMM cover” on page 59

2

1

1

60 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1050 Keyboard

For access, remove following FRU:
v “1010 Battery pack” on page 56

Remove 4 screws with keyboard icon to remove keyboard.

Note: Place the system on a hard flat table when you remove or reinstall the

screws. When reinstalling the screw 1a, use a manual screwdriver. Do not
secure this screw too tightly.

1

1a

1

1

Step Icon Screw (quantity) Color Torque

11a

M2 × 6 mm, wafer-head,
nylon-coated (4)

Black 0.196 Nm

(2 kgfcm)

(continued)

ThinkPad X60 61

Removing and replacing a FRU

Gently push the keyboard forward, as shown in step 2. Then lift up the
keyboard slightly, as shown in step 3.

Detach the keyboard connector 4 to remove the keyboard 5.

2

3

3

3

4

5

62 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

When installing: Follow the steps below.

1. Attach the connector.

2. Make sure that the keyboard edges are under the frame. Then press the keys to

latch the keyboard firmly in place.

ThinkPad X60 63

Removing and replacing a FRU

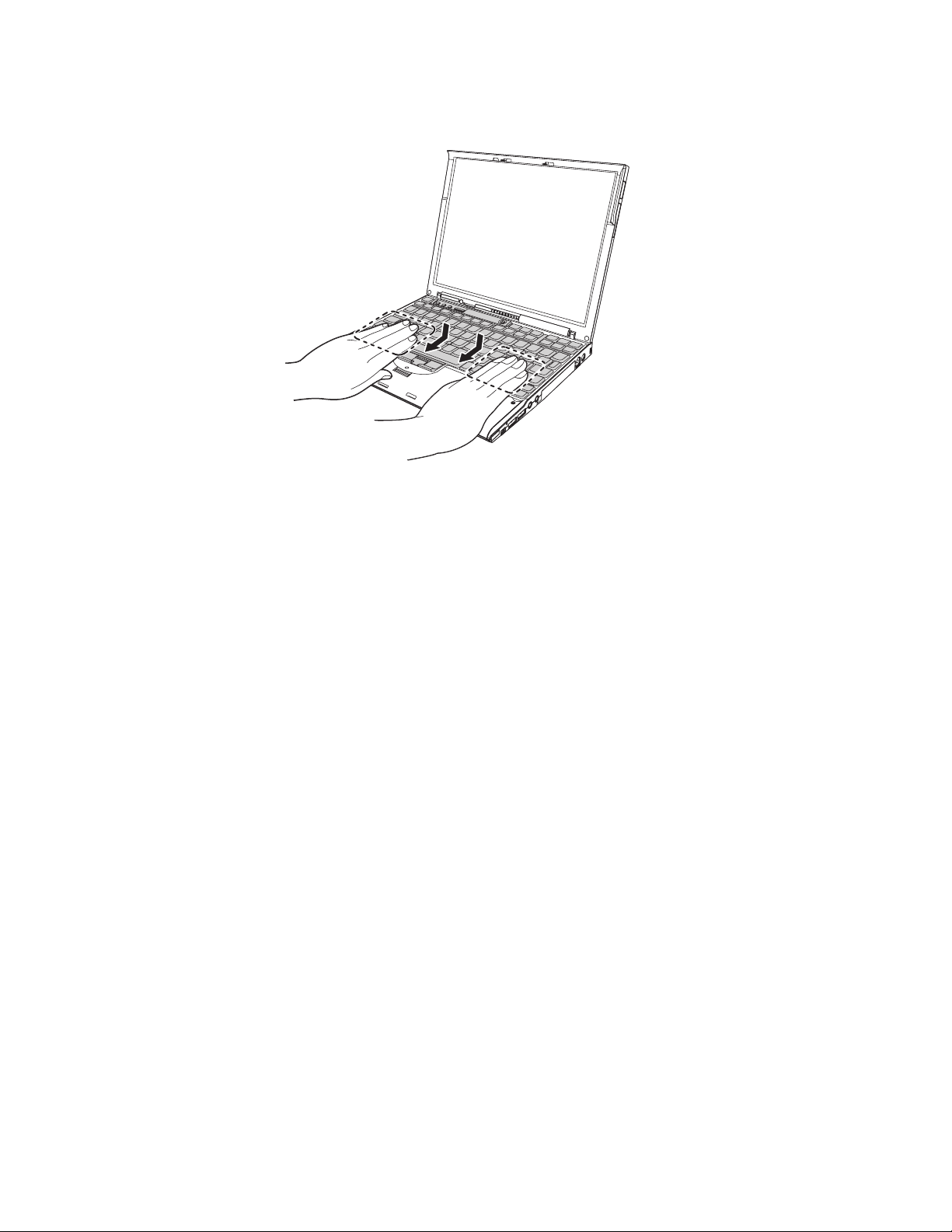

3. To make sure that the front side of the keyboard is housed firmly, gently press
the keys with your thumbs and try to slide the keyboard toward you.

4. Secure the keyboard by tightening the screws from the bottom side of the
computer.

64 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

2

Removing and replacing a FRU

1060 Upper case

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61

1

1

1

1

1

1

Step Screw (quantity) Color Torque

1 M2 × 6 mm, wafer-head, nylon-coated (6) Black 0.196 Nm

(2 kgfcm)

Note: Place the system on a hard flat table when you remove or reinstall the

screws.

For models with a fingerprint reader, detach the fingerprint cable 2.

Note:

(continued)

ThinkPad X60 65

Removing and replacing a FRU

Note: Open the LCD at least 150 degrees.

Press down and gently lift upper case up, as shown in steps 3 and 4, to
remove upper case.

3

4

3

When installing: Follow the steps below to make sure that the upper case is

installed firmly.

1

2

66 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1070 Fingerprint reader

Note: This procedure is only for models with a fingerprint reader.

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65

1

2

2

4

3

Step Screw (quantity) Color Torque

2 M2.5 × 3.5 mm, wafer-head, nylon-coated (2) Silver 0.196 Nm

(2 kgfcm)

ThinkPad X60 67

Removing and replacing a FRU

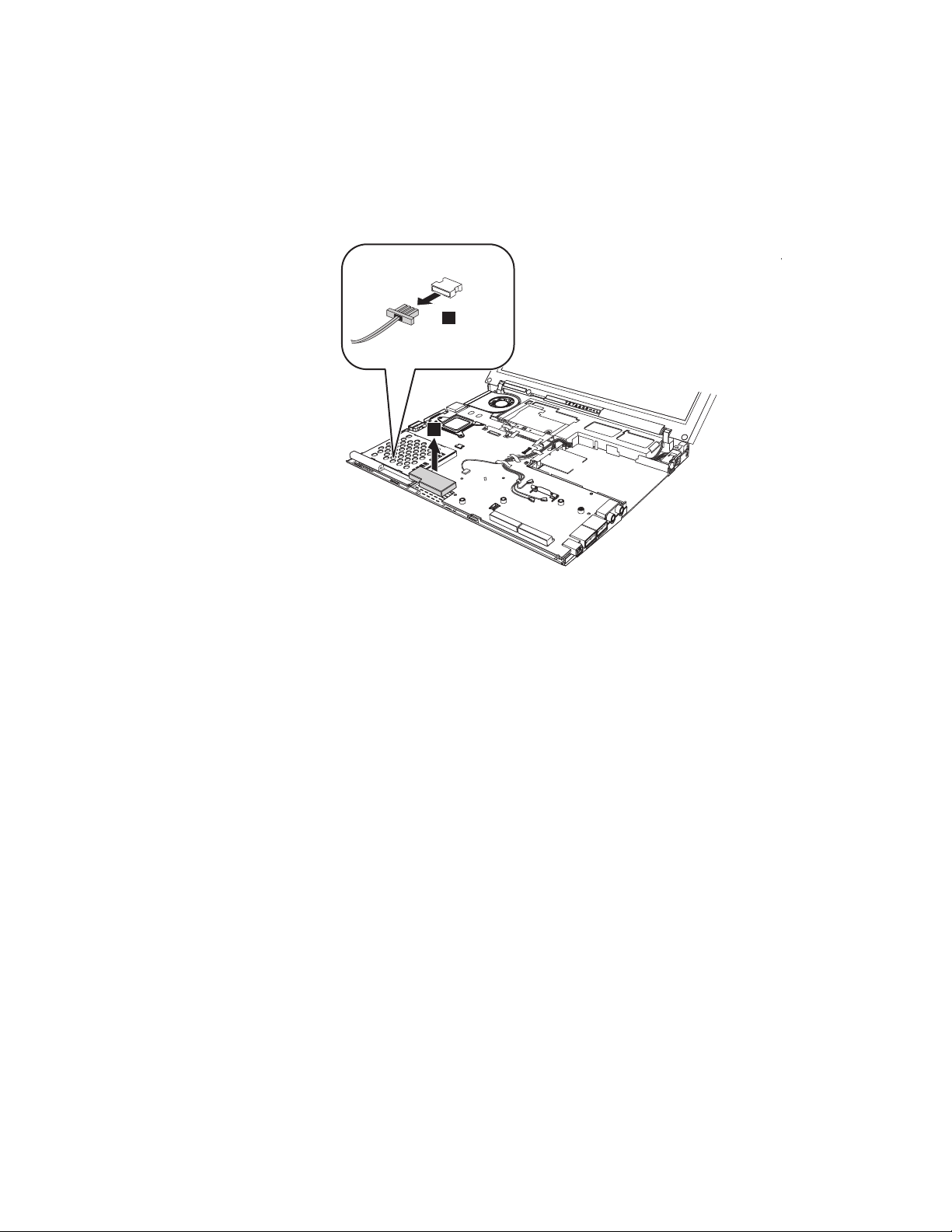

1080 Hard disk (1.8-inch)

Note: This procedure is only for models with a 1.8-inch hard disk drive.

Attention

v Do not drop or apply any shock to the hard disk drive. The hard disk

drive is sensitive to physical shock. Incorrect handling can cause damage
and permanent loss of data.

v Before removing the drive, have the user make a backup copy of all the

information on the drive if possible.

v Never remove the drive while the system is operating or is in suspend

mode.

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65

1

2

68 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1090 Hard disk housing (1.8-inch)

Note: This procedure is only for models with a 1.8-inch hard disk drive.

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1080 Hard disk (1.8-inch)” on page 68

1

2

Step Screw (quantity) Color Torque

1 M2.5 × 3.5 mm, wafer-head, nylon-coated (2) Silver 0.196 Nm

(2 kgfcm)

ThinkPad X60 69

Removing and replacing a FRU

1100 Wireless WAN PCI Express Mini card

Note: This procedure is only for models with wireless WA N feature. Step 2 is only

for models with Verizon wireless WAN.

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65

1

1

2

3

4

Step Screw (quantity) Color Torque

3 M2.5 × 3.5 mm, wafer-head, nylon-coated (2) Silver 0.196 Nm

70 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

(2 kgfcm)

Removing and replacing a FRU

1110 Wireless LAN PCI Express Mini card

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1100 Wireless WAN PCI Express Mini card” on page 70

For systems with 802.11a/b/g or 802.11b/g antenna cable connection

1

3

2

When installing: If you are installing a 802.11n MIMO card, attach the grey cable

to the left connector and the black cable to the right connector. If
you attach either cable to the center connector, the connection
speed will be lower.

ThinkPad X60 71

Removing and replacing a FRU

For 802.11n MIMO antenna cable connection

When installing: If you are installing a 802.11a/b/g or 802.11b/g card, first insert

the connector end of the white cable into a plastic cable bag and
affix the cable to the mainboard with tape. Then insert the card,
and attach the grey cable to the left connector, and the black
cable to the right connector on the card.

72 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1120 MDC

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65

2

3

1

1

Step Screw (quantity) Color Torque

1 M2.5 × 3.5 mm, wafer-head, nylon-coated (2) Silver 0.196 Nm

(2 kgfcm)

ThinkPad X60 73

Removing and replacing a FRU

1130 Backup battery

DANGER

Use only the battery specified in the parts list for your computer. Any other battery
could ignite or explode.

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61

1

2

When installing: Make sure that the battery connector is attached firmly.

74 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1140 Speaker

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65

2

1

When installing: Make sure that the speaker connector is attached firmly.

ThinkPad X60 75

Removing and replacing a FRU

1150 DC-in and RJ-11 connectors

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65

2

2

1

3

4

1

Step Screw (quantity) Color Torque

4

2 M2.5 × 3.5 mm, wafer-head, nylon-coated (2) Silver 0.196 Nm

(2 kgfcm)

When installing: Make sure that the DC-in and RJ-11 cables are routed properly

and the connectors are attached firmly.

76 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1160 LCD assembly

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1100 Wireless WAN PCI Express Mini card” on page 70
v “1110 Wireless LAN PCI Express Mini card” on page 71

Before removing LCD assembly, detach the connector 4. Then release the antenna
cables in steps 6 to 9.

1

1

4

2

3

Step Screw (quantity) Color Torque

1 M2 × 8 mm, wafer-head, nylon-coated (2) Silver 0.196 Nm

(2

kgfcm)

(continued)

ThinkPad X60 77

Removing and replacing a FRU

5

5

5

6

6

6

6

6

6

Step Screw (quantity) Color Torque

5 M2 × 3.5 mm, wafer-head, nylon-coated (3) Silver 0.196 Nm

(2 kgfcm)

7

8

9

(continued)

78 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

10

11

11

12

12

Step Screw (quantity) Color Torque

11 M2.5 × 5 mm, wafer-head, nylon-coated (2) Black 0.294 Nm

(3 kgfcm)

12 M2.5 × 5 mm, wafer-head, nylon-coated (2) Black 0.294 Nm

(3 kgfcm)

(continued)

ThinkPad X60 79

Removing and replacing a FRU

When installing: When fitting the LCD hinge into the system, make sure the

13

13

wireless antenna cables do not get pinched in by the hinge. Then
route the wireless antenna cables as shown below. For wireless
WAN: red is main; blue is aux. For wireless LAN: gray is main;
black is aux. Remember to reattach the mylar and tapes.

1

2

3

(continued)

80 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

When installing: Make sure to position the LCD cable properly and reattach the

mylar and tape. The LCD cable switch should fit in its slot 7.

5

5

7

6

4

ThinkPad X60 81

Removing and replacing a FRU

1170 Hard disk sub-card

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1020 Hard disk drive (2.5-inch) and HDD rubber rails” on page 57
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1080 Hard disk (1.8-inch)” on page 68
v “1090 Hard disk housing (1.8-inch)” on page 69
v “1150 DC-in and RJ-11 connectors” on page 76
v “1160 LCD assembly” on page 77

The hard disk sub-card is different for 2.5-inch hard disk drives and 1.8-inch

Note:

hard disk drives.

For 1.8-inch hard disk drive

For 2.5-inch hard disk drive

82 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1180 System board and lower case assembly with label

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1020 Hard disk drive (2.5-inch) and HDD rubber rails” on page 57
v “1030 DIMM cover” on page 59
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1080 Hard disk (1.8-inch)” on page 68
v “1090 Hard disk housing (1.8-inch)” on page 69
v “1100 Wireless WAN PCI Express Mini card” on page 70
v “1110 Wireless LAN PCI Express Mini card” on page 71
v “1120 MDC” on page 73
v “1140 Speaker” on page 75
v “1150 DC-in and RJ-11 connectors” on page 76
v “1160 LCD assembly” on page 77
v “1170 Hard disk sub-card” on page 82

Important notices for handling the system board

When handling the system board, bear the following in mind.

v The system board has an accelerometer, which can be broken by applying

several thousands of G-forces.

Dropping a system board from a height of as little as 6 inches so

Note:

that it falls flat on a hard bench can subject the accelerometer to as
much as 6,000 G’s of shock.

v Be careful not to drop the system board on a bench top that has a hard

surface, such as metal, wood, or composite.

v If a system board is dropped, you must test it, using PC-Doctor for DOS, to

make sure that the HDD Active Protection still functions (see below).

If the test shows that HDD Active Protection is not functioning, be

Note:

sure to document the drop in any reject report, and replace the
system board.

v Avoid rough handling of any kind.

v At every point in the process, be sure not to drop or stack the system

board.

v If you put a system board down, be sure to put it only on a padded

surface such as an ESD mat or conductive corrugated material.

After replacing the system board, run PC-Doctor for DOS to make sure that
HDD Active Protection still functions. The procedure is as follows:

1. Place the computer on a horizontal surface.

2. Run Diagnostics --> ThinkPad Devices --> HDD Active Protection Test.

Attention: Do not apply physical shock to the computer while the test is

running.

ThinkPad X60 83

Removing and replacing a FRU

Following components soldered on the top and bottom sides of the system board
are extremely sensitive. When you service the system board, avoid any kind of
rough handling.

a Accelerometer chip for the HDD Active Protection System
b Security chip
c CPU
d MCH (Memory Controller Hub)
e ICH (I/O Controller Hub)

Top

Bottom

b

c

d

e

a

84 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

1

1

Step Screw (quantity) Color Torque

1 M2 × 3.5 mm, wafer-head, nylon-coated (2) Silver 0.1372 Nm

(1.4 kgfcm)

2

When installing: Do not damage the wireless micro switch 1 on the system

board.

1

ThinkPad X60 85

Removing and replacing a FRU

1190 Fansink

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1020 Hard disk drive (2.5-inch) and HDD rubber rails” on page 57
v “1030 DIMM cover” on page 59
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1080 Hard disk (1.8-inch)” on page 68
v “1090 Hard disk housing (1.8-inch)” on page 69
v “1100 Wireless WAN PCI Express Mini card” on page 70
v “1110 Wireless LAN PCI Express Mini card” on page 71
v “1120 MDC” on page 73
v “1140 Speaker” on page 75
v “1150 DC-in and RJ-11 connectors” on page 76
v “1160 LCD assembly” on page 77
v “1170 Hard disk sub-card” on page 82
v “1180 System board and lower case assembly with label” on page 83

For models with LV processor

3b

3c

3a

2

4

1

For models with NV processor

Step Screw (quantity) Color Torque

2 M2 × 3.5 mm, wafer-head, nylon-coated (1) Silver 0.196 Nm

3 M2 × 9 mm, flat-head, spring-loaded, (3) Silver 0.245 Nm

3c

3a

2

3b

4

1

(2 kgfcm)

(2.5

kgfcm)

Note: Remove the fansink screws in the order shown: 3a, 3b, and 3c.

86 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

2010 LCD bezel

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1100 Wireless WAN PCI Express Mini card” on page 70
v “1110 Wireless LAN PCI Express Mini card” on page 71
v “1150 DC-in and RJ-11 connectors” on page 76
v “1160 LCD assembly” on page 77

For SPWG LCD

1

1

1

2

2

2

Step Screw (quantity) Color Torque

2 M2.5 × 5 mm, wafer-head, nylon-coated (3) Black 0.294 Nm

(3 kgfcm)

Note: The adhesive on the bezel can make bezel removal difficult.

(continued)

ThinkPad X60 87

Removing and replacing a FRU

3

3

3

3

When installing: The replacement bezel should have adhesive pre-applied;

therefore, remove the covering from the bezel to expose the
adhesive, and then place the top edge under the frame, then
push the bezel down and secure with the latches firmly. Be
careful to route the antenna cables properly.

For TMD LCD

1

(continued)

1

1

1

1

1

1

88 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

2

2

3

3

3

2

2

Step Screw (quantity) Color Torque

2 M2 × 2.5 mm, wafer-head, nylon-coated (4) Black 0.1568 Nm

(1.6 kgfcm)

3 M2.5 × 5 mm, wafer-head, nylon-coated (3) Black 0.294 Nm

(3 kgfcm)

Note: The adhesive on the bezel can make bezel removal difficult.

4

4

4

4

When installing: The replacement bezel should have adhesive pre-applied;

therefore, remove the covering from the bezel to expose the
adhesive, and then place the top edge under the frame, then
push the bezel down and secure with the latches firmly. Be
careful to route the antenna cables properly.

ThinkPad X60 89

Removing and replacing a FRU

2020 Inverter card

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1100 Wireless WAN PCI Express Mini card” on page 70
v “1110 Wireless LAN PCI Express Mini card” on page 71
v “1150 DC-in and RJ-11 connectors” on page 76
v “1160 LCD assembly” on page 77
v “2010 LCD bezel” on page 87

1

2

Step Screw (quantity) Color Torque

1 M2 × 2.5 mm, wafer-head, nylon-coated (1) Silver 0.1568 Nm

(1.6

kgfcm)

4

3

When installing: Make sure that both connectors are attached firmly.

90 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

2030 Bluetooth daughter card

Note: The following procedures are for models with Bluetooth.

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1100 Wireless WAN PCI Express Mini card” on page 70
v “1110 Wireless LAN PCI Express Mini card” on page 71
v “1150 DC-in and RJ-11 connectors” on page 76
v “1160 LCD assembly” on page 77
v “2010 LCD bezel” on page 87
v “2020 Inverter card” on page 90

When installing: Make sure that the connector is attached firmly.

ThinkPad X60 91

Removing and replacing a FRU

2040 LCD

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 56
v “1050 Keyboard” on page 61
v “1060 Upper case” on page 65
v “1100 Wireless WAN PCI Express Mini card” on page 70
v “1110 Wireless LAN PCI Express Mini card” on page 71
v “1150 DC-in and RJ-11 connectors” on page 76
v “1160 LCD assembly” on page 77
v “2010 LCD bezel” on page 87
v “2020 Inverter card” on page 90
v “2030 Bluetooth daughter card” on page 91

For SPWG LCD

1

1

1

(continued)

1

1

1

92 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534

Removing and replacing a FRU

2

2

2

2

2

2

Step Screw (quantity) Color Torque

2 M2 × 2.5 mm, wafer-head, nylon-coated (6) Black 0.1568 Nm

(1.6 kgfcm)

4

(continued)

3

ThinkPad X60 93

Removing and replacing a FRU

For TMD LCD

When removing: Make sure you do not touch or put pressure on these two

sections of the LCD indicated below.

1

3

2

94 MT1702/1703/1704/1705/1706/1707/1708/1709/2507/2508/2509/2510/2533/2534
