IBM

IBM Mobile Systems
ThinkPad Computer
Hardware Maintenance Manual

Note

Before using this information and the product it
supports, be sure to read the general information
under “Notices” on page 173.

First Edition (February 2003)
The following paragraph does not apply to the United

Kingdom or any country where such provisions are
inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION
PROVIDES THIS PUBLICATION “AS IS” WITHOUT ANY
WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
LIMITED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. Some states
do not allow disclaimer or express or implied warranties in
certain transactions; therefore, this statement may not
apply to you.

This publication could include technical inaccuracies or
typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in
new editions of the publication. IBM may make
improvements or changes to the products or the programs
described in this publication at any time.

It is possible that this publication may contain references
to, or information about, IBM products (machines and
programs), programming, or services that are not
announced in your country. Such references or information
must not be construed to mean that IBM intends to
announce such IBM products, programming, or services in
your country.

Requests for technical information about IBM products
should be made to your IBM authorized dealer or your IBM
marketing representative.

© Copyright International Business Machines
Corporation 2003. All rights reserved.

US Government Users Restricted Rights – Use, duplication
or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.

Contents

About this manual ...........1

Introduction .............3

Importantserviceinformation.........3

Strategy for replacing FRUs ........3

How to use error messages ........4

Diskette compatibility matrix .........4

Safety notices: multilingual translations ......5

Safetyinformation............17

General safety............17

Electrical safety ...........18

Safety inspection guide .........19

Handling devices that are sensitive to electrostatic

discharge............20

Grounding requirements .........21

Laser compliance statement.........22

General descriptions ..........25

Read this first .............25

What to do first ...........25

Relatedserviceinformation.........28

Service web site ...........28

Restoring the preloaded system ......28

Passwords.............30

Power management ..........32

Checkout guide ............36

Testing the computer ..........36

Detecting system information with PC-Doctor. . . 38

Power system checkout .........39

ThinkPad R40.............43

Product overview ............45

Specifications ............45

Statusindicators...........48

FRUtests.............50

Fn key combinations ..........52

Symptom-to-FRU index ..........53

Numeric error codes ..........53

Error messages ...........56

Beep symptoms ...........57

No-beep symptoms ..........57

LCD-relatedsymptoms.........58

Intermittentproblems..........59

Undetermined problems .........59

FRU replacement notices .........60

Screwnotices............60

Retaining serial numbers.........61

Removing and replacing a FRU........63

1010 Battery pack...........64

1020 Ultrabay Plus device ........65

© Copyright IBM Corp. 2003

iii

1030 Hard-disk drive ..........66

1040 DIMM ............68

1050 Mini PCI adapter .........70

1060 Keyboard ...........73

1070 Backup battery ..........81

1080 Optical storage in the fixed bay .....82

1090 PC Card slot assembly .......85

1100Hingecover...........87

1110 Communication daughter card (CDC) . . . 88

1120 Fan assembly ..........94

1130CPU.............95

1140 Bluetooth antenna assembly ......97

1150 LCD assembly ..........98

1160 Keyboard bezel .........103

1170 Speaker assembly and microphone cable 108

1180 System board ..........109

1190 Hard-disk drive slot ........116

2000 Ultrabay Plus guide rail .......117

2010 I/O Bracket...........119

2020 LCD front bezel .........120

2030 Inverter card ..........121

2040 LCD panel and LCD cable assembly . . . 122
2050 Antenna assembly, hinges, and LCD cover 124

Locations ..............127

Front view for 2681, 2682, 2683, 2722, 2723, 2724 127
Rear view for 2681, 2682, 2683, 2722, 2723, 2724 129
Bottom view for 2681, 2682, 2683, 2722, 2723,

2724 .............130

Front view for 2684, 2685 ........131

Rear view for 2684, 2685 ........132

Bottom view for 2684, 2685 .......133

Parts list ..............134

R40 series model matrix ........134

Overall .............141

LCD FRUs ............156

Keyboard .............160

RecoveryCDs...........161

Miscellaneous parts ..........164

AC adapters ............167

Telephone cable ...........168

Optional FRUs ...........169

Common parts list ..........171

Notices..............173

Trademarks ............173

iv ThinkPad R40

About this manual

This manual contains service and reference information for
IBM ThinkPad R40 product. Use this manual along with
the advanced diagnostic tests to troubleshoot problems.

The manual is divided into sections as follows:
v The common sections provide general information,

guidelines, and safety information required in servicing
computers.

v The product-specific section includes service, reference,

and product-specific parts information.

Important

This manual is intended for trained service
personnel who are familiar with ThinkPad products.
Use this manual along with the advanced diagnostic
tests to troubleshoot problems effectively.

Before servicing an IBM ThinkPad product, be sure
to review the safety information under “Safety
notices: multilingual translations” on page 5, “Safety
information” on page 17, and “Laser compliance
statement” on page 22.

© Copyright IBM Corp. 2003 1

2 ThinkPad R40

Introduction

Important service information

Important

BIOS and device driver fixes are
customer-installable. The BIOS and device drivers
are posted on the IBM support site

http://www.ibm.com/pc/support

Advise customers to contact the PC Company
HelpCenter at 800-772-2227 if they need assistance
in obtaining or installing any diskette fixes.

Customers in Canada should call IBM HelpPC at
800-565-3344 for assistance or download
information.

Strategy for replacing FRUs

Before replacing parts

Make sure that all diskette fixes are installed before
replacing any FRUs listed in this manual.

Use the following strategy to prevent unnecessary expense
for replacing and servicing FRUs:

v If you are instructed to replace a FRU but the

replacement does not correct the problem, reinstall
the original FRU before you continue.

v Some computers have both a processor board and a

system board. If you are instructed to replace either the
processor board or the system board, and replacing one
of them does not correct the problem, reinstall that
board, and then replace the other one.

v If an adapter or device consists of more than one FRU,

any of the FRUs may be the cause of the error. Before
replacing the adapter or device, remove the FRUs, one
by one, to see if the symptoms change. Replace only
the FRU that changed the symptoms.

Attention: The setup configuration on the computer you
are servicing may have been customized. Running
Automatic Configuration may alter the settings. Note the
current configuration settings (using the View Configuration
option); then, when service has been completed, verify that
those settings remain in effect.

© Copyright IBM Corp. 2003

3

Important service information

Strategy for replacing a hard-disk drive

Always try to run a low-level format before replacing a
hard-disk drive.

Attention: The drive startup sequence in the computer
you are servicing may have been changed. Be extremely
careful during write operations such as copying, saving, or
formatting. If you select an incorrect drive, data or
programs can be overwritten.

How to use error messages

Use the error codes displayed on the screen to diagnose
failures. If more than one error code is displayed, begin the
diagnosis with the first error code. Whatever causes the
first error code may also cause false error codes. If no
error code is displayed, see if the error symptom is listed
in the Symptom-to-FRU Index for the computer you are
servicing.

Diskette compatibility matrix

The compatibility of each of the drives with the diskettes
foritisasfollows:

Diskette
drive

3.5-inch 1.0 MB Read and write

Diskette
capacity

2.0 MB Read and write

4.0 MB Not compatible

Compatibility

4 ThinkPad R40

Safety notices

Safety notices: multilingual translations

In this manual, safety notices appear in English with a
page number reference to the appropriate multilingual,
translated safety notice found in this section.

The following safety notices are provided in English,
French, German, Hebrew, Italian, and Spanish.

Safety notice 1

Before the computer is powered-on after FRU replacement, make
sure all screws, springs, and other small parts are in place and
are not left loose inside the computer. Verify this by shaking the
computer and listening for rattling sounds. Metallic parts or metal
flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement
d’une unité en clientèle, vérifiez que tous les ressorts, vis et
autres pièces sont bien en place et bien fixées. Pour ce faire,
secouez l’unité et assurez-vous qu’aucun bruit suspect ne se
produit. Des pièces métalliques ou des copeaux de métal
pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder
angeschlossen wird, muß sichergestellt werden, daß keine
Schrauben, Federn oder andere Kleinteile fehlen oder im
Gehäuse vergessen wurden. Der Computer muß geschüttelt und
auf Klappergeräusche geprüft werden. Metallteile oder-splitter
können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la
sostituzione di una FRU, accertarsi che tutte le viti, le molle e
tutte le altri parti di piccole dimensioni siano nella corretta
posizione e non siano sparse all’interno dell’elaboratore. Verificare
ciò scuotendo l’elaboratore e prestando attenzione ad eventuali
rumori; eventuali parti o pezzetti metallici possono provocare
cortocircuiti pericolosi.

(continued)

Introduction 5

Safety notices

(continuation of safety notice 1)
Antes de encender el sistema despues de sustituir una FRU,

compruebe que todos los tornillos, muelles y demás piezas
pequeñas se encuentran en su sitio y no se encuentran sueltas
dentro del sistema. Compruébelo agitando el sistema y
escuchando los posibles ruidos que provocarían. Las piezas
metálicas pueden causar cortocircuitos eléctricos.

6 ThinkPad R40

Safety notices

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and
cadmium. Do not disassemble a standby battery, recharge it,
throw it into fire or water, or short-circuit it. Dispose of the
battery as required by local ordinances or regulations. Use
only the battery in the appropriate parts listing. Use of an
incorrect battery can result in ignition or explosion of the
battery.

Certaines batteries de secours contiennent du nickel et du
cadmium. Ne les démontez pas, ne les rechargez pas, ne les
exposez ni au feu ni à l’eau. Ne les mettez pas en
court-circuit. Pour les mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la pile de
sauvegarde ou celle de l’horloge temps réel, veillez à
n’utiliser que les modèles cités dans la liste de pièces
détachées adéquate. Une batterie ou une pile inappropriée
risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem
Diskettenlaufwerk befindet, kann geringe Mengen Nickel und
Cadmium enthalten. Sie darf nur durch die Verkaufsstelle
oder den IBM Kundendienst ausgetauscht werden. Sie darf
nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer
oder Wasser ausgesetzt werden. Die Batterie kann schwere
Verbrennungen oder Verätzungen verursachen. Bei der
Entsorgung die örtlichen Bestimmungen für Sondermüll
beachten. Beim Ersetzen der Bereitschafts-oder
Systembatterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien
kann zu Entzündung oder Explosion führen.

(continued)

Introduction 7

Safety notices

(continuation of safety notice 2)

Alcune batterie di riserva contengono una piccola quantità di
nichel e cadmio. Non smontarle, ricaricarle, gettarle nel fuoco
o nell’acqua né cortocircuitarle. Smaltirle secondo la
normativa in vigore (DPR 915/82, successive disposizioni e
disposizioni locali). Quando si sostituisce la batteria dell’RTC
(real time clock) o la batteria di supporto, utilizzare soltanto i
tipi inseriti nell’appropriato Catalogo parti. L’impiego di una
batteria non adatta potrebbe determinare l’incendio o
l’esplosione della batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad
de níquel y cadmio. No las desmonte, ni recargue, ni las
eche al fuego o al agua ni las cortocircuite. Deséchelas tal
como dispone la normativa local. Utilice sólo baterías que se
encuentren en la lista de piezas. La utilización de una batería
no apropiada puede provocar la ignición o explosión de la
misma.

8 ThinkPad R40

Safety notices

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not
disassemble it, throw it into fire or water, or short-circuit it.
Dispose of the battery pack as required by local ordinances
or regulations. Use only the battery in the appropriate parts
listing when replacing the battery pack. Use of an incorrect
battery can result in ignition or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne
l’exposez ni au feu ni à l’eau. Ne la mettez pas en
court-circuit. Pour la mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la
batterie, veillez à n’utiliser que les modèles cités dans la liste
de pièces détachées adéquate. En effet, une batterie
inappropriée risque de prendre feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht
zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder
Wasser ausgesetzt werden. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim Ersetzen der
Batterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien
kann zu Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non
smontarla, gettarla nel fuoco o nell’acqua né cortocircuitarla.
Smaltirla secondo la normativa in vigore (DPR 915/82,
successive disposizioni e disposizioni locali). Quando si
sostituisce la batteria, utilizzare soltanto i tipi inseriti
nell’appropriato Catalogo parti. L’impiego di una batteria non
adatta potrebbe determinare l’incendio o l’esplosione della
batteria stessa.

(continued)

Introduction 9

Safety notices

(continuation of safety notice 3)

Las baterías contienen pequeñas cantidades de níquel. No
las desmonte, ni recargue, ni las eche al fuego o al agua ni
las cortocircuite. Deséchelas tal como dispone la normativa
local. Utilice sólo baterías que se encuentren en la lista de
piezas al sustituir la batería. La utilización de una batería no
apropiada puede provocar la ignición o explosión de la
misma.

10 ThinkPad R40

Safety notices

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a
severe burn. Do not recharge it, remove its polarized
connector, disassemble it, heat it above 100°C (212°F),
incinerate it, or expose its cell contents to water. Dispose of
the battery as required by local ordinances or regulations.
Use only the battery in the appropriate parts listing. Use of
an incorrect battery can result in ignition or explosion of the
battery.

La pile de sauvegarde contient du lithium. Elle présente des
risques d’incendie, d’explosion ou de brûlures graves. Ne la
rechargez pas, ne retirez pas son connecteur polarisé et ne
la démontez pas. Ne l’exposez pas à une temperature
supérieure à 100°C, ne la faites pas brûler et n’en exposez
pas le contenu à l’eau. Mettez la pile au rebut conformément
à la réglementation en vigueur. Une pile inappropriée risque
de prendre feu ou d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich
entzünden, explodieren oder schwere Verbrennungen
hervorrufen. Batterien dieses Typs dürfen nicht aufgeladen,
zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf
ihr Inhalt nicht mit Wasser in Verbindung gebracht oder der
zur richtigen Polung angebrachte Verbindungsstecker
entfernt werden. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim Ersetzen der
Batterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien
kann zu Entzündung oder Explosion führen.

(continued)

Introduction 11

Safety notices

(continuation of safety notice 4)

La batteria di supporto e una batteria al litio e puo
incendiarsi, esplodere o procurare gravi ustioni. Evitare di
ricaricarla, smontarne il connettore polarizzato, smontarla,
riscaldarla ad una temperatura superiore ai 100 gradi
centigradi, incendiarla o gettarla in acqua. Smaltirla secondo
la normativa in vigore (DPR 915/82, successive disposizioni e
disposizioni locali). L’impiego di una batteria non adatta
potrebbe determinare l’incendio o l’esplosione della batteria
stessa.

La batería de repuesto es una batería de litio y puede
provocar incendios, explosiones o quemaduras graves. No la
recargue, ni quite el conector polarizado, ni la desmonte, ni
caliente por encima de los 100°C (212°F), ni la incinere ni
exponga el contenido de sus celdas al agua. Deséchela tal
como dispone la normativa local.

12 ThinkPad R40

Safety notices

Safety notice 5

If the LCD breaks and the fluid from inside the LCD gets into your
eyes or on your hands, immediately wash the affected areas with
water for at least 15 minutes. Seek medical care if any symptoms
from the fluid are present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous
recevez dans les yeux ou sur les mains une partie du fluide,
rincez-les abondamment pendant au moins quinze minutes.
Consultez un médecin si des symptômes persistent après le
lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei
der Entsorgung die örtlichen Bestimmungen für Sondermüll
beachten. Der LCD-Bildschirm besteht aus Glas und kann
zerbrechen, wenn er unsachgemäß behandelt wird oder der
Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist
und die darin befindliche Flüssigkeit in Kontakt mit Haut und
Augen gerät, sollten die betroffenen Stellen mindestens 15
Minuten mit Wasser abgespült und bei Beschwerden
anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso
contenuto entrasse in contatto con gli occhi o le mani, lavare
immediatamente le parti interessate con acqua corrente per
almeno 15 minuti; poi consultare un medico se i sintomi
dovessero permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto
con sus ojos o sus manos, lave inmediatamente las áreas
afectadas con agua durante 15 minutos como mínimo. Obtenga
atención medica si se presenta algún síntoma del fluido despues
de lavarse.

Introduction 13

Safety notices

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects
the lower part of the inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le
cache en plastique protégeant la partie inférieure de la carte
d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den
unteren Teil der Spannungswandlerplatine umgibt, nicht
entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in
plastica che avvolge la parte inferiore della scheda
invertitore.

Para evitar descargas, no quite la cubierta de plástico que
rodea la parte baja de la tarjeta invertida.

14 ThinkPad R40

Safety notices

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or
grounded battery can produce enough current to burn
personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé,
le court-circuit ou la mise à la masse d’une batterie peut
produire suffisamment de courant pour brûler des matériaux
combustibles ou causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung haben,
können sie doch bei Kurzschluß oder Erdung genug Strom
abgeben, um brennbare Materialien zu entzünden oder
Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio,
una batteria in corto circuito o a massa può fornire corrente
sufficiente da bruciare materiali combustibili o provocare
ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una
batería cortocircuitada o con contacto a tierra puede
producir la corriente suficiente como para quemar material
combustible o provocar quemaduras en el personal.

Introduction 15

Safety notices

Safety notice 8

DANGER

Before removing any FRU, power off the computer, unplug all
power cords from electrical outlets, remove the battery pack,
and then disconnect any interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le
système hors tension, débranchez tous les cordons
d’alimentation des socles de prise de courant, retirez la
batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der
Steckdose gezogen, der Akku entfernt und alle
Verbindungskabel abgenommen sein, bevor eine FRU
entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema,
scollegare dalle prese elettriche tutti i cavi di alimentazione,
rimuovere la batteria e poi scollegare i cavi di
interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe
todos los cables de las tomas de corriente eléctrica, quite la
batería y, a continuación, desconecte cualquier cable de
conexión entre dispositivos.

16 ThinkPad R40

Safety information

Safety information

The following section presents the safety information that
you need to be familiar with before servicing an IBM
mobile computer.

General safety

Follow these rules to ensure general safety:
v Observe good housekeeping in the area of the

machines during and after maintenance.

v When lifting any heavy object:

1. Ensure you can stand safely without slipping.

2. Distribute the weight of the object equally between
your feet.

3. Use a slow lifting force. Never move suddenly or
twist when you attempt to lift.

4. Lift by standing or by pushing up with your leg
muscles; this action removes the strain from the
muscles in your back.

object that weighs more than 16 kg (35 lb) or objects
that you think are too heavy for you.

v Do not perform any action that causes hazards to the

customer, or that makes the equipment unsafe.

v Before you start the machine, ensure that other service

representatives and the customer’s personnel are not in
a hazardous position.

v Place removed covers and other parts in a safe place,

away from all personnel, while you are servicing the
machine.

v Keep your toolcase away from walk areas so that other

people will not trip over it.

v Do not wear loose clothing that can be trapped in the

moving parts of a machine. Make sure that your sleeves
are fastened or rolled up above your elbows. If your hair
is long, fasten it.

v Insert the ends of your necktie or scarf inside clothing or

fasten it with a nonconductive clip, approximately 8
centimeters (3 inches) from the end.

v Do not wear jewelry, chains, metal-frame eyeglasses, or

metal fasteners for your clothing.
Attention: Metal objects are good electrical

conductors.

v Wear safety glasses when you are hammering, drilling,

soldering, cutting wire, attaching springs, using solvents,
or working in any other conditions that might be
hazardous to your eyes.

Do not attempt to lift any

Introduction 17

Safety information

v After service, reinstall all safety shields, guards, labels,

and ground wires. Replace any safety device that is
worn or defective.

v Reinstall all covers correctly before returning the

machine to the customer.

Electrical safety

Observe the following rules when working on electrical
equipment.

Important

Use only approved tools and test equipment. Some
hand tools have handles covered with a soft
material that does not insulate you when working
with live electrical currents.

Many customers have, near their equipment, rubber
floor mats that contain small conductive fibers to
decrease electrostatic discharges. Do not use this
type of mat to protect yourself from electrical shock.

v Find the room emergency power-off (EPO) switch,

disconnecting switch, or electrical outlet. If an electrical
accident occurs, you can then operate the switch or
unplug the power cord quickly.

v Do not work alone under hazardous conditions or near

equipment that has hazardous voltages.

v Disconnect all power before:

– Performing a mechanical inspection
– Working near power supplies
– Removing or installing main units

v Before you start to work on the machine, unplug the

power cord. If you cannot unplug it, ask the customer to
power-off the wall box that supplies power to the
machine and to lock the wall box in the off position.

v If you need to work on a machine that has

electrical circuits, observe the following precautions:
– Ensure that another person, familiar with the

power-off controls, is near you.
Attention: Another person must be there to switch

off the power, if necessary.

– Use only one hand when working with powered-on

electrical equipment; keep the other hand in your
pocket or behind your back.

Attention: An electrical shock can occur only when
there is a complete circuit. By observing the above
rule, you may prevent a current from passing through
your body.

exposed

18 ThinkPad R40

Safety information

– When using testers, set the controls correctly and

use the approved probe leads and accessories for
that tester.

– Stand on suitable rubber mats (obtained locally, if

necessary) to insulate you from grounds such as
metal floor strips and machine frames.

Observe the special safety precautions when you work
with very high voltages; these instructions are in the
safety sections of maintenance information. Use
extreme care when measuring high voltages.

v Regularly inspect and maintain your electrical hand tools

for safe operational condition.

v Do not use worn or broken tools and testers.

v

Never assume

a circuit. First,

v Always look carefully for possible hazards in your work

area. Examples of these hazards are moist floors,
nongrounded power extension cables, power surges,
and missing safety grounds.

v Do not touch live electrical circuits with the reflective

surface of a plastic dental mirror. The surface is
conductive; such touching can cause personal injury and
machine damage.

v Do not service the following parts

when they are removed from their normal operating
places in a machine:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators

and similar units. (This practice ensures correct
grounding of the units.)

v If an electrical accident occurs:

– Use caution; do not become a victim yourself.
– Switch off power.
– Send another person to get medical aid.

that power has been disconnected from

check

that it has been powered off.

with the power on

Safety inspection guide

The purpose of this inspection guide is to assist you in
identifying potentially unsafe conditions. As each machine
was designed and built, required safety items were
installed to protect users and service personnel from injury.
This guide addresses only those items. You should use
good judgment to identify potential safety hazards due to
attachment of non-IBM features or options not covered by
this inspection guide.

Introduction 19

Safety information

If any unsafe conditions are present, you must determine
how serious the apparent hazard could be and whether
you can continue without first correcting the problem.

Consider these conditions and the safety hazards they
present:

v Electrical hazards, especially primary power (primary

voltage on the frame can cause serious or fatal
electrical shock)

v Explosive hazards, such as a damaged CRT face or a

bulging capacitor

v Mechanical hazards, such as loose or missing hardware
To determine whether there are any potentially unsafe

conditions, use the following checklist at the beginning of
every service task. Begin the checks with the power off,
and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or
sharp edges).

2. Power-off the computer. Disconnect the power cord.

3. Check the power cord for:
a. A third-wire ground connector in good condition.

Use a meter to measure third-wire ground
continuity for 0.1 ohm or less between the external
ground pin and frame ground.

b. The power cord should be the type specified in the

parts list.

c. Insulation must not be frayed or worn.

4. Remove the cover.

5. Check for any obvious non-IBM alterations. Use good
judgment as to the safety of any non-IBM alterations.

6. Check inside the unit for any obvious unsafe
conditions, such as metal filings, contamination, water
or other liquids, or signs of fire or smoke damage.

7. Check for worn, frayed, or pinched cables.

8. Check that the power-supply cover fasteners (screws
or rivets) have not been removed or tampered with.

Handling devices that are sensitive to electrostatic discharge

Any computer part containing transistors or integrated
circuits (ICs) should be considered sensitive to electrostatic
discharge (ESD.) ESD damage can occur when there is a
difference in charge between objects. Protect against ESD

20 ThinkPad R40

Safety information

damage by equalizing the charge so that the machine, the
part, the work mat, and the person handling the part are all
at the same charge.

Notes

1. Use product-specific ESD procedures when they
exceed the requirements noted here.

2. Make sure that the ESD protective devices you
use have been certified (ISO 9000) as fully
effective.

When handling ESD-sensitive parts:
v Keep the parts in protective packages until they are

inserted into the product.

v Avoid contact with other people.
v Wear a grounded wrist strap against your skin to

eliminate static on your body.

v Prevent the part from touching your clothing. Most

clothing is insulative and retains a charge even when
you are wearing a wrist strap.

v Use the black side of a grounded work mat to provide a

static-free work surface. The mat is especially useful
when handling ESD-sensitive devices.

v Select a grounding system, such as those listed below,

to provide protection that meets the specific service
requirement.

Note

The use of a grounding system is desirable but
not required to protect against ESD damage.

– Attach the ESD ground clip to any frame ground,

ground braid, or green-wire ground.

– Use an ESD common ground or reference point

when working on a double-insulated or
battery-operated system. You can use coax or
connector-outside shells on these systems.

– Use the round ground-prong of the AC plug on

AC-operated computers.

Grounding requirements

Electrical grounding of the computer is required for
operator safety and correct system function. Proper
grounding of the electrical outlet can be verified by a
certified electrician.

Introduction 21

Laser compliance statement

Laser compliance statement

Some IBM Personal Computer models are equipped from
the factory with an optical storage device such as a
CD-ROM drive or a DVD-ROM drive. They are also sold
separately as options. The drive is certified in the U.S. to
conform to the requirements of the Department of Health
and Human Services 21 Code of Federal Regulations
(DHHS 21 CFR) Subchapter J for Class 1 laser products.
Elsewhere, the drive is certified to conform to the
requirements of the International Electrotechnical
Commission (IEC) 825 and CENELEC EN 60 825 for
Class 1 laser products.

22 ThinkPad R40

Laser compliance statement

When a CD-ROM drive, DVD drive or the other laser
product is installed, note the following:

CAUTION:

Use of controls or adjustments or performance of procedures
other than those specified herein might result in hazardous
radiation exposure.

O uso de controles, ajustes ou desempenho de
procedimentos diferentes daqueles aqui especificados pode
resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez
les consignes de réglage et d’utilisation des commandes,
ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier
festgesetzt verwendet, kann gefährliche Laserstrahlung
auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure
diverse da quelle specificate possono provocare
l’esposizione a.

El uso de controles o ajustes o la ejecución de
procedimientos distintos de los aquí especificados puede
provocar la exposición a radiaciones peligrosas.

Opening the CD-ROM drive, DVD-ROM drive or the other
optical storage device could result in exposure to
hazardous laser radiation. There are no serviceable parts
inside those drives. Do not open.

Introduction 23

Laser compliance statement

Some CD-ROM drives, DVD-ROM drives, or other optical
storage devices contain an embedded Class 3A or Class
3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not
stare into the beam, do not view directly with optical
instruments, and avoid direct exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de
luz, não olhe diretamente por meio de instrumentos óticos e
evite exposição direta com o feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le
faisceau, de le regarder directement avec des instruments
optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über
optische Instrumente in den Laserstrahl sehen und den
Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel,
se optikai eszközökkel. Kerülje a sugárnyalábbal való
érintkezést !.

Aprendo l’unità vengono emesse radiazioni laser. Non fissare
il fascio, non guardarlo direttamente con strumenti ottici e
evitare l’esposizione diretta al fascio.

Radiación láser al abrir. No mire fijamente ni examine con
instrumental óptico el haz de luz. Evite la exposición directa
al haz.

24 ThinkPad R40

General descriptions

This chapter includes descriptions for any ThinkPad model
that has the PC-Doctor DOS diagnostics program. Some
descriptions might not apply to your particular computer.

Read this first

Before you go to the checkout guide, be sure to read this
section.

Important notes

v Only certified trained personnel should

service the computer.

v Read the entire FRU removal and replacement

page before replacing any FRU.

v Use new nylon-coated screws when you

replace FRUs.

v Be extremely careful during such write

operations as copying, saving, or formatting.

Drives in the computer that you are servicing
sequence might have been altered. If you select
an incorrect drive, data or programs might be
overwritten.

v Replace FRUs only for the correct model.

When you replace a FRU, make sure the model
of the machine and the FRU part number are
correct by referring to the FRU parts list.

v A FRU should not be replaced because of a

single, unreproducible failure. Single failures

can occur for a variety of reasons that have
nothing to do with a hardware defect, such as
cosmic radiation, electrostatic discharge, or
software errors. Consider replacing a FRU only
when a problem recurs. If you suspect that a
FRU is defective, clear the error log and run the
test again. If the error does not recur, do not
replace the FRU.

v Be careful not to replace a nondefective FRU.

What to do first

When you do return a FRU, you must include the following
information in the parts exchange form or parts return form
that you attach to it:
__ 1. Name and phone number of servicer
__ 2. Date of service
__ 3. Date on which the machine failed

© Copyright IBM Corp. 2003

25

Read this first

__ 4. Date of purchase
__ 5. Failure symptoms, error codes appearing on the

display, and beep symptoms

__ 6. Procedure index and page number in which the

failing FRU was detected
__ 7. Failing FRU name and part number
__ 8. Machine type, model number, and serial number
__ 9. Customer’s name and address

Note for warranty:

During the warranty period, the customer may be
responsible for repair costs if the computer damage was
caused by misuse, accident, modification, unsuitable
physical or operating environment, or improper
maintenance by the customer. The following list provides
some common items that are not covered under warranty
and some symptoms that might indicate that the system
was subjected to stress beyond normal use.

Before checking problems with the computer, determine
whether the damage is covered under the warranty by
referring to the following:

The following are not covered under warranty:

v LCD panel cracked from the application of excessive

force or from being dropped

v Scratched (cosmetic) parts
v Distortion, deformation, or discoloration of the cosmetic

parts

v Cracked or broken plastic parts, broken latches, broken

pins, or broken connectors caused by excessive force

v Damage caused by liquid spilled into the system
v Damage caused by the improper insertion of a PC Card

or the installation of an incompatible card

v Damage caused by foreign material in the diskette drive
v Diskette drive damage caused by pressure on the

diskette drive cover or by the insertion of a diskette with
multiple labels

v Damaged or bent diskette eject button
v Fuses blown by attachment of a nonsupported device
v Forgotten computer password (making the computer

unusable)

v Sticky keys caused by spilling a liquid onto the keyboard

The following symptoms might indicate damage
caused by nonwarranted activities:

v Missing parts might be a symptom of unauthorized

service or modification.

26 ThinkPad R40

Read this first

v If the spindle of a hard-disk drive becomes noisy, it may

have been subjected to excessive force, or dropped.

General descriptions 27

Related service information

Related service information

This section provides information about the following:

v “Service web site”
v “Restoring the preloaded system”
v “Passwords” on page 30
v “Power management” on page 32

Service web site

When the latest maintenance diskette and the system
program service diskette become available, a notice will be
posted on http://www.ibm.com/pc/partner/infotips

Restoring the preloaded system

If the data on a hard-disk drive is damaged or accidentally
erased, you can restore the software that was shipped with
the computer. This software includes the pre-installed
operating system, applications, and device drivers.

To restore the pre-installed software, you can use either
the Product Recovery program or a recovery CD.

Ordering the recovery CD

When the hard-disk drive is replaced because of a
failure, no Product Recovery program is on the new
hard disk. In this case, you must use the Product
Recovery CD for the computer. Order the recovery
CD and the hard-disk drive at the same time so that
you can recover the new hard-disk drive with the
pre-installed software when they arrive. For
information on which CD to order, see “Recovery
CDs” on page 161

The Product Recovery program is in the service partition, a
section of the hard-disk drive that is not displayed by
Windows Explorer.

Attention: All of the files on the primary hard-disk
partition (usually drive C) will be lost in the recovery
process. Be sure to back up copies of the files you have
saved on your drive C before you begin.

Product Recovery program

If your hard disk drive data is damaged or accidentally
erased, you can restore the software that was shipped with
your computer. This software includes your pre-installed
operating system, applications, and device drivers.

You can restore your pre-installed software using the
Product Recovery program.

28 ThinkPad R40

Related service information

The Product Recovery program is in a section of your hard
disk drive that is not displayed by Windows Explorer.

Note: The recovery process might take up to 2 hours.

Attention

All of the files on the primary hard disk
partition (usually drive C) will be lost in the
recovery process. Be sure to back up copies
of the files you have saved on your drive C
before you begin.

To use the Product Recovery program to restore your
pre-installed software, do the following:

1. If possible, save all your files and shut down your
operating system.

2. Turn off your computer.

3. Turn on your computer. Watch the display carefully.
When the following message is displayed, press the
blue Access IBM button to open the Access IBM
Predesktop Area: “To interrupt normal startup, press
the blue Access IBM button.” (If Windows is not
running normally and does not open, the Access IBM
Predesktop Area will open automatically.)

4. Double-click the Recover to factory contents.

5. Follow the instructions on the screen.

6. When the Product Recovery program finishes, your
computer will restart and begin the configuration
process.

Using the recovery CD

To create the service partition and install the preloaded
system from the recovery CD, do the following:

To create the service partition:

1. Erase all partitions on the hard-disk drive, using FDISK
or a similar application.

2. Boot with the recovery CD (and the boot diskette if
required.)

3. Following message is displayed: “Your computer

originally included a Product Recovery program ...
Reinstall the Product Recovery program? (Y/N) [ ]”.

Note: If the hard-disk drive contains any partitions, you

do not receive this message; go to step 1.

4. Press Y key. The service partition is created and
loaded with the Product Recovery program files.

General descriptions 29

Related service information

Note: If you do not want to create the service partition,

press N key, and then go to step 8.

5. At next window, press Enter to continue.
v The service partition is created. The system

automatically reboots during this process.

v The recovery process copies some files to the

service partition, and PKUNZIPs others.

v Follow the prompts. You may be prompted to

change CDs.

v When the process is complete, the system reboots.

Continue to step 6 to install preloaded system.

Install preloaded system from CD:

6. Boot with the recovery CD (and the boot diskette if
required.)

7. If the hard-disk drive is blank, the following message
is displayed: “Your computer originally included a

Product Recovery program ... Reinstall the
Product Recovery program? (Y/N) [ ]”.

v To install the service partition, go to step 4.
v To preload the hard-disk drive without installing the

service partition, press N key.

8. If you get a message asking which operating system
to install, select the proper operating system and
press Enter.

9. A message is displayed: “Full Recovery:”. Press
Enter to select.

10. On each of the next three windows, press the Y key.

11. Follow the prompts to complete the recovery.

Passwords

As many as three passwords may be needed for any
ThinkPad computer: the power-on password (POP), the
hard-disk password (HDP), and the supervisor password
(SVP).

If any of these passwords has been set, a prompt for it
appears on the screen whenever the computer is turned
on. The computer does not start until the password is
entered.

Exception: If only an SVP is installed, the password

30 ThinkPad R40

prompt does not appear when the operating
system is booted.

Related service information

Power-on password:

A power-on password (POP) protects the system from
being powered on by an unauthorized person. The
password must be entered before an operating system can
be booted.

Hard-disk password:

There are two hard-disk passwords (HDPs):

v User HDP—for the user
v Master HDP—for the system administrator, who can use

it to get access to the hard disk even if the user has
changed the user HDP

Note: There are two modes for the HDP: User only and

Master + User. The Master + User mode requires

two HDPs; the system administrator enters both in
the same operation. The system administrator then
provides the user HDP to the system user.

Attention: If the user HDP has been forgotten, check
whether a master HDP has been set. If it has, it can be
used for access to the hard-disk drive. If no master HDP is
available, IBM does not provide any services to reset
either the user or the master HDP, or to recover data from
the hard-disk drive. The hard-disk drive can be replaced
for a scheduled fee.

Supervisor password:

A supervisor password (SVP) protects the system
information stored in the IBM BIOS Setup Utility. The SVP
must be entered in order to get access to the IBM BIOS
Setup Utility and make changes to system configuration
settings.

Attention: If the SVP has been forgotten and cannot be
made available to the servicer, there is no service
procedure to reset the password. The system board must
be replaced for a scheduled fee.

How to remove the power-on password

To remove a POP that you have forgotten, do the
following:

(A) If no SVP has been set:

1. Turn off the computer.

2. Remove the battery pack.
For how to remove the battery pack, see “1010 Battery

pack” on page 64.

3. Remove the backup battery.
For how to remove the backup battery, see “1070

Backup battery” on page 81.

General descriptions 31

Related service information

4. Turn on the computer and wait until the POST ends.
After the POST ends, the password prompt does not

appear. The POP has been removed.

5. Reinstall the backup battery and the battery pack.

(B) If an SVP has been set and is known by the servicer:

1. Turn on the computer by pressing and holding F1.

2. Enter the SVP. The IBM BIOS Setup Utility menu
appears.

3. Select Password, using the cursor keys to move down
the menu.

4. Select Power-On Password.

5. At the Enter Current Password field, enter the SVP.

6. When the Enter New Password field opens, leave it
blank and press Enter twice.

7. In the Changes have been saved window, press Enter.

8. Press F10; then, in the Setup confirmation window,
select Yes .

How to remove the hard-disk password

Attention: If User only mode is selected and the user

HDP has been forgotten and cannot be made available to
the servicer, IBM does not provide any services to reset
the user HDPs or to recover data from the hard-disk drive.
The hard-disk drive can be replaced for a scheduled fee.

To remove a user HDP that has been forgotten, when the
SVP and the master HDP are known, do the following:

1. Power on the computer by pressing and holding F1.

2. Enter the SVP. The IBM BIOS Setup Utility menu
appears.

3. Select Password, using the cursor keys to move down
the menu.

4. Select Hard-disk
the hard-disk drive. A pop-up window opens.

5. Select Master HDP.

6. Enter the master HDP; then leave the New Password
field blank and press Enter twice.

7. Press F10.

8. Select Yes in the Setup Configuration window.
Both user HDP and master HDP will have been

removed.

x

password, wherexis the letter of

Power management

To reduce power consumption, the computer has three
power management modes: screen blank, standby, and
hibernation.

32 ThinkPad R40

Related service information

Notes

v Screen blank mode is called

Windows 95 and Windows NT.

v Standby mode is called

Windows 95 and Windows NT.

standby mode

suspend mode

in

in

Screen blank mode

Screen blank mode has three variants, as follows:

1. If you press Fn+F3, or the time set on the “LCD off
timer” in IBM BIOS Setup Utility expires,

v The LCD backlight turns off.
v The hard-disk drive motor stops.
v The speaker is muted.

2. If you are using the ACPI operating system and you
press Fn+F3,

v The LCD backlight turns off.
v The hard-disk drive motor stops.

3. If the time set on the “Turn off monitor” timer in the
operating system expires,
v The LCD backlight turns off.

To end screen blank mode and resume normal operation,
press any key.

Standby mode

When the computer enters standby mode, the following
events occur in addition to what occurs in screen blank
mode:

v The LCD is powered off.
v The hard-disk drive is powered off.
v The CPU stops.

To enter standby mode, press Fn+F4.
Note: You can change the action of Fn+F4, if you are

using the ACPI operating system.

In certain circumstances, the computer goes into standby
mode automatically:

v If a “suspend time” has been set on the timer, and the

user does not do any operation with the keyboard, the
TrackPoint, the hard disk, the parallel connector, or the
diskette drive within that time.

v If the battery indicator blinks orange, indicating that the

battery power is low. (Alternatively, if Hibernate when
battery becomes low has been selected in the “Power
Management Properties” window, the computer goes
into hibernation mode.)

General descriptions 33

Related service information

Note for the APM operating system:

Even if you do not set the low-battery alarm, the charge
indicator notifies you when the battery is low, and then the
computer enters the power-saving mode automatically.
This default low-battery behavior is independent of the
operating system; so if you have set the low-battery alarm,
the computer may not do what you specified. It chooses
either your setting or the default setting, whichever is
appropriate.

If you are using the ACPI operating system, only the
low-battery alarm is available.

To cause the computer to return from standby mode and
resume operation, do one of the following:

v Press the Fn key.
v Open the LCD cover.
v Turn on the power switch.

Also, the computer automatically returns from standby
mode and resumes operation in either of the following
events:

v The ring indicator (RI) is signaled by a serial device or a

PC Card device (Windows 2000 does not support the
ring indicator (RI) resume by PC Card device.)

v The time set on the resume timer elapses. In Windows

98, the Scheduled Tasks setting takes priority over the
Resume on timer selection in the “Power Management
Properties” window.

Note: The computer does not accept any input

immediately after it enters standby mode. Wait a
few seconds before taking any action to reenter
operation mode.

Hibernation mode

Note for Windows NT

If you are using Windows NT in the default format,
NTFS, you cannot create a hibernation file. If you
want to use hibernation mode, you will need to
reinstall Windows NT with FAT format.

In hibernation mode, the following occurs:
v The system status, RAM, VRAM, and setup data are

stored on the hard disk.

v The system is powered off.
Note: If the computer enters the hibernation mode while it

is docked to the docking station, do not undock it
from the docking station before resuming normal

34 ThinkPad R40

Related service information

operation. If you do undock it and then try to
resume normal operation, you will get an error
message, and you will have to restart the system.

To cause the computer to enter hibernation mode, do any
of the following:

v Press the Fn+F12 keys.
v If you are using the APM operating system and have set

the mode to Power switch mode [Hibernation],turn
off the power switch.

v If you are using the ACPI operating system and have

defined one of the following actions as the event that
causes the system to go into hibernation mode, perform
that action.
– Closing the lid.
– Pressing the power button.
– Pressing Fn+F4 keys.

Also, the computer goes into hibernation mode
automatically in either of the following conditions:

v If a “hibernation time” has been set on the timer, and the

user does not do any operation with the keyboard, the
TrackPoint, the hard-disk drive, the parallel connector, or
the diskette drive within that time.

v If the timer conditions are satisfied in suspend mode.
v If you are using the APM operating system and have set

the mode to Hibernate when battery becomes low,
and the battery charge becomes critically low.

When the power is turned on, the computer returns from
hibernation mode and resumes operation. The hibernation
file in the boot record on the hard-disk drive is read, and
system status is restored from the hard-disk drive.

General descriptions 35

Checkout guide

Checkout guide

Use the following procedures as a guide in identifying and
correcting problems with the ThinkPad computer.

Note: The diagnostic tests are intended to test only IBM

products. The use of non-IBM products, prototype
cards, or modified options can lead to false
indications of errors and invalid system responses.

1. Identify the failing symptoms in as much detail as
possible.

2. Verify the symptoms. Try to re-create the failure by
running the diagnostic test or by repeating the
operation.

Testing the computer

The ThinkPad computer has a test program called
PC-Doctor
detect errors by running the diagnostics test included in
PC-Doctor. This section is an overview of the procedure.
For details that depend on model-unique functions, refer to
“Product overview” on page 45.

For some possible configurations of the computer,
PC-Doctor might not run correctly. To avoid this problem,
you need to initialize the computer setup by use of the IBM
BIOS Setup Utility before you run PC-Doctor. On the IBM
BIOS Setup Utility screen, press F9, Enter, F10, and then
Enter.

®

DOS (hereafter called

PC-Doctor

.) You can

Note: When you initialize the computer configuration,

some devices are disabled, such as the serial port.
If you test one of these devices, you will need to
enable it by using PS2.EXE.

PC-Doctor cannot be used to test a device that is in the
docking station, even if the computer supports the docking
station. To test a USB device, connect it to the USB
connector of the computer. To test the Ultrabay device,
install it in the Ultrabay Plus slot of the computer.

To run the test, do as follows:
Note: In the following procedure, you can select an item

not only with the arrow keys, but also with the
TrackPoint. Instead of pressing Enter, click the left
button.

1. Insert the PC-Doctor disk into the diskette drive; then
power on the computer.

If the computer cannot be powered on, go to “Power
system checkout” on page 39, and check the power
sources.

36 ThinkPad R40

Checkout guide

If an error code appears, go to “Symptom-to-FRU
index” on page 53.

On the first screen, select the model and press Enter.
Follow the instructions on the screen.

2. The main panel of PC-Doctor appears.

3. Select Diagnostics with the arrow keys, and press
Enter.

A pull-down menu appears. (Its exact form depends on
the model.)

The options on the test menu are as follows:

Diagnostics Interactive Tests

v Run Normal Test
v Run Quick Test
v CPU/Coprocessor
v Systemboard
v Video Adapter
v Serial Ports
v Parallel Ports
v Fixed Disks
v Diskette Drives
v Other Devices
v ZIP Drive
v LS-120/240 Drive
v Wireless LAN
v Memory Test – Full
v Memory Test – Quick

Notes:

v In the Keyboard test in Interactive Tests, the Fn key is

scanned only once. Each key should be held down for at least
2 seconds; otherwise, it cannot be sensed.

v Video Adapter test supports only the LCD display on

theThinkPad computer. Before running PC-Doctor DOS, detach
the external monitor.

v To test ZIP Drive or LS-120/240 Drive, each media is needed

to be inserted before start testing.

v To test Digital Signature Chip, the chip must be enabled.
v When Legacy Floppy Drives is enabled in the IBM BIOS Setup

Utility, Diskette Drives test is activated even if no legacy
diskette drive is attached to the ThinkPad computer.

v Keyboard
v Video
v Internal Speaker
v Mouse
v Joystick Test
v Diskette
v System Load
v CD-ROM/DVD Test
v Actiontec Wireless Radio
v 802.11b Wireless Radio Test

General descriptions 37

Checkout guide

Diagnostics

Use the cursor keys and ESC to move in menus. Press ENTER to select.

InteractiveTests

Run NormalTest

Run QuickTest
CPU/Coprocessor
Systemboard
VideoAdapter
Serial Ports
Parallel Ports
Fixed Disks
Diskette Drives
Other Devices
ZIP Drive
LS-120/240 Drive
Communication
Wireless LAN
Memory Test - Full
Memory Test - Quick

PC-DOCTOR 2.0 Copyright 2001 PC-Doctor, Inc. All Rights Reserved.

Hardware Info

Utility F1=Help

Quit

4. Run the applicable function test.

5. Follow the instructions on the screen. If there is a
problem, PC-Doctor shows messages describing it.

6. To exit the test, select Quit — Exit Diag.
To cancel the test, press Esc.

Note: After executing PC-Doctor, check the system

time/date and reset them if needed.

Detecting system information with PC-Doctor

PC-Doctor can detect the following system information:

Hardware Info

v System Configuration
v Memory Contents
v Physical Disk Drives
v Logical Disk Drives
v VGA Information
v IDE Drive Info
v PCI Information
v PNPISA Info
v SMBIOS Info
v VESA LCD Info

Utility

v Run External Tests
v Surface Scan Hard Disk
v Benchmark System
v DOS Shell
v Tech Support Form
v Battery Rundown
v View Test Log
v Print Log
v Save Log
v Full Erase Hard Drive
v Quick Erase Hard Drive

38 ThinkPad R40

Checkout guide

Power system checkout

To verify a symptom, do the following:

1. Power off the computer.

2. Remove the battery pack.

3. Connect the ac adapter.

4. Check that power is supplied when you power on the
computer.

5. Power off the computer.

6. Disconnect the ac adapter and install the charged
battery pack.

7. Check that the battery pack supplies power when you
power on the computer.

If you suspect a power problem, see the appropriate one
of the following power supply checkouts:

v “Checking the ac adapter”
v “Checking operational charging” on page 40
v “Checking the battery pack” on page 40
v “Checking the backup battery” on page 41

Checking the ac adapter

You are here because the computer fails only when the ac
adapter is used:

v If the power problem occurs only when the port

replicator is used, replace the port replicator.

v If the power-on indicator does not turn on, check the

power cord of the ac adapter for correct continuity and
installation.

v If the computer does not charge during operation, go to

″Checking operational charging.″

To check the ac adapter, do the following:

1. Unplug the ac adapter cable from the computer.

2. Measure the output voltage at the plug of the ac
adapter cable. See the following figure:

Pin Voltage (V dc)

2

1

(16-10V)

3. If the voltage is not correct, replace the ac adapter.

4. If the voltage is acceptable, do the following:
v Replace the system board.

1 +15.5 to +17.0
2 Ground

General descriptions 39

Checkout guide

v If the problem persists, go to “Product overview” on

page 45.

Note: Noise from the ac adapter does not always indicate

a defect.

Checking operational charging

To check whether the battery charges properly during
operation, use a discharged battery pack or a battery pack
that has less than 50% of the total power remaining when
installed in the computer.

Perform operational charging. If the battery status indicator
or icon does not turn on, remove the battery pack and let it
return to room temperature. Reinstall the battery pack. If
the charge indicator or icon still does not turn on, replace
the battery pack.

If the charge indicator still does not turn on, replace the
system board. Then reinstall the battery pack. If it is still
not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter
shows that less than 95% of the total power remains;
under this condition the battery pack can charge to 100%
of its capacity. This protects the battery pack from being
overcharged or from having a shortened life.

To check the status of your battery, move your cursor to
the Power Meter icon in the icon tray of the Windows
taskbar and wait for a moment (but do not click), and the
percentage of battery power remaining is displayed. To get
detailed information about the battery, double-click the
Power Meter icon.

Note: If the battery pack becomes hot, it may not be able

to charge. Remove it from the computer and leave it
at room temperature for a while. After it cools down,
reinstall and recharge it.

To check the battery pack, do the following:

1. Power off the computer.

2. Remove the battery pack and measure the voltage
between battery terminals 1 (+) and 5 (−). See the
following figure:

40 ThinkPad R40

Checkout guide

Terminal Voltage (V dc)

1 +0to+12.6

5(-)

1(+)

2

3

4

5 Ground (−)

3. If the voltage is less than +11.0 V dc, the battery pack
has been discharged.

Note: Recharging will take at least 3 hours, even if the

indicator does not turn on.

If the voltage is still less than +11.0 V dc after
recharging, replace the battery.

4. If the voltage is more than +11.0 V dc, measure the
resistance between battery terminals 4 and 5. The
resistance must be 4 to 30 K ó.

If the resistance is not correct, replace the battery
pack. If the resistance is correct, replace the system
board.

Checking the backup battery

Do the following:

1. Power off the computer, and unplug the ac adapter
from it.

2. Turn the computer upside down.

3. Remove the battery pack (see “1010 Battery pack” on
page 64).

4. Remove the backup battery (see “Checking the battery
pack” on page 40).

5. Measure the voltage of the backup battery. See the
following figure.

Red(+)

Blue(-)

Wire Voltage (V dc)

Red +2.5 to +3.2
Blue Ground

v If the voltage is correct, replace the system board.
v If the voltage is not correct, replace the backup battery.
v If the backup battery discharges quickly after

replacement, replace the system board.

General descriptions 41

Checkout guide

42 ThinkPad R40

ThinkPad R40

Product overview ............45

Specifications ............45

Statusindicators...........48

FRUtests.............50

Fn key combinations ..........52

Symptom-to-FRU index ..........53

Numeric error codes ..........53

Error messages ...........56

Beep symptoms ...........57

No-beep symptoms ..........57

LCD-relatedsymptoms.........58

Intermittentproblems..........59

Undetermined problems .........59

FRU replacement notices .........60

Screwnotices............60

Retaining serial numbers.........61

Restoring the serial number of the system unit 61

RetainingtheUUID.........61

Removing and replacing a FRU........63

1010 Battery pack...........64

1020 Ultrabay Plus device ........65

1030 Hard-disk drive ..........66

1040 DIMM ............68

1050 Mini PCI adapter .........70

1060 Keyboard ...........73

1070 Backup battery ..........81

1080 Optical storage in the fixed bay .....82

1090 PC Card slot assembly .......85

1100Hingecover...........87

1110 Communication daughter card (CDC) . . . 88

Modem daughter card (MDC) ......89

IBM Integrated Bluetooth with 56K Modem

(BMDC) ............92

1120 Fan assembly ..........94

1130CPU.............95

1140 Bluetooth antenna assembly ......97

1150 LCD assembly ..........98

1160 Keyboard bezel .........103

1170 Speaker assembly and microphone cable 108

1180 System board ..........109

1190 Hard-disk drive slot ........116

2000 Ultrabay Plus guide rail .......117

2010 I/O Bracket...........119

2020 LCD front bezel .........120

2030 Inverter card ..........121

2040 LCD panel and LCD cable assembly . . . 122
2050 Antenna assembly, hinges, and LCD cover 124

Locations..............127

Front view for 2681, 2682, 2683, 2722, 2723, 2724 127
Rear view for 2681, 2682, 2683, 2722, 2723, 2724 129

© Copyright IBM Corp. 2003

43

Bottom view for 2681, 2682, 2683, 2722, 2723,

2724 .............130

Front view for 2684, 2685 ........131

Rear view for 2684, 2685 ........132

Bottom view for 2684, 2685 .......133

Parts list ..............134

R40 series model matrix ........134

Overall .............141

LCD FRUs ............156

13/14in.TFT...........157

15in.TFT ...........158

Keyboard .............160

RecoveryCDs...........161

For Windows 2000 Professional .....161

For Windows XP Home Edition .....162

For Windows XP professional ......163

Miscellaneous parts ..........164

AC adapters ............167

Telephone cable ...........168

Optional FRUs ...........169

Ultrabay Plus devices ........169

Other optional FRUs ........169

Common parts list ..........171

Tools.............171

Power cords (system) ........171

Power cords (ThinkPad Mini Dock) ....172

Notices..............173

Trademarks ............173

44 ThinkPad R40

Product overview

Product overview

This section presents the following product-unique
information:

v “Specifications”
v “Status indicators” on page 48
v “FRU tests” on page 50
v “Fn key combinations” on page 52

Specifications

The following table lists the specifications of the ThinkPad
R40 series:

Feature Description
Processor 2681, 2682, 2683

v Mobile Intel

1.9/ 2.0/ 2.2/2.4GHz, L2 512 KB cache

v Mobile Intel

1.8GHz, L2 256KB cache

®

Pentium®4 processor- M 1.8/

®

Celeron®Processor 1.6/

Bus
architecture

Memory
(standard)

Memory
(optional)

Graphic
memory

2684, 2685

v Mobile Intel

1.8GHz, L2 512 KB cache

v Mobile Intel

1.8GHz, L2 256KB cache

2722, 2723, 2724

v Mobile Intel

1.5GHz, L2 1MB cache

v 400MHz PSB
v HUB link
v PCI bus
v LPC bus
v 266MHz DDR SDRAM (PC2100)

v 128 MB DDR SDRAM SO DIMM (PC2100)

card × 1

v 256 MB DDR SDRAM SO DIMM (PC2100)

card × 1

v 512 MB DDR SDRAM SO DIMM (PC2100)

card × 1

v 128 MB DDR SDRAM SO DIMM (PC2100)

card

v 256 MB DDR SDRAM SO DIMM (PC2100)

card

v 512 MB DDR SDRAM SO DIMM (PC2100)
(maximum of 1024 MB)

2681, 2682, 2683, 2722, 2723, 2724

v 16 MB DDR SDRAM (on the system board)
v 32 MB DDR SDRAM (on the system board)

2684, 2685

v 16 MB DDR SDRAM (on the system board)

®

Pentium®4 processor- M

®

Celeron®Processor 1.7/

®

Genuine®processor 1.3/ 1.4/

ThinkPad R40 45

Product overview

Feature Description

CMOS RAM v 242 bytes
Hard-disk drive 2681, 2682, 2683, 2722, 2723, 2724

Display 2681, 2682, 2683, 2722, 2723, 2724

I/O port 2681, 2682, 2683, 2722, 2723, 2724

v 20.0 GB, 4200 rpm, 2.5-inch, IDE interface
v 40.0 GB, 4200 rpm, 2.5-inch, IDE interface
v 40.0 GB, 5400 rpm, 2.5-inch, IDE interface
v 60.0 GB, 4200 rpm, 2.5-inch, IDE interface

2684, 2685

v 20.0 GB, 4200 rpm, 2.5-inch, IDE interface
v 40.0 GB, 4200 rpm, 2.5-inch, IDE interface

v 13.3-inch, 16M colors, XGA (1024 × 768

resolution) TFT color LCD

v 14.1-inch, 16M colors, XGA (1024 × 768

resolution) TFT color LCD

v 15-inch, 16M colors, XGA (1024 × 768

resolution) TFT color LCD

v 15-inch, 16M colors, SXGA+ (1400 × 1050

resolution) TFT color LCD

2684, 2685

v 13.3-inch, 16M colors, XGA (1024 × 768

resolution) TFT color LCD

v 14.1-inch, 16M colors, XGA (1024 × 768

resolution) TFT color LCD

v External monitor connector
v Stereo headphone jack
v Infrared port
v IEEE 1394 port
v Microphone jack
v Parallel connector
v Docking connector
v RJ11 connector
v RJ45 connector
v S-Video out connector
v Universal serial bus (USB) connector × 2

2684, 2685

v External monitor connector
v Stereo headphone jack
v Microphone jack
v Parallel connector
v RJ11 connector
v RJ45 connector
v Universal serial bus (USB) connector × 2

Audio v Internal stereo speakers

Infrared transfer v IrDA 1.1
Mini PCI

adapter
PC Card v Type-II or Type-III

v Software control volume

v IEEE 802.11b wireless LAN card
v IEEE 802.11a/b wireless LAN Combo card

46 ThinkPad R40

Feature Description

Communication
daughter card
(CDC)

AC adapter v 72-watt type
Ultrabay Plus

device
(standard)

Preinstalled
operating
system

v V.90 modem daughter card (MDC)
v Bluetooth Modem daughter card (BMDC)

v CD-ROM drive
v DVD drive
v CD-RW/DVD combo drive

2681, 2682, 2683, 2722, 2723, 2724

Windows 2000 Professional
Windows XP Home Edition
Windows XP Professional

2684, 2685

Windows XP Home Edition
Windows XP Professional

Product overview

ThinkPad R40 47

Product overview

Status indicators

The system status indicators show the status of the
computer, as follows:

2

TM

Indicator Meaning

«1¬ Bluetooth

status

«2¬ Wireless

status

3 4 5 61

Green: Bluetooth is operational. This

Green: Wireless is operational. This indicator

(continued)

8

7

indicator is on when the Bluetooth is
on and not in suspend mode.

is on when the Wireless is on and
not in suspend mode.

9

48 ThinkPad R40

Product overview

Indicator Meaning

«3¬ Drive in

use

«4¬ Num lock Green: The numeric keypad on the keyboard

«5¬ Caps lock Green: Caps Lock mode is enabled. To

«6¬ Power on Green: The computer is on and ready to use.

«7¬ Battery

status

«8¬ Standby

status

«9¬ Ultrabay

status

Green: Data is being read from or written to

the hard-disk drive, the diskette drive,
or the drive in the Ultrabay Plus
device. When this indicator is on, do
not put the computer into standby
mode or turn off the computer.

Note: Do not move the system while the green
drive-in-use light is on. Sudden physical shock
could cause drive errors.

is enabled. To enable or disable the
keypad, press and hold the Shift key,
and press the NumLk (ScrLk) key.

enable or disable Caps Lock mode,
press the Caps Lock key.

This indicator stays lit whenever the
computer is on and is not in standby
mode.

Green: The battery is in use and has enough

power. The ac adapter has charged
the battery completely.

Blinking green:

The battery is being charged, but still
has enough power to operate. (At
regular intervals, the indicator light
turns off briefly.)

Orange: The battery is being charged, but the

battery power is still low.

Blinking orange:

The battery needs to be charged.
When the indicator starts blinking
orange, the computer beeps three
times.

Green: The computer is in standby mode.
Blinking green:

The computer is entering standby
mode or hibernation mode, or is
resuming normal operation.

Green: An Ultrabay Plus device is installed

and in use.

Blinking green:

An Ultrabay Plus device is in the
process of being detached.

Turn off: An Ultrabay Plus device is ready to

be attached or detached.

Note: If you are using Windows 2000, the
Ultrabay status indicator does not blink while an
Ultrabay Plus device is being detached. Instead,
a message box pops up when the process is
completed; then the indicator turns off.

ThinkPad R40 49

Product overview

FRU tests

The following table shows the test for each FRU.

FRU Applicable test

System board 1. Diagnostics --> CPU/Coprocessor

Power Diagnostics --> Other Devices --> IBM AC

LCD unit 1. Diagnostics --> Video Adapter

Modem,
Modem
daughter card

Audio 1. Interactive Tests --> Internal Speaker

Speaker Interactive Tests --> Internal Speaker
PC Card slots Diagnostics --> Systemboard --> PCMCIA,

Keyboard 1. Diagnostics --> Systemboard -->

TrackPoint or
pointing device

Hard-disk drive Diagnostics --> Fixed Disks
Diskette drive 1. Diagnostics --> Diskette Drives

2. Diagnostics --> Systemboard

Adapter, IBM Battery 1 (IBM Battery 2)

2. Interactive Tests --> Video

1. Make sure the modem is set up correctly.

2. Replace the modem jack and the modem
card in turn, and run the following tests in
Diagnostics --> Other Devices:
a. Modem Digital Loopback Test
b. Modem Dialtone Test

2. Diagnostics --> Other Devices --> Analog

Devices AC97 CODEC Test

PCMCIA External Loop

Keyboard

2. Interactive Tests --> Keyboard

If the TrackPoint does not work, check the
configuration in the ThinkPad Configuration
program. If the TrackPoint is disabled, select
Automatic (or Enabled) to enable it.

After you use the TrackPoint, the pointer may
drift on the screen for a short time. This drift
can occur when a slight, steady pressure is
applied to the TrackPoint pointer. This symptom
is not a hardware problem. If the pointer stops
after a short time, no service action is
necessary.

If enabling the TrackPoint does not correct the
problem, continue with the following:
v Interactive Tests --> Mouse

2. Interactive Tests --> Diskette

(continued)

50 ThinkPad R40

Product overview

FRU Applicable test

CD-ROM or
DVD drive

Memory 1. If two DIMMs are installed, remove one of

Fan 1. Turn on the computer and check the air

Touch pad If the Touch Pad does not work, check the

1. Diagnostics --> Other Devices -->

CD-ROM/DVD

2. Interactive Tests --> CD-ROM/DVD Test

them and run Diagnostics --> Memory
Test—Quick.

2. If the problem does not recur, return the
DIMM to its place, remove the other one,
and run the test again.

3. If the test does not detect the error, run
Diagnostics --> Memory Test—Full.

turbulence at the louver near the power
switch.

2. Run Diagnostics --> Other Devices -->
IBM Fan.

configuration in the ThinkPad Configuration
program. If the Touch Pad is disabled, select
Automatic to enable it. If enabling the Touch
Pad does not correct the problem, continue with
the following:

v Interactive Tests --> Mouse

ThinkPad R40 51

Product overview

Fn key combinations

The following table shows the function of each combination
of Fn with a function key.

Key
combination

Fn+F1 Reserved.
Fn+F2 Reserved.
Fn+F3 Turn off the LCD display, leaving the screen

Fn+F4 Put the computer in standby mode. To return to

Fn+F5 Turn the Bluetooth on or off.
Fn+F6 Reserved.
Fn+F7 Apply a presentation scheme directly, with no

Fn+F8 Switch the computer screen size between

Fn+F9 Turn the Easy Eject on or off.
Fn+F10 Reserved.
Fn+F11 Reserved.
Fn+F12 Put the computer into hibernation mode. To

Fn+PgUp Turn the ThinkLight on or off.
Fn+Home The computer display becomes brighter.
Fn+End The computer display becomes less bright.
Fn+Spacebar Enable the FullScreen Magnifier function.

Description

blank. To turn the LCD display on again, press
any key or the TrackPoint stick.

normal operation, press the Fn key
independently, without pressing a function key.
Note: In Windows XP and Windows 2000, this
combination of buttons functions as a sleep
button. The setting can be changed so that
pressing it puts the computer into hibernation
mode or even shuts the computer down.

need to start Presentation Director.

expanded and normal mode if the computer
display image is smaller than the physical
display.
Note: This function is not supported in
Windows 2000 and Windows XP.

return to normal operation, press the power
button for less than four seconds.
Note: In Windows 2000 and Windows XP, you
can use Fn+F12 for hibernation only if the IBM
PM device driver has been installed on the
computer.

52 ThinkPad R40

Symptom-to-FRU index

Symptom-to-FRU index

The symptom-to-FRU index in this section lists symptoms
and errors and their possible causes. The most likely
cause is listed first, in boldface type.

Note: Do the FRU replacement or other actions in the

sequence shown in the column headed “FRU or
action, in sequence.” If replacing a FRU does not
solve the problem, put the original part back in the
computer. Do not replace a nondefective FRU.

This index can also help you determine, during regular
servicing, what FRUs are likely to need to be replaced
next.

A numeric error is displayed for each error detected in
POST or system operation. In the displays, n canbeany
number.

If no numeric code is displayed, check the narrative
descriptions of symptoms. If the symptom is not described
there, go to “Intermittent problems” on page 59.

Note

For an IBM device not supported by diagnostic
codes in the ThinkPad notebook computers, see the
manual for that device.

Numeric error codes

Symptom or error FRU or action, in sequence
0175

Bad CRC1, stop POST
task—The EEPROM checksum
is not correct.

0176

System Security—The System
has been tampered with.

0177

Bad SVP data, stop POST task.

0182

Bad CRC2. Enter BIOS Setup
and load Setup Defaults.

0185

Bad startup sequence settings.
Enter BIOS Setup and load
setup defaults.

System board.

1. Run IBM BIOS Setup

Utility and Load Setup
Defaults.

2. System board.

System board.

Run IBM BIOS Setup Utility
and Load Setup Defaults.

Run IBM BIOS Setup Utility
and Load Setup Defaults

ThinkPad R40 53

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
0187

EAIA data access error—The
access to EEPROM is failed.

0188

Invalid RFID serialization
information area or bad
CRC2—The EEPROM
checksum is not correct.

0189

Invalid RFID configuration
information area—The
EEPROM checksum is not
correct.

0190

Critical low-battery error

0199

System security — IBM security
password retry count exceeded.

01C8

More than one modem devices
are found. Remove one of
them. Press <Esc> to continue.

0200

Hard disk error—The hard disk
is not working.

021x

Keyboard error

0220

Monitor type error—Monitor
type does not match the one
specified in CMOS.

0230

Shadow RAM error—Shadow
RAM fails at offset nnnn.

0231

System RAM error—System
RAM fails at offset nnnn.

0232

Extended RAM
error—Extended RAM fails at
offset nnnn.

System board.

System board.

System board.

1. Charge the battery pack.

2. Battery pack.

1. Confirm supervisor
password and try again.

2. Run IBM BIOS Setup
Utility.

1. Remove either a Mini PCI

modem card or an modem
daughter card; or press
Esc to ignore the warning
message.

2. System board.

1. Reseat the hard-disk
drive.

2. Load Setup Defaults in IBM
BIOS Setup Utility.

3. Hard-disk drive.

4. System board.

Run interactive tests of the
keyboard and the auxiliary
input device.

Load Setup Defaults in IBM
BIOS Setup Utility.

System board.

1. DIMM.

2. System board.

1. DIMM.

2. System board.

54 ThinkPad R40

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
0250

System battery error—System
battery is dead.

0251

System CMOS checksum
bad—Default configuration
used.

0252

Password checksum bad—The
password is cleared.

0260

System timer error

0270

Real time clock error

0271

Date and time error—Neither
the date nor the time is set in
the computer.

0280

Previous boot
incomplete—Default
configuration used.

02B2

Incorrect drive A type

02F4

EISA CMOS not writable

02F5

DMA test failed

02F6

Software NMI failed

02F7

Fail-safe timer NMI failed

1801

Attached docking station is not
supported

1802

Unauthorized network card is
plugged in—Power off and
remove the miniPCI network
card.

Replace the backup battery
and run IBM BIOS Setup
Utility to reset the time and
date.

Replace the backup battery
and run IBM BIOS Setup
Utility to reset the time and
date.

Reset the password by
running IBM BIOS Setup
Utility.

1. Replace the backup

battery and run IBM BIOS
Setup Utility to reset the
time and date.

2. System board.

1. Replace the backup

battery and run IBM BIOS
Setup Utility to reset the
time and date.

2. System board.

Run IBM BIOS Setup Utility to
reset the time and date.

1. Load “Setup Default” in
IBM BIOS Setup Utility.

2. DIMM.

3. System board.

1. Diskette drive.

2. External FDD cable.

3. I/O card.

1. Load Setup Defaults in
IBM BIOS Setup Utility.

2. Replace the backup battery.

3. System board.

1. DIMM.

2. System board.

1. DIMM.

2. System board.

1. DIMM.

2. System board.

Shut down the computer and
remove it from the docking
station.

1. Remove Mini PCI network
card.

2. System board.

ThinkPad R40 55

Symptom-to-FRU index

Error messages

Symptom or error FRU or action, in sequence

Device address conflict. 1. Load “Setup Defaults” in

Allocation error for device. 1. Load “Setup Defaults” in

Failing bits: nnnn. 1. DIMM.

Invalid system configuration
data.

I/O device IRQ conflict. 1. Load “Setup Defaults” in

Operating system not found. 1. Check that the operating

Hibernation error. 1. Restore the system

Fan error. Fan.
Thermal sensing error. System board.

IBM BIOS Setup Utility.

2. Backup battery.

3. System board.

IBM BIOS Setup Utility.

2. Backup battery.

3. System board.

2. System board.

1. DIMM.

2. System board.

IBM BIOS Setup Utility.

2. Backup battery.

3. System board.

system has no failure and is
installed correctly.

2. Enter IBM BIOS Setup

Utility and see whether
the hard-disk drive and
the diskette drive are
properly identified.

3. Reseat the hard-disk drive.

4. Reinstall the operating
system.

5. Diskette drive.

6. Hard-disk drive.

7. System board.

configuration to what it
was before the computer
entered hibernation mode.

2. If memory size has been
changed, re-create the
hibernation file.

56 ThinkPad R40

Symptom-to-FRU index

Beep symptoms

Symptom or error FRU or action, in sequence

One beep and a blank,
unreadable, or flashing LCD.

One long and two short beeps,
and a blank or unreadable
LCD.

Two short beeps with error
codes.

Two short beeps and a blank
screen.

Three short beeps, pause,
three more short beeps, and
one short beep.

One short beep, pause, three
short beeps, pause, three more
short beeps, and one short
beep.

Only cursor appears. Reinstall operating system.
Four cycles of four short beeps

and a blank screen.
Five short beeps and a blank

screen.

1. Reseat the LCD
connector.

2. LCD assembly.

3. External CRT.

4. System board.

1. System board.

2. LCD assembly.

3. DIMM.

POST error. See “Numeric
error codes” on page 53.

1. System board.

2. DIMM.

1. DIMM.

2. System board

System board (IBM security
chip)

System board

No-beep symptoms

Symptom or error FRU or action, in sequence

No beep, power-on indicator
on, LCD blank, and no POST.

No beep, power-on indicator
on, and LCD blank during
POST.

The power-on password prompt
appears.

The hard-disk password prompt
appears.

The DOS full screen looks
smaller.

1. Make sure that every

connector is connected
tightly and correctly.

2. DIMM.

3. System board.

1. Reseat DIMM.

2. System board.

A power-on password or a
supervisor password is set.
Type the password and press
Enter.

A hard-disk password is set.
Type the password and press
Enter.

Start the ThinkPad
Configuration program and set
the Screen expansion
function.

ThinkPad R40 57

Symptom-to-FRU index

LCD-related symptoms

Important

The TFT LCD for the notebook computer contains
many thin-film transistors (TFTs). A small number of
dots that are missing, discolored, or always lighted
is characteristic of TFT LCD technology, but
excessive pixel problems can cause viewing
concerns. The LCD should be replaced if the
number of missing, discolored, or lighted dots in any
background is:
v XGA: 8 or more bright dots, 8 or more dark dots,

or a total of 9 or more bright and dark dots.

v SXGA+: 11 or more bright dots, 13 or more dark

dots, or a total of 16 or more bright and dark
dots.

Note: A bright dot means a pixel is always on

(white or color.) A dark dot means a pixel is
always off (black color.)

Symptom or error FRU or action, in sequence

No beep, power-on indicator
on, and a blank LCD during
POST.

v LCD backlight not working.
v LCD too dark.
v LCD brightness cannot be

adjusted.

v LCD contrast cannot be

adjusted.

v LCD screen unreadable.
v Characters missing pixels.
v Screen abnormal.
v Wrong color displayed.

Horizontal or vertical lines
displayed on LCD.

System board.

1. Reseat the LCD
connectors.

2. LCD assembly.

3. System board.

1. See important note for

“LCD-related symptoms.”

2. Reseat all LCD connectors.

3. LCD assembly.

4. System board.

LCD assembly.

58 ThinkPad R40

Symptom-to-FRU index

Intermittent problems

Intermittent system hang problems can be due to a variety
of causes that have nothing to do with a hardware defect,
such as cosmic radiation, electrostatic discharge, or
software errors. FRU replacement should be considered
only when a problem recurs.

When analyzing an intermittent problem, do the following:

1. Run the diagnostic test for the system board in loop
mode at least 10 times.

2. If no error is detected, do not replace any FRUs.

3. If any error is detected, replace the FRU shown by the
FRU code. Rerun the test to verify that no more errors
exist.

Undetermined problems

You are here because the diagnostic tests did not identify
which adapter or device failed, wrong devices are installed,
a short circuit is suspected, or the system is inoperative.
Follow these procedures to isolate the failing FRU (do not
isolate FRUs that have no defects).

Verify that all attached devices are supported by the
computer.

Verify that the power supply being used at the time of the
failure is operating correctly. (See “Power system
checkout” on page 39.)

1. Power off the computer.

2. Visually check each FRU for damage. Replace any
damaged FRU.

3. Remove or disconnect all of the following devices:
a. Non-IBM devices
b. Devices attached to the port replicator
c. Printer, mouse, and other external devices
d. Battery pack
e. Hard-disk drive
f. External diskette drive
g. DIMM
h. CD-ROM and diskette drive in the Ultrabay
i. PC Cards

4. Power on the computer.

5. Determine whether the problem has changed.

6. If the problem does not recur, reconnect the removed
devices one at a time until you find the failing FRU.

7. If the problem remains, replace the following FRUs one
at a time (do not replace a nondefective FRU):
a. System board
b. LCD assembly

ThinkPad R40 59

FRU replacement notices

FRU replacement notices

This section contains notices related to removing and
replacing parts. Read this section carefully before replacing
any FRU.

Screw notices

Loose screws can cause a reliability problem. In IBM
ThinkPad computer, this problem is addressed with special
nylon-coated screws that have the following characteristics:

v They maintain tight connections.
v They do not easily come loose, even with shock or

vibration.

v They are harder to tighten.
v They should be used only once.

Do the following when you service this machine:
v Keep the screw kit (for the P/N, see “Miscellaneous

parts” on page 164) in your tool bag.

v Always use new screws.
v Use a torque screwdriver if you have one.

Tighten screws as follows:

v Plastic to plastic

Turn an additional 90 degrees after the screw head
touches the surface of the plastic part:

90 degrees more

(Cross-section)

v Logic card to plastic

Turn an additional 180 degrees after the screw head
touches the surface of the logic card:

180 degrees more

(Cross-section)

v Torque driver

If you have a torque driver, refer to the “Torque” column
for each step.

60 ThinkPad R40

FRU replacement notices

v Make sure you use the correct screw. If you have a

torque screwdriver, tighten all screws firmly to the torque
shown in the table. Never use a screw that you

removed. Use a new one. Make sure the screws are
tightened firmly.

Retaining serial numbers

This section includes the following descriptions:

v “Restoring the serial number of the system unit”
v “Retaining the UUID”

Restoring the serial number of the system unit

When the computer was manufactured, the EEPROM on
the system board was loaded with the serial numbers of
the system and all major components. These numbers
need to remain the same throughout the life of the
computer.

If you replace the system board, you must restore the
serial number of the system unit to its original value.

Before replacing the system board, save the original serial
number by doing the following:

1. Install the ThinkPad hardware maintenance diskette
version 1.62, and restart the computer.

2. From the main menu, select 1. Set System
Identification.

3. Select 2. Read S/N data from EEPROM.

The serial number for each device is displayed. Write
down the serial number of the system unit, designated as
follows:

20: System unit serial number

After you have replaced the system board, restore the
serial number by doing the following:

1. Install the ThinkPad hardware maintenance diskette
version 1.62 and restart the computer.

2. From the main menu, select 1. Set System
Identification.

3. Select 1. Add S/N data from EEPROM.
Follow the instructions on the screen.

Note: The serial number of the system unit is written on

the label attached on the bottom of the computer.

Retaining the UUID

The Universally Unique Identifier (UUID) is a 128-bit
number uniquely assigned to your computer at production

ThinkPad R40 61

FRU replacement notices

and stored in the EEPROM of your system board. The
algorithm that generates the number is designed to provide
unique IDs until the year A.D. 3400. No two computers in
the world have the same number.

When you replace the system board, you must set the
UUID on the new system board as follows:

1. Install the ThinkPad hardware maintenance diskette
version 1.62, and restart the computer.

2. From the main menu, select 4. Assign UUID.
A new UUID is created and written. If a valid UUID

already exists, it is not overwritten.

62 ThinkPad R40

Removing and replacing a FRU

Removing and replacing a FRU

This section presents directions and drawings for use in
removing and replacing a FRU. Be sure to observe the
following general rules:

1. Do not try to service any computer unless you have
been trained and certified. An untrained person runs
the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement
notices” on page 60.

3. Begin by removing any FRUs that have to be removed
before the failing FRU. Any such FRUs are listed at the
top of the page. Remove them in the order in which
they are listed.

4. Follow the correct sequence in the steps for removing
the FRU, as indicated in the drawings by the numbers
in square callouts.

5. When turning a screw to replace a FRU, turn it in the
direction indicated by the arrow in the drawing.

6. When removing the FRU, move it in the direction
indicated by the arrow in the drawing.

7. To put the new FRU in place, reverse the removal
procedure and follow any notes that pertain to
replacement. For information about connecting and
arranging internal cables, see “Locations” on page 127.

8. When replacing a FRU, use the correct screw as
shown in the procedures.

DANGER

Before removing any FRU, power off the computer, unplug all
power cords from electrical outlets, remove the battery pack,
and then disconnect any interconnecting cables.

Attention: Before the computer is powered on after FRU

replacement, make sure that all screws, springs, and other
small parts are in place and are not loose inside the
computer. Verify this by shaking the computer gently and
listening for rattling sounds. Metallic parts or metal flakes
can cause electrical short circuits.

Attention: The system board is sensitive to, and can be
damaged by, electrostatic discharge. Before touching it,
establish personal grounding by touching a ground point
with one hand or by using an electrostatic discharge (ESD)
strap (P/N 6405959).

ThinkPad R40 63

Removing and replacing a FRU

1010 Battery pack

DANGER

The use only the battery in the parts listing for your
computer. Use of an incorrect battery can result in ignition or
explosion of the battery.

2

1

64 ThinkPad R40

Removing and replacing a FRU

1020 Ultrabay Plus device

For machine type 2681, 2682, 2683, 2722, 2723, 2724

Note

Any of Ultrabay Plus devices can be installed into
the Ultrabay Plus of the computer. The procedure
for installing and removing is the same for every
Ultrabay Plus device. For devices supported, see
“Optional FRUs” on page 169.

Note: When you release the switch in step «1¬, the lever

pops out. Pull the lever a little in step «2¬ to release
the device from the bay.

1

2

1

2

3

ThinkPad R40 65

Removing and replacing a FRU

1030 Hard-disk drive

Attention

v Do not drop or apply any shock to the

hard-disk drive. The hard-disk drive is sensitive

to physical shock. Improper handling can cause
damage and permanent loss of data.

v Before removing the drive, have the user make a

backup copy of all the information on the drive if
possible.

v Never remove the drive while the system is

operating or is in suspend mode.

For access, remove this FRU:
v “1010 Battery pack” on page 64

1

Note: The hard disk is attached to the cover.

Step Screw (quantity)

«1¬ HDD M3 × 3.5 mm, Black (1)

(continued)

66 ThinkPad R40

Removing and replacing a FRU

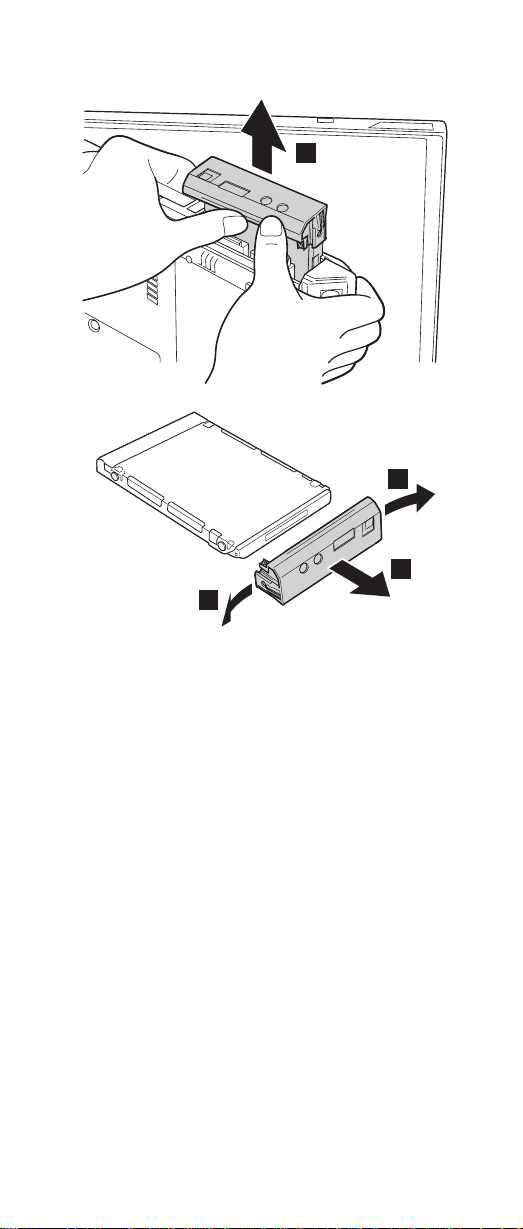

2

3

4

3

When installing: Make sure that the hard-disk connector

is firmly attached.

ThinkPad R40 67

Removing and replacing a FRU

1040 DIMM

For access, remove this FRU:
v “1010 Battery pack” on page 64

Note: Loosen the screws «1¬, but do not remove them.

2

1

Step Screw (quantity) Torque

«1¬ M2.5 x 3.5 mm, +/- Head BK(2) 0.294 Nm

(continued)

(3 kgfcm)

68 ThinkPad R40

Removing and replacing a FRU

3

4

3

When installing: With the notched end of the DIMM

toward the socket, insert the DIMM into
the socket, and then press it firmly. Pivot
the DIMM until it snaps into place. Make
sure that the card is firmly fixed in the
slot and does not move easily.

ThinkPad R40 69

Removing and replacing a FRU

1050 Mini PCI adapter

For access, remove this FRU:
v “1010 Battery pack” on page 64

Note: Some models do not have the Mini PCI card socket.
Note: Loosen the screw «1a¬ or «1b¬, but do not remove

it.

2

1a

1b

Step Screw (quantity) Torque

«1a¬ M2.5 x 3.5 mm, +/- Head BK (1) 0.294 Nm

«1b¬ M2.5 x 3.5 mm, Hexagon Head BK

(1), Tip: T7H, Torx — 802.11a/b Model

(3 kgfcm)

0.294 Nm
(3 kgfcm)

The following illustrations for step «3¬ to step «6¬ show the
combination of the Mini PCI Wireless LAN card.

3

(continued)

70 ThinkPad R40

Removing and replacing a FRU

Antenna cables «4a¬ and «4b¬ are for the wireless LAN
feature.

Note: When unplugging the antenna jack, do not pull the

cable; it might snap. Unplug the jack by pulling a
tab with your fingers.

4a

4b

When installing: Plug the gray antenna cable with the tab

marked “MAIN” («4a¬) into jack

J1

, and
the black antenna cable with the tab
marked “AUX” («4b¬)intojack

J2

.

(continued)

ThinkPad R40 71

Removing and replacing a FRU

5

5

6

When installing: With the notched end of the card toward

the socket, insert the card into the
socket, and then press it firmly. Pivot the
card until it snaps into place. Make sure
that the card is firmly fixed in the slot
and does not move easily.

72 ThinkPad R40

Removing and replacing a FRU

1060 Keyboard

For access, remove these FRUs, in order:
v “1010 Battery pack” on page 64

For machine type 2681, 2682, 2683, 2722, 2723, 2724

1

Step Screw (quantity) Torque

«1¬ M2.5 × 8.5 mm, Black (2) 0.294 Nm

(3 kgfcm)

(continued)

ThinkPad R40 73

Removing and replacing a FRU

4

3

2

In step «5¬, pull the keyboard a little in the direction of the
arrow, and then detach the connector «6¬.

6

74 ThinkPad R40

5

Removing and replacing a FRU

When installing: Install the keyboard, following the

directions below.

1. Attach the connector. (Step «6¬ in the removal
procedure.)

2. Make sure that the keyboard edges, shown in the
figure as (A) and (B), are under the frame.

(A)

(B)

3. Press the keys indicated by arrows to latch the
keyboard firmly in place.

(continued)

ThinkPad R40 75

Removing and replacing a FRU

4. To make sure that the front side of the keyboard is
housed firmly, gently press the keys with your thumbs
and try to slide the keyboard towards you.

5. Secure the keyboard from the bottom of the computer,
using the new screws provided with the keyboard.

76 ThinkPad R40

Removing and replacing a FRU

For machine type 2684, 2685

1

Step Screw (quantity) Torque

«1¬ M2.5 × 8.5 mm, Black (2) 0.294 Nm

(3 kgfcm)

(continued)

ThinkPad R40 77

Removing and replacing a FRU

4

3

2

In step «5¬, pull the keyboard a little in the direction of the
arrow, and then detach the connector «6¬.

6

78 ThinkPad R40

5

Removing and replacing a FRU

When installing: Install the keyboard, following the

directions below.

1. Attach the connector. (Step «6¬ in the removal
procedure.)

2. Make sure that the keyboard edges, shown in the
figure as (A) and (B), are under the frame.

(A)

(B)

3. Press the keys indicated by arrows to latch the
keyboard firmly in place.

(continued)

ThinkPad R40 79

Removing and replacing a FRU

4. To make sure that the front side of the keyboard is
housed firmly, gently press the keys with your thumbs
and try to slide the keyboard towards you.

5. Secure the keyboard from the bottom of the computer,
using the new screws provided with the keyboard.

80 ThinkPad R40

Removing and replacing a FRU

1070 Backup battery

DANGER

The use only the battery in the parts listing for your
computer. Use of an incorrect battery can result in ignition or
explosion of the battery.

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 64
v “1060 Keyboard” on page 73

2

1

When installing: Make sure that the connector «1¬ is

firmly attached.

ThinkPad R40 81

Removing and replacing a FRU

1080 Optical storage in the fixed bay

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 64
v “1060 Keyboard” on page 73

For machine type 2684, 2685

1

Step Screw (quantity) Torque

«1¬ M2.5 x 6 mm, Yellow (1) 0.294 Nm

(3 kgfcm)

(continued)

82 ThinkPad R40

Removing and replacing a FRU

Pull the L-shaped bracket to the right of the computer and
drag out the built-in optical drive from the computer.

Note: There is a sharp object next to the bracket inside

the square opening. Be careful not to cut your
finger.

2

(continued)

ThinkPad R40 83

Removing and replacing a FRU

3

84 ThinkPad R40

Removing and replacing a FRU

1090 PC Card slot assembly

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 64
v “1040 DIMM” on page 68
v “1050 Mini PCI adapter” on page 70
v “1060 Keyboard” on page 73

1

1

1

Step Screw (quantity) Torque

«1¬ M2.0 × 4.5 mm, Yellow (4) Tip(0) 0.294 Nm

(continued)

1

(3 kgfcm)

ThinkPad R40 85

Removing and replacing a FRU

2

When installing: Make sure that the connector of the PC

card slot is firmly attached, and then
secure the screws.

86 ThinkPad R40

Removing and replacing a FRU

1100 Hinge cover

For access, remove these FRUs, in order:
v “1010 Battery pack” on page 64

When installing: Attach the hinge cover, aligning the two

projections on the rear side with the two
small square holes of the base cover.

ThinkPad R40 87

Removing and replacing a FRU

1110 Communication daughter card (CDC)

For access, remove this FRU:

v “1010 Battery pack” on page 64
v “1060 Keyboard” on page 73
v “1100 Hinge cover” on page 87

Note: Some models do not have the Communication

daughter card (CDC).

Note: Loosen the screws «1¬ and «2¬.

1

2

Step Screw (quantity) Torque

«1¬ M2.5 x 8.5 mm, BK (2) 0.294 Nm

«2¬ M2.5 x 8.5 mm, BK (1) 0.294 Nm

(3 kgfcm)

(3 kgfcm)

88 ThinkPad R40

Removing and replacing a FRU

Modem daughter card (MDC)

5

4

(continued)

3

ThinkPad R40 89

Removing and replacing a FRU

6

7

When installing: Make sure that connector «6¬ is firmly

attached.

8

9

Step Screw (quantity) Torque

«8¬ M2.5 x 6 mm, Yellow (1) 0.294 Nm

(3 kgfcm)

(continued)

90 ThinkPad R40

Removing and replacing a FRU

10

11

Step Screw (quantity) Torque

«10¬ M2.0 x 3.5 mm, Silver (2) 0.294 Nm

(3 kgfcm)

12

13

Step Screw (quantity) Torque

«12¬ M2.0 x 3.5 mm, Silver (1) 0.294 Nm

(3 kgfcm)

(continued)

ThinkPad R40 91

Removing and replacing a FRU

15

14

When installing: Make sure that connectors «14¬ and

«15¬ are firmly attached.

IBM Integrated Bluetooth with 56K Modem (BMDC)

For machine type 2681, 2682, 2683, 2722, 2723, 2724

Following illustrations show the BMDC.

15

14

(continued)

92 ThinkPad R40

17

Removing and replacing a FRU

16

When installing: Make sure that antenna jack «17¬ is

firmly attached.

Note: When unplugging the Bluetooth antenna jack «17¬,

do not pull the cable; it might snap. Unplug the jack
by pulling a tab with your fingers.

ThinkPad R40 93

Removing and replacing a FRU

1120 Fan assembly

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 64
v “1060 Keyboard” on page 73
v “1100 Hinge cover” on page 87

1

3

5

4

2

Step Screw (quantity) Torque

«1¬ M2 × 13 mm, Silver (4) 0.294 Nm

When installing: Make sure that the connector «2¬ is

firmly attached.

(3 kgfcm)

94 ThinkPad R40

Removing and replacing a FRU

1130 CPU

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 64
v “1060 Keyboard” on page 73
v “1100 Hinge cover” on page 87
v “1120 Fan assembly” on page 94

Note: There are two types of CPU socket. Confirm the

socket type of the computer first.

Rotate the head of the screw (A) in the direction of the
arrow «1¬ to release the lock; then remove the CPU.

A

1'

1

A'

ThinkPad R40 95

Removing and replacing a FRU

When installing: Place the CPU on the CPU socket («1¬),

and then rotate the head of the screw
(A) in the direction of arrow «2¬ to
secure the CPU.

1

A

2'

2

1'

A'

96 ThinkPad R40
