Ibm THINKPAD I 1500, THINKPAD I 1400 User Manual

Note: Before using this information and the product it supports, be sure to read the general information under

“Safety Information” on page viii, and “Notices” on page 138. For ergonomics information, see the

User's Guide

Online

First Edition (August 1999)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION "AS IS" WITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE LIMITED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimers or express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements or changes in the products or the programs described in this publication at any time.

Requests for technical information about IBM products should be made to your IBM Authorized Dealer or your IBM Marketing Representative.

 Copyright International Business Machines Corporation 1999. All rights reserved. Note to US Government Users — Documentation related to restricted rights — Use, duplication, or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Thank You for Selecting an IBM ThinkPad i Series 1400/1500

Computer

We at IBM have developed this ThinkPad computer to meet both your technical requirements and your high expec-

tations. To help us continue to build products that address your mobile computing needs, please take a moment to

complete the ThinkPad Registration.

ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad ThinkPad

 Copyright IBM Corporation 1999 iii

Functional Highlights

All-in-one design with core technology The well-balanced,

all-in-one design of the ThinkPad i Series 1400/1500 brings ease-of-use to your computing needs.

High-speed processor The Intel high-speed processor enables

high-speed data processing and provides advanced performance.

Large-capacity hard disk drive The large-capacity hard disk drive

can respond to a wide variety of your business demands.

Large color LCD The large TFT (thin-film transistor) or HPA (high

performance addressing) display provides clear and brilliant text and graphics.

Lithium ion or nickel metal hydride battery pack The large-

capacity battery pack extends the operating time of your computer, further enhancing its portability.

Audio with 3D Stereo Sound Your computer is equipped with

internal audio record and playback capabilities including 3D audio from four speakers. When you enable the 3D stereo feature, sounds will appear to be generated all around you.

The audio feature supports the following:

 Wave audio recording and playback of up to 16 bits,

stereo, and 48 KHz sampling.

 Music CD playback with the computer turned off.

For more information on using the audio function, see the

Online User's Guide

ThinkPad Modem The ThinkPad modem enables you to send or

receive data and faxes over a telephone line. For more information on using the ThinkPad modem, see

the

Online User's Guide

TrackPoint with Enhanced Controls Your computer has an

enhanced TrackPoint function that enables you to make selections merely by pressing on the TrackPoint. A new

Functional Highlights

center button, the Internet Scroll Bar, converts the TrackPoint into a scroll controlling device or a magnifying glass on the screen.

For more information on using the TrackPoint, see “TrackPoint” on page 10.

PC Card Support Your computer provides a PC Card slot that

accepts a 16–bit PC Card, CardBus Card, or Zoomed Video Card.

For more information on installing PC Cards, see “Inserting a PC Card” on page 72.

Keyboard Light (select models only) Your computer is equipped

with a light that illuminates the keyboard area for computer use in dimly lit areas.

For more information on using the Keyboard Light, see “Keyboard Light” on page 16.

Easy Launch buttons Your computer is equipped with four

customizable buttons that allow you to connect to the Internet or to run programs at a single press of a button.

For more information on customizing the Easy Launch buttons, see “Easy Launch Buttons Customization Utility” on page 37.

Media Center Your computer is equipped with the Media Center,

consisting of a status LCD and playback buttons for CDs or DVDs (for DVD models). You can also play music CDs without turning on the computer.

For more information, see “Playing Music CDs” on page 19.

About This Book

This book contains information that will help you operate the IBM ThinkPad i Series 1400/1500 computer. Be sure to read the

ThinkPad i Series 1400/1500 Setup Guide

book before using the computer.

Chapter 1. "Getting Familiar with Your Computer," acquaints you

with the basic features of your computer

and Chapter 1 of this

Chapter 2. "Extending the Features ofYour Computer,"

provides information on installing options and using your computer's high-technology features.

Chapter 4. "Solving Computer Problems,"

computer problem. The chapter includes a troubleshooting guide and information on how to recover lost or damaged software.

Chapter 5. "Getting Service,"

service.

describes various options of IBM's support and

Appendix A, Features and Specifications describes the features and specifications associated with your computer, including information on power cords.

Appendix B, Product Warranties and Notices contains the warranty statements for your computer and notices for this book.

Chapter 3. "ProtectingYour Computer,"

provides information on using passwords, and using locks.

describes what to do when you have a

About This Book

The book concludes with an index.

vii

Safety Information

Electrical Safety Notice

Note: In the U.K., by law:

 The telephone line cable must be connected after the

power cord.

 The power cord must be disconnected after the telephone

line cable.

DANGER

Electrical current from power, telephone, and communication cables is hazardous. Reduce the risk of fire and electric shock by always following basic safety precautions, including the following:

viii

 Do not use your computer in or near water.  During electrical storms, do not connect the cable to

or disconnect it from the telephone outlet on the wall.

To avoid shock hazard, connect and disconnect cables as shown below when installing, moving, or opening the covers of this product or attached devices. The 3–pin power cord must be used with a properly grounded outlet.

Safety Information

DANGER

Do not disassemble, incinerate, or short-circuit the rechargeable battery pack. Do not put it in trash that is disposed of in landfills. Dispose of it as required by local ordinances or regulations. In the United States, call IBM at 1-800-IBM-4333 for information on disposal.

Safety Information

DANGER

There is a danger of an explosion if the battery is incorrectly replaced.

The lithium battery (IBM P/N 02K6502 UL-recognized component [file no. MH12210]) contains lithium and can explode if it is not properly handled or disposed of.

Replace only with a battery of the same type.

Do not: (1) throw or immerse it into water, (2) allow it to heat to more than 100°C (212°F), or (3) attempt to repair or disassemble it. Dispose of it as required by local ordinances or regulations.

CAUTION: The fluorescent lamp in the liquid crystal display (LCD) contains mercury. Do not put it in trash that is disposed of in landfills. Dispose of it as required by local ordinances or regulations.

The LCD is made of glass, and rough handling or dropping the computer can cause the LCD to break. If the LCD breaks and the internal fluid gets into your eyes or on your hands, immediately wash the affected areas with water for at least 15 minutes; then get medical care if any symptoms are present after washing.

Laser Compliance Statement

The CD-ROM or DVD-ROM drive of the ThinkPad i Series 1400/1500 computer is a laser product. The CD-ROM or DVD-ROM drive's classification label (shown below) is located on the top of the drive.

CLASS 1 LASER PRODUCT LASER KLASSE 1 LUOKAN 1 LASERLAITE

Safety Information

APPAREIL A LASER DE CLASSE 1 KLASS 1 LASER APPARAT

The CD-ROM or DVD-ROM drive is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products.

In other countries, the drive is certified to conform to the requirements of EN60825.

CAUTION: Do not open the CD-ROM or DVD-ROM drive; no user adjustments or serviceable parts are inside.

Use of controls, adjustments, or the performance of procedures other than those specified may result in hazardous radiation exposure.

Class 1 laser products are not considered to be hazardous. The CD-ROM or DVD-ROM drive has an internal, Class 1, 0.5-milliwatt, aluminum gallium-arsenide laser that operates at a wavelength of 760 to 810 nanometers. The design of the laser system and the CD-ROM or DVD-ROM drive ensures that there is no exposure to laser radiation above a Class 1 level during normal operation, user maintenance, or servicing conditions.

xii

Contents

Thank You for Selecting an IBM ThinkPad i Series 1400/1500

Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Functional Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . iv

About This Book ............................ vi

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Electrical Safety Notice ...................... viii

Laser Compliance Statement ................... x

Getting Familiar with Your Computer ............... 1

Identifying the Hardware Features .................. 3

Front View of the Computer .................... 3

Rear View of the Computer .................... 5

Bottom View of the Computer ................... 7

System Status Indicators ....................... 8

Distinctive Functions of Your Computer .............. 10

Keyboard Functions . . . . . . . . . . . . . . . . . . . . . . . . 10

CD-ROM or DVD-ROM Drive .................. 17

ThinkPad Utility Programs .................... 24

Online User's Guide ........................ 41

Reinstalling Software . . . . . . . . . . . . . . . . . . . . . . . . . 42

ThinkPad Software Selections CD ............... 42

Recovery CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

ThinkPad Web Site or Bulletin Board .............. 42

Replacing the Battery Pack ..................... 43

Service Hints & Tips ......................... 44

Handling Your ThinkPad Computer ............... 44

ThinkPad Don'ts . . . . . . . . . . . . . . . . . . . . . . . . . . 44

ThinkPad Do's . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Carrying Your Computer ..................... 46

Cleaning Your Computer ..................... 46

Extending Your Battery Life ................... 47

Ruggedized Mobile Computers ................. 47

For More Information ....................... 48

Extending the Features of Your Computer .......... 49

Customizing the TrackPoint ..................... 50

 Copyright IBM Corporation 1999 xiii

Using the Press-to-Select Window ............... 51

Using the Sensitivity Window .................. 52

Using the Scrolling Window ................... 53

Increasing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Attaching an External Mouse, Keypad or Keyboard ....... 59

Attaching an External Mouse or Numeric Keypad ...... 59

Attaching an External Keyboard and Mouse .......... 61

Disabling the TrackPoint ..................... 62

Attaching an External Monitor ................... 63

Display Output Location ..................... 64

Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Using the Dual Display Function ................ 67

Attaching a Television to Your Computer (select models only) . 69

Attaching a Printer .......................... 71

Inserting a PC Card ......................... 72

Removing the PC Card ...................... 73

Protecting Your Computer .................... 75

Using Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Setting a Password ........................ 77

Entering a Password ....................... 79

Removing and Changing a Password ............. 80

Using Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

xiv

Solving Computer Problems ................... 83

Frequently Asked Questions .................... 84

Hints, Tips and Considerations ................... 89

Playing DVD Movies ....................... 89

USB Connector Considerations ................. 89

Using an External Condenser Microphone ........... 89

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . 90

Troubleshooting Charts . . . . . . . . . . . . . . . . . . . . . . . 91

Error Codes or Messages .................... 92

No Error Codes or Messages .................. 94

Input Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Standby or Hibernation Problems ................ 97

LCD Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Indicator Problems . . . . . . . . . . . . . . . . . . . . . . . . 100

Battery Problems . . . . . . . . . . . . . . . . . . . . . . . . . 100

CD-ROM or DVD-ROM Problems ................ 101

Audio Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Universal Serial Bus (USB) Problems ............. 103

Modem Problems . . . . . . . . . . . . . . . . . . . . . . . . . 104

PC Card Problems ........................ 105

Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 106

External Monitor Problems .................... 107

Other Option Problems ...................... 109

Software Problems . . . . . . . . . . . . . . . . . . . . . . . . 110

Other Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Recovering Lost or Damaged Software .............. 112

Using the PC-Doctor Program .................. 112

Using the ThinkPad Software Selections CD ......... 112

Using the Recovery CD ..................... 113

ThinkPad Web Site or Bulletin Board .............. 114

Getting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Information on Your Computer ................... 116

Option List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Identification Numbers . . . . . . . . . . . . . . . . . . . . . . 116

Problem Recording Sheet .................... 117

Customer Service and Support ................... 118

Online Support Services ..................... 118

Fax Information . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Help by Telephone ........................ 119

EasyServ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Getting Help Around the World ................. 120

Purchasing Additional Services ................... 121

Enhanced PC Support Line ................... 121

Ordering Support Line Services ................. 122

Warranty and Repair Services .................. 122

Appendix A. Features and Specifications ........... 125

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

IBM Power Cords ........................... 130

Appendix B. Product Warranties and Notices ........ 133

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Year 2000 Readiness and Instructions ............. 138

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Macrovision Copyright Protection Statement ......... 139

Electronic Emission Notices ................... 140

Telecommunication Notice . . . . . . . . . . . . . . . . . . . . 141

Industry Canada Requirements ................. 143

Regions where ThinkPad i Series 1400/1500 has ThinkPad

Modem Integrated . . . . . . . . . . . . . . . . . . . . . . . . 146

Notice to European Users of the IBM ThinkPad Modem ... 146 Warning Notice to New Zealand Users of the IBM ThinkPad

Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

xvi

Getting Familiar with Your Computer

This chapter provides basic information about your computer.

Identifying the Hardware Features .................. 3

Front View of the Computer .................... 3

Rear View of the Computer .................... 5

Bottom View of the Computer ................... 7

System Status Indicators ....................... 8

Distinctive Functions of Your Computer .............. 10

Keyboard Functions . . . . . . . . . . . . . . . . . . . . . . . . 10

TrackPoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Fn Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Easy Launch Buttons ..................... 14

Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . 15

Keyboard Light . . . . . . . . . . . . . . . . . . . . . . . . . 16

CD-ROM or DVD-ROM Drive .................. 17

Using the CD-ROM or DVD-ROM Drive .......... 17

Handling CDs and DVDs ................... 18

Playing Music CDs ....................... 19

Playing DVD Movies ...................... 19

ThinkPad Utility Programs .................... 24

BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Notebook Manager . . . . . . . . . . . . . . . . . . . . . . . 31

Sleep Manager . . . . . . . . . . . . . . . . . . . . . . . . . 35

Easy Launch Buttons Customization Utility ......... 37

Online User's Guide ........................ 41

Reinstalling Software . . . . . . . . . . . . . . . . . . . . . . . . . 42

ThinkPad Software Selections CD ............... 42

Recovery CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

ThinkPad Web Site or Bulletin Board .............. 42

Replacing the Battery Pack ..................... 43

Service Hints & Tips ......................... 44

Handling Your ThinkPad Computer ............... 44

ThinkPad Don'ts . . . . . . . . . . . . . . . . . . . . . . . . . . 44

ThinkPad Do's . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Carrying Your Computer ..................... 46

Cleaning Your Computer ..................... 46

Extending Your Battery Life ................... 47

 Copyright IBM Corporation 1999 1

Ruggedized Mobile Computers ................. 47

For More Information ....................... 48

2 ThinkPad i Series 1400/1500 User's Reference

Identifying the Hardware Features

Front View of the Computer

(1) The LCD latches release the LCD when pressed and allow it to

be opened.

(2) The Keyboard Light (select models only) illuminates the keyboard

area for computer use in dimly lit areas. (3) The color LCD screen displays computer output. (4) The left and right internal speakers generate stereo sound. (5) The Keyboard Light switch turns the keyboard light on and off. (6) The indicator panel consists of the system-status indicators and

their associated symbols. (7) The CD-ROM or DVD-ROM drive. (8) The manual-eject hole is used to eject the CD-ROM or

DVD-ROM tray when it does not open with the eject button.

(9) The CD-ROM or DVD-ROM eject button ejects the CD-ROM or

DVD-ROM tray.

Getting Familiar with Your Computer 3

Identifying the Hardware Features

(10) The CD-ROM or DVD-ROM access indicator is on when data is

read from a CD or DVD in the CD-ROM or DVD-ROM drive. (11) The battery pack is a built-in power source for the computer. (12) The Media Center control panel allows your computer to function

like an audio CD player without turning on the computer. When the

computer is on, it also controls the playback of audio CDs, video

CDs and DVD movies. (13) The previous track/chapter button jumps to the previous track in

the audio CD or video CD, or the previous chapter in the DVD

movie. (14) The next track/chapter button jumps to the next track in the

audio CD or video CD, or the next chapter in the DVD movie. (15)

The audio volume control adjusts the volume of the

speakers. (16) The Media Center status LCD displays the current track number

in the audio CD or video CD, or the current chapter number in the

DVD movie. (17) The play/pause button plays or pauses audio CD, video CD or

DVD movie playback. (18) The stop/eject button stops audio CD, video CD or DVD movie

playback. It also ejects the CD-ROM or DVD-ROM tray when play-

back is stopped. (19) The Media Center power button turns the Media Center on and

off for audio CD playback when the computer power is off. (20) The Internet Scroll Bar works with the TrackPoint (23) and func-

tions as a scroll controlling device to easily scroll through Web

pages or program windows. (21) The TrackPoint buttons work with the TrackPoint (23) and func-

tion similar to the buttons on a mouse. (22) The Fn key is used with the function keys to activate the Fn key

functions. (23) The TrackPoint is a built-in pointing device that provides a func-

tion similar to that of a mouse. (24) The Easy Launch buttons are four customizable keys that allow

you to run programs at a single press of a button. See “Easy

Launch Buttons Customization Utility” on page 37 for more infor-

mation. (25) The built-in microphone captures sound and voice when it is

used with an application program capable of handling audio. (26)

The power switch turns the computer on and off.

4 ThinkPad i Series 1400/1500 User's Reference

Identifying the Hardware Features

Rear View of the Computer

(1)

The power jack is where the AC Adapter cable is con-

nected.

(2)

The PS/2 mouse and keyboard connector is used to attach a mouse, external keyboard, or external numeric keypad to the computer.

(3)

The internal modem port is used for connecting your com-

puter to an analog telephone line.

(4)

The serial connector is where you connect a 9–pin, serial-

device cable.

(5)

The parallel connector is where you connect a parallel-

printer signal cable.

(6)

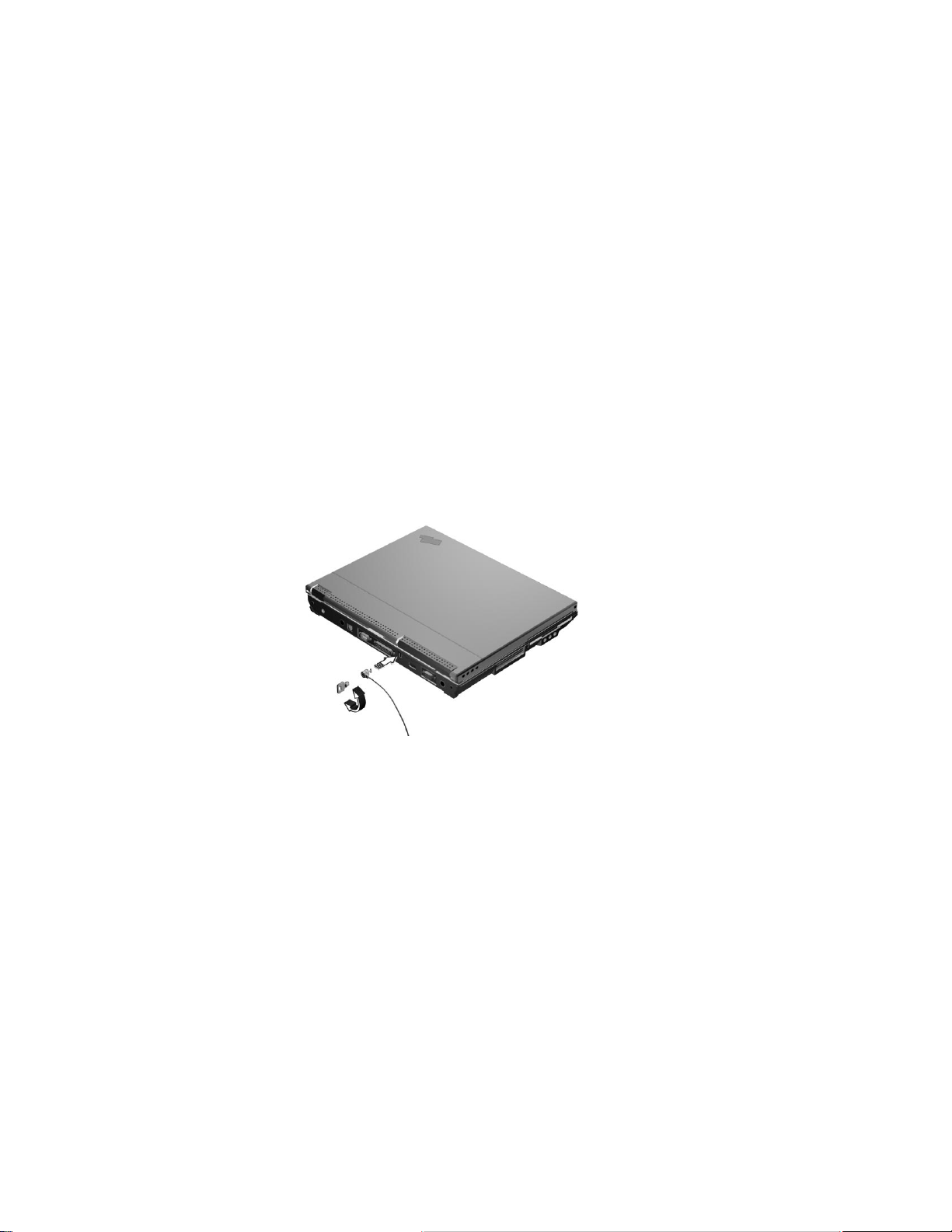

The security keyhole is used with a mechanical lock.

(7)

The universal serial bus (USB) allows you to connect any

device that conforms to the USB standard.

(8)

The external-monitor connector is where you attach the

external monitor.

(9) The S-video jack (select models only) is where you connect a

television or external display devices with an S-video in-out cable.

(10) The PC Card slot accepts a PC Card. (11) The PC Card eject button ejects the PC Card from the PC Card

slot.

Getting Familiar with Your Computer 5

Identifying the Hardware Features

(12)

(13)

(14)

(15) The diskette drive. (16) The diskette-drive-activity indicator lights up when the computer

(17) The diskette-eject button ejects the diskette from the diskette

The headphone jack, a ⅛inch (3.5mm) diameter jack, is where

you connect stereo headphones or external speakers.

The line-in jack, a ⅛inch (3.5mm) diameter jack, is where

you connect an external audio device.

The microphone jack, a ⅛inch (3.5mm) diameter jack, is

where you connect a self-powered stereo microphone. Note: Do not plug any device into the microphone jack except a

microphone.

is accessing the diskette drive.

drive.

6 ThinkPad i Series 1400/1500 User's Reference

Identifying the Hardware Features

Bottom View of the Computer

(1) The battery-pack latch locks or releases the battery pack. (2) The memory-slot cover covers the memory slot.

The two memory slots accept dual inline memory module (DIMM) options.

Note: Base memory (32 MB or 64 MB) occupies one memory

slot.

(3) Flip out the tilt feet to tilt the computer to an angle for more com-

fortable use of your computer, especially when typing.

Getting Familiar with Your Computer 7

System Status Indicators

The system-status indicators on the computer show the current status of your computer by their on or off states and colors (green and orange). Each indicator is identified with a symbol. The following shows the location and the meaning of each icon:

12 6

8ThinkPad i Series 1400/1500 User's Reference

System Status Indicators

Symbol Color Meaning

(1) Battery status Green Enough battery power remains for operation.

Blinking orange The battery pack needs to be charged Orange The battery pack is being charged.

(2) Standby mode Green The computer is in standby mode

Blinking green The computer is entering or resuming from

hibernation mode.

(3) Drive in use Orange Data is being read from or written to the hard

disk, floppy drive, or data is being read from the CD-ROM drive. Do not enter standby mode or power off the computer when this indicator is on.

(4) Numeric lock Green The numeric keypad on the keyboard is

enabled. You enable or disable the keypad by pressing and holding the Shift key, and pressing the NumLk key. For details, see “Numeric Keypad” on page 15.

(5) Caps lock Green Caps Lock mode is enabled. All alphabetic

characters without the Shift key being pressed. You enable or disable the Caps Lock mode by pressing the Caps Lock key.

(6) Scroll lock Green Scroll Lock mode is enabled. The Arrow keys

can be used as screen-scroll function keys. The cursor cannot be moved with the Arrow keys.

Not all application programs support this function.

pressing the ScrLk key.

(7) Power on Green The computer is operational. This indicator is on

when the computer is on.

(A-Z)

are entered in capital letters

You enable or disable Scroll Lock mode by

Getting Familiar with Your Computer 9

Distinctive Functions of Your Computer

Your computer has unique keyboard functions and utility programs for easy configuration. This section includes the following topics:

 Keyboard functions

 CD-ROM or DVD-ROM drive

 ThinkPad utilities

 Online User's Guide

Keyboard Functions

Your computer's keyboard has the following functions:  TrackPoint  Fn key

 Easy Launch buttons  Numeric keypad  Keyboard Light

TrackPoint

The keyboard contains a unique cursor-pointing device called the

TrackPoint

single process you can perform without moving your fingers from their typing position.

The TrackPoint consists of a stick on the keyboard and three click buttons below the keyboard. Movement of the pointer on the screen is controlled by the amount of pressure you apply to the nonslip cap on the stick in any direction parallel to the keyboard; the stick itself does not move. The speed at which the pointer moves corresponds to the pressure you apply to the stick. The function of the click buttons depends on the software you are using.

ThinkPad i Series 1400/1500 User's Reference

. Pointing, selecting, and dragging all become part of a

Distinctive Functions of Your Computer

Stick

Left click button

Internet Scroll Bar

Right click button

If you are not familiar with using the TrackPoint, these instructions will help you get started:

1. Place your hands in the typing position and press gently with either index finger on the stick in the direction you want the cursor to move.

Pressing the stick away from you moves the cursor up the screen; pressing it toward you moves the cursor down the screen. You can also move the cursor side to side by pressing sideways.

Note: The cursor may drift. This is not a defect. Do not use the

TrackPoint until the cursor stops moving.

Getting Familiar with Your Computer 11

Distinctive Functions of Your Computer

Mouse pointer

Stick

Left click button

Internet Scroll Bar

Right click button

2. Press the click buttons with either thumb to select and drag as required by your software.

Changing the Cap

The cap (1) on the end of the TrackPoint is removable. You can replace it with the spare shipped with your computer.

For more information on customizing the TrackPoint and using the Internet Scroll Bar, see “Customizing the TrackPoint” on page 50.

ThinkPad i Series 1400/1500 User's Reference

Distinctive Functions of Your Computer

Fn Key

The Fn key function allows you to change operational features instantly. When you use the following functions, press and hold the Fn key; then press the appropriate function key (F1 to F12) or other keys (Home and End).

Function keys

Fn key

Getting Familiar with Your Computer 13

Distinctive Functions of Your Computer

The following table shows the function of the Fn key combined with keys:

Feature and Icon Key Combination Meaning

Power Mode Functions Power Manage-

ment Properties

Sleep Fn+F4 The computer enters sleep mode. You can set the sleep

Other Functions Control at a glance

Switching between the LCD and the external monitor

Fn+F2 If you press this key combination, the Power Management

Properties window appears. You can view and set parameters for battery status in the window.

button function in the "Advanced" section of the Power Management Properties window.

Fn+F1 The Control at a glance screen appears. This screen

briefly describes the different user control features of the computer, including the Easy Launch buttons and the Media Center.

Fn+F7 Computer output is displayed in the following order when

an external monitor is attached.

Increase brightness

Decrease brightness

Contrast up Fn+Insert This increases the contrast of the computer LCD. Contrast down Fn+Delete This decreases the contrast of the computer LCD.

Fn+Home This increases the brightness of the computer LCD.

Fn+End This decreases the brightness of the computer LCD.

Note: The contrast Fn key functions are available only on HPA

models. The TFT models have optimized contrast settings.

Easy Launch Buttons

The Easy Launch buttons are four customizable keys located to the left of the power switch. These keys allow you to launch programs or visit Web sites at a single press of a button.

ThinkPad i Series 1400/1500 User's Reference
