IBM PC 300PL Type 6584, PC 300PL 6594 Technical Information Manual

Technical Information Manual

PC 300PL Personal Computer Types 6584 and 6594

Note

Before using this information and the product it supports, be sure to read the general information under Appendix E, “Notices and trademarks” on page 42.

First Edition (October 1999)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time.

This publication was developed for products and services offered in the United States of America. IBM may not offer the products, services, or features discussed in this document in other countries, and the information is subject to change without notice. Consult your local IBM representative for information on the products, services, and features available in your area.

Requests for technical information about IBM products should be made to your IBM reseller or IBM marketing representative.

Note to U.S. Government Users — Documentation related to restricted rights — Use, duplication or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Terminology usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Chapter 1. System overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Major features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Other features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Network support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Wake on LAN .................................................. 2

Wake on Ring .................................................. 3

Chapter 2. System board features ...................................... 4

Pentium III microprocessor with MMX technology ............................... 4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

L2 cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chip set control ................................................... 4

System memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PCI bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

IDE bus master interface ............................................ 6

USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Low pin count bus ................................................ 7

Video subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Monitor support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Video memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Audio subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Super input/output controller ........................................... 10

Diskette drive interface ............................................. 10

Serial ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Parallel port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Keyboard and mouse ports .......................................... 11

Network connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Real-time clock and CMOS ............................................ 12

Flash EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Expansion adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Physical layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

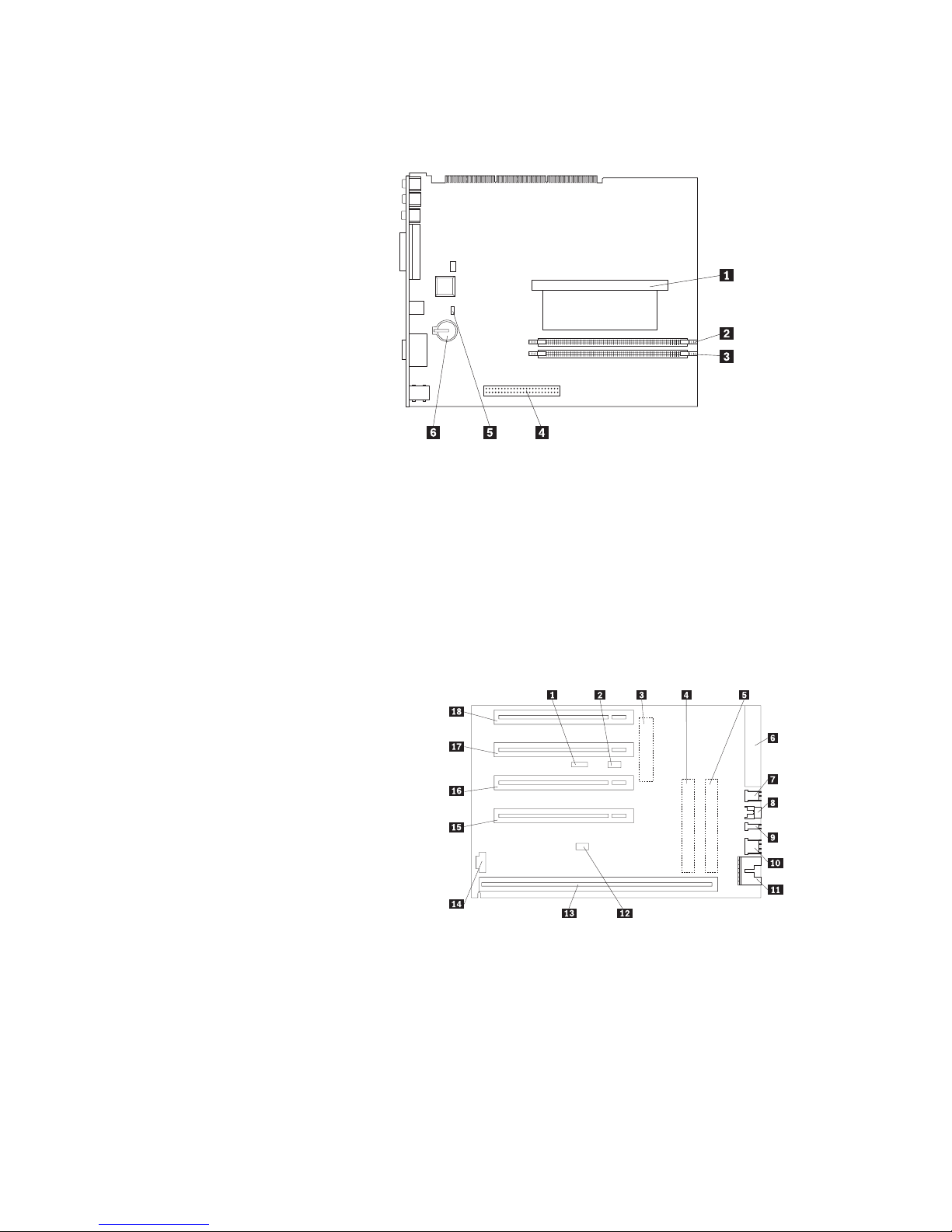

System board, Types 6584 and 6594 .................................... 13

Riser card layouts ................................................ 13

Recovery jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cable connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

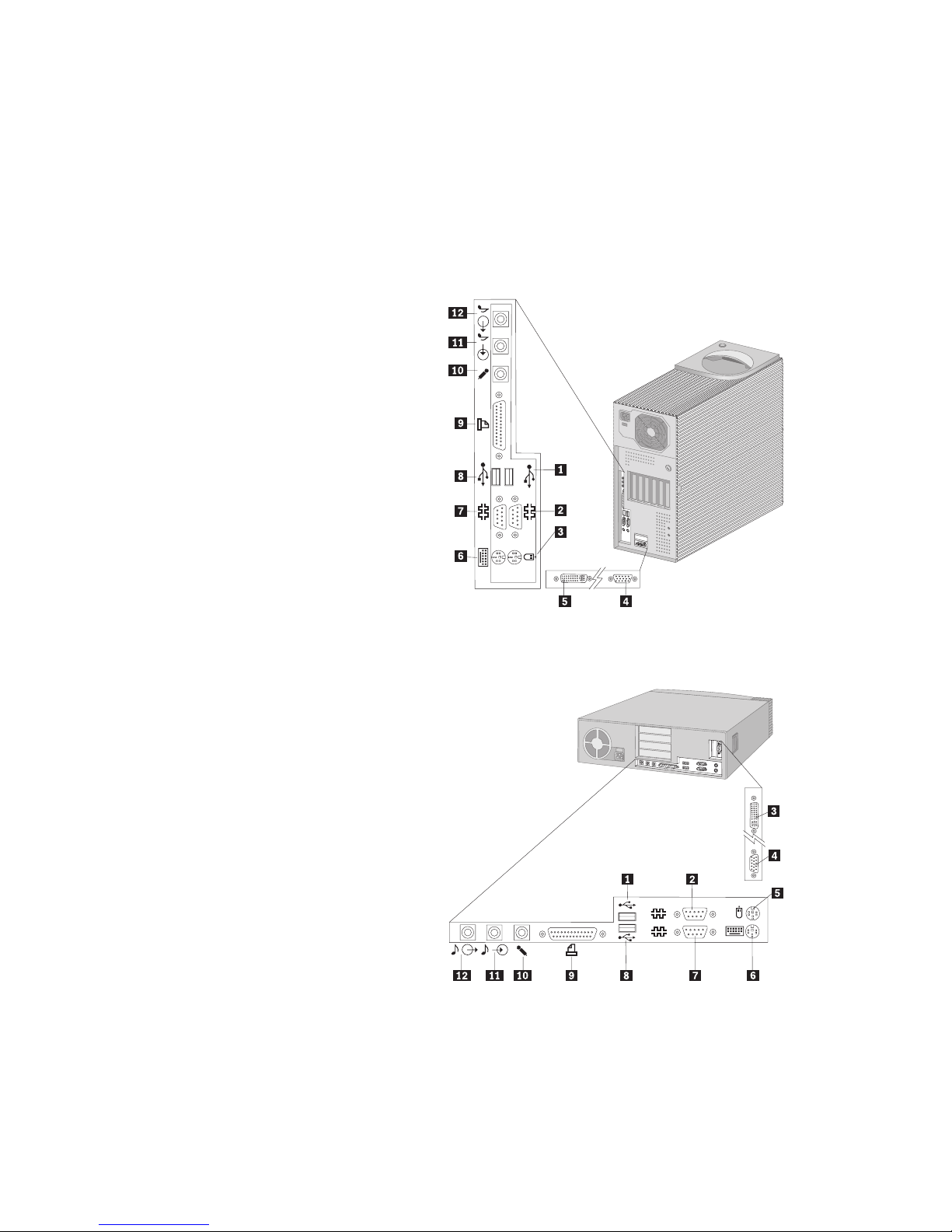

Connector panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chapter 3. Physical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

PC 300PL — desktop .............................................. 16

PC 300PL — tower ............................................... 17

Cabling requirements for Wake on LAN adapters ............................. 17

Chapter 4. Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Power output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Component outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

 Copyright IBM Corp. September 1999 iii

Output protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connector description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 5. System software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Plug and Play .................................................... 21

POST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Configuration/Setup Utility program ....................................... 22

Advanced Power Management (APM) ...................................... 22

Advanced Configuration and Power Interface (ACPI) ............................. 22

Flash update utility program ............................................ 22

Diagnostic program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Chapter 6. System compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Hardware compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Hardware interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Hard disk drives and controller ........................................ 24

Software compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Software interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Machine-sensitive programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Appendix A. Connector pin assignments .................................. 25

Monitor connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Memory connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

PCI connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

ISA connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

IDE connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Diskette drive connector .............................................. 31

Power supply connector .............................................. 31

Wake on LAN connectors ............................................. 32

Alert on LAN connectors ............................................. 32

Tamper detection switch .............................................. 32

Radio frequency ID ................................................. 32

SCSI high frequency LED connectors ...................................... 33

CD audio connector ................................................ 33

USB port connectors ................................................ 33

Mouse and keyboard port connectors ...................................... 33

Serial port connector ................................................ 34

Parallel port connector ............................................... 34

Appendix B. System address maps ..................................... 36

System memory map ............................................... 36

Input/output address map ............................................. 36

DMA I/O address map ............................................... 38

PCI configuration space map ........................................... 39

Appendix C. IRQ and DMA channel assignments ............................. 40

Appendix D. Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

POST error codes ................................................. 41

Beep codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Appendix E. Notices and trademarks .................................... 42

iv Technical Information Manual

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Contents v

Figures

1. Memory configurations for 133 MHz FSB ................................ 5

2. Video subsystem resources ........................................ 8

3. Supported VGA video modes ....................................... 9

4. Serial port assignments ........................................... 10

5. Parallel port assignments .......................................... 11

6. Recovery jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7. Power-input requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

8. Power-output (145 watts) .......................................... 18

9. Power output (200 watts) .......................................... 19

10. System board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

11. Keyboard port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

12. PCI-bus adapters (per slot) ......................................... 19

13. USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

14. Internal DASD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

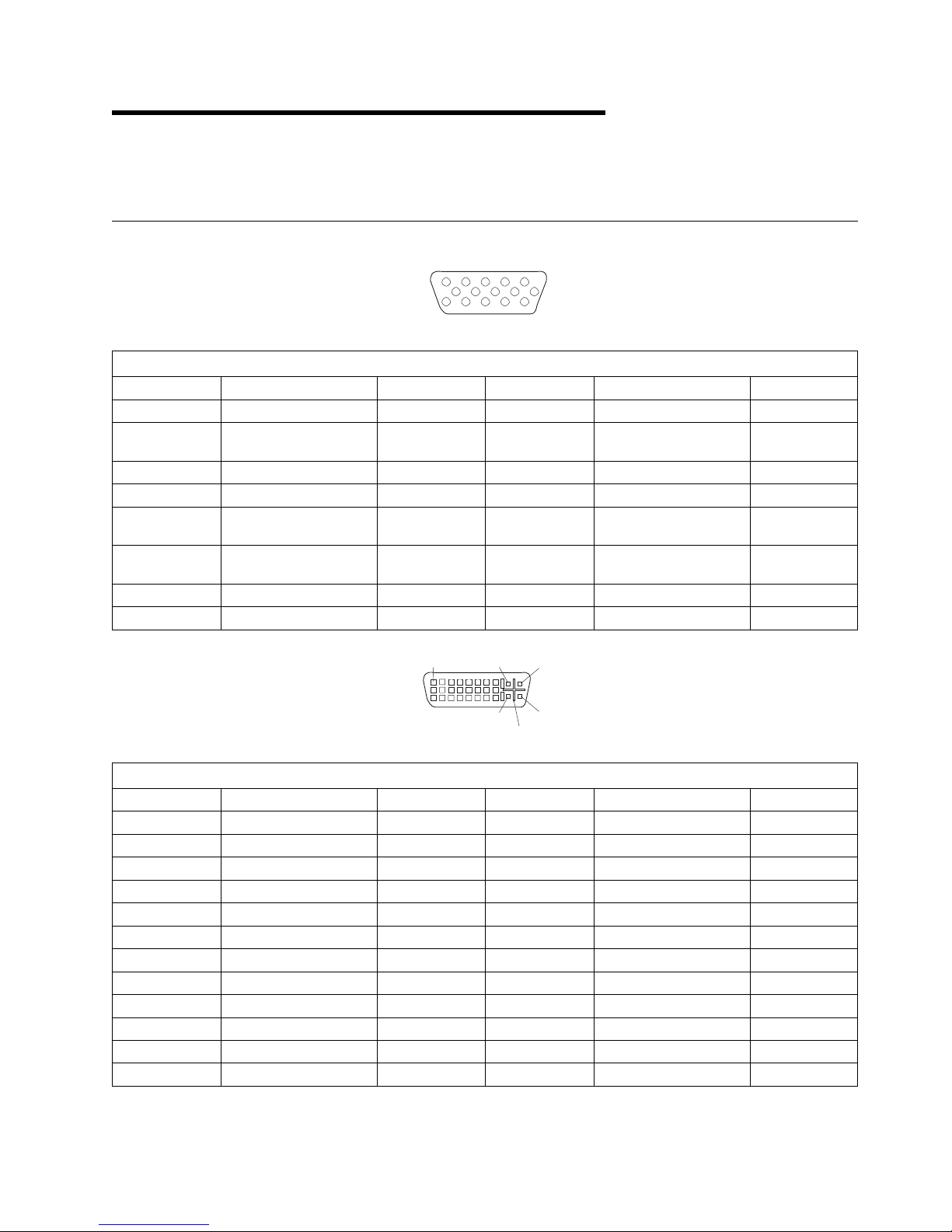

15. Monitor port connector pin assignments—SVGA ............................ 25

16. Monitor port connector pin assignments—DVI main pin field ..................... 25

17. Monitor port connector pin assignments—DVI MicroCross section .................. 26

18. System memory connector pin assignments ............................... 26

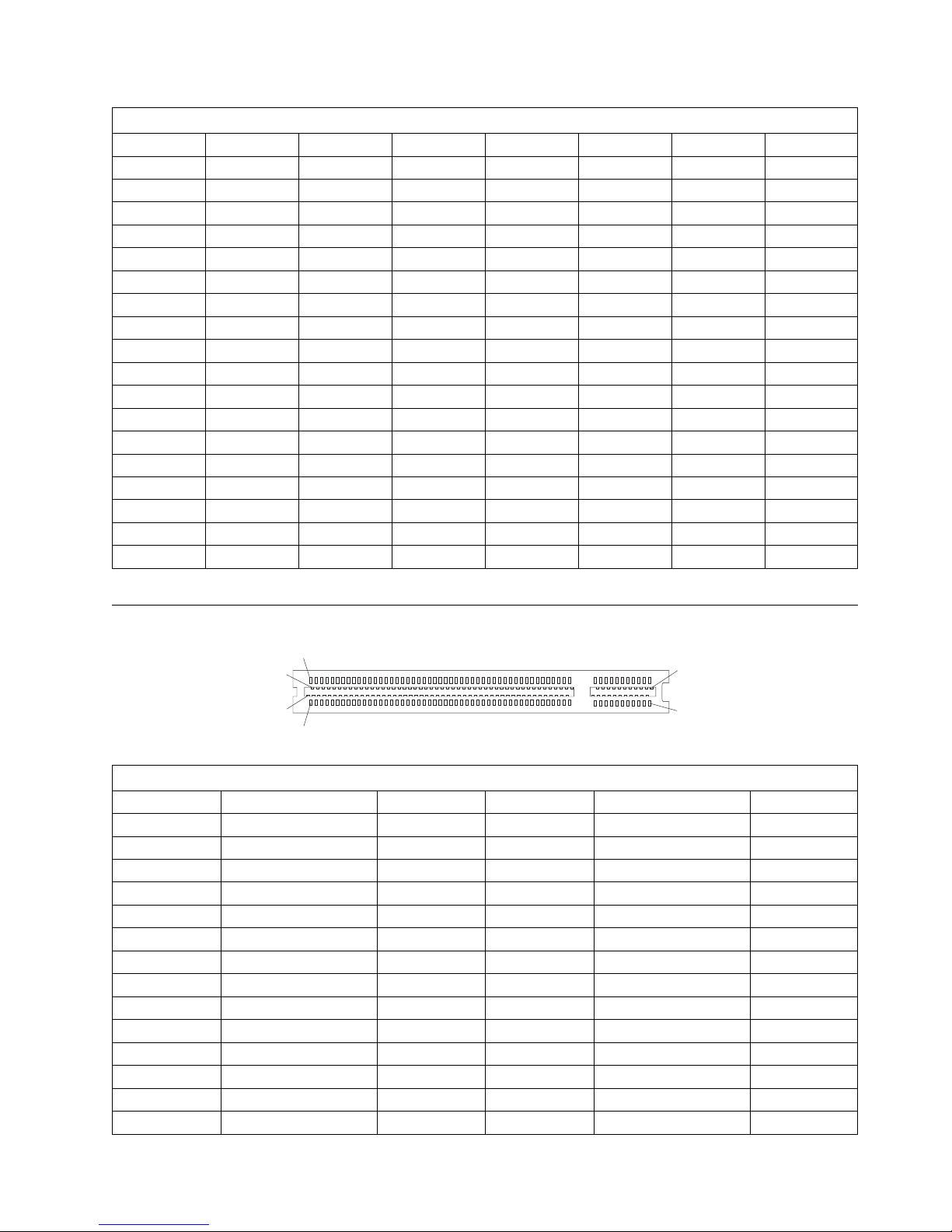

19. PCI connector pin assignments ...................................... 27

20. ISA connector pin assignments ...................................... 29

21. IDE connector pin assignments ...................................... 30

22. Diskette drive connector pin assignments ................................ 31

23. Power supply connector pin assignments ................................ 31

24. Wake on LAN connector pin assignments ................................ 32

25. Alert on LAN connector pin assignments ................................. 32

26. Tamper switch pin assignments ...................................... 32

27. Radio frequency identification (RFID) pin assignments ......................... 32

28. SCSI high frequency LED connector pin assignments ......................... 33

29. CD audio connector pin assignments ................................... 33

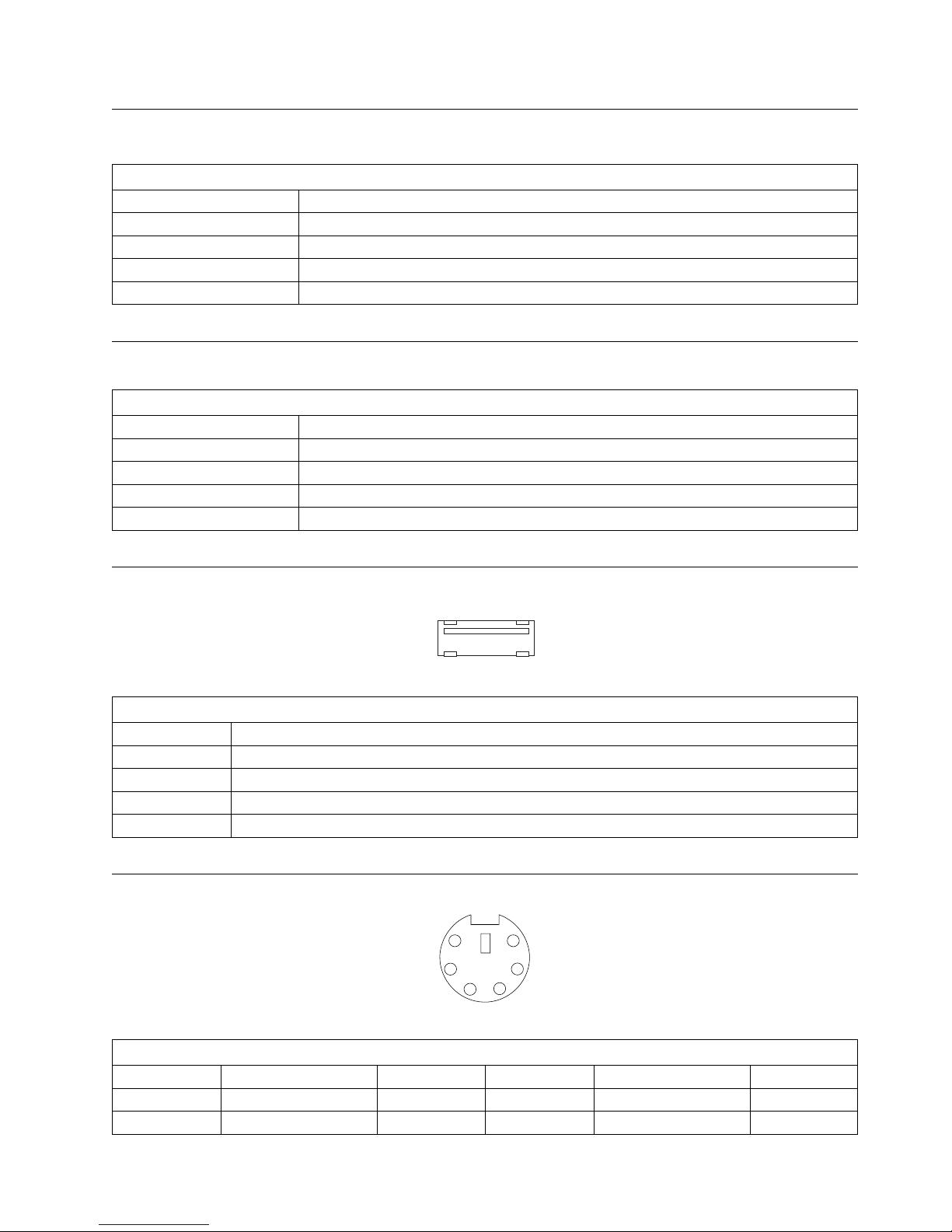

30. USB port connector pin assignments ................................... 33

31. Mouse port connector pin assignments .................................. 33

32. Keyboard port connector pin assignments ................................ 34

33. Serial port connector pin assignments .................................. 34

34. Parallel port connector pin assignments ................................. 34

35. System memory map ............................................ 36

36. I/O address map ............................................... 36

37. DMA I/O address map ........................................... 38

38. IRQ channel assignments ......................................... 40

39. DMA channel assignments ......................................... 40

vi  Copyright IBM Corp. September 1999

Preface

This

Technical Information Manual

intended for developers who want to provide hardware and software products to operate with these IBM computers and provides an in-depth view of how these IBM computers work. Users of this publication should have an understanding of computer architecture and programming concepts.

Related publications

In addition to this manual, the following IBM publications provide information related to the operation of the IBM PC 300PL Personal Computer:



PC 300PL User Guide

This publication contains information about configuring, operating, and maintaining the PC 300PL Personal Computer, as well as installing new options in the PC 300PL Personal Computer. Also included are warranty information, instructions for diagnosing and solving problems, and information on how to obtain help and service.

provides information for the IBM PC 300 Types 6584 and 6594. It is



Understanding Your Personal Computer

This online document includes general information about using computers and detailed information about the features of the PC 300PL Personal Computer.



About Your Software

This publication (provided only with computers that have IBM-preinstalled software) contains information about the preinstalled software package.



Hardware Maintenance Manual

This publication contains information for trained service technicians. It is available at http://www.ibm.com/pc/us/cdt/hmm.html on the World Wide Web, and it can also be ordered from IBM. To purchase a copy, see the "Getting Help, Service, and Information" section in

Guide



Compatibility Report

This publication contains information about compatible hardware and software for the PC 300PL Personal Computer. It is available at http://www.ibm.com/pc/us/cdt on the World Wide Web.



Network Administrator's Guide

This publication contains information for network administrators who configure and service local area networks (LANs). Look for this publication at http://www.ibm.com/pc/us/cdt on the World Wide Web.

Terminology usage

Attention: The term

Use of reserved areas can cause compatibility problems, loss of data, or permanent damage to the hardware. When the contents of a register are changed, the state of the reserved bits must be preserved. When possible, read the register first and change only the bits that must be changed.

reserved

describes certain signals, bits, and registers that should not be changed.

PC 300PL User

In this manual, some signals are represented in a small, all-capital-letter format (-ACK). A minus sign in front of the signal indicates that the signal is active low. No sign in front of the signal indicates that the signal is active high.

The use of the term

 Copyright IBM Corp. September 1999 vii

hex

indicates a hexadecimal number.

When numerical modifiers such as K, M, and G are used, they typically indicate powers of 2, not powers of 10. For example, 1 KB equals 1024 bytes (210), 1 MB equals 1048576 bytes (220), and 1 GB equals 1 073 741 824 bytes (230).

When expressing storage capacity, MB equals 1 000 KB (1024000). The value is determined by counting the number of sectors and assuming that every two sectors equals 1 KB.

Note: Depending on the operating system and other system requirements, the storage capacity available

to the user might vary.

viii Technical Information Manual

Chapter 1. System overview

PC 300PL Types 6584 and 6594 are computer systems designed to provide state-of-the-art computing power with room for future growth.

Major features

The major features are:

 An Intel Pentium III microprocessor with MMX technology, streaming single instruction multiple

data (SIMD) extensions, and 256 KB L2 cache

 Up to 1 GB of system memory  Integrated IDE bus master controller, Ultra DMA/66 capable  EIDE hard disk drive

 System management

– Wake on LAN support – Desktop Management Interface (DMI) BIOS and DMI software – Integrated network protocols – Enablement for remote administration – Wake on Ring support

 IDE CD-ROM1 drive, standard on some models

 Asset security

– Security settings provided by the Configuration/Setup Utility program

- Power-on and administrator password protection

- Startup sequence control

- Hard disk drive and diskette drive access control

- I/O port control – Cover key lock – U-bolt and security cabling (optional) – Operating system security

– Diskette write-protection

– Alert on LAN support – Tamper-detection switch on the chassis

 Accelerated graphics port (AGP) adapter  Integrated 16-bit stereo audio controller and built-in high-quality speaker in some models (supports

SoundBlaster, Adlib, and Microsoft Windows Sound System applications)

 Networking

– IBM 10/100 megabits-per-second (Mbps) PCI Ethernet adapter with Wake on LAN support in

some models

– IBM PCI token ring adapter with Wake on LAN support (optional)

Variable read rate. Actual playback speed will vary and is often less than the maximum possible.

 Copyright IBM Corp. September 1999

 Expansion

Desktop

– Four drive bays – Four PCI expansion slots

Tower

– Six drive bays – Six PCI expansion slots

 PCI I/O bus compatibility  EnergyStar compliance (some models only)  3.5-inch, 1.44 MB diskette drive

 Input/output features

– One 25-pin, parallel port with Extended Capabilities Port (ECP)/Extended Parallel Port (EPP)

support

– Two 9-pin, universal asynchronous receiver/transmitter (UART) serial ports – Two 4-pin, Universal Serial Bus ports

Chapter 1. System overview

– One 6-pin, keyboard port (Windows 95 compatible) – One 6-pin, mouse port – One 15-pin, DDC2B-compliant monitor port on the AGP adapter – Three 3.5-mm audio jacks (line out/headphone, line in, microphone)

Other features

The PC 300PL Personal Computer supports the following features:

Network support

PC 300PL Personal Computer computers are enabled to support management over a network. The following is a list of supported functions:

 Selectable startup sequence  Selectable automatic power on startup sequence  POST/BIOS update from network  Wake on LAN feature  CMOS Save/Restore utility program  CMOS setup over LAN  Wake on Ring

Wake on LAN

The power supply of the computer supports the Wake on LAN feature. With the Wake on LAN feature, the computer can be turned on when a specific LAN frame is passed to the computer over the LAN.

To use the Wake on LAN feature, the computer must be equipped with a network adapter that supports Wake on LAN. Some models come with a network adapter that supports Wake on LAN. You can find the menu for setting the Wake on LAN feature in the Configuration/Setup Utility program.

2 Technical Information Manual

Chapter 1. System overview

Wake on Ring

All models can be configured to turn on the computer after a ring is detected from an external or internal modem. The menu for setting the Wake on Ring feature is in the Configuration/Setup Utility program. Two options control this feature:

 Serial Ring Detect: Use this option if the computer has an external modem connected to the serial

port.

 Modem Ring Detect: Use this option if the computer has an internal modem.

Chapter 1. System overview 3

Chapter 2. System board features

This section includes information about system board features. For an illustration of the system board, see “System board, Types 6584 and 6594” on page 13.

Pentium III microprocessor with MMX technology

PC 300PL Types 6584 and 6594 come with an Intel Pentium III microprocessor. The microprocessor, which has an attached heat sink, plugs directly into a connector on the system board.

Features

The features of this microprocessor are as follows:

 Optimization for 32-bit software  64-bit microprocessor data bus  133 MHz front side bus (FSB)  256 KB L2 cache integrated into the microprocessor  32-bit microprocessor address bus

 Math coprocessor

 MMX technology, which boosts the processing of graphic, video, and audio data  Cache speed is half of processor core speed

– 4-way set associative

– Nonblocking

Chapter 2. System board features

L2 cache

The Pentium III microprocessor provides 256 KB L2 cache. The L2 cache ECC function is automatically enabled if ECC memory is installed. If non-ECC memory is installed, the L2 cache ECC is disabled. (For information on overriding the ECC memory settings, see the chapter about the Configuration/Setup Utility program, in http://www.intel.com on the World Wide Web.

PC 300PL User Guide

.) More information on this microprocessor is available at

Chip set control

The Intel 820 chip set is the interface between the microprocessor and the following:  Memory subsystem

 PCI bus

 IDE bus master connection  High-performance, PCI-to-ISA bridge

 USB ports  SMBus

 Enhanced DMA controller  Real-time clock (RTC)

4  Copyright IBM Corp. September 1999

Chapter 2. System board features

System memory

The system memory interface is controlled by the Intel 820 chip set. Rambus dynamic random access memory (RDRAM) is standard.

The maximum amount of addressable system memory is 1 GB. For memory expansion, the system board provides two Rambus inline memory module (RIMM) connectors. The system board also supports PC700 memory and PC800 memory RIMMs in sizes of 64 MB, 128 MB, 256 MB, and 512 MB. The amount of memory that is preinstalled varies by model.

The following information applies to system memory:

 ECC or non-ECC RDRAM is standard.  The maximum height of memory modules is 6.35 cm (2.5 in.).  Each memory connector supports a maximum of 512 MB of memory, when available.  Install only ECC RIMMS to enable ECC. If you use ECC and non-ECC memory together, all installed

memory will function as non-ECC memory.

 RIMM connectors do not support dual inline memory modules (DIMMs).  Any connector that does not have a RIMM installed must have a

continuity RIMM

(C-RIMM), a module that looks like a RIMM but has no memory on it. A continuity RIMM is used to continue the connection on a RIMM connector that does not have memory installed in it.

 Use PC700 or PC800 RIMMs only.  Maximum system memory can be auto-detected and auto-configured using serial presence detect and

configuration interface (BIOS specific).

The following table shows the possible configuration of RIMMs and continuity RIMMs that can be used in the PC 300PL Personal Computer.

Figure 1. Memory configurations for 133 MHz FSB

RIMM 1 RIMM 2 Functions as

PC700 PC700 PC700 PC700 PC800 PC700 PC700 C-RIMM PC700 PC800 PC800 PC800 PC800 C-RIMM PC800 C-RIMM C-RIMM Invalid Any RIMM No RIMM Invalid No RIMM No RIMM Invalid No RIMM C-RIMM Invalid

For information on the pin assignments for the memory-module connectors, see “Memory connectors” on page 26.

Chapter 2. System board features 5

Chapter 2. System board features

PCI bus

The fully synchronous 33 MHz PCI bus originates in the chip set. Features of the PCI bus are:

 Integrated arbiter with multitransaction PCI arbitration acceleration hooks  Zero-wait-state, microprocessor-to-PCI write interface for high-performance graphics  Built-in PCI bus arbiter with support for up to five masters  Microprocessor-to-PCI memory write posting with 5-Dword-deep buffers  Conversion of back-to-back sequential microprocessor-to-PCI memory write to PCI burst write  PCI-to-DRAM posting 18 Dwords  PCI-to-DRAM up to 100+ MB/sec bandwidth  Multitransaction timer to support multiple short PCI transactions within one PCI ARB cycle  PCI 2.2 compliant

 Delayed transaction

 PCI parity checking and generation support

IDE bus master interface

The system board incorporates a PCI-to-IDE interface that complies with the

Extensions

The bus master for the IDE interface is integrated into the I/O hub of the Intel 820 chip set. The chip set is PCI 2.2 compliant. It connects directly to the PCI bus and is designed to allow concurrent operations on the PCI bus and IDE bus. The chip set is capable of supporting PIO mode 0–4 devices and IDE DMA mode 0–3 devices, ATA 66 transfers up to 66 megabytes per second (MBps).

AT Attachment Interface with

The IDE devices receive their power through a four-position power cable containing +5, +12, and ground voltage. When devices are added to the IDE interface, one device is designated as the master device and another is designated as the slave or subordinate device. These designations are determined by switches or jumpers on each device. There are two IDE ports, one designated Primary and the other Secondary, allowing for up to four devices to be attached. The total number of physical IDE devices is determined by the mechanical package.

For the IDE interface, no resource assignments are given in the system memory or the direct memory access (DMA) channels. For information on the resource assignments, see “Input/output address map” on page 36 and Figure 38 on page 40 (for IRQ assignments).

Two connectors are provided on the riser card for the IDE interface. For information on the connector pin assignments, see “IDE connectors” on page 30.

USB interface

Universal Serial Bus (USB) technology is a standard feature of the computer. The system board provides the USB interface with two connectors integrated into the ICH1 (I/O hub) in the chip set. A USB-enabled device can attach to a connector, and if that device is a hub, multiple peripheral devices can attach to the hub and be used by the system. The USB connectors use Plug and Play technology for installed devices. The speed of the USB is up to 12 MB/sec with a maximum of 127 peripheral devices. The USB is compliant with Universal Host Controller Interface Guide 1.0.

6 Technical Information Manual

Chapter 2. System board features

Features provided by USB technology include:

 Support for hot-pluggable devices  Support for concurrent operation of multiple devices  Suitability for different device bandwidths  Support for up to five meters length from host to hub or from hub to hub  Guaranteed bandwidth and low latencies appropriate for specific devices  Wide range of packet sizes  Limited power to hubs

For information on the connector pin assignments for the USB interface, see “USB port connectors” on page 33.

Low pin count bus

The low pin count (LPC) bus allows a connection of the ISA and X-Bus devices such as Super I/O. The PC 300PL Personal Computer uses the National Semiconductor PC87360 Super I/O chip. The PC87360 chip includes the following:

 Floppy disk controller  Keyboard and mouse controller  IEEE 1284 parallel port  Two UART serial ports  Wake on LAN support  General purpose input/output (GPIO) ports

 PC98 compliance  ACPI compliance

Diskette write protection can be enabled or disabled by a programmable setting in the LPC I/O. This setting is accessible through the Configuration/Setup Utility program.

Video subsystem

The PC 300PL Personal Computer comes with one of the following graphics solutions:

 NumberNine S3 Savage4 Accelerated Graphics Port (AGP) 2X adapter with 8 MB 110 MHz SDRAM

and a 15-pin SVGA connector

 NumberNine S3 Savage4 Extreme AGP 4X adapter, with 16 MB 166 MHz SDRAM and a converter for

a 15-pin VGA displays

The Savage4 graphics accelerator supports the following features:

 128-bit 2D graphics engine  High-performance 2D/3D video accelerator

 3D rendering

 Motion video architecture  High-speed memory bus  Flat panel desktop monitor support  Full software support  ACPI and PCI power management  PCI 2.2 bus support, including bus mastering  300 MHz RAMDAC with gamma correction  I2C serial bus and flash ROM support  2.5 V core with 3.3V/5V tolerant I/O  Hardware and BIOS support for VESA timings and DDC monitor communications

Chapter 2. System board features 7

Chapter 2. System board features

The video subsystem supports all video graphics array (VGA) modes and is compliant with super video graphics array (SVGA) modes and Video Electronics Standards Association (VESA) 1.2. Some enhanced features include:

 Video subsystem on a chip, including 2D, 3D, and a video port  66 MHz AGP system bus interface with 2X or 4X mode  Sideband signaling (some models only)  Command list bus mastering support for fast 2D performance  64-bit, 125 MHz SDRAM or 166 MHz SGRAM interface  Plug and Play support  Advanced Power Management support  Color space conversion

 Hardware scaling The integrated graphics memory controller subsystem supports the VESA Display Data Channel (DDC)

standard 1.1 and uses DDC1 and DDC2B to determine optimal values during automatic monitor detection. The video subsystem has the following resource assignments:

Figure 2. Video subsystem resources

Resource Assignment

ROM Hex C0000–C7FFF (32KB) RAM Hex A0000–BFFFF I/O (hex) VGA registers: Attributes 0–14, CRT controller 0–18/22/24/26, CRTC Extension 0-6, DACSTAT, FEAT, GCTL

0-8, INSTS0-1, MISC, Sequencer 0-4, DAC

IRQ PCI interrupt 1 (automatically assigned to IRQ 0BH by POST or can be disabled in the Configuration/Setup

Utility)

DMA None

For further information on resource assignments, see Appendix B, “System address maps” on page 36 and Appendix C, “IRQ and DMA channel assignments” on page 40.

The PC 300PL Personal Computer supports the following video subsystem modes:

8 Technical Information Manual

Chapter 2. System board features

Figure 3. Supported VGA video modes

Dot Mode (hex)

00 Text 40 x 25 characters 2 B8000 28.322 31.5 70 01 Text 40 x 25 characters 16 B8000 28.322 31.5 70 02 Text 80 x 25 characters B/W B8000 28.322 31.5 70 03 Text 80 x 25 characters 16 B8000 28.322 31.5 70 04 Graphics 320 x 200 pixels 4 B8000 25.175 31.5 70 05 Graphics 320 x 200 pixels 4 B8000 25.175 31.5 70 06 Text 640 x 200 pixels 2 B8000 25.175 31.5 70 07 Text 80 x 25 characters Mono B0000 28.322 31.5 70 0D Graphics 320 x 200 pixels 16 A0000 25.175 31.5 70 0E Graphics 640 x 200 pixels 16 A0000 25.175 31.5 70 0F Graphics 640 x 350 pixels Mono A0000 25.175 31.5 70 10 Graphics 640 x 350 pixels 16 A0000 25.175 31.5 70 11 Graphics 640 x 480 pixels 2 A0000 25.175 31.5 60 12 Graphics 640 x 480 pixels 16 A0000 25.175 31.5 60 13 Graphics 320 x 200 pixels 256 A0000 25.175 31.5 70

Display mode Screen resolution Colors

Buffer start (hex)

clock

(MHz)

Sweep rate (kHz)

Refresh rate (Hz)

Monitor support

The video subsystem provides a 15-pin monitor connector on the system board. For information on connector pin assignments, see Appendix A, “Connector pin assignments” on page 25.

Video memory

The video memory interface is controlled by an integrated graphics subsystem on the AGP adapter with up to 16 MB video RAM for 2D/3D graphics.

Audio subsystem

The PC 300PL Personal Computer comes with an integrated audio controller. These models are capable of playing and recording sounds and support SoundBlaster, Adlib, and Microsoft Windows Sound System applications.

The device drivers for the preinstalled audio adapter are on the hard disk. The device drivers are also available on the with the computer.

If you connect an optional device to the audio adapter, follow the instructions provided by the manufacturer. (Note that device drivers might be required. If necessary, contact the manufacturer for information on these device drivers.)

The following connectors are available on the integrated audio controller:

Product Recovery CD

Device Driver and IBM Enhanced Diagnostics CD

that comes



Line/headphone out

port for connecting powered speakers. To hear audio from the adapter you must connect a set of speakers to the Line out port. These speakers must be powered with a built-in amplifier. In general, any powered speakers designed for use with personal computers can be used with the audio subsystem. These speakers are available with a wide range of features and power outputs.



Line in

Chapter 2. System board features 9

port for connecting musical devices, such as a portable CD player or stereo system.



Microphone

for connecting a microphone.

Super input/output controller

Control of the integrated input/output (I/O) and diskette drive controllers is provided by a single module. This module, which supports Plug and Play, controls the following features:

Diskette drive interface Serialport Parallelport

Keyboard and mouse ports

General-purpose I/O ports

Diskette drive interface

The PC 300PL Personal Computer has four drive bays for installing internal devices.The following is a list of devices that the diskette drive subsystem supports:

1.44 MB, 3.5-inch diskette drive

1.44 MB, 3.5-inch, 3-mode drive for Japan (no BIOS support for 3-mode drive)

1.2 MB, 5.25-inch diskette drive

1 Mbps, 500-Kbps, or 250 Kbps internal tape drive

Chapter 2.System board features

One connector is provided on the system board for diskette drive support.For information on the connector pin assignments, see “Diskette drive connector” on page31.

Serialports

Two universal asynchronous receiver/transmitter (UART) serial ports are integrated into the system board.The serial ports include 16-byte data, first-in first-out (FIFO) buffers and have programmable baud rate generators.The serial ports are NS16450 and PC16550A compatible.

For information on the connector pin assignments, see “Serial port connector” on page34. Note: Current loop interface is not supported. The following figure shows the serial port assignments in the configuration.

Figure 4. Serial port assignments

Port assignment Address range (hex) IRQ level

Serial 1 03F8–03FF IRQ4 Serial 2 02F8–02FF IRQ3 Serial 3 03E8–03FF IRQ4 Serial 4 02E8–02FF IRQ3

The default setting for the serial port is COM1.

Parallelport

Integrated in the system board is support for extended capabilities port (ECP), enhanced parallel port (EPP), and standard parallel port (SPP) modes.The modes of operation are selected through the Configuration/Setup Utility program with the default mode set to SPP.The ECP and EPP modes are compliant with IEEE 1284.

The following figure shows the parallel port assignments used in the configuration.

10 Technical Information Manual 

Chapter 2. System board features

Figure 5. Parallel port assignments

Port assignment Address range (hex) IRQ level

Parallel 1 03BC–03BE IRQ7 Parallel 2 0378–037F IRQ5 Parallel 3 0278–027F IRQ5

The default setting for the parallel port is Parallel 1. The system board has one connector for the parallel port. For information on the connector pin

assignments, see “Parallel port connector” on page 34.

Keyboard and mouse ports

The keyboard and mouse subsystem is controlled by a general purpose 8-bit microcontroller; it is compatible with 8042AH. The controller consists of 256 bytes of data memory and 2 KB of read-only memory (ROM).

The controller has two logical devices: one controls the keyboard and the other controls the mouse. The keyboard has two fixed I/O addresses and a fixed IRQ line and can operate without the mouse. The mouse cannot operate without the keyboard because, although it has a fixed IRQ line, the mouse relies on the addresses of the keyboard for operation. For the keyboard and mouse interfaces, no resource assignments are given in the system memory addresses or DMA channels. For information on the resource assignments, see “Input/output address map” on page 36 and Figure 38 on page 40 (for IRQ assignments).

The system board has one connector for the keyboard port and one connector for the mouse port. For information on the connector pin assignments, see “Mouse and keyboard port connectors” on page 33.

Network connection

Some PC 300PL Personal Computer models are equipped with an Ethernet adapter and some are equipped with a token ring adapter that supports the Wake on LAN feature.

Features of the Ethernet adapter are:

 Operates in shared 10BASE-T or 100BASE-TX environment  Transmits and receives data at 10 Mbps or 100 Mbps  Has a RJ-45 connector for LAN attachment  Operates in symmetrical multiprocessing (SMP) environments  Supports Wake on LAN  Supports Alert on LAN  Supports Remote Program Load (RPL) and Dynamic Host Configuration Protocol (DHCP)

Features of the token-ring adapter are:

 Transmits and receives data at 4 Mbps or 16 Mbps  Has a RJ-45 and D-shell connectors for LAN attachment  Supports Wake on LAN  Supports Alert on LAN  Supports Remote Program Load (RPL) and Dynamic Host Configuration Protocol (DHCP)

Chapter 2. System board features 11

Chapter 2. System board features

Real-time clock and CMOS

The real-time clock is a low-power clock that provides a time-of-day clock and a calendar. The clock settings are maintained by an external battery source of 3 V dc.

The system uses 242 bytes of complementary metal-oxide semiconductor (CMOS) memory to store data. The CMOS memory is erased if the jumper on the system board is moved.

To locate the battery, see “System board, Types 6584 and 6594” on page 13.

Flash EEPROM

The system board uses 4 Megabits (Mb) of flash electrically erasable, programmable, read-only memory (EEPROM) to store the basic input/output system (BIOS), video BIOS, IBM logo, Configuration/Setup Utility, and Plug and Play data.

If necessary, the EEPROM can be easily updated using a stand-alone utility program that is available on a

3.5-inch diskette.

Expansion adapters

Each PCI-expansion connector is a 32-bit slot. PCI-expansion connectors support the 32-bit 5 V dc, local-bus signalling environment that is defined in

The PC 300PL Personal Computer has four PCI slots to support the addition of adapters. For information on installing adapters, see

For information on the connector pin assignments, see “PCI connectors” on page 27.

Physical layout

The system board might look slightly different from the one shown. Note: A diagram of the system board, including switch and jumper settings, is attached to the underside

of the computer cover.

PC 300PL User Guide

PCI Local Bus Specification 2.1

12 Technical Information Manual

Chapter 2. System board features

System board, Types 6584 and 6594

.1/Microprocessor .2/RIMM connector 1 .3/RIMM connector 2 .4/AGP slot .5/Recovery jumper .6/Battery

Riser card layouts

The PC 300PL Personal Computer uses a riser card for expansion. The riser card contains expansion slots that connect the adapters to the peripheral component interconnect (PCI) and industry standard architecture (ISA) buses and connectors for the integrated drive electronics (IDE) drives and diskette drives. The following illustrations show the expansion slots on the riser card. The PCI slots are on the front of the riser card, and the power and IDE drive connectors are on the back of the riser card.

PC 300PL — desktop model

Some desktop models have a riser card with four PCI connector slots. The following illustration shows the location of the slots on the PCI riser card.

.1/SCSI LED connector .2/Wake on LAN connector .3/Power connector (back) .4/Primary IDE connector (back) .5/Secondary IDE connector (back) .6/Diskette drive connector .7/Fan connector .8/Tamper detector connector .9/Speaker connector .1ð/RFID connector .11/Power LEDs .12/Alert on LAN connector .13/212-pin connector .14/CD audio connector .15/PCI slot 1 .16/PCI slot 2 .17/PCI slot 3 .18/PCI slot 4

Chapter 2. System board features 13

Some desktop models have a riser card with two PCI slots, one ISA slot, and one shared PCI/ISA slot. The following illustration shows the location of the slot on the PCI/ISA riser card.

.1/PCI slot 3 .2/PCI slot 2 .3/Alert on LAN connector .4/SCSI LED connector .5/Wake on LAN connector .6/FDD connector .7/Fan connector .8/Tamper detector connector .9/Speaker connector .1ð/RFID connector .11/Power LEDs .12/ISA slot .13/ISA slot .14/System board connector .15/PCI slot 1 .16/CD audio connector

PC 300PL — tower model

The following illustration shows the riser card on the tower model.

.1/PCI slots 1-5, lowest to highest .2/Diskette drive connector .3/Hard disk fan 1 connector .4/Hard disk fan 2 connector .5/Front fan connector .6/Wake on LAN connector .7/RFID connector .8/Speaker connector .9/Tamper detector connector .1ð/SCSI LED connector .11/IDE secondary connector .12/IDE primary connector .13/Power connector .14/Alert on LAN connector .15/212-pin system board connector .16/CD audio connector

Chapter 2. System board features

Recovery jumper

The recovery jumper on the system board is used for custom configurations. For the location of the recovery jumper, see the “System board, Types 6584 and 6594” on page 13.

Figure 6. Recovery jumper

Pins Description

1 and 2 Normal (factory default) 2 and 3 Clear CMOS/password, boot block recovery

Cable connectors

Connections for attaching devices are provided on the back of the computer. The connectors are:  USB (2)

 Mouse  Keyboard  Serial (2)  Parallel

 Monitor (SVGA or DVI)

 Audio connectors for line in, line/headphone out, and microphone

14 Technical Information Manual

Chapter 2. System board features

Connector panel

Each connector for a features that is integrated into the system board can be identified by an icon directly below the connector. A connectors provided by an adapter might not have an identifying icon.

For pin-out details on connectors, see Appendix A, “Connector pin assignments” on page 25. The following illustration shows the connector panel for the tower model:

.1/USB connector 2 .2/Serial connector 2 .3/Mouse connector .4/SVGA monitor connector .5/DVI monitor connector .6/Keyboard connector .7/Serial connector 1 .8/USB connector 1 .9/Parallel connector .1ð/Microphone connector .11/Line in connector .12/Line/headphone out connector

The following illustration shows the connector panel for the desktop model:

.1/USB connector 2 .2/Serial connector 2 .3/SVGA monitor connector .4/DVI monitor connector .5/Mouse connector .6/Keyboard connector .7/Serial connector 1 .8/USB connector 1 .9/Parallel connector .1ð/Microphone connector .11/Line in connector .12/Line/headphone out connector

Chapter 2. System board features 15

Chapter 3. Physical specifications

This section lists the physical specifications for the PC 300PL Types 6584 and 6594. The PC 300PL Personal Computer desktop model has four expansion slots and four drive bays. The PC 300PL Personal Computer tower model has six expansion slots and six drive bays.

Note: This computer is classified as a Class B digital device. However, this computer includes a built-in

network interface controller (NIC) and is considered a Class A digital device when the NIC is in use. The Class A digital device rating and compliance notice are primarily because the inclusion of certain Class A options or Class A NIC cables changes the overall rating of the computer to Class A.

PC 300PL — desktop

Dimensions

 Height: 134 mm (5.3 in.)  Width: 447 mm (17.6 in.)  Depth: 450 mm (17.7 in.)

Weight

 Minimum configuration as shipped: 10.0 kg (22 lb)  Maximum configuration: 11.4 kg (25 lb)

Environment

 Air temperature:

– System on: 10° to 35°C (50° to 95°F) – System off: 10° to 43°C (50° to 110°F) – Maximum altitude: 2134 m (7000 ft)

Note: The maximum altitude, 2133.6 m (7000 ft.), is

the maximum altitude at which the specified air temperatures apply. At higher altitudes, the maximum air temperatures are lower than those specified.

 Humidity:

– System on: 8% to 80% – System off: 8% to 80%

Electrical input

 Input voltage:

– Low range:

- Minimum: 90 V ac

- Maximum: 137 V ac

- Input frequency range: 57–63 Hz

- Voltage switch setting: 115 V ac

– High range:

- Minimum: 180 V ac

- Maximum: 265 V ac

- Input frequency range: 47–53 Hz

- Voltage switch setting: 230 V ac

– Input kilovolt-amperes (kVA) (approximate):

- Minimum configuration as shipped: 0.08 kVA

- Maximum configuration: 0.28 kVA

Note: Power consumption and heat output vary depending

on the number and type of optional features installed and the power management optional features in use.

Heat output

 Approximate heat output in British thermal units (Btu) per

hour:

– Minimum configuration: 245 Btu/hr (70 watts) – Maximum configuration: 700 Btu/hr (204 watts)

Airflow

 Approximately 0.56 cubic meter per minute (20 cubic feet

per minute) maximum

Acoustical noise-emission values

 Average sound-pressure levels:

– At operator position:

- Idle: 37 dBA

- Operating: 43 dBA

– At bystander position–1 meter (3.3 ft):

- Idle: 32 dBA

- Operating: 36 dBA

 Declared (upper limit) sound-power levels:

– Idle: 4.7 bels – Operating: 5.1 bels

Note: These levels were measured in controlled acoustical environments according to procedures specified by the American National Standards Institute (ANSI) S12.10 and ISO 7779 and are reported in accordance with ISO 9296. Actual sound-pressure levels in a given location might exceed the average values stated because of room reflections and other nearby noise sources. The declared sound-power levels indicate an upper limit, below which a large number of computers will operate.

16  Copyright IBM Corp. September 1999

Chapter 3. Physical specifications

PC 300PL — tower

Dimensions

 Height: 492 mm (19.4 in.)  Width: 200 mm (7.9 in.)  Depth: 445 mm (17.5 in.)

Weight

 Minimum configuration as shipped: 15 kg (33 lb)  Maximum configuration: 17.3 kg (38 lb)

Environment

 Air temperature:

– System on: 10° to 35°C (50° to 95°F) – System off: 10° to 43°C (50° to 110°F) – Maximum altitude: 2134 m (7000 ft)

Note: The maximum altitude, 2133.6 m (7000 ft.), is

the maximum altitude at which the specified air temperatures apply. At higher altitudes, the maximum air temperatures are lower than those specified.

 Humidity:

– System on: 8% to 80% – System off: 8% to 80%

Electrical input

 Input voltage:

– Low range:

- Minimum: 90 V ac

- Maximum: 137 V ac

- Input frequency range: 57–63 Hz

- Voltage switch setting: 115 V

– High range:

- Minimum: 180 V ac

- Maximum: 265 V ac

- Input frequency range: 47–53 Hz

- Voltage switch setting: 230 V

– Input kilovolt-amperes (kVA) (approximate):

- Minimum configuration as shipped: 0.08 kVA

- Maximum configuration: 0.38 kVA

Note: Power consumption and heat output vary depending

on the number and type of optional features installed and the power management optional features in use.

Heat output

 Approximate heat output in British thermal units (Btu) per

hour:

– Minimum configuration: 245 Btu/hr (70 watts) – Maximum configuration: 969 Btu/hr (285 watts)

Airflow

 Approximately 0.85 cubic meter per minute (30 cubic feet

per minute) maximum

Acoustical noise-emission values

 Average sound-pressure levels:

– At operator position:

- Idle: 36 dBA

- Operating: 39 dBA

– At bystander position–1 meter (3.3 ft):

- Idle: 33 dBA

- Operating: 36 dBA

– Declared (upper limit) sound-power levels:

- Idle: 4.7 bels

- Operating: 5.0 bels

Cabling requirements for Wake on LAN adapters

The PC 300PL Personal Computer has a 3-pin header on the system board that provides the Auxiliary 5 volts (AUX5) and wake-up signal connections. Newer Wake on LAN adapters have a single 3-pin header that connects to the 3-pin header on the riser card. Some Wake on LAN adapters have two headers: a 3-pin, right-angle header for AUX5, and a 2-pin straight header for the wake-up signal. These Wake on LAN adapter options include a Y-cable that has a 3-pin system board connector on one end and splits into the 3-pin and 2-pin connectors that connect to the adapter.

Chapter 3. Physical specifications 17

Chapter 4. Power supply

The power-supply requirements are supplied by 145-watt PC 300PL Personal Computer power supply. The power supply provides 3.3-volt power for the Pentium microprocessor and core chip set and 5-volt power for PCI adapters. Also included is an auxiliary 5-volt (AUX 5) supply to provide power to power-management circuitry and a Wake on LAN adapter. The power supply converts the ac input voltage into four dc output voltages and provides power for the following:

 System board  Adapters  Internal drives

 Keyboard and auxiliary devices  USB devices

A logic signal on the power connector controls the power supply; the front panel switch is not directly connected to the power supply.

The power supply connects to the system board with a 2 x 10 connector.

Chapter 4. Power supply

Power input

The following figure shows the power-input specifications. The power supply has a manual switch to select the correct input voltage.

Figure 7. Power-input requirements

Specification Measurements

Input voltage, low range 100 (min) to 127 (max) V AC Input voltage, high range 200 (min) to 240 (max) V AC Input frequency 50 Hz ± 3 Hz or 60 Hz ± 3 Hz

Power output

The power supply outputs shown in the following figures include the current-supply capability of all the connectors, including system board, DASD, PCI, and auxiliary outputs.

Figure 8. Power-output (145 watts)

Output voltage Regulation Minimum current Maximum current

+5 volts +5% to −4% 1.5 A 18.0 A +12 volts +5% to −5% 0.2 A 4.2 A

−12 volts +10% to −9% 0.0 A 0.4 A +3.3 volts ±2% 0.0 A 10.0 A

−5 volts ±10% 0.0 A 0.3 A +5 volt (auxiliary) +5% to −5% 0.0 A 0.02 A

Note: The total combined 3.3 V and 5 V power must not exceed 100 watts.

18  Copyright IBM Corp. September 1999

Chapter 4. Power supply

Figure 9. Power output (200 watts)

Output voltage Regulation Minimum current Maximum current

+5 volts +5% to -4% 1.5 A 20.0 A +12 volts ±5% 0.2 A 8.0 A

−12 volts +10% to -9% 0.0 A 0.4 A

−5 volts ±10% 0.0 A 0.3 A

+ 3.3 volts ±2% 0.0 A 20.0 A +5 volts (auxiliary) ±5% 0.005 A 0.72 A

Component outputs

The power supply provides separate voltage sources for the system board and internal storage devices. The following figures show the approximate power that is provided for specific system components. Many components draw less current than the maximum shown.

Figure 10. System board

Supply voltage Maximum current Regulation limits

+3.3 V dc 3000 mA +5.0% to −5.0% +5.0 V dc 4000 mA +5.0% to −4.0% +12.0 V dc 25.0 mA +5.0% to −5.0%

−12.0 V dc 25.0 mA +10.0% to −9.0%

Figure 11. Keyboard port

Supply voltage Maximum current Regulation limits

+5.0 V dc 275 mA +5.0% to −4.0%

Figure 12. PCI-bus adapters (per slot)

Supply voltage Maximum current Regulation limits

+5.0 V dc 2000 mA +5.0% to −4.0% +3.3 V dc 3030 mA +5.0% to −4.0%

Note: For each PCI connector, the maximum power consumption is rated at 10 watts for +5 V dc and

+3.3 V dc combined. Typical power budget assumptions use 7.5 watts per adapter. If maximum power is used, then the overall system configuration will be limited in performance.

Figure 13. USB port

Supply voltage Maximum current Regulation limits

+5.0 V dc 500 mA +5.0% to −4.0%

Figure 14. Internal DASD

Supply voltage Maximum current Regulation limits

+5.0 V dc 1400 mA +5.0% to −5.0% +12.0 V dc 1500 mA at startup, 400 mA when

active

+5.0% to −5.0%

Chapter 4. Power supply 19

Chapter 4. Power supply

Note: Some adapters and hard disk drives draw more current than the recommended limits. These

adapters and drives can be installed in the system; however, the power supply will shut down if the total power used exceeds the maximum power that is available.

Output protection

The power supply protects against output overcurrent, overvoltage, and short circuits. See the power supply specifications on the previous pages for details.

A short circuit that is placed on any dc output (between outputs or between an output and dc return) latches all dc outputs into a shutdown state, with no damage to the power supply. If this shutdown state occurs, the power supply returns to normal operation only after the fault has been removed and the power switch has been turned off for at least one second.

If an overvoltage fault occurs (in the power supply), the power supply latches all dc outputs into a shutdown state before any output exceeds 130% of the nominal value of the power supply.

Connector description

The power supply for the PC 300PL Personal Computer has four 4-pin connectors for internal devices. The total power used by the connectors must not exceed the amount shown in “Component outputs” on page 19. For connector pin assignments, see Appendix A, “Connector pin assignments” on page 25.

20 Technical Information Manual

Chapter 5. System software

This section briefly describes some of the system software included with the computer.

BIOS

The computer uses the IBM basic input/output system (BIOS), which is stored in flash electrically erasable programmable read-only memory (EEPROM). Some features of the BIOS are:

 PCI support in accordance with PCI BIOS Specification 2.2  Microsoft PCI IRQ Routing Table  Plug and Play support in accordance with Plug and Play BIOS Specification 1.1a  Advanced Power Management (APM) support according to APM BIOS Interface Specification 1.2  Wake on LAN support  Wake on Ring support  Alert on LAN support  Remote program load (RPL) and Dynamic Host Configuration Protocol (DHCP)  Startable CD-ROM support

 Flash-over-LAN support

 Alternate startup sequence  IBM look and feel, such as screen arrangements  ACPI (Advanced Configuration and Power Interfaces) 1.0b  IDE logical block addressing (LBA) support  LSA 2.0 support

 LS120 support

 DM BIOS 2.1 (DMI 2.0 compliant)

 PC99 compliance

Plug and Play

Support for Plug and Play conforms to the following:

 Plug and Play BIOS Specification 1.1a and 1.0  Plug and Play BIOS Extension Design Guide 1.0  Plug and Play BIOS Specification, Errata, and Clarifications 1.0  Guide to Integrating the Plug and Play BIOS Extensions with system BIOS 1.2  Plug and Play Kit for DOS and Windows

POST

IBM power-on self-test (POST) code is used. Also, initialization code is included for the on-board system devices and controllers.

POST error codes include text messages for determining the cause of an error. For more information, see Appendix D, “Error codes” on page 41.

 Copyright IBM Corp. September 1999 21

Configuration/Setup Utility program

The Configuration/Setup Utility program provides menus for selecting options for devices, I/O ports, date and time, system security, start options, advanced setup, and power management.

Chapter 5. System software

More information on using the Configuration/Setup Utility program is provided in

PC 300PL User Guide

Advanced Power Management (APM)

The PC 300PL Personal Computer computers come with built-in energy-saving capabilities. Advanced Power Management (APM) is a feature that reduces the power consumption of systems when they are not being used. When enabled, APM initiates reduced-power modes for the monitor, microprocessor, and hard disk drive after a specified period of inactivity.

The BIOS supports APM 1.2. This enables the system to enter a power-managed state, which reduces the power drawn from the ac electrical outlet. Advanced Power Management is enabled through the Configuration/Setup Utility program and is controlled by the individual operating system.

For more information on APM, see

PC 300PL User Guide

and

Understanding Your Personal Computer

Advanced Configuration and Power Interface (ACPI)

Automatic Configuration and Power Interface (ACPI) BIOS mode enables the operating system to control the power management features of the computer. Not all operating systems support ACPI BIOS mode. See the operating system documentation to determine if ACPI is supported.

Flash update utility program

The flash update utility program is a stand-alone program to support flash updates. This utility program updates the BIOS code and can change the machine readable information (MRI) to different languages.

The flash update utility program is available on a 3.5-inch diskette.

Diagnostic program

The diagnostic program that comes with the PC 300PL Personal Computer computer is provided on the

Product Recovery CD

operating system. You can use IBM Enhanced Diagnostics to diagnose and repair problems with the computer. You can download the latest version from http://www.ibm.com/pc/support/desktop/desktop_support.html on the World Wide Web. For more information on this diagnostic program, see

and

Device Driver and IBM Enhanced Diagnostics CD

PC 300PL User Guide

. It runs independently of the

22 Technical Information Manual

Chapter 6. System compatibility

This chapter discusses some of the hardware, software, and BIOS compatibility issues for the computer. See the

Hardware compatibility

This section discusses hardware, software, and BIOS compatibility issues that must be considered when designing application programs.

Many of the interfaces are the same as those used by the IBM Personal Computer AT. In most cases, the command and status organization of these interfaces is maintained.

The functional interfaces are compatible with the following interfaces:

 Intel 8259 interrupt controllers (edge-triggered mode)  National Semiconductor NS16450 and NS16550A serial communication controllers

Compatibility Report

for a list of compatible hardware and software options.

 Motorola MC146818 Time of Day Clock command and status (CMOS reorganized)  Intel 8254 timer, driven from a 1.193 MHz clock (channels 0, 1, and 2)  Intel 8237 DMA controller, except for the Command and Request registers and the Rotate and Mask

functions; the Mode register is partially supported

 Intel 8272 or 82077 diskette drive controllers  Intel 8042 keyboard controller at addresses hex 0060 and hex 0064  All video standards using VGA, EGA, CGA, MDA, and Hercules modes  Parallel printer ports (Parallel 1, Parallel 2, and Parallel 3) in compatibility mode

Use this information to develop application programs. Whenever possible, use the BIOS as an interface to hardware to provide maximum compatibility and portability of applications among systems.

Hardware interrupts

Hardware interrupts are level-sensitive for PCI interrupts. The interrupt controller clears its in-service register bit when the interrupt routine sends an End-of-Interrupt (EOI) command to the controller. The EOI command is sent regardless of whether the incoming interrupt request to the controller is active or inactive.

The interrupt-in-progress latch is readable at an I/O-address bit position. This latch is read during the interrupt service routine and might be reset by the read operation or it might require an explicit reset.

Note: For performance and latency considerations, designers might want to limit the number of devices

sharing an interrupt level.

With level-sensitive interrupts, the interrupt controller requires that the interrupt request be inactive at the time the EOI command is sent; otherwise, a new interrupt request will be detected. To avoid this, a level-sensitive interrupt handler must clear the interrupt condition (usually by a read or write operation to an I/O port on the device causing the interrupt). After processing the interrupt, the interrupt handler:

1. Clears the interrupt

2. Waits one I/O delay

3. Sends the EOI

 Copyright IBM Corp. September 1999 23

Chapter 6. System compatibility

4. Waits one I/O delay

5. Enables the interrupt through the Set Interrupt Enable Flag command

Hardware interrupt IRQ9 is defined as the replacement interrupt level for the cascade level IRQ2. Program interrupt sharing is implemented on IRQ2, interrupt hex 0A. The following processing occurs to maintain compatibility with the IRQ2 used by IBM Personal Computer products:

1. A device drives the interrupt request active on IRQ2 of the channel.

2. This interrupt request is mapped in hardware to IRQ9 input on the second interrupt controller.

3. When the interrupt occurs, the system microprocessor passes control to the IRQ9 (interrupt hex 71) interrupt handler.

4. This interrupt handler performs an EOI command to the second interrupt controller and passes control to the IRQ2 (interrupt hex 0A) interrupt handler.

5. This IRQ2 interrupt handler, when handling the interrupt, causes the device to reset the interrupt request before performing an EOI command to the master interrupt controller that finishes servicing the IRQ2 request.

Hard disk drives and controller

Reading from and writing to the hard disk is initiated in the same way as in IBM Personal Computer products; however, new functions are supported.

Software compatibility

To maintain software compatibility, the interrupt polling mechanism that is used by IBM Personal Computer products is retained. Software that interfaces with the reset port for the IBM Personal Computer positive-edge interrupt sharing (hex address 02Fx or 06Fx, where x is the interrupt level) does not create interference.

Software interrupts

With the advent of software interrupt sharing, software interrupt routines must daisy chain interrupts. Each routine must check the function value, and if it is not in the range of function calls for that routine, it must transfer control to the next routine in the chain. Because software interrupts are initially pointed to address 0:0 before daisy chaining, check for this case. If the next routine is pointed to address 0:0 and the function call is out of range, the appropriate action is to set the carry flag and do a RET 2 to indicate an error condition.

Machine-sensitive programs

Programs can select machine-specific features, but they must first identify the machine and model type. IBM has defined methods for uniquely determining the specific machine type. The machine model byte can be found through Interrupt 15H, Return System Configuration Parameters function (AH)=C0H).

24 Technical Information Manual

Appendix A. Connector pin assignments

The following figures show the pin assignments for various system board connectors.

Monitor connector

10 6

15 11

Figure 15. Monitor port connector pin assignments—SVGA

Pin Signal I/O Pin Signal I/O

1 Red O 2 Green O 3 Blue O 4 Monitor ID 2 - Not

5 Ground NA 6 Red ground NA 7 Green ground NA 8 Blue ground NA 9 +5 V, used by DDC2B NA 10 Ground NA

used

11 Monitor ID 0 - Not

used 13 Horizontal sync O 14 Vertical sync O 15 DDC2B clock I/O

I 12 DDC2B serial data I/O

C1 C2

C3C5C4

Figure 16. Monitor port connector pin assignments—DVI main pin field

Pin Signal I/O Pin Signal I/O

1 TMDS data 2+ O 2 TMDS data 2- O 3 TMDS data 2/4 return N/A 4 TMDS data 4-* O 5 TMDS data 4+* O 6 DDC clock I/O 7 DDC data I/O 8 Analog vertical sync O 9 TMDS data 1- O 10 TMDS data 1+ O 11 TMDS data 1/3 shield N/A 12 TMDS data 3+* O 13 TMDS data 3+* O 14 +5V power O 15 Ground N/A 16 Hot plug detect O 17 TMDS data 0- O 18 TMDS data 0+ O 19 Return N/A 20 TMDS D5* O 21 TMDS data 5+* O 22 TMDS clock shield N/A 23 TMDS clock+ O 24 TMDS clock- O

 Copyright IBM Corp. September 1999 25

Figure 17. Monitor port connector pin assignments—DVI MicroCross section

Pin Signal I/O Pin Signal I/O

C1 Red video out O C2 Green video out O C3 Analog blue O C4 Analog horizontal sync O C5 Video/pixel clock return N/A

*These are not used on the NumberNine S3 Savage4 AGP card.

Memory connectors

Appendix A. Connector pin assignments

184

Figure 18 (Page 1 of 2). System memory connector pin assignments

Pin Signal Pin Signal Pin Signal Pin Signal

A1 Gnd B1 Gnd A47 NC B47 NC A2 LDQA8 B2 LDQA7 A48 NC B48 NC A3 Gnd B3 Gnd A49 NC B49 NC A4 LDQA6 B4 LDQA5 A50 NC B50 NC A5 Gnd B5 Gnd A51 Vref B51 Vref A6 LDQA4 B6 LDQA3 A52 Gnd B52 Gnd A7 Gnd B7 Gnd A53 SCL B53 SA0 A8 LDQA2 B8 LDQA1 A54 Vdd B54 Vdd A9 Gnd B9 Gnd A55 SDA B55 SA1 A10 LDQA0 B10 LCFM A56 SVdd B56 SVdd A11 Gnd B11 Gnd A57 SWP B57 SA2 A12 LCTMN B12 LCFMN A58 Vdd B58 Vdd A13 Gnd B13 Gnd A59 RSCK B59 RCMD A14 LCTM B14 NC A60 Gnd B60 Gnd A15 Gnd B15 Gnd A61 RDQB7 B61 RDQB8 A16 NC B16 LROW2 A62 Gnd B62 Gnd A17 Gnd B17 Gnd A63 RDQB5 B63 RDQB6 A18 LROW1 B18 LROW0 A64 Gnd B64 Gnd A19 Gnd B19 Gnd A65 RDQB3 B65 RDQB4 A20 LCOL4 B20 LCOL3 A66 Gnd B66 Gnd A21 Gnd B21 Gnd A67 RDQB1 B67 RDQB2 A22 LCOL2 B22 LCOL1 A68 Gnd B68 Gnd A23 Gnd B23 Gnd A69 RCOL0 B69 RDQB0 A24 LCOL0 B24 LDQB0 A70 Gnd B70 Gnd A25 Gnd B25 Gnd A71 RCOL2 B71 RCOL1 A26 LDQB1 B26 LDQB2 A72 Gnd B72 Gnd A27 Gnd B27 Gnd A73 RCOL4 B73 RCOL3 A28 LDQB3 B28 LDQB4 A74 Gnd B74 Gnd

26 Technical Information Manual

Appendix A. Connector pin assignments

Figure 18 (Page 2 of 2). System memory connector pin assignments

Pin Signal Pin Signal Pin Signal Pin Signal

A29 Gnd B29 Gnd A75 RROW1 B75 RROW0 A30 LDQB5 B30 LDQB6 A76 Gnd B76 Gnd A31 Gnd B31 Gnd A77 NC B77 RROW2 A32 LDQB7 B32 LDQB8 A78 Gnd B78 Gnd A33 Gnd B33 Gnd A79 RCTM B79 NC A34 LSCK B34 LCMD A80 Gnd B80 Gnd A3 Vcmos B35 Vcmos A81 RCTMN B81 RCFMN A36 SOUT B36 SIN A82 Gnd B82 Gnd A37 Vcmos B37 Vcmos A83 RDQA0 B83 RCFM A38 NC B38 NC A84 Gnd B84 Gnd A39 Gnd B39 Gnd A85 RDQA2 B85 RDQA1 A40 NC B40 NC A86 Gnd B86 Gnd A41 Vdd B41 Vdd A87 RDQA4 B87 RDQA3 A42 Vdd B42 Vdd A88 Gnd B88 Gnd A43 NC B43 NC A89 RDQA6 B89 RDQA5 A44 NC B44 NC A90 Gnd B90 Gnd A45 NC B45 NC A91 RDQA8 B91 RDQA7 A46 NC B46 NC A92 Gnd B92 Gnd

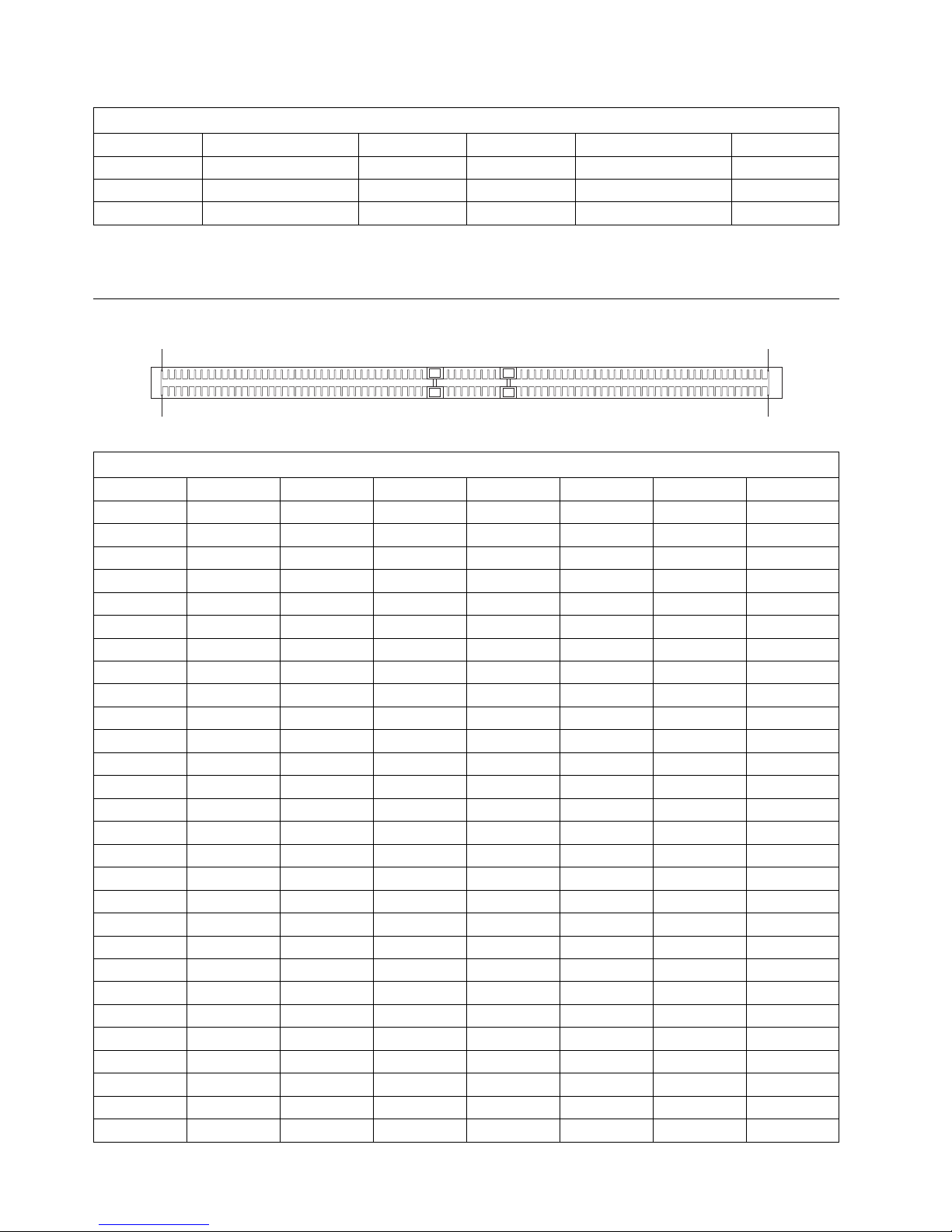

PCI connectors

A62

B62

Figure 19 (Page 1 of 3). PCI connector pin assignments

Pin Signal I/O Pin Signal I/O

A1 TRST# O B1 −12 V dc NA A2 +12 V dc NA B2 TCK O A3 TMS O B3 Ground NA A4 TDI O B4 TDO I A5 +5 V dc NA B5 +5 V dc NA A6 INTA# I B6 +5 V dc NA A7 INTC# I B7 INTB# I A8 +5 V dc NA B8 INTD# I A9 Reserved NA B9 PRSNT1# I A10 +5 V dc NA B10 Reserved NA A11 Reserved NA B11 PRSNT2# I A12 Ground NA B12 Ground NA A13 Ground NA B13 Ground NA A14 3.3 V AUX NA B14 3.3 V AUX NA

Appendix A. Connector pin assignments 27

Figure 19 (Page 2 of 3). PCI connector pin assignments

Pin Signal I/O Pin Signal I/O

A15 RST# O B15 Ground NA A16 +5 V dc (I/O) NA B16 CLK O A17 GNT# O B17 Ground NA A18 Ground NA B18 REQ# I A19 PCI NA B19 +5 V dc NA A20 Address/data 30 I/O B20 Address/data 31 I/O A21 +3.3 V dc NA B21 Address/data 29 I/O A22 Address/data 28 I/O B22 Ground NA A23 Address/data 26 I/O B23 Address/data 27 I/O A24 Ground I/O B24 Address/data 25 NA A25 Address/data 24 I/O B25 +3.3 V dc NA A26 IDSEL O B26 C/BE 3# I/O A27 +3.3 V dc NA B27 Address/data 23 I/O A28 Address/data 22 I/O B28 Ground NA A29 Address/data 20 I/O B29 Address/data 21 I/O A30 Ground I/O B30 Address/data 19 NA A31 Address/data 18 I/O B31 +3.3 V dc NA A32 Address/data 16 I/O B32 Address/data 17 I/O A33 +3.3 V dc NA B33 C/BE 2# I/O A34 FRAME# I/O B34 Ground NA A35 Ground NA B35 IRDY# I/O A36 TRDY# I/O B36 +3.3 V dc NA A37 Ground NA B37 DEVSEL# I/O A38 STOP# I/O B38 Ground NA A39 +3.3 V dc NA B39 LOCK# I/O A40 SMBCLK* I/O B40 PERR# I/O A41 SMBDATA* I/O B41 +3.3 V dc NA A42 Ground NA B42 SERR# I/O A43 PAR NA B43 +3.3 V dc NA A44 Address/data 15 I/O B44 C/BE 1# I/O A45 3.3 V dc I/O B45 Address/data 14 I/O A46 Address/data 13 NA B46 Ground NA A47 Address/data 11 I/O B47 Address/data 12 I/O A48 Ground I/O B48 Address/data 10 I/O A49 Address/data 9 NA B49 Ground NA A50 Key NA B50 Key NA A51 Key NA B51 Key NA A52 C/BE(0)# I/O B52 Address/data 8 I/O A53 3.3 V dc I/O B53 Address/data 7 I/O A54 Address/data 6 NA B54 +3.3 V dc NA A55 Address/data 4 I/O B55 Address/data 5 I/O A56 Ground I/O B56 Address/data 3 I/O A57 Address/data 2 NA B57 Ground NA

Appendix A. Connector pin assignments

28 Technical Information Manual

Appendix A. Connector pin assignments

Figure 19 (Page 3 of 3). PCI connector pin assignments

Pin Signal I/O Pin Signal I/O

A58 Address/data 0 I/O B58 Address/data 1 I/O A59 +5 V dc NA B59 +5 V dc NA A60 ACK64# I/O B60 ACK64# I/O A61 +5 V dc NA B61 +5 V dc NA A62 +5 V dc NA B62 +5 V dc NA

*These assignments are for PCI connector slot one only; for all other slots, the signal for pin A40 is SDONE and for pin A41 is SBO#.

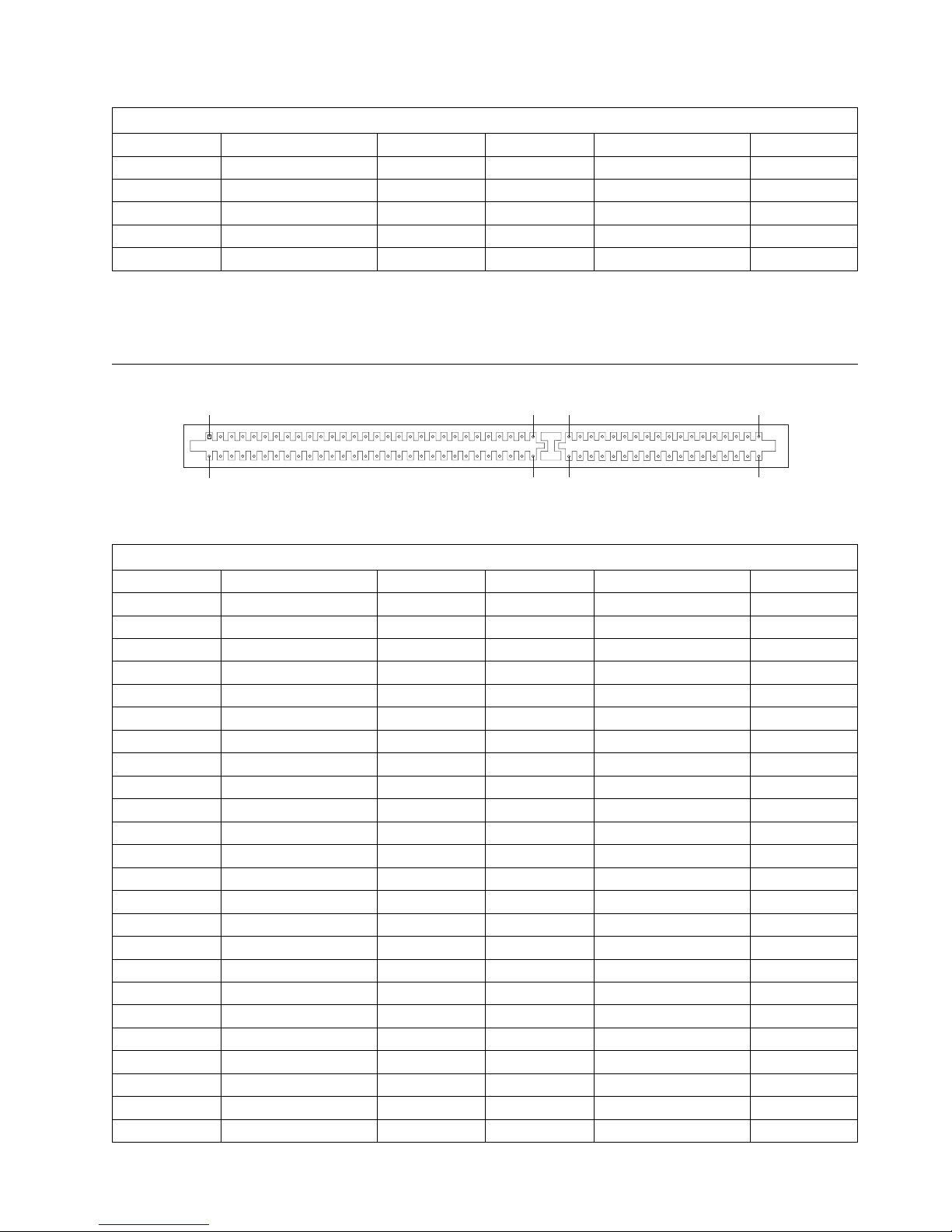

ISA connectors

A31

C18

B31C1D1

Note: The ISA connectors are on the riser card.

Figure 20 (Page 1 of 2). ISA connector pin assignments

Pin Signal I/O Pin Signal I/O

B1 Ground NA A1 IOCHCK# I B2 RESET DRV O A2 SD7 I/O B3 +5 V dc NA A3 SD6 I/O B4 IRQ2 I A4 SD5 I/O B5 -5 V dc NA A5 SD4 I/O B6 DRQ2 I A6 SD3 I/O B7 -12 V dc NA A7 SD2 I/O B8 OWS# I A8 SD1 I/O B9 +12 V dc NA A9 SD0 I/O B10 Ground NA A10 IOCHRDY I B11 SMEMW# O A11 AEN O B12 SMEMR# O A12 SA19 I/O B13 IOW# I/O A13 SA18 I/O B14 IOR# I/O A14 SA17 I/O B15 DACK3# O A15 SA16 I/O B16 DRQ3 I A16 SA15 I/O B17 DACK1# O A17 SA14 I/O B18 DRQ1 I A18 SA13 I/O B19 REFRESH# I/O A19 SA12 I/O B20 CLK O A20 SA11 I/O B21 IRQ7 I A21 SA10 I/O B22 IRQ6 I A22 SA9 I/O B23 IRQ5 I A23 SA8 I/O B24 IRQ4 I A24 SA7 I/O

D18

Appendix A. Connector pin assignments 29

Figure 20 (Page 2 of 2). ISA connector pin assignments

Pin Signal I/O Pin Signal I/O

B25 IRQ3 I A25 SA6 I/O B26 DACK2# O A26 SA5 I/O B27 TC O A27 SA4 I/O B28 BALE O A28 SA3 I/O B29 +5 V dc NA A29 SA2 I/O B30 OSC O A30 SA1 I/O B31 Ground NA A31 SA0 I/O D1 MEMCS16# I C1 SBHE# I/O D2 IOCS16# I C2 LA23 I/O D3 IRQ10 I C3 LA22 I/O D4 IRQ11 I C4 LA21 I/O D5 IRQ12 I C5 LA20 I/O D6 IRQ15 I C6 LA19 I/O D7 IRQ14 I C7 LA18 I/O D8 DACK0# O C8 LA17 I/O D9 DRQ0 I C9 MEMR# I/O D10 DACK5# O C10 MEMW# I/O D11 DRQ5 I C11 SD8 I/O D12 DACK6# O C12 SD9 I/O D13 DRQ6 I C13 SD10 I/O D14 DACK7# O C14 SD11 I/O D15 DRQ7 I C15 SD12 I/O D16 +5 V DC NA C16 SD13 I/O D17 MASTER# I C17 SD14 I/O D18 Ground NA C18 SD15 I/O

Appendix A. Connector pin assignments

IDE connectors

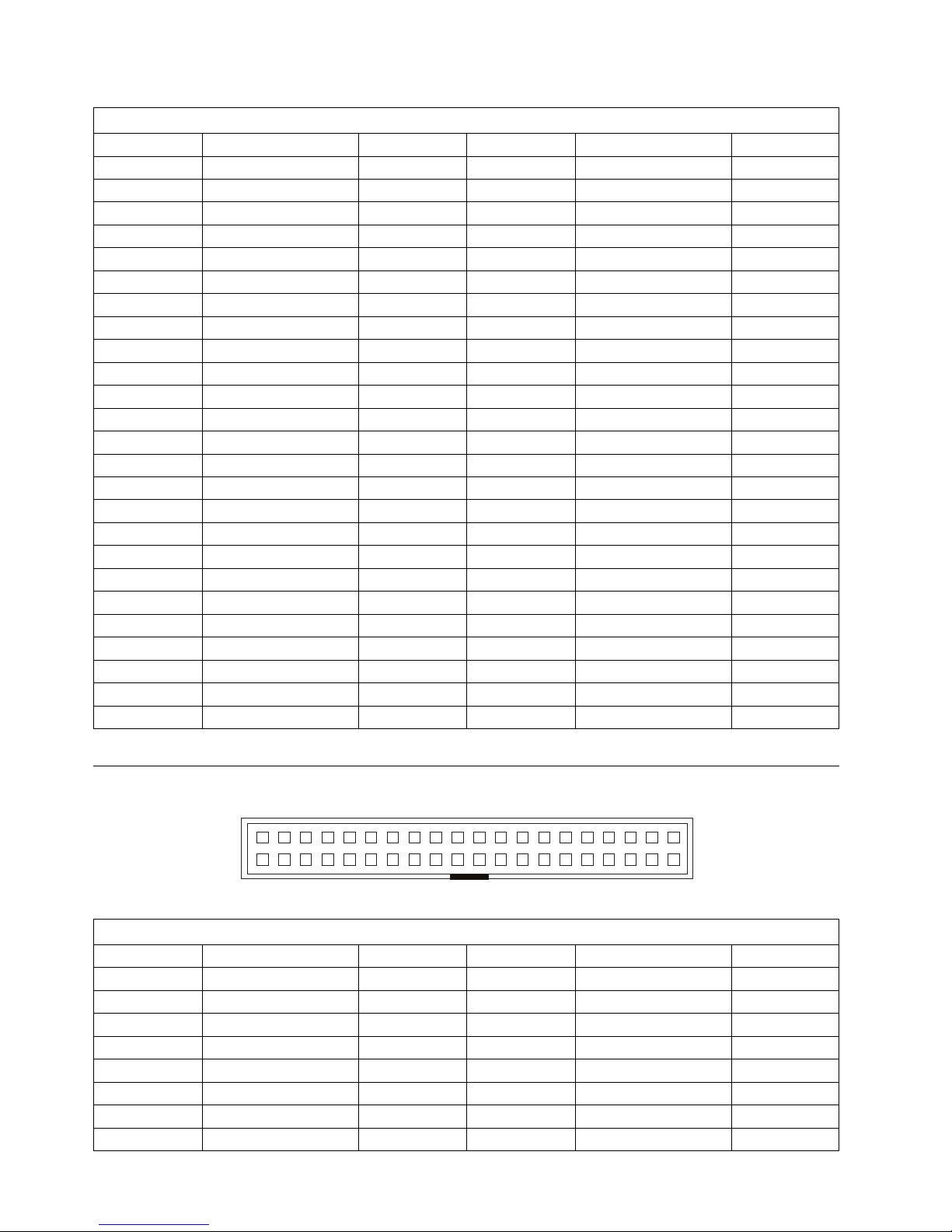

Figure 21 (Page 1 of 2). IDE connector pin assignments

Pin Signal I/O Pin Signal I/O

1 RESET O 21 NC NA 2 Ground NA 22 Ground NA 3 Data bus bit 7 I/O 23 I/O write O 4 Data bus bit 8 I/O 24 NC NA 5 Data bus bit 6 I/O 25 I/O read O 6 Data bus bit 9 I/O 26 Ground NA 7 Data bus bit 5 I/O 27 I/O channel ready I 8 Data bus bit 10 I/O 28 ALE O

30 Technical Information Manual

Appendix A. Connector pin assignments

Figure 21 (Page 2 of 2). IDE connector pin assignments

Pin Signal I/O Pin Signal I/O

9 Data bus bit 4 I/O 29 NC NA 10 Data bus bit 11 I/O 30 Ground NA 11 Data bus bit 3 I/O 31 IRQ I 12 Data bus bit 12 I/O 32 CS16# I 13 Data bus bit 2 I/O 33 SA1 O 14 Data bus bit 13 I/O 34 PDIAG# I 15 Data bus bit 1 I/O 35 SA0 O 16 Data bus bit 14 I/O 36 SA2 O 17 Data bus bit 0 I/O 37 CS0# O 18 Data bus bit 15 I/O 38 CS1 O 19 Ground NA 39 Active# I 20 Key (Reserved) NA 40 Ground NA

Diskette drive connector

Figure 22. Diskette drive connector pin assignments

Pin Signal I/O Pin Signal I/O

1 Drive 2 installed # I 2 High density select O 3 Not connected NA 4 Not connected NA 5 Ground NA 6 Data rate 0 NA 7 Ground NA 8 Index# I 9 Reserved NA 10 Motor enable 0# O 11 Ground NA 12 Drive select 1# O 13 Ground NA 14 Drive select 0# O 15 Ground NA 16 Motor enable 1# O 17 MSEN1 I 18 Direction in# O 19 Ground NA 20 Step# O 21 Ground NA 22 Write data# O 23 Ground NA 24 Write enable# O 25 Ground NA 26 Track0# I 27 MSEN0 I 28 Write protect# I 29 Ground NA 30 Read data# I 31 Ground NA 32 Head 1 select# O 33 Data rate 1 NA 34 Diskette change# I

Power supply connector

Figure 23 (Page 1 of 2). Power supply connector pin assignments

Pin Signal name Pin Signal name

1 +3.3 V 11 +3.3 V 2 +3.3 V 12 −12 V

Appendix A. Connector pin assignments 31

Figure 23 (Page 2 of 2). Power supply connector pin assignments

Pin Signal name Pin Signal name

3 Ground 13 Ground 4 +5 V 14 ON/OFF 5 Ground 15 Ground 6 +5 V 16 Ground 7 Ground 17 Ground 8 PWR GOOD 18 −5 V 9 +5 V standby 19 +5 V 10 +12 V 20 +5 V

Wake on LAN connectors

Figure 24. Wake on LAN connector pin assignments

Pin Description

1 +5 V standby 2 Ground 3 Wake on LAN

Appendix A. Connector pin assignments

Alert on LAN connectors

Figure 25. Alert on LAN connector pin assignments

Pin Description

1 SMB Data 2 SMB Clock 3 Intrusion

Tamper detection switch

Figure 26. Tamper switch pin assignments

Pin Description

1 Ground 2 Tamper switch

Radio frequency ID

Figure 27. Radio frequency identification (RFID) pin assignments

Pin Description

1 RFID Ant 1 2 Key 3 Ground 4 RFID Ant 2

32 Technical Information Manual

Appendix A. Connector pin assignments

SCSI high frequency LED connectors

Figure 28. SCSI high frequency LED connector pin assignments

Pin Description

1 Not connected 2 to LED 3 to LED 4 Not connected

CD audio connector

Figure 29. CD audio connector pin assignments

Pin Description

1 CD in left 2 CD in Ground 3 CD in Ground 4 CD in Right

USB port connectors

Figure 30. USB port connector pin assignments

Pin Signal

1 VCC 2 -Data 3 +Data 4 Ground

Mouse and keyboard port connectors

5 3

Figure 31 (Page 1 of 2). Mouse port connector pin assignments

Pin Signal I/O Pin Signal I/O

1 Data I/O 2 Reserved I/O 3 Ground NA 4 +5 V dc NA

Appendix A. Connector pin assignments 33

Figure 31 (Page 2 of 2). Mouse port connector pin assignments

Pin Signal I/O Pin Signal I/O

5 Clock I/O 6 Reserved NA

Figure 32. Keyboard port connector pin assignments

Pin Signal I/O Pin Signal I/O

1 Keyboard data I/O 2 Mouse data I/O 3 Ground NA 4 +5 V dc NA 5 Keyboard clock I/O 6 Mouse clock I/O

Serial port connector

Appendix A. Connector pin assignments

Figure 33. Serial port connector pin assignments

Pin Signal I/O Pin Signal I/O

1 Data carrier detect I 2 Receive data# I 3 Transmit data# O 4 Data terminal read O 5 Ground NA 6 Data set ready I 7 Request to send O 8 Clear to send I 9 Ring indicator I

Parallel port connector

Figure 34 (Page 1 of 2). Parallel port connector pin assignments

Pin Signal I/O Pin Signal I/O

1 STROBE# I/O 2 Data bit 0 I/O 3 Data bit 1 I/O 4 Data bit 2 I/O 5 Data bit 3 I/O 6 Data bit 4 I/O 7 Data bit 5 I/O 8 Data bit 6 I/O 9 Data bit 7 I/O 10 ACK# I 11 BUSY I 12 PE I 13 SLCT I 14 AUTO FD XT# O 15 ERROR# I 16 INIT# O 17 SLCT IN# O 18 Ground NA 19 Ground NA 20 Ground NA 21 Ground NA 22 Ground NA 23 Ground NA 24 Ground NA

34 Technical Information Manual

Appendix A. Connector pin assignments

Figure 34 (Page 2 of 2). Parallel port connector pin assignments

Pin Signal I/O Pin Signal I/O

25 Ground NA

Appendix A. Connector pin assignments 35

Appendix B. System address maps

System memory map

The first 640 KB of system board RAM is mapped starting at address hex 0000000. A 256 byte area and a 1 KB area of this RAM are reserved for BIOS data areas. Memory can be mapped differently if POST detects an error.

Figure 35. System memory map

Address range (decimal) Address range (hex) Size Description

0 K – 512 K 00000–7FFFF 512 KB Conventional 512 K – 639 K 80000–9FBFF 127 KB Extended conventional 639 K – 640 K 9FC00–9FFFF 1 KB Extended BIOS data 640 K – 767 K A0000–BFFFF 128 KB Dynamic video memory

display cache

768 K – 800 K C0000 to C7FFF 32 KB Video ROM BIOS

(shadowed)

800 K – 896 K C8000–DFFFF 96 KB PCI space, available to

adapter ROMs

896 K – 1 MB E0000–FFFFF 128 KB System ROM BIOS (main

memory shadowed) 1 MB – 16 MB 100000–FFFFFF 15 MB PCI space 16 MB – 4095.872 MB 1000000–FFDFFFF 4079.8 MB PCI space (positive decode)

FFFE0000 – FFFFFFFF 128 KB System ROM BIOS

Input/output address map

The following figure lists resource assignments for the I/O address map. Any addresses that are not shown are reserved.

Figure 36 (Page 1 of 3). I/O address map

Address (Hex) Size Description

0000–000F 16 bytes DMA 1 0010–001F 16 bytes General I/O locations — available to PCI bus 0020–0021 2 bytes Interrupt controller 1 0022–003F 30 bytes General I/0 locations — available to PCI bus 0040–0043 4 bytes Counter/timer 1 0044–00FF 28 bytes General I/0 locations — available to PCI bus 0060 1 byte Keyboard controller byte - reset IRQ 0061 1 byte PIIX4, system port B 0064 1 byte Keyboard controller, CMD/STAT byte 0070, bit 7 1 bit Enable NMI 0070, bits 6:0 1 bit Real-time clock, address 0071 1 byte Real-time clock, data 0072–007F 14 bytes General I/O locations — available to PCI bus 0080 1 byte POST checkpoint register during POST only 008F 1 byte Refresh page register

36  Copyright IBM Corp. September 1999

Appendix B. System address maps

Figure 36 (Page 2 of 3). I/O address map

Address (Hex) Size Description

0080–008F 16 bytes ICH1, DMA page registers 0090–0091 15 bytes General I/O locations — available to PCI bus 0092 1 byte PS/2 keyboard controller registers 0093–009F 15 bytes General I/O locations 00A0–00A1 2 bytes Interrupt controller 2 00A2–00BF 30 bytes APM control 00C0–00DF 31 bytes DMA 2 00E0–00EF 16 bytes General I/O locations — available to PCI bus 00F0 1 byte BX, Coprocessor Error register 00F1–016F 127 bytes General I/O locations — available to PCI bus 0170–0177 8 bytes Secondary IDE channel 01F0–01F7 8 bytes Primary IDE channel 0200–0207 8 bytes Available 0220–0227 8 bytes SMC 37C673, Serial port 3 or 4 0228–0277 80 bytes General I/O locations — available to PCI bus 0278–027F 8 bytes SMC 27C673, LPT3 0280–02E7 102 bytes Available 02E8–02EF 8 bytes SMC PC37C673, Serial port 3 or 4 02F8–02FF 8 bytes COM2 0338–033F 8 bytes SMC PC37C673, serial port 3 or 4 0340–036F 48 bytes Available 0370–0371. 2 bytes SMC SIO system board Plug and Play index/data registers 0372–0375 4 bytes Available 0376–0377 2 bytes IDE channel 1 command 0378–037F 8 bytes LPT2 0380–03B3 52 bytes Available 03B4–03B7 4 bytes Video 03BA 1 byte Video 03BC–03BE 16 bytes LPT1 03C0–03CF 16 bytes Video 03D4–03D7 4 bytes Video 03DA 1 byte Video 03D0–03DF 11 bytes Available 03E0–03E7 8 bytes Available 03E8–03EF 8 bytes COM3 or COM4 03F0–03F5 6 bytes Diskette channel 1 03F6 1 byte Primary IDE channel command port 03F7 (Write) 1 byte Diskette channel 1 command 03F7, bit 7 1 bit Diskette disk change channel 03F7, bits 6:0 7 bits Primary IDE channel status port 03F8–03FF 8 bytes COM1 0400–047F 128 bytes Available 0480–048F 16 bytes DMA channel high page registers

Appendix B. System address maps 37

Figure 36 (Page 3 of 3). I/O address map

Address (Hex) Size Description

0490–0CF7 1912 bytes Available 0CF8–0CFB 4 bytes PCI Configuration address register 0CFC–0CFF 4 bytes PCI Configuration data register LPTn + 400h 8 bytes ECP port, LPTn base address + hex 400 0CF9 1 byte Turbo and reset control register 0D00–FFFF 62207 bytes Available

DMA I/O address map

The following figure lists resource assignments for the DMA address map. Any addresses that are not shown are reserved.

Figure 37 (Page 1 of 2). DMA I/O address map

Address (hex) Description Bits Byte pointer

0000 Channel 0, Memory Address register 00–15 Yes 0001 Channel 0, Transfer Count register 00–15 Yes 0002 Channel 1, Memory Address register 00–15 Yes 0003 Channel 1, Transfer Count register 00–15 Yes 0004 Channel 2, Memory Address register 00–15 Yes 0005 Channel 2, Transfer Count register 00–15 Yes 0006 Channel 3, Memory Address register 00–15 Yes 0007 Channel 3, Transfer Count register 00–15 Yes 0008 Channels 0–3, Read Status/Write Command register 00–07 0009 Channels 0–3, Write Request register 00–02 000A Channels 0–3, Write Single Mask register bits 00–02 000B Channels 0–3, Mode register (write) 00–07 000C Channels 0–3, Clear byte pointer (write) N/A 000D Channels 0–3, Master clear (write)/temp (read) 00–07 000E Channels 0–3, Clear Mask register (write) 00–03 000F Channels 0–3, Write All Mask register bits 00–03 0081 Channel 2, Page Table Address register 0082 Channel 3, Page Table Address register 0083 Channel 1, Page Table Address register 0087 Channel 0, Page Table Address register 0089 Channel 6, Page Table Address register 008A Channel 7, Page Table Address register 008B Channel 5, Page Table Address register 008F Channel 4, Page Table Address/Refresh register 00–07 00C0 Channel 4, Memory Address register 00–15 Yes 00C2 Channel 4, Transfer Count register 00–15 Yes 00C4 Channel 5, Memory Address register 00–15 Yes 00C6 Channel 5, Transfer Count register 00–15 Yes 00C8 Channel 6, Memory Address register 00–15 Yes

2 2 2 2 2 2 2

00–07 00–07 00–07 00–07 00–07 00–07 00–07

Appendix B. System address maps

38 Technical Information Manual

Appendix B. System address maps

Figure 37 (Page 2 of 2). DMA I/O address map

Address (hex) Description Bits Byte pointer

00CA Channel 6, Transfer Count register 00–15 Yes 00CC Channel 7, Memory Address register 00–15 Yes 00CE Channel 7, Transfer Count register 00–15 Yes 00D0 Channels 4–7, Read Status/Write Command register 00–07 00D2 Channels 4–7, Write Request register 00–02 00D4 Channels 4–7, Write Single Mask register bit 00–02 00D6 Channels 4–7, Mode register (write) 00–07 00D8 Channels 4–7, Clear byte pointer (write) N/A 00DA Channels 4–7, Master clear (write)/temp (read) 00–07 00DC Channels 4–7, Clear Mask register (write) 00–03 00DE Channels 4–7, Write All Mask register bits 00–03 00DF Channels 5–7, 8- or 16-bit mode select 00–07

PCI configuration space map

Bus number (hex) Device number

(hex)

00 00 00 Intel 84440BX (host bridge) 00 01 00 Intel 84440BX (PCI/AGP) 00 1E 0 Intel 82371AB Hub interface to PCI bridge

00 1F 01 Intel 82371AB IDE bus master 00 1F 02 Intel 82371AB USB 00 1F 0 Intel 82371AB Interface bridge registers 00 1F 5 AC '97 audio controller 02 X 00 PCI connectors

Function number (hex)

Description

registers

Upper byte of memory address register.

Appendix B. System address maps

Appendix C. IRQ and DMA channel assignments

The following figures list the interrupt request (IRQ) and direct memory access (DMA) channel assignments.

Figure 38. IRQ channel assignments

IRQ System resource

NMI Critical system error SMI System management interrupt — power management 0 Reserved (interval timer) 1 Reserved (keyboard) 2 Reserved, cascade interrupt from slave PIC 3 COM2 4 COM1 5 LPT2/audio (if present) 6 Diskette controller 7 LPT1 8 Real-time clock 9 Video 10 Available to user 11 Available to user 12 Mouse port 13 Reserved (math coprocessor) 14 Primary IDE (if present) 15 Secondary IDE (if present)

3 3

Appendix C. IRQ and DMA channel assignments

Figure 39. DMA channel assignments

DMA channel Data width System resource

0 8 bits Open 1 8 bits Open 2 8 bits Diskette drive 3 8 bits Parallel port (for ECP or EPP) 4 – Reserved (cascade channel) 5 16 bits Open 6 16 bits Open 7 16 bits Open

Default, can be changed to another IRQ.

40  Copyright IBM Corp. September 1999

Appendix D. Error Codes

Appendix D. Error codes

A complete list of POST error codes is provided in the

Maintenance Manual

PC 300PL User Guide

and in the

Hardware

POST error codes

POST error messages appear when POST finds problems with the hardware during power-on or when a change in the hardware configuration is found. POST error messages are 3-, 4-, 5-, 8-, or 12-character alphanumeric messages.

Beep codes

A complete list of beep codes is provided in the

Hardware Maintenance Manual

Appendix E. Notices and trademarks

References in this publication to IBM products, programs, or services do not imply that IBM intends to make these available in all countries in which IBM operates. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Subject to IBM’s valid intellectual property or other legally protectable rights, any functionally equivalent product, program, or service may be used instead of the IBM product, program, or service. The evaluation and verification of operation in conjunction with other products, except those expressly designated by IBM, are the responsibility of the user.

IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing

IBM Corporation

North Castle Drive Armonk, NY 10504-1785 U.S.A.

Any references in this publication to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk.

The following terms are trademarks of the IBM Corporation in the United States or other countries or both: Alert on LAN PC 300

IBM PS/2 LANClient Control Manager Wake on LAN

Intel, Pentium, and MMX are trademarks of Intel Corporation in the United States, other countries, or both. Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States, other

countries, or both. Other company, product, and service names may be trademarks or service marks of others.

42  Copyright IBM Corp. September 1999

References



Advanced Power Management (APM) BIOS Interface Specification 1.2/

Source: Intel Corporation



AT Attachment Interface with Extensions

Source: American National Standard of Accredited Standards Committee



Extended Capabilities Port: Specification Kit

Source: Microsoft Corporation



Intel Microprocessor and Peripheral Component Literature

Source: Intel Corporation



PCI BIOS Specification 2.0

Source: PCI Special Interest Group



PCI Local Bus Specification 2.1

Source: PCI Special Interest Group



Plug and Play BIOS Specification 1.1

Source: Microsoft Corporation; available at

http://www.microsoft.com/hwdev



Plug and Play BIOS Specification, Errata and Clarifications 1.0

Source: Microsoft Corporation



Universal Serial Bus Specifications

Source:



Video Electronics Standards Association 1.2

Source:



AT24RF08A- PCID Specification

http://www.usb.org

http://www.vesa.org

Index

ACPI 22 address map

DMA 38 I/O 36

system memory 36 advanced configuration and power interface 22 advanced power management 22 APM (advanced power management) 22 audio

adapter 9

controller 9

device drivers 9

subsystem 9 audio connector pin assignments 33

beep codes 41 BIOS 21 BIOS data areas 36 bus

IDE 6

low pin count (LPC) 7

LPC 7

PCI 6, 12

universal serial bus 6

cache, L2 4 chip set 4, 10 clock, real-time 12 CMOS RAM 12 compatibility

hardware 23

software 24 component maximum current 19 configuration/setup utility program 22 connector

Alert on LAN 32

alert on lan pin assignments 32

cable 14

connector panel 15

diskette drive 31

diskette drive pin assignments 31

IDE 30

IDE pin assignments 30

ISA bus 29

ISA pin assignments 29

keyboard/mouse pin assignments 33

keyboard/mouse ports 33

connector

controller

(continued)

lan wake-up pin assignments 32 lan wakeup 32 memory pin assignments 26 monitor 25 parallel port 34 parallel port pin assignments 34 PCI 27 PCI pin assignments 27 power supply 20, 31 power supply pin assignments 31 RIMM 26 serial pin assignments 34 serial ports 34 USB 33 USB port pin assignments 33 Wake on LAN 32

audio 9 diskette drive 10 hard disk drive 24 I/O 10 keyboard/mouse 11 parallel 10 serial 10

diagnostic program 22 digital video interface (DVI) 25 diskette drive

controller 10

DMA (direct memory access) channel assignments 40

EEPROM 12 electrically erasable, programmable, read-only memory

(EEPROM) 12 Enhanced Diagnostics 22 environment, operating 16 error codes, POST 41 Ethernet port 11

fault, overvoltage 20 features

general 1 microprocessor 4 network support 2 system board 4 video 7

44  Copyright IBM Corp. September 1999

Index

features

flash EEPROM 12 flash update 22 frequency, input power 18

(continued)

Wake on LAN 2 Wake on Ring 3

hard disk drive

compatibility 24

controller 24 hardware compatibility 23 hardware interrupts 23

I/O

address map 36

controller 10

diskette drive 10

features 14

keyboard 10, 11

mouse 10, 11

parallel port 10

parallel port assignments 10

serial port 10 IDE interface 6 information, related vii input power

frequency 18

requirements 18

voltage 18 interrupt request assignments 40

jumper

configuration 14

locations (system board) 12

L2 cache 4 LED connectors 32 level-sensitive interrupts 23 load currents 19

machine-sensitive programs 24 main memory 5 memory

configuration tables 5

error in 36

map, system 36

RAM 36

memory

messages, POST error 41 microprocessor

modes, power management 22 monitor support 9 monitor, DVI pin assignments 25 monitor, SVGA pin assignments 25

(continued)

Rambus dynamic random access memory

(RDRAM) 5

Rambus inline memory module (RIMM)

connectors 5

RDRAM (Rambus dynamic random access

memory) 5 system memory map 36 video 9

features 4

network

connection 11 support 2

noise level 16, 17

ordering publications vii outputs, power supply 19 overvoltage fault 20

parallel port 10 parallel port assignments 10 PCI

bus 6 configuration space map 39 connectors 12

Pentium III microprocessor with MMX technology 4 physical layout 12 Plug and Play 21 polling mechanism 24 port

ethernet 11 keyboard/mouse 11 parallel 10 serial 10

POST 21, 36 POST error codes 41 power

consumption 22 description 18 for components 19 input 18 load currents 19 management modes 22

Index 45

power

(continued)

output 18 output protection 20

outputs 19 protection, power supply 20 publications, related vii

RAM (random access memory) 36 Rambus dynamic random access memory (RDRAM) 5 random access memory (RAM) 36 RDRAM (Rambus dynamic random access memory) 5 real-time clock 12 references 43 related information vii reserved

areas vii RFID 32

radio frequency identification 32 Riser card layout 13

serial port 10 serial port assignments 10 short circuit 20 software

compatibility 24

interrupts 24

machine-sensitive programs 24 specifications 16, 17

desktop 16

mechanical 16

tower 17 system

compatibility 23

memory 5

memory maps 36

software 21

specifications 16 system board

features 4

layout 13

universal serial bus

technology 6

(continued)

video

accelerated graphics port (AGP) 7 adapter 7 features 7 memory 9 modes 8 monitor support 9 resources 8

subsystem 7 voltage, input power 18 voltage, output power 18

Wake on LAN

cable requirements 17

Wake on LAN support 2 Wake on Ring

Wake on Ring 3

Index

tamper switch 32 tamper switch assignments 32 terminology vii token ring port 11

universal serial bus

connectors 33 port 6

46 Technical Information Manual
