IBM ThinkVision™ L191p Monitor
L191p
User's Guide |
|
English |

First Edition (May /2004)
Note: For important information, refer to the Monitor Safety and Warranty manual that comes with this monitor.

Contents
Safety (Read first) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Setting up the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Handling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Workplace Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Adjusting the Monitor Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Working Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Caring for your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Connecting your Monitor for Analog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Connecting your Monitor for Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Switching on your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Device Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Windows Millennium . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Windows 98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Windows 95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
FRANÇAIS ENGLISH
ESPAÑOL
Auto Image Setup (Analog Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
Auto Image Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
Auto Image Setup for DOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
Auto Image Setup for Windows 3.1, Windows 95, Windows 98, Windows 2000 |
|
Windows NT, Windows Me or Windows XP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
16 |
Manual Image Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adjusting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
User controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 On-screen display (OSD) controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Further Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Display modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Product Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Further Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Notices and Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
COMPL & WARR JAPANESE ITALIANO
1

.
í
í
í
2

Setting up the monitor
Product Description
The IBM ThinkVision L191p Monitor works with a computer with a suitable on-board sub-system or Video Adapter card that can support SXGA 1280 x 1024, XGA 1024 x 768, SVGA 800 x 600, or VGA 640 x 480 at 60 Hz.
In addition to your monitor, your option package includes the followings:
•User's Guide and Installation Files CD
•Monitor Warranty and Safety manual
•IBM ThinkVision L191p Monitor Setup Guide
•Power Cord
•IBM ThinkVision L191 p Monitor
•Analog Interface Cable - Attached to Monitor
•Digital Interface Cable - Detached from Monitor
FRANÇAIS ENGLISH
ESPAÑOL
Handling Instructions
Do not support the monitor |
1. Remove the shipping clip for cable as shown below. |
within the screen area. The |
|
Liquid Crystal Display is |
|
glass and can be damaged |
|
by rough handling or |
|
excessive pressure. |
|
COMPL & WARR JAPANESE ITALIANO
3

2.Lift the monitor by placing your hands where indicated below.
3.Before using your monitor for the first time, remove the clear protective film from the front of the screen.
Workplace Preparation
This section gives advice on what you should consider
before you set up your monitor.
Height
Position the monitor so that the top of the screen is slightly below your eye level when you sit at your workstation.
Orientation
Choose a position that gives the least reflection from lights and windows, usually at a right angle to any windows. Position the monitor directly in front of you so that you do not have to twist your body to use it. Tilt the monitor to a comfortable viewing angle.
4

Adjusting the Monitor Position
Viewing Angle
You can tilt the screen backward and forward, swivel left or right as well as lift up and down as shown below.
Working Practices
This section gives |
Rest |
advice on how you can |
Take regular breaks. Vary your posture, stand up and stretch occasionally as |
work comfortably and reduce |
|
fatigue. |
prolonged use of computer workstations can be tiring. |
Back
Sit back in your chair and use the backrest.
Hands
Adjust the seat height so that your forearms are approximately horizontal and your wrists are straight when using the keyboard. Your upper arms should be relaxed with your elbows near your body.
Use a light touch on the keyboard, keeping your hands and fingers relaxed. Allow a space in front of the keyboard to rest your wrists when not typing. Consider using a wristpad.
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
5

Eyesight
Working with monitors, in common with any prolonged close work, can be visually demanding. Look away from the screen periodically and have your eyesight checked regularly.
Screen settings
Set the screen brightness and contrast to a comfortable level. You may have to adjust this as the lighting changes during the day. Many application programs let you select color combinations which can help you to view in comfort. See the User controls section on page 19 for more information.
Caring for your Monitor
Be sure to turn off the power before you perform any maintenance on the monitor. Clean your monitor as follows:
•Gently wipe the device covers and the screen with a soft cloth.
•Remove finger marks and grease with a damp cloth and mild detergent; do not use solvents or abrasives
•Never use flammable cleaning material to clean your IBM monitor or any other electrical apparatus.
•Connect the power cord to the power port on the back of your monitor if the power cord supplied is not attached to the monitor. Then insert the plug into a properly grounded electrical outlet.
6

Connecting your Monitor for Analog
Be sure to read the ‘Safety Information’ at the front of this User Guide before carrying out this procedure.
1.Turn off your computer and all attached devices.
2.Connect the signal cable to the video port on the back of your computer. This port might be directly attached to your computer (figure A), or it might be part of a video adapter card (figure B). The video port on your computer or video adapter card might be blue to match the blue connector on your monitor’s video cable.
3.Connect the power cord to the power port on the back of your monitor if the power cord supplied is not attached to the monitor. Then insert the plug into a properly grounded electrical outlet.
ENGLISH
7

Connecting your Monitor for Digital
1.Turn off your computer and all attached devices.
a
2.Tilt monitor all the way forward.
3.Connect the DVI connector at the end of the DVI-D signal cable (shipped with your Monitor) to the DVI port located on the back of the Monitor. See picture below.
Connecting DVI Cable
DVI
Cable
8

4.Connect the DVI connector at the other end of the signal cable to the DVI port located on the back of the graphics adapter. See picture below.
graphics adapter |
DVI
Signal Cable
5.Connect the power cord to the power port on the back of your monitor if the power cord supplied is not attached to the monitor. Then insert the plug into a properly grounded electrical outlet.
6.Use the cable holder (a) to neatly organize the video and power cables.
7.Switch on the power source and your computer. To turn on the monitor,
push and release the power switch . To switch it off, push and release the power switch again.
Switching on your Monitor
1.Switch on the power source and your computer.
2.Switch on your monitor by pushing and releasing the power switch
marked .
(To switch off your monitor, push and release the power switch again).
3.To update or install device drivers, follow the instructions in the Device Driver Installation section found on page 10.
4.To optimize the displayed image, run Auto Image Setup by following the instructions in the Auto Image Setup section found on page14.
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
9

Device Driver Installation
Use the User's Guide and Installation Files CD that comes with your monitor to install the appropriate device driver for your operating system.
Installing the Windows XP device driver
To manually install or update the device driver for the Microsoft® Windows®
XP operating system, perform the following steps:
1.Insert the User’s Guide and Installation Files CD into the computer CDROM drive.
2. Click Start Control Panel Appearance & Themes and then click the Display icon.
3.In the Display Properties window, click the Settings tab, and then click
Advanced.
4. Click the Monitor tab, and then click Properties Driver tab Update Driver.
5.When the Hardware Update Wizard window opens, select “Install the software automatically,” click Next> and then Finish to complete the installation.
6.Close the Display Properties window.
7.Remove the User’s Guide and Installation Files CD from the computer CD-ROM drive.
Installing the Windows Me device driver
To manually install or update the device driver for the Microsoft® Windows® Millennium Edition operating system, perform the following steps:
1. Click Start Settings Control Panel and then double-click Display.
2.In the Display Properties window, click the Settings tab, and then click
Advanced.
3. |
Click the Monitor tab, and then click Change Specify the location of |
|
the driver Next. |
4. |
When the Update Device Driver Wizard window opens, select "Display |
|
a list of all the drivers in a specific location, so you can select the driver |
|
you want," and click Next>. |
5.Insert the the User’s Guide and Installation Files CD into the computer CD-ROM drive, then click Have Disk.
6.Type d:\ (change the drive letter to match your CD-ROM drive if it is not drive D) in the Copy manufacturer's files from: box, then click OK.
10

7.Click Next>, Next>, and then Finish to complete the installation.
8.Close the Display Properties window.
9.Remove the User’s Guide and Installation Files CD from the computer CD-ROM drive.
Installing the Windows 2000 device driver
To manually install or update the device driver for the Microsoft® Windows® 2000 Professional operating system, perform the following steps:
1. Click Start Settings Control Panel and then double-click Display.
2.In the Display Properties window, click the Settings tab, and then click
Advanced.
3. Click the Monitor tab, and then click Properties Driver Update Driver.
4.When the Update Device Driver Wizard window opens, select "Search for a suitable driver for my device," and click Next>.
5.Insert the User’s Guide and Installation Files CD into the computer CDROM drive, type d:\ (change the drive letter to match your CD-ROM drive if it is not drive D) in the Copy manufacturer's files from: box, click Next> and then Finish to complete the installation.
6.Close the Display Properties window.
7.Remove the User’s Guide and Installation Files CD from the computer CD-ROM drive.
Installing the Windows 98 device driver
Windows 98 automatically detects the new monitor and displays the Add New
Hardware Wizard window if the device driver is not already installed.
1.Insert the Device Driver and User’s Guide CD into the computer CDROM drive, and click Next> twice when the Add New Hardware Wizard window opens.
2.Click the CD-ROM drive box to install the device drivers from the CD and then click Next>.
3.Confirm that the device driver was found on the CD, and click Next> twice to install the device driver.
4.Click Finish to close the Add New Hardware Wizard window.
To manually install or update the device driver for the Microsoft® Windows® 98 operating system, perform the following steps:
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
11

1. Click Start Settings Control Panel and then double-click Display.
2.In the Display Properties window, click the Settings tab, and then click
Advanced.
3.Click the Monitor tab, and then click Change.
4.When the Update Device Driver Wizard window opens, follow the steps in the previous paragraph.
5.Remove the User’s Guide and Installation Files CD from the computer CD-ROM drive.
Installing the Windows 95 device driver
Right-click the My Computer icon on the computer desktop and then select Properties System to view the version number listed in the System window. Perform the steps below for the appropriate version.
If you have Windows 95 Version 4.00.950A, use the following steps to manually install or update the device driver:
1. Click Start Settings Control Panel and then double-click Display.
2.In the Display Properties window, click the Settings tab and then click
Change Display Type.
3.In the Change Display Type window, click Change and then click Have Disk.
4.Insert the User’s Guide and Installation Files CD into the computer CDROM drive, type d:\ (change the drive letter to match your CD-ROM drive if it is not drive D) in the Copy manufacturer's files from: box, and click OK.
5.In the Select Device window, click the appropriate monitor model and then click OK.
6.In the Change Display Type window, click Close.
7.In the Display Properties window, click OK.
8.Remove the User’s Guide and Installation Files CD from the computer CD-ROM drive.
If you have Windows 95 Version 4.00.950B, use the following steps to manually install or update the device driver:
1. Click Start Settings Control Panel and then double-click Display.
2.In the Display Properties window, click the Settings tab and then click
Advanced Properties.
3.In the Advanced Display Properties window, click the Monitor tab and then click Change.
12
4. |
In the Select Device window, click Have Disk. |
ENGLISH |
5. |
Insert the User’s Guide and Installation Files CD into the computer CD- |
|
|
||
|
ROM drive, type d:\ (change the drive letter to match your CD-ROM |
FRANÇAIS |
|
drive if it is not drive D) in the Copy manufacturer's files from: box, |
|
|
and click OK. |
|
|
|
|
6. |
In the Select Device window, click the appropriate monitor model and |
|
|
then click OK. |
|
7. |
In the Advanced Display Properties window, click Close. |
|
8. |
In the Display Properties window, click OK. |
|
9. |
Remove the User’s Guide and Installation Files CD from the computer |
|
|
CD-ROM drive. |
|
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
13

Auto Image Setup (Analog Only)
Auto Image Setup
The Setup Utility included on the setup diskette is for displaying dot
patterns. They do not replace or modify the display driver.
The Auto Image Setup instructions require the monitor to be warmed up for 15 minutes. This is not required for normal operation.
When you first use your monitor you must perform Auto Image Setup. This procedure sets up your monitor to process the video signals from your computer without image discoloration or smearing. After you perform Auto Image Setup, the settings are stored and used each time you turn on the monitor.
To optimise the displayed image a set-up utility is provided on the CD. Operation of the utility is dependent on the operating system on your computer. For correct operation locate the operating system on your computer from the table below and follow the appropriate instructions. You can choose to run AUTO IMAGE SETUP for each operating system that you use. This means that if you sometimes use your monitor while running any version of Windows and sometimes also use it from within DOS (not a DOS window), you must run AUTO IMAGE SETUP for both Windows and DOS. You can run versions of AUTO IMAGE SETUP in any order.
The AUTO IMAGE SETUP process only applies to the current screen mode. When a new
mode is selected, repeat this section to reset the monitor
Operating System |
Corresponding Auto Image Setup procedure |
|
|
|
|
DOS |
Auto Image Setup for DOS on page 15 |
|
|
Windows 3.1, Windows 95, |
Auto Image Setup for Windows 3.1, Windows |
Windows 98, Windows 2000, |
|
Microsoft Windows NT®, |
95, Windows 98, Windows NT, Windows 2000, |
Windows Me or Windows XP |
|
Windows Me or Windows XP |
|
|
|
Before you begin AUTO IMAGE SETUP for your computer:
1.Make sure the computer’s video mode is set in the range of the supported screen resolution shown in the Table on page 26.
You should perform AUTO IMAGE SETUP for each screen mode you use.
14

Auto Image Setup for DOS
If the monitor is in standby mode (STANDBY ON), it
may automatically turn off while you are waiting for it to warm up. If this happens, switch off the monitor and switch it on again after a few seconds.
If you are using PC-DOS/V, change to U.S. mode by
typing ‘CHEV US’ and pressing ENTER at the command prompt.
The size and diversity of the dot pattern varies with the
screen resolution.
To optimize the displayed image automatically in DOS, do the following:
1.Turn on the monitor first; then turn on the computer.
If the message CHECK SIGNAL CABLE is displayed, or if nothing is displayed, check:
•that the video interface cable is connected properly.
•the correct video adapter card is installed.
•the correct supported display mode is selected for your computer.
2.Wait approximately 15 minutes, until the monitor warms up.
3.Insert the User’s Guide and Installation Files CD into the computer CDROM drive.
4.Display the command prompt screen of the DOS full-screen display.
5.Type d:\ (change the drive letter to match your CD-ROM drive if it is not drive D).
6.Type TESTPATD and press ENTER.
7.Select from the screen the number for the color or text mode you want to set up.
8.Select from the screen the number for the video mode you want to set up. You can repeat this process for as many of the color and video modes as you need.
9. When the dot pattern appears, press the OSD Enter button |
at the |
bottom of the monitor to display the initial OSD menu. |
|
10.Use an Arrow button ( or
) to select the Image Setup icon then press the OSD Enter
button to access the function.
11.Using an Arrow button ( or ), select AUTOMATIC and press the
OSD Enter button . This activates the AUTO IMAGE SETUP procedure, which will optimize the display settings with the provided dot-patterns.
The screen will flash off several times and you might notice small changes to the test pattern.
12. When finished, the OSD main menu returns. Press the Exit button to exit from the OSD.
13.Press the ESCAPE key to exit the test pattern program.
14.Type Exit at the command prompt to return to Windows.
If you use other operating systems, perform the appropriate Auto Image Setup for those systems using instructions given in “Auto Image Setup for
Windows 3.1, Windows95, Windows 98, Windows NT, Windows Me or Windows XP on page 16”
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
15

Auto Image Setup for Windows 3.1, Windows 95, Windows 98, Windows NT, Windows 2000, Windows Me or Windows XP
If the monitor is in standby mode (STANDBY ON), it
may automatically turn off while you are waiting for it to warm up.
The size and diversity of the dot pattern varies with the
screen resolution.
To optimize the displayed image automatically in Windows 3.1 , Windows 95, Windows 98, Windows NT, Windows 2000, Windows Me, or Windows XP, do the following:
1.Turn on the monitor first; then the computer.
If the message CHECK SIGNAL CABLE is displayed, or if nothing is displayed, check:
•that the video interface cable is connected properly.
•the correct video adapter card is installed.
•the correct supported display mode is selected for your computer.
2.Wait approximately 15 minutes, until the monitor warms up.
3.Drag the icon bar and tool bar, if they are displayed, to the bottom of the screen.
4.Insert the User’s Guide and Installation Files CD into the computer CDROM drive.
5.Check the operating system installed on your computer and follow the instructions from the table below.
Position the mouse pointer at the bottom center of the screen. This allows AUTO IMAGE
SETUP to run properly
Operating system installation steps
Operating |
Step1 |
Step2 |
Step3 |
|
Step4 |
|
System |
|
|||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Windows 3.1 |
Open |
Select |
Select |
|
Type |
|
|
PROGRAM |
FILE |
RUN |
D:\TESTPAT |
||
Windows NT 3.5 |
||||||
MANAGER |
|
|
(change the |
|||
|
|
|
||||
|
|
|
|
drive letter to |
||
Windows 95, |
|
|
|
|||
|
|
|
match your CD- |
|||
Windows 98, |
|
|
|
|||
Select |
|
|
ROM drive if it |
|||
Windows 2000, |
Select RUN |
|||||
is not drive D) |
||||||
Windows NT, |
START |
|||||
|
|
and press |
||||
Windows Me or |
|
|
|
|||
Windows XP |
|
|
|
|
ENTER |
|
|
|
|
|
|
|
|
6. When the test pattern appears, press the OSD Enter button |
at the |
|||||
bottom of the monitor to display the initial OSD menu. |
|
|
7.Use an Arrow button ( or
) to select the Image Setup icon and press the OSD Enter button
to access the function.
8.Using an Arrow button ( or ), select AUTOMATIC and press the
OSD Enter button . This activates the AUTO IMAGE SETUP procedure, which will optimize the display settings with the provided test pattern.
16

The screen will dim, blink on and off several times, and you might notice small changes to the test pattern.
To abort the AUTO IMAGE SETUP function, press the ESC key.
9. When finished, the OSD main menu returns. Press the Exit button once to exit from the OSD.
10.Press the ESC key to return to Windows.
You have completed the monitor setup for Windows. If you are using the DOS operating system, go to .Auto Image Setup for DOS on page 15.
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
17

Manual Image Setup
If the monitor is in standby mode (STANDBY ON), it
might automatically turn off while you are waiting for it to warm up.
Normally, you can complete the setup procedure using AUTO IMAGE SETUP; however, if your screen image is still distorted after you perform AUTO IMAGE SETUP or the Installation CD does not run on your system, perform MANUAL
IMAGE SETUP.
1.Have your monitor turned on for about 15 minutes, until the monitor warms up.
2.Display the image you most frequently use on the screen.
3. Press the OSD Enter button |
at the bottom of the monitor to display |
the initial OSD menu. |
|
4.Use an Arrow button ( or
) to select the Image Setup icon and press the OSD Enter button
to access the function.
5. Using an Arrow button ( |
or |
), select MANUAL, press |
and then |
|
press |
again to access the Clock function (see page 22) . |
|
6.Use the Arrow buttons ( or
) to manually adjust the image (as much as possible).
7. Next press the |
button to select Phase. |
8.Use the Arrow buttons ( or
), again to tune the image to your liking. To save, press the
button two times.
9.When finished, press the Exit button to exit from the OSD.
You have completed the monitor manual image setup procedure.
18

Adjusting Your LCD Monitor
User controls
User control features
• Direct access controls
Icon |
Control |
Description |
OSD |
||
|
|
|
Input Change |
Switches the video input source. |
Inactive |
|
|
|
Image Setup |
Activates automatic image adjustment. |
Inactive |
|
|
|
|||
|
|
|
Brightness |
Directly accesses to Brightness on the |
Active |
|
|
|
|||
|
|
|
OSD main menu. |
||
|
|
|
|
|
|
|
|
|
OSD Enter |
Displays the OSD main menu. |
Active |
|
|
|
Power Switch |
Switches the monitor on and off. |
- |
|
|
|
|||
|
|
|
|||
|
|
|
|
|
|
• Main OSD menu controls
Icon |
Control |
Description |
OSD |
|
Exit |
Exits from menus and sub-menus |
Active |
|
Exits the OSD. |
||
|
|
|
|
|
Left Arrow |
Moves the cursor to highlight icons |
Active |
|
and other options. |
||
|
|
|
|
|
Right Arrow |
Moves the cursor to highlight icons |
Active |
|
and other options. |
||
|
|
|
|
|
OSD Enter |
Enters menus and sub-menus and |
Active |
|
selects the highlighted option. |
||
|
|
|
|
|
|
|
|
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
19

The image is already optimized for many display
modes; however the user controls can be used to adjust the image to your liking.
The settings are saved after adjustment and when
exiting the OSD and will be effective thereafter.
Operation
•Press the OSD Enter button to display the main OSD menu.
•Use the Arrow buttons to move among the icons. Select an icon and press OSD Enter to access that function. If there is a sub-menu, you can move between options using the Arrow buttons, then press OSD Enter to select
that function. Use the Arrow buttons to make adjustments. Press the button to save.
•Press the Exit button to move backwards through the sub-menus and exit from the OSD.
OSD Lock / Unlock
This feature allows you to secure the current control settings, while allowing the user to adjust Brightness and Contrast, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by using the same procedure.
Push and hold the OSD Enter button for 10 seconds to Lock or to Unlock. When locked, a “LOCKED” message will be displayed.
20

On-screen display (OSD) controls
The LCD monitor needs time to become thermally
stable the first time you turn it on each day. Thus, to achieve more accurate adjustments for parameters, allow the LCD monitor to warm up (be On) for at least 15 minutes before making any screen adjustments.
The settings adjustable with the user controls are viewed through the OnScreen Display (OSD). Press the OSD Enter button ( ) to activate the OSD.
Initial appearance of OSD
OSD functions

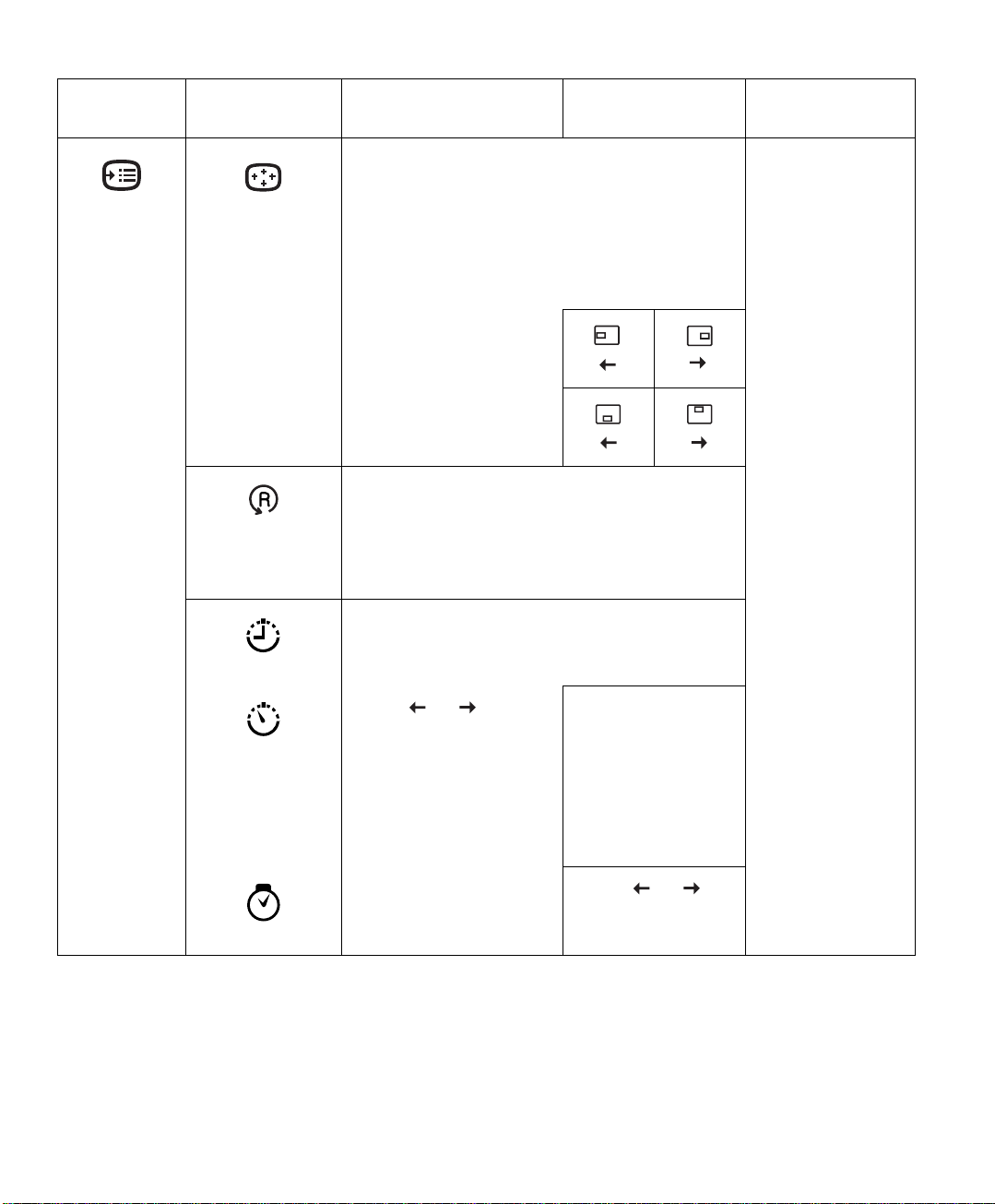

OSD Icon on |
Submenu |
Description |
Controls and |
Controls and |
|
Main Menu |
Adjustments (Analog) |
Adjustments (Digital) |
|||
|
|
||||
|
|
Adjusts brightness. |
|
Same as Analog |
|
Brightness/ |
Brightness |
|
|
|
|
Contrast |
|
|
|
|
|
|
|
Adjusts contrast. |
|
Controls Locked |
|
|
Contrast |
|
|
|
|
|
|
Moves the screen left or right. |
|
Controls Locked |
|
Image Position |
Horizontal Position |
|
|
|
|
|
|
Moves the screen up or down. |
|
Controls Locked |
|
|
Vertical Position |
|
|
|
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
21

OSD Icon on |
Submenu |
Description |
Controls and |
Controls and |
|
Main Menu |
Adjustments (Analog) |
Adjustments (Digital) |
|||
|
|
||||
|
|
|
|
|
|
|
|
Activates automatic image adjustment. |
Controls Locked |
||
Image Setup |
Automatic |
|
|
|
Use the or
button to adjust away the interference.
|
|
|
If satisfactory results are not obtained using the Phase |
|
|
|
|
Manual |
adjustment, use the Clock adjustment and then use Phase |
|
|
|
|
again. |
|
|
|
|
• |
Clock |
|
|
|
|
|
|
|
||
|
• |
Phase |
|
|
|
|
|
|
|
|
|
|
|
|
Adjusts intensity of red, green and blue. |
Same as Analog |
|
Image |
Color |
|
|
|
|
Properties |
|
|
|
|
|
|
|
|
|
|
|
|
1. Mode 1 |
|
|
|
|
|
|
(Preset Mode) |
6500K adjusts the screen more red. |
|
|
|
• |
6500K |
|
||
|
• |
7200K |
7200K adjusts the screen to the default color settings. |
|
|
|
• |
9300K |
9300K adjusts the screen more blue. |
|
|
|
|
|
|
|
|
|
2. Mode 2 |
|
|
|
|
|
(Custom) |
Increases or decreases 'red'. |
|
|
|
|
• |
Red |
|
|
|
|
• |
Green |
Increases or decreases 'green'. |
|
|
|
• |
Blue |
Increases or decreases 'blue'. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Same as Analog |
|
|
Sharpness |
|
|
|
|
|
adjusts the image softer. |
|
|
|
|
1. Mode 1 |
|
|
||
|
|
returns the image sharpness to the default settings. |
|
||
|
2. Default |
|
|||
|
|
adjust the image sharper. |
|
|
|
|
3. Mode 2 |
|
|
||
|
|
|
|
|
|
|
|
|
This monitor can accept video |
1 - selects D-SUB |
Same as Analog |
|
|
|
signals through two different |
(Analog) |
|
|
|
|
connectors. |
2 -selects DVI-Digital |
|
|
|
Input video signal Most desktop computers use a |
|
|
|
|
|
|
D-SUB connector. Select |
|
|
|
|
|
digital among OSD Controls |
|
|
|
|
|
when you use DVI connector. |
|
|
|
|
|
|
|
|
22

|
|
|
|
|
|
Shows resolution, refresh rate, and product details. |
|
|
|
|
|
|
|
Note: This screen does not allow any changes to the |
|
|
|
|
|
|
|
settings. |
|
Options |
Information |
|
|||||
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The language chosen affects |
Select one of the 5 |
|
|
|
|
|
|
only the language of the OSD. |
languages (English, |
|
|
|
|
|
|
It has no effect on any |
French, Italian, German |
|
|
|
Language |
||||
|
|
|
software running on the |
and Spanish) to use for |
|||
|
|
|
|
|
|
computer. |
the OSD. |
|
|
|
|
|
|
|
|
ENGLISH
Same as Analog
23

OSD Icon on |
Submenu |
Description |
Controls and |
Controls and |
|||||||||||||||
Main Menu |
Adjustments (Analog) |
Adjustments (Digital) |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Adjusts menu location on the screen. |
Same as Analog |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Options |
Menu Position |
|
|
|
|||||||||||||||
(Continued) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
1. Default |
Returns the menu position to the default settings. |
|
||||||||||||||
|
|
|
2. Custom |
|
|
|
•Horizontal (H) Changes the horizontal
|
|
|
|
|
position of OSD. |
|
|
|
|
|
|
• |
Vertical (V) |
Changes the vertical position |
|
|
|
||||
|
|
|
|
|||||||
|
|
|
|
|
of OSD. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
Resets monitor to the original settings. |
|
|
|||
|
|
Reset |
|
|
|
|
|
|
||
|
• |
Cancel |
Does not make the adjustment. |
|
|
|
||||
|
• |
Reset |
Resets the settings. |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
Changes button repeat rate |
|
|
|
||
|
|
|
|
|
and menu time out setting. |
|
|
|
||
|
|
Accessibility |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Selects |
or |
button |
Off - increases by 1 |
|
|
|
|
|
|
|
repeating rate. |
|
each time the button is |
|
||
|
|
|
|
|
|
pressed. |
|
|
||
|
• |
Button repeat |
|
|
|
|
|
|||
|
|
|
|
Default - increases |
|
|||||
|
|
rate |
|
|
|
|
||||
|
|
|
|
|
continuously while the |
|
||||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
button is pressed. |
|
|
|
|
|
|
|
|
|
|
Slow - increases by 1 |
|
|
|
|
|
|
|
|
|
|
every 2 seconds while |
|
|
|
|
|
|
|
|
|
|
the button is pressed. |
|
|
|
|
|
|
|
Sets the length of time the |
|
|
|
||
|
|
|
|
|
Use the |
or |
|
|||
|
|
|
|
|
OSD will remain active after |
button to select time |
|
|||
|
|
|
|
|
the last time a button is |
|
||||
|
• |
Menu time out |
from 5 to 60 seconds. |
|
||||||
|
pressed. |
|
|
|
||||||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
24

Further Information
Display modes
The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes.
The image size, position and shape might change when the display mode changes. This is normal and the image can be readjusted using AUTO IMAGE SETUP and the monitor controls.
Unlike CRT monitors, which require a high refresh rate to minimize flicker, TFT technology is inherently flicker-free. If possible, configure your computer for 1280 × 1024 addressability at 60Hz vertical refresh rate.
For the display modes listed on the next page, the screen image has been optimized during manufacture.
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
25

For image problems, you may want to run AUTO
Setup again before consulting to this section. In most cases, AUTO SETUP can fix the problems. See
Auto Image Setup for DOS on page 15 for details.
Factory Set Display Modes
Addressability |
Refresh Rate |
Horizontal |
Analog |
Digital |
|
Frequency |
|||||
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
640 × 350 |
70 Hz |
31.5 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
640 × 480 |
60 Hz |
31.5 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
640 × 480 |
72 Hz |
37.8 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
640 × 480 |
75 Hz |
37.5 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
720 × 400 |
70 Hz |
31.4 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
800 × 600 |
60 Hz |
37.8 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
800 × 600 |
72 Hz |
48.0 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
800 × 600 |
75 Hz |
46.8 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1024 × 768 |
60 Hz |
48.4 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1024 × 768 |
70 Hz |
56.5 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1024 x 768 |
75 Hz |
60.0 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1280 x 1024† |
60 Hz |
48.4 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1280 x 1024 |
75 Hz |
80.0 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
640 × 480 |
66 Hz(MAC) |
35.0 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
832 X 624 |
75 Hz(MAC) |
49.7 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1024 × 768 |
75 Hz(MAC) |
60.2 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1152 x 864 |
75 Hz |
67.5 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1152 x 870 |
75 Hz |
68.7 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1152 x 900 |
66 Hz(SUN) |
61.8 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1280 x 1024 |
72 Hz(HP) |
78.1 kHz |
Yes |
Yes |
|
|
|
|
|
|
|
1280 x 1024 |
76 Hz(SUN) |
81.1 kHz |
Yes |
Yes |
|
|
|
|
|
|
† Recommended
‘Note: VESA timings are as detailed in the VESA “Display Monitor Timing Specification”. Version 1.0, Revision 0.8, dated 09/17/98.’
26

Power Management
If your computer has previously been used with a CRT monitor and is
currently configured to a display mode outside the range that the Flat Panel monitor can display, you may need to re-attach the CRT monitor temporarily until you have re-configured the computer, preferably to 1280 x 1024 at 60Hz.
To benefit from power management, the monitor must be used in conjunction with a computer that implements the Video Electronics Standards Association (VESA) Display Power Management Signaling (DPMS) Standard.
The power management feature is invoked when the computer recognizes that you have not used your mouse or keyboard for a user-definable period. There are several states as described in the table below.
As an ENERGY STAR® Partner, IBM has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
For optimal performance, switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day.
FRANÇAIS ENGLISH
State |
Power |
Screen |
Restoring |
Compliance |
|
Indicator |
Operation |
||||
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
On |
Blinking green |
Normal |
|
|
|
|
|
|
|
|
|
Active off |
Blinking green |
Blank |
Press a key or |
ENERGY STAR® |
|
move the mouse. * |
|||||
|
|
|
|
||
|
|
|
|
|
* There may be a slight delay before the picture reappears.
Product Disposal
The fluorescent lamp in the liquid crystal display contains a small amount of mercury. Dispose of it as required by local ordinances and regulations.
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
27

Troubleshooting
If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your retailer or IBM, try the suggested actions that are appropriate to your problem.
Problem |
Possible |
Suggested Action |
Reference |
|
Cause |
||||
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Remove the other |
|
|
|
|
graphics adapter plugged |
Connecting |
|
Computer does |
There is |
into one of the expansion |
||
not boot after |
another |
slot. |
your Monitor |
|
the graphics |
graphics |
If the card is built-in to |
for Analog |
|
adapter is |
adapter in the |
the motherboard, check |
section on |
|
installed |
computer |
your system manual for |
page 7 |
|
|
|
instructions on how to |
|
|
|
|
disable the built-in adapter. |
|
|
|
|
|
|
|
The screen |
|
|
|
|
image is |
|
|
|
|
garbled or |
The display |
|
Connecting |
|
unusable |
driver is trying |
|
||
|
your Monitor |
|||
(rolling screen |
to use a |
Select the correct |
||
for Analog |
||||
images, |
setting your |
monitor again. |
||
section on |
||||
overlapping |
monitor does |
|
||
|
page 7 |
|||
screen images |
not support |
|
||
|
|
|||
or a blank |
|
|
|
|
screen) |
|
|
|
|
|
|
|
|
|
|
|
Ensure that the |
|
|
|
|
electrical outlet and the |
|
|
|
|
monitor are both switched |
|
|
|
|
on. |
|
|
|
|
Check that the power |
Connecting |
|
|
|
cord is firmly plugged into |
||
Screen is blank |
No power to |
the electrical outlet and the |
your Monitor |
|
and power |
power supply unit. |
for Analog |
||
monitor |
||||
indicator is off |
If the power cord plug |
section on |
||
|
||||
|
|
has a removable fuse, |
page 7 |
|
|
|
replace it. |
|
|
|
|
Try another power |
|
|
|
|
cord. |
|
|
|
|
Try another electrical |
|
|
|
|
outlet. |
|
|
|
|
|
|
28

Problem |
Possible |
Suggested Action |
Reference |
|
Cause |
||||
|
|
|
Screen is blank |
Brightness |
|
User |
|
|
controls |
|||
and power |
and Contrast |
Adjust brightness and |
||
section on |
||||
indicator is |
may be too |
contrast. |
||
page User |
||||
steady green |
low |
|
||
|
controls19 |
|||
|
|
|
||
|
|
|
|
|
|
|
Press any key on the |
Power |
|
|
|
keyboard or move the |
||
|
The monitor is |
Management |
||
|
mouse to restore |
|||
|
in the Power |
section on |
||
|
operation. |
|||
|
Management |
page Power |
||
|
Check the Power |
|||
|
Standby state |
Management2 |
||
|
Management software on |
|||
|
|
7 |
||
|
|
your computer |
||
|
|
|
||
|
|
|
|
|
|
|
Check that the signal |
Connecting |
|
Screen is blank |
|
cable is firmly connected to |
||
The monitor is |
your Monitor |
|||
and power |
the computer. |
|||
not receiving |
for Analog |
|||
indicator is |
Check that no pins are |
|||
a video signal |
section on |
|||
steady amber |
bent in the signal cable |
|||
|
page 7 |
|||
|
|
|||
|
|
connector. |
||
|
|
|
||
|
|
|
|
|
|
|
Press any key on the |
Power |
|
|
The monitor is |
keyboard or move the |
||
|
Management |
|||
|
in the Power |
mouse to restore |
||
|
section on |
|||
|
Management |
operation. |
||
|
page Power |
|||
|
Suspend or |
Check the Power |
||
|
Management2 |
|||
|
Off state |
Management software on |
||
|
7 |
|||
|
|
|||
|
|
your computer. |
||
|
|
|
||
|
|
|
|
|
Screen is blank |
Display mode |
|
Further |
|
and power |
of the |
|
||
Reconfigure the |
Information |
|||
indicator is |
computer is |
|||
computer to use a |
section on |
|||
Flashing green |
outside the |
|||
supported display mode. |
page Further |
|||
every 0.5 |
range of the |
|||
|
Information25 |
|||
second |
monitor |
|
||
|
|
|||
|
|
|
|
|
|
|
Select Image Setup |
User |
|
Image appears |
There are |
controls |
||
menu in the OSD. Then |
||||
noises in the |
section on |
|||
to be smeared |
select MANUAL to adjust |
|||
video signal |
page User |
|||
|
Phase/Clock settings. |
|||
|
|
controls19 |
||
|
|
|
||
|
|
|
|
|
|
|
|
User |
|
Image appears |
The Color |
Adjust the Color |
controls |
|
to be |
setting may |
section on |
||
settings. |
||||
discolored |
be incorrect |
page User |
||
|
||||
|
|
|
controls19 |
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
29
Problem |
Possible |
Suggested Action |
Reference |
|
Cause |
||||
|
|
|
||
|
|
|
|
|
|
|
|
||
A few dots are |
The LCD contains over 3,900,000 thin- |
|
||
film transistors (TFTs). A small number of |
|
|||
missing, |
|
|||
missing, discolored, or lighted dots may be |
|
|||
discolored, or |
|
|||
present on the screen, which is an intrinsic |
|
|||
inappropriately |
|
|||
characteristic of the TFT LCD technology |
|
|||
lighted. |
|
|||
and is not an LCD defect. |
|
|||
|
|
|||
|
|
|
|
30

Further Help
If possible, stay by your computer. Your Technical
Support Representative may wish to go through the problem with you during the call.
More help, late-breaking news and details of the latest
accessories for these products may be found on the worldwide web at:
http://www.pc.ibm.com/us/ accessories
|
|
ENGLISH |
|
|
|
||
If you are unable to correct the problem yourself, you may seek further help |
FRANÇAIS |
||
as follows: |
|||
|
|||
Call the IBM HelpCenter®. |
|
||
|
In the US call 1-800-IBM-SERV (800-426-7378) |
|
|
|
In Canada (Toronto Only) call 416-383-3344 |
|
|
|
In Canada (all others) call 1-800-565-3344 |
|
|
In other countries contact your dealer, retailer, or other IBM authorized |
|
||
Servicer. |
|
||
Before calling, please have available as much of the following information as |
|
||
possible: |
|
||
1. |
Model and serial number from the label on your monitor. |
ESPAÑOL |
|
2. |
Purchase receipt. |
||
3. |
Description of problem. |
||
4. |
Computer type and model. |
|
|
5. |
System configuration (hardware fitted, etc.). |
|
|
6. |
System BIOS version number. |
ITALIANO |
|
7. |
Operating System and version number. |
||
|
|||
8. |
Display driver version number. |
|
|
9. |
Video Adapter Type. |
|
|
|
|
JAPANESE |
|
|
|
COMPL & WARR |
31

Specifications
This color monitor (Type-model 9419-Hx7) uses a 19-inch TFT LCD
Dimensions |
A. Lower Position |
|
|
|
Height : |
361.9 mm (14.25 in.) |
|
|
Depth : |
237.05 mm (9.33 in.) |
|
|
Width : |
408.0 mm (16.06 in.) |
|
|
|
|
|
|
B. Higher Position |
|
|
|
Height : |
451.9 mm (17.79 in) |
|
|
Depth : |
237.05 mm (9.33 in) |
|
|
Width : |
408.0 mm (16.06 in) |
|
|
|
|
|
Weight |
Unpackaged: |
App 7.0 kg (15.48 lb) |
|
|
Packaged: |
App 9.5 kg (20.94 lb) |
|
|
|
|
|
Tilt / Swivel / Lift |
Tilt: |
– 0° / + 30° |
|
|
Swivel: |
– 135° / + 135° |
|
|
Lift : |
90 mm (3.54 in) |
(stroke) |
|
|
|
|
Image |
Viewable Image Size: |
481.9.7 mm (19.0 in.) |
|
|
Maximum Height: |
376.32 mm (14.8 in.) |
|
|
Maximum Width: |
301.06 mm (11.9 in.) |
|
|
Pixel Pitch: |
0.294 mm (.012 in.) (H) |
|
|
|
× 0.294 mm (.012 in.) (V) |
|
|
|
|
|
Power Input |
Supply Voltage: |
90 - 260 V ac, 60/50 ± 3 Hz |
|
|
Max Supply Current: |
1.5 A at 120 V ac |
|
|
|
|
|
Power |
Normal Operation: |
< 40 W |
|
Consumption |
DPMS Stand-by: |
< 2 W for Analog, < 3 W for Digital |
|
|
DPMS Suspend: |
< 2 W for Analog, < 3 W for Digital |
|
|
DPMS off: |
< 2 W for Analog, |
< 3 W for Digital |
|
|
|
|
Video |
Input Signal: |
Analog Direct Drive, 75 ohm 0.7 V |
|
Input(Analog) |
Horiz. Addressability: |
1280 pixels (max) |
|
|
Vert. Addressability: |
1024 lines (max) |
|
|
Clock Frequency: |
135 MHz |
|
|
|
|
|
Video |
Interface: |
DVI |
|
Input(Digital) |
Input Signal: |
VESA TMDS (Panel Link TM) |
|
|
Horiz. Addressability: |
1280 pixels (max) |
|
|
Vert. Addressability: |
1024 lines (max) |
|
|
Clock Frequency: |
135 MHz |
|
|
|
|
|
Communications |
VESA DDC: |
2 B |
|
|
|
|
|
Supported Display |
VESA Standard modes between |
IBM, VESA, HP, Sun, Mac |
|
Modes |
Horiz. Frequency: |
31 kHz - 81 kHz (Digital & Analog) |
|
|
Vert. Frequency: |
55 Hz - 76 Hz |
|
|
|
|
|
32

Environment |
Temperature: |
10 to 35° C (50 to 95° F) |
|
Operating: |
|
|
Storage: |
- 20 to 60° C (-4 to 140° F) |
|
Shipping: |
- 20 to 60° C (-4 to 140° F) |
|
Humidity: |
10 to 80% |
|
Operating: |
|
|
Storage: |
5 to 95% |
|
Shipping: |
5 to 95% |
|
|
|
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
33

Service Information
The following parts are for use by IBM service, or IBM authorized dealers, to support the customer warranty. Parts are for service use only.
|
Model Type 9419 |
|
73P3890 |
9419-HB7,HK7 |
Monitor - Business Black |
73P3891 |
9419-HG7 |
Monitor - Ash Grey |
73P3893 |
9419-HB7, HG7, HK7 |
Stand - Business Black |
73P3895 |
9419-HB7, HG7, HK7 |
Video Cable - Black |
73P3897 |
9419-HB7, HG7, HK7 |
User's Guide CD |
73P3899 |
9419-HB7, HG7, HK7 |
Setup Guide |
34

Notices and Trademarks
This section contains information on notices and trademarks.
Notices
IBM may not offer the products, services, or features discussed in this document in all countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. However, it is the user’s responsibility to evaluate and verify the operation of any non-IBM product, program, or service.
IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:
IBM Director of Licensing
IBM Corporation
North Castle Drive
Armonk, NY 10504-1785
U.S.A.
The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.
IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
Any references in this publication to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this IBM product, and use of those Web sites is at your own risk.
FRANÇAIS ENGLISH
COMPL & WARR JAPANESE ITALIANO ESPAÑOL
35
Trademarks
The following terms, used in this publication, are trademarks or service marks of the IBM Corporation in the United States, other countries, or both:
HelpCenter IBM
ENERGY STAR® is a U.S. Govt. registered trademark.
Microsoft® Windows®, and Windows NT are trademarks of Microsoft Corporation in the United States, other countries, or both.
Other company, product, and service names may be trademarks or service marks of others.
© Copyright International Business Machines Corporation 2004. All rights reserved.
36
