iL2215 IBM UltraPortable Data/Video Projector
User’ s Guide
iL2215 IBM UltraPortable Data/Video Projector
User’ s Guide
Note: Before using this information and the product it supports, read the information under
“Appendix F. Product warranties and notices” on page 49.
First Edition (October 2000)
© Copyright International Business Machines Corporation 2000. All rights reserved.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.
Contents
Safety information ..........v
About this book ..........vii
Installation and user’s guide ......1
Appendix A. Product specifications . . . 35
Appendix B. Portable and mobile computer
activation ............37
Appendix C. Using video mirroring . . . 43
Appendix D. Projected image size ....45
Appendix E. Help and service information 47
Appendix F. Product warranties and
notices .............49
© Copyright IBM Corp. 2000 iii
iv iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
Safety information
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety
Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
© Copyright IBM Corp. 2000 v
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette
produktet.
Antes de instalar este produto, leia as Informações sobre Segurança.
red inštaláciou tohto zariadenia si pečítaje Bezpečnostné predpisy.
Antes de instalar este producto lea la información de seguridad.
Lässäkerhetsinformationen innan du installerar den här produkten.
vi iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
About this book
This manual contains instructions for setting up, using, maintenance and
troubleshooting of the iL2215 IBM
manual is divided into two parts:
Part 1: Setup guide
This guide contains the product description and expanded installation
instructions.
Part 2: Appendixes
The appendixes contain product specifications, accessories, and help and
service. It also contains the product warranties and notices.
Note: The illustrations in this manual might be slightly different from your
hardware.
Registering your option
Thank you for purchasing OPTIONS by IBM. Please take a few moments to
register your product and provide us with information that will help IBM to
better serve you in the future. Your feedback is valuable to us in developing
products and services that are important to you, as well as in developing
better ways to communicate with you. Register your option on the IBM Web
site at
®
UltraPortable Data/Video Projector. The
http://www.ibm.com/pc/register
IBM will send you information and updates on your registered product unless
you indicate on the Web site questionnaire that you do not want to receive
further information.
© Copyright IBM Corp. 2000 vii
viii iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
Installation and user’s guide
Introduction
The iL2215 IBM®UltraPortable Data/Video Projector is specifically designed
for the mobile presenter. It offers XGA 1024 x 768 graphics with 16.7 million
colors in a small, 4.8-pound projector. It generates crisp, clear images using
Digital Light Processing (DLP) technology and features an M1-DA connector
for easy, built-in digital/analog and USB connectivity. The iL2215 is easy to
connect, easy to use, easy to transport, and easy to maintain.
The projector is compatible with these major broadcast video standards:
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60, and SECAM. It automatically
adjusts to optimize its performance for the incoming video. The input signal
for SECAM video is similar to other video signals and cannot be
automatically detected, therefore SECAM must be chosen manually. See
“Video standard” on page 22 for details.
Image resolution
The XGA resolution of the iL2215 projected image is 1024 x 768. The projector
cannot compress screen resolutions above 1024 x 768. If your computer screen
resolution is higher than 1024 x 768, reset it to a lower resolution before you
connect the projector.
Note: The iL2215 projector automatically expands 640 x 480 and 800 x 600
images to 1024 x 768. You can display these images at their native
resolutions by turning off the Auto Resize feature. See “Resize” on page
19 for more information.
Compatibility
The projector is compatible with a wide variety of computers and video
devices, including:
v IBM-compatible computers, including mobile computers, up to 1024 x 768
resolution.
v Apple Macintosh and PowerBook computers up to 1024 x 768 resolution.
v Most standard VCRs, DVD players, HDTV sources, camcorders, and laser
disc players.
Note: The projector is compatible with 1080i HDTV format.
© Copyright IBM Corp. 2000 1
Unpacking the projector
The projector comes with the items that are shown in the illustration. Check
to make sure that all are included. Contact your dealer if anything is missing.
If you are experienced in setting up presentation systems, use the Quick Start
card that comes with the iL2215 projector. For complete details on connecting
and operating the projector, refer to the User’s Guide.
Attention: This product contains a Metal Arc Lamp which contains Mercury.
Dispose of it as required by local ordinances and regulations.
Note: The items that come with your projector might vary depending on the
projector configuration you have ordered.
1iL2215 projector and lens cap 4Composite video cable 7MI-DA analog computer cable
2Soft carrying case 5Audio cable 8Power cord
3User’s Guide, Quick Start card
and multi-language online User’s
Guide CD (available after
12/31/00)
6Audio cable adapter 9Remote control
2 iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
1Zoom ring 3Speaker 5Connector panel 7Focus ring
2Keypad 4Security lock 6Power cord connector
Usage guidelines
Observe the following guidelines when using the projector.
Attention: Do not look directly into the projection lens when the lamp is
turned on. The bright light might harm your eyes.
Attention: Do not block the grills on the projector. Restricting the airflow
can cause it to overheat and turn off. If this happens, you must wait a minute
before attempting to turn it back on.
v Handle the projector as you would any product with glass components. Be
especially careful not to drop it.
v Avoid leaving the projector in direct sunlight or extreme cold for extended
periods of time. If this happens, allow it to reach room temperature before
use.
v Transport the projector in a carrying case. Refer to Appendix A to
determine what accessories are available for your projector.
Installation and user’s guide 3
Setting up the projector
Use the following procedure to set up the projector:
1. Place the projector on a flat surface.
v The projector must be within 10 feet (3 m) of your power source and
within 6 feet (1.8 m) of your computer.
v If you want to project from behind a translucent screen, set up the
projector behind the screen. See “Rear projection” on page 23 for
instructions for reversing the image.
2. Position the projector the desired distance from the screen.
v The distance from the lens of the projector to the screen and the zoom
setting determine the size of the projected image. The following
illustration shows three projected image sizes. For more information
about image size, see “Appendix D. Projected image size” on page 45.
3. Make sure that the projector is unplugged and your computer is turned
off.
Note: If you are connecting the projector to a computer, make sure that the
distance between the computer and the projector is 6 feet or less.
4 iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
in
in
1S-video 2Composite video 3Audio in 4MI-DA data interface
1To USB mouse 2To computer video 3To projector
DANGER
Electrical current from power, telephone, and communication cables is hazardous.
To avoid a shock hazard:
— Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration
of this product during an electrical storm.
— Connect all power cords to a properly wired and grounded electrical outlet.
— Connect to properly wired outlets any equipment that will be attached to this product.
— When possible, use one hand only to connect or disconnect signal cables.
— Never turn on any equipment when there is evidence of fire, water, or structural damage.
— Disconnect the attached power cords, telecommunications systems, networks, and modems before
you open the device covers, unless instructed otherwise in the installation and configuration
procedures.
— Connect and disconnect cables as described in the following table when installing, moving, or
opening covers on this product or attached devices.
Installation and user’s guide 5
To connect: To disconnect:
1. Turn everything OFF. 1. Turn everything OFF.
2. First attach all cables to devices. 2. First, remove power cords from outlet.
3. Attach signal cables to connectors. 3. Remove signal cables from connectors.
4. Attach power cords to outlet. 4. Remove all cables from devices.
5. Turn device ON.
Connecting a computer
The projector comes with an M1-DA analog computer cable. If your computer
has a digital output, you can use the optional M1-DA digital computer cable,
sold separately. See Appendix A for ordering accessories.
1. Plug the end of the M1-DA analog computer cable (marked A) into the
connector marked AD on the projector.
2. Plug the end of the M1-DA analog computer cable into the video
connector on your computer.
in
in
1Audio cable 2MI-DA analog computer cable 3USB mouse
Note: Many mobile computers do not automatically turn on their external
video port when a secondary display device such as a projector is
connected. See your computer manual for the command that activates
the external video port. Press Fn F7 on your IBM ThinkPad to activate
the external display. Activation commands for some mobile computers
are listed in Appendix B.
Note: If you are connecting the projector to an older Macintosh computer that
does not have a 15-pin connector, you must use a Mac adapter between
the computer and the projector.
6 iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
To control the computer mouse from the projector remote control or keypad,
plug the end of the M1-DA analog computer cable into the mouse connector
on your computer.
Note: The USB mouse is supported for use only with Microsoft
Microsoft Windows 2000 Professional, and Apple OS 8.5 and later.
To play the audio from your computer audio on the projector, plug either end
of the audio cable into the audio connector on your computer. Plug the other
end of the audio cable into the speaker connector on the projector.
For information about starting the projector and computer, go to “Starting the
projector and adjusting the image” on page 9.
Note: You do not need to restart your computer after connecting a USB
mouse. It is hot-pluggable.
Connecting a video player
Use the following procedure to connect a video player.
If your video player uses a round, one-prong composite video connector,
you’ll need only the audio cable, audio adapter, and composite video cable
that comes with the projector. If your video player uses a round, four-prong
S-video connector, you’ll need an S-video cable in addition to the audio cable
and audio adapter. The S-video cable is sold separately. See Accessories in
Appendix A.
1. Plug the yellow connector of the composite video cable into the
“video-out” connector on your video player. This connector might be
labeled “To Monitor.” Or, if you are using an S-video cable, connect it to
the “S-video out” connector on the video player.
2. Plug the other yellow connector into the composite video connector on the
projector. Or, if you are using S-video, plug the other end of the cable into
the “S-video” connector on the projector.
®
Windows®98,
Installation and user’s guide 7
Note: High Definition Television (HDTV) sources are connected to the
projector using the M1-DA computer cable.
in
in
1Audio adapter 2Composite video cable 3Audio cable
in
in
1Audio adapter 2S-video cable 3Audio cable
3. Plug the white connector of the audio adapter into the left “audio out”
connector on your video player. Plug the red connector of the adapter into
the right “audio out” connector on the video player.
4. Plug the other end of the audio adapter into the audio cable.
5. Plug the audio cable into the “audio in” connector on the projector.
Note: The audio adapter is provided so that the same audio cable that is used
to connect a computer can be used with the adapter to connect a VCR.
8 iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
Note: Your video player might also have a “Video Out” connector for a
coaxial cable connection. Do not use this to connect to the projector.
DANGER
Electrical current from power, telephone, and communication cables is hazardous.
To avoid a shock hazard:
— Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration
of this product during an electrical storm.
— Connect all power cords to a properly wired and grounded electrical outlet.
— Connect to properly wired outlets any equipment that will be attached to this product.
— When possible, use one hand only to connect or disconnect signal cables.
— Never turn on any equipment when there is evidence of fire, water, or structural damage.
— Disconnect the attached power cords, telecommunications systems, networks, and modems and
modems before you open the device covers, unless instructed otherwise in the installation and
configuration procedures.
— Connect and disconnect cables as described in the following table when installing, moving, or
opening covers on this product or attached devices.
To connect: To disconnect:
1. Turn everything OFF. 1. Turn everything OFF.
2. First attach all cables to devices. 2. First, remove power cords from outlet.
3. Attach signal cables to connectors. 3. Remove signal cables from connectors.
4. Attach power cords to outlet. 4. Remove all cables from devices.
5. Turn device ON.
Starting the projector and adjusting the image
Use the following procedure to start the projector and adjust the image.
Note: Always use the power cord that comes with the projector.
1. Remove the lens cap.
2. Plug the power cord into the side of the projector, and then plug it into an
electrical outlet. A surge-protected power strip is recommended. The fans
start to run, and the Lamp LED on the top of the projector lights orange
until the software has initialized. When initialization is complete, the
Lamp LED lights green. A green Lamp LED indicates that you can press
the lamp on/offbutton to turn the lamp on and off.
Note: The first time you connect your computer to the projector, the
computer might display a message stating that new hardware was
Installation and user’s guide 9
found. The Add New Hardware Wizard window might open. Use
the wizard to install the correct device driver (the computer
considers the projector a Plug and Play monitor).
3. Turn on the lamp by pressing the lamp on/off button on the keypad. The
startup window opens.
4. If you connected a video player, turn it on. The video image displays on
the projection screen. If a computer source is active, press the source
button on the keypad or the video button on the remote control to display
your video image. You can select a default source to determine which
source the projector examines first during power-up for active video; see
“Default source” on page 23. Use the volume buttons to adjust the
volume.
5. Turn on your computer.
Note: With some computers, the order in which you turn on the
equipment is very important. Most computers should be turned on
last, after all other peripheral devices have been turned on. See your
computer documentation to determine the correct order.
v The computer image displays on the projection screen. If a video source
is active, press the source button on the keypad or the computer button
on the remote control to display the computer image. Make sure that
your notebook computer’s external video port is activated; see “Portable
and mobile computer activation chart” in Appendix B for details.
v If necessary, make adjustments to the image using the on-screen menus
of the projector. To open the menus, press the menu button on the
keypad or remote control, then select the Display or Image submenu.
For information about the menus, see “Using the on-screen menus” on
page 16.
Turning off the projector
If you want to turn off the projector for a short period of time, press the
standby button on the keypad or remote control. This removes the image from
the screen for 15 minutes, but keeps the projector running. (You can change
the amount of time the projector stays in standby mode; see “Standby time”
on page 23 for details.) After 15 minutes, the lamp turns off and the projector
keeps running. To exit from standby mode, press the standby button again. It
might take several seconds for the projection lamp to reach full power and
project the image again.
Note: Lamp life will be extended if you turn the lamp off and then wait one
minute while the lamp cools before you unplug the projector. The
Lamp LED will light green when the lamp has cooled.
10 iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
Using the projector
This section describes how to use and make adjustments to the projector. It
also provides a reference to the keypad and remote-control buttons and the
options that are available from the on-screen menus.
Basic image adjustment
To adjust the image, do the following.
v Make sure you have turned on your equipment in the right order.
See“Starting the projector and adjusting the image” on page 9.
v If the image is not displayed completely, zoom the image (see “Adjusting
the projector” on page 13), adjust the height of the projector (see“Adjusting
the projector” on page 13) or center the image by adjusting its horizontal or
vertical position (see page 20). Be sure that the projector is at a 90-degree
angle to the screen.
v If the image is out of focus, rotate the focus lens (see “Adjusting the
projector” on page 13.
v If the image appears to shimmer or if it has blurry vertical bars after you
have adjusted the focus, turn Auto Image (see page 19) off and on again to
reset the automatic sync and tracking option. If that does not improve the
image, turn Auto Image off, and adjust the manual sync (see page 20), the
tracking (see page 20), or both.
v If the colors do not display correctly, adjust the brightness (see page 17).
Installation and user’s guide 11
Using the remote control
To control the computer mouse from the projector remote control or keypad,
you must connect the mouse connector on the computer cable to the
computer.
The projector comes with a remote control that has four function buttons, a
disk mouse, and two mouse buttons (one on the top of the remote and one on
the bottom).
Point the remote control at the projection screen or at the front of the
projector. The range for optimum operation is approximately 25 feet. If you
point the remote control at the projection screen, the distance to the screen
and back to the projector must be less than or equal to 25 feet. For best
results, point the remote control directly at the projector.
Note: If the remote control is inactive for several minutes, it “sleeps” to
conserve battery life. Press any button except the disk mouse to
reactivate the remote control.
1Disk mouse 2Right mouse button 3Left mouse button
Press anywhere on the edge of the disk mouse to move the cursor on the
screen. You can move the cursor at any angle by pressing the corresponding
edge of the disk. The mouse button on the top of the remote control simulates
your computer right mouse button; the button on the bottom simulates your
computer left mouse button. See “Using the keypad and remote control
buttons” on page 14 for a description of the four function buttons. If you are
12 iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
creating presentations in the Microsoft PowerPoint®presentation graphics
program, you can use the remote control mouse buttons to navigate through
your presentation while in Slide Show mode. To configure the PowerPoint for
this, click Options from the Tools menu, click the View tab, deselect the
Popup Menu on Right Mouse Click option in the Slide Show section, and
then click OK. Then, when you are in the PowerPoint Slide Show mode, click
the left mouse button to advance to the next slide, and click the right mouse
button to return to the previous slide (other PowerPoint modes are not
affected).
Adjusting the projector
To focus the image, rotate the focus ring 2(see the following illustration)
until the image is clear. To zoom the image, rotate the zoom ring1. This
adjusts the image size without affecting focus.
The projector is equipped with a self-locking, quick-release elevator foot and
button. To raise the projector:
1. Press and hold the elevator button 1(see the following illustration).
2. Raise the projector to the height that you want, and then release the
button to lock the elevator foot 2 into position.
Installation and user’s guide 13

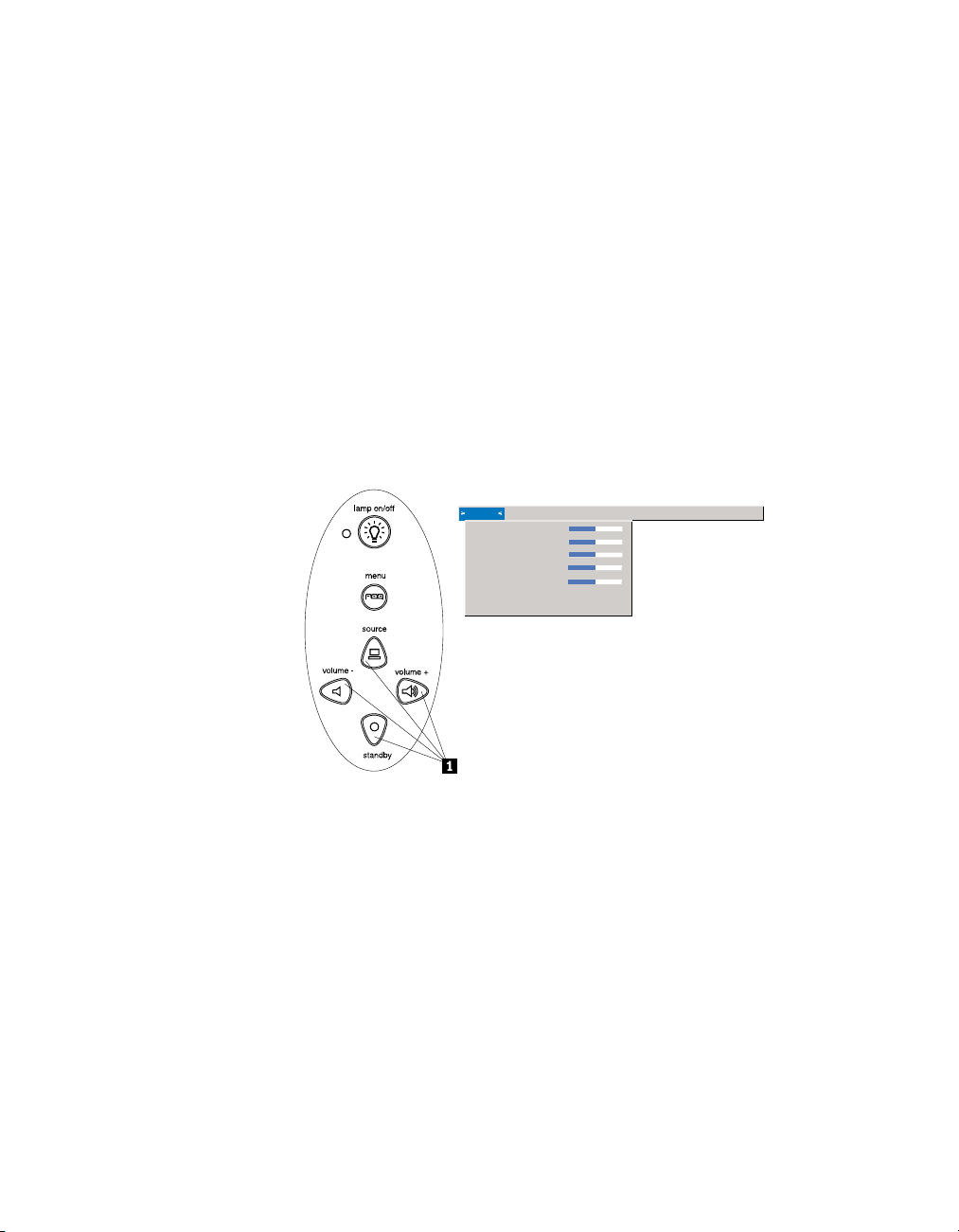

Using the keypad and remote control buttons
While the menus are displayed, the volume, source, and standy buttons on
the keypad act as menu navigation buttons. See “Using the on-screen menus”
on page 16.
Lamp on/off (keypad only)
Press the lamp on/off button to turn the lamp on or off. The Lamp LED
indicates the state of the lamp. When the Lamp LED 1 lights green, you can
turn the lamp on, or the lamp is currently on. An orange LED indicates the
software is initializing or the lamp is cooling. Do not press the lamp on/off
button when the LED is orange.
14 iL2215 IBM UltraPortable Data/Video Projector: User’s Guide
Loading...
