IBM storage products - official published specifications

IBM

Hard disk drive specifications

Travelstar 60GH & 40GN

2.5 inch ATA/IDE hard disk drive

IC25T060ATCS05Models: IC25N040ATCS04 IC25N030ATCS04 IC25N020ATCS04 IC25N010ATCS04

Revision 3.0 22 January 2002

S07N-7681-09 Publication # 1540

IBM

Hard disk drive specifications

Travelstar 60GH & 40GN

2.5 inch ATA/IDE hard disk drive

IC25T060ATCS05Models: IC25N040ATCS04 IC25N030ATCS04 IC25N020ATCS04 IC25N010ATCS04

Revision 3.0 22 January 2002

S07N-7681-09 Publication # 1540

1st Edition (Revision 0.1) S07N-7681-00 (19 September 2001) Preliminary 2nd Edition (Revision 0.2) S07N-7681-01 (23 October 2001) Preliminary 3rd Edition (Revision 0.3) S07N-7681-02 (25 October 2001) Preliminary 4th Edition (Revision 0.4) S07N-7681-03 (29 October 2001) Preliminary 5th Edition (Revision 0.5) S07N-7681-04 (1 November 2001) Preliminary 6th Edition (Revision 0.6) S07N-7681-05 (2 November 2001) Preliminary 7th Edition (Revision 0.7) S07N-7681-06 (5 November 2001) Preliminary 8th Edition (Revision 1.0) S07N-7681-07 (16 November 2001) 9th Edition (Revision 2.0) S07N-7681-08 (4 December 2001) 10th Edition (Revision 3.0) S07N-7681-09 (22 January 2002)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS

PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer or express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and changes in any product or program described in this publication at any time.

It is possible that this publication may contain reference to, or information about, IBM products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that IBM intends to announce such IBM products, programming, or services in your country.

Technical information about this product is available by contacting the local IBM representative or by using the following:

Internet: http://www.ibm.com/harddrive IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of

this document does not give you any license to these patents. You can send license inquiries, in writing, to the IBM Director of Commercial Relations, IBM Corporation, Armonk, NY 10577.

to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Table of contents

................................................................

.............................................................

.........................................................

...........................................................

.......................................................

...............................................

......................................................

Part 1. Functional specification

.....................................................

................................................

.............................................

..........................................................

.............................................

..............................................

.............................................

.................................................

........................................................

.................................................

.........................................................

.....................................................

........................................................

.......................................................

........................................................

..................................................

..........................................

.............................................

...............................................................

........................................................

.........................................................

..........................................

..................................................

.................................................

...................................................

................................................

......................................................

...........................................................

...................................................

...........................................

........................................

......................................

.......................................

......................................

viiFigures

11.0 General

11.1 Abbreviations

31.2 References

31.3 General caution

31.4 Drive handling precautions

52.0 General features

93.0 Fixed disk subsystem description

93.1 Control Electronics

93.2 Head disk assembly data

114.0 Fixed disk characteristics

114.1 Formatted capacity by model number

124.2 Data sheet

124.3 Cylinder allocation by model number

144.4 Performance characteristics

144.4.1 Command overhead

154.4.2 Mechanical positioning

174.4.3 Operating modes

195.0 Data integrity

195.1 Data loss on power off

195.2 Write Cache

195.3 Equipment status

205.4 WRITE safety

205.5 Data buffer test

205.6 Error recovery

205.7 Automatic reallocation

205.7.1 Nonrecovered write errors

205.7.2 Nonrecoverable read error

205.7.3 Recovered read errors

215.8 ECC

236.0 Specification

236.1 Environment

236.1.1 Temperature and humidity

246.1.2 Radiation noise

246.1.3 Conductive noise

246.1.4 Magnetic fields

256.2 DC power requirements

266.2.1 Power consumption efficiency

266.3 Start up Current

286.4 Reliability

286.4.1 Data reliability

286.4.2 Failure prediction (S.M.A.R.T.)

286.4.3 Cable noise interference

286.4.4 Service life and usage condition

Travelstar 60GH & 40GN hard disk drive specifications

iii

............................................

.....................................................

...............................................

......................................

............................................

....................................

..............................................

...........................................

...................................................

...............................................

.............................................

.................................................

...............................................

...........................................................

................................................

..............................................

....................................................

............................................

.......................................................

.....................................................

.............................................................

............................................

.................................................

.............................................

...................................................

........................................

..........................................................

.......................................

.............................................................

....................................................

......................................................

....................................................

..............................................

........................................................

..........................................................

.................................................

.....................................................

...............................................

...........................................

........................................

......................................

...............................................

.........................................

......................................

........................................

.................................................

.......................................

............................................

296.4.5 Preventive maintenance

296.4.6 Load/unload

316.5 Mechanical specifications

316.5.1 Physical dimensions and weight

316.5.2 Mounting hole locations

326.5.3 Connector and jumper description

326.5.4 Mounting orientation

336.5.5 Load/unload mechanism

346.6 Vibration and shock

346.6.1 Operating vibration

356.6.2 Nonoperating vibration

356.6.3 Operating shock

366.6.4 Nonoperating shock

376.7 Acoustics

376.7.1 Sound power level

386.7.2 Discrete tone penalty

396.8 Identification labels

396.9 Electromagnetic compatibility

396.9.1 CE Mark

396.9.2 C-Tick Mark

406.10 Safety

406.10.1 UL and CSA approval

406.10.2 IEC compliance

406.10.3 German Safety Mark

406.10.4 Flammability

406.10.5 Secondary circuit protection

406.11 Packaging

417.0 Electrical interface specifications

417.1 Cabling

417.2 Interface connector

427.3 Signal definitions

447.4 Signal descriptions

477.5 Interface logic signal levels

477.6 Reset timings

487.7 PIO timings

497.8 Multiword DMA timings

507.9 Ultra DMA timings

507.9.1 Initiating Read DMA

517.9.2 Host Pausing Read DMA

527.9.3 Host Terminating Read DMA

537.9.4 Device Terminating Read DMA

547.9.5 Initiating Write DMA

557.9.6 Device Pausing Write DMA

567.9.7 Device Terminating Write DMA

577.9.8 Host Terminating Write DMA

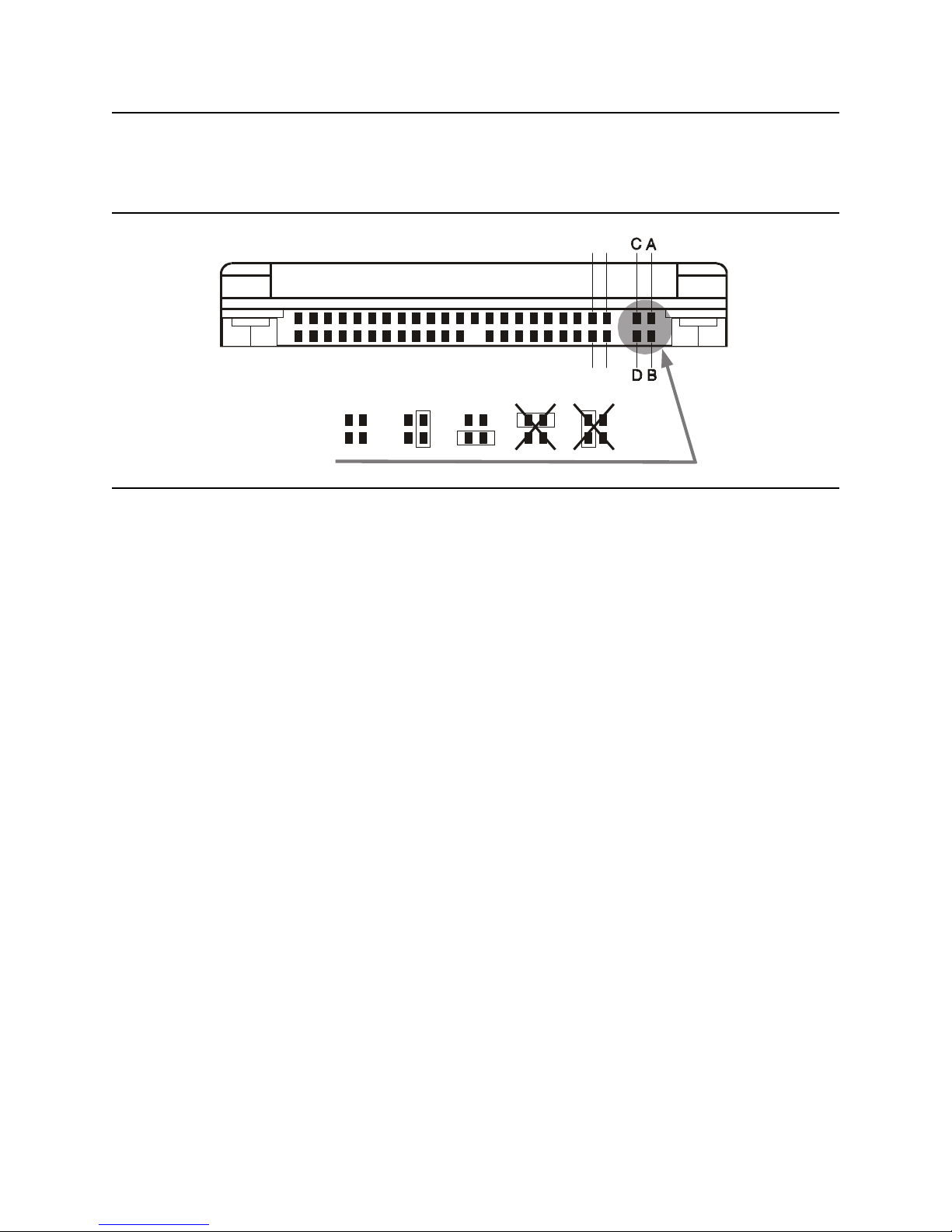

587.10 Drive address setting

587.10.1 Drive default address setting

597.11 Addressing of HDD registers

Part 2. Interface specification

............................................................

..........................................................

Travelstar 60GH & 40GN hard disk drive specifications

........................................

638.0 General

638.1 Introduction

.........................................................

..............................................

..........................................................

..............................................

...................................................

................................................

.................................................

.......................................................

...............................................

................................................

.................................................

.......................................................

...................................................

................................................

..............................................

.....................................................

........................................

......................................................

..................................................

......................................

...............................................

...................................................

...............................................

......................................

...............................................

......................................

............................................

...........................................

...................................................

.....................................

............................

..................................................

........................................................

.................................

.....................................

.............................

...........................................

................................................

.............................................

.................................................

..................................................

......................................................

.................................................

..............................................

......................................

............................................

....................

.............................................

..................................................

...................................................

.....................................................

....................................

...............................................

.................................................

638.2 Terminology

659.0 Deviations from standard

6710.0 Registers

6810.1 Alternate Status Register

6810.2 Command Register

6810.3 Cylinder High Register

6810.4 Cylinder Low Register

6910.5 Data Register

6910.6 Device Control Register

7010.7 Drive Address Register

7010.8 Device/Head Register

7110.9 Error Register

7110.10 Features Register

7110.11 Sector Count Register

7210.12 Sector Number Register

7210.13 Status Register

7311.0 General operation descriptions

7311.1 Reset response

7511.2 Register initialization

7611.3 Diagnostic and Reset considerations

7711.4 Power-off considerations

7711.4.1 Load/Unload

7711.4.2 Emergency unload

7811.4.3 Required power-off sequence

7811.5 Sector Addressing Mode

7811.5.1 Logical CHS addressing mode

7911.5.2 LBA addressing mode

8011.6 Power management features

8011.6.1 Power Mode

8011.6.2 Power management commands

8011.6.3 Standby/Sleep command completion timing

8111.6.4 Standby timer

8111.6.5 Status

8111.6.6 Interface Capability for Power Modes

8111.6.7 Initial Power Mode at Power On

8211.7 Advanced Power Management (ABLE-3) feature

8211.7.1 Performance Idle Mode

8211.7.2 Active Idle Mode

8211.7.3 Low Power Idle Mode

8211.7.4 Transition Time

8411.8 S.M.A.R.T. Function

8411.8.1 Attributes

8411.8.2 Attribute values

8411.8.3 Attribute thresholds

8411.8.4 Threshold exceeded condition

8411.8.5 S.M.A.R.T. commands

8511.8.6 S.M.A.R.T. operation with power management modes

8611.9 Security Mode Feature Set

8611.9.1 Security Mode

8611.9.2 Security level

8611.9.3 Password

8711.9.4 Master Password Revision Code

8711.9.5 Operation example

9011.9.6 Command table

Travelstar 60GH & 40GN hard disk drive specifications

..............................................

................................

...............................

..................................

................................

.............................................

.................................

......................................................

.................................................

..................................

.............................

..................................................

..........................................

.................................................

..................................................

.................................................

.........................................

.............................................

..........................................

.....................................

..............

...........

...............

...................

........................

........................................

..................................................

.....................................

.......................................

................................................

......................................................

............................................

......................................

..................................................

...............................................

................................................

.....................................

.............................................

........................................

...................................................

.......................................

.........................................

............................................

...........................................

..........................................

...............................................

.......................................................

..................................

.................................................

............................................

..................................................

...................................................

9211.10 Protected Area Function

9211.10.1 Example for operation (In LBA Mode)

9311.10.2 Set Max security extension commands

9511.11 Address Offset Feature (vendor specific)

9511.11.1 Enable/Disable Address Offset Mode

9611.11.2 Identify Device Data

9611.11.3 Exceptions in Address Offset Mode

9711.12 Seek Overlap

9811.13 Write Cache function

9811.14 Delayed Write function (vendor specific)

9811.14.1 Enable/Disable Delayed Write command

9911.15 Reassign Function

9911.15.1 Auto Reassign Function

10112.0 Command protocol

10112.1 Data In commands

10312.2 Data Out commands

10512.3 Nondata commands

10612.4 DMA Data Transfer commands

10713.0 Command descriptions

11113.1 Check Power Mode (E5h/98h)

11213.2 Device Configuration Overlay (B1h)

11213.2.1 DEVICE CONFIGURATION RESTORE (subcommand C0h)

11313.2.2 DEVICE CONFIGURATION FREEZE LOCK (subcommand C1h)

11313.2.3 DEVICE CONFIGURATION IDENTIFY (subcommand C2h)

11313.2.4 DEVICE CONFIGURATION SET (subcommand C3h)

11613.3 Enable/Disable Delayed Write (FAh: vendor specific)

11713.4 Execute Device Diagnostic (90h)

11813.5 Flush Cache (E7h)

11913.6 Format Track (50h: vendor specific)

12013.7 Format Unit (F7h: vendor specific)

12213.8 Identify Device (ECh)

13113.9 Idle (E3h/97h)

13213.10 Idle Immediate (E1h/95h)

13313.11 Initialize Device Parameters (91h)

13413.12 Read Buffer (E4h)

13513.13 Read DMA (C8h/C9h)

13713.14 Read Long (22h/23h)

13913.15 Read Multiple (C4h)

14113.16 Read Native Max ADDRESS (F8h)

14313.17 Read Sectors (20h/21h)

14513.18 Read Verify Sectors (40h/41h)

14713.19 Recalibrate (1xh)

14813.20 Security Disable Password (F6h)

14913.21 Security Erase Prepare (F3h)

15013.22 Security Erase Unit (F4h)

15213.23 Security Freeze Lock (F5h)

15313.24 Security Set Password (F1h)

15513.25 Security Unlock (F2h)

15713.26 Seek (7xh)

15813.27 Sense Condition (F0h: vendor specific)

15913.28 Set Features (EFh)

16113.29 Set Max ADDRESS (F9h)

16313.30 Set Multiple (C6h)

16413.31 Sleep (E6h/99h)

Travelstar 60GH & 40GN hard disk drive specifications

........................................

................................

..................................

...........................

.......................................

................................................

.................................................

.........................................

..................................................

...............................................

................................................

.............................................

.....................................

...................................................

.........................................................

.........................................

.............................

................................................................

16513.32 S.M.A.R.T. Function Set (B0h)

16613.32.1 S.M.A.R.T. Function Subcommands

17013.32.2 Device Attributes Data Structure

17513.32.3 Device Attribute Thresholds data structure

17713.32.4 S.M.A.R.T. error log sector

18013.32.5 Self-test log data structure

18113.32.6 Error reporting

18213.33 Standby (E2h/96h)

18313.34 Standby Immediate (E0h/94h)

18413.35 Write Buffer (E8h)

18513.36 Write DMA (CAh/CBh)

18713.37 Write Long (32h/33h)

18913.38 Write Multiple (C5h)

19113.39 Write Sectors (30h/31h)

19313.40 Write Verify (3Ch: vendor specific)

19514.0 Time-out values

19715.0 Appendix

19715.1 Commands Support Coverage

19915.2 SET FEATURES Command Support Coverage

20015.3 Changes from Travelstar 48GH, 30GN & 15GN 201Index

Travelstar 60GH & 40GN hard disk drive specifications

vii

This page intentionally left blank.

Figures

..............................................

.................................

......................................................

....................................

.............

..............

.........................................

...................................

.............................................

............................................

...................................................

.................................................

..........................................

...........................................

...................................

.........................................

...........................................

......................................

.....................

....................

.....................................

..........................

...............

....................

..............................................

.................

.................................................

..............................................

............................................

.................................

.................................................

...............................

.............................................

................................................

.......................................

..............................

..........................

........................

......................

..............................

.........................

......................

........................

.............................................

................................................

3Figure 1. Handling Precaution 1

3Figure 2. Handling Precaution 2 11Figure 3. Formatted capacity by model number. 12Figure 4. Data sheet 12Figure 5. Cylinder allocation of 60 GB model 13Figure 6. Cylinder allocation — all models except 60 GB (high TPI format) 13Figure 7. Cylinder allocation — all models except 60 GB (low TPI format) 14Figure 8. Performance characteristics 15Figure 9. Mechanical positioning performance 15Figure 10. Full stroke seek time 16Figure 11. Single track seek time 16Figure 12. Latency time 16Figure 13. Drive ready time 17Figure 14. Operating mode 17Figure 15. Drive ready time 21Figure 16. Examples of error cases. 23Figure 17. Environmental condition 23Figure 18. Limits of temperature and humidity 24Figure 19. Magnetic flux density limits 25Figure 20. DC Power requirements 26Figure 21. Power consumption efficiency 26Figure 22. Typical current wave form at start up of 60 GB model 27Figure 23. Typical current wave form at start up of 40 GB model 27Figure 24. Typical current wave form at start up of 20 GB model) 31Figure 25. Physical dimensions and weight 31Figure 26. Mounting hole locations of the 60 GB model. 32Figure 27. Mounting hole locations of all models except 60 GB model. 34Figure 28. Random vibration PSD profile breakpoints (operating) 34Figure 29. Swept sine vibration 35Figure 30. Random Vibration PSD Profile Breakpoints (nonoperating) 35Figure 31. Operating shock 36Figure 32. Nonoperating shock 37Figure 33. Weighted sound power 41Figure 34. Interface connector pin assignments 42Figure 35. Signal definition 43Figure 36. Special signal definitions for Ultra DMA 47Figure 37. System reset timings 48Figure 38. PIO cycle timings 49Figure 39. Multiword DMA cycle timings 50Figure 40. Ultra DMA cycle timings (Initiating Read) 51Figure 41. Ultra DMA cycle timings (Host Pausing Read) 52Figure 42. Ultra DMA cycle timings (Host Terminating Read) 53Figure 43. Ultra DMA cycle timings (Device Terminating Read) 54Figure 44. Ultra DMA cycle timings (Initiating Write) 55Figure 45. Ultra DMA cycle timings (Device Pausing Write) 56Figure 46. Ultra DMA cycle timings (Device Terminating Write) 57Figure 47. Ultra DMA cycle timings (Host Terminating Write) 58Figure 48. Drive address setting 59Figure 49. I/O address map

Travelstar 60GH & 40GN hard disk drive specifications

....................................................

..........................................

...........................................

............................................

..................................................

.................................................

.............................................

...........................................

................................................

.........................................

.................................

................................................

....................................................

..........................................

..................................................

........................

...............................

....................................

.......................

...................................................

............................................

.....................................

.............................

...................

..........................

....................................

........................

...........................

......................................

.....................................

.......................................

....................................

..............................

..........................

.........................................

.................................

..........................

......................................

...................................

....................................

.................................

............................

Travelstar 60GH & 40GN hard disk drive specifications

67Figure 50. Register Set 68Figure 51. Alternate Status Register 69Figure 52. Device Control Register 70Figure 53. Drive Address Register 70Figure 54. Device/Head Register 71Figure 55. Error Register 72Figure 56. Status Register 74Figure 57. Reset response table 75Figure 58. Default Register Values 75Figure 59. Diagnostic Codes 76Figure 60. Reset error register values 77Figure 61. Device behavior by ATA commands. 81Figure 62. Power conditions 87Figure 63. Initial setting 88Figure 64. Usual operation for POR 89Figure 65. Password lost 90Figure 66. Command table for device lock operation (1 of 2) 91Figure 67. Command table for device lock operation (2 of 2) 93Figure 68. Set Max SET PASSWORD data content 94Figure 69. Set Max security mode transition 95Figure 70. Device address map before and after Set Feature

97Figure 71. Seek overlap 107Figure 72. Command set (1 of 2) 108Figure 73. Command set (2 of 2) 109Figure 74. Command Set (Subcommand) 111Figure 75. Check Power Mode command (E5h/98h) 112Figure 76. Check Power Mode Command (E5h/98h) 112Figure 77. Device Configuration Overlay Features register values 114Figure 78. Device Configuration Overlay Data structure 115Figure 79. DCO error information definition 116Figure 80. Enable/Disable Delayed Write command (FAh) 117Figure 81. Execute Device Diagnostic command (90h) 118Figure 82. Flush Cache command (E7h) 119Figure 83. Format Track command (50h) 120Figure 84. Format Unit command (F7h) 122Figure 85. Identify Device command (ECh) 123Figure 86. Identify device information. (Part 1 of 7) 124Figure 87. Identify device information. (Part 2 of 7) 125Figure 88. Identify device information. (Part 3 of 7) 126Figure 89. Identify device information. (Part 4 of 7) 127Figure 90. Identify device information. (Part 5 of 7) 128Figure 91. Identify device information. (Part 6 of 7) 129Figure 92. Identify device information. (Part 7 of 7) 130Figure 93. Number of cylinders/heads/sectors by model. 131Figure 94. Idle command (E3h/97h) 132Figure 95. Idle Immediate command (E1h/95h) 133Figure 96. Initialize Device Parameters command (91h) 134Figure 97. Read Buffer command (E4h) 135Figure 98. Read DMA command (C8h/C9h) 137Figure 99. Read Long command (22h/23h) 139Figure 100. Read Multiple command (C4h) 141Figure 101. Read Native Max ADDRESS (F8h) 143Figure 102. Read Sectors command (20h/21h) 145Figure 103. Read Verify Sectors command (40h/41h)

......................................

..........................

...........

.............................

................................

..........................................

..............................

.............................

.................................

...................................

......................................

...........................................

..................................

.....................................

........................................

.....................................

.......................................

............................

...........................................

...................................

.................................

..........................................

..........................

................................

.......................................

..........................................

........................................

............................................

.......................................

.........................................

.....................................

............................

.....................................

..................................

...................................

....................................

.................................

...............................................

......................................

...............................

147Figure 104. Recalibrate command (1xh) 148Figure 105. Security Disable Password command (F6h) 148Figure 106. Password Information for Security Disable Password command 149Figure 107. Security Erase Prepare command (F3h) 150Figure 108. Security Erase Unit command (F4h) 150Figure 109. Erase Unit information 152Figure 110. Security Freeze Lock command (F5h) 153Figure 111. Security Set Password command (F1h) 154Figure 112. Security Set Password information 155Figure 113. Security Unlock command (F2h) 156Figure 114. Security Unlock information 157Figure 115. Seek command (7xh) 158Figure 116. Sense Condition Command (F0h) 159Figure 117. Set Features command (EFh) 161Figure 118. Set Max ADDRESS (F9h) 163Figure 119. Set Multiple command (C6h) 164Figure 120. Sleep command (E6h/99h) 165Figure 121. S.M.A.R.T. Function Set command (B0h) 167Figure 122. Log sector addresses 170Figure 123. Device Attribute Data Structure 171Figure 124. Individual Attribute Data Structure 172Figure 125. Status Flag definitions 175Figure 126. Device Attribute Thresholds Data Structure 176Figure 127. Individual Threshold Data Structure 177Figure 128. S.M.A.R.T. error log sector 177Figure 129. Error log data structure 178Figure 130. Command data structure 179Figure 131. Error data structure 180Figure 132. Self-test log data structure 181Figure 133. S.M.A.R.T. Error Codes 182Figure 134. Standby command (E2h/96h) 183Figure 135. Standby Immediate command (E0h/94h) 184Figure 136. Write Buffer command (E8h) 185Figure 137. Write DMA command (CAh/CBh) 187Figure 138. Write Long command (32h/33h) 189Figure 139. Write Multiple command (C5h) 191Figure 140. Write Sectors command (30h/31h) 195Figure 141. Time-out values 197Figure 142. Command coverage (1 of 2) 198Figure 143. Command coverage (2 of 2) 199Figure 144. SET FEATURES command coverage

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

1.0 General

This document describes the specifications of the IBM Travelstar 60GH & 40GN, a 2.5-inch hard disk drive with ATA/IDE interface:

Rotation speed (rpm)Height (mm)Capacity (GB)Model NumberDrive name

5,40012.560IC25T060ATCS05Travelstar 60GH 4,2009.540IC25N040ATCS04Travelstar 40GN 4,2009.530IC25N030ATCS04Travelstar 40GN 4,2009.520IC25N020ATCS04Travelstar 40GN 4,2009.510IC25N010ATCS04Travelstar 40GN

Part 1 of this document beginning on page 7 defines the hardware functional specification. Part 2 of this document beginning on page 61 defines the interface specification

These specifications are subject to change without notice.

1.1 Abbreviations

MeaningAbbreviation

32 x 1024 bytes32 KB 64 x 1024 bytes64 KB inch" ampA alternating currentAC Advanced TechnologyAT Advanced Technology AttachmentATA unit of sound powerBels Basic Input/Output SystemBIOS degrees Celsius°C Canadian Standards AssociationCSA Canadian-Underwriters LaboratoryC-UL cylinderCyl direct currentDC Drive Fitness TestDFT Direct Memory AccessDMA error correction codeECC European Economic CommunityEEC electromagnetic compatibilityEMC Error Recovery ProcedureERP electrostatic dischargeESD Federal Communications CommissionFCC field replacement unitFRU gravity, a unit of forceG 1 000 000 000 bitsGb 1 000 000 000 bytesGB

/Hz

1 000 000 000 bits per square inchGb/sq.in. (32 ft/sec) groundGND hexadecimalh hard disk driveHDD

per HertzG

Travelstar 60GH & 40GN hard disk drive specifications

us, µs

PIO

hertzHz InputI integrated lead suspensionILS impedanceimped Input/OutputI/O International Standards OrganizationISO 1,000 bytesKB 1,000 Bit Per InchKbpi kilogram (force)-centimeterkgf-cm kilohertzKHz logical block addressingLBA unit of A-weighted sound powerLw meterm maximummax. or Max. 1,000,000 bytesMB 1,000,000 Bit per secondMbps 1,000,000 Bit per secondMb/sec 1,000,000 bytes per secondMB/sec 1,000 ,00 bits per square inchMb/sq.in. megahertzMHz Machine Level ControlMLC millimetermm millisecondms microsecond numberNo. or # oscillations per minuteoct/min OutputO Open Drain Programmed Input/OutputOD

power on hoursPOH populationPop. part numberP/N peak-to-peakp-p power spectral densityPSD radiated electromagnetic susceptibilityRES radio frequency interferenceRFI relative humidityRH per cent relative humidity% RH root mean squareRMS revolutions per minuteRPM resetRST read/writeR/W secondsec sectors per trackSect/Trk secondary low voltageSELV Self-monitoring, analysis, and reporting technologyS.M.A.R.T tracks per inchTPI trackTrk. transistor-transistor logicTTL Underwriters LaboratoryUL voltV Verband Deutscher ElectrotechnikerVDE wattW transistor-transistor tristate logic3-state

Travelstar 60GH & 40GN hard disk drive specifications

1.2 References

ATA/ATAPI-5 (T13/1321D Revision 3)

1.3 General caution

! Do not apply force to the top cover (See figure below).

! Do not cover the breathing hole on the top cover (See figure below).

! Do not touch the interface connector pins or the surface of the printed circuit board.

! The drive can be damaged by shock or ESD (Electric Static Discharge). Any damages incurred to

the drive after removing it from the shipping package and the ESD protective bag are the responsibility of the user

1.4 Drive handling precautions

Do not press on the drive cover during handling.

Figure

Figure 2. Handling Precaution 2

. Handling Precaution 1

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

2.0 General features

" 2.5-inch, 12.5- and 9.5-mm Height MCC

" Formatted capacities of 60 GB, 40 GB, 30

" 512 bytes/sector

Interface (Enhanced

" Integrated controller

" No-ID recording format

" Coding : 96/104 MTR

" Multi zone recording

On-The-Fly

" Enhanced

# 40 bytes 3 way Interleaved Reed Solomon Code # 5 bytes per interleave On-The-Fly correction

" Segmented Buffer with write cache

# 2 MB - Upper 280 KB is used for firmware

" Fast data transfer rate (up to 100 MB/s)

" Media data transfer rate (max):

# 60-GB model - 261 Mb/s # all other models - 245 Mb/s

" Average seek time: 12 ms for read

ECC

) conforming to ATA/ATAPI-5

IDE

Compliance

GB,

and 10 GB

GB,

" Closed-loop actuator servo (Embedded Sector Servo)

" Rotary voice coil motor actuator

" Load/Unload mechanism

" Mechanical latch

" Adaptive power save control

# 60-GB model - 0.9 Watts at idle state # all other models - 0.65 Watts at idle state

" Power on to ready

# 60-GB model - 5.0 sec # all other models - 3.0 sec

" Operating shock

# 60-GB model - 150 G/2ms # all other models - 200 G/2ms

" Nonoperating shock

# 60-GB model - 700 G/1ms # all other models - 800 G/1ms

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

Part 1. Functional specification

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

3.0 Fixed disk subsystem description

3.1 Control Electronics

The control electronics works with the following functions:

! AT Interface Protocol

! Embedded Sector Servo

! No-ID (TM) formatting

! Multizone recording

! Code: 96/104 MTR

! ECC On-The-Fly

! Enhanced Adaptive Battery Life Extender

3.2 Head disk assembly data

The following technologies are used in the drive:

! Pico Slider

! Smooth glass disk

! GMR head

! Integrated lead suspension (ILS)

! Load/unload mechanism

! Mechanical latch

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

4.0 Fixed disk characteristics

4.1 Formatted capacity by model number

Physical Layout

Sectors per Track low TPI format high TPI format

Logical Layout

Physical Layout

Sectors per Track low TPI format high TPI format

Logical Layout

307–556

360–672 336–648

IC25N030ATCS04IC25N040ATCS04IC25T060ATCS05Description

512512512Bytes per Sector

360–672 336–648

348Number of Heads 224Number of Disks

161616Number of Heads 636363Number of Sectors/ Track

16,38316,38316,383Number of Cylinders

58,605,12078,140,160117,210,240Number of Sectors

30,005,821,44040,007,761,92060,011,642,880Total Logical Data Bytes

IC25N010ATCS04IC25N020ATCS04Description

512512Bytes per Sector

360–672 336–648

12Number of Heads 11Number of Disks

1616Number of Heads 6363Number of Sectors/ Track

16,38316,383Number of Cylinders

19,640,88039,070,080Number of Sectors

10,056,130,56020,003,880,960Total Logical Data Bytes

Figure 3. Formatted capacity by model number.

Travelstar 60GH & 40GN hard disk drive specifications

4.2 Data sheet

60-GB model

146–262 Data transfer rates (buffer to/from media) (Mbps)

Data transfer rates (Mbyte/sec) ULTRA DMA 100

459Recording density (Kbpi) (Max)

60.4Track density (Ktpi)

Figure 4. Data sheet

4.3 Cylinder allocation by model number

60-GB model

No. of Sectors/TrkCylinderZone

556 0–10230 5441024–20471 5282048–46072 5124608–69113 4996912–92154 4809216–130555 46013056–156156 44815616–174077 43217408–202238 41620224–222719 40322272–2431910 38424320–2739111 36427392–2918312 35229184–3097513 33630976–3353514 30733536–3507115

All other

models

4,2005,400Rotational Speed (RPM)

130–245 125–241

100100

528 509

63.5

66.4

3428Areal density (Gb/sq.in.- Max)

1616Number of zones

Figure 5. Cylinder allocation of 60 GB model

Travelstar 60GH & 40GN hard disk drive specifications

All other models - high TPI format

No. of Sectors/TrkCylinderZone

648 0–5110 640512–25591 6242560–48632 6004864–92153 5769216–115194 56011520–138235 54013824–168956 52016896–199677 50419968–215038 48021504–248319 45024832–2713510 44027136–2867111 42028672–3123112 40031232–3379113 36033792–3763114 33637632–3993515

Figure 6. Cylinder allocation — all models except 60 GB (high TPI format)

All other models - low TPI format

No. of Sectors/TrkCylinderZone

672 0–7670 660768–33271 6403328–66552 6246656–87033 6008704–122874 57612288–153595 56015360–171516 54017152–199677 52019968–220158 50422016–232959 48023296–2534310 48025344–2687911 45026880–2815912 42028160–3174313 38431744–3532714 36035328–3814315

Figure 7. Cylinder allocation — all models except 60 GB (low TPI format)

Travelstar 60GH & 40GN hard disk drive specifications

4.4 Performance characteristics

Drive performance is characterized by the following parameters:

! Command Overhead

! Mechanical Positioning

# Seek Time

# Latency

! Data Transfer Speed

! Buffering Operation (Look ahead/Write Cache)

Note: All the above parameters contribute to drive performance. There are other parameters which contribute to the performance of the actual system. This specification defines the essential characteristics of the drive. This specification does not include the system throughput as this is dependent upon the system and the application.

The following table gives a typical value for each parameter. The detailed descriptions are found in section 5.0.

All other models60-GBFunction

1212Average Random Seek Time - Read (ms)

1414Average Random Seek Time - Write (ms)

42005400Rotational Speed (RPM)

3.05.0Power-on-to-ready (sec)

1.01.0Command overhead (ms)

146-261Disk-buffer data transfer (Mb/s)

Figure 8. Performance characteristics

130-245 125-241

100100Buffer-host data transfer (MB/s)

4.4.1 Command overhead

Command overhead time is defined as the interval from the time that a drive receives a command to the time that the actuator starts its motion.

Travelstar 60GH & 40GN hard disk drive specifications

4.4.2 Mechanical positioning

4.4.2.1 Average seek time (including settling)

Max. (ms)Typical (ms)Command Type

1612Read 1714Write

Figure 9. Mechanical positioning performance

Typical and Max. are defined throughout the performance specification as follows:

Average of the drive population tested at nominal environmental and voltage conditions.Typical

Max.

The seek time is measured from the start of motion of the actuator to the start of a reliable read or write operation. A reliable read or write operation implies that error correction/recovery is not employed to correct arrival problems. The Average Seek Time is measured as the weighted average of all possible seek combinations.

Weighted Average = ––––––––––––––––––––––––––––

Maximum value measured on any one drive over the full range of the environmental and voltage conditions. (See section 6.1, "Environment" on page 23 and section 6.2, "DC power requirements" on page 25)

max.

Σ (max. + 1 – n)(Tn

n=1

+ Tn

out

)

(max. + 1)(max)

Where: max. = maximum seek length n = seek length (1-to-max.) Tn Tn

= inward measured seek time for an n-track seek

= outward measured seek time for an n-track seek

out

4.4.2.2 Full stroke seek

Max. (ms)Typical (ms)Command Type

30.023.0Read

31.024.0Write

Figure 10. Full stroke seek time

Full stroke seek time in milliseconds is the average time of 1000 full stroke seeks.

Travelstar 60GH & 40GN hard disk drive specifications

4.4.2.3 Single track seek time (without command overhead, including settling)

Maximum (ms)Typical (ms)Command Type

4.02.5Read

4.53.0Write

Figure 11. Single track seek time

Single track seek is measured as the average of one (1) single track seek from every track in both directions (inward and outward).

4.4.2.4 Average latency

Model

Figure 12. Latency time

4.4.2.5 Drive ready time

Figure 13. Drive ready time

Ready

The condition in which the drive is able to perform a media access command (for example—read, write) immediately.

This includes the time required for the internal self diagnostics.Power On To Ready

Rotational Speed

(RPM)

Time for one revolutio

(ms)

Average Latency

(ms)

5.511.1540060-GB model

7.114.34200All other models

Max. (sec)Typical (sec)ModelCondition

9.55.060-GB modelPower On To Ready

9.53.0All other modelsPower On To Ready

Travelstar 60GH & 40GN hard disk drive specifications

4.4.3 Operating modes

Operating mode Description

Spin-Up Start up time period from spindle stop or power down.

Seek Seek operation mode

Write Write operation mode

Read Read operation mode

Performance The device is capable of responding immediately to idle media access requests.

All electronic components remain powered and the full frequency servo remains operational.

Active idle The device is capable of responding immediately to media access requests.

Some circuitry—including servo system and R/W electronics—is in power saving mode. The head is parked near the mid-diameter the disk without servoing. A device in Active idle mode may take longer to complete the execution of a command because it must activate that circuitry.

Low power idle The head is unloaded onto the ramp position.

The spindle motor is rotating at full speed.

Standby The device interface is capable of accepting commands.

The spindle motor is stopped. All circuitry but the host interface is in power saving mode. The execution of commands is delayed until the spindle becomes ready.

Sleep The device requires a soft reset or a hard reset to be activated.

All electronics, including spindle motor and host interface, are shut off.

Figure 14. Operating mode

4.4.3.1 Mode transition time

Transition

Time (max.)

9.54.5IdleStandby60-GB model

9.52.0IdleStandby 40-GB, 30-GB models

9.51.8IdleStandby20-GB, 10-GB models

Figure 15. Drive ready time

ToFromModel

Transition Time (typ)

4.4.3.2 Operating mode at power on

The device goes into Idle mode after power on or hard reset as an initial state. Initial state may be changed to Standby mode using pin C on the interface connector. Refer to section 7.10 on page 58, "Drive address setting" for details.

4.4.3.3 Adaptive power save control

The transient timing from Performance Idle mode to Active Idle mode and Active Idle mode to Low Power Idle mode is controlled adaptively according to the access pattern of the host system. The transient timing from Low Power Idle mode to Standby mode is also controlled adaptively, if it is allowed by Set Features Enable Advanced Power Management subcommand.

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

5.0 Data integrity

5.1 Data loss on power off

! Data loss will not be caused by a power off during any operation except the write operation.

! A power off during a write operation causes the loss of any received or resident data that has not

been written onto the disk media.

! A power off during a write operation might make a maximum of one sector of data unreadable. This

state can be recovered by a rewrite operation.

5.2 Write Cache

When the write cache is enabled, the write command may complete before the actual disk write operation finishes. This means that a power off, even after the write command completion, could cause the loss of data that the drive has received but not yet written onto the disk.

In order to prevent this data loss, confirm the completion of the actual write operation prior to the power off by issuing a

! Soft reset

! Hard reset

! Flush Cache command

! Standby command

! Standby Immediate command

! Sleep command

Confirm the command’s completion.

5.3 Equipment status

The equipment status is available to the host system any time the drive is not ready to read, write, or seek. This status normally exists at the power-on time and will be maintained until the following conditions are satisfied:

! The access recalibration/tuning is complete.

! The spindle speed meets the requirements for reliable operation.

! The self-check of the drive is complete.

The appropriate error status is made available to the host system if any of the following conditions occur after the drive has become ready:

! The spindle speed lies outside the requirements for reliable operation.

! The occurrence of a Write Fault condition.

Travelstar 60GH & 40GN hard disk drive specifications

5.4 WRITE safety

The drive ensures that the data is written into the disk media properly. The following conditions are monitored during a write operation. When one of these conditions exceeds the criteria, the write operation is terminated and the automatic retry sequence is invoked.

! Head off track

! External shock

! Low supply voltage

! Spindle speed out of tolerance

! Head open/short

5.5 Data buffer test

The data buffer is tested at power on reset and when a drive self-test is requested by the host. The test consists of a write/read '00'x and 'ff'x pattern on all buffers.

5.6 Error recovery

Errors occurring on the drive are handled by the error recovery procedure.

Errors that are uncorrectable after application of the error recovery procedure are reported to the host system as nonrecoverable errors.

5.7 Automatic reallocation

The sectors that show some errors may be reallocated automatically when specific conditions are met. The drive does not report any auto reallocation to the host system. The conditions for auto reallocation are described below.

5.7.1 Nonrecovered write errors

When a write operation cannot be completed after the Error Recovery Procedure (ERP) is fully carried out, the sectors are reallocated to the spare location. An error is reported to the host system only when the write cache is disabled and the auto reallocation has failed.

5.7.2 Nonrecoverable read error

When a read operation fails after ERP is fully carried out, a hard error is reported to the host system. This location is registered internally as a candidate for the reallocation. When a registered location is specified as a target of a write operation, a sequence of media verification is performed automatically. When the result of this verification meets the required criteria, this sector is reallocated.

5.7.3 Recovered read errors

When a read operation for a sector fails and is recovered at the specific ERP step, the sector is reallocated automatically. A media verification sequence may be run prior to the reallocation according to the predefined conditions.

Travelstar 60GH & 40GN hard disk drive specifications

5.8 ECC

The 40 byte three interleaved ECC processor provides user data verification and correction capability. The first 4 bytes of ECC are check bytes for user data and the other 36 bytes are Read Solomon ECC. Each interleave has 12 bytes for ECC. Hardware logic corrects up to 15 bytes (5 bytes for each interleave) errors on-the-fly.

Following are some examples of error cases. An "O" means that the byte contains no error. An "X" means that at least one bit of the byte is bad.

On The Fly correctable

1 1 1 1 1 1 1 1

Byte # 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7

Interleave

A B C A B C A B C A B C A B C A B C

Error byte # for each interleave

A B

Error pattern Error pattern

Uncorrectable

Byte # 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7

Interleave

Error pattern Error pattern

X X X X X X X X X X X X X X X O O O

X X X X X X X X X O O O X X X X X X

A B C A B C A B C A B C A B C A B C

X X X X X X X X X X X X X X X X O O

X O O X O O X O O X O O X O O X O O

Figure 16. Examples of error cases.

1 1 1 1 1 1 1 1

Error byte # for each interleave

5 5

0 0

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

6.0 Specification

6.1 Environment

6.1.1 Temperature and humidity

Operating conditions

Temperature Relative humidity Maximum wet bulb temperature Maximum temperature gradient Altitude

Nonoperating conditions

Temperature Relative humidity Maximum wet bulb temperature Maximum temperature gradient Altitude

Figure 17. Environmental condition

The system is responsible for providing sufficient air movement to maintain surface temperatures below 60°C at the center of top cover and below 63°C at the center of the drive circuit board assembly.

5 to 55°C (See note below) 8 to 90% noncondensing

29.4°C noncondensing 20°C/hour –300 to 3048 m (10,000 ft)

–40 to 65°C 5 to 95% noncondensing 40°C noncondensing 20°C/hour –300 to 12,192 m (40,000 ft)

The maximum storage period in the shipping package is one year.

Specification (Environment )

100

31'C/90%

Non Operating

Operating

Relative Humidity (%)

-45 -35 -25 -15 -5 5 15 25 35 45 55 65

Temperature (degC)

41'C/95%

WetBulb 40'C

WetBulb29.4'C

65'C/23%

55'C/15%

Figure 18. Limits of temperature and humidity

Travelstar 60GH & 40GN hard disk drive specifications

6.1.1.1 Corrosion test

The hard disk drive must be functional and show no signs of corrosion after being exposed to a temperature humidity stress of 50°C/90%RH (relative humidity) for one week followed by a temperature and humidity drop to 25°C/40%RH in 2 hours.

6.1.2 Radiation noise

The disk drive shall work without degradation of the soft error rate under the following magnetic flux density limits at the enclosure surface.

Limits (Gauss RMS)Frequency (KHz)

5 0–60

2.561–100 1101–200

0.5201–400

Figure 19. Magnetic flux density limits

6.1.3 Conductive noise

The disk drive shall work without soft error degradation in the frequency range from DC to 20 Mhz injected through any two of the mounting screw holes of the drive when an AC current of up to 45 mA (p-p) is applied through a 50-ohm resistor connected to any two mounting screw holes.

6.1.4 Magnetic fields

The disk drive will withstand radiation and conductive noise within the limits shown below. The test method is defined in the Noise Susceptibility Test Method specification, P/N 95F3944.

Travelstar 60GH & 40GN hard disk drive specifications

6.2 DC power requirements

Connection to the product should be made in a safety extra low voltage (SELV) circuits. The voltage specifications are applied at the power connector of the drive.

RequirementsItem

+5 Volt dcNominal supply

–0.3 Volt to 6.0 VoltSupply voltage

100 mV p-p max.

±5%

7–100 msSupply rise time

ModelsWatts (RMS Typical)

20GB, 10 GB40GB, 30 GB60 GB

1.85 1.852.0

0.85 0.951.3Active Idle average

0.65 0.650.9Low Power Idle average

2.0 2.12.5

2.1 2.22.7Write average

2.3 2.32.6

0.25 0.250.25Standby

0.1 0.10.1Sleep

4.7 4.75.0

3.3 3.33.8Average from power on to ready

Power supply ripple (0–20 MHz) Tolerance

Performance Idle average

Read average

Seek average

Startup (maximum peak)

Footnotes:

The maximum fixed disk ripple is measured at the 5 volt input of the drive.

The disk drive shall not incur damage for an over voltage condition of +25% (maximum duration of

20 ms) on the 5 volt nominal supply.

The idle current is specified at an inner track.

The read/write current is specified based on three operations of 63 sector read/write per 100 ms.

The seek average current is specified based on three operations per 100 ms.

The worst case operating current includes motor surge.

Figure 20. DC Power requirements

Travelstar 60GH & 40GN hard disk drive specifications

6.2.1 Power consumption efficiency

Capacity (GB)

Power Consumption Efficiency (Watts/GB)

Figure 21. Power consumption efficiency

Note: Power consumption efficiency is calculated as Power Consumption of Low Power Idle Watt/

Capacity (GB).

1020304060

0.0650.0330.0220.0160.015

6.3 Start up Current

Figure 22. Typical current wave form at start up of 60 GB model

Travelstar 60GH & 40GN hard disk drive specifications

Figure 23. Typical current wave form at start up of 40 GB model

Figure 24. Typical current wave form at start up of 20 GB model)

Travelstar 60GH & 40GN hard disk drive specifications

6.4 Reliability

6.4.1 Data reliability

! Probability of not recovering data is 1 in 10

! ECC implementation

On-the-fly correction performed as a part of read channel function recovers up to 15 symbols of error in 1 sector (1 symbol is 8 bits).

6.4.2 Failure prediction (S.M.A.R.T.)

The drive supports Self-monitoring, analysis and reporting technology (S.M.A.R.T.) function. The details are described in section 11.8, "S.M.A.R.T. Function" on page 84 and 13.32, "S.M.A.R.T. Function Set (B0h)" on page 165.

6.4.3 Cable noise interference

To avoid any degradation of performance throughput or error when the interface cable is routed on top or comes in contact with the HDA assembly, the drive must be grounded electrically to the system frame by four screws. The common mode noise or voltage level difference between the system frame and power cable ground or AT interface cable ground should be in the allowable level specified in the power requirement section.

bits read

6.4.4 Service life and usage condition

The drive is designed to be used under the following conditions:

! The drive should be operated within specifications of shock, vibration, temperature, humidity, altitude,

and magnetic field.

! The drive should be protected from ESD.

! The breathing hole in the top cover of the drive should not be covered.

! Force should not be applied to the cover of the drive.

! The specified power requirements of the drive should be satisfied.

! The drive frame should be grounded electrically to the system through four screws.

! The drive should be mounted with the recommended screw depth and torque.

! The interface physical and electrical requirements of the drive should satisfy ATA-5.

! The power-off sequence of the drive should comply with the 6.4.6.2, "Required power-off sequence.”

Service life of the drive is approximately 5 years or 20,000 power on hours, whichever comes first, under the following assumptions:

! Less than 333 power on hours per month.

! Seeking/Writing/Reading operation is less than 20% of power on hours.

This does not represent any warranty or warranty period. Applicable warranty and warranty period are covered by the purchase agreement.

Travelstar 60GH & 40GN hard disk drive specifications

6.4.5 Preventive maintenance

None.

6.4.6 Load/unload

The product supports a minimum of 300,000 normal load/unloads.

Load/unload is a functional mechanism of the hard disk drive. It is controlled by the drive micro code. Specifically, unloading of the heads is invoked by the following commands:

! Hard reset

! Standby

! Standby immediate

! Sleep

Load/unload is also invoked as one of the idle modes of the drive.

The specified start/stop life of the product assumes that load/unload is operated normally, not in emergency mode.

6.4.6.1 Emergency unload

When hard disk drive power is interrupted while the heads are still loaded the micro code cannot operate and the normal 5-volt power is unavailable to unload the heads. In this case, normal unload is not possible. The heads are unloaded by routing the back EMF of the spinning motor to the voice coil. The actuator velocity is greater than the normal case and the unload process is inherently less controllable without a normal seek current profile.

Emergency unload is intended to be invoked in rare situations. Because this operation is inherently uncontrolled, it is more mechanically stressful than a normal unload.

The drive supports a minimum of 20,000 emergency unloads.

6.4.6.2 Required Power-Off Sequence

The required BIOS sequence for removing power from the drive is as follows:

! Step 1: Issue one of the following commands.

! Standby

! Standby immediate

! Sleep

Note: Do not use the Flush Cache command for the power off sequence because this command does not invoke Unload.

! Step 2: Wait until the Command Complete status is returned.

In a typical case 350 ms are required for the command to finish completion; however, the BIOS time out value needs to be 30 seconds considering error recovery time. Refer to section 14.0, "Time-out values," on page 195.

! Step 3: Terminate power to HDD.

Travelstar 60GH & 40GN hard disk drive specifications

This power-down sequence should be followed for entry into any system power-down state, system suspend state, or system hibernation state. In a robustly designed system, emergency unload is limited to rare scenarios, such as battery removal during operation.

6.4.6.3 Power switch design considerations

In systems that use the Travelstar 60GH & 40GN consideration should be given to the design of the system power switch.

IBM recommends that the switch operate under control of the BIOS, as opposed to being hardwired. The same recommendation is made for cover-close switches. When a hardwired switch is turned off, emergency unload occurs, as well as the problems cited in section 5.1, "Data loss by power off" on page 19 and section 5.2, “Write Cache” on page 19.

6.4.6.4 Test considerations

Start/stop testing is classically performed to verify head/disk durability. The heads do not land on the disk, so this type of test should be viewed as a test of the load/unload function.

Start/Stop testing should be done by commands through the interface, not Simple power cycling of the drive invokes the emergency unload mechanism and subjects the HDD to nontypical mechanical stress.

Power cycling testing may be required to test the boot-up function of the system. In this case IBM recommends that the power-off portion of the cycle contain the sequence specified in section 6.4.6.2, "Required Power-Off Sequence” on page 29. If this is not done, the emergency unload function is invoked and nontypical stress results.

by power cycling the drive.

Travelstar 60GH & 40GN hard disk drive specifications

6.5 Mechanical specifications

6.5.1 Physical dimensions and weight

The following figure lists the dimensions for the drive.

Figure 25. Physical dimensions and weight

6.5.2 Mounting hole locations

The mounting hole locations and size of the drive are shown below.

Weight (gram)Length (mm)Width (mm)Height (mm)Models

155 Max100.2±0.2569.85±0.2512.5±0.260 GB

99 Max100.2±0.2569.85±0.25 9.5±0.240 GB, 30 GB 95 Max100.2±0.2569.85±0.25 9.5±0.220 GB, 10 GB

Figure 26. Mounting hole locations of the 60 GB model.

Travelstar 60GH & 40GN hard disk drive specifications

Figure 27. Mounting hole locations of all models except 60 GB model.

6.5.3 Connector and jumper description

A jumper is used to designate the drive address as either master or slave. The jumper setting method is described in section 7.10, "Drive address setting" on page 58.

Connector specifications are included in section 7.2, "Interface connector" on page 41.

6.5.4 Mounting orientation

The drive will operate in all axes (six directions) and will stay within the specified error rates when tilted ±5 degrees from these positions.

Performance and error rate will stay within specification limits if the drive is operated in the other permissible orientations from which it was formatted. Thus a drive formatted in a horizontal orientation will be able to run vertically and vice versa.

The recommended mounting screw torque is 3.0±0.5 kgf-cm.

The recommended mounting screw depth is 3.0±0.3 mm for bottom and 3.5±0.5 mm for horizontal mounting.

Travelstar 60GH & 40GN hard disk drive specifications

The user is responsible for using the appropriate screws or equivalent mounting hardware to mount the drive securely enough to prevent excessive motion or vibration of the drive at seek operation or spindle rotation.

6.5.5 Load/unload mechanism

The head load/unload mechanism is provided to protect the disk data during shipping, movement, or storage. Upon power down, a head unload mechanism secures the heads at the unload position. See section 6.6.4, "Nonoperating shock" on page 36 for additional details.

Travelstar 60GH & 40GN hard disk drive specifications

6.6 Vibration and shock

All vibration and shock measurements in this section are for drives without mounting attachments for systems. The input level shall be applied to the normal drive mounting points.

Vibration tests and shock tests are to be conducted by mounting the drive to a table using the bottom four mounting holes.

6.6.1 Operating vibration

The drive will operate without a hard error while being subjected to the following vibration levels.

6.6.1.1 Random vibration

The test consists of 30 minutes of random vibration using the power spectral density (PSD) levels speci-

(Root Mean

fied in C-S 1-9711-002 (1990-03) as V5L. The vibration test level for V5L is 0.67 G RMS Square).

Random vibration PSD profile Breakpoint

/HzHz

2.0 x E–5 5

1.1 x E–317

1.1 x E–345

8.0 x E–348

8.0 x E–362

1.0 x E–365

1.0 x E–3150

5.0 x E–4200

5.0 x E–4500

Figure 28. Random vibration PSD profile breakpoints (operating)

6.6.1.2 Swept sine vibration

Swept sine vibration (zero to

peak 5 to 500 to 5 Hz sine wave)

1 G (5-300 Hz)

60-GB model

Figure 29. Swept sine vibration

1 G (300 Hz) - 0.33 G (350 Hz)

0.33 G (350-500 Hz)

Travelstar 60GH & 40GN hard disk drive specifications

Sweep rate (oct/min)

2.0

2.01 G (5-500 Hz)All other models

6.6.2 Nonoperating vibration

The disk drive withstands the following vibration levels without any loss or permanent damage.

6.6.2.1 Random vibration

The test consists of a random vibration applied in each of three mutually perpendicular axes for a duration of 15 minutes per axis. The PSD levels for the test simulating the shipping and relocation environment is shown below.

/HzHz

0.0012.5

0.035

0.01840

0.018500

Note: Overall RMS (root mean square) level of vibration is 3.01 G rms.

Figure 30. Random Vibration PSD Profile Breakpoints (nonoperating)

6.6.2.2 Swept sine vibration

! 5 G (zero-to-peak), 10 to 500 to 10 Hz sine wave

! 0.5 oct/min sweep rate

! 25.4 mm (peak-to-peak) displacement, 5 to 10 to 5 Hz

6.6.3 Operating shock

The hard disk drive meets the criteria in the table below while operating under these conditions:

! The shock test consists of 10 shock inputs in each axis and direction for a total of 60.

! There must be a minimum of 3 seconds delay between shock pulses.

! The disk drive will operate without a hard error while being subjected to the following half-sine shock

pulse.

Duration of 11 msDuration of 2 msModel

15 G150 G60-GB model 15 G200 Gall other models

Figure 31. Operating shock

The input level shall be applied to the normal disk drive subsystem mounting points used to secure the drive in a normal system.

Travelstar 60GH & 40GN hard disk drive specifications

6.6.4 Nonoperating shock

The drive withstands the following half-sine shock pulse without any data loss or permanent damage.

Duration of 11 msDuration of 1 msModels

120 G700 G60 GB 120 G800 GAll others

Figure 32. Nonoperating shock

The shocks are applied for each direction of the drive for three mutually perpendicular axes, one axis at a time. Input levels are measured on a base plate where the drive is attached with four screws.

Travelstar 60GH & 40GN hard disk drive specifications

6.7 Acoustics

6.7.1 Sound power level

The criteria of A-weighted sound power level are described below.

Measurements are to be taken in accordance with ISO 7779. The mean of the sample of 40 drives is to be less than the typical value. Each drive is to be less than the maximum value. The drives are to meet this requirement in both board down orientations.

Maximum (Bels)Typical (Bels)A-weighted Sound Power

OperatingIdleOperatingIdle

3.82.73.52.548 GB model

3.32.63.12.430 GB and 20 GB models

2.92.42.72.1All other models

Figure 33. Weighted sound power

The background power levels of the acoustic test chamber for each octave band are to be recorded.

Sound power tests are to be conducted with the drive supported by spacers so that the lower surface of the drive be located 25±3 mm above from the chamber floor. No sound absorbing material shall be used.

The acoustical characteristics of the disk drive are measured under the following conditions:

Mode definitions

! Idle mode: Power on, disks spinning, track following, unit ready to receive and respond to control

line commands.

! Operating mode: Continuous random cylinder selection and seek operation of the actuator with a

dwell time at each cylinder. The seek rate for the drive can be calculated as shown below.

Ns = 0.4/(Tt + T1)

where:

Ns = average seek rate in seeks/s

Tt = published seek time from one random track to another without including rotational latency

T1= equivalent time in seconds for the drive to rotate by half a revolution

Travelstar 60GH & 40GN hard disk drive specifications

6.7.2 Discrete tone penalty

Discrete tone penalties are added to the A-weighted sound power (Lw) with the following formula only when determining compliance.

Lwt(spec) = Lw = 0.1Pt + 0.3 < 4.0 (Bels)

where

Lw = A-weighted sound power level

Pt = Value of desecrate tone penalty = dLt – 6.0(dBA)

dLt = Tone-to-noise ratio taken in accordance with ISO 7779 at each octave band.

Travelstar 60GH & 40GN hard disk drive specifications

6.8 Identification labels

The following labels are affixed to every drive:

! A label which is placed on the top of the head disk assembly containing the statement "Made by

IBM" or equivalent, part number, EC number, and FRU number.

! A bar code label which is placed on the disk drive based on user request. The location on the disk

drive is to be designated in the drawing provided by the user.

! Labels containing the vendor's name, disk drive model number, serial number, place of manufacture,

and UL/CSA logos.

! The presence of labels containing jumper information depends on the customer.

6.9 Electromagnetic compatibility

When installed in a suitable enclosure and exercised with a random accessing routine at maximum data rate, the drive meets the following worldwide electromagnetic compatibility (EMC) requirements:

! United States Federal Communications Commission (FCC) Rules and Regulations (Class B), Part

Suppression German National Requirements

RFI

15.

! EU EMC Directive, Technical Requirements and Conformity Assessment Procedures

RFI

Japan

Requirements of

VCCI,

products

IBM

6.9.1 CE Mark

The product is certified for compliance with EC directive 89/336/EEC. The EC marking for the certification appears on the drive.

6.9.2 C-Tick Mark

The product complies with the Australian EMC standard "Limits and methods of measurement of radio disturbance characteristics of information technology equipment, AS/NZS 3548:1995 Class B."

Travelstar 60GH & 40GN hard disk drive specifications

6.10 Safety

6.10.1 UL and CSA approval

The product is qualified per UL (Underwriters Labratory) 1950 Third Edition and CAN/CSA C22.2 No.950-M95 Third Edition, for the use in Information Technology Equipment, including Electric Business Equipment. The UL Recognition or the CSA certification is maintained for the product life. The UL and C-UL recognition mark or the CSA monogram for CSA certification appears on the drive.

6.10.2 IEC compliance

All models of the Travelstar 60GH & 40GN comply with IEC 950:1991 +A1-4.

6.10.3 German Safety Mark

All models of the Travelstar 60GH & 40GN are approved by TUV on Test Requirement: EN 60950:1992+A1-4, but the GS mark has not been obtained.

6.10.4 Flammability

The printed circuit boards used in this product are made of material with a UL recognized flammability rating of V-1 or better. The flammability rating is marked or etched on the board. All other parts not considered electrical components are made of material with a UL recognized flammability rating of V-1 or better except minor mechanical parts.

6.10.5 Secondary circuit protection

This product utilizes printed circuit wiring that must be protected against the possibility of sustained combustion due to circuit or component failures as defined in C-B 2-4700-034 (Protection Against Combustion). Adequate secondary over current protection is the responsibility of the using system.

The user must protect the drive from its electrical short circuit problem. A 10 amp limit is required for safety purpose.

6.11 Packaging

Drives are packed in

protective bags and shipped in appropriate containers.

ESD

Travelstar 60GH & 40GN hard disk drive specifications

7.0 Electrical interface specifications

7.1 Cabling

The maximum cable length from the host system to the hard disk drive plus circuit pattern length in the host system shall not exceed 18 inches.

7.2 Interface connector

The signal connector for AT attachment is designed to mate with the 50 pin plug specified in Annex A, Connectors and Cable Assembly, of the ATA/ATAPI-5 document.

The figure below and Figure 6.5.2 on page 31 show the connector location and physical pin location.

Pin position 20 is left blank for correct connector insertion.

Pin positions A, B, C, and D are used for the drive address setting. (Refer to Figure 48 on page 58 for correct address setting.)

Figure 34. Interface connector pin assignments

Travelstar 60GH & 40GN hard disk drive specifications

7.3 Signal definitions

The pin assignments of interface signals are listed as follows:

TypeI/OSIGNALPINTypeI/OSIGNALPIN

GND02TTLIRESET-01

3–stateI/ODD08043–stateI/ODD0703 3–stateI/ODD09063–stateI/ODD0605 3–stateI/ODD10083–stateI/ODD0507 3–stateI/ODD11103–stateI/ODD0409 3–stateI/ODD12123–stateI/ODD0311 3–stateI/ODD13143–stateI/ODD0213 3–stateI/ODD14163–stateI/ODD0115 3–stateI/ODD15183–stateI/ODD0017

Key(20)GND19 GND223–stateODMARQ21 GND24TTLIDIOW-(*)23 GND26TTLIDIOR-(*)25

TTLICSEL28ODOIORDY(*)27

GND30TTLIDMACK-29

ODOIOCS16-(*)323–stateOINTRQ31

ODI/OPDIAG-34TTLIDA0133 TTLIDA0236TTLIDA0035 TTLICS1-38TTLICS0-37

GND40ODI/ODASP-39

power+ 5V motor42power+ 5V logic41

(reserved)44GND43

designates an output from the driveO designates an input to the driveI designates an input/output commonI/O designates an Open-Drain outputOD designates a power supply to the drivepower designates reserved pins which must be left unconnectedreserved

Figure 35. Signal definition

The signal lines marked with (*) are redefined during the Ultra DMA protocol to provide special functions. These lines change from the conventional to special definitions at the moment the host decides to allow a DMA burst, if the Ultra DMA transfer mode was previously chosen via SetFeatures. The drive becomes aware of this change upon assertion of the DMACK- line. These lines revert back to their original definitions upon the deassertion of DMACK- at the termination of the DMA burst.

Travelstar 60GH & 40GN hard disk drive specifications

(for Ultra DMA)

Write Operation

Read Operation

Figure 36. Special signal definitions for Ultra DMA

Conventional DefinitionSpecial Definition

IORDYDDMARDY-

DIOR-HSTROBE

DIOW-STOP

DIOR-HDMARDY-

IORDYDSTROBE

DIOW-STOP

Travelstar 60GH & 40GN hard disk drive specifications

7.4 Signal descriptions

DD00–DD15

A 16-bit bi-directional data bus between the host and the drive. The lower 8 lines, DD00-07, are used for Register and ECC access. All 16 lines, DD00–15, are used for data transfer. These are 3-state lines with 24 mA current sink capability.

DA00–DA02

These are addresses used to select the individual register in the drive.

CS0-

The chip select signal generated from the Host address bus. When active, one of the Command Block Registers [Data, Error (Features when written), Sector Count, Sector Number, Cylinder Low, Cylinder High, Drive/Head and Status (Command when written) register] can be selected.

CS1-

The chip select signal generated from the Host address bus. When active, one of the Control Block Registers [Alternate Status (Device Control when written) and Drive Address register] can be selected.

RESET-

This line is used to reset the drive. It shall be kept at a Low logic state during power up and kept High thereafter.

DIOW-

The rising edge of this signal holds data from the data bus to a register or data register of the drive.

DIOR-

When this signal is low, it enables data from a register or data register of the drive onto the data bus. The data on the bus shall be latched on the rising edge of DIOR-.

INTRQ

The interrupt is enabled only when the drive is selected and the host activates the -IEN bit in the Device Control Register. Otherwise, this signal is in high impedance state regardless of the state of the IRQ bit. The interrupt is set when the IRQ bit is set by the drive CPU. The IRQ is reset to zero by a host read of the status register or a write to the Command Register. This signal is a 3-state line with 24 mA of sink capability.

IOCS16-

A signal indicating to the host that a 16-bit wide data register has been addressed and that the drive is prepared to send or receive a 16-bit wide data word. This signal is an Open-Drain output with 24 mA sink capability and an external resistor is needed to pull this line to 5 volts.

DASP-

This is a time-multiplexed signal which indicates that a drive is active or that device 1 is present. This signal is driven by an Open-Drain driver and internally pulled up to 5 volts through a 10 kΩ resistor. During a Power-On initialization or after RESET- is negated, DASP- shall be asserted by Device 1 within 400 ms to indicate that device 1 is present. Device 0 shall allow up to 450 ms for device 1 to assert DASP-. If device 1 is not present, device 0 may assert DASP- to drive an LED indicator. The DASP- signal shall be negated following acceptance of the first valid command by device 1. Anytime after negation of DASP-, either drive may assert DASP- to indicate that a drive is active.

Travelstar 60GH & 40GN hard disk drive specifications

PDIAG-

This signal shall be asserted by device 1 to indicate to device 0 that it has completed the diagnostics. This line is pulled up to 5 volts in the drive through a 10 kΩ resistor.

Following a Power On Reset, software reset, or RESET-, drive 1 shall negate PDIAG- within 1 ms (to indicate to device 0 that it is busy). Drive 1 shall then assert PDIAG- within 30 seconds to indicate that it is no longer busy and is able to provide status.

Following the receipt of a valid Execute Drive Diagnostics command, device 1 shall negate PDIAGwithin 1 ms to indicate to device 0 that it is busy and has not yet passed its drive diagnostics. If device 1 is present then device 0 shall wait up to 6 seconds from the receipt of a valid Execute Drive Diagnostics command for drive 1 to assert PDIAG-. Device 1 should clear BSY before asserting PDIAG-, as PDIAG- is used to indicate that device 1 has passed its diagnostics and is ready to post status. If DASP- was not asserted by device 1 during reset initialization, device 0 shall post its own status immediately after it completes diagnostics and clears the device 1 Status register to 00h. Device 0 may be unable to accept commands until it has finished its reset procedure and is ready (DRDY=1).

CSEL (Cable Select)

This signal is monitored to determine the drive address (master or slave) when the jumper on the interface connector is at Position-3.

When CSEL is at ground or is at a low level, the drive works as a Master. If CSEL is open or is at a logical high level, the drive works as a Slave.

The signal level of CSEL to one drive should be different from the signal level to another drive on the same AT interface cable to avoid master-master or slave-slave configurations.

KEY

Pin position 20 has no connection pin. It is recommended to close the respective position of the cable connector in order to avoid incorrect insertion.

IORDY

This signal is an indication to the host that the drive is ready to complete the current I/O cycle. This line is driven low at the falling edge of DIOR- or DIOW- when the drive needs some additional WAIT cycle(s) to extend the PIO cycle. This line can be connected to the host IORDY signal in order to insert a WAIT state(s) into the host PIO cycle. This signal is an Open-Drain output with 24 mA sink capability.

5V Power

There are two input pins for the +5 V power supply. One is the "+5 V Logic" input pin and the second is the "+5 V Motor" input pin. These two input pins are tied together within the drive.

DMACK-

This signal shall be used by the host in response to DMARQ to either acknowledge that data has been accepted, or that data is available.

This signal is internally pulled up to 5 Volt through a 15 kΩ resistor with a resistor tolerance value of –50% to +100%.

DMARQ

This signal is used for DMA data transfers between the host and drive. It shall be asserted by the drive when it is ready to transfer data to or from the host. The direction of data transfer is controlled by

-HIOR and -HIOW signals. This signal is used in a handshake mode with DMACK-. This signal is a 3-state line with 24 mA sink capability and internally pulled down to GND through a 10 kΩ resistor.

Travelstar 60GH & 40GN hard disk drive specifications

HDMARDY- (Ultra DMA)

This signal is used only for Ultra DMA data transfers between host and drive.

The signal HDMARDY- is a flow control signal for Ultra DMA data in bursts. This signal is held asserted by the host to indicate to the device that the host is ready to receive Ultra DMA data in transfers. The host may negate HDMARDY- to pause an Ultra DMA data in transfer.

HSTROBE (Ultra DMA)

This signal is used only for Ultra DMA data transfers between host and drive.

The signal HSTROBE is the data out strobe signal from the host for an Ultra DMA data out transfer. Both the rising and falling edge of HSTROBE latch the data from DD (15:0) into the device. The host may stop toggling HSTROBE to pause an Ultra DMA data out transfer.

STOP (Ultra DMA)

This signal is used only for Ultra DMA data transfers between host and drive.

The

signal shall be asserted by the host prior to initiation of an Ultra

STOP

negated by the host before data is transferred in an Ultra

mode signals the termination of the burst.

during or after data transfer in an Ultra

DMA

burst. Assertion of

DMA

burst.

STOP

A STOP

by the host

DDMARDY- (Ultra DMA)

This signal is used only for Ultra DMA data transfers between host and drive.

The signal DDMARDY- is a flow control signal for Ultra DMA data out bursts. This signal is held asserted by the device to indicate to the host that the device is ready to receive Ultra DMA data out transfers. The device may negate DDMARDY- to pause an Ultra DMA data out transfer.

DSTROBE (Ultra DMA)

This signal is used only for Ultra DMA data transfers between host and drive.

The signal DSTROBE is the data in strobe signal from the device for an Ultra DMA data in transfer. Both the rising and the falling edge of DSTROBE latch the data from DD (15:0) into the host. The device may stop toggling DSTROBE to pause an Ultra DMA data in transfer.

shall be

Travelstar 60GH & 40GN hard disk drive specifications

7.5 Interface logic signal levels

The interface logic signals have the following electrical specifications:

Inputs

Outputs:

Current

Input High Voltage Input Low Voltage

Output High Voltage Output Low Voltage

Driver Sink Current Driver Source Current

7.6 Reset timings

RESET–

BUSY

2.0 V min./5.5 V max. –0.5 V min./0.8 V max.

2.4 V min.

0.5 V max.

24 mA min. –400 µA min.

t10

PARAMETER DESCRIPTION

Figure 37. System reset timings

Min.

µµµµ

(

Max.

(

µµµµ

9.5–RESET– high to Not BUSYt1 –25RESET– low widtht10

Travelstar 60GH & 40GN hard disk drive specifications

7.7 PIO timings

The PIO cycle timings meet Mode 4 of the ATA-5 description.

CS(1:0)DA(2:0)

DIOR-, DIOW-

Write data DD(15:0)

Read data DD(15:0)

IOCS16-(*)

IORDY

t7(*)

t3 t4

tRD

t2i

t6z

t8(*)

(*) Up to ATA-2 (mode-0,1,2)

MAX. (ns)MIN (ns)PARAMETER DESCRIPTION

–120Cycle timet0 –25Address valid to DIOR-/DIOW- setupt1 –70DIOR-/DIOW- pulse widtht2 –25DIOR-/DIOW- recovery timet2i –20DIOW- data setupt3 –10DIOW- data holdt4 –20DIOR- data setupt5

–5DIOR- data holdt6 30–DIOR- data tristatet6z 40–Address valid to IOCS16- assertiont7(*) 30–Address valid to IOCS16- releasedt8(*)

–10DIOR-/DIOW- to address valid holdt9

–0Read data valid to IORDY activetRD 35–IORDY setup widthtA

1,250–IORDY pulse widthtB

Figure 38. PIO cycle timings

Travelstar 60GH & 40GN hard disk drive specifications

7.8

Multiword DMA timings

The Multiword DMA timings meet Mode 2 of the ATA-3 description.

DMARQ

tLR/tLW

DMACK-

DIOR-/DIOW -

READ DD(15:0)

WRITE DD(15:0)

tKR/tKW

width

Figure 39. Multiword DMA cycle timings

tKR/tKW

MAX (ns)MIN (ns)PARAMETER DESCRIPTION

–120Cycle timet0 –70DIOR-/DIOW- asserted pulse widthtD

50–DIOR- data accesstE

–5DIOR- data holdtF –20DIOR-/DIOW- data setuptG –10DIOW- data holdtH –0DMACK- to DIOR-/DIOW- setuptI –5DIOR-/DIOW- to DMACK- holdtJ –25DIOR- negated pulse width / DIOW- negated pulse

35–DIOR- to DMARQ delay / DIOW- to DMARQ delaytLR/tLW 25–DMACK- to read data releasedtZ

Travelstar 60GH & 40GN hard disk drive specifications

7.9 Ultra DMA timings

The Ultra DMA timings meet Mode 0, 1, 2, 3, 4, and 5 of the Ultra DMA Protocol.

7.9.1 Initiating Read DMA

DMARQ

tUI

DMACK-

tACK tENV

STOP

tACK tENV

HDMARDY-

DSTROBE

DD(15:0)

tZIORDY

tAZ

tZIORDY

xxxxxxxxxxxxxxxxxxxxxxxxx

Host drives DD

PARAMETER DESCRIPTION

Minimum time before driving IORDY

Maximum time allowed for output drivers to release

MIN (ns)

tAZ

MAX

(ns)

t2CYC

tFS tCYC

tAZD

xxx xxx xxx

RD Data RD Data

tDS

Device drives DD

MAX

MIN

MAX

MIN

MAX

MIN

(ns)

tDH

tCYC

MIN (ns)

MAX

(ns)

RD Data

MODE 5MODE 4MODE 3MODE 2MODE 1MODE 0

MAX

MIN (ns)

(ns)

–0–0–0–0–0–0Unlimited interlock timetUI –20–20–20–20–20–20Setup time for DMACK-tACK

502055205520702070207020Envelope timetENV

–0–0–0–0–0–0

90–12001300170020002300First DSTROBE timetFS

–16.8–25–39–54–73–112Cycle timetCYC

-38–57–86–115–154–230Two cycle timet2CYC

1010–10–10–10–10–

–0–0–0–0–0–0Drivers to asserttZAD –4.8–5–7–7–10–15Data setup time at hosttDS –4.8–5–5–5–5–5Data hold time at hosttDH

Figure 40. Ultra DMA cycle timings (Initiating Read)

Travelstar 60GH & 40GN hard disk drive specifications

7.9.2 Host Pausing Read DMA

DMARQ

DMACK-

STOP

tSR

HDMARDY-

DSTROBE

tSR

tRFS

PARAMETER DESCRIPTION

DSTROBE to HDMARDYtime HDMARDY- to final DSTROBE time

MIN (ns)

MAX

(ns)

tRFS

MIN (ns)

MAX

(ns)

MIN (ns)

MAX

(ns)

MIN (ns)

MAX

(ns)

MIN (ns)

MAX

(ns)

MODE 5MODE 4MODE 3MODE 2MODE 1MODE 0

MIN (ns)

MAX

(ns)

––––––20–30–50–

50–60–60–60–70–75–

Note: When a host does not satisfy the tSR timing, the host should be ready to receive two more data words after HDMARDY- is negated.

Figure 41. Ultra DMA cycle timings (Host Pausing Read)

Travelstar 60GH & 40GN hard disk drive specifications

7.9.3 Host Terminating Read DMA

DMARQ

DMACK-

tRP

STOP

tLI

tMLI

tACK

HDMARDY-

DSTROBE

DD(15:0)

tRFS

tAZ

tZAH

tIORDYZ

tRFS

xxx RD Data xxxxxxxxxxx

Device drives DD

PARAMETER DESCRIPTION

HDMARDY- to final DSTROBE time

Maximum time allowed for output drivers to release Minimum delay time required for output

Maximum time before releasing IORDY

tLI tIORDYZ

tAZ

xxxxxxxxxxxxxxxxxx

tZAH

MAX

MIN

MAX

MIN

(ns)

MIN (ns)

tDS

xxx

CRC

Host drives DD

MIN

MAX

(ns)

tDH

MAX

(ns)

MIN (ns)

MAX

(ns)

MODE 5MODE 4MODE 3MODE 2MODE 1MODE 0

MIN (ns)

MAX

(ns)

50–60–60–60–70–75–

–85–100–100–100–125–160Ready to pause timetRP

75010001000150015001500Limited interlock timetLI

10–10–10–10–10–10–

–20–20–20–20–20–20

–20–20–20–20–20–20Interlock time with minimumtMLI –4–5–7–7–10–15CRC word setup time at devicetDS –4.6–5–5–5–5–5CRC word hold time at devicetDH –20–20–20–20–20–20Hold time for DMACK-tACK

20–20–20–20–20–20–

Figure 42. Ultra DMA cycle timings (Host Terminating Read)

Travelstar 60GH & 40GN hard disk drive specifications

7.9.4 Device Terminating Read DMA

DMARQ

DMACK-

STOP

HDMARDY-

DSTROBE

DD(15:0)

tSS

tAZ

tZAH

tIORDYZ

tSS

tLI

xxxxxx xxxxxxxxxx

tZAH

Device drives DD

PARAMETER DESCRIPTION

Time from DSTROBE edge to negation of DMARQ

Maximum time allowed for output drivers to release Maximum delay time required for output

Maximum time before releasing IORDY

tAZ

MIN (ns)

tLI

tIORDYZ

xxxxxxxxxxxxxxxxxx

MIN

MAX

MIN

MAX

(ns)

tMLI

tDH

tDS

CRC

Host drives DD

MAX

MIN

MAX

(ns)

tACK

MIN (ns)

MAX

(ns)

MODE 5MODE 4MODE 3MODE 2MODE 1MODE 0

MIN (ns)

MAX

(ns)

–50–50–50–50–50–50

75010001000150015001500Limited interlock timetLI

10–10–10–10–10–10–

–20–20–20–20–20–20

–20–20–20–20–20–20Interlock time with minimumtMLI –4–5–7–7–10–15CRC word setup time at devicetDS –4.6–5–5–5–5–5CRC word hold time at devicetDH –––20–20–20–20–20Hold time for DMACK-tACK

––20–20–20–20–20–

Figure 43. Ultra DMA cycle timings (Device Terminating Read)

Travelstar 60GH & 40GN hard disk drive specifications

7.9.5 Initiating Write DMA

DMARQ

tUI

DMACK-

tACK

STOP

tENV

DDMARDY-

HSTROBE

DD(15:0)

tZIORDY

tACK

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

PARAMETER DESCRIPTION

Minimum time before driving IORDY

MIN (ns)

tLI

tUI tCYC

Host drives DD

MIN

MAX

(ns)

WT Data

MIN

MAX

(ns)

t2CYC

tCYC

tDH

tDS

WT Data

xxx xxx

MIN

MAX

MIN

MAX

(ns)

WT Data

MODE 5MODE 4MODE 3MODE 2MODE 1MODE 0

MIN

MAX

(ns)

MAX

(ns)

–0–0–0–0–0–0Unlimited interlock timetUI –20–20–20–20–20–20Setup time for DMACK-tACK

552055205520702070207020Envelope timetENV

–0–0–0–0–0–0

75010001000150015001500Limited interlock timetLI

–16.8–25–39–54–73–112Cycle timetCYC –38–57–86–115–154–230Two cycle timet2CYC –4–5–7–7–10–15Data setup time at devicetDS –4.6–5–5–5–5–5Data Hold time at devicetDH

Figure 44. Ultra DMA cycle timings (Initiating Write)

Travelstar 60GH & 40GN hard disk drive specifications

7.9.6 Device Pausing Write DMA

DMARQ

DMACK-

STOP

tSR

DDMARDY-

HSTROBE

PARAMETER DESCRIPTION

tRFS

time

MIN (ns)

tRFS

MAX

(ns)

MIN (ns)

MAX

(ns)

MIN (ns)

MAX

(ns)

MIN

(ns)

MAX

(ns)

MIN (ns)

MAX

(ns)

MODE 5MODE 4MODE 3MODE 2MODE 1MODE 0

MIN (ns)

MAX

(ns)

––––––20–30–50–HSTROBE to DDMARDY- timetSR

50–60–60–60–70–75–DDMARDY- to final HSTROBE

Note: When a device does not satisfy the tSR timing, the device is ready to receive two more data words after DDMARDY- is negated.

Figure 45. Ultra DMA cycle timings (Device Pausing Write)

Travelstar 60GH & 40GN hard disk drive specifications

7.9.7 Device Terminating Write DMA

DMARQ

DMACK-

STOP

DDMARDY-

HSTROBE

DD(15:0)

tRFS

tIORDYZ

tRP

tRFS

xxx WT Data xxxxxxxxxx

PARAMETER DESCRIPTION

DDMARDY- to final HSTROBE time

Maximum time before releasing IORDY

tLI

tMLI

tIORDYZ

tLI

xxxxxxxxxxxxxxxxxxxxxxxxxx

Host drives DD

MAX

MIN

MAX

MIN

MAX

MIN

(ns)

tDS

MIN (ns)

tDH

CRC

MAX

(ns)

tACK

MIN (ns)

MAX

(ns)

MODE 5MODE 4MODE 3MODE 2MODE 1MODE 0

MIN (ns)

MAX

(ns)

50–60–60–60–70–75–

–85–100–100–100–125–160Ready to pause timetRP

75010001000150015001500Limited interlock timetLI

–20–20–20–20–20–20Interlocking time with minimumtMLI –4–5–7–7–10–15CRC word setup time at devicetDS –4.6–5–5–5–5–5CRC word hold time at devicetDH –20–20–20–20–20–20Hold time for DMACK-tACK

20–20–20–20–20–20–

Figure 46. Ultra DMA cycle timings (Device Terminating Write)

Travelstar 60GH & 40GN hard disk drive specifications

7.9.8 Host Terminating Write DMA

DMARQ

DMACK-

STOP

DDMARDY-

HSTROBE

DD(15:0)

tSS

tIORDYZ

tLI

tSS

tLI

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

PARAMETER DESCRIPTION

Time from HSTROBE edge to assertion of STOP

Maximum time before releasing IORDY

MIN (ns)

tLI

Host drives DD

MAX

MIN

MAX

(ns)

tMLI

tIORDYZ

MAX

MIN

(ns)

tDS

MIN (ns)

tDH

CRC

MAX

(ns)

tACK

xxxxxxxxxx

MAX

MIN

(ns)

MODE 5MODE 4MODE 3MODE 2MODE 1MODE 0

MIN (ns)

MAX

(ns)

–50–50–50–50–50–50

75010001000150015001500Limited interlock timetLI

20–20–20–20–20–20–

Figure 47. Ultra DMA cycle timings (Host Terminating Write)

Travelstar 60GH & 40GN hard disk drive specifications

7.10 Drive address setting

A jumper placed on the interface connector determines the drive address. The three drive addresses are shown below.

Figure 48. Drive address setting

Setting 1—Device 0 (Master) (no jumper is used) Setting 2—Device 1 (Slave) Setting 3—Cable Select Setting 4—Never attach a jumper here Setting 5—Never attach a jumper here

When pin C is grounded, the drive does not spin up at POR.

When the drive address is Cable Select, the address depends on the condition of pin 28 of the AT interface cable. If pin 28 is ground (or low), the drive is a Master. If pin 28 is open (or logic high), the drive is a Slave.

7.10.1 Drive default address setting

The default setting of jumper at shipment is Setting 1: no jumper.

Travelstar 60GH & 40GN hard disk drive specifications

7.11 Addressing of HDD registers

The host addresses the drive through a set of registers called a Task File. These registers are mapped into the host's I/O space. Two chip select lines (CS0- and CS1-) and three address lines (DA00–02) are used to select one of these registers, while a DIOR- or DIOW- is provided at the specified time.

The chip select line CS0- is used to address the Command Block registers while the CS1- is used to address Control Block registers.

The following table shows the I/ O address map.

DIOW- = 0 (Write)DIOR- = 0 (Read)DA00DA01DA02CS1-CS0-

Command Block Registers

Data Reg.Data Reg.00010 Features Reg.Error Reg.10010 Sector count Reg.Sector count Reg.01010 Sector number Reg.Sector number Reg.11010 Cylinder low Reg.Cylinder low Reg.00110 Cylinder high Reg.Cylinder high Reg.10110 Drive/Head Reg.Drive/Head Reg.01110 Command Reg. Status Reg. 11110

Control Block Registers

Device control Reg.Alt. Status Reg.01101

–Drive address Reg.11101

Figure 49. I/O address map

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

Part 2. Interface specification

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

8.0 General

8.1 Introduction

This specification describes the host interface of the Travelstar 60GH & 40GN.

The interface conforms to the Working Document of Information technology, AT Attachment with Packet Interface Extension (ATA/ATAPI-5) Revision 3, dated 29 February 2000, with certain limitations described in section 9.0, "Deviations From Standard” on page 65.

The drive supports the following new functions included by ATA/ATAPI-5 standards or newer standards:

! Device Configuration Overlay

The drive supports the following functions as Vendor Specific Functions:

! Address Offset Feature ! Format Unit Function ! ENABLE/DISABLE DELAYED WRITE ! SENSE CONDITION command

8.2 Terminology

The Travelstar 60GH & 40GN driveDevice

First Command

The system to which the device is attachedHost

The first command which is executed after the power on reset (also known as a hard reset) is the Standby mode command.

Interrupt request (Device or Host)INTRQ

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

9.0 Deviations from standard

The device conforms to the referenced specifications, with deviations described below.

The interface conforms to the Working Document of Information Technology, AT Attachment with Packet Interface Extension (ATA/ATAPI-5) Revision 3, dated 29 February 2000, with the following deviation:

Standby Timer

Write Verify

S.M.A.R.T. Return Status

Standby timer is enabled by STANDBY command or IDLE command. The value in the Sector Count register shall be used to determine the time programmed into the Standby timer. If the Sector Count register is zero, the Standby timer is automatically set to 109 minutes.

WRITE VERIFY command does not include read verification after write operation. The function is the same as WRITE SECTORS command.

S.M.A.R.T. RETURN STATUS subcommand does not check advisory attributes. This means that the device will not report a threshold exceeded condition unless the prefailure attributes exceed their corresponding thresholds. For example, a Power-On Hours Attribute never results in a negativ reliability status.

Travelstar 60GH & 40GN hard disk drive specifications

This page intentionally left blank.

10.0 Registers

Data bus high

xxxNN

impedance

Data bus high

xx0AN

impedance Data bus high

x01AN

impedance

Command block registers

A = signal assertedLogic conventions: N = signal not asserted x = either A or N

FunctionsAddresses

WRITE (DIOW-)READ (DIOR-)DA0DA1DA2CS1-CS0-

Not used

Control block registers

Not used

Device ControlAlternate Status011AN

Not usedDevice Address111AN

DataData 000NA

FeaturesError Register100NA

Sector CountSector Count010NA

Sector NumberSector Number110NA

* LBA bits 0-7 * LBA bits 0-7110NA

Cylinder LowCylinder Low001NA

* LBA bits 8-15 * LBA bits 8-15001NA

Cylinder HighCylinder High101NA

* LBA bits 16-23 * LBA bits 16-23101NA

Device/HeadDevice/Head.011NA

* LBA bits 24-27 * LBA bits 24-27011NA

CommandStatus111NA

Invalid addressInvalid addressxxxAA

* = Mapping of registers in LBA mode

Figure 50. Register Set

Communication to or from the device is through an I/O Register that routes the input or output data to or from the registers addressed by the signals from the host (CS0-, CS1-, DA2, DA1, DA0, DIOR- and DIOW-).

The Command Block Registers are used for sending commands to the device or posting status from the device.

The Control Block Registers are used for device control and to post alternate status.

Travelstar 60GH & 40GN hard disk drive specifications

10.1 Alternate Status Register

Alternate Status Register

01234567

ERRIDXCORDRQDSCDFRDYBSY

Figure 51. Alternate Status Register

This register contains the same information as the Status Register. The only difference between this register and the Status Register is that reading the Alternate Status Register does not imply an interrupt acknowledge or a clear of a pending interrupt. See 10.13, "Status Register" on page 72 for the definition of the bits in this register.

10.2 Command Register

This register contains the command code being sent to the device. Command execution begins immediately after this register is written. The command set is shown in Figure 72 on page 107. All other registers required for the command must be set up before writing to the Command Register.

10.3 Cylinder High Register

This register contains the high order bits of the starting cylinder address for any disk access. At the end of the command, this register is updated to reflect the current cylinder number.

In LBA Mode this register contains Bits 16–23. At the end of the command, this register is updated to reflect the current LBA Bits 16–23.

The cylinder number may be from zero to the number of cylinders minus one.

10.4 Cylinder Low Register

This register contains the low order 8 bits of the starting cylinder address for any disk access. At the end of the command, this register is updated to reflect the current cylinder number.

In LBA Mode this register contains Bits 8–15. At the end of the command, this register is updated to reflect the current LBA Bits 8–15.

The cylinder number may be from zero to the number of cylinders minus one (1).

Travelstar 60GH & 40GN hard disk drive specifications

10.5 Data Register

This register is used to transfer data blocks between the device data buffer and the host. It is also the register through which sector information is transferred on a Format Track command and the configuration information is transferred on an Identify Device command.

All data transfers are 16 bits wide, except for ECC byte transfers, which are 8 bits wide. Data transfers are PIO only.

The register contains valid data only when DRQ = 1 is in the Status Register.

10.6 Device Control Register

Drive Control Register

01234567

0–IENSRST1–––-

Figure 52. Device Control Register

Bit Definitions

SRST

-IEN

Software Reset. The device is held at reset when RST = 1. Setting RST = 0 again enables the device. To ensure that the device recognizes the reset, the host must set

RST = 1 and wait for at least 5

Interrupt Enable. When IEN = 0, and the device is selected, the device interrupts to the host will be enabled. When IEN = 1, or the device is not selected, the device interrupts to the host will be disabled.

s before setting RST = 0.

Travelstar 60GH & 40GN hard disk drive specifications

10.7 Drive Address Register

Drive Address Register

01234567

-DS0-DS1-H0-H1-H2-H3-WTGHIZ

Figure 53. Drive Address Register

This register contains the inverted drive select and head select addresses of the currently selected drive.

Bit Definitions

HIZ

-H3, -H2, -H1, -H0

-DS1

-DS0

High Impedance. This bit is not a device and will always be in a high impedance state.

-Write Gate. This bit is 0 when writing to the disk device is in progress.-WTG

-Head Select. These four bits are the one's complement of the binary coded address of the currently selected head. Bit -H0 is the least significant.

-Drive Select 1. The Drive Select bit for device 1 is active low. DS1 = 0 when device 1 (slave) is selected and active.

-Drive Select 0. The Drive Select bit for device 0 is active low. DS0 = 0 when device 0 (master) is selected and active.

10.8 Device/Head Register

Device/Head Register

Figure 54. Device/Head Register

This register contains the device and head numbers.

01234567

HS0HS1HS2HS3DRV1L1

Bit Definitions

DRV

HS3, HS2, HS0

Binary encoded address mode select. When L = 0, addressing is by CHS mode. When L = 1, addressing is by LBA mode.

Device. When DRV = 0, device 0 (master) is selected. When DRV = 1, device 1 (Slave) is selected.

Head Select. These four bits indicate the binary encoded address of the head. Bit HS0 is the least significant bit. At command completion, these bits are updated to reflect the currently selected head. The head number may be from zero to the number of heads minus one. In LBA mode, HS3 through HS0 contain bits 24–27 of the LBA. At command completion, these bits are updated to reflect the current LBA bits 24–27.

Travelstar 60GH & 40GN hard disk drive specifications

10.9 Error Register

Error Register

01234567

AMNFTK0NFABRT0IDNF0UNCCRC

Figure 55. Error Register

This register contains the status from the last command executed by the device or a diagnostic code. At the completion of any command, except Execute Device Diagnostic, the contents of this register are always valid even if ERR = 0 is in the Status Register.

Following a power on, a reset, or completion of an Execute Device Diagnostic command, this register contains a diagnostic code. See Figure 59 on page 75 for the definitions.

Bit Definitions

ICRCE (CRC)

UNC

IDNF (IDN)

ABRT (ABT)

TK0NF (T0N)

AMNF (AMN)

Interface CRC Error. When CRC = 1, it indicates that a CRC error has occurred on the data bus during a Ultra DMA transfer.

Uncorrectable Data Error. When UNC = 1 it indicates that an uncorrectable data error has been encountered.

ID Not Found. When IDN = 1, it indicates that the requested sector's ID field could not b found.

Aborted Command. When ABT = 1, it indicates that the requested command has been aborted due to a device status error or an invalid parameter in an output register.

Track 0 Not Found. When T0N = 1, it indicates that track 0 was not found during a Recalibrate command.

Address Mark Not Found. When AMN = 1, it indicates that the data address mark has not been found after finding the correct ID field for the requested sector.

10.10 Features Register

This register is command specific. This register is used with the Set Features command, the S.M.A.R.T. Function Set command, and the Format Unit command.

10.11 Sector Count Register

This register contains the number of sectors of data requested to be transferred on a read or write operation between the host and the device. If the value in the register is set to 0, a count of 256 sectors is specified.

If the register is zero at command completion, the command was successful. If it is not successfully completed, the register contains the number of sectors which need to be transferred in order to complete the request.

The contents of the register are defined differently on some commands. These definitions are given in section 13.0, “Command descriptions” on 107.

Travelstar 60GH & 40GN hard disk drive specifications

10.12 Sector Number Register

This register contains the starting sector number for any disk data access for the subsequent command. The sector number is from one to the maximum number of sectors per track.

In LBA mode, this register contains Bits 0–7. At the end of the command, this register is updated to reflect the current LBA Bits 0–7.

10.13 Status Register

Status Register

01234567

ERRIDXCORDRQDSCDFDRDYBSY

Figure 56. Status Register

This register contains the device status. The contents of this register are updated whenever an error occurs and at the completion of each command.

If the host reads this register when an interrupt is pending, it is considered to be the interrupt acknowledge. Any pending interrupt is cleared whenever this register is read.

If BSY=1, no other bits in the register are valid.

Bit Definitions BSY

DRDY (RDY)

DSC

DRQ

IDX

ERR

Busy. Bit BSY=1 whenever the device is accessing the registers. The host should not read or write any registers when BSY=1. If the host reads any register when BSY=1, the contents of the Status Register will be returned.

Device Ready. When bit RDY=1 it indicates that the device is capable of responding to a command. Bit RDY will be set to 0 during power on until the device is ready to accept a command.

Device Fault. It DF=1 it indicates that the device has detected a write fault condition. Bit DF is set to 0 after the Status Register is read by the host.

Device Seek Complete. If DSC=1, it indicates that a Seek has completed and the device head is settled over a track. Bit DSC is set to 0 by the device just before a Seek begins. When an error occurs, this bit is not changed until the Status Register is read by the hos and at that time the bit again indicates the current Seek complete status. When the device enters into or is in Standby mode or Sleep mode, this bit is set by device in spite of the drive not spinning up.

Data Request. Bit DRQ=1 indicates that the device is ready to transfer a word or byte of data between the host and the device. The host should not write the Command register when DRQ=1.

Corrected Data. Always 0.CORR (COR) Index. Bit IDX=1 once per revolution. Since IDX=1, only for a very short time during eac

revolution, the host may not see it set to 1 even if the host is reading the Status Register continuously. Therefore the host should not attempt to use IDX bit for timing purposes. Error. Bit ERR=1 indicates that an error occurred during execution of the previous command. The Error Register should be read to determine the error type. The device sets bit ERR=0 when the next command is received from the host.

Travelstar 60GH & 40GN hard disk drive specifications

11.0 General operation descriptions

11.1 Reset response

ATA has the following three types of resets:

Power On Reset (POR)

Hard Reset (Hardware Reset)

Soft Reset (Software Reset)

The actions of each reset are shown in Figure 57 on page 74.

The device executes a series of electrical circuitry diagnostics, spins up the head disk assembly, tests speed and other mechanical parametric, and sets default values.

The RESET signal is negated in the ATA Bus. The device resets the interface circuitry and sets the default values.

The SRST bit in the Device Control Register is set and then is reset. The device resets the interface circuitry according to the Set Features require ment.

Travelstar 60GH & 40GN hard disk drive specifications

default

! Number of CHS (set by Initialize

Device Parameters)

! Multiple mode ! Write Cache ! Delayed Write ! Read look-ahead ! ECC bytes ! Volatile max. Address ! Address offset mode

o—execute x—does not execute

POR

hard

reset

soft

reset

oo-Aborting Host interface

(*1)(*1)-Aborting Device operation

xxoInitialization of hardware xxoInternal diagnostic xx(*6)Starting or Spinning Up spindle motor oooInitialization of registers (*2) xooDASP- handshake oooPDIAG- handshake

(*3)ooReverting programmed parameters to

(*4)(*4)(*6)Power mode

oooReset Standby timer value (*5)

Notes.

(*1).

(*2).

(*3).

Execute after the data in write cache has been written. The default value on POR is shown in Figure 58 on page 75. The Set Features command with Feature register = CCh enables the device to revert

these parameters to the power on defaults.

(*4).

In the case of sleep mode, the device goes to standby mode. In other cases, the device does not change current mode.

(*5).

(*6).

Figure 57. Reset response table

After reset the Standby timer value is set to 109 minutes. Set according to the initial power mode selection.

Travelstar 60GH & 40GN hard disk drive specifications

11.2 Register initialization

After a power on, a hard reset, or a software reset, the register values are initialized as shown in the table below.

Default ValueRegister

Diagnostic CodeError

01hSector Count

01hSector Number

00hCylinder Low

00hCylinder High

A0hDevice/Head

50hStatus

50hAlternate Status

Figure 58. Default Register Values

If an Execute Device Diagnostic command is carried out, if the system is powered on, or if a hard reset occurs, the system generates an Error Register diagnostic code. See the table below for a description of the codes.

DescriptionCode

No error detected01h

Formatter device error02h

Sector buffer error03h

ECC circuitry error04h

Controller microprocessor error05h

Device 1 failed8xh

Figure 59. Diagnostic Codes

Travelstar 60GH & 40GN hard disk drive specifications

11.3 Diagnostic and Reset considerations

The Set Max password, the Set Max security mode and the Set Max unlock counter are not retained over a Power On Reset but are retained over a Hard Reset or Soft Reset.

For each Reset and Execute Device Diagnostic, the diagnostic is done as follows:

Power On Reset, Hard Reset

Soft Reset

Execute Device Diagnostic

In each case – Power On Reset [Hard Reset], Soft Reset, and the Execute Device Diagnostic com- mand – the Device 0 Error register value is interpreted using the table below.

DASP- is read by Device 0 to determine if Device 1 is present. If Device 1 is present Device 0 shall read PDIAG- to determine when it is valid to clear the BSY bit and whether Device 1 has powered on or reset without error, otherwise Device 0 clears the BSY bit whenever it is ready to accept commands. Device 0 may asser DASP- to indicate device activity. If Device 1 is not present, Device 0 does not Assert DASP- at POR.

If Device 1 is present, Device 0 shall read PDIAG- to determine when it is valid to clear the BSY bit and whether Device 1 has reset without any errors; otherwise, Device 0 shall simply reset and clear the BSY bit. DASP- is asserted by Device 0 (and Device 1 if it is present) in order to indicate device active.

If Device 1 is present, Device 0 shall read PDIAG- to determine when it is valid to clear the BSY bit and if Device 1 passed or failed the EXECUTE DEVICE DIAGNOSTIC command; otherwise, Device 0 shall simply execute its diagnostics and then clear the BSY bit. DASP- is asserted by Device 0 (and Device 1 if it is present) in order to indicate that the device is active.

Device 1 present?

PDIAG-

Asserted?

Device 0

Passed

Error

01hYesYesYes

0xhNoYesYes

81hYesNoYes

8xhNoNoYes

01hYes(not read)No

0xhNo(not read)No

The "x" indicates the appropriate Diagnostic Code for the Power on, RESET-, Soft Reset, or Device Diagnostic error.

Figure 60. Reset error register values

Travelstar 60GH & 40GN hard disk drive specifications

11.4 Power-off considerations

11.4.1 Load/Unload

Load/Unload is a functional mechanism of the hard disk drive. It is controlled by the drive microcode. Specifically, unloading of the heads is invoked by the following commands.

ResponseCommand

UL -> Comp.Standby

UL -> Comp.Standby Immediate

UL -> Comp.Sleep

ResponseReset

Rdy (*1)Soft Reset

UL -> RdyHard Reset

= unloadUL = completeComp = interface readyRdy Load/Unload condition is not changed by Soft Reset(*1)

Figure 61. Device behavior by ATA commands.

Load/unload is also invoked as one of the idle modes of the drive.

The specified start/stop life of the product assumes that load/unload is operated normally, NOT in emergency mode.

11.4.2 Emergency unload

When the drive power is interrupted with the heads still loaded, the microcode cannot operate and the normal 5V power is unavailable to unload the heads. In this case, normal unload is not possible, so the heads are unloaded by routing the back EMF of the spinning motor to the voice coil. The actuator velocity is greater than the normal case, and the unload process is inherently less controllable without a normal seek current profile.

Emergency unload is intended to be invoked in rare situations. Because this operation is inherently uncontrolled, it is more mechanically stressful than a normal unload.

A single emergency unload operation is more stressful than 100 normal unloads. Use of emergency unload reduces the start/stop life of the drive at a rate at least 100 times faster than that of normal unload and may damage the drive.

Travelstar 60GH & 40GN hard disk drive specifications

11.4.3 Required power-off sequence

When power is removed on most drives at an arbitrary time, problems can result. The followoing are examples of such problems:

! Data is lost from the write buffer ! If the drive is writing a sector, a partially-written sector with an incorrect ECC block results, the

sector contents are destroyed, and reading that sector results in a hard error

! Heads may land in the data zone instead of the landing zone depending on the design of the drive

You may then turn off the drive in the following order:

1. Issue Standby Immediate or sleep command

2. Wait until COMMAND COMPLETE STATUS is returned. (It may take up to 350 ms in a typical case.)

3. Terminate power to drive

11.5 Sector Addressing Mode

All addressing of data sectors recorded on the device's media is done by a logical sector address. The logical CHS address for the drive is different from the actual physical CHS location of the data sector on the disk media.

The drive supports both Logical CHS Addressing Mode and LBA Addressing Mode as the sector addressing mode.

The host system may select either the currently selected CHS translation addressing or LBA addressing on a command-by-command basis by using the L bit in the DEVICE/HEAD register. A host system must set the L bit to 1 if the host uses LBA Addressing mode.

11.5.1 Logical CHS addressing mode

The logical CHS addressing is made up of three fields: the cylinder number, the head number, and the sector number. Sectors are numbered from 1 to the maximum value allowed by the current CHS translation mode but cannot exceed 255 (0FFh). Heads are numbered from 0 to the maximum value allowed by the current CHS translation mode but cannot exceed 15 (0Fh). Cylinders are numbered from 0 to the maximum value allowed by the current CHS translation mode but cannot exceed 65535 (0FFFFh).

When the host selects a CHS translation mode using the INITIALIZE DEVICE PARAMETERS command, the host requests the number of sectors per logical track and the number of heads per logical cylinder. The device then computes the number of logical cylinders available in requested mode.

The default CHS translation mode is described in the Identify Device Information. The current CHS translation mode also is described in the Identify Device Information.

Travelstar 60GH & 40GN hard disk drive specifications

11.5.2 LBA addressing mode

Logical sectors on the device shall be linearly mapped with the first LBA addressed sector (sector 0) being the same sector as the first logical CHS addressed sector ( cylinder 0, head 0, sector 1). Irrespective of the logical CHS translation mode currently in effect, the LBA address of a given logical sector does not change. The following formula is always true:

LBA = ((cylinder x heads_per_cylinder + heads) x sectors_per_track) +

sector - 1

where heads_per_cylinder and sectors_per_track are the current translation mode values.

On LBA addressing mode, the LBA value is set to the following register:

<- - - LBA bits 27–24Device/Head

<- - - LBA bits 23–16Cylinder High

<- - - LBA bits 15–8Cylinder Low

<- - - LBA bits 7–0Sector Number

Travelstar 60GH & 40GN hard disk drive specifications

11.6 Power management features

The power management feature set permits a host to modify the behavior in a manner which reduces the power required to operate. The power management feature set provides a set of commands and a timer that enables a device to implement low power consumption modes.

The drive implements the following set of functions:

1. A Standby timer

2. Idle command

3. Idle Immediate command

4. Sleep command

5. Standby command

6. Standby Immediate command

11.6.1 Power Mode

Sleep Mode

Standby Mode

Active Mode

The lowest power consumption when the device is powered on occurs in Sleep Mode. When in sleep mode, the device requires a reset to be activated.

The device interface is capable of accepting commands, but since the media may not be immediately accessible, there is a delay while waiting for the spindle to reach operating speed.

Refer to 11.7, "Adaptive Battery Life Extender (ABLE-3) feature" on page 82.Idle Mode

The device is in execution of a command or accessing the disk media with the read look-ahead function or the write cache function.

11.6.2 Power management commands

The Check Power Mode command allows a host to determine if a device is currently in, going to, or leaving standby mode.

The Idle and Idle Immediate commands move a device to idle mode immediately from the active or standby modes. The idle command also sets the standby timer count and starts the standby timer.

The sleep command moves a device to sleep mode. The device's interface becomes inactive at the completion of the sleep command. A reset is required to move a device out of sleep mode. When a device exits sleep mode it will enter standby mode.

The Standby and Standby Immediate commands move a device to standby mode immediately from the active or idle modes. The standby command also sets the standby timer count.

11.6.3 Standby/Sleep command completion timing

1. Confirm the completion of writing cached data in the buffer to media.

2. Unload the heads on the ramp.

3. Set the DRDY bit and the DSC bit in Status Register.

4. Set the INTRQ (completion of the command).

5. Activate the spindle break to stop the spindle motor.

6. Wait until the spindle motor is stopped.

7. Perform the post process.

Travelstar 60GH & 40GN hard disk drive specifications

11.6.4 Standby timer

The standby timer provides a method for the device to automatically enter standby mode from either active or idle mode following a host programmed period of inactivity. If the device is in the active or idle mode, the device waits for the specified time period and if no command is received, the device automatically enters the standby mode.

If the value of the SECTOR COUNT register on Idle command or the Standby command is set to "00h", the device will automatically set the standby timer to 109 minutes.

11.6.5 Status

In the active, idle, and standby modes, the device shall have the RDY bit of the status register set. If the BSY bit is not set, the device shall be ready to accept any command.

In sleep mode, the device's interface is not active. A host shall not attempt to read the status of the device or issue commands to the device.

11.6.6 Interface Capability for Power Modes

Each power mode affects the physical interface as defined in the following table:

RDYBSYMode

Figure 62. Power conditions

Ready (RDY) is not a power condition. A device may post ready at the interface even though the media may not be accessible.

The interface is inactive in sleep mode, but the access to the interface registers and the validity of INTRQ is guaranteed for two seconds after the Sleep command is completed. After this period, the contents of interface registers may be lost. Since the contents of interface registers may be invalid, the host should NOT check the Status register nor the Alternate Status register prior to issuing a soft reset to wake up a device.

Interface

active

Media

ActiveYesxxActive

ActiveYes1oIdle InactiveYes1oStandby InactiveNoxxSleep

11.6.7 Initial Power Mode at Power On

After power on or hard reset the device goes to IDLE mode or STANDBY mode depending on the option. Refer to section 4.4.3, "Operating Modes" on page 17 for the initial power mode selection.

Travelstar 60GH & 40GN hard disk drive specifications

11.7 Advanced Power Management (ABLE-3) feature

This feature provides power saving without performance degradation. The Adaptive Battery Life Extender 3 (ABLE-3) technology intelligently manages transition among power modes within the device by monitoring access patterns of the host.

This technology has three idle modes; Performance Idle mode, Active Idle mode, and Low Power Idle mode.

This feature allows the host to select an advanced power management level. The advanced power management level is a scale from the lowest power consumption setting of 01h to the maximum performance level of FEh. Device performance may increase with increasing advanced power management levels. Device power consumption may increase with increasing advanced power management levels. The advanced power management levels contain discrete bands, described in the section of Set Feature command in detail.

This feature set uses the following functions:

! A SET FEATURES subcommand to enable Advanced Power Management

! A SET FEATURES subcommand to disable Advanced Power Management

The Advanced Power Management feature is independent of the Standby timer setting. If both Advanced Power Management level and the Standby timer are set, the device will go to the Standby state when the timer times out or the device's Advanced Power Management algorithm indicates that it is time to enter the Standby state.

The IDENTIFY DEVICE response word 83, bit 3 indicates that Advanced Power Management feature is supported if set. Word 86, bit 3 indicates that Advanced Power Management is enabled if set. Word 91, bits 7-0 contain the current Advanced Power Management level if Advanced Power Management is enabled.

11.7.1 Performance Idle Mode

This mode is usually entered immediately after Active mode command processing is complete, instead of conventional idle mode. In Performance Idle mode, all electronic components remain powered and full frequency servo remains operational. This provides instantaneous response to the next command. The duration of this mode is intelligently managed as described below.

11.7.2 Active Idle Mode

In this mode, power consumption is 45–55% less than that of Performance Idle mode. Additional electronics are powered off and the head is parked near the mid-diameter of the disk without servoing. Recovery time to Active mode is about 20 ms.

11.7.3 Low Power Idle Mode

Power consumption is 60–65% less than that of Performance Idle mode. The heads are unloaded on the ramp but the spindle is still rotated at the full speed. Recovery time to Active mode is about 300 ms.

11.7.4 Transition Time

The transition time is dynamically managed by the user's recent access pattern, instead of fixed times. The ABLE-3 algorithm monitors the interval between commands instead of the command frequency of ABLE-2. The algorithm supposes that the next command will come with the same command interval

Travelstar 60GH & 40GN hard disk drive specifications

distribution as the previous access pattern. The algorithm calculates the expected average saving energy and response delay for next command in several transition time case based on this assumption. And it selects the most effective transition time with the condition that the calculated response delay is shorter than the value calculated from the specified level by Set Feature Enable Advanced Power Management command.

The optimal time to enter Active Idle mode is variable depending on the recent behavior of the user. It is not possible to achieve the same level of Power savings with a fixed entry time into Active Idle because every user’s data and access pattern is different. The optimum entry time changes over time.

The same algorithm works for entering into Low Power Idle mode and Standby mode, which consumes less power but needs more recovery time switching from this mode to Active mode.

Travelstar 60GH & 40GN hard disk drive specifications

11.8 S.M.A.R.T. Function

The intent of Self-monitoring, analysis, and reporting technology (S.M.A.R.T.) is to protect user data and prevent unscheduled system downtime that may be caused by predictable degradation and/or fault of the device. By monitoring and storing critical performance and calibration parameters, S.M.A.R.T. devices employ sophisticated data analysis algorithms to predict the likelihood of near-term degradation or fault condition. By alerting the host system of a negative reliability status condition, the host system can warn the user of the impending risk of a data loss and advise the user of appropriate action.

Since S.M.A.R.T. utilizes the internal device microprocessor and other device resources, there may be some small overhead associated with its operation. However, special care has been taken in the design of the S.M.A.R.T. algorithms to minimize the impact to host system performance. Actual impact of S.M.A.R.T. overhead is dependent on the specific device design and the usage patterns of the host system. To further ensure minimal impact to the user, S.M.A.R.T. capable devices are shipped from the device manufacturer's factory with the S.M.A.R.T. feature disabled. S.M.A.R.T. capable devices can be enabled by the system OEMs at time of system integration or in the field by after-market products.

11.8.1 Attributes

Attributes are the specific performance or calibration parameters that are used in analyzing the status of the device. Attributes are selected by the device manufacturer based on that attribute's ability to contribute to the prediction of degrading or faulty conditions for that particular device. The specific set of attributes being used and the identity of these attributes is vendor specific and proprietary.

11.8.2 Attribute values

Attribute values are used to represent the relative reliability of individual performance or calibration attributes. Higher attribute values indicate that the analysis algorithms being used by the device are predicting a lower probability of a degrading or fault condition existing. Accordingly, lower attribute values indicate that the analysis algorithms being used by the device are predicting a higher probability of a degrading or fault condition existing. There is no implied linear reliability relationship corresponding to the numerical relationship between different attribute values for any particular attribute.

11.8.3 Attribute thresholds

Each attribute value has a corresponding attribute threshold limit which is used for direct comparison to the attribute value to indicate the existence of a degrading or faulty condition. The numerical value of the attribute thresholds are determined by the device manufacturer through design and reliability testing and analysis. Each attribute threshold represents the lowest limit to which its corresponding attribute value can be equal while still retaining a positive reliability status. Attribute thresholds are set at the device manufacturer's factory and cannot be changed in the field. The valid range for attribute thresholds is from 1 through 253 decimal.

11.8.4 Threshold exceeded condition

If one or more attribute values are less than or equal to their corresponding attribute thresholds, then the device reliability status is negative, indicating an impending degrading or faulty condition.

11.8.5 S.M.A.R.T. commands

The S.M.A.R.T. commands provide access to attribute values, attribute thresholds and other logging and reporting information.

Travelstar 60GH & 40GN hard disk drive specifications

11.8.6 S.M.A.R.T. operation with power management modes

The device saves attribute values automatically on every head unload timing except the emergency unload, even if the attribute auto save feature is not enabled. The head unload is done not only by Standby, Standby Immediate, or Sleep command or Hard Reset, but also by the automatic power saving functions like ABLE-3 or Standby timer. So basically it is not necessary for a host system to enable the attribute auto save feature, when it utilizes the power management. If the attribute auto save feature is enabled, attribute values will be saved after 30minutes passed since the last saving, besides above condition.

Travelstar 60GH & 40GN hard disk drive specifications

11.9 Security Mode Feature Set

Security Mode Feature Set is a powerful security feature. With a device lock password, a user can prevent unauthorized access to a device even if it is removed from the computer.

New commands are supported for this feature as listed below:

('F1'h)Security Set Password ('F2'h)Security Unlock ('F3'h)Security Erase Prepare ('F4'h)Security Erase Unit ('F5'h)Security Freeze Lock ('F6'h)Security Disable Password

11.9.1 Security Mode

The following security modes are provided.

Device Locked Mode

Device Unlocked Mode

Device Frozen Mode

The device disables media access commands after power on. Media access commands are enabled by either a Security Unlock command or a Security Erase Unit command.

The device enables all commands. If a password is not set this mode is entered after power on, otherwise it is entered by a Security Unlock or a Security Erase Unit command.

The device enables all commands except those which can update the device lock function, set/change password. The device enters this mode via a Security Freeze Lock command. It cannot quit this mode until power off.

11.9.2 Security level

The following security levels are provided:

High level security

Maximum level security

When the device lock function is enabled and the User Password is forgotten, the device can be unlocked via a Master Password.

When the device lock function is enabled and the User Password is forgotten, then only the Master Password with a Security Erase Unit command can unlock the device. Then user data is erased.

11.9.3 Password

This function can have two types of passwords as described below.

Master Password

User Password

The system manufacturer or dealer who intends to enable the device lock function for end users must set the master password even if only single level password protection is required. Otherwise, the 'default' master password which is set by IBM can unlock a device that is locked with a user password.

When the Master Password is set, the device does NOT enable the Device Lock Function, and the device CANNOT be locked with the Master Password, but the Master Password can be used for unlocking the locked device.

The User Password should be given or changed by a system user. When the User Password is set, the device enables the Device Lock Function, and then the device is locked on the next power on reset or hard reset.

Travelstar 60GH & 40GN hard disk drive specifications

11.9.4 Master Password Revision Code

This Master Password Revision Code is set by Security Set Password command with the master password. And this revision code field is returned in the Identify Device command word 92. The valid revision codes are 0001h to FFFEh. The default value of Master Password Revision Code is FFFEh. Values 0000h and FFFFh are reserved.

11.9.5 Operation example

11.9.5.1 Master Password setting

The system manufacturer or dealer can set an initial Master Password using the Security Set Password command, without enabling the Device Lock Function.

11.9.5.2 User Password setting

When a User Password is set, the device will automatically enter lock mode the next time the device is powered on.

< Setting password >

Set Password with User Password

POR

Figure 63. Initial setting

POR

Normal operation

Power off

Device locked mode

< No setting password >

POR

Normal operation

Power off

POR

Device unlocked mode

Travelstar 60GH & 40GN hard disk drive specifications

IBM IC25N040ATCS04, IC25N030ATCS04, Travelstar 60GH, IC25N020ATCS04, IC25N010ATCS04 Specifications

Specifications and Main Features

Frequently Asked Questions

User Manual
