IBM iSeries Handbook

Version 5 Release 1

The authority on expanding iSeries CPUs

Provides fast facts on iSeries features and requirements

Includes OS/400 V5R1 enhancements

ibm.com/redbooks

IBM ~ iSeries Handbook

Version 5 Release 1

Document Number GA19-5486-21B

12 February 2002

Take Note!

Before using this information and the product it supports, be sure to read the general information in “Special Notices” on page 835

Twenty-second Edition (August 2001)

This document created or updated on February 11, 2002.

Readers comments may be addressed to:

IBM United States Attention: Ms. Susan Powers Telephone: (507) 253-5195 Facsimile: (507) 253-6408 Internal ID: Susan Powers/US/IBM or SUSAN2@IBMUSM07 Internet: SUSAN2@us.ibm.com

When you send information to IBM, you grant IBM a non-exclusive right to use or distribute the information in any way it believes appropriate without incurring any obligation to you.

Note to U.S Government Users – Documentation related to restricted rights – Use, duplication or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Table of Contents

How to Use This Handbook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxv

Acknowledgements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvi

Comments Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxviii

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

iSeries Technology in Stride. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

iSeries Architecture: Fundamental Strength of the iSeries . . . . . . . . . 11

System Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

iSeries Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Technology Independent Machine Interface . . . . . . . . . . . . . . . . . . . . . . . . 13

Hierarchy of Microprocessors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Single-level Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

SOI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

On-chip Copper-wiring Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Hot-plugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Operating System OS/400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Object-based. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Java . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Web Serving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Lotus Domino . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

iSeries Integration with the Windows NT Server . . . . . . . . . . . . . . . . . . . . . . . 21

Logical Partitioning (LPAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Virtual LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Extended Adaptive Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

OS/400 Portable Application Solutions Environment . . . . . . . . . . . . . . . . . . . . 25

Reliable, Managed Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Linux for iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

High Speed Links (HSL). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Clustering with Switchable DASD and IASP . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Fibre Channel Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

iSeries Business Intelligence Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

e-business . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Characteristics of a Successful e-business. . . . . . . . . . . . . . . . . . . . . . . . . 33

Advanced User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Operations Navigator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Management Central-Pervasive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

EZ-Setup for V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Information Center for iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

XML Enablers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Workload and Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Commercial Processing Workload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

IBM Workload Estimator for AS/400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Disk Arm Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

iSeries Model 270 and 8xx Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Capacity Upgrade on Demand (CUoD). . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

AS/400e Dedicated Server for Domino Positioning . . . . . . . . . . . . . . . . . . . . . 45

Model 270 Dedicated Server for Domino Processor Features . . . . . . . . . . 46

iSeries Model 820 Dedicated Server for Domino Processor Features . . . . 46

5250 Throughput . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

5250 Express Data Stream . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

iSeries Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Product Previews . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Product Previews: Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Product Previews: Closed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Statement of Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Planning Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Withdrawn Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Features and Devices Not Supported on V5R1 . . . . . . . . . . . . . . . . . . . . . . . . 60

Software End of Support Dates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Communications (WAN) Functions No Longer Supported . . . . . . . . . . . . . . . . 62

iSeries and AS/400e Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Table 1: Summary of the AS/400e Server 250. . . . . . . . . . . . . . . . . . . . . . . . . 65

Table 2: Summary of the iSeries Model 250 Packages . . . . . . . . . . . . . . . . . . 66

Table 3: Summary of the iSeries Model 270 . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Table 4: Summary of the iSeries Model 820 . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Table 5: Summary of the iSeries Model 830 . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Table 6: Summary of the iSeries Model 840 . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Table 7: Summary of the iSeries Models SB2 and SB3. . . . . . . . . . . . . . . . . . 87

iSeries Model 250 Packages and AS/400e Server 250. . . . . . . . . . . . . . 93

AS/400e Server 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

iSeries Model 250 Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

PCI Card Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Main Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Workstation Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Multifunction I/O Processor (MFIOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

vi iSeries Handbook

#2746 PCI Twinaxial Workstation IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

#9720 Base PCI WAN/Twinaxial IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

PCI Base Multifunction IOP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

#2824 PCI LAN/WAN/Workstation IOP. . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

#2745 PCI Two-Line WAN IOA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

#2750 PCI ISDN BRI U IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

#2751 PCI ISDN BRI S/T IOA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

#2761 Integrated Analog Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

#9720 Base PCI WAN/Twinaxial IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

#0398 Operations Console Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

#9771 Base PCI 2-Line WAN with Modem . . . . . . . . . . . . . . . . . . . . . . . . 101

Communication WAN Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

#4801 PCI Crypto Coprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Local Area Networks and Asynchronous Transfer Mode . . . . . . . . . . . . . . . . 103

#2838/#9738 PCI 100/10 Mbps Ethernet IOA. . . . . . . . . . . . . . . . . . . . . . 103

#2724/#9724 PCI 16/4 Mbps Token-Ring IOA . . . . . . . . . . . . . . . . . . . . . 103

#2723/#9723 PCI Ethernet IOA (10 Mbps) . . . . . . . . . . . . . . . . . . . . . . . . 104

#2815 PCI 155 Mbps Unshielded Twisted Pair ATM IOA . . . . . . . . . . . . . 104

#2816 PCI 155 Mbps Multi-Mode Fiber OC3 ATM IOA . . . . . . . . . . . . . . 105

#2818 PCI 155 Mbps Single-Mode Fiber OC3 ATM IOA . . . . . . . . . . . . . 105

#2866 PCI Integrated Netfinity Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

9406 Model 250 System Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Power and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

System Expansion Unit Schematics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

#7102 System Expansion Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Power and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Uninterruptable Power Supply (UPS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Disk Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

#6831 1.6 GB Read Cache Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Magnetic Media Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

#2729 PCI Magnetic Media Controller SCSI. . . . . . . . . . . . . . . . . . . . . . . 111

#2718 PCI Magnetic Media Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

#2763 PCI RAID Disk Unit Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

#2748 PCI RAID Disk Unit Compression Controller . . . . . . . . . . . . . . . . . 111

Internal Tape, CD-ROM, and Diskette Units . . . . . . . . . . . . . . . . . . . . . . . . . 111

Base CD-ROM Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Diskette Drive Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

iSeries Server 270 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Card Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Processor Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Interactive Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Main Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

vii

Power and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

High Speed Link (HSL) on Model 270 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Workstation Controllers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

5250 Express Data Stream . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Remote Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

I/O Processor and I/O Adapter Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

LAN/WAN/Workstation IOAs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Internal Disk Unit Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Magnetic Media Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

I/O Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Internal Disk, Tape, and CD-ROM Support . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Internal Disk Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Internal Tape and CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

CIF Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Model 270 Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

iSeries Dedicated Server for Domino. . . . . . . . . . . . . . . . . . . . . . . . . . 135

CIF Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Main Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Dedicated Server for Domino Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

iSeries Model 820 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Card Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Processor Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Interactive Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Main Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Power and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

High Speed Link (HSL) on Model 820. . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Remote Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

I/O Processor and I/O Adapter Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

LAN/WAN/Workstation IOAs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Internal Disk Unit Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Magnetic Media Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

I/O Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Internal Disk, Tape, CD-ROM, and DVD-RAM Support . . . . . . . . . . . . . . . . . 159

Internal Disk Units and Read Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Internal Tape and CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

External Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Migration Tower Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

iSeries Model 830 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Card Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Processor Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Interactive Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

viii iSeries Handbook

Main Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Power and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

System Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

#0550 iSeries Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

#9074 Base I/O Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

#5101 30-Disk Expansion Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

#5111 30-Disk Expansion With Dual Line Cord Feature. . . . . . . . . . . . . . 173

High Speed Link (HSL) on Model 830 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Remote Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

I/O Processor and I/O Adapter Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

LAN/WAN/Workstation IOAs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Internal Disk Unit Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Magnetic Media Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

I/O Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Internal Disk, Tape, CD-ROM, and DVD-RAM Support . . . . . . . . . . . . . . . . . 178

Internal Disk Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Internal Tape, CD-ROM, and DVD-RAM . . . . . . . . . . . . . . . . . . . . . . . . . 178

External Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Migration Tower Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

iSeries Model 840 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Card Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Processor Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Interactive Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Main Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Power and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

System Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

#8079 Optional Base I/O Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

#9079 Base I/O Tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

#5101 30-Disk Expansion Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

#5111 30-Disk Expansion With Dual Line Cord Feature. . . . . . . . . . . . . . 193

#2730 Programmable Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

#5150 Battery Backup (external). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

High Speed Links (HSL) on Model 840 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Remote Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

I/O Processor and I/O Adapter Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

LAN/WAN/Workstation IOAs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Internal Disk Unit Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Magnetic Media Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

I/O Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Internal Disk, Tape, CD-ROM, and DVD-RAM Support . . . . . . . . . . . . . . . . . 199

Internal Disk Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Internal Tape, CD-ROM, and DVD-RAM . . . . . . . . . . . . . . . . . . . . . . . . . 200

External Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Migration Tower Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Upgrades to iSeries 8xx Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

Interactive Performance Reduction Option for 8xx and 7xx Servers . . . . . . . 205

Upgrade Scenarios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Migration considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

RISC to RISC Data Migration (#0205) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Upgrades to iSeries Server 820 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Upgrades to 820 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Model 820 Upgrades to 820 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Model 820 Upgrades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Upgrades to iSeries Model 830 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Upgrades to 830 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

8xx Upgrades to 830 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Model 830 Upgrades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Upgrades to iSeries Model 840 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Model 8xx Upgrades to 840 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Model 840 Upgrades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

iSeries Model SB2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Card Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

Processor Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Main Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Power and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

System Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

#9074 Base I/O Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

I/O Processor and I/O Adapter Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229

LAN/WAN/Workstation IOAs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229

Internal Disk Unit Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Magnetic Media Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

I/O Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Internal Disk, Tape, CD-ROM, and DVD-RAM Support . . . . . . . . . . . . . . . . . 230

Internal Disk Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Internal Tape, CD-ROM, and DVD-RAM . . . . . . . . . . . . . . . . . . . . . . . . . 230

External Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

iSeries Model SB3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Card Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

Processor Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

Main Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

Power and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

x iSeries Handbook

System Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

#9079 Base I/O Tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

#5150 Battery Backup (external). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

I/O Processor and I/O Adapter Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

LAN/WAN/Workstation IOAs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Internal Disk Unit Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Magnetic Media Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

I/O Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Internal Disk, Tape, CD-ROM, and DVD-RAM Support . . . . . . . . . . . . . . . . . 239

Internal Disk Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Internal Tape, CD-ROM, and DVD-RAM . . . . . . . . . . . . . . . . . . . . . . . . . 240

External Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Tow ers and Racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

Expansion Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

#5074 PCI Expansion Tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

#5105 Dual Line Cord: I/O Tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

#5101 30-Disk Expansion Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

#5111 30-Disk Expansion With Dual Line Cord Feature. . . . . . . . . . . . . . 245

#5075 PCI Expansion Tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

#5078 PCI Expansion Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

#5079 1.8m PCI I/O Expansion Tower . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Migration Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

#5033 Migration Tower I (600/S10 System Unit) . . . . . . . . . . . . . . . . . . . 254

#5034 Migration Tower I (10 Disk S20/620, 720 System). . . . . . . . . . . . . 256

#5035 Migration Tower I (15 Disk S20/620, 720 System). . . . . . . . . . . . . 257

#5077 Migration Tower II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

SPD Expansion Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

SPD Expansion Tower I/O Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Upgrade Options for #5065, #5066 and #5075 Expansion Towers . . . . . . . . 263

Racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

#0550 iSeries Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

#0551 iSeries Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

IBM 9309 Rack Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

High Speed Links (HSL). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Integrated xSeries Adapter (direct attach) . . . . . . . . . . . . . . . . . . . . . . . . 271

I/O Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

V5R1 System Unit Hardware (PCI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

Embedded 32 MB PCI IOP (CCIN 284x) . . . . . . . . . . . . . . . . . . . . . . . . . 277

#2842 PCI IOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

#2843/#9943 PCI IOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

#2790 PCI Integrated Netfinity Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

#2791 Integrated xSeries Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

#2890 PCI Integrated Netfinity Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

#2891 Integrated xSeries Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

#2799 PCI Integrated xSeries Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283

#2899 PCI Integrated xSeries Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283

Migration Tower Hardware PCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

#2809 PCI LAN/WAN/Workstation IOP. . . . . . . . . . . . . . . . . . . . . . . . . . . 285

#2824 PCI LAN/WAN/Workstation IOP. . . . . . . . . . . . . . . . . . . . . . . . . . . 285

#2851 PCI Integrated PC Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

#2854 PCI Integrated PC Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

#2865 PCI Integrated Netfinity Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Migration Tower Hardware SPD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286

#2629 SPD LAN/WAN/Workstation IOP . . . . . . . . . . . . . . . . . . . . . . . . . . 286

#2810 LAN/WAN IOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

#6616 Integrated PC Server (Formerly FSIOP) . . . . . . . . . . . . . . . . . . . . 287

#6617 Integrated PC Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

#6618 Integrated Netfinity Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

I/O Adapters and Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Homologation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

PCI Card Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

V5R1 System Unit Hardware (PCI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

#2743 PCI 1 Gbps Ethernet IOA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

#2744 PCI 100/16/4 Mbps Token Ring IOA . . . . . . . . . . . . . . . . . . . . . . . 293

#2760 1 Gbps/100 Mbps/10 Mbps UTP Ethernet UTP IOA . . . . . . . . . . . 293

#2765 PCI Fibre Channel Tape Controller . . . . . . . . . . . . . . . . . . . . . . . . 294

#2766 PCI Fibre Channel DASD Controller . . . . . . . . . . . . . . . . . . . . . . . 294

#2772 and #2773 two line WAN adapters. . . . . . . . . . . . . . . . . . . . . . . . . 295

#2805 and #2806 PCI Quad Modem IOA . . . . . . . . . . . . . . . . . . . . . . . . . 296

#2817 155 Mbps MMF ATM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297

#4723 PCI 10 Mbps Ethernet IOA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297

#4745 PCI Two-Line WAN IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

#4746 PCI Twinaxial Workstation IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

#4750 PCI ISDN BRI U IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

#4751 PCI ISDN BRI S/T IOA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

#4761 Integrated Analog Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

#4801 PCI Crypto Coprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

#4802 PCI Crypto Coprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300

#4815 PCI 155 Mbps Unshielded Twisted Pair ATM IOA . . . . . . . . . . . . . 300

#4816 PCI 155 Mbps Multi-Mode Fiber OC3 ATM IOA . . . . . . . . . . . . . . 300

#4818 PCI 155 Mbps Single-Mode Fiber OC3 ATM IOA . . . . . . . . . . . . . 301

#4838 PCI 100/10 Mbps Ethernet IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

#9771 Base PCI 2-Line WAN with Modem . . . . . . . . . . . . . . . . . . . . . . . . 301

#2763 PCI RAID Disk Unit Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

#4778/#9778 PCI RAID Disk Unit Controller. . . . . . . . . . . . . . . . . . . . . . . 303

xii iSeries Handbook

#4748/#9748 PCI RAID Disk Unit Controller. . . . . . . . . . . . . . . . . . . . . . . 303

#9767 PCI Disk Unit Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304

#2749 PCI Ultra Magnetic Media Controller . . . . . . . . . . . . . . . . . . . . . . . 304

#2768 PCI Magnetic Media Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . 305

Migration Tower PCI Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

#2720/#9720 PCI WAN/Twinaxial IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

#2721/#9721 PCI Two-Line WAN IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

#2722 PCI Twinaxial Workstation IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

#2723/#9723 PCI Ethernet IOA (10 Mbps) . . . . . . . . . . . . . . . . . . . . . . . . 307

#2724/#9724 PCI 16/4 Mbps Token-Ring IOA . . . . . . . . . . . . . . . . . . . . . 308

#2745/9745 PCI Two-Line WAN IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

#2746 PCI Twinaxial Workstation IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

#2750 PCI ISDN BRI U IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

#2751 PCI ISDN BRI S/T IOA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

#2761 Integrated Analog Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

#2815 PCI 155 Mbps Unshielded Twisted Pair ATM IOA . . . . . . . . . . . . . 310

#2816 PCI 155 Mbps Multi-Mode Fiber OC3 ATM IOA . . . . . . . . . . . . . . 310

#2818 PCI 155 Mbps Single-Mode Fiber OC3 ATM IOA . . . . . . . . . . . . . 310

#2838/#9738 PCI 100/10 Mbps Ethernet IOA. . . . . . . . . . . . . . . . . . . . . . 310

#4802 PCI Crypto Coprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

#2718 PCI Magnetic Media Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

#2726 PCI RAID Disk Unit Controller Ultra SCSI . . . . . . . . . . . . . . . . . . . 311

#2729 PCI Magnetic Media Controller SCSI PCI . . . . . . . . . . . . . . . . . . . 312

#2740 PCI RAID Disk Unit Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313

#2741 PCI RAID Disk Unit Compression Controller . . . . . . . . . . . . . . . . . 314

#2748 PCI RAID Disk Unit Compression Controller . . . . . . . . . . . . . . . . . 314

#9728 Base PCI Disk Unit Controller Ultra SCSI . . . . . . . . . . . . . . . . . . . 314

Migration Tower SPD Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315

#2699/#9699 SPD Two-Line WAN IOA . . . . . . . . . . . . . . . . . . . . . . . . . . 315

#6149 16/4 Mbps Token-Ring IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316

#6180/#9280 Twinaxial Workstation IOA . . . . . . . . . . . . . . . . . . . . . . . . . 316

#6181/#9381 Ethernet/IEEE 802.3 IOA (10 Mbps) . . . . . . . . . . . . . . . . . . 317

#2624 Storage Device Controller SPD . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

#6501 Tape/Disk Device Controller SPD . . . . . . . . . . . . . . . . . . . . . . . . . 318

#6513 Internal Tape Device Controller SPD . . . . . . . . . . . . . . . . . . . . . . . 318

#6533 RAID Disk Unit Contrlr (4 MB Cache) Ultra SCSI Compress SPD. 319

#6534 Magnetic Media Controller SCSI SPD . . . . . . . . . . . . . . . . . . . . . . 319

CCIN 671A MFIOP with RAID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

High Workload SPD IOP Placement Rules for Magnetic Media . . . . . . . . 320

Internal Magnetic Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

PCI Disk Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

SPD Disk Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327

xiii

Disk Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328

Disk Storage Specifications Comparison . . . . . . . . . . . . . . . . . . . . . . . . . 328

Load Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Disk Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Device Parity Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

RAID-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336

Mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336

Integrated Hardware Disk Compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337

Internal Tape, CD-ROM, and DVD-RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337

Tape Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339

Alternate IPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341

Tape Unit Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342

Individual Internal Tape Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344

CD-ROM and DVD-RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348

Internal CD-ROM and DVD-RAM Drives . . . . . . . . . . . . . . . . . . . . . . . . . 348

LPAR Support and CD-ROM / DVD-RAM. . . . . . . . . . . . . . . . . . . . . . . . . 348

Removable Storage Media Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . 353

Single External Tape Attach Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353

IBM 7207 Model 122 4 GB External QIC Tape Drive. . . . . . . . . . . . . . . . . . . 354

IBM 7208 External 8mm Tape Drive Model 342 . . . . . . . . . . . . . . . . . . . . . . 355

IBM 7208 60 GB External 8mm Tape Drive Model 345 . . . . . . . . . . . . . . . . . 356

Positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356

IBM 3570 Model C00 Magstar MP Tape Drive. . . . . . . . . . . . . . . . . . . . . . . . 357

IBM 3580 Model H11 Ultrium Tape Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . 357

IBM 7210 Model 025 External DVD-RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 358

Externally Attached Automated Libraries . . . . . . . . . . . . . . . . . . . . . . 361

Basic Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362

IBM 7329 Model 308 SLR100 Tape Autoloader. . . . . . . . . . . . . . . . . . . . . . . 363

IBM 3490E Magnetic Tape Subsystem Enhanced Capability Models F00, F01,

F11, and Library Model F1A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364

IBM Magstar MP 3570 Tape Cassette Subsystem . . . . . . . . . . . . . . . . . . . . 366

3570 Cxx Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

Magstar MP (Multipurpose) 3575 Tape Library Dataserver . . . . . . . . . . . . . . 369

IBM 358x Ultrium Tape Solutions with Linear Tape Open (LTO) Technology 371

IBM 3580 Ultrium Tape Drive Model H11 . . . . . . . . . . . . . . . . . . . . . . . . . 373

IBM 3581 Ultrium Tape Autoloader H17 . . . . . . . . . . . . . . . . . . . . . . . . . . 373

IBM 3583 Ultrium Scalable Tape Library . . . . . . . . . . . . . . . . . . . . . . . . . 374

IBM 3584 UltraScalable Tape Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374

IBM 3590 High Performance Tape Subsystem Models B1A and B11 . . . . . . 379

IBM 3590 High Performance Tape Subsystem Models E1A and E11 . . . . . . 380

Model Abstract 3590-E1A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382

xiv iSeries Handbook

3590 Extended High Performance Cartridge . . . . . . . . . . . . . . . . . . . . . . 383

Performance Statistics for the 3590-E and iSeries 8xx. . . . . . . . . . . . . . . 383

IBM 3494 Tape Library Dataserver Model . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

IBM 3995 Optical Library C-Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387

2105 Enterprise and Versatile Storage Servers . . . . . . . . . . . . . . . . . . 393

2105 Enterprise Storage Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393

2105 Versatile Storage Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394

Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

Storage Area Network Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

IBM SAN Fibre Channel Managed Hub 3534-1RU . . . . . . . . . . . . . . . . . . 399

IBM SAN Fiber Channel Switch 2109-S08 or 2109-S16 . . . . . . . . . . . . . . 401

IBM NetVista Thin Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402

IBM NetVista N2200 Thin Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403

IBM NetVista N2800 Thin Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403

IBM InfoWindow II Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

InfoWindow Model 3489 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

InfoWindow II 3153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

IBM 7852 Model 400 Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405

IBM iSeries Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

IBM iSeries Workgroup Printers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

IBM Infoprint Color 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407

IBM Infoprint 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407

IBM Network Printer 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

IBM Infoprint 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

IBM Infoprint 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

IBM Infoprint 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

IBM Infoprint 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

IBM Infoprint 1000 Workgroup Printer Family . . . . . . . . . . . . . . . . . . . . . . . . 410

IBM Infoprint 1120 Workgroup Laser Printer. . . . . . . . . . . . . . . . . . . . . . . 411

IBM Infoprint 1125 Workgroup Laser Printer. . . . . . . . . . . . . . . . . . . . . . . 411

IBM Infoprint 1130 Workgroup Laser Printer. . . . . . . . . . . . . . . . . . . . . . . 411

IBM Infoprint 1140 Workgroup Laser Printer. . . . . . . . . . . . . . . . . . . . . . . 411

IBM Infoprint 1145 Workgroup Laser Printer. . . . . . . . . . . . . . . . . . . . . . . 412

IBM iSeries Departmental and Production Printers . . . . . . . . . . . . . . . . . . . . 412

IBM Infoprint 60 and 3160 Advanced Function Printers . . . . . . . . . . . . . . 412

IBM Infoprint 60 Advanced Function Finisher . . . . . . . . . . . . . . . . . . . . . . 413

IBM Infoprint 62 Continuous Forms Printer . . . . . . . . . . . . . . . . . . . . . . . . . . 413

IBM Infoprint 70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414

IBM Infoprint 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415

IBM Infoprint 3000 Advanced Function Printing System . . . . . . . . . . . . . . . . 416

IBM Infoprint 4000 Advanced Function Printing System . . . . . . . . . . . . . . . . 417

IBM Infoprint 4000 Hi-Lite Color Printing System and IBM Infoprint 4005 Hi-Lite

Color Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

IBM InfoColor 70 Full-Color Digital Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . 419

Infoprint Color 100 Full-Color Digital Printer. . . . . . . . . . . . . . . . . . . . . . . . . . 419

IBM Color 130 and Color 130 Plus Full-Color Digital Printers . . . . . . . . . . . . 420

IBM iSeries Industrial Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

IBM 4230 Impact Matrix Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

IBM 4232 Impact Dot Matrix Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

IBM 4247 MultiForm Matrix Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423

IBM 4400 Thermal Label Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423

IBM 6400 Line Matrix Printers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424

Customer Install Features (CIF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 429

V5R1 and V4R5 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 429

Operating System/400 (5722-SS1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

OS/400 – New with V5R1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

Operating System Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445

OS/400 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 448

Communication and Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 451

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453

DB2 Universal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455

User-defined Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 459

Integrated File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 463

Extended Online Help and Support in OS/400. . . . . . . . . . . . . . . . . . . . . . . . 466

Ease of Installation, Use, and Maintenance . . . . . . . . . . . . . . . . . . . . . . . 466

GUI Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468

Performance and Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470

Logical Partitions (LPAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 473

Virtual LAN – New with V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476

Multiple Operating Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477

Linux for iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477

iSeries ODBC Driver for Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 479

Clustering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 479

GUI Management and Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 481

Client Server Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486

National Language Versions and Multilingual Support . . . . . . . . . . . . . . . 487

Euro Currency Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 489

Programs within OS/400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490

Options and Licensed Programs Included in OS/400 . . . . . . . . . . . . . . . . . . 490

System Openness Includes (5722-SS1 Option 13) . . . . . . . . . . . . . . . . . . . . 491

Media and Storage Extension (5722-SS1 Option 18) . . . . . . . . . . . . . . . . 491

OptiConnect for iSeries (5722-SS1 Options 22, 23) . . . . . . . . . . . . . . . . . 492

xvi iSeries Handbook

DB2 Symmetric Multiprocessing for OS/400 (5722-SS1 Option 26) . . . . . . . 493

DB2 Multisystem for iSeries (5722-SS1 Option 27) . . . . . . . . . . . . . . . . . . . . 494

PASE (Portable Application Solutions Environment) (5722-SS1 Option 33) . 494

PASE – New with V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 495

IBM Print Service Facilities Option (5722-SS1 Options 36, 37, 38) . . . . . . . . 496

PSF/400 – New with V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 497

Integration Services with FSIOP (5722-SS1 Base) . . . . . . . . . . . . . . . . . . . . 499

Integration for Lotus Notes (5722-SS1 Base) . . . . . . . . . . . . . . . . . . . . . . . . 499

Enhanced Integration with Novell Netware (5722-SS1 Option 25, 5722-SA3)500

Integration for Novell NetWare (5722-SA3) . . . . . . . . . . . . . . . . . . . . . . . 501

High Availability Switchable Resources, OS/400 (5722-SS1 Option 41) . . . . 501

iSeries Integration with Windows Server (Base 5722-SS1 as 5722-WSV) . . 502

V4R5 and V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 502

HTTP Server for iSeries (5722-DG1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506

Apache HTTP Server Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506

IBM HTTP Server for iSeries Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 507

Enhancements to HTTP Server for iSeries: August 2001. . . . . . . . . . . . . 510

Digital Certificate Manager with SSL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 511

Net.Currency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512

Web Registry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512

HTTP Server Powered by Apache for iSeries (5722-HT1). . . . . . . . . . . . . . . 513

Software Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 515

Supported Upgrade Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 515

OS/400 Single-Step Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 515

Current Release to Previous Release Support . . . . . . . . . . . . . . . . . . . . . . . 516

OS/400 Version 5 Terms and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 516

LPAR Systems and Guidance for Software Keys for Upgrades . . . . . . . . 517

Software Subscription . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 517

Software Keys and Guidance for LPAR System Upgrades . . . . . . . . . . . 518

Keyed Stamped Media Distribution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 518

IBM Licensed Programs: Database Accessories. . . . . . . . . . . . . . . . . 523

IBM DB2 OLAP Server for AS/400 Version 7.1 (5641-OLP) . . . . . . . . . . . . . 523

IBM DB2 OLAP Server for AS/400 – New with Version 7.1 . . . . . . . . . . . 524

DB2 OLAP Server for AS/400 Version 7.1 Add-on Programs. . . . . . . . . . 524

IBM DB2 DataPropagator Version 7.1 for AS/400 (5769-DP3) . . . . . . . . . . . 525

DB2 DataPropagator – New with 7.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 528

IBM DB2 DataJoiner Version 2.1.1 (5801-AAR Feature #3049) . . . . . . . . . . 529

DB2 Spatial Extender Version 2.1.1 (5801-AAR Feature #6507) . . . . . . . 533

IBM DB2 Intelligent Miner for Data for AS/400 V6R1 (5733-IM3) . . . . . . . . . 533

IBM DB2 Intelligent Miner for Data for AS/400 – New with V6R1. . . . . . . 535

IBM Query for AS/400 (5722-QU1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 535

xvii

IBM DB2 Query Manager and SQL Development Kit for AS/400 (5722-ST1) 536 Query Management Facility for Windows for AS/400 Version 7 (5697-G24) . 537

DB2 Warehouse Manager for AS/400 (5697-G23) . . . . . . . . . . . . . . . . . . . . 542

IBM Warehouse Manager for AS/400 V7.1 DB2 Forms V2 (5697-G23) . . . . 543

IBM System/38 Utilities for AS/400 (5722-DB1). . . . . . . . . . . . . . . . . . . . . . . 544

TCP/IP Connectivity Utilities (5722-TC1) . . . . . . . . . . . . . . . . . . . . . . . 547

Enterprise-class TCP/IP for Real Business Networks. . . . . . . . . . . . . . . . 547

GUI Configuration Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547

TCP/IP Connectivity Utilities for iSeries (Included in 5722-TC1) . . . . . . . . . . 549

TCP/IP Internet Setup Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550

Network Quality of Service (QoS) – New with V5R1. . . . . . . . . . . . . . . . . 550

TCP/IP Base Protocol Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550

Sockets over SNA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551

Simple Network Management Protocol (SNMP) . . . . . . . . . . . . . . . . . . . . 551

NETwork STATus (NETSTAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 552

Trace Route – New with V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 552

Lookup Host (NSLOOKUP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 552

Dynamic IP Routing (RIP and RIP2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553

Proxy Address Resolution Protocol (Proxy ARP) . . . . . . . . . . . . . . . . . . . 553

Point-to-Point Protocol (PPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553

Point-to-Point (PPP) Connectivity Enhancements – New with V5R1 . . . . 553

Application Programming Interfaces (APIs): SOCKETS and RPC . . . . . . 554

Sockets and SSL Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 554

Asynchronous I/O Completion Port Support and APIs for OS/400 Sockets554

Transport Layer Security Support on iSeries (TSL) . . . . . . . . . . . . . . . . . 556

TCP/IP Packet Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 556

Virtual Private Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 556

Layer 2 Tunneling Protocol (L2TP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 557

TCP/IP Servers and Services Descriptions. . . . . . . . . . . . . . . . . . . . . . . . 558

Lightweight Directory Access Protocol (LDAP) on the iSeries . . . . . . . . . 559

Simple Mail Transfer Protocol (SMTP) . . . . . . . . . . . . . . . . . . . . . . . . . . . 560

Post Office Protocol (POP) Version 3 Server . . . . . . . . . . . . . . . . . . . . . . 560

Domain Name System and Dynamic Domain Name System Server . . . . 561

Dynamic Host Configuration Protocol (DHCP) Server . . . . . . . . . . . . . . . 561

IP Printing to Network Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 562

Internet Printing Server for iSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 562

Line Printer Requester (LPR) and Line Printer Daemon (LPD) . . . . . . . . 562

Telnet client and server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 563

Network Address Translation (NAT) TCP/IP Address Mapping and Hiding563

TCP/IP Dial-on-Demand (DOD) Networking. . . . . . . . . . . . . . . . . . . . . . . 564

TCP/IP Integrated Load Balancing: Virtual IP Addressing (VIPA) . . . . . . 564

xviii iSeries Handbook

WebSphere and e-business . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 567

WebSphere Application Server Standard Edition for iSeries (128-Bit)

(5733-AS3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 569

WebSphere Application Server V3.5 Advanced Edition for iSeries

(5733-WA3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 571

IBM WebSphere Commerce Suite, Pro Edition for AS/400, V4.1 (5798-WC4)576

Improved Relationship Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . 578

WebSphere Commerce Studio Pro Edition. . . . . . . . . . . . . . . . . . . . . . . . 578

IBM WebSphere Payment Manager for iSeries V2.2 . . . . . . . . . . . . . . . . . . . 582

Payment Service Providers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 585

Connect for iSeries 1.1 (5733-B2B) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 586

Connect for iSeries: New with Version 1.1 . . . . . . . . . . . . . . . . . . . . . . . . 587

Connect for iSeries Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 589

IBM WebSphere Host Publisher V2.2 for AS/400 (5648-D31) . . . . . . . . . . . . 590

WebSphere Host Publisher AS/400 – New with V2.2. . . . . . . . . . . . . . . . 591

Products Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 592

IBM WebSphere Personalization for AS/400, V3.5 . . . . . . . . . . . . . . . . . . . . 595

Products Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 595

IBM Licensed Programs: Application Development Products . . . . . . 599

IBM VisualAge Generator Server for iSeries (5769-VG1) . . . . . . . . . . . . . . . 599

IBM CICS Transaction Server for iSeries (5722-DFH). . . . . . . . . . . . . . . . . . 600

IBM Application Program Driver for AS/400 (5722-PD1) . . . . . . . . . . . . . . . . 601

Java for iSeries (5722-JC1 and 5722-JV1) . . . . . . . . . . . . . . . . . . . . . . . . . . 602

iSeries Toolbox for Java (5722-JC1 Included with 5722-SS1). . . . . . . . . . . . 603

iSeries Developer Kit for Java (5722-JV1 Included with 5722-SS1) . . . . . . . 607

IBM VisualAge for Java Enterprise Toolkit for AS/400 (ET/400) . . . . . . . . . . 609

WebSphere Development Studio for iSeries (5722-WDS) . . . . . . . . . . . . . . . 611

IBM Integrated Languages Environment RPG for iSeries (Component of

5722-WDS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 615

RPG IV – New with V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 615

IBM Integrated Language Environment COBOL for iSeries (Component of

5722-WDS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 616

ILE COBOL – New with V5R1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 617

Integrated Language Environment C for iSeries (Component of 5722-WDS) 617

ILE C – New with V5R1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 617

ADTS – New with V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 619

WebSphere Development Tools for iSeries V5.1 (Entitled with 5722-WDS) . 622

WebFacing Tool (First Edition) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 624

WebSphere Studio for iSeries (Professional Edition) . . . . . . . . . . . . . . . . 625

VisualAge for Java for iSeries (Professional Edition) . . . . . . . . . . . . . . . . 627

CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 628

VisualAge RPG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 628

xix

System/36 Migration Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 629

System/38 Migration Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 629

IBM Licensed Programs: Lotus Products . . . . . . . . . . . . . . . . . . . . . . 633

Lotus Domino Server for iSeries (5769-LNT) . . . . . . . . . . . . . . . . . . . . . . . . . 633

Lotus Domino R5 Mail Server (Licensing Option of 5769-LNT) . . . . . . . . 636

Lotus Domino R5 Application Server (Licensing Option of 5769-LNT) . . . 640

Lotus Domino R5 Enterprise Server (Licensing Option of 5769-LNT) . . . 643

Lotus Domino R5 Advanced Enterprise Server . . . . . . . . . . . . . . . . . . . . 645

Lotus Enterprise Integrator (5769-LNP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 646

Changes to Lotus Notes/Domino Maintenance Strategy . . . . . . . . . . . . . . . . 646

Domino Client Choices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 647

Lotus iNotes Access for Microsoft Outlook . . . . . . . . . . . . . . . . . . . . . . . . 647

Lotus iNotes Web Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 648

Notes for Collaboration Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 648

R5 Domino Designer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 654

IBM Licensed Programs: Networking Products. . . . . . . . . . . . . . . . . . 661

IBM NetVista Thin Client Manager, Version 2 Release 1 (5638-C07, C08). . 661

Navio NC Navigator for IBM Network Station V1.0 (5648-B10, B20). . . . . . . 663

IBM Cryptographic Access Provider for iSeries . . . . . . . . . . . . . . . . . . . . . . . 664

IBM Cryptographic Access Provider 56-bit for iSeries (5722-AC2). . . . . . 664

IBM Cryptographic Access Provider 128-bit for iSeries (5722-AC3). . . . . 664

IBM iSeries Client Encryption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 665

IBM iSeries Client Encryption 56-bit (5722-CE2) . . . . . . . . . . . . . . . . . . . 665

IBM iSeries Client Encryption 128-bit (5722-CE3) . . . . . . . . . . . . . . . . . . 665

IBM Cryptographic Support for iSeries (5722-CR1) . . . . . . . . . . . . . . . . . . . . 666

IBM Corepoint Telephony Version 6 Release 2 (5648-C69) . . . . . . . . . . . . . 667

IBM Communications Utilities for iSeries 5722-CM1 . . . . . . . . . . . . . . . . . . . 668

IBM Distributed Computing Environment Base Srvcs for AS/400 (5769-DC1)669 IBM Distributed Computing Environment DES Library Routine (5769-DC3) . 670

IBM MQSeries for iSeries, V5.2 (5733-A38) . . . . . . . . . . . . . . . . . . . . . . . . . 670

Business Integration with the MQSeries Family . . . . . . . . . . . . . . . . . . . . 671

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 671

The Basics of MQSeries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 672

IBM MQSeries Integrator for iSeries and DB2 Version 1.1 (5697-F49) . . . . . 673

IBM Wireless Connection for AS/400 (5798-TBW) . . . . . . . . . . . . . . . . . . . . 675

iSeries Client Access Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 676

IBM iSeries Client Access Family for Windows (5722-XW1) . . . . . . . . . . . . . 677

iSeries Access for Web (5722-XH1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 677

WebSphere Host Publisher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 679

IBM iSeries Client Access Express for Windows (5722-XE1) . . . . . . . . . . . . 681

Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 683

xx iSeries Handbook

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 683

Network File and Print Serving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 684

PC5250 Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 685

Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 687

Application Enablers: Middleware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 690

Central Administration of PC Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 692

iSeries Administration and Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . 693

Operations Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 694

Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 694

iSeries Server Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 695

Client Workstation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 695

IBM Licensed Programs: System Management Products, Services. . 699

iSeries Operations Console: Direct Attach, LAN, and Remote . . . . . . . . . . . 699

Extreme Support through Personalization (ESP): Service Offering . . . . . . . . 703

Extreme Support through Personalization: New with V5R1 . . . . . . . . . . . 704

Management Central: Pervasive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 705

Easier Access to IBM Technical Support Web Sites – New with V5R1 . . 706

IBM Electronic Services for AS/400 – New with V5R1 . . . . . . . . . . . . . . . 706

Universal Connection – New with V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . 707

PM/400e Integrated with Workload Estimator (Service Offering) . . . . . . . 708

Physical Device Placement Assistant (PDPA) . . . . . . . . . . . . . . . . . . . . . 709

Software Inventory Utility (SIU) (Service Offering) . . . . . . . . . . . . . . . . . . 709

Services Network (Service Offering). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 709

iSeries and AS/400 University (Service Offering) . . . . . . . . . . . . . . . . . . . 710

Personalize Web Page (Service Offering) . . . . . . . . . . . . . . . . . . . . . . . . 710

Tivoli Management Agent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 710

IBM Backup Recovery and Media Services for iSeries (5722-BR1) . . . . . . . 711

IBM Advanced Job Scheduler for iSeries (5722-JS1) . . . . . . . . . . . . . . . . . . 714

IBM Managed System Services for iSeries (5722-MG1) . . . . . . . . . . . . . . . . 716

IBM System Manager for iSeries (5722-SM1) . . . . . . . . . . . . . . . . . . . . . . . . 717

IBM Performance Tools for iSeries (5722-PT1) . . . . . . . . . . . . . . . . . . . . . . . 719

IBM Content Manager OnDemand for iSeries (5722-RD1) . . . . . . . . . . . . . . 720

IBM Content Manager for iSeries V5R1 (5722-VI1) . . . . . . . . . . . . . . . . . . . . 721

IBM Licensed Programs: Printing and Document Handling Products 727

AFP Font Collection (5648-B45) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 727

IBM Content Manager for iSeries (5722-VI1) . . . . . . . . . . . . . . . . . . . . . . . . . 728

IBM Advanced Function Printing Utilities for iSeries (5722-AF1) . . . . . . . . . . 729

IBM Advanced Function Printing PrintSuite for OS/400 (5798-AF2, AF3) . . . 730

Advanced Print Utility (APU) (Included as Part of 5798-AF3). . . . . . . . . . 730

Page Printer Formatting Aid (PPFA) (5798-PF3) . . . . . . . . . . . . . . . . . . . 731

AFP Toolbox for OS/400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 731

xxi

SAP R/3 AFP Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 731

IBM Advanced DBCS Printer Support for iSeries (5722-AP1) . . . . . . . . . . . . 732

IBM Dictionary and Linguistics Tools for AS/400 (5769-DL1) . . . . . . . . . . . . 734

IBM Business Graphics Utility for iSeries (5722-DS1) . . . . . . . . . . . . . . . . . . 735

IBM Advanced Function Printing (AFP) Fonts for AS/400 (5769-FNT) . . . . . 735

IBM Advanced Function Printing DBCS Fonts for AS/400 (5769-FN1) . . . . . 736

IBM Facsimile Support for iSeries (5798-FAX) . . . . . . . . . . . . . . . . . . . . . . . 737

IBM Infoprint Designer for iSeries (5733-ID1) . . . . . . . . . . . . . . . . . . . . . . . . 739

IBM Infoprint Server for iSeries (5722-IP1) . . . . . . . . . . . . . . . . . . . . . . . . . . 740

Summary of Earlier AS/400, AS/400e, and iSeries Models . . . . . . . . . 745

Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 745

Models P01, P02. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 745

9401 Model P03 and 10S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 746

9402 Models C04, C06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 747

9402 Models D02, D04, D06. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 747

9402 Models E02, E04, E06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 748

9402 Models F02, F04, F06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 748

9402 Model 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 749

9402 Model 236 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 749

9402 Model 400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750

9402 Model 436 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 751

9404 Models B10, B20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 752

9404 Models C10, C20, C25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 752

9404 Models D10, D20, D25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 753

9404 Models E10, E20, E25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 753

9404 Models F10, F20, F25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 754

9406 Models B30, B35, B40, B45, B50, B60, B70 . . . . . . . . . . . . . . . . . . 754

9406 Models D35, D45, D50, D60, D70, D80 . . . . . . . . . . . . . . . . . . . . . . 755

9406 Models E35, E45, E50, E60, E70, E80, E90, E95 . . . . . . . . . . . . . . 756

9406 Models F35, F45, F50, F60, F70, F80, F90, F95, F97. . . . . . . . . . . 757

9406 Models 300, 310, 320. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 758

9406 Models 500, 510, 530. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 759

9406 Model 600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 760

9406 Model 620 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 761

9406 Model 640 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 763

9406 Model 650 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 765

Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 766

9402 Server Model 100 and 9404 Server Models 135 and 140 . . . . . . . . 766

9402 Server Model 20S and 9406 Server Model 30S. . . . . . . . . . . . . . . . 767

9402 Model 40S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768

9406 Models 50S and 53S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 769

9406 Model 170 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 770

xxii iSeries Handbook

9406 Model 170 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 771

9406 Model S10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 773

9406 Model S20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 775

9406 Model S30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 777

9406 Model S40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 779

9406 Model 720 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 781

9406 Model 730 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 784

9406 Model 740 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 786

Custom Mixed-Mode Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 787

9406 Model S20 Custom Mixed-Mode Server . . . . . . . . . . . . . . . . . . . . . 787

9406 Model S30 and S40 Custom Mixed-Mode eServers . . . . . . . . . . . . 789

9406 Model SB1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 791

Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 792

9401 Model 150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 792

9402 2xx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 793

9402 Model 400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 795

9402 Model 436 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 796

9402 Model 40S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 797

9402 Model 40S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 798

Table Notes for All Summary Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 798

Referenced Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 803

Communication References. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 803

Supported Communication Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 803

Supported Communication Facilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 803

Supported Communication Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . 804

NetVista Features and Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 805

NetVista N2200 Features and Requirements . . . . . . . . . . . . . . . . . . . . . . 805

NetVista N2800 Features and Requirements . . . . . . . . . . . . . . . . . . . . . . 805

Removable Media Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 806

Common Magnetic Media Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 808

Database References. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 810

DB2 UDB for iSeries Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 810

WebSphere Commerce Suite Pro Edition for AS/400 Prerequisites . . . . . . . 811

WebSphere Payment Manager V2.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 812

WebSphere Payment Manager V2.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 812

IBM Connect for iSeries Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 813

IBM WebSphere Personalization for AS/400 Prerequisites . . . . . . . . . . . . . . 813

Secure Sockets Layer Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 815

Options included in OS/400 V5R1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 816

Keyed Stamp Media Distribution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 816

Products and Features no Longer Marketed by IBM . . . . . . . . . . . . . . . . . . . 817

xxiii

Using the additional material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 831

Locating the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 831

Using the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 831

System requirements for downloading the Web material . . . . . . . . . . . . . 831

How to use the Web material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 832

Special Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 835

iSeries and AS/400e Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . 839

AS/400 Softcopy Library. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 839

iSeries Information Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 839

iSeries ITSO Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 839

IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 841

IBM Redbooks collections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 841

Other Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 842

Referenced Web Sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 842

How to Get IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 845

IBM Redbooks Fax Order Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 846

List of Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 849

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 857

IBM Redbooks Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 873

xxiv iSeries Handbook

How to Use This Handbook

Note

This IBM Redbook reflects the introduction of the IBM ~ iSeries server. iSeries servers are the Models 270, 820, 830, 840, SB2, and SB3 announced in May 2000, (supported by OS/400 V4R5), and the Model 250 packages announced in February 2002. Throughout this redbook, we use “iSeries” to refer to these models. AS/400e servers are all RISC models, announced from June 1995 to May 2000, and the 250 Models prior to February 2002.

Integrated xSeries Server for iSeries

Throughout this book you can find many references to a new integrated adapter named the

Integrated xSeries Server for iSeries

which is abbreviated in some charts as IXS. In this book, the name is also used to refer to the predecessor technology of integrated server adapters. That includes, the name is used to indicate the Integrated Netfinity Server (INS), Integrated PC Server (IPCS), and Integrated File Server IOP (FSIOP).

This

iSeries Handbook

is written for use by IBM System Specialists, Marketing Representatives, Business Partners, and IBM customers to answer first-level questions. It is designed for

guidance

to the companion manuals

iSeries 400 Migration

only. Use this Handbook as a reference for the options available. Refer

iSeries and AS400e System Builder

, SG24-6055, for more detailed information and configuration rules. Refer to IBM online publications and systems, such as ViewBlue and PartnerInfo (or their equivalent outside of the United States), and your IBM marketing and support representative for final confirmation.

. The shortened named is Integrated xSeries Server,

, SG24-2155, and

AS/400e to

You can also consult the

iSeries Pocket Handbook

, SG24-9406, a new publication with V5R1 that is anticipated for publication later this year, as a quick reference to product and feature numbers.

Periodically, the content of the Handbook is revised to keep readers informed about changes between IBM printed hardcopy editions. Incremental editions are annotated as -21b, where “b” represents a level of update. They are orderable in hardcopy from a print-on-demand vendor at:

The latest update to the

http://www1.fatbrain.com

iSeries Handbook

is always available in softcopy on the World Wide

Web. To view, search, or download in PDF or HTML formats, enter a search parameter of

iSeries Handbook or GA19-5486 on the Web site: http://www.redbooks.ibm.com

Or you can access the Handbook directly at:

http://www.redbooks.ibm.com/pubs/pdfs/redbooks/ga195486.pdf

Note: The Handbook provides much of the technical hardware and software information available from an HTML format document, which is pointed to from the iSeries home page at:

http://www.ibm.com/eserver/iseries

Acknowledgements

In this twenty-second edition of the

iSeries Handbook

, we provide a comprehensive guide to the iSeries hardware and software that is currently marketable by IBM representatives. Any comments or suggestions on the content, layout, and usefulness of this book are encouraged from all users of this book.

Many people contributed to the production of this April 2001 edition. I admire the dedication, hard work, and attention to detail of each of the associated teams with whom I have worked. I am especially grateful to the following people:

• Louis Cuypers, AS/400 Technical Support Specialist, has been with IBM Belgium for

23 years. He specializes in technical support and problem determination hardware/software for the iSeries server. His previous experience includes working with the S32, S34, S36, S38, and AS/400 system. He has participated in several residencies in the ITSO since the release of OS/400 V4R1.

• Glen McClymont is a Senior AS/400 Techline Specialist with IBM in Canada. Since

1988, he has worked with the iSeries server in customer hardware support, software support, and most recently in pre-sales marketing support. Glen has 30 years with IBM and is an alumni resident from previous Handbook and Builder residencies, providing sustained expertise between updates.

• Miroslav Iwachow is AS/400 TeCenter support specialist for Avnet in Germany, a

distributor of IBM. Miroslav previously worked for six years for IBM in the Czech Republic as the AS/400e product manager and team leader. Presently he specializes in supporting IBM Business Partners, including a joint partnership between Avnet and Vision Solutions for high availability solutions. He teaches courses that prepare Business Partners for IBM certifications.

• Axel Lachmann is a Project Manager and Senior Systems Engineer with FoxCom, an

AS/400 Business partner in Germany. He has nine years of experience in the OS/400 field. He is an IBM Certified Solutions Expert - AS/400 Technical Solutions and Domino R4.6 for AS/400 Technical Solutions. His areas of expertise include e-business enablement of LOB applications and Lotus Domino planning and implementation. Axel also extensively teaches TCP/IP for IBM Learning Services in Germany.

xxvi iSeries Handbook

• Kendall Kinnear is a System Consultant for Clear Technologies, Inc. in Dallas, Texas.

Kendall has 26 years experience in the IBM midrange solution, from the System/3, through the System/34 and System/38, to the iSeries server. Kendall brings substantial experience from his tenure at companies like IBM, EDS, StorageTek, and Jack Henry and Associates. He has experience as a System Programmer, Systems Analyst, Systems Engineer, Systems Administrator, Application Programmer, Application Designer, educator, and speaker. He also is an alumni resident from previous Handbook and Builder publications.

• Miklos David is the iSeries Product Manager from IBM Hungary. He is responsible for

iSeries marketing and configuration support countrywide. He has worked for IBM for five years. He holds a Faculty of Science degree from Eotvos Lorand University.

• Michael Harper is an Advisory I/T Specialist from Brisbane, Australia, with 24 years of

IBM experience. He has worked with the AS/400 and its iSeries successor since their inception in 1988 and also their S/34, S/36, and S/38 predecessors. His previous experience is in both hardware and software technical support and problem determination and now involves pre-sales support in the Australian Techline group. This was Michael’s first ITSO Residency.

• Félix Mejía is the iSeries Product Manager from GBM Dominicana, a branch of GBM

Corporation, which represents IBM in parts of the Caribbean and Central America. He is responsible for iSeries marketing, advising, and configuration in the Dominican Republic. He has worked for GBM since 1998 and is an IBM Certified Specialist. He holds a Computer Engineering Degree and is completing his MBA studies in the Pontificia Universidad Católica Madre y Maestra in the Dominican Republic. This was Félix’s first ITSO Residency.

• Many developers and engineers who assisted in answering questions, providing input

and validating output. Leading in this effort is Dave Wells, and his team of Jerry Allen, Teresa Barre, and Denis Nizinski for input on processors; Jeff Trachy and Jason Clegg for migration and rules information.

• Engineers and product managers who provided technical information, validation, or

consultation: Jenny Wong, IBM Toronto Laboratory Application Development Strategy and Planning, Bill Shaffer, Brand Manager, AS/400e Printing Solutions, Scott Maxson, iSeries Tape Integration, Mike Smith, System Chief Engineering Manager for iSeries Software, Jeff Tenner, Technical Chief Engineering Manager, as well as the following people:

Amy Anderson Mark Anderson Rebecca Bosch David Bruce Barbara Foss Randy Grimm Kathy Johnson

xxvii

Carole Miner Mark Olson Russ Ramirez Becky Schmieding Lance Snow Steve Sparrow Diane Wilaby

IBM Rochester

Joanne Mindzora

IBM Cleveland

• Everyone who offered support up to the final hours of preparing this book for

publication, especially Terri Dudek, Tony Goergen, Jenifer Servais, Janet Willis, and many ITSO residents.

Susan Powers, Senior I/T Specialist ITSO Rochester, MN

Comments Welcome

Your comments are important to us!

We want our Redbooks to be as helpful as possible. Please send us your comments about this or other Redbooks in one of the following ways:

• Fax the evaluation form found in “IBM Redbooks Review” on page 873 to the fax

number shown on the form.

• Use the online evaluation form found at

ibm.com/redbooks

• Send your comments in an Internet note to redbook@us.ibm.com

xxviii iSeries Handbook

Introduction

The iSeries features a unique design that delivers the benefits of today’s innovative technology without complexity. With V5R1, this design has been extended to take advantage of the latest industry leading technology and new OS/400 capabilities.

In the year 2000, the IBM significantly accent the evolution of the IBM server product line. SStar processors refreshed the iSeries models to run faster than the iStar processors.

With V5R1, there are new, more powerful processor features based on IBM’s industry leading Copper/Silicon on Insulator (SOI) technology, and increased disk and memory capacities provide increased performance and scalability. New Capacity Upgrade on Demand options on the Model 840 allow the activation of processor performance as it is needed.

Storage options are enhanced. The Storage Area Network (SAN) environment is supported using Fibre Channel disk and tape adapters. Faster, less expensive, system-to-system clustering with High Speed Link (HSL) OptiConnect brings increased high availability. With switchable disk clusters, the need for redundant data is reduced.

OS/400 V5R1 provides some of the industry’s foremost application flexibility, with support for Linux, Lotus Domino, Java, Microsoft Windows, Unix, and iSeries applications. High availability is combined with superior workload management and logical partitioning.

OS/400 V5R1 and the iSeries server stand out with robust reliability and scalability for the fast growing open source Linux environment. Users can quickly deploy PowerPC Linux applications while taking advantage of iSeries reliability and scalability.

Up to thirty-two partitions on a single iSeries server and dynamic resource allocation permit different applications to run safely and efficiently side by side. Options for managing windows application serving are greatly enhanced with the new integrated server options. An iSeries server can be attached to up to sixteen direct attach n-way xSeries servers, or up to thirty-two internal Integrated xSeries Servers, and provide SAN functions for these directly attached Windows 2000 servers.

~ iSeries Models 270 and 8xx were introduced to

OS/400 V5R1 includes a broad range of enhancements for e-business and application enablement, OS/400 PASE, XML, Client Access, directory services, IBM HTTP Server (powered by Apache), database, Java, Internet printing, Extreme Support Personalized (ESP) enhancements. These enrichments include:

• Faster processors to boost top performance on Models 270, 820, and 840.

• Three new base processors on the Model 820 designed for compute-intensive

workloads.

Introduction

• Main storage is doubled on Models 270, 820, and 830 and increased 33% on the

Model 840.

• Operations Navigator with Management Central adds extensive GUI enhancements in

Visualization, Wizards, and Integration.

• Switchable DASD towers, used in conjunction with Independent Auxiliary Storage

Pools (iASP), to provide high availability and redundant data options for integrated file system applications, such as Lotus Domino and Web serving.

• Operations Console with LAN connectivity to deliver more flexibility for distributed and

LPAR environments.

• Fibre Channel Adapters allow attachment to external tape and disk subsystems, and

enhance the iSeries ability to participate in Storage Area Networks (SAN).

• Logical Partitioning (LPAR) is now available on selected uni-iSeries processors,

including the Model 270. LPAR now supports dynamic resource movement, resource sharing and virtual LAN.

• Linux on iSeries brings iSeries integration, scalability, and robust availability to Linux.

Linux enables a new generation of Web based applications with resource sharing and management via Logical Partitions.

• Windows Server Integration is enhanced to allow the connection of external 4-way

xSeries servers with an Integrated xSeries Adapter via HSL, and the ability to run up to 32 Integrated xSeries Servers inside a single iSeries server.

• Lotus Domino Server for iSeries now supports iNotes access for Microsoft Outlook

clients. This allows those iNotes clients to take advantage of the additional functions and reliability of a Domino server running on iSeries. Lotus Domino Server for iSeries is enhanced with support for incremental Domino saves, improved BRMS, EZ-Setup Wizard for Domino, TCP/IP Autostart, and an incremental installer.

• WebSphere Development Studio for iSeries has all the key tools for e-business

development in one “attractively priced” package. It includes the WebFacing Tool as a quick, easy to use tool to convert 5250 applications to Web GUI applications.

• WebSphere Transcoding Publisher to optimize the wireless Web experience. Extend

existing Web content to new devices and markets without re-authoring expenses. Deliver efficient content to a variety of users across wireless networks.

• Connect for iSeries extends business to business capabilities. Plug into

e-marketplaces, integrate into existing back-end systems, take advantage of new trading protocols, and add incremental B2B function to applications.

• Client Access family now allows access to the iSeries with a new Web browser and to

enable 5250 applications for the Web.

• Print support of new capabilities to address the print and communication requirements

of e-business and network applications, namely:

4 iSeries Handbook

–

Internet Print Protocol (IPP)

: Enables business travellers, telecommuters, and other

remote users to submit and manage print jobs on a distant iSeries.

Introduction

Infoprint Server for iSeries

–

: Converts any standard iSeries output file into PDF format.

• Extreme Support Personalized to provide high speed connectivity and VPN support via

the Internet.

The new technologies behind iSeries Models 270 and 8xx expand the range for processor power, main storage, DASD storage, and communications speeds far beyond the current range of scalability – to extreme scalability. With this expanded range of scalability, you have the power and flexibility to integrate a variety of modern computing environments, from core business to e-business, in a very cost effective way, without concern for limits within a single server. The broad range of hardware migration support protects the investments you have with the iSeries.

This Handbook provides an overview of both the hardware and software for the newly refreshed iSeries servers. Included are the 9406 250, 270, 820, 830, 840, SB2, and SB3 models. OS/400 V5R1 operating software supports these models.

iSeries Technology in Stride

The iSeries server delivers tremendous capacity growth in its product line. The iSeries Layer (also known as Technology Independent Machine Interface (TIMI)) has made it possible to completely change the underlying hardware with minimum, if any, impact to iSeries applications. TIMI helps condition the iSeries to bring new technology to market.

The first AS/400e models based on the 64-bit RISC PowerPC AS processors were announced in June 1995. The ease with which customers have migrated to these powerful systems is a testimony to the fundamental strength of the server’s architecture.

In 1997, the 12-way AS/400e system was delivered using Power PCA35 microprocessors. Known as Apache technology, the Power PCA35 microprocessors provided a growth of 4.6 times.

In September 1998, the 12-way AS/400e system was delivered using the Power PCA50 microprocessor. Known as code name Northstar, the Power PCA50 microprocessors nearly doubled the high-end capacity. This set of processors provided the fourth generation since the AS/400 system’s inception in 1988 with 64-bit AS/400 Power PCs microprocessors.

The advance in processor technology is shown in the following figure.

Introduction 5

Introduction

Power4

Gigaprocessor

Copper

SStar

IStar

Pulsar

Northstar

1999

Again in 2000, the iSeries lead the industry by delivering the first server with the new “Silicon-on-Insulator” (SOI) technology. SOI represents a fundamental advance in the way chips are built. IBM's unique SOI process alters the design of transistors, essentially “turbo charging” them, so they run faster and use less power. For example, a microprocessor designed to operate at a given speed can instead be built using SOI technology to achieve higher speeds. At the same time, if performance levels are held constant, SOI chips can require as little as one-third the power of today's microchips. Silicon on Insulator is technology used by the iStar processors. The transistors are built within and on top of a thin layer of silicon that is on top of an insulating layer. The insulating layer is fabricated by implanting a thin layer of oxide beneath the primary silicon surface of the wafer.

2000

SOI

Silicon-On-Insulator

2001

2002/2003

2003/2004

Pulsar, iStar, and SStar processors use on-chip copper-wiring technology. The Pulsar processors integrate IBM CMOS7S technology. iStar and SStar processors integrate CMOS8S technology. Previously, Northstar technology used aluminum for on-chip wiring. Copper's better conductivity permits thinner wires to be used, which enables the transistors to be packed closer together. The denser new technology permits additional micro-architecture methods to improve performance.

Keeping multiple levels of high speed cache is still necessary to keep the processors busy. Denser processor technology permits more on-chip cache. All this new technology is implemented on the new iSeries servers.

6 iSeries Handbook

Introduction

This growth and implementation of new technology is possible because of the iSeries TIMI layer. TIMI allows the system to incorporate significant new hardware technology quickly and transparently.

The following figure shows this change of hardware processor technology and previews what is planned in future generations.

2002+

2000 / 2001

1998 / 1999

1997

1996

Giga (1000+ MHz)

24-Way A60 / A70 PPC Copper and SOI

12-Way A50 PPC

X 1.94

12-Way A35

X 4.59

X 2.87

6 4

X 3.6

Applications

OS/400

T I M I

Hardware

Introduction 7

Introduction

8 iSeries Handbook

Advanced Technology

iSeries Architecture: Fundamental Strength of the iSeries

The iSeries servers and supporting software offer important advanced capabilities in such key areas as Java, Web serving, Lotus Domino, integration with Windows NT, managed availability, database, and Business Intelligence solutions. The iSeries solution continues to be a strong performer in such growing areas as data warehousing and the Internet. To gain an appreciation of these technologies and of the particular strength of the iSeries server in delivering them, this chapter provides a summary of each prime element.

With over 650,000 systems shipped worldwide, the iSeries servers have the highest customer satisfaction index in the industry, as measured by IBM internal studies. Ten major factors contributing to this include:

• Offers state-of-the-art 64-bit relational database processing.

• Leads the industry in delivering the first server with Silicon on Insulator (SOI)

technology.

• Allows the deployment of Java, UNIX ported applications, Windows 2000,

Domino-based applications, and Linux on a single server.

• Directly (natively) supports different file structures, such as PC files, UNIX files,

NetWare files, Domino files, ASCII files, and EBCDIC files.

• Can ship with over 200 processor chips under the covers of a “single” large system.

• Can have 32 Windows NT servers in a single system while sharing host systems disk

storage, tape, and CD-ROM resources.

• Its object-based design makes it highly virus resistant.

• Has proven it can deliver over 99.9% availability.

• Its operating system can operate for more than one year without ever requiring a

re-IPL, in hundreds of customer shops.

• Delivers vector coded indexes for Business Intelligence applications offering up to ten

times the improvement in performance.

Why should the system architecture matter to a business person? This section helps you understand why.

Business leaders do not grow their business by simply choosing a computer system. They start by choosing an application to fit their business goals and needs. iSeries customers have tens of thousands of proven business applications worldwide. Because of that, very often the computer system is considered first.

If you compared an application running on an iSeries server to the same application running on a non-iSeries server, you would continue to choose the iSeries. Why? Because, although

iSeries Architecture: Fundamental Strength of the iSeries

two systems can appear to be equivalent today, the accelerating rate of change of both hardware and software technologies necessitates that the server you select is designed with the future in mind. The iSeries accommodates inevitable, rapid, and dramatic technology changes with minimum relative customer effort.

Paradoxically, the characteristic of the most advanced design and technology is that you do not notice it... you are not meant to do so. It accommodates rapidly-changing hardware and software technologies in stride — permitting you to fully exploit the latest technologies.

Ask any system manufacturer:

failure typically involve a re-start of the hardware and operating system? reliability rating been in the past few years as technologies have changed?

iSeries server will be your number one choice.

What is future-oriented in the system? Does recovering from a

What has your

We believe the

System Concepts

The iSeries servers are designed and built as a and system software components that a business demands. As a general-purpose business and network system, it is optimized for the required environment with these unique benefits:

• The iSeries architecture is a brilliant, technology-neutral architecture, enabling

businesses to readily exploit the latest hardware and software technologies, typically without causing disruption to existing application software. iSeries architecture is described in “iSeries Architecture” on page 13.

• The single purpose pervading each aspect of the iSeries architecture is to

business

complexities that such technologies inevitably contain. In other words, the iSeries allow you to rapidly deploy advanced business applications and facilitates your business growth.

• Customers typically decide on the required application software first and then select

an environment in which to run it. The iSeries models have tens of thousands of business applications worldwide of which thousands are client/server applications. These applications are written by thousands of IBM Business Partners across the globe. In addition, the iSeries server provides excellent platforms for Windows NT and Lotus Domino applications. iSeries models have national language support for over 50 languages, available in 140 countries. Support across the world is provided by an impressive network of global partners.

with the most advanced technology available,

total system

, fully integrating all the hardware

empower a

without encumbering it

with the

A concise and expanded explanation of the AS/400e (iSeries) server architecture is contained in the renowned book Architect, Dr. Frank G. Soltis.

12 iSeries Handbook

Inside the AS/400,

written by the AS/400 system's Chief

iSeries Architecture: Fundamental Strength of the iSeries

iSeries Architecture

Technology Independent Machine Interface

The iSeries servers are atypical in that they are defined by software, not by hardware. In other words, when a program presents instructions to the machine interface for execution, it “thinks” that the interface is the system hardware. But it is not! The instructions presented to that interface pass through a layer of microcode before they are “understood” by the hardware itself.

This comprehensive design insulates application programs and their users from changing hardware characteristics. When a different hardware technology is deployed, IBM rewrites sections of the microcode to absorb the fluctuations in hardware characteristics. As a result, the interface presented

to the customer remains the same

This interface is known as the iSeries Layer, or Technology Independent Machine Interface (TIMI). The microcode layer is known as the System Licensed Internal Code (SLIC).

Many of the frequently-executed routines run in SLIC. Supervisory resource management functions

Programs

in SLIC include validity and authorization checks. On a customary system, these routines reside in the operating system. Because SLIC is closer to the

TIMI

silicon, routines performed there are faster than routines placed “higher” in the machine.

SLIC

The brilliance of this design was dramatically illustrated when the AS/400 system changed its processor technology from Complex Instruction Set

64-bit RISC Hardware

Computing (CISC) processors to 64-bit Reduced Instruction Set Computing (RISC) processors in

1995. With any other system, the move from CISC to RISC would involve recompiling (and possibly some rewriting) of programs. Even then, the programs would run in 32-bit mode on the newer 64-bit hardware.

This is not so with the iSeries server, because of TIMI. Customers were able to programs off their CISC AS/400 systems, and

The programs run as 64-bit programs 64-bit application programs relational database

that fully exploited the

that ran on a

. As soon as they made this transition, customers had

restore

them on their RISC AS/400e models.

64-bit operating system,

64-bit RISC hardware

containing a

save

64-bit

TIMI and SLIC take 64-bit RISC processor technology in stride. These same architectural features will be exploited to fully accommodate post-RISC technologies, which may incorporate 96-bit or 128-bit processors.

iSeries Architecture: Fundamental Strength of the iSeries 13

iSeries Architecture: Fundamental Strength of the iSeries

Hierarchy of Microprocessors

The iSeries servers are designed for business computing. One of the fundamental characteristics of that environment is that it is I/O-intensive, rather than compute-intensive. In addition to outstanding performance in the business environment, the microprocessor hierarchy design gives the iSeries server an elegant method of integrating diverse environments into a single, harmonious customer solution.

The microprocessors that look after a particular I/O device are accommodated on I/O cards that fit into slots on the system buses. One of these cards may be the Integrated xSeries Server. This is a PC on a card, which enables the iSeries to run a Windows NT server, for example.

The following figure shows a range of iSeries processors dedicated to a particular input/output (I/O) device type.

2.4 GB/s

High Speed

Memory

I O P

2.4 GB/s

I O P

Memory

I O P

2.4 GB/s

Memory

Control

I O PI O P

1.0 GB/s

I/O Hub

1.0 GB/s

I O P

2.4 GB/s

1.0 GB/s

HSL

Ada pter

2.0 GB/s

2.4 GB/s

Interconnect Switch

4.8 GB/s 4.8 GB/s4.8 GB/s4.8 GB/s

Memory

P C I B U S

P C I B U S P C I B U S

P C I B U S

I O P

A single large iSeries configuration can have well over 200 processors. The main system processor complex (can be comprised of 24 separate processors) can encounter a request for data to be read from or written to any I/O device. That request for data is delegated to the particular microprocessor dedicated to that I/O device. Meanwhile, the main system

14 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

processor continues executing another application program. Nanoseconds (10-9 second) is the unit of time used to measure main storage access times. I/O operations are measured in

-3

milliseconds (10

second).

The previous figure shows a high-level overview of the structure of the iSeries 840 model. Central in the figure is the extremely high speed memory-processor-I/O interconnect switch at 43.2 GB/sec. This allows for data transfers between components connected to the switch to proceed at a very high rate. Separate connections to the switch are provided for each group of six processors, each of four banks of memory, and two connections for I/O traffic. These independent paths result in much superior performance than previous designs with a single common shared memory bus path, for which all components contended.

With the new design, there are many paths to the high speed switch, which can operate separately. Its high bandwidth characteristics allow for connecting source and destination quickly and efficiently to allow for significant benefit in overall processor speed and system performance enhancement. This design provides the iSeries server with outstanding performance in the commercial, transaction-based environment.

Single-level Storage

Application programs on an iSeries server are unaware of the underlying hardware characteristics, because of the iSeries Layer (or TIMI) (see “Technology Independent Machine Interface” on page 13). Applications are also unaware of the characteristics of any storage devices on the system because of single-level storage.

As with TIMI, the concept of single-level storage means that the knowledge of the underlying characteristics of hardware devices (in this case, main storage and disk storage) reside in the SLIC. All of the storage is automatically managed by the system. No user intervention is ever needed to take full advantage of any storage technology. Programs work with objects (see “Object-based” on page 18). Objects are accessed by name, not by address.

The iSeries server address size is vast. iSeries models can address the number of bytes that

64 bits allows it to address. The value 2

is equal to 18,446,744,073,709,551,616. Therefore, the iSeries models can address 18,446,744,073,709,551,616 bytes, or 18.4 quintillion bytes. To put this into more meaningful terms, it is twice the number of millimeters in a light year. Light travels at approximately 6,000,000,000,000 miles in one year.

Single-level storage also enables another extremely important iSeries customers benefit,

object persistence

. Object persistence means that the object continues to exist in single-level storage (unless purposely deleted by the customer). Memory access is extremely fast. A customary machine requires that information be stored in a separate file system if the information is to be shared or retained for a long time.

Persistence of objects is extremely important for future support of object-oriented databases for data accessibility and recovery. Objects continue to exist even after their creator goes

iSeries Architecture: Fundamental Strength of the iSeries 15

iSeries Architecture: Fundamental Strength of the iSeries

away. The iSeries models are uniquely positioned to exploit this characteristic of object persistence, where customary systems use a less-elegant mechanism that requires them to store their persistent objects in a separate file system, with all the attendant performance implications.

SOI

The Silicon on Insulator (SOI) technology was applied for the first time for the iSeries with OS/400 V4R5. This technology is used by the iStar processors of the iSeries. The transistors are built within and on top of a thin layer of silicon that is on top of an insulating layer. The insulating layer is fabricated by implanting a thin layer of oxide beneath the primary silicon surface of the wafer.

On-chip Copper-wiring Technology

Pulsar, iStar, and SStar processors use on-chip copper-wiring technology. Pulsar processors integrate IBM CMOS7S technology. iStar and SStar processors integrate IBM CMOS8S technology. Northstar technology used in prior AS/400e processors deploys aluminum for on-chip wiring.

Copper's better conductivity permits thinner wires to be used, which enables the transistors to be packed closer together. This new denser technology permits additional micro architecture methods to improve performance. Denser processor technology also permits more on-chip cache. Keeping multiple levels of high speed cache is enables efficient utilization of the processors.

Hot-plugging

The term “hot-plug PCI” is used by the computing industry for a wide range of purposes. Primarily, hot-plug PCI refers to the technology that allows users to install and remove PCI devices while the computer is running. For iSeries servers, “hot-plug” is known as concurrent maintenance.

A method must be in place to inform the operating system of insertion and removal events. Driven by the demand for the highest possible availability, PCI hot-plugging is available beginning with OS/400 V4R5 on all iSeries 8xx models and some of the 270 models. A brief description of how hot-plugging is implemented on the iSeries follows.

16 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

Hot-plugging in the iSeries is made possible by power control to individual card slots, so that PCI IOPs or IOAs can be added, removed, or replaced while the system remains active. In most cases, IOA configurations can be changed while other IOAs

OS/400

iSeries V4R5

SLIC/ HW drivers

SYSTEM HW

User Interface

SST / DST

Hardware

Service

Manager

functions

on the same IOP remain operational. Hot-plug implementation for the

Standard

Hot-Plug Hardware

Interface

iSeries with OS/400 V4R5 or later is illustrated in the figure on the right.

P O W E R C O N T R O L

P C I B U S

Beginning in OS/400 V4R5, the interface for hot-plugging actions uses the Hardware Service Manager in the System Service Tools, or a subset of Dedicated Service Tools (depending on which tool you have started). In limited paging environment, Dedicated Service Tools communicates directly with System Licensed Internal Code (SLIC).

Operating System OS/400

One of the single most dramatic points about the iSeries servers is that the operating system, OS/400, is a single entity. This section describes the meaning of this concept.

Once you buy an iSeries server, you do not have to continue shopping for system software components before it is ready to run your business. All of the software components for a relational database, comprehensive security, communications with a broad range of diverse systems, including Internet capabilities, and many more are already there in the operating system. They are all fully integrated into OS/400. By “fully integrated”, we mean fully tested, too. All components and prerequisites for running business applications in the 2000s work together, and are fully tested together. OS/400 operates as a single entity.

A customary machine does not have this approach to its operating system design. A customary operating system, which does the basic system housekeeping, needs a range of software products added before the environment is ready to support modern business applications. Examples of this are software for the relational database, support for various communications environments, software for security, support for an interactive environment, for multimedia, for availability, recoverability, and so on.

iSeries Architecture: Fundamental Strength of the iSeries 17

iSeries Architecture: Fundamental Strength of the iSeries

On a customary machine, many of these software modules are provided by third parties. A customer has to assure that someone integrates all these modules and performs the tests necessary to verify that they all function together. When one of the software components has a new release, a customer again needs to ensure that component is replaced, plus any other software modules on which it depends. The modules need to be at compatible release levels. Should a software malfunction occur, how do you establish precisely which modules are causing it? Can you be certain that multiple third-party software vendors agree with your diagnosis when you blame their software?

OS/400 does not have any of these problems. To achieve the functionality that is standard in OS/400, a customer would need to integrate typically between 10 and 25 different modules of software. OS/400 is installed with all these capabilities as standard. When software is updated, a new release of OS/400 is made available. OS/400 customers do not have to install individual system software components, nor do they have to check that releases can co-exist.

Object-based

An object is a container. Everything the system uses—user and system data structures—is packaged in one of these containers. The objects are encapsulated, which means that you cannot see inside. Inseparable from an object is the list of valid ways in which that object can be used.

There are two important consequences of an object-based design. The first is that a system built around an object model supports machine independence. This means that technology changes can be made in the environment without affecting application programs. The second consequence is that an object-based design delivers a high level of system integrity and security.

All objects are structured with a common object header and a functional portion dependent on object type. Therefore, on the iSeries servers, instructions work on only what they are supposed to work. Data cannot be treated as executable code (so that the processor tries, for example, to execute someone's shoe size). Executable code cannot be treated as data (by having something written into the middle of it).

Certain instructions apply to all objects, while other instructions work only on specific types of objects. It is not possible to misuse an object, unlike the situation that exists for non-iSeries systems without an object-based approach.

Java

Java is a key application development environment for the iSeries server. AS/400 Developer Kit for Java supports Sun's Java 2. The Java Virtual Machine, which resides below the iSeries Layer, enables fast interpretation and execution of Java code on the iSeries servers. In addition, a type of static compiler is available called a

class transformer

, to generate RISC

18 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

machine code from Java byte codes. This Java transformer enables the direct execution of Java on the system without the overhead of interpretation.

High-performance Garbage Collection is provided by OS/400 to improve the performance and scalability of Java. An advanced Garbage Collection algorithm allows Java to scale to the large numbers of objects expected when running enterprise applications on the server. Over time, Java is planned to become even more integrated with, and tuned for, OS/400 to meet the requirements of performance and scalability on the server without compromising the cross-platform portability of the rich language.

Other technology included in the AS/400 Developer Kit for Java allows GUI applications to run on the system without modification. This support is called Remote Abstract Windowing Toolkit (AWT). It intercepts GUI requests coming from a Java program and re-routes the requests to an attached workstation running its own Java Virtual Machine (JVM). Server programs with graphical interfaces for configuration or tuning run on the system without modification.

Java objects on the iSeries servers can be full-fledged system objects that allow them to be persistent, shared, secure, backed up, and restored. iSeries server single-level-storage technology permits Java objects to be stored in their object form without the performance and maintenance overhead of two-level-store operating systems.

Java Deployment Tools are aimed at simplifying the deployment, management, and tuning of Java applications on the system. IBM has tested InstallShield's Java Edition product. InstallShield allows Java application developers to create packages that will install natively on the iSeries server. This is the common method used to package and install applications on other platforms, such as Windows NT. InstallShield on the iSeries server makes it easier to port applications to the system that are currently targeted for other platforms. A number of Qshell enhancements and utilities are provided to support zip or unzip of Java packages. To aid in performance analysis and tuning of Java applications on iSeries, support is provided to convert data collected by Performance Explorer into standard formats used by popular Java performance analysis tools such as Javation and Hyperprof.

Java applets and applications that access iSeries and programs and data from client workstations (or a Java-enabled server) can be written using the AS/400 Toolbox for Java. Java classes on the client can be used to access existing iSeries applications and data using low-level APIs. The AS/400 Toolbox for Java can be used on a client to access iSeries servers running OS/400 V3R2, V3R7, or V4R1 and later. The ability to run Java applications on the AS/400e requires OS/400 V4R2 or later and V4R5 on the iSeries. The Toolbox requires Java Virtual Machine (JVM) 1.1.6 or later. At V4R4, the AS/400 Toolbox for Java was enhanced to support the Java Database Connection (JDBC) 2.0 specification. Secure Sockets Layer (SSL) specification enable support for data between the workstation and system to be encrypted and the server authenticated.

iSeries Architecture: Fundamental Strength of the iSeries 19

iSeries Architecture: Fundamental Strength of the iSeries

Java is the environment of choice for programming in today's network computing environment. It allows true portability of applications between platforms without modification or recompilation. The iSeries servers are uniquely positioned to leverage Java as it evolves from its current Web focus to a full commercial application environment. The strengths of the iSeries server will be combined with Java's object-oriented, network computing technology to provide solutions in the new millennium.

See “Java for iSeries (5722-JC1 and 5722-JV1)” on page 602 for more information.

Web Serving

An iSeries server can access a vast network of computers as if they are a single entity. Everyone and everything can access and distribute information, applications, and services provided by the network. For Web serving with the iSeries servers, network computing is supported with HTTP Server for iSeries and HTTP Server Powered by Apache for iSeries.

HTTP servers are the core foundation of technology at the heart of all e-business applications. They handle the communication with the client (typically browsers or XML-rendering devices such as palm pilots) and provide the entry point into server resources. These resources can range from simple HTML and GIF files, to e-business and e-commerce applications, all the way to full-blown business-to-business, collaborative enterprises.

iSeries HTTP support includes the Apache HTTP server. Apache, a freeware HTTP server, is open-source software that implements the industry standard HTTP/1.1 protocol with a focus on being highly configure capable and easily extendable. See “HTTP Server for iSeries (5722-DG1)” on page 506 and “HTTP Server for iSeries (5722-DG1)” on page 506.

OS/400 contains a complete set of base products and features that can be used to create a Web presence. Included are TCP/IP, Java, Virtual Private Networking, Cryptographic Services, Secure Socket Layer, Certificate Management, HTTP Server, Apache Server, and many more. The WebSphere family of products offered by IBM for the iSeries server allows you to build a complete e-business Web Site that is secure, easy to develop and maintain, and scale based on your needs.

See “WebSphere and e-business” on page 567 and “WebSphere Development Studio for iSeries (5722-WDS)” on page 611 for more information.

Lotus Domino

Domino for AS/400 is the leading groupware solution available for the iSeries server. It provides unparalleled capability for iSeries customers to use their business data in collaborative e-business solutions, both within their organizations and with their partners over

20 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

the Internet. Domino for AS/400 provides a critical foundation as companies begin to move from “information overload” into organizational learning and knowledge management. No competitive product offers the ease of use, low cost of ownership, tight integration, and positioning for the future that Domino for AS/400 delivers. Domino for AS/400 is offered with familiar iSeries and AS/400e terms and conditions for purchase, services, and support. See “Lotus Domino Server for iSeries (5769-LNT)” on page 633.

The iSeries Dedicated Server for Domino is specifically designed to deliver outstanding price performance and value when serving a variety of Lotus Domino workloads on a single server. Because the iSeries 270 and 820 models are used as the base models, the iSeries Dedicated Server for Domino is fully configured with all of the same expandability currently available on the iSeries servers 270 and 820.

Refer to “iSeries Dedicated Server for Domino” on page 135 and “AS/400e Dedicated Server for Domino Positioning” on page 45 for more information.

iSeries Integration with the Windows NT Server

Consolidating Servers Inside an iSeries Server

Currently, most companies deploy PC servers by function or service, with each server dedicated and tuned to an individual application such as file, print, or Web serving.

iSeries Integration with Windows NT Server enables Microsoft Windows NT Server Version

4.0 or Windows 2000 to be installed on the Integrated xSeries Server for iSeries. In this single combination server, customers can run their mission critical business applications on the iSeries solution, while also running Windows NT Server or Windows 2000 for file, print, personal productivity, and other applications. Improved hardware control and availability with reduced maintenance costs and simplified user administration and server operations are possible on a combined server.

iSeries is enhanced with additional Windows server integration facilities. These enhancements enable iSeries to support larger and more complex Windows applications and offer additional tools to help reduce the cost of managing Windows server environments.

Attachment of N-way xSeries Servers – New with V5R1

iSeries supports the attachment of external n-way xSeries servers via the High Speed Link. With the new Integrated xSeries Adapter, selected xSeries servers running a Windows 2000 Server can be used to extend Windows application scalability, while retaining the storage consolidation and systems management advantages of the Integrated xSeries Server.

iSeries Architecture: Fundamental Strength of the iSeries 21

iSeries Architecture: Fundamental Strength of the iSeries

Enhancements for the new Integrated xSeries Server include support for up to 32 servers on selected iSeries models. See “iSeries Integration with Windows Server (Base 5722-SS1 as 5722-WSV)” on page 502.

Benefits of Server Consolidation on the iSeries Server

Server consolidation on the iSeries allows you to:

• Consolidate PC server hardware and operations so you can run up to 32 Windows NT

servers in a single server.

• Increase business recovery protection with high-speed backup of the combined iSeries

server and Windows NT systems.

• Improve server uptime and error recovery using highly reliable iSeries disk drives with

RAID-5 and mirroring options. Use a spare Integrated xSeries Server to replace a failed server without reloading Windows NT.

• Maximize I/O investments by balancing iSeries servers and Windows NT disk

resources from a single pool. Switch user data disks between servers. Share the iSeries tape and CD-ROM drives.

Logical Partitioning (LPAR)

Logical Partitioning enhances the role of the iSeries as a consolidated server. LPAR is of value to customers who need server consolidation, business unit consolidation, mixed production, and a test environment, as well as integrated clusters. With LPAR, companies have both the power and flexibility to address multiple system requirements in a single machine.

LPAR lets you run multiple independent OS/400 instances or partitions (each with its own processors, memory, and disks) in an n-way symmetric multiprocessing AS/400e 6xx, Sxx, or 7xx and uni or n-way on 270 and 8xx models. Address multiple system requirements in a single machine to achieve server consolidation, business unit consolidation, mixed production/test environments, and integrated clusters.

Partitions have different system names and may have a different primary or secondary national language, or they may operate using different time zones. Each partition's system values can be set independently. This flexibility is ideal for banks and other multinational companies to centralize operations in a single location, yet retain the national characteristics of each system. Logical partitions are ideal for companies to run mixed interactive and server workloads on a single iSeries. Logical partitions allow the interactive performance of an iSeries to be flexibly allocated between partitions.

22 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

With OS/400 V5R1, LPAR is significantly enhanced to allow dynamic movement of processor, memory, and interactive performance between partitions. Up to four OS/400 V5R1 partitions per processor with a maximum of 32 partitions is supported.

Virtual LAN support establishes multiple high speed TCP/IP communication connections between partitions. Additional communication hardware is not required.

Linux is now supported in a logical partition.

You can find more details on LPAR in “Logical Partitions (LPAR)” on page 473.

Virtual LAN

Virtual LAN is new with OS/400 V5R1. Virtual LAN provides 16 independent high speed internal bus-to-bus communication paths between logical partitions and supports TCP/IP protocol.

Virtual LAN provides the additional granularity to set up high speed communications between partitions by being selective on which partitions or applications within a partition are allowed to communicate with other logical partitions on the system. More importantly, it allows high speed bus-to bus communication between OS/400 partitions and Linux partitions. It will be possible to select multiple communications paths between partitions and potentially tie in each of these paths to a specific application.

The enablement and set up of Virtual LAN is easy and does not require an IPL or any special hardware or software. Once a virtual communications port is enabled for a given partition, a communication resource (CMNxx) is created for that partition. The user can then create a high speed 1 GB Ethernet line description over this resource and set up TCP/IP configuration appropriately to start communicating to another partition. A maximum of 16 virtual ports can be enabled for high speed communications per partition.

Virtual LAN does not require any additional software or hardware. It provides the ability to provide multiple communication paths between applications that are executed in each of the partitions.

Extended Adaptive Cache

Extended Adaptive Cache is an advanced read cache technology that improves both the I/O subsystem and system response times by reducing the number of physical I/O requests that are read from disk. Extended Adaptive Cache operates at the disk subsystem controller level. It does not affect the system processor.

iSeries Architecture: Fundamental Strength of the iSeries 23

iSeries Architecture: Fundamental Strength of the iSeries

Management of the cache is performed automatically within the I/O adapter. It is designed to cache data by using a predictive algorithm. The algorithm considers how recently and how frequently the host has accessed a predetermined range of data.

The design of Extended Adaptive Cache is based on specific data management strategies of the iSeries server. To explain, whether the disks are device parity protected, mirrored, or unprotected, the data stored on the disks has a tendency to occur in bands. This means that there are physically contiguous areas of disk storage that fall under one of the following categories:

• Areas where the data is actively read

• Areas of data that are both actively read from and written to

• Areas that are frequently written to

• Areas of storage that are not frequently accessed

The goal is to cache bands characterized as read or write and read-only. A band that is characterized as write-only, while cached in the storage subsystem write cache, remains largely unaffected by Extended Adaptive Cache. Extended Adaptive Cache is designed to not harm the performance of large blocks of data that are either sequentially written or sequentially read. In this case, the pre-fetch capability of the disks, as well as other caches in the system, ensures a quick response time.

Using Extended Adaptive Cache improves the performance of database-read actions and all read actions. This includes read actions that are generated by other system components such as the Integrated xSeries Server. It also works effectively in storage subsystems that have device parity protection or mirroring.

Extended Adaptive Cache Simulator Restrictions and Considerations

• A storage controller capable of supporting Extended Adaptive Cache is required for

Extended Adaptive Cache Simulator. This includes the #2748, #4748, #2778, or #4778.

• The Simulator is enabled and disabled by the user through AS/400 Operations

Navigator, Management Central, or Collection Services.

• Performance Tools LPP is required for Extended Adaptive Cache Simulator.

• Activating the Extended Adaptive Cache Simulator does not actually improve your

system's performance. It gathers statistical information to predict the performance improvement that Extended Adaptive Cache could offer.

• Extended Adaptive Cache Simulator and Extended Adaptive Cache cannot be active

at the same time on the same I/O adapter.

24 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

OS/400 Portable Application Solutions Environment

The OS/400 Portable Application Solutions Environment (OS/400 PASE) is a technology designed to expand the iSeries solutions portfolio. OS/400 PASE is an integrated runtime that provides simplified porting of selected solution provider UNIX applications.

The broad base of iSeries server applications are continually enhanced by new applications coming to the platform from a variety of sources. Until recently, the iSeries servers’ Integrated Language Environment (ILE) accounted for the majority of C or C++ applications ports, many originating on UNIX systems. Other applications have UNIX system-specific requirements or are designed for highly compute intensive demands that favor a UNIX runtime. With the latest addition of OS/400 PASE, ISVs can rapidly port UNIX applications to the iSeries and take advantage of the extensive iSeries architecture.

OS/400 PASE provides a broad set of AIX interfaces, in a runtime that allows selected UNIX application binaries to run directly on the PowerPC processor of the iSeries server.

Refer to “PASE (Portable Application Solutions Environment) (5722-SS1 Option 33)” on page 494. You can also find more information on the Web at:

http://www.iseries.ibm.com/developer/factory/pase/index.html

Reliable, Managed Availability

The iSeries server has a reliable history of designing key functions into the hardware and software. High availability is one reason to select a managed availability approach. Other reasons include minimal disruptive backup solutions and the ability to non-disruptively install and pre-test new versions, releases, or software fixes to make optimum use of all company and system resources.

Hallmarks of iSeries availability include redundant internal hardware features, such as RAID-5 and mirroring. The robustness and stability of OS/400 extends into its multiple, subsystem support (batch, interactive, multi-language, applications). The iSeries server offers managed availability to ensure that it is ready to do business when you are.

iSeries managed availability software is also called

cross-system mirroring

• The ability to have one system act as a “hot” backup system to one or more primary

systems. The primary and secondary systems do not have to be the same size or model.

• A rapid switchover to the secondary machine in the event of an emergency.

• System backup that allows data from the primary system to be completely backed up

after only a few minutes of down time. While the secondary system has a “static” copy of the “primary” system’s data, the primary system continues to operate. Changes are

. It provides:

iSeries Architecture: Fundamental Strength of the iSeries 25

iSeries Architecture: Fundamental Strength of the iSeries

transmitted to the secondary system and applied when the backup is complete, therefore, providing continuous protection.

• The secondary system can be used for other activities, for example, business

intelligence or application development, while it concurrently provides backup to the primary system. The secondary system can also be used to “load balance”, to offload work of the primary system.

• Selection of which items on the primary system to dynamically protect by the

secondary system. This can minimize disk capacity on the secondary system or allow a smaller model to be used to “cross-system mirror” the larger system.

• Cross-protection among two or more systems, hundreds of miles apart. Data integrity

is maintained in both directions. Backups can be performed at the remote site.

• New software versions and releases (OS/400 and associated software), or fixes on the

secondary system can be applied while the primary system continues to function. Testing can occur on the secondary system before non-disruptively updating the primary system.

iSeries servers offers superior technology, service, and support in each of five critical components of availability:

• Single system reliability: Architecture and baseline design make the iSeries server one

of the most reliable servers in the world. The iSeries serves the small business customer with minimal skill or resource to manage complex environments. From its inception, the iSeries architecture inherits a design where reliability and availability are equal parameters to features like processor speed, memory capability, and number of disk arms.

iSeries design and development resources enable high levels of availability in a single system environment. This highly reliable design is useful for unplanned outages by the iSeries customer. The single-system iSeries remains the core building block to repeat and extend functions into other areas of the business.

• Single-system availability management: iSeries servers have high-availability

facilities that are fast, automated, and easy to use. Best availability practices are accessible to help reduce the duration of planned and unplanned outages. These high availability practices include facilities such as:

– Save-while-active – Parallel save and restore – Backup Recovery and Media Services (BRMS) for iSeries – RAID-5 disk parity protection – Disk mirroring protection – Automated journal management – Access path protection

26 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

• Clusters: Cluster technology is implemented to reduce downtime due to planned

outages and site disasters. System availability during planned outages contributes to an increase of unplanned outage coverage.

iSeries clustering took a major step forward with the introduction of Cluster Resource Services (APIs) as part of OS/400 V4R4. OS/400 handles the complexity of managing systems in a cluster and keeps track of data and applications. Simple cluster management is provided with the Simple Cluster Management GUI, which is part of Operations Navigator in V5R1. Advanced cluster management and enhanced data resilience applications are available from cluster middleware business partners to complete the total high availability solution.

Significant new capabilities with V5R1 include Independent Auxiliary Storage Pools (IASPs), which allow access to Integrated File System data that is independent of the System ASP and other User ASPs. Refer to “Clustering” on page 479.

• Applications - ClusterProven: A high availability solution for the iSeries server

involves the active participation of cluster middleware business partners. The partners provide advanced cluster management and data resiliency tools. Solution developers design applications to maintain the state of an application across an outage.

• Availability services and support: As a world leading enterprise computing vendor,

IBM has a collection of products and services to assist the customer to develop and maintain a high availability environment.

Linux for iSeries

IBM supports your choice of platform and operating systems, a commitment now extended to include Linux, the open-source operating system. Linux can enable a new stream of e-business applications to complement the strengths of the iSeries as an integrated core business solution. Linux inherits important strengths and reliability features of the iSeries architecture.

iSeries is enhanced to support Linux running in a secondary logical partition. The primary partition runs OS/400 V5R1. Up to 31 Linux partitions are supported depending on the iSeries model. See “Linux for iSeries” on page 477 for more details.

High Speed Links (HSL)

A new bus structure using High Speed Links (HSL) provides a faster data transportation mechanism for the iSeries 270 and 8xx models. These new systems have faster processors, more on-chip cache, a faster memory bus, a super fast cross-bar switch complex (with speeds

up to 43.2 GB per second

channel adapters step the iSeries into the world of SAN.

), faster DASD, and much faster IOPs and IOAs. New fibre

iSeries Architecture: Fundamental Strength of the iSeries 27

iSeries Architecture: Fundamental Strength of the iSeries

This new bus structure of HSL provides:

• Performance improvements and future system growth

– 1 GB/sec technology – 700 MB/sec maximum deliverable capacity running full duplex

• Simplified implementation

– Loop technology for redundancy – Multiple towers per loop – Migration tower attachment to support SPD I/O towers and PCI expansion

Towers (#5065/#5066)

• A homogeneous HSL network with V5R1 HSL adapters

– Simple HSL Clusters (two iSeries) – xSeries for iSeries HSL connectivity – Switchable HSL connected tower with IASP

For further details, see the product sections within this Handbook or

Migration

, SG24-6055.

AS/400e to iSeries 400

Clustering with Switchable DASD and IASP

OS/400 V5R1 and HSL OptiConnect provide switchable disk capability. Independent Auxiliary Storage Pools and switched disk clusters provide the ability to access content on a set of disk units from a second system. Support for both planned and unplanned outages is improved when the system currently using a switchable disk experiences an outage. Operations are continued on a system even when an isolated controller or disk unit fails.

Data availability is improved with Independent Auxiliary Storage Pools or switched disk clustering. Within a cluster, users can be switched to an alternate node in the cluster (another iSeries server) upon an outage. Integrated file system data residing in an IASP can be switched to another iSeries server without an IPL. This enables one iSeries to take over data and I/O controller in a disk tower from another iSeries.

Option 41 of OS/400 V5R1 is required to enable independent ASPs and switched disk clusters. It is a chargeable feature.

The primary function in the early stages of clustering is to offer coverage for planned upgrades and maintenance on the production system without affecting users accessing data from the switched disk towers, for the User Defined File System only. Cluster management middleware software, shipped as part of OS/400 option 41, manages the switchover. For high availability purposes, it ensures that no two systems access the disks (data) at the same time.

28 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

A properly designed switch disk cluster can offer advantages over a data replication cluster. Because a switch disk cluster does not use data replication, there is less overhead on the systems and, therefore, more resource available to process transactions. A switched disk cluster can be simpler to operate. Domino 5.0.7 is the first application to take advantage of this support and uses the switched disk architecture to attain ClusterProven specification. Switched disks do not remove the requirement to have application resiliency. The application is critical to the design of a true continuously available environment.

In this first release of Independent ASP, IFS files only are supported. For V5R1, IFS applications such as Lotus Domino or many Web serving applications are supported. This is useful in situations where workstations or communication lines are associated with the IFS data and the associated application is being switched. Planning and setup work are required to make sure the resources being switched are named identically on both servers.

Note: All I/O, not just the disk in the I/O tower, is switched. Any LAN, WAN, workstation controllers, etc. in the I/O tower are switched at the same time.

Fibre Channel Adapters

With V5R1, the iSeries can attach external disk and tape subsystems via high speed fibre channel disk and tape adapters. This enhances the iSeries’ ability to participate in Storage Area Networks (SAN). Storage Area Networks (SANs) may be defined as a combination of technologies – including hardware, software, and networking components – that provides any-to-any interconnection of server and storage elements. Fibre Channel technology is often used in many of the more flexible topologies and is gaining popularity and usage.

Without other components, a Fibre Channel cable runs directly from an iSeries Fibre Channel adapter to a Fibre Channel adapter in a tape drive or IBM ESS (Shark). The cable can be up to 500 meters long. If more than 500 meters is needed, a pair of hubs or switches is added to the configuration, allowing up to 10,000 meters (10 km) distance. The iSeries supports a specific managed hub. A managed hub is a hybrid, a limited switch, but smarter than a plain, regular hub. The iSeries also supports a regular switch in QuickLoop mode.

Refer to “V5R1 System Unit Hardware (PCI)” on page 292 for information on the Fibre channel adapters. See “Peripherals” on page 399 for information on hubs and switches. You can refer to “Removable Storage Media Devices” on page 353 and “Removable Storage Media Devices” on page 353 for tape drive information. For the IBM ESS, see “2105 Enterprise and Versatile Storage Servers” on page 393.

iSeries Architecture: Fundamental Strength of the iSeries 29

iSeries Architecture: Fundamental Strength of the iSeries

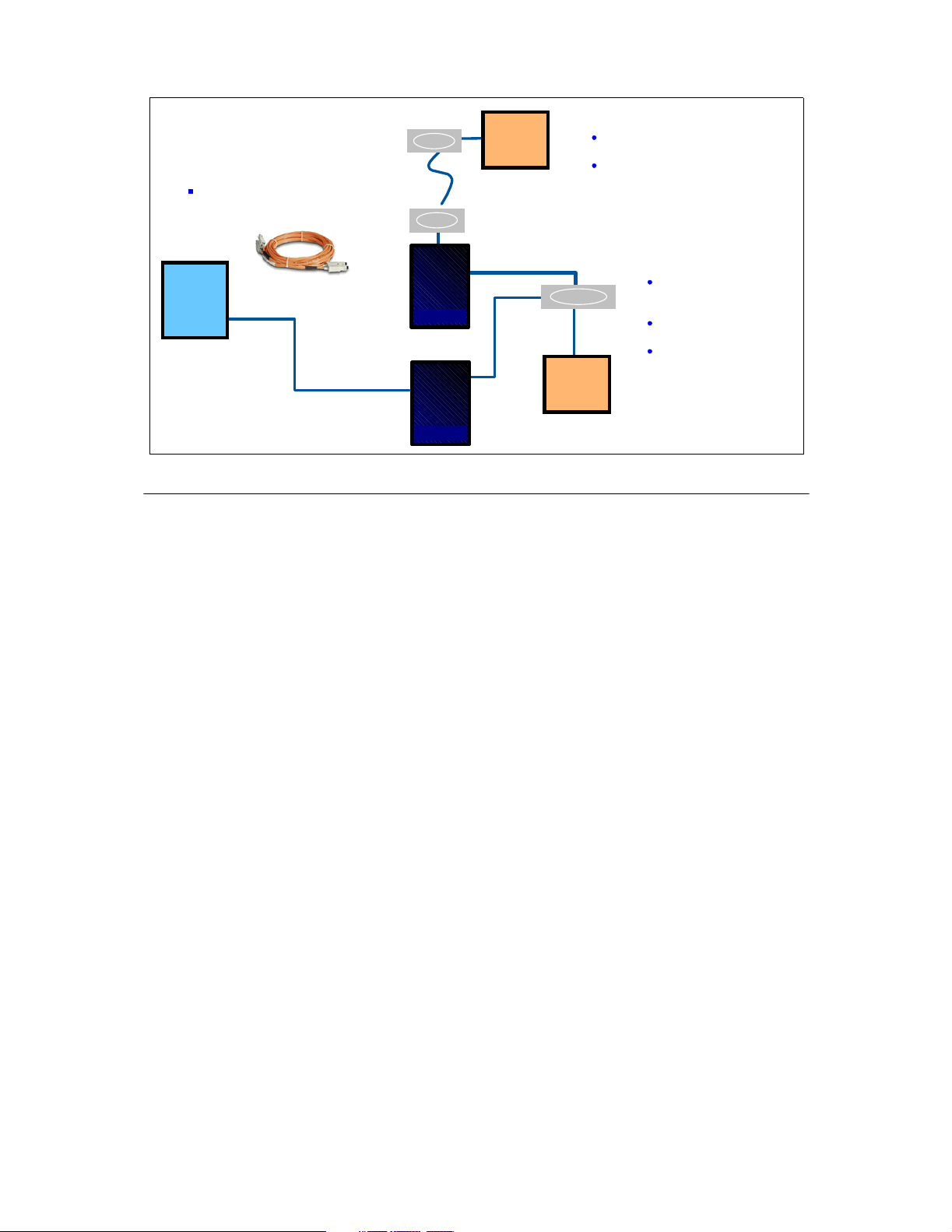

3534 Managed Hub

Limited switch, smarter than a regular hub

Sharing of single device (per zone) with multiple hosts

hub/switch

Fibre

Tape 3580 Exx 3584

2109 Switch

Smarter sharing of device(s) with multiple hosts

Smarter and more efficient than a hub

Requires QuickLoop RPQ

Fibre Channel cables

Point-to-point without other components

IBM ESS (Shark)

Fibre

up to 500m

hub

Fibre

hub

iSeries

Tape

3580 Exx 3584

up to 10km

Fibre

Database

DB2 UDB for iSeries offers state of the art database functions and open systems, standards based technology, while providing the maturity, stability, and ease of use that has become the trademark of the iSeries server. DB2 Universal Database (UDB) for iSeries is fully integrated into the OS/400 operating system software. It is not a separate product.

DB2/400 has been enhanced over the years to include many new and emerging standards. The integrated database is a full function database with features competitive to other widely used databases. The fact that the DB is integrated allows the operating system to control some of its management functions and makes it easier to maintain than competitive DB from other vendors reducing the need for a dedicated Database Administrator. Its security functions are integrated into the operating system. These functions allow a better security model than other DB where additional tools may need to be purchased to provide these functions.

The SQL Client Integration API allows providers of gateways and client/server solutions to integrate their products with DB2 UDB for iSeries. Many iSeries customers have the need for applications that not only access DB2 UDB for iSeries data, but also access data on other databases platforms such as Oracle or Sybase.

See “DB2 Universal” on page 455.

30 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

iSeries Business Intelligence Solutions

What is Business Intelligence?

Business Intelligence (BI) turns corporate data into meaningful business information. It can help you understand business trends and make better forecasting decisions. It can be used to bring better products to market in a more timely manner. It can be used to analyze daily sales information and make snap decisions that can significantly impact your company's performance. Business Intelligence provides a means for you to become familiar with who your customers are.

Business Intelligence turns corporate data into decision support information. Business Intelligence solutions have become much more affordable due to new innovations in software and hardware. One of these key technologies is data warehousing. Data warehouses provide the plumbing for Business Intelligence applications. The advent of data warehouse technology and industry specific Business Intelligence applications have made implementations meaningful and cost effective.

iSeries Enabling Technology

The iSeries servers offer state-of-the-art 64-bit relational database processing. The system has been optimized for a Business Intelligence environment with customized hardware (iSeries servers) and optimized software (DB2/400, SMP for DB2/400, DB2 Multi-System, and Data Propagator Relational). These hardware and software functions combine to make a powerful Business Intelligence server that is easy to install, manage, and use.

With iSeries server open interfaces, hundreds of tools can be used to provide Business Intelligence solutions accessing DB2/400 data transparently. Such tools include desktop analysis tools (Business Objects, for example) and sophisticated multi-dimensional analysis (commonly referred to as OLAP) tools (Essbase/400, for example), with no special programming required.

SMP for DB2/400

provides parallel query processing. This allows multiple processors in a single server to collectively work on a single query, which can improve query performance by as much as 400%.

DB2 Multi-System

support provides clustering for the iSeries and allows up to 32 servers to be “clustered” together into a single system. This clustering provides almost unlimited scalability and unparalleled performance for customers. The combination of all of these advanced features has dramatically improved system performance so much that customers using UNIX systems, PC servers, and even large specialized parallel servers have converted from these machines to iSeries servers.

Data replication is an important technology to facilitate the automated loading of data warehouses while cleaning up or summarizing data for integrity and performance purposes. DataPropagator/400 provides asynchronous data movement between OLTP systems and

iSeries Architecture: Fundamental Strength of the iSeries 31

iSeries Architecture: Fundamental Strength of the iSeries

Business Intelligence systems. Data Propagator allows fields to be summarized, derived, or aggregated into the data elements necessary in your data warehouse.

Data mining is a Business Intelligence application that uses mathematical algorithms to scan potentially large amounts of data to find the golden nuggets of information. Intelligent Miner for AS/400e provides the most advanced data mining application for iSeries customers. It offers optimized computer models to “discover” data relationships previously unknown. The models include algorithms for clustering, information classification, predictions, associations, sequential pattern recognition, and time sequence patterns. This analysis provides executives with insight that can truly be a competitive advantage.

Business Intelligence Solutions

Industry-specific Business Intelligence solutions allow customers to implement off-the-shelf industry applications that are designed for their business. These applications provide a range of functions that are specific to an industry and generally provide users with instant functional application templates that can be customized to meet each businesses unique needs.

Business Intelligence Tools and Applications

Virtually every major Business Intelligence tool is supported on the iSeries servers. That includes such tools as Data Mirror and ETI Extract for moving and cleansing data, and tools for organizing data into a multi-dimensional and relational format as Essbase/400 and DataTracker. It also supports such multi-dimensional analysis tools as Analyzer, Business Objects, and Cognos Powerplay. These tools allow customers unlimited flexibility in building their own Business Intelligence applications. They also allow applications to use OS/400 and non-OS/400 data.

There are many technical advantages of using the iSeries server for your Business Intelligence server. The main reason why customers choose the iSeries server is the combination of its power and simplicity. The system provides a full range of tools, applications, and hardware in a single integrated platform that helps to make rapid implementation a reality. Large and small businesses alike agree that this is the ideal Business Intelligence server.

iSeries servers provide outstanding database technology that supports rapid access to large amounts of data. OS/400 supports a wide range of Business Intelligence solutions including small departmental applications, and very large Business Intelligence environments. The benefits of this application are measured by the more informed decisions that can be made as a result of having better information and information in a format to support the decision-making processes of a company.

32 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

e-business

Success in business today depends on one thing: meeting customer needs, which are unique to each organization. To meet those needs, the best option is to build a computer to do business the way each organization does. That means a server that is flexible, versatile, and can deliver customized solutions, all in a cost effective manner.

The iSeries server has always been designed for business. By tightly integrating hardware, software, middleware, and the operating system. The iSeries servers provide a combination of power and flexibility that organizations can rely on to help them in their business. This design also makes it possible for the system to help ensure that they move with technology as it changes.

The latest iSeries hardware enhancements are the iSeries 270 and 8xx models. The newest version of the operating system is OS/400 V5R1. OS/400 is engineered to provide the performance and tools needed to help to obtain a quicker return on a business’ investment in such critical areas as e-business, enterprise resource planning, Business Intelligence, and server consolidation.

e-businesses require hardware and software solutions with cost-effective computing power. However, more importantly, they need solutions that scale well as workloads grow larger and more complex. To scale well means the computer system grows in capacity to accommodate business growth without changing the customer's applications, hardware, or system software investment. The iSeries has always been known for its scalability and meeting the needs of a dozen to several thousand users with the same architecture and operating system. The recent outstanding performance of iSeries as a Domino server in an independent NotesBench audit (10,400 concurrent light mail users on a single iSeries server) demonstrates that the iSeries scales just as well with new, advanced e-business applications as it does with a core line-of-business applications.

Characteristics of a Successful e-business

IBM has effectively branded and marketed the term have a general sense of what e-business means. But an expanded explanation with better examples is necessary. The topics that follow describe the successful e-business:

• Fully exploiting the latest IT tools and techniques

• Delivering a broad spectrum of applications

• Reaching a broad spectrum of users

These defining actions sound familiar to anyone who knows the fundamentals of using information technology (IT) to achieve competitive advantage. e-business does not change the fundamental rules, but represents a dramatic shift in a typical company’s ability to cost-effectively exploit IT on a broad scale. Simply stated, a wide range of affordable tools is

iSeries Architecture: Fundamental Strength of the iSeries 33

e-business

defining actions

. The market is beginning to

of tomorrow's

iSeries Architecture: Fundamental Strength of the iSeries

now available to enable even the smallest organization to conduct business electronically on a world-wide scale. This allows them to achieve a competitive advantage in a cost-effective manner. See “WebSphere and e-business” on page 567 and “IBM Licensed Programs: Lotus Products” on page 633.

Advanced User Interface

V5R1 delivers two times more advanced GUI function to iSeries customers than the previous release. Operations Navigator is significantly expanded in this release with industry-leading integrated systems management via easy-to-use graphical interface.

Operations Navigator

The systems management function now delivered via the easy-to-use Operations Navigator GUI includes:

• Work management (Active jobs, subsystems, job queues, memory pools)

• Backup and Recovery (BRMS GUI plug-in)

• Logical Partitions (LPAR)

• System values, including system comparison and update via Management Central

• Distributed user/group administration via Management Central

• Licensed program and fix creation, distribution, and installation via Management

Central

• Enhancements to performance monitors and collection services to graph extended

time periods

• New monitors and events for managing jobs and messages

• Complete DASD management: Disk balancing, compression, management of disk

pools, and units

• Simple two-node cluster configuration

• Integrated xSeries Server: Windows user/group and disk administration

• Database Navigator: Provides a pictorial view of the database showing the

relationships between objects.

• Graphical command prompting

• TaskPads: A user interface extension that allows easy access to key administrative

tasks.

Other ease-of-use initiatives for V5R1 include the addition of numerous GUI extensions to existing Operations Navigator functions, the creation of numerous configuration and

34 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

administration wizards (many of which are in the new GUI areas listed in the previous list), and a new iSeries Information Center with online documentation available on the Web or CD.

Management Central-Pervasive

Management Central-Pervasive (MC-Pervasive) allows iSeries network administrators to keep an eye on their iSeries servers while they are away from their workstation or office. Using an Internet capable cellular phone, PDA with a wireless modem, or a Web browser, the administrator can monitor and manage their iSeries servers.

V5R1 enhancements for MC-Pervasive include:

• Additional support for system performance monitoring

• Monitor specific jobs and servers on multiple systems

• Monitor message queues on multiple systems

• Hold, release, or end a job on any endpoint system

• Run commands on any system or group of systems

• Manage Integrated xSeries Servers

– View status of Integrated xSeries servers – Startup and shutdown of Integrated xSeries servers – Run Windows commands – Monitor Integrated xSeries events (routed to an iSeries message queue)

• Read only mode for selected users

These additional V5R1 enhancements are available via an English-only PTF. Customers interested in using Pervasive need to refer to the following IBM Web site to obtain the PTF numbers to load the code and MRI for Pervasive:

http://www.ibm.com/servers/eserver/iseries/sftsol/pervasive.htm

EZ-Setup for V5R1

In V5R1, EZ-Setup is extended to include:

• Installing and configuring Domino for iSeries

• Configuring LDAP service

• Configuring HTTP (using the Internet Connection Setup wizard)

• Installing Information Center

• Configuring the Extreme Support Connection

EZ-Setup now provides a complete setup path for many users and allows one to go from out-of-the-box to serving a business in one quick and easy path. EZ-Setup is now a part of iSeries Client Access Express and is on the orders).

Setup and Operations

CD-ROM (shipped with all

iSeries Architecture: Fundamental Strength of the iSeries 35

iSeries Architecture: Fundamental Strength of the iSeries

Information Center for iSeries

The Information Center for iSeries provides the starting point for finding iSeries technical information and is available on a CD-ROM shipped with OS/400. It is also on the Internet at:

http://www.ibm.com/eserver/iseries/infocenter

In V5R1, the Supplemental Library on PDF is integrated with the Information Center to provide a one-stop place to obtain technical information. You can search the PDF and HTML files in one search at the Internet site. In V5R1, the Information Center installation provides a wizard to install the Information Center to an intranet server from the iSeries. The wizard can even configure your HTTP server and set up search on the intranet.

XML Enablers

eXtensible Markup Language (XML) is one of the key technologies fueling growth of e-business and mobile e-business solutions. XML is becoming the standard way to represent data in a portable, reusable format for use in a number of solutions ranging from business-to-business (B2B) solutions that link together trading partners to pervasive computing applications, which connect mobile devices such as cell phones to core business solutions.

IBM and iSeries are committed to supporting XML. This support is demonstrated by the suite of XML application enablers delivered with OS/400 in V5R1, providing a core of XML services for applications to build on.

The XML application enablers provided in V5R1 include:

• XML parsers for use with Java and C++ applications. XML parsers are a common

building block that XML-based solutions use to work with data in XML format.

• XML parsing interfaces for procedural languages such as RPG, COBOL, and C. These

interfaces open the realm of XML to existing solutions, providing an easy path to extend these solutions with XML support.

• An Extensible Stylesheet Language (XSL) processor used to apply XSL stylesheets to

transform an XML document into another markup language format. XSL stylesheets are the standard way to convert data between two XML document types and are commonly used to convert XML data to HTML for presentation in a Web browser environment.

Security

The many levels of security available with OS/400 ease the job of system security management. The five levels of security range from minimal to an enhanced level that

36 iSeries Handbook

iSeries Architecture: Fundamental Strength of the iSeries

enables the iSeries servers to operate at the C2 level of trust as defined by the United states government. Security at V5R1 has been enhanced with:

• Enhanced system integrity with digital signature and object signing

• Easier to use Digital Certificate Manager

• Enhanced password protection

See “Security” on page 453.

Summary

iSeries servers offer a brilliant architecture that is not found on simply any business computing system. There are many examples of where the system architecture has delivered on its promise of making the most advanced technology readily and continuously available to its customers. For example, the iSeries servers have enabled their customers to:

• Provide Internet access to existing iSeries applications. Through a product known as

HTML Gateway (which resides within OS/400), Internet users can access and run iSeries applications.

• Integrate diverse environments (such as Microsoft Windows NT and Lotus

Notes/Domino) onto the iSeries server. All customer solutions require a range of hardware and software products from a variety of vendors. The iSeries server, through integrating these mixed environments, simplify the task of managing them.

• Change to the on-chip copper-wiring processor technology or to Silicon on Insulator

technology for the medium and high end servers.

• Implement PCI hot-plugging technology for higher availability, and use other

performance boosting innovations such as the High Speed Link and new high speed LAN adapters.

iSeries Architecture: Fundamental Strength of the iSeries 37

iSeries Architecture: Fundamental Strength of the iSeries

38 iSeries Handbook

Workload and Performance

Workload and performance are critical considerations in selecting an iSeries server. This chapter discusses some of the tools and factors to take into account, including workload ratings and processor positioning. Detailed performance information is in

Performance Capabilities Reference

http://www.iseries.ibm.com/developer/performance/index.html

•

, SC41-0607, which is located on the Web at:

• http://www.ibm.com/eserver/iseries/library

For sizing recommendations, consult with your IBM Marketing Representative and service provider.

Commercial Processing Workload

When the AS/400 system was announced in 1988, the Relative Performance Rating (RPR) or Relative System Performance (RSP) of different models was measured using a RAMP-C workload. This workload is representative of general commercial processing. RPR figures for AS/400 models have been expressed relative to the 9404 Model B10, which was the initial entry model for the AS/400 range in 1988. It had a RPR rating of 1.0.

iSeries

The AS/400e product line continues to grow in power with the PowerPC RISC processors and 24- and 12-way processors. With the increased processing power and more applications using vital technologies, such as Web serving, client/server, and multimedia, the point was reached when RAMP-C was no longer a valid means for measuring relative performance. Therefore, RAMP-C was replaced by a workload measurement called Commercial Processing Workload (CPW) in the second half of 1996.

Relative performance measurements are derived from commercial processing workload on the AS/400e. CPW is representative of commercial applications, particularly those that do significant database processing in conjunction with journaling and commitment control.

CPW contains a number of advantages over RAMP-C for measuring the iSeries and AS/400e servers, such as:

• Inclusion of a batch component

• Increased numbers of transaction types

• Support for journaling and commitment control

• Increased path lengths

• More complex file and terminal I/O

These enhancements mean that CPW exercises hardware and software paths that more closely match the paths exercised by our customers' current installations.

Workload and Performance

CPW values have been calculated for all previous AS/400e models. The summary table for most of the models, shown in “Summary of Earlier AS/400, AS/400e, and iSeries Models” on page 745, includes the CPW figures as well as RAMP-C figures. For processors announced since August 1997, CPW values are issued. No further RAMP-C figures are provided.

Note: Throughout this document, both RAMP-C and CPW performance figures are described

as Relative System Performance (RSP). This is done to ensure consistency and to identify what is being referred to. RAMP-C or CPW is used to identify to which RSP the figures apply.

CPW figures are not based relative to a single model, as was the case with RAMP-C. CPW values give a relative performance rating of all iSeries and AS/400e processors.

CPW can be used as a quick means of comparing performance. However, a more detailed analysis should always be done using BEST/1 for OS/400. The performance users see that their AS/400 depends on many factors. Some of these factors include: the type and number of disk devices, the number of workstation controllers, the amount of memory, the system model and processor, the application being run, and other factors.

More detailed performance information is found in the

Reference - Version 4, Release 5

http://publib.boulder.ibm.com/pubs/html/as400/online/chgfrm.htm

, SC41-0607. This document is available on the Web at:

AS/400 Performance Capabilities

IBM Workload Estimator for AS/400

The IBM Workload Estimator for AS/400 is a Web-based estimation tool that automates the manual calculations previously required from paper sizers. The Estimator tool allows the user the option to enter data for multiple workloads, from which a machine recommendation is made that best fits overall system needs.

IBM Workload Estimator is found on the Web at:

http://as400service.ibm.com/servlet/EstimatorServlet

Disk Arm Requirements

The disk configuration can be a major contributor of performance bottlenecks. It is important to size an iSeries and AS/400e server with an appropriate number of disk arms, to provide for the best obtainable disk subsystem performance, and, therefore, improve overall system performance.

A physical disk drive (and the processing through the disk controller) performs a specific number of disk accesses each second. Newer disk arms and controllers provide better performance than previous drives. Therefore, fewer disk drives (disk arms/actuators) can typically be used, yet provide comparable performance.

42 iSeries Handbook

Workload and Performance

To help size the minimum number of disk arms required for a given AS/400e processor, refer to the AS/400 Disk Arm Requirements based on the

http://www.iseries.ibm.com/developer/performance/dasdmenu.html

at:

Processor Model Performance

document

ISV and other application solution providers also have recommendations for a minimum configuration.

iSeries Model 270 and 8xx Performance

The iSeries Model 270 and 8xx servers are significant steps in the evolution of the AS/400e server product line. iSeries Models 270, 820, 830, and 840 are configured to meet a wide range of performance requirements. Whether the system is running mostly back-office applications, newer e-business applications, or a mixture of both, the performance can be customized on the new servers to match business needs. Each model includes a base processor and interactive performance feature. Optional processor and interactive performance features can be selected to balance the server's performance for a given workload. Increasing performance on installed servers is done simply and with little disruption.

Note: Please note the following terms:

Processor Feature: Used to indicate the feature code by which the processor is

•

ordered.

Interactive Feature: The feature code by which interactive performance is ordered.

•

Processor Feature Code: Used by OS/400.

•

System Processor Feature: Used by SLIC to indicate the same function.

•

iSeries Models 270, 820, 830, and 840 offer two CPW ratings to allow customizing of performance for a given workload:

Processor CPW: Represents maximum relative performance running commercial

•

processing workloads for a processor feature. Use this value to compare relative performance between various processor features. Processor CPW is known as Client/Server CPW in prior releases.

Interactive CPW: Represents the relative performance available to perform interactive

•

workloads. The amount of Interactive CPW consumed reduces the available Processor CPW by the same amount. Interactive CPW for a specific processor is changed through the installation of optional Interactive Features.

The interaction of the Processor CPW and Interactive CPW is illustrated in the following figure.

Workload and Performance 43

Workload and Performance

This chart shows the CPW that is available for server workloads as the interactive workload increases. On the left side of the chart, the scale runs from 0 to 100%, which represents the amount of Processor CPW available for server workloads (non 5250-type workload). On the right side of the chart, a similar scale reflects the amount of Interactive CPW used by Interactive workloads (5250 based). Each of the dotted lines dissecting the rectangle represents various levels of Interactive CPW that can be purchased when ordering an interactive feature for 270 and 8xx servers. Interactive features are not available on the Model

250.

At any point, the amount of CPW used to perform interactive workloads reduces the CPW available for server workloads by an equal and proportionate amount. For example, for a system with a processor CPW of 810 and an interactive feature CPW of 240, it is possible to use up to 240 CPW for an interactive workload and still have 570 CPW available for the non-interactive workload. On the other hand, if none of the AS/400e is used for interactive workloads, all of the Processor CPW is available to perform server workloads. No tuning or management is required.

For best performance, all critical system resources should be kept in balance with proper configuration. This includes processors (quantity and speed), number of disk arms, amount of memory, balanced HSL usage and more. For example, high I/O requirements on Optical HSL may be better handled by copper HSL.

Capacity Upgrade on Demand (CUoD)

iSeries Capacity Upgrade on Demand offers the ability to non-disruptively activate one or more additional central processors of specific models of iSeries Models 830 and 840. CUoD adds capacity in increments of one processor, up to the maximum number of On Demand processors built into the Model 840. CUoD has significant value for installations for customers who want to upgrade without disruption.

44 iSeries Handbook

Workload and Performance

There are now six Capacity Upgrade on Demand processor features (#2416, #2417, #2419, #2352, #2353, and #2354) for the Model 840 and one CUoD processor feature (#2351) for the Model 830. Each offers a number of are in “active” status and a set of

On Demand processors

Base processors

(only one for the Model 830) that

that are in “standby” status.

On Demand processors (one or more) can be permanently activated by ordering the desired quantity of feature code #1604 for Models 840 or #1605 for the Model 830 as an MES order. Ordering feature #1604 and #1605 generates a CUoD Activation Code, which is then posted on a Web site and mailed to the customer. This activation code must then be entered at the server console. For further details, refer to the

Demand

at: http://www.ibm.com/eserver/iseries/ondemand

Planning Guide for Capacity Upgrade On

AS/400e Dedicated Server for Domino Positioning

AS/400e capabilities to support Lotus Domino are firmly established since the announcement of Lotus Domino for AS/400 in January 1998. In mid-1999, IBM and Lotus delivered a first in the industry—the AS/400e Dedicated Server for Domino. Two models and six processor features were added in 2000.

For entry Domino environments, the Dedicated Server adds scalability for disk and memory capacity. For larger Domino environments, enterprise-class scalability and capacity can be achieved. The iSeries and AS/400e server’s reliability, robust subsystem architecture, and ease of operations provide a sound base to develop and deploy rich Web development and serving functions of Domino solutions. Combined with the rock-solid reliability and scalability of iSeries or AS/400e servers, Domino customers can achieve highly effective Web sites with intranet, extranet, and Internet capabilities.

iSeries and AS/400e customers extend their traditional applications and data by adding Lotus Domino solutions to their existing servers, as part of upgrades, or as stand-alone servers for e-mail, groupware applications, and Web sites. Domino customers use Domino partitioning on iSeries or AS/400e servers to consolidate Domino workloads onto one server with a simple, single footprint to deliver e-mail and business applications. Server consolidation offers vertical growth within the processor. Growth is available within the model.

With the availability of Dedicated Servers for Domino, customers choose to deploy Domino solutions on separate servers from other business applications for several reasons:

• Messaging and e-business servers are mission-critical assets. Reliability,

maintenance, and availability requirements differ from other production systems.

• Many organizations employ specialized staff and servers to deliver messaging and

groupware to their businesses, separate from those that support their line-of-business applications.

Workload and Performance 45

Workload and Performance

• Some organizations have remote environments, which require onsite groupware

servers to provide key applications and e-mail to their users.

The price/performance and the increased scalability of the Dedicated Servers enhance the cost advantage for customers who need a mixed workload Domino server. The Dedicated Server for Domino is positioned to compete strongly for Domino placements compared to multiple Intel-based servers.

Consider Dedicated Server for Domino for:

• New Lotus Domino solutions on a manageable, reliable, and scalable server.

• Reliability and manageability to support mission-critical Domino applications.

• Consolidation of several servers to a single iSeries or AS/400e servers by employing

the partitioning function of the Lotus Domino Enterprise Server license, multiple Domino servers for e-mail, Domino applications, Web serving, or a combination on segregated Intel servers.

• Groupware applications and messaging with existing system operations and skills.

• Standalone intranet, extranet, or Internet servers using Lotus Domino.

• Reliable servers to support Domino in remote locations where administration staff is

not available.

Model 270 Dedicated Server for Domino Processor Features

Processor features for the Model 270 Dedicated Server for Domino are:

#2422 Dedicated Domino Processor: An entry solution scalable mail server or mail

•

or application server.

#2423 Dedicated Domino Processor: More scalability for mail and robust

•

applications.

#2424 Dedicated Domino Processor (2-way): The highest level of scalability within

•

the AS/400e server 270.

iSeries Model 820 Dedicated Server for Domino Processor Features

Processor features for the Model 820 Dedicated Server for Domino are:

#2425 Dedicated Domino Processor: An enterprise solution appropriate for mail and

•

robust application. Ideal for customers who require more growth and capacity than the Model 270 provides.

#2426 Dedicated Domino Processor (2-way): More performance for mail and robust

•

applications.

46 iSeries Handbook

Workload and Performance

• #2427 Dedicated Domino Processor (4-way): The highest level of scalability and

performance within the iSeries Model 820.

The iSeries Dedicated Server for Domino Model 820 is the ideal model server for customers who require scalability or capacity beyond what the Model 270 Dedicated Domino #2424 processor provides.

Customers who require scalability or capacity beyond what the Dedicated Server for Domino 820 provides should pursue iSeries Models 830 or 840 servers, or to deploy multiple servers for their Domino applications.

Upgradability: Processor feature conversions are supported within each Dedicated

•

Server for Domino model. Upgrades are not available from a Model 270 to a Model 820, nor from the previous Dedicated Server for Domino Model 170.

Releases supported: Support is offered for Lotus Domino Release 5.01 or later. The

•

AS/400e Dedicated Server for Domino does not support Domino 4.6 or earlier.

The iSeries Dedicated Server for Domino is priced to be most competitive in these situations:

• Versus multiple single-function Intel Domino servers

• When reliability, manageability, and availability are a critical requirement in new or

current Domino implementations

The Dedicated Domino processors are tuned specifically for Lotus Domino workloads. They provide sufficient capacity for non-Domino workloads, such as remote DB2 access, file serving, Integrated xSeries Server for iSeries, and TCP/IP, which support a Domino environment.

Lotus Domino workloads: Defined as out-of-the-box functions such as:

•

– E-mail – Calendars and scheduling – Web serving – Standard Lotus Domino template applications (for example, discussion database,

workflow, and so on) and custom developed applications written with Domino Designer that perform no external program calls, relational database access, or Java integration.

Non-Domino workloads: For customers planning significant use of non-Domino

•

workloads, Dedicated Server for Domino should not be proposed. Instead, consider iSeries Model 270 or 8xx with standard processor features.

Considerations for non-Domino workloads include:

Workload and Performance 47

Workload and Performance

– Any and all workloads not designated as Domino workloads are considered to be

non-Domino workloads. They should be managed to a maximum of 10 to 15% of the

CPU. – Stand-alone Java, RPG, COBOL, or C applications are non-Domino workloads. – Applications can work alongside Domino on the same AS/400e. An example is a

Domino server that uses the *MSF SMTF Services option along with the QMSF task

to process Internet mail through the OS/400 SMTP server. The OS/400 SMTP server

and QMSF task are non-Domino work. – Domino applications using application integration functions, such as DB2 Universal

Database access or external program calls, are considered non-Domino workloads.

System administration: iSeries Dedicated Server for Domino can be effectively

• managed when there is no Interactive CPW (Interactive CPW = 0) available for application workloads. Interactive CPW is an approximate value reflecting the portion of Processor CPW that can be used for workloads performing interactive-based tasks (5250). The zero interactive CPW is intended to support a single interactive job for system administrative functions, that is:

– Any job started from a console (green screen) to perform system administration

only

functions is not considered interactive work if it is the

interactive job running

(single interactive job exception). – Any system administration job submitted to batch is not considered interactive work. – Any use of Operations Navigator (GUI administration functions) is not considered

interactive work.

Interactive workloads: Any task started through a 5250 session (5250 device or 5250

• emulation) where the user waits for a response is considered to be interactive work.

– Application processing that uses 5250 interfaces is not supported on the iSeries

Dedicated Server for Domino.

– 5250 print is not supported on the iSeries Dedicated Server for Domino.

Relative performance measurements are derived by performing various monitored and measured workloads on iSeries and AS/400e servers. The results can be used to compare relative performance characteristics of processor features offered for servers.

Simple Mail Users (SMU): This relative performance measurement is derived by

• performing high-volume Lotus Domino mail workloads on Dedicated Domino processors. SMUs are representative of mail applications, particularly those that do not perform any database related tasks. SMUs represent the estimated number of concurrent light mail users for the Dedicated Domino processors. Reported values reflect 70% processor utilization.

48 iSeries Handbook

Workload and Performance

• Mail and Calendaring Users (MCU): This relative performance measurement is derived by performing mail and calendaring functions. This workload is considerably more complex than Simple Mail Users. The MCU workload represents users on a Notes client who are reading, updating, or deleting documents in an e-mail database, as well as lookups in the Domino directory and scheduling appointments and invitations. Reported values reflect 70% processor utilization.

Commercial Processing Workloads (CPW): CPWs are representative of commercial

• applications, particularly those that do significant database processing in conjunction with journaling and commitment control. The reported values for CPW represent the capacity of a non-Domino workload available to support a Domino environment. The reported CPW may be used by System Resource activities and Domino resource extensions such as database accesses and external program calls. The amount of CPW consumed reduces the available capacity to perform Domino workloads reflected as SMU or MCU.

– Processor CPW is an approximate value reflecting the maximum amount of

non-Domino workload (10 to 15% of CPU) that can be supported.

– Interactive CPW is an approximate value reflecting the portion of Processor CPW that

can be used for application workloads performing interactive-based tasks.

Dedicated Domino Processors

100%

Domino resources

CPU

10 to

15%

The above figure shows the relationships of the various workloads on the Dedicated Domino Processors. Domino can take any available CPU capacity (even below the line). The CPW workload can never rise above the line, and excessive attempts to use CPW resources do not significantly affect Domino performance. If CPW exceeds its limit, the system will not redirect Domino resources to non-Domino (CPW) work, and the non-Domino performance degradation can be dramatic.

For some Domino solution scenarios, you need to work closely with an IBM, Lotus, or IBM Business Partner representative to determine whether iSeries Model 270 with standard processor features, 8xx servers, or the new Dedicated Server for Domino is most appropriate for the proposed environment. In particular, Domino applications that require some degree of

Processor CPW

Interactive CPW

Workload and Performance 49

Workload and Performance

integration with DB2 Universal Database for AS/400 data or use some external program calls (for example, RPG programs or Java) require careful evaluation.

The resources of Dedicated Server for Domino are focused primarily on the Domino workloads (see the following figure). Their ability to deliver superior Domino price/performance depends on running a workload very close to “pure Domino”. A small percentage of the overall processor capacity (10 to 15%) can be used for non-Domino work, such as routine system administration tasks and non-Domino programs invoked by the Domino application.

CAUTION

Domino mail Domino applications Mixed Domino

workload Domino Web serving

DB2 database integration on the same server

DB2 database integration on another server

AS/400 line of business (LOB) applications on the same server

Large user community

In evaluating Domino applications that access non-Domino functions, such as DB2/400 integration or program calls, ensure that the non-Domino functions represent a low percentage of the overall system utilization. Once non-Domino work reaches a maximum CPU capability on the Dedicated Server for Domino, no additional processing power will be available for non-Domino workloads. If the proposed Domino application employs any significant DB2 UDB or program integration, a standard iSeries or AS/400e server model is a better choice.

5250 Throughput

The iSeries and AS/400e servers support a family of displays and emulation adapters that are known as the 5250. The supported data stream is known as a 5250 data stream. Throughput considerations for these workstations regard the flow of the character stream, as discussed in the following section.

5250 Express Data Stream

The #2720, #2722, #2746, #4746, and #6180 twinax workstation adapter cards have three major features that can increase throughput:

50 iSeries Handbook

Workload and Performance

• 2X Mode: 2 Mbps versus 1 Mbps throughput of the #6050 workstation controller.

Optimized Mode: The block transfer of data is improved to almost double the

• throughput to or from the attached device.

•

Dual Mode: Means that two ports are polled simultaneously on the #2722, #2746,

#4746, and #6180 workstation controllers. On older controllers (such as the #6050 workstation controller), only one port out of eight is active at any given time.

The enhancement produces nearly four times the throughput when all of the attached devices on a port support 5250 Express Data Stream. All of the IBM devices from the original 5251 up through the 3489 support the Express Data Stream.

Refer to Informational APAR II11804 for additional details regarding workstation considerations when attached devices or cabling do not support 5250 Express Data Stream. Additional information on 5250 Express Data Stream is available on the Web at:

http://www.networking.ibm.com/525/

The IBM 7299 twinax-to-fiber multiplexer fully supports all the new functions of the #2720, #2722, #2746, #4746, and #6180 workstation controllers.

Workload and Performance 51

Workload and Performance

52 iSeries Handbook

iSeries Direction

This chapter outlines both future and present directions of the iSeries platform. It discusses product previews, statements of direction, and general planning information. Products, features, and software withdrawn are identified with announced dates when support is to be discontinued. By communicating these future plans, IBM intends to help our customers plan for better use of their system.

Product Previews

Product Previews identify specific functions IBM has committed to incorporate into future iSeries hardware or software releases. Understanding them can provide insight into IBM plans and directions for future iSeries hardware or software releases. The information released represents the current intent of IBM. They represent goals and objectives only. All statements regarding IBM’s plans, directions, and intent are subject to change or withdrawal without notice.

As part of the iSeries announcements made in April 2001 and May 2000, IBM announced an intention to provide an update of OS/400 that includes the following enhancements. The previews listed are separated into fulfilled and non-fulfilled categories at the time of the V5R1 initial and increment announcements (23 April 2001, 28 August 2001, and 12 February 2002 respectively).

Product Previews: Open

This product preview remains open at the time of the V5R1 announcement (23 April 2001):

Business-to-business (B2B) integration - iSeries Licensed Program and operating

•

system enhancements

IBM intends to consider additional capabilities and integration of B2B for iSeries beyond the first release of Connect for iSeries, some of which have been released in the product update that became available on 23 April 2001 and 31 August 2001. Specific connectors may be made available for different e-marketplaces, as well as back-end core business applications that plug into the integration framework delivered in the first release of Connect for iSeries.

IBM intends to integrate and provide interfaces to the Java servlets and JavaServer Pages (JSP) support for Apache, providing an integrated runtime environment for server applications written as Java servlets or JSPs. Also you will be able to upgrade from the base B2B, which can enable functions integrated into iSeries to the functionally rich IBM WebSphere framework of products. This upgrade will provide a smooth path for growth as you continue to enhance and integrate your processes with other businesses.

iSeries Direction

For more information on Connect for iSeries, go to the Web site at:

http://www.ibm.com/servers/eserver/iseries/btob/connect

These product previews are open at the time of the incremental V5R1 announcements made on 12 February 2002:

•

Support for WebSphere Application Server 4.0: IBM intends to support iSeries

Access for Web and WebSphere Host Publisher when used with WebSphere Application Server 4.0 Advanced Edition for iSeries. This support will be available in the next release.

•

Power4 microprocessor technology for iSeries: IBM plans to bring the POWER4

microprocessor technology to the iSeries in second half of 2002. In addition, the iSeries also plans to continue to strengthen its position as a leading e-business server with enhancements that further extend the integration of Domino, Linux, and WebSphere technologies.

•

SPD I/O not supported on Power 4 iSeries: IBM does not intend for the planned

Power 4 iSeries servers to support non-PCI (SPD-based) I/O controllers and adapters.

•

Growth options for Model 270 customers: Product offerings for small and medium

enterprise customers are important to iSeries' success and are part of our strategic and tactical plans. IBM intends to provide technology upgrade options for the Model 270 customer in the second half of 2002. This capability will support our customer's e-business and workload consolidation plans.

Product Previews: Closed

These product previews were closed at the time of the 28 August 2001 announcement:

Dual Power LIne Cords on iSeries: IBM intends to provide dual power line cords as

• another high availability option on iSeries Models 820, 830, and 840, as well as the #5074 and #5079 Towers.

•

Web Traffic Express: IBM has changed its plan to provide a Web Traffic Express

proxy server. Instead, a proxy server is included with the iSeries HTTP Server (Powered by Apache). It is an industry accepted proxy server and is delivered as a no charge feature of OS/400. The Apache-based HTTP proxy server provides high-performance caching, reverse proxy, and content filtering by domain and IP address.

These product previews were closed at the time of the V5R1 announcement (23 April 2001):

•

Logical Partitioning (LPAR) Enhancements: IBM intends to significantly increase

the flexibility of LPAR by supporting dynamic resource movement between partitions and providing support for multiple partitions assigned to a single processor.

•

iSeries Linux Support: IBM plans to provide Linux for selected models of the iSeries

platform by providing native support of the Linux kernel running in a secondary logical

56 iSeries Handbook

iSeries Direction

partition of the operating system. This will enable Linux applications to run on such iSeries servers with few or no changes required. The Linux kernel will enable a new stream of e-business applications for the iSeries platform that complements its strength as an integrated core business solution. Linux applications will benefit from the iSeries platform's ability to provide resource flexibility, reliability, and connectivity to other applications on a single server.

•

High-Speed Link (HSL) OptiConnect: IBM intends to further leverage the significant

bandwidth, flexibility, and speed of new High-Speed Link (HSL) for system-to-system connectivity by offering HSL OptiConnect.

•

Direct Attach Netfinity Server: IBM intends to support direct AS/400 attachment of

SMP Netfinity servers via the AS/400 High-Speed Link (HSL) bus, retaining the systems management and disk consolidation features of today's AS/400 Integrated Netfinity Server.

•

Electronic Customer Support (ECS) PM/400e and Service Agent: IBM intends to

support Electronic Customer Support (ECS) running over a TCP/IP connection, including electronic fix retrieval, problem reporting, and hardware and software inventory information. PM/400e and Service Agent (formerly known as Service Director) will also be modified to take advantage of the TCP/IP connection. These functions will use the V.90 integrated modem that is shipped with the 2xx and 8xx models. IBM also intends to add fax support for this integrated modem.

•

CPA Toolkit: Support for Common Programming APIs (CPA) Toolkit will be

discontinued in future OS/400 releases. OS/400 V4R4 is the last release to support the CPA Toolkit development environment. CPA applications can be modified on V4R4 and earlier releases only. The CPA Toolkit runtime environment is supported for V4R5. Software developers and customers are encouraged to migrate CPA applications to kernel threads, the strategic OS/400 function. Information on migrating from CPA to kernel threads is available at:

http://www.as400.ibm.com/developer/threads/cpa/roadmap.doc.html

• Altered Program Objects: Some application providers and customers alter their program objects. Today you cannot recreate a program object without source code on an iSeries or AS/400 server if observable information, which includes program creation data, has been removed. A future enhancement to OS/400 will retain program creation data when observable information is removed, allowing the program to be recreated at the customer's option. Recreating a program helps ensure its integrity and allows you to take advantage of new hardware or enhancements in translator technology. However, when a program is recreated, alterations made to the program object are not retained. Programs that depend on alterations may fail or behave in an unexpected manner should the customer choose to recreate them. Customers should consult their application providers regarding potential impacts of program re-creation.

Note: IBM recommends against altering program objects because altered programs may

bypass checks made by OS/400 that help ensure system integrity and security.

iSeries Direction 57

iSeries Direction

Statement of Direction

Statements of direction identify the commitment of IBM to direct the iSeries servers toward a given design or technology. Understanding them can provide insight into IBM’s design and technology plans.

As part of the iSeries announcements made in April 2001, IBM announced a commitment to the following direction:

Database File support in independent auxiliary storage pool/switchable disk In a future release, IBM intends to enhance OS/400 support for switching the ownership

of objects between Primary and Secondary Servers through the use of Independent Auxiliary Storage Pool (IASP) and switchable disk technologies by extending the list of possible switched objects beyond Integrated File System (IFS) files. Additions would include objects associated with the DB2 Universal Database for iSeries and other OS/400 library based objects.

Planning Information

Business grows, the information systems needs of a business change, and technology changes to allow more efficient and cost effective methods to solve business problems. As the iSeries and OS/400 are enhanced, new technology is introduced. Other technology reaches a point where no further enhancements, functions, or maintenance is planned. This section helps our customers plan for these changes and to protect their investment as their business needs change.

• AS/400 Models 4xx and 5xx: OS/400 V5R1 is the final release to be supported on

AS/400 Models 400, 436, 40S, 500, 510, 530, 50S, and 53S.

•

Client Access Family: IBM intends to remove support of the Windows 95 operating

system for the Client Access Express for Windows client. Client Access Express for Windows 95 will not be supported beyond V5R1.

This removal of Windows 95 support applies to all of the functions shipped with Client Access Express, including EZ-Setup, Operations Navigator, Management Central, and Operations Console. Client Access Express for Windows will continue to be supported on the Windows 98, NT 4.0, ME, and 2000 Operating systems.

•

AS/400 support for Windows Network Neighborhood: IBM intends to remove the

support of the Windows 95 operating system from AS/400 NetServer. Windows 95 will continue to be supported from AS/400 NetServer in V5R1, but not in subsequent releases. AS/400 NetServer will continue to support the Windows 98, NT 4.0, ME, and 2000 Operating systems.

58 iSeries Handbook

iSeries Direction

• OfficeVision/400: As previously announced, V4R5 is the final release to support OfficeVision/400. End of program services for OV/400 is 31 May 2001. OfficeVision/400 will be uninstalled upon upgrading to V5R1 or later releases.

• BEST/1: V5R1 is the final release to support the BEST/1 Capacity Planning tool.

BEST/1 is included in Performance Tools (5722-PT1). The BEST/1 function will be discontinued after V5R1.

•

Wireless Connection for AS/400 (5798-TBW): V4R5 is the final release to support

Wireless Connection for AS/400.

•

IPX: V5R1 is the final release to support the IPX protocol. The Enhanced Integration

for NetWare (Option 25) configurations can be changed from IPX to IP connectivity.

•

Lotus Domino Client subscription: IBM intends to provide a new offering for

customers to renew their software subscription entitlement for Lotus Domino clients, which was previously purchased under Lotus Domino Enterprise Server for AS/400 (5769-LNT).

Under the new offering, customers can purchase client entitlement for one year of subscription at a price similar to Lotus’ Passport Advantage. The terms of the current offering for Lotus Domino client software subscription are extended until the new offering is announced.

•

¼-Inch Cartridge Tape: V5R1 is the final release to support the #6385/#6485 ¼-inch

Cartridge Tape Unit. Customers using these tape units can order a conversion to a 16 GB ¼-inch Cartridge Tape Unit (#4483/#4583/#6383/#6483), a 25 Gb ¼-inch Cartridge Tape Unit (#4486/#4586/#6386/#6486), or a 50 GB ¼-inch Cartridge Tape Unit (#4487/#4587). Customers who use their tape drive primarily for incremental fast backups and need smaller (2.5 GB) capacity tape drive units should consider the #4482/#6382 2 GB ¼-inch tape drive.

•

OS/2 Warp Server for iSeries and Novell 4.11 on the iSeries Integrated Netfinity Server

: Customers running this product are no longer supported as of 31 January

2001. These products will not be functionally enhanced. We recommend that customers with Domino on the OS/2 based iSeries Integrated Netfinity Server migrate to the native Domino for iSeries product, which provides enhanced scalability, reliability, and integration. V4R3 is the last release of OS/400 to support Lotus Domino running on the OS/2 based iSeries Integrated Netfinity Server.

•

NetVista Thin Client: V5R1 is the final release to support NetVista Thin Client

Manager V2R1. The current Program Service End Date for Thin Client Manager V2R1 is 31 December 2001.

•

Workstation Gateway: V5R1 is the final release to support 5722-SS1 Workstation

Gateway, which is part of the TCP/IP functions of OS/400. Migrate to IBM WebSphere Host Publisher XML Legacy Gateway, a customizable Web-based 5250 interface function, for equivalent.

iSeries Direction 59

iSeries Direction

• Directory Services LDAP: V5R1 is the final release to support Option 32 of 5722-SS1. On releases beyond V5R1, call the APIs from library

nnnn

instead of library

QDIRSRV.

iSeries Planning Information Web Sites

For information on modeling tools, installation planning, and upgrade resources, see:

http://www.ibm.com/servers/eserver/iseries/support/planning

You can find such information as product previews, statements of direction, and products no longer supported on a release, with migration plans as available, on the Web at:

http://www-1.ibm.com/servers/eserver/iseries/support/planning/nav.html

Withdrawn Products

When products and features are withdrawn from marketing, they are removed from the

iSeries Handbook

found by referencing IBM online systems, such as a legacy edition of the

Handbook

found at: http://publib.boulder.ibm.com/pubs/html/as400/online/chgfrm.htm or the

iSeries home site.

Refer to “Products and Features no Longer Marketed by IBM” on page 817 for a listing of many withdrawn features and products.

. Information on all iSeries and AS/400e products and features can be

AS/400e System

Features and Devices Not Supported on V5R1

These features are not supported with OS/400 V5R1:

• #2620 Cryptographic Processor

• #2628 Cryptographic Processor

• #2851 PCI Integrated PC Server

• #2854 PCI Integrated PC Server

• #6509 Additional 16MS FSIOP Memory

• #6516 16MB One-Port FSIOP

• #6517/#9517 32MB One-Port FSIOP

• #6518 48MB One-Port FSIOP

• #6519 64MB One-Port FSIOP

• #6520 Upgrade 1 to 2 Port FSIOP

• #6526 16MB Two-Port FSIOP

• #6527 32MB Two-Port FSIOP

• #6528 48MB Two-Port FSIOP

• #6529 64MB Two-Port FSIOP

• #6616 Integrated PC Server

• #8716 Optional 16MB One-Port FSIOP

60 iSeries Handbook

iSeries Direction

• #8717 Optional 32MB One-Port FSIOP

• #8718 Optional 48MB One-Port FSIOP

• #8719 Optional 64MB One-Port FSIOP

• #8726 Optional 16MB Two-Port FSIOP

• #8727 Optional 32MB Two-Port FSIOP

• #8728 Optional 48MB Two-Port FSIOP

• #8729 Optional 64MB Two-Port FSIOP

These devices are not supported with OS/400 V5R1:

• 2440

• 3422

• 3430

• 3995: Models 042, 043, 142, 143, A43

• 9347

• 9331: Models 001 and 002

• 3995: All models connected via a #2621 are no longer supported

Software End of Support Dates

With the high quality and reliability of the current OS/400 software releases, OS/400 users may not recognize the importance of periodic upgrading to stay on a supported release. Every release of OS/400 has a defined Program Services period, with the end date announced with the initial announcement of the release. After the end of that Program Services period, IBM no longer accepts problems for defect analysis.

Versio n

Release

Modification

R7.5 SSP 8 March 1996 9 February 1999 31 May 2000 N/A V3R0.5 3 June 1994 11 February 1997 31 May 1997 N/A V3R1 30 June 1995 11 February 1997 31 October 1998 N/A V3R2 21 June 1996 10 February 1998 31 May 2000 N/A V3R6 29 September 1995 19 August 1997 31 October 1998 N/A V3R7 8 November 1996 1 September 1998 30 June 1999 N/A V4R1 29 August 1997 9 February 1999 31 May 2000 N/A V4R2 27 February 1998 9 February 1999 31 May 2000 31 January 2001 V4R3 11 September 1998 15 February 2000 31 January 2001 N/A V4R4 21 May 1999 31 May 2001 31 May 2000 30 November

V4R5 28 July 2000 31 July 2002 N/A V5R1 25 May 2001 N/A

General

Availability

End of

Marketing

End of

Program

Support

Fee-based

Support

Extension

2001

iSeries Direction 61

iSeries Direction

Communications (WAN) Functions No Longer Supported

The following functions are no longer supported on current iSeries and AS/400e product line WAN hardware (such as the #2609 EIA 232/V.24 Two Line Adapter, the #2610 X.21 Two Line Adapter, and other, older adapters). They are not supported on the #2720 PCI WAN/Twinaxial IOA, the #2721 or #2745 PCI Two-Line WAN IOA, the #2699 Two-Line WAN IOA, or the #9771 Base PCI 2-Line WAN with Modem.

• X.21 switched interface (X.21 leased support)

• X.21 Shorthold mode

• V.25 2 port autocall. This is the protocol used to auto dial on switched connections using modems that require a second port dedicated to the dial function. Do not confuse this with V.25bis, which is the current day autocall protocol that sends dial commands over the same port used for data. V.25 bis itself is supported.

• Asynchronous communication speeds of less than 300 bps.

• Data Rate Select signal on the EIA 232/V.24 interface. This function is used by some, older 2400 bps modems to reduce the speed to 1200 bps.

• LPDA-1 (Link Problem Determination Aids). This is a diagnostic function supported by some (primarily older IBM) modems.

• V.54 local and remote loopback (diagnostic functions supported by some modems).

62 iSeries Handbook

Server Summary

iSeries and AS/400e Servers

These tables summarize the resource capabilities and performance characteristics of all models in the current product line of iSeries and AS/400e servers.

Table 1: Summary of the AS/400e Server 250

Model 250 Processor Feature

Relative System Performance - CPW (Notes 1 and 2)

Processor Performance 50 75 Interactive Performance 15 20 Number of N-Way Multiprocessors 1 1 L2 Cache (MB) 0 0 Main Storage (MB) (min/max) 256-1024 256-1024 Main Storage or DIMMs (min/max) 2/8 2/8 Processor Group PPS/P05 PPS/P05

Base System for all

processors

Disk Storage (GB) Minimum Internal 8.58 0 8.58 Maximum Internal 70.16 105.24 175.40 System I/O Card Slots 6 9 15 Maximum Communication Lines (Note 4) 1-12 0-26 30 ATM Adapters (Note 3) 0 0-2 2 Maximum LAN/ATM Adapters (Note 6) 2 4 6 Non-Integrated Server LAN Low-Speed 1 4 5 Non-Integrated Server LAN 100/10 Ethernet 1 2 3 Integrated Server LAN Low-Speed 2 2 4 Integrated Server LAN 100/10 Ethernet 1 1 2 Maximum Workstation Controllers - Twinaxial 2 5 6 Maximum Workstations - Twinaxial 28-80 200 240 Cryptographic Processors 0 2 2

¼-inch Cartridge Tape (Internal) 0-1 0 1

8mm

½-inch Cartridge (External) 0 0-2 2

Tape Libraries (Note 5) 0 0-2 2 CD-ROM 1 0 1 Optical Libraries - Direct attach 0 0-2 2

#2295 #2296

System Unit

Expansion #7102

Total Maximum

iSeries and AS/400e Servers

Note 1: Commercial Processing Workload (CPW) is used to measure the performance of all iSeries and AS/400e

Note 2: Processor performance represents the relative performance (maximum capacity) of a processor feature

Note 3: The Integrated Server is mutually exclusive with the high-speed slot for LAN in the Base System Unit.

Note 4: One line is used by the Operations Console.

Note 5: Total number of external tape drives does not increase.

Note 6: Integrated Server refers to Integrated xSeries Server for iSeries.

processors announced from September 1996 onward. The CPW value is measured on maximum configurations. The type and number of disk devices, the number of workstation controllers, the amount of memory, the system model, other factors, and the application running determine what performance is achievable. With the introduction of the Dedicated Servers for Domino, Simple Mail Users is added as a performance measurement.

Table 2: Summary of the iSeries Model 250 Packages

Model Processor Feature

Relative System Performance - CPW (Notes 1 and 2)

Processor Performance 50 75 Interactive Performance 15 20 Number of N-Way Multiprocessors 1 1 L2 Cache (MB) 0 0 Processor Group (Note 3) PPS/P05 PPS/P05

Package Configuration

Main Storage (MB) (min/max) 256 1024 Main Storage or DIMMs (min/max) 2 8 Disk Storage (GB) (Note 5) Minimum Internal 17.54 35.08 Maximum Internal 35.08 70.16 System I/O Card Slots 6 6 Communication Lines (Note 6) 1 12 ATM Adapters 0 0 Maximum LAN/ATM Adapters (Note 7) 1 2 Non-Integrated Server LAN Low-Speed 0 1 Non-Integrated Server LAN 100/10 Ethernet 1 1 Integrated Server LAN Low-Speed 0 2

#0297 Entry #0298 Growth

(Note 4)

250

Configuration Maximum

66 iSeries Handbook

iSeries and AS/400e Servers

Package Configuration

Configuration Maximum

(Note 4)

Integrated Server LAN 100/10 Ethernet 0 1 Maximum Workstation Controllers - Twinaxial 1 2 Maximum Workstations - Twinaxial 28 80 Cryptographic Processors 0 0

¼-inch Cartridge Tape (Internal) (Note 8) 1 1

8mm

½-inch Cartridge (External) 0 0

Tape Libraries 0 0 CD-ROM 1 1 Optical Libraries - Direct attach 0 0

Note 1: Commercial Processing Workload (CPW) is used to measure the performance of all iSeries and AS/400e

Note 2: Processor performance represents the relative performance (maximum capacity) of a processor feature

Note 3: Package includes:

• OS/400 Base (5722-SS1)

• iSeries Client Access Family (5722-XW1)

• IBM Query for AS/400 (5722-QU1)

• IBM DB2 Query Manager and SQL Development Kit for AS/400 (5722-ST1) Other Licensed Programs may be added to the package when ordered.

Note 4: Package configuration reflects system as shipped from IBM. No modification of the hardware configuration

is allowed on a new order. Optional features may be added after shipment through IBM Business Partners.

Note 5: Package configuration includes two drives and is shipped with mirroring active. Minimum Internal Disk

Storage refers to available disk with mirroring active. Maximum Internal Disk Storage refers to unprotected disk capacity.

Note 6: Package configuration includes #9771 2-Line WAN w/Modem to provide for Electronic Customer Support

through the integrated modem on port 1. If the use of port 2 is required, the appropriate communications cable must be obtained through an IBM Business Partner.

Note 7: The Integrated Server is mutually exclusive with the high-speed slot for LAN.

Note 8: Package configuration includes #6382 4GB ¼-Inch Cartridge Tape Unit.

iSeries and AS/400e Servers 67

iSeries and AS/400e Servers

Table 3: Summary of the iSeries Model 270

Model 270 Processor Feature

Relative System Performance (Notes 1 and 2)

Processor CPW 150 370 950 2000 Interactive CPW Base #1516 (Note 5) - 0 0 0 #1517 25 - - #1518 - 30 - #1519 - - 50 #1520 - - - 70 Number / Type / Speed of Processors 1/Pulsar

L2 Cache (MB)/Processor 0 0 2 4 Main Storage (MB min/max) 256-4096 256-4096 256-8192 256-8192 Main Storage DIMMs (min/max) 2/8 2/8 2/16 2/16 Minimum Operating System Level V4R5 V4R5 V4R5 V4R5 Processor Group (Note 7) P05 P10/P10 P10/P10 P20/P20

#2248 #2250 #2252 #2253

400 Mhz

1/Pulsar

400 Mhz

1/Pulsar

450 Mhz

2/Pulsar

450 Mhz

Model Processor Feature

Relative System Performance (see Notes 1 and 2)

Processor CPW 465 1070 2350 Interactive CPW None - - Base #1516 (Note 5) - 0 0 #1518 30 - #1519 - 50 #1520 - - 70 Number / Type / Speed of

Processors L2 Cache (MB) 0 2 4 Main Storage (MB min-max) 256-8192 256-8192 256-16384 Main Storage DIMMs (min/max) 1/8 1/8 2/16 Minimum Operating System Level V5R1 V5R1 V5R1 Processor Group (Note 7) P10 P10/P10 P20/P20

#2431 #2432 #2434

1/SStar

540 Mhz

270

1/SStar

540 Mhz

2/SStar

600 Mhz

68 iSeries Handbook

iSeries and AS/400e Servers

Model Processor Feature

270 Dedicated Server for Domino

#2422 #2423 #2424

Relative System Performance (CPW - Notes 1 and 2)

Processor CPW 50 100 200 Interactive Environment (Note 5) 0 0 0 Simple Mail Users 2400 3860 7580 Mail and Calendaring Users 1600 2570 5050 Number / Type / Speed of Processors 1/Pulsar

400 Mhz

1/Pulsar 450 Mhz

2/Pulsar 450 Mhz

L2 Cache (MB) 0 2 4 Main Storage (MB min/max) 256-4096 256-8192 256-8192 Main Storage DIMMs (min/max) 2/8 2/16 2/16 Minimum Operating System Level V4R5 V4R5 V4R5 Processor Group (Note 7) P05 P05 P10

Model Processor Feature

270 Dedicated Server for Domino

#2452 #2454

Relative System Performance Processor CPW 100 240 Interactive Environment 0 0 Mail and Calendaring Users 3070 6660 Number / Type / Speed of Processors 1/SStar

540 Mhz

2/SStar

600 Mhz

L2 Cache (MB) 2 4 Main Storage (MB min/max) 256-8192 256-16384 Main Storage DIMMs (min/max) 1/8 2/16 Minimum Operating System Level V5R1 V5R1 Processor Group (Note 7) P05 P10

iSeries and AS/400e Servers 69

iSeries and AS/400e Servers

Summary

Base

System

Disk Storage (GB) Integrated Minimum 8.58 - - 8.58 Integrated Maximum 210.9 421.9 210.9 843.9 843.9 External Maximum (Note 7) 808.7 - 808.7 808.7 808.7 Total Maximum 843.9 421.9 808.7 843.9 843.9 DASD Arms Maximum 2312232424 Arms Internal 6 12 6 24 24 LUNs External 23 - 23 23 23 Physical Packaging External HSL Ports 2 - - 2 2 External HSL Loops 1 - - 1 1 #5075 Towers supported 1 - - 1 1 #5074 Towers supported - --- External xSeries Servers supported 2 - - 2 2 Embedded IOP 1 - 1 2 2 PCI Card Slots 7 - 8 15 15 Maximum PCI IOA Cards 6 - 7 13 13 Communication Lines (Note 4) 26 - 34 50 50 LAN Ports 4-588 Integrated Netfinity Servers 1 - 2 3 3 Twinaxial Workstation Controllers 4 - 6 6 6 Twinaxial Workstations 160 - 240 240 240 Internal/DlVD-ROM/DVD-RAM/Tape(6) 2 - - 2 2 External Tape 3 - 3 3 6 External CD-ROM / DVD-RAM (Note 6) 3 3 3 6 Tape Libraries (Note 3) 3 - 3 3 6 Optical Libraries 4 - 4 4 8 Diskettes (5 ¼-inch or 8-inch) - ---Cryptographic Processor 3 - 3 3 3

System Unit

Expansion

#7104

PCI

Expansion

Tow er #5075

Tot al

Maximum

LPAR

Maximum

Note 1: Commercial Processing Workload (CPW) is used to measure the performance of all iSeries and AS/400e

Note 2: Processor performance represents the relative performance (maximum capacity) of a processor feature

Note 3: The total number of tape drives does not increase.
