About this User's Guide

What you will learn from this user's guide

This user's guide explains how to install, configure, and use the CIO-DIO48H board so that you get the most out of its analog output features. This user's guide also refers you to related documents available on our web site, and to technical support resources.

Conventions in this user's guide

The following conventions are used in this manual to convey special information:
For more information on …
Text presented in a box signifies additional information and helpful hints related to the subject matter you are reading.
Caution! Shaded caution statements present information to help you avoid injuring yourself and others,
damaging your hardware, or losing your data.
Preface
<#:#> Angle brackets that enclose numbers separated by a colon signify a range of numbers, such as those assigned
to registers, bit settings, etc.
bold text Bold text is used for the names of objects on the screen, such as buttons, text boxes, and check boxes. For
example:
1. Insert the disk or CD and click the OK button.
italic text Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. For
example: The InstaCal installation procedure is explained in the Quick Start Guide. Never touch the exposed pins or circuit connections on the board.

Where to find more information

The following electronic documents provide information relevant to the operation of the CIO-DIO48H.
MCC's Specifications: CIO-DIO48H (the PDF version of the Specifications chapter in this guide) is
available on our web site at www.mccdaq.com/pdfs/CIO-DIO48H.pdf
MCC's Quick Start Guide is available on our web site at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf.
MCC's Guide to Signal Connections is available on our web site at
www.mccdaq.com/signals/signals.pdf
MCC's Universal Library User's Guide is available on our web site at
www.mccdaq.com/PDFmanuals/sm-ul-user-guide.pdf
MCC's Universal Library Function Reference is available on our web site at
www.mccdaq.com/PDFmanuals/sm-ul-functions.pdf
MCC's Universal Library for LabVIEW
www.mccdaq.com/PDFmanuals/SM-UL-LabVIEW.pdf
.
.
User’s Guide is available on our web site at
.
.
.
CIO-DIO48H User's Guide (this document) is also available on our web site at
www.mccdaq.com/PDFmanuals/CIO-DIO48H.pdf
.
6
Chapter 1

Introducing the CIO-DIO48H

Overview: CIO-DIO48H features

The CIO-DIO48H provides 48-bits of digital I/O. The I/O is organized into two 24-bit groups based on an 82C55 mode 0 emulation. Each 24-bit group is divided into three eight-bit ports labeled n is either "1" for FIRSTPORT or "2" for SECONDPORT. Port C can be split into two four-bit nibbles — Port C-HI and Port C-LO. Each of these ports may be individually programmed as input or output.
All digital inputs are LSTTL. The output signals are buffered high output drive TTL. The digital output drivers are 74S244 chips that can sink 64 mA and source 15 mA. The input buffers are 74LS373 chips and have standard high input impedance of the 74LS series devices.
On power up and reset, all I/O bits are set to input mode. If you are using the board to control items that must be OFF on reset, install pull-down resistors. The board is equipped with open locations where you can install SIP resistor networks for either pull-up or pull-down.
All signals pass through a 50-pin connector.
An, Bn and Cn, where

Software features

For information on the features of InstaCal and the other software included with your CIO-DIO48H, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
Check www.mccdaq.com/download.htm
for the latest software version.
.
7

Installing the CIO-DIO48H

What comes with your CIO-DIO48H shipment?

The following items are shipped with the CIO-DIO48H.

Hardware

CIO-DIO48H
Chapter 2

Additional documentation

In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
the software you received with your CIO-DIO48H and information regarding installation of that software. Please read this booklet completely before installing any software or hardware.
). This booklet supplies a brief description of

Optional components

C50FF-x cable
Signal termination and conditioning accessories
MCC provides signal conditioning and termination products for use with the CIO-DIO48H. Refer to Field
wiring, signal termination, and conditioning on page 12 for a complete list of compatible accessory
products.
8
CIO-DIO48H User's Guide Installing the CIO-DIO48H
3

Unpacking the CIO-DIO48H

As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the CIO-DIO48H from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge.
If any components are missing or damaged, notify Measurement Computing Corporation immediately by phone, fax, or e-mail:
Phone: 508-946-5100 and follow the instructions for reaching Tech Support. Fax: 508-946-9500 to the attention of Tech Support Email: techsupport@mccdaq.com

Installing the software

Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data Acquisition Software CD. This booklet is available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-
Quick-Start.pdf.

Configuring the base address switch

The CIO-DIO48H employs the PC bus for power, communications and data transfer. It draws power from the PC, monitors the address lines and control signals, responds to its I/O address, and receives and places data on the eight data lines.
The CIO-DIO48H has one bank of base address-select switches. Verify their settings before installing the board in your computer.

Base address switch

The easiest way to set the base address is to let InstaCal show you the correct settings. However, if you are already familiar with setting ISA base addresses, you may use the base address switch description below to guide your base address selection.
The base address is the starting location that software writes to when communicating with the CIO-DIO48H. A set of DIP switches is used to set the base address. By placing the switch down, the CIO-DIO48H address decode logic is instructed to respond to that address bit. A complete address is constructed by calculating the HEX or decimal number which corresponds to all the address bits the board has been instructed to respond to.
The board is shipped with the base address set to 300 hex (see system that uses address 300 hex (768 decimal), leave the switches as they were set at the factory.
9876
ADDRESS
54
Figure 1
3
). Unless there is already a board in your
HEX
SW
200
A9
100
A8
80
A7
40
A6
20
A5
10
A4
08
A
Figure 1. Base address switch
In the default configuration, addresses 9 and 8 are down, and all others are up. Address 9 = 200 hex (512 decimal), and address 8 = 100 hex (256 decimal). When added together they equal 300 hex (768 decimal).
9
CIO-DIO48H User's Guide Installing the CIO-DIO48H
Disregard the numbers printed on the switch
When setting the base address, refer to the numbers printed in white on the printed circuit board.
PC I/O Address Summary
Hex Range Function Hex Range Function
000-00F 8237 DMA #1 2C0-2CF EGA
020-021 8259 PIC #1 2D0-2DF EGA
040-043 8253 TIMER 2E0-2E7 GPIB (AT)
060-063 8255 PPI (XT) 2E8-2EF SERIAL PORT
060-064 8742 CONTROLLER (AT) 2F8-2FF SERIAL PORT
070-071 CMOS RAM & NMI MASK (AT) 300-30F PROTOTYPE CARD
080-08F DMA PAGE REGISTERS 310-31F PROTOTYPE CARD
0A0-0A1 8259 PIC #2 (AT) 320-32F HARD DISK (XT)
0A0-0AF NMI MASK (XT) 378-37F PARALLEL PRINTER
0C0-0DF 8237 #2 (AT) 380-38F SDLC
0F0-0FF 80287 NUMERIC CO-P (AT) 3A0-3AF SDLC
1F0-1FF HARD DISK (AT) 3B0-3BB MDA
200-20F GAME CONTROL 3BC-3BF PARALLEL PRINTER
210-21F EXPANSION UNIT (XT) 3C0-3CF EGA
238-23B BUS MOUSE 3D0-3DF CGA
23C-23F ALT BUS MOUSE 3E8-3EF SERIAL PORT
270-27F PARALLEL PRINTER 3F0-3F7 FLOPPY DISK
2B0-2BF EGA 3F8-3FF SERIAL PORT
You can set the base address switch to any address in the range of 000-3F8. If you are not using IBM prototyping cards or another board which occupies these addresses, 300-31Fh are also free to use.
Addresses not specifically listed, such as 390-39Fh, are not reserved and may be available. Check your computer for other boards which may use I/O addresses.

Installing the CIO-DIO48H

After you configure the base address, you can install the CIO-DIO48H into your computer. Follow the steps below.
Install the MCC DAQ software before you install your board
The driver needed to run your board is installed with the MCC DAQ software. Therefore, you need to install the MCC DAQ software before you install your board. Refer to the Quick Start Guide for instructions on installing the software.
1.
Turn your computer off, open it up, and insert your board into an available ISA slot.
2.
Close your computer and turn it on.
3.
To test your installation and configure your board, run the InstaCal utility you installed in the previous section. Refer to the Quick Start Guide that came with your board www.mccdaq.com/PDFmanuals/DAQ-
Software-Quick-Start.pdf for information on how to initially set up and load InstaCal.
10
CIO-DIO48H User's Guide Installing the CIO-DIO48H

Connecting the board for I/O operations

Connectors, cables – main I/O connector

The table below lists the board connector, applicable cables, and compatible accessory products.
Board connector, cables, and accessory equipment
Connector type 50-pin shrouded male header
Compatible cables C50FF-x
Compatible accessory products with the C50FF-x cable

Pinout – main I/O connector

The CIO-DIO48H connector is a 50-pin male shrouded header connector that is accessible through the PC/AT expansion bracket.
CIO-TERM100
CIO-SPADE50
CIO-MINI50
SSR-RACK24, SSR-RACK48
CIO-ERB24, CIO-ERB48
FIRSTPORTC Bit 0 48
GND 50
FIRSTPORTC Bit 2 46 FIRSTPORTC Bit 4 44 FIRSTPORTC Bit 6 42 FIRSTPORTB Bit 0 40 FIRSTPORTB Bit 2 38 FIRSTPORTB Bit 4 36 FIRSTPORTB Bit 6 34
FIRSTPORTA Bit 0 32 FIRSTPORTA Bit 2 30 FIRSTPORTA Bit 4 28
FIRSTPORTA Bit 6 26 SECONDPORTC Bit 0 24 SECONDPORTC Bit 2 22 SECONDPORTC Bit 4 20 SECONDPORTC Bit 6 18 SECONDPORTB Bit 0 16 SECONDPORTB Bit 2 14 SECONDPORTB Bit 4 12 SECONDPORTB Bit 6 10
SECONDPORTA Bit 0 8 SECONDPORTA Bit 2 6 SECONDPORTA Bit 4 4 SECONDPORTA Bit 6 2
49 +5V 47 FIRSTPORTC Bit 1 45 FIRSTPORTC Bit 3 43 FIRSTPORTC Bit 5 41 FIRSTPORTC Bit 7 39 FIRSTPORTB Bit 1 37 FIRSTPORTB Bit 3 35 FIRSTPORTB Bit 5 33 FIRSTPORTB Bit 7 31 FIRSTPORTA Bit 1 29 FIRSTPORTA Bit 3 27 FIRSTPORTA Bit 5 25 FIRSTPORTA Bit 7 23 SECONDPORTC Bit 1 21 SECONDPORTC Bit 3 19 SECONDPORTC Bit 5 17 SECONDPORTC Bit 7 15 SECONDPORTB Bit 1 13 SECONDPORTB Bit 3 11 SECONDPORTB Bit 5 9 SECONDPORTB Bit 7 7 SECONDPORTA Bit 1 5 SECONDPORTA Bit 3 3 SECONDPORTA Bit 5 1 SECONDPORTA Bit 7
Figure 2. I/O connector pin-out
All the digital inputs and outputs are TTL. Under normal operating conditions, the voltages on the I/O pins range from near 0 volts for the low state, to near 5 volts for the high state. The voltages and currents of external devices usually exceed these values. Because of this, external relays are usually employed to handle higher current and voltage loads.
In addition to load matching, digital signal sources often need to be filtered or "de-bounced". Refer to the Guide to Signal Connections for information on digital interfacing. This document is available at
www.mccdaq.com/signals/signals.pdf
11
CIO-DIO48H User's Guide Installing the CIO-DIO48H

Cabling

2
50
1
49
50-pin Female
IDC Connector
The red stripe
identifies pin # 1

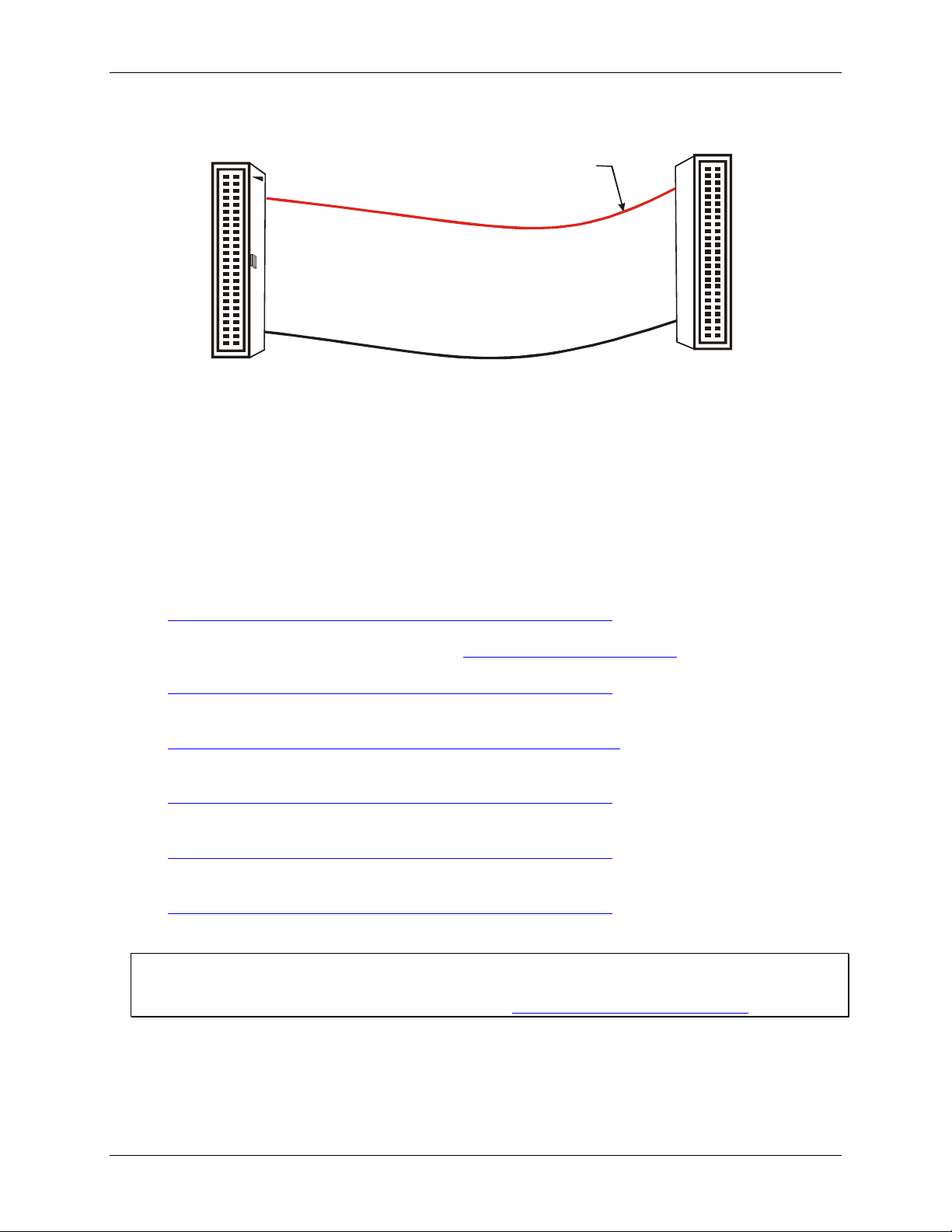

Figure 3. C50FF-x cable
2
50
1
49
50-pin Female IDC connector

Field wiring, signal termination, and conditioning

You can use the following cabling, screw termination, and signal conditioning products with the CIO-DIO48H.
CIO-TERM100 – 100-pin screw terminal board (daisy-chained 50-pin IDC connectors). Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=281
CIO-SPADE50 – 16" X 4" termination panel which mates with both 37-pin and 50-pin connectors. Details
on this product are available on our web site at www.mccdaq.com/pdfs/screw.pdf
CIO-MINI50 – 50-pin screw terminal board. Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258
SSR-RACK24 – 24-channel, solid-state relay mounting rack for digital signal conditioning. Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=1193
SSR-RACK48 – 48-channel, solid-state relay mounting rack with quad-format modules. Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=622
CIO-ERB24 – 24 Form C relays, 6 Amp relay accessory board for digital signal conditioning. Details on
this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=241
CIO-ERB48 – 48 Form C relays, 6 Amp, relay, 50-pin accessory board for digital signal conditioning.
Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=242
.
.
.
.
.
.
.
Information on signal connections
General information regarding signal connection and configuration is available in the Guide to Signal Connections. This document is available on our web site at www.mccdaq.com/signals/signals.pdf.
12
Chapter 3

Functional Details

82C55 emulation

The CIO-DIO48H emulates the 82C55 chip. The 82C55 emulation initializes all ports as inputs on power-up and reset. A TTL input is a high impedance input. If you connect another TTL input device to the output, it could be turned on or off every time the board is reset.
To establish a consistent TTL level at power-up, use resistors tied to either +5V (pull-up) or ground (pull­down). There are open locations for pull-up and pull-down resistor packs on the board.
Whenever an 82C55 emulation is powered on or reset, all pins are set to high-impedance input. Based on standard TTL functionality, these inputs will typically float high, and may have enough drive current to turn on external devices.
Consequently, if you have output devices such as solid state relays, they may be switched on whenever the computer is powered on or reset. To prevent unwanted switching, and to drive all outputs to a known state after power on or reset, pull all pins either high or low through a 2.2 K resistor.

Signal level control

To safeguard against unwanted signal levels, the devices being controlled by the CIO-DIO48H board should be tied low or high as required by a 2.2K resistor. In a 2.2K eight-resistor SIP pack, one side of all of the resistors is connected to a single common point and brought out to a pin. The common line, usually marked with a dot or line, is at one end of the SIP. The remaining resistor ends are brought out to the other eight pins (refer to Figure 4).
2.2KOhm SIP
Dot indicates the common line
(LO or HI)
I/O Lines
Figure 4. Eight-resistor SIP schematic
Figure 5 shows a schematic of an SIP installed in both the pull-up and pull-down positions. Each port provides 10 holes in a line. The end labeled
HI connects to +5V. The end marked LO connects to GND. The eight holes
in the middle (n0 –n7) connect to the eight lines of the port (A, B or C).
13
CIO-DIO48H User's Guide Functional Details
+5 VDC
HI
n7
n6
Digital
n = A, B, or C
n5
n4
I/O
n3
Port
n2
n1
n0
LO (GND)
2.2 K SIP installed for pull-up
2.2 K SIP
COM
Dot
User Connector
Digital I/O Lines
n = A, B, or C
+5 VDC
2.2 K SIP
HI
n7
n6
I/O
Port
n5
n4
n3
n2
n1
n0
LO (GND)
COM
Dot
Digital
2.2 K SIP installed for pull-down
User Connector
Digital I/O Lines
Figure 5. Pull-up and pull-down resistor SIPs schematic
To pull-up lines, orient the SIP with the common pin (dot) toward the HI end; to pull-down, install the resistor with the common pin in the
LO hole. When installing pull-up and pull-down resistor SIP packs, we recommend
using 2.2K, eight-resistor Single Inline Packages (MCC part number SP-K2.29C). Use a different value only if necessary.
Unconnected inputs float
Unconnected inputs typically float high, but not reliably. If you are using a CIO-DIO48H for input and have unconnected inputs, ignore the data from those lines. You do not have to terminate input lines. Unconnected lines will not affect the performance of connected lines. Mask out any unconnected bits in software.

Digital I/O Isolation

To provide external signal conditioning and isolation, you can connect the CIO-DIO48H to a CIO-ERB24 or SSR-RACK24. The CIO-ERB24 provides 24 Form C electromechanical relays. The SSR-RACK24 is a mounting rack for 24 solid-state relays.
The CIO-DIO48H provides digital I/O in groups of 48 bits. Many relay and solid-state relay (SSR) racks provide only 24-bits of digital I/O. You can configure the CIO-ERB24 relay output board and SSR-RACK24 I/O module rack in a daisy chain configuration to use all of the digital I/O bits provided by the CIO-DIO48H board. An example of the daisy chain configuration scheme for each board is shown on page 15.
14
CIO-DIO48H User's Guide Functional Details
CIO-DIO48H
IN
CIO-ERB24
OUT
or
SSR-RACK24
IN
CIO-ERB24
OUT
or
SSR-RACK24
Figure 6. CIO-DIO48H to CIO-ERB24 or SSR-RACK24 daisy chain
The 24 digital I/O bits on pins 25 to 48 (base address +0 through +2) control the first relay board. The 24 digital I/O bits on pins 1 to 24 control the second relay/SSR board on the daisy chain.
Use the C50FF-x cable for interconnections. You can also use SSR-RACK48 or the CIO-ERB48 series relay boards.
15
Chapter 4

Programming and Developing Applications

After following the installation instructions in Chapter 2, your board should now be installed and ready for use. In general there may be no correspondence among registers for different boards. Software written at the register level for other models will not function correctly with your board.

Programming languages

Measurement Computing's Universal Library provides access to board functions from a variety of Windows programming languages. If you are planning to write programs, or would like to run the example programs for Visual Basic or any other language, refer to the Universal Library User's Guide (available on our web site at
www.mccdaq.com/PDFmanuals/sm-ul-user-guide.pdf

Packaged applications programs

Many packaged application programs now have drivers for your board. If the package you own does not have drivers for your board, please fax or e-mail the package name and the revision number from the install disks. We will research the package for you and advise how to obtain drivers.
).
Some application drivers are included with the Universal Library package, but not with the application package. If you have purchased an application package directly from the software vendor, you may need to purchase our Universal Library and drivers. Please contact us by phone, fax or e-mail:
Phone: 508-946-5100 and follow the instructions for reaching Tech Support. Fax: 508-946-9500 to the attention of Tech Support Email: techsupport@mccdaq.com

Register-level programming

You should use the Universal Library or one of the packaged application programs mentioned above to control your board. Only experienced programmers should try register-level programming.
If you need to program at the register level in your application, refer to the Register Map for the CIO-DIO48, CIO-DIO48H, CIO-DIO96, and CIO-DIO192. This document is available on our website at
http://www.mccdaq.com/registermaps/RegMapCIO-DIO-Series.pdf
.
16

Specifications

Typical for 25 °C unless otherwise specified.
Specifications in italic text are guaranteed by design.

Digital input/output

Table 1. DIO specifications
Digital type 8255 mode 0 emulation
Output: 74S244 Input: 74LS373
Configuration 4 banks of 8, 4 banks of 4, programmable by bank as input or output
Number of channels 48 I/O
Output high 2.4 volts min @ -15 mA
Output low 0.5 volts max @ 64 mA
Input high 2.0 volts min, 7 volts absolute max
Input low 0.8 volts max, -0.5 volts absolute min
Power-up / reset state Input mode (high impedance)
Miscellaneous Locations provided for installation of pull-up or pull-down resistors.
Chapter 5

Power consumption

Table 2. Power consumption specifications
+5V 700 mA typical, 1200 mA max

Environmental

Table 3. Environmental specifications
Operating temperature range 0 to 50 °C
Storage temperature range -40 to +100 °C
Humidity 0 to 90% non-condensing

Main connector and pin out

Table 4. Connector specifications
Connector type 50-pin shrouded male header (P1)
Compatible cables C50FF-x
Compatible accessory products with the C50FF-x
CIO-TERM100
CIO-SPADE50
CIO-MINI50
SSR-RACK24, SSR-RACK48
CIO-ERB24, CIO-ERB48
17
CIO-DIO48H User's Guide Specifications
Table 5. Main connector pin out
Pin Signal name Pin Signal name
50 GND 49 +5V 48 FIRSTPORTC Bit 0 47 FIRSTPORTC Bit 1 46 FIRSTPORTC Bit 2 45 FIRSTPORTC Bit 3 44 FIRSTPORTC Bit 4 43 FIRSTPORTC Bit 5 42 FIRSTPORTC Bit 6 41 FIRSTPORTC Bit 7 40 FIRSTPORTB Bit 0 39 FIRSTPORTB Bit 1 38 FIRSTPORTB Bit 2 37 FIRSTPORTB Bit 3 36 FIRSTPORTB Bit 4 35 FIRSTPORTB Bit 5 34 FIRSTPORTB Bit 6 33 FIRSTPORTB Bit 7 32 FIRSTPORTA Bit 0 31 FIRSTPORTA Bit 1 30 FIRSTPORTA Bit 2 29 FIRSTPORTA Bit 3 28 FIRSTPORTA Bit 4 27 FIRSTPORTA Bit 5 26 FIRSTPORTA Bit 6 25 FIRSTPORTA Bit 7 24 SECONDPORTC Bit 0 23 SECONDPORTC Bit 1 22 SECONDPORTC Bit 2 21 SECONDPORTC Bit 3 20 SECONDPORTC Bit 4 19 SECONDPORTC Bit 5 18 SECONDPORTC Bit 6 17 SECONDPORTC Bit 7 16 SECONDPORTB Bit 0 15 SECONDPORTB Bit 1 14 SECONDPORTB Bit 2 13 SECONDPORTB Bit 3 12 SECONDPORTB Bit 4 11 SECONDPORTB Bit 5 10 SECONDPORTB Bit 6 9 SECONDPORTB Bit 7 8 SECONDPORTA Bit 0 7 SECONDPORTA Bit 1 6 SECONDPORTA Bit 2 5 SECONDPORTA Bit 3 4 SECONDPORTA Bit 4 3 SECONDPORTA Bit 5 2 SECONDPORTA Bit 6 1 SECONDPORTA Bit 7
18

Declaration of Conformity

Manufacturer: Measurement Computing Corporation Address: 10 Commerce Way Suite 1008 Norton, MA 02766 USA
Category: Electrical equipment for measurement, control and laboratory use.
Measurement Computing Corporation declares under sole responsibility that the product
CIO-DIO48H
to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents:
EU EMC Directive 89/336/EEC: Electromagnetic Compatibility, EN55022 (1987), EN50082-1
Emissions: Group 1, Class B
EN55022 (1987): Radiated and Conducted emissions.
Immunity: EN50082-1
IEC 801-2 (1987): Electrostatic Discharge immunity, Criteria B. IEC 801-3 (1984): Radiated Electromagnetic Field immunity Criteria A. IEC 801-4 (1988): Electric Fast Transient Burst immunity Criteria B.
Declaration of Conformity based on tests conducted by Chomerics Test Services, Woburn, MA 01801, USA in December, 1995. Test records are outlined in Chomerics Test Report #EMI0168B.95.
We hereby declare that the equipment specified conforms to the above Directives and Standards.
Carl Haapaoja, Director of Quality Assurance
Measurement Computing Corporation
10 Commerce Way
Suite 1008
Norton, Massachusetts 02766
(508) 946-5100
Fax: (508) 946-9500
E-mail: info@mccdaq.com
www.mccdaq.com
Loading...
